USER MANUAL 99-9305 Metra

(Non navigation models)

99-9305

KIT FEATURES

- ISO DIN head unit provision

KIT COMPONENTS

Front view of a car dashboard with three rotary switches and a central display (no visible text or symbols)

- A) DDIN Trim Plate - B) ISO Trim Plate - C) (4) Phillips Screws - D) (4) Phillips ISO Screws

A

Technical line drawing of a mechanical bracket or housing component (no text or symbols)

B

Technical line drawing of two metal bracket components labeled L and R (no text or symbols beyond labels)

C

D

WIRING & ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-9003 - European wire harness

Antenna Adapter:

• 40-EU10 - European antenna adapter

TOOLS REQUIRED

Panel Removal Tool • Phillips Screwdriver • Drill

Line drawings of three different screwdriver and drill bit designs (no text or symbols)

Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

*NOTE: Refer also to the instructions included with the aftermarket radio.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Dash Disassembly

1. Unclip and remove the hazard/door lock switch. (Figure A)

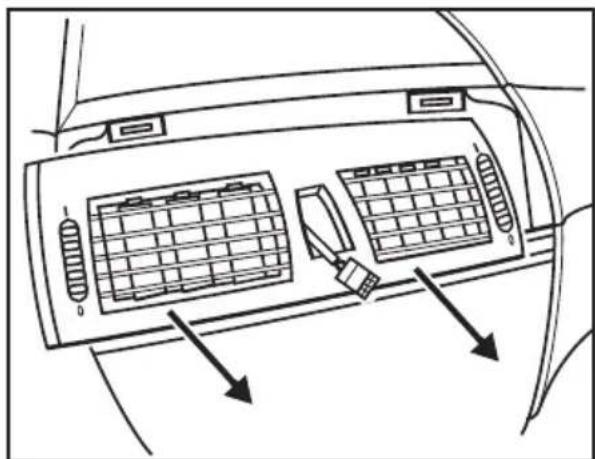

2. Unclip and remove the a/c vents above the radio. (Figure B)

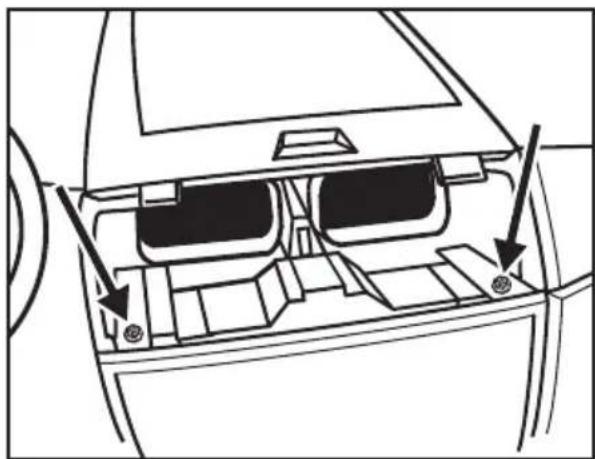

3. Remove (2) Phillips screws on top of the radio/climate control panel facing down. (Figure C)

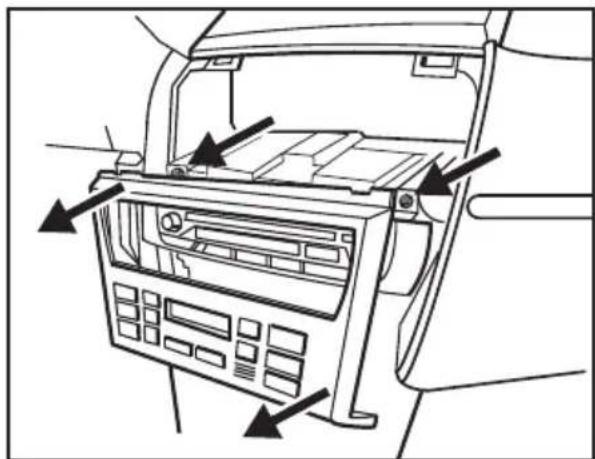

4. Unclip and remove the radio/climate control panel. (Figure D)
5. Remove (2) Phillips screws securing the radio. (Figure D)

Continue to kit assembly

Top-down line drawing of a car interior showing seating arrangement and ventilation slots (no text or symbols)

(Figure A)

Line drawing of a car interior showing the front panel with labeled buttons and arrows indicating navigation or movement (no text or symbols present)

(Figure B)

Diagram of a car interior showing internal compartments and directional arrows indicating movement or flow (no text or symbols present)

(Figure C)

Diagram of a car air conditioning unit with control panel and directional arrows indicating movement (no text or symbols)

(Figure D)

ISO DIN head unit provision

1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

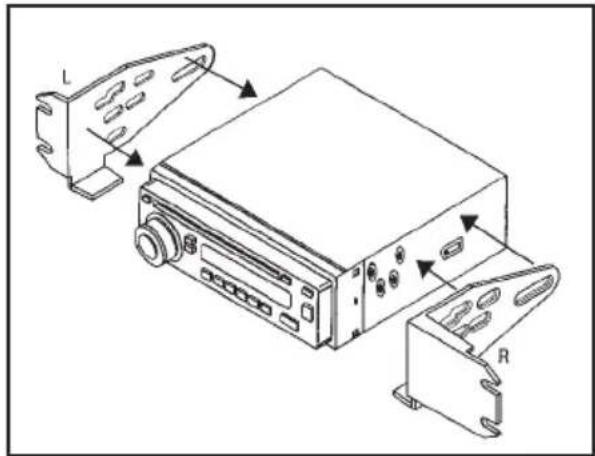

2. Secure the corresponding bracket to the aftermarket radio using the hardware supplied with the radio. (Figure A)

NOTE: If the ISO screws supplied with the aftermarket radio are too big, use the supplied (4) Phillips ISO screws.

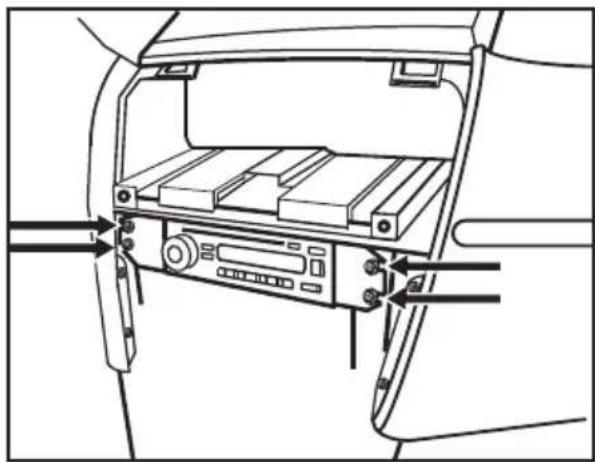

1. Using a drill screw the radio/bracket assembly into the dash using the supplied (4) Phillips screws. (Figure B)

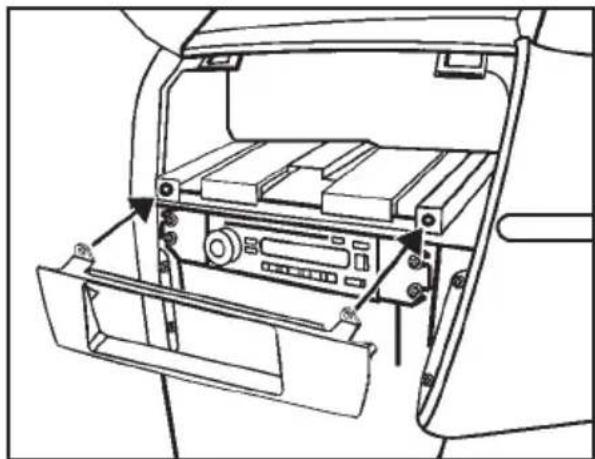

2. Position the radio housing over the radio face and secure using the factory hardware. (Figure C)
3. Reassemble dash in reverse order of disassembly.

Technical line drawing of a device with labeled components (L, R) and directional arrows indicating movement or assembly (no text or symbols beyond labels)

(Figure A)

Line drawing of a device rear panel with arrows pointing to ports (no text or symbols)

(Figure B)

Line drawing of a car interior showing the front compartment with storage racks and ventilation unit (no text or symbols)

(Figure C)
