USER MANUAL C27FG73FQW SAMSUNG

The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

© Samsung Electronics

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

(For India Only)

This product is RoHS compliant.

For more information on safe disposal and recycling visit our

website www.samsung.com/in or contact our Helpline

numbers-1800 40 SAMSUNG(1800 40 7267864) (Toll-Free)

Table of contents

Before Using the Product

Securing the Installation Space 4
Precautions for storage 4
Safety Precautions 4
Symbols	4
Cleaning	5
Electricity and Safety 5
Installation	6
Operation	7

Preparations

Parts	10
Control Panel 10
Function Key Guide 11
Game Setting Key 12
Changing Brightness, Contrast and Sharpness settings	13
Changing the Volume setting 13
Reverse Side 14
Adjusting the Product Tilt and Height 15
Rotating the Monitor Screen 16
Anti-theft Lock 18
Precautions for moving the monitor 18

Installation	19
Assembling the Stand base (C*FG70* model only)	19
Assembling the Stand base (C*FG73* model only)	20
Removing the Stand (For Attaching the BRACKET WALL) (C*FG70* model only)	21
Removing the Stand (For Attaching the BRACKET WALL) (C*FG73* model only)	22

Attaching the BRACKET WALL	23
Attaching the Stand (C*FG70* model only)	24
Attaching the Stand (C*FG73* model only)	25

Connecting and Using a Source Device

Pre-connection Checkpoints	26
Connecting and Using a PC	26
Connection Using the HDMI Cable	26
Connection Using an HDMI-DVI Cable 26
Connection Using an DP Cable	27
Connecting to Headphones	27
Connecting the Power (C24FG70FQ* / C24FG73FQ* model only)	27
Connecting the Power (C27FG70FQ* / C27FG73FQ* model only)	28
Tidying Up the Connected Cables (C*FG70* model only)	28
Tidying Up the Connected Cables (C*FG73* model only)	29
Correct posture to use the product	30
Driver Installation	30
Setting Optimum Resolution	30

Game

Picture Mode	31
Refresh Rate	32
Black Equalizer	32
Response Time	32
FreeSync	33
Low Input Lag	34
Screen Size	34
Save Settings	35

Screen Setup

Picture Mode	36
Brightness	37
Contrast	37
Sharpness	37
Color	37
HDMI Black Level	38
Eye Saver Mode	38
Screen Adjustment	38
Calibration Report	38

Table of contents

Adjusting OSD (On Screen Display) settings

Language	39
Display Time	39

Setup and Reset

Arena Lighting (C*FG70* model only) 40
Volume	41
Eco Saving Plus	41
Off Timer	41
PC/AV Mode	41
DisplayPort Ver.	41
Source Detection	42
Key Repeat Time	42
Power LED On	42
Reset All	42
Information	42

Installing the Software

Easy Setting Box 43

Restrictions and Problems with the Installation 43 System Requirements 43

Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center 44

Testing the Product 44

Checking the Resolution and Frequency 44

Check the following. 44

Q&A 46

Specifications

General	47
Standard Signal Mode Table 48

Appendix

Responsibility for the Pay Service (Cost to Customers)	50
Not a product defect 50
A Product damage caused by customer's fault	50
Others	50

Chapter 01 Before Using the Product

Securing the Installation Space

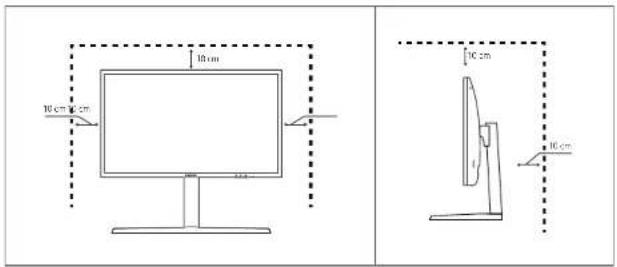

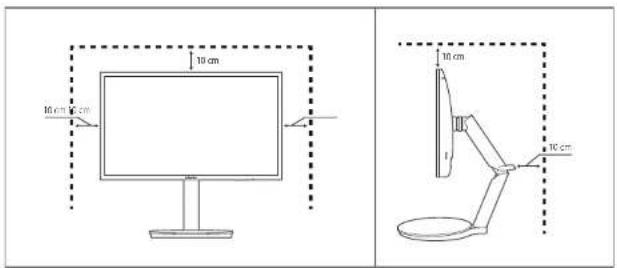

Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product.

The exterior may differ depending on the product.

10 cm 10 cm 10 cm 10 cm

10 cm 10 cm 10 cm 10 cm

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used nearby.

Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product (Service fee will be charged.)

Safety Precautions

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)

THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside.

It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

Symbols

Warning

A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are not followed.

Cleaning

Take the following steps when cleaning.

1 Power off the product and computer.
2 Disconnect the power cord from the product.
Fold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result.
3 Wipe the monitor with a clean, soft and dry cloth.
- Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor. - Do not spray water or detergent directly on the product.
4 Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.
5 Connect the power cord to the product when cleaning is finished.
6 Power on the product and computer.

Electricity and Safety

Warning

• Do not use a damaged power cord or plug, or a loose power socket.
• Do not use multiple products with a single power socket.
  • Do not touch the power plug with wet hands.
• Insert the power plug all the way in so it is not loose.
• Connect the power plug to a grounded power socket (type 1 insulated devices only).
• Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy object.
• Do not place the power cord or product near heat sources.
• Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

• Do not disconnect the power cord while the product is being used.
• Only use the power cord provided with your product by Samsung. Do not use the power cord with other products.
• Keep the power socket where the power cord is connected unobstructed.
• The power cord must be disconnected to cut off power to the product when an issue occurs.
• Hold the plug when disconnecting the power cord from the power socket.

Installation

Warning

• DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
• Do not install the product in poorly ventilated spaces such as a bookcase or closet.
  • Install the product at least 10cm away from the wall to allow ventilation.
• Keep the plastic packaging out of the reach of children.
• Children may suffocate.
• Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)
  – The product may fall and become damaged and/or cause an injury.
• Using the product in an area with excess vibration may damage the product or cause a fire.
• Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.
• Do not expose the product to direct sunlight, heat, or a hot object such as a stove.
• The product lifespan may be reduced or a fire may result.
• Do not install the product within the reach of young children.
  – The product may fall and injure children.
• Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Caution

• Do not drop the product while moving.
• Do not set down the product on its front.
• When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.
  The product may fall and become damaged and/or cause an injury.
  – Install the product only on cabinets or shelves of the right size.
• Set down the product gently.
  – Product failure or personal injury may result.
• Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical substances, extreme temperatures or a significant presence of moisture, or a place where the product will operate continuously for an extended period of time) may seriously affect its performance.
• Be sure to consult Samsung Customer Service Center if you want to install the product at such a place.

Operation

Warning

• There is a high voltage inside the product. Never disassemble, repair or modify the product yourself.
• Contact Samsung Customer Service Center for repairs.
  • To move the product, first disconnect all the cables from it, including the power cable.
• If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord immediately and contact Samsung Customer Service Center.
• Do not let children hang from the product or climb on top of it.
• Children may become injured or seriously harmed.
• If the product is dropped or the outer case is damaged, turn off the power and disconnect the power cord. Then contact Samsung Customer Service Center.
• Continued use can result in a fire or electric shock.
• Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.
• The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a serious injury.
• During a lightning or thunderstorm, power off the product and remove the power cable.
• Do not drop objects on the product or apply impact.
• Do not move the product by pulling the power cord or any cable.
• If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.
• Do not lift or move the product by pulling the power cord or any cable.
• Do not use or keep combustible spray or an inflammable substance near the product.
• Ensure the vents are not blocked by tablecloths or curtains.
• An increased internal temperature may cause a fire.

- Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper, matches, etc) into the product (via the vent or input/output ports, etc).

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center.

- Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

- Be sure to power off the product and disconnect the power cord when water or other foreign substances have entered the product. Then contact Samsung Customer Service Center.

Caution

• Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.
• Activate power-saving mode or a moving-picture screen saver if you will not be using the product for an extended period of time.
• Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc).
  – Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.
• Use the product at the recommended resolution and frequency.
• Your eyesight may deteriorate.
• Do not put AC/DC adapters together.
• Remove the plastic bag from the AC/DC adapter before you use it.
• Do not let water enter the AC/DC adapter device or get the device wet.
• An electric shock or fire may result.
• Avoid using the product outdoors where it can be exposed to rain or snow.
• Be careful not to get the AC/DC adapter wet when you wash the floor.
• Do not put the AC/DC adapter near to any heating apparatus.
• Otherwise, a fire may result.
• Keep the AC/DC adapter in a well-ventilated area.

• If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction. Make sure to rest the AC/DC power adapter flat on a table or the floor.

• Insert the power plug into the AC/DC adapter until a click sound is heard.

• Do not insert only the power plug into the power outlet.
• Do not use an AC/DC adapter other than the provided one.
• It may cause electric shock or fire.
• Do not insert the AC/DC adapter into the power outlet on the ceiling.
• It may cause electric shock or fire.
• Rotate the power plug not to exceed the range (0 to 90°) on the AC/DC adapter.
• It may cause electric shock or fire.
• Never diassemble the power plug after being assembled. (It cannot be separated after assembly.)
• Never use the provided power plug for other devices.
• When removing the AC/DC adapter from the power outlet, hold the body of AC/DC adapter and pull it up.
• It may cause electric shock or fire.
• Do not drop any objects or apply shock on the AC/DC adapter.
• It may cause electric shock or fire.
• Use the AC/DC adapter after removing its plastic cover.

• Otherwise, this may result fire.

• Do not hold the product upside-down or move it by holding the stand.

• The product may fall and become damaged or cause an injury.
• Looking at the screen too close for an extended period of time can deteriorate your eyesight.
• Do not use humidifiers or stoves around the product.
• Rest your eyes for more than 5 minutes or look at distance objects for every 1 hour of product use.
• Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.
• Store small accessories out of the reach of children.
  • Exercise caution when adjusting the product angle or stand height.
• Your hand or finger may get stuck and injured.
• Tilting the product at an excessive angle may cause the product to fall and an injury may result.
• Do not place heavy objects on the product.
  – Product failure or personal injury may result.
• When using headphones or earphones, do not turn the volume too high.
• Having the sound too loud may damage your hearing.

Chapter 02 Preparations

Parts

Control Panel

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Parts Description

JOG Button	Multi directional button that helps navigate.The JOG button is located on the rear left side of the product. The button can be used to move up, down, left or right, or as Enter.
Power LED	This LED Is power status indicator and works as• Power On (Power button): Off• Power saving mode: Blinking• Power Off (Power button): OnThe power Indicator operation can be swapped by changing in the menu (System → Power LED On) Actual models because of functional variation maybe haven't this function.
Function Key Guide	Press the JOG button when the screen is turned on. The Function Key Guide will appear. To access the onscreen menu when the guide is displayed, press the corresponding direction button again.Function Key Guide may vary depending on the function or product model. Please refer to the actual product.
Game Setting Key	Use shortcut keys to access previously saved custom game modes.• Game Setting 1 / Game Setting 2 / Game Setting 3The Game Setting Keys are located at the bottom right on the front of the monitor. To edit and save a custom game mode, go to Game → Save Settings.

Function Key Guide

To enter the main menu or to use other items, press the JOG button to display the Function Key Guide. You can exit by pressing the JOG button again.

UP/DOWN/LEFT/RIGHT: Move to the Item you want. The description for each item will appear when the focus changes. PRESS(ENTER): The selected item will be applied.

Icons Description

[H0X3]	Menu	Selects by moving the JOG button in the function key guide screen. The OSD (On Screen Display) of your Monitor's feature appears.
	Source	Selects by change the input signal by moving the JOG button in the Function Key Guide screen. A message will appear on the top left corner of the screen if the input signal has been changed.
	Eye Saver Mode	Selects by moving the JOG button in the function key guide screen. Press to enable or disable Eye Saver Mode.The items below are not available if the Eye Saver Mode function is enable.Game → Picture Mode, Black EqualizerPicture → Picture Mode, Brightness, ColorSystem → Eco Saving Plus
[XX4A]	Power Off	Selects by turn the Monitor off by moving the JOG button in the function key guide screen.

Actual models because of functional variation, Function key guide options will be different.

When the monitor displays nothing (i.e. Power saving mode or Non-signal mode), 2 direct keys for control source and power could be used as below.

JOG Button Power saving/Non-signal mode

UP Source Change

Down

PRESS(ENTER) for 2 seconds Power Off

When the monitor displays the Main menu the JOG Button could be used as below.

JOG Button Action

UP/DOWN Move the option
LEFT	Exit the Main menu. Close Sublist without saving value. Value decreases in the slider.
RIGHT	Move to next depth. Value increases in the slider.
PRESS(ENTER)	Move to next depth. Save the value and close Sublist.

Game Setting Key

You can quickly view the setting with a shortcut key at the bottom without using an OSD menu. You can directly see the settings for three different modes.

• Game Setting 1 / Game Setting 2 / Game Setting 3

C*FG70*C*FG73*

Game Setting 1 Game Setting 2 Game Setting 3

Game Setting 1 Game Setting 2 Game Setting 3

Changing Brightness, Contrast and Sharpness settings

You can adjust Brightness, Contrast or Sharpness by moving the JOG button up or down, if no OSD menu is displayed.

Sharpness Brightness 100 Contrast

The displayed image may differ depending on the model.

The default brightness can vary depending on the region.

Brightness

This menu is not available when Eco Saving Plus is enabled.

This menu is not available when Eye Saver Mode is enabled.

Contrast

This menu is not available when Picture Mode is set to Cinema mode.

Sharpness

This menu is not available when Picture Mode is set to Cinema mode.

Changing the Volume setting

You can adjust Volume by moving the JOG button left or right, if no OSD menu is displayed.

Volume 50 Mute

The displayed image may differ depending on the model.

If the audio quality of a connected input device is poor, the Auto Mute function on the product may mute the sound or cause choppy audio when applying the headphones or speakers. Set the input volume for the input device to at least 20% and control the volume using the volume control (JOG button LEFT/RIGHT) on the product.

What is Auto Mute?

The function mutes the audio to improve sound effect when there is sound noise or when the input signal is weak, usually due to a problem with the volume of an input device.

To activate the Mute function, access the Volume control screen, then use the JOG button to move the focus down.

To deactivate the Mute function, access the Volume control screen, then increase or decrease the Volume.

Reverse Side

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality,

Port Description

DC 19V	Connects to the AC/DC adapter.
HDMI IN 1 HDMI IN 2	Connects to a source device using an HDMI cable or HDMI-DVI cable.
DP IN	Connects to a PC using a DP cable.
SERVICE	Dedicated to service technicians.
	Connect to an audio output device such as headphones.

Adjusting the Product Tilt and Height

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

C*FG70*

15° to Left - 15° to Right (Total 30°, ±2°) -2° (±2°) - 92° (±2°)

140 mm (0, +10 mm) -2° (±2°) - 17° (±2°)

• The monitor tilt and height can be adjusted.
- When adjusting the tilt and height, hold both sides of the product and avoid using excessive force to prevent damage.
- The rotation and height adjustment has a certain tolerance. Stay within the tolerances when rotating or adjusting the height of the product.

C*FG73*

-15.0°(±2.0°) to Left ~ +15.0°(±2.0°) to Right -2.0°(±2.0°) ~ 92.0°(±2.0°)

135.0 mm (135.0, ± 5.0 mm) -3.0°(+2.0°) - 20.0°(+2.0°)

• The monitor tilt and height can be adjusted.
- When adjusting the tilt and height, hold both sides of the product and avoid using excessive force to prevent damage.
- The rotation and height adjustment has a certain tolerance. Stay within the tolerances when rotating or adjusting the height of the product.
- When adjusting the stand height, you may hear a noise. This noise is generated because the ball inside the stand slides when the stand height is adjusted. It is a normal noise and not a product malfunction.

Rotating the Monitor Screen

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

You can rotate your monitor as shown below.

C*FG70*

Simple line drawing of a computer monitor with a circular base (no text or symbols)

Simple line drawing of a desk lamp with an arrow indicating rotation (no text or symbols)

Simple line drawing of a monitor on a stand with a blue circle and arrow indicating direction (no text or symbols)

Simple line drawing of a chair or table with a curved seat and arm, no text or symbols present.

Simple line drawing of a mechanical device with a blue circular element and a purple arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular frame with a circular base and a small blue dot above it (no text or symbols)

C*FG73*

Simple line drawing of a computer monitor with three legs (no text or symbols)

Simple line drawing of a mechanical device with an arrow indicating motion (no text or symbols)

Simple line drawing of a computer monitor with a blue circular icon and an arrow pointing to it (no text or symbols)

Simple line drawing of a curved object mounted on a stand (no text or symbols)

Simple line drawing of a curved object on a stand with an arrow indicating direction (no text or symbols)

Simple line drawing of a monitor with a stand and a small blue circle above it (no text or symbols)

Adjust the screen following the arrow direction.

Rotate the screen in clockwise direction till it becomes completely vertical to the desktop.

Rotating the screen counterclockwise can damage the product. Rotating the screen when the product is upright or when the height is not at the maximum can also damage the product.

When rotating the monitor, set Arena Lighting to Off. Direct eye exposure to the bright light (A) on the bottom front of the monitor may cause your eyesight to deteriorate: (C*FG70* model only)

Adjust the screen following the arrow direction.

Rotate the screen in clockwise direction till it becomes completely vertical to the desktop.

Rotating the screen counterclockwise can damage the product. Rotating the screen when the product is upright or when the height is not at the maximum can also damage the product.

Caution

C*FG70*

Illustration of hands holding a tablet with a blue arrow pointing to the screen (no text or symbols)

- Grasp the left and right sides of the monitor and adjust the tilt.

Illustration of hands holding a tablet with blue curved arrows indicating rotation (no text or symbols)

90°

• Hold the bezel at both side edges and rotate the monitor. (Be careful not to directly hold the LCD display.)
• The screen can be rotated up to 90° clockwise if you are facing the screen.

C*FG73*

Illustration of hands holding a flatboard with a blue arrow pointing to the top panel (no text or symbols)

- Grasp the left and right sides of the monitor and adjust the tilt.

Illustration of two hands holding a blank tablet with blue arrows indicating rotation (no text or symbols)

90°

• Hold the bezel at both side edges and rotate the monitor. (Be careful not to directly hold the LCD display.)
• The screen can be rotated up to 90° clockwise if you are facing the screen.

Anti-theft Lock

An anti-theft lock allows you to use the product securely even in public places.

The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

To lock an anti-theft locking device:

C*FG70*C*FG73*

Diagram showing two computer monitor setups with a close-up of the screen, one with a hand icon pointing to it.

1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the locking device into the anti-theft lock slot at the back of the product.
4. Lock the locking device.

• An anti-theft locking device can be purchased separately.
• Refer to the user guide provided with your anti-theft locking device for details.
• Anti-theft locking devices can be purchased at electronics retailers or online.

Precautions for moving the monitor

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

C*FG70* C*FG73*

Two identical line drawings of a computer monitor with a circular icon on the screen, no text or symbols present.

Two identical line drawings of a desktop computer monitor with a circular screen on the left and a circle on the right (no text or symbols)

Two safety warning signs with Chinese characters, one indicating no hand holding a device, the other indicating no hand holding a water pump.

C*FG70*

Diagram illustrating a procedure for cleaning a window with a hand holding a circular object, showing step-by-step states of cleaning and reassembly.

• Hold the lower part of the monitor when moving it.
• When moving the monitor, rotate to portrait orientation and hold the top and bottom of the monitor.
• Do not hold the product upside down only by the stand.
  • Exercise caution to ensure that your fingers do not get caught.

Installation

Assembling the Stand base (C\*FG70\* model only)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.
Make sure to use the styrofoam (cushion) that came with the monitor.

Attach the stand to the back of the monitor, in the direction of the arrow.

Use the screws on the stand to tightly fasten.

Detach the COVER REAR SUB from the COVER REAR TOP in the direction as shown in the figure.

On the back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Push the COVER REAR TOP In the direction of the arrows.

On the back of the monitor, align and push the COVER REAR SUB in the groove in the direction of the arrow.

While pressing down with one hand on the lower styrofoam layer, lift the stand's neck with the other hand.

Attach the stand base to the neck, as shown in the image. Make sure there is no gap between the stand neck and base.

Attach the stand base to the stand neck, and then fasten the two screws on the base to tightly fix it.

Assembling the Stand base (C\*FG73\* model only)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.
Make sure to use the styrofoam (cushion) that came with the monitor.

Attach the stand to the back of the monitor, in the direction of the arrow.

Use the screws on the stand to tightly fasten.

Detach the COVER REAR SUB from the COVER REAR TOP in the direction as shown in the figure.

On the back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Push the COVER REAR TOP in the direction of the arrows.

On the back of the monitor, align and push the COVER REAR SUB in the groove in the direction of the arrow.

While pressing down with one hand on the lower styrofoam layer, lift the stand's neck with the other hand.

Attach the stand base to the neck, as shown in the image. Make sure there is no gap between the stand neck and base.

Attach the stand base to the stand neck, and then fasten the two screws on the base to tightly fix it.

Removing the Stand (For Attaching the BRACKET WALL) (C\*FG70\* model only)

Before removing the stand from the monitor, place the monitor on a flat and staple surface with the screen facing down.

The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

Line drawing of a mechanical device with a handle and circular component (no text or symbols)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

Make sure to use the styrofoam (cushion) that came with the monitor.

Diagram of a mechanical device with a magnified inset showing a tool interacting with a component (no text or symbols present)

Insert the dedicated disassembly pin into tabs A and B, then use the pin as a lever to lift the COVER REAR SUB.

Diagram showing a mechanical device with a magnified inset highlighting a component (no text or symbols present)

Remove the COVER REAR SUB in the arrow direction.

Illustration of a hand using a tool to press or install a component, with an inset magnified view showing the process (no text or symbols present)

On the back of the monitor, use your fingers to lift the COVER REAR TOP in the direction of the arrows, as shown in the image.

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Remove the COVER REAR TOP in the direction of the arrow.

Technical illustration of a mechanical assembly with two views of a component (no text or symbols)

Unfasten the screws on the stand, as shown in the image.

Illustration of a hand using a tool to add a small object into a container (no text or symbols visible)

Lift and remove the stand. Caution

Diagram showing a hand using a magnifying glass to remove a device with a red prohibition symbol

Do not press down on the monitor. There is a risk of damaging the monitor.

Removing the Stand (For Attaching the BRACKET WALL) (C\*FG73\* model only)

Before removing the stand from the monitor, place the monitor on a flat and stable surface with the screen facing down.

The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

Technical line drawing of a mechanical device with a handle and base plate (no text or symbols)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

Make sure to use the styrofoam (cushion) that came with the monitor.

Diagram showing a device with labeled parts A and B, including a magnified view of the component.

Insert the dedicated disassembly pin into tabs A and B, then use the pin as a lever to lift the COVER REAR SUB.

Illustration of a device with a magnified inset showing internal components (no text or symbols)

Remove the COVER REAR SUB in the arrow direction.

Technical illustration of a mechanical assembly with a magnified inset showing a tool interacting with a component (no text or symbols visible)

On the back of the monitor, use your fingers to lift the COVER REAR TOP in the direction of the arrows, as shown in the image.

Mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the internal structure (no text or symbols present)

Remove the COVER REAR TOP in the direction of the arrow.

Technical diagram showing mechanical assembly with labeled components and a magnified inset view of a component detail.

Unfasten the screws on the stand, as shown in the image.

Illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)

Lift and remove the stand. Caution

Illustration of a hand using a tool to adjust or remove a device component, no text or symbols present

Do not press down on the monitor. There is a risk of damaging the monitor.

Attaching the BRACKET WALL

Power the product off and remove the power cable from the power socket.

1 A

Diagram of a door panel with labeled components and a circular dial indicator

3 B a b c d e f g h i j k l m n o p q r s t u v w x y z

Simple line drawing of a front panel with a circular vent and a button, no text or symbols present.

A Attach the BRACKET WALL here

B BRACKET WALL

Align B with A on the monitor, then tightly fasten with the screws removed from the stand (P.21, P.22).

- Notes

• Using a screw longer than the standard length can damage the internal components of the product.
• The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications.
• Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.
• Samsung shall not be held liable for any product damage or personal injury caused by using a wall-mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
• To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10 cm or farther away from the wall.
• Be sure to use a wall-mount kit that complies with the standards.
• To install the monitor using a wall mount, disconnect the stand base from the monitor.

Unit: mm

Model name VESA screw hole specs in millimeters
Standard Screw Quantity

C24FG70FQ*/C24FG73FQ*/C27FG70FQ*/C27FG73FQ*

75 x 75 4 mm Φ, 0.7 pitch * 10 mm long 4 EA

Do not attach the BRACKET WALL when the monitor is turned on. This may cause electric shock and might result in injury.

Attaching the Stand (C\*FG70\* model only)

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

Isometric line drawing of a rectangular electronic device casing with internal components (no text or symbols)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

Make sure to use the styrofoam (cushion) that came with the monitor.

Illustration of a hand using a tool to clean or inspect a component, with no visible text or symbols.

Attach the stand to the back of the monitor, in the direction of the arrow.

Technical illustration of a mechanical assembly with two views of a component (no text or symbols)

Use the screws on the stand to tightly fasten. On the back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Diagram of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Illustration of a mechanical device with a magnified inset showing hand positioning (no text or symbols)

Push the COVER REAR TOP in the direction of the arrows.

Diagram of a mechanical device with a magnified inset showing a component detail (no text or symbols)

On the back of the monitor, align and push the COVER REAR SUB in the groove in the direction of the arrow.

Simple line drawing of a computer monitor with a circular base and a blue dot on the top (no text or symbols)

After attaching the stand, place the product in an upright position.

Diagram showing a hand using a magnifying glass to remove a device with a red prohibition symbol

Caution Do not press down on the monitor. There is a risk of damaging the monitor.

Attaching the Stand (C\*FG73\* model only)

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

The product is curved. Placing pressure on the product when on a flat surface may damage the product. When the product is on the ground facing up or down, do not put pressure on it.

Isometric line drawing of a rectangular electronic device with a circular component and internal components (no text or symbols)

Place the protective Styrofoam (cushion) included in the package on the floor and place the product facing down on the Styrofoam, as shown in the image.

Make sure to use the styrofoam (cushion) that came with the monitor.

Illustration of a device with a magnified inset showing internal components (no text or symbols)

Attach the stand to the back of the monitor, in the direction of the arrow.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Use the screws on the stand to tightly fasten. On the back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

back of the monitor, align and push the COVER REAR TOP in the groove in the direction of the arrow.

Technical illustration of a mechanical assembly with a magnified inset showing a hand operating a tool (no text or symbols present)

Push the COVER REAR TOP in the direction of the arrows.

Diagram of a device with a magnified inset showing internal components (no text or symbols)

On the back of the monitor, align and push the COVER REAR SUB in the groove in the direction of the arrow.

Line drawing of a computer monitor with a tripod base (no text or symbols)

After attaching the stand, place the product in an upright position.

Illustration of a hand using a tool to adjust or install a device with a red prohibition symbol (no text or labels present)

Caution Do not press down on the monitor. There is a risk of damaging the monitor.

Chapter 03

Connecting and Using a Source Device

Pre-connection Checkpoints

Before connecting a source device, read the user manual provided with it.

The number and locations of ports on source devices may differ from device to device.

Do not connect the power cable before connecting all other cables.

Ensure you connect a source device first before connecting the power cable.

Connecting the power cable during connection may damage the product.

Check the types of ports at the back of the product you want to connect.

Connecting and Using a PC

Select a connection method suitable for your PC.

Connecting parts may differ in different products.

Provided ports may vary depending on the product.

Connection Using the HDMI Cable

HDMI IN 1, HDMI IN 2

Connection Using an HDMI-DVI Cable

HDMI IN 1, HDMI IN 2

The audio function is not supported if the source device is connected using the HDMI-DVI cable.

The Interactive feature in Arena Lighting is not supported. This feature works in conjunction with sound input. (C^FG70^ model only)

Connection Using an DP Cable

DP IN

A DP cable shorter under 1.5 m in length is recommended. Using a cable longer than 1.5 m can affect the picture quality.

Connecting to Headphones

Diagram showing a microphone connected to a USB cable and a pair of headphones (no text or symbols present)

Use headphones when activating sound with a HDMI-HDMI or DP cable.
The Interactive feature in Arena Lighting is available. This feature works in conjunction with audio input. (C*FG70* model only)

Connecting the Power (C24FG70FQ* / C24FG73FQ* model only)

C24FG70FQ*

C24F673FQ*

1 Connect the power plug to the AC/DC adapter.
2 Connect the AC/DC adapter cable to the DC 19V port on the back of the monitor.
3 Plug the AC/DC adapter into the power outlet.
4 Press the JOG button on the back of the monitor to turn it on.
The input voltage is switched automatically.

Connecting the Power (C27FG70FQ\* / C27FG73FQ\* model only)

C27FG70FQ*

C27FG73FQ*

1 Connect the power cable to the AC/DC adapter. Then, connect the AC/DC adapter to the DC 19V port on the back of the product.
2 Next, connect the power cable to the power outlet.
3 Press the JOG button on the back of the monitor to turn it on.

The input voltage is switched automatically.

Tidying Up the Connected Cables (C\*FG70\* model only)

Connect cables to the appropriate connectors.

Run the cables through the holder in the direction of the arrow from the lower part of the holder, as shown in the image.

Pull cable down to adjust the length.

Use the same method to clean up the other cables.

Caution

While rotating the cable fixed on the holder, the cable may be separated or damaged. In this case, first remove the cable from the holder.

Tidying Up the Connected Cables (C\*FG73\* model only)

Simple line drawing of a folded paper or document with a circular arrow pointing to the page (no text or symbols)

Stand assembly is complete.
Adjust the screen following the arrow direction.

Simple line drawing of a folded paper or document with a curved arrow indicating rotation (no text or symbols)

Rotate the machine to the highest vertical position.
The monitor may get damaged if you rotate the screen without tilt, or counter clockwise direction.

Simple line drawing of a person standing beside a large mirror (no text or symbols)

Connect the corresponding cables. Open the COVER-STAND NECK LEFT, and rotate the open part at the bottom.

Illustration of a hand holding a tool near a mirror, with an inset showing the same object (no text or symbols present)

STAND NECK LEFT, and rotate the open part at the bottom.

Line drawing of a mechanical assembly with an inset showing a detail view of a component (no text or symbols)

Place the corresponding cables into the stand-neck holder. Do not stretch the cable. Three cables in one holder is recommended.

Simple line drawing of a person standing beside a mirror, no text or symbols present

Cover the COVER-STAND NECK LEFT.

Simple line drawing of a hand holding a rectangular object with a circular arrow, no text or symbols present

Rotate the machine to the horizontal position.

Line drawing of a computer monitor with a curved screen and stand (no text or symbols)

Arrange the external cables.

Correct posture to use the product

Line drawing of a person sitting at a desk using a computer (no text or symbols)

Use the product in the correct posture as follows:

• Straighten your back.
• Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen.
• Keep your eyes directly in front of the screen.
• Adjust the angle so light does not reflect on the screen.
• Keep your forearms perpendicular to your upper arms and level with the back of your hands.
• Keep your elbows at about a right angle.
• Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.
• Do the Eye exercises or blink frequently, then eye fatigue will be relieved.

Driver Installation

You can set the optimum resolution and frequency for this product by installing the corresponding drivers. To install the latest version of the product driver, download it from the Samsung Electronics website at http://www.samsung.com.

Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the first time after purchase.

Select a language on the product and change the resolution on your PC to the optimum setting.

If the optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again.

The optimum resolution can also be selected in Control Panel on your PC.

To change the refresh rate while retaining the current resolution, select Game → Refresh Rate on the OSD menu.

Chapter 04

Game

A detailed description of each function is provided. Refer to your product for details.

The functions available may vary depending on the product model. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Picture Mode

This menu provides an optimum picture quality suitable for the environment where the product will be used.

This menu is not available when Eye Saver Mode is enabled.

This menu is not available when Eco Saving Plus is enabled.

In PC mode

• Custom: Customize the screen settings.
  • High-Brightness: Maximize the screen brightness.
• FPS: Increase the brightness of darker areas of the FPS game screen. This mode increases visibility of your enemies during a FPS game.
• RTS: Increase the color temperature and contrast ratio to improve visibility of the RTS screen and minlmap.
• RPG: This mode is optimized for 3D graphics and instant messaging on the RPG game screen.
  • AOS: Increase the contrast ratio to obtain a picture quality optimized for the AOS game screen.
• sRGB: Adjust the color system to sRGB mode. This is the standard mode of this monitor.
  • Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.

In AV mode

When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Picture Mode has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.

• Dynamic: Select this mode to view a sharper image than in Standard mode.
- Standard: Select this mode when the surroundings are bright. This also provides a sharp image.
- Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.
- Custom: Select this mode when you want to adjust the image according to your preferences.

Refresh Rate

Change the screen refresh rate. A higher refresh rate can reduce eye strain.

• DisplayPort : 60 Hz / 100 Hz / 120 Hz / 144 Hz
• HDMI1, HDMI2: 60 Hz / 100 Hz / 120 Hz

This menu is not available when FreeSync is set to Standard Engine or Ultimate Engine mode.

When changing the Refresh Rate, the screen may flicker depending on the computer graphics card.

The function is available in a computer equipped with the graphic card that can change the refresh rate.

It is unavailable in the devices (e.g. AV devices) with fixed refresh rates. If the function is applied, the screen may have malfunction.

Black Equalizer

Adjust the brightness of the dark areas.

As the value gets closer to 1, the darker areas of the screen become brighter, making it easier to find enemies when playing a game. To find enemies more easily during a game, use a lower value.

As the value gets closer to 20, the darker areas of the screen become darker and the contrast increases.

This menu is not available when Eye Saver Mode is enabled.

This menu is not available when Picture Mode is set to Cinema mode.

Response Time

Accelerate the panel response rate to make video appear more vivid and natural.

It is best to set Response Time to Standard or Faster when you are not viewing a movie.

This menu is not available when FreeSync is set to Standard Engine or Ultimate Engine mode.

FreeSync

FreeSync technology is solution that eliminates screen tearing without all the usual lag and latency. This feature will eliminate screen tearing and lag during game play. Improve your gaming experience. The displayed FreeSync menu items on the monitor may vary, depending on the monitor model and compatibility with the AMD graphics card.

Menu item 1

- Off: Disable FreeSync.

- On: Turn on the AMD graphics cards' FreeSync function. You may experience intermittent flickers when playing some games.

Apply the optimum resolution when using FreeSync.

The refresh rate setting method please refer to Q & A → How can I change the frequency?

The FreeSync function is only enabled in HDMI1, HDMI2 or DisplayPort mode.

Use the HDMI/DisplayPort cable provided by the manufacturer when using FreeSync.

If you use the FreeSync function while playing a game, the following symptoms may occur:

- The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the following actions: decrease the game setting values, change the current FreeSync mode to Off, or visit the AMD website to check your graphics driver's version and update it with the latest one.

- While you are using the FreeSync function, the screen may flicker due to variation of the output frequency from the graphics card.

- The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the response rate.

• The sound quality of the monitor may be degraded.

If you encounter any issues when using the function, contact the Samsung Service Center.

If you change the screen resolution while the function is On, the screen may intermittently blank out due to the graph card. Set FreeSync to Off and change the resolution.

The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is applied, the screen may have malfunction.

How do you enable FreeSync?

1 Set FreeSync to On in the OSD on the monitor.

2 Enable FreeSync in AMD Radeon Settings:

Right-click the mouse → AMD Radeon Settings → Display

The "AMD FreeSync" feature should be set to "On". Select to "On" if not already enabled.

Menu item 2

- Off: Disable FreeSync.

- Standard Engine: Enable the basic FreeSync functions of the AMD graphics card.

- Ultimate Engine: Enable the FreeSync feature with a higher screen frame rate. Screen tearing (abnormal sync between the screen and content) is reduced in this mode. Note that screen flickering may occur during game play.

Apply the optimum resolution when using FreeSync.

The refresh rate setting method please refer to Q & A → How can I change the frequency?

The FreeSync function is only enabled in HDMI1, HDMI2 or DisplayPort mode.

Use the HDMI/DisplayPort cable provided by the manufacturer when using FreeSync.

If you use the FreeSync function while playing a game, the following symptoms may occur:

• The screen may flicker depending on the type of graphics card, the game option settings, or the video being played. Try the following actions: decrease the game setting values, change the current FreeSync mode to Standard Engine, or visit the AMD website to check your graphics driver's version and update it with the latest one.
• While you are using the FreeSync function, the screen may flicker due to variation of the output frequency from the graphics card.
• The response rate during the game may fluctuate depending on the resolution. A higher resolution generally decreases the response rate.
  • The sound quality of the monitor may be degraded.

If you encounter any issues when using the function, contact the Samsung Service Center.

When the resolution is changed while setting FreeSync to Standard Engine or Ultimate Engine, the screen tearing can happen intermittently. Set FreeSync to Off and change the resolution.

The function is unavailable in the devices (e.g. AV devices) that have no AMD graphic card. If the function is applied, the screen may have malfunction.

How do you enable FreeSync?

1 Set FreeSync to Standard Engine or Ultimate Engine in the OSD menu.
2 Enable FreeSync in AMD Radeon Settings:

Right-click the mouse → AMD Radeon Settings → Display

The "AMD FreeSync" feature should be set to "On". Select to "On" if not already enabled.

AMD Radeon Settings View Sort by Refresh Paste Paste shortcut New Screen resolution Gadgets Personalize

AMD RADEON SETTINGS RESERVED REFINED SUPERCHAPES Click to learn more about your Radeon Settings.

MOSO SOFTWARE Options to apply to the settings and settings configuration. Properties 1 MOSO SOFTWARE (MOSO) Options Add: 1 Add: 2 Add: 3 Add: 4 Add: 5 Add: 6 Add: 7 Add: 8 Add: 9 Add: 10 Add: 11 Add: 12 Add: 13 Add: 14 Add: 15 Add: 16 Add: 17 Add: 18 Add: 19 Add: 20 Add: 21 Add: 22 Add: 23 Add: 24 Add: 25 Add: 26 Add: 27 Add: 28 Add: 29 Add: 30 Add: 31 Add: 32 Add: 33 Add: 34 Add: 35 Add: 36 Add: 37 Add: 38 Add: 39 Add: 40 Add: 41 Add: 42 Add: 43 Add: 44 Add: 45 Add: 46 Add: 47 Add: 48 Add: 49 Add: 50 Add: 51 Add: 52 Add: 53 Add: 54 Add: 55 Add: 56 Add: 57 Add: 58 Add: 59 Add: 60 Add: 61 Add: 62 Add: 63 Add: 64 Add: 65 Add: 66 Add: 67 Add: 68 Add: 69 Add: 70 Add: 71 Add: 72 Add: 73 Add: 74 Add: 75 Add: 76 Add: 77 Add: 78 Add: 79 Add: 80 Add: 81 Add: 82 Add: 83 Add: 84 Add: 85 Add: 86 Add: 87 Add: 88 Add: 89 Add: 90 Add: 91 Add: 92 Add: 93 Add: 94 Add: 95 Add: 96 Add: 97 Add: 98 Add: 99 Add: 100

The models in the Graphic Cards list supports FreeSync

FreeSync can only be used with specific AMD graphics card models. Refer to the following list for supported graphics cards:

Make sure to install the latest official graphics drivers from AMD that support FreeSync.

For additional AMD graphics card models that support the FreeSync feature, visit the official AMD website.

Select FreeSync Off if you are using a graphics card from a different manufacturer.

When applying the FreeSync function via the HDMI Interface, it may fail to work due to the bandwidth limitation of certain AMD display cards.

• AMD Radeon R9 300 Series • AMD Radeon R9 290
• AMD Radeon R9 Fury X • AMD Radeon R9 285
• AMD Radeon R7 360 • AMD Radeon R7 260X
• AMD Radeon R9 295X2 • AMD Radeon R7 260
• AMD Radeon R9 290X • AMD Radeon RX480

Low Input Lag

Minimize input lag for fast reactions by reducing the video processing time.

This menu is not available when FreeSync is enabled.

This menu is not available when Refresh Rate is set to 60Hz.

If the refresh rate of the computer is different from the setting for Refresh Rate on the monitor, the function may not be supported.

Screen Size

Select the best screen size and ratio.

This menu is not available when FreeSync is enabled.

In PC mode

• Auto: Display the picture according to the aspect ratio of the input source.
- Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
- 17" (4:3): Use a 4:3 aspect ratio on a 17-inch screen. Pictures with a different aspect ratio will not be displayed.
- 19" (4:3): Use a 4:3 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 19" Wide (16:10): Use a 16:10 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 21.5" Wide (16:9): Use a 16:9 aspect ratio on a 21.5-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 22" Wide (16:10): Use a 16:10 aspect ratio on a 22-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 23" Wide (16:9): Use a 16:9 aspect ratio on a 23-inch wide screen. Pictures with a different aspect ratio will not be displayed.

In AV mode

• 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
• 16:9: Display the picture with an aspect ratio of 16:9.
• Screen Fit: Display the picture with the original aspect ratio without cutting off.
- 17" (4:3): Use a 4:3 aspect ratio on a 17-inch screen. Pictures with a different aspect ratio will not be displayed.
- 19" (4:3): Use a 4:3 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 19" Wide (16:10): Use a 16:10 aspect ratio on a 19-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 21.5" Wide (16:9): Use a 16:9 aspect ratio on a 21.5-Inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 22° Wide (16:10): Use a 16:10 aspect ratio on a 22-inch wide screen. Pictures with a different aspect ratio will not be displayed.
- 23" Wide (16:9): Use a 16:9 aspect ratio on a 23-inch wide screen. Pictures with a different aspect ratio will not be displayed.

The function may not be supported depending on the ports provided with the product.

Changing the screen size is available when the following conditions are satisfied.

A digital output device is connected using the HDMI/DP cable.

The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every model can support all of these signals.).

This can only be set when the external input is connected through HDMI/DP and PC/AV Mode is set to AV. (DisplayPort/HDMI1/HDMI2: This option is available when FreeSync is disabled)

Save Settings

Save up to three custom game modes to suit your preferences. Press a game mode shortcut key at the lower part of the monitor to directly access your favorite custom game mode.

If you edit and save a custom game mode, the previous settings will be deleted. Be careful when editing a mode.

• Game Setting 1 / Game Setting 2 / Game Setting 3

Game Setting Key

You can quickly view the setting with a shortcut key at the bottom without using an OSD menu. You can directly see the settings for three different modes.

C*FG70* C*FG73*

Two identical line drawings of a computer monitor setup with front and side views (no text or symbols)

Chapter 05 Screen Setup

Configure the screen settings such as brightness.

A detailed description of each function is provided. Refer to your product for details.

The functions available may vary depending on the product model. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Picture Mode

This menu provides an optimum picture quality suitable for the environment where the product will be used.

This menu is not available when Eye Saver Mode is enabled.

This menu is not available when Eco Saving Plus is enabled.

In PC mode

• Custom: Customize the screen settings.
  • High-Brightness: Maximize the screen brightness.
• FPS: Increase the brightness of darker areas of the FPS game screen. This mode increases visibility of your enemies during a FPS game.
• RTS: Increase the color temperature and contrast ratio to improve visibility of the RTS screen and minlmap.
• RPG: This mode is optimized for 3D graphics and instant messaging on the RPG game screen.
  • AOS: Increase the contrast ratio to obtain a picture quality optimized for the AOS game screen.
• sRGB: Adjust the color system to sRGB mode. This is the standard mode of this monitor.
  • Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD content.

In AV mode

When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Picture Mode has four automatic picture settings (Dynamic, Standard, Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard, Movie or Custom. You can select Custom which automatically recalls your personalized picture settings.

• Dynamic: Select this mode to view a sharper image than in Standard mode.
- Standard: Select this mode when the surroundings are bright. This also provides a sharp image.
- Movie: Select this mode when the surroundings are dark. This will save power and reduce eye fatigue.
- Custom: Select this mode when you want to adjust the image according to your preferences.

Brightness

You can adjust the general brightness of the picture. (Range: 0\~100)

A higher value will make the picture appear brighter.

This menu is not available when Eco Saving Plus is enabled.

This menu is not available when Eye Saver Mode is enabled.

Contrast

Adjust the contrast between the objects and background. (Range: 0\~100)

A higher value will increase the contrast to make the object appear clearer.

This menu is not available when Picture Mode is set to Cinema mode.

Sharpness

Make the outline of objects more clear or blurry. (Range: 0\~100)

A higher value will make the outline of objects clearer.

This menu is not available when Picture Mode is set to Cinema mode.

Color

Adjust the tint of the screen.

This menu is not available when Eye Saver Mode is enabled.

This menu is not available when Picture Mode is set to Cinema mode.

• Red: Adjust the red saturation level. Values closer to 100 mean greater intensity for the color.

• Green: Adjust the green saturation level. Values closer to 100 mean greater intensity for the color.

- Blue: Adjust the blue saturation level. Values closer to 100 mean greater intensity for the color.

• Color Tone: Select a color tone that best suits your viewing needs.

– Cool 2: Set the color temperature to be cooler than Cool 1.
– Cool 1: Set the color temperature to be cooler than Normal mode.
- Normal: Display the standard color tone.
- Warm 1: Set the color temperature to be warmer than Normal mode.
- Warm 2: Set the color temperature to be warmer than Warm 1.
- Custom: Customize the color tone.

When the external input is connected through HDMI/DP and PC/AV Mode is set to AV, Color Tone has four color temperature settings (Cool, Normal, Warm and Custom).

• Gamma: Adjust the middle level of luminance.

- Mode1 / Mode2 / Mode3

HDMI Black Level

If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/color degradation, black level, etc.) may occur, depending on the connected source device. In such case, HDMI Black Level can be used to adjust the image quality.

If this is the case, correct the degraded picture quality using HDMI Black Level.

This function is only available in HDMI1, HDMI2 mode.

• Normal: Select this mode when there is no contrast ratio degradation.
- Low: Select this mode to reduce the black level and increase the white level when there is a contrast ratio degradation.

HDMI Black Level may not be compatible with some source devices.

The HDMI Black Level feature is only activated at a certain AV resolution, such as 720P @ 60 Hz and 1080P @ 60 Hz.

Eye Saver Mode

Set to an optimum picture quality suitable for eye relaxation.

TÜV Rheinland "Low Blue Light Content" is a certification for products which meet requirements for lower blue light levels. When Eye Saver Mode is "On", the blue light that wavelength is around 400nm will decrease, and it will provide an optimum picture quality suitable for eye relaxation. At the same time, the blue light level is lower than in the default settings, and it was tested by TÜV Rheinland and certified as it met the requirements of TÜV Rheinland "Low Blue Light Content" standards.

Screen Adjustment

This option is only available when PC/AV Mode is set to AV.

This menu is only available when Screen Size is set to Screen Fit in AV Mode.

When a 480P or 576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select

Screen Fit to adjust horizontal position in 0-6 levels.

Configuring H-Position & V-Position

H-Position: Move the screen to the left or right.

V-Position: Move the screen up or down.

Calibration Report

The data from this report are measured at the time of shipment.

• The measurements may vary according to the measuring equipment, measuring location, system environment (e.g. computer, graphic board, etc) and other variables.
• Input signal: HDMI
  • Each measurement from this report is based on the Custom mode at the time of shipment.
• This report is not provided on the menu of some products, but in an separate hardcopy report instead.

Chapter 06

Adjusting OSD (On Screen Display) settings

A detailed description of each function is provided. Refer to your product for details.

The functions available may vary depending on the product model. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Language

Set the menu language.

A change to the language setting will only be applied to the onscreen menu display.

IT will not be applied to other functions on your PC.

Display Time

Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time.

Display Time can be used to specify the time after which you want the OSD menu to disappear.

Chapter 07 Setup and Reset

A detailed description of each function is provided. Refer to your product for details.

The functions available may vary depending on the product model. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality.

Arena Lighting (C\*FG70\* model only)

Configure how the LED lighting placed under the screen works.

• Off: Deactivate the Arena Lighting function.
- Blinking: The LED lighting works at a constant interval.
- Interactive: Automatically change the LED brightness according to the sound from the computer.

This mode changes the illumination level by detecting the intensity of the audio signal received by the monitor. A lower sound volume on the computer decreases the illumination level. Increase the sound volume to improve the illumination effect of the Arena Lighting feature for a better gaming experience.

Volume

Adjust the Volume controlling the JOG button LEFT/RIGHT.

Eco Saving Plus

Reduce energy consumption compared to consumption at the maximum brightness level.

This menu is not available when Eye Saver Mode is enabled.

• Off: Deactivate the Eco Saving Plus function.
• Auto: The power consumption will automatically be reduced by about 10% over the current setting. (The reduction of power consumption depends on the customer screen brightness condition.)
  • Low: Saves up to 25 % energy compared to the maximum brightness.
  • High: Saves up to 50 % energy compared to the maximum brightness.

Off Timer

Off Timer: Turn on Off Timer mode.

Turn Off After: The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours.

This option is only available when Off Timer is set to On.

For products for the market in some regions, the Off Timer is set to automatically activate 4 hours after the product powers on. This is done in accordance with power supply regulations. If you do not want the timer to activate, go to System and set Off Timer to Off.

PC/AV Mode

Set PC/AV Mode to AV. The picture size will be enlarged.

This option is useful when you view a movie.

- Set to PC when connected to a PC.

- Set to AV when connected to an AV device.

Supplied for the wide models only such as 16:9 or 16:10. If the monitor is in HDMI1, HDMI2, DisplayPort mode and the screen says Check Signal Cable or power saving mode activates, press the JOG button to display the function-button screen and then select the icon. You can select PC or AV.

DisplayPort Ver.

Select your Displayport.

Incorrect settings may cause the screen to go blank. If this occurs, check the device specifications.

If the monitor (when set to HDMI1, HDMI2 or DisplayPort) is in power saving mode or is displaying the message Check Signal Cable or powersaving mode activates, press the JOG button to display the function-button screen and then select the button to display the On Screen Display (OSD). You can select 1.1 or 1.2. If setting the DisplayPort Ver. to 1.1, for the bandwidth limitation of the DisplayPort 1.1 protocol, the actual maximum output refreshing rate of the display cards cannot achieve the level of 120 Hz/144 Hz.

Source Detection

Select either Auto or Manual as the method to recognize input signal.

Key Repeat Time

Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds only once when a button is pressed.

Power LED On

Configure the settings to enable or disable the power LED located at the lower part of the product.

• Working: The power LED is on when the product is turned on.
- Stand-by: The power LED is on when the product is turned off.

Reset All

Return all the settings for the product to the default factory settings.

Game Setting 1, Game Setting 2, and Game Setting 3 saved under Save Settings will not be changed.

Information

View the current input source, frequency and resolution.

Black-Equalizer Response Time Refresh Rate FreeSync Low Input Lag Off12: 100 On Game Picture OnScreen Display System Information Information: S:\********\nS/N:\********\nHDMI ****x****\n****KIE****2

The displayed image may differ depending on the model.

Chapter 08 Installing the Software

Easy Setting Box

Easy Setting Box

Easy Setting Box enables users to use the monitor by partitioning multiple sections.

To install the latest version of Easy Setting Box, download it from the Samsung Electronics website at http://www.samsung.com.

The software may not work properly if you do not restart the computer after the installation.

The Easy Setting Box icon may not appear depending on the computer system and the product specifications.

If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation

The Easy Setting Box installation may be affected by the Graphics Card, Motherboard and the Networking Environment.

System Requirements

OS Hardware

Windows 7 32Bit/64Bit	At least 32MB of memory
Windows 8 32Bit/64Bit	At least 60MB of free space on the hard disk drive
Windows 8.1 32Bit/64Bit
Windows 10 32Bit/64Bit

Chapter 09 Troubleshooting Guide

Requirements Before Contacting Samsung Customer Service Center

Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center.

Testing the Product

Check if your product is operating normally by using the product test function.

If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test.

1 Power off both the PC and product.
2 Disconnect the cables from the product.
3 Power on the product.
4 If the message Check Signal Cable appears, the product is working normally.

If the screen remains blank, check the PC system, video controller and cable.

Checking the Resolution and Frequency

For a mode that exceeds the supported resolution(refer to Standard Signal Mode Table), the message Not Optimum Mode will appear for a short time.

The displayed resolution may vary, depending on the computer system settings and cables.

Check the following.

Installation issue (PC mode)

The screen keeps switching on and off.

Check the cable connection between the product and PC, and ensure the connectors are locked.

Blank spaces are found on all four sides of the screen when an HDMI or HDMI-DVI cable is connected to the product and PC.

The blank spaces found on the screen have nothing to do with the product.

Blank spaces on the screen are caused by the PC or graphics card. To resolve the problem, adjust the screen size in the HDMI or DVI settings for the graphics card.

If the graphics card settings menu does not have an option to adjust the screen size, update the graphics card driver to the latest version.

(Please contact the graphics card or computer manufacturer for further details about how to adjust the screen settings.)

Screen issue

The power LED is off. The screen will not switch on.

Check that the power cable is connected properly.

The message Check Signal Cable appears.

Check that the cable is properly connected to the product.

Check that the device connected to the product is powered on.

Not Optimum Mode is displayed.

This message appears when the signal from the graphics card exceeds the maximum resolution or frequency for the product.

Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (P48).

The images on the screen look distorted.

Check the cable connection to the product.

The screen is not clear. The screen is blurry.

Remove any accessories (video extension cable, etc.) and try again.

Set the resolution and frequency to the recommended level.

The screen appears unstable and shaky. There are shadows or ghost images left on the screen.

Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (P48) in this manual and the Information menu on the product.

The screen is too bright. The screen is too dark.

Adjust Brightness and Contrast.

Screen color is inconsistent.

Change the Color settings.

The colors on the screen have a shadow and are distorted.

Change the Color settings.

White does not really look white.

Change the Color settings.

There is no image on the screen and the power LED blinks every 0.5 to 1 second.

The product is operating in power-saving mode.

Press any key on the keyboard or move the mouse to return to normal operating mode.

Text is blurry.

If using a Windows OS (e.g. Windows 7, Windows 8, Windows 8.1 or Windows10): Go to Control Panel → Fonts → Adjust ClearType text and change Turn on ClearType.

Video playback is choppy.

Playback of high-definition large video files can be choppy. This may be because the video player is not optimized for the computer resource.

Try playing the file on another video player.

Sound issue

There is no sound.

Check the connection of the audio cable or adjust the volume.

Check the volume.

The volume is too low.

Adjust the volume.

If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound

card or software program.

Video is available but there is no sound.

Sound cannot be heard if a HDMI-DVI cable is used to connect the input device.

Connect the device using an HDMI cable or a DP cable.

Source device issue

A beeping sound is heard when my PC is booting.

If a beeping sound is heard when your PC is booting, have your PC serviced.

Q & A

Refer to the user manual for your PC or graphics card for further instructions on adjustment.

How can I change the frequency?

Set the frequency on your graphics card.

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Screen Resolution → Advanced settings → Monitor, and adjust Refresh rate under Monitor settings.
• Windows 10: Go to Settings → System → Display → Advanced display settings → Display adapter properties → Monitor, and adjust Screen refresh rate under Monitor settings.

How can I change the resolution?

• Windows 7: Go to Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 8(Windows 8.1): Go to Settings → Control Panel → Appearance and Personalization → Display → Adjust Resolution, and adjust the resolution.
• Windows 10: Go to Settings → System → Display → Advanced display settings, and adjust the resolution.

How do I set power-saving mode?

• Windows 7: Set power-saving mode in Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 8(Windows 8.1): Set power-saving mode in Settings → Control Panel → Appearance and Personalization → Personalize → Screen Saver Settings → Power options or BIOS SETUP on the PC.
• Windows 10: Set power-saving mode in Settings → Personalization → Lock screen → Screen timeout settings → Power & sleep or BIOS SETUP on the PC.

Chapter 10 Specifications

General

Model Name C24FG70FQ* / C24FG73FQ* C27FG70FQ* / C27FG73FQ*

Size 59.8 cm 68.6 cm
Display area	521.3952 mm (H) x 293.2848 mm (V) 597.888 mm (H) x 336.312 mm (V)
Pixel Pitch 0.27156 mm (H) x 0.27156 mm (V) 0.3114 mm (H) x 0.3114 mm (V)
Maximum Pixel Clock HDMI: 297 MHz
DisplayPort: 346.5 MHz
Power Supply AC 100 - 240 V - (+/- 10 %), 50/60 Hz ± 3 HzRefer to the label at the back of the product as the standard voltage can vary in different countries.
Signal connectors HDMI, DisplayPort
Environmental conditions Operating
Temperature: 10 °C - 40 °C (50 °F - 104 °F)
Humidity: 10 % - 80 %, non-condensing
Storage
Temperature: -20 °C - 45 °C (-4 °F - 113 °F)
Humidity: 5 % - 95 %, non-condensing

— Plug-and-Play
This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.
Panel Dots (Pixels)
Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
— This device is a Class B digital apparatus.
— For detailed device specifications, visit the Samsung Electronics website.

Standard Signal Mode Table

Synchronization Horizontal Frequency 30 – 168 kHz
	Vertical Frequency 48 – 144 Hz
Resolution Optimum resolution 1920 x 1080 @ 120 Hz (HDMI)
	1920 x 1080 @ 144 Hz (DisplayPort)
Maximum resolution 1920 x 1080 @ 120 Hz (HDMI)
	1920 x 1080 @ 144 Hz (DisplayPort)

If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual.

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)

IBM, 720 x 400	31.469	70.087	28.322	-/+
MAC, 640 x 480	35.000	66.667	30.240	-/-
VESA, 640 x 480	31.469	59.940	25.175	-/-
VESA, 640 x 480	37.861	72.809	31.500	-/-
VESA, 640 x 480	37.500	75.000	31.500	-/-
VESA, 800 x 600	35.156	56.250	36.000	+/+
VESA, 800 x 600	37.879	60.317	40.000	+/+
VESA, 800 x 600	48.077	72.188	50.000	+/+
VESA, 800 x 600	46.875	75.000	49.500	+/+
VESA, 1024 x 768	48.363	60.004	65.000	-/-
VESA, 1024 x 768	56.476	70.069	75.000	-/-
VESA, 1024 x 768	60.023	75.029	78.750	+/+
VESA, 1280 x 720	45.000	60.000	74.250	+/+
VESA, 1280 x 800	49.702	59.810	83.500	-/+
VESA, 1280 x 1024	79.976	75.025	135.000	+/+

Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Pixel Clock (MHz) Sync Polarity (H/V)

VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 RB 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250	-/+
VESA, 1920 x 1080	67.500	60.000	148.500	+/+
CEA, 1920 x 1080	112.500	100.000	297.000	+/+
CEA, 1920 x 1080	135.000	120.000	297.000	+/+
CVT, 1920 x 1080 RB	166.587	143.981	346.500	+/-

Horizontal Frequency The time required to scan a single line from the left to the right side of the screen is called a horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency. Horizontal frequency is measured in kHz.
- Vertical Frequency Repeating the same picture dozens of times per second allows you to view natural pictures. The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Using a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for your product.

Chapter 11 Appendix

Responsibility for the Pay Service (Cost to Customers)

When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

• If a service technician gives instructions on how to use product or simply adjusts options without disassembling product.
  • If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
• If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time.
• If a product is reinstalled to move to a different spot or to move to a different house.
• If customer requests instructions on how to use because of another company's product.
• If customer requests instructions on how to use the network or another company's program.
  • If customer requests software installation and setup for the product.
• If a service technician removes/cleans dusts or foreign materials inside of the product.
• If customer requests an installation additionally after purchasing a product through home-shopping or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair. If a product damage is caused by;

• External impact or drop.
  • Use of supplies or separately sold product unspecified by Samsung.
• Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd.
• Remodeling or repairing the product by customer.
  • Using it with incorrect voltage or non-authorised electrical connections.
  • Not following the "cautions" in User Manual.

Others

• If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
- If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.)

If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.
