USER MANUAL SuperServer 5019A-FN5T Supermicro

Front view of a network equipment chassis showing ports, connectors, and a supermic device (no readable text or symbols)

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A or Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in industrial environment for Class A device or in residential environment for Class B device. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: October 14, 2020

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2020 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of this server. Installation and maintenance should be performed by experienced technicians only.

Please refer to the 5019A-FN5T server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wftp
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Secure Data Deletion

A secure data deletion tool designed to fully erase all data from storage devices can be found on our website: https://www.supermicro.com/about/policies/disclaimer.cfm?url=/wftp/utility/Lot9_Secure_Data_Deletion_Utility/

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....8
1.2 System Features 9
1.3 Chassis Features ....10

Control Panel 10
Front Features....11
Rear Features ....12

1.4 Motherboard Layout....13

Quick Reference Table....14

1.5 Server Installation and Setup....17

Unpacking the System....17
Warnings and Precautions....17
Adding Components to your System ....17

Chapter 2 Server Installation

2.1 Overview....18
2.2 Preparing for Setup....18

Choosing a Setup Location....18
Rack Precautions....18
Server Precautions....19
Rack Mounting Considerations....19

Ambient Operating Temperature....19
Airflow....19
Mechanical Loading....19
Circuit Overloading....20
Reliable Ground....20

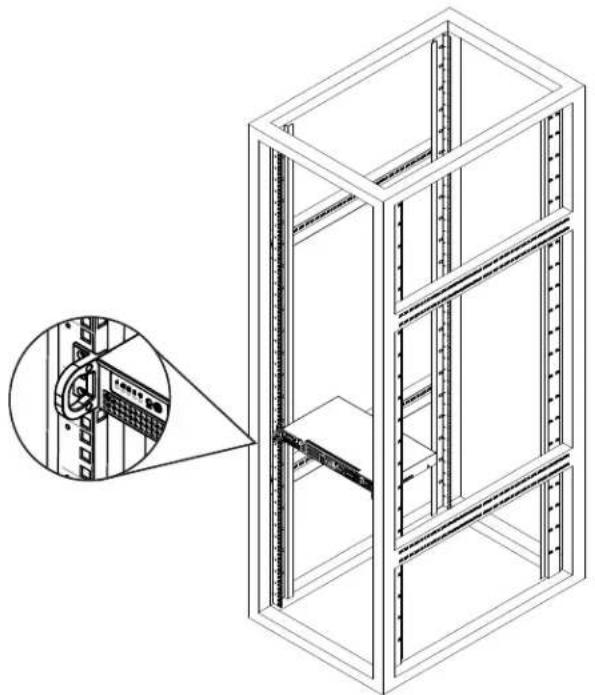

2.3 Installing the Chassis into the Rack....21

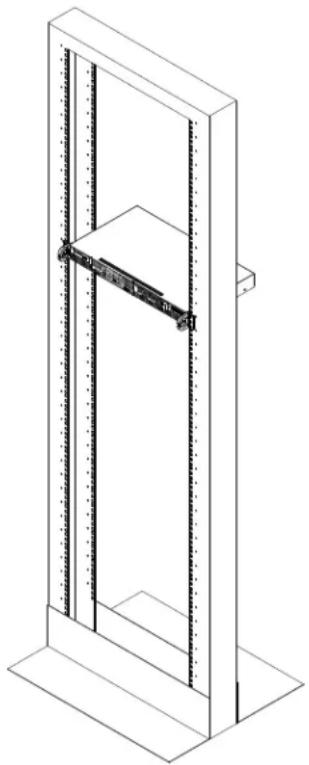

Installing to a Telco Rack....22
Installing the System into a Telco (Two-Post Style) Rack....22

Chapter 3 Maintenance and Component Installation

3.1 Removing Power....23

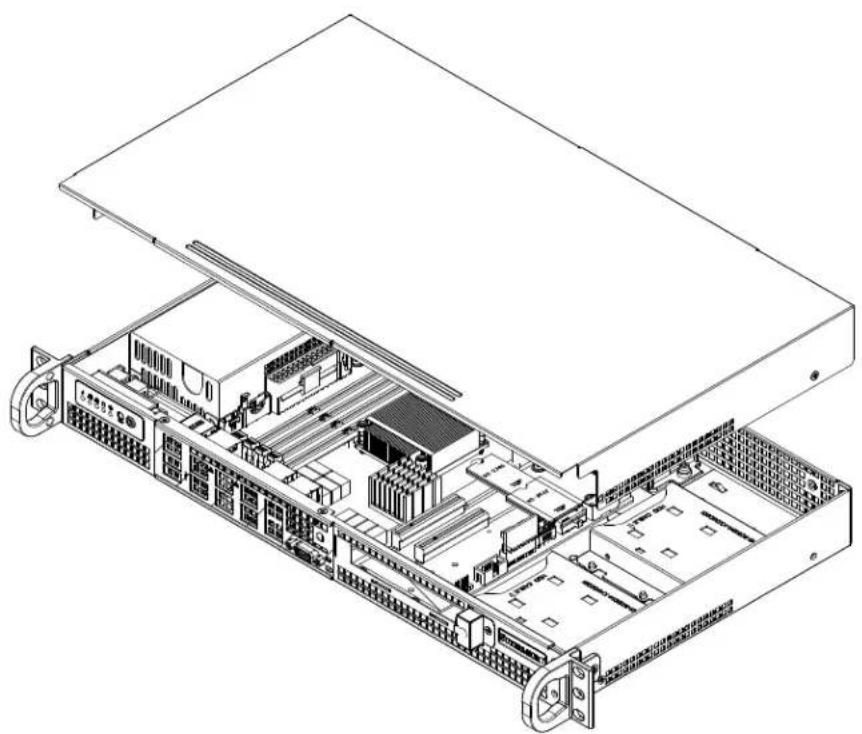

3.2 Accessing the System....24
3.3 Motherboard Components....25

Memory 25

Memory Support 25

ESD Precautions ....25

DIMM Module Population Configuration....26

DIMM Module Population Sequence 27

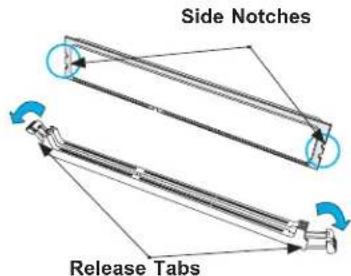

DIMM Installation....28

DIMM Removal....28

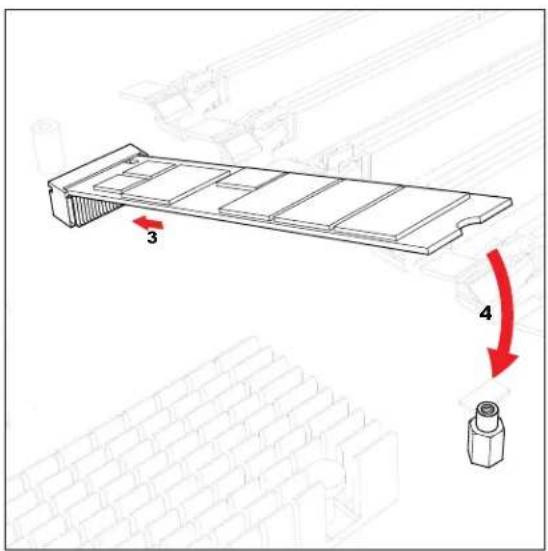

M.2 Card Installation....29

Motherboard Battery ....31

3.4 Chassis Components ....32

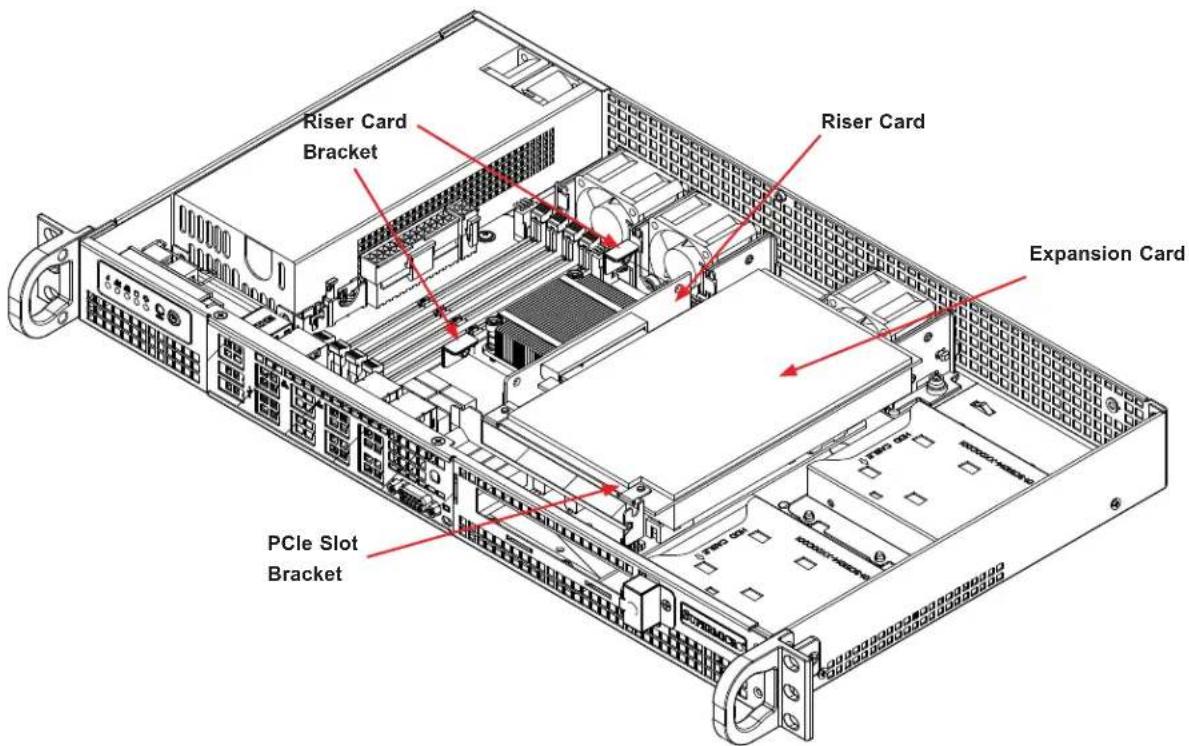

PCI Expansion Cards ....32

Storage Drives 34

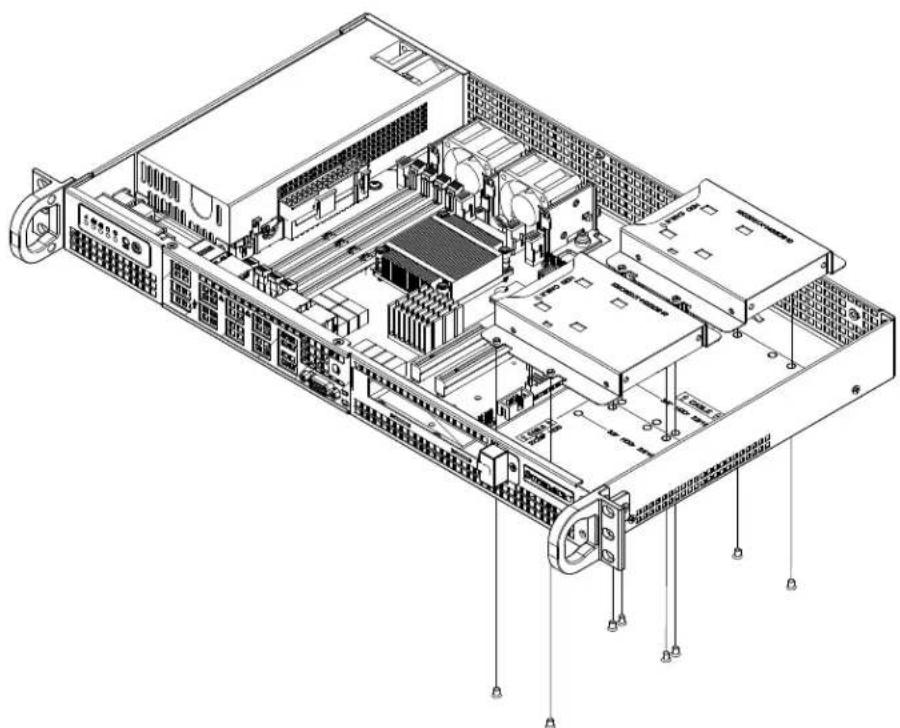

Installing Fixed Internal Drives ....34

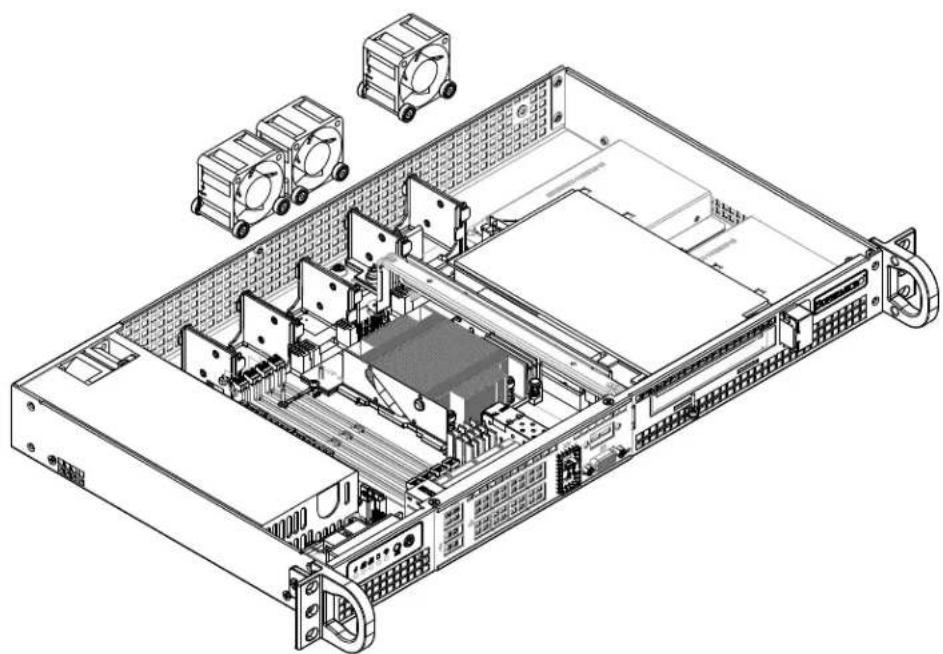

System Fans ....35

Checking the Server Air Flow....37

Overheating ....37

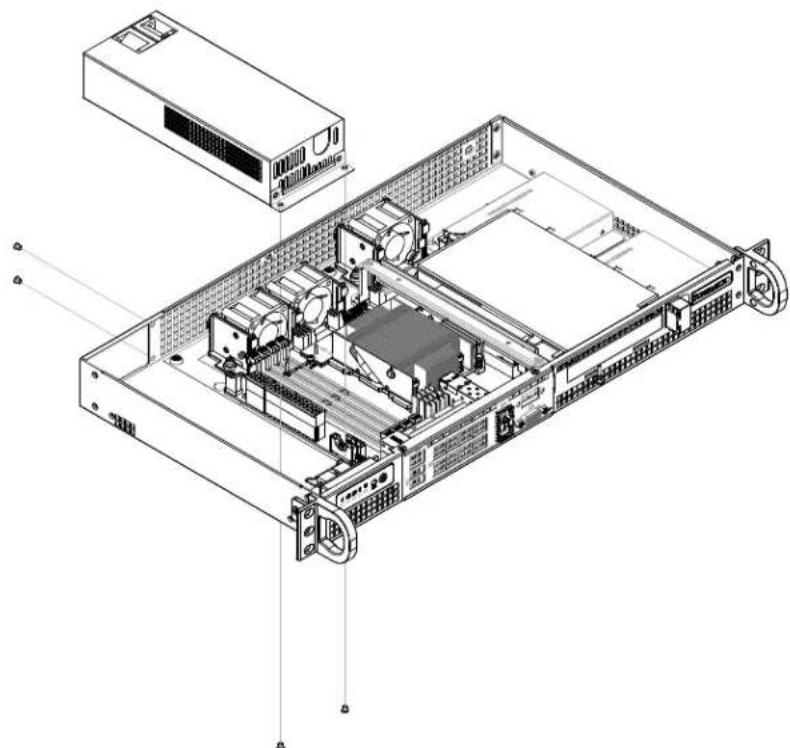

Power Supply 38

Connecting Cables....39

Power Supply Cables 39

SATA Cables....39

Fan Cables 39

Front Control Panel Cables 39

Chapter 4 Motherboard Connections

4.1 Power Connections .... 40

4.2 Headers and Connectors ....41

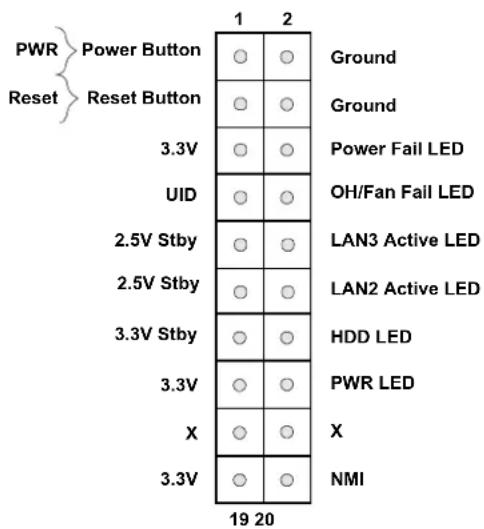

4.3 Front Control Panel 45

4.4 Ports 48

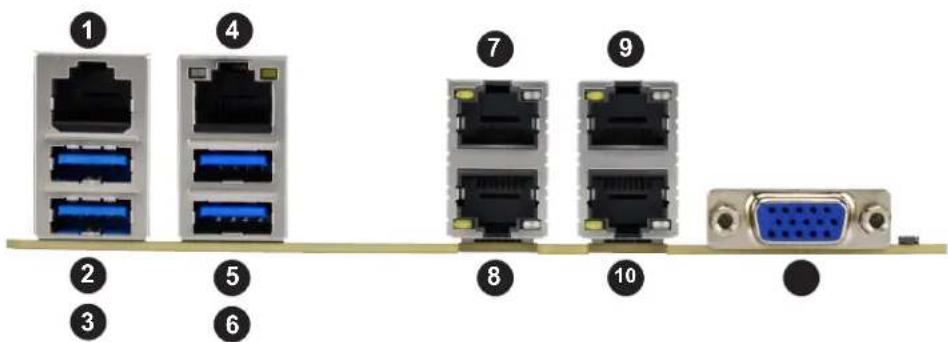

Front I/O Ports 48

4.5 Jumpers....50

Explanation of Jumpers....50

4.6 LED Indicators....54

Chapter 5 Software

5.1 Microsoft Windows OS Installation....55

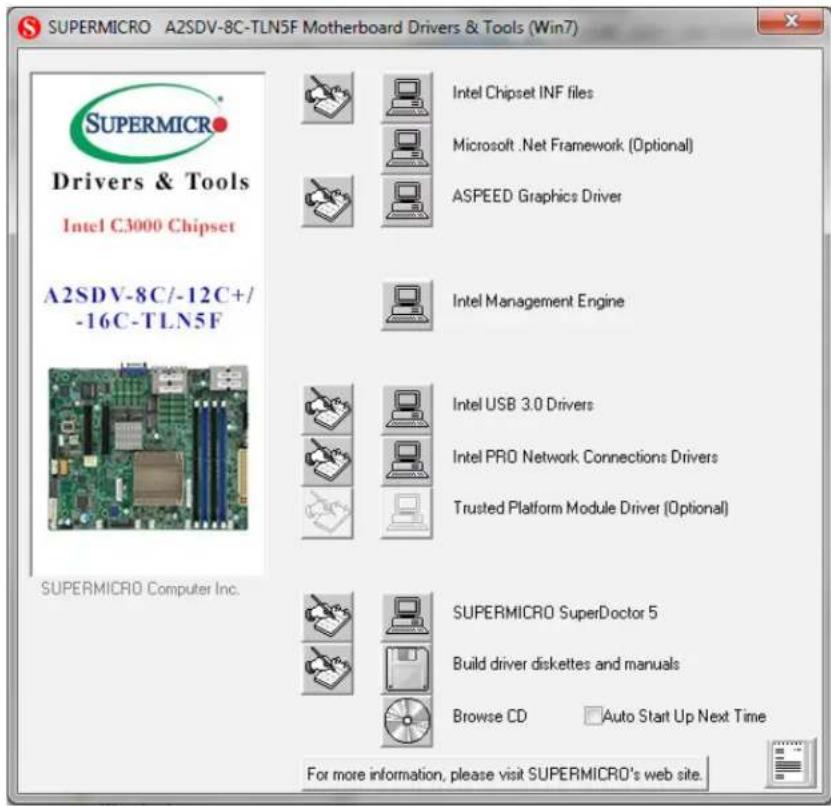

5.2 Driver Installation....57

5.3 SuperDoctor ^® 5....58

5.4 IPMI 59

BMC ADMIN User Password ....59

Chapter 6 BIOS

6.1 Introduction....60
Starting the Setup Utility 60

6.2 Main Setup....61

6.3 Advanced....63

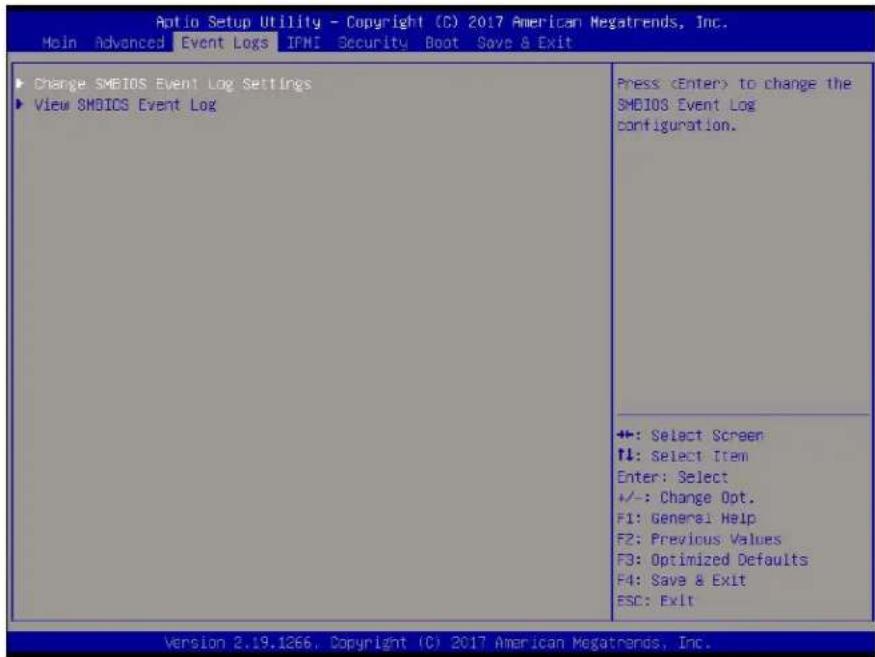

6.4 Event Logs ....85

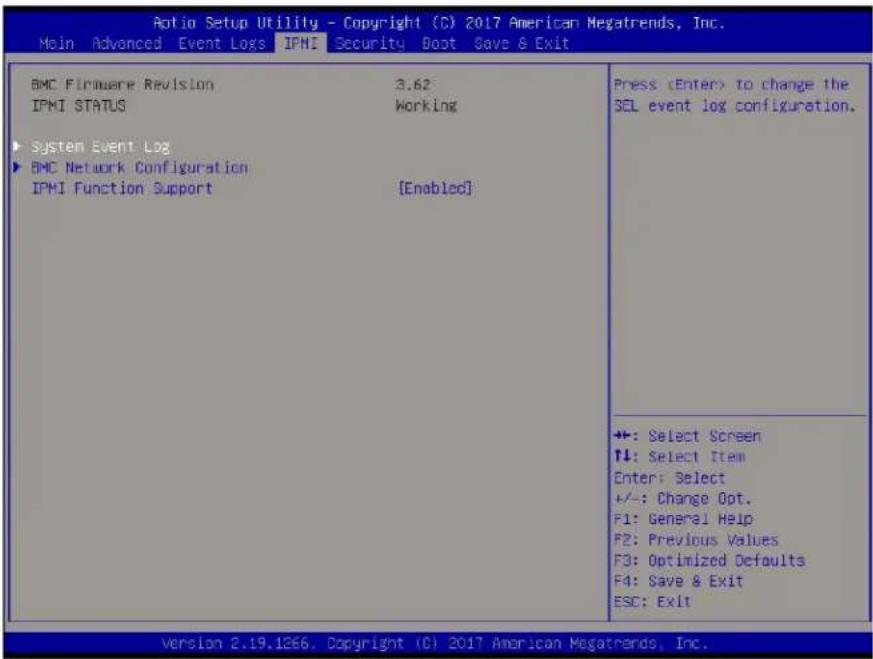

6.5 IPMI 87

6.6 Security....90

6.7 Boot....94

6.8 Save & Exit....96

Appendix A BIOS Codes

Appendix B Standardized Warning Statements for AC Systems

Appendix C System Specifications

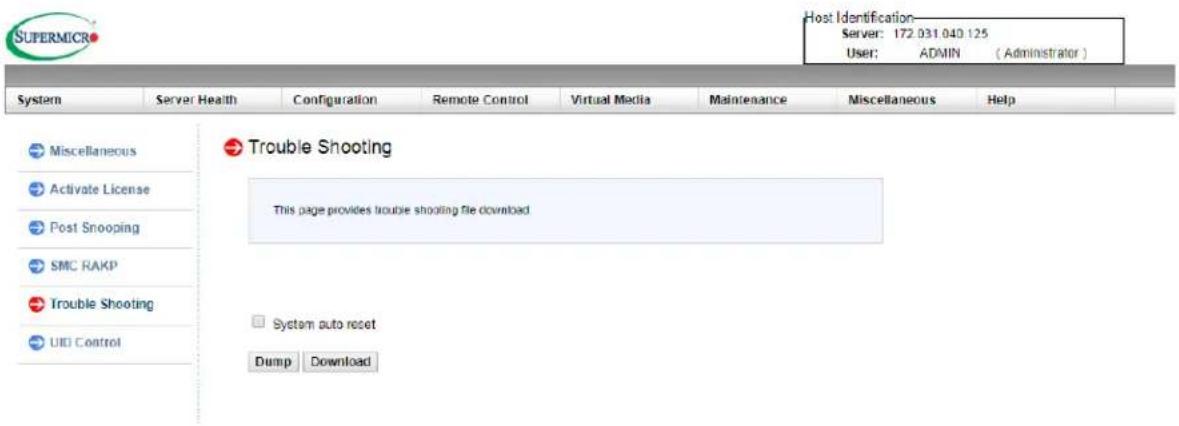

Appendix D IPMI Crash Dump

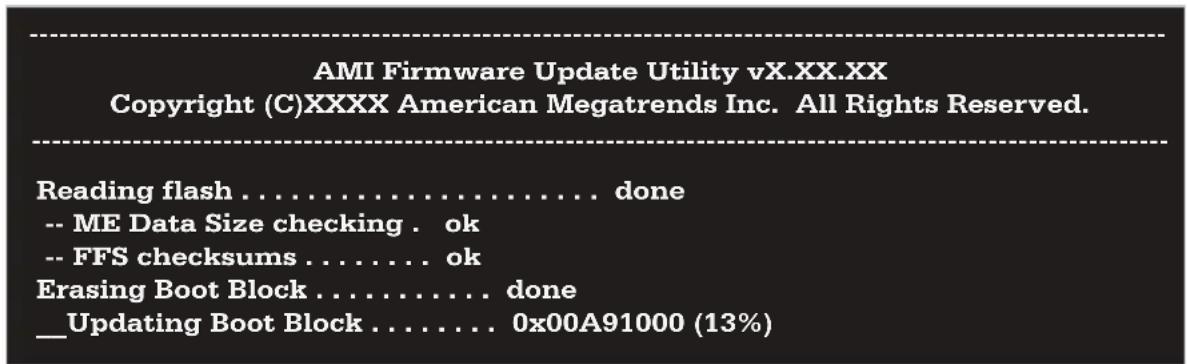

Appendix E Dual Boot Block

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

This chapter provides a brief outline of the functions and features of the SuperServer 5019A-FN5T. This server is based on the A2SDV-16C-TLN5F motherboard and the CSE-505-203B chassis.

In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

Main Parts List
Description Part Number Quantity
4-cm Cooling Fans FAN-065L4 3
Air Shroud MCP-310-50501-0B 1
Riser Card RSC-RR1U-E8 1
Power Supply PWS-203-1H 1
I/O Shield MCP-260-00085-0B 1

1.2 System Features

The table below is an overview of the main features of the SuperServer 5019A-FN5T.

System Features

Processor

Intel® Atom Processor C3958 in a FCBGA1310 type socket

Motherboards

A2SDV-16C-TLN5F

Chassis

CSE-505-203B

Memory

Supports up to 256GB Registered ECC RDIMM and DDR4-2400MHz or up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz in four DIMM slots

Chipset

System on Chip

Expansion Slots

One PCIe 3.0 x8 slot

M.2: one M-Key and one B-Key:M-Key Form Factor: 2242/2280Interface: PCIe 3.0 x2 SATAB-Key Form Factor 3042/2280Interface: PCIe 3.0 x2 SATA/USB3

Drive Bays

1x 3.5" or 2x 2.5" internal hard drive bays (no add-on card support while a 3.5" drive is populated)

Power

200W AC 80Plus Gold Level power supply

Cooling

Three (plus one optional) internal fixed 40 x 28 mm fans

Dimensions

(WxHxD) 17.2 x 1.7 x 9.8 in (437 x 43 x 249mm) 1U short-depth chassis

1.3 Chassis Features

Control Panel

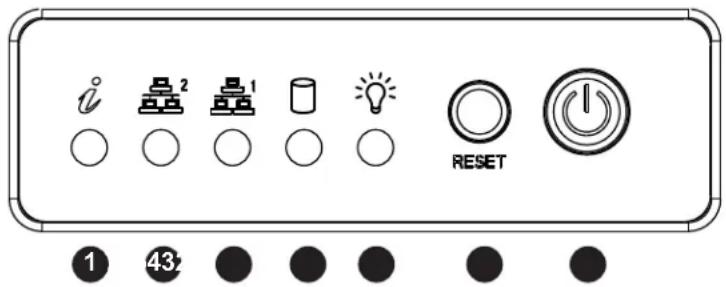

The switches and LEDs located on the control panel are described below. See Chapter 4 for details on the control panel connections.

The main power switch is used to apply or remove power from the power supply to the server. Turning off system power with this button removes the main power, but maintains standby power.

i 2 1 I RESET 1 43

Figure 1-1. Control Panel View

Control Panel Features
Item	Features Description
1	Informational LED Alerts operator to several states, as noted in the table below.
2	NIC2 LED	Indicates network activity on LAN port 2 when flashing.
3	NIC1 LED	Indicates network activity on LAN port 1 when flashing.
4	HDD LED Indicates hard drive activity when flashing.
5	Power LED	Indicates power is being supplied to the system power supply. This LED should normally be illuminated when the system is operating.
6	Reset Button	The reset button is used to reboot the system. Press the button with a slender device such the tip of a pen.
7	Power Button	The main power button is used to apply or remove power from the power supply to the server. Turning off system power with this button removes the main power but maintains system power. To perform maintenance tasks, you must also unplug the system before servicing.

Information LED
Status	Description
Continuously on and red	An overheat condition has occurred.(This may be caused by cable congestion.)
Blinking red (1Hz)	Fan failure, check for an inoperative fan.
Blinking red (0.25Hz)	Power failure, check for a non-operational power supply.
Solid blue	UID has been activated locally to locate the server in a rack environment.
Blinking blue	UID has been activated using IPMI to locate the server in a rack environment.

Front Features

The CSE-505-203B is a 1U short-depth chassis. See the illustration below for the features included on the front of the chassis.

1 2 3 4 5 6 7 1 SUPERMICRO

Figure 1-2. Server Front View

Server Front Features
Item Feature Description
1 Bracket Ear	Secures the chassis into the rack
2 Control Panel	Front control panel with LEDs and buttons (see the previous page)
3 I/O Ports	Input/output ports (see details in Chapter 4)
4 VGA Port	Video port
5 PCIe Location for expansion cards

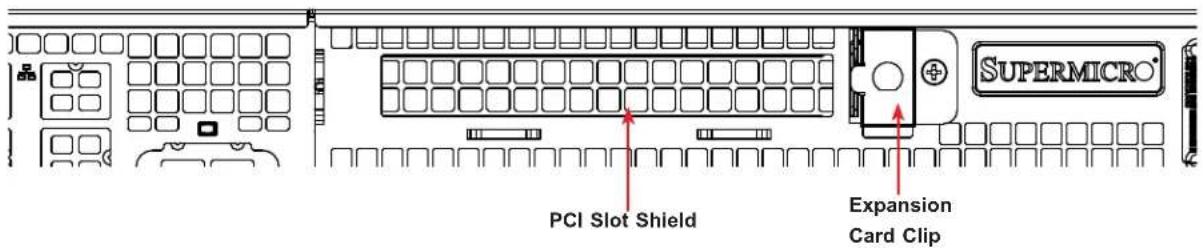

6 Expansion	Card Clip Secures the expansion card to the chassis front
7 BMC Label	Location Unique BMC password label location

Rear Features

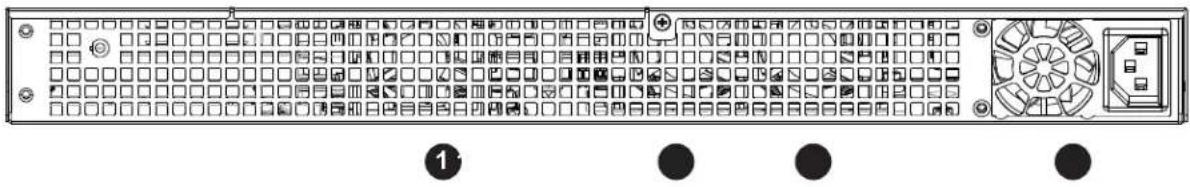

The illustrations below show the features included on the rear of the chassis.

Front panel of a computer tower with indicator lights and ports, no visible text or symbols on the main body (pure diagram)

Figure 1-3. Server Rear View

Server Rear Features
Item Feature Description
1 Fan Internal fans
2 Power Supply 200W AC Gold power supply

1.4 Motherboard Layout

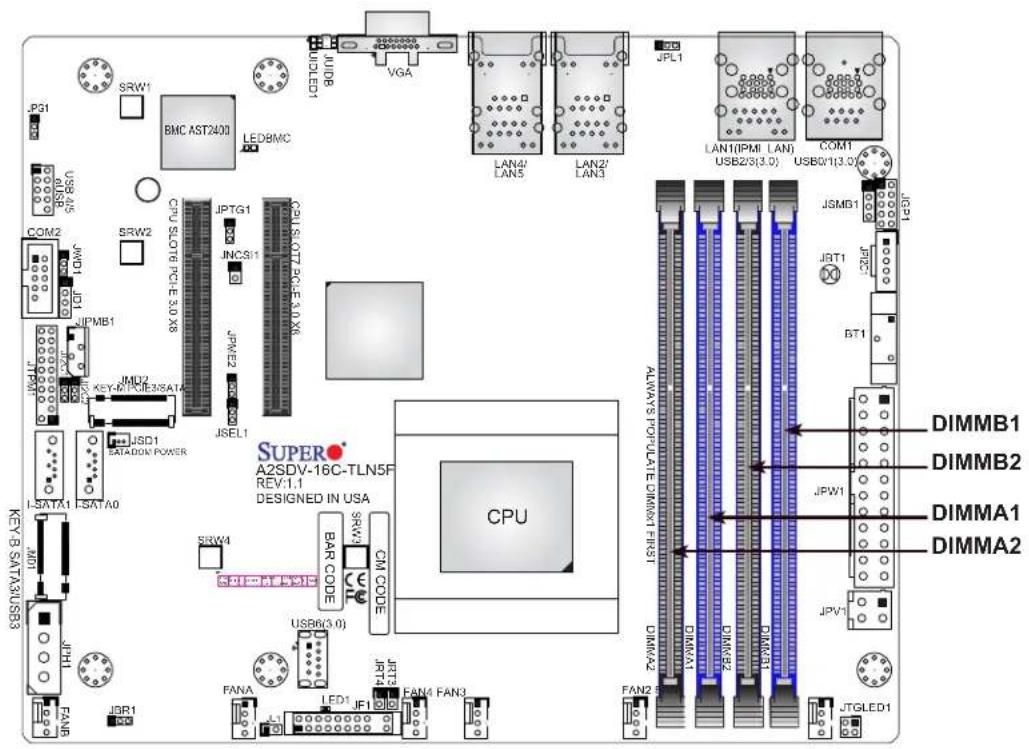

Below is a layout of the A2SDV-16C-TLN5F motherboard with jumper, connector, and LED locations shown. See the table on the following page for descriptions. For detailed descriptions, pinout information, and jumper settings, refer to Chapter 4.
    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    end

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_X2
    end

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2
    end

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2
    end

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-Internal_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-External_Layer
        CPU_SLOTS_PCE_1.0_X2 --> CPU_SLOTS_PCE_1.0_x2

    sub-total["Super"]:: A2SDV-16C-TLN5F REV: 1.1 DESIGNED IN USA]
    sub-total["External"]:: SUPER_A2SDV-16C-TLN5F REV: 1.1 DESIGNED IN USA]
    sub-total["External"]:: USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(6.0)

    sub-total["Internal"]:: USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0)

    sub-total["External"]:: USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0)

    sub-total["Internal"]:: USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.0)

    sub-total["External"]:: USB6(3.0) --> USB6(3.0) --> USB6(3.0) --> USB6(3.5)
    sub-total["Internal"]:: USB6(3.5) --> USB6(3.5) --> USB6(3.5) --> USB6(3.5) --> USB6(3.5) --> USB6(3.5) --> USB6(3.5) → USB6(3.5)
    sub-total["External"]:: USB6(3.5) --> USB6(3.5) → USB6(3.5)
    sub-total["Internal"]:: USB6(3.5) → USB6(3.5)
    sub-total["External"]:: USB6(3.5) → USB6(3.5)

    style Top_Layer fill:#f9f,stroke:#333,stroke-width:2px
    style Internal_Layer fill:#bbf,stroke:#f66,stroke-width:2px

Figure 1-4. Motherboard Layout

Notes:

- "■" indicates the location of pin 1.

- Jumpers/components/LED indicators not indicated are used for internal testing only.

Quick Reference Table
Jumper Description Default Setting

JBR1 BIOS Recovery Pins 1-2 (Normal)
JBT1 CMOS Clear Open (Normal)
JI2C1/JI2C2 SMB to PCIe Slots Enable/Disable Pins 1-2 (Enabled)
JNCSI1 IPMI Shared LAN Port Selection ON (short): LAN1, OFF (open): LAN2
JPG1 Onboard VGA Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN1 GbE Enable/Disable Pins 1-2 (Enabled)
JPME2	ME Manufacturing Mode	Pins 1-2 (Normal)
JPTG1	LAN2/3/4/5 10GbE Enable/Disable Pins 1-2 (Enabled)
JSEL1	PCIe Slot Selection	Pins 1-2: Slot 7, Pins 2-3: Slot 6
JWD1	Watch Dog Timer	Pins 1-2 (Reset)

LED Description Status

LED1 Power LED	Solid Green: Power On
LEDBMC	BMC Heartbeat Blinking Green: BMC Normal
UIDLED1	UID LED	Solid Blue: Unit Identified
Connector	Description
BT1	Onboard Battery
COM1	COM Port (on the I/O back panel)
COM2	COM Header
FAN1 - FAN4, FANA, FANB	System Fan Headers
IPMI_LAN	Shared IPMI LAN Port (Default: shared with LAN1)
I-SATA0-1	Intel® PCH SATA 3.0 Ports (I-SATA0: SuperDOM)
JD1	Speaker Header (Pins 1-4: Speaker)
JF1	Front Control Panel Header
JGP1	General Purpose I/O Header
JIPMB1	System Management Bus Header (for IPMI only)
JL1	Chassis Intrusion Header
JMD1	M.2 B-Key PCIE3/SATA3/USB3 Connector
JMD2	M.2 M-Key PCIE3/SATA3 Connector
JPI^2C1	Power Supply SMBus I^2C Header
JPH1	4-pin Power Connector for HDD use
JPW1	24-pin ATX Power Connector
JPV1	4-pin 12V DC Power Connector (To provide alternative power for a special enclosure when the 24-pin ATX power is not in use.)
JRT3	Thermal Diode 1
JRT4	Thermal Diode 2

Connector Description
JSD1 SATA Disk On Module (DOM) Power Connector

JSMB1 External BMC I

^2C Header

JTGLED1 LAN4 - LAN5 Activity LED Header
JTPM1 Trusted Platform Module (TPM)/Port 80 Connector
JUIDB1 Unit ID Button
LAN1 - LAN5 LAN1: Gigabit Ethernet (RJ45) Port
LAN2 - LAN5: 10Gigabit Ethernet (RJ45) Ports
SLOT6, SLOT7 PCIe 3.0 x8 Slots (use SLOT 6 or SLOT 7 only, selectable with JSEL1)
SRW1 - SRW4 M.2 Holding Screws (Standoffs)
USB0/1, USB2/3 Back Panel USB 3.0 Ports
USB4/5 Front Accessible USB 2.0 Header
USB6 USB 3.0 Type A Header
VGA VGA Port

Figure 1-5. Chipset System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the System Specifications appendix for the actual specifications of your motherboard.

1.5 Server Installation and Setup

The server is shipped with the processor and the motherboard installed in the chassis. Several steps are necessary to begin using your server. You must add memory, install the hard drives, and mount the system in place.

Unpacking the System

Inspect the box in which the system was shipped and note if it was damaged. If the server itself shows damage, file a damage claim with the carrier.

Warnings and Precautions

• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges, voltage spikes and to keep your system operating in case of a power failure.
• Review the electrical and general safety precautions in Appendix B.

Adding Components to your System

• Memory: If your system is not already fully integrated with system memory, refer to Chapter 3 for details on compatible types of memory and the installation procedure.
• Drives and Storage: To add storage capabilities to your server, see Chapter 3.
• Input/Output: See Chapter 4 for I/O ports and connect them as needed.
• Software: See Chapter 5 for description and procedures for installing software, including drivers and monitoring programs.

Chapter 2

Server Installation

2.1 Overview

This chapter provides advice and instructions for mounting your system in a server rack. If your system is not already fully integrated with system memory etc., refer to Chapter 3 for details on installing those specific components.

Caution: Electrostatic Discharge (ESD) can damage electronic components. To prevent such damage to PCBs (printed circuit boards), it is important to use a grounded wrist strap, handle all PCBs by their edges, and keep them in anti-static bags when not in use.

2.2 Preparing for Setup

The box in which the system was shipped should include the rackmount hardware needed to install it into the rack. Please read this section in its entirety before you begin the installation.

Choosing a Setup Location

• The system should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise, and electromagnetic fields are generated.
• Leave enough clearance in front of the rack so that you can open the front door completely (\~25 inches) and approximately 30 inches of clearance in the back of the rack to allow sufficient space for airflow and access when servicing.
• This product should be installed only in a Restricted Access Location (dedicated equipment rooms, service closets, etc.).
• This product is not suitable for use with visual display workplace devices according to §2 of the German Ordinance for Work with Visual Display Units.

Rack Precautions

• Ensure that the leveling jacks on the bottom of the rack are extended to the floor so that the full weight of the rack rests on them.

• In single rack installations, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.

• Always make sure the rack is stable before extending a server or other component from the rack.

• You should extend only one server or component at a time - extending two or more simultaneously may cause the rack to become unstable.

Server Precautions

• Review the electrical and general safety precautions in Appendix B.
• Determine the placement of each component in the rack before you install the rails.
• Install the heaviest server components at the bottom of the rack first and then work your way up.
• Use a regulating uninterruptible power supply (UPS) to protect the server from power surges and voltage spikes and to keep your system operating in case of a power failure.
• Allow any drives and power supply modules to cool before touching them.
• When not servicing, always keep the front door of the rack and all covers/panels on the servers closed to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the room's ambient temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

Airflow

Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

All power cords must be plugged into sockets that have an earth ground.

To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable. The following guidelines are provided to ensure your safety:

• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the unit in the rack.
• Slide rail mounted equipment is not to be used as a shelf or a work space.

2.3 Installing the Chassis into the Rack

This section provides information on installing the CSE-505-203B chassis into a rack unit. Due to the variety of rack units on the market, the assembly procedure might differ slightly. Also refer to the installation instructions that came with the rack unit you are using.

1. Gather the four mounting screws shipped with the system.

2. Align the mounting holes of the chassis with the thru-holes of the rack.

3. Insert the mounting screws into the thru-holes in the front of the chassis and tighten the screws until the chassis is secured to the rack.

Technical line drawing of a server rack cabinet with an inset close-up showing internal components (no text or symbols)

Figure 2-1. Installing the Server into a Rack

Note: Figures are for illustrative purposes only. Always install servers to the bottom of a rack first.

Warning: Do not pick up the server by the front handles. They are designed to pull the system from a rack only.

Stability hazard. The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over, which may cause serious personal injury or death.

Installing to a Telco Rack

The 5019A-FN5T supports Telco Rack installation. The compact design allows it to be installed into a Telco rack without the use of rails.

Isometric line drawing of a vertical shelf or rack unit with a central horizontal bar (no text or symbols)

Figure 2-2. Installing the Server into a Rack

Note: Figures are for illustrative purposes only. Servers should always be installed in racks from the bottom up.

Installing the System into a Telco (Two-Post Style) Rack

To install the system into a Telco style two-post rack, use two L-shaped brackets on either side of the chassis (four total).

1. Determine how far the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back.
2. If a bezel is included on your chassis, remove it.
3. Attach the two front brackets to each side of the chassis.
4. Attach the two rear brackets positioned with just enough space to accommodate the width of the Telco rack.
5. Slide the chassis into the rack and tighten the brackets to the rack.

Chapter 3

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components require that power first be removed from the system. Please follow the procedures given in each section.

3.1 Removing Power

Use the following procedure to ensure that power has been removed from the system.

1. Use the operating system to power down the system.
2. After the system has completely shut down, disconnect the AC power cords from the power strip or outlet.
3. Disconnect the AC power cords from the power supply module.

3.2 Accessing the System

Removing the Chassis Cover

1. Power down the system as described in Section 3.1.

2. Lift the cover up and off the chassis.

3. Remove one screw from the chassis rear and two screws from each chassis side.

Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover must be in place to allow proper airflow and prevent overheating.

Technical line drawing of an internal server rack with multiple ports and connectors (no text or labels)

Figure 3-1. Removing the Chassis Cover

3.3 Motherboard Components

Memory

Memory Support

The A2SDV-16C-TLN5F supports up to 256GB Registered ECC RDIMM and DDR4-2400MHz or up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz in four DIMM slots. Populating these DIMM slots with memory modules of the same type and size will result in interleaved memory, which will improve memory performance.

Refer to the table on the next page for the recommended DIMM population order.

ESD Precautions

Electrostatic Discharge (ESD) can damage electronic components including memory modules. To avoid damaging your DIMM modules, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.
• Handle the memory module by its edges only.
• Put the memory modules into the antistatic bags when not in use.
• Check the Supermicro website for recommended memory modules.

DIMM Module Population Configuration

For optimal memory performance, follow the table below when populating memory.

Memory Population (Balanced)
DIMMA1	DIMMB1	DIM	MA2 DIMMB2	Total System Memory
4GB 4GB	8GB
4GB 4GB	4GB 4GB	16GB
8GB 8GB	16GB
8GB 8GB	8GB 8GB	32GB
16GB 16GB	32GB
16GB 16GB	16GB 16GB	64GB
32GB 32GB	64GB
32GB 32GB	32GB 32GB	128GB
64GB 64GB	128GB
64GB 64GB	64GB 64GB	256GB

DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order: DIMMA1, DIMMB1, DIMMA2, DIMMB2.

• Always use DDR4 DIMM modules of the same type, size and speed.
- Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The motherboard will support odd-numbered modules (1 or 3 modules installed). However, for best memory performance, install DIMM modules in pairs to activate memory interleaving.

JPG1 SRW1 BMC AST2400 LED8MC JUOR VGA JPL1 COM1 USB2/3(3.0) LAN1(IPMI LAN) USB2/3(3.0) JSPD1 JPTG1 JNCS1 JPL1 JPL1 JPTG1 JNCS1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JFL05 JNCS1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JFL05 KMPB05 CPU SLOTE6 PCE 3.0 X8 JNCS1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JPL1 JBL05 KEY-M7-WE3/SAT4A0 JSD1 SATADON POWER SATAA0 L-SATAA0 KEY-B SATA3/USB3 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA2/USB3 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SATAA0 SATAA0 L-SSDVA-2-TLN5F REV: 1.1 DESIGNED IN USA CPU SATAA0 L-SSDVA-2-TLN5F REV: 2.9 DESIGNED IN USA CPU SATAA0 L-SSDVA-2-TLN5F REV: 3.9 DESIGNED IN USA CPU

Figure 3-2. Populating DIMM Slots

DIMM Installation

Caution: Exercise extreme caution when installing or removing memory modules to prevent any possible damage to the DIMMs or slots.

Begin by removing power from the system as described in Section 3.1.

1. Decide on the number of DIMMs to install and follow the DIMM population sequence table shown previously.

2. Push the release tabs outwards on both ends of the DIMM slot to unlock it.

Side Notches Release Tabs

1. Identify the notches on the side and bottom of the DIMM module.

Bottom Notch

1. Align the bottom notch on DIMM module with the receptive point in the memory slot. Align the side notches with the receptive points on the release tabs.

Illustration of hands holding a 3D array device with blue arrows indicating direction (no text or symbols)

1. With your thumbs on both ends of the DIMM module, press it straight down into the slot until the module snaps into place.

2. Press the release tabs to the locked position to secure the DIMM module into the slot.

DIMM Removal

To remove a DIMM, unlock the release tabs then pull the DIMM from the memory slot.

M.2 Card Installation

The A2SDV-16C-TLN5F supports two M.2 connectors: one M.2 M-Key 2242/2280 PCIe 3.0 x2 SATA connector and one B-Key 3042/2280 PCIe 3.0 x2 SATA/USB3 connector. To install an M.2 card, first locate the connector and the standoff on the motherboard.

1. Remove the old M.2 card.
2. Insert a new M.2 card into the slot.
3. Align the cutoff circle with the standoff.

4. Reinstall the screw on the standoff.

5. Remove the screw from the standoff and set aside.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Figure 3-3. Installing an M.2 Card

Note: The illustration shows an M.2 22110 card. Follow the same procedure to install any M.2 card in its respective slots.

M-Key Standoff JPO SRW1 BMC AST2400 LEDBMC JUOR VGA LAN4/ LAN5 LAN7/ LAN5 JPL1 LAN1(PMI_LAN) USB2(3/3.0) USB0(3.0) COM1 JSMB1 JB11 JPW1 BT1 JPMI JPL1 JPTG1 JNCSH1 CPU SLOT6 PC-E-3.0 X8 JPME2 JMSL1 JMD2 KEY-MI PCIE3/SATAE JSD1 DATACOM POWER COM2 USB 4/6 JID1 JIPMB1 JIPIN JPMI JPMI2 JSPATA1 PSATAO SAPR KEY-B SATA3USB3 B-Key Standoff B-Key Standoff SUPER A2SDV-16C-TLN5F REV.1.1 DESIGNED IN USA CPU SRW4 BAR CODE CMI CODE USB(3.0) LED1 T1 FANA FAN4 FAN3 JPTG1 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2 JPMI2

Figure 3-4. M.2 Connectors and Standoffs

Motherboard Battery

Caution: There is a danger of explosion if the onboard battery is installed in the wrong orientation with reversed polarities. This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032). Dispose of used batteries according to the manufacturer's instructions.

LITHIUM BATTERY BATTERY HOLDER

Figure 3-6. Installing the Onboard Battery

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

3.4 Chassis Components

This section provides instructions on installing and replacing system components. To assure compatibility, only use components that match the specifications or part numbers given.

PCI Expansion Cards

The system supports an optional riser card to allow a full-height, half-length expansion card to fit inside the chassis. Use the RSC-RR1U-E8 to install a PCIe x8 card.

Note: Install the expansion card after installing the 2.5" disk drives.

Assemble the PCIe Expansion Card, Riser Card, and Brackets

1. Remove power as described in Section 3.1 and remove the chassis cover.
2. Remove the expansion card clip and the PCI slot shield.

PCI Slot Shield Expansion Card Clip SUPERMICRO

Figure 3-7. Expansion Card Clip Location

1. Outside of the chassis, create a riser card assembly by installing the riser card to the riser card bracket.
2. Create a PCI card assembly by installing a PCI slot bracket to the expansion card.
3. Insert the PCI card assembly into the riser card assembly.

Installing the Expansion Card Assembly

1. Insert the expansion card into the riser card.
2. Insert the riser card and PCI card assembly into the motherboard.
3. Secure the PCI slot bracket to the chassis with the clip.

Riser Card Bracket Riser Card Expansion Card PCIe Slot Bracket

Figure 3-8. Assemble the PCIe Expansion Card, Riser Card, and Brackets

Storage Drives

The system supports two internal 2.5" SSD drives.

Note: Enterprise level drives are recommended for use in Supermicro servers. For information on recommended HDDs, visit the Supermicro website product pages at https://www.supermicro.com/products/nfo.

Installing Fixed Internal Drives

Installing 2.5" Drives to the Chassis Floor

1. Remove power as described in Section 3.1 and remove the chassis cover.
2. If necessary, remove the PCI expansion card from the chassis.
3. Remove the drive brackets from the chassis.
4. Insert the SSDs into the drive brackets and secure the drive to the bracket with screws.
5. Secure each drive bracket to the chassis floor using four screws.
6. Connect the drive cables to the motherboard and the power supply.
7. If necessary, reinstall the PCI expansion card.
8. Reinstall the chassis cover, reconnect the power cord, and power up the system.

Isometric line drawing of a server rack with multiple ports and connectors (no text or labels)

Figure 3-9. Securing the Mounting Brackets to the Chassis Floor

System Fans

The SuperServer 5019A-FN5T comes with three fans.

The fans can adjust their speed according to the heat level sensed in the system, which results in more efficient and quieter fan operation. Fan speed is controlled by IPMI. Each fan has its own separate tachometer.

If a fan fails, the remaining fans will ramp up to full speed, the overheat/fan fail LED on the control panel will blink on and off. Replace any failed fan at your earliest convenience with the same type and model.

Replacing a System Fan

1. Determine which fan has failed using remote management.
2. Once the failed fan has been identified, remove power from the system as described in Section 3.1.
3. Remove the chassis cover as described in Section 3.2.
4. Disconnect the failed fan from the motherboard.
5. Remove the failed fan from the fan tray.

Technical line drawing of a server rack with internal components and two-mounted fans (no text or labels)

Figure 3-10. Removing Fan from the Fan Tray

1. Install a new fan into the drive tray.
2. Connect the fan to the motherboard.
3. Reinstall the chassis cover.
4. Reconnect the power cord and power up the system.
5. Check that the overheat/fan fail LED on the control panel is off.

Checking the Server Air Flow

• Make sure there are no objects to obstruct airflow in and out of the server.
• Use only recommended server parts.
• Make sure no wires or foreign objects obstruct air flow through the chassis. Pull all excess cabling out of the airflow path or use shorter cables.

The control panel LEDs display system heat status. See “Control Panel” in Chapter 1 for details.

Overheating

There are several possible responses if the system overheats.

If the server overheats:

1. Use the overheat/fan fail LED to determine the nature of the overheating condition.
2. Confirm that the chassis covers are installed properly.
3. Make sure all fans are present and operating normally.
4. Check the routing of the cables.
5. Verify that the air shroud is installed properly.

Caution: If the operating temperature exceeds 30^ C and the system fans are not active, a LAN component may become overheated.

Power Supply

The 5019A-FN5T supports one 200 W AC Gold power supply. The power supply is auto-switching capable. The 200 W AC power supply can operate at a 100V to 240V input range. New units can be ordered directly from Supermicro or authorized distributors.

Replacing Power Supply

1. Remove power as described in Section 3.1 and remove the chassis cover as described in Section 3.2
2. Disconnect all wiring from the power supply.
3. Remove two screws holding the power supply to the chassis rear. From the underside of the chassis, remove two screws holding the power supply mounting bracket to the chassis floor. Set these four screws aside.
4. Remove the power supply from the chassis.
5. Align a new power supply with the thru holes at the chassis rear and on the chassis floor.
6. Reinstall the four screws.
7. Reconnect all wiring to the power supply, reinstall the chassis cover, reconnect the power cord, and power up the system.

Technical line drawing of a server rack with internal components and external housing (no text or labels)

Figure 3-11. Replacing the Power Supply

Connecting Cables

The 5019A-FN5T system comes with cables to connect chassis components such as SATA cables, fans, and expansion cards to the motherboard and the power supply. The cables are pre-installed in the system and are routed to optimize cooling in the chassis. If disconnecting a cable, reconnect it in the same configuration.

Power Supply Cables

An ATX 24-pin power cable (JPW1) supplies 12V power to the motherboard.

SATA Cables

Two Y-split SATA power cables connect the SATA drives to the power supply. Two data cables connect each SATA drive separately to the motherboard.

Fan Cables

The motherboard supports five 4-pin fan headers, FAN1\~FAN3 and FANA/FANB. Connect the fan cables from the fans to the motherboard.

Front Control Panel Cables

Connect the front control panel cable to the header on the motherboard and the connector on the chassis.

Chapter 4

Motherboard Connections

This section describes the connections on the motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required.

Please review the Safety Precautions in Appendix B before installing or removing components. Be sure to remove power from the system before performing any operation within the system.

4.1 Power Connections

Main ATX Power Supply Connector

The primary power supply connector (JPW1) meets the ATX SSI EPS 12V specification.

ATX Power 24-pin Connector Pin Definitions
Pin# Definition Pin# Definition
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

12V DC Power Connector

The 4-pin JPV1 connector is used to provide alternative power for a special enclosure when the 24-pin ATX power is not in use.

+12V 4-pin Power Pin Definitions

Pin# Definition

1 - 2 Ground

3 - 4 +12V

HDD Power Connector

JPH1 is a 4-pin power connector for HDD use. It provides power from the motherboard to the onboard HDD.

4-pin HDD Power Pin Definitions
Pin# Definition
1 12V
2-3 GND
4 5V

4.2 Headers and Connectors

Fan Headers

The A2SDV-16C-TLN5F has six 4-pin fan headers (FAN1 \~ FAN4, FANA, FANB). These headers are backwards-compatible with the traditional 3-pin fans. However, fan speed control is available for 4-pin fans only by Thermal Management via the IPMI 2.0 interface. Refer to the table below for pin definitions.

Fan HeaderPin Definitions
Pin#	Definition
1	Ground (Black)
2	2.5A/+12V (Red)
3	Tachometer
4	PWM_Control

Speaker Header

JD1 is the speaker header. Connect the cable of the external speaker to pins 1-4.

Speaker ConnectorPin Definitions

Pin Setting Definition

Pins 1-4 Speaker

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened. Refer to the table below for pin definitions.

Chassis Intrusion Pin Definitions

Pin# Definition

1 Intrusion Input

2 Ground

General Purpose I/O Header

JGP1 is a 10-pin general purpose I/O header. Each pin can be configured to be an input or output pin. The GPIO is controlled via the PCA9554 8-bit GPIO expansion. The base address is 0xF040(D31:F4).

JGP1 HeaderPin Definitions
Pin# Definition
1 +5V	+5V
2 Ground Ground
3 GP0	GPP_E0
4 GP1	GPP_F1
5 GP2	GPP_E1
6 GP3	GPP_F2
7 GP4	GPP_E2
8 GP5	GPP_F3
9 GP6	GPP_F0
10 GP7	GPP_F4

Disk On Module Power Connector

The Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to one of the SATA ports. Refer the table below for pin definitions.

DOM Power Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

LAN Activity LED Headers

JTGLED1 is the activity LED header for LAN4 and LAN5. Attach an LED to this header for LAN activity LED.

LAN Activity LEDPin Definitions
Pin#	Definition
1	LAN4_LED
2	LAN4_ACT_N
3	LAN5_LED
4	LAN5_ACT_N

3 4 1 2 JTGLED1

BMC External I2C Header

A System Management Bus header for IPMI 2.0 is located at JIPMB1. Connect the appropriate cable here to use the IPMB I ^2 C connection on your system. Refer to the table below for pin definitions.

External I2C HeaderPin Definitions
Pin#	Definition
1 Data
2 GND
3 Clock
4 NC

Power SMB (I²C) Header

The Power System Management Bus (I²C) connector (JPI²C1) monitors the power supply, fan, and system temperatures. Refer to the table below for pin definitions.

Power SMB HeaderPin Definitions
Pin#	Definition
1	Clock
2	Data
3	PMBUS_Alert
4	Ground
5	+3.3V

TPM/Port 80 Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro. A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the storage drive is not installed in the system.

Trusted Platform Module HeaderPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 LFRAME# 4 No Pin
5 LRESET# 6 +5V (X)
7 LAD3 8 LAD2
9 3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK (X) 14 SMB_DAT (X)
15 P3V3_STBY 16 SERIRQ
17 GND 18 LPC_CLKRUN (X)
19 SUS_STAT_N 20 LDRQ# (X)

External BMC I²C Header

A System Management Bus header for additional slave devices or sensors is located at JSMB1. See the table below for pin definitions.

External I2C Header Pin Definitions
Pin#	Definition
1 Data
2 Ground
3 Clock
4 NC

SATA Ports

Two SATA 3.0 connectors, supported by the Intel SoC, are located on the A2SDV-16C-TLN5F motherboard. Two additional SATA connections are available via the M.2 connector. Refer to the tables below for pin definitions.

SATA 3.0 PortPin Definitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

M.2 Connection

TheA2SDV-16C-TLN5F has two M.2 connectors at JMD1 and JMD2. JMD1 is an M.2 B-Key supporting a PCIe 3.0 x2/SATA/USB device. JMD2 is an M.2 M-Key supporting a PCIe 3.0 x2/SATA device.

Thermal Diode Headers

JRT3 is the thermal diode 1 header, and JRT4 is the thermal diode 2 header. They are thermal sensor headers that provide additional system temperature monitoring.

Thermal Diode 1Pin Definitions
Pin# Definition
1 TD1	P
2 TD1	N

Thermal Diode 2Pin Definitions
Pin# Definition
1 TD1	P
2 TD1	N

4.3 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

PWR Power Button Reset Reset Button 3.3V UID 2.5V Stby 2.5V Stby 3.3V Stby 3.3V X 3.3V 1 2 Ground Ground Power Fail LED OH/Fan Fail LED LAN3 Active LED LAN2 Active LED HDD LED PWR LED X NMI 19 20

Figure 4-1. JF1 Header Pins

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power when the system is in suspend mode, press the button for 4 seconds or longer. Refer to the table below for pin definitions.

Power ButtonPin Definitions (JF1)
Pin#	Definition
1	Signal
2	Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case. Refer the table below for pin definitions.

Reset ButtonPin Definitions (JF1)
Pin#	Definition
3 Reset
4 Ground

Overheat (OH)/Fan Fail

Connect an LED cable to pins 7 and 8 of the Front Control Panel to use the Overheat/Fan Fail LED connections. The LED on pin 8 provides warnings of overheat or fan failure. Refer to the tables below for pin definitions.

OH/Fan Fail Indicator Status
State	Definition
Off Normal
On Overheat
Flashing	Fan Fail

OH/Fan Fail LEDPin Definitions (JF1)
Pin#	Definition
7	Blue LED
8	OH/Fan Fail LED

LAN2/LAN3 Activity LED

The LAN LED connection for LAN port 2 is located on pins 11 and 12 of JF1, and the LED connection for LAN port 3 is on pins 9 and 10. Attach the NIC LED cables here to display network activity. Refer to the table below for pin definitions.

LAN1/LAN2 LEDPin Definitions (JF1)
Pin#	Definition
9	2.5V Stby
10	LAN3 Activity LED
11	2.5V Stby
12	LAN2 Activity LED

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable to show hard drive activity status. Refer to the table below for pin definitions.

HDD LEDPin Definitions (JF1)
Pin#	Definition
13	3.8V Stdby
14	HDD LED

Power LED

The Power LED connection is located on pins 15 and 16 of JF1. Refer to the table below for pin definitions.

Power LEDPin Definitions (JF1)
Pin#	Definition
15 3	3V
16 PWR	LED

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table below for pin definitions.

NMI ButtonPin Definitions (JF1)

Pins Definition

19 Control

20 Ground

Power Fail LED

Connect an LED cable to Power Fail connections on pins 5 and 6 of JF1 to provide warnings for a power failure. Refer to the table below for pin definitions.

OH/Fan Fail Indicator Status

Pin # Definition

5 3.3V

6 PWR Fail LED

4.4 Ports

Front I/O Ports

See Figure 4-1 below for the locations and descriptions of the various I/O ports on the front of the motherboard.

Diagram showing labeled network device ports and a terminal block with an A15 port

Figure 4-1. Rear I/O Port Locations and Definitions

Rear I/O Ports
#	Description	#	Description	#	Description
1. COM1 5 USB3 9. LAN5
2. USB1 6. USB2 10. LAN4
3. USB0 7. LAN3 11. VGA
4. LAN1/IPMI 8 LAN2 .

VGA Port

A VGA video port is located near LAN ports 4/5 on the I/O back panel. Use this connection for a VGA display.

COM Port and Header

The motherboard has one COM RJ45 port on the I/O back panel and one COM header for front access to provide a serial connection.

COM RJ45 PortPin Definitions
Pin# Definition Pin# Definition
1	RTS	5	GND
2	DTR	6	RXD
3	TXD	7	DSR
4	GND	8	CTS

COM HeaderPin Definitions
Pin# Definition Pin# Definition
1	DCD	6	DSR
2	RXD	7	RTS
3	TXD	8	CTS
4	DTR	9	RI
5	Ground	10	N/A

LAN Ports

There are five LAN ports located on the I/O back panel of the motherboard. LAN1 is a 1GbE RJ45 Ethernet port while LAN2 - 5 are 10GbE RJ45 Ethernet ports. The motherboard also offers one IPMI LAN port, which is shared with the LAN1 port by default.

Caution: If the operating temperature exceeds 30^ C and the system fans are not active, a LAN component may become overheated.

Universal Serial Bus (USB) Ports

There are four USB 3.0 ports (USB0/1/2/3) located on the I/O back panel. The motherboard also has one USB2.0 header offering two USB ports and one USB 3.0 Type A header (USB6). The onboard headers can be used to provide front side USB access with a cable (not included).

Type A USB 3.0Pin Definitions
Pin# Definition
1 VBU$
2 D-
3 D+
4 Ground
5 StdA_SSRX-
6 StdA_SSRX+
7 GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+

Front Panel USB4/5Pin Definitions
Pin# Definition Pin# Definition
1 +5V	2 +5V
3 USB_N	4 USB_N
5 USB_P	6 USB_P
7 Ground	8 Ground
9 Key	10 NC

Unit Identifier Button/UID LED Indicator

A Unit Identifier (UID) button and an UIDLED1 Indicator are located on the I/O back panel of the motherboard. The UID Button is located at UID, which is next to the VGA port on the back panel. The UID LED is located next to the UID switch. When you press the UID switch, the UID LED will be turned on. Press the UID switch again to turn off the LED indicator. The UID Indicator provides easy identification of a system unit that may be in need of service.

Note: UID can also be triggered via IPMI on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website at https://www.supermicro.com/support/manuals/.

UID Switch Pin Definitions
Pin#	Definition
1 Ground
2 Ground
3 Button In
4 Button In

UID LEDPin Definitions
Color	Status
Blue: On Unit Identified

4.5 Jumpers

Explanation of Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

Connector Pins Jumper Setting 3 2 1 3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

1. First power down the system and unplug the power cords.
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s) and power on the system.

Note: Clearing CMOS will also clear all passwords.

Do not use the PW_ON connector to clear CMOS.

JBT1 contact pads

LAN1 Port Enable/Disable

Use jumper JPL1 to enable or disable LAN1. Refer to the table below for jumper settings.

LAN Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Deafult)

Pins 2-3 Disabled

Manufacturing Mode Select

Close pins 2-3 of jumper JPME2 to bypass SPI flash security and force the system to operate in the manufacturing mode, which will allow the user to flash the system firmware from a host server for system setting modifications. Refer to the table below for jumper settings.

Manufacturing ModeJumper Settings
Jumper Setting Definition
Pins 1-2 Normal	(Default)
Pins 2-3 Manufacturing Mode

VGA Enable/Disable

Use jumper JPG1 to enable or disable the onboard VGA connector. Refer to the table below for jumper settings.

VGA Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

10Gb LAN Enable/Disable

Use jumper JPTG1 to enable or disable 10G LAN2/3/4/5. Refer to the table below for jumper settings.

10Gb LAN Enable/Disable Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

SMBus to PCI Slots

Jumpers JI ^2 C1 and JI ^2 C2 allow you to connect the System Management Bus (I ^2 C) to the PCIe slots. Both jumpers must be set to the same setting (JI ^2 C1 controls the clock and JI ^2 C2 controls the data). The default setting is Disabled.

SMBus to PCI SlotsJumper Settings
JFC1 Setting JI	^2C2 Setting Definition
JFC1: Pins 1-2 JI	^2C2 : Pins 1-2 Enabled (Default)
JFC1: Pins 2-3 JI	^2C2 : Pins 2-3 Disabled

BIOS Recovery

Close pins 2-3 of jumper JBR1 for BIOS recovery. The default setting is on pins 1 and 2 for normal operation. Refer to the table below for jumper settings. The default setting is Normal.

BIOS RecoveryJumper Settings
Jumper Setting Definition
Pins 1-2 Normal
Pins 2-3 BIOS Recovery

PCIe Slot Selection

Use jumper JSEL1 to select between PCIe x8 slot 6 or slot 7. Only one PCIe slot can be used at a time.

PCIe Slot SelectionJumper Settings
Jumper Setting Definition
Pins 1-2 Slot 7 (Default)
Pins 2-3 Slot 6

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, users need to write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

IPMI Shared LAN Port Selection

JNCSI1 is used to set a specific LAN port for shared IPMI access. Only a single port can be used for IPMI access at a time. Short the jumper to set LAN1 to operate as both the IPMI access port and 1GbE Ethernet port. Open the jumper to set LAN2 to operate as both the IPMI access port and 10GbE Ethernet port. Ethernet functionality remains enabled on both LAN1 and LAN2 regardless of which setting is used.

NCSI Port SelectionJumper Settings
Jumper Setting Definition
Short (ON) IPMI	Access on LAN1 (Default)
Open (OFF) IPMI	Access on LAN2

4.6 LED Indicators

LAN LEDs

Five LAN ports (LAN1 - LAN5) are located on the I/O back panel. Each Ethernet LAN port has two LEDs. One LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection. Refer to the tables below for more information.

1G Link LED (LAN1)

LED Color Definition

Off No Connection or 10 Mb/s

Green 100 Mb/s

Amber 1 Gb/s

Activity Indicator
Color Status Definition
Off No Connection
Yellow Flashing Active

Link LED Activity LED

10G Link LED (LAN2/3/4/5)

LED Color Definition

Off No Connection/10 Mbps/100 Mbps

Amber 1 Gbps

Green 10 Gbps

Power LED

LED1 is an onboard power LED. When this LED is lit, it means power is present on the motherboard. In suspend mode, this LED will blink on and off. Be sure to turn off the system and unplug the power cord(s) before removing or installing components.

Onboard Power LED Indicator
LED Color Definition
Off	System Off(power cable not connected)
Green System	On

BMC Heartbeat LED

LEDBMC is the BMC heartbeat LED. When the LED is blinking green, BMC is working. Refer to the table below for the LED status.

Onboard Power LED Indicator
LED Color Definition
BlinkingGreen	BMC Normal

Chapter 5

Software

After the hardware has been installed, you can install the Operating System (OS), configure RAID settings and install the drivers.

5.1 Microsoft Windows OS Installation

If you will be using RAID, you must configure RAID settings before installing the Windows OS and the RAID driver. Refer to the RAID Configuration User Guides posted on our website at www.supermicro.com/support/manuals.

Installing the OS

1. Create a method to access the MS Windows installation ISO file. That might be a DVD, perhaps using an external USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console.
2. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
3. Boot from a bootable device with Windows OS installation. You can see a bootable device list by pressing F11 during the system startup.

Please select boot device: ATEN Virtual CDROM YSOJ → IPMI virtual drive (Legacy) ASUS SDRW-08D2S-U F601 → USB DVD device (Legacy) USB FLASH DRIVE PMAP → USB flash drive with OS installation (Legacy) IBA 40-10G Slot 1900 v1060 → PXE boot (Legacy) UEFI: ATEN Virtual CDROM YSOJ → IPMI virtual drive (UEFI) UEFI: ASUS SDRW-08D2S-U F601 → USB DVD device (UEFI) UEFI: Built-in EFI Shell Enter Setup ↑ and ↓ to move selection ENTER to select boot device ESC to boot using defaults

Figure 5-1. Select Boot Device

1. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on "Load driver" link at the bottom left corner.

Where do you want to install Windows? Name Total size Free space Type Refresh Delete Format New Load driver Extend We couldn't find any drives. To get a storage driver, click Load driver. Next

Figure 5-2. Load Driver Link

To load the driver, browse the USB flash drive for the proper driver files.

• For RAID, choose the SATA/sSATA RAID driver indicated then choose the storage drive on which you want to install it.

• For non-RAID, choose the SATA/sSATA AHCI driver indicated then choose the storage drive on which you want to install it.

• Once all devices are specified, continue with the installation.

• After the Windows OS installation has completed, the system will automatically reboot multiple times.

5.2 Driver Installation

The Supermicro website contains drivers and utilities for your system at https://www.supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.)

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities". Insert the flash drive or disk and the screenshot shown below should appear.

SUPERMICRO A2SDV-8C-TLN5F Motherboard Drivers & Tools (Win7) SUPERMICRO Drivers & Tools Intel C3000 Chipset A2SDV-8C/-12C+/ -16C-TLN5F SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework (Optional) ASPEED Graphics Driver Intel Management Engine Intel USB 3.0 Drivers Intel PRO Network Connections Drivers Trusted Platform Module Driver (Optional) SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 5-3. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

5.3 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is ADMIN / ADMIN.

SuperDoctor 5 Matherboard: C7B366-CB-ML Voltage 10V 12V 14V 16V 18V 20V 22V 24V 26V 28V 30V 32V 34V 36V 38V 40V 42V 44V 46V 48V 50V 52V 54V 56V 58V 60V 62V 64V 66V 68V 70V 72V 74V 76V 78V 80V 82V 84V 86V 88V 90V 92V 94V 96V 98V 100V 102V 104V 106V 108V 110V 112V 114V 116V 118V 120V 122V 124V 126V 128V 130V 132V 134V 136V 138V 140V 142V 144V 146V 148V 150V 152V 154V 156V 158V 160V 162V 164V 166V 168V 170V 172V 174V 176V 178V 180V 182V 184V 186V 188V 190V 192V 194V 196V 198V 200V 202V 204V 206V 208V 210V 212V 214V 216V 218V 220V 222V 224V 226V 228V 230V 232V 234V 236V 238V 240V 242V 244V 246V 248V 250V 252V 254V 256V 258V 260V 262V 264V 266V 268V 270V 272V 274V 276V 278V 280V 282V 284V 286V 288V 290V 292V 294V 296V 298V 300V

Figure 5-4. SuperDoctor 5 Interface Display Screen (Health Information)

5.4 IPMI

The A2SDV-16C-TLN5F supports the Intelligent Platform Management Interface (IPMI). IPMI is used to provide remote access, monitoring and management. There are several BIOS settings that are related to IPMI.

For general documentation and information on IPMI, please visit our website at: http://www.supermicro.com/products/nfo/IPMI.cfm.

BMC ADMIN User Password

For security, each system is assigned a unique default BMC password for the ADMIN user. This can be found on a sticker on the chassis and a sticker on the motherboard. The sticker also displays the BMC MAC address.

BMC AC1F6BC07014 PWD SUOKJKJYZC

Figure 5-5. BMC Password Label

See Chapter 1 for the location of the label.

Chapter 6

BIOS

6.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the A2SDV-TLN5F series motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to the BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , keys, etc.) can be used at any time during the setup navigation process.

6.2 Main Setup

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below and the following items will be displayed:

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPHI Security Boot Save & Exit System Date System Time Supermicro A2SDV-16C- BIOS Version Build Date CPUD Version Memory Information Total Memory Memory Speed [Wed 02/14/2018] [12:01:09] 1.0b 12/12/2017 04.20.35 Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is the BIOS build date after RTC reset.

Supermicro A2SDV-16C-TLN5F

BIOS Version

This item displays the version of the BIOS ROM used in the system.

Build Date

This item displays the date when the version of the BIOS ROM used in the system was built.

Memory Information

Total Memory

This item displays the total size of memory available in the system.

Memory Speed

This item displays the default speed of the memory modules installed in the system.

6.3 Advanced

Use this menu to configure Advanced settings.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration SATA Configuration Intel Server Platform Services PCIe/PCI/PnP Configuration Super IO Configuration Serial Port Console Redirection ACPI Settings Trusted Computing ISCSI Configuration Intel(R) I210 Gigabit Network Connection - 00:25:90:5E:60:A8 Intel(R) Ethernet Connection X553/X557-AT 10GBASE-T - 00:25... Intel(R) Ethernet Connection X553/X557-AT 10GBASE-T - 00:25... Intel(R) Ethernet Connection X553/X557-AT 10GBASE-T - 00:25... Intel(R) Ethernet Connection X553/X557-AT 10GBASE-T - 00:25... Boot Feature Configuration Page +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Dot. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore to default manufacturer settings.

▶Boot Feature

Quiet Boot

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

Bootup NumLock State

Use this feature to set the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

Power Configuration

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than 5 minutes. The options are Disabled and Enabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are 4 Seconds Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power On, and Last State.

▶CPU Configuration

The following CPU information will display:

• Displays the CPU model
- Processor ID
- Microcode Revision
- Processor Frequency
• CPU BCLK Frequency
- L1 Cache RAM
- L2 Cache RAM

EIST (GV3)

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disable and Enable.

BIOS Request Frequency

Use this feature to instruct how much frequency will be delivered to the processor. The options are Disable and Enable.

TM1

Select Enable to activate TM1 support for system thermal monitoring. TM1 allows the CPU to regulate its power consumption based upon the modulation of the CPU Internal clock when the CPU temperature reaches a pre-defined overheating threshold. The options are Disable and Enable.

TM2 Mode

Use this feature to select the throttling mode for TM2. The options are LFM Throttling and Adaptive Throttling.

*The feature above is not available when EIST (GV3) or TM1 is disabled.

Dynamic Self Refresh

Select Enable to support Dynamic Self-Refreshing for the onboard memory controller. The options are Disable and Enable.

CPU C State

Select Enabled to enhance the Cx state of the CPU. Reboot the system for this feature to take effect. The options are Disable and Enable.

Package C State limit

Use this item to set the limit on the C-State package register. The options are No Pkg C-State, No S0lx, and No Limit.

*The feature above is not available when CPU C State is disabled.

Max Core C-State

Use this feature to select the CPU C-state. The options are C1 and C6.

*The feature above is not available when CPU C State is disabled.

Enhanced Halt State (C1E)

Select Enable to enable "Enhanced Halt State" support, which will significantly reduce the CPU's power consumption by minimizing its clock cycles and voltage use during a Halt State. The options are Disable and Enable.

*The feature above is not available when CPU C State is disabled.

Monitor/Mwait

Select Enable to enable the Monitor/Mwait instructions. The Monitor instructions monitors a region of memory for writes, and MWait instructions instruct the CPU to stop until the monitored region begins to write. The options are Disable and Enable.

*The feature above is not available when CPU C State is disabled.

L1 Prefetcher

If enabled, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L1 cache to improve CPU performance. The options are Enable and Disable.

L2 Prefetcher

If enabled, the hardware prefetcher will prefetch streams of data and instructions from the main memory to the L2 cache to improve CPU performance. The options are Enable and Disable.

ACPI 3.0 T-States

Select Enable to support ACPI (Advanced Configuration and Power Interface) 3.0 T-States to determine how the processor will report to the operating system during CPU-Throttling states. The options are Disable and Enable.

*If the feature above is enabled, T-State Throttle will be available for configuration:

T-State Throttle

Use this feature to select the On-Die thermal throttling. The options are default, 12.5%, 25.0%, 37.5%, 50.0%, 62.5%, 75.0%, and 87.5%.

Max CPUID Value Limit

Use this feature to set the maximum CPU ID value. Enable this feature to boot the legacy operating systems that cannot support processors with extended CPUID functions. The options are Disable and Enable.

Execute Disable Bit

Set to Enable for Execute Disable Bit support, which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damaging the system during a virus attack. The options are Disable and Enable. (Refer to the Intel and Microsoft websites for more information.)

Virtualization Technology

Select Enable to use Intel Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple virtual systems in one physical computer. The options are Disable and Enable.

Extended APIC (Advanced Programmable Interrupt Controller)

Based on the Intel Hyper-Threading technology, each logical processor (thread) is assigned 256 APIC IDs (APIDs) in 8-bit bandwidth. When this item is set to Enable, the APIC ID will be expanded from 8 bits to 16 bits to provide 512 APIDs to each thread to enhance CPU performance. The options are Disable and Enable.

AES-NI

Select Enable to use the Intel Advanced Encryption Standard (AES) New Instructions (NI) to ensure data security. The options are Disable and Enable.

Lock PACKAGE\_RAPL\_LIMIT

Use this feature to lock the MSR 0x610 bit. The options are Disable and Enable.

*If the feature above is set to Disable, the next three features will be available for configuration:

PL1 Time Window

Use this feature to define the Running Average Power Limit (RAPL) time window 1 in milliseconds. The default setting is 45. Use the "+" or "-" keys to define the setting.

PL1 Power Level

Use this feature to define the Running Average Power Limit (RAPL) power limit 1 in Watts. The default setting is 31. Use the "+" or "-" keys to define the setting.

PL2 Power Level

Use this feature to define the Running Average Power Limit (RAPL) power limit 2 in Watts. The default setting is 37. Use the "+" or "-" keys to define the setting.

Active Processor Cores

Use this feature to set the number of processor cores that will be activated for each CPU. Select 0 to activate all processor cores.

▶Chipset Configuration

Warning: Setting the wrong values in the following sections may cause the system to malfunction.

▶North Bridge Configuration

North Bridge Configuration

Memory Information

• MRC Version
• Total Memory
  • Memory Frequency

VT-d

Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing. The options are Disabled and Enabled.

Interrupt Remapping

Use this feature to enable Interrupt Remapping support, which detects and controls external interrupt requests. The options are Disabled and Enabled.

Fast Boot

Use this feature to enable or disable fast path through the memory reference code. The options are Disabled and Enabled.

Command Address Parity

Use this feature to address the DDR4 command parity. The options are Disabled and Enabled.

Memory Frequency

Use this feature to set the maximum memory frequency for onboard memory modules. The options are DDR-1600, DDR-1867, DDR-2133, and DDR-2400.

MMIO Size / BMBOUND Base

Use this feature to select the memory mapped IO size and BMBOUND base setting. The low for the two settings will always be 4GB. The options are Auto, 1024M/3072M, and 3072M/1024M.

TCL performance

Use this feature to enable the CAS Latency (tCL) to increase memory performance. The options are Disabled and Enabled.

Memory Preservation

Enable this feature for the memory content to be preserved through a warm reset. The options are Disabled and Enabled.

Patrol Scrub Enable

Patrol Scrubbing is a process that allows the CPU to correct correctable memory errors detected in a memory module and send the correction to the requestor (the original source). When this item is set to Enable, the IO hub will read and write back one cache line every 16K cycles if there is no delay caused by internal processing. By using this method, roughly 64GB of memory behind the IO hub will be scrubbed every day. The options are Enabled and Disabled.

Patrol Scrub Period

Use this feature to select the Patrol Scrub period. The options are 24 hours, 10 hours, 4 hours, and 1 hour.

Demand Scrub Enable

Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found in a memory module. When the CPU or I/O issues a demand-read command, and the read data from memory turns out to be a correctable error, the error is corrected and sent to the requestor (the original source). Memory is corrected as well. Select Enable to use Demand Scrubbing for ECC memory correction. The options are Enabled and Disabled.

Write Data Early Enable

Use this feature to enable or disable write data early. The options are Disabled and Enabled.

Select Refresh Rate

Use this feature to select the memory refresh rate. The options are 1x/2x and 1x/2x/4x.

CKE Power Down

Clock enable (CKE) Power Down controls the low power down for the memory. The options are Disabled, Active Power Down, and Precharge Power Down.

Memory Thermal Throttling

Memory thermal throttling is a power management feature that monitors read and write activities to control power consumption. The options are Auto and Disabled.

*If the feature above is set to Auto, CLTT Mode and MEMTRIP will be available for configuration:

CLTT Mode

Use this feature to select the Closed Loop Thermal Throttling (CLTT) mode. The options are Normal and Passthru.

MEMTRIP

Use this feature to enable or disable MEMTRIP. The options are Disabled and Enabled.

Scrambler

This feature scrambles data in the memory and makes it inaccessible. The options are Disabled and Enabled.

Slow Power Down Exit

Use this feature to enable or disable the slow power down exit from pre-charge. The options are Disabled and Enabled.

▶ South Bridge Configuration

South Bridge Configuration

• USB Module Version
• USB Controllers
• USB Devices

Legacy USB Support

Select Enabled to support onboard legacy USB devices. Select Auto to disable legacy support if there are no legacy USB devices present. Select Disable to have all USB devices available for EFI applications only. The options are Enabled, Disabled, and Auto.

XHCI Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

Port 60/64 Emulation

Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices. The options are Disabled and Enabled.

▶ IQAT Configuration

IQAT

Select Enabled to hide IQAT devices from the operating system. The options are Disabled and Enabled.

Set 64B MRR/MPL

Use this feature to enable setting for the 64B MRR/MPL in IQAT DevCTL register. The options are Disabled and Enabled.

*The following feature is displayed if an M.2 device is detected by the system:

M.2 (B-Key) I/O Selection

Use this feature to select the type of M.2 interface. The options are SATA, PCIe, PCIe/USB and SATA/USB.

▶SATA Configuration

▶ SATA1

SATA 1 Enable controller

This item enables or disables the onboard SATA controller supported by the processor. The options are Enabled and Disabled.

SATA 1 LPM (Link Power Management)

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity and will return the link to an active state when I/O activity resumes. The options are Enabled and Disabled.

*If the feature above is set to Enabled, SATA 0 ALPM will be available for configuration:

SATA 1 ALPM

Use this feature to enable or disable Aggressive Link Power Management. The options are Enabled and Disabled.

SATA 1 SGPIO/LED

Use this feature to select SATA SGPIO or SATA LED. The options are SATA SGPIO and SATA LED.

▶I-SATA0 \~ I-SATA1

This following information is displayed for each SATA drive entry:

• Device Information
- Device Size

Enable/disable port

Use this feature to disable or enable the SATA port number. The options are Enabled and Disabled.

Spin up

When the value of an edge detect or the value of an image binary (pixel) of a device is from 0 to 1, select Enabled to allow the PCH to start a COMRESET initialization sequence on this device. The options are Enabled and Disabled.

▶I-SATA (M.2 - B Key) \~ I-SATA (M.2 M Key)

This following information is displayed for each M.2 drive entry:

• Device Information
- Device Size

Enable/disable port

Use this feature to disable or enable the SATA port number. The options are Enabled and Disabled.

Spin up

When the value of an edge detect or the value of an image binary (pixel) of a device is from 0 to 1, select Enabled to allow the PCH to start a COMRESET initialization sequence on this device. The options are Enabled and Disabled.

▶Intel Server Platform Services

This feature displays the following ME information:

• General ME Configuration
  • Operational Firmware Version

• ME Firmware Type
  • Backup Firmware Version
  • Recovery Firmware Version
  • ME Firmware Features
  • ME Firmware Status #1
  • ME Firmware Status #2

• Current State

• Error Code

▶PCIe/PCI/PnP Configuration

The following PCI information will be displayed:

• PCI Bus Driver Version
• PCI Devices Common Settings:

Above 4G Decoding (Available if the system supports 64-bit PCI decoding)

Select Enabled to decode a PCI device that supports 64-bit in the space above 4G Address. The options are Disabled and Enabled.

SR-IOV Support (Available if the system supports Single-Root Virtualization)

Select Enabled for Single-Root IO Virtualization (SR-IOV) support. SR-IOV is an extension of the PCI Express interface and consists of two functions: physical functions (PF) and virtual functions (VF). PF is the primary function and is used to control and configure PCI Express devices, whereas VF is the lightweight function that offers limited configuration. The options are Disabled and Enabled.

Maximum Payload

Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

Maximum Read Request

Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes.

ASPM Support

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. Select Force L0s to force all links to L0s state. The options are Disabled, Auto, and Force L0s.

Warning: Enabling ASPM support may cause some PCI-E devices to fail!

ARI Forwarding

Select Enabled to lift a traditional Device Number restriction when turning a Type1 Configuration request into a Type0 Configuration request to permit access to extended functions in an ARI Device immediately below the port. The options are Disabled and Enabled.

CPU SLOT PCI-E 3.0 X8 OPROM

Use this item to select the firmware type for the add-on card for this slot. The options are Disabled, Legacy, and EFI.

KEY-B SATA3/USB3 OPROM

Use this item to select the firmware type for the add-on card for this slot. The options are Disabled, Legacy, and EFI.

KEY-M PCIE3/SATA3 OPROM

Use this item to select the firmware type for the add-on card for this slot. The options are Disabled, Legacy, and EFI.

Onboard LAN ROM Type

Use this feature to select the Onboard LAN Option ROM type. The options are Disabled, Legacy, and EFI.

Onboard Video Option ROM

Use this feature to select the Onboard Video Option ROM type. The options are Disabled, Legacy, and EFI.

VGA Priority

Use this feature to select the active video type. The options are Onboard and Offboard.

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled.

*If "Network Stack" is set to Enabled, the next four features will be available for configuration:

Ipv4 PXE Support

Use this feature to enable lpv4 PXE Boot Support. If this feature is disabled, it will not create the lpv4 PXE Boot option. The options are Disabled and Enabled.

Ipv6 PXE Support

Use this feature to enable lpv6 PXE Boot Support. If this feature is disabled, it will not create the lpv6 PXE Boot option. The options are Disabled and Enabled.

PXE Boot Wait Time

Use this feature to select the wait time to press the ESC key to abort the PXE boot. The default is 0.

Media Detect Count

Use this feature to select the wait time in seconds to detect LAN media. The default is 1.

▶Super IO Configuration

Super IO Chip AST2400

▶ Serial Port 1 Configuration

COM1

Serial Port 1

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user. This feature is hidden when Serial Port 1 is disabled.

Serial Port 1 Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶ Serial Port 2 Configuration

COM2

Serial Port 2

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user. This feature is hidden when Serial Port 2 is disabled.

Serial Port 2 Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto for the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12); (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Serial Port 2 Attribute

Use this feature to select the mode for serial port 2. The options are SOL and COM.

▶Serial Port Console Redirection

COM 1 Console Redirection

Select Enabled to enable COM Port 1 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Enabled and Disabled.

*If the feature above is set to Enabled, the following items will become available for configuration:

▶COM1 Console Redirection Settings

COM1 Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM1 Bits Per second

Use this item to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM1 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

COM1 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM1 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM1 Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM1 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM1 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM1 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM1 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

SOL/COM2

SOL/COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the following items will become available for configuration:

▶SOL Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

SOL/COM2 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

SOL/COM2 Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

SOL/COM2 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits).

SOL/COM2 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

SOL/COM2 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

SOL/COM2 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

SOL/COM2 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

SOL/COM2 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

SOL/COM2 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

SOL/COM2 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

The submenu allows the user to configure Console Redirection settings to support Out-of-Band Serial Port management.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Disabled and Enabled.

*If the item above is set to Enabled, the following items will become available for configuration:

▶EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and SOL/COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶ ACPI Settings

Use this feature to configure Advanced Configuration and Power Interface (ACPI) power management settings for your system.

ACPI Settings

WHEA Support

Select Enabled to support the Windows Hardware Error Architecture (WHEA) platform and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring. The options are Disabled and Enabled.

▶Trusted Computing (Available when a TPM device is installed and detected by the BIOS)

*The features from here to Current Status Information are displayed if a TPM 1.2 module is detected:

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

TPM State

Select Enabled to use TPM (Trusted Platform Module) settings to enhance system data security. Please reboot your system for any change on the TPM state to take effect. The options are Disable and Enable.

Pending operation

Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The default setting is Auto.

Current Status Information

This item displays the status of the TPM support on this motherboard.

• TPM Enabled Status
• TPM Active Status
• TPM Owner Status

*The features from here to Device Select on the next page are displayed if a TPM 2.0 module is detected:

TPM20 Device Found

Vendor: IFX

Firmware Version: 5.51

Configuration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

The following TPM information will be displayed:

• Active PCR banks
• Available PCR banks

*If the feature "Security Device Support" is set to Enable, the following features will become available for configuration:

SHA-1 PCR Bank

Use this item to disable or enable the SHA-1 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

SHA256 PCR Bank

Use this item to disable or enable the SHA256 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

Pending operation

Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Platform Hierarchy

Use this item to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this item to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this item to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

TPM2.0 UEFI Spec Version

Use this feature to specify the TPM UEFI spec version. TCG 1.2 has support for Windows® 2012, Windows 8, and Windows 10. TCG 2 has support for Windows 10 or later. The options are TCG_1_2 and TCG_2.

Physical Presence Spec Version

Use this feature to select the PPI spec version. The options are 1.2 and 1.3.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The default setting is Auto.

▶iSCSI Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

▶ Add an Attempt
▶ Delete Attempts
▶ Change Attempt Order

Intel® I210 Gigabit Network Connection - 00:25:90:5E:AD:A8

Intel® Ethernet Connection X553/X557-AT 10GBASE-T - 00:25...

Intel® Ethernet Connection X553/X557-AT 10GBASE-T - 00:25...

Intel® Ethernet Connection X553/X557-AT 10GBASE-T - 00:25...

Intel® Ethernet Connection X553/X557-AT 10GBASE-T - 00:25...

These features display the following information :

▶NIC Configuration

Link Speed

Use this feature to change the link speed and duplex for the current port. The options are Auto Negotiated, 10Mbps Half, 10Mbps Full, 100Mbps Half, and 100Mbps full.

Wake On LAN

Select enabled to wake the system with a magic packet. The options are Enabled and Disabled.

Blink LEDs

This feature allows the user to specify the duration for LEDs to blink. The range is from 0 \~ 15 seconds. The default setting is 0.

UEFI Driver

This item displays the UEFI driver version.

Adapter PBA

This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Device Name

This item displays the adapter device name.

Chip Type

This item displays the network adapter chipset name.

PCI Device ID

This item displays the device ID number.

PCI Address

This item displays the PCI address for this computer. PCI addresses are three two-digit hexadecimal numbers.

Link Status

This item displays the connection status.

MAC Address

This item displays the MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

Virtual MAC Address

This item displays the Virtual MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

6.4 Event Logs

Use this menu to configure Event Log settings.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPHI Security Boot Save & Exit Change SMBIOS Event Log Settings View SMBIOS Event Log Press to change the SMBIOS Event Log configuration. +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266, Copyright (C) 2017 American Megatrends, Inc.

▶Change SMBIOS Event Log Settings

Enabling/Disabling Options

PCIe ELog Support

Use this feature to enable or disable PCIe error logging support. The options are Disabled and Enabled.

Memory ELog Support

Use this feature to enable or disable memory error logging support. The options are Disabled and Enabled.

SMBIOS Event Log

Change this feature to enable or disable all features of the SMBIOS Event Logging during system boot. The options are Disabled and Enabled.

Erasing Settings

Erase Event Log

Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No, Yes, Next reset, and Yes, Every reset.

When Log is Full

Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately.

SMBIOS Event Log Standard Settings

Log System Boot Event

Select Enabled to log system boot events. The options are Enabled and Disabled.

MECI (Multiple Event Count Increment)

Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

METW (Multiple Event Count Time Window)

This feature is used to determine how long (in minutes) should the multiple event counter wait before generating a new event log. Enter a number between 0 to 99. The default setting is 60.

Note: Please reboot the system for the changes to take effect.

▶View SMBIOS Event Log

This item allows the user to view the event in the SMBIOS event log. The following categories are displayed:

DATE/TIME/ERROR CODE/SEVERITY

6.5 IPMI

Use this menu to configure Intelligent Platform Management Interface (IPMI) settings.

Action Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit BMC Firmware Revision 3.62 IPMI STATUS Working ► System Event Log ► BMC Network Configuration IPMI Function Support [Enabled] Press to change the SEL event log configuration. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defoults F4: Save & Exit ESC: Exit Version 2.19.1366. Copyright (C) 2017 American Megatrends, Inc.

BMC Firmware Revision

This feature indicates the IPMI firmware revision used in your system.

IPMI Status

This feature indicates the status of the IPMI firmware installed in your system.

▶System Event Log

Enabling/Disabling Options

SEL Components

Select Enabled for all system event logging at bootup. The options are Disabled and Enabled.

Erasing Settings

Erase SEL

Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

When SEL is Full

This feature allows the user to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

Note: After making changes on a setting, reboot the system for the changes to take effect.

▶BMC Network Configuration

The following items will be displayed:

IPMI LAN Selection

This feature displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This feature displays the IPMI Network Link status. The default setting is Shared LAN.

Update IPMI LAN Configuration

Select Yes for the BIOS to implement all IP/MAC address changes at the next system boot. The options are No and Yes.

*If the feature above is set to Yes, Configuration Address Source and VLAN will become available for configuration:

Configuration Address Source

Use this feature to select the source of the IP address for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field. If DHCP is selected, the BIOS will search for a DHCP (Dynamic Host Configuration Protocol) server in the network that is attached to and request the next available IP address for this computer. The options are DHCP and Static.

The following items are assigned IP addresses automatically if DHCP is selected, or they can be configured manually if Static is selected.

Station IP Address

This feature displays the Station IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This feature displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255.

Station MAC Address

This feature displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

Gateway IP Address

This feature displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253).

VLAN

This feature is configurable if the Update IPMI LAN Configuration feature is set to Yes. Use this feature to enable or disable the IPMI VLAN function. The options are Disable and Enable.

IPMI Function Support

Use this feature to enable IPMI support. The options are Disabled and Enabled. When this feature is disabled, the system powers on quicker by removing BIOS support for extended IPMI features. The Disable option is for applications that require faster power on time without using Supermicro Update Manager (SUM) or extended IPMI features. The BMC network configuration in the BIOS setup is also invalid when IPMI Function Support is disabled. The general BMC function and motherboard health monitor such as fan control are still functioning even when this option is disabled.

6.6 Security

Use this menu to configure Security settings.

Setup: Check password while invoking setup. Always: Check password while invoking setup as well as on each boot. Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the user will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Password Check [Setup] Administrator Password Secure Boot +: Select Screen +: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

Administrator Password

Use this feature to set the administrator password, which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

*The feature below is displayed if an Administrator Password is set:

User Password

Use this feature to set a user password.

▶ Secure Boot

Platform Mode - Setup

Secure Boot - Not Active

Vendor Keys - Not Active

Enable Secure Boot

Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Custom.

*If Secure Boot Mode is set to Custom, Key Management features will be available for configuration:

CSM Support

This feature is for manufacturing debug purposes.

▶ Reset to Setup Mode

Select Yes to delete all Secure Boot key databases and force the system to Setup Mode. The options are Yes and No.

Select Yes to restore all factory keys to the default settings. The options are Yes and No.

▶Key Management

This submenu allows the user to configure the following Key Management settings.

Provision Factory Defaults

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

▶Enroll Efi Image

This feature allows the image to run in Secure Boot mode.

▶ Save All Secure Boot Variables

This feature allows the user to decide if all secure boot variables should be saved.

▶ Platform Key (PK)

This feature allows the user to configure the settings of the platform keys.

Set New

Select Yes to load the new platform keys (PK) from the manufacturer's defaults. Select No to load the platform keys from a file. The options are Yes and No.

▶Key Exchange Key (KEK)

Set New

Select Yes to load the KEK from the manufacturer's defaults. Select No to load the KEK from a file. The options are Yes and No.

Append

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Set New

Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file. The options are Yes and No.

Append

Select Yes to add the database from the manufacturer's defaults to the existing DB. Select No to load the DB from a file. The options are Yes and No.

▶Forbidden Signatures

Set New

Select Yes to load the DBX from the manufacturer's defaults. Select No to load the DBX from a file. The options are Yes and No.

Append

Select Yes to add the DBX from the manufacturer's defaults to the existing DBX. Select No to load the DBX from a file. The options are Yes and No.

▶ Authorized TimeStamps

Set New

Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No.

Append

Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file. The options are Yes and No.

▶OsRecovery Signature

This item uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are:

1) Public Key Certificate
a. EFI Signature List
b. EFI CERT X509 (DER Encoded)
c. EFI CERT RSA2048 (bin)
d. EFI SERT SHA256 (bin)
2) EFI Time Based Authenticated Variable

Set New

Select Yes to load the OSRecovery Signature from the manufacturer's defaults. Select No to load the OSRecovery Signature from a file. The options are Yes and No.

Append

Select Yes to add the OSRecovery Signature from the manufacturer's defaults list to the existing OSRecovery Signature. Select No to load the OSRecovery Signature from a file. The options are Yes and No.

6.7 Boot

Use this menu to configure Boot settings:

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPHI Security Boot Save & Exit Boot Configuration Boot Mode Select [UEFI] FIXED BOOT ORDER Priorities UEFI Boot Option #1 [UEFI Hard Disk] UEFI Boot Option #2 [UEFI AP:UEFI: Bui...] UEFI Boot Option #3 [UEFI CD/DVD] UEFI Boot Option #4 [UEFI USB Hard Disk] UEFI Boot Option #5 [UEFI USB CD/DVD] UEFI Boot Option #6 [UEFI USB Key] UEFI Boot Option #7 [UEFI USB Floppy] UEFI Boot Option #8 [UEFI USB Lan] UEFI Boot Option #9 [UEFI Network:UEFI...] ▶ UEFI Application Boot Priorities ▶ UEFI NETWORK Drive BBS Priorities ▶ Delete Boot Option Select which boot devicc type to list in FIXED BOOT ORDER Priorities. +: Select Scraen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defoults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

Boot mode select

Use this feature to select the boot mode for bootable devices in the system. The options are LEGACY, UEFI, and DUAL.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices that the system boots from. Press on each entry from top to bottom to select devices.

• UEFI Boot Option #1
• UEFI Boot Option #2
• UEFI Boot Option #3
• UEFI Boot Option #4
- UEFI Boot Option #5
• UEFI Boot Option #6
- UEFI Boot Option #7

• UEFI Boot Option #8
• UEFI Boot Option #9

▶UEFI Application Boot Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disable.

▶UEFI Network Drive BBS Priorities

- Boot Option # - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disable.

▶ Delete Boot Option

Use this feature to select a boot device to delete from the boot priority list.

6.8 Save & Exit

Use this menu to save settings and exit the BIOS.

Auto Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Advanced Event Logs IPMI Security Boot Save & Exit Save Options Save Changes and Reset Discard Changes and Exit Save Changes Discord Changes Default Options Restore Optimized Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-In EFI Shall UEFI: PXE IP4 Intel(R) I210 Gigabit Network Connection UEFI: PXE IP4 Intel(R) Ethernet Connection X553/X557-AT 10G... UEFI: PXE IP4 Intel(R) Ethernet Connection X553/X557-AT 10G... UEFI: PXE IP4 Intel(R) Ethernet Connection X553/X557-AT 10G... UEFI: PXE IP4 Intel(R) Ethernet Connection X553/X557-AT 10G... Windows Boot Manager ubuntu Reset the system after saving the changes. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.19.1266. Copyright (C) 2017 American Megatrends, Inc.

Save Options

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Optimized Defaults

To set this feature, select Restore Optimized Defaults and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

This feature allows the user to override the Boot Option Priorities sequence in the Boot menu and immediately boot the system with another device specified by the user. This is a one-time override.

UEFI: Built-in EFI Shell

UEFI: PXE IP4 Intel® I210 Gigabit Network Connection

UEFI: PXE IP4 Intel® Ethernet Connection X553/X557-AT 10G...

UEFI: PXE IP4 Intel® Ethernet Connection X553/X557-AT 10G...

UEFI: PXE IP4 Intel® Ethernet Connection X553/X557-AT 10G...

UEFI: PXE IP4 Intel® Ethernet Connection X553/X557-AT 10G...

Windows Boot Manager

Appendix A

BIOS Codes

During the POST (Power-On Self-Test) routines, which are performed upon each system boot, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue to boot. These error messages normally appear on the screen.

Fatal errors will not allow the system to continue with bootup. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

Note: A speaker is required to hear the beep codes (optional part).

Appendix B

Standardized Warning Statements for AC Systems

B.1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源裝置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Intel® Atom Processor C3958

BIOS

AMI® UEFI BIOS

Memory

Supports up to 256GB Registered ECC RDIMM and DDR4-2400MHz or up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz in four DIMM slots

Drive Bays

Up to two internal SATA3 2.5" SSD drive bays or one SATA3 3.5" drive bay

Expansion Slots

One PCIe 3.0 x8 slot

M.2: one M-Key and one B-Key:

M-Key Form Factor: 2242/2280

Interface: PCIe 3.0 x2, SATA

B-Key Form Factor 3042/2280

Interface: PCIe 3.0 x2, SATA/USB3

Input/Output

Two SATA 3.0 ports

Two onboard COM connections (one via header)

Five USB 3.0 ports (four in front, one Type-A onboard)

Two USB 2.0 header

Network

Quad LAN with 10GBase-T with Intel® X557

Single LAN with Intel ^® i210 Gigabit Ethernet Controller

Motherboards

A2SDV-16C-TLN5F

Dimensions: 9" x 7.25" (229mm x 184mm)

Chassis

CSE-505-203B: (WxHxD) 17.2 x 1.7 x 9.8 in (437 x 43 x 249mm)

System Cooling

Three (plus one optional) internal fixed 40 × 28 ~mm fans

Power Supply

Model: PWS-203-1H, 200 W AC 80Plus Gold Level Certified

Output Voltage:

200 W: 100 to 240 Vac

Input Current:

200 W: 100 to 240 Vac, 50-60 Hz, 2.6 A max

+3.3 V: 8 A max

+5 V: 8 A max

+5 V standby: 2 A max

+12 V: 16 A max

-12 V: 0.5 A max

Operating Environment

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Non-operating Temperature: -40 °C to 70 °C (-104 °F to 158 °F)

Operating Relative Humidity: 8% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condensing)

Regulatory Compliance

FCC, ICES, CE, VCCI, RCM, NRTL, CB

Applied Directives, Standards

EMC/EMI: 2014/30/EU (EMC Directive)

FCC Part 15

ICES-003

VCCI 32-1

AS/NZS CISPR 32

EN55032

EN55035

CISPR 24

EN 61000-3-2

EN 61000-3-3

EN 61000-4-2

EN 61000-4-3

EN 61000-4-4

EN 61000-4-5

EN 61000-4-6

EN 61000-4-8

EN 61000-4-11

Green Environment:

2011/65/EU (RoHS Directive)

EC 1907/2006 (REACH)

2012/19/EU (WEEE Directive)

Product Safety: 2014/35/EU (LVD Directive)

UL/CSA 60950-1, 62368-1 (USA and Canada)

IEC/EN 60950-1, 62368-1

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"

Appendix D

IPMI Crash Dump

In the event of a processor internal error (IERR) that crashes your system, you may want to provide information to support staff. You can download a crash dump of status information using IPMI. The IPMI manual is available at https://www.supermicro.com/solutions/IPMI.cfm.

Check IPMI Error Log

1. Access the IPMI web interface.
2. Click the Server Health tab, then Event Log to verify an IERR error.

Host Identification Server: 172 031 040 125 User: ADMIN (Administrator) System Server Health Configuration Remote Control Virtual Media Maintenance Miscellaneous Help Server Health Sensor Readings Event Log Event Log For more special event log settings, please click here. This page displays events from the system's event log. You can choose a category from the pull-down box to filter the events and also sort them by clicking on a column header. Clear Event Log Save Select an event log category: All Events Event ID Time Stamp Sensor Name Sensor Type Description 1 2017/10/19 15:38:37 Processor IERR - Assertion 2 2017/10/19 15:50:20 Processor IERR - Assertion

Figure D-1. IPMI Event Log

In the event of an IERR, the BMC executes a crash dump. You must download the crash dump and save it.

Downloading the Crash Dump File

1. In the IPMI interface, click the Miscellaneous tab, then the Trouble Shooting option.
2. Click the Dump button and wait five minutes for the file to be created. (No confirmation message will appear.)
3. Click the Download button and a Save As dialog appears.
4. Save the zipped dump file, noting the name and location.

SUPERMICRO Host Identification Server: 172.031.040.125 User: ADMIN (Administrator) System Server Health Configuration Remote Control Virtual Media Maintenance Miscellaneous Help Miscellaneous Activate License Post Snooping SMC RAKP Trouble Shooting UID Control Trouble Shooting This page provides trouble shooting file download System auto reset Dump Download

Figure D-2. IPMI Crash Dump Download

Note: The System auto reset check box dictates behavior after an IERR. If checked, the system will restart automatically, and the dump file will be erased. If not, the system remains in a failed state. Do not check this box until after the dump file has been sent to Support.

Appendix E

Dual Boot Block

E.1 Introduction

The motherboard in this system supports the Dual Boot Block feature, which is the last-ditch mechanism to recover the BIOS boot block. This section provides an introduction to the feature.

BIOS Boot Block

A BIOS boot block is the minimum BIOS loader required to enable necessary hardware components for the BIOS crisis recovery flash that will update the main BIOS block. An on-call BIOS boot-block corruption may occur due to a software tool issue (see image below) or an unexpected power outage during BIOS updates.

AMI Firmware Update Utility vX.XX.XX Copyright (C)XXXX American Megatrends Inc. All Rights Reserved. Reading flash . . . . . . . . . . . . . done -- ME Data Size checking . ok -- FFS checksums . . . . . . . ok Erasing Boot Block . . . . . . . . . done __Updating Boot Block . . . . . . . 0x00A91000 (13%)

BIOS Boot Block Corruption Occurrence

When a BIOS boot block is corrupted due to an unexpected power outage or a software tool malfunctioning during BIOS updates, you can still reboot the system by closing pins 2 and 3 using a cap on jumper JBR1. When JBR1 is set to pins 2 and 3, the system will boot from a backup boot block pre-loaded in the BIOS by the manufacturer.

E.2 Steps to Reboot the System by Using Jumper JBR1

1. Power down the system.
2. Close pins 2-3 on jumper JBR1 and power on the system.
3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix D).
4. After completing the steps above, power down the system.
5. Close pins 1-2 on jumper JBR1 and power on the system.
