USER MANUAL Polar Pak P7-0812-CT-T3 Kolpak

Kolpak/RDI Refrigeration System Installation & Operation Manual

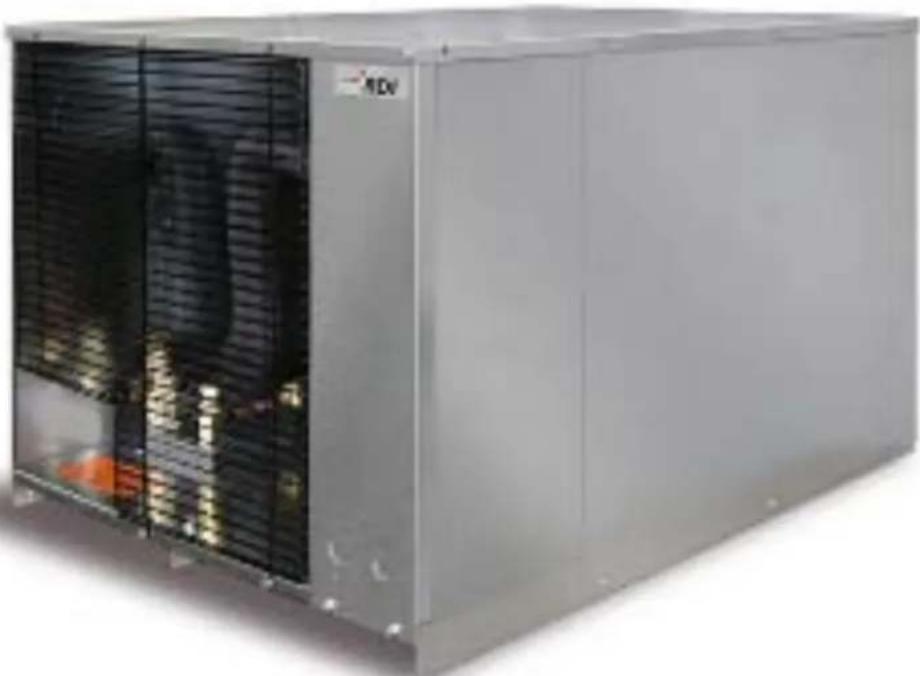

Exterior view of a large industrial machine with cooling fins and ventilation grilles (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

Welbilt

2915 Tennessee Avenue North

Parsons, TN 38363

Phone: [phone]

www.welbilt.com

550001058-10

April 2017

Table of Contents

Safety Information ....3

Receiving Inspection....4

Locating and Mounting Condensing Units 4-6

Locating and Mounting Evaporator Coils 6-7

Wiring 8

Piping....8-13

Leak Test....14-15

Evacuation....15-16

Refrigerant Charging....16

Suction/Liquid Line Sizing Chart 17

Operational Start-Up 18-20

Compressor Superheat....21

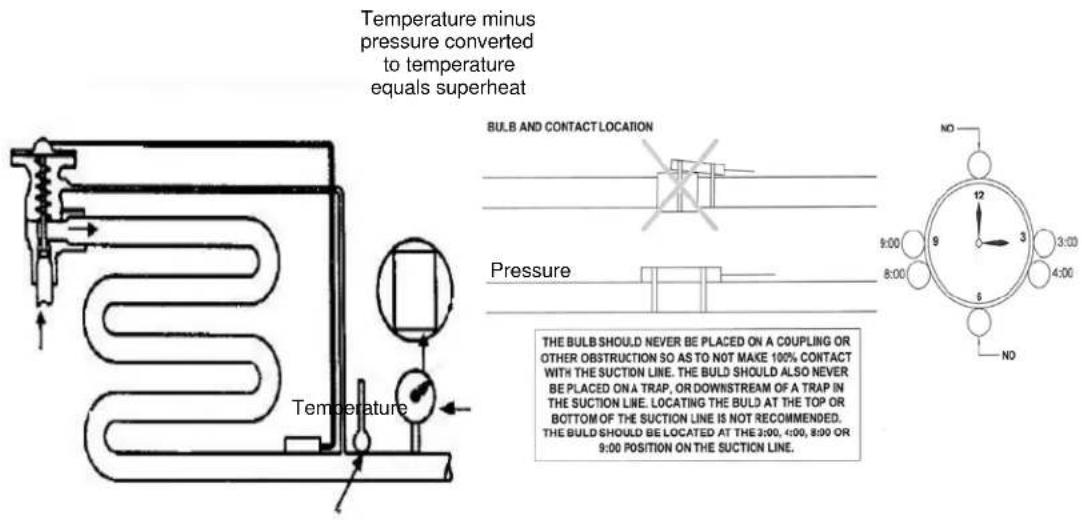

Evaporator Superheat 22-23

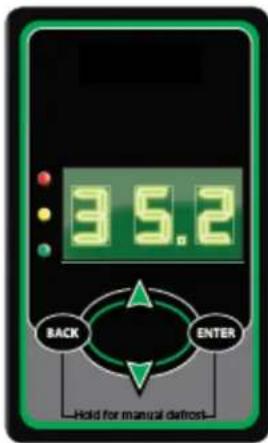

Thermostat....24-28

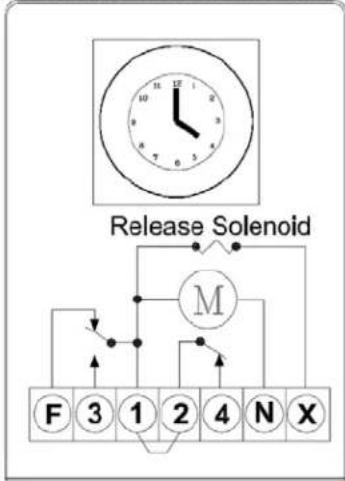

Electric Defrost Timer....29

Maintenance 30

Troubleshooting Charts....31-33

ArcticFox Local Area Dashboard & Alarms (LDA): 34

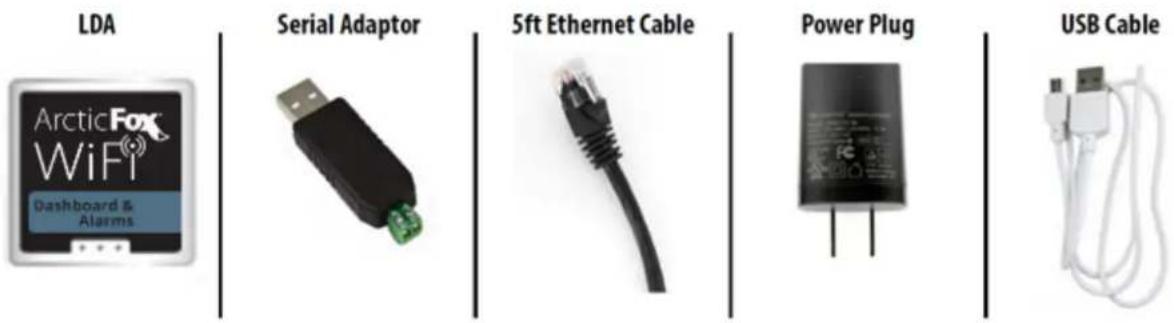

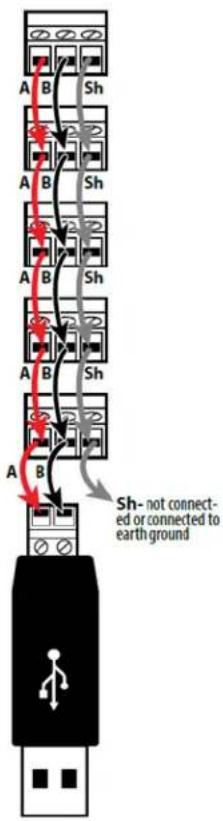

ArcticFox LDA Kit....34

ArcticFox LDA Back Label 35

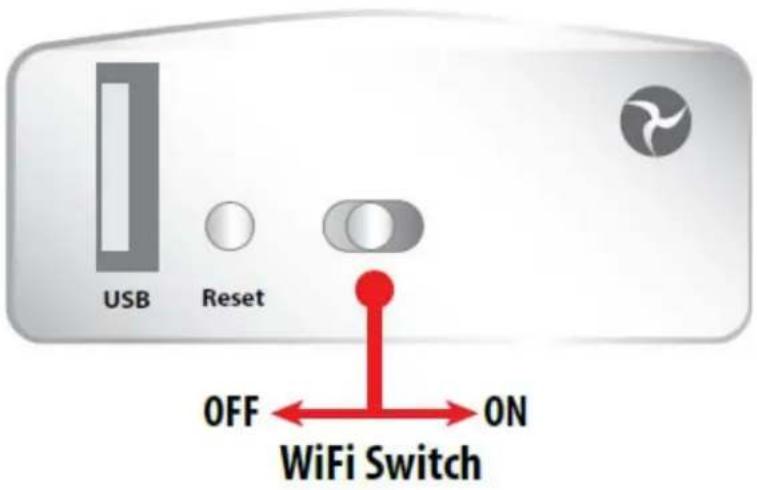

ArcticFox LDA Side View 35

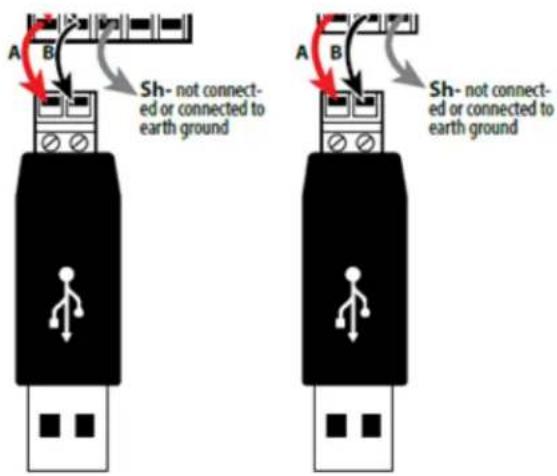

ModBus Configuration....36-38

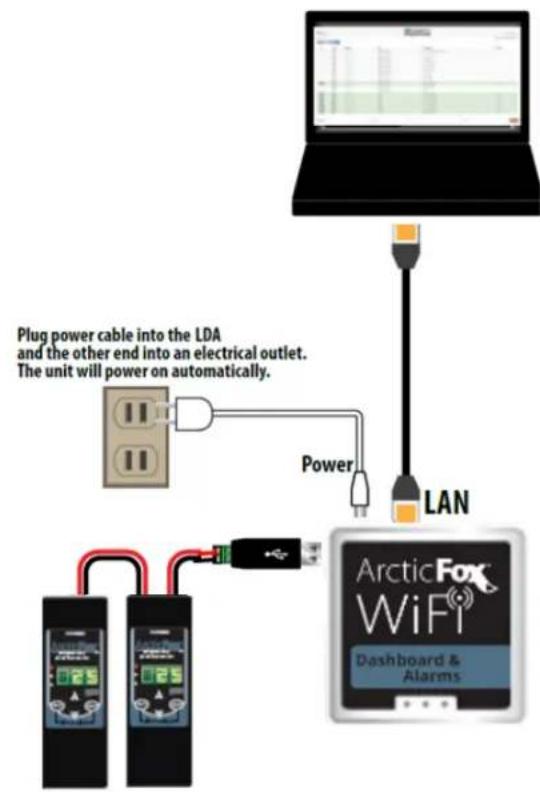

Installing The ArcticFox LDA: Option 1....39

Installing The ArcticFox LDA: Option 2....39

Installing The ArcticFox LDA: Option 3....40

Using the ArcticFox Flash Drive For Data Logging The ArcticFox LDA 40

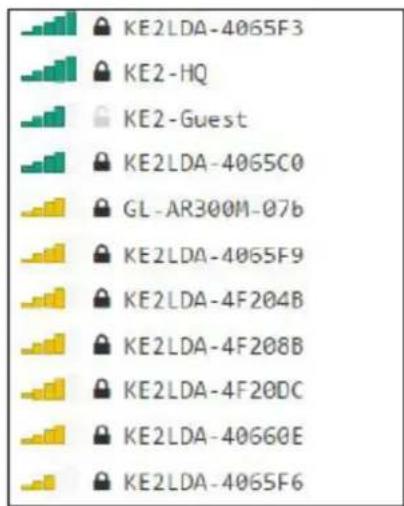

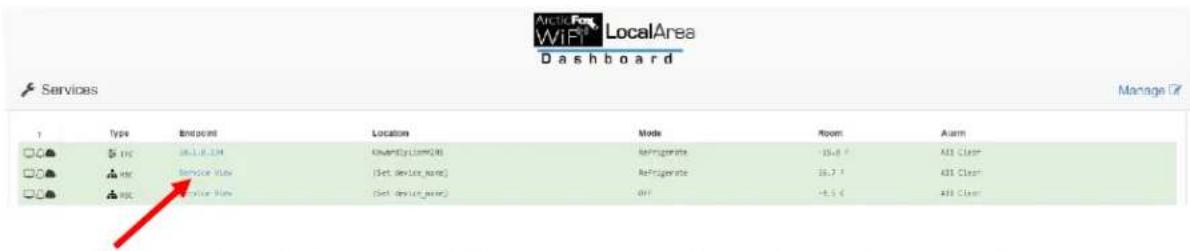

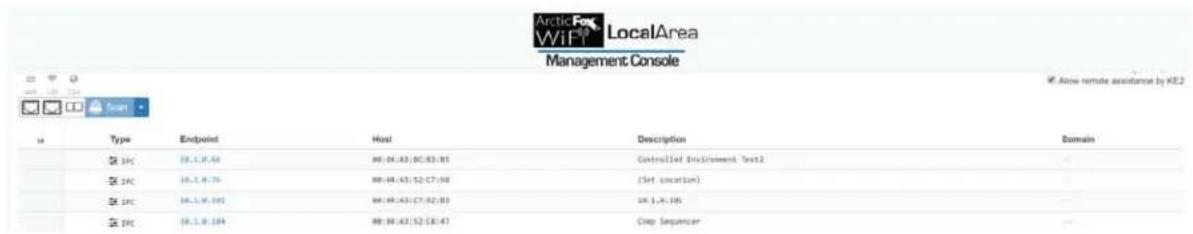

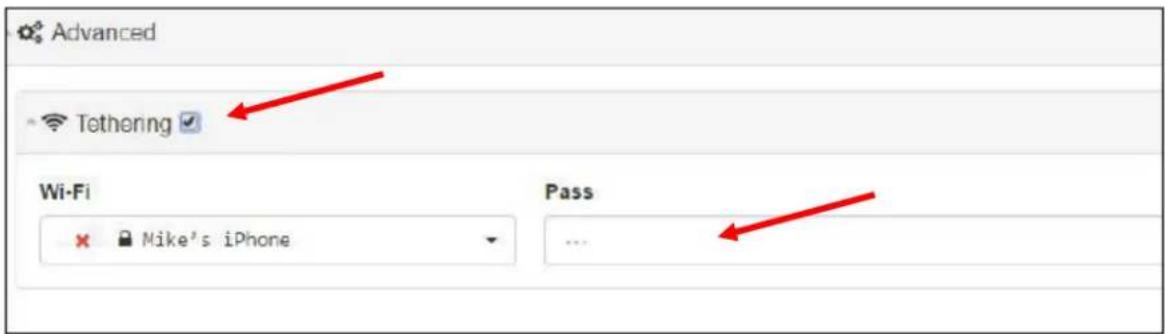

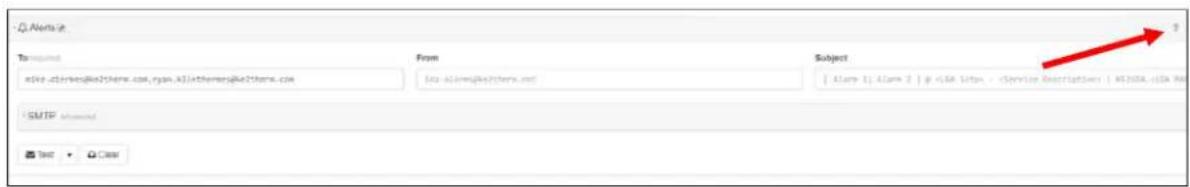

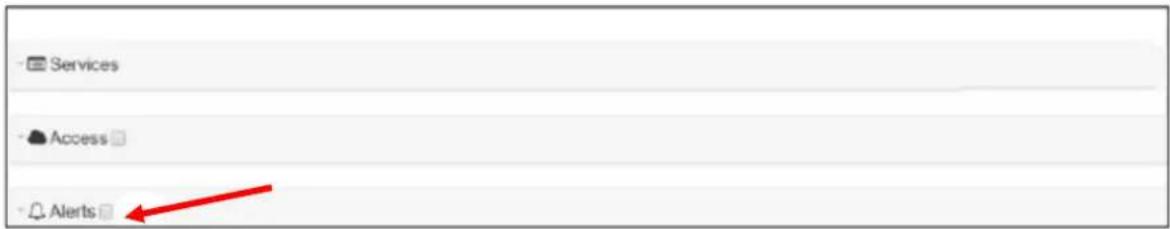

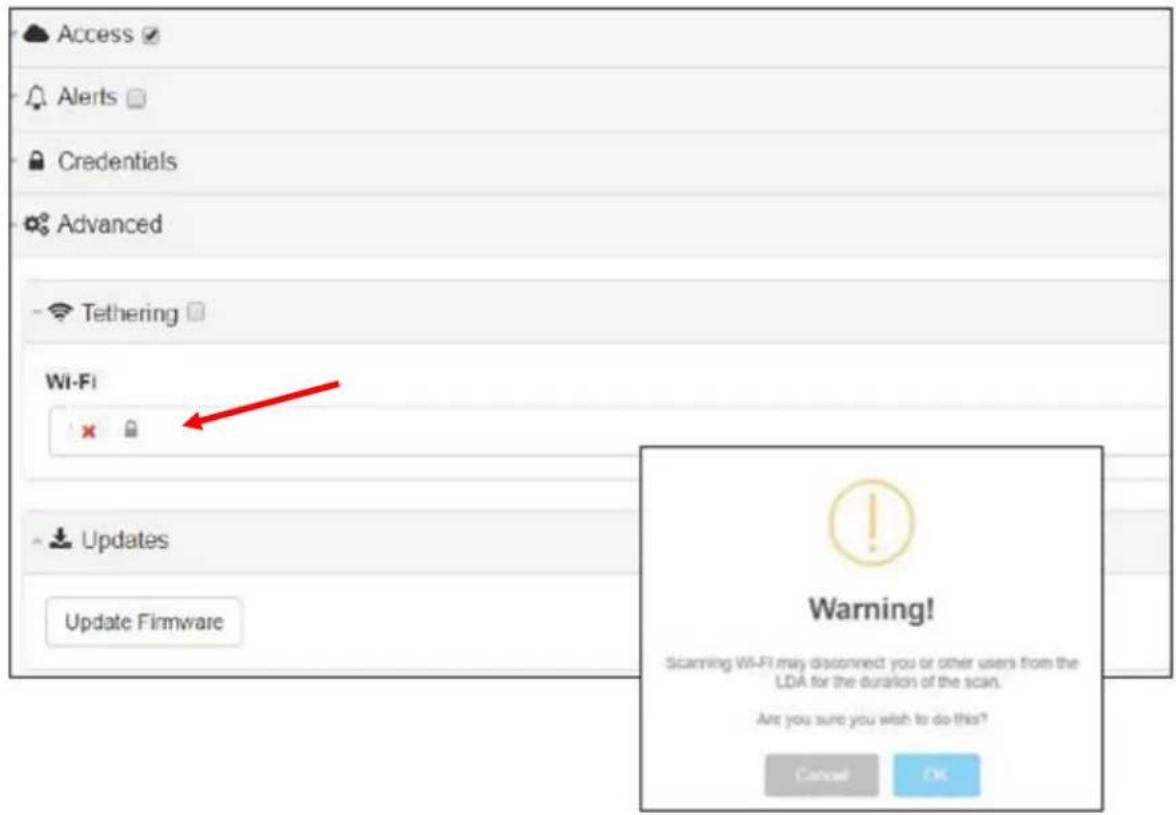

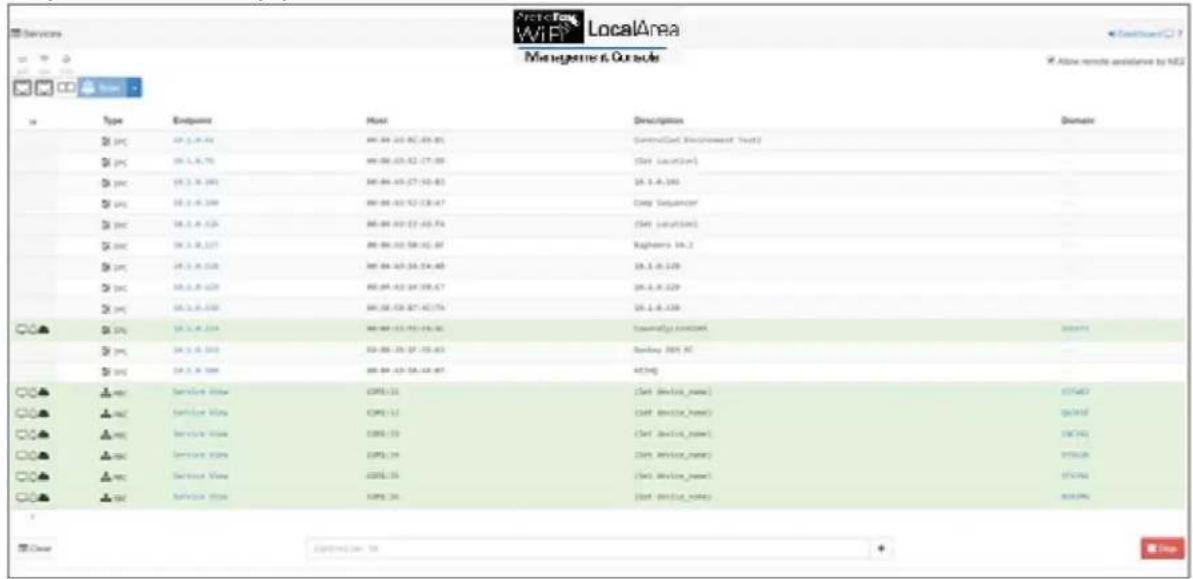

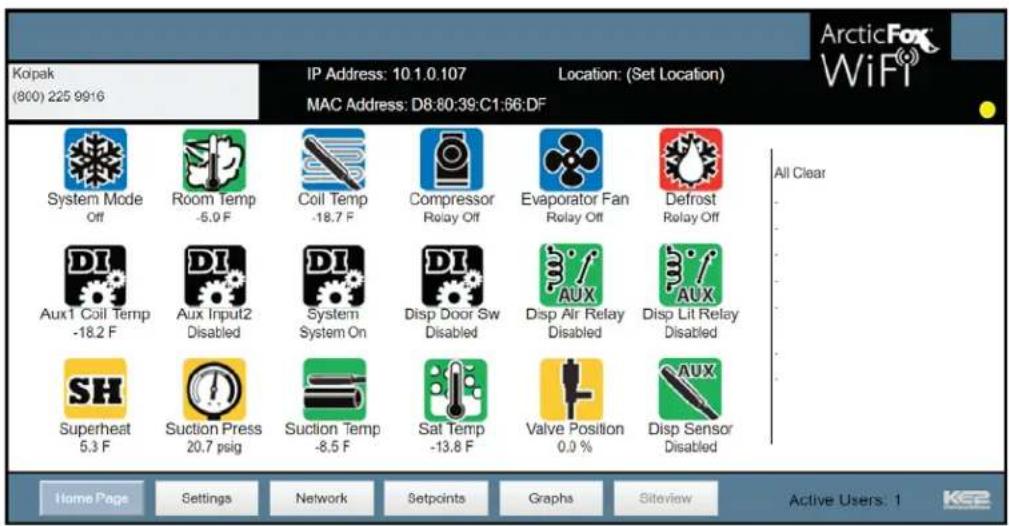

Accessing The Local Dashboard....41-58

Evaporator Troubleshooting....59

Condensing Unit Troubleshooting 60-61

Wiring Diagrams 62-76

Condensing Unit 208-230/1/60....62

Condensing Unit 208-230/3/60....63

Condensing Unit 460/3/60....64

Condensing Unit Medium Temp (MZ) Scroll 208-230/1/60....65

Condensing Unit Medium Temp (MZ) Scroll 208-230/3/60....66

Condensing Unit Low Temp (LZ) Scroll 208-230/1/60 67

Refrigeration System Low Temp (LZ) Scroll 208-230/1/60 68

Condensing Unit Low Temp (LZ) Scroll 208-230/3/60....69

Refrigeration System Low Temp (LZ) Scroll 208-230/3/60 70

Air Defrost Evaporator 115/1/....71

Air Defrost Evaporator 208-230/60/1....72

Air Defrost with 2 Evaporators 115/1/60 73

Air Defrost with 2 Evaporators 208-230/60/1....74

Electric Defrost Evaporator 208-230/1/60....75

Electric Defrost with 2 Evaporators 208-230/1/60....76

System Start-Up Data Sheet....77-80

Warranty Information....81

General Safety Information

Read this manual carefully before beginning the installation and operation of the refrigeration system. Special attention is required to all sections identified with the following warning and caution notices provided in both English and French languages:

WARNING

Text in a Warning box alerts you to a potential personal injury situation. Read each Warning statement before proceeding and work carefully.

AVERTISSEMENT

Text in a Caution box alerts you to a situation in which you could damage the refrigeration system. Read each Caution statement before proceeding and work carefully.

MISE EN GARDE

Disregarding these special notices may result in personal injury and/or damage to the refrigeration system.

Safety Notices:

➢ Installation and maintenance/servicing are to be performed only by trained and qualified personnel familiar with commercial refrigeration systems.
➢ Ensure that all field wiring conforms to the equipment requirements and all applicable local and national codes.
➢ Disconnect all power sources before servicing the refrigeration equipment.
Sheet metal and coil surfaces have sharp edges. Use appropriate protective gloves to prevent injury.
➢ Use appropriate eye protection during installation and servicing.

Receiving Inspection

Check the shipment carefully and compare to the bill of lading. Account for all items listed and inspect each container for damage. Carefully inspect for any concealed damage. Report any shortages or damages to the carrier, note on the bill of lading, and file a freight claim.

Damaged material cannot be returned to the manufacturer without prior approval. A Return Material Authorization (RMA) must be obtained. Contact a sales representative at 800-826-7036.

Locating and Mounting Condensing Unit

General Guidelines:

➢ Check the selected installation location to ensure that racks, braces, flooring, foundations, etc. are adequate to support the condensing unit weight.
The installation location is clean, dry, and level.
➢ Locate away from corrosive and noise sensitive atmospheres.
Use the condensing unit skid and base when moving the unit. Do not remove unit from skid until the unit is moved to the mounting location.
Mount the condensing unit base to pads or structural rails using properly sized bolts through the unit base. Center of condensing unit needs to be properly supported.

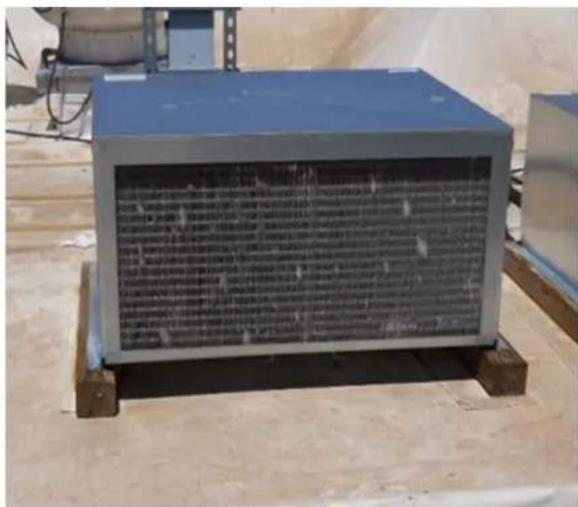

General Guidelines - Condensing Unit Locating and Mounting (continued):

Large white industrial air conditioner unit mounted on a wooden pallet, no visible text or symbols

Correct

Exterior view of a blue industrial enclosure with a grid-patterned panel, placed on wooden pallets (no visible text or symbols)

Incorrect

WARNING

Do not lift the condensing unit by the refrigerant tubing or components. These features will not support the condensing unit weight. Injury and unit damage may occur!

AVERTISSEMENT

Clearance Requirements:

➢ Locate where there is a sufficient and unrestricted supply of clean ambient air.
Locate where this is adequate space for the removal of the heated discharged air from the condensing unit area.
Do not position multiple units so that discharge air from one unit is blowing into the condenser inlet air of the other unit.
All sides of the unit should be positioned a minimum distance equal to the total width of the condensing unit away from any other unit, wall, or obstruction.

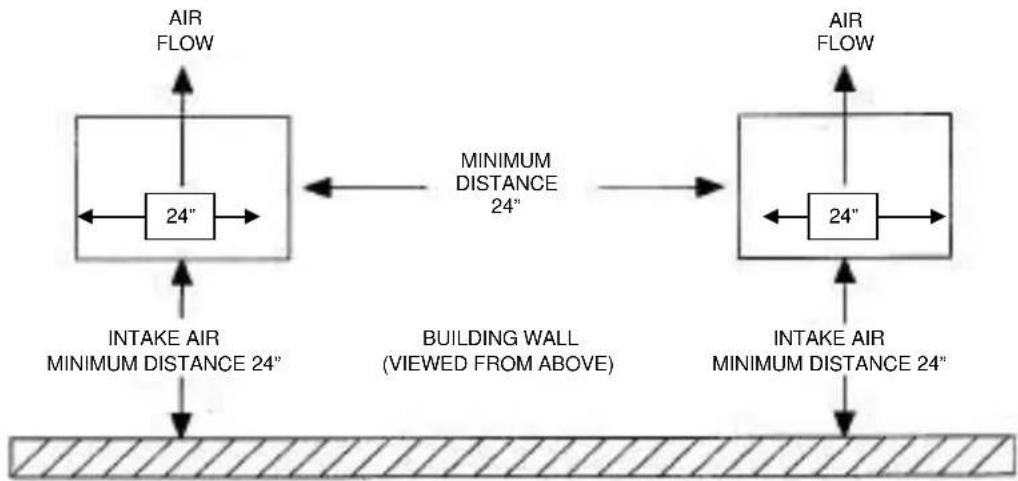

Clearance Requirements (continued):

Example of Multiple Units with Horizontal Airflow

CAUTION

Failure to observe clearance and air flow requirements will result in poor system performance and premature equipment failure!

MISE EN GARDE

Locating and Mounting Evaporator Coil

General Guidelines:

Do not place the evaporator above or close to door openings. This will help prevent potential icing problems.
➢ Allow a minimum clearance equal to or greater than the coil height on all sides of the coil for proper air flow and service access.
Use the evaporator coil for a template to locate and drill the mounting holes (1/2" diameter).
➢ Place a 1" and a 1-5/8" washer on each nylon bolt and insert through the drilled mounting holes in the ceiling from the exterior of the walk-in ceiling panel.

General Guidelines - Locating and Mounting Evaporator Coil (continued):

NOTE: Nylon bolts are supplied to prevent thermal transfer between the exterior of the walk-in and the interior of the walk-in. Do not use metal bolts.

➢ Lift the evaporator coil until the nylon bolts extend through the mounting brackets.
➢ Install washers and secure with nuts. Tighten until the coil is firm against the ceiling. The evaporator coil must be level.
Additional information is available in the installation manual supplied with the evaporator.

CAUTION

Failure to observe clearance and air flow requirements will result in poor system performance and premature equipment failure!

⚠️ MISE EN GARDE

Evaporator Coil Mounting Diagram Nylon Bolt 1" O.D. washer 1-5/8" O.D. washer 1" O.D. washer Nut Evaporator Mounting Bracket Note: Fasteners are supplied in the mounting kit.

Wiring

All electrical connections and routing must comply with local and national codes. Do not modify the factory installed wiring without written factory approval. The field wiring must enter through the knockouts provided. Refer to the nameplate on the condensing or evaporator coil to determine the proper electrical power supply. Wire type should be of copper conductor only and properly sized to handle the electrical load. The unit and coil must be properly grounded. Condensing unit wiring diagrams are located inside this installation manual and attached inside the electrical box cover. Evaporator coil wiring diagrams are located inside this installation manual and inside the evaporator cover.

WARNING

All wiring must comply with local and national codes. Wiring must be performed only by a refrigeration technician or certified electrician. Failure to follow these guidelines may result in injury!

AVERTISSEMENT

Check all wiring connections, including factory terminals, before operation. Connections can become loose during shipment and installation.

MISE EN GARDE

General Requirements:

All refrigeration piping and components are to be installed in accordance with applicable local and national codes and in conformance with industry refrigeration guidelines to ensure proper operation of the refrigeration system. Only refrigeration grade copper tubing should be used. Long radius elbows should be used. Short radius elbows have points of excessive stress concentration and are subject to breaking at these points, do not use short radius elbows. Suction lines must be insulated with a minimum 34 " thick insulation tubing to reduce heat pick-up.

Cleanliness:

Condensing units and evaporator coils are cleaned and dehydrated at the factory. The condensing unit must remain closed and pressurized until the piping is complete and final connections are ready to be made.

CAUTION

The maximum air exposure for dehydrated condensing units is 15 minutes. Systems exposed longer than 15 minutes must have the compressor oil and drier filter replaced. Leaving a system exposed to the atmosphere for more than 15 minutes can result in premature system failure.

MISE EN GARDE

Do not remove base mount valve covers until work is ready to be performed. Ensure that all refrigeration tubing is clean and dry prior to installation. Use only tubing cutters when trimming tubing to the proper length. Do not use saws to cut tubing.

CAUTION

The use of saws to cut tubing can contaminate the system with copper chips causing premature system failure.

MISE EN GARDE

Brazing joints require a dry inert gas, typically nitrogen, be passed through the lines at a low pressure to prevent scaling and oxidation. Use only silver solder brazing alloys. Minimize the amount of flux to prevent internal contamination. Flux only the male portion of the joint. Thoroughly clean fluxed joints after brazing.

CAUTION

Dry inert gas must be passed through the system while brazing to prevent scaling and oxidation. Scaling and oxides can clog refrigeration components resulting in system failure.

MISE EN GARDE

All tubing should be supported in a least two locations (near the end of each tubing run). Long runs will require additional support. As a guide, support 3/8" to 7/8" pipe every five feet, 1-1/8" to 1-3/8" every seven feet, and 1-5/8" to 2-1/8" every ten feet. Do not leave a corner unsupported when changing directions. Place supports within 2 feet of each direction change. Piping that is attached to a vibrating object (such as a compressor or compressor base) must be supported in a manner that will not restrict the movement of the vibrating object. Rigid mounting will fatigue the tubing causing refrigerant leaks.

Oil Traps:

To ensure proper oil return to the compressor, a P-type oil trap should be installed at the base of each suction riser of four feet or more. The suction trap must be the same size as the suction line. Additional traps are necessary for long vertical risers. Add a trap for each length of pipe (approximately 20 feet) to insure proper oil return. Suction lines must slope 14 per 10 feet toward the compressor. Install a suction line trap at the evaporator outlet if the suction line rises to a point higher than the connection on the evaporator.

CAUTION

Failure to properly install oil traps can prevent sufficient oil return to the compressor resulting in premature compressor failure.

MISE EN GARDE

Pressure Regulating-Relief Valves:

WARNING

Do not defeat, cap, add piping to the outlet of the valve, or, attempt to change the relief setting.

AVERTISSEMENT

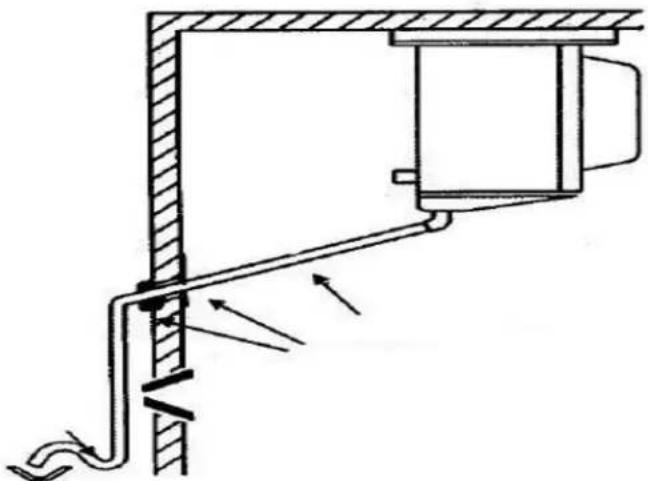

Evaporator coil drain lines should be pitched a minimum of 1/2" per foot to allow proper drainage and exit the walk-in as quickly as possible. Insulate and seal the drain line where it passes through the wall. Copper drain line is required. Freezer compartment drain lines must have heat tape wrapped around the copper drain line and must have 34 " thick insulation tubing. Do not locate drain line P-traps within the freezer space. Do not reduce the drain line size. Locate a drain line P-trap outside of the cooler space. Any outdoor P-traps exposed to low ambient temperatures should be wrapped with a drain line heater (provide 20 watts of heat per foot of drain line at 0°F, 30 watts per foot at -20°F. Freezer/cooler combo boxes can have one common drain line. However, there must be a P-trap located between the freezer evaporator and the cooler evaporator located inside the cooler compartment. The cooler compartment P-trap should be located between the cooler evaporator and the external drain location.

Technical diagram of a mechanical assembly with directional arrows indicating flow or movement (no text or symbols present)

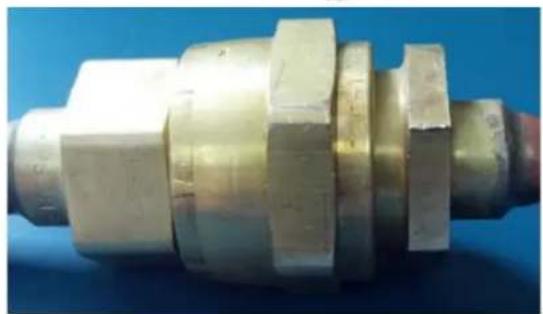

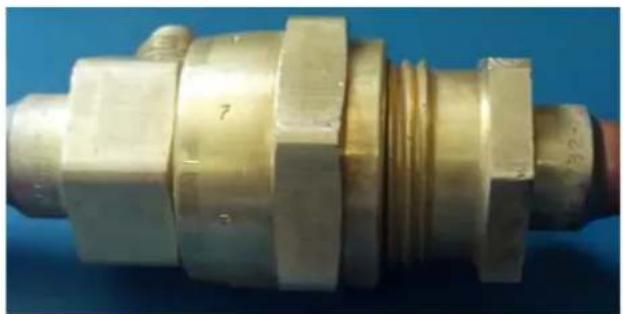

Pre-Charged lines and Quick Connects:

Route the suction and liquid line sets between the condensing unit and evaporator coil following the piping guidelines identified in this manual. Remove the dust caps from the quick connect fittings and verify that the o-rings are intact. Wipe the coupling seals and threaded surfaces with a clean cloth to prevent contamination. Lubricate the threads and o-rings with Polyol Ester oil. Thread the coupling halves together by hand to ensure proper thread mating. Tighten with a wrench until the coupling bodies “bottom” or until there is definite resistance. Tighten an additional 14 turn to ensure proper brass-to-brass seating. Once the system is opened and pressurized, check each fitting for refrigerant leaks. If a leak is detected, tighten until the leak stops.

Cross-sectional technical diagram of a mechanical assembly (no visible text or labels)

Close-up of a brass mechanical component with threaded end and hexagonal flanges (no visible text or symbols)

INCORRECT

Close-up of a metallic mechanical component with hexagonal flanges and stepped shaft (no visible text or symbols)

CORRECT

WARNING

Do not loosen and disconnect the quick connect fittings before reclaiming the refrigerant and depressurizing the system. Disconnecting a pressurized system can result in injury!

Pre-Charged lines and Quick Connects (continued):

AVERTISSEMENT

Quick connects are for one time use only. Once disconnected, the coupling cannot be re-used. Refrigerant leaks will occur if the couplings are re-used resulting in poor system performance.

MISE EN GARDE

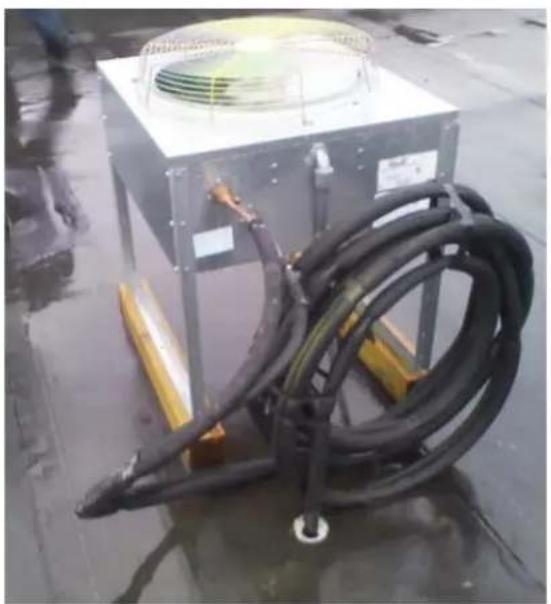

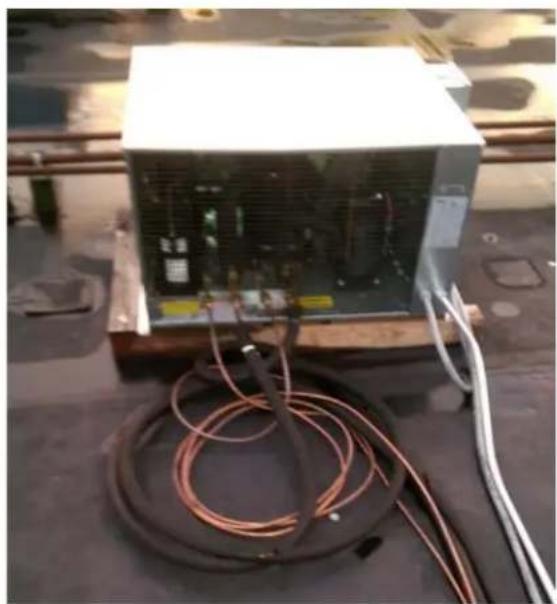

Excess line set length should never be allowed to coil in the vertical position. Excess line length should be laid flat on its side.

Industrial equipment setup with coiled black hoses and a square fan on a metal frame, placed on a wet floor (no visible text or symbols)

INCORRECT

Exterior view of a white industrial power unit with coiled copper wires on its side (no visible text or symbols)

CORRECT

Leak Testing

After all connections are complete the refrigeration system must be tested for leaks. Failure to perform a leak test can result in unsatisfactory system performance, additional servicing and service costs, and possible system failure. Leak test should be performed using an electronic leak detector. All joints and components, both factory and field installed, should be thoroughly inspected for leaks. The system installation must be leak free!

Leak Testing "PR" model systems:

• Open both the liquid and suction service valves.
  ➢ Ensure the solenoid valve is energized and open.
  ➢ Add 50 psi refrigerant, then pressurize with dry nitrogen to the low side test pressure identified on the unit rating label.
• Allow thirty minutes for refrigerant to reach all parts of the system.
  ➢ Check all joints and components with an electronic leak detector.

Leak Testing "PC" model systems:

Leave the service valves closed, the condensing unit is charged with refrigerant.
➢ Ensure the solenoid valve is energized and open.
➢ Add 50 psi refrigerant, then pressurize with dry nitrogen to the low side test pressure identified on the unit rating label.
- Allow thirty minutes for refrigerant to reach all parts of the system.
➢ Check all joints and components with an electronic leak detector.

Leak Testing "PCL" model systems:

• Open both the liquid and suction service valves.
  ➢ Ensure the solenoid valve is energized and open.
• Allow thirty minutes for refrigerant to reach all parts of the system.
  ➢ Check all joints and components with an electronic leak detector.

If a leak is detected, relieve the pressure and/or reclaim the refrigerant and repair the leak. If additional brazing is required, pass a dry inert gas (nitrogen) through the system to prevent contamination. Reference page 12 of this manual for leaks located at quick connects couplings. Retest the system as outlined above until no leaks are detected.

NOTE: R448 refrigerant is a blend and when leaks occur, it is unknown which refrigerant blend or how much of it has escaped. If R448 refrigerant is simply “topped off”, the new blend mixture may affect proper performance of the system.

CAUTION

If a braze joint is detected leaking, dry inert gas must be passed through the system while repairing the joint to prevent scaling and oxidation. Scaling and oxides can clog refrigeration components resulting in system failure.

MISE EN GARDE

Always use the system specified refrigerant when pressuring to perform a leak test.

MISE EN GARDE

Evacuation of the refrigeration system is necessary to remove all air and moisture from the system. A reliable rotary vacuum pump with an accurate deep vacuum gauge is recommended. Do not use the system compressor as a vacuum pump and do not operate the compressor while the system is under vacuum.

Evacuation of "PR" model systems:

➢ Open both the liquid and suction service valves.
➢ Ensure the solenoid valve is energized and open.
Connect vacuum pump to the liquid and suction service valves located on the condensing unit.
➢ Evacuate the system to 250 microns and maintain for a minimum of 4 hours.
➢ Perform a vacuum decay test for a minimum of ten minutes to ensure the system is leak free and dry.

Evacuation of "PC" model systems:

Leave the service valves closed, the condensing unit has been evacuated and is charged with refrigerant.
➢ Ensure the solenoid valve is energized and open.
Connect vacuum pump to the liquid and suction service valves. located on the condensing unit.
➢ Evacuate the system to 250 microns and maintain for a minimum of 4 hours.
➢ Perform a vacuum decay test for a minimum of ten minutes to ensure the system is leak free and dry.

Evacuation of "PCL" model systems:

- “PCL” systems do not require evacuation.

CAUTION

Do not use the system compressor to evacuate the system. Do not start the compressor while the system is under vacuum. This may damage to the compressor and cause premature system failure.

MISE EN GARDE

Refrigerant Charging

The refrigerant charge should be added to the system through the liquid line service valve located on the condensing unit. Do not charge liquid refrigerant into the suction service valve! The initial charge should be determined by weight and sight glass indication. Start the system. If the condensing temperature is 105^ F or greater, charge the system until the sight glass clears. If the condensing unit temperature is below 105^ F, reduce the condenser face surface area to raise the discharge pressures above 105^ F and to charge to a clear sight glass. Return to a full condenser face area when charging is complete.

NOTE: PC & PCL refrigerant charge amounts are based on average ambient operating temperatures across the United States. Any refrigerant amount added or removed based on ambient operating temperatures is considered part of normal maintenance and is not covered under warranty.

CAUTION

Do not charge liquid refrigerant into the suction service valve located on the condensing unit. Do not overcharge the system. These conditions can permit liquid refrigerant to enter the compressor and cause damage to internal components resulting in premature system failure.

MISE EN GARDE

* NOTES:
1. Sizes that are highlighted indicate maximum suction line sizes that should be used for risers. Riser size should not exceed horizontal size. Properly placed suction traps must also be used for adequate oil return.
All sizes shown are for O.D. Type L copper tubing.
2. Suction line sizes selected at pressure drop equivalent to 2^ F. Reduce estimate of system capacity accordingly.
3. Recommended liquid line size may increase with reverse cycle hot gas systems.
4. If system load drops below 40% of design, consideration to installing double suction risers should be made.

Operational Start-Up

The first 2 – 4 hours of operation after initial start-up is a critical time. Do not just start the system and leave. Pressure values, compressor and evaporator superheat, and inspecting for excessive vibrations and loose connections are some of checks that must be performed prior to leaving the system.

Pre-Start Checks:

▶ Verify that all service valves are fully open.
➢ Ensure that all refrigerant and electrical connections are tight.
➢ Verify that the wiring and piping is properly routed and secured.
The compressor mounting bolts are properly adjusted (see compressor mounts on page 18).
All fan motors and mounting brackets are tight.
The condensing unit base and evaporator coil are properly secured.

Compressor Mounts:

Hermetic Compressors – hermetic compressor springs are mounted internally; check the compressor mounting bolts to ensure the nuts have not become loose during shipment.

Semi-Hermetic Compressors – most semi-hermetic compressors have external spring mounts and are factory assembled. The following actions are required once the condensing unit is installed and before system start-up:

➢ Loosen the upper mounting nuts.
Remove the spring steel clips from the mounting springs.
Retighten the upper mounting nuts until the compressor can float on the springs approximately 1/16" between the mounting nut and rubber grommet.

Compressor Mounts (continued):

Mounting Stud Mounting Nut (Upper) Compressor Mounting Foot Rubber Spacer Mounting Spring Mounting Base Locking Device Mounting Nut (Lower) Properly Adjusted Compressor Mount

CAUTION

Failure to ensure the compressor mounts are properly tightened can result in fatigue to the system piping causing leaks and poor system performance.

MISE EN GARDE

Do not start the system while in a vacuum. Do not leave the system unattended until normal operating conditions are achieved.

MISE EN GARDE

Start-Up Procedure (continued):

Operate the system for a minimum of two hours and perform checks of the following:

➢ Check the compressor discharge and suction pressures to ensure they are in the normal operating range.
➢ Check the liquid line sight glass for proper refrigerant charge (based off of 105^ F condenser coil).

Monitor the compressor oil level (semi-hermetic compressors), add oil as necessary to keep the level at 34 sight glass when idle and 12 sight glass when running.

➢ Check the voltage and amperage at the compressor terminals. Voltage must be within +10% or -5% of the rating indicted on the condensing unit name plate. On three phase compressors, verify there is a balanced load.
➢ Check all fans on the evaporator coil and condensing unit to be sure they are operational and turning in the correct direction.
➢ Check the piping and electrical connections for vibration. Add supports and strapping if needed.
➢ Check the crankcase heater operation (if equipped).
➢ Set the defrost control time and verify the defrost initiation settings. See pages 28-30 for additional details.
➢ Set temperature control to desired temperature range.
➢ Check the compressor and evaporator superheat (reference pages 21-23).

After all system checks have been checked, properly adjusted, and verified, replace all Schrader caps, service valve caps, electrical box covers, housings, etc. File a copy of this manual for future reference.

CAUTION

Failure to check and properly adjust compressor superheat can result in premature system failure.

MISE EN GARDE

Compressor Superheat:

Compressor superheat is a critical value that must be checked. Check the compressor superheat as follows:

1. Determine the suction pressure at the suction service valve of the compressor.

2. Determine the saturation temperature at the observed suction pressure using refrigeration pressure temperature tables.

3. Measure the suction line temperature 6 -10 inches away from the compressor.

4. Subtract the saturation temperature (step 2) from the measured temperature (step 3). The difference is the superheat of suction gas.

A low suction superheat can cause liquid to return to the compressor. This will cause dilution of the oil and eventual failure of the bearings, rings and valves. A high suction superheat will cause excessive discharge temperatures, which cause a breakdown of the oil. This causes piston ring wear, and piston and cylinder wall damage. System capacity decreases as the suction superheat increases. For maximum system capacity, keep the suction superheat as low as practical. Copeland requires a minimum compressor superheat of 20^ F; however, to improve compressor life, 25^ F to 40^ F is preferred. Adjust the expansion valve at the evaporator when adjustments to the suction superheat are necessary. Refer to “Evaporator Superheat” on the next 2 pages for more information.

CHECK THE TEMPERATURE AND PRESSURE, THEN CONSULT A PRESSURE/TEMPERATURE CHART. TEMPERATURE MINUS PRESSURE CONVERTED TO TEMPERATURE EQUALS SUPERHEAT. PT CHART TEMPERATURE PRESSURE DETERMINING COMPRESSOR SUPERHEAT

Evaporator Superheat:

Check the evaporator superheat once the walk-in has reached the desired temperature. Generally, systems with a design temperature drop of 10^ F should have an evaporator superheat value of 6^-10^ F on freezers and 8^-12^ F on coolers for maximum efficiency.

To determine the evaporator superheat:

1. Measure the suction pressure at the evaporator outlet.
2. Convert the pressure to saturation temperature referencing a temperature-pressure chart.
3. Measure the temperature of the suction line at the expansion valve bulb. Ensure the bulb is mounted at the correct location on the suction tube.
4. Subtract the saturation temperature reading (step 2) from the measured temperature (step 3). The difference is the evaporator superheat.

Determining Evaporator Superheat

Temperature minus pressure converted to temperature equals superheat BULB AND CONTACT LOCATION Pressure THE BULB SHOULD NEVER BE PLACED ON A COUPLING OR OTHER OBSTRUCTION SO AS TO NOT MAKE 100% CONTACT WITH THE SUCTION LINE. THE BULD SHOULD ALSO NEVER BE PLACED ON A TRAP, OR DOWNSTREAM OF A TRAP IN THE SUCTION LINE. LOCATING THE BULD AT THE TOP OR BOTTOM OF THE SUCTION LINE IS NOT RECOMMENDED. THE BULD SHOULD BE LOCATED AT THE 3:00, 4:00, 8:00 OR 9:00 POSITION ON THE SUCTION LINE.

CAUTION

Minimum compressor superheat of 20^ F may override these recommendations on systems with short line runs.

MISE EN GARDE

The condensing unit must have the discharge pressure above the equivalent 105^ F condensing pressure (reference refrigerant charging on page 16).

Evaporator Superheat (continued):

MISE EN GARDE

Correct location and full contact of the expansion valve bulb is extremely important for proper system performance.

MISE EN GARDE

P/N:550005664 ArcticFox® Temperature Control - 10 KES® BACK ENTER Display will be blank during defrost cycle.

P/N 550005663 is used on all Air Defrost model evaporators and features a built in Air Defrost time clock. The default defrost settings are every 6 hours for 30 minutes. See pages 27-28 for default and custom defrost setting instructions.

P/N 550005664 is used on all Electric defrost model evaporators. See page 29 for Electric Defroster Timer setting instructions.

NOTE: The 550005664 display will be blank during the electric defrost cycle.

Thermostats (continued)

Red Light - Not used

Yellow Light - Non-critical alarm (system running)

Green Light - System running

Green Flashing - System waiting on minimum on/off timer to start/stop

• Access Setpoint mode by pressing and holding the ENTER button until ts (Temperature setpoint) displays on the screen
• Use the ▲ up and ▼ down arrows to scroll through the available setpoints
• Press ENTER to view the current setting
• Use the ▲ up and ▼ down arrows to change the setpoint
• Press and hold the ENTER button to confirm each setpoint change
• Press the BACK button to escape

Thermostats (continued)

Setpoints

tS = Temperature setpoint

diF = Differential

CSH = Maximum compressor starts/stops

dPd = Defrost per day

tod = time of day ( only used when custom defrost is selected)

dFt = Defrost time

HAO = High Alarm Offset

LAO = Low Alarm Offset

tAd = Temperature Alarm Delay

Adr = Mod Bus Address

Unt = Ynits for temperature display (FAH or CEL)

Basic Setpoints

Setpoint	Description	Minimum	550005663Default	550005664Default	Maximum
tS	Temperature Setpoint	-50°F (-45°C)	35°F	10°F	100°F (38°C)
diF	Differential	1°F	3.5°F	3.5°F	30°F
CSH	Maximum Compressor Starts/Hour	5 (Off)*	0 (off)	0 (off)	10
dPd	Defrost Per Day	0	4	0	12, CUS**
dFt	Defrost Time	0 min	30 min	0 min	720 min
HAO	High Alarm Offset	1°F	10°F	10°F	10°F
LAO	Low Alarm Offset	1°F	5°F	5°F	10°F
tAd	Temp Alarm Delay	1 min	60 min	60 min	180 min
Adr	Mod Bus Address	1	1	1	247
Unt	Units for Temp Display	FAH	FAH	FAH	CEL

*Selecting fewer than 5 compressor starts per hour results in the starts per hour feature being turned off. The compressor will then function on temperature only.
** Selecting CUS (custom) unlocks 12 tod (time of day) defrost setpoints.

Thermostats (continued)

Custom tod (Time of Day) Defrost Setpoints

Setpoint	Description	Minimum	Default	Maximum
tod Time of Day 0.0 12.0 23.5
d1 Start time of day #1 0.0 dis (disabled) 23,dis (disabled)
d2	Start time of day #2	0.0	dis	23,dis
d3	Start time of day #3	0.0	dis	23,dis
d4	Start time of day #4	0.0	dis	23,dis
d5	Start time of day #5	0.0	dis	23,dis
d6	Start time of day #6	0.0	dis	23,dis
d7	Start time of day #7	0.0	dis	23,dis
d8	Start time of day #8	0.0	dis	23,dis
d9	Start time of day #9	0.0	dis	23,dis
d10	Start time of day #10	0.0	dis	23,dis
d11	Start time of day #11	0.0	dis	23,dis
d12	Start time of day #12	0.0	dis	23,dis

Note: The time of day defrost setting use military time. The first 2 digits are the hour and the 1 digit after the decimal is the minutes.

Thermostats (continued)

Custom Defrost Setup

Custom Defrost Setup

The following steps will guide you through the setup of the custom defrost feature.

Abbreviations:

CUS = custom

d1 = custom defrost 1

diS = disabled

ts = temperature setpoint

tod = time of day

3.5.2 BACK ENTER Hold for manual defrost

STEP 1

Press and hold the ENTER button, tS is displayed on the LEDs

STEP 2

Press the ▲ up arrow until dPd is displayed,

then press ENTER, 6 (default) will be displayed.

STEP 3

Press the ▲ up arrow until CUS is displayed.

Press and hold the ENTER button for 3 seconds until the dPd is displayed.

STEP 4

Press the ▲ up arrow until tod (time of day) is displayed,

then press

Use the ▲ up arrow and ▼ down arrow to set the time.

Note: The time is displayed in military time (24-hr clock) The 1st 2 digits are the hour. The minutes are after the decimal. Since there are only 3 digits, the time will be set to the nearest 10 minutes. See examples below.

Examples:

8:10 am would be 8.1 on the controller's display

4:32 pm would be 16.3 on the controller's display.

After the time is set, press and hold the ENTER button for 3 seconds, until tod is displayed

STEP 5

Press the ▲ up arrow to display Defrost 1 (d1).

To set the first defrost, press ENTER button.

diS (disabled) will be displayed.

Use the ▼ down arrow to set the defrost time.

Note: Defrost times may only be set on the hour.

Example:

2:00 am would be 2

Once the correct time is displayed, press and hold the ENTER button until d1 is displayed.

STEP 6

Repeat steps as necessary for d2 to d12.

STEP 7

Press the BACK button to save settings, and return to the main screen (room temp will be displayed).

Electric Defrost Timer:

ELECTRIC DEFROST TIMER

Electric Defrost Time Clock Instructions:

Instructions for setting the timer is located on the inside cover of the time clock. The defrost timer clock must be set to the correct time at initial start-up and after any power interruptions. Set the clock by rotating the clock face until the correct time is at the arrow on the face of the timer. The switch is programmed by pushing the captive trippers to the inner ring for the entire period the load is to be turned "ON". When a tripper is pushed to the outside, the switch is in the "DEFROST" position. Each defrost tripper represents 15 minutes of defrost time. The timer is factory set for four defrost cycles daily: 4:00AM, 10:00AM, 4:00PM, and 10:00PM. Each defrost cycle is programmed for 45 minutes duration. The defrost times may be changed to initiate at periods of low activity (trippers pushed out will close contacts to terminals 1 & 3).

Note: If the defrost termination thermostat fails to close, the fail safe setting on the timer will terminate the defrost cycle. The timer starts the defrost cycle automatically at the predetermined times. A setting of two to four defrost cycles per day is typical. For heavier frost loads, additional cycles may be required.

When the defrost cycle begins:

1. Switch 2 to 4 opens in the time clock, breaking the circuit to the room thermostat, liquid line solenoid, and evaporator fan motors. This allows the compressor to pump down and shut off. Simultaneously, switch 1 to 3 closes in the timer, energizing the defrost heaters.
2. The heaters increase the coil temperatures above 32°F, melting the frost off the coil.
3. When the coil warms to approximately 55^ F, the defrost termination thermostat closes and energizes the switching solenoid in the timer. At this time, switch 1 to 3 in the timer opens, terminating the defrost heaters. Simultaneously, switch 2 to 4 closes in the time clock, energizing the temperature control circuit.
4. Suction pressure rises, the low pressure control closes, and the compressor starts.
5. The fan relay closes when the coil temperature reaches approximately 30^ F. This energizes the fan motors.
6. The system operates in the refrigeration cycle until another defrost cycle is initiated by the timer.

Maintenance

Maintenance Chart

Area	Task	Frequency
Evaporator	Check for proper defrosting	Monthly
	Clean the coil and drain pan	Every 6 months
	Check for proper drainage
Condenser	Inspect /clean the coil if the air supply is near polluting sources (such as cooking appliances)	Monthly
	Clean the coil surface	Every 3 months
General	Check/tighten all electrical connections	Every 6 months
	Check all wiring and insulators
	Check contactor for proper operation and contact point deterioration
	Check all fan motors
	Tighten fan set screws, and motor mount nuts and bolts
	For semi-hermetics, check the oil level in the system
	Check the operation of the control system
	Make certain all safety controls are operating properly
	Check operation of the drain line heater and examine for cuts and abrasions
	Check/tighten all mechanical/flare connections

CAUTION

Failure to keep the condenser coil clean will result in reduced airflow through the condenser, resulting in poor system performance and premature compressor failure.

MISE EN GARDE

Polyol Ester (POE) Lubricants:

Polyol Ester (POE) lubricants quickly absorb moisture from the ambient surroundings. POE lubricants absorb moisture more rapidly and in greater quantity than conventional mineral oils. Because moisture levels greater than 100 PPM will result in system corrosion and component failure, it is essential that system exposure to ambient conditions be kept to a minimum.

If a system is left open to the atmosphere for more than 15 minutes, the liquid line drier and compressor oil must be replaced. Drain at least 95% of the oil from the compressor suction port. Measure the amount of removed oil, and replace it with exactly the same amount of new POE oil. Mobil EAL™ ARCTIC 22 CC is the preferred Polyol Ester

Polyol Ester (POE) Lubricants (continued):

lubricant because of its particular additives. ICI Emkarate RL 32S is an acceptable alternative when the Mobil is not available. These POE lubricants must be used with HFC refrigerants. Lubricants are packaged in specially designed, sealed containers. Once opened, use the lubricant immediately. Properly dispose of any unused lubricant.

Troubleshooting Charts

Evaporator Troubleshooting Chart:

Problem	Possible Cause	Corrective Action
Fan(s) will not operate.	Main switch open	Close switch
	Blown fuse(s)	Replace fuse(s). Check for short circuits or overload conditions.
	Defective motor	Replace motor.
	Defective timer or defrost thermostat	Replace defective component.
	Unit in defrost cycle	Wait for completion of cycle.
Walk-in temperature too high.	Thermostat set too high	Adjust thermostat.
	Superheat too high	Adjust thermal expansion valve.
	System low on refrigerant	Locate and repair leak, recover, evacuate and recharge.
	Coil iced up Manually defrost coil.	Check defrost controls.
Ice accumulating on ceiling around evaporator and/or on fan guards, venturi, or blades.	Defrost duration is too long	Adjust defrost termination thermostat (if adjustable).
	Fan delay not delaying fans after defrost period	Replace defective defrost thermostat.
	Defective defrost thermostat or timer	Replace defective component.
	Too many defrost cycles per day	Reduce number of defrost cycles per day.
Frost on coil after defrost cycle.	Coil temperature not getting above freezing point during defrost	Check heater operation
	Not enough defrost cycles per day	Adjust timer for more defrost cycles per day
	Defrost cycle too short Adjust timer	for longer cycle, check defrost thermostat mounting
	Defective timer or defrost thermostat	Replace defective component.
Ice accumulating in drain pan.	Defective heater	Replace heater.
	Unit not pitched properly	Check and adjust.
	Drain line plugged	Clean drain line.
	Defective drain line heater	Replace heater.
	Defective timer or thermostat	Replace defective component.

Condensing Unit Troubleshooting Chart:

Problem	Possible Cause	Corrective Action
Compressor will not run.	Main switch open	Close switch
	Fuse blown	Check electrical circuits and motor winding for shorts or grounds. Investigate for possible overloading. Replace fuse after fault is corrected.
	Thermal overloads tripped	Overloads are automatically reset. Check unit closely when unit comes back on line.
	Defective contactor or coil	Repair or replace
	System shut down by safety devices	Determine type and cause of shutdown and correct
	No cooling required	None. Wait until cooling is required.
	Liquid line solenoid will not open.	Repair or replace coil.
	Low pressure switch will not close.	Replace switch
	Motor electrical trouble	Check motor for open windings or short circuit.
	Loose wiring	Check all wire junctions. Tighten all terminal screws.
Compressor noisy or vibrating	Flooding of refrigerant into crankcase	Check superheat setting of expansion valve
	Improper pipe support	Relocate or add hangers
	Worn compressor	Replace compressor
High discharge pressure	Non-condensable in system	Recover, evacuate and charge
	System overcharged with refrigerant	Remove excess charge
	Discharge shut-off valve partially closed	Open valve
	Fan not running	Check electrical circuit or replace defective fan motor
	Insufficient condenser air supply	Check for cause and correct
	Dirty condenser coil	Clean coil
Low discharge pressure	Faulty head pressure control	Check head pressure control operation.
	Suction shut-off valve partially closed	Open valve
	Insufficient refrigerant in system	Locate and repair leak, recover, evacuate and recharge
	Low suction pressure	Check for proper refrigerant charge
High suction pressure	Excessive load	Reduce load or add additional equipment
	Expansion valve overfeeding	Secure and insulate TXV bulb or if required adjust superheat.
Low suction pressure	Lack of refrigerant	Locate and repair leak, recover, evacuate and charge.
	Evaporator dirty or iced	Clean
	Clogged liquid line or suction line filter-drier	Replace filter-drier
	Expansion valve malfunctioning	Check and reset for proper superheat
	Condensing temperature too low	Check head pressure control
	Improper TXV	Check for proper sizing
Compressor loses oil	Lack of refrigerant	Locate and repair leak, recover, evacuate and recharge
	Excessive compression ring blow-by	Replace compressor
	Refrigerant flood back	Maintain proper superheat at compressor
	Improper piping or traps	Correct piping
Compressor thermal protector switch open	Operating beyond design	Add facilities so that operating conditions are within allowable limits
	Discharge valve partially shut	Open valve
	Dirty condenser coil	Clean coil
	Overcharged system	Correct charge

Notes:

ArcticFox Local Area Dashboard & Alarms (LDA):

1. When the LDA is connected to the same network as ArcticFox controllers, it immediately and automatically scans and finds all ArcticFox controllers – Ethernet or Serial-ModBus.

2. Serve as a Permanent WiFi Service Tool

3. Display a Local Area Dashboard showing controllers connected to the customer's network
4. Connect controllers to ArcticFox SmartAccess customer portal without requiring controller upgrades
5. Send Email Alarms to multiple email recipients
6. View Serial devices in a webpage, make changes to setpoints, and receive alerts via email or text message
   • 366-day datalogging when used with the ArcticFox Flash Drive

7. Wirelessly tether to the local network (Wirelessly connect a controller to existing WiFi.)

8. The LDA allows customers to locally view all of their controllers in a single view, without a recurring fee. And, additionally, enables customers to access their controllers over the Internet, by functioning as a conduit to ArcticFox SmartAccess (available for a nominal monthly charge.)

ArcticFox LDA Kit includes the LDA & Accessories:

LDA ArcticFox WiFi® Dashboard & Alarms Serial Adaptor 5ft Ethernet Cable Power Plug USB Cable

LDA Back Label:

Unique for each LDA Used to identify device Serial #: 16197-251 Power: 5V-1A MAC: EF:95:6E:40:87:F3 WIFI ESSID: KE2LDA-4087F3 WIFI PW: 3YzliZmQyZTI4 MGMT LOGIN: ke2admin MGMT PW: 3YzliZmQyZTI4 http:ke2lda or IP: 192.168.50.1 QR Code Links to Setup Page

LDA Side View:

USB Reset OFF ON WiFi Switch

ModBus Configuration – First Installation Of ModBus Devices On LDA.

Step 1 – Daisy chain connections on controllers.

A B Sh A B Sh A B Sh A B Sh A B Sh- not connected or connected to earth ground

Step 2 – Finish wiring connection at USB adapter.

Do not plug into LDA or power on LDA

A B Sh- not connected or connected to earth ground A B Sh- not connected or connected to earth ground

Step 3 – Power on controllers.

Step 4 – Change ModBus address on each controller.

Each controller's ModBus address must be unique. Available addresses are 2-247.

Press and hold the ENTER button to access the Setpoints menu.

tS is displayed.

t5

Then use the ▼ arrow until you see Adr (Address).

Rdr

Press ENTER and the current address is displayed (default =1)

Change the address by pressing the ▲ or ▼ arrow to change the value. Use the button to move to the next digit. Available addresses are 2-247.

When address is set to the preferred value (ex. 123), press and hold ENTER for 3 seconds to save the address.

123

Example

The controller will return to the Adr screen when the setting is saved.

Rdr

The setting change can be verified by pressing the ENTER button.

To exit, press the BACK button several times.

Step 5 – Plug the USB adapter into the LDA.

ArcticFox WiFi Dashboard & Alarms

Step 6 – Power the LDA.

Power ArcticFox WiFi Dashboard & Alarms

Installing the LDA: Option 1 – Connecting using the LDA as a permanent WiFi service tool.

Note: Each device must have a separate/unique Modbus address.

Plug power cable into the LDA and the other end into an electrical outlet. The unit will power on automatically.

Installing the LDA: Option 2 – Connection direct to PC via cable or WiFi. Note: Each device must have a separate/unique Modbus address.

Installing the LDA: Option 3 – Connection direct to PC via cable without WiFi. Note: Each device must have a separate/unique Modbus address.

Plug power cable into the LDA and the other end into an electrical outlet. The unit will power on automatically. Power LAN ArcticFox WiFi Dashboard & Alarms

Using the Flash Drive for data logging the LDA.

1. Regardless of how the LDA is connected to the network, if the Flash Drive is used for data logging, the USB Hub is connected first. Then the Flash Drive, and the daisy-chained Serial-Modbus controllers, are connected to the ports in the USB Hub.

Flash Drive Kit

Flash Drive

Black USB Hub device with four ports, labeled 'USB Hub' (no other text or symbols visible)

Accessing the local dashboard.

1. To access the LDA, connect to the same network as the device. Since it is an Ethernet device, speaking TCP/IP, users can connect to it by simply launching their preferred web browser, and typing in the address bar: https://aflda

https://aflda/

1. This brings the user to their local dashboard. Once connected to the dashboard, the user will immediately see up to 10 displayed controllers. For controllers on the network, simply click on the IP address of the controller, to immediately connect to that controller's home page.

ArcioFos WiFi LocalArea Dashboard Services Manage Type Endpoint Location Mode Room Alarm DC HC 16.1.18.134 Kuwait(110000) Refrigerate 15.8 F ABS Clean DC HC Service View (Set device name) Refrigerate 16.7 F ABS Clean DC HC Service View (Set device name) OFF 14.5 C ABS Clean

1. The user's web browser will launch a new tab, and open the controllers MasterView, giving immediate access to view the controller, as well as make changes.

Koipak [phone] IP Address: 10.1.0.107 MAC Address: D8:80:39:C1:86:DF Location: (Set Location) System Mode Off Room Temp -5.0 F Coil Temp -18.7 F Compressor Relay Off Evaporator Fan Relay Off Defrost Relay Off Aux1 Coil Temp -18.2 F Aux Input2 Disabled System System On Disp Door Sw Disabled Disp Air Relay Disabled Disp Lit Relay Disabled SH Superheat 5.3 F Suction Press 20.7 psig Suction Temp -8.5 F Sat Temp -13.8 F Valve Position 0.0 % Disp Sensor Disabled All Clear Home Pages Settings Network Setpoints Graphs Siteview Active Users: 1 Keep

Connecting the LDA to the internet:

You have 2 options when connecting the LDA to the internet – either hardwire the WAN port to the customer switch/router, or tethering to WiFi.

When in the manage page, click on the "Advanced" tab.

Clicking anywhere in the Wi-Fi box forces a scan for available wireless networks.

Kolpak recommends connecting to the LDA via the LAN port. As the warning states you could be disconnected from Wi-Fi during the scan.

Access Alerts Credentials Advanced Tethering Wi-Fi Updates Update Firmware Warning! Scanning Wi-Fi may disconnect you or other users from the LDA for the duration of the scan. Are you sure you wish to do this? Cancel OK

Pick the appropriate WiFi profile to connect.

KE2LDA-4065F3 KE2-HQ KE2-Guest KE2LDA-4065C0 GL-AR300M-07b KE2LDA-4065F9 KE2LDA-4F204B KE2LDA-4F208B KE2LDA-4F20DC KE2LDA-40660E KE2LDA-4065F6

Enter the password, then check the Tethering box.

Advanced Tethering ✓ Wi-Fi Mike's iPhone Pass ...

Allowing Kolpak to Remote Access:

It is often beneficial to allow Kolpak Technical Support to remotely access the portal to help assist with any problems.

Services WiFi LocalArea Managasta & Our role Access: 17 Active remote assistance by NOS Type Endpoints Host Description Domain

pc # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC #PC

pc # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC #PC

pc # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC # PC #PC

pc # PC # PC # PC # PC # PC #PC

pc # PC # PC # PC #PC

pc # PC #PC

pc #PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0 / 0

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @PC

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc @Pc

pc : 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17 / 17

Manage Email Alerts - Designed to simplify email notifications, the LDA provides:

• Single-point to enter email information, up to 10 controllers.
• Manage the email addresses receiving alerts.
• Set who the email is from.
• Elect to either use ArcticFox email server, or a customer provided server.

Navigate to the Management screen.

Arctic Fox LocalArea WiFi Management Console ✓ Allow remote assistance by KE2

Type Endpoint Host Description Domain

IPC #1.1.8.56 #0.01.83:0C.83.85 Controlled Environment Test2

IPC #1.1.8.76 #0.04.83:52-C7.58 (Set Location)

IPC #1.1.8.995 #0.04.83:57-52.83 28.1.8.10.

IPC #1.1.8.104 #0.04.83:52-C8.47 Corp Sequencer

The Alerts section is at the bottom of the listed options. To enable the functionality, click the box next to the alerts.

Services Access Alerts

For questions pertaining to the Alerts, click on the ? near the top right on the screen.

Alerts Transqued From Subject [e-mail],ryan.kli@[e-mail] [[e-mail]] [ Alarm 1 ] [ Alarm 2 ] [ xkR Sites - Service Description ] [ KSHSA xkA No SMTP Advanced Text Clear

A description on the Alerts feature is displayed.

Send email alerts for alarms in services. Click the Alerts checkbox in the panel header to enable / disable. Marks selected services with (△) when enabled. Fields To Email address(es). Required. Multiple addresses should be , delimited. From Email address. Optional. Subject Subject line. Optional. Default one is dynamic and includes uniquely-identifying information for reported alarm(s) and the reporting service and LDA. Can only be customized to a static text that stays the same for all alarms and services. SMTP Settings to use a custom outgoing mail server. Actions Test Send test email alert using mock alarms. Clear cached alarms to cause all alarms

The field expands to enter an email address as well as define the From email and Subject line if desired.

Alerts To required [e-mail],[e-mail] From [e-mail] Subject [ Also -SMTP Test Clear

To:

The email addresses receiving the email alerts should be entered into this field. Multiple addresses should be separated with a comma as shown.

From:

If the default sender creates confusion for the party (parties) receiving the emails it can be changed to reflect the desired information.

When customers choose to use their own email server as the email relay, the SMTP section should be expanded. It can be expanded by clicking anywhere on the gray bar.

Once expanded, the appropriate information should be entered from the customer supplied email server.

Sample screenshot when accessing via cell phone. ke2Ida LocalArea Management Console Alerts To required userifexample.com,user2fexample.com From [e-mail] Subject | Alarm 1; Alarm 2 | 0 - When customers choose to use their own email server as the email relay, the SMTP section should be expanded. It can be expanded by clicking anywhere on the gray bar. Once expanded, the appropriate information should be entered from the customer supplied Email server.

Alerts To request [e-mail],[e-mail] From [e-mail] SMTP advanced Server Username Password http://www.elseaemport/ TLS STARTTLS Test Clear Credentials Management User Management Pass koSadma Modbus User Modbus Pass koSadma Wi-Fi SSID Wi-Fi Pass NEZLDM-000000

Server: hostname or hostname:port - The Host is the address of the email server being used to relay the email alarm. The Port defines the specific port used by the email server when routing mail. This is TCP25 by default. Username: Enter the username for the account being used for authentication to the email server.

Alerts To request [e-mail][e-mail] From [e-mail] SMTP advanced Server Username Password hostcode Of: n0472951.net TLS STARTTLS Text Clear Credentials Management User kgSadmix Management Pass Modbus User kgSadmix Modbus Pass Wi-Fi SSID REZLDN+00000 Wi-Fi Pass ...

Password: The credentials for the Username being used for authentication.

Alerts To account from [e-mail][e-mail] to [e-mail] SMTP advanced Server Username Password housepower OR https://www.port TLS STARTTLS Text Clear Credentials Management User Management Pass koAdmin Modbus User Modbus Pass koAdmin WiFi SSID WiFi Pass REZLDA-00808 —

TLS: This option is selected when using secure email. STARTTLS: This option will upgrade insecure connections to SSL/TLS. When the proper information has been entered, the email service can be tested using the Test button. The Clear button clears alarms on published controllers. Will resend emails for controllers in alarm.

TLS STARTTLS Test Clear Credentials Management User ke2admin Management Pass Modbus User ke2admin Modbus Pass Wi-Fi SSID KE2LDA-406608 Wi-Fi Pass

Credentials: Changing User Names & Passwords. Credentials are also changed on the Management Console.

Alerts To required [e-mail],[e-mail] From [e-mail] -SMTP advanced Server hostname OF hostname:port Username TLS STARTTLS Test Clear Credentials Management User ke2admin Modbus User ke2admin Wi-FI SSID KE2LDA-406608

In the Credentials section, for user security purposes, the Management User name and Management Password, Modbus User name and Modbus Password, as well as the Wi-Fi Password for the LDA, can all be changed. When changing the Management User Credentials, Management User, or Management Password, the changes are made independent of each other. You must re-authenticate, with the new credentials, after each change. You will be prompted to confirm, then redirected to the Login page. NOTE: If login credentials are misplaced, the only option is to hold the reset button, and reset the LDA to factory settings, i.e. afadmin for all User and Passwords. This will also reset the wireless credentials, to those listed on the back label of the LDA.

ke2lda-406608 says: Are you sure you want to update this credential? OK Cancel


ke2lda-406608 says: Management credentials have changed! Redirecting to login page... □ Prevent this page from creating additional dialogs. OK


LDA Management Login Username: Password: Login

Modbus (Serial) Access:

For the ModBus (serial) devices you can access the web page for the controller by clicking on the Services view from either the Management Console or the Dashboard for published devices. When you open the Services view you will see the web page in either Simple or Advanced View.

Services Scan Type Endpoint Host Description IPC 10.1.0.08 00:04:A3:BC:83:85 Controlled Envio IPC 10.1.0.76 00:04:A3:2:7:$8 (Set Location) IPC 10.1.0.101 00:04:A3:C7:H2:83 10.1.0.101 IPC 10.1.0.129 00:04:A3:14:8:7 10.1.0.129 IPC 10.1.0.130 00:31:CR:87:4C:7A 10.1.0.130 TPC 10.1.0.134 00:04:A3:P5:P9:AC CowardylionV205 IPC 10.1.0.169 DR:00:29:2F:5:63 Donkey OEM RC TPC 10.1.0.188 00:04:A3:8:A4:7 XE2MQ MHC Service View COM1:31 (Set device_name) MHC Service View COM1:32 (Set device_name) MHC Service View COM1:33 (Set device_name) MHC Service View COM1:34 (Set device_name)

Simple View:

In Simple View you will see the System State as individual icons. This is the current state of the device. To access Advanced View click on the Show Advanced View

Advanced View:

Click on the ? in any of the setpoint areas to show the limits for those setpoints. For example the Room Temperature.

ArcticFox Temp Show Simple View Logout System State SystemMode Refrigerate RoomTemperature 36.7 F Relay Relay On Alarms None Manual System Control Next Mode Setpoints RoomTemperature ? 35 F AirTempOff ? 3 F Compressor Starts Per Hour ? 6 Defrost Time ? 15 DefrostsPerDay ? 8 HiTempAlarmOffset ? 10 F HighAndLowAlarmDelay ? 90 Temperature Units :

Click within the grey area to make changes to a setpoint.

Room Temperature ? Limits Min: -50 F Max: 100 F 35 F

Setting a setpoint outside of the limits...will return a "Validation failed" message.

Room Temperature ? Limits Min: -50 F Max: 100 F 101 Save Cancel


An embedded page at ... niazmv3wtzdsr7ynufqnr8dqy33vvsjn0x3oa- x1.dyn.ke2therm.net says: Validation failed: 101 is greater than maximum of 100.

For any changes to Modbus setpoints or device\_name changes you will be prompted for the Modbus Device Login. The defaults are afadmin and afadmin, unless they were changed on the authentication screen. NOTE: This will be a one time login for your active session. The first setpoint that's changed will prompt you for the password. Additional setpoint changes on that controller, or other Modbus controller's, will not prompt for the password.

Modbus Device Login Username: Password: Login Close

Sample screenshot when accessing via cell phone.

ke2lda LocalArea Managemart Console Advanced Tethering Wi-Fi Pass Updates Update Firmware

For security purposes, Logout when finished making all ModBus changes. The Success image will display to verify that you have successfully logged out.

ArcticFox Temp Show Simple View Logout Success You are logged out! OK

Remote Access Setup:

ArcticFox LDA provides the user with simple remote access to Smart Access portal, which provides quick and easy, real time access to your refrigeration systems 24/7. No port forwarding. No VPN. All the LDA needs is a physical connection to the network router with a cat 5 cable. Smart Access automatically connects to your personal web portal, providing a dashboard of the controllers you publish with the LDA. For questions pertaining to the Access feature, click on the ? near the top right of the screen. A description of the Access page features is displayed.

Access Portal required Access Publish services to a portal for remote access from anywhere in the world. Click the Access checkbox in the panel header to enable / disable. Marks selected services with (●) when enabled. Fields Portal Domain name. Site Login credential. Pass Login credential.

Portal: The portal is the internet address used to access the controllers remotely. This should NEVER be changed without directions from Kolpak. Changing it may result in loss of remote access. Site: The default Site for all LDA devices AFLDA-and the last 6 digits of MAC Address. Kolpak recommends changing this to something easily remembered by the person who will be accessing the controllers remotely.

Access Portal required smartaccess.ke2therm.net checking ... Site required KE2LDA - 40600D

Pass: The default Pass for the LDA is the Mac Address, separated by dashes, rather than colons. For example if the LDA's Mac Address is E4:95:6E:60:0D the Password is E4-95-6E-60-0D.

Site required KE2LDA-40600D Pass required MAC address is the default password, with dashes, replacing colons. Serial #: 16197-251 Power: SV-1A MAC: EF:95:6E:40:60:0D WIFI ESSID: KE2LDA-4087F3 WIFI PW: 3YzliZmQyZT4 MGMT LOGIN: ke2admin MGMT PW: 3YzliZmQyZT4 http:ke2lda or IP: 192.168.50.1 Sample screenshot when accessing via cell phone.

By clicking on the arrow next to your portal name (or entering https://afwifi.net in your web browser) will take you to the site.

Sample screenshot when accessing via cell phone. Access Portal required afwifi.net Site required KEZLDA-40600D checking... Portal > access afwifi.net Ready Site required aFidaket Pass required **********

Use the site name and credentials you setup on the previous page to access your site.

ArcticFox™ Site Password Log in

Upon sign in, your site will look like this. Select the Fields drop down to customize the dashboard.

http://www.163.com.cn Location MAC Mode Room Cell Alarm Health License [e-mail] 04-05-04-03:00:04 26.4.8.09 NetApprvs 16.1.7 16.2.7 76 sec Server ****** close at 00:00:00 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 162.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.1 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 163.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 164.4.2 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165. 165.

Show only the fields that are important to you, by clicking on the field name, and checking or unchecking the boxes.

Fields ▲ Controller Location MAC Address IP Address System Mode Room Temperature Coil Temperature Superheat Suction Press Alarm Service Health Reconnects License Units Normalize °C / °F

To setup Alarms notifications select the Alarms drop down and enter the email addresses.

Location MAC Node Room Cell Alarm Health License Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 100.0.0.00 Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/124 Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/125 Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/123.com/124 Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com / 888.8.9 Access: http://www.123.com/123.com/123.com/123.com/123.com/123.com/123.com/124 Access: http://www.123.com/123.com/123.com/123.com/124 Access: http://www.123.com/124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www.124 Access: http://www-< img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < img src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src="box"> < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box' < image src='box'

When a controller goes into alarm, an email notification is sent to everyone in the list.

Fields ▼ Alarms ▲ Send Emails To [e-mail]

NOTE: This is not required if Alarm notifications were already setup on the LDA. Click the Licenses drop down to easily purchase Smart Access.

arms ▼ Licenses ▲ Buy Key Copy

Evaporator Troubleshooting Chart:

Problem	Possible Cause	Corrective Action
Fan(s) will not operate.	Main switch open	Close switch
	Blown fuse(s)	Replace fuse(s). Check for short circuits or overload conditions.
	Defective motor	Replace motor.
	Defective timer or defrost thermostat	Replace defective component.
	Unit in defrost cycle	Wait for completion of cycle.
Walk-in temperature too high.	Thermostat set too high	Adjust thermostat.
	Superheat too high	Adjust thermal expansion valve.
	System low on refrigerant	Locate and repair leak, recover, evacuate and recharge.
	Coil iced up	Manually defrost coil. Check defrost controls.
Ice accumulating on ceiling around evaporator and/or on fan guards, venturi, or blades.	Defrost duration is too long	Adjust defrost termination thermostat (if adjustable).
	Fan delay not delaying fans after defrost period	Replace defective defrost thermostat.
	Defective defrost thermostat or timer	Replace defective component.
	Too many defrost cycles per day	Reduce number of defrost cycles per day.
Frost on coil after defrost cycle.	Coil temperature not getting above freezing point during defrost	Check heater operation
	Not enough defrost cycles per day	Adjust timer for more defrost cycles per day
	Defrost cycle too short	Adjust timer for longer cycle, check defrost thermostat mounting
	Defective timer or defrost thermostat	Replace defective component.
Ice accumulating in drain pan.	Defective heater	Replace heater.
	Unit not pitched properly	Check and adjust.
	Drain line plugged	Clean drain line.
	Defective drain line heater	Replace heater.
	Defective timer or thermostat	Replace defective component.

Condensing Unit Troubleshooting Chart:

Problem	Possible Cause	Corrective Action
Compressor will not run.	Main switch open	Close switch
	Fuse blown	Check electrical circuits and motor winding for shorts or grounds. Investigate for possible overloading. Replace fuse after fault is corrected.
	Thermal overloads tripped	Overloads are automatically reset. Check unit closely when unit comes back on line.
	Defective contactor or coil	Repair or replace
	System shut down by safety devices	Determine type and cause of shutdown and correct
	No cooling required	None. Wait until cooling is required.
	Liquid line solenoid will not open.	Repair or replace coil.
	Low pressure switch will not close.	Replace switch
	Motor electrical trouble	Check motor for open windings or short circuit.
	Loose wiring	Check all wire junctions. Tighten all terminal screws.
Compressor noisy or vibrating	Flooding of refrigerant into crankcase	Check superheat setting of expansion valve
	Improper pipe support	Relocate or add hangers
	Worn compressor	Replace compressor
High discharge pressure	Non-condensable in system	Recover, evacuate and charge
	System overcharged with refrigerant	Remove excess charge
	Discharge shut-off valve partially closed	Open valve
	Fan not running	Check electrical circuit or replace defective fan motor
	Insufficient condenser air supply	Check for cause and correct
	Dirty condenser coil	Clean coil
Low discharge pressure	Faulty head pressure control	Check head pressure control operation.
	Suction shut-off valve partially closed	Open valve
	Insufficient refrigerant in system	Locate and repair leak, recover, evacuate and recharge
	Low suction pressure	Check for proper refrigerant charge
High suction pressure	Excessive load	Reduce load or add additional equipment
	Expansion valve overfeeding	Secure and insulate TXV bulb or if required adjust superheat.
Low suction pressure	Lack of refrigerant	Locate and repair leak, recover, evacuate and charge.
	Evaporator dirty or iced	Clean
	Clogged liquid line or suction line filter-drier	Replace filter-drier
	Expansion valve malfunctioning	Check and reset for proper superheat
	Condensing temperature too low	Check head pressure control
	Improper TXV	Check for proper sizing
Compressor loses oil	Lack of refrigerant	Locate and repair leak, recover, evacuate and recharge
	Excessive compression ring blow-by	Replace compressor
	Refrigerant flood back	Maintain proper superheat at compressor
	Improper piping or traps	Correct piping
Compressor thermal protector switch open	Operating beyond design	Add facilities so that operating conditions are within allowable limits
	Discharge valve partially shut	Open valve
	Dirty condenser coil	Clean coil
	Overcharged system	Correct charge

Notes:

FACTORY WIRING FIELD WIRING 208-230/60/1 L1 L2 G GROUND SCREW CONNECT INCOMING POWER LEADS FROM DISCONNECT SWITCH TO L1, AND L2, CONSISTENT WITH NAMEPLATE VOLTAGE AND FREQUENCY. USE COPPER CONDUCTORS ONLY. HIGH PRESSURE CONTROL SWITCH LOW PRESSURE CONTROL SWITCH ORANGE ORANGE BLUE or RED or GRAY BLUE or RED or GRAY BLACK BLUE RED O C O S O R EXTERNAL OVERLOAD (If required) Wired in series In common line. COMPRESSOR TERMINAL BOX BLACK BLACK CRANKCASE HEATER (IF REQUIRED) CONDENSING UNIT ELECTRICAL BOX FAN CYCLE CONTROL SWITCH (IF REQUIRED) CONDENSING UNIT ELECTRICAL BOX CONDENSER FAN YELLOW BLUE RUN CAPACITOR BLACK RED YELLOW


FACTORY WIRING FIELD WIRING 208-230/3/60 L1 L2 L3 G GROUNDS SCREW ORANGE ORANGE BLUE or RED or GRAY BLUE or RED or GRAY HIGH PRESSURE CONTROL SWITCH LOW PRESSURE CONTROL SWITCH 230V COIL T1 T2 T3 BLACK BLUE RED COMPRESSOR TERMINAL BOX BLACK BLACK CRANKCASE HEATER (IF REQUIRED) CONDENSING UNIT ELECTRICAL BOX FAN CYCLE CONTROL SWITCH (IF REQUIRED) CONDENSING UNIT (17577-5) WIRING DIAGRAM 208-230/3/60 CONDENSING UNIT


FACTORY WIRING FIELD WIRING 460/3/60 L1 L2 L3 G CONNECT INCOMING POWER LEADS FROM DISCONNECT SWITCH TO L1, L2 AND L3, CONSISTENT WITH NAMEPLATE VOLTAGE AND FREQUENCY. USE COPPER CONDUCTORS ONLY. FUSES 460 V TRANSFORMER 230 V GROUND SCREW 230V COIL ORANGE ORANGE BLUE or RED or GRAY BLUE or RED or GRAY HIGH PRESSURE CONTROL SWITCH LOW PRESSURE CONTROL SWITCH BLACK BLUE RED COMPRESSOR TERMINAL BOX BLACK BLACK CRANKCASE HEATER (IF REQUIRED) WIRING DIAGRAM 460/3/60 CONDENSING UNIT 20045-3 CONDENSER FAN YELLOW YELLOW FAN CYCLE CONTROL SWITCH (IF REQUIRED)


POWER LEADS FROM DISCONNECT SWITCH 208-230/60/1 G CONNECT INCOMING POWER LEADS FROM DISCONNECT SWITCH TO L1, AND L2 CONSISTENT WITH NAMEPLATE VOLTAGE AND FREQUENCY, USE COPPER CONDUCTORS ONLY. GROUND SCREW 5 2 RELAY 1 ADITZA 30Hz ORANGE START CAPACITOR RUN CAPACITOR BLUE T1 T2 BLACK BLACK BLACK GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN GREEN Greenhouse Line Thermostat High Pressure Control Switch Low Pressure Control Switch Black Black Blue Blue Black Blue Red Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black


POWER LEADS FROM DISCONNECT SWITCH 208-230/60/3 G CONNECT INCOMING POWER LEADS FROM DISCONNECT SWITCH TO L1, L2, AND L3 CONSISTENT WITH NAMEPLATE VOLTAGE AND FREQUENCY, USE COPPER CONDUCTORS ONLY. GROUND SCREW COIL 230V L1 L2 L3 CONTACTOR T1 T2 T3 BLACK BLACK BLACK BLACK BLACK BLACK BLUE BLUE DISCHARGE LINE THERMOSTAT HIGH PRESSURE CONTROL SWITCH LOW PRESSURE CONTROL SWITCH BLACK BLACK ORANGE ORANGE COMPRESSOR T1 C T2 S T3 R COMPRESSOR TERMINAL BOX BLACK BLUE RED BLACK BLACK CONDENSING UNIT ELECTRICAL BOX CRANKCASE HEATER (IF REQUIRED) LEFT CONDENSER FAN RIGHT CONDENSER FAN YELLOW YELLOW FAN CYCLE CONTROL SWITCH (OPTIONAL) WIRING DIAGRAM MEDIUM TEMP (MZ) SCROLL CONDENSING UNIT 208-230/60/3 550001506


230V ELECTRIC DEFROST TIMER FUSE1 FUSE1 RED USA BLACK USA RED USA TBI YELLOW USA WHITE USA RED USA TB1 3NX WIRE TO EVAPORATOR COIL FUSE1 RED USA BLACK USA RED USA TBI YELLOW USA YELLOW USA RED USA TB1 CONDENSING UNIT ELECTRICAL BOX CONDENSING UNIT ELECTRICAL BOX POWER LEADS FROM DISCONNECT SWITCH 208-230/1/60 L1 L2 G GREEN GREEN GREEN LGA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GA GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L4 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND GREEN L5 GND Green Charge Line THORMOSTAT Blue Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Black Blue T1 C O T2 S O T3 R COMPRESSION CORPRESSOR TERMINAL BOX CRAMCASE HEATER RED CHEDDER CONTROL SWITCH OFFIDUAL LEFT CONCERNER CAN RESET CONCERNER PAN 550003895-4


230V ELECTRIC DEFROST TIMER FUSE FUSE RED 10GA BLACK 10GA RED 14GA TRB TRB TRB TRB TRB T82 3 N X 4 WIRE TO EVAPORATOR COIL CONDENSING UNIT ELECTRICAL BOX POWER LEADS FROM DISCONNECT SWITCH 208-230/3/60 CONTACT INCONING POWER LEADS FROM DISCONNECT SWITCH TO L1, L2 AND L3 CONSISTENT WITH NAMEPLATE VOLTAGE AND FREQUENCY, USE COPPER CONDUCTORS ONLY. FACTORY WIRING FIELD WIRING RED 14GA BLUE 14 GA CONTACTOR BLACK 14GA RED 14GA BLACK 14GA RED 14 GA ADJUSTABLE LOW PHRINBURG SWITCH BLUE 14 GA DRANGE BRANCHARGE LINE THURBSSTAT BLACK BLACK DRANGE BRANCHARGE T3 C T2 S T3 R COMPRESSOR COMPRESSOR TERMINAL BOX CRANKCASE HEATER YELLOW BLACK BLACK YELLOW PAN CYCLE CONTROL SWITCH (OPTIONAL) LEFT CONCUMBER PAN RIGHT CONCUMBER PAN LOW TEMP SCROLL (LZ) REFRIGERATION SYSTEM WIRING DIAGRAM 208-230/3/60 SINGLE POINT ELECTRICAL TIMER MOUNTED & WIRED 550003911-4


UNIT COOLER 115/60/1 FAN MOTOR(S) SOLENOID VALVE (NC) NOTE: TEMPERATURE W/ AIR DEFROST CONTROL, SOLENOID VALVE, AND EXPANSION VALVE FACTORY MOUNTED AND WIRED M1 M2 RIB BLACK BLACK SENSOR YELLOW BLACK PURPLE L2/N L1 NC NO COM ELECTRONIC TEMPERATURE W/ AIR DEFROST CONTROL N H G 115/60/1 POWER LEADS FROM DISCONNECT SWITCH NOTE: DEFROST CONTROL IS BUILT INTO THE TEMPERATURE CONTROL. BY DEFAULT, THE DEFROST SETTINGS ARE EVERY 6 HOURS FOR 30 MINUTES. REFER TO OPERATIONS MANUAL FOR INSTRUCTIONS ON HOW TO CHANGE DEFROST SETTINGS. FIELD WIRING FACTORY WIRING WIRING DIAGRAM-AIR DEFROST EVAPORATOR w/ELECTRONIC TEMPERATURE & AIR DEFROST CONTROL 550003619-4


UNIT COOLER 208-230/60/1 FAN MOTOR(S) SOLENOID VALVE (NC) NOTE: TEMPERATURE W/ AIR DEFROST CONTROL, SOLENOID VALVE, AND EXPANSION VALVE FACTORY MOUNTED AND WIRED M1 M2 RIB BLACK BLACK SENSOR TEMP-IN YELLOW BLACK PURPLE L2/N L1 NC NO COM ELECTRONIC TEMPERATURE W/ AIR DEFROST CONTROL L2 208-230/60/1 L1 POWER LEADS FROM DISCONNECT SWITCH G NOTE: DEFROST CONTROL IS BUILT INTO THE TEMPERATURE CONTROL. BY DEFAULT, THE DEFROST SETTINGS ARE EVERY 6 HOURS FOR 30 MINUTES. REFER TO OPERATIONS MANUAL FOR INSTRUCTIONS ON HOW TO CHANGE DEFROST SETTINGS. FIELD WIRING FACTORY WIRING WIRING DIAGRAM-AIR DEFROST EVAPORATOR w/ELECTRONIC TEMPERATURE & AIR DEFROST CONTROL 550003620-1
    subgraph_Unit_Cooler_A["UNIT COOLER-A 115/60/1"]
        A["FAN MOTOR(S)"] --> B["M1"]
        B --> C["M2"]
        C --> D["RIB BLACK"]
        D --> E["SOLENOID VALVE (NC)"]
        E --> F["BLACK"]
        F --> G["SENSOR"]
        G --> H["TEMP-IN"]
        H --> I["L2/N"]
        I --> J["L1"]
        J --> K["BLACK"]
        K --> L["NO COM"]
        L --> M["PHILPLE"]
        M --> N["YELLOW"]
        N --> O["EXTRACTIONIC TEMPERATURE W/ AIR DEFROST CONTROL (SHIPS LOOSE)"]
    end

    subgraph_Unit_Cooler_B["UNIT COOLER-B 115/60/1"]
        P["FAN MOTOR(S)"] --> Q["M1"]
        Q --> R["M2"]
        R --> S["SOLENOID VALVE (NC)"]
        S --> T["BLACK"]
        T --> U["SENSOR"]
        U --> V["TEMP-IN"]
        V --> W["L2/N"]
        W --> X["L1"]
        X --> Y["BLACK"]
        Y --> Z["NO COM"]
        Z --> AA["PHILPLE"]
        AA --> AB["YELLOW"]
        AB --> AC["EXTRACTIONIC TEMPERATURE W/ AIR DEFROST CONTROL SHIPPED LOOSE FOR FIELD INSTALLATION. ALL COMPONENTS TO BE WIRED IN THE FIELD."]
    end

    Note["NOTE: DEFROST CONTROL IS BUILT INTO THE TEMPERATURE CONTROLLER. BY DEFAULT, THE DEFROST SETTINGS ARE EVERY 6 HOURS FOR 30 MINUTES. REFER TO OPERATIONS MANUAL FOR INSTRUCTIONS ON HOW TO CHANGE DEFROST SETTINGS."] --> Note
    Note --> Note1["NOTE: SOLENOID VALVE, AND EXPANSION VALVE FACTORY MOUNTED. TEMPERATURE W/ AIR DEFROST CONTROL SHIPPED LOOSE FOR FIELD INSTALLATION. ALL COMPONENTS TO BE WIRED IN THE FIELD."]
    Note1 -->|N 115/1/60 POWER LEADS FROM DISCONNECT SWITCH| Note
    subgraph_Unit_Cooler_A["UNIT COOLER-A 208-230/60/1"]
        A["FAN MOTOR(S)"] --> B["M1"]
        B --> C["M2"]
        C --> D["RIB BLACK"]
        D --> E["SOLENOID VALVE (NC)"]
        E --> F["BLACK"]
        F --> G["SENSOR"]
        G --> H["TOTEX"]
        H --> I["TEMP-IN"]
        I --> J["L2/N"]
        J --> K["L1"]
        K --> L["BLACK"]
        L --> M["NO COM"]
        M --> N["PURPLE"]
        N --> O["TECHOLIC TEMPERATURE W/ AIR DEFROST CONTROL (SHIPS LOOSE)"]
    end

    subgraph_Unit_Cooler_B["UNIT COOLER-B 208-230/60/1"]
        P["FAN MOTOR(S)"] --> Q["M1"]
        Q --> R["M2"]
        R --> S["SOLENOID VALVE (NC)"]
        S --> T["BLACK"]
        T --> U["SENSOR"]
        U --> V["TOTEX"]
        V --> W["TEMP-IN"]
        W --> X["L2/N"]
        X --> Y["L1"]
        Y --> Z["BLACK"]
        Z --> AA["NO COM"]
    end

    Note["NOTE: DEFROST CONTROL IS BUILT INTO THE TEMPERATURE CONTROLLER. BY DEFAULT, THE DEFROST SETTINGS ARE EVERY 6 HOURS FOR 30 MINUTES. REFER TO OPERATIONS MANUAL FOR INSTRUCTIONS ON HOW TO CHANGE DEFROST SETTINGS."] --> Note
    Note --> Note2["NOTE: SOLENOID VALVE, AND EXPANSION VALVE FACTORY MOUNTED. TEMPERATURE W/ AIR DEFROST CONTROL SHIPPED LOOSE FOR FIELD INSTALLATION. ALL COMPONENTS TO BE WIRED IN THE FIELD."]
    Note2 --> Note3["208-230/60/1 POWER LEADS FROM DISCONNECT SWITCH"]
    Note3 --> Note4["FIELD WIRING"]
    Note3 --> Note5["FACTORY WIRING"]


UNIT COOLER 208-230/1/60 ELECTRONIC TEMPERATURE CONTROL NOTE: PER MFG. INSTRUCTIONS, THE TIME SWITCH IS PROGRAMMED BY PUSHING THE CAPTIVE TRIPPERS TO THE INNER RING POSITION FOR THE ENTIRE PERIOD THAT THE LOAD IS IN THE NORMAL OPERATING CYCLE. WHEN A TRIPPER IS PUSHED TO THE OUTSIDE, THE SWITCH IS IN THE "DEFROST" POSITION. EACH TRIPPER EQUALS 15 MINUTES OF TIMED ELECTRIC DEFROST. ELECTRIC DEFROST TIMER WIRE TO EVAPAPORATOR COIL NOTE: POWER SUPPLIED TO DEFROST TIMER TO TERMINALS 1 & N. WIRE FROM TIMER TERMINALS: 3, 4, N, & X, TO EVAPORATOR TERMINALS: 3, 4, N, & X

WIRING DIAGRAM - ELECTRIC DEFROST EVAPORATOR w/ELECTRONIC TEMPERATURE CONTROL & ELECTRIC DEFROST TIMER FIELD WIRING FACTORY WIRING

UNIT COOLER-B 208-230/1/60 UNIT COOLER-A 208-230/1/60 WIRE TO ELECTRIC DEFROST TIMER GREEN H2 N X H4 TB3 TBI 4 3 N X RED YELLOW M1 M2 M3 M4 M5 M6 FAN MOTOR(S) HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR HTR FAN MOTOR(S) TFR FD TFR FD TFR FD TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFR TFRGREEN BLUE ELECTRIC DEFROST TIMER Release Solenoid M P3 1 2 4 N X G 208-230/1/60 FROM DISCONNECT SWITCH L1 L2 3 4 N X WIRE TO UNIT COOLER-A TERMINAL BOARD EXPANSION VALVE AND SOLENOID VALVE ARE INSTALLED AND Wired IN THE EVAPORATOR WIRING COMPARTMENT, THE TEMPERATURE CONTROL IS SHIPPED LOOSE FOR FIELD INSTALLATION. NOTE: REMOVE RED WIRE FROM TERMINAL "N" FROM DEFROST TERMINATION SWITCH ON UNIT COOLER-A AND CONNECT TO WIRE FROM TERMINAL "X" ON UNIT COOLER-B. ELECTRONIC TEMPERATURE CONTROL (SHIPS LOOSE)

WIRING DIAGRAM - (2) ELECTRIC DEFROST EVAPORATORS w/ELECTRONIC TEMPERATURE CONTROL & ELECTRIC DEFROST TIMER FIELD WIRING FACTORY W|R|NG

System Start-up Checklist

Date System Installed: // Installer and Address: \_\_\_\_ Phone Number: ( ) - Start-Up Service Agency: \_\_\_\_ Phone Number: ( ) -

Freezer Condensing Unit
Inspection Feature	Data	Accept	Reject	Action Required
Model Number:
Serial Number:
Electrical Volts:
Electrical Phase:
Amperage @ L1:
Amperage @ L2:
Amperage @ L3:
Ambient Temp:	°F
Comp. Discharge Pressure:	PSIG
Comp. Suction Pressure:	PSIG
Suction Line Temp @ Comp.:	°F
Discharge Line Temp @ Comp.:	°F
Comp. Superheat:	°F
Defrost Setting (4 day/45 min):
All electrical connections are tight:
Unit base properly supported:
Fans Running & No Vibration:
All guards, covers attached:
Refrigerant Sight Glass Clear:
Comp. Oil Level @ 1⁄2 Sight Glass:
Comp. Mounting Clips Removed:
Suction line insulated fully and properly supported:

Freezer Evaporator
Inspection Feature	Data	Accept	Reject	Action Required
Evaporator installed with nylon bolts with proper airflow clearance:
Model Number:
Serial Number:
Electrical Volts:
Electrical Phase:
Suction Line Temp @ Evap:	°F
Evap Superheat:	°F
Thermostat Set:	°F
Operating Temp:	°F
TXV Bulb Properly Mounted:
All guards, covers attached:
All electrical connections are tight:
Defrost Heater Amp Draw:	A
Freezer Piping
Inspection Feature	Data	Accept	Reject	Action Required
Suction Lines Insulated:
Oil Trap at Base of Suction Riser:
Copper Drain Lines Sloped Min 1/2" ft:
Piping Supported Every 5':
Copper drain line heater attached, working, and insulated:
Copper Drain Line Trapped Outside Freezer Space:

Cooler Condensing Unit
Inspection Feature	Data	Accept	Reject	Action Required
Model Number:
Serial Number:
Electrical Volts:
Electrical Phase:
Amperage @ L1:
Amperage @ L2:
Amperage @ L3:
Ambient Temp:	°F
Comp. Discharge Pressure:	PSIG
Comp. Suction Pressure:	PSIG
Suction Line Temp @ Comp.:	°F
Discharge Line Temp @ Comp.:	°F
Comp. Superheat:	°F
Defrost Setting (4 day/45 min):
All electrical connections are tight:
Unit base properly supported:
Fans Running & No Vibration:
All guards, covers attached:
Refrigerant Sight Glass Clear:
Comp. Oil Level @ 1⁄2 Sight Glass:
Comp. Mounting Clips Removed:
Suction line insulated fully and properly supported:

Cooler Evaporator
Inspection Feature	Data	Accept	Reject	Action Required
Evaporator installed with nylon bolts with proper airflow clearance:
Model Number:
Serial Number:
Electrical Volts:
Electrical Phase:
Suction Line Temp @ Evap:	°F
Evap Superheat:	°F
Thermostat Set:	°F
Operating Temp:	°F
TXV Bulb Properly Mounted:
All guards, covers attached:
All electrical connections are tight:
Cooler Piping
Inspection Feature	Data	Accept	Reject	Action Required
Suction Lines Insulated:
Oil Trap at Base of Suction Riser:
Copper Drain Lines Sloped Min 1/2" ft:
Copper Drain Lines Insulated:
Copper Piping Supported Every 5':
Copper Drain Line Trapped Outside Cooler Space:

Walk-In Freezer
Inspection Feature	Data	Accept	Reject	Action Required
Serial Number:
Interior Lights Installed and Working:
All Penetrations Sealed:
Doors/Jambs Squared and Operating Properly:
All Panel Locks Fully Engaged:
All Plug Buttons Installed:
Door Heater Working:
Door Sweeps Adjusted:
Heat Air Vent Working:
Door Closers Adjusted and Working:
Wainscot and Trim Installed:
Alarm Set and Working:
Thermometer Bulb Mounted and Calibrated:
Walk-In Clean (no excessive caulk, etc.)
Walk-in at proper temperature:

Walk-In Cooler
Inspection Feature	Data	Accept	Reject	Action Required
Serial Number:
Interior Lights Installed and Working:
All Penetration Sealed:
Doors/Jambs Squared and Operating Properly:
All Panel Locks Fully Engaged:
All Plug Buttons Installed:
Door Heater Working:
Door Sweeps Adjusted:
Heat Air Vent Working:
Door Closers Adjusted and Working:
Wainscot and Trim Installed:
Alarm Set and Working:
Thermometer Bulb Mounted
and Calibrated:
Walk-In Clean (no excessive caulk, etc.)
Walk-in at proper temperature:

Notes:

Superintendent/Customer Signature:	Date:
Service Tech/Installer Signature:	Date:

Warranty Information

For information regarding warranty guidelines, claim form, product registration, warranty verification, or locating a service provider please visit our website at www.welbilt.com or call 1-800-225-9916. Failure to follow the System Start-Up Checklist could create warranty issues in the future. Please follow, complete and return completed System Start Up Checklist forms to: [e-mail] or fax to 1-731-847-5389. This Page Left Intentionally Blank This Page Intentionally Left Blank
