Product Type	Countertop Water Filter System
Brand	Crystal Quest
Model	CQE-CT-00151
Filtration Technology	Coconut-based carbon block, pleated cellulose, ceramic, and specialty media
Micron Rating	5 micron (carbon block)
Rated Service Flow	0.3 - 0.5 gpm
Operating Pressure	30 - 60 psi (2.1 - 4.2 bar)
Operating Temperature	40 - 85°F (4.4 - 29.4°C)
Cartridge Dimensions	2-7/8" x 9-3/4"
Weight (approximate)	2.5 lb (1.1 kg)
Installation	Countertop, connects to faucet via diverter valve
Water Supply	Cold, potable water only
Warranty	1 year limited
Country of Origin	USA
Included Components	Diverter valve, tubing, clamps, spout, sump wrench, filter housing, O-rings, adapters
Replacement Cartridge Options	Carbon block, sediment, SMART PLUS, ceramic, fluoride removal, nitrate removal, arsenic removal
Optional Prefilter	Available for all countertop models
Maintenance	Replace cartridge every 12-18 months; flush after non-use; lubricate O-rings with non-petroleum oil
Safety Warnings	Do not install on hot water line; protect from freezing; use only cold potable water
Certifications	Not listed, but claims cyst reduction capability

Frequently Asked Questions - CQE-CT-00151 Crystal Quest

How do I install the diverter valve on my faucet?

Remove the aerator from your faucet, then screw the appropriate adapter (included) into the faucet. Screw the diverter valve onto the adapter, ensuring the gasket is seated properly. Tighten manually, then connect the hose using the clamp.

Why is my water cloudy after installing the filter?

Cloudiness is caused by trapped air in the new cartridge. Let the water sit in a glass for a few minutes; the cloudiness will clear from the bottom up. This is harmless and will dissipate after a few uses.

How often should I replace the filter cartridge?

Standard carbon cartridges typically last 12-18 months, but this depends on water usage and quality. Replace sooner if you notice a change in taste, odor, or a decrease in flow rate.

What should I do if I see a leak between the base and housing?

Turn off the faucet and unscrew the housing. Check both O-rings for damage and lubricate with non-petroleum oil (do not use coconut oil). Ensure the cartridge is inserted correctly (arrow pointing down). Apply thread seal tape to the sump threads and reassemble. If the leak persists, contact support.

Can I use this system on a hot water line?

No, this system is designed for cold water only. Hot water can damage the filter and housing, and may cause safety issues.

What if the diverter valve gets stuck or won't release?

Unscrew the diverter valve from the faucet and soak it in white vinegar for up to one hour to dissolve mineral scale. Rinse thoroughly before reinstalling.

Why does my water have a bad taste or odor after some time?

This indicates that the filter cartridge is exhausted and needs replacement. Also, flush the system for 5-10 minutes after installing a new cartridge to remove any fines.

How do I prepare the system after a long vacation?

Flush the system thoroughly by letting cold water run for 5-6 minutes before using. Repeat if necessary to remove any stagnant water.

What replacement cartridges are compatible with this model?

Crystal Quest offers several 2-7/8" x 9-3/4" cartridges: carbon block (CQE-RC-04000), sediment (CQE-RC-04001), SMART PLUS (CQE-RC-04002), ceramic (CQE-RC-04005), fluoride removal (CQE-RC-04006), nitrate removal (CQE-RC-04007), arsenic removal (CQE-RC-04008), and combination versions.

Does this filter remove fluoride?

Only if you use the specific Fluoride Removal Filter Cartridge (CQE-RC-04006) or the combination Fluoride Removal + SMART cartridge (CQE-RC-04049). Standard carbon cartridges do not remove fluoride.

USER MANUAL CQE-CT-00151 Crystal Quest

Crystal Quest® Countertop Replaceable Water Filter Systems INSTALLATION AND OPERATION GUIDE

Illustration of industrial water pumps and valves on a kitchen sink, no text or symbols present

ONLINE WARRANTY INFORMATION

CrystalQuest.com/warranty.html

Copyright 2020

Crystal Quest®

All rights reserved

MADE IN THE USA

i IMPORTANT INFORMATION

• Please read all instructions and precautions before installing and using your Crystal Quest ® Countertop Water Filter.
  • Numbered diagrams correspond with numbered steps.
• Use this system on a potable (safe-to-drink) COLD water supply only. Do not install on hot water line.
• Do not use non-Crystal Quest ^ replacement cartridges.
• Do not use non-Crystal Quest ® parts or modify/tamper with unit.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. CAUTION: Filter must be protected against freezing which can cause cracking of the filter and water leakage.

NOTE:

• Filter cartridge life varies depending on filter type, usage, and water conditions. The replacement filter cartridge used with this system has a limited service life. Changes in taste, odor, or reduced flow of the water being filtered can indicate that the cartridge should be replaced.
• The contaminants or other substances removed or reduced by these systems are not necessarily in your water. Ask your local water municipality for a copy of their water analysis or have your private well tested by a reputable water testing lab.
• After prolonged periods of non-use (such as during a vacation), it is recommended that the system be flushed thoroughly. Let water run for 5-6 minutes before using. Repeat if necessary.

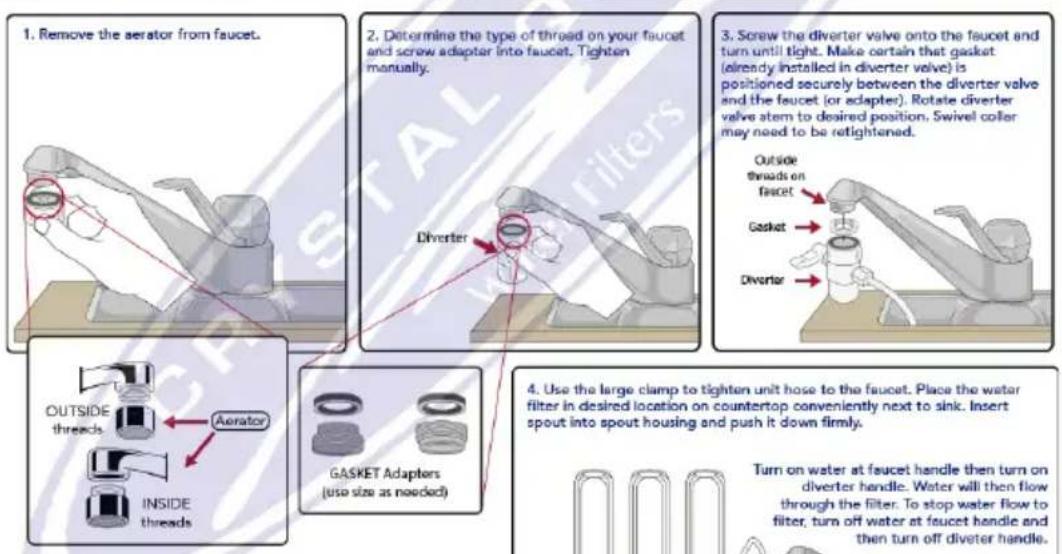

CONNECTING DIVERTER VALVE TO FAUCET


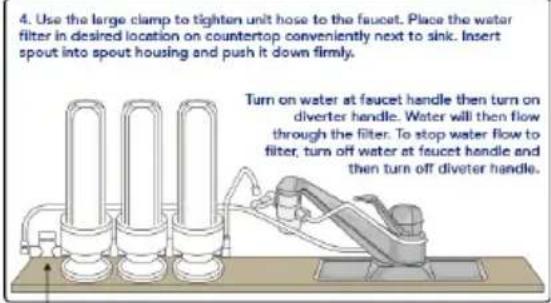

    C --> D["4. Use the large clamp to tighten unit hose to the faucet. Place the water filter in desired location on countertop conveniently next to sink. Insert spout into spout housing and push it down firmly."]
    D --> E["5. Use the large clamp to tighten unit hose to the faucet. Place the water filter in desired location on countertop conveniently next to sink. Insert spout into spout housing and push it down firmly."]

NOTE: Adapters are included which will fit most faucets. To create a tight seal, you may need to use the gasket from your faucet's aerator in addition to the washers included with the adapters. If the adapters do not fit, consult your local plumbing or hardware supplier for assistance in obtaining the correctly threaded adapter.

Optional Prefilter available for all countertop models

OPERATION

• A drinking water cartridge may contain carbon fines (very fine black powder). After installation, flush the cartridge 3-4 times per flush for 5-10 minutes to remove the fines before using the water. Repeat as required.
• It is recommended that you run the tap at least 20 seconds prior to each use for drinking or cooking purposes.
• During initial use, your water may appear cloudy. This cloudiness is caused by air that has been trapped in the cartridge. If the water sits for 5 minutes in a glass, you will notice the cloudiness disappear from the bottom up. This phenomenon is not harmful and will clear up in time as the remaining air is flushed from the cartridge.

OPERATING SPECIFICATIONS

Pressure Range: 30-60 psi (2.1-4.2 bar)

Temperature Range: 40-85°F (4.4-29.4°C)

Rated Service Flow: 0.3-0.5 gpm

TROUBLESHOOTING

A. Leaks between base and housing:

• Turn off faucet and unscrew base of housing.
• Check to make sure both O-rings are clean, lubricated with non-petroleum oil (do not use coconut oil) and undamaged. Replace if necessary.
• Use thread seal tape around sump threading.
• Reinsert cartridge into base according to the directional arrow on the cartridge which indicated "This End Downward Towards Cap" and screw on sump using sump wrench. Be careful not to cross-thread or overtighten. If leak persists, contact Technical Support at [e-mail].

B. Diverter valve will not release:

• Unscrew diverter valve from faucet.
- Soak in white vinegar up to one hour to remove scale build-up a nd rinse.

C. Decreased f ow or return of bad taste/odor:

- Replace filter cartridge.

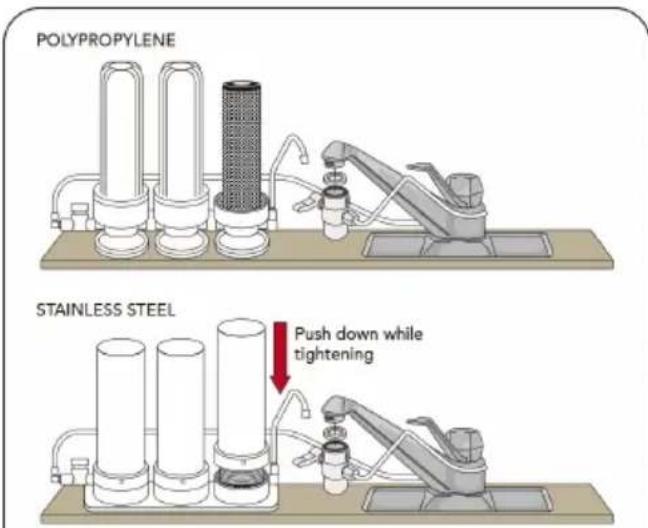

FILTER CARTRIDGE REPLACEMENT

A. Turn off faucet. Unscrew the top of the housing using sump wrench (Fig 1). Water may spill when housing is removed. Empty excess water into sink. Set top of filter housing aside.
B. Pull out filter cartridge to remove from the base. Clean top and base of filter housing with warm water, mild dish soap and a soft cloth. Do not use harsh detergents, abrasive cleaners or wire brushes, as they may damage the system.
C. Set base of filter on counter. Insert new filter cartridge according to the directional arrow on the cartridge which indicates "This End Towards Cap". Seat securely into filter base (Fig 2).

NOTE: Make sure both black O-rings are present on the filter housing. Also, make sure to lubricate O-rings with cooking oil. (Do not use coconut oil).

D. Screw top of filter housing onto base and tighten with sump wrench until very snug.

E. Turn on water and the diverter handle. Flush the cartridge 3-4 times for 5 to 10 minutes to remove any media fines before using water.

(Fig. 1)

(Fig. 2)

REPLACEMENT PARTS

CQE-RC-04000 2-7/8" x 9-3/4"

Coconut Based 5-Micron Carbon Block Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04001 2-7/8" x 9-3/4"

Pleated Cellulose Sediment Cartridge (12-18 months lifetime expectancy)

CQE-RC-04002 2-7/8" x 9-3/4"

SMART PLUS Filter Cartridge (18-36 months lifetime expectancy)

CQE-RC-04005 2-7/8" x 9-3/4"

Ceramic Water Filter Cartridge (2-3 years with proper cleaning)

CQE-RC-04006 2-7/8" x 9-3/4"

Fluoride Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04049 2-7/8" x 9-3/4"

Fluoride Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04007 2-7/8" x 9-3/4"

Nitrate Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04050 2-7/8" x 9-3/4"

Nitrate Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04008 2-7/8" x 9-3/4"

Arsenic Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04051 2-7/8" x 9-3/4"

Arsenic Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

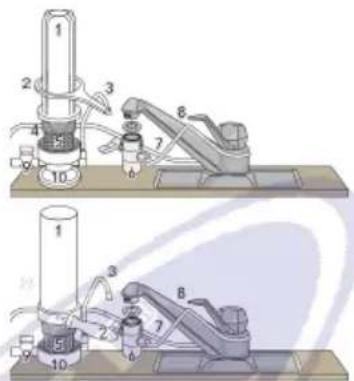

Filter Housing (1)

Wrench (2)

Spout (3)

O-ring (4)

Filter Cartridge (S)

Divertor Valve (6)

Tubing (7)

Clamp (8)

Optional Prefilter (9)

Base (10)

ONE-YEAR LIMITED WARRANTY

CRYSTAL QUEST® warrants your CRYSTAL QUEST® Countertop Replaceable Water Filter System for one year from the date of purchase against all defects in materials and workmanship when used in compliance with the manual. This warranty does not include replacement cartridges unless defective upon receipt. CRYSTAL QUEST® disclaims all implied warranties including, without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase, please call for assistance. This warranty gives you specific legal rights and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages, for damages arising out of misuse of the product, or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusions may not apply to you. Should service be required during or after the warranty period or should you have any questions regarding how to use your CRYSTAL QUEST® Countertop Replaceable Water Filter System, contact our Technical Support Department at [e-mail], Monday through Friday, 9 A.M. to 4:30 P.M. Eastern Time.

KEEP THIS MANUAL FOR FUTURE REFERENCE AND UNIT MAINTENANCE

Online warranty information

http://crystalquest.com/warranty.htm

Product design is subject to change without notice.

For further assistance, contact your Crystal Quest dealer

or visit us at www.crystalquest.com

To view the latest edition of the Countertop Replaceable Water Filter System, visit CrystalQuest.com

Please note all drawings, pictures, colors and sizes are approximate for illustrative purposes only and may not exactly resemble the end product.
