Product Type	Countertop Replaceable Water Filter System
Brand	Crystal Quest
Model	CQE-CT-00146
Water Supply Requirement	Potable cold water only
Operating Pressure Range	30-60 psi (2.1-4.2 bar)
Operating Temperature Range	40-85°F (4.4-29.4°C)
Rated Service Flow	0.3-0.5 gpm
Filter Cartridge Type	2-7/8" x 9-3/4" (various media options)
Cartridge Lifespan	12-36 months depending on type and usage
Materials	Coconut-based carbon, pleated cellulose, ceramic, etc.
Safety Features	Do not use on hot water; freeze protection required; for disinfected water only
Maintenance	Flush 5-6 min after non-use; replace cartridge when taste/odor/flow decreases
Warranty	1-year limited on system (excluding cartridges)
Included Accessories	Diverter valve, spout, wrench, tubing, clamps, adapters
Replacement Parts Available	Multiple filter cartridges, O-rings, housing, diverter valve, prefilter
Installation	Connects to faucet via diverter valve; no plumbing modification
Country of Origin	USA

Frequently Asked Questions - CQE-CT-00146 Crystal Quest

How do I install the Crystal Quest CQE-CT-00146 countertop water filter?

Remove your faucet aerator, screw the appropriate adapter onto the faucet, then attach the diverter valve. Connect the filter unit hose using the clamp, place the filter on the counter, and insert the spout. For complete steps, refer to the manual's numbered diagrams.

How often should I replace the filter cartridge?

Cartridge life varies by type and usage: typically 12-18 months for carbon or sediment cartridges, up to 36 months for SMART PLUS (CQE-RC-04002). Replace when you notice a change in taste, odor, or flow rate.

What should I do if the filter leaks between the base and housing?

Turn off the water, unscrew the housing, check both O-rings for cleanliness and damage. Lubricate with non-petroleum oil (not coconut oil), use thread seal tape on threads, and re-tighten. If leak persists, contact [e-mail].

Can I use this filter on a well water system?

Yes, but only if the water is microbiologically safe or has been adequately disinfected. Have your well tested by a reputable lab to ensure it meets safety standards before use.

How do I flush the system after installation or prolonged non-use?

After installation, flush 3-4 times for 5-10 minutes each to remove carbon fines. After non-use (e.g., vacation), let water run for 5-6 minutes before using. Repeat if necessary until water runs clear.

Why is my filtered water cloudy?

Cloudiness is caused by trapped air in the new cartridge. Let the water sit in a glass for 5 minutes; the cloudiness will disappear from the bottom up. This is harmless and will stop once the air is fully flushed.

What replacement cartridges are compatible with this model?

All 2-7/8" x 9-3/4" Crystal Quest cartridges fit: CQE-RC-04000 carbon block, CQE-RC-04001 sediment, CQE-RC-04002 SMART PLUS, CQE-RC-04005 ceramic, CQE-RC-04006 fluoride removal, CQE-RC-04007 nitrate removal, CQE-RC-04008 arsenic removal, and their SMART+ versions.

What is the warranty coverage?

Crystal Quest offers a one-year limited warranty against defects in materials and workmanship. It does not cover replacement cartridges unless defective at receipt. Contact [e-mail] for assistance.

Can I use this filter with hot water?

No. The system is designed only for cold potable water. Using hot water can damage the filter and void the warranty.

How do I replace the filter cartridge?

Turn off the faucet, unscrew the housing top using the supplied wrench, remove the old cartridge, clean the housing with mild soap and water, insert the new cartridge with the arrow pointing down, reassemble, and flush for 5-10 minutes before use.

USER MANUAL CQE-CT-00146 Crystal Quest

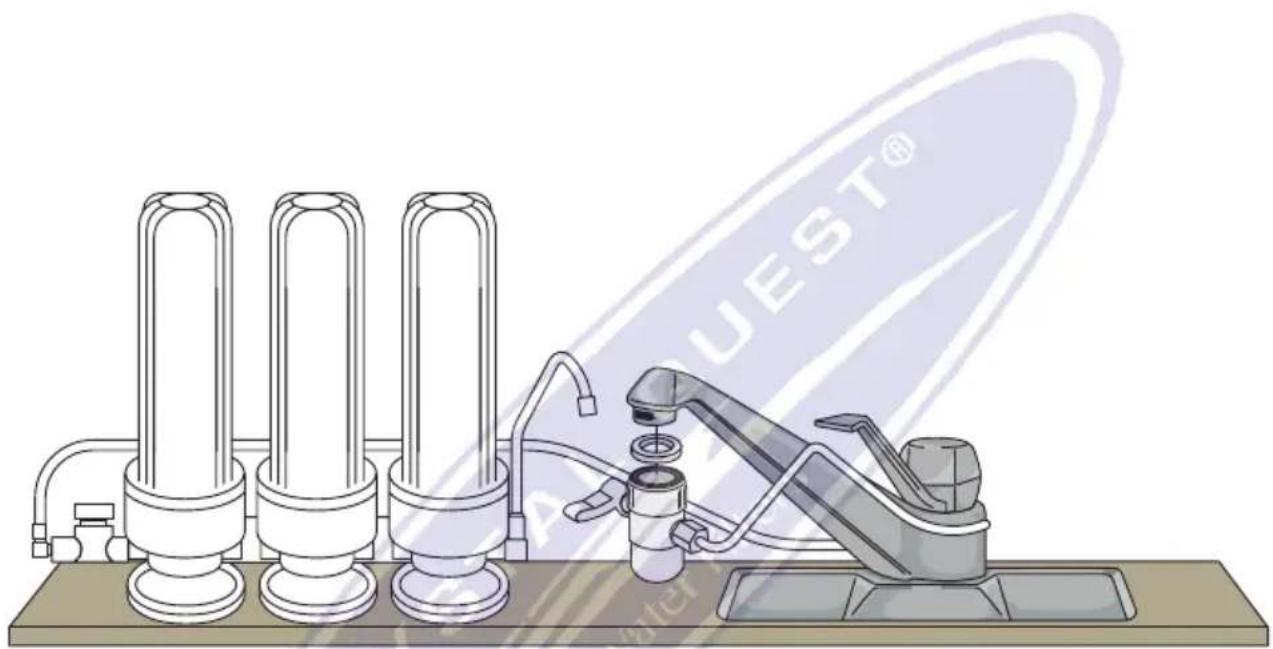

Crystal Quest® Countertop Replaceable Water Filter Systems INSTALLATION AND OPERATION GUIDE

ONLINE WARRANTY INFORMATION

CrystalQuest.com/warranty.html

Copyright 2020

Crystal Quest®

All rights reserved

MADE IN THE USA

i IMPORTANT INFORMATION

• Please read all instructions and precautions before installing and using your Crystal Quest® Countertop Water Filter. • Numbered diagrams correspond with numbered steps.
• Use this system on a potable (safe-to-drink) COLD water supply only. Do not install on hot water line.
• Do not use non-Crystal Quest® replacement cartridges.
• Do not use non-Crystal Quest® parts or modify/tamper with unit.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. CAUTION: Filter must be protected against freezing which can cause cracking of the filter and water leakage.

NOTE:

• Filter cartridge life varies depending on filter type, usage, and water conditions. The replacement filter cartridge used with this system has a limited service life. Changes in taste, odor, or reduced flow of the water being filtered can indicate that the cartridge should be replaced.
• The contaminants or other substances removed or reduced by these systems are not necessarily in your water. Ask your local water municipality for a copy of their water analysis or have your private well tested by a reputable water testing lab.
• After prolonged periods of non-use (such as during a vacation), it is recommended that the system be flushed thoroughly. Let water run for 5-6 minutes before using. Repeat if necessary.

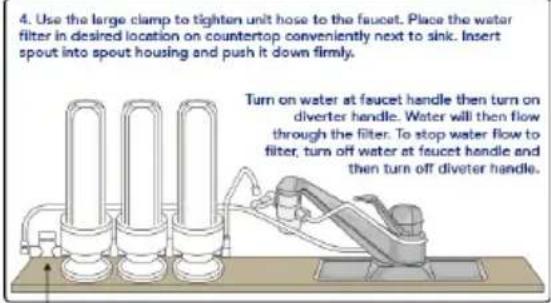

CONNECTING DIVERTER VALVE TO FAUCET

NOTE: Adapters are included which will fit most faucets. To create a tight seal, you may need to use the gasket from your faucet's aerator in addition to the washers included with the adapters. If the adapters do not fit, consult your local plumbing or hardware supplier for assistance in obtaining the correctly threaded adapter.

Optional Prefilter available for all countertop models

OPERATION

• A drinking water cartridge may contain carbon fines (very fine black powder). After installation, flush the cartridge 3-4 times per flush for 5-10 minutes to remove the fines before using the water. Repeat as required.
• It is recommended that you run the tap at least 20 seconds prior to each use for drinking or cooking purposes.
• During initial use, your water may appear cloudy. This cloudiness is caused by air that has been trapped in the cartridge. If the water sits for 5 minutes in a glass, you will notice the cloudiness disappear from the bottom up. This phenomenon is not harmful and will clear up in time as the remaining air is flushed from the cartridge.

OPERATING SPECIFICATIONS

Pressure Range: 30-60 psi (2.1-4.2 bar)

Temperature Range: 40-85°F (4.4-29.4°C)

Rated Service Flow: 0.3-0.5 gpm

TROUBLESHOOTING

A. Leaks between base and housing:

• Turn off faucet and unscrew base of housing.
• Check to make sure both O-rings are clean, lubricated with non-petroleum oil (do not use coconut oil) and undamaged. Replace if necessary.
• Use thread seal tape around sump threading.
• Reinsert cartridge into base according to the directional arrow on the cartridge which indicated "This End Downward Towards Cap" and screw on sump using sump wrench. Be careful not to cross-thread or overtighten. If leak persists, contact Technical Support at [e-mail].

B. Diverter valve will not release:

• Unscrew diverter valve from faucet.
• Soak in white vinegar up to one hour to remove scale build-up and rinse.

C. Decreased flow or return of bad taste/odor:

- Replace filter cartridge.

FILTER CARTRIDGE REPLACEMENT

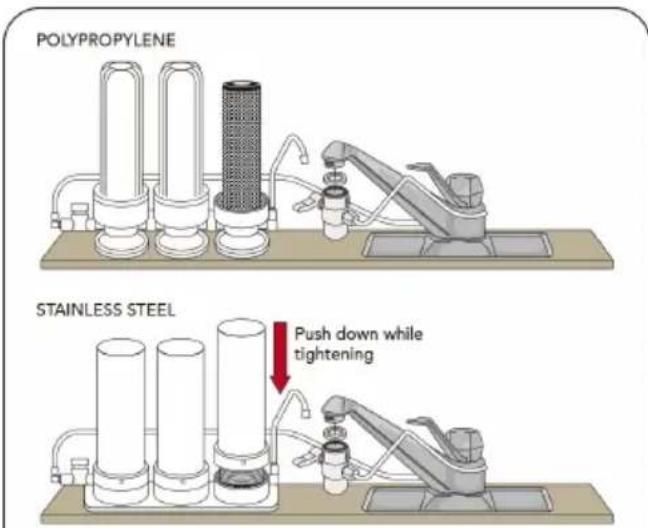

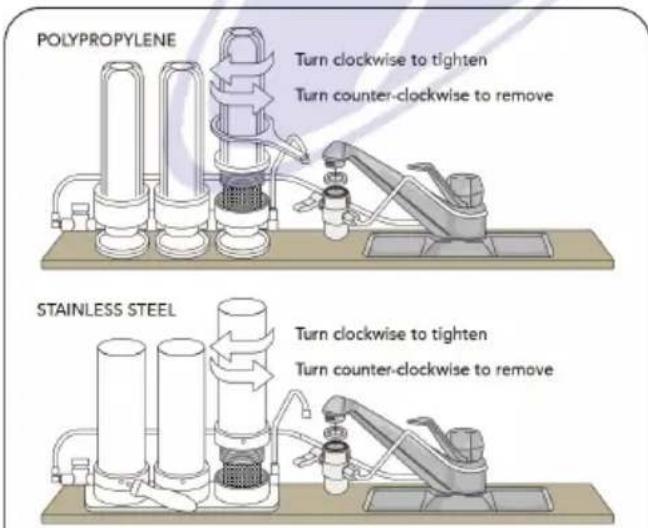

A. Turn off faucet. Unscrew the top of the housing using sump wrench (Fig 1). Water may spill when housing is removed. Empty excess water into sink. Set top of filter housing aside. B. Pull out filter cartridge to remove from the base. Clean top and base of filter housing with warm water, mild dish soap and a soft cloth. Do not use harsh detergents, abrasive cleaners or wire brushes, as they may damage the system. C. Set base of filter on counter. Insert new filter cartridge according to the directional arrow on the cartridge which indicates "This End Towards Cap". Seat securely into filter base (Fig 2).

NOTE: Make sure both black O-rings are present on the filter housing. Also, make sure to lubricate O-rings with cooking oil. (Do not use coconut oil).

D. Screw top of filter housing onto base and tighten with sump wrench until very snug.

E. Turn on water and the diverter handle. Flush the cartridge 3-4 times for 5 to 10 minutes to remove any media fines before using water.

(Fig. 1)

(Fig. 2)

REPLACEMENT PARTS

CQE-RC-04000 2-7/8" x 9-3/4"

Coconut Based 5-Micron Carbon Block Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04001 2-7/8" x 9-3/4"

Pleated Cellulose Sediment Cartridge (12-18 months lifetime expectancy)

CQE-RC-04002 2-7/8" x 9-3/4"

SMART PLUS Filter Cartridge (18-36 months lifetime expectancy)

CQE-RC-04005 2-7/8" x 9-3/4"

Ceramic Water Filter Cartridge (2-3 years with proper cleaning)

CQE-RC-04006 2-7/8" x 9-3/4"

Fluoride Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04049 2-7/8" x 9-3/4"

Fluoride Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04007 2-7/8" x 9-3/4"

Nitrate Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04050 2-7/8" x 9-3/4"

Nitrate Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04008 2-7/8" x 9-3/4"

Arsenic Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04051 2-7/8" x 9-3/4"

Arsenic Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

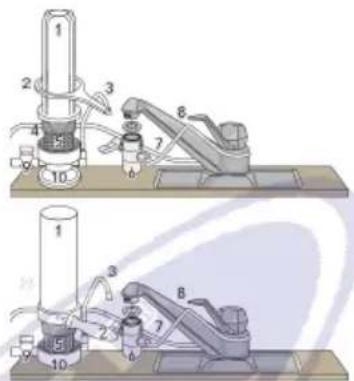

Filter Housing (1)

Wrench (2)

Spout (3)

O-ring (4)

Filter Cartridge (S)

Divertor Valve (6)

Tubing (7)

Clamp (8)

Optional Prefilter (9)

Base (10)

ONE-YEAR LIMITED WARRANTY

CRYSTAL QUEST® warrants your CRYSTAL QUEST® Countertop Replaceable Water Filter System for one year from the date of purchase against all defects in materials and workmanship when used in compliance with the manual. This warranty does not include replacement cartridges unless defective upon receipt. CRYSTAL QUEST® disclaims all implied warranties including, without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase, please call for assistance. This warranty gives you specific legal rights and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages, for damages arising out of misuse of the product, or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusions may not apply to you. Should service be required during or after the warranty period or should you have any questions regarding how to use your CRYSTAL QUEST® Countertop Replaceable Water Filter System, contact our Technical Support Department at [e-mail], Monday through Friday, 9 A.M. to 4:30 P.M. Eastern Time.

KEEP THIS MANUAL FOR FUTURE REFERENCE AND UNIT MAINTENANCE

Online warranty information

http://crystalquest.com/warranty.htm

Product design is subject to change without notice.

For further assistance, contact your Crystal Quest dealer

or visit us at www.crystalquest.com

To view the latest edition of the Countertop Replaceable Water Filter System, visit CrystalQuest.com

Please note all drawings, pictures, colors and sizes are approximate for illustrative purposes only and may not exactly resemble the end product.
