USER MANUAL IR-BMW42W Morel

DDD morel Integration Reference Installation Guide BMW IR-BMW42W IR-BMW42INT

Integration

Reference

Installation Guide

BMW

IR-BMW42W

IR-BMW42INT

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Integration Reference speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at:

www.morelhifi.com

Components

Component System

x2
Midwoofer

x2
Connecting Cable

x2
Gasket

x2
Adapter 1 (already mounted)

x2
Adapter 2

x2
Adapter 3

x2

x2
Mounting bracketTweeter

x2
Cable Splitter

x2
Woofer crossover

x2
Tweteter crossover

Integra System

x2
Coax

x2
Connecting Cable

x2
Gasket

x2
Adapter 1 (already mounted)

x2
Adapter 2

x2
Adapter 3

Installation tools

Two stylized tool designs with no text or symbols on the shapes themselves

Component Midwoofer and Coax Adapter Assembly

Assembly Overview

Technical line drawing of a mechanical component with cross-sectional and top views (no text or symbols)

Configuration A

Adapter 1

Gasket

Configuration B

Adapter 1
Configuration DConfigu

Scan for vehicle-specific compatibility information

Adapter 2 Adapter 1

Technical line drawing of a mechanical assembly with multiple circular components and mounting holes (no text or symbols)

Adapter 3

Speaker Connection

IR-BMW42 Component System


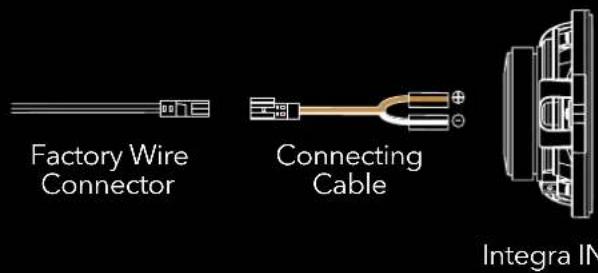

IR-BMW42INT Integra System

Factory Wire Connector Connecting Cable Integra IN

Woofer, Integra and Tweeter Installation

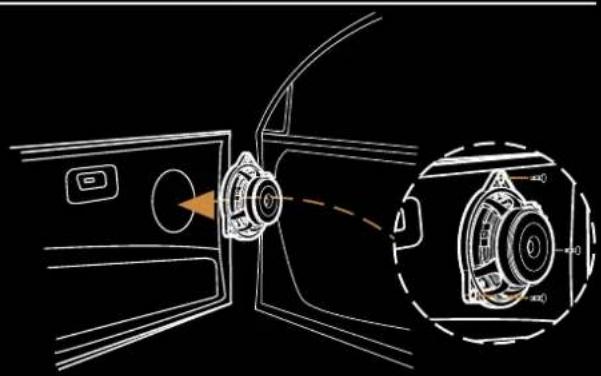

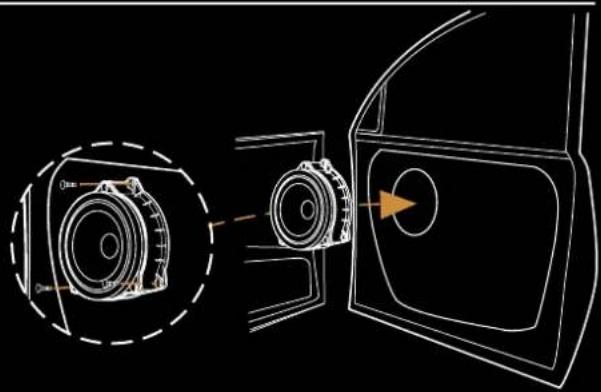

4" Woofer and Integra - Trim Installation 4" Woofer and Integra - Door Installation

Technical diagram showing car interior with labeled components and a magnified inset of the engine component

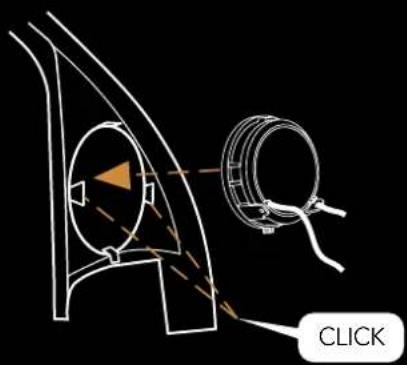

Tweeter - Front Installation

Technical diagram showing a car interior with labeled components and directional arrows indicating flow or movement.

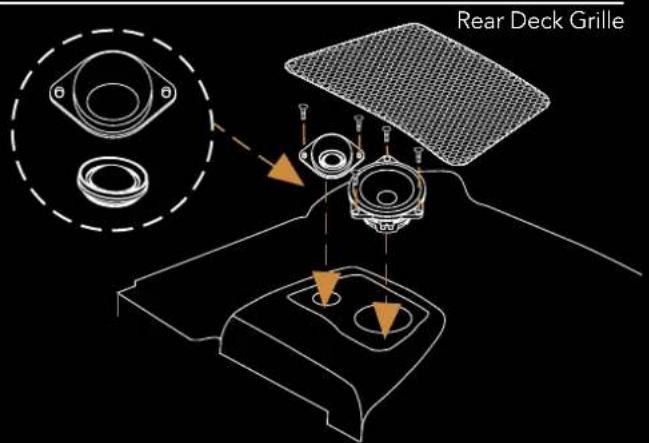

Tweeter - Rear Deck Installation

Technical line drawing of a mechanical component with two views, one showing a circular feature and the other a cylindrical housing (no text or symbols)

Rear Deck Grille

Specifications

	MIDWOOFER	INTEGRA
Nominal Impedance (ohm) 4	4
Power Handling Wrms	100	80
Max. Trans. Pwr Handling Wrms	300	250
Sensitivity (2.83 V/1M) dB	92	90
Frequency response Hz	50-4200	80-20,000
Resonant Freq. Fs Hz	82	92
Voice Coil Diameter mm (inch) 54 (2.1)	54 (2.1)
DC Resistance (ohm) 3	2.8
Magnet System	Neodymium	Neodymium
HE-Magnetic Gap Height mm (inch)	4 (0.16) 4 (0.16)
B-Hux Density (T) 1	0.95
BL Product/BXL 4.3	5.1
Suspension Compliance CMS - mm/N 0.5	0.5
Electrical O Factor QES 0.5	0.36
QTS 0.4	0.3
CMS 2.47	2.12
Mech. Resistance RMS- N•S / M 1.3	1.68
Moving Mass MMS - gr/ounce	6.4(0.22)	5.2 (0.18)
Equiv. Can Air Load VAS - L (cu.ft) 0.7 (0.02)	2.2(0.07)
Effective Piston Area SD sq.cm (sq.inch)	55.4(8.58)	31.6 (4.9)
Cone Material	DPC	Composite cellular fiber
Unit Diameter mm(inch) 96.7 (3.8)	96.7 (3.8)
Net Wight Kg (lb)	0.35 (0.77)	0.37 (0.81)

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice

	IR-BMW42TWEETER
Nominal Impedance (ohm)	4
Power Handling Wrms	100
Max. Trans. Pwr Handling Wrms (10ms)	200
Sensitivity (2.83 V/1M) dB	91.5
Frequency Response Hz	1600-20000
FS Hz	900
Voice Coil Diameter mm (inch)	28 (1.1)
Voice Coil Wire	Aluminium
Magnet System	Neodymium Vented
	20 (0.8)Mounting Depth mm (inch)

CROSSOVERS	TWEETER	MIDWOOFER
Crossover Point	2700Hz/12dB (highpass)	2700Hz/12dB (lowpass)
