Product Type	Countertop Water Filter System
Brand	Crystal Quest
Model	CQE-CT-00185
Application	Drinking water filtration for municipal or well water
Filtration Technology	Replaceable filter cartridges (carbon block, sediment, ceramic, specialty)
Pressure Range	30-60 psi (2.1-4.2 bar)
Temperature Range	40-85°F (4.4-29.4°C)
Rated Service Flow	0.3-0.5 gpm
Cartridge Dimensions	2-7/8" x 9-3/4" (all models)
Cartridge Lifetime	6-36 months depending on cartridge type
Connection Type	Faucet diverter valve (adapters included)
Installation	Countertop, no plumbing required
Material	Plastic housing, BPA-free components
Safety Features	Cold water only, freeze protection required, O-ring seals
Maintenance	Replace cartridge as needed, lubricate O-rings with cooking oil, flush after prolonged non-use
Spare Parts	Various filter cartridges, O-rings, sump wrench, diverter valve
Warranty	1-year limited warranty
Country of Origin	USA
Included Accessories	Filter housing, base, spout, diverter valve, tubing, clamp, sump wrench, adapters

Frequently Asked Questions - CQE-CT-00185 Crystal Quest

How do I install the Crystal Quest CQE-CT-00185?

Remove your faucet aerator, screw the appropriate adapter into the faucet, then attach the diverter valve. Connect the hose from the diverter valve to the filter unit using the clamp. Place the filter on the countertop and insert the spout. Ensure all connections are tight.

How often should I replace the filter cartridge?

Replacement frequency depends on the cartridge type and water usage. For carbon block cartridges, replace every 12-18 months. For sediment cartridges, every 12-18 months. For SMART Plus, 18-36 months. Reduced flow or bad taste indicates replacement is needed.

Can I use this filter on hot water?

No. The system is designed for cold water only (40-85°F). Using hot water can damage the filter and void the warranty.

What should I do if water leaks from the base?

Turn off the faucet, unscrew the housing, and check the O-rings. Ensure they are clean, lubricated with non-petroleum oil (not coconut oil), and undamaged. Replace if necessary. Use thread seal tape on the sump threads. Reassemble carefully.

Why is my water cloudy after installation?

Cloudiness is caused by trapped air in the cartridge. This is harmless. Let the water sit for a few minutes, and the cloudiness will clear from the bottom up. Flush the system 3-4 times for 5-10 minutes each to remove air.

How do I flush the filter after prolonged non-use?

If the unit has not been used for a while (e.g., vacation), flush it thoroughly by letting water run for 5-6 minutes before use. Repeat if necessary.

Can I use non-Crystal Quest replacement cartridges?

No. Only use Crystal Quest replacement cartridges to ensure proper fit, performance, and warranty coverage.

What is the warranty period for this product?

Crystal Quest offers a 1-year limited warranty against defects in materials and workmanship. It does not cover replacement cartridges unless defective upon receipt.

How do I clean the filter housing?

Use warm water, mild dish soap, and a soft cloth. Do not use harsh detergents, abrasive cleaners, or wire brushes as they may damage the system.

My diverter valve is stuck, what should I do?

Unscrew the diverter valve from the faucet and soak it in white vinegar for up to one hour to remove scale buildup. Rinse thoroughly before reattaching.

USER MANUAL CQE-CT-00185 Crystal Quest

Crystal Quest® Countertop Replaceable Water Filter Systems INSTALLATION AND OPERATION GUIDE

ONLINE WARRANTY INFORMATION

CrystalQuest.com/warranty.html

Copyright 2020

Crystal Quest®

All rights reserved

MADE IN THE USA

i IMPORTANT INFORMATION

• Please read all instructions and precautions before installing and using your Crystal Quest ® Countertop Water Filter.
  • Numbered diagrams correspond with numbered steps.
• Use this system on a potable (safe-to-drink) COLD water supply only. Do not install on hot water line.
• Do not use non-Crystal Quest replacement cartridges.
• Do not use non-Crystal Quest ® parts or modify/tamper with unit.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. CAUTION: Filter must be protected against freezing which can cause cracking of the filter and water leakage.

NOTE:

• Filter cartridge life varies depending on filter type, usage, and water conditions. The replacement filter cartridge used with this system has a limited service life. Changes in taste, odor, or reduced flow of the water being filtered can indicate that the cartridge should be replaced.
• The contaminants or other substances removed or reduced by these systems are not necessarily in your water. Ask your local water municipality for a copy of their water analysis or have your private well tested by a reputable water testing lab.
• After prolonged periods of non-use (such as during a vacation), it is recommended that the system be flushed thoroughly. Let water run for 5-6 minutes before using. Repeat if necessary.

CONNECTING DIVERTER VALVE TO FAUCET

NOTE: Adapters are included which will fit most faucets. To create a tight seal, you may need to use the gasket from your faucet's aerator in addition to the washers included with the adapters. If the adapters do not fit, consult your local plumbing or hardware supplier for assistance in obtaining the correctly threaded adapter.

Optional Prefilter available for all countertop models

OPERATION

• A drinking water cartridge may contain carbon fines (very fine black powder). After installation, flush the cartridge 3-4 times per flush for 5-10 minutes to remove the fines before using the water. Repeat as required.
• It is recommended that you run the tap at least 20 seconds prior to each use for drinking or cooking purposes.
• During initial use, your water may appear cloudy. This cloudiness is caused by air that has been trapped in the cartridge. If the water sits for 5 minutes in a glass, you will notice the cloudiness disappear from the bottom up. This phenomenon is not harmful and will clear up in time as the remaining air is flushed from the cartridge.

OPERATING SPECIFICATIONS

Pressure Range: 30-60 psi (2.1-4.2 bar)

Temperature Range: 40-85°F (4.4-29.4°C)

Rated Service Flow: 0.3-0.5 gpm

TROUBLESHOOTING

A. Leaks between base and housing:

• Turn off faucet and unscrew base of housing.
• Check to make sure both O-rings are clean, lubricated with non-petroleum oil (do not use coconut oil) and undamaged. Replace if necessary.
• Use thread seal tape around sump threading.
• Reinsert cartridge into base according to the directional arrow on the cartridge which indicated "This End Downward Towards Cap" and screw on sump using sump wrench. Be careful not to cross-thread or overtighten. If leak persists, contact Technical Support at [e-mail].

B. Diverter valve will not release:

• Unscrew diverter valve from faucet.
• Soak in white vinegar up to one hour to remove scale build-up a nd rinse.

C. Decreased f ow or return of bad taste/odor:

- Replace filter cartridge.

FILTER CARTRIDGE REPLACEMENT

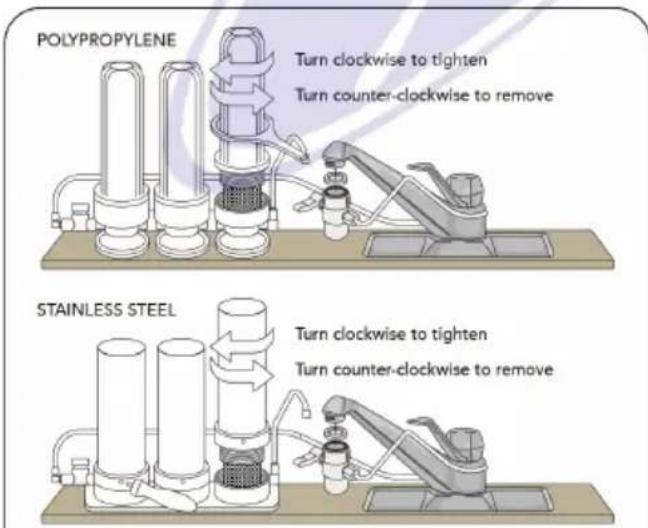

A. Turn off faucet. Unscrew the top of the housing using sump wrench (Fig 1). Water may spill when housing is removed. Empty excess water into sink. Set top of filter housing aside.
B. Pull out filter cartridge to remove from the base. Clean top and base of filter housing with warm water, mild dish soap and a soft cloth. Do not use harsh detergents, abrasive cleaners or wire brushes, as they may damage the system.
C. Set base of filter on counter. Insert new filter cartridge according to the directional arrow on the cartridge which indicates "This End Towards Cap". Seat securely into filter base (Fig 2).

NOTE: Make sure both black O-rings are present on the filter housing. Also, make sure to lubricate O-rings with cooking oil. (Do not use coconut oil).

D. Screw top of filter housing onto base and tighten with sump wrench until very snug.

E. Turn on water and the diverter handle. Flush the cartridge 3-4 times for 5 to 10 minutes to remove any media fines before using water.

(Fig. 1)

(Fig. 2)

REPLACEMENT PARTS

CQE-RC-04000 2-7/8" x 9-3/4"

Coconut Based 5-Micron Carbon Block Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04001 2-7/8" x 9-3/4"

Pleated Cellulose Sediment Cartridge (12-18 months lifetime expectancy)

CQE-RC-04002 2-7/8" x 9-3/4"

SMART PLUS Filter Cartridge (18-36 months lifetime expectancy)

CQE-RC-04005 2-7/8" x 9-3/4"

Ceramic Water Filter Cartridge (2-3 years with proper cleaning)

CQE-RC-04006 2-7/8" x 9-3/4"

Fluoride Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04049 2-7/8" x 9-3/4"

Fluoride Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04007 2-7/8" x 9-3/4"

Nitrate Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04050 2-7/8" x 9-3/4"

Nitrate Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

CQE-RC-04008 2-7/8" x 9-3/4"

Arsenic Removal Filter Cartridge (12-18 months lifetime expectancy)

CQE-RC-04051 2-7/8" x 9-3/4"

Arsenic Removal + SMART Filter Cartridge (6-12 months lifetime expectancy)

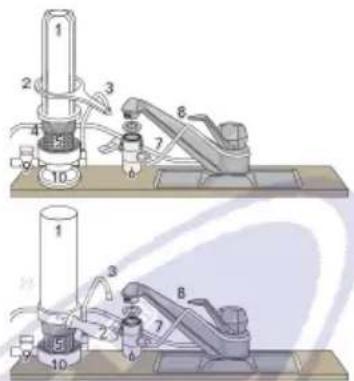

Filter Housing (1)

Wrench (2)

Spout (3)

O-ring (4)

Filter Cartridge (S)

Divertor Valve (6)

Tubing (7)

Clamp (8)

Optional Prefilter (9)

Base (10)

ONE-YEAR LIMITED WARRANTY

CRYSTAL QUEST® warrants your CRYSTAL QUEST® Countertop Replaceable Water Filter System for one year from the date of purchase against all defects in materials and workmanship when used in compliance with the manual. This warranty does not include replacement cartridges unless defective upon receipt. CRYSTAL QUEST® disclaims all implied warranties including, without limitation, warranties of merchantability and fitness for a particular purpose. If for any reason the product proves to be defective within one year from the date of purchase, please call for assistance. This warranty gives you specific legal rights and you may have other legal rights which vary from state to state. CRYSTAL QUEST® assumes no responsibility for incidental or consequential damages, for damages arising out of misuse of the product, or the use of any unauthorized attachment. Some states do not allow the exclusion or limitation of implied warranties or incidental or consequential damages, so the above limitations or exclusions may not apply to you. Should service be required during or after the warranty period or should you have any questions regarding how to use your CRYSTAL QUEST® Countertop Replaceable Water Filter System, contact our Technical Support Department at [e-mail], Monday through Friday, 9 A.M. to 4:30 P.M. Eastern Time.

KEEP THIS MANUAL FOR FUTURE REFERENCE AND UNIT MAINTENANCE

Online warranty information

http://crystalquest.com/warranty.htm

Product design is subject to change without notice.

For further assistance, contact your Crystal Quest dealer

or visit us at www.crystalquest.com

To view the latest edition of the Countertop Replaceable Water Filter System, visit CrystalQuest.com

Please note all drawings, pictures, colors and sizes are approximate for illustrative purposes only and may not exactly resemble the end product.
