USER MANUAL BSVOA 181 BEKO

Split-type room air conditioner

User Manual

BSVOA 090/BSVOA 091

BSVOA 120/BSVOA 121

BSVOA 180/BSVOA 181

BSVOA 240/BSVOA 241

BTV0A 090/BTV0A 091

BTVOA 120/BTVOA 121

BTV0A 180/BTV0A 181

RSVC09VS-I/RSVC09VS-0

RSVC12VS-I/RSVC12VS-0

RSSC09CV-I/RSSC09CV-0

RSSC12CV-I/RSSC12CV-0

02M-8895063200-0921-01

EN

beko

Table of Contents

Owner's Manual

0 Safety Precautions....04
1 Unit Specifications and Features....06

SAFETY FIRST

Line drawing of a remote control with Wi-Fi signal icon above (no text or symbols)

2 Manual Operation (Without Remote)....11

Simple line drawings of weather symbols including sun, water drop, snowflake, and refresh arrow (no text or labels)

3 Care and Maintenance....12
4 Troubleshooting....14

Illustration of a wrench and screwdriver crossed with a gear, connected to a warning triangle with a flame symbol (no text or labels)

Caution:Riskoffire/flammablematerials

WARNING: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. For more details, please refer to the "Information on servicing" on "INSTALLATION MANUAL".

Safety Precautions

Read Safety Precautions Before Installation

Incorrect installation due to ignoring instructions can cause serious damage or injury.

The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.

WARNING

This symbol indicates that ignoring instructions may cause death or serious injury.

CAUTION

This symbol indicates that ignoring instructions may cause moderate injury to your person, or damage to your appliance or other property.

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

INSTALLATION WARNINGS

• Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water leakage, electric shock, or fire.
• All repairs, maintenance and relocation of this unit must be performed by an authorized service technician. Inappropriate repairs can lead to serious injury or product failure.

WARNINGS FOR PRODUCT USE

• If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the power plug. Call your dealer for instructions to avoid electric shock, fire or injury.
• Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating at high speeds.
• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.
• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.
• Do not operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can cause electrical shock and cause the product to deteriorate.
• Do not expose your body directly to cool air for a prolonged period of time.

ELECTRICAL WARNINGS

• Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer or certified service agent.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.
• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can damage it, which can lead to fire or electric shock.
• Do not use an extension cord, manually extend the power cord, or connect other appliances to the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufficient voltage can cause fire.

CLEANING AND MAINTENANCE WARNINGS

• Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation.

CAUTION

• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.
• Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.
• Turn off and unplug the unit during storms.
  • Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high.

Explanation of symbols displayed on the indoor unit or outdoor unit:

	WARNING	This symbol shows that this appliance used a flammable refrigerant. If the refrigerant is leaked and exposed to an external ignition source, there is a risk of fire.
	CAUTION	This symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

Unit Specifications and Features

1

Unit Specifications and Features

Unit Parts

Front Panel Power Cable (Some Units) Louver 88 Remote Control Remote Control Holder Display window(A) 88

"ON " for 3 seconds when:

- TIMER ON is set

• SWING, TURBO, or SILENCE features are turned on

"OF " for 3 seconds when:

- TIMER OFF is set

• SWING, TURBO, or SILENCE features are turned off

"cF " when anti-cold air feature is turned on

" dF " when defrosting

"5C " when unit is self-cleaning

"FP " when freeze protection is turned on

88 " When ECO function is activated, the '88'illuminates gradually one by one as --E C--O--set temperature--E..... in one second interval.

"ECO " when ECO function is activated.

Display Code Meanings

In Fan mode, the unit will display the room temperature.

In other modes, the unit will display your temperature setting.

NOTE: A guide on using the infrared remote is not included in this literature package.

Achieving Optimal Performance

Optimal performance for the COOL and DRY modes can be achieved in the following temperature ranges. When your air conditioner is used outside of these ranges, certain safety protection features will activate and cause the unit to perform less than optimally.

Inverter Split Type

COOL mode DRY mode
Room Temperature	17°C - 32°C(63°F - 90°F)	10°C - 32°C(50°F - 90°F)
Outdoor Temperature	0°C - 50°C(32°F - 122°F)	0°C - 50°C(32°F - 122°F)

FOR OUTDOOR UNITS WITH AUXILIARY ELECTRIC HEATER

When outside temperature is below 0^ C ( 32^ F), we strongly recommend keeping the unit plugged in at all time to ensure smooth ongoing performance.

Fixed-speed Type

	COOL mode DRY mode
Room Temperature	17°-32°C (63°-90°F) 10°-32°C	(50°-90°F)
Outdoor Temperature	18°-43°C (64°-109°F)	11°-43°C (52°-109°F)

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
  • Regularly inspect and clean air filters.

For a detailed explanation of each function, refer to the Remote Control Manual.

Other Features

- Auto-Restart

If the unit loses power, it will automatically restart with the prior settings once power has been restored.

• Anti-mildew (some units)

When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue operate at very low power to dry up condensed water and prevent mildew growth.

• Wireless Control (some units)

Wireless control allows you to control your air conditioner using your mobile phone and a wireless connection.

For the USB device access, replacement, maintenance operations must be carried out by professional staff.

- Louver Angle Memory(some units)

When turning on your unit, the louver will automatically resume its former angle.

- Refrigerant Leakage Detection (some units)

The indoor unit will automatically display "EC" when it detects refrigerant leakage.

For a detailed explanation of your unit's advanced functionality (such as TURBO mode and its self-cleaning functions), refer to the Remote Control Manual.

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

- Setting Angle of Air Flow

Setting vertical angle of air flow

While the unit is on, use the SWING/DIRECT button to set the direction (vertical angle) of airflow.

1. Press the SWING/DIRECT button once to activate the louver. Each time you press the button, it will adjust the louver by 6°. Press the button until the direction you prefer is reached.
2. To make the louver swing up and down continuously, press and hold the SWING/DIRECT button for 3 seconds. Press it again to stop the automatic function.

Setting horizontal angle of air flow

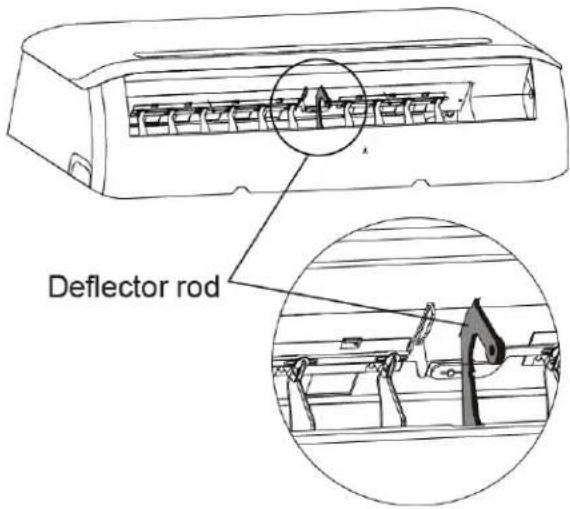

The horizontal angle of the airflow must be set manually. Grip the deflector rod (See Fig.B) and manually adjust it to your preferred direction.

For some units, the horizontal angle of the airflow can be set by remote control. please refer to the Remote Control Manual.

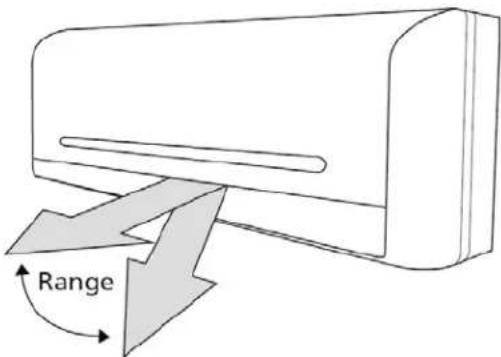

NOTE ON LOUVER ANGLES

When using COOL or DRY mode, do not set louver at too vertical an angle for long periods of time. This can cause water to condense on the louver blade, which will drop on your floor or furnishings. (See Fig.A)

When using COOL mode, setting the louver at too vertical an angle can reduce the performance of the unit due to restricted air flow.

Do not move louver by hand. This will cause the louver to become out of sync. If this occurs, turn off the unit and unplug it for a few seconds, then restart the unit. This will reset the louver.

Range

Caution: Do not keep louver at too vertical an angle for long periods of time. This can cause water condensation to drip on your furnishings.

Fig. A

CAUTION

Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury.

Deflector rod

Fig. B

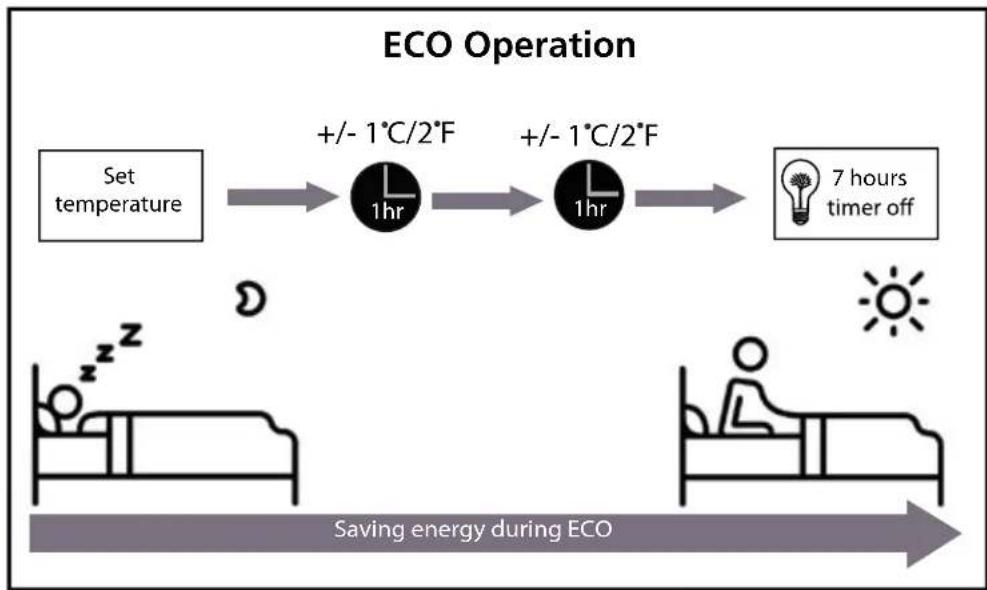

- ECO Operation

The ECO function is used to decrease energy use while you ECO (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control.

Press the ECO button when you are ready to go to ECO. When in COOL mode, the unit will increase the temperature by 1°C (2°F) after 1 hour, and will increase an additional 1°C (2°F) after another hour.

It will hold the new temperature for 5 hours, then the unit will turn off automatically.

Note: The ECO function is not available in FAN or DRY mode.

Manual Operation (Without Remote)

2

How to operate your unit without the remote control

In the event that your remote control fails to work, your unit can be operated manually with the MANUAL CONTROL button located on the indoor unit. Note that manual operation is not a long-term solution, and that operating the unit with your remote control is strongly recommended.

Unit must be turned off before manual operation.

To operate your unit manually:

1. Open the front panel of the indoor unit.
2. Locate the MANUAL CONTROL button on the right-hand side of the unit.
3. Press the MANUAL CONTROL button one time to activate FORCED AUTO mode.
4. Press the MANUAL CONTROL button again to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a third time to turn the unit off.
6. Close the front panel.

CAUTION

The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit.

Manual control button

Care and Maintenance

3

Cleaning Your Indoor Unit

BEFORE CLEANING OR MAINTENANCE

ALWAYS TURN OFF YOUR AIR CONDITIONER SYSTEM AND DISCONNECT ITS POWER SUPPLY BEFORE CLEANING OR MAINTENANCE.

CAUTION

Only use a soft, dry cloth to wipe the unit clean. If the unit is especially dirty, you can use a cloth soaked in warm water to wipe it clean.

• Do not use chemicals or chemically treated cloths to clean the unit
• Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform.
• Do not use water hotter than 40°C (104°F) to clean the front panel. This can cause the panel to deform or become discolored.

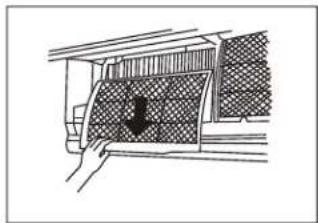

Cleaning Your Air Filter

A clogged air conditioner can reduce the cooling efficiency of your unit, and can also be bad for your health. Make sure to clean the filter once every two weeks.

1. Lift the front panel of the indoor unit.
2. Grip the tab on the end of the filter, lift it up, then pull it towards yourself.
3. Now pull the filter out.

4. Clean the large air filter with warm, soapy water. Be sure to use a mild detergent.

5. Rinse the filter with fresh water, then shake off excess water.

6. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.
7. When dry, then slide it back into the indoor unit.
8. Close the front panel of the indoor unit.

Filter Tabs

Diagram of a vehicle interior with a shaded canopy and a person silhouette (no text or symbols)

Diagram showing a water tap above a grid-patterned panel with a central object (no text or symbols)

CAUTION

• Before changing the filter or cleaning, turn off the unit and disconnect its power supply.
• When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.
• Do not expose filter to direct sunlight when drying. This can shrink the filter.

CAUTION

• Any maintenance and cleaning of outdoor unit should be performed by an authorized dealer or a licensed service provider.
• Any unit repairs should be performed by an authorized dealer or a licensed service provider.

Maintenance – Long Periods of Non-Use

If you plan not to use your air conditioner for an extended period of time, do the following:

3D grid pattern with a small musical note icon on the top right corner (no text or symbols)

Clean the filter

Simple line drawing of a house with wavy lines inside, no text or symbols present

Turn on FAN function until unit dries out completely

Warning symbol with crossed-out lightning bolt inside a circle, indicating no protection or resistance.

Turn off the unit and remove batteries disconnect the power from

Line drawing of a handheld electronic device with ports and connectors (no text or symbols)

from remote control

Maintenance – Pre-Season Inspection

After long periods of non-use, or before periods of frequent use, do the following:

Symbolic illustration of a crossed-out electrical hazard zone with lightning bolts (no text or labels)

Check for damaged wiresNClean the filter

3D grid diagram with hatched fill and a small arrow pointing upward (no text or symbols)

Line drawing of a smartphone with internal components and a clip (no text or symbols)

Safety warning symbol with crossed line and droplet icons, indicating no protection or disinfection

Check for leaksNReplace batteries

Make sure nothing is blocking all air inlets and outlets

Troubleshooting

4

SAFETY PRECAUTIONS

If ANY of the following conditions occurs, turn off your unit immediately!

• The power cord is damaged or abnormally warm
• You smell a burning odor
  • The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
  • Water or other objects fall into or out of the unit

DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE PROVIDER IMMEDIATELY!

Common Issues

The following problems are not a malfunction and in most situations will not require repairs.

Issue Possible Causes
Unit does not turn on when pressing ON/OFF button	The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off.
The unit changes from COOL mode to FAN mode	The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again.
	The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again.
The indoor unit emits white mist	In humid regions, a large temperature difference between the room's air and the conditioned air can cause white mist.
The indoor unit makes noises	A rushing air sound may occur when the louver resets its position.
Both the indoor unit and outdoor unit make noises	Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.
	Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction.
	Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises.
The outdoor unit makes noises	The unit will make different sounds based on its current operating mode.
Dust is emitted from either the indoor or outdoor unit	The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity.
The unit emits a bad odor	The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operations.
	The unit's filters have become moldy and should be cleaned.
The fan of the outdoor unit does not operate	During operation, the fan speed is controlled to optimize product operation.
Operation is erratic, unpredictable, or unit is unresponsive	Interference from cell phone towers and remote boosters may cause the unit to malfunction.In this case, try the following:Disconnect the power, then reconnect.Press ON/OFF button on remote control to restart operation.
NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number.

Troubleshooting

When troubles occur, please check the following points before contacting a repair company.

Problem Possible Causes Solution
Poor Cooling Performance	Temperature setting may be higher than ambient room temperature	Lower the temperature setting
	The heat exchanger on the indoor or outdoor unit is dirty	Clean the affected heat exchanger
	The air filter is dirty	Remove the filter and clean it according to instructions
	The air inlet or outlet of either unit is blocked	Turn the unit off, remove the obstruction and turn it back on
	Doors and windows are open	Make sure that all doors and windows are closed while operating the unit
	Excessive heat is generated by sunlight	Close windows and curtains during periods of high heat or bright sunshine
	Too many sources of heat in the room (people, computers, electronics, etc.)	Reduce amount of heat sources
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
	SILENCE function is activated(optional function)	SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function.
Problem	Possible Causes	Solution
The unit is not working	Power failure	Wait for the power to be restored
	The power is turned off	Turn on the power
	The fuse is burned out	Replace the fuse
	Remote control batteries are dead	Replace batteries
	The Unit's 3-minute protection has been activated	Wait three minutes after restarting the unit
	Timer is activated	Turn timer off
The unit starts and stops frequently	There's too much or too little refrigerant in the system	Check for leaks and recharge the system with refrigerant.
	Incompressible gas or moisture has entered the system.	Evacuate and recharge the system with refrigerant
	The compressor is broken	Replace the compressor
	The voltage is too high or too low	Install a manostat to regulate the voltage
Indicator lamps continue flashing	The unit may stop operation or continue to run safely. If the indicator lamps continue to flash or error codes appear, wait for about 10 minutes. The problem may resolve itself. If not, disconnect the power, then connect it again. Turn the unit on.If the problem persists, disconnect the power and contact your nearest customer service center.
Error code appears in the window display of indoor unit:• E0, E1, E2...• P1, P2, P3...• F1, F2, F3...

NOTE: If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Specifications

Type	Indoor unit	BSVOA 090 BSVOA 120 BSVOA 180
	Outdoor unit	BSVOA 091 BSVOA 121 BSVOA 181
Climate Mode		T1 T1 T1
Cooling capacity(Btu/Hr) / Heating capacity(Btu/Hr)		9000 / - 12000 / - 18000 / -
Air Flow volume(m3/h)		570 583 779
Power Supply form(V/Hz/Ph)		220-240~ / 60Hz / 1Ph 220-240~ / 60Hz / 1Ph 220-240~ / 60Hz / 1Ph
PowerInput(W) Cooling / Heating		722 / - 890 / - 1518 / -
Refrigerant /Total gas quantity(g)		R32 / 420 R32 / 490 R32 / 830
Noise SoundPressure(dB)	Indoor unit	39	41
	Outdoor unit	54	59
Indoor	Size of shape(WxDxH)(mm)	835x198x297	835x198x297
	Net weight(Kg)	10	10
Outdoor	Size of shape(WxDxH)(mm)	681x285x434	770x300x555
	Net weight(Kg)	18.5	23
Diameter of connecting pipe(mm)	Liquid tube	6.35(1/4")	6.35(1/4")
	Vapor tube	9.52(3/8")	12.7(1/2")

Notes: 1, Specifications are standard values calculated based on rated operating conditions,
They will vary in difference work condition.
2, Rated Cooling value is tested under 27/19(In.) 35/24(Out.) condition.
