USER MANUAL Abs Wing (2013) Honda

Specifications P. 116

Index P. 120

Scooter Safety

This section contains important information for safe riding of your scooter. Please read this section carefully.

Safety Guidelines ......P. 3

Safety Labels ......P. 7

Safety Precautions ......P. 9

Riding Precautions ......P. 10

Accessories & Modifications......P. 14

Loading P. 15

Safety Guidelines

Follow these guidelines to enhance your safety:

●Perform all routine and regular inspections specified in this manual.
- Stop the engine and keep sparks and flame away before filling the fuel tank.
- Do not run the engine in enclosed or partly enclosed areas. Carbon monoxide in exhaust gases is toxic and can kill you.

Always Wear a Helmet

It's a proven fact: helmets and protective apparel significantly reduce the number and severity of head and other injuries. So always wear an approved motorcycle helmet and protective apparel. P. 9

Before Riding

Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your passenger are both wearing an approved motorcycle helmet and protective apparel. Instruct your passenger on holding onto the handrails or your waist, leaning with you in turns, and keeping their feet on the footpegs, even when the scooter is stopped.

Take Time to Learn & Practice

Even if you have ridden other scooters, practice riding in a safe area to become familiar with how this scooter works and handles, and to become accustomed to the scooter's size and weight.

Safety Guidelines

We recommend that all riders take a certified course approved by the Motorcycle Safety Foundation (MSF). New riders should start with the basic course, and even experienced riders will find the advanced course beneficial. For information about the MSF training course nearest you, call the national toll-free number: [phone].

Other riding tips can be found in the You and Your Motorcycle Riding Tips booklet that came with your scooter.

Ride Defensively

Always pay attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.

Make Yourself Easy to See

Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning yourself so other drivers can see you, signaling before turning or changing lanes, and using your horn when necessary.

Ride within Your Limits

Never ride beyond your personal abilities or faster than conditions warrant. Fatigue and inattention can impair your ability to use good judgement and ride safely.

Don't Drink and Ride

Alcohol and riding don't mix. Even one alcoholic drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. Don't drink and ride, and don't let your friends drink and ride either.

Safety Guidelines

Keep Your Honda in Safe Condition

It's important to keep your scooter properly maintained and in safe riding condition. Inspect your scooter before every ride and perform all recommended maintenance. Never exceed load limits (P. 15), and do not modify your scooter or install accessories that would make your scooter unsafe (P. 14).

If You are Involved in a Crash

Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.

If you decide to continue riding, first evaluate the condition of your scooter. If the engine is still running, turn it off. Inspect for fluid leaks,

check the tightness of critical nuts and bolts, and check the handlebar, control levers, brakes, and wheels. Ride slowly and cautiously. Your scooter may have suffered damage that is not immediately apparent. Have your scooter thoroughly checked at a qualified service facility as soon as possible.

Safety Guidelines

Carbon Monoxide Hazard

Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.

If you run the engine in confined or even partly enclosed area, the air you breathe could contain a dangerous amount of carbon monoxide. Never run your scooter inside a garage or other enclosure.

WARNING

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any areas or activities that expose you to carbon monoxide.

Safety Labels

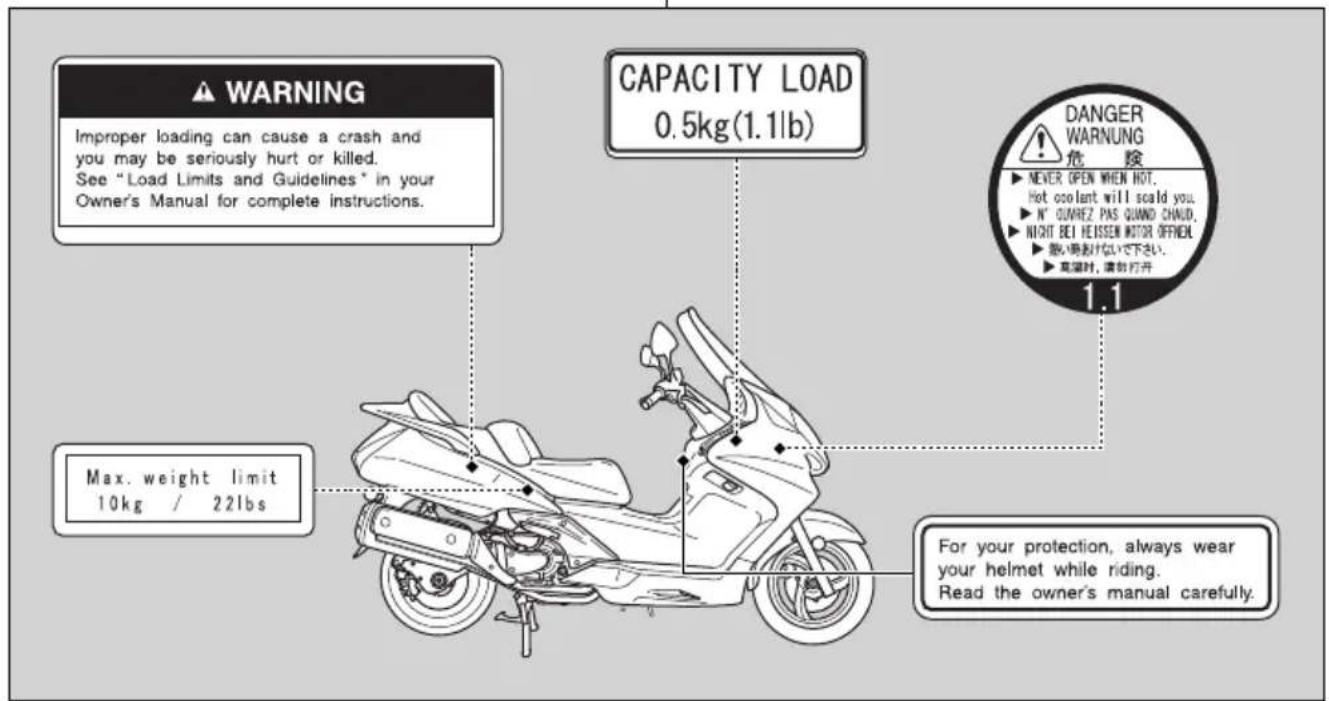

Safety Labels

Safety and information labels on your scooter provide important safety information and may warn you of potential hazards that could cause serious injury. Read these labels carefully and don't remove them. If a label comes off or becomes hard to read, contact your dealer for a replacement.

WARNING Improper loading can cause a crash and you may be seriously hurt or killed. See "Load Limits and Guidelines" in your Owner's Manual for complete instructions. CAPACITY LOAD 0.5kg(1.1lb) MAX. weight limit 10kg / 22lbs DANGER WARNING 危 险 ▶ NEVER OPEN WHEN HOT. Hot coolant will scald you. ▶ N° O'URÉZ PAS QUAND CHNUD. ▶ NICHT BEI HEISSEN MOTOR OFFNEIN ▶ 敲い無駄ないで下さい. ▶ 電望时，请勿打开 1.1 For your protection, always wear your helmet while riding. Read the owner's manual carefully.

Safety Labels

Glove Box Max. weight limit 1.0kg / 2.0lbs TIRE INFORMATION Cold tire pressures: 【Up to maximum weight capacity】 Front 200kPa 2.00kgf/cm² 29psi Rear 250kPa 2.50kgf/cm² 36psi 【Up to 90kg (200lbs) load】 Front 200kPa 2.00kgf/cm² 29psi Rear 225kPa 2.25kgf/cm² 33psi Maximum weight capacity : 166kg(366lbs) Tire size : Front 120/80-14M/C 58S Rear 150/70-13M/C 64S Tire brand IRC Front SS530F Rear SS530R Min. recommend tire center tread depth: Front 1.5mm(0.06in.) Rear 2.0mm(0.08in.) This motorcycle is equipped with tubeless tires. Read owner's manual.

Safety Precautions

Safety Precautions

• Ride cautiously and keep your hands on the handlebars and feet on the floor.
• Keep passenger's hands onto the handrails or your waist, passenger's feet on the footpegs while riding.
  ●Always consider the safety of your passenger, as well as other drivers and riders.

Protective Apparel

Make sure that you and any passenger are wearing an approved motorcycle helmet, eye protection, and high-visibility protective clothing. Ride defensively in response to weather and road conditions.

Helmet

Should be safety-standard certified, high-visibility, and correct size for your head.

●Must fit comfortably but securely, with the chin strap fastened.

●Face shield with unobstructed field of vision or other approved eye protection.

Look for a DOT (Department of Transportation) certification label on any helmet you buy.

WARNING

Not wearing a helmet increases the chance of serious injury or death in a crash.

Make sure that you and any passenger always wear an approved helmet and protective apparel.

Gloves

Full-finger leather gloves with high abrasion resistance.

Riding Precautions

Boots or Riding Shoes

Sturdy boots with non-slip soles and ankle protection.

Jacket and Pants

Protective, highly visible, long-sleeved jacket and durable long pants for riding (or a protective suit).

Riding Precautions

Break-in Period

During the first 300 miles (500 km) of running, follow these guidelines to ensure your scooter's future reliability and performance.

●Avoid full-throttle starts and rapid acceleration.
●Avoid hard braking.
●Ride conservatively.

Brakes

Observe the following guidelines:

●For full braking effectiveness, operate both the front and rear brakes together.
●Avoid excessively hard braking.

Sudden braking can reduce the scooter's stability.

▶Where possible, reduce speed before turning; otherwise you risk sliding out.

Riding Precautions

●Exercise caution on low traction surfaces.

The tires slip more easily on such surfaces and braking distances are longer.
●Avoid continuous braking.
▶ Repeated braking, such as when descending long, steep slopes can seriously overheat the brakes, reducing their effectiveness.

Combined ABS

Your scooter's rear brake system is linked to the front brake. This means that operating the rear brake lever applies the rear brake and a portion of the front brake. Operating the front brake lever applies only the front brake.

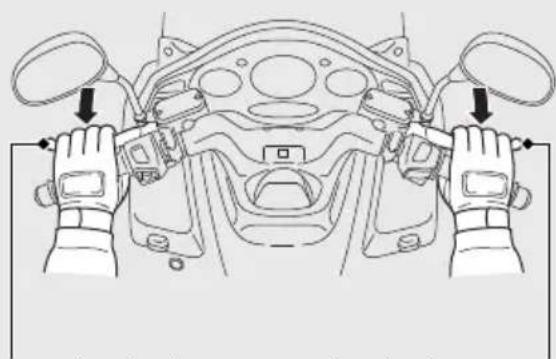

For full braking effectiveness, operate both the brake levers together.

This model is also equipped with an Anti-lock Brake System (ABS) designed to help prevent the brakes from locking up during hard braking.

●ABS does not reduce braking distance. In certain circumstances, ABS may actually result in a longer stopping distance.
●ABS does not function at speeds below 6 mph (10 km/h).
●The brake levers may recoil slightly when applying the brakes. This is normal.
●Always use the recommended tires to ensure correct ABS operation.

Wet or Rainy Conditions

Road surfaces are slippery when wet, and wet brakes further reduce braking efficiency.

Exercise extra caution when braking in wet conditions.

If the brakes get wet, apply the brakes while riding at low speed to help them dry.

Riding Precautions

Parking

●Park on a firm, level paved surface.
- If you must park on a slight incline or loose surface, park so that the scooter cannot move or fall over.
●Make sure that high-temperature parts cannot come into contact with flammable materials.
- Do not touch the engine, muffler, brakes and other high-temperature parts until they cool down.
●To reduce the likelihood of theft, always lock the handlebar and remove the key when leaving the scooter unattended. Use of an anti-theft device is also recommended.

Parking with the Side Stand or Center Stand

1. Stop the engine.

2. Using the side stand

Lower the side stand. Slowly lean the scooter to the left until its weight rests on the side stand.

Turn the handlebar fully to left.

▶Turning the handlebar to the right reduces stability and may cause the scooter to fall.

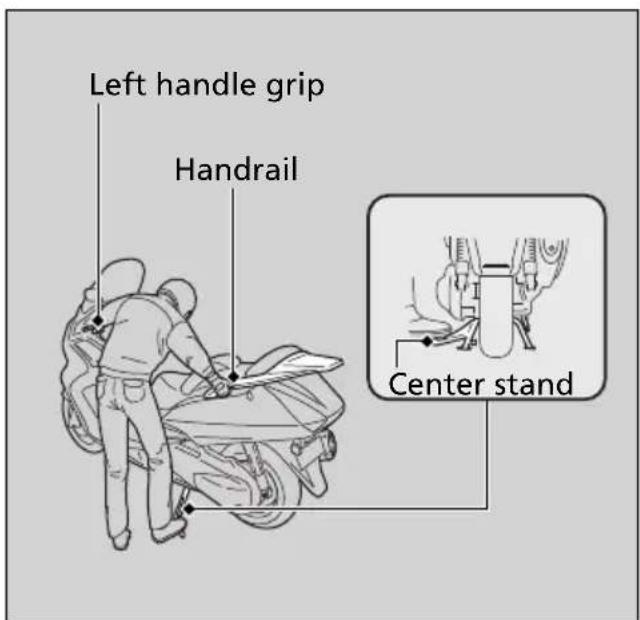

Using the center stand

Stand on the left side of the scooter, and then hold the left handle grip and the left passenger handrail. Press down on the tip of the center stand with your right foot and, simultaneously, pull up and back.

Turn the handlebar fully to left or right.

Left handle grip Handrail Center stand

1. Lock the steering and remove the key. P. 24

Refueling and Fuel Guidelines

Follow these guidelines to protect the engine and catalytic converter:

●Use only unleaded gasoline.
●Use recommended octane number. Using lower octane gasoline will result in decreased engine performance.
●Do not use fuels containing a high concentration of alcohol. P. 110
●Do not use stale or contaminated gasoline or an oil/gasoline mixture.
●Avoid getting dirt or water in the fuel tank.

Accessories & Modifications

Accessories & Modifications

We strongly advise that you do not add any accessories that were not specifically designed or approved for your scooter by Honda or make modifications to your scooter from its original design. Doing so can make it unsafe. Modifying your scooter may also void your warranty and make your scooter illegal to operate on public roads and highways. Before deciding to install accessories on your scooter be certain the modification is safe and legal.

WARNING

Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding accessories and modifications.

Do not pull a trailer with, or attach a sidecar to, your scooter. Your scooter was not designed for these attachments, and their use can seriously impair your scooter's handling.

Loading

• Carrying extra weight affects your scooter's handling, braking and stability. Always ride at a safe speed for the load you are carrying.
  ●Avoid carrying an excessive load and keep within specified load limits.
  Maximum weight capacity / Maximum luggage weight P. 116
  ●Tie all luggage securely, evenly balanced and close to the center of the scooter.
• Do not place objects near the lights or the muffler.

WARNING

Overloading or improper loading can cause a crash and you can be seriously hurt or killed.

Follow all load limits and other loading guidelines in this manual.

Parts Location

Backrest P. 36 Center compartment P. 32 Tool kit/Document bag P. 33 Throttle grip P. 78 Front brake fluid reservoir P. 74 Windscreen garnish P. 55 Right fairing pocket P. 35 Coolant reserve tank P. 72 Parking brake lever P. 25 Fuel fill cap P. 30 Engine oil fill cap/ dipstick P. 67 Engine oil filter P. 69 Engine oil plug P. 69 Air cleaner P. 63 Right side cover P. 59

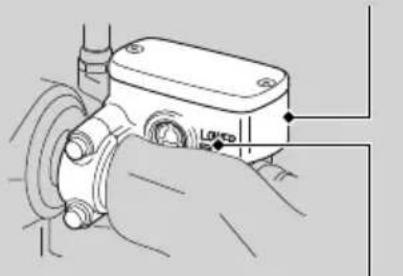

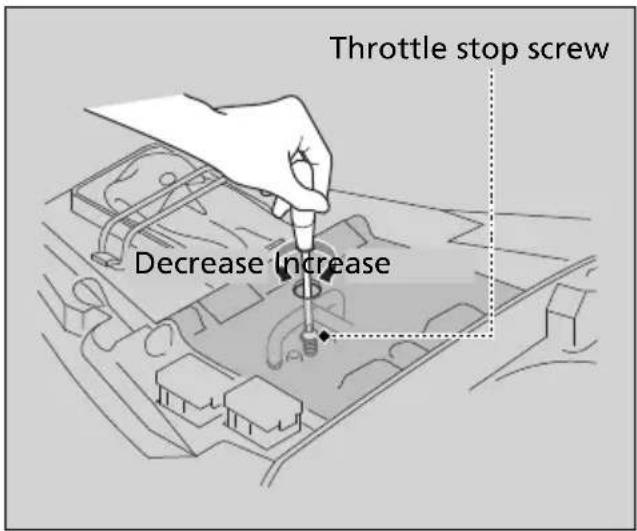

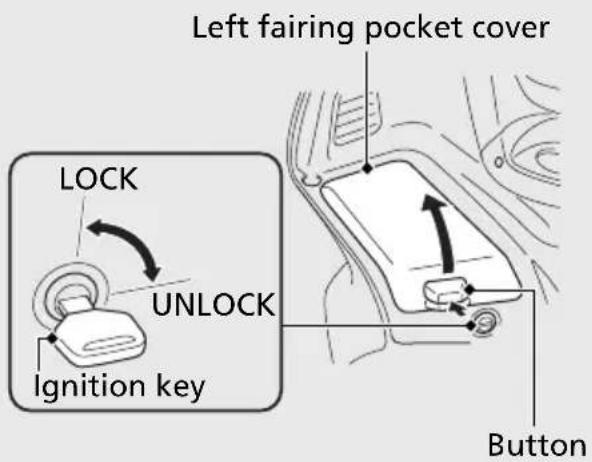

Rear brake fluid reservoir P.74 Left fairing pocket P.34 Throttle stop screw (Idle speed) P.71 Main fuse A P.93 Fuse boxes P.92 Rear cover P.56 Seat lock P.32 Rear suspension spring preload adjuster P.79 Battery P.62 Left side cover P.57 Crankcase breather P.64 Side stand P.77 Spark plugs P.65

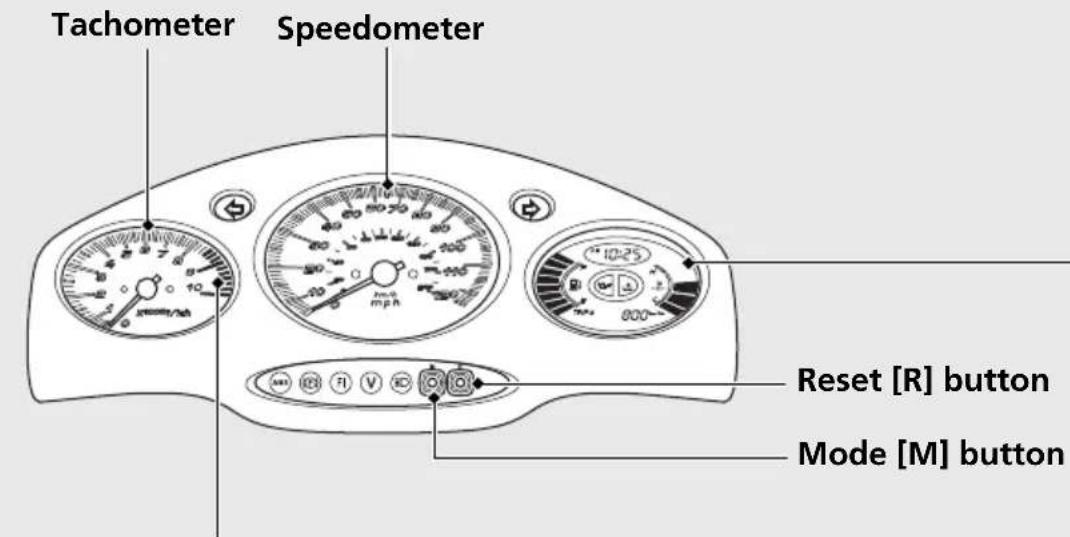

Instruments

Tachometer Speedometer Reset [R] button Mode [M] button

Tachometer red zone

(excessive engine rpm range)

NOTICE

Do not operate the engine in the tachometer red zone.

Excessive engine speed can adversely affect engine life.

Display Check

When the ignition switch is turned on, all the mode and digital segments will show. If any part of these displays does not come on when it should, have your dealer check for problems.

Clock

To set the clock:

AM 18:88 PM F E H C TRIP A 000000 mile TOTAL B

Coolant temperature gauge ( )

- Above the specified temperature:

• 5th (H) segment comes on
• High coolant temperature indicator comes on

Fuel gauge

Remaining fuel when only 1st (E) segment starts flashing: approximately 0.92 US gal (3.5 liters)

Odometer [TOTAL] & Tripmeter [TRIP A/B]

Mode[M] button switches between odometer & tripmeters.

• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since tripmeter was reset (press and hold reset [R] button to reset to 0.0 mile).

continued

Instruments (Continued)

To set the clock:

1 Turn the ignition switch on.
2 Press and hold mode [M] and reset [R] buttons until the hour digits start flashing.
3 Press reset [R] button until the desired hour is displayed.
▶Press and hold to advance the hour fast.
4 Press mode [M] button. The minute digits start flashing.

5 Press reset [R] button until the desired minute is displayed.

▶Press and hold to advance the minute fast.

6 Press mode [M] button. The clock is set.

The time can also be set by turning the ignition switch off.

The display will stop flashing automatically and the adjustment will be cancelled if the button is not pressed for about 2 minutes.

Indicators

FI

PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL)

Comes on briefly when the ignition switch is turned on with the engine stop switch in the (Run) position.

If it comes on while engine is running:

High coolant temperature indicator

Comes on briefly when the ignition switch is turned on.

If it comes on while riding:

P. 82 800 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 4300 4400 4500 4600 4700 4800 4900 5000 5100 5200 5300 5400 5500 5600 5700 5800 5900 6000 6100 6200 6300 6400 6500 6600 6700 6800 6900 7000 7100 7200 7300 7400 7500 7600 7700 7800 7900 800

ABS

ABS (Anti-lock Brake System) indicator

Comes on when the ignition switch is turned on. Goes off when your speed reaches approximately 6 mph (10 km/h).

If it comes on while riding:

Low oil pressure indicator

Comes on when the ignition switch is turned on. Goes off when the engine starts.

If it comes on while engine is running: P.83

Indicators (Continued)

Left turn signal indicator

Right turn signal indicator

High beam indicator

make indicator V V-matic indicator

Parking brake indicator

Comes on as a reminder that you have not released the parking brake lever. P.25

V-matic indicator

• Comes on briefly when the ignition switch is turned on.
• Comes on when the V-matic parts have to be replaced. If it comes on, contact your dealer.

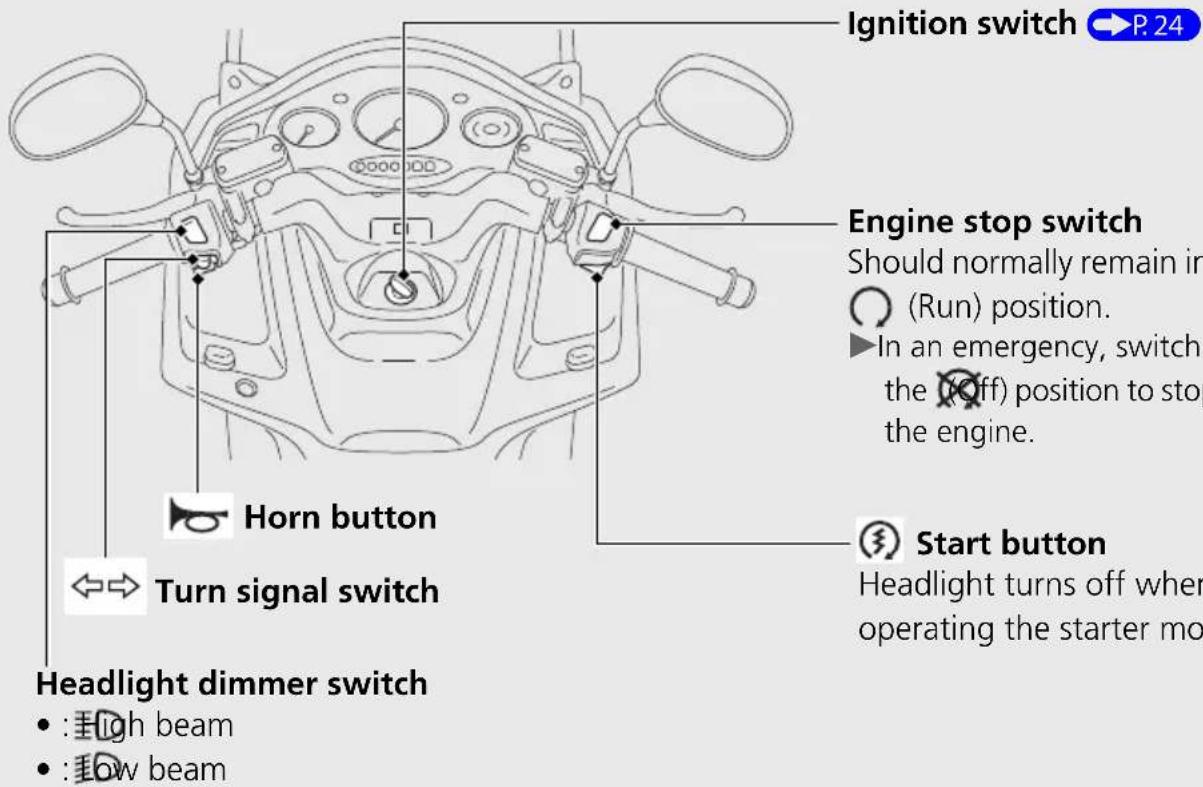

Switches

Ignition switch P.24 Engine stop switch Should normally remain in (Run) position. In an emergency, switch the (Off) position to stop the engine. Start button Headlight turns off when operating the starter mo Headlight dimmer switch High beam low beam

Switches (Continued)

Ignition switch

Switches the electrical system on/off, locks the steering.

▶Key can be removed when in the OFF or LOCK position.

Steering Lock

Lock the steering when parking to help prevent theft.

A U-shaped wheel lock or similar device is also recommended.

① ② Push Turn Ignition key

ON

Turns electrical system on for starting/riding.

OFF Turns engine off.

LOCK

Locks steering.

Locking

1 Turn the handlebar all the way to the left (or right only when the center stand is used).
2 Push the key down, and turn the ignition switch to the LOCK position.

▶Jiggle the handlebar if the lock is difficult to engage.

③ Remove the key.

Unlocking

Insert the key, push it in, and turn the ignition switch to the OFF position.

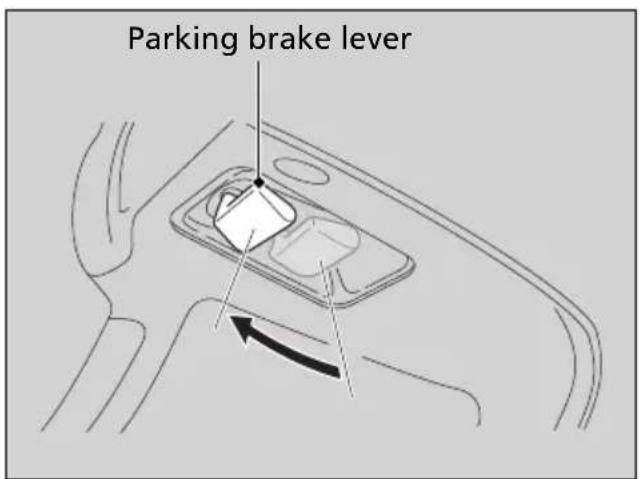

Parking Brake

Parking Brake Lever

Be sure the parking brake is applied while parking and warming up the engine.

To apply the parking brake

Pull the parking brake lever back to lock the rear wheel.

The parking brake lock will not function if the parking brake is not adjusted properly.

To release the parking brake

Release the parking brake lever by lightly pulling in the lever.

Before riding, check that the parking brake indicator is turned off and make sure that the parking brake is fully released so there is no drag on the rear wheel.

Top-down technical line drawing of a motorcycle's front dashboard and steering wheel (no text or symbols)

To Apply

Parking brake lever

Pull
To Release

Lightly pull

Release

Starting

Starting the Engine

Start your engine using the following procedure, regardless of whether the engine is cold or warm.

This scooter is equipped with a side stand ignition cut-off system.

▶If the side stand is down, the engine cannot be started.
▶If you lower the side stand with the engine running, it will automatically shut off.

NOTICE

• If the engine does not start within 5 seconds, turn the ignition off and wait 10 seconds before trying to start the engine again to recover battery voltage.
• Extended fast idling and revving the engine can damage the engine, and the exhaust system.
• Snapping the throttle of fast idling for more than 5 minutes may cause exhaust pipe discoloration.

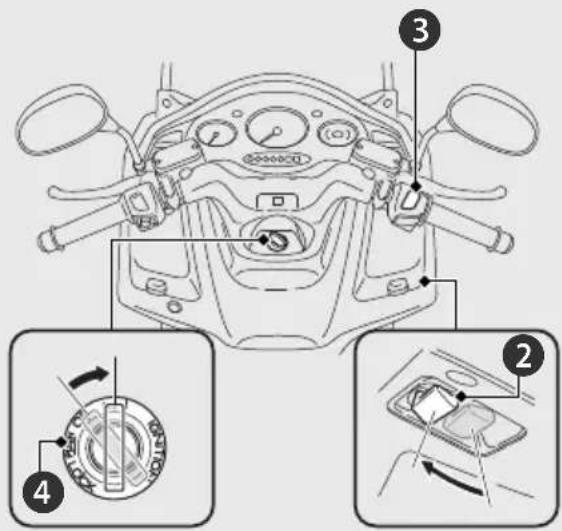

1 Place the scooter on its center stand.
2 Lock the parking brake (parking brake indicator comes on).
③ Make sure the engine stop switch is in the (Run) position.
4 Turn the ignition switch to the ON position.

Technical diagram of a motorcycle head with labeled parts and directional arrows indicating rotation or adjustment.

⑤ Squeeze the rear brake lever.
The starter motor will only work when the rear brake lever is squeezed and the side stand is up.
6 Press the start button with the throttle completely closed. Release the start button as soon as the engine starts.

Illustration of a hand operating a mechanical device with a hand pointing to the grip (no text or symbols present)

Diagram showing a hand operating a mechanical component with an arrow and labeled point 6

If the engine does not start:

① Open the throttle fully and press the start button for 5 seconds.
②Repeat the normal starting procedure.
③If the engine starts, open the throttle slightly if idling is unstable.
④If the engine does not start, wait 10 seconds before trying steps ① & ② again.

If Engine Will Not Start P.81

Riding

Starting the Scooter

1 Push the scooter forward off the center stand.

▶Lock the parking brake.
▶ Keep throttle closed.

Make sure the side stand and center stand are up.

2 Get on the scooter.
▶Mount the scooter from the left side, keeping at least one foot on the ground.
3 Release the parking brake lever.
▶ To prevent unexpected movement, squeeze brake levers.

4 Acceleration and deceleration.

To accelerate.....Open the throttle slowly.

To decelerate.....Close the throttle.

Close (Decelerate) Open (Accelerate)

Braking

Close the throttle and apply the front and rear brake levers together.

Do not apply the parking brake while riding. It may cause the rear wheel to lock, reducing control of the scooter.

Technical line drawing of a car interior showing hand positioning and valve assembly (no text or symbols)

Rear brake lever Front brake lever

Refueling

Fuel type: Unleaded gasoline only Fuel octane number: Your scooter is designed to use Pump Octane Number (PON) 86 or higher. Tank capacity: 4.23 US gal (16.0 liters)

Refueling and Fuel Guidelines P.13

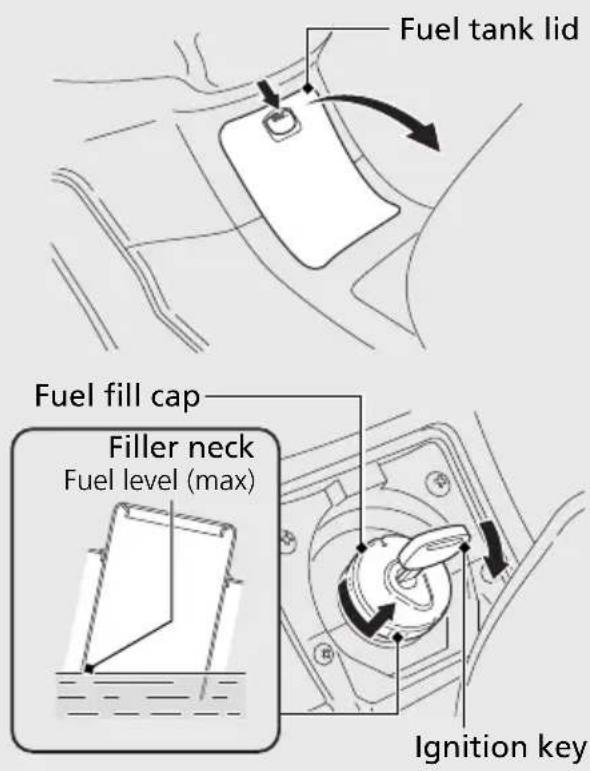

Opening the Fuel Fill Cap

1 Open the fuel tank lid.
②Turn the ignition key clockwise until it stops.
3 Turn the fuel fill cap counterclockwise until it stops and remove the cap.

Fuel tank lid Fuel fill cap Filler neck Fuel level (max) Ignition key

Do not fill with fuel above the filler neck.

Closing the Fuel Fill Cap

① Install and tighten the fuel fill cap by turning it clockwise.
▶ Make sure that the arrow mark on the cap faces forward.
②Turn the key counterclockwise until it stops and remove the key.
③Close the fuel tank lid.

WARNING

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine, and keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.

Storage Equipment

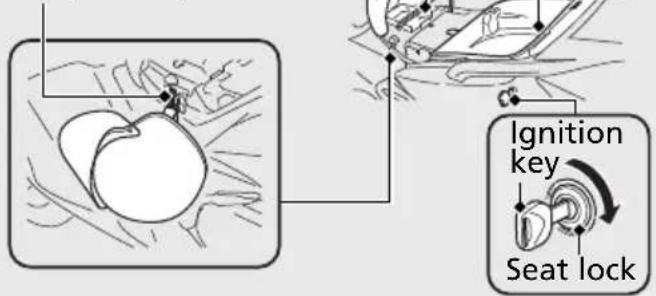

Helmet holder

The helmet holder is located under the seat.

▶ Use the helmet holder only when parked.

Ignition key Seat lock

Center compartment

Never exceed the maximum weight capacity.

Maximum Weight: 22 lb (10 kg)

▶ Do not store food and other articles.

WARNING

Riding with a helmet attached to the holder can interfere with your ability to safely operate the scooter and could lead to a crash in which you can be seriously hurt or killed.

Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

To open the seat

Insert the ignition key into the seat lock and turn it clockwise to unlock.

To close the seat

Close and push down on the rear of the seat until it locks. Make sure that the seat is locked securely to pull it up lightly.

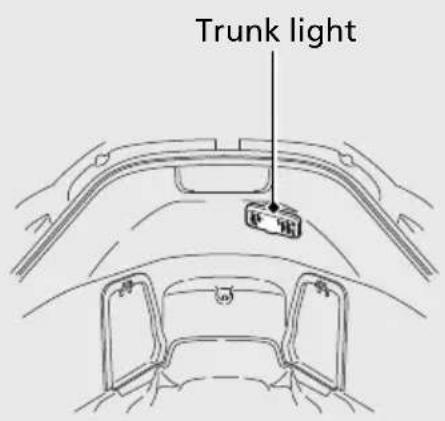

Trunk light

Lights automatically when the seat is opened. Turns off when the seat is closed.

Trunk light

Tool kit/Document bag

The tool kit and document bag are stored under the seat by the rubber strap.

Tool kit Document bag Rubber strap

Storage Equipment (Continued) Left Fairing Pocket

Never exceed the maximum weight capacity.

Maximum weight: 2.0 lb (1.0 kg)

Left fairing pocket cover LOCK UNLOCK Ignition key Button

To open

1 Insert the ignition key and turn it clockwise to unlock.
2 Open the left fairing pocket cover while pressing the button.

To close

Close the left fairing pocket cover and turn the ignition key counterclockwise to lock.

Make sure that the cover is locked securely.

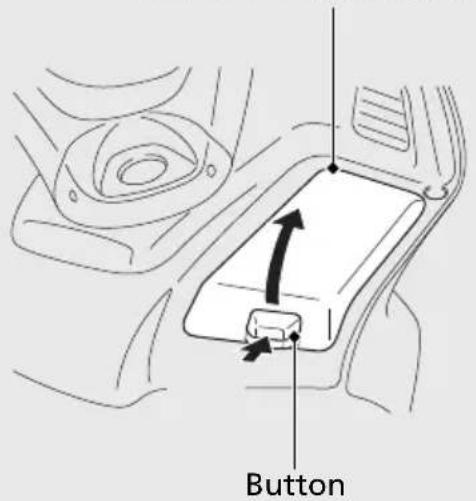

Right Fairing Pocket

Never exceed the maximum weight capacity.

Maximum weight: 1.1 lb (0.5 kg)

Right fairing pocket cover

Button

To open

Open the right fairing pocket cover while pressing the button.

To close

Close the right fairing pocket cover.

Make sure that the cover is closed securely.

Comfort & Convenience

Backrest

The seat is equipped with an adjustable backrest.

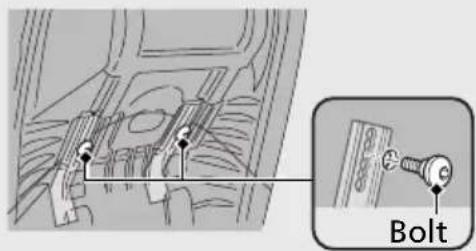

To adjust

1 Open the seat. P. 32
2 Remove the bolts.
3 Move the backrest to the preferred position.
4 Install the bolts.
5 Close the seat.
Make sure that the backrest is locked securely.

After cleaning or riding in the rain, wipe off water collected under the backrest before riding the scooter again.

Backrest

Bolt

Maintenance

Please read "Importance of Maintenance" and "Maintenance Fundamentals" carefully before attempting any maintenance. Refer to "Specifications" for service data.

Importance of Maintenance ...... P. 38

Maintenance Schedule P. 40

Maintenance Fundamentals ...... P. 43

Removing & Installing Body Components ..P. 55

Windscreen Garnish.... P. 55

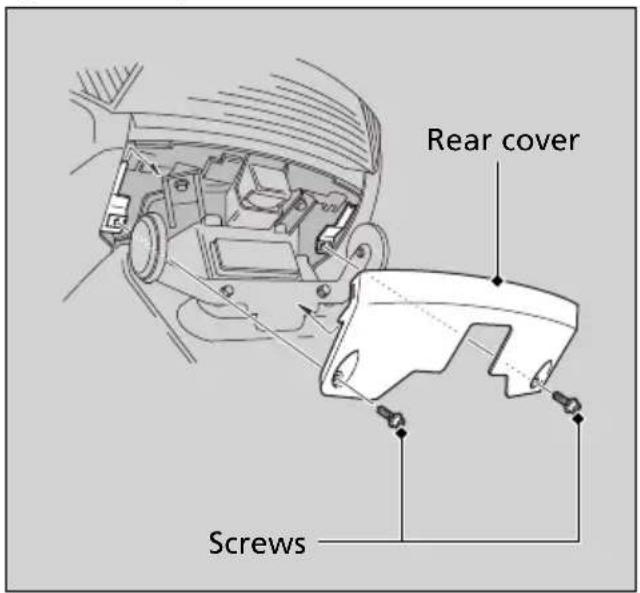

Rear Cover..... P. 56

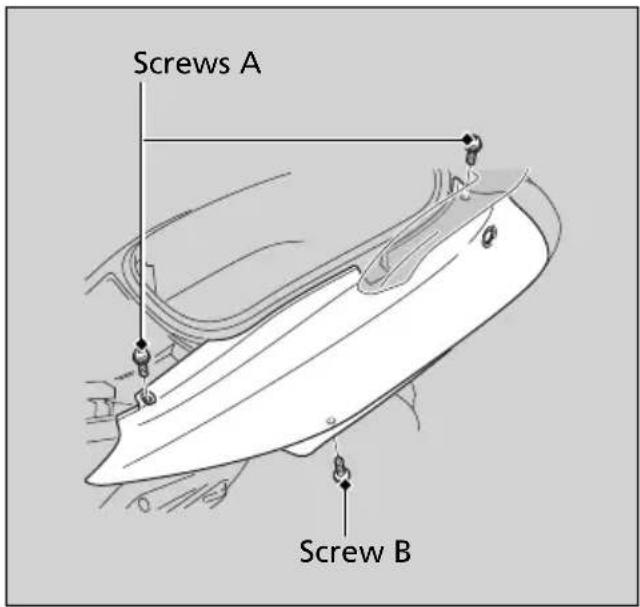

Left Side Cover P. 57

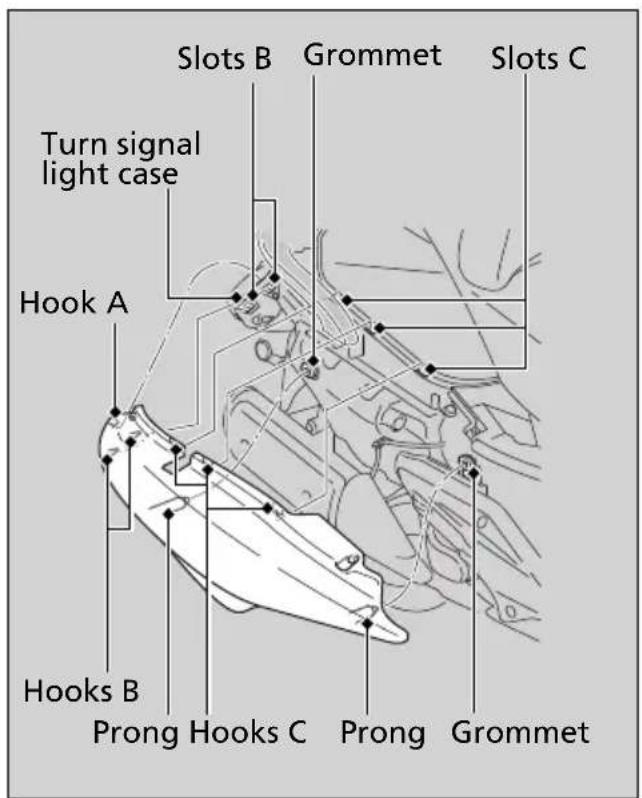

Right Side Cover P. 59

Right Fairing Pocket P. 61

Battery.... P. 62

Air Cleaner P. 63

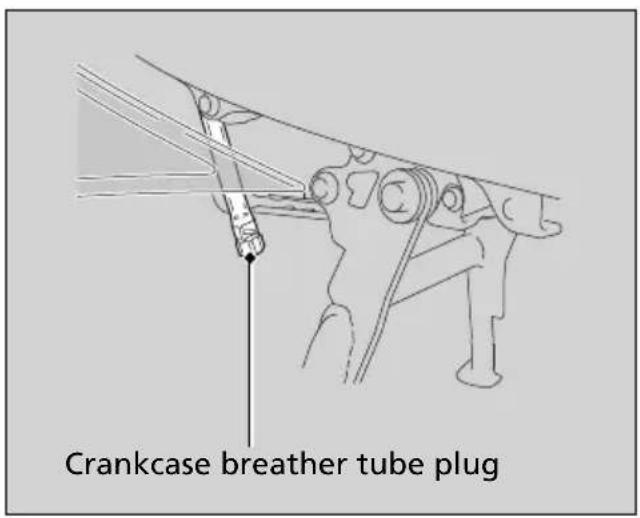

Crankcase Breather .....P. 64

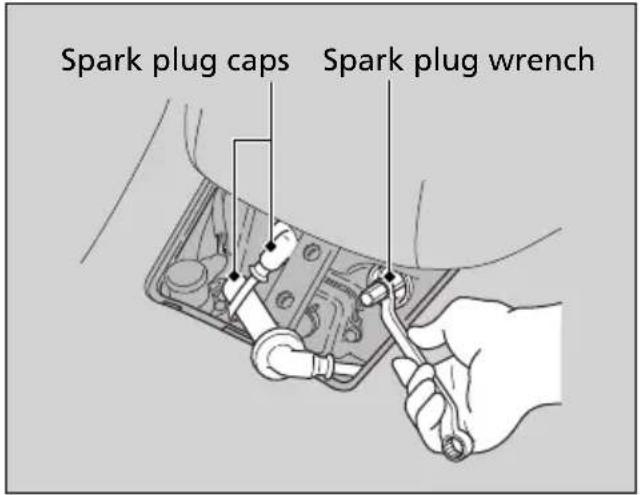

Spark Plugs ......P. 65

Engine Oil P. 67

Engine Idle Speed P. 71

Coolant P. 72

Brakes P. 74

Side Stand....P. 77

Throttle P. 78

Other Adjustments ...... P. 79

Rear Suspension ......P. 79

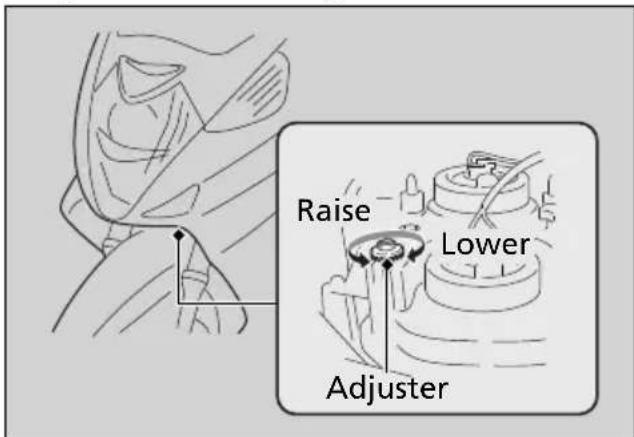

Headlight Aim P. 79

Importance of Maintenance

Importance of Maintenance

Keeping your scooter well-maintained is absolutely essential to your safety and to protect your investment, obtain maximum performance, avoid breakdowns, and reduce air pollution. Maintenance is the owner's responsibility. Be sure to inspect your scooter before each ride, and perform the periodic checks specified in the Maintenance Schedule. P. 40

WARNING

Improperly maintaining your scooter or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

For information about the exhaust emission and noise emission requirements of the U.S. Environmental Protection Agency (EPA) and the California Air Resources Board (CARB). P. 104

Maintenance, replacement or repair of the emission control devices and systems may be performed by any motorcycle repair establishment or individual using parts that are "certified" to EPA standards.

Importance of Maintenance

Maintenance Safety

Always read the maintenance instructions before you begin each task, and make sure that you have the tools, parts, and skills required. We cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

Follow these guidelines when performing maintenance.

• Stop the engine and remove the key.
  ●Park your scooter on a firm, level surface using the center stand to provide support.
• Allow the engine, muffler, brakes, and other high-temperature parts to cool before servicing as you can get burned.
  ●Run the engine only when instructed, and do so in a well-ventilated area.

Maintenance Schedule

The maintenance schedule specifies the maintenance requirements necessary to ensure safe, dependable performance, and proper emission control.

Maintenance work should be performed in accordance with Honda's standards and specifications by properly trained and equipped technicians. Your dealer meets all of these requirements. Keep an accurate record of maintenance to help ensure that your scooter is properly maintained. Make sure that whomever performs the maintenance completes this record.

All scheduled maintenance is considered a normal owner operating cost and will be charged for by your dealer. Retain all receipts. If you sell the scooter, these receipts should be transferred with the scooter to the new owner.

Maintenance Schedule

Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4			Odometer Reading *1
			× 1,000 mi 0	6 4 8 12	16 20 24						Refer to page
Emission-Related Items	Fuel Line -					I		I		I
	Throttle Operation 78					I		I		I
	Air Cleaner*2						R			R	63
	Crankcase Breather*3				C	C	C	C	C	C	64
	Spark Plugs					R		R		R	65
	Valve Clearance							I			-
	Engine Oil		Initial = 600 mi (1,000 km) or 1 month: R Regular = Every 8,000 mi (12,800 km) or 12 months: R								67

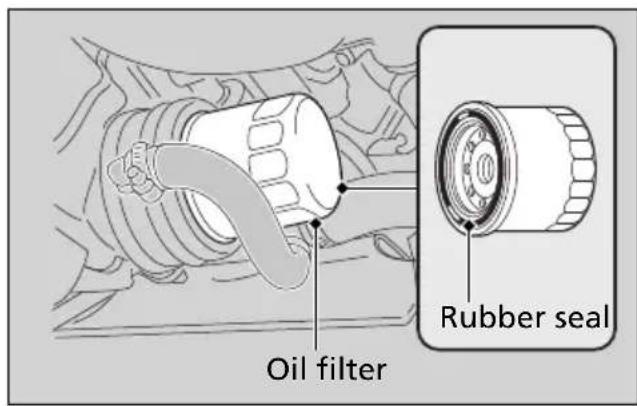

	Engine Oil Filter			R		R		R		R	68

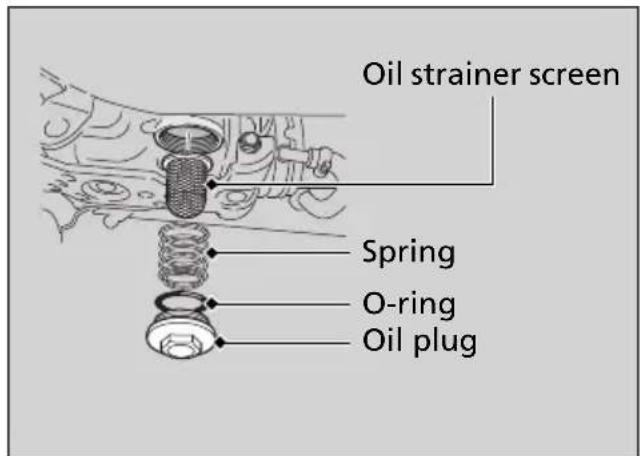

	Engine Oil Strainer Screen					C		C		C	68
	Engine Idle Speed			I	I	I	I	I	I	I	71
	Radiator Coolant*5					I		I		R	72
	Cooling System					I		I		I	-
	Secondary Air Supply System					I		I		I	-
	Evaporative Emission Control System						I			I	-

Maintenance Level

: Intermediate. We recommend service by your dealer, unless you have the necessary tools and are mechanically skilled. Procedures are provided in an official Honda Service Manual.

(→P. 111)

✗ : Technical. In the interest of safety, have your scooter serviced by your dealer.

Maintenance Legend

I : Inspect (clean, adjust, lubricate, or replace, if necessary)
R : Replace C: Clean

continued

Maintenance Schedule

Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4			Odometer Reading *1
			× 1,000 mi 0.6 4 8 12		16 20 24						Refer to page
Non-Emission-Related Items	Drive Belt*4						I	R		I	-
	Belt Case Air Cleaner -					C		C		C
	Final Drive Oil*6										-
	Brake Fluid*5				I	I	R	I	I	R	74

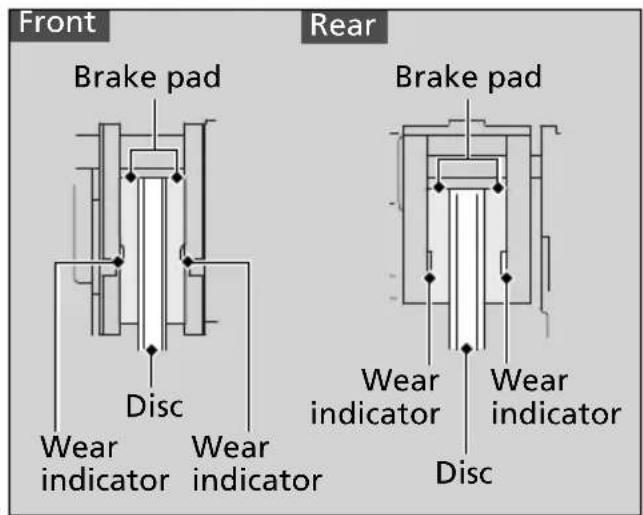

	Brake Pads Wear 75				I	I	I	I	I	I
	Brake System			I		I		I		I	74, 75
	Brake Lock Operation			I	I	I	I	I	I	I	76
	Headlight Aim					I		I		I	79
	Clutch Shoes Wear				I	I	I	I	I	I	-
	Side Stand					I		I		I	77
	Suspension					I		I		I	-
	Nuts, Bolts, Fasteners			I		I		I		I	-
	Wheels/Tires					I		I		I	51
	Steering Head Bearings			I		I		I		I	-

Notes:

*1: At higher odometer readings, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : Service more frequently when riding in rain or at full throttle.
*4: Inspect every 12,000 mi (19,200 km) after replacement.

*5 : Replace every 2 years, or at indicated odometer interval, whichever comes first. Replacement requires mechanical skill.
*6 : Replace every 2 years. Replacement requires mechanical skill.

Maintenance Fundamentals

Pre-ride Inspection

To ensure safety, it is your responsibility to perform a pre-ride inspection and make sure that any problem you find is corrected. A pre-ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tire, can be a major inconvenience.

Check the following items before you get on your scooter:

●Tire tread wear and air pressures are within limits. P. 51
●Lights, horn, and turn signals operate normally.

Check the following items if you are carrying a passenger or cargo:

●Combined weight is within load limits. P. 116
●Cargo is secured properly.

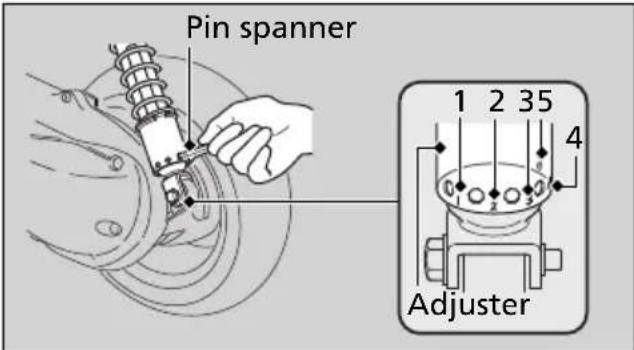

●Suspension spring preload setting is adjusted to suit load. ➤P. 79

Check the following items after you get on your scooter:

●Throttle action moves smoothly without binding. ➤P. 78
●Brake levers operate normally.
- Check the remaining fuel and refuel when needed. P. 19, 30
●Engine stop switch functions properly. P. 23

Check the following items at regular intervals:

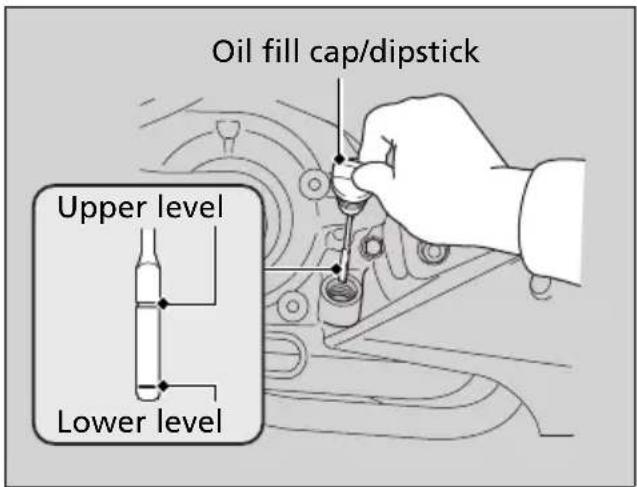

●Oil level is between the upper and lower marks. P. 67
●Brake fluid level is above the lower marks. P. 74

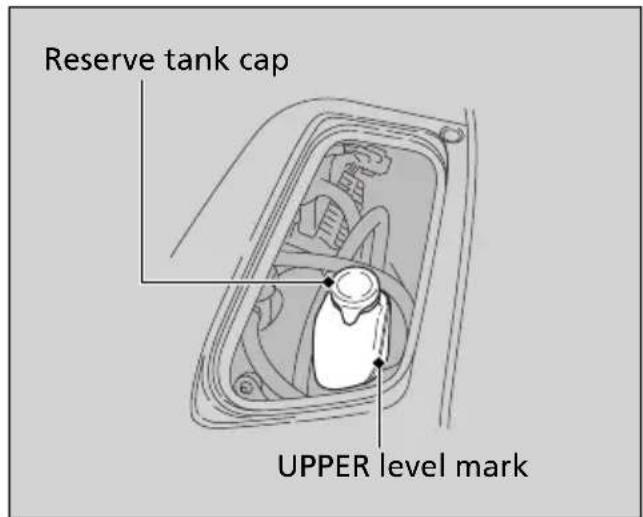

●Engine coolant level is between the upper and lower marks. P. 72
- Side stand functions properly. ➞ P. 77
● Parking brake works properly. ➞ P. 76

Maintenance Fundamentals

Periodic Checks

You should also perform other periodic maintenance checks at least once a month regardless of how often you ride, or more often if you ride frequently.

Also, check the odometer reading against the Maintenance Schedule and perform all maintenance that is due. P. 40

Tires and wheels	Check the air pressure (P. 51), examine tread for wear and damage (P. 51), and check the wheels for damage.
Fluid levels	Check the engine oil level (P. 67), engine coolant level (P. 72), and brake fluid level (P. 74).
Lights	Check that the headlight, brake light, taillight, turn signals and license plate light are working properly.

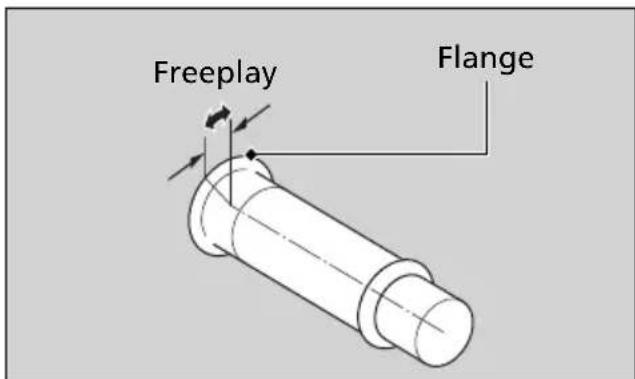

Controls	Check the freeplay of the throttle grip (P. 78). Check the parking brake (P. 76) operate properly.

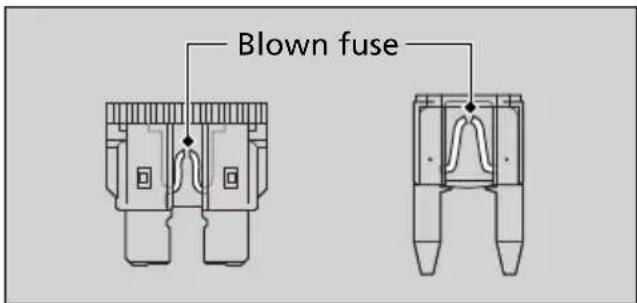

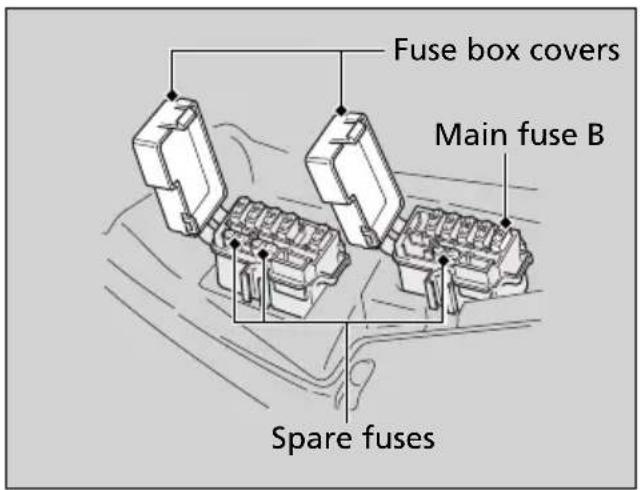

Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.

Maintenance Fundamentals

Replacing Parts

Always use Honda Genuine Parts or their equivalents to ensure reliability and safety. When ordering colored components, specify the model name, color, and code mentioned on the color label. The color label is attached to the center compartment under the seat.

→P.32

Color label

Top-down line drawing of a car's internal engine compartment (no text or symbols)

WARNING

Installing non-Honda parts may make your scooter unsafe and cause a crash in which you can be seriously hurt or killed.

Always use Honda Genuine Parts or equivalents that have been designed and approved for your scooter.

Maintenance Fundamentals

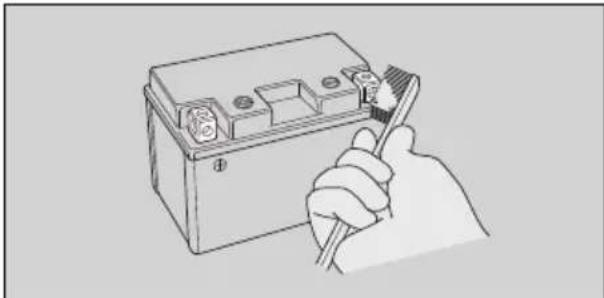

Battery

Your scooter has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water. Clean the battery terminals if they become dirty or corroded.

Do not remove the battery cap seals. There is no need to remove the cap when charging.

What to do in an emergency

If any of the following occur, immediately see your doctor.

●Electrolyte splashes into your eyes:

▶Wash your eyes repeatedly with cool water for at least 15 minutes. Using water under pressure can damage your eyes.

●Electrolyte splashes onto your skin:

▶Remove affected clothing and wash your skin thoroughly using water.

●Electrolyte splashes into your mouth:

▶ Rinse mouth thoroughly with water, and do not swallow.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery servicing.

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds.

Wash your hands after handling.

Maintenance Fundamentals

Cleaning the Battery Terminals

1. Remove the battery. ➞ P. 62
2. If the terminals are starting to corrode and are coated with a white substance, wash with warm water and wipe clean.
3. If the terminals are heavily corroded, clean and polish the terminals with a wire brush or sandpaper. Wear safety glasses.

Line drawing of a hand holding a battery with a screwdriver inserted (no text or symbols)

1. After cleaning, reinstall the battery.

The battery has a limited life span. Consult your dealer about when you should replace the battery. Always replace the battery with another maintenance-free battery of the same type.

Charging

If you use electrical accessories that drain the battery or you do not ride frequently, we recommend that you charge the battery every 30 days using a charger designed specifically for your Honda, which can be purchased from your dealer. Read the information that came with your battery charger and follow the instructions on the battery. Avoid using an automobile-type battery charger, as these can overheat a motorcycle battery and cause permanent damage.

Make sure the ignition switch is in the OFF position before charging the battery.

NOTICE

Improper charging can damage the battery. If you can't charge the battery or it appears unable to hold a charge, contact your dealer.

Maintenance Fundamentals

NOTICE

Jump starting using an automobile battery can damage your scooter's electrical system and is not recommended. Bump starting is also not recommended.

NOTICE

Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system.

Fuses

Fuses protect the electrical circuits on your scooter. If something electrical on your scooter stops working, check for and replace any blown fuses. P. 92

Inspecting and Replacing Fuses

Turn off the ignition switch to remove and inspect fuses. If a fuse is blown, replace with a fuse of the same rating. For fuse ratings, see "Specifications". P. 118

Blown fuse

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.

If a fuse fails repeatedly, you likely have an electrical fault. Have your scooter inspected by your dealer.

Maintenance Fundamentals

Engine Oil

Engine oil consumption varies and oil quality deteriorates according to riding conditions and time elapsed.

Check the engine oil level regularly, and top off if necessary. Dirty oil or old oil should be changed as soon as possible.

Selecting the Engine Oil

For recommended engine oil, see

"Specifications". ➕P. 117

If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards:

●JASO T 903 standard *1: MA
●SAE standard *2: 10W-30
●API classification ^*3 : SG or higher

*1. The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. For example, the following label shows the MA classification.

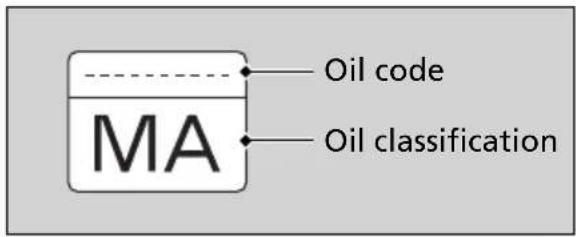

Oil code MA Oil classification

*2. The SAE standard grades oils by their viscosity.
*3. The API classification specifies the quality and performance rating of engine oils. Use SG or higher oils, excluding oils marked as "Energy Conserving" or "Resource Conserving" on the circular API service symbol.

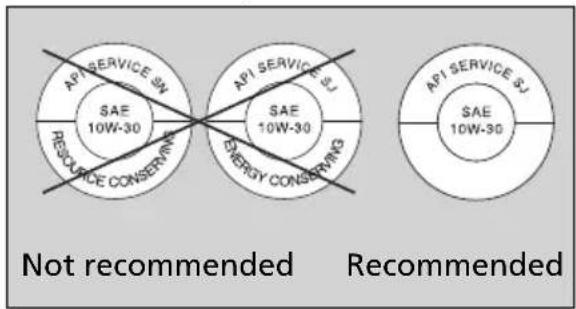

API SERVICE SN SAE 10W-30 Resource Conserving API SERVICE SL SAE 10W-30 ENERGY CONSERVING API SERVICE SL SAE 10W-30 Not recommended Recommended

Maintenance Fundamentals

Brake Fluid

Do not add or replace brake fluid, except in an emergency. Use only fresh brake fluid from a sealed container. If you do add fluid, have the brake system serviced by your dealer as soon as possible.

NOTICE

Brake fluid can damage plastic and painted surfaces.

Wipe up spills immediately and wash thoroughly.

Recommended brake fluid:

Honda DOT 4 Brake Fluid or equivalent

Recommended Coolant

Pro Honda HP is a pre-mixed solution of antifreeze and distilled water.

Concentration:

50 % antifreeze and 50 % distilled water

A concentration of antifreeze below 40 % will not provide proper corrosion and cold temperature protection. A concentration of up to 60 % will provide better protection in colder climates.

NOTICE

Using coolant not specified for aluminum engines or using ordinary tap water can cause corrosion.

Air Cleaner

This scooter is equipped with a viscous type air cleaner element.

Compressed air cleaning or any other cleaning can degrade the viscous element performance and cause the intake of dust.

Crankcase Breather

Service more frequently when riding in rain, at full throttle, or after the scooter is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

Tires (Inspecting/Replacing)

Checking the Air Pressure

Visually inspect your tires and use an air pressure gauge to measure the air pressure at least once a month or any time you think the tires look low. Always check air pressure when your tires are cold. P. 117

Inspecting for Damage

Inspect the tires for cuts, slits, or cracks that exposes fabric or cords, or nails or other foreign objects embedded in the side of the tire or the tread. Also inspect for the bumps or bulges in the side walls of the tires.

Diagram of a plant cell with two circular insets showing internal structures (no text or labels)

Maintenance Fundamentals

Inspecting for Abnormal Wear

Inspect the tires for signs of abnormal wear on the contact surface.

Diagram of a biological or mechanical structure with concentric circles and internal hatched patterns (no text or symbols)

Inspecting Tread Depth

Inspect the tread wear indicators. If they become visible, replace the tires immediately. For safe riding, you should replace the tires when the minimum tread depth is reached.

Wear indicator location mark

WARNING

Riding on tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding tire inflation and maintenance.

Have your tires replaced by your dealer.

For recommended tires, air pressure and minimum tread depth, see "Specifications".

→P. 117

Follow these guidelines whenever you replace tires.

●Use the recommended tires or equivalents of the same size, construction, speed rating, and load range.
●Have the wheel balanced with Honda Genuine balance weights or equivalent after the tire is installed.
- Do not install a tube inside a tubeless tire on this scooter. Excessive heat build-up can cause the tube to burst.
- Use only tubeless tires on this scooter. The rims are designed for tubeless tires, and during hard acceleration or braking, a tube-type tire could slip on the rim and cause the tire to rapidly deflate.

WARNING

Installing improper tires on your scooter can adversely affect handling and stability, and can cause a crash in which you can be seriously hurt or killed.

Always use the size and type of tires recommended in this owner's manual.

Maintenance Fundamentals

Tire Service Life

The service life of your tires is dependent on many factors, including, but not limited to, riding habits, road conditions, vehicle loading, tire air pressure, maintenance history, speed, and environmental conditions (even when the tires are not in use).

In addition to your regular inspections and maintenance, it is recommended that you have annual inspections performed once the tires reach 5 years old. It is also recommended that all tires be removed from service after 10 years from the date of manufacture, regardless of their condition or state of wear.

The last four digits of the TIN (tire identification number) indicate the date of manufacture.

Tire Identification Number (TIN)

The tire identification number (TIN) is a group of numbers and letters located on the sidewall of the tire.

①②③

DOT XXXX XXXX 22 09

DOT: This indicates that the tire meets all requirements of the U.S. Department of Transportation.

① XXXX: Factory code
② XXXX: Tire type code
③ 22 09: Date of manufacture (week & year). Example: week 22 in year 09.

Tire Labeling Example

M TYPE M N M N M

Tire identification number (TIN)

Removing & Installing Body Components

Windscreen Garnish

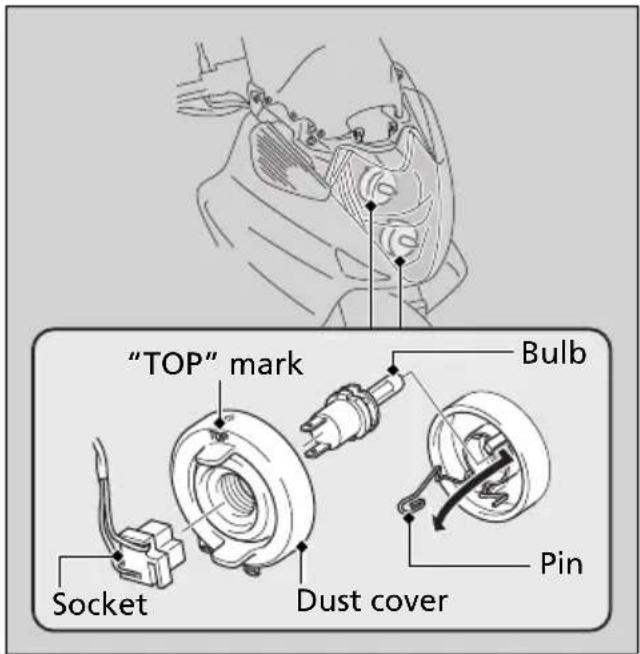

The windscreen garnish must be removed for headlight bulb and front turn signal light bulb replacement.

Screws A Windscreen garnish Screws B

Removal

1. Remove the screws A and screws B.
2. Remove the windscreen garnish.

Installation

Install the parts in the reverse order of removal.

Removing & Installing Body Components ▶ Rear Cover

Rear Cover

The rear cover must be removed to remove the left and right side covers and license plate light bulb replacement.

Rear cover Screws

Removal

1. Remove the screws.
2. Remove the rear cover.

Installation

Install the parts in the reverse order of removal.

Removing & Installing Body Components ▶ Left Side Cover

Left Side Cover

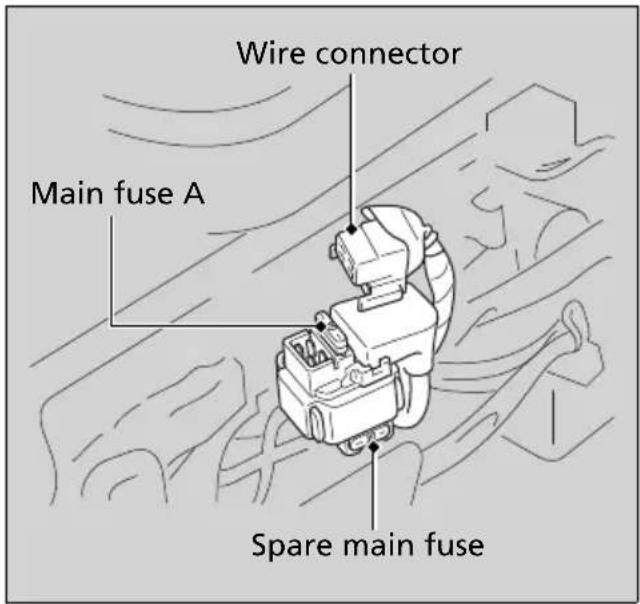

The left side cover must be removed to access the main fuse A.

Screws A Screw B

Removal

1. Remove the rear cover. ➞ P. 56
2. Open the seat. ➞P. 32
3. Remove the screws A and screw B.

Removing & Installing Body Components ▶ Left Side Cover

Slots C Grommet Slots B Turn signal light case Hook A Grommet Prong Prong Hooks C Hooks B

1. Remove the hook A from the turn signal light case.
2. Remove the hooks B from the slots B.
3. Remove the prongs from the grommets.
4. Remove the hooks C from the slots C.
   ▶ Carefully release the hooks.

Installation

Install the parts in the reverse order of removal.

Removing & Installing Body Components ▶ Right Side Cover

Right Side Cover

The right side cover must be removed for air cleaner maintenance.

Screws

Removal

1. Remove the rear cover. ➡ P. 56
2. Open the seat. ➞P. 32
3. Remove the screws.

Removing & Installing Body Components ▶ Right Side Cover

Slots B Grommet Slots C Turn signal light case Hook A Hooks B Prong Hooks C Prong Grommet

1. Remove the hook A from the turn signal light case.
2. Remove the hooks B from the slots B.
3. Remove the prongs from the grommets.
4. Remove the hooks C from the slots C.
   ▶ Carefully release the hooks.

Installation

Install the parts in the reverse order of removal.

Right Fairing Pocket

The right fairing pocket must be removed to access the coolant reserve tank.

Right fairing pocket Hooks Edge Edge Screw Hooks

Removal

1. Open the right fairing pocket cover. P. 35
2. Remove the screw.
3. Pry up on the edge of the right fairing pocket to release the right and left hooks as shown in the illustration.
4. Close the right fairing pocket cover.
5. Remove the right fairing pocket.

Installation

Install the parts in the reverse order of removal.

Battery

Negative terminal Positive terminal Battery Battery cover Screw

Removal

Make sure the ignition switch is off.

1. Open the seat. ➡P. 32
2. Remove the screw and battery cover.
3. Disconnect the negative ⊖ terminal and remove the battery lead.
4. Disconnect the positive ⊕ terminal and remove the battery lead.
5. Pull out the battery taking care not to drop the terminal nuts.

Installation

Install the parts in the reverse order of removal. Always connect the positive terminal first. Make sure that bolts and nuts are tight. The clock will be reset AM 1:00 if the battery is disconnected.

For proper handling of the battery, see

"Maintenance Fundamentals." P. 46

"Battery Goes Dead." ➞ P. 86

Air Cleaner

Changing Air Cleaner Element

Use a new Honda Genuine air cleaner element or equivalent specified for your model.

NOTICE

Using the wrong air cleaner element can result in serious damage to the engine.

1. Remove the rear cover. ➡ P. 56
2. Remove the right side cover. ➡ P. 59
3. Release the wire harness from the guide.
4. Remove the air cleaner housing cover by removing the screws A.
5. Remove the air cleaner element by removing the screw B.
6. Install a new air cleaner element.
7. Install the parts in the reverse order of removal.

▶ Make sure that the wire harness is installed in the guide securely.

Screws A Screws A Guide Air cleaner housing cover Screws A Wire harness

Screw B Air cleaner element

Crankcase Breather

Draining Crankcase Breather

Crankcase breather tube plug

1. Place a drain pan under the crankcase breather tube.
2. Remove the crankcase breather tube plug and drain deposits.
3. Reinstall the plug.

Spark Plugs

Changing Spark Plug

For the recommended spark plugs, see "Specifications". P. 117

Use only the recommended type of spark plugs in the recommended heat range.

NOTICE

Using spark plugs with an improper heat range can cause engine damage.

1. Open the seat. ➕P. 32
2. Remove the screws.
3. Close the seat.

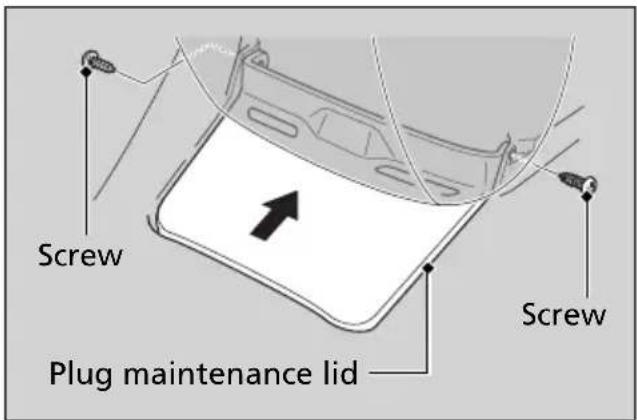

4. Push the plug maintenance lid backward.

Screw Plug maintenance lid Screw

1. Remove the plug maintenance lid.


Plug maintenance lid

Spark Plugs ▶ Changing Spark Plug

1. Disconnect the spark plug caps.
2. Clean any dirt from around the spark plug bases.
3. Remove the spark plugs using a suitable spark plug wrench.

Spark plug caps Spark plug wrench

1. Install the new spark plugs.

2. With the plug washers attached, thread the spark plugs in by hand to prevent cross-threading.

3. Tighten each spark plug:

- If the old plug is good:

1/8 turn after it seats.

- If installing a new plug, tighten it twice to prevent loosening:

a) First, tighten the plug:

NGK: 1/2 turn after it seats.

DENSO: 1 turn after it seats.

b) Then loosen the plug.

c) Next, tighten the plug again:

1/8 turn after it seats.

NOTICE

Improperly tightened spark plugs can damage the engine. If a plug is too loose, a piston may be damaged. If a plug is too tight, the threads may be damaged.

1. Reinstall the spark plug caps. Take care avoid pinching any cables or wires.
2. Install the parts in the reverse order of removal.

Engine Oil

Checking the Engine Oil

1. Place your scooter on its center stand on a firm, level surface.
2. If the engine is cold, idle the engine for 3 to 5 minutes.
3. Turn the ignition switch off, stop the engine and wait 2 to 3 minutes.
4. Remove the oil fill cap/dipstick and wipe it clean.
5. Insert the oil fill cap/dipstick until it seats, but don't screw it in.
   Check that the oil level is between the upper and lower level marks in the oil fill cap/dipstick.
6. Securely install the oil fill cap/dipstick.

Oil fill cap/dipstick Upper level Lower level

Engine Oil ▶ Adding Engine Oil

Adding Engine Oil

If the engine oil is below or near the lower level mark, add the recommended engine oil. P. 49

1. Add the recommended oil until it reaches the upper level mark.

▶ Place your scooter on its center stand on a firm, level surface when checking the oil level.
▶ Do not overfill above the upper level mark.
▶ Make sure no foreign objects enter the oil filler opening.
▶Wipe up any spills immediately.

1. Securely reinstall the oil fill cap/dipstick.

NOTICE

Overfilling with oil or operating with insufficient oil can cause damage to your engine. Do not mix different brands and grades of oil. They may affect lubrication.

For the recommended oil and oil selection guidelines, see "Maintenance Fundamentals". P. 49

Changing Engine Oil & Filter, Cleaning Strainer Screen

Changing the oil and filter requires special tools. We recommend that you have your scooter serviced by your dealer.

Use a new Honda Genuine oil filter or equivalent specified for your model.

Engine Oil ▶ Changing Engine Oil & Filter, Cleaning Strainer Screen

NOTICE

Using the wrong oil filter can result in serious damage to the engine.

1. Place your scooter on its center stand on a firm, level surface.
2. If the engine is cold, idle the engine for 3 to 5 minutes.
3. Turn the ignition switch off, stop the engine and wait for 2 to 3 minutes.
4. Place a drain pan under the oil plug.
5. Remove the oil fill cap, oil plug, O-ring, spring and oil strainer screen to drain the oil.
6. Clean the oil strainer screen.
7. Remove the oil filter with a filter wrench and let the remaining oil drain out. Make sure the prior seal is not stuck to the engine.
   ▶Discard the oil and oil filter at an approved recycling center.

Oil strainer screen Spring O-ring Oil plug

Oil filter Rubber seal

Engine Oil ▶ Changing Engine Oil & Filter, Cleaning Strainer Screen

1. Apply a thin coat of engine oil to the rubber seal of a new oil filter.
2. Install a new oil filter and tighten.

Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).

1. Replace the O-ring and apply a thin coat of engine oil to the new O-ring before installing it.
2. Clean the oil strainer screen.
3. Check that the oil strainer screen and sealing rubber are in good condition.
4. Replace the O-ring and apply a thin coat of engine oil to the new O-ring before installing it.
5. Install the oil strainer screen, spring and tighten oil plug.

Torque: 11 lbf·ft (15 N·m, 1.5 kgf·m).

1. Fill the crankcase with the recommended oil (P. 49) and install the oil fill cap/dipstick.

Required oil

When changing oil & engine oil filter:

2.3 US qt (2.2 liters)

When changing oil only:

2.1 US qt (2.0 liters)

1. Check the oil level. ➞ P. 67
2. Check that there are no oil leaks.

Engine Idle Speed

Adjusting the Engine Idle Speed

The engine must be at normal operating temperature for accurate idle speed adjustment. 10 minutes of stop-and-go riding is sufficient.

1. Warm up the engine, place the scooter on its center stand.
2. Open the seat. ➕P. 32
3. Adjust idle speed with the throttle stop screw.

Idle speed:

1,300 ± 100 rpm

Throttle stop screw Decrease Increase

Coolant

Checking the Coolant

1. Place your scooter on a firm, level surface.
2. Hold your scooter in an upright position.
3. Check that the coolant level is between the UPPER and LOWER level marks in the reserve tank.

UPPER level LOWER level

If the coolant level is dropping noticeably or the reserve tank is empty, you likely have a serious leak. Have your scooter inspected by your dealer.

Adding Coolant

If the coolant level is below the LOWER level, add the recommended coolant (▶ P. 50) until the level reaches the UPPER level mark.

Add fluid only from the reserve tank cap and do not remove the radiator cap.

1. Remove the right fairing pocket. ➡ P. 61

Reserve tank cap UPPER level mark

1. Remove the reserve tank cap and add fluid while monitoring the coolant level.

▶Do not overfill above the UPPER level mark.
▶ Make sure no foreign objects enter the reserve tank opening.

1. Securely reinstall the cap.
2. Reinstall the right fairing pocket.

WARNING

Removing the radiator cap while the engine is hot can cause the coolant to spray out, potentially scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

Changing Coolant

Have your dealer change the coolant unless you have the proper tools and are mechanically qualified.

Brakes

Checking Brake Fluid

1. Place your scooter in an upright position on a firm, level surface.
2. Check that the brake fluid reservoir cap is horizontal and that the fluid level is above the LOWER level mark.

If the brake fluid level in either reservoir is below the LOWER level mark or both the brake levers freeplay becomes excessive, inspect the brake pads for wear. If the brake pads are not worn, you most likely have a leak. Have your scooter inspected by your dealer.

Front

Front brake fluid reservoir

Technical line drawing of a mechanical device with hands operating it (no text or symbols)

LOWER level mark

Rear

Rear brake fluid reservoir

Technical line drawing of a mechanical component with no visible text or symbols

LOWER level mark

Inspecting the Brake Pads

Check the condition of the brake pad wear indicators. The pads need to be replaced if a brake pad is worn to the wear indicator.

Front Brake pad Disc Wear indicator Wear indicator Rear Brake pad Wear indicator Wear indicator Disc

1. Front Inspect the brake pads from underneath the brake caliper.
2. Rear Inspect the brake pads from underneath the brake caliper.

If necessary have the pads replaced by your dealer.

Always replace both left and right brake pads at the same time.

Brakes ▶ Inspecting the Parking Brake

Inspecting the Parking Brake

Parking brake lever

Place your scooter on a firm, level surface. Stop the engine and push your scooter while applying the parking brake lever to check the efficacy of the parking brake.

If the efficacy of the parking brake become weak, have the brake adjusted by your dealer.

Side Stand

Side stand spring

1. Place your scooter on its center stand on a firm, level surface.
2. Check that the side stand operates smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean grease.

3. Check the spring for damage or loss of tension.

4. Sit on the scooter and raise the side stand.

5. Start the engine.
6. Lower the side stand all the way. The engine should stop as you lower the side stand. If the engine doesn't stop, have your scooter inspected by your dealer.

Throttle

Checking the Throttle

With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the scooter inspected by your dealer.

Freeplay at the throttle grip flange: 1/16 to 1/4 in (2 to 6 mm).

Freeplay Flange

Adjusting the Throttle Freeplay

1. Slide the cable boot.
2. Loosen the lock nut.
3. Turn the adjuster until the freeplay is 1/16 to 1/4 in (2 to 6 mm).
4. Tighten the lock nut, return the cable boot, and inspect the throttle action again.

Throttle grip Cable boot - + Lock nut Adjuster

Other Adjustments

Adjusting the Rear Suspension

Spring Preload

You can adjust the spring preload by the adjuster to suit the load or the road surface. Use a proper pin spanner to turn the adjuster. Position 1 is for a decrease spring preload (soft), or turn the position 3 to 5 increase spring preload (hard). The standard position is 2.

Pin spanner 1 2 35 4 0 2 3 4 Adjuster

NOTICE

Do not turn the adjuster beyond its limits.

Adjusting the Headlight Aim

You can adjust vertical aim of the headlight for proper alignment. Turn the adjuster in or out as necessary.

Obey local laws and regulations.

Raise Lower Adjuster

Troubleshooting

Engine Will Not Start ......P. 81

Overheating (High coolant temperature indicator is on)....P. 82

Warning Indicators On or Flashing .....P. 83

Low Oil Pressure Indicator.....P. 83

PGM-FI (Programmed Fuel Injection)

Malfunction Indicator Lamp (MIL) .....P. 83

ABS (Anti-lock Brake System) Indicator .....P. 84

Tire Puncture ......P. 85

Electrical Trouble P. 86

Battery Goes Dead P. 86

Burned-out Light Bulb.... P. 86

Blown Fuse P. 92

Engine Will Not Start

Starter Motor Operates But Engine Does Not Start

Check the following items:

• Check the correct engine starting sequence. ➡ P. 26
• Check that there is gasoline in the fuel tank.
• Check if the PGM-FI malfunction indicator lamp (MIL) is on.

▶If the indicator light is on, contact your dealer as soon as possible.

Starter Motor Does Not Operate

Check the following items:

●Make sure engine stop switch is (Run) position. P. 23
●Make sure the side stand is raised.
- Check for a blown fuse. ➡ P. 92
- Check for a loose battery connection or battery terminal corrosion. ➞ P. 46
- Check the condition of the battery. ➞ P. 86 If the problem continues, have your scooter inspected by your dealer.

Overheating (High coolant temperature indicator is on)

The engine is overheating when the following occurs:

●High coolant temperature indicator comes on.
- Acceleration becomes sluggish. If this occurs, pull safely to the side of the road and perform the following procedure. Extended fast idling may cause the overheating.

NOTICE

Continuing to ride with an overheated engine can cause serious damage to the engine.

1. Stop the engine using the ignition switch, and then turn the ignition switch to the ON position.

2. Check that the radiator fan is operating, and then turn the ignition switch to the OFF position.

If the fan is not operating:

Suspect a fault. Do not start the engine. Transport your scooter to your dealer.

If the fan is operating:

Allow the engine to cool with the ignition switch in the OFF position.

1. After the engine has cooled, inspect the radiator hose and check if there is a leak.

→P. 72

If there is a leak:

Do not start the engine. Transport your scooter to your dealer.

1. Check the coolant level in the reserve tank, and add coolant as necessary.

→P. 72

1. If 1-4 check normal, you may continue riding, but closely monitor the temperature gauge.

Warning Indicators On or Flashing

Low Oil Pressure Indicator

If the low oil pressure indicator comes on, pull safely to the side of the road and stop the engine.

NOTICE

Continuing to ride with low oil pressure can cause serious damage to the engine.

1. Check the engine oil level, and add oil as necessary. P. 67
2. Start the engine.

▶ Only continue riding if the low oil pressure indicator goes off.

Rapid acceleration may momentarily cause the low oil pressure indicator to come on, especially if the oil is at or near the low level. If the low oil pressure indicator stays on when the oil level is at the proper level, stop the engine and contact your dealer.

If the engine oil level goes down rapidly, your scooter may have a leak or another serious problem. Have your scooter inspected by your dealer.

PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)

If the indicator comes on while riding, you may have a serious problem with the PGM-FI system. Reduce speed and have your scooter inspected by your dealer as soon as possible.

ABS (Anti-lock Brake System) Indicator

If the indicator operates in one of the following ways, you may have a serious problem with the brake system. Reduce your speed and have your scooter inspected by your dealer as soon as possible.

●Indicator comes on or starts flashing while riding.
●Indicator does not come on when the ignition switch is in the on position.
●Indicator does not go off at speeds above 6 mph (10 km/h).

If the ABS indicator stays on, your brakes will continue to work as a conventional system, but without the anti-locking function.

The ABS indicator may come on if you turn the rear wheel while your scooter is lifted off the ground. In this case, turn the ignition switch off and then on again. The ABS indicator will go off after your speed reaches 19 mph (30 km/h).

Tire Puncture

Repairing a puncture or removing a wheel requires special tools and technical expertise. We recommend you have this type of service performed by your dealer.

After an emergency repair, always have the tire inspected/replaced by your dealer.

Emergency Repair Using a Tire Repair Kit

If your tire has a minor puncture, you can make an emergency repair using a tubeless tire repair kit.

Follow the instructions provided with the emergency tire repair kit.

Riding your scooter with a temporary tire repair is very risky. Do not exceed 30 mph (50 km/h). Have the tire replaced by your dealer as soon as possible.

WARNING

Riding your scooter with a temporary tire repair can be risky. If the temporary repair fails, you can crash and be seriously injured or killed.

If you must ride with a temporary tire repair, ride slowly and carefully and do not exceed 30 mph (50 km/h) until the tire is replaced.

Electrical Trouble

Battery Goes Dead

Charge the battery using a motorcycle battery charger.

Remove the battery from the scooter while charging.

Do not use an automobile-type battery charger, as these can overheat a scooter battery and cause permanent damage. If the battery does not recover after recharging, contact your dealer.

NOTICE

Jump starting using an automobile battery is not recommended, as this can damage your scooter's electrical system.

Burned-out Light Bulb

Follow the procedure below to replace a burned-out light bulb.

Turn the ignition switch to the OFF or LOCK position.

Allow the bulb to cool before replacing it.

Do not use bulbs other than those specified.

Check the replacement bulb for correct operation before riding.

For the light bulb wattage, see

"Specifications". ➞ P. 118

Headlight Bulb

"TOP" mark Bulb Socket Dust cover Pin

Electrical Trouble ▶ Burned-out Light Bulb

1. Remove the windscreen garnish. ➡ P. 55

2. Pull the socket off the bulb without turning it.

3. Remove the dust cover.

4. Press the pin down and pull out the bulb without turning it.

5. Install a new bulb and parts in the reverse order of removal.

▶Install the dust cover with its "TOP" mark facing up.

1. Reinstall the windscreen garnish.

Do not touch the glass surface with your fingers. If you touch the bulb with your bare hands, clean it with a cloth moistened with alcohol.

Electrical Trouble ▶ Burned-out Light Bulb

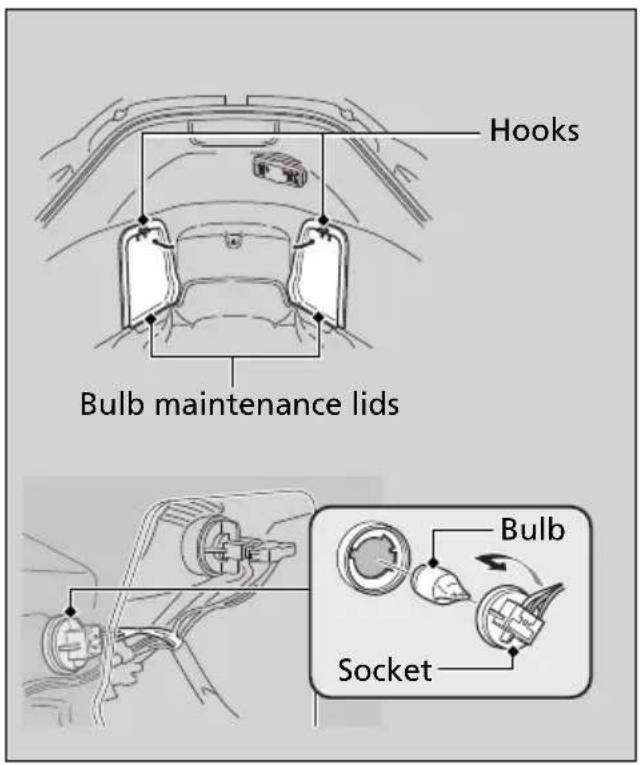

Brake/Tail Light Bulb

Hooks Bulb maintenance lids Bulb Socket

1. Open the seat. ➕P. 32
2. Remove the bulb maintenance lids while pressing down the hooks.
3. Turn the socket counterclockwise and pull it out.
4. Pull out the bulb without turning it.
5. Install a new bulb in the reverse order of removal.
6. Reinstall the bulb maintenance lids.
7. Close the seat.

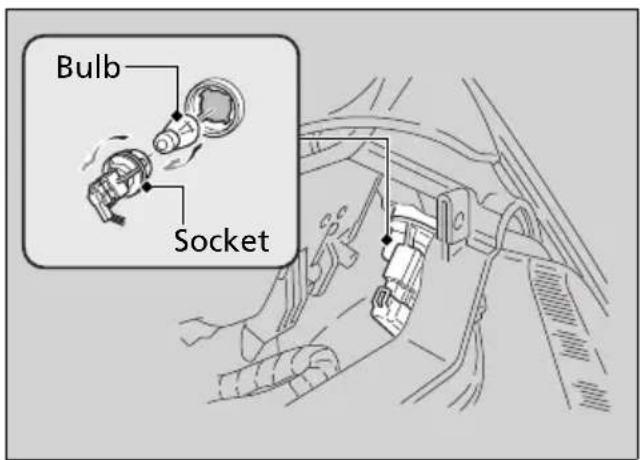

Front Turn Signal Light Bulb

Bulb Socket

Electrical Trouble ▶ Burned-out Light Bulb

1. Remove the windscreen garnish. ➡ P. 55
2. Turn the socket counterclockwise and pull it out.
3. Slightly press the bulb in and turn it counterclockwise.
4. Install a new bulb in the reverse order of removal.
   ▶ Use only the amber bulb.
5. Reinstall the windscreen garnish.

Electrical Trouble ▶ Burned-out Light Bulb

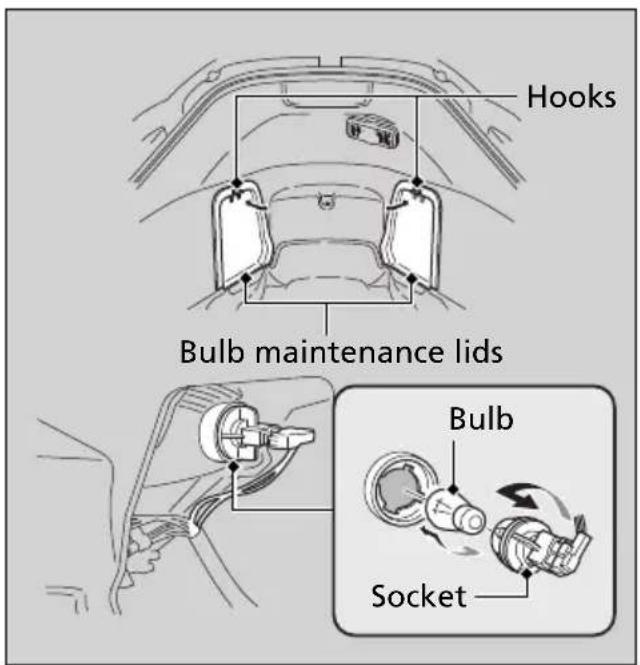

Rear Turn Signal Light Bulb

Hooks Bulb maintenance lids Bulb Socket

1. Open the seat. ➕P. 32
2. Remove the bulb maintenance lids while pressing down the hooks.
3. Turn the socket counterclockwise and pull it out.
4. Slightly press the bulb in and turn it counterclockwise.
5. Install a new bulb in the reverse order of removal.
   ▶ Use only the amber bulb.
6. Reinstall the bulb maintenance lids.
7. Close the seat.

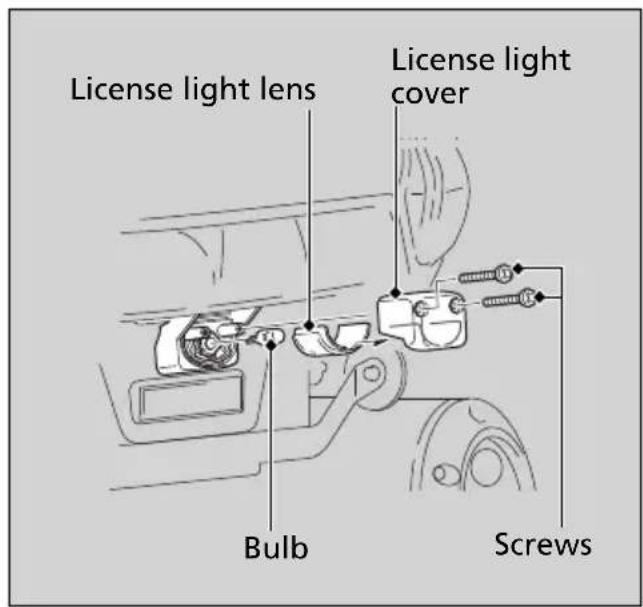

License Plate Light Bulb

License light lens License light cover Bulb Screws

Electrical Trouble ▶ Burned-out Light Bulb

1. Remove the rear cover. ➡ P. 56
2. Remove the screws, license light cover and license light lens.
3. Pull out the bulb without turning it.
4. Install a new bulb in the reverse order of removal.
5. Install the parts in the reverse order of removal.

Electrical Trouble ▶ Blown Fuse

Blown Fuse

Before handling fuses, see "Inspecting and Replacing Fuses". P. 48

I Fuse Box Fuses

Fuse box covers Main fuse B Spare fuses

1. Open the seat. ➡ P. 32
2. Open the fuse box covers.
3. Pull the main fuse B and other fuses out one by one and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
4. Close the fuse box covers.
5. Close the seat.

Main Fuse A

Wire connector Main fuse A Spare main fuse

1. Remove the rear cover. ➞ P. 56

2. Open the seat. ➕P. 32

3. Remove the left side cover. ➡ P. 57

4. Disconnect the wire connector of the starter magnetic switch.

5. Pull the main fuse A out and check for a blown fuse. Always replace a blown fuse with a spare of the same rating.

▶Spare main fuse is located under the starter magnetic switch.

1. Install the parts in the reverse order of removal.

NOTICE

If a fuse fails repeatedly, you likely have an electrical problem. Have your scooter inspected by your dealer.

Information

Keys....P. 95

Instruments, Controls, & Other Features .....P. 96

Caring for Your Scooter....P. 97

Storing Your Scooter ......P. 100

Transporting Your Scooter ......P. 101

You & the Environment ......P. 102

Vehicle Identification Number ......P. 103

Emission Control Systems....P. 104

Catalytic Converter P. 109

Oxygenated Fuels ......P. 110

Authorized Manuals ......P. 111

Warranty Coverage and Service.... P. 112

Honda Contacts ...... P. 113

Reporting Safety Defects P. 115

Keys

Ignition key

Be sure to record the key number provided with the original keys. Store the spare key and recorded key number in a safe location.

To make a duplicate, take the spare key or the key number to a locksmith.

If you lose all keys and the key number, the ignition switch assembly will probably have to be removed by your dealer to determine the key number.

A metal key holder may cause damage to the area surrounding the ignition switch.

Instruments, Controls, & Other Features

Instruments, Controls, & Other Features

Ignition Switch

The headlight is always on when the ignition switch is on. Leaving the ignition switch on with the engine stopped will drain the battery. Do not turn the key while riding.

Engine Stop Switch

Do not use the engine stop switch except in an emergency. Doing so when riding will cause the engine to suddenly turn off, making riding unsafe.

If you stop the engine using the engine stop switch, turn the ignition switch off. Failing to do so will drain the battery.

Odometer

The display locks at 999999 when the readout exceeds 999999.

Tripmeter

The tripmeter A and B return to 0.0 when the readout exceeds 999.9.

Document Bag

The owner's manual, registration, and insurance information can be stored in the plastic document bag located under the seat.

Ignition Cut-off System

A banking (lean angle) sensor automatically stops the engine and fuel pump if the scooter falls over. To reset the sensor, you must turn the ignition switch to OFF and back to the ON position before the engine can be restarted.

Caring for Your Scooter

Caring for Your Scooter

Frequent cleaning and polishing is important to ensure the life of your Honda. A clean scooter makes it easier to spot potential problems. In particular, seawater and salts used to prevent ice on roads promote the formation of corrosion. Always wash your scooter thoroughly after riding on coastal or treated roads.

Washing

Allow the engine, muffler, brakes, and other high-temperature parts to cool before washing.

1. Rinse your scooter thoroughly using a garden hose to remove loose dirt.
2. If necessary, use a sponge or a soft towel with mild cleaner to remove road grime.

▶Clean the windscreen, headlight lens, panels, and other plastic components with extra care to avoid scratching them. Avoid directing water into the air cleaner,

muffler, and electrical parts.

1. Thoroughly rinse your scooter with plenty of clean water and dry with a soft, clean cloth.
2. After the scooter dries, lubricate any moving parts.

▶ Make sure that no lubricant spills onto the brakes or tires. Brake discs or pads contaminated with oil will suffer greatly reduced braking effectiveness and can lead to a crash.

1. Apply a coat of wax to prevent corrosion.

▶ Avoid products that contain harsh detergents or chemical solvents. These can damage the metal, paint, and plastic on your scooter.
Keep the wax clear of the tires and brakes.

▶If your scooter has any matte painted parts, do not apply a coat of wax to the matte painted surface.

Caring for Your Scooter

Washing Precautions

Follow these guidelines when washing:

●Do not use high-pressure washers:

▶High-pressure water cleaners can damage moving parts and electrical parts, rendering them inoperable.

●Do not direct water at the muffler:

▶Water in the muffler can prevent starting and causes rust in the muffler.

●Dry the brakes:

▶Water adversely affects braking effectiveness. After washing, apply the brakes intermittently at low speed to help dry them.

●Do not direct water under the seat:

▶Water in the underseat compartment can damage your documents and other belongings.

●Do not direct water at the air cleaner:

▶Water in the air cleaner can prevent the engine from starting.

●Do not direct water near the headlight:
▶ Any condensation inside the headlight should dissipate after a few minutes of running the engine.
- Do not use waxes containing compounds at the matte painted surface:
▶ Using plenty of water, clean the matte painted surface with a soft cloth or sponge. Dry with a soft, clean cloth.
▶ Use neutral detergent to clean matte painted surface.

Aluminum Components

Aluminum will corrode from contact with dirt, mud, or road salt. Clean aluminum parts regularly and follow these guidelines to avoid scratches:

●Do not use stiff brushes, steel wool, or cleaners containing abrasives.
●Avoid riding over or scraping against curbs.

Panels and Windscreen

Follow these guidelines to prevent scratches and blemishes:

●Wash gently using a soft sponge and plenty of water.
●To remove stubborn stains, use diluted detergent and rinse thoroughly with plenty of water.
●Avoid getting gasoline, brake fluid, or detergents on the instruments, windscreen, panels, or headlight.

Exhaust Pipe and Muffler

The exhaust pipe and muffler are stainless steel but may become stained by mud or dust.

To remove mud or dust, use a wet sponge and a liquid kitchen abrasive, then rinse well with clean water. Dry with chamois or a soft towel. If necessary, remove heat stains by using a commercially available fine texture compound. Then rinse by the same manner as removing

mud or dust.

When the exhaust pipe and muffler are painted, do not use a commercially available abrasive kitchen cleaning compound. Use a neutral detergent to clean the painted surface on the exhaust pipe and muffler. If you are not sure if your exhaust pipe and muffler are painted, contact your dealer.

NOTICE

Even though the exhaust is made of stainless steel, it can become stained. Remove all marks and blemishes as soon as they are noticed.

Storing Your Scooter

Storing Your Scooter

If you store your scooter outdoors, you should consider using a full-body motorcycle cover. If you won't be riding for an extended period, follow these guidelines:

●Wash your scooter and wax all painted surfaces (except matte painted surfaces). Coat chrome pieces with rust-inhibiting oil.
- Use the center stand and position a block so that both tires are off the ground.
●After rain, remove the body cover and allow the scooter to dry.
- Remove the battery to prevent discharge. Charge the battery in a shaded, well-ventilated area.

▶If you leave the battery in place, disconnect the negative ⊖ terminal to prevent discharge.

After removing your scooter from storage, inspect all maintenance items required by the Maintenance Schedule.

For more information about storage, refer to the Honda Winter Storage Guide, available from your dealer.

Transporting Your Scooter

Transporting Your Scooter

If your scooter needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your scooter with a wheel or wheels on the ground.

NOTICE

Towing your scooter can cause serious damage to the transmission.

You & the Environment

You & the Environment

Owning and riding a scooter can be enjoyable, but you must do your part to protect the environment.

Choose Sensible Cleaners

Use a biodegradable detergent when you wash your scooter. Avoid aerosol spray cleaners that contain chlorofluorocarbons (CFCs) which damage the atmosphere's protective ozone layer.

Recycle Wastes

Put oil and other toxic wastes in approved containers and take them to a recycling center. Call your local or state office of public works or environmental services to find a recycling center in your area, and to get instructions on how to dispose of non-recyclable wastes. Do not place used engine oil in the trash, or pour it down a

drain or on the ground. Used oil, gasoline, coolant, and cleaning solvents contain poisons that can hurt refuse workers and contaminate drinking water, lakes, rivers, and oceans.

Vehicle Identification Number

The VIN and engine serial numbers uniquely identify your scooter and are required in order to register your scooter. They may also be required when ordering replacement parts.

The VIN is stamped on the right side of the frame body and also appears on the Safety Certification Label attached under the right front air cover.

The engine number is stamped on the left side of the crankcase.

You should record these numbers and keep them in a safe place.

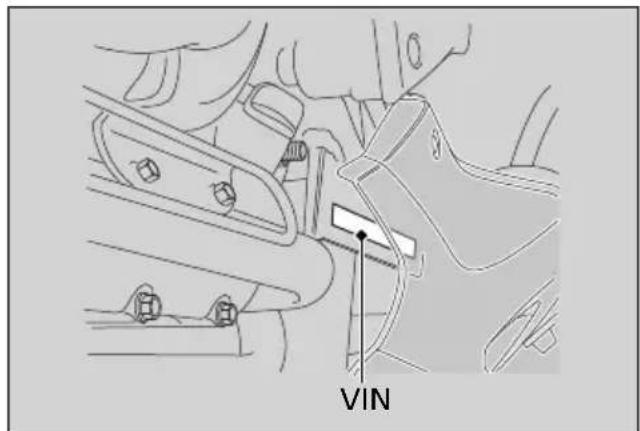

VIN

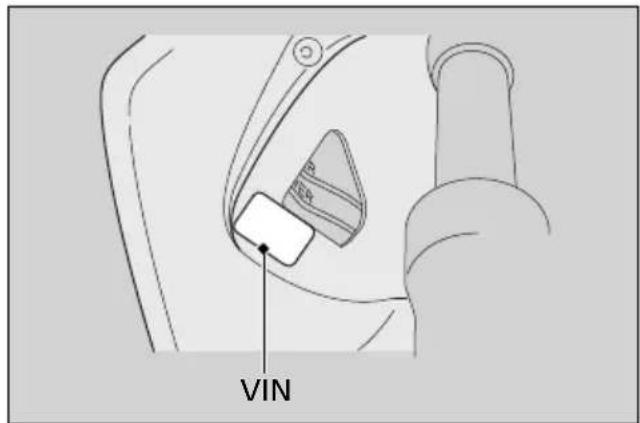

VIN

Emission Control Systems

Engine number

Emission Control Systems

Your scooter engine emits combustion byproducts, including carbon monoxide (CO), oxides of nitrogen (NOx), and hydrocarbons (HC). Gasoline evaporation also emits hydrocarbons. Controlling the production of NOx, CO, and HC is important for the environment.

Exhaust Emission Requirements

The U.S. Environmental Protection Agency (EPA) and the California Air Resources Board (CARB) require that your scooter comply with applicable exhaust, crankcase, and fuel permeation emission standards during its useful life, when operated and maintained according to the instructions provided.

CARB also requires that your scooter comply with applicable evaporative emission requirements during its useful life, when operated and maintained according to the instructions provided.

Compliance with the terms of the Distributor's Warranties for Honda Scooter Emission Control Systems is necessary in order to maintain a valid emissions system warranty. The Vehicle Emission Control Information label is attached to the inside of the center compartment.

P. 32

Vehicle emission control information label

Line drawing of a car interior showing hand positioning and dashboard controls (no text or symbols)

Noise Emission Requirements

The EPA requires that scooters built after January 1, 1983 comply with applicable noise emission standards for one year or 3,730 miles (6,000 km) after the time of purchase when operated and maintained according to the instructions provided.

Emission Control Systems

Exhaust Emission Control System

The exhaust emission control system includes the following components that should not need adjustment, although periodic inspection by your dealer is recommended.

PGM-FI System

The PGM-FI (programmed fuel injection) system uses sequential multiport fuel injection, and is comprised of air intake, engine control, fuel control, and exhaust control subsystems.

The engine control module (ECM) uses sensors to determine how much air enters the engine, and then controls how much fuel to inject.

Ignition Timing Control System

The ignition timing control system adjusts the ignition timing to reduce the amount of HC, CO, and NOx produced.

Secondary Air Injection System

The secondary air injection system adds filtered air into the exhaust gas to help improve emission control performance.

Catalytic Converters

The exhaust system contains one or more catalytic converters. Catalytic converters use a catalyst to convert most of the harmful exhaust gas compounds into harmless compounds.

Evaporative Emission Control System

An evaporative emissions control system uses a canister filled with charcoal to adsorb fuel vapor from the fuel tank while the engine is off. The vapor is drawn into the engine and burned while riding.

Crankcase Emissions Control System

The positive crankcase ventilation system prevents gases that build up in the engine's crankcase from being released into the atmosphere. The gases are drawn into the engine and burned while riding.

Fuel Permeation Emission Control

The fuel tank, fuel hoses, and fuel vapor charge hoses use fuel permeation control technologies to prevent fuel vapor emissions.

Tampering with these components to reduce or defeat the effectiveness of the fuel permeation technologies is prohibited.

Noise Emission Control System

TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED:

U. S. federal law prohibits the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use; or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

Emission Control Systems

AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE FOLLOWING ACTS:

1. Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
2. Removal of, or puncturing of any part of the intake system.
3. Lack of proper maintenance.
4. Removing or disabling any emissions compliance component, or replacing any compliance component with a non-compliant component.

Problems Affecting Scooter Exhaust Emissions

Have your scooter inspected and repaired by your dealer if you experience any of the following symptoms:

●Hard starting or stalling after starting.
●Rough idling.
●Misfiring or backfiring during acceleration.
●Poor engine performance and poor fuel economy.

Catalytic Converter

This scooter is equipped with a three-way catalytic converter. The catalytic converter contain precious metals that serve as catalysts in high temperature chemical reactions that convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gasses into safe compounds.

A defective catalytic converter contributes to air pollution and can impair your engine's performance. A replacement unit must be an original Honda part or equivalent.

Follow these guidelines to protect your scooter's catalytic converter.

●Always use unleaded gasoline. Leaded gasoline will damage the catalytic converter.
- Keep the engine in good running condition. A poorly running engine can cause the catalytic converter to overheat causing damage to the converter or the scooter.
- If your engine is misfiring, backfiring, stalling, or otherwise not running properly, stop riding and turn off the engine. Have your scooter serviced as soon as possible.

Oxygenated Fuels

Oxygenated Fuels

Some conventional fuels blended with alcohol or an ether compound are available in some areas to help reduce emissions to meet clean air standards. These gasolines are collectively referred to as oxygenated fuels. If you plan to use oxygenated fuel, check that it is unleaded and meets the minimum octane rating and blend requirement.

The following fuel blends are EPA-approved and have been approved for use in your scooter:

• Ethanol (ethyl alcohol) 10 % by volume (max). Gasoline containing ethanol may be marketed under the name "Gasohol".
  ●MTBE (Methyl Tertiary Butyl Ether) 15 % by volume (max).
  ●Methanol (methyl alcohol) 5 % by volume (max) that contain cosolvents and corrosion inhibitors to protect the fuel system. Never use a blend containing more than 5 %.

If you accidentally fill your fuel tank with an oxygenated fuel containing higher percentages, you may experience performance problems. To resolve the problem, have your dealer drain the fuel tank and replace with the correct fuel. Fuel system or performance problems resulting from the use of an oxygenated fuel containing higher percentages are not covered by your warranty.

NOTICE

Improper use of oxygenated fuels can damage metal, rubber, and plastic parts of your fuel system. Oxygenated fuel can also damage paint. Damage caused by spilled fuel is not covered by warranty.

If you notice any undesirable operating symptoms or performance problems, try a different brand of gasoline.

Authorized Manuals

Authorized Manuals

The Service Manual used by your authorized dealer is available from your Honda dealer or Helm, Inc.

Also available, but not necessary to service your model, is the Honda Common Service Manual, which explains basic service information for various systems on Honda motorcycles, scooters, and all-terrain vehicles.

These Honda manuals are written for the professional technician. However, if you possess the proper tools, observe the safety standards, and are mechanically capable, you should find them easy to use.

Special Honda tools are necessary for some procedures.

Publication Item No.	Description
61MCT11 2013 FSC600A SILVER WING Service Manual
61CM002 Common Service Manual
31MGF640 2013 FSC600A SILVER WING Owner’s Manual

Order On-Line: www.helminc.com

Order Toll Free: 1-888-CYCLE93

(1-888-292-5393)

(NOTE: For Credit Card Orders Only)

Monday – Friday 8:00 AM – 6:00 PM EST

Warranty Coverage and Service

Warranty Coverage and Service

Coverage

Your new Honda is covered by the following warranties:

●Scooter Limited Warranty
●Emission Control System Warranty
●Noise Control Warranty

The responsibilities, restrictions, and exclusions that apply to these warranties are explained in the Warranties Booklet given to you by your Honda dealer at the time of purchase. Always keep your Honda owner's card with your Warranties Booklet.

It is important to realize that your warranty applies only to defects in material or workmanship of your Honda. Your warranty coverage does not apply to the normal wear and deterioration associated with use of the

scooter.

Your warranty coverage is not voided if you perform your own maintenance. However, failures that occur due directly to improper maintenance are not covered by these warranties.

You can extend almost all of your warranty coverage through the Honda Protection Plan. For more information, see your Honda dealer.

Service

Please remember that maintenance recommended in the Maintenance Schedule is not included in your warranty coverage.

If you believe you have a problem with your scooter, call the service department of your Honda dealer. Make an appointment for an inspection and diagnosis. You will be asked to authorize that inspection, and your dealer will

return the results of the inspection. If a problem exists and is covered under warranty, your dealer will perform the warranty repairs. If you have any questions about your warranty coverage or the nature of the repair, talk to the Service Manager of your Honda dealer.

If a misunderstanding occurs and you aren't satisfied with your dealer's handling of the situation, we suggest you discuss your problem with the appropriate member of the dealership's management team. If you are still not satisfied, contact the owner of the dealership or their designated representative.

Honda Contacts

American Honda Motor Co., Inc.

If you wish to contact Honda directly to comment on your experiences with your scooter or with your dealer, please send your comments to the following address:

Motorcycle Division,

American Honda Motor Co., Inc.,

P.O. Box 2200, Torrance,

CA 90509-2200

Mailstop: 100-4C-7B,

Telephone: [phone].

Please include the following information in your letter:

●Name, address, and telephone number
●Product model, year, and VIN
●Date of purchase
●Dealer name and address

Honda Contacts

We will likely ask your Honda dealer to respond, or possibly acknowledge your comments directly.

Your Honda Dealer

The service department of your Honda dealer offers trained personnel to perform regular maintenance and most repairs. It has the latest available service information from Honda and also handles warranty inspections and repairs.

The parts department offers Honda Genuine Parts, Pro Honda products and Honda Genuine Accessories that provide the same quality that went into your scooter.

The sales department offers the Honda Protection Plan to extend almost all of your warranty coverage.

Your Honda dealer can also supply information about, riding events, and information about

safety training available in your local area, and the Honda Rider's Club of America.

Honda Rider's Club of America (HRCA)

The Honda Rider's Club of America (HRCA) sponsors local riding chapters at Authorized Honda Dealerships across the country. You can log on to the HRCA Clubhouse website for more information at www.hrca.honda.com.

Reporting Safety Defects

Reporting Safety Defects

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at: 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain other information about motor vehicle safety from: http://www.safercar.gov.

Specifications

Main Components

Type PF01
Overall length 89.6 in (2,275 mm)
Overall width 30.3 in (770 mm)
Overall height 56.3 in (1,430 mm)
Wheelbase 62.8 in (1,595 mm)
Minimum ground clearance	5.5 in (140 mm)
Caster angle 28° 30'
Trail 4.1 in (105 mm)
Curb weight 551 lb (250 kg)
Maximum weight capacity*1	366 lb (166 kg)
Maximum luggage weight*2	25 lb (11.5 kg)Luggage 22 lb (10 kg)
	Accessories 3.3 lb (1.5 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius	9.2 ft (2.8 m)

*1 Including rider, passenger, all luggage, and accessories.

*2 Includes the weight of the luggage and added accessories.

Displacement 35.5 cu-in (582 cm)
Bore x stroke 2.83 x 2.81 in (72.0 x 71.5 mm)
Compression ratio 10.2:1
Fuel	Unleaded gasolineRecommended: 86 PON or higher
Tank capacity 4.23 US gal (16.0 liters)
Battery	YTZ12S12V-11Ah (10 HR) orFTZ12S12V-10Ah (10 HR)
Primary reduction V-Matic (2.1:1 ~ 0.85:1)
Final reduction	6.016

Specifications

Service Data

Tire size	Front 120/80-14M/C 58S
	Rear 150/70-13M/C 64S
Tire type Bias-ply, tubeless
Recommended Tires	Front IRC SS530F
	Rear IRC SS530R
Tire air pressure	Front 29 psi (200 kPa, 2.00 kgf/cm ^2 )
	Rear	[With less than 200 lb (90 kg) of added weight]33 psi (225 kPa, 2.25 kgf/cm ^2 )[With more than 200 lb (90 kg) of added weight]36 psi (250 kPa, 2.50 kgf/cm ^2 )
Minimum tread depth	Front 0.06 in (1.5 mm)
	Rear 0.08 in (2.0 mm)
Spark plugs (standard)		CR8EH-9 (NGK) or U24FER9 (DENSO)
Spark plug gap		0.031 to 0.035 in(0.80 to 0.90 mm)
Idle speed 1,300 ± 100 rpm

Recommended engine oil	API Service Classification SG or higher except oils labeled as energy conserving or resource conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil or Honda 4-stroke oil, or an equivalent motorcycle oil
Engine oil capacity	After draining 2.1 US qt (2.0 liters)
	After draining & engine oil filter change 2.3 US qt (2.2 liters)
	After disassembly 2.7 US qt (2.6 liters)
Recommended brake fluid	Honda DOT 4 Brake Fluid
Cooling system capacity	3.2 US qt (3.0 liters)
Recommended coolant	Pro Honda HP Coolant

Specifications

Bulbs

Headlight 12V-55W x 2

Brake/Tail light 12V-21/5W x 2

Front turn signal lights 12V-21W x 2

Rear turn signal lights 12V-21W x 2

License plate light 12V-5W

Trunk light 12V-3.4W

Fuses

Main fuse	A 30A
	B 30A
Other fuses 30A, 15A, 10A

Torque Specifications

Engine oil plug 11 lbf·ft (15 N·m, 1.5 kgf·m)

Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)

Information Record

VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager

Index

A

ABS (Anti-lock Brake System) 11

ABS (Anti-lock Brake System) Indicator.... 21, 84

Accessories 14

Air Cleaner.... 63

Authorized Manuals 111

B

Backrest.... 36

Battery 46, 62

Brakes Brakes....10

Fluid 50,74

Pad Wear 75

Parking Brake 76

Braking.... 29

Bulb Brake/Tail Light....88

Front Turn Signal Light 89

Headlight 87

License Plate Light 91

Rear Turn Signal Light.... 90

C

Caring for Your Scooter 97

Catalytic Converter 109

Center Compartment ......32

Color Label 45

Compartment Center .... 32

Owner's Manual 33

Tool Kit....33

Coolant....72

Coolant Temperature Gauge 19

Crankcase Breather....64

D

Digital Clock Adjustment ....20

E

Electrical Trouble 86

Emission Control Systems 104

Engine Idle Speed....71

Number 103

Oil 49,67

Oil Filter 68

Oil Strainer Screen.... 68

Overheats 82

Starting.... 26

Stop Switch.... 23, 96

Stopping 96

Environment.... 102

F

Flooded Engine 27

Frame Number 103

Fuel

Gauge.... 19

Recommended.... 30

Remaining.... 19

Tank Capacity 30

Fuses 48, 92

G

Gasohol.... 110

Gasoline.... 30

H

Headlight Aim 79

Headlight Dimmer Switch.... 23

Helmet Holder 32

High Beam Indicator 22

High Coolant Temperature Indicator..... 21

Honda Contacts 113

Horn Button.... 23

|

Ignition Cut-off System

Banking Sensor....96

Side Stand 77

Ignition Key 26,95

Ignition Switch 24, 96

Indicators 21

Information Record.... 119

Instruments.... 18

L

Labels 7

Left Fairing Pocket 34

Left Side Cover 57

Load Limits.... 15

Loading Guidelines 15

Low Oil Pressure Indicator 21,83

M

Maintenance

Fundamentals...... 43

Importance.... 38

Safety.... 39

Schedule 40

Maximum Weight Limit 15, 116

Modifications.... 14

0

Odometer 19, 96

Oil

Engine.... 49, 67

Overheating.... 82

Oxygenated Fuels.... 110

P

Parking.... 12

Parking Brake Indicator 22

Parking Brake Lever....25

Parts Location 16

PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL).....21, 83

Protective Apparel....9

R

Rear Cover....56

Recommended

Coolant 50

Fuel 30

Oil 49

Refueling....30

Removal

Battery....62

Left Side Cover 57

Rear Cover....56

Right Fairing Pocket 61

Right Side Cover 59

Windscreen Garnish....55

Repair Kit 85

Reporting Safety Defects 115

Riding Precautions....10

Right Fairing Pocket 61

Right Side Cover.... 59

S

Safety Labels 7

Safety Precautions 9

Seat.... 32

Side Stand....77

Side Stand Ignition Cut-off System.... 26, 77

Spark Plugs 65

Specifications 116

Speedometer.... 18

Start Button.... 23

Starting the Engine.... 26

Stopping Engine 96

Storage

Center Compartment.... 32

Equipment 32

Left Fairing Pocket 34

Owner's Manual 33

Right Fairing Pocket 35

Tool Kit 33

Storing Your Scooter 100

Switches 23

T

Tachometer.... 18

Throttle 78

Tires

Air Pressure 51, 117

Puncture.... 85

Replacing 53

Tool Kit 33

Transporting Your Scooter 101

Tripmeter 19

Troubleshooting....80

Trunk Light 33

Turn Signal Indicators 22

V

Vehicle Identification Number 103

V-matic Indicator.... 22

W

Warning Indicators On 83

Warranty Coverage and Service 112

Washing Your Scooter 97

Weight Limit.... 15

Windscreen Garnish 55
