GSK15 - Aaaa GEMINI - Free user manual and instructions

Product Type	Electric Kettle
Brand	Gemini
Model	GSK15
Power Consumption	1850–2200 W
Mains Voltage	220–240 V, 50/60 Hz
Capacity	1.5 L (max), 0.5 L (min)
Dimensions (H x W x D)	251 x 160 x 230 mm
Material	Plastic body, stainless steel heating element
Auto Shut-off	Yes
Boil-dry Protection	Yes
Overheating Protection	Yes
Lid Type	Push-button opening
Pilot Light	Yes (illuminates when on)
Base	Power base (included)
Cleaning	Wipe exterior with damp cloth; descale interior with vinegar
Maintenance	Descaling required periodically
Safety	Do not immerse in water; use dry hands
Warranty	Contact customer service; no specified duration

Frequently Asked Questions - GSK15 GEMINI

How should I use the kettle for the first time?

Before first use, boil 3 full kettles of water (1.5 L each) and discard the water to remove manufacturing residues. You may also use vinegar or a descaling agent for the first time.

What are the minimum and maximum water levels?

The minimum water level is 0.5 L (MIN) and the maximum is 1.5 L (MAX). Never fill beyond the MAX mark to avoid hot water splashing out.

Can I open the lid while the water is boiling?

No. Never open the lid when the water is still boiling, as steam and hot water may spatter and cause burns. Wait until the boiling has stopped.

How does the automatic shut-off work?

After the water comes to a boil, the kettle automatically switches off a few seconds later, and the pilot light turns off. This prevents over-boiling.

How do I clean and descale the kettle?

Unplug and let cool. Wipe the exterior with a damp cloth. For descaling, fill to MAX with a vinegar-water solution, boil, let stand a few hours, empty, then boil twice with clean water. Never use ammonia or harsh cleaners.

What should I do if the kettle turns off before the water boils?

If the kettle switches off prematurely, it may have activated the boil-dry protection due to insufficient water. Fill at least to MIN (0.5 L) and allow the kettle to cool for 10 minutes before reusing.

Can I use the kettle without water?

No. Do not switch on the kettle when empty. This can damage the heating element and activate the overheating protection. Allow the kettle to cool for 10 minutes before refilling.

Is the kettle suitable for other liquids like milk or soup?

No. This kettle is designed only for boiling or heating water. Using it for other liquids may cause damage and create a hazard.

How should I store the kettle?

Allow the kettle to cool to room temperature before storage. Place it on a flat, stable surface away from windows and moisture. Do not let the cord hang over edges.

What if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid a hazard. Do not use the kettle until repaired.

USER MANUAL GSK15 GEMINI

Please read and retain for future reference.

SAFETY INSTRUCTIONS

1. Please read these instructions carefully and retain them for reference.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
3. Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.
4. Never use the appliance outdoors.
5. Never use the appliance in a humid room.
6. Do not place the electric kettle in the work of the platform near the window, prevent any accidents and short circuit caused by outdoor weather.
7. Place the appliance on a flat, stable surface.
8. Never allow the power cord to hang over the edge of the draining board, worktop or table.
9. Do not place any objects covered the kettle.
10. Make sure that your hands are dry before touching the appliance, power cord or plug.
11. Always remove the plug from the wall socket after use, and before cleaning the appliance.
12. Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately and do not use the appliance any more.
13. Use solely the power base supplied with the jug kettle. Never use the power base for other purposes.
14. Remove the jug from the power base, and fill with water from the tap. Never fill the jug above the 'MAX' 1.5 litre level.
15. Do not switch on the appliance before you have filled it with water. Fill only with cold water.
16. The jug's lid must remain securely closed whilst the appliance is in use.
17. Never open the lid when the water is still boiling.
18. Use the appliance only to boil or heat water. Never use it for other liquids!
19. Fill the jug kettle with at least MIN (0.5 litres) of water and above the water level MIN.
20. Allow the appliance to cool to room temperature before storage.
21. This appliance may not be used through an external timer or by means of a remote control.
22. The heating element surface is subject to residual heat after use.
23. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This unit is for HOUSEHOLD USE ONLY.

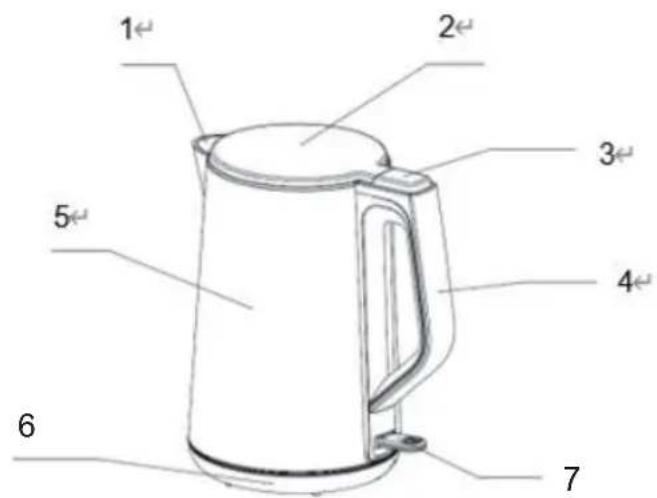

PRODUCT REVIEW

1. Spout
2. Top lid
3. Lid release button
4. Handle
5. Body
6. Power base
7. On/off switch with pilot light

BEFORE USE FOR THE FIRST TIME

Before first use, remove possible manufacturing process residues by boiling 3 full kettles of water. Dispose this water.

Tip: You can use vinegar or special descaling agents for the first time.

USE

1. Turn the jug so that the spout faces away from you.
2. Press the top lid (2) to open or close the lid of the kettle.
3. Fill the jug with the required quantity of water (at least MIN (0.5 litres) and a MAX of 1.5 litres). Never fill the water boiler over the "MAX". Otherwise the hot water can spatter out of the power base.

ATTENTION

Make sure that you do not spill any water on the power base.

1. Release the button to open the lid.
2. Place the jug on the power base, and insert the plug in the wall socket. Push down the on / off switch. The on/off pilot light will illuminate.
3. The jug kettle is now switched on, and the water will now begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. The on/off pilot light will now extinguish.
4. Remove the jug from the power base by the handle, and pour the water out.
5. Remove the plug from the wall socket when you have finished using the jug kettle.

ATTENTION

Be careful you do not contact the hot water. It can cause serious burning wounds.

NOTE

To operate the kettle, please fulfill the following conditions:

1. Connect the power source;
2. Fill the jug with the required quantity of water (at least (0.5 litres) and a maximum of 1.5 litres);
3. Ensure the kettle body place on the power base at a flat, stable surface, and press on/off switch.

CAUTION

1. Do not put the product into water or sprinkle water on it, otherwise, it may cause short circuit and electric shock.
2. Do not touch the body of the kettle when they are hot, otherwise it may cause scald.
3. Do not open the lid or pour out boiled water when during the course of boiling, otherwise, boiled water will easily sprinkle and steam will jet out which may cause scald.
4. Use qualified socket independently which shall meet the rated power supply of the product, unplug the power plug from the socket, when not in use for a period of time, it may cause heat or fire if the product shares one socket with other electrical appliances.

OVERHEATING PROTECTION

Do not turn on the kettle if it is empty. The incorrect use of the kettle may negatively affect its lifetime. If you accidentally turn on the kettle without water or less than MIN (0.5 Litres) water, the thermostat will, after reaching a certain temperature, interrupt the electric circuit. The switch will move to the OFF position and the indicator light will turn off. Allow the kettle to cool down for at least 10 minutes before using it again.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket, and allow the appliance to cool.
2. Clean the jug with a damp cloth. Never immerse the appliance in water. Never put the appliance in a dishwasher. Make sure that the electrical connections do not become damp.
3. If the interior of the jug has become severely discoloured, then the best way to clean it is with a damp cloth and a little washing soda. After cleaning, rinse the jug very thoroughly.

ATTENTION

1. Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.
2. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

DESCALING

Lime will be deposited on the heating element at a rate depending on the hardness of the water. For this reason the heating element must be cleaned at regular intervals.

1. Remove the plug from the wall socket, and allow the appliance to cool.
2. Fill the jug with a vinegar and mixed water cleaning solution to the MAX (1.5L) water level and boil it.
3. After boiling, leave the jug with the vinegar solution to stand for a couple hours.
4. Empty the jug, fill with clean water to the MAX (1.5L) water level, and bring to the boil. Empty the jug. Repeat this process twice.

Never use ammonia or other products to descale the appliance. These can be injurious to your health. Use solely a vinegar solution, or special descaling agents available from retailers.

SPECIFICATIONS

Model No.: GSK15

Mains Voltage & Frequency: 220-240V \~ 50/60Hz

Power consumption: 1850-2200W

Capacity: 1.5 litres

Product Dimension: 251(H) x 160(W) x 230(D) mm

* The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.
