USER MANUAL BWLWAPG1000 Bountiful
V1.1
Table of Contents
1 – Introduction ...... 1
2 - Logging into the BWRACWALL .... 2
3 - Navigating the Web GUI 2
4 - Configuring the SSID .... 3
5 – AP Association, Default AP Configuration, Unique AP
Configuration 5
1 - Introduction
This Quick Start Guide will help you configure the BWLWAPG1000. These basic instructions will aide in setting up the lightweight access point, and will walk through and managing BWLWAPG1000 lightweight access points.
Requirements: IMPORTANT
A computer running Windows 2000, Windows XP, Windows Vista or Mac that is already connected to the internet and a BWRACWALL Access Controller
In the box you will receive a BWLWAPG1000, a power supply, an Ethernet cable and a quick start guide.
2- Logging into the BWRACWALL
STEP 2.1
Plug an Ethernet cable from a computer into the LAN port of the BWRACWALL
STEP 2.2
Open up a browser window i.e.: Firefox, Explorer, Safari. The BWRACWALL runs a web server IP (192.168.101.2) on its LAN connection.
STEP 2.3

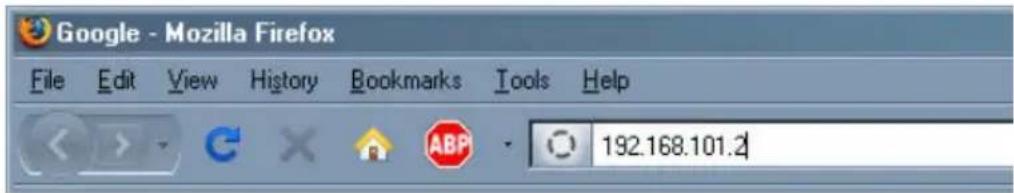

Type 192.168.101.2 into the address bar
Input user name and password when prompt appears.
Default user name and password
Username: admin
Password: admin
3- Navigating the web GUI
STEP 3.1
When you first access the Bountiful® Wi-Fi BWRACWALL web GUI, the system status screen will appear. Along the left-hand side of all the screens is a menu to allow you to navigate to other screens. The default Bountiful® Wi-Fi BWRACWALL configuration may be sufficient for you. If not review the following sections.
System
General setup
Static routes
Firmware
Advanced
User manager
Interfaces
LAN
WAN
OPT1
OPT2
OPT3
OPT4
Firewall
Rules
NAT
Traffic shaper
Aliases
Services
DNS forwarder
Dynamic DNS
DHCP server
DHCP relay
SNMP
Proxy ARP
Captive portal
Wake on LAN
SP Proxy
Wireless
SSID configuration
AP configuration
VPN
IPsec
PFTP
Status
System
Interfaces
Traffic graph
Wireless APs
▶ Diagnostics
Bountiful™ wifi
System information
| Name | south.villageonmainstreet.com |
| Version | 1.3b13-bwifi-beta3built on Thu Dec 11 00:00:00 CEST 2008 |
| Platform | generic-pc |
| Uptime | 31 days, 22:44 |
| Last config change | Fri Jan 2 14:14:46 MST 2009 |
| CPU usage | view graph |
| Memory usage | 13% |
| Notes |
© 2002-2008 Bountiful Wifi Inc. All rights reserved. Based on [mOnOwall]
4- Configuring the SSID
STEP 4.1
Click on SSID under Wireless section.
Wireless: SSID Configuration
| SSID name | Description |
| VillageOnMain | Default Config |
| First SSID wep | |
| Second SSID |
To make changes click on the ⓔ for edit.
Click on ⭕ to configure additional SSIDs.
Click on the ✕ to delete existing SSIDs.
webGUI Configuration
south.vliapconmainstreet.com
System
General setup
Static routes
Firmware
Advanced
User manager
Interfaces
LAN
WAN
OFT1
OFT2
Firewall
Rules
NAT
Traffic shaper
4.123
Services
DNS forwarder
Dynamic DNS
DHCP server
DHCP relay
SNMP
Proxy ARP
Captive portal
Wake on LAN
SIP Proxy
Wireless
SSD configuration
AP configuration
VPN
IFSEC
FPTP
Status
System
Interfaces
Traffic graph
Wireless APs
Captive portal
▶ Diagnostics
Wirless: SSID Configuration: Edit SSID configuration
| SSID name | VillageOnManEnter a character string for the wireless network's SSID name. |
| Description | Default ConfigYou may enter a description here for your reference (not parsed). |
| Encryption | none nonewep psk psk2 wpa wpa2 |
| Key/Passphrase /Shared Secret | |
| RADIUS server | Enter the IP address of the RADIUS server. |
| RADIUS port | Enter the RADIUS port number for the RADIUS server. |
| APs using this SSID | Default AP Config00:14:ac:00:17:cf South 3rd floor East Corner00:14:ac:00:17:d2 South 31700:14:ac:00:17:cb South Side 30900:14:ac:00:17:c8 South Side 24100:14:ac:00:17:cd South Side 25000:14:ac:00:17:c0 Leasing Office |
| Save |
© 2002-2003 Bountiful Wifi Inc. All rights reserved. Based on [mOnOwell]
STEP 4.2
Input an SSID in the given box. It is also suggested that you type a description but not required.
STEP 4.3
Encryption- Determine the level of security you wish your wireless network to have. Input a unique password and save the changes.
5- AP Association, Default AP Configuration, Unique AP Configuration
STEP 5.1
AP Association:
STEP 5.1.1
Plug your BWLWAPG1000(s) (lightweight Bountiful® Wi-Fi Access Point(s) into your BWRACWALL LAN port or into the switch used with your controller.
STEP 5.1.2
Wait a few minutes until your BWLWAPG1000 associates with the controller.
STEP 5.1.3
Go to the Wireless "AP Configuration" menu to verify that your BWLWAPG1000 has successfully associated. You will see your description, heartbeat, first SSID and encryption presented on the screen. A green heartbeat signifies a successful and real time association between AP and the BRWACWALL controller.
STEP 5.2
Default AP Configuration:
STEP 5.2.1
Under "AP Configuration" look for the "Default AP Configuration" tab.
STEP 5.2.2
Push the
to begin configuring the default AP.
webGUI Configuration
south.villageonmanstreet.com
System
General setup
Static routes
Firmware
Advanced
User manager
Interfaces
LAN
WAN
OPT1
OPT2
Firewall
Rules
Ma
Traffic shaper
Aliases
Services
DNS forwarder
Wireless: AP Configuration
| Default APConfiguration | |||||
| WirelessEnabled | Channel | SSID 1 | SSID 2 | SSID 3 | SSID4 |
| YES | 6 | VillageOnMain | none | none | none |
Discovered APs (32 Max)
| Description | IP address | Heartbeat | First SSID | Encryption | Using Default AP Configuration |
| 00:14:ac:00:17:cf South 3rd floor East Corner | 192.168.101.195 | 2009/1/16 13:16:08:44 | VillageOnMain | none | NO |
STEP 5.2.3
Here you can configure the following AP defaults: AP name, wireless status, channel, SSID.
STEP 5.2.4
Press save when you are complete. All new APs will automatically be setup with your default configuration.
webGUI Configuration
south.village@mainstreet.com
System
General setup
Static routes
Fittigare
Advanced
Lisen manager
Interfaces
LAN
MAN
0911
0372
Firewall
Rules
NAT
Train shaper
Alters
Services
EYE forwarder
Dynamic pre
DHP server
Wirless: AP Configuration: Edit AP configuration
| AP name | |
| Enter a character string to identify the AP. | |
| MAC address | default |
| Wireless | Enable wireless interface |
| Channel | 6 |
| SSID 1 | none |
| SSID 2 | none |
| SSID 3 | none |
| SSID 4 | none |
| Save |
STEP 5.3
Unique AP Configuration:
STEP 5.3.1
To change your configurations per AP return to the main wireless AP configuration screen and press the 📔 next to the AP you would like to uniquely configure.
| OPT1 |
| OPT2 |
| Firewall |
| Rules |
| NAT |
| Traffic shaper |
| Aliases |
| Services |
| DNS forwarder |
| Dynamic DNS |
| DHCP server |
| DHCP relay |
| SNMP |
| Proxy ARP |
| Captive portal |
| Wake on LAN |
| SIP Proxy |
| Wireless |
| SSID configuration |
| AP configuration |
| VPN |
| IPsec |
| BFTP |
| Discovered APs (32 Max) | |||||
| Description | IP address | Heartbeat | First SSID | Encryption | Using Default AP Configuration |
| 00:14:ac:00:17:cf South 3rd floor East Corner | 192.168.101.196 | 2009/1/16 13:16:00 44 | VillageOnMain | none | NO |
| 00:14:ac:00:17:d2 South 317 | 192.168.101.197 | 2009/1/16 13:15:57 55 | VillageOnMain | none | NO |
| 00:14:ac:00:17:cb South Side 309 | 192.168.101.195 | 2009/1/16 13:16:30 22 | VillageOnMain | none | NO |
| 00:14:ac:00:17:c8 South Side 241 | 192.168.101.199 | 2009/1/16 13:16:17 35 | VillageOnMain | none | NO |
| 00:14:ac:00:17:cd South Side 253 | 192.168.101.194 | 2009/1/16 13:16:52 0 | VillageOnMain | none | NO |
| 00:14:ac:00:17:c0 Leasing Office | 192.168.101.198 | 2009/1/16 13:16:48 4 | VillageOnMain | none | NO |
STEP 5.3.2
Here you can uniquely configure per AP the: AP name, MAC address, IP address, turn off and on the default AP configuration, wireless status, WDS (bridge and repeater. Please see user's manual for more information on how to configure lightweight APs as bridge or repeater), channel and SSID. Remember, your encryption is configured by SSID under "wireless SSID configuration."
STEP 5.3.3
Press Save when you are complete configuring your AP.
System
General setup
Static routes
Firmware
Advanced
User manager
Interfaces
LAN
WAN
OPT1
OPT2
Firewall
Rules
NAT
Traffic shaper
Aliases
Services
DNS forwarder
Dynamic DNS
DHCP server
DHCP relay
SNMP
Proxy ARP
Captive portal
Wake on LAN
SIP Proxy
Wireless
SSID configuration
AP configuration
VPN
Wirless: AP Configuration: Edit AP configuration
| AP name | 00:14:ac:00:17:cf South 3rd Floor EaEnter a character string to identify the AP. |
| MAC address | 00:14:ac:00:17:cf |
| IP address | 192.168.101.196 |
| Default AP | Use default ap configuration |
| Wireless | Enable wireless interface |
| Wireless Distribution Service mode | disabledTo enable WDS select repeating or bridge. |
| WDS Root AP | disabledSelect the AP to repeat or bridge. |
| Channel | 11 |
| SSID 1 | VillageOnMain |
| SSID 2 | none |
| SSID 3 | none |
| SSID 4 | none |
| Save |
After you press save a red ⓟ or “push configuration” will appear. Allow a few moments for the configuration to finish. Some configurations may take longer than others. A percentage sign will appear to indicate how much of the configuration has been completed.
This completes the Quick Setup guide for the BWRACWALL controllers and lightweight Access Points. If you would like assistance on setting up additional features or would like a more in depth explanation on how to set up the controller, please go to www.Bountifulwif.com and download the BWRACWALL users manual
