USER MANUAL mcp4632 Microchip

7/8-Bit Single/Dual I²C Digital POT with Volatile Memory

Features:

• Single or Dual Resistor Network Options
• Potentiometer or Rheostat Configuration Options
  • Resistor Network Resolution
• 7-bit: 128 Resistors (129 Steps)
• 8-bit: 256 Resistors (257 Steps)

• R_AB Resistances Options of:

• 5 k Ω
• 1 0 k Ω
• 50 k Ω
• 1 0 0 k Ω

• Zero-Scale to Full-Scale Wiper Operation

- Low Wiper Resistance: 75 (typical)

- Low Tempco:

- Absolute (Rheostat): 50 ppm typical (0°C to 70°C)

- Ratiometric (Potentiometer): 15 ppm typical

- I²C Serial Interface

- 100 kHz, 400 kHz and 3.4 MHz Support

- Serial Protocol Allows:

- High-Speed Read/Write to Wiper - Increment/Decrement of Wiper

- Resistor Network Terminal Disconnect Feature via the Terminal Control (TCON) Register

- Brown-Out Reset Protection (1.5V typical)

- Serial Interface Inactive Current (2.5 uA typical)

• High-Voltage Tolerant Digital Inputs: up to 12.5V

- Wide Operating Voltage:

- 2.7V to 5.5V - Device Characteristics Specified - 1.8V to 5.5V - Device Operation

- Wide Bandwidth (-3dB) Operation: - 2 MHz (typical) for 5.0 kΩ Devio

- Extended Temperature Range (-40°C to +125°C)

Description:

The MCP45XX and MCP46XX devices offer a wide range of product offerings using an C interface. This family of devices support 7-bit and 8-bit resistor networks, volatile memory configurations, and Potentiometer and Rheostat pinouts.

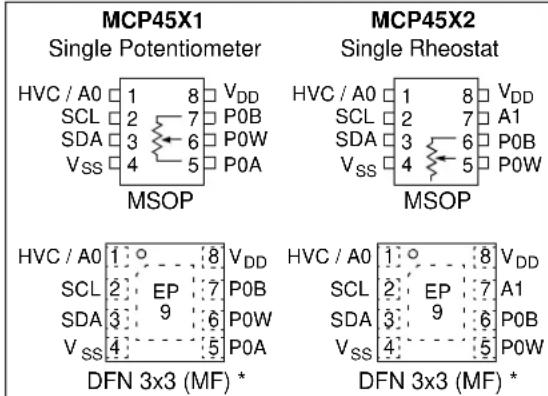

Package Types (top view)

MCP46X1 Dual Potentiometers

MCP46X2 Dual Rheostat

HVC/A0 1 10 VDD SCL 2 9 A1 SDA 3 8 P0B VSS 4 7 P0W P1B 5 6 P1W MSOP

HVC / A0 1: ○ 10 VDD SCL 2: 9 A1 SDA 3: EP 8 P0B Vss 4: 11 7 P0W P1B 5: 6 P1W DFN 3x3 (MF) *

* Includes Exposed Thermal Pad (EP); see Table 3-1.

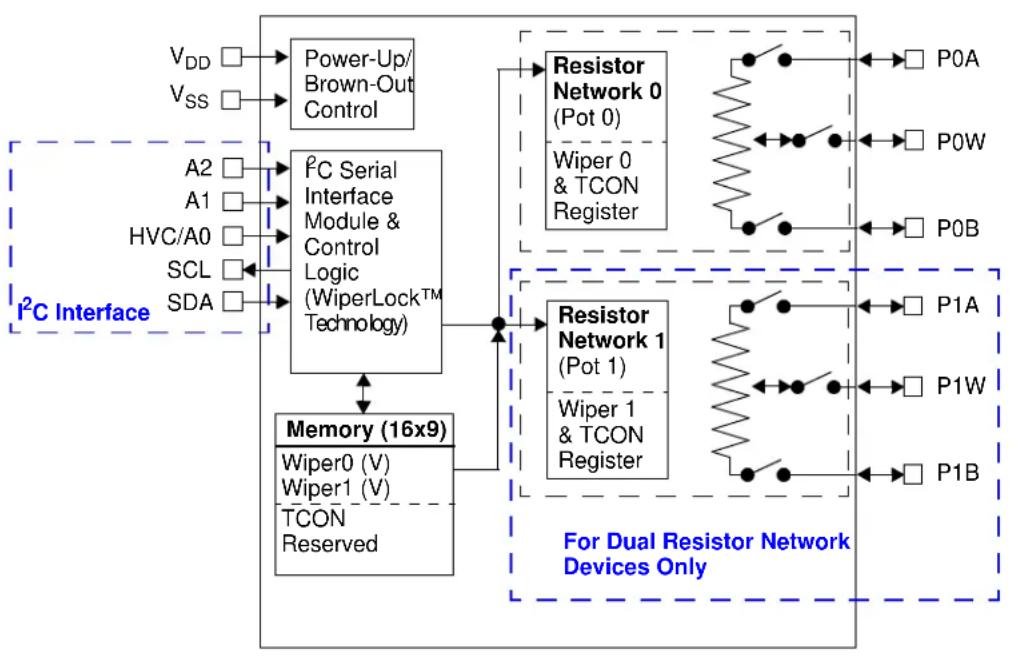

Device Block Diagram

Device Features

Device	# of POTs	WiperConfiguration	Control	Memory Type	WiperLock	POR Wiper Setting	Resistance (typical)		# of Steps	V_DD OperatingRange(2)
							R_AB Options ( k )	Wiper - R_W (Ω)
MCP4531 1	Potentiometer	(1)	I^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 129	1.8V to	5.5V
MCP4532 1	Rheostat I		^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 129	1.8V to	5.5V
MCP4541 1	Potentiometer	(1)	I^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	129	2.7V to 5.5V
MCP4542 1	Rheostat I		^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	129	2.7V to 5.5V
MCP4551	1	Potentiometer(1)	I^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 257	1.8V to	5.5V
MCP4552 1	Rheostat I		^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 257	1.8V to	5.5V
MCP4561 1	Potentiometer	(1)	I^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	257	2.7V to 5.5V
MCP4562 1	Rheostat I		^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	257	2.7V to 5.5V
MCP4631 2	Potentiometer	(1)	I^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 129	1.8V to	5.5V
MCP4632	2	Rheostat I	^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 129	1.8V to	5.5V
MCP4641 2	Potentiometer	(1)	I^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	129	2.7V to 5.5V
MCP4642 2	Rheostat I		^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	129	2.7V to 5.5V
MCP4651 2	Potentiometer	(1)	I^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 257	1.8V to	5.5V
MCP4652 2	Rheostat I		^2C	RAM No	Mid-	Scale 5.0, 10	0.0, 50.0, 100.0 75 257	1.8V to	5.5V
MCP4661 2	Potentiometer	(1)	I^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	257	2.7V to 5.5V
MCP4662 2	Rheostat I		^2C	EE	Yes	NV Wiper	5.0, 10.0, 50.0, 100.0	75	257	2.7V to 5.5V

Note 1: Floating either terminal (A or B) allows the device to be used as a Rheostat (variable resistor).
2: Analog characteristics only tested from 2.7V to 5.5V unless otherwise noted.

1.0 ELECTRICAL CHARACTERISTICS

Absolute Maximum Ratings †

Voltage on V_DD with respect to V_SS -0.6V to +7.0V

Voltage on HVC/A0, A1, A2, SCL, and SDA with respect to V_SS -0.6V to 12.5V

Voltage on all other pins (PxA, PxW, and PxB) with respect to V_SS -0.3V to V_DD + 0.3V

Input clamp current, I_IK ( V_I < 0 , V_I > V_DD , V_I > V_PP ON HV pins)....±20 mA

Output clamp current, I_OK ( V_O < 0 or V_O > V_DD )......±20 mA

Maximum output current sunk by any Output pin....25 mA

Maximum output current sourced by any Output pin 25 mA

Maximum current out of V_SS pin .... 100 mA

Maximum current into V_DD pin 100 mA

Maximum current into PxA, PxW & PxB pins ....±2.5 mA

Storage temperature ....-65°C to +150°C

Ambient temperature with power applied....-40°C to +125°C

Package power dissipation ( T_A = +50^ , T_J = +150^ )

MSSOP-8....473 mW

MSSOP-8 473 mW

MSSOP-10....495 mW

DFN-8 (3x3) 1.76W

DFN-10 (3x3) 1.87W

TSSOP-14....1.00W

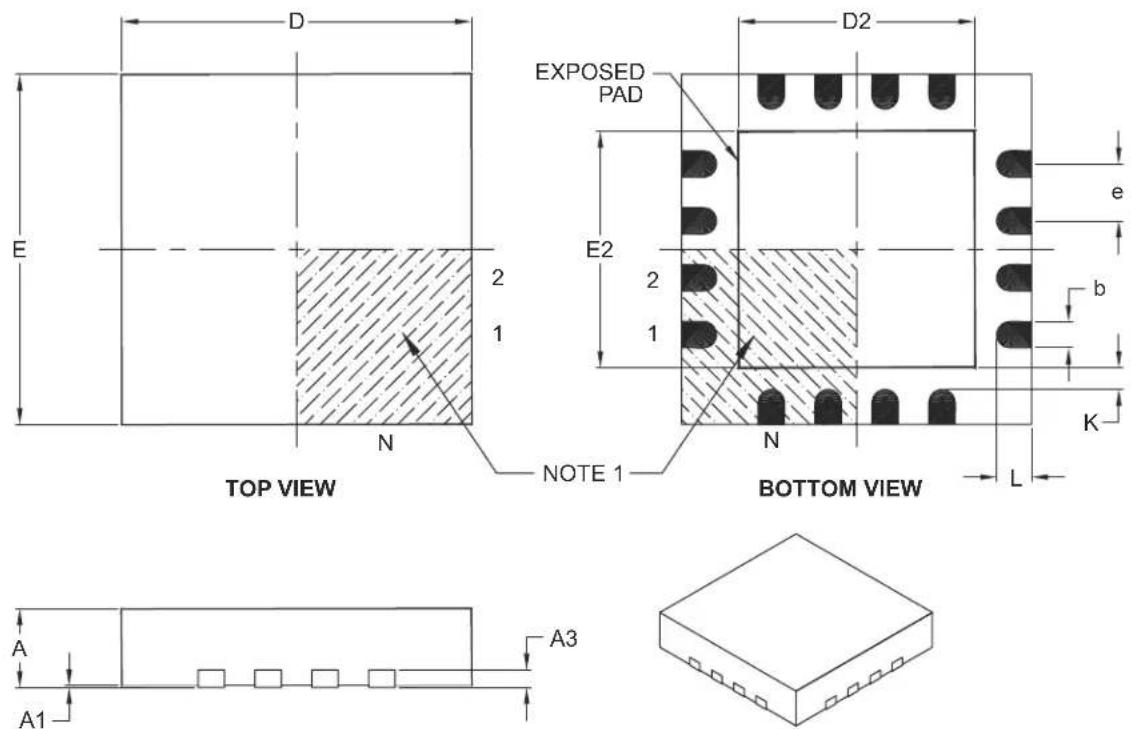

QFN-16 (4x4) 2.18W

Soldering temperature of leads (10 seconds) ....+300°C

ESD protection on all pins ≥ 4 kV (HBM)

≥300V (MM)

Maximum Junction Temperature ( T_J ) .....+150°C

† Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

AC/DC CHARACTERISTICS

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40°C ≤ TA ≤ +125°C (extended)All parameters apply across the specified operating ranges unless noted.VDD=+2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for VDD=5.5V, TA=+25°C.
Parameters Sym	Min Typ Max	Units Conditions
Supply Voltage V	DD	2.7 —	5.5 V
		1.8 —	2.7 V	Serial	interface	only.
HVC pin Voltage Range	V HV	VSS	—	12.5V	V	VDD≥4.5V	The HVC pin will be at one of three input levels(VIL, VIH or VIHH). (Note 6)
		VSS	—	VDD+8.0V	V	VDD<4.5V
VDD Start Voltage to ensure Wiper Reset	VBOR	—	—	1.65	V	RAM retention voltage (VRAM)<VBOR
VDD Rise Rate to ensure Power-on Reset	VDDRR	(Note 9)			V/ms
Delay after device exits the reset state (VDD>VBOR)	TBORD	—	10	20	μs

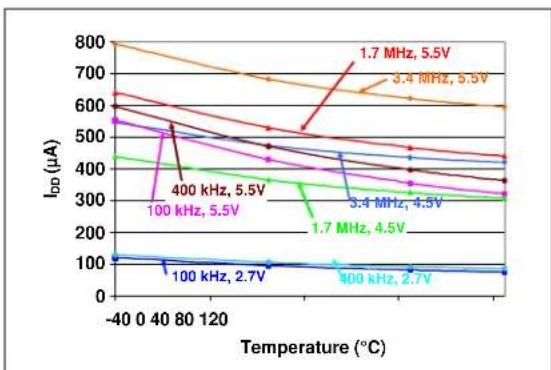

Supply Current (Note 10)	IDD	—	—	600	μA	Serial Interface Active,HVC/A0 = VIH (or VIL) (Note 11)Write all 0's to Volatile Wiper 0VDD=5.5V, FSCL=3.4 MHz
		—	—	250	μA	Serial Interface Active,HVC/A0 = VIH (or VIL) (Note 11)Write all 0's to Volatile Wiper 0VDD=5.5V, FSCL=100 kHz
		—2.5	5	μA	Serial Interface Inactive,(Stop condition, SCL = SDA = VIH),Wiper = 0VDD=5.5V, HVC/A0 = VIH

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See I_PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Resistance(± 20%)	R_AB	4.0	5	6.0	kΩ	-502 devices (Note 1)
		8.0	10	12.0	kΩ	-103 devices (Note 1)
		40.0	50	60.0	kΩ	-503 devices (Note 1)
		80.0	100	120.0	kΩ	-104 devices (Note 1)
Resolution	N	257			Taps	8-bit	No Missing Codes
		129			Taps	7-bit No	Missing Codes
Step Resistance	R_S	—	R_AB/ (256)	—	Ω	8-bit	Note 6
		—	R_AB/ (128)	—	Ω	7-bit	Note 6

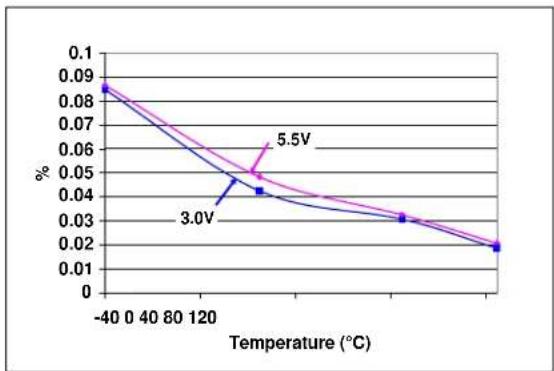

NominalResistance Match	|R_AB0-R_AB1|/R_AB	—	0.2	1.25	%	MCP46X1 devices only
	|R_BW0-R_BW1|/R_BW	—	0.25	1.5	%	MCP46X2 devices only,Code = Full-Scale

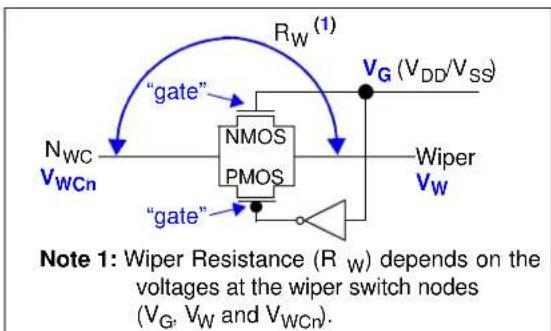

Wiper Resistance(Note 3, Note 4)	R_W	—	75 160 Ω	V		_DD = 5.5 V, I_W = 2.0 mA, code = 00h
		—	75 300 Ω	V		_DD = 2.7 V, I_W = 2.0 mA, code = 00h

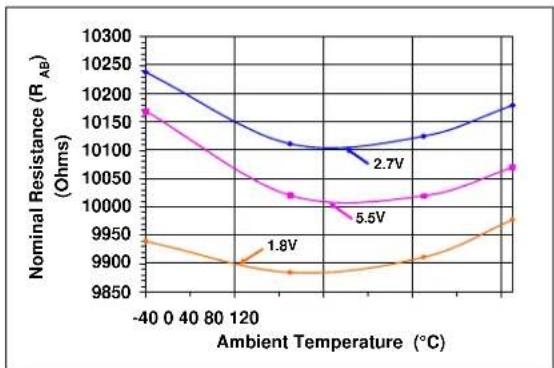

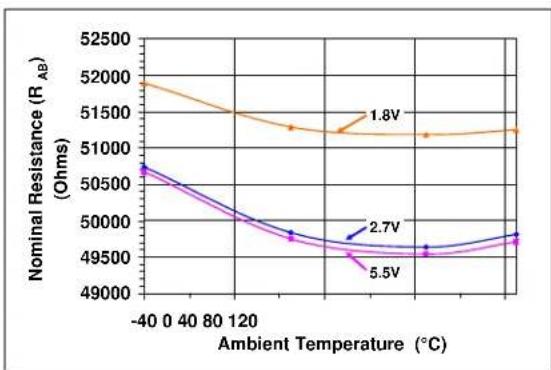

NominalResistanceTempco	R_AB/ T	—	50	—	ppm/°C	T_A = -20^ to +70^
		—	100	—	ppm/°C	T_A = -40^ to +85^
		—	150	—	ppm/°C	T_A = -40^ to +125^
RatiometericTempco	V_WB/ T	—	15	—	ppm/°C	Code = Midscale (80h or 40h)
Resistor Terminal InputVoltage Range(Terminals A, B and W)	V_A, V_W, V_B	Vss	— V	_DD	V	Note 5, Note 6

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See p_U specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Maximum current through Terminal (A, W or B)Note 6	I_T	— —	2.5 mA	Terminal	A I		AW,W = Full-Scale (FS)
		— —	2.5 mA	Terminal	B I		BW,W = Zero Scale (ZS)
		— —	2.5 mA	Terminal	W I		AW or I_BW ,W = FS or ZS
		—	—	1	.	3 8	mI_AB, V_B A 0V , V_A = 5.5V , R_AB(MIN) = 4000
		— —	0.688	mA		ITerminal A and Terminal B	AB, V_B = 0V , V_A = 5.5V , R_AB(MIN) = 8000
		— —	0.138	mA			AB, V_B = 0V , V_A = 5.5V , R_AB(MIN) = 40000
		— —	0.069	mA		I	AB, V_B = 0V , V_A = 5.5V , R_AB(MIN) = 80000
Leakage current into A, W or B	I_WL	—	100	—	nA	MCP4XX1 PxA = PxW = PxB = V_SS
		—	100	—	nA	MCP4XX2 PxB = PxW = V_SS
		—	100	—	nA Terminals Disconnected(R1HW = R0HW = 0)

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V IHH , the I DD current is less due to current into the HVC/A0 pin. See I _PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Full-Scale Error(MCP4XX1 only)(8-bit code = 100h,7-bit code = 80h)	V_WFSE	-6.0	-0.1	—	LSb	5 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		-4.0	-0.1	—	LSb	Sb	7-bit	3.0V _DD ≤ V_DD
		-3.5	-0.1	—	LSb	10 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		-2.0	-0.1	—	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V
		-0.8	-0.1	—	LSb	50 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		-0.5	-0.1	—	LSb	Sb	7-bit	3.0V _DD ≤ V_DD
		-0.5	-0.1	—	LSb	100 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		-0.5	-0.1	—	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V
Zero-Scale Error(MCP4XX1 only)(8-bit code = 00h,7-bit code = 00h)	V_WZSE	—	+0.1	+6.0	LSb	5 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+3.0	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+3.5	LSb	10 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+2.0	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+0.8	LSb	50 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+0.5	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+0.5	LSb	100 kΩ	8-bit	3.0V ≤ V_DD ≤ 5.5V
		—	+0.1	+0.5	LSb		7-bit	3.0V ≤ V_DD ≤ 5.5V

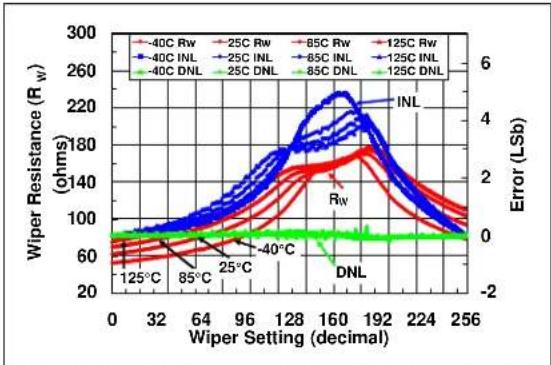

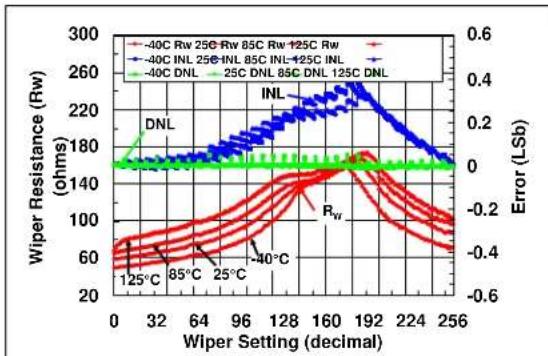

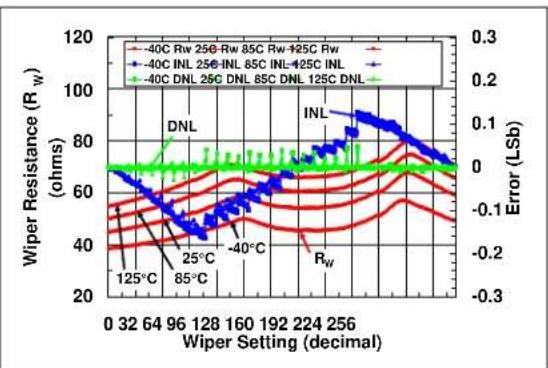

Potentiometer IntegralNon-linearity	INL	-1	±0.5	+1	LSb	8-bit	3.0V ≤ V_DD ≤ 5.5VMCP4XX1 devices only (Note 2)
		-0.5	±0.25	+0.5	LSb 7	-bit
PotentiometerDifferential Non-linearity	DNL	-0.5	±0.25	+0.5	LSb	8-bit	3.0V ≤ V_DD ≤ 5.5VMCP4XX1 devices only (Note 2)
		-0.25	±0.125	+0.25	LSb 7	-bit

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See I_PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Bandwidth -3 dB(See Figure 2-65, load = 30 pF)	BW — 2	— MHz 5	kΩ 8-bit Code	= 80h
		— 2 — MHz 7-bit Code = 40h
		—	1 —	M	H	z	1	0	k
		— 1 — MHz 7-bit Code = 40h
		—	200 —	kHz	50 kΩ	8-bit	Code = 80h
		—	200 —	kHz		7-bit	Code = 40h
		—	100 —	kHz	100 kΩ	8-bit	Code = 80h
		—	100 —	kHz		7-bit	Code = 40h

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See I_PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Rheostat IntegralNon-linearityMCP45X1(Note 4, Note 8)MCP4XX2 devices only(Note 4)	R-INL -1.5	± 0.5 +1.5	LSb 5	kΩ 8-bit	5.5V, l			W = 900 A
		-8.25	+4.5	+8.25	LSb			3.0V, I_W = 480 A (Note 7)
		-1.125	± 0.5	+1.125	LSb		7-bit	5.5V, I_W = 900 A
		-6.0	+4.5	+6.0	LSb			3.0V, I_W = 480 A (Note 7)
		-1.5	± 0.5	+1.5	LSb	10 kΩ	8-bit	5.5V, I_W = 450 A
		-5.5	+2.5	+5.5	LSb			3.0V, I_W = 240 A (Note 7)
		-1.125	± 0.5	+1.125	LSb		7-bit	5.5V, I_W = 450 A
		-4.0	+2.5	+4.0	LSb			3.0V, I_W = 240 A (Note 7)
		-1.5	± 0.5	+1.5	LSb	50 kΩ	8-bit	5.5V, I_W = 90 A
		-2.0	+1	+2.0	LSb			3.0V, I_W = 48 A (Note 7)
		-1.125	± 0.5	+1.125	LSb		7-bit	5.5V, I_W = 90 A
		-1.5	+1	+1.5	LSb			3.0V, I_W = 48 A (Note 7)
		-1.0	± 0.5	+1.0	LSb	100 kΩ	8-bit	5.5V, I_W = 45 A
		-1.5	+0.25	+1.5	LSb			3.0V, I_W = 24 A (Note 7)
		-0.8	± 0.5	+0.8	LSb		7-bit	5.5V, I_W = 45 A
		-1.125	+0.25	+1.125	LSb			3.0V, I_W = 24 A (Note 7)

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE.
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See I_PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
RheostatDifferential Non-linearityMCP45X1(Note 4, Note 8)MCP4XX2 devices only(Note 4)	R-DNL	-0.5	±0.25	+0.5	LSb	5 kΩ7-bit	8-bit	5.5V, I_W = 900 μA
		-1.0	+0.5	+1.0	LSb			3.0V, I_W = 480 μA(Note 7)
		-0.375 ±0.25 +0.375 LSb					5.5V, I_W = 900 μA
		-0.75	+0.5	+0.75	LSb			3.0V, I_W = 480 μA(Note 7)
		-0.5	±0.25	+0.5	LSb	10 kΩ7-bit	8-bit	5.5V, I_W = 450 μA
		-1.0	+0.25	+1.0	LSb			3.0V, I_W = 240 μA(Note 7)
		-0.375 ±0.25 +0.375 LSb					5.5V, I_W = 450 μA
		-0.75	+0.5	+0.75	LSb			3.0V, I_W = 240 μA(Note 7)
		-0.5	±0.25	+0.5	LSb	50 kΩ7-bit	8-bit	5.5V, I_W = 90 μA
		-0.5	±0.25	+0.5	LSb			3.0V, I_W = 48 μA(Note 7)
		-0.375 ±0.25 +0.375 LSb					5.5V, I_W = 90 μA
		-0.375	±0.25	+0.375	LSb			3.0V, I_W = 48 μA(Note 7)
		-0.5	±0.25	+0.5	LSb	100 kΩ7-bit	8-bit	5.5V, I_W = 45 μA
		-0.5	±0.25	+0.5	LSb			3.0V, I_W = 24 μA(Note 7)
		-0.375 ±0.25 +0.375 LSb					5.5V, I_W = 45 μA
		-0.375	±0.25	+0.375	LSb			3.0V, I_W = 24 μA(Note 7)
Capacitance ( P_A )	C_AW	—	75	—	pF	f =1 MHz, Code = Full-Scale
Capacitance ( P_W )	C_W	—	120	—	pF	f =1 MHz, Code = Full-Scale
Capacitance ( P_B )	C_BW	—	75	—	pF	f =1 MHz, Code = Full-Scale

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V IHH , the I DD current is less due to current into the HVC/A0 pin. See | _PU specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Digital Inputs/Outputs (SDA, SCK, HVC/A0, A1, A2, WP)
Schmitt Trigger High Input Threshold	V_IH	0.45 V_DD	—	—		VInputs exceptVSDA and SCL	2.7V ± AV _DD ≤ 5.5V I(Allows 2.7V Digital V_DD with 5V Analog V_DD )
		0.5 V_DD	—	—			1 _DD ≤ 2.7V 8 V
		0.7 V_DD	—	V_MAX	V	SDA and SCL	100 kHz
		0.7 V_DD	—	V_MAX	V		4	0 0
		0.7 V_DD	—	V_MAX	V		1	. 7
		0.7 V_DD	—	V_MAX	V		3	. 4
Schmitt Trigger Low Input Threshold	V_IL	— —	0.2V	_DD	V All	inputs except SDA and SCL
		-0.5 —	0.3V	_DD	V	SDA and SCL	100 kHz
		-0.5 —	0.3V	_DD	V		4	0 0
		-0.5 —	0.3V	_DD	V		1	. 7
		-0.5 —	0.3V	_DD	V		3	. 4
Hysteresis of Schmitt Trigger Inputs (Note 6)	V_HYS	—	0 _D	—1	W All	inputs except SDA and SCL
		N.A.	—	—	V	SDA and VSCL V	100 kHz	V_DD < 2.0V
		N.A.	—	—	V			V_DD ≥ 2.0V
		0.1 V_DD	—	—	V		400 kHz	V_DD < 2.0V
		0.05 V_DD	—	—				_DD ≥ 2.0V
		0.1 V_DD	—	—			1	. 7 M H
		0.1 V_DD	—	—			3	. 4 M h
High Voltage Limit	V_MAX	—	—	12.5(6)	V Pin	can tolerate V MAX or less.

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V IHH , the I DD current is less due to current into the HVC/A0 pin. See b _U specification.

AC/DC CHARACTERISTICS (CONTINUED)

DC Characteristics		Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (extended)All parameters apply across the specified operating ranges unless noted. V_DD = +2.7V to 5.5V, 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ devices.Typical specifications represent values for V_DD = 5.5V , T_A = +25^ .
Parameters	Sym	Min	Typ	Max	Units	Conditions
Output Low Voltage (SDA)	V_OL	V_SS	—	0 DD	2 V V	V_DD < 2.0V , I_OL = 1mA
		V_SS	—	0	. 4	_DD ≥ 2.0V / I_OL = 3VmA
Weak Pull-up / Pull-down Current	I_PU	— —	1.75 mA	Internal	V	_DD pull-up, V_IHH pull-down V_DD = 5.5V , V_IHH = 12.5V
		— 170	— μA	HVC pin,	V	_DD = 5.5V , V_HVC = 3V
HVC Pull-up / Pull-down Resistance	R_HVC	—	16	—	kΩ	V_DD = 5.5V , V_HVC = 3V
Input Leakage Current I	IL	-1	—	1	μA	V_IN = V_DD and V_IN = V_SS
Pin Capacitance	C_IN, C_OUT	—	10	—	pF	_C =f3.4 MHz
RAM (Wiper) Value
Value Range	N	0h	—	1FFh	hex	8-bit device
		0h	—	1FFh	hex	7-bit device
TCON POR/BOR Value N TCON		1FFh			hex	All Terminals connected
Power Requirements
Power Supply Sensitivity (MCP45X2 and MCP46X2 only)	PSS	—	0.0015	0.0035	%/%	8-bit	V_DD = 2.7V to 5.5V, V_A = 2.7V , Code = 80h
		—	0.0015	0.0035	%/%	7-bit	V_DD = 2.7V to 5.5V, V_A = 2.7V , Code = 40h

Note 1: Resistance is defined as the resistance between terminal A to terminal B.
2: INL and DNL are measured at V_W with V_A = V_DD and V_B = V_SS .
3: MCP4XX1 only.
4: MCP4XX2 only, includes V_WZSE and V_WFSE .
5: Resistor terminals A, W and B's polarity with respect to each other is not restricted.
6: This specification by design.
7: Non-linearity is affected by wiper resistance ( R_W ), which changes significantly overvoltage and temperature.
8: The MCP4XX1 is externally connected to match the configurations of the MCP45X2 and MCP46X2, and then tested.
9: POR/BOR is not rate dependent.
10: Supply current is independent of current through the resistor network.
11: When HVC/A0 = V_IHH , the I_DD current is less due to current into the HVC/A0 pin. See I_PU specification.

SCL 90 91 93 SDA START Condition STOP Condition

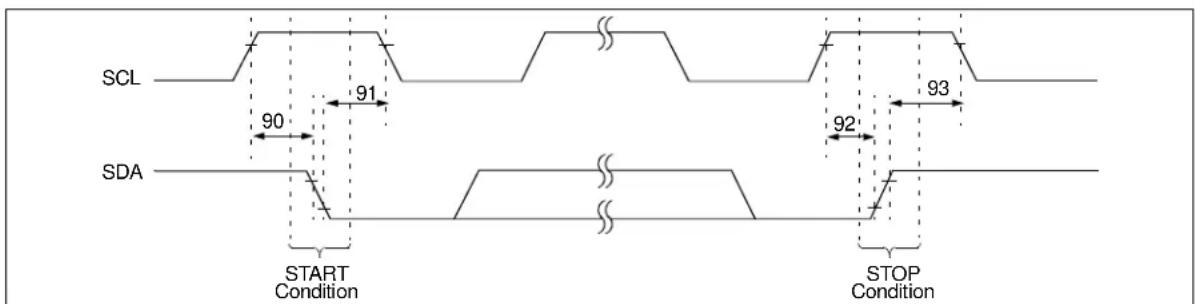

FIGURE 1-1: I ^2 C Bus Start/Stop Bits Timing Waveforms.

TABLE 1-1: I ^2 C BUS START/STOP BITS REQUIREMENTS

I^2C AC Characteristics			Standard Operating Conditions (unless otherwise specified)Operating Temperature -40°C ≤ TA ≤ +125°C (Extended)Operating Voltage VDD range is described in AC/DC Characteristics
Param. No.	Symbol	Characteristic Min Max Units Conditions
	F_SCL		Standard		Mode		b=400 pF, 1.8V - 5.5V
			Fast Mode	0 400	kHz	C	b=400 pF, 2.7V - 5.5V
			High-Speed 1.7	0	1.7	MHz	C_D =400 pF, 4.5V - 5.5V
			High-Speed 3.4	0	3.4	MHz	C_D =100 pF, 4.5V - 5.5V
D102	C_b	Bus capacitive loading	100 kHz mode	—	400	pF
			400 kHz mode	—	400	pF
			1.7 MHz mode	—	400	pF
			3.4 MHz mode	—	100	pF
90	T_SU:STA	START condition Setup time	100 kHz mode	4700	—	ns	Only relevant for repeated START condition
			400 kHz mode	600	—	ns
			1.7 MHz mode	160	—	ns
			3.4 MHz mode	160	—	ns
91	T_HD:STA	START condition Hold time	100 kHz mode	4000	—	ns	After this period the first clock pulse is generated
			400 kHz mode	600	—	ns
			1.7 MHz mode	160	—	ns
			3.4 MHz mode	160	—	ns
92	T_SU:STO	STOP condition Setup time	100 kHz mode	4000	—	ns
			400 kHz mode	600	—	ns
			1.7 MHz mode	160	—	ns
			3.4 MHz mode	160	—	ns
93	T_HD:STO	STOP condition Hold time	100 kHz mode	4000	—	ns
			400 kHz mode	600	—	ns
			1.7 MHz mode	160	—	ns
			3.4 MHz mode	160	—	ns

SCL 90 91 103 100 101 102 SDA In 106 107 92 110 109 109 SDA Out

FIGURE 1-2: I ^2 C Bus Data Timing.

TABLE 1-2: I ^2 C BUS DATA REQUIREMENTS (SLAVE MODE)

I^2C AC Characteristics			Standard Operating Conditions (unless otherwise specified)Operating Temperature -40^ ≤ T_A ≤ +125^ (Extended)Operating Voltage V_DD range is described inAC/DC Characteristics
Param.No.	Symbol	Characteristic Min Max Units Conditions
100 T	HIGH	Clock high time	100 kHz mode	4000	—	ns	1.8V-5.5V
			400 kHz mode	600	—	ns	2.7V-5.5V
			1.7 MHz mode	120		ns	4.5V-5.5V
			3.4 MHz mode	60	—	ns	4.5V-5.5V
101	T_LOW	Clock low time	100 kHz mode	4700	—	ns	1.8V-5.5V
			400 kHz mode	1300	—	ns	2.7V-5.5V
			1.7 MHz mode	320		ns	4.5V-5.5V
			3.4 MHz mode	160	—	ns	4.5V-5.5V
102A(Note 5)	T_RSCL	SCL rise time	100 kHz mode	—	1000	ns	Cb is specified to be from 10 to 400 pF (100 pF maximum for 3.4 MHz mode)
			400 kHz mode	20 + 0.1Cb	300	ns
			1.7 MHz mode	20	80 ns
			1.7 MHz mode	20	160	ns	After a Repeated Start condition or an Acknowledge bit
			3.4 MHz mode	10	40 ns
			3.4 MHz mode	10	80	ns	After a Repeated Start condition or an Acknowledge bit
102B(Note 5)	T_RSDA	SDA rise time	100 kHz mode	—	1000	ns	Cb is specified to be from 10 to 400 pF (100 pF max for 3.4 MHz mode)
			400 kHz mode	20 + 0.1Cb	300	ns
			1.7 MHz mode	20	160	ns
			3.4 MHz mode	10	80 ns
103A(Note 5)	T_FSCL	SCL fall time	100 kHz mode	—	300	ns	Cb is specified to be from 10 to 400 pF (100 pF max for 3.4 MHz mode)
			400 kHz mode	20 + 0.1Cb	300	ns
			1.7 MHz mode	20	80 ns
			3.4 MHz mode	10	40 ns

Note 1: As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region (minimum 300 ns) of the falling edge of SCL to avoid unintended generation of START or STOP conditions.

2: A fast-mode (400 kHz) I²C-bus device can be used in a standard-mode (100 kHz) ℃C-bus system, but the requirement tSU:DAT≥250 ns must then be met. This will automatically be the case if the device does not stretch the LOW period of the SCL signal. If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line.

T_R max.+ t_SU;DAT=1000+250=1250 ns (according to the standard-mode I²C bus specification) before the SCL line is released.

3: Use C_b in pF for the calculations.

4: Not tested.

5: A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do not unintentionally create a Start or Stop condition.

6: Ensured by the T_AA 3.4 MHz specification test.

TABLE 1-2: I²C BUS DATA REQUIREMENTS (SLAVE MODE) (CONTINUED)

I^2C AC Characteristics			Standard Operating Conditions (unless otherwise specified)Operating Temperature -40°C ≤ T_A ≤ +125°C (Extended)Operating Voltage V_DD range is described in AC/DC Characteristics
Param. No.	Symbol	Characteristic		Min	Max	Units	Conditions
103B (Note 5)	T_FSDA	DA fall time 100	kHz mode — 300	ns Cb is specified to be from			10 to 400 pF (100 pF max for 3.4 MHz mode)
			400 kHz mode 20 + 0.1Cb (Note 3)		300 ns
			1.7 MHz mode 20 160 ns
			3.4 MHz mode 10 80 ns
106 T	HD:DAT	Data input hold time	100 kHz mode	0	—	ns	1.8V-5.5V, Note 5
			400 kHz mode	0	—	ns	2.7V-5.5V, Note 5
			1.7 MHz mode	0	—	ns	4.5V-5.5V, Note 5
			3.4 MHz mode	0	—	ns	4.5V-5.5V, Note 5
107 T	SU:DAT	Data input setup time	100 kHz mode	250	—	ns	Note 2
			400 kHz mode 100 —		ns
			1.7 MHz mode	10	—	ns
			3.4 MHz mode	10	—	ns
109	T_{AA}	Output valid from clock	100 kHz mode	—	3450	ns	Note 1
			400 kHz mode — 900 ns
			1.7 MHz mode	—	150	ns	Cb = 100 pF, Note 1, Note 6
				— 310 ns Cb = 400 pF,			Note 1, Note 4
			3.4 MHz mode	—	150	ns	Cb = 100 pF, Note 1
110	T_{BUF}	Bus free time	100 kHz mode	4700	—	ns	Time the bus must be free before a new transmission can start
			400 kHz mode	1300	— ns
			1.7 MHz mode	N.A.	—	ns
			3.4 MHz mode	N.A.	—	ns
	T_{SP}$	Input filter spike suppression (SDA and SCL)	100 kHz mode	—	50	ns	Philips Spec states N.A.
			400 kHz mode — 50 ns
			1.7 MHz mode	—	10	ns	Spike suppression
			3.4 MHz mode	—	10 ns Spike suppression

Note 1: As a transmitter, the device must provide this internal minimum delay time to bridge the undefined region (minimum 300 ns) of the falling edge of SCL to avoid unintended generation of START or STOP conditions.
2: A fast-mode (400 kHz) I²C-bus device can be used in a standard-mode (100 kHz) C-bus system, but the requirement t_SU;DAT ≥ 250 ns must then be met. This will automatically be the case if the device does not stretch the LOW period of the SCL signal. If such a device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line. T_R max.+ t_SU;DAT = 1000 + 250 = 1250 ns (according to the standard-mode I²C bus specification) before the SCL line is released.
3: Use C_b in pF for the calculations.
4: Not tested.
5: A Master Transmitter must provide a delay to ensure that difference between SDA and SCL fall times do not unintentionally create a Start or Stop condition.
6: Ensured by the T_AA 3.4 MHz specification test.

TEMPERATURE CHARACTERISTICS

Electrical Specifications: Unless otherwise indicated, V_DD = +2.7V to +5.5V, V_SS = GND .
Parameters Sym Min Typ Max Units Conditions
Temperature Ranges
Specified Temperature Range T	A	-40 —	+125 °C
Operating Temperature Range T	A	-40 —	+125 °C
Storage Temperature Range T	A	-65 —	+150 °C
Thermal Package Resistances
Thermal Resistance, 8L-DFN (3x3)	_JA	—	56.7	—	°C/W
Thermal Resistance, 8L-MSOP	_JA	—	211	—	°C/W
Thermal Resistance, 8L-SOIC θ	JA	—	149.5	—	°C/W
Thermal Resistance, 10L-DFN (3x3)	_JA	—	57	—	°C/W
Thermal Resistance, 10L-MSOP	_JA	—	202	—	°C/W
Thermal Resistance, 14L-MSOP	_JA	—	N/A	—	°C/W
Thermal Resistance, 14L-SOIC	_JA	—	95.3	—	°C/W
Thermal Resistance, 16L-QFN	_JA	—	45.7	—	°C/W

2.0 TYPICAL PERFORMANCE CURVES

Note: The graphs and tables provided following this note are a statistical summary based on a limited number of samples and are provided for informational purposes only. The performance characteristics listed herein are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-1: Device Current (I DD ) vs. I^2C Frequency ( fSCL ) and Ambient Temperature ( V_DD = 2.7V and 5.5V).

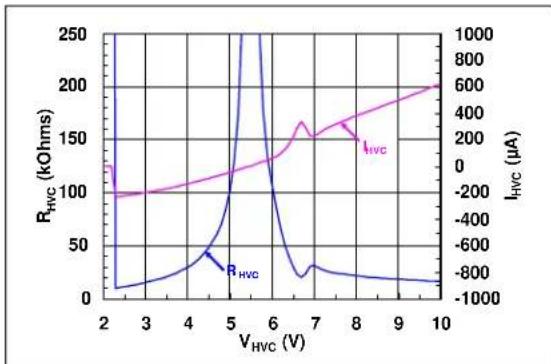

FIGURE 2-4: HVC Pull-up/Pull-down Resistance ( R_HVC ) and Current ( I_HVC ) vs. HVC Input Voltage ( V_HVC ) ( V_DD = 5.5V ).

FIGURE 2-2: Device Current (I SHDN) and V_DD (HVC = V_DD ) vs. Ambient Temperature.

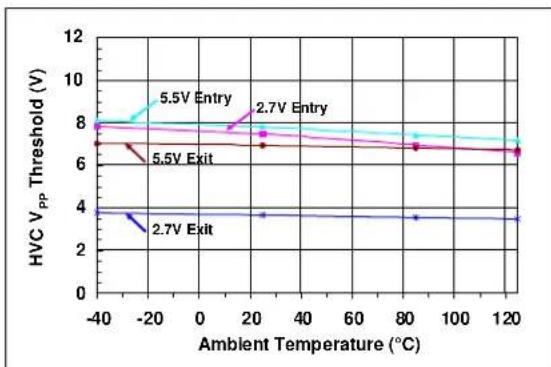

FIGURE 2-5: HVC High Input Entry/Exit Threshold vs. Ambient Temperature and V_DD .

FIGURE 2-3: Write Current (I WRITE) vs. Ambient Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

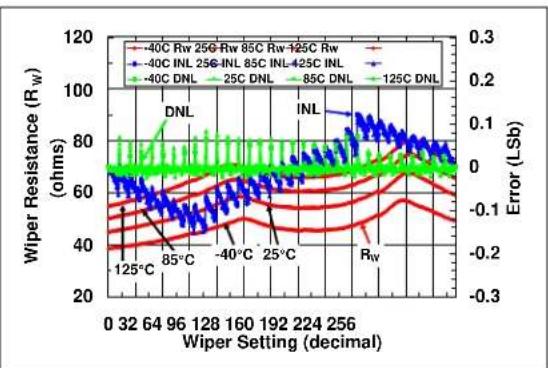

FIGURE 2-6: 5 k Ω Pot Mode - R_W(Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 5.5V).

FIGURE 2-9: 5 k Ω Rheo Mode - R_W(Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 5.5V).

FIGURE 2-7: 5 k Ω Pot Mode - R_W(Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 3.0V).

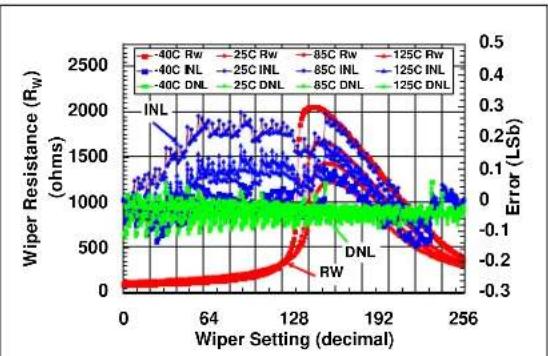

FIGURE 2-10: 5 k Ω Rheo Mode - R_W(Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 3.0V).

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.

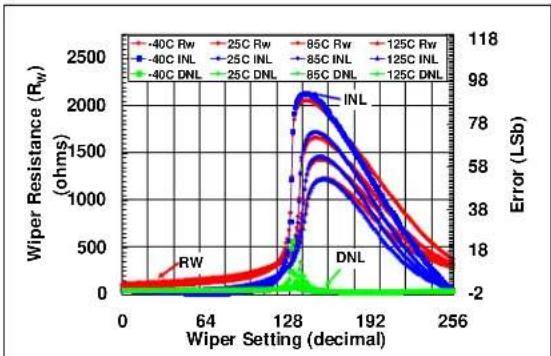

FIGURE 2-8: 5 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.

FIGURE 2-11: 5 k Ω Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-12: 5 k -Nominal Resistance ( ) vs. Ambient Temperature and V_DD .

FIGURE 2-13: 5 k - R_WB() vs. Wiper Setting and Ambient Temperature.

Note: Unless otherwise indicated, TA = + 25^ C,VDD = 5 V,V_SS = 0 V .

PVR VCC PVR VCC PVR 1.09 V 4.00 V 1.32 V 6.00 V 18A points 1.32 V Display Impedance Intuit Bandwidth Lator DC DC 1000000000000000000000000000000000000000000000000000000000000000000 2 sec 2018 09:58:51

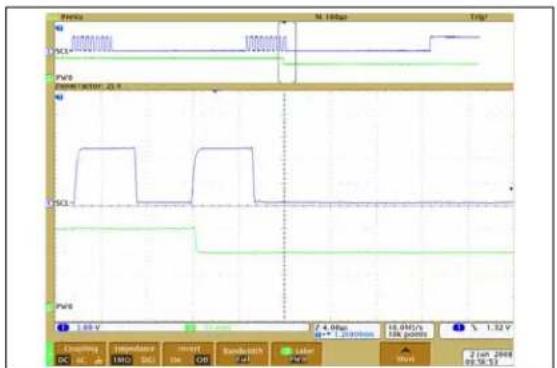

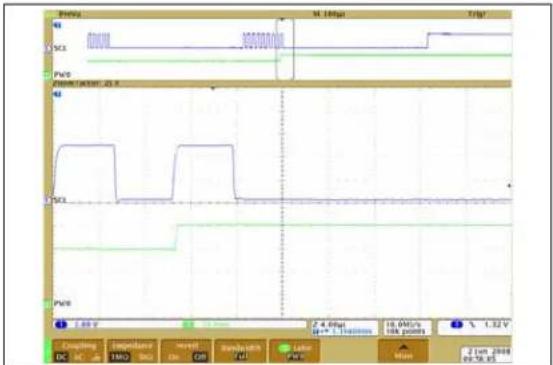

FIGURE 2-14: 5 k -Low-Voltage Decrement Wiper Settling Time ( V_DD = 5.5V ) (1 s/Div).

PWR SCL PWR Depolarization: 25.4 V SCL PWR Display Impedance Next Switch Bandwidth Filter DC DC TA THC SC On Call Put Power 2.10V 2008 ps-78.65 1.32V

FIGURE 2-17: 5 k -Low-Voltage Increment Wiper Settling Time ( V_DD = 5.5V ) (1 s/Div).

SCL PVB Emulator: 20.3 SCL PVB 1.29 V Circuit: Impedance DC: 0.0 100 500 0.0 100 500 10.04V/s 18K points 1.32 V 2.0m 2008 06:34:45

FIGURE 2-15: 5 k -Low-Voltage Decrement Wiper Settling Time ( V_DD = 2.7V ) (1 s/Div).

PDB SCL PWR Cancelactur: 25 s SCL PWR 1.00 V 1.32 V Timing: 1000 MHz DC: 1000 MHz T1: 1200 MHz T2: 1200 MHz T3: 1200 MHz T4: 1200 MHz T5: 1200 MHz T6: 1200 MHz T7: 1200 MHz T8: 1200 MHz T9: 1200 MHz T10: 1200 MHz T11: 1200 MHz T12: 1200 MHz T13: 1200 MHz T14: 1200 MHz T15: 1200 MHz T16: 1200 MHz T17: 1200 MHz T18: 1200 MHz T19: 1200 MHz T20: 1200 MHz T21: 1200 MHz T22: 1200 MHz T23: 1200 MHz T24: 1200 MHz T25: 1200 MHz T26: 1200 MHz T27: 1200 MHz T28: 1200 MHz T29: 1200 MHz T30: 1200 MHz T31: 1200 MHz T32: 1200 MHz T33: 1200 MHz T34: 1200 MHz T35: 1200 MHz T36: 1200 MHz T37: 1200 MHz T38: 1200 MHz T39: 1200 MHz T40: 1200 MHz T41: 1200 MHz T42: 1200 MHz T43: 1200 MHz T44: 1200 MHz T45: 1200 MHz T46: 1200 MHz T47: 1200 MHz T48: 1200 MHz T49: 1200 MHz T50: 1200 MHz T51: 1200 MHz T52: 1200 MHz T53: 1200 MHz T54: 1200 MHz T55: 1200 MHz T56: 1200 MHz T57: 1200 MHz T58: 1200 MHz T59: 1200 MHz T60: 1200 MHz

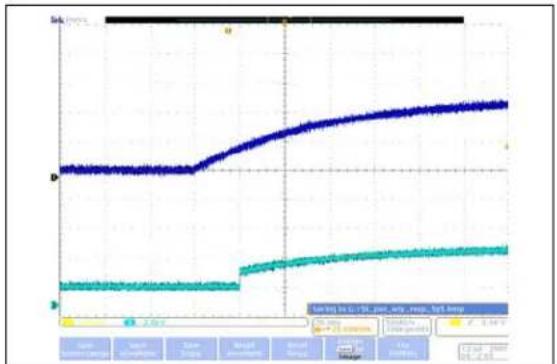

FIGURE 2-18: 5 k -Low-Voltage Increment Wiper Settling Time ( V_DD = 2.7V ) (1 s/Div).

FIGURE 2-16: 5 k Ω - Power-Up Wiper Response Time (20 ms/Div).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

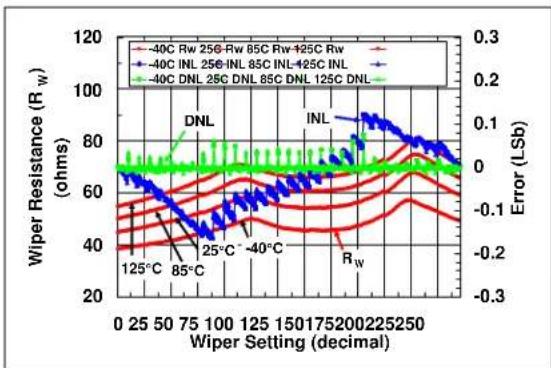

FIGURE 2-19: 10 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 5.5V ).

FIGURE 2-22: 10 k Ω Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 5.5V ).

FIGURE 2-20: 10 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 3.0V ).

FIGURE 2-23: 10 k Ω Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 3.0V ).

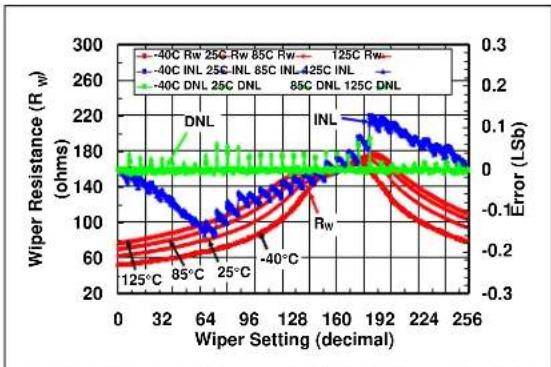

FIGURE 2-21: 10 k Ω Pot Mode - R_W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 1.8V).

FIGURE 2-24: 10 k Ω Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-25: 10 k -Nominal Resistance ( ) vs. Ambient Temperature and V_DD .

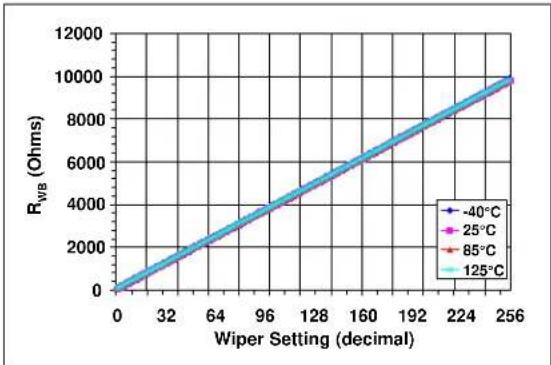

FIGURE 2-26: 10 k - R_WB() vs. Wiper Setting and Ambient Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

Run M 200µm 1µm SCL Pcc Interactor, 36.6 SCL Vcc 1.69 V F 4.5µm N= 200 mV 5.60kHz 10A points 1.32 V 29 Mar 2008 16.28:46

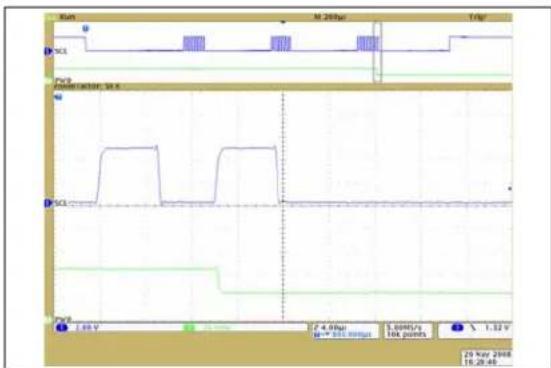

FIGURE 2-27: 10 k -Low-Voltage Decrement Wiper Settling Time ( V_DD = 5.5V ) (1 s/Div).

Punch M_200µA 1µA SCL PM2.5 Punch Punchactor: 10 k M SCL PM2.5 1.32 V 2.69 V 4.0 µA N= 100 µA 5.00V/s 10k points 29 May 2008 18.28.12

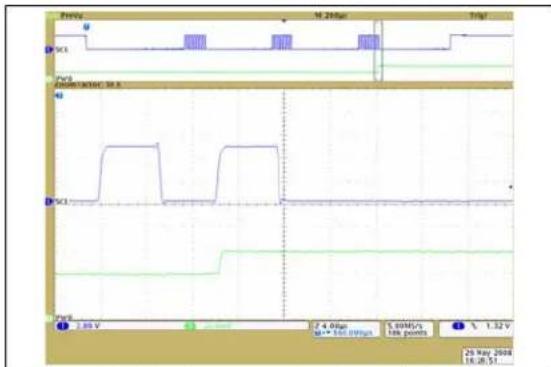

FIGURE 2-30: 10 k Ω - Low-Voltage Increment Wiper Settling Time ( V_DD = 5.5V ) (1 μs/Div).

I/O V 2000p mp I/O PMI Amperifier: 5.6 I/O I/O I/O 1.00 V 4.00µs 3.000V/s 100 points 1.32 V 29 May 2008 16:28:15

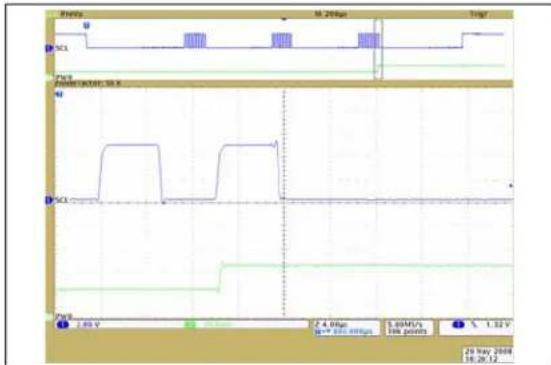

FIGURE 2-28: 10 k Ω - Low-Voltage Decrement Wiper Settling Time ( V_DD = 2.7V ) (1 μs/Div).

Prints 16.20V Tang D SCL Port Amplifier: 38.5 D SCL Port 1.20 V 17.40V 5.00Hz/s 100 points 1.32 V 29 May 2008 18:28:51

FIGURE 2-31: 10 k Ω - Low-Voltage Increment Wiper Settling Time ( V_DD = 2.7V ) (1 μs/Div).

FIGURE 2-29: 10 k Ω - Power-Up Wiper Response Time (1 μs/Div).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

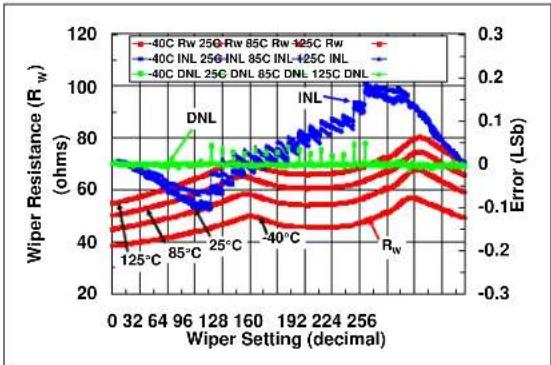

FIGURE 2-32: 50 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 5.5V ).

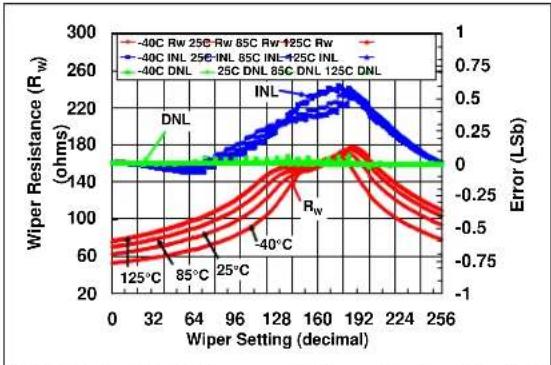

FIGURE 2-35: 50 k Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 5.5V ).

FIGURE 2-33: 50 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 3.0V ).

FIGURE 2-36: 50 k Ω Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 3.0V ).

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.
FIGURE 2-34: 50 k Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).

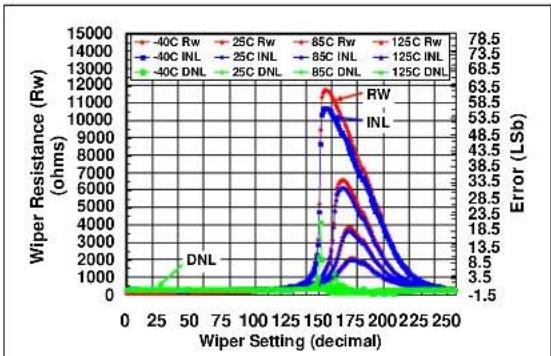

FIGURE 2-37: 50 k Rheo Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V).

Note: Unless otherwise indicated, T_A=+25^ , V_DD=5V , V_SS=0V .

FIGURE 2-38: 50 k -Nominal Resistance ( ) vs. Ambient Temperature and V_DD .

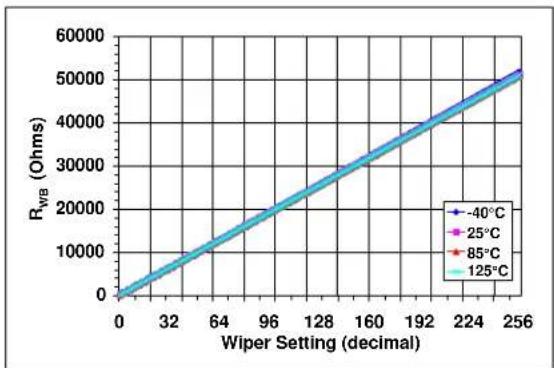

FIGURE 2-39: 50 k - R_WB() vs. Wiper Setting and Ambient Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

SCL PWR Signal/Timing: 30.6 SCL FWP 1.69 V 4.00V 5.00Hz/s 18k points % 1.32 V USB Field USB Field Filterset Signal/Time GPs 29.94: 2008 18:11:24

FIGURE 2-40: 50 k -Low-Voltage Decrement Wiper Settling Time ( V_DD = 5.5V ) (1 s/Div).

SCL PV0 Power Factor, 37.6 SCL PV1 4.8V d= 510 ms/Hz 5.0MHz/s link points % 1.32 V sforce Range: 1.0V USB Efficient Switches GND C 29 May 2008 16:06:12

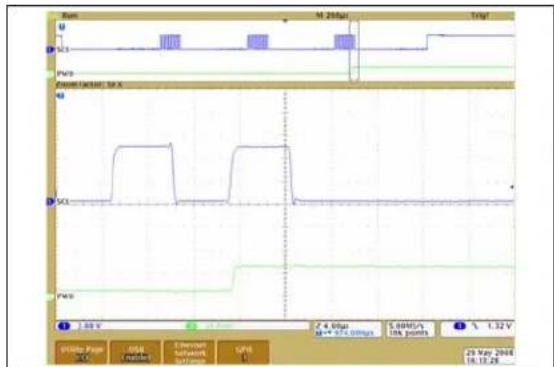

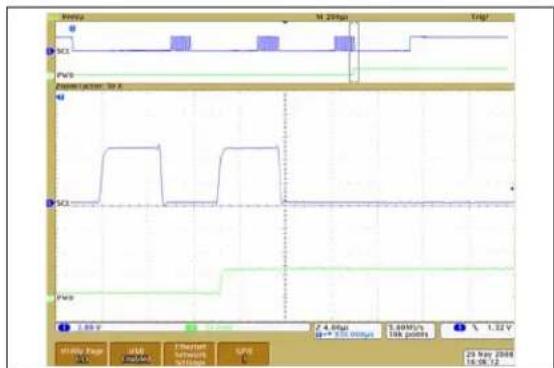

FIGURE 2-43: 50 k -Low-Voltage Increment Wiper Settling Time ( V_DD = 5.5V ) (1 s/Div).

Fms U M 200pA Trig* D SCL PWS PowerFactor: SP X M1 D SCL PWS 1.69 V SCL 100pA 100pA 5.00Hz/s 100 pons % 1.32 V White Page GSS 100pA 100pA C 29 May 2008 16:16:17

FIGURE 2-41: 50 k -Low-Voltage Decrement Wiper Settling Time ( V_DD = 2.7V ) (1 s/Div).

Wave 14.20µm Trig* Vcc Purs PowerInput: 5V X Vcc Purs J 69 V Z 4 Bits G=+ 5V 0.000A 5.000A/s 1Hz points % 1.32 V PHI/Hz Page OSK Energent Solutions GND 29 May 2008 16:15:26

FIGURE 2-44: 50 k -Low-Voltage Increment Wiper Settling Time ( V_DD = 2.7V ) (1 s/Div).

FIGURE 2-42: 50 k Ω - Power-Up Wiper Response Time (1 μs/Div).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

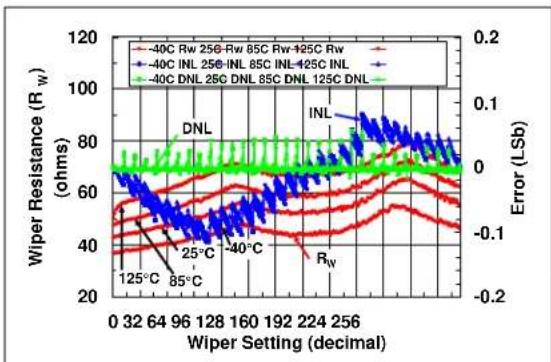

FIGURE 2-45: 100 k Ω Pot Mode - R_W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V_DD = 5.5V).

FIGURE 2-48: 100 k Ω Rheo Mode - R_W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 5.5V ).

FIGURE 2-46: 100 k Ω Pot Mode - R W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature (V DD = 3.0V).

FIGURE 2-49: 100 k Ω Rheo Mode - R_W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 3.0V ).

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.

Note: Refer to Appendix B: "Characterization Data Analysis" for additional information on the characteristics of the wiper resistance (R_W) with respect to device voltage and wiper setting value.

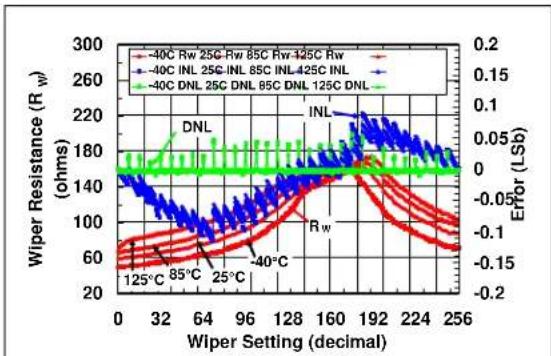

FIGURE 2-47: 100 k Ω Pot Mode - R_W() , INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).
FIGURE 2-50: 100 k Ω Rheo Mode - R_W (Ω), INL (LSb), DNL (LSb) vs. Wiper Setting and Ambient Temperature ( V_DD = 1.8V ).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-51: 100 k Ω - Nominal

Resistance ( ) vs. Ambient Temperature and V_DD .

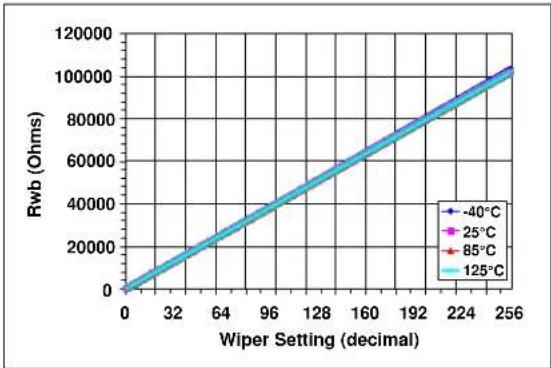

FIGURE 2-52: 100 k - R_WB() vs. Wiper Setting and Ambient Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

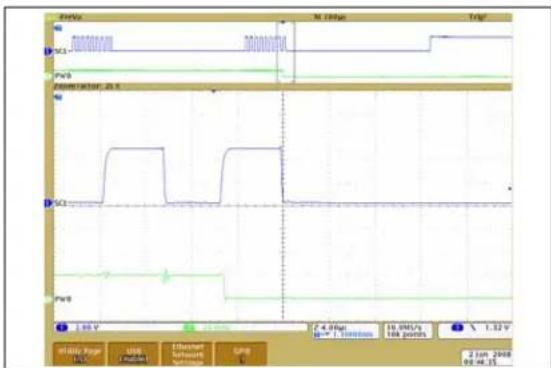

FIGURE 2-53: 100 k Ω - Low-Voltage Decrement Wiper Settling Time ( V_DD = 5.5V ) (1 μs/Div).

SCL Pcc0 PowerFactor: 21.6 SCL Pcc1 1.00 V USB Channel Signal Circuit 4.0 MHz 19.0 MHz/s 10k pips % 1.32 V ST/BL Page USB Channel Signal Circuit 2.5m 2008 06:48:22

FIGURE 2-56: 100 k Ω - Low-Voltage Increment Wiper Settling Time ( V_DD = 2.7V ) (1 μs/Div).

PcV M 100µs Tmp D SCL PcR Reinstactor: 25.3 SCL PcR 1.09 V 4.00µs 10.00V/s 1.32 V OFFLINE PAGE USB Circuit Effective Settings UFP 2 Jan 2008 06:47:37

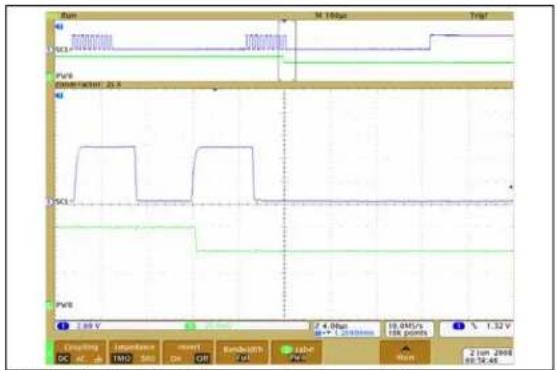

FIGURE 2-54: 100 k Ω - Low-Voltage Decrement Wiper Settling Time ( V_DD = 2.7V ) (1 μs/Div).

I/O I/O 21.5 2.1μV 10.000/s 100 points 1.32 V USB Efficient Control CPS 2 Jan 2008 09:46:32

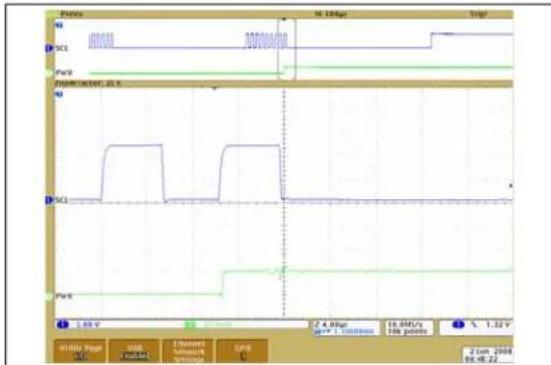

FIGURE 2-55: 100 k Ω - Low-Voltage Increment Wiper Settling Time ( V_DD = 5.5V ) (1 μs/Div).

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-57: Resistor Network 0 to Resistor Network 1 R_AB(5k) Mismatch vs. V_DD and Temperature.

FIGURE 2-59: Resistor Network 0 to Resistor Network 1 R_AB (50 kΩ) Mismatch vs. V_DD and Temperature.

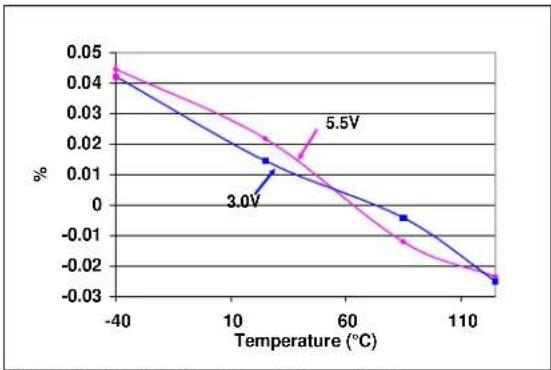

FIGURE 2-58: Resistor Network 0 to Resistor Network 1 R_AB (10 kΩ) Mismatch vs. V_DD and Temperature.

FIGURE 2-60: Resistor Network 0 to Resistor Network 1 R_AB (100 kΩ) Mismatch vs. V_DD and Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-61: V IH (SDA, SCL) vs. VDD and Temperature.

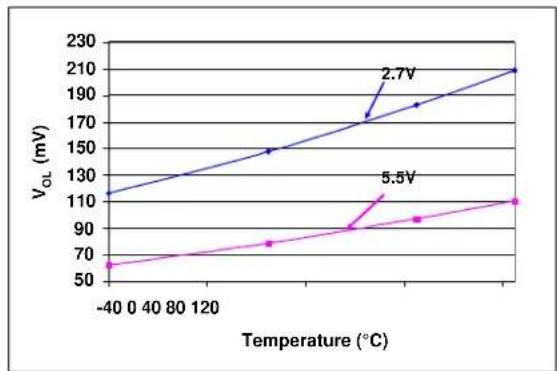

FIGURE 2-63: V OL (SDA) vs. VDD and Temperature ( I_OL = 3 mA).

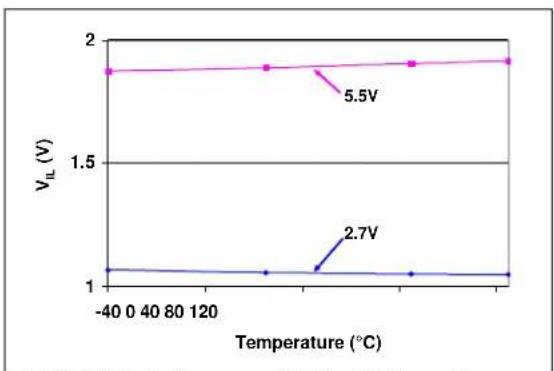

FIGURE 2-62: V IL (SDA, SCL) vs. V_DD and Temperature.

Note: Unless otherwise indicated, T_A = +25^ , V_DD = 5V , V_SS = 0V .

FIGURE 2-64: POR/BOR Trip point vs. V and Temperature.

2.1 Test Circuits

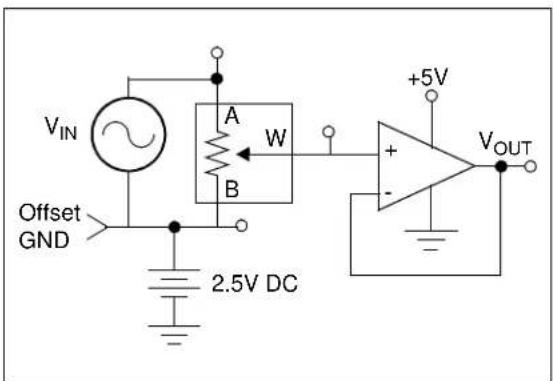

VIN Offset GND A W B 2.5V DC +5V VOUT

FIGURE 2-65: -3 db Gain vs. Frequency Test.

floating A V_A W V_W I_W B V_B R_BW = V_W/I_W R_W = (V_W - V_A)/I_W

FIGURE 2-66: R BW and RW Measurement.

3.0 PIN DESCRIPTIONS

The descriptions of the pins are listed in Table 3-1.

Additional descriptions of the device pins follows.

TABLE 3-1: PINOUT DESCRIPTION FOR THE MCP453X/455X/463X/465X

Pin								Weak Pull-up/ down (1)	Standard Function
Single Dual					Symbol I/O		Buffer Type
Rheo	Pot (1)	Rheo	Pot
8L 8L	10L 14L 16L
1	1	1	1	16	HVC/A0	I	HV w/ST	“smart”	High Voltage Command / Address 0
2	2	2	2	1	SCL	I	HV w/ST	No	I^2C clock input
3	3	3	3	2	SDA	I/O	HV w/ST	No	I^2C serial data I/O. Open Drain output
4	4	4	4	3, 4	V_SS	—	P	—	Ground
—	—	5	5	5	P1B	A	Analog	No	Potentiometer 1 Terminal B
—	—	6	6	6	P1W	A	Analog	No	Potentiometer 1 Wiper Terminal
—	—	—	7	7	P1A	A	Analog	No	Potentiometer 1 Terminal A
—	5	—	8	8	P0A	A	Analog	No	Potentiometer 0 Terminal A
5	6	7	9	9	P0W	A	Analog	No	Potentiometer 0 Wiper Terminal
6	7	8	10	10	P0B	A	Analog	No	Potentiometer 0 Terminal B
—	—	—	11	11, 12	NC	—	—	—	No Connection
—	—	—	12	13	A2	I	HV w/ST	“smart”	Address 2
7	—	9	13	14	A1	I	HV w/ST	“smart”	Address 1
8	8	10	14	15	V_DD	—	P	—	Positive Power Supply Input
9	9	11	—	17	EP	—	—	—	Exposed Pad (Note 2)

Legend: HV w/ST = High Voltage tolerant input (with Schmidt trigger input)
A = Analog pins (Potentiometer terminals) I = digital input (high Z)
O = digital output I/O = Input / Output
P = Power
Note 1: The pin's "smart" pull-up shuts off while the pin is forced low. This is done to reduce the standby and shutdown current.
2: The DFN and QFN packages have a contact on the bottom of the package. This contact is conductively connected to the die substrate, and therefore should be unconnected or connected to the same ground as the device's V_SS pin.

3.1 High Voltage Command / Address 0 (HVC/A0)

The HVC/A0 pin is the Address 0 input for the I²C interface as well as the High Voltage command pin. At the device's POR/BOR the value of the A0 address bit is latched. This input, along with the A2 and A1 pins, completes the device address. This allows up to eight MCP45XX/46XX devices on a single PC bus.

During normal operation the voltage on this pin determines if the I^2C command is a normal command or a High Voltage command (when HVC/A0 = V_IHH ).

3.2 Serial Clock (SCL)

The SCL pin is the serial interfaces Serial Clock pin. This pin is connected to the Host Controllers SCL pin. The MCP45XX/46XX is a slave device, so its SCL pin accepts only external clock signals.

3.3 Serial Data (SDA)

The SDA pin is the serial interfaces Serial Data pin. This pin is connected to the Host Controllers SDA pin. The SDA pin is an open-drain N-channel driver.

3.4 Ground (V ss)

The V_SS pin is the device ground reference.

3.5 Potentiometer Terminal B

The terminal B pin is connected to the internal potentiometer's terminal B.

The potentiometer's terminal B is the fixed connection to the Zero Scale wiper value of the digital potentiometer. This corresponds to a wiper value of 0x00 for both 7-bit and 8-bit devices.

The terminal B pin does not have a polarity relative to the terminal W or A pins. The terminal B pin can support both positive and negative current. The voltage on terminal B must be between V_SS and V_DD .

MCP46XX devices have two terminal B pins, one for each resistor network.

3.6 Potentiometer Wiper (W) Terminal

The terminal W pin is connected to the internal potentiometer's terminal W (the wiper). The wiper terminal is the adjustable terminal of the digital potentiometer. The terminal W pin does not have a polarity relative to terminals A or B pins. The terminal W pin can support both positive and negative current. The voltage on terminal W must be between V_SS and V_DD .

MCP46XX devices have two terminal W pins, one for each resistor network.

3.7 Potentiometer Terminal A

The terminal A pin is available on the MCP4XX1 devices, and is connected to the internal potentiometer's terminal A.

The potentiometer's terminal A is the fixed connection to the Full-Scale wiper value of the digital potentiometer. This corresponds to a wiper value of 0x100 for 8-bit devices or 0x80 for 7-bit devices.

The terminal A pin does not have a polarity relative to the terminal W or B pins. The terminal A pin can support both positive and negative current. The voltage on terminal A must be between V_SS and V_DD .

The terminal A pin is not available on the MCP4XX2 devices, and the internally terminal A signal is floating.

MCP46X1 devices have two terminal A pins, one for each resistor network.

3.8 Address 2 (A2)

The A2 pin is the I²C interface's Address 2 pin. Along with the A1 and A0 pins, up to eight MCP45XX/46XX devices can be used on a single ℃C bus.

3.9 Address 1 (A1)

The A2 pin is the I²C interface's Address 1 pin. Along with the A2 and A0 pins, up to eight MCP45XX/46XX devices can be used on a single ℃ bus.

3.10 Positive Power Supply Input (V DD)

The V_DD pin is the device's positive power supply input. The input power supply is relative to V_SS .

While the device V_DD < V_min (2.7V), the electrical performance of the device may not meet the data sheet specifications.

3.11 No Connect (NC)

These pins should be either connected to V_DD or V_SS .

3.12 Exposed Pad (EP)

This pad is conductively connected to the device's substrate. This pad should be tied to the same potential as the V_SS pin (or left unconnected). This pad could be used to assist as a heat sink for the device when connected to a PCB heat sink.

4.0 FUNCTIONAL OVERVIEW

This data sheet covers a family of thirty-two digital Potentiometer and Rheostat devices that will be referred to as MCP4XXX. The MCP4XX1 devices are the Potentiometer configuration, while the MCP4XX2 devices are the Rheostat configuration.

As the Device Block Diagram shows, there are four main functional blocks. These are:

• POR/BOR Operation
• Memory Map
• Resistor Network
• Serial Interface (I ^2 C)

The POR/BOR operation and the memory map are discussed in this section and the Resistor Network and I²C operation are described in their own sections. The Device Commands commands are discussed in Section 7.0 "Device Commands".

4.1 POR/BOR Operation

The Power-on Reset is the case where the device has power applied to it, starting from the V_SS level. The Brown-out Reset occurs when power is applied to the device, and that power (voltage) drops below the specified range.

The device's RAM retention voltage ( V_RAM ) is lower than the POR/BOR voltage trip point ( V_POR/V_BOR ). The maximum V_POR/V_BOR voltage is less than 1.8V.

When V_POR/V_BOR < V_DD < 2.7V , the electrical performance may not meet the data sheet specifications. In this region, the device is capable of incrementing, decrementing, reading and writing to its volatile memory if the proper serial command is executed.

4.1.1 POWER-ON RESET

When the device powers up, the device V_DD will cross the V_POR/V_BOR voltage. Once the V_DD voltage crosses the V_POR/V_BOR voltage the following happens:

• Volatile wiper register is loaded with value (mid-scale)
• The TCON register is loaded with the default value
• The device is capable of digital operation

4.1.2 BROWN-OUT RESET

When the device powers down, the device V_DD will cross the V_POR/V_BOR voltage.

Once the V_DD voltage decreases below the V_POR/V_BOR voltage, the Serial Interface is disabled.

If the V_DD voltage decreases below the V_RAM voltage, the following may happen:

• Volatile wiper registers become corrupt
• TCON register becomes corrupt

As the voltage recovers above the V_POR/V_BOR voltage see Section 4.1.1 “Power-on Reset”.

Serial commands not completed due to a brown-out condition may cause the volatile memory location to become corrupted.

4.2 Memory Map

The device memory map supports 16 locations, of which three locations are used. Each location is 9-bits wide (16x9 bits). This memory space is shown in Table 4-1.

TABLE 4-1: MEMORY MAP

Address Function Memory Type
00h Volatile Wiper 0 RAM
01h Volatile Wiper 1 RAM
02h Reserved —
03h Reserved —
04h Volatile TCON register		RAM
05h Reserved		RAM
06h - 0Fh	Reserved	—

4.2.1 VOLATILE MEMORY (RAM)

There are four volatile memory locations. These are:

• Volatile Wiper 0
• Volatile Wiper 1 (Dual Resistor Network devices only)
  • Terminal Control (TCON) register
• Reserved

The volatile memory starts functioning at the RAM retention voltage ( V_RAM ).

4.2.1.1 Address 05h (Reserved)

This memory location is Reserved and is mapped to the Status Register of the nonvolatile MCP45XX/46XX devices. Since the nonvolatile device's bits are not used by the volatile device, this location is reserved. Reading this address will result in a value of 1F7h.

4.2.1.2 Terminal Control (TCON) Register

This register contains 8 control bits. Four bits are for Wiper 0, and four bits are for Wiper 1. Register 4-1 describes each bit of the TCON register.

The state of each resistor network terminal connection is individually controlled. That is, each terminal connection (A, B and W) can be individually connected/disconnected from the resistor network. This allows the system to minimize the currents through the digital potentiometer.

The value that is written to this register will appear on the resistor network terminals when the serial command has completed.

When the WL1 bit is enabled, writes to the TCON register bits R1HW, R1A, R1W, and R1B are inhibited.

When the WL0 bit is enabled, writes to the TCON register bits R0HW, R0A, R0W, and R0B are inhibited.

On a POR/BOR this register is loaded with 1FFh (9-bits), for all terminals connected. The Host Controller needs to detect the POR/BOR event and then update the volatile TCON register value.

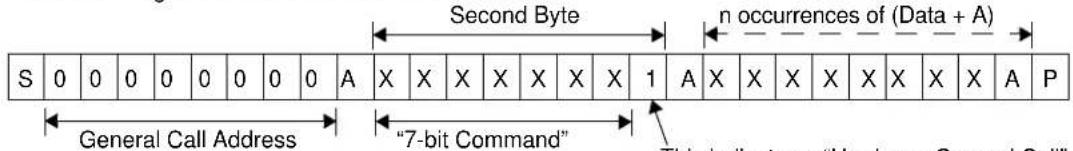

Additionally, there is a bit which enables the operation of General Call commands.

REGISTER 4-1: TCON BITS (ADDRESS = 0x04) ^(1)

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1
GCEN R1	HW	R1A	R1W	R1B	R0HW	R0A	R0W	R0B
bit 8 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 8 GCEN: General Call Enable bit

This bit specifies if General Call commands are accepted

1 = Enable Device to "Accept" the General Call Address (0000h)

0 = The General Call Address is disabled

bit 7 R1HW: Resistor 1 Hardware Configuration Control bit

This bit forces Resistor 1 into the "shutdown" configuration of the Hardware pin

1 = Resistor 1 is NOT forced to the hardware pin "shutdown" configuration

0 = Resistor 1 is forced to the hardware pin "shutdown" configuration

bit 6 R1A: Resistor 1 Terminal A (P1A pin) Connect Control bit

This bit connects/disconnects the Resistor 1 Terminal A to the Resistor 1 Network

1 = P1A pin is connected to the Resistor 1 Network

0 = P1A pin is disconnected from the Resistor 1 Network

bit 5 R1W: Resistor 1 Wiper (P1W pin) Connect Control bit

This bit connects/disconnects the Resistor 1 Wiper to the Resistor 1 Network

1 = P1W pin is connected to the Resistor 1 Network

0 = P1W pin is disconnected from the Resistor 1 Network

bit 4 R1B: Resistor 1 Terminal B (P1B pin) Connect Control bit

This bit connects/disconnects the Resistor 1 Terminal B to the Resistor 1 Network

1 = P1B pin is connected to the Resistor 1 Network

0 = P1B pin is disconnected from the Resistor 1 Network

bit 3 ROHW: Resistor 0 Hardware Configuration Control bit

This bit forces Resistor 0 into the "shutdown" configuration of the Hardware pin

1 = Resistor 0 is NOT forced to the hardware pin "shutdown" configuration

0 = Resistor 0 is forced to the hardware pin "shutdown" configuration

bit 2 R0A: Resistor 0 Terminal A (P0A pin) Connect Control bit

This bit connects/disconnects the Resistor 0 Terminal A to the Resistor 0 Network

1 = P0A pin is connected to the Resistor 0 Network

0 = P0A pin is disconnected from the Resistor 0 Network

bit 1 R0W: Resistor 0 Wiper (P0W pin) Connect Control bit

This bit connects/disconnects the Resistor 0 Wiper to the Resistor 0 Network

1 = POW pin is connected to the Resistor 0 Network

0 = POW pin is disconnected from the Resistor 0 Network

bit 0 R0B: Resistor 0 Terminal B (P0B pin) Connect Control bit

This bit connects/disconnects the Resistor 0 Terminal B to the Resistor 0 Network

1 = P0B pin is connected to the Resistor 0 Network

0 = P0B pin is disconnected from the Resistor 0 Network

Note 1: These bits do not affect the wiper register values.

NOTES:

5.0 RESISTOR NETWORK

The Resistor Network has either 7-bit or 8-bit resolution. Each Resistor Network allows zero scale to full-scale connections. Figure 5-1 shows a block diagram for the resistive network of a device.

The Resistor Network is made up of several parts. These include:

• Resistor Ladder
• Wiper
• Shutdown (Terminal Connections)

Devices have either one or two resistor networks, These are referred to as Pot 0 and Pot 1.

A 8-Bit 7-Bit N = 256 N = 128 (100h) (80h) Rs Rw (1) 255 127 (RW (1) (FFh) (7Fh) Rs Rw (1) 254 126 (FEh) (7Eh) Rs Rw (1) 1 1 (01h) (01h) Rs Rw (1) 0 0 (00h) (00h) Analog Mux B W

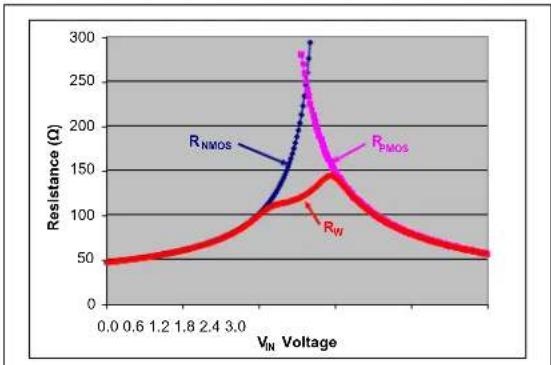

Note 1: The wiper resistance is dependent on several factors including, wiper code, device V_DD , Terminal voltages (on A, B, and W), and temperature. Also for the same conditions, each tap selection resistance has a small variation. This R_W variation has greater effects on some specifications (such as INL) for the smaller resistance devices (5.0 kΩ compared to larger resistance devices (100.0 kΩ)).
FIGURE 5-1: Resistor Block Diagram.

5.1 Resistor Ladder Module

The resistor ladder is a series of equal value resistors ( R_S ) with a connection point (tap) between the two resistors. The total number of resistors in the series (ladder) determines the R_AB resistance (see Figure 5-1). The end points of the resistor ladder are connected to analog switches, which are connected to the device Terminal A and Terminal B pins. The R_AB (and R_S ) resistance has small variations over voltage and temperature.

For an 8-bit device, there are 256 resistors in a string between terminal A and terminal B. The wiper can be set to tap onto any of these 256 resistors, thus providing 257 possible settings (including terminal A and terminal B).

For a 7-bit device, there are 128 resistors in a string between terminal A and terminal B. The wiper can be set to tap onto any of these 128 resistors, thus providing 129 possible settings (including terminal A and terminal B).

Equation 5-1 shows the calculation for the step resistance.

EQUATION 5-1: R S CALCULATION

R_S = \frac{R_{AB}}{(256)} \quad 8\text{-bit Device} R_S = \frac{R_{AB}}{(128)} \quad 7\text{-bit Device}

5.2 Wiper

Each tap point (between the R_S resistors) is a connection point for an analog switch. The opposite side of the analog switch is connected to a common signal, which is connected to the Terminal W (Wiper) pin.

A value in the Volatile Wiper register selects which analog switch to close, connecting the W terminal to the selected node of the resistor ladder.

The wiper can connect directly to Terminal B or to Terminal A. A zero-scale connection, connects the Terminal W (wiper) to Terminal B (wiper setting of 000h). A full-scale connection, connects the Terminal W (wiper) to Terminal A (wiper setting of 100h or 80h). In these configurations, the only resistance between Terminal W and the other Terminal (A or B) is that of the analog switches.

A wiper setting value greater than full-scale (wiper setting of 100h for 8-bit device or 80h for 7-bit devices) will also be a Full-Scale setting (Terminal W (wiper) connected to Terminal A). Table 5-1 illustrates the full wiper setting map.

Equation 5-2 illustrates the calculation used to determine the resistance between the wiper and terminal B.

EQUATION 5-2: R WB CALCULATION

R_WB = _ABN256( + R)W	8-bit Device
N = 0 to 256 (decimal)
R_WB = _ABN128( + R)W	7-bit Device
N = 0 to 128 (decimal)

TABLE 5-1: VOLATILE WIPER VALUE VS. WIPER POSITION MAP

Wiper Setting		Properties
7-bit Pot	8-bit Pot
3FFh081h	3FFh101h	Reserved (Full-Scale (W = A)),Increment and Decrement commands ignored
080h 100h Full-Scale (W = A),Increment commands ignored
07Fh041h	0FFh081	W = N
040h 080h W = N (Mid-Scale)
03Fh001h	07Fh001	W = N
000h 000h Zero Scale (W = B)Decrement command ignored

A POR/BOR event will load the Volatile Wiper register value with the default value. Table 5-2 shows the default values offered. Custom POR/BOR options are available. Contact the local Microchip Sales Office.

TABLE 5-2: DEFAULT FACTORY SETTINGS SELECTION

Resistance Code	Typical RAB Value	Default POR Wiper Setting	Wiper Code
			8-bit	7-bit
-502	5.0 kΩ	Mid-scale	80h	40h
-103	10.0 kΩ	Mid-scale	80h	40h
-503	50.0 kΩ	Mid-scale	80h	40h
-104	100.0 kΩ	Mid-scale	80h	40h

5.3 Shutdown

Shutdown is used to minimize the device's current consumption. The MCP4XXX achieves this through the Terminal Control Register (TCON).

5.3.1 TERMINAL CONTROL REGISTER (TCON)

The Terminal Control (TCON) register is a volatile register used to configure the connection of each resistor network terminal pin (A, B, and W) to the Resistor Network. This bits are described in Register 4-1.

When the RxHW bit is a "0", the selected resistor network is forced into the following state:

• The PxA terminal is disconnected
- The PxW terminal is simultaneously connected to the PxB terminal (see Figure 5-2)
- The Serial Interface is NOT disabled, and all Serial Interface activity is executed

Alternate low power configurations may be achieved with the RxA, RxW, and RxB bits.

Note 1: The RxHW bits are identical to the RxHW bits of the MCP41XX/42XX devices. The MCP42XX devices also have a SHDN pin which forces the resistor network into the same state as that resistor networks RxHW bit.

2: When RxHW = "0", the state of the TCON register RxA, RxW, and RxB bits is overridden (ignored). When the state of the RxHW bit returns to "1", the TCON register RxA, RxW, and RxB bits return to controlling the terminal connection state. In other words, the RxHW bit does not corrupt the state of the RxA, RxW, and RxB bits.

A Resistor Network B W

FIGURE 5-2: Resistor Network Shutdown Configuration.

5.3.2 INTERACTION OF RxHW BIT AND RxA, RxW, AND RxB BITS (TCON REGISTER)

Using the TCON bits allows each resistor network (Pot 0 and Pot 1) to be individually "shutdown".

The state of the RxHW bit does NOT corrupt the other bit values in the TCON register, nor the value of the Volatile Wiper registers. When the Shutdown mode is exited (RxHW changes state from "0" to "1"):

• The device returns to the Wiper setting specified by the Volatile Wiper value
• The RxA, RxB, and RxW bits return to controlling the terminal connection state of that resistor network

NOTES:

6.0 SERIAL INTERFACE (I ^2 C)

The MCP45XX/46XX devices support the I²C serial protocol. The MCP45XX/46XX I²C's module operates in Slave mode (does not generate the serial clock).

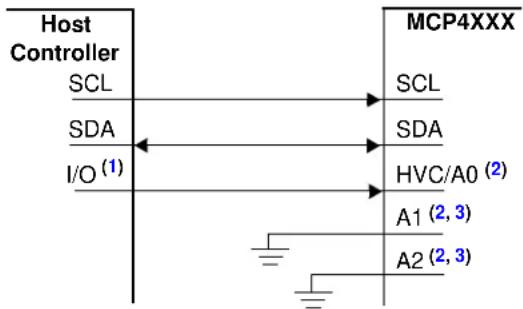

Figure 6-1 shows a typical I ^2 C Interface connection. All I ^2 C interface signals are high-voltage tolerant.

The MCP45XX/46XX devices use the two-wire I²C serial interface. This interface can operate in standard, fast or High-Speed mode. A device that sends data onto the bus is defined as transmitter, and a device receiving data, as receiver. The bus has to be controlled by a master device which generates the serial clock (SCL), controls the bus access and generates the START and STOP conditions. The MCP45XX/46XX device works as slave. Both master and slave can operate as transmitter or receiver, but the master device determines which mode is activated. Communication is initiated by the master (microcontroller) which sends the START bit, followed by the slave address byte. The first byte transmitted is always the slave address byte, which contains the device code, the address bits, and the R/W bit.

Refer to the Phillips I ^2 C document for more details of the I ^2 C specifications.

Typical I ^2 C Interface Connections

Note 1: If High voltage commands are desired, some type of external circuitry needs to be implemented.
2: These pins have internal pull-ups. If faster rise times are required, then external pull-ups should be added.
3: This pin could be tied high, low, or connected to an I/O pin of the Host Controller.

FIGURE 6-1: Typical I ^2 C Interface Block Diagram.

6.1 Signal Descriptions

The I²C interface uses up to five pins (signals). These are:

• SDA (Serial Data)
• SCL (Serial Clock)
• A0 (Address 0 bit)
  • A1 (Address 1 bit)
  • A2 (Address 2 bit)

6.1.1 SERIAL DATA (SDA)

The Serial Data (SDA) signal is the data signal of the device. The value on this pin is latched on the rising edge of the SCL signal when the signal is an input.

With the exception of the START and STOP conditions, the High or Low state of the SDA pin can only change when the clock signal on the SCL pin is LOW. During the high period of the clock the SDA pin's value (high or low) must be stable. Changes in the SDA pin's value while the SCL pin is HIGH will be interpreted as a START or a STOP condition.

6.1.2 SERIAL CLOCK (SCL)

The Serial Clock (SCL) signal is the clock signal of the device. The rising edge of the SCL signal latches the value on the SDA pin. The MCP45XX/46XX supports three I²C interface clock modes:

• Standard mode: clock rates up to 100 kHz
• Fast mode: clock rates up to 400 kHz
  • High-Speed mode (HS mode): clock rates up to 3.4 MHz

The MCP4XXX will not stretch the clock signal (SCL) since memory read accesses occur fast enough.

Depending on the clock rate mode, the interface will display different characteristics.

6.1.3 THE ADDRESS BITS (A2:A1:A0)

There are up to three hardware pins used to specify the device address. The number of address pins is determined by the part number.

Address 0 is multiplexed with the High Voltage Command (HVC) function. So the state of A0 is latched on the MCP4XXX's POR/BOR event.

The state of the A2 and A1 pins should be static, that is they should be tied high or tied low.

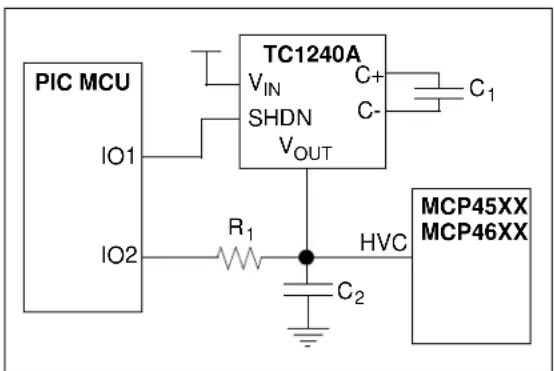

6.1.3.1 The High Voltage Command (HVC) Signal

The High Voltage Command (HVC) signal is multiplexed with Address 0 (A0) and is used to indicate that the command, or sequence of commands, are in the High Voltage mode. High Voltage commands are supported for compatibility with the nonvolatile devices.

The HVC pin has an internal resistor connection to the MCP45XX/46XXs internal V_DD signal.

6.2 I ^2 C Operation

The MCP45XX/46XX's I²C module is compatible with the Philips I²C specification. The following lists some of the module's features:

• 7-bit slave addressing
  • Supports three clock rate modes:

• Standard mode, clock rates up to 100 kHz

• Fast mode, clock rates up to 400 kHz
• High-speed mode (HS mode), clock rates up to 3.4 MHz

• Support Multi-Master Applications

- General call addressing

- Internal weak pull-ups on interface signals

The I ^2 C 10-bit addressing mode is not supported.

The Philips I^2C specification only defines the field types, field lengths, timings, etc. of a frame. The frame content defines the behavior of the device. The frame content for the MCP4XXX is defined in Section 7.0.

6.2.1 I ^2 C BIT STATES AND SEQUENCE

Figure 6-8 shows the I²C transfer sequence. The serial clock is generated by the master. The following definitions are used for the bit states:

• Start bit (S)
• Data bit
• Acknowledge (A) bit (driven low) / No Acknowledge (A) bit (not driven low)
  • Repeated Start bit (Sr)
• Stop bit (P)

6.2.1.1 Start Bit

The Start bit (see Figure 6-2) indicates the beginning of a data transfer sequence. The Start bit is defined as the SDA signal falling when the SCL signal is HIGH.

SDA SCL S 1st Bit 2nd Bit

FIGURE 6-2: Start Bit.

6.2.1.2 Data Bit

The SDA signal may change state while the SCL signal is LOW. While the SCL signal is HIGH, the SDA signal MUST be stable (see Figure 6-5).

SDA SCL 1st Bit 2nd Bit Data Bit

FIGURE 6-3: Data Bit.

6.2.1.3 Acknowledge (A) Bit

The A bit (see Figure 6-4) is typically a response from the receiving device to the transmitting device. Depending on the context of the transfer sequence, the A bit may indicate different things. Typically, the Slave device will supply an A response after the Start bit and 8 "data" bits have been received. The A bit has the SDA signal low.

SDA D0 A SCL 8 9

FIGURE 6-4: Acknowledge Waveform.

Not A (A) Response

The bit has the SDA signal HIGH. Table 6-1 shows some of the conditions where the Slave Device will issue a Not A ( ).

If an error condition occurs (such as an instead of A), then an START bit must be issued to reset the command state machine.

TABLE 6-1: MCP45XX/46XX A / A RESPONSES

Event	Acknowledge Bit Response	Comment
General Call A	Only if GCEN bit is	set
Slave Address valid	A
Slave Address not valid
Device memory address and specified command (AD3:AD0 and C1:C0) are an invalid combination		After device has received address and command
Bus Collision N.	A. I	^2C Module Resets, or a “Don't Care” if the collision occurs on the Masters “Start bit”.

6.2.1.4 Repeated Start Bit

The Repeated Start bit (see Figure 6-5) indicates the current Master Device wishes to continue communicating with the current Slave Device without releasing the I²C bus. The Repeated Start condition is the same as the Start condition, except that the Repeated Start bit follows a Start bit (with the Data bits + A bit) and not a Stop bit.

The Start bit is the beginning of a data transfer sequence and is defined as the SDA signal falling when the SCL signal is HIGH.

Note 1: A bus collision during the Repeated Start condition occurs if: •SDA is sampled low when SCL goes from low to high. •SCL goes low before SDA is asserted low. This may indicate that another master is attempting to transmit a data "1".

SDA 1st Bit SCL Sr = Repeated Start

FIGURE 6-5: Repeat Start Condition Waveform.

6.2.1.5 Stop Bit

The Stop bit (see Figure 6-6) Indicates the end of the I²C Data Transfer Sequence. The Stop bit is defined as the SDA signal rising when the SCL signal is HIGH.

A Stop bit resets the interface of all MCP4XXX devices.

SDA A/Ā SCL P

FIGURE 6-6: Stop Condition Receive or Transmit Mode.

6.2.2 CLOCK STRETCHING

"Clock Stretching" is something that the receiving device can do, to allow additional time to "respond" to the "data" that has been received.

The MCP4XXX will not stretch the clock signal (SCL) since memory read accesses occur fast enough.

6.2.3 ABORTING A TRANSMISSION

If any part of the I^2C transmission does not meet the command format, it is aborted. This can be intentionally accomplished with a START or STOP condition. This is done so that noisy transmissions (usually an extra START or STOP condition) are aborted before they corrupt the device.

SDA SCL S 1st Bit 2nd Bit 3rd Bit 4th Bit 5th Bit 6th Bit 7th Bit 8th Bit PA / A

FIGURE 6-7: Typical 8-Bit I ^2 C Waveform Format.

SDA SCL START Condition Data allowed to change Data or A valid STOP Condition

FIGURE 6-8: I ^2 C Data States and Bit Sequence.

6.2.4 ADDRESSING

The address byte is the first byte received following the START condition from the master device. The address contains four (or more) fixed bits and (up to) three user defined hardware address bits (pins A2, A1, and A0). These 7-bits address the desired I²C device. The A7:A4 address bits are fixed to "0101" and the device appends the value of following three address pins (A2, A1, A0). Address pins that are not present on the device are pulled up (a bit value of '1').

Since there are up to three address bits controlled by hardware pins, there may be up to eight MCP4XXX devices on the same PC bus.

Figure 6-9 shows the slave address byte format, which contains the seven address bits. There is also a read/write bit. Table6-2 shows the fixed address for each device.

Hardware Address Pins

The hardware address bits (A2, A1, and A0) correspond to the logic level on the associated address pins. This allows up to eight devices on the bus.

These pins have a weak pull-up enabled when the V_DD < V_BOR . The weak pull-up utilizes the “smart” pull-up technology and exhibits the same characteristics as the High-voltage tolerant I/O structure.

The state of the A0 address pin is latch on POR/BOR. This is required since High-Voltage commands force this pin (HVC/A0) to the V_IHH level.

Slave Address S A6 A5 A4 A3 A2 A1 A0 R/W A/A Start bit See Table 6-2 R/W bit R/W = 0 = write R/W = 1 = read A bit (controlled by slave device) A = 0 = Slave Device Acknowledges byte A = 1 = Slave Device does not Acknowledge byte

FIGURE 6-9: Slave Address Bits in the I²C Control Byte.

TABLE 6-2: DEVICE SLAVE ADDRESSES

Device Address Comment
MCP45X1	‘0101 11'b + A0	Supports up to 2 devices. (Note 1)
MCP45X2	‘0101 1'b + A1:A0	Supports up to 4 devices. (Note 1)
MCP46X1	‘0101'b + A2:A1:A0	Supports up to 8 devices. (Note 1)
MCP46X2	‘0101 1'b + A1:A0	Supports up to 4 devices. (Note 1)

Note 1: A0 is used for High-Voltage commands, and the value is latched at POR.

6.2.5 SLOPE CONTROL

The MCP45XX/46XX implements slope control on the SDA output.

As the device transitions from HS mode to FS mode, the slope control parameter will change from the HS specification to the FS specification.

For Fast (FS) and High-Speed (HS) modes, the device has a spike suppression and a Schmidt trigger at SDA and SCL inputs.

6.2.6 HS MODE

The I²C specification requires that a high-speed mode device must be 'activated' to operate in High-Speed (3.4 Mbit/s) mode. This is done by the Master sending a special address byte following the START bit. This byte is referred to as the high-speed Master Mode Code (HSMMC).

The MCP45XX/46XX device does not acknowledge this byte. However, upon receiving this command, the device switches to HS mode. The device can now communicate at up to 3.4 Mbit/s on SDA and SCL lines. The device will switch out of the HS mode on the next STOP condition.

The master code is sent as follows:

1. START condition (S)
2. High-Speed Master Mode Code (0000 1XXX), The xxx bits are unique to the high-speed (HS) mode Master.
3. No Acknowledge (A ^- )

After switching to the High-Speed mode, the next transferred byte is the I²C control byte, which specifies the device to communicate with, and any number of data bytes plus acknowledgements. The Master Device can then either issue a Repeated Start bit to address a different device (at High-Speed), or a Stop bit to return to Fast/Standard bus speed. After the Stop bit, any other Master Device (in a Multi-Master system) can arbitrate for the I²C bus.

See Figure 6-10 for illustration of HS mode command sequence.

For more information on the HS mode, or other I ^2 C modes, please refer to the Phillips ^2 C specification.

6.2.6.1 Slope Control

The slope control on the SDA output is different between the Fast/Standard Speed and the High-Speed clock modes of the interface.

6.2.6.2 Pulse Gobbler

The pulse gobbler on the SCL pin is automatically adjusted to suppress spikes < 10 ns during HS mode.
        G["S = Start bit"]
        H["Sr = Repeated Start bit"]
        I["A = Acknowledge bit"]
        J["A̅ = Not Acknowledge bit"]
        K["R/W̅ = Read/Write bit"]
        L["P = Stop bit (Stop condition terminates HS Mode)"]
    end
    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#ffc,stroke:#333
    style F fill:#fcc,stroke:#333
    style G fill:#fff,stroke:#333
    style H fill:#fff,stroke:#333
    style I fill:#fff,stroke:#333
    style J fill:#fff,stroke:#333
    style K fill:#fff,stroke:#333
    style L fill:#fff,stroke:#333

FIGURE 6-10: HS Mode Sequence.

6.2.7 GENERAL CALL

The General Call is a method that the "Master" device can communicate with all other "Slave" devices. In a Multi-Master application, the other Master devices are operating in Slave mode. The General Call address has two documented formats. These are shown in Figure 6-11. We have added a MCP45XX/46XX format in this figure as well.

This will allow customers to have multiple Digital Potentiometers on the bus and have them operate in a synchronous fashion (analogous to the DAC Sync pin functionality). If these MCP45XX/46XX 7-bit commands conflict with other ^2 devices on the bus, then the customer will need two busses and ensure that the devices are on the correct bus for their desired application functionality.

Dual Pot devices cannot update both Pot0 and Pot1 from a single command. To address this, there are General Call commands for the Wiper 0, Wiper 1, and the TCON registers.

Table 6-3 shows the General Call commands. Three commands are specified by the PC specification and are not applicable to the MCP45XX/46XX (so command is Not Acknowledged) The MCP45XX/46XX General Call commands are Acknowledge. Any other command is Not Acknowledged.

Note: There is only one General Call command per General Call control byte (address). Any additional General Call commands are ignored and Not Acknowledged.

TABLE 6-3: GENERAL CALL COMMANDS

7-bit Command (1, 2, 3)	Comment
‘1000 00d’b Write Next Byte (Third Byte) to Volatile Wiper 0 Register
‘1001 00d’b Write Next Byte (Third Byte) to Volatile Wiper 1 Register
‘1100 00d’b Write Next Byte (Third Byte) to TCON Register
‘1000 010’bor ‘1000 011’b	Increment Wiper 0 Register
‘1001 010’bor ‘1001 011’b	Increment Wiper 1 Register
‘1000 100’bor ‘1000 101’b	Decrement Wiper 0 Register
‘1001 100’bor ‘1001 101’b	Decrement Wiper 1 Register

Note 1: Any other code is Not Acknowledged. These codes may be used by other devices on the I²C bus.
2: The 7-bit command always appends a "0" to form 8-bits.
3: "d" is the D8 bit for the 9-bit write value.

Second Byte S 0 0 0 0 0 0 0 0 A X X X X X X X X X 0 A P General Call Address "7-bit Command"

Reserved 7-bit Commands (By I ^2 C Specification - Philips # 9398 393 40011, Ver. 2.1 January 2000)

'0000 011'b - Reset and write programmable part of slave address by hardware.

'0000 010'b - Write programmable part of slave address by hardware.

'0000 000'b - NOT Allowed

MCP45XX/MCP46XX 7-bit Commands

'1000 01x'b - Increment Wiper 0 Register.

'1001 01x'b - Increment Wiper 1 Register.

'1000 10x'b - Decrement Wiper 0 Register.

'1001 10x'b - Decrement Wiper 1 Register.

The Following is a Microchip Extension to this General Call Format

Second Byte Third Byte General Call Address "7-bit Command" "0" for General Call Command

MCP45XX/MCP46XX 7-bit Commands

'1000 00d'b - Write Next Byte (Third Byte) to Volatile Wiper 0 Register.

'1001 00d'b - Write Next Byte (Third Byte) to Volatile Wiper 1 Register.

'1100 00d'b - Write Next Byte (Third Byte) to TCON Register.

The Following is a "Hardware General Call" Format

Second Byte n occurrences of (Data + A) S 0 0 0 0 0 0 0 0 A X X X X X X X X 1 A X X X X X X X X A P General Call Address "7-bit Command" This indicates a "Hardware General Call"

This indicates a "Hardware General Call" MCP45XX/MCP46XX will ignore this byte and all following bytes (and A), until a Stop bit (P) is encountered.

FIGURE 6-11: General Call Formats.

NOTES:

7.0 DEVICE COMMANDS

The MCP4XXX's I²C command formats are specified in this section. The I²C protocol does not specify how commands are formatted.

The MCP4XXX supports four basic commands. Depending on the location accessed determines the commands that are supported.

For the Volatile Wiper registers, these commands are:

• Write Data
• Read Data
• Increment Data
• Decrement Data

For the TCON Register, these commands are:

- Write Data

- Read Data

These commands have formats for both a single command or continuous commands. These commands are shown in Table 7-1.

Each command has two operational states. These operational states are referred to as:

• Normal Serial Commands

• High-Voltage Serial Commands

Note: High Voltage commands are supported for compatibility with nonvolatile devices in the family.

TABLE 7-1: I ^2 C COMMANDS

Command		# of Bit Clocks (1)	Operates on Volatile/ Nonvolatile Memory
Operation Mode
Write Data Single		29 Both
		Continuous	18n + 11 Volatile Only
Read Data	Single	29	Both
	Random	48	Both
	Continuous	18n + 11	Both
Increment	Single	20	Volatile Only
	Continuous	9n + 11	Volatile Only
Decrement	Single	20	Volatile Only
	Continuous	9n + 11	Volatile Only

Note 1: "n" indicates the number of times the command operation is to be repeated.

Normal serial commands are those where the HVC pin is driven to V_IH or V_IL . With High-Voltage Serial Commands, the HVC pin is driven to V_IHH . In each mode, there are four possible commands.

Table 7-2 shows the supported commands for each memory location.

Table 7-3 shows an overview of all the device commands and their interaction with other device features.

7.1 Command Byte

The MCP4XXX's Command Byte has three fields: the Address, the Command Operation, and two data bits, (see Figure 7-1). Currently only one of the data bits is defined (D8).

The device memory is accessed when the Master sends a proper Command Byte to select the desired operation. The memory location getting accessed is contained in the Command Byte's AD3:AD0 bits. The action desired is contained in the Command Byte's C1:C0 bits (see Table 7-1). C1:C0 determines if the desired memory location will be read, written, Incremented (wiper setting +1) or Decremented (wiper setting -1). The Increment and Decrement commands are only valid on the volatile wiper registers.

If the Address bits and Command bits are not a valid combination, then the MCP4XXX will generate a Not Acknowledge pulse to indicate the invalid combination. The I²C Master device must then force a Start Condition to reset the MCP4XXX's ²C module.

D9 and D8 are the most significant bits for the digital potentiometer's wiper setting. The 8-bit devices utilize D8 as their MSb while the 7-bit devices utilize D7 (from the data byte) as it's MSb.

COMMAND BYTE A A A A A C C D D A D D D D 1 0 1 0 9 8 MCP4XXX Memory Address MSbits (Data) Command Operation bits 00 = Write Data 01 = Increment 10 = Decrement 11 = Read Data

FIGURE 7-1: Command Byte Format.

TABLE 7-2: MEMORY MAP AND THE SUPPORTED COMMANDS

Address		Command Operation	Data (10-bits) (1)	Comment
Value Function
00h Volatile Wiper 0 Write Data nn		nnnn nnnn
		Read Data (3)	nn nnnn nnnn
		Increment Wiper —
		Decrement Wiper —
01h Volatile Wiper 1 Write Data nn		nnnn nnnn
		Read Data (3)	nn nnnn nnnn
		Increment Wiper —
		Decrement Wiper —
02h	Reserved	—	—
03h	Reserved	—	—
04h (2)	Volatile TCON Register	Write Data nn nnnn nnnn
		Read Data (3)	nn nnnn nnnn
05h (2)	Reserved	Read (3) nn nn Data nnnn Maps to nonvolatile MCP45XX/46XX device's STATUS Register
06h - 0Fh (2)	Reserved	—	—

Note 1: The Data memory is only 9-bits wide, so the MSb is ignored by the device.
2: Increment or Decrement commands are invalid for these addresses.
3: I^2C read operation will read 2 bytes, of which the 10-bits of data are contained within.

7.2 Data Byte

Only the Read Command and the Write Command have Data Byte(s).

The Write command concatenates the 8-bits of the Data Byte with the one data bit (D8) contained in the Command Byte to form 9-bits of data (D8:D0). The Command Byte format supports up to 9-bits of data so that the 8-bit resistor network can be set to Full-Scale (100h or greater). This allows wiper connections to Terminal A and to Terminal B. The D9 bit is currently unused.

7.3 Error Condition

If the four address bits received (AD3:AD0) and the two command bits received (C1:C0) are a valid combination, the MCP4XXX will Acknowledge the bus.

If the address bits and command bits are an invalid combination, then the MCP4XXX will Not Acknowledge the I²C bus.

Once an error condition has occurred, any following commands are ignored until the PC bus is reset with a Start Condition.

7.3.1 ABORTING A TRANSMISSION

A Restart or Stop condition in the expected data bit position will abort the current command sequence and data will not be written to the MCP4XXX.

TABLE 7-3: COMMANDS

Command Name # of Bits		High Voltage ( V_IHH ) on HVC pin?
Write Data 29 —
Read Data 29 —
Increment Wiper 20 —
Decrement Wiper 20 —
High Voltage Write Data	29	Yes
High Voltage Read Data	29	Yes
High Voltage Increment Wiper	20	Yes
High Voltage Decrement Wiper	20	Yes

7.4 Write Data

Normal and High Voltage

The Write command can be issued to both the volatile and nonvolatile memory locations. The format of the command (see Figure 7-2), includes the I²C Control Byte, an A bit, the MCP4XXX Command Byte, an A bit, the MCP4XXX Data Byte, an A bit, and a Stop (or Restart) condition. The MCP4XXX generates the A/A bits.

A Write command to a volatile memory location changes that location after a properly formatted Write Command and the A/A clock have been received.

7.4.1 SINGLE WRITE TO VOLATILE MEMORY

For volatile memory locations, data is written to the MCP4XXX after every byte transfer (during the Acknowledge). If a Stop or Restart condition is generated during a data transfer (before the A), the data will not be written to the MCP4XXX. After the A bit, the master can initiate the next sequence with a Stop or Restart condition.

Refer to Figure 7-2 for the byte write sequence.

7.4.2 CONTINUOUS WRITES TO VOLATILE MEMORY

A continuous write mode of operation is possible when writing to the volatile memory registers (address 00h, 01h, and 04h). This continuous write mode allows writes without a Stop or Restart condition or repeated transmissions of the I²C Control Byte. Figure 7-3 shows the sequence for three continuous writes. The writes do not need to be to the same volatile memory address. The sequence ends with the master sending a STOP or RESTART condition.

7.4.3 THE HIGH VOLTAGE COMMAND (HVC) SIGNAL

The High Voltage Command (HVC) signal is multiplexed with Address 0 (A0) and is used to indicate that the command, or sequence of commands, are in the High Voltage operational state. High Voltage commands allow the device's WiperLock Technology and write protect features to be enabled and disabled.

The HVC pin has an internal resistor connection to the MCP45XX/46XXs internal V_DD signal.

Fixed Address Variable Address Write bit Device Memory Address Command Write "Data" bits Control Byte WRITE Command Write Data bits

FIGURE 7-2: I ^2 C Write Sequence.

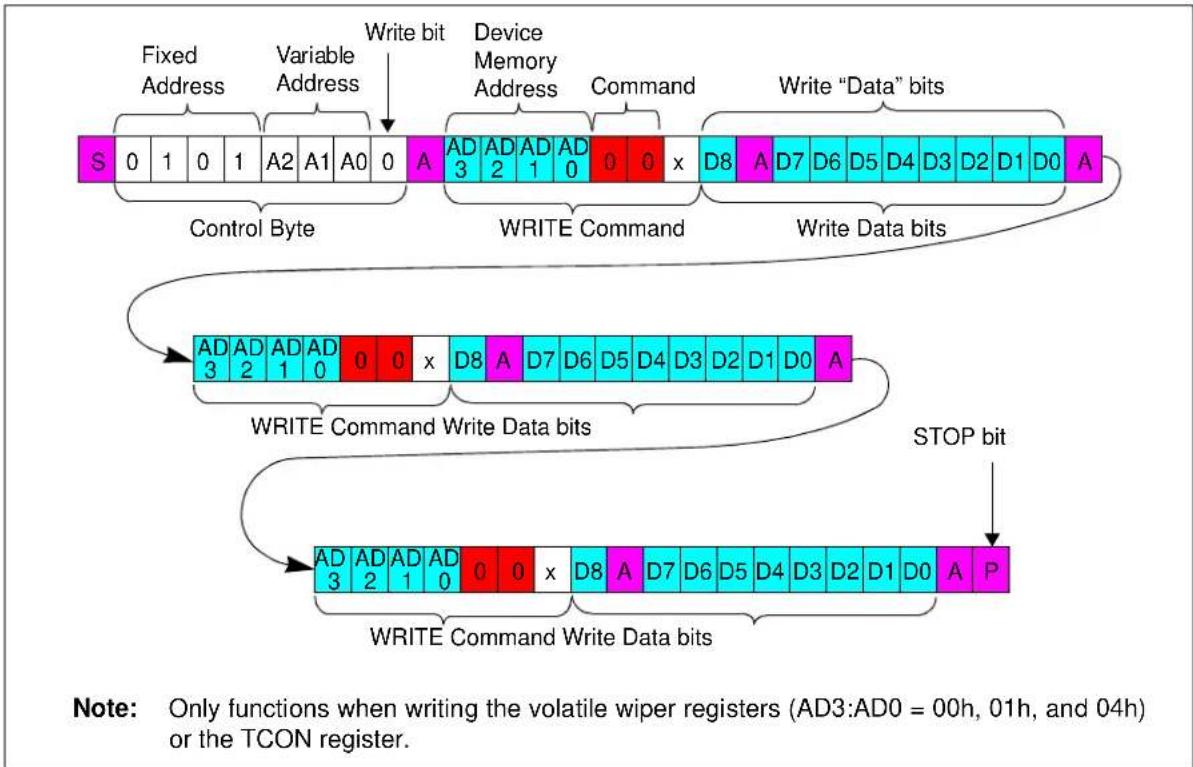

FIGURE 7-3: I ^2 C Continuous Volatile Wiper Write.

7.5 Read Data

Normal and High Voltage

The Read command can be issued to both the volatile and nonvolatile memory locations. The format of the command (see Figure 7-4) includes the Start condition, I²C Control Byte (with R/W bit set to "0"), A bit, MCP4XXX Command Byte, A bit, followed by a Repeated Start bit, I²C Control Byte (with R/W bit set to "1"), and the MCP4XXX transmitting the requested Data High Byte, A bit, the Data Low Byte, the Master generating the , and Stop condition.

The I²C Control Byte requires the R/W bit equal to a logic one (R/W = 1) to generate a read sequence. The memory location read will be the last address contained in a valid write MCP4XXX Command Byte or address 00h, if no write operations have occurred since the device was reset (Power-on Reset or Brown-out Reset).

Read operations initially include the same address byte sequence as the write sequence (shown in Figure 6-9). This sequence is followed by another control byte (including the Start condition and Acknowledge) with the R/W bit equal to a logic one (R/ = 1) to indicate a read. The MCP4XXX will then transmit the data contained in the addressed register. This is followed by the master generating an A bit in preparation for more data, or an bit followed by a Stop. The sequence is ended with the master generating a Stop or Restart condition.

The internal address pointer is maintained.

7.5.1 SINGLE READ

Figure 7-4 shows the waveforms for a single read.

For single reads, the master sends a STOP or RESTART condition after the data byte is sent from the slave.

7.5.1.1 Random Read

Figure 7-5 shows the sequence for a Random Reads.

Refer to Figure 7-5 for the random byte read sequence.

7.5.2 CONTINUOUS READS

Continuous reads allow the device's memory to be read quickly. Continuous reads are possible to all memory locations. If a nonvolatile memory write cycle is occurring, then Read commands may only access the volatile memory locations.

Figure 7-6 shows the sequence for three continuous reads.

For continuous reads, instead of transmitting a STOP or RESTART condition after the data transfer, the master reads the next data byte. The sequence ends with the master Not Acknowledging and then sending a STOP or RESTART.

7.5.3 THE HIGH VOLTAGE COMMAND (HVC) SIGNAL

The High Voltage Command (HVC) signal is multiplexed with Address 0 (A0) and is used to indicate that the command, or sequence of commands, are in the High Voltage mode. High Voltage commands allow the device's WiperLock Technology, and write protect features to be enabled and disabled.

The HVC pin has an internal resistor connection to the MCP4XXXs internal V_DD signal.

7.5.4 IGNORING AN I ^2 C TRANSMISSION AND "FALLING OFF" THE BUS

The MCP4XXX expects to receive entire, valid I²C commands, and will assume any command not defined as a valid command is due to a bus corruption, and will enter a passive high condition on the SDA signal. All signals will be ignored until the next valid Start condition and Control Byte are received.

Fixed Address Variable Address Read bit Control Byte Read Data bits STOP bit Read bits

Note 1: Master Device is responsible for A/A signal. If an signal occurs, the MCP45XX/46XX will abort this transfer and release the bus.

2: The Master Device will Not Acknowledge, and the MCP45XX/46XX will release the bus so the Master Device can generate a Stop or Repeated Start condition.
3: The MCP45XX/46XX retains the last "Device Memory Address" that it has received. This is the MCP45XX/46XX does not "corrupt" the "Device Memory Address" after Repeated Start or Stop conditions.
4: The Device Memory Address pointer defaults to 00h on POR and BOR conditions.

FIGURE 7-4: I ^2 C Read (Last Memory Address Accessed).

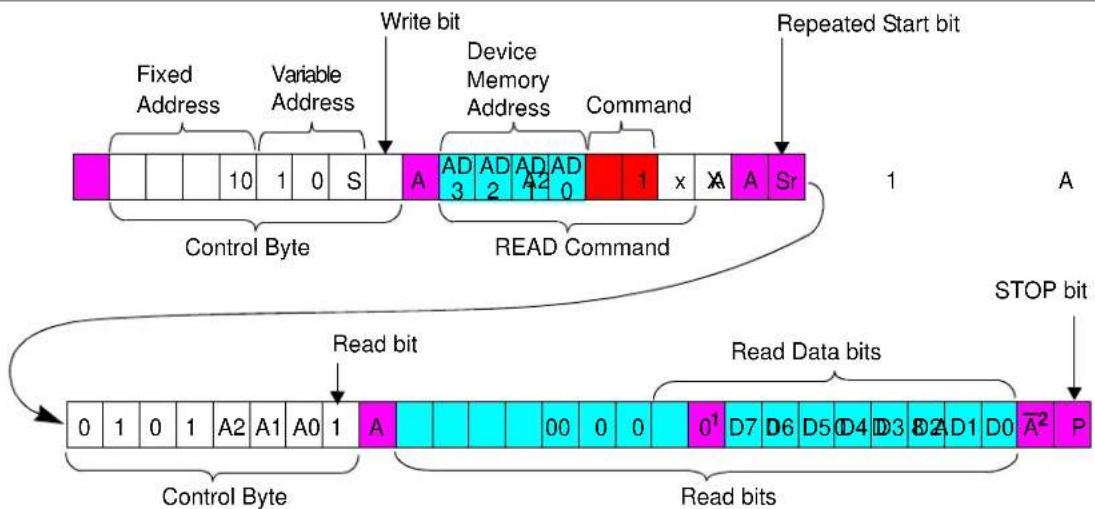

Note 1: Master Device is responsible for A / signal. If a signal occurs, the MCP45XX/46XX will abort this transfer and release the bus.

2: The Master Device will Not Acknowledge, and the MCP45XX/46XX will release the bus so the Master Device can generate a Stop or Repeated Start condition.
3: The MCP45XX/46XX retains the last "Device Memory Address" that it has received. This is the MCP45XX/46XX does not "corrupt" the "Device Memory Address" after Repeated Start or Stop conditions.

FIGURE 7-5: I ^2 C Random Read.

FIGURE 7-6: I ^2 C Continuous Reads.

7.6 Increment Wiper Normal and High Voltage

The Increment Command provides a quick and easy method to modify the potentiometer's wiper by +1 with minimal overhead. The Increment Command will only function on the volatile wiper setting memory locations 00h and 01h.

Note: Table 7-2 shows the valid addresses for the Increment Wiper command. Other addresses are invalid.

When executing an Increment Command, the volatile wiper setting will be altered from n to n+1 for each Increment Command received. The value will increment up to 100h maximum on 8-bit devices, and 80h on 7-bit devices. If multiple Increment Commands are received after the value has reached 100h (or 80h), the value will not be incremented further. Table 7-4 shows the Increment Command versus the current volatile wiper value.

Refer to Figure 7-7 for the Increment Command sequence. The sequence is terminated by the Stop condition. So when executing a continuous command string, the Increment command can be followed by any other valid command. This means that writes do not need to be to the same volatile memory address.

Note: The command sequence can go from an increment to any other valid command for the specified address.

The advantage of using an Increment Command instead of a read-modify-write series of commands is speed and simplicity. The wiper will transition after each Command Acknowledge when accessing the volatile wiper registers.

TABLE 7-4: INCREMENT OPERATION VS. VOLATILE WIPER VALUE

Current Wiper Setting		Wiper (W) Properties	Increment Command Operates?
7-bit Pot	8-bit Pot
3FFh081h	3FFh101h	Reserved(Full-Scale (W = A))	No
080h 1	00h Full-	Scale (W = A) No
07Fh041h	0FFh081	W = N
040h 0	80h W =	N (Mid-Scale) Yes
03Fh001h	07Fh001	W = N
000h 0	00h Zero	Scale (W = B) Yes

7.6.1 THE HIGH VOLTAGE COMMAND (HVC) SIGNAL

The High Voltage Command (HVC) signal is multiplexed with Address 0 (A0) and is used to indicate that the command, or sequence of commands, are in the High Voltage mode. An HVC/A0 pin voltage > V_HH (\~8.5V) puts the MCP45XX/46XX device into the High Voltage mode.

Note: There is a required delay after the HVC pin is driven to the V_IHH level to the 1st edge of the SCL pin.

The HVC pin has an internal resistor connection to the MCP45XX/46XXs internal V_DD signal.

Fixed Address Variable Address Write bit Device Memory Address Command S 0 1 0 1 A2 A1 A0 0 A AD AD AD AD 0 1 x X A AD AD AD AD 4 3 2 1 0 1 x X A P (2) Control Byte INCR Command (n+1) INCR Command (n+2)

Note1: Increment Command (INCR) only functions when accessing the volatile wiper registers (AD3:AD0 = 0h and 1h).

2: This command sequence does not need to terminate (using the Stop bit) and can change to any other desired command sequence (Increment, Read or Write).

FIGURE 7-7: I ^2 C Increment Command Sequence.

7.7 Decrement Wiper Normal and High Voltage

The Decrement Command provides a quick and easy method to modify the potentiometer's wiper by -1, with minimal overhead. The Decrement Command will only function on the volatile wiper setting memory locations 00h and 01h.

Note:

Table 7-2 shows the valid addresses for the Decrement Wiper command. Other addresses are invalid.

When executing a Decrement Command, the volatile wiper setting will be altered from n to n-1 for each Decrement Command received. The value will decrement down to a minimum of 000h. If multiple Decrement Commands are received after the value has reached 000h, the value will not be decremented further. Table 7-5 shows the Increment Command versus the current volatile wiper value.

Refer to Figure 7-8 for the Decrement Command sequence. The sequence is terminated by the Stop condition. So when executing a continuous command string, The Increment command can be followed by any other valid command. This means that writes do not need to be to the same volatile memory address.

Note: The command sequence can go from an increment to any other valid command for the specified address.

The advantage of using a Decrement Command instead of a read-modify-write series of commands is speed and simplicity. The wiper will transition after each Command Acknowledge when accessing the volatile wiper registers.

TABLE 7-5: DECREMENT OPERATION VS. VOLATILE WIPER VALUE

Current Wiper Setting		Wiper (W) Properties	Decrement Command Operates?
7-bit Pot	8-bit Pot
3FFh081h	3FFh101h	Reserved(Full-Scale (W = A))	No
080h 1	00h Full-Scale (W = A) Yes
07Fh041h	0FFh081	W = N
040h 0	80h W = N (Mid-Scale) Yes
03Fh001h	07Fh001	W = N
000h 0	00h Zero	Scale (W = B) No

7.7.1 THE HIGH VOLTAGE COMMAND (HVC) SIGNAL

The High Voltage Command (HVC) signal is multiplexed with Address 0 (A0) and is used to indicate that the command, or sequence of commands, are in the High Voltage mode. An HVC/A0 pin voltage > V_HH (\~8.5V) puts the MCP45XX/46XX device into the High Voltage mode.

Note: There is a required delay after the HVC pin is driven to the V_IHH level to the 1st edge of the SCL pin.

The HVC pin has an internal resistor connection to the MCP45XX/46XXs internal V_DD signal.

Fixed Address Variable Address Write bit S 0 1 0 1 A2 A1 A0 0 A AD 3 AD 2 AD 1 AD 0 1 0 X X A AD 4 AD 3 AD 2 AD 1 1 0 X X A P (2) Control Byte Device Memory Address Command DECR Command (n-1) DECR Command (n-2)

Note1: Decrement Command (DECR) only functions when accessing the volatile wiper registers (AD3:AD0 = 0h and 1h).

2: This command sequence does not need to terminate (using the Stop bit) and can change to any other desired command sequence (INCR, Read, or Write).

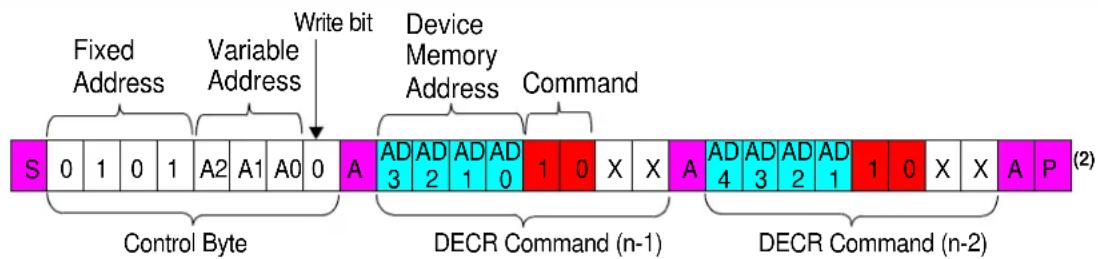

FIGURE 7-8: I ^2 C Decrement Command Sequence.

8.0 APPLICATIONS EXAMPLES

Nonvolatile digital potentiometers have a multitude of practical uses in modern electronic circuits. The most popular uses include precision calibration of set point thresholds, sensor trimming, LCD bias trimming, audio attenuation, adjustable power supplies, motor control overcurrent trip setting, adjustable gain amplifiers and offset trimming. The MCP453X/455X/463X/465X devices can be used to replace the common mechanical trim pot in applications where the operating and terminal voltages are within CMOS process limitations ( V_DD = 2.7V to 5.5V).

8.1 Techniques to force the HVC pin to V_IHH

The circuit in Figure 8-1 shows a method using the TC1240A doubling charge pump. When the SHDN pin is HIGH, the TC1240A is off, and the level on the HVC pin is controlled by the PIC® microcontrollers (MCUs) IO2 pin.

When the SHDN pin is low, the TC1240A is on and the V_OUT voltage is 2 × V_DD . The resistor R_1 allows the HVC pin to go higher than the voltage such that the PIC MCU's IO2 pin "clamps" at approximately V_DD .

PIC MCU IO1 IO2 TC1240A VIN SHDN VOUT C+ C- C1 R1 HVC C2 MCP45XX MCP46XX

FIGURE 8-1: Using the TC1240A to Generate the V_IHH Voltage.

The circuit in Figure 8-2 shows the method used on the MCP402X nonvolatile Digital Potentiometer Evaluation Board (Part Number: MCP402XEV). This method requires that the system voltage be approximately 5V. This ensures that when the PIC10F206 enters a brown-out condition, there is an insufficient voltage level on the HVC pin to change the stored value of the wiper. The MCP402X nonvolatile Digital Potentiometer Evaluation Board User's Guide (DS51546) contains a complete schematic.

GP0 is a general purpose I/O pin, while GP2 can either be a general purpose I/O pin or it can output the internal clock.

For the serial commands, configure the GP2 pin as an input (high impedance). The output state of the GP0 pin will determine the voltage on the HVC pin ( V_IL or V_IH ).

For high-voltage serial commands, force the GP0 output pin to output a high level ( V_OH ), and configure the GP2 pin to output the internal clock. This will form a charge pump and increase the voltage on the HVC pin (when the system voltage is approximately 5V).

PIC10F206 GP0 R1 MCP4XXX GP2 C1 HVC C2

FIGURE 8-2: MCP4XXX Nonvolatile Digital Potentiometer Evaluation Board (MCP402XEV) Implementation to Generate the V_IHH Voltage.

8.2 Using Shutdown

Figure 8-3 shows a possible application circuit where the independent terminals could be used. Disconnecting the wiper allows the transistor input to be taken to the Bias voltage level (disconnecting A and or B may be desired to reduce system current). Disconnecting Terminal A modifies the transistor input by the R_BW rheostat value to the Common B. Disconnecting Terminal B modifies the transistor input by the R_AW rheostat value to the Common A. The Common A and Common B connections could be connected to V_DD and V_SS .

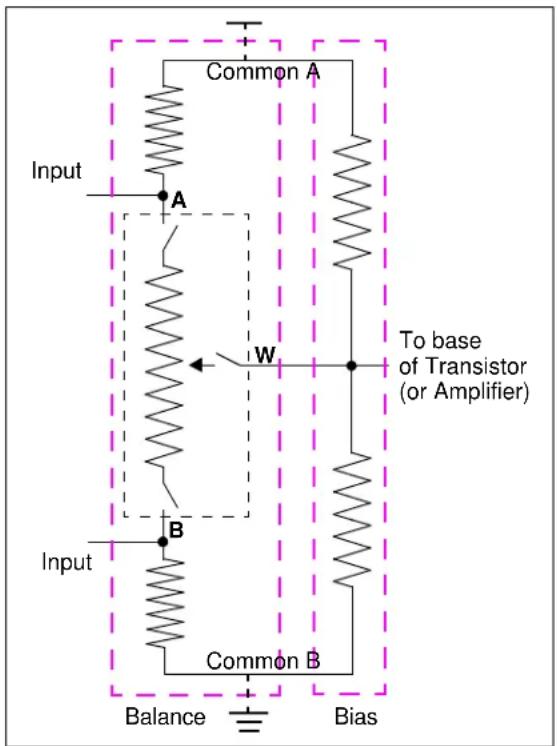

Common A Input A W To base of Transistor (or Amplifier) Input B Common B Balance Bias

FIGURE 8-3: Example Application Circuit using Terminal Disconnects.

8.3 Software Reset Sequence

Note: This technique is documented in AN1028.

At times it may become necessary to perform a Software Reset Sequence to ensure the MCP45XX/46XX device is in a correct and known Interface state. This technique only resets the state machine.

This is useful if the MCP45XX/46XX device powers up in an incorrect state (due to excessive bus noise, ...), or if the Master Device is reset during communication. Figure 8-4 shows the communication sequence to software reset the device.

S '1' '1' '1' '1' '1' '1' '1' '1' S P Start bit Nine bits of '1' Start bit Stop bit

FIGURE 8-4: Software Reset Sequence Format.

The 1st Start bit will cause the device to reset from a state in which it is expecting to receive data from the Master Device. This occurs since the device is monitoring the data bus in Receive mode and can detect the Start bit which forces an internal Reset.

The nine bits of '1' are used to force a Reset of those devices that could not be reset by the previous Start bit. This occurs only if the MCP45XX/46XX is driving an A bit on the I²C bus, or is in output mode (from a Read command) and is driving a data bit of '0' onto the PC bus. In both of these cases, the previous Start bit could not be generated due to the MCP45XX/46XX holding the bus low. By sending out nine '1' bits, it is ensured that the device will see an bit (the Master Device does not drive the I²C bus low to acknowledge the data sent by the MCP45XX/46XX), which also forces the MCP45XX/46XX to reset.

The 2nd Start bit is sent to address the rare possibility of an erroneous write. This could occur if the Master Device was reset while sending a Write command to the MCP45XX/46XX, AND then as the Master Device returns to normal operation and issues a Start condition, while the MCP45XX/46XX is issuing an Acknowledge. In this case, if the 2nd Start bit is not sent (and the Stop bit was sent) the MCP45XX/46XX could initiate a write cycle.

Note: The potential for this erroneous write ONLY occurs if the Master Device is reset while sending a Write command to the MCP45XX/46XX.

The Stop bit terminates the current PC bus activity. The MCP45XX/46XX wait to detect the next Start condition.

This sequence does not effect any other I^2C devices which may be on the bus, as they should disregard this as an invalid command.

8.4 Using the General Call Command

The use of the General Call Address Increment, Decrement, or Write commands is analogous to the "Load" feature (LDAC pin) on some DACs (such as the MCP4921). This allows all the devices to "Update" the output level "at the same time".

For some applications, the ability to update the wiper values at the same time may be a requirement, since they delay from writing to one wiper value and then the next may cause application issues. A possible example would be a "tuned" circuit that uses several MCP45XX/46XX in rheostat configuration. As the system condition changes (temperature, load, ...) these devices need to be changed (incremented/decremented) to adjust for the system change. These changes will either be in the same direction or in opposite directions. With the Potentiometer device, the customer can either select the PxB terminals (same direction) or the PxA terminal(s) (opposite direction).

Figure 8-6 shows that the update of six devices takes 6^T_I2CDLY time in “normal” operation, but only 1^T_I2CDLY time in “General Call” operation.

Note: The application system may need to partition the I²C bus into multiple busses to ensure that the MCP45XX/46XX General Call commands do not conflict with the General Call commands that the other I²C devices may have defined. Also if only a portion of the MCP45XX/46XX devices are to require this synchronous operation, then the devices that should not receive these commands should be on the second I²C bus.

Figure 8-5 shows two I²C bus configurations. In many cases, the single I²C bus configuration will be adequate. For applications that do not want all the MCP45XX/46XX devices to do General Call support or have a conflict with General Call commands, the multiple I²C bus configuration would be used.

Single I²C Bus Configuration

Multiple I²C Bus Configuration

FIGURE 8-5: Typical Application I ^2 C Bus Configurations.

Normal Operation

INC POT01 INC POT02 INC POT03 INC POT04 INC POT05 INC POT06 T12CDLY T12CDLY T12CDLY T12CDLY T12CDLY T12CDLY

General Call Operation

T_I2CDLY= Time from one I^2C command completed to completing the next f^2C command.

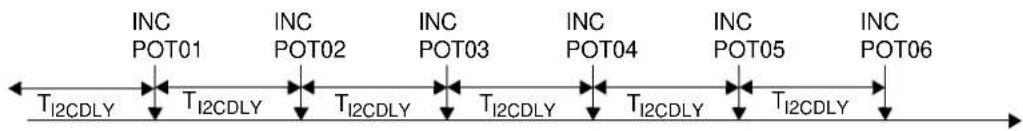

FIGURE 8-6: Example Comparison of "Normal Operation" vs. "General Call Operation" Wiper Updates.

8.5 Implementing Log Steps with a Linear Digital Potentiometer

In audio volume control applications, the use of logarithmic steps is desirable since the human ear hears in a logarithmic manner. The use of a linear potentiometer can approximate a log potentiometer, but with fewer steps. An 8-bit potentiometer can achieve fourteen 3 dB log steps plus a 100% (0 dB) and a mute setting.

Figure 8-7 shows a block diagram of one of the MCP45X1 resistor networks being used to attenuate an input signal. In this case, the attenuation will be ground referenced. Terminal B can be connected to a common mode voltage, but the voltages on the A, B and Wiper terminals must not exceed the MCP45X1's V_DD/V_SS voltage limits.

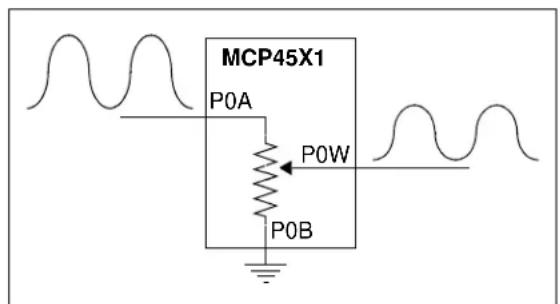

MCP45X1 P0A P0W P0B

FIGURE 8-7: Signal Attenuation Block Diagram - Ground Referenced.

Equation 8-1 shows the equation to calculate voltage dB gain ratios for the digital potentiometer, while Equation 8-2 shows the equation to calculate resistance dB gain ratios. These two equations assume that the B terminal is connected to ground.

If terminal B is not directly resistively connected to ground, then this terminal B to ground resistance ( R_B2GND ) must be included into the calculation. Equation 8-3 shows this equation.

EQUATION 8-1: dB CALCULATIONS (VOLTAGE)

$$ L = 2 0 \times l o g _ {1 0} \left(\frac {V _ {O U T}}{V _ {I N}}\right) $$

EQUATION 8-2: dB CALCULATIONS (RESISTANCE) - CASE 1

Terminal B connected to Ground (see Figure 8-7)

$$ L = 2 \times 0 _ {1 0} \left(\frac {R _ {B W}}{R _ {A B}}\right) g $$

EQUATION 8-3: dB CALCULATIONS (RESISTANCE) - CASE 2

Terminal B through R_B2GND to Ground

$$ L = 2 \times 0 _ {1 0} \left(\frac {R _ {B W} + R _ {B 2 G N D}}{R _ {A B}}\right) $$

Table 8-1 shows the codes that can be used for 8-bit digital potentiometers to implement the log attenuation. The table shows the wiper codes for -3 dB, -2 dB and -1 dB attenuation steps. This table also shows the calculated attenuation based on the wiper code's linear step. Calculated attenuation values less than the desired attenuation are shown with red text. At lower wiper code values, the attenuation may skip a step; if this occurs the next attenuation value is colored magenta to highlight that a skip occurred. For example, in the -3 dB column the -48 dB value is highlighted since the -45 dB step could not be implemented (there are no wiper codes between 2 and 1).

TABLE 8-1: LINEAR TO LOG ATTENUATION FOR 8-BIT DIGITAL POTENTIOMETERS

# of Steps	-3 dB Steps -2 dB Steps			-1 dB Steps
	Desired Attenuation	Wiper Code	Calculated Attenuation (1)	Desired Attenuation	Wiper Code	Calculated Attenuation (1)	Desired Attenuation	Wiper Code	Calculated Attenuation (1)
0	0 dB	256	0 dB	0 dB	256	0 dB	0 dB	256	0 dB
1	-3 dB	181	-3.011 dB	-2 dB	203	-2.015 dB	-1 dB	228	-1.006 dB
2	-6 dB	128	-6.021 dB	-4 dB	162	-3.975 dB	-2 dB	203	-2.015 dB
3	-9dB	91	-8.984 dB	-6 dB	128	-6.021 dB	-3 dB	181	-3.011 dB
4	-12 dB	64	-12.041 dB	-8 dB	102	-7.993 dB	-4 dB	162	-3.975 dB
5	-15 dB	46	-14.910 dB	-10 dB	81	-9.995 dB	-5 dB	144	-4.998 dB
6	-18 dB	32	-18.062 dB	-12 dB	64	-12.041 dB	-6 dB	128	-6.021 dB
7	-21 dB	23	-20.930 dB	-14 dB	51	-14.013 dB	-7 dB	114	-7.027 dB
8	-24 dB	16	-24.082 dB	-16 dB	41	-15.909 dB	-8 dB	102	-7.993 dB
9	-27 dB	11	-27.337 dB	-18 dB	32	-18.062 dB	-9 dB	91	-8.984 dB
10	-30 dB	8	-30.103 dB	-20 dB	26	-19.865 dB	-10 dB	81	-9.995 dB
11	-33 dB	6	-32.602 dB	-22 dB	20	-22.144 dB	-11 dB	72	-11.018 dB
12	-36 dB	4	-36.124 dB	-24 dB	16	-24.082 dB	-12 dB	64	-12.041 dB
13	-39 dB	3	-38.622 dB	-26 dB	13	-25.886 dB	-13 dB	57	-13.047 dB
14	-42 dB	2	-42.144 dB	-28 dB	10	-28.165 dB	-14 dB	51	-14.013 dB
15	-48 dB	1	-48.165 dB	-30 dB	8	-30.103 dB	-15 dB	46	-14.910 dB
16	Mute	0	Mute	-32 dB	6	-32.602 dB	-16 dB	41	-15.909 dB
17				-34 dB	5	-34.185 dB	-17 dB	36	-17.039 dB
18				-36 dB	4	-36.124 dB	-18 dB	32	-18.062 dB
19				-38 dB	3	-38.622 dB	-19 dB	29	-18.917 dB
20				-42 dB	2	-42.144 dB	-20 dB	26	-19.865 dB
21				-48 dB	1	-48.165 dB	-21 dB	23	-20.930 dB
22				Mute	0	Mute	-22 dB	20	-22.144 dB
23							-23 dB	18	-23.059 dB
24							-24 dB	16	-24.082 dB
25							-25 dB	14	-25.242 dB
26							-26 dB	13	-25.886 dB
27							-27dB	11	-27.337 dB
28							-28 dB	10	-28.165 dB
29							-29 dB	9	-29.080 dB
30							-30 dB	8	-30.103 dB
31							-31 dB	7	-31.263 dB
32							-33 dB	6	-32.602 dB
33							-34 dB	5	-34.185 dB
34							-36 dB	4	-36.124 dB
35							-39 dB	3	-38.622 dB
36							-42 dB	2	-42.144 dB
37							-48 dB	1	-48.165 dB
38							Mute	0	Mute

Note 1: Attenuation values do not include errors from Digital Potentiometer errors, such as Full Scale Error or Zero Scale Error.

8.6 Design Considerations

In the design of a system with the MCP4XXX devices, the following considerations should be taken into account:

• Power Supply Considerations
- Layout Considerations

8.6.1 POWER SUPPLY

CONSIDERATIONS

The typical application will require a bypass capacitor in order to filter high-frequency noise, which can be induced onto the power supply's traces. The bypass capacitor helps to minimize the effect of these noise sources on signal integrity. Figure 8-8 illustrates an appropriate bypass strategy.

In this example, the recommended bypass capacitor value is 0.1 F. This capacitor should be placed as close (within 4 mm) to the device power pin ( V_DD ) as possible.

The power source supplying these devices should be as clean as possible. If the application circuit has separate digital and analog power supplies, V_DD and V_SS should reside on the analog plane.

VDD 0.1 μF A W B MCP453X/455X/ 463X/465X SCL SDA PIC® Microcontroller VSS VSS 0.1 μF VDD

FIGURE 8-8: Typical Microcontroller Connections.

8.6.2 LAYOUT CONSIDERATIONS

Inductively-coupled AC transients and digital switching noise can degrade the input and output signal integrity, potentially masking the MCP4XXX's performance. Careful board layout minimizes these effects and increases the Signal-to-Noise Ratio (SNR). Multi-layer boards utilizing a low-inductance ground plane, isolated inputs, isolated outputs and proper decoupling are critical to achieving the performance that the silicon is capable of providing. Particularly harsh environments may require shielding of critical signals.

If low noise is desired, breadboards and wire-wrapped boards are not recommended.

8.6.3 RESISTOR TEMPCO

Characterization curves of the resistor temperature coefficient (Tempco) are shown in Figure 2-12, Figure 2-25, Figure 2-38, and Figure 2-51.

These curves show that the resistor network is designed to correct for the change in resistance as temperature increases. This technique reduces the end-to-end change in R_AB resistance.

8.6.4 HIGH VOLTAGE TOLERANT PINS

High Voltage support ( V_IHH ) on the Serial Interface pins is for compatibility with the nonvolatile devices.

9.0 DEVICE OPTIONS

Additional, custom devices are available. These devices have weak pull-up resistors on the SDA and SCL pins. This is useful for applications where the wiper value is programmed during manufacture and not modified by the system during normal operation.

Please contact your local sales office for current information and minimum volume requirements.

9.1 Custom Options

The custom device will have a "P" (for Pull-up) after the resistance version in the Product Identification System. These devices will not be available through Microchip's online Microchip Direct, nor Microchip's Sample systems.

Example part number:

MCP4631-103PE/ST

NOTES:

10.0 DEVELOPMENT SUPPORT

10.1 Development Tools

Several development tools are available to assist in your design and evaluation of the MCP45XX/46XX devices. The currently available tools are shown in Table 10-1.

These boards may be purchased directly from the Microchip web site at www.microchip.com.

10.2 Technical Documentation

Several additional technical documents are available to assist you in your design and development. These technical documents include Application Notes, Technical Briefs, and Design Guides. Table 10-2 shows some of these documents.

TABLE 10-1: DEVELOPMENT TOOLS

Board Name Part # Supported Devices
MCP46XX PICTail Plus Daughter Board ^(2)	MCP46XXDM-PTPLS	MCP46XX
MCP4XXX Digital Potentiometer Daughter Board ^(1)	MCP4XXXDM-DB MCP	42XXX, MCP42XX, MCP46XX,MCP4021, and MCP4011
MCP46XXEV Evaluation Board MCP46XXEV	MCP4631, MCP4641	MCP4651,MCP4661
TSSOP-20 and SSOP-20 Evaluation Board	TSSOP20EV	MCP4631, MCP4641, MCP4651,MCP4661
8-pin SOIC/MSOP/TSSOP/DIP Evaluation Board	SOIC8EV	Any 8-pin device in DIP, SOIC,MSOP, or TSSOP package
14-pin SOIC/MSOP/DIP Evaluation Board	SOIC14EV	Any 14-pin device in DIP, SOIC, orMSOP package

Note 1: Requires the use of a PICDEM Demo Board (see User's Guide for details) and the SOIC14EV board to convert an MCP46XX device in TSSOP package to the DIP footprint.
2: Requires the use of the PIC24 Explorer 16 Demo Board (see User's Guide for details)

TABLE 10-2: TECHNICAL DOCUMENTATION

Application Note Number	Title	Literature #
AN1316	Using Digital Potentiometers for Programmable Amplifier Gain	DS01316
AN1080	Understanding Digital Potentiometers Resistor Variations	DS01080
AN737	Using Digital Potentiometers to Design Low Pass Adjustable Filters	DS00737
AN692	Using a Digital Potentiometer to Optimize a Precision Single Supply Photo Detect	DS00692
AN691	Optimizing the Digital Potentiometer in Precision Circuits	DS00691
AN219	Comparing Digital Potentiometers to Mechanical Potentiometers	DS00219
—	Digital Potentiometer Design Guide	DS22017
—	Signal Chain Design Guide	DS21825

NOTES:

11.0 PACKAGING INFORMATION

11.1 Package Marking Information

8-Lead DFN (3x3)

XXXX

XYWW

NNN

Part Number Code	Part Number Code
MCP4531-502E/MF	DACA	MCP4532-502E/MF
MCP4531-103E/MF	DACB	MCP4532-103E/MF DACF
MCP4531-104E/MF	DACD	MCP4532-104E/MF
MCP4531-503E/MF	DACC	MCP4532-503E/MF
MCP4551-502E/MF	DACT	MCP4552-502E/MF
MCP4551-103E/MF	DACU	MCP4552-103E/MF
MCP4551-104E/MF	DACW MC	P4552-104E/MF DADA
MCP4551-503E/MF	DACV	MCP4552-503E/MF

Example:

DACA1028256

8-Lead MSOP

XXXXXX

YWWNNN

Part Number Code	Part Number Code
MCP4531-103E/MS	453113	MCP4532-103E/MS	453213
MCP4531-104E/MS	453114	MCP4532-104E/MS	453214
MCP4531-502E/MS	453152	MCP4532-502E/MS	453252
MCP4531-503E/MS	453153	MCP4532-503E/MS	453253
MCP4551-103E/MS	455113	MCP4552-103E/MS	455213
MCP4551-104E/MS	455114	MCP4552-104E/MS	455214
MCP4551-502E/MS	455152	MCP4552-502E/MS	455252
MCP4551-503E/MS	455153	MCP4552-503E/MS	455253

Example

453113028256

Legend: XX...X Customer-specific information

Y Year code (last digit of calendar year)

YY Year code (last 2 digits of calendar year)

WW Week code (week of January 1 is week '01')

NNN Alphanumeric traceability code

ePb-free JEDEC designator for Matte Tin (Sn)

* This package is Pb-free. The Pb-free JEDEC designator (e3) can be found on the outer packaging for this package.

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.

Package Marking Information (Continued)

10-Lead DFN (3x3)

Part Number Code	Part Number Code
MCP4632-502E/MF	AABA MCP4652-502E/MF AAKA
MCP4632-103E/MF	AACA MCP4652-103E/MF AALA
MCP4632-104E/MF	AAEA MCP4652-104E/MF AAPA
MCP4632-503E/MF	AADA MCP4652-503E/MF AAMA

Example:

10-Lead MSOP

Part Number Code	Part Number Code
MCP4632-502E/UN	463252 MCP4652-502E/UN 465252	52
MCP4632-103E/UN	463213 MCP4652-103E/UN 465213	13
MCP4632-104E/UN	463214 MCP4652-104E/UN 465214	14
MCP4632-503E/UN	463253 MCP4652-503E/UN 465253	53

Example

14-Lead TSSOP (MCP4631, MCP4651)

XXXXXXXX YYWW NNN

Example

4631502E 1028 256

16-Lead QFN (MCP4631, MCP4651)

XXXXX XXXXXX XXXXXX YYWWNNN

Example

4631 502 E/ML^e3 028256

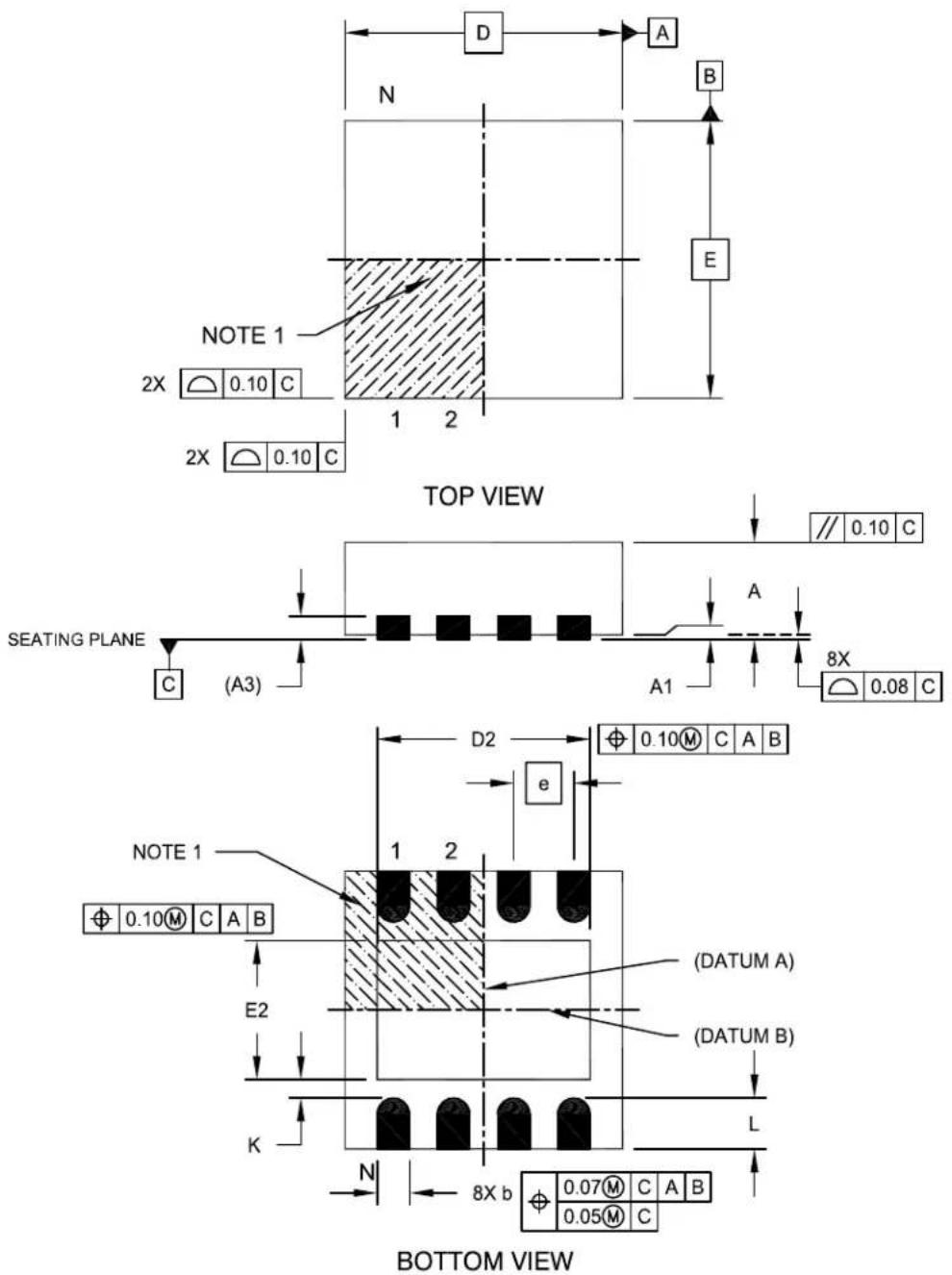

8-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing No. C04-062C Sheet 1 of 2

8-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 2

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	8
Pitch	e	0.65 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Contact Thickness	A3	0.20 REF
Overall Length	D	3.00 BSC
Exposed Pad Width	E2	1.34	-	1.60
Overall Width	E	3.00 BSC
Exposed Pad Length	D2	1.60	-	2.40
Contact Width	b	0.25	0.30	0.35
Contact Length	L	0.20	0.30	0.55
Contact-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package may have one or more exposed tie bars at ends.
3. Package is saw singulated
4. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing No. C04-062C Sheet 2 of 2

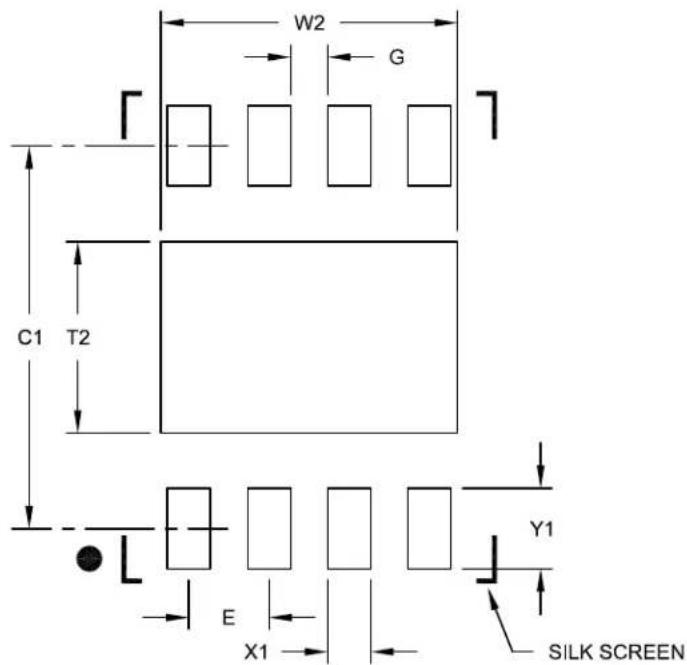

8-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

W2 G C1 T2 E X1 Y1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Optional Center Pad Width	W2			2.40
Optional Center Pad Length	T2			1.55
Contact Pad Spacing	C1		3.10
Contact Pad Width (X8)	X1			0.35
Contact Pad Length (X8)	Y1			0.65
Distance Between Pads	G	0.30

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2062B

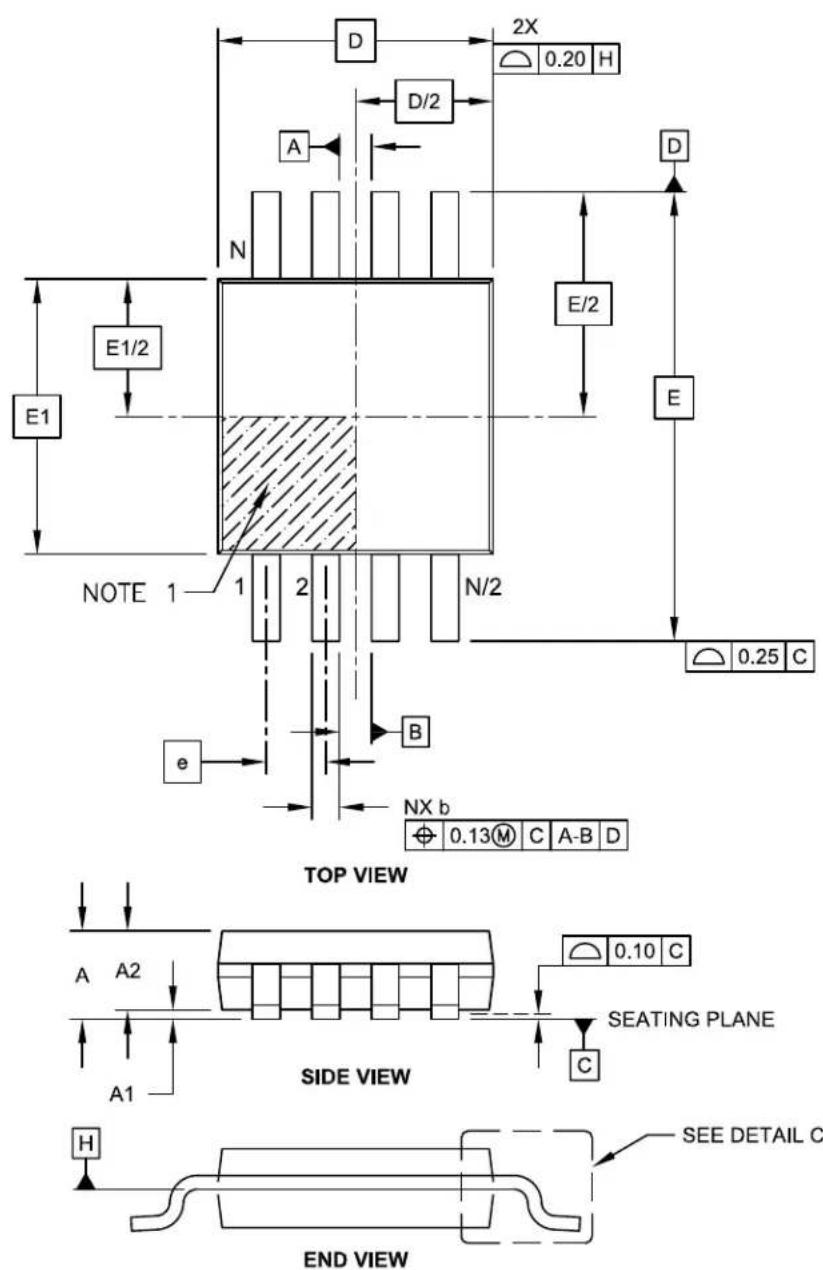

8-Lead Plastic Micro Small Outline Package (MS) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

2X 0.20 H D/2 A E/2 D E1/2 E1 N E E/2 NOTE 1 1 2 N/2 0.25 C e B NX b 0.13 M C A-B D TOP VIEW SIDE VIEW A A2 A1 0.10 C SEATING PLANE C H SEE DETAIL C END VIEW

Microchip Technology Drawing C04-111C Sheet 1 of 2

8-Lead Plastic Micro Small Outline Package (MS) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

SEATING PLANE L (L1) GAUGE PLANE c φ

DETAIL C

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N		8
Pitch	e	0.65 BSC
Overall Height	A	-	-	1.10
Molded Package Thickness	A2	0.75	0.85	0.95
Standoff	A1	0.00	-	0.15
Overall Width	E	4.90 BSC
Molded Package Width	E1	3.00 BSC
Overall Length	D	3.00 BSC
Foot Length	L	0.40	0.60	0.80
Footprint	L1	0.95 REF
Foot Angle		0°	-	8°
Lead Thickness	c	0.08	-	0.23
Lead Width	b	0.22	-	0.40

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.15mm per side.
3. Dimensioning and tolerancing per ASME Y14.5M. BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-111C Sheet 2 of 2

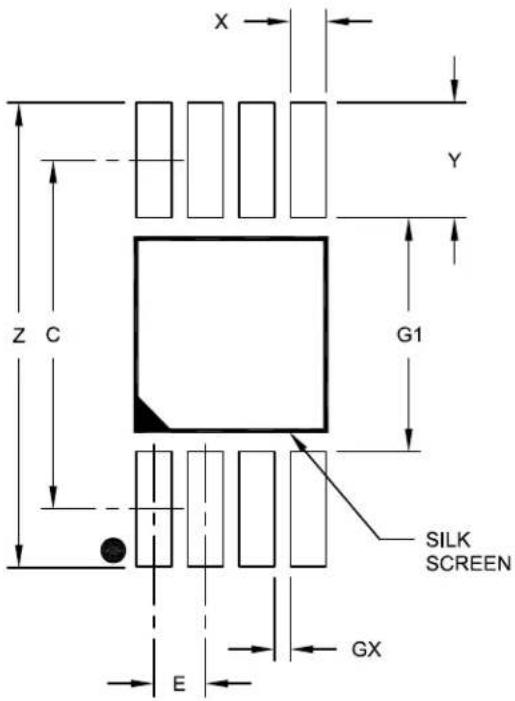

8-Lead Plastic Micro Small Outline Package (MS) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

X Y Z C G1 SILK SCREEN GX E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Contact Pad Spacing	C		4.40
Overall Width	Z			5.85
Contact Pad Width (X8)	X1			0.45
Contact Pad Length (X8)	Y1			1.45
Distance Between Pads	G1	2.95
Distance Between Pads	GX	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2111A

10-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing No. C04-063C Sheet 1 of 2

10-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 2

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	10
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Contact Thickness	A3	0.20 REF
Overall Length	D	3.00 BSC
Exposed Pad Length	D2	2.15	2.35	2.45
Overall Width	E	3.00 BSC
Exposed Pad Width	E2	1.40	1.50	1.75
Contact Width	b	0.18	0.25	0.30
Contact Length	L	0.30	0.40	0.50
Contact-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package may have one or more exposed tie bars at ends.
3. Package is saw singulated.
4. Dimensioning and tolerancing per ASME Y14.5M.

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing No. C04-063C Sheet 2 of 2

10-Lead Plastic Dual Flat, No Lead Package (MF) - 3x3x0.9mm Body [DFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

W2 G Y1 C1 T2 E X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Optional Center Pad Width	W2			2.48
Optional Center Pad Length	T2			1.55
Contact Pad Spacing	C1		3.10
Contact Pad Width (X10)	X1			0.30
Contact Pad Length (X10)	Y1			0.65
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2063B

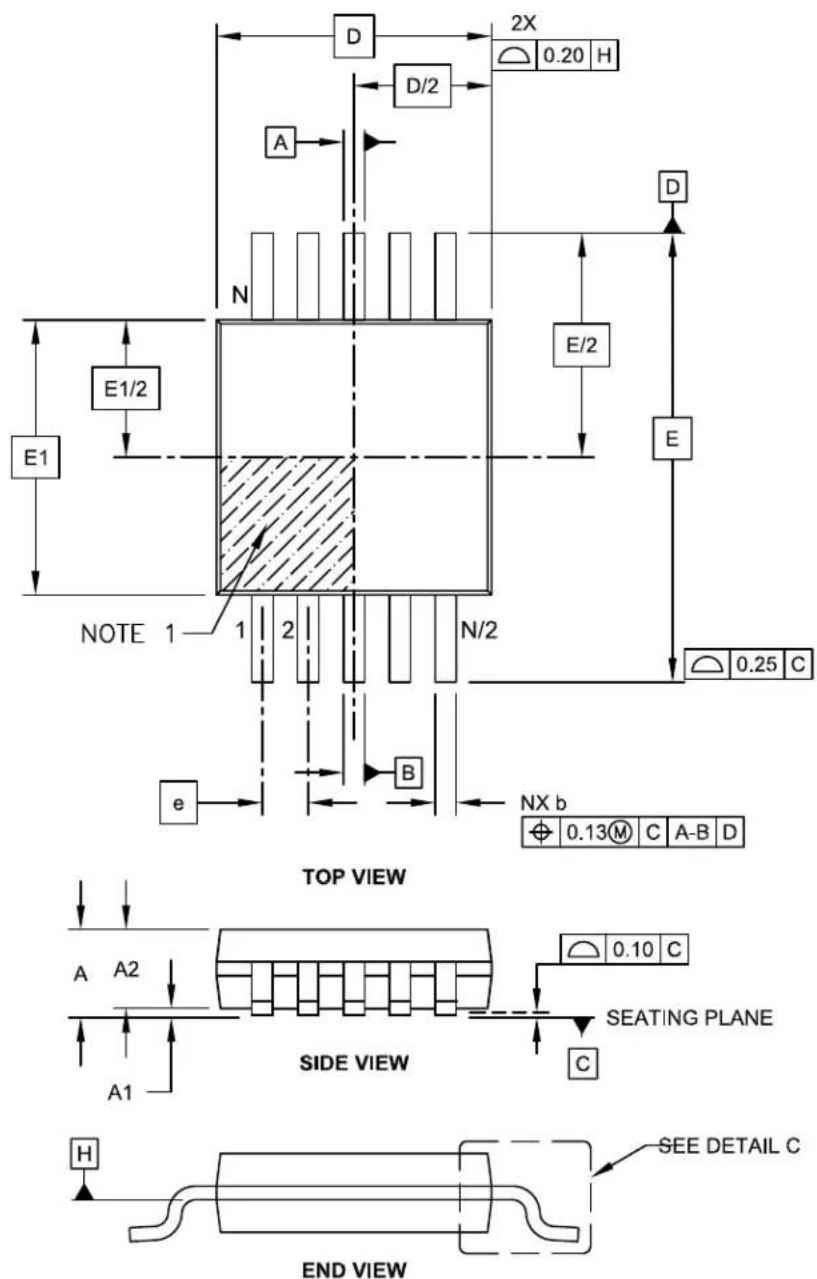

10-Lead Plastic Micro Small Outline Package (UN) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

2X 0.20 H D/2 A E/2 D E1/2 E1 N E NOTE 1 1 2 N/2 B e NX b 0.25 C TOP VIEW A A2 A1 SIDE VIEW 0.13 M C A-B D C SEATING PLANE H SEE DETAIL C END VIEW

Microchip Technology Drawing C04-021C Sheet 1 of 2

10-Lead Plastic Micro Small Outline Package (UN) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

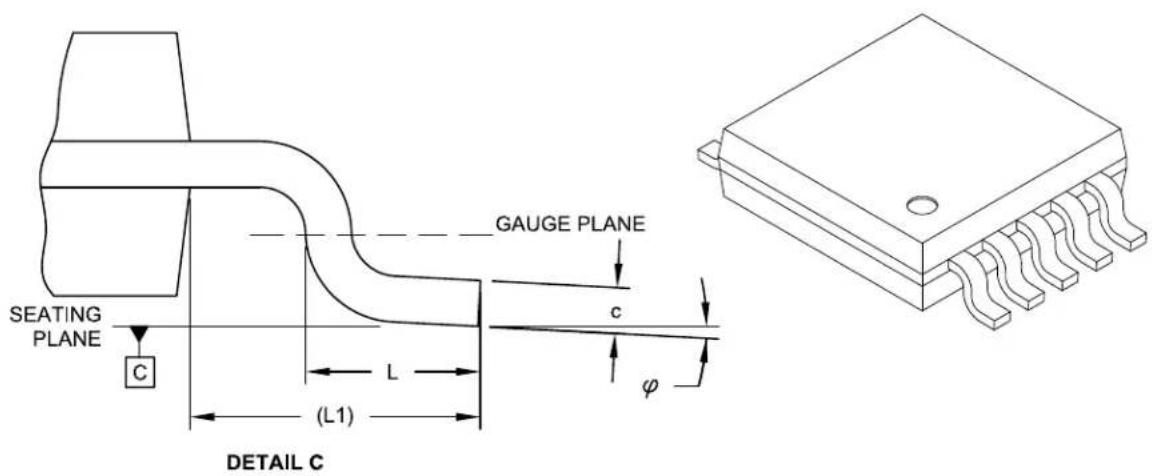

SEATING PLANE L (L1) GAUGE PLANE c φ DETAIL C

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	10
Pitch	e	0.50 BSC
Overall Height	A	-	-	1.10
Molded Package Thickness	A2	0.75	0.85	0.95
Standoff	A1	0.00	-	0.15
Overall Width	E	4.90 BSC
Molded Package Width	E1	3.00 BSC
Overall Length	D	3.00 BSC
Foot Length	L	0.40	0.60	0.80
Footprint	L1	0.95 REF
Foot Angle		0°	-	8°
Lead Thickness	c	0.08	-	0.23
Lead Width	b	0.15	-	0.33

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.15mm per side.
3. Dimensioning and tolerancing per ASME Y14.5M. BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-021C Sheet 2 of 2

10-Lead Plastic Micro Small Outline Package (UN) [MSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

X Y Z C G1 SILK SCREEN GX E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Contact Pad Spacing	C		4.40
Overall Width	Z			5.80
Contact Pad Width (X10)	X1			0.30
Contact Pad Length (X10)	Y1			1.40
Distance Between Pads	G1	3.00
Distance Between Pads	GX	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
Microchip Technology Drawing No. C04-2021A

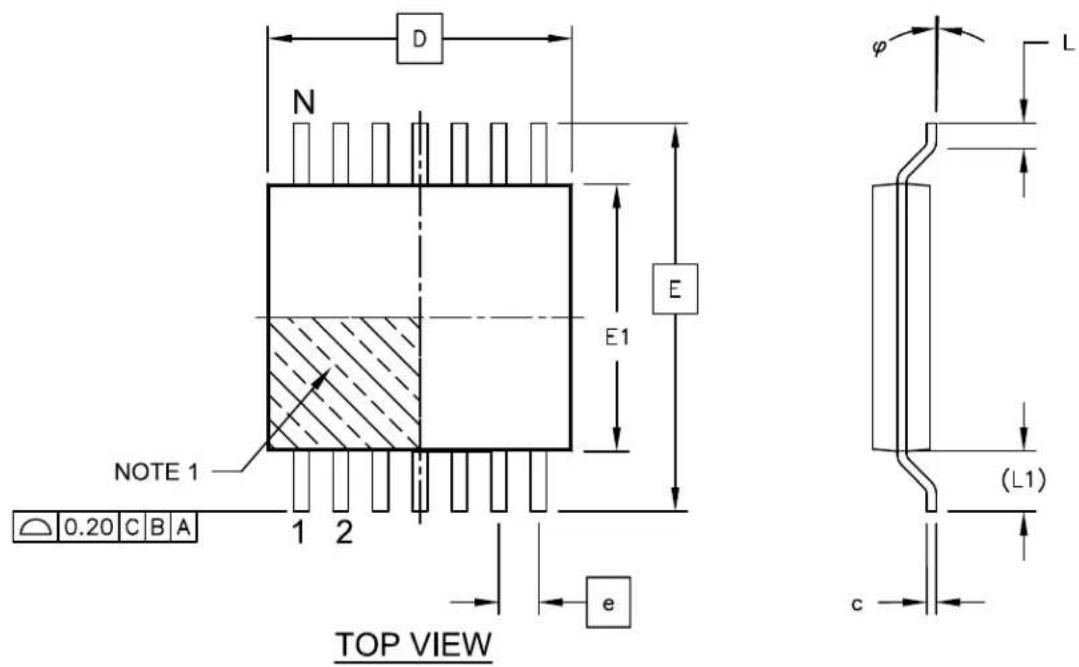

14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

0.10 C B A SEATING PLANE C A D A2 A A1 14X b Ø 0.10 M C B A SIDE VIEW

Microchip Technology Drawing C04-087C Sheet 1 of 2

14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Isometric line drawing of an integrated circuit chip with multiple pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	14
Pitch	e	0.65 BSC
Overall Height	A	-	-	1.20
Molded Package Thickness	A2	0.80	1.00	1.05
Standoff	A1	0.05	-	0.15
Overall Width	E	6.40 BSC
Molded Package Width	E1	4.30	4.40	4.50
Molded Package Length	D	4.90	5.00	5.10
Foot Length	L	0.45	0.60	0.75
Footprint	(L1)	1.00 REF
Foot Angle	φ	0°	-	8°
Lead Thickness	c	0.09	-	0.20
Lead Width	b	0.19	-	0.30

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.15mm per side.
3. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing No. C04-087C Sheet 2 of 2

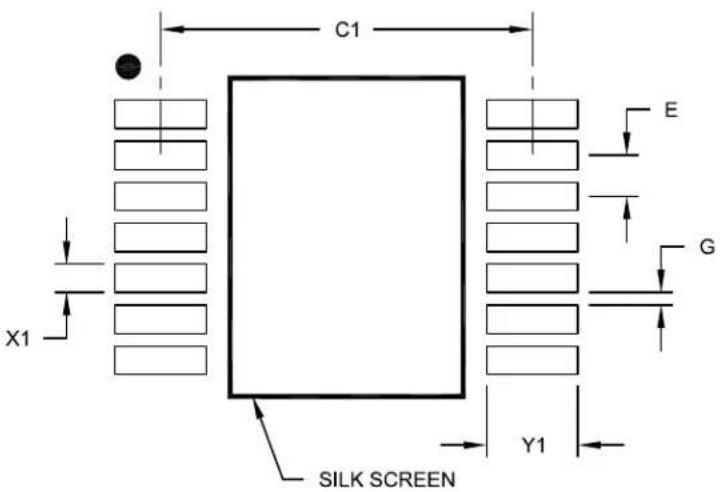

14-Lead Plastic Thin Shrink Small Outline (ST) - 4.4 mm Body [TSSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 E G X1 Y1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Contact Pad Spacing	C1		5.90
Contact Pad Width (X14)	X1			0.45
Contact Pad Length (X14)	Y1			1.45
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2087A

16-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4x0.9 mm Body [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Units		MILLIMETERS
Dimension Limits		MIN NOM MAX
Number of Pins N 16
Pitch e 0.65 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Contact Thickness	A3	0.20 REF
Overall Width	E	4.00 BSC
Exposed Pad Width	E2	2.50	2.65	2.80
Overall Length	D	4.00 BSC
Exposed Pad Length	D2	2.50	2.65	2.80
Contact Width	b	0.25	0.30	0.35
Contact Length	L	0.30	0.40	0.50
Contact-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated.
3. Dimensioning and tolerancing per ASME Y14.5M.

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-127B

16-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4x0.9mm Body [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 W2 C2 T2 E G Y1 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Optional Center Pad Width	W2			2.50
Optional Center Pad Length	T2			2.50
Contact Pad Spacing	C1		4.00
Contact Pad Spacing	C2		4.00
Contact Pad Width (X16)	X1			0.35
Contact Pad Length (X16)	Y1			0.80
Distance Between Pads	G	0.30

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2127A

NOTES:

APPENDIX A: REVISION HISTORY

Revision B (February 2013)

The following is the list of modifications:

1. Corrected MCP45x1 DFN package pinout.

2. Corrected Device Block Diagram.

3. Updated the Absolute Maximum Ratings with Total Power Dissipation values for each package type.

4. Updated typical thermal values in Temperature Characteristics table.

5. Corrected labeling in Figure 2-1, from Section 2.0 "Typical Performance Curves". Also corrected Figure 2-4.

6. Appropriate 1.8V Graphs in Section 2.0 "Typical Performance Curves" now reference Appendix B: "Characterization Data Analysis".

7. Added new Figure 2-66.

8. Corrected values in Figure 5-1.

9. Added description of wiper value on POR/BOR (Section 5.2 "Wiper").

10. Added new section Section 8.5 "Implementing Log Steps with a Linear Digital Potentiometer".

11. Added information in the Development Tools Section (Section 10.0 "Development support").

12. Updated packaging section with package available landing pattern diagrams.

13. Added Appendix B: "Characterization Data Analysis".

14. Updated the format of the Absolute Maximum Ratings page in Section 1.0 “Electrical Characteristics”.

15. Clarified actions of the POR in Section 4.1.1 "Power-on Reset".

16. Removed Note 3 from Table 10-1.

Revision A (November 2008)

• Original Release of this Document.

NOTES:

APPENDIX B: CHARACTERIZATION DATA ANALYSIS

Some designers may desire to understand the device operational characteristics outside of the specified operating conditions of the device.

Applications where the knowledge of the resistor network characteristics could be useful include battery powered devices and applications that experience brown-out conditions.

In battery applications, the application voltage decays over time until new batteries are installed. As the voltage decays, the system will continue to operate. At some voltage level, the application will be below its specified operating voltage range. This is dependent on the individual components used in the design. It is still useful to understand the device characteristics to expect when this low-voltage range is encountered. Unlike a microcontroller, which can use an external supervisor device to force the controller into the Reset state, a digital potentiometer's resistance characteristic is not specified. But understanding the operational characteristics can be important in the design of the application's circuit for this low-voltage condition.

Other application system scenarios, where understanding the low-voltage characteristics of the resistor network could be important, is for system brown-out conditions.

For the MCP453X/455X/463X/465X devices, the analog operation is specified at a minimum of 2.7V. Device testing has Terminal A connected to the device V_DD (for potentiometer configuration only) and Terminal B connected to V_SS .

B.1 Low-Voltage Operation

This appendix gives an overview of CMOS semiconductor characteristics at lower voltages. This is important so that the 1.8V resistor network characterization graphs of the MCP453X/455X/463X/465X devices can be better understood.

For this discussion, we will use the 5 kΩ device data. This data was chosen since the variations of wiper resistance has much greater implications for devices with smaller R_AB resistances.

Figure B-1 shows the worst case R_BW error from the average R_BW as a percentage, while Figure B-2 shows the R_BW resistance versus wiper code graph. Nonlinear behavior occurs at approximately wiper code 160. This is better shown in Figure B-2, where the R_BW resistance changes from a linear slope. This change is due to the change in the wiper resistance.

FIGURE B-1: 1.8V Worst Case R BW Error from Average RBW ( R_BW0-R_BW3 ) vs. Wiper Code and Temperature ( V_DD=1.8V , I_W=190 A ).

FIGURE B-2: R BW vs. Wiper Code And Temperature (V DD = 1.8V, I _W = 190 μA).

Figure B-3 and Figure B-4 show the wiper resistance for V_DD voltages of 5.5, 3.0, 1.8 volts. These graphs show that as the resistor ladder wiper node voltage ( V_WCn ) approaches the V_DD/2 voltage, the wiper resistance increases. These graphs also show the different resistance characteristics of the NMOS and PMOS transistors that make up the wiper switch. This is demonstrated by the wiper code resistance curve, which does not mirror itself around the mid-scale code (wiper code = 128).

So why are the R_W graphs showing the maximum resistance at about mid-scale (wiper code = 128) and the R_BW graphs showing the issue at code 160?

This requires understanding low-voltage transistor characteristics as well as how the data was measured.

FIGURE B-3: Wiper Resistance (R W ) vs. Wiper Code and Temperature ( VDD = 5.5V , I_W = 900 UA; V_DD = 3.0V , I_W = 480 μA).

FIGURE B-4: Wiper Resistance (R W ) vs. Wiper Code and Temperature ( VDD = 1.8V, I_W = 260 A ).

The method in which the data was collected is important to understand. Figure B-5 shows the technique that was used to measure the R_BW and R_W resistance. In this technique, Terminal A is floating and Terminal B is connected to ground. A fixed current is then forced into the wiper ( I_W ), and the corresponding wiper voltage ( V_W ) is measured. Forcing a known current through R_BW ( I_W ) and then measuring the voltage difference between the wiper ( V_W ) and Terminal A ( V_A ), the wiper resistance ( R_W ) can be calculated, as shown in Figure B-5. Changes in I_W current will change the wiper voltage ( V_W ). This may effect the device's wiper resistance ( R_W ).

floating A V_A W V_W I_W B V_B R_BW = V_W/I_W R_W = (V_W - V_A)/I_W

FIGURE B-5: R BW and RW Measurement.

Figure B-6 shows a block diagram of the resistor network where the R_AB resistor is a series of 256 R_S resistors. These resistors are polysilicon devices. Each wiper switch is an analog switch made up of an NMOS and PMOS transistor. A more detailed figure of the wiper switch is shown in Figure B-7. The wiper resistance is influenced by the voltage on the wiper switches' nodes ( V_G V_W and V_WCn ). Temperature also influences the characteristics of the wiper switch, as shown in Figure B-4.

The NMOS transistor and PMOS transistor have different characteristics. These characteristics, as well as the wiper switch node voltages, determine the R_W resistance at each wiper code. The variation of each wiper switch's characteristics in the resistor network is greater than the variation of the R_S resistors.

The voltage on the resistor network node ( V_WCn ) is dependent upon the wiper code selected and the voltages applied to V_A , V_B and V_W . The wiper switch V_G voltage to V_W or V_WCn voltage determines how strongly the transistor is turned on. When the transistor is weakly turned on the wiper resistance, R_W will be high. When the transistor is strongly turned on, the wiper resistance ( R_W ) will be in the typical range.

A V_A N_n R_S R_W (1) R_W (1) N_{n-1} R_S N_{n-2} R_S N_{n-3} V_{WC(n-2)} R_W (1) R_W (1) D_V_G N_MOS PMOS R_W (1) W V_W N_1 R_S N_0 R_W (1) R_W (1) B V_B

Note 1: The wiper resistance is dependent on several factors including, wiper code, device V_DD , Terminal voltages (on A, B and W), and temperature.
FIGURE B-6: Resistor Network Block Diagram.

The characteristics of the wiper are determined by the characteristics of the wiper switch at each of the resistor networks tap points. Figure B-7 shows an example of a wiper switch. As the device operational voltage becomes lower, the characteristics of the wiper switch change due to a lower voltage on the V_G signal.

Figure B-7 shows an implementation of a wiper switch. When the transistor is turned off, the switch resistance is in the Giga s. When the transistor is turned on, the switch resistance is dependent on the V_G , V_W and V_WCn voltages. This resistance is referred to as R_W .

R_W^(1) "gate" N_WC V_WCN NMOS PMOS "Wiper V_W V_G(V_DD/V_SS) "gate" Note 1: Wiper Resistance (R_W) depends on the voltages at the wiper switch nodes (V_G, V_W and V_WCN).

FIGURE B-7: Wiper Switch.

So, looking at the wiper voltage ( V_W ) for the 3.0V and 1.8V data gives the graphs in Figure B-8 and Figure B-9. In the 1.8V graph, as the V_W approaches 0.8V, the voltage increases nonlinearly. Since V = I^*R , and the current ( I_W ) is constant, it means that the device resistance increased nonlinearly at around wiper code 160.

FIGURE B-8: Wiper Voltage (V W ) vs. Wiper Code ( VDD = 3.0V , I_W = 190 A ).

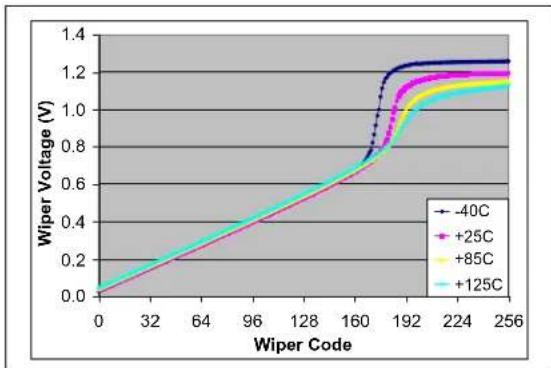

FIGURE B-9: Wiper Voltage (V W vs. Wiper Code ( VDD = 1.8V , I_W = 190 A ).

Using the simulation models of the NMOS and PMOS devices for the MCP4XXX analog switch (Figure B-10), we plot the device resistance when the devices are turned on. Figure B-11 and Figure B-12 show the resistances of the NMOS and PMOS devices as the V_IN voltage is increased. The wiper resistance ( R_W ) is simply the parallel resistance on the NMOS and PMOS devices ( R_W = R_NMOS R_PMOS ). Below the threshold voltage for the NMOS and PMOS devices, the resistance becomes very large (Giga s ). In the transistor's active region, the resistance is much lower. For these graphs, the resistances are on different scales. Figure B-13 and Figure B-14 only plot the NMOS and PMOS device resistance for their active region and the resulting wiper resistance. For these graphs, all resistances are on the same scale.

V_IN "gate" R_W NMOS PMOS "gate" V_G (V_DD/V_SS) V_OUT

FIGURE B-10: Analog Switch.

FIGURE B-11: NMOS and PMOS Transistor Resistance ( R_NMOS , R_PMOS ) and Wiper Resistance ( R_W ) VS. V_IN ( V_DD = 3.0V ).

FIGURE B-12: NMOS and PMOS Transistor Resistance ( R_NMOS , R_PMOS ) and Wiper Resistance ( R_W ) VS. V_IN ( V_DD = 1.8V ).

FIGURE B-13: NMOS and PMOS Transistor Resistance ( R_NMOS , R_PMOS ) and Wiper Resistance ( R_W ) VS. V_IN ( V_DD = 3.0V ).

FIGURE B-14: NMOS and PMOS Transistor Resistance ( R_NMOS , R_PMOS ) and Wiper Resistance ( R_W ) VS. V_IN ( V_DD = 1.8V ).

B.2 Optimizing Circuit Design for Low-Voltage Characteristics

The low-voltage nonlinear characteristics can be minimized by application design. The section will show two application circuits that can be used to control a programmable reference voltage ( V_OUT ).

Minimizing the low-voltage nonlinear characteristics is done by keeping the voltages on the wiper switch nodes at a voltage where either the NMOS or PMOS transistor is turned on.

An example of this is if we are using a digital potentiometer for a voltage reference ( V_OUT ). Let's say that we want V_OUT to range from 0.5 × V_DD to 0.6 × V_DD .

In example implementation #1 (Figure B-15), we window the digital potentiometer using resistors R1 and R2. When the wiper code is at full scale, the V_OUT voltage will be ≥ 0.6 * V_DD , and when the wiper code is at zero scale, the V_OUT voltage will be ≤ 0.5 * V_DD . Remember that the digital potentiometers R_AB variation must be included. Table B-1 shows that the V_OUT voltage can be selected to be between 0.455 * V_DD and 0.727 * V_DD , which includes the desired range. With respect to the voltages on the resistor network node, at 1.8V the V_A voltage would range from 1.29V to 1.31V, while the V_B voltage would range from 0.82V to 0.86V. These voltages cause the wiper resistance to be in the nonlinear region (see Figure B-12). In Potentiometer mode, the variation of the wiper resistance is typically not an issue, as shown by the INL/DNL graph (Figure 2-7).

In example implementation #2 (Figure B-16), we use the digital potentiometer in Rheostat mode. The resistor ladder uses resistors R1 and R2 with R_BW at the bottom of the ladder. When the wiper code is at full scale, the V_OUT voltage will be ≥ 0.6 * V_DD , and when the wiper code is at full scale, the V_OUT voltage will be ≤ 0.5 * V_DD . Remember that the digital potentiometers R_AB variation must be included. Table B-2 shows that the V_OUT voltage can be selected to be between 0.50 * V_DD and 0.687 * V_DD , which includes the desired range. With respect to the voltages on the resistor network node, at 1.8V the V_W voltage would range from 0.29V to 0.38V. These voltages cause the wiper resistance to be in the linear region (see Figure B-12).

R1 V_A A W V_W V_OUT B V_B R2

FIGURE B-15: Example Implementation #1.

TABLE B-1: EXAMPLE #1 VOLTAGE CALCULATIONS

	Variation
	Min Typ	Max
R1 12,000 12	000 12,000
R2 20,000 20	000 20,000
R_AB	8,000	10,000 12,000
V_OUT (@ FS)	0.714 V_DD	0.70 V_DD	0.727 V_DD
V_OUT (@ ZS)	0.476 V_DD	0.50 V_DD	0.455 V_DD
V_A	0.714 V_DD	0.70 V_DD	0.727 V_DD
V_B	0.476 V_DD	0.50 V_DD	0.455 V_DD

Legend: FS – Full Scale, ZS – Zero Scale

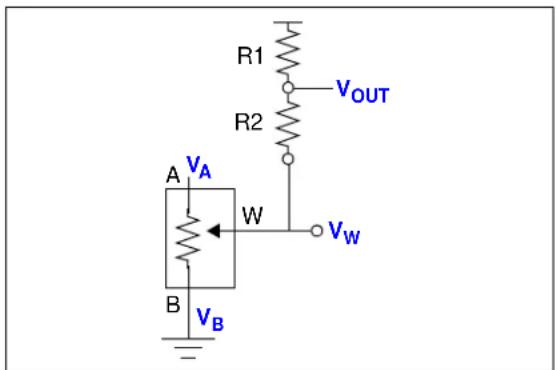

R1 VOUT R2 A VA W VW B VB

FIGURE B-16: Example Implementation #2.

TABLE B-2: EXAMPLE #2 VOLTAGE CALCULATIONS

	Variation
	Min Typ	Max
R1 10,000 10	000 10,000
R2 10,000 10	000 10,000
R_BW (max) 8,000 10,000 12,000
V_OUT (@ FS)	0.667 V_DD	0.643 V_DD	0.687 V_DD
V_OUT (@ ZS)	0.50 V_DD	0.50 V_DD	0.50 V_DD
V_W (@ FS)	0.333 V_DD	0.286 V_DD	0.375 V_DD
V_W (@ ZS)	V_SS	V_SS	V_SS

Legend: FS – Full Scale, ZS – Zero Scale

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PART NO.	XXX	X	XX
Device	Resistance Version	Temperature Range	Package

Device: MCP4531: Single Nonvolatile 7-bit Potentiometer

MCP4531T: Single Nonvolatile 7-bit Potentiometer

(Tape and Reel)

MCP4532: Single Nonvolatile 7-bit Rheostat

MCP4532T: Single Nonvolatile 7-bit Rheostat

(Tape and Reel)

MCP4551: Single Nonvolatile 8-bit Potentiometer

MCP4551T: Single Nonvolatile 8-bit Potentiometer

(Tape and Reel)

MCP4552: Single Nonvolatile 8-bit Rheostat

MCP4552T: Single Nonvolatile 8-bit Rheostat

(Tape and Reel)

MCP4631: Dual Nonvolatile 7-bit Potentiometer

MCP4631T: Dual Nonvolatile 7-bit Potentiometer

(Tape and Reel)

MCP4632: Dual Nonvolatile 7-bit Rheostat

MCP4632T: Dual Nonvolatile 7-bit Rheostat

(Tape and Reel)

MCP4651: Dual Nonvolatile 8-bit Potentiometer

MCP4651T: Dual Nonvolatile 8-bit Potentiometer

(Tape and Reel)

MCP4652: Dual Nonvolatile8-bit Rheostat

MCP4652T: Dual Nonvolatile 8-bit Rheostat

(Tape and Reel)

Resistance Version: 502 = 5 kΩ

103 = 10 kΩ

503 = 50 kΩ

104 = 100 kΩ

Temperature Range: E = -40°C to +125°C

Package: MF = Plastic Dual Flat No-lead (3x3 DFN), 8/10-lead

ML = Plastic Quad Flat No-lead (QFN), 16-lead

MS = Plastic Micro Small Outline (MSOP), 8-lead

ST = Plastic Thin Shrink Small Outline (TSSOP), 14-lead

UN = Plastic Micro Small Outline (MSOP), 10-lead

Examples:

a) MCP4531-502E/XX: 5 kΩ, 8LD Device

b) MCP4531-103E/XX: 10 kΩ, 8-LD Device

c) MCP4531-503E/XX: 50 kΩ, 8LD Device

d) MCP4531-104E/XX: 100 kΩ, 8LD Device

e) MCP4531T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4532-502E/XX: 5 kΩ, 8LD Device

b) MCP4532-103E/XX: 10 kΩ, 8-LD Device

c) MCP4532-503E/XX: 50 kΩ, 8LD Device

d) MCP4532-104E/XX: 100 kΩ, 8LD Device

e) MCP4532T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4551-502E/XX: 5 kΩ, 8LD Device

b) MCP4551-103E/XX: 10 kΩ, 8-LD Device

c) MCP4551-503E/XX: 50 kΩ, 8LD Device

d) MCP4551-104E/XX: 100 kΩ, 8LD Device

e) MCP4551T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4552-502E/XX: 5 kΩ, 8LD Device

b) MCP4552-103E/XX: 10 kΩ, 8-LD Device

c) MCP4552-503E/XX: 50 kΩ, 8LD Device

d) MCP4552-104E/XX: 100 kΩ, 8LD Device

e) MCP4552T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4631-502E/XX: 5 kΩ, 8LD Device

b) MCP4631-103E/XX: 10 kΩ, 8-LD Device

c) MCP4631-503E/XX: 50 kΩ, 8LD Device

d) MCP4631-104E/XX: 100 kΩ, 8LD Device

e) MCP4631T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4632-502E/XX: 5 kΩ, 8LD Device

b) MCP4632-103E/XX: 10 kΩ, 8-LD Device

c) MCP4632-503E/XX: 50 kΩ, 8LD Device

d) MCP4632-104E/XX: 100 kΩ, 8LD Device

e) MCP4632T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4651-502E/XX: 5 kΩ, 8LD Device

b) MCP4651-103E/XX: 10 kΩ, 8-LD Device

c) MCP4651-503E/XX: 50 kΩ, 8LD Device

d) MCP4651-104E/XX: 100 kΩ, 8LD Device

e) MCP4651T-104E/XX: T/R, 100 kΩ, 8LD Device

a) MCP4652-502E/XX: 5 kΩ, 8LD Device

b) MCP4652-103E/XX: 10 kΩ, 8-LD Device

c) MCP4652-503E/XX: 50 kΩ, 8LD Device

d) MCP4652-104E/XX: 100 kΩ, 8LD Device

e) MCP4652T-104E/XX: T/R, 100 kΩ, 8LD Device

XX = MF for 8/10-lead 3x3 DFN

= ML for 16-lead QFN

= MS for 8-lead MSOP

= ST for 14-lead TSSOP

= UN for 10-lead MSOP

NOTES:

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
- There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
- Microchip is willing to work with the customer who is concerned about the integrity of their code.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as "unbreakable."

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

QUALITY MANAGEMENT SYSTEM CERTIFIED BY DNV = ISO/TS 16949=

Trademarks

The Microchip name and logo, the Microchip logo, dsPIC, FlashFlex, KEELOQ, KEELOQ logo, MPLAB, PIC, PICmicro, PICSTART, PIC ^32 logo, rfPIC, SST, SST Logo, SuperFlash and UNI/O are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

FilterLab, Hampshire, HI-TECH C, Linear Active Thermistor, MTP, SEEVAL and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.

Analog-for-the-Digital Age, Application Maestro, BodyCom, chipKIT, chipKIT logo, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, dsSPEAK, ECAN, ECONOMONITOR, FanSense, HI-TIDE, In-Circuit Serial Programming, ICSP, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, mTouch, Omniscient Code Generation, PICC, PICC-18, PICDEM, PICDEM.net, PICkit, PICtail, REAL ICE, rfLAB, Select Mode, SQL, Serial Quad I/O, Total Endurance, TSHARC, UniWinDriver, WiperLock, ZENA and Z-Scale are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

GestIC and ULPP are registered trademarks of Microchip Technology Germany II GmbH & Co. & KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2008-2013, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.

Printed on recycled paper. ISBN: 978-1-62077-023-8

Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company's quality system processes and procedures are for its PIC® MCUs and dsPIC® DSCs, KEELoQ® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip's quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, I

Tel: [phone]

Fax: [phone]

Cleveland

Independence, OH

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Farmington Hills, MI

Tel: [phone]

Fax: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Santa Clara

Santa Clara, CA

Tel: [phone]

Fax: [phone]

Toronto

Mississauga, Ontario,

Canada

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: [phone]

Fax: [phone]

Australia - Sydney

Tel: [phone]

Fax: [phone]

China - Beijing

Tel: [phone]

Fax: [phone]

China - Chengdu

Tel: [phone]

Fax: [phone]

China - Chongqing

Tel: [phone]

Fax: [phone]

China - Hangzhou

Tel: [phone]

Fax: [phone]

China - Hong Kong SAR

Tel: [phone]

Fax: [phone]

China - Nanjing

Tel: [phone]

Fax: [phone]

China - Qingdao

Tel: [phone]

Fax: [phone]

China - Shanghai

Tel: [phone]

Fax: [phone]

China - Shenyang

Tel: [phone]

Fax: [phone]

China - Shenzhen

Tel: [phone]

Fax: [phone]

China - Wuhan

Tel: [phone]

Fax: [phone]

China - Xian

Tel: [phone]

Fax: [phone]

China - Xiamen

Tel: [phone]

Fax: [phone]

China - Zhuhai

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

Fax: [phone]

India - New Delhi

Tel: [phone]

Fax: [phone]

India - Pune

Tel: [phone]

Fax: [phone]

Japan - Osaka

Tel: [phone]

Fax: [phone]

Japan - Tokyo

Tel: [phone]

Fax: [phone]

Korea - Daegu

Tel: [phone]

Fax: [phone]

Korea - Seoul

Tel: [phone]

Fax: [phone] or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: [phone]

Fax: [phone]

Malaysia - Penang

Tel: [phone]

Fax: [phone]

Philippines - Manila

Tel: [phone]

Fax: [phone]

Singapore

Tel: [phone]

Fax: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Fax: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Fax: [phone]

Taiwan - Taipei

Tel: [phone]

Fax: [phone]

Thailand - Bangkok

Tel: [phone]

Fax: [phone]

EUROPE

Austria - Wels

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]

11/29/12
