Chapter 1 JBOD Hardware

1-1 Installation Precautions

The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the service guide and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

- When handling the motherboard, avoid touching any metal leads or connectors.

- It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

- Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.

- Before unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.

- Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.

- Before using the product, please verify that all cables and power connectors of your hardware components are connected.

- To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.

- Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

- Do not place the computer system on an uneven surface.

- Do not place the computer system in a high-temperature environment.

- Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

- If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

1-2 Product Specifications

NOTE:

We reserve the right to make any changes to the product specifications and product-related information without prior notice.

	System Dimension	◆ 2OU◆ 537 (W) x 93 (H) x 807.6 (D) mm
	Open Rack Version	◆ ORV3
	LAN	◆ 1 x 100/1000 management LAN
	Storage ◆ 32 x 3.5"/2.5" HDD/SSD bays
[5DYS]	SATA	◆ Supported
	SAS	◆ Supported
	RAID	◆ Depends on SAS Card
	SAS Expander (TO24-JD0)	◆ 3 x Broadcom SAS4X32 SAS expanders, single-path
	(TO24-JD1)	◆ 6 x Broadcom SAS4X32 SAS expanders, dual-path
	Front I/O ◆ 8 x Mini-SAS HD ports◆ 1 x Power button◆ 1 x BMC reset button◆ 1 x Audio jack for UART◆ 1 x System status LED◆ 1 x ID button with LED◆ 1 x MLAN Access LED
	System Management	◆ Aspeed® AST2520 management controller
	System Fan	◆ 4 x 92x92x38mm (16,500rpm) system fan modules on rear side of the chassis
	No. of Bus Bars	◆ 1 x 48V Bus Bar

Chapter 2 JBOD System Appearance

2-1 Front View

TO24-JD0

2 1 3 A1 A2 A3 A4 22 23 30 31 20 21 28 29 18 19 26 27 16 17 24 25 06 07 14 15 04 05 12 13 02 03 10 11 00 01 08 09

TO24-JD1

2 1 3 4 A1 A2 A3 A4 22 23 20 21 18 19 16 17 30 31 25 29 26 27 24 25 06 07 04 08 02 09 00 01 14 15 12 13 10 11 08 09

No. Description

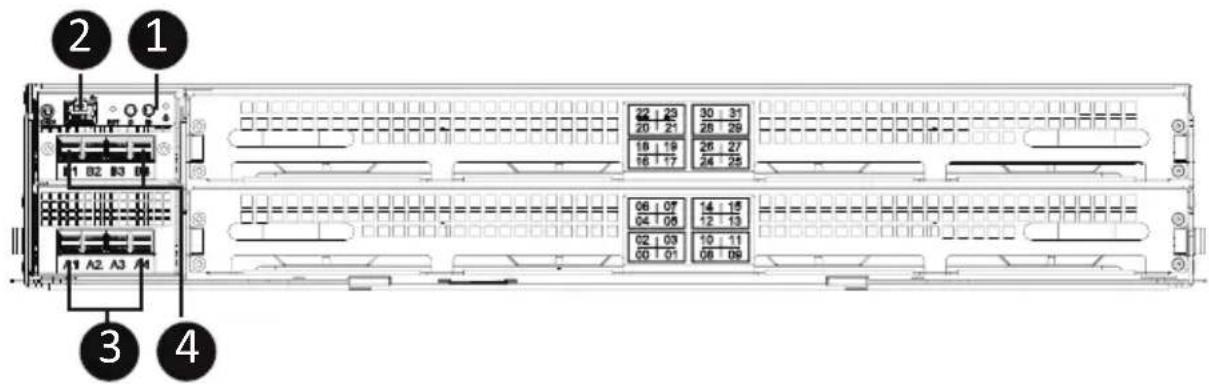

1. Front Panel LEDs and Buttons
2. Server Management LAN Port
3. miniSAS Hard Disk Drive Connectors A1 / A2 / A3 / A4 (from left to right)
4. miniSAS Hard Disk Drive Connectors B1 / B2 / B3 /B4 (from left to right/TO24-JD1 Only)

Please go to Front Panel LED and Buttons on page 12 for detail description of function LEDs.

2-2 Top View

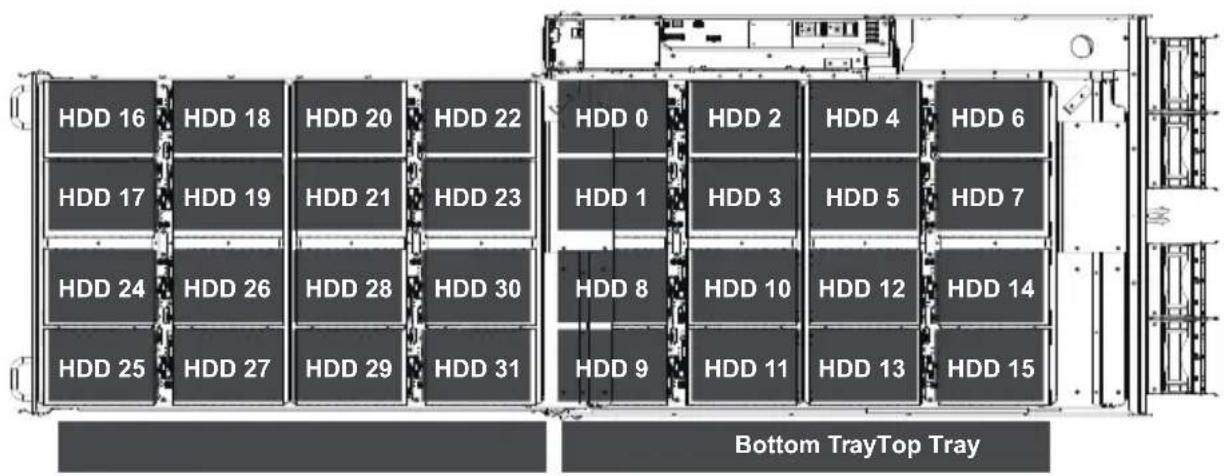

HDD 16 HDD 18 HDD 20 HDD 22 HDD 0 HDD 2 HDD 4 HDD 6 HDD 17 HDD 19 HDD 21 HDD 23 HDD 1 HDD 3 HDD 5 HDD 7 HDD 24 HDD 26 HDD 28 HDD 30 HDD 8 HDD 10 HDD 12 HDD 14 HDD 25 HDD 27 HDD 29 HDD 31 HDD 9 HDD 11 HDD 13 HDD 15 Bottom TrayTop Tray

2-3 Rear View

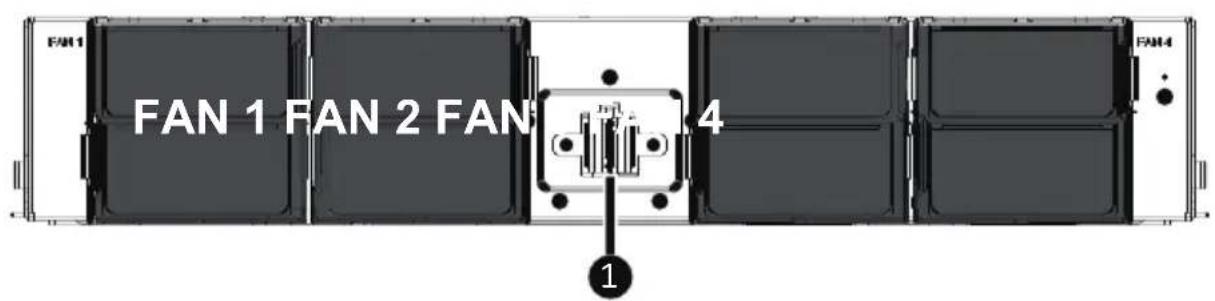

FAN1 FAN 1 FAN 2 FAN 3 FAN 4 1

No. Description

1. 48V BusBar Power Connector

2-4 Front Panel LED and Buttons

14 IOIOI RST ID 5

No.	Name	Color	Status	Description
1.	Audio Jack -- -- For management console
2.	Reset Button -- -- Press this button to reset the system.
3.	Power button with LED	Green	On	Indicates the system is powered on and .in a normal state
		Green	Blink	Voltage event has occurred
4.	ID Button	Blue		Press the button to activate system identification
5.	System Status LED	Green	On	Indicates system is operating normally.
		Amber	On	Indicates HDD error.

2-5 Hard Disk Drive LEDs

Color	HDD Present(No Access)	No HDD
Green On Off

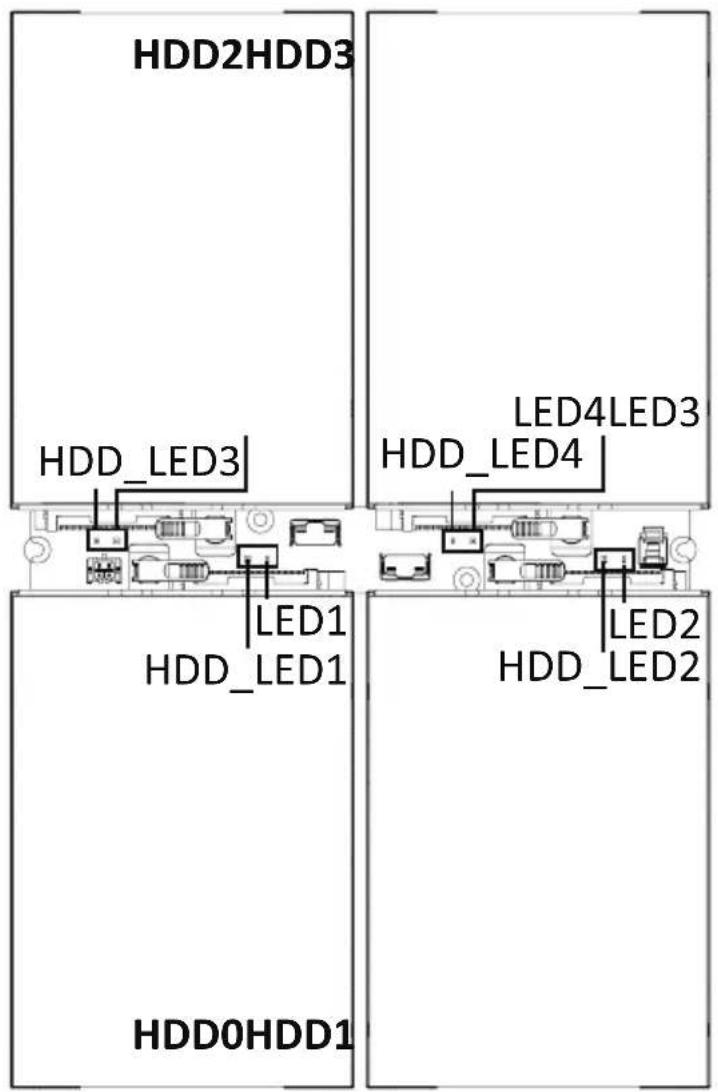

HDD LED 0\~3

Color Locate Fail HDD Access

Green On N/A Blink

Amber N/A On N/A

2-6 Front System LAN LEDs

1 2 IOIOI RST ID

No.	Name	Color	Status	Description
1 Speed		Amber On 1Gbps data rate
		Green On 100Mbps data rate
2 Link/Act		Green	On Link between system and network or no access
			Blinking Data transmissionor receiving is occurring
		N/A Off No data transmission or receiving is occurring

Chapter 3 JBOD System Hardware Installation

Pre-installation Instructions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

• Always disconnect the computer from the power outlet whenever you are working inside the computer case.
• If possible, wear a grounded wrist strap when you are working inside the computer case. Alternatively, discharge any static electricity by touching the bare metal system of the computer case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the components on the board unless it is necessary to do so. Do not flex or stress the circuit board.
• Leave all components inside the static-proof packaging until you are ready to use the component for the installation.

3-1 Removing the JBOD from the Rack

Follow these instructions to remove the JBOD from the rack:

1. Press the release latches outward while simultaneously pulling the handle for the JBOD.
2. Pull the JBOD out of the cabinet.
3. To install the JBOD, push the JBOD back into the cabinet.

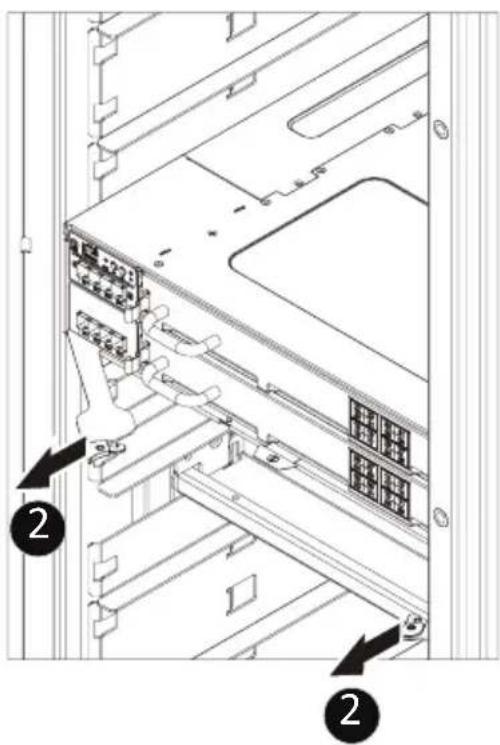

Technical line drawing of a server rack with internal components and two circular insets showing mechanical adjustment (no text or symbols)

Technical diagram of server rack with labeled components and numbered annotations

3-2 Removing and Installing the HDD Tray

Follow these instructions to remove the HDD Tray:

1. Press the release latches inward while simultaneously pulling the handle for the HDD tray.
2. To install the HDD tray, push the HDD tray back into the JBOD until it clicks.

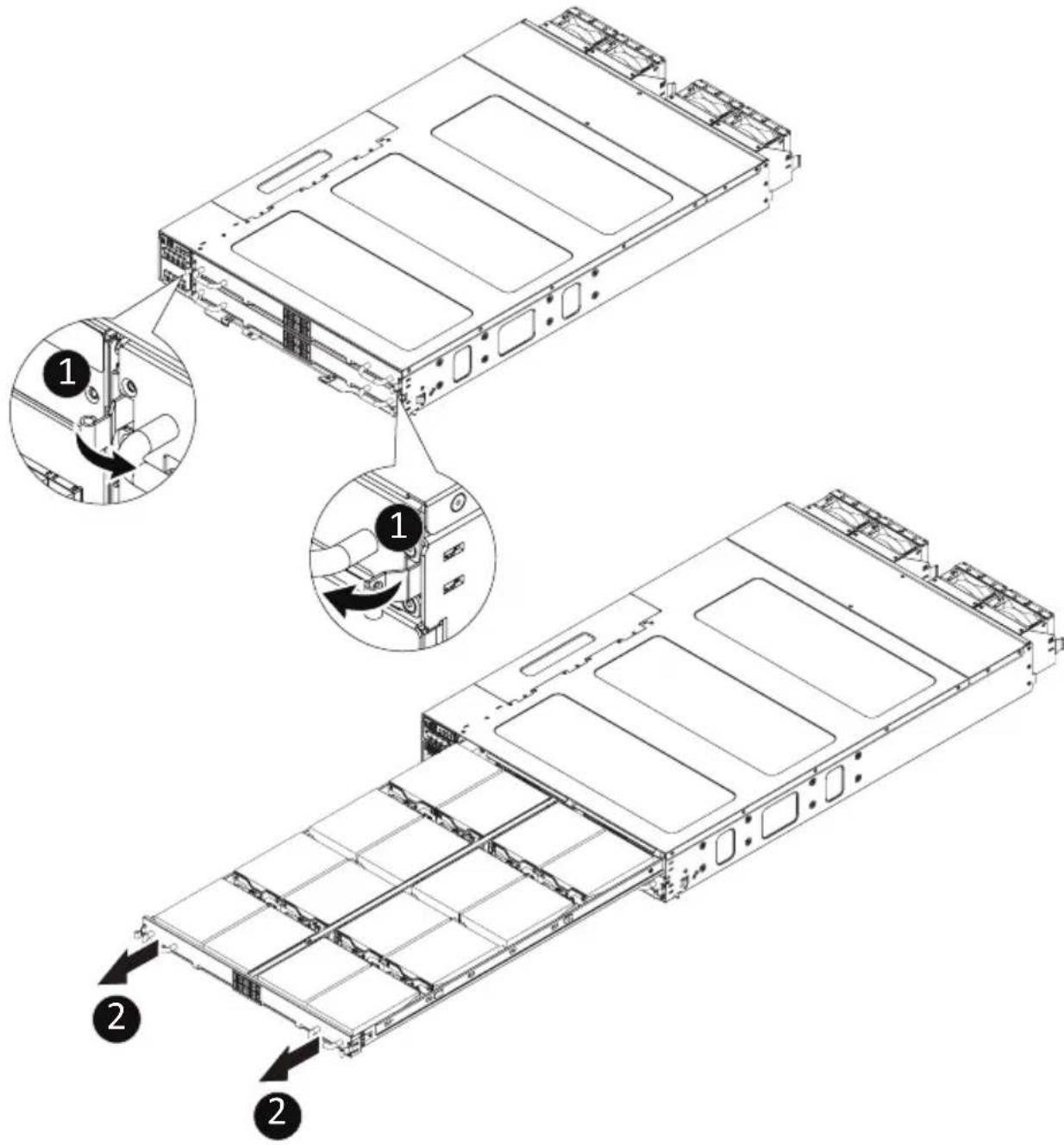

Technical diagram of a server rack with labeled components and assembly steps

3-3 Installing the Hard Disk Drive

Read the following guidelines before you begin to install the Hard disk drive:

• Take note of the drive tray orientation before sliding it out.
- The tray will not fit back into the bay if inserted incorrectly.
- Make sure that the HDD is connected to the HDD connector on the backplane.

Follow these instructions to install a hard disk drive into the front section of the system:

1. Remove the HDD tray from the system.
2. Push the lock and at the same time push inward the HDD tray.

Technical diagram of a battery pack assembly with numbered components and directional arrows indicating assembly steps

1. Insert a new hard disk drive into the HDD tray and make sure the HDD is seated firmly seated in the HDD tray. Push the HDD tray back to lock position and make sure the lock is in the locked position.

Lock ②

3-4 Replacing the Fan Assembly

Follow these instructions to replace the fan assembly:

1. Press the release latches on the bottom-left and top-right sides of the fan assembly inwards while pulling the fan out of its compartment.
2. To install the replacement fan assembly, push the assembly into the compartment.

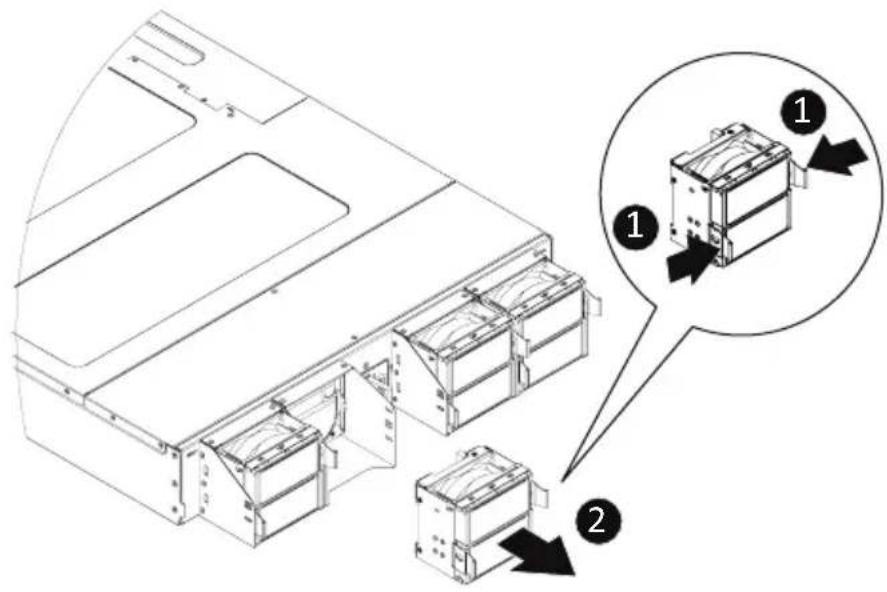

Technical diagram of a server rack with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical device with labeled components and directional arrows indicating assembly or assembly steps.
