USER MANUAL SuperServer 5029AP-TN2 Supermicro

Line drawing of a simple refrigerator with lid and door (no text or symbols)

USER'S MANUAL

Revision 1.0

The information in this User's Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate".

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0

Release Date: March 08, 2017

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2017 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About this Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperServer 5029AP-TN2. Installation and maintenance should be performed by experienced technicians only.

Please refer to the 5029AP-TN2 server specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).

Notes

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
• Product drivers and utilities: ftp://ftp.supermicro.com
• Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm

If you have any questions, please contact our support team at:

[e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Warnings

Special attention should be given to the following symbols used in this manual.

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Contents

Chapter 1 Introduction

1.1 Overview....7
1.2 System Features ....8
1.3 Chassis Features ....9

Front Features....9

Rear Features ....10

DisplayPort....10

HDMI Port....10

1.4 Motherboard Layout....11

Quick Reference Table....12

System Block Diagram....13

Chapter 2 Maintenance and Component Installation

2.1 Removing Power....14
2.2 Hardware Security....14

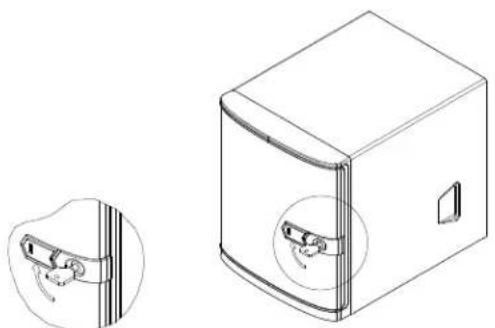

Front Bezel Lock....14

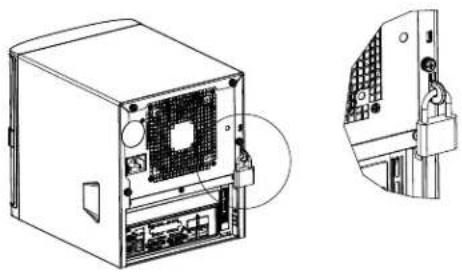

Rear Chassis Hasp....15

Kensington Cable Slot (K-Slot)....15

2.3 Accessing the System....16
2.4 Motherboard Components....17

Processor ....17
Memory Support....17

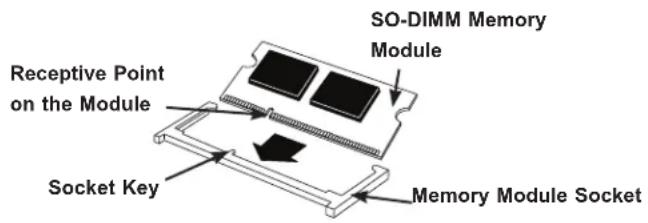

Installing Memory....17
M.2 SSD....18

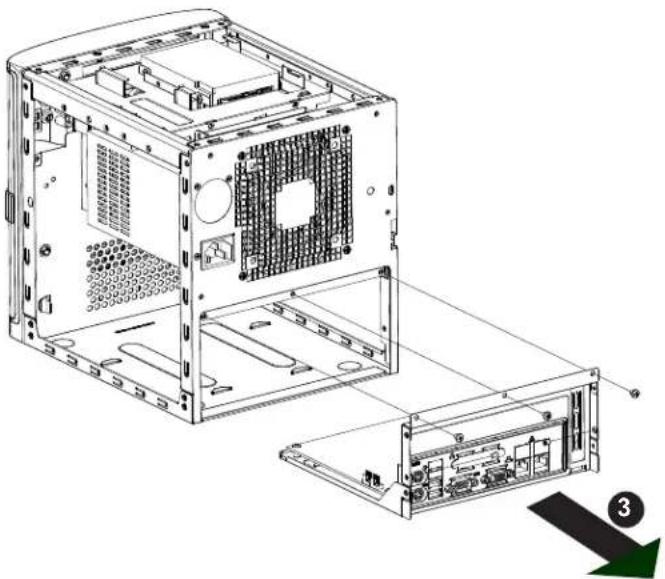

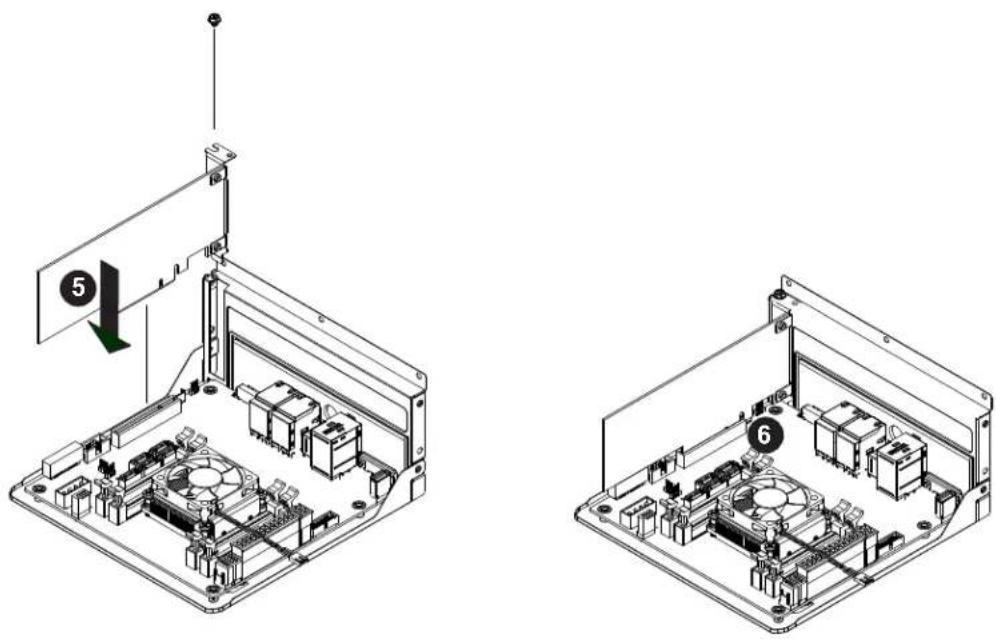

Installing Expansion Cards....19
Motherboard Battery ....21

2.5 Chassis Components ....22

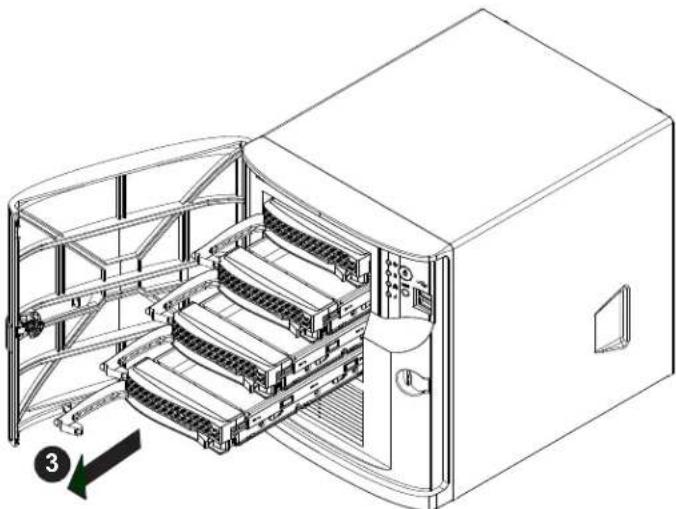

Front-Mounted Hot-Swap Drives 22

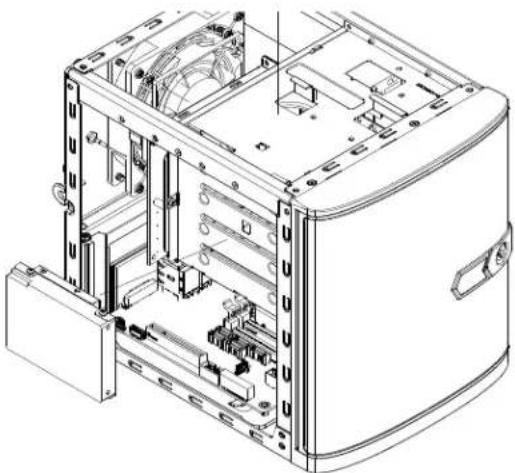

Installing the Internal Fixed Hard Drives ....24

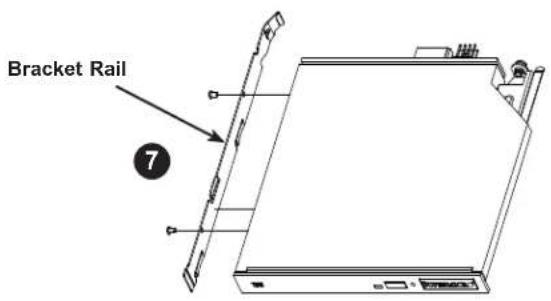

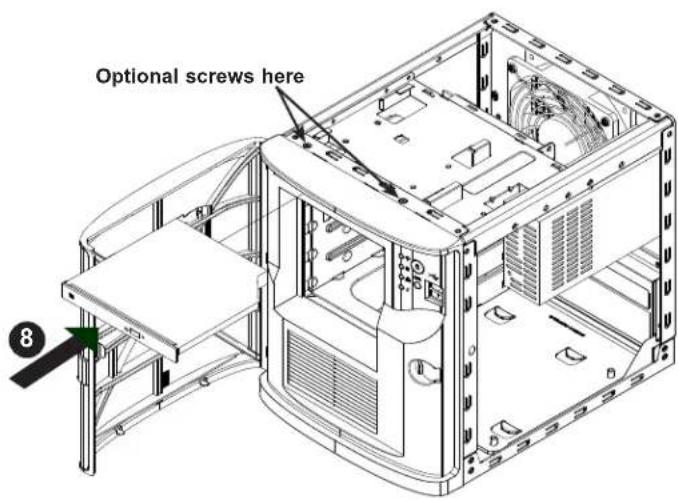

Installing a DVD Drive ....26

Installing a Fan....28

Replacing the Power Supply....29

Chapter 3 Motherboard Connections

3.1 Power Connections ....30
3.2 Headers and Connectors ....32

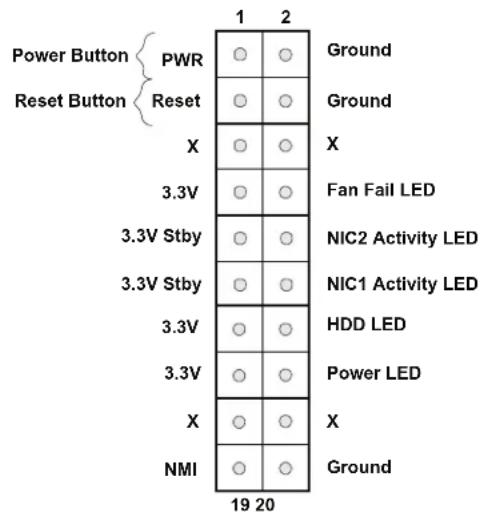

Control Panel Header....36

3.3 Ports ....38
3.4 Jumpers....39

Explanation of Jumpers....39

3.5 LED Indicators....41

Chapter 4 Software

4.1 Driver Installation....42

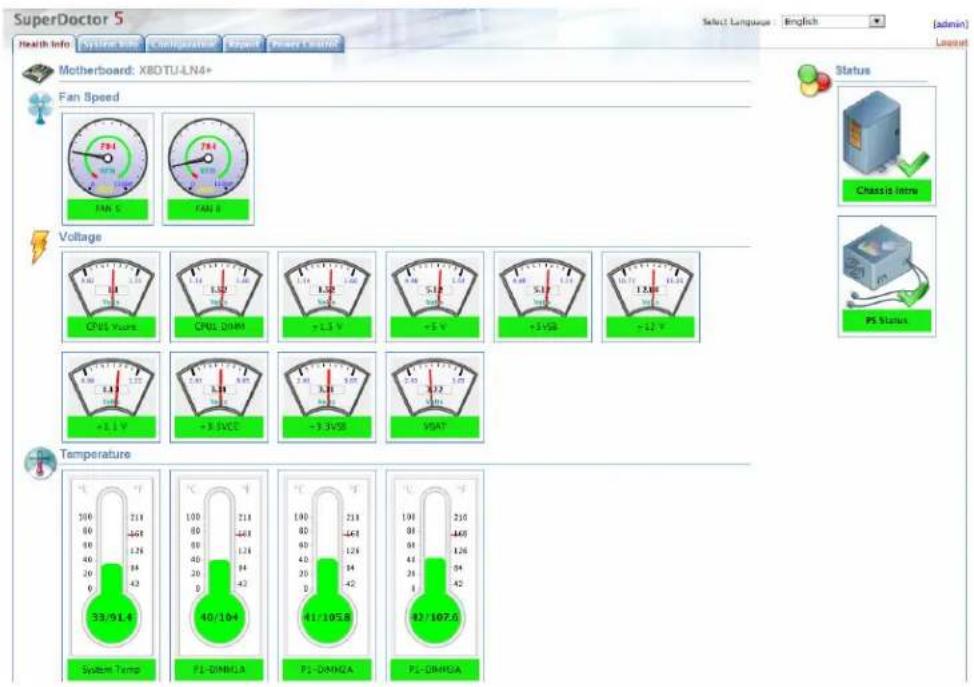

4.2 SuperDoctor ^® 5....43

Chapter 5 BIOS

5.1 Introduction....44
Starting BIOS Setup Utility....44
5.2 Main Setup 44
5.3 Advanced Setup Configurations....46
5.4 Security....65
5.5 Boot....68

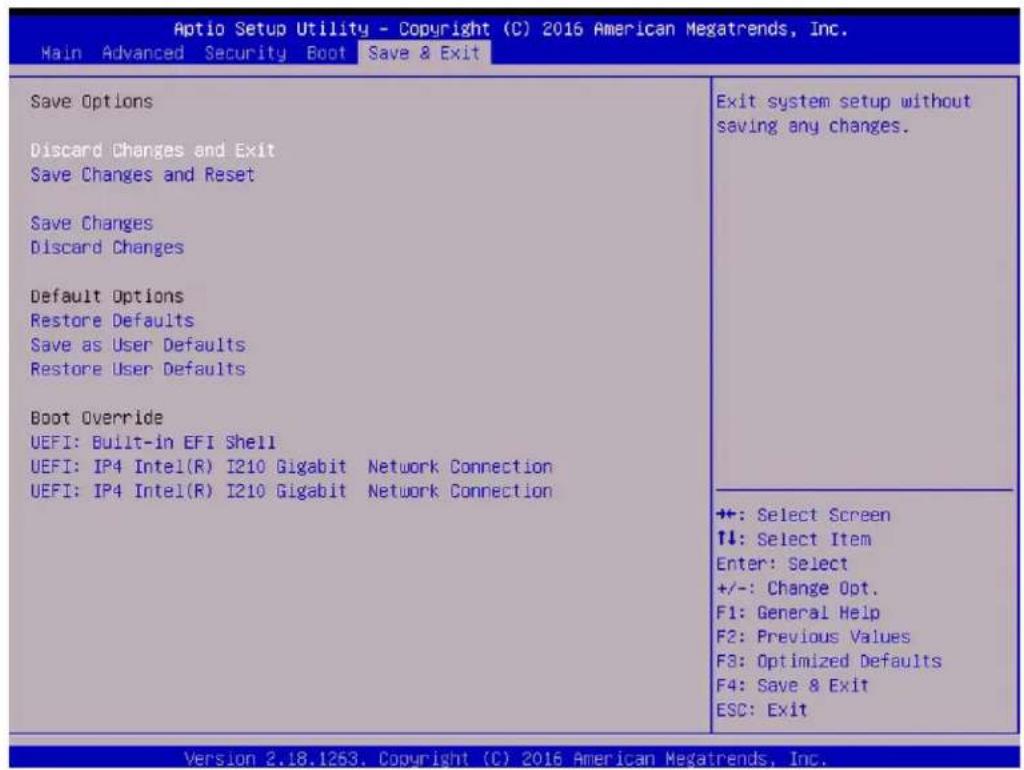

5.6 Save & Exit....70

Appendix A BIOS Codes

Appendix B Standardized Warning Statements for AC Systems

Appendix C System Specifications

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Chapter 1

Introduction

1.1 Overview

The SuperServer 5029AP-TN2 is a compact, embedded system comprised of the SC721TQ-250B chassis and the A2SAV single processor motherboard.

Refer to our website for information on operating systems that have been certified for use with the system (www.supermicro.com).

This chapter provides a brief outline of the functions and features. In addition to the motherboard and chassis, several important parts that are included with the system are listed below.

Main Parts List
Description Part Number Quantity
SAS/SATA backplane (CSE-SAS-733TQ) CSE-SAS-733TQ 1
3.5" hot-swap drive carriers MCP-220-00075-0B 4
12-cm exhaust fan FAN-0124L4 1

1.2 System Features

The following table provides an overview of the main features of the 5029AP-TN2.

System Features

Motherboard

A2SAV

Chassis

Mini Tower, SC721TQ-250B

CPU

Intel Atom E3940 Quad Core SoC (System on a Chip) in the FCBGA 1296 format.

Fan

One 12-cm rear exhaust fan

Memory

Supports up to 8 GB of non-ECC DDR3-1866/1600/1333 SO-DIMM memory at 1866 MHz in one horizontal socket

Expansion Slots

One M.2 PCIe 2.0 x2, M Key 2242/2280One PCIe 2.0 x2 (in x8 slot)One mini PCIe with mSATA

Hard Drives

Four 3.5" hot-swap drive baysTwo internal fixed 2.5" hard drive bays (DVD-ROM as an option in the top 2.5" bay)

Power

One 250W flex ATX power supply

Input/Output Ports

LAN: Dual Gigabit portsUSB: Two USB3.0 ports, two USB2.0 ports, one USB 2.0 Type A port, one front USB 2.0 port via internal headerDisplay: one DisplayPort, one HDMI, one VGA (two independent displays)Serial ATA: Six SATA3 (6Gbps) portsOne rear COM port via RJ45 and one COM headerOne SuperDOM connector

Dimensions

Width 8.27" (210mm), Height 9.45" (240mm), Depth 11" (279mm)

1.3 Chassis Features

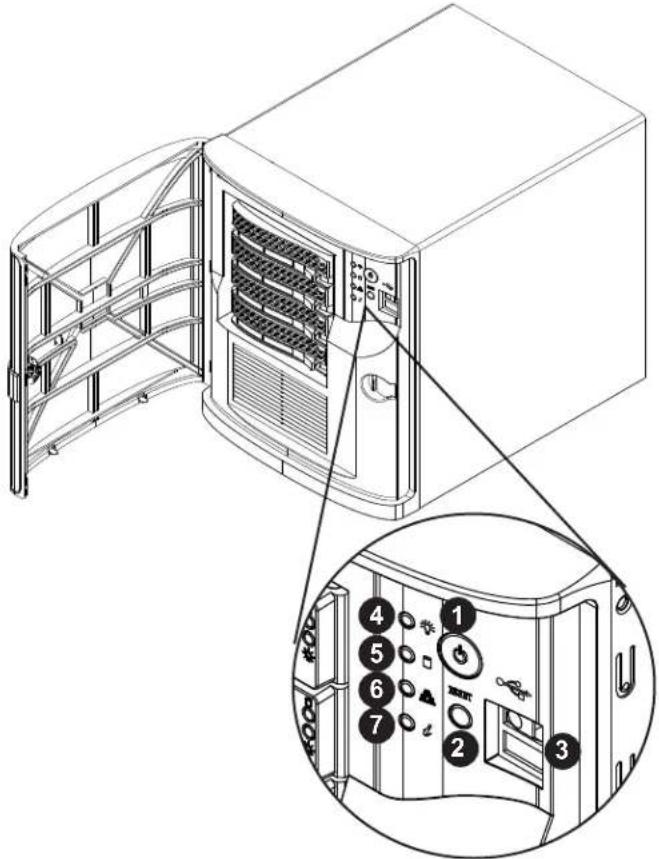

Front Features

The SC721TQ-250B is a compact Mini Tower chassis. The front of the chassis includes a power on/off push-button, a reset button and several LEDs as described below.

Technical diagram of a server rack with labeled components and an inset view showing internal layout and control buttons.

Figure 1-1. Chassis Front View

Front Chassis Features
Item Feature Description
1 Power	Button	The power button applies or removes power to the system. Turning off power removes the main power but keeps standby power supplied to the system.
2 Reset	Button Restarts the system
3 USB	USB 2.0 ports
4 Power		Indicates power is being supplied to the system power supply. This LED is illuminated when the system is operating normally.
5 HDD	Indicates activity on a hard disk drive when flashing.
6 NIC	Indicates network activity when flashing.
7	Information LED	This LED alerts the operator to several states, as noted in the table below.

Information LED
Status Description
Continuously on and red	An overheat condition has occurred.(This may be caused by cable congestion.)
Blinking red (1Hz) Fan failure	, check for an inoperative fan.

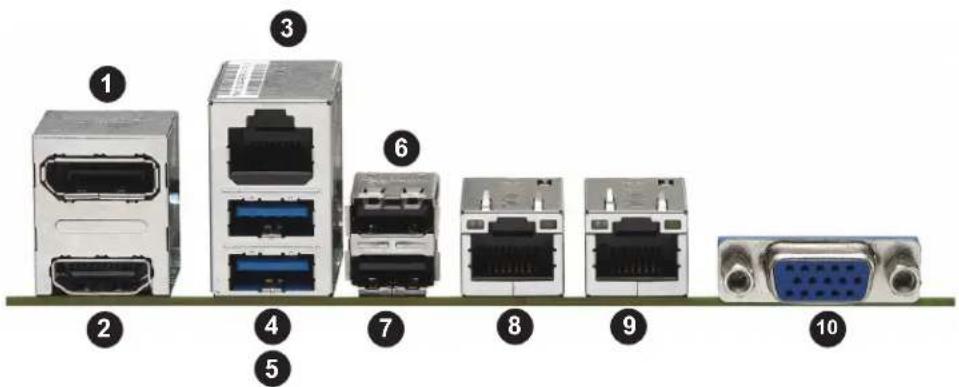

Rear Features

The rear of the chassis has various input/output ports.

Diagram showing 10 labeled network device ports and connectors, including Ethernet, Ethernet, USB, and VGA.

Figure 1-2. Rear I/O Ports

Rear I/O Ports
# Description # Description
1. DisplayPort 6. USB1 Port
2. HDMI Port 7. USB0 Port
3 COM1 (Serial) Port 8 LAN1 Port
4 USB2 Port 9 LAN2 Port
5. USB3 Port 10 VGA Port

DisplayPort

DisplayPort, developed by the VESA consortium, delivers digital display and fast refresh rates. It can connect to virtually any display device using a DisplayPort adapter for devices such as VGA, DVI or HDMI.

HDMI Port

The HDMI (High-Definition Multimedia Interface) port is used to display both high definition video and digital sound through an HDMI-capable display, using the same (HDMI) cable.

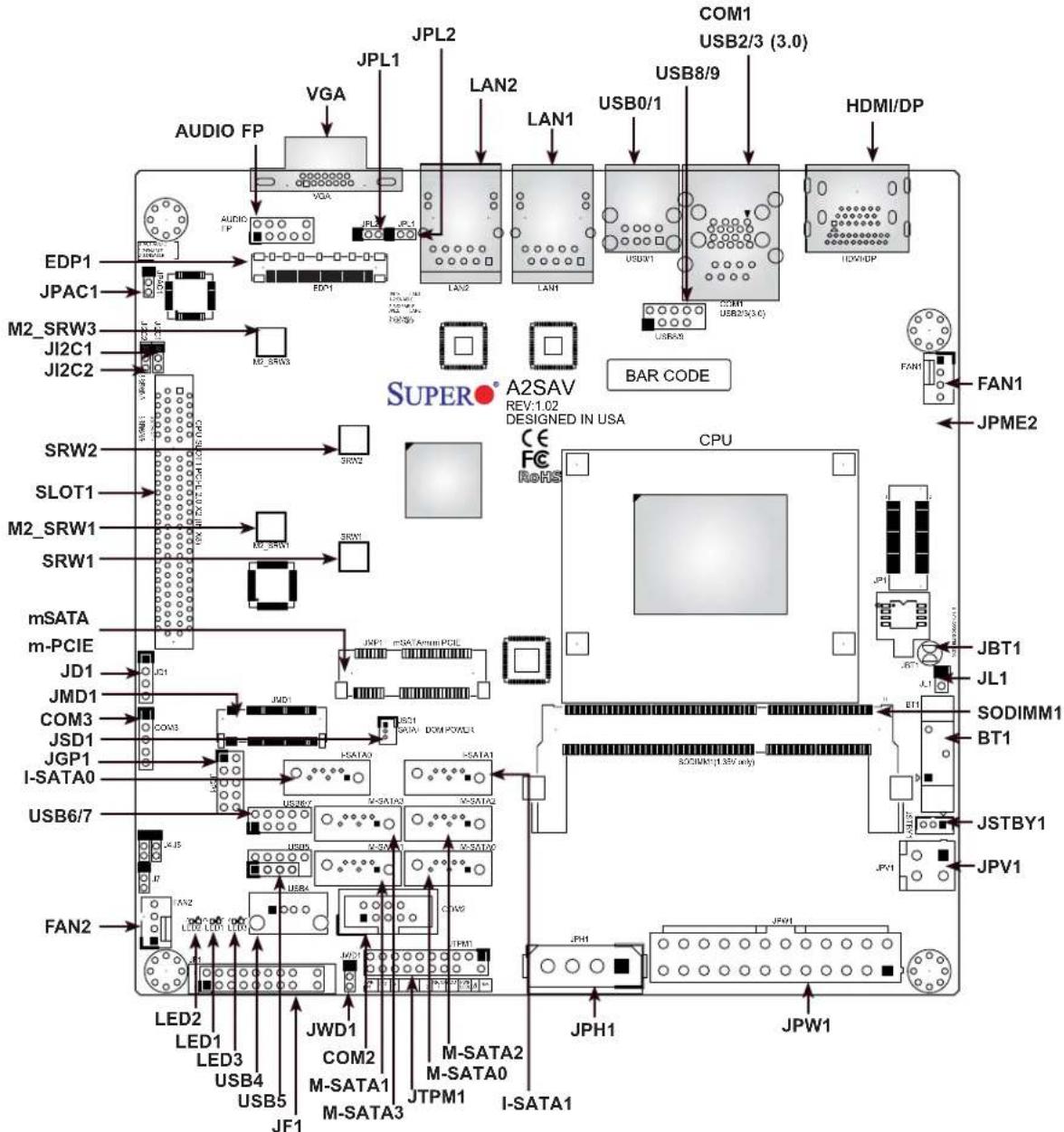

1.4 Motherboard Layout

Jumper, connector and LED locations are shown below with brief descriptions on the following page. Detailed descriptions are found in Chapter 4.

Figure 1-3. Motherboard Layout

• Jumpers and LED indicators not identified are used for testing only.
• " " indicates the location of pin 1.

Quick Reference Table
Jumper Description Default Setting

JBT1 CMOS Clear Open: Normal, Short: Clear CMOS
JI2C1/JI2C2 SMB to PCI-E Slots Enable/Disable Pins 1-2 (Enabled)
JPAC1 Audio Enable/Disable Pins 1-2 (Enabled)
JPL1 LAN1 Enable/Disable Pins 1-2 (Enabled)
JPL2 LAN2 Enable/Disable Pins 1-2 (Enabled)
JPME2 Manufacturer Mode Pins 1-2 (Normal)
JWD1 Watch Dog	Pins 1-2 (Reset)

LED Description	Status
LED1	Power LED S3 Blink Function	Blinking Green: S3 function
LED2	System Power LED	Solid Blue: Power On
LED3	P5V_STBY Power LED	5V Standby Power Ready
Connector	Description
AUDIO FP	Front Panel Audio Header
BT1	Onboard Battery
COM1 ~ COM3	COM Ports supported by Novuton 5523D (COM1: RJ45, COM1/2: RS-232, COM3: RS-485)
EDP1	Embedded DisplayPort (switch with VGA)
FAN1/FAN2	System/CPU Fan Headers (FAN1: CPU Fan)
HDMI/DP	High Definition Multimedia Interface/DisplayPort
I-SATA0/I-SATA1	Intel SATA 3.0 Ports
JD1	Speaker Header
JF1	Front Panel Control Header
JGP1	General Purpose I/O Header
JL1	Chassis Intrusion Header
JMD1	M.2 PCI-E 2.0 x2 Slot / I-SATA Slot
JMP1	Mini PCI-E with mSATA
JPH1	4-pin Power Connector for HDD devices (provides power from the motherboard to system HDD devices.)
JPW1	24-pin ATX Power Connector
JPV1	12V 4-pin Power Connector
JSD1	SATA DOM Power Connector
JSTBY1	Standby Power Header
JTPM1	Trusted Platform Module/Port 80 Connector
LAN1/LAN2	LAN (RJ45) Ports
M2_SRW2/M2_SRW3	M.2 Mounting Screws
mSATA/m-PCIE	mSATA/miniPCIE Slot
M-SATA0 ~ M-SATA3	SATA Ports supported by Marvel 88SE9230
SLOT1	CPU PCI-E 2.0 x2 (In x8) Slot
SRW1/SRW2	m-PCIE Mounting Screws

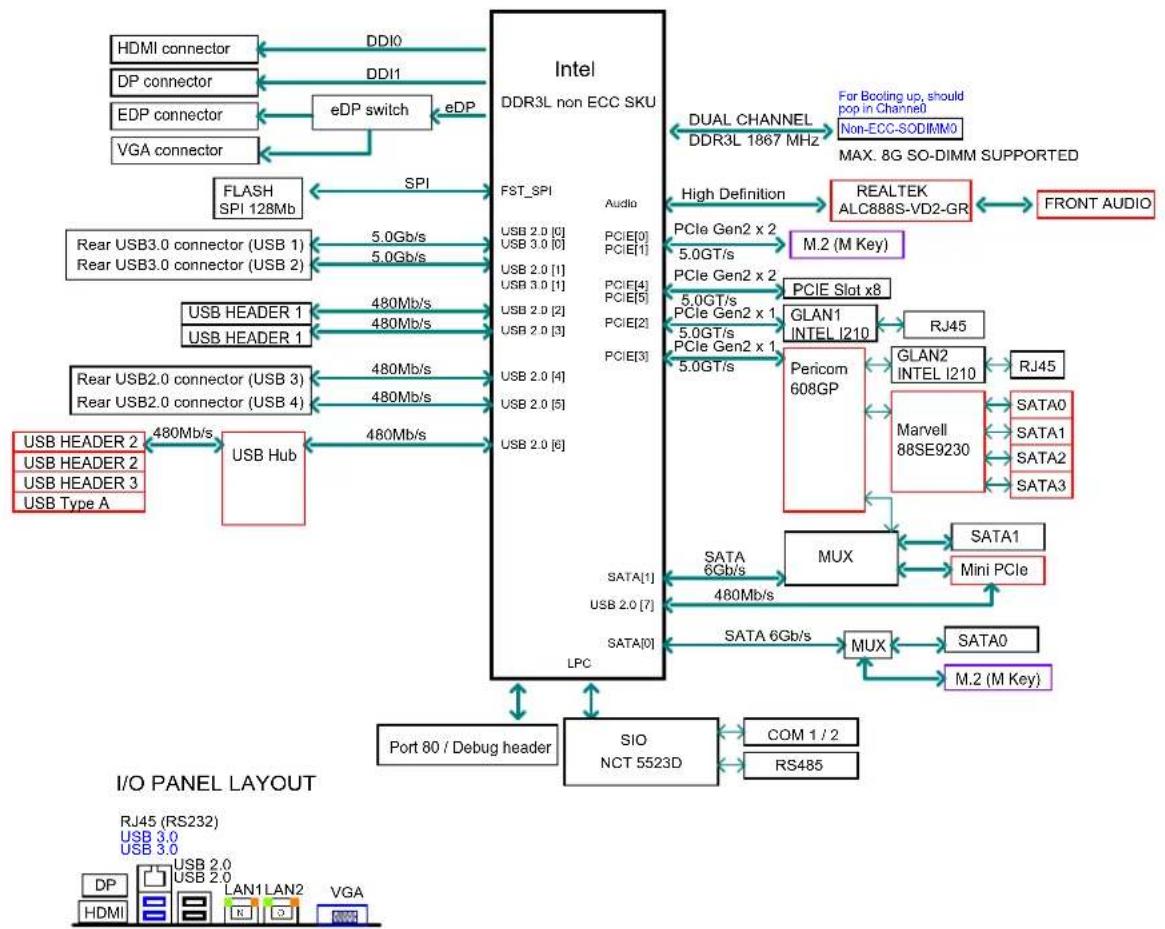

System Block Diagram
        SIO_NCT["SIO NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NCT NMTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNNTNMTNNTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNMTNHTMNTNHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMAFTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMHTMINTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFTMAFSTSPI<br>        CPU [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE [PCIE :X"] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] :X] / RS485

Figure 1-3. System Block Diagram

Note: This is a general block diagram and may not exactly represent the features on your motherboard.

Chapter 2

Maintenance and Component Installation

This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given.

Installation or replacement of most components requires that power first be removed from the system. Please follow the procedures given in each section.

2.1 Removing Power

Use the following procedure to ensure that power has been removed from the system. This step is necessary when removing or installing non hot-swap components or when replacing a non-redundant power supply.

1. Use the operating system to power down the system.
2. After the system has completely shut-down, disconnect the AC power cord from the power source.
3. Disconnect the power cord from the chassis.

2.2 Hardware Security

The chassis features multiple locking devices to help deter hardware theft and protect user data. While no lock is infallible, it is recommended that users keep their systems locked when not in use.

Front Bezel Lock

The locking front bezel protects against unauthorized removal of the hard drives. Use the key to lock or unlock the bezel. Always remove the key from the lock and store it in a secure place.

Line drawing of a refrigerator with a close-up inset showing the door and seat (no text or symbols)

Figure 2-1. Front Bezel Lock

Rear Chassis Hasp

Unauthorized entry through the rear of the chassis may be discouraged by placing a lock on the rear of the chassis. The chassis is equipped with a rear chassis hasp that can accommodate a variety of commonly available locks (not included).

Technical line drawing of a server rack with internal components and a close-up view showing internal wiring (no text or symbols)

Figure 2-2. Rear Chassis Hasp

Kensington Cable Slot (K-Slot)

The chassis features a Kensington cable slot or K-slot. This slot accepts a standard Kensington cable locking device (not included), Attach the loop end of the cable to a secure object, then insert the device into the K-slot as illustrated below.

Technical line drawings of two computer rack units with ventilation fans and drive bays (no text or symbols)

Figure 2-3. Inserting a Kensington Cable Device (not included)

2.3 Accessing the System

The SC721TQ-250B features a removable top cover to access to the inside of the chassis.

Technical diagram of a computer tower case with labeled components and directional arrow indicating movement or assembly.

Figure 2-4. Removing the Chassis Cover

Removing the Top Cover

1. Power down the system as described in section 2.1.
2. Lift the release lever located on the right side rear of the chassis.
3. Slide the cover toward the rear of the chassis the lift it off.

Caution: Except for short periods of time, do not operate the server without the cover in place. The chassis cover helps maintain proper airflow and prevent system overheating.

2.4 Motherboard Components

Processor

The 5029AP-TN2 features an embedded Intel Atom E3940 Quad Core SoC processor.

Memory Support

The motherboard supports up to 8 GB of DDR3L Dual Non-ECC SO-DIMM of speeds up to 1866 MHz in one low-profile slot. Check the Supermicro website for a list of memory modules that have been validated.

Installing Memory

Caution: Exercise extreme care when installing or removing DIMM modules to prevent damage.

Installing a SO-DIMM Module into a Horizontal Socket

1. Align the receptive point on the bottom of the SO-DIMM module with the key on the memory socket. Note the notches on the side of the SO-DIMM module and those on the socket to avoid causing damage.

SO-DIMM Memory Module Receptive Point on the Module Socket Key Memory Module Socket

1. Line up the bottom of the SO-DIMM memory module with the edge of the horizontal socket.

Diagram of a mechanical component with two rectangular blocks and downward arrows indicating force or movement (no text or symbols)

1. Once they are lined up, push the memory module into the memory socket until the module is securely seated.

Diagram showing a device with two black components and an arrow indicating direction (no text or symbols)

M.2 SSD

The A2SAV supports one M.2 SSD of 120mm in length. Visit the Supermicro website for a current list of supported M.2 SSDs.

Note: installing an M.2 SSD card will disable I-SATA0.

Installing an M.2 SSD

1. Power down the system and remove the power as described in Section 2.1.
2. Access the motherboard by removing the chassis cover as described in Section 2.3.
3. Locate the M.2 slot (JMD1) and the screw mount (M2_SRW3) that secures it, as shown in Figure 2-5 below.
4. Insert the M.2 SSD into the slot at a slight upward angle. Note the two keys on the M.2 card and the slot to ensure that the SSD is installed with the correct side up.
5. Secure the M.2 card by placing a screw in the screw mount.
6. Replace the chassis cover.
7. Plug the power cord into the rear of the power supply and power up the system.

M2_SRW3 SUPER A2SAV REV.1/02 DESIGNED IN USA BAR CODE CPU JMD1 JMD1 COM3 JCI M2_SRW3 CPU 1/01 PC/E 2.0 X2IN X6 M2_SRW1 JCI JMD1

Figure 2-5. Installing an M.2 SSD Card

Installing Expansion Cards

The 5029AP-TN2 includes a PCI slot for a low-profile expansion card. The card is installed by removing the chassis tray that holds the motherboard and rear I/O shield.

Installing an Expansion Card

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Remove the three screws securing the rear tray to the rear of the chassis and set them aside for later use.
3. Pull the rear tray out from the chassis.

Technical line drawing of a computer tower case with internal components and an external panel assembly (no text or symbols)

Figure 2-6. Removing the Rear Tray from the Chassis

1. Remove the screw that secures the PCI slot shield in the PCI slot at the rear of the tray and set it aside for later use.
2. Slide the PCI slot shield up and out of the PCI slot.
3. Insert the card into its slot on the motherboard while aligning its bracket into the slot on the chassis drawer.
4. Secure the bracket of the expansion card with the screw previously set aside.
5. Slide the rear tray into the chassis and secure it with the screws.
6. Replace the chassis cover and power up the system.

Technical diagram showing two views of an electronic device with labeled components and a numbered callout (5 and 6)

Figure 2-7. Installing the Expansion Card

Motherboard Battery

The motherboard uses non-volatile memory to retain system information when system power is removed. This memory is powered by a lithium battery residing on the motherboard.

LITHIUM BATTERY BATTERY HOLDER

Figure 2-8. Installing the Onboard Battery

Replacing the Battery

1. Remove power from the system as described in section 2.1.
2. Push aside the small clamp that covers the edge of the battery. When the battery is released, lift it out of the holder.
3. To insert a new battery, slide one edge under the lip of the holder with the positive (+) side facing up. Then push the other side down until the clamp snaps over it.

Note: Handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations of your local hazardous waste management agency to dispose of your used battery properly.

Warning: There is a danger of explosion if the onboard battery is installed upside down (which reverses its polarities). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer (CR2032).

2.5 Chassis Components

Front-Mounted Hot-Swap Drives

The SC721TQ-250B supports four hot-swappable drives mounted in carriers that are accessible from the front of the chassis. These drives may be removed and installed without powering down the system.

Removing 3.5" Hot-Swap Hard Drives

1. Unlock the front bezel and swing it open.
2. Press the release tab on the hard drive carrier; this will extend the hard drive carrier handle.
3. Use the handle to pull the hard drive out of the chassis.

Technical line drawing of an open server rack cabinet with internal channels and ventilation slots (no text or labels)

Figure 2-9. Installing the Hard Drive

Installing a Hard Drive into a Drive Carrier

1. After removing a drive carrier, remove the six screws securing the dummy drive tray to the drive carrier. Lift the tray out.
2. Install the new hard drive into the carrier with the printed circuit board side facing down and with the mounting holes in the drive aligned with those in the carrier.
3. Secure the drive to the carrier by tightening all six screws. The logic and power connections to the drive will be supplied through the backplane.

Hard Drive Dummy Drive Hard Drive Carrier

Figure 2-10. Installing a Hard Drive into a Drive Carrier

Installing a Drive Carrier into the Hard Drive Cage

1. Insert the hard drive carrier into the drive bay, using the drive carrier handle to push it all the way into the hard drive cage until it stops.
2. Close the handle until the drive carrier clicks into the locked position.
3. Close and lock the front bezel.

Technical line drawing of a server rack unit with internal storage racks and ventilation ducts (no text or symbols)

Figure 2-11. Installing a Drive Carrier into the Hard Drive Cage

Installing the Internal Fixed Hard Drives

The SC721TQ-250B chassis supports two internal 2.5" SATA fixed hard drives: one top-mounted drive and one side-mounted drive.

Installing a Top-Mounted Fixed Hard Drive

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Place a 2.5" hard drive into the hard drive bracket and secure the drive to the bracket with the four screws provided.
3. Place the hard drive and bracket into the top mounting position of the chassis as illustrated below and secure it to the chassis with two screws.
4. Replace the chassis cover, plug the power cord into the rear of the power supply and power up the system.

Technical line drawings of a computer tower case with internal components and mounting brackets (no text or symbols)

Figure 2-12. Installing a Top-Mounted Fixed Hard Drive

Installing a Side-Mounted Fixed Hard Drive

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Place a 2.5" hard drive into the hard drive bracket and secure the hard drive to the bracket with the four screws provided.
3. Place the hard drive and bracket into the side mounting position of the chassis by inserting the pin on the bracket into the mounting hole on the chassis as illustrated below.
4. Replace the chassis cover, plug the power cord into the rear of the power supply and power up the system.

Technical line drawing of a computer tower case with internal components and mounting hardware (no text or labels)

Figure 2-13. Installing a Side-Mounted Fixed Hard Drive

Installing a DVD Drive

The SC721TQ-250B supports one DVD drive. It can be installed only if the top mounted fixed HDD is not used. It requires a mounting bracket rail (p/n MCP-220-81502-0N).

Installing a DVD Drive

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Unlock the front bezel and swing it open.
3. Remove the bracket for the top mounted fixed hard drive by removing the two screws.
4. Remove the two screws securing the EMI grid to the front of the chassis.
5. Remove the EMI grid from inside the chassis, just behind the chassis front. If you will later remove the DVD drive, save the EMI grid.
6. Remove the plastic DVD bay cover from the chassis front by carefully breaking it out.

Technical diagram of a server rack with numbered components and directional arrows indicating assembly or movement.

Figure 2-14. Configuring the Chassis for a DVD Drive

1. Install the bracket rail (part number MCP-220-81502-0N) onto the left hand side of the DVD drive, using the two screws provided.

Bracket Rail 7

Figure 2-15. Securing the Bracket Rail to a DVD Drive

1. Slide the DVD drive into the chassis until it snaps into place. (Some DVD drives allow you to secure the drive with two screws.)
2. Connect the SATA cable and the power cable to the DVD drive.
3. Close the front bezel, replace the chassis cover and power up the system.

Optional screws here 8

Figure 2-16. Installing a DVD Drive

Installing a Fan

The chassis includes a single 12-cm rear exhaust fan. The chassis also features a set of mounting holes that will support a standard 9-cm exhaust fan (not included).

Installing the Exhasut Fan

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Place the fan on top of the fan grill, aligning the mounting holes of the fan grill with the mounting holes of the system fan.
3. Secure the fan to the chassis with four screws.
4. Connect the fan cable to the motherboard.
5. Replace the chassis cover, plug the power cord into the rear of the power supply and power up the system.

Technical line drawing of a computer tower case with visible internal components and fan assembly (no text or labels)

Figure 2-17. Installing the Exhaust Fan

Replacing the Power Supply

The SC721TQ-250B includes a fixed (non-hot-swap) 250W power supply. If it is necessary to replace the power supply, follow the instructions below.

Changing the Power Supply

1. Power down the system as described in Section 2.1 and remove the chassis cover.
2. Remove all power cables from the motherboard, hard drives, and backplane.
3. Remove the screws securing the power supply to the chassis, which are located on the rear of the chassis. Set these screws aside for later use.
4. Remove the power supply from the chassis.
5. Replace the failed power supply with the same model power supply (p/n: PWS-251-1H).
6. Secure the new power supply using the screws previously set aside.
7. Reattach the power cables to the motherboard, hard drives, and backplane.
8. Replace the chassis cover, plug the power cord into the rear of the power supply and power up the system.

Power Supply

Figure 2-18. Removing the Power Supply

Chapter 3

Motherboard Connections

This section describes the connections on the A2SAV motherboard and provides pinout definitions. Note that depending on how the system is configured, not all connections are required. The LEDs on the motherboard are also described here. A motherboard layout indicating component locations may be found in Chapter 1.

Please review the Safety Precautions in Appendix A before installing or removing components.

3.1 Power Connections

Main ATX Power Supply Connector

The primary power supply connector (JPW1) meets the ATX SSI EPS 24-pin specification.

ATX Power 24-pin ConnectorPin Definitions
Pin# Definition Pin# Definition
13 +3.3V 1 +3.3V
14 NC 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 Res (NC) 8 PWR_OK
21 +5V 9 5VSB
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

4-pin 12V Power Connector

JPV1 is the 12V DC power connector that provides an alternative single power source for special enclosure when the 24-pin ATX power is not in use.

Required Connection

Note 1: The 12V DC input is limited to 12A by design. It provides up to 144W power input to the motherboard. Please keep onboard power use within the power limits specified above. Over-current DC power use may cause damage to the motherboard.

Note 2: Do not use the 4-pin DC power at JPW2 when the 24-pin ATX Power at JPW1 is connected to the power supply. Do not plug in both JPW1 and JPW2 at the same time..

4-pin Connector for HDD

This 4-pin power connector at JPH1 provides power from the motherboard to internal SATA hard drive or SSD device.

Pin Definitions
Pin# Definition
1 12V
2 GND
3 GND
4 5V

3.2 Headers and Connectors

Fan Headers

There are two 4-pin fan headers on the motherboard. Although pins 1-3 of the fan headers are backward compatible with traditional 3-pin fans, we recommend you use 4-pin fans to take advantage of the fan speed control via Pulse Width Modulation through the BMC. This allows the fan speeds to be automatically adjusted based on the motherboard temperature.

Fan HeaderPin Definitions

Pin# Definition

1 Ground (Black)

2 +12V (Red)

3 Tachometer

4 PWM Control

External Speaker

The JD1 header is for the external speaker. If you wish to use an external speaker, connect its cable to pins 1-4.

External Speaker ConnectorPin Definitions

Pin Setting Definition

Pins 1-4 Speaker

Disk-On-Module Power Connector

The Disk-On-Module (DOM) power connector at JSD1 provides 5V power to a solid-state DOM storage device connected to one of the SATA ports.

DOM Power Pin Definitions
Pin# Definition
1 5V
2 Ground
3 Ground

Standby Power

The Standby Power header is located at JSTBY1 on the motherboard.

Standby Power Pin Definitions
Pin# Definition
1 +5V	Standby
2 Ground
3 No Connection

TPM Header

The JTPM1 header is used to connect a Trusted Platform Module (TPM), which is available from a third-party vendor. A TPM is a security device that supports encryption and authentication in hard drives. It enables the motherboard to deny access if the TPM associated with the hard drive is not installed in the system. See the table below for pin definitions.

Trusted Platform Module HeaderPin Definitions
Pin# Definition Pin# Definition
1 LCLK 2 GND
3 LFRAME# 4 No Pin
5 LRESET# 6 +5V (X)
7 LAD3 8 LAD2
9 3.3V 10 LAD1
11 LAD0 12 GND
13 SMB_CLK4 (X) 14 SMB_DAT4 (X)
15 P3V3_STBY 16 SERIRQ
17 GND 18 GND
19 P3V3_STBY 20 LDRQ# (X)

GPIO Headers

The JGP1 (General Purpose Input/Output) header is located near the SATA connectors on the motherboard. The JGP1 header is a general-purpose I/O expander on a pin header from Intel SoC.

GPIO Memory Address Table Pin Definitions
Pin#	SoC GPIO #	Memory Address
1 Power
2	Ground
3	GP0	0xD0C70578
4	GP4	0xD0C70558
5	GP1	0xD0C70570
6	GP5	0xD0C70550
7	GP2	0xD0C70568
8	GP6	0xD0C70548
9	GP3	0xD0C70560
10	GP7	0xD0C70540

Note: The "I2C#_SCL/SDA" are pin names of Intel N3700 SoC GPIO.

Audio Front Panel Header

A 10-pin audio header located on the motherboard allows you to use the onboard sound chip (ALC888S) for audio function. Connect an audio cable to the this header to use this feature.

Audio HeaderPin Definitions
Pin# Definition Pin# Definition
1 Microphone_Left 2 Audio_Ground
3 Microphone_Right 4 Audio_Detect
5 Line_2_Right 6 Ground
7 Jack_Detect 8 Key
9 Line_2_Left 10 Ground

Chassis Intrusion

A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate cable from the chassis to the header to inform you when the chassis is opened.

Chassis Intrusion Pin Definitions

Pins Definition

1 Intrusion Input

2 Ground

SATA Ports

The motherboard has two SATA 3.0 ports (I-SATA0/1) that are supported by the Intel SoC processor.

M.2 Slot

M.2 is formerly known as Next Generation Form Factor (NGFF). The M.2 slot at JMD1 is designed for internal mounting devices. The A2SAV motherboard deploys the 2242/2280 M-key dedicated for SSD devices with the ultimate performance capability in a PCI Express 2.0 x2 interface for native PCI-E SSD support.

Mini PCI-E Slot

The Mini PCI-E slot is used to install a compatible Mini PCI-E device. The slot supports mSATA and is Mux with I-SATA1.

The mSATA feature leverages the speed and reliability of the SATA interface to provide a high performance, cost-effective storage solution for smaller devices like notebooks and netbooks.

The specification maps SATA signals onto a small form factor connector, enabling more compact integration in a wide variety of applications for hard disk or solid state drives.

Mini PCI-EPin Definitions
Pin#	Definition Pin#	Definition
52 +3.3Vaux 51 MSATA_DET#
50 GND 49 NC
48 +1.5V 47 NC
46 NC 45 NC
44 NC 43 mSATA/PC E Switch
42 NC 41 +3.3Vaux
40 GND 39 +3.3Vaux
38 USB_D+ 37 GND
36 USB_D- 35 GND
34 GND 33 PETp0
32 SMB_DATA 31 PETn0
30 SMB_CLK 29 GND
28 +1.5V 27 GND
26 GND 25 PERp0
24 +3.3Vaux 23 PERn0
22 PERST# 21 DET_CARD_PLUG
20 W_DISABLE# 19 NC
18 GND 17 NC
16 NC 15 GND
14 NC 13 REFCLK+
12 NC 11 REFCLK-
10 NC 9 GND
8	NC 7 CLKREQ#
6	1.5V	5	NC
4	GND 3 NC
2	3.3Vaux	1	WAKE#

Control Panel Header

JF1 contains header pins for various control panel connections. See the figure below for the pin locations and definitions of the control panel buttons and LED indicators.

All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the motherboard. The other end connects to the control panel PCB board

Power Button PWR Reset Button Reset X 3.3V 3.3V Stby 3.3V Stby 3.3V 3.3V X NMI 1 2 Ground Ground X Fan Fail LED NIC2 Activity LED NIC1 Activity LED HDD LED Power LED X Ground 19 20

Figure 3-1. JF1: Control Panel Pins

Power Button

The Power Button connection is located on pins1 and 2 of JF1. Pressing this button will power on/off the system. The button can also be configured to function as a suspend button with a BIOS setting. To turn off the power in suspend mode, press the button for at least 4 seconds.

Power ButtonPin Definitions (JF1)
Pins Definition
1 Signal
2 Ground

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system.

Reset ButtonPin Definitions (JF1)

Pins Definition

3 Reset

4 Ground

Fan Fail

Connect an LED cable to Fan Fail connections on pins 7 and 8 of JF1 to provide warnings for chassis overheat/fan failure.

Fan Fail Indicator Status
Pin# Definition
Off Normal
Flashing Fan Fail

Fan Fail LEDPin Definitions (JF1)
Pins Definition
7 Vcc/	Blue UID LED
8 Fan	Fail LED

The NIC (Network Interface Controller) LED connection for LAN port 1 is located on pins 11 and 12 of JF1, and the LED connection for LAN port 2 is on pins 9 and 10. These LEDs display network activity on their corresponding LAN port.

LAN1/LAN2 LEDPin Definitions (JF1)

Pins Definition

9/11 3.3V Standby

10/12 LAN LED Active

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. Attach a cable here to indicate the status of all HDD activity.

HDD LEDPin Definitions (JF1)
Pins Definition
13 +3.3V
14 HD	Active

Power LED

The Power LED connection is located on pins 15 and 16 of JF1.

Power LEDPin Definitions (JF1)

Pins Definition

15 +3.3V

16 Power LED Active

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20.

NMI ButtonPin Definitions (JF1)

Pins Definition

19 Control

20 Ground

3.3 Ports

Diagram showing 10 labeled network device ports and connectors, including Ethernet, Ethernet, USB port, and VGA.

Figure 3-2. Rear input/Output Ports

Rear I/O Ports
#	Description # Description
1.	DisplayPort 6. USB1 Port	(USB	2.0)
2.	HDMI Port 7. USB0 Port	(USB	2.0)
3	COM1 Port 8 LAN1 Port
4	USB2 Port (USB 3.0) 9 LAN2 Port		Port
5.	USB3 Port (USB 3.0) 10 VGA		Port

DP and HDMI Ports

One HDMI and one DisplayPort are used to display both high definition video and digital sound through an HDMI or DP-capable display, using a single HDMI or DP cable (not included). The A2SAV supports HDMI Specification version 1.4b and DP 1.1a via N3700 processor graphics controller.

LAN Ports

Two LAN ports (LAN1, LAN2) are located on the I/O back panel. They accept RJ45 type cables.

Universal Serial Bus (USB) Ports

There are two USB 2.0 ports (USB0/1) and two USB 3.0 ports (USB2/3) located on the I/O back panel. The motherboard also has a header for two USB 2.0 ports (USB8/9). The onboard headers can be used to provide front side USB access with a cable (not included).

Serial Ports

There is one COM port (COM1) on the I/O back panel using an RJ45 connector and two COM headers (COM2, COM3) on the motherboard. COM2 supports RS-232 and COM3 supports RS-485 only.

VGA Port

The VGA controller is from AST2400 mainly for BMC KVM (Keyboard/Video/Mouse) remote control purposes.

3.4 Jumpers

Explanation of Jumpers

To modify the operation of the motherboard, jumpers are used to choose between optional settings. Jumpers create shorts between two pins to change the function associated with it. Pin 1 is identified with a square solder pad on the printed circuit board. See the motherboard layout page for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" indicates the jumper is either on only one pin or has been completely removed.

Connector Pins Jumper Setting 3 2 1 ● ● ■ 3 2 1

CMOS Clear

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To Clear CMOS

JBT1 contact pads

1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four seconds.
5. Replace the cover, reconnect the power cord(s) and power on the system.

Notes: Clearing CMOS will also clear all passwords.

Do not use the PW_ON connector to clear CMOS.

LAN Port Enable/Disable

JPL1 and JPL2 are used to enable or disable LAN ports 1 and 2, respectively.

LAN1/2 Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

Manufacturing Mode Select

Close JPME2 to bypass SPI flash security and force the system to use the Manufacture Mode, which will allow you to flash the system firmware from a host server to modify system settings. The default setting is Normal.

Manufacturing ModeJumper Settings
Jumper Setting Definition
Pins 1-2 Normal	(Default)
Pins 2-3 Manufacturing Mode

Front panel Audio Enable

JPAC1 allows you to enable or disable onboard audio support. The default setting is Enabled.

Audio Enable/DisableJumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

SMBus to PCI Slots

Jumpers JI ^2 C1 and JI ^2 C2 allow you to connect the System Management Bus (I ^2 C) to the PCI-E/PCI slots. (JI ^2 C1 controls the clock and JI ^2 C2 controls the data). Both jumpers must be set to the same setting. The default setting is Enabled.

SMB to PCI-E Slots (JI2C1/JI2C2)Jumper Settings

Jumper Setting Definition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

Watch Dog

JWD1 controls the Watch Dog function. Watch Dog is a monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause Watch Dog to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. Watch Dog must also be enabled in BIOS. The default setting is Reset.

Note: When Watch Dog is enabled, the user must write their own application software to disable it.

Watch DogJumper Settings
Jumper Setting Definition
Pins 1-2 Reset (Default)
Pins 2-3 NMI
Open Disabled

3.5 LED Indicators

LAN1, LAN2 LEDs

The Ethernet ports each have two LEDs. The Activity LED indicates network activity when flashing. The Link LED may be green, amber or off to indicate the speed of the connection.

LAN1/2 LEDs(Connection Speed Indicator)

LED Color Definition

Off 10 Mb/s or none

Green 100 Mb/s

Amber 1 Gb/s

Activity LEDLink LED

Power LED S3 Blink Function

LED1 is the power LED S3 blink function LED. If the system enters the S3 mode, LED1 will blink.

Power LED S3 Blink Indicator
LED Color Definition
Blinking Green S3	Mode
Off	System Off (power cable not connected)
Solid Green System	Power On

Power LED

LED2 is the Power LED. When lit, power is present on the motherboard. Be sure to turn off the system and unplug the power cords before removing or installing components.

LED Indicator

LED Color Definition

Off System Off

Green System On

Standby Power LED

LED3 is the standby power LED. When lit, the system is in standby mode.

LED Indicator
LED Color Definition
On	5V Standby Power Ready
Off	5V Standby Power off (can enter deep sleep mode)

Chapter 4

Software

This section describes the installation of drivers and management programs for the system.

4.1 Driver Installation

The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp.supermicro.com. Some of these must be installed, such as the chipset driver.

After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a DVD with the ISO files, insert the disk into the DVD drive on your system and the display shown in Figure 4-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

SUPERMICRO A2SAV-L Motherboard Drivers & Tools (Win7) SUPERMICRO Drivers & Tools Intel Atom Processor E3940 (SoC) A2SAV/-L SUPERMICRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework (Optional) Intel Graphics Media Accelerator Driver Realtek High Definition Audio Driver Intel TXE Firmware Intel USB 3.0 Drivers Intel PRO Network Connections Drivers Trusted Platform Module Driver (Optional) SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure 4-1. Driver & Tool Installation Screen

Note: Click the icons showing a hand writing on paper to view the readme files for each item. Click the computer icons to the right of these items to install each item (from top to the bottom) one at a time. After installing each item, you must re-boot the system before moving on to the next item on the list. The bottom icon with a CD on it allows you to view the entire contents.

4.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SuperDoctor 5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default User Name and Password for SuperDoctor 5 is ADMIN / ADMIN.

SuperDoctor 5 Health Info Systems arm Continuous Express Power Rating Motherboard: XBDTU-LN4+ Fan Speed 79.4 FAN S 78.4 FAN E Voltage CPUL VOUT CPUL DMM +1.3 V +5 V +3VSB -12 V +1.1 V -3.5VCC -3.3VSB VSAT Temperature System Temp PL-DMMZA PL-DMMZA PL-DMMZA Status Chassis Intra PS Status 40/104 41/105.8 42/107.0 100 210 80 -460 40 120 20 80 0 40 -42 100 210 80 -460 40 120 20 80 -42 100 210 80 -460 40 120 20 80 -42 100 210 80 -460 40 120 20 80 -42

Figure 4-2. SuperDoctor 5 Interface Display Screen (Health Information)

Chapter 5

BIOS

5.1 Introduction

This chapter describes the AMI BIOS setup utility for the A2SAV and provides the instructions on navigating the setup screens. The BIOS is stored in a Flash EEPROM and can be updated.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted since this manual was published.

Starting BIOS Setup Utility

To enter the AMI BIOS setup utility screens, press the key while the system is booting up. (There are a few cases when other keys are used, such as , , etc.)

The BIOS screens have three main frames. The large left frame displays options can be configured by the user. These are blue. When an option is selected, it is highlighted in white. Settings printed in Bold are the default values.

In the left frame, a "▶" indicates a submenu. Highlighting such an item and pressing the key opens the list of settings in that submenu.

The upper right frame displays helpful information for the user. The AMI BIOS has default informational messages built in. The manufacturer retains the option to include, omit, or change any of these informational messages.

The lower right frame lists navigational methods. The AMI BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys can be used at any time during setup navigation. These keys include , , , , arrow keys, etc.

Some system parameters may be changed.

5.2 Main Setup

When running the AMI BIOS setup utility, it starts with the Main screen. You can always return to it by selecting the Main tab on the top of the screen.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Save & Exit System Date [Thu 01/01/2015] System Time [05:39:23] Supermicro X11SAA BIOS Version 1.00 Build Date 12/02/2016 Memory Information Total Memory 2048 MB Memory Speed 1333 MHz MRC Version 0.56 TXE FW 3.0.11.1131 GOP 10.0.1035 Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2016 American Megatrends, Inc.

The Main tab page allows you to set the date and time, and it displays system information.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. The date's default value is 01/01/2016 after RTC reset.

Supermicro A2SAV (Motherboard model)

BIOS Version

Build Date (of the BIOS)

CPLD (Complex Programmable Logic Device) Version: This item displays the CPLD version used in the system.

Memory Information

Total Memory (for the system)

Memory Speed

5.3 Advanced Setup Configurations

Use the arrow keys to select the Advanced tab and press to access the submenu items.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Save & Exit ▶ Boot Feature ▶ CPU Configuration ▶ Chipset Configuration ▶ SATA Configuration ▶ Trusted Computing ▶ ACPI Settings ▶ Super IO Configuration ▶ Hardware Monitor ▶ Serial Port Console Redirection ▶ PCIe/PCI/PnP Configuration ▶ iSCSI Configuration ▶ Intel(R) I210 Gigabit Network Connection - OC:C4:7A:8B:4D:F4 ▶ Intel(R) I210 Gigabit Network Connection - OC:C4:7A:8B:4D:F5 Boot Feature Configuration Page ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2016 American Megatrends, Inc.

Caution: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect DRAM timing setting may make the system unstable. If this occurs, revert to the manufacture default settings.

▶Boot Feature

Quiet

Use this feature to select the screen display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

AddOn ROM Display Mode

This feature sets the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

This feature selects the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 Capture Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this item is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot.

Power Configuration

DeepSx Power Policies

Use this item to configure the Advanced Configuration and Power Interface (ACPI) settings for the system. Enable S5 to power off the whole system except the power supply unit (PSU) and keep the power button "alive" so that the user can "wake up" the system by using an USB keyboard or mouse. The options are Disabled and Enabled

Watch Dog Function

If enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than 5 minutes. The options are Disabled and Enabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power on, and Last State.

▶CPU Configuration

The following CPU information appears:

• Displays the CPU model
• CPU Signature
• Microcode Patch
• Max CPU Speed
• Min CPU Speed
• Processor Cores
• Intel HT Technology
  • Intel VT-x Technology
• L1 Data Cache
• L1 Code Cache
• L2 Cache
• L3 Cache
• Speed
• 64-bit

▶CPU Power Management

EIST (P-States)

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disabled and Enabled.

Turbo Mode

Select Enabled for processor cores to run faster than the frequency specified by the manufacturer. The options are Disabled and Enabled.

Boot performance mode

This feature allows the user to select the performance state that the BIOS will set before the operating system handoff. The options are Power Saving, Max Non-Turbo Performance, and Turbo Performance.

Power Limit 1 Enable

Use this feature to set the power limit for the CPU. The options are Disable and Enable.

Power Limit 1

Power Limit 1 Clamp Mode

Use this feature to set the PL1 clamp bit. The options are Disable and Enable.

Power Limit 1 Power

Use this item to configure the value for Power Limit 1. The value is in milli watts and the step size is 125mW. Use the number keys on your keyboard to enter the value. Enter Auto to use the manufacture default setting.

Power Limit 1 Time Window

Use this feature to indicate the time window over which the TDP value should be maintained. The default value is Auto. The options are Auto, 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 20, 24, 28, 32, 40, and 48.

Active Processor Cores

This feature determines how many CPU cores will be activated for each CPU. When Enabled is selected, all cores in the CPU will be activated. Please refer to Intel's website for more information. The options are Disable and Enable.

Intel® Virtualization Technology

Select Enable to use Intel Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Disabled and Enabled.

VT-d

Select Enabled to enable Intel Virtualization Technology support for Direct I/O VT-d by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security and availability in networking and data-sharing. The options are Disabled and Enabled.

Monitor Mwait

Select Enabled to enable the Monitor/Mwait instructions. The Monitor instructions monitors a region of memory for writes, and MWait instructions instruct the CPU to stop until the monitored region begins to write. The options are Disabled and Enabled.

P-STATE Coordination

This feature allows the user to change the P-State (Power-Performance State) coordination type. P-State is also known as "SpeedStep" for Intel processors. Select HW_ALL to change the P-State coordination type for hardware components only. Select SW_ALL to change the

P-State coordination type for all software installed in the system. Select SW_ANY to change the P-State coordination type for a software program in the system. The options are HW_All, SW_ALL, and SW_ANY.

▶Chipset

Warning: Setting the wrong values in the following sections may cause the system to malfunction.

▶North Bridge

The following memory information will be displayed:

• Memory Slot 0
• Memory Slot 1

Max TOLUD

This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled. The options are 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, and 3 GB.

▶ Graphics Configuration

GOP Configuration

GOP Driver

The Graphics Output Protocol (GOP) driver is a replacement for legacy video BIOS that accesses UEFI protocols. The options are Enable and Disable.

IGFX Graphic Output

Use this feature to select the supported IGFX graphics device output to the EDP panel or VGA morning. The options are VGA and Embedded Display

IGD Configuration

Integrate Graphics Device

When enabled, the onboard graphics device will be used as the primary video display. The options are Disable and Enable.

Primary Display

Use this feature to select the primary video display. The options are IGD and PCIe.

RC6 (Render Standby)

Select Enabled to enable render standby support. The options are Disabled and Enabled.

GTT Size

Use this feature to set the memory size to be used by the graphics translation table (GTT). The options are 2MB, 4MB, and 8MB.

Aperture Size

Use this feature to set the Aperture size, which is the size of system memory reserved by the BIOS for graphics device use. The options are 128MB, 256MB, and 512 MB.

DVMT Pre-Allocated

Dynamic Video Memory Technology (DVMT) allows dynamic allocation of system memory to be used for video devices to ensure best use of available system memory based on the DVMT 5.0 platform. The options are 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, and 512M.

DVMT Total Gfx Mem

Use this feature to set the total memory size to be used by internal graphics devices based on the DVMT 5.0 platform. The options are 128MB, 256MB, and MAX.

GT PM Support

Use this feature to enable the IGFX Power Management function. The options are Enable and Disable.

PAVP Enable

Protected Audio Video Path (PAVP) decodes Intel integrated graphics encrypted video. The options are Enable and Disable.

▶ South Bridge

The following South Bridge information will be displayed:

▶HD Audio Configuration

HD-Audio Support

Use this feature to enable high-definition audio support. The options are Enable and Disable.

▶PCI Express Configuration

▶CPU SLOT1 PCI-E 2.0 X2 (IN X8)

ASPM

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the

system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Uses this feature to select the PCI speed for the device installed in slot 1. The options are Auto, Gen1, and Gen2.

▶M.2

ASPM

Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Use this feature to select the PCI speed for the device installed in the M.2 slot. The options are Auto, Gen1, and Gen2.

▶USB Configuration

USB3.0 Support

Select Enable for USB 3.0 support. The options are Enable and Disable.

XHCI Pre-Boot Driver

Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a pre-boot drive specified by the user. The options are Enabled and Disabled.

XHCI Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

USB Mass Storage Driver Support

Select Enabled for USB mass storage device support. The options are Disabled and Enabled.

▶SATA Configuration

Chipset SATA

This item enables or disables the onboard SATA controller supported by the SoC. The options are Enable and Disable.

SATA Mode Selection

Use this item to select the mode for the installed SATA drives. The options are AHCI and RAID.

Aggressive LPM (Link Power Management) Support

When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Enabled and Disabled.

SATA Frozen

Use thia feature to enable the HDD Security Frozen Mode. The options are Disabled and Enabled.

SATA Port 0 \~ 1

Port

Use this feature to enable of disable the specified SATA port. The options are Disabled and Enabled.

SATA Port Hot Plug

This feature designates the SATA port specified for hot plugging. Set this item to Enabled for hot-plugging support, which will allow the user to replace a SATA disk drive without shutting down the system. The options are Enabled and Disabled.

Spin Up Device

When the value of an edge detect or the value of an image binary (pixel) of a device is from 0 to 1, select Enabled to allow the PCH to start a COMRESET initialization sequence on this device. The options are Enabled and Disabled.

SATA Device Type

Use this item to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

SATA Port DevSlp

DEVSLP is a signal that is sent to a SATA disk drive to tell it to enter a very low power state. The options are Disabled and Enabled.

▶Trusted Computing

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Reboot the system for a change on this setting to take effect. The options are Disable and Enable.

TPM State

This feature changes the TPM State. The options are Disabled and Enabled. Note: The system will restart to change the TPM State.

Pending TPM operation

Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are None and TPM Clear.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The default setting is Auto.

The following are informational status messages that indicate the current TPM State:

TPM Enabled Status

TPM Active Status

TPM Owner Status

▶ACPI Settings

ACPI Sleep State

Use this feature to select which sleep state mode the system will enter when the Suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

High Precision Event Timer

Select Enabled to activate the High Performance Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Performance Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disabled and Enabled.

▶Super IO Configuration

Super IO Chip NCT5523D

▶ Serial Port 1 Configuration

Serial Port 1

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Port 1 Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶ Serial Port 2 Configuration

Serial Port 2

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled

Device Settings

This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Port 2 Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 2 are Auto, (IO=2F8h; IRQ=3), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶ Serial Port 3 Configuration

Serial Port 3

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled

Device Settings

This item displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Port 3 Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified.

The options for Serial Port 2 are Auto, (IO=3E8h; IRQ=7), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

▶Hardware Monitor

The following PC Health Status information will be displayed:

• Peripheral temperature
- System temperature

Fan Speed Control Mode

Use this feature to select the fan speed control mode. The options are Standard and Full Speed.

• Fan2 Speed
• Pan1 Speed
• VCORE
• VDIMM
• VBAT

▶Serial Port Console Redirection

COM1 Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶COM1 Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM1 Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM1 Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM1 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM1 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM1 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM1 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM1 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM1 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM1 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM1 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM1 Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

COM1 Redirection After BIOS POST

Use this feature to enable or disable legacy console redirection after BIOS POST. When set to Bootloader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶COM2 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. The options are Enabled and Disabled.

COM2 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM2 Bits Per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600 and 115200 (bits per second).

COM2 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM2 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select

Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

COM2 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM2 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM2 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM2 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM2 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM2 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM2 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2 Redirection After BIOS POST

Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

The submenu allows the user to configure Console Redirection settings to support Out-of-Band Serial Port management.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available for user's configuration:

▶EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits Per Second

This item sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶PCIe/PCI/PnP Configuration

PCI Bus Driver Version A5.01.08

PCI Devices Common Settings:

Above 4G Decoding

Select Enabled for 64-bit devices to be decoded above the 4GB address space If 64bit PCI decoding is supported by the system. The options are Disabled and Enabled.

CPU SLOT1 PCI-E 2.0 X2 (INX8) OPROM

Use this feature to select the type of firmware to be loaded for the device installed on this slot. The options are Disabled and EFI.

Onboard SAS Option ROM Type

Use this feature to select the type of firmware to be loaded for the onboard SAS. The options are Disabled and EFI.

Onboard LAN Option ROM Type

Select Enabled to enable Option ROM support to boot the computer using a network device specified by the user. The options are Disabled and EFI.

Onboard Video Option ROM

Use this item to select the Onboard Video Option ROM type. The options are Disabled and EFI.

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Disabled and Enabled.

Ipv4 PXE Support (Available when Network Stack is set to Enabled)

Select Enabled to enable lpv4 PXE (Preboot Execution Environment) for boot support. If this feature is set to Disabled, lpv4 PXE boot option will not be supported. The options are Disabled and Enabled.

Ipv6 PXE Support (Available when Network Stack is set to Enabled)

Select Enabled to enable lpv6 PXE (Preboot Execution Environment) for boot support. If this feature is set to Disabled, lpv6 PXE boot option will not be supported. The options are Disabled and Enabled.

PXE boot wait time

Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media detect count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

▶iSCSi Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following items.

▶ Add an Attempt
▶ Delete Attempts
▶ Change Attempt order
Intel I210 Gigabit Network Connection - 0C:C4:7A:88:4D:F4

▶NIC Configuration

Link Speed

This feature allows the user to specify the port speed used for the selected boot protocol. The options are Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On LAN

Select Enabled for Wake On LAN support, which will allow the system to "wake up" when an onboard device receives an incoming signal. The options are Disabled and Enabled.

Blink LEDs

Use this feature to identify the physical network port by blinking the associated LED. Use the keyboard to select a value.

UEFI Driver

This item displays the UEFI driver version.

Adapter PBA

This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Device Name

This item displays the adapter device name.

Chip Type

This item displays the network adapter chipset name.

PCI Device ID

This item displays the device ID number.

PCI Address

This item displays the PCI address for this computer. PCI addresses are three two-digit hexadecimal numbers.

Link Status

This item displays the connection status.

MAC Address

This item displays the MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

Virtual MAC Address

This item displays the Virtual MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

Intel I210 Gigabit Network Connection - 0C:C4:7A:88:4D:F5

▶NIC Configuration

Link Speed

This feature allows the user to specify the port speed used for the selected boot protocol. The options are Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On LAN

Select Enabled for Wake_On_LAN support, which will allow the system to "wake up" when an onboard device receives an incoming signal. The options are Disabled and Enabled.

Blink LEDs

Use this feature to identify the physical network port by blinking the associated LED. Use the keybaord to select a value.

UEFI Driver

This item displays the UEFI driver version.

Adapter PBA

This item displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Device Name

This item displays the adapter device name.

Chip Type

This item displays the network adapter chipset name.

PCI Device ID

This item displays the device ID number.

PCI Address

This item displays the PCI address for this computer. PCI addresses are three two-digit hexadecimal numbers.

Link Status

This item displays the connection status.

MAC Address

This item displays the MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

Virtual MAC Address

This item displays the Virtual MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

5.4 Security

Use this tab page to configure Security settings.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Save & Exit
Password Description If ONLY the Administrator's password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20 Password Check [Setup] Setup Administrator Password User Password Secure Boot	Customizable Secure Boot settings
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

This menu allows the user to configure Security settings.

Password Check

Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the password when entering setup and at each bootup. The options are Setup and Always.

Setup Administrator Password

Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

User Password

Use this feature to set a user password which is required to log into the system and to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

▶ Secure Boot

Secure Boot Support

Select Enable for secure boot support to ensure system security at bootup. The options are Enabled and Disabled.

Secure Boot Mode

This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Customized.

If Secure Boot Mode is set to Customized, Key Management features will be available for configuration:

▶Key Management

This submenu allows the user to configure the following Key Management settings.

Provision Factory Default Keys

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

Install Factory Default keys

Select Yes to install the default settings for all keys. The options are Yes and No.

▶Enroll All Factory Default Keys

Select Yes to install all default secure keys set by the manufacturer. The options are Yes and No.

▶ Save All Secure Boot Variables

This feature allows the user to decide if all secure boot variables should be saved.

▶ Platform Key (PK)

This feature allows the user to configure the settings of the platform keys.

Set New Key

Select Yes to load the new platform keys (PK) from the manufacturer's defaults. Select No to load the platform keys from a file. The options are Yes and No.

▶Key Exchange Key (KEK)

Set New Key

Select Yes to load the KEK from the manufacturer's defaults. Select No to load the KEK from a file. The options are Yes and No.

Append Key

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK. Select No to load the KEK from a file. The options are Yes and No.

▶ Authorized Signatures

Set New Key

Select Yes to load the database from the manufacturer's defaults. Select No to load the DB from a file. The options are Yes and No.

Append Key

Select Yes to add the database from the manufacturer's defaults to the existing DB. Select No to load the DB from a file. The options are Yes and No.

▶Forbidden Signatures

Set New Key

Select Yes to load the DBX from the manufacturer's defaults. Select No to load the DBX from a file. The options are Yes and No.

Append Key

Select Yes to add the DBX from the manufacturer's defaults to the existing DBX. Select No to load the DBX from a file. The options are Yes and No.

▶ Authorized TimeStamps

Set New Key

Select Yes to load the DBT from the manufacturer's defaults. Select No to load the DBT from a file. The options are Yes and No.

Append Key

Select Yes to add the DBT from the manufacturer's defaults list to the existing DBT. Select No to load the DBT from a file. The options are Yes and No.

▶OsRecovery Signature

This item uploads and installs an OSRecovery Signature. You may insert a factory default key or load from a file. The file formats accepted are:

1) Public Key Certificate

a. EFI Signature List

b. EFI CERT X509 (DER Encoded)

c. EFI CERT RSA2048 (bin)

d. EFI SERT SHA256 (bin)

2) EFI Time Based Authenticated Variable

When prompted, select "Yes" to load Factory Defaults or "No" to load from a file.

5.5 Boot

Use this tab page to configure Boot Settings.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Save & Exit
FIXED BOOT ORDER Priorities Boot Option #1 [UEFI Hard Disk] Boot Option #2 [UEFI AP:UEFI: Bul...] Boot Option #3 [UEFI CD/DVD] Boot Option #4 [UEFI USB Hard Disk] Boot Option #5 [UEFI USB CD/DVD] Boot Option #6 [UEFI USB Key] Boot Option #7 [UEFI USB Floppy] Boot Option #8 [UEFI USB Lan] Boot Option #9 [UEFI Network:UEFI...]	Sets the system boot order
▶ UEFI Application Boot Priorities ▶ UEFI NETWORK Drive BBS Priorities ▶ Delete Boot Option	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.18.1263. Copyright (C) 2016 American Megatrends, Inc.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices that the system can boot from. Press on each entry from top to bottom to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5
• Boot Option #6
• Boot Option #7
• Boot Option #8
• Boot Option #9

▶UEFI Application Boot Priorities

This feature allows the user to specify which UEFI devices are boot devices.

• UEFI Boot Order #1

▶UEFI USB Key Drive BBS Priorities

This feature allows the user to specify which UEFI USB Key drive devices are boot devices. This feature is displayed when a storage device is detected.

• UEFI Boot Order #1
• UEFI Boot Order #2
• UEFI Boot Order #3
• UEFI Boot Order #4

▶ Add New Boot Option

Use this feature to select a new boot device to add to the boot priority list. This featured is displayed when a storage device is detected.

▶ Delete Boot Option

Use this feature to remove a pre-defined boot device from which the system will boot during startup.

The settings are [any pre-defined boot device].

5.6 Save & Exit

Use this tab page to configure Save & Exit settings.

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc. Main Advanced Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-in EFI Shell UEFI: IP4 Intel(R) I210 Gigabit Network Connection UEFI: IP4 Intel(R) I210 Gigabit Network Connection Exit system setup without saving any changes. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2016 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Defaults

To set this feature, select Restore Defaults from the Exit menu and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

This feature allows the user to override the Boot Option Priorities sequence in the Boot menu, and immediately boot the system with another device specified by the user. This is a one-time override.

UEFI: Built-in EFI Shell

UEFI: IP4 Intel I210 Gigabit Network Connection

UEFI: IP4 Intel I210 Gigabit Network Connection

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The numbers on the fatal error list (on the following page) correspond to the number of beeps for the corresponding error. All errors listed, with the exception of Beep Code 8, are fatal errors.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20).

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Standardized Warning Statements for AC Systems

B.1 About Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this appendix in its entirety before installing or configuring components in the Supermicro chassis.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Warning Definition

Warning! This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.

警告の定義

この警告サインは危険を意味します。

Installation Instructions

Warning! Read the installation instructions before connecting the system to the power source.

設置手順書

Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A.

サーキット・ブレーカー

Power Disconnection Warning

Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components.

電源切断の警告

Equipment Installation

Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment.

機器の設置

Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security. (This warning does not apply to workstations).

アクセス制限区域

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Redundant Power Supplies

Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit.

冗長電源装置

Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing.

バックプレーンの電圧

Comply with Local and National Electrical Codes

Warning! Installation of the equipment must comply with local and national electrical codes.

地方および国の電気規格に準拠

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄

Warning! Hazardous moving parts. Keep away from moving fan blades. The fans might still be turning when you remove the fan assembly from the chassis. Keep fingers, screwdrivers, and other objects away from the openings in the fan assembly's housing.

ファン・ホットスワップの警告

Power Cable and AC Adapter

Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA-certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.

電源コードとACアダプター

System Specifications

Processors

Single Intel Atom E3940 Quad Core SoC in an FCBGA 1296 type socket

Note: Please refer to the motherboard specifications pages on our website for updates to supported processors.

Chipset

n/a

BIOS

64Mb SPI Flash EEPROM with AMI UEFI BIOS

Memory

One 204-pin SO-DIMM slot supporting up to 8 GB of non-ECC DDR3-1866/1600/1333 memory

Note: See the memory section in Chapter 3 for details and our website for updates to supported memory.

SATA Controller

SATA 3.0 (6Gbps) from Intel SoC

Drive Bays

Four 3.5" hot-swap drive bays

Two internal fixed 2.5" hard drive bays (DVD-ROM as an option in the top 2.5" bay)

PCI Expansion Slots

One M.2 PCIe 2.0 x2, M Key 2242/2280

One PCIe 2.0 x2 (in x8 slot)

SC721TQ-250B; Mini ITX, Width 8.27" (210mm), Height 9.45" (240mm), Depth 11" (279mm)

System Cooling

One 250W flex ATX power supply

+12V (18A), -12V (.3A), +5V (14A), +3.3V (12A), +5Vstby (2.5A)

Power cord specifications: Type SVT or SJT, minimum 18 AWG or better, minimum 125V, minimum 8A, maximum 4.5m long

Operating Environment

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Non-operating Temperature: -20°C to 60°C (-4°F to 140°F)

Operating Relative Humidity: 10% to 85% (non-condensing)

Non-operating Relative Humidity: 10% to 95% (non-condensing)

Regulatory Compliance

Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: CSA/EN/IEC/UL 60950-1 Compliant, UL or CSA Listed (USA and Canada), CE Marking (Europe) 1. The power supply power cords must include a grounding plug and must be plugged into grounded electrical outlets. 2. Power should always be disconnected from the system when removing or installing main system components, such as the serverboard, memory modules (not necessary for hot swappable drives). When disconnecting power, you should first power down the system with the operating system and then unplug the power cords from all the power supply modules in the system.

Perchlorate Warning

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate"
