USER MANUAL HBB-25-HC-S Avantco

Exterior view of three AVANTCO industrial cooling units (no visible text or symbols on the devices themselves)

Refrigerated Horizontal Bottle Coolers

Models:

178HBB25HC

178HBB25HCS

178HBB36HC

178HBB36HCS

178HBB50HC

178HBB50HCS

178HBB65HC

178HBB65HCS

178HBB80HC

178HBB80HCS

178HBB95HC

178HBB95HCS

Note:

Please read the manual thoroughly prior to equipment setup, operation, and maintenance.

Table of Contents

Safety....3

Installation 4

Cabinet Location Guidelines 4

Electrical 5

Adjusting the Temperature 5

Defrost System....5

Safety/Warning......6

Operation/Maintenance....7

Troubleshooting....8

Safety

Warning

DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.

PELIGRO – RRIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.

DANGER – RISQUE DE FEU OU D'EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE FRIGORIGENE.

CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR MANUAL/OWNER'S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY PRECAUTIONS MUST BE FOLLOWED.

Please read this manual thoroughly prior to equipment setup, operation, and maintenance.

This unit is intended for use in a temperature-controlled environment less than 75 degrees Fahrenheit and 60% relative humidity. Malfunction due to improper conditions is not covered under warranty.

IMPORTANT – Please Read Before Installation:

• If the unit has recently been transported on its side, please let unit stand upright for a minimum of 24 hours before plugging it in.
• Make sure that the unit has reached the desired temperature before loading the unit with products. This unit is meant for keeping cold products cold, not chilling warm products.
• Make sure that there is proper ventilation around the unit in the area where it will operate.
• Make sure all accessories are installed (i.e., shelves, shelf clips, casters) before plugging the unit in.
• Do not attempt to remove or repair any component of the unit. Consult an authorized service technician for servicing/repair.
• Do not sit or stand inside the unit.
• Please read through the manual in its entirety.
• This unit is designed to perform in a temperature-controlled environment at 60% relative humidity. The unit should be located away from doors, air ducts, and fans that could disrupt airflow and negatively impact performance.

Cabinet Location Guidelines

• Install the unit on strong and leveled surfaces.

• If the surface is uneven, the unit may be noisy.
• The unit may malfunction if the surface is uneven.

• Install the unit in an indoor, well-ventilated area.

• For best performance, please maintain clearance of 6" on the back of the unit.
• Brackets should be attached on the back of the unit.
• Do not use outdoors. For indoor use only.
• Avoid direct sunlight.

- Avoid installation in a high humidity and/or dusty area.

• Humidity above 60% can cause the unit to rust, collect condensation, and may decrease efficiency.
• Dust collected on the condenser coil will cause the unit to malfunction.

- Select a location away from heat and moisture-generating equipment.

• Ambient temperatures above 75 degrees Fahrenheit may cause the compressor to malfunction.
• Malfunctions due to ambient temperatures above 75 degrees Fahrenheit will void the warranty.
• Do not install the unit inside a closet or alcove.

Electrical

• Please ensure that the required voltage is being supplied at all times.
• The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current projection. NEVER USE AN ADAPTER PLUG! Please refer to the electrical requirements on the unit's nameplate.
• This unit should have its own dedicated outlet.
• Do not use extension cords.
• Ensure the unit is not resting on or against the electrical cord.
• If the unit is not in use for a long period of time, please unplug the unit from the outlet.
• To avoid shock and fire hazards, do not plug in or unplug the unit with wet hands.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause damage to the compressor.

Refrigeration Control

Adjusting the Temperature

Your new refrigerator is already factory-set to run at optimum temperatures for food safety and should require no adjustments.

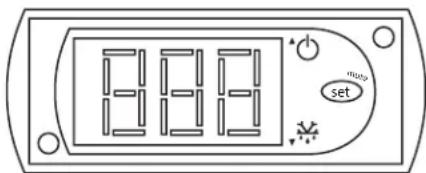

888 set

Refrigerators are set to cycle between a minimum temperature of 33 degrees Fahrenheit and a maximum temperature of 40 degrees Fahrenheit.

Adjusting the temperature changes the minimum temperature your unit will run at. Your unit will not run constantly at this setting. To change it, follow these instructions:

Digital Control Units

• Hold "SET" for 1 sec. The display will flash the current minimum temperature.
• Use the arrow buttons to adjust the minimum temperature you want it to run at.
• Press "SET" again to save your settings.

Always remember to calculate the differential if you change the minimum temperature setting. The cabinet temperature will fluctuate up to +7 degrees over your set minimum temperature as the compressor runs and shuts off. Setting the temperature too high will result in unsafe maximum temperatures and possible health code violations.

Defrost System

Refrigerator coils are kept below the freezing point (32 degrees Fahrenheit). During compressor downtime, the evaporator fan continues to circulate air through the evaporator coil. This air circulation raises the coil temperature above the freezing point, melting any accumulated frost. Run-off water is drained into the evaporator pan and evaporated. Automatic defrost timers automatically initiate at pre-set intervals and for a pre-determined duration.

Safety / Warning

Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury and/or damage to the unit.

ATTENTION

• To minimize shock and fire hazards, be sure not to overload outlet. Please designate one outlet for your unit.
• Do not use extension cords.
• Do not put your hands under the unit while it is being moved.
• When the unit is not in use for a long period of time, please unplug the unit from the outlet.
• After unplugging the unit, wait at least 10 minutes before plugging it back in. Failure to do so could cause damage to the compressor.

UNPLUG CORD

• To minimize shock and fire hazards, please do not plug or unplug the cord with wet hands.
• During maintenance and cleaning, please unplug the unit.

- To minimize shock and fire hazards, make sure that the unit is properly grounded.

WARNING

• Do not attempt to remove or repair any component unless instructed by factory.
• Make sure that the unit is not resting on or against the electrical cord and plug.
• To minimize personal injury, do not hang on the doors.
• Do not store any flammable and explosive gas or liquids inside the unit.
• Do not attempt to alter or tamper with the electrical cord.

Operation / Maintenance

WARNING: Disconnect the power cord before cleaning any parts of the unit.

NOTE: We strongly recommend that any servicing be performed by an authorized service technician.

Loading Product

- Do not store flammable and explosive gas or liquids inside the unit.

Cleaning the Fan Blades and Motor

• If necessary, clean the fan blades and motor with a soft cloth.
• If it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage.

Cleaning the Interior of the Unit

• When cleaning the cabinet interior, use a solvent of warm water and mild soap.
• Do not use steel wool, caustic soap, abrasive cleaners, or bleach that may damage the interior finish.
  • Periodically remove the dividers from the unit and clean them with a mild soap and warm water.

Cleaning the Condenser Coil

• For efficient operation, keep the condenser surface free of dust, dirt, and lint.
  • We recommend cleaning the condenser coil at least once per month.

Condenser Coil Cleaning Instructions:

A dusty condenser may lead to high energy consumption, less cooling effectiveness, and compressor damage.

The condenser coil is located at the bottom behind the panel.

1. Disconnect the electrical power from the unit.
2. Remove the front cover and base cover with a screwdriver.
3. Using a soft brush and/or vacuum, remove the dirt, lint, etc. from the finned condenser coil in a vertical direction.
4. Clean the condenser with a commercial condenser coil cleaner, available from any kitchen equipment retailer. Ex. Noble Chemical Tech Line.
5. After cleaning, straighten any bent condenser fins with a fin comb.
6. When finished, be sure to reinstall the front cover and base cover.
7. Reconnect the electrical power to the unit.

Troubleshooting

Compressor is Not Running

Problem Possible	Solution
Fuse blown or circuit breaker tripped.	Replace fuse or reset circuit breaker.
Power cord unplugged.	Plug in power cord.
Thermostat set too high.	Set thermostat to lower temperature.
Cabinet in defrost cycle.	Wait for defrost cycle to finish.

Cabinet Temperature is too Warm

Problem Possible	Solution
Thermostat is set too high.	Set thermostat to lower temperature.
Airflow is blocked.	Re-arrange products to allow for proper air flow.Make sure there is at least four inches of clearance from the fan.
Low refrigerant levels.	Contact a service technician to check refrigerant levels.
Door is slightly ajar.	Make sure door is completely closed.
