Introduction

Thank you for purchasing the Yamaha CXS18XLF, CXS15XLF SUBWOOFER (hereinafter referred to as "CXS"). This product is a speaker designed for live performance, sound reinforcement and fixed installation sound system applications. This manual explains how to install, set up, and configure the connections for the installers, constructors, or general users familiar with speakers. Please read this manual thoroughly before you begin using this product to get the most out of the product. After reading this manual, please keep it available for future reference.

- The example illustrations used in this manual are taken from the CXS18XLF, if not otherwise specified.

Contents

PRECAUTIONS	2
Introduction	5
Main Features	5
Included Accessories	5
Optional Accessories (sold separately)	5
Functions	6

Connection	7
Selection and Settings of Processors and Amplifiers	8
Basic Setting Example	8
Cardioid Mode Setup	9
Troubleshooting	9
Specifications (English only)	68

Main Features

• The CXS series has two different models, depending on the woofer size: the CXS18XLF (18-inch) and the CXS15XLF (15-inch).
• The unit features an aluminum die-cast frame and a large 4-inch voice coil for high durability in audio reproduction. Double dampers and a straight cone are used for large amplitude and sound pressure.
• The enclosure features reinforcement ribs to suppress resonance and a flared bass reflex port to reduce wind noise, to easily and accurately reproduce ultra low bass even at high sound pressure output.
• The specially designed enclosure features lightweight and strong plywood with a scratch-resistant rigid polyurea coating for improved portability and durability.
• Convenient functions include dual pole sockets that accommodate 35 mm diameter poles and M20 screws, and a speakON output jack to simplify cabling.
• An optional set of quiet wheels (SPW-1) is sold separately.

Included Accessories

Owner's Manual (this book)

Optional Accessories (sold separately)

	Wheels Speaker cover (SPCVR series)
CXS18XLF	SPW-1	SPCVR-DXS18X
CXS15XLF SPCVR-DXS15X

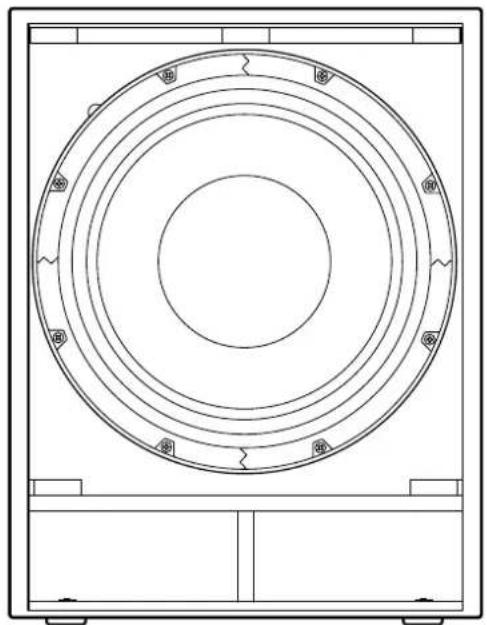

Front Rear

OUTPUT 1± FOR FULL RANGE or CARDIOID REAR 2± N/C 4 INPUT OUTPUT 2± 1± 1± 2± 5 PARALLEL INPUT/PARALLEL 1± SUBWOOFER INPUT 2± FOR FULL RANGE or CARDIOID REAR

①Dual pole sockets

Compatible with commercially available speaker poles of 35 mm diameter and M20 screws.

35 mm diameter M20 screw

If you use the pole socket for mounting of a satellite speaker, observe the conditions below for your safety.

Subwoofer	Speakers to be mounted	Pole length
CXS18XLF	Weight: 26 kg or lessHeight: 76.0 cm or less(CZR15 or smaller)	104 cm or less
CXS15XLF	Weight: 22 kg or lessHeight: 64.5 cm or less(CZR12 or smaller)	82 cm or less
	Weight: 18 kg or lessHeight: 53.7 cm or less(CZR10 or smaller)	104 cm or less

②Feet cups

When stacking multiple speakers, align the rubber feet of the upper speaker to the feet cups of the lower one.

③Wheel mounting screws

Mechanical diagram showing a lever system with pulleys and weights, no text or symbols present

For installing the optionally available Yamaha SPW-1 wheels. To install the wheels, use these screws after removing them from the unit. Do not use the CXS once the screws are removed. This causes air leaks to occur in the enclosure, resulting in undesirable performance.

NOTE

• For details on installing the wheels or special precautions you should take, please refer to the corresponding manual for the wheels.
• Do not install any wheels other than the SPW-1.

④⑤[INPUT/PARALLEL] jacks

These are speakON jacks (Neutrik NL4). Either ④ or ⑤ can be connected since they are connected in parallel inside. The speaker unit is connected to the 1+/1- contacts of the [INPUT/PARALLEL] jacks.

speakON plug Insert all the way inside and turn to lock

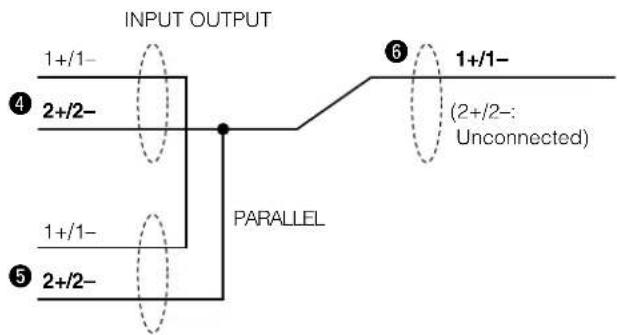

⑥[OUTPUT] jack

This speakON jack is for use with a full-range speaker through CXS, or when using CXS in the cardioid mode. This jack receives the signals via 2+/2- of 4 or 5 and routes them to 1+/1- for output.


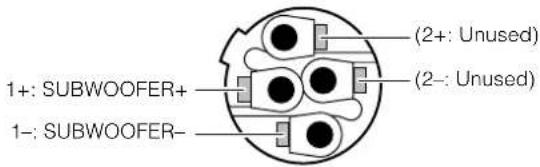

Wiring

Wire the plugs as shown below. Use cables specially designed for speakers. When using only the CXS itself, wiring to the 2+ and 2- contacts is unnecessary. When the signal to a full-range speaker, or the signal for cardioid mode are sent together over a single cable using the [OUTPUT] jack, make sure to also wire to the 2+ and 2- contacts. (See "Basic Setting Example" on page 8, and "Cardioid Mode Setup" on page 9.)

When using only the CXS itself.

1+: SUBWOOFER+ 1-: SUBWOOFER- (2+: Unused) (2-: Unused)

When using the [OUTPUT] jack.

1+: SUBWOOFER+ 1-: SUBWOOFER- 2+: FULL RANGE+ 2-: FULL RANGE- 1+: CARDIOID FRONT+ 1-: CARDIOID FRONT- 2+: CARDIOID REAR+ 2-: CARDIOID REAR-

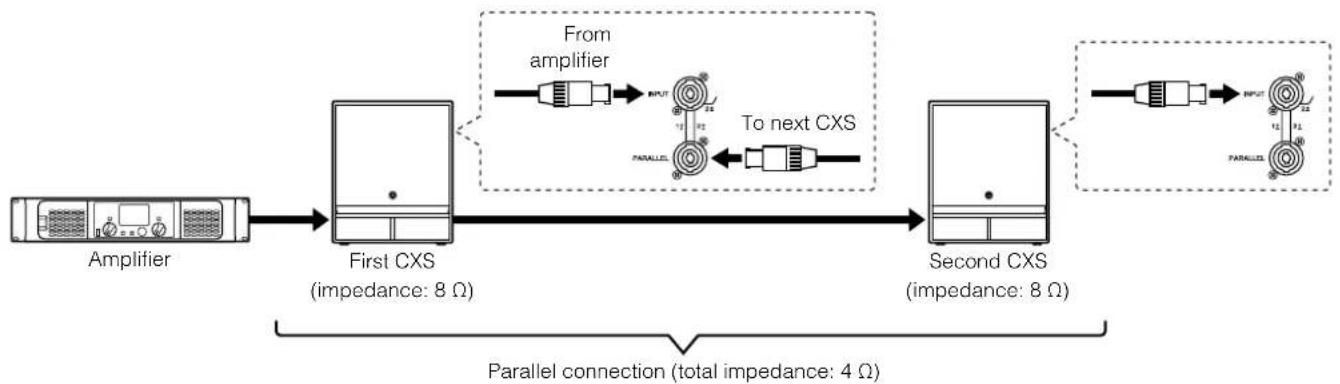

Parallel Connection of Speakers

[INPUT/PARALLEL] jacks are connected inside in parallel. The first CXS can receive the signal from a power amplifier (hereinafter, "amplifier") by one of the [INPUT/PARALLEL] jacks, and route the signal to the second CXS from the rest of [INPUT/PARALLEL] jacks.

When connecting CXS units in parallel, be sure to check the load impedance that the amplifier can drive with. The nominal impedance of one CXS is eight ohms, and the total impedance of two parallel CXS units is four ohms. In this case, the amplifier must be able to drive a speaker less than four ohm load impedance.


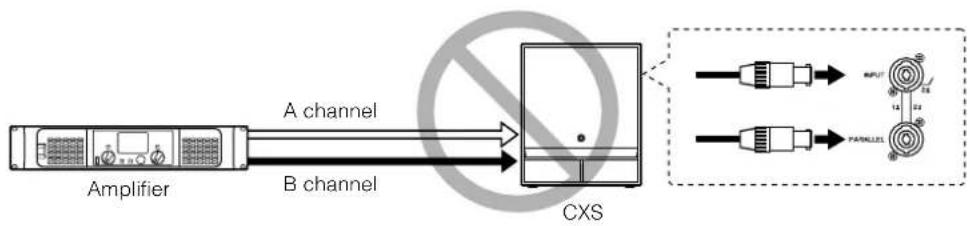

- Invalid connection

NOTICE

NEVER connect the multiple signals from the amplifier to the [INPUT/PARALLEL] jacks simultaneously. This creates a very dangerous short circuit, possibly resulting in amplifier malfunction.

Selection and Settings of Processors and Amplifiers

In order to take full advantage of the CXS performance, make sure to adjust the cut-off and equalizer (EQ) using a processor/DSP built-in amplifier.

When selecting an amplifier, the amplifier should have a similar program (PGM) wattage rating to the speaker. For example, since the PGM rating of the CXS18XLF is 1000 W, an amplifier of 800 W to 1250 W (0.8 to 1.25 times that of 1000 W) should be selected. However, when a speaker can be protected properly by a limiter, amplifiers with more power can be used together.

Visit the CXS product page of the Yamaha Pro Audio global website for details on the recommended models of processors and amplifiers, and EQ settings.

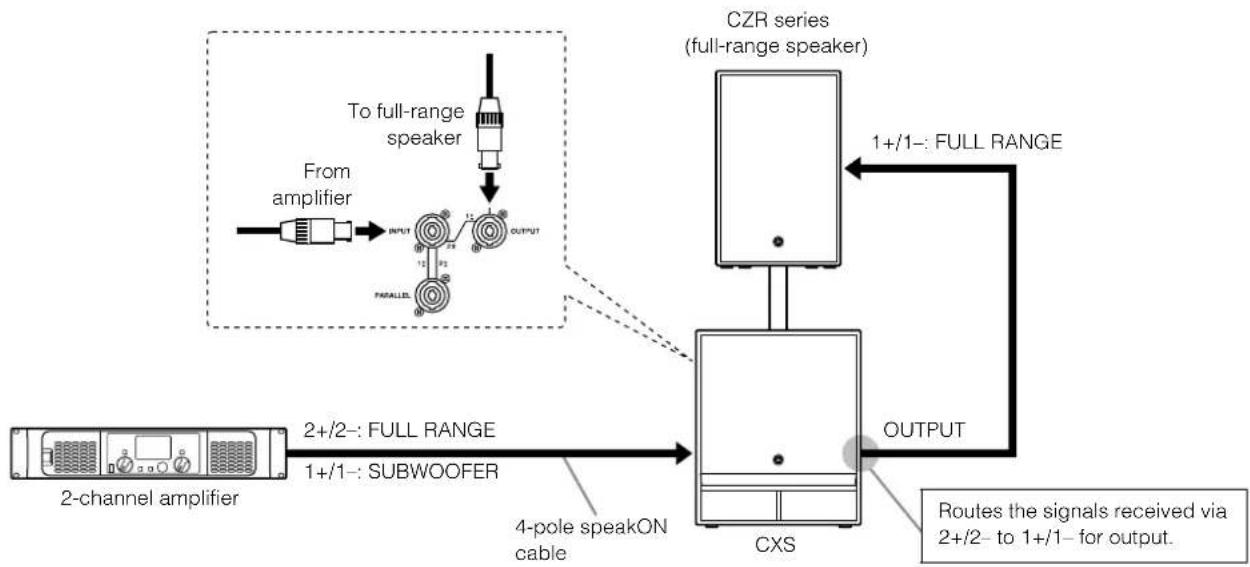

Basic Setting Example

This system is connected by two independent cables from a 2-channel amplifier to a CXS and a full-range speaker.

This system is connected by a single cable from the outputs of a 2-channel amplifier, using the [OUTPUT] jack.

The [OUTPUT] jack of the CXS receives the signals via 2+/2- of the [INPUT/PARALELL] jack and routes them to 1+/1- for output. Using the [OUTPUT] jack of the CXS along with a 4-pole speakON cable, you can connect an amplifier to the CXS with a single cable.


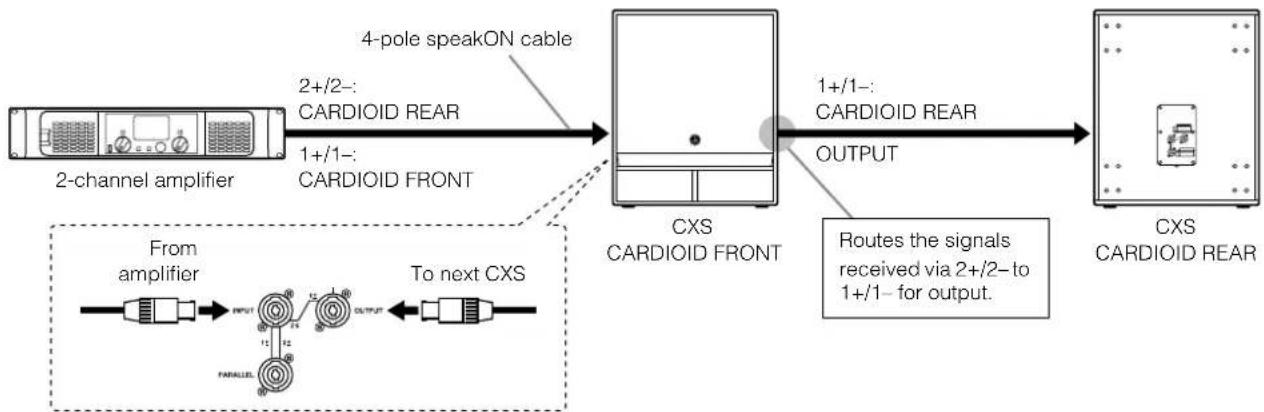

Cardioid Mode Setup

Because directivity in the low frequency range is weak, the output sound from the subwoofer diffracts not only toward the audience but also to the stage with almost the same sound pressure. By using the Cardioid mode, bass to the audience is summed up and bass to the stage is canceled. This suppresses the bass volume on the stage, providing greater headroom before feedback, and resulting in more powerful bass for the audience.

In order to setup the Cardioid mode, you should process the signals correctly using a processor. Also, the signals from an amplifier to both FRONT and REAR are required. Visit the CXS product page of the Yamaha Pro Audio global website for details on the setting information of the processors for the CXS.

Using the [OUTPUT] jack along with a 4-pole speakON cable, you can connect the FRONT signal and REAR signal from a 2-channel amplifier with a single cable.

Troubleshooting

Symptom Possible causes Possible solution
No sound. The cable	is not connected properly.	Connect the speakON cable to the [INPUT/PARAL-LEL] jack correctly. Make sure to connect the amplifier outputs to the 1+/1- contacts of the speakON cable.
Sound is inter-rupted suddenly.	The built-in protection system has been enabled because the input volume is excessive.	To reset (cool down) the protection system, lower the volume of the input device, or stop the input. Wait for 30 seconds or longer. If the unit doesn't automatically reset itself, there is a possibility of malfunction of the speaker unit.
	The speaker unit is damaged.	If no sound although the connection and signal level are appropriate, there is a possibility of malfunction of the speaker unit. Contact your Yamaha dealer.
The amplifier shuts down.	When connecting the speakers in parallel, the total impedance of the speakers is less than the minimum load impedance of the amplifier. (For example, when more than three eight-ohm speakers are connected in parallel to an amplifier having a minimum load impedance of four ohms.)	Lower the number of speakers connected in parallel, or use the amplifier which can drive with the total impedance of the speakers, in order to not be less than the minimum load impedance of the amplifier.
	The protection system of the amplifier has been enabled because the input volume is excessive.	Wait until the amplifier cools down. Before using it again, lower the input volume.
Sound is distorted.	Input volume is excessive.	Lower the volume of the input device so that the limit indicator of the amplifier lights only occasionally.

If any specific problem should persist, please contact your Yamaha dealer.

General Specifications

		CXS18XLF CXS15XLF
System Type Subwoofer, Bass-reflex
Frequency Range (-10 dB) Passive 32 Hz - 3 kHz 33 Hz - 3.5 kHz
	Normal *1	32 Hz - 150 Hz 35 Hz - 150 Hz
	Extend *1	29 Hz - 150 Hz 33 Hz - 150 Hz
Nominal Impedance 8 Ω 8 Ω
Power Rating (EIA 426-A)	NOISE 500 W	400 W
	PGM	1000 W	800 W
	MAX	2000 W	1600 W
Sensitivity (1 W, 1 m)*2		100 dB SPL 98 dB SPL
Maximum SPL (Calculated, 1 m)*2		133 dB SPL	130 dB SPL
Transducer	LF	18" Cone, 4" Voice coil, Ferrite magnet	15" Cone, 4" Voice coil, Ferrite magnet
Enclosure Material, Finish, Color		Plywood, Durable polyurea coating, Black
Dimensions (W x H x D, with rubber feet)		550 x 657 x 720 mm	450 x 587 x 600 mm
Net Weight		43.6 kg	35.6 kg
Handles		Aluminium die-cast, Side x 2
Pole Socket		∅35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Connectors		speakON NL4MP x 3 (Parallel x 2, Output x 1)
Optional Wheel		SPW-1
Optional Cover SPCVR-DXS18X		SPCVR-DXS15X

*1: With recommended DSP processing.
*2: Half-space (2π)

The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file.

Important Notice: Guarantee Information for customers in European Economic Area (EEA) and Switzerland

Important Notice: Guarantee Information for customers in EEA* and SwitzerlandFor detailed guarantee information about this Yamaha product, and Pan-EEA* and Switzerland warranty service, please either visit the website address below (Printable file is available at our website) or contact the Yamaha representative office for your country. * EEA: European Economic Area	English
Wichtiger Hinweis: Garantie-Information für Kunden in der EWR* und der SchweizFür nähere Garantie-Information über dieses Produkt von Yamaha, sowie über den Pan-EWR* - und Schweizer Garantieservice, besuchen Sie bitte entweder die folgend angegebene Internetadresse (eine druckfähige Version befindet sich auch auf unserer Webseite), oder wenden Sie sich an den für Ihr Land zuständigen Yamaha-Vertrieb. *EWR: Europäischer Wirtschaftsraum	Deutsch
Remarque importante: informations de garantie pour les clients de l’EEE et la SuissePour des informations plus détaillées sur la garantie de ce produit Yamaha et sur le service de garantie applicable dans l’ensemble de l’EEE ainsi qu’en Suisse, consultez notre site Web à l’adresse ci-dessous (le fichier imprimable est disponible sur notre site Web) ou contactez directement Yamaha dans votre pays de résidence. * EEE : Espace Economique Européen	Français
Belangrijke mededeling: Garantie-informatie voor klanten in de EER* en ZwitzerlandVoor gedetailleerde garantie-informatie over dit Yamaha-product en de garantieservice in heel de EER* en Zwitzerland, gaat u naar de onderstaande website (u vind een afdrukbaar bestand op onze website) of neemt u contact op met de vertegenwoordiging van Yamaha in uw land. * EER: Europese Economische Ruimte	Nederlands
Aviso importante: información sobre la garantia para los clientes del EEE* y SuizaPara una información detallada sobre este producto Yamaha y sobre el soporte de garantía en la zona EEE* y Suiza, visite la dirección web que se incluye más abajo (la version del archivo para imprimir esta disponible en nuestro sitio web) o póngase en contacto con el representante de Yamaha en su país. * EEE: Espacio Económico Europeo	Español
Avviso importante: informazioni sulla garanzia per i clienti residenti nell’EEA* e in SvizzeraPer informazioni dettagliate sulla garanzia relativa a questo prodotto Yamaha e l’assistenza in garanzia nei paesi EEA* e in Svizzera, potete consultare il sito Web all’indirizzo riportato di seguito (è disponibile il file in formato stampabile) oppure contattare l’ufficio di rappresentanza locale della Yamaha. * EEA: Area Economica Europea	Italiano
Aviso importante: informações sobre as garantias para clientes da AEE* e da SuíçaPara obter uma informação pormenorizada sobre este produto da Yamaha e sobre o serviço de garantia na AEE* e na Suíça, visite o site a seguir (o arquivo para impressão está disponível no nosso site) ou entre em contato com o escritório de representação da Yamaha no seu país. * AEE: Área Econômica Européia	Português
Εημαντική σπηείωση: Πληροφορίες εγγύησης για τους πελάτες στον ΕΟΧ* και ΕλβετίαΓια λεπτομερείς πληροφορίες εγγύησης σχετικά με το παρόν προϊόν της Yamaha και την κάλυμη εγγύησης σε όλες τις χώρες του ΕΟΧ και την Ελβετία, επισκεφείτε την παρακάτω ιστοσελίδα (Εκτυπώσιμη μορφή είναι διαθέσιμη στην ιστοσελίδα μας) ή απευθυνθείτε στην αντιπροσωπεία της Yamaha στη χώρα σας. * ΕΟΧ: Eurupntaikós Οικονομικός χώρος	Ελληνικά
Viktigt: Garantiinformation för kunder i EES-området* och SchweizFör detaljerad information om denna Yamahaprodukt samt garantiservice i hela EES-området* och Schweiz kan du antingen besöka nedanstående webbaddress (en utskriftsvänlig fil finns på webbplatsen) eller kontakta Yamahas officiella representant i ditt land. * EES: Europeiska Ekonomiska Samarbetsområdet	Svenska
Viktig merknad: Garantiinformasjon for kunder i EOS* og SveitsDetaljert garantiinformasjon om dette Yamaha-produktet og garantiservice for hele EOS-området* og Sveits kan fås enten ved å besøke nettadressen nedenfor (utskriftsversion finnes på våre nettsider) eller kontakte kontakte Yamaha-kontoret i landet der du bor. *EOS: Det europeiske økonomiske samarbeidsområdet	Norsk
Vigtig oplysning: Garantiophysninger til kunder i EOO* og SchweizDe kan finde detaljerede garantiophysninger om dette Yamaha-produkt og den failes garantiserviceordning for EOO* (og Schweiz) ved at besøge det websted, der er angivet nedenfor (der findes en fil, som kan udskrives, på vores websted), eller ved at kontakte Yamahas nationale repräsentationskontor i det land, hvor De bor. * EOO: Det Europæiske ∅konomiske Område	Dansk
Tärkeä limoitus: Takuutiedot Euroopan talousalueen (ETA)* ja Sveitsin asiakkailleTämän Yamaha-tuotteen sekä ETA-alueen ja Sveitsin takuuta koskevat yksityiskohtaiset tiedot saatte alla olevasta nettiosoitteesta. (Tulostettava tiedosto saatavissa sivustollamme.)Volte myös ottaa yhteyttä paikalliseen Yamaha-edustajaan. *ETA: Euroopan talousalue	Suomi
Wažne: Warunki gwarancyjne obowiązujące w EOG* i SzwajcariiAby dowiedzieć się więcej na temat warunków gwarancyjnych tego produktu firmy Yamaha i serwisu gwarancyjnego w całym EOG* i Szwajcarii, należy odwiedzić wskazaną poníżej stronę internetową (Plik gotowy do wydruku znajduje się na naszej stronie internetowej) lub skontaktować się z przedstawicielstwem firmy Yamaha w swoim kraju. * EOG — Europejski Obszar Gospodarczy	Polski
Důležité oznámeni: Záruční informace pro zákazníky v EHS* a ve ŠvýcarskuPodrobné záruční informace o tomto produktu Yamaha a záručním servisu v celém EHS* a ve Švýcarsku naleznete na niže uvedené webové adrese (soubor k tisku je dostupný na našich webových stránkách) nebo se můžete obrátit na zastoupení firmy Yamaha ve své zemi. * EHS: Evropsky hospodářský prostor	Česky
Fontos figyelmeztetés: Garancia-információk az EGT* területén és Svájcban élő vásárlók számáraA jelen Yamaha termékre vonatköz részletes garancia-információk, valamint az EGT*-re és Svájcrà kiterjedő garanciális szolgáltatás tekintetében keresse fel webhelyünket az alábbi címen (a webhelyen nyomtatható fájtít is talál), vagy pedig lépjen kapcsolatba az országában működő Yamaha képviseleti irodával. * EGT: Európai Gazdasági Tér ség	Magyar
Oluline márkus: Garantiiteave Europa Majanduspiirkonna (EMP)* ja Šveitsi klientideleTäpsema teabe saamiseks selle Yamaha toote garantii ning kogu Euroopa Majanduspiirkonna ja Šveitsi garantiiteeninduse kohta, külastage palun veebisaiti alljärgneval aadressil (meie saidil on saadaval prinditav fail) või põröduge Teie regiooni Yamaha esinduse poole. * EMP: Europa Majanduspiirkond	Eesti keel
Svarigs pazinojums: garantijas informácija klientiem EEZ* un ŠveicêLaii saņemtu detalizėtu garantijas informáciju par šo Yamaha produktu, kā arī garantijas apkalpošanu EEZ* un Šveicê, lõdzu, apmekléjiet zemäk norădito tîmekja vietnes adresi (tîmekja vietně ir pieejams drukăjams fails) vai sazinieties ar jūsu valsti apkalpojošo Yamaha pärstävniecibu. * EEZ: Europas Ekonomikas zona	Latviešu
Dèmesio: informacija dél garantijos pirkėjams EEE* ir ŠveicarijojeJei reikia išsamios informacijos apie ši „Yamaha“ produkta ir jo techninę priežiūrą visoje EEE* ir Šveicarijoje, apsilankykite mūsų svetainėje toliau nurodytu adresu (svetainėje yra spausdintinas failas) arba kreipkitės į „Yamaha“ atstovybę savo šaliai. * EEE – Europos ekonominė erdvė	Lietuvių kalba
Doležitė upozornenie: Informácie o záruke pre zákaznikov v EHP* a ŠvajčiarskuPodrobné informácie o záruke týkajúce sa tohto produktu od spoločnosti Yamaha a garančnom servise v EHP* a Švajčiarsku najdete na webovej stránke uvedenej nižšie (na našej webovej stránke je k dispozicii súbor na tlač) alebo sa obrátte na zástupcu spoločnosti Yamaha vo svojej krajine. * EHP: Európsky hospodářsky priestor	Slovenčina
Pomembno obvestilo: Informacije o garanciji za kupce v EGP* in ŠviciZa podrobně informacije o tem Yahaminem izdelku ter garancijskem servisu v celotnem EGP in Švici, obiščite spletno mesto, ki je navedeno spodaj (natisljiva datoteka je na voljo na našem spletnem mestu), ali se obrnite na Yahaminega predstavnika v svoji državi. * EGP: Evropski gospodarski prostor	Slovenščina
Bажно съобщение: Информация за гаранцията за клиенти в ЕИП* и ШвейцарияЗа подробна информация за гаранцията за този продукт на Yamaha и гаранционното обслужване в паневропейската зона на ЕИП* и Швейцария или посетете посочения по-долу уеб сайт (на нашия уеб сайт има файл за печат), или се свържете с представителния офис на Yamaha във вашата страна. * ЕИП: Европейско ikonomическо пространство	Български език
Notificare importantă: Informații despre garantije pentru clientii din SEE* și ElvețiaPentru informații detaliate privind acest produs Yamaha și serviciul de garantje Pan-SEE* și Elveția, vizitați site-ul la adresa de mai jos (fișierul împrimabil este disponibil pe site-ul nostru) sau contactați biroul reprezentanței Yamaha din țara dumneavoastră. * SEE: Spațiul Economic European	Limba română

http://europe.yamaha.com/warranty/

URL_4

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Toronto, Ontario,

M1S 3R1, Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Avenue, Buena Park, CA 90620,

U.S.A.

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, U.K.

Tel: [phone]

GERMANY

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

Switzerland in Thalwil

Seestrasse 18a, 8800 Thalwil, Switzerland

Tel: [phone]

AUSTRIA/BULGARIA/

CZECH REPUBLIC/HUNGARY/

ROMANIA/SLOVAKIA/SLOVENIA

Yamaha Music Europe GmbH

Branch Austria

Schleiergasse 20, 1100 Wien, Austria

Tel: [phone]

POLAND

Yamaha Music Europe GmbH

Valletta Road, Mosta MST9010, Malta

Tel: [phone]

NETHERLANDS/BELGIUM/

LUXEMBOURG

Yamaha Music Europe Branch Benelux

Clarissenhof 5b, 4133 AB Vianen, The Netherlands

Tel: [phone]

FRANCE

Yamaha Music Europe

Yamaha Music Europe GmbH, Branch Italy

19th klm. Leof. Lavriou 190 02 Peania – Attiki,

Greece

Tel: [phone]

SWEDEN/FINLAND/ICELAND

Yamaha Music Europe GmbH Germany filial

Scandinavia

JA Wettergrensgata 1, 400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

Yamaha Music Denmark,

Fillial of Yamaha Music Europe GmbH, Tyskland

Generatorvej 8C, ST. TH., 2860 Søborg, Denmark

Tel: [phone]

NORWAY

Yamaha Music Europe GmbH Germany -

Norwegian Branch

Grini Næringspark 1, 1332 ∅sterås, Norway

Tel: [phone]

CYPRUS

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

RUSSIA

Yamaha Music (Russia) LLC.

Room 37, entrance 7, bld. 7, Kievskaya street,

Moscow, 121059, Russia

Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Europe GmbH

Siemensstrasse 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: [phone]

MIDDLE EAST

TURKEY

Yamaha Music Europe GmbH

Bati Atasehir Istanbul, Turkey

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

JAFZA-16, Office 512, P.O.Box 17328,

Jebel Ali FZE, Dubai, UAE

Tel: [phone]

ASIA

THE PEOPLE'S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co., Ltd.

2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,

Shanghai, China

Tel: [phone]

INDIA

Yamaha Music India Private Limited

P-401, JMD Megapolis, Sector-48, Sohna Road,

Gurgaon-122018, Haryana, India

Tel: [phone]

INDONESIA

PT. Yamaha Musik Indonesia (Distributor)

Yamaha Music Center Bldg. Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

11F, Prudential Tower, 298, Gangnam-dacro,

Gangnam-gu, Seoul, 06253, Korea

Tel: [phone]

MALAYSIA

Yamaha Music (Malaysia) Sdn. Bhd.

No.8, Jalan Perbandaran, Kelana Jaya, 47301

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

SINGAPORE

Yamaha Music (Asia) Private Limited

Block 202 Hougang Street 21, #02-00,

Singapore 530202, Singapore

Tel: [phone]

TAIWAN

Yamaha Music & Electronics Taiwan Co., Ltd.

2F., No.1, Yuandong Rd., Banqiao Dist.,

New Taipei City 22063, Taiwan (R.O.C.)

3, 4, 15, 16th Fl., Siam Motors Building,

891/1 Rama 1 Road, Wangmai,

Pathumwan, Bangkok 10330, Thailand

Tel: [phone]

VIETNAM

Yamaha Music Vietnam Company Limited

15th Floor, Nam A Bank Tower, 201-203 Cach

Mang Thang Tam St., Ward 4, Dist.3,

Ho Chi Minh City, Vietnam

Tel: [phone]

OTHER ASIAN COUNTRIES

http://asia.yamaha.com/

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 80 Market Street, South Melbourne,

VIC 3205, Australia

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

http://asia.yamaha.com/

Yamaha Pro Audio global website https://www.yamaha.com/proaudio/

Yamaha Downloads https://download.yamaha.com/
