USER MANUAL MCP1630V Microchip

Bidirectional 4 Cell

Li-Ion Charger Reference Design

User's Guide

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
- There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights.

QUALITY MANAGEMENT SYSTEM CERTIFIED BY DNV

=ISO/TS 16949:2002=

Trademarks

The Microchip name and logo, the Microchip logo, Accuron, dsPIC, KEELOQ, microID, MPLAB, PIC, PICmicro, PICSTART, PRO MATE, PowerSmart, rfPIC and SmartShunt are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AmpLab, FilterLab, Migratable Memory, MXDEV, MXLAB, SEEVAL, SmartSensor and The Embedded Control Solutions Company are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Analog-for-the-Digital Age, Application Maestro, CodeGuard, dsPICDEM, dsPICDEM.net, dsPICworks, ECAN, ECONOMONITOR, FanSense, FlexROM, fuzzyLAB, In-Circuit Serial Programming, ICSP, ICEPIC, Linear Active Thermistor, Mindi, MiWi, MPASM, MPLIB, MPLINK, PICkit, PICDEM, PICDEM.net, PICLAB, PICtail, PowerCal, PowerInfo, PowerMate, PowerTool, REAL ICE, rfLAB, rfPICDEM, Select Mode, Smart Serial, SmartTel, Total Endurance, UNI/O, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

All other trademarks mentioned herein are property of their respective companies.

© 2006, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.

Printed on recycled paper.

Microchip received ISO/TS-16949:2002 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona, Gresham, Oregon and Mountain View, California. The Company's quality system processes and procedures are for its PIC® 8-bit MCUs, KEELoQ® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip's quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

Table of Contents

Preface ....1

Introduction....1

Document Layout 1

Conventions Used in this Guide 2

Recommended Reading.... 2

The Microchip Web Site .... 3

Customer Support 3

Document Revision History .... 3

Chapter 1. Product Overview....5

1.1 Introduction ...... 5

1.2 What is the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design? 6

1.3 What the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design kit includes ....6

Chapter 2. Installation and Operation ....7

2.4 Introduction ...... 7

2.5 Features 7

2.6 Getting Started 8

Appendix A. Schematics and Board Layouts.... 11

A.1 Introduction 11

A.2 Schematic - Sheet 1 ...... 12

A.3 Schematic - Sheet 2 ...... 13

A.4 Board – Top Silk Layer 14

A.5 Board – Top Metal Layer 15

A.6 Board – Mid Layer1 16

A.7 Board – Mid Layer2 17

A.8 Board – Metal Layer 18

A.9 Board – Bottom Silk Layer 19

Appendix B. Bill Of Materials (BOM) 21

Appendix C. Firmware 23

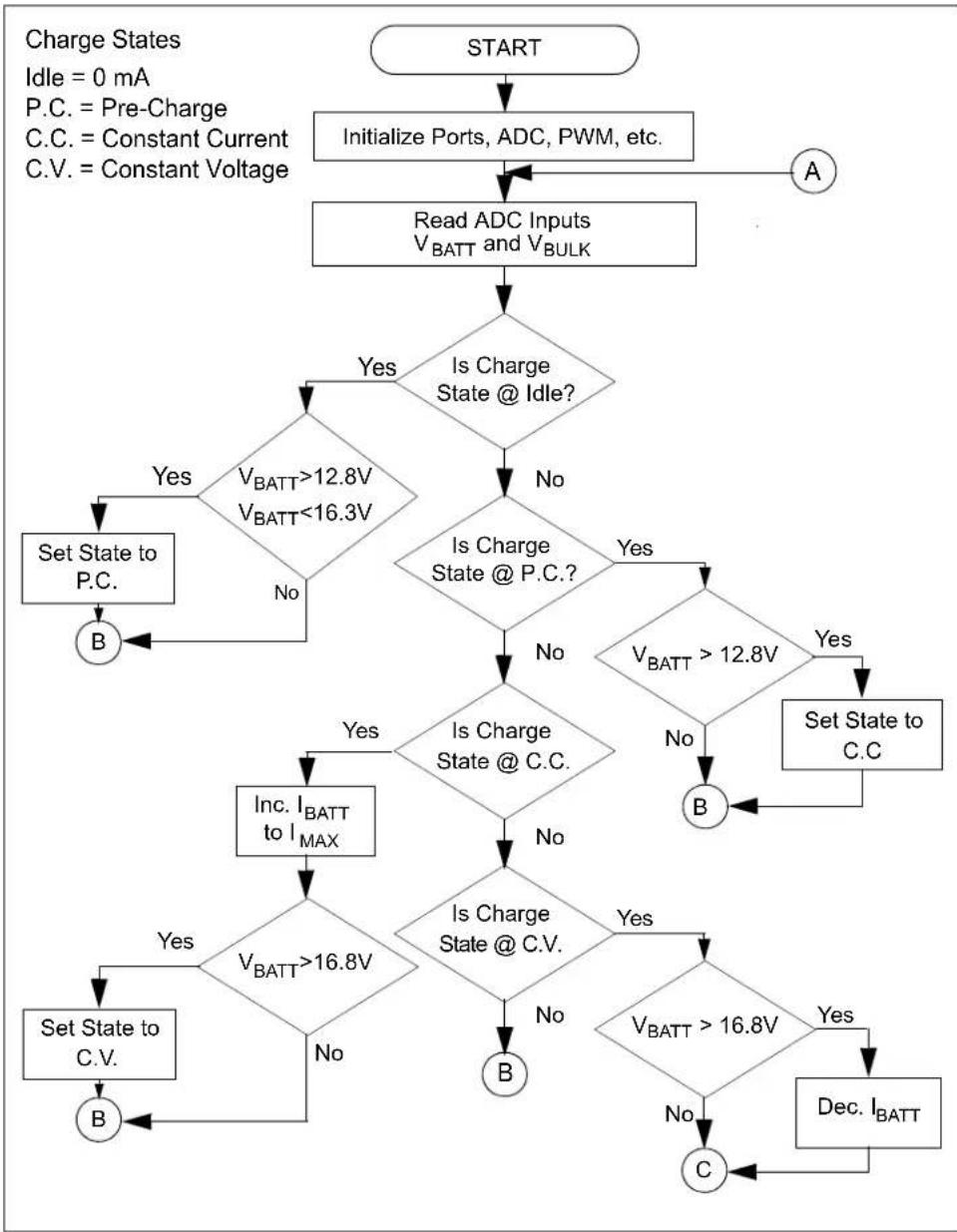

C.1 Device Firmware - Flowchart 23

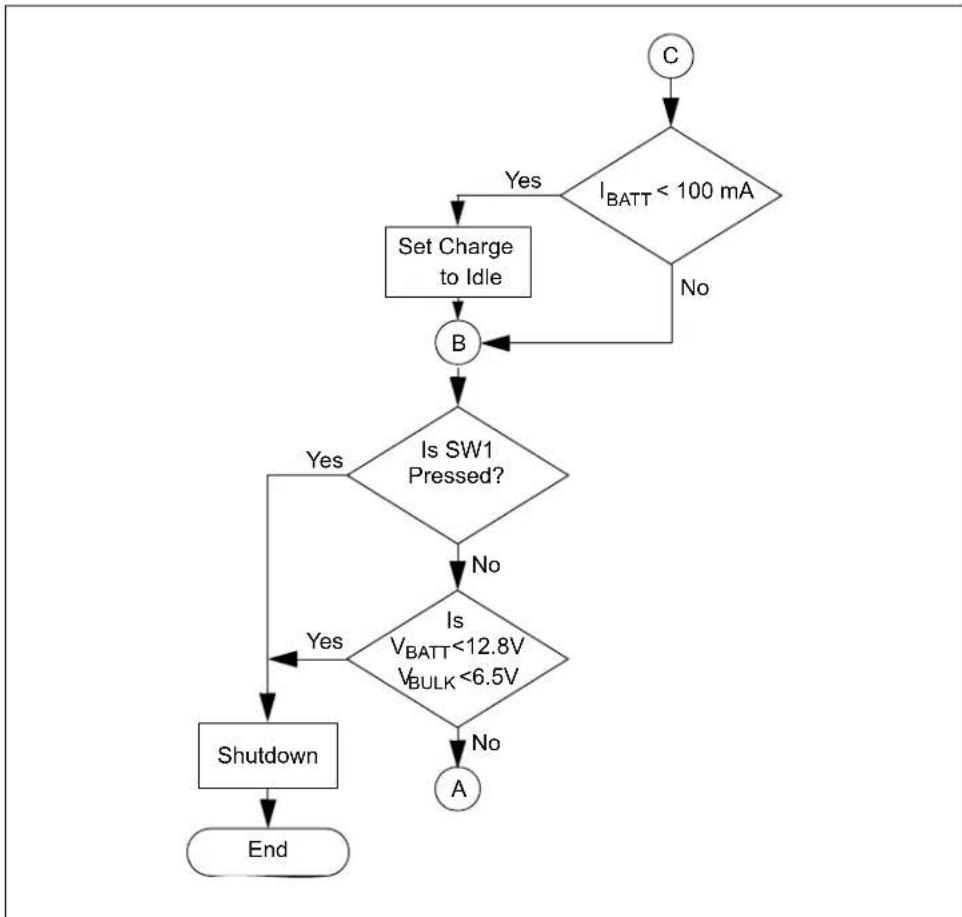

C.2 Device Firmware - Flowchart (Continued) 24

Worldwide Sales and Service 26

NOTES:

Preface

NOTICE TO CUSTOMERS

All documentation becomes dated, and this manual is no exception. Microchip tools and documentation are constantly evolving to meet customer needs, so some actual dialogs and/or tool descriptions may differ from those in this document. Please refer to our web site (www.microchip.com) to obtain the latest documentation available.

Documents are identified with a "DS" number. This number is located on the bottom of each page, in front of the page number. The numbering convention for the DS number is "DSXXXXXA", where "XXXXX" is the document number and "A" is the revision level of the document.

For the most up-to-date information on development tools, see the MPLAB ^® IDE on-line help. Select the Help menu, and then Topics to open a list of available on-line help files.

INTRODUCTION

This chapter contains general information that will be useful to know before using the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design. Items discussed in this chapter include:

• Document Layout
• Conventions Used in this Guide
• Recommended Reading
  • The Microchip Web Site
• Customer Support
  • Document Revision History

DOCUMENT LAYOUT

This document describes how to use the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design as a development tool to emulate and debug firmware on a target board. The manual layout is as follows:

• Chapter 1. "Product Overview"— Important information about the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design.
• Chapter 2. “Installation and Operation” – Includes instructions on how to get started with this user’s guide and a description of the user’s guide.
• Appendix A. “Schematics and Board Layouts” – Shows the schematic and layout diagrams for the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design.
• Appendix B. "Bill Of Materials (BOM)" – Lists the parts used to build the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design.
• Appendix C. "Firmware" – Provides information about the application firmware and where the source code can be found.

CONVENTIONS USED IN THIS GUIDE

This manual uses the following documentation conventions:

DOCUMENTATION CONVENTIONS

Description Represents Examples
Arial font:
Italic characters Referenced books	MPLAB	^ IDE User's Guide
	Emphasized text ...is the only compiler...
Initial caps A window the Output	window
	A dialog the Settings dialog
	A menu selection select Enable	Programmer
Quotes A field name in a window or dialog		"Save project before build"
Underlined, italic text with right angle bracket	A menu path	>Save
Bold characters	A dialog button	Click OK
	A tab	Click the Power tab
N'Rnnnn	A number in verilog format, where N is the total number of digits, R is the radix and n is a digit.	4'b0010, 2'hF1
Text in angle brackets < >	A key on the keyboard	Press,,
Courier New font:
Plain Courier New	Sample source code	#define START
	Filenames	autoexec.bat
	File paths	c:\mcc18\h
	Keywords	_asm, _endasm, static
	Command-line options	-Opa+, -Opa-
	Bit values	0, 1
	Constants	0xFF, 'A'
Italic Courier New	A variable argument	file.o, where file can be any valid filename
Square brackets []	Optional arguments	mcc18 [options] file [options]

RECOMMENDED READING

This user's guide describes how to use MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design. The following Microchip documents are available and recommended as supplemental reference resources.

MCP1630/MCP1630V Data Sheet, "High-Speed, Microcontroller-Adaptable, Pulse Width Modulator" (DS21896)

This data sheet provides detailed information regarding the MCP1630/MCP1630V, product family.

PIC16F88 Data Sheet, "20-Pin Flash-Based, 8-Bit CMOS Microcontrollers with Nano Watt Technology" (DS30487)

This data sheet provides detailed information regarding the PIC16F88 product family.

APEC Conference Paper, "Bi-Directional Power System for Laptop Computers", 2005

This paper provides detailed information about powering laptop computers using 4 series cell Li-Ion batteries with a bidirectional laptop computer.

Microchip provides online support via our web site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support

Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://support.microchip.com

DOCUMENT REVISION HISTORY

Revision A (November 2006)

- Initial Release of this Document.

NOTES:

Chapter 1. Product Overview

1.1 INTRODUCTION

As high power portable applications continue to gain in popularity, more innovative techniques are needed to charge the batteries while also providing a low regulated voltage to the system's high end digital electronics. For example, laptop computers, portable test equipment, portable printers, etc., all require more power than a single or two cell Li-Ion battery pack can efficiently store. As a result, three or four series Li-Ion cell packs are used to store the necessary that power these high end applications. The result is a high dc voltage used to store the energy requiring a difficult high voltage to low voltage dc-dc conversion. The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design can be used to evaluate a design that boosts a low source voltage to charge four Li-Ion series cells while providing energy to the system simultaneously. When the source is removed, the same power train used to charge the battery pack provides a low regulated voltage to operate the system.

This chapter covers the following topics.

• What is the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design?
• What the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design Kit includes.

FIGURE 1-1: MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design shown in Laptop Computer system level block diagram.

1.2 WHAT IS THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN?

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design demonstrates the use of a bidirectional buck-boost converter used to charge multiple series cell Li-Ion batteries with the presence of an input source (boost) and provide a regulated output voltage when the input source is removed (buck). The board also serves as a platform to evaluate the MCP1630V device.

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design inputs were developed to be easily attached to the I/O of a PIC® Microcontroller. The MCU supplies the oscillator (OSC_IN) and reference voltage ( V_REF ) to the MCP1630V creating a flexible and adaptable power system. The power system switching frequency and maximum duty cycle are set using the hardware PWM of the MCU. The reference input to the high speed analog PWM can be external, a D/A Converter (DAC) output or as simple as an I/O output from the MCU. This enables the power system to adapt to external signals and variables in order to optimize performance and facilitate calibration.

This board utilizes Microchip's MCP1630V (high-speed PIC MCU PWM MSOP8) with the PIC16F88 (Flash MCU) in a four cell Li-Ion charger combined with a synchronous buck regulator. Under normal operation, the input supply can range between 6.5V and 7.0V. The converter is capable of charging four Li-Ion cells connected in series when the 6.5V input is present and regulating the bulk input voltage to 6.0V when the input source voltage is removed by stepping, (bucking), down the battery pack voltage.

1.3 WHAT THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN KIT INCLUDES

This MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design kit includes:

- MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design

- Analog and Interface Products Demonstration Boards CD-ROM (DS21912)

- MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User's Guide (DS51641)

Chapter 2. Installation and Operation

2.4 INTRODUCTION

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design demonstrates Microchip's high speed pulse width modulator (PWM) used in a four cell Li-Ion battery charger combined power supply application. When used in conjunction with a microcontroller, the MCP1630V will control the power system duty cycle to provide regulated output voltage or current. The PIC16F88 microcontroller oscillator output is used to provide pulses at switching frequency of 500 kHz. The MCP1630V generates duty cycle based on various external inputs. External signals include the input oscillator pulses from PIC16F88, the reference voltage and the feed back voltage. The output signal is a square wave pulse provided to the synchronous gate drive input. They synchronous gate driver is used to turn on and off the upper buck MOSFET and lower synchronous MOSFET.

The PIC16F88 microcontroller is programmable, allowing the user to modify or develop their own firmware routines to further evaluate the MCP1630V in this application.

2.5 FEATURES

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design has the following features:

• Four Cell Li-Ion Battery Charger, operates stand alone. (Additional firmware added allows the charger to communicate with smart battery packs)
• Charges four cell Li-Ion battery pack from 6.5V to 7.0V Input (complete precondition, constant current and constant voltage charge algorithm in firmware)
• Regulates input dc bus voltage, (steps battery pack voltage down), to 6.0V when input source is removed (providing uninterrupted power source for system)
• ON/OFF button used to enable and disable system, low I_Q drain on the battery when disabled (< 10 μA)
• Output over-voltage protection in the event of open battery connections
  • High efficiency over entire operating input voltage range (94% typical)
• PIC16F88 is used to generate ref Voltage and Oscillator signal at 500 kHz frequency at maximum duty cycle
• Proprietary features can be added by modifying the firmware contained in the PIC16F88
  • Factory programmed source code is available

2.6 GETTING STARTED

The MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design is fully assembled and tested for charging a four series cell Li-Ion battery pack (Battery Pack should have internal overvoltage, overcurrent and overtemperature protection). The board requires the use of an external input voltage source (+7.0V) for charging.

2.6.1 Power Input and Output Connection

2.6.1.1 POWERING THE MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN

1. Connect the positive side of the +6.5V to +7.0V input to J2 Pin 2, connect the negative side (or ground) to Pin 1 of J2. This source voltage should not exceed 7.0 and be rated for 8A minimum supply current.
2. Connect the positive side of the Four cell Li-Ion battery pack voltage to J1 Pin 1, connect the battery pack return to the negative side of J1 Pin 2.

Note: Both supplies should have a separate isolated return (ground), there is a current sense resistor between the +7.0V ( V_BULK ) and +14V( V_BATT ) supply returns. If the returns are connected, the charge current can not be controlled.

1. Once the SW1 push button is pressed, the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design is powered. When powered, a charge cycle will start automatically if the 7.0V is connected and all preconditions are meet, (see Appendix C. "Firmware").
2. LED D3 will be illuminated when the board is running, (charging or bucking).
3. LED D5 will flash only when a charge cycle is in progress.
4. Again, a subsequent pressing of the SW1 push button during normal operation of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design will power-off the converter.

LOCATIONS FOR D3 D5 +14 VBAT I +7V J2 C12 R18 R36 R31 R28 C16 R21 C23 C24 C20 C21 C16 R24 TP6 Q3 U4 C17 R19 R30 R23 Q7 U5 C19 R11 C26 C10 C9 R14 R9 C8 TP5 J3 CONN ICD 2 SW1 SWITCH MicroCHIP BI-DIRECTIONAL POWER SUPPLY 102-00052

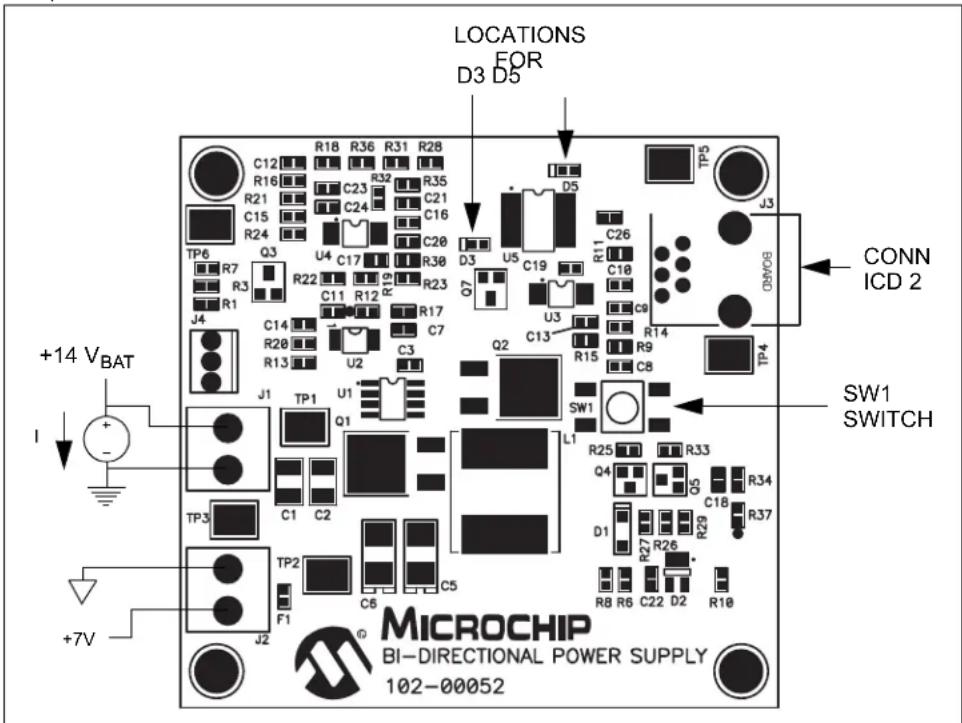

FIGURE 2-2: Board Top Assembly and Connections

2.6.1.2 APPLYING BATTERY TO MCP1630V BIDIRECTIONAL 4 CELL LI-ION CHARGER REFERENCE DESIGN

A four cell battery pack (with internal protection) is connected to the J1 connector before applying input power and pressing SW1 to start the charge cycle. Once the battery pack is connected, SW1 can be pressed to start the synchronous buck converter (assuming there is no 7.0V input applied to J2). With the battery pack connected, the source for J2 can be “hot” plugged in and out, a voltage will always be present on J2 until SW1 is pressed shutting off the converter.

2.6.1.3 ALTERNATIVE BATTERY PACK SIMULATOR

As an alternative to the four cell Li-Ion battery pack, a battery pack simulation circuit can be used, (Figure 2-3). This simulation circuit consists of an adjustable metal wound power load resistor (10Ω, 100W), Aluminum Electrolytic Capacitor (3,300 μF 25V) and Schottky Diode (10V, 30V). For evaluating the bidirectional converter design, the battery simulator circuit is recommended. When using the battery pack simulator, the operating point for charging and discharging can be easily be adjusted using the V_BATT power supply and load resistor value.

2.6.1.4 LED STATUS INDICATION

Two LED's are connected to the I/O of the PIC16F88 to provide status of the charger. LED D3 provides indication that the converter is running while LED D5 flashing provides indication that the converter is charging. With a 6.5V to 7.0V source applied to J2 while the converter is running, a charge cycle is initiated. Once the charge cycle is complete, the charger will continue to operate providing 0 mA of current to the battery. If the source is removed from J2, the converter will regulate the V_BULK voltage to 6.0V with a load up to 6A.

Evaluating the Application

The best way to evaluate the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design is to operate the bidirectional power system over a wide range using the battery pack simulator. The simulator consists of a 10 power resistor, diode and variable voltage source. When configured as shown in Figure 2-3, the circuit will simulate a battery. The loadresistor is used to sink current from the charger while a large capacitor is used to simulate the battery voltage ( V_SIM ). By adjusting the V_SIM voltage, different operating points in the charge cycle can be evaluated.

Once evaluated using the battery pack simulator, the bi-directional reference design can be used to run charge and discharge cycles using a four cell Li-ion battery pack. If using an actual Li-ion battery pack, it must have the proper protection features including, (overvoltage, overcurrent, overtemperature, etc.).

J1-1 +V_BATT 3,300 μF 10Ω +12V to +17.5V J1-2 -V_BATT

FIGURE 2-3: Battery Simulator Circuit.

Firmware

The PIC16F88 comes pre programmed with firmware to operate the system as described above. The file listing and firmware flow diagram are shown in Appendix C. "Firmware".

Programming

Header J4 is provided for In-Circuit Serial Programming™ (ICSP™). This is an optional feature since the demo board comes preprogrammed with firmware to operate the system. The PIC16F88 can be reprogrammed with the Baseline Flash Microcontroller Programmer (BFMP).

Appendix A. Schematics and Board Layouts

A.1 INTRODUCTION

This appendix contains the following schematics and layouts for the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design:

• Board – Schematic Sheet 1
• Board – Schematic Sheet 2
• Board – Top Silk Layer
• Board – Top Metal Layer
• Board – Internal MidLayer 1
• Board – Internal MidLayer 2
• Board – Metal Layer
• Board – Bottom Silk Layer

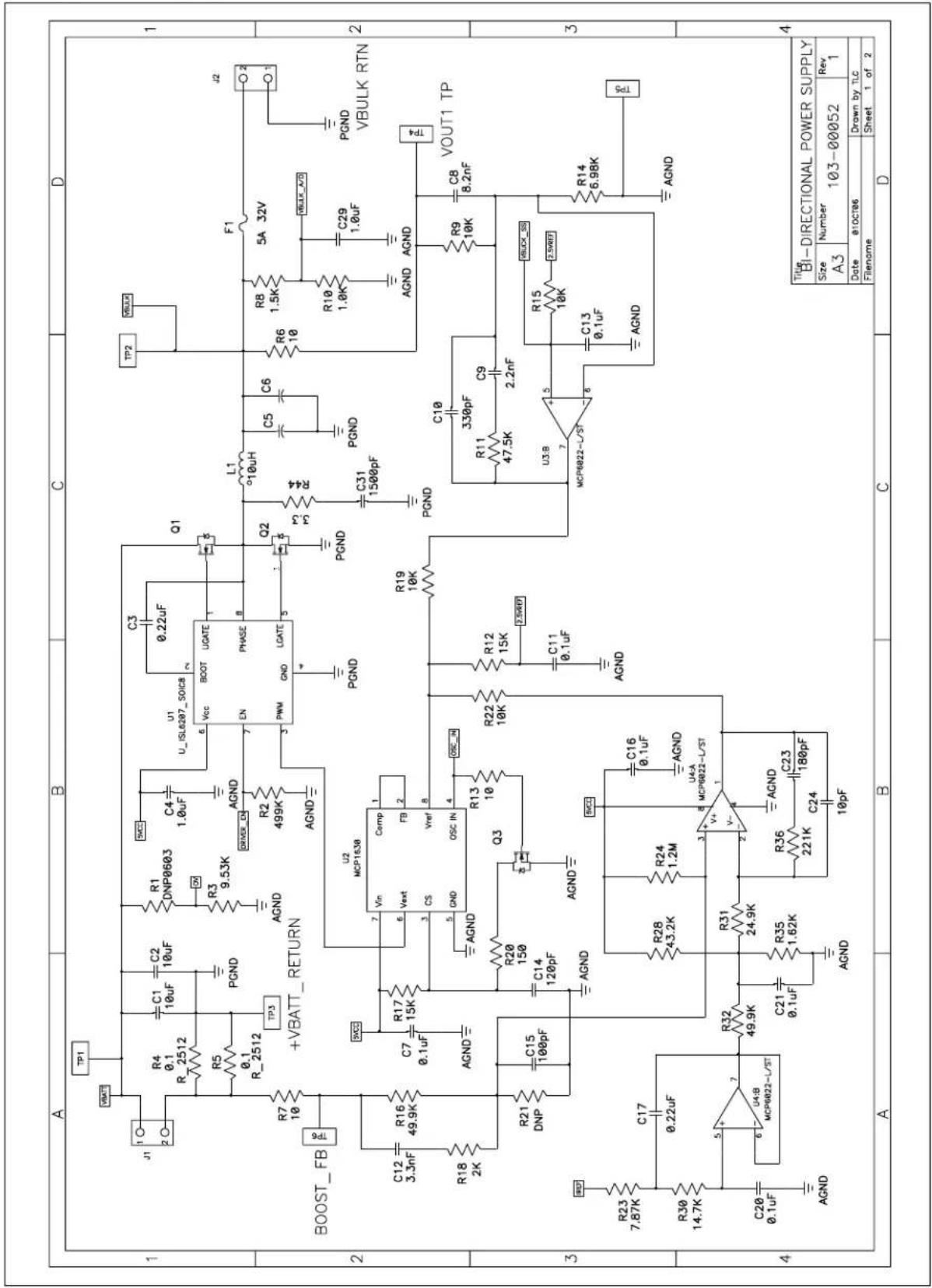

A.2 SCHEMATIC - SHEET 1

A B C D 1 2 3 4 TP1 R4 0.1 R-2512 R5 0.1 R-2512 TP3 +VBATT_RETURN J1 U1 C2 10uF C4 1.0uF R1 DNP0603 R3 9.53K R2 499K AGND C3 0.22uF U-ISL697_SOIC8 BOOT UGATE PHASE U-DATE GND PGND Q1 U Vcc U-DATE PWN C31 1500pF Q2 10uH C5 PGND C6 L1 C10uH C31 10kΩF VOUT1 TP C8 8.2nF R9 10kΩF C9 47.5kΩF 2.2nF R15 10kΩF C13 0.1uF AGND AGND U3.B NCPI822-L/ST AGND U2 MCP1638 Comp Vin Vext FB Vref C3 GND OSC IN Q3 R12 15kΩF C11 0.1uF AGND R22 10kΩF ACND R17 15kΩF C7 0.1uF AGND- C15 100pF R20 150ΩF C14 120pF AGND- C23 49.9kΩF R31 24.9kΩF C21 0.1uF AGND- R28 43.2kΩF R35 1.62kΩF C24 180pF R36 221kΩF ACND- U4A U4B U4C888-LSST ACND- U4A 1.2MΩF ACND- U4A 0.1uF ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- ACND- A3-DIRECTIONAL POWER SUPPLY Size Number 103-00052 Rev 1 Date 01086 Drawn by TLc Filename Sheet 1 of 2 A B C D A E F A F A G H I N I J K L M N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N P N O N F S T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A R Q T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A RQ T A R, D W D E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E X E x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x y z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z z zz Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z Z ZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZZzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzzz-

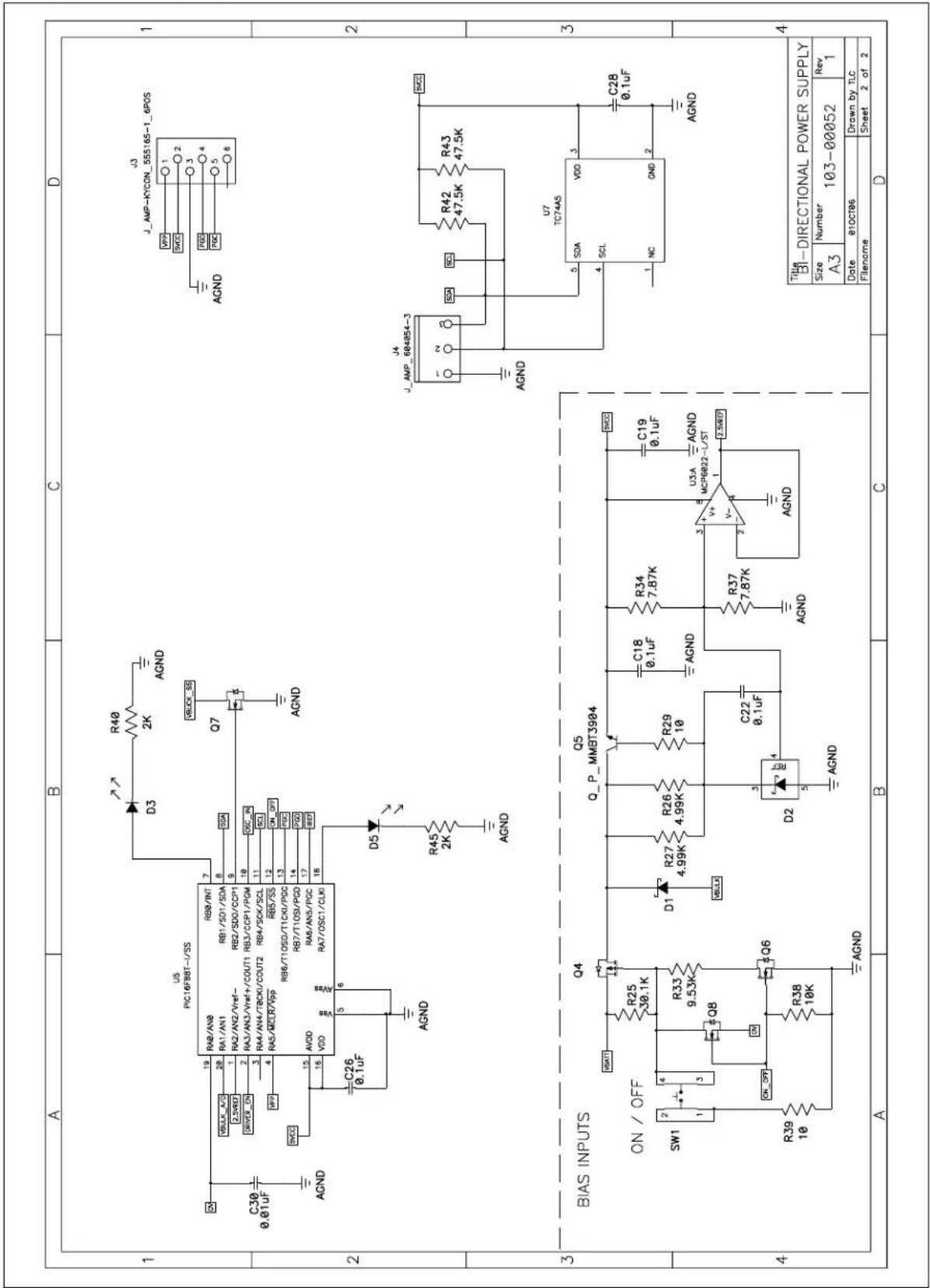

A.3 SCHEMATIC - SHEET 2

A B C D 1 2 3 4 BIAIS INPUTS ON / OFF SW1 R39 10 Q4 R25 30.1K R33 9.53K Q8 ON_OFF R38 10K Q6 R27 4.99K R26 4.99K R29 10 C18 0.1uF R34 7.87K C22 0.1uF D1 RBLKL D2 R37 7.87K AGND AGND C28 0.1uF U7 TC74A5 SDA VDD 3 NC GND AGND J3 J_AMP-KYCON_555165-1_6POS VP3 O 1 SWCS O 2 PDC O 3 PDC O 4 AGND O 5 AGND O 6 U3:A AGND MCP6822-L/ST V+ V- 2.5x80Ω AGND Q4 P_MMBT3904 Q5 R45 2K AGND R40 2K AGND US PIC16/BBT-1/SS VCLK_SS Q7 VCLK_SS AC 19 RA2/AN8 RB8/INT 7 RA1/AN1 RB1/SD1/SDA 8 SDA RA2/AN2/Vref- RB2/SDO/CCP1 9 RA3/AN3/Vref+/COUT1 RB3/CCP1/PGM 10 DISC_IN 11 SCL RA4/AN4/T8CKI/COUT2 RB4/SCK/SCL 12 ON_OFF 13 PDC 14 PDD 15 RED 16 RD7/T10SI/PGD 17 VDD 18 VDD/ANS/PDC 19 RA6/OSC1/CLKI 20 VDD/ANS/PDC 21 RA7/OSC1/CLKI 22 VDD/ANS/PDC 23 RA7/OSC1/CLKI 24 VDD/ANS/PDC 25 RA7/OSC1/CLKI 26 VDD/ANS/PDC 27 RA7/OSC1/CLKI 28 VDD/ANS/PDC 29 RA7/OSC1/CLKI 30 VDD/ANS/PDC 31 RA7/OSC1/CLKI 32 VDD/ANS/PDC 33 RA7/OSC1/CLKI 34 VDD/ANS/PDC 35 RA7/OSC1/CLKI 36 VDD/ANS/PDC 37 RA7/OSC1/CLKI 38 VDD/ANS/PDC 39 RA7/OSC1/CLKI 40 VDD/ANS/PDC 41 RA7/OSC1/CLKI 42 VDD/ANS/PDC 43 RA7/OSC1/CLKI 44 VDD/ANS/PDC 45 RA7/OSC1/CLKI 46 VDD/ANS/PDC 47 RA7/OSC1/CLKI 48 VDD/ANS/PDC 49 RA7/OSC1/CLKI 50 VDD/ANS/PDC 51 RA7/OSC1/CLKI 52 VDD/ANS/PDC 53 RA7/OSC1/CLKI 54 VDD/ANS/PDC 55 RA7/OSC1/CLKI 56 VDD/ANS/PDC 57 RA7/OSC1/CLKI 58 VDD/ANS/PDC 59 RA7/OSC1/CLKI 60 VDD/ANS/PDC 61 RA7/OSC1/CLKI 62 VDD/ANS/PDC 63 RA7/OSC1/CLKI 64 VDD/ANS/PDC 65 RA7/OSC1/CLKI 66 VDD/ANS/PDC 67 RA7/OSC1/CLKI 68 VDD/ANS/PDC 69 RA7/OSC1/CLKI 70 VDD/ANS/PDC 71 RA7/OSC1/CLKI 72 VDD/ANS/PDC 73 RA7/OSC1/CLKI 74 VDD/ANS/PDC 75 RA7/OSC1/CLKI 76 VDD/ANS/PDC 77 RA7/OSC1/CLKI 78 VDD/ANS/PDC 79 RA7/OSC1/CLKI 80 VDD/ANS/PDC 81 RA7/OSC1/CLKI 82 VDD/ANS/PDC 83 RA7/OSC1/CLKI 84 VDD/ANS/PDC 85 RA7/OSC1/CLKI 86 VDD/ANS/PDC 87 RA7/OSC1/CLKI 88 VDD/ANS/PDC 89 RA7/OSC1/CLKI 90 VDD/ANS/PDC 91 RA7/OSC1/CLKI 92 VDD/ANS/PDC 93 RA7/OSC1/CLKI 94 VDD/ANS/PDC 95 RA7/OSC1/CLKI 96 VDD/ANS/PDC 97 RA7/OSC1/CLKI 98 VDD/ANS/PDC 99 RA7/OSC1/CLKI

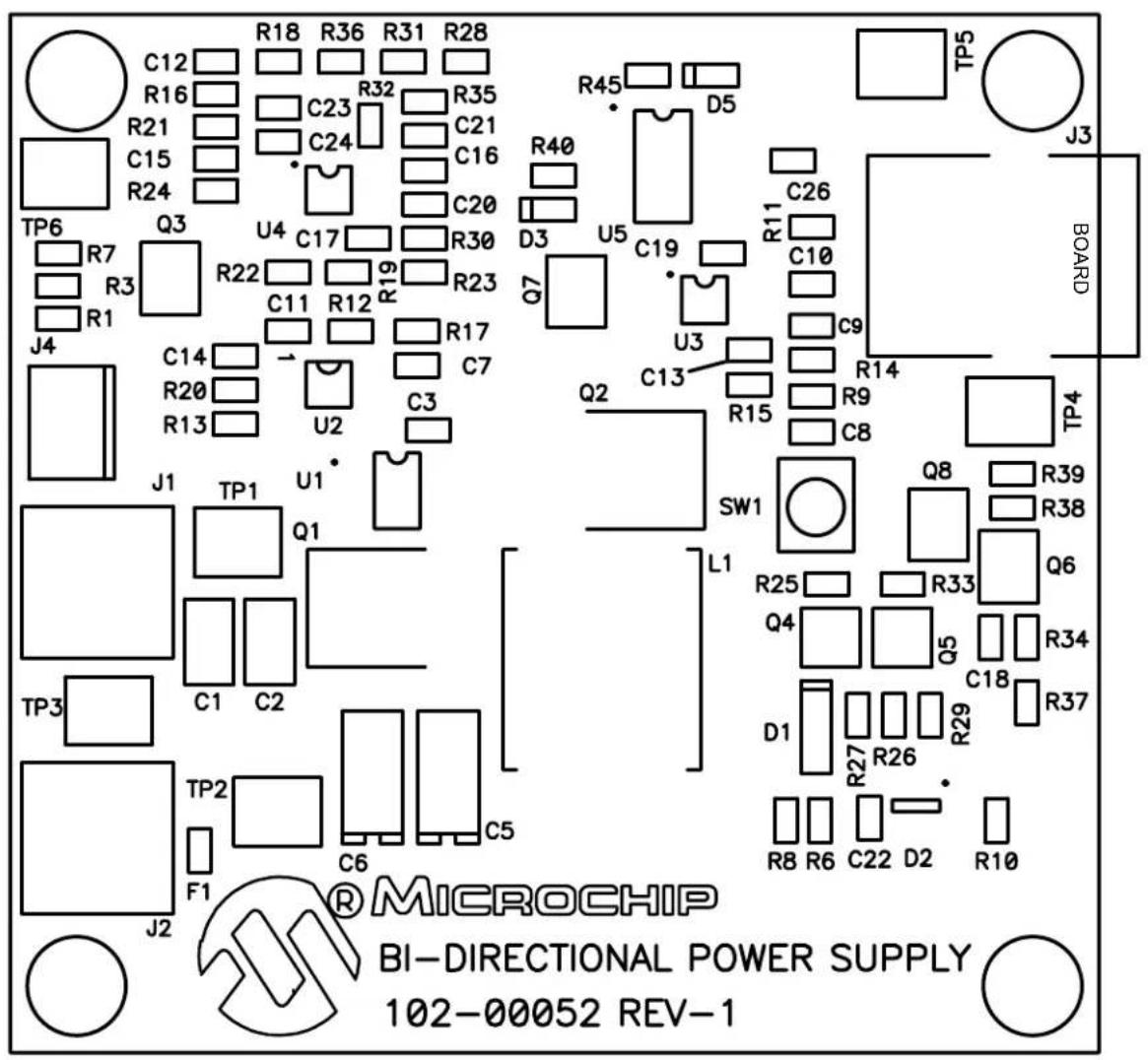

A.4 BOARD - TOP SILK LAYER

C12 R16 R21 C15 R24 TP6 R7 R3 R1 J4 Q3 U4 C17 R22 C11 R12 R19 R23 C14 R20 R13 U2 C3 J1 TP1 U1 Q1 TP3 F1 TP2 C6 C5 L1 SW1 Q2 C13 U3 C10 C9 R14 R9 C8 TP4 Q8 R39 R38 Q6 R25 R33 Q4 Q5 C18 R34 R37 D1 R27 R26 R29 R8 R6 C22 D2 R10 TP5 J3 BOARD MICROCHIP BI-DIRECTIONAL POWER SUPPLY 102-00052 REV-1

A.5 BOARD - TOP METAL LAYER

Pure electrical circuit lines without any symbols

A.6 BOARD - MID LAYER1

WIDAYEJ

A.7 BOARD - MID LAYER2

MIDLAYER2

A.8 BOARD - METAL LAYER

Pure electrical circuit lines without any symbols or text, depicting components and connections without any readable text or labels.

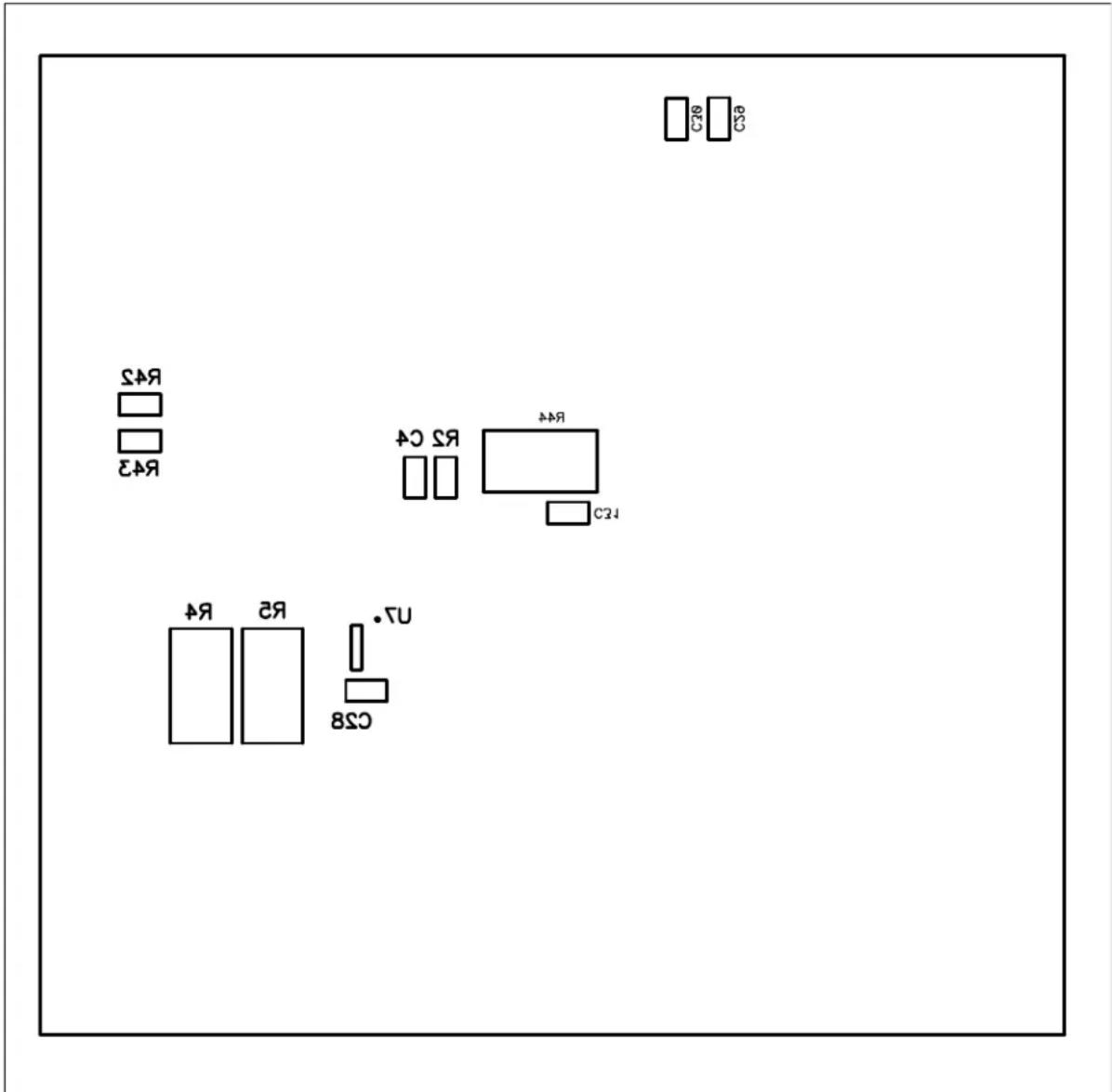

A.9 BOARD – BOTTOM SILK LAYER

C78 C58 R45 R42 R41 R34 R2 R2 U CS8

NOTES:

Appendix B. Bill Of Materials (BOM)

TABLE B-1: BILL OF MATERIALS (BOM)

QTY	Reference Designator	Description Manufacturer	Part Number
2 C1,	C2 CAP CER 10	UF 25V X5R 1210 Taiyo Yuden	®	TMK325BJ106MN-T
2 C3,	C17 CAP CERM	22UF 10% 10V X7R 0603 AVX Corporation	on 0603ZC224KAT2A
2 C4,	C29 CAP CERAM	MIC 1.0UF 10V X5R 0603 Kemet	® Electronics Corp	C0603C105K8PACTU
2	C5, C6	CAP TANT 100UF 10V 20% POLY SMD	EPCOS Inc.	B76010V1079M055
12 C7,	C11, C13, C16, C18, C19, C20, C21, C22, C26, C28	CAP .10UF 10V CERAMIC X7R 0603 Kemet	Electronics Corp C0603C104K8RACTU
1 C8	CAP	CERM 8200PF 10% 50V X7R 0603	AVX Corporation 06035C8	22KAT2A
1	C9	CAP CER 2200PF 50V C0G 5% 0603	TDK Corporation	C1608C0G1H222J
1	C10	CAP CERAMIC 330PF 50V NP0 0603	Kemet Electronics Corp	C0603C331J5GACT
1	C12	CAP 3300PF 50V CERAMIC X7R 0603	Kemet Electronics Corp	C0603C332K5RACTU
2	C14	CAP CERAMIC 120PF 50V NP0 0603	Kemet Electronics Corp	C0603C121J5GACTU
1	C15	CAP CERAMIC 100PF 50V NP0 0603	Kemet Electronics Corp	C0603C101J5GACTU
1	C23	CAP CERAMIC 180PF 50V NP0 0603	Kemet Electronics Corp	C0603C181J5GACTU
1	C24	CAP CERAMIC 10PF 50V NP0 0603	Kemet Electronics Corp	C0603C100J5GACTU
1 C30	CAP	10000PF 50V CERAMIC X7R 0603	Kemet Electronics Corp	C0603C103K5RACTU
1	C31	CAP 1500PF 50V CERAMIC X7R 0603	Kemet Electronics Corp	C0603C152K5RACTU
2 D1	DIODE SCHOTTKY 30V 200MW SOD123		Diodes Inc.	BAT42W-7-F
1 D2	IC ADJ SHUNT REGULATOR SOT-23-5		Texas Instruments	TL431IDBVR
2 D3,	D5 LED 660NM SUPER RED DIFF 0603SMD		Lumex® Opto/ Components Inc	SML-LX0603SRW-TR
1 F1	FUSE 5.0A 32V FAST SMD 0603 Tyco		® Electronics/ Raychem Circuit Protection	0603SFF500F/32-2
2	J1, J2	CONN TERM BLOCK 2POS 5MM PCB	Phoenix Contact	1715022
1	J3	CONN MOD JACK 6-6 RT/A PCB 50AU	Tyco Electronics/Amp	5555165-1
1	J4	CONN HEADER VERT 3POS.100 TIN	Tyco Electronics/Amp	640454-3
1 L1	INDUCTOR POWER HI CURR 10UH SMD		Coiltronics/Div of Cooper/Bussmann	HC1-100-R
1	Q1	MOSFET N-CH 30V 35A DPAK	International Rectifier	IRLR3303PBF
1	Q2	MOSFET N-CH 30V 91A DPAK	International Rectifier	IRLR8103VPBF
4 Q3,QTY	Q6, Q7, Q8Reference Designator	MOSFET N-CH 30V 1.2A SSOT3Description	Fairchild SemiconductorManufacturer	NDS351ANPart Number
1 Q4	MOSFET P-CH 30	0V 610MA SOT-23 International Rectifier	IRLML5103TRPBF
1 Q5	TRANSISTOR GP	NPN AMP SOT-23 Fairchild Semiconductor	®	MMBT3904
0 R1,	R21 SMT0603 RE	RESISTORDO NOT POPULATE	—	—
1 R2	RES 499K OHM	1/10W 1% 0603 SMD Panasonic	® - ECG ERJ-3EKF4993V
2 R3,	R33 RES 9.53K	OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF9531V
2 R4,	R5 RESISTOR .	100 OHM 1W 1% 2512 Panasonic - ECG ERJ-L1WKF10CU
5 R6,	R7, R13,R29, R39	RES 10.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1002V
1 R8	RES 1.50K OHM	1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1501V
6 R9,	R15, R19,R22, R38	RES 10.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1002V
1 R10	RES	1.00K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1001V
3 R11,	R42, R43	RES 47.5K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4752V
1 R12,	R17	RES 15.0K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1502V
1 R14	RES	6.98K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF6981V
2 R16,	R32	RES 49.9K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4992V
3 R18,	R40, R45 RES	2.00K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2001V
1 R20	RES	150 OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1500V
3 R23,	R34, R37 RES	7.87K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF7871V
1 R24	RES	ISTOR 1.20M OHM 1/10W 1%0603	Panasonic - ECG ERJ-3EKF1204V
1 R25	RES	30.1K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF3012V
3 R26,	R27	RES 4.99K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4991V
1 R28	RES	43.2K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF4322V
1 R30	RES	14.7K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1472V
1 R31	RES	24.9K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2492V
1 R35	RES	1.62K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF1621V
1 R36	RES	221K OHM 1/10W 1% 0603 SMD Panasonic - ECG ERJ-3EKF2213V
1 R44	RES	3.3 OHM 1W 1% 2512 SMD Panasonic - ECG ERJ-1TRQF3R3U
1	SW1	SWITCH TACT 6MM 260GF SMT	E-Switch	TL3301NF260QG
6 TP1	TP2, TP3,TP4, TP5, TP6	PC TEST POINT COMPACT SMT	Keystone Electronics®	5016
1 U1	IC DRIVER MOSFET DUAL SYNC8SOIC		Intersil	ISL6207CBZ
1 U2	MCP1630V HIGH	SPEED ANALOGPWM	Microchip Technology Inc.	MCP1630V-E/MS
2 U3,	U4 DUAL10MHz	AMPLIFIER 8 PINTSSOP PACKAGE	Microchip Technology Inc.	MCP6022-I/ST
1 U5	IC MCU FLASH 4	KX14 EEPROM20SSOP	Microchip Technology Inc.	PIC16F88T-I/SS
1 U7	IC DGTL THERM	SENSOR 5VSOT23A-5	Microchip Technology Inc.	TC74A5-5.0VCTTR

Note 1: The components listed in this Bill of Materials are representative of the PCB assembly. The released BOM used in manufacturing uses all RoHS-compliant components.

Appendix C. Firmware

C.1 DEVICE FIRMWARE - FLOWCHART

For the latest copy of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User's Guide firmware, visit our web site at www.microchip.com.

FIGURE C-1: Firmware Flowchart, page 1.

C.2 DEVICE FIRMWARE - FLOWCHART (CONTINUED)

For the latest copy of the MCP1630V Bidirectional 4 Cell Li-Ion Charger Reference Design User's Guide firmware, visit our web site atwww.microchip.com

FIGURE C-2: Firmware Flowchart, page 2.

NOTES:

WORLDWIDE SALES AND SERVICE

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://support.microchip.com

Web Address:

www.microchip.com

Atlanta

Alpharetta, GA

Tel: [phone]

Fax: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Farmington Hills, MI

Tel: [phone]

Fax: [phone]

Kokomo

Kokomo, IN

Tel: [phone]

Fax: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Santa Clara

Santa Clara, CA

Tel: [phone]

Fax: [phone]

Toronto

Mississauga, Ontario,

Canada

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Habour City, Kowloon

Hong Kong

Tel: [phone]

Fax: [phone]

Australia - Sydney

Tel: [phone]

Fax: [phone]

China - Beijing

Tel: [phone]

Fax: [phone]

China - Chengdu

Tel: [phone]

Fax: [phone]

China - Fuzhou

Tel: [phone]

Fax: [phone]

China - Hong Kong SAR

Tel: [phone]

Fax: [phone]

China - Qingdao

Tel: [phone]

Fax: [phone]

China - Shanghai

Tel: [phone]

Fax: [phone]

China - Shenyang

Tel: [phone]

Fax: [phone]

China - Shenzhen

Tel: [phone]

Fax: [phone]

China - Shunde

Tel: [phone]

Fax: [phone]

China - Wuhan

Tel: [phone]

Fax: [phone]

China - Xian

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

Fax: [phone]

India - New Delhi

Tel: [phone]

Fax: [phone]

India - Pune

Tel: [phone]

Fax: [phone]

Japan - Yokohama

Tel: [phone]

Fax: [phone]

Korea - Gumi

Tel: [phone]

Fax: [phone]

Korea - Seoul

Tel: [phone]

Fax: [phone] or

82-2-558-5934

Malaysia - Penang

Tel: [phone]

Fax: [phone]

Philippines - Manila

Tel: [phone]

Fax: [phone]

Singapore

Tel: [phone]

Fax: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Fax: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Fax: [phone]

Taiwan - Taipei

Tel: [phone]

Fax: [phone]

Thailand - Bangkok

Tel: [phone]

Fax: [phone]

EUROPE

Austria - Wels

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]
