Microchip is a leading provider of semiconductor supplier of smart, connected and secure embedded control solutions, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Offering outstanding technical support along with dependable delivery and quality, Microchip serves over 125,000 customers across the industrial, automotive, consumer, aerospace and defense, communications and computing markets worldwide.

8-bit Microcontrollers

Microchip's PIC® and AVR® microcontrollers (MCUs) represent two dominant architectures for embedded design. With a combined 45 years' experience developing commercially available and cost-effective 8-bit MCUs, Microchip is the supplier of choice for many due to its strong legacy and history of innovation in 8-bit. Our current lineup of 8-bit PIC and AVR MCUs incorporates the latest technologies to enhance system performance while reducing power consumption and development time. With more than 1,200 devices, Microchip offers the industry's largest 8-bit portfolio. Key features include Core Independent Peripherals, low-power performance with picoPower® and eXtreme Low Power (XLP) technology, industry-leading robustness driven by best-in-class EMI/EMC performance and simplified development with our suite of easy-to-use development tools. For more information visit: www.microchip.com/8bit.

16-bit PIC Microcontrollers

The PIC24 is a cost-effective, eXtreme Low Power (XLP) family of MCUs, featuring devices with dual partition memory up to 1024 KB of Flash and a rich set of Core Independent Peripherals (CIPs). Our portfolio offers an upgrade in features for applications that are pushing the boundaries of 8-bit MCU capabilities, offering more memory, more pins and faster peripherals in the same ecosystem for easy migration. The PIC24 MCUs also feature hardware safety features. For more information visit: www.microchip.com/16bit.

dsPIC® Digital Signal Controllers

The dsPIC family of Digital Signal Controllers (DSCs) features a Digital Signal Processor (DSP) engine with up to 100 MIPS performance capable of high-efficiency, high-precision variable speed, constant torque PI control and Field Oriented Control (FOC) motor control. Equipped with high-level analog integration and capable of operating up to 150°, the dsPIC33 family is ideal for PMSM, ACIM and BLDC motor control in industrial, medical, automotive and consumer applications.

Many dsPIC33 DSCs are “Functional Safety Ready” with integrated safety features and offer safety manuals, FMEDA reports and diagnostic software. For more information visit: www.microchip.com/16bitfunctionalsafety.

32-bit Microcontrollers

From simple embedded control to advanced graphics, secure Internet of Things (IoT) and functional safety applications, Microchip portfolio of 32-bit MCUs can meet your design challenge. Spanning a wide range of options—from offering the industry's lowest power consumption to delivering the highest performance—these MCUs run at up to 600 DMIPs and deliver ample code and data space with up to 2048 KB Flash and 512 KB RAM with 32 MB integrated DDR2 DRAM or 128 MB externally addressable options. They are supported by novel and easy-to-use software solutions to speed up your application development. For more information visit: www.microchip.com/32bit.

32-bit Arm® Microprocessors

As you push beyond the boundaries of 32-bit MCUs, the SAM9 (ARM9) and SAMA5 (Cortex® A5) microprocessor (MPU) families provide the power and performance needed for demanding applications. They feature up to 600 MHz (942 DMIPS) operation and System-in-Package options with integrated DDR2 or LPDDR2 memory and System-on-Modules. Microchip's MPUs offer a rich set of peripherals and user interfaces including Gigabit Ethernet MACs, high-speed USB, hardware video decoding, capacitive touch, 12-bit CMOS image (camera) sensors, I²S audio interfaces and advanced 24-bit graphic LCD controllers with overlays. They deliver market-leading low power (down to 0.3 mW sleep) and advanced security features needed for Internet-connected gateways and cost-sensitive industrial and consumer applications. The MPU devices come with free Linux®OS and third-party tools and software, and low-cost hardware development boards are available to ease development. For more information visit: www.microchip.com/mpu.

Analog and Interface Products

Microchip's integrated analog technology, peripherals and features are engineered to meet today's demanding design requirements. Our extensive spectrum of analog products addresses thermal management, power management, battery management, mixed-signal, linear, interface and safety and security solutions. Our broad portfolio of stand-alone analog and interface devices offers highly integrated solutions that combine various analog functions in space-saving packages and support a variety of bus interfaces. Many of these

Microchip: A Partner in Your Success

devices support functionality that enhances the analog features currently available on PIC microcontrollers. Microchip extends power solutions with a broad portfolio of Silicon diodes, MOSFETs and IGBTs and Silicon Carbine (SiC) MOSFETs and Schottky Barrier Diodes (SBDs). For more information visit: www.microchip.com/analog.

Security and Authentication Products

Microchip offers a series for secure key storage products with the CryptoAuthentication devices, CryptoAutomotive devices and TPM. For applications such as disposables, accessories and nodes used in home automation, industrial networking, medical and other applications, these devices employ secure, hardware-based cryptographic key storage and cryptographic countermeasures such as active anti-tamper protection, side channel attack protections, which offer higher security than software-based solutions. To further reduce complexity and cost of your supply chain, Microchip also offers a secure key provisioning service integrated as part of the Trust Platform program. For more information visit: www.microchip.com/SecureElements.

Timing and Communication Products

Microchip has an expansive, wide-ranging clock and timing portfolio that delivers total solutions for your complex timing requirements. Our oscillator products offer both low-jitter and low-power online-configurable products with the option of choosing a traditional quartz-based solution or going with our MEMS silicon-based resonator products. The clock generation line offers online configurable, single chip, multiple-frequency clock tree solutions. Rounding out the portfolio, our clock and data distribution product line includes one of the industry's largest portfolios of buffers, logic translators and multiplexers.

With the right combination of products, configuration tools and technical support, Microchip's Timing and Communications products are ideal for all designs, from simple to high-performance systems. For more information visit: www.microchip.com/timing.

Real-Time Clock/Calendar

Microchip offers a family of highly integrated, low-cost Real-Time Clock/Calendar devices with battery backup capability, digital trimming, plus on-board EEPROM and SRAM memory. For more information visit: www.microchip.com/clock.

Memory Products

Microchip's broad portfolio of memory devices includes Serial EEPROM, Serial SRAM, Serial Flash, Serial NVSRAM, Serial EERAM, Parallel EEPROM, Parallel OTP (One-Time Programmable) and Parallel Flash devices. Our innovative, low-power designs and extensive testing have ensured industry-leading robustness and endurance, along with best-in-class quality, at low costs. For more information visit: www.microchip.com/memory.

Wireless Products

The Microchip wireless portfolio is focused on offering extremely low-power operation and is designed for sensing or command/control operation products. This extensive portfolio is comprised of solutions for Wi-Fi ^® , Bluetooth ^® , LoRa ^® technology, 802.15.4 (such as zigbee ^® or MiWi ^™ wireless networking protocol) along with proprietary 2.4 GHz and Sub-GHz communications. The Timberwolf ^™ platform is the latest-generation audio processor. The hardware architecture is ideal for today's growing need for hands-free communications and Human To Machine (H2M) voice interfaces. This field-upgradable platform is designed for multiple end-market applications. For more information visit: www.microchip.com/wireless.

High-Throughput USB and Ethernet Interface Solutions

High-speed networking is the backbone of many industrial, IoT, consumer and automotive applications. Microchip offers a complete portfolio of Ethernet PHYs, switches, controllers and bridge devices, enabling up to 10 Gigabit-speed communications in harsh environments. For high-speed telecommunications networks deployed by service providers and hyperscalers, 400 Gigabit PHYs enable application ranging including data center and edge routers, switches and optical transport platforms.

The USB offering spans low cost to SuperSpeed Plus and incorporates value-rich solutions such as USB SmartHub controllers, power delivery and charging, transceivers/switches, Flash media controllers and security solutions. For more information visit www.microchip.com/usb and www.microchip.com/ethernet.

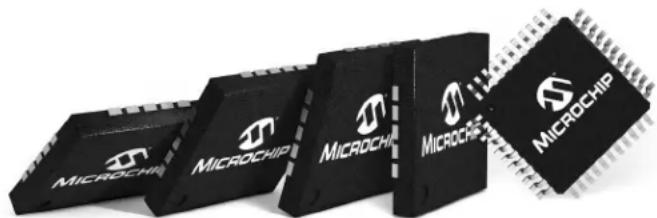

Five black MICROCHIP microchips with printed logos, displayed side by side (no readable text beyond branding)

MOST® Technology

Media Oriented Systems Transport (MOST) technology is the accepted standard in high-bandwidth automotive infotainment systems. It is broadly standardized from the physical layer up to the application level. Various speed grades and physical layers are available. The highly flexible and scalable MOST platform can transmit A/V streaming, packet, and isochronous and control data. It is also approved to transmit DVD and Blu-ray™ content using Digital Transmission Content Protection (DTCP). For more information visit: www.microchip.com/automotiveproducts.

Embedded Controllers and Super I/O

Microchip's computing-related products include state-of-the-art embedded controllers based on the innovative eSPI bus technology, Input/Output (I/O) devices, keyboard controllers, root of trust, secure boot and authentication devices and system-management devices. These components serve the computing industry, including major OEMs and motherboard manufacturers worldwide. Applications include traditional computing applications such as notebooks and desktops, and embedded computing which is found in a variety of applications such as information kiosks, networking equipment, automatic teller machines and devices for the oil and gas industries. For more information visit: www.microchip.com/computing.

Touch, Multi-Touch and 3D Gesture Control

Microchip offers the most feature-rich solutions in capacitive sensing for applications ranging from single-touch buttons and proximity sensing to touchpads, touchscreens and free-space 3D gesture control. Turnkey solutions (maXTouch® technology) as well as MCU/MPU solutions (PIC, AVR, PIC32 and SAM) come with Graphical User Interface (GUI) software tools and code configurators for easy design-in cycles that shorten your time to market. For more information please visit: www.microchip.com/touch.

Power over Ethernet (PoE) Systems and ICs

Microchip offers a comprehensive end-to-end portfolio of PoE solutions comprised of PoE ICs and PoE Injectors/Systems. Microchip's PoE ICs product line is the broadest in the market with PSE ICs featuring 1 to 8 ports, presenting the highest integration level and lowest total BOM cost. The PD ICs line provides solutions with and without integrated PWM controllers and is used as a compact way to convert PoE input power to one or more output voltages. The PoE Injectors/Systems line includes stand-alone PoE Injectors/Midspans and Switches ranging from single-port to multi-port solutions. These

off-the-shelf products can be added by customers to their portfolio while saving the development efforts on their side. The PoE Injectors support best-of-breed PoE deployments making it easier than ever to install PoE-enabled Ethernet-based devices in both indoor, outdoor and industrial environments. The PoE multi-port injectors increase the flexibility and longevity of Ethernet networks.

Optical Networking Solutions

Microchip OTN processors and OTN PHYs offer leading innovation, integration and power for Data Center Interconnect (DCI) and metro and regional optical transport networks. They deliver the quickest time to market and lowest R&D expense for the OEM and minimize the total cost of ownership for the service provider. We also offer a comprehensive portfolio of optical networking solutions for Synchronous Optical Networking/Synchronous Digital Hierarchy (SONET/SDH), T1/E1 and Fiber-to-the-Home/Passive Optical Network (FTTH/PON) protocols. For more information visit: www.microchip.com/design-centers/high-speed-communications/optical-networking

FPGAs

Our unique, low-power, non-volatile technology sets Microchip's Field Programmable Gate Arrays (FPGAs) apart from traditional SRAM-based devices. With an extensive heritage of reliability, Microchip's FPGAs and SoCs meet demands for low power, and security in a variety of applications.

In wired and wireless communications, defense and aviation, and industrial embedded applications, Microchip FPGAs deliver ample resources at the lowest power, highest reliability and greatest security. Microchip FPGAs demonstrate value in applications such as hardware acceleration, artificial intelligence, image processing and edge computing with robust DSP and memory resources.

Storage Adapters

Microchip's Smart Storage stack delivers one of the industry's broadest portfolios of trusted storage solutions that reliably move, manage, and store critical data and digital content. Adaptec® SmartRAID RAID adapters and SmartHBA and HBA Host Bus Adapters deliver the security and performance needed by critical applications, lower your power footprint and scale for future growth. Our high quality, reliable solutions are backed by decades of experience and technical support to guide you from purchase to implementation of your design. For more information visit: www.microchip.com/smartstorage

PCIe Solutions

Microchip's Switchtec PCIe switches are the industry's highest-density, lowest-power PCIe switches, enabling solutions for a wide variety of systems from data center equipment, GPU workstations/servers, GPU arrays, pooled storage/compute/networking, multi-host architectures, Just a Bunch Of Flash (JBOF), PCIe SSD enclosures, flash arrays, high-density servers, communications, and any applications requiring low-power and high-reliability PCIe switching.

The Switchtec PFX Gen 3 and Gen 4 Fanout PCIe switches are high-reliability, low-power PCIe switches supporting up to 100 PCIe lanes, advanced error containment, comprehensive diagnostics and debug capabilities, and a wide breadth of I/O interfaces. For more information visit: www.microchip.com/PCIeSwitches

Table of Contents

8-bit PIC Microcontrollers....6
8-bit AVR Microcontrollers 7
16-bit Microcontrollers and dsPIC
Digital Signal Controllers....9
32-bit Microcontrollers ..... 12
32-bit Microprocessors....15
Analog and Interface Products ..... 17
Thermal Management....17
Power Management....17
Display and LED Drivers 24
High-Voltage Interface 25
Linear 27
Mixed Signal....27
Interface (CAN) 30
Interface (LIN) 30
Ultrasound 31
CO and Smoke Detector ICs 32
Motor Drivers 32

Timing and Communication Products....33
Oscillators 33
Clock and Data Distribution 34
High-Speed Communication 48
Memory Products....49
Wireless Products. 55
Wireless Audio 56
USB Products 57
Ethernet Products 58
Automotive Products 61
Embedded Controllers and Super I/O....63
Security Products....63
Touch and 3D Gesture Control 64
Power Discretes and Modules 65
Power over Ethernet....70
FPGA 74
Data Center Solutions....76
Terms and Definitions 79

8-bit PIC® Microcontrollers

Product Family

Pin Count

Program Flash Memory (KB)

RAM (KB)

Data EE (B)

Intelligent Analog Waveform Control

Logic and Math

Safety and Monitoring

Communications

User Interface

Low Power and System Flexibility

Packages

ADC (# of bits)

Comp

HSComp

DAC (# of bits)

OPA

SlopeComp / PRG

ZCD

CCP/ECCP

10-bit PWM

16-bit PWM

COG

CWG

NCO

DSM

HLT (8-bit)

Universal Timer

NCO (20-bit)

SMT (24-bit)

RTCC

TEMP/TS

CLC

MULT

MathACC

CRC/SCAN

HLT

WWDT

USART

PIC10(L)F3XX

6.384-896 B 0.064 HEF 8

√

√

√

√

√

√

√

SOT-23, DFN, PDIP

PIC16F152XX

8-40 3.5-28 0.5-2 - 10

√

√

√

√

√

√

√

1

√

√

DFN, SOIC, SSOP, TSSOP, VQFN, PDIP, TQFP

PIC12/16 LF155X/6X

14-20 7-14

1.024 HEF

10

2

√

√

√

√

√

√

PDIP, SOIC 150mil, TSSOP, QFN, SSOP 208mil, UQFN, SOIC 300mil, SPDIP, TQFP

PIC16(L)F145X

14-20

14

1.024 HEF

10

√

√

√

√

√

√

√

√

PDIP, SOIC 150mil, TSSOP, QFN, UQFN, SOIC 300mil, SSOP 208mil

PIC1X(L)F157X

8-20

1.75-14 1.024 HEF

10

√

5

√

√

√

√

√

√

√

√

DFN, MSOP, PDIP, SOIC 150mil, UDFN, TSSOP, UQFN, PDIP, SOIC 300mil, SSOP 208mil

PIC16(L)F153XX

8-48

3.5-28 2.048 HEF

10

√

5

√

√

√

√

√

√

√

√

√

√

√

2

√

√

√

PDIP, SOIC 150mil, TSSOP, UQFN, SOIC 300mil, SSOP 208mil, QFN, SPDIP, TQFP

PIC1X(HV)F752/53

8-14

1.75-3.5

0.128 - 10

√

5/9

√

SC

√

√

√

√

√

DFN, PDIP, SOIC 150mil, TSSOP, QFN

PIC1X(L)F161X

8-14

3.5

0.256 HEF

10

√

8

√

√

√

√

√

√

√

√

√

√

DFN, PDIP, SOIC 150mil, TSSOP, QFN

PIC16(L)F161X®

14-20 7-14

1.024 HEF

10

√

8

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

PDIP, SOIC 150mil, TSSOP, QFN, SOIC 300mil, SSOP 208mil, UQFN, TQFP

PIC18-Q40/1

14-20

16-32

1-4

512

12

√

8

√5

√

√

√

√

√

√

√

√

√

√

√

2

1

√

√

√

√

√

SOIC, TSSOP, QFN, PDIP

PIC16(L)F170X/71X

14-40

3.5-28 2.048 HEF

10

√

5/8

√

√

√

√

√

√

√

√

√

√

√

√

PDIP, SOIC 150mil, TSSOP, QFN, SOIC 150mil, UQFN, SOIC 300mil, SSOP 208mil

PIC16(L)F176X/7X

14-40 7-28

2.048 HEF

10

√

5/10

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

PDIP, SOIC 150mil, TSSOP, QFN, SOIC 300mil, SSOP 208mil, SPDIP, UQFN, TQFP

PIC16(L)F183XX

8-20

3.5-14 2.048

256

10

√

5

√

√

√

√

√

√

√

√

√

√

√

√

√

PDIP, SOIC 150mil, UDFN, TSSOP, UQFN, SOIC 300mil, SSOP 208mil

PIC16(L)F184XX

14-28

7-28 2.048

256

12

√

5

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

UQFN, PDIP, SOIC, TSSOP, SSOP, VQFN, SPDIP

PIC16(L)F188XX

28-40 7-56

4.096

256

10

√

5

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

QFN, SOIC 300mil, SPDIP, SSOP 208mil, UQFN, PDIP, TQFP

PIC18-Q10

28-40

16-128 1-3.6

256-1K

103

√

5

√

√

√

√

√

√

√

√

√

√

√

2

√

√

√

√

√

QFN, SOIC, SPDIP, SSOP, VQFN, PDIP, TQFP

PIC18-Q43

28-48

32-128

2-8

1024

124

√

8

√

√

√

√

√

√

√

√

√

√

√

√

4

1

√

√

√

√

√

√

PIC18-Q84®

28-48

64-128 8-13

1024

12

√

8

√

√

√

√

√

√

√

√

√

√

√

√

3

2

√

√

√

√

√

VQFN, PDIP, SOIC, SSOP,TQFP

PIC16(L)F191XX

28-64

14-56 4.096

256

12

√

5

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

QFN, TQFP

PIC18-K40

28-64

16-128

3.728

256-1K

103

√

5

√

√

√

√

√

√

√

√

√

√

5

√

√

√

√

√

PIC18-K42

28-48

16-128

8.192

256-1K

124

√

5

√

√

√

√

√

√

√

√

√

√

√

√

1

1

√

√

√

√

√

√

PIC18-J94

64-100

32-128

4.096 - 12

√

√

√

√

4

√

√

√

√

√

√

Notes: (1) In addition to standard 8-bit and 16-bit timers (2) Independent Dual ADC Modules (3) PIC16F1615/9 include an angular timer. (4) ADCC: Analog-to-Digital Converter with Computation (5) PIC18-Q41 has an OPAMP (6) Device is CAN-FD capable (7) Analog-to-Digital Converter with Computation and Context Switching (6) CAN-FD & JTAG capable

8-bit AVR® Microcontrollers

Product Family	Pin Count	Program Flash Memory (KB)	SRAM (KB)	Supply Voltage	Speed (MHz) Single Cycle Instruction: MHz = MIPS	Intelligent Analog								Waveform Control			Timing and Measurements			Logic, Crypto and Math		Safety and Monitoring			Communications						User Interface		System Flexibility
						ADC (# of bits)	ADC (# of channels)	Comparators	ADC Gain Stage	DAC (# of bits)	Temperature Sensor	Internal Voltage Reference	Zero Cross Detector (ZCD)	8-bit PWM	16-bit PWM	Quadrature Decoder	Waveform Extension (Wx)	Real-Time Counter	8-bit Timer/Counters	12-bit Timer Counter	16-bit Timer/Counter	CCL	MULT	Crypto (AES/DES)	CRC/SCAN	POR	BOD	WDT	USART	USB	IC	SPI	IRCOM	Serial Number	QTouch® Technology	QTouchTechnology with PTC ^a	LCD	External Bus Interface	DMA Channels	Event System	Sleep Walking	Sleep Modes picoPower® Technology
ATtiny4/5/9/10	6 0.5-1 0.032		1.8-5.5 12	10 ^3 4			(5)	✓							2					1					✓	✓	✓											4
ATtiny102/104	8/14 1		0.032 1.8-5.5 12	10 5/8				✓				✓			2					2					✓		✓	1										4
ATtiny13A	8-20 1		0.064 1.8-5.5 20	10 4				✓							2										✓	✓	✓	✓										3	✓
ATtiny20/40	12-20		2/4	0.128/0.256	1.8-5.5	12	10	8/12	✓			✓			2	2			1		1				✓	✓	✓			1	1			✓					4
ATtiny24A/44A/84A	14-20		2-8 Up to	0.512 1.8-5.5 20	10 8				✓	✓		✓	✓		2	2			1		1				✓	✓	✓			1	1			✓					4	✓
ATtiny48/88	28-32		4/8	Up to 0.512	1.8-5.5	16 10	8		✓			✓	✓		1	1			1		1				✓	✓	✓			1	1								3	✓
ATtiny87/167	20-32		8/16	0.512 1.8-5.5	16 10	11			✓			✓	✓		1	2			1		1				✓	✓	✓	1 ^⓶		1	2								4
ATtiny261A/461A/861A	20-32		2-8 Up to	0.512 1.8-5.5	20 10	11			✓	✓		✓	✓						1		1				✓	✓	✓			1	1			✓					4	✓
ATtiny20x/40x/80x/160x	8-24 2-16		Up to 1	1.8-5.5 20	10 12			✓				✓	✓			2		✓			1	✓	✓	✓	✓	✓		1 ^⓹		1	1		✓					✓	✓	3	✓
ATtiny21x/41x/81x/161x/321x	8-24	2-32	Up to 2	1.8-5.5	20	10	12	✓		8	✓	✓			2		✓		1		1	✓	✓	✓	✓	✓		1 ^⓹		1	1		✓		✓ ^⓹				✓	✓	3	✓
ATtiny441/841	14-20	4/8	Up to 0.512	1.7-5.5	16	10	12	✓	✓		✓				1	2			1		2				✓	✓	✓	2		1	1									4	✓
ATtiny2313A	20	2 0.1	28 1.8-5.5 20	-	-			✓				✓			2	2			1		1				✓	✓	✓	1		1	2									3	✓
Atmega8A/16A/32A	28-44	8-32	1-2 2.7-5.5	16 10	8			✓							2	1		✓	2		1		✓			✓	✓	✓	1		1	1		✓						5
Atmega8U2/16U2/32U2	32	8-32 0	5-1 2.7-5.5	16	--			✓			✓	✓			4	6		✓	2		3		✓			✓	✓	✓	2	✓	2	2								6
Atmega16U4/32U4	32 16/32		1/2 2.7-5.5	16 10	12			✓			✓	✓			5				1		1		✓			✓	✓	✓	1	✓		1								6
Atmega48PB/88PB/168PB/328PB	32	4-32 0	5-2 1.8-5.5	20 10	8			✓			✓	✓			4	2/6 ^⓺		✓	2		1/3 ^⓺		✓			✓	✓	✓	1/2 ^⓺		1/2 ^⓺	1/2 ^⓺			✓	✓ ^⓺					6
Atmega80x/160x/320x/480x	28-48	8-48	1-6 1.8-5.5	20 10	16			✓			✓	✓			4	3		✓			5	✓	✓	✓	✓	✓		4		1	1		✓						✓	✓	3	✓
Atmega64A/128A	64	64-128	4	2.7-5.5	16 10	8		✓	✓			✓			2	6			2		2		✓			✓	✓	✓	2		1	1			✓						6
Atmega164PA/324PA/644PA/1284P	44	16-128	1-16	1.8-5.5	20 10	8		✓	✓			✓			4 2/2/4		✓	2 1/1/2				✓			✓	✓	✓	2		1	1			✓							6	✓
Atmega165PA/325PA/645P	44	16-64	1-4 1.8-5.5	16 10	8			✓				✓			4	6		✓	2		3		✓			✓	✓	✓	3		2	2									6	✓
Atmega169PA/329PA/649P	64	16-64	1-4 1.8-5.5	16 10	8			✓				✓			2	2		✓	2		1		✓			✓	✓	✓	1		1	1			✓		✓					5
Atmega324PB	44	32	2	1.8-5.5	20	10	8	✓				✓			2	2		✓	2		1		✓			✓	✓	✓	1		1	1			✓	✓						5
Atmega640/1280/2560/1281/2561	64-100	64-256	8	1.8-5.5	16	10	8*6	✓	✓			✓			4	6/12		✓	2		4		✓			✓	✓	✓	2/4		1	1			✓			✓ ^⓹				6
Atmega3290PA/6490P	100	32-64	2-4 1.8-5.5	20 10	8			✓	✓			✓			2	2		✓	2		1		✓			✓	✓	✓	1		1	1			✓		✓					5
Atmega3250PA/6450P	100	32-64	2-4 1.8-5.5	20 10	8			✓	✓			✓			2	2		✓	2		1		✓			✓	✓	✓	1		1	1			✓							5
AVR DA Family	28-64	32-128	4-16	1.8-5.5	24	12	12	✓		10	✓	✓	1.3	9-17	3-6		✓		1 1-5		✓	✓	✓	✓	✓		3-6		1-2	2	✓	✓			✓					✓	✓	3	✓
ATxmega A1U/A3U/A4U Family	44-100	16-128	2-8 1.6-3.6	32 12 12/16				✓	✓	12	✓	✓			5-8	✓	✓			5-8		✓	✓	✓	✓	✓	5-8	✓	2-4	2-4	✓			✓			✓	4	✓		5	✓
ATxmega B1/B3 Family	64-100	64-128	4-8 1.6-3.6	32 12 8				✓	✓		✓	✓			2/3	✓	✓			2/3		✓	✓	✓	✓	✓	1/2	✓	1	1	✓	✓	✓	✓				2	✓		5	✓
ATxmega C3/D3/C4/D4 Family	44-64	16-384	2-32	1.6-3.6	32	12	12/16	✓	✓		✓	✓			4/5	✓	✓			4/5		✓	✓	✓	✓		2/3	✓ ^⓹	2	2	✓	✓	✓						✓		5	✓
ATxmega32E5 Family	32	8-32	1-4 1.6-3.6 32 12 16

1: LIN port also 2: Peripheral Touch Controller 3: Only on the ATtiny5/10 4: Not on the ATtiny212/214/412/414/416 5: Only on the ATmega1281/2561 6: Only on the ATmega328PB 7: Only on the C3 and C4 8: UART only LIN Port also

8-bit PIC and AVR MCU Terminology

COMMUNICATIONS: General, Industrial, Lighting and Automotive
UART: Universal Synchronous/ Asynchronous Receiver Transmitter	1. General purpose serial communications2. Support for LIN
USB: Universal Serial Bus	Support for Full-Speed USB 2.0 device profiles
I'C: Inter-Integrated Circuit	General purpose 2-wire serial communications
SPI: Serial Peripheral Interface	General purpose 4-wire serial communications
IRCOM: Infrared Communication Module	Encodes and decodes data according to the IrDA communication protocol
Serial Number	Factory programmed unique ID useful in wired and wireless communications
USER INTERFACE: Capacitive Touch Sensing and LCD Control
LCD: Liquid Crystal Display	Highly integrated segmented LCD controller
QTouch®: Microchip Proprietary Touch Technology	Provides a simple-to-use solution to realize touch-sensitive interfaces
QTouch with PTC: QTouch with Peripheral Touch Controller	Provides a simple-to-use solution to realize touch-sensitive interfaces with a Peripheral Touch Controller
LOW POWER AND SYSTEM FLEXIBILITY: Low-Power Technology, Peripheral and Interconnects
DMA: Direct Memory Access	Moves data between memories and peripherals without CPU overhead, improving overall system performance and efficiency
Event System	Flexible routing of peripheral events, ability to control peripheral independent from the CPU
External Bus Interface	Highly flexible module for interfacing external memories and memory-addressable peripherals
picoPower® Technology	Low-power technology
Sleep Modes	Low-power saving modes, IDLE, power-down, power-save, standby and extended standby
SleepWalking	Ability to put the CPU core to sleep until a relevant event occurs

INTELLIGENT ANALOG: Sensor Interfacing and Signal Conditioning
ADC: Analog-to-Digital Converter	General purpose 10-/12-bit ADC
ADC Gain Stage: Analog-to-Digital Converter Gain Stage	Programmable gain stage, providing amplification steps on the differential input voltage
Comp: Comparator	General purpose rail-to-rail comparator
DAC: Digital-to-Analog Converter	Programmable voltage reference with multiple internal and external connections
VREF: Voltage Reference	Stable fixed voltage reference for use with integrated analog peripherals
ZCD: Zero Cross Detect	AC high-voltage zero-crossing detection for simplifying TRIAC control, synchronised switching control and timing
WAVEFORM CONTROL: PWM Drive and Waveform Generation
PWM: Pulse Width Modulation	General purpose 10-bit PWM control
16-bit PWM: Standalone 16-bit PWM and 16-bit Timer/Counter	1. High-resolution 16-bit PWM with edge- and center-aligned modes2. General purpose 16-bit timer/counter
WeX: Waveform Extension	1. Module for more customised and advanced waveform generation2. Optimised for various types of motor, ballast and power stage control
TIMING AND MEASUREMENTS: Signal Measurement with Timing and Counter Control
8-/12-/16-bit Timer	General purpose 8-/12-/16-bit timer/counter
LOGIC, CRYPTO AND MATH: Customizable Logic and Math Functions
CCL: Configurable Custom Logic	1. Integrated combinational and sequential logic2. Custom interconnection and re-routing of digital peripherals
MULT: Hardware Multiplier	MULTIPLY function of two 8-bit values with 16-bit result
Crypto (AES/DES)	Data encryption and decryption can be easily performed for both internally stored data or for small external data packets
SAFETY AND MONITORING: Hardware Monitoring and Fault Detection
CRC/SCAN:Cyclical Redundancy Check with Memory Scan	Automatically calculates CRC checksum of Program/DataEE memory for NVM integrity
POR: Power-On Reset	Keeps the device in reset until the voltage is high enough.Ensures a safe start-up of logic and memories
BOD: Brownout Detector	Prevents code execution if voltage drops below a set threshold
WDT: Watchdog Timer	Monitors correct program operation.Constantly running timer with a configurable time-out period

16-bit Microcontrollers and dsPIC® Digital Signal Controllers

Product Family

Maximum MIPS

Program Flash Memory (KB)

RAM (KB)

Pin Count

Peripheral Function Focus

Packages

Intelligent Analog

Waveform Control

Timing and Measurements

Safety and Monitoring

Communication

User Interface

Secure Data

System Flexibility

ADC resolution*

DAC resolution*

CVias

HS Comp

OPA/PGA

SCCP

MCCP

PWM

MC PWM

SMFS PWM

IC and OC

PWM Resolution (ns)

16-bit Timer

32-bit Timer

RTCQ

CEI

LVD

WDT/WDT

DMT

CRC

Class B Safety4

Functional Safety Reedy

USB

CAN

UART

LIN

IRDA5

I:C

SPI

I'STM

SENT

Parallel Port

LCD (Segments)

GFX

Cryptographic Engine

Secure Key Storage

RNG

Dual Partition Flash

CLC

PPS

PTG

DMA

IDLE, SLEEP and PMD

DOZE

XLP

Vbat

PIC24 Family

PIC24FJ64GA004

16 16-64 4-8 28-44 10

√

√

√

62

√

√

√

√

L2

√

√

√

√

√

√

√

√

√

√

√

TQFP (PT), QFN (ML)

1: 16-bit PIC® MCU offers SAR: 2 Includes features of DAC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed ADC, high-speed

16-bit Microcontrollers and dsPIC® Digital Signal Controllers

Product Family

Maximum MIPS

Program Flash Memory (KB)

RAM (KB)

Pin Count

Peripheral Function Focus

Packages

Intelligent Analog

Waveform Control

Timing and Measurements

Safety and Monitoring

Communication

User Interface

Secure Data

System Flexibility

ADC resolution1

DAC resolution2

CVREF

HS Comp

OPA/PGA

SCCP

MCPP

PWM

MC PWM

SMP3 PWM

IG and OC

PWM Resolution (ns)

16-bit Timer

32-bit Timer

RTCC

QEI

LVD

WDT/WDT

DMT

CRC

Class B Safety3

Functional Safety Ready

USB

CAN

UART

LIN

IRDA8

I'C

SPI

ISTM

SENT

Parallel Port

LCD (Segments)

GFX

Cryptographic Engine

Secure Key Storage

RNG

Dual Partition Flash

CLC

PPS

PTG

DMA

IDLE, SLEEP and PMD

DOZE

XLP

Vbat

dsPIC33CH128MP508

M: 90S: 100

M:64-128

M:16S:24(PRAM)S:4 (Data)

28-80 12 12

√

√

√

√

√

√

0.25

√

√

√√

√

√

L3

√

FD

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

✗

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

×

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

○

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

□

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

dsPIC33CH512MP508

M: 90S:100

M:256-512

M:32-48S:72(PRAM)S:16 (Data)

48-80 12 12

√

√

√

√

√

√

√

0.25

√

√

√√

√

√

L3

√

FD

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

UQFN (M4), TQFP (PT), QFN (MR)

dsPIC33CK Family - Single Core

dsPIC33CK256MP508

100 32-256 8-24 28-80 12 12

SSOP (SS), UQFN (2N, M5, M4),TQFP (PT), QFN (MR)

dsPIC33CK64MP105

100 32-64 8 28-48 12 12

SSOP (SS),UQFN (M6, 2N, M5, M4),TQFP (PT)

SCOP (SS), UQFN (M6, 2N, M5, M4),TQFP (PT)

SCOP (SS), UQFN (M6, 2N, M5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, M5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, M5, M3)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP(PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT) (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT) (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT) (PT)

SCOP (SS), UOFN (M6, 2N, N5, N5, M4)TQFP (PT) (PT)

SCOP (SS), UOFN (M6, 2N, N5, M4)TQFP (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT) (PT)

16-bit PIC MCU offers SAR ADC, high-speed ADC and Delta-Sigma ADC 2: 16-bit PIC MCU offers general-purpose DAC and audio DAC 3: Class B Safety Features: LI: Includes WDT, oscillator fail safe, illegal opcode detect, TRAP reset trace, register lock, frequency check, CodeGuardTM security, PWM lock* L2: Includes features of LI + CRC L3: Includes features of LI + Flash EOC + DMT *PWM lock available in devices with MC PWM/SMPS PWM peripheral

16-bit MCUs and DSCs Terminology

Communications: General, Industrial, Lighting and Automotive
USB OTG: Universal Serial Bus	USB 2.0 full-speed (host and device), low-speed (host) and On-The-Go (OTG) support
CAN: Controller Area Network	Industrial- and automotive-centric communication bus
UART: Universal Asynchronous Receiver Transmitter	General-purpose full-duplex, 8-bit or 9-bit data serial communications with optional ISO 7816 Smart Card support
LIN: Local Interconnect Network	1. Industrial- and automotive-centric communication bus2. Support for LIN when using the EUSART
IrDA ^2 : Infrared Data Association	IrDA encoder and decoder logic support through UART
I°C: Inter-Integrated Circuit	General purpose 2-wire inter IC serial interface for communicating with other peripherals or microcontroller devices
SPI: Serial Peripheral Interface	General-purpose 4-wire synchronous serial interface for communicating with other peripherals or microcontroller devices
I°S: Data Converter Interface	3-wire synchronous half duplex serial interface to handle the stereo data
SENT: Single-Edge Nibole Transmission	SENT is an unidirectional, single-wire serial communications protocol designed for point-to-point transmission of signal values
Parallel Port	General-purpose parallel communication interface
User Interface: Capacitive Touch Sensing and LCD Control
LCD: Liquid Crystal Display	Highly Integrated segmented LCD controller
GFX: Graphics Controller	Highly integrated graphics controller supporting direct interface with display glasses with built-in analog drive for individual pixel control
Secure Data: Hardware-Integrated Cryptographic Engine
Cryptographic Engine	Independent NIST-standard encryption and decryption engine
Secure Key Storage	Multiple option for key storage, selection and management
RNG: Random Number Generator	Hardware true random number generation
System Flexibility: System Peripherals and Interconnects
Dual Partition Flash	Dual partition Flash operation, allowing the support of robust bootloader systems and fall-safe storage of application code, with options designed to enhance code security
CLC: Configurable Logic Cell	Integrated combinational and sequential logic with custom interconnection and re-routing of digital peripherals
PPS: Peripheral Pin Select	I/O pin remapping of digital peripherals for greater design flexibility and improved EMI board layout
PTG: Peripheral Trigger Generator	User-programmable sequencer, capable of generating complex trigger signal sequences to coordinate the operation of other peripherals
DMA: Direct Memory Access	Direct memory access for transfer of data between the CPU and its peripherals without CPU assistance
IDLE, SLEEP and PMD	Low-power saving modes
DOZE	Ability to run the CPU core slower than the system clock used by the internal peripherals
XLP: cXtreme Low Power Technology	XLP technology devices with extreme low-power operation modes for battery/low-power applications
VBAT	Hardware-based power mode that maintains only the most critical operations when a power loss occurs on Vpp

Integrated Analog: Sensor Interfacing and Signal Conditioning
ADC: Analog-to-Digital Converter	General-purpose ADC with up to 10-/12-/16-bit resolution
HS ADC: High Speed Analog-to-Digital Converter	High-speed SAR ADC with 12-bit resolution and sampling speed of 10 Msps
ΔΣ ADC: Delta-Sigma Analog-to-Digital Converter	Bipolar differential inputs configurable gain integrated PGA Delta-Sigma ADC
DAC: Digital-to-Analog Converter	General-purpose DAC with resolution up 16-bit resolution
ΔΣ DAC: Delta-Sigma Digital-to-Analog Converter	Second-order digital bipolar, two output channel Delta-Sigma DAC with storage operation support
CVncr: Internal Voltage Reference	Programmable voltage reference with multiple internal and external connections
HS Comp: High-Speed Comparator	General-purpose rail-to-rail comparator with <1 ns response time
OPA: Operational Amplifier	General-purpose op amp for internal and external signal source conditioning
Waveform Control: PWM Drive and Waveform Generation
CCP/ECCP: (Enhanced) Capture/Compare/PWM	Multi-purpose timers with functionality of the comparable input capture, output compare and PWM with four outputs
SCCP: Single Capture/Compare/PWM	Multi-purpose 16-/32-bit input capture, output compare and PWM
MCCP: Multiple Capture/Compare/PWM	Multi-purpose 16-/32-bit input capture, output compare and PWM with up to six outputs and an extended range of output control features
PWM: Pulse Width Modulation	16-bit PWM with up to nine independent time bases
MC PWM: Motor Control Pulse-Width Modulation	Motor control 16-bit PWM with multiple synchronized pulse-width modulation, up to six outputs with four duty cycle generators and resolution up to 1 ns
SMPS PWM: Power Supply Pulse-Width Modulation	Power supply 16-bit PWM with multiple synchronized pulse-width modulation, up to eight outputs with four independent time bases and resolution up to 1 ns
IC: Input Capture	Input capture with an independent timer base to capture an external event
OC: Output Compare	Output compare with an independent time base to compare value with compare registers and generate a single output pulse, or a train of output pulses on a compare match event
Clocks and Timers: Signal Measurement with Timing and Counter Control
8-/16-/32-bit Timer	General-purpose 8-/16-/32-bit timer/counter with compare capability
RTCC: Real-Time Clock/Calendar	Real-time clock and calendar with a Binary-Coded Decimal (BCD) clock calendar to maintain accurate timing with external 32.768 kHz crystal
QEI: Quadrature Encoder Interface	Quadrature encoder interface to increment encoders for obtaining mechanical position data
Safety and Monitoring: Hardware Monitoring and Fault Detection
LVD: Low-Voltage Detection	LVD detects drops in system operating voltage using an internal reference voltage for comparison, especially in battery-powered applications
WDT: Watchdog Timer	System supervisory circuit that generates a reset when software timing anomalies are detected within a configurable critical window
DMT: Dead Man Timer	System supervisory circuit that generates a reset when instruction sequence anomalies are detected within a configurable critical window
CRC: Cyclical Redundancy Check with Memory Scan	Automatically calculates CRC checksum of Program/DataEE memory for NVM integrity and a general-purpose 16-bit CRC for use with memory and communications data
Class B Safety	Hardware Class B support with Flash error correction, backup system oscillator, WDT, DMT, CRC scan, etc.
Functional Safety Ready	Functional Safety Ready devices include integrated hardware safety features and offer safety manuals, FMEDA reports and diagnostic software.

32-bit Microcontroller Quick Reference Guide

Product Family

Core

Max. Operation Freq. (MHz)

Program Flash Memory (KB)

RAM (KB)

Pin Count

Peripheral Function Focus

Intelligent Analog

Waveform Control

Timing and Measurements

Safety and Monitoring

Communication User Interface Security

Packages

ADC (channels/bits)

ADC Speed (sps)

DAC (channels/bits)

Analog Comparator (+Op Amp)

Output Compare Channels

Input Capture Channels

PWM Channels

16-bit/32-bit Timer

TCC (24-bit Control Timer)(1)

Motor Interface (OEI/GDEC)(2)

Watchdog Timer DMT (Dead Man Timer)(3)

Class B Safety/DSU/Touch Safety

Functional Safety Support (ASILB , SILZ)(4)

USB (FS/HS) + PHY (Transceiver)

CAN (2.0B or FD)

Ethernet (10/100)

SERCOM/FLEXCOM (4)

USART/UART

ΓC

SPI(1)

SDIO/SD/eMMC

CMOS Camera Interface

SOI/QSPI

Audio CODEC (I2S)(5)

Peripheral Bus Interface PMP/EBI (bus width, bit)(6)

Touch PTC (channels)/Driven Shield +(4)

Segment/Graphics LCD Controller

LCD/GFX Interface (PMP/EBI)

Crypto Engine (AES, SHA, ECC, RSA/DSA, TRNG)

TrustZone(4)

Secure Boot(4)

TrustRAM (Bytes)(4)

DataFlash (KB)(4)

Tamper Detection

Secure Key Provisioning

Kinibi-M SDK Support

Dual Panel/Bank Flash(4)

Intelligent Low Power Peripheral Event System (channels)(4)

DMA (channels)

CLC/CCL(4)

DUAL Panel/Bank Flash(4)

Intelligent Low Power Peripheral Event System (channels)(4)

DMA (channels)

CLC/CCL(4)

PICS2

PIC32MMGPL	microAptiv 25 16-64 4-8			20-36	14^12	200k 1	23 387/3 W 2 2																								✓	SSOP, SOIC, SPDIP, QFN,UQFN, VQFN
PIC32MMGPM*	microAptiv 25		64-256	16-32	28-64	24^12	200k 1	3	9	9	24	21/9			W			1^12			3	333									4		✓	SSOP, SOIC, SPDIP, QFN,UQFN, VQFN
PIC32MX 1/2^15 +	M4K	50	16-512	4-64	28-100	48^12	1M		35555/2 W B			1						1^12	1+		5	244	P			18			P				4	SOIC, SSOP, SPDIP, QFN,VTLA, TQFP, TFBGA*
PIC32MX1/2 XLP	M4K	72	128-256	32-64	28-44	13^12	1M		35555/2			W+D B			1			1^12			2	222	P			2			P				4	SOIC, QFN, TQFP
PIC32MX 3/4^*	M4K	120	32-512	16-128	64-124	16^12	1M		25555/2 W B			1						1^12			5	222	P			18			P				4	TQFP, QFN, TFBGA, VTLA
PIC32MX 5	M4K	80	64-512	16-64	64-100	16^12	1M		25555/2 W B			1						1^12	1		6	54 P				18			P				8	QFN, TQFP, TFBGA, VTLA
PIC32MX 6	M4K	80	64-512	32-128	64-100	16^12	1M		25555/2 W B			1						1^12		16	54 P					18			P				8	QFN, TQFP, TFBGA, VTLA
PIC32MX 7	M4K	80	128-512	32-128	64-100	16^12	1M		25555/2 W B			1						1^12	216	54 P						18			P				8	QFN, TQFP, TFBGA, VTLA
PIC32MKGP/MC	microAptiv 120		512-1024	128-256	64-100	42^12	16M	3^12	504	12	16	16	14/16		E	W+D	B		2^12	4		656	P				21			P			✓	13	QFN, TQFP
PIC32MZEF (9)	M-Class		252	512-2048	128-512	64-144	48^12	18M		29999/4				W+D B			1		1^12	216	56				✓	6	P/E*			P+E	A,S,T			✓	18	QFN, TQFP, TFBGA, VTLA,LQFP
PIC32MZDA (10)	microAptiv 200			1024-2048	256-640	169-288	45^12	18M		29999/4				W+D B			1		1^12	216	561				✓	6	P/E*		G P I E	A,S,T				✓	26	LFBGA, LQFP

SAM

SAM D09	CM0+	48 8-16	4	14-24	10^12	350k			6	3	4	2/1			W	B				2	2	2	2										5	6		QFN, SOIC
SAM D10	CM0+	48 6-16	4	14-24	10^12	350k	1^10	2	6	3	12	2/1	1		W	B+T				3	3	3	3				P2							6	6		QFN, SOIC, WLCSP
SAM D11	CM0+	48	16	4	14-24	10^12	350k	1^10	2	6	3	12	2/1	1		W	B+T		1^P		3	3	3	3				P	4						6	6		QFN, SOIC, WLCSP
SAM D20	CM0+	48	16-256	2-32	32-64	20^12	350k	1^10	2	16	8	16	5/2			W	B+T				6	6	6	6				P26							8			TQFP, QFN, WLCSP, UFBGA
SAM D21	CM0+	48	32-256	4-32	32-64	20^12	350k	1^10	2	18	8	24	5/2	3		W	B+T	A-S	1^P		6	6	6	6	1		P		24							12	12		TQFP, QFN, WLCSP, UFBGA
SAM D21L	CM0+	48	32-64	4-8	32-48	18^12	350k	1^10	4	18	13	24	5/2	3		W	B+T				5	5	5	5											12	12		TQFP, QFN
SAM DA1 (3)	CM0+	48	16-64	4-8	32-64	20^12	350k	1^10	2	18	8	24	5/2	3		W	B+T	A	1^P,P		6	6	6	6	1		P		26							12	8		TQFP, QFN
SAM L10	CM23	32	16-64	4-16	24-32	10^12	IM	1^10	203	6	6	6	3/1	W	B+T												100.0			T			√23	2	√		8	8	√
SAM L11	CM23	32	16-64	8-16	24-32	10^12	IM	1^10	203	6	6	6	3/1	W	B+T												100.0			A,S,T	√	√	√23	2	√	√		8	8	√
SAM L11-KPH	CM23	32	32-64	8-16	24-32	10^12	IM	1^10	203	6	6	6	3/1	W	B+T												100.0			A,S,T	√	√	√23	2	√	√	√	8	8	√

Note 1: USARTs with SPI mode are taken into account Note 2: DRAM Memory Support; PIC32MZ DA with DDR2 (32 MB embedded or 128 MB external); SAM S7x/E7x/V7x with SDRAM (external) Note 3: Automotive Grade Devices Note 4: Terminology in following table Note 5: SAM C20/C21 are true 5V devices; SAM C21 also comes with 3x 16-bit Delta-Sigma ADC *: Variants with USB function +: Variants with CAN function

32-bit Microcontroller Quick Reference Guide

Product Family

Core

Max. Operation Freq. (MHz)

Program Flash Memory (KB)

RAM (KB)

Pin Count

Peripheral Function Focus

Intelligent Analog

Waveform Control

Timing and Measurements

Safety and Monitoring

Communication User Interface Security

System Flexibility

Packages

ADC (channels/bits)

ADC Speed (sps)

DAC (channels/bits)

Analog Comparator (+Op Amp)

Output Compare Channels

Input Capture Channels

PWM Channels

16-bit/32-bit Timer

TCC (24-bit Control Timer)(4)

Motor Interface (OEI/QDEC)(5)

Watchdog Timer DMT (Dead Man Timer)(4)

Class B Safety/DSU/Touch Safety

Functional Safety Support (ASILB, SIL2)(6)

USB (FS/HS) + PHY (Transceiver)

CAN (2.0E or FD)

Ethernet (10/100)

SERCOM/FLEXCOM (4)

USART/UART

IC

SPI(1)

SDIO/SD/eMMC

CMOS Camera Interface

SOI/QSPI

Audio CODEC (I2S)(7)

Peripheral Bus Interface PMP/EBI (bus width, bit)(4)

Touch PTC (channels)/Driven Shield+(4)

Segment/Graphics LCD Controller

LCD/GFX Interface (PMP/EBI)

Crypto Engine (AES, SHA, ECC, RSA/DSA, TRNG)

TrustiZone(8)

Secure Boot(9)

TrustRAM (Bytes)(4)

DataFlash (KB)(4)

Tamper Detection

Secure Key Provisioning

Kinibi-M SDK Support

Dual Panel/Bank Flash(9)

Intelligent Low Power Peripheral Event System (channels)(4)

DMA (channels)

CLC/COL(4)

SAM L21	CM0-48		32-256	4-32	32-64	20^1/2	1M	2^1/2	203	24	8	24	5/2	2	W	B+T	S	1					1P		6	6	6	P						100			A,T	12	16								✓	TQFP, QFN, WLCSP
SAM L22	CM0-32		64-256	8-32	48-100	20^1/2	1M		2	12	8	12	4/2	1	W	B+T	1					5P		6	6	6	P							5P	S^20		A,T				✓			8	16	✓	TQFP, QFN, WLCSP, UFBGA
SAM C20	CM0-48		32-256	4/32	32-64	12^1/2	1M		2	14	6	18	5/2	2	W	B+T	A			4	4	4	P											2X									6	6	✓	TQFP, QFN, WLCSP
SAM C21 (9)	CM0-48		32-256	4-32	32-100	20^1/2	1M	1^1/0	4	18	8	24	5/2	2	W	B+T	A		2					-0		8	8	8	P					3X									12	12	✓	TQFP, QFN, WLCSP
SAM4N	CM4 100		512-1024	64-80	48-100	16^1/2	510k	1^1/0			18	12	4	2/-		D	W		1						3/4	3	4																	23		LQFP, TFBGA, VFBGA, QFN
SAM4S	CM4 120		128-2048	64-160	48-100	16^1/2	1M	2^1/2	1	18	12	4	2/-			D	W		1						2/2	2	3	1	✓		1	E-4				E							✓	14	22		LQFP, TFBGA, VFBGA, QFN, WLCSP
SAM4E	CM4F	120	512-1024	128	100-144	24^1/2	300k	2^1/2	1	24	18	4	-3			D	W		1																										✓		33	LFBGA, TFBGA, LQFP
SAM4L	CM4	48	128-512	32-64	48-100	16^1/2	300k	1^1/0	4	18	12	5	2/-			W			1																											4	16		LQFP, WLCSP
SAM G	CM4F	120	256-512	64-176	49-100	8^1/2	500k			6	6	6	2/-			W			1P																											✓		6 30		LQFP, QFN, WLCSP
SAM D5x	CM4F	120	256-1024	128-256	64-128	32^1/2	1M	2^1/2	2	25	16	24	8/4	2	D	W	B+T		1																											✓		✓	32 32	✓	TQFP, QFN, WLCSP
SAM E5x	CM4F	120	256-1024	128-256	64-128	32^1/2	1M	2^1/2	2	25	16	24	8/4	2	D	W	B+T		1												✓	✓	1													✓		✓	32 32	✓	TQFP, QFN
SAM S7x (2)	CM7 300		512-2048	256-384	64-144	24^1/2	1.7M	2^1/2	1	44	24	8	4/-			D	W		1																												✓			12 24		LQFP, LFBGA, TFBGA, UFBGA, VFBGA, QFN
SAM E7x (2)	CM7 300		512-2048	256-384	64-144	24^1/2	1.7M	2^1/2	1	44	24	8	4/-			D	W		1													✓	✓	2	E-4											✓			12 24		LQFP, LFBGA, TFBGA, UFBGA
SAM V7x (2)(3)	CM7 300		512-2048	256-384	64-144	24^1/2	1.7M	2^1/2	1	44	24	8	4/-			D	W		1																	E	A,S,T									✓			12 24		LQFP, TFBGA, LFBGA

Note 1: USAIRIs with SPI mode are taken into account Note 2: DHAM Memory Support: PIC32MC DA with DDH2 (32 MB embedded or 128 MB external); SAM 5/x/E/x/V/x with SDHAM (external) Note 3: Automotive Grade Devices Note 4: Terminology in following table Note 5: SAM C20/C21 are true 5V devices; SAM C21 also comes with 3x 16-bit Delta-Sigma ADC ^-1 ; Variants with USB function +: Variants with CAN function

32-bit MCUs Terminology

System Flexibility: System Peripherals and Interconnects
CLC/CCL: Configurable Custom Logic	The CCL is a programmable logic peripheral which can be connected to the device pins, events or to other internal peripherals. This allows you to eliminate logic gates for simple glue logic function on the PCB.
EVSYS: Event System	The Event System allows autonomous, low-latency and configurable communication between peripherals. Several peripherals can be configured to generate and/or respond to signals known as events. Communication is made without CPU intervention and without consuming system resources such as Bus or RAM bandwidth. This reduces the load on the CPU and other system resources, compared to a traditional interrupt-based system.
Dual Panel/Bank Flash	Dual Bank Flash allows live field firmware/program update on one bank while CPU can continue executing code from another Flash bank.
Security: Chip-Level Security, Crypto Acceleration, Secure Key Provisioning and Storage and Tamper Detection
TrustZone	TrustZone® for ARMv8-M provides hardware-enforced security isolation between trusted and the untrusted resources on a CortexTM-M23 based device, while maintaining the efficient exception handling.
TrustRAM	TrustRAM provides secure key storage against software attacks and can resist microprobing. It also prevents data remanence and facilitates rapid erase on tamper event.
DataFlash	DataFlash provides secure key storage against software attacks. It also allows data scrambling and facilitates rapid erase on tamper event.
Secure Boot	Secure Boot authenticates the Flash content at startup and ensures the desired code is executed.
Kinibi-M	A modular secure application development framework that makes implementation of security simple.

Development Tools

SAM Products

Tool Description
Atmel Studio 7	Atmel Studio 7 is the Integrated Development Platform (IDP) for developing and debugging AVR ^ and Arm ^® -based SAM MCU applications. Atmel Studio 7 provides you with a seamless easy-to-use environment to develop and debug applications written in C/C++ or assembly code. It connects seamlessly to a range of debuggers, programmers and development kits.
Atmel START	Atmel START is an innovative online tool for intuitive, graphical configuration and deployment of embedded software. It lets you select and configure software components, drivers and middleware, as well as deploy complete example projects tailored to the needs of your application. Atmel START is completely platform independent, and able to generate project files for a number of IDEs. The configuration engine lets you review dependencies between software components and available hardware resources in the selected MCU, and automatically suggests solutions to any conflicts that in your chosen setup.
ASF Software Framework for SAM	ASF provides software drivers and libraries to build applications for AVR and SAM devices. It is architected for readability and performance, and contains a number of advanced middleware components for 32-bit SAM devices such as USB device, TCP/IP, Wi-Fi, RTOS kernel (FreeRTOS), Bluetooth, file system and more.
Data Visualizer	Track and profile your applications run-time behavior using the powerful Data Visualizer. It provides an oscilloscope view of signals such as GPIO, SPI, UART, etc. The Data Visualizer also provides live power measurements when used together with a supported probe or board, such as the power debugger. Profiling your applications power usage has never been easier.
QTouch ^ Composer	The QTouch Composer allows you to seamlessly develop capacitive touch functionality for your application. This simplifies the design process by tying together the tools required to edit the code in Studio 7 and tune the touch design in QTouch Composer.

Timing and Measurements: Signal Measurement With Timing and Counter Control
TCC: Timer/Counters for Control	Selected SAM products have TCCs for applications like Switch Mode Power Supplies (SMPS), lighting and motor control. The TCCs support up to 96 MHz and 24-bit resolution.
QEI: Quadrature Encoder Interface QDEC: Quadrature Decoder	QEI to increment encoders for obtaining mechanical position data typical for automation or motor control applications. QDEC performs the input lines filtering, decoding of quadrature signals and connects to the timers/counters in order to read the position and speed of the motor through the user interface.
Communications: General, Industrial, Lighting and Automotive
SERCOM: Serial Communication Module	The SERCOM is software that is configurable to operate as PC, SPI or USART, giving you extended flexibility to mix serial interfaces and greater freedom in PCB layout. Each SERCOM instance can be assigned to different I/O pins through I/O multiplexing, further increasing versatility.
I2S: Inter-IC Sound Controller	The Inter-IC-Sound Controller provides a bidirectional, synchronous digital audio link with external audio devices.
PMP: Parallel Master Port EBI: External Bus Interface	PMP/EBI provide a high-speed and convenient interface to external parallel memory devices, graphic LCDs and camera sensors.
Safety and Monitoring: Hardware Monitoring and Fault Detection
DMT: Dead Man Timer	The primary function of the DMT is to reset the processor in the event of a software malfunction. A DMT is typically used in mission-critical and safetycritical applications, where any single failure of a software functionality and sequencing must be detected.
Functional Safety Support	Select 32-bit MCUs support safety critical applications enabling household appliances with Class B based on IEC60730 , industrial applications with SIL 2 based on the IEC61508 and automotive with ASIL B based on the ISO26262 standards.
User Interface: Capacitive Touch Sensing and LCD Control
PTC: Peripheral Touch Controller	An embedded peripheral touch controller makes it easy to add capacitive touch sensing to your project with buttons, sliders, wheels and proximity. By offering superb sensitivity and noise tolerance as well as self-calibration, the PTC eliminates the need for external components and minimizes CPU overhead. The PTC supports up to 256 channels on 64-pin devices, 120 channels on 64-pin devices and 60 channels on 32-pin devices. PTC with Driven Shield + can achieve better noise immunity and moisture tolerance.

Tool	Description
MPLAB® X IDE	MPLAB® X is the Integrated Development Environment (IDE) for developing and debugging PIC32 and SAM MCU and MPU applications, in addition to Microchips 8- and 16-bit Microcontrollers. It is based on the open-source NetBeans IDE from Oracle and runs under Windows®, Mac OS® and Linux®, and connects seamlessly to a range of debuggers, programmers and development kits.
MPLAB Harmony Configurator	The MPLAB Harmony Configurator (MHC) is a time-saving hardware configuration utility for MPLAB Harmony, Microchip's award winning software framework. Developers use MHC to get visual understanding and control of the configuration of their target device and application. MHC is a fully integrated tool within MPLAB X IDE.
MPLAB Harmony Software Framework	MPLAB Harmony is a flexible, abstracted, fully integrated firmware development platform for PIC32 and SAM microcontrollers and MPUs. It takes key elements of modular and object oriented design, adds in the flexibility to use a Real-Time Operating System (RTOS) or work without one. MPLAB Harmony provides a framework of software modules that are easy to use, configurable for your specific needs, and in a format that allows for maximum re-use and reduces time to market.
MPLAB Harmony Graphics Suite	MPLAB Harmony Graphics Suite is Microchip's industry-leading graphics toolset for PIC32 and SAM Microcontrollers and MPUs. Providing a fully-integrated easy to use WYSIWYG editor, graphics asset management and code generator within the MPLAB Harmony framework, the suite allows you to go from concept to glass in minutes without writing a single line of code. Additionally the integrated Display Manager plug-in enables quick support for new and unsupported displays in MPLAB Harmony.
Touch Interface	MPLAB Harmony supports both capacitive and resistive touch. With automatic generation and configuration of event handlers for touch events, it allows quick development of touch enabled graphics solutions.
Data Visualizer	Track and profile your applications run-time behavior using the powerful Data Visualizer. It provides an oscilloscope view of signals such as GPIO, SPI, UART, etc. The Data Visualizer also provides live power measurements when used together with a supported probe or board, such as the power debugger. Profiling your applications power usage has never been easier.

32-bit Microprocessors

Product

Core Sub-System Memory Connectivity User Interface Security Control

Core

VFPU/NEON/Trustzone

Clock Speed (MHz)*

Core Operating Voltage

SRAM (KB)

L1 Cache Memory (KB) (Instruction/Data)

L2 Cache (KB)

LPSDR/SDRAM

OSPI Interface

DDR2/LPDDR/LPDDR2

DDR3/DDR3L/LPDDR3

DDR Bus Width 16/32

NAND

USB Ethernet

Packages

SLC ECC (bit)

MLC ECC (bit)

UART

SPI

TWI (I°C)

SSC (and I*S**)

CAN

Device Only

Device and Host

Host Only

10/100 Ethernet MAC

10/100/1000 MAC

IEEE 1588 Support

SD/eMMC

Class D/PDM/Audio PLL

Max I/O Pins

Graphic LCD

LCD Overlay

Resistive (R) and/or PCAP (P) Touchscreen

Hardware Video Decoder

Camera Interface

Security Level

Secure Boot

Anti-Tamper Pins

Environmental Monitors

32-bit Timers

PWM Channels

10-bit ADC Channels

12-bit ADC Channels

Extended Temperature Range (-40 to 105°C Ambient)

ATSAMA5
ATSAMA5D21	Cortex ^2 -A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	16	32	32	9	6	6	4	-	-	1 HS	1 HS	1	-	Y	1	1/1/1	72	1	Y	R	-	1	Adv.	Y	6	-	5	4	-	12	-	BCA 196, 11 x 11,0.75 mm pitch
ATSAMA5D22	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	16	32	32	9	6	6	4	1	-	1 HS	1 HS	1	-	Y	1	1/1/1	72	1	Y	R, P	-	1	Adv.	Y	6	-	5	4	-	12	Y	BCA 196, 11 x 11,0.75 mm pitch
ATSAMA5D23	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	16	32	32	9	6	6	4	1	-	1 HS	1 HS	1	-	Y	1	1/1/1	72	1	Y	P	-	1	PCI Pre-certified	Y	6	Y	5	4	-	12	Y	BCA 196, 11 x 11,0.75 mm pitch
ATSAMA5D24	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	32	32	32	10	7	7	4	-	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1/1	105	1	Y	R, P	-	1	Med.	Y	2	-	6	4	-	12	-	BCA 266, 8 x 8,0.4 mm pitch
ATSAMA5D26	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	32	32	32	10	7	7	4	-	-	1 HS	1 HS	1	-	Y	2	1/1/1	128	1	Y	R	-	1	Adv.	Y	8	-	6	4	-	12	Y	BCA 289, 14 x 14,0.8 mm pitch
ATSAMA5D27	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	32	32	32	10	7	7	4	2	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1/1	128	1	Y	R, P	-	1	Adv.	Y	8	-	6	4	-	12	Y	BCA 269, 14 x 14,0.8 mm pitch
ATSAMA5D28	Cortex-A5	1/1/1	500	1.2V	128	2 x 32	128	-	2	1/1/1	1/1/1	32	32	32	10	7	7	4	2	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1/1	126	1	Y	R, P	-	1	PCI Pre-certified	Y	8	Y	6	4	-	12	Y	BCA 289, 14 x 14,0.8 mm pitch
ATSAMA5D31	Cortex-A5	1/-/-	536	1.2V	128	2 x 32	-	-	-	1/1/1	-	32	24	24	7	6	3	2	-	-	1 HS	2 HS	1	-	Y	3	-	160	1	Y	R	-	1	Med.	Y	-	-	5	4	-	12	-	BCA 324, 15 x 15,0.8 mm pitch, BGA 324, 12 x 12,0.5 mm pitch
ATSAMA5D33	Cortex-A5	1/-/-	536	1.2V	128	2 x 32	-	-	-	1/1/1	-	32	24	24	5	6	3	2	-	-	1 HS	2 HS	-	1	Y	2	-	160	1	Y	R	-	1	Med.	Y	-	-	5	4	-	12	-	BCA 324, 15 x 15,0.8 mm pitch
ATSAMA5D34	Cortex-A5	1/-/-	536	1.2V	128	2 x 32	-	-	-	1/1/1	-	32	24	24	5	6	3	2	-	-	1 HS	2 HS	-	1	Y	3	-	160	1	Y	R	-	1	Med.	Y	-	-	5	4	-	12	-	BCA 324, 15 x 15,0.8 mm pitch
ATSAMA5D35	Cortex-A5	1/-/-	536	1.2V	128	2 x 32	-	-	-	1/1/1	-	32	24	24	7	6	3	2	-	-	1 HS	2 HS	1	1	Y	3	-	160	-	-	R	-	1	Med.	Y	-	-	6	4	-	12	Y	BCA 324, 15 x 15,0.8 mm pitch
ATSAMA5D36	Cortex-A5	1/1/1	536	1.2V	128	2 x 32	-	-	-	1/1/1	-	32	24	24	7	6	3	2	-	-	1 HS	2 HS	1	1	Y	3	-	160	1	Y	R	-	1	Med.	Y	-	-	6	4	-	12	Y	BCA 324, 15 x 15,0.8 mm pitch
ATSAMA5D41	Cortex-A5	1/1/1	600	1.8V	128	2 x 32	128	-	-	1/1/1	-	32	24	24	8	8	4	2	-	-	1 HS	2 HS	2	-	Y	2	-	152	1	Y	R	-	1	Adv.	Y	8	-	9	4	5	-	-	BCA 289, 14 x 14,0.8 mm pitch
ATSAMA5D42	Cortex-A5	1/1/1	600	1.8V	128	2 x 32	128	-	-	1/1/1	-	32	24	24	8	8	4	2	-	-	1 HS	2 HS	2	-	Y	2	-	152	1	Y	R	-	1	Adv, Y	8	-	9	4	5	-	-	BCA 361, 16 x 16,0.8 mm pitch
ATSAMA5D43	Cortex-A5	1/1/1	600	1.8V	128	2 x 32	128	-	-	1/1/1	-	32	24	24	8	8	4	2	-	-	1 HS	2 HS	2	-	Y	2	-	152	1	Y	R	30 fps,720p	1	Adv. Y	8	-9	4	5	-	-	BCA 269, 14 x 14,0.8 mm pitch
ATSAMA5D44	Cortex-A5	1/1/1	600	1.8V	128	2 x 32	128	-	-	1/1/1	-	32	24	24	8	8	4	2	-	-	1 HS	2 HS	2	-	Y	2	-	152	1	Y	R	30 fps,730p	1	Adv. Y	8	-9	4	5	-	-	BCA 361, 16 x 16,0.8 mm pitch
ATSAMA5D27C-D1G	Cortex-A5	1/1/1	500	1.1V-1.32V	128	32/32	128	-	2	128	-	2	32	32	10	7	7	2/2	2	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1/1	128	1	Y	Y	-	1	Adv. Y	8	-6	4	-	12	-	BCA 289, 14 x 14,0.8 mm pitch
ATSAMA5D27C-D5M	Cortex-A5	1/1/1	500	1.1V-1.32V	128	32/32	128	-	2	64	-	2	32	32	10	7	7	2/2	2	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1/1	128	1	Y	Y	-	1	Adv. Y	8	-6	4	-	12	-	BCA 289, 14 x 14,0.6 mm pitch
ATSAMA5D28C-D1G	Cortex-A5	1/1/1	500	1.1V-1.32V	128	32/32	128	-	2	128	-	2	32	32	10	7	7	2/2	2	-	1 HS	1 HS,1 HSIC	1	-	Y	2	1/1 / 128	1	Y	Y	-	1	PCI Pre-certified Y	8	-6	4	-	12	-	BCA 289, 14 x 14,0.8 mm pitch
ATSAMA5D225C-D1M	Cortex-A5	1/1/1	500	1.1V-1.32V	128	32/32	128	-	2	16	-	2	32	32	9	7	7	2/2	1	-	1 HS	1 HS	1	-	Y	2	1/1/1	90	1	Y	Y	-	1	Adv. Y	6	-5	4	-	12	-	BCA 196, 11 x 11,0.75 mm pitch
ATSAMA5D27D27-SOM1SAMA5D27C-LD1G	Cortex-A5	1/1/1	500	3.3V	128	32/32	128	-	1	128	-

* Clock speed: Max. clock speed @ +85°C. Notes: 1. Temperature Range: -40°C to +85°C (ambient) 2. UART: Support for RS485, ISO7816, IDA ^3 , LIN, modem control lines and SPI on selected UARTs. 3. TWI: Two-Wire Interface; interconnects components on a two-wire bus. 4. SSC: Serial synchronous Controller, supports many serial synchronous communications protocols used in audio and telecom applications such as I'S, short or long frame sync. 5. 16-bit and 32-bit Timers: Capture/compare, waveform generation and PWM modes. 6. ECC: Error Correction Code controller. 7. Security level: Adv. = hardware encryption engine + on the fly DDR encryption/decryption + secure storage + tamper pins; Med. = hardware encryption engine only. 8. Y = Yes 9. Camera Interface: For CMOS-type image sensor, ITU-R ST, 6CC/656 external interface, programmable frame capture rate, up to 12-bit data interface, SAV and EAV synchronization, preview path with scaling, output is in YCbCr format; Bayer RAW is supported on the ATSAMASD2 series. 10. Graphics LCD: 24-bit parallel interface; supports STN and TFT displays, up to 16-bits per pixel in STN color mode, up to 16M colors in TFT mode. 11. Video Decoder: Hardware video decoding and image post processing: H.264, MPEG4, H.263, MPEG2, JPEG, VP8, 12. eMMC™: V4.3 – MLC NAND Flash supported exMMC interface; V4.5 support for the ATSAMASD2 series. 13. USB: High speed (HS), Full Speed (FSI), High Speed Inter-Cip (HSIC) 14. Peripheral implementation varies among products. Consult individual product datasheets for a detailed description

32-bit Microprocessors

Product

Core Sub-System Memory Connectivity User Interface Security Control

Core

Clock Speed (MHz)*

Core Operating Voltage

SRAM (KB)

L1 Cache Memory (KB) (Instruction/Data)

LPSDR/SDRAM

External Bus Interface

DDR2/LPDDR/LPDDR2

NAND

UART

SPI

TWI (fC)

SSC (FS)

CAN

USB

Device Only

Device and Host

Host Only

Ethernet 10/100 Ethernet MAC

SD/eMMC

Soft Modem

Max I/O Pins

Graphic LCD

LCD Overlay

Resistive Touchscreen

Hardware Video Decoder

Camera Interface

Security Level

Secure Boot

16-bit Timers

32-bit Timers

PWM Channels

10-bit ADC Channels

Packages

SLC ECC (bit)

MLC ECC (bit)

SLC ECC (bit)

MLC ECC (bit)

ATSAM9

ATSAM9M10/M11	ARM926EJ-S	400	1.0V	64	2 x 32	1/1	2	1/1/-	1	-	5	8	2	2	-	-	1 HS	2 HS	1	2	-	160	1	Y	Y	30fps, D1	1	Med.(M11)	-6 - 4	8 BGA 324,	15 x 15, 0.8 mm pitch
ATSAM9G45/G46	ARM926EJ-S	400	1.0V	64	2 x 32	1/1	2	1/1/-	1	-	5	8	2	2	-	-	1 HS	2 HS	1	2	-	160	1	-	Y	-	1	Med.(G48)	-6 - 4	8 BGA 324,	15 x 15, 0.8 mm pitch
ATSAM9X35	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	5	3	1	2	-	1 HS	1HS, 1 FS	1	2	Y	105	1	Y	Y	-	-	-	-	-	6	4	12	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9X25	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	6	3	1	2	-	1 HS	1HS, 1 FS	2	2	Y	105	-	-	-	-	-	-	-	-	6	4	12	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9G35	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	6	5	3	1	-	-	1 HS	1HS, 1 FS	1	2	Y	105	1	Y	Y	-	-	-	-	-	6	4	12	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9G25	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	6	3	1	-	-	1 HS	1HS, 1 FS	1	2	Y	105	-	-	-	-	1	-	-	-	6	4	12	BGA 217, 15 x 15, 0.8 mm pitch, BGA 247, 10 x 10, 0.5 mm pitch
ATSAM9G15	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	5	5	3	1	-	-	1 HS	1HS, 1 FS	-	2	Y	105	1	Y	Y	-	-	-	-	-	6	4	12	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9CN12	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	8	2	1	-	1 FS	-	1 FS	-	1	-	105	1	-	Y	-	-	Med.	Y	6	-	4	12	BGA 217, 15 x 15, 0.8 mm pitch, BGA 247, 10 x 10, 0.5 mm pitch
ATSAM9CN11	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	6	2	1	-	1 FS	-	1 FS	-	1	-	105	1	-	Y	-	-	-	-	6	-	4	12	BGA 217, 15 x 15, 0.8 mm pitch, BGA 247, 10 x 10, 0.5 mm pitch
ATSAM9N12	ARM926EJ-S	400	1.0V	32	2 x 16	1/1	1	1/1/-	24	24	7	6	2	1	-	1 FS	-	1 FS	-	1	-	105	1	-	Y	-	-	-	-	6	-	4	12	BGA 2 17, 15 x 15, 0.8 mm pitch, BGA 247, 10 x 10, 0.5 mm pitch
ATSAM9G20	ARM926EJ-S	400	1.0V	32	2 x 32	-/1	1	-	1	-	7	6	1	1	-	1 FS	-	2 FS	1	1	-	96	-	-	-	-	Y	-	-	6	-	-	4	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9G10	ARM926EJ-S	266	1.2V	16	2 x 16	-/1	1	-	1	-	4	5	1	3	-	1 FS	-	2 FS	-	1	-	96	1	-	-	-	-	-	-	3	-	-	-	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9263	ARM926EJ-S	240	1.3V	96	2 x 16	-/1	2	-	1	-	4	5	1	2	1	1 FS	-	2 FS	1	2	-	160	1	-	-	-	Y	-	-	3	-	4	-	BGA 324, 15 x 15, 0.8mm pitch
ATSAM9261	ARM926EJ-S	190	1.2V	160	2 x 16	-/1	1	-	1	-	4	5	1	3	-	1 FS	-	2 FS	-	1	-	96	1	-	-	-	-	-	-	3	-	-	-	BGA 217, 15 x 15, 0.8 mm pitch
ATSAM9260	ARM926EJ-S	190	1.2V	8	2 x 8	-/1	1	-	1	-	7	6	1	1	-	1 FS	-	2 FS	1	1	-	96	-	-	-	-	Y	-	-	6	-	-	4	BGA 217, 15 x 15, 0.8 mm pitch, QFP 208, 28 x 28, 0.5 mm pitch
SAM9X60	ARM926EJ-S	600	1.2V	64	2 x 32	1/1	1	1/1/-	24	24	13	6	13	2	2	-	1 HS	2 HS	2	2	-		1	Y	Y	-	1	Adv.	Y	-	6	4	-	BGA 228, 11 x 11, 0.65 mm pitch
SAM9X60D6K	ARM926EJ-S	600	1.2V	64	2 x 32	1/1	1	1/1/-	24	24	13	6	13	2	2	-	1 HS	2 HS	2	2	-		1	Y	Y	-	1	Adv.	Y	-	6	4	-	BGA 196, 11 x 11, 0.65 mm pitch
SAM9X60D5M	ARM926EJ-S	600	1.2V	64	2 x 32	1/1	1	1/1/-	24	24	13	6	13	2	2	-	1 HS	2 HS	2	2	-		1	Y	Y	-	1	Adv.	Y	-	6	4	-	BGA 233, 14 x 14, 0.8 mm pitch
SAM9X60D1G	ARM926EJ-S	600	1.2V	64	2 x 32	1/1	1	1/1/-	24	24	13	6	13	2	2	-	1 HS	2 HS	2	2	-		1	Y	Y	-	1	Adv.	Y	-	6	4	-	BGA 238, 14 x 14, 0.8 mm pitch

* Clock speed; Max. clock speed @ +85°C. Notes: 1. Temperature Range: -40°C to +85°C (ambient) 2. UART: Support for RS485, ISO/7616, IrDA, LIN, modem control lines and SPI on selected UARTs. 3. TWI: Two-Wire Interface; interconnects components on a two-wire bus.
* Error: Serial Synchronous Controller; supports many serial synchronous communications protocols used in audio and telecom applications such as PS, short or long frame sync. 5. 16-bit and 32-bit Timers: Capture/compare, waveform generation and PWM modes. 6. ECC: Error Correction Code controller. 7. Security level: Adv. = hardware encryption engine - on the fly DDR encryption/decryption + secure storage - tamper pins; Mod. = hardware encryption engine only. 8.Y = Yes 9. Camera Interface: For CMOS-type image sensor, ITU-R BT, 601/656 external interface, programmable frame capture rate, up to 12-bit data Interface, SAV and EAV synchronization, preview path with scaling, output is in YCbCr format; Raw Bayer is supported on the ATSAMA5D2 series. 10. Graphics LCD: 24-bit parallel interface; supports STN eMMC interface; V4.5 support for the ATSAMA5D2 series. 11. Video Decoder: Hardware video decoding and image post processing: H.264, MPEG4, H.263, MPEG2, JPEG, VP8. 12. eMMC™: V4.3 - MLC NAND Flash supported through eMMC interface; V4.5 support for the ATSAMA5D2 series. 13. USB: High speed (HS), Full Speed (FS), High Speed Inter-Chip (HSIC) 14. Peripheral implementation varies among products. Consult individual product datasheets for a detailed description.

Thermal Management: Temperature Sensors

Product Description		# Temps. Monitored	Typical/Max Accuracy (°C)	Temp. Range (°C)	Vcc Range (V)	Typical Supply Current (μA)	Alerts	Resistance Error Correction	Beta Compensation	Packages
MCP9501/2/3/4	Temperature Switch Replacing MAX6501/2/3/4	1	1.0/3.0	-40 to +125	+2.7 to +5.5	25	-	-	-	6-pin SOT-23
MCP9509/10	Resistor-Programmable Temperature Switch	1	0.5/3.5	-40 to +125	+2.7 to +5.5	30	-	-	-	6-pin SOT-23
MCP9800/1/2/3	SMBus/IC Temperature Sensor	1	0.5/1.0	-56 to +125	+2.7 to +5.5	200	1	-	-	5-pin SOT-23
MCP9804	SMBus/IC Temperature Sensor	1	0.25/1.0	-40 to +125	-2.7 to +5.5	200	1	-	-	8-pin DFN, 8-pin MSOP
MCP9808	SMBus/IC Temperature Sensor	1	0.25/0.5	-40 to +125	-2.7 to +5.5	200	1	-	-	8-pin DFN, 8-pin MSOP
MCP98244	SMBus/IC Temperature Sensor with EEPROM	1	0.5/3.0	-40 to +125	+2.2 to +3.6	100	1	-	-	8-pin TDFN
MCP9902/3/4	Lower Temperature Multi-Temperature Sensors	2/3/4	0.25/1.0	-40 to +125	+3.0 to -3.6	200	1	✓	Automatic	8-pin WDFN, 10-pin VDFN
TCN75A	SMBus/IC Temperature Sensor	1	0.5/3.0	-40 to +125	+2.7 to +5.5	200	1	-	-	8-pin MSOP, 8-pin SOIC
AT30TS74	SMBus/IC Temperature Sensor	1	1.0/2.0	-55 to +125	+1.7 to +5.5	160	-	-	-	4/5 ball WLCSP
AT30TS750A	SMBus/IC Temperature Sensor with NVM	1	0.5/1.0	-55 to +125	-1.7 to +5.5	150	-	-	-	8-pin SOIC, 8-pin MSOP, 8-pin UDFN
AT30TS752A/4A/8A	SMBus/IC Temperature Sensor with NVM, 2/4/8 KB Serial EEPROM	1	0.5/1.0	-55 to +125	+1.7 to +5.5	150	-	-	-	8-pin SOIC, 8-pin MSOP, 8-pin UDFN
MCP9700/01	Linear Active Thermistor IC	1	1.0/4.0	-40 to +150	+2.3 to +5.5	6	-	-	-	3-pin SOT-23, 3-pin TO-92, 5-pin SC-70
MCP9700/01A	Linear Active Thermistor IC	1	1.0/2.0	-40 to +150	+2.3 to +5.5	6	-	-	-	3-pin SOT-23, 3-pin TO-92, 5-pin SC-70
EMC1033	SMBus/IC Multi-Temperature Sensor	3	1.0/3.0	-40 to +125	+3.0 to +3.6	50	2	✓	-	8-pin MSOP
EMC1043	SMBus/IC Multi-Temperature Sensor	3	0.5/1.0	-40 to +125	+3.0 to +3.6	105	-	✓	Configurable	8-pin MSOP
EMC1046/7	SMBus/IC Multi-Temperature Sensor with Hottest of Zones	6/7	0.25/1.0 -40 to +125 +3.0 to +3.6 395 -					✓	Automatic	10-pin MSOP
EMC1412/3/4	SMBus/IC Multi-Temperature Sensor	2/3/4	0.25/1.0	-40 to +125	+3.0 to +3.6	430	2	✓	Automatic	8-pin TDFN, 8-pin MSOP, 10-pin DFN, 10-pin MSOP
EMC1422/3/4	SMBus/IC Multi-Temperature Sensor with Shutdown	2/3/4	0.25/1.0	-40 to +125	+3.0 to +3.6	430	1	✓	Automatic	8-pin MSOP, 10-pin MSOP
EMC1438	SMBus/IC Multi-Temperature Sensor with Hottest of Zones	8 0.25/1.0 -40 to +125 +3.0 to +3.6 450 1						✓	Automatic	16-pin QFN

Thermal Management: Sensor Conditioning ICs

Product	Description	Typical Tc Accuracy (°C)	Typical Th Accuracy (°C)	Temperature Range (°C)	Vcc Range (V)	Max Supply Current (μA)	Packages
MCP9600	Fully Integrated thermocouple EMF to temperature converter. Supports thermocouple types K, J, T, N, S, E, B and R.	1	1	-40 to +125	2.7 to 5.5	500	5 x 5 MQFN
MCP96L00	Fully Integrated thermocouple EMF to temperature converter. Supports thermocouple types K, J, T, N, S, E, B and R.	1	4	-40 to +125	2.7 to 5.5	500	5 x 5 MQFN
MCP96RL00	Fully Integrated thermocouple EMF to temperature converter. Supports thermocouple types K, J, T, N, S, E, B and R.	1	6	-40 to +125	2.7 to 5.5	500	5 x 5 MQFN

Thermal Management: Fan Controllers

Product	Description	# Fan Drivers	PWM/Linear Control	# External Temp. Inputs	Typical Accuracy (°)	Max. Accuracy (°)	Vcc Range (V)	Interface Alerts		Fan Speed Lookup Table	Packages
EMC2101	Programmable Fan Controller with Thermal Management	1	PWM	2	0.5	1.0	+3.0 to +3.6	SMBus/°C	√	√	8-pin MSOP, 8-pin SOIC
EMC2103-1	Programmable Fan Controller with Thermal Management	1	PWM	1	0.5	1.0	+3.0 to +3.6	SMBus/°C	√	√	12-pin QFN
EMC2104	Programmable Multi-Fan Controller with Thermal Management	2	PWM	4	0.26	1.0	+3.0 to +3.6	SMBus/°C	√	√	20-pin QFN
EMC2301/2/3/5	Programmable Fan Controller	1/2/3/5	PWM	-	-	-	+3.0 to +3.6	SMBus/°C	√	-8-pin MSOP, 10-pin MSOP, 12-pin QFN, 16-pin QFN

Power Management: Switching Regulators

Product	Input Voltage Range (V)	Output Voltage (V)	Operating Temp. Range (°C)	Switching Frequency (kHz)	Output Current (mA)	Features	Packages
Single Output Switching Regulator - Step Down Regulator
MCP1601/3	2.7 to 5.5	0.9V to Vin	-40 to +85	750	500	UVLO, Auto-Switching, LDO/Overtemperature and Overcurrent Protection	8-pin MSOP

Power Management: Switching Regulators

Product

Input Voltage Range (V)

Output Voltage (V)

Operating Temp. Range (°C)

Switching Frequency (kHz)

Output Current (mA)

Features

Packages

Single Output Switching Regulator - Step Down Regulator

MCP1612	2.7 to 5.5	0.8 to 5.5	-40 to +85	1400	1000	Overall Efficiency >94%, Soft Start, Overtemperature and Overcurrent Protection	8-pin MSOP, 8-pin (3 x 3) DFN
MIC23030/1	2.7 to 5.5 1.0, 1.2, 1.5, 1.8, Adj -40 to -125 8000/4000 400 HyperLight Load					*Mode 6-pin 1.6 x 1.8 MLF
MIC23050/1	2.7 to 5.5	1.0, 1.2, 1.8, 3.3/1-1.2, 1-1.8, 1.18-1.4, 0.96-1.25	-40 to +125	4000	600	HyperLight Load Mode	8-pin 2 x 2 MLF
MIC23150/3	2.7 to 5.5	1.0, 1.2, 1.35, 1.8, 3.3/1.8, Adj	-40 to +125	4000	2000	HyperLight Load Mode	8-pin 2 x 2 MLF
MIC23155	2.7 to 5.5	1.8, Adj	-40 to +125	3000	2000	Power Good, HyperLight Load Mode	10-pin 2.5 x 2.5 MFL
MIC23303	2.7 to 5.5	Adj.	-40 to +125	4000	3000	Power Good, HyperLight Load Mode	12-pin 3 x 3 MLF
MCP16311/12	4.4 to 30.0	2.0 to 24.0	-40 to +125	500	1000	PFM/PWM Operation, Enable Function	8-pin MSOP, 8-pin (2 x 3) TDFN
MCP16301	4.0 to 30	2.0 to 15	-40 to -85	500	600	Integrated N-channel, UVLO, Soft Start, Overtemperature Protection	6-pin SOT-23
MIC24045	4.5 to 19	0.7 to 3.3	-40 to +125	400-790	6000	IC Programmable, 4.5V-19V Input	20-pin (3 x 3) QFN
MIC24046	4.5 to 19	0.7 to 3.3	-40 to +125	400-790	6000	Pin Selectable, 4.5V-19V Input	20-pin (3 x 3) QFN
MIC24051/53/55	4.5 to 19	Adj.	-40 to +125	600	600/9000/1200	Power Good, Soft Start, COT Regulation Scheme	28-pin (5 x 6) QFN
MIC24052/54/56	4.5 to 19	Adj.	-40 to +125	600	600/9000/1200	Power Good, Soft Start, HyperLight Load Mode	28-pin (5 x 6) QFN
MIC26601/MIC26901/MIC26950	4.5 to 28	Adj.	-40 to +125	600	6000/9000/12000	Power Good, Soft Start, Hyper Speed Control® Architecture	28-pin (5 x 6) QFN
MIC26603/MIC26903	4.5 to 28	Adj.	-40 to +125	600	6000	Power Good, Soft Start, HyperLight Load Mode	28-pin (5 x 6) QFN
MIC27600	4.5 to 36	Adj.	-40 to +125	300	7000	Soft Start, COT Regulation scheme - Hyper Speed Control Architecture, Thermal Shutdown	28-pin (5 x 6) QFN
MIC28510	4.5 to 75	Adj.	-40 to +125	100-500	4000	Soft Start, COT Regulation scheme - Hyper Speed Control Architecture, Thermal Shutdown	28-pin (5 x 6) QFN
MIC28511/12/13 (-1/2)	4.6 to 60/70/45	Adj.	-40 to -125	200-680	3000/2000/4000	Power Good, Soft Start, HyperLight Load Mode, Hyper Speed Control	24-pin (3 x 4) FCQFN
MIC28514/15	4.5 to 75	Adj.	-40 to +125	270-800	5000	Power Good, Adjustable Soft Start (MIC28514), Hyper Speed Control Architecture, Selectable HyperLight Load/CCM mode (MIC28515)	6 x 6 mm PQFN
MCP1623/4	0.65 to 5.5	2.0 to 5.5	-40 to +85	500	425	Integrated synchronous boost regulator, 0.65V start-up voltage, soft start, true load disconnect	6-pin SOT-23, 8-pin (2 x 3) DFN
MCP16251/2	0.82 to 5.5	1.8 to 5.5	-40 to +85	500	650	True load disconnect shutdown (MCP16251)/Input to output bypass shutdown (MCP16252)	6-pin SOT-23, 8-pin (2 x 3) DFN
MCP1640/B/C/D	0.65 to 5.5	2.0 to 5.5	-40 to +85	500	800	Integrated synchronous boost regulator, 0.65V start-up voltage, soft start, true load disconnect or input-to-output bypass option	6-pin SOT-23, 8-pin (2 x 3) DFN
MCP1642B/D	0.65 to 5.5	1.8 to 5.5 -40 to [phone]				Integrated synchronous boost regulator, 0.65V start-up voltage, soft start, enable, power good output, true load disconnect or input-to-output bypass option	8-pin MSOP, 8-pin (2 x 3) DFN
MIC2877	2.5 to 5.6	Up to Vin	-40 to +125	6500	4800	6.5A ISW, Synchronous Boost Regulator with Bidirectional Load Disconnect and Bypass Mode	8-pin 2 x 2 mm FTQFN
MIC2145	2.4 to 16	Up to 16	-40 to +85	450	900	High-Efficiency 2.5W Boost Converter	8-pin MSOP, 3 x 3 MLF
MIC2253	2.5 to 10	Up to 30	-40 to +125	1000	3500	3.5A, 1 MHz High-Efficiency Boost Regulator with OVP and Soft Start	12-pin 3 x 3 MLF
MIC2290	2.5 to 10	Up to 34	-40 to +125	1200	750	PWM Boost Regulator with Internal Schottky Diode	8-pin 2 x 2 MLF
MIC2295/96	2.5 to 10	Up to 34	-40 to +125	1200/600	1700	High Power Density 1.2A Boost Regulator	5-pin SOT23, 2 x 2 MLF
MCP1663/4	2.4 to 5.5	Up to 32	-40 to +85	500	1800	High-efficiency (up to 92%), fixed-frequency, non-synchronous, 300 mV feedback for LED driving (MCP1664)	5-pin SOT-23, 8-pin (2 x 3) TDFN
MCP1665	2.7 to 5	Up to 32	-40 to -85	500	3600	3.6A Integrated Switch PFM/PWM Boost Regulator	10-pin 2 x 2 VQFN
MIC2601/02	4.5 to 20	Up to 40	-40 to +125	1200/2000	1700	1.2A, 1.2 MHz/2 MHz Wide Input Range Integrated Switch Boost Regulator	8-pin 2 x 2 MLF

Power Management: Switching Regulators
Product	Input Voltage Range (V)	Output Voltage (V)	Operating Temp. Range (°C)	Switching Frequency (kHz)	Output Current (mA)	Features Packages
Single Output Switching Regulator - Step Down Regulator
MIC2171/72	3 to 40 Up to 65 -40 to [phone]/1250 100 kHz 2.5A/1.25A Switching Regulator								5-pin TO220, TO263/8-pin SOIC, 8-pin DIP
Multiple Output Switching Regulators
MIC2800/10	2.9 to 5.5	Adj./Adj.	-40 to +125	2.0 MHz	600/300/300	600 mA Buck Regulator, 2 x 300 mA LDO, LowQ Mode (MIC2810)			16-pin (3 x 3) MLF
MIC2238/30	2.5 to 5.5	1.28/1.65, 1.8/1.2, 1.8/1.545, 1.8/1.575, 1.8/3.3, 1.8/1.6, 2.5/1.2, 3.3/1.2, 3.3/3.3, Adj./Adj.	-40 to +125	2.5 MHz	800/800	Power Good, Soft Start, Current Limit Protection, Dual Output Voltages			12-pin (3 x 3) MLF
MIC23250	2.7 to 5.5	0.9/1.1, 1.2/1.0, 1.2/1.6, 1.2/1.8, 1.2/2.8, 1.2/3.3, 1.575/1.8, 2.6/3.3, Adj./Adj.	-40 to +125	4.0 MHz 400/400	20 mVpp in HyperLight Load	* Mode, Soft Start, Ultra-Fast Transient Response			10-pin (2 x 2) MLF, 12-pin (2.5 x 2.5) MLF
MIC23254	2.5 to 5.5	1.0/1.8	-40 to +125	4.0 MHz	400/400	20 mVpp in HyperLight Load Mode, Soft Start, Ultra-Fast Transient Response			10-pin (2 x 2) Thin MLF
MIC23450	2.7 to 5.5	Adj./Adj./Adj.	-40 to +125	3.0 MHz	2000/2000/2000	Power Good, Soft Start, HyperLight Load Mode			32-pin (5 x 5) QFN
MIC24420	4.6 to 15	Adj./Adj.	-40 to +125	1 MHz	2500/2500	Power Good, Soft Start			24-pin (4 x 4) MLF
MIC24421	4.5 to 15	Adj./Adj.	-40 to +125	500 kHz	2500/2500	Power Good, Soft Start			24-pin (4 x 4) MLF
MIC23158	2.7 to 5.5	Adj./Adj.	-40 to +125	3.0 MHz	2000/2000	Power Good, Soft Start, HyperLight Load Mode			20-pin (3 x 4) MLF
MIC23159	2.7 to 5.5	Adj./Adj.	-40 to +125	3.0 MHz	2000/2000	Power Good, Soft Start, HyperLight Load Mode			20-pin (3 x 4) MLF
MIC23451	2.7 to 5.5	Adj./Adj./Adj.	-40 to +125	3.0 MHz	2000/2000/2000	Power Good, Soft Start, HyperLight Load Mode			26-pin (4 x 4) QFN
MIC7400/1	2.4 to 5.5	1.1, 1.8, 1.05, 1.25, 12 or Configurable	-40 to +125	2 MHz Boost, 1.3 MHz Bucks	DC to DC Bucks: 3,000, DC/DC Boost 200	Highly integrated-configurable, featuring five buck regulators, one boost regulator and global Power Good indicator/enable pin			36-pin 4.5 x 4.5 QFN
Power Management: Inductorless Offline Switches
Product		Vin (Vac)	Adjustable Vout (V)		Fixed Vout (V)	Iout Max. (mA)		Load Regulation (%/mA)	Packages
SR086		80-285	9.0-50		3.3	100		0.025	8-Lead SOIC with Heat Slug
SR10		80-285	6.0-28		6.0, 12, 24	60		-	8-Lead SOIC
Power Management: AC-DC Auxiliary Controllers
Product	Minimum Input Voltage (V)	Maximum Input Voltage (V)	Osc Frequency Min (kHz)	Osc Frequency Max (kHz)	On-Board FET	Type of On-Board FET	Rds,on (Max, 25C)	Overcurrent Protection	Other Protections	Package
MCP1012	16V (Typical)	500V Continuous/700V Transient	37	63	FALSE	NA	NA	Cycle Cycle	CCM, OVP, UVLO, OTP (Shutdown)	7/SOIC
Power Management: PWM Controllers
Product	Supported Topologies	Supported Outputs	Input Voltage Range (V)	Output Voltage (V)	Operating Frequency (Hz)	Operating Temperature Range (°C)	Features		Packages
MIC2103/4	Sync. Buck	1	4.5-75	0.8-24	200-600 kHz	-40 to +125	HyperLight Load® Mode, External Clock Sync, Power Good, Soft Start, Internal Compensation and Voltage Bias		16-pin 3 x 3 MLF
MIC2124	Sync. Buck	1	3.0-18	0.8-12	300 kHz	-40 to +125	Soft Start, Internal Voltage Bias		10-pin MSOP
MIC2130/1	Sync. Buck	1	8.0-40	0.7-24	150/400 kHz	-40 to -125	Power Good, Soft Start, Internal Voltage Bias		16-pin e-TSSOP, 16-pin 4 x 4 MLF
MIC2150/1	Sync. Buck	2	4.5-14.5	0.7-5.5	500 kHz	-40 to +125	Power Good, Soft Start, Internal Voltage Bias		24-pin 4 x 4 MLF
MIC2183	Sync. Buck	1	2.9-14	1.3-12	200/400 kHz	-40 to -125	External Clock Sync, Soft Start, Internal Voltage Bias		16-pin SOP, 16-pin OSOP
MIC2184	Async. Buck	1	2.9-14	1.3-12	200/400 kHz	-40 to +125	External Clock Sync, Soft Start, Internal Voltage Bias		16-pin SOP, 16-pin OSOP
MIC2185/86	Boost, SEPIC, Čuk	1	2.9-14	3.3-14	100/200/400 kHz	-40 to +125	Skip Mode, External Clock Sync, Soft Start, Internal Voltage Bias		16-pin SOIC, 16-pin OSOP
Power Management: PWM Controllers
Product Supported Topologies			Supported Outputs	Input Voltage Range (V)	Output Voltage (V)	Operating Frequency (Hz)		Operating Temperature Range (°C)	Features Packages
MIC38HC42/3/4/5	Forward, Flyback		1	9.0 up to 20	-	Adj. to 500 kHz		-40 to +85	Forward, Flyback Supported Topologies	8-pin PDIP, 14-pin PDIP, 8-pin SOIC, 14-pin SOIC
MIC9130/1	Forward, Flyback		1	9.0-180	-	Adj. up to 1.5 MHz		-40 to +125	Forward, Flyback Supported Topologies, External Clock Sync	16-pin SOIC, 16-pin OSOP
MCP1630/1/2	Flyback, Boost, SEPIC, Čuk		1	3.0-5.5	-	Sync. up to 2 MHz		-40 to +125	External Clock Sync, Current Limit/Short Circuit Protection, Soft Start, Internal Voltage Bias, UVLO, Peak Current Control Mode	20-pin TSSOP, 20-pin SSCP, 20 pin 4 x 4 QFN
MCP1631HV	Flyback, Boost, SEPIC, Čuk		1	3.5-16	-	Sync. to 2 MHz		-40 to +125	External Clock Sync, Current Limit/Short Circuit Protection	20-pin TSSOP, 20-pin SSOP
MCP19035	Sync. Buck		1	4.5-30	-	300/600 kHz		-40 to +125	Power Good, Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection	10-pin 3 x 3 DFN
MIC2128/27A	Sync. Buck		1	4.5-75	0.6-32	270-800kHz		-40 to +125	Internal and External soft start, Internal LDO, Short Circuit Protection, Current limit	16 pin 3 x 3 DFN
Power Management: Hybrid PWM Controllers
Part #	Input Voltage Range (V)	Output Voltage (V)	Topologies Supported	Channels	Integrated MCU	Program Memory (KWords)	RAM (bytes)	GPIO	Product Features Integrated MCU, LDD, MOSFET Drivers, 10b A/D Converter, Temp Sensor, User-Configurable Operation and:	Packages
MCP19110 MCP19111	4.5-32	0.5 to 90% cf Vin	Sync. Buck	1	✓	4	256	11 14	Configurable and dynamically changeable internal analog compensation network	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19114 MCP19115	4.5-42	Topology Dependent	Boost, Flyback, SEPIC, Cuk	1	✓	4	256	8 12	Excellent regulation for constant current applications	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19116 MCP19117	4.5-42	Topology Dependent	Boost, Flyback, SEPIC, Cuk	1	✓	8	336	8 12	Improved current regulation accuracy, additional code space (compared to MCP19114 or MCP19115)	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19118 MCP19119	4.5-40	0.5 to 90% cf Vin	Sync. Buck	1	✓	4	256	11 14	Configurable and dynamically changeable internal analog compensation network	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19122 MCP19123	4.5-40	0.3-16	Sync. Buck	1	✓	4	256	12 16	Emulated average current mode control, programmable gain feedback amplifier, multiphase operation, improved regulation accuracy and current measurement accuracy (compared to MCP19110/1/8/9)	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19124 MCP19125	4.5-42	Topology Dependent	Boost, Flyback, SEPIC, Cuk	1	✓	4	256	8 12	Dual Independent voltage and current control loops allow seamless transitions from constant voltage to constant current regulation	24-pin 4x4 QFN 28-pin 5x5 QFN
MCP19214 MCP19215	4.5-42	Topology Dependent	Boost, Flyback, SEPIC, Cuk	2	✓	8	336	8 12	Dual channels, which can be configured to control two outputs, or one bidirectional system	26-pin 5x5 QFN 32-pin 5x5 QFN
Power Management: Power Modules
Product	Input Voltage Range (V)	Output Voltage (V)	Operating Temp. Range (°C)	Control Scheme	Switching Frequency (kHz)	Vour Max. (V)	Output Current (A)	Features	Packages
MIC28304-1/-2	4.5 to 70	Adj.	-40 to +125	COT	600	24	3	HyperLight Load® Mode, Hyper Speed Control® Architecture, Power Good, Soft Start	64-pin (12 x 12) QFN
MIC45205-1/-2	4.5 to 26	Adj.	-40 to +125	COT	200-600	5.5	6	HyperLight Load Mode, Hyper Speed Control Architecture, Power Good, Soft Start	52-pin (8 x 8) QFN
MIC45208-1/-2	4.5 to 26	Adj.	-40 to +125	COT	200-600	5.5	10	HyperLight Load Mode, Hyper Speed Control Architecture, Power Good, Soft Start	52-pin (10 x 10) QFN
MIC45212-1/-2	4.5 to 26	Adj.	-40 to +125	COT	200-600	5.5	14	HyperLight Load Mode, Hyper Speed Control Architecture, Power Good, Soft Start	64-pin (12 x 12) QFN
MIC33030	2.7 to 5.5	1.2, 1.8, Adj.	-40 to -125	PWM	8,000	3.6	0.4	HyperLight Load Mode	10-pin (2.5 x 2.0) MLF®
MIC33050	2.7 to 5.5	1.0, 1.2, 1.8, 3.3, Adj.	-40 to +125	PWM	4,000	3.3	0.6	HyperLight Load Mode	12-pin (3 x 3) MLF
MIC33153	2.7 to 5.5	1.2, Adj.	-40 to -125	PWM	4,000	3.6	1.2	HyperLight Load Mode, Power Good, Soft Start	14-pin (3 x 3.5) MLF
MIC3385	2.7 to 5.5	1.5, Adj.	-40 to -125	PWM	8,000	5.5	0.6	LowQ	14-pin (3 x 3.5) MLF
MIC28303-1/-2	4.5 to 60	Adj.	-40 to +125	COT	600	24	3	HyperLight Load Mode, Hyper Speed Control Architecture, Power Good, Soft Start	64-pin (12 x 12) QFN
MIC45116-1/-2	4.5 to 20	Adj.	-40 to +125	COT	600	17	6	HyperLight Load Mode, Hyper Speed Control Architecture, Power Good, Soft Start	52-pin (8 x 8) QFN
MIC45404	4.5 to 19	Selectable	-40 to +125	Fixed	400-790	3.3	5	Power Good, Soft Start	64-pin (6 x 10) QFN

Power Management: Linear Regulators
Part #	± Vin Min (V)	± Vin Max (V)	Output Voltage (V)	Max Output Current (mA)	Typical Line Regulation (%/V)	Typical Load Regulation (%/mA)	Packages
LR8	12 450 1.2-440 10 0.003 0.15 3-Lead TO-252, 3-Lead TO-92, 3-Lead SOT-89
LR12	12 100 1.2-68 50 0.003 0.06 3-Lead TO-252, 8-Lead SOIC, 3-Lead TO-92
Power Management: DDR Termination Regulators
Product	Iout	Vin Min. (V)	Vin Max. (V)	Vout (V)	PWR Good	VTT Accuracy	External Transistor	Sync Buck	Frequency	Features	Packages
MIC5166	±3A	0.9	3.6	1/2 of Vin	Y	±40 mV	-	-	-	Integrated FETs	3 x 3 DFN
MIC5167	±6A	2.6	5.5	Adj. down to 0.35V	Y	±12 mV	-	Y	1 MHz	Integrated Sync-Buck	4 x 4 DFN
Power Management: Charge Pump DC-to-DC Converters
Product	Configuration	Input Voltage Range (V)	Output Voltage (V)	Typical Output Current (mA)	Switching Frequency (kHz)	Supply Current (Is, floating output, μA, 25°C)	Output Resistance (Ω, at typical output current, 25°C)	Power Conversion Efficiency (%)	Features Packages
Inverting or Doubling Charge Pumps
TC7660S/H	Inverting or doubling	1.5-12	-Vin or 2* Vin	20	10, 45, or 120	80 or 480	55 or 60	98% at 1 mA, 86% at 10 mA	Boost pin increases switching frequency, high-voltage oscillator	8-pin SOIC and 8-pin PDIP
TC7662A/B	Inverting or doubling	1.5-15	-Vin or 2* Vin	20 or 40	10, 12 or 35	80 or 190	50 or 65	96% at 1 mA, 97% at 7.5 mA	Boost pin increases switching frequency, no low-voltage terminal required	8-pin SOIC and 8-pin PDIP
Regulated Charge Pumps
MCP1252/3	Regulated	2.0-5.5	3.3, 5.0, or Adjustable	150	650, 1000	60	N/A	81% at 10 mA	Shutdown, power good, regulated output, adjustable version	8-pin MSOP

Power Management: Power MOSFET Drivers
Product Drivers	Configuration		Peak Output Current (source/sink, A)	Max Supply Voltage (V)	Output Resistance (source/sink, Ω)	Propagation Delay (Tc1/To2, ns)	Rise/Fall Time (Tc, Tf, ns)	Packages
Low-Side Power MOSFET Drivers
MCP14A0051/2	Single Inverting/Non-Inverting 0.5/0.5 18 6.5/4.5 40/31 51/39 6-pin SOT-23, 6-pin 2 x 2 DFN
MIC4416/7	Single Non-Inverting/Inverting/Complimentary 1.2/1.2 16.3.5/3.5 42/42 3.5/3.5 SOT-143
MIC4467/8/9	Quad	Inverting/Non-Inverting/Complimentary	1.2/1.2	18	5/5	35/55	5/5	16-pin WSOIC, 14-pin PDIP
MCP14A0151/2	Single	Inverting/Non-Inverting	1.5/1.5	18	17/10	41/32	18.5/17	6-pin SOT-23, 6-pin 2 x 2 DFN
MCP14A0153/4/5	Dual	Inverting/Non-Inverting/Complimentary	1.5/1.5	18	4.5/3	32/24	11/10	8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP14E6/7/8	Dual	Inverting/Non-Inverting/Complimentary	2.0/2.0	18	5/5	45/45	12/15	8-pin SOIC, 8 pin PDIP, 8 pin 6 x 5 DFN
MIC4478/9/80	Dual	Non-Inverting/Inverting/Complimentary	2.5/2.5	32	6/3	160/70	120/45	8-pin SOIC, 8-pin ePAD SOIC
MCP14E9/10/11	Dual	Inverting/Non-Inverting/Complimentary	3.0/3.0	18	4/4	45/45	14/17	8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MAQ4123/4/5	Dual	Inverting/Non-Inverting/Complimentary	3.0/3.0	20	5/5	40/60	11/11	8-pin ePAD SOIC
MIC4123/4/5	Dual	Inverting/Non-Inverting/Complimentary	3.0/3.0	20	5/5	44/59	11/11	8-pin ePAD SOIC
MCP14E3/4/5	Dual	Inverting/Non-Inverting/Complimentary	4.0/4.0	18	2.5/2.5	46/50	15/18	8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MCP14A0451/2	Single	Non-Inverting/Inverting	4.5/4.5	18	1.6/1.2	16/19.5	9/9.5	8-pin MSOP, 8-pin SOIC 8 pin 2 x 2 WDFN
MCP14A0601/2	Single	Non-Inverting/Inverting	6.0/6.0	18	1.2/0.9	22/22	10/10	8-pin MSOP, 8-pin SOIC 8 pin 2 x 3 WDFN
MCP14A031/2	Single	Non-Inverting/Inverting	3.0/3.0	18	2.2/1.5	15/18	18/17	8-pin MSOP, 8 pin SOIC, 8 pin, 2 x 2 DFN
MIC4120/29	Single	Non-Inverting/Inverting	6.0/6.0	20	5/5	45/50	12/13	8-pin ePAD SOIC, 8-pin 3 x 3 MLF
MIC4421A/22A	Single	Inverting/Non-Inverting	9.0/9.0	18	0.8/0.6	15/35	20/24	8-pin PDIP, 8-pin SOIC, 5-pin TO-220
MIC4451/2	Single	Inverting/Non-Inverting	12.0/12.0	18	0.8/0.6	25/40	20/24	8-pin SOIC, 8-pin PDIP, 5-pin TO-220
High-Side Power MOSFET Drivers
MIC5011/13	High-Side or Low-Side Single	Non-Inverting	950 μA* /225 μA*	32	N/A	N/A	25 μs/4 μs	8-pin SOIC, 8-pin PDIP
MIC5014/15	High-Side or Low-Side Single	Non-Inverting/Inverting	800 μA*	30	N/A	N/A	90 μs/6 μs	8-pin SOIC, 8-pin PDIP
MIC5018/19	High-Side or Low-Side Single	Non-Inverting	10 μA*	9	N/A	N/A	750 μs/10 μs	4-pin SOT-143
MIC5021	High-Side or Low-Side Single	Non-Inverting	5600 μA*	36	N/A	500/800	400 ns/400 ns	8-pin SOIC, 8 pin PDIP
MIC5060	High-Side or Low-Side Single	Non-Inverting	800 μA*	30	N/A	N/A	90 μs/6 μs	8-pin 3 x 3 MLF
Synchronous Drivers
MCP14628/MCP14700	Half Bridge Driver	Dual Inputs	2.0/3.5	5.5 (36V Boot Pin)	1/1 (0.5 on low side)	15/22	10/10	8-pin SOIC, 8-pin 3 x 3 DFN
MIC4100/1	Half Bridge Driver	Dual Inputs	2.0/2.0	16 (100V Boot Pin)	2.5/2.0	27/27	10/10	8-pin SOIC
MIC4102	Half Bridge Driver	Single PWM	3.0/2.0	16 (100V Boot Pin)	1.5/2.0	60/75	10/6	8-pin SOIC
MIC4103/4	Half Bridge Driver	Dual Inputs	3.0/2.0	16 (100V Boot Pin)	1.5/2.0	24/24	10/6	8-pin SOIC
MIC4600	Half Bridge Driver	Dual Inputs, Single PWM	1.0/1.0	28	2.0/1.5	26/55	15/13.5	16-pin 3 x 3 QFN
MIC4604	Half Bridge Driver	Dual Inputs	1.0/1.0	16 (85V Boot Pin)	4.4/4.0	33/34	20/20	8-pin SOIC, 10-pin 2.5 x 2.5 TDFN
MIC4605	Half Bridge Driver	Dual Inputs, Single PWM	1.0/1.0	16 (85V Boot Pin)	10/6	35/35	20/20	8-pin SOIC, 10-pin 2.5 x 2.5 TDFN
MIC4606	Full Bridge Driver	Dual Inputs, Single PWM	1.0/1.0	16 (85V Boot Pin)	10/6	35/35	20/20	16-pin 4 x 4 QFN
MIC4607	3 Phase Driver	Dual Inputs, Single PWM	1.0/1.0	16 (85V Boot Pin)	10/6	35/35	20/20	28-pin TSSOP, 28-pin 4 x 5 QFN
MIC4608	Half Bridge Driver	Dual Inputs, Single PWM	1.0/1.0	20 (600V Boot Pin)	8/9.2	450/450	31/31	14-pin SOIC
MIC4609	3 Phase Driver	Dual Inputs	1.0/1.0	20 (600V Boot Pin)	8/9.2	450/450	31/31	28-pin SOIC
Power Management: Power Switches
Part #	Description	USB Port Power Switch (55 mΩ)	High-Speed USB 2.0 Switch	Battery Charger Emulation Profiles	8 Resistor Set Current Limits	Charging Indicator Output	Attach Detection Output	Current Measurement	Power Allocation	Interface
USB Port Power Controllers
UCS1001-3/4	USB Port Power Controller with Charger Emulation	1	1	9	Up to 2.4A	-3 option	-4 option	-	-	Discrete I/O
UCS1002-2	Programmable USB Port Power Controller with Charger Emulation	1	1	9 + 1 Programmable	Up to 2.4A	Y	-	Y	Y	I/C/SMBus
UCS1003-1	Programmable USB Port Power Controller with Charger Emulation	1	1	9 + 1 Programmable	Up to 3A	-	Y	Y	Y	I/C/SMBus
UCS81003	Programmable USB Port Power Controller - Automotive	1	1	9 + 1 Programmable	Up to 3A	-	Y	Y	Y	I/C/SMBus

Power Management: Power Switches

Part # Channels

VIN Range(V)

Fixed Current Limit Min.

Adj. Current Limit Max.

Ros(on) (mΩ)

Reverse Blocking

Enable Logic UVLO

Thermal Protection

Fault Flag

Current Measurement

Packages

Current Limit USB Protection Switches

MIC200x/201x

Single

2.5-5.5

500 mA, 800 mA, 1.2A

Up to 2A

70/100/170

-

Active Low, Active High

Y

Y

-/Y

-

5-pin SOT23, 6-pin SOT23, 2 x 2

MIC2025/75

Single

2.7-5.5

500 mA

-

90

Y

Active Low, Active High

Y

Y

Y

-

8-pin SOIC, 8-pin MSOP

MIC2033/39

Single

2.5-5.5

475 mA, 617 mA, 760 mA, 950 mA, 1.14A

2.5A

75

-

Active Low, Active High

Y

Y

Y

-

6-pin SOT-23, 2 x 2 TDFN

MIC2042/43

Single

0.8-5.5

-

3.0A

60

Y

Active Low, Active High

Y

Y

Y

-

8-pin SOIC, 14-pin TSSOP

MIC2044/45

Single

0.8-5.5

-

6.0A

30

Y

Active Low, Active High

Y

Y

Y

-

16-pin TSSOP

MIC2544/48

Single

2.7-5.5

-

1.5A

80

Y

Active Low, Active High

-

Y

Y

-

8-pin SOIC, 8-pin MSOP

MIC2545A/49A

Single

2.7-5.5

-

3.0A

35

Y

Active Low, Active High

-

Y

Y

-

8-pin SOIC, 8-pin PDIP, 14-pin TSSOP

MIC2026/76

Dual

2.7-5.5

500 mA

-

90

Y

Active Low, Active High

Y

Y

Y

-

8-pin SOIC, 8-pin PDIP

MIC2506

Dual

2.7-7.5

1.0A

-

75

Y

Active Low, Active High

-

Y

Y

-

8-pin SOIC, 8-pin PDIP

MIC2546/47

Dual

2.7-5.5

-

1.5A

80

Y

Active Low, Active High

-

Y

Y

-

16-pin SOIC, 16-pin TSSOP

UCS2113/2114

Dual

2.9-5.5

-

3.4A

40/18

Y

Active Low, Active High

Y

Y

Y

Y

20-pin 4 x 4 QFN, 20-pin 3 x 3 QFN

Power Management: Power Switches

Part #

Channels

VIN Range (V)

Max. Switch Current (A)

Ros(on) (mΩ)

Soft Start (μs)

Load Discharge (Ω)

Enable Logic

Reverse Blocking

Packages

Load Switches

MIC94040/1/2/3/4/5

Single

1.7-5.5

3.0

28

100 (94042), 900 (94044/5)

250 (94041/3), 200 (94045)

Active High

-

1.2 x 1.2

MIC94070/1/2/3

Single

1.7-5.5

1.2

120

800 (94072/3)

200 (94071/3)

Active High

-

6-pin SC70, 1.2 x 1.6"

MIC94080/1/2/3/4/5

Single

1.7-5.5

2.0

67

800 (94082/3), 120 (94084/5)

250 (94081/3/5)

Active High

-

0.85 x 0.85

MIC94161/2/3/4/5

Single

1.7-5.5

3.0

15.5

2700 (94161/4/5), 60 (94162/3)

200 (94162/4)

Active High

Y

1.5 x 1 WLCSP

MIC95410

Single

0.5-5.5

7.0

6.6

1100

2300

Active High

-

1.2 x 2

MIC94066/7/8/9

Dual

1.7-5.5

2

85

800 (94068/9)

200 (94067/9)

Active High

-

2 x 2

Power Management: LDO Single Output

Product

Output Current (mA)

VIN Min.(V)

VIN Max.(V)

Vout (V)

Voltage Drop Typ. (mV)

IGND Typ. (μA)

Output Accuracy (%)

PSRR 1 kHz (dB)

Features

Packages

MIC5280/1/2/3

25/50/100/150

4.5

120

3.3, 5.0, Adj.

1100

31 μA/6 μA

±2/±3

80/90

High Input Voltage, Load Dump, Reverse Battery Protection

8-pin SOIC

MCP1790/1

70

6

30

3.0, 3.3, 5.0

700

70 μA

±0.2

90

High Input

3-pin SOT-223, 3-pin DDPAK, 5-pin DDPAK, 5-pin SOT-223

MIC5233

100

2.3

38

1.8, 2.5, 3.0, 3.3, 5.0, Adj

270

18 μA

±1

50

High Input Voltage, Reverse Battery and Current Protection

3-pin SOT-223, 5-pin SOT-23

MCP1810

150

2.5

5.5

1.2, 1.8, 2.5, 3.0, 3.3, 4.2

380

0.02 μA

±1

40

Ultra Low Quiescent Current

2x2 DFN

MIC5365

150

2.5

5.5

1.0, 1.2, 1.3, 1.5, 1.8, 2.0, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.3

155

32 μA

±2

80

High PSRR

5-pin SC70, 5-pin TSOT, 4-pin UDFN

MCP1711

150

1.4

6

1.2-5.0

500

0.6 μA

±1

20

Ultra Low Iq, Capless

4-pin UQFN, 5-pin SOT-23

MCP1703A

250

2.7

16

1.2-5.5

625

2 μA

±0.4

35

High Input, Low Iq

3-pin SOT-89, 3-pin SOT-23A, 3-pin SOT-223, 8-pin DFN

MIC5501/2/3/4

300

2.5

5.5

1.2, 1.8, 2.8, 3.0, 3.3

160

38 μA

±2

60

Low Dropout

4-pin UDFN, 5-pin SOT-23

MIC5239

500

2.3

30

1.5, 1.8, 2.6, 3.0, 3.3, 5.0, Adj

350

23 μA

±1

50

Reverse Battery and Current Protection

8-pin MSOP, 8-pin SOIC, 3-pin SOT-223

MIC5524

500

2.5

5.5

1.2, 1.8, 2.8,3.0, 3.3

260

38 μA

±2

65

Low Noise

4-pin UDFN

MIC39100

1000

2.25

16

1.8, 2.5, 3.3, 5.0

410

6.5 mA

±1

55

Reverse Battery and Current Protection

3-pin SOT-223

MIC29151

1500

2.25

26

3.3, 5.0, 12

350

22 mA

±1

Load Dump, Reverse Current Protection

5-pin TO-220, 5-pin DDPAK

MIC29301

3000

2.25

28

3.3, 5.0, 12

370

37 mA

±1

-

Load Dump, Reverse Current Protection

5-pin TO-220, 5-pin DDPAK

MIC29751

7500

2.5

28

3.3, 5.0

425

120 mA

±1

-

Load Dump, Reverse Current Protection

5-pin TO-247

Display and LED Drivers: Electroluminescent Backlight Drivers
Part # Type Input Voltage Min. (V) Input Voltage Max. (V)						Nominal Output Voltage (V)	Max. Switch Resistance (Ω)	Output Regulation	Max. Lamp Size Per Device (in2)	Packages
16-Segment Drivers
HV509	16-Segment Drivers 2 5.5 ±50 to ±200 -- 6.5 32-pin VQFN
Single Lamp Drivers
HV833	Single Lamp Driver 1.6 6.5 ±90 4 Y 12 8-pin MSOP
HV852	Single Inductorless Lamp Driver			2.4	5	±80	-	Y	1.6	10-pin WDFN, 8-pin MSOP
HV859	Single Lamp Driver			1.6	5	±105	6	Y	5	8-pin WDFN, 8-pin MSOP
Dual Lamp Drivers
HV861	Dual Lamp Drivers			2.5 4.5 ±90 7 Y	5 16-pin WQFN
Display and LED Drivers: LED Drivers
Part #	Topology	Input Voltage (V)	Dimming	Io Typ. (mA)	Switching Frequency (Hz)	Switching MOSFET	Dithered	ILED Accuracy	Vra (V)	Packages
General Purpose LED Drivers
HV9801A	Buck	16-450	4-Level Switch	1.0	100k	External FET	-	N/A	0.25	16-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV9803B	Buck	7-13.2	PWM/Linear	1.5	100k	External FET	-	±2%	0.28	8-pin SOIC 150 mil
HV9805	2-Stage	102-265	-	2.5	370k	0.7A FET	-	N/A	1.25	10-pin MSOP
HV98100/HV98101	Buck - Boost	9.5-17.5	-	0.2	320k	External FET	-	±5%	0.2	6-pin SOT23
HV9910B/HV9910C	Buck	8-450/15-450	PWM/Linear	1.0	100k	External FET	-	±5%	0.25	16-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV9918/HV9919B	Buck	4.5-40	PWM	1.5	2M	0.7A FET/Ext. FET	-	±5%	0.23	8-pin WDFN
HV9930	Cuk	8-200	PWM	1.0	Variable	External FET	-	N/A	0.12	8-pin SOIC 150 mil
HV9961/HV9861A	Buck	8-450/15-450	PWM/Linear	1.5	100k	External FET	-	±3%	0.27	16-pin SOIC 150 mil, 8-pin SOIC 150 mil
MIC3202	Buck	6-37	PWM	1.2	Hyst to 1.0M	1A FET	Y	±5%	2	8-pin SOIC
MIC3230/1/2	Boost	6-45	PWM	3.2	Programmable	External FET	Optional	±3%	0.25	10-pin MSOP, 12-pin VDFN, 16-pin TSSOP EP
HV96001	8-60					External FET	Extra Wide Range PWM and Analog	Yes		16/SOIC, 16/QFN
Display and LED Drivers: LED Drivers
Part #	VIN (V)		Vout (V)		Output Current (mA)	Dimming		Parallelable	Features	Packages
Linear Regulators
CL2	5.0-90		5.0-90		20	External FET		Yes	-	TO-252-3, TO-92-3, SOT-89-3
CL220	Buck		5.0-220		20	External FET		Yes	-	TO-252-3, TO-220-3
CL320	6.5-90		4.0-90		20	PWM		Yes	OTP, Separate ENABLE Pin	SOIC-8 with Heat Slug
Display and LED Drivers: LED Drivers
Part #	VIN (V)	# of White LEDs	Dimming	Io (mA)	VDDIPOUTLED @ 20 mA	ILED Matching	Ext LDOs	VDDIPOUT	IQLDO	Comments	Packages
Linear LED Drivers
MIC2860-2D	3-5.5	2 @ 30.2 mA	1-Wire, 32-Steps	0.7	52 mV	±0.5%	-	-	-		6-pin SO70, 6-pin SOT-23
MIC2860-2P	Buck	2 @ 30.2 mA	PWM down to 250 Hz	0.7	52 mV	±0.5%	-	-	-		6-pin SC70, 6-pin SOT-23
MIC4811	3-5.5	6 @ 50 mA	PWM (200 Hz-500 kHz)	1.7	100 mV @ 50 mA	±1.0%	-	-	-	DAM	10-pin MSOP
MIC4812	3-5.5	6 @ 100 mA	PWM (200 Hz-500 kHz)	3.2	190 mV @ 100 mA	±1.0%	-	-	-	DAM	10-pin eMSOP
Display and LED Drivers: LED Drivers
Part #	VIN (VAC)		Vout (V)	Output Current (Peak mA)	Dimming		Parallelable	Features		Packages
Sequential LED Drivers
CL8800	90-275		70-350	115	External Dimmer		Yes	6-Stage		QFN-33
CL8801	90-275		70-350	200	External Dimmer		Yes	4-Stage		QFN-33
CL88020	90-135		70-190	115	External Dimmer		Yes	4-Tap		SOIC-8 EP
CL88030	90-320				External Dimmer		Yes	4-Tap, ALR, OTP, Iout FET Dependent		10-Ld DFN
CL88031	90-320				External Dimmer		Yes	6-Tap, ALR, OTP, Io FET Dependent		10-Ld DFN

High-Voltage Interface: Driver Arrays
Part #	Output Channels	Vour Operating (V) - Transient	Vour Operating (V) - Sustained	Input Structure	Output Structure	Iour per Channel (mA)	Min. Data Clock (MHz)	Packages
Source
HV57009	64 96 85 Serial P-Ch Open Drain -2 (Programmable) 16 80-pin PQFP
MIC2981/82	8	50	50	Parallel	Darlington Open Emitter	-600	-	18-pin PDIP, 18-pin SOIC 300 mil
Sink
HV5222	32	250	225	Serial	N-Ch Open Drain	100	8	44-pin CERQUAD, 44-pin PLCC, 44-pin PQFP
HV5630	32	315	300	Serial	N-Ch Open Drain	100	8	44-pin PLCC
MIC58P01	8	80	60	Parallel	Darlington Open Collector	400	-	24-pin SOIC 300 mil, 26-pin PLCC
Source-Sink
HV507	64	320	300	Serial	Half-Bridge	±1.0	8	80-pin PQFP
HV508	2	60	45	Parallel	Half-Bridge	-2.8, -0.38	-	8-pin SOIC 150 mil
HV513	8	275	250	Serial	Half-Bridge	±20	8	24-pin SOIC 300 mil, 32-pin WQFN
HV57908	64	90	80	Serial	Half Bridge	-1.25	8	80-pin PQFP
HV582	95	85	80	Serial	Half-Bridge	±75	30	169-pin TFBCA
HV583	128	90	80	Serial	Half-Bridge	±30	40	169-pin TFBCA
HV6810	10	90	80	Serial	Half Bridge	-250	5	20-pin SOIC 300 mil
HV7224	40	260	240	Serial	Half-Bridge	±70	3	64-pin PQFP
HV7620	32	225	200	Serial	Half-Bridge	±50	10	64-pin PQFP
High-Voltage Interface: Amplifiers and MEMS Drivers
Part #	Output Channels	Slew Rate (V/μs)	Closed Loop Gain (V/V)	Feedback Resistance (MΩ)	Source Current Max. (μA)	Sink Current Max. (μA)	Output Capacitive Load Max. (pF)	Packages
HV256	32	2	72	12	715	715	3000	100-pin MQFP
HV264	4	9	66.7	5.3	3000	3000	15	24-pin TSSOP
HV265	4	0.02	82	4.9	3000	3000	200	TSSOP-24
HV56020	0.2	75	1.9	96000	167000	N/A	OCP Flag to Host Micro	43-Ld, 7mmx7mm VQFN
HV56022	0.2	75	1.9	96000	167000	N/A	OCP Flag to Host Micro	20-Ld, 4mm x 4mm VQFN
High-Voltage Interface: MOSFETs - Interface
Part #	BVosx Min. (V)		Ros (ox) Max. (Ω)	Vos (orr) Min. (V)		Vos (orr) Max. (V)		Packages
Depletion-Mode N-Channel
LND01	9		1.4	-0.8		-3		5-pin SOT-23
DN1509	90		6	-1.8		-3.5		3-pin SOT-89, 5-pin SOT-23
DN2625	250		3.5	-1.5		-2.1		8-pin VDFN, 3-pin DPAK
DN2530	300		12	-1		-3.5		3-pin TO-92, 3-pin SOT-89
DN2450	500		10	-1.5		-3.5		3-pin DPAK, 3-pin SOT-89
LND150	500		1000	-1		-3		3-pin TO-92, 3-pin SOT-89, 3-pin SOT-23
DN2470	700		42	-1.5		-3.5		3-pin DPAK
High-Voltage Interface: MOSFETS Interface
Part #	BVoss Min. (V)		Ros (ox) Max. (Ω)	Ciss Max. (pF)		Vos (tr) Max. (V)		Packages
Enhancement-Mode N-Channel
TN0702	20		1.3	200		1.0		3-pin TO-92
TN0104	40		2.0	70		1.6		3-pin TO-92, 3-pin SOT-89
VN0808	80		4.0	50		2.0		3-pin TO-92
VN2210	100		0.4	500		2.4		3-pin TO-92, 3-pin TO-39
TN0620	200		6.0	150		1.6		3-pin TO-92
TN2640	400		5.0	225		2.0		3-pin DPAK, 3-pin TO-92, 8-pin SOIC 150 mil
VN2450	500		13.0	150		4.0		3-pin TO-92, 3-pin SOT-89
VN2460	600		20.0	150		4.0		3-pin TO-92, 3-pin SOT-89

High-Voltage Interface: MOSFETS Interface
Part #	BVoss Min. (V)		Rds(on) Max. (Ω)		Ciss Max. (pF)		Vss(th) Max. (V)			Packages
Enhancement-Mode P-Channel
TP2502	-20 2.0 125 -2.4 3-pin SOT-89
TP0604	-40 2.0 150 -2.4 3-pin TO-92
VP0808	-80 5.0 150 -4.5 3-pin TO-92
TP2510	-100 3.5 125 -2.4 3-pin SOT-89
TP2520	-200 12.0 125 -2.0 3-pin SOT-89
TP2640	-400 15.0 300 -2.0 3-pin TO-92, 8-pin SOIC 150 mil
VP2450	-500		30.0		190		-3.5			3-pin TO-92, 3-pin SOT-89
High-Voltage Interface: MOSFETs Interface
Part #	BVoss N-Channel (V)		BVoss P-Channel (V)	Rds(on) N-Channel Max. (Ω)	Rds(on) P-Channel Max. (Ω)		Vss(th) Max. (V)	Details		Packages
Complimentary (Enhancement Mode MOSFET Arrays)
TC6320	200		-200	7.0	8.0		2.0	N- and P- Channel Pair		8-pin SOIC, 8-pin VDFN
TC6321	200		-200	7.0	8.0		2.0	N- and P- Channel Pair		8-pin SOIC, 8-pin VDFN
TC8220	200		-200	5.3	6.5		2.0	2 N- and P- Channel Pairs		12-pin VDFN
High-Voltage Interface: Application Specific
Part #	DC/DC	Input Voltage Min. (V)	Input Voltage Max. (V)	Output Voltage Min. (VRMS)	Output Voltage Max. (VRMS)		Load Min. (pF)	Load Max. (pF)		Packages
Liquid Lens Driver
HV892	Internal Charge Pump	2.65	5.5	10	60		100	200		10-pin WDFN
High-Voltage Interface: Application Specific
Part #	# of Channels	Input Voltage Min. (V)	Input Voltage Max. (V)	Output Voltage Min. (V)	Output Voltage Max. (V)		Input to Output Isolation (V)	Packages
Complimentary MOSFET LEVEL Translator Driver
HT0440	2	3.15	5.5	6	10		±400	10-pin VDFN, 8-pin SOIC 150 mil
HT0740	1	3.15	5.5	4.5	8.5		±400	8-pin SOIC 150 mil
High-Voltage Interface: Application Specific
Part #	Vin (V)	Gain	Rise and Fall Time (μs)	VSENSE Max. (mV)		Quiescent Current Max. (μA)		Packages
High-Side Current Monitor
HV7800	8.0-450	Fixed, 1	0.7-2.0	500		50		5-pin SOT-23
HV7801	8.0-450	Fixed, 5	0.7-2.0	500		50		5-pin SOT-23
HV7802	8.0-450	Adjustable	0.7-1.4	500		50		8-pin MSOP
High-Voltage Interface: Application Specific
Part #	Vin Min. (V)	Vin Max. (V)	In Max. (mA)	Oscillator Frequency Min. (kHz)	Oscillator Frequency Max. (kHz)	Oscillator Frequency Fsync Max. (kHz)	Max. Output Duty Cycle (%)	Typical Current Sense Pull-In (V)	Typical Current Sense Hold	External Adjustable Regulator Output Voltage (V)	External Adjustable Regulator Output Current (mA)
Relay Driver and Controller
HV9901	10	450	2	20	140	150	99.5	0.883	Adjustable	2.0-5.5	0-1.0

Linear: Op Amps

Product

# Per Package

GBWP (MHz)

Iq Typical (μA)

Vos Max (mV)

Operating Voltage (V)

Packages Product

# Per Package

GBWP (MHz)

Iq Typical (μA)

Vos Max (mV)

Operating Voltage (V)

Packages

MCP661/2/3/4/5/9

1/2/1/4/2/4 60 6000 8 2.5 to 5.5 SOIC, MSOP, DFN, TSSOP, QFN, SOT

MCP6V01/2/3

1/2/1 1.3 300 0.002 1.8 to 5.5 SOIC, DFN, TDFN

MCP651/1S/2/3/4/5/9

1/1/2/1/4/2/4 50 6000 0.2 2.5 to 5.5 SOIC, MSOP, DFN, TSSOP, QFN, SOT

MCP6V06/7/8

1/2/1 1.3 300 0.003 1.8 to 5.5 SOIC, DFN, TDFN

MCP631/2/3/4/5/9

1/2/1/4/2/4 24 2500 8 2.5 to 5.5 SOIC, MSOP, DFN, TSSOP, QFN, SOT

MCP6071/2/4

1/2/4 1.2 110 0.15 1.8 to 6.0

SOIC, TSSOP, DFN, SOT

MCP621/1S/2/3/4/5/9

1/1/2/1/4/2/4 20 2500 0.2 2.5 to 5.5 SOIC, MSOP, DFN, TSSOP, QFN, SOT

MCP6H01/2/4

1/2/4

1.2

135

4.5

3.5 to 18

SOIC, TSSOP, TDFN, SOT, SC70

MCP6H91/2/4

1/2/4

10

2000

4

3.5 to 12.0

DFN, SOIC, TSSOP

MCP6001/2/4

1/2/4

1

100

4.5

1.8 to 6.0

PDIP, SOIC, MSOP, TSSOP, TDFN, SOT, SC70

MCP6V91/2/4

1/2/4

10

1100

0.009

2.4 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6401/2/4

1/2/4

1

45

4.5

1.8 to 6.0

SOIC, TSSOP, TDFN, SOT, SC70

MCP6021/2/3/4

1/2/1/4

10 1000

0.5 2.5 to 5.5 PDIP, SOIC, MSOP, TSSOP, SOT

MCP6V61/2/4

1/2/4 1

80 0.008 1.8 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6291/2/3/4/5

1/2/1/4/2 10 1000

3 2.4 to 6.0 PDIP, SOIC, MSOP, TSSOP, SOT

MCP6061/2/4

1/2/4 0.73 60

0.15 1.8 to 6.0

SOIC, TSSOP, DFN, SOT

MCP6491/2/4

1/2/4 7.5

530

1.5 2.4 to 5.5

SOT, SC70, MSOP, TDFN, SOIC, TSSOP

MCP6241/2/4

1/2/4

0.55

50

5

1.8 to 5.5

PDIP, SOIC, MSOP, TSSOP, TDFN, SOT, SC70

MCP6H81/2/4

1/2/4

5.5

700

4

3.5 to 12.0

DFN, SOIC, TSSOP

MCP6051/2/4

1/2/4 0.385 30 0.15 1.8 to 6.0

SOIC, TSSOP, DFN, SOT

MCP6V81/2/4

1/2/4

5

500

0.009

2.2 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6V31/2/4

1/2/4 0.3

23 0.008 1.8 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6281/2/3/4/5

1/2/1/4/2 5

445

3 2.2 to 6.0 PDIP, SOIC, MSOP, TSSOP, SOT

MCP6231/2/4

1/2/4

0.3

20

5

1.8 to 6.0

PDIP, SOIC, MSOP, TSSOP, TDFN, SOT, SC70

MCP6481/2/4

1/2/4

4

240

1.5

2.2 to 5.5

SOT, SC70, MSOP, TDFN, SOIC, TSSOP

MCP616/7/8/9

1/2/1/4 0.19 19 0.15 2.3 to 5.5

PDIP, SOIC, MSOP, TSSOP

MCP6286

1

3.5

540

1.5

2.2 to 5.5

SOT

MCP606/7/8/9

1/2/1/4

0.155 19

0.25 2.5 to 6.0

PDIP, SOIC, TSSOP, SOT

MCP601/2/3/4

1/2/1/4

2.8

230

2

2.7 to 6.0

PDIP, SOIC, TSSOP, SOT

MCP6141/2/3/4

1/2/1/4

0.1

0.6

3

1.4 to 6.0

PDIP, SOIC, MSOP, TSSOP, SOT

MCP6H71/2/4

1/2/4

2.7

480

4

3.5 to 12.0

DFN, SOIC, TSSOP

MCP6421/2/4

1/2/4

0.09

4.4

1

1.8 to 5.5

SOT, SC70, MSOP, SOIC, TSSOP

MCP6271/2/3/4/5

1/2/1/4/2 2

170

3 2.0 to 6.0 PDIP, SOIC, MSOP, TSSOP, SOT

MCP6V11/2/4

1/2/4

0.08

7.5

0.008

1.8 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6471/2/4

1/2/4

2

100

1.5

2 to 5.5

SOT, SC70, MSOP, TDFN, SOIC, TSSOP

MCP6041/2/3/4

1/2/1/4

0.014

0.6

3

1.4 to 6.0

PDIP, SOIC, MSOP, TSSOP, SOT

MCP6V26/7/8

1/2/1

2

620

0.002

2.3 to 5.5

SOIC, MSOP, DFN

MCP6031/2/3/4

1/2/1/4

0.01

0.9

0.15

1.8 to 5.5

SOIC, MSOP, TSSOP, DFN, SOT

MCP6V71/2/4

1/2/4

2

170

0.008

2.0 to 5.5

TSSOP, MSOP, TDFN, SOT, SC70

MCP6441/2/4

1/2/4

0.009

0.45

4.5

1.4 to 6.0

SOIC, MSOP, TSSOP, SOT, SC70

MCP6V51

1

2

470

0.015

4.5 to 45

SOT, MSOP

Linear: Instrumentation Amps

Product	Bandwidth (kHz)	Io Typical (μA)	Vos Max (μV)	Operating Voltage (V)	Features	Packages
MCP6N11	500	800	350	1.8 to 5.5	Rail-to-rail input/output, enable pin, mCal technology	SOIC, TDFN
MCP6N16	500	1100	17	1.8 to 5.5	Rail-to-rail input/output, enable pin, enhanced EMI rejection	MSOP, DFN

Linear: Current Sense Amplifiers

Part #	# per Package	Input Common-Mode Range (V)	Vos Max (uV)	Vos Drift Max (nV/°C)	Max Gain Error (%)	Bandwidth (kHz)	Iq Max (mA)	Operating Voltage (V)	Temperature Range (°C)	Features	Packages
MCP6C02	1	3 to 65	16 (G=20), 14 (G=50), 12 (G=100)	85 (G=20), 70 (G=50), 65, (G=100)	1.6	500 (G=20), 500 (G=50), 350 (G=100)	0.75	2 to 5.5	-40 to +125	Bidirectional Current Sense Amplifier, Enhanced EMI Rejection	6-pin SOT-23
MCP6C04	1	3 to 52	30 (G=20), 27 (G=50), 24 (G=100)	180 (G=20), 140 (G=50), 130 (G=100)	1.6	500 (G=20), 500 (G=50), 350 (G=100)	0.84	2 to 5.5	-40 to +125	Bidirectional Current Sense Amplifier, Enhanced EMI Rejection	6-pin SOT-23

Mixed Signal: Successive Approximation Register (SAR) Analog-to-Digital Converters

Product	Resolution (bits)	Maximum Sampling Rate (samples/sec)	# of Input Channels	Input Type	Interface	Max. Supply Current (μA)	Temperature Range (°C)	Packages
MCP3021/3221	10/12	22k	1	Single-ended	I°C	250	-40 to +125	SOT-23A
MCP3001/2/4/8	10	200k	1/2/4/8	Single-ended	SPI	600-560	-40 to +85	PDIP, SOIC, MSOP, TSSOP
MCP3201/2/4/8	12	100k	1/2/4/8	Single-ended	SPI	400-550	-40 to +85	PDIP, SOIC, MSOP, TSSOP
MCP3301/2/4	13	100k	1/2/4	Differential	SPI	450	-40 to +85	PDIP, SOIC, MSOP, TSSOP
MCP33111D	12	1M	1	Differential	SPI	2250	-40 to +85	10-pin MSOP, 10-pin TDFN
MCP33121D	14	1M	1	Differential	SPI	2250	-40 to +85	10-pin MSOP, 10-pin TDFN
MCP33131D	16	1M	1	Differential	SPI	2250	-40 to +85	10-pin MSOP, 10-pin TDFN

Mixed Signal: Digital-to-Analog Converters

Product

Resolution (Bits)

DAC Channels

Memory

DNL (±LSb)

INL (±LSb)

Packages Product

Resolution (Bits)

DAC Channels

Memory DNL (±LSb)

INL (±LSb) Packages

MCP48FEB01/11/21

8/10/12 1

EEPROM

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP47DA1

6.1 Volatile

0.35 0.7

SOT23-6, SC70-6

MCP48FEB02/12/22

8/10/12 2

EEPROM

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4706/16/26

8/10/12

1

EEPROM

0.05/0.188/0.75

0.907/3.625/14.5

MCP48FVB01/11/21

8/10/12 1

Volatile

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4725

12

1

EEPROM

0.75

14.5

MCP48FVB02/12/22

8/10/12 2

Volatile

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4728

12

4 EEPROM

0.75 13

MSOP-10

MCP47FEB01/11/21

8/10/12 1

EEPROM

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4801/11/21

8/10/12

1

Volatile

0.5/0.5/0.75

1/3.5/12

MCP47FEB02/12/22

8/10/12 2

EEPROM

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4802/12/22

8/10/12

2

Volatile

0.5/0.5/0.75

1/3.5/12

MCP47FVB01/11/21

8/10/12 1

Volatile

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4901/11/21

8/10/12

1

Volatile

0.5/0.5/0.75

1/3.5/12

MCP47FVB02/12/22

8/10/12 2

Volatile

0.25/0.5/1

0.5/1.5/6

MSOP-8

MCP4902/12/22

8/10/12

2

Volatile

0.5/0.5/0.75

1/3.5/12

MCP47CVB01/11/21

8/10/12

1

Volatile

0.1/0.25/1

0.1/0.25/1

10-pin MSOP, 16-pin QFN, 10-pin DFN

MCP48CVB01/11/21

8/10/12

1

Volatile

0.1/0.25/1

0.1/0.25/1

MCP47CVB02/12/22

8/10/12

2

Volatile

0.1/0.25/1

0.1/0.25/1

10-pin MSOP, 16-pin QFN, 10-pin DFN

MCP48CVB02/12/22

8/10/12

2

Volatile

0.1/0.25/1

0.1/0.25/1

MCP47CMB01/11/21

8/10/12

1

MTP

0.1/0.25/1

0.1/0.25/1

10-pin MSOP, 16-pin QFN, 10-pin DFN

MCP48CMB01/11/21

8/10/12

1

MTP

0.1/0.25/1

0.1/0.25/1

MCP47CMB02/12/22

8/10/12

2

MTP

0.1/0.25/1

0.1/0.25/1

10-pin MSOP, 16-pin QFN, 10-pin DFN

MCP48CMB02/12/22

8/10/12

2

MTP

0.1/0.25/1

0.1/0.25/1

Mixed Signal: Energy Meter and Power Monitoring ICs

Product

Dynamic Range

Typical Accuracy

ADC Channels

ADC Resolution

SINAD

Gain Selection

Output Type

Analog Vpp (V)

Digital Vpp (V)

Temperature Range (°C)

Features

Packages

MCP3918/10/19

10000:1

0.1%

1/2/3

24

94.5 dB

1 to 32

SPI/2-Wire

2.7-3.6

2.7-3.6

-40 to +125

Two Channel, 24-bit AFE with Phase Correction, Programmable Data Rate up to 125 kGPS, 16-bit CRC, Register Map Lock, 2-wire Interface

4 mm x 4 mm QFN-20, SSOP-20

MCP3911/12/13/14

10000:1

0.1%

2/4/6/8

24

94.5 dB

1 to 32

SPI

2.7-3.6

2.7-3.6

-40 to +125

Two Channel, 24-bit AFE with Phase Correction, Programmable Data Rate up to 125 kSPS, 16-bit CRC, Register Map Lock

4 mm x 4 mm QFN-20, SSOP-20

MCP39F511N

4000:1

0.5%

3

24

94.5 dB

1 to 32

UART/ Single-wire

2.7-3.6

2.7-3.6

-40 to +125

Dual-channel power monitoring IC with active, reactive and apparent power;active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROM, PWM output

5 mm x 5 mm QFN-28

MCP39F511A

4000:1

0.1%

2

24

94.5 dB

1 to 32

UART/ Single-wire

2.7-3.6

2.7-3.6

-40 to +125

AC/DC Dual-mode Power monitoring IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROM, PWM output

5 mm x 5 mm QFN-28

Mixed Signal: Current/DC Power Measurement ICs

Product

# Current Sensors

Description

Full Scale Range (mV)

Current Measurement Max. Accr. (%)

Effective Sampling Interval Min. to Max. (msec)

Bus Voltage Range (V)

# Temp. Monitors (Ambient, Remote)

Temp. Accuracy Typ./Max. (°C)

Alert/ Therm.

Peak Detection

Interface

Packages

PAC1710/20

1/2

Current/DC Power Sensor

10, 20, 40, 80

±1

2.5 to 2600

0 to +40

N/A

N/A

1

-

SMBus/FC

10-pin DFN

PAC1921

1

SMBus/IC Current/Power Sensor with Analog Output

100

±1

2.5 to 2900

0 to +32

N/A

N/A

-

-

SMBus/FC

10-pin DFN

PAC1934

4

SMBus/IC Current/Power Sensor with Accumulator

100

±0.9

0.98 to 125

0 to +32

N/A

N/A

1

-

SMBus/FC

WLCSP

EMC1701/2/4

1

Current/DC Power Sensor with Temperature Monitoring

10, 20, 40, 80

±1

2.5 to 2600

+3 to +24

1, 0/1/3

±0.25/±1.0

2

Y

SMBus/FC

12-pin QFN, 10-pin MSOP, 16-pin QFN, 14-pin SOIC

Mixed Signal: Digital Potentiometers

Product	# of Taps	Memory	Channels	Interface	Resistance (kΩ)	Temperature Range (°C)	Packages
MCP4011/12/13/14	64	Volatile	1	Up/Down	2.1, 5, 10, 50	-40 to +125	DFN, SOT-23
MCP4017/18/19	126	Volatile	1	fC	5, 10, 50, 100	-40 to +125	SC70
MCP40D17/D18/D19	126	Volatile	1	fC	5, 10, 50, 100	-40 to +125	SC70
MCP4021/22/23/24	64	Nonvolatile	1	Up/Down	2.1, 5, 10, 50	-40 to +125	DFN, SOT-23
MCP4141/42	128	Nonvolatile	1	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4241/42	128	Nonvolatile	2	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4131/32	128	Volatile	1	SPI	5, 10, 50, 100	-40 to +125	QFN, DFN
MCP4231/32	128	Volatile	2	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4151/52	256	Volatile	1	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN

Mixed Signal: Digital Potentiometers
Product	# of Taps	Memory		Channels	Interface	Resistance (kΩ)	Temperature Range (°C)	Packages
MCP41HV31	128 Volatile 1 SPI 5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP41HV51	256 Volatile 1 SPI 5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP4161/62	256	Nonvolatile		1	SPI	6, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4251/52	256	Volatile		2	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4261/62	256	Nonvolatile		2	SPI	5, 10, 50, 100	-40 to +125	MSOP, QFN, DFN
MCP4341/42	128	Nonvolatile		4	SPI	5, 10, 50, 100	-40 to +125	TSSOP, QFN
MCP4361/62	257	Nonvolatile		4	SPI	5, 10, 50, 100	-40 to +125	TSSOP, QFN
MCP4331/32	129	Volatile		4	SPI	5,10,50,100	-40 to +125	TSSOP, QFN
MCP4351/52	257	Volatile		4	SPI	5,10,50,100	-40 to +125	TSSOP, QFN
MCP4431/32	129 Volatile 4	I			°C	5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP4441/42	129 Nonvolatile	4		I	°C	5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP4451/52	257 Volatile 4	I			°C	5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP4461/62	257 Nonvolatile	4		I	°C	5, 10, 50, 102 -40 to +125 TSSOP, QFN
MCP4531/32	126 Volatile	1		I	°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4631/32	126 Volatile	2		I	°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4541/42	126 Nonvolatile 1	I			°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP46HV31	128 Volatile 1	I			°C	5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP45HV51	256 Volatile 1	I			°C	5, 10, 50, 100 -40 to +125 TSSOP, QFN
MCP4641/42	128 Nonvolatile 2	I			°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4551/52	256 Volatile	1		I	°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4651/52	256 Volatile	2		I	°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4561/62	256 Nonvolatile 1	I			°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
MCP4661/62	256 Nonvolatile 2	I			°C	5, 10, 50, 100	-40 to +125	MSOP, DFN
Mixed Signal: Delta-Sigma Analog-to-Digital Converters
Product	Resolution(bits)	Maximum SamplingRate (samples/sec)	# of InputChannels	Interface	Typical SupplyCurrent (μA)	TemperatureRange (°C)	Features		Packages
MCP3461	16	153.6k	2	SPI	930	-40 to +125	One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low Noise 16-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3462	16	153.6k	4	SPI	930	-40 to +125	Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3464	16	153.6k	8	SPI	930	-40 to +125	Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3561	24	153.6k	2	SPI	930	-40 to +125	One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3562	24	153.6k	4	SPI	930	-40 to +125	Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3564	24	153.6k	8	SPI	930	-40 to +125	Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-Bit Delta-Sigma ADCs		3 mm x 3 mm UQFN-20
MCP3910	24	125k	2	SPI/2-Wire	2500	-40 to +125	Two Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs with 2-Wire Mode, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3911	24	125k	2	SPI	2500	-40 to +125	Two Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3912	24	125k	4	SPI	4700	-40 to +125	Four Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3913	24	125k	6	SPI	7400	-40 to +125	Six Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3914	24	125k	8	SPI	9800	-40 to +125	Eight Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3918	24	125k	1	SPI/2-Wire	1300	-40 to +125	Single Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20
MCP3919	24	125k	3	SPI/2-Wire	3500	-40 to +125	Three Channel, 125 kSPS, 24-bit Simultaneously Sampling Delta-Sigma ADCs, AEC-Q100 Grade 1		4 mm x 4 mm QFN-20, SSOP-20

Mixed Signal: Pipelined Analog-to-Digital Converters

Product	Resolution (bits)	Maximum Sampling Rate (Msamples/sec)	# of Input Channels	Power Dissipation (mW)	Interface	Input Channel BW (MHz)	SNR (dB)	SFDR (dB)	Temperature Range (°C)	Features Packages
MCP37D10-200	12	200	1	338	Serial DDR LVDS or Parallel CMOS	650	67	96	-40 to +85	Digital down-converter, decimation filters, noise-shaping requantizer	124-pin VTLA, 121-pin TFBGA
MCP37210-200	12	200	1	338	Serial DDR LVDS or Parallel CMOS	650	67	96	-40 to +85	Decimation filters, noise-shaping requantizer	124-pin VTLA, 121-pin TFBGA
MCP37D11-200	12	200	8-mux, Diff	468	Serial DDR LVDS or Parallel CMOS	1.2, 1.8	71.3	90	-40 to +85	Decimation filters, digital down-converter, noise-shaping requantizer	124-pin VTLA, 121-pin TFBGA
MCP37211-200	12	200	8-mux, Diff	468	Serial DDR LVDS or Parallel CMOS	1.2, 1.8	71.3	90	-40 to +85	Decimation filters, noise-shaping requantizer	124-pin VTLA, 121-pin TFBGA
MCP37D20-200	14	200	1	348	Serial DDR LVDS or Parallel CMOS	650	67.8	96	-40 to +85	Digital down-converter, decimation filters	124-pin VTLA, 121-pin TFBGA
MCP37220-200	14	200	1	348	Serial DDR LVDS or Parallel CMOS	650	67.8	96	-40 to +85	Decimation filters, noise-shaping requanizer	124-pin VTLA, 121-pin TFBGA
MCP37D21-200	14	200	8-mux, Diff	490	Serial DDR LVDS or Parallel CMOS	1.2, 1.8	74.2	90	-40 to +85	Decimation filters, digital down-converter	124-pin VTLA, 121-pin TFBGA
MCP37221-200	14	200	8-mux, Diff	490	Serial DDR LVDS or Parallel CMOS	1.2, 1.8	74.2	90	-40 to +85	Decimation filters	124-pin VTLA, 121-pin TFBGA
MCP37D31-200	16	200	8-mux, Diff	490	Serial DDR LVDS or Parallel CMOS	500	74	90	-40 to +85	Decimation filters	124-pin VTLA, 121-pin TFBGA
MCP37231-200	16	200	8-mux, Diff	490	Serial DDR LVDS or Parallel CMOS	500	74	90	-40 to +85	Digital down-converter, decimation filters	124-pin VTLA, 121-pin TFBGA

Interface: CAN Products

Product	Description and Features	Operating Voltage (V)	Operating Temperature Range (°C)	Packages
ATA6560	CAN Transceiver with stand-by and silent mode, 5V I/O, CAN FD ready, 5 Mbps, AECQ100 Grade 1	4.5-5.5	-40 to +125	VDFN8, SOIC8
ATA6561	CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, CAN FD ready, 5 Mbps, AECQ100 Grade 1	4.5-5.5	-40 to +125	VDFN8, SOIC8
ATA6562	CAN Transceiver with stand-by and silent mode, 5V I/O, wake-up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 1	4.5-5.5	-40 to +125/150	VDFN8, SOIC8
ATA6563	CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, wake-up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 1	4.5-5.5	-40 to -125/150	VDFN8, SOIC8
ATA6564	CAN Transceiver with silent mode, compatible with 3.3V and 5V microcontroller, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 1	4.5-5.5	-40 to +125/150	VDFN8, SOIC8
ATA6565	Dual CAN Transceiver with stand-by mode, 5V I/O, wake up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 1	4.5-5.5	-40 to +125/150	VDFN14, SO14
ATA6566	CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, wake-up pattern, CAN FD ready, 2 Mbps, AECQ100 Grade 0, 1, suitable for the Japanese market	4.5-5.5	-40 to +125/150	VDFN8, SOIC8
ATA6570	CAN Partial Networking Transceiver with Wake pin and Window Watchdog, compatible with 3.3V and 5V microcontroller, wake-up pattern or wake-up frame, CAN FD ready, 5 Mbps, AECQ100 Grade 1	4.55-28	-40 to +125	SOIC14
MCP2515	Stand-Alone CAN 2.0B Controller with SPI Interface	2.7-5.5	-40 to +125	18-pin PDIP, 18-pin SOIC, 20-pin TSSOP
MCP2517FD	External CAN FD Controller with SPI Interface, ISO 11898-1:2015 Compliant, 32-bit Time Stamp, Supports CAN 2.0B and CAN FD, Highly Configurable 31 FIFOs and 32 Filters	2.7-5.5	-40 to -150	14-pin SOIC, 14-pin VDFN
MCP25625	Integrated High-Speed CAN Transceiver and CAN 2.0B Controller	2.7-5.5	-40 to +125	28-pin SSOP, 28-pin 6 x 6 QFN

Interface: LIN Products

Product	Description	Vrea Output Voltage (V)	Operating Temperature Range (°C)	Vrea Output Current (mA)	Supply Voltage Range (V)	Max. Baud Rate	LIN Specification Supported	Packages
ATA663211	LIN Transceiver	-	-40 to +125	-	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8, SOIC8
ATA663201	LDO, pin compatible with ATA663231 LIN SBC	3.3	-40 to +125	85	5-28	-	-	VDFN8
ATA663203	LDO, pin compatible with ATA663254 LIN SBC	5.0	-40 to +125	85	5-28	-	-	VDFN8
ATA663231	LIN Transceiver with integrated Vrec, pinout acc. to OEM hardware recommendation	3.3	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8
ATA663254	LIN Transceiver with integrated Vacs, pinout acc. to OEM hardware recommendation	5.0	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8, SOIC8
ATA663232	LIN Transceiver with integrated Vacc and Wake Pin, pinout acc. to OEM hardware recommendation	3.3	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8
ATA663255	LIN Transceiver with integrated Verc and Wake Pin, pinout acc. to OEM hardware recommendation	5.0	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8
ATA6625	LIN Transceiver with integrated Vacs, classic pinout	5.0	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN8, SOIC8
ATA663331	LIN Transceiver with integrated Vrec and 2 relay driver	3.3	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN16
ATA663354	LIN Transceiver with integrated Vacs and 2 relay driver	5.0	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN16
ATA663431	LIN Transceiver with integrated Vacs and WWDT	3.3	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN16

Interface: LIN Products
Product Description			Vreg Output Voltage (V)	Operating Temperature Range (°C)	Vreg Output Current (mA)	Supply Voltage Range (V)	Max. Baud Rate	LIN Specification Supported Packages
ATA663454	LIN Transceiver with integrated Vears and WWDT		5.0	-40 to +125	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	VDFN16
ATSAMHA1G14A	LIN System-in Package (SIP) Solution incl. Arm® Cortex® MO- MCU, 16 KB Flash memory 3.3 -40 to [phone] kBaud 2.0, 2.1, 2.2, 2.2A, SAEJ2602-2 QFN48
ATSAMHA1G15A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 32 KB Flash memory		3.3	-40 to +85	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN48
ATSAMHA1G16A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 64 KB Flash memory		3.3	-40 to +85	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN48
ATSAMHA1E14A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 16 KB Flash memory		3.3	-40 to +85	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA1E15A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 32 KB Flash memory		3.3	-40 to +85	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA1E16A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 64 KB Flash memory		3.3	-40 to +85	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA0E14A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 16 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA0E15A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 32 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA0E16A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 64 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN32
ATSAMHA0G14A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 16 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN48
ATSAMHA0G15A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 32 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN48
ATSAMHA0G16A	LIN System-in Package (SIP) Solution incl. Arm Cortex MO+ MCU, 64 KB Flash memory		3.3	-40 to +105	85	5-28	20 kBaud	2.0, 2.1, 2.2, 2.2A, SAEJ2602-2	QFN48
Ultrasound: T/R Switch ICs
Product	Number of Channels	Voltage (V)	RSW	Diode Clamps	VTRIP (V)		BW (MHz)	Packages
MD0100	1 or 2	±100	15	No	±2.0		100	3-pin SOT-80, 8-pin VDFN
MD0101	4	±100	15	Yes	±2.0		100	18-pin VDFN
MD0105	4	±100	15	Yes	±2.0		100	18-pin VDFN
Ultrasound: Arbitrary Waveform Generator
Product	Resolution	Amplitude Control	Apodization	Input Voltage (V)	Typical Delay Time (ns)		Output Current (A)	Packages
MD2131	7.5" Phase	PWM	8-bit SPI	2.5	4		0-3.0	40-pin WQFN
MD2134	±127 steps	PWM	8-bit SPI	2.5	4		0-3.0	40-pin WQFN
Ultrasound: MOSFET Driver
Product	Number of Drivers	Input Voltage Min. (V)	Input Voltage Max. (V)		Output Voltage Bipolar (V)		Output Voltage Unipolar (V)	Packages
MD1210	2	1.2	5		-		0-12	12-pin QFN
MD1711	12	1.8	5.5		-		0-12	48-pin LOFP, 48-pin VQFN
MD1712	12	1.8	5.5		-		0-12	48-pin LOFP, 48-pin VQFN
MD1715	2	1.8	3.6		-		0-12	40-pin VQFN
MD1810	4	1.2	5		±5.0		0-12	16-pin QFN
MD1811	4	1.2	5		±5.0		0-12	16-pin QFN
MD1820	4	1.7	6.25		±5.0		0-12	16-pin VQFN
MD1822	4	1.7	5.25		±5.0		0-12	16-pin VQFN
Ultrasound: High-Voltage Ultrasound Transmitters
Product	Number of Channels	Output Voltage (V)	Number Output Levels	HD2 (dB)	Output Current (A)	Features		Packages
HV7321	4	±80	5	-44	±2.5	Built-in T/R switches, output protection diodes and clamp diodes		64-pin VQFN (9 x 9 mm)
HV7350	8	±60	3	-40	±1.0	Built-in floating power supplies		56-pin VQFN
HV7351	8	±70	3	-40	±3.0	Programmable launch delay, 4 transmit waveforms, clock up to 200 MHz		80-pin VQFN
HV7360	1	±100	3	-	±2.5	Built-in coupling capacitors		22-pin CABGA
HV7361	1	±100	3	-	±2.5	Built-in T/R switch, 8 capacitors		22-pin CABGA
HV7322	8	±80	7	-40	±2.0	8-Channel 7-level with dual T/R		206-ball TFBGA 12 x 12 mm
HV7358	16	±80	7	-40	±1.6	16-Channel 3-Level with Built-in Digital Beamformer and T/R		168-ball TFBGA 13 x 13 mm

Ultrasound: MOSFET Array

Product	BVdss/BVdss N-Channel (V)	BVdss/BVdss P-Channel (V)	Rds(on) N-Channel max (Ω)	Rds(on) P-Channel max (Ω)	Vgs(th) max (V)	Note	Package
TC6320	200 - 200 7 8 2 N- and P-Channel pair						8-pin SOIC, 8-pin VDFN
TC8020	200 - 200 8 9.5 3 Six N- and P-Channel pairs	56-pin VQFN
TC8220	200	-200	5.3	6.5	2	Two N- and P-Channel Pairs	12-pin VDFN

CO and Smoke Detector ICs

Product	Horn Driver	Detection Method	Low Battery Detection	Alarm Memory	Alarm Interconnect	Hush/Sensitivity Timer	Operating Temperature Range (°C)	Packages
RE46C191	Yes	Photo	Yes	Yes	Yes	Yes	-10 to +60	16-pin SOIC
RE46C317/8	Yes	Just Driver	No	No	No	No	-10 to +60	PDIP, SOIC
RE46C803	Yes	CO	No	No	No	No	-10 to +60	20-pin SSOP

Motor Drivers: Stepper Motors, DC Motors and 3-Phase BLDC Fan Controllers

Product	Motor Type	Input Voltage Range (V)	Internal/ External FETs	Output Current (mA)	Control Scheme	Motor Speed Output	Protections	Operating Temp. Range (°C)	Features	Packages
ATA6826C	DC Motor	7 to 40	Internal	1000 SPI N/A			Short Circuit, Overtemperature, Power Supply Fail	-40 to 125	3 half bridge outputs, No shoot-through, Very low quiescent current <2 μA	SO14
ATA6831C(2C)	DC Motor	7 to 40	Internal	1000 SPI N/A			Short Circuit, Overtemperature, Power Supply Fail	-40 to 125 (150)	3 half bridge outputs, No shoot through, Very low quiescent current <2 μA, PWM input	18-pin 4 x 4 QFN
ATA6836C(8C)	DC Motor	7 to 40	Internal	650 (950)	SPI N/A		Short Circuit, Overtemperature, Power Supply Fail	-40 to 125	6 half bridge outputs, No shoot through, Very low quiescent current <2 μA	24-pin 5 x 5 QFN, SO26
ATA6823C(4C)	DC Motor	7 to 20	Internal	100	PWM, DIR	N/A	Short Circuit, Overtemperature, Over/Under Voltage, Chargepump Fail	-40 to 125 (150)	Dead time adjust, Charge pump supply for external battery reverse protection NMOS, LDO 3.3V/5V, Window Watchdog, LIN TRX (HV Interface)	32-pin 7 x 7 QFN, 32-pin 7 x 7 TQFP
MCP8026	3-Phase Brushless Motors	6 to 28	External	500	Direct PWM	N/A	Overcurrent, Overvoltage, Uncervoltage, Overtemperature, 48V Load Dump Protection, Short Circuit, Shoot Through	-40 to +150	3 Op Amps, Adj. Buck Regulator, 5V LDO, 12V LDO, Thermal Warning, Dead Time, Blanking Time, Level Translator, Motor Enable, Sleep Mode (MCP8026)	40-pin 5 x 5 QFN, 48-pin 7 x 7 TQFP
MCP8025A	3-Phase Brushless Motor	6 to 19	External	500	Direct PWM	N/A	Overcurrent, Overvoltage, Uncervoltage, Overtemperature, 48V Load Dump Protection, Short Circuit, Shoot Through	-40 to +150	Sleep Mode, LIN Transceiver, AZ Output, Adj. Buck Regulator, LDO, Op Amp, Overcurrent Comparator, Fault Output, Thermal Warning, Selectable Dead Time and Blanking Time	40-pin 5 x 5 QFN, 48-pin 7 x 7 TQFP
MTS62C19A/MTS2916A	One Bipolar Stepper Motor or Two DC Motors	10 to 40	Internal	750	Direct PWM Input, Current Limit Control, Microstepping	No Overtemperature, Under Voltage	-40 to +105		Dual Full-Bridge Motor Driver for Stepper Motors, Pin Compatible with Allegro 6219	24-pin SOIC
MCP8063	3-Phase Brushless Motor	2 to 14	Internal	750	Sensorless Sinusoidal	Frequency Generator	Overtemperature, Motor Lock-up, Overcurrent, Overvoltage	-40 to +125	3-Phase BLDC 180° Sinusoidal Sensorless Fan Motor Driver, Overcurrent limitation, Output Switching Frequency at 23 kHz	Thermally Enhanced 8-pin 4 x 4 DFN
MTD650X	3-Phase Brushless Motor	2 to 14 (5,5)	Internal	500-800	Sensorless Sinusoidal	Frequency Generator	Overtemperature, Motor Lock-up, Overcurrent, Overvoltage	-30 (-40) to -95 (125)	3-Phase BLDC 180° Sinusoidal Sensorless Drive, Direction Control, Programmable BEMF Coefficient Range, 20 kHz+ Output Switching Frequency, Programmable Start-up RPM and Slew Rate, Selectable Start-up Strength and Phase Target Regulation	SOP, DFN, QFN

Ultrasound: High-Voltage Analog Multiplexers
Part #	# of Ch. and Configuration	Bleed Resistor	Vpp-Vnn	Ron (Ω)	C86 On/Off (pF)	Isw (A)	Features	Packages
HV20220	8 SPST	No	200V	22	38/12	3	5V-12V Logic Input, 5 MHz clock frequency	48-Lead LQFP, 28-Lead PLCC
HV209	6 x 2:1 Mux	Yes	200V	22	38/12	3	5V-12V Logic Input, 5 MHz clock frequency	48-Lead LQFP
HV20822	2 Banks of 8 channel	No	220V	22	38/12	3	6V-12V Logic Input, 5 MHz clock frequency	48-Lead LQFP
HV2601	16 SPST	No	200V	22	38/12	3	3.3V-5V Logic input, 20 MHz clock frequency	48-Lead LQFP, 42-Ball Bumped Die (BD)
HV2701	16 SPST	No	200V	22	38/12	3	3.3V-5V Logic input, 20 MHz clock frequency	48-Lead LQFP, 42-Ball Bumped Die (BD)
HV2605	16 SPST	No	200V	22	13/10	3	3.3V-5V Logic input, 20 MHz clock frequency	48-Lead LQFP, 42-Ball Bumped Die (BD)
HV2705	16 SPST	Yes	200V	22	13/10	3	3.3V-5V Logic input, 20 MHz clock frequency	48-Lead LQFP, 42-Ball Bumped Die (BD)
HV2803	32 SPST	No	±6V	10	27/9	3	3.3V Input Logic, 66 MHz Clock Frequency	132-ball TFBGA 12 x 12 mm
HV2903	32 SPST	Yes-2	±8V	10	27/9	3	3.3V Input Logic, 66 MHz Clock Frequency	132-ball TFBGA 12 x 12 mm
HV2904	32 SPST	Yes-1	±6V	10	27/9	3	3.3V Input Logic, 66 MHz Clock Frequency	132-ball TFBGA 12 x 12 mm
HV2662	24 SPST	No	200V	22	12/9	2	3.3V-5V Logic input, 20 MHz clock frequency	64-Ball VFBGA
HV2762	24 SPST	Yes	200V	22	12/9	2	3.3V-5V Logic input, 20 MHz clock frequency	64-Ball VFBGA
HV2801	16 x 2:1 Mux	No	200V	22	23/9	3	3.3V-5V Logic input, 20 MHz clock frequency	64-Lead QFN
HV2901	16 x 2:1 Mux	Yes	200V	22	23/9	3	3.3V-5V Logic input, 20 MHz clock frequency	64-Lead QFN
HV2802	32 SPST	No	200V	22	13/10	3	3.3V-5V Logic input, 20 MHz clock frequency	9 x 9 VFBGA
HV2902	32 SPST	Yes	200V	22	13/10	3	3.3V-5V Logic input, 20 MHz clock frequency	9 x 9 VFBGA
Oscillators: Ultra-Low Jitter
Product	Output Frequency (MHz)	Output Logic	Input Function	Frequency Stability (ppm)	Temperature Range (°C)	Supply Voltage (V)	Phase Noise (ps RMS)	Package
MX57	10 to 860	LVCMOS, LVPECL, LVDS, HCSL	OE on Pin1 or OE on pin2	±50	-40 to 85	2.375 to 3.63	0.16 (12k-20M)	7.0 x 5.0 mm 6-pin
MX55	10 to 860	LVCMOS, LVPECL, LVDS, HCSL	OE on Pin1 or OE on pin3	±50	-40 to 85	2.375 to 3.63	0.16 (12k-20M)	5.0 x 3.2 mm 6-pin
MX574BBD322M265	322.265625	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.143/0.098	7.0 x 5.0 mm 6-pin
MX555ANR133M333	133.3333	LVPECL	OE on pin2	±50	-40 to 85	2.375 to 3.63	0.143/0.092	5.0 x 3.2 mm 6-pin
MX553BBA156M250	156.25	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.165/0.11	5.0 x 3.2 mm 6-pin
MX553BBB156M250	156.25	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.162/0.093	5.0 x 3.2 mm 6-pin
MX573BBA156M250	156.25	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.165/0.11	7.0 x 5.0 mm 6-pin
MX553BBA312M500	312.5	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.155/0.106	5.0 x 3.2 mm 6-pin
MX575ABA25M0000	25	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.152/0.088	7.0 x 5.0 mm 6-pin
MX573LBB148M500	148.5	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.149/0.096	7.0 x 5.0 mm 6-pin
MX555ABD100M000	100	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.22/0.1	5.0 x 3.2 mm 6-pin
MX573NBA622M080	622.06	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.148/0.103	7.0 x 5.0 mm 6-pin
MX573BBB156M250	156.25	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.162/0.093	5.0 x 3.2 mm 6-pin
MX554BBD322M265	322.265625	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.154/0.1	5.0 x 3.2 mm 6-pin
MX574BBD322M265	322.265625	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.154/0.1	7.0 x 5.0 mm 6-pin
MX573BBA312M500	312.5	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.148/0.103	7.0 x 5.0 mm 6-pin
MX573BBB312M500	312.5	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.175/0.08	7.0 x 5.0 mm 6-pin
MX555ABA25M0000	25	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.152/0.08	5.0 x 3.2 mm 6-pin
MX575ABB200M000	200	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.22/0.1	7.0 x 5.0 mm 6-pin
MX555ABB200M000	200	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.22/0.1	5.0 x 3.2 mm 6-pin
MX575ABC200M000	200	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.128/0.089	7.0 x 5.0 mm 6-pin
MX575ABC125M000	125	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.128/0.089	7.0 x 5.3 mm 6-pin
MX553ABB212M500	212.5	LVDS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.175/0.08	5.0 x 3.2 mm 6-pin
MX573ABA212M500	212.5	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.175/0.08	7.0 x 5.0 mm 6-pin

Oscillators: Ultra-Low Jitter

Product	Output Frequency (MHz)	Output Logic	Input Function	Frequency Stability (ppm)	Temperature Range (°C)	Supply Voltage (V)	Phase Noise (ps RMS)	Package
MX555ABA150M000	150 LVPECL OE on pin1 ±50 -40 to 85 2.375 to 3.63 0.143/0.098 5.0 x 3.2 mm 6-pin
MX575ABD100M000	100	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.22/0.1	7.0 x 5.0 mm 6-pin
MX555ABD100M000	100	HCSL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.22/0.1	5.0 x 3.2 mm 6-pin
MX575ABA100M000	100	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.152, 0.112	7.0 x 5.0 mm 6-pin
MX555ABC50M0000	50	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.142, 0.1	5.0 x 3.2 mm 6-pin
MX575ABC50M0000	50	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.142, 0.1	7.0 x 5.0 mm 6-pin
MX555ABA50M0000	50	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.142, 0.101	5.0 x 3.2 mm 6-pin
MX575ABA50M0000	50	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.142, 0.101	7.0 x 5.0 mm 6-pin
MX555ABC25M0000	25	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.131, 0.077	5.0 x 3.2 mm 6-pin
MX575ABC25M0000	25	LVCMOS	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.131, 0.077	7.0 x 5.0 mm 6-pin
MX574BBF644M531	644.53125	LVPECL	OE on pin1	±50	-40 to 85	2.375 to 3.63	0.139, 0.101	7.0 x 5.0 mm 6-pin

Clock and Data Distribution: Buffers

Product

Buffer Type

Fanout

Input MUX

Input Type

EEPROM

Termination

Output Type

Supply Voltage (V)

Output Frequency (Max) (MHz)

Host BUS

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Output Enable

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

PL123-02N

Fanout

1:2

LVCMOS

LVCMOS

1.8/2.5/3.3

200

500

6/DFN

PL123-05

Zero Delay

1:5

LVCMOS

LVCMOS

3.3

100/134

250

8/SOIC

PL123-09

Zero Delay

1:9

LVCMOS

LVCMOS

3.3

100/134

250

16/SOIC 16/TSSOP

PL123E-05

Zero Delay

1:5

LVCMOS

LVCMOS

2.5/3.3

220/167/200/134

8/SOIC

PL123E-09

Zero Delay

1:9

LVCMOS

LVCMOS

2.5/3.3

220/167/200/134

16/SOIC

PL133-21

Fanout

1:2

LVCMOS/Sine Wave

LVCMOS

1.8/2.5/3.3

150

500

6/UDFN

PL133-27

Fanout

1:2

LVCMOS/Sine Wave

LVCMOS

1.8/2.5/3.3

150

500

6/UDFN

PL133-37

Fanout

1:3

LVCMOS/Sine Wave

LVCMOS

1.8/2.5/3.3

150

250

6/SOT-23

PL133-47

Fanout

1:4

LVCMOS

LVCMOS

2.5/3.3

150

9200

250

8/SOIC 150mil

PL133-67

Fanout

1:6

LVCMOS

LVCMOS

2.5/3.3

150

9200

250

16/TSSOP

PL133-97

Fanout

1:9

LVCMOS

LVCMOS

2.5/3.3

150

9200

250

16/QFN

PL133-97

Fanout

1:9

LVCMOS

LVCMOS

1.8/2.5/3.3

0.15

9200

250

Yes

16/VQFN

PL135-27

Fanout

1:2

Crystal Oscillator

LVCMOS

1.8/2.5/3.3

40

500

6/UDFN

PL135-37

Fanout

1:3

Crystal Oscillator

LVCMOS

1.8/2.5/3.3

40

250

8/SOIC 150mil

PL135-47

Fanout

1:4

Crystal

LVCMOS

1.8/2.5/3.3

0.04

250

Yes

16/TSSOP

PL135-67

Fanout

1:6

Crystal

LVCMOS

1.8/2.5/3.3

0.04

250

Yes

16/WQFN

PL138-48

Fanout

1:4 2:1

LVDS/LVPECL/LVHSTL/SSTL/HCSL/LVCMOS

LVPECL

2.5/3.3

800

890

37

16/QFN and 20/TSSOP

SY100E222L

Fanout

1:15

2:1

LVECL/LVPECL

LVPECL

3.3

1500

1520

50

52/LQFP

SY100EL11V

Fanout

1:2

ECL

ECL

3.3/5

800

365

20

8/SOIC

SY100EL14V

Fanout

1:5

2:1

ECL/PECL

PECL

3.3/5

880

50

Yes

20/SOIC

SY100EP111U

Fanout

1:10

2:1

LVPECL/LVECL/HSTL

PECL

2.5/3.3

3000

400

25

32/TQFP

SY100EP11U

Fanout

1:2

LVPECL/PECL/ECL

PECL

2.5/3.3/5

3

300

20

8/MSOP & SOIC

SY100EP14U

Fanout

1:5

2:1

PECL, LVPECL, ECL, HSTL

ECL

2.5/3.3/5

2

600

25

Yes

20/TSSOP

SY100EP15V

Fanout

1:4

2:1

PECL, LVPECL, ECL, HSTL

LVPECL

2.5/3.3/5

2.5

425

25

Yes

16/TSSOP 32/TQFP

SY10EP11U

Fanout

1:2

LVPECL/PECL/ECL

PECL

2.5/3.3/5

3

300

20

8/MSOP & SOIC

SY54020AR

Fanout

1:4

ANY

CML

2.5

3.2

3.2

400

20

Yes

16/MLF

SY56011R

Fanout

1:2

ANY

CML

2.5

4.5

6.4

280

15

16/QFN

SY56020R

Fanout

1:4

ANY

CML

2.5

4.5

6.4

280

15

Yes

16/QFN

SY58011U

Fanout

1:2

ANY

CML

2.5/3.3

7

10.7

250

15

16/QFN

Clock and Data Distribution: Buffers

Product

Buffer Type

Fanout

Input MUX

Input Type

EEPROM

Termination

Output Type

Supply Voltage (V)

Output Frequency (Max [MHz])

Host BUS

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Output Enable

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

SY58012U

Fanout 1:2

ANY LVPECL

2.5/3.3

5 260 15 16/MLF

SY58020U

Fanout 1:4

ANY CML

2.5/3.3

6 250 15 16/QFN

SY58021U

Fanout 1:4

ANY LVPECL

2.5/3.3

4 5 300 15 16/QFN

SY58031U

Fanout 1:8

ANY CML

2.5/3.3

5 270 20 18/QFN

SY58032U

Fanout 1:8

ANY LVPECL

2.5/3.3

4 330 20 32/MLF

SY58035U

Fanout

1:6

2:1

ANY

LVPECL

2.5/3.3

4.5

230

20

32/MLF

SY58606U

Fanout

1:2

ANY

CML

2.5/3.3

2.5

4.25

400

15

Yes

16/QFN

SY58607U

Fanout

1:2

ANY

LVPECL

2.5/3.3

2.5

3.2

450

20

Yes

16/QFN

SY58608U

Fanout

1:2

ANY

LVDS

2.5

2

3.2

420

20

Yes

16/QFN

SY75572L

PCIo Fanout

1:2

2:1

HCSL/LVDS

HCSL

3.3

267

50

Yes

16/VQFN

SY75576L

PCIo Fanout

1:4

2:1

HCSL/LVDS

HCSL/LVDS

3.3

267

50

Yes

20/TSSOP

SY89112U

Fanout

1:12

2:1

ANY

LVPECL

2.5/3.3

3

550

25

44/QFN

SY89311U

Fanout 1:2

ECL/PECL/LVPECL/LVECL

ECL/PECL/LVPECL/LVECL

2.5/3.3/5

3 300 20

8/MLF

SY89467U

Fanout

1:20

2:1

ANY

LVPECL

2.5/3.3

1.5

1200

20

Yes

64/TQFP

SY89468U

Fanout

1:20

2:1

ANY

LVDS

2.5

1.5

1200

25

Yes

64/TQFP

SY897132L

Link Replicator

1:2

2:1

LVPECL

LVPECL

3.3

0.8

1.5

4000

Yes

28/TSSOP

SY89830U

Fanout 1:4

2:1

ECL/PECL/LVPECL/LVECL

ECL/PECL/LVPECL/LVECL

2.5/3.3/5

2.5

450

25

16/TSSOP

SY89831U

Fanout

1:4

ANY

LVPECL

2.5/3.3

2

390

20

16/VQFN

SY89832U

Fanout

1:4

ANY

LVDS

2.5

2

570

20

16/VQFN

SY89833AL

Fanout

1:4

ANY

LVDS

3.3

2

600

20

16/VQFN

SY89833L

Fanout

1:4

ANY

LVDS

3.3

2

600

20

16/VQFN

SY89835U

Fanout

1:2

LVDS

LVDS

2.5

3.2

2

500

20

Yes

8/MLF

SY89837U

Fanout

1:8

2:1

ANY

LVPECL

2.5/3.3

1.5

975

40

Yes

Yes

32/VQFN

SY89838U

Fanout

1:8

2:1

ANY

LVDS

2.5

1.5

950

40

Yes

Yes

32/VQFN

SY89846U

Fanout

1:5

2:1

ANY

LVPECL

2.5/3.3

1.5

900

20

Yes

32/VQFN

SY89847U

Fanout

1:5

2:1

ANY

LVDS

2.5

1.5

1000

20

Yes

32/VQFN

SY898530U

Fanout

1:16

LVDS/LVPECL/LVHSTL/SSTL/HCSL

LVPECL

3.3

0.5

2000

50

45/TQFP

SY898535XL

Fanout

1:4

2:1

XTAL/LVCMOS/LVTTL

LVPECL

3.3

0.24

1750

30

20/TSSOP

SY89854U

Fanout

1:4

ANY

LVPECL

2.5/3.3

3.5

340

20

16/VQFN

ZL40200

Fanout

1:2

1:1

LVPECL, LVDS, HCSL, CML

External

LVPECL

2.5/3.3

750

16/VQFN

ZL40201

Fanout

1:2

1:1

LVPECL, LVDS, HCSL, CML

Internal

LVPECL

2.5/3.3

750

16/VQFN

ZL40202

Fanout

1:4

1:1

LVPECL, LVDS, HCSL, CML

External

LVPECL

2.5/3.3

750

16/VQFN

ZL40203

Fanout

1:4

1:1

LVPECL, LVDS, HCSL, CML

Internal

LVPECL

2.5/3.3

750

16/VQFN

ZL40204

Fanout

1:5

1:1

LVPECL, LVDS, HCSL, CML

External

LVPECL

2.5/3.3

750

32/VQFN

ZL40205

Fanout

1:8

1:1

LVPECL, LVDS, HCSL, CML

Internal

LVPECL

2.5/3.3

750

32/VQFN

ZL40206

Fanout

1:8

1:1

LVPECL, LVDS, HCSL, CML

External

LVPECL

2.5/3.3

750

32/VQFN

ZL40207

Fanout

1:8

1:1

LVPECL, LVDS, HCSL, CML

Internal

LVPECL

2.5/3.3

750

32/VQFN

ZL40208

Fanout

1:8

2:1

LVPECL, LVDS, HCSL, CML

External

LVPECL

2.5/3.3

750

32/VQFN

ZL40209

Fanout

1:6

2:1

LVPECL, LVDS, HCSL, CML

Internal

LVPECL

2.5/3.3

750

32/VQFN

Clock and Data Distribution: Buffers

Product

Buffer Type

Fanout

Input MUX

Input Type

EEPROM

Termination

Output Type

Supply Voltage (V)

Output Frequency (Max) [MHz]

Host BUS

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Output Enable

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

ZL40210

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML External LVPECL 2.5/3.3 750 32/QFN

ZL40211

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML Internal LVPECL 2.5/3.3 750 32/QFN

ZL40212

Fanout 1:2 1:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 16/QFN

ZL40213

Fanout 1:2 1:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 16/QFN

ZL40214

Fanout 1:4 1:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 16/QFN

ZL40215

Fanout 1:4 1:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 16/QFN

ZL40216

Fanout 1:8 1:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 32/QFN

ZL40217

Fanout 1:6 1:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 32/QFN

ZL40218

Fanout 1:8 1:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 32/QFN

ZL40219

Fanout 1:8 1:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 32/QFN

ZL40220

Fanout 1:6 2:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 32/QFN

ZL40221

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 32/QFN

ZL40222

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 32/QFN

ZL40223

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 32/QFN

ZL40224

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML External LVPECL 2.5/3.3 750 32/QFN

ZL40225

Fanout 1:8 2:1 LVPECL, LVDS, HCSL, CML Internal LVPECL 2.5/3.3 750 32/QFN

ZL40226

Fanout 1:8 1:1 LVPECL, LVDS, HCSL, CML External LVDS 2.5/3.3 750 32/QFN

ZL40227

Fanout 1:8 1:1 LVPECL, LVDS, HCSL, CML Internal LVDS 2.5/3.3 750 32/QFN

ZL40230

Fanout 1:10 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVPECL, LVDS, HCSL

2.5/3.3 1600

SPI

YES

48/qfn

ZL40231

Fanout 1:10 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVPECL, LVDS, HCSL

2.5/3.3 1600 48/qfn

ZL40234

Fanout 1:4 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVPECL, LVDS, HCSL

2.5/3.3 1600 32/qfn

ZL40235

Fanout 1:4 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVPECL, LVDS, HCSL

2.5/3.3 1600

SPI

YES

32/qfn

ZL40240

Fanout 1:10 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVCMOS

2.5/3.3

250

SPI

YES

32/qfn

ZL40241

Fanout 1:10 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVCMOS

2.5/3.3 250

32/qfn

ZL40260

Fanout 1:10 2:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

LVPECL 2.5/3.3 1600 32/qfn

ZL40250

Programmable Fanout

1:6 3:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

External

LVDS, LVPECL, HCSL, CMOS, HSTL

2.5/3.3 1000

SPI/PC

YES

56/QFN

ZL40251

Programmable Fanout

1:6 3:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

Internal

LVDS, LVPECL, HCSL, CMOS, HSTL

2.5/3.3 1000

SPI/PC

YES

56/QFN

ZL40252

Programmable Fanout

1:10 3:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

External

LVDS, LVPECL, HCSL, CMOS, HSTL

2.5/3.3 1000

SPI/PC

YES

56/QFN

ZL40253

Programmable Fanout

1:10 3:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

Internal

LVDS, LVPECL, HCSL, CMOS, HSTL

2.5/3.3 1000

SPI/PC

YES

56/QFN

ZL40255

Programmable Fanout

1:10 3:1

LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS

Internal

CML

2.5/3.3 1000

SPI/PC

YES

32/QFN

Clock and Data Distribution: Buffers

Product

Buffer Type

Fanout

Input MUX

Input Type

EEPROM

Termination

Output Type

Supply Voltage (V)

Output Frequency (Max) (MHz)

Host BUS

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Output Enable

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

ZL40292

DB2000/PCIe Fanout

1:20 1:1 HCSL LPHCSL 3.3 250 YES 72/QFN

ZL40293

PCIe Fanout

1:20 1:1 HCSL LPHCSL 3.3 250 YES 72/QFN

ZL40294

DB2000/PCIe Fanout

1:20 1:1 HCSL LPHCSL 3.3 250 YES 80/GQFN

ZL40295

PCIe Fanout

1:20 1:1 HCSL LPHCSL 3.3 250 YES 80/GQFN

ZL40262

PCIe Fanout

1:1 1:2 HCSL HCSL 400 YES 20/QFN

ZL40264

PCIe Fanout

1:1 1:4 HCSL HCSL 400 YES 20/QFN

Timing Products: Real-Time Clock/Calendar (RTCC)

Bus

Product Pins

Timing Features

Memory

Power

Unique Features ^2

Packages

Digital Trimming (Adj./Range)

Alarm Settings

WDT

Outputs

SRAM (Bytes)

EEPROM (KBits)

Protected EEPROM (bits)

Min Vcc

Min Vbat

IC

MCP7940M

8

±127 ppm

1 sec.

-

IRQ/CLK

64

0

0

1.8

-

-

SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY), PDIP (P)

MCP7940N

8

±127 ppm

1 sec.

-

IRQ/CLK

64

0

0

1.8

1.3

Power Fail Timestamp

SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY), PDIP (P)

MCP7940x

8

±127 ppm

1 sec.

-

IRQ/CLK

64

0

64

1.8

1.3

Power Fail Timestamp

SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY)

MCP7941x

8

±127 ppm

1 sec.

-

IRQ/CLK

64

1

64

1.8

1.3

Power Fail Timestamp

SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY)

MCP7951x

10

±265 ppm

0.01 sec.

-

IRQ/CLK

64

1

128

1.8

1.3

Power Fail Timestamp

SOIC (SL), TSSOP (ST)

SPI

MCP7952x

10

±265 ppm

0.01 sec.

-

IRQ/CLK

64

2

128

1.8

1.3

Power Fail Timestamp

MSOP (MS), TDFN (MN)

MCP795W1x

14

±265 ppm

0.01 sec.

Y

IRQ/CLK/WDT RST

64

1

128

1.8

1.3

Power Fail Timestamp, Event Detects (×2)

SOIC (SL), TSSOP (ST)

MCP795W2x

14

±265 ppm

0.01 sec.

Y

IRQ/CLK/WDT RST

64

2

128

1.8

1.3

Power Fail Timestamp, Event Detects (×2)

SOIC (SL), TSSOP (ST)

Clock and Data Distribution: Dividers

Product Divide by MUX: Fanout Input Type Output Type Supply Voltage (V)

Output Frequency(Max) (GHz)

Propagation Delay(Max) (ps)

Within DeviceSkew (Max) (ps)

InternalTermination

Output Enable

Fail-Safe Input(FSI)

Packages

SY89872U

2, 4, 8, 16 1:2

ANY LVDS 2.5V 2 750 15 Yes Yes 16/QFN

SY89876L

1, 2, 4, 8, 16

1:2

ANY

LVDS

3.3V

2

870

15

Yes

16/QFN

SY89875U

1, 2, 4, 8, 16

1:2

ANY LVDS 2.5V 2 870 15 Yes Yes 16/QFN

SY89871UMG

2, 4, 8, 16

1:3

ANY

LVPECL

2.5/3.3

3.2

670

15

Yes

Yes

16/QFN

SY100EP32V

2

1:1

ECL

ECL

5/3.3

4

440

8/MSOP, 8/SOIC

SY100EL33

4

1:1

ECL

ECL

3.3

3.6

630

8/SOIC

SY89874U

1, 2, 4, 8, 16

1:2

ANY

LVPECL

2.5/3.3V

2.5

790

15

Yes

Yes

16/QFN

SY89873L

2, 4, 8, 16

1:2

ANY

LVDS

3.3V

2

800

15

Yes

Yes

16/QFN

SY89874AU

1, 2, 4, 8, 16

1:2

ANY

LVPECL

2.5/3.3V

2.5

570

15

Yes

Yes

16/QFN

SY89200U

1, 2, 4

1:3

ANY

LVDS

2.5

1.5

900

25

Yes

32/QFN

SY89202U

1, 2, 4

1:8

ANY

LVPECL

2.5/3.3

1.5

930

25

Yes

Yes

32/VQFN

SY89228U

3, 5

1:1

ANY

LVPECL

2.5/3.3V

1

1500

Yes

Yes

16/QFN

SY100S834L

1, 2, 4 or 2, 4, 8

1:1

ECL/PECL

ECL/PECL

3.3

1200

50

Yes

16/SOIC

SY89230U

3, 5

1:1

ANY

LVPECL

2.5/3.3V

3.2

850

Yes

Yes

16/QFN

SY100EL32V

2

1:1

LVPECL

LVPECL

3.3/5

3

630

8/SOIC

SY100EP33V

4

1:1

ECL

ECL

5/3.3

4

500

16/SOIC

SY100EL34

2, 4, 8

1:3

ECL/PECL

ECL/PECL

5

1200

50

Yes

16/SOIC

SY100EL34L

2, 4, 8

1:3

ECL/PECL

ECL/PECL

3.3

1200

50

Yes

16/SOIC

SY89218U

1, 2, 4

2:15

ANY

LVDS

2.5

1.5

1600

35

Yes

Yes

64/TQFP

SY89221U

1, 2, 4

2:15

ANY

LVPECL

2.5/3.3V

1.5

1600

35

Yes

Yes

64/TQFP

SY89231U

3, 5

1:1

ANY

LVDS

2.5V

3.2

810

Yes

Yes

16/QFN

Clock and Data Distribution: Drivers and Receivers

Product

Function

Channels

Feature

Input Type

Output Type

Supply Voltage (V)

Output Frequency (Max) (GHz)

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Icc (mA)

Fail Safe Input (FSI)

Packages

SY89251V

Receiver

Single

Output Enable

ECL/LVPECL

ECL/LVPECL

3.3/6V

380

26

8/DFN

SY100EL16V

Receiver

Single

ECL/PECL

ECL/PECL

3.3/5V

425

26

8MSOP/SOIC

SY58600U

Driver/Receiver

Single

Internal Termination

ANY

CML

2.5/3.3V

10.7

7

220

65

8/MLF

SY58603U

Buffer

Single

Fall-Safe Input (FSI)

ANY

CML

2.5/3.3V

4.25

2.5

350

50

Yes

8/DFN

SY58605U

Buffer

Single

Fall-Safe Input (FSI)

ANY

LVDS

2.5V

3.2

2

420

50

Yes

8/DFN

SY89250V

Receiver

Single

Output Enable

LVECL/LVPECL

PECL

3.3/6V

0.8

380

46

8/MLF

SY58604U

Buffer

Single

Fall-Safe Input (FSI)

ANY

LVPECL

2.5/3.3V

3.2

2.5

450

45

Yes

8/DFN

SY54016AR

Driver/Receiver

Single

Internal Termination

ANY

CML

2.5V

3.2

3.2

280

16

8/MLF

SY100EL17

Receiver

Quad

ECL/LVPECL

ECL/LVPECL

3.3/6V

610

26

20/SOIC

SY58601U

Driver/Receiver

Single

Internal Termination

ANY

LVPECL

2.5/3.3V

5

5

220

60

8/MLF

SY54016R

Driver/Receiver

Single

Fall-Safe Input (FSI)

ANY

CML

2.5V

2.5

420

40

8/MLF

SY58016L

Driver/Receiver

Single

Internal Termination

CML/PECL

CML

3.3V

10.7

7

150

75

16/MLF

SY58602U

Driver/Receiver

Single

Internal Termination

ANY

LVPECL

2.5/3.3

10.7

7

220

65

8/QFN

SY56016R

Driver/Receiver

Single

Input Equalization

ANY

CML

2.5V

6.4

5

250

42

10/MLF

Clock and Data Distribution: Translators

Product No. of Channels Core Supply Voltage (V) Input Type Output Type Output Voltage (V)						Output Frequency(Max) (GHz)	Propagation Delay(Max) (ps)	Within Device Skew(Max) (ps)	Packages
SY89321L	Single 3.3 LVPECL/CML/LVDS LVTTL 3.3 0.275 2500 8/MLF
SY100ELT22	Dual	5	TTL	PECL	2.5/3.8	0.15	600	100	8/SOIC
SY100EPT21	Single 3.3	LVPECL	LVTTL 3.3 0.275 2500 500 8/MSOP 8/SOIC
SY100ELT22L	Dual	3.3	LVTTL	LVPECL	2.5/3.9	0.15	600	100	8/SOIC
SY100ELT23L	Dual	3.3	LVPECL	LVTTL	2	0.16	2500	300	8/SOIC
SY55857L	Dual	3.3	ANY	LVPECL	3.3	2.5	400	50	10/MSOP
SY89323L	Dual	3.3	LVPECL	LVTTL	3.3	0.275	250	50	8/MLF
SY89329V	Single	3.3/8	LVTTL	LVPECL	3.3/7	0.8	600		8/MLF
PL130-07	Single	2.5/3.4	Sine Wave/LVCMOS	LVCMOS	2.5/3.4	0.2			16/QFN, 8/TSSOP, 8/SOIC
SY100EPT22	Dual	3.3/6	TTL/LVTTL/CMOS/LVCMOS	PECL/LVPECL	3.3/6	0.8	600	500	8/MSOP 8/SOIC
SY89322V	Dual	3.3/7	LVTTL	LVPECL	3.3/6	0.8	600	100	8/MLF
SY10/100EPT20	Single	3.3/5	TTL/LVTTL/CMOS/LVCMOS	PECL/LVPECL	3.3/5	0.35	600	500	8/MSOP 8/SOIC
SY55855V	Dual	3.3/6	PECL/LVPECL/CML	LVDS	3.3/5	0.75	700	50	10/MSOP
SY100ELT23	Dual	5	PECL	TTL	2.5	0.16	3500	300	8/SOIC
SY100EPT23	Dual	3.3	LVPECL	LVTTL	3.3	0.275	2500	300	8/MSOP 8/SOIC
SY89327L	Single	3.3	ANY	LVPECL	3.3	2.5	400		8/QFN
SY100ELT21L	Single	3.3	LVPECL	LVTTL	2.5/3.7	0.15	2500		8/SOIC
SY100ELT25	Single	5	ECL	TTL	5	0.5	3600		8/SOIC
SY89328L	Single	3.3	LVPECL/LVTTL	LVTTL/LVPECL	3.3	0.275	600		8/MLF
SY100EPT28	Single	3.3	LVPECL/LVTTL	LVPECL/LVTTL	3.3	0.275	2500		8/MSOP 8/SOIC
PL130-09	Single	2.5/3.6	Sine Wave/TTL/CMOS/LVDS	LVDS	2.5/3.6	1			8/SOP,16/QFN

Clock and Data Distribution: Multiplexers

Product

MUX: Fanout

No. of Channels

Input Type

Output Type

Supply Voltage (V)

Output Frequency (Max) (GHz)

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Crosspoint

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

SY58609U

2:1

Single

ANY

CML

2.5/3.3V

3

4.25

450

20

Yes

16/QFN

SY58018U

2:1

Single

ANY

LVPECL

2.5/3.3V

4

5

240

15

16/QFN

SY58611U

2:1

Single

ANY

LVDS

2.5V

2.5

3.2

470

20

Yes

16/QFN

SY89474U

2:2

Single

ANY

LVDS

2.5V

2.5

2.5

470

20

24/QFN

SY100EP57

4:1

Single

PECL/ECL

PECL/ECL

3.3V/5V

3

520

20/TSSOP

SY89544U

4:1

Single

ANY

LVDS

2.5V

4

3.2

510

20

32/MLF

SY89840U

2:1

Single

ANY

LVPECL

2.5/3.3V

2

880

Yes

Yes

16/QFN

SY89841U

2:1

Single

ANY

LVDS

2.5V

2

870

Yes

Yes

16/MLF

SY89547L

4:2

Single

ANY

LVDS

3.3V

4

3.2

540

20

32/MLF

SY58028U

4:2

Single

ANY

CML

2.5/3.3V

7

10.7

340

20

32/MLF

SY58610U

2:1

Single

ANY

LVPECL

2.5/3.3V

2.5

3.2

470

20

Yes

16/QFN

SY58017U

2:1

Single

ANY

CML

2.5/3.3V

7

10.7

240

15

16/MLF

SY58038U

8:2

Single

ANY

LVPECL

2.5/3.3V

5

4.5

500

15

44/QFN

SY100EP56

2:1

Dual

PECL/ECL

PECL/ECL

3.3V/5V

3

470

100

20/TSSOP

SY89853U

2:1

Dual

ANY

LVPECL

2.5/3.3V

2.5

2.5

360

20

32/QFN

SY89545L

4:1

Single

ANY

LVDS

3.3V

3

3.2

600

25

32/MLF

SY56034AR

2:6

Single

ANY

CML

2.5V

5

6.4

300

25

Yes

32/QFN

SY89859U

8:2

Single

ANY

LVPECL

2.5/3.3V

2.5

3.5

640

20

44/QFN

SY89543L

2:1

Dual

ANY

LVDS

3.3V

3

3.2

510

25

32/MLF

SY58029U

4:2

Single

ANY

LVPECL

2.5/3.3V

4

5

390

15

32/MLF

SY89855U

4:2

Single

ANY

LVPECL

2.5/3.3V

2.5

2.5

410

20

32/QFN

SY89465U

2:1

Single

ANY

LVDS

2.5V

2

1200

25

Yes

Yes

44/QFN

SY89844U

2:2

Single

ANY

LVDS

2.5V

2

870

20

Yes

Yes

24/QFN

SY58026U

2:1

Dual

ANY

LVPECL

2.5/3.3V

6

5

310

15

32/MLF

Clock and Data Distribution: Multiplexers

Product

MUX: Fanout

No. of Channels

Input Type Output

Type Supply Voltage (V)

Output Frequency (Max) (GHz)

Output Data Rate (Max) (Gbps)

Propagation Delay (Max) (ps)

Within Device Skew (Max) (ps)

Crosspoint

Runt Pulse Eliminator (RPE)

Fail-Safe Input (FSI)

Packages

SY58019U

2:1 Single ANY LVPECL

2.5/3.3V 7 10.7 240 15

16/MLF

SY58025U

2:1 Dual ANY

CML

2.5/3.3V 8 10.7 290 15

32/MLF

SY58030U

4:2 Single ANY LVPECL

2.5/3.3V 7 10.7 340 20

32/MLF

Clock and Data Distribution: Skew Management

Product

No. of Channels

Input Type

Output Type

Propagation Delay Resolution (Typ) (ps/step)

Propagation Delay (Min) (ns)

Propagation Delay (Max)(ns)

Fine Tune

Supply Voltage (V)

Output Frequency (Max) (GHz)

Packages

SY100EP195V

Single

ANY

ECL

10

2.2

12.2

3.3/5

2.5

32/TQFP

SY100EP196V

Single

ANY

ECL

10

2.2

12.2

Yes

3.3/5

2.5

32/TQFP

SY55856U

Dual

CML

CML

50

0.35

0.7

2.5/3.3

2.5

32/TQFP

SY89295U

Single

LVPECL/LVTTL

LVPECL

10

3.2

14.8

2.5/3.3

1.5

32/TQFP 32/VCFN

SY89296U

Single

LVPECL/LVTTL

LVPECL

10

3.2

14.8

Yes

2.5/3.3

1.5

32/TQFP 32/VCFN

SY89297U

Dual

ANY

CML

5

2

7

3.3

1.6

24/VCFN

Clock and Data Distribution: High Temperature Oscillators

Part Family	Type	Footprint (mm)	Output Frequency (MHz)	Temperature Stability (ppm)	Temperature Range (°C)	Output Logic Supply Voltage (V)
HM-4201-RTCM1	Real time clock module	13 x 13	0.000512	150	-40 to 200	CMOS
HT-RTC-XO	Real time clock XO	multiple options, see specification	0.032768	100	-55 to 200	CMOS
HX-171	High temp OCXO	28 x 38	10 to 20	0.005	-40 to 150	CMOS
PX-420	High temp XO	13 x 13	0.5 to 40	200	-55 to 230	CMOS
PX-570	High temp XO	8.5 x 8	0.5 to 40	200	-55 to 230	CMOS
PX-610	High temp XO	∅9.65	0.032768 to 40	200	-55 to 230	CMOS
PX-702	High temp XO	7 x 5	0.5 to 50	200	-55 to 230	CMOS
VX-400	High temp VCXO	20 x 13	1 to 32.768		-55 to 200	CMOS
VX-708	High temp VCXO	7 x 5	2 to 40		-55 to 180	CMOS

Clock and Data Distribution: Disciplined Oscillator Module

Part Family	Type	Footprint (mm)	Output Standard (MHz)	Temperature Stability (ppb)	Temperature Range Min (°C)	Holdover 24 hours - constant temperature us	1pps RMS (1 sigma) accuracy to UTC ns	Phase Noise 10 Hz dBc/Hz	Phase Noise 100 kHz dBc/Hz
MD-013	High Stability GNSSDOCXO	115 x 60	19	0.4	-40 to 85	1.5	10	-125	-145
MD-174	Low noise GNSSDOCXO	50 x 40	10	5	-40 to 85	15	20	-135	-170
MD-175	High Stability GNSSDOCXO	50 x 40	10	0.4	-40 to 85	1.5	10	-125	-145
MD-2610-OCXO	Compact GNSSDOCXO	25 x 20	10	5	-40 to 85	8	20	-120	-150

OCXO

Part Family	Type Footprint (mm)		Output Frequency (MHz)	Temperature Stability (ppb)	Temperature Range (°C)	Aging Per Year (ppb)	Phase Noise 10 Hz dBc/Hz	Phase Noise 10 kHz dBc/Hz	Carrier (MHz)	Supply Voltage (V)
EX-219	Low Power Space OCXO	26 x 24	10 to 120	100	-40 to +85	200	-90	-145	10	3.3, 5
EX-421	Low power OCXO	13 x 13	10 to 100	30	-40 to +85	100	-125	-165	10	3.3, 5
MX-503	Microprocessor corrected TCXO	14 x 9	8 to 60	30	-40 to +85	250	-93	-154	20	3.3, 5
MX-600	Microprocessor corrected TCXO	9 x 7	8 to 40	30	-40 to +85	250	-100	-153	10	3.3
OX-043	Low g OCXO	51 x 51	8 to 15	30	-40 to +85	40	-135	-170	10	12, 15
OX-046	Low g OCXO	51 x 51	50 to 250	200	-40 to -85	200	-100	-175	100	12, 15
OX-171	High stability OCXO	38 x 28	5 to 20	0.8	-40 to +85	15	-125	-145	10	3.3, 5, 12
OX-208	High Stability OCXO	25 x 25	5 to 20	0.8	-40 to +85	20	-125	-156	10	3.3, 5
OX-221	High Stability OCXO	25 x 22	10 to 30.72	3	-40 to +85	60	-122	-151	10	3.3
OX-228	High stability OCXO	25 x 22	10 to 20	1	-40 to +85	200				3.3
OX-249	Space OCXO	35 x 20	10 to 120	100	-40 to +85	200	-108	-162	50	5

OCXO
Part Family Type Footprint (mm)			Output Frequency (MHz)	Temperature Stability (ppb)	Temperature Range (°C)	Aging Per Year (ppb)	Phase Noise 10 Hz dBc/Hz	Phase Noise 10 kHz dBc/Hz	Carrier (MHz) Supply Voltage (V)
OX-304	Low noise OCXO 20 x 20 to 20 to -40 to +85 to -135 to 12
OX-305	Low noise OCXO 20 x 20 to 120 to -40 to +85 to -105 to 12
OX-401	1588 OCXO 20 x 13 to 40 to +85 to -121 to 152 to 3.3, 5
OX-405	Low noise OCXO 20 x 13 to 120 to -40 to +85 to -95 to 155 to 100			3.3, 5
OX-502	Standard OCXO 14 x 9	10 to 40 to -40 to +85 to -90 to 150 to 3.3
OX-601	Standard OCXO 9 x 7	10 to 40 to -40 to +85 to -90 to 150 to 3.3
TCXO
Part Family	Type	Footprint (mm)	Output Frequency (MHz)	Temperature Stability -40 to 85 ppm	Phase Noise 10 Hz dBc/Hz	Phase Noise 10 kHz dBc/Hz	Carrier (MHz)	Output Logic	Supply Voltage (V)
DOC200103	Space TCXO	multiple options, see specification	0.3 to 425	2				CMOS, Sine	3.3, 5, 12
DOC207139	Space TCXO	35 x 25	12 to 200	2				LVDS	3.3
TX-321	Low noise TCXO	23 x 18	5 to 50	1	-116	-162	10	CMOS	3.3, 5
TX-707	Low g TCXO	7 x 5	8 to 52	1	-100	-158	10	CMOS, Clipped Sine	3.3, 5
TX-708	Low g TCXO	7 x 5	96 to 160	1	-75	-140	150	CMOS	3.3
VT-706	Stratum 3 TCXO	7 x 5	5 to 52	0.2	-102	-154	10	CMOS	3, 3.3, 5
VT-803	Stratum 3 TCXO	5 x 3.2	10 to 52	0.28	-91	-150	26	CMOS, Clipped Sine	2.5, 3.3, 5
VT-820	Standard TCXO	3.2 x 2.5	8 to 45	0.5	-91	-149	10	Clipped Sine	1.8, 2.5, 3, 3.3
VT-841	Standard TCXO	2.5 x 2	10 to 52	1	-91	-148	19.2	Clipped Sine	1.8, 2.5, 3.3
VT-860	Standard TCXO	2 x 1.6	13 to 52	0.5	-90	-145	26	Clipped Sine	1.8, 2.5, 3, 3.3
VCSO and PSO
Part Family	Type	Footprint (mm)	Output Frequency (MHz)	Temperature Range (°C)	Jitter 12k-20 MHz fs-rms		Carrier (MHz)	Output Logic
DOC206559	Space VCSO	16 x 16	300 to 1500	-40 to +85			1000	Sine
DOC206906	Space VCSO	16 x 16	300 to 1000	-40 to +85	0.5		1000	LVPECL
VS-501	Single frequency VCSO	14 x 9	600 to 3000	-10 to +85	12		1700	Sine, Balanced or Differential Sinewave, LVPECL
VS-504	Dual frequency VCSO	14 x 9	600 to 3000	-10 to +85	12		1980	Sine, Balanced or Differential Sinewave, LVPECL
VS-507	Single frequency VCSO	14 x 9	3000 to 6000	-40 to +85	10		5898.24	Sine, Balanced or Differential Sinewave
VS-702	Single frequency VCSO	7 x 5	150 to 1000	-40 to +85	100		622.08	LVPECL, LVDS
VS-709	Dual frequency VCSO	7 x 5	120 to 1200	-40 to +85	120		698.61	LVPECL, LVDS
VS-800	Single frequency VCSO	5 x 3.2	800 to 3200	-40 to +85	6		2949.12	Sine, Balanced or Differential Sinewave
VCXO
Part Family Type Footprint (mm)			Output Frequency (MHz)	Temperature Range (°C)	Pull Range (ppm)	Phase Noise 10 Hz dBc/Hz	Phase Noise 100 kHz dBc/Hz	Carrier (MHz)	Output Logic	Supply Voltage (V)
VX-501	Low noise VCXO	14 x 9	10 to 1200	-40 to +85	65	-76	-165	100	CMOS, Sine, LVPECL, LVDS	3.3, 5
VX-706	Low noise VCXO	7 x 5	40 to 300	-40 to +85	80	-72	-168	122.88	CMOS, LVPECL	3.3, 5
VX-805	Low noise VCXO	5 x 3.2	100 to 204.8	-40 to +105	50	-68	-157	122.88	LVPECL	3.3
VX-505	Ml temp range VCXO	14 x 9	20 to 800	-55 to +125	60	-76	-161	100	CMOS, LVPECL	3.3, 5
DOC204898	Space VCXO	25 x 25	100 to 700	-40 to +85	20			700	LVPECL	3.3
DOC204899	Space VCXO	25 x 25	80 to 200	-40 to +85	20			200	LVDS	3.3
DOC206218	Space VCXO	14 x 9	1 to 100	-40 to +85	50	-85	-159	16	CMOS	3.3, 5
VW-800	Standard VCXO	5 x 3.2	1.544 to 77.76	-40 to +85	150	-63	-157	61.44	CMOS	3.3, 5
VX-705	Standard VCXO	7 x 5	77.76 to 170	-40 to +85	50	-68	-151	122.88	CMOS, LVPECL	3.3

xo

Part Family Type Footprint (mm)			Output Frequency (MHz)	Temperature Stability (ppm)	Temperature Range Min (°C)	Jitter 12k-20 MHz fs-rms	Carrier (MHz) Output Logic Supply Voltage (V)
DOC203679	Space XO 16 x 16 12 to 200 50 -55 to +125 0.09 200 LVDS 3.3
DOC203810	Space XO	multiple options, see specification	100 to 700	50	-55 to +125	0.3	700	LVPECL
DOC204900	Space XO	multiple options, see specification	12 to 160	50	-55 to +125	0.14	100	CMOS
DOC206379	Space XO, 300k rad 16 x 16 12 to 100 50 -55 to +125 0.08 100 CMOS 3.3, 5
DOC206903	Space XO, 300 krad 16 x 16 12 to 200 50 -55 to +125 0.09 200 LVDS 3.3
M55310/28B	Mil temp range XO	14 x 9	1 to 85	50	-55 to -125			TTL
M55310/30B	Mil temp range XO	14 x 9	0.45 to 85	50	-55 to -125			CMOS
OS-68338	Space XO	multiple options, see specification	0.35 to 100	50	-55 to +125	0.16	40	CMOS, TTL
PS-702	High frequency SO	7 x 5	150 to 1000	50	-40 to -85	100	622.08	LVPECL, LVDS
PX-700	Precision XO	7 x 5	1 to 800	50	-55 to -125	500	100	CMOS, TTL, LVPECL, LVDS
PX-706	Standard XO	7 x 5	40 to 300	25	-40 to +85	48	100	CMOS, LVPECL
VC-711	Low jitter XO	7 x 5	10 to 170	100	-40 to -105	100	156.25	LVPECL, LVDS
VC-801	Standard XO	5 x 3.2	0.03277 to 125	50	-55 to +125	500	125	CMOS
VC-806	Standard XO	5 x 3.2	25 to 250	25	-40 to +85	300	155.52	LVPECL, LVDS
VC-820	Standard XO	3.2 x 2.5	0.625 to 133	50	-55 to +125	61	125	CMOS
VC-827	Low jitter XO	3.2 x 2.5	20 to 170	100	-40 to +105	130	156.25	LVPECL, LVDS
VC-840	Standard XO	2.5 x 2	0.75 to 60	25	-40 to +105	177	25	CMOS

Low-Power Oscillators

Product	Output Frequency Min. (MHz)	Output Frequency Max (MHz)	Output Logic	Frequency Stability (ppm)	Temp. Range (°C)	Supply Voltage (V)	Current (Typ) (mA)	Period Jitter (ps RMS)	# Outputs	Dimensions	Output Drive Strength (pf)
DSC60X1B	0.002	80	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	1.3	10	1	1.6 x 1.2 mm 4-pin	15
DSC60X3B	0.002	80	LVCMOS	±20, ±25, ±51	-40 to +125	1.71–3.63	1.3	10	1	2.0 x 1.6 mm 4-pin2.5 x 2.0 mm 4-pin	5
DSC61X1B	0.002	100	LVCMOS	±20, ±25, ±56	-40 to +125	1.71–3.63	3.0	7.0	1	3.2 x 2.5 mm 4-pin'	15
DSC61X2B	0.002	100	LVCMOS	±20, ±25, ±57	-40 to +125	1.71–3.63	3.0	7.0	1	5.0 x 3.2 mm 4 pin'7.0 x 5.0 mm 4-pin'	25
DSC1001	1	170	LVCMOS	±10, ±25, ±50	-40 to +105	1.62–3.63	5.0	6.0	1	2.5 x 2.0 mm 4-pin	15
DSC1003	1	170	LVCMOS	±10, ±25, ±50	-40 to +105	1.62–3.63	6.0	5.0	1	3.2 x 2.5 mm 4-pin5.0 x 3.2 mm 4-pin	25
DSC1004	1	170	LVCMOS	±10, ±25, ±50	-40 to +105	1.62–3.63	7.0	5.0	1	7.0 x 5.0 mm 4-pin	40

Low-Jitter Oscillators

Product	Output Frequency Min. (MHz)	Output Frequency Max (MHz)	Output Logic	Frequency Stability (ppm)	Temperature Range (°C)	Supply Voltage (V)	Current (Typ) (mA)	Period Jitter (ps RMS)	Phase Noise (ps RMS) (12k-20 MHz)	# Outputs	Dimensions	Output Drive Strength (pf)
MX57	10	860	LVCMOS, LVPECL, LVDS, HCSL	±20, ±50	-40 to +85	2.375-3.63	70		0.16	1	7.0 x 5.0 mm 6-pin
MX55	10	860	LVCMOS, LVPECL, LVDS, HCSL	±20, ±50	-40 to +85	2.375-3.63	70		0.16	1	5.0 x 3.2 mm 6-pin
DSC11x1	2.3	170	LVCMOS	±10, ±25, ±50	-55 to +125	2.25-3.63	25	3	1.70/0.3 (200k-20M)	1	2.5 x 2.0 mm 6-pin3.2 x 2.5 mm 6-pin5.0 x 3.2 mm 6-pin7.0 x 5.0 mm 6-pin	15
DSC11x2	2.3	460	LVPECL	±10, ±25, ±50	-40 to +105	2.25-3.63	51	2.5	1.70/0.3 (200k-20M)	1
DSC11x3	2.3	460	LVDS	±10, ±25, ±50	-40 to -105	2.25-3.63	29	2.5	1.70/0.3 (200k-20M)	1
DSC11x4	2.3	460	HCSL	±10, ±25, ±50	-40 to -105	2.25-3.63	30	2.5	1.70/0.3 (200k-20M)	1
DSC12x1	2.5	170	LVCMOS	±20, ±25, ±55	-40 to +125	2.25-3.63	27		0.65	1		15
DSC12x2	2.5	450	LVPECL	±20, ±25, ±55	-40 to +105	2.25-3.63	50		0.65	1
DSC12x3	2.5	450	LVDS	±20, ±25, ±55	-40 to -125	2.25-3.63	32		0.65	1
DSC12x4	2.5	450	HCSL	±20, ±25, ±55	-40 to -105	2.25-3.63	40		0.65	1
DSC2x10	2.3	170	LVCMOS	±10, ±25, ±50	-55 to +125	2.25-3.63	25	3	1.70/0.3 (200k-20M)	1	3.2 x 2.5 mm 14-pin	15
DSC2x20	2.3	460	LVPECL	±10, ±25, ±50	-40 to +105	2.25-3.63	51	2.5	1.70-0.3 (200k-20M)	1
DSC2x30	2.3	460	LVDS	±10, ±25, ±50	-40 to -105	2.25-3.63	29	2.5	1.70/0.3 (200k-20M)	1
DSC2x40	2.3	460	HCSL	±10, ±25, ±50	-40 to -105	2.25-3.63	30	2.5	1.70/0.3 (200k-20M)	1

Spread Spectrum Oscillators

Product	Output Frequency Min. (MHz)	Output Frequency Max (MHz)	Output Logic	Frequency Stability (ppm)	Temp. Range (°C)	Supply Voltage (V)	Current (Typ) (mA)	Period Jitter (ps RMS)	# Outputs Dimensions	Output Drive Strength (pf)
DSC6x1B	1 100 LVCMOS ±20, ±25, ±50 -40 to +125 1.71-3.63 3 7 1								1.6 x 1.2 mm 4-pin2.0 x 1.6 mm 4-pin2.5 x 2.0 mm 4-pin3.2 x 2.5 mm 4-pin*	10
DSC63x2B	1 100 LVCMOS ±20, ±25, ±53 -40 to +125 1.71-3.63 3 7 1 25

Automotive Oscillators

Product	Output Frequency Min. (MHz)	Output Frequency Max (MHz)	Output Logic	Frequency Stability (ppm)	Temperature Range (°C)	Supply Voltage (V)	Current (Typ) (mA)	Period Jitter (ps RMS)	Phase Noise (ps RMS)	# Outputs	Dimensions	Output Drive Strength (pf)
DSA60x1	0.002	80	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	1.3	10		1	1.6 x 1.2 mm 4-pin2.0 x 1.6 mm 4-pin2.5 x 2.0 mm 4-pin3.2 x 2.5 mm 4-pin*5.0 x 3.2 mm 4 pin*7.0 x 5.0 mm 4-pin*	10
DSA60x3	0.002	80	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	1.3	10		1		5
DSA61x1	0.002	100	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	3.0	7.0		1		10
DSA61x2	0.002	100	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	3.0	7.0		1		25
DSA63x1	1	100	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	3	7		1		10
DSA63x2	1	100	LVCMOS	±20, ±25, ±50	-40 to +125	1.71–3.63	3	7		1		25
DSA1001	1	170	LVCMOS	±20, ±25, ±50	-40 to +105	1.62–3.63	5.0	6.0		1	2.5 x 2.0 mm 4-pin	15
DSA11x1	2.3	170	LVCMOS	±20, ±25, ±50	-55 to +125	2.25–3.63	25	3	1.70/0.3(200k–20M)	1	2.5 x 2.0 mm 6-pin3.2 x 2.5 mm 6-pin5.0 x 3.2 mm 6-pin	15
DSA2311	2.3	170	LVCMOS	±25, ±50	-55 to +125	2.25–3.63	21	3	1.70/0.3(200k–20M)	2	2.5 x 2.0 mm 6-pin	15
DSA557-03	100	100	HCSL	±25, ±50	-40 to -105	2.25–3.63	60		PCIe Gen 1/2/3/4	2	3.2 x 2.5 mm 14-pin

Advanced Jitter Attenuators (OTN)

Part	DPLLs or Paths	DPLL BW (Hz)	Inputs	Diff. Outputs	CMOS Outputs	Low-Jitter APLLs	GP Clock Gen	Typ. Jitter (psRMS)	Input Frequency	Output Frequency	NV Memory	Host Bus	2K/8K Align	1 Hz Align	NCO (ppb)	Package
ZL30152	1	14-896	2 D/SE	4	2	1	0	0.7	1 kHz to 750 MHz	1 kHz to 750 MHz	OTP	SPI/PC				64-pin LBGA
ZL30155	2	14-896	4 D/SE	8	4	2	0	0.7	1 kHz to 750 MHz	1 kHz to 750 MHz	OTP	SPI/PC				100-pin LBGA
ZL30157	2	14-896	4 D/SE	8-12	4-12	1	1	0.7	1 kHz to 750 MHz	1 kHz to 750 MHz	OTP	SPI/PC				100-pin LBGA
ZL30160	4	14-896	4 D/SE	8	4-12	2	2	0.7	1 kHz to 750 MHz	1 kHz to 750 MHz	OTP	SPI/PC				100-pin LBGA
ZL30165	4	5-806	8 D/SE	8	8	4	0	0.65	1 kHz to 750 MHz	1 Hz to 750 MHz	OTP	SPI/PC			0.001	144-pin LBGA
ZL30166	3	5-896	9 D/SE + 2 SE	8	8	4	0	0.65	1 kHz to 750 MHz	1 Hz to 750 MHz	OTP	SPI/PC		√	0.001	145-pin LBGA
ZL30167	2	5-896	9 D/SE + 2 SE	8	8	4	0	0.65	1 kHz to 750 MHz	1 Hz to 750 MHz	OTP	SPI/PC		√	0.001	146-pin LBGA
ZL30168	4	5-896	8D/SE	8	8	4	0	0.65	1 kHz to 750 MHz	1 Hz to 750 MHz	OTP	SPI/PC			0.001	147-pin LBGA
ZL30169	1	14-500	2 D/SE + 2 SE	3	6	1	0	0.25	1 kHz to 1250 MHz	1 Hz to 1035 MHz	Int EE	SPI/PC	√		0.01	32-pin QFN
ZL30182	2	5-500	4 D/SE + 2 SE	6	12	2	0	0.25	1 kHz to 1250 MHz	1 Hz to 1035 MHz	Int EE	SPI/PC	√		0.01	64-pin LGA
ZL30174	3	14-470	5 D/10 SE	6	14	3	1	0.18	1 kHz to 900 MHz	1 Hz to 900 MHz	Int EE	SPI/PC	√	√		100-pin ACFN

IEEE 1588 Timing Solutions

Part No.	DPLLs	BW (Hz)	Inputs	Input Frequency	Embedded PPS & EPP2S	Diff. Outputs	CMOS Outputs	Output Frequency	Low-Jitter APLLs	GP Clock Gen	Jitter (psRMS)	Pkg size (mm)
ZL30361	1 NCO	0.1 to 896	11	1 Hz to 750 MHz		6	6	1 Hz to 750 MHz	3	0	0.67	144-pin LBGA
ZL30362	4 NCO	0.1 to 896	11	1 Hz to 750 MHz		8	8	1 Hz to 750 MHz	4	0	0.67	144-pin LBGA
ZL30363	2 NCO	0.1 to 896	11	1 Hz to 750 MHz		8	8	1 Hz to 750 MHz	4	0	0.67	144-pin LBGA
ZL30364	3 NCO	0.1 to 896	11	1 Hz to 750 MHz		8	8	1 Hz to 750 MHz	4	0	0.67	144-pin LBGA
ZL30365	4 or (4 NCO)	5 to 890	8 D/SE	1 Hz to 750 MHz	8	8	8	1 Hz to 750 MHz	4	0	0.67	144-pin LBGA
ZL30367	2 or (2 NCO)	5 to 890	9 D/SE+2 SE	1 Hz to 750 MHz	6	6	6	1 Hz to 750 MHz	3	0	0.67	144-pin LBGA
ZL30721	1 NCO	0.1 to 10	2 D/SE + 1 SE	8 kHz to 1250 MHz		3	6	<1 Hz to 1035 MHz	1	0	0.26	64-pin LGA
ZL30722	1 NCO	0.1 to 500	2 D/SE + 1 SE	8 kHz to 1250 MHz		3	6	<1 Hz to 1035 MHz	1	0	0.26	32-pin QFN
ZL30723	2 NCO	0.1 to 500	4 D/SE + 1 SE	8 kHz to 1250 MHz		6	12	<1 Hz to 1035 MHz	2	0	0.26	64-pin LGA
ZL30701	1 or (1 NCO)	0.1m to 470	5 D/10 SE	0.5 Hz to 900 MHz	√	6	14	0.5 Hz to 900 MHz	2 or 3	1	0.19	100-pin AQFN

IEEE 1588 Timing Solutions

Part No. DPLLs BW (Hz) Inputs Input Frequency				Embedded PPS & EPP2S	Diff. Outputs	CMOS Outputs	Output Frequency	Low-Jitter APLLs	GP Clock Gen	Jitter (psRMS)	Pkg size (mm)
ZL30702	2 or (2 NCO) 0.1m to 470 5 D/10 SE 0.5 Hz to 900 MHz			√	6 14 0.5 Hz to 900 MHz 2 or 3 1	0.19 100-pin AQFN
ZL30703	3 or (3 NCO) 0.1m to 470 5 D/10 SE 0.5 Hz to 900 MHz			√	6 14 0.5 Hz to 900 MHz 2 or 3 1	0.19 100-pin AQFN
ZL30704	4 or (4 NCO) 0.1m to 470 5 D/10 SE 0.5 Hz to 900 MHz			√	6 14 0.5 Hz to 900 MHz 2 or 3 1	0.19 100-pin AQFN
ZL30771	1 or (1 NCO) 0.1m to 470 10 D/10 SE 0.5 Hz to 900 MHz			√	8	16 – 2	0.5 Hz to 1045 MHz	2	1	0.19	80-lead LGA
ZL30772	2 or (2 NCO) 0.1m to 470 10 D/10 SE 0.5 Hz to 900 MHz			√	8	16 – 2	0.5 Hz to 1045 MHz	2	1	0.19	80-lead LGA
ZL30773	3 or (3 NCO) 0.1m to 470 10 D/10 SE 0.5 Hz to 900 MHz			√	8	16 – 2	0.5 Hz to 1045 MHz	2	1	0.19	80-lead LGA

General-Purpose Jitter Attenuators

Product

Independent Output Freq. Families

Inputs

Diff Input Freq. Range

Low-Jitter APLLs

Typical Jitter fs RMS

DPLL Features: Ref. Switching/ Holdover/ DPLL Bandwidth

NCO Mode

NCO ppb

Diff Outputs

CMOS Outputs

Output Freq. Range

NV Memory

Host Bus

Supply Voltage

Package

ZL30159

1

1 XTAL, 1 D

1 Hz to 750 M

1

<1000

0

2

1 Hz-177.5 M

SPI/PC

3.3 + 1.8

64-pin LBGA

ZL30252

1

1 XTAL/SE, 3 D/SE

1 kHz to 1250 M

1

1601

Glitchless/Digital Hold/ 14 Hz-500 Hz

√

0.01

0-3

0-6

<1 Hz-1035 M2

Ext EE3

SPI/PC

3.3 + 1.8

32-pin QFN

ZL30253

1

1 XTAL/SE, 3 D/SE

1 kHz to 1250 M

1

1601

Glitchless/Digital Hold/ 14 Hz-500 Hz

√

0.01

0-3

0-6

<1 Hz-1035 M2

Int EE3

SPI/PC

3.3 + 1.8

32-pin QFN

ZL30254

1

1 XTAL, 2 SE

1

<1 ps

Glitchless/Digital Hold/ 25 Hz

2

0

125 MHz or 156.25 MHz

None

3.3 - 1.8

32-pin QFN

ZL30255

2

2 XTAL/SE, 6 D/SE

1 kHz to 1250 M

2

1601

Glitchless/Digital Hold/ 14 Hz-500 Hz

√

0.01

0-6

0-12

<1 Hz-1035 M2

Int EE3

SPI/PC

3.3 + 1.8

32-pin QFN

ZL30256

3

5 D/10 SE

1 kHz to 1045 M

3

190

Glitchless/Digital Hold 14 Hz-470 Hz

√

~0.0000035

0-8

0-16 +2

1 Hz-1045 M

Int EE4

SPI/PC

3.3 + 1.8

80-head LGA

Synchronous Ethernet (SyncE) Silicon Timing Solutions

Part

DPLLs BW (Hz) Inputs Input Frequency

Embedded PPS & EPP2S

Diff. Outputs

CMOS Outputs

Output Frequency

Low-Jitter APLLs

GP Clock Gen

Jitter (psRMS)

Package size (mm)

ZL30161

1 or (1 NCO)

0.1m-1k

11

1 Hz-750 MHz

6

6

1 Hz-750 MHz

3

0

0.67

144-pin LBGA

ZL30162

4 or (4 NCO)

0.1m-1k

11

1 Hz-750 MHz

8

8

1 Hz-750 MHz

4

0

0.67

144-pin LBGA

ZL30163

2 or (2 NCO)

0.1m-1k

11

1 Hz-750 MHz

8

8

1 Hz-750 MHz

4

0

0.67

144-pin LBGA

ZL30164

3 or (3 NCO)

0.1m-1k

11

1 Hz-750 MHz

8

8

1 Hz-750 MHz

4

0

0.67

144-pin LBGA

ZL30621

1 or (1 NCO)

0.1m-10

2 D/SE + 1 SE

8 kHz-1250 MHz

3

6

<1 Hz-1035 MHz

1

0

0.26

64-pin LGA

ZL30622

1 or (1 NCO)

0.1m-500

2 D/SE + 1 SE

8 kHz-1250 MHz

3

6

<1 Hz-1035 MHz

1

0

0.26

32-pin QFN

ZL30623

2 or (2 NCO)

0.1m-500

4 D/SE + 1 SE

8 kHz-1250 MHz

6

12

<1 Hz-1035 MHz

2

0

0.26

64-pin LGA

ZL30601

1 or (1 NCO) 0.1m-470

5 D/10 SE

0.5 Hz-800 MHz

✓

6

14

0.5 Hz-800 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30602

2 or (2 NCO) 0.1m-470

5 D/10 SE

0.5 Hz-800 MHz

✓

6

14

0.5 Hz-800 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30603

3 or (3 NCO) 0.1m-470

5 D/10 SE

0.5 Hz-800 MHz

✓

6

14

0.5 Hz-800 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30604

4 or (4 NCO) 0.1m-470

5 D/10 SE

0.5 Hz-800 MHz

✓

6

14

0.5 Hz-800 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30671

1 or (1 NCO)

0.1m-470 10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

ZL30672

2 or (2 NCO)

0.1m-470 10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

ZL30673

3 or (3 NCO)

0.1m-470 10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

ZL30151

1

1-500

2 D/SE + 1 SE

1 kHz-850 MHz

0-3

0-6

<1 Hz-850 MHz

1

0

0.26

32-pin QFN

ZL30611

1 or (1 NCO)

14-470

5 D/10 SE

0.5 Hz-900 MHz

✓

6

14

0.5 Hz-900 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30612

2 or (2 NCO)

14-470

5 D/10 SE

0.5 Hz-900 MHz

✓

6

14

0.5 Hz-900 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30614

4 or (4 NCO)

14-470

5 D/10 SE

0.5 Hz-900 MHz

✓

6

14

0.5 Hz-900 MHz

2 or 3

1

0.19

100-pin AQFN

ZL30681

1 or (1 NCO)

14-470

10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

ZL30682

2 or (2 NCO)

14-470

10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

ZL30683

3 or (3 NCO)

14-470

10 D/10 SE

0.5 Hz-900 MHz

✓

8

16 + 2

0.5 Hz-1045 MHz

2

1

0.19

80-lead LGA

Programmable Oscillators

Product

Output Frequency Min. (MHz)

Output Frequency Max (MHz)

Output Logic

Frequency Stability (ppm)

Temperature Range (°C)

Supply Voltage (V)

Current (Typ) (mA)

Period Jitter (ps RMS)

Phase Noise (ps RMS) (12k-20 MHz)

# Outputs Dimensions

Output Drive Strength (pf)

DSC8001

1 170 LVCMOS ±10, ±25, ±50 -40 to +105 1.62-3.63 5.0 6.0 1

2.5 x 2.0 mm 4-pin

15

DSC8003

1 170 LVCMOS ±10, ±25, ±50 -40 to +105 1.62-3.63 6.0 5.0 1 25

3.2 x 2.5 mm 4-pin

DSC8004

1 170 LVCMOS ±10, ±25, ±50 -40 to +105 1.62-3.63 7.0 5.0 1 40

5.0 x 3.2 mm 4-pin

DSC81x1

2.3 170 LVCMOS ±10, ±25, ±50 -40 to -105 2.25-3.63 25 3 1.70/0.3 (200k-20M) 1

7.0 x 5.0 mm 4-pin

DSC81x2

2.3 460 LVPECL ±10, ±25, ±50 -40 to -105 2.25-3.63 51 2.5 1.70/0.3 (200k-20M) 1

2.5 x 2.0 mm 6-pin

15

DSC81x3

2.3

460

LVDS

±10, ±25, ±50

-40 to +105

2.25-3.63

29

2.5

1.70/0.3 (200k-20M)

1

3.2 x 2.5 mm 6-pin

DSC81x4

2.3

460

HCSL

±10, ±25, ±50

-40 to +105

2.25-3.63

30

2.5

1.70/0.3 (200k-20M)

1

5.0 x 3.2 mm 8-pin

7.0 x 5.0 mm 8-pin

555 Timers

Product

Max Astable Frequency (MHz)

Monostable Accuracy (%)

Monostable Drift over Temp (ppm)

Monostable Drift over Supply (%V)

Astable Accuracy (%)

Astable Drift over Temp (ppm)

Astable Drift over Supply (%V)

Temperature Range (°C)

Supply Voltage (V)

Current (Typ) (uA)

MIC1555

5

2

100

0.5

2

150

0.5

-55 to +125

2.7 to 18

240

MIC1557

5

2

100

0.5

2

150

0.5

-55 to +125

2.7 to 18

255

High Frequency TCXO

Product

Output Frequency Min. (MHz)

Output Frequency Max (MHz)

Output Logic

Frequency Stability (ppm)

Temp. Range (°C)

Supply Voltage (V)

Current (Typ) (mA)

Phase Noise (ps RMS) (12k-20 MHz)

# Outputs

Dimensions

MXT57

10

860

LVCMOS, LVPECL, LVDS, HCSL

±2.5, ±5.0

-40 to +85

2.375-3.63

80

0.5

1

7.0 x 5.0 mm 8-pin

Multi-Output Oscillators

Product

Output Frequency Min (MHz)

Output Frequency Max (MHz)

Output Logic

Frequency Stability (ppm)

Temp. Range (°C)

Supply Voltage (V)

Phase Noise (ps RMS) (12k - 20MHz)

# Outputs

Dimensions

MX85

10

860

LVPECL, LVDS, HCSL, LVCMOS

±25, ±50

-40 to -85

2.375-3.63

0.2

5

5.0 x 7.0 mm 38-pin

DSC2311

2.3

170

LVCMOS

±25, ±50

-55 to +125

2.25-3.63

1.70/0.3 (200k-20M)

2

2.5 x 2.0 mm 6-pin

DSC20xx

2.3

460

LVCMOS, LVPECL, LVDS, HCSL

±25, ±50

-40 to +105

2.25-3.63

1.70/0.3 (200k-20M)

2

3.2 x 2.5 mm 14-pin

DSC21xx

2.3

460

LVCMOS, LVPECL, LVDS, HCSL

±25, ±50

-40 to +105

2.25-3.63

1.70/0.3 (200k-20M)

2

3.2 x 2.5 mm 14-pin

DSC22xx

2.3

460

LVCMOS, LVPECL, LVDS, HCSL

±25, ±50

-40 to +105

2.25-3.63

1.70/0.3 (200k-20M)

2

3.2 x 2.5 mm 14-pin

DSC400-xxxx

2.3

460

LVCMOS, LVPECL, LVDS, HCSL

±25, ±50

-40 to +105

2.25-3.63

1.70/0.3 (200k-20M)

4

5.0 x 3.2 mm 20-pin

DSC612

0.002

100

LVCMOS

±20, ±25, ±50

-40 to +125

1.71-3.63

2

1.6 x 1.2 mm 6-pin

DSC613

0.002

100

LVCMOS

±20, ±25, ±50

-40 to +125

1.71-3.63

3

2.0 x 1.8 mm 6-pin

DSC557-03

100

100

HCSL/LVDS

±25, ±50

-40 to -105

2.25-3.63

PCIe Gen 1/2/3/4

2

3.2 x 2.5 mm 14-pin

DSC557-04

100

100

HCSL/LVDS

±25, ±50

-40 to -105

2.25-3.63

PCIe Gen 1/2/3/4

3

5.0 x 3.2 mm 20-pin

DSC557-05

100

100

HCSL/LVDS

±25, ±50

-40 to -105

2.25-3.63

PCIe Gen 1/2/3/4

4

Clock Generators

Product Category

Phase Jitter (ps) (Typ, 12 KHz to 20 MHz)

Period Jitter (ps)(peak to peak)

Inputs

No. of outputs

Output Logic

Output Frequency Min. (MHz)

Output Frequency Max. (MHz)

Voltage (V)

Temp. Range (°C)

Dimensions

Frequency Stability (ppm)

DSC2030

Low Power Clock Generators

1.70/0.3(200k-20V)

30 Integrated MEMS 1 LVDS

2.3 460 2.25-3.63 -40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

PL611s-02

Low Power Clock Generators

70

Crystal or Reference

2

LVCMOS

1

200

1.8-3.3

-45 to +85

DFN-6L, SOT-6L

DSC2210

Low Power Clock Generators

1.70/0.3(200k-20V)

30 Integrated MEMS 1 LVCMOS

2.3 170 2.25-3.63 -40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

SM802

Low-Jitter Clock Generators

0.2

25 MHz Crystal/Ref

8

LVPECL, LVDS, HCSL, LVCMOS

2.5-3.3

-40 to +85

24-pin QFN 4 x 4

PL902

Clock Conditioning

Reference

3

LVCMOS

1.25

200

2.5-3.3

-45 to +85

DSC2010

Low Power Clock Generators

1.70/0.3(200k-20V)

30 Integrated MEMS 1 LVCMOS

2.3 170 2.25-3.63 -40 to +105

14-pin QFN, 3.2 x 2.5 mm

DSC612

Low Power Clock Generators

140

Integrated MEMS

2

LVCMOS

0.002

100

1.71-3.63

-40 to +125

1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm

=20, ±25, ±50

DSC613

Low Power Clock Generators

140

Integrated MEMS

3

LVCMOS

0.002

100

1.71-3.63

-40 to +125

1.6 x 1.2 mm, 2.0 x 1.6 mm, 2.5 x 2.0 mm

=20, ±25, ±50

PL602032

Low-Jitter Clock Generators

2

25

25 MHz Crystal

2

HCSL

100

100

2.25-3.63

-40 to +85

16 pin QFN 3 x 3

PL602041

Low-Jitter Clock Generators

0.22

10

25 MHz Crystal

4

HCSL

100

100

2.25-3.63

-40 to +85

24-pin QFN 4 x 4

PL607041

Low-Jitter Clock Generators

0.78

25 MHz Crystal

4

HCSL

100

100

2.25-3.63

-40 to +85

24-pin QFN 4 x 4

PL602081

Low-Jitter Clock Generators

0.22

10

25 MHz Crystal

8

HCSL

100

100

2.25-3.63

-40 to +85

44-pin QFN 7 x 7

PL607081

Low-Jitter Clock Generators

0.78

25 MHz Crystal

8

HCSL

100

100

2.25-3.63

-40 to +85

44-pin QFN 7 x 7

PL602-21

Low-Jitter Clock Generators

2

25

25 MHz Crystal/Ref

1

HCSL

100

100

2.25-3.63

-40 to +85

8-pin SOP/6-pin SOT

DSC557-04

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

30

Integrated MEMS

3

HCSL

100

100

2.25-3.63

-40 to +105

20-pin QFN 5.0 x 3.2 mm

±25, ±50

DSC557-05

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

30

Integrated MEMS

4

HCSL

100

100

2.25-3.63

-40 to +105

20-pin QFN 5.0 x 3.2 mm

±25, ±50

DSA557-03

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

Integrated MEMS

2

HCSL

100

100

2.25-3.63

-40 to +105

14-pin QFN 3.2 x 2.5 mm

±50 ppm ±100 ppm

DSA557-04

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

Integrated MEMS

3

HCSL

100

100

2.25-3.63

-40 to +105

20-pin QFN 5.0 x 3.2 mm

±50 ppm ±100 ppm

DSA557-05

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

Integrated MEMS

4

HCSL

100

100

2.25-3.63

-40 to +105

20-pin QFN 5.0 x 3.2 mm

±50 ppm ±100 ppm

DSC557-03

Low-Jitter Clock Generators

PCIe Gen1/2/3/4

30

Integrated MEMS

2

HCSL/LVDS/LVCMOS

100

100

2.25-3.63

-40 to +105

14-pin QFN 3.2 x 2.5 mm

±25, ±50

PL602033

Low-Jitter Clock Generators

2

25

25MHz Crystal

2

LVCMOS/HCSL

125

125

2.5-3.3

-45 to +85

16 pin QFN 3 x 3

PL602-22

Low-Jitter Clock Generators

2

25

25MHz Crystal

1

HCSL

125

125

2.5-3.3

-45 to +85

8-pin SOP/6-pin SOT

PL613-21

Low Power Clock Generators

300

Crystal or Reference

4

LVCMOS

156.25

125

1.8-3.3

-45 to +85

QFN-16L, TSSOP-16L

PL611s-18

Low Power Clock Generators

70

Crystal or Reference

2

LVCMOS

.5 KHz

125

1.8-3.3

-45 to +85

DFN-6L, SOT-6L

PL611s-19

Low Power Clock Generators

70

Reference

2

LVCMOS

.5 KHz

125

1.8-3.3

-45 to +85

DFN-6L, SOT-6L

PL904

Clock Conditioning

0.5

2

LVPECL,LVDS, HCSL,LVCMOS

12-850

2.5-3.3

-45 to +85

PL500-37

VCXO

0.1

Crystal

1

CMOS

36

130

2.5/3.3

-45 to +85

Die, SOT-6L, SOP-8L

PL602-15

None

2

25

25MHz Crystal

2

HCSL

156.25

156.25

2.5-3.3

-45 to +85

8-pin SOP/6-pin SOT

SM803020

Low-Jitter Clock Generators

0.18

12

PECL

200

156.25

-45 to +85

DSC2311

Low-Jitter Clock Generators

1.70/0.3(200k-20V)

30

Integrated MEMS

2

LVCMOS

200

170

2.25-3.63

-55 to +125

6-pin DFN, 2.5 x 2.0 mm

±25, ±50

DSC2011

Low-Jitter Clock Generators

1.70/0.3(200k-20V)

30

Integrated MEMS

2

LVCMOS

2.3

170

2.25-3.63

-55 to +125

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSA2311

Low-Jitter Clock Generators

3

2

LVCMOS x 2

2.3

170

-40 to +125

2.5 x 2.0 mm 6-pin

=20, ±25, ±50

PL500-16

VCXO

0.1

Crystal

1

CMOS

4

18

2.5/3.3

-45 to +85

Die, SOT-6L, SOP-8L

PL602034

None

25

25MHz Crystal

2

LVCMOS/HCSL

200

200

2.5-3.3

-45 to +85

8-pin SOP/6-pin SOT

PL602-23

None

25

25MHz Crystal

1

LVCMOS/HCSL

200

200

2.5-3.3

-45 to +85

8-pin SOP/6-pin SOT

PL671-25

Clock Conditioning

100

Crystal or Reference

2

CMOS

1

200

2.5-3.3

-45 to +85

SOP-8L

PL671-29

Clock Conditioning

100

Crystal or Reference

1

CMOS

1

200

2.5-3.3

-45 to +85

SOP-8L

PL671-30

Clock Conditioning

100

Crystal or Reference

1

CMOS

1

200

2.5-3.3

-45 to +85

SOP-8L

Clock Generators

Product Category

Phase Jitter (ps) (Typ, 12 KHz to 20 MHz)

Period Jitter (ps)(peak to peak)

Inputs

No. of outputs

Output Logic

Output Frequency Min. (MHz)

Output Frequency Max. (MHz)

Voltage (V)

Temp. Range (°C)

Dimensions

Frequency Stability (ppm)

PL671-01

Clock Conditioning 100

Crystal or Reference 3

CMOS 1

200 2.5-3.3 -45 to +85

SOP-8L, SOT23-6L

PL671-02

Clock Conditioning 100

Crystal or Reference 3

CMOS 1

200 2.5-3.3 -45 to +85

SOT23-6L

PL613-05

Low Power

3

LVCMOS

1

200

1.8-3.3

-45 to +85

PL611-01

Low Power Clock Generators

3

40

Crystal or Reference

3

LVCMOS

1

200

2.5-3.3

-45 to -85

DFN-6L, SOT-6L

PL613-01

Low Power Clock Generators

300

Crystal or Reference

8

LVCMOS

1

200

1.8-3.3

-45 to -85

QFN-18L, TSSOP-18L

PL611-31

Low Power Clock Generators

2.5

40

Crystal or Reference

3

PECL, LVDS, HCSL, CMOS

5

200

2.5-3.3

-45 to +85

SOP-8L

PL602031

None

2

25

25MHz Crystal

2

LVCMOS/HCSL

25

25

2.5-3.3

-45 to +85

16-pin QFN 3 x 3

PL602-27

None

2

25

25MHz Crystal

1

LVCMOS/HCSL

250

250

2.5-3.3

-45 to +85

PL602082

None

0.22

10

25MHz Crystal

8

HCSL

25

250

2.5-3.3

-45 to +85

PL607082

None

8

HCSL

25

250

2.5-3.3

-45 to +85

PL500-17

VCXO

0.1

Crystal

1

CMOS

17

36

2.5/3.3

-45 to +85

Die, SOT-6L, SOP-8L

PL500-15

VCXO

0.1

Crystal

1

CMOS

1

4

2.5/3.3

-45 to +85

Die, SOT-6L, SOP-8L

PL611-30

Low-Power Clock Generators

2.5

40

Crystal or Reference

3

PECL, LVDS, HCSL, CMOS

5

400

2.5-3.3

-45 to +85

DFN-6L, SOT-6L

DSC2040

Low-Power Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

1

HCSL

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2044

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

HCSL

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2041

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

HCSL, LVCMOS

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2042

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

HCSL, LVPECL

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2211

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVCMOS

2.3

460

2.25-3.63

-65 to +125

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC400

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

4

LVCMOS/LVPECL/LVDS/HCSL

2.3

460

2.25V to 3.63V

-40 to +105

5.0 x 3.2 mm 20-pin

±20/25/50 ppm

DSC2033

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVDS

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2233

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVDS

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2031

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVDS, LVCMOS

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5mm

±25, ±50

DSC2022

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVPECL

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

DSC2222

Low-Jitter Clock Generators

1.70/0.3 (200k-20M)

30

Integrated MEMS

2

LVPECL

2.3

460

2.25-3.63

-40 to +105

14-pin QFN, 3.2 x 2.5 mm

±25, ±50

SM803

Low-Jitter Clock Generators

0.18

5

Crystal or Reference

12

CMOS, PECL, LVDS, HCSL

12

850

SM813

Low-Jitter Clock Generators

0.115

5

Crystal or Reference

12

PECL, LVDS, HCSL, CMOS

12

850

2.5-3.3

-45 to +85

48-, 76-pin QFN

ZL30250

Low-Jitter Clock Generators

0.16

1 XTAL/SE, 3 D/SE

3D/6SE

CML, CMOS

<1Hz

1.035

3.3+1.8

-40 to +85

32-pin QFN

ZL30251

Low-Jitter Clock Generators

0.16

1 XTAL/SE, 3 D/SE

3D/6SE

CML, CMOS

<1Hz

1.035

3.3+1.8

-40 to +85

32-pin QFN

ZL30244

Low-Jitter Clock Generators

0.16

2 XTAL/SE, 6 D/SE

6D/12SE

CML, CMOS

<1Hz

1.035

3.3+1.8

-40 to +85

64-pin LGA

ZL30245

Low-Jitter Clock Generators

0.16

2 XTAL/SE, 6 D/SE

6D/12SE

CML, CMOS

<1Hz

1.035

3.3+1.8

-40 to +85

64-pin LGA

ZL30260

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

6D/12SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-40 to +85

56-pin QFN

ZL30261

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

6D/12SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-10 to +85

56-pin QFN

ZL30262

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

10D/20SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-40 to +85

56-pin QFN

ZL30263

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

10D/20SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

40 to +85

56 pin QFN

ZL30264

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

6D/12SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-20 to +85

56-pin QFN

ZL30265

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

6D/12SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-30 to +85

56 pin QFN

ZL30266

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

10D/20SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

56 pin QFN

ZL30267

Low-Jitter Clock Generators

0.18

1 XTAL/SE, 3 D/SE

10D/20SE

LVDS, LVPECL, HCSL, CMOS, HSTL

<1Hz

1.035

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

10 to +85

56 pin QFN

ZL30281

PCIe Clock Generators

0.18

1 XTAL

3D/6SE

CML, CMOS

25 M, 100 M

N/A

3.3+1.8

-40 to +85

32-pin QFN

Clock Generators

Product Category

Phase Jitter (ps) (Typ, 12 KHz to 20 MHz)

Period Jitter (ps)(peak to peak)

Inputs

No. of outputs

Output Logic

Output Frequency Min. (MHz)

Output Frequency Max. (MHz)

Voltage (V)

Temp. Range (°C)

Dimensions

Frequency Stability (ppm)

ZL30282

PCIe Clock Generators 0.18

1 XTAL 6D/12SE

LVDS, LVPECL, HCSL, CMOS, HSTL

25 M, 75 M, 100 M

N/A

2.5 V only, 3.3 V only, 1.8 V + 2.5 V, 1.8 V - 3.3 V

-40 to +85

56-pin QFN

SM806

Low+B123:N123-Jitter Clock Generators

0.079

6

Crystal or Reference

12

PECL, LVDS, HCSL, CMOS

12

850

2.5-3.3

-45 to +85

24-, 48-pin QFN

MX87

Low-Jitter Clock Generators

0.079 6

Crystal Integrated/ Reference

6

PECL, LVDS, HCSL, CMOS

12 850

2.5-3.3

-45 to -85

48-pin QFN

Product	Product Type	Data Rate Capability	Power Supply (V)	Data Input Type	Data Output Type	LOS/SD	Packages
SY84113BU	Fiber Optic Post Amplifiers	1.25 Gbps	2.5	PECL	CML	LOS (TTL)	16-pin VQFN
SY88053CL	Limiting Amplifiers - Burst Mode and Limiting Amplifiers - Continuous Mode	12.5 Gbps	3.3	CML/PECL	CML	SD/LOS (TTL)	16-pin VQFN
SY88063CL	Limiting Amplifiers - Burst Mode and Limiting Amplifiers - Continuous Mode	12.5 Gbps	3.3	CML/PECL	CML	SD/LOS (TTL)	16-pin VQFN
SY88073L	Limiting Amplifiers - Continuous Mode	12.5 Gbps	3.3	CML/PECL	CML	SD/LOS (TTL)	16-pin VQFN
SY88083L	Limiting Amplifiers - Continuous Mode	12.5 Gbps	3.3	CML/PECL	CML	SD/LOS (TTL)	16-pin VQFN
SY88147DL	Limiting Amplifiers - Continuous Mode	1.25 Gbps	3.3	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88149CL	Limiting Amplifiers - Continuous Mode	1.25 Gbps	3.3	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88149HAL	Limiting Amplifiers - Burst Mode	1.25 Gbps	3.3	CML/PECL	PECL	SD/LOS (TTL)	16-pin VQFN
SY88149NDL	Limiting Amplifiers - Burst Mode	1.25 Gbps	3.3	CML/PECL	PECL	SD/LOS (TTL)	Please call for package information
SY88303BL	Limiting Amplifiers - Continuous Mode	3.2 Gbps	3.3	PECL	CML	LOS (TTL)	10-pin MSOP, 16-pin VQFN
SY88343BL	Limiting Amplifiers - Continuous Mode	3.2 Gbps	3.3	PECL	CML	LOS (TTL)	10-pin MSOP, 16-pin VQFN
SY88349NDL	Limiting Amplifiers - Burst Mode	2.5 Gbps	3.3	CML/PECL	PECL	SD/LOS (TTL)	Please call for package information
SY88353BL	Limiting Amplifiers - Continuous Mode	3.2 Gbps	3.3	PECL with Internal 500 to Vacr	CML	LOS (TTL)	16-pin VQFN
SY88403BL	Limiting Amplifiers - Continuous Mode	4.25 Gbps	3.3	PECL	CML	LOS (TTL)	10-pin MSOP, 16-pin VQFN
SY88773V	Limiting Amplifiers - Continuous Mode	3.2 Gbps	3.3, 5.0	PECL	CML	LOS (TTL)	16-pin VQFN
SY88803V	Limiting Amplifiers - Continuous Mode	0.16 Gbps	3.3, 5.0	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88813V	Limiting Amplifiers - Continuous Mode	0.16 Gbps	3.3, 5.0	PECL	PECL	SD (PECL)	10-pin MSOP
SY88843V	Limiting Amplifiers - Continuous Mode	3.2 Gbps	3.3, 5.0	PECL	CML	SD (TTL)	Please call for package information
SY88893V	Fiber Optic Post Amplifiers	0.155 Gbps		PECL	PECL	SD (TTL)	10-pin MSOP
SY88903AL	Limiting Amplifiers - Continuous Mode	1.25 Gbps	3.3	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88903V	Limiting Amplifiers - Continuous Mode	1.25 Gbps	3.3, 5.0	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88923AV	Fiber Optic Post Amplifiers	3.2 Gbps	3.3, 5	PECL	PECL	LOS (TTL)	10-pin MSOP
SY88933AL	Limiting Amplifiers - Continuous Mode	1.25 Gbps	3.3	PECL	PECL	SD (TTL)	10-pin MSOP
SY84403BL	Limiting Amplifiers - Continuous Mode	4.25 Gbps	3.3	PECL with Internal 500 to VFF	CML	LOS (TTL)	Please call for package information

High-Speed Communication: Laser Diode Drivers
Product Product Type Data Rate Capability Power Supply (V) Data Input Type Modulation Current Bias Current Packages

SY84782U	DFB/FP Laser Drivers 1.25 Gbps 2.5 CML 90 16-pin VQFN
SY88022AL	DFB/FP Laser Drivers 11.3 Gbps 3.3 60 80 Please call for package information
SY88024L	VCSEL Drivers	11.3 Gbps 3.3 20 20 Please call for package information
SY88422L	DFB/FP Laser Drivers 4.25 Gbps 3.3 60 16-pin VQFN
SY88822V	DFB/FP Laser Drivers	0.155 Gbps	3.3, 5.0			10-pin MSOP
SY88922V	DFB/FP Laser Drivers	2.5 Gbps	3.3, 5.0		25	10-pin MSOP
SY88932L	DFB/FP Laser Drivers 4.25 Gbps 3.3 CML 60 16-pin VQFN
SY88982L	DFB/FP Laser Drivers	2.7 Gbps	3.3 90 16-pin VQFN
SY88992L	VCSEL Drivers	4.25 Gbps 3.3 25 16-pin VQFN

High-Speed Communication: Laser Diode Drivers

Product Product Type Data Rate Capability Power Supply (V) LA Data Input Type LA Data Output Type LDD Data Input Type LDD Modulation Current (mA) LDD Bias Current (mA) Packages

SY88432L	Transceivers	4.25 Gbps	3.3	CML	CML	CML	60		24-pin VQFN
High-Speed Communication: Fiber Optic Module Controllers
Product		Product Type	Power Supply (V)		Serial Interface		Packages

MIC3001GML	FOM Controllers	3.3 I	°C SMBus Compliant	Please call for package information
MIC3003GFL	FOM Controllers	3.3 I	°C SMBus Compliant	Please call for package information
MIC3003GML	FOM Controllers	3.3 I	°C SMBus Compliant	Please call for package information

High-Speed Communication: Clock and Data Recovery

Product	Product Type	Data Rate Capability	Power Supply (V)	Data Input Type	Data Output Type	Packages
SY69753AL	Clock and Data Recovery	125–155 Mbps	3.3		PECL	32/TQFP
SY87700AL	Clock and Data Recovery	32–208 Mbps	3.3		PECL	Please call for package information
SY87701AL	Clock and Data Recovery	28–1300 Mbps	3.3		PECL	Please call for package information

Memory Products: Serial Flash

Product

Bus

Density

Organization

Max. Clock Frequency

Operating Voltage

Temperature Range

E/W Endurance (Typical)

Data Retention (Minimum)

Write Speed (Typical)

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Packages

SST25VF512A

x 1

512 Kb

x 8

33 MHz

2.7-3.6V

-40°C to +85°C

100k

100 Years

14 μs (Byte Program)

8 μA

Y

Y

Various

8L-SOIC, 8C-WSON

SST25VF010A

x 1

1 Mb

x 8

33 MHz

2.7-3.6V

-40°C to +85°C

100k

100 Years

14 μs (Byte Program)

8 μA

Y

Y

Various

8L-SOIC, 8C-WSON

SST25VF020B

x 1

2 Mb

x 8

80 MHz

2.7-3.6V

-40°C to +85°C

100k

100 Years

7 μs (Word Program)

5 μA

Y

Y

Various

8L-SOIC, 8C-WSON

SST25WF020A

x 1

2 Mb

x 8

40 MHz

1.65-1.95V

-40°C to +85°C

100k

20 Years

3 ms (Page Program)

10 μA

Y

Y

Various

8L-SOIC, 8C-WSON, 8C-USON, 9B-WLCSP

SST26VF020A

x 1, x 2, x 4

2 Mbit

x 8

104 MHz

2.3V-3.6V

-40°C to +125°C

100k

100 Years

1 ms (Page Program)

30 μA

Y

Y

Various

8L-SOIC, 8C-WDFN

SST25PF040C

x 1, x 2

4 Mbit

x 8

40 MHz

2.3-3.6V

-40°C to +125°C

100k

20 Years

4 ms (Page Program)

50 μA

Y

Y

Various

8L-SOIC, 8C-WSON, 8C-USON

SST25VF040B

x 1

4 Mb

x 8

40 MHz

2.7-3.6V

-40°C to +85°C

100k

100 Years

7 μs (Word Program)

5 μA

Y

Y

Various

8L-SOIC, 8C-WSON

SST26WF040B/BA

x 1, x 2, x 4

4 Mb

x 8

104 MHz

1.65-1.95V

-40°C to +85°C

100k

100 Years

1 ms (Page Program)

40 μA

Y

Y

Various

8L-SOIC, 8C-WSON, 8C-USON, 8B-WLCSP

SST25WF040B

x 1, x 2

4 Mb

x 8

40 MHz

1.65-1.95V

-40°C to +125°C

100k

20 Years

0.8 ms (Page Program)

50 μA

Y

Y

Various

8L-SOIC, 8C-UDFN, 8C-USON, 9B-WLCSP

SST26VF040A

x 1, x 2, x 4

4 Mbit

x 8

104 MHz

2.3-3.6V

-40°C to +125°C

100k

100 Years

1 ms (Page Program)

30 μA

Y

Y

Various

8L-SOIC, 8C-WDFN

SST25VF080B

x 1

8 Mb

x 8

40 MHz

2.7-3.6V

-40°C to +85°C

100k

100 Years

7 μs (Word Program)

5 μA

Y

Y

Various

8L-SOIC, 8C-WSON, 8B-XFBGA

Memory Products: Serial Flash

Product Bus Density Organization

Max. Clock Frequency

Operating Voltage

Temperature Range

E/W Endurance (Typical)

Data Retention (Minimum)

Write Speed (Typical)

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Packages

SST25WF080B

× 1, × 2

8 Mb

× 8

40 MHz

1.65-1.95V

- 40^ C to + 125^ C

100k

20 Years

0.8 ms (Page Program)

50 μA

Y

Y

Various

8L-SOIC, 8C- UDFN, 8C-USON, 9B-WLCSP

SST26VF080A

× 1, × 2, × 4

8 Mb

× 8

104 MHz

2.3-3.6V

- 40^ C to + 125^ C

100k

100 Years

1 ms (Page Program)

30 μA

Y

Y

Various

8L-SOIC, 8C-WDFN

SST26WF080B/BA

× 1, × 2, × 4

8 Mb

× 8

104 MHz

1.65-1.95V

- 40^ C to + 85^ C

100k

100 Years

1 ms (Page Program)

40 μA

Y

Y

Various

8L-SOIC, 8C-WSON, 8C-USON, 8B-WLCSP

SST26WF016B/BA

× 1, × 2, × 4

16 Mb

× 8

104 MHz

1.65-1.95V

- 40^ C to + 85^ C

100k

100 Years

1 ms (Page Program)

40 μA

Y

Y

Various

8L-SOIC, 8C-WSON. 8B-WLCSP

SST26VF016B

× 1, × 2, × 4

16 Mb

× 8

104 MHz

2.3-3.6V

- 40^ C to + 125^ C

100k

100 Years

1 ms (Page Program)

45 μA

Y

Y

Various

8L-SOIC, 8L-SOU, 8C-WSON

SST26VF032B/BA

× 1, × 2, × 4

32 Mb

× 8

104 MHz

2.3-3.6V

- 40^ C to + 125^ C

100k

100 Years

1 ms (Page Program)

45 μA

Y

Y

Various

8L-SOU, 8C-WSON, 24B-TBGA

SST26VF064B/BA

× 1, × 2, × 4

64 Mb

× 8

104 MHz

2.3-3.6V

- 40^ C to + 105^ C

100k

100 Years

1 ms (Page Program)

45 μA

Y

Y

Various

8L-SOU, 16L-SOIC, 8C-WSON, 8C-TDFN-S, 24B-TBGA

SST26WF064C

× 1, × 2, × 4

64 Mb

× 8

104 MHz

1.65-1.95V

- 40^ C to + 85^ C

100k

100 years

1.5 ms (Page Program)

40 μA

Y

Y

Various

8L-SOU, 16L-SOIC, 8C-WSON, 24B-TBGA

Memory Products: Parallel Flash

Product

Density

Bus Organization

Access Time (ns)

Operating Voltage

Temperature Range (°C)

E/W Endurance (Minimum)

Data Retention (Minimum)

Write Speed (Typical)

Typ. Standby Current

Hard Pin Protect

Software Protect

Protected Array Size (KB)

Special/ Unique Features

Packages

SST39SF010A

1 Mb

× 8

× 8

70

4.5-5.5V

-40 to +85

100K

100 Years

14 μs (Byte Program)

30 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

32L-PLCC, 32L-PDIP, 32L-TSOP

SST39LF010

1 Mb

× 8

× 8

55

3.0-3.6V

0 to 70

100K

100 Years

14 μs (Byte Program)

1 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 32L-TSOP, 32L-PLCC

SST39VF010

1 Mb

× 8

× 8

70

2.7-3.6V

-40 to +85

100K

100 Years

14 μs (Byte Program)

1 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 32L-TSOP, 32L-PLCC

SST39SF020A

2 Mb

× 8

× 8

55, 70

4.5-5.5V

-40 to +85

100K

100 Years

14 μs (Byte Program)

30 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

32L-PLCC, 32L-PDIP, 32L-TSOP

SST39VF020

2 Mb

× 8

× 8

70

2.7-3.6V

-40 to +85

100K

100 Years

14 μs (Byte Program)

1 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 32L-TSOP, 32L-PLCC

SCT39SF040

4 Mb

× 8

× 8

70

4.5-5.5V

-40 to +85

100K

100 Years

14 μs (Byte Program)

30 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

32L-PLCC, 32L-PDIP, 32L-TSOP

STST39WF400B

4 Mb

× 16 × 16

70

1.65-1.85V

-40 to +85

100K

100 Years

28 μs (Word Program)

40 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 48B-WFBGA, 48B-XFBGA

SST39VF40xC

4 Mb

× 16

× 16

70

2.7-3.6V

-40 to +85

100K

100 Years

7 μs (Word Program)

3 μA

Y

-8

Fast read, program and erase; Low power; Small erase sector; Industry-standard command set and boot block structure

48B-TFBGA, 48L-TSOP, 48B-WFBGA

SST39WF800B

8 Mb

× 16 × 16

70

1.65-1.85V

-40 to +85

100K

100 Years

28 μs (Word Program)

40 μA

--

N/A

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 48B-WFBGA, 48B-XFBBA

SST39LF80xC

8 Mb

× 16

× 16

55

3.0-3.6V

0 to 70

100K

100 Years

7 μs (Word Program)

3 μA

Y

-

N/A

Fast read, program and erase; Low power; Small erase sector; Industry-standard command set and boot block structure

48B-TFBGA, 48L-TSOP, 48B-WFBGA

SST39VF80xC

8 Mb

× 16

× 16

70

2.7-3.6V

-40 to +85

100K

100 Years

7 μs (Word Program)

3 μA

Y

-

N/A

Fast read, program and erase; Low power; Small erase sector; Industry-standard command set and boot block structure

48B-TFBGA, 48L-TSOP, 48B-WFBGA

SST39WF160x

16 Mb

× 16

× 16

70

1.65-1.95V

-40 to +85

100K

100 Years

28 μs (Word Program)

40 μA

Y

-

64

Fast read, program and erase; Low power; Small erase sector

48B-TFBGA, 48B-WFBGA, 48B-XFBGA

SST39VF160xC

16 Mb

× 16

× 16

70

2.7-3.6V

-40 to +85

100K

100 Years

7 μs (Word Program)

3 μA

Y

-8

Fast read, program and erase; Low power; Small erase sector; Industry-standard command set and boot block structure

48B-TFBGA, 48L-TSOP, 48B-WFBGA

Memory Products: Parallel Flash

Product Density Bus Organization

Access Time (ns)

Operating Voltage

Temperature Range (°C)

E/W Endurance (Minimum)

Data Retention (Minimum)

Data Retention (Minimum)

Write Speed (Typical)

Typ. Standby Current

Hard Pin Protect

Software Protect

Protected Array Size (KB)

Special/ Unique Features Packages

SST39VF320xC

32 Mb x 16 x 16 70 2.7-3.6V -40 to +85 100K 100 Years

7 μs (Word Program)

4 μA Y - 8

Fast read, program and erase; Low power; Small erase sector; Industry-standard command set and boot block structure

48B TFBGA, 48L-TSOP

SST38VF640xB

64 Mb x 16 x 16 70 2.7-3.6V -40 to +85 100K 100 Years

7 μs/1.75 μs (Write Buffer Program)

3 μA Y Y 32, 8

Fast read, program and erase; Low power; Industry-standard command set and boot block structure, Security features

48B-TFBGA, 48L-TSOP

Memory Products: Serial EEPROM

Bus

Product

Density

Organization

Max. Clock Frequency

Operating Voltage (V)

Temperature Range

E/W Endurance (Minimum)

Data Retention (Minimum)

Factory Programmed Serial Number

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Special/Unique Features

Packages

Single Wire

AT21CS01

1 Kb

x 8

125 kbps

1.7-3.6

-40°C to -85°C

1M

100 Years

Y

2.5 uA

-

Y

W, %, %, %

Two pins only: SI/O and GND. 256-bit security register with 64-bit serial number

SOIC (SS), SOT-23 (ST), UDFN (MA), WLCSP (U), XSFN (MS)

AT21CS11

1 Kb

x 8

125 kbps

2.7 to 4.5

-40°C to -85°C

1M

100 Years

Y

2.5 uA

-

Y

W, %, %, %

Two pins only: SI/O and GND. 256-bit security register with 64-bit serial number

SOIC (SS), SOT-23 (ST), UDFN (MA), WLCSP (U), XSFN (MS)

IC

24xx00

128 b

x 8

400 kHz

1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

-

-

-

No address pins - single slave address

PDIP (P), SOIC (SN), TSSOP (ST), DFN (MNY), 5-SOT-23 (OT)

24xx01/01H

1 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W, %

No address pins - single slave address

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), TDFN (MNY), UDFN (MUY), 5-SOT-23 (OT), SC70 (LT)

AT24C01C

1 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

PDIP (P), SOIC (SS), SOT-23 (ST), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

24xx014/014H

1 Kb

x 8

400 kHz

1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W, %

Three address pins; page size = 16 Bytes

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), TDFN (MNY), 5-SOT-23 (OT)

AT24CS01

1 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

AT24CSW01

1 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

Y

0.8 μA

-

Y

W, %, %, %

Software Slave Address, 256-bit security register separate from the main array (128-bit register factory-programmed, 128-bit user programmable and permanently lockable), write protect can also be permanently locked

WLCSP (U)

24xx02E48/ E64/ UID

2 Kb

x 8

400 kHz

1.7-5.5 1.5-3.6

-40°C to +125°C

1M

200 Years

Y

1 μA

Y

-

W, %

Three address pins - cascade up to eight devices to share a common 2-wire bus, unique EUI-48/EUI-64 MAC address and unique ID options available

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 5-SOT-23 (OT), SC70 (LT)

24xx02/02H

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W, %

No address pins - single slave address

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), TDFN (MNY), UDFN (MUV), 5-SOT-23 (OT), SC70 (LT)

24xx024/25/24H

2 Kb

x 8

400 kHz

1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W, %

Three address pins; page size = 16 Bytes

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 5-SOT-23 (OT), SC70 (LT)

AT24C02C

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

PDIP (P), SOIC (SS), SOT-23 (ST), TSSOP (X), UDFN (MA, UDFN (MAP), VFBGA (C)

AT24CS02

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

AT24CSW02

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

Y

0.8 μA

-

Y

W, %, %, %

Software Slave Address, 256-bit security register separate from the main array (128-bit register factory-programmed, 128-bit user programmable and permanently lockable), write protect canalso be permanently locked

WLCSP (U)

AT24HC02C

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

%

Three address pins - cascade up to eight devices to share a common 2-wire bus, half array write protect

PDIP (P), SOIC (SS), TSSOP (X)

AT24MAC402/602

2 Kb

x 8 1

MHz

1.7-5.5

-40°C to +85°C

1M

100 Years

Y

6 μA

Y

Y

W, %

Unique IEEE -provided 48/64-bit pre-programmed MAC/EUI address, unique read-only 128-bit serial number

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

Memory Products: Serial EEPROM

Product

Density

Organization

Max. Clock Frequency

Operating Voltage (V)

Temperature Range

E/W Endurance (Minimum)

Data Retention (Minimum)

Factory Programmed Serial Number

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Special/Unique Features

Packages

24xx04/04H

4 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M 200 Years N 1 μA Y - W, 1⁄2 No address pins - single slave address

PDIP (P),SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), TDFN (MNY), UDFN (MUY), 5-SOT-23 (OT), CS16K (CSP)

24xx044

4 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M 200 Years N 1 μA Y - W Three address pins; page size = 16 Bytes

PDIP (P),SOIC (SN), TSSOP (ST), MSOP (MS), UDFN (MUY)

AT24C04C

4 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Two address pins - cascade up to four devices to share a common 2-wire bus.

PDIP (P), SOIC (SS), SOT-23 (ST), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

AT24CS04

4 Kb x 8 1 MHz 1.7-5.5

-40°C to -85°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

AT24CSW04

4 Kb x 8 1 MHz 1.7-5.5

-40°C to -85°C

1M 100 Years

Y

0.8 μA - Y

W, 3⁄4, 1⁄2, 3⁄4

Software Slave Address, 256-bit security register separate from the main array (128-bit register factory-programmed, 128-bit user programmable and permanently lockable), write protect can also be permanently locked

WLCSP (U)

AT24HC04B

4 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M 100 Years N

0.8 μA Y - 1⁄2

Two address pins - cascade up to four devices to share a common 2-wire bus, hall array write protect

PDIP (PU), SOIC (S), TSSOP (T)

24xx08/08H

8 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W, 1/2

No address pins - single slave address; page size = 16 Bytes

PDIP (P),SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), TDFN (MNY), UDFN (MUY), 5-SOT-23 (OT), CS16K (CSP)

AT24C08C

8 Kb x 8 1 MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

One address pin - cascade up to two devices to share a common 2-wire bus.

PDIP (P), SOIC (SN), SOT-23 (ST), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

AT24CS08

8 Kb x 8 1 MHz 1.7-5.5

-40°C to -85°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

AT24CSW08

8 Kb x 8 1 MHz 1.7-5.5

-40°C to -85°C

1M 100 Years

Y

0.8 μA - Y

W, 3⁄4, 1⁄2, 3⁄4

Software Slave Address, 256-bit security register separate from the main array (128-bit register factory-programmed, 128-bit user programmable and permanently lockable), write protect can also be permanently locked

WLCSP (U)

24xx16

16 Kb

x 8

1 MHz 1.7-5.5

-40°C to +125°C

1M 200 Years N 1 μA Y - W, 1⁄2

Three address pins - cascade up to eight devices to share a common 2-wire bus, 16 byte page write buffer

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MC), DFN (MNY), 5-SOT-23 (OT), WLCSP (CS), UDFN (MUY)

AT24C16C

16 Kb

x 8 1

MHz 1.7-5.5

-40°C to -85°C

1M

100 Years

N

6.0 μA

Y

-

W

No address pins - single slave address

PDIP (P), SOIC (SS), SOT-23 (ST), TSSOP (X), UDFN (MA), VFBGA (C), XDFN (ME)

AT24CS16

16 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

Y

6 μA

Y

-

W

No address pins - single slave address

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

24xx32A

32 Kb

x 8

400 KHz

1.7-5.5

-40°C to +125°C

1M 200 Years N 1 μA Y - W, 1⁄2

Three address pins - cascade up to eight devices to share a common 2-wire bus, 32 byte page write buffer

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 5-SOT-23 (OT), WLCSP (CS)

AT24C32D

32 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M 100 Years N

0.8 μA Y - W

Three address pins - cascade up to eight devices to share a common 2-wire bus, 32 byte page write buffer

SOIC (SS), SOT-23 (ST), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C), XDFN (ME)

AT24CS32

32 Kb

x 8 1

MHz 1.7-5.5

-40°C to -85°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSOT (ST), TSSOP (X), UDFN (MA)

24xx64

64 Kb

x 8

1 MHz 1.7-5.5

-40°C to +125°C

1M, 10M

200 Years N 1 μA Y - W, 1⁄2

Three address pins - cascade up to eight devices to share a common 2-wire bus, 32 byte page write buffer

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 5-SOT-23 (OT), WLCSP (CS)

24xx65

64 Kb

x 8

1 MHz

1.8-6

-40°C to +125°C

1M, 10M

200 Years N 1 μA - Y

up to 15 4 KB bikes

Three address pins, software WP, high endurance block, page size up to 64 Bytes

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 5-SOT-23 (OT), WLCSP (CS)

AT24C64D

64 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M 100 Years N 6 μA Y - W

Three address pins, software WP, high endurance block, page size up to 64 Bytes

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C), WLCSP (U), XDFN (ME)

AT24CS64

64 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

Y

6 μA

Y

-

W

Unique 128-bit serial number separate from the main memory array

SOIC (SS), TSSOP (X), UDFN (MA)

24xx128

128 Kb

x 8

1 MHz 1.7-5.5

-40°C to +125°C

1M 200 Years N 1 μA Y - W

Three address pins - cascade up to eight devices to share a common 2-wire bus

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), WLCSP (CS)

AT24C128C

128 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C), WLCSP (U), XDFN (ME)

24xx256

256 Kb

x 8

1 MHz 1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

PDIP (P), SOIC (SN), TSSOP (ST), SOU (SM), MSOP (MS), DFN (MF), WLCSP (CS), TDFN (MNY)

24xx256UID

256 Kb

x 8

1 MHz 1.7-5.5

-40°C to +125°C

1M 200 Years

Y

1 μA Y - W

Three address pins - cascade up to eight devices to share a common 2-wire bus, EUI-48, EUI-64 and unique ID options available

PDIP (P), SOIC (SN), TSSOP (ST), SOU (SM), MSOP (MS), DFN (MF), WLCSP (CS), TDFN (MNY)

sng

Ozl

Memory Products: Serial EEPROM

Bus

Product

Density

Organization

Max. Clock Frequency

Operating Voltage (V)

Temperature Range

E/W Endurance (Minimum)

Data Retention (Minimum)

Factory Programmed Serial Number

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Special/Unique Features

Packages

IC

AT24C256C

256 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

24xx512

512 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

200 Years

N

1 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

PDIP (P), SOIC (SN), TSSOP (ST), DFN (MF), SOU (SM), WLCSP (CS)

AT24C512C

512 Kb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

40 Years

N

6 μA

Y

-

W

Three address pins - cascade up to eight devices to share a common 2-wire bus

SOIC (SS), SOU (S), TSSOP (X), UDFN (MA), VFBGA (C), WLCSP (U)

24xx1025/26

1 Mb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M 200

Years N 5 μA Y - W

Two address pins - cascade up to four devices to share a common 2-wire bus, 25 and 26 difference is address pins

PDIP (P), SOIC (SN), SOU (SM)

AT24CM01

1 Mb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

40 Years

N

6 μA

Y

-

W

Two address pins - cascade up to four devices to share a common 2-wire bus.

SOIC (SS), SOU (S), TSSOP (X), WLCSP (U)

AT24CM02

2 Mb

x 8 1

MHz 1.7-5.5

-40°C to +125°C

1M

100 Years

N

6 μA

Y

-

W

Two address pins - cascade up to four devices to share a common 2-wire bus.

SOIC (SS), WLCSP (U)

48LM01

1 Mb

x 8

66 MHz

2.7-3.6

-40°C to -85°C

oo

100 Years

200 μA N N

W, 1⁄2, 1⁄4

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

SOU (SM)

SPI

25xx010A

1 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 16 byte page

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 6-SOT-23 (OT)

AT25010B

1 Kb

x 8

20 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

3.5 μA Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0, 0) and 3 (1, 1)

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

25xx020A

2 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 16 byte page, Unique EUI-48/EUI-64 MAC address and unique ID options available

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 6-SOT-23 (OT)

25xx020E48/ E64/ UID

2 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years Y

1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 16 byte page, Unique EUI-48/EUI-64 MAC address and unique ID options available

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY), 6-SOT-23 (OT)

AT25020B

2 Kb

x 8

20 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

3.5 μA Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP)

25xx040A

4 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 16 byte page

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS). DFN (MNY), 6-SOT-23 (OT)

AT25040B

4 Kb

x 8

20 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

3.5 μA Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDIN (MAP), VFBGA (C)

25xx080C/D

8 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

16/32 byte page, 5 MHz @ 2.5V, Status register

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY)

AT25080B

8 Kb

x 8.5 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

13 μA

Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C), WLCSP (U), XDFN (ME)

25xx160C/D

16 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

16/32 byte page, 5 MHz @ 2.5V, Status register

PDIP (P), SOIC (SN), TSSOP (ST), MSO (MS), DFN (MNY)

AT25160B

16 Kb

x 8.5 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

13 μA

Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDN (MAP), VFBGA (C), XDFN (ME)

25xx320A

32 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 32 byte page

PDIP (P), SOIC (SN), TSSOP (ST), MSO (MS), DFN (MNY)

AT25320B

32 Kb

x 8.5 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

13 μA

Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDRN (MAP), VFBGA (C), XDFN (ME)

25xx640A

64 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 32 byte page

PDIP (P), SOIC (SN), TSSOP (ST), MSOP (MS), DFN (MNY, MF)

AT25640B

64 Kb

x 8.5 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

13 μA

Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UFDN (MAP), VFBGA (C), XDFN (ME)

25xx128

128 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 64 byte page

PDIP (P), SOIC (SN), TSSOP (ST), DFN (MF)

AT25128B

128 Kb

x 8

20 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

5.0 μA Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

25xx256

256 Kb

x 8

10 MHz

1.8-5.5

-40°C to +150°C

1M 200

Years N 1 μA Y Y

W, 1⁄2, 1⁄4

5 MHz @ 2.5V, Status register, 64 byte page

PDIP (P), SOIC (SN), TSSOP (ST), DFN (MF), SOU (SM)

AT25256B

256 Kb

x 8

20 MHz

1.7-5.5

-40°C to +125°C

1M 100

Years N

5.0 μA Y Y

W, 1⁄2, 1⁄4

Supports SPI Modes 0 (0,0) and 3 (1,1)

SOIC (SS), SOU (S), TSSOP (X), UDFN (MA), UDFN (MAP), VFBGA (C)

Memory Products: Serial EEPROM

Bus

Product

Density

Organization

Max. Clock Frequency

Operating Voltage (V)

Temperature Range

E/W Endurance (Minimum)

Data Retention (Minimum)

Factory Programmed Serial Number

Max. Standby Current (@ 85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Special/Unique Features

Packages

_S

25xx512

512 Kb

×8

20 MHz

1.8-5.5

-40°C to +125°C

1M 200 Years N 10 μA Y Y

W, 12 , 14

10 MHz @ 2.5V, Deep power down, Status register, Page/sector/chip erase PDIP (P), SOIC (SN), DFN (MF), SOU (SM)

AT25512

512 Kb

×8

20 MHz

1.8-5.5

-40°C to -85°C

1M 40 Years N 5.0 μA Y Y

W, 12 , 14

Supports SPI Modes 0 (0,0) and 3 (1,1) SOIC (S), TSSOP (T), UDFN (Y)

25xx1024

1 Mb

×8

20 MHz

1.8-5.5

-40°C to +125°C

1M 200 Years N 12 μA Y Y

W, 12 , 14

10 MHz @ 2.5V, Deep power down, Status register, Page/sector/chip erase PDIP (P), DFN (MF), SOU (SM)

AT25M01

1 Mb

×8

20 MHz

1.7-5.5

-40°C to -85°C

1M 100 Years N 5.0 μA Y Y

W, 12 , 14

Supports SPI Modes 0 (0,0) and 3 (1,1) SOIC (SS), SOU (S), UDFN (MF), WLCSP (U)

AT25M02

2 Mb

×8.5 MHz

1.7-5.5

-40°C to -85°C

1M 40 Years N 3.0 μA Y Y

W, 12 , 14

Supports SPI Modes 0 (0,0) and 3 (1,1)

Memory Products: Serial RAM

Bus

Product

Density

Organization

Max. Clock Frequency

Operating Voltage (V)

Temperature Range (°C)

E/W Endurance (Minimum)

Data Retention (Minimum)

Max. Standby Current (85°C)

Hard Pin Protect

Software Protect

Protected Array Size

Special/ Unique Features

Packages

Serial SRAM

SPI

23x640

64 Kb × 8

20 MHz

1.5–1.95, 2.7–3.6

-40 to +125

∞

Volatile

4 μA

-

-

-

Zero write cycle time, Infinite endurance, Volatile RAM, Byte/page/sequential read-write modes

PDIP (P), SOIC (SN), TSSOP (ST)

23x256

256 Kb

× 8

20 MHz

1.5–1.95, 2.7–3.6

-40 to +125

∞

Volatile

4 μA

-

-

-

Zero write cycle time, Infinite endurance, Volatile RAM, Byte/page/sequential read-write modes

PDIP (P), SOIC (SN), TSSOP (ST)

23xx512

512 Kb

× 8

20 MHz

1.7–2.2, 2.5–5.5

-40 to +125

∞

Volatile

4 μA

-

-

-

Fast Speed: Quad SPI available (80 MHz), Infinite endurance, Zero write times, 5V capable

SOIC (SN), PDIP (P), TSSOP (ST)

23xx1024

1024 Kb

× 8

20 MHz

1.7–2.2, 2.5–5.5

-40 to +125

∞

Volatile

4 μA

-

-

-

Fast Speed: Quad SPI available (80 MHz), Infinite endurance, Zero write times, 5V capable

SOIC (SN), PDIP (P), TSSOP (ST)

Serial NVSRAM

SPI

23LCV512

512 Kb

× 8

20 MHz

2.5–5.5

-40 to +85

20 Years via battery

4 μA

-

-

-

Battery backed non-volatile SRAM, Infinite endurance, Zero write times

SOIC (SN), PDIP (P), TSSOP (ST)

23LCV1024

1024 Kb

× 8

20 MHz

2.5–5.5

-40 to +85

20 Years via battery

4 μA

-

-

-

Battery backed non-volatile SRAM, Infinite endurance, Zero write times

SOIC (SN), PDIP (P), TSSOP (ST)

Serial EERAM

C

47x04

4 Kb

×8 1 MHz

2.7-3.6,4.5-5.5

-40 to +125

∞

200 Years

40 μA

-

Y

W to 1/64

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

SOIC (SN), PDIP (P), TSSOP (ST)

47x16

16 Kb

×8 1 MHz

2.7-3.6,4.5-5.5

-40 to +125

∞

200 Years

40 μA

-

Y

W to 1/64

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and at power down (with small external capacitor)

SOIC (SN), PDIP (P), TSSOP (ST)

SPI

47L64

64 Kb

×8

1 MHz

2.7-3.6

-40°C to +85°C

oo

100 Years

200 μA

Y

N

14

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

48L640

64 Kb

×8

68 MHz

2.7-3.6

-40°C to +85°C

oo

100 Years

200 μA

N

N

W, 12,14

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

48L256

256 Kb

×8

68 MHz

2.7-3.6

-40°C to +85°C

oo

100 Years

300 μA

N

N

W, 12,14

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

48L512

512 Kb

×8

66 MHz

2.7-3.6

-40°C to +85°C

oo

100 Years

200 μA

N

N

W, 12,14

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

48LM01

1 Mb

×8

66 MHz

2.7-3.6

-40°C to +85°C

oo

100 Years

200 μA

N

N

W, 12,14

Unlimited endurance to SRAM, Data automatically backed up to EEPROM and power down (with small external capacitor)

Wireless Products: Wi-Fi ^® Modules

Product Radio

Pin Count

Antenna

Frequency Range (GHz)

Sensitivity (dBm)

Power Output (dBm)

Tx Power Consumption (mA)

Rx Power Consumption (mA)

Tested Throughput Mbps

Encryption/ Security

Interface

Packages (Dimensions)

Downlink

Uplink

ATSAMW25

802.11 b/g/n 51 Chip, PCB, U.FL 2.412-2.472 -96 17 264 61

TCP: 10UDP: 15

TCP: 8UDP: 11

WEP, WPA/WPA2 Personal and Enterprise, TLS SPI

51/Module(33.9 x 14.9 mm)

ATWINC15x0

802.11 b/g/n 28 Chip, PCB, U.FL 2.412-2.472 -89 17 264 61

TCP: 11UDP: 19

TCP: 10UDP: 12

WEP, WPA/WPA2 Personal and Enterprise, TLS SPI

28/Module(21.7 x 14.7mm)

ATWINC3400-MR

802.11 b/g/n and BLE 36 Chip 2.412-2.484 -96

4 (BLE), 14 (Wi-Fi*)

350 (Wi-Fi)

92 (Wi-Fi), 45 (BLE)

TCP: 3UDP: 6

TCP: 5UDP: 5

WEP, WPA/WPA2 Personal SPI, UART

37/Module(22.4 x 14.7 mm)

ATWILC1000-MR

802.11 b/g/n 28 PCB 2.412-2.484 -96 15 289 52.5

Linux®TCP: 26UDP: 46

LinuxTCP: 20UDP: 25

WEP, WPA/WPA2 Personal and Enterprise, TLS (Linux)WEP, WPA/WPA2 Personal and Enterprise (RTOS)

SPI, SDIO

29/Module(21.5 x 14.5 mm)

ATWILC3000-MR

802.11 b/g/n and BLE 36 Chip 2.412-2.484 -96

4 (BLE), 14 (Wi-Fi)

295 (Wi-Fi), 110 (BLE)

86 (Wi-Fi), 45 (BLE)

LinuxTCP: 28UDP: 18

LinuxTCP: 20UDP: 24

WEP, WPA/WPA2 Personal and Enterprise, TLS (Linux)WEP, WPA/WPA2 Personal (RTOS)

SPI, SDIO,UART

37/Module(22.4 x 14.7 mm)

Wireless Products: IEEE 802.15.4 Transceivers/Modules

Product

Pin Count

Antenna

Frequency Range (GHz)

Sensitivity (dBm)

Power Output (dBm)

RSSI

Tx Power Consumption (mA)

Rx Power Consumption (mA)

Clock (MHz)

Sleep

MAC

MAC Features

Protocols

Encryption

Interface

Packages (Dimensions)

AT86RF215

48

-

.3895 -2.483

-123

-14.5

Yes

62

28

26

.03 mA

Yes

-

zigbee®, MIWTM wireless networking protocol

-

I/Q

48 QFN

AT86RF233

32

-

2.4

-101

4

Yes

13.8

11.8

16

.02 mA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

SPI

32 QFN

AT86RF212B

32

-

.769 - .930

-110

11

Yes

18

9.2

16

.2 mA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

SPI

32 QFN

MR.F24J40

40

-

2.405-2.48

-95

0

Yes

23

19

20

2 μA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

4-wire SPI

40/QFN

MRF24J40MA

12

PCB

2.405-2.48

-94

0

Yes

23

19

20

2 μA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

4-wire SPI

12/Module (17.8 x 27.9 mm)

MRF24J40MD

12

PCB

2.405-2.48

-104

-19

Yes

140

32

20

10 μA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

4-wire SPI

12/Module (17.8 x 27.9 mm)

MRF24J40ME

12

U.FL

2.405-2.48

-104

+19

Yes

140

32

20

10 μA

Yes

CSMA-CA

zigbee, MIWI wireless networking protocol

AES128

4-wire SPI

12/Module (17.8 x 27.9 mm)

1. Indicates off current for sleep column. 2. Supported in the provided stack.

Product	Functionality	No Shield Option	Rx Sensitivity (dBm)	Power Output (dBm) (typ.)	Sleep	Profiles	Interface	Pin Count	Packages (Dimensions)
RN4020	Data, Single-Mode BLE	No	-92.5	7	Dormant < 700 nA, deep sleep < 5.0 μA	GAP, GATT, SM, L2CAP, integrated public profiles	UART, PIO, AIO, SPI	24	Module11.5 × 19.5 mm
BM70	Data, Single-Mode BLE	Yes	-90	0	Power Saving 1 μA	GAP, GATT, SM, L2CAP, Integrated public profiles	UART, IC, SPI, ADC, PWM, GPIOs	33	Module22 × 12 × 2.4 mm15 × 12 × 1.8 mm
BM71	Data, Single-Mode BLE	Yes	-90	0	Power Saving 1 μA	GAP, GATT, SM, L2CAP, Integrated public profiles	UART, IC, SPI, ADC, PWM, GPIOs	17	Module9 × 11.6 × 2.1 mm6 × 8 × 1.8 mm
BM78	Data, Dual-Mode	Yes	-90 (BR/EDR)-92 LE	2	Deep Power Down 130 μA	GAP, SPP, SDP, RFCOMM, L2CAP GAP, GATT, ATT, SMP, L2CAP	UART, IC, GPIOs	33	Module22 × 12 × 2.4 mm15 × 12 × 1.8 mm
RN4678	Data, Dual-Mode	Yes	-90 (BR/EDR)-92 LE	2	Deep Power Down 130 μA	GAP, SPP, SDP, RFCOMM, L2CAP GAP, GATT, ATT, SMP, L2CAP	UART, IC, GPIOs	33	Module22 × 12 × 2.4 mm15 × 12 × 1.8mm
BM20	Audio	Yes	-91	4	System Off 2 μA	HFP, HSP, A2DP, AVRCP, SPP, PCAP	Analog audio out, mic in, line in, UART	40	Module29 × 15 × 2.5 mm

Product	Functionality	No Shield Option	Rx Sensitivity (dBm)	Power Output (dBm) (typ.)	Sleep	Profiles	Interface	Pin Count	Packages (Dimensions)
BM23	Audio	Yes	-91	4	System Off 2 μA	HFP, HSP, A2DP, AVRCP, SPP, PCAP	RS Digital audio out, mic in, line in, UART 43		Module29 x 15 x 2.5 mm
BM62	Audio	Yes	-90	+2 (Class 2)	System < 10 μA	HFP, AVRCP, A2DP, HSP, SPP	UART	37	Module29 x 15 x 2.5 mm
BM83	Audio (BBC, AAC, LDAC) No -90			8.5 dBm (Class 1)	System < 10 μA	HFP, HSP, A2DP, AVRCP, SPP, PCAP, MAP, DIS, ANO5	Line in, mic in, ADC, IS, PC, UART, USB, GPIOs	50	Module32 x 15 mm
BM64	Audio Yes -90			+15 (Class 1), +2 (Class 2)	System < 10 μA HFP, AVRCP, A2DP, HSP, SPP UART 43				Module32 x 15 x 2.5 mm
Wireless Products: BluetoothICs
IS2062	Audio	Yes	-90	+2 (Class 2)	System < 20 μA	HFP, AVRCP, A2DP, HSP, SPP	UART	56	LGA (7 x 7 mm)
IS2063	Audio		-90	+2 (Class 2)	System < 20 μA	HFP, AVRCP, A2DP, HSP, SPP	UART	82	BGA (5 x 5 mm)
IS2064	Audio Yes -90			+15 (Class 1), +2 (Class 2)	System < 20 μA HFP, AVRCP, A2DP, HSP, SPP UART		68, 61		68 LGA (8 x 8 x 1.0 mm), 68 QFN (8 x 8 x 0.9 mm), 61 BGA (5 x 5 x 0.9 mm)
IS2066	Audio (SBC, AAC)		-90	-2 (Class 2)	-	HFP, AVRCP, A2DP, HSP, SPP	mic in, analog out, DAC	50	BGA (5 x 3.5 mm)
IS2021S	Audio No -90 4		Showdown < 1 μA			Audio: HFP, HSP, A2DP, AVRCP, SPP, PBAP	UART	48, 56, 68	5 x 6.5 mm 48 QFN (IS2021S)7 x 7 mm 56 QFN (IS2020S, IS2023S)8 x 8 mm 68 QFN (IS2025S)

Wireless Products: Sub-GHz Transceivers/Modules

Product	Pin Count	Frequency Range (MHz)	Sensitivity (dBm)	Power Output (dBm)	RSSI	TX Power Consumption (mA)	RX Power Consumption (mA)	Clock	Sleep	Interface	Packages
MRF89XAM8A	12	868	-113	12.5	Yes	25 mA @ +10 dBm	3	12.8 MHz	0.1 μA	4-wire SPI	12/Module (17.8 × 27.9 mm)
MRF89XAM9A	12	915	-113	12.5	Yes	25 mA @ +10 dBm	3	12.8 MHz	0.1 μA	4-wire SPI	12/Module (17.8 × 27.9 mm)
MRF89XA	32	888/915/950	-113	12.5	Yes	25 mA @ +10 dBm	3	12.8 MHz	0.1 μA	4-wire SPI	32-pin TQFN
ATSAMR30	32/48	779/930	up to -110	11	Yes	18.2 mA @ 5 dBm	9.4	48 MHz	0.45	SPI, USART, IC, LIN	(5 × 5 mm) 32-pin QFN, (7 × 7 mm) 48-pin QFN
ATSAMR30M	32/48	779/930	up to -105	8.7	Yes	18.7 mA @ 5 dBm	9.4	48 MHz	0.45	SPI, USART, IC, LIN	(11 × 127 mm) Module

Wireless Products: Sub-GHz Transmitters

Product	Pin Count	Frequency Range (MHz)	Modulation	Data Rate (Kbps)	Tx Power (dBm)	Operating Voltage (V)	Packages
MICRF114	6	285–445	OOK	115.2 (NRZ), 57.6 (Manchester Encoded)	10	1.8–3.6	6-pin SOT-23
MICRF113	6	300–450	ASK	20	10	1.8–3.6	6-pin SOT-23
MICRF112	10	300–450	ASK/FSK	50 (ASK), 10 (FSK)	10	1.8–3.6	10-pin MSOP, 10-pin DFN

Wireless Products: Sub-GHz Receivers

Product	Pin Count	Frequency Range (MHz)	Sensitivity (dBm)	Power Output (dBm)	RSSI Modulation		RX Power Consumption (mA)	Sleep	Interface	Packages
MICRF219A	16	300–450	-110	-	Yes	ASK/OOK	4.3	-	-	16-pin QSOP
MICRF220	16	300–450	-110	-	Yes	ASK/OOK	4.3	-	-	16-pin QSOP
MICRF221	16	850–950	-109	-	Yes	ASK/OOK	9	-	-	16-pin QSOP
MICRF229	16	400–450	-112	-	Yes	ASK/OOK	6	-	-	16-pin QSOP
MICRF230	16	400–450	-112	-	Yes	ASK/OOK	6	-	-	16-pin QSOP

Wireless Products: LoRa® Technology Modems

Product	Pin Count	Frequency Range (MHz)	Sensitivity (dBm)	Power Output (dBm)	RSSI	TX Power Consumption (mA)	RX Power Consumption (mA)	Sleep	Interface	Packages
RN2483	47	433/868	-148	14	N/A	40 mA @ -14 dBm (868 MHz)	14.2	1 μA	UART	47/Module (17.8 × 26.7 × 3 mm)
RN2903	47	915	-146	18.5	N/A	124 mA @ +18.5 dBm	13.5	2 μA	UART	47/Module (17.8 × 26.7 × 3 mm)

USB Products
Product Description Processor Interface # of Downstream Ports Card Formats Industrial Version Packages
USB 2.0 Hubs/Controllers

USB2422	Small-footprint, 2-Port Value Hub, Commercial and Industrial Temperature with USB Battery Charging 1.1 USB 2.0 2 -				√	24-pin QFN
USB251XB/USB2517	Hi-Speed USB 2.0 Hub with Battery Charger Detection USB 2.0 2, 3, 4, 7 port options -				√	36- or 64-pin QFN
USB2524	4-Port Hi-Speed USB 2.0 Multi-Switch Hub	USB 2.0 x 2	4	-	-	58-pin QFN
USB3503	3-Port Hi-Speed USB 2.0 HSIC Hub for Mobile Applications	HSIC	3 -		√	25-ball WLCSP
USB3803	3-Port Hi-Speed USB 2.0 Hub for Mobile Applications	USB 2.0 3 -			√	25-ball WLCSP
USB3X13	3-Port Hi-Speed USB 2.0 SmartHub for Mobile Applications	USB 2.0 or HSIC	3 (USB 2.0 x2/HSIC x1)	-	√	30-ball WLCSP
USB253X	USB2.0 Hi-Speed SmartHub with Battery Charging Detection	USB 2.0	2, 3, 4 port options	-	√	36-pin QFN
USB46X4	Hi-Speed USB 2.0 Controller Hub with USB and HSIC Interlaces	USB 2.0 or HSIC	4 (USB 2.0 x4 or USB 2.0 x2/HSIC x2)	-	√Automotive	48-pin QFN
USB8460X	Automotive SmartHub, Host/Device Switching, USB/HSIC interfaces	USB 2.0	2 or 4 ports	-	Automotive only	48-pin QFN
USB491X	Automotive SmartHub, Multi-Host Endpoint Reflector	USB 2.0	3 or 5 ports	-	Automotive only	48- or 64-pin QFN
USB4715	SmartHub, FlexConnect on all ports	USB 2.0	4 ports -		√Automotive	48-pin QFN

USB492X Automotive SmartHub, Dual Upstream architecture USB 2.0 3 or 5 ports - Automotive only 48- or 64-pin QFN

USB 3.x Hubs/Controllers

USB553XB	SuperSpeed Hub with Battery Charger Detection	USB 3.0	2, 3, 4 or 7 port options	-	-	64- or 72-pin QFN
USB5734	SuperSpeed SmartHub with I/O Bridging and FlexConnect	USB 3.1 Gen 1	4	-	√	64-pin QFN
USB574X	SuperSpeed SmartHub with FlexConnect	USB 3.1 Gen 1	2 or 4 port options	-	√	56-pin QFN
USB58XXC	SuperSpeed SmartHub with I/O Bridging and FlexConnect with USB-CTM support downstream	USB 3.1 Gen 1	6 or 7 port options	-	√	100-pin QFN
USB59XXC	SuperSpeed SmartHub with I/O Bridging and FlexConnect with USB-C support upstream and downstream	USB 3.1 Gen 1	6	-	√	100-pin QFN
USB7002	SuperSpeed USB 3.1 Gen 1 SmartHub with Power Delivery and Type C Support	USB 3.1 Gen 1	4	-	√ Automotive	100-pin QFN
USB705X	SuperSpeed USB 3.1 Gen1 SmartHub with Power Delivery and Type C Support	USB 3.1 Gen 1	4, 6	-	√	100-pin QFN
USB72XX	SuperSpeed Plus USB3.1 Gen2 SmartHub and Type C support	USB 3.1 Gen 2	4, 6	-	√	100-pin QFN

USB Products

Product	Description	Processor Interface	# of Downstream Ports	Card Formats	Industrial Version	Packages
USB-CTM Power and Charging
UTC200X	USB-C Controller	I/O	1 DFP or 1 UFP	-	√Automotive	16-pin QFN
USB Transceivers/Switches
USB333X	Mobile Hi-Speed USB 2.0 Transceiver with Multi-frequency Support	ULPI	-	-	√	25-ball WLCSP
USB334X	Hi-Speed USB 2.0 Transceiver with Multi-frequency Support	ULPI	-	-	Automotive	24- or 32-pin QFN
USB3300	Hi-Speed USB 2.0 Transceiver (24 MHz reference clock support)	ULPI	-	-	√	32-pin QFN
USB3740B	Hi-Speed USB 2.0 Switch with Extremely Low Power	USB 2.0	-	-	√	10-pin QFN
USB375XA-X	Hi-Speed USB 2.0 Port Protection with Switch and Charger Detection	USB 2.0	-	-	√	16-pin QFN
USB Flash Media Controllers
USB224X	Hi-Speed USB 2.0 Multi-Format Flash Media Controller	USB 2.0	-	SDTM/MMC/eMMCTM/MS/XD	√	36-pin QFN
USB225X	Hi-Speed USB 2.0 Multi-Format Flash Media Controller	USB 2.0	-	SD/MMC/eMMC/MS/xD/CF	√	128-pin VTQFP
USB264X	Hi-Speed USB 2.0 Multi-Format Flash Media Hub Controller	USB 2.0	2	SD/MMC/eMMC/MS/xD	√Automotive	48-pin QFN
USB2660	Hi-Speed USB 2.0 Multi-Format Flash Media Hub Controller	USB 2.0	2	SD/MMC/eMMC/MS/xD (x2)	√	64-pin QFN
USB4640	USB 2.0 Hi-Speed SmartHub with HSIC interface Option	HSIC	2	SD/MMC/eMMC/MS/xD	√	48-pin QFN

USB Products
USB-C™/Power Delivery Controllers
Product Description PD Version Interface Port Power Controller Industrial Version # of Pins Packages

UPD360	PD 2.0 Compliant USB-C PD Controller with Integrated PPC PD 2.0 I		°C, SPI Yes No 44 BGA
UPD350	PD 3.0 Compliant USB-C PD Controller PD 3.0 I		°C, SPI No	Yes + Auto	28, 40	QFN
UTC2000	USB-C Controller	Type-C	None	No	Yes + Auto	16	QFN

USB Security
Package
Industrial Version
Card Formats

of Downstream Ports

of Downstream

of Downstream

of Downstream

of Downstream

of Downstream

of Downstream

of Downstream

of Downstream

of Downstream

Ethernet Products
Product	Bandwidth	Ports	Interface (Upstream)	1568-v2	Cable Diags	100 Fx	Temperature	AEC-Q100 Auto	Packages
Ethernet Switches
KSZ8795	10/100	5	GMII/RGMII/MII/RMII	-	√	-	-40°C to +85°C	-	80-pin LQFP
KSZ8863	10/100	3 MII/RMII		-	√	√	-40°C to +85°C	-	48-pin LQFP
KSZ8864	10/100	4 MII/RMII		-	√	-	-40°C to 105°C	√	64-pin VQFN
KSZ8873	10/100	3 MII/RMII		-	√	√	-40°C to 105°C	√	64-pin VQFN
KSZ8895	10/100	5 MII/RMII		-	√	-	-40°C to +85°C	√	128-pin LQFP
KSZ9477	Gigabit	7	SGMII/RGMII/MII/RMII	1588 + AVB +HDR/DLR	LinkMD+ with signal quality indicator	with SGMII	-40°C to +85°C	-	128-pin LQFP
KSZ9563	Gigabit	3	SGMII/RGMII/MII/RMII	1588 + AVB	LinkMD+ with signal quality indicator	with SGMII	-40°C to +85°C	-	64-pin QFN, 128-pin LQFP
KSZ9567	Gigabit	7	SGMII/RGMII/MII/RMII	1588 + AVB	LinkMD+ with signal quality indicator	with SGMII	-40°C to +85°C	-	128-pin TQFP-EP
KSZ9893	Gigabit	3	SGMII/RGMII/MII/RMII	-	√	-	-40°C to +85°C	-	64-pin QFN, 128-pin LQFP
KSZ9896	Gigabit	6	RGMII/GMII/MII/RMII	-	√	-	-40°C to +85°C	-	128-pin TQFP
KSZ9897	Gigabit	7	RGMII/SGMII/MII/RMII	-	√	with SGMII	-40°C to +85°C	-	128-pin TQFP
VSC7511	10/100/1000/2500 Mbps	4	SGMII 1000Base-T (4)	-	√	100FX, 1000X	-40°C to +125°C	-	172/VQFN
VSC7512	10/100/1000/2500 Mbps	10	SGMII, QSGMII 1000Base-T (4)	-	√	100FX, 1000X	-40°C to +125°C	-	172/VQFN
VSC7513	10/100/1000/2500 Mbps	8	SGMII, QSGMII 1000Base-T (4)	√	√	100FX, 1000X	-40°C to 125°C	-	256/PBGA
VSC7514	10/100/1000/2500 Mbps	10	SGMII, QSGMII 1000Base-T (4)	√	√	100FX, 1000X	-40°C to +125°C	-	256/PBGA
VSC7420	10/100/1000/2500 Mbps	10	SGMII 1000Base-T (8)	-	√	100FX, 1000X	-40°C to +125°C	-	672/HSBGA
VSC7421	10/100/1000/2500 Mbps	17	SGMII, QSGMII 1000Base-T (12)	-	√	100FX, 1000X	-40°C to +125°C	-	672/HSBGA
VSC7422	10/100/1000/2500 Mbps	25	SGMII, QSGMII 1000Base-T (12)	-	√	100FX, 1000X	-40°C to +125°C	-	672/HSBGA
VSC7423	10/100/1000/2500 Mbps	7	SGMII 1000Base-T (5)	√	√	100FX, 1000X	-40°C to +125°C	-	672/HSBGA
VSC7424	10/100/1000 Mbps	10	SGMII 1000Base-T (8)	-	√	100FX, 1000X	0°C to 125°C	-	672/HSBGA
VSC7425	10/100/1000 Mbps	18	SGMII, QSGMII 1000Base-T (12)	-	√	100FX, 1000X	0°C to 125°C	-	672/HSBGA
VSC7426	10/100/1000 Mbps	24	QSGMII 1000Base-T (12)	-	√	-	0°C to 125°C	-	672/HSBGA
VSC7427	10/100/1000 Mbps	26	SGMII, QSGMII 1000Base-T (12)	-	√	100FX, 1000X	0°C to 125°C	-	672/HSBGA
VSC7440	10/100/1000/2500 Mbps 10 Gbps	10	SGMII 1000Base-T XFI	√	√	100FX, 1000X, SFI	-40°C to +125°C	-	324/PBGA
VSC7448	10/100/1000/2500 Mbps 10 Gbps	52	SGMII, QSGMII XFI, XAUI, RXAUI	√	-	100FX, 1000X, SFI	-40°C to +110°C	-	672/HFCBGA
VSC7449	10/100/1000/2500 Mbps 10 Gbps	52	SGMII, QSGMII XFI, XAUI, RXAUI	√	-	100FX, 1000X, SFI	-40°C to +110°C	-	672/HFCBGA

*VSC parts Junction temperature (Tja)

Ethernet Products
Product Bandwidth Ports Interface (Upstream) 1588v2 Wake-On-LAN EEE Temperature AEC-Q100 Auto Packages

Ethernet Controllers
ENC28J60	10	1	SPI	-	-	-	-40°C to +85°C	-	28-pin SPDIP, SSOP, SOIC, QFN
ENC624J600	10/100	1	SPI/Parallel	-	-	-	-40°C to +85°C	-	24-pin TQFN, QFN, 64-pin TQFN
LAN9217	10/100	1	16-bit Host Bus/MII	-	-	-	-	-	100-pin TQFP
LAN9218	10/100	1	32-bit Host Bus	-	-	-	-40°C to +85°C	-	100-pin TQFP
LAN9220/1	10/100	1	16-bit Host Bus	-	-	-	-40°C to +85°C	-	56-pin QFN
LAN9250	10/100	1	SPI, SQITM, HBI	-	√	√	-40°C to +85°C	-64-pin QFN, 64-pin TQFP-EP
LAN9420	10/100	1	32-bit PCI 3.0	-	-	-	-40°C to +85°C	-	128-pin VTQFP
LAN89218	10/100	1	32-bit Host Bus	-	-	-	-40°C to +105°C	√	100-pin TQFP
KSZ8851	10/100	1	8-/16-/32-bit or SPI	-	√	-	-40°C to +105°C	√	32-pin QFN, 48-pin LQFP, 128-pin PQFP
KSZ8852	10/100	1	8-/16-/32-bit	-	√	√	|	-64-pin LQFP
KSZ8441	10/100	1	8-/16-/32-bit or SPI	-	√	√	|	-64-pin LQFP
Ethernet Transceivers (PHYs)
LAN8710A	10/100	1	MII/RMII	-	-	-	-40°C to +85°C	-	32-pin QFN
LAN8720A	10/100	1	RMII	-	-	-	-40°C to +85°C	-	24-pin QFN
LAN8740A	10/100	1	MII/RMII	-	√	√	-40°C to +85°C	-32-pin QFN
LAN8741A	10/100	1	MII/RMII	--		√	-40°C to +85°C	-32-pin QFN
LAN8742A	10/100	1	RMII -		√	--40°C to +85°C	-24-pin QFN
LAN88730	10/100	1	MII/RMII	-	-	-	-40°C to +105°C	√	32-pin QFN
KSZ8051	10/100	1	MII/RMII	-	-	-	-40°C to +105°C	√	32-pin QFN
KSZ8061	10/100	1	MII/RMII	-	√	-	-40°C to +105°C	√	32-/48-pin QFN
KSZ8081	10/100	1	MII/RMII	-	-	-	-40°C to +85°C	-	24-/32-pin QFN, 48-pin LQFP
KSZ8091	10/100	1	MII/RMII	-	√	√	-40°C to +85°C	-24-/32-pin QFN, 48-pin LQFP
LAN8810	Gigabit	1	GMII	-	-	-	-40°C to +85°C	-	72-pin QFN
LAN8820	Gigabit	1	RGMII	-	-	-	-40°C to +85°C	-	56-pin QFN
KSZ9031	Gigabit	1	MII/RMII/RGMII	-	√	-	-40°C to +105°C	√	48-/64-pin QFN
KSZ9131	Gigabit	1	MII/RMII/RGMII	-	√	√	-40°C to +105°C	√	48-/64-pin QFN
VSC8531	Gigabit	1	RMII/RGMII	-	√	√	-40°C to +125°CA	-48 pin QFN
VSC8541	Gigabit	1	GMII/MII/RMII/RGMII	-	√	√	-40°C to +125°CA	-68 pin QFN
VSC8584	Gigabit	4 Cu/4 Fbr	QSGMII/SGMII	√	√√		-40°C to +125°CA	-256 pin QFN
VSC8258	10G Optical	4Cu	XFI, SFI, KR	√	√√		-40°C to +125°C*	-256 pin QFN
VSC8490	10G Optical	2Cu	XAUI, RXAUI, XFI, SFI	√	√√		-40°C to +125°C*	-196 pin QFN

^* VSC parts Junction temperature (Tja)

High-Speed Ethernet PHYs

Product

Description

Max Bandwidth Gbps

MACsec

FlexE

Interlaken

Retimer

Gearbox

Crosspoint

# Ports

Max port rate

Max SERDES Rate Gbps

RoHS

PM61104

META-DX1 Ethernet PHY (without MACsec/FlexE)

1200

-

-

-

√

√

√

12

400GbE

56

√

PM61108

META-DX1 Ethernet PHY (without FlexE)

1200

√

-

√ √

√

√

12

400GbE

56

√

PM61110

META-DX1 Ethernet PHY Family (MACsec/FlexE)

1200

√

√

√ √

√

√

12

400GbE

56

√

Automotive: Media Oriented Systems Transport (MOST®) Network Interface Controllers Intelligent Network Interface Controller (INC) for MOST Networks
Product Features Interface					Ambient Temperature Range	Pin	Package
OS81110 INIC	Fully-encapsulated, single-chip, single MOST150 network port, embedded network management, supports MOST embedded Ethernet channel and isochronous channels (MOST150)		MOST150 FOT or external MOST150 coax transceiver, PC, PS/SPDIF, TSI, SPI, RMCK, JTAG, MediaLB2 3-Pin, MediaLB bus 6-Pin		-40°C to 105°C 48 QFN
OS81082 INIC	Fully-encapsulated, single-chip, embedded network management (MOST50)		MOST50 electrical (UTP), PC, PS*, MediaLB -40°C to 95°C 64 ETQFP
OS81092 INIC	ROM version of OS81082 INC (MOST50)		MOST50 electrical (UTP), FC, PS, MediaLB		-40°C to 105°C	48	QFN
OS81050 INIC	Fully-encapsulated, single-chip with embedded network management (MOST25)		MOST25 FOT, PC, PS, MediaLB		Standard range: -40 to 85 Extended range: -40 to 105	44	QFP, ETQFP
OS81060 INIC	ROM version of OS81050 INC (MOST25) MOST25 FOT, PC, PS, MediaLB				-40°C to 105°C (targeted)	40 QFN
OS81118AF INIC	Fully-encapsulated, single-chip, single MOST150 network port, embedded network management, integrated MOST150 coaxial transceiver, supports MOST embedded Ethernet channel, isochronous channels (MOST150), and USB 2.0 high-speed port		MOST150 FOT or MOST150 coaxial physical layer, USB 2.0 high-speed, GPIO, PC, PS, SPI, RMCK, JTAG, MediaLB 3-Pin, MediaLB bus 6-Pin		-40°C to +85°C 72 QFN
OS81118BF INIC	Fully-encapsulated, single-chip, single MOST150 network port, embedded network management, supports MOST embedded Ethernet channel, isochronous channels (MOST150), and USB 2.0 high-speed port		MOST150 FOT or external MOST150 coaxial transceiver, USB 2.0 high-speed, GPIO, PC, PS, SPI, RMCK, JTAG, MediaLB 3-Pin, MediaLB bus 6-Pin		-40°C to +85°C 72 QFN
OS81119AF INIC	Fully-encapsulated, single-chip, double MOST150 network ports, embedded network management, integrated MOST150 coaxial transceiver, supports MOST embedded Ethernet channel, isochronous channels (MOST150), and USB 2.0 high-speed port		MOST150 FOT or MOST150 coaxial physical layer, USB 2.0 high-speed, GPIO, PC, PS, SPI, RMCK, JTAG, MediaLB 3-Pin, MediaLB Bus 6-Pin		-40°C to +85°C 88 QFN
OS82150 (MOST150 Coaxial Transceiver)	MOST150 Coaxial Transceiver, integrates coaxial cable driver and coaxial cable receiver in a single package		MOST150 coaxial physical layer, interface to MOST150 INC		-40°C to +105°C	16	QFN
Automotive: Power Management Companion For Diagnostics, Status Monitoring and Power Supply
Product	Features		Interface	Temperature Range (°C)	Pin	Packages
MPM85000	Power management companion for diagnostics, status monitoring and power supply		LIN 2.0, PC	-40 to 105	24	QFN
Automotive: Multimedia I/O Companion Multimedia I/O Port Expander
Product	Features		Interface		Temperature Range	Pin	Packages
OS85650	Low-cost multimedia I/O port expander, DTCP co-processor		MediaLB® bus 3-pin and 6-pin, Host Bus Interface (HBI), 2 x multi-channel streaming ports, 2 x TSI, 2 x SPI, PC		-40°C to 105°C	128	ETQFP
OS85652	Low-cost multimedia I/O port expander		MediaLB bus 3-pin and 6-pin, Host Bus Interface (HBI), 2 x multi-channel streaming ports, 2 x TSI, 2 x SPI, PC		-40°C to 105°C	128	ETQFP
OS85656	Low-cost multimedia I/O port expander well-suited for streaming applications		MediaLB bus 3-pin, streaming port PS (FSYN, FCLK, 4 x In, 4 x Out, @ 512 Fs), serial transport stream interface (TSI), PC		-40°C to 105°C	48	QFN
OS85654	Low-cost multimedia I/O port expander well-suited for streaming applications, DTCP co-processor		MediaLB bus 3-pin, streaming port PS (FSYN, FCLK, 4 x In, 4 x Out, @ 512 Fs), serial transport stream interface (TSI), PC		-40°C to 105°C	48	QFN
Automotive: Ethernet Controllers 10/100 Ethernet Controllers with USB 2.0, HSIC or HBI
Product	Features	Interface		Temperature Range (°C)	Pin	Packages
LAN89218	High-performance, single-chip controller with HP Auto-MDIX support*	MAC/PHY, 10Base-T/100Base-TX, 32- and 16-bit Host Bus Interface (HBI)		-40 to 85	100	TQFP
LAN89530	HI-Speed USB 2.0 to 10/100 Ethernet controller	USB 2.0		-40 to 85	56	QFN
*HP Auto-MDIX eliminates the need for special crossover cables when connecting LAN devices together.
Automotive: Ethernet Switch 10/100 Managed Ethernet Switch with HP Auto-MDIX Support
Product	Features	Interface		Temperature Range (°C)	Ports	Pin	Packages
LAN89303	High performance, small-footprint, full-featured, single MII/RMI/Turbo MII support	MII/RMI, 2 x 10/100 PHYs, 3 x 10/100 MACs		-40 to 85	4	56	QFN
Automotive: Ethernet Transceiver 10/100 Ethernet Transceiver with HP Auto-MDIX Support*, Featuring flexPWR® Technology
Product	Features	Interface		Temperature Range (°C)	Pin	Packages
LAN88730	Small footprint, low-power consumption, full featured	10Base T/100Base TX, MII/RMI		LAN88730AM: -40 to 85 LAN88730BM: -40 to 105	32	QFN

*HP Auto MDIX eliminates the need for special crossover cables when connecting LAN devices together.

Automotive: Hi-Speed USB 2.0 HubUSB 2.0 Hub Featuring MultiTRAKTM Technology
Product Features Interface Temperature Range (°C) Ports Pin Packages
USB82512	Versatile, cost effective, energy efficient, incorporating MultTRAK, PortMap, PortSwap, PHYBoost technologies		SMBus/FC	-40 to 85	2	36	QFN
USB82513	Versatile, cost effective, energy efficient, incorporating MultTRAK, PortMap, PortSwap, PHYBoost technologies		SMBus/FC	-40 to 85	3	36	QFN
USB82514	Versatile, cost effective, energy efficient, incorporating MultTRAK, PortMap, PortSwap, PHYBoost technologies		SMBus/FC	-40 to 85	4	36	QFN
Automotive: Hi-Speed USB 2.0 Hub and Flash Media Card ControllersUSB 2.0 Hub and Card Controller Combos
Product Features			Socket Type	Supports		Temperature Range (°C)	USB Ports	Pin	Packages
USB82640	USB Hub/Card Reader combo with PortMap, PortSwap and PHYBoost Technologies		Single	SDTM/SD High CapacityTM/MultiMediaCardTM/Memory Stick®/MS PROTM, MS PRO-HGTM		-40 to 85	2	48	QFN
USB82642	USB bridge/card reader combo with USB to SDIC and USB to I2C bridging functionality and PortMap, PortSwap and PHYBoost technologies		Single	SD/SD High Capacity/MultiMediaCard/Memory Stick/MS PRO, MS PRO-HG		-40 to 85	2	48	QFN
USX2730	USB Card Reader only		Single	SD/SD High Capacity/MultiMediaCard		-40 to 85	0	48	QFN
Automotive: Hi-Speed USB 2.0 TransceiverUSB 2.0 Transceiver with 1.8V ULPI Interface
Product Features			Interface	Temperature Range (°C)	Ports	Pin	Packages
USB83340	Multi-frequency reference clock		1.8V to 3.3V ULPI	-40 to 105	1	32	QFN
Automotive: Hi-Speed USB 2.0 Battery ChargerStandalone USB Battery Charger
Product Features					Temperature Range (°C)	Supports	Pin	Packages
UCS81001	USB battery charger supporting BC1.2, China charging, Apple® and RIM® charging profiles as well as programmable charging profiles for unforeseen peripherals				-40 to 85	USB, I2C, SMBus	28	QFN
UCS81002	USB battery charger supporting BC1.2, China charging, Apple and RIM charging profiles as well as programmable charging profiles for unforeseen peripherals				-40 to 85	USB, I2C, SMBus	28	QFN
Automotive: Hi-Speed USB 2.0 Charger Controllers and Port Protection
Product Features				Temperature Range (°C)	Supports	Pin	Packages
UCS81003	USB port charger controller supporting BC1.2, China charging, Apple® and RIM® charging profiles as well as programmable charging profiles for unforeseen peripherals and integrated current monitoring			-40 to 85	USB, I2C, SMBus 28	QFN
UCS2113	Dual USB port power protection switch and current monitor			-40 to 105	I2C, SMBus	20	QFN
Automotive: Wireless AudioRadio Frequency Digital Audio Transceiver
Product Features				Typical Sink Mode Power Consumption	PA Output Power	Audio	Qualification
KLR83012	Wirelessly streams uncompressed lossless audio up to 25m over robust 2.4 GHz radio link, multi-point to multi-point connectivity, strong WI-F® coexistence, data channel for audio playback control, very low power consumption			20 mW	1.5 dB/m	16 bit, 44.1 ks/s stereo	AEC Q100
Automotive: Capacitive Touch Sensors
Product Features		Input Channels	LED Drivers	Proximity Included	Interface	Pin	Packages
CAP81188	Reset, wake and alert, automatic recalibration, base capacitance compensation	8	8	✓	IC/SPI/BC-Link	24	QFN

Embedded Controllers and Super I/O: Embedded Controllers

Product Description Core Code Storage Data RAM EEPROM						Crypto Engine	GPIO Host Interface	Operating Temperature (°C)	UART MAF/SAF Package
MEC1418-I/SZ	High-performance 32-bit embedded microcontroller with 128 KB of SRAM and 32 KB of Boot ROM, eSPI, LPC, IC	MIPS	192 KB SRAM (Code + Data)	PO SRAM N/A No 106 eSPI, LPC, I			°C -40 to +85 Full MAF				144 WFBGA, 9 x 9 mm
MEC1428-SZ-C	High-performance 32-bit embedded microcontroller with 224 KB of SRAM and 32 KB of Boot ROM, eSPI, LPC, IC	MIPS	192 KB SRAM (Code + Data)	PO SRAM	N/A	Yes	65	eSPI, LPC, IC	0 to +70	Full MAF/SAF	144 WFBGA, 9 x 9 mm
MEC1701H-C1-SZ	High-performance 32-bit embedded microcontroller with 224 KB of SRAM and 32 KB of Boot ROM and Secure Boot, eSPI, LPC, IC	Arm Cortex-M4F	224 KB	32 KB	N/A	Yes	123	eSPI, LPC, IC	0 to +70	2	MAF
MEC1703H-C1-SZ	High-performance 32-bit embedded microcontroller with 224 KB of SRAM and 32 KB of Boot ROM and Secure Boot, eSPI, LPC, IC	Arm Cortex-M4F	224 KB	32 KB	2 KB	Yes	148	eSPI, LPC, IC	0 to +70	2	MAF
MEC1704Q-C1-I/SZ	High-performance 32-bit embedded microcontroller with 316 KB of SRAM and 64 KB of Boot ROM and Secure Boot, eSPI, LPC, IC	Arm Cortex-M4F	316 KB	64 KB	N/A	Yes	123	eSPI, LPC, IC -40 to +85	2	MAF	144 WFBGA, 9 x 9 mm
MEC1705Q-C1-I/SZ	High-performance 32-bit embedded microcontroller with 316 KB of SRAM and 64 KB of Boot ROM and Secure Boot eSPI, LPC, IC	Arm Cortex-M4F	316 KB	64 KB	2 KB	Yes	148	eSPI, LPC, IC -40 to +85	2	MAF	144 WFBGA, 9 x 9 mm

Embedded Controllers and Super I/O: Super I/O

	Description	Operating Temperature	GPIO	Security Key Register	PECI Support	SMBus Interface	Intruder Detection	Resume Reset	Package
SCH3221	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	33	No	No	No	No	No	64 WFBGA
SCH3222	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	23	Yes	No	No	No	Yes	84 WFBGA
SCH3223	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	19	Yes	No	No	No	Yes	64 WFBGA
SCH3224	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	24	Yes	No	No	No	Yes	100 WFBGA
SCH3226	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	40	Yes	No	No	No	Yes	100 WFBGA
SCH3227	LPC IO with multiple serial ports, 8042 KBC, reset generation and HWM	-40°C to +85°C	40	Yes	No	No	No	Yes	144 WFBGA

Security Products

Product

Core

Max Speed

Ram (KB)

Operating Temperature

Package

RNG

Monotonic Counter

Crypto Algorithms

OTP - User Programmable

Memory Protection Unit

Debug Interface

Floating Point Unit

CEC1302

Arm® Cortex®-M4

48

128 0°C to +70°C

144-pin WFBGA

Yes

No

AES128, AES129, AES256, SHA-1, SHA-256, RSA-512 to RSA-2048

500-bits

No

5-pin

Yes

CEC1702

Arm Cortex-M4

96

450

0°C to +70°C

84-pin WFBGA

Yes Yes

AES128, AES129, AES256, SHA-1, SHA-256, SHA-384, SHA-512, RSA-1024 to RSA-4096, ECDSA, EC-KCDSA, Support for Curve 25519, Ed25519

2500-bits

Yes

5-pin and SWD

Yes

Security Products

Product

Typical Sleep Current

Typical Application

Interface (Designator)

Tamper Detection Pin

Memory Density

Temp Range (°C)

Min Vcc Supply

Unique ID

RNG

Monotonic Counters

Crypto Algorithms

Key Size

Individual Slots

TLS Stack Support

Cloud Support

Pacakges (Designator)

Secure Provisioning Service

ECC508A

30 nA Typ 2 μA Max

Authentication for IP connected node and accessory authentication

I^oC (DA) Single wire (CZ)

14.5 Kb

-40 to +85

2.0V

72-bit serial number

FIPS 2

FIPS186-3 ECDSA, NIST P256, NIST SHA256 with HMAC option, ECDH

256-bit keys

16

CycloneSSL, WofSSL, OpenSSL, WINC TLS

AWS, Azure

SOIC (MAH), UDFN (SSH), 3 contacts (RBH)

Yes

ECC108A

30 nA Typ 2 μA Max

Accessory authentication

I^oC (DA) Single wire (CZ)

14.5 Kb

-40 to +85

2.0V

72-bit serial number

FIPS 2

FIPS186-3 ECDSA, NIST P256, NIST B283, NIST K283, NIST SHA256 with HMAC option

256 bits and 263-bits keys

16

N/A

N/A

SOIC (MAH), UDFN (SSH), 3 contacts (RBH)

Yes

SHA204A

30 nA Typ 2 μA Max

Disposable/accessory authentication

I^oC (DA) Single wire (CZ)

4.5 Kb

-40 to +85

2.0V

72-bit serial number

FIPS

2

NIST SHA256 with HMAC Option

256-bit keys

16

N/A

N/A

SOIC (MAH), UDFN (SSH) 3 contacts, (RBH), SOT-23 (STU), TSSOP (XHD) XDFN (MXH)

Yes

AES132

100 μA @3.3V Vcc 250 μA @5.5V Vcc

Secure storage

SPI (Q) I^oC (R)

16x 2 Kb

-40 to +85

2.0V

64-bit serial number

FIPS

16

AES-CCM for authentication, MAC Capability

Up to 16x 128-bit keys

N/A

N/A SOIC (BS1), UDFN (SMA2) No

Touch and 3D Gesture Control: Capacitive Touch Controllers
Product Buttons	LED Drivers	Additional Features Proximity Interface				Safety certified Touch VDE/UL 60730 class B	Voltage (V) Pins Packages
AT42QT1010	1 - adjustable sensitivity, noise filtering		✓	GPIO 1.8-5.5 6/8 SOT-23, UDFN
AT42QT1011	1 - adjustable sensitivity, noise filtering		✓	GPIO 1.8-5.5 6/8 SOT 23, UDFN
AT42QT1012	1 - adjustable sensitivity, noise rejection filters, low-power mode		✓	GPIO 1.8-5.5 6/8 SOT-23, UDFN
AT42QT1040	4	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		GPIO			1.8-5.5	20	VQFN
AT42QT1050	5	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		IC/GPIO			1.8-5.5 12/20	VQFN, WLCSP
AT42QT1060	6	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		IC/GPIO			1.8-5.5	28	VQFN
AT42QT1070	7	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		IC/GPIO			1.8-5.5 14/20 SOIC, VQFN
AT42QT2100	10	solder/whool, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		SPI/GPIO			2.0-5.5	32	VQFN
AT42QT1110	11	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		SPI/GPIO			3.0-5.5	32	TQFP, VQFN
AT42QT2120	12	slider/whool, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)	✓	IC			1.8-5.5	20	SOIC, TSSOP, VQFN
AT42QT2160	16	slider/whool, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		IC			1.8-5.5	28	VQFN
AT42QT1244	24	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters, Adjacent key suppression (AKS)		IC	✓		3.0-5.5	32	TQFP, VQFN
AT42QT1245	24	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters, Adjacent key suppression (AKS)		SPI	✓		3.0-5.5	32	TQFP, VQFN
AT42QT1481	48	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters		SPI/UART	✓		4.8-5.3	44	TQFP
AT42QT2640	64	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters		SPI	✓		4.8-5.3	44	TQFP
CAP1133	3.3	alert, automatic calibration, base capacitance compensation	✓	IC			3.0-3.6	10	QFN
CAP1106	6 - alert, automatic calibration, base capacitance compensation		✓	IC			3.0-3.6	10	QFN
CAP1126	6.2	slider, reset, alert, automatic calibration, base capacitance compensation	✓	IC/SPI 3.0-3.6	16	QFN
CAP1166	6.6	slider, reset, alert, automatic calibration, base capacitance compensation	✓	IC/SPI 3.0-3.6	20	QFN
CAP1128	8.2	slider, reset, alert, automatic calibration, base capacitance compensation	✓	IC/SPI 3.0-3.6	20	QFN
CAP1188	8.8	slider, reset, alert, automatic calibration, base capacitance compensation	✓	IC/SPI 3.0-3.6	24	QFN
CAP1114	14	slider, reset, alert, automatic calibration, base capacitance compensation	✓	IC			3.0-3.6	32	QFN
CAP1203	3 - alert, automatic calibration, base capacitance compensation	I		C			3.3-5.0	8	QFN
CAP1293	3 - alert, automatic calibration, base capacitance compensation		✓	IC					QFN
CAP1206	6 - alert, automatic calibration, base capacitance compensation	I		C					QFN
CAP1296	6 - alert, automatic calibration, base capacitance compensation		✓	IC					QFN
CAP1208	8 - alert, automatic calibration, base capacitance compensation	I		C					QFN
CAP1298	8 - alert, automatic calibration, base capacitance compensation		✓	IC			3.3-5.0	16	QFN
CAP1214	14	slider, reset, alert, automatic calibration, base capacitance compensation, audio output	✓	IC			3.0-3.6	32	QFN
MTCH102	2	optimized for button replacement, adjustable sensitivity, noise rejection filters, active guard, low-power mode	✓	CPIO 2.1-3.6	8	MSOP, UDFN
MTCH105	5	optimized for button replacement, adjustable sensitivity, noise rejection filters, active guard, low-power mode	✓	GPIO 2.1-3.6 14/16 TSSOP, QFN
MTCH108	8	optimized for button replacement, adjustable sensitivity, noise rejection filters, active guard, low-power mode	✓	GPIO 2.1-3.6	20 SSOP, UCFN
Touch and 3D Gesture Control: 3D Gesture Controllers
Product Channels	Position Tracking	Additional Features Automotive Temperature Range Low Power Interface Voltage Pin Package
MGC3030	5 - Gesture port, auto wake/sleep, touch detection - -20°C to +85°C YI						°C, EDI (gesture port) 3.3V	26	SSOP
MGC3130	5	Y	Gesture port, auto wake/sleep, touch detection	-	-20°C to +85°C	Y	IC, EDI (gesture port) 3.3V	28	QFN
MGC3140	5	Y	Gesture port, auto wake/sleep, touch detection	Y	-40°C to +125°C	Y	IC, EDI (gesture port) 3.3V	48	UQFN
Power Discretes: Silicon Carbide (SIC) MOSFETs
Part Number			Voltage		RDS(on)		Package
MSCxxxSMA070B			700V		15-90 mΩ		TO-247
MSCxxxSMA070S			700V		15-90 mΩ		D3PAK
MSCxxxSMA120B			1200V		25-280 mΩ		TO-247
MSCxxxSMA120S			1200V		25-360 mΩ		D3PAK
MSCxxxSMA120J			1200V		25-80 mΩ		SOT-227
MSCxxxSMA170B			1700V		45-750 mΩ		TO-247
MSCxxxSMA170S			1700V		45-750 mΩ		D3PAK
Power Discretes: Silicon Carbide (SIC) Diodes
Part Number			Voltage		RDS(on)		Package
MSCxxxSDA070K			700V		10-30A		TO-220
MSCxxxSDA070B			700V		10-50 A		TO-247
MSCxxxSDA070S			700V		30-50A		D3PAK
MSCxxxSDA120K			1200V		10-30A		TO-220
MSCxxxSDA120B			1200V		10-50A		TO-247
MSCxxxSDA120S			1200V		10-30A		D3PAK
MSCxxxSDA170B			1700V		10-50 A		TO-247
Power Discretes: Insulated Gate Bipolar Transistors (IGBTs)
Standard Series		Voltage Range (V)	Technology		Easy to Parallel	Short Circuit Safe Operating Range (SOA)		Parameter
MOS 7TM		1200	Punch-Through		-	-		Ultra-low gate charge
MOS 8TM		600, 650, 900, 1200	Punch-Through, Non-Punch-Through		-	-		Highest efficiency
Field Stop Trench Gate		600, 1200	Field Stop		Yes	Yes		Lowest conduction loss
Power Discretes: Power MOS 8TM MOSFETs/FREDFETs
MGSFET Part Number		FREDFET Part Number	BVDSS (V)	Rds(on)Max (Ω)	Id (A)	Id (A)	Package Style
APTxxM120xx		APTxxF120xx	1200	2.4-0.29	8-36	7-33	TO-247, D3PAK, T-MAX®, TO-264, ISOTOP
APTxxM100xx		APTxxF100xx	1000	2.0-0.18	8-45	7-42	TO-247, D3PAK, T-MAX, TO-264, ISOTOP
APTxxM80xx		APTxxF80xx	800	0.9-0.10	13-60	12-57	TO-247, D3PAK, T-MAX, TO-264, ISOTOP
APTxxM60xx		APTxxF80xx	600	0.37-0.055	36-84	19-84	TO-247, D3PAK, T-MAX, TO-264, ISOTOP
APTxxM50xx		APTxxF50xx	500	0.24-0.036	58-103	24-103	TO-247, D3PAK, T-MAX, TO-264, ISOTOP

Power Discretes: Low-Voltage Power MOS V ^® MOSFETs/FREDFETs
MOSFET Part Number FRED FET Part Number BVDSS (V) Rds(on)Max (Ω) Id (A) Id (A) Package Style
APT30MxxxxRx APT30MxxxxFx 300 0.065-0.019 40-130 48-130 TO-247, D3PAK, ISOTOP
APT20MxxxxRx APT20MxxxxFx 200 0.046-0.011 56-175 58-175 TO-247, D3PAK, T-MAX							®, TO-264, ISOTOP
Power Discretes: Ultra-Fast, MOS7 ^® MOSFETs
MOSFET Part Number		BVDSS (V)	Rds(on)Max (Ω)	Id (A)	FREDFET Part Number		Package Style
APT120xxxxLLx		1200	4.700-0.570	3.5-22	APT120xxxFLLx		TO-247, D3PAK, T-MAX ^®
APT100xxxxLLx		1000	0.900-0.210	12-37	APT100xxxFLLx		TO-247, D3PAK, T-MAX, TO-264, ISOTOP
APT80xxxxLLx		800	0.200-0.140	33-52	APT80xxxFLLx		TO-247, D3PAK, T-MAX, TO-264, ISOTOP
APT50xxxxLLx		500	0.140-0.038	35-88	APT50xxxFLLx		TO-247, D3PAK, T-MAX, TO-264, ISOTOP
Power Discretes: Ultra-fast, MOS 7R MOSFET
MOSFET Part Number		BVDSS (V)		Rds(on)Max (Ω)	Id (A)		Package Style
APT36N00BC3G		900		0.12	36		TO-247
APTxxN80xxC3G		800		0.450-0.145	11-34		TO-247, T-MAX ^® , TO-264
APTxxN65xxCxx		650		0.070-0.035	47-94		TO-247, D3PAK, T-MAX, TO-264
APTxxN60xxCxx		600		0.125-0.035	30-106		TO-247, D3PAK, T-MAX, TO-264, ISOTOP
Power Discretes: Linear MOSFETs
Part Number		BVDSS (V)		Rds(on)Max (Ω)	Id (A)		SOA (W)
APL602xxx		600		0.125	43-49		325
APL502xxx		500		0.90	52-58		325
Power Discretes: Silicon and Silicon Carbide Diodes
Series	Voltage Ratings		Features		Applications		Comment
D	200, 300, 400, 600, 1000, 1200		Medium Vf, Medium speed		Freewheeling diode, Output rectifier, DC-DC converter		Proprietary platinum process
DQ	600, 1000, 1200		High speed, Avalanche rated		PFC, Freewheeling diode, DC-DC converter		Stopped EPI Improves softness Proprietary platinum process
Schottky	200		Low Vf, Avalanche rated		Output rectifier, Freewheeling diode, DC-DC converter		API-602xxx
SIC Schottky	700, 1200, 1700		Zero reverse recovery		PFC, Freewheeling diode, DC-DC converter		Low switching losses, high power density and high-temperature operation
Power Discretes: High-Voltage RF MOSFETs
Part Number	Pout(W)	Freq.(MHz)	Package Style	Class of Operation	Comments
ARFxxxxxxx	90-750	25-120	TO-247, M174, TO-264, T3A, T3, T3C, T1, T2	A-E	The ARF family of RF power MOSFETs is optimized for applications requiring frequencies as high as 150 MHz and operating voltages as high as 400V
VRFxxxxxxx	30-600	30-175	M113, M174, M177, M208, T2	-	The VRF family of RF MOSFETs includes improved replacements for industry-standard RF transistors. They provide improved ruggedness by increasing the Bvdss over 30 percent from the industry-stan-dard 125V to 170V minimum
DRFxxxxxxx	400-2000	30	T2B, T4, T4A, T5	D-E	The DRF family of RF solutions integrate drivers, bypass capacitors and RF MOSFETs into a single package

Power Modules: Standard Configurations
Electrical Topology	IGBT600V to 1700V	MOSFET75V to 1200V	DIODE200V to 1700V	Mix SI-SIC600V to 1200V	SIC DIODE600V to 1200V	SIC MOSFET600V to 1700V	Packages
Asymmetrical Bridge	50A to 300A 64A to 207A ---- SP1, SP3F, SP4, SP6
Boost buck	100A 70A ---- SP3F
Boost and Buck Chopper	30A to 600A 17A to 370A - 15A to 107A - 50A and 100A						SOT-227, SP1, SP3F, SP4, SP6, D3
Common Anode	-- 400A --- SP8
Common Cathode	-- 400A - 100A to 600A - D1P, SP6
Dual boost and Buck Chopper	50A to 90A 17A to 100A - 40A -- SP1, SP3F
Dual Common Source	50A to 600A 45A to 370A ---- SP4, SP6
Dual Diode	---- 20A to 100A - SOT-227
Full Bridge	20A to 300A 6A to 207A 30A to 200A - 20A to 200A	110A					SOT-227, SP1, SP2, SP3F, SP4, SP6
Full Bridge With PFC	38A	29A and 38A	- 38A -- SP3F
Full Bridge With Fast Rectifier Diode Bridge	38A and 50A	29A and 38A	- 38A -- SP3F
Full bridge With Series and Parallel Diodes	-	13A to 62A	-	11A to 38A	-	-	SP4
Interleaved PFC	-	38A and 70A	---- SP1, SP3F
Linear Single and Dual Switch	-	14A and 33A	---- SP1, SP3F
Phase Leg	30A to 600A 25A to 370A	400A - 100A to 600A	40A to 586A				SP1, SP2, SP3F, SP4, SP6, SP6LI, D1P, D3
Phase Leg With Gate Driver	300A to 400A ---- LP8
Phase Leg With PFC	-	27A and 38A	---- SP3F
Phase Leg With Series and Parallel Diodes	- 26A to 225A - 21A to 110A -- SP4, SP6
Single switch	400A to 750A	97A to 640A	400A to 500A	-	-	-	SP6, D4, LP4
Single Switch With Series and Parallel Diodes	- 88A to 310A - 86A and 110A -- SP6
Single Switch With Series Diodes	475A	110A to 160A ---- SP6
3-Level NPC Inverter	20A to 300A 30A to 75A	---- 20A to 160A	SP1, SP3F, SP6
3-Level T-Type Inverter	40A to 200A ----	20A and 50A SP3F, SP6
3-Phase Bridge	30A to 75A	-	-	40A and 90A	50A	-	SP1, SP3F
Triple Dual Common Source	50A to 160A	21A and 54A	---- SP6-P
Triple Phase Leg	30A to 160A	17A to 100A	-	50A and 87A	-	55A to 150A	SP3F, SP6-P

Hi Rel Discrete Solutions (HRDS) Product Portfolio

Product Family	Type Polarity Rated Voltage Rated Current Rated Power Max T) (					°C) Package Qual Level			CHIP Availability	RAD HARD Availability
Bipolar Transistor	Power Transistor	NPN/PNP	40V to 760V	0.2A to 50A	0.75W to 300W	150 to 200	Metal/Ceramic - TO's and LCC's	MIL-PRF-19500 up to JANS	on Select	on Select
	Darlington Transistor	NPN/PNP	40V to 450V	5A to 20A	1W to 175W	175 to 200	Metal - TO's	MIL-PRF-19500 up to JANTXV	on Select	on Select
	Small Signal Transistor	NPN/PNP, Singles, Duals and Quads	10V to 450V	0.01A to 3A	0.16W to 5W	175 to 200	Metal/Ceramic - TO's, LCC's FP and DIP's	MIL-PRF-19500 up to JANS	on Select	on Select
	Small Signal RF Transistor	NPN/PNP	12V to 30V	0.03 to 0.04A	0.2W to 1W	200	Metal/Ceramic - TO's and LCC's	MIL-PRF-19500 up to JANS	on Select	on Select
Field Effect Transistor	JFET	P, N and Matched	30V to 50V	0.0015A to 0.175A	0.3W to 0.5W	175 to 200	Metal/Ceramic - TO's and LCC's	To be Qualified	on Select	on Select
	MOSFET's	N Channel	100V to 250V	12.4A to 56A	75W to 250W	150	Metal/Ceramic - TO's and LCC's	To be Qualified	on Select	Yes
Diode	Small Signal Diodes	PN, Singles and Duals	50V to 225V	0.075A to 0.3A		175 to 200	Glass - DO's and Metal/Ceramic - LCC's	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	Rectifier	PN, Singles,Duals, Stacked, Bridge	50V to 1600V	0.12A to 300A		150 to 200	Glass/Metal - DO's and Metal/Ceramic - LCC's	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	High Voltage Rectifier	PN Single and Stacked	1000V to 3000V	0.1A		175	Glass - DO's	MIL-PRF-19500 up to JANTX	Not Applicable	Not Applicable
	Power Schottky	N and N Dual	15V to 150V	3A to 150A		125 to 150	Metal/Ceramic - TO's, LCC's, ThinKey	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	Small Signal Schottky - Hemetic	N and N Dual	20V to 100V	0.033A to 1A		125 to 150	Glass - DO's and Metal/Ceramic - LCC's	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	Small Signal Schottky - Non Hermetic	N and N Dual	20V to 100V	0.033A to 1A		125 to 150	Plastic - DO's, PowerMite	Up to MX level	on Select	Not Applicable
Regulators/TVS	TVS - Hermetic	Unipolar and Bipolar	5V to 185V	1.7A to 440A	500W to 5000W	175	Glass/Metal - DO's and Ceramic - ThinKey	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	TVS - Non Hermetic	Unipolar and Bipolar	5V to 185V	1.7A to 440A	500W to 5000W	175	Plastic - DO's, PowerMite and PLAD	Up to MX level	on Select	Not Applicable
	Voltage Regulator (Zener)	PN	1.8V to 390V	0.00046A to 12.4A	0.5W to 50W	175	Glass/Metal - DO's and Metal - TO's	MIL-PRF-19500 up to JANS	on Select	Not Applicable
	Temperature Compensated Zeners	PN/NP	6.2V to 49.6V	0.0005A to 0.01A	to 0.5W	100 to 175	Glass - DO's	MIL-PRF-19500 up to JANS	on Select	on Select
	Current Regulators	JFET	50V to 100V	0.0002A to 0.01A	0.5W	175	Glass - DO's	MIL-PRF-19500 up to JANS	on Select	Not Applicable
Modules	Arrays and Bridges	PN and Arrays	60V to 1000V	0.3A to 25A	0.5W and up	150	DIP's and Epoxy Filled Cases	MIL-PRF-19500 up to JANTX	Not Applicable	Not Applicable

Motor and Actuator Drives

Part Number

Product

Description

Power rating (KVA)

Nominal High Voltage Input (V)

Nominal Low Voltage Input (V)

Nom. Output Current (A)

Max. Output Current (A)

Power Architecture

Semiconductor Technology

Operating Temp. Range (°C)

Dimensions (mm)

Package

MAICMMC40X120A

PCM510

Power Core Module (PCM) with telemetry monitoring, control, communications, power bridge and fully integrated gate drive

5

540

15

12.5

25

3-phase bridge

SiC MOSFET or Si IGBT

-55 to +110

105 x 85 x 30

Right-angle connector

MAICMMC40X120B

PCM510

Power Core Module (PCM) with telemetry monitoring, control, communications, power bridge and fully integrated gate drive

5

540

15

12.5

25

3-phase bridge

SiC MOSFET or Si IGBT

-55 to +110

105 x 85 x 30

Straight connector

MAIPDMC40X120A

HPD610

Hybrid Power Drive (HPD) with power bridge and fully integrated gate drive

5

540

15

12.5

25

3-phase bridge

SiC MOSFET or Si IGBT

-55 to +110

105 x 85 x 25

Screw terminals

MAIPDMC40X120C

HPD620

Hybrid Power Drive (HPD) with power bridge and fully integrated gate drive

5

540

15

12.5

25

3-phase bridge

SiC MOSFET or Si IGBT

-55 to +110

92 x 82 x 19

Soldered pins

Radiation Hardened Power Supplies

Part Number

Product

Description

Power rating (W)

Nominal Voltage Input (V)

Outputs

Efficiency

Nom. Output Current (A)

Radiation

Power Architecture

Features

Operating Temp. Range (°C)

Dimensions (mm)

Weight

SA50-120-5S

SA Series DC - DC Converters

Space grade non-hybrid DC-DC Converter Single Output

50

120

Single 3.3V to 28V

65%

2A to 10A 100kRad

Forward Converter

Enable; Sync; Adjust; Parallel

-55 to +105

2 x 3 x 0.5

110 gm

SA50-120-5-15T

SA Series DC - DC Converters

Space grade non-hybrid DC-DC Converter Triple Output

50

120

Triple (Dual) 3.3V to 28V

65%

1A to 10A 100kRad

Forward Converter

Enable; Sync -55 to -105

2 x 3 x 0.5

110 gm

Integrated Power Solutions: Relays

Hermatically Sealed Power Relays

# of Poles

Latch/Non-Latch

Suppressed Coils Available

Space grade Available per NASA EEE-INST-002

Contact Rating @28 VDC or 115V 400 Hz

Coil AC/DC Coil

DC Coil Voltages (V)

Pull-in power (mW)

Contact Resistance (Ohms)

Insulation Resistance @500 Vdc

Dielectric @Vac

Temperature Rating (°C)

Design to meet or exceed MIL-PRF Reference

Terminal options

Dimensions in Inches less mounting Brackets (L x Wx H)

Resistive Load (ohms)

Inductive Load (ohms)

Motor Load (ohms)

Low Level 10-50 μA @ 10-50 mv

Gold Plated plug-In

Solder pin

3 long pins

Solder Hook

BR10

2PDT Non-latch No 1

--X DC 6, 12, 18, 26

100.0500 10 K MΩ 250-500 65-125 MIL-PRF-39016

√

√

√

√

0.5 x 0.24 x 0.4

BR13

2PDT Non-latch

No

2-3-5

-

-

X

DC

6, 12, 26, 115

40, 100, 250

0.060Ω

10 K MΩ

500-1000

65-125

MIL-PRF-39016

-

√

√

0.81 x 0.41 x 0.90

BR15

4PDT Non-latch

√

5-7.5-10

1.75-2.5-3.5

-X

115 VAC/DC 6, 12, 26, 115

400, 500, 1000

0.010Ω

10 K MΩ

1000-1250

65-125

MIL-PRF-39016

√

√

-

√

1 x 1 x 1.3

BR19

2PDT Non-latch

No

5, 7.5, 10

1.75-2.5-3.5

-

X

115 VAC/DC

6, 12, 26, 48, 115

175, 500

0.010Ω

10 K MΩ

1000-1250

65-125

MIL-PRF-39016

√

√

√

-

1.08 x 0.52 x 1.3

BR20

2PDT Latch

No

10

3.5

4

X

DC

6, 12, 26, 48, 115

130, 250

0.010Ω

10 K MΩ

1000-1250

65-125

MIL-PRF-39016

√

√

-

√

1.08 x 0.52x 1.3

BR23

4PDT Latch

√

10

3.5

4

X

DC

6, 12, 26, 48, 115

250, 500

0.010Ω

10 K MΩ

500-1250

65-125

MIL-PRF-39016

√

√

-

√

1 x 1 x 1.3

BR24

2PDT Non-latch Yes

Yes

No

10

3.5

4

X

DC

6, 12, 26

400

0.010Ω

10 K MΩ

500-1000

65-125

MIL-PRF-39016

√

√

-

√

1.02 x 0.52 x 0.89

BR26

2PDT Non-latch

No

2

-

-

X

DC

6, 12, 26

250

0.050Ω

10 K MΩ

500-1000

65-125

MIL-PRF-39016

√

√

-

√

0.81 x 0.4 x 0.41

BR246

2PDT Non-latch Yes

√

10

8

2.5

-

115 VAC/DC

6, 12, 28, 48

500

0.010Ω

100 MΩ

1000-1250

65-125

MIL-PRF-83536

√

√

√

√

1.03 x 5.3 x 1.01

BR247

2PDT Latch Yes

Yes

√

10

8

2.5

-

115 VAC/DC

6, 12, 28, 49

500

0.010Ω

100 MΩ

1000-1250

65-125

MIL-PRF-83536

√

√

√

√

1.03 x 5.3 x 1.01

BR230

4PDT Non-latch Yes

√

10

8

2.5

-

115 VAC/DC

6, 12, 28, 50

500

0.010Ω

100 MΩ

1000-1250

65-125

MIL-PRF-83536

√

√

-

√

1.03 x 1.0 3x 1.01

BR231

4PDT Latch Yes

√

10

8

2.5

-

115 VAC/DC

6, 12, 28, 51

500

0.010Ω

100 MΩ

1000-1250

65-125

MIL-PRF-83536

√

√

-

√

1.03 x 1.03 x 1.01

BR250

2PDT Non-latch Yes

√

25

15

6

-

115 VAC/DC

6, 12, 28, 52

500

0.006Ω

100 MΩ

1000-1250

66-125

MIL-PRF-83536

√

√

-

√

1.03 x 5.3 x 1.01

BR246-SXXX

2PDT Non-latch Yes

-

10

8

2.5

-

115 VAC/DC

6, 12, 28, 48

500

0.010Ω

100 MΩ

1000-1250

40-200

MIL-PRF-83536

-

√

-

√

1.03 x 0.53 x 1.01

BR250-SXXX

2PDT Non-latch Yes

-

25

15

5

-

115 VAC/DC

6, 12, 28, 52

500

0.006Ω

100 MΩ

1000-1250

40-200

MIL-PRF-83536

-

√

-

√

1.03 x 0.53 x 1.01

Integrated Power Solutions: Remote Power Controllers

Remote Power Controllers

#of Poles

Latch/Non-Latch

Contact Rating @28 VDC or 115V 400 Hz

Coil AC/DC Coil

Contac Voltage Drop at Rated Current

Insulation Resistance @500 Vdc

Dielectric @Vac

MIL-PRF Reference

Options

BI-Directional

Temperature Rating

Features

Resistive Load (ohms)

Motor Load (ohms)

Factory Current Trip Currents

Factory Current Trip Times

Adjusted to Customers Specifications

Auxiliary Switch

701

SPST

Magnetic Latching

5-200 Amps @ 28 VDC

5-200 Amps @ 28 VDC

28 VDC

.225 mv

100 MΩ

1350-1500

MIL-PRF-83383

√

√

√

√

-55°C to 85°C

1500 watts of Peak Power Dissipation transient suppression

702

SPST

Magnetic Latching

5-200 Amps @ 28 VDC or 115/208V 400 Hz

5-200 Amps @ 28 VDC or 115/208V 400 Hz

28 VDC or 115 VAC 400 HZ

.225 mv

100 MΩ

1350-1500

MIL-PRF-83383

√

√

√

√

-55°C to 85°C

703

3PST Magnetic Latching

Magnetic Latching

5-150 Amps @ 115/208V 400 Hz

5-150 Amps @ 115/208V 400 Hz

28 VDC or 115 VAC 400 HZ

.225 mv

100 MΩ

1350-1500

MIL-PRF-83383

√

√

√

√

-55°C to 85°C

PoE PSE ICs

Product Description

Product Type

Standards Supported

Ports

2-Pair Power

4-Pair Power

Maximum Current

PoE Class (0-8)

PoE Type (1-4)

FETs

Sense Resistor

Operating Temperature

PoE Controller

Host Interface

Temperature Grade

Package Type

Package Carrier

PD69101ILQ-TR

IEEE 802.3at single port PoE PSE controller + manager, industrial temp

PSE Manager

IEEE 802.3af IEEE 802.3at

1 36.25W NA 0.725A 0-4

1-2

Internal 0.3Ω

External 0.5Ω

-40°C to 85°C

Auto mode

Serial monitoring

Industrial

24 QFN 4 mm x 5 mm

Tape and reel

PD69104B1ILQ-TR

IEEE 802.3at / UPoE, 4 ports PSE controller + manager

PSE Manager

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at UPoE

4 36W 72W 0.725A 0-4

1-2

Internal 0.3Ω

External 0.36Ω

-40°C to 85°C

Auto mode

PC UART

Commercial

48 QFN 8 mm x 8 mm

Tape and reel

PD69104B1FILQ-TR

IEEE 802.3at / UPoE, 4 ports PSE controller + manager

PSE Manager

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at UPoE

4 36W 72W 0.725A 0-4

1-2

Internal 0.3Ω

External 0,36Ω

-40°C to 85°C

Auto mode

PC UART

Commercial

48 QFN 8 mm x 8 mm

Tape and reel

PD69108ILQ-TR

IEEE 802.3at / UPoE / PoH, 8 ports PSE controller + manager

PSE Manager

IEEE 802.3af IEEE 802.3at UPoE PoH

8 50W 100W 1A

0-4

1-2

Internal 0.3Ω

External 0.36Ω

-40°C to 85°C

PD69100 / Marvell ISSR

PC UART

Industrial

48 QFN 8 mm x 8 mm

Tape and reel

PD69200X-GGGG

IEEE 802.3bt / UPoE / PoH PoE controller

PoE Controller

IEEE 802.3af IEEE 802.3at IEEE 802.3bt UPoE PoH

96 NA NA NA NA

NA NA

-40°C to 85°C

NA

PC UART

Industrial

32 QFN 5 mm x 5 mm

Tray

PD69204T4ILQ-TR-LE

IEEE 802.3bt Type 4 / UPoE / PoH, 4 ports, fully integrated PSE manager, industrial temp

PSE Manager

IEEE 802.3af IEEE 802.3at IEEE 802.3bt UPoE PoH

4 47.5W 95W 0.94A

0-8

1-4

Internal 0.2Ω

Internal 0.1Ω

-40°C to 85°C

PD69200 / PD69210 / Marvell ISSR

NA

Industrial

56 QFN 8 mm x 8 mm

Tape and reel

PD69208MILQ-TR-LE

IEEE 802.3bt Type 3 / UPoE / PoH, 8 ports, fully integrated PSE manager, industrial temp

PSE Manager

IEEE 802.3af IEEE 802.3at IEEE 802.3bt UPoE PoH

8 35.7W

71.4W

0.627A 0-6

1-3

Internal 0.2Ω

Internal 0.1Ω

-40°C to 85°C

PD69200 / PD69210 / Marvell ISSR

NA

Industrial

56 QFN 8 mm x 8 mm

Tape and reel

PD69208T4ILQ-TR-LE

IEEE 802.3bt Type 4 / UPoE / PoH, 8 ports, fully integrated PSE manager, industrial temp

PSE Manager

IEEE 802.3af IEEE 802.3at IEEE 802.3bt UPoE PoH

8 47.5W 95W

0.94A

0-8

1-4

Internal 0.2Ω

Internal 0.1Ω

-40°C to 85°C

PD69200 / PD69210 / Marvell ISSR

NA

Industrial

56 QFN 8 mm x 8 mm

Tape and reel

PD69210X-GGGG

IEEE 802.3bt / UPoE / PoH PoE controller

PoE Controller

IEEE 802.3af IEEE 802.3at IEEE 802.3bt UPoE PoH

96 NA NA

NA NA

NA NA

-40°C to 85°C

NA

PC UART

Industrial

32 QFN 5 mm x 5 mm

Tray

PoE PSE EVBs

Product Description	Product Type	Standards Supported	Number of Ports	2-Pair Power	4-Pair Power	PoE Class (0-8)	PoE Type (1-4)	PD-PSE Power Forwarding	Host Interface Featured
PD-IM-7401	IEEE 802.3at, Dual-port PSE EVB featuring PD69101 PSE IC	IEEE 802.3afIEEE 802.3at	2 36W NA 0-4 1-2 No Serial PD69101
PD-IM-7504B	IEEE 802.3at/UPoE, 4 ports PSE EVB featuring PD69104B1 PSE IC	IEEE 802.3afIEEE 802.3at	4 36W 72W 0-4 1-2 No					IPCUART	PD69104B1
PD-IM-7604-4MH	IEEE 802.3 at/bt Type 3, 4 x 2-pair + 4 x 4-Pair ports PSE EVB featuring PD69208M and PD69200, LED stream support	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3bt	8 35.7W 71.4W 0-6 1-3 No		USB (PC)			PD69208MPD69200
PD-IM-7604-4T4H	IEEE 802.3 at/bt Type 4, 4 x 2-pair + 4 x 4-Pair ports PSE EVB featuring PD69208T4, PD69204T4 and PD69200, LED stream support	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3btPoH	8 47.5W	95W 0-8 1-4 No	USB (PC)			PD69208T4PD69204T4PD69200
PD-IM-7608M	IEEE 802.3 at/bt Type 3, 8 ports PSE EVB featuring PD69208M and PD69200, LED stream support	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3bt	8 35.7W 71.4W 0-4 1-2 No		USB (PC)			PD69208MPD69200
PD-IM-7608M-2	IEEE 802.3 at/bt Type 3, 2 PoE Inputs and 8 PSE ports out EVB PSE EVB featuring PD69208M, PD69200, PD70224 IdealBridgeTM and PD70211 PD ICs	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3bt	8 35.7W 71.4W 0-6 1-3 Yes				IPCUSB (PC)SPI (Internal Use)	PD69208MPD69200PD70224PD70211
PD-IM-7618T4	IEEE 802.3 at/bt Type 3, eight 2-pair ports PSE EVB featuring PD69208T4 and PD69210, LED stream support	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3bt	8 30W				UARTUSB	PD69208T4PD69210
PD-IM-7618T4H	IEEE 802.3 at/bt Type 4, eight 4-pair ports PSE EVB featuring PD69208T4 and PD69210, LED stream support	PSE IC	IEEE 802.3afIEEE 802.3atIEEE 802.3bt	8		90W			UARTUSB	PD69208T4PD69210

PoE PD ICs

Product

Description

Product Type

Standards Supported

IC Type

PoE Type

PoE Class

Output Power

Maximum Current

Maximum Channel Resistance

Operating Temperature (°C)

Temperature Grade

Integrated PWM Controller

Package Type

Package Carrier

PD70100ILD-TR

IEEE 802.3af Type 1, PD Front-end IC w/ internal 0.6 Ohm FET

PD IC

IEEE 802.3af

PD front end

AF Type 1

1-3

15.4W

0.45A

0.6Ω

-40 to +85

Industrial

No

12 DFN 4 mm x 3 mm

Tape and reel

PD70101ILQ-TR

IEEE 802.3af Type 1, PD front-end and PWM controller IC w/internal 0.6 Ohm FET

PD IC IEEE 802.3af

PD front end + PWM controller

AF Type 1

1-3

15.4W

0.45A

0.6Ω

-40 to +85

Industrial

Yes

32 QFN 5 mm x 5 mm

Tape and reel

PD70200ILD-TR

IEEE 802.3at Type 2, PD front-end IC w/ internal 0.6 Ohm FET

PD IC

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at

PD front end

AT Type 2

1-4

47W

1.2A

0.6Ω

-40 to +85

Industrial

No

12-DFN 4 mm x 3 mm

Tape and reel

PD70201ILQ-TR

IEEE 802.3at Type 2, PD front-end and PWM controller IC w/Internal 0.6 Ohm FET

PD IC

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at

PD front end + PWM controller

AT Type 2

1-4

47W

1.2A

0.6Ω

-40 to +85

Industrial

Yes

32 QFN 5 mm x 5 mm

Tape and reel

PD70210ILD-TR

IEEE 802.3at Type 2 / PoH PD front-end IC w/Internal 0.3 Ohm FET

PD IC

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at PoH

PD front end

AT Type 2/ PoH

1-4

95W

2A

0.3Ω

-40 to -85

Industrial

No

16 DFN 5 mm x 4 mm

Tape and reel

PD70210AILD-TR

IEEE 802.3at Type 2 / PoH PD front-end IC w/Internal 0.3 Ohm FET and Wall Adapter support

PD IC

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at PoH

PD front end

AT Type 2/ PoH

1-4

95W

2A

0.3Ω

-40 to -85

Industrial

No

16 DFN 5 mm x 4 mm

Tape and reel

PD70211ILQ-TR

IEEE 802.3at Type 2 / PoH PD front-end and PWM controller IC w/Internal 0.3 Ohm FET

PD IC

IEEE 802.3af IEEE 802.3at Dual-IEEE 802.3at PoH

PD Front end + PWM controller

AT Type 2/ PoH

1-4

95W

2A

0.3Ω

-40 to -85

Industrial

Yes

36 QFN 6 mm x 6 mm

Tape and reel

PD70224ILQ-TR

IEEE 802.3at/bt Type 2 / PoH IdeaBridggtM dual MOSFET-bridge rectifier

PoE IdeaBridg

IEEE 802.3af IEEE 802.3at IEEE 802.3bt PoH

Ideal diode bridge

AT/BT Type 2 /PoH

1-8

95W

2A

0.76Ω

-40 to +85

Industrial

NA

40 QFN 6 mm x 8 mm

Tape and reel

PoE PD EVBs

Product Description Product Type

Standards Supported

IC Used Power

PoE Class (1-8)

PoE Type (1-4)

Output Voltage

Output Current

PD-PSE Power Forwarding

Diode Bridge

Auxiliary Power Priority

Topology

PD70100EVB15B

IEEE 802.3af/bt Type 1 PD EVB featuring PD70100 w/3 output voltages

PD EVB

IEEE 802.3af IEEE 802.3at

PD70100 15W 3 1

12V 0.6A

No Standard Yes Buck3.3V 2A

1.8V 0.6A

PD70101EVB3F

IEEE 802.3af/bt Type 1 PD EVB featuring PD70101 w/ isolated flyback converter, 3.3V 1Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70101

3.3W

3

1

3.3V

1A

No

Standard

Yes

Flyback

PD70101EVB6F

IEEE 802.3af/bt Type 1 PD EVB featuring PD70101 w/ isolated flyback converter, 5V 1.2Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70101

6W

3

1

5V

1.2A

No

Standard

Yes

Flyback

PD70101EVB15F-5

IEEE 802.3af/bt Type 1 PD EVB featuring PD70101 w/ isolated flyback converter, 5V 2.6Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70101 13W 3 1

5V 2.6A No Standard Yes Flyback

PD70101EVB15F-12

IEEE 802.3af/bt Type 1 PD EVB featuring PD70101 w/ isolated flyback converter, 12V 1.1Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70101

13.2W

3

1

12V

1.1A

No

Standard

Yes

Flyback

PD70201EVB25F-3

IEEE 802.3af/bt Type 2 PD EVB featuring PD70201 w/ isolated flyback converter, 3.3V 7.5A output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201 25W 4 2 3.3V 7.5A No

Ideal No

Flyback

PD70201EVB25F-5

IEEE 802.3af/bt Type 2 PD EVB featuring PD70201 w/ isolated flyback converter, 5V 5Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

25W

4

2

5V

5A

No

Ideal

No

Flyback

PD70201EVB25F-12

IEEE 802.3af/bt Type 2 PD EVB featuring PD70201 w/ isolated flyback converter, 12V 2.1Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

25W

4

2

12V

2.1A

No

Ideal

No

Flyback

PD70201EVB25F-D-5

IEEE 802.3af/bt Type 2 PD Compact EVB featuring PD70201 w/ isolated flyback converter, 5V 5Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

25W

4

2

5V

5A

No

Ideal

Yes

Flyback

PD70201EVB25FW-3

Dual-IEEE 802.3af Type 2 (4 pair) PD EVB featuring PD70201, 4 pair supply w/isolated Forward converter, 3.3V 7.5A output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

25W

4

2

3.3V

7.5A

No

Ideal

Yes

Active clamp forward

PD70201EVB47F

IEEE 802.3af/bt Type 2 PD EVB featuring PD70201 w/ isolated flyback converter, 12V 4Amp output

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

48W

4

2

12V

4A

No

Ideal

Yes

Flyback

PD70201EVB-U-25F-5

IEEE 802.3af/bt Type 2 PD EVB featuring PD70201 w/ isolated flyback converter, 5V 5Amp output, 17-54V Input range

PD EVB

IEEE 802.3af IEEE 802.3at

PD70201

25W

4

2

5V

5A

No

Standard

Yes

Flyback

PD70211EVB50FW-3

Dual-IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70211, 4 pair supply w/isolated Forward converter, 3.3V 15A output

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70211

50W

4

2

3.3V

15A

No

Ideal

Yes

Active clamp forward

PD70211EVB50FW-5

Dual-IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70211, 4 pair supply w/isolated Forward converter, 5V 10A output

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70211

50W

4

2

5V

10A

No

Ideal

Yes

Active clamp forward

PD70211EVB51F-12

Dual-IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70211, 4 pair supply w/isolated Forward converter, 12V 4.17A output

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70211

51W

4

2

12V

4.25A

No

Ideal

Yes

Flyback

PD70211EVB72FW-12

Dual-IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70211, 4 pair supply w/isolated Forward converter, 12V 6A output

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70211

72W

4

2

12V

6A

No

Ideal

Yes

Active clamp forward

PD70224EVB

Dual IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70210 PD and PD70224 IdealBridgeTM

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70210 PD70224

72W

4

2

NA

NA

No

Ideal

No

PD70224EVB-wAuxPwr

Dual IEEE 802.3af/bt Type 2/PoH PD EVB featuring PD70210A PD and PD70224 IdealBridge

PD EVB

IEEE 802.3af IEEE 802.3at PoH

PD70210A PD70224

72W

4

2

NA

NA

No

Ideal

Yes

PoE Systems
Product Description		Operating Environment	Power Per Port	Number of Ports	Data Rate	Managed Input	Power Package Type
PD-3501GC/AC-XX	1 port, 15.4W, IEEE 802.3af-compliant indoor PoE midspan Indoor 15.4W 1 1G No AC Standalone Unit
PD-3504G/AC-XX	4 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan Indoor 15.4W 4 1G No AC Standalone unit
PD-6512G/AC/M-XX	12 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan, managed	Indoor	15.4W	12	1G	Yes	AC	Standalone unit
PD-6524G/AC/M/F-XX	24 ports, 15.4W, IEEE 802.3af-compliant indoor PoE midspan, managed	Indoor	15.4W	24	1G	Yes	AC	Standalone unit
PD-9001GC/AC-XX	1 port, 30W, IEEE 802.3at-compliant indoor PoE midspan	Indoor 30W	1 1G No AC Standalone Unit
PD-9001-10GC/AC-XX	1 port, 30W, IEEE 802.3at-compliant indoor PoE midspan with 10G data rate	Indoor	30W	1	1G	No	AC	Standalone Unit
PD-9001GR/SP/AC-XX	1 port, 30W, IEEE 802.3at, indoor PoE midspan with surge protection	Indoor	30W	1	1G	No	AC	Standalone unit
PD-9004G/AC-XX	4 ports, 30W, IEEE 802.3at-compliant indoor PoE midspan	Indoor 30W	4 1G No AC Standalone unit
PD-9006G/ACDC/M-XX	6 ports, 30W, IEEE 802.3at-compliant, indoor PoE midspan, managed	Indoor	30W	6	1G	Yes	AC and DC	Standalone unit
PD-9012G/ACDC/M-XX	12 ports, 30W, IEEE 802.3at-compliant, indoor PoE midspan, managed	Indoor	30W	12	1G	Yes	AC and DC	Standalone unit
PD-9024G/ACDC/M-XX	24 ports, 30W, IEEE 802.3at-compliant, indoor PoE midspan, managed	Indoor	30W	24	1G	Yes	AC and DC	Standalone unit
PD-9501GC/AC-XX	1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan	Indoor 60W	1 1G No AC Standalone unit
PD-9501-10GC/AC-XX	1 port, 60W, IEEE 802.3bt-compliant indoor PoE midspan with 10G data rate	Indoor	60W	1	1G	No	AC	Standalone unit
PD-9501G/48VDC-XX	1 port, 60W, IEEE 802.3at compliant indoor PoE midspan	Indoor 60W	1 1G No DC Standalone unit
PD-9501GR/SP/AC-XX	1 port, 60W, IEEE 802.3at-compliant indoor PoE midspan with surge protection	Indoor	60W	1	1G	No	AC	Standalone unit
PD-9501GCS/AC-XX	1 port, 60W, IEEE 802.3bt-compliant PoE media converter to extend existing network distance with fiber cabling	Indoor	60W	1	1G	No	AC	Standalone unit
PD-9506GC/AC-XX	6 ports, 60W, IEEE 802.3bt-compliant, indoor EEPoE midspan, managed	Indoor	60W	6	1G	Yes	AC	Standalone unit
PD-9512GC/AC-XX	12 ports, 60W, IEEE 802.3bt-compliant, indoor EEPoE midspan, managed	Indoor	60W	12	1G	Yes	AC and DC	Standalone unit
PD-9524GC/AC-XX	24 ports, 60W, IEEE 802.3bt-compliant, indoor EEPoE midspan, managed	Indoor	60W	24	1G	Yes	AC and DC	Standalone unit
PD-9601GC/AC-XX	1 port, 90W, IEEE 802.3bt-compliant indoor port PoE midspan	Indoor	90W	1	1G	No	AC	Standalone unit
PD-9606GC/AC-XX	6 ports, 90W, IEEE 802.3bt-compliant indoor PoE midspan, managed	Indoor	90W	6	1G	Yes	AC	Standalone unit
PD-9612GC/AC-XX	12 ports, 90W, IEEE 802.3bt-compliant indoor PoE midspan, managed	Indoor	90W	12	1G	Yes	AC and DC	Standalone unit
PD-9624GC/AC-XX	24 ports, 90W, IEEE 802.3bt-compliant indoor PoE midspan, managed	Indoor	90W	24	1G	Yes	AC and DC	Standalone unit
PDS-408G/AC-XX	8+3 ports, 90W, IEEE 802.3bt-compliant, fanless PoE switch for digital ceiling, managed	Indoor	90W	8+3	1G	Yes	AC	Standalone unit
PD-9001GCO/AC	1 port, 30W, IEEE 802.3at-compliant, IP67 outdoor PoE midspan with extended temperature range	Outdoor	30W	1	1G	No	AC	Standalone unit
PD-9501GCO/AC	1 port, 60W, IEEE 802.3bt-compliant, IP67 outdoor PoE midspan with extended temperature range	Outdoor	60W	1	1G	No	AC	Standalone unit
PDS-104GO/AC/M-IN	4 ports, 60W, outdoor PoE switch with surge protection and international power cord, managed	Outdoor	60W	4	1G	Yes	AC	Standalone unit
PDS-104GO/AC/M-NA	4 ports, 60W, outdoor PoE switch with surge protection and North America power cord, managed	Outdoor	60W	4	1G	Yes	AC	Standalone unit
PD-9601GO/AC	1 port, 90W, IEEE 802.3at-compliant, outdoor PoE midspan with surge protection	Outdoor	90W	1	1G	No	AC	Standalone unit
PD-9001GCI/DC	1 port, 30W, IEEE 802.3at-compliant industrial grade PoE midspan	Industrial	30W	1	1G	No	DC	Standalone unit
PD-9501GCI/DCF	1 port, 60W, IEEE 802.3bt-compliant industrial grade PoE midspan	Industrial	60W	1	1G	No	DC	Standalone unit
PD-AS-951/12-24	Single port PoE splitter for contemporary devices unable to accept power via Ethernet	Indoor	54W	1	1G		PoE	Standalone unit
PD-POE-EXTENDER	Single port PoE extender to extend Ethernet network range beyond 100m	Indoor	30W	1	1G		DC	Standalone unit
PD-OUT/SP11	Single port PoE surge protector for Ethernet networks with outdoor PoE midspans and powered devices	Outdoor		1	1G		DC	Standalone unit
PoE Tester	PoE tester to test RJ-45 for PoE	Indoor			1G		PoE	Standalone unit

Touch and 3D Gesture Control: Capacitive Touch Controllers

Product Buttons		LED Drivers	Additional Features Proximity Interface			Safety certified Touch VDE/UL 60730 class B	Voltage (V) Pins Packages
AT42QT1010	1 - adjustable sensitivity, noise filtering			✓	GPIO 1.8-5.5 6/8 SOT-23, UDFN
AT42QT1011	1 - adjustable sensitivity, noise filtering			✓	GPIO 1.8-5.5 6/8 SOT-23, UDFN
AT42QT1012	1 - adjustable sensitivity, noise rejection filters, low-power mode			✓	GPIO 1.8-5.5 6/8 SOT-23, UDFN
AT42QT1040	4	-	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		GPIO		1.8-5.5	20	VQFN
AT42QT1050	5	-	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		PC/GPIO		1.8-5.5	12/20	VQFN, WLCSP
AT42QT1060	6	-	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		PC/GPIO		1.8-5.5	28	VQFN
AT42QT1070	7	-	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		PC/GPIO		1.8-5.5	14/20	SOIC, VQFN
AT42QT2100	10	-	slider/wheel, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		SPI/GPIO		2.0-5.5	32	VQFN
AT42QT1110	11	-	adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		SPI/GPIO		3.0-5.5	32	TQFP, VQFN
AT42QT2120	12	-	slider/wheel, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)	✓	PC		1.8-5.5 20	SOIC, TSSOP, VQFN
AT42QT2160	16	-	slider/wheel, adjustable sensitivity, noise rejection filters, low-power mode, Adjacent key suppression (AKS)		PC		1.8-5.5	28	VQFN
AT42QT1244	24	-	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters, Adjacent key suppression (AKS)		PC	✓	3.0-5.5 32	TCFP, VQFN
AT42QT1245	24	-	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters, Adjacent key suppression (AKS)		SPI	✓	3.0-5.5 32	TCFP, VQFN
AT42QT1481	48	-	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters		SPI/UART	✓	4.8-5.3 44		TQFP
AT42QT2640	64	-	IEC/EN/UL60730 Class B safety, FMEA, adjustable sensitivity, noise rejection filters		SPI	✓	4.8-5.3 44		TQFP
CAP1133	3 3		alert, automatic calibration, base capacitance compensation	✓	PC		3.0-3.6 10		QFN
CAP1106	6 - alert, automatic calibration, base capacitance compensation			✓	PC		3.0-3.6 10		QFN
CAP1126	6 2		slider, reset, alert, automatic calibration, base capacitance compensation	✓	PC/SPI		3.0-3.6 16		QFN
CAP1166	6 6		slider, reset, alert, automatic calibration, base capacitance compensation	✓	PC/SPI		3.0-3.6 20		QFN
CAP1128	8 2		slider, reset, alert, automatic calibration, base capacitance compensation	✓	PC/SPI		3.0-3.6 20		QFN
CAP1188	8 8		slider, reset, alert, automatic calibration, base capacitance compensation	✓	PC/SPI		3.0-3.6 24		QFN
CAP1114	14	11	slider, reset, alert, automatic calibration, base capacitance compensation	✓	PC		3.0-3.6 32		QFN
CAP1203	3	-	alert, automatic calibration, base capacitance compensation		PC		3.2-5.0	8	QFN
CAP1293	3 - alert, automatic calibration, base capacitance compensation			✓	PC				QFN

OTN Processors

Product	Description	Max Bandwidth Gbps	Line Rates	Client Interfaces	Max SERDES Rate Gbps	ODUk Switching	System Interfaces	OTN Encryption	RoHS
PM5420	HyPHY-20G OTN Processor	40	OTU2	GbE/FC/SDH/SONET/OTUk/Video	11	Yes (ODU1+)	Interlaken	-	√
PM5426	HyPHY-10G OTN Processor	20	OTU2	GbE/FC/SDH/SONET/OTUk/Video	11	Yes (ODU1+)	Interlaken	-	√
PM5440	DIGI-120G OTN Processor	240	OTU2/OTU3/OTU4	GbE/FC/SDH/SONET/OTUk	11	Yes (ODU0+)	Interlaken	-	√
PM5441	DIGI-60G OTN Processor	120	OTU2/OTU3	GbE/FC/SDH/SONET/OTUk	28	Yes (ODU0+)	Interlaken	-	√
PM5450	HyPHY-20Gflex OTN Processor	40	OTU2	GbE/FC/SDH/SONET/OTUk/Video	11	Yes (ODU0+)	Interlaken	-	√
PM5451	HyPHY-AXS OTN Processor	40	OTU2	GbE/FC/SDH/SONET/OTUk/Video	11	Yes (ODU0+)	-	-	√

OTN Processors
Product Description		Max Bandwidth Gbps	Line Rates Client Interfaces		Max SERDES Rate Gbps	ODUk Switching	System Interfaces	OTN Encryption	RoHS
PM5456	HyPHY-10Gflex OTN Processor 20 OTU2 GbE/FC/SDH/SONET/OTUk/Video 11 Yes (ODU0+) Interlaken -								✓
PM5980	DIGI-100GX OTN Processor 200 OTU2/OTU3/OTU4 GbE/FC/SDH/SONET/OTUk 28 Yes (ODU0+) Interlaken							✓	✓
PM5981	DIGI-100GX OTN Processor (without encryption) 200 OTU2/OTU3/OTU4 GbE/FC/SDH/SONET/OTUk 28 Yes (ODU0+) Interlaken -								✓
PM5990	DIGI-G4 OTN Processor Family 800 OTU2/OTU3/OTU4 GbE/FC/SDH/SONET/OTUk 28 Yes (ODU0+) Interlaken							✓	✓
PM5991	DIGI-G4 OTN Processor (without encryption) 800 OTU2/OTU3/OTU4 GbE/FC/SDH/SONET/OTUk 28 Yes (ODU0+) Interlaken -								✓
PM6010	DIGI-G5 OTN Processor Family	1200	OTU2/OTU4/OTUCn	GbE/FC/OTUk/FlexO	56	Yes (ODU0+)	Interlaken	✓	✓
PM6011	DIGI-G5 OTN Processor (without encryption)	1200	OTU2/OTU4/OTUCn	GbE/FC/OTUk/FlexO	56	Yes (ODU0+)	Interlaken	-	✓
OTN PHYs
Product	Description	# Ports / Rates		OTN Line Rates	Ethernet Line Rates	Max SERDES Rates Gbps	Max Bandwidth Gbps	OTN Encryption	RoHS
PM5442	META-120G OTN/Ethernet PHY	1x100G or 3x40G or 12x10G		OTU2/OTU3/OTU4	10/40/100 GbE	11	120	-	✓
PM5984	META-120GX OTN/Ethernet PHY	1x100G or 3x40G or 12x10G		OTU2/OTU3/OTU4	10/40/100 GbE	28	120	✓	✓
PM5985	META-120GX OTN/Ethernet PHY (without encryption)	1x100G or 3x40G or 12x10G		OTU2/OTU3/OTU4	10/40/100 GbE	28	120	-	✓
PM5992	META-240G OTN/Ethernet PHY	2x100G or 6x40G or 24x10G		OTU2/OTU3/OTU4	10/40/100 GbE	28	240	✓	✓
PM5993	META-240G OTN/Ethernet PHY (without encryption)	2x100G or 6x40G or 24x10G		OTU2/OTU3/OTU4	10/40/100 GbE	28	240	-	✓
Broad Range FPGA Supplier (1-500K LE)
Features	SmartFusion®, ProASIC®3, IGLOO®			SmartFusion2 IGLOO2		PolarFire®
Logic Elements	100-30K			5K-150K		100-480K
Transceiver Rate	-			1-5 Gbps		250 Mbps-12.7 Gbps
I/O Speeds	400 Mbps LVDS			667 Mbps DDR3, 750 Mbps LVDS		1600 Mbps DDR4, 1.6 Gbps LVDS
DSP (18x18 Multipliers)	-			240		1480
Max RAM	144 Kb			5 Mb		33 Mb
Processor Option	Hard 100 MHz, Arm® Cortex®-M3			Hard 166 MHz, Arm Cortex-M3, Soft RISC-V		Soft RISC-V, Hard Crypto Processor
On-Board Flash	Up to 512 KB code store			Up To 512 KB code store		56 KB secure NVM
Family Type	CPLD Replacements, Smallest Packages			Low Density FPGAs with more resources and lowest power		Mid-Range Density FPGAs, Lowest Power, Cost Optimized

DCS

Product

Part Number

Description

Port Count

Interface RAID Level

Physical Dimensions

Form Factor MTBF at 40°C Controller Connectors Cache

SSD Cache Protection

Cache Protection

Adaptec® SmartRAID 3162-8i /e

2299500-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.88M hours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

2 GB DDR4/2100 MHz

maxCacheTM 4.0

Embedded Flash backup On board ASCM-17F supercap

Adaptec SmartRAID 3162-8i

2299800-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.88Mhours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

2 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup On board ASCM-17F supercap

Adaptec SmartRAID 3154-24i

2294700-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

24 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.7M hours

12 Gops Smar/ROC 3100

6 (×4) SFF-8643

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3154-816e

2294800-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal/16 external

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2M hours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643/4(4x) SFF-8644

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3154-16i

2295000-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

16 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.7M hours

12 Gops Smar/ROC 3100

4 (×4) SFF-8643

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3154-8i8e

2295100-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal/8 external

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2M hours

12 Gops Smar/ROC 3100

2 (×4) SFP-8643/2(4x) SFF-8644

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3154-8i

2291000-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3154-8e

2290800-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 external

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

2 (×4 SFF-8644

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3152-8i

2290200-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.37M hour

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

4 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3102-8i

2294800-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6,10, 50, 60,1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

2 GB DDR4/2100 MHz

NA NA

Adaptec SmartRAID 3101-4i

2291700-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

4 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 5.2 L (64 mm × 132.08 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

1 (×4) SFF-8643

1 GB DDR4/2100 MHz

NA NA

Adaptec SmartRAID 3151-4i

2294900-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

4 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM

2.535 H × 5.2 L (64 mm × 132.08 mm)

Low-profile, MD2

1.17M hours

12 Gops Smar/ROC 3100

1 (×4) SFF-8643

1 GB DDR4/2100 MHz

maxCache 4.0

Embedded Flash backup Tethered ASCM-35F supercap

Adaptec SmartRAID 3102E-8i

2304400-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

8 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 10, 1 ADM and 10 ADM

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

2 (×4) SFF-8643

2 GB DDR4/2100 MHz

NA NA

Adaptec SmartRAID 310I E-4i

2304200-R

12 Gbps PCIe Gen 3 SAS/SATA RAID Adapter

4 internal

8-Lane PCIe Gen 3

Hardware RAID 0, 1, 10, 1 ADM and 10 ADM

2.535 H × 5.2 L (64 mm × 132.08 mm)

Low-profile, MD2

1.37M hours

12 Gops Smar/ROC 3100

1 (×4) SFF-8643

1 GB DDR4/2100 MHz

NA NA

Adaptec SmartHBA 2100-24i

2301600-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

24 internal

8-Lane PCIe Gen 3

0, 1, 10, 5

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gops Smart/OC 2100

6 (×4) SFF-8643 NA

NA NA

Adaptec SmartHBA 2100-16i

2302100-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

16 external

8-Lane PCIe Gen 3

0, 1, 10, 5

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gops Smart/OC 2100

4 (×4) SFF-8643 NA

NA NA

Adaptec SmartHBA 2100-4i4e

2292200-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

4 internal/4 external

8-Lane PCIe Gen 3

0, 1, 10, 5

2.535 H × 5.2 L (64 mm × 132.08 mm)

Low-profile, MD2

>1.4 M hours

12 Gops Smart/OC 2100

1 (×4) SFF-8643/1 (×4) SFF-8644

NA NA NA

DCS

Product

Part Number

Description

Port Count

Interface RAID Level

Physical Dimensions

Form Factor MTBF at 40°C Controller Connectors Cache

SSD Cache Protection

Cache Protection

Adaptec SmartHBA 2100-8i

2290400-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

8 internal

8-Lane PCIe Gen 3

0, 1, 10, 5

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.76M hours

12 Gbps SmartIOC 2100

2 (×4) SFF-8643 NA NA NA

Adaptec SmartHBA 2100-8i8e

2301900-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

8 internal8 external

8-Lane PCIe Gen 3

0, 1, 10, 5

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.76M hours

12 Gbps SmartIOC 2100

2 (×4) SFF-8643 NA NA NA

Adaptec HBA 1100-16e

2293600-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

16 external

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gbps SmartIOC 2100

4 (×4) SFF-8644 NA NA NA

Adaptec HBA 1100-16i

2293500-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

16 internal

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gbps SmartIOC 2100

4 (×4) SFF-8643 NA NA NA

Adaptec HBA 1100-24i

2293800-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

24 internal

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gbps SmartIOC 2100

6 (×4) SFF-8643 NA NA NA

Adaptec HBA 1100-4i

2293400-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

4 internal

8-Lane PCIe Gen 3

NA

2.535 H × 5.2 L (64 mm × 132.08 mm)

Low-profile, MD2

>1.4M hours

12 Gbps SmartIOC 2100

1 (×4) SFF-8643 NA NA NA

Adaptec HBA 1100-8e

2293300-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

8 external

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.36M hours

12 Gbps SmartIOC 2100

2 (×4) SFF-8644 NA NA NA

Adaptec HBA 1100-8i

2293200-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

8 internal

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

1.36M hours

12 Gbps SmartIOC 2100

2 (×4) SFF-8643 NA NA NA

Adaptec HBA 1100-8i8e

2293700-R

12 Gbps PCIe Gen 3 SAS/SATA Host Bus Adapter

8 internal8 external

8-Lane PCIe Gen 3

NA

2.535 H × 6.6 L (64 mm × 167 mm)

Low-profile, MD2

2.73M hours

12 Gbps SmartIOC 2100

2 (×4) SFF-8643/2 (×4) SFF-8644

NA NA NA

Switchtec PSX, PFX, PAX Gen 3, Gen 4 Device Comparison

SwitchtecTM PFX 96xG3

SwitchtecTM PFX 80xG3

SwitchtecTM PFX 64xG3

SwitchtecTM PFX 48xG3

SwitchtecTM PFX 32xG3

SwitchtecTM PFX 24xG3

SwitchtecTM PFX -L 96xG3

SwitchtecTM PFX-L 80xG3

SwitchtecTM PFX-L 64xG3

SwitchtecTM PFX-L 48xG3

SwitchtecTM PFX-L 32xG3

SwitchtecTM PFX-L 24xG3

SwitchtecTM PFX-I 96xG3

SwitchtecTM PFX-I 80xG3

SwitchtecTM PFX-I 64xG3

SwitchtecTM PFX-I 48xG3

SwitchtecTM PFX-I 32xG3

SwitchtecTM PFX-I 24xG3

Lanes

96 80 64

48 32 24 96

80 64 48 32

24 96 80 64

48 32 24

Ports

48 40 32

24 16 12 24

20 16 12 8 6

48 40 32 24

16 12

Port Bifurcation

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x4/8/16

x4/8/16

x4/8/16

x4/8/16

x4/8/16

x4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

NTBs

48

40

32

24

16

12

2 (any port)

2 (any port)

2 (any port)

2 (any port)

2 (any port)

2 (any port)

48

40

32

24

16

12

Virtual Switches

24 20 16

12 8 6 6 6

6 6 4 3 24

20 16 12 8 6

PCIe Multicast

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Downstream Port Containment

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Completion Timeout Synthesis

Yes

Yes

Yes

Yes

Yes

Yes

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

UEC

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

Hot Plug Ctrls

48 40 32

24 16 12 6

6 6 6 6 6

48 40 32 24 16 12

Customer Programmable

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

Multi-host I/O Sharing

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

PCIe Fabric Support

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

DMA

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

SwitchtecPSX, PFX, PAX Gen 3, Gen 4 Device Comparison

Switchtec ^TM PFX 96xG3

Switchtec ^TM PFX 80xG3

Switchtec ^TM PFX 64xG3

Switchtec ^TM PFX 48xG3

Switchtec ^TM PFX 32xG3

Switchtec ^TM PFX 24xG3

Switchtec ^TM PFX -L96xG3

Switchtec ^TM PFX-L60xG3

Switchtec ^TM PFX-L64xG3

Switchtec ^TM PFX-L48xG3

Switchtec ^TM PFX-L32xG3

Switchtec ^TM PFX-L24xG3

Switchtec ^TM PFX-I96xG3

Switchtec ^TM PFX-I80xG3

Switchtec ^TM PFX-I64xG3

Switchtec ^TM PFX-I48xG3

Switchtec ^TM PFX-I32xG3

Switchtec ^TM PFX-I24xG3

Enclosure Mgmt Processor + SDK

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No

10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 11/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/100 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/200 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 10/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20/201 20p

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No Nc

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No

Ethernet

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes

YesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYes

YesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYesYes

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No NoNo

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No Non

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No Not

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No NO

No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No No NO

No NoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNonNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNc

NoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNONoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNo

NoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNono

NoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNoNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNOCNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNobNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNogNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNoclNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocyNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNucNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNecNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNodNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNoeNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNocNanOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonOonO on

Switchtec PSX, PFX, PAX Gen3, Gen 4 Device Comparison

Switchtec ^TM PFX 96xG4

Switchtec ^TM PFX 80xG4

Switchtec ^TM PFX 64xG4

Switchtec ^TM PFX 48xG4

Switchtec ^TM PFX 32xG4

Switchtec ^TM PFX 24xG4

Switchtec ^TM PFX 16xG4

Switchtec ^TM PFX 24xG4

Switchtec ^TM PFX 12xG4

Switchtec ^TM PFX 52xG4

Switchtec ^TM PFX 58xG4

Switchtec ^TM PFX 14xG4

Switchtec ^TM PFX 48xG4

Switchtec ^TM PFX 14xG4

Switchtec ^TM PFX 32xG4

Switchtec ^TM PFX 12xG4

Switchtec ^TM PFX 24xG4

Lanes

96

80

64

48

32

24

16

12

52

44

36

28

20

16

Ports

48

40

32

24

16

24

16

12

48

42

34

28

18

16

Port Bifurcation

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/16

x2/4/8/15

x2/4/8/16

x2/4/8/16

x2/4/8/16

NTBs

48

40

32

24

16

24

16

12

48

42

34

28

18

16

Virtual Switches

24

20

16

12

8

12

8

6

26

22

18

14

10

8

PCIe Multicast

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Yes, 64 overlays por stack

Downstream Port Containment

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Completion Timeout Synthesis

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

UEC

No

No

No

No

No

No

No

No

No

No

No

No

No

No

Hot Plug Ctris

48

40

32

24

16

24

16

12

52

44

36

28

20

16

Customer Programmable

No

No

No

No

No

No

No

No

No

No

No

No

No

No

Multi-host I/O Sharing

No

No

No

No

No

No

No

No

No

No

No

No

No

No

PCIe Fabric Support

No

No

No

No

No

No

No

No

No

No

No

No

No

No

DMA

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

Enclosure Mgmt Processor + SDK

No

No

No

No

No

No

No

No

No

No

No

No

No

No

Ethernet (M)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

PC Master/Slave

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Package Size (mm)

40x40

40x40

40x40

29x29

29x29

29x29

29x29

29x29

40x40

40x40

40x40

29x29

29x29

29x29

Temp

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

0, 105

RoHS

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Terms and Definitions

1 Gbps...... 10^9 bytes per second		Watchdog Timer	POR/POOR......Power ON Reset/Power ON/OFF Reset
1 KB......1024 bytes	FlexE......Flexible Ethernet	PPS......Peripheral Pin Select
1 Kw......1024 words	HC I/O......High-Current I/O	PRG......Programmable Ramp Generator
18F/PIC18......16-bit instruction word: 75/83 instructions	HEF......High-Endurance Flash(128B of Nonvolatile Data Storage)	PSMC......Programmable Switch Mode Controller(16-bit PWM)
1 Tbps...... 10^12 bytes per second
ADC......Analog to Digital Converter	HLT......Hardware Limit Timer	PWM......Pulse-Width Modulation
ADC2/ADCC......ADC with Computation	HV......High Voltage	QEI......Quadrature Encoder Interface
AngTMR......Angular Timer	ICD......In-Circuit Debug	RAM......Random Access Memory
AUSART......Addressable Universal Synchronous Asynchronous Receiver Transmitter	ICE......In-Circuit Emulation	RTCC......Real-Time Clock Calendar
	ICSPTM......In-Circuit Serial ProgrammingTM	SlopeComp......Slope Compensation
BL/Baseline......12-bit instruction word: 33 instructions	IDE......Integrated Development Environment	SMT......24-bit Signal Measurement Timer
BOR/PBOR......Brown Out Reset/ Programmable Brown Out Reset	IDLE......Low-Power Idle Mode	Source/Sink Current......All ProductsSupport 25 mA per I/O
BTLE......Bluetooth® Low Energy	Inst Amp......Instrumentation Amplifier	SR Latch......Set Reset Latch
CAN......Controller Area Network	LCD......Liquid Crystal Display	SRAM......Static Random Access Memory
CCP/ECCP......Capture Compare PWM/ Enhanced Capture Compare PWM	LDO......Low Drop-Out Voltage Regulator	SPI......Serial Peripheral Interface
	LF......Low-Power Flash	TEMP......Temperature Indicator
CLC......Configurable Logic Cell	LPBOR......Low-Power Brown Out Reset	T1G......Timer 1 Gate
COG......Complementary Output Generator	MI°C/I°C......Master Inter-Integrated Circuit Bus/Inter-Integrated Circuit Bus	USART......Universal Synchronous AsynchronousReceiver Transmitter
Comp......Capacitive Sensing Implemented via Comparator	MathACC......Math Accelerator	USB......Universal Serial Bus
CRC/SCAN......Cyclical Redundancy Check with Memory Scanner	Mid-Range......(Denoted as PIC1XF1XXX)	USB (Full Speed)......12 MB Data Rate
	MIPS......Million Instructions Per Second	USB OTG......USB On-The-Go
CTMU......mTouch® Sensing: Charge Time Measurement Unit	MR/Mid-Range......14-bit instruction word:35 instructions	WWDT......Window Watchdog Timer
CVD......Charge Voltage Divide (Capacitive Sensing Implemented via ADC)	MSSP/SSP......Master/Synchronous Serial Port(I°C and SPI Peripheral)	XLP......eXtreme Low-Power Technology
CWG......Complementary Waveform Generator	mTouch......Proprietary Touch Sensing Technology	ZCD......Zero-Cross Detection
DAC......Digital-to-Analog Converter	NCO......Numerically Controlled Oscillator
DOZE......Low-Power Doze Mode	Op Amp......Operational Amplifier
DSM......Data Signal Modulator	OTN......Optical Transport Network
dsPIC®DSC......16-bit Core with DSP	OTU2......Transport signal for 10 Gbps
EBL......Enhanced Baseline	OTU3......Transport signal for 40 Gbps
EEPROM......Electrically Erasable Programmable Read Only Memory	OTU4......Transport signal for 100 Gbps
EMR/Enhanced......14-bit instruction word:49 instructions	PIC10/12/16/18......8-bit Core
	PIC24......16-bit Core
	PIC32......32-bit Core
ESD......Electrostatic Discharge	PLVD......Programmable Low Voltage Detect
EUSART......Enhanced Universal Synchronous Asynchronous Receiver Transmitter	PMD......Low-Power Peripheral Module Disable
EWDT/WDT......Extended Watchdog Timer/

Support

Microchip is committed to supporting its customers in developing products faster and more efficiently. We maintain a worldwide network of field applications engineers and technical support ready to provide product and system assistance. For more information, please visit www.microchip.com:

• Technical Support: www.microchip.com/support
- Evaluation samples of any Microchip device: www.microchip.com/sample
• Knowledge base and peer help: www.microchip.com/forums
• Sales and Global Distribution: www.microchip.com/sales

Training

If additional training interests you, Microchip offers several resources including in-depth technical training and reference material, self-paced tutorials and significant online resources.

• Overview of Technical Training Resources: www.microchip.com/training
• MASTERS Conferences: www.microchip.com/masters
• Developer Help Website: www.microchip.com/developerhelp
• Technical Training Centers: www.microchip.com/seminars

Sales Office Listing

AMERICAS

Atlanta, GA

Tel: [phone]

Austin, TX

Tel: [phone]

Boston, MA

Tel: [phone]

Chandler, AZ (HQ)

Tel: [phone]

Chicago, IL

Tel: [phone]

Dallas, TX

Tel: [phone]

Detroit, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis, IN

Tel: [phone]

Tel: [phone]

Los Angeles, CA

Tel: [phone]

Tel: [phone]

Raleigh, NC

Tel: [phone]

New York, NY

Tel: [phone]

San Jose, CA

Tel: [phone]

Tel: [phone]

Canada - Toronto

Tel: [phone]

EUROPE

Austria - Wels

Tel: [phone]

Denmark - Copenhagen

Tel: [phone]

Finland - Espoo

Tel: [phone]

France - Paris

Tel: [phone]

Germany - Garching

Tel: [phone]

Germany - Haan

Tel: [phone]

Germany - Heilbronn

Tel: [phone]

Germany - Karlsruhe

Tel: [phone]

Germany - Munich

Tel: [phone]

Germany - Rosenheim

Tel: [phone]

EUROPE

Israel - Ra'anana

Tel: [phone]

Italy - Milan

Tel: [phone]

Italy - Padova

Tel: [phone]

Netherlands - Drunen

Tel: [phone]

Norway - Trondheim

Tel: [phone]

Poland - Warsaw

Tel: [phone]

Romania - Bucharest

Tel: [phone]

Spain - Madrid

Tel: [phone]

Sweden - Gothenberg

Tel: [phone]

Sweden - Stockholm

Tel: [phone]

UK - Wokingham

Tel: [phone]

ASIA/PACIFIC

Australia - Sydney

Tel: [phone]

China - Beijing

Tel: [phone]

China - Chengdu

Tel: [phone]

China - Chongqing

Tel: [phone]

China - Dongguan

Tel: [phone]

China - Guangzhou

Tel: [phone]

China - Hangzhou

Tel: [phone]

China - Hong Kong SAR

Tel: [phone]

China - Nanjing

Tel: [phone]

China - Qingdao

Tel: [phone]

China - Shanghai

Tel: [phone]

China - Shenyang

Tel: [phone]

China - Shenzhen

Tel: [phone]

China - Suzhou

Tel: [phone]

China - Wuhan

Tel: [phone]

China - Xiamen

Tel: [phone]

China - Xian

Tel: [phone]

ASIA/PACIFIC

China - Zhuhai

Tel: [phone]

India - Bangalore

Tel: [phone]

India - New Delhi

Tel: [phone]

India - Pune

Tel: [phone]

Japan - Osaka

Tel: [phone]

Japan - Tokyo

Tel: [phone]

Korea - Daegu

Tel: [phone]

Korea - Seoul

Tel: [phone]

Malaysia - Kuala Lumpur

Tel: [phone]

Malaysia - Penang

Tel: [phone]

Philippines - Manila

Tel: [phone]

Singapore

Tel: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Taiwan - Taipei

Tel: [phone]

Thailand - Bangkok

Tel: [phone]

Microchip Technology Inc. | 2355 W. Chandler Blvd. | Chandler AZ, 85224-6199

The Microchip name and logo, the Microchip logo, AVR, dsPIC, Hyper Speed Control, HyperLight Load, IGLOO, maXTouch, MediaLB, MOST, MPLAB, PIC, picoPower, PolarFire, ProASIC, QTouch, QuietWIRE and SmartFusion are registered trademarks and ICSP, MIWI, MultiSwitch and SQL, are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. Arm and Cortex are registered trademarks of ARM Limited (or its subsidiaries) in the EU and other countries. mTouch is a registered trademark of Microchip Technology Inc in the U.S.A. The LoRa name and associated logo are trademarks of Semtech Corporation or its subsidiaries. USB-C and USB Type-C are trademarks of the USB Developers Forum. All other trademarks mentioned herein are property of their respective companies. © 2020, Microchip Technology Incorporated. All Rights Reserved. 8/20 DS00001308U
