SAM9X60-EK User's Guide

Scope

This user's guide introduces the SAM9X60 Evaluation Kit (SAM9X60-EK) and describes the development and debugging capabilities running on SAM9 Arm®-based embedded MPUs.

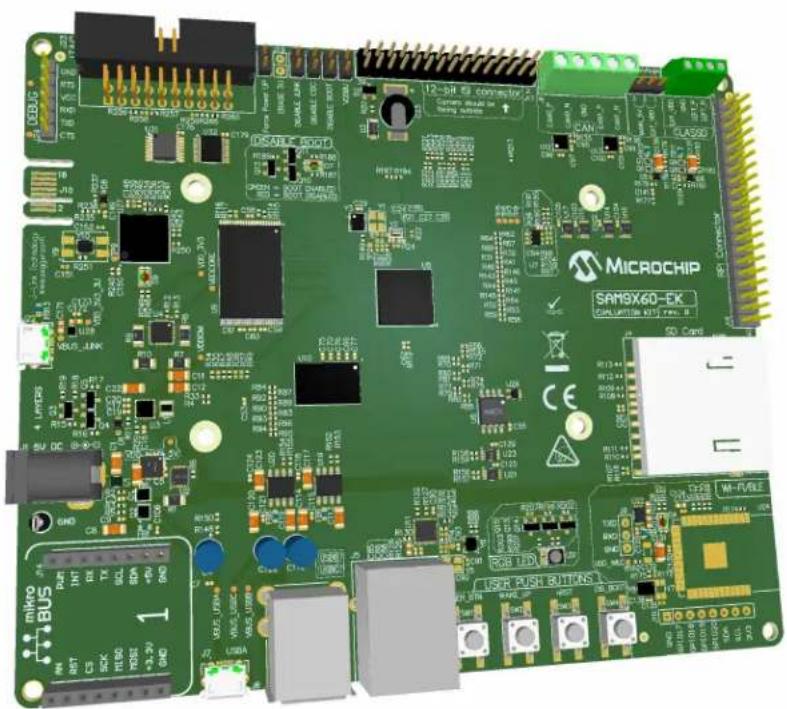

MICROCHIP SAM9X60-EK Smart Home H15.78.1.4 SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAP Capi Microchip SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SAPCCC SALR PUSH RUTANS

Table of Contents

Scope....1

1. Introduction......4

1.1. Document Layout....4
1.2. Recommended Reading....4

2. Product Overview....5

2.1. SAM9X60-EK Features....5
2.2. Evaluation Kit Specifications....6
2.3. Power Sources....6
2.4. Connectors on Board....6
2.5. Default Jumper Settings....9
2.6. Kit Content....9

3. Function Blocks....10

3.1. Power Supply Topology and Power Distribution....10
3.2. Processor....14
3.3. On-board Memories....29
3.4. Peripherals....33
3.5. User Interaction and Debugging....49

4. Installation and Operation....56

4.1. System and Configuration Requirements....56
4.2. Board Setup.... 56

5. Errata....57

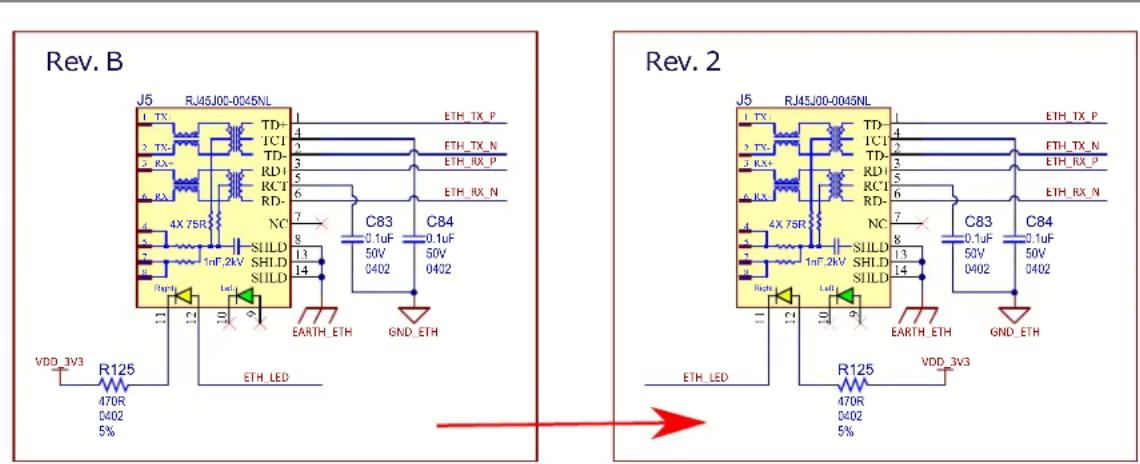

5.1. Inoperative LED....57
5.2. Booting Issue....57
5.3. Powering-Up Issue....57
5.4. Resistor Mislabeling....58

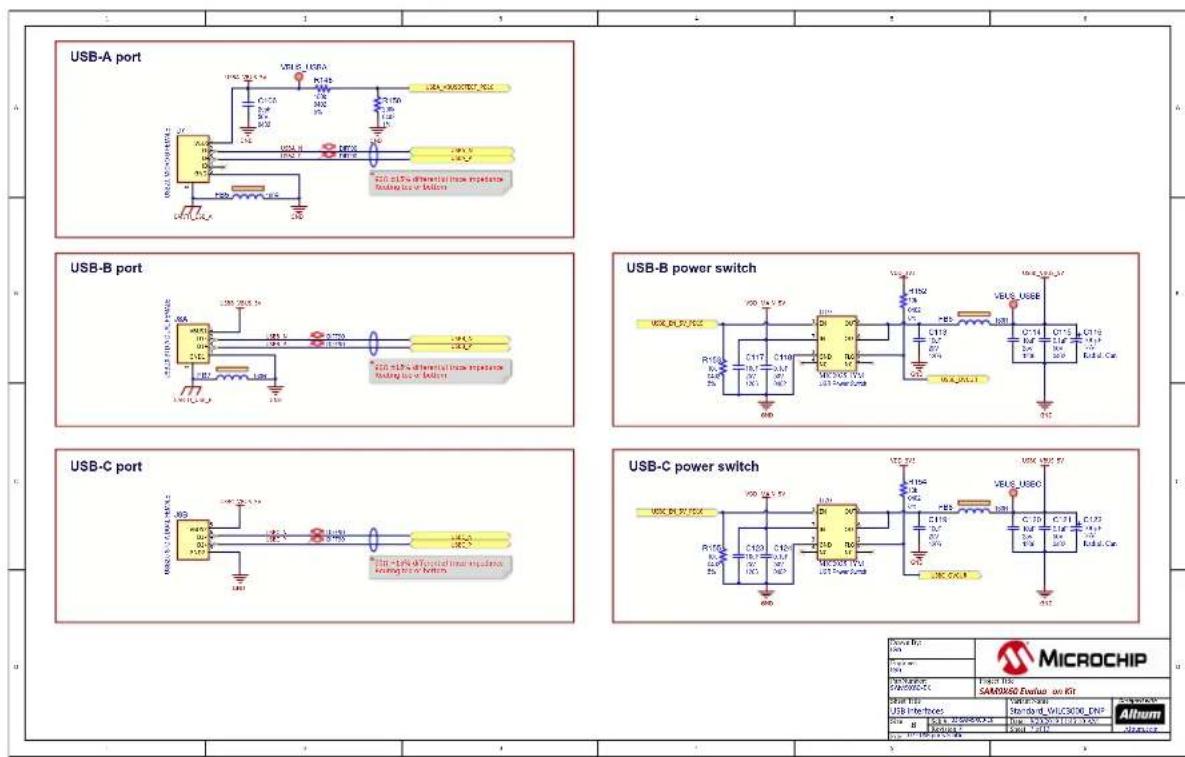

6. Appendix. Schematics and Layouts....60

7. Revision History......67

7.1. DS50002907B - 01/2020....67
7.2. DS50002907A - 10/2019....67

The Microchip Website....68

Product Change Notification Service....68

Customer Support....68

Microchip Devices Code Protection Feature....68

Legal Notice....68

Trademarks....69

Quality Management System....69

Worldwide Sales and Service....70

1. Introduction

1.1 Document Layout

The document is organized as follows:

• Chapter 1. "Introduction"
- Chapter 2. "Product Overview" – Important information about the SAM9X60-EK board
- Chapter 3. "Function Blocks" – Specifications of the SAM9X60-EK and high-level description of the major components and interfaces
- Chapter 4. "Installation and Operation" – Instructions on how to get started with the SAM9X60-EK
- Appendix. "Schematics and Layouts" – SAM9X60-EK schematics and layout diagrams

1.2 Recommended Reading

The following Microchip document is available and recommended as a supplemental reference resource:

• SAM9X60 Datasheet. Lit. Number DS60001579

2. Product Overview

The SAM9X60-EK follows the Microchip MPU strategy for low cost evaluation kits, showcasing all the features that the SAM9X60 MPU can offer.

2.1 SAM9X60-EK Features

Table 2-1. SAM9X60-EK Features

Characteristic Specification Featured Components
Processor 228-ball TFBGA, 11x11 mm, 0.65 mm pitch Microchip SAM9X60
External clock	MPU: 24 MHz, 32.768 KHzMisc. osc.: 25 MHz	DSC1001CI5DSC6083CE2A
Memory	One 16-bit, 2-Gbit DDR2One NAND FlashOne QSPI FlashOne EEPROM	Winbond W972GG6KB-25Micron MT29F4G08ABAEAAMicrochip SST26VF064BMicrochip 24AA02E48
SD/MMC One standard 4-bit SD card interface -
USB	Two stacked Type-A connectors with power switchesOne Micro-B USB Device	2 * Microchip MIC2025
CAN Two CAN interfaces Microchip MCP2542
Ethernet One ETH port Microchip KSZ8081
Wi-Fi/BT One optional Wi-Fi®/Bluetooth®interface Slot for Microchip ATWILC3000
Audio One ClassD audio port -
Display	One 24-bit LCD interface	-
Camera	One 12-bit Image Sensor Interface	-

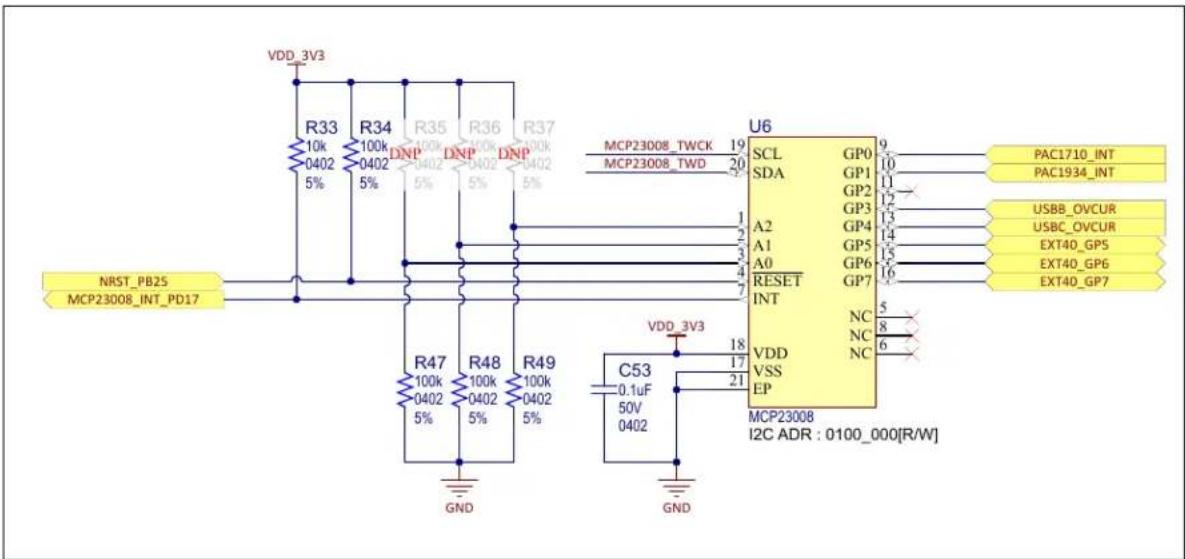

IO	One expander IO	Microchip MCP23008
Debug port	One J-Link-OB + CDCOne JTAG interface	Embedded J-Link-OB through the CDC interface (ATSAM3U4C TFBGA100)
Board monitor	One RGB (Red, Green, Blue) LEDFour push button switches	--
Expansion	One PIO connectorOne mikroBUSTMconnector	-Hundreds of possible ClickTM extensions featuring Microchip functions inside
Power management	Two power regulatorsTwo power consumption measurement devices	Microchip MIC2800, MCP1725Microchip PAC1934, PAC1710
Board supply	From USB A or from external connector	-
Backup battery SuperCap -

2.2 Evaluation Kit Specifications

Table 2-2. Evaluation Kit Specifications

Characteristic Specification
Board SAM9X60-EK
Board supply voltage External or USB-powered
Temperature	Operating: 0°C to +70°CStorage: -40°C to +85°C
Relative humidity 0 to 90% (non-condensing)
Main board dimensions 150 × 125 × 20 mm
RoHS status Compliant
Board identification SAM9X60 Evaluation Kit

2.3 Power Sources

Two options are available to power up the SAM9X60-EK board:

• Powering through an external AC to DC +5V wall adapter connector (J1)
• Powering through the USB Micro-B connector on the USBA port (J7 – default choice)

Table 2-3. Electrical Characteristics

Electrical Parameters Value
Input voltage 5VDC
Maximum input voltage (limits) 6VDC
Maximum 3.3VDC current 300 mA

The SAM9X60-EK board runs at a 3.3V voltage level logic. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages (e.g., 5V) to an I/O pin could damage the board.

2.4 Connectors on Board

The fully-featured SAM9X60-EK board integrates multiple peripherals and interface connectors, as shown in the following figures.

Figure 2-1. SAM9X60-EK Top Connectors

JTAG 20-pin IDC Connector Configuration Jumpers ISI Connector 2 x CAN Connector CLASSD Audio Connector UART DEBUG JLINK USB Micro-B External Power Jack MikroBus™ USB 2.0 Micro-B Stacked USB type A Ethernet 10/100 4 x User Buttons I2C and PCM audio header to/from ATWILC3000 Raspberry Pi Connector MICROCHIP SAM9X60-EK EVALUATION KIT rev. B SD Card RPI Connector R213 CAN CAN N CAN_P CAN_R R187 R188 R189 R190 R191 R192 R193 R194 R195 R196 R197 R198 R199 R200 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R253 R254 R255 R256 R257 R258 U17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V17 V USER PUSH BUTTONS USER_BTN WAKE_UP DS_8000 SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SWI SMIC USB 2.0 Micro-B Stacked USB type A Ethernet 10/100 4 x User Buttons Place to solder the Wi-Fi / BT Module

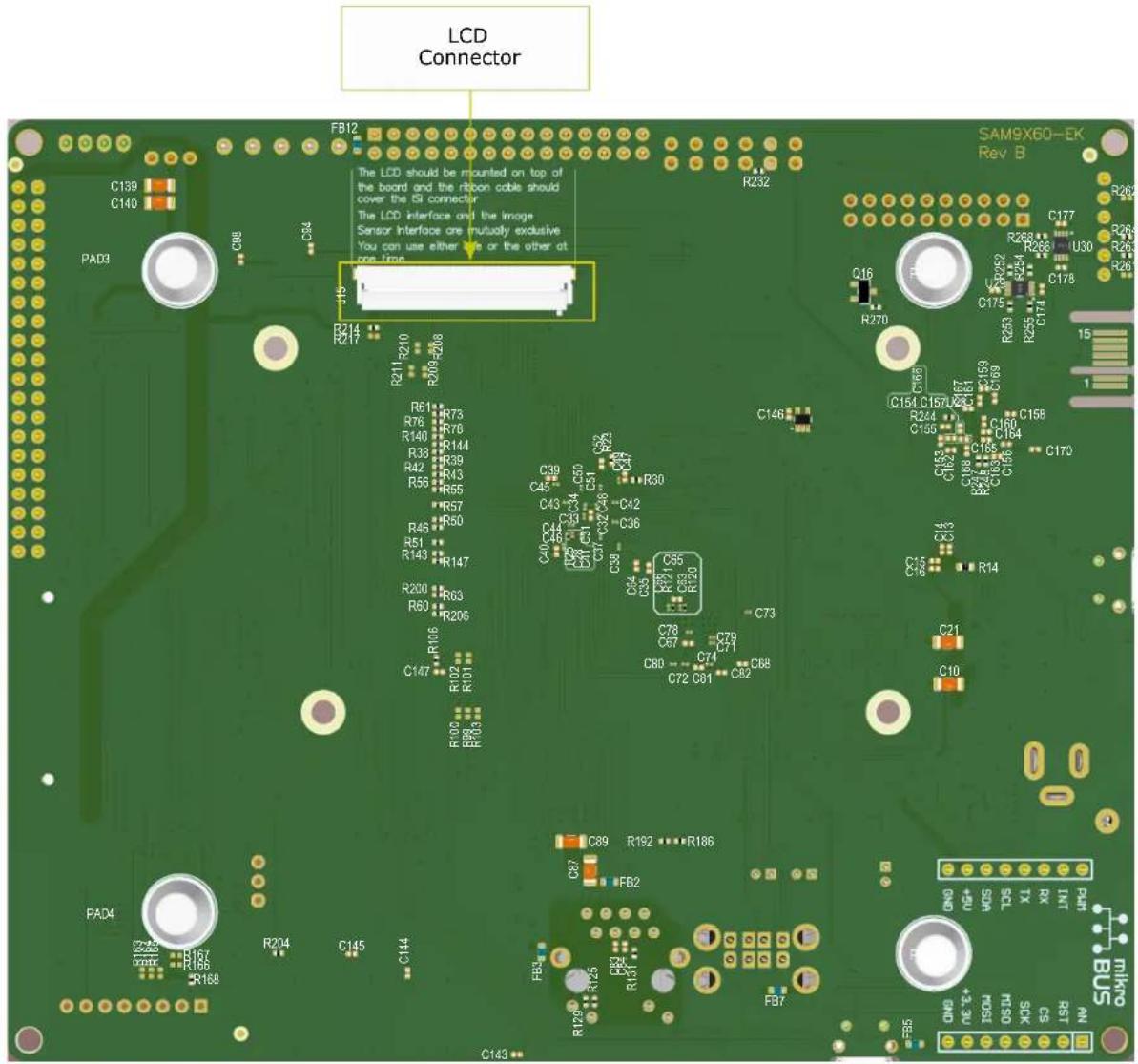

Figure 2-2. SAM9X60-EK Bottom Connectors

LCD Connector FB12 C139 C140 PAD9 C98 C94 R214 R217 R211 R210 R209 R206 R51 R73 R76 R78 R140 R144 R38 R39 R42 R43 R56 R55 R57 R50 R46 R51 R51 R143 R147 R200 R63 R60 R206 R106 C147 R102 R101 R000 R90 C143 PAC4 PAO4 R167 R166 R168 R204 C145 C144 C89 R192 R186 C87 FB2 FB3 FBN FBN2 FBN3 FBN4 FBN5 SAMS-60-EK Rev B C177 C176 C175 C174 C173 C172 C171 C170 C169 C168 C167 C166 C165 C164 C163 U243 C163 C162 U232 C162 C161 U221 C161 C160 U210 C160 C159 U208 C159 C158 U207 C158 C157 U206 C157 C156 U205 C156 C155 U204 C155 C154 U203 C154 C153 U202 C153 C152 U201 C152 C151 U200 C151 C150 U199 C150 C149 U198 C148 C147 U197 C147 C146 U196 C146 C145 U195 C145 C144 U194 C144 C143 U193 C143 C142 U192 C142 C141 U191 C142 C141 U190 C142 C140 U189 C142 C141 U188 C142 C143 U187 C142 C144 U186 C142 C145 U185 C142 C146 U184 C142 C147 U183 C142 C148 U182 C142 C149 U181 C142 C150 U180 C142 C151 U179 C142 C152 U178 C142 C153 U177 C142 C154 U176 C142 C155 U175 C142 C156 U174 C142 C157 U173 C142 C158 U172 C142 C159 U171 C142 C160 U169 C142 C161 U168 C142 C162 U167 C142 C163 U166 C142 C164 U165 C142 C165 U164 C142 C166 U163 C142 C167 U162 C142 C168 U161 C142 C169 U160 C142 C170 U159 C142 C171 U158 C142 C172 U157 C142 C173 U156 C142 C174 U155 C142 C175 U154 C142 C176 U153 C142 C177 U152 C142 C178 U151 C 80 - C83 - C82 - C80 - C79 - C78 - C77 - C76 - C75 - C74 - C73 - C72 - C70 - C69 - C68 - C67 - C66 - C65 - C64 - C63 - C62 - C60 - C59 - C58 - C57 - C56 - C55 - C54 - C53 - C52 - C50 - C49 - C48 - C47 - C46 - C45 - C44 - C43 - C42 - C40 - C39 - C38 - C37 - C36 - C35 - C34 - C33 - C32 - C30 - R30 - R39 - R38 - R37 - R36 - R35 - R34 - R33 - R32 - R30 - R29 - R28 - R27 - R26 - R25 - R24 - R23 - R22 - R20 - R-00 - R-09 - R-08 | Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 Q 0 SAMS-60-EK Rev B

Table 2-4. SAM9X60-EK Board Interface Connectors

Connector Interfaces to

J1 External power jack

J4 Standard SDMMC connector

J6 Dual CAN

J7 USB 2.0 Micro-B (USB-A)

J8A Stacked Type-A USB (USB-B)

J8B Stacked Type-A USB (USB-B)

J10 (not populated) ATWILC3000 GPIO

J9 (not populated) ATWILC3000 UART

......continued

Connector Interfaces to

J5 Ethernet 10/100 RJ45 (port 1)

J11 Audio external power

J12 ClassD audio output

J14 mikroBUS socket

J15 LCD connector

J16 External GPIO

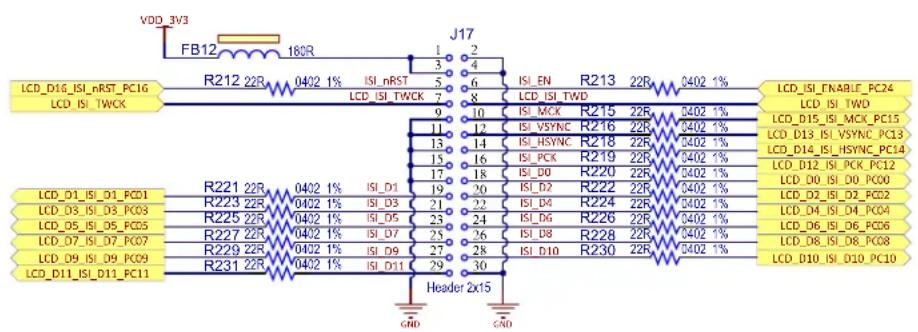

J17 ISI Camera Connector

J18 PCB connector for factory-programming the SAM3U/J-Link-OB (not to be used by end user)

J22 USB 2.0 Micro-B, J-Link-OB/J-Link-CDC

J23 JTAG, 20-pin IDC

J24 FTDI connector (UART debugger)

2.5 Default Jumper Settings

Table 2-5. SAM9X60-EK Jumper Settings

Jumper State Function
J2 Closed VDDBU current measurement
J3	Closed Disable	the SHDN function and always keep the board powered on
	Open (default)	Normal behavior, the PMIC can be powered down by the MPU

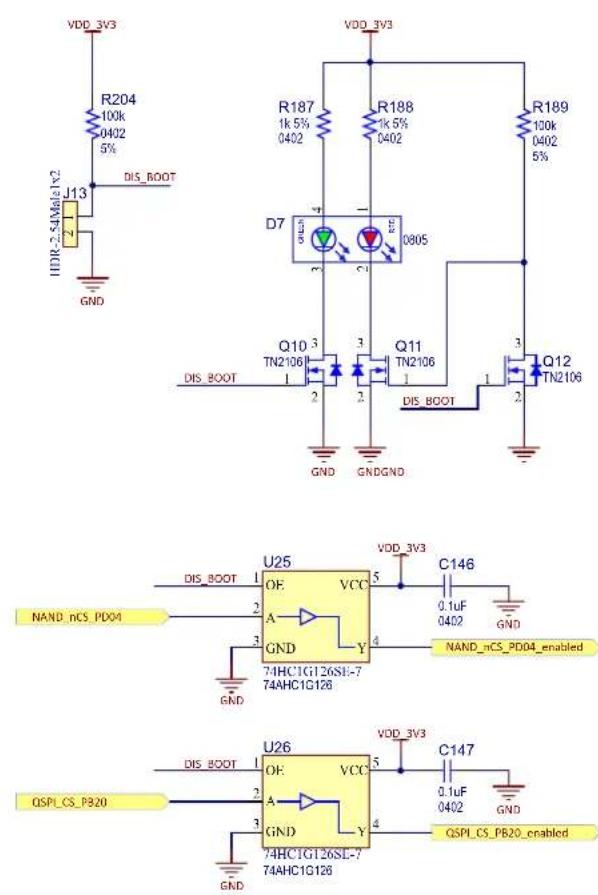

J13	Closed Booting	from on-board memories is permanently disabled
	Open (default)	Booting from on-board memories is disabled only when SW4 is pressed
J19(not populated)	Closed	Erase SAM3U firmware (not populated, reserved for factory configuration and should never be used by the end user)
	Open (default)	Normal SAM3U operation (runs the J-Link interface)
J20	Closed	J-Link on-board interface is disabled. MPU debugging is done through J23, the 20-pin SAM-ICETM connector (i.e., an external JTAG interface is required)
	Open (default)	J-Link on-board interface is enabled. MPU debugging is done through it (i.e., using the SAM3U MCU and the micro USB connector J22)
J21	Closed Disable	UART communication (CDC) between MPU and SAM3U
	Open (default)	Enable UART communication (CDC) between MPU and SAM3U (PD20 port must be high as well)

2.6 Kit Content

The SAM9X60 evaluation kit includes the following:

• The SAM9X60-EK board
- USB-A to USB Micro-B cable
- 50-position FFC/FPC cable

3. Function Blocks

This section covers the specifications of the SAM9X60-EK and provides a high-level description of the board's major components and interfaces. This document is not intended to provide detailed documentation about the processor or about any other component used on the board. It is expected that the user will refer to the appropriate documents of these devices to access detailed information.

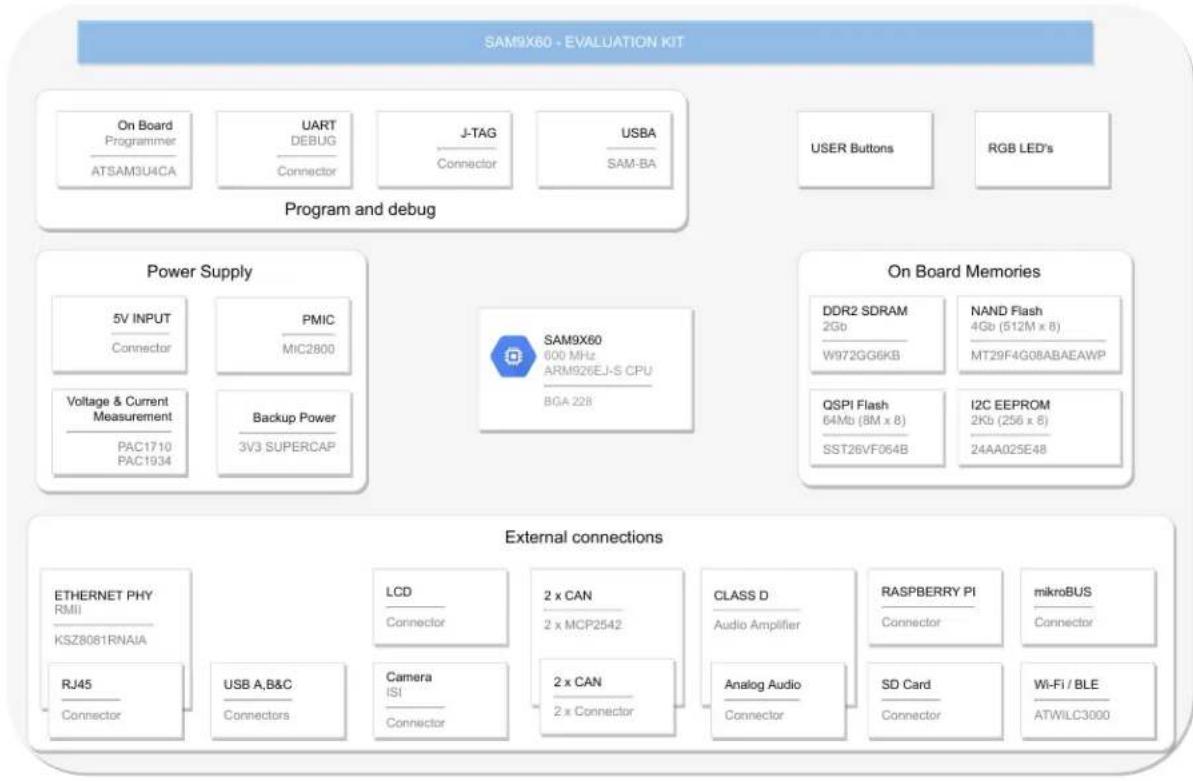

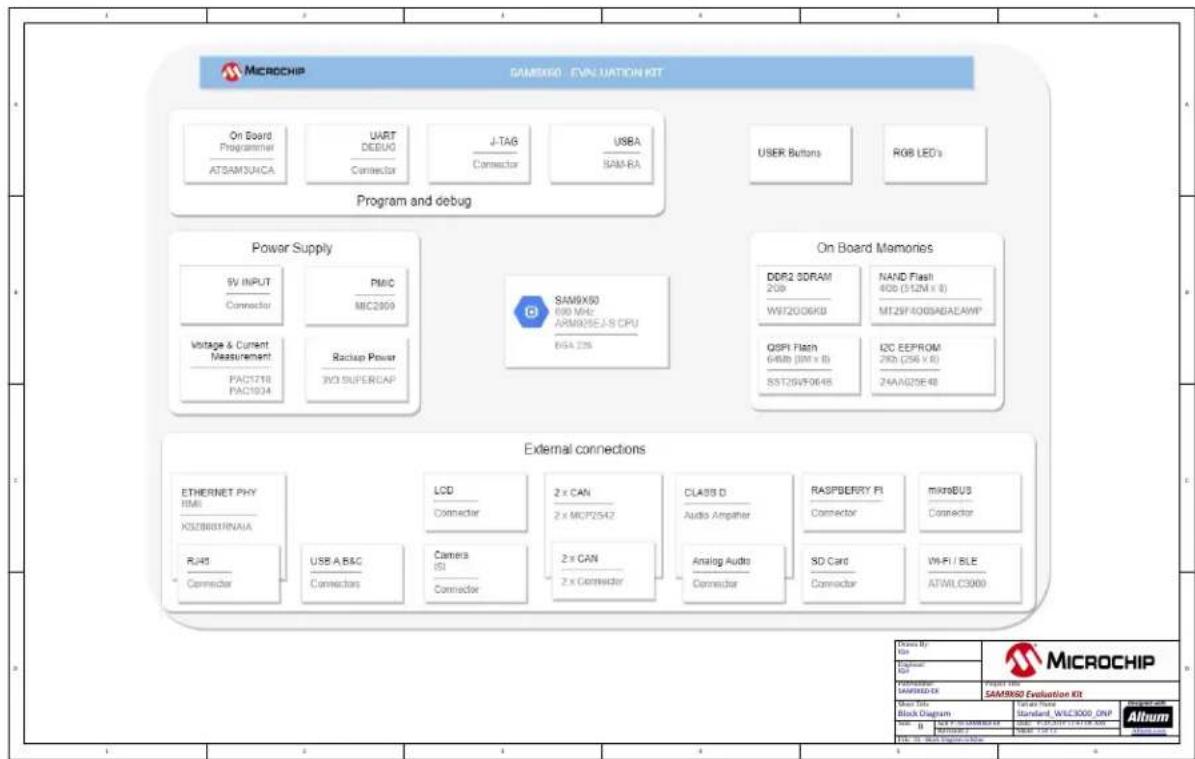

Figure 3-1. SAM9X60-EK Block Diagram

    A --> I["Power Supply"]
    I --> J["5V INPUT"]
    I --> K["PMIC"]
    I --> L["Voltage & Current Measurement"]
    I --> M["Backup Power"]
    I --> N["3V3 SUPERCAP"]

    A --> O["External connections"]

    O --> P["ETHERNET PHY RMII"]
    O --> Q["RS28061RNAIA"]
    O --> R["RJ45"]
    O --> S["USB A,B&C Connectors"]

    O --> T["LCD Connector"]
    O --> U["Camera ISI Connector"]

    O --> V["2 x CAN"]
    O --> W["2 x MCP2542"]

    O --> X["CLASS D Audio Amplifier"]
    O --> Y["Analog Audio Connector"]

    O --> Z["RASPBERRY PI Connector"]
    O --> AA["SD Card Connector"]

    O --> AB["mikroBUS Connector"]

    O --> AC["ATWILC3000"]

    subgraph External connections
        AD["ETHERNET PHY RMII"]
        AE["RS28061RNAIA"]
        AF["RJ45"]
        AG["USB A,B&C Connectors"]
        AH["Camera ISI Connector"]
        AI["2 x CAN"]
        AJ["2 x MCP2542"]
        AK["2 x CAN"]
        AL["2 x Connector"]
        AM["CLASS D Audio Amplifier"]
        AN["Analog Audio Connector"]
        AO["RASPBERRY PI Connector"]
        AP["SD Card Connector"]
        AQ["MikroBUS Connector"]
        AR["ATWILC3000"]
    end

3.1 Power Supply Topology and Power Distribution

This section describes the implementation and the circuitry that ensures adequate voltage stability and current budget for all the devices on the board and a correct power-up sequence for the MPU. The power-up and power-down sequences indicated in the SAM9X60 datasheet must be respected for a reliable operation of the device.

3.1.1 Input Power Options

The SAM9X60-EK board can be powered through:

• an external AC to DC +5V wall adapter connected via a 2.1 mm center-positive plug into the power jack of the board (J1). The recommended output capacity of the power adapter is 2A,
• USB port A (J7).

The +5V from the wall adapter is protected through an NCP349 positive overvoltage controller switch. The controller is able to disconnect the system from its output pin when incorrect input operating conditions are detected (5.83V max).

The USB-powered operation comes from the USB device port connected to a PC or a 5VDC supply. The USB supply is enough to power the board in most applications. It is important to note that when the USB supply is used, the USB port has limited power. If USB Host port is required for the application, it is recommended that the external DC supply be used.

The switch between the two powering options is made by four transistors that ensure the separation between the two when both are plugged. The switch prioritizes powering from the wall adapter to maximize power transfer.

The following figure shows the input power supply topology.

Figure 3-2. Input Power Options

J1 2.1mm EJ508A EXT_5VDC_5V C1 10uF 25V 1206 U1 NCP349MNAETBG IN IN PAD OUT1 OUT2 EN GND FLAG 3 C2 10uF 25V 1206 C3 0.1uF 50V 0402 R2 100k 0402 5% Q1A SIA923AEDJ-T1-GE3 1 7 Q1B SIA923AEDJ-T1-GE3 8 4 VDD_MAIN_5V_ C4 100uF 16V Radial, Can GND USB_VBUS_5V FB1 180R0603 USB_5V C7 0.1uF 50V 0402 C8 10uF 25V 1206 C9 0.1uF 50V 0402 R5 100k 0402 5% Q2A SIA923AEDJ-T1-GE3 1 7 Q2B SIA923AEDJ-T1-GE3

Note: USB-powered operation eliminates additional wires and batteries. It is the preferred mode of operation for any project that requires only a 5V source at up to 500 mA.

3.1.2 Power Management Integrated Circuit

The MIC2800 is a high-performance power management IC providing three output voltages with maximum efficiency. Integrating a 2-MHz DC/DC converter with an LDO post-regulator, the MIC2800 gives two high-efficiency outputs with a second, 300 mA LDO for maximum flexibility. The DC-to-DC converter uses small values of L and C to reduce board space while still retaining efficiency over 90% at load currents up to 600 mA. For more information about the MIC2800, refer to the product web page.

Each LDO has an independent Enable (EN) pin thus allowing a proper power-up sequence for the MPU. The 20 KΩ resistor in series and the 0.1 μF capacitor in parallel with the EN1 input make a low-pass filter and introduce the necessary delay between the 3.3V and 1.15V rails needed for the proper operation of the MPU. The diode (D1 in Figure 3-3) ensures that the capacitor fast discharges during the power-down sequence.

Detailed information on the SAM9X60 MPU power supplies and power-up/down considerations are described in section "Electrical Characteristics" in the SAM9X60 device datasheet (see 1.2 Recommended Reading).

The MIC2800-G8S comes preset to supply all the voltage rails needed by the system:

• 1.8V DC/DC supplies SAM9X60 DDR2 pads (VDDIOM) and devices.
  • 1.15V LDO1 supplies SAM9X60 Core (VDDCORE).
  • 3.3V LDO2 supplies SAM9X60 I/O pads.

The figure below shows the power management scheme.

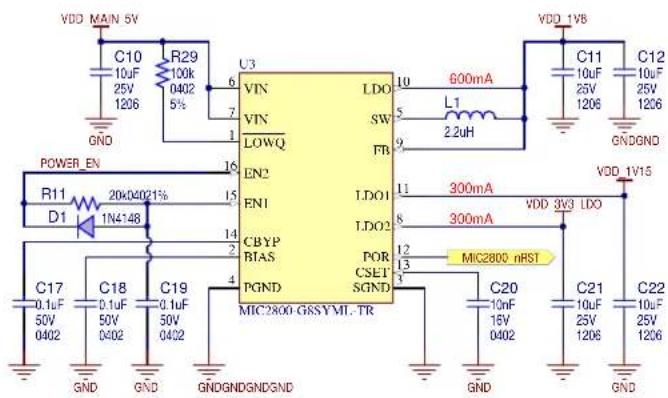

Figure 3-3. Power Management Integrated Circuit

VDD MAIN 5V C10 10uF 25V 1206 R29 100k 0402 5% GND POWER_EN R11 D1 20k/4021% 1N4148 C17 0.1uF 50V 0402 C18 0.1uF 50V 0402 C19 0.1uF 50V 0402 GND GND GNDGNDGND/GND U3 VIN VIN LOWQ EN2 EN1 CBYP BTAS PGND MIC2800 GSSYML TR LDO SW FB LDO1 LDO2 POR CSET SGND 600mA L1 2.2uH 11 300mA 300mA VDD 3V3 LDO 12 MIC2800 nRST C20 10nF 16V 0402 GND GND GNDGND VDD 1VB C11 10uF 25V 1206 C12 10uF 25V 1206 VDD 1V15 C21 10uF 25V 1206 C22 10uF 25V 1206

3.1.3 Shutdown Circuitry

The processor can assert the SHDN signal to shut down the PMIC and enter Power-down mode. This is done by pulling both enable pins of the PMIC to GND through a Field Effect Transistor (FET) scheme.

Jumper J3 must not be set to enable this functionality. By setting jumper JP2/J3, the user can shut down the MPU without powering down its power rails.

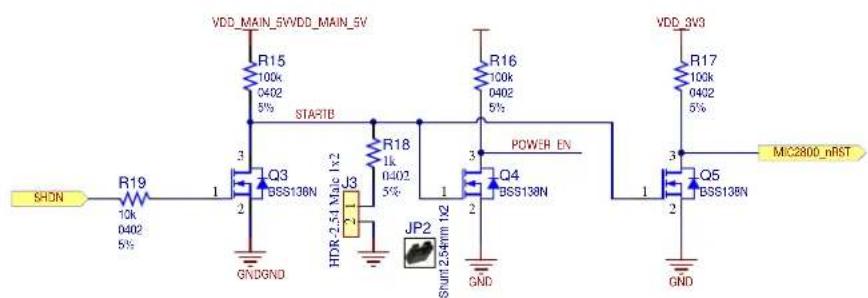

Figure 3-4. Shutdown Circuitry

VDD_MAIN_5WVDD_MAIN_5V R15 100k 0402 5% STARTB R16 100k 0402 5% POWER EN R17 100k 0402 5% MIC2800_nRST SHDN R19 10k 0402 5% Q3 BSS138N J3 HDR-2.54 Male 1x2 JP2 Shunt 2.54mm 1x2 GNDGND Q4 BSS138N VDD_SV3 R17 100k 0402 5% GND Q5 BSS138N

3.1.4 Battery Unit

A 3.3V battery (supercapacitor) is implemented to permanently maintain the VDDBU voltage.

This function allows the user to shut down the MPU and the system, thus entering a low power mode, and still keep the custom configuration that was previously set in the MPU backup area. While in Shut-down mode, the board can be woken up by action on the SW2 button (WAKE UP), which signals the MPU to resume operations.

Jumper JP1/J2 must be in place for proper operation of the MPU, and can be removed if the user wants to bring the MPU back to the initial configuration, by resetting the General Purpose Backup Registers (GPBR).

Make sure the board is powered off before removing the JP1/J2 jumper.

Figure 3-5. Battery Unit

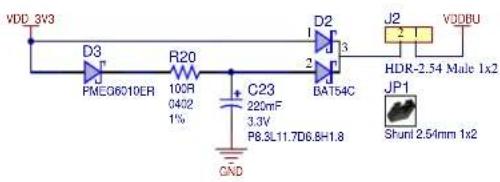

VDD 3V3 D3 PMEG6010ER R20 100R 0402 1% C23 220mF 3.3V P8.3L11.7D6.8H1.8 BAT54C D2 J2 VQDBU 1 2 3 HDR-2.54 Male 1x2 JP1 Shunt 2.54mm 1x2

3.1.5 Current Measurement

Two Microchip DC power/energy monitors are embedded on the SAM9X60-EK board:

• one single high-side current sense monitor PAC1710
• one four-channel current sense monitor PAC1934

Both chips communicate with the MPU via a Two-wire Interface (TWI) and both output their ALERT# signal to a port expander.

The PAC1710 is a single high-side bidirectional current sensing monitor with precision voltage measurement capabilities. The power monitor measures the voltage developed across an external sense resistor to represent the high-side current of a battery or voltage regulator. The PAC1710 also measures the SENSE+ pin voltage and calculates average power over the integration period. The PAC1710 can be programmed to assert the ALERT# pin when high and low limits are exceeded for current sense and bus voltage. For more information about the PAC1710, refer to the product web page.

One current sense resistor is populated on board for measuring voltage and current on the main 5V power rail.

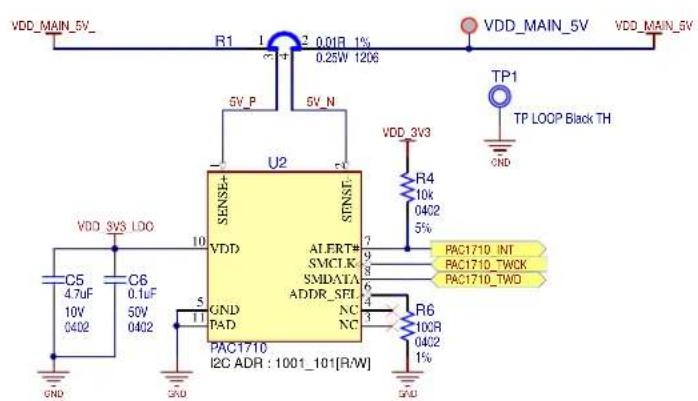

Figure 3-6. PAC1710 Current Measurement

VDD_MAIN_5V_ R1 1 2 0.01R 1% 0.25W 1206 VDD_MAIN_5V VDD_MAIN_5V 5V_P 5V_N U2 SENSE+ STNST- VDD_3V3 R4 10k 04C2 5% TP1 TP LOOP Black TH VDD_3V3 C5 4.7uF C6 0.1uF 10V 50V 0402 GND GND PAD PAC1710 I2C ADR : 1001_101[R/W] ALERT# SMCI.K SMDATA ADDR_SEL NC NC 7 9 8 5 4 3 R6 10CR 04C2 1% GND

Table 3-1. PAC1710 Signal Descriptions

PIO Signal Name Shared PIO Signal Description
PA31 PAC1710_TWCK Power TWI TWI clock
PA30 PAC1710_TWD		Power TWI TWI data
-	PAC1710_INT	-	Interrupt – to port expander U6

The PAC1934 is a four-channel power/energy monitor with current sensor amplifier and bus voltage monitors that feed high resolution ADCs. Digital circuitry performs power calculations and energy accumulation. The PAC1934 enables energy monitoring with integration periods from 1 ms to up to 36 hours. Bus voltage, sense resistor voltage, and accumulated proportional power are stored in registers for retrieval by the system master or embedded controller. For more information about the PAC1934, refer to the product web page.

Four current sense resistors are populated on board for measuring voltage and current consumption on the power rails:

• 3.3V VDD_3V3_MPU - MPU on the 3.3V rail
- 3.3V VDD_3V3_SYS - rest of the system on the 3.3V rail
• 1.8V VDDIOM - MPU and DDR2 memory
• 1.15V VDDCORE – MPU core

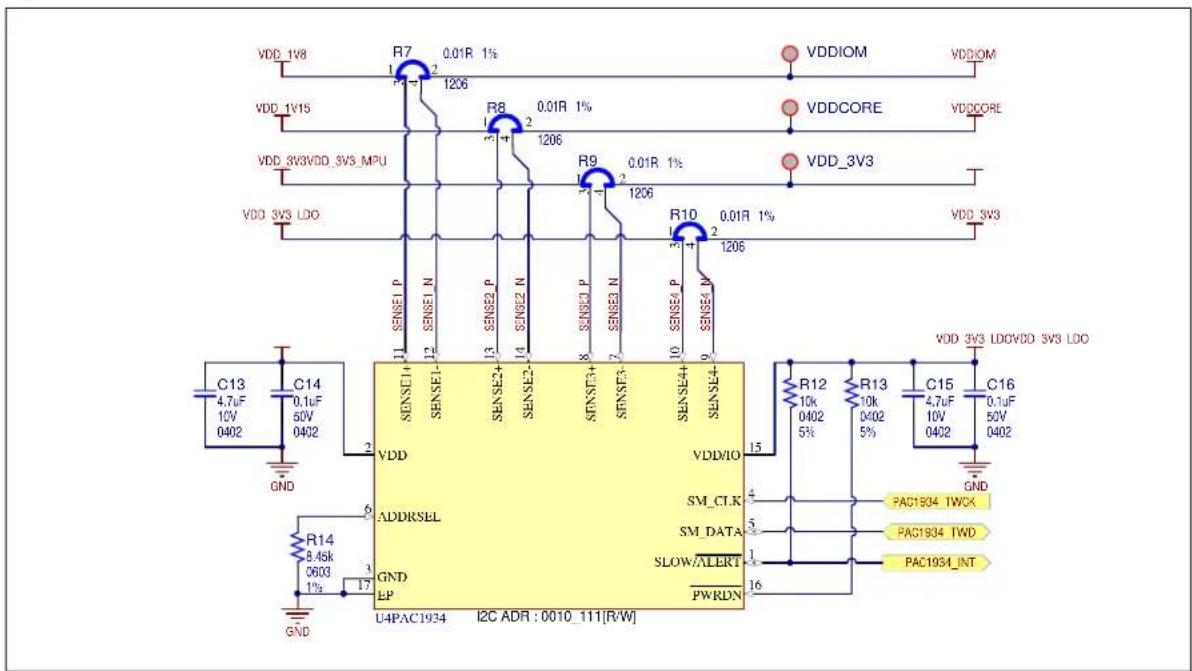

Figure 3-7. PAC1934 Current Measurement

VDD_1V8 R7 0.01R 1% 1206 VDD_1V15 R8 0.01R 1% 1206 VDD_3V3VDD_3V3 MPU R9 0.01R 1% 1206 VDD_3V3 LDO R10 0.01R 1% 1206 VDD_3V3 C13 4.7uF 10V 0402 C14 0.1uF 50V 0402 GND SENSE1 P SENSE1- SENSE2 P SENSE2- SENSE3 P SENSE3- SENSE4 P SENSE4 N SENSE4 N SENSE4- VDD ADDRSEL GND EP U4PAC1934 I2C ADR : 0010_111[R/W] VDD/IO SM_CTK SM_DATA SLOW/ALERT PWRDN R12 10k 0402 5% R13 10k 0402 5% C15 4.7uF 10V 0402 C16 0.1uF 50V 0402 GND PAC1934 TWCK PAC1934 TWD PAC1934_INT

Table 3-2. PAC1934 Signal Descriptions

PIO Signal Name Shared PIO Signal Description

PA31 PAC1934_TWCK Power TWI TWI clock

PA30 PAC1934_TWD Power TWI TWI data

- PAC1934_INT - Interrupt - to port expander U6

3.2 Processor

The SAM9X60 is a high-performance, ultra-low power ARM926EJ-S CPU-based embedded microprocessor (MPU) running up to 600 MHz, with support for multiple memories such as SDRAM, LPSDRAM, LPDDR, DDR2, QSPI and e.MMC Flash. The device integrates powerful peripherals for connectivity and user interface applications, and offers security functions (tamper detection, etc.), TRNG, as well as high-performance crypto accelerators for AES and SHA.

Refer to the SAM9X60 datasheet for more information (see 1.2 Recommended Reading).

3.2.1 Power Supply

The PMIC (main regulator) provides all power supplies required by the SAM9X60 device:

• 1.15V for VDDCORE
- 1.8V for VDDIOM
• 3.3V for VDDIOP0, VDDIOP1, VDDANA, VDDNF, VDDQSPI, VDDIN33 and VDDBU

Decoupling capacitors are placed close to the MPU power pins to stabilize the voltage rails.

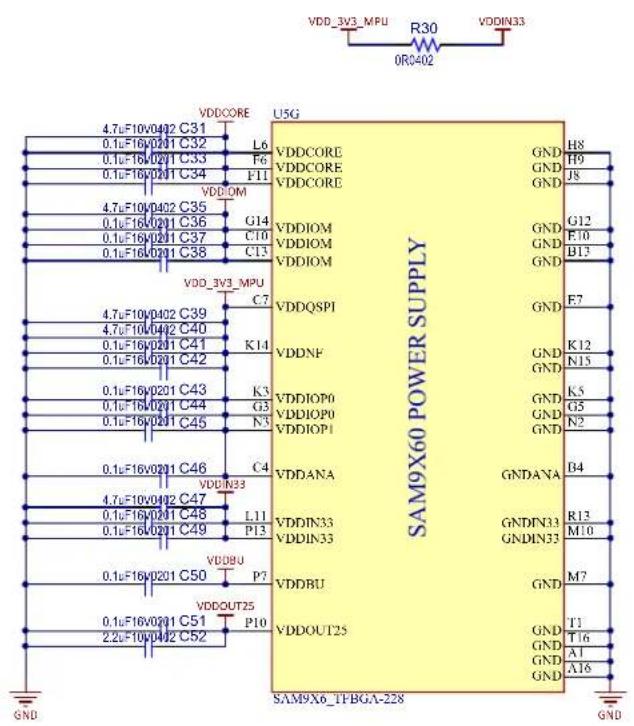

Figure 3-8. Processor Power Supplies

VDD_3V3_MPU R30 VDDIN33 0RC402 VDDCORE U5G 4.7uF10v0402 C31 0.1uF16v0201 C32 0.1uF16v0201 C33 0.1uF16v0201 C34 VDDIOM 4.7uF10v0402 C35 0.1uF16v0201 C36 0.1uF16v0201 C37 0.1uF16v0201 C38 G14 C10 C13 VDDIOM VDDIOM VDDIOM VDDQSPI C7 4.7uF10v0402 C39 4.7uF10v0402 C40 0.1uF16v0201 C41 0.1uF16v0201 C42 K14 VDDNF VDDIOP0 G3 N3 K3 VDDIOP0 VDDIOP1 VDDANA VDDIN33 L11 P13 VDDBU P7 VDDOUT25 2.2uF10v0402 C50 VDDOUT25 P10 VDDOUT25 VDDCORE VDDCORE VDDCORE VDDCORE GND H8 H9 J8 GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND

3.2.2 Main Configuration and Control

This block depicts the main block for processor configuration and control:

• XIN and XOUT are the Main Clock Oscillator input/output.
• XIN32 and XOUT32 are the Slow Clock Oscillator input/output.
• SHDN is an output signal used to enable and disable an external power supply circuit.
• WKUP is an event detection input pin used to wake up the processor from Shutdown state.
• JTAGSEL is an input that when pulled high enables the JTAG boundary scan.
  • TCK, TDI, TDO, TMS and RTCK are used for JTAG communication.
• nRST is the processor main reset input.
• HHSD_A/B/C are the three USB ports embedded inside the MPU.
• RTUNE is used for USB external tuning.
• TST input is reserved for processor manufacturing tests.
• ADVREFP and ADVREFN are the positive and negative reference points for the embedded analog comparator. A small low-pass filter is placed to reduce the input noise and improve accuracy.

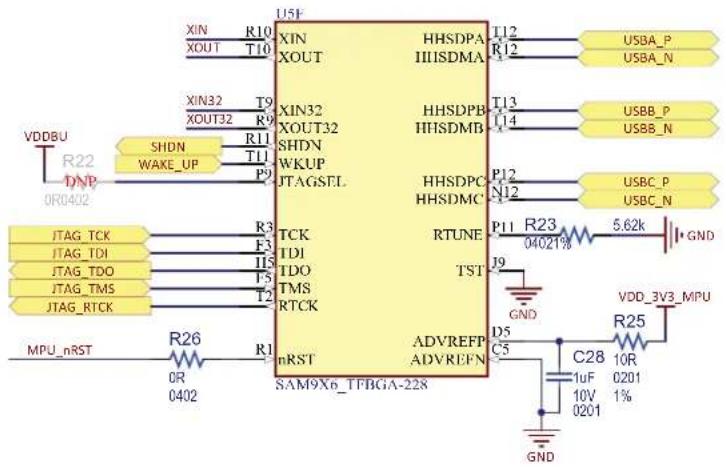

Figure 3-9. Processor Main Configuration and Control

U5F XIN R10 XOUT T10 XIN32 T9 XOUT32 R9 SHDN R11 WAKE_UP T11 P9 JTAGSTL TCK TDI TDO TMS RTCK R26 OR 0402 nRST SAM9x0_TFBGA-228 HHSDPA T12 HHSDMA R12 HHSDPB T13 HHSDMB U14 HHSDPC P12 HHSDMC N12 RTUNE P11 R23 5.62k 04021% J9 GND D5 C5 ADVREFP ADVREFN VDD_3V3_MPU R25 C28 10R 1uF 0201 1% 10V 0201 GND

3.2.3 Clock Circuitry

The embedded MPU generates its necessary clocks based on two oscillators: one slow clock (SLCK) oscillator running at 32.768 kHz and one main clock oscillator running at 24 MHz.

The main clock oscillator is implemented with a MEMS (Micro Electro-Mechanical System) device DSC1001.

For evaluation purposes, we leave users the freedom to mount a crystal instead, using the PCB footprint reservation (Y1). In that case, resistors R149 and R28 should be removed, resistors R27 and R91 should be populated and capacitors C24 and C25 should be populated with the appropriate load capacitance for the selected crystal.

Figure 3-10. Processor Clock Circuitry

C26 0402 GND C27 20pF Y2 32.768KHz ABS06-32.768KHZ-T 20pF0402 XIN32 DNP 524 1M 042 6% XOUT32

C24 DNP 0402 11 GND C25 DNP 27p-0482M5G-24.00MHz-18-D2Y-1 DNP IY1 24VHz 18pF R21 TM 0402 5% R27 DNP 0R 0402 R91 DNP 0R 0402 XIN XOUT

VDD_3V3 C29 0.1uF 50V 0402 GND GND Y3 VDD OUT GND STR 24MHz DSC1001C15-024.0000 R149 51R 0402 TP2 XIN R28 0R 0402 XOUT

3.2.4 Reset Circuitry

Three reset sources for the SAM9X60 MPU are placed on the board:

• Power-on Reset from the power management unit MIC2800
- User push button reset SW3
- External JTAG or J-Link-OB reset from an in-circuit emulator

Figure 3-11. Processor Reset Circuitry

MIC2800_nRST R185 100R34021% USER_nRST R190 100R34021% JTAG_nRST R191 100R34021% MPU_nRST

3.2.5 DDR Controller (MPDDRC)

The SAM9X60 embeds a Multi-Port DDR-SDRAM Controller (MPDDRC) to drive DDR2 and LPDDR1 memories.

Note the following regarding the command and control signal connections between the DDR Controller and the DDR Memory:

• Addresses A0, A1 and A12 are not used on the controller side.
• Addresses A2 to A11 are connected to A0 to A9 on the memory side.
  • Signal SDA10 must be connected to A10.
• Addresses A13 to A15 are connected to the last three addresses on the memory side.
  • A16 to A18 are connected to BA0 to BA2.

It is recommended to double-check the design schematic against the information provided in the datasheet.

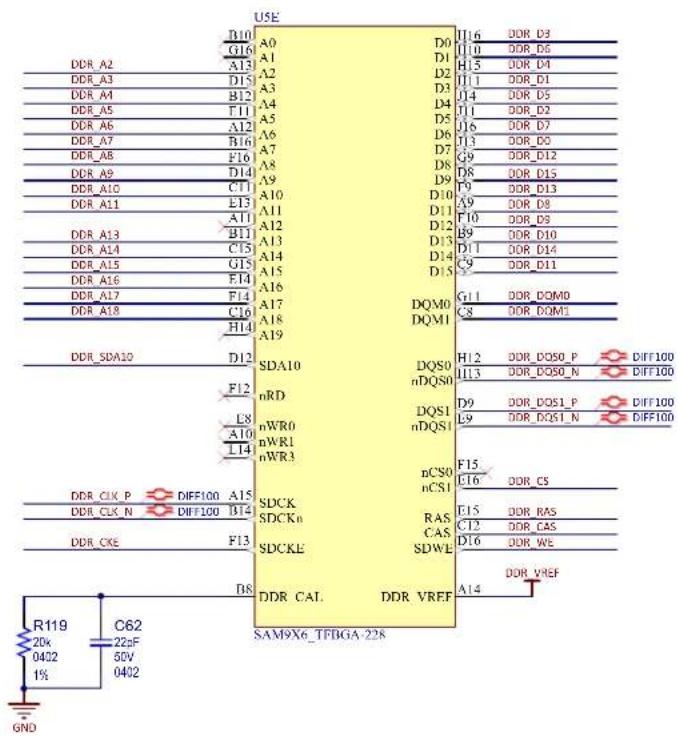

Figure 3-12. Processor DDR Controller

The MPDDRC I/Os embed an automatic impedance matching control to avoid overshoots and to reach the best performance levels depending on the bus load and external memories. A serial termination connection scheme, where the driver has an output impedance matched to the characteristic impedance of the line, is used to improve signal quality and reduce EMI. This is done using the ZQ calibration procedure to calibrate the SAM9X60 DDR I/O drive strength. The pin name where the ZQ resistor must be connected is DDR_CAL and, as indicated in the SAM9X60 datasheet for DDR2 case, the resistor value is 20 KOhms.

The DDR_VREF pin serves as a voltage reference input for the DDR I/Os when DDR2 or LPDDR external SDRAM memories are used.

Figure 3-13. DDR Reference Voltage

VDD/OM C65 4.7uF 10V 0402 GND C63 0.1uF 16V 0201 R120 4.7k 0201 1% C66 0.1uF 16V 0201 R121 4.7k 0201 1% DOR_VREF

3.2.6 PIOs

The following sections depict all the signals connected to the SAM9X60 MPU ports.

See Table 3-3 for details about each port's functions.

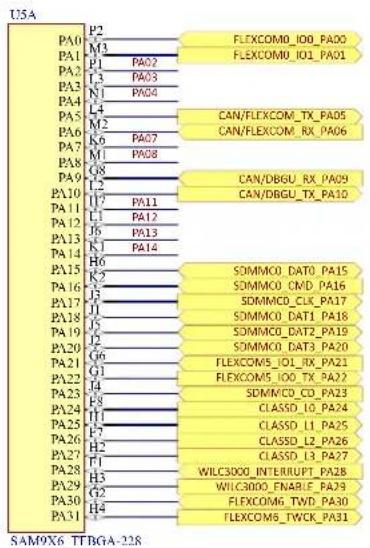

Figure 3-14. Processor PIOs PA and PC

I15A PA0 P2 FLEXCOM0_IO0_PA00 M3 FLEXCOM0_IO1_PA01 PA1 P1 PA02 L3 L4 CAN/FLEXCOM_TX_PA05 P2 P3 CAN/FLEXCOM_RX_PA06 PA2 N1 PA04 PA3 L4 CAN/DBGU_RX_PA09 P4 M2 CAN/DBGU_TX_PA10 PA4 K6 PA07 P5 M1 PA08 PA6 G8 PA7 L2 CAN/DBGU_RX_PA10 PA8 L7 PA11 PA9 L1 PA12 PA10 J6 PA13 PA11 H1 PA14 PA12 J1 PA13 H2 PA14 K1 PA15 H3 PA16 K2 SDMMC0_DAT0_PA15 J3 SDMMC0_CMD_PA16 PA17 SDMMC0_CLK_PA17 PA18 SDMMC0_DAT1_PA18 J5 SDMMC0_DAT2_PA19 PA19 SDMMC0_DAT3_PA20 J2 SDMMC0_DAT4_PA21 PA20 SDMMC0_DAT5_PA22 G6 SFXCOM5_IO1_RX_PA21 G1 FLEXCOM5_IO0_TX_PA22 PA21 H4 SDMMC0_CO_PA23 PA22 F4 CLASSD_10_PA24 PA23 F1 CLASSD_L1_PA25 PA24 F2 CLASSD_L2_PA26 PA25 F3 CLASSD_L3_PA27 PA26 H3 WILC3000_INTERRUPT_PA28 PA27 F4 WILC3000_ENABLE_PA29 PA28 G2 FLEXCOM6_TWD_PA30 PA30 H4 FLEXCOM6_TWCK_PA31 PA31

USC M4 PC0 P4 PC1 N5 PC2 P5 PC3 L5 PC4 R4 PC5 M6 PC6 L3 PC7 N8 PC8 L4 PC9 P6 PC10 N6 PC11 R5 PC12 L7 PC13 T5 PC14 J7 PC15 R6 PC16 K8 PC17 T0 PC18 L8 PC19 P8 PC20 M8 PC21 R7 PC22 K9 PC23 R8 PC24 T9 PC25 L10 PC26 M9 PC27 N9 PC28 L10 PC29 T7 PC30 M13 PC31 LCD_D0_ISI_D0_PC00 LCD_D1_ISI_D1_PC01 LCD_D2_ISI_D2_PC02 LCD_D3_ISI_D3_PC03 LCD_D4_ISI_D4_PC04 LCD_D5_ISI_D5_PC05 LCD_D6_ISI_D6_PC06 LCD_D7_ISI_D7_PC07 LCD_D8_ISI_D8_PC08 LCD_D9_ISI_D9_PC09 LCD_D10_ISI_D10_PC10 LCD_D11_ISI_D11_PC11 LCD_D12_ISI_PCK_PC12 LCD_D13_ISI_VSYNC_PC13 LCD_D14_ISI_HSYNC_PC14 LCD_D15_ISI_MCK_PC15 LCD_D16_ISI_nRST_PC16 LCD_D17_PC17 LCD_D18_PC18 LCD_D19_PC19 LCD_D20_PC20 LCD_D21_PC21 LCD_D22_PC22 LCD_D23_PC23 LCD_ISI_ENABLE_PC24 LCD_IRQ1_PC25 LCD_PWM_PC26 LCD_VSYNC/CS_PC27 LCD_HSYNC/WL_PC28 LCD_DATA_ENABLE_PC29 LCD_PCLK_PC30

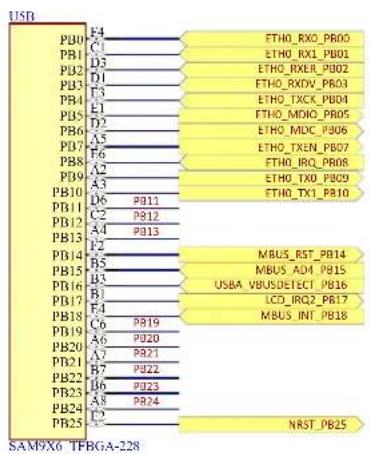

Figure 3-15. Processor PIOs PB and PD

USB PB01 F4 PB1 C1 PB2 D3 PB3 D1 PB4 E1 PB5 D2 PB6 A5 PB7 F6 PB8 A2 PB9 A3 PB10 D6 PB11 PB11 C2 PB12 PB12 A4 PB13 PB13 F2 PB14 B5 PB15 B3 PB16 B1 PB17 F4 PB18 C6 PB19 PB19 A6 PB20 PB20 A7 PB21 PB21 B7 PB22 PB22 I6 PB23 PB23 A8 PB24 PB24 L2 PB25 NRST_PB25 ETHO_RXO_PR00 ETHO_RXI_PR01 ETHO_RXER_PR02 ETHO_RXDV_PR03 ETHO_TXCK_PR04 ETHO_MDO_PR05 ETHO_MDC_P306 ETHO_TXEN_PR07 ETHO_IRQ_PR08 ETHO_TXO_PR09 ETHO_TX1_PR10 MBUS_RST_PB14 MBUS_A0M_PB15 USBA_VBUSDETECT_PB16 LCD_IRQ2_PB17 MBUS_INT_PB18 SAM9X6 TFBGA-228

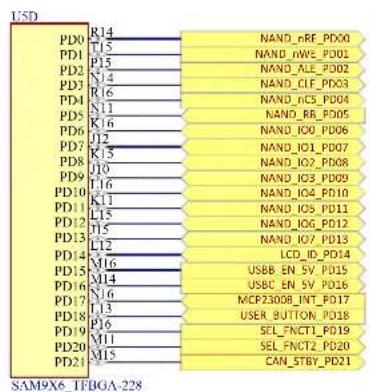

LSD PD0 R14 NAND_rRF_PD00 PD1 T15 NAND_rWE_PD01 PD2 P15 NAND_ALE_PD02 PD3 N14 NAND_CIF_PD03 PD4 R16 NAND_IC5_PD04 PD5 N11 NAND_RC_PD05 PD6 K16 NAND_IOI_PD06 PD7 J12 NAND_IO1_PD07 PD8 K15 NAND_IO2_PD08 PD9 L16 NAND_IO3_PD09 PD10 K11 NAND_IO4_PD10 PD11 L15 NAND_IO5_PD11 PD12 J15 NAND_IO6_PD12 PD13 L12 NAND_IO7_PD13 PD14 LCD_ID_PD14 PD15 M16 USBB EN_5V_PD15 PD16 M14 USBC EN_5V_PD16 PD17 N16 MCP23008_INT_PD17 PD18 L13 USER_BUTTON_PD18 PD19 P16 SEL_FNCT1_PD19 PD20 M11 SEL_FNCT2_PD20 PD21 M15 CAN_STBY_PD21 SAM9X6_IFBGA-228

Some of the ports were multiplexed to accommodate more devices on the evaluation kit and to showcase all the functions the SAM9X60 MPU can address off a single PIO wire.

Most of the ports that share multiple functions are split through passive resistors placed on the board as close to the MPU as possible, therefore no other hardware change must be made. In most cases, the user can use only one of their functions at a time, or can develop a composite driver enabling the use of multiple functions at the same time.

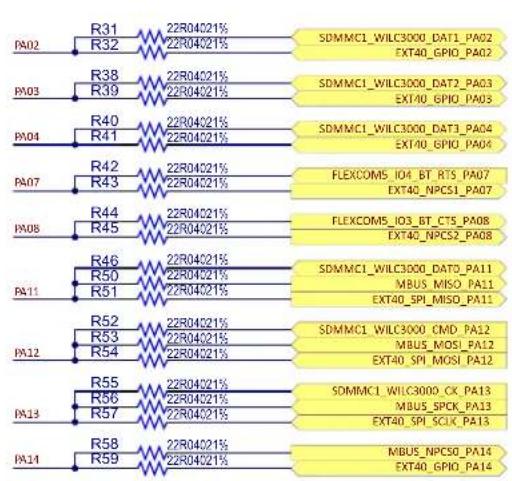

Figure 3-16. Processor PIO Muxing

R31 22R04021% SDMMC1_WILC3000_DAT1_PA02 EXT40_GPIO_PA02 R32 22R04021% SDMMC1_WILC3000_DAT2_PA03 EXT40_GPIO_PA03 R38 22R04021% SDMMC1_WILC3000_DAT3_PA04 EXT40_GPIO_PA04 R39 22R04021% SDMMC1_WILC3000_DAT4_PA05 EXT40_NPCS1_PA07 R40 22R04021% FLEXCOM5_IO4_BT_RTS_PA06 EXT40_NPCS2_PA08 R41 22R04021% FLEXCOM5_IO3_BT_CTS_PA07 EXT40_NPCS2_PA08 R42 22R04021% FLEXCOM5_IO4_BT_RTS_PA08 EXT40_NPCS1_PA07 R43 22R04021% FLEXCOM5_IO3_BT_CTS_PA09 EXT40_NPCS1_PA08 R44 22R04021% FLEXCOM5_IO3_BT_CTS_PA08 EXT40_NPCS2_PA08 R45 22R04021% FLEXCOM5_IO3_BT_CTS_PA09 EXT40_NPCS1_PA11 R46 22R04021% SDMMC1_WILC3000_DAT0_PA12 MBUS_MISO_PA12 EXT40_SPI_MISO_PA11 R50 22R04021% SDMMC1_WILC3000_CMD_PA13 MBUS_MOSI_PA13 EXT40_SPI_MOSI_PA12 R51 22R04021% SDMMC1_WILC3000_CMD_PA14 MBUS_MOSI_PA14 R52 22R04021% SDMMC1_WILC3000_CMD_PA15 MBUS_MOSI_PA15 EXT40_SPI_MOSI_PA13 R53 22R04021% SDMMC1_WILC3000_CMD_PA16 MBUS_MOSI_PA16 EXT40_SPI_MOSI_PA15 R54 22R04021% SDMMC1_WILC3000_CMD_PA17 MBUS_MOSI_PA17 EXT40_SPI_MOSI_PA16 R55 22R04021% SDMMC1_WILC3000_CMD_PA18 MBUS_MOSI_PA18 EXT40_SPI_MOSI_PA17 R56 22R04021% SDMMC1_WILC3000_CMD_PA19 MBUS_MOSI_PA19 EXT40_SPI_MOSI_PA18 R57 22R04021% SDMMC1_WILC3000_CMD_PA20 MBUS_MOSI_PA20 EXT40_SPI_MOSI_PA21 R58 22R04021% SDMMC1_WILC3000_CMD_PA21 MBUS_MOSI_PA21 EXT40_SPI_MOSI_PA22 R59 22R04021% SDMMC1_WILC3000_CMD_PA22 MBUS_MOSI_PA22 EXT40_SPI_MOSI_PA23 R66 22R04021% SDMMC1_WILC3000_CMD_PA66 MBUS_MOSI_PA66 EXT40_SPI_MOSI_PA67 R67 22R04021% SDMMC1_WILC3000_CMD_PA68 MBUS_MOSI_PA68 EXT40_SPI_MOSI_PA69 R68 22R04021% SDMMC1_WILC3000_CMD_PA79 MBUS_MOSI_PA79 EXT40_SPI_MOSI_PA7A R69 22R04021% SDMMC1_WILC3000_CMD_PA8A MBUS_MOSI_PA8A EXT40_SPI_MOSI_PA8B

PB11 R60 0R0402 EXT40_PWM0_PB11 LED_RED_PB11 PB12 R63 0R0402 EXT40_PWM2_PB12 LED_GREEN_PB12 PB13 R65 0R0402 MBUS_PWM_PB13 EXT40_CLKP_PB13 LED_BLUE_PB13 R66 0R0402 EXT40_12SCK_PB19 QSPI_SCK_PB19 PB19 R69 22R04021% EXT40_12SWS_PB20 QSPI_CS_PB20 R70 22R04021% EXT40_12SDIN_PB21 QSPI_IOI_PB21 PB20 R71 22R04021% EXT40_12SDOUT_PB22 QSPI_IOI_PB22 R72 22R04021% EXT40_12SMCK_PB23 QSPI_IO2_PB23 PB21 R74 22R04021% EXT40_GPIO_PB24 QSPI_IO3_PB24 R75 22R04021% EXT40_CUK1_PC31 ETHO_PCK1_PC31 PB22 R77 22R04021% EXT40_12SDOUT_PB23 QSPI_IOI_PB23 R79 22R04021% EXT40_12SDOUT_PB24 QSPI_IOI_PB24 PB23 R80 22R04021% EXT40_12SMCK_PB25 QSPI_IO2_PB25 R81 22R04021% EXT40_GPIO_PB26 QSPI_IO3_PB26 PB24 R82 22R04021% EXT40_GPIO_PB27 QSPI_IO3_PB27 PC31 R85 22R04021% EXT40_GPIO_PB28 QSPI_IO3_PB28 R86 22R04021% EXT40_CUK1_PC31 ETHO_PCK1_PC31

Table 3-3. Processor PIOs Pin Assignment and Signal Description

Pad Power Rail Function I/O Type
PA0 VDDIOP0 (3.3V) FLEXCOM0_IO0		TWI Data (TWD) bidirectional line shared between the LCD, EEPROMs and external 40-pin header
PA1 VDDIOP0 (3.3V) FLEXCOM0_IO1		TWI Clock (TWCK) output line shared between the LCD, EEPROMs and external 40-pin header

Pad Power Rail Function I/O Type
PA2 VDDIOP0 (3.3V)		SDMMC1_DAT1	SDIO Data 1 (I/O1) bidirectional line for the ATWILC3000 Wi-Fi/BT module
		GPIO GPIO going to the external 40-pin header
PA3 VDDIOP0 (3.3V)		FLEXCOM0_IO3	SDIO Data 2 (I/O2) bidirectional line for the ATWILC3000 Wi-Fi/BT module
		GPIO GPIO going to the external 40-pin header
PA4 VDDIOP0 (3.3V)		FLEXCOM0_IO2	SDIO Data 3 (I/O3) bidirectional line for the ATWILC3000 Wi-Fi/BT module
		GPIO GPIO going to the external 40-pin header
PA5^1	VDDIOP0 (3.3V)	FLEXCOM1_IO0 UART Transmit (TX) output line going to the external 40-pin header
		CANTX1	CAN Transmit (CANTX) output line going to the second CAN transceiver MCP2542
PA6^1	VDDIOP0 (3.3V)	FLEXCOM1_IO1 UART Receive (RX) input line going to the external 40-pin header
		CANRX1	CAN Receive (CANRX) input line going to the second CAN transceiver MCP2542
PA7 VDDIOP0 (3.3V)		FLEXCOM4_IO4 First SPI Chip Select (nCS) output line for the external 40-pin header
		FLEXCOM5_IO4 SPI Request to Send (RTS) output line for the BT module
PA8 VDDIOP0 (3.3V)		FLEXCOM4_IO5	Second SPI Chip Select (nCS) output line for the external 40-pin header
		FLEXCOM5_IO3 SPI Clear to Send (CTS) input line for the BT module
PA9^2	VDDIOP0 (3.3V)	DRXD DEBUG UART Receive (DRX) input line
		CANRX0	CAN Receive (CANRX) input line going to the first CAN transceiver MCP2542

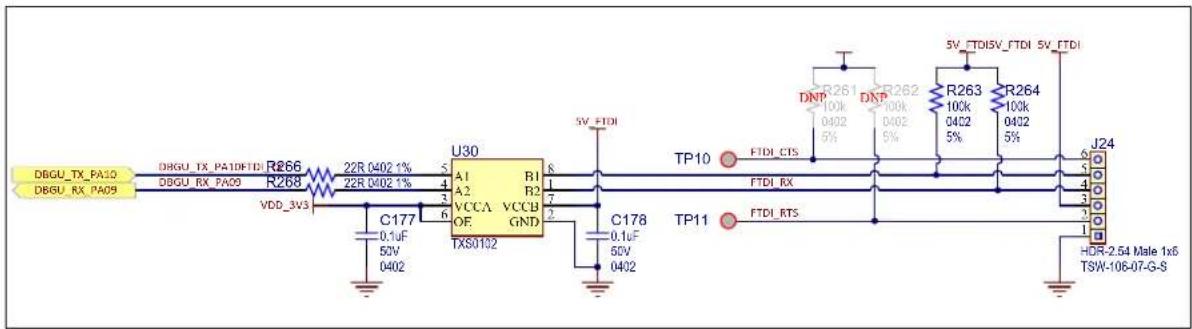

PA10^2	VDDIOP0 (3.3V)	DTXD DEBUG UART Transmit (DTX) input line
		CANTX0	CAN Transmit (CANTX) output line going to the first CAN transceiver MCP2542
PA11 VDDIOP0 (3.3V)		FLEXCOM4_IO1	SPI Master Input Slave Output (MISO) input line shared between the mikroBUS and external 40-pin connectors
		SDMMC1_DAT0	SDIO Data 0 (I/O0) bidirectional line going to the ATWILC3000 Wi-Fi/BT module
PA12 VDDIOP0 (3.3V)		FLEXCOM4_IO0	SPI Master Output Slave Input (MOSI) output line shared between the mikroBUS and external 40-pin connectors
		SDMMC1_CMD	SDIO Command (CMD) bidirectional line going to the ATWILC3000 Wi-Fi/BT module
PA13 VDDIOP0 (3.3V)		FLEXCOM4_IO2	SPI Source Clock (SCLK) output line shared between the mikroBUS and external 40-pin connectors
		SDMMC1_CK	SDIO Data 0 (I/O0) bidirectional line going to the ATWILC3000 Wi-Fi/BT module
PA14 VDDIOP0 (3.3V)		FLEXCOM4_IO3 SPI Chip Select (nCS) output line for the mikroBUS connector
		GPIO GPIO going to the external 40-pin header
Pad Power Rail Function I/O Type

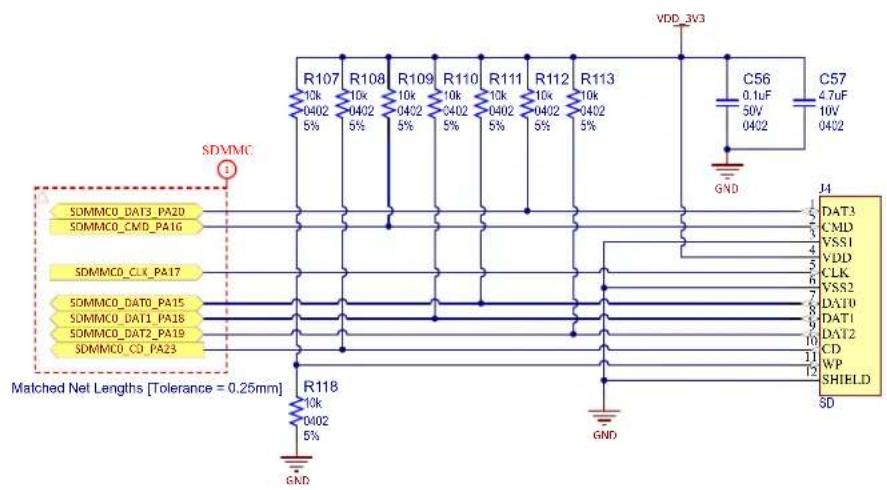

PA15	VDDIOP0 (3.3V)	SDMMC0_DAT0 SDIO	Data 0 (I/O0) bidirectional line going to the SD card connector
PA16	VDDIOP0 (3.3V)	SDMMC0_CMD	SDIO Command (CMD) bidirectional line going to the SD card connector
PA17	VDDIOP0 (3.3V)	SDMMC0_CK SDIO	Clock (CLK) output line going to the SD card connector
PA18	VDDIOP0 (3.3V)	SDMMC0_DAT1 SDIO	Data 1 (I/O1) bidirectional line going to the SD card connector
PA19	VDDIOP0 (3.3V)	SDMMC0_DAT2 SDIO	Data 2 (I/O2) bidirectional line going to the SD card connector
PA20	VDDIOP0 (3.3V)	SDMMC0_DAT3 SDIO	Data 3 (I/O3) bidirectional line going to the SD card connector
PA21	VDDIOP0 (3.3V)	FLEXCOM5_IO1	UART Receive (RX) input line shared between the mikroBUS connector and the BT transceiver on the ATWILC3000 module
PA22	VDDIOP0 (3.3V)	FLEXCOM5_IO0	UART Transmit (TX) output line shared between the mikroBUS connector and the BT transceiver on the ATWILC3000 module
PA23	VDDIOP0 (3.3V)	GPIO	GPIO used as input to detect when an SD card has been inserted in the SD connector
PA24	VDDIOP0 (3.3V)	CLASSD_L0 CLASSD	Left Output L0
PA25	VDDIOP0 (3.3V)	CLASSD_L1 CLASSD	Left Output L1
PA26	VDDIOP0 (3.3V)	CLASSD_L2 CLASSD	Left Output L2
PA27	VDDIOP0 (3.3V)	CLASSD_L3 CLASSD	Left Output L3
PA28	VDDIOP0 (3.3V)	GPIO / WKUP4	GPIO Input used to signal any interrupt coming from the WILC300 Wi-Fi/BT module
PA29	VDDIOP0 (3.3V)	GPIO	GPIO Output used to enable the WILC300 Wi-Fi/BT module by enabling its power supply

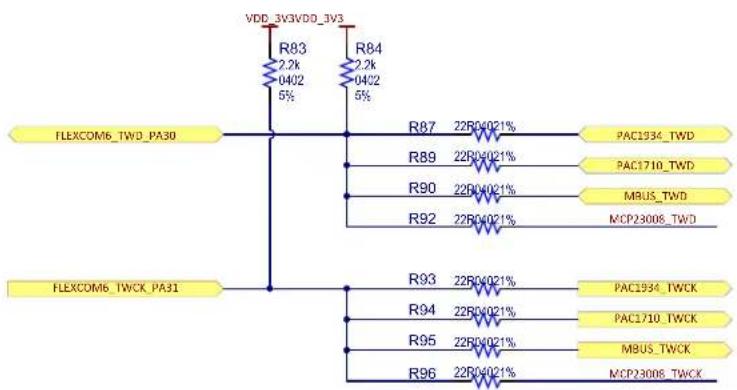

PA30	VDDIOP0 (3.3V)	FLEXCOM6_IO0	TWI Data (TWD) bidirectional signal shared between PAC1934, PAC1710, MPC23008 and the mikroBUS connector
PA31	VDDIOP0 (3.3V)	FLEXCOM6_IO1	TWI Clock (TWCK) Bidirectional signal shared between PAC1934, PAC1710, MPC23008 and the mikroBUS connector
PB0	VDDANA (3.3V)	E0_RX0 RMII Ethernet	Receive Data 0 signal going to KSZ8081
PB1	VDDANA (3.3V)	E0_RX1 RMII Ethernet	Receive Data 1 signal going to KSZ8081
PB2	VDDANA (3.3V)	E0_RXER RMII Ethernet	Receive Error signal going to KSZ8081
PB3	VDDANA (3.3V)	E0_RXDV RMII Ethernet	Receive Data Valid signal going to KSZ8081
PB4	VDDANA (3.3V)	E0_TXCK RMII Ethernet	Transmit Clock signal going to KSZ8081
PB5	VDDANA (3.3V)	E0_MDIO RMII Ethernet	Management Data I/O signal going to KSZ8081
PB6	VDDANA (3.3V)	E0_MDC RMII Ethernet	Management Data Clock signal going to KSZ8081
PB7	VDDANA (3.3V)	E0_TXEN RMII Ethernet	Receive Data Valid signal going to KSZ8081
PB8	VDDANA (3.3V)	E0_TXER RMII Ethernet	Transmit Coding Error signal going to KSZ8081
PB9	VDDANA (3.3V)	E0_TX0 RMII	Ethernet Transmit Data 0 signal going to KSZ8081
PB10	VDDANA (3.3V)	E0_TX1	RMII Ethernet Transmit Data 1 signal going to KSZ8081
PB11	VDDANA (3.3V)	PWM0	PWM signal shared between the LD1 red LED and the 40-pin connector
......continued
Pad Power Rail Function I/O Type
PB12 VDDANA (3.3V) PWM1			PWM signal shared between the LD1 green LED and the 40-pin connector
PB13 VDDANA (3.3V) PWM2			PWM signal shared between the LD1 blue LED, the mikroBUS and the 40-pin connectors
PB14 VDDANA (3.3V) GPIO GPIO output used as the reset signal for the mikroBUS connector
PB15 VDDANA (3.3V) AD4 Analog input for the mikroBUS connector
PB16 VDDANA (3.3V) GPIO			GPIO input used to detect if the board has been connected to a host on the USBA port
PB17 VDDANA (3.3V) GPIO GPIO input used to signal any interrupt request from the LCD
PB18 VDDANA (3.3V) GPIO			GPIO input used to signal any interrupt request from the mikroBUS connector

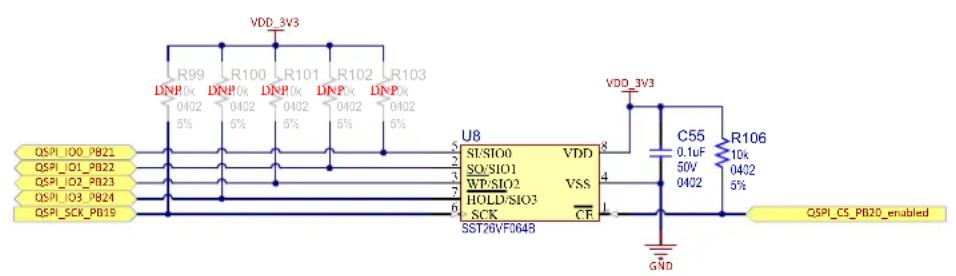

PB19 VDDQSPI (3.3V)	QSCK QSPI Serial Clock (SCK) signal going to SST26VF064B
	I2SMCC_CK I2S Bit Clock (CK) signal going to the 40-pin connector
PB20 VDDQSPI (3.3V)	QCS QSPI Chip Select (CS) signal going to SST26VF064B
	I2SMCC_WS I2S Word Select (WS) signal going to the 40-pin connector
PB21 VDDQSPI (3.3V)	QIO0 QSPI Data I/O 0 (IO0) signal going to SST26VF064B
	I2SMCC_DINO I2S Data IN 0 (DINO) signal going to the 40-pin connector
PB22 VDDQSPI (3.3V)	QIO1 QSPI Data I/O 1 (IO1) signal going to SST26VF064B
	I2SMCC_DOUTO I2S Data Out 0 (DOUTO) signal going to the 40-pin connector
PB23 VDDQSPI (3.3V)	QIO2 QSPI Data I/O 2 (IO2) signal going to SST26VF064B
	I2SMCC_MCK I2S Master Clock (MCK) signal going to the 40-pin connector
PB24 VDDQSPI (3.3V)	QIO3 QSPI Data I/O 3 (IO3) signal going to SST26VF064B
	GPIO GPIO signal going to the 40-pin connector
PB25 VDDIOP0 (3.3V) NRST_OUT Output signal used to reset all the devices on the board
PC0 VDDIOP1 (3.3V)	LCDDAT0	LCD Data Output 0 (DAT0) signal going to the LCD connector
	ISI_D0	Image Sensor Interface (ISI) Data Input 0 (D0) signal going to the ISI connector
PC1 VDDIOP1 (3.3V)	LCDDAT1	LCD Data Output 1 (DAT1) signal going to the LCD connector
	ISI_D1	Image Sensor Interface (ISI) Data Input 1 (D1) signal going to the ISI connector
PC2 VDDIOP1 (3.3V)	LCDDAT2	LCD Data Output 2 (DAT2) signal going to the LCD connector
	ISI_D2	Image Sensor Interface (ISI) Data Input 2 (D2) signal going to the ISI connector
PC3 VDDIOP1 (3.3V)	LCDDAT3	LCD Data Output 3 (DAT3) signal going to the LCD connector
	ISI_D3	Image Sensor Interface (ISI) Data Input 3 (D3) signal going to the ISI connector
Pad Power Rail Function I/O Type
PC4 VDDIOP1 (3.3V)	LCDDAT4 LCD Data Output 4 (DAT4) signal going to the LCD connector
	ISI_D4	Image Sensor Interface (ISI) Data Input 4 (D4) signal going to the ISI connector
PC5 VDDIOP1 (3.3V)	LCDDAT5 LCD Data Output 5 (DAT5) signal going to the LCD connector
	ISI_D5	Image Sensor Interface (ISI) Data Input 5 (D5) signal going to the ISI connector
PC6 VDDIOP1 (3.3V)	LCDDAT6 LCD Data Output 6 (DAT6) signal going to the LCD connector
	ISI_D6	Image Sensor Interface (ISI) Data Input 6 (D6) signal going to the ISI connector
PC7 VDDIOP1 (3.3V)	LCDDAT7 LCD Data Output 7 (DAT7) signal going to the LCD connector
	ISI_D7	Image Sensor Interface (ISI) Data Input 7 (D7) signal going to the ISI connector
PC8 VDDIOP1 (3.3V)	LCDDAT8 LCD Data Output 8 (DAT8) signal going to the LCD connector
	ISI_D8	Image Sensor Interface (ISI) Data Input 8 (D8) signal going to the ISI connector
PC9 VDDIOP1 (3.3V)	LCDDAT9 LCD Data Output 9 (DAT9) signal going to the LCD connector
	ISI_D9	Image Sensor Interface (ISI) Data Input 9 (D9) signal going to the ISI connector
PC10 VDDIOP1 (3.3V)	LCDDAT10 LCD Data Output 10 (DAT10) signal going to the LCD connector
	ISI_D10	Image Sensor Interface (ISI) Data Input 10 (D10) signal going to the ISI connector
PC11 VDDIOP1 (3.3V)	LCDDAT11 LCD Data Output 11 (DAT11) signal going to the LCD connector
	ISI_D11	Image Sensor Interface (ISI) Data Input 11 (D11) signal going to the ISI connector
PC12 VDDIOP1 (3.3V)	LCDDAT12 LCD Data Output 12 (DAT12) signal going to the LCD connector
	ISI_PCK	Image Sensor Interface (ISI) Data Input 12 (D12) signal going to the ISI connector
PC13 VDDIOP1 (3.3V)	LCDDAT13 LCD Data Output 13 (DAT13) signal going to the LCD connector
	ISI_VSYNC	Image Sensor Interface (ISI) Vertical Synchronization (VSYNC) signal going to the ISI connector
PC14 VDDIOP1 (3.3V)	LCDDAT14 LCD Data Output 14 (DAT14) signal going to the LCD connector
	ISI_HSYNC	Image Sensor Interface (ISI) Horizontal Synchronization (HSYNC) signal going to the ISI connector
PC15 VDDIOP1 (3.3V)	LCDDAT15 LCD Data Output 15 (DAT15) signal going to the LCD connector
	ISI_MCK	Image Sensor Interface (ISI) Main Clock (MCK) signal going to the ISI connector
PC16 VDDIOP1 (3.3V) LCDDAT16 LCD Data Output 16 (DAT16) signal going to the LCD connector
PC17 VDDIOP1 (3.3V) LCDDAT17 LCD Data Output 17 (DAT17) signal going to the LCD connector
PC18 VDDIOP1 (3.3V) LCDDAT18 LCD Data Output 18 (DAT18) signal going to the LCD connector
PC19 VDDIOP1 (3.3V) LCDDAT19 LCD Data Output 19 (DAT19) signal going to the LCD connector
PC20 VDDIOP1 (3.3V) LCDDAT20 LCD Data Output 20 (DAT20) signal going to the LCD connector
PC21 VDDIOP1 (3.3V) LCDDAT21 LCD Data Output 21 (DAT21) signal going to the LCD connector
PC22 VDDIOP1 (3.3V) LCDDAT22 LCD Data Output 22 (DAT22) signal going to the LCD connector
PC23 VDDIOP1 (3.3V) LCDDAT23 LCD Data Output 23 (DAT23) signal going to the LCD connector
PC24 VDDIOP1 (3.3V) LCDDISP	LCD Display ON/OFF (DISP) output signal going to the LCD connector
PC25 VDDIOP1 (3.3V) GPIO	GPIO input used to signal any interrupt request from the LCD connector
PC26 VDDIOP1 (3.3V) LCDPWM	LCD PWM for Contrast Control (PWM) output signal going to the LCD connector
PC27 VDDIOP1 (3.3V) LCDVSYNC	LCD Vertical Synchronization (VSYNC) output signal going to the LCD connector
PC28 VDDIOP1 (3.3V) LCDHSYNC	LCD Horizontal Synchronization (HSYNC) output signal going to the LCD connector
PC29 VDDIOP1 (3.3V) LCDDEN LCD Data Enable (EN) output signal going to the LCD connector
PC30 VDDIOP1 (3.3V) LCDPCK LCD Pixel Clock (PCK) output signal going to the LCD connector
PC31 VDDIOP1 (3.3V) PCK1	Programmable Clock Output that can be used as a clock source for either the RMII Ethernet PHY KSZ8081 or the 40-pin connector
PD0 VDDNF (3.3V) NANDOE	NAND Flash Output Enable (OE) output signal going to MT29F4G08ABAEA
PD1 VDDNF (3.3V) NANDWE	NAND Flash Write Enable (OE) output signal going to MT29F4G08ABAEA
PD2 VDDNF (3.3V) A21/NANDALE	NAND Flash Address Latch Enable (ALE) output signal going to MT29F4G08ABAEA
PD3 VDDNF (3.3V) A22/NANDCLE	NAND Flash Command Latch Enable (CLE) output signal going to MT29F4G08ABAEA
PD4 VDDNF (3.3V) NCS3	NAND Flash Chip Select (CLE) output signal going to MT29F4G08ABAEA
PD5 VDDNF (3.3V) NWAIT	NAND Flash Ready/busy# (R/B#) input pin provides a hardware method of detecting PROGRAM or ERASE cycle completion from MT29F4G08ABAEA
PD6 VDDNF (3.3V) D16	NAND Flash Data 0 (D0) Bidirectional signal going to MT29F4G08ABAEA
PD7 VDDNF (3.3V) D17	NAND Flash Data 1 (D1) Bidirectional signal going to MT29F4G08ABAEA
PD8 VDDNF (3.3V) D18	NAND Flash Data 2 (D2) Bidirectional signal going to MT29F4G08ABAEA
PD9 VDDNF (3.3V) D19	NAND Flash Data 3 (D3) Bidirectional signal going to MT29F4G08ABAEA
PD10 VDDNF (3.3V) D20	NAND Flash Data 4 (D4) Bidirectional signal going to MT29F4G08ABAEA

......continued
Pad Power Rail Function I/O Type
PD11 VDDNF (3.3V) D21			NAND Flash Data 5 (D5) Bidirectional signal going to MT29F4G08ABAEA
PD12 VDDNF (3.3V) D22			NAND Flash Data 6 (D6) Bidirectional signal going to MT29F4G08ABAEA
PD13 VDDNF (3.3V) D23			NAND Flash Data 7 (D7) Bidirectional signal going to MT29F4G08ABAEA
PD14 VDDNF (3.3V) GPIO			GPIO used to identify the type of LCD connected by reading the information stored on an EEPROM placed on the LCD through the OneWire interface
PD15 VDDNF (3.3V) GPIO GPIO used as output for enabling the 5V supply on the USBB port
PD16 VDDNF (3.3V) GPIO GPIO used as output for enabling the 5V supply on the USBC port
PD17 VDDNF (3.3V) GPIO			GPIO used as input to signal any interrupt request from the MCP23008 GPIO expander
PD18 VDDNF (3.3V) GPIO GPIO used as input to probe the changes of the user button
PD19 VDDNF (3.3V) GPIO			GPIO used as output for selecting between the functions of PA05 and PA06(1)HIGH = UART to 40-pin connector LOW = CAN1 communication
PD20 VDDNF (3.3V) GPIO			GPIO used as output for selecting between the functions of PA10 and PA09(2)HIGH = Enable DEBUG UARTLOW = CAN0 communication
PD21 VDDNF (3.3V) D31			GPIO used as output to place the CAN transceivers in or out of standby

Note:

1. The selection of the functions of ports PA5 and PA6 must also comply with the state of PD19 as this signal commands an analog switch placed on the board.
2. The selection of the functions of ports PA9 and PA10 must also comply with the state of PD20 as this signal commands an analog switch placed on the board.

3.2.7 Dedicated Two-wire Interfaces

The SAM9X60-EK features two dedicated TWIs to access the devices present on board.

The TWI interface uses only two lines, namely serial data (TWD) and serial clock (TWCK). According to the standard, the TWI clock rate is limited to 400 kHz in Fast mode and 100 kHz in Normal mode, but a configurable baud rate generator permits the output data rate to be adapted to a wide range of core clock frequencies. The TWI supports both Master and Slave modes.

One interface is used to access the devices placed in the lower left side of the board:

• The PAC1934 voltage monitor (address: 0010_111[R/W])
• The PAC1710 voltage monitor (address: 1001_101[R/W])
• The MCP23008 Port Expander (address: 0100_000[R/W])
- And any device placed on the mikroBUS connector

Figure 3-17. Board Lower Left TWI Interface

The second interface is used to access the devices placed in the upper right side of the board:

• The 24AA025E48 serial EEPROM (address: 1010_011[R/W])
• The LCD or camera connected on the ISI connector
- And any device connected on the external 40-pin connector

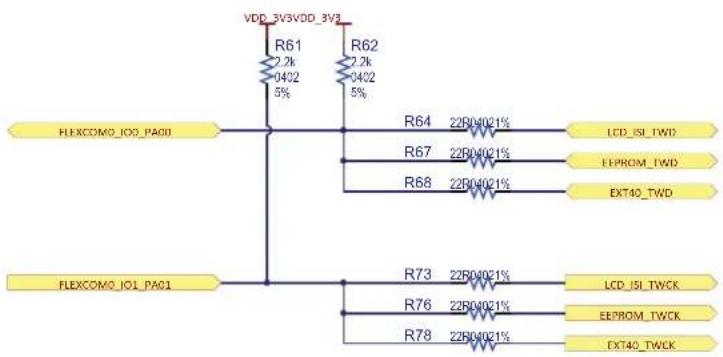

Figure 3-18. Board Upper Right TWI Interface

VDD_3V3VDD_3V3 R61 2.2k 0402 5% R62 2.2k 0402 5% FLEXCOMO_IO0_PA00 R64 22B04021% LCD_ISI_TWD R67 22B04021% EEPROM_TWD R68 22B04021% EXT40_TWD FLEXCOMO_IO1_PA01 R73 22B04021% LCD_ISI_TWCK R76 22B04021% EEPROM_TWCK R78 22B04021% EXT40_TWCK

3.2.8 I/O Expander

The SAM9X60-EK features an 8-bit I/O expander with serial TWI interface MCP23008.

The MCP23008 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits.

The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.

The interrupt output can be configured to activate under two (mutually exclusive) conditions:

• When any input state differs from its corresponding input port register state (indicating to the system master that an input state has changed)
• When an input state differs from a preconfigured register value

The Interrupt Capture register captures port values at the time of the interrupt, thereby saving the condition that caused the interrupt.

The Power-on Reset (POR) sets the registers to their default values and initializes the device state machine.

The MCP23008 communicates with the MPU via a TWI bus.

Figure 3-19. Processor IO Expander

VDD_3V3 R33 10k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 1 NRST_PB25 MCP23008_INT_PD17 R47 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 1 GND R48 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 100k 1 GND R49 100k 100k 100k 100k 100k 100k 100k 100k 100k 1 VDD_3V3 C53 5.1uF 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6.0 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 7.0 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 8.0 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 8.9 9.0 9.1 9.2 9.3 9.4 9.5 9.6 9.7 9.8 9.9 U6 SCL GP0 SDA GP1 GP2 GP3 GP4 GP4 GP5 GP5 GP6 GP6 GP7 GP7 NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC N C PAC1710_INT PAC1934_INT USBB_OVCUR USBC_OVCUR EXT40_GP5 EXT40_GP6 EXT40_GP7 I2C ADR : 0100_000[R/W]

Table 3-4. I/O Expander Signal Descriptions

PIO Signal Name Signal Description
GP0 PAC1710_INT PAC1710 interrupt to MPU
GP1 PAC1934_INT PAC1934 interrupt to MPU
GP2 --
GP3 USBB_OVCUR USB B overcurrent indicator
GP4 USBC_OVCUR USB C overcurrent indicator
GP5 EXT40_GP5 Free use GPIO
GP6 EXT40_GP6 Free use GPIO
GP7 EXT40_GP7 Free use GPIO
INT MCP23008_INT_PD17 MCP23008 Interrupt to MPU
RESET - nRST
SCL MCP23008_TWCK MCP23008 TWI clock
SDA MCP23008_TWD MCP23008 TWI data

3.2.9 Special Function Selectors

Some ports shared between different interfaces are separated using dedicated signal buffers to avoid any possible interference on the lines.

Ports PA05 and PA06 are shared between the CAN1 transceiver and a UART interface going to the 40-pin connector. The selection is done using port PD19:

• HIGH = UART to 40-pin connector
- LOW = CAN1 communication

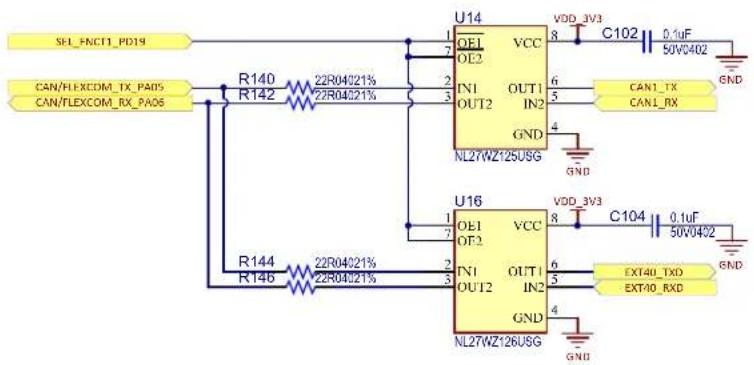

Figure 3-20. Selection between CAN1 or EXT40 UART

SEL_ENCT1_PD19 CAN/FLEXCOM_TX_PA05 CAN/FLEXCOM_RX_PA06 R140 R142 22R04021% 22R04021% U14 OE1 VCC OE2 IN1 OUT1 OUT2 IN2 GND NL27WZ125USG VDD_3V3 8 C102 0.1uF 50V0402 CAN1_TX CAN1_RX GND R144 R146 22R04021% 22R04021% U16 OE1 VCC OE2 IN1 OUT1 OUT2 IN2 GND NL27WZ126USG VDD_3V3 8 C104 0.1uF 50V0402 EXT40_TXD EXT40_RXD GND

Ports PA09 and PA10 are shared between the CAN0 transceiver and the DEBUG UART interface going to the DEBUG connector. The selection is done using port PD20:

• HIGH = DEBUG UART communication
- LOW = CAN0 communication

Figure 3-21. Selection between CAN0 or DBGU UART

SEL_FNCT2_PD20 CAN/DBGU_TX_PA10 CAN/DBGU_RX_PA09 R141 R143 22R04021% 22R04021% R145 R147 22R04021% 22R04021% U15VDD_3V3 OEL OL2 IN1 OU12 OUT1 LN2 GND NL27WZ126USG U17 OE1 OE2 IN1 OUT1 LN2 GND NL27WZ126USG VCC 8 C103 0.1uF 50V0402 GND CAND_TX CAND_RX VDD_3V3 8 C105 0.1uF 50V0402 GND DRGU_TX_PA10 DRGU_RX_PA09

Ports PA21 and PA22 are shared between a UART interface going to the mikroBUS connector and the UART interface used to access and configure the Bluetooth functions of the ATWILC3000 module. The selection is done using port PA29:

• HIGH = ATWILC3000 UART communication
- LOW = MikroBUS CAN communication

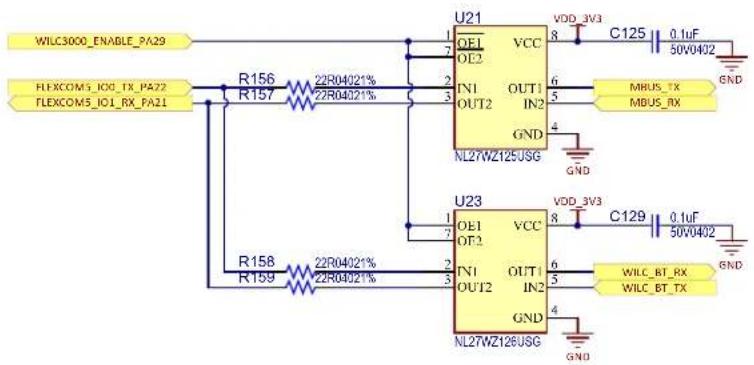

Figure 3-22. Selection between mikroBUS UART or ATWILC3000 Bluetooth UART

WILC3000_ENABLE_PA29 FLEXCOM5_IO1_TX_PA72 FLEXCOM5_IO1_RX_PA21 R156 R157 22R04021% 22R04021% U21 OE1 OE2 IN1 OUT2 VCC GND NL27WZ125USG VDD_3V3 8 C125 0.1uF 50V0402 GND MRUS_TX MBUS_RX U23 OE1 OE2 IN1 OUT2 VCC GND NL27WZ126USG VDD_3V3 8 C129 0.1uF 50V0402 GND WILC_BT_RX WILC_BT_TX

When developing an application, the designer must keep in mind to first configure the values for the selection ports (PA29, PD19 and PD20) to ensure the signal takes the desired path.

3.3 On-board Memories

The SAM9X60 features a DDR/SDR memory interface and an External Bus Interface (EBI) to enable interfacing to a wide range of external memories and to almost any type of parallel peripheral.

This section describes the memory devices mounted on the SAM9X60-EK board:

• One DDR2 SDRAM
• One NAND Flash
• One QSPI Flash
  • One serial EEPROM

Additional memory can be added to the board by:

• Installing an SD or MMC card in the SD/MMC slot,
  • Using the USB ports.

Support is dependent upon driver support in the OS.

3.3.1 DDR2/SDRAM

One DDR2/SDRAM (2-Gbit W972GG6KB = 16 Mwords x 16 bits x 8 banks) is used as main system memory, totaling 256 KBytes of SDRAM on the board. The memory bus is 16 bits wide and operates with a frequency of up to 200 MHz.

Figure 3-23. DDR2/SDRAM

The SAM9X60-EK has native support for NAND Flash memory through its NAND Flash Controller. The board implements one MT29F4G08ABAEA 4Gb x 8 NAND Flash connected to Chip Select three (NCS3) of the microcontroller. That makes a 512-Mbyte memory space.

Figure 3-24. NAND Flash

NAND-Flash R116 10k 0402 5% R114 10k 0402 5% R115 10k 0402 5% VDD_3V3 NAND-CLF_PD03NAND_PD06 NAND_ALE_PD02 NAND_nRE_PD00 NAND_nWE_PD01 NAND_nC5_PD04_enabled NAND_RB_PD05 Matched Net Lengths [Tolerance = 0.25mm] U9 CLE ALF RF WL CF R/B WP NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC NT29F4G08ABAEAWP.E TR MT29F4G08ABAEAWP.E TR NAND-Flash Matched Net Lengths [Tolerance = 0.25mm] NAND_IO1_PD07 NAND_IO2_PD08 NAND_IO3_PD09 NAND_IO4_PD10 NAND_IO5_PD11 NAND_IO6_PD12 NAND_IO7_PD13 VDD_3V3 C58 0.1uF 50V 0402 C59 0.1uF 50V 0402 C60 0.1uF 50V 0402 C61 0.1uF 50V 0402 GND

Table 3-5. NAND Flash Signal Descriptions

PIO Signal Name Shared PIO Signal Description
PD6 NAND_IO0_PD06 – Data 0
PD7 NAND_IO0_PD07 – Data 1
PD8 NAND_IO0_PD08 – Data 2
PD9 NAND_IO0_PD09 – Data 3
PD10 NAND_IO0_PD10 – Data 4
PD11 NAND_IO0_PD11 – Data 5
PD12 NAND_IO0_PD12 – Data 6
PD13 NAND_IO0_PD13 – Data 7
PD1 NAND_nWE_PD01 – Write Enable
PD4 NAND_nCS_PD04_enabled –		Chip Select (through a Disable Boot control buffer – see 3.5.5 Disable Boot)
PD2 NAND_ALE_PD02 – Address Latch Enable
PD3 NAND_CLE_PD03 – Command Latch Enable
PD0 NAND_nRE_PD00 – Output Enable
PD5 NAND_RB_PD05 – Ready/Busy#

3.3.3 QSPI Serial Flash

The SAM9X60-EK board features one Quad Serial Peripheral Interface (QSPI) memory SST26VF064B.

A QSPI bus is a synchronous serial data link that provides communication with external devices in Master mode.

The QSPI can be used in SPI mode to interface with serial peripherals (such as ADCs, DACs, LCD controllers, CAN controllers and sensors), or in Serial Memory mode to interface with serial Flash memories.

The QSPI allows the system to execute code directly from a serial Flash memory (XIP, or Execute In Place, technology) without code shadowing to RAM. The Flash memory communication protocol is serial, however it is seen in the system as a conventional parallel memory (ROM, SRAM, DRAM, embedded Flash memory, etc.).

With the support of the Quad SPI protocol, the QSPI allows the system to use high-performance serial Flash memories which are small and inexpensive, instead of larger and more expensive parallel Flash memories.

Figure 3-25. QSPI Serial Flash

VDD_3V3 R99 DNP 0x 0402 5% R100 DNP 0x 0402 5% R101 DNP 0x 0402 5% R102 DNP 0x 0402 5% R103 DNP 0x 0402 5% QSPI_IO0_PB21 QSPI_IO1_PB21 QSPI_O3_PB23 QSPI_IO3_PB24 QSPI_SCK_PB19 U8 SI/SIO0 VDD SO/SIO1 VSS WP/SIO2 HOLD/SIO3 SCK CF SST26VF064B VDD_3V3 C55 0.1uF R106 50V 10k 0402 0432 5% GND QSPI_CS_PB20_enabled

Table 3-6. QSPI Signal Descriptions

PIO Signal Name Shared PIO Signal Description
PB19	QSPI0_SCK_PB19 I2SMCC_CK QSPI Clock
PB20	QSPI0_CS_PB20_enabled I2SMCC_WS		Chip Select (through a Disable Boot control buffer – see 3.5.5 Disable Boot)
PB21	QSPI0_IO0_PB21 I2SMCC_DIN0 Data0
PB22	QSPI0_IO1_PB22 I2SMCC_DOUT0 Data1
PB23	QSPI0_IO2_PB23 I2SMCC_MCL Data2
PB24	QSPI0_IO3_PB24 – Data3

3.3.4 Serial EEPROM with Unique MAC Address

The SAM9X60-EK board embeds one Microchip 24AA025E48 serial EEPROM. The 24AA025E48 features 2048 bits of serial Electrically-Erasable Programmable Read-Only Memory (EEPROM) organized as 256 words of eight bits each and is accessed via an I²C-compatible (2-wire) serial interface. In addition, the 24AA025E48 incorporates an easy and inexpensive method to obtain a globally unique MAC or EUI address (EUI-48™). For more information about the 24AA025E48, refer to the product web page.

The EUI-48 addresses can be assigned as the actual physical address of a system hardware device or node, or it can be assigned to a software instance. These addresses are factory-programmed by Microchip and unique. They are permanently write-protected in an extended memory block located outside the standard 2-Kbit memory array.

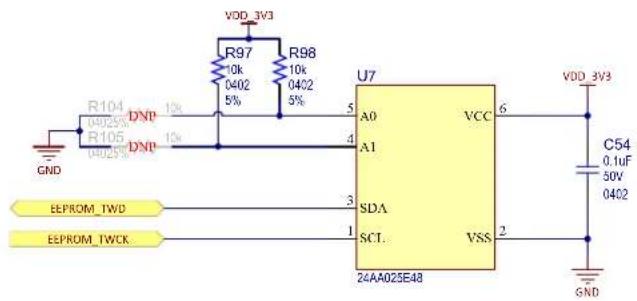

Figure 3-26. EEPROM 24AA02E48

VDD_3V3 R97 10k 0402 R98 10k 0402 5% 5% U7 A0 VCC 6 VDD_3V3 C54 0.1uF 50V 0402 R104 DND 1% R105 DND 1% A1 SDA SCT. VSS 24AA025E48 GND EEPROM_TWD EEPROM_TWCK

Table 3-7. EEPROM PIO Signal Descriptions

PIO Signal	Name Shared PIO Signal Description
PA00 EEPROM_TWD TWI and SPI TWI data
PA01 EEPROM_TWCK TWI and SPI TWI clock

In the SAM9X60-EK usage context, the EEPROM device is used as a "software label" to store board information such as chip type, manufacturer name and production date, using the last two 16-byte blocks in memory. The information contained in these blocks should not be modified.

3.4 Peripherals

Several interfaces and connectors are implemented in the SAM9X60-EK with the purpose of enabling the user to test all the features that the MPU can offer and to facilitate a reference design for future customer applications.

This section describes the following peripherals mounted on the SAM9X60-EK board:

• Ethernet 10/100 port (GMAC)
• USB host/device
  • Wi-Fi/Bluetooth module (optional)
  • Controller Area Network (CAN) interface
  • Liquid Crystal Display (LCD) interface
  • Image Sensor Interface (ISI)
  • Audio Class D (CLASSD) amplifier
• Secure Digital Multimedia Card (SDMMC)
• mikroBUS interface
• GPIO interface

3.4.1 Ethernet 10/100 Port (GMAC)

The KSZ8081 is a single-supply 10Base-T/100Base-TX Ethernet physical-layer transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable. The KSZ8081 is a highly-integrated PHY solution. It reduces board cost and simplifies board layout by using on-chip termination resistors for the differential pairs and by integrating a low-noise regulator to supply the 1.2V core, and by offering 1.8/2.5/3.3V digital I/O interface support.

The KSZ8081RNA is connected over the Reduced Media Independent Interface (RMII) directly to the RMII-compliant MAC inside the SAM9X60 MPU. As the power-up default, the KSZ8081RNA uses a 25 MHz MEMS oscillator to generate all required clocks, including the 50-MHz RMII reference clock output for the MAC. For more information about the KSZ8081RNx, refer to the product web page.

An individual unique 48-bit MAC address (Ethernet hardware address) is allocated to this product and is stored in the Microchip 24AA025E48 TWI serial EEPROM described in 3.3.4 Serial EEPROM with Unique MAC Address.

Additionally, for monitoring and control purposes, a LED functionality is carried on the RJ45 connectors to indicate activity, link, and speed status.

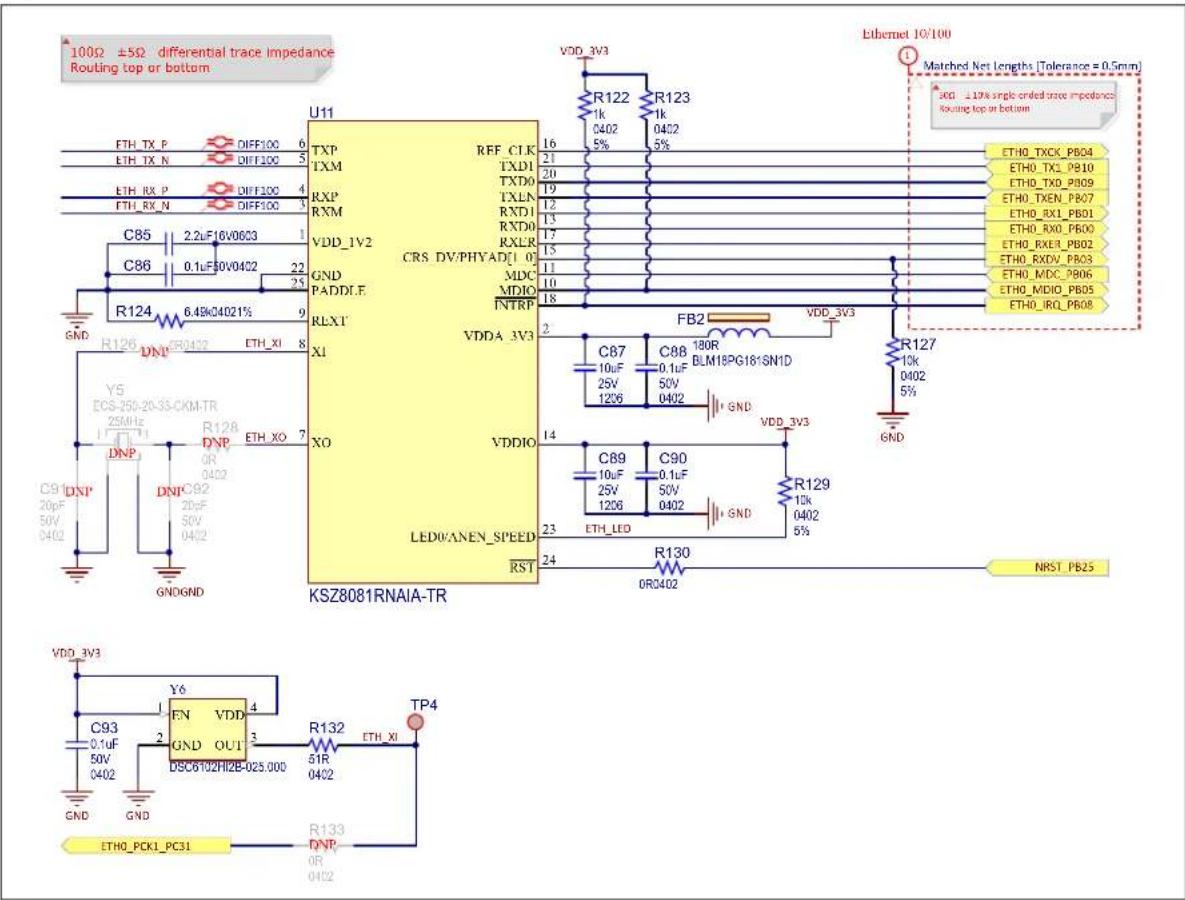

Figure 3-27. Ethernet Interface

1002 ±5Ω differential trace impedance Routing top or bottom U11 TXP RFF_CLK TXM TXD1 TXD0 TXLN RXM RXD1 RXD0 RXLR VDD_IV2 CRS_DV/PHYAD[1 0] GND PADDIF MDC MDIO NTRP RLXT VDDA_3V3 X1 FB2 VDD_3V3 C87 10uF C88 0.1uF BLM18PG18+SN1D 25V 50V 1206 0402 GND R127 10k 0402 5% GND Y5 ECS-250-20-35-CKM-TR 25MHz DNP R128 DNP ETH_XO 7 OR 0402 C91 DNP DNPC92 20uF 50V 0402 GNDGND XO VDDIO LED0/VANEN_SPEED RST C89 10uF C90 0.1uF 50V 1206 0402 GND R129 10k 0402 5% R130 OR3402 NRST_PB25 VDD_3V3 C93 0.1uF 50V 0402 GND GND Y6 EN VDD 4 GND OUT 3 DSC6102HI2E-025.000 51R ETH_XI TP4 R132 DNP 4 ETH_XI R133 DNP 4 GND GND GND_PCK1_PC31

Table 3-8. Ethernet PHY 10/100 Signal Descriptions

PIO Signal	Name Shared Signal Description
PB04	ETH_TXCK_PB24	-	Transmit clock
PB07	ETH_TXEN_PB10	-	Transmit enable
PB03	ETH_RXDV_PB03	-	Receive data valid
PB02	ETH_RXER_PB02	-	Receive error
PB00	ETH_RX0_PB00	-	Receive data 0
PB01	ETH_RX1_PB01	-	Receive data 1
PB09	ETH_TX0_PB09	-	Transmit data 0
PB10	ETH_TX1_PB10	-	Transmit data 1
PB06	ETH_MDC_PB06	-	Management data clock
PB05	ETH_MDIO_PB05	-	Management data in/out
PB08	ETH_IRQ_PB08	-	Interrupt

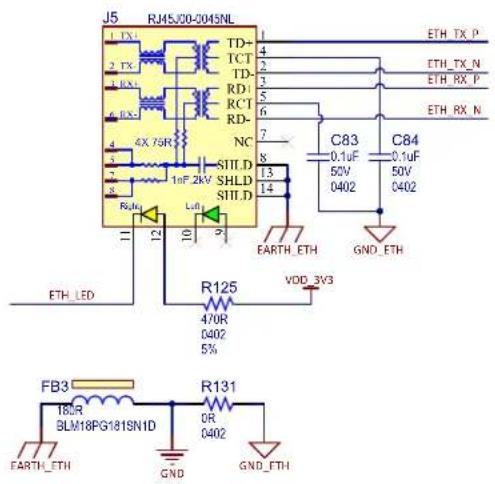

Figure 3-28. Ethernet PHY Connector

J5 RJMSJ00-0045NL 1 TX 2 TX 3 RX 4 RX 5 RX 6 RX 7 4X 76R 8 1.0F 2kV SHLD 9 1.0F 2kV SHLD 10 1.0F 2kV SHLD 11 1.0F 2kV SHLD 12 1.0F 2kV SHLD 13 1.0F 2kV SHLD 14 1.0F 2kV SHLD 15 1.0F 2kV SHLD 16 1.0F 2kV SHLD 17 1.0F 2kV SHLD 18 1.0F 2kV SHLD 19 1.0F 2kV SHLD 20 1.0F 2kV SHLD 21 1.0F 2kV SHLD 22 1.0F 2kV SHLD 23 1.0F 2kV SHLD 24 1.0F 2kV SHLD 25 1.0F 2kV SHLD 26 1.0F 2kV SHLD 27 1.0F 2kV SHLD 28 1.0F 2kV SHLD 29 1.0F 2kV SHLD 30 1.0F 2kV SHLD 31 1.0F 2kV SHLD 32 1.0F 2kV SHLD 33 1.0F 2kV SHLD 34 1.0F 2kV SHLD 35 1.0F 2kV SHLD 36 1.0F 2kV SHLD 37 1.0F 2kV SHLD 38 1.0F 2kV SHLD 39 1.0F 2kV SHLD 40 1.0F 2kV SHLD 41 1.0F 2kV SHLD 42 1.0F 2kV SHLD 43 1.0F 2kV SHLD 44 1.0F 2kV SHLD 45 1.0F 2kV SHLD 46 1.0F 2kV SHLD 47 1.0F 2kV SHLD 48 1.0F 2kV SHLD 49 1.0F 2kV SHLD 50 1.0F 2kV SHLD 51 1.0F 2kV SHLD 52 1.0F 2kV SHLD 53 1.0F 2kV SHLD 54 1.0F 2kV SHLD 55 1.0F 2kV SHLD 56 1.0F 2kV SHLD 57 1.0F 2kV SHLD 58 1.0F 2kV SHLD 59 1.0F 2kV SHLD 60 1.0F 2kV SHLD 61 1.0F 2kV SHLD 62 1.0F 2kV SHLD 63 1.0F 2kV SHLD 64 1.0F 2kV SHLD 65 1.0F 2kV SHLD 66 1.0F 2kV SHLD 67 1.0F 2kV SHLD 68 1.0F 2kV SHLD 69 1.0F 2kV SHLD 70 1.0F 2kV SHLD 71 1.0F 2kV SHLD 72 1.0F 2kV SHLD 73 1.0F 2kV SHLD 74 1.0F 2kV SHLD 75 1.0F 2kV SHLD 76 1.0F 2kV SHLD 77 1.0F 2kV SHLD 78 1.0F 2kV SHLD 79 1.0F 2kV SHLD 80 1.0F 2kV SHLD 81 1.0F 2kV SHLD 82 1.0F 2kV SHLD 83 1.0F 2kV SHLD 84 1.0F 2kV SHLD 85 1.0F 2kV SHLD 86 1.0F 2kV SHLD 87 1.0F 2kV SHLD 88 1.0F 2kV SHLD 89 1.0F 2kV SHLD 90 1.0F 2kV SHLD 91 1.0F 2kV SHLD 92 1.0F 2kV SHLD 93 1.0F 2kV SHLD 94 1.0F 2kV SHLD 95 1.0F 2kV SHLD 96 1.0F 2kV SHLD 97 1.0F 2kV SHLD 98 1.0F 2kV SHLD 99 1.0F 2kV SHLD 100 EARTH_ETH GND_ETH

Table 3-9. Ethernet RJ45 Connector J5 Pin Assignment

Pin No Signal Name Signal Description
1 TD+ Transmit
2 TD- Transmit
3 RD+ Receive
4 Decoupling capacitor –
5 Decoupling capacitor –
6 RD- Receive
7 NC –
8 EARTH / GND Common ground
9 ACT LED LED activity
10 ACT LED LED activity
11 LINK LED	LED link connection
12 LINK LED	LED link connection
13 EARTH / GND Common ground
14 EARTH / GND Common ground
15 NC –
16 NC –

3.4.2 USB Host/Device

The USB (Universal Serial Bus) is a hot-pluggable general-purpose high-speed I/O standard for computer peripherals. The standard defines connector types, cabling, and communication protocols for interconnecting a wide variety of electronic devices. The USB 2.0 Specification defines data transfer rates as high as 480 Mbps (also known as High Speed USB). A USB host bus connector uses four pins: a power supply pin (5V), a differential pair (D+ and D- pins) and a ground pin.

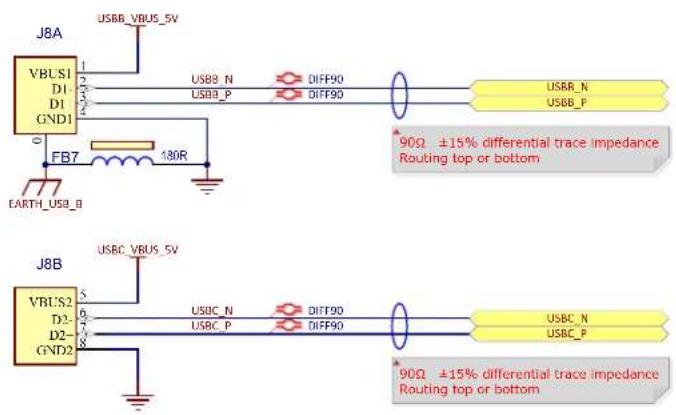

The SAM9X60-EK board features three USB communication ports named USB-A to USB-C ^™ .

The USB-A port can act only as a USB device interface and can be accessed via the USB Micro-B connector (J7).

Two resistors are placed on its power rail to form a voltage divider, converting 5V into 3.3V that is then used to signal the presence of a USB host to the MPU.

In the case of board bring-up, USB-A is the default port used to connect to the MPU over SAM-BA (SAM Boot Assistance). For more information, refer to the product web page.

The USB-A port is also used as a secondary power source, as mentioned in 3.1 Power Supply Topology and Power Distribution. In most cases, this port is limited to 500 mA.

Figure 3-29. USB-A Port

V_BUS_USBA USBA_VBUS_5V C106 20pF 50V 0402 R148 100k 0402 5% R150 200k 0402 1% USBA_VBUSDETECT_PB16 J7 V_BUS D- D+ TD GND USBA_N USBA_P DIFF90 DIFF90 USBA_N USBA_P FB5 180R EARTH_USB_A 90Ω ±15% differential trace impedance Routing top or bottom

Table 3-10. USB-A Connector Signal Descriptions

Pin No Signal Name Signal Description
1 USBA_VBUS_5V First port 5V power
2 USBA_N First port data minus
3 USBA_P First port data plus
4 ID – (not used)
5 GND First port ground

Table 3-11. USB-A PIO Signal Descriptions

PIO Signal	Name Shared Signal Description
PB16	USBA_VBUSDETECT_PB16	—	VBUS detection

The USB-B and USB-C ports are connected to the stacked USB Type-A connector (J8) and each port can act both as device and as host.

Figure 3-30. USB-B and USB-C Ports

J8A VBUS1 D1- D1 GND1 FB7 130R EARTH_USB_B J8B VBUS2 D2- D2- GND2 USBB_VBUS_5V USB8_N DIFF90 USB8_P DIFF90 USBB_N USBB_P 90Ω ±15% differential trace impedance Routing top or bottom USBC_VBUS_5V USBC_N DIFF90 USBC_P DIFF90 USBC_N USBC_P 90Ω ±15% differential trace impedance Routing top or bottom

Table 3-12. USB-B and USB-C Connector Signal Descriptions

Pin No Signal Name Signal Description
0 EARTH_USB_B Connector chassis connected to ground
1 USBB_VBUS_5V Second port 5V power
2 USBB_N Second port data minus
3 USBB_P Second port data plus
4 GND Second port ground
5 USBC_VBUS_5V Third port 5V power
6 USBC_N Third port data minus
7 USBC_P Third port data plus
8 GND Third port ground

In Host mode, the USB Host ports B and C are equipped with 500-mA high-side power switches to enable self-powered and bus-powered applications. The USBx_EN_5V_PDxx signal controls the current limiting power switch MIC2025, which in turn supplies power to a client device. Per the USB specification, bus-powered USB 2.0 devices are limited to a maximum of 500 mA, therefore the MIC2025 limits the current and indicates an overcurrent with the USBx_OVCUR signal. For more information about the MIC2025, refer to the product web page.

Figure 3-31. USB Power Switches

VDD_MAIN_5V U19 EN IN GND NC OUT FLG NC MIC2025-1YM USB Power Switch R152 10k 0402 5% FB6 C113 10uF 25V 120S USBB_OVCUR VDD_3V3 V_BUS_USBB C114 10uF 25V 120S C115 0.1uF 50V 0402 C116 100μF 16V Radial, Can USBB_VBUS_5V VDD_MAIN_5V U20 EN IN GND NC OUT FLG NC MIC2025-1YM USB Power Switch R154 10k 0402 5% FB8 C119 10uF 25V 120S USBC_VBUS_5V VDD_MAIN_5V U20 EN IN GND NC OUT FLG NC MIC2025-1YM USB Power Switch R155 10k 0402 5% C123 10uF 25V 120S C124 0.1uF 50V 0402

Table 3-13. USB Power Switch PIO Signal Descriptions

PIO Signal Name Shared Signal Description
PD14 USBA_EN_5V_PD14 – Power switch enable (active high)
GP2 expander USBA_OVCUR – Indicates overcurrent (open drain)
PD15 USBA_EN_5V_PD15 – Power switch enable (active high)
GP3 expander USBB_OVCUR – Indicates overcurrent (open drain)
PD16 USBC_EN_5V_PD16 – Power switch enable (active high)
GP4 expander USBC_OVCUR – Indicates overcurrent (open drain)

3.4.3 Wi-Fi/Bluetooth Module (Optional)

The user has the option to solder an ATWILC3000-MR110CA Wi-Fi/BT module with a chip antenna.

The ATWILC3000-MR110PA WLAN PHY is designed to achieve a reliable and power-efficient physical layer communication as specified by IEEE ^ 802.11 b/g/n in Single Stream mode with a 20-MHz bandwidth. Advanced algorithms are used to achieve maximum throughput in a real-world communication environment with impairments and interference. The PHY implements all required functions such as FFT, filtering, FEC (Viterbi decoder), frequency and timing acquisition and tracking, channel estimation and equalization, carrier sensing and clear channel assessment, as well as automatic gain control. The module is available in a fully certified, 22.428 x 17.732 mm, 36-pin module package. For more information about the ATWILC3000, refer to the product web page.

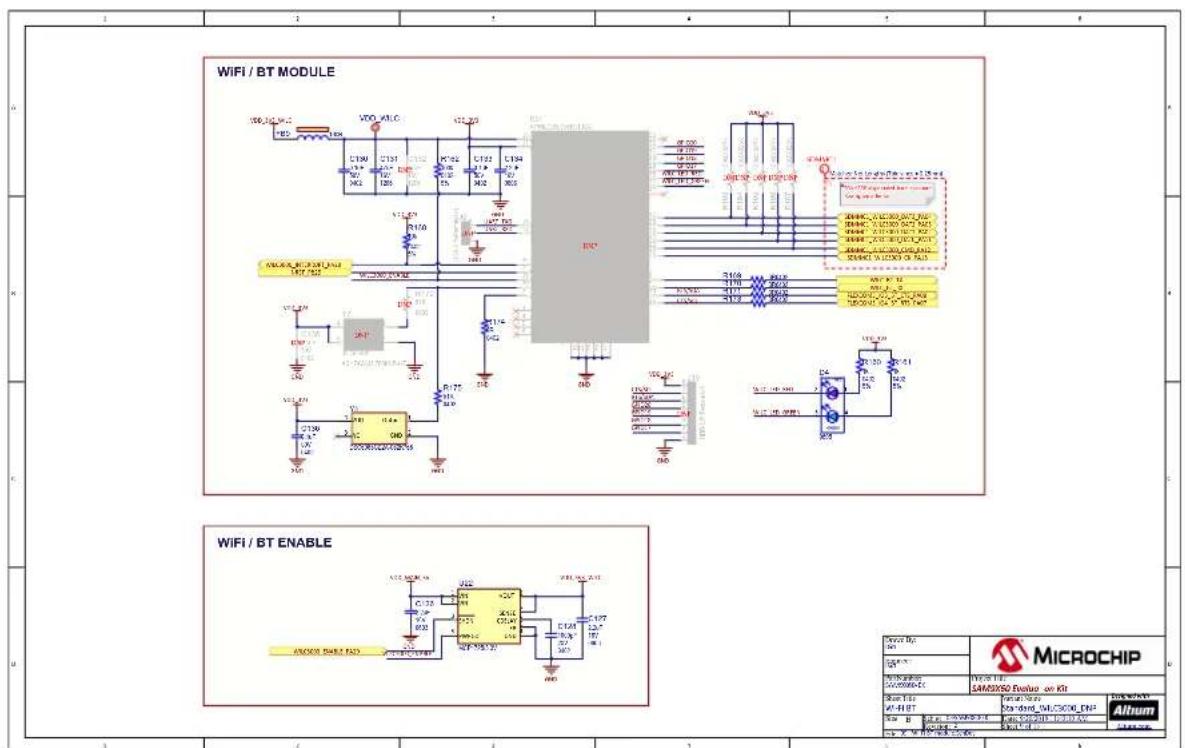

Figure 3-32. Wi-Fi/Bluetooth Interface

VDD_W3_WILC_VDD_W3 FB8 180Ω VDD_WILC C130 0.1F 5W 30Ω C131 47F 16V 120S DNP C132 7F 18V 120S R162 100k 40Ω 5K C133 0.1F 5W 30Ω C134 2.2F 18V 90Ω ATMIL C3003-VR10CA GND UART TXO UART RXD GND VDD_BV3 R166 13k 40Ω 5K VILC3000_INTERRSUPT_FA28 NIST_PD25 WILC3000_ENABLE DNP R172 DNP 51R 30Ω R174 5R 30Ω GND/ND DNP VDD_BV3 C135 DNP 32.760Hz-E AS-7AW-32.768kHz-LS- GND_GND VDD_BV3 C136 0.1F 5W 30Ω Y8 Output NC GND OSC0X6CE2A-032K700 GND_GND VDD_BV5 CTS/SCL RTS/SOA GPIO70 GPIO19 GPIO18 GPIO27 GND VDD_BV3 DNP HFR-2.5V-mode vol VDD_BV5 CTS/SCL RTS/SOA GPIO70 GPIO19 GPIO18 GPIO27 GND VDD_BV3 D4 2Ω 4Ω 5Ω 6Ω 7Ω 8Ω 9Ω 10Ω 11Ω 12Ω 13Ω 14Ω 15Ω 16Ω 17Ω 18Ω 19Ω 20Ω 21Ω 22Ω 23Ω 24Ω 25Ω 26Ω 27Ω 28Ω 29Ω 30Ω 31Ω 32Ω 33Ω 34Ω 35Ω 36Ω 37Ω 38Ω 39Ω 40Ω 41Ω 42Ω 43Ω 44Ω 45Ω 46Ω 47Ω 48Ω 49Ω 50Ω 51Ω 52Ω 53Ω 54Ω 55Ω 56Ω 57Ω 58Ω 59Ω 60Ω 61Ω 62Ω 63Ω 64Ω 65Ω 66Ω 67Ω 68Ω 69Ω 70Ω 71Ω 72Ω 73Ω 74Ω 75Ω 76Ω 77Ω 78Ω 79Ω 80Ω 81Ω 82Ω 83Ω 84Ω 85Ω 86Ω 87Ω 88Ω 89Ω 90Ω 91Ω 92Ω 93Ω 94Ω 95Ω 96Ω 97Ω 98Ω 99Ω 100Ω SDMMC1 Matched Net Lengths [Tolerance -0.25mm] GND: ±10% single-ended max. Impedance. Routing Top or Button: SDMMC1_WILC3000_DAT3_PADW SDMMC1_WILC3000_DAT2_PA03 SDMMC1_WILC3000_DAT1_PA02 SUMMCL_WILC3000_DATJPAI1 SDMMC1_WILC3000_CMD_PAI2 SDMMC1_WILC3000_CK_PAI3 WILC_BT_TX WILC_VL_TX FLEXCOVS_IOB_BT_CTS_PAD FLEXCOVS_IOA_BT_RTS_PAD7

Table 3-14. Wi-Fi/Bluetooth Signal Descriptions

PIO Signal Name Shared Signal Description
PA11 SDMMC1_WILC3000_DAT0_PA11	-	SDIO data
PA02	SDMMC1_WILC3000_DAT1_PA02	-	SDIO data
PA03	SDMMC1_WILC3000_DAT2_PA03	-	SDIO data
PA04	SDMMC1_WILC3000_DAT3_PA04	-	SDIO data
PA12	SDMMC1_WILC3000_CMD_PA12	-	SDIO command
PA13	SDMMC1_WILC3000_CK_PA13	-	SDIO clock
PA21	FLEXCOM1_IO1_RX_PA21	-	Bluetooth serial TX (RX into SAM9X60)
PA22	FLEXCOM1_IO0_TX_PA22	-	Bluetooth serial RX (TX from SAM9X60)
PA07	FLEXCOM1_IO1_RTS_PA07	-	Bluetooth serial RTS
PA08	FLEXCOM1_IO1_CTS_PA08	-	Bluetooth serial CTS
PB25	NRST_PB25	-	Module reset
PA28	WILC3000_INTERUPT_PA28	-	Interrupt
PA29	WILC3000_ENABLE_PA29	-	Chip enable

Special care must be taken when powering the ATWILC3000 wireless module. Due to the nature of the wireless transmission, the module draws a lot of current from its supply rail. In the worst-case scenario, the module can draw up to 300 mA. The main PMIC on the board, the MIC2800, has a maximum output capacity of 300 mA on its 3.3V rail, therefore it is not fit to power this module alongside the other components on the board.

To address this issue, the module is fitted with its own separate power supply, the MCP1725, which is a 500-mA Low Dropout (LDO) linear regulator that provides high current and low output voltages in a very small package. For more information about the MCP1725, refer to the product web page.

The MCP1725 was chosen because it can supply the current required by the module, and because it features a shutdown input pin (SHDN) and a Power Good output pin (PWRGD):

• The SHDN input allows to shut down the wireless module if it is unused, therefore saving power.
• The PWRGD output ensures that the ATWILC3000 wireless module is kept in reset until its power rails are stable.

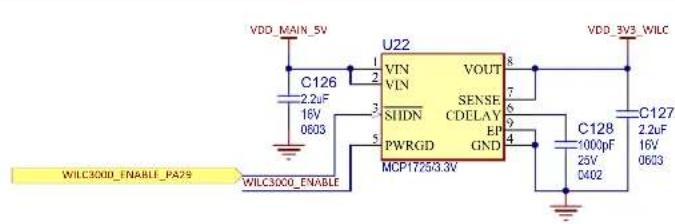

Figure 3-33. Wi-Fi/Bluetooth Enable

VDD_MAIN_5V U22 1 VTN VOUT 2 VIN 7 SENSE 3 SUIDN CDELAY 6 EP 9 PWRGD GND 4 MCP17253.3V 8 VDD_3V3_WILC C126 2.2uF 16V 0603 WILC300D_ENABLE_PA29 C127 2.2uF 16V 0603 WILC300D_ENABLE

Note: Enabling the ATWILC3000 module prevents the Flexcom UART from being used with the mikroBUS connector (this is switched by U23).

3.4.4 Controller Area Network (CAN) Interface

Two MCP2542 transceivers are placed on the SAM9X60-EK.

The MCP2542 is a high-speed CAN transceiver that provides the interface between the Controller Area Network (CAN) protocol controller and the physical two-wire bus. For more information about the MCP2542, refer to the product web page.

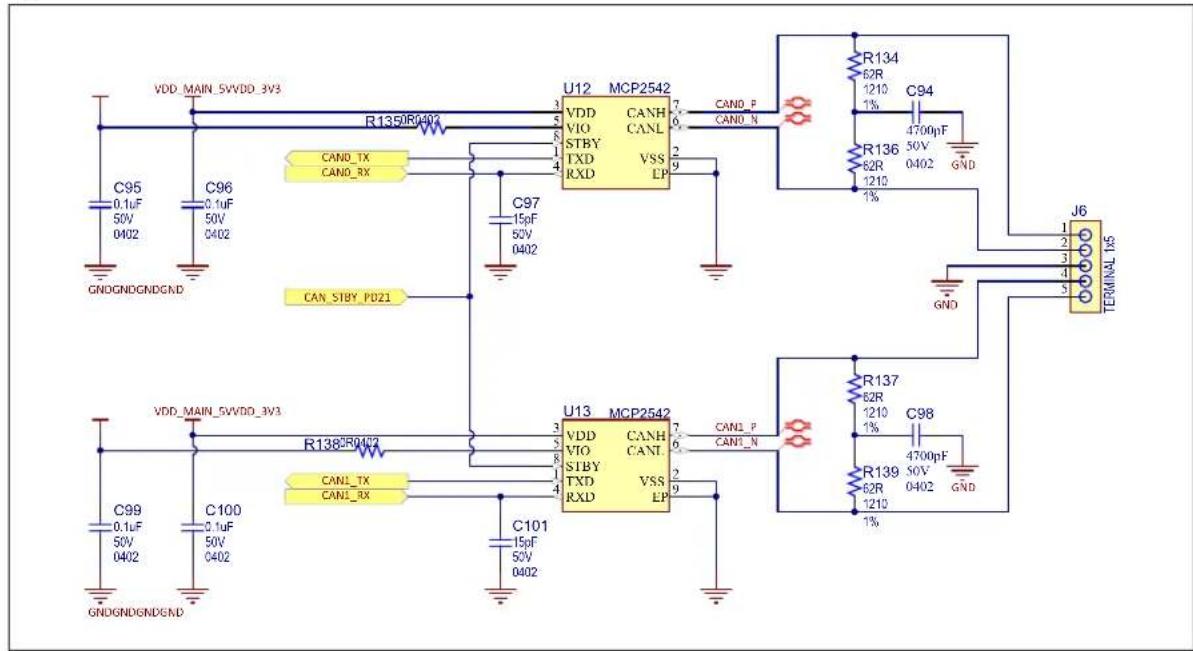

Figure 3-34. Dual CAN Interface

VDD_MAIN_5VVDD_3V3 R1359R0402 C95 0.1uF 50V 0402 C96 0.1uF 50V 0402 CAN_TX CAN_RX CAN_STBY_PD21 U12 MCP2542 VDD CANH VIO CANL STBY VSS TXD EP RXD CAN0_P CAN0_N C97 15pF 50V 0402 U13 MCP2542 VDD CANH VIO CANL STBY VSS TXD EP RXD EP CAN1_P CAN1_N C101 15pF 50V 0402 C100 0.1uF 50V 0402 C99 0.1uF 50V 0402 U13 62R 1210 C94 1% R136 62R 1210 4700pF 50V GND GND J6 TERMINAL 1x5 R137 62R 1210 C98 1% R139 62R 1210 4700pF 50V GND

Table 3-15. CAN Signal Descriptions

PIO Signal Name Shared Signal Description
PD21 CAN_STBY_PD21 – Dual CAN standby
PA10 CAN0_TX_PA10 – CAN transmit port 0
PA09 CAN0_RX_PA09 – CAN receive port 0
PA05 CAN1_TX_PA05 – CAN transmit port 1
PA06 CAN1_RX_PA06 – CAN receive port 1

Table 3-16. CAN Connector J6 Signal Description

Pin No Signal Name	Signal Description
1 CANH Differential positive port 0
2 CANL Differential negative port 0
3 GND Common ground
4 CANH Differential positive port 1
5 CANL Differential negative port 1

CAN1 function and UART on the external 40-pin connector are shared and selectable through the SEL_FNCT1_PD19 PIO.

CAN0 function and Debug UART are shared and selectable through the SEL_FNCT2_PD20 PIO.

3.4.5 Liquid Crystal Display (LCD) Interface

The SAM9X60-EK board provides a connector with 24 bits of data and control signals to the LCD interface.

Optional displays such as AC320005-5 (refer to the product web page) can be connected to the board.

In order to operate correctly with various LCD modules, two voltage lines are available: 3.3V and 5VDC (default). The selection is made with 0R resistors.

J15 is a 1.27-mm pitch, 50-pin header. It gives access to the LCD signals.

Figure 3-35. LCD Connector

Matched Net Lengths [Tolerance = 0.5mm] LCD LCD_ID_PD14 LCD_D0_ISI_D0_PC00 LCD_D1_ISI_D1_PC01 LCD_D2_ISI_D2_PC02 LCD_D3_ISI_D3_PC03 LCD_D4_ISI_D4_PC04 LCD_D5_ISI_D5_PC05 LCD_D6_ISI_D6_PC06 LCD_D7_ISI_D7_PC07 LCD_D8_ISI_D8_PC08 LCD_D9_ISI_D9_PC09 LCD_D10_ISI_D10_PC10 LCD_D11_ISI_D11_PC11 LCD_D12_ISI_PCK_PC12 LCD_D13_ISI_VSYNC_PC13 LCD_D14_ISI_HSYNC_PC14 LCD_D15_ISI_MCK_PC15 LCD_D16_ISI_nRST_PC16 LCD_D17_PC17 LCD_D18_PC18 LCD_D19_PC19 LCD_D20_PC20 LCD_D21_PC21 LCD_D22_PC22 LCD_D23_PC23 LCD_PCLK_PC30 LCD_VSYNC/CS_PC27 LCD_HSYNC/WE_PC28 LCD_DATA_ENABLE_PC29 LCD_ISI_ENABLE_PC24 LCD_IRQ1_PC25 LCD_PWM_PC26 VDD_MAIN_SV VDD_3V3 OR0402 R214 OR0402 R217 MNT GND J15 FFC/IFPC 50P Female

Table 3-17. LCD Connector J15 Signal Descriptions

Pin No	LCD pin PIO Signal Function
1 ID	PD18	LCDID_PD18	ID LCD module
2 GND – GND Ground
3 LCDDAT0	PC0	LCD_D0_ISI_D0_PC00	Data line
4 LCDDAT1	PC1	LCD_D1_ISI_D1_PC01	Data line
5 LCDDAT2	PC2	LCD_D2_ISI_D2_PC02	Data line
6 LCDDAT3	PC3	LCD_D3_ISI_D3_PC03	Data line
7 GND – GND Ground
8 LCDDAT4	PC4	LCD_D4_ISI_D4_PC04	Data line
9 LCDDAT5	PC5	LCD_D5_ISI_D5_PC05	Data line
10	LCDDAT6	PC6	LCD_D6_ISI_D6_PC06	Data line
11	LCDDAT7	PC7	LCD_D7_ISI_D7_PC07	Data line
12	GND – GND Ground
13	LCDDAT8	PC8	LCD_D8_ISI_D8_PC08	Data line
14	LCDDAT9 PC9 LCD_D9_ISI_D9_PC09 Data line
15	LCDDAT10 PC10 LCD_D10_ISI_D10_PC10 Data line
16	LCDDAT11 PC11 LCD_D11_ISI_D11_PC11 Data line
17	GND - GND		Ground
18	LCDDAT12 PC12 LCD_D12_ISI_PCK_PC12 Data line
19	LCDDAT13 PC13 LCD_D13_ISI_VSYNC_PC13 Data line
20	LCDDAT14 PC14 LCD_D14_ISI_HSYNC_PC14 Data line
21	LCDDAT15 PC15 LCD_D15_ISI_MCK_PC15 Data line
22	GND - GND		Ground
23	LCDDAT16 PC16 LCD_D16_PC16 Data line
24	LCDDAT17 PC17 LCD_D17_PC17 Data line
25	LCDDAT18 PC18 LCD_D18_PC18 Data line
26	LCDDAT19 PC19 LCD_D19_PC19 Data line
27	GND - GND		Ground
28	LCDDAT20 PC20 LCD_D20_PC20 Data line
29	LCDDAT21 PC21 LCD_D21_PC21 Data line
30	LCDDAT22 PC22 LCD_D22_PC22 Data line
31	LCDDAT23 PC23 LCD_D23_PC23 Data line
32	GND - GND		Ground
33	LCDPCK PC30 LCD_PCLK_PC30 Pixel clock
34	LCDVSYNC PC27 LCD_VSYNC/CS_PC27 Vertical synchronization
35	LCDHSYNC PC28 LCD_HSYNC/WE_PC28 Horizontal synchronization
36	LCDDEN PC29 LCD_DATA_ENABLE_PC29 Data enable
37	SPI_SPCK - NC			Test point to access the SPI interface via DNP resistor (see Figure 3-35)
38	SPI_MOSI - NC			Test point to access the SPI interface via DNP resistor (see Figure 3-35)
39	SPI_MISO - NC			Test point to access the SPI interface via DNP resistor (see Figure 3-35)
40	SPI_NPCS0 - NC Test point to access the SPI interface via DNP resistor (see Figure 3-35)
41	LCDDISP PC24 LCD_ISI_ENABLE_PC24 Display enable signal
42	TWD PA00 LCD_TWD I ^2C data line (maXTouch)
43	TWCK PA01 LCD_TWCK I ^2C clock line (maXTouch)
44	GPIO PC25 LCD_IRQ1_PC25 maXTouch interrupt line
45	GPIO PB17 LCD_IRQ2_PB17 Interrupt line for other I ^2C devices

......continued
Pin No	LCD pin	PIO Signal Function
46	LCDPWM PC26	LCD_PWM_PC26 Backlight control
47	RESET PB25	NRST_PB25 Reset for both display and maXTouch
48	Main_5V/3.3V	VCC VCC 3.3V or 5V supply (0R)
49	Main_5V/3.3V	VCC VCC 3.3V or 5V supply (0R)
50	GND _ GND Ground

3.4.6 Image Sensor Interface (ISI)

The SAM9X60-EK board provides a connector (J17) for connecting a 12-bit external camera. A TWI connection is also included for controlling the camera.

The ISI interface and LCD interface are mutually exclusive and should be used one at a time.

J17 is a 30-pin, 2.54-mm pitch header. It gives access to the ISI signals.

Figure 3-36. ISI Expansion Header

VDD_3V3 FB12 180R J17 LCD_D16_ISI_nRST_PC16 R212 22R 0402 1% ISI_nRST 5 6 ISI_EN R213 22R 0402 1% LCD_ISI_FNABLE_PC24 LCD_ISI_TWCK LCD_ISI_TWCK LCD_ISI_TWCK LCD_ISI_TWD LCD_ISI_TWD LCD_D1_ISI_D1_PCD1 R221 22R 0402 1% ISI_D1 19 20 ISI_MCK R215 22R 0402 1% LCD_D15_ISI_MCK_PC15 LCD_D3_ISI_D3_PCD3 R223 22R 0402 1% ISI_D3 21 22 ISI_VSYNC R216 22R 0402 1% LCD_D13_ISI_VSYNC_PC13 LCD_D5_ISI_D5_PCD5 R225 22R 0402 1% ISI_D5 23 24 ISI_HSYNC R218 22R 0402 1% LCD_D14_ISI_HSYNC_PC14 LCD_D7_ISI_D7_PCD7 R227 22R 0402 1% ISI_D7 25 26 ISI_PCK R219 22R 0402 1% LCD_D12_ISI_PCK_PC12 LCD_D9_ISI_D9_PCD9 R229 22R 0402 1% ISI_D9 27 28 ISI_D0 R220 22R 0402 1% LCD_D0_ISI_D0_PCD0 LCD_D11_ISI_D11_PC11 R231 22R 0402 1% ISI_D11 29 30 Header 2x15 LCD DIO GND GND LCD_D10_ISI_D10_PC10

Table 3-18. ISI Connector J17 Signal Descriptions

Pin No	ISI Pin	PIO	Signal	Function
1	Main_3V3	VCC	VCC	3.3V supply
2	GND	- GND	Ground
3	Main_3V3	VCC	VCC	3.3V supply
4	GND	- GND	Ground
5	ISI_nRST	PC16	LCD_RESET_PC16	Camera reset line
6	ISI_EN	PC24	LCD_ISI_ENABLE_PC24	Camera enable
7	ISI_TWCK	PA00	LCD_TCKD	TWI interface clock line
8	ISI_TWD	PA01	LCD_TWD	TWI interface data line
9	GND	- GND	Ground
10	ISI_MCK	PC15	LCD_D15_ISI_MCK_PC15	Master clock line
11	GND	-	GND	Ground
......continued
Pin No ISI	Pin PIO Signal Function
12 ISI_VSYNC PC13 LCD_D13_ISI_VSYNC_PC13 Vertical synchronization
13 GND –	GND Ground
14 ISI_HSYNC PC14 LCD_D14_ISI_HSYNC_PC14 Horizontal synchronization
15 GND –	GND Ground
16 ISI_PCK PC12 LCD_D12_ISI_PCK_PC12 Clock line
17 GND –	GND Ground
18 ISI_D0	PC00 LCD_D0_ISI_D0_PC00	Data line
19 ISI_D1	PC01 LCD_D1_ISI_D1_PC01	Data line
20 ISI_D2	PC02 LCD_D2_ISI_D2_PC02	Data line
21 ISI_D3	PC03 LCD_D3_ISI_D3_PC03	Data line
22 ISI_D4	PC04 LCD_D4_ISI_D4_PC04	Data line
23 ISI_D5	PC05 LCD_D5_ISI_D5_PC05	Data line
24 ISI_D6	PC06 LCD_D6_ISI_D6_PC06	Data line
25 ISI_D7	PC07 LCD_D7_ISI_D7_PC07	Data line
26 ISI_D8	PC08 LCD_D8_ISI_D8_PC08	Data line
27 ISI_D9	PC09 LCD_D9_ISI_D9_PC09	Data line
28 ISI_D10	PC10 LCD_D10_ISI_D10_PC10	Data line
29	ISI_D11	PC11	LCD_D11_ISI_D11_PC11	Data line
30 GND –	GND Ground

3.4.7 Audio Class D (CLASSD) Amplifier

The Audio Class D (CLASSD) Amplifier is a digital input, Pulse Width Modulated (PWM) output stereo Class D amplifier. CLASSD features a high-quality interpolation filter embedding a digitally-controlled gain, an equalizer and a de-emphasis filter.

On its input side, CLASSD is compatible with most common audio data rates. On the output side, its PWM output can drive either:

• high-impedance single-ended or differential output loads (Audio DAC application), or
• external MOSFETs through an integrated non-overlapping circuit (Class D power amplifier application).

For more information, refer to the SAM9X60 datasheet (see 1.2 Recommended Reading).

The output stage of the CLASSD amplifier featured on the SAM9X60-EK can be powered either from the on-board 5V power rail or an outside power supply. The selection is made by changing the jumper (JP3) position on J11:

• 2-3 shorted = on-board 5V power supply
• 1-2 shorted = external power supply

Figure 3-37. Audio Class D Mono Amplifier

CLASSD_L0_PA24 R177 DR 0402 C141 1000cpF 25V 0402 R176 10k 0402 5% D5 1N4148W Q6 SSM3J56ACT C137 12uF 25V 1206 C138 10uF 25V 1208 C139 10uF 25V 1206 C140 12uF 25V 1206 VDD_AUDIO JP3 Shunt 2.54mm 1x2 VDD_MAIN_5V HOR-2.54_Male_1x3 CLASSD_L1_PA25 R178 DR 0402 C142 1000cpF 25V 0402 R179 10k 0402 5% GNDGND Q7 SSM3K56ACT FB10 LEFT_P GND CLASSD_L2_PA26 R181 DR 0402 C142 10k 0402 5% R180 10k 0402 5% D6 1N4148W Q8 SSM3J56ACT FB11 LEFT_N CLASSD_L3_PA27 R182 DR 0402 C143 10k 0402 5% R183 10k 0402 5% GNDGND Q9 SSM3K56ACT

Table 3-19. Class D Output Connector J12 Signal Description

Pin No Signal Name	Signal Description
1 LEFT_N	Negative level
2 LEFT_P	Positive level
3 GND Ground
4 External power Input external power

3.4.8 Secure Digital Multimedia Card (SDMMC)

The SD (Secure Digital) card is a non-volatile memory card format used as a mass storage memory in mobile devices.

The SAM9X60 has one Secure Digital Multimedia Card (SDMMC) interface that supports the MultiMedia Card (e.MMC) Specification V4.51, the SD Memory Card Specification V3.0, and the SDIO V3.0 specification. It is compliant with the SD Host Controller Standard V3.0 Specification.

A standard MMC/SD card connector, connected to the SDMMC interface, is mounted on the top side of the board. The SDMMC0 communication is based on an 8-pin interface (clock, command, four data and power lines). It includes a card detection switch.

Figure 3-38. SDMMC Connector

VDD_3V3 R107 R108 R109 R110 R111 R112 R113 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 5% 0402 0402 0402 0402 0402 0402 0402 0402 0402 0402 SDMMC GND C56 C57 0.1uF 50V 10V 0402 4.7uF 10V 0402 J4 DAT3 CMD VSS1 VDD CLK VSS2 DAT10 DAT1 DAT2 CD WP SHIELD SD SDMMC0_DAT3_PA2D SDMMC0_CMD_PA16 SDMMC0_CLK_PA17 SDMMC0_DAT0_PA15 SDMMC0_DAT1_PA18 SDMMC0_DAT2_PA19 SDMMC0_CI_PA23 Matched Net Lengths [Tolerance = 0.25mm] R118 10k 0402 5% GND

3.4.9 mikroBUS Interface

The SAM9X60-EK hosts a pair of 8-pin female headers (J14) implementing a mikroBUS socket. For details, refer to the mikroBUS documentation on https://www.mikroe.com/mikrobus.

Figure 3-39. mikroBUS Interface

J14 MBUS_AD1_PB15 1 AN PWM 16 MBUS_PWM_PB13 MBUS_RST_PB14 2 RST INT 15 MBUS_INT_PB18 MBUS_NFC50_PA14 3 CS RX 14 MBUS_RX MBUS_SPCK_PA13 4 SCK TX 13 MBUS_TX MBUS_MISO_PA11 5 MISO SCT 12 MBUS_TWCK MBUS_MOSI_PA12 6 MOSI SDA 11 MBUS_TWD 7 +3.3V +5V 10 MBUS_TWD 8 GND GND 9 T mikroBUS HCST GNDGND

Table 3-20. mikroBUS Connector J14 Pin Assignment

Function PIO Mbus Signal Pin # Pin # Mbus Signal PIO Function
Analog input PB15 AN 1 16 PWM PB13 PWM
Reset PB14 RST 2 15 INT PB18 Interrupt
SPI Chip Select	PA14	SPI_NPCS	3 14 UART_RX	PA21 UART receive			(output from Mbus into SAM)
SPI clock	PA13	SPI_SPCK	4	13	UART_TX	PA22	UART transmit (input from SAM into Mbus)
SPI MISO	PA11	SPI_MISO	5	12	TWI_SCL	PA31	TWI clock
SPI MOSI	PA12	SPI_MOSI	6	11	TWI_SDA	PA30	TWI data
VCC_	3V3 Supply	7 10 5V	Supply _		VDD
GROUND	_	GND	8	9	GND	_	Ground

Note: Enabling the ATWILC3000 interface prevents the UART functionality from being used with the mikroBUS connector. See 3.4.3 Wi-Fi/Bluetooth Module (Optional).

3.4.10 GPIO Interface

The SAM9X60-EK board features a 40-pin connector (Raspberry Pi ^® compatible) for free use.

Figure 3-40. GPIO Connector

VDD_3V3VDD_MAIN_5V J16 EXT40_TWD EXT40_TWCK EXT40_I25MCK_PB23 EXT40_GPIO_PA02 EXT40_GPIO_PA04 EXT40_GPIO_PA03 EXT40_SPI_MOSI_PA12 EXT40_SPI_MISO_PA11 EXT40_SPI_SCLK_PA13 EXT40_CLK1_PC31 EXT40_CLK2_PB13 EXT40_PWM1_PB12 EXT40_I25WS_PB20 EXT40_GP7 EXT40_TXD EXT40_RXD EXT40_I25CK_PB19 EXT40_GPS EXT40_GP6 EXT40_GPIO_PA14 EXT40_NPCS1_PA07 EXT40_NPCS2_PA08 EXT40_PWM0_PB11 EXT40_GPIO_PB24 EXT40_I2SDIN_PB21 EXT40_I2SDOUT_PB22 HDR-2.54 Male 2x20 TSW-120-D7-G-D

Table 3-21. GPIO Connector J16 Pin Assignment

Signal Pin No Pin No Signal
+3V3 1 2 +5V
EXT40_TWD 3 4 +5V
EXT40_TWCK 5 6 Ground
EXT40_I2SMCK_PB23 7 8 EXT40_TXD
GND 9 10 EXT40_RXD
EXT40_GPIO_PA02 11 12 EXT40_I2SCK_PB19
EXT40_GPIO_PA03 13 14 Ground
EXT40_GPIO_PA04 15 16 EXT40_GP5
+3V3 17 18 EXT40_GP6
EXT40_SPI_MOSI_PA12	19 20 Ground
EXT40_SPI_MISO_PA11 21 22 EXT40_GPIO_PA14
EXT40_SPI_SCLK_PA13	23 24 EXT40_NPCS1_PA07
GND 25 26 EXT40_NPCS2_PA08
NC	27 28 NC
EXT40_CLK1_PC31	29 30 Ground
EXT40_CLK2_PB13	31 32 EXT40_PWM0_PB11
EXT40_PWM1_PB12	33 34 Ground
EXT40_I2SWS_PB20	35 36 EXT40_GPIO_PB24
EXT40_GP7	37 38 EXT40_I2SDIN_PB21
GND 39 40 EXT40_I2SDOUT_PB22

3.5 User Interaction and Debugging

The SAM9X60-EK includes two main debugging interfaces to provide debug-level access to the SAM9X60-EK:

• One UART through the USB/J-Link-OB CDC feature
- Two JTAG interfaces, one connected directly to the MPU using connector J23 and one through the J-Link-OB interface USB port J21

3.5.1 Serial Debug Com Port (FTDI)

The SAM9X60-EK board features a dedicated serial port for debugging, accessible through header J24. Various interfaces can be used as a USB/Serial DBGU port bridge, such as the FTDI TTL-232R USB-to-TTL serial cable.

Figure 3-41. Serial Debug Com Port

DBGU_TX_PA10 DBGU_RX_PA09 DRGU_TX_PAIDFTDI R266 22R 0402 1% R268 22R 0402 1% VDD_3VS C177 0.1uF 50V 0402 U30 A1 R1 A2 R2 VCCA VCCB OF GND TXS0102 5V_FTDI C178 0.1uF 50V 0402 TP10 FTDI_CTS FTDI_RX TP11 FTDI_RTS 5V_FTDISV_FTDI 5V_FTDI R261 100k DNP R262 100k DNP R263 100k DNP R264 100k DNP R265 100k DNP R266 100k DNP R267 100k DNP R268 100k DNP R269 100k DNP R270 100k DNP R271 100k DNP R272 100k DNP R273 100k DNP R274 100k DNP R275 100k DNP R276 100k DNP R277 100k DNP R278 100k DNP R279 100k DNP R280 100k DNP R281 100k DNP R282 100k DNP R283 100k DNP R284 100k DNP R285 100k DNP R286 100k DNP R287 100k DNP R288 100k DNP R289 100k DNP R290 100k DNP R291 100k DNP R292 100k DNP R293 100k DNP R294 100k DNP R295 100k DNP R296 100k DNP R297 100k DNP R298 100k DNP R299 100k DNP R300 J24 HDR-2.54 Male 1x6 TSW-106-07-G-S

Table 3-22. Debug Com Port Signal Descriptions

PIO Signal Name Shared Signal Description
PA09 DBGU_RX_PA09 DEBUG Receive data
PA10 DBGU_TX_PA10 DEBUG Transmit data

3.5.2 Debug JTAG

A 20-pin JTAG header (J23) is provided on the SAM9X60-EK board to facilitate software development and debugging using various JTAG emulators. The interface signals have a voltage level of 3.3V.

Figure 3-42. JTAG Connector

VDD_3V3 R260 100k 0402 5% DNP R259 100k 0402 5% DNP R258 100k 0402 5% R257 100k 0402 5% R256 100k 0402 5% VDD_3V3 J23 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 JTAG_CONN_TDI JTAG_CONN_TMS JTAG_CONN_TCK JTAG_CONN_RTCX JTAG_CONN_TDO JTAG_CONN_NRST R265 100R 0402 1% HDR-2.54 Male 2x10- 302-R201_GND

Table 3-23. JTAG/ICE Connector J23 Pin Assignment

Signal Pin No Pin No Signal
+3.3V 2 1 +3V3
GND 4 3 NC
GND 5 5 TDI
GND 8 7 TMS
GND 10 9 TCK
GND 12 11 RTCK
GND 14 13 TDO
GND 16 15 nRST
GND 18 17 NC
GND 20 19 NC

3.5.3 Embedded Debugger (J-Link-OB) Interface

The SAM9X60-EK includes a built-in SEGGER J-Link-On-Board (J-Link-OB) device. The functionality is implemented with an ATSAM3U4C microcontroller in an LFBGA100 package. The ATSAM3U4C provides the functions of the JTAG interface and a bridge from USB to Serial debug port (known as CDC, or communication class device). The bi-colored LED (D9) shows the status of the J-Link-On-Board device.

The J-Link-OB device is designed to provide an efficient, low-cost, on-board alternative to the standard J-Link or SAM-ICE.

Its own dedicated USB port acts as a power source for this block (which is separated from the rest of the system) and provides the communication link to program and debug the MPU.

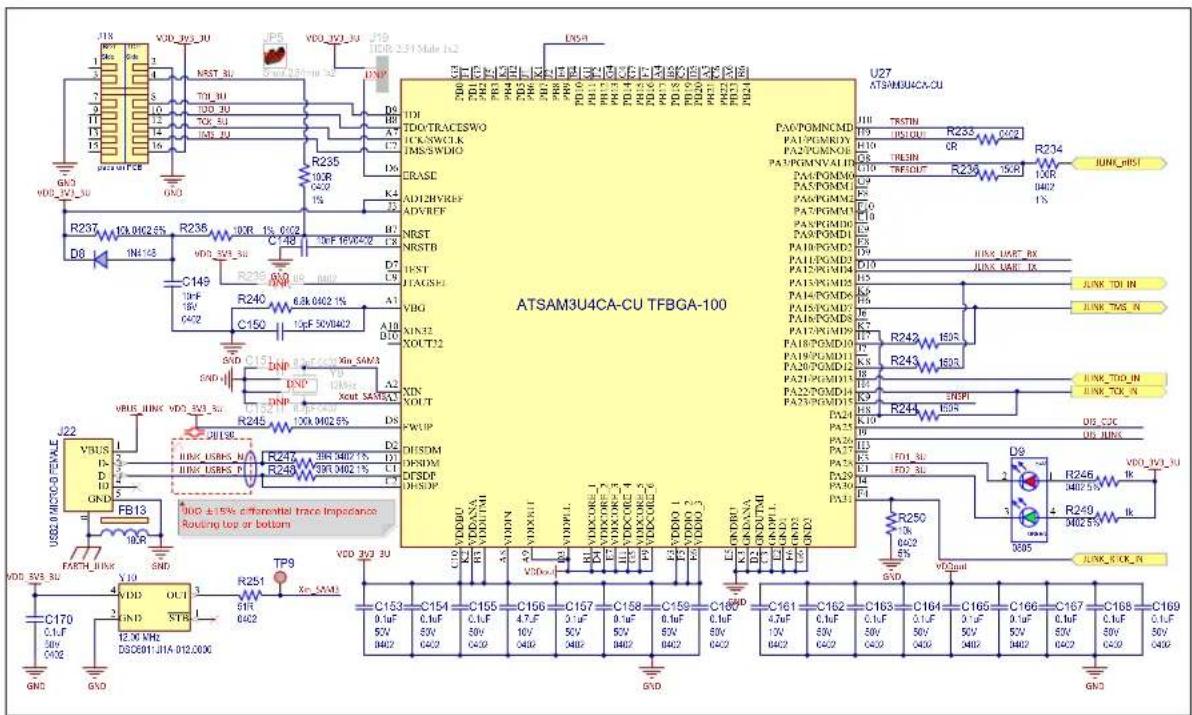

Figure 3-43. J-Link-OB with J-Link-CDC Interface

J18 R01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3U VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3PU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CPU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD_30X_3CU VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 52V 8402 VDD 1.1uF 56V 8402 VDD 1.1uF 56V 8402 VDD 1.1uF 56V 8402 VDD 1.1uF 56V 8402 VDD 1.1uF 56V 8402 VDD 1.1uF 56V 8402 VDD/1.1uF 56V 8402 VDD/1.1uF 56V 8402 VDD/1.1uF 56V 8402 VDD/1.1uF 56V 8402 VDD/1.1uF 56V 8402 VDD/1.1uF 56V VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/1.1uF VDD/6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6 x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6x6 x6x6x6x6 x6x6x6x6 x6x6x6x6 x6x6x6x6 x6x6x6x6 x6x6x6x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x6 x

Table 3-24. J-Link-OB and J-Link-CDC LED D9 Status

LED D9 State Description
Red and Green Off J-Link (SAM3U device) is not programmed, or J20 and J21 are installed.
Red On J-Link (SAM3U device) is programmed but J-Link is disabled (J20 installed).
Green Flashing J-Link is operational but the USB port is not connected.
Green On J-Link-OB is connected and ready.

The ATSAM3U microcontroller is powered only through the J-Link USB connector. This way, the programmer IC is separated from the rest of the system and the user can have a better reading of the power that the system is drawing when interrogating the power measurement devices placed on the board.

The MIC5528 has been selected to convert the 5V coming from the USB connector into the 3.3V rail needed by the microcontroller. The MIC5528 is a simple low-power, low dropout regulator designed for optimal performance in a very small footprint. It is capable of sourcing up to 500 mA of output current while only drawing 38 A of operating current. For more information about the MIC5528, refer to the product web page.

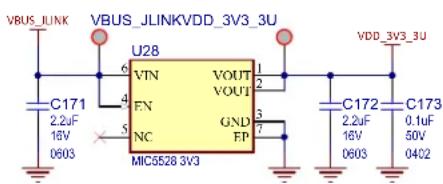

Figure 3-44. J-Link-OB Power Supply

VBUS_ILINK VBUS_JLINKVDD_3V3_3U U28 6 VTN 1 VOUT 1 FN 2 GND 3 NC FP 7 MIC5528 3V3 603 5 C171 2.2uF 16V 4 VOUT 2 C172 2.2uF 16V 0603 0.1uF 50V 0402 C173

If the user does not require the on-board programming feature, this section can be left unpowered, with no impact on the rest of the system. A level shifter has been placed on the DEBUG UART line between the SAM9X60 MPU and the on-board programmer to properly separate the two voltage domains.

Figure 3-45. J-Link-OB Level Shifter

DIS_CDC R252 22R0-5011% R254 22R0-5011% VDD_3V3 C174 0.1uF 50V 0402 U29 A1 B1 A2 B2 VCCA VCCB OE GND TXS0102 C175 0.1uF 50V 0402 JLINK_UART_TX JLINK_UART_RX VDD_3V3_3U GNDXND

Jumper JP6/J20 disables the J-Link-OB JTAG functionality. When installed (J20 shorted), a quad analog switch (U31/U32) routes the JTAG interface of the SAM9X60 to the 20-pin header J23.

• Jumper JP6/J20 not installed: J-Link-OB-ATSAM3U4C is enabled and fully functional.
• Jumper JP6/J20 installed: J-Link-OB-ATSAM3U4C is disabled and an external JTAG controller can be used through the 20-pin JTAG port J23.

Figure 3-46. Disable J-Link CDC

JP7 Shunt 2.54mm 1x2 DIS_CDC VDD_3V3_3U R241 10k 0402 5% J21 2:1 HDR-2.54Max2 GND

Figure 3-47. JTAG Switch

DIS JUNK U31 S VCC 16 E GND 8 C176 0.1μF 50V C402 JTAG TCK 4 JTAG TDI 7 JTAG TDO 9 JTAG TMS 12 YA 10A 2 T1A 3 YB 10B 5 11B 6 YC 10C 11 11C 10 YD 10D 14 11D 13 IDTC3VH257PAG JTAG_CONN TCK JUNK_TCK_IN JTAG_CONN TDI JUNK_TDI_IN JTAG_CONN_TDO JUNK_TDO_IN JTAG_CONN_TMS JUNK_TMS_IN

R270 100k04025½ VDD_3V3 U32 DIS_JUNK C179 0.1uF 50V C402 Q16 BSS138N JTAG_RTCK JTAG_RST DTQS3VH125 1Y 1A 3 2Y 2A 6 3Y 3A 11 4Y 4A 14 JTAG_CONN_RTCK JLINK_RTCK_IN JTAG_CONN_nRST JLINK_nRST

In addition to the J-Link-OB functionality, the ATSAM3U4C microcontroller provides a bridge to a debug serial port (DBGU) of the main board processor. The port is made accessible over the same USB connection used by JTAG by implementing a Communication Device Class (CDC), which allows a terminal communication with the target device.

This feature is enabled/disabled by jumper J21.

• Jumper J21 not installed: the J-Link-OB CDC function is enabled and fully functional.
• Jumper J21 installed: the J-Link-OB CDC function is disabled.

The USB CDC converts the USB device into a serial communication device. The target device running the CDC is recognized by the host as a serial interface (USB2COM, virtual COM port) without the need of installing a special host driver (the CDC is standard). All PC software using a COM port work without modifications with this virtual COM port. Under Microsoft ^® Windows ^® , the device shows up as a COM port; under Linux ^® , as a /dev/ACMx device. This enables the user to use host software which was not designed to be used with USB, such as a terminal program.

Figure 3-48. Disable J-Link JTAG

JP6 Shunt 2.54mm 1x2 DIS_JLINK VDD_3V3_3U R232 10k 0402 5% J20 1 HDR-2.54 Male 1x2

3.5.4 Push Button Switches

The SAM9X60-EK features four push buttons:

• One User push button (SW1) connected to PIO_PD18. This is left at user usage.
• One Wake-up push button (SW2) connected to the SAM9X60 WKUP pin; when pressed, the processor recovers from shutdown.
• One Board Reset push button (SW3); when pressed, the processor is reset.

- One Disable Boot push button (SW4); if kept pressed during power-up, the processor is prevented from booting off the on-board memories (QSPI and NAND Flash), thereby enabling booting from other sources or into ROM Code.

Figure 3-49. User Push Buttons

VDD_3V3 R186 10k 0402 5% USER_BUTTON_PD18 R192 100R0402 1% SW1 1 2 3 TL3301NF260QG GNDGND VDDBU R194 100k 0402 5% WAKE_UP R197 100R0402 1% SW2 1 2 3 TL3301NF260QG GNDGND USER_nRST C145 0.1uF 0402 1 2 3 TL3301NF260QG GND SW3 1 2 3 DIS_BOOT DIS_BOOT SW4 1 2 3 TL3301NF260QG GND

3.5.5 Disable Boot

On-board push button SW4 and/or jumper J13 control the selection (CS#) of the bootable memory components (QSPI and NAND FLASH) using a non-inverting 3-state buffer.

The rule of operation is:

• SW4 (DISABLE_BOOT) or J13 shorted = booting from QSPI and NAND FLASH is disabled.
• LED D6 indicates the state of the DIS_BOOT signal.

- Red = on-board boot memories are disabled.

- Green = on-board boot memories are enabled.

Figure 3-50. Disable Boot

Note: The "Disable Boot" mechanism does not disable booting from the SD card connector. The user must remove the SD card in order to disable booting from it.

3.5.6 RGB LED

The SAM9X60-EK board features one RGB LED. The three LED cathodes are controlled via GPIO PWM pins.

Figure 3-51. User LEDs

LED_BLUE_PB13 R195 100R 0402 1% GND R196 10k 0402 5% R199 1k0-02 Q13 TN2106 5% I 2 GND R200 100R 0402 1% GND R202 10k 0402 5% I 3 Q14 TN2106 5% I 2 GND R201 1k0-02 Q15 TN2106 5% I 3 R203 2.2k0-02 Q15 TN2106 5% I 2 GND VDD 3V3 LD1 CLV1A-FKB-CK1NIG1B57R4S3 LED_GREEN_PB12 R206 100R 0402 1% GND R207 DNP1A 0402 5% I 3 Q15 TN2106

Table 3-25. RGB LED PIOs

Signal PIO Function
LED_RED_PB11 PB11 PWMH1
LED_GREEN_PB12 PB12 PWML1
LED_BLUE_PB13 PB13 PWML0

4. Installation and Operation

4.1 System and Configuration Requirements

The SAM9X60-EK requires the following:

• Personal Computer
• USB cable (provided in the kit box)

4.2 Board Setup

Follow these steps before using the SAM9X60-EK:

1. Unpack the board, taking care to avoid electrostatic discharge.
2. Check the default jumper settings (see 2.5 Default Jumper Settings).
3. Connect the Micro-USB cable to connector J7 (USB-A port).
4. Connect the other end of the cable to a free port on your PC.
5. Open a terminal (console 115200, N, 8, 1) on your PC.
6. Reset the board. A startup message appears on the console.

5. Errata

5.1 Inoperative LED

On SAM9X60-EK Rev. B, the Ethernet activity LED on RJ45 connector J5 is inoperative due to an incorrect LED connection. This issue is solved in Rev. 2, as shown in the following picture. Nevertheless, the Ethernet port is perfectly operational on Rev. B boards.

Figure 5-1. RJ45 Connector Right LED Connection Change from Rev. B to Rev. 2

Rev. B J5 RJ45J00-0045NL 1 TX 2 RX 3 RX 4 RX 5 RX 6 RX 7 RX 8 RX 9 RX 10 RX 11 RX 12 RX 13 RX 14 RX 15 RX 16 RX 17 RX 18 RX 19 RX 20 RX 21 RX 22 RX 23 RX 24 RX 25 RX 26 RX 27 RX 28 RX 29 RX 30 RX 31 RX 32 RX 33 RX 34 RX 35 RX 36 RX 37 RX 38 RX 39 RX 40 RX 41 RX 42 RX 43 RX 44 RX 45 RX 46 RX 47 RX 48 RX 49 RX 50 RX 51 RX 52 RX 53 RX 54 RX 55 RX 56 RX 57 RX 58 RX 59 RX 60 RX 61 RX 62 RX 63 RX 64 RX 65 RX 66 RX 67 RX 68 RX 69 RX 70 RX 71 RX 72 RX 73 RX 74 RX 75 RX 76 RX 77 RX 78 RX 79 RX 80 RX 81 RX 82 RX 83 RX 84 RX 85 RX 86 RX 87 RX 88 RX 89 RX 90 RX 91 RX 92 RX 93 RX 94 RX 95 RX 96 RX 97 RX 98 RX 99 RX 100 RX 101 RX 102 RX 103 RX 104 RX 105 RX 106 RX 107 RX 108 RX 109 RX 110 RX 111 RX 112 RX 113 RX 114 RX 115 RX 116 RX 117 RX 118 RX 119 RX 120 RX 121 RX 122 RX 123 RX 124 RX 125 RX

5.2 Booting Issue

On SAM9X60-EK Rev. B, Rev. 2 and Rev. 3 boards, when booting from NAND Flash memory MT29F4G08ABAEA, the boot sequence does not execute the first time the board powers up; booting occurs only after the user presses the Reset button.

The reason is that the MT29F4G08ABAEA memory does not follow the ONFI specification, which requires a maximum 5 s internal reset time after the RESET command (0xFF) has been sent. It is therefore not ready when the SAM9X60 needs to read boot code from it.

We recommend not to use MT29F4G08ABAEA in your design.

5.3 Powering-Up Issue

There is a known issue that can occur on the SAM9X60-EK Rev. B, Rev. 2 and Rev. 3 boards if the user tries to mount and use the optional WILC3000 module together with the LCD or with the Ethernet PHY.

With WILC3000, a special power-up sequence applies, requiring that the reset line be held low for a specific period of time. However, as all devices share the same reset line, this can cause communication disruptions during runtime.

To solve this issue, we recommend separating the reset line going to the WILC3000 by cutting the trace and connecting it to a free GPIO from the 40-pin GPIO connector (J16). Our recommendation is to use PC31 (pin 29), as this is the one implemented in our current Linux distribution.

The following figures provide board modification guidance.

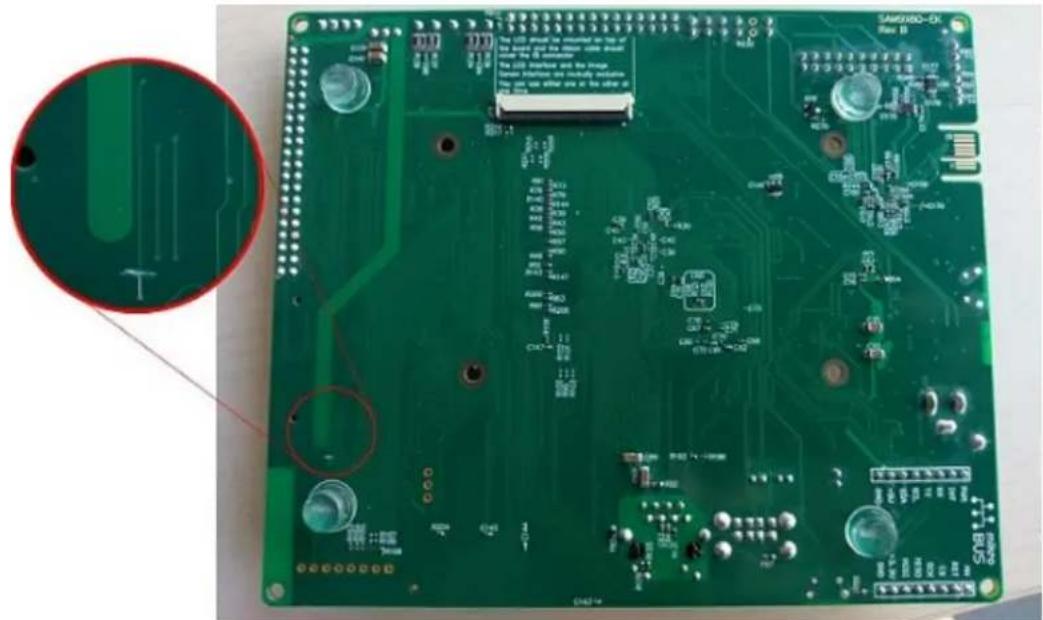

Figure 5-2. Board Modification Step 1

Close-up of a green printed circuit board (PCB) with visible traces, pads, and components, no readable text or symbols.

Figure 5-3. Board Modification Step 2

SAMX80-EX Rev 13 The LCD should be mounted on a 46% of the brand and the motion cable should have the 2D connection The LCD Interface and the Image Sensor Interface will multiply activation. This can use either one or the other of the device. C175 C176 C177 C178 C179 C180 C181 C182 C183 C184 C185 C186 C187 C188 C189 C190 C191 C192 C193 C194 C195 C196 C197 C198 C199 C200 C201 C202 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 C227 C228 C229 C230 C231 C232 C233 C234 C235 C236 C237 C238 C239 C240 C241 C242 C243 C244 C245 C246 C247 C248 C249 C250 C251 C252 C253 C254 C255 C256 C257 C258 C259 C260 C261 C262 C263 C264 C265 C266 C267 C268 C269 C270 C271 C272 C273 D373

5.4 Resistor Mislabeling

There is a known silkscreen error on the SAM9X60-EK Rev. B and Rev. 2 boards: resistor R65 is mistakenly labeled as R72 whereas resistor R72 has no designator. See the following figure.

Figure 5-4. R65 and R72 Resistor Identification

R65 R72 R66 R195 R72 R71

6. Appendix. Schematics and Layouts

This appendix contains the following schematics and layouts for the SAM9X60-EK board:

• Block Diagram
  • Power Supply
• SAM9X60 Processor
• Processor I/Os
• Processor I/O Expansions
• On-board Memories
• USB Interfaces
• Ethernet MAC
  • Wi-Fi/Bluetooth
  • SDMMC, CAN and CLASSD
• Expansion Connectors
• User Interaction
• On-board J-Link

Figure 6-1. Block Diagram

    subgraph Program and debug
        F["On Board Programmer AT5AM3UAICA"] --> G["UART DEBUG Connector"]
        H["J-TAB Connector"] --> I["USBA SAM-RA"]
        J["USER Buttons"] --> K["RGB LED's"]
    end

    subgraph External Connections
        L["SV INPUT Connector"] --> M["PMIC MIC2099"]
        N["Voltage & Current Measurement PAC1718 PAC1934"] --> O["Backup Power 3VO SUPERCAP"]
        P["SAM9X60 640 MHz APM0/5CE J-S CPU BSA 22A"] --> Q["On Board Memories"]
        R["DDR2 SDRAM 200 WST2006KB"] --> S["NAND Flash 400 (312M x 8) MT29F400SABEAWP"]
        T["QSPI Flash 648bit (8N x 8) SST26VF064B"] --> U["L2C EEPROM 290 (256 x 8) Z4AA625E4B"]
    end

    subgraph External Connections
        V["ETHERNET PHY SIM X5ZBB031RNAIA"] --> W["LCD Connector"]
        X["RJ40 Connector"] --> Y["USB A,B&C Connectors"]
        Z["Camera ISI Connector"] --> AA["2 x CAN 2 x MCP254Z"]
        AB["CLA33 D Audio Amplifier"] --> AC["ANalog Audio Connector"]
        AD["RASPBERRY FI Connector"] --> AE["SD Card Connector"]
        AF["microBUS Connector"] --> AG["WIFI / BLE ATWILC3000"]
    end

    subgraph External Connections
        AH["External Connection"] --> AI["External Connection"]
    end

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#ffc,stroke:#333
    style F fill:#fcc,stroke:#333
    style G fill:#fcc,stroke:#333
    style H fill:#fcc,stroke:#333
    style I fill:#fcc,stroke:#333
    style J fill:#fcc,stroke:#333
    style K fill:#fcc,stroke:#333
    style L fill:#fcc,stroke:#333
    style M fill:#fcc,stroke:#333
    style N fill:#fcc,stroke:#333
    style O fill:#fcc,stroke:#333
    style P fill:#fcc,stroke:#333
    style Q fill:#fcc,stroke:#333
    style R fill:#fcc,stroke:#333
    style S fill:#fcc,stroke:#333
    style T fill:#fcc,stroke:#333
    style U fill:#fcc,stroke:#333
    style V fill:#fcc,stroke:#333
    style W fill:#fcc,stroke:#333
    style X fill:#fcc,stroke:#333
    style Y fill:#fcc,stroke:#333
    style Z fill:#fcc,stroke:#333
    style AA fill:#fcc,stroke:#333
    style AB fill:#fcc,stroke:#333
    style AC fill:#fcc,stroke:#333
    style AD fill:#fcc,stroke:#333
    style AE fill:#fcc,stroke:#333
    style AF fill:#fcc,stroke:#333

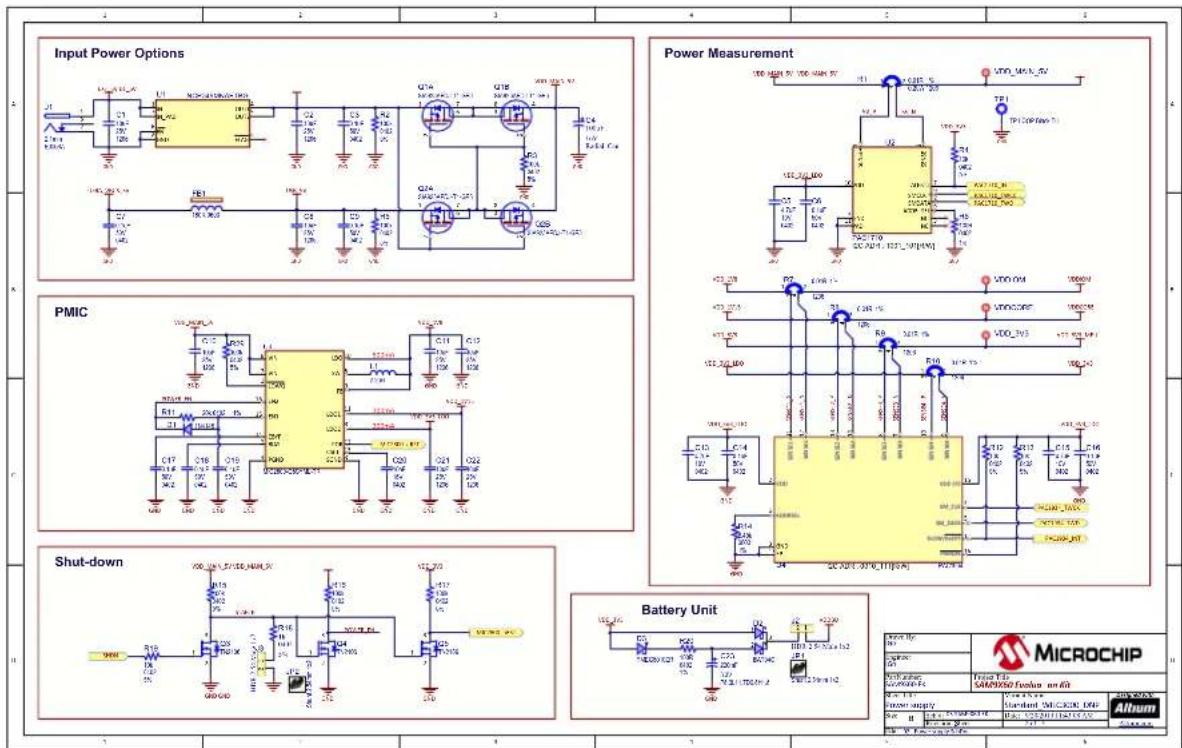

Figure 6-2. Power Supply

Input Power Options Power Measurement PMIC Shut-down Battery Unit MICROCHIP Microchip SAPRISO Electron unit Power Supply Basic 1.5V Standard Microchip Album

Figure 6-3. SAM9X60 Processor

SAM9X60 Power SAM9X60 POWER SUPPLY SAM9X60 DDR Controller SAM9X60 Clocks SAM9X60 Core DDR_VREF SAM9X60 Reset MicroCHIP SAMS2500 Emitter on Kit SAMS2500 Emitter on Kit Procciser SAV9600 Standard MLC800 DHP Altum 1 2 3 4 5 6 Dissuizing case should be placed as close as possible in their corresponding power bank Place C15 close to L11 or P13, and place C80 close to P10

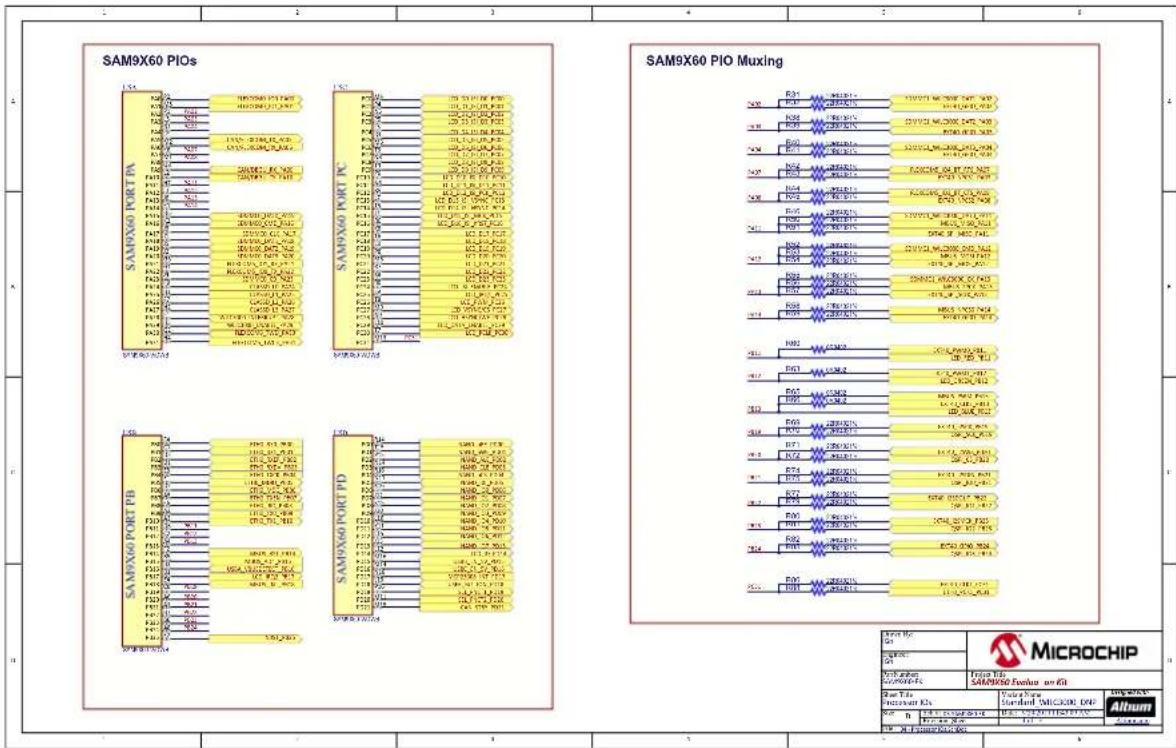

Figure 6-4. Processor I/Os

Figure 6-5. Processor I/O Expansions

CAN1 / EXT40 UART Selection Port Expander CAN0 / DEBUG UART Selection Upper Right Board TWI MikroBUS UART / WILC BT UART Selection Lower Left Board TWI MICROCHIP Microchip CAMERAO Evaluator on Kit Procoquer 10 Expansions Standard WILC3000 2MP Altum Pin No: 1876-5200-0000 1876-5200-0000 1876-5200-0000 SAMS3000 Evaluator on Kit

Figure 6-6. On-board Memories

TWI EEPROM 2Gb DDR2-800 SDRAM 16bit Serial Quad I/O Flash 4Gb NAND Flash TSOP-48 MicroCHIP Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip Micro Chip

Figure 6-7. USB Interfaces

USB-A port USB-B port USB-B power switch USB-C power switch MicroCHIP SAMS/2000-CT USB Interface USB-1.5V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.3V USB-1.5V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0.1V 0. USB-2.5V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V 0.2V USB-3.5V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V 0.3V USB-4.5V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V 0.4V USB-5.5V 0.5V 0.5V 0.5V 0.5V 0.5V 0.5V 0.5V 0.5V 0.5V USB-6.5V 0.6V 0.6V 0.6V 0.6V 0.6V USB-7.5V 0.7V 0.7V USB-8.5V 0.8V USB-9.5V USB-10A USB-11A USB-12A USB-13A USB-14A USB-15A USB-16A USB-17A USB-18A USB-19A USB-20A USB-21A USB-22A USB-23A USB-24A USB-25A USB-26A USB-27A USB-28A USB-29A USB-30A USB-31A USB-32A USB-33A USB-34A USB-35A USB-36A USB-37A USB-38A USB-39A USB-40A USB-41A USB-42A USB-43A USB-44A USB-45A USB-46A USB-47A USB-48A USB-49A USB-50A USB-51A USB-52A USB-53A USB-54A USB-55A USB-56A USB-57A USB-58A USB-59A USB-60A USB-61A USB-62A USB-63A USB-64A USB-65A USB-66A USB-67A USB-68A USB-69A USB-70A USB-71A USB-72A USB-73A USB-74A USB-75A USB-76A USB-77A USB-78A USB-79A USB-80A USB-81A USB-82A USB-83A USB-84A USB-85A USB-86A USB-87A USB-88A USB-89A USB-90A USB-91A USB-92A USB-93A USB-94A USB-95A USB-96A USB-97A USB-98A USB-99A USB-COS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/COS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCS/CCs / Microchip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip / Micro Chip |

Figure 6-8. Ethernet MAC

Ethernet Connector Ethernet PHY Micro LED transistors main inductor Enabling output circuit K5276018P414-TR Micro Chip MicroCHIP Micro Chip MicroChip Micro Chip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip MicroChip

Figure 6-9. Wi-Fi/Bluetooth

WIFI / BT MODULE VDD 20.1kΩ L130 C135 M122 C132 C134 VDD 20.1kΩ R170 R175 R180 R185 R190 R195 R200 R205 R210 R215 R220 R225 R230 R235 R240 R245 R250 R255 R260 R265 R270 R275 R280 R285 R290 R295 R300 R305 R310 R315 R320 R325 R330 R335 R340 R345 R350 R355 R360 R365 R370 R375 R380 R385 R390 R395 R400 VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kΩ VDD 20.1kOmega/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NC/NA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/CNA/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/LA/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/B/BB/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/GN/A/SAMX2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Micro Chip SAMS2X50 Focus on Kit Althum

Figure 6-10. SDMMC, CAN and CLASSD

CAN SDMMC CLASSD CLASSD MICROCHIP Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip SARX90507 Tension on Air Micro Chip

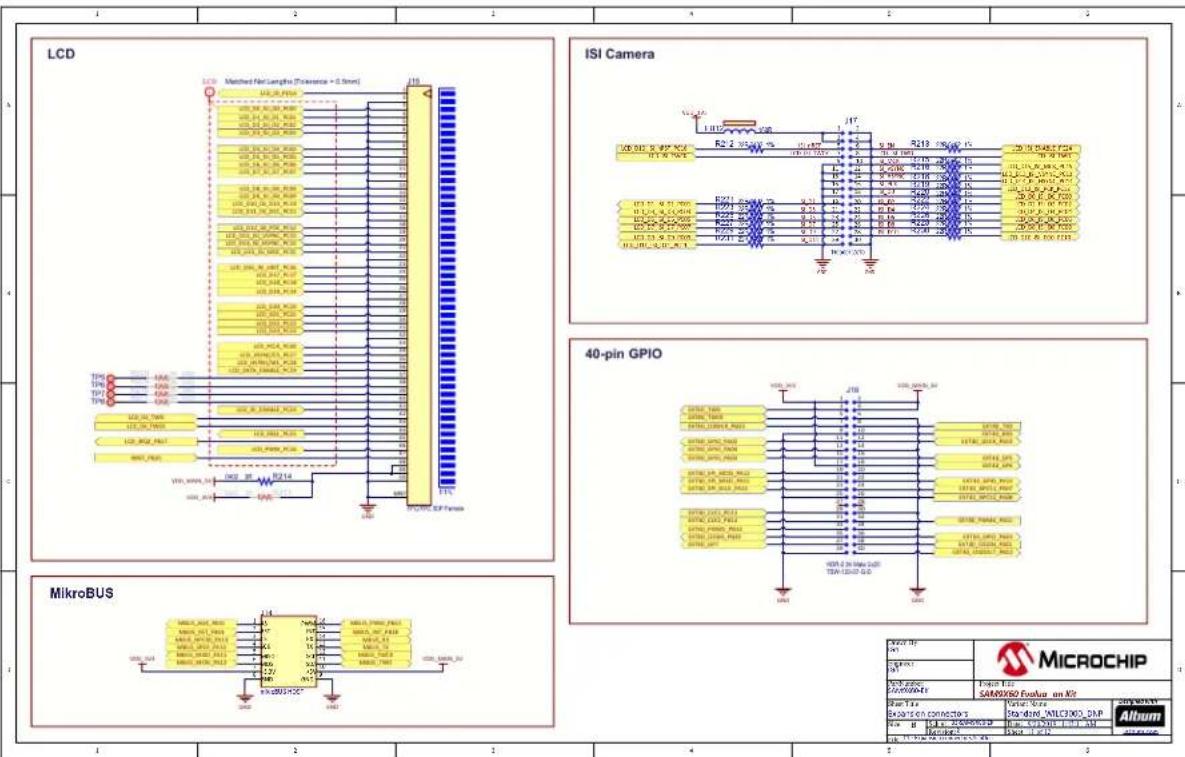

Figure 6-11. Expansion Connectors

LCD Matched Net Length (Tolerance = 0.5mm) LCD 120.00.0000 120.00.0000 120.00.0000 120.00.0000 120.00.0000 120.00.0000 120.00.0000 120.00.0000 120.00.0000 121.37.38.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39.39 ISI Camera LVD: 256V 85V 75V R2-2 25V 75V R2-19 25V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 68V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 75V 25V 15V 68V 75V 25V 15V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16V 68V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16V 75V 25V 16S 68S 75S 25S 16S 75S 25S 16S 75S 25S 16S 75S 25S 16S 68S 25S 16S 75S 25S 16S 75S 25S 16S 68S 25S 16S 75S 25S 16S 75S 25S 16S 68S 25S 16S 75S 25S 16S 75S 24S-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44-44- MikroBUS MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MILKOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED MIL KIOSOLED LED

Figure 6-12. User Interaction

USER PUSH BUTTONS RGB LEDs DISABLE BOOT JTAG FTDI DEBUG PLACEHOLDERS PAD1 PAD2 CRC FCL2 FCL3 MicroCHIP SAMS9850 Epsilon on Kit User Microchip Standard 076/08/08 DkV Altum R100 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6.0 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 7.0 PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC PADC

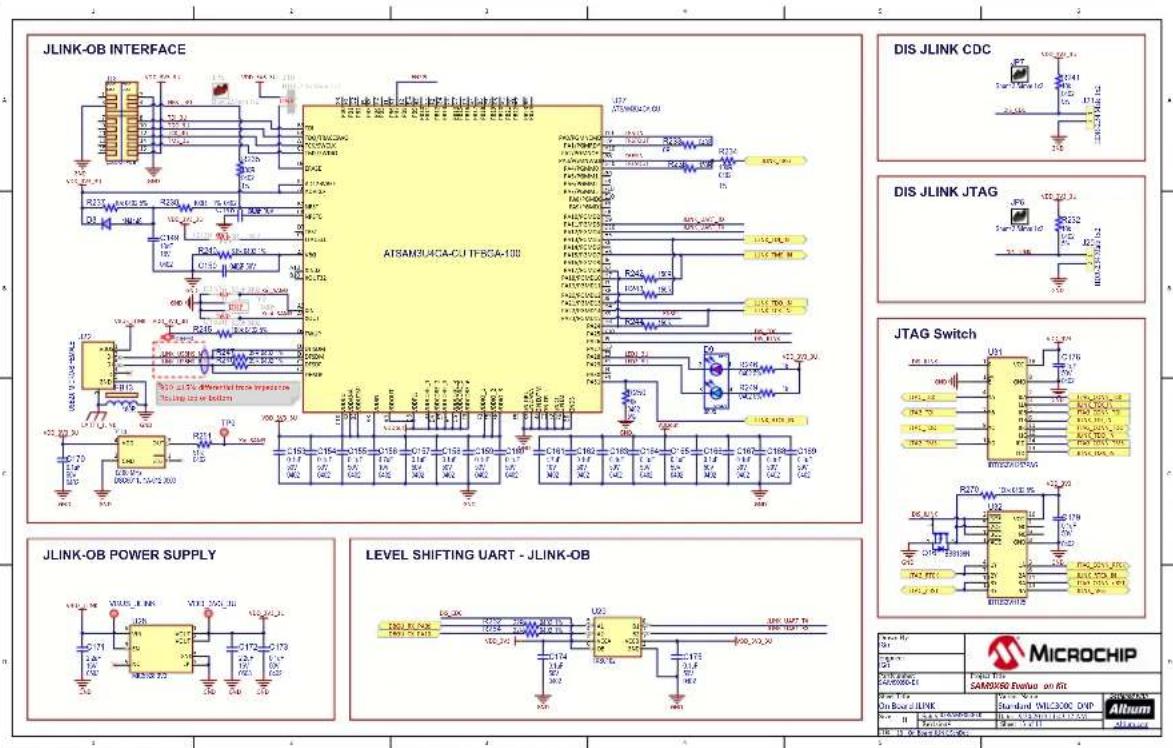

Figure 6-13. On-board J-Link

JLINK-OB INTERFACE ATSAMSUICA-CU IFBCA-100 DIS JLINK CDC DIS JLINK JTAG JTAG Switch JLINK-OB POWER SUPPLY LEVEL SHIFTING UART - JLINK-OB MICROCHIP On Board JLINK Standard MICR3000 DVP Altum Microchip

7. Revision History

Microchip provides online support via our website at http://www.microchip.com/. This website is used to make files and information easily available to customers. Some of the content available includes:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip design partner program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

Product Change Notification Service

Microchip's product change notification service helps keep customers current on Microchip products. Subscribers will receive email notification whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, go to http://www.microchip.com/pcn and follow the registration instructions.

Customer Support

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Embedded Solutions Engineer (ESE)
- Technical Support

Customers should contact their distributor, representative or ESE for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in this document.

Technical support is available through the website at: http://www.microchip.com/support

Microchip Devices Code Protection Feature

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.
• Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
• There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
• Microchip is willing to work with the customer who is concerned about the integrity of their code.
• Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Legal Notice

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with

your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AnyRate, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, chipKIT, chipKIT logo, CryptoMemory, CryptoRF, dsPIC, FlashFlex, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PackeTime, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TempTrackr, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

APT, ClockWorks, The Embedded Control Solutions Company, EtherSynch, FlashTec, Hyper Speed Control, HyperLight Load, IntelliMOS, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, Temux, TimeCesium, TimeHub, TimePictra, TimeProvider, Vite, WinPath, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, BlueSky, BodyCom, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial Programming, ICSP, INICnet, Inter-Chip Connectivity, JitterBlocker, KleerNet, KleerNet logo, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, SAM-ICE, Serial Quad I/O, SMART-I.S., SQI, SuperSwitcher, SuperSwitcher II, Total Endurance, TSHARC, USBCheck, VariSense, ViewSpan, WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2020, Microchip Technology Incorporated, Printed in the U.S.A., All Rights Reserved.

ISBN: 978-1-5224-5460-1

AMBA, Arm, Arm7, Arm7TDMI, Arm9, Arm11, Artisan, big.LITTLE, Cordio, CoreLink, CoreSight, Cortex, DesignStart, DynamlQ, Jazelle, Keil, Mali, Mbed, Mbed Enabled, NEON, POP, RealView, SecurCore, Socrates, Thumb, TrustZone, ULINK, ULINK2, ULINK-ME, ULINK-PLUS, ULINKpro, μVision, Versatile are trademarks or registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

Quality Management System

For information regarding Microchip's Quality Management Systems, please visit http://www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS ASIA/PACIFIC ASIA/PACIFIC EUROPE

Corporate Office2355 West Chandler Blvd.Chandler, AZ 85224-6199Tel: [phone]Fax: [phone]Technical Support:http://www.microchip.com/supportWeb Address:http://www.microchip.comAtlantaDuluth, GATel: 678-957-9614Fax: [phone]Austin, TXTel: 512-257-3370BostonWestborough, MATel: 774-760-0087Fax: [phone]ChicagoItasca, ILTel: 630-285-0071Fax: [phone]DallasAddison, TXTel: 972-818-7423Fax: [phone]DetroitNovi, MITel: 248-848-4000Houston, TXTel: 281-894-5983IndianapolisNoblesville, INTel: 317-773-8323Fax: [phone]Tel: [phone]Los AngelesMission Viejo, CATel: 949-462-9523Fax: [phone]Tel: [phone]Raleigh, NCTel: 919-844-7510New York, NYTel: 631-435-6000San Jose, CASel: 408-735-9110Tel: [phone]Canada - TorontoTel: 905-695-1980Fax: [phone]

Australia - SydneyTel: 61-2-9868-6733China - BeijingTel: 86-10-8569-7000China - ChengduTel: 86-28-8665-5511China - ChongqingTel: 86-23-8980-9588China - DongguanTel: 86-769-8702-9880China - GuangzhouTel: 86-20-8755-8029China - HangzhouTel: 86-571-8792-8115China - Hong Kong SARTel: 852-2943-5100China - NanjingTel: 86-25-8473-2460China - QingdaoTel: 86-532-8502-7355China - ShanghaiTel: 86-21-3326-8000China - ShenyangTel: 86-24-2334-2829China - ShenzhenTel: 86-755-8864-2200China - SuzhouTel: 86-186-6233-1526China - WuhanTel: 86-27-5980-5300China - XianTel: 86-29-8833-7252China - XiamenTel: 86-592-2388138China - ZhuhaiTel: 86-756-3210040

India - BangaloreTel: 91-80-3090-4444India - New DelhiTel: 91-11-4160-8631India - PuneTel: 91-20-4121-0141Japan - OsakaTel: 81-6-6152-7160Japan - TokyoTel: 81-3-6880-3770Korea - DaeguTel: 82-53-744-4301Korea - SeoulTel: 82-2-554-7200Malaysia - Kuala LumpurTel: 60-3-7651-7906Malaysia - PenangTel: 60-4-227-8870Philippines - ManilaTel: 63-2-634-9065SingaporeTel: 65-6334-8870Taiwan - Hsin ChuTel: 886-3-577-8366Taiwan - KaohsiungTel: 886-7-213-7830Taiwan - TaipeiTel: 886-2-2508-8600Thailand - BangkokTel: 66-2-694-1351Vietnam - Ho Chi MinhTel: 84-28-5448-2100

Austria - WelsTel: 43-7242-2244-39Fax: [phone]Denmark - CopenhagenTel: 45-4450-2828Fax: [phone]Finland - EspooTel: 358-9-4520-820France - ParisTel: 33-1-69-53-63-20Fax: [phone]Germany - GarchingTel: 49-8931-9700Germany - HaanTel: 49-2129-3766400Germany - HeilbronnTel: 49-7131-72400Germany - KarlsruheTel: 49-721-625370Germany - MunichTel: 49-89-627-144-0Fax: [phone]Germany - RosenheimTel: 49-8031-354-560Israel - Ra'ananaTel: 972-9-744-7705Italy - MilanTel: 39-0331-742611Fax: [phone]Italy - PadovaTel: 39-049-7625286Netherlands - DrunenTel: 31-416-690399Fax: [phone]Norway - TrondheimTel: 47-72884388Poland - WarsawTel: 48-22-3325737Romania - BucharestTel: 40-21-407-87-50Spain - MadridTel: 34-91-708-08-90Fax: [phone]Sweden - GothenbergTel: 46-31-704-60-40Sweden - StockholmTel: 46-8-5090-4654UK - WokinghamTel: 44-118-921-5800Fax: [phone]
