USER MANUAL ATSAMA5D41 Microchip

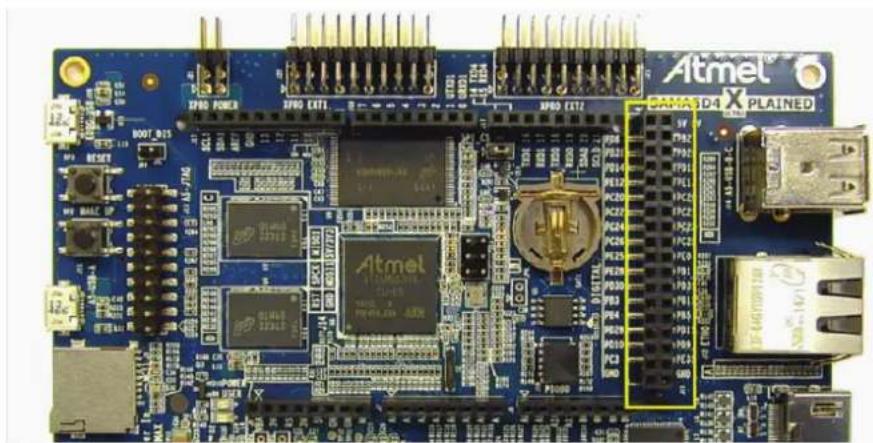

Close-up of a blue printed circuit board (PCB) with various electronic components and connectors, no visible text or symbols on the board itself.

Introduction

This user guide introduces the Atmel® SAMA5D4 Xplained Ultra evaluation kit (SAMA5D4-XULT) and describes the development and debugging capabilities for applications running on the Atmel | SMART SAMA5D4 ARM® Cortex®-A5-based embedded microprocessor unit (eMPU).

Scope

This guide provides details on the SAMA5D4-XULT. It is made up of four main sections:

• Section 1. describes the evaluation kit content and its main features.
• Section 2. provides instructions to power up the SAMA5D4-XULT board.
• Section 3. provides an overview of the SAMA5D4-XULT board.
• Section 4. describes the SAMA5D4-XULT board components.

Kit Contents

The SAMA5D4-XULT includes:

• Board
  — One SAMA5D4-XULT board
  Cables
  — One Micro-AB type USB cable
• Welcome letter

Table of Contents

Introduction....1

Scope 1

Kit Contents....2

Table of Contents 3

1. Evaluation Kit Specifications ...... 4

1.1 Electrostatic Warning 4
1.2 Power Supply Warning 4

2. Power Source 5

2.1 Power up the Board....5
2.2 Sample Code and Technical Support 5

3. Hardware Overview 6

3.1 Introduction....6
3.2 Equipment List....6
3.3 Board Features 6

4. Board Components ..... 7

4.1 Board Overview....7
4.2 Function Blocks....9
4.3 PIO Usage and Interface Connectors 41
4.4 SAMA5D4-XULT Board Schematics....57

5. Revision History 72

1. Evaluation Kit Specifications

Table 1-1. Evaluation Kit Specifications

Characteristic Specifications
Board SAMA5D4-XULT
Board supply voltage		USB powered5VDC from optional jack connector or from “Arduino shield”
Temperature	Operating 0°C to	+70°C
	Storage -40°C to	+85°C
Relative Humidity 0 to 90% (non-condensing)
Dimensions: Main board 135 × 88 × 20 mm
RoHS status Compliant
Board Identification SAMA5D4-XULT

1.1 Electrostatic Warning

WARNING

Electrostatic sensitive device

ESD-Sensitive Electronic Equipment!

The evaluation kit is shipped in a protective anti-static package. The board system must not be subject to high electrostatic potentials.

We strongly recommend using a grounding strap or similar ESD protective device when handling the board in hostile ESD environments (offices with synthetic carpet, for example). Avoid touching the component pins or any other metallic element on the board.

1.2 Power Supply Warning

WARNING

Hardware Power Supply Limitation

Using a power adapter greater than 5Vcc (e.g., the 12Vcc power adapters from other kits such as Arduino kits) may damage the board.

WARNING

Hardware Power Budget

Using the USB as the main power source (max. 500 mA) is acceptable only with the use of the on-board peripherals and low-power LCD extension.

When external peripheral or add-on boards need to be powered, we recommend the use of an external power adapter connected to the J4 DC jack (can provide up to 1.2A on the 3.3V node).

2. Power Source

Several options are available to power up the SAMA5D4-XULT board.

The board can be:

• USB-powered through the USB Micro-AB connector (J11 - default configuration).
• Powered through an external AC-to-DC adapter connected via a 2.1 mm center-positive plug into the optional power jack of the board (J4). The recommended output voltage range of the power adapter is 5V at 2A.
• Powered through the Arduino shield.
• Powered through the USB Micro-AB connector on the Atmel Embedded Debugger (EDBG) interface (J20).

WARNING

Unlike Arduino Uno boards, the SAMA5D4-XULT board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages (e.g., 5V) to an I/O pin could damage the board.

2.1 Power up the Board

Unpack the board, taking care to avoid electrostatic discharge. Connect the USB Micro-AB cable to the connector (J11). Then connect the other end of the cable to a free USB port of your PC.

Table 2-1. Electrical Characteristics

Electrical Parameter Values
Input voltage 5 VCC
Maximum Input voltage (limits) 6 VCC
Max DC 3v3 current available 1.2A
I/O Voltage 3.3V only

2.2 Sample Code and Technical Support

After boot up, you can run some sample code or your own application on the development kit. You can download sample code and get technical support from the Atmel website.

Linux software and demos can be found on the website Linux4SAM.

3. Hardware Overview

3.1 Introduction

The Atmel SAMA5D4-XULT is a fully-featured evaluation platform for the Atmel SAMA5D4 series ARM-based embedded microprocessor units (eMPU). It allows users to extensively evaluate, prototype and create application-specific designs.

3.2 Equipment List

The SAMA5D4-XULT board is based on the integration of an ARM Cortex-A5-based microprocessor with external memory, one Ethernet physical layer transceiver, two SD/MMC interfaces, two host USB ports and one device USB port, one 24-bit RGB LCD and HDMI interface and debug interfaces.

Seven headers, compatible with Arduino R3 (Uno, Due) and two Xplained headers are available for various shield connections.

3.3 Board Features

Table 3-1. Board Specifications

Characteristics Specifications
Dimensions (L x W x H)	135 × 88 × 20 mm
Processor SAMA5D44 (361-ball BGA package), 16x16 mm body, pitch 0.8 mm
Oscillators	MPU, EDBG: 12 MHz quartzRTC: 32.768 kHzPHY: 25 MHz
Main Memory	2 x DDR2 2 Gb 16 Meg x 16 x 8 banks (total 4 Gbit = 512 MB)1 x SLC NAND Flash 4 Gb 8-bit data (total 4 Gbit = 512 MB)
Accessory memories	One optional Serial EEPROM SPIOne EEPROM with Mac Address and Serial Number
SD/MMC	One 4-bit SD card connectorOne 4-bit Micro-SD card connector
USB	Two USB Hosts with power switchOne Micro-AB USB device
Display	One LCD interface connector, LCD TFT Controller with overlay, alpha-blending, rotation, scaling and color space conversion
	One HDMI interface and connector
Ethernet One Ethernet PHY (RMII 10/100MHz)
Debug port	One JTAG interface connectorOne EDBG interfaceOne serial DBGU interface (3v3 level)
Expansion connector	Arduino R3 compatible set of connectorsXPRO set of connectors
Board supply voltage	5V from USB, power jack, and Arduino shieldOn-board power regulation by PMIC
Battery On-board battery socket
User interface	Reset, Wake-up and free user push buttonOne red user/power LEDOne blue user LED

4. Board Components

4.1 Board Overview

The fully-featured SAMA5D4-XULT board integrates multiple peripherals and interface connectors, as shown in Figure 4-1.

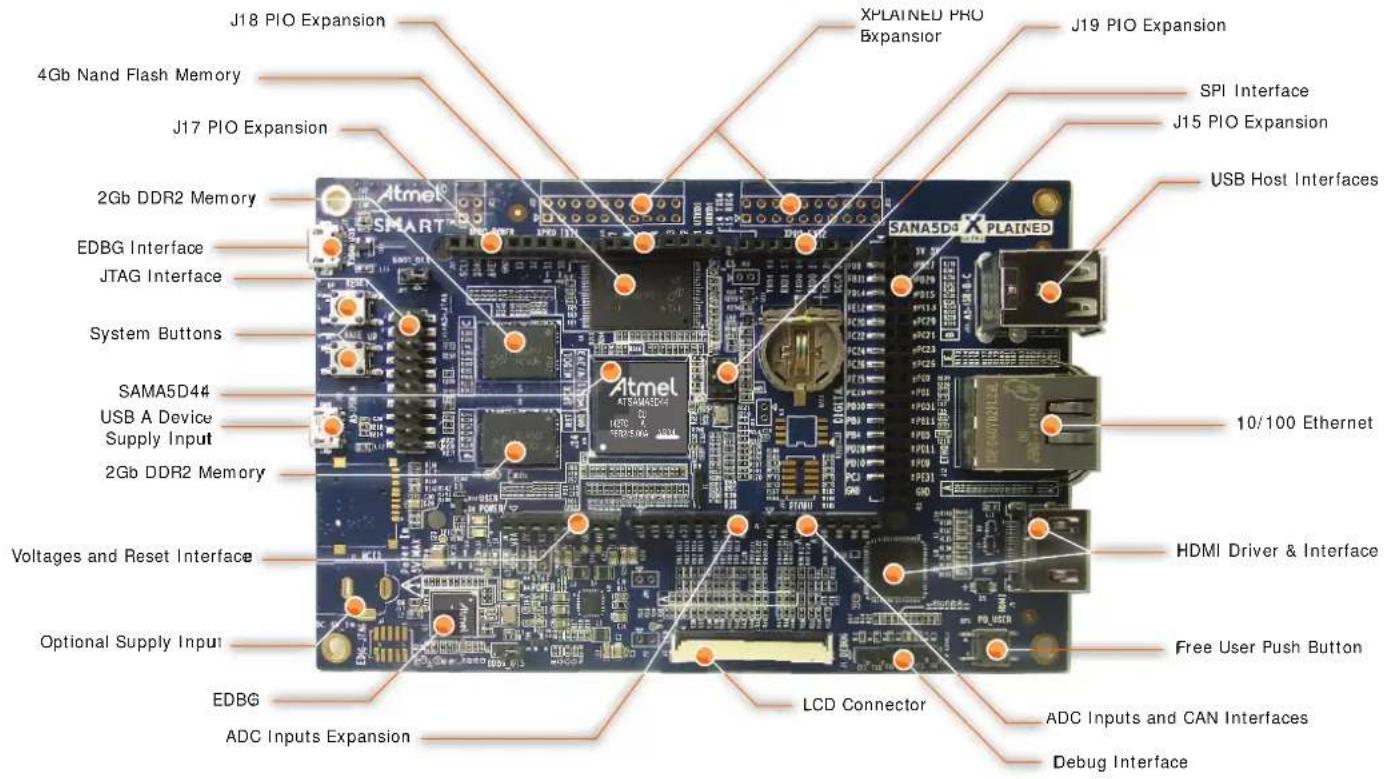

Figure 4-1. SAMA5D4-XULT Board Overview

J18 PIO Expansion 4Gb Nand Flash Memory J17 PIO Expansion 2Gb DDR2 Memory EDBG Interface JTAG Interface System Buttons SAMA5D4# USB A Device Supply Input 2Gb DDR2 Memory Voltages and Reset Interface Optional Supply Input EDBG ADC Inputs Expansion LCD Connector XPLAINED PRO Expansion J19 PIO Expansion SPI Interface J15 PIO Expansion USB Host Interfaces Atmel SANA5D4 XPLAINED 10/100 Ethernet HDMI Driver & Interface Free User Push Button ADC Inputs and CAN Interfaces Debug Interface

Table 4-1 describes the interface connectors on the SAMA5D4-XULT.
Table 4-1. SAMA5D4-XULT Board Interface Connectors

Connector Interfaces to
J4 Main power supply
J11 USB A Device. Supports USB device using a type Micro-AB connector

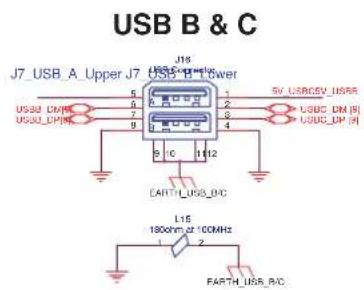

J16 USB Host B and C. Supports USB host using a stacked type A connector

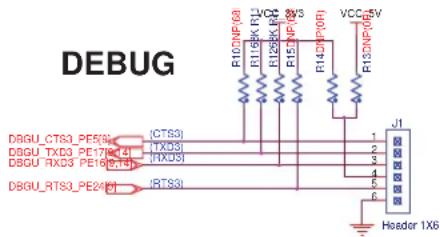

J1 Serial DBGU (3.3V level)
J13 JTAG, 20 pin IDC connector
J20 EDBG USB connector
J9 Micro-SD connector

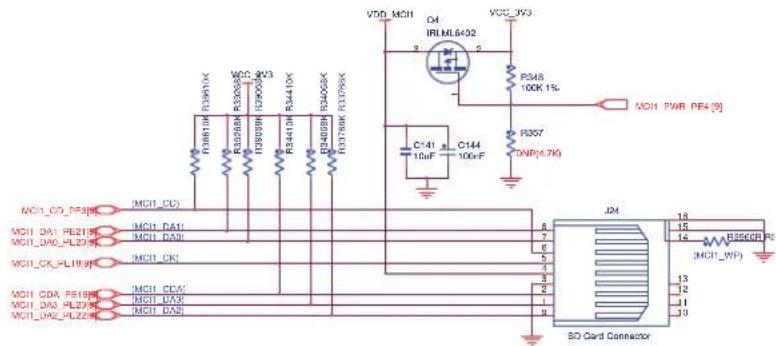

J24 SD/MMC connector
J12 Ethernet ETH0

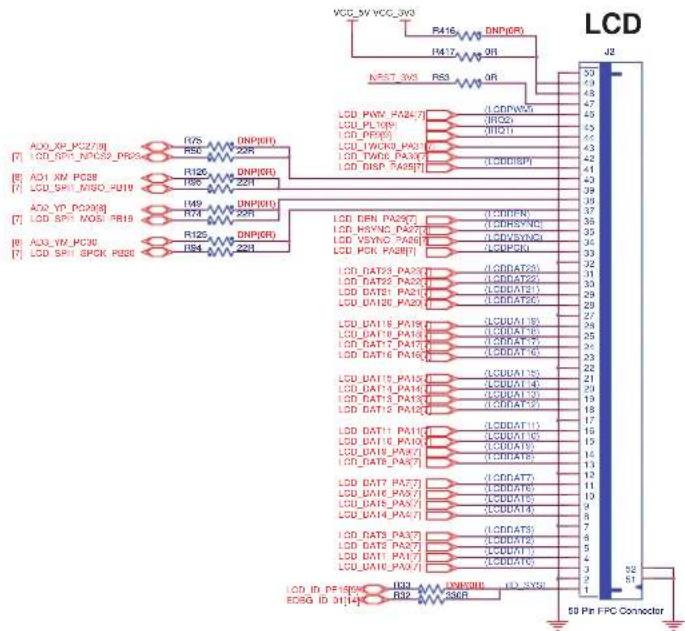

J2	Expansion connector with all LCD controller signals for display module connection (QTouch®, TFT LCD display with touchscreen and backlight)

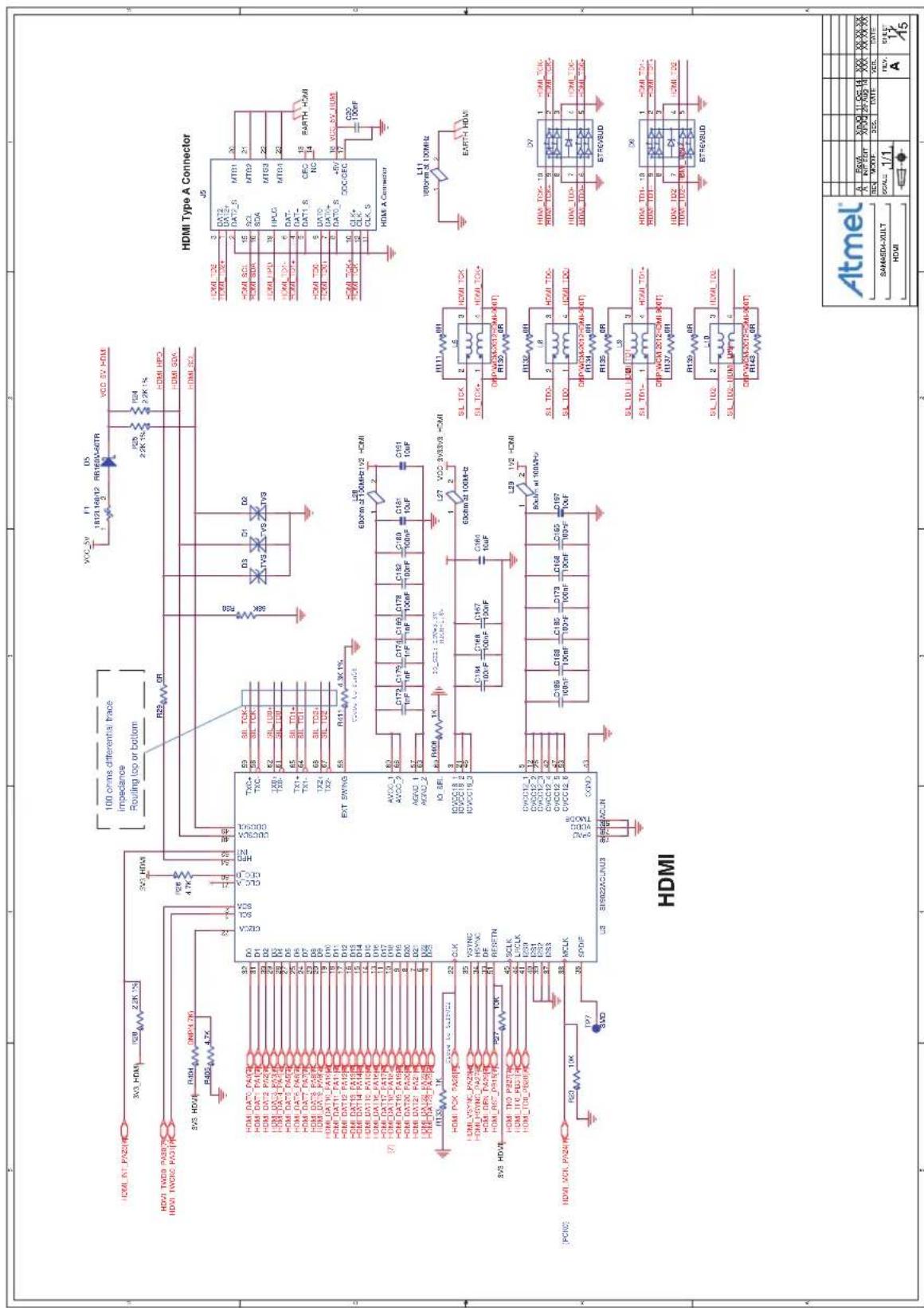

J5 HDMI connector type A
BAT1 CR1225 Battery holder

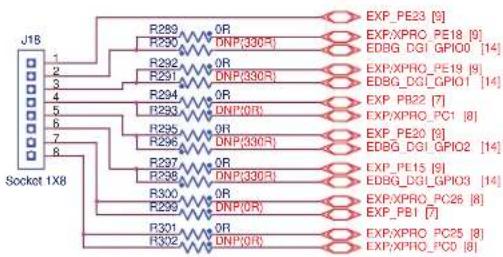

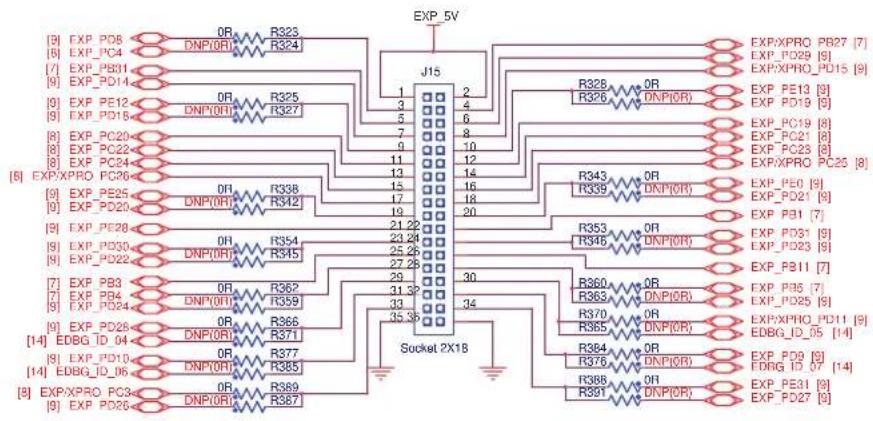

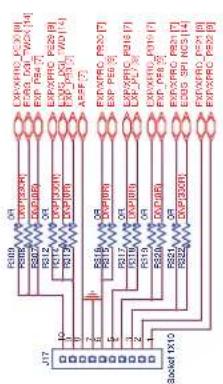

J6, J7, J8,J14, J15,J17, J18, J19	Expansion connectors with Arduino R3 compatible PIO signals
J21, J22, J23 Expansion connectors Xplained
J3 JTAG EDBG (not populated)
J10 PIOBU extension (not populated)

4.2 Function Blocks

4.2.1 Processor

The Atmel® | SMART SAMA5D4 Series is a high-performance, power-efficient ARM® Cortex®-A5 processor MPU capable of running up to 600 MHz. It integrates the ARM NEON™ SIMD engine for accelerated signal processing, multimedia and graphics as well as a 128 KB L2-Cache for high system performance. The device features the ARM TrustZone® enabling a strong security perimeter for critical software, as well as several hardware security features. The device also features advanced user interface and connectivity peripherals.

The SAMA5D4 devices have three software-selectable low-power modes: Idle, Ultra Low-power, and Backup. In Idle mode, the processor is stopped while all other functions can be kept running at normal operating bus frequency. In Ultra Low-power mode, the processor is stopped while all other functions can be kept running at minimum operating bus frequency. In Backup mode, only the real-time clock, real-time timer, backup SRAM, backup registers, and wake-up logic are running.

The SAMA5D4 features an internal multi-layer bus architecture associated with 32 DMA channels to sustain the high bandwidth required by the processor and the high-speed peripherals. The device supports DDR2/LPDDR/LPDDR2 and SLC/MLC NAND Flash memory with 24-bit ECC.

The comprehensive peripheral set includes a 720p hardware video decoder, an LCD controller with overlays for hardware-accelerated image composition, a resistive touch screen function, and a CMOS sensor interface. Connectivity peripherals include a dual 10/100 Ethernet MAC with IEEE1588, three HS USB ports, UARTs, SPIs and I2Cs.

Security features includes an "on-the-fly" encryption-decryption process from the external DDR memory, tamper detection pins, secure storage of critical data, an integrity check monitor (ICM) to detect modification of the memory contents and a secure boot. The product also includes a dedicated coprocessor for public key cryptography such as RSA and elliptic curves algorithms (ECC), as well as AES, 3DES, SHA function and TRNG. These features permit to protect the system against counterfeiting, to safeguard sensitive data, authenticate safe program or secure external data transfers.

The SAMA5D4 series is optimized for control panel/HMI applications needing video playback and applications that require high levels of connectivity in the industrial and consumer market. Its security features make the SAMA5D4 well suited for secure gateways or for the IoT.

4.2.2 Power Supply Topology and Power Distribution

4.2.2.1 Power Lines

Refer to the Power Supplies and Power Supply Connections tables in the SAMA5D4 datasheet.

4.2.2.2 Power-up and Power-down Considerations

Power-up and power-down considerations are described in section “Power Considerations” of the SAMA5D4 Series datasheet.

4.2.2.3 SAMA5D44 Power Supplies Summary

Table 4-2. SAMA5D44 Power Supplies

Name	Voltage Range, Nominal	Associated Ground Powers
VDDCORE 1	62–1.98V, 1.8V GND	CORE	Regulator that generates core power supply on VCCCORE10 μF decoupling capacitor is to be connected to VCCCORMUST BE ESTABLISHED AFTER VDDIOP OR AT THE SAME TIME
VCCCORE	1.1–1.32V, 1.2V	GNDCORE	Core
VDDIODDR	1.70–1.90V, 1.8V	GNDIODDRP-DDR2 Interface	DDR2 Interface I/O lines
	1.14–1.30V, 1.2V LP		ce I/O lines
VDDIOM	1.65–1.95V, 1.8V3.0–3.6V, 3.3V	GNDIOM NAND	and HSMC Interface I/O lines
VDDIOP (1)	3.0–3.6V, 3.3V GNDIOP		Peripherals I/O linesMUST BE ESTABLISHED PRIOR TO VDDCORE
VDDBU 1.88	-2.12V, 2V GNDBU		Slow Clock oscillator, the internal 64 kHz RC and a part of the System ControllerMUST BE ESTABLISHED FIRST
VDDUTMIC 1	1.1–1.32V, 1.2V GNDUTMI		USB device and host UTMI+ core and the UTMI PLLMUST be connected to VCCCORE
VDDUTMII	3.0–3.6V, 3.3V	GNDUTMI	USB device and host UTMI+ interface
VDDPLLA	1.1–1.32V, 1.2V GNDPLL		PLLA cellMUST be connected to VCCCORE
VDDOSC	3.0–3.6V	GNDOSC	Main Oscillator cell
VDDANA(1)	3.0–3.6V, 3.3V GNDANA		Analog partsMUST be connected to VDDIOP with filtering
VDDFUSE	2.25–2.75V, 2.5V GNDFUSE		Fuse box for programmingVDDFUSE must be 2.5V or 0V and must not be left floating

Notes: 1. Both VDDIOP and VDDANA must rise at the same time due to internal constraints.

4.2.2.4 ACT8865 Power Management IC

The ACT8865 is a complete, cost-effective and highly-efficient ActivePMU™ power management solution, optimized to provide a single-chip power solution and voltage sequencing for Atmel SAMA5D3/SAMA5D4 and SAM9 series MPUs. It also meets the control requirements of these devices.

The ACT8865 features three step-down DC/DC converters and four low-noise, low-dropout linear regulators.

There is a known error on the ACT8865 I²C implementation. The port must be shut off after configuration or problems may occur with devices using the same I²C channel, e.g., TM43xx LCD display.

Refer to the ACT8865 datasheet at www.active-semi.com for more details.

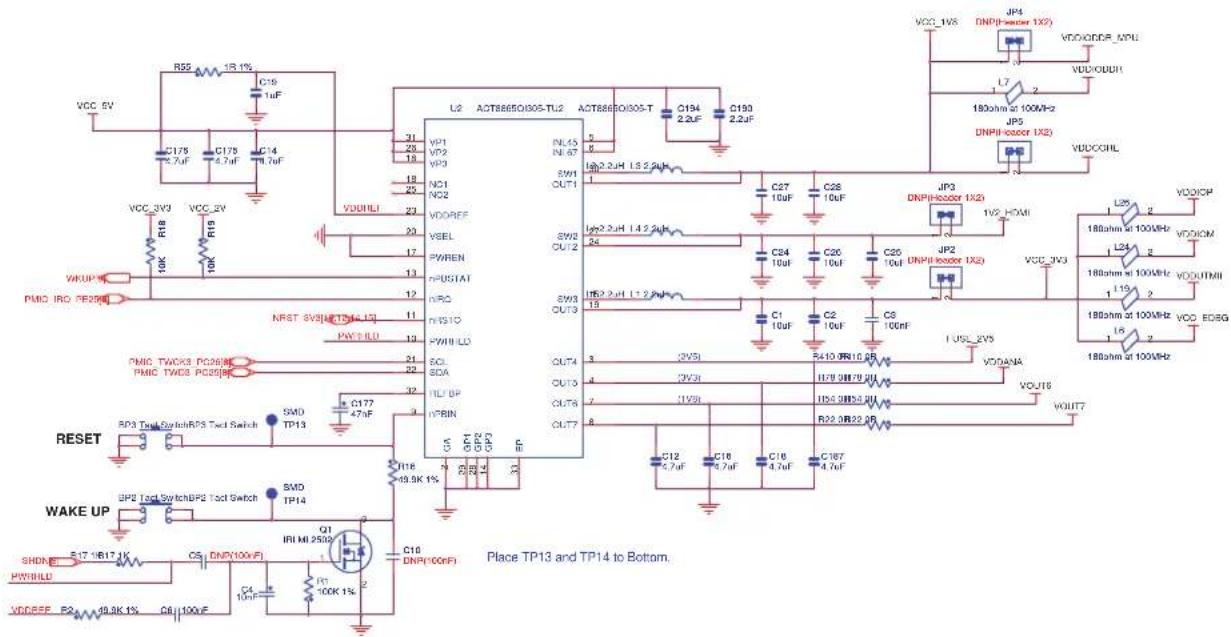

Figure 4-2. Board Power Management

VCC_SV R55 1R 1% C19 1uF C175 7uF C175 4.7uF C14 4.7uF VCC_3V3 R18 VCC_EV R19 VDDHLI VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUP 10K VDDUHIL 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23 23

Supply Group Configuration

The ACT8865 provides:

• All power supplies required by the SAMA5D44 device:

1.8V VDDCORE
- 1.8V VDDIODDR
- 2.0V VDDBU
- 3.3V VDDIOP, VDDIOM, VDDANA, VDDUTMII
2.5V VDDFUSE

• Power supplies to external chips on the main board:

1.2V HDMI
- 3.3V Ethernet PHY, HDMI, EDBG

4.2.2.5 Power Options

There are several power options for the SAMA5D4-XULT board.

The power sources are selected by a set of 0R resistors. The USB-powered operation is the default configuration. It comes from the USB device port connected to a PC or a 5V DC supply. The USB supply is sufficient to power the board in most applications. It is important to note that when the USB supply is used, the USB Host ports do not function. If USB Host ports are required for the application, it is recommended that a DC supply be used.

Figure 4-3 provides the schematics of power options.

Figure 4-3. Input Powering Scheme Option

EDBG_USB_VBUS_5V14 R429 R7P409 0R Q5 IRLML6402 Q6 IRLML6402 U16 OUT1 OUT2 FLAG VCC_5V_IN C170 C171 IN IN_pod EN GND NCP349MNAFTRG VCC_5V C23 22uF C21 100nF R407 100K 1% R432 I2P402 0R Q7 IRLML6402 Q8 IRLML6402 R403 100K 1% R438 DNP(R)R431 DNP(R) EXP_5V13 J4 DNP(DC Jack) 5V/2A Input

Note: USB-powered operation eliminates additional wires and batteries. It is the preferred mode of operation for any project that requires only a 5V source at up to 500 mA.

4.2.2.6 Wall Supply Source

A wall supply can be used to provide power to the board. A regulated 5V DC supply of at least 2A is required. If USB ports and expansion headers are used, a rating of 3A is preferred. A 2.1 mm plug with a center-hot configuration is required.

If the USB host ports or expansion board Arduino shields are used, additional current is necessary.

If the DC load required is greater than 500 mA per port, a higher current supply must be used.

4.2.2.7 Backup Power Supply

The SAMA5D4-XULT board requires a battery (3V lithium battery type CR1225 or equivalent) in order to permanently power the backup part of the SAMA5D4 device (refer to SAMA5D4 Series data sheet).

To avoid losing data and saved registers, the board must be powered on when replacing the battery.

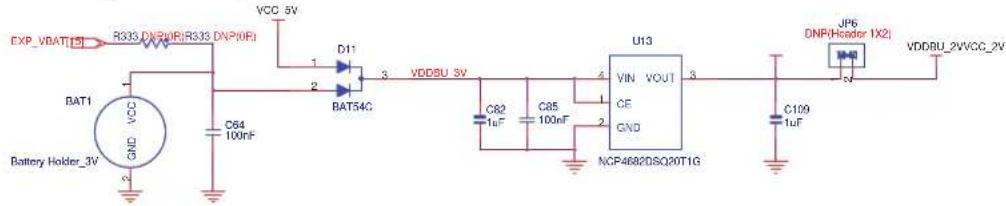

Figure 4-4. VBAT Powering Scheme Option

EXP_VBAT[5] R333 DN20R1RS33 DNP90F1 VCC 5V BAT1 1 2 3 VDDBU 3V GND VCC C64 100nF C82 1uF C25 100nF U13 VIN VOUT CE GND NCP4682DSQ20T1G JP6 DNP(Header 1X2) VDDBU_2VVCC_2V Battery Holder_3V

4.2.2.8 Power Supply Control

In the ACT8865, three DCDCs (1.8V, 1.2V, 3.3V) and two LDO outputs are available.

All ACT8865 outputs can be controlled by the TWI interface through software.

The three DCDCs outputs can be enabled or disabled by the SAMA5D44 SHDN output:

• SHDN = 0: The DCDCs output is disabled.
• SHDN = 1: The DCDCs output is enabled.

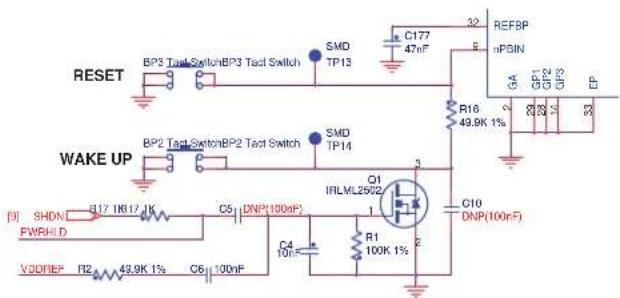

Two push buttons are also available:

• Wakeup push button: When pressed, the ACT8865 power outputs are restarted if the ACT8865 is in shutdown mode.
• Reset push button: When pressed, the ACT8865 transfers the reset signal to NRST_3V3, and then to NRST_2V for the MPU by using a resistor divider.

4.2.3 Reset Circuitry

The reset sources for SAMA5D4-XULT board are:

• Power-on reset from the Power Management Unit (PMIC)
- Push button reset BP3
• External reset from Arduino connectors
• JTAG or EDBG reset from an in-circuit emulator

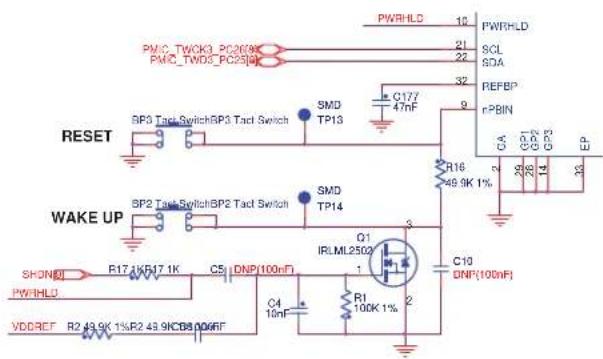

Figure 4-5. Reset/Wakeup and Shutdown Control

PWRHLD 15 PWRHLD 21 SCL 22 SDA 32 REFBP 9 rPBIN CA 29 CQ1 28 CQ2 14 G23 16 EP RESET SP3 Tact SwitchBP3 Tact Switch SMD TP13 R16 49.9K 1% R17 1kR17 1K C5 DNP(100nF) IRLML2502 Q1 1 C4 10nF R1 100K 1% C10 DNP(100nF) WAKE UP SHON PWMHLD VDDREF R2 49.9K 1%R2 49.9KCB8006nF

4.2.4 Clock Circuitry

The SAMA5D4-XULT board includes four clock sources:

• Two clocks are alternatives for the SAMA5D44 processor (12 MHz, 32 kHz)
• One crystal oscillator used for the Ethernet RMII chip (25 MHz)
• One crystal oscillator used for the EDBG (12 MHz)

Figure 4-6. Clock Circuitry

4.2.5 Memory

4.2.5.1 Memory Organization

The SAMA5D4 features a DDR/SDR memory interface and an External Bus Interface (EBI) to permit interfacing to a wide range of external memories and to almost any kind of parallel peripheral.

This section describes the memory devices that equip the SAMA5D4-XULT board.

4.2.5.2 DDR2/SDRAM

- Two DDR2/SDRAM (MT47H128M16 - 2 Gb - 16 Meg x 16 x 8 banks) are used as main system memory. The board provides 4 Gb on-board, soldered DDR2 (double data rate) SDRAM. The memory bus is 32 bits wide and operates with a frequency of up to 176 MHz.

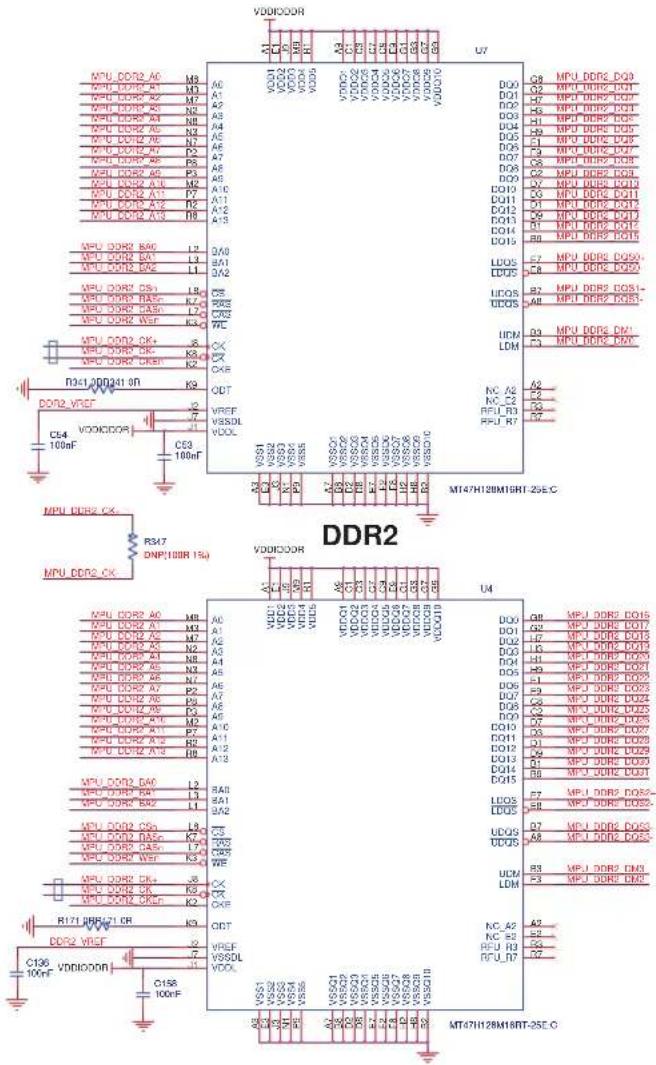

Figure 4-7. DDR2

Circuit schematic diagram of a memory driver using DDR2 and VDDI000R, showing pin connections and component labels.

4.2.5.3 DDR\_CALP and DDR\_CALN Analog Inputs

Two specific analog inputs, DDR_CALP and DDR_CALN, are used to calibrate all DDR I/Os.

Figure 4-8. DDR_CALP and DDR_CALN Analog Inputs

MPU DDR2 BA0 C15 DDR BA0 MPU DDR2 BA1 D14 DDR BA1 MPU DDR2 BA2 G13 DDR BA2 VDDIODDR R244 200R 1%R244 200R 1% R243 200R 1%R243 200R 1% C39 DDR CALN DDR_CALP DDR2 VREF K12 DDR VREF C97 100nF

Table 4-3. DDR_CALN and DDR_CALP

Memory Type CALP Pull-down CALN Pull-up
DDR2 200 ohm 200 ohm
LPDDR2 240 ohm 240 ohm

4.2.5.4 NAND Flash

One 512 MB NAND Flash is connected to the processor.

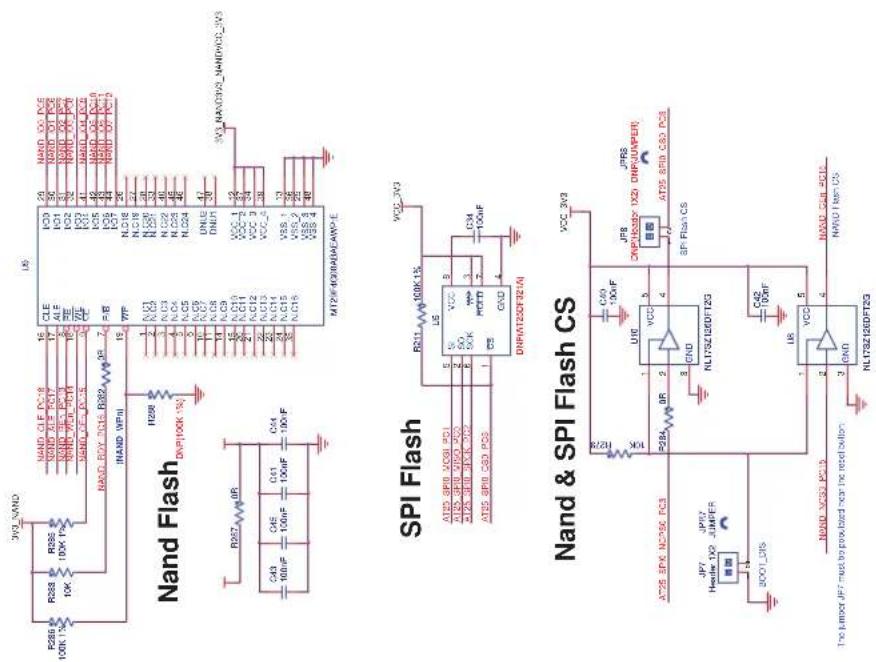

Figure 4-9. NAND Flash

Nand Flash R286 10DK 1% R283 10K R285 10DK 1% 3V3_NAND NAND CLE PC18 NAND ALE PC17 NAND HEA PC16 NAND WFn PC14 NAND CEa PC15 NAND RDY PC16 R282 2R (NAND WPn) R288 DNP(100K 1%) R267 0R C43 100nF C45 100nF C41 100nF C44 100nF U9 CLE ALE FE WF VE H/R WP N.C16 N.C19 N.C20 N.C21 N.C22 N.C23 N.C24 N.C25 N.C26 N.C27 N.C28 N.C29 N.C30 N.C31 N.C32 N.C33 N.C34 N.C35 N.C36 N.C37 N.C38 N.C39 N.C40 N.C41 N.C42 N.C43 N.C44 N.C45 N.C46 N.C47 N.C48 N.C49 N.C50 N.C51 N.C52 N.C53 N.C54 N.C55 N.C56 N.C57 N.C58 N.C59 N.C60 29 NAND I00 PC5 I01 31 NAND I01 PC6 I02 31 NAND I02 PC7 I03 32 NAND I03 PC8 I04 41 NAND I04 PC9 I05 42 NAND I05 PC10 I06 43 NAND I06 PC11 I07 44 NAND I07 PC12 NV3_NAND3V9_NANDVCC_3V3 VCC 1 12 VCC 2 37 VCC 3 34 VCC 4 39 VSS 1 13 VSS 2 38 VSS 3 25 VSS 4 48 MT29F4C08ABADAWP.E

4.2.5.5 CS Disable

The SAMA5D44 device boots according to the following sequence:

1. D CARD connected on MCI1

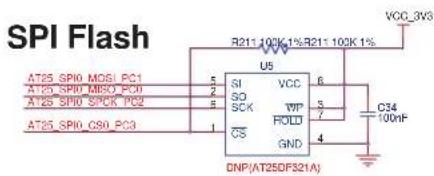

2. Optional Dataflash connected on NPCS0 SPI0
3. 8-bit NAND Flash connected to D0-D7

In this sequence, the first device found with bootable contents is selected as the boot source. The others are disregarded.

On-board jumpers (JP7, JP8) control the selection (CS#) of the on-board bootable memory components (NAND Flash and Serial DataFlash) using a non-inverting 3-state buffer.

Figure 4-10. CS Disable

Nand & SPI Flash CS VCC 3V3 C40 100nF U10 R291/280/281 0R VCC 5 JPS DNP Header 1X2 JPR8 DNP(UX/PLR) ATX5_SP18_C03_PC3ATX5_SP16_NCPS3_PC3 SPI Flash CS JP7 Header 1X2 JP17 JUMPER U0G1_LX8 C42 100nF U8 VCC 5 JND NL17SZ1260FT2G C40 100nF U8 VCC 5 JND NL17SZ1250F13G NAND_CF-PC15NAND_NC53_PC15 NAND Flash CS The jumper JP2 must be populated next the reset button

The rule of operation is:

JP7 = OFF (default) → enable normal boot from NAND Flash (or serial DataFlash if mounted)
JP7 = ON → booting from optional serial DataFlash or NAND Flash is disabled

JP8 (optional) also controls the serial DataFlash if mounted.

Refer to the SAMA5D4 Series datasheet for more information on standard boot strategies and sequencing.

4.2.6 Additional Memories

4.2.6.1 Serial Data Flash (optional)

The SAMA5D44 provides two high-speed Serial Peripheral Interface (SPI) controllers. One port is used to interface with the optional on-board serial DataFlash.

The four main signals used in the SPI are Clock, Data In, Data Out, and Chip Select. The SPI is a serial interface similar to the I²C bus interface but with three main differences:

It operates at a higher speed.
• Transmit and receive data lines are separate.
• Device access is chip select-based instead of address-based.

Figure 4-11. Optional Serial DataFlash

SPI Flash A725 SPI0 MOSI PC1 A725 SPI0 MSO PC0 A725 SPI0 SPCK PC2 A725 SPI0 CSO PC3 R211 100K 1% R211 100K 1% VCC 3V3 U5 SI VCC SO WP SCK FOLD CS GND DNP(AT25DF521A) C34 100nF VCC_3V3

4.2.6.2 Serial EEPROM with Unique MAC Address

The SAMA5D4-XULT board embeds one Atmel AT24MAC402/602 EEPROM using a TWI0 interface.

The AT24MAC402/602 provides 2048 bits of Serial Electrically-Erasable Programmable Read-Only Memory (EEPROM) organized as 256 words of eight bits each and is accessed via an I²C-compatible (2-wire) serial interface. In addition, the AT24MAC402/602 incorporates an easy and inexpensive method to obtain a globally unique MAC or EUI address (EUI-48 or EUI-64).

The EUI-48/64 addresses can be assigned as the actual physical address of a system hardware device or node, or it can be assigned to a software instance. These addresses are factory-programmed by Atmel and permanently write-protected in an extended memory block located outside of the standard 2-Kbit memory array.

In addition, the AT24MAC402/602 provides the value-added feature of a factory-programmed, guaranteed unique 128-bit serial number located in the extended memory block (same area as the EUI address values).

The EEPROM device is used as a "soft label" to store board information such as chip type, manufacture name and production date, using the last two 16-byte blocks in memory.

WARNING

The information contained in these blocks should not be modified.

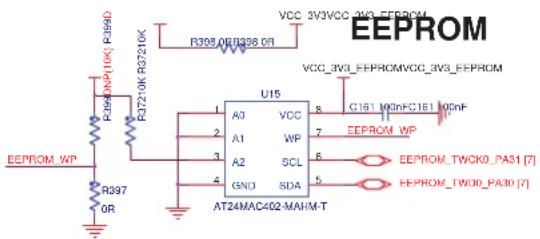

Figure 4-12. EEPROM

EEPROM R398.0RR398.0R VCC_3V3VCC_3V3_EEPROM R399.0DP(10K) R399.0 R722.0K R372.10K R397.0R U15 A0 VCC A1 WP A2 SCL GND SDA AT24MAC402-MAHM-T C161 100nFC161 100nF EEPROM_WP EEPROM_TWCK0_PA31 [7] EEPROM_TWJ0D_PA30 [7]

4.2.7 High-Speed Multimedia Card Interface (HSMCI)

4.2.7.1 Multimedia Card Interface (MCI)

The SAMA5D4-XULT board has two high-speed Multimedia Card interfaces (MCIs) that support the multimedia card (MMC) Specification V4.3, the SD Memory Card Specification V2.0 and the SDIO V1.1 specification:

• MCI0 interface based on a 7-pin interface (clock, command, 4-bit data, power lines).
• MCI1 Interface based on a 7-pin interface (clock, command, 4-bit data, power lines).

4.2.7.2 HSMCI Card Connector

A standard MMC/SD card (push and click type) connector, connected to MCI1, is mounted on the top side of the board. It features a push-lock / push-eject mechanism and a card detection switch.

A micro SD card (push and click type) connector, connected to MCI0, is mountable as an option on the bottom side of the board.

Figure 4-13. HSMCI0 & HSMCI1

VDD_MCH D4 IRLML8432 VCC_JW3 R548 100K 1% P357 DNP(4.7K) MOH_PWR_PE4 [9] C141 10uF C144 100xF J24 18 15 14 13 12 11 10 R56CR (MCH_WP3) SO Card Connector R0801X R0802X R0803X R0804X R0805X R0806X R0807X R0808X R0809X R0810X R0811X R0812X R0813X R0814X R0815X R0816X R0817X R0818X R0819X R0820X R0821X R0822X R0823X R0824X R0825X R0826X R0827X R0828X R0829X R0830X R0831X R0832X R0833X R0834X R0835X R0836X R0837X R0838X R0839X R0840X R0841X R0842X R0843X R0844X R0845X R0846X R0847X R0848X R0849X R0850X R0851X R0852X R0853X R0854X R0855X R0856X R0857X R0858X R0859X R0860X R0861X R0862X R0863X R0864X R0865X R0866X R0867X R0868X R0869X R0870X R0871X R0872X R0873X R0874X R0875X R0876X R0877X R0878X R0879X R0880X R0881X R0882X R0883X R0884X R0885X R0886X R0887X R0888X R0889X R0890X R0891X R0892X R0893X R0894X R0895X R0896X R0897X R0898X R0899X R144A 1.5uF 1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5uF/1.5U

SD/MMCPlus CARD INTERFACE - MCI1

I10589 R1 10000K R17368 R17368 K R13688 R13688 K R14128 R14128 K VCC_3V3 R142 R163 R1D410 IACIO_DA0 IACIO_DA1 IACIO_DA2 IACIO_CAS IACIO_COW IACIO_CRY IACIO_DJ_PF204 IACIO_DJ J9 DAT0 DAT1 DAT2 DAT3 CMG CLK VDD VSS CD PGND P5ND 1 P5ND 2 P5ND 3 NC 1 NC 2 12 13 14 15 C29 C30 10uF 10uF DNP(MicroSD Card Connector)

Micro SD CARD INTERFACE - MCI0

4.2.8 Communication Interfaces

The SAMA5D4-XULT board is equipped with EMAC and USB Host/Device communication interfaces.

4.2.8.1 Ethernet 10/100 (EMAC) Port

The SAMA5D4-XULT board contains a MICREL PHY device (KSZ8081) operating at 10/100 Mb/s. The board supports RMII interface modes. The Ethernet interface consists of two pairs of low-voltage differential pair signals designated from GRX± and GTX± plus control signals for link activity indicators. These signals can be used to connect to a 10/100 Base-T RJ45 connector integrated on SAMA5D4-XULT board.

Additionally, for monitoring and control purposes, LED functionality is carried on the RJ45 connectors to indicate activity, link, and speed status information.

For more information about the Ethernet controller device, refer to the MICREL KSZ8081RN controller manufacturer's datasheet.

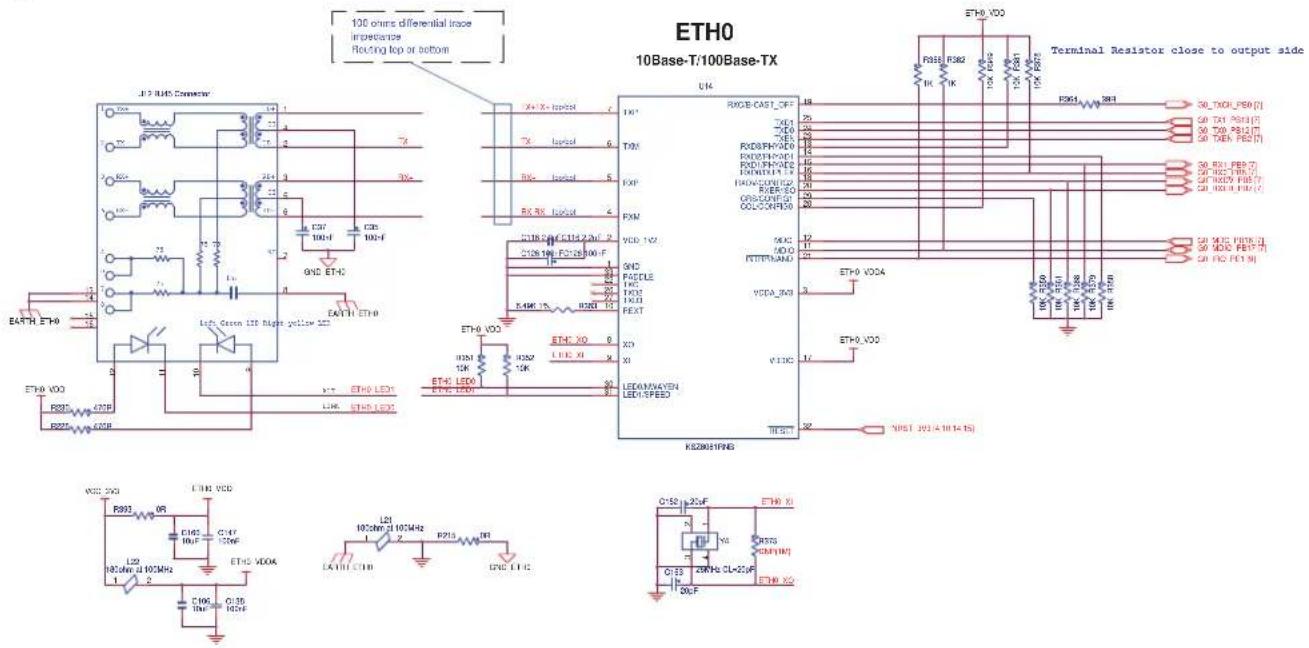

Figure 4-14. Ethernet

100 ns differential trace impedance Routing top or bottom J1 2 RADS Connect J1 2 RADS EARTH ETH ETH0 VDD R935 R935 COSF L20 100mA di 100MHz C106 10Hz C145 10uF C147 10uF ETH0 VDD L21 100mA di 100MHz C106 10Hz C145 10uF ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0 LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0LED ETH0L THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB THB

4.2.8.2 USB Host/Device A, B & C

The SAMA5D4-XULT board features three USB communication ports:

• USB Host B/C High- and Full-speed Interface
- Two USB host stacked type A connectors.

• USB Host/Device A Interface

One USB device standard micro-AB connector. This port has a VBUS detection function made through the resistor ladder R218 and R214.

Figure 4-15. USB Host & Device Interface

USB A USB VISUS SV [4] H218 100K 13/1218 100K 13 C56 20pF R214 200K USBA_VSUS_PE31 [9] V_BUS 1 DH 2 DP 3 D1 4 DND 5 J11 MicroUSB Alt Connector L12 183ohm at 100Gb 1 2 EARTH_USB_A EARTH_USB_A

USB B & C J7_USB_A_Upper_J7_USB_B_Upper J15 USB_DIN USB_DIN 5 6 7 8 9 10 11/12 5V_USB_CEV_USB_R 5V_USB_DM_R 5V_USB_DP_R L15 180ohm at 100MHz FARTH_USB_B/C FARTH_USB_B/C

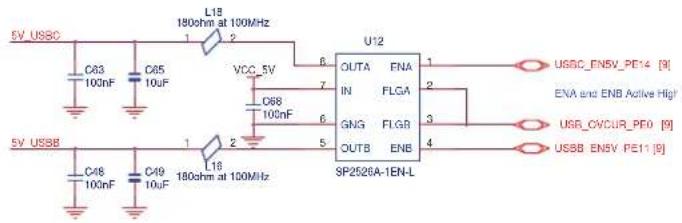

The two USB Host ports are equipped with 500 mA high-side power switch for self-powered and bus-powered applications.

5V USSC C43 100nF C45 10uF L18 180ohm at 100MHz VCC_5V C68 100nF C46 100nF C49 10uF L18 180ohm at 100MHz U12 OUTA ENA IN FLGA GNG FLGB OUTB ENB SP2526A-1EN-L 1 2 3 4 USGC_EN5V_PE14 [9] ENA and ENB Active High* USB_CVCUR_PE0 [9] USSB_EN5V_PE11 [9]

4.2.9 LCD TFT Interface

4.2.9.1 LCD

The SAMA5D4 provides 24 bits of data and control signals to the LCD interface. Other signals are used to control the LCD and are available on connector J2: TWI, SPI, 2 GPIOs for interrupt, 1-Wire and power supply lines.

4.2.9.2 LCD Expansion Header

J2 is a 1.27mm pitch 50-pin header; it gives access to the LCD signals.

Figure 4-16. LCD Expansion Header Interface

VCC_5V VCC_9V R416 DNP(OR) R417 OR NRS7 WNS R33 OR LCD PWM PA24/7 LCD_PLT09 LCD_PRP8/ LCD_TWDCU PA23 LCD_DSP PA25/7 LCD_CEN PA26/7 LCD_NSNC PA27 LCD_VSYNC PA28/7 LCD_PCK PA29/7 LCD_DAT3 PA20/7 LCD_DAT2 PA21/7 LCD_DAT1 PA22/7 LCD_DAT1 PA23/7 LCD_DAT1 PA24/7 LCD_DAT1 PA25/7 LCD_DAT1 PA26/7 LCD_DAT1 PA27/7 LCD_DAT1 PA28/7 LCD_DAT1 PA29/7 LCD_DAT1 PA30/7 LCD_DAT1 PA31/7 LCD_DAT1 PA32/7 LCD_DAT1 PA33/7 LCD_DAT1 PA34/7 LCD_DAT1 PA35/7 LCD_DAT1 PA36/7 LCD_DAT1 PA37/7 LCD_DAT1 PA38/7 LCD_DAT1 PA39/7 LCD_DAT1 PA40/7 LCD_DAT1 PA41/7 LCD_DAT1 PA42/7 LCD_DAT1 PA43/7 LCD_DAT1 PA44/7 LCD_DAT1 PA45/7 LCD_DAT1 PA46/7 LCD_DAT1 PA47/7 LCD_DAT1 PA48/7 LCD_DAT1 PA49/7 LCD_DAT1 PA50/7 LCD_DAT1 PA51/7 LCD_DAT1 PA52/7 LCD_DAT1 PA53/7 LCD_DAT1 PA54/7 LCD_DAT1 PA55/7 LCD_DAT1 PA56/7 LCD_DAT1 PA57/7 LCD_DAT1 PA58/7 LCD_DAT1 PA59/7 LCD_DAT1 PA60/7 LCD_DAT1 PA61/7 LCD_DAT1 PA62/7 LCD_DAT1 PA63/7 LCD_DAT1 PA64/7 LCD_DAT1 PA65/7 LCD_DAT1 PA66/7 LCD_DAT1 PA67/7 LCD_DAT1 PA68/7 LCD_DAT1 PA69/7 LCD_DAT1 PA70/7 LCD_DAT1 PA71/7 LCD_DAT1 PA72/7 LCD_DAT1 PA73/7 LCD_DAT1 PA74/7 LCD_DAT1 PA75/7 LCD_DAT1 PA76/7 LCD_DAT1 PA77/7 LCD_DAT1 PA78/7 LCD_DAT1 PA79/7 LCD_DAT1 PA80/7 LCD_DAT1 PA81/7 LCD_DAT1 PA82/7 LCD_DAT1 PA83/7 LCD_DAT1 PA84/7 LCD_DAT1 PA85/7 LCD_DAT1 PA86/7 LCD_DAT1 PA87/7 LCD_DAT1 PA88/7 LCD_DAT1 PA89/7 LCD_DAT1 PA90/7 LCD_DAT1 PA91/7 LCD_DAT1 PA92/7 LCD_DAT1 PA93/7 LCD_DAT1 PA94/7 LCD_DAT1 PA95/7 LCD_DAT1 PA96/7 LCD_DAT1 PA97/7 LCD_DAT1 PA98/7 LCD_DAT1 PA99/7 LCD_ID_PREFIN ID3 DNVSNR ID2_SYSB S2 S1 LCD Pin FPC Connector

4.2.9.3 LCD Power

In order to operate correctly out of the processor with various LCD modules, two voltage lines are available: 3.3V and 5 VCC (default), both selected by 0R resistors R416 and R417.

Figure 4-17. LCD Power

VCC_5V VCC_3V3 R416 DNP(0R) R417 0R NRST 3V3 R53 0R LCD 50 49 48 47 J2

4.2.10 HDMI Transmitter Interface

The SAMA5D4-XULT board features the Silicon Image SiI9022ACUN device to convert video signals to the HDMI standard.

It features the following:

• Compliance
  — HDMI 1.2a, Simply HD, DVI 1.0
  Digital Video Output
• Integrated TMDS core
  DTV resolution support - 480i/576i/480p/576p/720p/1080i/1080p
• PC resolution support - VGA/XGA/SXGA/WSXGA/UXGA
• Flexible interface to HD MPEG decoders
• Integrated YCbCr → RGB conversion
  4:2:2 → 4:4:4 up-converter

Digital Audio Output

— DVD-Audio support through 4 x I2S inputs
– Supports 2-ch 192 kHz or 8-ch 96 kHz
Supports IEC60958 2-ch PCM or IEC61937 compressed audio (Dolby Digital, DTS, etc.)
— Industry-standard S/PDIF input, Integrated MCLK generator

Power Management

- 1.2V and 1.8V cores provide low-power operation

- Flexible power-down modes

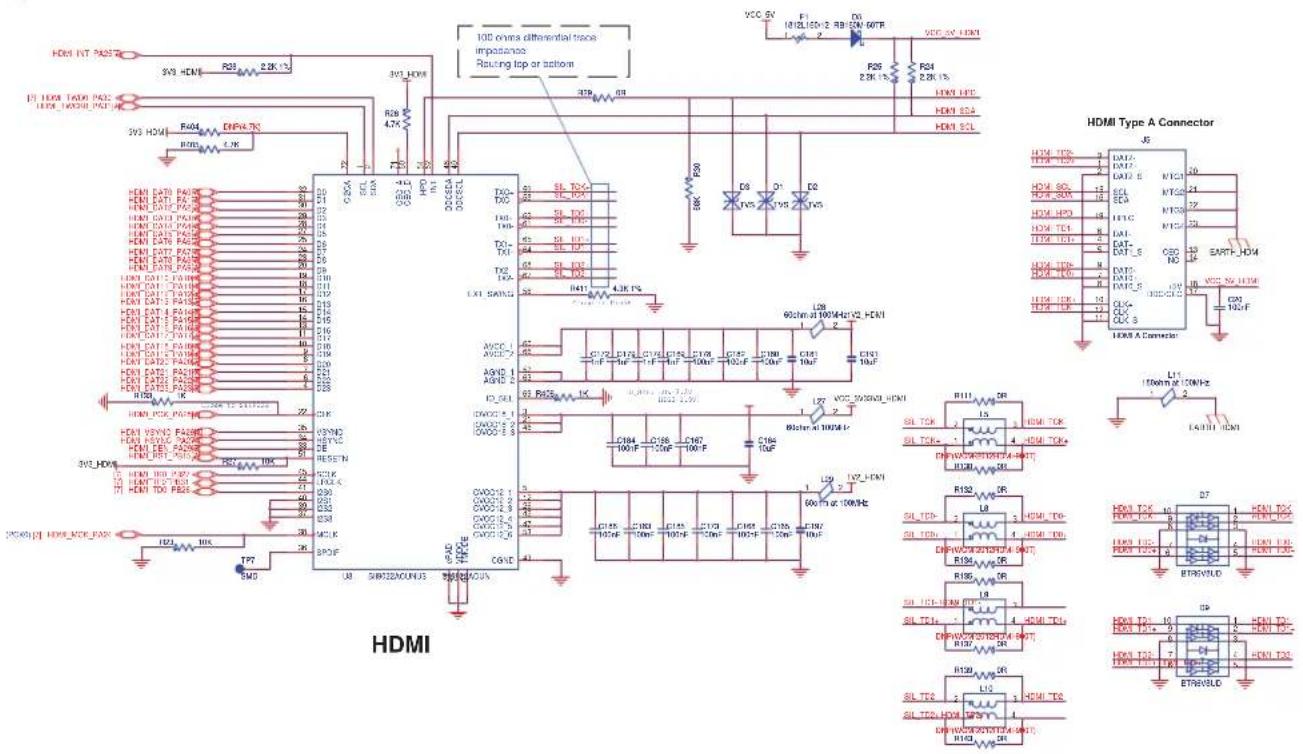

Figure 4-18. HDMI Interface

HDMI 100 ohms differential trace impedance Racing top or action VCC GV F1 1012L16D-2 RB-EN 560TR VCC_VS_HDMI F25 2.8K 1% F24 2.8K 1% HDM_SCL HDM_SCL HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_1 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_2 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_3 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_4 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_5 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_6 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM_7 HDM 800A HOMI 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kV HOMI 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kHz 100kV HOMI 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100kHz 100kHz 100kHz 100kHz 100kHz 10kV HOMI 1kV HOMI 2kV HOMI 3kV HOMI 4kV HOMI 5kV HOMI 6kV HOMI 7kV HOMI 8kV HOMI 9kV HOMI 1kV HOMI 2kV HOMI 3kV HOMI 4kV HOMI 5kV HOMI 6kV HOMI 7kV HOMI 8kV HOMI 9kV HOMI 1kV HOMI 2kV HOMI 3kV HOMI 4kV HOMI 5kVI HOMI 6kVI HOMI 7kVI HOMI 8kVI HOMI 9kVI HOMI 1kVI HOMI 2kVI HOMI 3kVI HOMI 4kVI HOMI 5kVI HOMI 6kVI HOMI 7kVI HOMI 8kVI HOMI 9kVI HOMI

4.2.11 Indicators

There are two LEDs on the SAMA5D4-XULT board that can be controlled by the user:

The red LED provides an indication that power is supplied to the board and is controlled via software.
• The blue LED is controlled via GPIO pins.

Figure 4-19. LED Indicators

LED LED USER PE15 R14E 470R D10 BLUE PD30 LED POWER PD30 R144 100K 1%R144 100K 1% Q3 2 IRLML2502 TP16TP19 R136 470R DB RED VOC 3W3

4.2.12 Push Button Switches

The SAMA5D4-XULT features three push buttons:

One board Reset button (BP3). When pressed and released, it causes a power-on reset of the board.
• One Wakeup push button to exit the processor from low-power mode (BP2).
• One User momentary push button (BP1).

Figure 4-20. Push Buttons

RESET BP3 Tap-SwitchBP3 Tap Switch SMD TP13 C177 47nF 32 REFBP nPBN GA Q1 Q2 Q3 EP R16 49.9K 1% GND WAKE UP BP2 Tap-SwitchBP2 Tap Switch SMD TP14 3 IRLVL2502 Q1 1 C10 DNP(100nF) C4 10nF R1 100K 1% C6 100nF R17 1K17 1K SHDN FWRHD VDDREF R2 43.9K 1% 32 REFBP nPBN GA Q1 Q2 Q3 Q4 EP

IRLML2502/IRL7P2502 SMD REDRED PEB PE USE1 PE8 BP1 Tap SwitchBP1 Tap Switch Place TP19 to Bottom

USER BUTTON

4.2.13 Debug Interfaces

The SAMA5D4-XULT board includes a JTAG, a Debug serial COM port and an EDBG interface port, to provide debug level access to the SAMA5D4.

4.2.13.1 Debug JTAG

A 2x10-pin JTAG header is provided on the SAMA5D4-XULT board to facilitate the software development and debugging by using various JTAG emulators. The interface signals have a voltage level of 3.3V.

Figure 4-21. JTAG Interface

JTAG VCC_3V3 VCC_3V3 R224 100K 1% R222 100K 1% R227 100K 1% R217 100K 1% R220 IN823 0P MTRST [7] TDI [7,14] TWS [7,14] TDX [7,14] TDO [7,14] NRST_3V3 [4,12,14,15] J13 J1 2 6 8 10 12 14 16 18 20 Hostor 2X10 R235 IN835 0P R250 IN850 0P

4.2.13.2 DBGU

The SAMA5D4-XULT board has a dedicated serial port for debugging, which is accessible through the 6-pin male header J1. Various interfaces can be used as USB/Serial DBGU port bridge, such as FTDI TTL-232R USB to TTL serial cable or basic breakout board for the RS232/USB converter.

Figure 4-22. DBGU Interface

DEBUG D8GU_CTS3_PE59 D8GU_TXD3_PE170[4] D8GU_RXD3_PE160[15] D8GU_RTS3_PE24[1] CTS3 TXD3 TXU3 RTS3 R10DP001 R116K_R1 R125K_R2 R137P001 R14DP001 R15DP001 R16DP001 R17DP001 R18DP001 R19DP001 R20DP001 R21DP001 R22DP001 R23DP001 R24DP001 R25DP001 R26DP001 R27DP001 R28DP001 R29DP001 R30DP001 R31DP001 R32DP001 R33DP001 R34DP001 R35DP001 R36DP001 R37DP001 R38DP001 R39DP001 R40DP001 J1 Header 1X6

R13 and R14 are optional (not implemented) resistors that can be used for power selection. Power can be delivered either by the SAMA5D4-XULT board or by the debug interface tool. To avoid malfunction between the debug interface (e.g., FTDI) and the on-board power system, ensure that the voltage level selected corresponds to application requirements.

4.2.14 Embedded Debugger (EDBG) Interface

The Atmel Embedded Debugger (EDBG) ^(1) is an intuitive plug-and-play solution which adds full programming and debugging support to embedded hardware kits containing Atmel microcontrollers. It enables seamless integration between the target hardware and the Atmel Studio front end.

In addition to the Virtual COM port which provides a UART bridge to the target device, the EDBG provides a Data Gateway Interface, through which the target device and host PC can communicate, facilitating high-level application debugging, monitoring, graphing and logging of system information in real-time.

The EDBG is based on the Atmel UC3A4 high-performance low-power 32-bit AVR microcontroller running at up to 60 MHz. The device includes an on-chip USB 2.0 high-speed hardware module with dedicated DMA channels, making it ideal for data communications.

By default, the EDBG is in Reset state and not usable. To use the EDBG interface, remove the jumper JP1. To avoid any conflict with the debug signals, do not use the JTAG and EDBG at the same time.

Figure 4-23. EDBG Interface

EDBG_TWI EDBG U1 MEDIUM/MEDIUM/MEDIUM/IC JTAG VCC EDBG C22 C103 C196 C100 C188 C22 C103 C196 C100 C188 VCC EDBG C22 C103 C196 C100 C188 C22 C103 C196 C100 C188 VCC EDBG C22 C103 C196 C100 C188 C22 C103 C196 C100 C188 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4 VCC EDBG C22 D4

1. Device and Ordering Information—The EDBG is a factory-programmed AT32UC3A4256J-C1UR standard microcontroller with ordering code AT32UC3A4256HHB-C1UR. For further information please contact [e-mail].

4.2.15 Expansion Ports

4.2.15.1 Arduino

Five 8-pin, one 6-pin, one 10-pin and one 36-pin headers (J6, J7, J8, J14, J15, J17, J18, J19) are provided on the SAMA5D4-XULT board to enable the PIO connection of various expansion cards. These headers' physical and electrical implementation match the Arduino R3 extension ("shields") scheme.

Due to multiplexing, different signals can be provided on each pin.

Figure 4-24. Expansion Boards Connectors

Expansion Boards Connectors VCC 3V3 EXP VBAT4 R1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 J6 R009 RD09-0R DNP3SOR EXP-XPRO PC30 [6] R008 RD07 RDNPDR EXP-PC1 [6] R312 RD12-0R DNP3SOR EXP-XPRO PE30 [6] R314 RD13-0R DNPOR EXP-DGI TWC [14] R313 RD14-0R DNPOR EXP-PD0 [7] R315 RD15-0R DNPOR EXP-XPRO PB20 [7] R316 RD16-0R DNPOR EXP-PE2 [8] R317 RD17-0R DNPOR EXP-XPRO PB18 [7] R318 RD18-0R DNPOR EXP-PE7 [8] R319 RD19-0R DNPOR EXP-XPRO PB18 [7] R320 RD20-0R DNPOR EXP-PE8 [8] R321 RD21-0R DNPOR EXP-XPRO PB21 [7] R322 RD22-0R DNPOR EXP-SPI MOS [14] Sakiver TX10 J7 J6 J7 J6 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8 J9 J8

4.2.15.2 Functions Available Through the Arduino Headers

The multiplexing of the SAMA5D44 I/Os (standard parallel I/O and up to three peripheral functions per pin) makes it possible to route alternate signals via Arduino extension headers. To enable these signals, SAMA5D44 PIO multiplexing must be properly configured. For more details, refer to Section 4.3.15 of this document and the section PIO Controller (PIO) in the SAMA5D4 Series datasheet.

In addition, on-board resistors may be unsoldered and moved to an alternate location to enable a different connection.

Table 4-5 to Table 4-11, together with the connector schematics, provide the alternate signals available for use with Arduino connectors.

TIP

How to read the tables

For the example Figure 4-25 and Table 4-4 below, the information provided on alternate signals is read as follows:

Pin 3 of Jxx is normally connected to SAMA5D44 PD8 which has PCK0 as an alternate function.

By unsoldering R323 and soldering it on R324 footprint, pin 3 of J15 will be connected to SAMA5D44 PC4 which has SPI0_NPCS1, MCIO_CK and PCK1 as alternate functions.

Figure 4-25. Jxx Connector

[EXP_FD8 [EXP_PC4 0R DNP(03) R323 R324 EXP_5V J15 1 2 3

Close-up of a blue printed circuit board with visible components and connectors (no readable text or symbols)

Table 4-4. Jxx Connector Signals

Pin No.	SAMA5D44	PIO	Muxing Alternates On-board Alternates
3	PD8	PCK0	--	PC4	SPI0_NPC	S1 MCI0_CK	PCK1

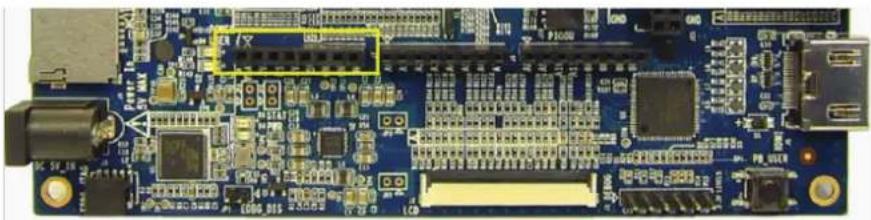

Figure 4-26. J6 Connector

VCC 3V3 [4] EXP VBAT [4,10,12,14] NRST 3V3 R216 100R 1% [4] EXP 5V J6 1 2 3 4 5 6 7 8 Socket 1X8

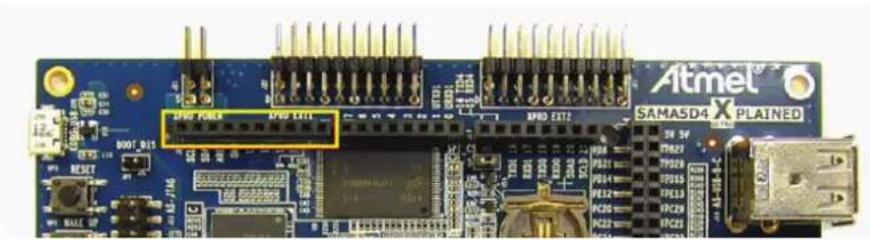

Close-up of a blue printed circuit board with various electronic components and connectors (no readable text or symbols)

Table 4-5. J6 Connector Signals

Pin No. Signal On-board Alternates
1 EXP_VBAT ----
2	V	C	C	-	3	V	3
3	N	R	S	T	-	3	V
4	V	C	C	-	3	V	3
5	E	X	P	-	5	V	-
6	G	N	D	-	-	-	-
7	G	N	D	-	-	-	-
8	N	C		-	-	-	-

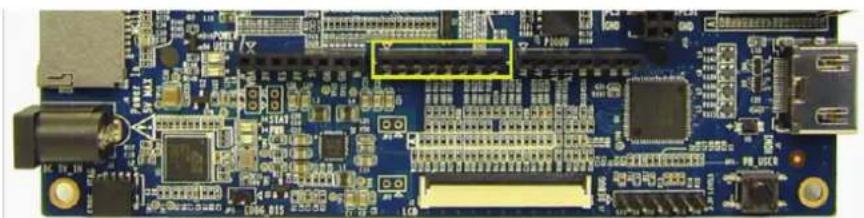

Figure 4-27. J7 Connector

EXP_PB28 EXP/XPRO_PC27 EXP/XPRO_PC28 EXP/XPRO_PC29 EXP/XPRO_PC30 EXP_PC31 EXP_PE24 EXP_PE5 J7 1 2 3 4 5 6 7 8 Socket 1X8

Close-up of a blue printed circuit board with connectors and ports (no readable text or symbols)

Table 4-6. J7 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates
1 PB28	SPI2_NPCS3	TD0 PWMH1	----
2 PC27	AD0 SPI0_NPCS1	PWML0	----
3 PC28	AD1 SPI0_NPCS2	PWML1	----
4 PC29	AD2 SPI0_NPCS3	PWMFI0	----
5 PC30	AD3 -	PWMH0	----
6 PC31	AD4 -	PWMH1	----
7 PE24	NCS0	RT$3	----
8	PE5	A5	CTS3	-	-	-	-	-

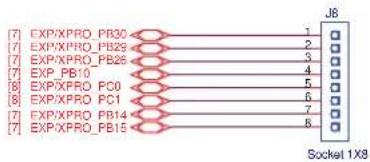

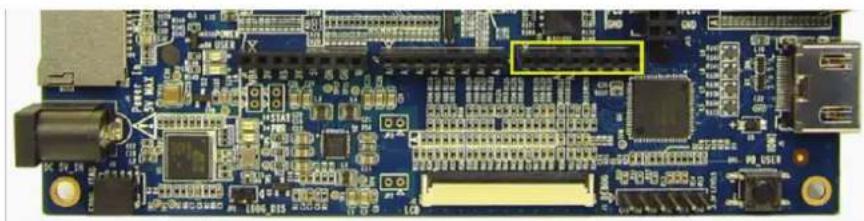

Figure 4-28. J8 Connector

7 EXP/XPRO_PB30 7 EXP/XPRO_PB29 7 EXP_XPRO_PB26 7 EXP_PB10 8 EXP/XPRO_PC0 8 EXP_XPRO_PC1 7 EXP/XPRO_PB14 7 EXP/XPRO_PB15 J8 Socket1X8

Close-up of a blue printed circuit board with various electronic components and connectors (no readable text or symbols)

Table 4-7. J8 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates
1 PB30	TWCK2 RF0	--
2 PB29	TWD2 RD0	PWML1 -
3 PB26	PCK0	RK0	PWMH0		-
4 PB10	G0_RX2	PCK2	PWML1 -
5	PC0	SPI0_MISO	PWMH2	ISI_D8	No DAC available
6	PC1	SPI0_MOSI	PWML2	ISI_D9	No DAC available
7	PB14	G0_TX2	SPI2_NPCS1	PWMH0	No CAN available
8	PB15	G0_TX3	SPI2_NPCS2	PWML0	No CAN available

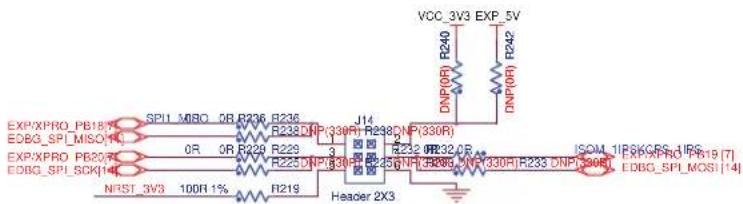

Figure 4-29. J14 Connector

VOC_3V3 EXP_5V R240 DNP(VR) R242 EXP'XPRO_PB18/7 SP11 MBO 0R R236 R236 R238 DNP(330R) R238 DNP(330R) EXP'XPRO_PB20/7 0R 0R R228 R229 R225 DNP(330R) R225 DNP(330R) R232 0R 32.0F EXP'_SPI_SCK14 NRST_3V3 100R 1% Header 2X3 ISOM_1IPKCRS_1IPS EXP'XPRO_PB19 [7] EDBG_SPI_MOSI [14]

Close-up of a blue printed circuit board with multiple ATmel chip modules and connectors (no readable text or symbols)

Table 4-8. J14 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates				On-board Alternates				EDBG Alternate
1	PB18	SPI1_MISO	D8	-	-	-	-	-	DGI_SPI
2	5V	-	-	-	-	-	-	-	-
3	PB20	SPI1_SPCK	D10	-	-	-	-	-	DGI_SPI
4	PB19	SPI1_MOSI	D9	-	-	-	-	-	DGI_SPI
5	nRST	-	-	-	-	-	-	-	-
6	GND	-	-	-	-	-	-	-	-

Figure 4-30. J15 Connector

[3] EXP_PD6 [6] EXP_PC4 [7] EXP_PB31 [9] EXP_PD14 [9] EXP_PE12 [9] EXP_PD15 [8] EXP_PC20 [8] EXP_PC22 [8] EXP_PC24 [8] EXP_XPRO_PC26 [9] EXP_PE25 [9] EXP_PD20 [9] EXP_PE28 [9] EXP_PD30 [9] EXP_PD22 [7] EXP_PB3 [7] EXP_PB4 [9] EXP_PD24 [14] EDBG_ID_04 [14] EDBG_ID_06 [3] EXP_XPRO_PC3 [9] EXP_PD26 J15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 Socket 2X18 R323 R324 R325 R327 R338 R342 R354 R345 R362 R359 R366 R371 R377 R385 R389 R387 R326 OR R326 OR DNP(OR) R343 OR R339 OR DNP(OR) R353 OR R345 OR DNP(OR) R360 OR R363 OR DNP(OR) R370 OR R365 OR DNP(OR) R384 OR R376 OR DNP(OR) R388 OR R391 OR DNP(OR) EXP_5V EXP_XPRO PB27 [7] EXP_PD29 [9] EXP_XPRO_PD15 [9] EXP_PE13 [9] EXP_PD19 [9] EXP_PC19 [8] EXP_PC21 [8] EXP_PC23 [8] EXP_XPRO_PC25 [8] EXP_PE0 [9] EXP_PD21 [9] EXP_PB1 [7] EXP_PD31 [9] EXP_PD23 [9] EXP_PB11 [7] EXP_PB5 [7] EXP_PD25 [9] EXP_XPRO_PD11 [9] EDBG_ID_05 [14] EXP_P09 [8] EDBG_ID_07 [14] EXP_PE31 [9] EXP_PD27 [9]

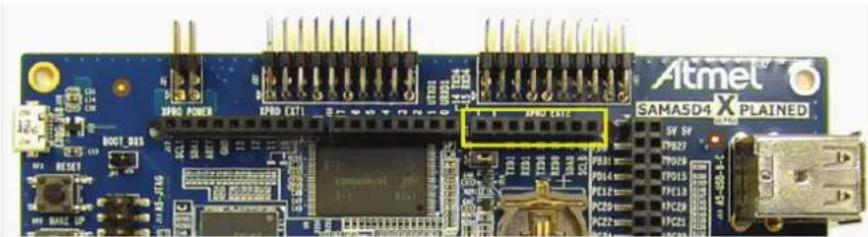

Close-up of a blue Atmel 124X PLC board with visible components and connectors (no readable text or symbols)

Table 4-9. J15 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates
1	5V	-	-	5V	-	-	-
2	5V	-	-	-		5V	-	-
3	PD8	PCK0	-	-	PC4	SPI0_NPCS1	MCI0_CK	PCK1
4	PB27	SPI1_NPCS3	TK0	PWML0	-	-	-	-
5	PB31	-	TF0	-	-	-	-	-
6	PD29	SCK1	DIS	-	-	-	-	-
7	PD14	CTS1	CDETB	-	-	-	-	-
8	PD15	RTS1	SPI2_SPCK	-	-	-	-	-
9	PE12	A12	TIOA1	PWMH2	PD18	-	SENSE0	-
10	PE13	A13	TIOB1	PWML2	PD19	-	SENSE1	-
11	PC20	ISI_D1	TF1	-	-	-	-	-
12	PC19	ISI_D0	TK1	-	-	-	-	-
Pin No.	SAMA5D44 PIO Muxing Alternates				On-board Alternates
13	PC22	ISI_D3	RF1	-	-	-
14	PC21	ISI_D2	TD1	-	-	-
15	PC24	ISI_D5	RK1	PCK1	-	-
16	PC23	ISI_D4	RD1	-	-	-
17	PC26	ISI_D7	TWCK3	UTXD1	-	-
18	PC25	ISI_D6	TWD3	URXD1	-	-
19	PE25	NCS1	SCK4	IRQ	PD20	-	SENSE2	-
20	PE0	A0/NBS0	MCI0_CDB	CTS4	PD21	-	SENSE3	-
21	PE28	NWAIT	RTS4	A19	-	-
22	PB1	G0_RXCK	SCK2	ISI_PCK	-	-	-	-
23	PD30	-	-	-	PD22	-	SENSE4	-
24	PD31	SPI0_NPCS2	PCK1	-	PD23	-	SENSE5	-
25	PB3	G0_TXER	CTS2	ISI_VSYNC	-	-	-	-
26	PB11	G0_RX3	RTS2	PWMH1	-	-	-	-
27	PB4	G0_CRS	RXD2	ISI_HSYNC	PD24	-	SENSE6	-
28	PB5	G0_COL	TXD2	PCK2	PD25	-	SENSE7	-
29	PD28	SCK0	-	-	-	-	-	-
30	PD11	RTS0	SPI2_MISO	-	-	-	-	-
31	PD10	CTS0	CDETA	-	-	-	-
32	PD9	FIQ	-	-	-	-	-	-
33	PC3	SPI0_NPCS0	PWML3	ISI_D11	PD26	-	SENSE8	-
34	PE31	ADTRG	-	-	PD27	-	SENSE9	-
35	GND	-	-	-	GND	-	-	-
36	GND	-	-	-	GND	-	-	-

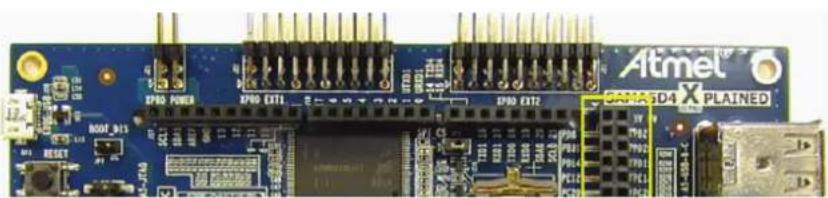

Figure 4-31. J17 Connector

J17 10 9 8 7 6 5 4 3 2 1 Socket 1X10 R309 PE102.0H R308 R307 R312 PE112.0H R314 R313 R316 PE115.0H R315 R317 PE117.0H R318 R319 PE119.0H R320 R321 PE21.0H R322 DNP(330R) DNP(0R) DNP(330R) DNP(0R) DNP(330R) DNP(0R) EXP:XPRO_PE30 [9] EDBG_DGI_TWCK [14] EXP_FB4 [7] EXP:XPRO_PE29 [9] EDBG_DGI_TWD [14] EXP_FB3 [7] AREF [7] EXP:XPRO_PB20 [7] EXP_PE6 [9] EXP:XPRO_PB18 [7] EXP_PE7 [9] EXP:XPRO_PB19 [7] EXP_PE8 [9] EXP:XPRO_PB21 [7] EDBG_SPL_NCS [14] EXP:XPRO_PE21 [9] EXP:XPRO_PE22 [9]

Atmel SAMAS4X PLAINED SPRD POWER SPRD DATA SPRD EXT2 SPD1000000000000000000000000000000000000000000000000000000000000000000000000000000 SPD10000000000000000 SPD15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 3F SPD27 SPD29 SPD33 SPD36 SPD39 SPD42 SPD45 SPD48 SPD52 SPD56 SPD60 SPD64 SPD68 SPD72 SPD76 SPD80 SPD84 SPD88 SPD92 SPD96 SPD99 SPD103 SPD107 SPD112 SPD116 SPD120 SPD124 SPD128 SPD132 SPD136 SPD140 SPD144 SPD148 SPD152 SPD156 SPD160 SPD164 SPD168 SPD172 SPD176 SPD27 SPD29 SPD33 SPD36 SPD39 SPD42 SPD45 SPD48 SPD52 SPD56 SPD60 SPD64 SPD68 SPD72 SPD76 SPD80

Table 4-10. J17 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates								EDBG Alternate
10 PE30	DIBN U	TXD0 TWCK1 PB	B4 G0_CR S RXD2 ISI_H	SYNC	DGI_TWI
9	PE29	DIBP	URXD0	TWD1	PB3	G0_TXER	CTS2	ISI_VSYNC	DGI_TWI
8	AREF	-	-	-	-	-	-	-	-
7	GND	-	-	-	-	-	-	-	-
6	PB20	SPI1_SPCK	D10	-	PE6	A6	TIOA3		-
5	PB18	SPI1_MISO	D8	-	PE7	A7	TIOB3	PWMFI1	-
4	PB19	SPI1_MOSI	D9	-	PE8	A8	TCLK3	PWML3	-
3	PB21	SPI1_NPCS0	D11	-	-	-	-	-	DGI_SPI
2	PE21	A23	TIOA4	MCI1_DA1	-	-	-	-	-
1	PE22	A24	TIOB4	MCI1_DA2	-	-	-	-	-

Figure 4-32. J18 Connector

J16 1 2 3 4 5 6 7 8 Socket 1X8 R289 OR R290 DNP(330R) R292 OR R291 DNP(390R) R294 OR R293 DNP(0R) R295 OR R296 DNP(330R) R297 OR R298 DNP(330R) R300 OR R299 DNP(0R) R301 OR R302 DNP(0R) EXP_PE23 [9] EXP/XPRO_PE18 [9] EDBG_DGI_GPIO [14] EXP/XPRO_PE19 [9] EDBG_DGI_GPIO1 [14] EXP_PB22 [7] EXP/XPRO_PC1 [8] EXP_PE20 [8] EDBG_DGI_GPIO2 [14] EXP_PE15 [8] EDBG_DGI_GPIO3 [14] EXP/XPRO_PC26 [8] EXP_PB1 [7] EXP/XPRO_PC25 [8] EXP/XPRO_PC0 [8]

Close-up of a blue electronic circuit board with visible components and connectors (no readable text or symbols)

Table 4-11. J18 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates								EDBG Alternate
1	PE23	A25	TCLK4	MCI1_DA3	-	-			-
2	PE18	A18	TIOA5	MCI1_CK	-	-	-	-	DGI_GPIO0
3	PE19	A19	TIOB5	MCI1_CDA	-	-			- -
4	PB22	SPI1_NPCS1	D12	-	PC1	SPI0_MOSI	PWML2	ISI_D9	-
5	PE20	A20	TCLK5	MCI1_DA0	-	-			-
6	PE15	A15	SCK3	TIOA0	-	-	-	-	DGI_GPIO3
7	PC26	ISI_D7	TWCK3	UTXD1	PB1	G0_RXCK	SCK2	ISI_PCK	-
8	PC25	ISI_D6	TWD3	URXD1	PC0	SPI0_MISO	PWMH2	ISI_D8	-

Figure 4-33. J19 Connector

J19 1 2 3 4 5 6 7 8 Socket 1X8 R304 OR R303 OR R305 OR R306 OR EXP:XPRO_PE27 [9] EXP:XPRO_PE26 [9] EXP:XPRO_PD17 [9] EXP_PD18 [9] EXP:XPRO_PD13 [9] EXP_PD12 [9] EXP_TWDO_PA30 [7] EXP:XPRO_PC3 [8] EXP_TWCKO_PA31 [7] EXP:XPRO_PC2 [8]

Close-up of an Atmel SIMA5D4 X PLAINED microcontroller board with visible pin labels and connectors (no readable text beyond branding)

Table 4-12. J19 Connector Signals

Pin No.	SAMA5D44 PIO Muxing Alternates On-board Alternates
1	PE27	NWR1/NBS1	TXD4	-	-	-	-
2	PE26	NCS2	RXD4	A18	-	-	-
3	PD17	TXD1	SPI2_NPCS0	-	-		-	-
4	PD16	RXD1	DCENB	-	-		-
5	PD13	TXD0	SPI2_MOSI	-	-		-	-
6	PD12	RXD0	DCENA	-	-		-
7	PA30	TWD0	-	-	PC3	SPI0_NPCS0	PWML3	ISI_D11
8	PA31	TWCK0	-	-	PC2	SPI0_SPCK	PWMH3	ISI_D10

4.2.15.3 SAMA5D44 Peripheral Functions Available Through Arduino Headers

Table 4-13 provides details on access to the SAMA5D44 internal peripherals through the Arduino headers.

Note: Only one function at a time can be selected for each pin (refer to Section 4.3.15 in this document and the PIO controller section in SAMA5D4 Series datasheet).

Table 4-13. SAMA5D44 Peripheral Functions Available through the Arduino Headers

Connector	SAMA5D44 to Arduino	System Function PCK ISI SSC SPI TWI						UART/USART ANALOG MISC
J14	PB18	-	-		-	-	SPI1_MISO		-	-
	3v3/5v	3.3V/5V	-	-	-	-	-	-	-	-
	PB20	-	-	-	-	SPI1_SPCK	-	-	-	-
	PB19	-	-		-	-	SPI1_MOSI		-	-
	nRST	nRST	-	-	-	-	-	-	-	-
	GND	GND	-	-	-	-	-	-	-	-
J7	PB28	-	-		-TD0	SPI2_NPCS3	-	-	-	PWMH1
	PC27	-	-		-	SP40_NPCS2	-	-	AD0 PWML0
	PC28	-	-		-	SP40_NPCS3	-	-	AD1 PWML1
	PC29	-	-		-	-		-	-AD2	PWMFI0
	PC30	-	-		-	-		-	-AD3 PWMH0
	PC31	-	-		-	-		-	-AD4 PWMH1
	PE24	-	-		-	-	RTS3	--	-	-
	PE5	-	-		-	-	CTS3	--	-	-
J8	PB30	-	-	-	RF0	-	TWCK2	-	-	-
	PB29	-	-	-	RD0	-	TWD2	-	-	PWML1
	PB26	-	PCK0	-	RK0	-	-	-	-	PWMH0
	PB10	-	PCK2	-	-	-	-	-	-	PWML1
	PC0	-	-	ISI_D8	-	SPI0_MISO	-	-	-	PWMH2
	PC1	-	-	ISI_D9	-	SPI0_MOSI	-	-	-	PWML2
	PB14	-	-	ISI_D10	-	SPI0_SPCK	-	-	-	PWMH0
	PB15	-	-	-	-	-	-	-	-	PWML0
J17	PE30	-	-	ISI_HSYNC	-	-	TWCK1	RXD2	-	-
	PE29	-	-	ISI_VSYNC	-	-	TWD1	CTS2	-	-
	AREF	AREF	-	-	-	-	-	-	-	-
	GND	GND	-	-	-	-	-	-	-	-
	PB20	-	-	-	-	SPI1_SPCK	-	-	-	TIOA3
	PB18	-	-	-	-	SPI1_MISO	-	-	-	TIOB3
	PB19	-	-	-	-	SPI1_MOSI	-	-	-	TCLK3
	PB21	-	-	-	-	SPI1_NPCS0	-	-	-	-
	PE21	-	-	-	-	-	-	-	-	TIOA4
	PE22	-	-	-	-	-	-	-	-	TIOB4
Connector	SAMA5D44 to Arduino	System Function	PCK	ISI	SSC	SPI	TWI	UART/USART	ANALOG	MISC
J18	PE23	-	-	-	-		-	-	-	-
	PE18	-	-	-	-		-	-	-	-
	PE19	-	-	-	-		-	-	-	-
	PB22	-	-	ISI_D9	-	SPI1_NPCS1		-	-	-
	PE20	-	-	-	-	SPI2_NPCS1		-	-	-
	PE15	-	-	-	-	SPI2_NPCS2		-	-	-
	PC26	-	-	ISI_D8	-	-	TWCK3	UTXD1	-	PWMH2
	PC25	-	-	ISI_PCK	-	-	TWD3	URXD1	-	-
J19	PE27	-	-	-	-	-	-	TXD4	-	-
	PE26	-	-	-	-	-	-	RXD4	-	-
	PD17	-	-	-	-	SPI2_NPCS0	-	TXD1	-	-
	PD16	-	-	-	-	-	-	RXD1	-	-
	PD13	-	-	-	-	SPI2_MOSI	-	TXD0	-	-
	PD12	-	-	-	-	-	-	RXD0	-	-
	PA30	-	-	ISI_D11	-	SPI0_NPCS0	TWD0	-	-	PWML3
	PA31	-	-	ISI_D10	-	SPI0_SPCK	TWCK0	-	-	PWMH3
J15	5V 5V -	- - - - -
	5V 5V -	- - - - -
	PD8 -		PCK0/PCK1	-	T	K	0			-
	PB27	-	-	-	TF0	SPI1_NPCS3	-	-	-	PWML0
	PB31	-	-	-	-	-	-	-	-	-
	PD29	-	-	-	-	-	SCK1	-	-
	PD14	-	-	-	-	-	TWD0	CTS1	-	-
	PD15	-	-	-	-	SPI2_SPCK	TWCK0	RTS1	-	-
	PE12	-	-	-	-	-	-	-	-	PWMH2
	PE13 -	- - - - -	- - - - -	PWML2
	PC20	-	-	ISI_D1	TF1	-	-	-	-	-
	PC19	-	-	ISI_D0	TK1	-	-	-	-	-
	PC22	-	-	ISI_D3	RF1	-	-	-	-	-
	PC21	-	-	ISI_D2	TD1	-	-	-	-	-
	PC24	-	PCK1	ISI_D5	RK1	-	-	-	-	-
	PC23	-	-	ISI_D4	RD1	-	-	-	-	-
	PC26	-	-	ISI_D7	-	-	TWCK3	UTXD1	-	-
	PC25	-	-	ISI_D6	-	-	TWD3	URXD1	-	-
	PE25	-	-	-	-	SPI0_MOSI	-	SCK4	-	-
	PE0	-	-	-	-	SPI0_MISO	-	CTS4	-	-
	PE28	-	-	-	-	SPI0_NPCS0	-	RTS4	-	-
	PB1	-	-	-	-	SPI0_SPCK	-	SCK2	-	-
	PD30	-	-	-	-	-	-		-	-
	PD31	-	PCK1	-	-	SPI0_NPCS2	-	-	-	-
	PB3 -	- - - - -	CTS2	- -
	PB11	-	-	-	-	-	-	RTS2	-	PWMH1
	PB4	-	-	-	-	-	-	RXD2	-	-
	PB5	-	PCK2	-	-	- -	TXD2	-	-
	PD28	-	-	-	-	-	-	SCK0	-	-
	PD11	-	-	-	-	-	-	RTS0	-	-
	PD10 -	- - - - -	CTS0	- -
	PD9 -	- - - - -	- - - - -
	PC3	-	-	ISI_D11		SPI0_NPCS0	-	-	-	PWML3
	PE31	-	-	-	-	-	-		-	-
	GND	GND	-	-	-	-	-	-	-	-
	GND	GND	-	-	-	-	-	-	-	-

4.2.15.4 XPRO

The SAMA5D4-XULT board embeds three connectors to interface Xplained PRO wings.

Figure 4-34. XPRO Connectors

XPRO Power EXP 5V 1 2 VCC_5V 3 4 DNP(Header 2X2) XPRO EXT1 ID02 1 2 AD0 3 4 AD1 TIOA4 5 6 TIOR4 PWM13 7 8 PWM13 PCK0 9 10 SP11 NPCS1 TWD2 11 12 TWCK2 UPD0 13 14 UJCK1 SP11 NPCS0 15 16 SP11 MDS1 SP11 MISO 17 18 SP11 SPCK DNP(Header 2X10) XPRO EXT2 ID03 1 2 AD2 3 4 AD3 TIOA5 5 6 TIOR5 PWM3 7 8 PWM3 PCK2 NPCS1 9 10 SP12 NPCS2 TWD1 11 12 TWCK UPD4 13 14 TXD4 SP2 NP3S0 15 16 SP2 MOSI SP2 MISO 17 18 SP2 SPCK DNP(Header 2X10)

XPRO Connectors

The standard extension headers include common signals. These are male 20-pin/100-mil/right-angled headers (extension boards feature a female 20-pin straight header).

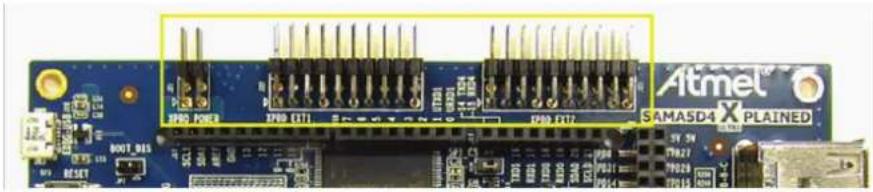

Figure 4-35. XPRO Extension Headers

Close-up of a blue electronic circuit board with multiple black connectors and labeled components (no readable text or symbols beyond labels)

4.3 PIO Usage and Interface Connectors

4.3.1 Power Supply

Figure 4-36. Power Supply Connector J4

Pure technical diagram of a mechanical component with concentric circles and a base, no text or symbols present

Table 4-14. Power Supply Connector J4 Signal Description

Pin Mnemonic Signal Description
1 Center pin +5V
2 Spring blade GND
3 Fixing pin Floating

4.3.2 JTAG/ICE Connector

Figure 4-37. JTAG J13

Pin Mnemonic Signal Description
1 VTref.	3.3V power This is the target reference voltage (main 3.3V).
2 Vsupply.	3.3V power	This pin is not connected in SAM-ICETM and reserved for compatibility with other equipment. Connected to main 3.3V.
3	nTRST TARGET RESET - Active-low output signal that resets the target	JTAG Reset. Output from SAM-ICE to control the Reset signal on the target system.
4 GND	Common ground
5	TDI TEST DATA INPUT - Serial data output line, sampled on the rising edge of the TCK signal	JTAG data input into target CPU
6 GND	Common ground
7 TMS	TEST MODE SELECT JTAG mode set input into target CPU
8 GND	Common ground
9	TCK TEST CLOCK - Output timing signal, for synchronizing test logic and control register access	JTAG clock signal into target CPU
10 GND	Common ground
11	RTCK - Input Return test clock signal from the target	Some targets having too slow system clock must synchronize the JTAG inputs to internal clocks. In present case such synchronization is unneeded and TCK merely looped back into RTCK.
12 GND	Common ground
13	TDO JTAG TEST DATA OUTPUT - Serial data input from the target	JTAG data output from target CPU
14 GND	Common ground
15 nSRST	RESET Active-low reset signal. Target CPU reset signal.
16 GND	Common ground
17 RFU	This pin is not connected in SAM-ICE
18 GND	Common ground
19 RFU	This pin is not connected in SAM-ICE
20 GND	Common ground

4.3.3 EDBG USB Type Micro-AB

Figure 4-38. EDBG USB Type Micro-AB Connector J20

Table 4-16. EDBG USB Type Micro-AB Connector J20 Signal Descriptions

Pin Mnemonic Signal Description
1 Vbus 5V power
2 DM Data minus
3 DP Data plus
4 ID On-the-go identification
5 GND Common ground

4.3.4 USB Type A Dual Port

Figure 4-39. USB Type A Dual Port J16

Line drawing of a multi-pin electrical connector with terminal blocks and leads (no text or symbols)

Table 4-17. USB Type A Dual Port J16 Signal Descriptions

Pin Mnem	onic Signal Description
A1 Vbus -	USB_A 5V power
A2 DM -	USB_A Data minus
A3 DP -	USB_A Data plus
A4 GND	Common ground
B1 Vbus -	USB_A 5V power
B2 DM -	USB_A Data minus
B3 DP -	USB_A Data plus
B4 GND	Common ground
Mechanical pins	-	Shield

4.3.5 USB Micro-AB

Figure 4-40. USB Host/Device Micro-AB Connector J11

Table 4-18. USB Host/Device Micro-AB Connector J11 Signal Descriptions

Pin Mnemonic Signal Description
1 Vbus 5V power
2 DM Data minus
3 DP Data plus
4 ID On-the-go identification
5 GND Common ground

4.3.6 DEBUG Connector

Figure 4-41. DEBUG Connector J1

Table 4-19. DEBUG Connector J1 Signal Descriptions

Pin Mnemonic PIO Signal Description
1 CTS3	PE5 Handshake input
2 TXD3	(Transmitted Data) PE17 RS232 serial data input signal
3 RXD3	(Received Data) PE16 RS232 serial data output signal
4 Power	- 5V/3.3V (selected by resistors)
5 RTS3	PE24 Handshake output
6 GND	- Common ground

4.3.7 SD/MMC Plus MCI0

Figure 4-42. SD/MMC Socket J24

Isometric line drawing of a rectangular electronic component with mounting holes and slots (no text or symbols)

Table 4-20. SD/MMC Socket J24 Signal Descriptions

Pin Mnemonic PIO Signal Description
1 DAT3	PE23 Data Bit
2 CMD	PE19 Command Line
3 VSS –	Common ground
4 VCC –	Supply Voltage 3.3V
5 CLK	PE18 Clock / Command Line
6 CD PE3	Card Detect
7 DAT0	PE20 Data Bit
8 DAT1	PE21 Data Bit
9 DAT2	PE22 Data Bit
10	–	Not connected Data Bit
11	–	Not connected Data Bit
12	–	Not connected Data Bit
13	–	Not connected Data Bit
14	WP	GND	Write Protection (deactivated)
15	VSS – Common ground
16	VSS – Common ground

4.3.8 MicroSD MCI1

Figure 4-43. MicroSD Socket J9

Technical line drawing of a mechanical component with numbered parts (no text or symbols)

Table 4-21. MicroSD Socket J9 Signal Descriptions

Pin Mnemonic PIO Signal Description
1 DAT2 PC8 Data Bit 2
2 CD/DA T3 PC9 Card Detect / Data Bit 3
3 CMD PC5 Command Line
4 VCC – Supply Voltage 3.3V
5 CLK	PC4 Clock / Command Line
6 VSS	– Common ground
7 DAT0 PC6 Data Bit 0
8 DAT1 PC7 Data Bit 1
9 CD PE2 Card Detect
10	GND	– Common ground

4.3.9 Ethernet ETH0 RJ45 Socket J12

Figure 4-44. Ethernet RJ45 Socket J12

12345678

RJ-45

Figure 4-46. HDMI Type A Female Connector J5

Table 4-23. HDMI Type A Female Connector J5 Signal Descriptions

Signal Pin No. Signal
TMDS Data 2+ 1 2 TMDS Data 2 Shield
TMDS Data 2- 3 4 TMDS Data 1+
TMDS Data 1 Shield 5 6 TMDS Data 1-
TMDS Data 0+ 7 8 TMDS Data 0 Shield
TMDS Data 0- 9 10 TMDS Clock +
TMDS Clock Shield 11 12 TMDS Clock -
CEC (not connected) 13 14 Not connected
SCL 15 16	SDA
GND	17 18		+5V
Hot Plug Detect	19 20	DDC/CEC (GND)

4.3.12 XPRO Power Connector

Figure 4-47. XPRO Power Connector J21

Table 4-24. XPRO Power Connector J21 Signal Descriptions

Signal Pin No. Signal
EXP_5V	1	2
VCC_5V	3	4	VCC_3v3

4.3.13 XPRO Ext1 Connector

Figure 4-48. XPRO Ext1 Connector J22

Note: 1. Used by the EDBG interface.

4.3.14 XPRO Ext2 Connector

Figure 4-49. XPRO Ext2 Connector J23

Note: 1. Used by the EDBG interface.

4.3.15 PIO Usage

The following tables provide the use of different PIO lines on the SAMA5D4-XULT, sorted by PIO lines. Most of the signals can also be configured as either inputs or outputs from/to the processor.

Table 4-27. PIO A Pin Assignment and Signal Description

Power Rail I/O	Type Primary Signal		Peripheral A Signal	Peripheral B Signal	Peripheral C Signal
VDDIOP GPIO	PA0 LCDDAT0 - TMS
VDDIOP GPIO	PA1 LCDDAT1 --
VDDIOP GPIO	CLK PA2 LCDDAT2	G1_TXCK -
VDDIOP GPIO	CLK PA3 LCDDAT3	G1_RXCK	-
VDDIOP GPIO	PA4 LCDDAT4	G1_TXEN -
VDDIOP GPIO	PA5 LCDDAT5	G1_TXER -
VDDIOP GPIO	PA6 LCDDAT6	G1_CRS	-
VDDIOP GPIO	PA7 LCDDAT7 --
VDDIOP GPIO	PA8 LCDDAT8 -	TCK
VDDIOP GPIO	PA9 LCDDAT9 --
VDDIOP	GPIO	PA10	LCDDAT10	G1_RXDV	-
VDDIOP	GPIO	PA11	LCDDAT11	G1_RXER	-
VDDIOP GPIO	PA12	LCDDAT12 G1_RX0		-
VDDIOP GPIO	PA13	LCDDAT13 G1_RX1		-
VDDIOP GPIO	PA14	LCDDAT14 G1_TX0 -
VDDIOP GPIO	PA15	LCDDAT15 G1_TX1 -
VDDIOP	GPIO	PA16	LCDDAT16	-	NTRST
VDDIOP GPIO	PA17	LCDDAT17 --
VDDIOP GPIO	PA18	LCDDAT18 G1_RX2		-
VDDIOP GPIO	PA19	LCDDAT19 G1_RX3		-
VDDIOP GPIO	PA20	LCDDAT20 G1_TX2 -
VDDIOP GPIO	PA21	LCDDAT21 G1_TX3 -
VDDIOP	GPIO	PA22	LCDDAT22	G1_MDC	-
VDDIOP GPIO	PA23	LCDDAT23 G1_MDIO -
VDDIOP	GPIO_CLK	PA24	LCDPWM	PCK0	-
VDDIOP GPIO	PA25	LCDDISP TD0		-
VDDIOP	GPIO	PA26	LCDVSYNC	PWMH0	SPI1_NPCS1
VDDIOP	GPIO	PA27	LCDHSYNC	PWML0	SPI1_NPCS2
VDDIOP	GPIO_CLK2	PA28	LCDPCK	PWMH1	SPI1_NPCS3
VDDIOP	GPIO	PA29	LCDDEN	PWML1	-
VDDIOP GPIO	PA30	TWD0	--
VDDIOP GPIO	PA31	TWCK0	--

Table 4-28. PIO B Pin Assignment and Signal Description

Power Rail I/O	Type Primary Signal		Peripheral A Signal	Peripheral B Signal	Peripheral C Signal
VDDIOP GPIO	CLK PB0 G0_TXCK	--
VDDIOP GPIO	CLK PB1 G0_RXCK	SCK2 ISI_PCK
VDDIOP GPIO	PB2 G0_TXEN	--
VDDIOP GPIO	PB3 G0_TXER CTS2	ISI_VSYNC
VDDIOP GPIO	PB4	G0_CRS	RXD2	ISI_HSYNC
VDDIOP GPIO	PB5	G0_COL_TXD2	PCK2
VDDIOP GPIO	PB6 G0_RXDV	--
VDDIOP GPIO	PB7 G0_RXER	--
VDDIOP GPIO	PB8	G0_RX0	--
VDDIOP GPIO	PB9	G0_RX1	--
VDDIOP GPIO	CLK	PB10	G0_RX2 PCK2	PWML1
VDDIOP	GPIO	PB11	G0_RX3	RTS2	PWMH1
VDDIOP GPIO	PB12	G0_TX0	--
VDDIOP GPIO	PB13	G0_TX1	--
VDDIOP	GPIO	PB14	G0_TX2	SPI2_NPCS1	PWMH0
VDDIOP	GPIO	PB15	G0_TX3	SPI2_NPCS2	PWML0
VDDIOP GPIO	PB16	G0_MDC	--
VDDIOP GPIO	PB17	G0_MDIO	--
VDDIOP GPIO	PB18	SPI1_MISO D8		-
VDDIOP GPIO	PB19	SPI1_MOSI D9		-
VDDIOP GPIO	CLK	PB20	SPI1_SPCK D10	-
VDDIOP GPIO	PB21	SPI1_NPCS0 D11		-
VDDIOP	GPIO	PB22	SPI1_NPCS1	D12	-
VDDIOP	GPIO	PB23	SPI1_NPCS2	D13	-
VDDIOP	GPIO	PB24	DRXD	D14	TDI
VDDIOP	GPIO	PB25	DTXD	D15	TDO
VDDIOP	GPIO_CLK	PB26	PCK0	RK0	PWMH0
VDDIOP	GPIO	PB27	SPI1_NPCS3	TK0	PWML0
VDDIOP	GPIO	PB28	SPI2_NPCS3	TD0	PWMH1
VDDIOP	GPIO	PB29	TWD2	RD0	PWML1
VDDIOP	GPIO	PB30	TWCK2	RF0	-
VDDIOP	GPIO	PB31	-	TF0	-

Table 4-29. PIO C Pin Assignment and Signal Description

Power Rail I/O	Type Primary Signal		Peripheral A Signal	Peripheral B Signal	Peripheral C Signal
VDDIOM GPIO	PC0 SPI0_MISO PWMH2 ISI_D8
VDDIOM GPIO	PC1 SPI0_MOSI PWML2 ISI_D9
VDDIOM GPIO	CLK PC2 SPI0_SPCK PWMH3 ISI_D10
VDDIOM	GPIO	PC3	SPI0_NPCS0	PWML3	ISI_D11
VDDIOM	MCI_CLK	PC4	SPI0_NPCS1	MCI0_CK	PCK1
VDDIOM GPIO	PC5	D0	MCI0_CDA	-
VDDIOM GPIO	PC6	D1	MCI0_DA0	-
VDDIOM GPIO	PC7	D2	MCI0_DA1	-
VDDIOM GPIO	PC8	D3	MCI0_DA2	-
VDDIOM GPIO	PC9	D4	MCI0_DA3	-
VDDIOM	GPIO	PC10	D5	MCI0_DA4	-
VDDIOM	GPIO	PC11	D6	MCI0_DA5	-
VDDIOM	GPIO	PC12	D7	MCI0_DA6	-
VDDIOM GPIO	PC13	NRD/NANDOE	MCI0_DA7	-
VDDIOM	GPIO	PC14	NWE/NANDWE	-	-
VDDIOM	GPIO	PC15	NCS3	-	-
VDDIOM GPIO	PC16	NANDRDY	-	-
VDDIOM GPIO	PC17	A21/NANDALE -		-
VDDIOM GPIO	PC18	A22/NANDCLE -		-
VDDIOM	GPIO	PC19	ISI_D0	TK1	-
VDDIOM	GPIO	PC20	ISI_D1	TF1	-
VDDIOM	GPIO	PC21	ISI_D2	TD1	-
VDDIOM	GPIO	PC22	ISI_D3	RF1	-
VDDIOM	GPIO	PC23	ISI_D4	RD1	-
VDDIOM	GPIO	PC24	ISI_D5	RK1	PCK1
VDDIOM	GPIO	PC25	ISI_D6	TWD3	URXD1
VDDIOM GPIO	PC26	ISI_D7	TWCK3 UTXD1
VDDANA	GPIO_ANA	PC27	AD0	SPI0_NPCS1	PWML0
VDDANA	GPIO_ANA	PC28	AD1	SPI0_NPCS2	PWML1
VDDANA	GPIO_ANA	PC29	AD2	SPI0_NPCS3	PWMFI0
VDDANA	GPIO_ANA	PC30	AD3	-	PWMH0
VDDANA	GPIO_ANA	PC31	AD4	-	PWMH1

Table 4-30. PIO D Pin Assignment and Signal Description

PIOD Mode Secure		Primary Signal	Peripheral A Signal	Peripheral B Signal	Peripheral C SignalPower
VDDIOP GPIO	_CLK PD8 PCK0 --
VDDIOP GPIO	PD9 FIQ --
VDDIOP GPIO	PD10 CTS0	CDETA	-
VDDIOP GPIO	PD11	RTS0 SPI2_MISO	-
VDDIOP GPIO	PD12	RXD0 DCENA	-
VDDIOP GPIO	PD13 TXD0	SPI2_MOSI	-
VDDIOP GPIO	PD14 CTS1	CDETB	-
VDDIOP GPIO	PD15 RTS1	SPI2_SPCK	-
VDDIOP GPIO	PD16	RXD1 DCENB	-
VDDIOP GPIO	PD17 TXD1	SPI2_NPCS0	-
VDDANA	GPIO_ANA	PD18	- SENSE0	-
VDDANA	GPIO_ANA	PD19	- SENSE1	-
VDDANA	GPIO_ANA	PD20	- SENSE2	-
VDDANA	GPIO_ANA	PD21	- SENSE3	-
VDDANA	GPIO_ANA	PD22	- SENSE4	-
VDDANA	GPIO_ANA	PD23	- SENSE5	-
VDDANA	GPIO_ANA	PD24	- SENSE6	-
VDDANA	GPIO_ANA	PD25	- SENSE7	-
VDDANA	GPIO_ANA	PD26	- SENSE8	-
VDDANA	GPIO_ANA	PD27	- SENSE9	-
VDDIOP GPIO	_CLK PD28 SCK0 --
VDDIOP GPIO	_CLK PD29 SCK1 DIS -
VDDIOP GPIO	PD30 ---
VDDIOP GPIO	_CLK PD31 SPI0_NPCS2 PCK1 -

Rail I/

Table 4-31. PIO E Pin Assignment and Signal Description

Power Rail I/O	Type Primary Signal		Peripheral A Signal	Peripheral B Signal	Peripheral C Signal
VDDIOM MCI_CLK PE0 A0/NBS0 MCI0_CDB CTS4
VDDIOM EBI PE1 A1 MCI0_DB0 -
VDDIOM EBI PE2 A2 MCI0_DB1 -
VDDIOM EBI PE3 A3 MCI0_DB2 -
VDDIOM EBI PE4 A4 MCI0_DB3 -
VDDIOM EBI PE5 A5		CTS3 -
VDDIOM EBI PE6 A6		TIOA3	-
VDDIOM EBI PE7 A7		TIOB3	PWMFI1
VDDIOM EBI PE8 A8		TCLK3	PWML3
VDDIOM EBI PE9 A9		TIOA2	-
VDDIOM	EBI	PE10	A10	TIOB2	-
VDDIOM	EBI	PE11	A11	TCLK2	-
VDDIOM	EBI	PE12	A12	TIOA1	PWMH2
VDDIOM	EBI	PE13	A13	TIOB1	PWML2
VDDIOM	EBI	PE14	A14	TCLK1	PWMH3
VDDIOM EBI	PE15	A15	SCK3	TIOA0
VDDIOM EBI	PE16	A16	RXD3	TIOB0
VDDIOM	EBI	PE17	A17	TXD3	TCLK0
VDDIOM	EBI	PE18	A18	TIOA5	MCI1_CK
VDDIOM	EBI	PE19	A19	TIOB5	MCI1_CDA
VDDIOM	EBI	PE20	A20	TCLK5	MCI1_DA0
VDDIOM	EBI	PE21	A23	TIOA4	MCI1_DA1
VDDIOM	EBI	PE22	A24	TIOB4	MCI1_DA2
VDDIOM	EBI	PE23	A25	TCLK4	MCI1_DA3
VDDIOM EBI	PE24	NCS0	RTS3 -
VDDIOM	EBI	PE25	NCS1	SCK4	IRQ
VDDIOM	EBI	PE26	NCS2	RXD4	A18
VDDIOM EBI	PE27	NWR1/NBS1	TXD4 -
VDDIOM EBI	PE28	NWAIT	RTS4	A19
VDDIOP	DIB	PE29	DIBP	URXD0	TWD1
VDDIOP	DIB	PE30	DIBN	UTXD0	TWCK1
VDDIOP	GPIO	PE31	ADTRG	-	-

4.4 SAMA5D4-XULT Board Schematics

This section contains the following schematics:

• Block diagram
• PIO Muxing Table
  • Power Supply
• SAMA5D44 - Power
• SAMA5D44 - DDR2
  • SAMA5D44 - PIOA and PIOB
  • SAMA5D44 - PIOC and Flash
  • SAMA5D44 - SYS, PIOD, and PIOE
  • JTAG, USB, DEBUG, and LCD
  HDMI
• Ethernet_ETH0_10/100M
  HSMCI
  • EDBG
  • Expansion and XPRO Connectors

Figure 4-50. Block diagram

Figure 4-51. PIO Muxing Table
PIO Muxing & Jumper setting

PIOA	USAGE	PIOA	USAGE		USAGE		USAGE		USAGE	PIOC	INDEXID/BPIOB
PA0	LCDDAT0/JTAG_TMS	PA16	LCDDAT16/NTRST	PB0	GO_TXCK	PB16	GO_MDC	PC0	SPI0_MISO/PWMH2/ISI_D8	PC16	NAND_RDY
PA1	LCDDAT1	PA17	LCDDAT17	PB1	SCK2/ISI_PCK	PB17	GO_MDIO	PC1	SPI0_MOSI/PWML2/ISI_D9	PC17	NAND_ALE
PA2	LCDDAT2	PA18	LCDDAT18	PB2	GO_TXEN	PB18	SPI1_MISO	PC2	SPI0_SPCK/PWMH3/ISI_D10	PC18	NAND_CLE
PA3	LCDDAT3	PA19	LCDDAT19	PB3	CTS2/ISI_VSYNC	PB19	SPI1_MOSI	PC3	SPI0_NPCS0/PWML3/ISI_D11	PC19	ISI_D0/TK1
PA4	LCDDAT4	PA20	LCDDAT20	PB4	RXD2/ISI_HSYNC	PB20	SPI1_SPCK	PC4	MCI0_CK/PCK1	PC20	ISI_D1/TF1
PA5	LCDDAT5	PA21	LCDDAT21	PB5	TXD2/PCK2	PB21	SPI1_NPCS0	PC5	MCI0_CDA/NAND_D0	PC21	ISI_D2/TD1
PA6	LCDDAT6	PA22	LCDDAT22	PB6	GO_RXDV	PB22	SPI1_NPCS1	PC6	MCI0_DA0/NAND_D1	PC22	ISI_D3/RF1
PA7	LCDDAT7	PA23	LCDDAT23	PB7	GO_RXER	PB23	SPI1_NPCS2	PC7	MCI0_DA1/NAND_D2	PC23	ISI_D4/RD1
PA8	LCDDAT8/JTAG_TCK	PA24	LCDPWM/HDMI_MCK	PB8	GO_RXO	PB24	JTAG_TDI	PC8	MCI0_DA2/NAND_D3	PC24	ISI_D5/RK1/PCK1
PA9	LCDDAT9	PA25	LCDDISP/HDMI_INT	PB9	GO_RX1	PB25	JTAG_TDO	PC9	MCI0_DA3/NAND_D4	PC25	ISI_D6/TWD3/URXD1
PA10	LCDDAT10	PA26	LCDVSYNC	PB10	PCK2/PWML1	PB26	PCK0/RK0/PWMH0	PC10	NAND_D5	PC26	ISI_D7/TWCK3/UTXD1
PA11	LCDDAT11	PA27	LCDHSYNC	PB11	RTS2/PWMH1	PB27	SPI1_NPCS3/HDMI_TKO/PWML0	PC11	NAND_D6	PC27	AD0_XP/PWMLO
PA12	LCDDAT12	PA28	LCDPCK	PB12	GO_TXO	PB28	SPI2_NPCS3/HDMI_TDO/PWMH1	PC12	NAND_D7	PC28	AD1_XM/PWML1
PA13	LCDDAT13	PA29	LCDDEN	PB13	GO_TX1	PB29	TWD2/RDO/PWML1	PC13	NAND_RE	PC29	AD2_YP/PWMH0
PA14	LCDDAT14	PA30	TWDC	PB14	SPI2_NPCS1/PWMH0	PB30	TWCK2/RF0	PC14	NWE/NAND_WE	PC30	AD3_YM/PWMH0
PA15	LCDDAT15	PA31	TWCK0	PB15	SPI2_NPCS2/PWMLO/HDMI_RST	PB31	HDMI_TFO	PC15	NAND_NCS3	PC31	AD4/PWMH1

PIOD		PIOD	EGASU		EGASU	EGASU	PIOE	IOE	EGASU
		PD16	RXD1	PE0	USB_OVCUR/CTS4		PE16	DBGU_RXD3
		PD17	TXD1/SPI2_NPCS0	PE1	GO_IRQ		PE17	DBGU_TXD3
		PD18	SENSE0	PE2	MCI0_CD		PE18	TIOA5/MCI1_CK
		PD19	SENSE1	PE3	MCI1_CD		PE19	TIOB5/MCI1_CDA
		PD20	SENSE2	PE4	MCI1_PWR		PE20	TCLK5/MCI1_DA0
		PD21	SENSE3	PE5	DBGU_CTS3		PE21	TIOA4/MCI1_DA1
		PD22	SENSE4	PE6	TIOA3		PE22	TIOB4/MCI1_DA2
		PD23	SENSE5	PE7	TIOB3		PE23	TCLK4/MCI1_DA3
PD8	PCK0	PD24	SENSE6	PE8	PB_USER/TCLK3		PE24	DBGU_RTS3
PD9	FIQ	PD25	SENSE7	PE9	LCD_IRQ1		PE25	PMIC_IRQ/SCK4
PD10	CTSO	PD26	SENSE8	PE10	LCD_IRQ2		PE26	RXD4
PD11	RTS0/SPI2_MISO	PD27	SENSE9	PE11	USB8_EN5V		PE27	TXD4
PD12	RXD0	PD28	SCK0	PE12	TIOA1/PWMR2		PE28	RTS4
PD13	TXDO/SPI2_MOSI	PD29	SCK1	PE13	TIOB1/PWML2		PE29	URXD0/TWD1
PD14	CTS1	PD30	LED_POWER	PE14	USBC_EN5V		PE30	UTXD0/TWCK1
PD15	RTS1/SPI2_SPCK	PD31	SPI0_NPCS2/PCK1	PE15	LED_USER/LCD_ID/TIOA0		PE31	USBA_VBUS

JUMPER DESCRIPTION
PART	DEFAULT	FUNCTION
JP1	OPEN	Disable EDBG
JP2	SHORT	I VCC 3V3 Measurement
JP3	SHORT	I_1V2 HDMI Measurement
JP4	SHORT	I VDDIODDR MPU Measurement
JP5	SHORT	I VDDCORE Measurement
JP6	SHORT	I_VDDBU Measurement
JP7	OPEN	Disable CS SPI&Nand Flash Memory
JP8	DNP	CS SPI Flash Memory

LCD
ID_SYS	1
GND	2
LCDDAT0	3
LCDDAT1	4
LCDDAT2	5
LCDDAT3	6
GND	7
LCDDAT4	8
LCDDAT5	9
LCDDAT6	10
LCDDAT7	11
GND	12
LCDDAT8	13
LCDDAT9	14
LCDDAT10	15
LCDDAT11	16
GND	17
LCDDAT12	18
LCDDAT13	19
LCDDAT14	20
LCDDAT15	21
GND	22
LCDDAT16	23
LCDDAT17	24
LCDDAT18	25
LCDDAT19	26
GND	27
LCDDAT20	28
LCDDAT21	29
LCDDAT22	30
LCDDAT23	31
GND	32
LCDPCK	33
LCDVSYNC	34
LCDHSYNC	35
LCDDEN	36
SPI1_SPCK/AD3_YM	37
SPI1_MOSI/AD2_YP	38
SPI1_MISO/AD1_XM	39
SPI1_NPCS2/AD0_XP	40
LCDDISP	41
TWDO	42
TWCK0	43
IRQ1	44
IRQ2	45
LCDPWM	46
Reset	47
VCC	48
VCC	49
GND	50

A	B	C	D	E	F
A	INIT EDIT		POS.	DATE	REV.
NOV					A

Figure 4-52. Power Supply

Electrical schematic diagram of a power supply circuit with labeled components, ICs, resistors, capacitors, and a reset panel.

Figure 4-53. SAMA5D44 - Power

VDDCORE (C13) 10uF C131 10uF C112 10uF C112 10uF C123 10uF C123 10uF C104 10uF C104 10uF C101 10uF C101 10uF C109 10uF C109 10uF C118 10uF C118 10uF C117 10uF C117 10uF C113 10uF C113 10uF C108 inf VDDUUL_2V (VS) VDDBU GNDBU GNDCCRE 1 GNDCCRE 2 GNDCCRE 3 GNDCCRE 4 GNDCCRE 5 GNDCCRE 6 GNDCCRE 7 GNDCCRE 8 GNDCCRE 9 GNDCCRE 10 GNDCCRE 11 GNDCCRE 12 GNDCCRE 13 GNDCCRE 14 GNDCCRE 15 GNDCCRE 16 GNDCCRE 17 GNDCCRE 18 GNDCCRE 19 GNDCCRE 20 GNDCCRE 21 GNDCCRE 22 GNDCCRE 23 GNDCCRE 24 GNDCCRE 25 GNDCCRE 26 GNDCCRE 27 GNDCCRE 28 GNDCCRE 29 GNDCCRE 30 GNDCCRE 31 GNDCCRE 32 GNDCCRE 33 GNDCCRE 34 GNDCCRE 35 GNDCCRE 36 GNDCCRE 37 GNDCCRE 38 GNDCCRE 39 GNDCCRE 40 GNDCCRE 41 GNDCCRE 42 GNDCCRE 43 GNDCCRE 44 GNDCCRE 45 GNDCCRE 46 GNDCCRE 47 GNDCCRE 48 GNDCCRE 49 GNDCCRE 50 GNDCCRE 51 GNDCCRE 52 GNDCCRE 53 GNDCCRE 54 GNDCCRE 55 GNDCCRE 56 GNDCCRE 57 GNDCCRE 58 GNDCCRE 59 GNDCCRE 60 GNDCCRE 61 GNDCCRE 62 GNDCCRE 63 GNDCCRE 64 GNDCCRE 65 GNDCCRE 66 GNDCCRE 67 GNDCCRE 68 GNDCCRE 69 GNDCCRE 70 GNDCCRE 71 GNDCCRE 72 GNDCCRE 73 GNDCCRE 74 GNDCCRE 75 GNDCCRE 76 GNDCCRE 77 GNDCCRE 78 GNDCCRE 79 GNDCCRE 80 VDDIOUTM-10A-2A-3A-4A-5A-6A-7A-8A-9A-10A-11A-12A-13A-14A-15A-16A-17A-18A-19A-20A-21A-22A-23A-24A-25A-26A-27A-28A-29A-30A-31A-32A-33A-34A-35A-36A-37A-38A-39A-40A-41A-42A-43A-44A-45A-46A-47A-48A-49A-50A-51A-52A-53A-54A-55A-56A-57A-58A-59A-60A-61A-62A-63A-64A-65A-66A-67A-68A-69A-70A-71A-72A-73A-74A-75A-76A-77A-78A-79A-80A-81A-82A-83A-84A-85A-86A-87A-88A-89A-90A-91A-92A-93A-94A-95A-96A-97A-98A-99B-VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUT M- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIOUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDDIDUTM- VDOCKS-MICUICOS (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDDUAM ( L ) VDDUAM (L) VDDUAM (L) VDD UML( L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOCKS-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUICOS (L) VDOKSC-MICUUCOLO( L ) AII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII AIII A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III A III AIII BRI SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U RHS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA UR HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D44CA U R HSS TSM SMM5D

POWER TEST POINTS

VCC_5V TP1 SMDTPI1 SMDC_3V3 TP12 SMDTPI2SMDRU_2V1 TP16 SMDTPI2SMD 19V VCCORE_1V2 FUSE_2V5 VCC_1D0G VOJ76 VOJ77 TP8 SMDTPI4 SMD TP8 SMDTPI5 SMD TP8 SMDTPI6 SMD TP8 SMDTPI7 SMD TP8 SMDTPI8 SMD TP8 SMDTPI9 SMD TP8 SMDTPI10 SMD TP8 SMDTPI11 SMD TP8 SMDTPI12 SMD TP8 SMDTPI13 SMD TP8 SMDTPI14 SMD TP8 SMDTPI15 SMD TP8 SMDTPI16 SMD TP8 SMDTPI17 SMD TP8 SMDTPI18 SMD TP8 SMDTPI19 SMD TP8 SMDTPI20 SMD TP8 SMDTPI21 SMD TP8 SMDTPI22 SMD TP8 SMDTPI23 SMD TP8 SMDTPI24 SMD TP8 SMDTPI25 SMD TP8 SMDTPI26 SMD TP8 SMDTPI27 SMD TP8 SMDTPI28 SMD TP8 SMDTPI29 SMD TP8 SMDTPI30 SMD TP8 SMDTPI31 SMD TP8 SMDTPI32 SMD TP8 SMDTPI33 SMD TP8 SMDTPI34 SMD

MCU_DDR VOCICDDR L17 10uF 130mA/L17 10uH 100mA C158 4.7uF R331 1R 1%) CR2 4.3uF C61 10uF DOS_VREF C60 10uF DOS_VREF C143 2.2uF C75 10uF C76 10uF C79 10uF C120 10uF C122 10uF C125 10uF C127 10uF C130 10uF C132 10uF C135 10uF C137 10uF C139 10uF C142 10uF C144 10uF C146 10uF C148 10uF C150 10uF C152 10uF C155 10uF C157 10uF C159 10uF C160 10uF C162 10uF C164 10uF C166 10uF SALMS36A-CHI USB MPU DDR2 A0 T15 MPU DDR2 A0 T16 T17 T18 T19 T20 T21 T22 T23 T24 T25 T26 T27 T28 T29 T30 T31 T32 T33 T34 T35 T36 T37 T38 T39 T40 T41 T42 T43 T44 T45 T46 T47 T48 T49 T50 T51 T52 T53 T54 T55 T56 T57 T58 T59 T60 T61 T62 T63 T64 T65 T66 T67 T68 T69 T70 T71 T72 T73 T74 T75 T76 T77 T78 T79 T80 T81 T82 T83 T84 T85 T86 T87 T88 T89 T90 T91 T92 T93 T94 T95 T96 T97 T98 T99 T100 UTR MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 MPU DDR2 A0 H8 VOCICDDR L17 10uH 130mA/L17 10uH 100mA VOCICDDR L17 10uH 130mA/L17 10uH 100mA COP not as sheel to possible, therefore, DDR2 devices have to be powered close to possible of SALMS36A4 The input PMI DDR2 should use or not lead the impedance traces of 7Ω. Such are different in the presence. Address, control and data traces may not exceed 13 inches (33.6 mm). Address, control and data traces must be length matched to within 6.1 inch (2.54 mm). Address, control and data traces must motion the class group trace lengths to within 9.28 inches (6.36 mm). Kop not as sheel to possible, therefore, DDR2 devices have to be powered close to possible of SALMS36A4 The input PMI DDR2 should use or not lead the impedance traces of 7Ω. Such are different in the presence. Address, control and data traces may not exceed 13 inches (33.6 mm). Address, control and data traces must be length matched to within 6.1 inch (2.54 mm). Address, Control and Data Traces must motion the class group trace lengths to within 9.28 inches (6.36 mm). VOCICDDR L17 10uH 130mA/L17 10uH 100mA VOCICDDR L17 10uH 130mA/L17 10uH 100mA COP not as sheel to possible, therefore, DDR2 devices have to be powered close to possible of SALMS36A4 The input PMI DDR2 should use an inled Impedance traces of 7Ω. Such are different in the presence. Address, control and data traces may not exceed 13 inches (33.6 mm). Address, control and data traces must be length matched to within 6.1 inch (2.54 mm). Address, Control and Data Traces must motion the class group trace lengths to within 9.28 inches (6.36 mm). Kop not as sheel to possible, therefore, DDR2 devices have to be powered close to possible of SALMS36A4 The input PMI DDR2 should use an inled Impedance traces of 7Ω. Such are different in the presence. Address, control and data traces may not exceed 13 inches (33.6 mm). Address, Control and Data Traces must motion the class group trace lengths to within 6.1 inch (2.54 mm). Address, Control and Data Traces must motion the class group trace lengths to within 9.28 inches (6.36 mm). VOCICDDR L17 10uH 130mA/L17 10uH 100mA VOCICDDR L17 10uH 130mA/L17 10uH

Figure 4-55. SAMA5D44 - PIOA and PIOB

Figure 4-56. SAMA5D44 - PIOC and Flash

Nand Flash R286 100K 1k R288 10K R286 100K 1k NAND CLE PC-16 NAND ALF PC17 NAND PD18 PC19 NAND VCC PC20 NAND CE21 PC22 NAND RDY PC23 R282 INAND WPN H258 DNP(100K 1k) R267 8R C43 100uF C46 100uF C41 100uF C44 100uF U9 L6 VCC 9 VCC 8 VCC 7 VCC 6 VCC 5 VCC 4 VCC 3 VCC 2 VCC 1 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 0 VCC 1 VCC 2 VCC 3 VCC 4 VCC 5 VCC 6 VCC 7 VCC 8 VCC 9 VCC 10 VCC 11 VCC 12 VCC 13 VCC 14 VCC 15 VCC 16 VCC 17 VCC 18 VCC 19 VCC 20 VCC 21 VCC 22 VCC 23 VCC 24 VCC 25 VCC 26 VCC 27 VCC 28 VCC 29 VCC 30 VCC 31 VCC 32 VCC 33 VCC 34 VCC 35 VCC 36 VCC 37 VCC 38 VCC 39 VCC 40 VCC 41 VCC 42 VCC 43 VCC 44 VCC 45 VCC 46 VCC 47 VCC 48 VCC 49 VCC 50 VCC 51 VCC 52 VCC 53 VCC 54 VCC 55 VCC 56 VCC 57 VCC 58 VCC 59 VCC 60 VCC 61 VCC 62 VCC 63 VCC 64 VCC 65 VCC 66 VCC 67 VCC 68 VCC 69 VCC 70 VCC 71 VCC 72 VCC 73 VCC 74 VCC 75 VCC 76 VCC 77 VCC 78 VCC 79 VCC 80 VCC 81 VCC 82 VCC 83 VCC 84 VCC 85 VCC 86 VCC 87 VCC 88 VCC 89 VCC 90 VCC 91 VCC 92 VCC 93 VCC 94 VCC 95 VCC 96 VCC 97 VCC 98 VCC 99 VI3_NAD3/VI3_NAND/VCD_IV3

A	B	3	4(Mx)	11 Oct. 14	XX XX
A	INT EDT		29 Aug. 14		XX XX XXX
RPA			DATE	ORDER	SALADORA
SAMS04-XULT		SCALE: 1/1			FELV. SHEET
SAMS04- PICC & FLASH					8/15

PC01 R155 28R ATAS SPIC MSCI PC01 PC01 R160 28R LUXNXP01 PC01[15] PC01 R169 28R ATAS SPIC MSCI PC1 PC01 R170 28R FXYNP01 PC01[15] PC02 R186 28R ATAS SPIC SPICK PC02 PC02 R191 28R FXYNP01 PC02[15] PC02 R179 28R ATAS NOD NOSP01 PC03 PC03 R181 28R LUXNXP01 PC03[15] PC03 R183 38H NAND OK PC04[15] PC03 R187 38H FXYP04[15] PC03 R187 28R NAND OC PC05 PC03 R189 28R NAND OD PC06 PC03 R193 28R NAND OJ1 PC06 PC03 R200 28R NAND OG PC07 PC03 R209 28R NAND OD PC08 PC03 R278 28R NAND OD PC09 PC03 R274 28R NAND OD PC10 PC03 R264 28R NAND OD PC11 PC03 R265 28R NAND OD PC12 PC03 R265 28R NAND OD PC13 PC03 R265 28R NAND OD PC14 PC03 R265 28R NAND OD PC15 PC03 R265 28R NAND OD PC16 PC03 R265 28R NAND OD PC17 PC03 R265 28R NAND OD PC18 PC03 R265 28R NAND OD PC19 PC03 R265 28R NAND OD PC20 PC03 R265 28R NAND OD PC21 PC03 R265 28R NAND OD PC22 PC03 R265 28R NAND OD PC23 PC03 R265 28R NAND OD PC24 PC03 R265 28R NAND OD PC25 PC03 R265 28R NAND OD PC26 PC03 R265 28R NAND OD PC27 PC03 R265 28R NAND OD PC28 PC03 R265 28R NAND OD PC29 PC03 R265 28R NAND OD PC30 PC03 R265 28R NAND OD PC31 PC03 R265 28R NAND OD PC32 PC03 R265 28R NAND OD PC33 PC03 R265 28R NAND OD PC34 PC03 R265 28R NAND OD PC35 PC03 R265 28R NAND OD PC36 PC03 R265 28R NAND OD PC37 PC03 R265 28R NAND OD PC38 PC03 R265 28R NAND OD PC39 PC03 R265 28R NAND OD PC40 PC03 R265 28R NAND OD PC41 PC03 R265 28R NAND OD PC42 PC03 R265 28R NAND OD PC43 PC03 R265 28R NAND OD PC44 PC03 R265 28R NAND OD PC45 PC03 R265 28R NAND OD PC46 PC03 R265 28R NAND OD PC47 PC03 R265 28R NAND OD PC48 PC03 R265 28R NAND OD PC49 PC03 R265 28R NAND OD PC50 PC03 R265 28R NAND OD PC51 PC03 R265 28R NAND OD PC52 PC03 R265 28R NAND OD PC53 PC03 R265 28R NAND OD PC54 PC03 R265 28R NAND OD PC55 PC03 R265 28R NAND OD PC56 PC03 R265 28R NAND OD PC57 PC03 R265 28R NAND OD PC58 PC03 R265 28R NAND OD PC59 PC03 R265 28R NAND OD PC60 PC03 R265 28R NAND OD PC61 PC03 R265 28R NAND OD PC62 PC03 R265 28R NAND OD PC63 PC03 R265 28R NAND OD PC64 PC03 R265 28R NAND OD PC65 PC03 R265 28R NAND OD PC66 PC03 R265 28R NAND OD PC67 PC03 R265 28R NAND OD PC68 PC03 R265 28R NAND OD PC69 PC03 R265 28R NAND OD PC70 PC03 R265 28R NAND OD PC71 PC03 R265 28R NAND OD PC72 PC03 R265 28R NAND OD PC73 PC03 R265 28R NAND OD PC74 PC03 R265 28R NAND OD PC75 PC03 R265 28R NAND OD PC76 PC03 R265 28R NAND OD PC77 PC03 R265 28R NAND OD PC78 PC03 R265 28R NAND OD PC79 PC03 R265 28R NAND OD PC80 PC03 R265 28R NAND OD PC81 PC03 R265 28R NAND OD PC82 PC03 R265 28R NAND OD PC83 PC03 R265 28R NAND OD PC84 PC03 R265 28R NAND OD PC85 PC03 R265 28R NAND OD PC86 PC03 R265 28R NAND OD PC87 PC03 R265 28R NAND OD PC88 PC03 R265 28R NAND OD PC89 PC03 R265 28R NAND OD PC90 PC03 R265 28R NAND OD PC91 PC03 R265 28R NAND OD PC92 PC03 R265 28R NAND OD PC93 PC03 R265 28R NAND OD PC94 PC03 R265 28R NAND OD PC95 PC03 R265 28R NAND OD PC96 PC03 R265 28R NAND OD PC97 PC03 R265 28R NAND OD PC98 PC03 R265 28R NAND OD PC99 PC03 R265 28R NAND OD PC100

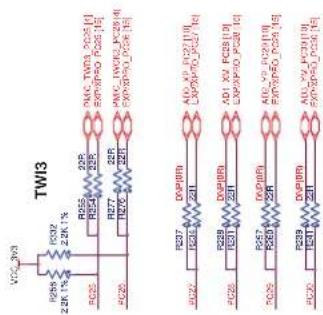

TWI3 VCC 20A R255 R262 R271 2.2K 1% PC25 R255 R262 R271 R258 R262 R271 PC25 R271 R262 R274 R262 R271 PNC_TW3A_PC25 [1] EXPXFP0_PC25 [1] PNC_LW3A_PC25 [1] EXPXFP0_PC25 [1] PNC_DW3A_PC25 [1] PNC_LW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10 EXPXFP0_PC25 [10] PNC_DW3A_PG[10 EXPXFP0_PC25 [10] PNC_DW3A_PG[10 EXPXFP0_PC25 [10] PNC_DW3A_PG[10 EXPXFP0_PC25 [10] PNC_DW3A_PG[10 EXPXFP0_PC25 [10] VCC 20A R255 R262 R271 PC25 R258 R262 R271 PC25 R274 R262 R271 PNC TW3A_PC25 [1] EXPXFP0_PC25 [1] PNC_TW3A_PC25 [1] PNC_LW3A_PC25 [1] PNC_LW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PC25 [1] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] PNC_DW3A_PG[10] EXPXFP0_PC25 [10] VCC 20A R255 R262 R271 PC25 R258 R262 R271 PC25 R274 R262 R271 PNC TW3A_PG[10] EXPXFP0_PC25 [10] PNC_TW3A_PG[10] PNC_LW3A_PG[10] PNC_LW3A_PG[10] PNC_DW3A_PG[10] PNC_DW3A_PG[10] PNC_DW3A_PG[10]

PICC USF P0CSPC M80/PWMH2B1 D8 Y6 PC0 P0CSPC MOS/PWMH2B1 D8 Y5 PC1 P0CSPC SPO/PWMH2B1 D10 Y2 PC2 P0CSPC NPS/PWMH2B1 D11 Y3 PC3 P0CSPC NPS/MOS/PWMH2B1 D12 Y4 PC4 P0CSPC NPS/MOS/MOS/PWMH2B1 D13 Y5 PC5 P0CSPC NPS/MOS/MOS/PWMH2B1 D14 Y6 PC6 P0CSPC NPS/MOS/MOS/PWMH2B1 D15 Y7 PC7 P0CSPC NPS/MOS/MOS/PWMH2B1 D16 Y8 PC8 P0CSPC NPS/MOS/MOS/PWMH2B1 D17 Y9 PC9 P0CSPC NPS/MOS/MOS/PWMH2B1 D18 Y10 PC10 P0CSPC NPS/MOS/MOS/PWMH2B1 D19 Y10 PC11 P0CSPC NPS/MOS/MOS/PWMH2B1 D20 Y11 PC12 P0CSPC NPS/MOS/MOS/PWMH2B1 D21 Y12 PC13 P0CSPC NPS/MOS/MOS/PWMH2B1 D22 Y13 PC14 P0CSPC NPS/MOS/MOS/PWMH2B1 D23 Y14 PC15 P0CSPC NPS/MOS/MOS/PWMH2B1 D24 Y15 PC16 P0CSPC NPS/MOS/MOS/PWMH2B1 D25 Y16 PC17 P0CSPC NPS/MOS/MOS/PWMH2B1 D26 Y17 PC18 P0CSPC NPS/MOS/MOS/PWMH2B1 D27 Y18 PC19 P0CSPC NPS/MOS/MOS/PWMH2B1 D28 Y19 PC20 P0CSPC NPS/MOS/MOS/PWMH2B1 D30 Y20 PC21 P0CSPC NPS/MOS/MOS/PWMH2B1 D31 Y22 PC23 P0CSPC NPS/MOS/MOS/PWMH2B1 D32 Y24 PC25 P0CSPC NPS/MOS/MOS/PWMH2B1 D33 Y26 PC26 P0CSPC NPS/MOS/MOS/PWMH2B1 D34 Y28 PC28 P0CSPC NPS/MOS/MOS/PWMH2B1 D35 Y30 PC30 P0CSPC NPS/MOS/MOS/PWMH2B1 D36 Y32 PC32 P0CSPC NPS/MOS/MOS/PWMH2B1 D37 Y34 PC34 P0CSPC NPS/MOS/MOS/PWMH2B1 D38 Y36 PC36 P0CSPC NPS/MOS/MOS/PWMH2B1 D39 Y38 PC38 P0CSPC NPS/MOS/MOS/PWMH2B1 D40 Y40 PC40 P0CSPC NPS/MOS/MOS/PWMH2B1 D41 Y42 PC42 P0CSPC NPS/MOS/MOS/PWMH2B1 D42 Y44 PC44 P0CSPC NPS/MOS/MOS/PWMH2B1 D43 Y46 PC46 P0CSPC NPS/MOS/MOS/PWMH2B1 D44 Y48 PC48 P0CSPC NPS/MOS/MOS/PWMH2B1 D45 Y50 PC50 P0CSPC NPS/MOS/MOS/PWMH2B1 D46 Y52 PC52 P0CSPC NPS/MOS/MOS/PWMH2B1 D47 Y54 PC54 P0CSPC NPS/MOS/MOS/PWMH2B1 D48 Y56 PC56 P0CSPC NPS/MOS/MOS/PWMH2B1 D49 Y58 PC58 P0CSPC NPS/MOS/MOS/PWMH2B1 D50 Y60 PC60 P0CSPC NPS/MOS/MOS/PWMH2B1 D51 Y62 PC62 P0CSPC NPS/MOS/MOS/PWMH2B1 D52 Y64 PC64 P0CSPC NPS/MOS/MOS/PWMH2B1 D53 Y66 PC66 P0CSPC NPS/MOS/MOS/PWMH2B1 D54 Y68 PC68 P0CSPC NPS/MOS/MOS/PWMH2B1 D55 Y70 PC70 P0CSPC NPS/MOS/MOS/PWMH2B1 D56 Y72 PC72 P0CSPC NPS/MOS/MOS/PWMH2B1 D57 Y74 PC74 P0CSPC NPS/MOS/MOS/PWMH2B1 D58 Y76 PC76 P0CSPC NPS/MOS/MOS/PWMH2B1 D59 Y78 PC78 P0CSPC NPS/MOS/MOS/PWMH2B1 D60 Y80 PC80 P0CSPC NPS/MOS/MOS/PWMH2B1 D61 Y82 PC82 P0CSPC NPS/MOS/MOS/PWMH2B1 D62 Y84 PC84 P0CSPC NPS/MOS/MOS/PWMH2B1 D63 Y86 PC86 P0CSPC NPS/MOS/MOS/PWMH2B1 D64 Y88 PC88 P0CSPC NPS/MOS/MOS/PWMH2B1 D65 Y90 PC90 P0CSPC NPS/MOS/MOS/PWMH2B1 D66 Y92 PC92 P0CSPC NPS/MOS/MOS/PWMH2B1 D67 Y94 PC94 P0CSPC NPS/MOS/MOS/PWMH2B1 D68 Y96 PC96 P0CSPC NPS/MOS/MOS/PWMH2B1 D69 Y98 PC98 P0CSPC NPS/MOS/MOS/PWMH2B1 D70 Y100 | EXP PCSI [18] EXP PCSI [19] EXP PCSI [20] EXP PCSI [21] EXP PCSI [22] EXP PCSI [23] EXP PCSI [24] EXP PCSI [25] EXP PCSI [26] EXP PCSI [27] EXP PCSI [28] EXP PCSI [29] EXP PCSI [30] EXP PCSI [31] EXP PCSI [32] EXP PCSI [33] EXP PCSI [34] EXP PCSI [35] EXP PCSI [36] EXP PCSI [37] EXP PCSI [38] EXP PCSI [39] EXP PCSI [40] EXP PCSI [41] EXP PCSI [42] EXP PCSI [43] EXP PCSI [44] EXP PCSI [45] EXP PCSI [46] EXP PCSI [47] EXP PCSI [48] EXP PCSI [49] EXP PCSI [50] EXP PCSI [51] EXP PCSI [52] EXP PCSI [53] EXP PCSI [54] EXP PCSI [55] EXP PCSI [56] EXP PCSI [57] EXP PCSI [58] EXP PCSI [59] EXP PCSI [60] EXP PCSI [61] EXP PCSI [62] EXP PCSI [63] EXP PCSI [64] EXP PCSI [65] EXP PCSI [66] EXP PCSI [67] EXP PCSI [68] EXP PCSI [69] EXP PCSI [70] EXP PCSI [71] EXP PCSI [72] EXP PCSI [73] EXP PCSI [74] EXP PCSI [75] EXP PCSI [76] EXP PCSI [77] EXP PCSI [78] EXP PCSI [79] EXP PCSI [80] EXP PCSI [81]

EEPROM VCC_3V0_2LDPROM/VCC_3V0_2LFPROM VCC_3V0_2LDPROM/VCC_3V0_2LFPROM AC VCC 8 C150 I20F A1 W7 EEPROM WP A2 SCL 8 A3 BDA 5 EEPROM TWO_PAD1(7) A4 BDA 5 EEPROM TWO_PAD0(7) A124MMC402 MNVAT

Figure 4-57. SAMA5D44 - SYS, PIOD, and PIOE

A	B	C	D	E	F
A	B/F	E/F	11-Oct-14	XXX	XX
REV.			29-Aug-14	REV.	DATE:XXX
SAMS04-XULT
SAMS04-SYS & PIOD & PIOD	SCALE: 1/1			REV.	SHEET: A 9/15

Figure 4-58. JTAG, USB, DEBUG, and LCD

LCD VCC_SV VCC_9V3 R416 R417 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R53 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R52 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R51 R50 R49 R48 R47 R46 R45 R44 R43 R42 R41 R40 R39 R38 R37 R36 R35 R34 R33 R32 R31 R30 R29 R28 R27 R26 R25 R24 R23 R22 R21 R20 R19 R18 R17 R16 R15 R14 R13 R12 R11 R10 R9 R8 R7 R6 R5 R4 DISP_PA26 LCCDAI700P0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000- LCD_PAM_PA24 LCD_VCL9PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ4PAAQ8-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7-7- LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAIC) LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCCN) LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCCN) LCD_PAM_PA24 (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) (LDCAI7) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAM_PA24 (LDCCN) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24 (LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC_PA24( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAWPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDAI6) LCD_PAVPC PAKT1( LCCDA I D PEIPB3/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R83/ R9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 9- 10. Pin: IPC Commency

DEBUG DDR1_CTS1_PES0 DDR1_XDS_PH70_R1 DDR1_RXD_PB10_R1 DDR1_HSS_PZ40 R11 R12 R13 R14 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 Fheader 1X8

5V USRS C63 100nF C65 10uF L18 190ohm at 100kHz VCC 5V C68 100nF C7 1 2 L16 1900hm at 100kHz U12 CUTA EVA 1 IN FLEA 2 ONQ FLOB 3 OUTB EVB 4 SP2256A-1EN-L USB_CN5V_PE14 [I] ENA and ENB Active High USB_ONCURP_PEB [I] USB_EN5V_PE11 [I]

JTAG VCC_5V3 R224 100K 1% F222 100K 1% F227 100K 1% R217 100K 1% R220 3R NTRS [1] TCK [7,14] LMS [7,54] TCK [7,14] TDC [7,54] NRST 3V3 [4,12-4,15] H2 3R OR R25E OR Headar ZX10

USB A USB_VIRUS_SV [R218 100K 15R218 100K 15 USRA_VIRUS_FR31 [R214 20kF] C36 20pF R214 20kF J11 MicroUSB AB Connector L12 180cm at 100M-cc EARTH_USB_A EARTH_USB_A

USB B & C

J7 USB A Upper J15 USB Connector J7 USB B Lower USB DM USB DP 5 6 7 8 9 10 11 12 EARTH_USB_B/C L15 180GHz at 100MHz 1 2 EARTH_USB_B/C

A	RevA	XinJG	11 Oct. 14	XXX	XX XX XX
A	INT CRT	XinJG	29-Aug-14	XXX	XX XX XX
BRA	W/INT	TXG	LANT	OFF	DATE
SCALE: 1/1				REV.A	SHEET10/15

Figure 4-59. HDMI

HDMI Type A Connector J5 HDMI 132 3 CAT2 70V 2.5V MT10 -CM1 SC1 15 ACI MT19 MT12 MT13 MT14 LTM1/PG 38 PAG MT15 MT16 MT17 MT18 MT19 MT20 MT21 MT22 MT23 MT24 MT25 MT26 MT27 MT28 MT29 MT30 MT31 MT32 MT33 MT34 MT35 MT36 MT37 MT38 MT39 MT40 MT41 MT42 MT43 MT44 MT45 MT46 MT47 MT48 MT49 MT50 MT51 MT52 MT53 MT54 MT55 MT56 MT57 MT58 MT59 MT60 MT61 MT62 MT63 MT64 MT65 MT66 MT67 MT68 MT69 MT70 MT71 MT72 MT73 MT74 MT75 MT76 MT77 MT78 MT79 MT80 MT81 MT82 MT83 MT84 MT85 MT86 MT87 MT88 MT89 MT90 MT91 MT92 MT93 MT94 MT95 MT96 MT97 MT98 MT99 MT100 HTM A Connector GDS TDPF CLK S CLK S HDMI A Connector EARTH HDMI HDMI 132 HDMI 100MHz 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 VDC 1 V DC 1 VDC 1 VDC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V DC 1 V AC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V DC 1V AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC AC BCN CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CAC CCA CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCC CCCCCC

Figure 4-60. Ethernet_ETH0_10/100M

100 ohms differential trace impedance Routing top or bottom J12 RJ45 Connector TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX TX T12 RJ45 Connector C37 C35 100Hz 100Hz C116 ETRF 2uF C126 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRF 2uF C116 ETRM LDC 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100MHz 100GHz EARTH ETHO LTHB_VDD R298 G70H R298 G70H FARTH_ETHO ATT ETH LED LTHB_LLOC ETHO_VDD R351 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R352 R354 UVM FXCB_CABT_OFF TXP TXM RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXP RXS VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDA_7VQ VDDB XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XG XGS ETHO_XC 8 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_XC 9 THO_Xc 4.10.14.15 K3ZD8I RN8 VDDIO RESET RESET NRST 3VQ [4.10.14.15] ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA ETHO_VDDA THY AD/2:3/4/6/8/14/18:30 - 1 CONFR/2:3/4/6/8/14/18:30 - 1 CPU mode pin/8:3/4/6/8/14/18:30 - 1 Digital mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin/8:3/4/6/8/14/18:30 - 1 Intermediate Mode pin/8:3/4/6/8/14/18:30 - 1 Intermediate Mode pin/8:3/4/6/8/14/18:30 - 1 Intermediate Mode pin/8:3/4/6/8/14/18:30 - 1 Intermediate Mode pin/8:3/4/6/8/14/18:30 - 1 Interface Mode pin /8:3 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /6 /8 /4 /n At the De-Assertion of Reset: PHY_AD/D2:3/spln/E5:14:15:30 - 1 CONFR/G2:3/jn/nB/B/S/S/B/M PM mode. Duplex Mode pin/8:3, 9-bit Dpass. Interact Mode pin/2:3, 9-bit Dpass. Speed Modemain/C: 1.10Mbps. Nagy Auto-Negation pSC: 1 Enable C/LSD +2pF ETH(O)XI YI YII YIII YIV YV YW YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX YX Yx

A	B	c	d	e	f
R	NP EDT		25 AUG 14		XX XX XX XX
REV.			DATE	VER.	DATATXXX
SAMA5D4-XULT
Ehomet STHO 13"10CM
SCALE: 1/1

Figure 4-61. HSMCI

VCC 3V3 F536 1.0K 89K 1.0K 89K 1.0K 7.5K 6.5K 6.5K F534 1.0K 89K 1.0K F537 1.0K VDD MCII Q4 IPLMLC402 VCC 3V3 R343 103K T3 R357 DNP(4.7K) MCII_PWIL_PL4[IN] VDD MCII C141 10kF C144 100F VCC 3V3 R343 103K T3 R357 DNP(4.7K) MCII_PWIL_PL4[IN] VDD MCII C141_0A1 C141_0A2 VDD MCII C141_0A3 VDD MCII C141_0A4 VDD MCII C141_0A5 VDD MCII C141_0A6 VDD MCII C141_0A7 VDD MCII C141_0A8 VDD MCII C141_0A9 VDD MCII C141_0A10 VDD MCII C141_0A11 VDD MCII C141_0A12 VDD MCII C141_0A13 VDD MCII C141_0A14 VDD MCII C141_0A15 VDD MCII C141_0A16 VDD MCII C141_0A17 VDD MCII C141_0A18 VDD MCII C141_0A19 VDD MCII C141_0A20 VDD MCII C141_0A21 VDD MCII C141_0A22 VDD MCII C141_0A23 VDD MCII C141_0A24 VDD MCII C141_0A25 VDD MCII C141_0A26 VDD MCII C141_0A27 VDD MCII C141_0A28 VDD MCII C141_0A29 VDD MCII C141_0A30 VDD MCII C141_0A31 VDD MCII C141_0A32 VDD MCII C141_0A33 VDD MCII C141_0A34 VDD MCII C141_0A35 VDD MCII C141_0A36 VDD MCII C141_0A37 VDD MCII C141_0A38 VDD MCII C141_0A39 VDD MCII C141_0A40 VDD MCII C141_0A41 VDD MCII C141_0A42 VDD MCII C141_0A43 VDD MCII C141_0A44 VDD MCII C141_0A45 VDD MCII C141_0A46 VDD MCII C141_0A47 VDD MCII C141_0A48 VDD MCII C141_0A49 VDD MCII C141_0A50 VDD MCII C141_0A51 VDD MCII C141_0A52 VDD MCII C141_0A53 VDD MCII C141_0A54 VDD MCII C141_0A55 VDD MCII C141_0A56 VDD MCII C141_0A57 VDD MCII C141_0A58 VDD MCII C141_0A59 VDD MCII C141_0A60 VDD MCII

SD/MMCPlus CARD INTERFACE - MCI1

SD/Micro SD CARD

Figure 4-63. Expansion and XPRO Connectors

Expansion Boards Connectors EVDOSO, PB19 E480_SP, M301R EPOXPRO PB201R L200SP_5001R NR2T_3W3 100R 1% R219 SP1_MISO_0R R236 DINSSPF_R236 SP11_SCK_0R R239 DINSSPF_R239 R239 R239 Hadar 203 J14 2 e R352 R352 DRONPS_R352 DRONPS_R342 VCC_3W3 EXP_SN OR SP1_MOS DRONPSXP EXPPRO PB19 (T) LDOQ_SP_MOS 1M

XPRO Power EXP_SV 1 2 VCC_R 3 4 VCC_3V3 DNP Header 2X20 XPRO EXT1 EDB5 ID 0214 1 AD0 3 EXXPRO_PG216 1 DV4 5 EXXPRO_PG218 1 PWM 7 EXXPRO_PG220 1 PV0 9 EXXPRO_PG222 1 VDD2 11 EXXPRO_PG224 1 DSS1 13 EXXPRO_PG226 1 SHI PSC58 15 EXXPRO_PG228 1 SHI VISO 17 EXXPRO_PG230 1 DNP Header 2X10 XPRO EXT2 LDC5 ID 0314 1 AD2 1 EXXPRO_PG230 1 DV5 6 EXXPRO_PG232 1 PWM 8 EXXPRO_PG234 1 DV6 9 EXXPRO_PG236 1 VDD1 11 EXXPRO_PG238 1 DV7 13 EXXPRO_PG240 1 DV8 15 EXXPRO_PG242 1 DV9 17 EXXPRO_PG244 1 DV10 19 EXXPRO_PG246 1 DV11 20 EXXPRO_PG248 1 DV12 21 EXXPRO_PG250 1 DV13 22 EXXPRO_PG252 1 DV14 23 EXXPRO_PG254 1 DV15 24 EXXPRO_PG256 1 DV16 25 EXXPRO_PG258 1 DV17 26 EXXPRO_PG260 1 DV18 27 EXXPRO_PG262 1 DV19 28 EXXPRO_PG264 1 DV20 29 EXXPRO_PG266 1 DV21 30 EXXPRO_PG268 1 DV22 31 EXXPRO_PG270 1 DV23 32 EXXPRO_PG272 1 DV24 33 EXXPRO_PG274 1 DV25 34 EXXPRO_PG276 1 DV26 35 EXXPRO_PG278 1 DV27 36 EXXPRO_PG280 1 DV28 37 EXXPRO_PG282 1 DV29 38 EXXPRO_PG284 1 DV30 39 EXXPRO_PG286 1 DV31 40 EXXPRO_PG288 1 DV32 41 EXXPRO_PG290 1 DV33 42 EXXPRO_PG292 1 DV34 43 EXXPRO_PG294 1 DV35 44 EXXPRO_PG296 1 DV36 45 EXXPRO_PG298 1 DV37 46 EXXPRO_PG300 1 DV38 47 EXXPRO_PG302 1 DV39 48 EXXPRO_PG304 1 DV40 49 EXXPRO_PG306 1 DV41 50 EXXPRO_PG308 1 DV42 51 EXXPRO_PG310 1 DV43 52 EXXPRO_PG312 1 DV44 53 EXXPRO_PG314 1 DV45 54 EXXPRO_PG316 1 DV46 55 EXXPRO_PG318 1 DV47 56 EXXPRO_PG320 1 DV48 57 EXXPRO_PG322 1 DV49 58 EXXPRO_PG324 1 DV50 59 EXXPRO_PG326 1 DV51 60 EXXPRO_PG328 1 DV52 61 EXXPRO_PG330 1 DV53 62 EXXPRO_PG332 1 DV54 63 EXXPRO_PG334 1 DV55 64 EXXPRO_PG336 1 DV56 65 EXXPRO_PG338 1 DV57 66 EXXPRO_PG340 1 DV58 67 EXXPRO_PG342 1 DV59 68 EXXPRO_PG344 1 DV60 69 EXXPRO_PG346 1 DV61 70 EXXPRO_PG348 1 DV62 71 EXXPRO_PG350 1 DV63 72 EXXPRO_PG352 1 DV64 73 EXXPRO_PG354 1 DV65 74 EXXPRO_PG356 1 DV66 75 EXXPRO_PG358 1 DV67 76 EXXPRO_PG360 1 DV68 77 EXXPRO_PG362 1 DV69 78 EXXPRO_PG364 1 DV70 79 EXXPRO_PG366 1 DV71 80 EXXPRO_PG368 1 DV72 81 EXXPRO_PG370 1 DV73 82 EXXPRO_PG372 1 DV74 83 EXXPRO_PG374 1 DV75 84 EXXPRO_PG376 1 DV76 85 EXXPRO_PG378 1 DV77 86 EXXPRO_PG380 1 DV78 87 EXXPRO_PG382 1 DV79 88 EXXPRO_PG384 1 DV80 89 EXXPRO_PG386 1 DV81 90 EXXPRO_PG388 1 DV82 91 EXXPRO_PG390 1 DV83 92 EXXPRO_PG392 1 DV84 93 EXXPRO_PG394 1 DV85 94 EXXPRO_PG396 1 DV86 95 EXXPRO_PG398 1 DV87 96 EXXPRO_PG400

A	PegA	XinCo	11 Oct 14	XXX	XX XX XX
A	BRC EBIT	XinCo	29 Aug 16	XXX	XX XX XX
REV	WALPF	DEC	DATE	REV.	DATE
SCALE: 1/1				REV.A	SHEET15/15

J17 30 40 50 60 70 80 90 100 R189 R190 R191 R192 R193 R194 R195 R196 R197 R198 R199 R200 R201 R202 R203 R204 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R246 R247 R248 R249 R250 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 R261 R262 R263 R264 R265 R266 R267 R268 R269 R270 R271 R272 R273 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292

J16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

J18 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

EXP_F01A EXP_F02A EXP_F03A EXP_F04A EXP_F05A EXP_F06A EXP_F07A EXP_F08A EXP_F09A EXP_F10A EXP_F11A EXP_F12A EXP_F13A EXP_F14A EXP_F15A EXP_F16A EXP_F17A EXP_F18A EXP_F19A EXP_F20A EXP_F21A EXP_F22A EXP_F23A EXP_F24A EXP_F25A EXP_F26A EXP_F27A EXP_F28A EXP_F29A EXP_F30A EXP_F31A EXP_F32A EXP_F33A EXP_F34A EXP_F35A EXP_F36A EXP_F37A EXP_F38A EXP_F39A EXP_F40A EXP_F41A EXP_F42A EXP_F43A EXP_F44A EXP_F45A EXP_F46A EXP_F47A EXP_F48A EXP_F49A EXP_F50A EXP_F51A EXP_F52A EXP_F53A EXP_F54A EXP_F55A EXP_F56A EXP_F57A EXP_F58A EXP_F59A EXP_F60A EXP_F61A EXP_F62A EXP_F63A EXP_F64A EXP_F65A EXP_F66A EXP_F67A EXP_F68A EXP_F69A EXP_F70A EXP_F71A EXP_F72A EXP_F73A EXP_F74A EXP_F75A EXP_F76A EXP_F77A EXP_F78A EXP_F79A EXP_F80A EXP_F81A EXP_F82A EXP_F83A EXP_F84A EXP_F85A EXP_F86A EXP_F87A EXP_F88A EXP_F89A EXP_F90A EXP_F91A EXP_F92A EXP_F93A EXP_F94A EXP_F95A EXP_F96A EXP_F97A EXP_F98A EXP_F99A EXP_P00B J10 R323 R324 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT X OUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT XOUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X OUT X Out Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y OUT Y IN

5. Revision History

In the tables that follow, the most recent version of the document appears first.

Table 5-1. SAMA5D4 Xplained Ultra User Guide Rev. 44005C Revision History

Doc. Date Changes
11-Aug-15	Updated Section 4.2.1 “Processor”Modified Section 4.2.2.1 “Power Lines”Modified Section 4.2.2.2 “Power-up and Power-down Considerations” (title and content)

Table 5-2. SAMA5D4 Xplained Ultra User Guide Rev. 44005B Revision History

Doc. Date Changes

28-Feb-15

Minor formatting and editorial changes throughoutTable 4-3 “DDR_CALN and DDR_CALP”: added column header “Memory Type”Section 4.2.9.3 “LCD Power”: corrected “two voltage lines are available: 3.3V by default and 5 VCC” to read “two voltage lines are available: 3.3V and 5 VCC (default)”Table 4-13 “SAMA5D44 Peripheral Functions Available through the Arduino Headers”: changed column header “SAMA5D4 to Arduino” to “SAMA5D44 to Arduino”; added column header “System Function”Table 4-20 “SD/MMC Socket J24 Signal Descriptions”: defined mnemonic for pins 15 and 16 as “VSS”Table 4-21 “MicroSD Socket J9 Signal Descriptions”: for pin 9, changed mnemonic from “CARD DETECT” to “CD”; for pin 10, changed mnemonic from “PGND” to “GND”

Table 5-3. SAMA5D4 Xplained Ultra User Guide Rev. 44005 Revision History

Doc. Rev. Changes

44005A First issue.

Atmel

Enabling Unlimited Possibilities®

Atmel Corporation

1600 Technology Drive, San Jose, CA 95110 USA

T: (+1)[phone]

F: (+1)[phone]

www.atmel.com

© 2015 Atmel Corporation. / Rev.: Atmel-44005C-ATARM-SAMA5D4-Xplained-Ultra-User Guide_11-Aug-15.

Atmel ^® , Atmel logo and combinations thereof, Enabling Unlimited Possibilities ^® , maXTouch ^® , QTouch ^® and others are registered trademarks or trademarks of Atmel Corporation in U.S. and other countries. ARM ^® , ARM Connected ^® logo, and others are the registered trademarks or trademarks of ARM Ltd. Other terms and product names may be trademarks of others.

DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT. IN NO EVENT SHALL ATMEL BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, PUNITIVE, SPECIAL OR INCIDENTAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS AND PROFITS, BUSINESS INTERRUPTION, OR LOSS OF INFORMATION) ARISING OUT OF THE USE OR INABILITY TO USE THIS DOCUMENT, EVEN IF ATMEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Atmel makes no representations or warranties with respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and products descriptions at any time without notice. Atmel does not make any commitment to update the information contained herein. Unless specifically provided otherwise, Atmel products are not suitable for, and shall not be used in, automotive applications. Atmel products are not intended, authorized, or warranted for use as components in applications intended to support or sustain life.

SAFETY-CRITICAL, MILITARY, AND AUTOMOTIVE APPLICATIONS DISCLAIMER: Atmel products are not designed for and will not be used in connection with any applications where the failure of such products would reasonably be expected to result in significant personal injury or death ("Safety-Critical Applications") without an Atmel officer's specific written consent. Safety-Critical Applications include, without limitation, life support devices and systems, equipment or systems for the operation of nuclear facilities and weapons systems. Atmel products are not designed nor intended for use in military or aerospace applications or environments unless specifically designated by Atmel as military-grade. Atmel products are not designed nor intended for use in automotive applications unless specifically designated by Atmel as automotive-grade.
