USER MANUAL dsPIC33CK64MC103 Microchip

16-Bit Digital Signal Controllers with High-Speed ADC, Op Amps, Comparators and High-Resolution PWM

Operating Conditions

• 3.0V to 3.6V: -40°C to +125°C, DC to 100 MIPS
• 3.0V to 3.6V: -40°C to +150°C, DC to 70 MIPS

High-Performance 16-Bit DSP RISC CPU

• 16-Bit Wide Data Path
• Code Efficient (C and Assembly) Architecture
• 40-Bit Wide Accumulators
- Single-Cycle (MAC/MPY) with Dual Data Fetch
- Single-Cycle, Mixed-Sign Multiply: - 32-bit multiply support
- Fast Six-Cycle Divide
• Zero Overhead Looping

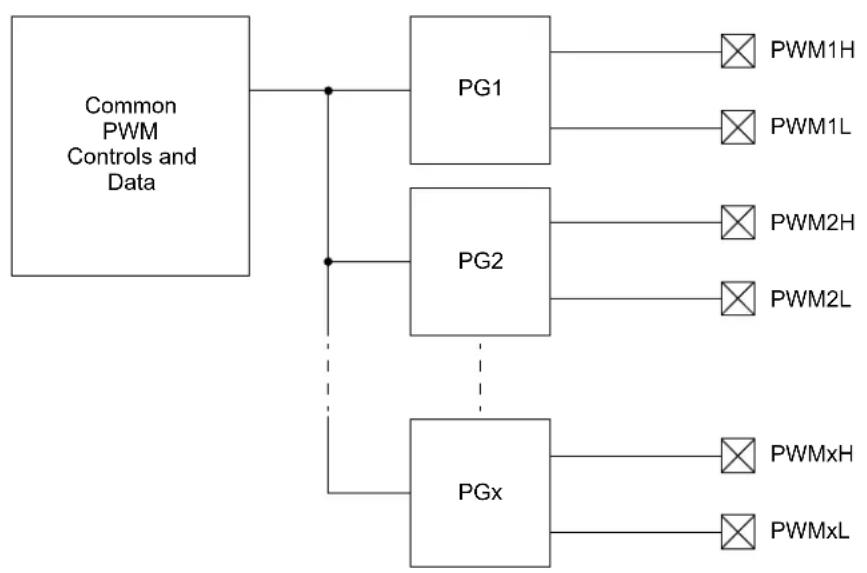

High-Resolution PWM

• Four PWM Pairs
• Up to 2 ns PWM Resolution
  • Dead Time for Rising and Falling Edges
  • Dead-Time Compensation
• Clock Chopping for High-Frequency Operation
• PWM Support for:

- DC/DC, AC/DC, inverters, PFC, lighting

BLDC, PMSM, ACIM, SRM motors

• Fault and Current Limit Inputs
- Flexible Trigger Configuration for ADC Triggering

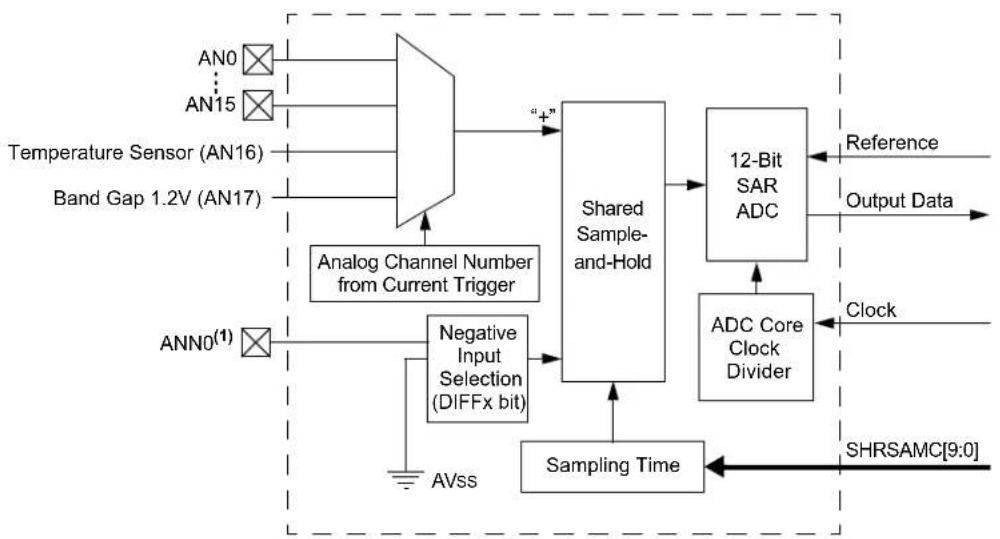

High-Speed Analog-to-Digital Converter

• Up to 15 A/D inputs
  • 12-Bit Resolution
  • One Shared SAR ADC Core
• Up to 3.5 Msps Conversion Rate per Core
  • Dedicated Result Buffer for Each Analog Channel
  • Flexible and Independent ADC Trigger Sources
  • Four Digital Comparators
  • Four Oversampling Filters

Microcontroller Features

• Small Pin Count Packages Ranging from 28 to 48 Pins, Including UQFN as Small as 4x4 mm
  • High-Current I/O Sink/Source
• Edge or Level Change Notification Interrupt on I/O Pins
• Peripheral Pin Select (PPS) Remappable Pins

• Up to 64 Kbytes Flash Memory:

• 10,000 erase/write cycle endurance

• 20 years minimum data retention
• Self-programmable under software control
• Programmable code protection
• Error Code Correction (ECC)
• Flash OTP by ICSP™ Write Inhibit

• Eight Kbytes SRAM Memory:
- SRAM Memory Built-In Self-Test (MBIST)
- Multiple Interrupt Vectors with Individually Programmable Priority
- Four Sets of Interrupt Context Saving Registers which Include Accumulator and STATUS for Fast Reserved Interrupt Handling
- Four External Interrupt Pins
- Watchdog Timer (WDT)
• Windowed Deadman Timer (DMT)
- Fail-Safe Clock Monitor (FSCM) with Dedicated Oscillator
- Selectable Oscillator Options Including:

• High-precision, 8 MHz internal Fast RC (FRC) Oscillator
• Primary high-speed, crystal/resonator oscillator or external clock

• Primary PLL, which can be clocked from FRC or crystal oscillator

• Low-Power Management modes (Sleep and Idle)
  • Power-on Reset and Brown-out Reset

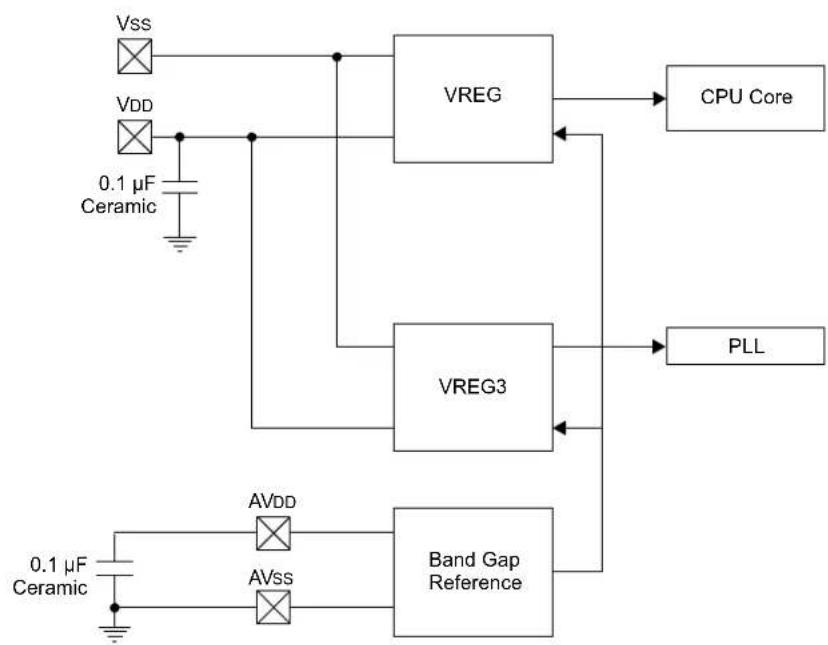

• On-Board Capacitorless Regulator
  • 384 Bytes of One-Time-Programmable (OTP) Memory

Peripheral Features

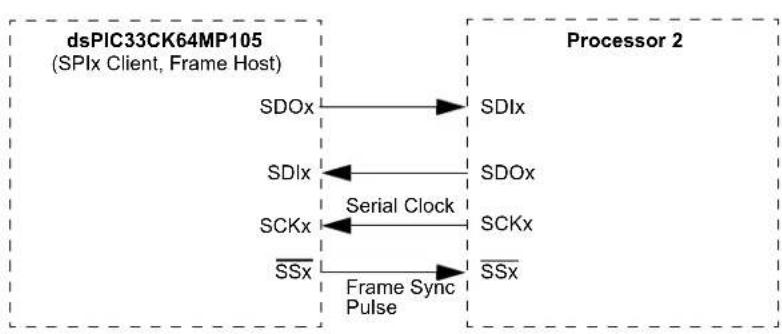

- Two Four-Wire SPI modules (up to 50 Mbps):

• 16-byte FIFO
• Variable width
• I²S mode

- On 2C Host and Client w/Address Masking and IPMI Support

- Three Protocol UARTs with Automated Handling Support for:

• LIN 2.2
• DMX

• Smart card (ISO 7816)

• One SENT module

• Timers/Counters:

- One dedicated 16-bit timer/counter

- Four Single Output Capture/Compare/PWM/Timer (SCCP) modules:

• Flexible configuration as PWM, input capture, output compare or timers
• Two 16-bit timers or one 32-bit timer in each module
• PWM resolution down to 2.5 ns
• Single PWM output

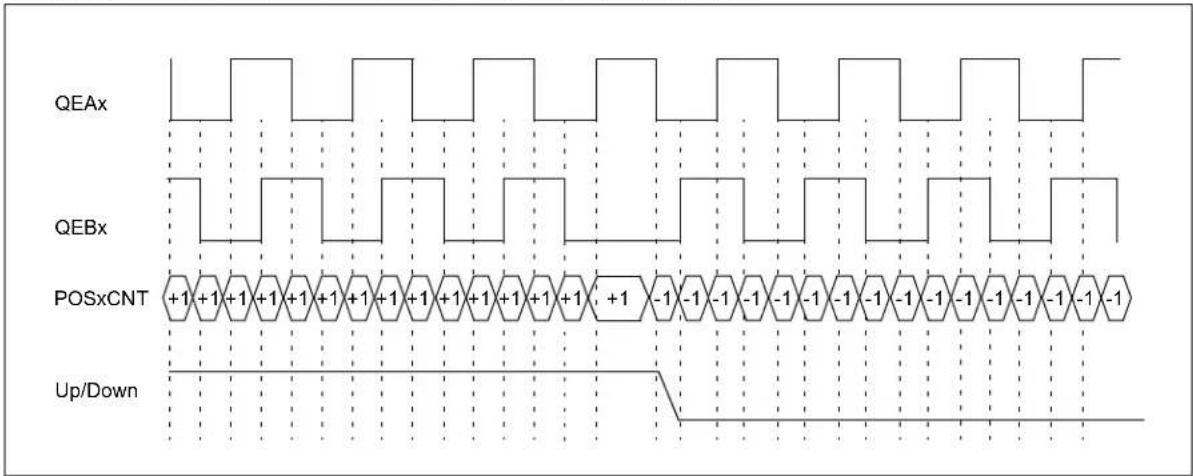

• One Quadrature Encoder Interface (QEI):

• Four inputs: Phase A, Phase B, Home, Index
• One 32-bit timer/counter (in QEI module, available if encoder is not used)

• Reference Clock Output (REFCLKO)

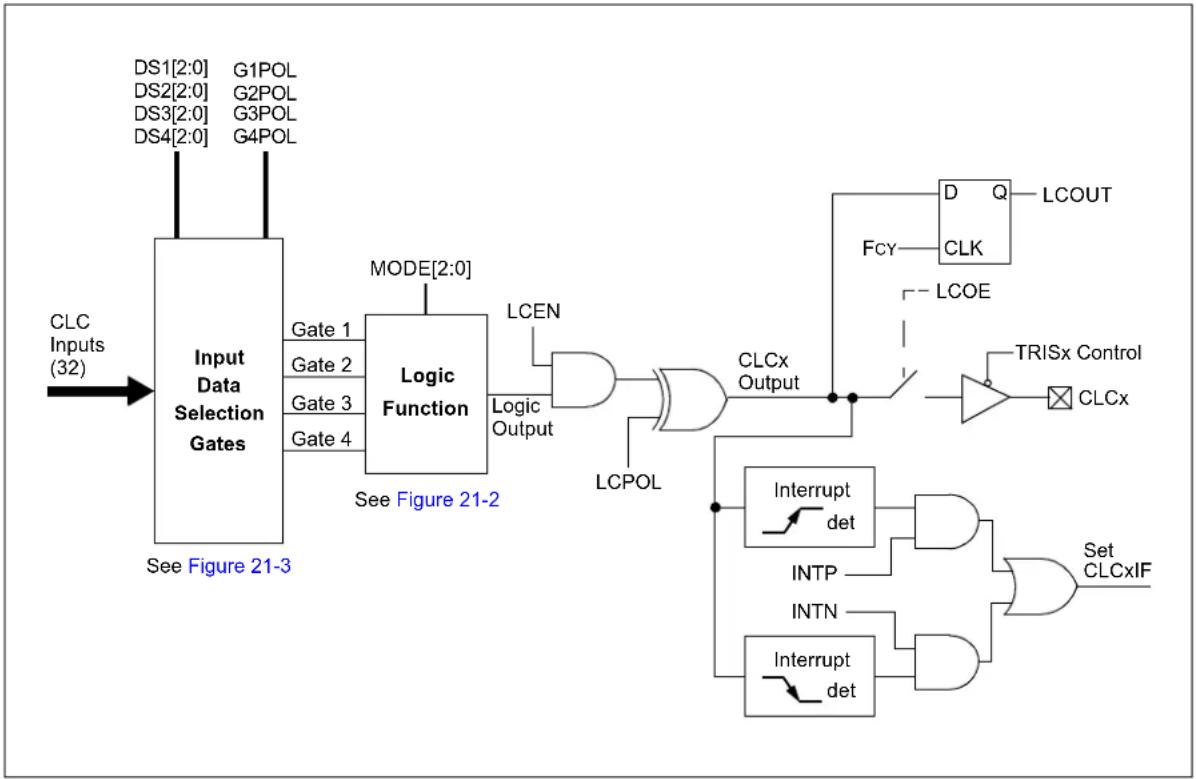

• Four Configurable Logic Cells (CLC) with Internal Connections to Select Peripherals and PPS
  • Four-Channel Hardware DMA
  • 32-Bit CRC Calculation module
  • Peripheral Trigger Generator (PTG):

• 16 possible trigger sources to other peripheral modules

• CPU-independent state machine-based instruction sequencer
• Two 16-bit general purpose timers

Analog Features

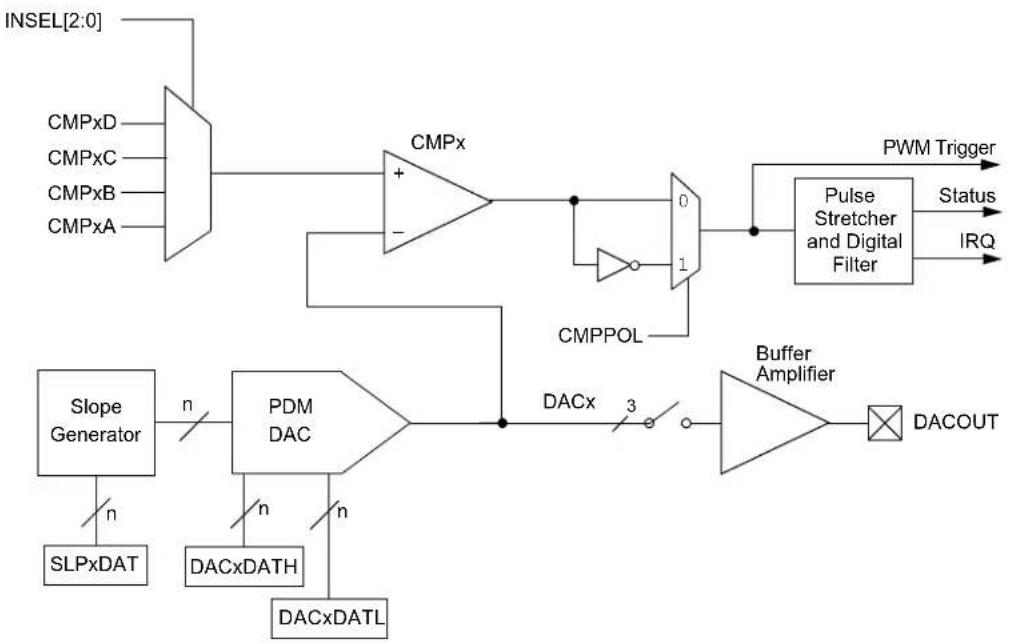

• One Fast Analog Comparator with Input Multiplexing
• Three Operational Amplifiers
• One 12-Bit PDM DAC with Slope Compensation
• One Output DAC Buffer

Debug Features

• Three Programming and Debugging Interfaces:
• Two-wire ICSP™ interface with non-intrusive access and real-time data exchange with application
• Three Complex, Five Simple Breakpoints
• IEEE Standard 1149.2 Compatible (JTAG) Boundary Scan

Safety Features

• Backup Fast RC Oscillator (BFRC)
• Brown-out Reset (BOR)
  • Capless Internal Voltage Regulator
• Clock Monitor System with Backup Oscillator
  • CodeGuard™ Security
  • Cyclic Redundancy Check (CRC)
  • Dual Watchdog Timer (WDT)
• Fail-Safe Clock Monitoring (FSCM)
• Flash Error Correcting Code (ECC)
• Flash OTP by ICSP™ Write Inhibit
  • RAM Memory Built-In Self-Test (MBIST)
• Two-Speed Start-up
  • Virtual Pins for Redundancy and Monitoring
  • Windowed Deadman Timer (DMT)

Functional Safety Collaterals

• Class B Safety Library – IEC 60730
- For ASIL B and Beyond Applications – ISO 26262
- FMEDA Computation Spreadsheet (evaluation of Random Hardware Failures Metric)
• Functional Safety Manual
• Functional Safety Diagnostics Suite

Qualification

• AEC-Q100 REV G (Grade 1: -40°C to +125°C)
• AEC-Q100 REV G (Grade 0: -40°C to +150°C)

dsPIC33CK64MC105 PRODUCT FAMILIES

The device names, pin counts, memory sizes and peripheral availability of each device are listed in Table 1. The following pages show their pinout diagrams.

TABLE 1: dsPIC33CK64MC105 FAMILY

Product	Pins	Program Memory	Data Memory	General Purpose I/O/PPS	High-Resolution PWM (Generators)	12-Bit ADC (External Channels)	Remappable Peripherals					Op Amplifiers	Comparators	12-Bit DACs	I^2C	QEI	SENT	32-Bit CRC	PTG	Current Bias Generator	DMA (Channels)	Packages
							Dedicated 16-Bit Timers(3)	UARTs	SCCP(1)	CLC	SPI/ I^2S
dsPIC33CK32MC102 28	32K	8K 21	16 4	1		(2)	1	3	4	4	2	2	1	1	1	1	1	1	1	1	4	S S O
dsPIC33CK32MC103 36	32K	8K 27	22 4	5		(2)	1	3	4	4	2	3	1	1	1	1	1	1	1	1	4	U Q
dsPIC33CK32MC105 48	32K	8K 39	34 4	5		(2)	1	3	4	4	2	3	1	1	1	1	1	1	1	1	4	U Q F
dsPIC33CK64MC102 28	64K	8K 21	16 4	1		(2)	1	3	4	4	2	2	1	1	1	1	1	1	1	1	4	S S O
dsPIC33CK64MC103 36	64K	8K 27	22 4	5		(2)	1	3	4	4	2	3	1	1	1	1	1	1	1	1	4	U Q
dsPIC33CK64MC105 48	64K	8K 39	34 4	5		(2)	1	3	4	4	2	3	1	1	1	1	1	1	1	1	4	U Q F

Note 1: SCCP can be configured as a PWM with one output, input capture, output compare, 2 x 16-bit timers or 1 x 32-bit timer.
2: Analog ADC inputs AN1 and AN7 share the same pin.
3: In addition to the dedicated 16-bit timer, the SCCP module contains eight more 16-bit timers and two more are available in the PTG module. A 32-bit timer is located in the QEI module and the SCCP module timers can also be configured as four 32-bit timers.

Pin Diagrams

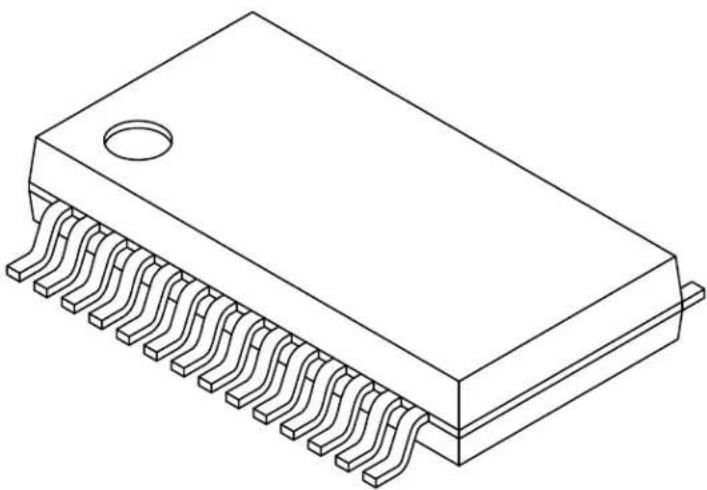

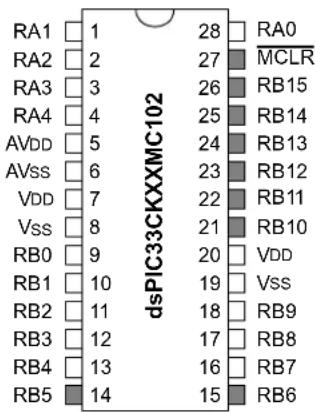

28-Pin SSOP

RA1 1 28 RA0 RA2 2 27 MCLR RA3 3 26 RB15 RA4 4 25 RB14 AVDD 5 24 RB13 AVss 6 23 RB12 VDD 7 22 RB11 Vss 8 21 RB10 RB0 9 20 VDD RB1 10 dsPIC33CKXXMC102 19 Vss RB2 11 18 RB9 RB3 12 17 RB8 RB4 13 16 RB7 RB5 14 15 RB6

Legend: Shaded pins are up to 5 VDC tolerant.

TABLE 2: 28-PIN SSOP COMPLETE PIN FUNCTION DESCRIPTIONS

Pin #	Function (1)	Pin #	Function (1)
1	OA1IN-/RA1 15 PGC3/RP38/RB6
2	OA1IN+/AN9/RA2	16	TDO/AN2/RP39/RB7
3	DACOUT/AN3/CMP1C/RA3 17 PGD1/AN10/RP40/SCL1/RB8
4	AN4/IBIAS3/RA4	18	PGC1/AN11/RP41/SDA1/RB9
5	AVDD	19	Vss
6	AVss	20	VDD
7	VDD	21	TMS/RP42/PWM3H/RB10(3)
8	Vss	22	TCK/RP43/PWM3L/RB11
9	OSCI/CLKI/AN5/RP32/RB0	23	TDI/RP44/PWM2H/RB12
10	OSCO/CLKO/AN6/RP33/RB1 (2,4)	24	RP45/PWM2L/RB13
11	OA2OUT/AN1/AN7/CMP1D/RP34/INT0/RB2	25	RP46/PWM1H/RB14
12	PGD2/OA2IN-/AN8/RP35/RB3	26	RP47/PWM1L/RB15
13	PGC2/OA2IN+/RP36/RB4	27	MCLR
14	PGD3/RP37/RB5	28	OA1OUT/AN0/CMP1A/IBIAS0/RA0

Note 1: RPn represents remappable peripheral functions.
2: Pin has an increased current drive strength. Refer to Section 31.0 "Electrical Characteristics" for details.
3: A pull-up resistor is connected to this pin during programming or when JTAG is enabled in the Configuration bits; this limits the maximum voltage on this pin to 3.6V. If JTAG is disabled, the maximum voltage on this pin can reach 5.5V.
4: This pin is toggled during programming.

Pin Diagrams (Continued)

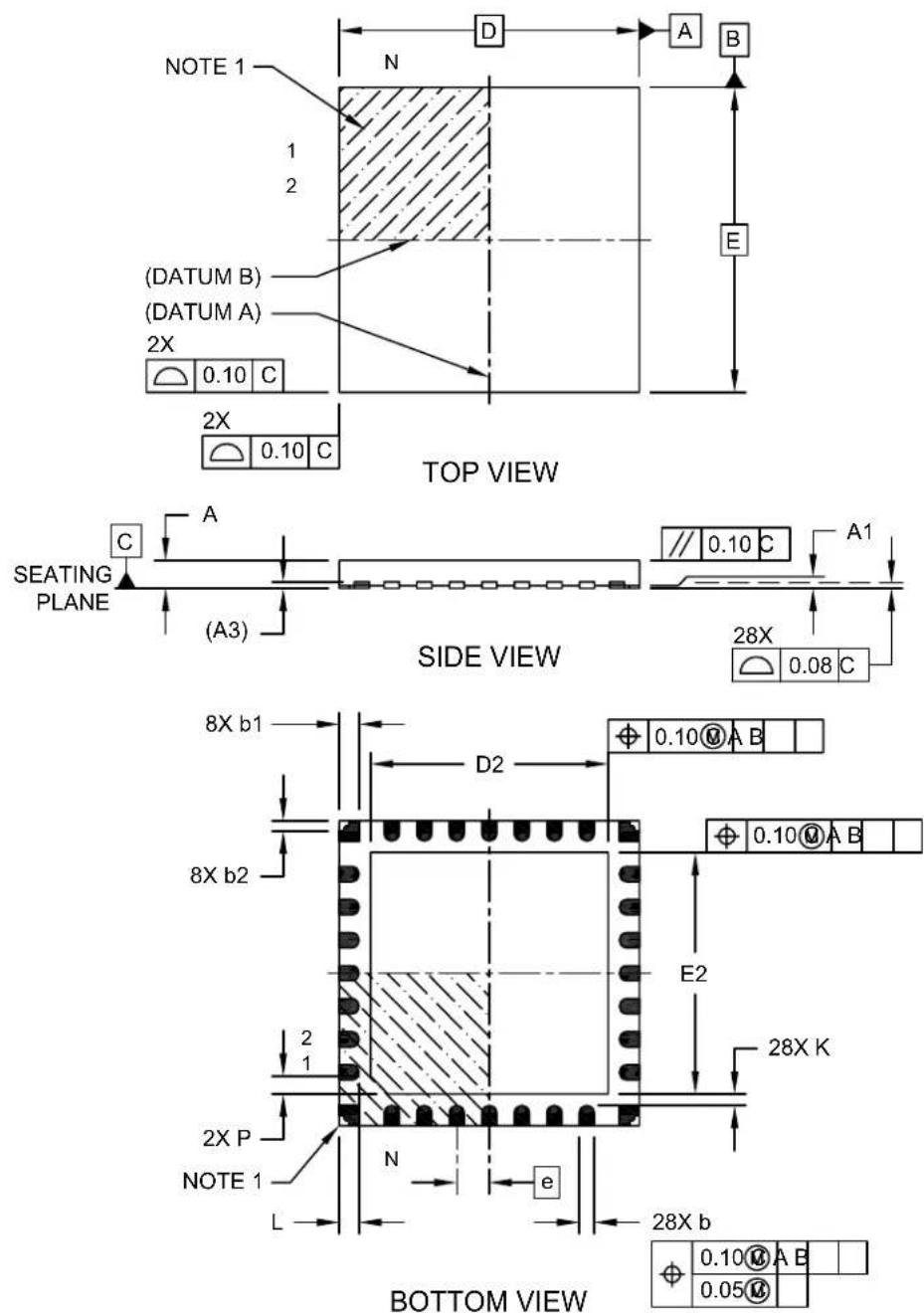

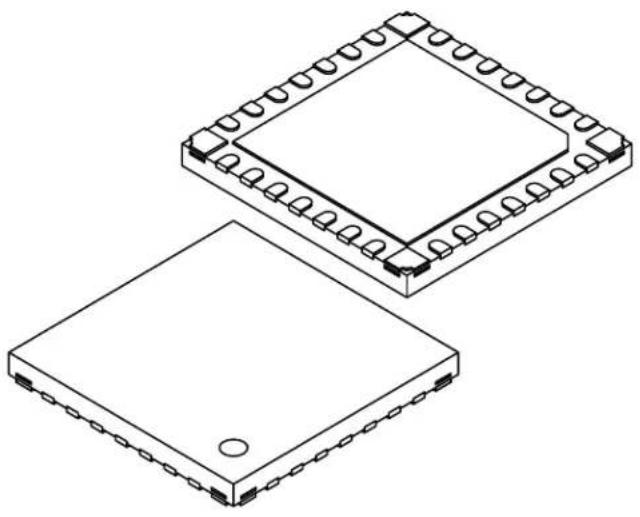

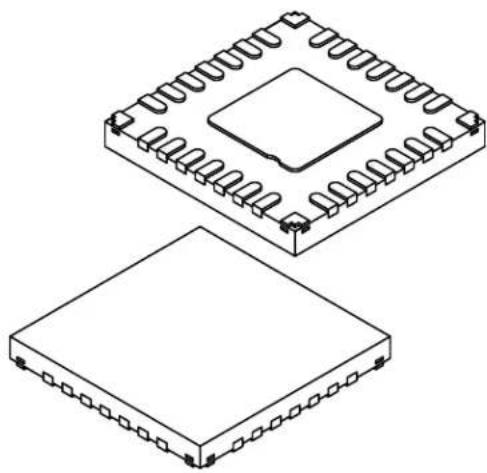

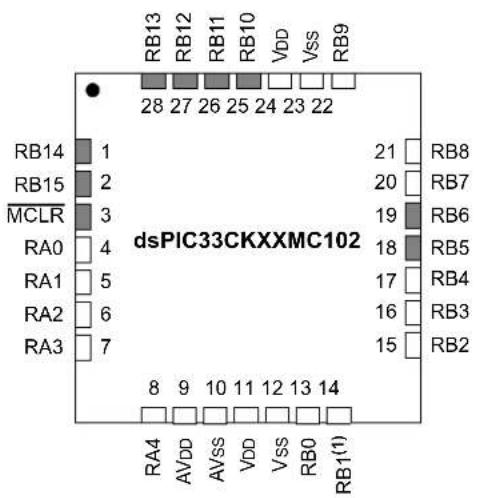

28-Pin UQFN ^(1)

Legend: Shaded pins are up to 5 VDC tolerant.
Note 1: The large center pad on the bottom of the package may be left floating or connected to Vss. The four-corner anchor pads are internally connected to the large bottom pad, and therefore, must be connected to the same net as the large center pad

TABLE 3: 28-PIN UQFN COMPLETE PIN FUNCTION DESCRIPTIONS

Pin #	Function (1)	Pin #	Function (1)
1	RP46/PWM1H/RB14	15	OA2OUT/AN1/AN7/CMP1D/RP34/INT0/RB2
2	RP47/PWM1L/RB15	16	PGD2/OA2IN-/AN8/RP35/RB3
3	MCLR	17	PGC2/OA2IN+/RP36/RB4
4	OA1OUT/AN0/CMP1A/IBIAS0/RA0	18	PGD3/RP37/RB5
5	OA1IN-/RA1	19	PGC3/RP38/RB6
6	OA1IN+/AN9/RA2	20	TDO/AN2/RP39/RB7
7	DACOUT/AN3/CMP1C/RA3	21	PGD1/AN10/RP40/SCL1/RB8
8	AN4/IBIAS3/RA4	22	PGC1/AN11/RP41/SDA1/RB9
9	AVDD	23	Vss
10	AVss	24	VDD
11	VDD	25	TMS/RP42/PWM3H/RB10(3)
12	Vss	26	TCK/RP43/PWM3L/RB11
13	OSCI/CLKI/AN5/RP32/RB0	27	TDI/RP44/PWM2H/RB12
14	OSCO/CLKO/AN6/RP33/RB1(2,4)	28	RP45/PWM2L/RB13

Note 1: RPn represents remappable peripheral functions.
2: Pin has an increased current drive strength. Refer to Section 31.0 "Electrical Characteristics" for details.
3: A pull-up resistor is connected to this pin during programming or when JTAG is enabled in the Configuration bits; this limits the maximum voltage on this pin to 3.6V. If JTAG is disabled, the maximum voltage on this pin can reach 5.5V.
4: This pin is toggled during programming.

Pin Diagrams (Continued)

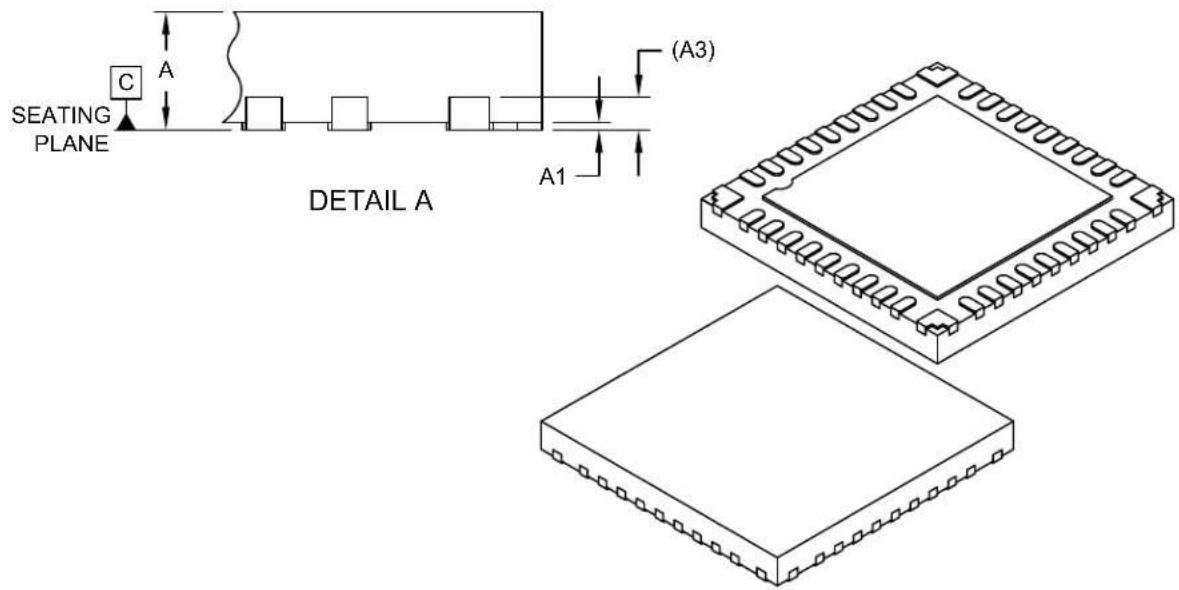

36-Pin UQFN ^(1)

Legend: Shaded pins are up to 5 VDC tolerant.
Note 1: The large center pad on the bottom of the package may be left floating or connected to Vss. The four-corner anchor pads are internally connected to the large bottom pad, and therefore, must be connected to the same net as the large center pad

TABLE 4: 36-PIN UQFN COMPLETE PIN FUNCTION DESCRIPTIONS

Pin #	Function (1)	Pin #	Function (1)
1	RP46/PWM1H/RB14	19	OA2OUT/AN1/AN7/CMP1D/RP34/INT0/RB2
2	RP47/PWM1L/RB15	20	PGD2/OA2IN-/AN8/RP35/RB3
3	MCLR	21	PGC2/OA2IN+/RP36/RB4
4	AN12/RP48/RC0	22	Vss
5	OA1OUT/AN0/CMP1A/IBIAS0/RA0	23	VDD
6	OA1IN-/RA1	24	PGD3/RP37/RB5
7	OA1IN+/AN9/RA2	25	PGC3/RP38/RB6
8	DACOUT/AN3/CMP1C/RA3	26	TDO/AN2/RP39/RB7
9	OA3OUT/AN4/IBIAS3/RA4	27	PGD1/AN10/RP40/SCL1/RB8
10 AV DD		28	PGC1/AN11/RP41/SDA1/RB9
11	AVss	29	RP52/RC4
12	OA3IN-/AN13/CMP1B/ISRC0/RP49/RC1	30	RP53/RC5
13 OA3IN+/AN14/ISRC1/RP50/RC2		31	Vss
14	VDD	32	VDD
15	Vss	33	TMS/RP42/PWM3H/RB10(3)
16	AN15/IBIAS2/RP51/RC3	34	TCK/RP43/PWM3L/RB11
17	OSCI/CLKI/AN5/RP32/RB0	35	TDI/RP44/PWM2H/RB12
18	OSCO/CLKO/AN6/RP33/RB1(2,4)	36	RP45/PWM2L/RB13

Note 1: RPN represents remappable peripheral functions.
2: Pin has an increased current drive strength. Refer to Section 31.0 "Electrical Characteristics" for details.
3: A pull-up resistor is connected to this pin during programming or when JTAG is enabled in the Configuration bits; this limits the maximum voltage on this pin to 3.6V. If JTAG is disabled, the maximum voltage on this pin can reach 5.5V.
4: This pin is toggled during programming.

Pin Diagrams (Continued)

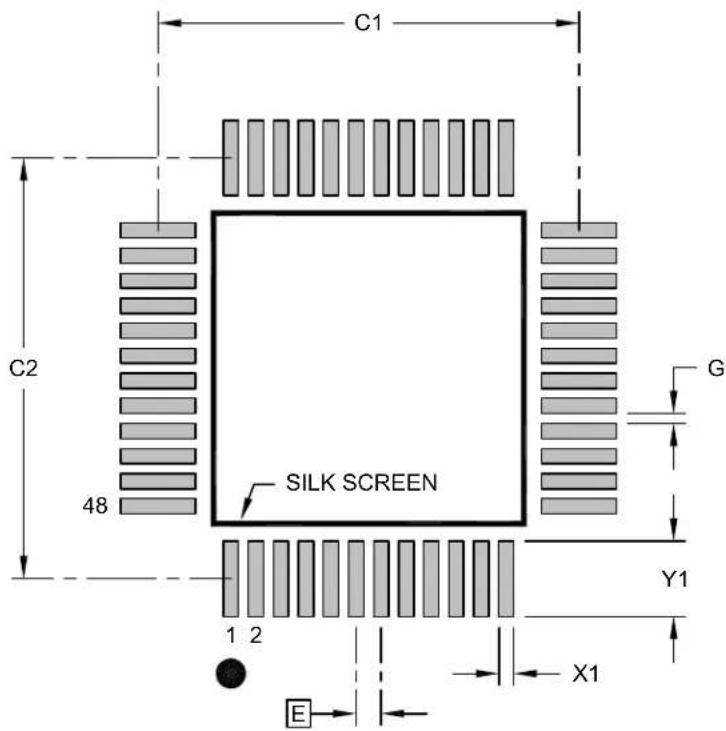

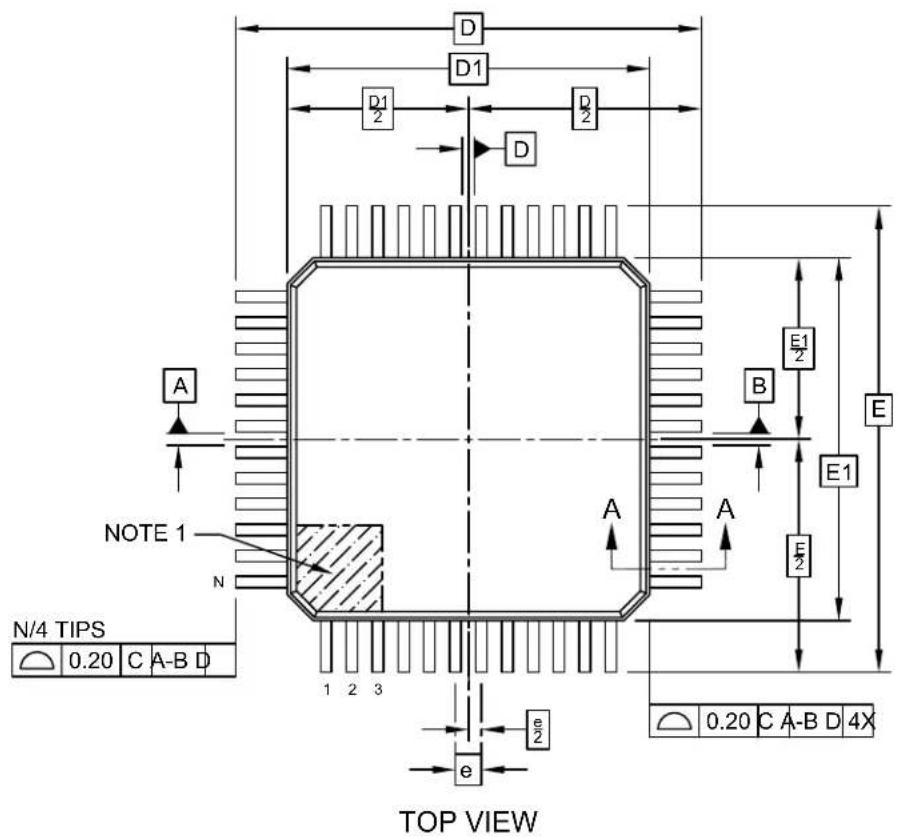

48-Pin TQFP, UQFN ^(1)

Legend: Shaded pins are up to 5 VDC tolerant.

Note 1: The large center pad on the bottom of the UQFN package may be left floating or connected to Vss. The four corner anchor pads are internally connected to the large bottom pad, and therefore, must be connected to the same net as the large center pad

TABLE 5: 48-PIN TQFP, UQFN COMPLETE PIN FUNCTION DESCRIPTIONS

Pin #	Function (1)	Pin #	Function (1)
1	RP46/PWM1H/RB14	25	OA2OUT/AN1/AN7/CMP1D/RP34/INT0/RB2
2	RP47/PWM1L/RB15 26 PGD2/OA2IN-/AN8/RP35/RB3
3	RP60/RC12	27	PGC2/OA2IN+/RP36/RB4
4	RP61/RC13	28	RP56/ASDA1/SCK2/RC8^(2)
5	MCLR	29	RP57/ASCL1/SDI2/RC9^(2)
6	ANN0/RP77/RD13	30	RP72/SDO2/PCI19/RD8^(2)
7	AN12/RP48/RC0	31	Vss
8	OA1OUT/AN0/CMP1A/IBIAS0/RA0	32	VDD
9	OA1IN-/RA1	33	PGD3/RP37/RB5
10	OA1IN+/AN9/RA2	34	PGC3/RP38/RB6
11	DACOUT/AN3/CMP1C/RA3	35	TDO/AN2/RP39/RB7
12	OA3OUT/AN4/IBIAS3/RA4	36	PGD1/AN10/RP40/SCL1/RB8
13	AVDD	37	PGC1/AN11/RP41/SDA1/RB9
14	AVss	38	RP52/RC4
15	OA3IN-/AN13/CMP1B/ISRC0/RP49/RC1	39	RP53/RC5
16	OA3IN+/AN14/ISRC1/RP50/RC2	40	RP58/RC10
17	IBIAS1/RP54/RC6	41	RP59/RC11
18	VDD	42	Vss
19	Vss	43	VDD
20	AN15/IBIAS2/RP51/RC3	44	RP65/PWM4H/RD1
21	OSCI/CLKI/AN5/RP32/RB0	45	TMS/RP42/PWM3H/RB10(3)
22	OSCO/CLKO/AN6/RP33/RB1(2,4)	46	TCK/RP43/PWM3L/RB11
23	ISRC3/RP74/RD10	47	TDI/RP44/PWM2H/RB12
24	ISRC2/RP55/RC7	48	RP45/PWM2L/RB13

Note 1: RPn represents remappable peripheral functions.
2: Pin has an increased current drive strength. Refer to Section 31.0 "Electrical Characteristics" for details.
3: A pull-up resistor is connected to this pin during programming or when JTAG is enabled in the Configuration bits; this limits the maximum voltage on this pin to 3.6V. If JTAG is disabled, the maximum voltage on this pin can reach 5.5V.
4: This pin is toggled during programming.

Table of Contents

1.0 Device Overview 13

2.0 Guidelines for Getting Started with 16-Bit Digital Signal Controllers.... 17

3.0 CPU 23

4.0 Memory Organization 35

5.0 Flash Program Memory 63

6.0 Resets 77

7.0 Interrupt Controller 81

8.0 I/O Ports 99

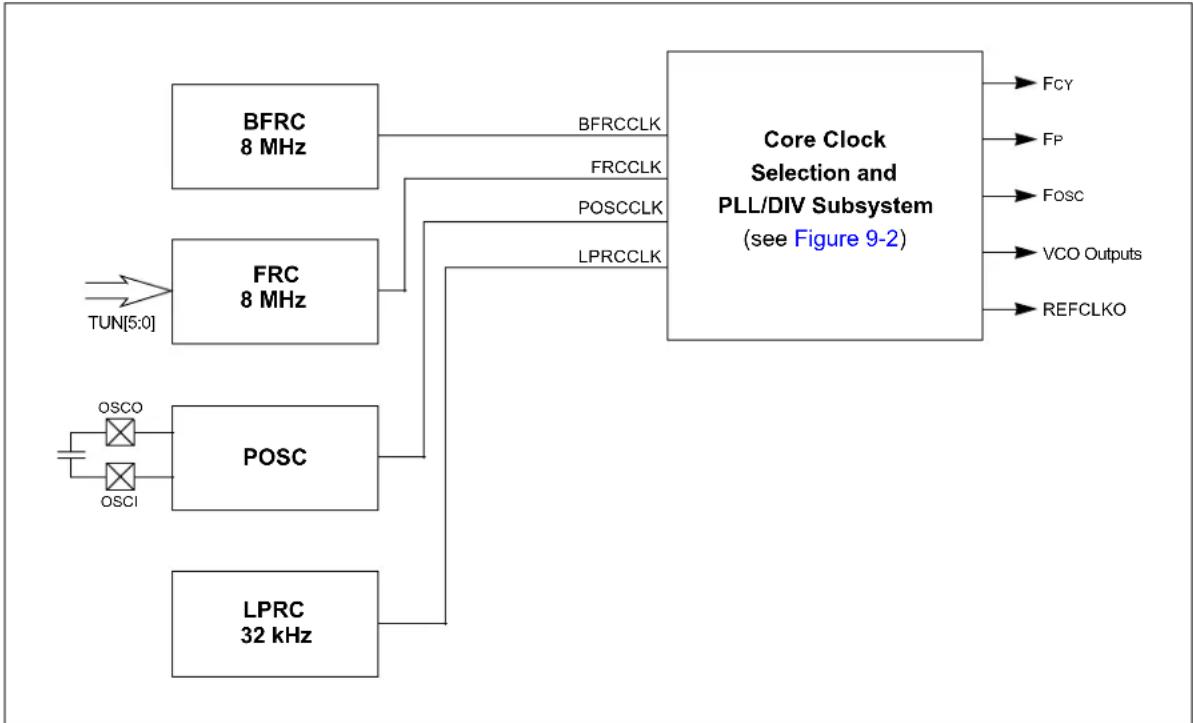

9.0 Oscillator with High-Frequency PLL 149

10.0 Direct Memory Access (DMA) Controller 167

11.0 High-Resolution PWM 177

12.0 High-Speed, 12-Bit Analog-to-Digital Converter (ADC).... 211

13.0 High-Speed Analog Comparator with Slope Compensation DAC 237

14.0 Quadrature Encoder Interface (QEI) 249

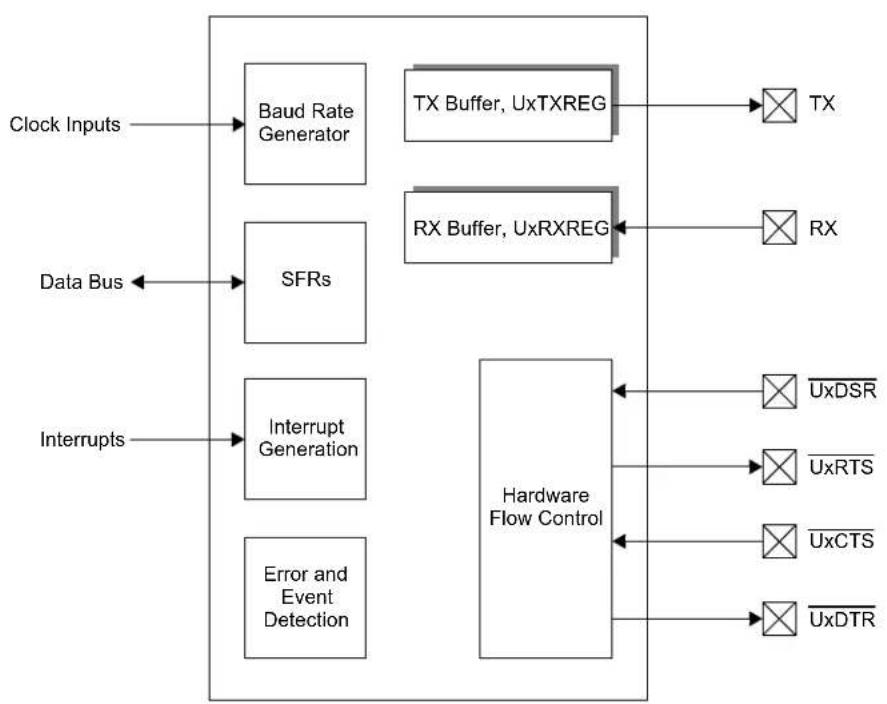

15.0 Universal Asynchronous Receiver Transmitter (UART) 269

16.0 Serial Peripheral Interface (SPI)....291

17.0 Inter-Integrated Circuit (I ^2 C)....309

18.0 Single-Edge Nibble Transmission (SENT) 319

19.0 Timer1 329

20.0 Capture/Compare/PWM/Timer Modules (SCCP) 333

21.0 Configurable Logic Cell (CLC) 349

22.0 Peripheral Trigger Generator (PTG) 361

23.0 Current Bias Generator (CBG) 377

24.0 Operational Amplifier 383

25.0 Deadman Timer (DMT) 387

26.0 32-Bit Programmable Cyclic Redundancy Check (CRC) Generator 395

27.0 Power-Saving Features....399

28.0 Special Features 411

29.0 Instruction Set Summary 437

30.0 Development Support.... 447

31.0 Electrical Characteristics 449

32.0 High-Temperature Electrical Characteristics 477

33.0 Packaging Information 485

Appendix A: Revision History 505

Index 507

The Microchip Website 515

Customer Change Notification Service 515

Customer Support 515

Product Identification System 517

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at [e-mail]. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Website at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

- Microchip's Worldwide Website; http://www.microchip.com

- Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using.

Customer Notification System

Register on our website at www.microchip.com to receive the most current information on all of our products.

Referenced Sources

This device data sheet is based on the following individual chapters of the "dsPIC33/PIC24 Family Reference Manual". These documents should be considered as the general reference for the operation of a particular module or device feature.

Note: To access the documents listed below, browse to the documentation section of the dsPIC33CK64MC105 product page of the Microchip website (www.microchip.com) or select a family reference manual section from the following list.

In addition to parameters, features and other documentation, the resulting page provides links to the related family reference manual sections.

• "Introduction" (www.microchip.com/DS70573)
• "Enhanced CPU" (www.microchip.com/DS70005158)
  • "Data Memory" (www.microchip.com/DS70595)
• “dsPIC33/PIC24 Program Memory” (www.microchip.com/DS70000613)
• “Flash Programming” (www.microchip.com/70000609)
• “Reset” (www.microchip.com/DS70602)
• “Interrupts” (www.microchip.com/DS70000600)
• "I/O Ports with Edge Detect" (www.microchip.com/DS70005322)
• “Oscillator Module with High-Speed PLL” (www.microchip.com/DS70005255)
• "Direct Memory Access Controller (DMA)" (www.microchip.com/DS30009742)
• “High-Resolution PWM with Fine Edge Placement” (www.microchip.com/DS70005320)
• “12-Bit High-Speed, Multiple SARs A/D Converter (ADC)” (www.microchip.com/DS70005213)
• “High-Speed Analog Comparator Module” (www.microchip.com/DS70005280)
• “Quadrature Encoder Interface (QEI)” (www.microchip.com/DS70000601)
• “Multiprotocol Universal Asynchronous Receiver Transmitter (UART) Module” (www.microchip.com/DS70005288)
• “Serial Peripheral Interface (SPI) with Audio Codec Support” (www.microchip.com/DS70005136)
• “Inter-Integrated Circuit (I ^2 C)” (www.microchip.com/DS70000195)
• "Single-Edge Nibble Transmission (SENT) Module" (www.microchip.com/DS70005145)
• “Timer1 Module” (www.microchip.com/DS70005279)
• “Capture/Compare/PWM/Timer (MCCP and SCCP)” (www.microchip.com/DS30003035)
• "Configurable Logic Cell (CLC)" (www.microchip.com/DS70005298)
• “Peripheral Trigger Generator (PTG)” (www.microchip.com/DS70000669)
• "Current Bias Generator (CBG)" (www.microchip.com/DS70005253)
• “Deadman Timer (DMT)” (www.microchip.com/DS70005155)
• “32-Bit Programmable Cyclic Redundancy Check (CRC)” (www.microchip.com/DS30009729)
• “Dual Watchdog Timer” (www.microchip.com/DS70005250)
• "Watchdog Timer and Power-Saving Modes" (www.microchip.com/DS70615)
• “Programming and Diagnostics” (www.microchip.com/DS70608)
• “CodeGuard™ Intermediate Security” (www.microchip.com/DS70005182)
• "Flash Programming" (www.microchip.com/DS70000609)

Terminology Cross Reference

Table 6 provides updated terminology for depreciated naming conventions. Register and bit names remain unchanged, however, descriptions and usage guidance may have been updated.

TABLE 6: TERMINOLOGY CROSS REFERENCES

Use Case	Depreciated Term	New Term
CPU Master Initiator
DMA Master Initiator
I^2C Master Host
	Slave Client
SPI Master Host
	Slave Client
UART, LIN Mode Master Commander
PWM Master Host

1.0 DEVICE OVERVIEW

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive resource. To complement the information in this data sheet, refer to the related section of the "dsPIC33/PIC24 Family Reference Manual", which is available from the Microchip website (www.microchip.com).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

This document contains device-specific information for the dsPIC33CK64MC105 Digital Signal Controller (DSC) and Microcontroller (MCU) devices.

dsPIC33CK64MC105 devices contain extensive Digital Signal Processor (DSP) functionality with a high-performance, 16-bit MCU architecture.

Figure 1-1 shows a general block diagram of the core and peripheral modules of the dsPIC33CK64MC105 family. Table 1-1 lists the functions of the various pins shown in the pinout diagrams.

FIGURE 1-1: dsPIC33CK64MC105 FAMILY BLOCK DIAGRAM (1)

Note 1: The numbers in the parentheses are the number of instantiations of the module indicated.
2: Not all I/O pins or features are implemented on all device pinout configurations.
3: Some peripheral I/Os are only accessible through Peripheral Pin Select (PPS).
4: 28-lead devices have only two op amp instances.

TABLE 1-1: PINOUT I/O DESCRIPTIONS

Pin Name(1)	Pin Type	Buffer Type	PPS	Description
AN0-AN15 I Analog No Analog input channels.
ANN0 I Analog No Analog negative input.
CLKI	I	ST	No	External Clock (EC) source input. Always associated with OSCI pin function.
CLKO	O	—	No	In Configuration bits, it can be set to output the CPU clock. Always associated with OSCO pin function.
OSCI	I	CMOS	No	Oscillator crystal input. Connects to crystal or resonator in Crystal Oscillator mode.
OSCO	I/O	—	No	Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode.
REFCLKI	I	ST	Yes	Reference clock input.
REFCLKO	O	—	Yes	Reference clock output.
INT0	I	ST	No	External Interrupt 0.
INT1	I	ST	Yes	External Interrupt 1.
INT2	I	ST	Yes	External Interrupt 2.
INT3	I	ST	Yes	External Interrupt 3.
IOCA[4:0]	I	ST	No	Interrupt-on-Change input for PORTA.
IOCB[15:0]	I	ST	No	Interrupt-on-Change input for PORTB.
IOCC[13:0]	I	ST	No	Interrupt-on-Change input for PORTC.
IOCD1, IOCD8, IOCD10	I	ST	No	Interrupt-on-Change input for PORTD.
IOCD13
QEIAx	I	ST	Yes	QElx Input A.
QEIBx	I	ST	Yes	QElx Input B.
QEINDXx	I	ST	Yes	QElx Index input.
QEIHOMx	I	ST	Yes	QElx Home input.
QEICMPx	O	—	Yes	QElx comparator output.
RP32-RP61, RP65, RP72, RP77	I/O	ST	Yes	Remappable I/O ports.
RA0-RA4 I/O ST No PORTA is a bidirectional I/O port.
RB0-RB15	I/O	ST	No	PORTB is a bidirectional I/O port.
RC0-RC13	I/O	ST	No	PORTC is a bidirectional I/O port.
RD1, RD8, RD10, RD13	I/O	ST	No	PORTD is a bidirectional I/O port.
T1CK	I	ST	Yes	Timer1 external clock input.
U1CTS	I	ST	Yes	UART1 Clear-to-Send.
U1RTS	O	—	Yes	UART1 Request-to-Send.
U1RX	I	ST	Yes	UART1 receive.
U1TX	O	—	Yes	UART1 transmit.
U1DSR	I	ST	Yes	UART1 Data-Set-Ready.
U1DTR	O	—	Yes	UART1 Data-Terminal-Ready.
U2CTS	I	ST	Yes	UART2 Clear-to-Send.
U2RTS	O	—	Yes	UART2 Request-to-Send.
U2RX	I	ST	Yes	UART2 receive.
U2TX	O	—	Yes	UART2 transmit.
U2DSR	I	ST	Yes	UART2 Data-Set-Ready.
U2DTR	O	—	Yes	UART2 Data-Terminal-Ready.

Legend: CMOS = CMOS compatible input or output ST = Schmitt Trigger input with CMOS levels PPS = Peripheral Pin Select

Analog = Analog input O = Output

P = Power I = Input
Note 1: Not all pins are available in all package variants. See the "Pin Diagrams" section for pin availability.
2: PWM4L and PWM4H pins are available on PPS.
3: SPI2 supports dedicated pins as well as PPS on 48-pin devices.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name(1)	Pin Type	Buffer Type	PPS	Description
U3CTS	I	ST	Yes	UART3 Clear-to-Send.
U3RTS	O	—	Yes	UART3 Request-to-Send.
U3RX	I	ST	Yes	UART3 receive.
U3TX	O	—	Yes	UART3 transmit.
U3DSR	I	ST	Yes	UART3 Data-Set-Ready.
U3DTR	O	—	Yes	UART3 Data-Terminal-Ready.
SENT1	I	ST	Yes	SENT1 input.
SENT1OUT	O	—	Yes	SENT1 output.
PTGTRG24	O	—	Yes	PTG Trigger Output 24.
PTGTRG25	O	—	Yes	PTG Trigger Output 25.
TCKI1-TCKI4	I	ST	Yes	SCCP timer inputs.
ICM1-ICM4	I	ST	Yes	SCCP capture inputs.
OCFA-OCFB	I	ST	Yes	SCCP Fault inputs.
OCM1x-OCM4x	O	—	Yes	SCCP compare outputs.
SCK1	I/O	ST	Yes	Synchronous serial clock input/output for SPI1.
SDI1	I	ST	Yes	SPI1 data in.
SDO1	O	—	Yes	SPI1 data out.
SS1	I/O	ST	Yes	SPI1 Client synchronization or frame pulse I/O.
SCK2	I/O	ST	Yes(3)	Synchronous serial clock input/output for SPI2.
SDI2	I	ST	Yes(3)	SPI2 data in.
SDO2	O	—	Yes(3)	SPI2 data out.
SS2	I/O	ST	Yes(3)	SPI2 Client synchronization or frame pulse I/O.
SCL1	I/O	ST	No	Synchronous serial clock input/output for I2C1.
SDA1	I/O	ST	No	Synchronous serial data input/output for I2C1.
ASCL1	I/O	ST	No	Alternate synchronous serial clock input/output for I2C1.
ASDA1	I/O	ST	No	Alternate synchronous serial data input/output for I2C1.
TMS	I	ST	No	JTAG Test mode select pin.
TCK	I	ST	No	JTAG test clock input pin.
TDI	I	ST	No	JTAG test data input pin.
TDO	O	—	No	JTAG test data output pin.
PCI8-PCI18	I	ST	Yes	PWM Inputs 8 through 18.
PCI19	I	ST	No	PWM Input 19.
PWMEA-PWMED	O	—	Yes	PWM Event Outputs A through D.
PWM1L-PWM4L(2)	O	—	No	PWM Low Outputs 1 through 4.
PWM1H-PWM4H(2)	O	—	No	PWM High Outputs 1 through 4.
CLCINA-CLCIND	I	ST	Yes	CLC Inputs A through D.
CLCxOUT	O	—	Yes	CLCx output.
CMP1A	I	Analog	No	Comparator Channel 1A.
CMP1B	I	Analog	No	Comparator Channel 1B.
CMP1C	I	Analog	No	Comparator Channel 1C.
CMP1D	I	Analog	No	Comparator Channel 1D.

Legend: CMOS = CMOS compatible input or output Analog = Analog input P = Power
ST = Schmitt Trigger input with CMOS levels O = Output I = Input
PPS = Peripheral Pin Select

Note 1: Not all pins are available in all package variants. See the "Pin Diagrams" section for pin availability.

2: PWM4L and PWM4H pins are available on PPS.

3: SPI2 supports dedicated pins as well as PPS on 48-pin devices.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name(1)	Pin Type	Buffer Type	PPS	Description
DACOUT O — No DAC output voltage.
IBIAS0-IBIAS3ISRC0-ISRC3	OO	AnalogAnalog	NoNo	50 μA Constant-Current Outputs 0 through 3.10 μA Constant-Current Outputs 0 through 3.
OA1IN+OA1IN-OA1OUTOA2IN+OA2IN-OA2OUTOA3IN+OA3IN-OA3OUT	I|I|O|I|O|I	——————	NoNoNoNoNoNoNoNoNoNoNo	Op Amp 1+ input.Op Amp 1- input.Op Amp 1 output.Op Amp 2+ input.Op Amp 2- input.Op Amp 2 output.Op Amp 3+ input.Op Amp 3- input.Op Amp 3 output.
ADTRG31 I ST No External ADC trigger source.
PGD1PGC1	I/O|	STST	NoNo	Data I/O pin for Programming/Debugging Communication Channel 1.Clock input pin for Programming/Debugging Communication Channel 1.
PGD2PGC2	I/O|	STST	NoNo	Data I/O pin for Programming/Debugging Communication Channel 2.Clock input pin for Programming/Debugging Communication Channel 2.
PGD3PGC3	I/O|	STST	NoNo	Data I/O pin for Programming/Debugging Communication Channel 3.Clock input pin for Programming/Debugging Communication Channel 3.
MCLR	I/P ST No Master Clear (Reset) input. This pin is an active-low Reset to the device.
AVDD	P	P	No	Positive supply for analog modules. This pin must be connected at all times.
AVss	P	P	No	Ground reference for analog modules. This pin must be connected at all times.
VDD	P	P	No	Positive supply for peripheral logic and I/O pins.
Vss	P	P	No	Ground reference for logic and I/O pins.

Legend: CMOS = CMOS compatible input or output Analog = Analog input P = Power ST = Schmitt Trigger input with CMOS levels O = Output I = Input PPS = Peripheral Pin Select
Note 1: Not all pins are available in all package variants. See the "Pin Diagrams" section for pin availability.
2: PWM4L and PWM4H pins are available on PPS.
3: SPI2 supports dedicated pins as well as PPS on 48-pin devices.

2.0 GUIDELINES FOR GETTING STARTED WITH 16-BIT DIGITAL SIGNAL CONTROLLERS

2.1 Basic Connection Requirements

Getting started with the dsPIC33CK64MC105 family devices requires attention to a minimal set of device pin connections before proceeding with development. The following is a list of pin names which must always be connected:

• A I and Vss pins (see Section 2.2 "Decoupling Capacitors")
• A I I DA and AVss pins regardless if ADC module is not used (see Section 2.2 "Decoupling Capacitors")
• MCLR pin (see Section 2.3 "Master Clear (MCLR) Pin")
• PGCx/PGDx pins used for In-Circuit Serial Programming™ (ICSP™) and debugging purposes (see Section 2.4 "ICSP Pins")
• OSCI and OSCO pins when an external oscillator source is used (see Section 2.5 "External Oscillator Pins")

2.2 Decoupling Capacitors

The use of decoupling capacitors on every pair of power supply pins, such as VDD, Vss, AVDD and AVss is required.

Consider the following criteria when using decoupling capacitors:

- Value and type of capacitor: Recommendation of 0.1 F (100 nF), 10-20V. This capacitor should be a low-ESR and have resonance frequency in the range of 20 MHz and higher. It is recommended to use ceramic capacitors.

- Placement on the Printed Circuit Board: The decoupling capacitors should be placed as close to the pins as possible. It is recommended to place the capacitors on the same side of the board as the device. If space is constricted, the capacitor can be placed on another layer on the PCB using a via; however, ensure that the trace length from the pin to the capacitor is within one-quarter inch (6 mm) in length.

- Handling high-frequency noise: If the board is experiencing high-frequency noise, above tens of MHz, add a second ceramic-type capacitor in parallel to the above described decoupling capacitor. The value of the second capacitor can be in the range of 0.01 F to 0.001 F . Place this second capacitor next to the primary decoupling capacitor. In high-speed circuit designs, consider implementing a decade pair of capacitances as close to the power and ground pins as possible. For example, 0.1 F in parallel with 0.001 F .

- Maximizing performance: On the board layout from the power supply circuit, run the power and return traces to the decoupling capacitors first, and then to the device pins. This ensures that the decoupling capacitors are first in the power chain. Equally important is to keep the trace length between the capacitor and the power pins to a minimum, thereby reducing PCB track inductance.

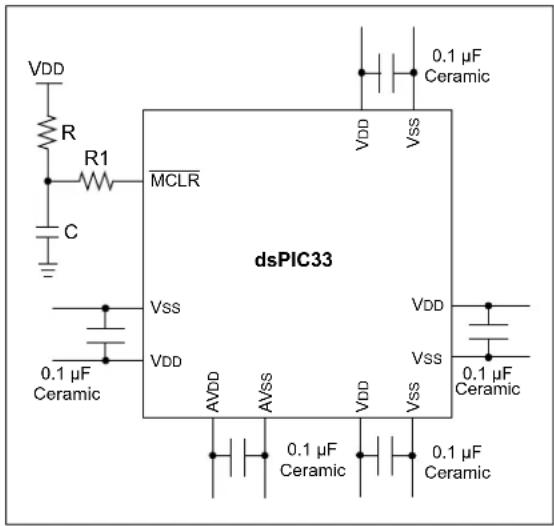

FIGURE 2-1: RECOMMENDED MINIMUM CONNECTION

VDD R R1 C MCLR dsPIC33 0.1 μF Ceramic VSS VDD AVDD AVSS 0.1 μF Ceramic VDD VSS 0.1 μF Ceramic 0.1 μF Ceramic

2.2.1 BULK CAPACITORS

On boards with power traces running longer than six inches in length, it is suggested to use a bulk capacitor for integrated circuits, including DSCs, to supply a local power source. The value of the bulk capacitor should be determined based on the trace resistance that connects the power supply source to the device and the maximum current drawn by the device in the application. In other words, select the bulk capacitor so that it meets the acceptable voltage sag at the device. Typical values range from 4.7 F to 47 F.

2.3 Master Clear (MCLR) Pin

The MCLR pin provides two specific device functions:

• Device Reset
  • Device Programming and Debugging.

During device programming and debugging, the resistance and capacitance that can be added to the pin must be considered. Device programmers and debuggers drive the MCLR pin. Consequently, specific voltage levels (VH and VIL) and fast signal transitions must not be adversely affected. Therefore, specific values of R and C will need to be adjusted based on the application and PCB requirements.

For example, as shown in Figure 2-2, it is recommended that the capacitor, C, be isolated from the MCLR pin during programming and debugging operations.

Place the components, as shown in Figure 2-2, within one-quarter inch (6 mm) from the MCLR pin.

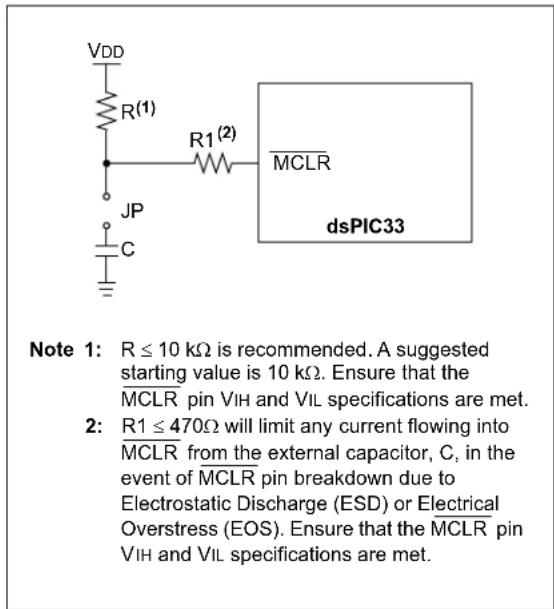

FIGURE 2-2: EXAMPLE OF MCLR PIN CONNECTIONS

VDD R(1) R1(2) MCLR JP C dsPIC33 Note 1: R ≤ 10 kΩ is recommended. A suggested starting value is 10 kΩ. Ensure that the MCLR pin VIH and VIL specifications are met. 2: R1 ≤ 470Ω will limit any current flowing into MCLR from the external capacitor, C, in the event of MCLR pin breakdown due to Electrostatic Discharge (ESD) or Electrical Overstress (EOS). Ensure that the MCLR pin VIH and VIL specifications are met.

2.4 ICSP Pins

The PGCx and PGDx pins are used for ICSP and debugging purposes. It is recommended to keep the trace length between the ICSP connector and the ICSP pins on the device as short as possible. If the ICSP connector is expected to experience an ESD event, a series resistor is recommended, with the value in the range of a few tens of Ohms, not to exceed 100 Ohms.

Pull-up resistors, series diodes and capacitors on the PGCx and PGDx pins are not recommended as they will interfere with the programmer/debugger communications to the device. If such discrete components are an application requirement, they should be removed from the circuit during programming and debugging. Alternatively, refer to the AC/DC characteristics and timing requirements information in the respective device Flash programming specification for information on capacitive loading limits and pin Voltage Input High (VIH) and Voltage Input Low (VIL) requirements.

Ensure that the "Communication Channel Select" (i.e., PGCx/PGDx pins) programmed into the device matches the physical connections for the ICSP to MPLAB® debugger tool.

For more information on the MPLAB programmer/debugger connection requirements, refer to the Microchip website.

2.5 External Oscillator Pins

When the Primary Oscillator (POSC) circuit is used to connect a crystal oscillator, special care and consideration is required to ensure proper operation. The POSC circuit should be tested across the environmental conditions that the end product is intended to be used. The load capacitors specified in the crystal oscillator data sheet can be used as a starting point, however, the parasitic capacitance from the PCB traces can affect the circuit and the values may need to be altered to ensure proper start-up and operation.

Excessive trace length and other physical interaction can lead to poor signal quality. Poorly tuned oscillator circuits can have reduced amplitude, incorrect frequency (runt pulses), distorted waveforms and long start-up times that may result in unpredictable application behavior, such as instruction misexecution, illegal op code fetch, etc. Ensure that the crystal oscillator circuit is at full amplitude and correct frequency before the system begins to execute code. In planning the application's routing and I/O assignments, ensure that adjacent port pins, and other signals in close proximity to the oscillator do not have high frequencies, short rise and fall times and other similar noise. For further information on the Primary Oscillator see Section 9.4 "Internal Fast RC (FRC) Oscillator".

2.6 External Oscillator Layout Guidance

Use best practices during PCB layout to ensure robust start-up and operation. The oscillator circuit should be placed on the same side of the board as the device. Also, place the oscillator circuit close to the respective oscillator pins, not exceeding one-half inch (12 mm) distance between them. The load capacitors should be placed next to the oscillator itself, on the same side of the board. Use a grounded copper pour around the oscillator circuit to isolate from surrounding circuits. The grounded copper pour should be routed directly to the MCU ground. Do not run any signal traces or power traces inside the ground pour. If using a two-sided board, avoid any traces on the other side of the board where the crystal is placed. A suggested layout is shown in Figure 2-3.

For additional information and design guidance on oscillator circuits, please refer to these Microchip Application Notes, available at the Microchip website (www.microchip.com):

• AN943, "Practical PICmicro® Oscillator Analysis and Design"
  • AN949, "Making Your Oscillator Work"
  • AN1798, "Crystal Selection for Low-Power Secondary Oscillator

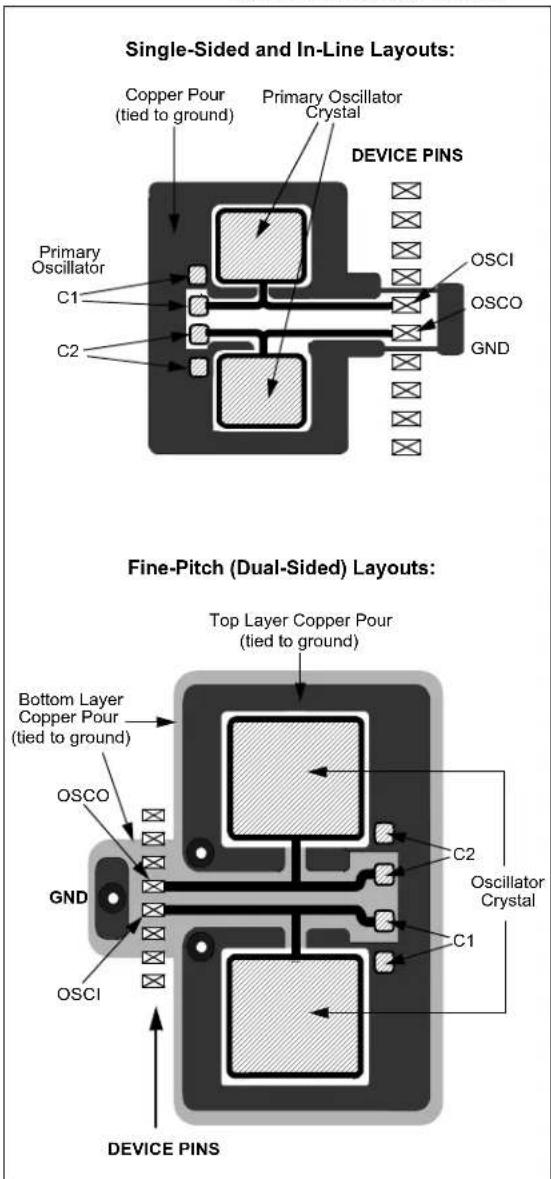

FIGURE 2-3: SUGGESTED PLACEMENT OF THE OSCILLATOR CIRCUIT

Single-Sided and In-Line Layouts: Copper Pour (tied to ground) Primary Oscillator Crystal DEVICE PINS Primary Oscillator C1 C2 OSCI OSCO GND Fine-Pitch (Dual-Sided) Layouts: Top Layer Copper Pour (tied to ground) Bottom Layer Copper Pour (tied to ground) OSCO C2 Oscillator Crystal GND C1 OSCI DEVICE PINS

2.7 Oscillator Value Conditions on Device Start-up

If the PLL of the target device is enabled and configured for the device start-up oscillator, the maximum oscillator source frequency must be limited to a certain frequency (see Section 9.0 "Oscillator with High-Frequency PLL") to comply with device PLL start-up conditions. This means that if the external oscillator frequency is outside this range, the application must start up in the FRC mode first. The default PLL settings after a POR with an oscillator frequency outside this range will violate the device operating speed.

Once the device powers up, the application firmware can initialize the PLL SFRs, CLKDIV and PLLFBD, to a suitable value, and then perform a clock switch to the Oscillator + PLL clock source. Note that clock switching must be enabled in the device Configuration Word.

2.8 Unused I/Os

Unused I/O pins should be configured as outputs and driven to a Logic Low state.

Alternatively, connect a 1k to 10k resistor between Vss and unused pins, and drive the output to logic low.

2.9 Targeted Applications

• Power Factor Correction (PFC):

• Interleaved PFC
• Critical Conduction PFC
• Bridgeless PFC

- DC/DC Converters:

• Buck, Boost, Forward, Flyback, Push-Pull
• Half/Full-Bridge
• Phase-Shift Full-Bridge
• Resonant Converters

- DC/AC:

• Half/Full-Bridge Inverter
• Resonant Inverter

- Motor Control

• B L D C
• P M S M
• SR
• A C I M

Examples of typical applications are shown in Figure 2-4 through Figure 2-6.

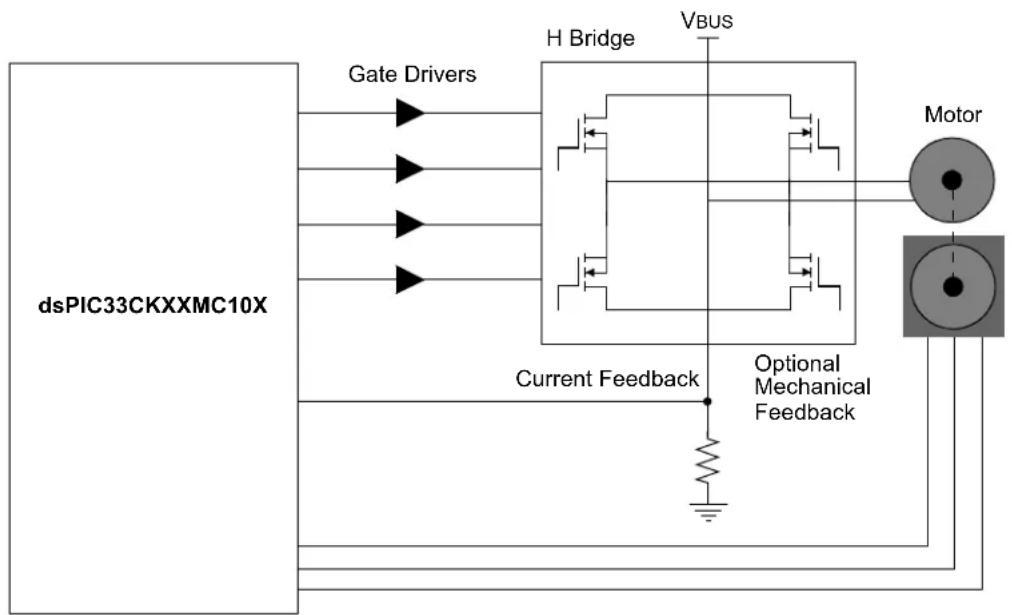

FIGURE 2-4: BRUSHED DC MOTOR


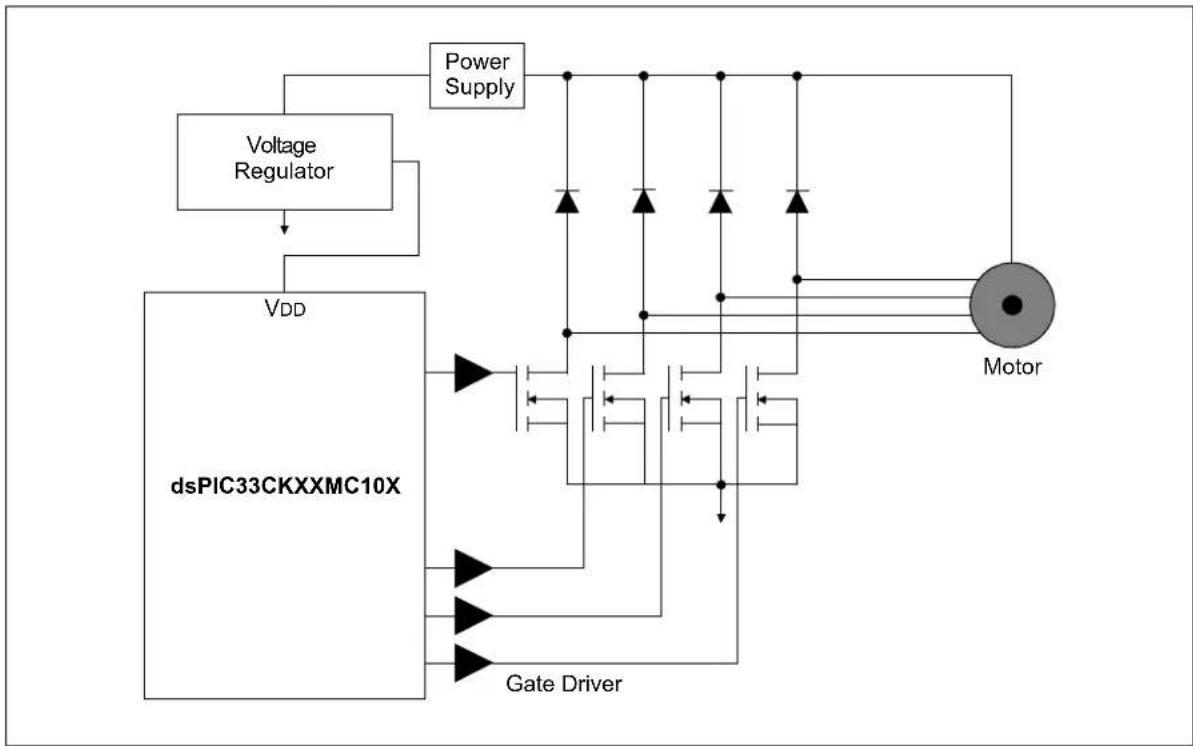

FIGURE 2-5: STEPPER MOTOR


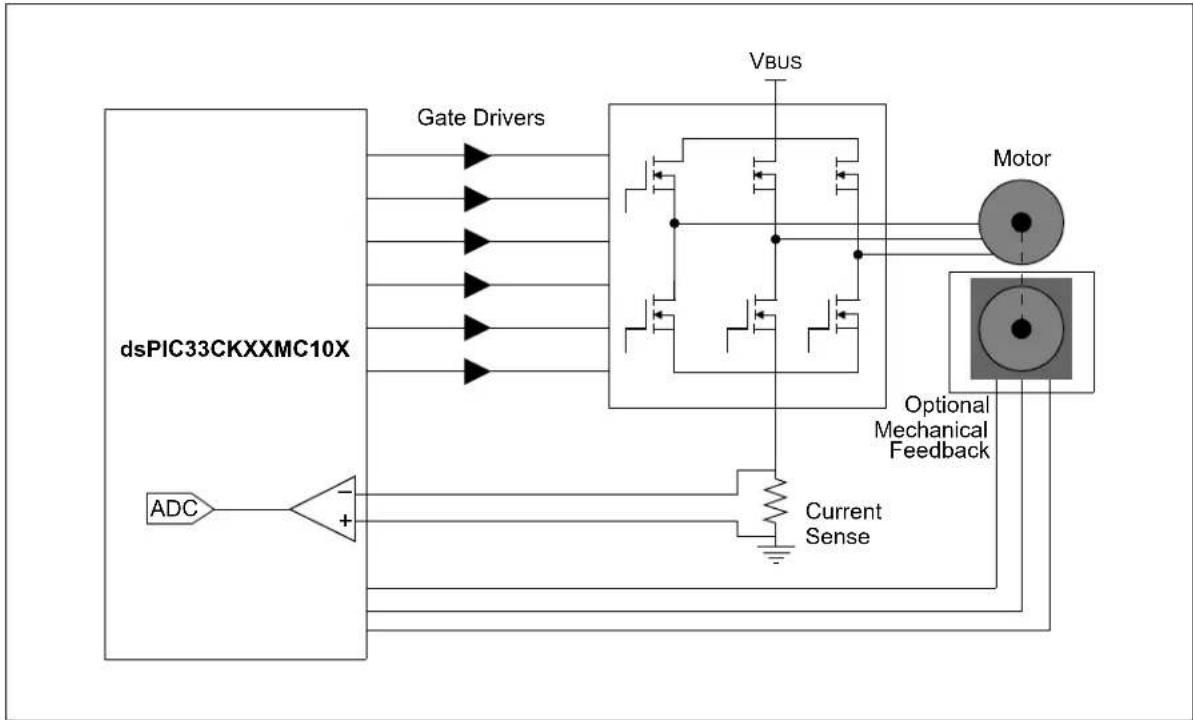

FIGURE 2-6: BLDC MOTOR

3.0 CPU

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Enhanced CPU” (www.microchip.com/DS70005158) in the “dsPIC33/PIC24 Family Reference Manual”.

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The dsPIC33CK64MC105 family CPU has a 16-bit (data) modified Harvard architecture with an enhanced instruction set, including significant support for Digital Signal Processing (DSP). The CPU has a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23 bits wide and addresses up to 4M x 24 bits of user program memory space.

An instruction prefetch mechanism helps maintain throughput and provides predictable execution. Most instructions execute in a single-cycle effective execution rate, with the exception of instructions that change the program flow, the double-word move (MOV.D) instruction, PSV accesses and the table instructions. Overhead-free program loop constructs are supported using the DO and REPEAT instructions, both of which are interruptible at any point.

3.1 Registers

The dsPIC33CK64MC105 devices have sixteen, 16-bit Working registers in the programmer's model. Each of the Working registers can act as a Data, Address or Address Offset register. The 16th Working register (W15) operates as a Software Stack Pointer (SSP) for interrupts and calls.

In addition, the dsPIC33CK64MC105 devices include four Alternate Working register sets, which consist of W0 through W14. The Alternate Working registers can be made persistent to help reduce the saving and restoring of register content during Interrupt Service Routines (ISRs). The Alternate Working registers can be assigned to a specific Interrupt Priority Level (IPL1 through IPL6) by configuring the CTXTx[2:0] bits in the FALTREG Configuration register. The Alternate Working registers can also be accessed manually by using the CTXTSWP instruction. The CCTXI[2:0] and MCTXI[2:0] bits in the CTXTSTAT register can be used to identify the current, and most recent, manually selected Working register sets.

3.2 Instruction Set

The instruction set for dsPIC33CK64MC105 devices has two classes of instructions: the MCU class of instructions and the DSP class of instructions. These two instruction classes are seamlessly integrated into the architecture and execute from a single execution unit. The instruction set includes many addressing modes and was designed for optimum C compiler efficiency.

3.3 Data Space Addressing

The base Data Space can be addressed as up to 4K words or 8 Kbytes, and is split into two blocks, referred to as X and Y data memory. Each memory block has its own independent Address Generation Unit (AGU). The MCU class of instructions operates solely through the X memory AGU, which accesses the entire memory map as one linear Data Space. Certain DSP instructions operate through the X and Y AGUs to support dual operand reads, which splits the data address space into two parts. The X and Y Data Space boundary is device-specific.

The upper 32 Kbytes of the Data Space memory map can optionally be mapped into Program Space (PS) at any 16K program word boundary. The program-to-Data Space mapping feature, known as Program Space Visibility (PSV), lets any instruction access Program Space as if it were Data Space. Refer to "Data Memory" (www.microchip.com/DS70595) in the "dsPIC33/PIC24 Family Reference Manual" for more details on PSV and table accesses.

On dsPIC33CK64MC105 family devices, overhead-free circular buffers (Modulo Addressing) are supported in both X and Y address spaces. The Modulo Addressing removes the software boundary checking overhead for DSP algorithms. The X AGU Circular Addressing can be used with any of the MCU class of instructions. The X AGU also supports Bit-Reversed Addressing to greatly simplify input or output data re-ordering for radix-2 FFT algorithms.

3.4 Addressing Modes

The CPU supports these addressing modes:

• Inherent (no operand)
• Relative
• Literal
• Memory Direct
• Register Direct
• Register Indirect

Each instruction is associated with a predefined addressing mode group, depending upon its functional requirements. As many as six addressing modes are supported for each instruction.

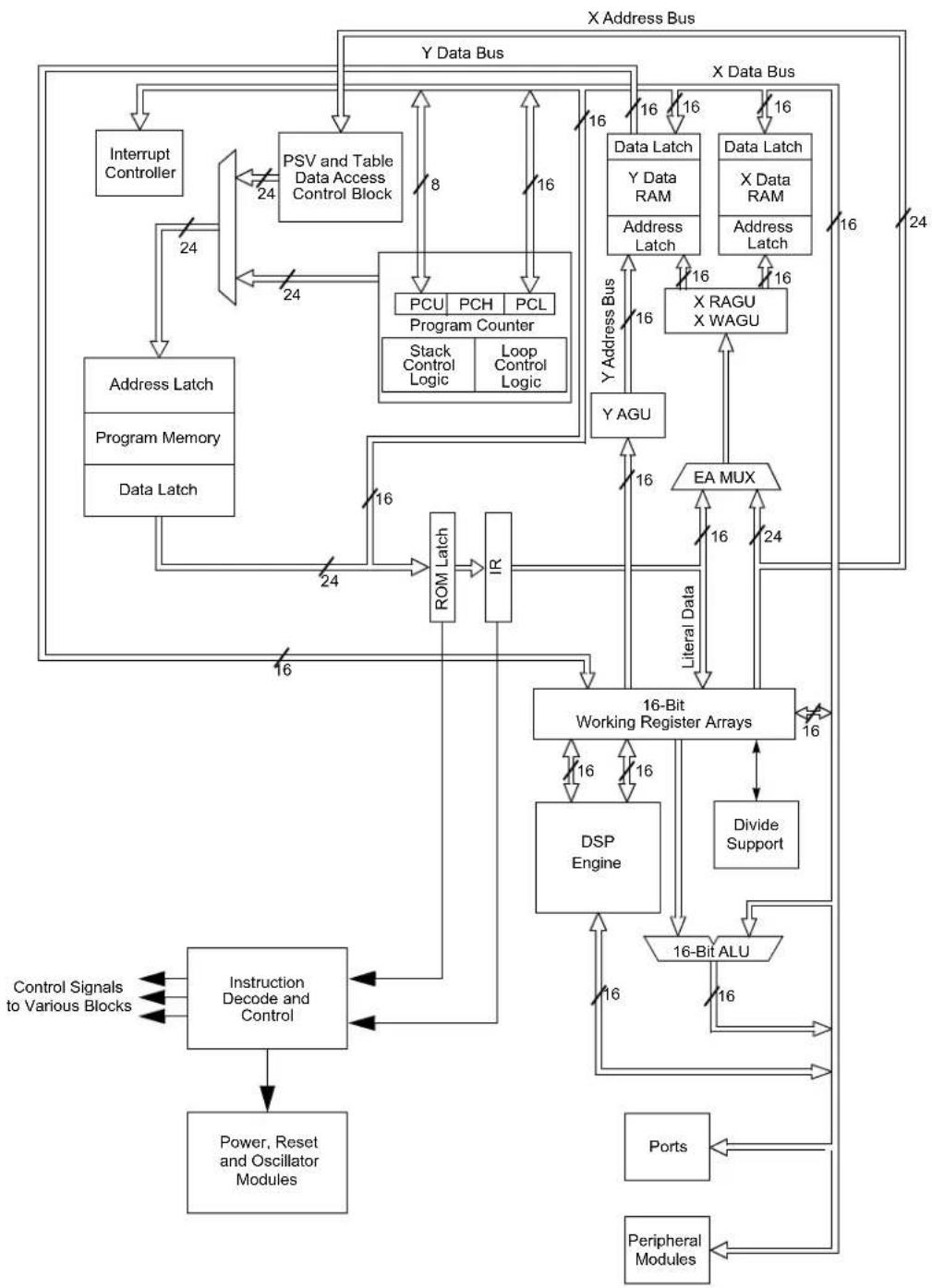

FIGURE 3-1: dsPIC33CK64MC105 FAMILY CPU BLOCK DIAGRAM
        BZXXXX["X Data RM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RAM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
        BZXXXX["X Data RM"]
    end

    subgraph "HALMs"
        CQ["DSP Engine"] --> RQ["DSP Engine"]
        SP["DSP Engine"] --> TQ["DSP Engine"]
        UQ["DSP Engine"] --> VQ["DSP Engine"]
        WQ["DSP Engine"] --> XQ["DSP Engine"]
        YQ["DSP Engine"] --> ZQ["DSP Engine"]
        ZQ["DSP Engine"] --> AA["DSP Engine"]
        AB["DSP Engine"] --> AC["DSP Engine"]
        AD["DSP Engine"] --> AE["DSP Engine"]
        AF["DSP Engine"] --> AFD["DSP Engine"]
        AG["DSP Engine"] --> AH["DSP Engine"]
        AI["DSP Engine"] --> AIQ["DSP Engine"]
        AJ["DSP Engine"] --> AJQ["DSP Engine"]
        AK["DSP Engine"] --> AKQ["DSP Engine"]
        AL["DSP Engine"] --> ALQ["DSP Engine"]
        AM["DSP Engine"] --> AMQ["DSP Engine"]
        AN["DSP Engine"] --> ANQ["DSP Engine"]
        AO["DSP Engine"] --> AOQ["DSP Engine"]
        AP["DSP Engine"] --> APQ["DSP Engine"]
        AQ["DSP Engine"] --> AQQ["DSP Engine"]
        AR["DSP Engine"] --> ARQ["DSP Engine"]
        AS["DSP Engine"] --> ASQ["DSP Engine"]
        AT["DSP Engine"] --> ATQ["DSP Engine"]
        AU["DSP Engine"] --> AUQ["DSP Engine"]
        AV["DSP Engine"] --> AVQ["DSP Engine"]
        AW["DSP Engine"] --> AWQ["DSP Engine"]
        AX["DSP Engine"] --> AXQ["DSP Engine"]
        AY["DSP Engine"] --> AYQ["DSP Engine"]
        AZ["DSP Engine"] --> AZQ["DSP Engine"]
        BA["DSP Engine"] --> BAQ["DSP Engine"]
        BB["DSP Engine"] --> BBQ["DSP Engine"]
        BC["DSP Engine"] --> BCQ["DSP Engine"]
        BD["DSP Engine"] --> BDQ["DSP Engine"]
        BED["DSP Engine"] --> BEQ["DSP Engine"]
        BFDE["DSP Engine"] --> BFQ["DSP Engine"]
    end

    subgraph "HALMs"
        BG["DSP Engine"] --> BH["DSP Engine"]
        BI["DSP Engine"] --> BIQ["DSP Engine"]
        AJ["DSP Engine"] --> AJQ["DSP Engine"]
        AK["DSP Engine"] --> AKQ["DSP Engine"]
        AL["DSP Engine"] --> ALQ["DSP Engine"]
        AMD["DSP Engine"] --> AMQ["DSP Engine"]
        AND["DSP Engine"] --> ANQ["DSP Engine"]
    end

    subgraph "HALMs"
        AO["DSP Engine"] --> AP["DSP Engine"]
        AQ["DSP Engine"] --> AQQ["DSP Engine"]
        ARD["DSP Engine"] --> ARQ["DSP Engine"]
    end

    subgraph "HALMs"
        ASD["DSP Engine"] --> ATD["DSP Engine"]
        AUO["DSP Engine"] --> AUQ["DSP Engine"]
    end

    subgraph "HALMs"
        AZD["DSP Engine"] --> BAQ["DSP Engine"]
        BBQ["DSP Engine"] --> BBQ["DSP Engine"]

    A2[A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2A2B3
    end

    subgraph "HALMs"
        AO3[A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,B3
    end

    subgraph "HALMs"
        AO33[A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,B3
    end

    subgraph "HALMs"
        AO333[A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,B3
    end

    subgraph "HALMs"
        AO333[A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,A0,B3
    end

    subgraph "HALMs"
        AO333[A0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,B3
    end

    subgraph "HALMs"
        AO333[A0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,a0,B3
    end

    subgraph "HALMs"
        AO333[A0,a0,a0,a0,a0,a5,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,X,Y,C,X,Y,D,X,Y,E,X,Y,Z,W,K,L,M,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,p,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,mk,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k.l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,m,k,l,r,s,t,u,v,w,x,y,z,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u-v,w,x,y,z,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u-v,w,x,y,Z,u,v,w,x,y,z,u,v,w,x,y,z,u,v,w,x,y,z,u,v,w,x,y,z,U,v,w,x,U,v,w,x,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,R,s,t,U,v,w,x,y,z,U,v,w,x,y,z,U,v,w,x,y,z,U,v,w,x,U,v,w,x,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,w,U,v,W,s,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,t,tt,
    end

    A3[A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:A3:BB,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,L,M,L,M,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,LM,B,C,D,E,F,G,H,I,J,K,L,M,L,M,|
end

    style A fill:#f9f,stroke:#333,stroke-width:2px

3.4.1 PROGRAMMER'S MODEL

The programmer's model for the dsPIC33CK64MC105 family is shown in Figure 3-2. All registers in the programmer's model are memory-mapped and can be manipulated directly by instructions. Table 3-1 lists a description of each register.

In addition to the registers contained in the programmer's model, the dsPIC33CK64MC105 devices contain control registers for Modulo Addressing, Bit-Reversed Addressing and interrupts. These registers are described in subsequent sections of this document.

All registers associated with the programmer's model are memory-mapped, as shown in Figure 3-2.

TABLE 3-1: PROGRAMMER'S MODEL REGISTER DESCRIPTIONS

Register(s) Name Description
W0 through W15 ^(1)	Working Register Array
W0 through W14 ^(1)	Alternate Working Register Array 1
W0 through W14 ^(1)	Alternate Working Register Array 2
W0 through W14 ^(1)	Alternate Working Register Array 3
W0 through W14 ^(1)	Alternate Working Register Array 4
ACCA, ACCB 40-Bit DSP Accumulators (Additional Four Alternate Accumulators)
PC 23-Bit Program Counter
SR ALU and DSP Engine STATUS Register
SPLIM Stack Pointer Limit Value Register
TBLPAG Table Memory Page Address	Register
DSRPAG	Extended Data Space (EDS) Read Page Register
RCOUNT	REPEAT Loop Counter Register
DCOUNT	DO Loop Counter Register
DOSTARTH, DOSTARTL ^(2)	DO Loop Start Address Register (High and Low)
DOENDH, DOENDL	DO Loop End Address Register (High and Low)
CORCON	Contains DSP Engine, DO Loop Control and Trap Status bits

Note 1: Memory-mapped W0 through W14 represent the value of the register in the currently active CPU context.
2: The DOSTARTH and DOSTARTL registers are read-only.

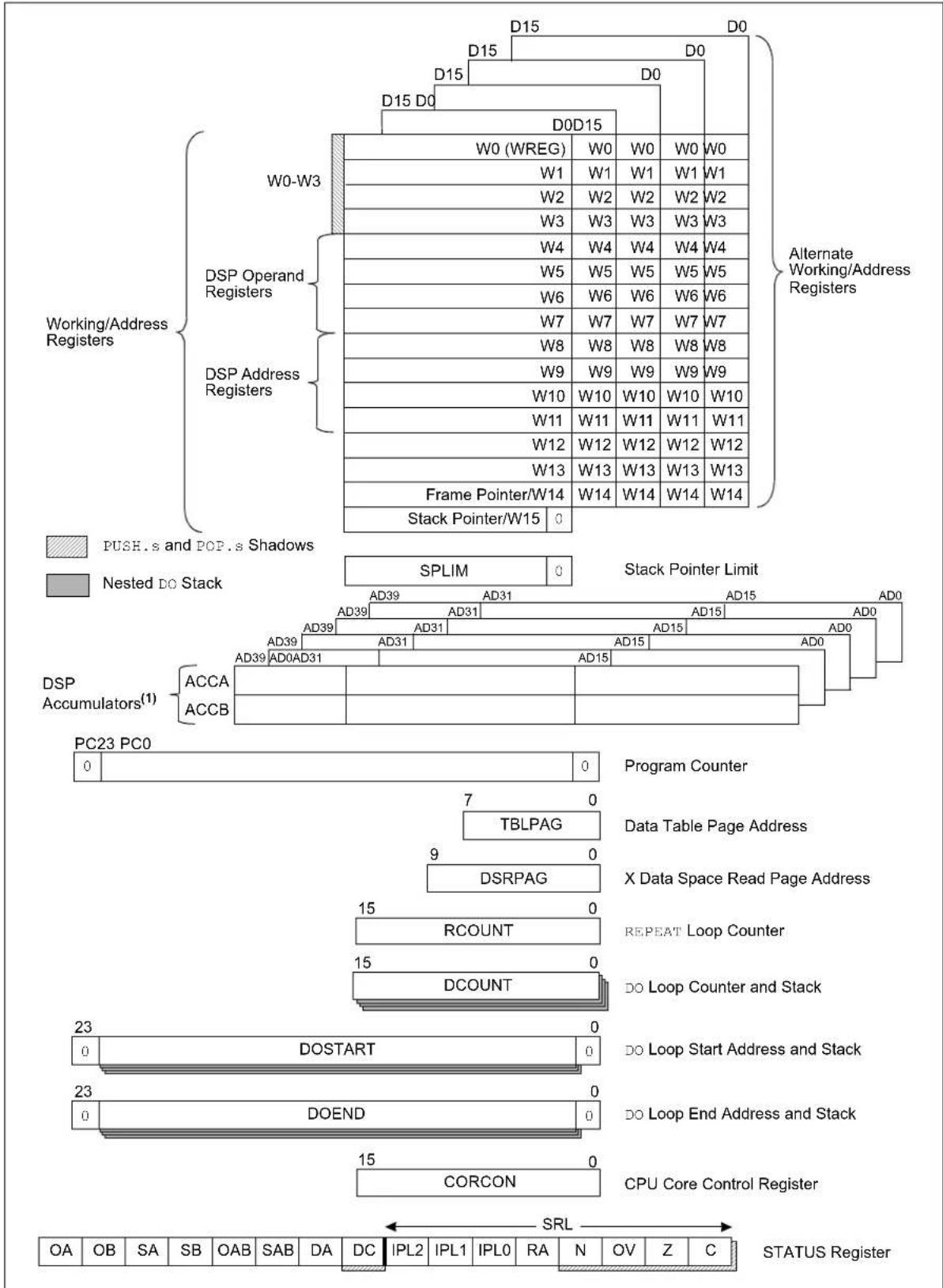

FIGURE 3-2: PROGRAMMER'S MODEL

    U["DSP Accumulators(1)"] --> V["ACCA"]
    U --> W["ACCB"]

    X["Alternate Working/Address Registers"] --> Y["SPLIM"]
    X --> Z["Stack Pointer Limit"]

    AA["Program Counter"] --> AB["DBPAG"]
    AB --> AC["Data Table Page Address"]
    AC --> AD["X Data Space Read Page Address"]
    AD --> AE["REPEAT Loop Counter"]
    AE --> AF["DO Loop Counter and Stack"]

    AG["DO Loop Start Address and Stack"] --> AH["DOSTART"]
    AH --> AI["DOEND"]
    AI --> AJ["CORCON"]

    AK["CPU Core Control Register"] --> AL["STATUS Register"]

    AM["PUSH.s and POP.s Shadows"] --> AN["SPLIM"]
    AN --> AO["AD39"]
    AO --> AP["AD31"]
    AP --> AQ["AD15"]
    AQ --> AR["AD0"]

    AS["Nested DO Stack"] --> AT["DBPAG"]
    AT --> AU["DSRPAG"]
    AU --> AV["RCOUNT"]
    AV --> AW["DCOUNT"]

    AX["Program Counter"] --> AY["TBLPAG"]
    AY --> AZ["X Data Space Read Page Address"]
    AZ --> BA["REPEAT Loop Counter"]

    BB["DO Loop End Address and Stack"] --> BC["DOEND"]
    BC --> BD["CORCON"]

    BE["DO Loop Start Address and Stack"] --> BF["DOSTART"]
    BF --> BG["DOEND"]

    BH["DO Loop Start Address and Stack"] --> BI["DOEND"]

    BJ["DO Loop End Address and Stack"] --> BK["CORCON"]

3.4.2 CPU RESOURCES

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

• “Enhanced CPU” (www.microchip.com/DS70005158) in the “dsPIC33/PIC24 Family Reference Manual”
• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

3.4.3 CPU CONTROL REGISTERS

REGISTER 3-1: SR: CPU STATUS REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/C-0 R/C-0 R-0 R/W-0
OA OB SA	(3)	SB(3)	OAB SAB	DA	DC
bit 15 bit 8

R/W-0^(2)	R/W-0^(2)	R/W-0^(2)	R-0 R/W-0		R/W-0	R/W-0	R/W-0
IPL2^(1)	IPL1^(1)	IPL0^(1)	RA	N	OV	Z	C
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 OA: Accumulator A Overflow Status bit

1 = Accumulator A has overflowed

0 = Accumulator A has not overflowed

bit 14 OB:Accumulator B Overflow Status bit

1 = Accumulator B has overflowed

0 = Accumulator B has not overflowed

bit 13 SA: Accumulator A Saturation 'Sticky' Status bit ^(3)

1 = Accumulator A is saturated or has been saturated at some time

0 = Accumulator A is not saturated

bit 12 SB: Accumulator B Saturation 'Sticky' Status bit ^(3)

1 = Accumulator B is saturated or has been saturated at some time

0 = Accumulator B is not saturated

bit 11 OAB: OA || OB Combined Accumulator Overflow Status bit

1 = Accumulator A or B has overflowed

0 = Neither Accumulator A or B has overflowed

bit 10 SAB: SA || SB Combined Accumulator 'Sticky' Status bit

1 = Accumulator A or B is saturated or has been saturated at some time

0 = Neither Accumulator A or B is saturated

bit 9 DA: DO Loop Active bit

1 = DO loop is in progress

0 = DO loop is not in progress

bit 8 DC: MCU ALU Half Carry/Borrow bit

1 = A carry-out from the 4th low-order bit (for byte-sized data) or 8th low-order bit (for word-sized data) of the result occurred

0 = No carry-out from the 4th low-order bit (for byte-sized data) or 8th low-order bit (for word-sized data) of the result occurred

Note 1: The IPL[2:0] bits are concatenated with the IPL[3] bit (CORCON[3]) to form the CPU Interrupt Priority Level. The value in parentheses indicates the IPL, if IPL[3] = 1. User interrupts are disabled when IPL[3] = 1.

2: The IPL[2:0] Status bits are read-only when the NSTDIS bit (INTCON1[15]) = 1.

3: A data write to the SR register can modify the SA and SB bits by either a data write to SA and SB or by clearing the SAB bit. To avoid a possible SA or SB bit write race condition, the SA and SB bits should not be modified using bit operations.

REGISTER 3-1: SR: CPU STATUS REGISTER (CONTINUED)

bit 7-5 IPL[2:0]: CPU Interrupt Priority Level Status bits (1,2)

111 = CPU Interrupt Priority Level is 7 (15); user interrupts are disabled
110 = CPU Interrupt Priority Level is 6 (14)
101 = CPU Interrupt Priority Level is 5 (13)
100 = CPU Interrupt Priority Level is 4 (12)
011 = CPU Interrupt Priority Level is 3 (11)
010 = CPU Interrupt Priority Level is 2 (10)
001 = CPU Interrupt Priority Level is 1 (9)
000 = CPU Interrupt Priority Level is 0 (8)

bit 4 RA: REPEAT Loop Active bit

1 = REPEAT loop is in progress
0 = REPEAT loop is not in progress

bit 3 N: MCU ALU Negative bit

1 = Result was negative
0 = Result was non-negative (zero or positive)

bit 2 OV: MCU ALU Overflow bit

This bit is used for signed arithmetic (two's complement). It indicates an overflow of the magnitude that causes the sign bit to change state.

1 = Overflow occurred for signed arithmetic (in this arithmetic operation)
0 = No overflow occurred

bit 1 Z: MCU ALU Zero bit

1 = An operation that affects the Z bit has set it at some time in the past
0 = The most recent operation that affects the Z bit has cleared it (i.e., a non-zero result)

bit 0 C: MCU ALU Carry/Borrow bit

1 = A carry-out from the Most Significant bit of the result occurred
0 = No carry-out from the Most Significant bit of the result occurred

Note 1: The IPL[2:0] bits are concatenated with the IPL[3] bit (CORCON[3]) to form the CPU Interrupt Priority Level. The value in parentheses indicates the IPL, if IPL[3] = 1. User interrupts are disabled when IPL[3] = 1.

2: The IPL[2:0] Status bits are read-only when the NSTDIS bit (INTCON1[15]) = 1.

3: A data write to the SR register can modify the SA and SB bits by either a data write to SA and SB or by clearing the SAB bit. To avoid a possible SA or SB bit write race condition, the SA and SB bits should not be modified using bit operations.

REGISTER 3-2: CORCON: CORE CONTROL REGISTER

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R-0 R-0 R-0
VAR	— US1	US0 EDT		(1)	DL2 DL1	DL0
bit 15 bit 8

R/W-0	R/W-0	R/W-1	R/W-0	R/C-0	R-0	R/W-0	R/W-0
SATA	SATB	SATDW	ACCSAT	IPL3^(2)	SFA	RND IF
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 VAR: Variable Exception Processing Latency Control bit

1 = Variable exception processing is enabled

0 = Fixed exception processing is enabled

bit 14 Unimplemented: Read as '0'

bit 13-12 US[1:0]: DSP Multiply Unsigned/Signed Control bits

11 = Reserved

10 = DSP engine multiplies are mixed sign

01 = DSP engine multiplies are unsigned

00 = DSP engine multiplies are signed

bit 11 EDT: Early DO Loop Termination Control bit ^(1)

1 = Terminates executing DO loop at the end of the current loop iteration

0 = No effect

bit 10-8 DL[2:0]: DO Loop Nesting Level Status bits

111 = Seven DO loops are active

...

001 = One DO loop is active

000 = Zero DO loops are active

bit 7 SATA: ACCA Saturation Enable bit

1 = Accumulator A saturation is enabled

0 = Accumulator A saturation is disabled

bit 6 SATB: ACCB Saturation Enable bit

1 = Accumulator B saturation is enabled

0 = Accumulator B saturation is disabled

bit 5 SATDW: Data Space Write from DSP Engine Saturation Enable bit

1 = Data Space write saturation is enabled

0 = Data Space write saturation is disabled

bit 4 ACCSAT: Accumulator Saturation Mode Select bit

1 = 9.31 saturation (super saturation)

0 = 1.31 saturation (normal saturation)

bit 3 IPL3: CPU Interrupt Priority Level Status bit 3 ^(2)

1 = CPU Interrupt Priority Level is greater than 7

0 = CPU Interrupt Priority Level is 7 or less

Note 1: This bit is always read as '0'.

2: The IPL3 bit is concatenated with the IPL[2:0] bits (SR[7:5]) to form the CPU Interrupt Priority Level.

REGISTER 3-2: CORCON: CORE CONTROL REGISTER (CONTINUED)

bit 2 SFA: Stack Frame Active Status bit

1 = Stack frame is active; W14 and W15 address 0x0000 to 0xFFFF, regardless of DSRPAG
0 = Stack frame is not active; W14 and W15 address the base Data Space

bit 1 RND: Rounding Mode Select bit

1 = Biased (conventional) rounding is enabled
0 = Unbiased (convergent) rounding is enabled

bit 0 IF: Integer or Fractional Multiplier Mode Select bit

1 = Integer mode is enabled for DSP multiply
0 = Fractional mode is enabled for DSP multiply

Note 1: This bit is always read as '0'.

2: The IPL3 bit is concatenated with the IPL[2:0] bits (SR[7:5]) to form the CPU Interrupt Priority Level.

REGISTER 3-3: CTXTSTAT: CPU W REGISTER CONTEXT STATUS REGISTER

U-0 U-0 U-0 U-0 R-0		R-0		R-0
—	—	—	—	—	CCTXI[2:0]
bit 15					bit 8

U-0 U-0 U-0 U-0 R-0		R-0		R-0
—	—	—	—	—	MCTXI[2:0]
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-11 Unimplemented: Read as '0'

bit 10-8 CCTXI[2:0]: Current (W Register) Context Identifier bits

111 = Reserved

100 = Alternate Working Register Set 4 is currently in use
011 = Alternate Working Register Set 3 is currently in use
010 = Alternate Working Register Set 2 is currently in use
001 = Alternate Working Register Set 1 is currently in use
000 = Default Working Register set is currently in use

bit 7-3 Unimplemented: Read as '0'

bit 2-0 MCTXI[2:0]: Manual (W Register) Context Identifier bits

111 = Reserved
...
100 = Alternate Working Register Set 4 was most recently manually selected
011 = Alternate Working Register Set 3 was most recently manually selected
010 = Alternate Working Register Set 2 was most recently manually selected
001 = Alternate Working Register Set 1 was most recently manually selected
000 = Default Working Register set was most recently manually selected

REGISTER 3-4: MSTRPR: EDS BUS MASTER PRIORITY CONTROL REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	—
bit 15							bit 8

U-0 U-0	R/W-0	U-0 U-0 U-0 U-0		R/W-0
—	—	DMAPR	—	—	—	—	NVMPR
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-6 Unimplemented: Read as '0'

bit 5 DMAPR: Modify DMA Controller Bus Master Priority Relative to CPU bit

1 = Raises DMA Controller bus Master priority to above that of the CPU
0 = No change to DMA Controller bus Master priority

bit 4-1 Unimplemented: Read as '0'

bit 0 NVMPR: Modify NVM Controller Bus Master Priority Relative to CPU bit

1 = Raises NVM Controller bus Master priority to above that of the CPU
0 = No change to NVM Controller bus Master priority

3.4.4 ARITHMETIC LOGIC UNIT (ALU)

The dsPIC33CK64MC105 family ALU is 16 bits wide and is capable of addition, subtraction, bit shifts and logic operations. Unless otherwise mentioned, arithmetic operations are two's complement in nature. Depending on the operation, the ALU can affect the values of the Carry (C), Zero (Z), Negative (N), Overflow (OV) and Digit Carry (DC) Status bits in the SR register. The C and DC Status bits operate as Borrow and Digit Borrow bits, respectively, for subtraction operations.

The ALU can perform 8-bit or 16-bit operations, depending on the mode of the instruction that is used. Data for the ALU operation can come from the W register array or data memory, depending on the addressing mode of the instruction. Likewise, output data from the ALU can be written to the W register array or a data memory location.

Refer to the "16-Bit MCU and DSC Programmer's Reference Manual" (www.microchip.com/DS70000157) for information on the SR bits affected by each instruction.

The core CPU incorporates hardware support for both multiplication and division. This includes a dedicated hardware multiplier and support hardware for 16-bit divisor division.

3.4.4.1 Multiplier

Using the high-speed, 17-bit x 17-bit multiplier, the ALU supports unsigned, signed or mixed-sign operation in several MCU multiplication modes:

• 16-bit x 16-bit signed
• 16-bit x 16-bit unsigned
  • 16-bit signed x 5-bit (literal) unsigned
  • 16-bit signed x 16-bit unsigned
• 16-bit unsigned x 5-bit (literal) unsigned
  • 16-bit unsigned x 16-bit signed
• 8-bit unsigned x 8-bit unsigned

3.4.4.2 Divider

The divide block supports 32-bit/16-bit and 16-bit/16-bit signed and unsigned integer divide operations with the following data sizes:

• 32-bit signed/16-bit signed divide
• 32-bit unsigned/16-bit unsigned divide
• 16-bit signed/16-bit signed divide
• 16-bit unsigned/16-bit unsigned divide

The 16-bit signed and unsigned DIV instructions can specify any W register for both the 16-bit divisor (Wn) and any W register (aligned) pair (W(m + 1):Wm) for the 32-bit dividend. The divide algorithm takes one cycle per bit of divisor, so both 32-bit/16-bit and 16-bit/16-bit instructions take the same number of cycles to execute. There are additional instructions: DIV2 and DIVF2. Divide instructions will complete in six cycles.

3.4.5 DSP ENGINE

The DSP engine consists of a high-speed 17-bit x 17-bit multiplier, a 40-bit barrel shifter and a 40-bit adder/subtracter (with two target accumulators, round and saturation logic).

The DSP engine can also perform inherent accumulator-to-accumulator operations that require no additional data. These instructions are, ADD, SUB, NEG, MIN and MAX.

The DSP engine has options selected through bits in the CPU Core Control register (CORCON), as listed below:

• Fractional or integer DSP multiply (IF)
• Signed, unsigned or mixed-sign DSP multiply (USx)
- Conventional or convergent rounding (RND)
• Automatic saturation on/off for ACCA (SATA)
• Automatic saturation on/off for ACCB (SATB)
• Automatic saturation on/off for writes to data memory (SATDW)
- Accumulator Saturation mode selection (ACCSAT)

TABLE 3-2: DSP INSTRUCTIONS SUMMARY

Instruction	Algebraic Operation	ACC Write-Back
CLR A = 0 Yes
ED A = (x - y)	^2	No
EDAC A = A + (x - y)	^2	No
MAC	A = A + (x · y)	Yes
MAC A = A + x	^2	No
MOVSAC	No change in A	Yes
MPY	A = x · y	No
MPY A = x	^2	No
MPY . N	A = -x · y No
MSC	A = A - x · y	Yes

NOTES:

4.0 MEMORY ORGANIZATION

Note: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "dsPIC33/PIC24 Program Memory" (www.microchip.com/DS70000613) in the "dsPIC33/PIC24 Family Reference Manual".

The dsPIC33CK64MC105 family architecture features separate program and data memory spaces, and buses. This architecture also allows the direct access of program memory from the Data Space (DS) during code execution.

4.1 Program Address Space

The program address memory space of the dsPIC33CK64MC105 family devices is 4M instructions.

The space is addressable by a 24-bit value derived either from the 23-bit PC during program execution, or from table operation or Data Space remapping, as described in Section 4.5.5 “Interfacing Program and Data Memory Spaces”.

User application access to the program memory space is restricted to the lower half of the address range (0x000000 to 0x7FFFFFF). The exception is the use of TBLRD operations, which use TBLPAG[7] to permit access to calibration data and Device ID sections of the configuration memory space.

The program memory maps for dsPIC33CK64MC105 devices are shown in Figure 4-1 through Figure 4-3.

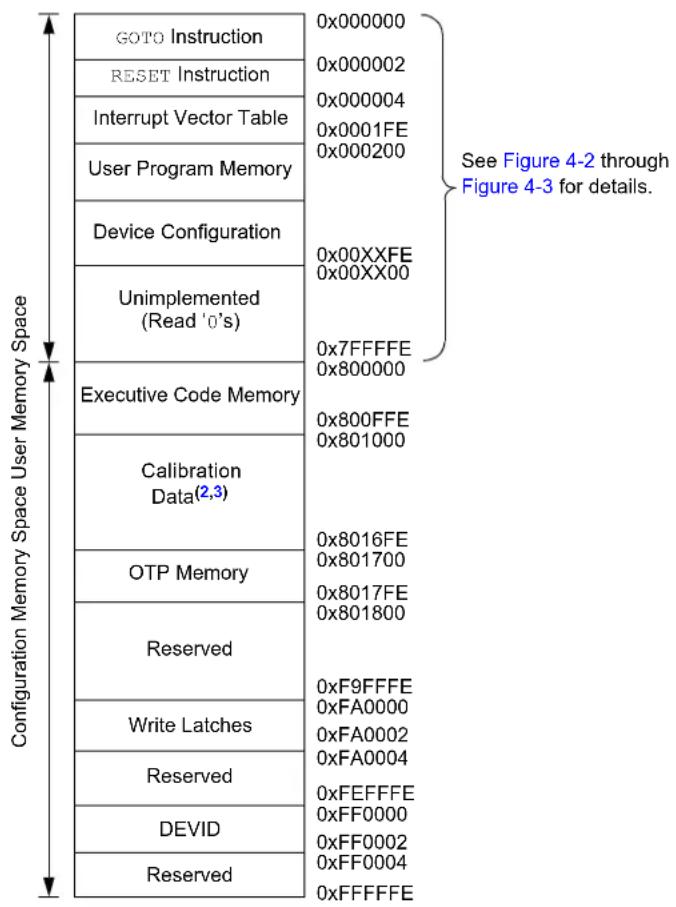

FIGURE 4-1: PROGRAM MEMORY MAP FOR dsPIC33CK32MC10X DEVICES (1)

GOTO Instruction RESET Instruction Interrupt Vector Table User Program Memory Device Configuration Unimplemented (Read '0's) Executive Code Memory Calibration Data(2,3) OTP Memory Reserved Write Latches Reserved DEVID Reserved 0x000000 0x000002 0x000004 0x0001FE 0x000200 0x00XXFE 0x00XX00 0x7FFFFE 0x800000 0x800FFE 0x801000 0x8016FE 0x801700 0x8017FE 0x801800 0xF9FFFE 0xFA0000 0xFA0002 0xFA0004 0xFEFFFFE 0xFF0000 0xFF0002 0xFF0004 0xFFFFFE See Figure 4-2 through Figure 4-3 for details.

Note 1: Memory areas are not shown to scale.
2: Calibration data area must be maintained during programming.
3: Calibration data area includes UDID and ICSP ^TM Write Inhibit registers locations.

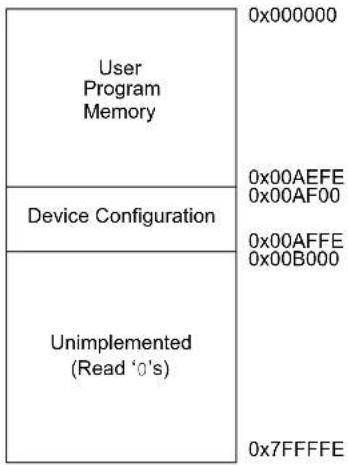

FIGURE 4-2: CODE MEMORY MAP FOR dsPIC33CK64MC10X DEVICES (1)

User Program Memory 0x000000 Device Configuration 0x00AEFE 0x00AF00 0x00AFFE 0x00B000 Unimplemented (Read '0's) 0x7FFFFE

Note 1: Memory areas are not shown to scale.

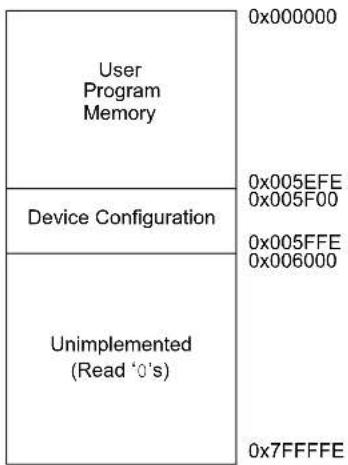

FIGURE 4-3: CODE MEMORY MAP FOR dsPIC33CK32MC10X DEVICES (1)

User Program Memory 0x000000 Device Configuration 0x005EFE 0x005F00 0x005FFE 0x006000 Unimplemented (Read '0's) 0x7FFFFFE

Note 1: Memory areas are not shown to scale.

4.1.1 PROGRAM MEMORY ORGANIZATION

The program memory space is organized in word-addressable blocks. Although it is treated as 24 bits wide, it is more appropriate to think of each address of the program memory as a lower and upper word, with the upper byte of the upper word being unimplemented. The lower word always has an even address, while the upper word has an odd address (Figure 4-4).

Program memory addresses are always word-aligned on the lower word, and addresses are incremented or decremented, by two, during code execution. This arrangement provides compatibility with data memory space addressing and makes data in the program memory space accessible.

4.1.2 INTERRUPT AND TRAP VECTORS

All dsPIC33CK64MC105 family devices reserve the addresses between 0x000000 and 0x000200 for hard-coded program execution vectors. A hardware Reset vector is provided to redirect code execution from the default value of the PC on device Reset to the actual start of code. A GOTO instruction is programmed by the user application at address, 0x000000, of Flash memory, with the actual address for the start of code at address, 0x000002, of Flash memory.

A more detailed discussion of the Interrupt Vector Tables (IVTs) is provided in Section 7.0 "Interrupt Controller".

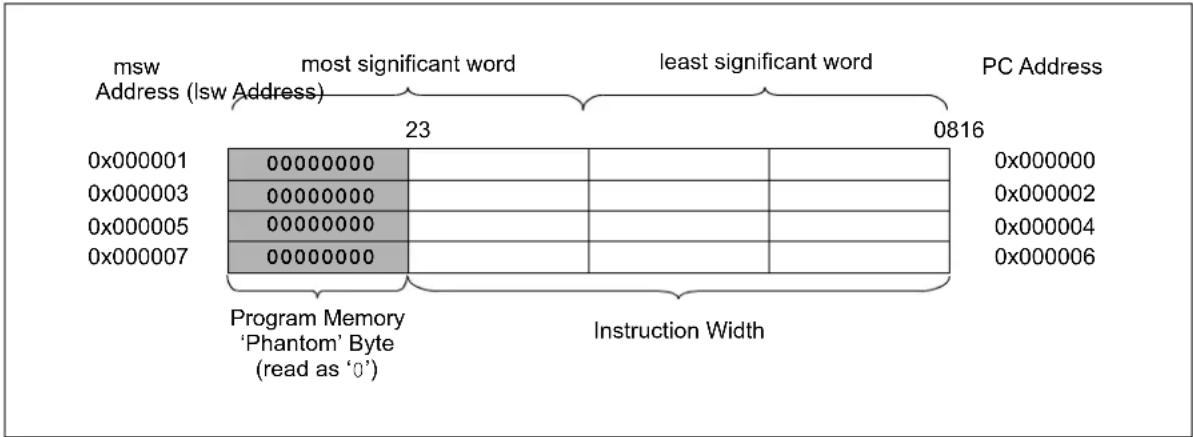

FIGURE 4-4: PROGRAM MEMORY ORGANIZATION

msw Address (lsw Address) most significant word least significant word PC Address 23 0816 0x000001 0x000003 0x000005 0x000007 Program Memory 'Phantom' Byte (read as '0') Instruction Width 0x000000 0x000002 0x000004 0x000006

4.1.3 UNIQUE DEVICE IDENTIFIER (UDID)

All dsPIC33CK64MC105 family devices are individually encoded during final manufacturing with a Unique Device Identifier or UDID. The UDID cannot be erased by a bulk erase command or any other user-accessible means. This feature allows for manufacturing traceability of Microchip Technology devices in applications where this is a requirement. It may also be used by the application manufacturer for any number of things that may require unique identification, such as:

• Tracking the device
• Unique serial number
• Unique security key

The UDID comprises five 24-bit program words. When taken together, these fields form a unique 120-bit identifier.

The UDID is stored in five read-only locations, located between 0x801200 and 0x801208 in the device configuration space. Table4-1 lists the addresses of the identifier words and shows their contents.

TABLE 4-1: UDID ADDRESSES

UDID Address Description
UDID1	0x801200	UDID Word 1
UDID2	0x801202	UDID Word 2
UDID3	0x801204	UDID Word 3
UDID4	0x801206	UDID Word 4
UDID5	0x801208	UDID Word 5

4.2 Data Address Space

The dsPIC33CK64MC105 family CPU has a separate 16-bit wide data memory space. The Data Space is accessed using separate Address Generation Units (AGUs) for read and write operations. The data memory map is shown in Figure 4-5.

All Effective Addresses (EAs) in the data memory space are 16 bits wide and point to bytes within the Data Space. This arrangement gives a base Data Space address range of 64 Kbytes or 32K words.

The lower half of the data memory space (i.e., when EA[15] = 0) is used for implemented memory addresses, while the upper half (EA[15] = 1) is reserved for the Program Space Visibility (PSV).

The dsPIC33CK64MC105 family devices implement up to 16 Kbytes of data memory. If an EA points to a location outside of this area, an all-zero word or byte is returned.

4.2.1 DATA SPACE WIDTH

The data memory space is organized in byte-addressable, 16-bit wide blocks. Data are aligned in data memory and registers as 16-bit words, but all Data Space EAs resolve to bytes. The Least Significant Bytes (LSBs) of each word have even addresses, while the Most Significant Bytes (MSBs) have odd addresses.

4.2.2 DATA MEMORY ORGANIZATION AND ALIGNMENT

To maintain backward compatibility with PIC ^® MCU devices and improve Data Space memory usage efficiency, the dsPIC33CK64MC105 family instruction set supports both word and byte operations. As a consequence of byte accessibility, all Effective Address calculations are internally scaled to step through word-aligned memory. For example, the core recognizes that Post-Modified Register Indirect Addressing mode [Ws++] results in a value of Ws + 1 for byte operations and Ws + 2 for word operations.

A data byte read, reads the complete word that contains the byte, using the LSb of any EA to determine which byte to select. The selected byte is placed onto the LSB of the data path. That is, data memory and registers are organized as two parallel, byte-wide entities with shared (word) address decode, but separate write lines. Data byte writes only write to the corresponding side of the array or register that matches the byte address.

All word accesses must be aligned to an even address. Misaligned word data fetches are not supported, so care must be taken when mixing byte and word operations, or translating from 8-bit MCU code. If a misaligned read or write is attempted, an address error trap is generated. If the error occurred on a read, the instruction underway is completed. If the error occurred on a write, the instruction is executed but the write does not occur. In either case, a trap is then executed, allowing the system and/or user application to examine the machine state prior to execution of the address Fault.

All byte loads into any W register are loaded into the LSB; the MSB is not modified.

A Sign-Extend (SE) instruction is provided to allow user applications to translate 8-bit signed data to 16-bit signed values. Alternatively, for 16-bit unsigned data, user applications can clear the MSB of any W register by executing a Zero-Extend (ZE) instruction on the appropriate address.

4.2.3 SFR SPACE

The first 4 Kbytes of the Near Data Space, from 0x0000 to 0x0FFF, is primarily occupied by Special Function Registers (SFRs). These are used by the dsPIC33CK64MC105 family core and peripheral modules for controlling the operation of the device.

SFRs are distributed among the modules that they control and are generally grouped together by module. Much of the SFR space contains unused addresses; these are read as '0'.

Note: The actual set of peripheral features and interrupts varies by the device. Refer to the corresponding device tables and pinout diagrams for device-specific information.

4.2.4 NEAR DATA SPACE

The 8-Kbyte area, between 0x0000 and 0x1FFF, is referred to as the Near Data Space. Locations in this space are directly addressable through a 13-bit absolute address field within all memory direct instructions. Additionally, the whole Data Space is addressable using MOV instructions, which support Memory Direct Addressing mode with a 16-bit address field, or by using Indirect Addressing mode using a Working register as an Address Pointer.

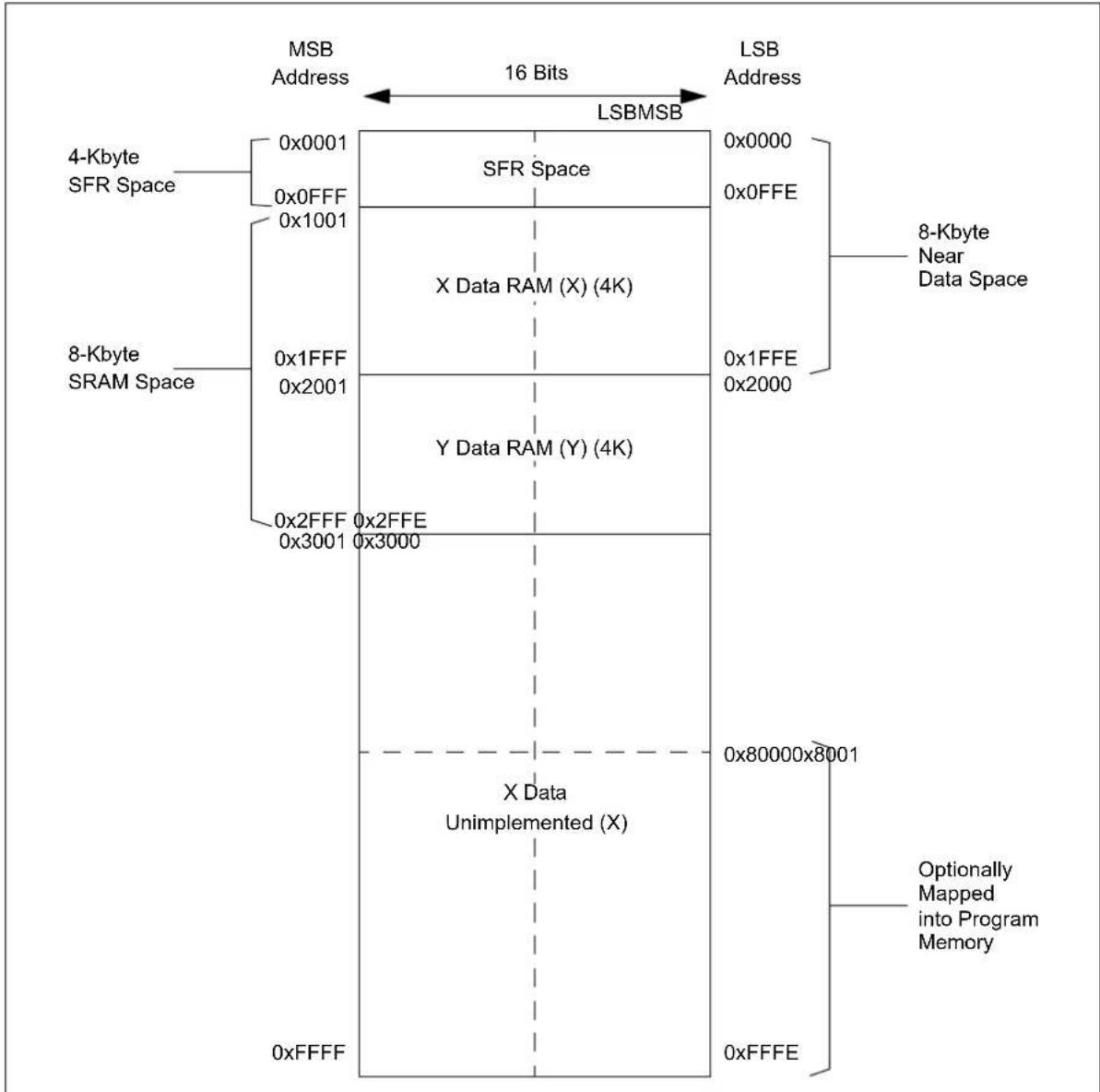

FIGURE 4-5: DATA MEMORY MAP FOR dsPIC33CK64MCX0X AND dsPIC33CK32MCX0X DEVICES

Note: Memory areas are not shown to scale.

4.2.5 X AND Y DATA SPACES

The dsPIC33CK64MC105 family core has two Data Spaces: X and Y. These Data Spaces can be considered either separate (for some DSP instructions) or as one unified linear address range (for MCU instructions). The Data Spaces are accessed using two Address Generation Units (AGUs) and separate data paths. This feature allows certain instructions to concurrently fetch two words from RAM, thereby enabling efficient execution of DSP algorithms, such as Finite Impulse Response (FIR) filtering and Fast Fourier Transform (FFT).

The X Data Space is used by all instructions and supports all addressing modes. X Data Space has separate read and write data buses. The X read data bus is the read data path for all instructions that view Data Space as combined X and Y address space. It is also the X data prefetch path for the dual operand DSP instructions (MAC class).

The Y Data Space is used in concert with the X Data Space by the MAC class of instructions (CLR, ED, EDAC, MAC, MOVSAC, MPY, MPY.N and MSC) to provide two concurrent data read paths.

Both the X and Y Data Spaces support Modulo Addressing mode for all instructions, subject to addressing mode restrictions. Bit-Reversed Addressing mode is only supported for writes to X Data Space.

All data memory writes, including in DSP instructions, view Data Space as combined X and Y address space. The boundary between the X and Y Data Spaces is device-dependent and is not user-programmable.

4.3 BIST Overview

The dsPIC33CK64MC105 family features a data memory Built-In Self-Test (BIST) that has the option to be run at start-up or run time. The memory test checks that all memory locations are functional and provides a pass/fail status of the RAM that can be used by software to take action if needed. If a failure is reported, the specific location(s) are not identified.

The MBISTCON register (Register 4-1) contains control and status bits for BIST operation. The MBISTDONE bit (MBISTCON[7]) indicates if a BIST was run since the last Reset and the MBISTSTAT bit (MBISTCON[4]) provides the pass/fail result.

The BIST feature operates with a clock of FRC+PLL with PLL settings forced by hardware to result in a 125 MHz clock rate, at both start-up and run time.

4.3.1 BIST AT START-UP

The BIST can be configured to automatically run on a POR-type Reset, as shown in Figure 4-6. By default, when BISTDIS (FPOR[6]) = 1, the BIST is disabled and will not be part of device start-up. If the BISTDIS bit is cleared during device programming, the BIST will run after all Configuration registers have been loaded and before code execution begins.

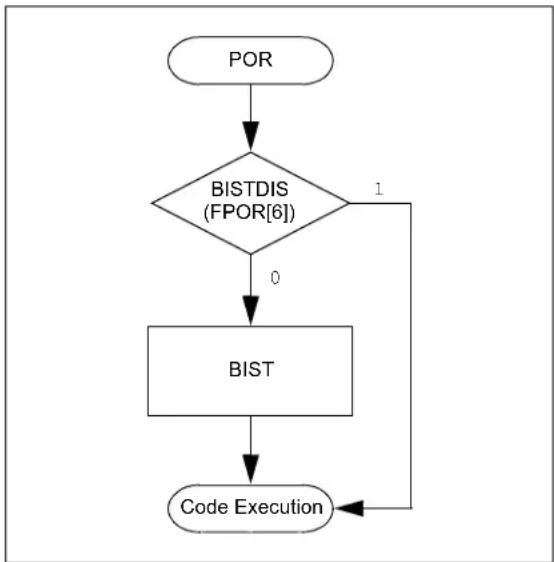

FIGURE 4-6: BIST FLOWCHART

4.3.2 BIST AT RUN TIME

A BIST test can be requested to run on subsequent device Resets at any time.

A BIST will corrupt all of the RAM contents, including the Stack Pointer, and requires a subsequent Reset. The system should be prepared for a Reset before a BIST is performed. The BIST is invoked by setting the MBISTEN bit (MBISTCON[0]) and executing a Reset. The MBISTCON register is protected against accidental writes and requires an unlock sequence prior to writing. Only one bit can be set per unlock sequence. The procedure for a run-time BIST is as follows:

1. Execute the unlock sequence by consecutively writing 0x55 and 0xAA to the NVMKEY register.
2. Write 0x0001 to the MBISTCON SFR.
3. Execute a software RESET command.
4. Verify a Software Reset has occurred by reading SWR (RCON[6]) (optional).
5. Verify that the MBISTDONE bit is set.
6. Take action depending on test result indicated by MBISTSTAT.

4.3.3 FAULT SIMULATION

A mechanism is available to simulate a BIST failure to allow testing of Fault handling software. When the FLTINJ bit is set during a run-time BIST, the MBISTSTAT bit will be set regardless of the test result. The procedure for a BIST Fault simulation is as follows:

1. Execute the unlock sequence by consecutively writing 0x55 and 0xAA to the NVMKEY register.
2. Set the MBISTEN bit (MBISTCON[0]).
3. Execute 2nd unlock sequence by consecutively writing 0x55 and 0xAA to the NVMKEY register.
4. Set the FLTINJ bit (MBISTCON[8]).
5. Execute a software RESET command.
6. Verify the MBISTDONE, MBSITSTAT and FLTINJ bits are all set.

REGISTER 4-1: MBISTCON: MBIST CONTROL REGISTER

Legend:	HS = Hardware Settable bit	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-9 Unimplemented: Read as '0'

bit 8 FLTINJ: MBIST Fault Inject Control bit (1)

1 = The MBIST test will complete and sets MBISTSTAT = 1, simulating an SRAM test failure
0 = The MBIST test will execute normally

bit 7 MBISTDONE: MBIST Done Status bit (1)

1 = An MBIST operation has been executed
0 = No MBIST operation has occurred on the last Reset sequence

bit 6-5 Unimplemented: Read as '0'

bit 4 MBISTSTAT: MBIST Status bit

1 = The last MBIST failed
0 = The last MBIST passed; all memory may not have been tested

bit 3-1 Unimplemented: Read as '0'

bit 0 MBISTEN: MBIST Enable bit (2)

1 = MBIST test is armed; an MBIST test will execute at the next device Reset
0 = MBIST test is disarmed

Note 1: HW resets only on a true POR Reset.

2: This bit will self-clear when the MBIST test is complete.

4.4 Memory Resources

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

4.4.1 KEY RESOURCES

- “dsPIC33/PIC24 Program Memory” (www.microchip.com/DS70000613) in the “dsPIC33/PIC24 Family Reference Manual”

• Code Samples
• Application Notes

• Software Libraries

• Webinars

• All Related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

4.5 SFR Maps

The following tables show the dsPIC33CK64MC105 family SFR names, addresses and Reset values. These tables contain all registers applicable to the dsPIC33CK64MC105 family. Not all registers are present on all device variants. Refer to Table 1 and Table 2 for peripheral availability. Table8-1 details port availability for the different package options.

TABLE 4-2: SFR BLOCK 000h

Register	Address	All Resets	Register	Address	All Resets	Register	Address	All Resets
Core			CORCON	044	0-000000010000	CRCXORL	0B4	0000000000000-
WREG0	000	00000000000000	MODCON	046	00--00000000000	CRCXORH	0B6	00000000000000
WREG1	002	00000000000000	XMODSRT	048	0000000000000	CRCDATL	0B8	00000000000000
WREG2	004	00000000000000	XMODEND	04A	00000000000001	CRCDATH	0BA	00000000000000
WREG3	006	00000000000000	YMODSRT	04C	0000000000000	CRCWDATL	0BC	00000000000000
WREG4	008	00000000000000	YMODEND	04E	00000000000001	CRCWDATH	0BE	00000000000000
WREG5	00A	00000000000000	XBREV	050	0000000000000	CLC
WREG6	00C	0000000000000	DISICNT	052	--000000000000	CLC1CONL	0C0	0---00---000---000
WREG7	00E	0000000000000	TBLPAG	054	----0000000	CLC1CONH	0C2	----0000
WREG8	010	0000000000000	YPAG	056	----0000001	CLC1SEL	0C4	-000-000-000-000
WREG9	012	0000000000000	MSTRPR	058	----0----0	CLC1GLSL	0C8	00000000000000
WREG10	014	0000000000000	CTXTSTAT	05A	----000----000	CLC1GLSH	0CA	00000000000000
WREG11	016	0000000000000	DMT			CLC2CONL	0CC	0---00---000---000
WREG12	018	0000000000000	DMTCON	05C	0----	CLC2CONH	0CE	----0000
WREG13	01A	0000000000000	DMTPRECLR	060	0000000----	CLC2SEL	0D0	-000-000-000-000
WREG14	01C	000000000000	DMTCLR	064	----0000000	CLC2GLSL	0D4	0000000000000
WREG15	01E	000000000000	DMTSTAT	068	----000----0	CLC2GLSH	0D6	000000000000
SPLIM	020	00000000000	DMTCNTL	06C	000000000000	CLC3CONL	0D8	0---00---000---000
ACCAL	022	00000000000	DMTCNTH	06E	000000000000	CLC3CONH	0DA	----0000
ACCAH	024	00000000000	DMTHOLDREG	070	00000000000	CLC3SEL	0DC	-000-000-000-000
ACCAU	026	00000000000	DMTPSCNTL	074	00000000000	CLC3GLSL	0E0	00000000000
ACCBL	028	0000000000	DMTPSCNTH	076	0000000000	CLC3GLSH	0E2	0000000000
ACCBH	02A	0000000000	DMTPSINTVL	078	0000000000	CLC4CONL	0E4	0---00---000---000
ACCBU	02C	000000000	DMTPSINTVH	07A	000000000	CLC4CONH	0E6	----000
PCL	02E	000000000	SENT			CLC4SEL	0E8	-000-000-000-000
PCH	030	----0000	SENT1CON1	080	0-0-0000-0-0	CLC4GLSL	0EC	0000000000
DSRPAG	032	----0000	SENT1CON2	084	000000000	CLC4GLSH	0EE	000000000
DSWPAG	034	----0000	SENT1CON3	088	00000000	ECC
RCOUNT	036	COCOOCOOCOOCOOCO	SENT1STAT	08C	----000
DCOUNT	038	COCOOCOOCOOCOOCO	SENT1SYNC	090	COCOOCOOCOOCO	ECCCONH	OF2	COCOOCOOCOOCO
DOSTARTL	03A	COCOOCOOCOOCOOCO	SENT1DATL	094	COCOOCOOCOOCO	ECCADDRL	OF4	COCOOCOOCOOCO
DOSTARTH	03C	----000	SENT1DATH	096	COCOOCOOCOOCO	ECCADDRH	OF6	----COCO
DOENDL	03E	COCOOCOOCOOCOOCO	CRC			ECCSTATL	OF8	COCOOCOOCOOCO
DOENDH	040	----000	CRCCONL	OB0	COCOOCOOCOOCO	ECCSTATH	OFA	----COCO
SR	042	COCOOCOOCOOCOOCO	CRCCONH	OB2	----000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-3: SFR BLOCK 100h

Register Address All		Resets Register Address	Ass All Resets	Register Address All Resets
Timers			POS1CNTH	14E	000000000000000	INT1HLDH	162
T1CON	100	0-000000-00-00-	POS1HLDL	150	000000000000000	INDX1CNTL	164
TMR1	104	000000000000000	POS1HLD	152	000000000000000	INDX1CNTH	166
PR1	108	000000000000000	VEL1CNT	154	000000000000000	INDX1HLDL	168
QEI			VEL1CNTH	156	000000000000000	INDX1HLD	16A
QEI1CON	140	0-000000-0000000	VEL1HLDL	158	000000000000000	QEI1GECL/QEI1ICL	16C
QEI1IOC	144	00000000000xxxx	VEL1HLD	15A	000000000000000	QEI1GECH/QEI1ICH	16E
QEI1IOCH	146	----0	INT1TMRL	15C	000000000000000	QEI1LECL	170
QEI1STAT	148	--0000000000000	INT1TMRH	15E	000000000000000	QEI1LECH	172
POS1CNTL	14C	000000000000000	INT1HLDL	160	000000000000000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-4: SFR BLOCK 200h

Register	Address	All Resets	Register	Address	All Resets	Register	Address	All Resets
I2C1			U1SCCON	258	----00000-	SPI1STATL	2B4	---00--0001-1-00
I2C1CONL	200	0-0100000000000	U1SCINT	25A	--00-000--00-000	SPI1STATH	2B6	--000000--000000
I2C1CONH	202	----0000000	U1INT	25C	----00---0--	SPI1BUFL	2B8	000000000000000
I2C1STAT	204	000--000000000	U2MODE	260	0-000-000000000	SPI1BUFH	2BA	000000000000000
I2C1ADD	208	----000000000	U2MODEH	262	00--00000000000	SPI1BRGL	2BC	----xxxxxxxxxxxxx
I2C1MSK	20C	----000000000	U2STA	264	00000001000000	SPI1IMSKL	2C0	---00--0000-0-00
I2C1BRG	210	000000000000000	U2STAH	266	-000-0000101110	SPI1IMSKH	2C2	0-000000-00000
I2C1TRN	214	----1111111	U2BRG	268	00000000000000	SPI1URDTL	2C4	000000000000000
I2C1RCV	218	----00000000	U2BRGH	26A	----0000	SPI1URDTH	2C6	000000000000000
UART1 and UART2			U2RXREG	26C	----xxxxxxxx	SPI2CON1L	2C8	0-0000000000000
U1MODE	238	0-000-000000000	U2TXREG	270	x----xxxxxxxx	SPI2CON1H	2CA	00000000000000
U1MODEH	23A	00--0000000000	U2P1	274	----00000000	SPI2CON2L	2CC	----0000
U1STA	23C	00000001000000	U2P2	276	----00000000	SPI2STATL	2D0	---00--0001-1-00
U1STAH	23E	-000-0000101110	U2P3	278	00000000000000	SPI2STATH	2D2	--00000--00000
U1BRG	240	00000000000000	U2P3H	27A	----0000000	SPI2BUFL	2D4	00000000000000
U1BRGH	242	----0000	U2TXCHK	27C	----0000000	SPI2BUFH	2D6	00000000000000
U1RXREG	244	----xxxxxxxx	U2RXCHK	27E	----0000000	SPI2BRGL	2D8	----xxxxxxxxxxxxx
U1TXREG	248	x----xxxxxxxx	U2SCCON	280	----0000-	SPI2IMSKL	2DC	---00--0000-0-00
U1P1	24C	----00000000	U2SCINT	282	--00-000--00-000	SPI2IMSKH	2DE	0-000000-00000
U1P2	24E	----00000000	U2INT	284	----00---0--	SPI2URDTL	2E0	00000000000000
U1P3	250	00000000000000	SPI			SPI2URDTH	2E2	00000000000000
U1P3H	252	----0000000	SPI1CON1L	2AC	0-0000000000000
U1TXCHK	254	----0000000	SPI1CON1H	2AE	00000000000000
U1RXCHK	256	----0000000	SPI1CON2L	2B0	----0000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-5: SFR BLOCK 300h-400h

Register Address All		Resets Register Address	All Resets Register Address All Resets
High-Resolution PWM			PG1TRIGB	356	0000000000000000	PG3FFPCIH	3AE	0000-00000000000
PCLKCON	300	----0--00--00	PG1TRIGC	358	0000000000000000	PG3SPCIL	3B0	000000000000000
FSCL	302	0000000000000000	PG1DTL	35A	----0000000000	PG3SPCIH	3B2	0000-00000000000
FSMINPER	304	0000000000000000	PG1DTH	35C	----0000000000	PG3LEBL	3B4	0000000000000---
MPHASE	306	0000000000000000	PG1CAP	35E	0000000000000000	PG3LEBH	3B6	----000----0000
MDC	308	000000000000000	PG2CONL	360	0----000----0000	PG3PHASE	3B8	000000000000000
MPER	30A	000000000000000	PG2CONH	362	000-00000--0000	PG3DC	3BA	000000000000000
LFSR	30C	-000000000000000	PG2STAT	364	000000000000000	PG3DCA	3BC	----0000000
CMBTRIGL	30E	----0000000	PG2IOCONL	366	000000000000000	PG3PER	3BE	000000000000000
CMBTRIGH	310	----0000000	PG2IOCONH	368	-000----0----0000	PG3TRIGA	3C0	000000000000000
LOGCONA	312	00000000000-000	PG2EVTL	36A	0000000----0000	PG3TRIGB	3C2	00000000000000
LOGCONB	314	00000000000-000	PG2EVTH	36C	0000--00000000	PG3TRIGC	3C4	00000000000000
LOGCONC	316	00000000000-000	PG2FPCIL	36E	00000000000000	PG3DTL	3C6	----00000000
LOGCOND	318	0000000000-000	PG2FPCIH	370	0000-00000000	PG3DTH	3C8	----0000000
LOGCONE	31A	000000000-000	PG2CLPCIL	372	0000000000000	PG3CAP	3CA	0000000000000
LOGCONF	31C	000000000-000	PG2CLPCIH	374	0000-00000000	PG4CONL	3CC	0----000----0000
PWMEVTA	31E	0000----000-000	PG2FFPCIL	376	0000000000000	PG4CONH	3CE	000-00000--000
PWMEVTB	320	0000----000-000	PG2FFPCIH	378	0000-00000000	PG4STAT	3D0	0000000000000
PWMEVTC	322	0000----000-000	PG2SPCIL	37A	000000000000	PG4IOCONL	3D2	000000000000
PWMEVTD	324	0000----000-000	PG2SPCIH	37C	0000-00000000	PG4IOCONH	3D4	-000----0----0
PWMEVTE	326	0000----000-000	PG2LEBL	37E	00000000000---	PG4EVTL	3D6	0000000----0
PWMEVTF	328	000C----00C-00C	PG2LEBH	380	----00----000	PG4EVTH	3D8	0000--000000
PG1CONL	32A	0----0C----00C	PG2PHASE	382	00000000000	PG4FPCIL	3DA	0000000000
PG1CONH	32C	00-0000-0-00	PG2DC	384	000000000C	PG4FPCIH	3DC	000-00000
PG1STAT	32E	00000000000	PG2DCA	386	----0000	PG4CLPCIL	3DE	000000000
PG1IOCONL	330	0000000000	PG2PER	388	0000000000	PG4CLPCIH	3E0	000-0000
PG1IOCONH	332	-00----0--0	PG2TRIGA	38A	000000000	PG4FFPCIL	3E2	00000000
PG1EVTL	334	00C-0C--C-	PG2TRIGB	38C	C-	PG4FFPCIH	3E4	000-00C
PG1EVTH	336	000-00C-	PG2TRIGC	38E	C-	PG4SPCIL	3E6	C-
PG1FPCIL	338	C-	PG2DTL	390	----C-	PG4SPCIH	3E8	C-
PG1FPCIH	33A	C-	PG2DTH	392	----C-	PG4LEBL	3EA	C-
PG1CLPCIL	33C	C-	PG2CAP	394	C-	PG4LEBH	3EC	C-
PG1CLPCIH	33E	C-	PG3CONL	396	C-	PG4PHASE	3EE	C-
PG1FFPCIL	340	C-	PG3CONH	398	C-	PG4DC	3F0	C-
PG1FFPCIH	342	C-	PG3STAT	39A	C-	PG4DCA	3F2	C-
PG1SPCIL	344	C-	PG3IOCONL	39C	C-	PG4PER	3F4	C-
PG1SPCH	346	C-	PG3IOCONH	39E	C-	PG4TRIGA	3F6	C-
PG1LEBL	348	C-	PG3EVTL	3A0	C-	PG4TRIGB	3F8	C-
PG1LEBH	34A	C-	PG3EVTH	3A2	C-	PG4TRIGC	3FA	C-
PG1PHASE	34C	C-	PG3FPCIL	3A4	C-	PG4DTL	3FC	C-
PG1DC	34E	C-	PG3FPCIH	3A6	C-	PG4DTH	3FE	C-
PG1DCA	350	C-	PG3CLPCIL	3A8	C-	PG4CAP	400	C-
PG1PER	352	C-	PG3CLPCIH	3AA	C-	C-
PG1TRIGA	354	C-	PG3FFPCIL	3AC	C-

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-6: SFR BLOCK 800h

Register Address All		Resets Register Address All Resets		Register Address All Resets
Interrupts				IPC5	84A	-100----100-100	IPC42	894	-100-100-100----
IFS0	800	0000000000-00000		IPC6	84C	-100-100----100	IPC43	896	-100-100-100-100
IFS1	802	-00000-00-000000		IPC7	84E	----100-100-100	IPC44	898	-100-100-100-100
IFS2	804	--0----00----00----		IPC8	850	-100----	IPC45	89A	----100
IFS3	806	0----000----0000		IPC9	852	----100	IPC47	89E	-100-100-100----
IFS4	808	--0-0----0000--0		IPC10	854	----100-100	INTCON1	8C0	0000000000-0000-
IFS5	80A	000000--0000000-		IPC11	856	----100----	INTCON2	8C2	100----0----0000
IFS6	80C	---000000000000		IPC12	858	-100-100-100-100	INTCON3	8C4	0----0----0----
IFS7	80E	0000000000000----		IPC14	85C	----100-100-100	INTCON4	8C6	----00
IFS10	814	0000000----		IPC15	85E	-100----	INTTREG	8C8	--0-000000000000
IFS11	816	000----00000		IPC16	860	-100----100	Flash
IEC0	820	0000000000-00000		IPC17	862	----100-100-100	NVMCON	8D0	0000--00----0000
IEC1	822	-00000-00-00000		IPC18	864	-100----	NVMADR	8D2	xxxxxxxxxxxxxx
IEC2	824	--0----00----00----		IPC19	866	----100----	NVMADRU	8D4	----xxxxxxxxxx
IEC3	826	0----000----0000		IPC20	868	-100-100-100----	NVMKEY	8D6	----00000000
IEC4	828	--0-0----0000--0		IPC21	86A	-100-100-100-100	NVMSRCADRL	8D8	000000000000000
IEC5	82A	000000--0000000-		IPC22	86C	-100-100----	NVMSRCADRH	8DA	----0000000
IEC6	82C	---000000000000		IPC23	86E	-100-100-100-100	Op Amp
IEC7	82E	0000000000000----		IPC24	870	-100-100-100-100	AMPCON1L	8DC	0----000
IEC10	834	000000----		IPC25	872	-100-100-100-100	AMPCON1H	8DE	----000
IEC11	836	000----0000		IPC26	874	-100-100-100-100	CBG
IPC0	840	-100-100-100-100		IPC27	876	----100	BIASCON	8F0	0----0000
IPC1	842	-100-100----100		IPC28	878	-100----	IBIASCONL	8F4	--000000--000000
IPC2	844	-100-100-100-100		IPC29	87A	-100-100-100-100	IBIASCONH	8F6	--000000--000000
IPC3	846	-100-100-100-100		IPC30	87C	-100-100-100-100
IPC4	848	-100-100-100-100		IPC31	87E	-100-100-100-100

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-7: SFR BLOCK 900h

Register Address All		Resets Register Address	Ass All Resets Register Address All Resets
PTG			CCP			CCP2BUFH	996	000000000000000
PTGCST	900	0-00-000000---00	CCP1CON1L	950	0-00000000000000	CCP3CON1L	998	0-0000000000000
PTGCON	902	000000000000-000	CCP1CON1H	952	00--00000000000	CCP3CON1H	99A	00--00000000000
PTGBTE	904	000000000000000	CCP1CON2L	954	00-0----0000000	CCP3CON2L	99C	00-0----0000000
PTGBTEH	906	000000000000000	CCP1CON2H	956	0----00-0000	CCP3CON2H	99E	0----00-0000
PTGHOLD	908	000000000000000	CCP1CON3L	958	----00000	CCP3CON3H	9A2	0000----0-00--
PTGTOLIM	90C	000000000000000	CCP1CON3H	95A	0000----0-00--	CCP3STATL	9A4	----0--0110000
PTGT1LIM	910	000000000000000	CCP1STATL	95C	----0--0110000	CCP3STATH	9A6	----0000
PTGSDLIM	914	000000000000000	CCP1STATH	95E	----0000	CCP3TMRL	9A8	00000000000000
PTGCOLIM	918	000000000000000	CCP1TMRL	960	00000000000000	CCP3TMRH	9AA	00000000000000
PTGC1LIM	91C	000000000000000	CCP1TMRH	962	00000000000000	CCP3PRL	9AC	11111111111111
PTGADJ	920	000000000000000	CCP1PRL	964	11111111111111	CCP3PRH	9AE	11111111111111
PTGL0	924	000000000000000	CCP1PRH	966	11111111111111	CCP3RA	9B0	00000000000000
PTGQPTR	928	----0000	CCP1RA	968	0000000000000	CCP3RB	9B4	0000000000000
PTGQUE0	930	00000000000000	CCP1RB	96C	000000000000	CCP3BUFL	9B8	000000000000
PTGQUE1	932	0000000000000	CCP1BUFL	970	00000000000	CCP3BUFH	9BA	00000000000
PTGQUE2	934	0000000000000	CCP1BUFH	972	00000000000	CCP4CON1L	9BC	0-0000000000
PTGQUE3	936	0000000000000	CCP2CON1L	974	0-0000000000	CCP4CON1H	9BE	00--0000000
PTGQUE4	938	000000000000	CCP2CON1H	976	0--00000000	CCP4CON2L	9C0	0C-0----000
PTGQUE5	93A	000000000000	CCP2CON2L	978	0C-0----000	CCP4CON2H	9C2	0----0-00
PTGQUE6	93C	000000000000	CCP2CON2H	97A	0----0C-0C	CCP4CON3H	9C6	00C----0-0
PTGQUE7	93E	00000000000	CCP2CON3H	97E	000--0-0--	CCP4STATL	9C8	----0--011
PTGQUE8	940	00000000000	CCP2STATL	980	----0--011	CCP4STATH	9CA	----0
PTGQUE9	942	0000000000	CCP2STATH	982	----0C	CCP4TMRL	9CC	0000000000
PTGQUE10	944	000000000	CCP2TMRL	984	000000000	CCP4TMRH	9CE	0C
PTGQUE11	946	00000000	CCP2TMRH	986	00000000	CCP4PRL	9D0	111111111111
PTGQUE12	948	00000000	CCP2PRL	988	1111111111111	CCP4PRH	9D2	111111111111
PTGQUE13	94A	00000000	CCP2PRH	98A	1111111111111	CCP4RA	9D4	C
PTGQUE14	94C	00000000	CCP2RA	98C	00000000	CCP4RB	9D8	C
PTGQUE15	94E	00000000	CCP2RB	990	00000000	CCP4BUFL	9DC	C
			CCP2BUFL	994	00000000	CCP4BUFH	9DE	C

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-8: SFR BLOCK A00h

Register Address All		Resets Register Address	All Resets Register Address All Resets
DMA			DMACNT0	ACC	000000000000001	DMADST2	ADE	000000000000000
DMACON	ABC	C-C----0	DMACH1	ACE	----0000000000	DMACNT2	AE0	000000000000001
DMABUF	ABE	000000000000000	DMAINT1	AD0	000000000000--0	DMACH3	AE2	----0000000000
DMAL	AC0	000000000000000	DMASRC1	AD2	000000000000000	DMAINT3	AE4	000000000000--0
DMAH	AC2	000000000000000	DMADST1	AD4	000000000000000	DMASRC3	AE6	000000000000000
DMACH0	AC4	----0000000000	DMACNT1	AD6	00000000000001	DMADST3	AE8	000000000000000
DMAINT0	AC6	000000000000--0	DMACH2	AD8	----0000000000	DMACNT3	AEA	00000000000001
DMASRC0	AC8	000000000000000	DMAINT2	ADA	00000000000--0
DMADST0	ACA	000000000000000	DMASRC2	ADC	0000000000000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-9: SFR BLOCK B00h

Register Address		Resets Register Address	All Resets Register Address		All Resets
ADC			ADCMP1ENL	B40	0000000000000000		ADTRIG0L	B80	----00000----00000
ADCON1L	B00	0-0----	ADCMP1ENH	B42	----00		ADTRIG0H	B82	----00000----00000
ADCON1H	B02	----011----	ADCMP1LO	B44	000000000000000		ADTRIG1L	B84	----00000----00000
ADCON2L	B04	00-0-000-000000	ADCMP1HI	B46	000000000000000		ADTRIG1H	B86	----00000----00000
ADCON2H	B06	00----000000000	ADCMP2ENL	B48	000000000000000		ADTRIG2L	B88	----00000----00000
ADCON3L	B08	000000000000000	ADCMP2ENH	B4A	----00		ADTRIG2H	B8A	----00000----00000
ADCON3H	B0A	000000000----	ADCMP2LO	B4C	000000000000000		ADTRIG3L	B8C	----00000----00000
ADMOD0L	B10	00000000000000	ADCMP2HI	B4E	000000000000000		ADTRIG3H B8E	----00000----00000
ADMOD0H	B12	00000000000000	ADCMP3ENL	B50	000000000000000		ADTRIG4L	B90	----00000----00000
ADMOD1L	B14	----0000	ADCMP3ENH	B52	----00		ADCMP0CON	BA0	----000000000000
ADIEL	B20	0000000000000	ADCMP3LO	B54	00000000000000		ADCMP1CON	BA4	----000000000000
ADIEH	B22	----00	ADCMP3HI	B56	00000000000000		ADCMP2CON	BA8	----000000000000
ADCSSL	B28	0000000000000	ADFL0DAT	B68	0000000000000		ADCMP3CON	BAC	----000000000000
ADCSSH	B2A	0000000000000	ADFL0CON	B6A	00000000----00		ADLVLTRGL	BD0	0000000000000
ADSTATL	B30	0000000000000	ADFL1DAT	B6C	0000000000000		ADLVLTRGH	BD2	----00
ADSTATH	B32	----00	ADFL1CON	B6E	0000000----00		ADEIEL	BF0	0000000000000
ADCMP0ENL	B38	000000000000	ADFL2DAT	B70	00000000000		ADEIEH	BF2	----00
ADCMP0ENH	B3A	----00	ADFL2CON	B72	000000----00		ADEISTATL	BF8	000000000000
ADCMP0LO	B3C	000000000000	ADFL3DAT	B74	00000000000		ADEISTATH	BFA	----00
ADCMP0HI	B3E	000000000000	ADFL3CON	B76	000000----00

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-10: SFR BLOCK C00h

Register Address All Resets Register Address			Register Address All Resets
ADC (Continued)			ADCBUF9	C1E	0000000000000000	DACCTRL2H	C86	----0010001010
ADCON5L	C00	0----0----	ADCBUF10	C20	0000000000000000	DAC1CONL	C88	000--000x0000000
ADCON5H	C02	----xxxx0----	ADCBUF11	C22	0000000000000000	DAC1CONH	C8A	----0000000000
ADCBUF0	C0C	0000000000000000	ADCBUF12	C24	000000000000000	DAC1DATL	C8C	----00000000000
ADCBUF1	C0E	0000000000000000	ADCBUF13	C26	000000000000000	DAC1DATH	C8E	----00000000000
ADCBUF2	C10	0000000000000000	ADCBUF14	C28	000000000000000	SLP1CONL	C90	00000000000000
ADCBUF3	C12	0000000000000000	ADCBUF15	C2A	000000000000000	SLP1CONH	C92	0----000----
ADCBUF4	C14	0000000000000000	ADCBUF16	C2C	000000000000000	SLP1DAT	C94	000000000000000
ADCBUF5	C16	0000000000000000	ADCBUF17	C2E	000000000000000	VREGCON	CFC	0----
ADCBUF6	C18	0000000000000000	DAC
ADCBUF7	C1A	0000000000000000	DACCTRL1L	C80	0-0----0000-000
ADCBUF8	C1C	0000000000000000	DACCTRL2L	C84	----0001010101

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-11: SFR BLOCK D00h

Register Address All		Resets Register Address All Resets Register Address All Resets
PPS			RPINR23	D32	----0000000	RPOR7	D8E	--000000--000000
RPCON	D00	----0----	RPINR27	D3A	000000000000000	RPOR8	D90	--000000--000000
RPINR0	D04	0000000----	RPINR37	D4E	000000000000000	RPOR9	D92	--000000--000000
RPINR1	D06	000000000000000	RPINR38	D50	----0000000	RPOR10	D94	--000000--000000
RPINR2	D08	0000000----	RPINR42	D58	000000000000000	RPOR11	D96	--000000--000000
RPINR3	D0A	000000000000000	RPINR43	D5A	000000000000000	RPOR12	D98	--000000--000000
RPINR4	D0C	000000000000000	RPINR44	D5C	000000000000000	RPOR13	D9A	--000000--000000
RPINR5	D0E	000000000000000	RPINR45	D5E	0000000----	RPOR14	D9C	--000000--000000
RPINR6	D10	000000000000000	RPINR46	D60	000000000000000	RPOR16	DA0	--000000----
RPINR11	D1A	000000000000000	RPINR47	D62	000000000000000	RPOR17	DA2	--000000--000000
RPINR12	D1C	000000000000000	RPINR48	D64	000000000000000	RPOR18	DA4	--000000--000000
RPINR13	D1E	000000000000000	RPINR49	D66	000000000000000	RPOR19	DA6	--000000--000000
RPINR14	D20	000000000000000	RPOR0	D80	--00000--00000	RPOR20	DA8	----000000
RPINR15	D22	000000000000000	RPOR1	D82	--00000--00000	RPOR21	DAA	----000000
RPINR18	D28	000000000000000	RPOR2	D84	--00000--00000	RPOR22	DAC	--000000----
RPINR19	D2A	000000000000000	RPOR3	D86	--00000--00000	RPOR24	DB0	--000000--000000
RPINR20	D2C	000000000000000	RPOR4	D88	--00000--00000	RPOR25	DB2	--000000--000000
RPINR21	D2E	000000000000000	RPOR5	D8A	--00000--00000	RPOR26	DB4	--00000--000000
RPINR22	D30	000000000000000	RPOR6	D8C	--00000--00000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-12: SFR BLOCK E00h

Register Address All	Resets Register Address		Address All Resets	Register Address All Resets
I/O Ports			ODCB	E24	000000000000000	CNSTATC	E4A
ANSELA	E00	----11111	CNPUB	E26	000000000000000	CNEN1C	E4C
TRISA	E02	----11111	CNPDB	E28	000000000000000	CNFC	E4E
PORTA	E04	----00000	CNCONB	E2A	0---0----	ANSELD	E54
LATA	E06	----xxxxx	CNEN0B	E2C	000000000000000	TRISD	E56
ODCA	E08	----00000	CNSTATB	E2E	000000000000000	PORTD	E58
CNPUA	E0A	----00000	CNEN1B	E30	000000000000000	LATD	E5A
CNPDA	E0C	----00000	CNFB	E32	000000000000000	ODCD	E5C
CNCONA	E0E	0---0----	ANSELC	E38	----11--1111	CNPUD	E5E
CNEN0A	E10	----00000	TRISC	E3A	--1111111111111	CNPDD	E60
CNSTATA	E12	----00000	PORTC	E3C	--00000000000000	CNCOND	E62
CNEN1A	E14	----00000	LATC	E3E	-xxxxxxxxxxxxxxxx	CNEN0D	E64
CNFA	E16	----00000	ODCC	E40	--00000000000000	CNSTATD	E66
ANSELB	E1C	----111--11111	CNPUC	E42	--00000000000000	CNEN1D	E68
TRISB	E1E	111111111111111	CNPDC	E44	--00000000000000	CNFD	E6A
PORTB	E20	000000000000000	CNCONC	E46	0---0----	Memory BIST
LATB	E22	xxxxxxxxxxxxxxxx	CNEN0C	E48	--00000000000000	MBISTCON	EFC

Legend: x = unknown or indeterminate value; “-” = unimplemented bits. Address values are in hexadecimal. Reset values are in binary.

TABLE 4-13: SFR BLOCK F00h

Register Address All		Resets Register Address	U3SCINT	F22	--00-000--00-000	PMD4	FAA	----C---
U3MODE	F00	0-000-000000000	U3INT	F24	----00----0--	PMD6	FAE	----0000----
U3MODEH	F02	00--000000000000	Reset and Oscillator			PMD7	FB0	----0----0---
U3STA	F04	0000000010000000	RCON	F80	00----0000-00011	PMD8	FB2	--0-0--0--00000-
U3STAH	F06	-000-0000101110	OSCCON	F84	-000-yyy0-0-0--0	WDT
U3BRG	F08	000000000000000	CLKDIV	F86	00110000--000001	WDTCONL	FB4	0--0000000000000
U3BRGH	F0A	----0000	PLLFBD	F88	----000010010110	WDTCONH	FB6	000000000000000
U3RXREG	F0C	----xxxxxxxx	PLLDIV	F8A	----00-011-001	Reference Clock Output
U3TXREG	F10	x----xxxxxxxx	OSCTUN	F8C	----000000	REFOCONL	FB8	0-000-00----0000
U3P1	F14	----00000000	DCOTUN	F9C	----000000	REFOCONH	FBA	-000000000000000
U3P2	F16	----00000000	DCOCON	F9E	--0-xxxx----	REFOTRIMH	FBE	000000000----
U3P3	F18	000000000000000	PMD			Programmer/Debugger
U3P3H	F1A	----0000000	PMDCONL	FA0	----0----	VISI	FCC	000000000000000
U3TXCHK	F1C	----0000000	PMD1	FA4	----000-00000--0	APPO	FD2	000000000000000
U3RXCHK	F1E	----0000000	PMD2	FA6	----0000	APPI	FD4	000000000000000
U3SCCON	F20	----00000-	PMD3	FA8	----0--0--	APPS	FD6	----0000

Legend: x = unknown or indeterminate value; “-” = unimplemented bits; y = value set by Configuration bits. Address values are in hexadecimal. Reset values are in binary.

4.5.1 PAGED MEMORY SCHEME

The dsPIC33CK64MC105 architecture extends the available Data Space through a paging scheme, which allows the available Data Space to be accessed using MOV instructions in a linear fashion for pre- and post-modified Effective Addresses (EAs). The upper half of the base Data Space address is used in conjunction with the Data Space Read Page (DSRPAG) register to form the Program Space Visibility (PSV) address.

The Data Space Read Page (DSRPAG) register is located in the SFR space. Construction of the PSV address is shown in Figure 4-7. When DSRPAG[9] = 1 and the base address bit, EA[15] = 1, the DSRPAG[8:0] bits are concatenated onto EA[14:0] to form the 24-bit PSV read address.

The paged memory scheme provides access to multiple 32-Kbyte windows in the PSV memory. The Data Space Read Page (DSRPAG) register, in combination with the upper half of the Data Space address, can provide up to 8 Mbytes of PSV address space. The paged data memory space is shown in Figure 4-8.

The Program Space (PS) can be accessed with a DSRPAG of 0x200 or greater. Only reads from PS are supported using the DSRPAG.

FIGURE 4-7: PROGRAM SPACE VISIBILITY (PSV) READ ADDRESS GENERATION

Note: DS read access when DSRPAG = 0x000 will force an address error trap.

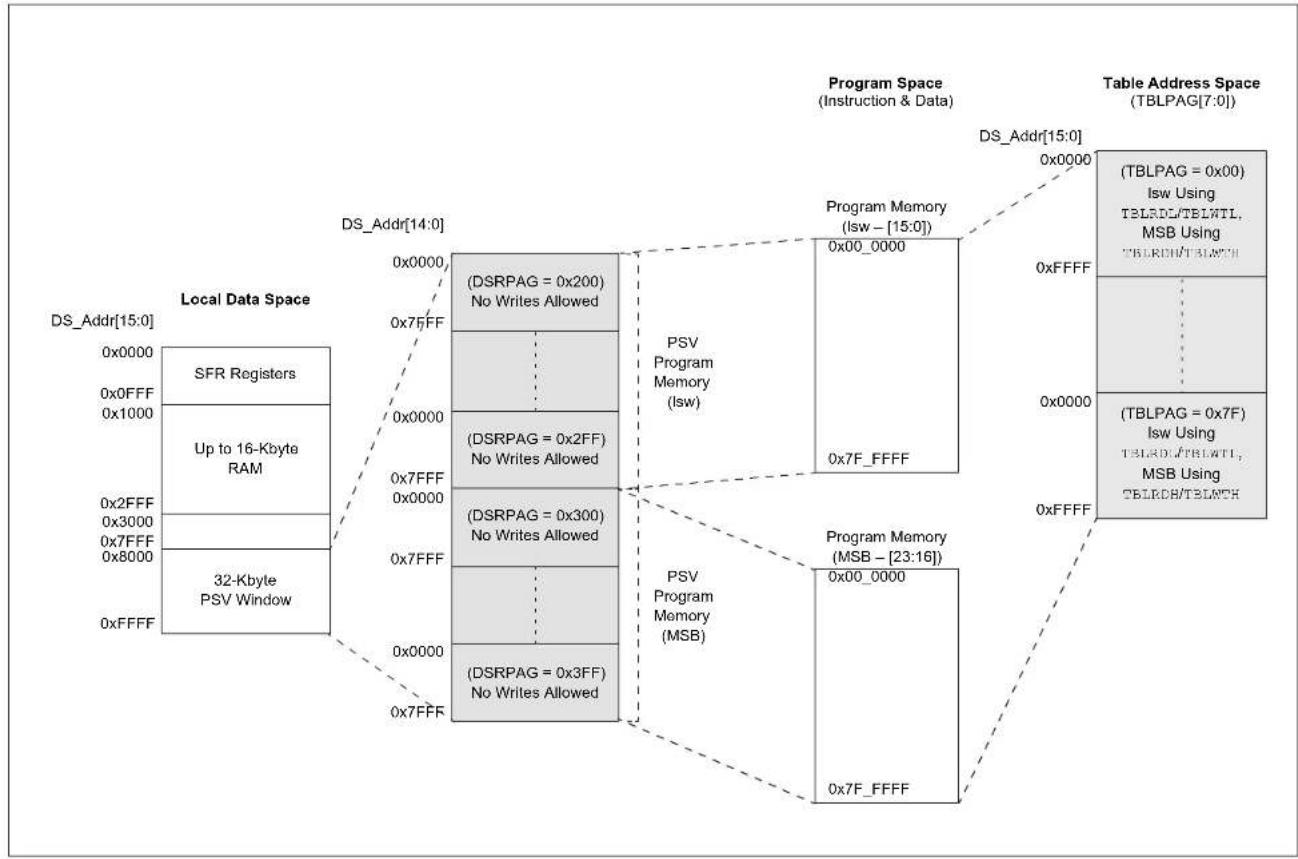

FIGURE 4-8: PAGED DATA MEMORY SPACE

When a PSV page overflow or underflow occurs, EA[15] is cleared as a result of the register indirect EA calculation. An overflow or underflow of the EA in the PSV pages can occur at the page boundaries when:

• The initial address, prior to modification, addresses the PSV page
• The EA calculation uses Pre- or Post-Modified Register Indirect Addressing; however, this does not include Register Offset Addressing

In general, when an overflow is detected, the DSRPAG register is incremented and the EA[15] bit is set to keep the base address within the PSV window. When an underflow is detected, the DSRPAG register is decremented and the EA[15] bit is set to keep the base

address within the PSV window. This creates a linear PSV address space, but only when using Register Indirect Addressing modes.

Exceptions to the operation described above arise when entering and exiting the boundaries of Page 0 and PSV spaces. Table 4-14 lists the effects of overflow and underflow scenarios at different boundaries.

In the following cases, when overflow or underflow occurs, the EA[15] bit is set and the DSRPAG is not modified; therefore, the EA will wrap to the beginning of the current page:

• Register Indirect with Register Offset Addressing
• Modulo Addressing
• Bit-Reversed Addressing

TABLE 4-14: OVERFLOW AND UNDERFLOW SCENARIOS AT PAGE 0 AND PSV SPACE BOUNDARIES ^(2,3,4)

O/U,R/W	Operation	Before After
		DSRPAG	DSEA[15]	PageDescription	DSRPAG	DSEA[15]	PageDescription
O,Read	[++Wn]or[Wn++]	DSRPAG = 0x2FF 1	PSV: Last lswpage		DSRPAG = 0x300 1	PSV: First MSBpage
O,Read		DSRPAG = 0x3FF 1	PSV: Last MSBpage		DSRPAG = 0x3FF	0	See Note 1
U,Read	[--Wn]or[Wn--]	DSRPAG = 0x001	1	PSV page	DSRPAG = 0x001	0	See Note 1
U,Read		DSRPAG = 0x200 1	PSV: First lswpage		DSRPAG = 0x200	0	See Note 1
U,Read		DSRPAG = 0x300 1	PSV: First MSBpage		DSRPAG = 0x2FF 1	PSV: Last lswpage

Legend: O = Overflow, U = Underflow, R = Read, W = Write
Note 1: The Register Indirect Addressing now addresses a location in the base Data Space (0x0000-0x8000).
2: An EDS access, with DSRPAG = 0x000, will generate an address error trap.
3: Only reads from PS are supported using DSRPAG.
4: Pseudolinear Addressing is not supported for large offsets.

4.5.1.1 Extended X Data Space

The lower portion of the base address space range, between 0x0000 and 0x7FFF, is always accessible, regardless of the contents of the Data Space Read Page register. It is indirectly addressable through the register indirect instructions. It can be regarded as being located in the default EDS Page 0 (i.e., EDS address range of 0x000000 to 0x007FFF with the base address bit, EA[15] = 0, for this address range). However, Page 0 cannot be accessed through the upper 32 Kbytes, 0x8000 to 0xFFFF, of base Data Space in combination with DSRPAG = 0x00. Consequently, DSRPAG is initialized to 0x001 at Reset.

Note 1: DSRPAG should not be used to access Page 0. An EDS access with DSRPAG set to 0x000 will generate an address error trap.

2: Clearing the DSRPAG in software has no effect.

The remaining PSV pages are only accessible using the DSRPAG register in combination with the upper 32 Kbytes, 0x8000 to 0xFFFF, of the base address, where the base address bit, EA[15] = 1.

4.5.1.2 Software Stack

The W15 register serves as a dedicated Software Stack Pointer (SSP), and is automatically modified by exception processing, subroutine calls and returns; however, W15 can be referenced by any instruction in the same manner as all other W registers. This simplifies reading, writing and manipulating the Stack Pointer (for example, creating stack frames).

Note: To protect against misaligned stack accesses, W15[0] is fixed to '0' by the hardware.

W15 is initialized to 0x1000 during all Resets. This address ensures that the SSP points to valid RAM in all dsPIC33CK64MC105 devices and permits stack availability for non-maskable trap exceptions. These can occur before the SSP is initialized by the user software. You can reprogram the SSP during initialization to any location within Data Space.

The Software Stack Pointer always points to the first available free word and fills the software stack, working from lower toward higher addresses. Figure 4-9 illustrates how it pre-decrements for a stack pop (read) and post-increments for a stack push (writes).

When the PC is pushed onto the stack, PC[15:0] are pushed onto the first available stack word, then PC[22:16] are pushed into the second available stack location. For a PC push during any CALL instruction, the MSB of the PC is zero-extended before the push, as shown in Figure 4-9. During exception processing, the MSB of the PC is concatenated with the lower eight bits of the CPU STATUS Register, SR. This allows the contents of SRL to be preserved automatically during interrupt processing.

Note 1: To maintain system Stack Pointer (W15) coherency, W15 is never subject to (EDS) paging, and is therefore, restricted to an address range of 0x0000 to 0xFFFF. The same applies to the W14 when used as a Stack Frame Pointer (SFA = 1).

2: As the stack can be placed in, and can access X and Y spaces, care must be taken regarding its use, particularly with regard to local automatic variables in a C development environment

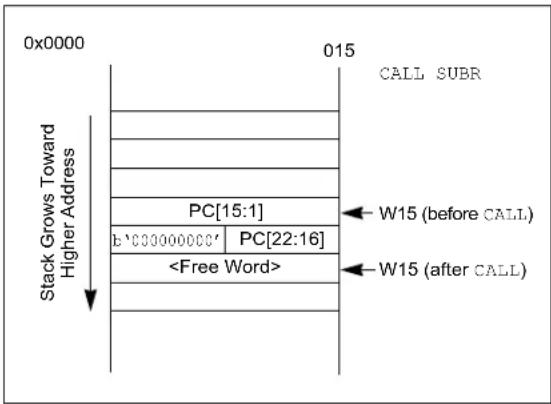

FIGURE 4-9: CALL STACK FRAME

0x0000 Stack Grows Toward Higher Address 015 CALL SUBR PC[15:1] b'030000000' PC[22:16] W15 (before CALL) W15 (after CALL)

4.5.2 INSTRUCTION ADDRESSING MODES

The addressing modes shown in Table 4-15 form the basis of the addressing modes optimized to support the specific features of individual instructions. The addressing modes provided in the MAC class of instructions differ from those in the other instruction types.

4.5.2.1 File Register Instructions

Most file register instructions use a 13-bit address field (f) to directly address data present in the first 8192 bytes of data memory (Near Data Space). Most file register instructions employ a Working register, W0, which is denoted as WREG in these instructions. The destination is typically either the same file register or WREG (with the exception of the MUL instruction), which writes the result to a register or register pair. The MOV instruction allows additional flexibility and can access the entire Data Space.

4.5.2.2 MCU Instructions

The three-operand MCU instructions are of the form:

Operand 3 = Operand 1 Operand 2

where Operand 1 is always a Working register (that is, the addressing mode can only be Register Direct), which is referred to as Wb. Operand 2 can be a W register fetched from data memory or a 5-bit literal. The result location can either be a W register or a data memory location. The following addressing modes are supported by MCU instructions:

• Register Direct
• Register Indirect
• Register Indirect Post-Modified
• Register Indirect Pre-Modified
• 5-Bit or 10-Bit Literal

Note: Not all instructions support all the addressing modes given above. Individual instructions can support different subsets of these addressing modes.

TABLE 4-15: FUNDAMENTAL ADDRESSING MODES SUPPORTED

Addressing Mode Description
File Register Direct The address of the file register is specified explicitly.
Register Direct	The contents of a register are accessed directly.
Register Indirect	The contents of Wn form the Effective Address (EA).
Register Indirect Post-Modified	The contents of Wn form the EA. Wn is post-modified (incremented or decremented) by a constant value.
Register Indirect Pre-Modified	Wn is pre-modified (incremented or decremented) by a signed constant value to form the EA.
Register Indirect with Register Offset (Register Indexed)	The sum of Wn and Wb forms the EA.
Register Indirect with Literal Offset	The sum of Wn and a literal forms the EA.

4.5.2.3 Move and Accumulator Instructions

Move instructions, and the DSP accumulator class of instructions, provide a greater degree of addressing flexibility than other instructions. In addition to the addressing modes supported by most MCU instructions, move and accumulator instructions also support Register Indirect with Register Offset Addressing mode, also referred to as Register Indexed mode.

Note:

For the MOV instructions, the addressing mode specified in the instruction can differ for the source and destination EA. However, the 4-bit Wb (Register Offset) field is shared by both source and destination (but typically only used by one).

In summary, the following addressing modes are supported by move and accumulator instructions:

• Register Direct
• Register Indirect
• Register Indirect Post-Modified
• Register Indirect Pre-Modified
• Register Indirect with Register Offset (Indexed)
• Register Indirect with Literal Offset
• 8-Bit Literal
• 16-Bit Literal

Note: Not all instructions support all the addressing modes given above. Individual instructions may support different subsets of these addressing modes.

4.5.2.4 MAC Instructions

The dual source operand DSP instructions (CLR, ED, EDAC, MAC, MPY, MPY . N, MOVSAC and MSC), also referred to as MAC instructions, use a simplified set of addressing modes to allow the user application to effectively manipulate the Data Pointers through register indirect tables.

The two-source operand prefetch registers must be members of the set {W8, W9, W10, W11}. For data reads, W8 and W9 are always directed to the X RAGU, and W10 and W11 are always directed to the Y AGU. The Effective Addresses generated (before and after modification) must therefore, be valid addresses within X Data Space for W8 and W9, and Y Data Space for W10 and W11.

Note: Register Indirect with Register Offset Addressing mode is available only for W9 (in X space) and W11 (in Y space).

In summary, the following addressing modes are supported by the MAC class of instructions:

• Register Indirect
• Register Indirect Post-Modified by 2
• Register Indirect Post-Modified by 4
• Register Indirect Post-Modified by 6
• Register Indirect with Register Offset (Indexed)

4.5.2.5 Other Instructions

Besides the addressing modes outlined previously, some instructions use literal constants of various sizes. For example, BRA (branch) instructions use 16-bit signed literals to specify the branch destination directly, whereas the DISI instruction uses a 14-bit unsigned literal field. In some instructions, such as ULNK, the source of an operand or result is implied by the opcode itself. Certain operations, such as a NOP, do not have any operands.

4.5.3 MODULO ADDRESSING

Modulo Addressing mode is a method of providing an automated means to support circular data buffers using hardware. The objective is to remove the need for software to perform data address boundary checks when executing tightly looped code, as is typical in many DSP algorithms.

Modulo Addressing can operate in either Data or Program Space (since the Data Pointer mechanism is essentially the same for both). One circular buffer can be supported in each of the X (which also provides the pointers into Program Space) and Y Data Spaces. Modulo Addressing can operate on any W Register Pointer. However, it is not advisable to use W14 or W15 for Modulo Addressing since these two registers are used as the Stack Frame Pointer and Stack Pointer, respectively.

In general, any particular circular buffer can be configured to operate in only one direction, as there are certain restrictions on the buffer start address (for incrementing buffers) or end address (for decrementing buffers), based upon the direction of the buffer.

The only exception to the usage restrictions is for buffers that have a power-of-two length. As these buffers satisfy the start and end address criteria, they can operate in a Bidirectional mode (that is, address boundary checks are performed on both the lower and upper address boundaries).

4.5.3.1 Start and End Address

The Modulo Addressing scheme requires that a starting and ending address be specified and loaded into the 16-bit Modulo Buffer Address registers: XMODSRT, XMODEND, YMODSRT and YMODEND (see Table4-2).

Note: Y space Modulo Addressing EA calculations assume word-sized data (LSb of every EA is always clear).

The length of a circular buffer is not directly specified. It is determined by the difference between the corresponding start and end addresses. The maximum possible length of the circular buffer is 32K words (64 Kbytes).

4.5.3.2 W Address Register Selection

The Modulo and Bit-Reversed Addressing Control register, MODCON[15:0], contains enable flags, as well as a W register field to specify the W Address registers. The XWM and YWM fields select the registers that operate with Modulo Addressing:

• If XWM = 1111, X RAGU and X WAGU Modulo Addressing is disabled
• I f Y W M = 1111, Y AGU Modulo Addressing is disabled

The X Address Space Pointer W (XWM) register, to which Modulo Addressing is to be applied, is stored in MODCON[3:0] (see Table 4-2). Modulo Addressing is enabled for X Data Space when XWM is set to any value other than '1111' and the XMODEN bit is set (MODCON[15]).

The Y Address Space Pointer W (YWM) register, to which Modulo Addressing is to be applied, is stored in MODCON[7:4]. Modulo Addressing is enabled for Y Data Space when YWM is set to any value other than '1111' and the YMODEN bit (MODCON[14]) is set.

FIGURE 4-10: MODULO ADDRESSING OPERATION EXAMPLE

Byte Address 0x1100 0x1163 Start Addr = 0x1100 End Addr = 0x1163 Length = 0x0032 words MOV #0x1100, WO MOV WO, XMODSRT ;set modulo start address MOV #0x1163, WO MOV WO, MODEND ;set modulo end address MOV #0x8001, WO MOV WO, MODCON ;enable W1, X AGU for modulo MOV #0x0000, WO ;WO holds buffer fill value MOV #0x1110, W1 ;point W1 to buffer DO AGAIN, #0x31 ;fill the 50 buffer locations MOV WO, [W1++] ;fill the next location AGAIN: INC WO, WO ;increment the fill value

4.5.3.3 Modulo Addressing Applicability

Modulo Addressing can be applied to the Effective Address (EA) calculation associated with any W register. Address boundaries check for addresses equal to:

• The upper boundary addresses for incrementing buffers
• The lower boundary addresses for decrementing buffers

It is important to realize that the address boundaries check for addresses less than, or greater than, the upper (for incrementing buffers) and lower (for decrementing buffers) boundary addresses (not just equal to). Address changes can, therefore, jump beyond boundaries and still be adjusted correctly.

Note: The modulo corrected Effective Address is written back to the register only when Pre-Modify or Post-Modify Addressing mode is used to compute the Effective Address. When an address offset (such as [W7 + W2]) is used, Modulo Addressing correction is performed, but the contents of the register remain unchanged.

4.5.4 BIT-REVERSED ADDRESSING

Bit-Reversed Addressing mode is intended to simplify data reordering for radix-2 FFT algorithms. It is supported by the X AGU for data writes only.

The modifier, which can be a constant value or register contents, is regarded as having its bit order reversed. The address source and destination are kept in normal order. Thus, the only operand requiring reversal is the modifier.

4.5.4.1 Bit-Reversed Addressing Implementation

Bit-Reversed Addressing mode is enabled in any of these situations:

• BWMx bits (W register selection) in the MODCON register are any value other than '1111' (the stack cannot be accessed using Bit-Reversed Addressing)

- The BREN bit is set in the XBREV register

- The addressing mode used is Register Indirect with Pre-Increment or Post-Increment

If the length of a bit-reversed buffer is M = 2^N bytes, the last 'N' bits of the data buffer start address must be zeros.

XB[14:0] is the Bit-Reversed Addressing modifier, or 'pivot point', which is typically a constant. In the case of an FFT computation, its value is equal to half of the FFT data buffer size.

Note: All bit-reversed EA calculations assume word-sized data (LSb of every EA is always clear). The XB value is scaled accordingly to generate compatible (byte) addresses.

When enabled, Bit-Reversed Addressing is executed only for Register Indirect with Pre-Increment or Post-Increment Addressing and word-sized data writes. It does not function for any other addressing mode or for byte-sized data and normal addresses are generated instead. When Bit-Reversed Addressing is active, the W Address Pointer is always added to the address modifier (XB) and the offset associated with the Register Indirect Addressing mode is ignored. In addition, as word-sized data are a requirement, the LSb of the EA is ignored (and always clear).

Note: Modulo Addressing and Bit-Reversed Addressing can be enabled simultaneously using the same W register, but Bit-Reversed Addressing operation will always take precedence for data writes when enabled.

If Bit-Reversed Addressing has already been enabled by setting the BREN (XBREV[15]) bit, a write to the XBREV register should not be immediately followed by an indirect read operation using the W register that has been designated as the Bit-Reversed Pointer.

FIGURE 4-11: BIT-REVERSED ADDRESSING EXAMPLE

TABLE 4-16: BIT-REVERSED ADDRESSING SEQUENCE (16-ENTRY)

Normal Address Bit-Reversed Address
A3 A2	A1 A0	Decimal	A3 A2 A1	A0 Decimal
0	0	0	0	0 0	0	0	0		0
0	0	0	1	1 1	0	0	0		8
0	0	1	0	2 0	1	0	0		4
0	0	1	1	3 1	1	0	0		12
0	1	0	0	4 0	0	1	0		2
0	1	0	1	5 1	0	1	0		10
0	1	1	0	6 0	1	1	0		6
0	1	1	1	7 1	1	1	0		14
1	0	0	0	8 0	0	0	1		1
1	0	0	1	9 1	0	0	1		9
1	0	1	0	10 0	1	0	1		5
1	0	1	1	11	1	1	0	1	13
1	1	0	0	12 0	0	1	1		3
1	1	0	1	13	1	0	1	1	11
1	1	1	0	14 0	1	1	1		7
1	1	1	1	15 1	1	1	1		15

4.5.5 INTERFACING PROGRAM AND DATA MEMORY SPACES

The dsPIC33CK64MC105 family architecture uses a 24-bit wide Program Space (PS) and a 16-bit wide Data Space (DS). The architecture is also a modified Harvard scheme, meaning that data can also be present in the Program Space. To use these data successfully, they must be accessed in a way that preserves the alignment of information in both spaces.

Aside from normal execution, the architecture of the dsPIC33CK64MC105 family devices provides two methods by which Program Space can be accessed during operation:

• Using table instructions to access individual bytes or words anywhere in the Program Space
• Remapping a portion of the Program Space into the Data Space (Program Space Visibility)

Table instructions allow an application to read small areas of the program memory. This capability makes the method ideal for accessing data tables that need to be updated periodically. It also allows access to all bytes of the program word. The remapping method allows an application to access a large block of data on a read-only basis, which is ideal for look-ups from a large table of static data. The application can only access the least significant word of the program word.

TABLE 4-17: PROGRAM SPACE ADDRESS CONSTRUCTION

Access Type	Access Space	Program Space Address
		[23] [22:16] [15] [14:1] [0]
Instruction Access (Code Execution)	User 0 PC[22:1] 0
		0xxx xxxx xxxx xxxx xxxx xxxx
TBLRD (Byte/Word Read)	User	TBLPAG[7:0]		Data EA[15:0]
		0xxx xxxx		xxxx xxxx xxxx xxxx
	Configuration	TBLPAG[7:0]		Data EA[15:0]
		1xxx xxxx		xxxx xxxx xxxx xxxx

FIGURE 4-12: DATA ACCESS FROM PROGRAM SPACE ADDRESS GENERATION

Note 1: The Least Significant bit (LSb) of Program Space addresses is always fixed as '0' to maintain word alignment of data in the Program and Data Spaces.

2: Table operations are not required to be word-aligned. Table Read operations are permitted in the configuration memory space.

4.5.5.1 Data Access from Program Memory Using Table Instructions

The TBLRDL instruction offers a direct method of reading the lower word of any address within the Program Space without going through Data Space. The TBLRDH instruction is the only method to read the upper eight bits of a Program Space word as data.

This allows program memory addresses to directly map to Data Space addresses. Program memory can thus be regarded as two 16-bit wide word address spaces, residing side by side, each with the same address range. TBLRDL accesses the space that contains the least significant data word. TBLRDH accesses the space that contains the upper data byte.

Two table instructions are provided to read byte or word-sized (16-bit) data from Program Space. Both function as either byte or word operations.

• TBLRDL (Table Read Low):

• In Word mode, this instruction maps the lower word of the Program Space location (P[15:0]) to a data address (D[15:0])
• In Byte mode, either the upper or lower byte of the lower program word is mapped to the lower byte of a data address. The upper byte is selected when Byte Select is '1'; the lower byte is selected when it is '0'.

• TBLRDH (Table Read High):

• In Word mode, this instruction maps the entire upper word of a program address (P[23:16]) to a data address. The 'phantom' byte (D[15:8]) is always '0'.
• In Byte mode, this instruction maps the upper or lower byte of the program word to D[7:0] of the data address in the TBLRDL instruction. The data are always '0' when the upper 'phantom' byte is selected (Byte Select = 1).

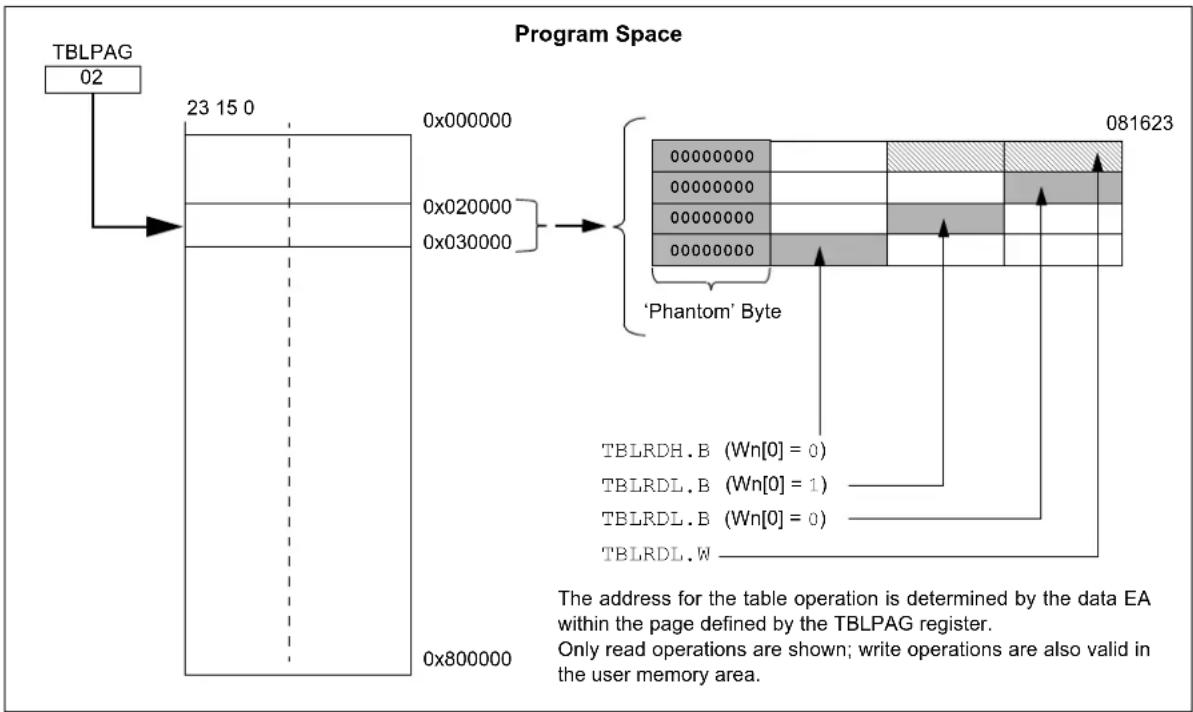

FIGURE 4-13: ACCESSING PROGRAM MEMORY WITH TABLE INSTRUCTIONS

NOTES:

5.0 FLASH PROGRAM MEMORY

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Flash Programming" (www.microchip.com/DS70000609) in the "dsPIC33/PIC24 Family Reference Manual".

The dsPIC33CK64MC105 family devices contain internal Flash program memory for storing and executing application code. The memory is readable, writable and erasable during normal operation over the entire VDD range.

Flash memory can be programmed in three ways:

• In-Circuit Serial Programming™ (ICSP™) programming capability
  • Enhanced In-Circuit Serial Programming (Enhanced ICSP)
  • Run-Time Self-Programming (RTSP)

ICSP allows for a dsPIC33CK64MC105 family device to be serially programmed while in the end application circuit. This is done with a Programming Clock and Programming Data (PGCx/PGDx) line, and three other lines for power (VDD), ground (Vss) and Master Clear (MCLR). This allows customers to manufacture boards with unprogrammed devices and then program the device just before shipping the product. This also allows the most recent firmware or a custom firmware to be programmed.

Enhanced In-Circuit Serial Programming uses an on-board bootloader, known as the Programming Executive, to manage the programming process. Using an SPI data frame format, the Programming Executive can erase, program and verify program memory. For more information on Enhanced ICSP, see the device programming specification.

RTSP is accomplished using TBLRD (Table Read) and TBLWT (Table Write) instructions. With RTSP, the user application can write program memory data by double program memory words or by blocks ('rows') of 128 instructions (256 addressable bytes). RTSP can erase program memory in blocks or 'pages' of 1024 instructions (2048 addressable bytes) at a time.

5.1 Table Instructions and Flash Programming

Regardless of the method used, all programming of Flash memory is done with the Table Read and Table Write instructions. These allow direct read and write access to the program memory space from the data memory while the device is in normal operating mode. The 24-bit target address in the program memory is formed using bits[7:0] of the TBLPAG register and the Effective Address (EA) from a W register, specified in the table instruction, as shown in Figure 5-1. The TBLRDL and TBLWTL instructions are used to read or write to bits[15:0] of program memory. TBLRDL and TBLWTL can access program memory in both Word and Byte modes. The TBLRDH and TBLWTH instructions are used to read or write to bits[23:16] of program memory. TBLRDH and TBLWTH can also access program memory in Word or Byte mode.

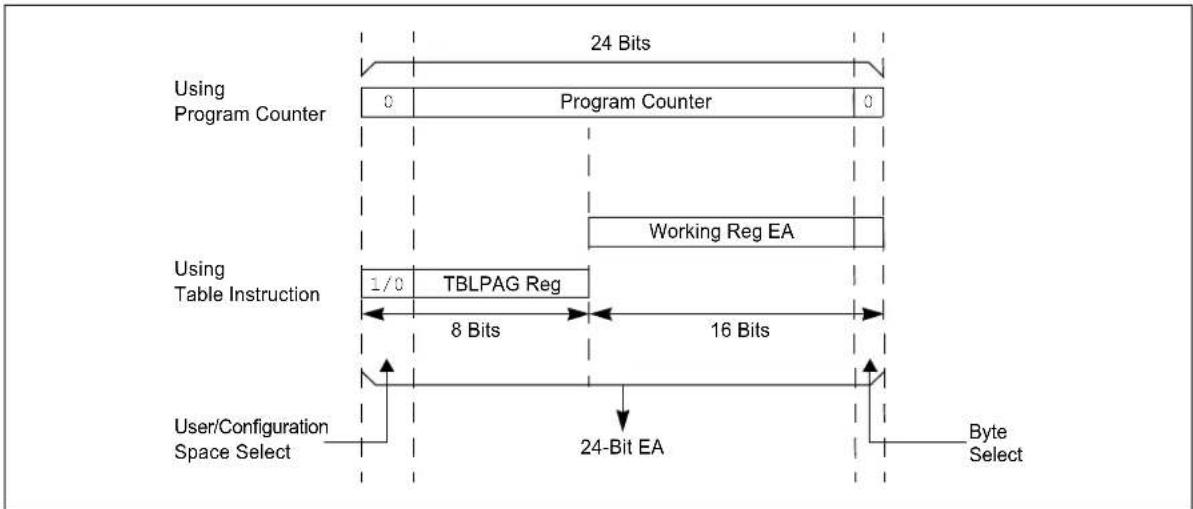

FIGURE 5-1: ADDRESSING FOR TABLE REGISTERS

5.2 RTSP Operation

The dsPIC33CK64MC105 family Flash program memory array is organized into rows of 128 instructions or 384 bytes. RTSP allows the user application to erase a single page (eight rows or 1024 instructions) of memory at a time and to program one row at a time. It is possible to program two instructions at a time as well.

The page erase and single row write blocks are edge-aligned, from the beginning of program memory, on boundaries of 3072 bytes and 384 bytes, respectively. Table 31-17 in Section 31.0 "Electrical Characteristics" lists the typical erase and programming times. To write into the Flash memory, it is necessary to erase the page that contains the desired address of the location the user wants to change.

Row programming is performed by loading 384 bytes into data memory and then loading the address of the first byte in that row into the NVMSRCADRL/H register pair. Once the write has been initiated, the device will automatically load the write latches, and increment the NVMSRCADRL/H and the NVMADR/U registers until all bytes have been programmed. The RPDF bit (NVMCON[9]) selects the format of the stored data in RAM to be either compressed or uncompressed. See Figure 5-2 for data formatting. Compressed data help to reduce the amount of required RAM by using the upper byte of the second word for the MSB of the second instruction.

The basic sequence for RTSP word programming is to use the TBLWTL and TBLWTH instructions to load two of the 24-bit instructions into the write latches found in configuration memory space. Refer to Figure 4-1 through Figure 4-3 for write latch addresses. Programming is performed by unlocking and setting the control bits in the NVMCON register.

All erase and program operations may optionally use the NVM interrupt to signal the successful completion of the operation.

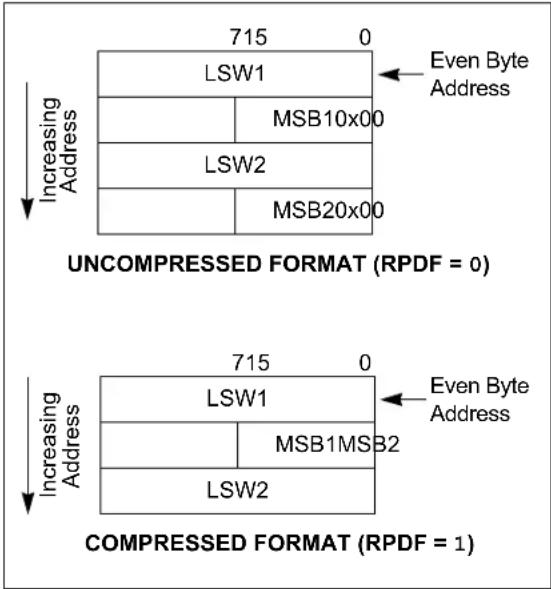

FIGURE 5-2: UNCOMPRESSED/ COMPRESSED FORMAT

715 0 LSW1 Even Byte Address MSB10x00 LSW2 MSB20x00 INCOMPRESSED FORMAT (RPDF = 0) 715 0 LSW1 Even Byte Address MSB1MSB2 LSW2 INCOMPRESSED FORMAT (RPDF = 1)

A complete programming sequence is necessary for programming or erasing the internal Flash in RTSP mode. The processor stalls (waits) until the programming operation is finished. Setting the WR bit (NVMCON[15]) starts the operation and the WR bit is automatically cleared when the operation is finished. The WR bit is protected against an accidental write. To set this bit, 0x55 and 0xAA values must be written sequentially into the NVMKEY register. After the programming command (WR bit = 1) has been executed, the user application must wait until programming is complete (WR bit = 0). The two instructions following the start of the programming sequence should be NOPs.

Note: MPLAB ^ XC16 provides a built-in C language function, including the unlocking sequence to set the WR bit in the NVMCON register: __builtin_write_NVM()

5.3 Program Flash Memory Control Registers

Six SFRs are used to write and erase the Program Flash Memory: NVMCON, NVMKEY, NVMADR/U and NVMSRCADRL/H.

The NVMCON register (Register 5-1) selects the operation to be performed (page erase, word/row program, Inactive Partition erase) and initiates the program or erase cycle.

NVMKEY (Register 5-4) is a write-only register that is used for write protection. To start a programming or erase sequence, the user application must consecutively write 0x55 and 0xAA to the NVMKEY register.

There are two NVM Address registers: NVMADRU and NVMADR. These two registers, when concatenated, form the 24-bit Effective Address (EA) of the selected word/row for programming operations, or the selected page for erase operations. The NVMADRU register is used to hold the upper eight bits of the EA, while the NVMADR register is used to hold the lower 16 bits of the EA.

For row programming operation, data to be written to Program Flash Memory are written into data memory space (RAM) at an address defined by the NVMSRCADRL/H register pair (location of first element in row programming data).

REGISTER 5-1: NVMCON: NONVOLATILE MEMORY (NVM) CONTROL REGISTER

R/SO-0^(1,6)	R/W-0^(1)	R/C-0^(1)	R/W-0	U-0	U-0	R/W-0	R/C-0
WR WRE	N WRERR NV	MSIDL	(2)		— — RP	DF URERR
bit 15 bit 8

U-0	U-0 U-0	U-0	R/W-0	(1)	R/W-0^(1)	R/W-0^(1)	R/W-0^(1)
—	—	—	—	NVMOP[3:0] ^(3,4)
bit 7 bit 0

Legend:	C = Clearable bit	SO = Settable Only bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 WR: Write Control bit ^(1,6)

1 = Initiates a Flash memory program or erase operation; the operation is self-timed and the bit is cleared by hardware once the operation is complete
0 = Program or erase operation is complete and inactive

bit 14 WREN: Write Enable bit ^(1)

1 = Enables Flash program/erase operations
0 = Inhibits Flash program/erase operations

bit 13 WRERR: Write Sequence Error Flag bit ^(1)

1 = An improper program or erase sequence attempt, or termination has occurred (bit is set automatically on any set attempt of the WR bit)
0 = The program or erase operation completed normally

bit 12 NVMSIDL: NVM Stop in Idle Control bit ^(2)

1 = Flash voltage regulator goes into Standby mode during Idle mode
0 = Flash voltage regulator is active during Idle mode

bit 11-10 Unimplemented: Read as '0'

bit 9 RPDF: Row Programming Data Format bit

1 = Row data to be stored in RAM are in compressed format
0 = Row data to be stored in RAM are in uncompressed format

bit 8 URERR: Row Programming Data Underrun Error bit

1 = Indicates row programming operation has been terminated
0 = No data underrun error is detected

bit 7-4 Unimplemented: Read as '0'

Note 1: These bits can only be reset on a POR.

2: If this bit is set, there will be minimal power savings (IIDLE), and upon exiting Idle mode, there is a delay (TVREG) before Flash memory becomes operational.
3: All other combinations of NVMOP[3:0] are unimplemented.
4: Execution of the PWRSAV instruction is ignored while any of the NVM operations are in progress.
5: Two adjacent words on a 4-word boundary are programmed during execution of this operation.
6: An unlock sequence is required to write to this bit (see Section 5.2 "RTSP Operation").

REGISTER 5-1: NVMCON: NONVOLATILE MEMORY (NVM) CONTROL REGISTER (CONTINUED)

bit 3-0 NVMOP[3:0]: NVM Operation Select bits (1,3,4)

1111 = Reserved 1110 = User memory bulk erase operation 1101 = Reserved 1100 = Reserved 1011 = Reserved 1010 = Reserved 1001 = Reserved 1000 = Reserved 0111 = Reserved 0101 = Reserved 0100 = Reserved 0011 = Memory page erase operation 0010 = Memory row program operation 0001 = Memory double-word operation ^(5) 0000 = Reserved

Note 1: These bits can only be reset on a POR.

2: If this bit is set, there will be minimal power savings (IIDLE), and upon exiting Idle mode, there is a delay (TVREG) before Flash memory becomes operational.
3: All other combinations of NVMOP[3:0] are unimplemented.
4: Execution of the PWRSAV instruction is ignored while any of the NVM operations are in progress.
5: Two adjacent words on a 4-word boundary are programmed during execution of this operation.
6: An unlock sequence is required to write to this bit (see Section 5.2 "RTSP Operation").

REGISTER 5-2: NVMADR: NONVOLATILE MEMORY LOWER ADDRESS REGISTER

R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

NVMADR[15:8]

bit 15 bit 8

R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

NVMADR[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0 NVMADR[15:0]: Nonvolatile Memory Lower Write Address bits

Selects the lower 16 bits of the location to program or erase in Program Flash Memory. This register may be read or written to by the user application.

REGISTER 5-3: NVMADRU: NONVOLATILE MEMORY UPPER ADDRESS REGISTER

R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

NVMADRU[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 NVMADRU[23:16]: Nonvolatile Memory Upper Write Address bits

Selects the upper eight bits of the location to program or erase in Program Flash Memory. This register may be read or written to by the user application.

REGISTER 5-4: NVMKEY: NONVOLATILE MEMORY KEY REGISTER

W-0	W-0	W-0	W-0	W-0	W-0	W-0	W-0
NVMKEY[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 NVMKEY[7:0]: NVM Key Register bits (write-only)

REGISTER 5-5: NVMSRCADRL: NVM SOURCE DATA ADDRESS REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

NVMSRCADR[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

NVMSRCADR[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 NVMSRCADR[15:0]: NVM Source Data Address bits

The RAM address of the data to be programmed into Flash when the NVMOP[3:0] bits are set to row programming.

REGISTER 5-6: NVMSRCADRH: NVM SOURCE DATA ADDRESS REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

NVMSRCADR[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 NVMSRCADR[23:16]: NVM Source Data Address bits

The RAM address of the data to be programmed into Flash when the NVMOP[3:0] bits are set to row programming.

5.4 Error Correcting Code (ECC)

In order to improve program memory performance and durability, these devices include Error Correcting Code (ECC) functionality as an integral part of the Flash memory controller. ECC can determine the presence of single-bit errors in program data, including which bit is in error, and correct the data automatically without user intervention. ECC cannot be disabled.

When data are written to program memory, ECC generates a 7-bit Hamming code parity value for every two (24-bit) instruction words. The data are stored in blocks of 48 data bits and seven parity bits; parity data are not memory-mapped and are inaccessible. When the data are read back, the ECC calculates the parity on them and compares it to the previously stored parity value. If a parity mismatch occurs, there are two possible outcomes:

• Single-bit error has occurred and has been automatically corrected on readback.
• Double-bit error has occurred and the read data are not changed.

Single-bit error occurrence can be identified by the state of the ECCSBEIF (IFS0[13]) bit. An interrupt can be generated when the corresponding interrupt enable bit is set, ECCSBEIE (IEC0[13]). The ECCSTATL register contains the parity information for single-bit errors. The SECOUT[7:0] bits field contains the expected calculated SEC parity and the SECIN[7:0] bits contain the actual value from a Flash read operation. The SECSYNDx bits (ECCSTATH[7:0]) indicate the bit position of the single-bit error within the 48-bit pair of instruction words. When no error is present, SECINx equals SECOUTx and SECSYNDx is zero. The ECCSTATL and ECCSTATH registers will only update and be valid when an error has occurred, or when included Fault injection is enabled, and an ECCADDR match occurs.

Double-bit errors result in a generic hard trap. The ECCDBE bit (INTCON4[1]) bit will be set to identify the source of the hard trap. If no Interrupt Service Routine is implemented for the hard trap, a device Reset will also occur. The ECCSTATH register contains double-bit error status information. The DEDOUT bit is the expected calculated DED parity and DEDIN is the actual value from a Flash read operation. When no error is present, DEDIN equals DEDOUT.

5.4.1 ECC FAULT INJECTION

To test Fault handling, an EEC error can be generated. Both single and double-bit errors can be generated in both the read and write data paths. Read path Fault injection first reads the Flash data and then modifies them prior to entering the ECC logic. Write path Fault injection modifies the actual data prior to them being written into the target Flash and will cause an EEC error on a subsequent Flash read. The following procedure is used to inject a Fault:

1. Load the Flash target address into the ECCADDR register.
2. Select 1st Fault bit determined by FLT1PTRx (ECCCONH[7:0]). The target bit is inverted to create the Fault.
3. If a double Fault is desired, select the 2nd Fault bit determined by FLT2PTRx (ECCCONH[15:8]), otherwise set to all '1's.
4. Write the NVMKEY unlock sequence (see Section 5.3 "Program Flash Memory Control Registers").
5. Enable the ECC Fault injection logic by setting the FLTINJ bit (ECCCONL[0]).
6. Perform a read or write to the Flash target address.

5.4.2 ECC CONTROL REGISTERS

REGISTER 5-7: ECCCONL: ECC FAULT INJECTION CONFIGURATION REGISTER LOW

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-1 Unimplemented: Read as '0'

bit 0 FLTINJ: Fault Injection Sequence Enable bit

1 = Enabled

0 = Disabled

REGISTER 5-8: ECCCONH: ECC FAULT INJECTION CONFIGURATION REGISTER HIGH

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
FLT2PTR[7:0]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
FLT1PTR[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 FLT2PTR[7:0]: ECC Fault Injection Bit Pointer 2 bits

11111111-00111000 = No Fault injection occurs

00110111 = Fault injection (bit inversion) occurs on bit 55 of ECC bit order

•

.

•

00000001 = Fault injection (bit inversion) occurs on bit 1 of ECC bit order

00000000 = Fault injection (bit inversion) occurs on bit 0 of ECC bit order

bit 7-0 FLT1PTR[7:0]: ECC Fault Injection Bit Pointer 1 bits

11111111-00111000 = No Fault injection occurs

00110111 = Fault injection occurs on bit 55 of ECC bit order

•

•

•

00000001 = Fault injection occurs on bit 1 of ECC bit order

00000000 = Fault injection occurs on bit 0 of ECC bit order

REGISTER 5-9: ECCADDRL: ECC FAULT INJECT ADDRESS COMPARE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

ECCADDR[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

ECCADDR[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0

ECCADDR[15:0]: ECC Fault Injection NVM Address Match Compare bits

REGISTER 5-10: ECCADDRH: ECC FAULT INJECT ADDRESS COMPARE REGISTER HIGH

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8

Unimplemented: Read as '0'

bit 7-0

ECCADDR[23:16]: ECC Fault Injection NVM Address Match Compare bits

REGISTER 5-11: ECCSTATL: ECC SYSTEM STATUS DISPLAY REGISTER LOW

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

SECOUT[7:0]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

SECIN[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 SECOUT[7:0]: Calculated Single Error Correction Parity Value bits

bit 7-0 SECIN[7:0]: Read Single Error Correction Parity Value bits

SECIN[7:0] bits are the actual parity value of a Flash read operation.

REGISTER 5-12: ECCSTATH: ECC SYSTEM STATUS DISPLAY REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
—	—	—	—	—	—	DEDOUT	DEDIN
bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

SECSYND[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-10 Unimplemented: Read as '0'

bit 9 DEDOUT: Calculated Dual Bit Error Detection Parity bit

bit 8 DEDIN: Read Dual Bit Error Detection Parity bit

DEDIN is the actual parity value of a Flash read operation.

bit 7-0 SECSYND[7:0]: Calculated ECC Syndrome Value bits

Indicates the bit location that contains the error.

5.5 Flash OTP by ICSP™ Write Inhibit

ICSP Write Inhibit is an access restriction feature, that when activated, restricts all of Flash memory. Once activated, ICSP Write Inhibit permanently prevents ICSP Flash programming and erase operations, and cannot be deactivated. This feature is intended to prevent alteration of Flash memory contents, with behavior similar to One-Time-Programmable (OTP) devices.

RTSP, including erase and programming operations, is not restricted when ICSP Write Inhibit is activated; however, code to perform these actions must be programmed into the device before ICSP Write Inhibit is activated. This allows for a bootloader-type application to alter Flash contents with ICSP Write Inhibit activated.

Entry into ICSP and Enhanced ICSP modes is not affected by ICSP Write Inhibit. In these modes, it will continue to be possible to read configuration memory space and any user memory space regions which are not code-protected. With ICSP writes inhibited, an attempt to set WR (NVMCON[15]) = 1 will maintain WR = 0, and instead, set WRERR (NVMCON[13]) = 1. All Enhanced ICSP erase and programming commands will have no effect with self-checked programming commands returning a FAIL response opcode (PASS if the destination already exactly matched the requested programming data).

Once ICSP Write Inhibit is activated, it is not possible for a device executing in Debug mode to erase/write Flash, nor can a debug tool switch the device to Production mode. ICSP Write Inhibit should therefore only be activated on devices programmed for production.

5.5.1 ACTIVATING FLASH OTP BY ICSP WRITE INHIBIT

Note: It is not possible to deactivate ICSP Write Inhibit.

ICSP Write Inhibit is activated by executing a pair of NVMCON double-word programming commands to save two 16-bit activation values in the configuration memory space. The target NVM addresses and values required for activation are shown in Table 5-1. Once both addresses contain their activation values, ICSP Write Inhibit will take permanent effect on the next device Reset.

Only the lower 16 data bits stored at the activation addresses are evaluated; the upper eight bits and second 24-bit word written by the double-word programming should be written as '0's. The addresses can be programmed in any order and also during separate ICSP/Enhanced ICSP/RTSP sessions, but any attempt to program an incorrect 16-bit value or use a row programming operation to program the values will be aborted without altering the existing data.

TABLE 5-1: ICSP™ WRITE INHIBIT ACTIVATION ADDRESSES AND DATA

	Configuration Memory Address	ICSPTM Write Inhibit Activation Value
Write Lock 1	0x801028 0x006D63
Write Lock 2	0x80102C 0x006870

NOTES:

6.0 RESETS

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Reset" (www.microchip.com/DS70602) in the "dsPIC33/PIC24 Family Reference Manual".

2: Some registers and associated bits described in this section may not be available on all devices.

The Reset module combines all Reset sources and controls the device Master Reset Signal, SYSRST. The following is a list of device Reset sources:

• POR: Power-on Reset
• BOR: Brown-out Reset
• M C LMBster Clear Pin Reset
- S W R : RESET Instruction
• WDTO: Watchdog Timer Time-out Reset
• CM: Configuration Mismatch Reset
• TRAPR: Trap Conflict Reset
• IOPUWR: Illegal Condition Device Reset

• Illegal Opcode Reset
• Uninitialized W Register Reset
• Security Reset

A simplified block diagram of the Reset module is shown in Figure 6-1.

Any active source of Reset will make the SYSRST signal active. On system Reset, some of the registers associated with the CPU and peripherals are forced to a known Reset state and some are unaffected.

Note: Refer to the specific peripheral section or Section 4.0 "Memory Organization" of this manual for register Reset states.

All types of device Reset set a corresponding status bit in the RCON register to indicate the type of Reset (see Register 6-1).

A POR clears all the bits, except for the BOR and POR bits (RCON[1:0]) that are set. The user application can set or clear any bit, at any time, during code execution. The RCON bits only serve as status bits. Setting a particular Reset status bit in software does not cause a device Reset to occur.

The RCON register also has other bits associated with the Watchdog Timer and device Power-Saving states. The function of these bits is discussed in other sections of this manual.

Note: The status bits in the RCON register should be cleared after they are read so that the next RCON register value after a device Reset is meaningful.

For all Resets, the default clock source is determined by the FNOSC[2:0] bits in the FOSCSEL Configuration register. The value of the FNOSCx bits is loaded into the NOSC[2:0] (OSCCON[10:8]) bits on Reset, which in turn, initializes the system clock.

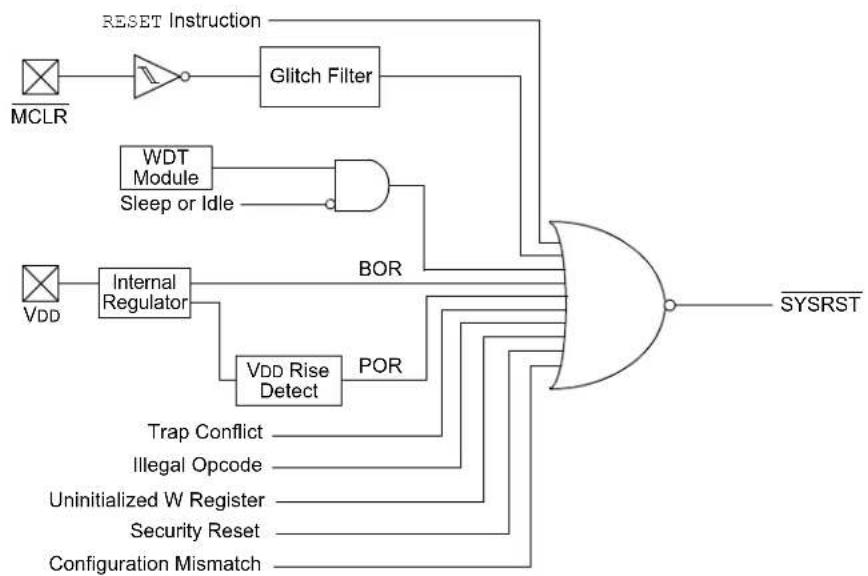

FIGURE 6-1: RESET SYSTEM BLOCK DIAGRAM

6.1 Reset Resources

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

6.1.1 KEY RESOURCES

• “Reset” (www.microchip.com/DS70602) in the “dsPIC33/PIC24 Family Reference Manual”
• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All Related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

REGISTER 6-1: RCON: RESET CONTROL REGISTER (1)

R/W-0 R/W-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
TRAPR IOP	UWR	—	—	—	—	CM	VREGS
bit 15 bit 8

R/W-0	R/W-0	r-0	R/W-0	R/W-0	R/W-0	R/W-1	R/W-1
EXTR SWR		—	WDTO SL	EEP	IDLE BOR POR
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15	TRAPR: Trap Reset Flag bit1 = A Trap Conflict Reset has occurred0 = A Trap Conflict Reset has not occurred
bit 14	IOPUWR: Illegal Opcode or Uninitialized W Register Access Reset Flag bit1 = An illegal opcode detection, an illegal address mode or Uninitialized W register used as an Address Pointer caused a Reset0 = An illegal opcode or Uninitialized W Register Reset has not occurred
bit 13-10	Unimplemented: Read as ‘0’
bit 9	CM: Configuration Mismatch Flag bit1 = A Configuration Mismatch Reset has occurred.0 = A Configuration Mismatch Reset has not occurred
bit 8	VREGS: Voltage Regulator Standby During Sleep bit1 = Voltage regulator is active during Sleep0 = Voltage regulator goes into Standby mode during Sleep
bit 7	EXTR: External Reset (MCLR) Pin bit1 = A Master Clear (pin) Reset has occurred0 = A Master Clear (pin) Reset has not occurred
bit 6	SWR: Software RESET (Instruction) Flag bit1 = A RESET instruction has been executed0 = A RESET instruction has not been executed
bit 5	Reserved: Read as ‘0’
bit 4	WDTO: Watchdog Timer Time-out Flag bit1 = WDT time-out has occurred0 = WDT time-out has not occurred
bit 3	SLEEP: Wake-up from Sleep Flag bit1 = Device has been in Sleep mode0 = Device has not been in Sleep mode
bit 2	IDLE: Wake-up from Idle Flag bit1 = Device has been in Idle mode0 = Device has not been in Idle mode
bit 1	BOR: Brown-out Reset Flag bit1 = A Brown-out Reset has occurred0 = A Brown-out Reset has not occurred
bit 0	POR: Power-on Reset Flag bit1 = A Power-on Reset has occurred0 = A Power-on Reset has not occurred

Note 1: All of the Reset status bits can be set or cleared in software. Setting one of these bits in software does not cause a device Reset.

NOTES:

7.0 INTERRUPT CONTROLLER

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Interrupts” (www.microchip.com/DS70000600) in the “dsPIC33/PIC24 Family Reference Manual”.

2: Some registers and associated bits described in this section may not be available on all devices.

The dsPIC33CK64MC105 family interrupt controller reduces the numerous peripheral interrupt request signals to a single interrupt request signal to the dsPIC33CK64MC105 family CPU.

The interrupt controller has the following features:

• Six Processor Exceptions and Software Traps
• Seven User-Selectable Priority Levels
• Interrupt Vector Table (IVT) with a Unique Vector for each Interrupt or Exception Source
• Fixed Priority within a Specified User Priority Level
  • Fixed Interrupt Entry and Return Latencies
• Alternate Interrupt Vector Table (AIVT) for Debug Support

7.1 Interrupt Vector Table

The dsPIC33CK64MC105 family Interrupt Vector Table (IVT), shown in Figure 7-1, resides in program memory, starting at location, 000004h. The IVT contains six non-maskable trap vectors and up to 246 sources of interrupts. In general, each interrupt source has its own vector. Each interrupt vector contains a 24-bit wide address. The value programmed into each interrupt vector location is the starting address of the associated Interrupt Service Routine (ISR).

Interrupt vectors are prioritized in terms of their natural priority. This priority is linked to their position in the vector table. Lower addresses generally have a higher natural priority. For example, the interrupt associated with Vector 0 takes priority over interrupts at any other vector address.

7.1.1 ALTERNATE INTERRUPT VECTOR TABLE

The Alternate Interrupt Vector Table (AIVT), shown in Figure 7-2, is available only when the Boot Segment (BS) is defined and the AIVT has been enabled. To enable the Alternate Interrupt Vector Table, the Configuration bits, BSEN and AIVTDIS in the FSEC register, must be programmed, and the AIVTEN bit must be set (INTCON2[8] = 1). When the AIVT is enabled, all interrupt and exception processes use the alternate vectors instead of the default vectors. The AIVT begins at the start of the last page of the Boot Segment, defined by BSLIM[12:0]. The second half of the page is no longer usable space. The Boot Segment must be at least two pages to enable the AIVT.

Note: Although the Boot Segment must be enabled in order to enable the AIVT, application code does not need to be present inside of the Boot Segment. The AIVT (and IVT) will inherit the Boot Segment code protection.

The AIVT supports debugging by providing a means to switch between an application and a support environment without requiring the interrupt vectors to be reprogrammed. This feature also enables switching between applications for evaluation of different software algorithms at run time.

7.2 Reset Sequence

A device Reset is not a true exception because the interrupt controller is not involved in the Reset process. The dsPIC33CK64MC105 family devices clear their registers in response to a Reset, which forces the PC to zero. The device then begins program execution at location, 0x000000. A GOTO instruction at the Reset address can redirect program execution to the appropriate start-up routine.

Note: Any unimplemented or unused vector locations in the IVT should be programmed with the address of a default interrupt handler routine that contains a RESET instruction.

FIGURE 7-1: dsPIC33CK64MC105 FAMILY INTERRUPT VECTOR TABLE

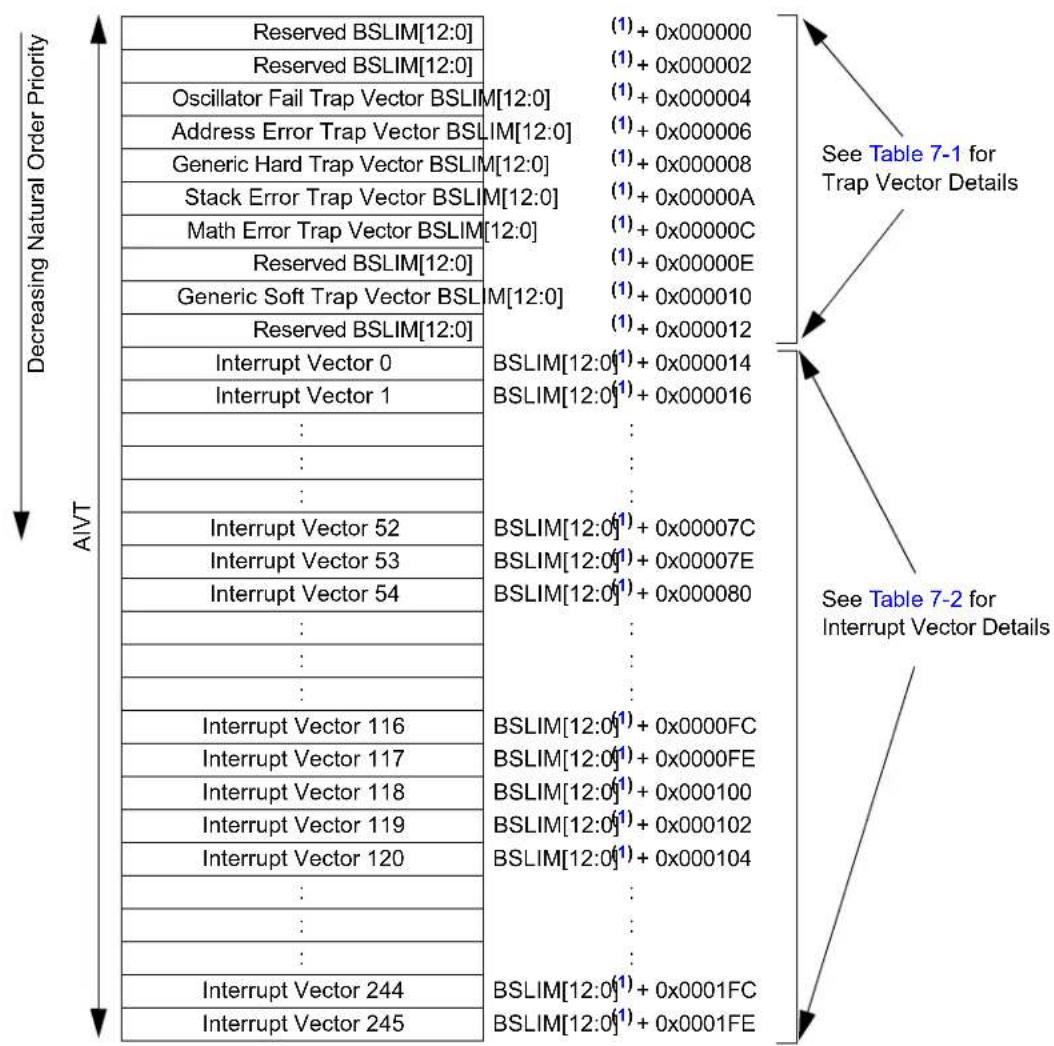

FIGURE 7-2: dsPIC33CK64MC105 ALTERNATE INTERRUPT VECTOR TABLE

Note 1: The address depends on the size of the Boot Segment defined by BSLIM[12:0]: [([12:0]-1)×0x800]+Offset .

TABLE 7-1: TRAP VECTOR DETAILS

Trap Description	MPLAB® XC16 Trap ISR Name	IVT Address	Trap Bit Location			Priority
			Interrupt Flag	Type Enable
Oscillator Failure _OscillatorFail 0x000004 INTCON1[1]				— —	1	5
Address Error _AddressError 0x000006 INTCON1[3]				— —	1	4
ECC Double-Bit Error	_HardTrapError 0x000008 INTCON4[1]			— —	1	3
Software Generated Trap	_HardTrapError 0x000008 INTCON4[0]			—	INTCON2[13]	13
Stack Error	_StackError	0x00000A	INTCON1[2]	— —	1	2
Overflow Accumulator A	_MathError	0x00000C	INTCON1[4]	INTCON1[14]	INTCON1[10]	11
Overflow Accumulator B	_MathError	0x00000C	INTCON1[4]	INTCON1[13]	INTCON1[9]	11
Catastrophic Overflow Accumulator A	_MathError	0x00000C	INTCON1[4]	INTCON1[12]	INTCON1[8]	11
Catastrophic Overflow Accumulator B	_MathError	0x00000C	INTCON1[4]	INTCON1[11]	INTCON1[8]	11
Shift Accumulator Error	_MathError	0x00000C	INTCON1[4]	INTCON1[7]	INTCON1[8]	11
Divide-by-Zero Error	_MathError	0x00000C	INTCON1[4]	INTCON1[6]	INTCON1[8]	11
Reserved	Reserved	0x00000E	—	—	—	—
DMT Software Error	_SoftTrapError	0x000010	INTCON3[15]	— —	9
NVM Address Error	_SoftTrapError	0x000010	INTCON3[8]	—	—	9
DO Stack Overflow	_SoftTrapError	0x000010	INTCON3[4]	— —	9
Reserved	Reserved	0x000012	—	—	—	—

TABLE 7-2: INTERRUPT VECTOR DETAILS

Interrupt Source	MPLAB® XC16ISR Name	Vector#	IRQ#	IVT Address	Interrupt Bit Location
					Flag Enable Priority
External Interrupt 0 _INT0Interrupt	8 0 0x000014 IFS0[0] IEC0[0] IPC0[2:0]
Timer1 _T1Interrupt	9 1 0x000016 IFS0[1] IEC0[1] IPC0[6:4]
Change Notice Interrupt A	_CNAInterrupt	10	2	0x000018	IFS0[2]	IEC0[2]	IPC0[10:8]
Change Notice Interrupt B	_CNBInterrupt	11	3	0x00001A	IFS0[3]	IEC0[3]	IPC0[14:12]
DMA Channel 0	_DMA0Interrupt	12	4	0x00001C	IFS0[4]	IEC0[4]	IPC1[2:0]
Reserved	Reserved	13	5	0x00001E	—	—	—
Input Capture/Output Compare 1	_CCP1Interrupt	14	6	0x000020	IFS0[6]	IEC0[6]	IPC1[10:8]
CCP1 Timer	_CCT1Interrupt	15	7	0x000022	IFS0[7]	IEC0[7]	IPC1[14:12]
DMA Channel 1	_DMA1Interrupt	16	8	0x000024	IFS0[8]	IEC0[8]	IPC2[2:0]
SPI1 Receiver	_SPI1RXInterrupt	17	9	0x000026	IFS0[9]	IEC0[9]	IPC2[6:4]
SPI1 Transmitter	_SPI1TXInterrupt	18	10	0x000028	IFS0[10]	IEC0[10]	IPC2[10:8]
UART1 Receiver	_U1RXInterrupt	19	11	0x00002A	IFS0[11]	IEC0[11]	IPC2[14:12]
UART1 Transmitter	_U1TXInterrupt	20	12	0x00002C	IFS0[12]	IEC0[12]	IPC3[2:0]
ECC Single-Bit Error	_ECCSBEInterrupt	21	13	0x00002E	IFS0[13]	IEC0[13]	IPC3[6:4]
NVM Write Complete	_NVMInterrupt	22	14	0x000030	IFS0[14]	IEC0[14]	IPC3[10:8]
External Interrupt 1	_INT1Interrupt	23	15	0x000032	IFS0[15]	IEC0[15]	IPC3[14:12]
I2C1 Client Event	_SI2C1Interrupt	24	16	0x000034	IFS1[0]	IEC1[0]	IPC4[2:0]
I2C1 Host Event	_MI2C1Interrupt	25	17	0x000036	IFS1[1]	IEC1[1]	IPC4[6:4]
DMA Channel 2	_DMA2Interrupt	26	18	0x000038	IFS1[2]	IEC1[2]	IPC4[10:8]
Change Notice Interrupt C	_CNCInterrupt	27	19	0x00003A	IFS1[3]	IEC1[3]	IPC4[14:12]
External Interrupt 2	_INT2Interrupt	28	20	0x00003C	IFS1[4]	IEC1[4]	IPC5[2:0]
DMA Channel 3	_DMA3Interrupt	29	21	0x00003E	IFS1[5]	IEC1[5]	IPC5[6:4]
Reserved	Reserved	30	22	0x000040	—	—	—
Input Capture/Output Compare 2	_CCP2Interrupt	31	23	0x000042	IFS1[7]	IEC1[7]	IPC5[14:12]
CCP2 Timer	_CCT2Interrupt	32	24	0x000044	IFS1[8]	IEC1[8]	IPC6[2:0]
Reserved	Reserved	33	25	0x000046	—	—	—
External Interrupt 3	_INT3Interrupt	34	26	0x000048	IFS1[10]	IEC1[10]	IPC6[10:8]
U2RX - UART2 Receiver	_U2RXInterrupt	35	27	0x00004A	IFS1[11]	IEC1[11]	IPC6[14:12]
U2TX - UART2 Transmitter	_U2TXInterrupt	36	28	0x00004C	IFS1[12]	IEC1[12]	IPC7[2:0]
SPI2 Receiver	_SPI2RXInterrupt	37	29	0x00004E	IFS1[13]	IEC1[13]	IPC7[6:4]
SPI2 Transmitter	_SPI2TXInterrupt	38	30	0x000050	IFS1[14]	IEC1[14]	IPC7[10:8]
Reserved	Reserved	39-42	31-34	0x000052-0x000058	—	—	—
Input Capture/Output Compare 3	_CCP3Interrupt	43	35	0x00005A	IFS2[3]	IEC2[3]	IPC8[14:12]
CCP3 Timer	_CCT3Interrupt	44	36	0x00005C	IFS2[4]	IEC2[4]	IPC9[2:0]
Reserved	Reserved	45-47	37-39	0x00005E-0x000062	—	—	—
Input Capture/Output Compare 4	_CCP4Interrupt	48	40	0x000064	IFS2[8]	IEC2[8]	IPC10[2:0]
CCP4 Timer	_CCT4Interrupt	49	41	0x000066	IFS2[9]	IEC2[9]	IPC10[6:4]
Reserved	Reserved	50-52	42-44	0x000068-0x00006C	—	—	—
Deadman Timer	_DMTInterrupt	53	45	0x00006E	IFS2[13]	IEC2[13]	IPC11[6:4]
Reserved	Reserved	54-55	46-47	0x000070-0x000072	—	—	—
QEI Position Counter Compare	_QEI1Interrupt	56	48	0x000074	IFS3[0]	IEC3[0]	IPC12[2:0]
UART1 Error	_U1EInterrupt	57	49	0x000076	IFS3[1]	IEC3[1]	IPC12[6:4]
UART2 Error	_U2EInterrupt	58	50	0x000078	IFS3[2]	IEC3[2]	IPC12[10:8]
CRC Generator	_CRCInterrupt	59	51	0x00007A	IFS3[3]	IEC3[3]	IPC12[14:12]
Reserved	Reserved	60-63	52-55	0x00007C-0x000082	—	—	—
UART3 Error	_U3EInterrupt	64	56	0x000084	IFS3[8]	IEC3[8]	IPC14[2:0]
UART3 ReceiverUART3 Transmitter	_U3RXInterrupt_U3TXInterrupt	6566	5758	0x0000860x000088	IFS3[9]IFS3[10]	IEC3[9]IEC3[10]	IPC14[6:4]IPC14[10:8]
Reserved	Reserved	67-68	59-60	0x00008A-0x00008C	—	—	—
In-Circuit Debugger	_ICDInterrupt	69	61	0x00008E	IFS3[13]	IEC3[13]	IPC15[6:4]
Reserved	Reserved	70	62	0x000090	—	—	—
PTG Step	_PTGSTEPInterrupt	71	63	0x000092	IFS3[15]	IEC3[15]	IPC15[14:12]
I2C1 Bus Collision	_I2C1BCInterrupt	72	64	0x000094	IFS4[0]	IEC4[0]	IPC16[2:0]
Reserved	Reserved	73-74	65-66	0x000096-0x000098	—	—	—
PWM Generator 1	_PWM1Interrupt	75	67	0x00009A	IFS4[3]	IEC4[3]	IPC16[14:12]
PWM Generator 2	_PWM2Interrupt	76	68	0x00009C	IFS4[4]	IEC4[4]	IPC17[2:0]
PWM Generator 3	_PWM3Interrupt	77	69	0x00009E	IFS4[5]	IEC4[5]	IPC17[6:4]
PWM Generator 4	_PWM4Interrupt	78	70	0x0000A0	IFS4[6]	IEC4[6]	IPC17[10:8]
Reserved	Reserved	79-82	71-74	0x0000A2-0x0000A8	—	—	—
Change Notice D	_CNDInterrupt	83	75	0x0000AA	IFS4[11]	IEC4[11]	IPC18[14:12]
Reserved	Reserved	84	76	0x0000AC	—	—	—
Comparator 1	_CMP1Interrupt	85	77	0x0000AE	IFS4[13]	IEC4[13]	IPC19[6:4]
Reserved	Reserved	86-88	78-80	0x0000B0-0x0000B4	—	—	—
PTG Watchdog Timer Time-out	_PTGWDTInterrupt	89	81	0x0000B6	IFS5[1]	IEC5[1]	IPC20[6:4]
PTG Trigger 0	_PTG0Interrupt	90	82	0x0000B8	IFS5[2]	IEC5[2]	IPC20[10:8]
PTG Trigger 1	_PTG1Interrupt	91	83	0x0000BA	IFS5[3]	IEC5[3]	IPC20[14:12]
PTG Trigger 2	_PTG2Interrupt	92	84	0x0000BC	IFS5[4]	IEC5[4]	IPC21[2:0]
PTG Trigger 3	_PTG3Interrupt	93	85	0x0000BE	IFS5[5]	IEC5[6]	IPC21[6:4]
SENT1 TX/RX	_SENT1Interrupt	94	86	0x0000C0	IFS5[6]	IEC5[6]	IPC21[10:8]
SENT1 Error	_SENT1EInterrupt	95	87	0x0000C2	IFS5[7]	IEC5[7]	IPC21[14:12]
Reserved	Reserved	96-97	88-89	0x0000C4-0x0000C6	—	—	—
ADC Global Interrupt	_ADCInterrupt	98	90	0x0000C8	IFS5[10]	IEC5[10]	IPC22[10:8]
ADC AN0 Interrupt	_ADCAN0Interrupt	99	91	0x0000CA	IFS5[11]	IEC5[11]	IPC22[14:12]
ADC AN1 Interrupt	_ADCAN1Interrupt	100	92	0x0000CC	IFS5[12]	IEC5[12]	IPC23[2:0]
ADC AN2 Interrupt	_ADCAN2Interrupt	101	93	0x0000CE	IFS5[13]	IEC5[13]	IPC23[6:4]
ADC AN3 Interrupt	_ADCAN3Interrupt	102	94	0x0000D0	IFS5[14]	IEC5[14]	IPC23[10:8]
ADC AN4 Interrupt	_ADCAN4Interrupt	103	95	0x0000D2	IFS5[15]	IEC5[15]	IPC23[14:12]
ADC AN5 Interrupt	_ADCAN5Interrupt	104	96	0x0000D4	IFS6[0]	IEC6[0]	IPC24[2:0]
ADC AN6 Interrupt	_ADCAN6Interrupt	105	97	0x0000D6	IFS6[1]	IEC6[1]	IPC24[6:4]
ADC AN7 Interrupt	_ADCAN7Interrupt	106	98	0x0000D8	IFS6[2]	IEC6[2]	IPC24[10:8]
ADC AN8 Interrupt	_ADCAN8Interrupt	107	99	0x0000DA	IFS6[3]	IEC6[3]	IPC24[14:12]
ADC AN9 Interrupt	_ADCAN9Interrupt	108	100	0x0000DC	IFS6[4]	IEC6[4]	IPC25[2:0]
ADC AN10 Interrupt	_ADCAN10Interrupt	109	101	0x0000DE	IFS6[5]	IEC6[5]	IPC25[6:4]
ADC AN11 Interrupt	_ADCAN11Interrupt	110	102	0x0000E0	IFS6[6]	IEC6[6]	IPC25[10:8]
ADC AN12 Interrupt	_ADCAN12Interrupt	111	103	0x0000E2	IFS6[7]	IEC6[7]	IPC25[14:12]
ADC AN13 Interrupt	_ADCAN13Interrupt	112	104	0x0000E4	IFS6[8]	IEC6[8]	IPC26[2:0]
ADC AN14 Interrupt	_ADCAN14Interrupt	113	105	0x0000E6	IFS6[9]	IEC6[9]	IPC26[6:4]
ADC AN15 Interrupt	_ADCAN15Interrupt	114	106	0x0000E8	IFS6[10]	IEC6[10]	IPC26[10:8]
ADC AN16 Interrupt	_ADCAN16Interrupt	115	107	0x0000EA	IFS6[11]	IEC6[11]	IPC26[14:12]
ADC AN17 Interrupt	_ADCAN17Interrupt	116	108	0x0000EC	IFS6[12]	IEC6[12]	IPC27[2:0]
Reserved	Reserved	117-123	109-115	0x0000EE-0x0000FA	—	—	—
ADC Digital Comparator 0	_ADCMP0Interrupt	124	116	0x0000FC	IFS7[4]	IEC7[4]	IPC29[2:0]
ADC Digital Comparator 1	_ADCMP1Interrupt	125	117	0x0000FE	IFS7[5]	IEC7[5]	IPC29[6:4]
ADC Digital Comparator 2	_ADCMP2Interrupt	126	118	0x000100	IFS7[6]	IEC7[6]	IPC29[10:8]
ADC Digital Comparator 3	_ADCMP3Interrupt	127	119	0x000102	IFS7[7]	IEC7[7]	IPC29[14:12]
ADC Oversample Filter 0 _ADFL	TR0Interrupt 128 12	0x0001	04 IFS7[8]	IEC7[8] IPC30[2:0]
ADC Oversample Filter 1 _ADFL	TR1Interrupt 129 12	0x0001	06 IFS7[9]	IEC7[9] IPC30[6:4]
ADC Oversample Filter 2 _ADFL	TR2Interrupt 130 12	0x0001	08 IFS7[10]	IEC7[10] IPC30[10:8]
ADC Oversample Filter 3	_ADFLTR3Interrupt	131	123	0x00010A	IFS7[11]	IEC7[11]	IPC30[14:12]
CLC1 Positive Edge	_CLC1PInterrupt	132	124	0x00010C	IFS7[12]	IEC7[12]	IPC31[2:0]
CLC2 Positive Edge	_CLC2PInterrupt	133	125	0x00010E	IFS7[13]	IEC7[13]	IPC31[6:4]
SPI1 Error	_SPI1Interrupt 134	126 0x000	110 IFS7[14]	IEC7[14] IPC31[10:8]
SPI2 Error	_SPI2Interrupt	135	127	0x000112	IFS7[15]	IEC7[15]	IPC31[14:12]
Reserved	Reserved	136-176	128-168	0x000114-0x000164	—	—	—
PEVTA – PWM Event A	_PEVTALntrupt	177	169	0x000166	IFS10[9]	IEC10[9]	IPC42[6:4]
PEVTB – PWM Event B	_PEVTBInterrupt	178	170	0x000168	IFS10[10]	IEC10[10]	IPC42[10:8]
PEVTC – PWM Event C	_PEVTCInterrupt	179	171	0x00016A	IFS10[11]	IEC10[11]	IPC42[14:12]
PEVTD – PWM Event D	_PEVTDInterrupt	180	172	0x00016C	IFS10[12]	IEC10[12]	IPC43[2:0]
PEVTE – PWM Event E	_PEVTEInterrupt	181	173	0x00016E	IFS10[13]	IEC10[13]	IPC43[6:4]
PEVTF – PWM Event F	_PEVTFInterrupt	182	174	0x000170	IFS10[14]	IEC10[14]	IPC43[10:8]
CLC3 Positive Edge	_CLC3PInterrupt	183	175	0x000172	IFS10[15]	IEC10[15]	IPC43[14:12]
CLC4 Positive Edge	_CLC4PInterrupt	184	176	0x000174	IFS11[0]	IEC11[0]	IPC44[2:0]
CLC1 Negative Edge	_CLC1NInterrupt	185	177	0x000176	IFS11[1]	IEC11[1]	IPC44[6:4]
CLC2 Negative Edge	_CLC2NInterrupt	186	178	0x000178	IFS11[2]	IEC11[2]	IPC44[10:8]
CLC3 Negative Edge	_CLC3NInterrupt	187	179	0x00017A	IFS11[3]	IEC11[3]	IPC44[14:12]
CLC4 Negative Edge	_CLC4NInterrupt	188	180	0x00017C	IFS11[4]	IEC11[4]	IPC45[2:0]
Reserved	Reserved	189-196	181-188	0x0017E-0x0018C	—	—	—
UART1 Event	_U1EVTInterrupt	197	189	0x00018E	IFS11[13]	IF2C11[13]	IPC47[6:4]
UART2 Event	_U2EVTInterrupt	198	190	0x000190	IFS11[14]	IF2C11[14]	IPC47[12:8]
UART3 Event	_U3EVTInterrupt	199	191	0x000192	IFS11[15]	IF2C11[15]	IPC47[14:12]
Reserved	Reserved	200-255	192-247	0x000194-0x0001FE	—	—	—

TABLE 7-3: INTERRUPT FLAG REGISTERS

Register

Address Bit

15 Bit14 Bit

13 Bit 12 Bit

11 Bit 10 Bit 9

Bit 8 Bit 7 Bit

6 Bit 5 Bit 4 Bit

3 Bit 2 Bit 1

Bit 0

IFS0

800h

INT1IF

NVMI F

ECCSBEIF

U1TXIF

U1RXIF

SPHTXIF

SPH1RXIF

DMA1IF

CCT1IF

CCP1IF

—

DMA0IF

CNBIF

CNAIF

T1IF

INT0IF

IFS1

802h

—

SPI2TXIF

SPI2RXIF

U2TXIF

U2RXIF

INT3IF

—

CCT2IF

CCP2IF

—

DMA3IF

INT2IF

CNCIF

DMA2IF

MI2C1IF

SI2C1IF

IFS2

804h

—

—

DMTIF

—

—

—

CCT4IF

CCP4IF

—

—

—

CCT3IF

CCP3IF

—

—

—

IFS3

806h

PTGSTEPIF

—

ICDIF

—

—

U3TXIF

U3RXIF

U3EIF

—

—

—

—

CRCIF

U2EIF

U1EIF

QE11IF

IFS4

808h

—

—

CMP1IF

—

CNDIF

—

—

—

—

PWM4IF

PWM3IF

PWM2IF

PWM1IF

—

—

I2C1BCIF

IFS5

80Ah

ADCAN4IF

ADCAN3IF

ADCAN2IF

ADCAN1IF

ADCAN0IF

ADCIF

—

—

SENT1EIF

SENT1IF

PTG3IF

PTG2IF

PTG1IF

PTG0IF

PTGWDTIF

—

IFS6

80Ch

—

—

—

ADCAN17IF

ADCAN16IF

ADCAN15IF

ADCAN14IF

ADCAN13IF

ADCAN12IF

ADCAN11IF

ADCAN10IF

ADCAN9IF

ADCAN8IF

ADCAN7IF

ADCAN8IF

ADCAN5IF

IFS7

80Eh

SPI2GIF

SPI1GIF

CLC2PIF

CLC1PIF

ADFLTR3IF

ADFLTR2IF

ADFLTR1IF

ADFLTR0IF

ADCMP3IF

ADCMP2IF

ADCMP1IF

ADCMP0IF

—

—

—

—

IFS10

814h

CLC3PIF

PEV1TFIF

PEVTEIF

PEVTDIF

PEVTCIF

PEVTBIF

PEVTAIF

—

—

—

—

—

—

—

—

—

IFS11

816h

U3EVTIF

U2EVTIF

U1EVTIF

—

—

—

—

—

—

—

—

CLC4NIF

CLC3NIF

CLC2NIF

CLC1NIF

CLC4PIF

Legend: — = Unimplemented.

TABLE 7-4: INTERRUPT ENABLE REGISTERS

Register

Address

Bit 15

Bit14

Bit 13

Bit 12

Bit 11

Bit 10

Bit 9

Bit 8

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

IEC0

820h

INT1IE

NVMIE

ECCSBEIE

U1TXIE

U1RXIE

SPI1TXIE

SPI1RXIE

DMA1IE

CCT1IE

CCP1IE

—

DMA0IE

CNBIE

CNAIE

T1IE

INT0IE

IEC1 822h

—

SPI2TXIE

SPI2RXIE

U2TXIE

U2RXIE

INT3IE

—

CCT2IE

CCP2IE

—

DMA3IE

INT2IE

CNCIE

DMA2IE

MI2C1IE

SI2C1IE

IEC2 824h

—

—

DMTIE

—

—

—

CCT4IE

CCP4IE

—

—

—

CCT3IE

CCP3IE

—

—

—

IEC3 826h

PTGSTEPIE

—

ICDIE

—

—

U3TXIE

U3RXIE

USEIE

—

—

—

—

CRCIE

U2EIE

U1EIE

QE1HIE

IEC4 828h

—

—

CMP1IE

—

—

CNDIE

—

—

—

PWM4IE

PWM3IE

PWM2IE

PWM1IE

—

—

I2C1BCIE

IEC5

82Ah

ADCAN4IE

ADCAN3IE

ADCAN2IE

ADCAN1IE

ADCAN0IE

ADCIE

—

—

SENT1EIE

SENT1IE

PTG3IE

PTG2IE

PTG1IE

PTG0IE

PTGWDTIE

—

IEC6

82Ch

—

—

—

ADCAN17IE

ADCAN16IE

ADCAN15IE

ADCAN14IE

ADCAN13IE

ADCAN12IE

ADCAN11IE

ADCAN10IE

ADCAN9IE

ADCAN8IE

ADCAN7IE

ADCANS6IE

ADCANS6IE

IEC7

82Eh

SPI2GIE

SPI1GIE

CLC2PIE

CLC1PIE

ADFLTR3IE

ADFLTR2IE

ADFLTR1IE

ADFLTR0IE

ADCMP3IE

ADCMP2IE

ADCMP1IE

ADCMP0IE

—

—

—

—

IEC10

834h

CLC3PIE

PEVTRE

PEVTEIE

PEVTDIE

PEVTCIE

PEVTBIE

PEVTAIE

—

—

—

—

—

—

—

—

—

IEC11

836h

U3EVTIE

U2EVTIE

U1EVTIE

—

—

—

—

—

—

—

—

CLC4NIE

CLC3NIE

CLC2NIE

CLC1NIE

CLC4PIE

Legend: — = Unimplemented.

TABLE 7-5: INTERRUPT PRIORITY REGISTERS

Register

Address

Bit 15

Bit14

Bit 13

Bit 12

Bit 11

Bit 10

Bit 9

Bit 8

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

IPC0

840h

—

CNBP2

CNBP1

CNBP0

—

CNAIP2

CNAIP1

CNAIP0

—

T1IP2

T1IP1

T1IP0

—

INT0IP2

INT0IP1

INT0IP0

IPC1

842h

—

CCT1IP2

CCT1IP1

CCT1IP0

—

CCP1IP2

CCP1IP1

CCP1IP0

—

—

—

—

—

DMA0IP2

DMA0IP1

DMA0IP0

IPC2

844h

—

U1RXIP2

U1RXIP1

U1RXIP0

—

SP11TXIP2

SP11TXIP1

SP11TXIP0

—

SP11RXIP2

SP11RXIP1

SP11RXIP0

—

DMA1IP2

DMA1IP1

DMA1IP0

IPC3

846h

—

INT1IP2

INT1IP1

INT1IP0

—

NVMIP2

NVMIP1

NVMIP0

—

ECCSBEIP2

ECCSBEIP1

ECCSBEIP0

—

U1TXIP2

U1TXIP1

U1TXIP0

IPC4

848h

—

CNCIP2

CNCIP1

CNCIP0

—

DMA2IP2

DMA2IP1

DMA2IP0

—

M2C1IP2

M2C1IP1

M2C1IP0

—

S2C1IP2

S2C1IP1

S2C1IP0

IPC5

84Ah

—

CCP2IP2

CCP2IP1

CCP2IP0

—

—

—

—

—

DMA3IP2

DMA3IP1

DMA3IP20

—

INT2IP2

INT2IP1

INT2IP0

IPC6

84Ch

—

U2RXIP2

U2RXIP1

U2RXIP0

—

INT3IP2

INT3IP1

INT3IP0

—

—

—

—

—

CCT2IP2

CCT2IP1

CCT2IP0

IPC7

84Eh

—

—

—

—

—

SP12TXIP2

SP12TXIP1

SP12TXIP0

—

SPI2RXIP2

SPI2RXIP1

SPI2RXIP0

—

U2TXIP2

U2TXIP1

U2TXIP0

IPC8

850h

—

CCP3IP2

CCP3IP1

CCP3IP0

—

—

—

—

—

—

—

—

—

—

—

—

IPC9

852h

—

—

—

—

—

—

—

—

—

—

—

—

—

CCT3IP2

CCT3IP1

CCT3IP0

IPC10

854h

—

CCP5IP2

CCP5IP1

CCP5IP0

—

—

—

—

—

CCT4IP2

CCT4IP1

CCT4IP0

—

CCP4IP2

CCP4IP1

CCP4IP0

IPC11

858h

—

—

—

—

—

—

—

—

—

DMTP2

DMTP1

DMTP0

—

—

—

—

IPC12

858h

—

CRCIP2

CRCIP1

CRCIP0

—

U2EIP2

U2EIP1

U2EIP0

—

U1EIP2

U1EIP1

U1EIP0

—

QE1IP2

QE1IP1

QE1IP0

IPC14

85Ch

—

—

—

—

—

U3TXIP2

U3TXIP1

U3TXIP1

—

U3RXIP2

U3RXIP1

U3RXIP0

—

U3EIP2

U3EIP1

U3EIP0

IPC15

85Eh

—

PTGSTEPIF2

PTGSTEPIP1

PTGSTEPIP0

—

—

—

—

—

ICDIP2

ICDIP1

ICDIP0

—

—

—

—

IPC16

860h

—

PWM1IP2

PWM1IP1

PWM1IP0

—

—

—

—

—

—

—

—

—

I2C1BCIP2

I2C1BCIP1

I2C1BCIP0

IPC17

862h

—

—

—

—

—

PWM4IP2

PWM4IP1

PWM4IP0

—

PWM3IP2

PWM3IP1

PWM3IP0

—

PWM2IP2

PWM2IP1

PWM2IP0

IPC18

864h

—

CNDIP2

CNDIP1

CNDIP0

—

—

—

—

—

—

—

—

—

—

—

—

IPC19

868h

—

—

—

—

—

—

—

—

—

CMP1IP2

CMP1IP1

CMP1IP0

—

—

—

—

IPC20

868h

—

PTG1IP2

PTG1IP1

PTG1IP0

—

PTG0IP2

PTG0IP1

PTG0IP0

—

PTGWDTIP2

PTGWDTIP1

PTGWDTIP0

—

—

—

—

IPC21

86Ah

—

SENT1EIP2

SENT1EIP1

SENT1EIP0

—

SENT1IP2

SENT1IP1

SENT1IP0

—

PTG3IP2

PTG3IP1

PTG3IP0

—

PTG2IP2

PTG2IP1

PTG2IP0

IPC22 86Ch

—

ADCAN0IP2

ADCAN0IP1

ADCAN0IP0

—

ADCIP2

ADCIP1

ADCIP0

—

—

—

—

—

—

—

—

IPC23

86Eh

—

ADCAN4IP2

ADCAN4IP1

ADCAN4IP0

—

ADCAN3IP2

ADCAN3IP1

ADCAN3IP0

—

ADCAN2IP2

ADCAN2IP1

ADCAN2IP0

—

ADCAN1IP2

ADCAN1IP1

ADCAN1IP0

IPC24

870h

—

ADCAN8IP2

ADCAN8IP1

ADCAN8IP0

—

ADCAN7IP2

ADCAN7IP1

ADCAN7IP0

—

ADCAN6IP2

ADCAN6IP1

ADCAN6IP0

—

ADCANSIP2

ADCANSIP1

ADCANSIP0

IPC25

872h

—

ADCAN12IP2

ADCAN12IP1

ADCAN12IP0

—

ADCAN11IP2

ADCAN11IP1

ADCAN11IP0

—

ADCAN10IP2

ADCAN10IP1

ADCAN10IP0

—

ADCANSIP2

ADCANSIP1

ADCANSIP0

IPC26

874h

—

ADCAN16IP2

ADCAN16IP2

ADCAN16IP2

—

ADCAN15IP2

ADCAN15IP1

ADCAN15IP0

—

ADCAN14IP2

ADCAN14IP1

ADCAN14IP0

—

ADCAN13IP2

ADCAN13IP1

ADCAN13IP0

IPC27

876h

—

—

—

—

—

—

—

—

—

—

—

—

—

ADCAN17IP2

ADCAN17IP1

ADCAN17IP0

IPC29

87Ah

—

ADCMP3IP2

ADCMP3IP1

ADCMP3IP0

—

ADCMP2IP2

ADCMP2IP1

ADCMP2IP0

—

ADCMP1IP2

ADCMP1IP1

ADCMP1IP0

—

ADCMPIP0P2

ADCMPIP1P1

ADCMPIP0P0

IPC30 87Ch

—

ADFLTR3IP2

ADFLTR3IP1

ADFLTR3IP0

—

ADFLTR2IP2

ADFLTR2IP1

ADFLTR2IP0

—

ADFLTR1IP2

ADFLTR1IP1

ADFLTR1IP0

—

ADFLTR0IP2

ADFLTR0IP1

ADFLTR0IP0

IPC31

87Eh

—

SPI2GIP0

SPI2GIP1

SPI2GIP0

—

SPI1GIP2

SPI1GIP1

SPI1GIP0

—

CLC2PIP2

CLC2PIP1

CLC2PIP0

—

CLC1PIP2

CLC1PIP1

CLC1PIP0

IPC42

894h

—

PEVTCIP2

PEVTCIP1

PEVTCIP0

—

PEVTBIP2

PEVTBIP1

PEVTBIP0

—

PEVTAIF2

PEVTAIP1

PEVTAIP0

—

—

—

—

IPC43

896h

—

CLC3PIP2

CLC3PIP1

CLC3PIP0

—

PEVTFIP2

PEVTFIP1

PEVTFIP0

—

PEVTEIP2

PEVTEIP1

PEVTEIP0

—

PEVTDIP2

PEVTDIP1

PEVTDIP0

IPC44

898h

—

CLC3NIP2

CLC3NIP1

CLC3NIP0

—

CLC2NIP2

CLC2NIP1

CLC2NIP0

—

CLC1NIP2

CLC1NIP1

CLC1NIP0

—

CLC4PIP2

CLC4PIP1

CLC4PIP0

IPC45

89Ah

—

—

—

—

—

—

—

—

—

—

—

—

—

CLC4NIP2

CLC4NIP1

CLC4NIP0

IPC47

89Eh

—

U3EVTP2

U3EVTP1

U3EVTP0

—

U2EVTP2

U2EVTP1

U2EVTP0

—

U1EVTP2

U1EVTP1

U1EVTP0

—

—

—

—

Legend: — = Unimplemented.

7.3 Interrupt Resources

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

7.3.1 KEY RESOURCES

• “Interrupts” (www.microchip.com/DS70000600) in the “dsPIC33/PIC24 Family Reference Manual”
• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All Related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

7.4 Interrupt Control and Status Registers

The dsPIC33CK64MC105 family devices implement the following registers for the interrupt controller:

• INTCON1
• INTCON2
• INTCON3
• INTCON4
  • INT TREG

7.4.1 INTCON1 THROUGH INTCON4

Global interrupt control functions are controlled from INTCON1, INTCON2, INTCON3 and INTCON4.

INTCON1 contains the Interrupt Nesting Disable bit (NSTDIS), as well as the control and status flags for the processor trap sources.

The INTCON2 register controls external interrupt request signal behavior, contains the Global Interrupt Enable bit (GIE) and the Alternate Interrupt Vector Table Enable bit (AIVTEN).

INTCON3 contains the status flags for the DO stack overflow status trap sources.

The INTCON4 register contains the Software Generated Hard Trap Status bit (SGHT).

7.4.2 IFSx

The IFSx registers maintain all of the interrupt request flags. Each source of interrupt has a status bit, which is set by the respective peripherals or external signal and is cleared via software.

7.4.3 IECx

The IECx registers maintain all of the interrupt enable bits. These control bits are used to individually enable interrupts from the peripherals or external signals.

7.4.4 IPCx

The IPCx registers are used to set the Interrupt Priority Level (IPL) for each source of interrupt. Each user interrupt source can be assigned to one of seven priority levels.

7.4.5 INTTREG

The INTTREG register contains the associated interrupt vector number and the new CPU Interrupt Priority Level, which are latched into the Vector Number (VECNUM[7:0]) and Interrupt Level bits (ILR[3:0]) fields in the INTTREG register. The new Interrupt Priority Level is the priority of the pending interrupt.

The interrupt sources are assigned to the IFSx, IECx and IPCx registers in the same sequence as they are listed in Table 7-2. For example, INT0 (External Interrupt 0) is shown as having Vector Number 8 and a natural order priority of 0. Thus, the INT0IF bit is found in IFS0[0], the INT0IE bit in IEC0[0] and the INT0IP[2:0] bits in the first position of IPC0 (IPC0[2:0]).

7.4.6 STATUS/CONTROL REGISTERS

Although these registers are not specifically part of the interrupt control hardware, two of the CPU Control registers contain bits that control interrupt functionality. For more information on these registers, refer to "Enhanced CPU" (www.microchip.com/DS70005158) in the "dsPIC33/PIC24 Family Reference Manual".

• The CPU STATUS Register, SR, contains the IPL[2:0] bits (SR[7:5]). These bits indicate the current CPU Interrupt Priority Level. The user software can change the current CPU Interrupt Priority Level by writing to the IPLx bits.
• The CORCON register contains the IPL3 bit, which together with IPL[2:0], also indicates the current CPU priority level. IPL3 is a read-only bit so that trap events cannot be masked by the user software.

All Interrupt registers are described in Register 7-3 through Register 7-7 in the following pages.

REGISTER 7-1: SR: CPU STATUS REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/C-0 R/C-0 R-0 R/W-0
OA	OB	SA	SB	OAB	SAB	DA	DC
bit 15 bit 8

R/W-0^(3)	R/W-0^(3)	R/W-0^(3)	R-0 R/W-0		R/W-0	R/W-0	R/W-0
IPL2^(2)	IPL1^(2)	IPL0^(2)	RA	N	OV	Z	C
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 7-5 IPL[2:0]: CPU Interrupt Priority Level Status bits ^(2,3)

111 = CPU Interrupt Priority Level is 7 (15); user interrupts are disabled

110 = CPU Interrupt Priority Level is 6 (14)

101 = CPU Interrupt Priority Level is 5 (13)

100 = CPU Interrupt Priority Level is 4 (12)

011 = CPU Interrupt Priority Level is 3 (11)

010 = CPU Interrupt Priority Level is 2 (10)

001 = CPU Interrupt Priority Level is 1 (9)

000 = CPU Interrupt Priority Level is 0 (8)

Note 1: For complete register details, see Register 3-1.

2: The IPL[2:0] bits are concatenated with the IPL[3] bit (CORCON[3]) to form the CPU Interrupt Priority Level. The value in parentheses indicates the IPL, if IPL[3] = 1. User interrupts are disabled when IPL[3] = 1.

3: The IPL[2:0] Status bits are read-only when the NSTDIS bit (INTCON1[15]) = 1.

REGISTER 7-2: CORCON: CORE CONTROL REGISTER (1)

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R-0 R-0 R-0
VAR	—	US1	US0	EDT	DL2	DL1	DL0
bit 15 bit 8

R/W-0	R/W-0	R/W-1	R/W-0	R/C-0	R-0	R/W-0	R/W-0
SATA	SATB	SATDW	ACCSAT	IPL3^(2)	SFA RND	IF
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 VAR: Variable Exception Processing Latency Control bit

1 = Variable exception processing latency is enabled
0 = Fixed exception processing latency is enabled

bit 3 IPL3: CPU Interrupt Priority Level Status bit 3 ^(2)

1 = CPU Interrupt Priority Level is greater than 7
0 = CPU Interrupt Priority Level is 7 or less

Note 1: For complete register details, see Register 3-2.

2: The IPL3 bit is concatenated with the IPL[2:0] bits (SR[7:5]) to form the CPU Interrupt Priority Level.

REGISTER 7-3: INTCON1: INTERRUPT CONTROL REGISTER 1

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
NSTDIS	OVAERR	OVBERR	COVAERR	COVBERR	OVATE	OVBTE	COVTE
bit 15 bit 8

R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	U-0
SFTACERR	DIV0ERR	—	MATHERR	ADDRERR	STKERR	OSCFAIL	—
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 NSTDIS: Interrupt Nesting Disable bit

1 = Interrupt nesting is disabled

0 = Interrupt nesting is enabled

bit 14 OVAERR: Accumulator A Overflow Trap Flag bit

1 = Trap was caused by an overflow of Accumulator A

0 = Trap was not caused by an overflow of Accumulator A

bit 13 OVBERR: Accumulator B Overflow Trap Flag bit

1 = Trap was caused by an overflow of Accumulator B

0 = Trap was not caused by an overflow of Accumulator B

bit 12 COVAERR: Accumulator A Catastrophic Overflow Trap Flag bit

1 = Trap was caused by a catastrophic overflow of Accumulator A

0 = Trap was not caused by a catastrophic overflow of Accumulator A

bit 11 COVBERR: Accumulator B Catastrophic Overflow Trap Flag bit

1 = Trap was caused by a catastrophic overflow of Accumulator B

0 = Trap was not caused by a catastrophic overflow of Accumulator B

bit 10 OVATE: Accumulator A Overflow Trap Enable bit

1 = Trap overflow of Accumulator A is enabled

0 = Trap is disabled

bit 9 OVBTE: Accumulator B Overflow Trap Enable bit

1 = Trap overflow of Accumulator B is enabled

0 = Trap is disabled

bit 8 COVTE: Catastrophic Overflow Trap Enable bit

1 = Trap catastrophic overflow of Accumulator A or B is enabled

0 = Trap is disabled

bit 7 SFTACERR: Shift Accumulator Error Status bit

1 = Math error trap was caused by an invalid accumulator shift

0 = Math error trap was not caused by an invalid accumulator shift

bit 6 DIV0ERR: Divide-by-Zero Error Status bit

1 = Math error trap was caused by a divide-by-zero

0 = Math error trap was not caused by a divide-by-zero

bit 5 Unimplemented: Read as '0'

bit 4 MATHERR: Math Error Status bit

1 = Math error trap has occurred

0 = Math error trap has not occurred

bit 3 ADDRERR: Address Error Trap Status bit

1 = Address error trap has occurred

0 = Address error trap has not occurred

REGISTER 7-3: INTCON1: INTERRUPT CONTROL REGISTER 1 (CONTINUED)

bit 2 STKERR: Stack Error Trap Status bit

1 = Stack error trap has occurred
0 = Stack error trap has not occurred

bit 1 OSCFAIL: Oscillator Failure Trap Status bit

1 = Oscillator failure trap has occurred
0 = Oscillator failure trap has not occurred

bit 0 Unimplemented: Read as '0'

REGISTER 7-4: INTCON2: INTERRUPT CONTROL REGISTER 2

R/W-1 R/W-0 R/W-0 U-0 U-0 U-0 U-0 R/W-0
GIE DISI	SWTRAP		—	—	—	—	AIVTEN
bit 15 bit 8

U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—	—	INT3EP	INT2EP	INT1EP	INT0EP
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15	GIE: Global Interrupt Enable bit1 = Interrupts and associated IE bits are enabled0 = Interrupts are disabled, but traps are still enabled
bit 14	DISI: DISI Instruction Status bit1 = DISI instruction is active0 = DISI instruction is not active

bit 13	SWTRAP: Software Trap Status bit
	1 = Software trap is enabled
	0 = Software trap is disabled

bit 12-9

Unimplemented: Read as '0'

bit 8

AIVTEN: Alternate Interrupt Vector Table Enable bit1 = Uses Alternate Interrupt Vector Table0 = Uses standard Interrupt Vector Table

bit 7-4

Unimplemented: Read as '0'

bit 3	INT3EP: External Interrupt 3 Edge Detect Polarity Select bit
	1 = Interrupt on negative edge
	0 = Interrupt on positive edge

bit 2	INT2EP: External Interrupt 2 Edge Detect Polarity Select bit
	1 = Interrupt on negative edge
	0 = Interrupt on positive edge

bit 1	INT1EP: External Interrupt 1 Edge Detect Polarity Select bit
	1 = Interrupt on negative edge
	0 = Interrupt on positive edge

bit 0	INT0EP: External Interrupt 0 Edge Detect Polarity Select bit
	1 = Interrupt on negative edge
	0 = Interrupt on positive edge

REGISTER 7-5: INTCON3: INTERRUPT CONTROL REGISTER 3

R/W-0 U-0 U-0 U-0 U-0 U-0 R/W-0
DMTON	— — —	— — —	NAE
bit 15 bit 8

U-0	U-0	U-0	R/W-0	U-0	U-0	U-0	U-0
—	—	—	DOOVR	—	—	—	—
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 DMTON: DMT Event Status bit

1 = DMT module event has occurred

0 = DMT module event has not occurred

bit 14-9 Unimplemented: Read as '0'

bit 8 NAE: NVM Address Error Soft Trap Status bit

1 = NVM address error soft trap has occurred

0 = NVM address error soft trap has not occurred

bit 7-6 Unimplemented: Read as '0'

bit 5 DAE: DMA Address Error (Soft) Trap Status bit

1 = DMA address error trap has occurred

0 = Trap has not occurred

bit 4 DOOVR: DO Stack Overflow Soft Trap Status bit

1 = DO stack overflow soft trap has occurred

0 = DO stack overflow soft trap has not occurred

bit 3-0 Unimplemented: Read as '0'

REGISTER 7-6: INTCON4: INTERRUPT CONTROL REGISTER 4

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1 ECCDBE: ECC Double-Bit Error Trap bit

1 = ECC double-bit error trap has occurred

0 = ECC double-bit error trap has not occurred

bit 0 SGHT: Software Generated Hard Trap Status bit

1 = Software generated hard trap has occurred

0 = Software generated hard trap has not occurred

REGISTER 7-7: INTTREG: INTERRUPT CONTROL AND STATUS REGISTER

U-0 U-0 R-0 U-0 R-0 R-0 R-0 R-0
—	—	VHOLD	—	ILR3	ILR2	ILR1	ILR0
bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0
VECNUM[7:0]
bit 7	bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13 VHOLD: Vector Number Capture Enable bit

1 = VECNUM[7:0] bits read current value of vector number encoding tree (i.e., highest priority pending interrupt)

0 = Vector number latched into VECNUM[7:0] at Interrupt Acknowledge and retained until next IACK

bit 12 Unimplemented: Read as '0'

bit 11-8 ILR[3:0]: New CPU Interrupt Priority Level bits

1111 = CPU Interrupt Priority Level is 15

...

0001 = CPU Interrupt Priority Level is 1

0000 = CPU Interrupt Priority Level is 0

bit 7-0 VECNUM[7:0]: Vector Number of Pending Interrupt bits

11111111 = 255, Reserved; do not use

...

00001001 = 9, T1 - Timer1 interrupt

00001000 = 8, INT0 - External Interrupt 0

00000111 = 7, Reserved; do not use

00000110 = 6, Generic soft error trap

00000101 = 5, Reserved; do not use

00000100 = 4, Math error trap

00000011 = 3, Stack error trap

00000010 = 2, Generic hard trap

00000001 = 1, Address error trap

00000000 = 0, Oscillator fail trap

8.0 I/O PORTS

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "I/O Ports with Edge Detect" (www.microchip.com/DS70005322) in the "dsPIC33/PIC24 Family Reference Manual".

2: Some registers and associated bits described in this section may not be available on all devices.

Many of the device pins are shared among the peripherals and the Parallel I/O ports. All I/O input ports feature Schmitt Trigger inputs for improved noise immunity. The PORT registers are located in the SFR.

Some of the key features of the I/O ports are:

• Individual Output Pin Open-Drain Enable/Disable
• Individual Input Pin Weak Pull-up and Pull-Down
• Monitor Selective Inputs and Generate Interrupt when Change in Pin State is Detected
  • Operation during Sleep and Idle modes

8.1 Parallel I/O (PIO) Ports

All port pins have 12 registers directly associated with their operation as digital I/Os. The Data Direction register (TRISx) determines whether the pin is an input or an output. If the data direction bit is a '1', then the pin is an input.

All port pins are defined as inputs after a Reset. Reads from the latch (LATx), read the latch. Writes to the latch, write the latch. Reads from the port (PORTx), read the port pins, while writes to the port pins, write the latch. Any bit and its associated data and control registers that are not valid for a particular device are disabled. This means the corresponding LATx and TRISx registers, and the port pin are read as zeros.

When a pin is shared with another peripheral or function that is defined as an input only, it is nevertheless regarded as a dedicated port because there is no other competing source of outputs. Table8-1 shows the pin availability. Table8-2 shows the 5V input tolerant pins across this device.

TABLE 8-1: PIN AND ANSELx AVAILABILITY

Device Rx15 Rx

14 Rx1

3 Rx12

Rx11

Rx10

Rx9 Rx

8 Rx7

Rx6 Rx

Rx5 Rx4

Rx3

Rx2 Rx

Rx1 Rx0

PORTA

dsPIC33CKXXMC105

—

—

—

—

—

—

—

—

—

—

—

X

X

X

X

X

dsPIC33CKXXMC103

—

—

—

—

—

—

—

—

—

—

—

X

X

X

X

X

dsPIC33CKXXMC102

—

—

—

—

—

—

—

—

—

—

—

X

X

X

X

X

ANSELA

—

—

—

—

—

—

—

—

—

—

—

X

X

X

X

X

PORTB

dsPIC33CKXXMC105

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

dsPIC33CKXXMC103

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

dsPIC33CKXXMC102

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

ANSELB

—

—

—

—

—

—

X

X

X

—

—

X

X

X

X

X

PORTC

dsPIC33CKXXMC105

—

—

X

X

X

X

X

X

X

X

X

X

X

X

X

X

dsPIC33CKXXMC103

—

—

—

—

—

—

—

—

—

—

X

X

X

X

X

X

dsPIC33CKXXMC102

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

ANSELC

—

—

—

—

—

—

—

—

X

X

—

—

X

X

X

X

PORTD

dsPIC33CKXXMC105

—

—

X

—

—

X

—

X

—

—

—

—

—

—

X

—

dsPIC33CKXXMC103

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

dsPIC33CKXXMC102

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

ANSELD

—

—

X

—

—

X

—

—

—

—

—

—

—

—

—

—

TABLE 8-2: 5V INPUT TOLERANT PORTS

PORTA

—

—

—

—

—

—

—

—

—

—

—

RA4

RA3

RA2

RA1

RA0

PORTB

RB15

RB14 R

B13 RB

12 RB1

1 RB10

(1)

RB9

RB8

RB7

RB6

RB5

RB4

RB3

RB2

RB1

RB0

PORTC

—

—

RC13

RC12

RC11

RC10

RC9

RC8

RC7

RC6

RC5

RC4

RC3

RC2

RC1

RC0

PORTD

—

—

RD13

—

—

RD10

—

RD8

—

—

—

—

—

—

RD1

—

Legend: Shaded pins are up to 5.5 VDC input tolerant.
Note 1: A pull-up resistor is connected to this pin during programming or when JTAG is enabled in the Configuration bits; this limits the maximum voltage on this pin to 3.6V. If JTAG is disabled, the maximum voltage on this pin can reach 5.5V.

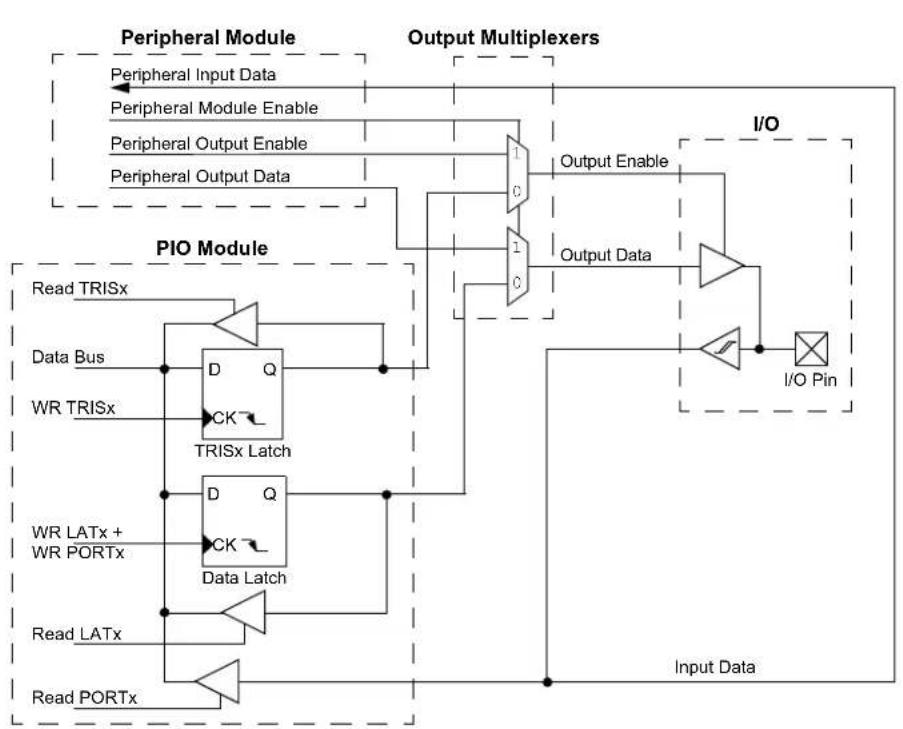

FIGURE 8-1: BLOCK DIAGRAM OF A TYPICAL SHARED PORT STRUCTURE

8.1.1 OPEN-DRAIN CONFIGURATION

In addition to the PORTx, LATx and TRISx registers for data control, port pins can also be individually configured for either digital or open-drain output. This is controlled by the Open-Drain Enable for PORTx register, ODCx, associated with each port. Setting any of the bits configures the corresponding pin to act as an open-drain output.

The open-drain feature allows the generation of outputs, other than VDD, by using external pull-up resistors. The maximum open-drain voltage allowed on any pin is the same as the maximum VIH specification for that particular pin.

8.2 Configuring Analog and Digital Port Pins

The ANSELx registers control the operation of the analog port pins. The port pins that are to function as analog inputs must have their corresponding ANSELx and TRISx bits set. In order to use port pins for I/O functionality with digital modules, such as timers, UARTs, etc., the corresponding ANSELx bit must be cleared.

The ANSELx registers have a default value of 0xFFFF; therefore, all pins that share analog functions are analog (not digital) by default.

Pins with analog functions affected by the ANSELx registers are listed with a buffer type of analog in the Pinout I/O Descriptions (see Table 1-1).

If the TRISx bit is cleared (output) while the ANSELx bit is set, the digital output level (VOH or VOL) is converted by an analog peripheral, such as the ADC module or comparator module.

When the PORTx register is read, all pins configured as analog input channels are read as cleared (a low level).

Pins configured as digital inputs do not convert an analog input. Analog levels on any pin, defined as a digital input (including the ANx pins), can cause the input buffer to consume current that exceeds the device specifications.

8.2.1 I/O PORT WRITE/READ TIMING

One instruction cycle is required between a port direction change or port write operation and a read operation of the same port. Typically, this instruction would be a NOP.

8.3 Control Registers

The following registers are in the PORT module:

• Register 8-1: ANSELx (one per port)
• Register 8-2: TRISx (one per port)
• Register 8-3: PORTx (one per port)
• Register 8-4: LATx (one per port)
• Register 8-5: ODCx (one per port)
• Register 8-6: CNPUx (one per port)
• Register 8-7: CNPDx (one per port)
• Register 8-8: CNCONx (one per port – optional)
• Register 8-9: CNEN0x (one per port)
• Register 8-10: CNSTATx (one per port – optional)
• Register 8-11: CNEN1x (one per port)
• Register 8-12: CNFx (one per port)

REGISTER 8-1: ANSELx: ANALOG SELECT FOR PORTx REGISTER

R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1
ANSELx[15:8]
bit 15							bit 8

R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1
ANSELx[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 ANSELx[15:0]: Analog Select for PORTx bits

1 = Analog input is enabled and digital input is disabled on the PORTx[n] pin

0 = Analog input is disabled and digital input is enabled on the PORTx[n] pin

REGISTER 8-2: TRISx: OUTPUT ENABLE FOR PORTx REGISTER

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

TRISx[15:8]

bit 15 bit 8

R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1 R/W-1

TRISx[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 TRISx[15:0]: Output Enable for PORTx bits

1 = LATx[n] is not driven on the PORTx[n] pin
0 = LATx[n] is driven on the PORTx[n] pin

REGISTER 8-3: PORTx: INPUT DATA FOR PORTx REGISTER

R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1
PORTx[15:8]
bit 15 bit 8

R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1	R/W-1
PORTx[7:0]
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 PORTx[15:0]: PORTx Data Input Value bits

REGISTER 8-4: LATx: OUTPUT DATA FOR PORTx REGISTER

R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

LATx[15:8]

bit 15 bit 8

R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x R/W-x

LATx[7:0]

bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 LATx[15:0]: PORTx Data Output Value bits

REGISTER 8-5: ODCx: OPEN-DRAIN ENABLE FOR PORTx REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
ODCx[15:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
ODCx[7:0]
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 ODCx[15:0]: PORTx Open-Drain Enable bits
1 = Open-drain is enabled on the PORTx pin
0 = Open-drain is disabled on the PORTx pin

REGISTER 8-6: CNPUx: CHANGE NOTIFICATION PULL-UP ENABLE FOR PORTx REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CNPUx[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CNPUx[7:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 CNPUx[15:0]: Change Notification Pull-up Enable for PORTx bits

1 = The pull-up for PORTx[n] is enabled – takes precedence over the pull-down selection
0 = The pull-up for PORTx[n] is disabled

REGISTER 8-7: CNPDx: CHANGE NOTIFICATION PULL-DOWN ENABLE FOR PORTx REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CNPDx[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CNPDx[7:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 CNPDx[15:0]: Change Notification Pull-Down Enable for PORTx bits

1 = The pull-down for PORTx[n] is enabled (if the pull-up for PORTx[n] is not enabled)
0 = The pull-down for PORTx[n] is disabled

REGISTER 8-8: CNCONx: CHANGE NOTIFICATION CONTROL FOR PORTx REGISTER

R/W-0 U-0 U-0 U-0 R/W-0 U-0 U-0 U-0
ON	—	—	—	CNSTYLE	—	—	—
bit 15 bit 8

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 ON: Change Notification (CN) Control for PORTx On bit

1 = CN is enabled
0 = CN is disabled

bit 14-12 Unimplemented: Read as '0'

bit 11 CNSTYLE: Change Notification Style Selection bit

1 = Edge style (detects edge transitions, CNFx[15:0] bits are used for a Change Notification event)
0 = Mismatch style (detects change from last port read, CNSTATx[15:0] bits are used for a Change Notification event)

bit 10-0 Unimplemented: Read as '0'

REGISTER 8-9: CNEN0x: CHANGE NOTIFICATION INTERRUPT ENABLE FOR PORTx REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
CNEN0x[15:8]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
CNEN0x[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 CNEN0x[15:0]: Change Notification Interrupt Enable for PORTx bits

1 = Interrupt-on-change (from the last read value) is enabled for PORTx[n]
0 = Interrupt-on-change is disabled for PORTx[n]

REGISTER 8-10: CNSTATx: CHANGE NOTIFICATION INTERRUPT STATUS FOR PORTx REGISTER

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

CNSTATx[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

CNSTATx[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 CNSTATx[15:0]: Change Notification Interrupt Status for PORTx bits

When CNSTYLE (CNCONx[11]) = 0:

1 = Change occurred on PORTx[n] since last read of PORTx[n]
0 = Change did not occur on PORTx[n] since last read of PORTx[n]

REGISTER 8-11: CNEN1x: CHANGE NOTIFICATION INTERRUPT EDGE SELECT FOR PORTx REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			CNEN1x[15:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
CNEN1x[7:0]
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 CNEN1x[15:0]: Change Notification Interrupt Edge Select for PORTx bits

REGISTER 8-12: CNFx: CHANGE NOTIFICATION INTERRUPT FLAG FOR PORTx REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CNFx[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CNFx[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-CNFX[15:0]: Change Notification Interrupt Flag for PORTx bits

When CNSTYLE (CNCONx[11]) = 1:

1 = An enabled edge event occurred on the PORTx[n] pin
0 = An enabled edge event did not occur on the PORTx[n] pin

8.4 Input Change Notification (ICN)

The Input Change Notification function of the I/O ports allows the dsPIC33CK64MC105 family devices to generate interrupt requests to the processor in response to a Change-of-State (COS) on selected input pins. This feature can detect input Change-of-States, even in Sleep mode, when the clocks are disabled. Every I/O port pin can be selected (enabled) for generating an interrupt request on a Change-of-State. Five control registers are associated with the Change Notification (CN) functionality of each I/O port. To enable the Change Notification feature for the port, the ON bit (CNCONx[15]) must be set.

The CNEN0x and CNEN1x registers contain the CN interrupt enable control bits for each of the input pins. The setting of these bits enables a CN interrupt for the corresponding pins. Also, these bits, in combination with the CNSTYLE bit (CNCONx[11]), define a type of transition when the interrupt is generated. Possible CN event options are listed in Table 8-3.

TABLE 8-3: CHANGE NOTIFICATION EVENT OPTIONS

CNSTYLE Bit (CNCONx[11])	CNEN1x Bit	CNEN0x Bit	Change Notification Event Description
0 Does not matter	0 Disabled
0 Does not matter	1 Detects a mismatch between the last read state and the current state of the pin
1	0	0	Disabled
1	0	1	Detects a positive transition only (from ‘0’ to ‘1’)
1	1	0	Detects a negative transition only (from ‘1’ to ‘0’)
1	1	1	Detects both positive and negative transitions

The CNSTATx register indicates whether a change occurred on the corresponding pin since the last read of the PORTx bit. In addition to the CNSTATx register, the CNFx register is implemented for each port. This register contains flags for Change Notification events. These flags are set if the valid transition edge, selected in the CNEN0x and CNEN1x registers, is detected. CNFx stores the occurrence of the event. CNFx bits must be cleared in software to get the next Change Notification interrupt. The CN interrupt is generated only for the I/Os configured as inputs (corresponding TRISx bits must be set).

Note: Pull-ups and pull-downs on Input Change Notification pins should always be disabled when the port pin is configured as a digital output.

8.5 Peripheral Pin Select (PPS)

A major challenge in general purpose devices is providing the largest possible set of peripheral features, while minimizing the conflict of features on I/O pins. The challenge is even greater on low pin count devices. In an application where more than one peripheral needs to be assigned to a single pin, inconvenient work arounds in application code, or a complete redesign, may be the only option.

Peripheral Pin Select configuration provides an alternative to these choices by enabling peripheral set selection and placement on a wide range of I/O pins. By increasing the pinout options available on a particular device, users can better tailor the device to their entire application, rather than trimming the application to fit the device.

The Peripheral Pin Select configuration feature operates over a fixed subset of digital I/O pins. Users may independently map the input and/or output of most digital peripherals to any one of these I/O pins. Hardware safeguards are included that prevent accidental or spurious changes to the peripheral mapping once it has been established.

8.5.1 AVAILABLE PINS

The number of available pins is dependent on the particular device and its pin count. Pins that support the Peripheral Pin Select feature include the label, "RPn", in their full pin designation, where "n" is the remappable pin number. "RP" is used to designate pins that support both remappable input and output functions.

8.5.2 AVAILABLE PERIPHERALS

The peripherals managed by the Peripheral Pin Select are all digital only peripherals. These include general serial communications (UART and SPI), general purpose timer clock inputs, timer-related peripherals (input capture and output compare) and interrupt-on-change inputs.

In comparison, some digital only peripheral modules are never included in the Peripheral Pin Select feature. This is because the peripheral's function requires special I/O circuitry on a specific port and cannot be easily connected to multiple pins. One example includes I²C modules. A similar requirement excludes all modules with analog inputs, such as the A/D Converter (ADC).

A key difference between remappable and non-remappable peripherals is that remappable peripherals are not associated with a default I/O pin. The peripheral must always be assigned to a specific I/O pin before it can be used. In contrast, non-remappable peripherals are always available on a default pin, assuming that the peripheral is active and not conflicting with another peripheral.

When a remappable peripheral is active on a given I/O pin, it takes priority over all other digital I/Os and digital communication peripherals associated with the pin. Priority is given regardless of the type of peripheral that is mapped. Remappable peripherals never take priority over any analog functions associated with the pin.

8.5.3 CONTROLLING CONFIGURATION CHANGES

Because peripheral mapping can be changed during run time, some restrictions on peripheral remapping are needed to prevent accidental configuration changes. The dsPIC33CK64MC105 devices have implemented the control register lock sequence.

After a Reset, writes to the RPINRx and RPORx registers are allowed, but they can be disabled by setting the IOLOCK bit (RPCON[11]). Attempted writes with the IOLOCK bit set will appear to execute normally, but the contents of the registers will remain unchanged. Setting IOLOCK prevents writes to the control registers; clearing IOLOCK allows writes. To set or clear IOLOCK, the NVMKEY unlock sequence must be executed:

1. Write 0x55 to NVMKEY.
2. Write 0xAA to NVMKEY.
3. Clear (or set) IOLOCK as a single operation.

Note: MPLAB ^ XC16 compiler provides a built-in C language function for unlocking and modifying the RPCON register:

__builtin_write_RPCON(value); For more information, see the XC16 compiler help files.

8.5.4 INPUT MAPPING

The inputs of the Peripheral Pin Select options are mapped on the basis of the peripheral. That is, a control register associated with a peripheral dictates the pin it will be mapped to. The RPINRx registers are used to configure peripheral input mapping. Each register contains sets of 8-bit fields, with each set associated with one of the remappable peripherals. Programming a given peripheral's bit field with an appropriate 8-bit index value maps the RPn pin with the corresponding value, or internal signal, to that peripheral. See Table 8-4 for a list of available inputs.

For example, Figure 8-2 illustrates remappable pin selection for the U1RX input. Example 8-1 provides a configuration for bidirectional communication with flow control using UART1. The following input and output functions are used:

• Input Functions: U1RX, U1CTS
  • Output Functions: U1TX, U1RTS

EXAMPLE 8-1: CONFIGURING UART1 INPUT AND OUTPUT FUNCTIONS

//
**************************
// Unlock Registers
//**************************
__builtin_write_RPCON(0x0000);
//**************************
// Configure Input Functions (See Table 8-5)
// Assign U1Rx To Pin RP35
//**************************
_U1RXR = 35;
// Assign U1CTS To Pin RP36
//**************************
_U1CTSR = 36;
//**************************
// Configure Output Functions (See Table 8-7)
//**************************
// Assign U1Tx To Pin RP37
//**************************
_RP37R = 1;
//**************************
// Assign U1RTS To Pin RP38
//**************************
_RP38R = 2;
//**************************
// Lock Registers
//**************************
__builtin_write_RPCON(0x0800);

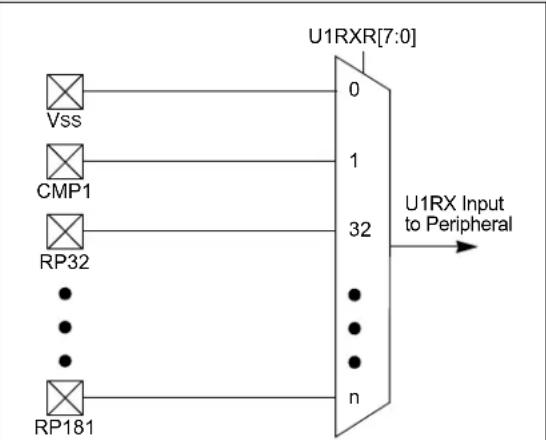

FIGURE 8-2: REMAPPABLE INPUT FOR U1RX

Note: For input only, Peripheral Pin Select functionality does not have priority over TRISx settings. Therefore, when configuring an RPn pin for input, the corresponding bit in the TRISx register must also be configured for input (set to '1'). Physical connection to a pin can be made through RP32 through RP77. There are internal signals and virtual pins that can be connected to an input. Table 8-4 shows the details of the input assignment.

TABLE 8-4: REMAPPABLE PIN INPUTS

RPINRx[15:8] or RPINRx[7:0]	Function Available on Ports
0	Vss Internal
1 Comparator 1 Internal
2 Comparator 2 Internal
3 Comparator 3 Internal
4-5 RP4-RP5 Reserved
6 PTG Trigger 26 Internal
7 PTG Trigger 27 Internal
8-10 RP8-RP10	Reserved
11	PWM Event Out C	Internal
12	PWM Event Out D	Internal
13	PWM Event Out E	Internal
14-31	RP14-RP31	Reserved
32	RP32	Port Pin RB0
33	RP33	Port Pin RB1
34	RP34	Port Pin RB2
35	RP35	Port Pin RB3
36	RP36	Port Pin RB4
37	RP37	Port Pin RB5
38	RP38	Port Pin RB6
39	RP39	Port Pin RB7
40	RP40	Port Pin RB8
41	RP41	Port Pin RB9
42	RP42	Port Pin RB10
43	RP43	Port Pin RB11
44	RP44	Port Pin RB12
45	RP45	Port Pin RB13
46	RP46	Port Pin RB14
47	RP47	Port Pin RB15
48	RP48	Port Pin RC0
49	RP49	Port Pin RC1
50	RP50	Port Pin RC2
51	RP51	Port Pin RC3
52	RP52	Port Pin RC4
53	RP53	Port Pin RC5
54	RP54	Port Pin RC6
55	RP55	Port Pin RC7
56	RP56	Port Pin RC8
57	RP57	Port Pin RC9
58	RP58	Port Pin RC10
59	RP59	Port Pin RC11
60	RP60	Port Pin RC12
61	RP61	Port Pin RC13
RPINRx[15:8] or RPINRx[7:0]	Function	Available on Ports
62-64 RP62-RP64 Reserved
65 RP65 Port Pin RD1
66-71 RP66-RP71 Reserved
72 RP72 Port Pin RD8
73 RP73 Reserved
74 RP74 Port Pin RD10
75-76 RP75-RP76 Reserved
77 RP77 Port Pin RD13
78-167 RP78-RP167 Reserved
168 DAC pwm_req_on Internal
169	DAC1 pwm_req_off	Internal
170-175	RP170-175	Reserved
176	RP176	Virtual RPV0
177	RP177	Virtual RPV1
178	RP178	Virtual RPV2
179	RP179	Virtual RPV3
180	RP180	Virtual RPV4
181	RP181	Virtual RPV5

8.5.5 VIRTUAL CONNECTIONS

The dsPIC33CK64MC105 devices support six virtual RPn pins (RP176-RP181), which are identical in functionality to all other RPn pins, with the exception of pinouts. These six pins are internal to the devices and are not connected to a physical device pin.

These pins provide a simple way for inter-peripheral connection without utilizing a physical pin. For example, the output of the analog comparator can be connected to RP176 and the PWM Fault input can be configured for RP176 as well. This configuration allows the analog comparator to trigger PWM Faults without the use of an actual physical pin on the device.

TABLE 8-5: SELECTABLE INPUT SOURCES (MAPS INPUT TO FUNCTION)

Input Name^(1)	Function Name Register Register Bits
External Interrupt 1 INT1 RPINR0 INT1R[7:0]
External Interrupt 2 INT2 RPINR1 INT2R[7:0]
External Interrupt 3 INT3 RPINR1 INT3R[7:0]
Timer1 External Clock T1CK RPINR2 T1CK[7:0]
SCCP Timer1	TCKI1	RPINR3	TCKI1R[7:0]
SCCP Capture 1	ICM1	RPINR3	ICM1R[7:0]
SCCP Timer2	TCKI2	RPINR4	TCKI2R[7:0]
SCCP Capture 2	ICM2	RPINR4	ICM2R[7:0]
SCCP Timer3	TCKI3	RPINR5	TCKI3R[7:0]
SCCP Capture 3	ICM3	RPINR5	ICM3R[7:0]
SCCP Timer4	TCKI4	RPINR6	TCKI4R[7:0]
SCCP Capture 4	ICM4	RPINR6	ICM4R[7:0]
SCCP Fault A	OCFA	RPINR11	OCFAR[7:0]
SCCP Fault B	OCFB	RPINR11	OCFBR[7:0]
PWM PCI Input 8	PCI8	RPINR12	PCI8R[7:0]
PWM PCI Input 9	PCI9	RPINR12	PCI9R[7:0]
PWM PCI Input 10	PCI10	RPINR13	PCI10R[7:0]
PWM PCI Input 11 PCI11	RPINR13	PCI11R[7:0]
QE11 Input A	QEIA1	RPINR14	QEIA1R[7:0]
QE11 Input B	QEIB1	RPINR14	QEIB1R[7:0]
QE11 Index 1 Input	QEINDX1	RPINR15	QEINDX1R[7:0]
QE11 Home 1 Input	QEIHOM1	RPINR15	QEIHOM1R[7:0]
UART1 Receive	U1RX	RPINR18	U1RXR[7:0]
UART1 Data-Set-Ready	U1DSR	RPINR18 U1DSRR[7:0]
UART2 Receive	U2RX	RPINR19	U2RXR[7:0]
UART2 Data-Set-Ready	U2DSR	RPINR19 U2DSRR[7:0]
SPI1 Data Input	SDI1	RPINR20	SDI1R[7:0]
SPI1 Clock Input	SCK1IN	RPINR20	SCK1R[7:0]
SPI1 Client Select	SS1	RPINR21	SS1R[7:0]
Reference Clock Input	REFCLKI RPINR21	REFOIR[7:0]
SPI2 Data Input	SDI2	RPINR22	SDI2R[7:0]
SPI2 Clock Input	SCK2IN	RPINR22	SCK2R[7:0]
SPI2 Client Select	SS2	RPINR23	SS2R[7:0]
UART3 Receive	U3RX	RPINR27	U3RXR[7:0]
UART3 Data-Set-Ready	U3DSR	RPINR27 U3DSRR[7:0]
SCCP Fault C	OCFC	RPINR37	OCFCR[7:0]
PWM PCI Input 17	PCI17	RPINR37	PCI17R[7:0]
PWM PCI Input 18	PCI18	RPINR38	PCI18R[7:0]
PWM PCI Input 12	PCI12	RPINR42	PCI12R[7:0]
PWM PCI Input 13	PCI13	RPINR42	PCI13R[7:0]
PWM PCI Input 14	PCI14	RPINR43	PCI14R[7:0]
PWM PCI Input 15	PCI15	RPINR43	PCI15R[7:0]
PWM PCI Input 16	PCI16	RPINR44	PCI16R[7:0]
Input Name^(1)	Function Name	Register	Register Bits
SENT1 Input SENT1 RPINR44 SENT1	R[7:0]
CLC Input A CLCINA RPINR45 CLCIN	AR[7:0]
CLC Input B CLCINB RPINR46 CLCIN	BR[7:0]
CLC Input C CLCINC RPINR46 CLCIN	CR[7:0]
CLC Input D CLCIND RPINR47 CLCIND	DR[7:0]
ADC Trigger Input (ADTRIG31) ADCTR	RG RPINR47 ADCTRGR[7:0]
SCCP Fault D	OCFD	RPINR48	OCFDR[7:0]
UART1 Clear-to-Send	U1CTS	RPINR48 U1CTSR[7:0]
UART2 Clear-to-Send	U2CTS	RPINR49 U2CTSR[7:0]
UART3 Clear-to-Send	U3CTS	RPINR49 U3CTSR[7:0]

Note 1: Unless otherwise noted, all inputs use the Schmitt Trigger input buffers.

8.5.6 OUTPUT MAPPING

In contrast to inputs, the outputs of the Peripheral Pin Select options are mapped on the basis of the pin. In this case, a control register associated with a particular pin dictates the peripheral output to be mapped. The RPORx registers are used to control output mapping. Each register contains sets of 6-bit fields, with each set associated with one RPn pin (see Register 8-43 through Register 8-62). The value of the bit field corresponds to one of the peripherals and that peripheral's output is mapped to the pin (see Table 8-7 and Figure 8-3).

A null output is associated with the output register Reset value of '0'. This is done to ensure that remappable outputs remain disconnected from all output pins by default.

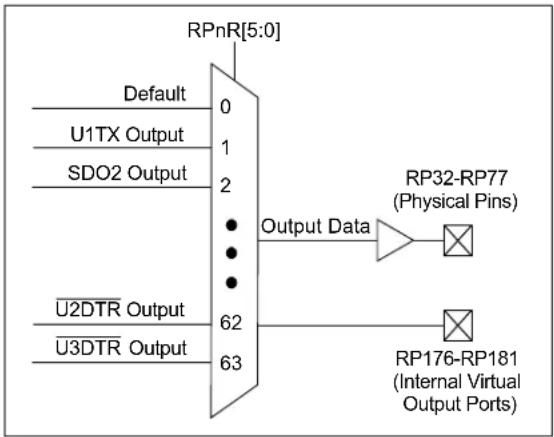

FIGURE 8-3: MULTIPLEXING REMAPPABLE OUTPUTS FOR RPn

RPnR[5:0] Default U1TX Output SDO2 Output U2DTR Output U3DTR Output 0 1 2 62 63 Output Data RP32-RP77 (Physical Pins) RP176-RP181 (Internal Virtual Output Ports)

Note 1: There are six virtual output ports which are not connected to any I/O ports (RP176-RP181). These virtual ports can be accessed by RPOR17, RPOR18 and RPOR19.

8.5.7 MAPPING LIMITATIONS

The control schema of the peripheral select pins is not limited to a small range of fixed peripheral configurations. There are no mutual or hardware-enforced lockouts between any of the peripheral mapping SFRs. Literally, any combination of peripheral mappings, across any or all of the RPn pins, is possible. This includes both many-to-one and one-to-many mappings of peripheral inputs, and outputs to pins. While such mappings may be technically possible from a configuration point of view, they may not be supportable from an electrical point of view (see Table 8-6).

TABLE 8-6: REMAPPABLE OUTPUT PIN REGISTERS

Register RP Pin I/O Port
RPOR0[5:0] RP32 Port Pin	RB0
RPOR0[13:8] RP33 Port Pin	RB1
RPOR1[5:0] RP34 Port Pin	RB2
RPOR1[13:8] RP35 Port Pin	RB3
RPOR2[5:0] RP36 Port Pin	RB4
RPOR2[13:8] RP37 Port Pin	RB5
RPOR3[5:0] RP38 Port Pin	RB6
RPOR3[13:8] RP39 Port Pin	RB7
RPOR4[5:0] RP40 Port Pin	RB8
RPOR4[13:8] RP41 Port Pin	RB9
RPOR5[5:0] RP42 Port Pin	RB10
RPOR5[13:8] RP43 Port Pin	RB11
RPOR6[5:0] RP44 Port Pin	RB12
RPOR6[13:8] RP45 Port Pin	RB13
RPOR7[5:0] RP46 Port Pin	RB14
RPOR7[13:8] RP47 Port Pin	RB15
RPOR8[5:0] RP48 Port Pin	RC0
RPOR8[13:8] RP49 Port Pin	RC1
RPOR9[5:0] RP50 Port Pin	RC2
RPOR9[13:8] RP51 Port Pin	RC3
RPOR10[5:0] RP52 Port Pin	RC4
RPOR10[13:8]	RP53 Port Pin RC5
RPOR11[5:0]	RP54 Port Pin RC6
RPOR11[13:8]	RP55 Port Pin RC7
RPOR12[5:0] RP56 Port Pin	RC8
RPOR12[13:8]	RP57 Port Pin RC9
RPOR13[5:0] RP58	Port Pin	RC10
RPOR13[13:8]	RP59 Port Pin RC11
RPOR14[5:0] RP60	Port Pin	RC12
RPOR14[13:8]	RP61	Port Pin RC13
RPOR15[5:0] RP65 Port Pin	RD1
RPOR15[13:8]	RP72 Port Pin RD8
RPOR16[5:0] RP74	Port Pin	RD10
RPOR16[13:8]	RP77	Port Pin RD13
RPOR17[5:0]	RP176	Virtual Pin RPV0
RPOR17[13:8]	RP177	Virtual Pin RPV1
RPOR18[5:0]	RP178	Virtual Pin RPV2
RPOR18[13:8]	RP179	Virtual Pin RPV3
RPOR19[5:0]	RP180	Virtual Pin RPV4
RPOR19[13:8]	RP181	Virtual Pin RPV5

TABLE 8-7: OUTPUT SELECTION FOR REMAPPABLE PINS (RPn)

Function RPnR[5:0] Output Name
Not Connected 0 Not Connected
U1TX 1 RPn tied to UART1 Transmit
1RTS	2 RPn tied to UART1 Request-to-Send
U2TX 3 RPn tied to UART2 Transmit
2RTS	4 RPn tied to UART2 Request-to-Send
SDO1 5 RPn tied to SPI1	Data Output
SCK1 6 RPn tied to SPI1	Clock Output
1	7 RPn tied to SPI1 Client Select
SDO2 8 RPn tied to SPI2	Data Output
SCK2 9 RPn tied to SPI2	Clock Output
2	10 RPn tied to SPI2 Client Select
REFCLKO 14 RPn tied to	Reference Clock Output
OCM1A	15 RPn tied to SCCP1 Output
OCM2A	16 RPn tied to SCCP2 Output
OCM3A	17 RPn tied to SCCP3 Output
OCM4A	18 RPn tied to SCCP4 Output
CMP1	23 RPn tied to Comparator 1 Output
U3TX	27 RPn tied to UART3 Transmit
3RTS	28 RPn tied to UART3 Request-to-Send
PWM4H	34 RPn tied to PWM4H Output
PWM4L	35 RPn tied to PWM4L Output
PWMEA	36 RPn tied to PWM Event A Output
PWMEB	37 RPn tied to PWM Event B Output
QEICMP1	38 RPn tied to QE11 Comparator Output
CLC1OUT	40 RPn tied to CLC1 Output
CLC2OUT	41 RPn tied to CLC2 Output
PWMEC	44 RPn tied to PWM Event C Output
PWMED	45 RPn tied to PWM Event D Output
PTGTRG24	46 RPn tied to PTG Trigger Output 24
PTGTRG25	47 RPn tied to PTG Trigger Output 25
SENT1OUT	48 RPn tied to SENT1 Output
CLC3OUT	59 RPn tied to CLC4 Output
CLC4OUT	60 RPn tied to CLC4 Output
1DTR	61 RPn tied to UART1 DTR
2DTR	62 RPn tied to UART2 DTR
3DTR	63 RPn tied to UART3 DTR

8.5.8 I/O HELPFUL TIPS

1. In some cases, certain pins, as defined in Table 31-14 under "Injection Current", have internal protection diodes to VDD and Vss. The term, "Injection Current", is also referred to as "Clamp Current". On designated pins, with sufficient external current-limiting precautions by the user, I/O pin input voltages are allowed to be greater or lesser than the data sheet absolute maximum ratings, with respect to the Vss and VDD supplies. Note that when the user application forward biases either of the high or low-side internal input clamp diodes, that the resulting current being injected into the device that is clamped internally by the VDD and Vss power rails, may affect the ADC accuracy by four to six counts.
2. I/O pins that are shared with any analog input pin (i.e., ANx) are always analog pins, by default, after any Reset. Consequently, configuring a pin as an analog input pin automatically disables the digital input pin buffer and any attempt to read the digital input level by reading PORTx or LATx will always return a '0', regardless of the digital logic level on the pin. To use a pin as a digital I/O pin on a shared ANx pin, the user application needs to configure the Analog Select for PORTx registers in the I/O ports module (i.e., ANSELx) by setting the appropriate bit that corresponds to that I/O port pin to a '0'.

Note: Although it is not possible to use a digital input pin when its analog function is enabled, it is possible to use the digital I/O output function, TRISx = 0x0, while the analog function is also enabled. However, this is not recommended, particularly if the analog input is connected to an external analog voltage source, which would create signal contention between the analog signal and the output pin driver.

1. Most I/O pins have multiple functions. Referring to the device pin diagrams in this data sheet, the priorities of the functions allocated to any pins are indicated by reading the pin name, from left-to-right. The left most function name takes precedence over any function to its right in the naming convention. For example: AN16/T2CK/T7CK/RC1; this indicates that AN16 is the highest priority in this example and will supersede all other functions to its right in the list. Those other functions to its right, even if enabled, would not work as long as any other function to its left was enabled. This rule applies to all of the functions listed for a given pin.
2. Each pin has an internal weak pull-up resistor and pull-down resistor that can be configured using the CNPUx and CNPDx registers, respectively. These resistors eliminate the need for external resistors in certain applications. The internal pull-up is up to (V_DD-0.8) , not VDD. This value is still above the minimum VIH of CMOS and TTL devices.
3. When driving LEDs directly, the I/O pin can source or sink more current than what is specified in the VOH/LOH and VOL/LOL DC characteristics specification. The respective LOH and IOL current rating only applies to maintaining the corresponding output at or above the VOH, and at or below the VOL levels. However, for LEDs, unlike digital inputs of an externally connected device, they are not governed by the same minimum VIH/VIIL levels. An I/O pin output can safely sink or source any current less than that listed in the Absolute Maximum Ratings in Section 31.0 "Electrical Characteristics" of this data sheet. For example:

$$ \mathrm{VOH} = 2. 4 \mathrm{V} @ \mathrm{IOH} = - 8 \mathrm{mA} \text { and } \mathrm{VDD} = 3. 3 \mathrm{V} $$

The maximum output current sourced by any 8 mA I/O pin = 12 mA.

LED source current < 12 mA is technically permitted.

1. The Peripheral Pin Select (PPS) pin mapping rules are as follows:

a) Only one "output" function can be active on a given pin at any time, regardless if it is a dedicated or remappable function (one pin, one output).
b) It is possible to assign a "remappable output" function to multiple pins and externally short or tie them together for increased current drive.
c) If any "dedicated output" function is enabled on a pin, it will take precedence over any remappable "output" function.
d) If any "dedicated digital" (input or output) function is enabled on a pin, any number of "input" remappable functions can be mapped to the same pin.
e) If any “dedicated analog” function(s) are enabled on a given pin, “digital input(s)” of any kind will all be disabled, although a single “digital output”, at the user’s cautionary discretion, can be enabled and active as long as there is no signal contention with an external analog input signal. For example, it is possible for the ADC to convert the digital output logic level, or to toggle a digital output on a comparator or ADC input, provided there is no external analog input, such as for a Built-In Self-Test (BIST).
f) Any number of "input" remappable functions can be mapped to the same pin(s) at the same time, including to any pin with a single output from either a dedicated or remappable "output".
g) The TRISx registers control only the digital I/O output buffer. Any other dedicated or remappable active "output" will automatically override the TRISx setting. The TRISx register does not control the digital logic "input" buffer. Remappable digital "inputs" do not automatically override TRISx settings, which means that the TRISx bit must be set to input for pins with only remappable input function(s) assigned.
h) All analog pins are enabled by default after any Reset and the corresponding digital input buffer on the pin has been disabled. Only the Analog Select for PORTx (ANSELx) registers control the digital input buffer, not the TRISx register. The user must disable the analog function on a pin using the Analog Select for PORTx registers in order to use any "digital input(s)" on a corresponding pin, no exceptions.

8.5.9 I/O PORTS RESOURCES

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

8.5.9.1 Key Resources

- "I/O Ports with Edge Detect" (www.microchip.com/DS70005322) in the "dsPIC33/PIC24 Family Reference Manual"

• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All Related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

TABLE 8-8: PORTA REGISTER SUMMARY

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-12 Unimplemented: Read as '0'

bit 11 IOLOCK: Peripheral Remapping Register Lock bit

1 = All Peripheral Remapping registers are locked and cannot be written
0 = All Peripheral Remapping registers are unlocked and can be written

bit 10-0 Unimplemented: Read as '0'

Note 1: Writing to this register needs an unlock sequence.

REGISTER 8-14: RPINR0: PERIPHERAL PIN SELECT INPUT REGISTER 0

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
INT1R7	INT1R6	INT1R5	INT1R4	INT1R3	INT1R2	INT1R1	INT1R0
bit 15 bit 8

U-0 U-0 U-0 U-0		U-0	U-0 U-0 U-0
——	—+		—	—
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 INT1R[7:0]: Assign External Interrupt 1 (INT1) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 Unimplemented: Read as '0'

REGISTER 8-15: RPINR1: PERIPHERAL PIN SELECT INPUT REGISTER 1

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
INT3R7	INT3R6	INT3R5	INT3R4	INT3R3	INT3R2	INT3R1	INT3R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
INT2R7	INT2R6	INT2R5	INT2R4	INT2R3	INT2R2	INT2R1	INT2R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 INT3R[7:0]: Assign External Interrupt 3 (INT3) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 INT2R[7:0]: Assign External Interrupt 2 (INT2) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-16: RPINR2: PERIPHERAL PIN SELECT INPUT REGISTER 2

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
T1CKR7	T1CKR6	T1CKR5	T1CKR4	T1CKR3	T1CKR2	T1CKR1	T1CKR0
bit 15 bit 8

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 T1CKR[7:0]: Assign Timer1 External Clock (T1CK) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 Unimplemented: Read as '0'

REGISTER 8-17: RPINR3: PERIPHERAL PIN SELECT INPUT REGISTER 3

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ICM1R7	ICM1R6	ICM1R5	ICM1R4	ICM1R3	ICM1R2	ICM1R1	ICM1R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TCKI1R7	TCKI1R6	TCKI1R5	TCKI1R4	TCKI1R3	TCKI1R2	TCKI1R1	TCKI1R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 ICM1R[7:0]: Assign SCCP Capture 1 (ICM1) Input to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 TCKI1[7:0]: Assign SCCP Timer1 (TCKI1) Input to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-18: RPINR4: PERIPHERAL PIN SELECT INPUT REGISTER 4

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ICM2R7	ICM2R6	ICM2R5	ICM2R4	ICM2R3	ICM2R2	ICM2R1	ICM2R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TCKI2R7	TCKI2R6	TCKI2R5	TCKI2R4	TCKI2R3	TCKI2R2	TCKI2R1	TCKI2R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 ICM2R[7:0]: Assign SCCP Capture 2 (ICM2) Input to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 TCKI2R[7:0]: Assign SCCP Timer2 (TCKI2) Input to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-19: RPINR5: PERIPHERAL PIN SELECT INPUT REGISTER 5

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ICM3R7	ICM3R6	ICM3R5	ICM3R4	ICM3R3	ICM3R2	ICM3R1	ICM3R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TCKI3R7	TCKI3R6	TCKI3R5	TCKI3R4	TCKI3R3	TCKI3R2	TCKI3R1	TCKI3R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 ICM3R[7:0]: Assign SCCP Capture 3 (ICM3) Input to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 TCKI3R[7:0]: Assign SCCP Timer3 (TCKI3) Input to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-20: RPINR6: PERIPHERAL PIN SELECT INPUT REGISTER 6

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ICM4R7	ICM4R6	ICM4R5	ICM4R4	ICM4R3	ICM4R2	ICM4R1	ICM4R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TCKI4R7	TCKI4R6	TCKI4R5	TCKI4R4	TCKI4R3	TCKI4R2	TCKI4R1	TCKI4R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 ICM4R[7:0]: Assign SCCP Capture 4 (ICM4) Input to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 TCKI4R[7:0]: Assign SCCP Timer4 (TCKI4) Input to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-21: RPINR11: PERIPHERAL PIN SELECT INPUT REGISTER 11

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
OCFBR7	OCFBR6	OCFBR5	OCFBR4	OCFBR3	OCFBR2	OCFBR1	OCFBR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
OCFAR7	OCFAR6	OCFAR5	OCFAR4	OCFAR3	OCFAR2	OCFAR1	OCFAR0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-8 OCFBR[7:0]: Assign xCCP Fault B (OCFB) Input to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 OCFAR[7:0]: Assign xCCP Fault A (OCFA) Input to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-22: RPINR12: PERIPHERAL PIN SELECT INPUT REGISTER 12

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI9R7	PCI9R6	PCI9R5	PCI9R4	PCI9R3	PCI9R2	PCI9R1	PCI9R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI8R7	PCI8R6	PCI8R5	PCI8R4	PCI8R3	PCI8R2	PCI8R1	PCI8R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-8 PCI9R[7:0]: Assign PWM Input 9 (PCI9) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 PCI8R[7:0]: Assign PWM Input 8 (PCI8) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-23: RPINR13: PERIPHERAL PIN SELECT INPUT REGISTER 13

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI11R7	PCI11R6	PCI11R5	PCI11R4	PCI11R3	PCI11R2	PCI11R1	PCI11R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI10R7	PCI10R6	PCI10R5	PCI10R4	PCI10R3	PCI10R2	PCI10R1	PCI10R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 PCI11R[7:0]: Assign PWM Input 11 (PCI11) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 PCI10R[7:0]: Assign PWM Input 10 (PCI10) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-24: RPINR14: PERIPHERAL PIN SELECT INPUT REGISTER 14

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEIB1R7	QEIB1R6	QEIB1R5	QEIB1R4	QEIB1R3	QEIB1R2	QEIB1R1	QEIB1R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEIA1R7	QEIA1R6	QEIA1R5	QEIA1R4	QEIA1R3	QEIA1R2	QEIA1R1	QEIA1R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 QEIB1R[7:0]: Assign QEI1 Input B (QEIB1) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 QEIA1R[7:0]: Assign QEI1 Input A (QEIA1) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-25: RPINR15: PERIPHERAL PIN SELECT INPUT REGISTER 15

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEIHOM1R7	QEIHOM1R6	QEIHOM1R5	QEIHOM1R4	QEIHOM1R3	QEIHOM1R2	QEIHOM1R1	QEIHOM1R0
bit 15 bit 8
R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEINDX1R7	QEINDX1R6	QEINDX1R5	QEINDX1R4	QEINDX1R3	QEINDX1R2	QEINDX1R1	QEINDX1R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 QEIHOM1R[7:0]: Assign QEI1 Home 1 Input (QEIHOM1) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 QEINDX1R[7:0]: Assign QEI1 Index 1 Input (QEINDX1) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-26: RPINR18: PERIPHERAL PIN SELECT INPUT REGISTER 18

R/W-0 R/W-0 R/W-0		R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
U1DSRR7	U1DSRR6	U1DSRR5	U1DSRR4	U1DSRR3	U1DSRR2	U1DSRR1	U1DSRR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0		R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
U1RXR7	U1RXR6	U1RXR5	U1RXR4	U1RXR3	U1RXR2	U1RXR1	U1RXR0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 U1DSRR[7:0]: Assign UART1 Data-Set-Ready ( 1DSR ) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 U1RXR[7:0]: Assign UART1 Receive (U1RX) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-27: RPINR19: PERIPHERAL PIN SELECT INPUT REGISTER 19

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
U2DSRR7	U2DSRR6	U2DSRR5	U2DSRR4	U2DSRR3	U2DSRR2	U2DSRR1	U2DSRR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
U2RXR7	U2RXR6	U2RXR5	U2RXR4	U2RXR3	U2RXR2	U2RXR1	U2RXR0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 U2DSRR[7:0]: Assign UART2 Data-Set-Ready ( 2DSR ) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 U2RXR[7:0]: Assign UART2 Receive (U2RX) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-28: RPINR20: PERIPHERAL PIN SELECT INPUT REGISTER 20

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SCK1R7	SCK1R6	SCK1R5	SCK1R4	SCK1R3	SCK1R2	SCK1R1	SCK1R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SDI1R7	SDI1R6	SDI1R5	SDI1R4	SDI1R3	SDI1R2	SDI1R1	SDI1R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 SCK1R[7:0]: Assign SPI1 Clock Input (SCK1IN) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 SDI1R[7:0]: Assign SPI1 Data Input (SDI1) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-29: RPINR21: PERIPHERAL PIN SELECT INPUT REGISTER 21

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
REFOIR7	REFOIR6	REFOIR5	REFOIR4	REFOIR3	REFOIR2	REFOIR1	REFOIR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SS1R7	SS1R6	SS1R5	SS1R4	SS1R3	SS1R2	SS1R1	SS1R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 REFOIR[7:0]: Assign Reference Clock Input (REFCLKI) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 SS1R[7:0]: Assign SPI1 Client Select (SS1) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-30: RPINR22: PERIPHERAL PIN SELECT INPUT REGISTER 22

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SCK2R7	SCK2R6	SCK2R5	SCK2R4	SCK2R3	SCK2R2	SCK2R1	SCK2R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SDI2R7	SDI2R6	SDI2R5	SDI2R4	SDI2R3	SDI2R2	SDI2R1	SDI2R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 SCK2R[7:0]: Assign SPI2 Clock Input (SCK2IN) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 SDI2R[7:0]: Assign SPI2 Data Input (SDI2) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-31: RPINR23: PERIPHERAL PIN SELECT INPUT REGISTER 23

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——	—
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SS2R7	SS2R6	SS2R5	SS2R4	SS2R3	SS2R2	SS2R1	SS2R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 SS2R[7:0]: Assign SPI2 Client Select (SS2) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-32: RPINR27: PERIPHERAL PIN SELECT INPUT REGISTER 27

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
U3DSRR7	U3DSRR6	U3DSRR5	U3DSRR4	U3DSRR3	U3DSRR2	U3DSRR1	U3DSRR0
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
U3RXR7	U3RXR6	U3RXR5	U3RXR4	U3RXR3	U3RXR2	U3RXR1	U3RXR0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 U3DSRR[7:0]: Assign UART3 Data-Set-Ready (U3DSR) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 U3RXR[7:0]: Assign UART3 Receive (U3RX) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-33: RPINR37: PERIPHERAL PIN SELECT INPUT REGISTER 37

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI17R7	PCI17R6	PCI17R5	PCI17R4	PCI17R3	PCI17R2	PCI17R1	PCI17R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
OCFCR7	OCFCR6	OCFCR5	OCFCR4	OCFCR3	OCFCR2	OCFCR1	OCFCR0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 PCI17R[7:0]: Assign PWM Input 17 (PCI17) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 OCFCR[7:0]: Assign xCCP Fault C (OCFC) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-34: RPINR38: PERIPHERAL PIN SELECT INPUT REGISTER 38

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 PCI18R[7:0]: Assign PWM Input 18 (PCI18) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-35: RPINR42: PERIPHERAL PIN SELECT INPUT REGISTER 42

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI13R7	PCI13R6	PCI13R5	PCI13R4	PCI13R3	PCI13R2	PCI13R1	PCI13R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI12R7	PCI12R6	PCI12R5	PCI12R4	PCI12R3	PCI12R2	PCI12R1	PCI12R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 PCI13R[7:0]: Assign PWM Input 13 (PCI13) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 PCI12R[7:0]: Assign PWM Input 12 (PCI12) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-36: RPINR43: PERIPHERAL PIN SELECT INPUT REGISTER 43

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI15R7	PCI15R6	PCI15R5	PCI15R4	PCI15R3	PCI15R2	PCI15R1	PCI15R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI14R7	PCI14R6	PCI14R5	PCI14R4	PCI14R3	PCI14R2	PCI14R1	PCI14R0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 PCI15R[7:0]: Assign PWM Input 15 (PCI15) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 PCI14R[7:0]: Assign PWM Input 14 (PCI14) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-37: RPINR44: PERIPHERAL PIN SELECT INPUT REGISTER 44

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SENT1R7	SENT1R6	SENT1R5	SENT1R4	SENT1R3	SENT1R2	SENT1R1	SENT1R0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PCI16R7	PCI16R6	PCI16R5	PCI16R4	PCI16R3	PCI16R2	PCI16R1	PCI16R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 SENT1R[7:0]: Assign SENT1 Input (SENT1) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 PCI16[7:0]: Assign PWM Input 16 (PCI16) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-38: RPINR45: PERIPHERAL PIN SELECT INPUT REGISTER 45

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLCINAR7	CLCINAR6	CLCINAR5	CLCINAR4	CLCINAR3	CLCINAR2	CLCINAR1	CLCINAR0
bit 15 bit 8

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 CLCINAR[7:0]: Assign CLC Input A (CLCINA) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 Unimplemented: Read as '0'

REGISTER 8-39: RPINR46: PERIPHERAL PIN SELECT INPUT REGISTER 46

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLCINCR7	CLCINCR6	CLCINCR5	CLCINCR4	CLCINCR3	CLCINCR2	CLCINCR1	CLCINCR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLCINBR7	CLCINBR6	CLCINBR5	CLCINBR4	CLCINBR3	CLCINBR2	CLCINBR1	CLCINBR0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 CLCINCR[7:0]: Assign CLC Input C (CLCINC) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 CLCINBR[7:0]: Assign CLC Input B (CLCINB) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-40: RPINR47: PERIPHERAL PIN SELECT INPUT REGISTER 47

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ADCTRGR7	ADCTRGR6	ADCTRGR5	ADCTRGR4	ADCTRGR3	ADCTRGR2	ADCTRGR1	ADCTRGR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLCINDR7	CLCINDR6	CLCINDR5	CLCINDR4	CLCINDR3	CLCINDR2	CLCINDR1	CLCINDR0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 ADCTRGR[7:0]: Assign ADC Trigger Input (ADCTRG) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 CLCINDR[7:0]: Assign CLC Input D (CLCIND) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-41: RPINR48: PERIPHERAL PIN SELECT INPUT REGISTER 48

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
U1CTSR7	U1CTSR6	U1CTSR5	U1CTSR4	U1CTSR3	U1CTSR2	U1CTSR1	U1CTSR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
OCFDR7	OCFDR6	OCFDR5	OCFDR4	OCFDR3	OCFDR2	OCFDR1	OCFDR0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 U1CTSR[7:0]: Assign UART1 Clear-to-Send (U1CTS) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 OCFDR[7:0]: Assign xCCP Fault D (OCFD) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-42: RPINR49: PERIPHERAL PIN SELECT INPUT REGISTER 49

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
U3CTSR7	U3CTSR6	U3CTSR5	U3CTSR4	U3CTSR3	U3CTSR2	U3CTSR1	U3CTSR0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
U2CTSR7	U2CTSR6	U2CTSR5	U2CTSR4	U2CTSR3	U2CTSR2	U2CTSR1	U2CTSR0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 U3CTSR[7:0]: Assign UART3 Clear-to-Send (U3CTS) to the Corresponding RPn Pin bits See Table 8-4.

bit 7-0 U2CTSR[7:0]: Assign UART2 Clear-to-Send (U2CTS) to the Corresponding RPn Pin bits See Table 8-4.

REGISTER 8-43: RPOR0: PERIPHERAL PIN SELECT OUTPUT REGISTER 0

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP33R5	RP33R4	RP33R3	RP33R2	RP33R1	RP33R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP32R5	RP32R4	RP32R3	RP32R2	RP32R1	RP32R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP33R[5:0]: Peripheral Output Function is Assigned to RP33 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP32R[5:0]: Peripheral Output Function is Assigned to RP32 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-44: RPOR1: PERIPHERAL PIN SELECT OUTPUT REGISTER 1

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP35R5	RP35R4	RP35R3	RP35R2	RP35R1	RP35R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP34R5	RP34R4	RP34R3	RP34R2	RP34R1	RP34R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP35R[5:0]: Peripheral Output Function is Assigned to RP35 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP34R[5:0]: Peripheral Output Function is Assigned to RP34 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-45: RPOR2: PERIPHERAL PIN SELECT OUTPUT REGISTER 2

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP37R5	RP37R4	RP37R3	RP37R2	RP37R1	RP37R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP36R5	RP36R4	RP36R3	RP36R2	RP36R1	RP36R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP37R[5:0]: Peripheral Output Function is Assigned to RP37 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP36R[5:0]: Peripheral Output Function is Assigned to RP36 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-46: RPOR3: PERIPHERAL PIN SELECT OUTPUT REGISTER 3

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP39R5	RP39R4	RP39R3	RP39R2	RP39R1	RP39R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP38R5	RP38R5	RP38R5	RP38R5	RP38R5	RP38R5
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP39R[5:0]: Peripheral Output Function is Assigned to RP39 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP38R[5:0]: Peripheral Output Function is Assigned to RP38 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-47: RPOR4: PERIPHERAL PIN SELECT OUTPUT REGISTER 4

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP41R5	RP41R4	RP41R3	RP41R2	RP41R1	RP41R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP40R5	RP40R4	RP40R3	RP40R2	RP40R1	RP40R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP41R[5:0]: Peripheral Output Function is Assigned to RP41 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP40R[5:0]: Peripheral Output Function is Assigned to RP40 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-48: RPOR5: PERIPHERAL PIN SELECT OUTPUT REGISTER 5

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP43R5	RP43R4	RP43R3	RP43R2	RP43R1	RP43R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP42R5	RP42R4	RP42R3	RP42R2	RP42R1	RP42R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP43R[5:0]: Peripheral Output Function is Assigned to RP43 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP42R[5:0]: Peripheral Output Function is Assigned to RP42 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-49: RPOR6: PERIPHERAL PIN SELECT OUTPUT REGISTER 6

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP45R5	RP45R4	RP45R3	RP45R2	RP45R1	RP45R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP44R5	RP44R4	RP44R3	RP44R2	RP44R1	RP44R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP45R[5:0]: Peripheral Output Function is Assigned to RP45 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP44R[5:0]: Peripheral Output Function is Assigned to RP44 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-50: RPOR7: PERIPHERAL PIN SELECT OUTPUT REGISTER 7

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP47R5	RP47R4	RP47R3	RP47R2	RP47R1	RP47R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP46R5	RP46R4	RP46R3	RP46R2	RP46R1	RP46R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP47R[5:0]: Peripheral Output Function is Assigned to RP47 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP46R[5:0]: Peripheral Output Function is Assigned to RP46 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-51: RPOR8: PERIPHERAL PIN SELECT OUTPUT REGISTER 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP49R5	RP49R4	RP49R3	RP49R2	RP49R1	RP49R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP48R5	RP48R4	RP48R3	RP48R2	RP48R1	RP48R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP49R[5:0]: Peripheral Output Function is Assigned to RP49 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP48R[5:0]: Peripheral Output Function is Assigned to RP48 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-52: RPOR9: PERIPHERAL PIN SELECT OUTPUT REGISTER 9

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP51R5	RP51R4	RP51R3	RP51R2	RP51R1	RP51R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP50R5	RP50R4	RP50R3	RP50R2	RP50R1	RP50R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP51R[5:0]: Peripheral Output Function is Assigned to RP51 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP50R[5:0]: Peripheral Output Function is Assigned to RP50 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-53: RPOR10: PERIPHERAL PIN SELECT OUTPUT REGISTER 10

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP53R5	RP53R4	RP53R3	RP53R2	RP53R1	RP53R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP52R5	RP52R4	RP52R3	RP52R2	RP52R1	RP52R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP53[5:0]: Peripheral Output Function is Assigned to RP53 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP52R[5:0]: Peripheral Output Function is Assigned to RP52 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-54: RPOR11: PERIPHERAL PIN SELECT OUTPUT REGISTER 11

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP55R5	RP55R4	RP55R3	RP55R2	RP55R1	RP55R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP54R5	RP54R4	RP54R3	RP54R2	RP54R1	RP54R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP55R[5:0]: Peripheral Output Function is Assigned to RP55 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP54R[5:0]: Peripheral Output Function is Assigned to RP54 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-55: RPOR12: PERIPHERAL PIN SELECT OUTPUT REGISTER 12

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP57R5	RP57R4	RP57R3	RP57R2	RP57R1	RP57R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP56R5	RP56R4	RP56R3	RP56R2	RP56R1	RP56R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP57R[5:0]: Peripheral Output Function is Assigned to RP57 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP56R[5:0]: Peripheral Output Function is Assigned to RP56 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-56: RPOR13: PERIPHERAL PIN SELECT OUTPUT REGISTER 13

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP59R5	RP59R4	RP59R3	RP59R2	RP59R1	RP59R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP58R5	RP58R4	RP58R3	RP58R2	RP58R1	RP58R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP59R[5:0]: Peripheral Output Function is Assigned to RP59 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP58R[5:0]: Peripheral Output Function is Assigned to RP58 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-57: RPOR14: PERIPHERAL PIN SELECT OUTPUT REGISTER 14

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP61R5	RP61R4	RP61R3	RP61R2	RP61R1	RP61R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP60R5	RP60R4	RP60R3	RP60R2	RP60R1	RP60R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP61R[5:0]: Peripheral Output Function is Assigned to RP61 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP60R[5:0]: Peripheral Output Function is Assigned to RP60 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-58: RPOR15: PERIPHERAL PIN SELECT OUTPUT REGISTER 15

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP72R5	RP72R4	RP72R3	RP72R2	RP72R1	RP72R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP65R5	RP65R4	RP65R3	RP65R2	RP65R1	RP65R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP72R[5:0]: Peripheral Output Function is Assigned to RP72 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP65R[5:0]: Peripheral Output Function is Assigned to RP65 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-59: RPOR16: PERIPHERAL PIN SELECT OUTPUT REGISTER 16

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP77R5	RP77R4	RP77R3	RP77R2	RP77R1	RP77R0
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	RP74R5	RP74R4	RP74R3	RP74R2	RP74R1	RP74R0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP77R[5:0]: Peripheral Output Function is Assigned to RP77 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP74R[5:0]: Peripheral Output Function is Assigned to RP74 Output Pin bits (see Table 8-7 for peripheral function numbers)

REGISTER 8-60: RPOR17: PERIPHERAL PIN SELECT OUTPUT REGISTER 17

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP177R5		(1)	RP177R4(1)	RP177R3(1)	RP177R2(1)	RP177R1(1)	RP177R0(1)
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP	176R5	(1)	RP176R4(1)	RP176R3(1)	RP176R2(1)	RP176R1(1)	RP176R0(1)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP177R[5:0]: Peripheral Output Function is Assigned to RP177 Output Pin bits ^(1) (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP176R[5:0]: Peripheral Output Function is Assigned to RP176 Output Pin bits ^(1) (see Table 8-7 for peripheral function numbers)

Note 1: These are virtual output ports.

REGISTER 8-61: RPOR18: PERIPHERAL PIN SELECT OUTPUT REGISTER 18

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP	179R5	(1)	RP179R4(1)	RP179R3(1)	RP179R2(1)	RP179R1(1)	RP179R0(1)
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP	178R5	(1)	RP178R4(1)	RP178R3(1)	RP178R2(1)	RP178R1(1)	RP178R0(1)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP179R[5:0]: Peripheral Output Function is Assigned to RP179 Output Pin bits ^(1) (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP178R[5:0]: Peripheral Output Function is Assigned to RP178 Output Pin bits ^(1) (see Table 8-7 for peripheral function numbers)

Note 1: These are virtual output ports.

REGISTER 8-62: RPOR19: PERIPHERAL PIN SELECT OUTPUT REGISTER 19

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP	181R5	^(1)	RP181R4 ^(1)	RP181R3 ^(1)	RP181R2 ^(1)	RP181R1 ^(1)	RP181R0 ^(1)
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — RP	180R5	(1)	RP180R4(1)	RP180R3(1)	RP180R2(1)	RP180R1(1)	RP180R0(1)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RP181R[5:0]: Peripheral Output Function is Assigned to RP181 Output Pin bits (see Table 8-7 for peripheral function numbers)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 RP180R[5:0]: Peripheral Output Function is Assigned to RP180 Output Pin bits (see Table 8-7 for peripheral function numbers)

Note 1: These are virtual output ports.

TABLE 8-12: PPS INPUT CONTROL REGISTERS

Register

Bit 15

Bit 14

Bit 13

Bit 12

Bit 11

Bit 10

Bit 9

Bit 8

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

RPCON

—

—

—

—

IOLOCK

—

—

—

—

—

—

—

—

—

RPINR0

INT1R7

INT1R6

INT1R5

INT1R4

INT1R3

INT1R2

INT1R1

INT1R0

—

—

—

—

—

—

RPINR1

INT3R7

INT3R6

INT3R5

INT3R4

INT3R3

INT3R2

INT3R1

INT3R0

INT2R7

INT2R6

INT2R5

INT2R4

INT2R3

INT2R2

RPINR2

T1CKR7

T1CKR6

T1CKR5

T1CKR4

T1CKR3

T1CKR2

T1CKR1

T1CKR0

—

—

—

—

—

—

RPINR3

ICM1R7

ICM1R6

ICM1R5

ICM1R4

ICM1R3

ICM1R2

ICM1R1

ICM1R0

TCKI1R7

TCKI1R6

TCKI1R5

TCKI1R4

TCKI1R3

TCKI1R2

RPINR4

ICM2R7

ICM2R6

ICM2R5

ICM2R4

ICM2R3

ICM2R2

ICM2R1

ICM2R0

TCKI2R7

TCKI2R6

TCKI2R5

TCKI2R4

TCKI2R3

TCKI2R2

RPINR5

ICM3R7

ICM3R6

ICM3R5

ICM3R4

ICM3R3

ICM3R2

ICM3R1

ICM3R0

TCKI3R7

TCKI3R6

TCKI3R5

TCKI3R4

TCKI3R3

TCKI3R2

RPINR6

ICM4R7

ICM4R6

ICM4R5

ICM4R4

ICM4R3

ICM4R2

ICM4R1

ICM4R0

TCKI4R7

TCKI4R5

TCKI4R4

TCKI4R3

TCKI4R2

TCKI4R1

RPINR11

OCFBR7

OCFBR6

OCFBR5

OCFBR4

OCFBR3

OCFBR2

OCFBR1

OCFBR0

OCFAR7

OCFAR6

OCFAR5

OCFAR4

OCFAR3

OCFAR2

RPINR12

PCI9R7

PCI9R6

PCI9R5

PCI9R4

PCI9R3

PCI9R2

PCI9R1

PCI9R0

PCI8R7

PCI8R6

PCI8R5

PCI8R4

PCI8R3

PCI8R2

RPINR13

PCI11R7

PCI11R6

PCI11R5

PCI11R4

PCI11R3

PCI11R2

PCI11R1

PCI11R0

PCI10R7

PCI10R6

PCI10R5

PCI10R4

PCI10R3

PCI10R2

RPINR14

QEIB1R7

QEIB1R6

QEIB1R5

QEIB1R4

QEIB1R3

QEIB1R2

QEIB1R1

QEIB1R0

QEIA1R7

QEIA1R6

QEIA1R5

QEIA1R4

QEIA1R3

QEIA1R2

RPINR15

QEIHOM1R7

QEIHOM1R6

QEIHOM1R5

QEIHOM1R4

QEIHOM1R3

QEIHOM1R2

QEIHOM1R1

QEIHOM1R0

QEINDX1R7

QEINDX1R6

QEINDX1R5

QEINDX1R4

QEINDX1R3

QEINDX1R2

RPINR18

U1DSRR7

U1DSRR6

U1DSRR5

U1DSRR4

U1DSRR3

U1DSRR2

U1DSRR1

U1DSRR0

U1RXR7

U1RXR6

U1RXR5

U1RXR4

U1RXR3

U1RXR2

RPINR19

U2DSRR7

U2DSRR6

U2DSRR5

U2DSRR4

U2DSRR3

U2DSRR2

U2DSRR1

U2DSRR0

U2RXR7

U2RXR6

U2RXR5

U2RXR4

U2RXR3

U2RXR2

RPINR20

SCK1R7

SCK1R6

SCK1R5

SCK1R4

SCK1R3

SCK1R2

SCK1R1

SCK1R0

SDI1R7

SDI1R6

SDI1R5

SDI1R4

SDI1R3

SDI1R2

RPINR21

REFOIR7

REFOIR6

REFOIR5

REFOIR4

REFOIR3

REFOIR2

REFOIR1

REFOIR0

SS1R7

SS1R6

SS1R5

SS1R4

SS1R3

SS1R2

RPINR22

SCK2R7

SCK2R6

SCK2R5

SCK2R4

SCK2R3

SCK2R2

SCK2R1

SCK2R0

SDI2R7

SDI2R6

SDI2R5

SDI2R4

SDI2R3

SDI2R2

RPINR23

—

—

—

—

—

—

—

—

SS2R7

SS2R6

SS2R5

SS2R4

SS2R3

SS2R2

RPINR27

U3DSRR7

U3DSRR6

U3DSRR5

U3DSRR4

U3DSRR3

U3DSRR2

U3DSRR1

U3DSRR0

U3RXR7

U3RXR5

U3RXR4

U3RXR3

U3RXR2

U3RXR1

RPINR37

PCI17R7

PCI17R6

PCI17R5

PCI17R4

PCI17R3

PCI17R2

PCI17R1

PCI17R0

OCFCR7

OCFCR6

OCFCR5

OCFCR4

OCFCR3

OCFCR2

RPINR38

—

—

—

—

—

—

—

—

PCI18R7

PCI18R6

PCI18R5

PCI18R4

PCI18R3

PCI18R2

RPINR42

PCI13R7

PCI13R6

PCI13R5

PCI13R4

PCI13R3

PCI13R2

PCI13R1

PCI13R0

PCI12R7

PCI12R6

PCI12R5

PCI12R4

PCI12R3

PCI12R2

RPINR43

PCI15R7

PCI15R6

PCI15R5

PCI15R4

PCI15R3

PCI15R2

PCI15R1

PCI15R0

PCI14R7

PCI14R6

PCI14R5

PCI14R4

PCI14R3

PCI14R2

RPINR44

SENT1R7

SENT1R5

SENT1R5

SENT1R4

SENT1R3

SENT1R2

SENT1R1

SENT1R0

PCI16R7

PCI16R6

PCI16R5

PCI16R4

PCI16R3

PCI16R2

RPINR45

CLCINAR7

CLCINAR6

CLCINAR5

CLCINAR4

CLCINAR3

CLCINAR2

CLCINAR1

CLCINAR0

—

—

—

—

—

—

RPINR46

CLCINCR7

CLCINCR6

CLCINCR5

CLCINCR4

CLCINCR3

CLCINCR2

CLCINCR1

CLCINCR0

CLCINBR7

CLCINBR6

CLCINBR5

CLCINBR4

CLCINBR3

CLCINBR2

RPINR47

ADCTRGR7

ADCTRGR6

ADCTRGR5

ADCTRGR4

ADCTRGR3

ADCTRGR2

ADCTRGR1

ADCTRGR0

CLCINDR7

CLCINDR6

CLCINDR5

CLCINDR4

CLCINDR3

CLCINDR2

RPINR48

U1CTSRI7

U1CTSRI6

U1CTSRI5

U1CTSRI4

U1CTSRI3

U1CTSRI2

U1CTSRI1

U1CTSRI0

OCFDR7

OCFDR6

OCFDR5

OCFDR4

OCFDR3

OCFDR2

RPINR49

U3CTSR7

U3CTSR6

U3CTSR5

U3CTSR4

U3CTSR3

U3CTSR2

U3CTSR1

U3CTSR0

U2CTSRI7

U2CTSRI6

U2CTSRI5

U2CTSRI4

U2CTSRI3

U2CTSRI2

TABLE 8-13: PPS OUTPUT CONTROL REGISTERS

Register Bit

15 Bit 14

Bit 13 Bit 12

Bit 11 Bit 10

Bit 9 Bit 8

Bit 7 Bit 6

Bit 5 Bit 4

Bit 3 Bit 2

Bit 1

Bit 0

RPOR0

—

—

RP33R5

RP33R4

RP33R3

RP33R2

RP33R1

RP33R0

—

—

RP32R5

RP32R4

RP32R3

RP32R2

RP32R1

RP32R0

RPOR1

—

—

RP35R5

RP35R4

RP35R3

RP35R2

RP35R1

RP35R0

—

—

RP34R5

RP34R4

RP34R3

RP34R2

RP34R1

RP34R0

RPOR2

—

—

RP37R5

RP37R4

RP37R3

RP37R2

RP37R1

RP37R0

—

—

RP36R5

RP36R4

RP36R3

RP36R2

RP36R1

RP36R0

RPOR3

—

—

RP39R5

RP39R4

RP39R3

RP39R2

RP39R1

RP39R0

—

—

RP38R5

RP38R4

RP38R3

RP38R2

RP38R1

RP38R0

RPOR4

—

—

RP41R5

RP41R4

RP41R3

RP41R2

RP41R1

RP41R0

—

—

RP40R5

RP40R4

RP40R3

RP40R2

RP40R1

RP40R0

RPOR5

—

—

RP43R5

RP43R4

RP43R3

RP43R2

RP43R1

RP43R0

—

—

RP42R5

RP42R4

RP42R3

RP42R2

RP42R1

RP42R0

RPOR6

—

—

RP45R5

RP45R4

RP45R3

RP45R2

RP45R1

RP45R0

—

—

RP44R5

RP44R4

RP44R3

RP44R2

RP44R1

RP44R0

RPOR7

—

—

RP47R5

RP47R4

RP47R3

RP47R2

RP47R1

RP47R0

—

—

RP46R5

RP46R4

RP46R3

RP46R2

RP46R1

RP46R0

RPOR8

—

—

RP49R5

RP49R4

RP49R3

RP49R2

RP49R1

RP49R0

—

—

RP48R5

RP48R4

RP48R3

RP48R2

RP48R1

RP48R0

RPOR9

—

—

RP51R5

RP51R4

RP51R3

RP51R2

RP51R1

RP51R0

—

—

RP50R5

RP50R4

RP50R3

RP50R2

RP50R1

RP50R0

RPOR10

—

—

RP53R5

RP53R4

RP53R3

RP53R2

RP53R1

RP53R0

—

—

RP52R5

RP52R4

RP52R3

RP52R2

RP52R1

RP52R0

RPOR11

—

—

RP55R5

RP55R4

RP55R3

RP55R2

RP55R1

RP55R0

—

—

RP54R5

RP54R4

RP54R3

RP54R2

RP54R1

RP54R0

RPOR12

—

—

RP57R5

RP57R4

RP57R3

RP57R2

RP57R1

RP57R0

—

—

RP56R5

RP56R4

RP56R3

RP56R2

RP56R1

RP56R0

RPOR13

—

—

RP59R5

RP59R4

RP59R3

RP59R2

RP59R1

RP59R0

—

—

RP58R5

RP58R4

RP58R3

RP58R2

RP58R1

RP58R0

RPOR14

—

—

RP61R5

RP61R4

RP61R3

RP61R2

RP61R1

RP61R0

—

—

RP60R5

RP60R4

RP60R3

RP60R2

RP60R1

RP60R0

RPOR15

—

—

RP72R5

RP72R4

RP72R3

RP72R2

RP72R1

RP72R0

—

—

RP65R5

RP65R4

RP65R3

RP65R2

RP65R1

RP65R0

RPOR16

—

—

RP77R5

RP77R4

RP77R3

RP77R2

RP77R1

RP77R0

—

—

RP74R5

RP74R4

RP74R3

RP74R2

RP74R1

RP74R0

RPOR17

—

—

RP177R5

RP177R4

RP177R3

RP177R2

RP177R1

RP177R0

—

—

RP176R5

RP176R4

RP176R3

RP176R2

RP176R1

RP176R0

RPOR18

—

—

RP179R5

RP179R4

RP179R3

RP179R2

RP179R1

RP179R0

—

—

RP178R5

RP178R4

RP178R3

RP178R2

RP178R1

RP178R0

RPOR19

—

—

RP181R5

RP181R4

RP181R3

RP181R2

RP181R1

RP181R0

—

—

RP180R5

RP180R4

RP180R3

RP180R2

RP180R1

RP180R0

9.0 OSCILLATOR WITH HIGH-FREQUENCY PLL

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Oscillator Module with High-Speed PLL" (www.microchip.com/DS70005255) in the "dsPIC33/PIC24 Family Reference Manual".

The dsPIC33CK64MC105 family oscillator with high-frequency PLL includes these characteristics:

• On-Chip Phase-Locked Loop (PLL) to Boost Internal Operating Frequency on Select Internal and External Oscillator Sources
• Doze mode for System Power Savings
• Scalable Reference Clock Output (REFCLKO)
• On-the-Fly Clock Switching between Various Clock Sources
• Fail-Safe Clock Monitoring (FSCM) that Detects Clock Failure and Permits Safe Application Recovery or Shutdown

A block diagram of the dsPIC33CK64MC105 oscillator system is shown in Figure 9-1.

FIGURE 9-1: dsPIC33CK64MC105 CORE CLOCK SOURCES BLOCK DIAGRAM

FIGURE 9-2: dsPIC33CK64MC105 CORE OSCILLATOR SUBSYSTEM

Note 1: See Figure 9-3 for details of the PLL module.
2: XTPLL, HSPLL, ECPLL, FRCPLL (F PLLO).
3: Clock option for PWM.
4: Clock option for ADC.
5: Clock option for DAC.

9.1 Primary PLL

The Primary Oscillator and internal FRC Oscillator sources can optionally use an on-chip PLL to obtain higher operating speeds. Figure 9-3 illustrates a block diagram of the PLL module.

For PLL operation, the following requirements must be met at all times without exception:

• The PLL Input Frequency (F PLLI) must be in the range of 8 MHz to 64 MHz
• The PFD Input Frequency (F PFD) must be in the range of 8 MHz to (Fvco/16) MHz

The VCO Output Frequency (Fvco) must be in the range of 400 MHz to 1600 MHz

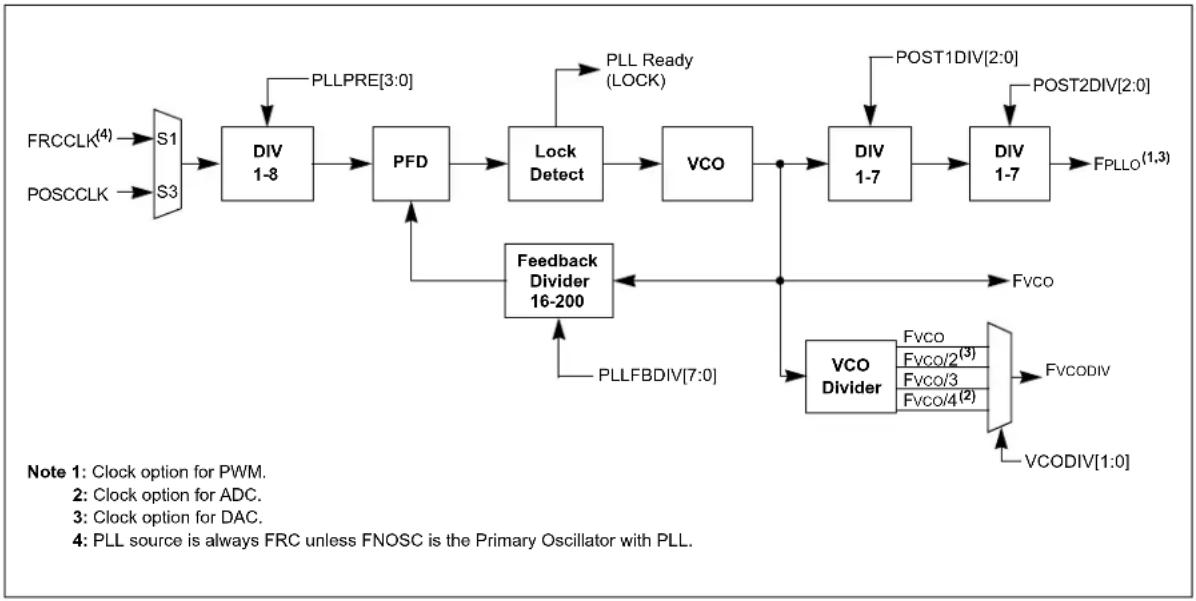

FIGURE 9-3: PLL AND VCO DETAIL

Equation 9-1 provides the relationship between the PLL Input Frequency (FPLLI) and VCO Output Frequency (Fvco).

EQUATION 9-1: Fvco CALCULATION

$$ F _ {V C O} = F _ {P L L I} \times \left(\frac {M}{N 1}\right) = F _ {P L L I} \times \left(\frac {P L L F B D I V [ 7 : 0 ]}{P L L P R E [ 3 : 0 ]}\right) $$

Equation 9-2 provides the relationship between the PLL Input Frequency (FPLLI) and PLL Output Frequency (FPLLO).

EQUATION 9-2: FPLLO CALCULATION

$$ F P L L O = F P L L I \times \left(\frac {M}{N 1 \times N 2 \times N 3}\right) = F P L L I \times \left(\frac {P L L F B D I V [ 7 : 0 ]}{P L L P R E [ 3 : 0 ] \times P O S T 1 D I V [ 2 : 0 ] \times P O S T 2 D I V [ 2 : 0 ]}\right) $$

Where:

$$ M = P L L F B D I V [ 7: 0 ] $$

$$ N 1 = P L L P R E [ 3: 0 ] $$

$$ N 2 = P O S T I D I V [ 2: 0 ] $$

$$ N 3 = P O S T 2 D I V [ 2: 0 ] $$

Note: The PLL Phase Detector Input Divider Select (PLLPREx) bits and the PLL Feedback Divider (PLLFBDIVx) bits should not be changed when operating in PLL mode. Therefore, the user must start in either a non-PLL mode or clock switch to a non-PLL mode (e.g., internal FRC Oscillator) to make any necessary changes and then clock switch to the desired PLL mode. It is not permitted to directly clock switch from one PLL clock source to a different PLL clock source. The user would need to transition between PLL clock sources with a clock switch to a non-PLL clock source.

Example 9-1 illustrates code for using the PLL

(50 MIPS) with the Primary Oscillator.

EXAMPLE 9-1: CODE EXAMPLE FOR USING PLL (50 MIPS) WITH PRIMARY OSCILLATOR (POSC)

//code example for 50 MIPS system clock using POSC with 10 MHz external crystal
// Select Internal FRC at POR
_FOSCSEL(FNOSC_FRC & IESO_OFF);

// Enable Clock Switching and Configure POSC in XT mode
_FOSC(FCKSM_CSECMD & POSCMD_XT);

int main()
{
    // Configure PLL prescaler, both PLL postscalers, and PLL feedback divider
    CLKDIVbits.PLLPRE = 1;    // N1=1
    PLLFBDbits.PLLFBDIV = 100;    // M = 100
    PLLDIVbits.POST1DIV = 5;    // N2=5
    PLLDIVbits.POST2DIV = 1;    // N3=1

    // Initiate Clock Switch to Primary Oscillator with PLL (NOSC=0b011)
    __builtin_write_OSCCONH(0x03);
    __builtin_write_OSCCONL(OSCCON | 0x01);

    // Wait for Clock switch to occur
    while (OSCCONbits.OSWEN!= 0);

    // Wait for PLL to lock
    while (OSCCONbits.LOCK!= 1);
}

Example 9-2 illustrates code for using the PLL with an

8 MHz internal FRC.

EXAMPLE 9-2: CODE EXAMPLE FOR USING PLL (50 MIPS) WITH 8 MHz INTERNAL FRC

//code example for 50 MIPS system clock using 8MHz FRC

// Select Internal FRC at POR
_FOSCSEL(FNOSC_FRC & IESO_OFF);

// Enable Clock Switching
_FOSC(FCKSM_CSECMD);

int main()
{
    // Configure PLL prescaler, both PLL postscalers, and PLL feedback divider
    CLKDIVbits.PLLPRE = 1;    // N1=1
    PLLFBDbits.PLLFBDIV = 125;    // M = 125
    PLLDIVbits.POST1DIV = 5;    // N2=5
    PLLDIVbits.POST2DIV = 1;    // N3=1

    // Initiate Clock Switch to FRC with PLL (NOSC=0b001)
    __builtin_write_OSCCONH(0x01);
    __builtin_write_OSCCONL(OSCCON | 0x01);

    // Wait for Clock switch to occur
    while (OSCCONbits.OSWEN!= 0);

    // Wait for PLL to lock
    while (OSCCONbits.LOCK!= 1);
}

9.2 CPU Clocking

The dsPIC33CK64MC105 devices can be configured to use any of the following clock configurations:

• Primary Oscillator (POSC) on the OSCI and OSCO pins
- Internal Fast RC Oscillator (FRC) with optional clock divider
• Internal Low-Power RC Oscillator (LPRC)
• Primary Oscillator with PLL (ECPLL, HSPLL, XTPLL)
- Internal Fast RC Oscillator with PLL (FRCPLL)
- Backup Internal Fast RC Oscillator (BFRC)

The system clock source is divided by two to produce the internal instruction cycle clock. In this document, the instruction cycle clock is denoted by Fcy. The timing diagram in Figure 9-4 illustrates the relationship between the system clock (Fosc), the instruction cycle clock (Fcγ) and the Program Counter (PC).

The internal instruction cycle clock (Fcy) can be output on the OSCO I/O pin if the Primary Oscillator mode (POSCMD[1:0]) is not configured as HS/XT. For more information, see Section 9.0 "Oscillator with High-Frequency PLL".

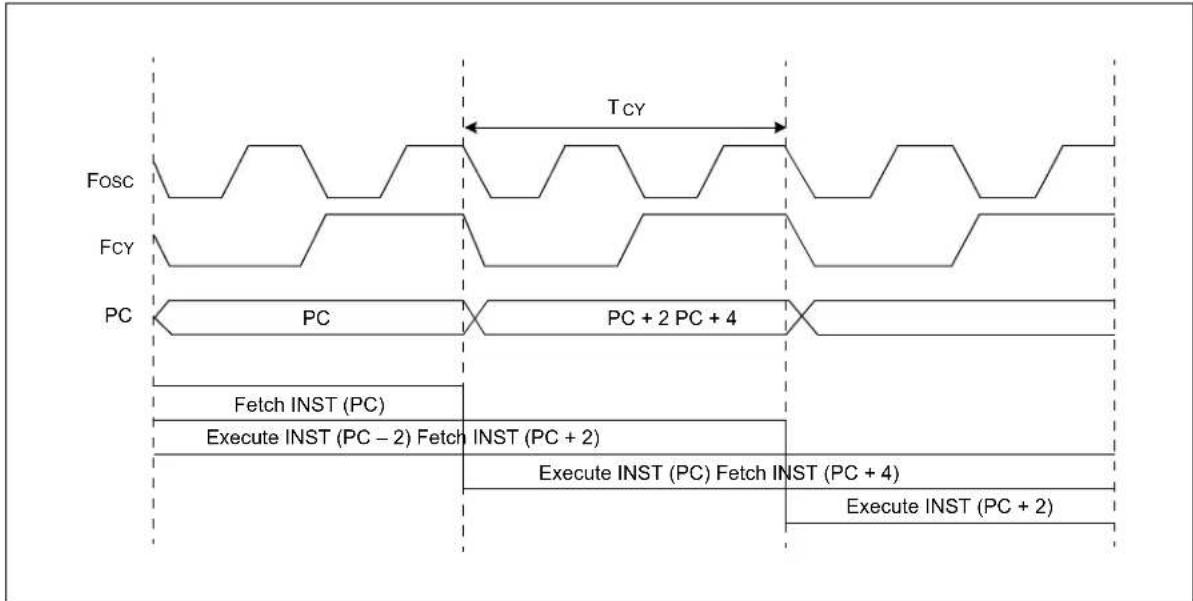

FIGURE 9-4: CLOCK AND INSTRUCTION CYCLE TIMING

Fosc FCY PC T CY PC + 2 PC + 4 Fetch INST (PC) Execute INST (PC - 2) Fetch INST (PC + 2) Execute INST (PC) Fetch INST (PC + 4) Execute INST (PC + 2)

9.3 Primary Oscillator (POSC)

The dsPIC33CK64MC105 family devices feature a Primary Oscillator (POSC) and it is available on the OSCI and OSCO pins. This connection enables an external crystal (or ceramic resonator) to provide the clock to the device. The Primary Oscillator provides three modes of operation:

• Medium Speed Oscillator (XT Mode):
The XT mode is a Medium Gain, Medium Frequency mode used to work with crystal frequencies of 3.5 MHz to 10 MHz.
• High-Speed Oscillator (HS Mode):
The HS mode is a High-Gain, High-Frequency mode used to work with crystal frequencies of 10 MHz to 32 MHz.
- External Clock Source Operation (EC Mode): If the on-chip oscillator is not used, the EC mode allows the internal oscillator to be bypassed. The device clocks are generated from an external source (0 MHz to up to 64 MHz) and input on the OSCI pin.

9.4 Internal Fast RC (FRC) Oscillator

The dsPIC33CK64MC105 family devices contain one instance of the internal Fast RC (FRC) Oscillator and it provides a nominal 8 MHz clock without requiring an external crystal or ceramic resonator, which results in system cost savings for applications that do not require a precise clock reference.

The application software can tune the frequency of the oscillator using the FRC Oscillator Tuning bits (TUN[5:0]) in the FRC Oscillator Tuning register (OSCTUN[5:0]).

9.5 Low-Power RC (LPRC) Oscillator

The dsPIC33CK64MC105 family devices contain one instance of the Low-Power RC (LPRC) Oscillator, which provides a nominal clock frequency of 32 kHz, and is the clock source for the Watchdog Timer (WDT) and Fail-Safe Clock Monitor (FSCM) circuits in the clock subsystem. The LPRC Oscillator is shut off in Sleep mode.

The LPRC Oscillator remains enabled under these conditions:

• The FSCM is enabled

• The WDT is enabled

• The LPRC Oscillator is selected as the system clock

9.6 Backup Internal Fast RC (BFRC) Oscillator

The oscillator block provides a stable reference clock source for the Fail-Safe Clock Monitor (FSCM). When FSCM is enabled in the FCKSM[1:0] Configuration bits (FOSC[7:6]), it constantly monitors the main clock source against a reference signal from the 8 MHz Backup Internal Fast RC (BFRC) Oscillator. In case of a clock failure, the Fail-Safe Clock Monitor switches the clock to the BFRC Oscillator, allowing for continued low-speed operation or a safe application shutdown.

9.7 Reference Clock Output

In addition to the CLKO output (Fosc/2), the dsPIC33CK64MC105 family devices can be configured to provide a reference clock output signal to a port pin. This feature is available in all oscillator configurations and allows the user to select a greater range of clock submultiples to drive external devices in the application. CLKO is enabled by Configuration bit, OSCIOFNC, and is independent of the REFCLKO reference clock. REFCLKO is mappable to any I/O pin that has mapped output capability. Refer to Table 8-7 for more information. The Reference Clock Output module block diagram is shown in Figure 9-5.

FIGURE 9-5: REFERENCE CLOCK GENERATOR

This reference clock output is controlled by the REFOCONL and REFOCONH registers. Setting the ROEN bit (REFOCONL[15]) makes the clock signal available on the REFCLKO pin. The RODIV[14:0] bits (REFOCONH[14:0]) and ROTRIM[8:0] bits (REFOTRIMH[15:7]) enable the selection of different clock divider options. The formula for determining the final frequency output is shown in Equation 9-3. The ROSWEN bit (REFOCONL[9]) indicates that the clock divider has been successfully switched. In order to switch the REFCLKO divider, the user should ensure that this bit reads as '0'. Write the updated values to the RODIV[14:0] or ROTRIM[8:0] bits, set the ROSWEN bit and then wait until it is cleared before assuming that the REFCLKO clock is valid.

EQUATION 9-3: CALCULATING FREQUENCY OUTPUT

$$ F _ {R E F O U T} = \frac {F _ {R E F I N}}{2 \cdot (R O D I V [ 1 4 : 0 ] + R O T R I M [ 8 : 0 ] / 5 1 2)} $$

Where: FREFOUT = Output Frequency FREFIN = Input Frequency When RODIV[14:0] = 0 , the output clock is the same as the input clock.

The ROSEL[3:0] bits (REFOCONL[3:0]) determine which clock source is used for the reference clock output. The ROSLP bit (REFOCONL[11]) determines if the reference source is available on REFCLKO when the device is in Sleep mode.

To use the reference clock output in Sleep mode, both the ROSLP bit must be set and the clock selected by the ROSEL[3:0] bits must be enabled for operation during Sleep mode, if possible. Clearing the ROSEL[3:0] bits allows the reference output frequency to change, as the system clock changes, during any clock switches. The ROOUT bit enables/disables the reference clock output on the REFCLKO pin.

The ROACTIV bit (REFOCONL[8]) indicates that the module is active; it can be cleared by disabling the module (setting ROEN to '0'). The user must not change the reference clock source, or adjust the divider when the ROACTIV bit indicates that the module is active. To avoid glitches, the user should not disable the module until the ROACTIV bit is '1'.

9.8 Oscillator Configuration

The oscillator system has both Configuration registers and SFRs to configure, control and monitor the system. The FOSCSEL and FOSC Configuration registers (Register 28-4 and Register 28-5, respectively) are used for initial setup.

Table 9-1 lists the configuration settings that select the device's oscillator source and operating mode at a Power-on Reset (POR).

TABLE 9-1: CONFIGURATION BIT VALUES FOR CLOCK SELECTION

Oscillator Source	Oscillator Mode	FNOSC[2:0] Value	POSCMD[1:0] Value
S0 Fast RC Oscillator (FRC) (1)		000 xx
S1 Fast RC Oscillator with PLL (FRCPLL) (1)		001 xx
S2 Primary Oscillator (EC) (1)		010 00
S2 Primary Oscillator (XT) 010 01
S2 Primary Oscillator (HS) 010 10
S3 Primary Oscillator with PLL (ECPLL) (1)		011 00
S3 Primary Oscillator with PLL (XTPLL) 011 01
S3 Primary Oscillator with PLL (HSPLL)		011 10
S4 Reserved		100 xx
S5 Low-Power RC Oscillator (LPRC) (1)		101 xx
S6 Backup FRC (BFRC) (1)		110 xx
S7 Fast RC Oscillator with ÷ N Divider (FRCDIVN) (1,2)		111 xx

Note 1: The OSCO pin function is determined by the OSCIOFNC Configuration bit.
2: This is the default oscillator mode for an unprogrammed (erased) device.

9.9 OSCCON Unlock Sequence

The OSCCON register is protected against unintended writes through a lock mechanism. The upper and lower bytes of OSCCON have their own unlock sequence, and both must be used when writing to both bytes of the register. Before OSCCON can be written to, the following unlock sequence must be used:

1. Execute the unlock sequence for the OSCCON high byte.

In two back-to-back instructions:

• Write 0x78 to OSCCON[15:8]
- Write 0x9A to OSCCON[15:8]

1. In the instruction immediately following the unlock sequence, the OSCCON[15:8] bits can be modified.

2. Execute the unlock sequence for the OSCCON low byte.

In two back-to-back instructions:

• Write 0x46 to OSCCON[7:0]
• Write 0x57 to OSCCON[7:0]

1. In the instruction immediately following the unlock sequence, the OSCCON[7:0] bits can be modified.

Note: MPLAB ^® XC16 provides a built-in C language function, including the unlocking sequence to modify high and low bytes in the OSCCON register:

__builtin_write_OSCCONH(value)

builtin write OSCCONL(value)

9.10 Oscillator Control Registers

REGISTER 9-1: OSCCON: OSCILLATOR CONTROL REGISTER (1)

U-0 R-0 R-0 R-0 U-0 R/W-y R/W-y R/W-y
— COSC2 COSC1 COSC0 —			N	O	S	C(2)2	NOSC1(2)	NOSC0(2)
bit 15 bit 8

R/W-0 U-0 R-0 U-0 R/W-0 U-0 U-0 R/W-0
CLKLOCK	—	LOCK	—	CF^(3)	—	—	OSWEN
bit 7 bit 0

Legend:	y = Value set from Configuration bits on POR
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-12 COSC[2:0]: Current Oscillator Selection bits (read-only)

111 = Fast RC Oscillator (FRC) with Divide-by-n (FRCDIVN)

110 = Backup FRC (BFRC)

101 = Low-Power RC Oscillator (LPRC)

100 = Reserved - default to FRC

011 = Primary Oscillator (XT, HS, EC) with PLL (XTPLL, HSPLL, ECPLL)

010 = Primary Oscillator (XT, HS, EC)

001 = Fast RC Oscillator (FRC) with PLL (FRCPLL)

000 = Fast RC Oscillator (FRC)

bit 11 Unimplemented: Read as '0'

bit 10-8 NOSC[2:0]: New Oscillator Selection bits ^(2)

111 = Fast RC Oscillator (FRC) with Divide-by-n (FRCDIVN)

110 = Backup FRC (BFRC)

101 = Low-Power RC Oscillator (LPRC)

100 = Reserved - default to FRC

011 = Primary Oscillator (XT, HS, EC) with PLL (XTPLL, HSPLL, ECPLL)

010 = Primary Oscillator (XT, HS, EC)

001 = Fast RC Oscillator (FRC) with PLL (FRCPLL)

000 = Fast RC Oscillator (FRC)

bit 7 CLKLOCK: Clock Lock Enable bit

1 = If (FCKSM0 = 1), then clock and PLL configurations are locked; if (FCKSM0 = 0), then clock and PLL configurations may be modified

0 = Clock and PLL selections are not locked, configurations may be modified

bit 6 Unimplemented: Read as '0'

bit 5 LOCK: PLL Lock Status bit (read-only)

1 = Indicates that PLL is in lock or PLL start-up timer is satisfied

0 = Indicates that PLL is out of lock, start-up timer is in progress or PLL is disabled

bit 4 Unimplemented: Read as '0'

Note 1: Writes to this register require an unlock sequence (see Section 9.9 "OSCCON Unlock Sequence").

2: Direct clock switches between any Primary Oscillator mode with PLL and FRCPLL mode are not permitted. This applies to clock switches in either direction. In these instances, the application must switch to FRC mode as a transitional clock source between the two PLL modes.

3: This bit should only be cleared in software. Setting the bit in software (= 1) will have the same effect as an actual oscillator failure and will trigger an oscillator failure trap.

REGISTER 9-1: OSCCON: OSCILLATOR CONTROL REGISTER (1) (CONTINUED)

bit 3 CF: Clock Fail Detect bit

(3)

1 = FSCM has detected a clock failure
0 = FSCM has not detected a clock failure

bit 2-1 Unimplemented: Read as '0'

bit 0 OSWEN: Oscillator Switch Enable bit

1 = Requests oscillator switch to the selection specified by the NOSC[2:0] bits
0 = Oscillator switch is complete

Note 1: Writes to this register require an unlock sequence (see Section 9.9 "OSCCON Unlock Sequence").

2: Direct clock switches between any Primary Oscillator mode with PLL and FRCPLL mode are not permitted. This applies to clock switches in either direction. In these instances, the application must switch to FRC mode as a transitional clock source between the two PLL modes.
3: This bit should only be cleared in software. Setting the bit in software (= 1) will have the same effect as an actual oscillator failure and will trigger an oscillator failure trap.

REGISTER 9-2: CLKDIV: CLOCK DIVIDER REGISTER

R/W-0 R/W-0 R/W-1 R/W-1 R/W-0 R/W-0 R/W-0 R/W-0
ROI DOZ	E2(1)	DOZE1(1)	DOZE0(1)	DOZEN(2,3)	FRCDIV2	FRCDIV1	FRCDIV0
bit 15 bit 8

U-0 U-0 r-0 r-0 R/W-0 R/W-0 R/W-0 R/W-1
— — —	— PLLPRE[3:0]		(4)
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 ROI: Recover on Interrupt bit 1 = Interrupts will clear the DOZEN bit and the processor clock, and the peripheral clock ratio is set to 1:1 0 = Interrupts have no effect on the DOZEN bit

bit 14-12 DOZE[2:0]: Processor Clock Reduction Select bits ^(1) 111 = FP divided by 128

110 = FP divided by 64

101 = FP divided by 32

100 = FP divided by 16

011 = FP divided by 8 (default)

010 = FP divided by 4

001 = FP divided by 2

000 = FP divided by 1

bit 11 DOZEN: Doze Mode Enable bit ^(2,3) 1 = DOZE[2:0] field specifies the ratio between the peripheral clocks and the processor clocks

0 = Processor clock and peripheral clock ratio is forced to 1:1

bit 10-8 FRCDIV[2:0]: Internal Fast RC Oscillator Postscaler bits 111 = FRC divided by 256 110 = FRC divided by 64 101 = FRC divided by 32 100 = FRC divided by 16 011 = FRC divided by 8 010 = FRC divided by 4 001 = FRC divided by 2 000 = FRC divided by 1 (default)

bit 7-6 Unimplemented: Read as '0' bit 5-4 Reserved: Read as '0'

Note 1: The DOZE[2:0] bits can only be written to when the DOZEN bit is clear. If DOZEN = 1, any writes to DOZE[2:0] are ignored.

2: This bit is cleared when the ROI bit is set and an interrupt occurs.

3: The DOZEN bit cannot be set if DOZE[2:0] = 000. If DOZE[2:0] = 000, any attempt by user software to set the DOZEN bit is ignored.

4: PLLPRE[3:0] may be updated while the PLL is operating, but the VCO may overshoot.

REGISTER 9-2: CLKDIV: CLOCK DIVIDER REGISTER (CONTINUED)
bit 3-0 PLLPRE[3:0]: PLL Phase Detector Input Divider Select bits (also denoted as 'N1', PLL prescaler) ^(4) 11111 = Reserved ... 1001 = Reserved 1000 = Input divided by 8 0111 = Input divided by 7 0110 = Input divided by 6 0101 = Input divided by 5 0100 = Input divided by 4 0011 = Input divided by 3 0010 = Input divided by 2 0001 = Input divided by 1 (power-on default selection) 0000 = Reserved

Note 1: The DOZE[2:0] bits can only be written to when the DOZEN bit is clear. If DOZEN = 1, any writes to DOZE[2:0] are ignored.

2: This bit is cleared when the ROI bit is set and an interrupt occurs.

3: The DOZEN bit cannot be set if DOZE[2:0] = 000. If DOZE[2:0] = 000, any attempt by user software to set the DOZEN bit is ignored.
4: PLLPRE[3:0] may be updated while the PLL is operating, but the VCO may overshoot.

REGISTER 9-3: PLLFBD: PLL FEEDBACK DIVIDER REGISTER

U-0 U-0 U-0 U-0 r-0 r-0 r-0 r-0
——	——	——
bit 15 bit 8

R/W-1 R/W-0 R/W-0 R/W-1 R/W-0 R/W-1 R/W-1 R/W-0

PLLFBDIV[7:0]

bit 7 bit 0

Legend: r = Reserved bit
R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-12 Unimplemented: Read as '0'

bit 11-8 Reserved: Maintain as '0'

bit 7-0 PLLFBDIV[7:0]: PLL Feedback Divider bits (also denoted as 'M', PLL multiplier)

11111111 = Reserved ... 11001000 = 200 Maximum ^(1) ... 10010110 = 150 (default) ... 00010000 = 16 Minimum ^(1) ... 00000010 = Reserved 00000001 = Reserved 00000000 = Reserved

Note 1: The allowed range is 16-200 (decimal). The rest of the values are reserved and should be avoided. The default power-on feedback divider is 150 (decimal) with an 8 MHz FRC input clock. The VCO frequency is 1.2 GHz.

REGISTER 9-4: OSCTUN: FRC OSCILLATOR TUNING REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — TUN[5:0]
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-6 Unimplemented: Read as '0'

bit 5-0 TUN[5:0]: FRC Oscillator Tuning bits

011111 = Maximum frequency deviation of +1.45%

011110 = Center frequency + 1.40%

* * *

000001 = Center frequency + 0.047%

000000 = Center frequency (8.00 MHz nominal)

111111 = Center frequency - 0.047%

* * *

100001 = Center frequency - 1.45%

100000 = Minimum frequency deviation of -1.50%

REGISTER 9-5: PLLDIV: PLL OUTPUT DIVIDER REGISTER

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
— —	— — — VCODIV1 VCODIV0
bit 15 bit 8

U-0	R/W-0	R/W-1	R/W-1	U-0	R/W-0	R/W-0	R/W-1
—	POST1DIV2(1,2)	POST1DIV1(1,2)	POST1DIV0(1,2)	—	POST2DIV2(1,2)	POST2DIV1(1,2)	POST2DIV0(1,2)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-10 Unimplemented: Read as '0'

bit 9-8 VCODIV[1:0]: PLL VCO Output Divider Select bits

11 = Fvco

10 = Fvco/2

01 = Fvco/3

00 = Fvco/4

bit 7 Unimplemented: Read as '0'

bit 6-4 POST1DIV[2:0]: PLL Output Divider #1 Ratio bits ^(1,2)

POST1DIV[2:0] can have a valid value, from 1 to 7 (POST1DIVx value should be greater than or equal to the POST2DIVx value). The POST1DIVx divider is designed to operate at higher clock rates than the POST2DIVx divider.

bit 3 Unimplemented: Read as '0'

bit 2-0 POST2DIV[2:0]: PLL Output Divider #2 Ratio bits ^(1,2)

POST2DIV[2:0] can have a valid value, from 1 to 7 (POST2DIVx value should be less than or equal to the POST1DIVx value). The POST1DIVx divider is designed to operate at higher clock rates than the POST2DIVx divider.

Note 1: The POST1DIVx and POST2DIVx divider values must not be changed while the PLL is operating.

2: The default values for POST1DIVx and POST2DIVx are 4 and 1, respectively, yielding a 150 MHz system source clock.

REGISTER 9-6: REFOCONL: REFERENCE CLOCK CONTROL LOW REGISTER

R/W-0	U-0	R/W-0	R/W-0	R/W-0	U-0	HC/R/W-0
ROEN	—	ROSIDL	ROOUT	ROSLP	—	ROSWEN
bit 15 bit 8

U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—	—	ROSEL[3:0]
bit 7 bit 0

Legend:	HC = Hardware Clearable bit	HSC = Hardware Settable/Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 ROEN: Reference Clock Enable bit

1 = Reference Oscillator is enabled on the REFCLKO pin

0 = Reference Oscillator is disabled

bit 14 Unimplemented: Read as '0'

bit 13 ROSIDL: Reference Clock Stop in Idle bit

1 = Reference Oscillator is disabled in Idle mode

0 = Reference Oscillator continues to run in Idle mode

bit 12 ROOUT: Reference Clock Output Enable bit

1 = Reference clock external output is enabled and available on the REFCLKO pin

0 = Reference clock external output is disabled

bit 11 ROSLP: Reference Clock Stop in Sleep bit

1 = Reference Oscillator continues to run in Sleep modes

0 = Reference Oscillator is disabled in Sleep modes

bit 10 Unimplemented: Read as '0'

bit 9 ROSWEN: Reference Clock Switch Request and Status bit

1 = Clock divider change (requested by changes to RODIVx) is requested or is in progress (set in software, cleared by hardware upon completion)

0 = Clock divider change has completed or is not pending

bit 8 ROACTIV: Reference Clock Status bit

1 = Reference clock is active; do not change clock source

0 = Reference clock is stopped; clock source and configuration may be safely changed

bit 7-4 Unimplemented: Read as '0'

bit 3-0 ROSEL[3:0]: Reference Clock Source Select bits

1111 = Reserved

... = Reserved

1000 = Reserved

0111 = REFI pin

0110 = Fvco/4

0101 = BFRC

0100 = LPRC

0011 = FRC

0010 = Primary Oscillator

0001 = Peripheral clock (FP)

0000 = System clock (Fosc)

REGISTER 9-7: REFOCONH: REFERENCE CLOCK CONTROL HIGH REGISTER

U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
— RODIV[14:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
RODIV[7:0]
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-0 RODIV[14:0]: Reference Clock Integer Divider Select bits

Divider for the selected input clock source is two times the selected value.

111 1111 1111 1111 = Base clock value divided by 65,534 (2 * 7FFFh)

111 1111 1111 1110 = Base clock value divided by 65,532 (2 * 7FFEh)

111 1111 1111 1101 = Base clock value divided by 65,530 (2 * 7FFDh)

000 0000 0000 0010 = Base clock value divided by 4 (2 * 2)

000 0000 0000 0001 = Base clock value divided by 2 (2 * 1)

000 0000 0000 0000 = Base clock value

REGISTER 9-8: REFOTRIMH: REFERENCE OSCILLATOR TRIM REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
ROTRIM[8:1]
bit 15 bit 8

R/W-0	U-0	U-0	U-0	U-0	U-0	U-0	U-0
ROTRIMO	—	—	—	—	—	—	—
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-7 ROTRIM[8:0]: REFO Trim bits

These bits provide a fractional additive to the RODIV[14:0] value for the 1/2 period of the REFO clock.

000000000 = 0/512 (0.0 divisor added to the RODIV[14:0] value)

000000001 = 1/512 (0.001953125 divisor added to the RODIV[14:0] value)

000000010 = 2/512 (0.00390625 divisor added to the RODIV[14:0] value)

100000000 = 256/512 (0.5000 divisor added to the RODIV[14:0] value)

111111110 = 510/512 (0.99609375 divisor added to the RODIV[14:0] value)

111111111 = 511/512 (0.998046875 divisor added to the RODIV[14:0] value)

bit 6-0 Unimplemented: Read as '0'

10.0 DIRECT MEMORY ACCESS (DMA) CONTROLLER

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. For more information, refer to “Direct Memory Access Controller (DMA)” (www.microchip.com/DS30009742) in the “dsPIC33/PIC24 Family Reference Manual”.

The Direct Memory Access (DMA) Controller is designed to service high data throughput peripherals operating on the SFR bus, allowing them to access data memory directly and alleviating the need for CPU-intensive management. By allowing these data-intensive peripherals to share their own data path, the main data bus is also deloaded, resulting in additional power savings.

The DMA Controller functions both as a peripheral and a direct extension of the CPU. It is located on the microcontroller data bus, between the CPU and DMA-enabled peripherals, with direct access to SRAM. This partitions the SFR bus into two buses, allowing the DMA Controller access to the DMA-capable peripherals located on the new DMA SFR bus. The controller serves as an Initiator device on the DMA SFR bus, controlling data flow from DMA-capable peripherals.

The controller also monitors CPU instruction processing directly, allowing it to be aware of when the CPU requires access to peripherals on the DMA bus and automatically relinquishing control to the CPU as needed. This increases the effective bandwidth for handling data without DMA operations causing a processor Stall. This makes the controller essentially transparent to the user.

The DMA Controller has these features:

• Four Independently Programmable Channels
- Concurrent Operation with the CPU (no DMA caused Wait states)
• DMA Bus Arbitration
- Five Programmable Address modes
- Four Programmable Transfer modes
- Four Flexible Internal Data Transfer modes
- Byte or Word Support for Data Transfer
- 16-Bit Source and Destination Address Register for each Channel, Dynamically Updated and Reloadable
- 16-Bit Transaction Count Register, Dynamically Updated and Reloadable
• Upper and Lower Address Limit Registers
- Counter Half-Full Level Interrupt
- Software Triggered Transfer
- Null Write mode for Symmetric Buffer Operations

A simplified block diagram of the DMA Controller is shown if Figure 10-1.

FIGURE 10-1: DMA FUNCTIONAL BLOCK DIAGRAM

10.1 Summary of DMA Operations

The DMA Controller is capable of moving data between addresses according to a number of different parameters. Each of these parameters can be independently configured for any transaction. In addition, any or all of the DMA channels can independently perform a different transaction at the same time. Transactions are classified by these parameters:

• Source and destination (SFRs and data RAM)
• Data size (byte or word)
• Trigger source
• Transfer mode (One-Shot, Repeated or Continuous)
• Addressing modes (Fixed Address or Address Blocks with or without Address Increment/Decrement)

In addition, the DMA Controller provides channel priority arbitration for all channels.

10.1.1 SOURCE AND DESTINATION

Using the DMA Controller, data may be moved between any two addresses in the Data Space. The SFR space (0000h to 0FFFh) or the data RAM space (1000h to 2FFFh) can serve as either the source or the destination. Data can be moved between these areas in either direction or between addresses in either area. The four different combinations are shown in Figure 10-2.

If it is necessary to protect areas of data RAM, the DMA Controller allows the user to set upper and lower address boundaries for operations in the Data Space above the SFR space. The boundaries are set by the DMAH and DMAL Limit registers. If a DMA channel attempts an operation outside of the address boundaries, the transaction is terminated and an interrupt is generated.

10.1.2 DATA SIZE

The DMA Controller can handle both 8-bit and 16-bit transactions. Size is user-selectable using the SIZE bit (DMACHn[1]). By default, each channel is configured for word-sized transactions. When byte-sized transactions are chosen, the LSB of the source and/or destination address determines if the data represent the upper or lower byte of the data RAM location.

10.1.3 TRIGGER SOURCE

The DMA Controller can use 82 of the device's interrupt sources to initiate a transaction. The DMA trigger sources occur in reverse order from their natural interrupt priority and are shown in Table 10-1.

Since the source and destination addresses for any transaction can be programmed independently of the trigger source, the DMA Controller can use any trigger to perform an operation on any peripheral. This also allows DMA channels to be cascaded to perform more complex transfer operations.

10.1.4 TRANSFER MODE

The DMA Controller supports four types of data transfers, based on the volume of data to be moved for each trigger.

• One-Shot: A single transaction occurs for each trigger.
• Continuous: A series of back-to-back transactions occur for each trigger; the number of transactions is determined by the DMACNTn transaction counter.
• Repeated One-Shot: A single transaction is performed repeatedly, once per trigger, until the DMA channel is disabled.
• Repeated Continuous: A series of transactions are performed repeatedly, one cycle per trigger, until the DMA channel is disabled.

All transfer modes allow the option to have the source and destination addresses, and counter value, automatically reloaded after the completion of a transaction.

10.1.5 ADDRESSING MODES

The DMA Controller also supports transfers between single addresses or address ranges. The four basic options are:

• Fixed-to-Fixed: Between two constant addresses
- Fixed-to-Block: From a constant source address to a range of destination addresses
- Block-to-Fixed: From a range of source addresses to a single, constant destination address
- Block-to-Block: From a range of source addresses to a range of destination addresses

The option to select auto-increment or auto-decrement of source and/or destination addresses is available for Block Addressing modes.

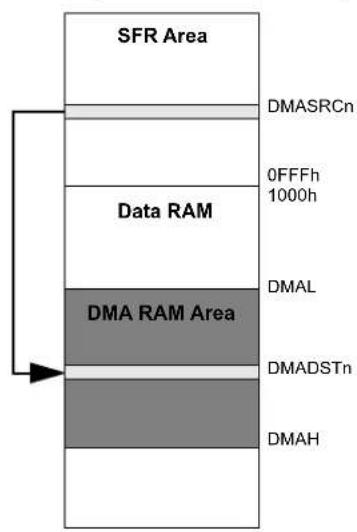

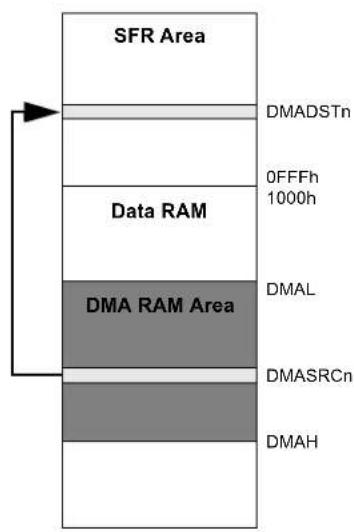

FIGURE 10-2: TYPES OF DMA DATA TRANSFERS
Peripheral to Memory Memory to Peripheral

SFR Area DMASRCn 0FFFh 1000h Data RAM DMA RAM Area DMAL DMADSTn DMAH

SFR Area DMADSTn 0FFFh 1000h Data RAM DMA RAM Area DMAL DMASRCn DMAH

Peripheral to Peripheral Memory to Memory

SFR Area DMASRCn DMADSTn 0FFFh 1000h Data RAM

SFR Area Data RAM 0FFFh 1000h DMA RAM Area DMAL DMASRCn DMADSTn DMAH

Note: Relative sizes of memory areas are not shown to scale.

10.1.6 CHANNEL PRIORITY

Each DMA channel functions independently of the others, but also competes with the others for access to the data and DMA buses. When access collisions occur, the DMA Controller arbitrates between the channels using a user-selectable priority scheme. Two schemes are available:

• Round Robin: When two or more channels collide, the lower numbered channel receives priority on the first collision. On subsequent collisions, the higher numbered channels each receive priority based on their channel number.
• Fixed: When two or more channels collide, the lowest numbered channel always receives priority, regardless of past history; however, any channel being actively processed is not available for an immediate retrigger. If a higher priority channel is continually requesting service, it will be scheduled for service after the next lower priority channel with a pending request.

10.2 Typical Setup

To set up a DMA channel for a basic data transfer:

1. Enable the DMA Controller (DMAEN = 1) and select an appropriate channel priority scheme by setting or clearing PRSSEL.
2. Program DMAH and DMAL with appropriate upper and lower address boundaries for data RAM operations.
3. Select the DMA channel to be used and disable its operation (CHEN = 0).
4. Program the appropriate source and destination addresses for the transaction into the channel's DMASRCn and DMADSTn registers.
5. Program the DMACNTn register for the number of triggers per transfer (One-Shot or Continuous modes) or the number of words (bytes) to be transferred (Repeated modes).
6. Set or clear the SIZE bit to select the data size.
7. Program the TRMODE[1:0] bits to select the Data Transfer mode.
8. Program the SAMODE[1:0] and DAMODE[1:0] bits to select the addressing mode.
9. Enable the DMA channel by setting CHEN.
10. Enable the trigger source interrupt.

10.3 Peripheral Module Disable

The channels of the DMA Controller can be individually powered down using the Peripheral Module Disable (PMD) registers.

10.4 Registers

The DMA Controller uses a number of registers to control its operation. The number of registers depends on the number of channels implemented for a particular device.

There are always four module-level registers (one control and three buffer/address):

• DMACON: DMA Engine Control Register (Register 10-1)
• DMAH and DMAL: DMA High and Low Address Limit Registers
  • DMABUF: DMA Transfer Data Buffer

Each of the DMA channels implements five registers (two control and three buffer/address):

• DMACHn: DMA Channel n Control Register (Register 10-2)
• DMAINTn: DMA Channel n Interrupt Register (Register 10-3)
• DMASRCn: DMA Data Source Address for Channel n Register
• DMADSTn: DMA Data Destination Address for Channel n Register
• DMACNTn: DMA Transaction Counter for Channel n Register

For dsPIC33CK64MC105 devices, there are a total of 34 registers.

REGISTER 10-1: DMACON: DMA ENGINE CONTROL REGISTER

R/W-0 U-0 U-0 U-0 U-0 U-0 U-0
DMAEN	———	———
bit 15 bit 8

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0
——	—— — PR SSEL
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15 DMAEN: DMA Module Enable bit

1 = Enables module

0 = Disables module and terminates all active DMA operation(s)

bit 14-1 Unimplemented: Read as '0'

bit 0 PRSSEL: Channel Priority Scheme Selection bit

1 = Round robin scheme

0 = Fixed priority scheme

REGISTER 10-2: DMACHn: DMA CHANNEL n CONTROL REGISTER

U-0 U-0 U-0 r-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	— — NULLW	RELOAD				(1)	CHREQ(3)
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SAMODE1	SAMODE0	DAMODE1	DAMODE0	TRMODE1	TRMODE0	SIZE	CHEN
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-13 Unimplemented: Read as '0'

bit 12 Reserved: Maintain as '0'

bit 11 Unimplemented: Read as '0'

bit 10 NULLW: Null Write Mode bit

1 = A dummy write is initiated to DMASRCn for every write to DMADSTn

0 = No dummy write is initiated

bit 9 RELOAD: Address and Count Reload bit ^(1)

1 = DMASRCn, DMADSTn and DMACNTn registers are reloaded to their previous values upon the start of the next operation

0 = DMASRCn, DMADSTn and DMACNTn are not reloaded on the start of the next operation ^(2)

bit 8 CHREQ: DMA Channel Software Request bit ^(3)

1 = A DMA request is initiated by software; automatically cleared upon completion of a DMA transfer

0 = No DMA request is pending

bit 7-6 SAMODE[1:0]: Source Address Mode Selection bits

11 = Reserved

10 = DMASRCn is decremented based on the SIZE bit after a transfer completion

01 = DMASRCn is incremented based on the SIZE bit after a transfer completion

00 = DMASRCn remains unchanged after a transfer completion

bit 5-4 DAMODE[1:0]: Destination Address Mode Selection bits

11 = Reserved

10 = DMADSTn is decremented based on the SIZE bit after a transfer completion

01 = DMADSTn is incremented based on the SIZE bit after a transfer completion

00 = DMADSTn remains unchanged after a transfer completion

bit 3-2 TRMODE[1:0]: Transfer Mode Selection bits

11 = Repeated Continuous

10 = Continuous

01 = Repeated One-Shot

00 = One-Shot

bit 1 SIZE: Data Size Selection bit

1 = Byte (8-bit)

0 = Word (16-bit)

bit 0 CHEN: DMA Channel Enable bit

1 = The corresponding channel is enabled

0 = The corresponding channel is disabled

Note 1: Only the original DMACNTn is required to be stored to recover the original DMASRCn and DMADSTn values.

2: DMACNTn will always be reloaded in Repeated mode transfers, regardless of the state of the RELOAD bit.

3: The number of transfers executed while CHREQ is set depends on the configuration of TRMODE[1:0].

REGISTER 10-3: DMAINTn: DMA CHANNEL n INTERRUPT REGISTER

R-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DBUFWF(1)	CHSEL6 CH	HSEL5 CHSEL	4 CHSEL3 CH	SEL2 CHSEL1	CHSEL0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0 R/W-0
HIGHIF^(1,2)	LOWIF^(1,2)	DONEIF^(1)	HALFIF^(1)	OVRUNIF^(1)	— —	H	A L
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	DBUFWF: DMA Buffered Data Write Flag bit(1)
	1 = The content of the DMA buffer has not been written to the location specified in DMADSTn or DMASRCn in Null Write mode
	0 = The content of the DMA buffer has been written to the location specified in DMADSTn or DMASRCn in Null Write mode
bit 14-8	CHSEL[6:0]: DMA Channel Trigger Selection bitsSee Table 10-1 for a complete list.
bit 7	HIGHIF: DMA High Address Limit Interrupt Flag bit(1,2)
	1 = The DMA channel has attempted to access an address higher than DMAH or the upper limit of the data RAM space
	0 = The DMA channel has not invoked the high address limit interrupt
bit 6	LOWIF: DMA Low Address Limit Interrupt Flag bit(1,2)
	1 = The DMA channel has attempted to access the DMA SFR address lower than DMAL, but above the SFR range (07FFh)
	0 = The DMA channel has not invoked the low address limit interrupt
bit 5	DONEIF: DMA Complete Operation Interrupt Flag bit(1)If CHEN = 1:1 = The previous DMA session has ended with completion0 = The current DMA session has not yet completedIf CHEN = 0:1 = The previous DMA session has ended with completion0 = The previous DMA session has ended without completion
bit 4	HALFIF: DMA 50% Watermark Level Interrupt Flag bit(1)1 = DMACNTn has reached the halfway point to 0000h0 = DMACNTn has not reached the halfway point
bit 3	OVRUNIF: DMA Channel Overrun Flag bit(1)1 = The DMA channel is triggered while it is still completing the operation based on the previous trigger0 = The overrun condition has not occurred
bit 2-1	Unimplemented: Read as ‘0’
bit 0	HALFEN: Halfway Completion Watermark bit1 = Interrupts are invoked when DMACNTn has reached its halfway point and at completion0 = An interrupt is invoked only at the completion of the transfer

Note 1: Setting these flags in software does not generate an interrupt.
2: Testing for address limit violations (DMASRCn or DMADSTn is either greater than DMAH or less than DMAL) is NOT done before the actual access.

TABLE 10-1: DMA CHANNEL TRIGGER SOURCES

CHSEL[6:0] Trigger (Interrupt) CHSEL[6:0]			Trigger (Interrupt)		CHSEL[6:0] Trigger (Interrupt)
0 00h	NT0 - External Interrupt 0 33 21h				(Reserved, do not use)	66	42h	AD1FLTR3 - Oversample Filter 3
1	01h	SCCP1 IC/OC	34	22h		67	43h	AD1FLTR4 - Oversample Filter 4
2 02h		SPI1 Receiver	35	23h		68	44h	CLC1 Positive Edge Interrupt
3	03h	SPI1 Transmitter	36	24h	PWM Event C	69	45h	CLC2 Positive Edge Interrupt
4	04h	UART1 Receiver	37	25h	SENT1 TX/RX	70	46h	SPI1 - Fault Interrupt
5 05h	UART1 Transmitter		38	26h	(Reserved, do not use)	71	47h	SPI2 - Fault Interrupt
6	06h	ECC Single-Bit Error	39	27h	ADC Common Interrupt	72	48h	(Reserved, do not use)
7	07h	NVM Write Complete	40	28h	ADC Done AN0	...	...
8	08h	INT1 - External Interrupt 1	41	29h	ADC Done AN1	86	56h
9	09h	SI2C1 - I2C1 Client Event	42	2Ah	ADC Done AN2	87	57h	PWM Event D
10	0Ah	MI2C1 - I2C1 Host Event	43	2Bh	ADC Done AN3	88	58h	PWM Event E
11	0Bh	INT2 - External Interrupt 2	44	2Ch	ADC Done AN4	89	59h	PWM Event F
12	0Ch	SCCP2 Interrupt	45	2Dh	ADC Done AN5	90	5Ah	(Reserved, do not use)
13	0Dh	INT3 - External Interrupt 3	46	2Eh	ADC Done AN6	91	5Bh
14	0Eh	UART2 Receiver	47	2Fh	ADC Done AN7	92	5Ch
15	0Fh	UART2 Transmitter	48	30h	ADC Done AN8	93	5Dh
16	10h	SPI2 Receiver	49	31h	ADC Done AN9	94	5Eh
17	11h	SPI2 Transmitter	50	32h	ADC Done AN10	95	5Fh
18	12h	SCCP3 Interrupt	51	33h	ADC Done AN11	96	60h	CLC3 Positive Edge Interrupt
19	13h	(Reserved, do not use)	52	34h	ADC Done AN12	97	61h	CLC4 Positive Edge Interrupt
20	14h		53	35h	ADC Done AN13	98	62h	(Reserved, do not use)
21	15h	SCCP4 Interrupt	54	36h	ADC Done AN14	99	63h
22	16h	(Reserved, do not use)	55 37h		ADC Done AN15	100	64h
23	17h		56	38h	ADC Done AN16	101	65h
24	18h	CRC Generator Interrupt	57	39h	ADC Done AN17	102	66h
25	19h	PWM Event A	58	3Ah	(Reserved, do not use)	103	67h
26	1Ah	(Reserved, do not use)	59	3Bh		104	68h	UART3 Receiver
27	1Bh	PWM Event B	60	3Ch		105	69h	UART3 Transmitter
28	1Ch	PWM Generator 1	61	3Dh		106	6Ah	(Reserved, do not use)
29	1Dh	PWM Generator 2	62	3Eh		...	...
30	1Eh	PWM Generator 3	63	3Fh		127	7Fh
31	1Fh	PWM Generator 4	64	40h	AD1FLTR1 - Oversample Filter 1
32	20h	(Reserved, do not use)	65	41h	AD1FLTR2 - Oversample Filter 2

NOTES:

11.0 HIGH-RESOLUTION PWM

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “High-Resolution PWM with Fine Edge Placement” (www.microchip.com/DS70005320) in the “dsPIC33/PIC24 Family Reference Manual”.

The High-Resolution PWM (HRPWM) module is a Pulse-Width Modulation (PWM) module to support both motor control and power supply applications. This flexible module provides features to support many types of Motor Control (MC) and Power Control (PC) applications, including:

• AC-to-DC Converters
• DC-to-DC Converters
  • AC and DC Motors: BLDC, PMSM, ACIM, SRM, etc.
• Inverters
• Battery Chargers
• Digital Lighting
  • Power Factor Correction (PFC)

Note: The Fine Edge Placement feature is not available in this family of devices.

11.1 Features

• Four Independent PWM Generators, each with Dual Outputs
• Operating modes:
• Independent Edge mode
• Variable Phase PWM mode
• Center-Aligned mode
• Double Update Center-Aligned mode
• Dual Edge Center-Aligned mode
• Dual PWM mode

- Output modes:

- Complementary

- Independent

- Push - Pull

• Dead-Time Generator
• Leading-Edge Blanking (LEB)
• Output Override for Fault Handling
• Flexible Period/Duty Cycle Updating Options
• Programmable Control Inputs (PCI)
• Advanced Triggering Options
• Six Combinatorial Logic Outputs
• Six PWM Event Outputs

11.2 Architecture Overview

The PWM module consists of a common set of controls and features, and multiple instantiations of PWM Generators (PGs). Each PWM Generator can be independently configured or multiple PWM Generators can

be used to achieve complex multiphase systems. PWM Generators can also be used to implement sophisticated triggering, protection and logic functions. A high-level block diagram is shown in Figure 11-1.

FIGURE 11-1: PWM HIGH-LEVEL BLOCK DIAGRAM

11.3 PWM4H Output on PPS

All devices support the capability to output a PWM4H signal via PPS on to any "RPn" pin. This feature is intended for lower pin count devices that do not have PWM4H on a dedicated pin. If PWM4H PPS output functions are used on 48-pin devices that also have a fixed RP65/PWM4H/RD1 pin, the output signal will be present on both the dedicated and "RPn" pins. The PWM4L/H Output Port Enable bits, PENH and PENL (PG4IOCONH[3:2]), control both dedicated and PPS pins together; it is not possible to disable the dedicated pin and use only PPS.

Given the natural priority of the "RPn" functions above that of the PWM, it is possible to use the PPS output functions on the dedicated RP65/PWM4H/RD1 pin while the PWM4H signal is routed to other pins via PPS.

11.4 Write Restrictions

The LOCK bit (PCLKCON[8]) may be set in software to block writes to certain registers. For more information, refer to “High-Resolution PWM with Fine Edge Placement” (www.microchip.com/DS70005320) in the “dsPIC33/PIC24 Family Reference Manual”.

The following lock/unlock sequence is required to set or clear the LOCK bit:

1. Write 0x55 to NVMKEY.
2. Write 0xAA to NVMKEY.
3. Clear (or set) the LOCK bit (PCLKCON[8]) as a single operation.

In general, modifications to configuration controls should not be done while the module is running, as indicated by the ON bit (PGxCONL[15]) being set.

11.5 Control Registers

There are two categories of Special Function Registers (SFRs) used to control the operation of the PWM module:

An 'x' in the register name denotes an instance of a PWM Generator.

A 'y' in the register name denotes an instance of the common function.

• Common, shared by all PWM Generators
- PWM Generator-specific

REGISTER 11-1: PCLKCON: PWM CLOCK CONTROL REGISTER

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-9 Unimplemented: Read as '0'

bit 8 LOCK: Lock bit ^(1)

1 = Write-protected registers and bits are locked
0 = Write-protected registers and bits are unlocked

bit 7-6 Unimplemented: Read as '0'

bit 5-4 DIVSEL[1:0]: PWM Clock Divider Selection bits

11 = Divide ratio is 1:16
10 = Divide ratio is 1:8
01 = Divide ratio is 1:4
00 = Divide ratio is 1:2

bit 3-2 Unimplemented: Read as '0'

bit 1-0 MCLKSEL[1:0]: PWM Master Clock Selection bits ^(2)

11 = Fvco/3
10 = FPLLO - Primary PLL post-divider output
01 = Fvco/2
00 = Fosc

Note 1: The LOCK bit is protected against an accidental write. To set this bit, 0x55 and 0xAA values must be written sequentially into the NVMKEY register (see Section 11.4 "Write Restrictions").

2: Changing the MCLKSEL[1:0] bits while ON (PGxCONL[15]) = 1 is not recommended.

REGISTER 11-2: FSCL: FREQUENCY SCALE REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

FSCL[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

FSCL[7:0]

bit 7 bit 0

Legend:
R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0

FSCL[15:0]: Frequency Scale Register bits

The value in this register is added to the frequency scaling accumulator at each pwm_master_clk. When the accumulated value exceeds the value of FSMINPER, a clock pulse is produced.

REGISTER 11-3: FSMINPER: FREQUENCY SCALING MINIMUM PERIOD REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			FSMINPER[15:8]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
FSMINPER[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0

FSMINPER[15:0]: Frequency Scaling Minimum Period Register bits

This register holds the minimum clock period (maximum clock frequency) that can be produced by the frequency scaling circuit.

REGISTER 11-4: MPHASE: MASTER PHASE REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MPHASE[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MPHASE[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0 MPHASE[15:0]: Master Phase Register bits

This register holds the phase offset value that can be shared by multiple PWM Generators.

REGISTER 11-5: MDC: MASTER DUTY CYCLE REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MDC[15:8](1)

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MDC[7:0](1)

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0 MDC[15:0]: Master Duty Cycle Register bits ^(1)

This register holds the duty cycle value that can be shared by multiple PWM Generators.

Note 1: Duty cycle values less than '0x0008' should not be used.

REGISTER 11-6: MPER: MASTER PERIOD REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MPER[15:8](1)

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

MPER[7:0](1)

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 MPER[15:0]: Master Period Register bits ^(1)

This register holds the period value that can be shared by multiple PWM Generators.

Note 1: Period values less than '0x0010' should not be used.

REGISTER 11-7: CMBTRIGL: COMBINATIONAL TRIGGER REGISTER LOW

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 CTA4EN: Enable Trigger Output from PWM Generator #4 as Source for Combinational Trigger A bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger A signal 0 = Disabled

bit 2 CTA3EN: Enable Trigger Output from PWM Generator #3 as Source for Combinational Trigger A bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger A signal 0 = Disabled

bit 1 CTA2EN: Enable Trigger Output from PWM Generator #2 as Source for Combinational Trigger A bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger A signal 0 = Disabled

bit 0 CTA1EN: Enable Trigger Output from PWM Generator #1 as Source for Combinational Trigger A bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger A signal 0 = Disabled

REGISTER 11-8: CMBTRIGH: COMBINATIONAL TRIGGER REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 U-0 U-0
—	—	—	—	—	—	—	—
bit 15 bit 8
U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—	—	CTB4EN	CTB3EN	CTB2EN	CTB1EN
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 CTB4EN: Enable Trigger Output from PWM Generator #4 as Source for Combinational Trigger B bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger B signal 0 = Disabled

bit 2 CTB3EN: Enable Trigger Output from PWM Generator #3 as Source for Combinational Trigger B bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger B signal 0 = Disabled

bit 1 CTB2EN: Enable Trigger Output from PWM Generator #2 as Source for Combinational Trigger B bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger B signal 0 = Disabled

bit 0 CTB1EN: Enable Trigger Output from PWM Generator #1 as Source for Combinational Trigger B bit 1 = Enables specified trigger signal to be OR'd into the Combinatorial Trigger B signal 0 = Disabled

REGISTER 11-9: LOGCONy: COMBINATORIAL PWM LOGIC CONTROL REGISTER y ^(2)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PWMS1y3(1)	PWMS1y2(1)	PWMS1y1(1)	PWMS1y0(1)	PWMS2y3(1)	PWMS2y2(1)	PWMS2y1(1)	PWMS2y0(1)
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
S1yPOL	S2yPOL	PWMLFy1	PWMLFy0	—	PWMLFyD2^(3)	PWMLFyD1^(3)	PWMLFyD0^(3)
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-12 PWMS1y[3:0]: Combinatorial PWM Logic Source #1 Selection bits ^(1)

1111-1000 = Reserved

0111 = PWM4L

0110 = PWM4H

0101 = PWM3L

0100 = PWM3H

0011 = PWM2L

0010 = PWM2H

0001 = PWM1L

0000 = PWM1H

bit 11-8 PWMS2y[3:0]: Combinatorial PWM Logic Source #2 Selection bits ^(1)

1111-1000 = Reserved

0111 = PWM4L

0110 = PWM4H

0101 = PWM3L

0100 = PWM3H

0011 = PWM2L

0010 = PWM2H

0001 = PWM1L

0000 = PWM1H

bit 7 S1yPOL: Combinatorial PWM Logic Source #1 Polarity bit

1 = Input is inverted

0 = Input is positive logic

bit 6 S2yPOL: Combinatorial PWM Logic Source #2 Polarity bit

1 = Input is inverted

0 = Input is positive logic

bit 5-4 PWMLFy[1:0]: Combinatorial PWM Logic Function Selection bits

11 = Reserved

10 = PWMS1y ^ PWMS2y (XOR)

01 = PWMS1y & PWMS2y (AND)

00 = PWMS1y | PWMS2y (OR)

bit 3 Unimplemented: Read as '0'

Note 1: Logic function input will be connected to '0' if the PWM channel is not present.

2: 'y' denotes a common instance (A-F).

3: Instances of y = A, C, E of LOGCONy assign logic function output to the PWMxH pin. Instances of y = B, D, F of LOGCONy assign logic function to the PWMxL pin.

REGISTER 11-9: LOGCONy: COMBINATORIAL PWM LOGIC CONTROL REGISTER y ^(2) (CONTINUED)

bit 2-0 PWMLFyD[2:0]: Combinatorial PWM Logic Destination Selection bits ^(3)

111-100 = Reserved

011 = Logic function is assigned to PWM4H or PWM4L pin

010 = Logic function is assigned to PWM3H or PWM3L pin

001 = Logic function is assigned to PWM2H or PWM2L pin

000 = No assignment, combinatorial PWM logic function is disabled

Note 1: Logic function input will be connected to '0' if the PWM channel is not present.

2: 'y' denotes a common instance (A-F).

3: Instances of y = A, C, E of LOGCONy assign logic function output to the PWMxH pin. Instances of y = B, D, F of LOGCONy assign logic function to the PWMxL pin.

REGISTER 11-10: PWMEVTy: PWM EVENT OUTPUT CONTROL REGISTER y (5)

R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0 U-0 U-0
EVTyOEN EVTyPOL EVTySTRD EVTySYNC				—	—	—	—
bit 15 bit 8
R/W-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
EVTySEL3	EVTySEL2	EVTySEL1	EVTySEL0	—	EVTyPGS2(2)	EVTyPGS1(2)	EVTyPGS0(2)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	EVTyOEN: PWM Event Output Enable bit1 = Event output signal is output on PWMEy pin0 = Event output signal is internal only
bit 14	EVTyPOL: PWM Event Output Polarity bit1 = Event output signal is active-low0 = Event output signal is active-high
bit 13	EVTySTRD: PWM Event Output Stretch Disable bit1 = Event output signal pulse width is not stretched0 = Event output signal is stretched to eight PWM clock cycles minimum ^(1)
bit 12	EVTySYNC: PWM Event Output Sync bit1 = Event output signal is synchronized to the system clock0 = Event output is not synchronized to the system clockEvent output signal pulse will be two system clocks when this bit is set and EVTySTRD = 1.

bit 11-8	Unimplemented: Read as ‘0’
bit 7-4	EVTySEL[3:0]: PWM Event Selection bits
	1111-1010 = Reserved
	1001 = ADC Trigger 2 signal
	1000 = ADC Trigger 1 signal
	0111 = STEER signal (available in Push-Pull Output modes only)(4)
	0110 = CAHALF signal (available in Center-Aligned modes only)(4)
	0101 = PCI Fault active output signal
	0100 = PCI Current limit active output signal
	0011 = PCI Feed-forward active output signal
	0010 = PCI Sync active output signal
	0001 = PWM Generator output signal(3)
	0000 = Source is selected by the PGTRGSEL[2:0] bits
bit 3	Unimplemented: Read as ‘0’

Note 1: The event signal is stretched using peripheral_clk because different PWM Generators may be operating from different clock sources.

2: No event will be produced if the selected PWM Generator is not present.

3: This is the PWM Generator output signal prior to output mode logic and any output override logic.

4: This signal should be the PGx_clk domain signal prior to any synchronization into the system clock domain.

5: 'y' denotes a common instance (A-F).

REGISTER 11-10: PWMEVTy: PWM EVENT OUTPUT CONTROL REGISTER y (5) (CONTINUED)

bit 2-0 EVTyPGS[2:0]: PWM Event Source Selection bits (2)

111-100 = Reserved
011 = PWM Generator 4
...
000 = PWM Generator 1

Note 1: The event signal is stretched using peripheral_clk because different PWM Generators may be operating from different clock sources.

2: No event will be produced if the selected PWM Generator is not present.

3: This is the PWM Generator output signal prior to output mode logic and any output override logic.

4: This signal should be the PGx_clk domain signal prior to any synchronization into the system clock domain.

5: 'y' denotes a common instance (A-F).

REGISTER 11-11: LFSR: LINEAR FEEDBACK SHIFT REGISTER

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

— LFSR[14:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
LFSR[7:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-0 LFSR[14:0]: Linear Feedback Shift Register bits

A read of this register will provide a 15-bit pseudorandom value.

REGISTER 11-12: PGxCONL: PWM GENERATOR x CONTROL REGISTER LOW

R/W-0 r-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0
ON	—	—	—	—	TRGCNT2	TRGCNT1	TRGCNT0
bit 15 bit 8

U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—	CLKSEL1	CLKSEL0	MODSEL2	MODSEL1	MODSEL0
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 ON: Enable bit

1 = PWM Generator is enabled

0 = PWM Generator is not enabled

bit 14 Reserved: Maintain as '0'

bit 13-11 Unimplemented: Read as '0'

bit 10-8 TRGCNT[2:0]: Trigger Count Select bits

111 = PWM Generator produces eight PWM cycles after triggered

110 = PWM Generator produces seven PWM cycles after triggered

101 = PWM Generator produces six PWM cycles after triggered

100 = PWM Generator produces five PWM cycles after triggered

011 = PWM Generator produces four PWM cycles after triggered

010 = PWM Generator produces three PWM cycles after triggered

001 = PWM Generator produces two PWM cycles after triggered

000 = PWM Generator produces one PWM cycle after triggered

bit 7-5 Unimplemented: Read as '0'

bit 4-3 CLKSEL[1:0]: Clock Selection bits

11 = PWM Generator uses Master clock scaled by frequency scaling circuit(1)

10 = PWM Generator uses Master clock divided by clock divider circuit(1)

01 = PWM Generator uses Master clock selected by the MCLKSEL[1:0] (PCLKCON[1:0]) control bits

00 = No clock selected, PWM Generator is in Lowest Power state (default)

bit 2-0 MODSEL[2:0]: Mode Selection bits

111 = Dual Edge Center-Aligned PWM mode (interrupt/register update twice per cycle)

110 = Dual Edge Center-Aligned PWM mode (interrupt/register update once per cycle)

101 = Double-Update Center-Aligned PWM mode

100 = Center-Aligned PWM mode

011 = Reserved

010 = Independent Edge PWM mode, dual output

001 = Variable Phase PWM mode

Note 1: The PWM Generator time base operates from the frequency scaling circuit clock, effectively scaling the duty cycle and period of the PWM Generator output.

REGISTER 11-13: PGxCONH: PWM GENERATOR x CONTROL REGISTER HIGH

R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
MDCSEL M	PERSEL MP	HSEL	— MST	EN UPDMOD2	UPDMOD1	UPDMOD0
bit 15							bit 8

r-0	R/W-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
—	TRGMOD	—	—	SOCS3(1,2,3)		SOCS2(1,2,3)	SOCS1(1,2,3)
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 MDCSEL: Master Duty Cycle Register Select bit

1 = PWM Generator uses MDC register

0 = PWM Generator uses PGxDC register

bit 14 MPERSEL: Master Period Register Select bit

1 = PWM Generator uses MPER register

0 = PWM Generator uses PGxPER register

bit 13 MPHSEL: Master Phase Register Select bit

1 = PWM Generator uses MPHASE register

0 = PWM Generator uses PGxPHASE register

bit 12 Unimplemented: Read as '0'

bit 11 MSTEN: Master Update Enable bit

1 = PWM Generator broadcasts software set/clear of the UPDREQ status bit and EOC signal to other PWM Generators

0 = PWM Generator does not broadcast the UPDREQ status bit state or EOC signal

bit 10-8 UPDMOD[2:0]: PWM Buffer Update Mode Selection bits

011 = Client immediate update

Updates Data registers immediately, or as soon as possible, when a Master update request is received. A Master update request will be transmitted if MSTEN = 1 and UPDREQ = 1 for the requesting PWM Generator.

010 = Client SOC update

Updates Data registers at the start of the next cycle if a Master update request is received. A Master update request will be transmitted if MSTEN = 1 and UPDREQ = 1 for the requesting PWM Generator.

001 = Immediate update

Updates Data registers immediately, or as soon as possible, if UPDREQ = 1. The UPDATE status bit will be cleared automatically after the update occurs.

000 = SOC update

Updates Data registers at start of next PWM cycle if UPDREQ = 1. The UPDATE status bit will be cleared automatically after the update occurs. ^(1)

bit 7 Reserved: Maintain as '0'

Note 1: The PCI selected Sync signal is always available to be OR'd with the selected SOC signal per the SOCS[3:0] bits if the PCI Sync function is enabled.

2: The source selected by the SOCS[3:0] bits MUST operate from the same clock source as the local PWM Generator. If not, the source must be routed through the PCI Sync logic so the trigger signal may be synchronized to the PWM Generator clock domain.

3: PWM Generators are grouped into groups of four: PG1-PG4 and PG5-PG8, if available. Any generator within a group of four may be used to trigger another generator within the same group.

REGISTER 11-13: PGxCONH: PWM GENERATOR x CONTROL REGISTER HIGH (CONTINUED)

bit 6 TRGMOD: PWM Generator Trigger Mode Selection bit

1 = PWM Generator operates in Retriggerable mode
0 = PWM Generator operates in Single Trigger mode

bit 5-4 Unimplemented: Read as '0'

bit 3-0 SOCS[3:0]: Start-of-Cycle Selection bits (1,2,3)

1111 = TRIG bit or PCI Sync function only (no hardware trigger source is selected)
1110-0101 = Reserved
0100 = Trigger output selected by PG4 PGTRGSEL[2:0] bits (PGxEVTL[2:0])
0011 = Trigger output selected by PG3 PGTRGSEL[2:0] bits (PGxEVTL[2:0])
0010 = Trigger output selected by PG2 PGTRGSEL[2:0] bits (PGxEVTL[2:0])
0001 = Trigger output selected by PG1 PGTRGSEL[2:0] bits (PGxEVTL[2:0])
0000 = Local EOC - PWM Generator is self-triggered

Note 1: The PCI selected Sync signal is always available to be OR'd with the selected SOC signal per the SOCS[3:0] bits if the PCI Sync function is enabled.

2: The source selected by the SOCS[3:0] bits MUST operate from the same clock source as the local PWM Generator. If not, the source must be routed through the PCI Sync logic so the trigger signal may be synchronized to the PWM Generator clock domain.
3: PWM Generators are grouped into groups of four: PG1-PG4 and PG5-PG8, if available. Any generator within a group of four may be used to trigger another generator within the same group.

REGISTER 11-14: PGxSTAT: PWM GENERATOR x STATUS REGISTER

HS/C-0 HS/C-0 HS/C-0 HS/C-0 R-0 R-0 R-0 R-0
SEVT	FLTEVT	CLEVT	FFEVT	SACT	FLTACT	CLACT	FFACT
bit 15 bit 8

W-0	W-0	HS/R/W-0	R-0	W-0	R-0	R-0	R-0
TRSET	TRCLR	CAP(1)	UPDATE	UPDREQ	STEER	CAHALF	TRIG
bit 7 bit 0

Legend:	C = Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	‘0’ = Bit is cleared x = Bit is unknown
-n = Value at POR	‘1’ = Bit is set	U = Unimplemented bit, read as ‘0’

bit 15 SEVT: PCI Sync Event bit

1 = A PCI Sync event has occurred (rising edge on PCI Sync output or PCI Sync output is high when module is enabled) 0 = No PCI Sync event has occurred

bit 14 FLTEVT: PCI Fault Active Status bit

1 = A Fault event has occurred (rising edge on PCI Fault output or PCI Fault output is high when module is enabled) 0 = No Fault event has occurred

bit 13 CLEVT: PCI Current Limit Status bit

1 = A PCI current limit event has occurred (rising edge on PCI current limit output or PCI current limit output is high when module is enabled) 0 = No PCI current limit event has occurred

bit 12 FFEVT: PCI Feed-Forward Active Status bit

1 = A PCI feed-forward event has occurred (rising edge on PCI feed-forward output or PCI feed-forward output is high when module is enabled) 0 = No PCI feed-forward event has occurred

bit 11 SACT: PCI Sync Status bit

1 = PCI Sync output is active 0 = PCI Sync output is inactive

bit 10 FLTACT: PCI Fault Active Status bit

1 = PCI Fault output is active 0 = PCI Fault output is inactive

bit 9 CLACT: PCI Current Limit Status bit

1 = PCI current limit output is active 0 = PCI current limit output is inactive

bit 8 FFACT: PCI Feed-Forward Active Status bit

1 = PCI feed-forward output is active 0 = PCI feed-forward output is inactive

bit 7 TRSET: PWM Generator Software Trigger Set bit

User software writes a '1' to this bit location to trigger a PWM Generator cycle. The bit location always reads as '0'. The TRIG bit will indicate '1' when the PWM Generator is triggered.

bit 6 TRCLR: PWM Generator Software Trigger Clear bit

User software writes a '1' to this bit location to stop a PWM Generator cycle. The bit location always reads as '0'. The TRIG bit will indicate '0' when the PWM Generator is not triggered.

Note 1: User software may write a '1' to CAP as a request to initiate a software capture. The CAP status bit will be set when the capture event has occurred. No further captures will occur until CAP is cleared by software.

REGISTER 11-14: PGxSTAT: PWM GENERATOR x STATUS REGISTER (CONTINUED)

bit 5 CAP: Capture Status bit (1)

1 = PWM Generator time base value has been captured in PGxCAP
0 = No capture has occurred

bit 4 UPDATE: PWM Data Register Update Status bit

1 = PWM Data register update is pending – user Data registers are not writable

0 = No PWM Data register update is pending

bit 3 UPDREQ: PWM Data Register Update Request bit

User software writes a '1' to this bit location to request a PWM Data register update. The bit location always reads as '0'. The UPDATE status bit will indicate '1' when an update is pending.

bit 2 STEER: Output Steering Status bit (Push-Pull Output mode only)

1 = PWM Generator is in 2nd cycle of Push-Pull mode
0 = PWM Generator is in 1st cycle of Push-Pull mode

bit 1 CAHALF: Half Cycle Status bit (Center-Aligned modes only)

1 = PWM Generator is in 2nd half of time base cycle
0 = PWM Generator is in 1st half of time base cycle

bit 0 TRIG: PWM Trigger Status bit

1 = PWM Generator is triggered and PWM cycle is in progress
0 = No PWM cycle is in progress

Note 1: User software may write a '1' to CAP as a request to initiate a software capture. The CAP status bit will be set when the capture event has occurred. No further captures will occur until CAP is cleared by software.

REGISTER 11-15: PGxIOCONL: PWM GENERATOR x I/O CONTROL REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLMOD SWAP OVRENH OVRENLOVRDAT1OVRDAT0				OSYNC1 OSYNC0
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
FLTDAT1	FLTDAT0	CLDAT1	CLDAT0	FFDAT1	FFDAT0	DBDAT1	DBDAT0
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 CLMOD: Current Limit Mode Select bit

1 = If PCI current limit is active, then the PWMxH and PWMxL output signals are inverted (bit flipping),and the CLDAT[1:0] bits are not used

0 = If PCI current limit is active, then the CLDAT[1:0] bits define the PWM output levels

bit 14 SWAP: Swap PWM Signals to PWMxH and PWMxL Device Pins bit

1 = The PWMxH signal is connected to the PWMxL pin and the PWMxL signal is connected to the PWMxH pin

0 = PWMxH/L signals are mapped to their respective pins

bit 13 OVRENH: User Override Enable for PWMxH Pin bit

1 = OVRDAT1 provides data for output on the PWMxH pin

0 = PWM Generator provides data for the PWMxH pin

bit 12 OVRENL: User Override Enable for PWMxL Pin bit

1 = OVRDAT0 provides data for output on the PWMxL pin

0 = PWM Generator provides data for the PWMxL pin

bit 11-10 OVRDAT[1:0]: Data for PWMxH/PWMxL Pins if Override is Enabled bits

If OVERENH = 1, then OVRDAT1 provides data for PWMxH.

If OVERENL = 1, then OVRDAT0 provides data for PWMxL.

bit 9-8 OSYNC[1:0]: User Output Override Synchronization Control bits

11 = Reserved

10 = User output overrides via the OVRENH/L and OVRDAT[1:0] bits occur when specified by the UPDMOD[2:0] bits in the PGxCONH register

01 = User output overrides via the OVRENH/L and OVRDAT[1:0] bits occur immediately (as soon as possible)

00 = User output overrides via the OVRENH/L and OVRDAT[1:0] bits are synchronized to the local PWM time base (next Start-of-Cycle)

bit 7-6 FLTDAT[1:0]: Data for PWMxH/PWMxL Pins if Fault Event is Active bits

If Fault is active, then FLTDAT1 provides data for PWMxH.

If Fault is active, then FLTDAT0 provides data for PWMxL.

bit 5-4 CLDAT[1:0]: Data for PWMxH/PWMxL Pins if Current Limit Event is Active bits

If current limit is active, then CLDAT1 provides data for PWMxH.

If current limit is active, then CLDAT0 provides data for PWMxL.

bit 3-2 FFDAT[1:0]: Data for PWMxH/PWMxL Pins if Feed-Forward Event is Active bits

If feed-forward is active, then FFDAT1 provides data for PWMxH.

If feed-forward is active, then FFDAT0 provides data for PWMxL.

bit 1-0 DBDAT[1:0]: Data for PWMxH/PWMxL Pins if Debug Mode is Active bits

If Debug mode is active and device halted, then DBDAT1 provides data for PWMxH.

If Debug mode is active and device halted, then DBDAT0 provides data for PWMxL.

REGISTER 11-16: PGxIOCONH: PWM GENERATOR x I/O CONTROL REGISTER HIGH

U-0 R/W-0 R/W-0 R/W-0 U-0 U-0 U-0 R/W-0
— CAPSRC2 (1)		CAPSRC1(1)	CAPSRC0(1)	— — —	DTCMPSEL
bit 15 bit 8
U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	PMOD1	PMOD0	PENH	PENL	POLH	POLL
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-12 CAPSRC[2:0]: Time Base Capture Source Selection bits ^(1)

111 = Reserved

110 = Reserved

101 = Reserved

100 = Capture time base value at assertion of selected PCI Fault signal

011 = Capture time base value at assertion of selected PCI current limit signal

010 = Capture time base value at assertion of selected PCI feed-forward signal

001 = Capture time base value at assertion of selected PCI Sync signal

000 = No hardware source selected for time base capture - software only

bit 11-9 Unimplemented: Read as '0'

bit 8 DTCMPSEL: Dead-Time Compensation Select bit

1 = Dead-time compensation is controlled by PCI feed-forward limit logic

0 = Dead-time compensation is controlled by PCI Sync logic

bit 7-6 Unimplemented: Read as '0'

bit 5-4 PMOD[1:0]: PWM Generator Output Mode Selection bits

11 = Reserved

10 = PWM Generator outputs operate in Push-Pull mode

01 = PWM Generator outputs operate in Independent mode

00 = PWM Generator outputs operate in Complementary mode

bit 3 PENH: PWMxH Output Port Enable bit

1 = PWM Generator controls the PWMxH output pin

0 = PWM Generator does not control the PWMxH output pin

bit 2 PENL: PWMxL Output Port Enable bit

1 = PWM Generator controls the PWMxL output pin

0 = PWM Generator does not control the PWMxL output pin

bit 1 POLH: PWMxH Output Polarity bit

1 = Output pin is active-low

0 = Output pin is active-high

bit 0 POLL: PWMxL Output Polarity bit

1 = Output pin is active-low

0 = Output pin is active-high

Note 1: A capture may be initiated in software at any time by writing a '1' to CAP (PGxSTAT[5]).

REGISTER 11-17: PGxEVTL: PWM GENERATOR x EVENT REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ADTR1PS4	ADTR1PS3	ADTR1PS2	ADTR1PS1	ADTR1PS0	ADTR1EN3	ADTR1EN2	ADTR1EN1
bit 15 bit 8

U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—	UPDTRG1	UPDTRG0	PGTRGSEL2^(1)	PGTRGSEL1^(1)	PGTRGSEL0^(1)
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-11 ADTR1PS[4:0]: ADC Trigger 1 Postscaler Selection bits

11111 = 1:32

...

00010 = 1:3

00001 = 1:2

00000 = 1:1

bit 10 ADTR1EN3: ADC Trigger 1 Source is PGxTRIGC Compare Event Enable bit

1 = PGxTRIGC register compare event is enabled as trigger source for ADC Trigger 1
0 = PGxTRIGC register compare event is disabled as trigger source for ADC Trigger 1

bit 9 ADTR1EN2: ADC Trigger 1 Source is PGxTRIGB Compare Event Enable bit

1 = PGxTRIGB register compare event is enabled as trigger source for ADC Trigger 1
0 = PGxTRIGB register compare event is disabled as trigger source for ADC Trigger 1

bit 8 ADTR1EN1: ADC Trigger 1 Source is PGxTRIGA Compare Event Enable bit

1 = PGxTRIGA register compare event is enabled as trigger source for ADC Trigger 1
0 = PGxTRIGA register compare event is disabled as trigger source for ADC Trigger 1

bit 7-5 Unimplemented: Read as '0'

bit 4-3 UPDTRG[1:0]: Update Trigger Select bits

11 = A write of the PGxTRIGA register automatically sets the UPDATE bit
10 = A write of the PGxPHASE register automatically sets the UPDATE bit
01 = A write of the PGxDC register automatically sets the UPDATE bit
00 = User must set the UPDREQ bit (PGxSTAT[3]) manually

bit 2-0 PGTRGSEL[2:0]: PWM Generator Trigger Output Selection bits ^(1)

111 = Reserved
110 = Reserved
101 = Reserved
100 = Reserved
011 = PGxTRIGC compare event is the PWM Generator trigger
010 = PGxTRIGB compare event is the PWM Generator trigger
001 = PGxTRIGA compare event is the PWM Generator trigger
000 = EOC event is the PWM Generator trigger

Note 1: These events are derived from the internal PWM Generator time base comparison events.

REGISTER 11-18: PGxEVTH: PWM GENERATOR x EVENT REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0 R/W-0 R/W-0
FLTIEN^(1)	CLIEN^(2)	FFIEN^(3)	SIEN^(4)	— — IEVTSEL1 IEVTSEL0
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
ADTR2EN3	ADTR2EN2	ADTR2EN1	ADTR1OFS4	ADTR1OFS3	ADTR1OFS2	ADTR1OFS1	ADTR1OFS0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 FLTIEN: PCI Fault Interrupt Enable bit ^(1)

1 = Fault interrupt is enabled
0 = Fault interrupt is disabled

bit 14 CLIEN: PCI Current Limit Interrupt Enable bit ^(2)

1 = Current limit interrupt is enabled
0 = Current limit interrupt is disabled

bit 13 FFIEN: PCI Feed-Forward Interrupt Enable bit ^(3)

1 = Feed-forward interrupt is enabled
0 = Feed-forward interrupt is disabled

bit 12 SIEN: PCI Sync Interrupt Enable bit ^(4)

1 = Sync interrupt is enabled
0 = Sync interrupt is disabled

bit 11-10 Unimplemented: Read as '0'

bit 9-8 IEVTSEL[1:0]: Interrupt Event Selection bits

11 = Time base interrupts are disabled (Sync, Fault, current limit and feed-forward events can be independently enabled)
10 = Interrupts CPU at ADC Trigger 1 event
01 = Interrupts CPU at TRIGA compare event
00 = Interrupts CPU at EOC

bit 7 ADTR2EN3: ADC Trigger 2 Source is PGxTRIGC Compare Event Enable bit

1 = PGxTRIGC register compare event is enabled as trigger source for ADC Trigger 2
0 = PGxTRIGC register compare event is disabled as trigger source for ADC Trigger 2

bit 6 ADTR2EN2: ADC Trigger 2 Source is PGxTRIGB Compare Event Enable bit

1 = PGxTRIGB register compare event is enabled as trigger source for ADC Trigger 2
0 = PGxTRIGB register compare event is disabled as trigger source for ADC Trigger 2

bit 5 ADTR2EN1: ADC Trigger 2 Source is PGxTRIGA Compare Event Enable bit

1 = PGxTRIGA register compare event is enabled as trigger source for ADC Trigger 2
0 = PGxTRIGA register compare event is disabled as trigger source for ADC Trigger 2

bit 4-0 ADTR1OFS[4:0]: ADC Trigger 1 Offset Selection bits

11111 = Offset by 31 trigger events

00010 = Offset by 2 trigger events
00001 = Offset by 1 trigger event
00000 = No offset

Note 1: An interrupt is only generated on the rising edge of the PCI Fault active signal.

2: An interrupt is only generated on the rising edge of the PCI current limit active signal.
3: An interrupt is only generated on the rising edge of the PCI feed-forward active signal.
4: An interrupt is only generated on the rising edge of the PCI Sync active signal.

REGISTER 11-19: PGxyPCIL: PWM GENERATOR xy PCI REGISTER LOW (x = PWM GENERATOR #; y = F, CL, FF OR S)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TSYNCDIS	TERM2	TERM1	TERM0	AQPS	AQSS2	AQSS1	AQSS0
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SWTERM	PSYNC	PPS	PSS4	PSS3	PSS2	PSS1	PSS0
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 TSYNCDIS: Termination Synchronization Disable bit

1 = Termination of latched PCI occurs immediately
0 = Termination of latched PCI occurs at PWM EOC

bit 14-12 TERM[2:0]: Termination Event Selection bits

111 = Selects PCI Source #9
110 = Selects PCI Source #8
101 = Selects PCI Source #1 (PWM Generator output selected by the PWMPCI[2:0] bits)
100 = PGxTRIGC trigger event
011 = PGxTRIGB trigger event
010 = PGxTRIGA trigger event
001 = Auto-Terminate: Terminate when PCI source transitions from active to inactive
000 = Manual Terminate: Terminate on a write of '1' to the SWTERM bit location

bit 11 AQPS: Acceptance Qualifier Polarity Select bit

1 = Inverted
0 = Not inverted

bit 10-8 AQSS[2:0]: Acceptance Qualifier Source Selection bits

111 = SWPCI control bit only (qualifier forced to '0')
110 = Selects PCI Source #9
101 = Selects PCI Source #8
100 = Selects PCI Source #1 (PWM Generator output selected by the PWMPCI[2:0] bits)
011 = PWM Generator is triggered
010 = LEB is active
001 = Duty cycle is active (base PWM Generator signal)
000 = No acceptance qualifier is used (qualifier forced to '1')

bit 7 SWTERM: PCI Software Termination bit

A write of '1' to this location will produce a termination event. This bit location always reads as '0'.

bit 6 PSYNC: PCI Synchronization Control bit

1 = PCI source is synchronized to PWM EOC
0 = PCI source is not synchronized to PWM EOC

bit 5 PPS: PCI Polarity Select bit

1 = Inverted
0 = Not inverted

REGISTER 11-19: PGxyPCIL: PWM GENERATOR xy PCI REGISTER LOW

(x = PWM GENERATOR #; y = F, CL, FF OR S) (CONTINUED)

bit 4-0 PSS[4:0]: PCI Source Selection bits

11111 = CLC1
11110-11100 = Reserved
11011 = Comparator 1 output
11010 = PWM Event D
11001 = PWM Event C
11000 = PWM Event B
10111 = PWM Event A
10110-10100 = Reserved
10011 = Device pin, PCI[19]
10010 = RPn input, PCI18R
10001 = RPn input, PCI17R
10000 = RPn input, PCI16R
01111 = RPn input, PCI15R
01110 = RPn input, PCI14R
01101 = RPn input, PCI13R
01100 = RPn input, PCI12R
01011 = RPn input, PCI11R
01010 = RPn input, PCI10R
01001 = RPn input, PCI9R
01000 = RPn input, PCI8R
00100-00111 = Reserved
00011 = Internally connected to Combo Trigger B
00010 = Internally connected to Combo Trigger A
00001 = Internally connected to the output of PWMPCI[2:0] MUX
00000 = Tied to '0'

REGISTER 11-20: PGxyPCIH: PWM GENERATOR xy PCI REGISTER HIGH (x = PWM GENERATOR #; y = F, CL, FF OR S)

R/W-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
BPEN BPSEL2(1)		BPSEL1(1)	BPSEL0(1)	—	ACP2	ACP1	ACP0
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SWPCI	SWPCIM1	SWPCIM0	LATMOD	TQPS	TQSS2	TQSS1	TQSS0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 BPEN: PCI Bypass Enable bit

1 = PCI function is enabled and local PCI logic is bypassed; PWM Generator will be controlled by PCI function in the PWM Generator selected by the BPSEL[2:0] bits 0 = PCI function is not bypassed

bit 14-12 BPSEL[2:0]: PCI Bypass Source Selection bits ^(1)

111-100 = Reserved 011 = PCI control is sourced from PWM Generator 4 PCI logic when BPEN = 1 010 = PCI control is sourced from PWM Generator 3 PCI logic when BPEN = 1 001 = PCI control is sourced from PWM Generator 2 PCI logic when BPEN = 1 000 = PCI control is sourced from PWM Generator 1 PCI logic when BPEN = 1

bit 11 Unimplemented: Read as '0'

bit 10-8 ACP[2:0]: PCI Acceptance Criteria Selection bits

111 = Reserved 110 = Reserved 101 = Latched any edge 100 = Latched rising edge 011 = Latched 010 = Any edge 001 = Rising edge 000 = Level-sensitive

bit 7 SWPCI: Software PCI Control bit

1 = Drives a '1' to PCI logic assigned to by the SWPCIM[1:0] control bits 0 = Drives a '0' to PCI logic assigned to by the SWPCIM[1:0] control bits

bit 6-5 SWPCIM[1:0]: Software PCI Control Mode bits

11 = Reserved 10 = SWPCI bit is assigned to termination qualifier logic 01 = SWPCI bit is assigned to acceptance qualifier logic 00 = SWPCI bit is assigned to PCI acceptance logic

bit 4 LATMOD: PCI SR Latch Mode bit

1 = SR latch is Reset-dominant in Latched Acceptance modes 0 = SR latch is Set-dominant in Latched Acceptance modes

bit 3 TQPS: Termination Qualifier Polarity Select bit

1 = Inverted 0 = Not inverted

Note 1: Selects '0' if selected PWM Generator is not present.

REGISTER 11-20: PGxyPCIH: PWM GENERATOR xy PCI REGISTER HIGH (x = PWM GENERATOR #; y = F, CL, FF OR S) (CONTINUED)
bit 2-0 TQSS[2:0]: Termination Qualifier Source Selection bits

111 = SWPCI control bit only (qualifier forced to '0')
110 = Selects PCI Source #9
101 = Selects PCI Source #8
100 = Selects PCI Source #1 (PWM Generator output selected by the PWMPCI[2:0] bits)
011 = PWM Generator is triggered
010 = LEB is active
001 = Duty cycle is active (base PWM Generator signal)
000 = No termination qualifier used (qualifier forced to '1')

Note 1: Selects '0' if selected PWM Generator is not present.

REGISTER 11-21: PGxLEBL: PWM GENERATOR x LEADING-EDGE BLANKING REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LEB[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R-0	R-0	R-0
	LEB[7:0]^(1)
bit 7		bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-0 LEB[15:0]: Leading-Edge Blanking Period bits ^(1)

Leading-Edge Blanking period. The three LSBs of the blanking time are not used, providing a blanking resolution of eight clock periods. The minimum blanking period is eight clock periods, which occurs when LEB[15:3] = 0.

Note 1: Bits[2:0] are read-only and always remain as '0'.

REGISTER 11-22: PGxLEBH: PWM GENERATOR x LEADING-EDGE BLANKING REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0
— — —	— —		PWMPCI[2:0]	(1)
bit 15 bit 8

U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
— — —	— PHR PHF		PLR	PLF
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-11 Unimplemented: Read as '0'

bit 10-8 PWMPCI[2:0]: PWM Source for PCI Selection bits ^(1)

111-100 = Reserved

011 = PWM Generator #4 output is made available to PCI logic

010 = PWM Generator #3 output is made available to PCI logic

001 = PWM Generator #2 output is made available to PCI logic

000 = PWM Generator #1 output is made available to PCI logic

bit 7-4 Unimplemented: Read as '0'

bit 3 PHR: PWMxH Rising Edge Trigger Enable bit

1 = Rising edge of PWMxH will trigger the LEB duration counter

0 = LEB ignores the rising edge of PWMxH

bit 2 PHF: PWMxH Falling Edge Trigger Enable bit

1 = Falling edge of PWMxH will trigger the LEB duration counter

0 = LEB ignores the falling edge of PWMxH

bit 1 PLR: PWMxL Rising Edge Trigger Enable bit

1 = Rising edge of PWMxL will trigger the LEB duration counter

0 = LEB ignores the rising edge of PWMxL

bit 0 PLF: PWMxL Falling Edge Trigger Enable bit

1 = Falling edge of PWMxL will trigger the LEB duration counter

0 = LEB ignores the falling edge of PWMxL

Note 1: The selected PWM Generator source does not affect the LEB counter. This source can be optionally used as a PCI input, PCI qualifier, PCI terminator or PCI terminator qualifier (see the description in Register 11-19 and Register 11-20 for more information).

REGISTER 11-23: PGxPHASE: PWM GENERATOR x PHASE REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxPHASE[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxPHASE[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 PGxPHASE[15:0]: PWM Generator x Phase Register bits

REGISTER 11-24: PGxDC: PWM GENERATOR x DUTY CYCLE REGISTER

R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PGxDC[15:8](1)
bit 15	bit 8

R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PGxDC[7:0](1)
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 PGxDC[15:0]: PWM Generator x Duty Cycle Register bits ^(1)

Note 1: Duty cycle values less than '0x0008' should not be used.

REGISTER 11-25: PGxDCA: PWM GENERATOR x DUTY CYCLE ADJUSTMENT REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PGxDCA[7:0]
bit 7							bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 PGxDCA[7:0]: PWM Generator x Duty Cycle Adjustment Value bits

Depending on the state of the selected PCI source, the PGxDCA value will be added to the value in the PGxDC register to create the effective duty cycle. When the PCI source is active, PGxDCA is added.

REGISTER 11-26: PGxPER: PWM GENERATOR x PERIOD REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PGxPER[15:8](1)
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PGxPER[7:0](1)
bit 7							bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0 PGxPER[15:0]: PWM Generator x Period Register bits ^(1)

Note 1: Period values less than '0x0010' should not be used.

REGISTER 11-27: PGxTRIGA: PWM GENERATOR x TRIGGER A REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGA[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGA[7:0]

bit 7 bit 0

Legend:
R = Readable bit W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR ‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 PGxTRIGA[15:0]: PWM Generator x Trigger A Register bits

REGISTER 11-28: PGxTRIGB: PWM GENERATOR x TRIGGER B REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGB[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGB[7:0]

bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 PGxTRIGB[15:0]: PWM Generator x Trigger B Register bits

REGISTER 11-29: PGxTRIGC: PWM GENERATOR x TRIGGER C REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGC[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PGxTRIGC[7:0]

bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 PGxTRIGC[15:0]: PWM Generator x Trigger C Register bits

REGISTER 11-30: PGxDTL: PWM GENERATOR x DEAD-TIME REGISTER LOW

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0
— — —	— —		DTL[10:8]
bit 15					bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
DTL[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set		'0' = Bit is cleared x = Bit is unknown

bit 15-11 Unimplemented: Read as '0'

bit 10-0 DTL[10:0]: PWMxL Dead-Time Delay bits

REGISTER 11-31: PGxDTH: PWM GENERATOR x DEAD-TIME REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0
—	—	—	—	—	DTH[10:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
DTH[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set		'0' = Bit is cleared x = Bit is unknown

bit 15-11 Unimplemented: Read as '0'

bit 10-0 DTH[10:0]: PWMxH Dead-Time Delay bits

REGISTER 11-32: PGxCAP: PWM GENERATOR x CAPTURE REGISTER

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PGxCAP[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PGxCAP[7:0](1)

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-0 PGxCAP[15:0]: PGx Time Base Capture bits ^(1)

Note 1: PGxCAP[1:0] will read as '0' in Standard Resolution mode.

NOTES:

12.0 HIGH-SPEED, 12-BIT ANALOG-TO-DIGITAL CONVERTER (ADC)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “12-Bit High-Speed, Multiple SARs A/D Converter (ADC)” (www.microchip.com/DS70005213) in the “dsPIC33/PIC24 Family Reference Manual”.
2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The dsPIC33CK64MC105 devices have a high-speed, 12-bit Analog-to-Digital Converter (ADC) that features a low conversion latency, high resolution and oversampling capabilities to improve performance in AC/DC, DC/DC power converters. The devices implement the ADC with one shared SAR core.

The number of available channels and negative inputs is dependent on package size, as shown in Table 12-1.

TABLE 12-1: ADC EXTERNAL INPUT AVAILABILITY

Package Type	External Inputs	Negative Inputs
48-pin	AN0-AN15^(1)	ANN0
36-pin	AN0-AN15^(1)	—
28-pin	AN0-AN11^(1)	—

Note 1: AN1 and AN7 are connected to the same input device pin.

12.1 ADC Features Overview

The High-Speed, 12-Bit Multiple SARs Analog-to-Digital Converter (ADC) includes the following features:

• One Shared (common) Core
- User-Configurable Resolution of up to 12 Bits for Each Core
- Up to 3.5 Msps Conversion Rate per Channel at 12-Bit Resolution

- Low-Latency Conversion

- Up to 16 Analog Input Channels with a Separate 16-Bit Conversion Result Register for Each Input – AN1 and AN7 Share the Same Pin

- Conversion Result can be Formatted as Unsigned or Signed Data, on a per Channel Basis, for All Channels

• Channel Scan Capability

- Multiple Conversion Trigger Options for each Core, including:

• PWM triggers from CPU cores
• SCCP modules triggers
• CLC modules triggers
• External pin trigger event (ADTRG31)
• Software trigger

- Four Integrated Digital Comparators with Dedicated Interrupts:

- Multiple comparison options

- Assignable to specific analog inputs

- Four Oversampling Filters with Dedicated Interrupts:

- Provide increased resolution

- Assignable to a specific analog input

The module consists of one shared SAR ADC core. Simplified block diagrams of the Multiple SARs 12-Bit ADC are shown in Figure 12-1 and Figure 12-2.

The analog inputs (channels) are connected through multiplexers and switches to the Sample-and-Hold (S&H) circuit of each ADC core. The core uses the channel information (the output format, the Measurement mode and the input number) to process the analog sample. When conversion is complete, the result is stored in the result buffer for the specific analog input, and passed to the digital filter and digital comparator if they were configured to use data from this particular channel.

If multiple ADC inputs request conversion on the shared core, the module will convert them in a sequential manner, starting with the lowest order input.

The ADC provides each analog input the ability to specify its own trigger source. This capability allows the ADC to sample and convert analog inputs that are associated with PWM Generators operating on independent time bases.

FIGURE 12-1: ADC MODULE BLOCK DIAGRAM

Note 1: Pin ANNO is only available in the 48-pin package.
2: Band Gap Reference (VBG) is an internal analog input and is not available on device pins.

FIGURE 12-2: ADC SHARED CORE BLOCK DIAGRAM

Note 1: Pin ANNO is only available in the 48-pin package.

12.2 Temperature Sensor

The ADC channel, AN16, is connected to a forward-biased diode. It can be used to measure a die temperature. This diode provides an output with a temperature coefficient of approximately -1.5 mV/C that can be monitored by the ADC. To get the exact gain and offset numbers, the two temperature points calibration is recommended.

12.3 Analog-to-Digital Converter Resources

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

12.4 Differential-Mode

ANNx negative external inputs are used for Differential-mode, as shown in Figure 12-2. To enable Differential-mode, the DIFF bit (in the ADMODxL or ADMODxH register) is set for the corresponding channel.

12.4.1 KEY RESOURCES

- "12-Bit High-Speed, Multiple SARs A/D Converter (ADC)" (www.microchip.com/DS70005213) in the "dsPIC33/PIC24 Family Reference Manual"

• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All Related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

12.5 ADC Control/Status Registers

REGISTER 12-1: ADCON1L: ADC CONTROL REGISTER 1 LOW

R/W-0 U-0 R/W-0 U-0 r-0 U-0 U-0 U-0
ADON^(1)	—	A	D	S	I	D	L	——
bit 15 bit 8

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 7 bit 0

Legend:	r = Reserved bit
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 ADON: ADC Enable bit ^(1)

1 = ADC module is enabled

0 = ADC module is off

bit 14 Unimplemented: Read as '0'

bit 13 ADSIDL: ADC Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12 Unimplemented: Read as '0'

bit 11 Reserved: Maintain as '0'

bit 10-0 Unimplemented: Read as '0'

Note 1: Set the ADON bit only after the ADC module has been configured. Changing ADC Configuration bits when ADON = 1 will result in unpredictable behavior.

REGISTER 12-2: ADCON1H: ADC CONTROL REGISTER 1 HIGH

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7 FORM: Fractional Data Output Format bit

1 = Fractional

0 = Integer

bit 6-5 SHRRES[1:0]: Shared ADC Core Resolution Selection bits

11 = 12-bit resolution

10 = 10-bit resolution

01 = 8-bit resolution

00 = 6-bit resolution

bit 4-0 Unimplemented: Read as '0'

REGISTER 12-3: ADCON2L: ADC CONTROL REGISTER 2 LOW

R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
REFCIE REFERCIE	—	E	I	(3)	SHREISEIN(1)	SHREIBEL1(1)	SHREISELO(1)G
bit 15							bit 8

U-0	R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	SHRADCS[6:0](2)
bit 7

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	REFCIE: Band Gap and Reference Voltage Ready Common Interrupt Enable bit1 = Common interrupt will be generated when the band gap will become ready0 = Common interrupt is disabled for the band gap ready event
bit 14	REFERCIE: Band Gap or Reference Voltage Error Common Interrupt Enable bit1 = Common interrupt will be generated when a band gap or reference voltage error is detected0 = Common interrupt is disabled for the band gap and reference voltage error event

bit 13	Unimplemented: Read as ‘0’
bit 12	EIEN: Early Interrupts Enable bit1 = The early interrupt feature is enabled for the input channel interrupts (when the EISTATx flag is set)0 = The individual interrupts are generated when conversion is done (when the ANxRDY flag is set)

bit 11	PTGEN: PTG Conversion Request Interface bit(3)
	1 = PTG triggers are enabled
	0 = PTG triggers are disabled

bit 10-8	SHREISEL[2:0]: Shared Core Early Interrupt Time Selection bits ^(1)
	111 = Early interrupt is set and interrupt is generated eight TADCORE clocks prior to when the data are ready
	110 = Early interrupt is set and interrupt is generated seven TADCORE clocks prior to when the data are ready
	101 = Early interrupt is set and interrupt is generated six TADCORE clocks prior to when the data are ready
	100 = Early interrupt is set and interrupt is generated five TADCORE clocks prior to when the data are ready
	011 = Early interrupt is set and interrupt is generated four TADCORE clocks prior to when the data are ready
	010 = Early interrupt is set and interrupt is generated three TADCORE clocks prior to when the data are ready
	001 = Early interrupt is set and interrupt is generated two TADCORE clocks prior to when the data are ready
	000 = Early interrupt is set and interrupt is generated one TADCORE clock prior to when the data are ready

bit 7	Unimplemented: Read as '0'
bit 6-0	SHRADCS[6:0]: Shared ADC Core Input Clock Divider bits ^(2) These bits determine the number of TCORESRC (Source Clock Periods) for one shared TADCORE (Core Clock Period).1111111 = 254 Source Clock Periods...0000011 = 6 Source Clock Periods0000010 = 4 Source Clock Periods0000001 = 2 Source Clock Periods0000000 = 2 Source Clock Periods

Note 1:	For the 6-bit shared ADC core resolution (SHRES[1:0] = 00), the SHREISEL[2:0] settings, from ‘100’ to ‘111’, are not valid and should not be used. For the 8-bit shared ADC core resolution (SHRES[1:0] = 01), the SHREISEL[2:0] settings, ‘110’ and ‘111’, are not valid and should not be used.
2:	The ADC clock frequency, selected by the SHRADCS[6:0] bits, must not exceed 70 MHz.
3:	Other ADC trigger sources cannot be used if PTG triggers are enabled.

REGISTER 12-4: ADCON2H: ADC CONTROL REGISTER 2 HIGH

HSC/R-0 HSC/R-0 U-0 r-0 r-0 R/W-0 R/W-0
REFRDY REFERR		— — —	— SHRSAMC9	SHRSAMC8
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SHRSAMC7	SHRSAMC6	SHRSAMC5 S	SHRSAMC4 SH	SHRSAMC3 SHR	SAMC2 SHRS	AMC1 SHRSA	MC0
bit 7 bit 0

Legend:	r = Reserved bit	U = Unimplemented bit, read as ‘0’
R = Readable bit W = Writable bit		HSC = Hardware Settable/Clearable bit
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 REFRDY: Band Gap and Reference Voltage Ready Flag bit

1 = Band gap is ready

0 = Band gap is not ready

bit 14 REFERR: Band Gap or Reference Voltage Error Flag bit

1 = Band gap was removed after the ADC module was enabled (ADON = 1)

0 = No band gap error was detected

bit 13 Unimplemented: Read as '0'

bit 12-10 Reserved: Maintain as '0'

bit 9-0 SHRSAMC[9:0]: Shared ADC Core Sample Time Selection bits

These bits specify the number of shared ADC Core Clock Periods (TADCORE) for the shared ADC core sample time.

1111111111 = 1025 TADCORE

...

0000000001 = 3 TADCORE

0000000000 = 2 TADCORE

REGISTER 12-5: ADCON3L: ADC CONTROL REGISTER 3 LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0					HSC/R-0	R/W-0	HSC/R-0
REFSEL2	REFSEL1	REFS	EL0 SUSPEND	SUSPCIE SU	USPRDY SHR	$AMP CNVRTCH
bit 15 bit 8

R/W-0	HSC/R-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SWLCTRG	SWCTRG	CNVCHSEL5		CNVCHSEL4	CNVCHSEL3	CNVCHSEL2	CNVCHSEL1	CNVCHSEL0
bit 7 bit 0

Legend:	U = Unimplemented bit, read as '0'
R = Readable bit	W = Writable bit	HSC = Hardware Settable/Clearable bit
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-13 REFSEL[2:0]: ADC Reference Voltage Selection bits

Value	VREFH	VREFL
000	AVDD	AVss

001-111 = Unimplemented: Do not use

bit 12 SUSPEND: All ADC Core Triggers Disable bit

1 = All new trigger events for all ADC cores are disabled

0 = All ADC cores can be triggered

bit 11 SUSPCIE: Suspend All ADC Cores Common Interrupt Enable bit

1 = Common interrupt will be generated when ADC core triggers are suspended (SUSPEND bit = 1) and all previous conversions are finished (SUSPRDY bit becomes set)

0 = Common interrupt is not generated for suspend ADC cores event

bit 10 SUSPRDY: All ADC Cores Suspended Flag bit

1 = All ADC cores are suspended (SUSPEND bit = 1) and have no conversions in progress

0 = ADC cores have previous conversions in progress

bit 9 SHRSAMP: Shared ADC Core Sampling Direct Control bit

This bit should be used with the individual channel conversion trigger controlled by the CNVRTCH bit. It connects an analog input, specified by the CNVCHSEL[5:0] bits, to the shared ADC core and allows extending the sampling time. This bit is not controlled by hardware and must be cleared before the conversion starts (setting CNVRTCH to '1').

1 = Shared ADC core samples an analog input specified by the CNVCHSEL[5:0] bits

0 = Sampling is controlled by the shared ADC core hardware

bit 8 CNVRTCH: Software Individual Channel Conversion Trigger bit

1 = Single trigger is generated for an analog input specified by the CNVCHSEL[5:0] bits; when the bit is set, it is automatically cleared by hardware on the next instruction cycle

0 = Next individual channel conversion trigger can be generated

bit 7 SWLCTRG: Software Level-Sensitive Common Trigger bit

1 = Triggers are continuously generated for all channels with the software, level-sensitive common trigger selected as a source in the ADTRIGnL and ADTRIGnH registers

0 = No software, level-sensitive common triggers are generated

bit 6 SWCTRG: Software Common Trigger bit

1 = Single trigger is generated for all channels with the software; common trigger selected as a source in the ADTRIGnL and ADTRIGnH registers; when the bit is set, it is automatically cleared by hardware on the next instruction cycle

0 = Ready to generate the next software common trigger

bit 5-0 CNVCHSEL [5:0]: Channel Number Selection for Software Individual Channel Conversion Trigger bits

These bits define a channel to be converted when the CNVRTCH bit is set.

REGISTER 12-6: ADCON3H: ADC CONTROL REGISTER 3 HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CLKSEL1(1)	CLKSEL0(1)	CLKDIV5(2)	CLKDIV4(2)	CLKDIV3(2)	CLKDIV2(2)	CLKDIV1(2)	CLKDIV0(2)
bit 15 bit 8

R/W-0 U-0 U-0 U-0 U-0 U-0 U-0
SHREN	———	———
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-14 CLKSEL[1:0]: ADC Module Clock Source Selection bits ^(1)

11 = Fvco/4

10 = Fvco/3

01 = Fosc

00 = FP (Peripheral Clock)

bit 13-8 CLKDIV[5:0]: ADC Module Clock Source Divider bits ^(2)

The divider forms a TCORESRC clock used by the ADC core from the TSRC ADC module clock source selected by the CLKSEL[1:0] bits. Then, each ADC core individually divides the TCORESRC clock to get a core-specific TADCORE clock using the ADCS[6:0] bits in the ADCORExH register or the SHRADCS[6:0] bits in the ADCON2L register.

111111 = 64 Source Clock Periods

...

000011 = 4 Source Clock Periods

000010 = 3 Source Clock Periods

000001 = 2 Source Clock Periods

000000 = 1 Source Clock Period

bit 7 SHREN: Shared ADC Core Enable bit

1 = Shared ADC core is enabled

0 = Shared ADC core is disabled

bit 6-0 Unimplemented: Read as '0'

Note 1: The ADC input clock frequency, selected by the CLKSEL[1:0] bits, must not exceed Parameters AD9, AD10 and AD11 listed in Table 31-30.

2: The ADC clock frequency, after the first divider selected by the CLKDIV[5:0] bits, must not exceed Parameters AD9, AD10 and AD11 listed in Table 31-30.

REGISTER 12-7: ADCON5L: ADC CONTROL REGISTER 5 LOW

HSC/R-0 U-0 U-0 U-0 U-0 U-0
SHRRDY —	— — — — —	—
bit 15 bit 8

R/W-0 U-0 U-0 U-0 U-0 U-0 U-0
SHRPWR	——	—— —
bit 7 bit 0

Legend: U = Unimplemented bit, read as '0'
R = Readable bit W = Writable bit		HSC = Hardware Settable/Clearable bit
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	SHRRDY: Shared ADC Core Ready Flag bit1 = ADC core is powered and ready for operation0 = ADC core is not ready for operation
bit 14-8	Unimplemented: Read as '0'
bit 7	SHRPWR: Shared ADC Core Power Enable bit1 = ADC core is powered0 = ADC core is off
bit 6-0	Unimplemented: Read as '0'

REGISTER 12-8: ADCON5H: ADC CONTROL REGISTER 5 HIGH

U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	— WARMTIME[3:0]
bit 15 bit 8

R/W-0 U-0 U-0 U-0 U-0		U-0	U-0	U-0
SHRCIE	—	—	—	—	—	—	—
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-12 Unimplemented: Read as '0'

bit 11-8 WARMTIME[3:0]: ADC Core x Power-up Delay bits

These bits determine the power-up delay in the number of the Core Source Clock Periods (CORESRC) for all ADC cores.

1111 = 32768 Source Clock Periods
1110 = 16384 Source Clock Periods
1101 = 8192 Source Clock Periods
1100 = 4096 Source Clock Periods
1011 = 2048 Source Clock Periods
1010 = 1024 Source Clock Periods
1001 = 512 Source Clock Periods
1000 = 256 Source Clock Periods
0111 = 128 Source Clock Periods
0110 = 64 Source Clock Periods
0101 = 32 Source Clock Periods
0100 = 16 Source Clock Periods
00xx = 16 Source Clock Periods

bit 7 SHRCIE: Shared ADC Core Ready Common Interrupt Enable bit

1 = Common interrupt will be generated when ADC core is powered and ready for operation
0 = Common interrupt is disabled for an ADC core ready event

bit 6-0 Unimplemented: Read as '0'

REGISTER 12-9: ADLVLTRGL: ADC LEVEL-SENSITIVE TRIGGER CONTROL REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LVLEN[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

LVLEN[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 LVLEN[15:0]: Level Trigger for Corresponding Analog Input Enable bits

1 = Input trigger is level-sensitive
0 = Input trigger is edge-sensitive

REGISTER 12-10: ADLVLTRGH: ADC LEVEL-SENSITIVE TRIGGER CONTROL REGISTER HIGH

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 LVLEN[17:16]: Level Trigger for Corresponding Analog Input Enable bits

1 = Input trigger is level-sensitive
0 = Input trigger is edge-sensitive

REGISTER 12-11: ADEIEL: ADC EARLY INTERRUPT ENABLE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

EIEN[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

EIEN[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 EIEN[15:0]: Early Interrupt Enable for Corresponding Analog Inputs bits

1 = Early interrupt is enabled for the channel
0 = Early interrupt is disabled for the channel

REGISTER 12-12: ADEIEH: ADC EARLY INTERRUPT ENABLE REGISTER HIGH

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 EIEN[17:16]: Early Interrupt Enable for Corresponding Analog Inputs bits

1 = Early interrupt is enabled for the channel
0 = Early interrupt is disabled for the channel

REGISTER 12-13: ADEISTATL: ADC EARLY INTERRUPT STATUS REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

EISTAT[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

EISTAT[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 EISTAT[15:0]: Early Interrupt Status for Corresponding Analog Inputs bits

1 = Early interrupt was generated
0 = Early interrupt was not generated since the last ADCBUFx read

REGISTER 12-14: ADEISTATH: ADC EARLY INTERRUPT STATUS REGISTER HIGH

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 EISTAT[17:16]: Early Interrupt Status for Corresponding Analog Inputs bits

1 = Early interrupt was generated
0 = Early interrupt was not generated since the last ADCBUFx read

REGISTER 12-15: ADMOD0L: ADC INPUT MODE CONTROL REGISTER 0 LOW (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DIFF7 SIGN	N7	DIFF6 SIGN	N6	DIFF5 SIGN	N5	DIFF4 SIGN	4
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DIFF3 SIGN	N3	DIFF2 SIGN	N2	DIFF1 SIGN	1	DIFF0 SIGN	0
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 through DIFF[7:0]: Differential-Mode for Corresponding Analog Inputs bits

bit 1 (odd)

1 = Channel is differential

0 = Channel is single-ended

bit 14 through SIGN[7:0]: Output Data Sign for Corresponding Analog Inputs bits

bit 0 (even)

1 = Channel output data are signed

0 = Channel output data are unsigned

Note 1: The DIFF bits are available only on devices in the 48-pin package; they are used to enable the differential input feature which is linked to the presence of the pin named ANN0. This pin is only available in 48-pin packages.

REGISTER 12-16: ADMOD0H: ADC INPUT MODE CONTROL REGISTER 0 HIGH (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DIFF15	SIGN15	DIFF14	SIGN14	DIFF13	SIGN13	DIFF12	SIGN12
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DIFF11	SIGN11	DIFF10	SIGN10	DIFF9	SIGN9	DIFF8	SIGN8
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 through DIFF[15:8]: Differential-Mode for Corresponding Analog Inputs bits

bit 1 (odd)

1 = Channel is differential

0 = Channel is single-ended

bit 14 through SIGN[15:8]: Output Data Sign for Corresponding Analog Inputs bits

bit 0 (even)

1 = Channel output data are signed

0 = Channel output data are unsigned

Note 1: The DIFF bits are available only on devices in the 48-pin package; they are used to enable the differential input feature which is linked to the presence of the pin named ANN0. This pin is only available in 48-pin packages.

REGISTER 12-17: ADMOD1L: ADC INPUT MODE CONTROL REGISTER 1 LOW

U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	———
bit 15 bit 8

U-0 U-0 U-0 U-0 R/W-0		R/W-0	R/W-0	R/W-0
—	—	—	—	DIFF17	SIGN17	DIFF16	SIGN16
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set		'0' = Bit is cleared x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 through DIFF[17:16]: Differential-Mode for Corresponding Analog Inputs bits

bit 1 (odd) 1 = Channel is differential

0 = Channel is single-ended

bit 2 through SIGN[17:16]: Output Data Sign for Corresponding Analog Inputs bits

bit 0 (even) 1 = Channel output data are signed

0 = Channel output data are unsigned

REGISTER 12-18: ADIEL: ADC INTERRUPT ENABLE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

IE[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

IE[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 IE[15:0]: Common Interrupt Enable bits

1 = Common and individual interrupts are enabled for the corresponding channel
0 = Common and individual interrupts are disabled for the corresponding channel

REGISTER 12-19: ADIEH: ADC INTERRUPT ENABLE REGISTER HIGH

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 IE[17:16]: Common Interrupt Enable bits

1 = Common and individual interrupts are enabled for the corresponding channel
0 = Common and individual interrupts are disabled for the corresponding channel

REGISTER 12-20: ADSTATL: ADC DATA READY STATUS REGISTER LOW

HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0

AN[15:8]RDY

bit 15 bit 8

HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0

AN[7:0]RDY

bit 7 bit 0

Legend: U = Unimplemented bit, read as '0'

R = Readable bit W = Writable bit HSC = Hardware Settable/Clearable bit

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 AN[15:0]RDY: Data Ready Status for Corresponding Analog Inputs bits

1 = Channel conversion result is ready in the corresponding ADCBUFx register
0 = Channel conversion result is not ready

REGISTER 12-21: ADSTATH: ADC DATA READY STATUS REGISTER HIGH

U-0	U-0	U-0	U-0	U-0	U-0	HSC/R-0 HSC/R-0
— —	— —	— —	AN[17:16]	RDY
bit 7 bit 0

Legend: U = Unimplemented bit, read as '0'

R = Readable bit W = Writable bit HSC = Hardware Settable/Clearable bit

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 AN[17:16]RDY: Data Ready Status for Corresponding Analog Inputs bits

1 = Channel conversion result is ready in the corresponding ADCBUFx register
0 = Channel conversion result is not ready

REGISTER 12-22: ADTRIGnL/ADTRIGnH: ADC CHANNEL TRIGGER n(x) SELECTION REGISTERS LOW AND HIGH (x = 0 TO 17; n = 0 TO 4)

U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	TRGSRC(x+1)4 TRGS	RC(x+1)3 TRGS	RC(x+1)2 TRGS	RC(x+1)1 TRGS	RC(x+1)0
bit 15 bit 8

U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	—	TRGSRCx4	TRGSRCx3	TRGSRCx2	TRGSRCx1	TRGSRCx0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-13 Unimplemented: Read as '0'

bit 12-8 TRGSRC(x+1)[4:0]: Trigger Source Selection for Corresponding Analog Inputs bits

(TRGSRC1 to TRGSRC19 - Odd)

11111 = ADTRG31 (PPS input)

11110 = PTG12

11101 = CLC2

11100 = CLC1

11011 = Reserved

11010 = Reserved

11001 = Reserved

11000 = Reserved

10111 = SCCP4 input capture/output compare

10110 = SCCP3 input capture/output compare

10101 = SCCP2 input capture/output compare

10100 = SCCP1 input capture/output compare

10011 = Reserved

10010 = CLC4 output

10001 = CLC3 output

10000 = Reserved

01111 = SCCP4 trigger

01110 = SCCP3 trigger

01101 = SCCP2 trigger

01100 = SCCP1 trigger

01011 = PWM4 Trigger 2

01010 = PWM4 Trigger 1

01001 = PWM3 Trigger 2

01000 = PWM3 Trigger 1

00111 = PWM2 Trigger 2

00110 = PWM2 Trigger 1

00101 = PWM1 Trigger 2

00100 = PWM1 Trigger 1

00011 = Reserved

00010 = Level software trigger

00001 = Common software trigger

00000 = No trigger is enabled

bit 7-5 Unimplemented: Read as '0'

REGISTER 12-22: ADTRIGnL/ADTRIGnH: ADC CHANNEL TRIGGER n(x) SELECTION REGISTERS LOW AND HIGH (x = 0 TO 17; n = 0 TO 4) (CONTINUED)

bit 4-0 TRGSRCx[4:0]: Common Interrupt Enable for Corresponding Analog Inputs bits (TRGSRC0 to TRGSRC20 – Even)
11111 = ADTRG31 (PPS input)
11110 = PTG12
11101 = CLC2
11100 = CLC1
11011 = Reserved
11010 = Reserved
11001 = Reserved
11000 = Reserved
10111 = SCCP4 CCP interrupt
10110 = SCCP3 CCP interrupt
10101 = SCCP2 CCP interrupt
10100 = SCCP1 CCP interrupt
10011 = Reserved
10010 = CLC4 output
10001 = CLC3 output
10000 = Reserved
01111 = SCCP4 trigger
01110 = SCCP3 trigger
01101 = SCCP2 trigger
01100 = SCCP1 trigger
01011 = PWM4 Trigger 2
01010 = PWM4 Trigger 1
01001 = PWM3 Trigger 2
01000 = PWM3 Trigger 1
00111 = PWM2 Trigger 2
00110 = PWM2 Trigger 1
00101 = PWM1 Trigger 2
00100 = PWM1 Trigger 1
00011 = Reserved
00010 = Level software trigger
00001 = Common software trigger
00000 = No trigger is enabled

REGISTER 12-23: ADCMPxCON: ADC DIGITAL COMPARATOR x CONTROL REGISTER (x = 0, 1, 2, 3)

U-0 U-0 U-0		HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0
— — —	CHNL[4:0]
bit 15			bit 8

R/W-0	R/W-0	HC/HS/R-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
CMPEN	IE	STAT	BTWN	HIHI	HILO	LOHI	LOLO
bit 7 bit 0

Legend:	HC = Hardware Clearable bit	U = Unimplemented bit, read as '0'
R = Readable bit	W = Writable bit	HSC = Hardware Settable/Clearable bit
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared HS = Hardware Settable bit

bit 15-13 Unimplemented: Read as '0'

bit 12-8 CHNL[4:0]: Input Channel Number bits

If the comparator has detected an event for a channel, this channel number is written to these bits. 11111 = Reserved

10010 = Reserved

10001 = Band gap, 1.2V (AN17)

10000 = Temperature sensor (AN16)

01111 = AN15

00011 = AN3 00010 = AN2 00001 = AN1 00000 = AN0

bit 7 CMPEN: Comparator Enable bit

1 = Comparator is enabled

0 = Comparator is disabled and the STAT status bit is cleared

bit 6 IE: Comparator Common ADC Interrupt Enable bit

1 = Common ADC interrupt will be generated if the comparator detects a comparison event

0 = Common ADC interrupt will not be generated for the comparator

bit 5 STAT: Comparator Event Status bit

This bit is cleared by hardware when the channel number is read from the CHNL[4:0] bits.

1 = A comparison event has been detected since the last read of the CHNL[4:0] bits

0 = A comparison event has not been detected since the last read of the CHNL[4:0] bits

bit 4 BTWN: Between Low/High Comparator Event bit

1 = Generates a comparator event when ADCMPxLO ≤ ADCBUFx < ADCMPxHI

0 = Does not generate a digital comparator event when ADCMPxLO ≤ ADCBUFx < ADCMPxHI

bit 3 HIHI: High/High Comparator Event bit

1 = Generates a digital comparator event when ADCBUFx ≥ ADCMPxHI

0 = Does not generate a digital comparator event when ADCBUFx ≥ ADCMPxHI

bit 2 HILO: High/Low Comparator Event bit

1 = Generates a digital comparator event when ADCBUFx < ADCMPxHI

0 = Does not generate a digital comparator event when ADCBUFx < ADCMPxHI

bit 1 LOHI: Low/High Comparator Event bit

1 = Generates a digital comparator event when ADCBUFx ≥ ADCMPxLO

0 = Does not generate a digital comparator event when ADCBUFx ≥ ADCMPxLO

bit 0 LOLO: Low/Low Comparator Event bit

1 = Generates a digital comparator event when ADCBUFx < ADCMPxLO

0 = Does not generate a digital comparator event when ADCBUFx < ADCMPxLO

REGISTER 12-24: ADCMPxENL: ADC DIGITAL COMPARATOR x CHANNEL ENABLE REGISTER LOW (x = 0 or 3)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CMPEN[15:8]

bit 15 bit 8

R/W/0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

CMPEN[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 CMPEN[15:0]: Comparator Enable for Corresponding Input Channels bits
1 = Conversion result for corresponding channel is used by the comparator
0 = Conversion result for corresponding channel is not used by the comparator

REGISTER 12-25: ADCMPxENH: ADC DIGITAL COMPARATOR x CHANNEL ENABLE REGISTER HIGH (x = 0 or 3)

U-0	U-0	U-0	U-0	U-0	U-0	U-0	R/W-0
——	————
bit 15 bit 8

U-0	U-0	U-0	U-0	U-0	U-0	R/W-0	R/W-0
———	——— CMPEN[17:16]
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-2 Unimplemented: Read as '0'

bit 1-0 CMPEN[17:16]: Comparator Enable for Corresponding Input Channels bits
1 = Conversion result for corresponding channel is used by the comparator
0 = Conversion result for corresponding channel is not used by the comparator

REGISTER 12-26: ADFLxCON: ADC DIGITAL FILTER x CONTROL REGISTER (x = 0 or 3)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0								HSC/R-0
FLEN MODE1 MODE0 OVRSAM2 OVR SAM1 OVRSAM0 IE RDY
bit 15 bit 8

U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
—	—	—			FLCHSEL[4:0]
bit 7							bit 0

Legend:	U = Unimplemented bit, read as ‘0’
R = Readable bit	W = Writable bit	HSC = Hardware Settable/Clearable bit
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 FLEN: Filter Enable bit

1 = Filter is enabled

0 = Filter is disabled and the RDY bit is cleared

bit 14-13 MODE[1:0]: Filter Mode bits

11 = Averaging mode

10 = Reserved

01 = Reserved

00 = Oversampling mode

bit 12-10 OVRSAM[2:0]: Filter Averaging/Oversampling Ratio bits

If MODE[1:0] = 00:

111 = 128x (16-bit result in the ADFLxDAT register is in 12.4 format)

110 = 32x (15-bit result in the ADFLxDAT register is in 12.3 format)

101 = 8x (14-bit result in the ADFLxDAT register is in 12.2 format)

100 = 2x (13-bit result in the ADFLxDAT register is in 12.1 format)

011 = 256x (16-bit result in the ADFLxDAT register is in 12.4 format)

010 = 64x (15-bit result in the ADFLxDAT register is in 12.3 format)

001 = 16x (14-bit result in the ADFLxDAT register is in 12.2 format)

000 = 4x (13-bit result in the ADFLxDAT register is in 12.1 format)

If MODE[1:0] = 11 (12-bit result in the ADFLxDAT register in all instances):

111 = 256x

110 = 128x

101 = 64x

100 = 32x

011 = 16x

110 = 8

001 = 4x

000 = 2x

bit 9 IE: Filter Interrupts Enable bit

1 = Individual and common interrupts will be generated when the filter result is ready

0 = Individual and common interrupts will not be generated for the filter

bit 8 RDY: Oversampling Filter Data Ready Flag bit

This bit is cleared by hardware when the result is read from the ADFLxDAT register.

1 = Data in the ADFLxDAT register are ready

0 = The ADFLxDAT register has been read and new data in the ADFLxDAT register are not ready

bit 7-5 Unimplemented: Read as '0'

REGISTER 12-26: ADFLxCON: ADC DIGITAL FILTER x CONTROL REGISTER (x = 0 or 3) (CONTINUED)

bit 4-0 FLCHSEL[4:0]: Oversampling Filter Input Channel Selection bits

11111 = Reserved

...

10010 = Reserved

10001 = Band gap, 1.2V (AN17)

10000 = Temperature sensor (AN16)

01111 = AN15

...

00011 = AN3

00010 = AN2

00001 = AN1

00000 = ANO

NOTES:

13.0 HIGH-SPEED ANALOG COMPARATOR WITH SLOPE COMPENSATION DAC

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “High-Speed Analog Comparator Module” (www.microchip.com/DS70005280) in the “dsPIC33/PIC24 Family Reference Manual”.

The high-speed analog comparator module provides a method to monitor voltage, current and other critical signals in a power conversion application that may be too fast for the CPU and ADC to capture. There are a total of three comparator modules. The analog comparator module can be used to implement Peak Current mode control, Critical Conduction mode (variable frequency) and Hysteretic Control mode.

13.1 Overview

The high-speed analog comparator module is comprised of a high-speed comparator, Pulse Density Modulation (PDM) DAC and a slope compensation unit. The slope compensation unit provides a user-defined slope which can be used to alter the DAC output. This feature is useful in applications, such as Peak Current mode control, where slope compensation is required to maintain the stability of the power supply. The user simply specifies the direction and rate of change for the slope compensation and the output of the DAC is modified accordingly.

The DAC consists of a PDM unit, followed by a digitally controlled multiphase RC filter. The PDM unit uses a phase accumulator circuit to generate an output stream of pulses. The density of the pulse stream is proportional to the input data value, relative to the maximum value supported by the bit width of the accumulator. The output pulse density is representative of the desired output voltage. The pulse stream is filtered with an RC filter to yield an analog voltage. The output of the DAC is connected to the negative input of the comparator. The positive input of the comparator can be selected using a MUX from either of the input pins. The comparator provides a high-speed operation with a typical delay of 15 ns.

The output of the comparator is processed by the pulse stretcher and the digital filter blocks, which prevent comparator response to unintended fast transients in the inputs. Figure 13-1 shows a block diagram of the high-speed analog comparator module. The DAC module can be operated in one of three modes: Slope Generation mode, Hysteretic mode and Triangle Wave mode. Each of these modes can be used in a variety of power supply applications.

Note: The DACOUT pin can only be associated with a single DAC output at any given time. If more than one DACOEN bit is set, the DACOUT pin will be a combination of the signals.

FIGURE 13-1: HIGH-SPEED ANALOG COMPARATOR MODULE BLOCK DIAGRAM

Note: n = 16

13.2 Features Overview

• Three Rail-to-Rail Analog Comparators
- Up to Four Selectable Input Sources per Comparator
- Programmable Comparator Hysteresis
• Programmable Output Polarity
- Interrupt Generation Capability
• Dedicated Pulse Density Modulation DAC for Each Analog Comparator:
- PDM unit followed by a digitally controlled multimode multipole RC filter
- Multimode Multipole RC Output Filter:
- Transition mode: Provides the fastest response
- Fast mode: For tracking DAC slopes
- Steady-State mode: Provides 12-bit resolution
- Slope Compensation along with Each DAC:
- Slope Generation mode
- Hysteretic Control mode
- Triangle Wave mode
- Functional Support for the High-Speed PWM module which Includes:
- PWM duty cycle control
- PWM period control
- PWM Fault detect

13.3 Control Registers

The DACCTRL1L and DACCTRL2H/L registers are common configuration registers for DAC modules.

The DACxCON, DACxDAT, SLPxCON and SLPxDAT registers specify the operation of individual modules.

REGISTER 13-1: DACCTRL1L: DAC CONTROL 1 LOW REGISTER

R/W-0	U-0	R/W-0	U-0	U-0	U-0	U-0	U-0
DACON —	DACSIDL —	—— —
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
CLKSEL1(1,3)	CLKSEL0(1,3)	CLKDIV1(1,3)	CLKDIV0(1,3)	—	FCLKDIV2(2)	FCLKDIV1(2)	FCLKDIV0(2)
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15 DACON: Common DAC Module Enable bit

1 = Enables DAC modules
0 = Disables DAC modules and disables FSCM clocks to reduce power consumption; any pending Slope mode and/or underflow conditions are cleared

bit 14 Unimplemented: Read as '0'

bit 13 DACSIDL: DAC Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode
0 = Continues module operation in Idle mode

bit 12-8 Unimplemented: Read as '0'

bit 7-6 CLKSEL[1:0]: DAC Clock Source Select bits ^(1,3)

11 = FPLLO
10 = Fvco/3
01 = Fvco/2
00 = Fvcodiv

bit 5-4 CLKDIV[1:0]: DAC Clock Divider bits ^(1,3)

11 = Divide-by-4
10 = Divide-by-3 (non-uniform duty cycle)
01 = Divide-by-2
00 = 1x

bit 3 Unimplemented: Read as '0'

bit 2-0 FCLKDIV[2:0]: Comparator Filter Clock Divider bits ^(2)

111 = Divide-by-8
110 = Divide-by-7
101 = Divide-by-6
100 = Divide-by-5
011 = Divide-by-4
010 = Divide-by-3
001 = Divide-by-2
000 = 1x

Note 1: These bits should only be changed when DACON = 0 to avoid unpredictable behavior.

2: The input clock to this divider is the selected clock input, CLKSEL[1:0], and then divided by 2.
3: Clock source and dividers should yield an effective DAC clock input as specified in Table 31-32 and Table 32-12.

REGISTER 13-2: DACCTRL2H: DAC CONTROL 2 HIGH REGISTER

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
— — —	— — — SSTIME[9:8]				(1)
bit 15 bit 8

R/W-1	R/W-0	R/W-0	R/W-0	R/W-1	R/W-0	R/W-1	R/W-0
SSTIME[7:0](1)
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15-10 Unimplemented: Read as '0'

bit 9-0 SSTIME[9:0]: Time from Start of Transition Mode until Steady-State Filter is Enabled bits ^(1)

Note 1: The value for SSTIME[9:0] should be greater than the TMODTIME[9:0] value.

REGISTER 13-3: DACCTRL2L: DAC CONTROL 2 LOW REGISTER

U-0	U-0	U-0	U-0	U-0	U-0	R/W-0	R/W-0
—	—	—	—	—	—	—	TMODTIME[9:8](1)
bit 15 bit 8

R/W-0	R/W-1	R/W-0	R/W-1	R/W-0	R/W-1	R/W-0	R/W-1
TMODTIME[7:0](1)
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15-10 Unimplemented: Read as '0'

bit 9-0 TMODTIME[9:0]: Transition Mode Duration bits ^(1)

Note 1: The value for TMODTIME[9:0] should be less than the SSTIME[9:0] value.

REGISTER 13-4: DACxCONH: DACx CONTROL HIGH REGISTER

U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
—	—	—	—	—	—	TMCB[9:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
TMCB[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15-10 Unimplemented: Read as '0'

bit 9-0 TMCB[9:0]: DACx Leading-Edge Blanking bits

These register bits specify the blanking period for the comparator, following changes to the DAC output during Change-of-State (COS), for the input signal selected by the HCFSEL[3:0] bits in Register 13-9.

REGISTER 13-5: DACxCONL: DACx CONTROL LOW REGISTER

R/W-0	R/W-0	R/W-0	U-0	U-0	R/W-0	R/W-0	R/W-0
DACEN	IRQM1^(1,2)	IRQM0^(1,2)	—	—	CBE	DACOEN	FLTREN
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
CMPSTAT	CMPPOL	INSEL2	INSEL1	INSEL0	HYSPOL	HYSSEL1	HYSSEL0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15 DACEN: Individual DACx Module Enable bit

1 = Enables DACx module
0 = Disables DACx module to reduce power consumption; any pending Slope mode and/or underflow conditions are cleared

bit 14-13 IRQM[1:0]: Interrupt Mode select bits ^(1,2)

11 = Generates an interrupt on either a rising or falling edge detect
10 = Generates an interrupt on a falling edge detect
01 = Generates an interrupt on a rising edge detect
00 = Interrupts are disabled

bit 12-11 Unimplemented: Read as '0'

Note 1: Changing these bits during operation may generate a spurious interrupt.

2: The edge selection is a post-polarity selection via the CMPPOL bit.

REGISTER 13-5: DACxCONL: DACx CONTROL LOW REGISTER (CONTINUED)

bit 10 CBE: Comparator Blank Enable bit

1 = Enables the analog comparator output to be blanked (gated off) during the recovery transition following the completion of a slope operation

0 = Disables the blanking signal to the analog comparator; therefore, the analog comparator output is always active

bit 9 DACOEN: DACx Output Buffer Enable bit

1 = DACx analog voltage is connected to the DACOUT pin

0 = DACx analog voltage is not connected to the DACOUT pin

bit 8 FLTREN: Comparator Digital Filter Enable bit

1 = Digital filter is enabled

0 = Digital filter is disabled

bit 7 CMPSTAT: Comparator Status bits

The current state of the comparator output including the CMPPOL selection.

bit 6 CMPPOL: Comparator Output Polarity Control bit

1 = Output is inverted

0 = Output is noninverted

bit 5-3 INSEL[2:0]: Comparator Input Source Select bits

111 = Reserved

110 = Reserved

101 = Reserved

100 = Reserved

011 = CMPxD input pin

010 = CMPxC input pin

001 = CMPxB input pin

000 = CMPxA input pin

bit 2 HYSPOL: Comparator Hysteresis Polarity Select bit

1 = Hysteresis is applied to the falling edge of the comparator output

0 = Hysteresis is applied to the rising edge of the comparator output

bit 1-0 HYSSEL[1:0]: Comparator Hysteresis Select bits

11 = 45 mv hysteresis

10 = 30 mv hysteresis

01 = 15 mv hysteresis

00 = No hysteresis is selected

Note 1: Changing these bits during operation may generate a spurious interrupt.

2: The edge selection is a post-polarity selection via the CMPPOL bit.

REGISTER 13-6: DACxDATH: DACx DATA HIGH REGISTER

U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0
— — —	—		DACDATH[11:8]
bit 15						bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
DACDATH[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15-12 Unimplemented: Read as '0'

bit 11-0 DACDATH[11:0]: DACx Data bits

This register specifies the high DACx data value. Valid values are from 205 to 3890.

REGISTER 13-7: DACxDATL: DACx DATA LOW REGISTER

U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
— — —	—		DACDATL[11:8]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
DACDATL[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared

bit 15-12 Unimplemented: Read as '0'

bit 11-0 DACDATL[11:0]: DACx Low Data bits

In Hysteretic mode, Slope Generator mode and Triangle mode, this register specifies the low data value and/or limit for the DACx module. Valid values are from 205 to 3890.

REGISTER 13-8: SLPxCONH: DACx SLOPE CONTROL HIGH REGISTER

R/W-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 U-0
SLOPEN —	— —	HME		(1)	TWME(2)	PSE	—
bit 15 bit 8

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared

bit 15 SLOPEN: Slope Function Enable/On bit

1 = Enables slope function
0 = Disables slope function; slope accumulator is disabled to reduce power consumption

bit 14-12 Unimplemented: Read as '0'

bit 11 HME: Hysteretic Mode Enable bit ^(1)

1 = Enables Hysteretic mode for DACx
0 = Disables Hysteretic mode for DACx

bit 10 TWME: Triangle Wave Mode Enable bit ^(2)

1 = Enables Triangle Wave mode for DACx
0 = Disables Triangle Wave mode for DACx

bit 9 PSE: Positive Slope Mode Enable bit

1 = Slope mode is positive (increasing)
0 = Slope mode is negative (decreasing)

bit 8-0 Unimplemented: Read as '0'

Note 1: HME mode requires the user to disable the slope function (SLOPEN = 0).
2: TWME mode requires the user to enable the slope function (SOPEN = 1).

REGISTER 13-9: SLPxCONL: DACx SLOPE CONTROL LOW REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
HCFSEL3	HCFSEL2	HCFSEL1	HCFSEL0	SLPSTOPA3	SLPSTOPA2	SLPSTOPA1	SLPSTOPA0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SLPSTOPB3	SLPSTOPB2	SLPSTOPB1	SLPSTOPB0	SLPSTRT3	SLPSTRT2	SLPSTRT1	SLPSTRT0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set0	'0' = Bit is cleared

bit 15-12 HCFSEL[3:0]: Hysteretic Comparator Function Input Select bits

The selected input signal controls the switching between the DACx high limit (DACxDATH) and the DACx low limit (DACxDATL) as the data source for the PDM DAC. It modifies the polarity of the comparator, and the rising and falling edges initiate the start of the LEB counter (TMCB[9:0] bits in Register 13-4).

Input Selection	Source
0101-1111	1
0100	PWM4H
0011	PWM3H
0010	PWM2H
0001	PWM1H
0000	0

bit 11-8 SLPSTOPA[3:0]: Slope Stop A Signal Select bits

The selected Slope Stop A signal is logically OR'd with the selected Slope Stop B signal to terminate the slope function.

Slope Stop A Signal Selection	Source
0101-1111	1
0100	PWM4 Trigger 2
0011	PWM3 Trigger 2
0010	PWM2 Trigger 2
0001	PWM1 Trigger 2
0000	0

bit 7-4 SLPSTOPB[3:0]: Slope Stop B Signal Select bits

The selected Slope Stop B signal is logically OR'd with the selected Slope Stop A signal to terminate the slope function.

Slope Stop B Signal Selection	Source
0010-1111	1
0001	CMP1 Out
0000	0

REGISTER 13-9: SLPxCONL: DACx SLOPE CONTROL LOW REGISTER (CONTINUED)

bit 3-0 SLPSTRT[3:0]: Slope Start Signal Select bits

Slope Start Signal Selection	Source
0101-1111 1
0100 PWM4	Trigger 1
0011 PWM3	Trigger 1
0010 PWM2	Trigger 1
0001 PWM1	Trigger 1
0000 0

REGISTER 13-10: SLPxDAT: DACx SLOPE DATA REGISTER ^(1)

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			SLPDAT[15:8]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
SLPDAT[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared

bit 15-0

SLPDAT[15:0]: Slope Ramp Rate Value bits

The SLPDATx value is in 12.4 format.

Note 1: Register data are left justified.

NOTES:

14.0 QUADRATURE ENCODER INTERFACE (QEI)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive resource. For more information, refer to “Quadrature Encoder Interface (QEI)” (www.microchip.com DS70000601) in the “dsPIC33/PIC24 Family Reference Manual”.

The Quadrature Encoder Interface (QEI) module provides the interface to incremental encoders for obtaining mechanical position data. The dsPIC33CK64MC105 family implements one instance of the QEI. Quadrature Encoders, also known as incremental encoders or optical encoders, detect position and speed of rotating motion systems. Quadrature Encoders enable closed-loop control of motor control applications, such as Switched Reluctance (SR) and AC Induction Motors (ACIM).

A typical Quadrature Encoder includes a slotted wheel attached to the shaft of the motor and an emitter/ detector module that senses the slots in the wheel. Typically, three output channels, Phase A (QEAx),

Phase B (QEBx) and Index (INDXx), provide information on the movement of the motor shaft, including distance and direction.

The two channels, Phase A (QEAX) and Phase B (QEBx), are typically 90 degrees out of phase with respect to each other. The Phase A and Phase B channels have a unique relationship. If Phase A leads Phase B, the direction of the motor is deemed positive or forward. If Phase A lags Phase B, the direction of the motor is deemed negative or reverse. The Index pulse occurs once per mechanical revolution and is used as a reference to indicate an absolute position.

Figure 14-1 illustrates the Quadrature Encoder Interface signals.

The Quadrature signals from the encoder can have four unique states ('01', '00', '10' and '11') that reflect the relationship between QEAx and QEBx. Figure 14-1 illustrates these states for one count cycle. The order of the states get reversed when the direction of travel changes.

The Quadrature Decoder increments or decrements the 32-bit up/down Position x Counter (POSxCNTH/L) registers for each Change-of-State (COS). The counter increments when QEAX leads QEBx and decrements when QEBx leads QEAX.

FIGURE 14-1: QUADRATURE ENCODER INTERFACE SIGNALS

Table 14-1 shows the truth table that describes how the Quadrature signals are decoded.
TABLE 14-1: TRUTH TABLE FOR QUADRATURE ENCODER

Current Quadrature State		Previous Quadrature State		Action
Q E	A Q	E	B Q	E A Q E B
1	1	1	1	No count or direction change
1	1	1	0	Count up
1	1	0	1	Count down
1	1	0	0	Invalid state change; ignore
1	0	1	1	Count down
1	0	1	0	No count or direction change
1	0	0	1	Invalid state change; ignore
1	0	0	0	Count up
0	1	1	1	Count up
0	1	1	0	Invalid state change; ignore
0	1	0	1	No count or direction change
0	1	0	0	Count down
0	0	1	1	Invalid state change; ignore
0	0	1	0	Count down
0	0	0	1	Count up
0	0	0	0	No count or direction change

Figure 14-2 illustrates the simplified block diagram of the QEI module. The QEI module consists of decoder logic to interpret the Phase A (QEAx) and Phase B (QEBx) signals, and an up/down counter to accumulate the count. The counter pulses are generated when the Quadrature state changes. The count direction information must be maintained in a register until a direction change is detected. The module also includes digital noise filters, which condition the input signal.

The QEI module consists of the following major features:

• Four Input Pins: Two Phase Signals, an Index Pulse and a Home Pulse
• Programmable Digital Noise Filters on Inputs
• Quadrature Decoder providing Counter Pulses and Count Direction
• Count Direction Status
• 4x Count Resolution
• Index (INDXx) Pulse to Reset the Position Counter
• General Purpose 32-Bit Timer/Counter mode
• Interrupts generated by QEI or Counter Events
  • 32-Bit Velocity Counter
  • 32-Bit Position Counter
  • 32-Bit Index Pulse Counter
  • 32-Bit Interval Timer
  • 32-Bit Position Initialization/Capture Register
  • 32-Bit Compare Less Than and Greater Than Registers
• External Up/Down Count mode
• External Gated Count mode
• External Gated Timer mode
• Interval Timer mode

FIGURE 14-2: QUADRATURE ENCODER INTERFACE (QEI) MODULE BLOCK DIAGRAM

Note 1: These registers map to the same memory location.

14.1 QEI Control/Status Registers

REGISTER 14-1: QEIXCON: QEIX CONTROL REGISTER

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEEN —	QEISIDL PIMOD2		(1,5)	PIMOD1(1,5)	PIMOD0(1,5)	IMV1(2)	IMV0(2)
bit 15 bit 8

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— INTD	V2	(3)	INTDIV1(3)	INTDIV0(3)	CNTPOL GATEN	CCM1 CCM0
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 QEIEN: Quadrature Encoder Interface Module Enable bit

1 = Module counters are enabled

0 = Module counters are disabled, but SFRs can be read or written

bit 14 Unimplemented: Read as '0'

bit 13 QEISIDL: QEI Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12-10 PIMOD[2:0]: Position Counter Initialization Mode Select bits ^(1,5)

111 = Modulo Count mode for position counter and every Index event resets the position counter ^(4)

110 = Modulo Count mode for position counter

101 = Resets the position counter when the position counter equals the QEIXGEC register

100 = Second Index event after Home event initializes position counter with contents of QEIXIC register

011 = First Index event after Home event initializes position counter with contents of QEIXIC register

010 = Next Index input event initializes the position counter with contents of QEIXIC register

001 = Every Index input event resets the position counter

000 = Index input event does not affect the position counter

bit 9-8 IMV[1:0]: Index Match Value bits ^(2)

11 = Index match occurs when QEBx = 1 and QEAX = 1

10 = Index match occurs when QEBx = 1 and QEAX = 0

01 = Index match occurs when QEBx = 0 and QEAX = 1

00 = Index match occurs when QEBx = 0 and QEAX = 0

bit 7 Unimplemented: Read as '0'

Note 1: When CCMx = 10 or CCMx = 11, all of the QEI counters operate as timers and the PIMOD[2:0] bits are ignored.

2: When CCMx = 00, and QEAx and QEBx values match the Index Match Value (IMV), the POSxCNTH and POSxCNTL registers are reset.

3: The selected clock rate should be at least twice the expected maximum quadrature count rate.

4: Not all devices support this mode.

5: The QCAPEN and HCAPEN bits must be cleared during PIMODx Modes 2 through 7 to ensure proper functionality. Not all devices support HCAPEN.

REGISTER 14-1: QEIXCON: QEIX CONTROL REGISTER (CONTINUED)

bit 6-4	INTDIV[2:0]: Timer Input Clock Prescale Select bits ^(3) (interval timer, main timer (position counter), velocity counter and Index counter internal clock divider select)
	111 = 1:256 prescale value
	110 = 1:64 prescale value
	101 = 1:32 prescale value
	100 = 1:16 prescale value
	011 = 1:8 prescale value
	010 = 1:4 prescale value
	001 = 1:2 prescale value
	000 = 1:1 prescale value

bit 3 CNTPOL: Position and Index Counter/Timer Direction Select bit

1 = Counter direction is negative unless modified by external up/down signal

0 = Counter direction is positive unless modified by external up/down signal

bit 2 GATEN: External Count Gate Enable bit

1 = External gate signal controls position counter operation

0 = External gate signal does not affect position counter operation

bit 1-0 CCM[1:0]: Counter Control Mode Selection bits

11 = Internal Timer mode

10 = External Clock Count with External Gate mode

01 = External Clock Count with External Up/Down mode

00 = Quadrature Encoder mode

Note 1: When CCMx = 10 or CCMx = 11, all of the QEI counters operate as timers and the PIMOD[2:0] bits are ignored.

2: When CCMx = 0.0, and QEAx and QEBx values match the Index Match Value (IMV), the POSxCNTH and POSxCNTL registers are reset.

3: The selected clock rate should be at least twice the expected maximum quadrature count rate.

4: Not all devices support this mode.

5: The QCAPEN and HCAPEN bits must be cleared during PIMODx Modes 2 through 7 to ensure proper functionality. Not all devices support HCAPEN.

REGISTER 14-2: QEIXLOC: QEIX I/O CONTROL REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QCAPEN FL	TREN QFDIV2	QFDIV1 QFD	IV0 OUTFNC1	OUTFNC0 SW	WPAB
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R-x	R-x	R-x	R-x
HOMPOL	IDXPOL	QEBPOL	QEAPOL	HOME	INDEX	QEB	QEA
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	QCAPEN: QEIx Position Counter Input Capture Enable bit 1 = HOMEx input event (positive edge) triggers a position capture event (HCAPEN must be cleared) 0 = HOMEx input event (positive edge) does not trigger a position capture event
bit 14	FLTREN: QEAx/QEBx/INDXx/HOMEx Digital Filter Enable bit 1 = Input pin digital filter is enabled 0 = Input pin digital filter is disabled (bypassed)

bit 13-11	QFDIV[2:0]: QEAx/QEBx/INDXx/HOMEx Digital Input Filter Clock Divide Select bits
	111 = 1:256 clock divide
	110 = 1:64 clock divide
	101 = 1:32 clock divide
	100 = 1:16 clock divide
	011 = 1:8 clock divide
	010 = 1:4 clock divide
	001 = 1:2 clock divide
	000 = 1:1 clock divide

bit 10-9	OUTFNC[1:0]: QEIX Module Output Function Mode Select bits
	11 = The QEICMPx pin goes high when POSxCNT≤QEIXLEC or POSxCNT ≥ QEIXGEC
	10 = The QEICMPx pin goes high when POSxCNT≤QEIXLEC
	01 = The QEICMPx pin goes high when POSxCNT≥QEIXGEC
	00 = Output is disabled

bit 8

SWPAB: Swap QEAx and QEBx Inputs bit1 = QEAx and QEBx are swapped prior to Quadrature Decoder logic0 = QEAx and QEBx are not swapped

bit 7	HOMPOL: HOMEx Input Polarity Select bit
	1 = Input is inverted
	0 = Input is not inverted

bit 6	IDXPOL: INDXx Input Polarity Select bit
	1 = Input is inverted
	0 = Input is not inverted

bit 5	QEBPOL: QEBx Input Polarity Select bit
	1 = Input is inverted
	0 = Input is not inverted

bit 4	QEAPOL: QEAx Input Polarity Select bit
	1 = Input is inverted
	0 = Input is not inverted

bit 3	HOME: Status of HOMEx Input Pin After Polarity Control bit (read-only)
	1 = Pin is at logic '1' if the HOMPOL bit is set to '0'; pin is at logic '0' if the HOMPOL bit is set to '1'
	0 = Pin is at logic '0' if the HOMPOL bit is set to '0'; pin is at logic '1' if the HOMPOL bit is set to '1'

REGISTER 14-2: QEIXLOC: QEIX I/O CONTROL REGISTER (CONTINUED)

bit 2 INDEX: Status of INDXx Input Pin After Polarity Control bit (read-only)

1 = Pin is at logic '1' if the IDXPOL bit is set to '0'; pin is at logic '0' if the IDXPOL bit is set to '1'
0 = Pin is at logic '0' if the IDXPOL bit is set to '0'; pin is at logic '1' if the IDXPOL bit is set to '1'

bit 1 QEB: Status of QEBx Input Pin After Polarity Control and SWPAB Pin Swapping bit (read-only)

1 = Physical pin, QEBx, is at logic '1' if the QEBPOL bit is set to '0' and the SWPAB bit is set to '0'; physical pin, QEBx, is at logic '0' if the QEBPOL bit is set to '1' and the SWPAB bit is set to '0'; physical pin, QEAx, is at logic '1' if the QEBPOL bit is set to '0' and the SWPAB bit is set to '1'; physical pin, QEAx, is at logic '0' if the QEBPOL bit is set to '1' and the SWPAB bit is set to '1'
0 = Physical pin, QEBx, is at logic '0' if the QEBPOL bit is set to '0' and the SWPAB bit is set to '0'; physical pin, QEBx, is at logic '1' if the QEBPOL bit is set to '1' and the SWPAB bit is set to '0'; physical pin, QEAx, is at logic '0' if the QEBPOL bit is set to '0' and the SWPAB bit is set to '1'; physical pin, QEAx, is at logic '1' if the QEBPOL bit is set to '1' and the SWPAB bit is set to '1'

bit 0 QEA: Status of QEAx Input Pin After Polarity Control and SWPAB Pin Swapping bit (read-only)

1 = Physical pin, QEAX, is at logic '1' if the QEAPOL bit is set to '0' and the SWPAB bit is set to '0'; physical pin, QEAX, is at logic '0' if the QEAPOL bit is set to '1' and the SWPAB bit is set to '0'; physical pin, QEBx, is at logic '1' if the QEAPOL bit is set to '0' and the SWPAB bit is set to '1'; physical pin, QEBx, is at logic '0' if the QEAPOL bit is set to '1' and the SWPAB bit is set to '1'
0 = Physical pin, QEAX, is at logic '0' if the QEAPOL bit is set to '0' and the SWPAB bit is set to '0'; physical pin, QEAX, is at logic '1' if the QEAPOL bit is set to '1' and the SWPAB bit is set to '0'; physical pin, QEBx, is at logic '0' if the QEAPOL bit is set to '0' and the SWPAB bit is set to '1'; physical pin, QEBx, is at logic '1' if the QEAPOL bit is set to '1' and the SWPAB bit is set to '1'

REGISTER 14-3: QEIXIOCH: QEIX I/O CONTROL HIGH REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0
———	——— — HCAPEN
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-1 Unimplemented: Read as '0'

bit 0 HCAPEN: Position Counter Input Capture by Home Event Enable bit

1 = HOMEx input event (positive edge) triggers a position capture event
0 = HOMEx input event (positive edge) does not trigger a position capture event

REGISTER 14-4: QEIXSTAT: QEIX STATUS REGISTER

U-0 U-0 HS/R/C-0 R/W-0 HS/R/C-0 R/W-0 HS/R/C-0 R/W-0
— — PC	HEQIRQ	PCH	EQIEN	PCLEQ	RQ	PCLEQIEN	POSOVIRQ POSOVIEN
bit 15 bit 8

HS/R/C-0 R/W-0 HS/R/C-0 R/W-0 HS/R/C-0 R/W-0 HS/R/C-0 R/W-0
PCIIRQ^(1)	PCIIEN	VELOVIRQ	VELOVIEN	HOMIRQ	HOMIEN	IDXIRQ	IDXIEN
bit 7 bit 0

Legend:	C = Clearable bit HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13 PCHEQIRQ: Position Counter Greater Than Compare Status bit

1 = POSxCNT ≥ QE|xGEC

0 = POSxCNT < QEIXGEC

bit 12 PCHEQIEN: Position Counter Greater Than Compare Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 11 PCLEQIRQ: Position Counter Less Than Compare Status bit

1 = POSxCNT ≤ QE|xLEC

0 = POSxCNT > QEIXLEC

bit 10 PCLEQIEN: Position Counter Less Than Compare Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 9 POSOVIRQ: Position Counter Overflow Status bit

1 = Overflow has occurred

0 = No overflow has occurred

bit 8 POSOVIEN: Position Counter Overflow Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 7 PCIIRQ: Position Counter (Homing) Initialization Process Complete Status bit ^(1)

1 = POSxCNT was reinitialized

0 = POSxCNT was not reinitialized

bit 6 PCIEN: Position Counter (Homing) Initialization Process Complete Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 5 VELOVIRQ: Velocity Counter Overflow Status bit

1 = Overflow has occurred

0 = No overflow has occurred

bit 4 VELOVIEN: Velocity Counter Overflow Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 3 HOMIRQ: Status Flag for Home Event Status bit

1 = Home event has occurred

0 = No Home event has occurred

Note 1: This status bit is only applicable to PIMOD[2:0] modes, '011' and '100'.

REGISTER 14-4: QEIXSTAT: QEIX STATUS REGISTER (CONTINUED)

bit 2 HOMIEN: Home Input Event Interrupt Enable bit

1 = Interrupt is enabled
0 = Interrupt is disabled

bit 1 IDXIRQ: Status Flag for Index Event Status bit

1 = Index event has occurred
0 = No Index event has occurred

bit 0 IDXIEN: Index Input Event Interrupt Enable bit

1 = Interrupt is enabled
0 = Interrupt is disabled

Note 1: This status bit is only applicable to PIMOD[2:0] modes, '011' and '100'.

REGISTER 14-5: POSxCNTL: POSITION x COUNTER REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSCNT[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSCNT[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 POSCNT[15:0]: Low Word Used to Form 32-Bit Position Counter Register (POSxCNT) bits

REGISTER 14-6: POSxCNTH: POSITION x COUNTER REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSCNT[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSCNT[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 POSCNT[31:16]: High Word Used to Form 32-Bit Position Counter Register (POSxCNT) bits

REGISTER 14-7: POSxHLD: POSITION x COUNTER HOLD REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSHLD[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

POSHLD[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 POSHLD[15:0]: Hold Register for Reading/Writing Position x Counter High Word Register (POSxCNTH) bits

REGISTER 14-8: VELxCNT: VELOCITY x COUNTER REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELCNT[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELCNT[7:0]

bit 7 bit 0

Legend:R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 VELCNT[15:0]: Velocity Counter bits

REGISTER 14-9: VELxCNTH: VELOCITY x COUNTER REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELCNT[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELCNT[23:16]

bit 7 bit 0

Legend:R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 VELCNT[31:16]: Velocity Counter bits

REGISTER 14-10: VELxHLD: VELOCITY x COUNTER HOLD REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELHLD[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

VELHLD[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 VELHLD[15:0]: Hold for Reading/Writing Velocity Counter Register (VELxCNT) bits

REGISTER 14-11: INTxTMRL: INTERVAL x TIMER REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTTMR[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTTMR[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INTTMR[15:0]: Low Word Used to Form 32-Bit Interval Timer Register (INTxTMR) bits

REGISTER 14-12: INTxTMRH: INTERVAL x TIMER REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTTMR[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTTMR[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INTTMR[31:16]: High Word Used to Form 32-Bit Interval Timer Register (INTxTMR) bits

REGISTER 14-13: INTXxHLDL: INTERVAL x TIMER HOLD REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTHLD[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTHLD[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INTHLD[15:0]: Low Word Used to Form 32-Bit Interval Timer Hold Register (INTxHLD) bits

REGISTER 14-14: INTXxHLDH: INTERVAL x TIMER HOLD REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTHLD[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INTHLD[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INTHLD[31:16]: High Word Used to Form 32-Bit Interval Timer Hold Register (INTxHLD) bits

REGISTER 14-15: INDXxCNTL: INDEX x COUNTER REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXCNT[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXCNT[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INDXCNT[15:0]: Low Word Used to Form 32-Bit Index x Counter Register (INDXxCNT) bits

REGISTER 14-16: INDXxCNTH: INDEX x COUNTER REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXCNT[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXCNT[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 INDXCNT[31:16]: High Word Used to Form 32-Bit Index x Counter Register (INDXxCNT) bits

REGISTER 14-17: INDXxHLD: INDEX x COUNTER HOLD REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXHLD[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

INDXHLD[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0

INDXHLD[15:0]: Hold Register for Reading/Writing Index x Counter High Word Register (INDXxCNTH) bits

REGISTER 14-18: QEIXICL: QEIX INITIALIZATION/CAPTURE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEIIC[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEIIC[7:0]

bit 7 bit 0

Legend:R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 QEIIC[15:0]: Low Word Used to Form 32-Bit Initialization/Capture Register (QEIxIC) bits

REGISTER 14-19: QEIXICH: QEIX INITIALIZATION/ CAPTURE REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEIIC[31:24]
bit 15	bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
QEIIC[23:16]
bit 7	bit 0

Legend:
R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 QEIIC[31:16]: High Word Used to Form 32-Bit Initialization/Capture Register (QEIxIC) bits

REGISTER 14-20: QEIXLECL: QEIX LESS THAN OR EQUAL COMPARE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEILEC[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEILEC[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 QEILEC[15:0]: Low Word Used to Form 32-Bit Less Than or Equal Compare Register (QEIxLEC) bits

REGISTER 14-21: QEIXLECH: QEIX LESS THAN OR EQUAL COMPARE REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEILEC[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEILEC[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 QEILEC[31:16]: High Word Used to Form 32-Bit Less Than or Equal Compare Register (QEIxLEC) bits

REGISTER 14-22: QEIXGECL: QEIX GREATER THAN OR EQUAL COMPARE REGISTER LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEIGEC[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

QEIGEC[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 QEIGEC[15:0]: Low Word Used to Form 32-Bit Greater Than or Equal Compare Register (QEIxGEC) bits

REGISTER 14-23: QEIXGECH: QEIX GREATER THAN OR EQUAL COMPARE REGISTER HIGH

R/W-0 R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
QEIGEC[31:24]
bit 15	bit 8

R/W-0 R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
QEIGEC[23:16]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 QEIGEC[31:16]: High Word Used to Form 32-Bit Greater Than or Equal Compare Register (QEIxGEC) bits

15.0 UNIVERSAL ASYNCHRONOUS RECEIVER TRANSMITTER (UART)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Multiprotocol Universal Asynchronous Receiver Transmitter (UART) Module" (www.microchip.com/DS70005288) in the "dsPIC33/PIC24 Family Reference Manual".

The Universal Asynchronous Receiver Transmitter (UART) is a flexible serial communication peripheral used to interface dsPIC ^® microcontrollers with other equipment, including computers and peripherals. The UART is a full-duplex, asynchronous communication channel that can be used to implement protocols, such as RS-232 and RS-485. The UART also supports the following hardware extensions:

• LIN/J2602
• I r Ⓑ A
- Direct Matrix Architecture (DMX)
- Smart Card

The primary features of the UART are:

• Full or Half-Duplex Operation
- Up to 8-Deep TX and RX First In, First Out (FIFO) Buffers
• 8-Bit or 9-Bit Data Width
- Configurable Stop Bit Length
- Flow Control
• Auto-Baud Calibration
- Parity, Framing and Buffer Overrun Error Detection
- Address Detect
- Break Transmission
• Transmit and Receive Polarity Control
• Manchester Encoder/Decoder
• Operation in Sleep mode
- Wake from Sleep on Sync Break Received Interrupt

15.1 Architectural Overview

The UART transfers bytes of data, to and from device pins, using First-In First-Out (FIFO) buffers up to eight bytes deep. The status of the buffers and data is made available to user software through Special Function

Registers (SFRs). The UART implements multiple interrupt channels for handling transmit, receive and error events. A simplified block diagram of the UART is shown in Figure 15-1.

FIGURE 15-1: SIMPLIFIED UARTx BLOCK DIAGRAM

15.2 Character Frame

A typical UART character frame is shown in Figure 15-2. The Idle state is high with a 'Start' condition indicated by a falling edge. The Start bit is followed by the number of data, parity/address detect and Stop bits defined by the MOD[3:0] (UxMODE[3:0]) bits selected.

FIGURE 15-2: UART CHARACTER FRAME

15.3 Data Buffers

Both transmit and receive functions use buffers to store data shifted to/from the pins. These buffers are FIFOs and are accessed by reading the SFRs, UxTXREG and UxRXREG, respectively. Each data buffer has multiple flags associated with its operation to allow software to read the status. Interrupts can also be configured based on the space available in the buffers. The transmit and receive buffers can be cleared and their pointers reset using the associated TX/RX Buffer Empty Status bits, UTXBE (UxSTAH[5]) and URXBE (UxSTAH[1]).

15.4 Protocol Extensions

The UART provides hardware support for LIN/J2602, IrDA ^® , DMX and smart card protocol extensions to reduce software overhead. A protocol extension is enabled by writing a value to the MOD[3:0] (UxMODE[3:0]) selection bits and further configured using the UARTx Timing Parameter registers, UxP1 (Register 15-9), UxP2 (Register 15-10), UxP3 (Register 15-11) and UxP3H (Register 15-12). Details regarding operation and usage are discussed in their respective chapters.

15.5 UART Control/Status Registers

REGISTER 15-1: UxMODE: UARTx CONFIGURATION REGISTER

R/W-0 U-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 HC/R/W-0
UARTEN	—	USIDL	WAKE	RXBIMD	—	BRKOVR	UTXBRK
bit 15 bit 8

R/W-0	HC/R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
BRGH	ABAUD	UTXEN	URXEN	MOD3	MOD2	MOD1	MOD0
bit 7 bit 0

Legend:	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	UARTEN: UART Enable bit1 = UART is ready to transmit and receive0 = UART state machine, FIFO Buffer Pointers and counters are reset; registers are readable and writable
bit 14	Unimplemented: Read as '0'
bit 13	USIDL: UART Stop in Idle Mode bit1 = Discontinues module operation when device enters Idle mode0 = Continues module operation in Idle mode
bit 12	WAKE: Wake-up Enable bit1 = Module will continue to sample the RX pin – interrupt generated on falling edge, bit cleared in hardware on following rising edge; if ABAUD is set, Auto-Baud Detection (ABD) will begin immediately0 = RX pin is not monitored nor rising edge detected
bit 11	RXBIMD: Receive Break Interrupt Mode bit1 = RXBKIF flag when a minimum of 23 (DMX)/11 (asynchronous or LIN/J2602) low bit periods are detected0 = RXBKIF flag when the Break makes a low-to-high transition after being low for at least 23/11 bit periods
bit 10	Unimplemented: Read as '0'
bit 9	BRKOVR: Send Break Software Override bitOverrides the TX Data Line:1 = Makes the TX line active (Output 0 when UTXINV = 0, Output 1 when UTXINV = 1)0 = TX line is driven by the shifter
bit 8	UTXBRK: UART Transmit Break bit(1)1 = Sends Sync Break on next transmission; cleared by hardware upon completion0 = Sync Break transmission is disabled or has completed
bit 7	BRGH: High Baud Rate Select bit1 = High Speed: Baud rate is baudclk/40 = Low Speed: Baud rate is baudclk/16
bit 6	ABAUD: Auto-Baud Detect Enable bit (read-only when MOD[3:0] = 1xxx)1 = Enables baud rate measurement on the next character – requires reception of a Sync field (55h); cleared in hardware upon completion0 = Baud rate measurement is disabled or has completed

Note 1: R/HS/HC in DMX and LIN mode.

REGISTER 15-1: UxMODE: UARTx CONFIGURATION REGISTER (CONTINUED)

bit 5 UTXEN: UART Transmit Enable bit

1 = Transmit enabled – except during Auto-Baud Detection
0 = Transmit disabled – all transmit counters, pointers and state machines are reset; TX buffer is not flushed, status bits are not reset

bit 4 URXEN: UART Receive Enable bit

1 = Receive enabled – except during Auto-Baud Detection
0 = Receive disabled – all receive counters, pointers and state machines are reset; RX buffer is not flushed, status bits are not reset

bit 3-0 MOD[3:0]: UART Mode bits

Other = Reserved
1111 = Smart card
1110 = IrDA®
1101 = Reserved
1100 = LIN Commander/Responder
1011 = LIN Responder only
1010 = DMX
1001 = Reserved
1000 = Reserved
0111 = Reserved
0110 = Reserved
0101 = Reserved
0100 = Asynchronous 9-bit UART with address detect, ninth bit = 1 signals address
0011 = Asynchronous 8-bit UART without address detect, ninth bit is used as an even parity bit
0010 = Asynchronous 8-bit UART without address detect, ninth bit is used as an odd parity bit
0001 = Asynchronous 7-bit UART
0000 = Asynchronous 8-bit UART

Note 1: R/HS/HC in DMX and LIN mode.

REGISTER 15-2: UxMODEH: UARTx CONFIGURATION REGISTER HIGH

R/W-0 R-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
SLPEN	ACTIVE	—	—	BCLKMOD	BCLKSEL1	BCLKSEL0	HALFDPLX
bit 15 bit 8
R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
RUNOVF	URXINV	STSEL1	STSEL0	C0EN	UTXINV	FLO1	FLO0
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown
bit 15	SLPEN: Run During Sleep Enable bit
	1 = UART BRG clock runs during Sleep
	0 = UART BRG clock is turned off during Sleep
bit 14	ACTIVE: UART Running Status bit
	1 = UART clock request is active (user can not update the UxMODE/UxMODEH registers)
	0 = UART clock request is not active (user can update the UxMODE/UxMODEH registers)
bit 13-12	Unimplemented: Read as '0'
bit 11	BCLKMOD: Baud Clock Generation Mode Select bit
	1 = Uses fractional Baud Rate Generation
	0 = Uses legacy divide-by-x counter for baud clock generation (x = 4 or 16 depending on the BRGH bit)
bit 10-9	BCLKSEL[1:0]: Baud Clock Source Selection bits
	11 = FVCODIV
	10 = Fosc
	01 = PLL VCO/5
	00 = Fosc/2 (FP)
bit 8	HALFDPLX: UART Half-Duplex Selection Mode bit
	1 = Half-Duplex mode: UxTX is driven as an output when transmitting and tri-stated when TX is Idle
	0 = Full-Duplex mode: UxTX is driven as an output at all times when both UARTEN and UTXEN are set
bit 7	RUNOVF: Run During Overflow Condition Mode bit
	1 = When an Overflow Error (OERR) condition is detected, the RX shifter continues to run so as to remain synchronized with incoming RX data; data are not transferred to UxRXREG when it is full (i.e., no UxRXREG data are overwritten)
	0 = When an Overflow Error (OERR) condition is detected, the RX shifter stops accepting new data (Legacy mode)
bit 6	URXINV: UART Receive Polarity bit
	1 = Inverts RX polarity; Idle state is low
	0 = Input is not inverted; Idle state is high
bit 5-4 STSEL[1:0]: Number of Stop Bits Selection bits
				11 = 2 Stop bits sent, 1 checked at receive
				10 = 2 Stop bits sent, 2 checked at receive
				01 = 1.5 Stop bits sent, 1.5 checked at receive
				00 = 1 Stop bit sent, 1 checked at receive
bit 3	C0EN: Enable Legacy Checksum (C0) Transmit and Receive bit
	1 = Checksum Mode 1 (enhanced LIN checksum in LIN mode; add all TX/RX words in all other modes)
	0 = Checksum Mode 0 (legacy LIN checksum in LIN mode; not used in all other modes)

REGISTER 15-2: UxMODEH: UARTx CONFIGURATION REGISTER HIGH (CONTINUED)

bit 2 UTXINV: UART Transmit Polarity bit

1 = Inverts TX polarity; TX is low in Idle state
0 = Output data are not inverted; TX output is high in Idle state

bit 1-0 FLO[1:0]: Flow Control Enable bits (only valid when MOD[3:0] = 0xxx)

11 = Reserved
10 = RTS-DSR (for TX side)/CTS-DTR (for RX side) hardware flow control
01 = XON/XOFF software flow control
00 = Flow control off

REGISTER 15-3: UxSTA: UARTx STATUS REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TXMTIE	PERIE	ABDOVE	CERIE	FERIE	RXBKIE	OERIE	TXCIE
bit 15 bit 8
R-1	R-0	HS/R/W-0	HS/R/W-0	R-0	HS/R/W-0	HS/R/W-0	R/W-0
TRMT	PERR	ABDOVF	CERIF	FERR	RXBKIF	OERR	TXCIF
bit 7 bit 0

Legend:	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 TXMTIE: Transmit Shifter Empty Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 14 PERIE: Parity Error Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 13 ABDOVE: Auto-Baud Rate Acquisition Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 12 CERIE: Checksum Error Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 11 FERIE: Framing Error Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 10 RXBKIE: Receive Break Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 9 OERIE: Receive Buffer Overflow Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 8 TXCIE: Transmit Collision Interrupt Enable bit

1 = Interrupt is enabled

0 = Interrupt is disabled

bit 7 TRMT: Transmit Shifter Empty Interrupt Flag bit (read-only)

1 = Transmit Shift Register (TSR) is empty (end of last Stop bit when STPMD = 1 or middle of first Stop bit when STPMD = 0)

0 = Transmit Shift Register is not empty

bit 6 PERR: Parity Error/Address Received/Forward Frame Interrupt Flag bit

LIN and Parity Modes:

1 = Parity error detected

0 = No parity error detected

Address Mode:

1 = Address received

0 = No address detected

All Other Modes:

Not used.

REGISTER 15-3: UxSTA: UARTx STATUS REGISTER (CONTINUED)

bit 5 ABDOVF: Auto-Baud Rate Acquisition Interrupt Flag bit (must be cleared by software)

1 = BRG rolled over during the auto-baud rate acquisition sequence (must be cleared in software)
0 = BRG has not rolled over during the auto-baud rate acquisition sequence

bit 4 CERIF: Checksum Error Interrupt Flag bit (must be cleared by software)

1 = Checksum error
0 = No checksum error

bit 3 FERR: Framing Error Interrupt Flag bit

1 = Framing Error: Inverted level of the Stop bit corresponding to the topmost character in the buffer; propagates through the buffer with the received character
0 = No framing error

bit 2 RXBKIF: Receive Break Interrupt Flag bit (must be cleared by software)

1 = A Break was received
0 = No Break was detected

bit 1 OERR: Receive Buffer Overflow Interrupt Flag bit (must be cleared by software)

1 = Receive buffer has overflowed
0 = Receive buffer has not overflowed

bit 0 TXCIF: Transmit Collision Interrupt Flag bit (must be cleared by software)

1 = Transmitted word is not equal to the received word
0 = Transmitted word is equal to the received word

REGISTER 15-4: UxSTAH: UARTx STATUS REGISTER HIGH

U-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
— UTXI	SEL2 UTXISEL	1 UTXISEL0	— URXISEL2		(1)	URXISEL1(1)	URXISEL0(1)
bit 15 bit 8

HS/R/W-0	R/W-0	R/S-1	R-0	R-1	R-1	R/S-1	R-0
TXWRE	STPMD	UTXBE	UTXBF	RIDLE	XON	URXBE	URXBF
bit 7 bit 0

Legend:	HS = Hardware Settable bit S = Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-12 UTXISEL[2:0]: UART Transmit Interrupt Select bits

111 = Sets transmit interrupt when there is one empty slot left in the buffer

• • •

010 = Sets transmit interrupt when there are six empty slots or more in the buffer

001 = Sets transmit interrupt when there are seven empty slots or more in the buffer

000 = Sets transmit interrupt when there are eight empty slots in the buffer; TX buffer is empty

bit 11 Unimplemented: Read as '0'

bit 10-8 URXISEL[2:0]: UART Receive Interrupt Select bits ^(1)

111 = Triggers receive interrupt when there are eight bytes in the buffer; RX buffer is full

...

001 = Triggers receive interrupt when there are two bytes or more in the buffer

000 = Triggers receive interrupt when there is one byte or more in the buffer

bit 7 TXWRE: TX Write Transmit Error Status bit

LIN and Parity Modes:

1 = A new byte was written when the buffer was full or when P2[8:0] = 0 (must be cleared by software)

0 = No error

Address Detect Mode:

1 = A new byte was written when the buffer was full or to P1[8:0] when P1x was full (must be cleared by software)

0 = No error

Other Modes:

1 = A new byte was written when the buffer was full (must be cleared by software)

0 = No error

bit 6 STPMD: Stop Bit Detection Mode bit

1 = Triggers RXIF at the end of the last Stop bit

0 = Triggers RXIF in the middle of the first (or second, depending on the STSEL[1:0] setting) Stop bit

bit 5 UTXBE: UART TX Buffer Empty Status bit

1 = Transmit buffer is empty; writing '1' when UTXEN = 0 will reset the TX FIFO Pointers and counters

0 = Transmit buffer is not empty

bit 4 UTXBF: UART TX Buffer Full Status bit

1 = Transmit buffer is full

0 = Transmit buffer is not full

bit 3 RIDLE: Receive Idle bit

1 = UART RX line is in the Idle state

0 = UART RX line is receiving something

Note 1: The receive watermark interrupt is not set if PERR or FERR is set and the corresponding IE bit is set.

REGISTER 15-4: UxSTAH: UARTx STATUS REGISTER HIGH (CONTINUED)

bit 2 XON: UART in XON Mode bit

Only valid when FLO[1:0] control bits are set to XON/XOFF mode.

1 = UART has received XON

0 = UART has not received XON or XOFF was received

bit 1 URXBE: UART RX Buffer Empty Status bit

1 = Receive buffer is empty; writing '1' when URXEN = 0 will reset the RX FIFO Pointers and counters

0 = Receive buffer is not empty

bit 0 URXBF: UART RX Buffer Full Status bit

1 = Receive buffer is full

0 = Receive buffer is not full

Note 1: The receive watermark interrupt is not set if PERR or FERR is set and the corresponding IE bit is set.

REGISTER 15-5: UxBRG: UARTx BAUD RATE REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

BRG[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

BRG[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15

BRG[15:0]: Baud Rate Divisor bits

REGISTER 15-6: UxBRGH: UARTx BAUD RATE REGISTER HIGH

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3-0 BRG[19:16]: Baud Rate Divisor bits

REGISTER 15-7: UxRXREG: UARTx RECEIVE BUFFER REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
———	——— — — —
bit 15 bit 8

R-x	R-x	R-x R-x	R-x R-x R-x R-x
RXREG[7:0]
bit 7			bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 RXREG[7:0]: Received Character Data bits 7-0

REGISTER 15-8: UxTXREG: UARTx TRANSMIT BUFFER REGISTER

W-x U-0 U-0 U-0 U-0 U-0 U-0
LAST	———	———
bit 15 bit 8

W-x	W-x	W-x	W-x	W-x	W-x	W-x	W-x
TXREG[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 LAST: Last Byte Indicator for Smart Card Support bit

bit 14-8 Unimplemented: Read as '0'

bit 7-0 TXREG[7:0]: Transmitted Character Data bits 7-0

If the buffer is full, further writes to the buffer are ignored.

REGISTER 15-9: UxP1: UARTx TIMING PARAMETER 1 REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0
— — —	— — — — P1[8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
P1[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-9 Unimplemented: Read as '0'

bit 8-0 P1[8:0]: Parameter 1 bits

DMX TX:

Number of Bytes to Transmit - 1 (not including Start code).

LIN Commander TX:

PID to transmit (bits[5:0]).

Asynchronous TX with Address Detect:

Address to transmit. A '1' is automatically inserted into bit 9 (bits[7:0]).

Smart Card Mode:

Guard Time Counter bits. This counter is operated on the bit clock whose period is always equal to one ETU (bits[8:0]).

Other Modes:

Not used.

REGISTER 15-10: UxP2: UARTx TIMING PARAMETER 2 REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0
———	——— —	P2[8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
P2[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-9 Unimplemented: Read as '0'

bit 8-0 P2[8:0]: Parameter 2 bits

DMX RX:

The first byte number to receive - 1, not including Start code (bits[8:0]).

LIN Responder TX:

Number of bytes to transmit (bits[7:0]).

Asynchronous RX with Address Detect:

Address to start matching (bits[7:0]).

Smart Card Mode:

Block Time Counter bits. This counter is operated on the bit clock whose period is always equal to one ETU (bits[8:0]).

Other Modes:

Not used.

REGISTER 15-11: UxP3: UARTx TIMING PARAMETER 3 REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

P3[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

P3[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 P3[15:0]: Parameter 3 bits

DMX RX:

The last byte number to receive -1, not including Start code (bits[8:0]).

LIN Responder RX:

Number of bytes to receive (bits[7:0]).

Asynchronous RX:

Used to mask the UxP2 address bits; 1 = P2 address bit is used, 0 = P2 address bit is masked off (bits[7:0]).

Smart Card Mode:

Waiting Time Counter bits (bits[15:0]).

Other Modes:

Not used.

REGISTER 15-12: UxP3H: UARTx TIMING PARAMETER 3 REGISTER HIGH

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 P3[23:16]: Parameter 3 High bits

Smart Card Mode:

Waiting Time Counter bits (bits[23:16]).

Other Modes:

Not used.

REGISTER 15-13: UxTXCHK: UARTx TRANSMIT CHECKSUM REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
TXCHK[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 TXCHK[7:0]: Transmit Checksum bits (calculated from TX words)

LIN Modes:

COEN = 1: Sum of all transmitted data + addition carries, including PID.

COEN = 0: Sum of all transmitted data + addition carries, excluding PID.

LIN Responder:

Cleared when Break is detected.

LIN Commander/Responder:

Cleared when Break is detected.

Other Modes:

COEN = 1: Sum of every byte transmitted + addition carries.

COEN = 0: Value remains unchanged.

REGISTER 15-14: UxRXCHK: UARTx RECEIVE CHECKSUM REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
RXCHK[7:0]
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 RXCHK[7:0]: Receive Checksum bits (calculated from RX words)

LIN Modes:

C0EN = 1: Sum of all received data + addition carries, including PID.

COEN = 0: Sum of all received data + addition carries, excluding PID.

LIN Responder:

Cleared when Break is detected.

LIN Commander/Responder:

Cleared when Break is detected.

Other Modes:

C0EN = 1: Sum of every byte received + addition carries.

COEN = 0: Value remains unchanged.

REGISTER 15-15: UxSCCON: UARTx SMART CARD CONFIGURATION REGISTER

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-6 Unimplemented: Read as '0'

bit 5-4 TXRPT[1:0]: Transmit Repeat Selection bits

11 = Retransmit the error byte four times

10 = Retransmit the error byte three times

01 = Retransmit the error byte twice

00 = Retransmit the error byte once

bit 3 CONV: Logic Convention Selection bit

1 = Inverse logic convention

0 = Direct logic convention

bit 2 T0PD: Pull-Down Duration for T = 0 Error Handling bit

1 = Two ETUs

0 = One ETU

bit 1 PRTCL: Smart Card Protocol Selection bit

1 = T = 1

0 = T = 0

bit 0 Unimplemented: Read as '0'

REGISTER 15-16: UxSCINT: UARTx SMART CARD INTERRUPT REGISTER

U-0 U-0 HS/R/W-0 HS/R/W-0 U-0 HS/R/W-0 HS/R/W-0 HS/R/W-0
—	—	RXRPTIF	TXRPTIF	—	BTCIF	WTCIF	GTCIF
bit 15 bit 8
U-0	U-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
—	—	RXRPTIE	TXRPTIE	—	BTCIE	WTCIE	GTCIE
bit 7 bit 0

Legend:	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14	Unimplemented: Read as ‘0’
bit 13	RXRPTIF:Receive Repeat Interrupt Flag bit1 = Parity error has persisted after the same character has been received five times (four retransmits)0 = Flag is cleared
bit 12	TXRPTIF:Transmit Repeat Interrupt Flag bit1 = Line error has been detected after the last retransmit per TXRPT[1:0]0 = Flag is cleared
bit 11	Unimplemented:Read as ‘0’
bit 10	BTCIF:Block Time Counter Interrupt Flag bit1 = Block Time Counter has reached 00 = Block Time Counter has not reached 0
bit 9	WTCIF:Waiting Time Counter Interrupt Flag bit1 = Waiting Time Counter has reached 00 = Waiting Time Counter has not reached 0
bit 8	GTCIF:Guard Time Counter Interrupt Flag bit1 = Guard Time Counter has reached 00 = Guard Time Counter has not reached 0
bit 7-6	Unimplemented:Read as ‘0’
bit 5	RXRPTIE:Receive Repeat Interrupt Enable bit1 = An interrupt is invoked when a parity error has persisted after the same character has been received five times (four retransmits)0 = Interrupt is disabled
bit 4	TXRPTIE:Transmit Repeat Interrupt Enable bit1 = An interrupt is invoked when a line error is detected after the last retransmit per TXRPT[1:0] has been completed0 = Interrupt is disabled
bit 3	Unimplemented:Read as ‘0’
bit 2	BTCIE:Block Time Counter Interrupt Enable bit1 = Block Time Counter interrupt is enabled0 = Block Time Counter interrupt is disabled
bit 1	WTCIE:Waiting Time Counter Interrupt Enable bit1 = Waiting Time Counter interrupt is enabled0 = Waiting Time Counter interrupt is disabled
bit 0	GTCIE:Guard Time Counter interrupt enable bit1 = Guard Time Counter interrupt is enabled0 = Guard Time Counter interrupt is disabled

REGISTER 15-17: UxINT: UARTx INTERRUPT REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
———	——— ——
bit 15 bit 8

R/W-0, HS	R/W-0, HS	U-0	U-0	U-0	R/W-0	U-0	U-0
WUIF	ABDIF	— — —	ABDIE	— —
bit 7 bit 0

Legend:	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7 WUIF: Wake-up Interrupt Flag bit

1 = Sets when WAKE = 1 and RX makes a '1'-to-'0' transition; triggers event interrupt (must be cleared by software) 0 = WAKE is not enabled or WAKE is enabled, but no wake-up event has occurred

bit 6 ABDIF: Auto-Baud Completed Interrupt Flag bit

1 = Sets when ABD sequence makes the final '1'-to-'0' transition; triggers event interrupt (must be cleared by software) 0 = ABAUD is not enabled or ABAUD is enabled but auto-baud has not completed

bit 5-3 Unimplemented: Read as '0'

bit 2 ABDIE: Auto-Baud Completed Interrupt Enable Flag bit

1 = Allows ABDIF to set an event interrupt 0 = ABDIF does not set an event interrupt

bit 1-0 Unimplemented: Read as '0'

NOTES:

16.0 SERIAL PERIPHERAL INTERFACE (SPI)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Serial Peripheral Interface (SPI) with Audio Codec Support” (www.microchip.com/DS70005136) in the “dsPIC33/PIC24 Family Reference Manual”.

The Serial Peripheral Interface (SPI) module is a synchronous serial interface, useful for communicating with other peripheral or microcontroller devices. These peripheral devices may be serial EEPROMs, shift registers, display drivers, A/D Converters, etc. The SPI module is compatible with the Motorola® SPI and SIOP interfaces. All devices in the dsPIC33CK64MC105 family include three SPI modules. On 48-pin devices, SPI instance of SPI2 can operate at higher speeds when selected as a non-PPS pin. The selection is done using the SPI2PIN bit (FDEVOPT[13]). If the bit for SPI2PIN is '1', the PPS pin will be used. When SPI2PIN is '0', the SPI signals are routed to dedicated pins.

The module supports operation in two Buffer modes. In Standard mode, data are shifted through a single serial buffer. In Enhanced Buffer mode, data are shifted through a FIFO buffer. The FIFO level depends on the configured mode.

Note: FIFO depth for this device is four (in 8-Bit Data mode).

Variable length data can be transmitted and received, from 2 to 32 bits.

Note: Do not perform Read-Modify-Write operations (such as bit-oriented instructions) on the SPIxBUF register in either Standard or Enhanced Buffer mode.

The module also supports a basic framed SPI protocol while operating in either Host or Client mode. A total of four framed SPI configurations are supported.

The module also supports Audio modes. Four different Audio modes are available.

- I^2S mode

• Left Justified mode
• Right Justified mode
• PCM/DSP mode

In each of these modes, the serial clock is free-running and audio data are always transferred.

If an audio protocol data transfer takes place between two devices, then usually one device is the Host and the other is the Client. However, audio data can be transferred between two Clients. Because the audio protocols require free-running clocks, the Host can be a third-party controller. In either case, the Host generates two free-running clocks: SCKx and LRC (Left, Right Channel Clock/SSx/FSYNC).

The SPI serial interface consists of four pins:

• SDlx: Serial Data Input
• SDOx: Serial Data Output
  • SCKx: Shift Clock Input or Output
• SSx : Active-Low Client Select or Frame Synchronization I/O Pulse

The SPI module can be configured to operate using two, three or four pins. In the 3-pin mode, SSx is not used. In the 2-pin mode, both SDOx and SSx are not used.

The SPI module has the ability to generate three interrupts reflecting the events that occur during the data communication. The following types of interrupts can be generated:

1. Receive interrupts are signalled by SPIxRXIF.

This event occurs when:

• RX watermark interrupt
• SPIROV = 1
• SPIRBF = 1
• SPIRBE = 1

provided the respective mask bits are enabled in SPIxIMSKL/H.

1. Transmit interrupts are signalled by SPIxTXIF.

This event occurs when:

• TX watermark interrupt
• SPITUR = 1
• SPITBF = 1
• SPITBE = 1

provided the respective mask bits are enabled in SPIxIMSKL/H.

1. General interrupts are signalled by SPIxGIF.

This event occurs when:

• FRMERR = 1
• SPIBUSY = 1
• SRMT = 1

provided the respective mask bits are enabled in SPIxIMSKL/H.

Block diagrams of the module in Standard and Enhanced modes are shown in Figure 16-1 and Figure 16-2.

Note: In this section, the SPI modules are referred to together as SPIx, or separately as SPI1, SPI2 or SPI3. Special Function Registers will follow a similar notation. For example, SPIxCON1 and SPIxCON2 refer to the control registers for any of the three SPI modules.

To set up the SPIx module for the Standard Host mode of operation:

1. If using interrupts:

a) Clear the interrupt flag bits in the respective IFSx register.
b) Set the interrupt enable bits in the respective IECx register.
c) Write the SPIxIP bits in the respective IPCx register to set the interrupt priority.

1. Write the desired settings to the SPIxCON1L and SPIxCON1H registers with the MSTEN bit (SPIxCON1L[5]) = 1.

2. Clear the SPIROV bit (SPIxSTATL[6]).

3. Enable SPIx operation by setting the SPIEN bit (SPIxCON1L[15]).
4. Write the data to be transmitted to the SPIxBUFL and SPIxBUFH registers. Transmission (and reception) will start as soon as data are written to the SPIxBUFL and SPIxBUFH registers.

To set up the SPIx module for the Standard Client mode of operation:

1. Clear the SPIxBUF registers.
2. If using interrupts:

a) Clear the SPIxBUFL and SPIxBUFH registers.
b) Set the interrupt enable bits in the respective IECx register.
c) Write the SPIxIP bits in the respective IPCx register to set the interrupt priority.

1. Write the desired settings to the SPIxCON1L, SPIxCON1H and SPIxCON2L registers with the MSTEN bit (SPIxCON1L[5]) = 0.

2. Clear the SMP bit.

3. If the CKE bit (SPIxCON1L[8]) is set, then the SSEN bit (SPIxCON1L[7]) must be set to enable the SSx pin.
4. Clear the SPIROV bit (SPIxSTATL[6]).
5. Enable SPIx operation by setting the SPIEN bit (SPIxCON1L[15]).

FIGURE 16-1: SPIx MODULE BLOCK DIAGRAM (STANDARD MODE)

To set up the SPIx module for the Enhanced Buffer Host mode of operation:

1. If using interrupts:

a) Clear the interrupt flag bits in the respective IFSx register.
b) Set the interrupt enable bits in the respective IECx register.
c) Write the SPIxIP bits in the respective IPCx register.

1. Write the desired settings to the SPIxCON1L, SPIxCON1H and SPIxCON2L registers with MSTEN (SPIxCON1L[5]) = 1.
2. Clear the SPIROV bit (SPIxSTATL[6]).
3. Select Enhanced Buffer mode by setting the ENHBUF bit (SPIxCON1L[0]).
4. Enable SPIx operation by setting the SPIEN bit (SPIxCON1L[15]).
5. Write the data to be transmitted to the SPIxBUFL and SPIxBUFH registers. Transmission (and reception) will start as soon as data are written to the SPIxBUFL and SPIxBUFH registers.

To set up the SPIx module for the Enhanced Buffer Client mode of operation:

1. Clear the SPIxBUFL and SPIxBUFH registers.
2. If using interrupts:

a) Clear the interrupt flag bits in the respective IFSx register.
b) Set the interrupt enable bits in the respective IECx register.
c) Write the SPIxIP bits in the respective IPCx register to set the interrupt priority.

1. Write the desired settings to the SPIxCON1L, SPIxCON1H and SPIxCON2L registers with the MSTEN bit (SPIxCON1L[5]) = 0.

2. Clear the SMP bit.

3. If the CKE bit is set, then the SSEN bit must be set, thus enabling the pin.
4. Clear the SPIROV bit (SPIxSTATL[6]).
5. Select Enhanced Buffer mode by setting the ENHBUF bit (SPIxCON1L[0]).
6. Enable SPIx operation by setting the SPIEN bit (SPIxCON1L[15]).

FIGURE 16-2: SPIx MODULE BLOCK DIAGRAM (ENHANCED MODE)

To set up the SPIx module for Audio mode:

1. Clear the SPIxBUFL and SPIxBUFH registers.
2. If using interrupts:

a) Clear the interrupt flag bits in the respective IFSx register.
b) Set the interrupt enable bits in the respective IECx register.
c) Write the SPIxIP bits in the respective IPCx register to set the interrupt priority.

1. Write the desired settings to the SPIxCON1L, SPIxCON1H and SPIxCON2L registers with AUDEN (SPIxCON1H[15]) = 1.

2. Clear the SPIROV bit (SPIxSTATL[6]).

3. Enable SPIx operation by setting the SPIEN bit (SPIxCON1L[15]).
4. Write the data to be transmitted to the SPIxBUFL and SPIxBUFH registers. Transmission (and reception) will start as soon as data are written to the SPIxBUFL and SPIxBUFH registers.

Note: After start-up, when configured for Client mode, left justified for all possible configurations of MODE[32,16] and in right justified for MODE[32,16] = {0b00, 0b10} the SPI drives ones out of SDOx if the MSb bit of the first data is a one.

16.1 SPI Control/Status Registers

REGISTER 16-1: SPIxCON1L: SPIx CONTROL REGISTER 1 LOW

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SPIEN	—	SPISIDL	DIS$DO	MODE	32	(1,4)	MODE16(1,4)	SMP CKE	(1)
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
SSEN(2)	CKP MST	EN DISSDI DI	SSCK	MCLKEN	(3)	SPIFE ENH	BUF
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15

SPIEN: SPIx On bit

1 = Enables module
0 = Turns off and resets module, disables clocks, disables interrupt event generation, allows SFR modifications

bit 14

Unimplemented: Read as '0'

bit 13 SPISIDL: SPIx Stop in Idle Mode bit

1 = Halts in CPU Idle mode
0 = Continues to operate in CPU Idle mode

bit 12 DISSDO: Disable SDOx Output Port bit

1 = SDOx pin is not used by the module; pin is controlled by port function
0 = SDOx pin is controlled by the module

bit 11-10

MODE32 and MODE16: Serial Word Length Select bits ^(1,4)

MODE32	MODE16	AUDEN	Communication
1	x	0	32-Bit
0	1		16-Bit
0	0		8-Bit
1	1	1	24-Bit Data, 32-Bit FIFO, 32-Bit Channel/64-Bit Frame
1	0		32-Bit Data, 32-Bit FIFO, 32-Bit Channel/64-Bit Frame
0	1		16-Bit Data, 16-Bit FIFO, 32-Bit Channel/64-Bit Frame
0	0		16-Bit FIFO, 16-Bit Channel/32-Bit Frame

bit 9

SMP: SPIx Data Input Sample Phase bit

Host Mode:

1 = Input data are sampled at the end of data output time
0 = Input data are sampled at the middle of data output time

Client Mode:

Input data are always sampled at the middle of data output time, regardless of the SMP setting.

bit 8

CKE: SPIx Clock Edge Select bit ^(1)

1 = Transmit happens on transition from Active Clock state to Idle Clock state
0 = Transmit happens on transition from Idle Clock state to Active Clock state

Note 1: When AUDEN (SPIxCON1H[15]) = 1, this module functions as if CKE = 0, regardless of its actual value.

2: When FRMEN = 1, SSEN is not used.
3: MCLKEN can only be written when the SPIEN bit = 0.
4: This channel is not meaningful for DSP/PCM mode as LRC follows FRMSYPW.

REGISTER 16-1: SPIxCON1L: SPIx CONTROL REGISTER 1 LOW (CONTINUED)

bit 7 SSEN: Client Select Enable bit (Client mode) (2)

1 = SSx pin is used by the macro in Client mode; SSx pin is used as the Client select input
0 = SSx pin is not used by the macro (SSx pin will be controlled by the port I/O)

bit 6 CKP: Clock Polarity Select bit

1 = Idle state for clock is a high level; active state is a low level
0 = Idle state for clock is a low level; active state is a high level

bit 5 MSTEN: Master Mode Enable bit

1 = Host mode
0 = Client mode

bit 4 DISSDI: Disable SDIx Input Port bit

1 = SDIx pin is not used by the module; pin is controlled by port function
0 = SDIx pin is controlled by the module

bit 3 DISSCK: Disable SCKx Output Port bit

1 = SCKx pin is not used by the module; pin is controlled by port function
0 = SCKx pin is controlled by the module

bit 2 MCLKEN: Master Clock Enable bit (3)

1 = Reference Clock (REFCLKO) is used by the BRG
0 = Peripheral Clock (FP = Fosc/2) is used by the BRG

bit 1 SPIFE: Frame Sync Pulse Edge Select bit

1 = Frame Sync pulse (Idle-to-active edge) coincides with the first bit clock
0 = Frame Sync pulse (Idle-to-active edge) precedes the first bit clock

bit 0 ENHBUF: Enhanced Buffer Enable bit

1 = Enhanced Buffer mode is enabled
0 = Enhanced Buffer mode is disabled

Note 1: When AUDEN (SPIxCON1H[15]) = 1, this module functions as if CKE = 0, regardless of its actual value.

2: When FRMEN = 1, SSEN is not used.

3: MCLKEN can only be written when the SPIEN bit = 0.

4: This channel is not meaningful for DSP/PCM mode as LRC follows FRMSYPW.

REGISTER 16-2: SPIxCON1H: SPIx CONTROL REGISTER 1 HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
AUDEN(1)	SPISGNEXT	IGNROV	IGNTUR	AUDMONO (2)	URDTEN(3)	AUDMOD1(4)	AUDMOD0(4)
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
FRMEN FRMSYNC FRMPOL MSSEN FRMSYPW FRMCNT2 FRMCNT1 FRMCNT0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 AUDEN: Audio Codec Support Enable bit (1)

1 = Audio protocol is enabled; MSTEN controls the direction of both SCKx and frame (a.k.a. LRC), and this module functions as if FRMEN = 1, FRMSYNC = MSTEN, FRMCNT[2:0] = 0.01 and SMP = 0, regardless of their actual values 0 = Audio protocol is disabled

bit 14 SPISGNEXT: SPIx Sign-Extend RX FIFO Read Data Enable bit

1 = Data from RX FIFO are sign-extended 0 = Data from RX FIFO are not sign-extended

bit 13 IGNROV: Ignore Receive Overflow bit

1 = A Receive Overflow (ROV) is NOT a critical error; during ROV, data in the FIFO are not overwritten by the receive data 0 = A ROV is a critical error that stops SPI operation

bit 12 IGNTUR: Ignore Transmit Underrun bit

1 = A Transmit Underrun (TUR) is NOT a critical error and data indicated by URDTEN are transmitted until the SPIxTXB is not empty 0 = A TUR is a critical error that stops SPI operation

bit 11 AUDMONO: Audio Data Format Transmit bit (2)

1 = Audio data are mono (i.e., each data word is transmitted on both left and right channels) 0 = Audio data are stereo

bit 10 URDTEN: Transmit Underrun Data Enable bit (3)

1 = Transmits data out of SPIxURDT register during Transmit Underrun conditions 0 = Transmits the last received data during Transmit Underrun conditions

bit 9-8 AUDMOD[1:0]: Audio Protocol Mode Selection bits ^(4)

11 = PCM/DSP mode 10 = Right Justified mode: This module functions as if SPIFE = 1, regardless of its actual value 01 = Left Justified mode: This module functions as if SPIFE = 1, regardless of its actual value 00 = I²S mode: This module functions as if SPIFE = 0, regardless of its actual value

bit 7 FRMEN: Framed SPIx Support bit

1 = Framed SPIx support is enabled (SSx pin is used as the FSYNC input/output) 0 = Framed SPIx support is disabled

Note 1: AUDEN can only be written when the SPIEN bit = 0.

2: AUDMONO can only be written when the SPIEN bit = 0 and is only valid for AUDEN = 1.

3: URDTEN is only valid when IGNTUR = 1.

4: AUDMOD[1:0] can only be written when the SPIEN bit = 0 and is only valid when AUDEN = 1. When NOT in PCM/DSP mode, this module functions as if FRMSYPW = 1, regardless of its actual value.

REGISTER 16-2: SPIxCON1H: SPIx CONTROL REGISTER 1 HIGH (CONTINUED)

bit 6 FRMSYNC: Frame Sync Pulse Direction Control bit

1 = Frame Sync pulse input (Client)

0 = Frame Sync pulse output (Host)

bit 5 FRMPOL: Frame Sync/Client Select Polarity bit

1 = Frame Sync pulse/Client select is active-high

0 = Frame Sync pulse/Client select is active-low

bit 4 MSSEN: Host Mode Client Select Enable bit

1 = SPIx Client select support is enabled with polarity determined by FRMPOL (SSx pin is automatically driven during transmission in Host mode)

0 = Client select SPIx support is disabled (SSx pin will be controlled by port I/O)

bit 3 FRMSYPW: Frame Sync Pulse-Width bit

1 = Frame Sync pulse is one serial word length wide (as defined by MODE[32,16]/WLENGTH[4:0])

0 = Frame Sync pulse is one clock (SCKx) wide

bit 2-0 FRMCNT[2:0]: Frame Sync Pulse Counter bits

Controls the number of serial words transmitted per Sync pulse.

111 = Reserved

110 = Reserved

101 = Generates a Frame Sync pulse on every 32 serial words

100 = Generates a Frame Sync pulse on every 16 serial words

011 = Generates a Frame Sync pulse on every 8 serial words

010 = Generates a Frame Sync pulse on every 4 serial words

001 = Generates a Frame Sync pulse on every 2 serial words (value used by audio protocols)

000 = Generates a Frame Sync pulse on each serial word

Note 1: AUDEN can only be written when the SPIEN bit = 0.

2: AUDMONO can only be written when the SPIEN bit = 0 and is only valid for AUDEN = 1.

3: URDTEN is only valid when IGNTUR = 1.

4: AUDMOD[1:0] can only be written when the SPIEN bit = 0 and is only valid when AUDEN = 1. When NOT in PCM/DSP mode, this module functions as if FRMSYPW = 1, regardless of its actual value.

REGISTER 16-3: SPIxCON2L: SPIx CONTROL REGISTER 2 LOW

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	————
bit 15 bit 8

U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	WLENGTH[4:0]	(1,2)
bit 7		bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-5 Unimplemented: Read as '0'

bit 4-0 WLENGTH[4:0]: Variable Word Length bits ^(1,2)

11111 = 32-bit data
11110 = 31-bit data
11101 = 30-bit data
11100 = 29-bit data
11011 = 28-bit data
11010 = 27-bit data
11001 = 26-bit data
11000 = 25-bit data
10111 = 24-bit data
10110 = 23-bit data
10101 = 22-bit data
10100 = 21-bit data
10011 = 20-bit data
10010 = 19-bit data
10001 = 18-bit data
10000 = 17-bit data
01111 = 16-bit data
01110 = 15-bit data
01101 = 14-bit data
01100 = 13-bit data
01011 = 12-bit data
01010 = 11-bit data
01001 = 10-bit data
01000 = 9-bit data
00111 = 8-bit data
00110 = 7-bit data
00101 = 6-bit data
00100 = 5-bit data
00011 = 4-bit data
00010 = 3-bit data
00001 = 2-bit data
00000 = See MODE[32, 16] bits in SPIxCON1L[11:10]

Note 1: These bits are effective when AUDEN = 0 only.

2: Varying the length by changing these bits does not affect the depth of the TX/RX FIFO.

Legend:	C = Clearable bit	U = Unimplemented, read as ‘0’
R = Readable bit	W = Writable bit	HSC = Hardware Settable/Clearable bit
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared HS = Hardware Settable bit

bit 15-13 Unimplemented: Read as '0'

bit 12 FRMERR: SPIx Frame Error Status bit

1 = Frame error is detected

0 = No frame error is detected

bit 11 SPIBUSY: SPIx Activity Status bit

1 = Module is currently busy with some transactions

0 = No ongoing transactions (at time of read)

bit 10-9 Unimplemented: Read as '0'

bit 8 SPITUR: SPIx Transmit Underrun Status bit ^(1)

1 = Transmit buffer has encountered a Transmit Underrun condition

0 = Transmit buffer does not have a Transmit Underrun condition

bit 7 SRMT: Shift Register Empty Status bit

1 = No current or pending transactions (i.e., neither SPIxTXB or SPIxTXSR contains data to transmit)

0 = Current or pending transactions

bit 6 SPIROV: SPIx Receive Overflow Status bit

1 = A new byte/half-word/word has been completely received when the SPIxRXB was full

0 = No overflow

bit 5 SPIRBE: SPIx RX Buffer Empty Status bit

1 = RX buffer is empty

0 = RX buffer is not empty

Standard Buffer Mode:

Automatically set in hardware when SPIxBUF is read from, reading SPIxRXB. Automatically cleared in hardware when SPIx transfers data from SPIxRXSR to SPIxRXB.

Enhanced Buffer Mode:

Indicates RXELM[5:0] = 000000.

bit 4 Unimplemented: Read as '0'

Note 1: SPITUR is cleared when SPIEN = 0. When IGNTUR = 1, SPITUR provides dynamic status of the Transmit Underrun condition, but does not stop RX/TX operation and does not need to be cleared by software.

REGISTER 16-4: SPIxSTATL: SPIx STATUS REGISTER LOW (CONTINUED)
bit 3 SPITBE: SPIx Transmit Buffer Empty Status bit 1 = SPIxTXB is empty 0 = SPIxTXB is not empty Standard Buffer Mode: Automatically set in hardware when SPIx transfers data from SPIxTXB to SPIxTXSR. Automatically cleared in hardware when SPIxBUF is written, loading SPIxTXB. Enhanced Buffer Mode: Indicates TXELM[5:0] = 000000.

bit 2 Unimplemented: Read as '0' bit 1 SPITBF: SPIx Transmit Buffer Full Status bit 1 = SPIxTXB is full 0 = SPIxTXB not full Standard Buffer Mode: Automatically set in hardware when SPIxBUF is written, loading SPIxTXB. Automatically cleared in hardware when SPIx transfers data from SPIxTXB to SPIxTXSR. Enhanced Buffer Mode: Indicates TXELM[5:0] = 111111.

bit 0 SPIRBF: SPIx Receive Buffer Full Status bit 1 = SPIxRXB is full 0 = SPIxRXB is not full Standard Buffer Mode: Automatically set in hardware when SPIx transfers data from SPIxRXSR to SPIxRXB. Automatically cleared in hardware when SPIxBUF is read from, reading SPIxRXB. Enhanced Buffer Mode: Indicates RXELM[5:0] = 111111.

Note 1: SPITUR is cleared when SPIEN = 0. When IGNTUR = 1, SPITUR provides dynamic status of the Transmit Underrun condition, but does not stop RX/TX operation and does not need to be cleared by software.

U-0 U-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0
— —	T	X	E(3)	TXELM4(2)	M TXELM3(1)	TXELM2	TXELM1	TXELM0
bit 7 bit 0

Legend:	HSC = Hardware Settable/Clearable bit
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13-8 RXELM[5:0]: Receive Buffer Element Count bits (valid in Enhanced Buffer mode) ^(1,2,3)

bit 7-6 Unimplemented: Read as '0'

bit 5-0 TXELM[5:0]: Transmit Buffer Element Count bits (valid in Enhanced Buffer mode) ^(1,2,3)

Note 1: RXELM3 and TXELM3 bits are only present when FIFODEPTH = 8 or higher.

2: RXELM4 and TXELM4 bits are only present when FIFODEPTH = 16 or higher.

3: RXELM5 and TXELM5 bits are only present when FIFODEPTH = 32.

REGISTER 16-6: SPIxIMSKL: SPIx INTERRUPT MASK REGISTER LOW

U-0 U-0 U-0 R/W-0 R/W-0 U-0 U-0 R/W-0
— — —	FRMERREN	BUSYEN — —	SPITUREN
bit 15 bit 8

R/W-0 R/W-0 R/W-0 U-0 R/W-0 U-0 R/W-0 R/W-0
SRMTEN	SPIROVEN	SPIRBEN	—	SPITBEN	—	SPITBFEN	SPIRBFEN
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-13 Unimplemented: Read as '0'

bit 12 FRMERREN: Enable Interrupt Events via FRMERR bit

1 = Frame error generates an interrupt event

0 = Frame error does not generate an interrupt event

bit 11 BUSYEN: Enable Interrupt Events via SPIBUSY bit

1 = SPIBUSY generates an interrupt event

0 = SPIBUSY does not generate an interrupt event

bit 10-9 Unimplemented: Read as '0'

bit 8 SPITUREN: Enable Interrupt Events via SPITUR bit

1 = Transmit Underrun (TUR) generates an interrupt event

0 = Transmit Underrun does not generate an interrupt event

bit 7 SRMTEN: Enable Interrupt Events via SRMT bit

1 = Shift Register Empty (SRMT) generates interrupt events

0 = Shift Register Empty does not generate interrupt events

bit 6 SPIROVEN: Enable Interrupt Events via SPIROV bit

1 = SPIx Receive Overflow (ROV) generates an interrupt event

0 = SPIx Receive Overflow does not generate an interrupt event

bit 5 SPIRBEN: Enable Interrupt Events via SPIRBE bit

1 = SPIx RX buffer empty generates an interrupt event

0 = SPIx RX buffer empty does not generate an interrupt event

bit 4 Unimplemented: Read as '0'

bit 3 SPITBEN: Enable Interrupt Events via SPITBE bit

1 = SPIx transmit buffer empty generates an interrupt event

0 = SPIx transmit buffer empty does not generate an interrupt event

bit 2 Unimplemented: Read as '0'

bit 1 SPITBFEN: Enable Interrupt Events via SPITBF bit

1 = SPIx transmit buffer full generates an interrupt event

0 = SPIx transmit buffer full does not generate an interrupt event

bit 0 SPIRBFEN: Enable Interrupt Events via SPIRBF bit

1 = SPIx receive buffer full generates an interrupt event

0 = SPIx receive buffer full does not generate an interrupt event

REGISTER 16-7: SPIxIMSKH: SPIx INTERRUPT MASK REGISTER HIGH

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
RXWIEN	— RXMSK5 (1)		RXMSK4(1,4)	RXMSK3(1,3)	RXMSK2(1,2)	RXMSK1(1)	RXMSK0(1)
bit 15 bit 8

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TXWIEN	— TXMSK5(1)		TXMSK4(1,4)	TXMSK3(1,3)	TXMSK2(1,2)	TXMSK1(1)	TXMSK0(1)
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 RXWIEN: Receive Watermark Interrupt Enable bit

1 = Triggers receive buffer element watermark interrupt when RXMSK[5:0] ≤ RXELM[5:0]

0 = Disables receive buffer element watermark interrupt

bit 14 Unimplemented: Read as '0'

bit 13-8 RXMSK[5:0]: RX Buffer Mask bits ^(1,2,3,4)

RX mask bits; used in conjunction with the RXWIEN bit.

bit 7 TXWIEN: Transmit Watermark Interrupt Enable bit

1 = Triggers transmit buffer element watermark interrupt when TXMSK[5:0] = TXELM[5:0]

0 = Disables transmit buffer element watermark interrupt

bit 6 Unimplemented: Read as '0'

bit 5-0 TXMSK[5:0]: TX Buffer Mask bits ^(1,2,3,4)

TX mask bits; used in conjunction with the TXWIEN bit.

Note 1: Mask values higher than FIFODEPTH are not valid. The module will not trigger a match for any value in this case.

2: RXMSK2 and TXMSK2 bits are only present when FIFODEPTH = 8 or higher.

3: RXMSK3 and TXMSK3 bits are only present when FIFODEPTH = 16 or higher.

4: RXMSK4 and TXMSK4 bits are only present when FIFODEPTH = 32.

FIGURE 16-3: SPIx HOST/CLIENT CONNECTION (STANDARD MODE)

Note 1: Using the SSx pin in Client mode of operation is optional.
2: User must write transmit data to read the received data from SPIxBUF. The SPIxTXB and SPIxRXB registers are memory-mapped to SPIxBUF.

FIGURE 16-4: SPIx HOST/CLIENT CONNECTION (ENHANCED BUFFER MODES)

Note 1: Using the SSx pin in Client mode of operation is optional.
2: User must write transmit data to read the received data from SPIxBUF. The SPIxTXB and SPIxRXB registers are memory-mapped to SPIxBUF.

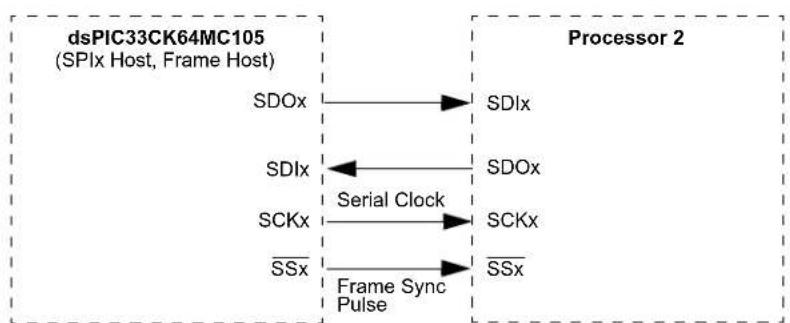

FIGURE 16-5: SPIx HOST, FRAME HOST CONNECTION DIAGRAM
        K["SDIx"]
        L["SDOx"]
        M["SCKx"]
        N["SSx"]
    end

FIGURE 16-6: SPIx HOST, FRAME CLIENT CONNECTION DIAGRAM
FIGURE 16-7: SPIx CLIENT, FRAME HOST CONNECTION DIAGRAM
FIGURE 16-8: SPIx CLIENT, FRAME CLIENT CONNECTION DIAGRAM

EQUATION 16-1: RELATIONSHIP BETWEEN DEVICE AND SPIx CLOCK SPEED

$$ B a u d R a t e = \frac {F _ {P}}{(2 * (S P I x B R G + 1))} $$

Where:

FP is the Peripheral Bus Clock Frequency.

17.0 INTER-INTEGRATED CIRCUIT (I²C)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. For more information, refer to "Inter-Integrated Circuit (I²C)" (www.microchip.com/DS70000195) in the "dsPIC33/PIC24 Family Reference Manual".

The Inter-Integrated Circuit (I²C) module is a serial interface useful for communicating with other peripheral or microcontroller devices. These peripheral devices may be serial EEPROMs, display drivers, A/D Converters, etc.

The I ^2 C module supports these features:

• Independent Host and Client Logic
- 7-Bit and 10-Bit Device Addresses
- General Call Address as Defined in the I²C Protocol
- Clock Stretching to Provide Delays for the Processor to Respond to a Client Data Request
- Both 100 kHz and 400 kHz Bus Specifications
- Configurable Address Masking
- Multi-Host modes to Prevent Loss of Messages in Arbitration
- Bus Repeater mode, Allowing the Acceptance of All Messages as a Client, regardless of the Address
- Automatic SCL

A block diagram of the module is shown in Figure 17-1.

17.1 Communicating as a Host in a Single Host Environment

The details of sending a message in Host mode depends on the communication protocol for the device being communicated with. Typically, the sequence of events is as follows:

1. Assert a Start condition on SDAx and SCLx.
2. Send the I ^2 C device address byte to the Client with a write indication.
3. Wait for and verify an Acknowledge from the Client.
4. Send the first data byte (sometimes known as the command) to the Client.
5. Wait for and verify an Acknowledge from the Client.
6. Send the serial memory address low byte to the Client.
7. Repeat Steps 4 and 5 until all data bytes are sent.
8. Assert a Repeated Start condition on SDAx and SCLx.
9. Send the device address byte to the Client with a read indication.
10. Wait for and verify an Acknowledge from the Client.
11. Enable Host reception to receive serial memory data.
12. Generate an ACK or NACK condition at the end of a received byte of data.
13. Generate a Stop condition on SDAx and SCLx.

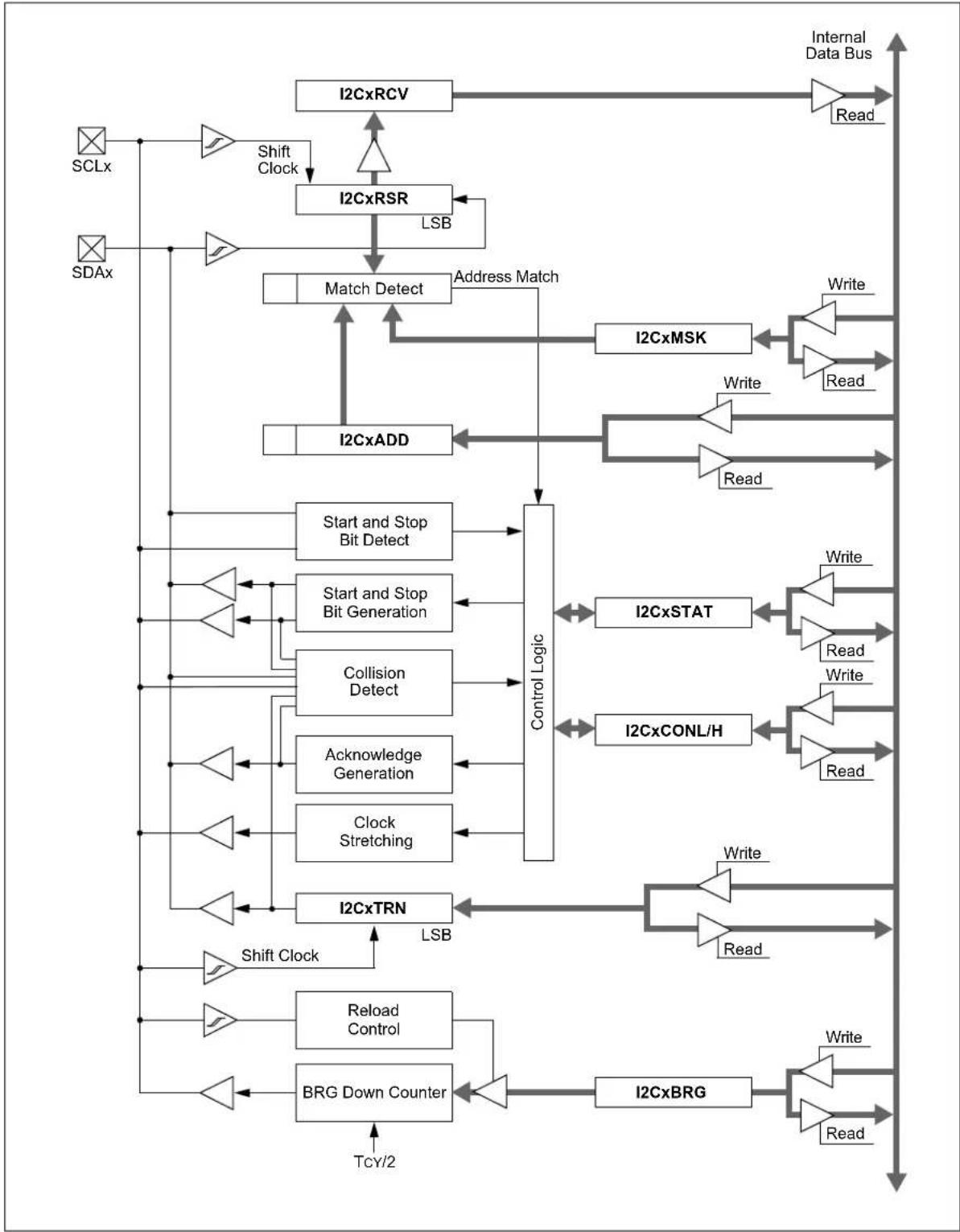

FIGURE 17-1: I2Cx BLOCK DIAGRAM

17.2 Setting Baud Rate When Operating as a Bus Host

To compute the Baud Rate Generator reload value, use Equation 17-1.

EQUATION 17-1: COMPUTING BAUD RATE RELOAD VALUE ^(1,2,3,4)

$$ 1 2 C x B R G = ((1 / F S C L - D e l a y) \cdot F P / 2) - 2 $$

Note 1: Based on FP = Fosc/2.

2: These clock rate values are for guidance only. The actual clock rate can be affected by various system-level parameters. The actual clock rate should be measured in its intended application.
3: Typical value of delay varies from 110 ns to 150 ns.
4: I2CxBRG values of 0 to 3 are expressly forbidden. The user should never program the I2CxBRG with a value of 0x0, 0x1, 0x2 or 0x3 as indeterminate results may occur.

17.3 Client Address Masking

The I2CxMSK register (Register 17-4) designates address bit positions as "don't care" for both 7-Bit and 10-Bit Addressing modes. Setting a particular bit location (= 1) in the I2CxMSK register causes the Client module to respond, whether the corresponding address bit value is a '0' or a '1'. For example, when I2CxMSK is set to '0010000000', the Client module will detect both addresses, '0000000000' and '0010000000'.

To enable address masking, the Intelligent Peripheral Management Interface (IPMI) must be disabled by clearing the STRICT bit (I2CxCONL[11]).

Note: As a result of changes in the I ^2 C protocol, the addresses in Table 17-2 are reserved and will not be Acknowledged in Client mode. This includes any address mask settings that include any of these addresses.

TABLE 17-1: I2Cx CLOCK RATES (1,2)

FcY FsCL		I2CxBRG Value
		Decimal	Hexadecimal
100 MHz	1 MHz	41	29
100 MHz	400 kHz	116	74
100 MHz	100 kHz	491	1EB
80 MHz	1 MHz	32	20
80 MHz	400 kHz	92	5C
80 MHz	100 kHz	392	188
60 MHz	1 MHz	24	18
60 MHz	400 kHz	69	45
60 MHz	100 kHz	294	126
40 MHz	1 MHz	15	0F
40 MHz	400 kHz	45	2D
40 MHz	100 kHz	195	C3
20 MHz	1 MHz	7	7
20 MHz	400 kHz	22	16
20 MHz	100 kHz	97	61

Note 1: Based on F P = Fosc/2.
2: These clock rate values are for guidance only. The actual clock rate can be affected by various system-level parameters. The actual clock rate should be measured in its intended application.

TABLE 17-2: I2Cx RESERVED ADDRESSES (1)

Client Address R/W Bit Description
0000 000 0	General Call Address (2)
0000 000 1	Start Byte
0000 001 x	Cbus Address
0000 01x x	Reserved
0000 1xx x	HS Mode Host Code
1111 0xx x	10-Bit Client Upper Byte (3)
1111 1xx x	Reserved

Note 1: The address bits listed here will never cause an address match independent of address mask settings.
2: This address will be Acknowledged only if GCEN = 1.
3: A match on this address can only occur on the upper byte in 10-Bit Addressing mode.

17.4 I ^2 C Control/Status Registers

REGISTER 17-1: I2CxCONL: I2Cx CONTROL REGISTER LOW

R/W-0 U-0 HC/R/W-0 R/W-1 R/W-0 R/W-0 R/W-0 R/W-0
I2CEN —	I2CSIDL	$CLREL	(1)	STRICT	A10M	DISSLW	SMEN(3)
bit 15 bit 8

R/W-0	R/W-0	R/W-0	HC/R/W-0	HC/R/W-0	HC/R/W-0	HC/R/W-0	HC/R/W-0
GCEN	STREN	ACKDT	ACKEN	RCEN	PEN	RSEN	SEN
bit 7 bit 0

Legend:	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	I2CEN: I2Cx Enable bit (writable from software only)1 = Enables the I2Cx module, and configures the SDAx and SCLx pins as serial port pins0 = Disables the I2Cx module; all pins are controlled by port functions
bit 14	Unimplemented: Read as '0'
bit 13	I2CSIDL: I2Cx Stop in Idle Mode bit1 = Discontinues module operation when device enters Idle mode0 = Continues module operation in Idle mode
bit 12	SCLREL: SCLx Release Control bit ( I^2C Client mode only)(1)1 = Releases the SCLx clock0 = Holds the SCLx clock low (clock stretch)If STREN = 1:(2)User software may write '0' to initiate a clock stretch and write '1' to release the clock. Hardware clears at the beginning of every Client data byte transmission. Hardware clears at the end of every Client address byte reception. Hardware clears at the end of every Client data byte reception.If STREN = 0:User software may only write '1' to release the clock. Hardware clears at the beginning of every Client data byte transmission. Hardware clears at the end of every Client address byte reception.
bit 11	STRICT: I2Cx Strict Reserved Address Rule Enable bit1 = Strict reserved addressing is enforced; for reserved addresses, refer to Table 17-2.(In Client Mode) – The device doesn't respond to reserved address space and addresses falling in that category are NACKed.(In Host Mode) – The device is allowed to generate addresses with reserved address space.0 = Reserved addressing would be Acknowledged.(In Client Mode) – The device will respond to an address falling in the reserved address space.When there is a match with any of the reserved addresses, the device will generate an ACK.(In Host Mode) – Reserved.
bit 10	A10M: 10-Bit Client Address Flag bit1 = I2CxADD is a 10-bit Client address0 = I2CxADD is a 7-bit Client address

Note 1: Automatically cleared to '0' at the beginning of Client transmission; automatically cleared to '0' at the end of Client reception.
2: Automatically cleared to '0' at the beginning of Client transmission.
3: The SMB3EN Configuration bit (FDEVOPT[10]) selects between normal and SMBus 3.0 levels.

REGISTER 17-1: I2CxCONL: I2Cx CONTROL REGISTER LOW (CONTINUED)

bit 9 DISSLW: Slew Rate Control Disable bit

1 = Slew rate control is disabled for Standard Speed mode (100 kHz, also disabled for 1 MHz mode)

0 = Slew rate control is enabled for High-Speed mode (400 kHz)

bit 8 SMEN: SMBus Input Levels Enable bit

(3)

1 = Enables input logic so thresholds are compliant with the SMBus specification

0 = Disables SMBus-specific inputs

bit 7 GCEN: General Call Enable bit (I ^2 C Client mode only)

1 = Enables interrupt when a general call address is received in I2CxRSR; module is enabled for reception

0 = General call address is disabled.

bit 6 STREN: SCLx Clock Stretch Enable bit

In I ^2 C Client mode only; used in conjunction with the SCLREL bit.

1 = Enables clock stretching

0 = Disables clock stretching

bit 5 ACKDT: Acknowledge Data bit

In I ^2 C Host mode during Host Receive mode. The value that will be transmitted when the user initiates an Acknowledge sequence at the end of a receive.

In I ^2 C Client mode when AHEN = 1 or DHEN = 1. The value that the Client will transmit when it initiates an Acknowledge sequence at the end of an address or data reception.

1 = NACK is sent

0 = ACK is sent

bit 4 ACKEN: Acknowledge Sequence Enable bit

In I ^2 C Host mode only; applicable during Host Receive mode.

1 = Initiates Acknowledge sequence on SDAx and SCLx pins, and transmits ACKDT data bit

0 = Acknowledge sequence is Idle

bit 3 RCEN: Receive Enable bit (I ^2 C Host mode only)

1 = Enables Receive mode for I²C; automatically cleared by hardware at end of 8-bit receive data byte

0 = Receive sequence is not in progress

bit 2 PEN: Stop Condition Enable bit (I ^2 C Host mode only)

1 = Initiates Stop condition on SDAx and SCLx pins

0 = Stop condition is Idle

bit 1 RSEN: Restart Condition Enable bit (I ^2 C Host mode only)

1 = Initiates Restart condition on SDAx and SCLx pins

0 = Restart condition is Idle

bit 0 SEN: Start Condition Enable bit (I ^2 C Host mode only)

1 = Initiates Start condition on SDAx and SCLx pins

0 = Start condition is Idle

Note 1: Automatically cleared to '0' at the beginning of Client transmission; automatically cleared to '0' at the end of Client reception.

2: Automatically cleared to '0' at the beginning of Client transmission.

3: The SMB3EN Configuration bit (FDEVOPT[10]) selects between normal and SMBus 3.0 levels.

REGISTER 17-2: I2CxCONH: I2Cx CONTROL REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
—	PCIE	SCIE	BOEN	SDAHT	SBCDE	AHEN	DHEN
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-7 Unimplemented: Read as '0'

bit 6 PCIE: Stop Condition Interrupt Enable bit (I²C Client mode only).

1 = Enables interrupt on detection of Stop condition

0 = Stop detection interrupts are disabled

bit 5 SCIE: Start Condition Interrupt Enable bit (I²C Client mode only)

1 = Enables interrupt on detection of Start or Restart conditions

0 = Start detection interrupts are disabled

bit 4 BOEN: Buffer Overwrite Enable bit (I²C Client mode only)

1 = I2CxRCV is updated and an ACK is generated for a received address/data byte, ignoring the state of the I2COV bit only if RBF bit = 0

0 = I2CxRCV is only updated when I2COV is clear

bit 3 SDAHT: SDAx Hold Time Selection bit

1 = Minimum of 300 ns hold time on SDAx after the falling edge of SCLx

0 = Minimum of 100 ns hold time on SDAx after the falling edge of SCLx

bit 2 SBCDE: Client Mode Bus Collision Detect Enable bit (I²C Client mode only)

If, on the rising edge of SCLx, SDAx is sampled low when the module is outputting a High state, the BCL bit is set and the bus goes Idle. This Detection mode is only valid during data and ACK transmit sequences.

1 = Enables Client bus collision interrupts

0 = Client bus collision interrupts are disabled

bit 1 AHEN: Address Hold Enable bit (I²C Client mode only)

1 = Following the 8th falling edge of SCLx for a matching received address byte; SCLREL bit (I2CxCONL[12]) will be cleared and the SCLx will be held low

0 = Address holding is disabled

bit 0 DHEN: Data Hold Enable bit (I²C Client mode only)

1 = Following the 8th falling edge of SCLx for a received data byte; Client hardware clears the SCLREL bit (I2CxCONL[12]) and SCLx is held low

0 = Data holding is disabled

REGISTER 17-3: I2CxSTAT: I2Cx STATUS REGISTER

HSC/R-0 HSC/R-0 HSC/R-0 U-0 U-0 HSC/R/C-0 HSC/R-0 HSC/R-0
ACKSTAT	TRSTAT	ACKTIM	—	—	BCL	GCSTAT	ADD10
bit 15 bit 8

HS/R/C-0	HS/R/C-0	HSC/R-0	HSC/R-0	HSC/R-0	HSC/R-0	HSC/R-0	HSC/R-0
IWCOL	I2COV	D/	P	S	R/	RBF	TBF
bit 7 bit 0

Legend:	C = Clearable bit	HSC = Hardware Settable/Clearable bit
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	HS = Hardware Settable bit

bit 15	ACKSTAT: Acknowledge Status bit (updated in all Host and Client modes)1 = Acknowledge was not received from Client0 = Acknowledge was received from Client
bit 14	TRSTAT: Transmit Status bit (when operating as I^2C Host; applicable to Host transmit operation)1 = Host transmit is in progress (eight bits + ACK)0 = Host transmit is not in progress
bit 13	ACKTIM: Acknowledge Time Status bit (valid in I^2C Client mode only)1 = Indicates I^2C bus is in an Acknowledge sequence, set on 8th falling edge of SCLx clock0 = Not an Acknowledge sequence, cleared on 9th rising edge of SCLx clock
bit 12-11	Unimplemented: Read as '0'
bit 10	BCL: Bus Collision Detect bit (cleared when I^2C module is disabled, I2CEN = 0)1 = A bus collision has been detected during a transmit operation0 = No bus collision has been detected
bit 9	GCSTAT: General Call Status bit (cleared after Stop detection)1 = General call address was received0 = General call address was not received
bit 8	ADD10: 10-Bit Address Status bit (cleared after Stop detection)1 = 10-bit address was matched0 = 10-bit address was not matched
bit 7	IWCOL: I2Cx Write Collision Detect bit1 = An attempt to write to the I2CxTRN register failed because the I^2C module is busy; must be cleared in software0 = No collision
bit 6	I2COV: I2Cx Receive Overflow Flag bit1 = A byte was received while the I2CxRCV register is still holding the previous byte; I2COV is a “don’t care” in Transmit mode, must be cleared in software0 = No overflow
bit 5	D/A: Data/Address bit (when operating as I^2C Client)1 = Indicates that the last byte received was data0 = Indicates that the last byte received or transmitted was an address
bit 4	P: I2Cx Stop bitUpdated when Start, Reset or Stop is detected; cleared when the I^2C module is disabled, I2CEN = 0.1 = Indicates that a Stop bit has been detected last0 = Stop bit was not detected last

REGISTER 17-3: I2CxSTAT: I2Cx STATUS REGISTER (CONTINUED)

bit 3 S: I2Cx Start bit

Updated when Start, Reset or Stop is detected; cleared when the I^2C module is disabled, I2CEN = 0.

1 = Indicates that a Start (or Repeated Start) bit has been detected last
0 = Start bit was not detected last

: Read/Write Information bit (when operating as I²C Client)

bit 2 R/W : Read/Write Information bit (when operating as I²C Client)

1 = Read: Indicates the data transfer is output from the Client
0 = Write: Indicates the data transfer is input to the Client

bit 1 RBF: Receive Buffer Full Status bit

1 = Receive is complete, I2CxRCV is full
0 = Receive is not complete, I2CxRCV is empty

bit 0 TBF: Transmit Buffer Full Status bit

1 = Transmit is in progress, I2CxTRN is full (eight bits of data)
0 = Transmit is complete, I2CxTRN is empty

REGISTER 17-4: I2CxMSK: I2Cx CLIENT MODE ADDRESS MASK REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0
— — —	— — — MSK[9:8]
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
MSK[7:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-10 Unimplemented: Read as '0'

bit 9-0 MSK[9:0]: I2Cx Mask for Address Bit x Select bits

1 = Enables masking for bit x of the incoming message address; bit match is not required in this position
0 = Disables masking for bit x; bit match is required in this position

NOTES:

18.0 SINGLE-EDGE NIBBLE TRANSMISSION (SENT)

Note 1: This data sheet summarizes the features of this group of dsPIC33CK64MC105 family devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Single-Edge Nibble Transmission (SENT) Module" (www.microchip.com/DS70005145) in the "dsPIC33/PIC24 Family Reference Manual".

The Single-Edge Nibble Transmission (SENT) module is based on the SAE J2716, "SENT – Single-Edge Nibble Transmission for Automotive Applications". The SENT protocol is a one-way, single wire, time-modulated serial communication, based on successive falling edges. It is intended for use in applications where high-resolution sensor data need to be communicated from a sensor to an Engine Control Unit (ECU).

The SENTx module has the following major features:

• Selectable Transmit or Receive mode
• Synchronous or Asynchronous Transmit modes
  • Automatic Data Rate Synchronization
• Optional Automatic Detection of CRC Errors in Receive mode
• Optional Hardware Calculation of CRC in Transmit mode
  • Support for Optional Pause Pulse Period
  • Data Buffering for One Message Frame
• Selectable Data Length for Transmit/Receive, Up to Six Nibbles
  • Automatic Detection of Framing Errors

SENT protocol timing is based on a predetermined time unit, TICK. Both the transmitter and receiver must be preconfigured for TICK, which can vary from 3 to 90 s.

A SENT message frame starts with a Sync pulse. The purpose of the Sync pulse is to allow the receiver to calculate the data rate of the message encoded by the transmitter. The SENT specification allows messages to be validated with up to a 20% variation in TICK. This allows for the transmitter and receiver to run from different clocks that may be inaccurate, and drift with time and temperature. The data nibbles are 4 bits in length and are encoded as the data value + 12 ticks. This yields a 0 value of 12 ticks and the maximum value, 0xF, of 27 ticks.

A SENT message consists of the following:

• A synchronization/calibration period of 56 tick times
  • A status nibble of 12-27 tick times
• Up to six data nibbles of 12-27 tick times
  • A CRC nibble of 12-27 tick times
• An optional pause pulse period of 12-768 tick times

Figure 18-1 shows a block diagram of the SENTx module.

Figure 18-2 shows the construction of a typical 6-nibble data frame, with the numbers representing the minimum or maximum number of tick times for each section.

FIGURE 18-1: SENTx MODULE BLOCK DIAGRAM


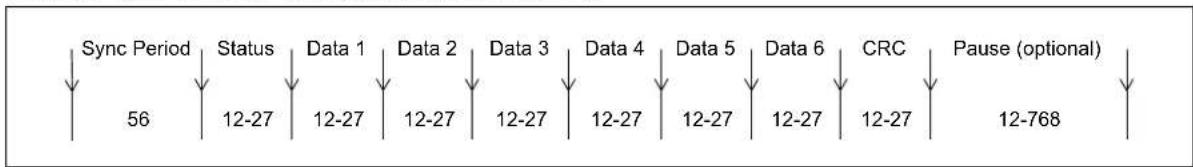

FIGURE 18-2: SENTx PROTOCOL DATA FRAMES

18.1 Transmit Mode

By default, the SENTx module is configured for transmit operation. The module can be configured for continuous asynchronous message frame transmission, or alternatively, for Synchronous mode triggered by software. When enabled, the transmitter will send a Sync, followed by the appropriate number of data nibbles, an optional CRC and optional pause pulse. The tick period used by the SENTx transmitter is set by writing a value to the TICKTIME[15:0] (SENTxCON2[15:0]) bits. The tick period calculations are shown in Equation 18-1.

EQUATION 18-1: TICK PERIOD CALCULATION

$$ T I C K T I M E [ 1 5: 0 ] = \frac {T T I C K}{T C L K} - 1 $$

An optional pause pulse can be used in Asynchronous mode to provide a fixed message frame time period. The frame period used by the SENTx transmitter is set by writing a value to the FRAMETIME[15:0] (SENTxCON3[15:0]) bits. The formulas used to calculate the value of frame time are shown in Equation 18-2.

EQUATION 18-2: FRAME TIME CALCULATIONS

$$ F R A M E T I M E [ 1 5: 0 ] = T T I C K / T F R A M E $$

$$ F R A M E T I M E [ 1 5: 0 ] \geq 1 2 2 + 2 7 N $$

$$ F R A M E T I M E [ 1 5: 0 ] \geq 8 4 8 + 1 2 N $$

Where:

T_FRAME = Total time of the message from ms

N = The number of data nibbles in message, 1-6

Note: The module will not produce a pause period with less than 12 ticks, regardless of the FRAMETIME[15:0] value. FRAMETIME[15:0] values beyond 2047 will have no effect on the length of a data frame.

18.1.1 TRANSMIT MODE CONFIGURATION

18.1.1.1 Initializing the SENTx Module

Perform the following steps to initialize the module:

1. Write RCVEN (SENTxCON1[11]) = 0 for Transmit mode.
2. Write TXM (SENTxCON1[10]) = 0 for Asynchronous Transmit mode or TXM = 1 for Synchronous mode.
3. Write NIBCNT[2:0] (SENTxCON1[2:0]) for the desired data frame length.
4. Write CRCEN (SENTxCON1[8]) for hardware or software CRC calculation.
5. Write PPP (SENTxCON1[7]) for optional pause pulse.
6. If PPP = 1, write T FRAME to SENTxCON3.
7. Write SENTxCON2 with the appropriate value for the desired tick period.
8. Enable interrupts and set interrupt priority.
9. Write initial status and data values to SENTxDATH/L.
10. If CRCEN = 0, calculate CRC and write the value to CRC[3:0] (SENTxDATL[3:0]).
11. Set the SNTEN (SENTxCON1[15]) bit to enable the module.

User software updates to SENTxDATH/L must be performed after the completion of the CRC and before the next message frame's status nibble. The recommended method is to use the message frame completion interrupt to trigger data writes.

18.2 Receive Mode

The module can be configured for receive operation by setting the RCVEN (SENTxCON1[11]) bit. The time between each falling edge is compared to SYNCMIN[15:0] (SENTxCON3[15:0]) and SYNCMAX[15:0] (SENTxCON2[15:0]), and if the measured time lies between the minimum and maximum limits, the module begins to receive data. The validated Sync time is captured in the SENTxSYNC register and the tick time is calculated. Subsequent falling edges are verified to be within the valid data width and the data are stored in the SENTxDATL/H registers. An interrupt event is generated at the completion of the message and the user software should read the SENTx Data registers before the reception of the next nibble. The equation for SYNCMIN[15:0] and SYNCMAX[15:0] is shown in Equation 18-3.

EQUATION 18-3: SYNCMIN[15:0] AND SYNCMAX[15:0] CALCULATIONS

$$ T T I C K = T C L K \cdot (T I C K T I M E [ 1 5: 0 ] + 1) $$

$$ F R A M E T I M E [ 1 5: 0 ] = T T I C K / T F R A M E $$

$$ \text { SyncCount } = 8 \times F R C V \times T T I C K $$

$$ \text { SYNCMIN } [ 1 5: 0 ] = 0. 8 \times \text { SyncCount } $$

$$ \text { SYNCMAX } [ 1 5: 0 ] = 1. 2 \times \text { SyncCount } $$

$$ F R A M E T I M E [ 1 5: 0 ] \geq 1 2 2 + 2 7 N $$

$$ F R A M E T I M E [ 1 5: 0 ] \geq 8 4 8 + 1 2 N $$

Where:

T_FRAME = Total time of the message from ms

N = The number of data nibbles in message, 1-6

FRCV = FCY × Prescaler

T_CLK = F_CY/Prescaler

For TTICK = 3.0 μs and FCLK = 4 MHz, SYNCMIN[15:0] = 76.

Note: To ensure a Sync period can be identified, the value written to SYNCMIN[15:0] must be less than the value written to SYNCMAX[15:0].

18.2.1 RECEIVE MODE CONFIGURATION

18.2.1.1 Initializing the SENTx Module

Perform the following steps to initialize the module:

1. Write RCVEN (SENTxCON1[11]) = 1 for Receive mode.
2. Write NIBCNT[2:0] (SENTxCON1[2:0]) for the desired data frame length.
3. Write CRCEN (SENTxCON1[8]) for hardware or software CRC validation.
4. Write PPP (SENTxCON1[7]) = 1 if pause pulse is present.
5. Write SENTxCON2 with the value of SYNCMAXx (Nominal Sync Period + 20%).
6. Write SENTxCON3 with the value of SYNCMINx (Nominal Sync Period - 20%).
7. Enable interrupts and set interrupt priority.
8. Set the SNTEN (SENTxCON1[15]) bit to enable the module.

The data should be read from the SENTxDATL/H registers after the completion of the CRC and before the next message frame's status nibble. The recommended method is to use the message frame completion interrupt trigger.

18.3 SENT Control/Status Registers

REGISTER 18-1: SENTxCON1: SENTx CONTROL REGISTER 1

R/W-0 U-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
SNTEN —	SNTSIDL	—RCVEN	TXM		(1)	TXPOL(1)	CRCEN
bit 15 bit 8

R/W-0		R/W-0 U-0 R/W-0 U-0		R/W-0 R/W-0 R/W-0
PPP SPCEN		(2)	—	PS	—	NIBCNT2	NIBCNT1	NIBCNT0
bit 7								bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15 SNTEN: SENTx Enable bit

1 = SENTx is enabled

0 = SENTx is disabled

bit 14 Unimplemented: Read as '0'

bit 13 SNTSIDL: SENTx Stop in Idle Mode bit

1 = Discontinues module operation when the device enters Idle mode

0 = Continues module operation in Idle mode

bit 12 Unimplemented: Read as '0'

bit 11 RCVEN: SENTx Receive Enable bit

1 = SENTx operates as a receiver

0 = SENTx operates as a transmitter (sensor)

bit 10 TXM: SENTx Transmit Mode bit ^(1)

1 = SENTx transmits data frame only when triggered using the SYNCTXEN status bit

0 = SENTx transmits data frames continuously while SNTEN = 1

bit 9 TXPOL: SENTx Transmit Polarity bit ^(1)

1 = SENTx data output pin is low in the Idle state

0 = SENTx data output pin is high in the Idle state

bit 8 CRCEN: CRC Enable bit

Module in Receive Mode (RCVEN = 1):

1 = SENTx performs CRC verification on received data using the preferred J2716 method

0 = SENTx does not perform CRC verification on received data

Module in Transmit Mode (RCVEN = 0):

1 = SENTx automatically calculates CRC using the preferred J2716 method

0 = SENTx does not calculate CRC

bit 7 PPP: Pause Pulse Present bit

1 = SENTx is configured to transmit/receive SENT messages with pause pulse

0 = SENTx is configured to transmit/receive SENT messages without pause pulse

bit 6 SPCEN: Short PWM Code Enable bit ^(2)

1 = SPC control from external source is enabled

0 = SPC control from external source is disabled

bit 5 Unimplemented: Read as '0'

Note 1: This bit has no function in Receive mode (RCVEN = 1).

2: This bit has no function in Transmit mode (RCVEN = 0).

REGISTER 18-1: SENTxCON1: SENTx CONTROL REGISTER 1 (CONTINUED)

bit 4 PS: SENTx Module Clock Prescaler (divider) bits

1 = Divide-by-4

0 = Divide-by-1

bit 3 Unimplemented: Read as '0'

bit 2-0 NIBCNT[2:0]: Nibble Count Control bits

111 = Reserved; do not use

110 = Module transmits/receives six data nibbles in a SENT data packet

101 = Module transmits/receives five data nibbles in a SENT data packet

100 = Module transmits/receives four data nibbles in a SENT data packet

011 = Module transmits/receives three data nibbles in a SENT data packet

010 = Module transmits/receives two data nibbles in a SENT data packet

001 = Module transmits/receives one data nibble in a SENT data packet

000 = Reserved; do not use

Note 1: This bit has no function in Receive mode (RCVEN = 1).

2: This bit has no function in Transmit mode (RCVEN = 0).

REGISTER 18-2: SENTxSTAT: SENTx STATUS REGISTER

Legend:	C = Clearable bit	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7 PAUSE: Pause Period Status bit

1 = The module is transmitting/receiving a pause period
0 = The module is not transmitting/receiving a pause period

bit 6-4 NIB[2:0]: Nibble Status bits

Module in Transmit Mode (RCVEN = 0):

111 = Module is transmitting a CRC nibble
110 = Module is transmitting Data Nibble 6
101 = Module is transmitting Data Nibble 5
100 = Module is transmitting Data Nibble 4
011 = Module is transmitting Data Nibble 3
010 = Module is transmitting Data Nibble 2
001 = Module is transmitting Data Nibble 1
000 = Module is transmitting a status nibble or pause period, or is not transmitting
Module in Receive Mode (RCVEN = 1):
111 = Module is receiving a CRC nibble or was receiving this nibble when an error occurred
110 = Module is receiving Data Nibble 6 or was receiving this nibble when an error occurred
101 = Module is receiving Data Nibble 5 or was receiving this nibble when an error occurred
100 = Module is receiving Data Nibble 4 or was receiving this nibble when an error occurred
011 = Module is receiving Data Nibble 3 or was receiving this nibble when an error occurred
010 = Module is receiving Data Nibble 2 or was receiving this nibble when an error occurred
001 = Module is receiving Data Nibble 1 or was receiving this nibble when an error occurred
000 = Module is receiving a status nibble or waiting for Sync

bit 3 CRCERR: CRC Status bit (Receive mode only)

1 = A CRC error has occurred for the 1-6 data nibbles in SENTxDATL/H

0 = A CRC error has not occurred

bit 2 FRMERR: Framing Error Status bit (Receive mode only)

1 = A data nibble was received with less than 12 tick periods or greater than 27 tick periods

0 = Framing error has not occurred

bit 1 RXIDLE: SENTx Receiver Idle Status bit (Receive mode only)

1 = The SENTx data bus has been Idle (high) for a period of SYNCMAX[15:0] or greater

0 = The SENTx data bus is not Idle

Note 1: In Receive mode (RCVEN = 1), the SYNCTXEN bit is read-only.

REGISTER 18-2: SENTxSTAT: SENTx STATUS REGISTER (CONTINUED)

bit 0 SYNCTXEN: SENTx Synchronization Period Status/Transmit Enable bit ^(1)

Module in Receive Mode (RCVEN = 1):

1 = A valid synchronization period was detected; the module is receiving nibble data
0 = No synchronization period has been detected; the module is not receiving nibble data

Module in Asynchronous Transmit Mode (RCVEN = 0, TXM = 0):

The bit always reads as '1' when the module is enabled, indicating the module transmits SENTx data frames continuously. The bit reads '0' when the module is disabled.

Module in Synchronous Transmit Mode (RCVEN = 0, TXM = 1):

1 = The module is transmitting a SENTx data frame
0 = The module is not transmitting a data frame, user software may set SYNCTXEN to start another data frame transmission

Note 1: In Receive mode (RCVEN = 1), the SYNCTXEN bit is read-only.

REGISTER 18-3: SENTxDATL: SENTx RECEIVE DATA REGISTER LOW (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DATA4[3:0] DATA5[3:0]
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DATA6[3:0] CRC[3:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-12 DATA4[3:0]: Data Nibble 4 Data bits

bit 11-8 DATA5[3:0]: Data Nibble 5 Data bits

bit 7-4 DATA6[3:0]: Data Nibble 6 Data bits

bit 3-0 CRC[3:0]: CRC Nibble Data bits

Note 1: Register bits are read-only in Receive mode (RCVEN = 1). In Transmit mode, the CRC[3:0] bits are read-only when automatic CRC calculation is enabled (RCVEN = 0, CRCEN = 1).

REGISTER 18-4: SENTxDATH: SENTx RECEIVE DATA REGISTER HIGH (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
STAT[3:0]	DATA1[3:0]
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
DATA2[3:0] DATA3[3:0]
bit 7	bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-12 STAT[3:0]: Status Nibble Data bits

bit 11-8 DATA1[3:0]: Data Nibble 1 Data bits

bit 7-4 DATA2[3:0]: Data Nibble 2 Data bits

bit 3-0 DATA3[3:0]: Data Nibble 3 Data bits

Note 1: Register bits are read-only in Receive mode (RCVEN = 1). In Transmit mode, the CRC[3:0] bits are read-only when automatic CRC calculation is enabled (RCVEN = 0, CRCEN = 1).

NOTES:

19.0 TIMER1

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Timer1 Module” (www.microchip.com/DS70005279) in the “dsPIC33/PIC24 Family Reference Manual”.

The Timer1 module is a 16-bit timer that can operate as a free-running interval timer/counter.

The Timer1 module has the following unique features over other timers:

• Can be Operated in Asynchronous Counter mode
• Asynchronous Timer
  • Operational during CPU Sleep mode
• Software Selectable Prescalers 1:1, 1:8, 1:64 and 1:256
  • External Clock Selection Control
• The Timer1 External Clock Input (T1CK) can Optionally be Synchronized to the Internal Device Clock and the Clock Synchronization is Performed after the Prescaler

If Timer1 is used for SCCP, the timer should be running in Synchronous mode.

The Timer1 module can operate in one of the following modes:

• Timer mode
• Gated Timer mode
  • Synchronous Counter mode
  • Asynchronous Counter mode

A block diagram of Timer1 is shown in Figure 19-1.

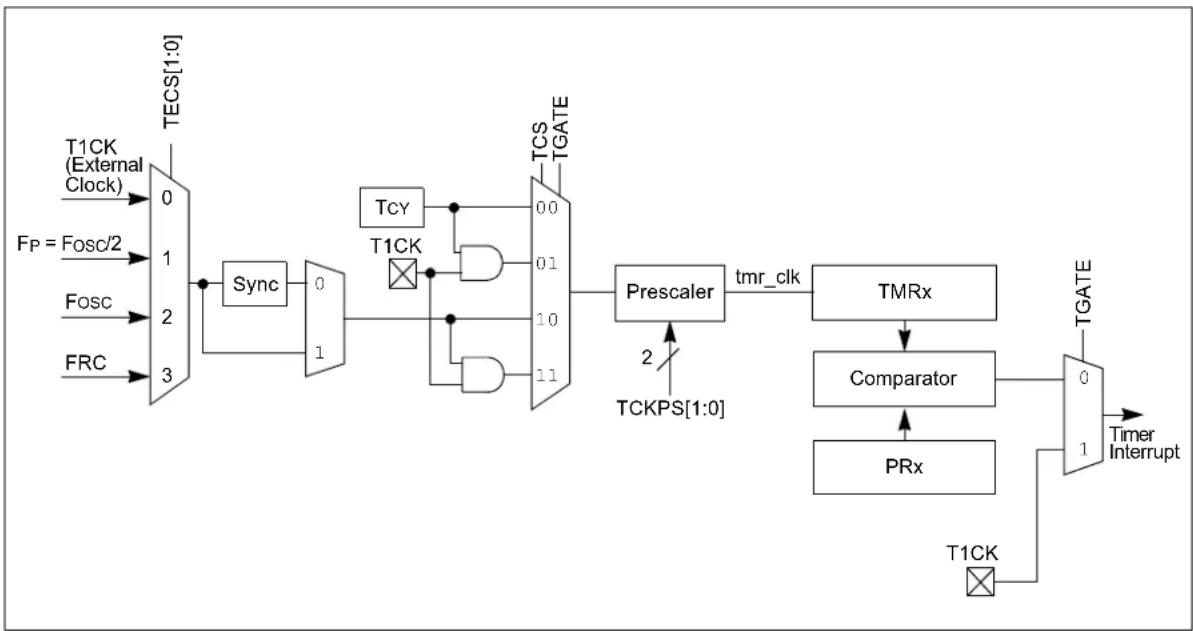

FIGURE 19-1: 16-BIT TIMER1 MODULE BLOCK DIAGRAM

19.1 Timer1 Control Register

REGISTER 19-1: T1CON: TIMER1 CONTROL REGISTER

R/W-0 U-0 R/W-0 R/W-0 R-0 R-0 R/W-0 R/W-0
TON^(1)	— SIDL	TMWDIS TMWIP	PR	WIP	TECS1	TECS0
bit 15								bit 8

R/W-0	U-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	U-0
TGATE	—	TCKPS1	TCKPS0	—	TSYNC^(1)	TCS^(1)	—
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 TON: Timer1 On bit ^(1)

1 = Starts 16-bit Timer1
0 = Stops 16-bit Timer1

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: Timer1 Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode
0 = Continues module operation in Idle mode

bit 12 TMWDIS: Asynchronous Timer1 Write Disable bit

1 = Timer writes are ignored while a posted write to TMR1 or PR1 is synchronized to the asynchronous clock domain
0 = Back-to-back writes are enabled in Asynchronous mode

bit 11 TMWIP: Asynchronous Timer1 Write in Progress bit

1 = Write to the timer in Asynchronous mode is pending
0 = Write to the timer in Asynchronous mode is complete

bit 10 PRWIP: Asynchronous Period Write in Progress bit

1 = Write to the Period register in Asynchronous mode is pending
0 = Write to the Period register in Asynchronous mode is complete

bit 9-8 TECS[1:0]: Timer1 Extended Clock Select bits

11 = FRC Clock
10 = Fosc Oscillator Clock
01 = FP = Fosc/2 Peripheral Clock
00 = External Clock comes from the T1CK pin

bit 7 TGATE: Timer1 Gated Time Accumulation Enable bit

When TCS = 1:

This bit is ignored.

When TCS = 0:

1 = Gated time accumulation is enabled
0 = Gated time accumulation is disabled

bit 6 Unimplemented: Read as '0'

Note 1: When Timer1 is enabled in External Synchronous Counter mode (TCS = 1, TSYNC = 1, TON = 1), any attempts by user software to write to the TMR1 register are ignored.

REGISTER 19-1: T1CON: TIMER1 CONTROL REGISTER (CONTINUED)
bit 5-4 TCKPS[1:0]: Timer1 Input Clock Prescale Select bits 11 = 1:256 10 = 1:64 01 = 1:8 00 = 1:1

bit 3 Unimplemented: Read as '0'

bit 2 TSYNC: Timer1 External Clock Input Synchronization Select bit ^(1) When TCS = 1: 1 = Synchronizes the External Clock input 0 = Does not synchronize the External Clock input When TCS = 0: This bit is ignored.

bit 1 TCS: Timer1 Clock Source Select bit ^(1) 1 = External Clock source selected by TECS[1:0] 0 = Internal peripheral clock (FP)

bit 0 Unimplemented: Read as '0'

Note 1: When Timer1 is enabled in External Synchronous Counter mode (TCS = 1, TSYNC = 1, TON = 1), any attempts by user software to write to the TMR1 register are ignored.

NOTES:

20.0 CAPTURE/COMPARE/PWM/TIMER MODULES (SCCP)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. For more information on the SCCP modules, refer to “Capture/Compare/PWM/Timer (MCCP and SCCP)” (www.microchip.com/DS30003035) in the “dsPIC33/PIC24 Family Reference Manual”.

dsPIC33CK64MC105 family devices include four SCCP Capture/Compare/PWM/Timer base modules, which provide the functionality of three different peripherals from earlier PIC24F devices. The module can operate in one of three major modes:

• General Purpose Timer
• Input Capture
• Output Compare/PWM

Single Capture/Compare/PWM (SCCP) output modules provide only one PWM output.

The SCCPx modules can be operated in only one of the three major modes at any time. The other modes are not available unless the module is reconfigured for the new mode.

A conceptual block diagram for the module is shown in Figure 20-1. All three modes share a time base generator and a common Timer register pair (CCPxTMRH/L); other shared hardware components are added as a particular mode requires.

Each module has a total of six control and status registers:

• CCPxCON1L (Register 20-1)
• CCPxCON1H (Register 20-2)
- CCPxCON2L (Register 20-3)
• CCPxCON2H (Register 20-4)
• CCPxCON3H (Register 20-5)
• CCPxSTATL (Register 20-6)

Each module also includes eight buffer/counter registers that serve as Timer Value registers or data holding buffers:

• CCPxTMRH/CCPxTMRL (CCPx Timer High/Low Counters)
• CCPxPRH/CCPxPRL (CCPx Timer Period High/Low)
• CCPxRA (CCPx Primary Output Compare Data Buffer)
• CCPxRB (CCPx Secondary Output Compare Data Buffer)
• CCPxBUFH/CCPxBUFL (CCPx Input Capture High/Low Buffers)

FIGURE 20-1: SCCPx CONCEPTUAL BLOCK DIAGRAM

20.1 Time Base Generator

The Timer Clock Generator (TCG) generates a clock for the module's internal time base, using one of the clock signals already available on the microcontroller. This is used as the time reference for the module in its three major modes. The internal time base is shown in Figure 20-2.

There are eight inputs available to the clock generator, which are selected using the CLKSEL[2:0] bits (CCPxCON1L[10:8]). Available sources include the FRC and LPRC, the Secondary Oscillator and the TCLKI External Clock inputs. The system clock is the default source (CLKSEL[2:0] = 000).

FIGURE 20-2: TIMER CLOCK GENERATOR

Note 1: Gating is available in Timer modes only.

20.2 General Purpose Timer

Timer mode is selected when CCSEL = 0 and MOD[3:0] = 0000. The timer can function as a 32-bit timer or a dual 16-bit timer, depending on the setting of the T32 bit (Table 20-1).

Dual 16-Bit Timer mode provides a simple timer function with two independent 16-bit timer/counters. The primary timer uses CCPxTMRL and CCPxPRL. Only the primary timer can interact with other modules on the device. It generates the SCCPx sync out signals for use by other SCCP modules. It can also use the SYNC[4:0] bits signal generated by other modules.

The secondary timer uses CCPxTMRH and CCPxPRH. It is intended to be used only as a periodic interrupt source for scheduling CPU events. It does not generate an output sync/trigger signal like the primary time base. In Dual Timer mode, the CCPx Secondary Timer Period register, CCPxPRH, generates the SCCP compare event (CCPxIF) used by many other modules on the device.

The 32-Bit Timer mode uses the CCPxTMRL and CCPxTMRH registers, together, as a single 32-bit timer. When CCPxTMRL overflows, CCPxTMRH increments by one. This mode provides a simple timer function when it is important to track long time periods. Note that the T32 bit (CCPxCON1L[5]) should be set before the CCPxTMRL or CCPxPRH registers are written to initialize the 32-bit timer.

In both 16-bit and 32-bit modes, the timer can also function in either synchronization ("sync") or trigger operation. Both use the SYNC[4:0] bits (CCPxCON1H[4:0]) to determine the input signal source. The difference is how that signal affects the timer.

In sync operation, the timer Reset or clear occurs when the input selected by SYNC[4:0] is asserted. The timer immediately begins to count again from zero unless it is held for some other reason. Sync operation is used whenever the TRIGEN bit (CCPxCON1H[7]) is cleared. SYNC[4:0] can have any value, except '11111'.

In trigger operation, the timer is held in Reset until the input selected by SYNC[4:0] is asserted; when it occurs, the timer starts counting. Trigger operation is used whenever the TRIGEN bit is set. In Trigger mode, the timer will continue running after a trigger event as long as the CCPTRIG bit (CCPxSTATL[7]) is set. To clear CCPTRIG, the TRCLR bit (CCPxSTATL[5]) must be set to clear the trigger event, reset the timer and hold it at zero until another trigger event occurs. On dsPIC33CK64MC105 family devices, trigger operation can only be used when the system clock is the time base source (CLKSEL[2:0] = 000).

FIGURE 20-3: DUAL 16-BIT TIMER MODE

FIGURE 20-4: 32-BIT TIMER MODE

20.3 Output Compare Mode

Output Compare mode compares the Timer register value with the value of one or two Compare registers, depending on its mode of operation. The Output Compare x module, on compare match events, has the ability to generate a single output transition or a train of

output pulses. Like most PIC ^® MCU peripherals, the Output Compare x module can also generate interrupts on a compare match event.

Table 20-2 shows the various modes available in Output Compare modes.

TABLE 20-2: OUTPUT COMPARE x/PWMx MODES

MOD[3:0](CCPxCON1L[3:0])	T32(CCPxCON1L[5])	Operating Mode
0001 0 Output High on Compare (16-bit)			Single Edge Mode
0001 1 Output High on Compare (32-bit)
0010 0 Output Low on Compare (16-bit)
0010 1 Output Low on Compare (32-bit)
0011 0 Output Toggle on Compare (16-bit)
0011 1 Output Toggle on Compare (32-bit)
0100 0 Dual Edge Compare (16-bit) Dual Edge Mode
0101	0	Dual Edge Compare (16-bit buffered)	PWM Mode

FIGURE 20-5: OUTPUT COMPARE x BLOCK DIAGRAM

20.4 Input Capture Mode

Input Capture mode is used to capture a timer value from an independent timer base, upon an event, on an input pin or other internal trigger source. The input capture features are useful in applications requiring frequency (time period) and pulse measurement. Figure 20-6 depicts a simplified block diagram of Input Capture mode.

Input Capture mode uses a dedicated 16/32-bit, synchronous, up counting timer for the capture function. The timer value is written to the FIFO when a capture event occurs. The internal value may be read (with a synchronization delay) using the CCPxTMRH/L register.

To use Input Capture mode, the CCSEL bit (CCPxCON1L[4]) must be set. The T32 and the MOD[3:0] bits are used to select the proper Capture mode, as shown in Table20-3.

TABLE 20-3: INPUT CAPTURE x MODES

MOD[3:0](CCPxCON1L[3:0])	T32(CCPxCON1L[5])	Operating Mode
0000 0 Edge Detect (16-bit capture)
0000 1 Edge Detect (32-bit capture)
0001 0 Every Rising (16-bit capture)
0001 1 Every Rising (32-bit capture)
0010 0 Every Falling (16-bit capture)
0010 1 Every Falling (32-bit capture)
0011 0		Every Rising/Falling (16-bit capture)
0011 1		Every Rising/Falling (32-bit capture)
0100 0		Every 4th Rising (16-bit capture)
0100 1		Every 4th Rising (32-bit capture)
0101 0		Every 16th Rising (16-bit capture)
0101 1		Every 16th Rising (32-bit capture)

FIGURE 20-6: INPUT CAPTURE x BLOCK DIAGRAM

20.5 Auxiliary Output

The SCCPx modules have an auxiliary (secondary) output that provides other peripherals access to internal module signals. The auxiliary output is intended to connect to other SCCP modules, or other digital peripherals, to provide these types of functions:

• Time Base Synchronization
• Peripheral Trigger and Clock Inputs
- Signal Gating

The type of output signal is selected using the AUXOUT[1:0] control bits (CCPxCON2H[4:3]). The type of output signal is also dependent on the module operating mode.

TABLE 20-4: AUXILIARY OUTPUT

AUXOUT[1:0] CCSEL MOD[3:0] Comments Signal Description
00 x xxxx Auxiliary Output Disabled			No Output
01	0	0000	Time Base Modes	Time Base Period Reset or Rollover
10				Special Event Trigger Output
11				No Output
01 0 0001		through 1111	Output Compare Modes	Time Base Period Reset or Rollover
10				Output Compare Event Signal
11				Output Compare Signal
01	1	xxxx	Input Capture Modes	Time Base Period Reset or Rollover
10				Reflects the Value of the ICDIS bit
11				Input Capture Event Signal

20.6 SCCP Control/Status Registers

REGISTER 20-1: CCPxCON1L: CCPx CONTROL 1 LOW REGISTERS

R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
CCPON —	CCPSIDL CCPSLP TMRSYNC CLKSEL2 CLKSEL1 CLKSEL0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TMRPS1	TMRPS0	T32	CCSEL	MOD3	MOD2	MOD1	MOD0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 CCPON: CCPx Module Enable bit

1 = Module is enabled with an operating mode specified by the MOD[3:0] control bits 0 = Module is disabled

bit 14 Unimplemented: Read as '0'

bit 13 CCPSIDL: CCPx Stop in Idle Mode Bit

1 = Discontinues module operation when device enters Idle mode 0 = Continues module operation in Idle mode

bit 12 CCPSLP: CCPx Sleep Mode Enable bit

1 = Module continues to operate in Sleep modes 0 = Module does not operate in Sleep modes

bit 11 TMRSYNC: Time Base Clock Synchronization bit

1 = Asynchronous module time base clock is selected and synchronized to the internal system clocks (CLKSEL[2:0] ≠ 000) 0 = Synchronous module time base clock is selected and does not require synchronization (CLKSEL[2:0] = 000)

bit 10-8 CLKSEL[2:0]: CCPx Time Base Clock Select bits

111 = PPS TxCK input 110 = CLC4 101 = CLC3 100 = CLC2 011 = CLC1 010 = Reserved 001 = Reference Clock 000 = Peripheral Clock

bit 7-6 TMRPS[1:0]: Time Base Prescale Select bits

11 = 1:64 Prescaler 10 = 1:16 Prescaler 01 = 1:4 Prescaler 00 = 1:1 Prescaler

bit 5 T32: 32-Bit Time Base Select bit

1 = Uses 32-bit time base for timer, single edge output compare or input capture function
0 = Uses 16-bit time base for timer, single edge output compare or input capture function

bit 4 CCSEL: Capture/Compare Mode Select bit

1 = Input Capture peripheral 0 = Output Compare/PWM/Timer peripheral (exact function is selected by the MOD[3:0] bits)

REGISTER 20-1: CCPxCON1L: CCPx CONTROL 1 LOW REGISTERS (CONTINUED)

bit 3-0 MOD[3:0]: CCPx Mode Select bits

For CCSEL = 1 (Input Capture modes):
1xxx = Reserved
011x = Reserved
0101 = Capture every 16th rising edge
0100 = Capture every 4th rising edge
0011 = Capture every rising and falling edge
0010 = Capture every falling edge
0001 = Capture every rising edge
0000 = Capture every rising and falling edge (Edge Detect mode)
For CCSEL = 0 (Output Compare/Timer modes):
1111 = External Input mode: Pulse generator is disabled, source is selected by ICS[2:0]
1110 = Reserved
110x = Reserved
10xx = Reserved
0111 = Reserved
0110 = Reserved
0101 = Dual Edge Compare mode, buffered
0100 = Dual Edge Compare mode
0011 = 16-Bit/32-Bit Single Edge mode, toggles output on compare match
0010 = 16-Bit/32-Bit Single Edge mode, drives output low on compare match
0001 = 16-Bit/32-Bit Single Edge mode, drives output high on compare match
0000 = 16-Bit/32-Bit Timer mode, output functions are disabled

REGISTER 20-2: CCPxCON1H: CCPx CONTROL 1 HIGH REGISTERS

R/W-0 R/W-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
OPSSRC(1)	RTRGEN(2)	— — OPS3	(3)	OPS2(3)	OPS1(3)	OPS0(3)
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
TRIGEN	ONESHOT	ALTSYNC	SYNC4	SYNC3	SYNC2	SYNC1	SYNC0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 OPSSRC: Output Postscaler Source Select bit ^(1)

1 = Output postscaler scales module trigger output events

0 = Output postscaler scales time base interrupt events

bit 14 RTRGEN: Retrigger Enable bit ^(2)

1 = Time base can be retriggered when TRIGEN bit = 1

0 = Time base may not be retriggered when TRIGEN bit = 1

bit 13-12 Unimplemented: Read as '0'

bit 11-8 OPS3[3:0]: CCPx Interrupt Output Postscale Select bits ^(3)

1111 = Interrupt every 16th time base period match

1110 = Interrupt every 15th time base period match

...

0100 = Interrupt every 5th time base period match

0011 = Interrupt every 4th time base period match or 4th input capture event

0010 = Interrupt every 3rd time base period match or 3rd input capture event

0001 = Interrupt every 2nd time base period match or 2nd input capture event

0000 = Interrupt after each time base period match or input capture event

bit 7 TRIGEN: CCPx Trigger Enable bit

1 = Trigger operation of time base is enabled

0 = Trigger operation of time base is disabled

bit 6 ONESHOT: One-Shot Trigger Mode Enable bit

1 = One-Shot Trigger mode is enabled; trigger duration is set by OSCNT[2:0]

0 = One-Shot Trigger mode is disabled

bit 5 ALTSYNC: CCPx Alternate Synchronization Output Signal Select bit

1 = An alternate signal is used as the module synchronization output signal

0 = The module synchronization output signal is the Time Base Reset/rollover event

bit 4-0 SYNC[4:0]: CCPx Synchronization Source Select bits

See Table 20-5 for the definition of inputs.

Note 1: This control bit has no function in Input Capture modes.

2: This control bit has no function when TRIGEN = 0.

3: Output postscale settings, from 1:5 to 1:16 (0100-1111), will result in a FIFO buffer overflow for Input Capture modes.

TABLE 20-5: SYNCHRONIZATION SOURCES

SYNC[4:0] Synchronization Source
00000 None; Timer with Rollover on CCPxPR Match or FFFFh
00001 Sync Output SCCP1
00010 Sync Output SCCP2
00011 Sync Output SCCP3
00100 Sync Output SCCP4
00101-01000 Reserved
01001 INT0
01010 INT1
01011 INT2
01100 UART1 RX Edge Detect
01101 UART1 TX Edge Detect
01110 UART2 RX Edge Detect
01111 UART2 TX Edge Detect
10000 CLC1 Output
10001 CLC2 Output
10010 CLC3 Output
10011 CLC4 Output
10100 UART3 RX Edge Detect
10101 UART3 TX Edge Detect
10111 Comparator 1 Output
11000-11110 Reserved
11111	None; Timer with Auto-Rollover (FFFFh → 0000h)

REGISTER 20-3: CCPxCON2L: CCPx CONTROL 2 LOW REGISTERS

R/W-0 R/W-0 U-0 R/W-0 U-0 U-0 U-0 U-0
PWMRSEN ASDGM — SSDG — — — —
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

ASDG[7:0]

bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 PWMRSEN: CCPx PWM Restart Enable bit

1 = ASEVT bit clears automatically at the beginning of the next PWM period, after the shutdown input has ended

0 = ASEVT bit must be cleared in software to resume PWM activity on output pins

bit 14 ASDGM: CCPx Auto-Shutdown Gate Mode Enable bit

1 = Waits until the next Time Base Reset or rollover for shutdown to occur

0 = Shutdown event occurs immediately

bit 13 Unimplemented: Read as '0'

bit 12 SSDG: CCPx Software Shutdown/Gate Control bit

1 = Manually forces auto-shutdown, timer clock gate or input capture signal gate event (setting of ASDGM bit still applies)

0 = Normal module operation

bit 11-8 Unimplemented: Read as '0'

bit 7-0 ASDG[7:0]: CCPx Auto-Shutdown/Gating Source Enable bits

1 = ASDGx Source n is enabled (see Table 20-6 for auto-shutdown/gating sources)

0 = ASDGx Source n is disabled

TABLE 20-6: AUTO-SHUTDOWN AND GATING SOURCES

ASDG[x] Bit	Auto-Shutdown/Gating Source
	SCCP1	SCCP2	SCCP3	SCCP4
0	Comparator 1 Output
2	OCFC
3	OCFD
4	ICM1^(1)	ICM2^(1)	ICM3^(1)	ICM4^(1)
5	CLC1^(1)
6	OCFA^(1)
7	OCFB^(1)

Note 1: Selected by Peripheral Pin Select (PPS).

REGISTER 20-4: CCPxCON2H: CCPx CONTROL 2 HIGH REGISTERS

R/W-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
OENSYNC	— — — — —	—
bit 15 bit 8

R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
ICGSM1 IC	GSM0	— AUXOUT1 AUXOUT0		ICS2	ICS1 ICS0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 OENSYNC: Output Enable Synchronization bit

1 = Update by output enable bits occurs on the next Time Base Reset or rollover
0 = Update by output enable bits occurs immediately

bit 14-8 Unimplemented: Read as '0'

bit 7-6 ICGSM[1:0]: Input Capture Gating Source Mode Control bits

11 = Reserved

10 = One-Shot mode: Falling edge from gating source disables future capture events (ICDIS = 1)

01 = One-Shot mode: Rising edge from gating source enables future capture events (ICDIS = 0)

00 = Level-Sensitive mode: A high level from gating source will enable future capture events; a low level will disable future capture events

bit 5 Unimplemented: Read as '0'

bit 4-3 AUXOUT[1:0]: Auxiliary Output Signal on Event Selection bits

11 = Input capture or output compare event; no signal in Timer mode

10 = Signal output is defined by module operating mode (see Table 20-4)

01 = Time base rollover event (all modes)

00 = Disabled

bit 2-0 ICS[2:0]: Input Capture Source Select bits

111 = CLC4 output

110 = CLC3 output

101 = CLC2 output

100 = CLC1 output

011 = Reserved

010 = Reserved

001 = Comparator 1 output

000 = Input Capture ICMx pin (PPS)

REGISTER 20-5: CCPxCON3H: CCPx CONTROL 3 HIGH REGISTERS

R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0 U-0 U-0
OETRIG O$CNT2 OSCNT1 OSCNT0			— — —	—
bit 15 bit 8

U-0 U-0 R/W-0 U-0 R/W-0 R/W-0 U-0 U-0
—	—	POLACE	—	PSSACE1	PSSACE0	—	—
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15	OETRIG: CCPx Dead-Time Select bit1 = For Triggered mode (TRIGEN = 1): Module does not drive enabled output pins until triggered0 = Normal output pin operation
bit 14-12	OSCNT[2:0]: One-Shot Event Count bits111 = Extends one-shot event by seven time base periods (eight time base periods total)110 = Extends one-shot event by six time base periods (seven time base periods total)101 = Extends one-shot event by five time base periods (six time base periods total)100 = Extends one-shot event by four time base periods (five time base periods total)011 = Extends one-shot event by three time base periods (four time base periods total)010 = Extends one-shot event by two time base periods (three time base periods total)001 = Extends one-shot event by one time base period (two time base periods total)000 = Does not extend one-shot Trigger event
bit 11-6	Unimplemented: Read as ‘0’
bit 5	POLACE: CCPx Output Pins, OCMxA, OCMxC and OCMxE, Polarity Control bit1 = Output pin polarity is active-low0 = Output pin polarity is active-high
bit 4	Unimplemented: Read as ‘0’
bit 3-2	PSSACE[1:0]: PWMx Output Pins, OCMxA, OCMxC and OCMxE, Shutdown State Control bits11 = Pins are driven active when a shutdown event occurs10 = Pins are driven inactive when a shutdown event occurs0x = Pins are tri-stated when a shutdown event occurs
bit 1-0	Unimplemented: Read as ‘0’

REGISTER 20-6: CCPxSTATL: CCPx STATUS REGISTER LOW

U-0 U-0 U-0 U-0 U-0 W1-0 U-0 U-0
— — —	— —	C	G	A	R	M	— —
bit 15 bit 8

R-0 W1-0 W1-0 R/C-0 R/C-0 R/C-0 R/C-0 R/C-0
CCPTRIG	TRSET	TRCLR	ASEVT	SCEVT	ICDIS	ICOV	ICBNE
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W1 = Write '1' Only bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-11 Unimplemented: Read as '0'

bit 10 ICGARM: Input Capture Gate Arm bit

A write of '1' to this location will arm the input capture gating logic for a one-shot gate event when ICGSM[1:0] = 01 or 10. Bit always reads as '0'.

bit 9-8 Unimplemented: Read as '0'

bit 7 CCPTRIG: CCPx Trigger Status bit

1 = Timer has been triggered and is running

0 = Timer has not been triggered and is held in Reset

bit 6 TRSET: CCPx Trigger Set Request bit

Writes '1' to this location to trigger the timer when TRIGEN = 1 (location always reads as '0').

bit 5 TRCLR: CCPx Trigger Clear Request bit

Writes '1' to this location to cancel the timer trigger when TRIGEN = 1 (location always reads as '0').

bit 4 ASEVT: CCPx Auto-Shutdown Event Status/Control bit

1 = A shutdown event is in progress; CCPx outputs are in the Shutdown state

0 = CCPx outputs operate normally

bit 3 SCEVT: Single Edge Compare Event Status bit

1 = A single edge compare event has occurred

0 = A single edge compare event has not occurred

bit 2 ICDIS: Input Capture x Disable bit

1 = Event on Input Capture x pin (ICx) does not generate a capture event

0 = Event on Input Capture x pin will generate a capture event

bit 1 ICOV: Input Capture x Buffer Overflow Status bit

1 = The Input Capture x FIFO buffer has overflowed

0 = The Input Capture x FIFO buffer has not overflowed

bit 0 ICBNE: Input Capture x Buffer Status bit

1 = Input Capture x buffer has data available

0 = Input Capture x buffer is empty

REGISTER 20-7: CCPxSTATH: CCPx STATUS REGISTER HIGH

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 U-0 R/C-0 R/C-0 R/C-0 R/C-0 R/C-0
— — —	PRLWIP TMR	HWIP TMRLWIP	RBWIP RAWIP
bit 7 bit 0

Legend:	C = Clearable bit
R = Readable bit	W1 = Write ‘1’ Only bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-5 Unimplemented: Read as '0'

bit 4 PRLWIP: CCPxPRL Write In Progress Status bit

1 = An update to the CCPxPRL register with the buffered contents is in progress
0 = An update to the CCPxPRL register is not in progress

bit 3 TMRHWIP: CCPxTMRH Write In Progress Status bit

1 = An update to the CCPxTMRH register with the buffered contents is in progress
0 = An update to the CCPxTMRH register is not in progress

bit 2 TMRLWIP: CCPxTMRL Write In Progress Status bit

1 = An update to the CCPxTMRL register with the buffered contents is in progress
0 = An update to the CCPxTMRL register is not in progress

bit 1 RBWIP: CCPxRB Write In Progress Status bit

1 = An update to the CCPxRB register with the buffered contents is in progress
0 = An update to the CCPxRB register is not in progress

bit 0 RAWIP: CCPxRA Write In Progress Status bit

1 = An update to the CCPxRA register with the buffered contents is in progress
0 = An update to the CCPxRA register is not in progress

21.0 CONFIGURABLE LOGIC CELL (CLC)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. For more information, refer to “Configurable Logic Cell (CLC)” (www.microchip.com/DS70005298) in the “dsPIC33/PIC24 Family Reference Manual”. The information in this data sheet supersedes the information in the FRM.

The Configurable Logic Cell (CLC) module allows the user to specify combinations of signals as inputs to a logic function and to use the logic output to control other peripherals or I/O pins. This provides greater flexibility and potential in embedded designs, since the CLC module can operate outside the limitations of software execution, and supports a vast amount of output designs.

There are four input gates to the selected logic function. These four input gates select from a pool of up to 32 signals that are selected using four data source selection multiplexers. Figure 21-1 shows an overview of the module.

Figure 21-3 shows the details of the data source multiplexers and Figure 21-2 shows the logic input gate connections.

FIGURE 21-1: CLCx MODULE

FIGURE 21-2: CLCx LOGIC FUNCTION COMBINATORIAL OPTIONS

AND - ORMODE[2:0] = 000	OR - XORMODE[2:0] = 001
4-Input ANDMODE[2:0] = 010	S-R LatchMODE[2:0] = 011
1-Input D Flip-Flop with S and RMODE[2:0] = 100	2-Input D Flip-Flop with RMODE[2:0] = 101
J-K Flip-Flop with RMODE[2:0] = 110	1-Input Transparent Latch with S and RMODE[2:0] = 111

FIGURE 21-3: CLCx INPUT SOURCE SELECTION DIAGRAM

Note: All controls are undefined at power-up.

21.1 Control Registers

The CLCx module is controlled by the following registers:

• C L C x C O N L
• C L C x C O N H
- CLCxSEL
• C L C x G L S L
• C L C x G L S H

The CLCx Control registers (CLCxCONL and CLCxCONH) are used to enable the module and interrupts, control the output enable bit, select output polarity and select the logic function. The CLCx Control registers also allow the user to control the logic polarity of not only the cell output, but also some intermediate variables.

The CLCx Input MUX Select register (CLCxSEL) allows the user to select up to four data input sources using the four data input selection multiplexers. Each multiplexer has a list of eight data sources available.

The CLCx Gate Logic Input Select registers (CLCxGLSL and CLCxGLSH) allow the user to select which outputs from each of the selection MUXes are used as inputs to the input gates of the logic cell. Each data source MUX outputs both a true and a negated version of its output. All of these eight signals are enabled, ORed together by the logic cell input gates. If no inputs are selected (CLCxGLS = 0x00), the output will be zero or one, depending on the GxPOL bits.

REGISTER 21-1: CLCxCONL: CLCx CONTROL REGISTER (LOW)

R/W-0 U-0 U-0 U-0 R/W-0 R/W-0 U-0 U-0
LCEN	— — —	INTP INTN —	—
bit 15 bit 8

R-0 R-0 R/W-0 U-0 U-0		R/W-0	R/W-0	R/W-0
LCOE	LCOUT	LCPOL	— — MODE2	MODE1	MODE0
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 LCEN: CLCx Enable bit

1 = CLCx is enabled and mixing input signals
0 = CLCx is disabled and has logic zero outputs

bit 14-12 Unimplemented: Read as '0'

bit 11 INTP: CLCx Positive Edge Interrupt Enable bit

1 = Interrupt will be generated when a rising edge occurs on LCOUT
0 = Interrupt will not be generated

bit 10 INTN: CLCx Negative Edge Interrupt Enable bit

1 = Interrupt will be generated when a falling edge occurs on LCOUT
0 = Interrupt will not be generated

bit 9-8 Unimplemented: Read as '0'

bit 7 LCOE: CLCx Port Enable bit

1 = CLCx port pin output is enabled
0 = CLCx port pin output is disabled

bit 6 LCOUT: CLCx Data Output Status bit

1 = CLCx output high
0 = CLCx output low

bit 5 LCPOL: CLCx Output Polarity Control bit

1 = The output of the module is inverted
0 = The output of the module is not inverted

bit 4-3 Unimplemented: Read as '0'

REGISTER 21-1: CLCxCONL: CLCx CONTROL REGISTER (LOW) (CONTINUED)

bit 2-0 MODE[2:0]: CLCx Mode bits

111 = Single input transparent latch with S and R
110 = JK flip-flop with R
101 = Two-input D flip-flop with R
100 = Single input D flip-flop with S and R
011 = SR latch
010 = Four-input AND
001 = Four-input OR-XOR
000 = Four-input AND-OR

REGISTER 21-2: CLCxCONH: CLCx CONTROL REGISTER (HIGH)

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
—	—	—	—	G4POL	G3POL	G2POL	G1POL
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 G4POL: Gate 4 Polarity Control bit

1 = Channel 4 logic output is inverted when applied to the logic cell
0 = Channel 4 logic output is not inverted

bit 2 G3POL: Gate 3 Polarity Control bit

1 = Channel 3 logic output is inverted when applied to the logic cell
0 = Channel 3 logic output is not inverted

bit 1 G2POL: Gate 2 Polarity Control bit

1 = Channel 2 logic output is inverted when applied to the logic cell
0 = Channel 2 logic output is not inverted

bit 0 G1POL: Gate 1 Polarity Control bit

1 = Channel 1 logic output is inverted when applied to the logic cell
0 = Channel 1 logic output is not inverted

REGISTER 21-3: CLCxSEL: CLCx INPUT MUX SELECT REGISTER

U-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
—	D	$	4 [
bit 15 bit 8

U-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
—	D	$	2 [
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15 Unimplemented: Read as '0'

bit 14-12 DS4[2:0]: Data Selection MUX 4 Signal Selection bits

111 = SCCP3 auxiliary out 110 = SCCP1 auxiliary out 101 = CLCIND pin 100 = Reserved 011 = SPI1 Input (SDIx) ^(1) 010 = Reserved 001 = CLC2 output 000 = PWM Event A

bit 11 Unimplemented: Read as '0'

bit 10-8 DS3[2:0]: Data Selection MUX 3 Signal Selection bits
111 = SCCP4 output compare
110 = SCCP3 output compare
101 = CLC4 out
100 = UART1 RX
011 = SPI1 Output (SDOx)(1)
010 = Reserved
001 = CLC1 output
000 = CLCINC I/O pin

bit 7 Unimplemented: Read as '0'

bit 6-4 DS2[2:0]: Data Selection MUX 2 Signal Selection bits
111 = SCCP2 output compare
110 = SCCP1 output compare
101 = Reserved
100 = Reserved
011 = UART1 TX input corresponding to CLCx module
010 = Comparator 1 output
001 = Reserved
000 = CLCINB I/O pin
bit 3 Unimplemented: Read as '0'

Note 1: Valid only when SPI is used on PPS.

REGISTER 21-3: CLCxSEL: CLCx INPUT MUX SELECT REGISTER (CONTINUED)

bit 2-0 DS1[2:0]: Data Selection MUX 1 Signal Selection bits

111 = SCCP4 auxiliary out

110 = SCCP2 auxiliary out

101 = Reserved

100 = REFCLKO output

011 = INTRC/LPRC clock source

010 = CLC3 out

001 = System clock (FcY)

000 = CLCINA I/O pin

Note 1: Valid only when SPI is used on PPS.

REGISTER 21-4: CLCxGLSL: CLCx GATE LOGIC INPUT SELECT LOW REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
G2D4T G2	D4N G2D3T G	2D3N G2D2T	G2D2N G2D1T	G2D1N
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
G1D4T G1	D4N G1D3T G	1D3N G1D2T	G1D2N G1D1†	G1D1N
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15	G2D4T: Gate 2 Data Source 4 True Enable bit1 = Data Source 4 signal is enabled for Gate 20 = Data Source 4 signal is disabled for Gate 2
bit 14	G2D4N: Gate 2 Data Source 4 Negated Enable bit1 = Data Source 4 inverted signal is enabled for Gate 20 = Data Source 4 inverted signal is disabled for Gate 2
bit 13	G2D3T: Gate 2 Data Source 3 True Enable bit1 = Data Source 3 signal is enabled for Gate 20 = Data Source 3 signal is disabled for Gate 2
bit 12	G2D3N: Gate 2 Data Source 3 Negated Enable bit1 = Data Source 3 inverted signal is enabled for Gate 20 = Data Source 3 inverted signal is disabled for Gate 2
bit 11	G2D2T: Gate 2 Data Source 2 True Enable bit1 = Data Source 2 signal is enabled for Gate 20 = Data Source 2 signal is disabled for Gate 2
bit 10	G2D2N: Gate 2 Data Source 2 Negated Enable bit1 = Data Source 2 inverted signal is enabled for Gate 20 = Data Source 2 inverted signal is disabled for Gate 2
bit 9	G2D1T: Gate 2 Data Source 1 True Enable bit1 = Data Source 1 signal is enabled for Gate 20 = Data Source 1 signal is disabled for Gate 2
bit 8	G2D1N: Gate 2 Data Source 1 Negated Enable bit1 = Data Source 1 inverted signal is enabled for Gate 20 = Data Source 1 inverted signal is disabled for Gate 2
bit 7	G1D4T: Gate 1 Data Source 4 True Enable bit1 = Data Source 4 signal is enabled for Gate 10 = Data Source 4 signal is disabled for Gate 1
bit 6	G1D4N: Gate 1 Data Source 4 Negated Enable bit1 = Data Source 4 inverted signal is enabled for Gate 10 = Data Source 4 inverted signal is disabled for Gate 1
bit 5	G1D3T: Gate 1 Data Source 3 True Enable bit1 = Data Source 3 signal is enabled for Gate 10 = Data Source 3 signal is disabled for Gate 1
bit 4	G1D3N: Gate 1 Data Source 3 Negated Enable bit1 = Data Source 3 inverted signal is enabled for Gate 10 = Data Source 3 inverted signal is disabled for Gate 1

REGISTER 21-4: CLCxGLSL: CLCx GATE LOGIC INPUT SELECT LOW REGISTER (CONTINUED)

bit 3 G1D2T: Gate 1 Data Source 2 True Enable bit

1 = Data Source 2 signal is enabled for Gate 1
0 = Data Source 2 signal is disabled for Gate 1

bit 2 G1D2N: Gate 1 Data Source 2 Negated Enable bit

1 = Data Source 2 inverted signal is enabled for Gate 1
0 = Data Source 2 inverted signal is disabled for Gate 1

bit 1 G1D1T: Gate 1 Data Source 1 True Enable bit

1 = Data Source 1 signal is enabled for Gate 1
0 = Data Source 1 signal is disabled for Gate 1

bit 0 G1D1N: Gate 1 Data Source 1 Negated Enable bit

1 = Data Source 1 inverted signal is enabled for Gate 1
0 = Data Source 1 inverted signal is disabled for Gate 1

REGISTER 21-5: CLCxGLSH: CLCx GATE LOGIC INPUT SELECT HIGH REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
G4D4T G4	D4N G4D3T G	4D3N G4D2T	G4D2N G4D1T	G4D1N
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
G3D4T G3	D4N G3D3T G	3D3N G3D2T	G3D2N G3D1†	G3D1N
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set '0' = Bit is cleared	x = Bit is unknown

bit 15	G4D4T: Gate 4 Data Source 4 True Enable bit1 = Data Source 4 signal is enabled for Gate 40 = Data Source 4 signal is disabled for Gate 4
bit 14	G4D4N: Gate 4 Data Source 4 Negated Enable bit1 = Data Source 4 inverted signal is enabled for Gate 40 = Data Source 4 inverted signal is disabled for Gate 4
bit 13	G4D3T: Gate 4 Data Source 3 True Enable bit1 = Data Source 3 signal is enabled for Gate 40 = Data Source 3 signal is disabled for Gate 4
bit 12	G4D3N: Gate 4 Data Source 3 Negated Enable bit1 = Data Source 3 inverted signal is enabled for Gate 40 = Data Source 3 inverted signal is disabled for Gate 4
bit 11	G4D2T: Gate 4 Data Source 2 True Enable bit1 = Data Source 2 signal is enabled for Gate 40 = Data Source 2 signal is disabled for Gate 4
bit 10	G4D2N: Gate 4 Data Source 2 Negated Enable bit1 = Data Source 2 inverted signal is enabled for Gate 40 = Data Source 2 inverted signal is disabled for Gate 4
bit 9	G4D1T: Gate 4 Data Source 1 True Enable bit1 = Data Source 1 signal is enabled for Gate 40 = Data Source 1 signal is disabled for Gate 4
bit 8	G4D1N: Gate 4 Data Source 1 Negated Enable bit1 = Data Source 1 inverted signal is enabled for Gate 40 = Data Source 1 inverted signal is disabled for Gate 4
bit 7	G3D4T: Gate 3 Data Source 4 True Enable bit1 = Data Source 4 signal is enabled for Gate 30 = Data Source 4 signal is disabled for Gate 3
bit 6	G3D4N: Gate 3 Data Source 4 Negated Enable bit1 = Data Source 4 inverted signal is enabled for Gate 30 = Data Source 4 inverted signal is disabled for Gate 3
bit 5	G3D3T: Gate 3 Data Source 3 True Enable bit1 = Data Source 3 signal is enabled for Gate 30 = Data Source 3 signal is disabled for Gate 3
bit 4	G3D3N: Gate 3 Data Source 3 Negated Enable bit1 = Data Source 3 inverted signal is enabled for Gate 30 = Data Source 3 inverted signal is disabled for Gate 3

REGISTER 21-5: CLCxGLSH: CLCx GATE LOGIC INPUT SELECT HIGH REGISTER (CONTINUED)

bit 3 G3D2T: Gate 3 Data Source 2 True Enable bit

1 = Data Source 2 signal is enabled for Gate 3
0 = Data Source 2 signal is disabled for Gate 3

bit 2 G3D2N: Gate 3 Data Source 2 Negated Enable bit

1 = Data Source 2 inverted signal is enabled for Gate 3
0 = Data Source 2 inverted signal is disabled for Gate 3

bit 1 G3D1T: Gate 3 Data Source 1 True Enable bit

1 = Data Source 1 signal is enabled for Gate 3
0 = Data Source 1 signal is disabled for Gate 3

bit 0 G3D1N: Gate 3 Data Source 1 Negated Enable bit

1 = Data Source 1 inverted signal is enabled for Gate 3
0 = Data Source 1 inverted signal is disabled for Gate 3

NOTES:

22.0 PERIPHERAL TRIGGER GENERATOR (PTG)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Peripheral Trigger Generator (PTG)” (www.microchip.com/DS70000669) in the “dsPIC33/PIC24 Family Reference Manual”.

The dsPIC33CK64MC105 family Peripheral Trigger Generator (PTG) module is a user-programmable sequencer that is capable of generating complex trigger signal sequences to coordinate the operation of other peripherals. The PTG module is designed to interface with the modules, such as an Analog-to-Digital Converter (ADC), output compare and PWM modules, timers and interrupt controllers.

22.1 Features

• Behavior is Step Command Driven:
• Step commands are eight bits wide
• Commands are Stored in a Step Queue:
• Queue depth is up to 32 entries
• Programmable Step execution time (Step delay)
  • Supports the Command Sequence Loop:
• Can be nested one-level deep
• Conditional or unconditional loop
• Two 16-bit loop counters

• 15 Hardware Input Triggers:

- Sensitive to either positive or negative edges, or a high or low level

• One Software Input Trigger

- Generates up to 32 Unique Output Trigger Signals

- Generates Two Types of Trigger Outputs:

- Individual

- Broadcast

- Generates up to Ten Unique Interrupt Signals

- Two 16-Bit General Purpose Timers

- Flexible Self-Contained Watchdog Timer (WDT) to Set an Upper Limit to Trigger Wait Time

- Single-Step Command Capability in Debug mode

- Selectable Clock (System, Pulse-Width Modulator (PWM) or ADC)

- Programmable Clock Divider

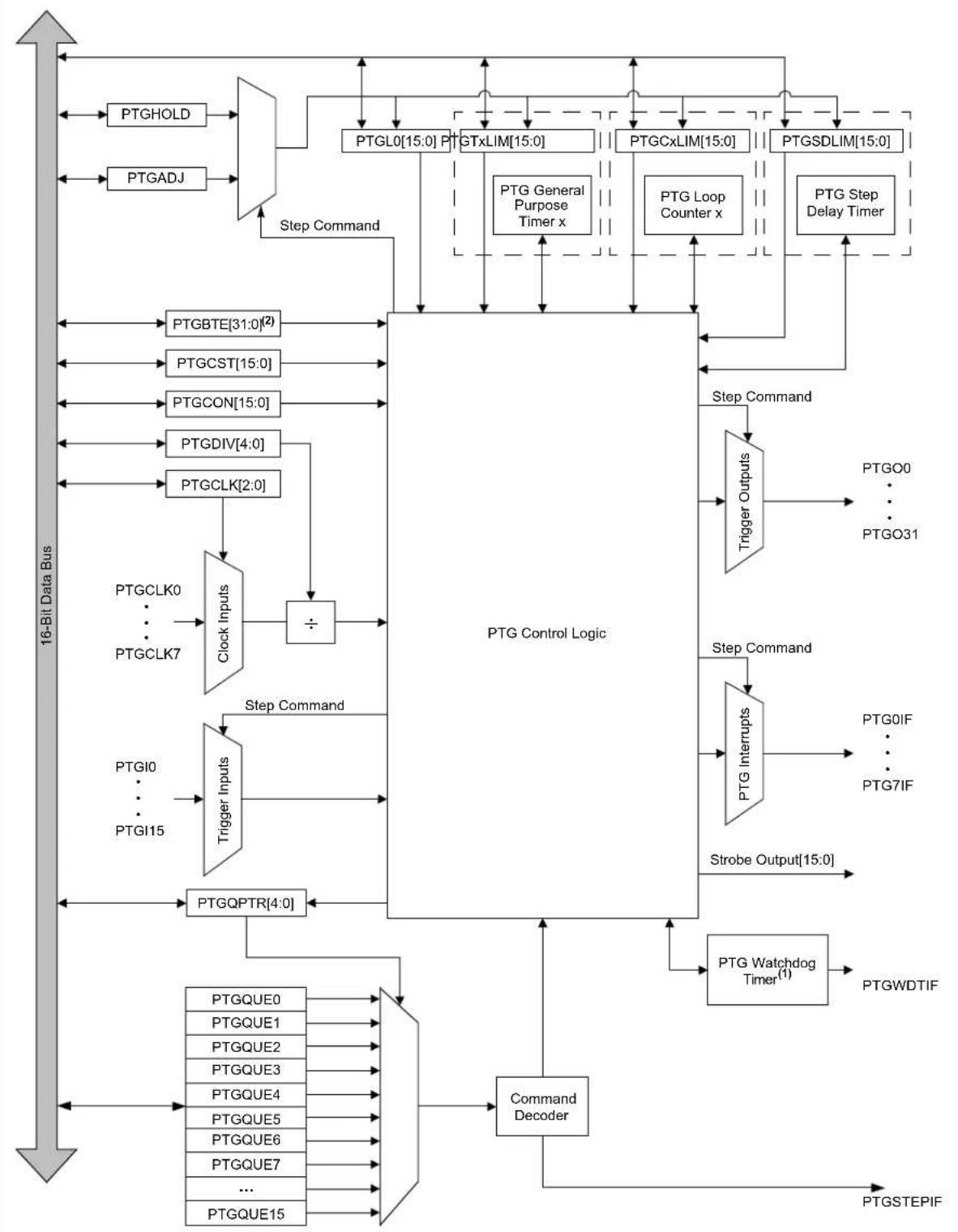

FIGURE 22-1: PTG BLOCK DIAGRAM

Note 1: This is a dedicated Watchdog Timer for the PTG module and is independent of the device Watchdog Timer.
2: Some devices support only PTGBTE[15:0] (16 outputs).

22.2 PTG Control/Status Registers

REGISTER 22-1: PTGCST: PTG CONTROL/STATUS LOW REGISTER

R/W-0 U-0 R/W-0 R/W-0 U-0 HC/R/W-0 R/W-0 R/W-0
PTGEN	—	PTGSIDL	PTGTOGL	—	PTGSWT(2)	PTGSSEN(3)	PTGIVIS
bit 15 bit 8

HC/R/W-0	HS/R/W-0	HS/HC/R/W-0	U-0	U-0	U-0	R/W-0	R/W-0
PTGSTRT	PTGWDTO	PTGBUSY	—	—	—	PTGITM1^(1)	PTGITM0^(1)
bit 7 bit 0

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 PTGEN: PTG Enable bit

1 = PTG is enabled

0 = PTG is disabled

bit 14 Unimplemented: Read as '0'

bit 13 PTGSIDL: PTG Freeze in Debug Mode bit

1 = Halts PTG operation when device is Idle

0 = PTG operation continues when device is Idle

bit 12 PTGTOGL: PTG Toggle Trigger Output bit

1 = Toggles state of TRIG output for each execution of PTGTRIG

0 = Generates a single TRIG pulse for each execution of PTGTRIG

bit 11 Unimplemented: Read as '0'

bit 10 PTGSWT: PTG Software Trigger bit ^(2)

1 = If the PTG state machine is executing the "Wait for software trigger" Step command (OPTION[3:0] = 1010 or 1011), the command will complete and execution will continue 0 = No action other than to clear the bit

bit 9 PTGSSEN: PTG Single-Step Command bit ^(3)

1 = Enables single step when in Debug mode

0 = Disables single step

bit 8 PTGIVIS: PTG Counter/Timer Visibility bit

1 = Reading the PTGSDLIM, PTGCxLIM or PTGTxLIM registers returns the current values of their corresponding Counter/Timer registers (PTGSDLIM, PTGCxLIM and PTGTxLIM) 0 = Reading the PTGSDLIM, PTGCxLIM or PTGTxLIM registers returns the value of these Limit registers

bit 7 PTGSTRT: PTG Start Sequencer bit

1 = Starts to sequentially execute the commands (Continuous mode) 0 = Stops executing the commands

bit 6 PTGWDTO: PTG Watchdog Timer Time-out Status bit

1 = PTG Watchdog Timer has timed out 0 = PTG Watchdog Timer has not timed out

Note 1: These bits apply to the PTGWHI and PTGWLO commands only.

2: This bit is only used with the PTGCTRL Step command software trigger option.

3: The PTGSSEN bit may only be written when in Debug mode.

REGISTER 22-1: PTGCST: PTG CONTROL/STATUS LOW REGISTER (CONTINUED)

bit 5 PTGBUSY: PTG State Machine Busy bit

1 = PTG is running on the selected clock source; no SFR writes are allowed to PTGCLK[2:0] or PTGDIV[4:0]
0 = PTG state machine is not running

bit 4-2 Unimplemented: Read as '0'

bit 1-0 PTGITM[1:0]: PTG Input Trigger Operation Selection bit ^(1)

11 = Single-level detect with Step delay not executed on exit of command (regardless of the PTGCTRL command) (Mode 3)
10 = Single-level detect with Step delay executed on exit of command (Mode 2)
01 = Continuous edge detect with Step delay not executed on exit of command (regardless of the PTGCTRL command) (Mode 1)
00 = Continuous edge detect with Step delay executed on exit of command (Mode 0)

Note 1: These bits apply to the PTGWHI and PTGWLO commands only.

2: This bit is only used with the PTGCTRL Step command software trigger option.

3: The PTGSSEN bit may only be written when in Debug mode.

REGISTER 22-2: PTGCON: PTG CONTROL/STATUS HIGH REGISTER

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
PTGCLK2	PTGCLK1	PTGCLK0	PTGDIV4	PTGDIV3	PTGDIV2	PTGDIV1	PTGDIV0
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 U-0			R/W-0 R/W-0 R/W-0
PTGPWD3	PTGPWD2	PTGPWD1	PTGPWD0	— PTGWDT2	PTGWDT1	PTGWDT0
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-13 PTGCLK[2:0]: PTG Module Clock Source Selection bits

111 = CLC1

110 = PLL VCO DIV 4 output

101 = Reserved

100 = Reserved

011 = Input from Timer1 Clock pin, T1CK

010 = PTG module clock source will be ADC clock

001 = PTG module clock source will be Fosc

000 = PTG module clock source will be Fosc/2 (FP)

bit 12-8 PTGDIV[4:0]: PTG Module Clock Prescaler (Divider) bits

11111 = Divide-by-32

11110 = Divide-by-31

• • •

00001 = Divide-by-2

00000 = Divide-by-1

bit 7-4 PTGPWD[3:0]: PTG Trigger Output Pulse-Width (in PTG clock cycles) bits

1111 = All trigger outputs are 16 PTG clock cycles wide

1110 = All trigger outputs are 15 PTG clock cycles wide

...

0001 = All trigger outputs are 2 PTG clock cycles wide

0000 = All trigger outputs are 1 PTG clock cycle wide

bit 3 Unimplemented: Read as '0'

bit 2-0 PTGWDT[2:0]: PTG Watchdog Timer Time-out Selection bits

111 = Watchdog Timer will time out after 512 PTG clocks

110 = Watchdog Timer will time out after 256 PTG clocks

101 = Watchdog Timer will time out after 128 PTG clocks

100 = Watchdog Timer will time out after 64 PTG clocks

011 = Watchdog Timer will time out after 32 PTG clocks

010 = Watchdog Timer will time out after 16 PTG clocks

001 = Watchdog Timer will time out after 8 PTG clocks

000 = Watchdog Timer is disabled

REGISTER 22-3: PTGBTE: PTG BROADCAST TRIGGER ENABLE LOW REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGBTE[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGBTE[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGBTE[15:0]: PTG Broadcast Trigger Enable bits

1 = Generates trigger when the broadcast command is executed
0 = Does not generate trigger when the broadcast command is executed

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-4: PTGBTEH: PTG BROADCAST TRIGGER ENABLE HIGH REGISTER (1)

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PTGBTE[31:24]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PTGBTE[23:16]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGBTE[31:16]: PTG Broadcast Trigger Enable bits

1 = Generates trigger when the broadcast command is executed
0 = Does not generate trigger when the broadcast command is executed

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-5: PTGHOLD: PTG HOLD REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGHOLD[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGHOLD[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGHOLD[15:0]: PTG General Purpose Hold Register bits

This register holds the user-supplied data to be copied to the PTGTxLIM, PTGCxLIM, PTGSDLIM or PTGL0 register using the PTGCOPY command.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-6: PTGT0LIM: PTG TIMER0 LIMIT REGISTER (1)

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PTGTOLIM[15:8]
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
PTGTOLIM[7:0]
bit 7							bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGTOLIM[15:0]: PTG Timer0 Limit Register bits

General Purpose Timer0 Limit register.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-7: PTGT1LIM: PTG TIMER1 LIMIT REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGT1LIM[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGT1LIM[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGT1LIM[15:0]: PTG Timer1 Limit Register bits

General Purpose Timer1 Limit register.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-8: PTGSDLIM: PTG STEP DELAY LIMIT REGISTER ^(1)

R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
		PTGSDLIM[15:8]
bit 15 bit 8

R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0
		PTGSDLIM[7:0]
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGSDLIM[15:0]: PTG Step Delay Limit Register bits

This register holds a PTG Step delay value representing the number of additional PTG clocks between the start of a Step command and the completion of a Step command.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-9: PTGC0LIM: PTG COUNTER 0 LIMIT REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGC0LIM[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGC0LIM[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGC0LIM[15:0]: PTG Counter 0 Limit Register bits

This register is used to specify the loop count for the PTGJMPC0 Step command or as a Limit register for the General Purpose Counter 0.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-10: PTGC1LIM: PTG COUNTER 1 LIMIT REGISTER ^(1)

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			PTGC1LIM[15:8]
bit 15 bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			PTGC1LIM[7:0]
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-0 PTGC1LIM[15:0]: PTG Counter 1 Limit Register bits

This register is used to specify the loop count for the PTGJMPC1 Step command or as a Limit register for the General Purpose Counter 1.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-11: PTGADJ: PTG ADJUST REGISTER (1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGADJ[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGADJ[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGADJ[15:0]: PTG Adjust Register bits

This register holds the user-supplied data to be added to the PTGTxLIM, PTGCxLIM, PTGSDLIM or PTGL0 register using the PTGADD command.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-12: PTGL0: PTG LITERAL 0 REGISTER ^(1)

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGL0[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

PTGL0[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 PTGL0[15:0]: PTG Literal 0 Register bits

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-13: PTGQPTR: PTG STEP QUEUE POINTER REGISTER (1)

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-5 Unimplemented: Read as '0'

bit 4-0 PTGQPTR[4:0]: PTG Step Queue Pointer Register bits

This register points to the currently active Step command in the Step queue.

Note 1: These bits are read-only when the module is executing Step commands.

REGISTER 22-14: PTGQUEn: PTG STEP QUEUE n POINTER REGISTER (n = 0-15) ^(1)

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
			STEP2n+1[7:0]^(2)
bit 15							bit 8

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
STEP2n[7:0](2)
bit 7							bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 STEP2n+1[7:0]: PTG Command 4n+1 bits ^(2)

A queue location for storage of the STEP2n+1 command byte, where 'n' is from PTGQUEn.

bit STEP2n[7:0]: PTG Command 4n+2 bits ^(2)

A queue location for storage of the STEP2n command byte, where 'n' are the odd numbered Step Queue Pointers.

Note 1: These bits are read-only when the module is executing Step commands.

2: Refer to Table 22-1 for the Step command encoding.

TABLE 22-1: PTG STEP COMMAND FORMAT AND DESCRIPTION

Step Command Byte
STEPx[7:0]
CMD[3:0] OPTION[3:0]
bit 7 bit 4 bit 3 bit 0

bit 7-4	Step Command	CMD[3:0] Command Description
	PTGCTRL 0000 Execute the control command as described by the OPTION[3:0] bits.
	PTGADD 0001	Add contents of the PTGADJ register to the target register as described by the OPTION[3:0] bits.
	PTGCOPY Copy contents of the PTGHOLD register to the target register as described by the OPTION[3:0] bits.
	PTGSTRB 001x	This command starts an ADC conversion of the channels specified in CMD[0] and OPTION[3:0] bits.
	PTGWHI 0100 Wait for a low-to-high edge input from a selected PTG trigger input as described by the OPTION[3:0] bits.
	PTGWLO 0101 Wait for a high-to-low edge input from a selected PTG trigger input as described by the OPTION[3:0] bits.
	— 0110 Reserved; do not use. (1)
	PTGIRQ 0111	Generate individual interrupt request as described by the OPTION[3:0] bits.
	PTGTRIG 100x Generate	individual trigger output as described by the bits, CMD[0]:OPTION[3:0].
	PTGJMP 101x Copy the values contained in the bits, CMD[0]:OPTION[3:0], to the PTGQPTR register and jump to that Step queue.
	PTGJMPC0 110x	PTGC0 = PTGC0LIM: Increment the PTGQPTR register.
		PTGC0 ≠ PTGC0LIM: Increment Counter 0 (PTGC0) and copy the values contained in the bits, CMD[0]:OPTION[3:0], to the PTGQPTR register, and jump to that Step queue.
	PTGJMPC1 111x	PTGC1 = PTGC1LIM: Increment the PTGQPTR register.
		PTGC1 ≠ PTGC1LIM: Increment Counter 1 (PTGC1) and copy the values contained in the bits, CMD[0]:OPTION[3:0], to the PTGQPTR register, and jump to that Step queue.

Note 1: All reserved commands or options will execute, but they do not have any affect (i.e., execute as a NOP instruction).

TABLE 22-2: PTG COMMAND OPTIONS

bit 3-0	Step Command	OPTION[3:0]	Command Description
	PTGCTRL^(1)	0000 NOP.
		0001 Reserved; do not use.
		0010 Disable Step delay timer (PTGSD).
		0011 Reserved; do not use.
		0100 Reserved; do not use.
		0101 Reserved; do not use.
		0110 Enable Step delay timer (PTGSD).
		0111 Reserved; do not use.
		1000 Start and wait for the PTG Timer0 to match the PTGT0LIM register.
		1001 Start and wait for the PTG Timer1 to match the PTGT1LIM register.
		1010 Wait for the software trigger (level, PTGSWT = 1).
		1011 Wait for the software trigger (positive edge, PTGSWT = 0 to 1).
		1100 Copy the PTGC0LIM register contents to the strobe output.
		1101 Copy the PTGC1LIM register contents to the strobe output.
		1110 Reserved; do not use.
		1111 Generate the triggers indicated in the PTGBTE register.
	PTGADD^(1)	0000 Add the PTGADJ register contents to the PTGC0LIM register.
		0001 Add the PTGADJ register contents to the PTGC1LIM register.
		0010 Add the PTGADJ register contents to the PTGT0LIM register.
		0011 Add the PTGADJ register contents to the PTGT1LIM register.
		0100 Add the PTGADJ register contents to the PTGSDLIM register.
		0101 Add the PTGADJ register contents to the PTGL0 register.
		0110 Reserved; do not use.
		0111 Reserved; do not use.
	PTGCOPY^(1)	1000 Copy the PTGHOLD register contents to the PTGC0LIM register.
		1001 Copy the PTGHOLD register contents to the PTGC1LIM register.
		1010 Copy the PTGHOLD register contents to the PTGT0LIM register.
		1011 Copy the PTGHOLD register contents to the PTGT1LIM register.
		1100 Copy the PTGHOLD register contents to the PTGSDLIM register.
		1101 Copy the PTGHOLD register contents to the PTGL0 register.
		1110 Reserved; do not use.
		1111 Reserved; do not use.
bit 3-0	Step Command	OPTION[3:0]	Option Description
	PTGWHI^(1) or PTGWLO^(1)	0000	PTGI0 (see Table 22-3 for input assignments).
		····	····
		1111	PTGI15 (see Table 22-3 for input assignments).
	PTGIRQ^(1)	0000 Generate PTG Interrupt 0.
		····	····
		0111 Generate PTG Interrupt 7.
		1000 Reserved; do not use.
		····	····
		1111 Reserved; do not use.
	PTGTRIG	00000	PTGO0 (see Table 22-4 for output assignments).
		00001	PTGO1 (see Table 22-4 for output assignments).
		····	····
		11110	PTGO30 (see Table 22-4 for output assignments).
		11111	PTGO31 (see Table 22-4 for output assignments).
	PTGWHI^(1) or PTGWLO^(1)	0000	PTGI0 (see Table 22-3 for input assignments).
		····	····
		1111	PTGI15 (see Table 22-3 for input assignments).
	PTGIRQ^(1)	0,000 Generate PTG Interrupt 0.
		····	····
		0111 Generate PTG Interrupt 7.
		1000 Reserved; do not use.
		····	····
		1111 Reserved; do not use.
	PTGTRIG	00000	PTGO0 (se e Table 22-4 for output assignments).
		00001	PTGO1 (se e Table 22-4 for output assignments).

Note 1: All reserved commands or options will execute, but they do not have any affect (i.e., execute as a NOP instruction).

TABLE 22-3: PTG INPUT DESCRIPTIONS

PTG Input Number PTG Input Description
PTG Trigger Input 0 Trigger Input from	PWM1 ADC Trigger 2
PTG Trigger Input 1 Trigger Input from	PWM2 ADC Trigger 2
PTG Trigger Input 2 Trigger Input from	PWM3 ADC Trigger 2
PTG Trigger Input 3 Trigger Input from	PWM4 ADC Trigger 2
PTG Trigger Input 4 Reserved
PTG Trigger Input 5 Reserved
PTG Trigger Input 6 Reserved
PTG Trigger Input 7 Trigger Input from	SCCP4 Input Capture/Output Compare
PTG Trigger Input 8 Reserved
PTG Trigger Input 9 Trigger Input from	Comparator 1
PTG Trigger Input 10 Reserved
PTG Trigger Input 11 Reserved
PTG Trigger Input 12 Trigger Input from	CLC1
PTG Trigger Input 13 Trigger Input from	ADC Common Interrupt
PTG Trigger Input 14 Reserved
PTG Trigger Input 15 Trigger Input from	INT2 PPS

TABLE 22-4: PTG OUTPUT DESCRIPTIONS

PTG Output Number PTG	Output Description
PTGO0 to PTGO11 Reserved
PTGO12 ADC TRGSRC[30]
PTGO13 to PTGO23 Reserved
PTGO24 PPS Output RP46
PTGO25 PPS Output RP47
PTGO26 PPS Input RP6
PTGO27 PPS Input to P7
PTGO28 PPS Input to PTGO31
PTGO29 to PTGO31 Reserved

NOTES:

23.0 CURRENT BIAS GENERATOR (CBG)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Current Bias Generator (CBG)" (www.microchip.com/DS70005253) in the "dsPIC33/PIC24 Family Reference Manual".

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The Current Bias Generator (CBG) consists of two classes of current sources: 10 A and 50 A sources. The major features of each current source are:

• 10 μA Current Sources:

- Current sourcing only

- Up to four independent sources

• 50 μA Current Sources:

- Selectable current sourcing or sinking

- Selectable current mirroring for sourcing and sinking

A simplified block diagram of the CBG module is shown in Figure 23-1.

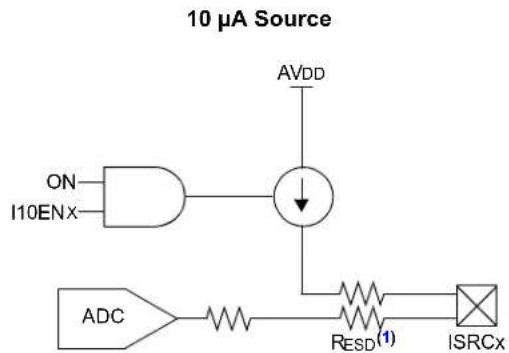

FIGURE 23-1: CONSTANT-CURRENT SOURCE MODULE BLOCK DIAGRAM (2)

Note 1: RESD is typically 350 Ohms.
2: In Figure 23-1, the ADC analog input is shown for clarity. Each analog peripheral connected to the pin has a separate Electrostatic Discharge (ESD) resistor.

23.1 Current Bias Generator Control Registers

REGISTER 23-1: BIASCON: CURRENT BIAS GENERATOR CONTROL REGISTER

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 ON: Current Bias Module Enable bit

1 = Module is enabled
0 = Module is disabled

bit 14-4 Unimplemented: Read as '0'

bit 3 I10EN3: 10 μA Enable for Output 3 bit

1 = 10 μA output is enabled
0 = 10 μA output is disabled

bit 2 I10EN2: 10 μA Enable for Output 2 bit ^(1)

1 = 10 μA output is enabled
0 = 10 μA output is disabled

bit 1 I10EN1: 10 μA Enable for Output 1 bit ^(2)

1 = 10 μA output is enabled
0 = 10 μA output is disabled

bit 0 I10ENO: 10 μA Enable for Output 0 bit

1 = 10 μA output is enabled
0 = 10 μA output is disabled

Note 1: This bit is only available for the 36 and 48-pin package devices.

2: This bit is only available for the 48-pin package devices.

REGISTER 23-2: IBIASCONH: CURRENT BIAS GENERATOR 50 μA CURRENT SOURCE CONTROL HIGH REGISTER

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — S	SHRSRCEN3	(1)	SHRSNKEN3(1)	GENSRCEN3(1)	GENSNKEN3(1)	SRCEN3(1)
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — SHRSRCEN2	(1)	SHRSNKEN2(1)	GENSRCEN2(1)	GENSNKEN2(1)	SRCEN2(1)	SNKEN2(1)
bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13 SHRSRCEN3: Share Source Enable for Output #3 bit ^(1)

1 = Sourcing Current Mirror mode is enabled (uses reference from another source) 0 = Sourcing Current Mirror mode is disabled

bit 12 SHRSNKEN3: Share Sink Enable for Output #3 bit ^(1)

1 = Sinking Current Mirror mode is enabled (uses reference from another source) 0 = Sinking Current Mirror mode is disabled

bit 11 GENSRCEN3: Generated Source Enable for Output #3 bit ^(1)

1 = Source generates the current source mirror reference
0 = Source does not generate the current source mirror reference

bit 10 GENSNKEN3: Generated Sink Enable for Output #3 bit ^(1)

1 = Source generates the current sink mirror reference 0 = Source does not generate the current sink mirror reference

bit 9 SRCEN3: Source Enable for Output #3 bit ^(1)

1 = Current source is enabled 0 = Current source is disabled

bit 8 SNKEN3: Sink Enable for Output #3 bit ^(1)

1 = Current sink is enabled 0 = Current sink is disabled

bit 7-6 Unimplemented: Read as '0'

bit 5 SHRSRCEN2: Share Source Enable for Output #2 bit ^(1)

1 = Sourcing Current Mirror mode is enabled (uses reference from another source) 0 = Sourcing Current Mirror mode is disabled

bit 4 SHRSNKEN2: Share Sink Enable for Output #2 bit ^(1)

1 = Sinking Current Mirror mode is enabled (uses reference from another source) 0 = Sinking Current Mirror mode is disabled

bit 3 GENSRCEN2: Generated Source Enable for Output #2 bit ^(1)

1 = Source generates the current source mirror reference
0 = Source does not generate the current source mirror reference

bit 2 GENSNKEN2: Generated Sink Enable for Output #2 bit ^(1)

1 = Source generates the current sink mirror reference 0 = Source does not generate the current sink mirror reference

Note 1: This bit is only available in 48-pin package devices.

REGISTER 23-2: IBIASCONH: CURRENT BIAS GENERATOR 50 μA CURRENT SOURCE CONTROL HIGH REGISTER (CONTINUED)

bit 1 SRCEN2: Source Enable for Output #2 bit (1)

1 = Current source is enabled
0 = Current source is disabled

bit 0 SNKEN2: Sink Enable for Output #2 bit (1)

1 = Current sink is enabled
0 = Current sink is disabled

Note 1: This bit is only available in 48-pin package devices.

REGISTER 23-3: IBIASCONL: CURRENT BIAS GENERATOR 50~ A CURRENT SOURCE CONTROL LOW REGISTER

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— —SHRSRCEN1(1)		SHRSNKEN1(1)	GENSRCEN1(1)	GENSNKEN1(1)	SRCEN1(1)	SNKEN1(1)
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— —	SHRSRCENO	(1)	SHRSNKENO(1)	GENSRCENO(1)	GENSNKENO(1)	SRCENO(1)
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13 SHRSRCEN1: Share Source Enable for Output #1 bit ^(1)

1 = Sourcing Current Mirror mode is enabled (uses reference from another source) 0 = Sourcing Current Mirror mode is disabled

bit 12 SHRSNKEN1: Share Sink Enable for Output #1 bit ^(1)

1 = Sinking Current Mirror mode is enabled (uses reference from another source) 0 = Sinking Current Mirror mode is disabled

bit 11 GENSRCEN1: Generated Source Enable for Output #1 bit ^(1)

1 = Source generates the current source mirror reference 0 = Source does not generate the current source mirror reference

bit 10 GENSNKEN1: Generated Sink Enable for Output #1 bit ^(1)

1 = Source generates the current sink mirror reference 0 = Source does not generate the current sink mirror reference

bit 9 SRCEN1: Source Enable for Output #1 bit ^(1)

1 = Current source is enabled 0 = Current source is disabled

bit 8 SNKEN1: Sink Enable for Output #1 bit ^(1)

1 = Current sink is enabled 0 = Current sink is disabled

bit 7-6 Unimplemented: Read as '0'

bit 5 SHRSRCEN0: Share Source Enable for Output #0 bit ^(1)

1 = Sourcing Current Mirror mode is enabled (uses reference from another source) 0 = Sourcing Current Mirror mode is disabled

bit 4 SHRSNKENO: Share Sink Enable for Output #0 bit ^(1)

1 = Sinking Current Mirror mode is enabled (uses reference from another source) 0 = Sinking Current Mirror mode is disabled

bit 3 GENSRCEN0: Generated Source Enable for Output #0 bit ^(1)

1 = Source generates the current source mirror reference 0 = Source does not generate the current source mirror reference

bit 2 GENSNKEN0: Generated Sink Enable for Output #0 bit ^(1)

1 = Source generates the current sink mirror reference 0 = Source does not generate the current sink mirror reference

Note 1: This bit is only available in 36 and 48-pin package devices.

REGISTER 23-3: IBIASCONL: CURRENT BIAS GENERATOR 50 μA CURRENT SOURCE CONTROL LOW REGISTER (CONTINUED)

bit 1 SRCEN0: Source Enable for Output #0 bit (1)

1 = Current source is enabled
0 = Current source is disabled

bit 0 SNKEN0: Sink Enable for Output #0 bit (1)

1 = Current sink is enabled
0 = Current sink is disabled

Note 1: This bit is only available in 36 and 48-pin package devices.

24.0 OPERATIONAL AMPLIFIER

Note: The 28-pin device variants support only two op amp instances. Refer to Table and Table2 for availability.

The dsPIC33CK64MC105 family implements three instances of operational amplifiers (op amps). The op amps can be used for a wide variety of purposes, including signal conditioning and filtering. The three op amps are functionally identical. The block diagram for a single amplifier is shown in Figure 24-1.

FIGURE 24-1: SINGLE OPERATIONAL AMPLIFIER BLOCK DIAGRAM

The op amps are controlled by two SFR registers: AMPCON1L and AMPCON1H. They remain in a Low-Power state until the AMPON bit is set. Each op amp can then be enabled independently by setting the corresponding AMPENx bit (x = 1, 2, 3).

The NCHDISx bit provides some flexibility regarding input range versus Integral Nonlinearity (INL). When NCHDISx = 0 (default), the op amps have a wider input voltage range (see Table 31-36 in Section 31.0 "Electrical Characteristics"). When NCHDISx = 1, the wider input range is traded for improved INL performance (lower INL).

24.1 Operational Amplifier Control Registers

REGISTER 24-1: AMPCON1L: OP AMP CONTROL REGISTER LOW

R/W-0 U-0 U-0 U-0 U-0 U-0 U-0
AMPON	—	—	—	—	—	—	—
bit 15 bit 8

U-0	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0
—	—	—	—	—	AMPEN3^(1)	AMPEN2	AMPEN1
bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15 AMPON: Op Amp Enable/On bit

1 = Enables op amp modules if their respective AMPENx bits are also asserted

0 = Disables all op amp modules

bit 14-3 Unimplemented: Read as '0'

bit 2 AMPEN3: Op Amp #3 Enable bit ^(1)

1 = Enables Op Amp #3 if the AMPON bit is also asserted

0 = Disables Op Amp #3

bit 1 AMPEN2: Op Amp #2 Enable bit

1 = Enables Op Amp #2 if the AMPON bit is also asserted

0 = Disables Op Amp #2

bit 0 AMPEN1: Op Amp #1 Enable bit

1 = Enables Op Amp #1 if the AMPON bit is also asserted

0 = Disables Op Amp #1

Note 1: This bit is not available on 28-pin devices.

REGISTER 24-2: AMPCON1H: OP AMP CONTROL REGISTER HIGH

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-3 Unimplemented: Read as '0'

bit 2 NCHDIS3: Op Amp #3 N Channel Disable bit (1)

1 = Disables Op Amp #3 N channel input stage; reduced INL, but lowered input voltage range 0 = Wide input range for Op Amp #3

bit 1 NCHDIS2: Op Amp #2 N Channel Disable bit

1 = Disables Op Amp #2 N channel input stage; reduced INL, but lowered input voltage range 0 = Wide input range for Op Amp #2

bit 0 NCHDIS1: Op Amp #1 N Channel Disable bit

1 = Disables Op Amp #1 N channel input stage; reduced INL, but lowered input voltage range 0 = Wide input range for Op Amp #1

Note 1: This bit is not available on 28-pin devices.

NOTES:

25.0 DEADMAN TIMER (DMT)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Deadman Timer (DMT)” (www.microchip.com/DS70005155) in the “dsPIC33/PIC24 Family Reference Manual”.

The primary function of the Deadman Timer (DMT) is to interrupt the processor in the event of a software malfunction. The DMT, which works on the system clock, is a free-running instruction fetch timer, which is clocked

whenever an instruction fetch occurs, until a count match occurs. Instructions are not fetched when the processor is in Sleep mode.

DMT can be enabled in the Configuration fuse or by software in the DMTCON register by setting the ON bit. The DMT consists of a 32-bit counter with a time-out count match value, as specified by the two 16-bit Configuration Fuse registers: FDMTCNTL and FDMTCNTH.

A DMT is typically used in mission-critical and safety-critical applications, where any single failure of the software functionality and sequencing must be detected.

Figure 25-1 shows a block diagram of the Deadman Timer module.

Note 1: DMT Max Count is controlled by the initial value of the FDMTCNTL and FDMTCNTH Configuration registers.
2: DMT window interval is controlled by the value of the FDMTIVTL and FDMTIVTH Configuration registers.

25.1 Deadman Timer Control/Status Registers

REGISTER 25-1: DMTCON: DEADMAN TIMER CONTROL REGISTER

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 ON: DMT Module Enable bit ^(1)

1 = Deadman Timer module is enabled
0 = Deadman Timer module is not enabled

bit 14-0 Unimplemented: Read as '0'

Note 1: This bit has control only when DMTDIS = 0 in the FDMT register.

REGISTER 25-2: DMTPRECLR: DEADMAN TIMER PRECLEAR REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
STEP1[7:0]
bit 15							bit 8

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15-8 STEP1[7:0]: DMT Preclear Enable bits

01000000 = Enables the Deadman Timer preclear (Step 1)

All Other

Write Patterns = Sets the BAD1 flag; these bits are cleared when a DMT Reset event occurs. STEP1[7:0] bits are also cleared if the STEP2[7:0] bits are loaded with the correct value in the correct sequence.

bit 7-0 Unimplemented: Read as '0'

REGISTER 25-3: DMTCLR: DEADMAN TIMER CLEAR REGISTER

R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
STEP2[7:0]
bit 7							bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7-0 STEP2[7:0]: DMT Clear Timer bits

00001000 = Clears STEP1[7:0], STEP2[7:0] and the Deadman Timer if preceded by the correct loading of the STEP1[7:0] bits in the correct sequence. The write to these bits may be verified by reading the DMTCNTL/H register and observing the counter being reset.

All Other

Write Patterns = Sets the BAD2 bit; the value of STEP1[7:0] will remain unchanged and the new value being written to STEP2[7:0] will be captured. These bits are cleared when a DMT Reset event occurs.

REGISTER 25-4: DMTSTAT: DEADMAN TIMER STATUS REGISTER

Legend:	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7 BAD1: Deadman Timer Bad STEP1[7:0] Value Detect bit

1 = Incorrect STEP1[7:0] value was detected

0 = Incorrect STEP1[7:0] value was not detected

bit 6 BAD2: Deadman Timer Bad STEP2[7:0] Value Detect bit

1 = Incorrect STEP2[7:0] value was detected

0 = Incorrect STEP2[7:0] value was not detected

bit 5 DMTEVENT: Deadman Timer Event bit

1 = Deadman Timer event was detected (counter expired, or bad STEP1[7:0] or STEP2[7:0] value was entered prior to counter increment)

0 = Deadman Timer event was not detected

bit 4-1 Unimplemented: Read as '0'

bit 0 WINOPN: Deadman Timer Clear Window bit

1 = Deadman Timer clear window is open

0 = Deadman Timer clear window is not open

REGISTER 25-5: DMTCNTL: DEADMAN TIMER COUNT REGISTER LOW

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

COUNTER[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

COUNTER[7:0]

bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 COUNTER[15:0]: Read Current Contents of Lower DMT Counter bits

REGISTER 25-6: DMTCNTH: DEADMAN TIMER COUNT REGISTER HIGH

R-0	R-0 R-0 R-0 R-0 R-0 R-0 R-0
COUNTER[31:24]
bit 15	bit 8

R-0	R-0 R-0 R-0 R-0 R-0 R-0 R-0
COUNTER[23:16]
bit 7	bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 COUNTER[31:16]: Read Current Contents of Higher DMT Counter bits

REGISTER 25-7: DMTPSCNTL: DMT POST-CONFIGURE COUNT STATUS REGISTER LOW

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSCNT[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSCNT[7:0]

bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 PSCNT[15:0]: Lower DMT Instruction Count Value Configuration Status bits This is always the value of the FDMTCNTL Configuration register.

REGISTER 25-8: DMTPSCNTH: DMT POST-CONFIGURE COUNT STATUS REGISTER HIGH

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSCNT[31:24]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSCNT[23:16]

bit 7 bit 0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-0 PSCNT[31:16]: Higher DMT Instruction Count Value Configuration Status bits This is always the value of the FDMTCNTH Configuration register.

REGISTER 25-9: DMTPSINTVL: DMT POST-CONFIGURE INTERVAL STATUS REGISTER LOW

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSINTV[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSINTV[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0

PSINTV[15:0]: Lower DMT Window Interval Configuration Status bits

This is always the value of the FDMTIVTL Configuration register.

REGISTER 25-10: DMTPSINTVH: DMT POST-CONFIGURE INTERVAL STATUS REGISTER HIGH

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSINTV[31:24]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

PSINTV[23:16]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0

PSINTV[31:16]: Higher DMT Window Interval Configuration Status bits

This is always the value of the FDMTIVTH Configuration register.

REGISTER 25-11: DMTHOLDREG: DMT HOLD REGISTER (1)

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

UPRCNT[15:8]

bit 15 bit 8

R-0 R-0 R-0 R-0 R-0 R-0 R-0 R-0

UPRCNT[7:0]

bit 7 bit 0

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 15-0 UPRCNT[15:0]: DMTCNTH Register Value when DMTCNTL and DMTCNTH were Last Read bits

Note 1: The DMTHOLDREG register is initialized to '0' on Reset, and is only loaded when the DMTCNTL and DMTCNTH registers are read.

26.0 32-BIT PROGRAMMABLE CYCLIC REDUNDANCY CHECK (CRC) GENERATOR

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. For more information, refer to “32-Bit Programmable Cyclic Redundancy Check (CRC)” (www.microchip.com/DS30009729) in the “dsPIC33/PIC24 Family Reference Manual”.

The 32-bit programmable CRC generator provides a hardware implemented method of quickly generating checksums for various networking and security applications. It offers the following features:

• User-Programmable CRC Polynomial Equation, up to 32 Bits
• Programmable Shift Direction (little or big-endian)
• Independent Data and Polynomial Lengths
• Configurable Interrupt Output
• Data FIFO

A simple version of the CRC shift engine is displayed in Figure 26-1.

FIGURE 26-1: CRC MODULE BLOCK DIAGRAM

26.1 CRC Control Registers

REGISTER 26-1: CRCCONL: CRC CONTROL REGISTER LOW

R/W-0 U-0 R/W-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0 HSC/R-0
CRCEN	— CSIDL VWORD4 VWORD3 VWORD2 VWORD1 VWORD0
bit 15 bit 8

HSC/R-0	HSC/R-1	R/W-0	HC/R/W-0	R/W-0	R/W-0	U-0	U-0
CRCFUL	CRCMPT	CRCISEL	CRCGO	LENDIAN	MOD	—	—
bit 7 bit 0

Legend:	HC = Hardware Clearable bit	HSC = Hardware Settable/Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 CRCEN: CRC Enable bit

1 = Enables module
0 = Disables module

bit 14 Unimplemented: Read as '0'

bit 13 CSIDL: CRC Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode
0 = Continues module operation in Idle mode

bit 12-8 VWORD[4:0]: Pointer Value bits

Indicates the number of valid words in the FIFO. Has a maximum value of 8 when PLEN[4:0] ≥ 7 or 16 when PLEN[4:0] ≤ 7 .

bit 7 CRCFUL: CRC FIFO Full bit

1 = FIFO is full
0 = FIFO is not full

bit 6 CRCMPT: CRC FIFO Empty bit

1 = FIFO is empty
0 = FIFO is not empty

bit 5 CRCISEL: CRC Interrupt Selection bit

1 = Interrupt on FIFO is empty; the final word of data is still shifting through the CRC
0 = Interrupt on shift is complete and results are ready

bit 4 CRCGO: CRC Start bit

1 = Starts CRC serial shifter
0 = CRC serial shifter is turned off

bit 3 LENDIAN: Data Shift Direction Select bit

1 = Data word is shifted into the FIFO, starting with the LSb (little-endian)
0 = Data word is shifted into the FIFO, starting with the MSb (big-endian)

bit 2 MOD: CRC Calculation Mode bit

1 = Alternate mode
0 = Legacy mode bit

bit 1-0 Unimplemented: Read as '0'

REGISTER 26-2: CRCCONH: CRC CONTROL REGISTER HIGH

U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	DWIDTH[4:0]
bit 15 bit 8

U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	PLEN[4:0]
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-13 Unimplemented: Read as '0'

bit 12-8 DWIDTH[4:0]: Data Word Width Configuration bits

Configures the width of the data word (Data Word Width - 1).

bit 7-5 Unimplemented: Read as '0'

bit 4-0 PLEN[4:0]: Polynomial Length Configuration bits

Configures the length of the polynomial (Polynomial Length - 1).

REGISTER 26-3: CRCXORL: CRC XOR POLYNOMIAL REGISTER, LOW

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

X[15:8]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0
X[7:1]	—
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-1 X[15:1]: XOR of Polynomial Term x^n Enable bits bit 0 Unimplemented: Read as '0'

REGISTER 26-4: CRCXORH: CRC XOR POLYNOMIAL REGISTER, HIGH

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

X[31:24]

bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0

X[23:16]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 X[31:16]: XOR of Polynomial Term x^n Enable bits

27.0 POWER-SAVING FEATURES

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to “Watchdog Timer and Power-Saving Modes” (www.microchip.com/DS70615) in the “dsPIC33/PIC24 Family Reference Manual”.

The dsPIC33CK64MC105 family devices provide the ability to manage power consumption by selectively managing clocking to the CPU and the peripherals. In general, a lower clock frequency and a reduction in the number of peripherals being clocked constitutes lower consumed power.

dsPIC33CK64MC105 family devices can manage power consumption in four ways:

• Clock Frequency
• Instruction-Based Sleep and Idle modes
• Software-Controlled Doze mode
• Selective Peripheral Control in Software

Combinations of these methods can be used to selectively tailor an application's power consumption while still maintaining critical application features, such as timing-sensitive communications.

27.1 Clock Frequency and Clock Switching

The dsPIC33CK64MC105 family devices allow a wide range of clock frequencies to be selected under application control. If the system clock configuration is not locked, users can choose low-power or high-precision oscillators by simply changing the NOSCx bits (OSCCON[10:8]). The process of changing a system clock during operation, as well as limitations to the process, are discussed in more detail in Section 9.0 "Oscillator with High-Frequency PLL".

27.2 Instruction-Based Power-Saving Modes

The dsPIC33CK64MC105 family devices have two special power-saving modes that are entered through the execution of a special PWRSAV instruction. Sleep mode stops clock operation and halts all code execution. Idle mode halts the CPU and code execution, but allows peripheral modules to continue operation. The assembler syntax of the PWRSAV instruction is shown in Example 27-1.

Sleep and Idle modes can be exited as a result of an enabled interrupt, WDT time-out or a device Reset. When the device exits these modes, it is said to "wake-up".

EXAMPLE 27-1: PWRSAV INSTRUCTION SYNTAX

PWRSAV #0 ; Put the device into Sleep mode PWRSAV #1 ; Put the device into Idle mode

27.2.1 SLEEP MODE

The following occurs in Sleep mode:

• The system clock source is shut down. If an on-chip oscillator is used, it is turned off.
• The device current consumption is reduced to a minimum, provided that no I/O pin is sourcing current.
• The Fail-Safe Clock Monitor does not operate, since the system clock source is disabled.
• The LPRC clock continues to run in Sleep mode if the WDT is enabled.
• The WDT, if enabled, is automatically cleared prior to entering Sleep mode.
• Some device features or peripherals can continue to operate. This includes items such as the Input Change Notification on the I/O ports or peripherals that use an External Clock input.
• Any peripheral that requires the system clock source for its operation is disabled.

The device wakes up from Sleep mode on any of the these events:

- Any interrupt source that is individually enabled

- Any form of device Reset

• A W D T time - out

On wake-up from Sleep mode, the processor restarts with the same clock source that was active when Sleep mode was entered.

For optimal power savings, the regulators can be configured to go into standby when Sleep mode is entered by clearing the VREGS (RCON[8]) bit (default configuration).

If the application requires a faster wake-up time, and can accept higher current requirements, the VREGS (RCON[8]) bit can be set to keep the regulators active during Sleep mode. The available Low-Power Sleep modes are shown in Table 27-1. Additional regulator information is available in Section 28.4 "On-Chip Voltage Regulator".

TABLE 27-1: LOW-POWER SLEEP MODES

Relative Power	LPWREN	VREGS	MODE
Highest	0	1	Full power, active
—	0	0	Full power, standby
—	1^(1)	1	Low power, active
Lowest	1^(1)	0	Low power, standby

Note 1: Low-Power modes; when LPWREN = 1, can only be used in the industrial temperature range.

27.2.2 IDLE MODE

The following occurs in Idle mode:

• The CPU stops executing instructions.
• The WDT is automatically cleared.
- The system clock source remains active. By default, all peripheral modules continue to operate normally from the system clock source, but can also be selectively disabled (see Section 27.4 "Peripheral Module Disable").
- If the WDT or FSCM is enabled, the LPRC also remains active.

The device wakes from Idle mode on any of these events:

• Any interrupt that is individually enabled
• Any device Reset
  • A W D T time - out

On wake-up from Idle mode, the clock is reapplied to the CPU and instruction execution will begin (2-4 clock cycles later), starting with the instruction following the PWRSAV instruction or the first instruction in the ISR.

All peripherals also have the option to discontinue operation when Idle mode is entered to allow for increased power savings. This option is selectable in the control register of each peripheral; for example, the SIDL bit in the Timer1 Control register (T1CON[13]).

27.2.3 INTERRUPTS COINCIDENT WITH POWER SAVE INSTRUCTIONS

Any interrupt that coincides with the execution of a PWRSAV instruction is held off until entry into Sleep or Idle mode has completed. The device then wakes up from Sleep or Idle mode.

27.3 Doze Mode

The preferred strategies for reducing power consumption are changing clock speed and invoking one of the power-saving modes. In some circumstances, this cannot be practical. For example, it may be necessary for an application to maintain uninterrupted synchronous communication, even while it is doing nothing else. Reducing system clock speed can introduce communication errors, while using a power-saving mode can stop communications completely.

Doze mode is a simple and effective alternative method to reduce power consumption while the device is still executing code. In this mode, the system clock continues to operate from the same source and at the same speed. Peripheral modules continue to be clocked at the same speed, while the CPU clock speed is reduced. Synchronization between the two clock domains is maintained, allowing the peripherals to access the SFRs while the CPU executes code at a slower rate.

Doze mode is enabled by setting the DOZEN bit (CLKDIV[11]). The ratio between peripheral and core clock speed is determined by the DOZE[2:0] bits (CLKDIV[14:12]). There are eight possible configurations, from 1:1 to 1:128, with 1:1 being the default setting.

Programs can use Doze mode to selectively reduce power consumption in event-driven applications. This allows clock-sensitive functions, such as synchronous communications, to continue without interruption while the CPU Idles, waiting for something to invoke an interrupt routine. An automatic return to full-speed CPU operation on interrupts can be enabled by setting the ROI bit (CLKDIV[15]). By default, interrupt events have no effect on Doze mode operation.

27.4 Peripheral Module Disable

The Peripheral Module Disable (PMD) registers provide a method to disable a peripheral module by stopping all clock sources supplied to that module. When a peripheral is disabled using the appropriate PMD control bit, the peripheral is in a Minimum Power Consumption state. The control and status registers associated with the peripheral are also disabled, so writes to those registers do not have any effect and read values are invalid.

A peripheral module is enabled only if both the associated bit in the PMD register is cleared and the peripheral is supported by the specific dsPIC® DSC variant. If the peripheral is present in the device, it is enabled in the PMD register by default.

Note 1: If a PMD bit is set, the corresponding module is disabled after a delay of one instruction cycle. Similarly, if a PMD bit is cleared, the corresponding module is enabled after a delay of one instruction cycle (assuming the module control registers are already configured to enable module operation).

27.5 Power-Saving Resources

Many useful resources are provided on the main product page of the Microchip website for the devices listed in this data sheet. This product page contains the latest updates and additional information.

27.5.1 KEY RESOURCES

• “Watchdog Timer and Power-Saving Modes” (www.microchip.com/DS70615) in the “dsPIC33/PIC24 Family Reference Manual”
• Code Samples
• Application Notes
• Software Libraries
• Webinars
• All related "dsPIC33/PIC24 Family Reference Manual" Sections
• Development Tools

27.6 PMD Control Registers

REGISTER 27-1: PMD1: PERIPHERAL MODULE DISABLE 1 CONTROL REGISTER

U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 U-0
— — —	— T1MD QEI1	MD PWMMD +
bit 15 bit 8

R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0 U-0 R/W-0
I2C1MD U2MD U1MD	SPI2MD	SPI1MD		— —	ADC1MD
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-12 Unimplemented: Read as '0'

bit 11 T1MD: Timer1 Module Disable bit

1 = Timer1 module is disabled

0 = Timer1 module is enabled

bit 10 QEI1MD: QEI1 Module Disable bit

1 = QE1 module is disabled

0 = QEI1 module is enabled

bit 9 PWMMD: PWM Module Disable bit

1 = PWM module is disabled

0 = PWM module is enabled

bit 8 Unimplemented: Read as '0'

bit 7 I2C1MD: I2C1 Module Disable bit

1 = I2C1 module is disabled

0 = I2C1 module is enabled

bit 6 U2MD: UART2 Module Disable bit

1 = UART2 module is disabled

0 = UART2 module is enabled

bit 5 U1MD: UART1 Module Disable bit

1 = UART1 module is disabled

0 = UART1 module is enabled

bit 4 SPI2MD: SPI2 Module Disable bit

1 = SPI2 module is disabled

0 = SPI2 module is enabled

bit 3 SPI1MD: SPI1 Module Disable bit

1 = SPI1 module is disabled

0 = SPI1 module is enabled

bit 2-1 Unimplemented: Read as '0'

bit 0 ADC1MD: ADC Module Disable bit

1 = ADC module is disabled

0 = ADC module is enabled

REGISTER 27-2: PMD2: PERIPHERAL MODULE DISABLE 2 CONTROL REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	— CCP4MD	CCP3MD	CCP2MD	CCP1MD
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 CCP4MD: SCCP4 Module Disable bit

1 = SCCP4 module is disabled

0 = SCCP4 module is enabled

bit 2 CCP3MD: SCCP3 Module Disable bit

1 = SCCP3 module is disabled

0 = SCCP3 module is enabled

bit 1 CCP2MD: SCCP2 Module Disable bit

1 = SCCP2 module is disabled

0 = SCCP2 module is enabled

bit 0 CCP1MD: SCCP1 Module Disable bit

1 = SCCP1 module is disabled

0 = SCCP1 module is enabled

REGISTER 27-3: PMD3: PERIPHERAL MODULE DISABLE 3 CONTROL REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

R/W-0 U-0 U-0 U-0 R/W-0 U-0 U-0 U-0
CRCMD	———	U	3	M	D	———
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-8 Unimplemented: Read as '0'

bit 7 CRCMD: CRC Module Disable bit

1 = CRC module is disabled

0 = CRC module is enabled

bit 6-4 Unimplemented: Read as '0'

bit 3 U3MD: UART3 Module Disable bit

1 = UART3 module is disabled

0 = UART3 module is enabled

bit 2-0 Unimplemented: Read as '0'

REGISTER 27-4: PMD4: PERIPHERAL MODULE DISABLE 4 CONTROL REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 15 bit 8

U-0 U-0 U-0 U-0 R/W-0 U-0 U-0 U-0
———	—	R	E	F	O	M	D	———
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-4 Unimplemented: Read as '0'

bit 3 REFOMD: Reference Clock Module Disable bit

1 = Reference clock module is disabled

0 = Reference clock module is enabled

bit 2-0 Unimplemented: Read as '0'

REGISTER 27-5: PMD6: PERIPHERAL MODULE DISABLE 6 CONTROL REGISTER

U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
— — —	— DMA3MD	DMA2MD DMA	1MD DMA0MD
bit 15 bit 8

U-0 U-0 U-0 U-0 U-0 U-0 U-0 U-0
——	——	——
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-12 Unimplemented: Read as '0'

bit 11 DMA3MD: DMA3 Module Disable bit

1 = DMA3 module is disabled

0 = DMA3 module is enabled

bit 10 DMA2MD: DMA2 Module Disable bit

1 = DMA2 module is disabled

0 = DMA2 module is enabled

bit 9 DMA1MD: DMA1 Module Disable bit

1 = DMA1 module is disabled

0 = DMA1 module is enabled

bit 8 DMA0MD: DMA0 Module Disable bit

1 = DMA0 module is disabled

0 = DMA0 module is enabled

bit 7-0 Unimplemented: Read as '0'

REGISTER 27-6: PMD7: PERIPHERAL MODULE DISABLE 7 CONTROL REGISTER

U-0 U-0 U-0 U-0 U-0 U-0 R/W-0
———	————	C	M	P	1	M	D
bit 15 bit 8

U-0 U-0 U-0 U-0 R/W-0 U-0 U-0 U-0
— — —	—	P	T	G	M	D	— — —
bit 7 bit 0

Legend:

R = Readable bit W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 15-9 Unimplemented: Read as '0'

bit 8 CMP1MD: Comparator 1 Module Disable bit

1 = Comparator 1 module is disabled

0 = Comparator 1 module is enabled

bit 7-4 Unimplemented: Read as '0'

bit 3 PTGMD: PTG Module Disable bit

1 = PTG module is disabled

0 = PTG module is enabled

bit 2-0 Unimplemented: Read as '0'

REGISTER 27-7: PMD8: PERIPHERAL MODULE DISABLE 8 CONTROL REGISTER

U-0 U-0 R/W-0 U-0 R/W-0 U-0 U-0 R/W-0
—	—	OPAMPMD	—	SENT1MD	—	—	DMTMD
bit 15 bit 8

U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 U-0
—	—	CLC4MD	CLC3MD	CLC2MD	CLC1MD	BIASMD	—
bit 7 bit 0

Legend:
R = Readable bit W = Writable bit		U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15-14 Unimplemented: Read as '0'

bit 13 OPAMPMD: Op Amp Module Disable bit

1 = Op amp modules are disabled

0 = Op amp modules are enabled

bit 12 Unimplemented: Read as '0'

bit 11 SENT1MD: SENT1 Module Disable bit

1 = SENT1 module is disabled

0 = SENT1 module is enabled

bit 10-9 Unimplemented: Read as '0'

bit 8 DMTMD: Deadman Timer Module Disable bit

1 = DMT module is disabled

0 = DMT module is enabled

bit 7-6 Unimplemented: Read as '0'

bit 5 CLC4MD: CLC4 Module Disable bit

1 = CLC4 module is disabled

0 = CLC4 module is enabled

bit 4 CLC3MD: CLC3 Module Disable bit

1 = CLC3 module is disabled

0 = CLC3 module is enabled

bit 3 CLC2MD: CLC2 Module Disable bit

1 = CLC2 module is disabled

0 = CLC2 module is enabled

bit 2 CLC1MD: CLC1 Module Disable bit

1 = CLC1 module is disabled

0 = CLC1 module is enabled

bit 1 BIASMD: Constant-Current Source Module Disable bit

1 = Constant-current source module is disabled

0 = Constant-current source module is enabled

bit 0 Unimplemented: Read as '0'

TABLE 27-2: PMD REGISTERS

Note: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the related section of the "dsPIC33/PIC24 Family Reference Manual", which is available from the Microchip website (www.microchip.com).

The dsPIC33CK64MC105 family devices include several features intended to maximize application flexibility and reliability, and minimize cost through elimination of external components. These are:

• Flexible Configuration
• Watchdog Timer (WDT)
  • Code Protection and CodeGuard™ Security
  • JTAG Boundary Scan Interface
• In-Circuit Serial Programming™ (ICSP™)
  • In-Circuit Emulation
• Brown-out Reset (BOR)

28.1 Configuration Bits

In dsPIC33CK64MC105 family devices, the Configuration Words are implemented as volatile memory. This means that configuration data will get loaded to volatile memory (from the Flash Configuration Words) each time the device is powered up. Configuration data are stored at the end of the on-chip program memory space, known as the Flash Configuration Words. Their specific locations are shown in Table 28-1. The configuration data are automatically loaded from the Flash Configuration Words to the proper Configuration Shadow registers during device Resets.

Note: Configuration data are reloaded on all types of device Resets.

When creating applications for these devices, users should always specifically allocate the location of the Flash Configuration Words for configuration data in their code for the compiler. This is to make certain that program code is not stored in this address when the code is compiled. Program code executing out of configuration space will cause a device Reset.

Note: Performing a page erase operation on the last page of program memory clears the Flash Configuration Words.

TABLE 28-1: dsPIC33CKXXMCX0X CONFIGURATION ADDRESSES

Register Name	64k 32k
FSEC	0x00AF00	0x005F00
FBSLIM	0x00AF10	0x005F10
FSIGN	0x00AF14	0x005F14
FOSCSEL	0x00AF18	0x005F18
FOSC	0x00AF1C	0x005F1C
FWDT	0x00AF20	0x005F20
FPOR	0x00AF24	0x005F24
FICD	0x00AF28	0x005F28
FDMTIVTL	0x00AF2C	0x005F2C
FDMTIVTH	0x00AF30	0x005F30
FDMTCNTL	0x00AF34	0x005F34
FDMTCNTH	0x00AF38	0x005F38
FDMT	0x00AF3C	0x005F3C
FDEVOPT	0x00AF40	0x005F40
FALTREG	0x00AF44	0x005F44

TABLE 28-2: CONFIGURATION REGISTERS MAP

Register Name

Bits 23-16

Bit 15 Bit 1

4 Bit 13 E

It 12 Bit 1

Bit 10 Bit

9 Bit 8 Bit

7 Bit 6 Bit

5 Bit 4 Bit 3

Bit 2 Bit 1

Bit 0

FSEC

—

AIVTDIS

—

—

—

CSS[2:0]

CWRP

GSS[1:0]

GWRP

—

BSEN

BSS[1:0]

BWRP

FBSLIM

—

—

—

—

BSLIM[12:0]

FSIGN

—

r^(2)

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

FOSCSEL

—

—

—

—

—

—

—

—

—

IESO

—

—

—

—

FNOSC[2:0]

FOSC

—

—

—

—

XTBST

XTCFG[1:0]

—

PLLKEN

FCKSM[1:0]

—

—

—

OSCIOFNC

POSCMD[1:0]

FWDT

—

FWDTEN

SWDTPS[4:0]

WDTWIN[1:0]

WINDIS

RCLKSEL[1:0]

RWDTPS[4:0]

FPOR

—

—

—

—

—

—

r^(1)

—

—

—

BISTDIS

r^(1)

r^(1)

—

—

—

—

FICD

—

—

—

—

—

—

—

—

—

r^(1)

—

JTAGEN

—

—

—

ICS[1:0]

FDMTIVTL

—

DMTIVT[15:0]

FDMTIVTH

—

DMTIVT[31:16]

FDMTCNTL

—

DMTCNT[15:0]

FDMTCNTH

—

DMTCNT[31:16]

FDMT

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

DMTDIS

FDEVOPT

—

—

—

SPI2PIN

—

—

SMB3EN

r^(2)

r^(2)

r^(1)

—

—

—

ALTI2C1

r^(1)

—

—

FALTREG

—

—

CTXT4[2:0]

—

CTXT3[2:0]

—

CTXT2[2:0]

—

CTXT1[2:0]

Legend: — = unimplemented bit, read as '1'; r = reserved bit.
Note 1: Bit reserved, maintain as '1'.
2: Bit reserved, maintain as '0'.

REGISTER 28-1: FSEC CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

R/PO-1 U-1 U-1 U-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1
AIVTDIS	— — —	CSS2 CSS1 C	SS0 CWRP
bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 U-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1
GSS1 GS$0	GWRP		— BSEN	BSS1	BSS0	BWRP
bit 7 bit 0

Legend:	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15 AIVTDIS: Alternate Interrupt Vector Table Disable bit

1 = Disables AIVT

0 = Enables AIVT

bit 14-12 Unimplemented: Read as '1'

bit 11-9 CSS[2:0]: Configuration Segment Code Flash Protection Level bits

111 = No protection (other than CWRP write protection)

110 = Standard security

10x = Enhanced security

0xx = High security

bit 8 CWRP: Configuration Segment Write-Protect bit

1 = Configuration Segment is not write-protected

0 = Configuration Segment is write-protected

bit 7-6 GSS[1:0]: General Segment Code Flash Protection Level bits

11 = No protection (other than GWRP write protection)

10 = Standard security

0x = High security

bit 5 GWRP: General Segment Write-Protect bit

1 = User program memory is not write-protected

0 = User program memory is write-protected

bit 4 Unimplemented: Read as '1'

bit 3 BSEN: Boot Segment Control bit

1 = No Boot Segment

0 = Boot Segment size is determined by BSLIM[12:0]

bit 2-1 BSS[1:0]: Boot Segment Code Flash Protection Level bits

11 = No protection (other than BWRP write protection)

10 = Standard security

0x = High security

bit 0 BWRP: Boot Segment Write-Protect bit

1 = User program memory is not write-protected

0 = User program memory is write-protected

REGISTER 28-2: FBSLIM CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

U - 1		U - 1		U - 1		R /
— — —	BSLIM[12:8]		(1)
bit 15 bit 8

R/PO-1	R/PO-1	R/PO-1	R/PO-1	R/PO-1	R/PO-1	R/PO-1	R/PO-1
BSLIM[7:0](1)
bit 7							bit 0

Legend:	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-13 Unimplemented: Read as '1'

bit 12-0 BSLIM[12:0]: Boot Segment Code Flash Page Address Limit bits ^(1)

Contains the page address of the first active General Segment page. The value to be programmed is the inverted page address, such that programming additional '0's can only increase the Boot Segment size.

Note 1: The BSLIMx bits are a 'write-once' element. If, after the Reset sequence, they are not erased (all '1's), then programming of the FBSLIM bits is prohibited. An attempt to do so will fail to set the WR bit (NVMCON[15]), and consequently, have no effect.

REGISTER 28-3: FSIGN CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

r-0 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 15 bit 8

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 7							bit 0

Legend:	r = Reserved bit	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15 Reserved: Maintain as '0'

bit 14-0 Unimplemented: Read as '1'

REGISTER 28-4: FOSCSEL CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 15 bit 8

R/PO-1 U-1 U-1 U-1 R/PO-1 R/PO-1 R/PO-1
IESO	— — —	— FNOSC2 FNOSC1 FNOSC0
bit 7 bit 0

Legend: PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-8 Unimplemented: Read as '1'

bit 7 IESO: Internal External Switchover bit

1 = Internal External Switchover mode is enabled (Two-Speed Start-up is enabled)
0 = Internal External Switchover mode is disabled (Two-Speed Start-up is disabled)

bit 6-3 Unimplemented: Read as '1'

bit 2-0 FNOSC[2:0]: Initial Oscillator Source Selection bits

111 = Internal Fast RC (FRC) Oscillator with Postscaler
110 = Backup Fast RC (BFRC)
101 = LPRC Oscillator
100 = Reserved
011 = Primary Oscillator with PLL (XTPLL, HSPLL, ECPLL)
010 = Primary (XT, HS, EC) Oscillator
001 = Internal Fast RC Oscillator with PLL (FRCPLL)
000 = Fast RC (FRC) Oscillator

REGISTER 28-5: FOSC CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

U-1 U-1 U-1 R/PO-1 R/PO-1 R/PO-1 U-1 R/PO-1
— — —			XTBST XTCFG1 XTCFG0		—	PLLKEN(1)
bit 15 bit 8

R/PO-1 R/PO-1 U-1 U-1 U-1 R/PO-1 R/PO-1 R/PO-1
FCKSM1 FCKSM0		———			OSCIOFNC	POSCMD1	POSCMD0
bit 7 bit 0

Legend:	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-13	Unimplemented: Read as ‘1’
bit 12	XTBST: Oscillator Kick-Start Programmability bit1 = Boosts the kick-start0 = Default kick-start
bit 11-10	XTCFG[1:0]: Crystal Oscillator Drive Select bitsCurrent gain programmability for oscillator (output drive).11 = Gain3 (use for 24-32 MHz crystals)10 = Gain2 (use for 16-24 MHz crystals)01 = Gain1 (use for 8-16 MHz crystals)00 = Gain0 (use for 4-8 MHz crystals)
bit 9	Unimplemented: Read as ‘1’
bit 8	PLLKEN: PLL Lock Enable bit(1)1 = PLL clock output will be disabled if lock is lost0 = PLL clock output will not be disabled if lock is lost
bit 7-6	FCKSM[1:0]: Clock Switching Mode bits1x = Clock switching is disabled, Fail-Safe Clock Monitor is disabled01 = Clock switching is enabled, Fail-Safe Clock Monitor is disabled00 = Clock switching is enabled, Fail-Safe Clock Monitor is enabled
bit 5-3	Unimplemented: Read as ‘1’
bit 2	OSCIOFNC: OSCO Pin Function bit (except in XT and HS modes)1 = OSCO is the clock output0 = OSCO is the general purpose digital I/O pin
bit 1-0	POSCMD[1:0]: Primary Oscillator Mode Select bits11 = Primary Oscillator is disabled10 = HS Crystal Oscillator mode (10 MHz-32 MHz)01 = XT Crystal Oscillator mode (3.5 MHz-10 MHz)00 = EC (External Clock) mode

Note 1: A time-out period will occur when the system clock switching logic requests the PLL clock source and the PLL is not already enabled.

REGISTER 28-6: FWDT CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1
FWDTEN SW	WDTPS4 SWD	TPS3 SWDTPS	S2 SWDTPS1	SWDTPS0 WDTWIN1 WDTWIN0
bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1
WINDIS	RCLKSEL1	RCLKSEL0	RWDTPS4	RWDTPS3	RWDTPS2	RWDTPS1	RWDTPS0
bit 7 bit 0

Legend:	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15 FWDEN: Watchdog Timer Enable bit

1 = WDT is enabled in hardware

0 = WDT controller via the ON bit (WDTCONL[15])

bit 14-10 SWDTPS[4:0]: Sleep Mode Watchdog Timer Period Select bits

11111 = Divide by 2^31 = 2,147,483,648

11110 = Divide by 2^30 = 1,073,741,824

• • •

00001 = Divide by 2^1 = 2

00000 = Divide by 2^0 = 1

bit 9-8 WDTWIN[1:0]: Watchdog Timer Window Select bits

11 = WDT window is 25% of the WDT period

10 = WDT window is 37.5% of the WDT period

01 = WDT window is 50% of the WDT period

00 = WDT Window is 75% of the WDT period

bit 7 WINDIS: Watchdog Timer Window Enable bit

1 = Watchdog Timer is in Non-Window mode

0 = Watchdog Timer is in Window mode

bit 6-5 RCLKSEL[1:0]: Watchdog Timer Clock Select bits

11 = LPRC clock

10 = Uses FRC when WINDIS = 0, system clock is not INTOSC/LPRC and device is not in Sleep; otherwise, uses INTOSC/LPRC

01 = Uses peripheral clock when system clock is not INTOSC/LPRC and device is not in Sleep; otherwise, uses INTOSC/LPRC

00 = Reserved

bit 4-0 RWDTPS[4:0]: Run Mode Watchdog Timer Period Select bits

11111 = Divide by 2^31 = 2,147,483,648

11110 = Divide by 2 ^ 30 = 1,073,741,824

...

00001 = Divide by 2^1 = 2

00000 = Divide by 2^0 = 1

REGISTER 28-7: FPOR CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

U-1 U-1 U-1 U-1 U-1 r-1 U-1 U-1
——	——	——
bit 15 bit 8

U-1 R/PO-1 (1) r-1 r-1 U-1 U-1 U-1 U-1
— BISTDIS — — — —	— —
bit 7 bit 0

Legend:	PO = Program Once bit	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-11 Unimplemented: Read as '1'

bit 10 Reserved: Maintain as '1'

bit 9-7 Unimplemented: Read as '1'

bit 6 BISTDIS: Memory BIST Feature Disable bit ^(1)

1 = MBIST on Reset feature is disabled

0 = MBIST on Reset feature is enabled

bit 5-4 Reserved: Maintain as '0b11'

bit 3-0 Unimplemented: Read as '1'

Note 1: Applies to a Power-on Reset (POR) only.

REGISTER 28-8: FICD CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 15 bit 8

r-1 U-1 R/PO-1 U-1 U-1 U-1 R/PO-1 R/PO-1
—	—	JTAGEN	—	—	—	ICS1	ICS0
bit 7 bit 0

Legend:	PO = Program Once bit	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-8 Unimplemented: Read as '1'

bit 7 Reserved: Maintain as '1'

bit 6 Unimplemented: Read as '1'

bit 5 JTAGEN: JTAG Enable bit

1 = JTAG port is enabled

0 = JTAG port is disabled

bit 4-2 Unimplemented: Read as '1'

bit 1-0 ICS[1:0]: ICD Communication Channel Select bits

11 = Communicates on PGC1 and PGD1

10 = Communicates on PGC2 and PGD2

01 = Communicates on PGC3 and PGD3

00 = Reserved, do not use

REGISTER 28-9: FDMTIVTL CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTIVT[15:8]

bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTIVT[7:0]

bit 7 bit 0

Legend: PO = Program Once bitR = Readable bit W = Writable bit U = Unimplemented bit, read as '0'-n = Erased value '1' = Bit is set

'0' = Bit is cleared x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15-0 DMTIVT[15:0]: DMT Window Interval Lower 16 bits

REGISTER 28-10: FDMTIVTH CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTIVT[31:24]

bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTIVT[23:16]

bit 7 bit 0

Legend: PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15-0 DMTIVT[31:16]: DMT Window Interval Higher 16 bits

REGISTER 28-11: FDMTCNTL CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTCNT[15:8]

bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTCNT[7:0]

bit 7 bit 0

Legend: PO = Program Once bit
R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15-0 DMTCNT[15:0]: DMT Instruction Count Time-out Value Lower 16 bits

REGISTER 28-12: FDMTCNTH CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTCNT[31:24]

bit 15 bit 8

R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1 R/PO-1

DMTCNT[23:16]

bit 7 bit 0

Legend: PO = Program Once bit
R = Readable bit W = Writable bit U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '1'

bit 15-0 DMTCNT[31:16]: DMT Instruction Count Time-out Value Upper 16 bits

REGISTER 28-13: FDMT CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 15 bit 8

U-1 U-1 U-1 U-1 U-1 U-1 R/PO-1
——	——	D	M	T	D	I	S
bit 7 bit 0

Legend: PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-1 Unimplemented: Read as '1'

bit 0 DMTDIS: DMT Disable bit

1 = DMT is disabled

0 = DMT is enabled

REGISTER 28-14: FDEVOPT CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	——	——
bit 23 bit 16

U-1	U-1	R/PO-1	U-1	U-1	R/PO-1	r-0	r-0
— —	SPI2PIN	(1)	—	—	SMB3EN(2)	—	—
bit 15 bit 8

r-1 U-1 U-1 U-1		R/PO-1		r-1 U-1 U-1
—	—	—	—	ALTI2C1	—	—	—
bit 7 bit 0

Legend:	PO = Program Once bit	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Erased value	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-14 Unimplemented: Read as '1'

bit 13 SPI2PIN: Host SPI #2 Fast I/O Pad Disable bit ^(1)

1 = Host SPI2 uses PPS (I/O remap) to make connections with device pins

0 = Host SPI2 uses direct connections with specified device pins

bit 12-11 Unimplemented: Read as '1'

bit 10 SMB3EN: SMBus 3.0 Levels Enable bit ^(2)

1 = SMBus 3.0 input levels

0 = Normal SMBus input levels

bit 9-8 Reserved: Maintain as '0'

bit 7 Reserved: Maintain as '1'

bit 6-4 Unimplemented: Read as '1'

bit 3 ALTI2C1: Alternate I2C1 Pin Mapping bit

1 = Default location for SCL1/SDA1 pins

0 = Alternate location for SCL1/SDA1 pins (ASCL1/ASDA1)

bit 2 Reserved: Maintain as '1'

bit 1-0 Unimplemented: Read as '1'

Note 1: Fixed pin option is only available for 48-pin packages.

2: SMBus mode is enabled by the SMEN bit (I2CxCONL[8]).

REGISTER 28-15: FALTREG CONFIGURATION REGISTER

U-1 U-1 U-1 U-1 U-1 U-1 U-1
——	———
bit 23 bit 16

U-1 R/PO-1 R/PO-1 R/PO-1 U-1 R/PO-1 R/PO-1 R/PO-1
— CTXT4[2:0] — CTXT3[2:0]
bit 15 bit 8

U-1 R/PO-1 R/PO-1 R/PO-1 U-1 R/PO-1 R/PO-1 R/PO-1
— CTXT2[2:0] — CTXT1[2:0]
bit 7 bit 0

Legend:	PO = Program Once bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Erased value	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-15	Unimplemented: Read as ‘1’
bit 14-12	CTXT4[2:0]: Specifies the Alternate Working Register Set #4 with Interrupt Priority Levels (IPL) bits111 = Not assigned110 = Alternate Register Set #4 is assigned to IPL Level 7101 = Alternate Register Set #4 is assigned to IPL Level 6100 = Alternate Register Set #4 is assigned to IPL Level 5011 = Alternate Register Set #4 is assigned to IPL Level 4010 = Alternate Register Set #4 is assigned to IPL Level 3001 = Alternate Register Set #4 is assigned to IPL Level 2000 = Alternate Register Set #4 is assigned to IPL Level 1
bit 11	Unimplemented: Read as ‘1’
bit 10-8	CTXT3[2:0]: Specifies the Alternate Working Register Set #3 with Interrupt Priority Levels (IPL) bits111 = Not assigned110 = Alternate Register Set #3 is assigned to IPL Level 7101 = Alternate Register Set #3 is assigned to IPL Level 6100 = Alternate Register Set #3 is assigned to IPL Level 5011 = Alternate Register Set #3 is assigned to IPL Level 4010 = Alternate Register Set #3 is assigned to IPL Level 3001 = Alternate Register Set #3 is assigned to IPL Level 2000 = Alternate Register Set #3 is assigned to IPL Level 1
bit 7	Unimplemented: Read as ‘1’
bit 6-4	CTXT2[2:0]: Specifies the Alternate Working Register Set #2 with Interrupt Priority Levels (IPL) bits111 = Not assigned110 = Alternate Register Set #2 is assigned to IPL Level 7101 = Alternate Register Set #2 is assigned to IPL Level 6100 = Alternate Register Set #2 is assigned to IPL Level 5011 = Alternate Register Set #2 is assigned to IPL Level 4010 = Alternate Register Set #2 is assigned to IPL Level 3001 = Alternate Register Set #2 is assigned to IPL Level 2000 = Alternate Register Set #2 is assigned to IPL Level 1
bit 3	Unimplemented: Read as ‘1’

REGISTER 28-15: FALTREG CONFIGURATION REGISTER (CONTINUED)

bit 2-0 CTXT1[2:0]: Specifies the Alternate Working Register Set #1 with Interrupt Priority Levels (IPL) bits

111 = Not assigned
110 = Alternate Register Set #1 is assigned to IPL Level 7
101 = Alternate Register Set #1 is assigned to IPL Level 6
100 = Alternate Register Set #1 is assigned to IPL Level 5
011 = Alternate Register Set #1 is assigned to IPL Level 4
010 = Alternate Register Set #1 is assigned to IPL Level 3
001 = Alternate Register Set #1 is assigned to IPL Level 2
000 = Alternate Register Set #1 is assigned to IPL Level 1

28.2 Device Identification

The dsPIC33CK64MC105 devices have two Identification registers, near the end of configuration memory space, that store the Device ID (DEVID) and Device Revision (DEVREV). These registers are used to

determine the mask, variant and manufacturing information about the device. These registers are read-only and are shown in Register 28-16 and Register 28-17.

REGISTER 28-16: DEVREV: DEVICE REVISION REGISTER

U-0 U-0 U-0 U-0 R		R	R	R
—	—	—	—	DEVREV[3:0]
bit 7 bit 0

Legend:
R = Read-Only bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 23-4 Unimplemented: Read as '0'

bit 3-0 DEVREV[3:0]: Device Revision bits

REGISTER 28-17: DEVID: DEVICE ID REGISTERS

R	R	R	R	R	R	R	R
DEV[7:0](1)
bit 7							bit 0

Legend:
R = Read-Only bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 23-16 Unimplemented: Read as '0'

bit 15-8 FAMID[7:0]: Device Family Identifier bits

1000 1110 = dsPIC33CK64MC105 family

bit 7-0 DEV[7:0]: Individual Device Identifier bits ^(1)

Note 1: See Table 28-3 for the list of Device Identifier bits.

TABLE 28-3: DEVICE IDs FOR THE dsPIC33CK64MC105 FAMILY

Device	DEVID
dsPIC33CK64MC105	0x9912
dsPIC33CK64MC103	0x9911
dsPIC33CK64MC102	0x9910
dsPIC33CK32MC105	0x9902
dsPIC33CK32MC103	0x9901
dsPIC33CK32MC102	0x9900

28.3 User OTP Memory

The dsPIC33CK64MC105 family devices contain 64 One-Time-Programmable (OTP) double words, located at addresses, 801700h through 8017FEh. Each 48-bit OTP double word can only be written one time. The OTP Words can be used for storing checksums, code revisions, manufacturing dates, manufacturing lot numbers or any other application-specific information.

The OTP area is not cleared by any erase command. This memory can be written only once.

28.4 On-Chip Voltage Regulator

The dsPIC33CK64MC105 family devices have a capacitorless internal voltage regulator to supply power to the core at 1.2V (typical). The voltage regulator, VREG, provides power for the core. The PLL is powered using a separate regulator, VREGPLL, as shown in Figure 28-1. The regulators have Low-Power and Standby modes for use in Sleep modes. For additional information about Sleep, see Section 27.2.1 "Sleep Mode".

When the regulators are in Low-Power mode (LPWREN = 1), the power available to the core is limited.

Before the LPWREN bit is set, the device should be placed into a Lower Power state by disabling peripherals and lowering CPU frequency (e.g., 8 MHz FRC without PLL). The output voltages of the two regulators can be controlled independently by the user, which gives the capability to save additional power during Sleep mode.

FIGURE 28-1: INTERNAL REGULATOR

REGISTER 28-18: VREGCON: VOLTAGE REGULATOR CONTROL REGISTER

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 15 LPWREN: Low-Power Mode Enable bit ^(1)

1 = Voltage regulators are in Low-Power mode
0 = Voltage regulators are in Full Power mode

bit 14-0 Reserved: Maintain as '0'

Note 1: Low-Power mode can only be used within the industrial temperature range. The CPU should be run at slow speed (8 MHz or less) before setting this bit.

28.5 Brown-out Reset (BOR)

The Brown-out Reset (BOR) module is based on an internal voltage reference circuit that monitors the regulated supply voltage. The main purpose of the BOR module is to generate a device Reset when a brown-out condition occurs. Brown-out conditions are generally caused by glitches on the AC mains (for example, missing portions of the AC cycle waveform due to bad power transmission lines or voltage sags due to excessive current draw when a large inductive load is turned on).

A BOR generates a Reset pulse which resets the device. The BOR selects the clock source based on the device Configuration bit selections.

If an oscillator mode is selected, the BOR activates the Oscillator Start-up Timer (OST). The system clock is held until OST expires. If the PLL is used, the clock is held until the LOCK bit (OSCCON[5]) is '1'.

The BOR status bit (RCON[1]) is set to indicate that a BOR has occurred. The BOR circuit continues to operate while in Sleep or Idle mode and resets the device should VDD fall below the BOR threshold voltage.

28.6 Dual Watchdog Timer (WDT)

Note 1: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to "Dual Watchdog Timer", (www.microchip.com/DS70005250) in the "dsPIC33/PIC24 Family Reference Manual".

The dsPIC33 dual Watchdog Timer (WDT) is described in this section. Refer to Figure 28-2 for a block diagram of the WDT.

The WDT, when enabled, operates from the internal Low-Power RC (LPRC) Oscillator clock source or a selectable clock source in Run mode. The WDT can be used to detect system software malfunctions by resetting the device if the WDT is not cleared periodically in software. The WDT can be configured in Windowed

mode or Non-Windowed mode. Various WDT time-out periods can be selected using the WDT postscaler. The WDT can also be used to wake the device from Sleep or Idle mode (Power Save mode). If the WDT expires and issues a device Reset, the WTDO bit in RCON (Register 6-1) will be set.

The following are some of the key features of the WDT modules:

• Configuration or Software Controlled
• Separate User-Configurable Time-out Periods for Run and Sleep/Idle
• Can Wake the Device from Sleep or Idle
• User-Selectable Clock Source in Run mode
• Operates from LPRC in Sleep/Idle mode

Note: The WDT is not automatically reset when a Fail-Safe Clock Monitor event occurs. The user should issue a CLRWDT instruction after a clock fail event is detected.

FIGURE 28-2: WATCHDOG TIMER BLOCK DIAGRAM

REGISTER 28-19: WDTCONL: WATCHDOG TIMER CONTROL REGISTER LOW

R/W-0 U-0 U-0 R-y R-y R-y R-y R-y
ON^(1,2)	— — RUNDIV4		(3)	RUNDIV3^(3)	RUNDIV2^(3)	RUNDIV1^(3)	RUNDIV0^(3)
bit 15 bit 8

R	R	R-y	R-y	R-y	R-y	R-y	HS/R/W-0
CLKSEL1(3,5)	CLKSEL0(3,5)	SLPDIV4(3)	SLPDIV3(3)	SLPDIV2(3)	SLPDIV1(3)	SLPDIV0(3)	WDTWINEN(4)
bit 7 bit 0

Legend:	HS = Hardware Settable bit	y = Value from Configuration bit on POR
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 15 ON: Watchdog Timer Enable bit ^(1,2) 1 = Enables the Watchdog Timer if it is not enabled by the device configuration

0 = Disables the Watchdog Timer if it was enabled in software

bit 14-13 Unimplemented: Read as '0'

bit 12-8 RUNDIV[4:0]: Sleep and Idle Mode WDT Postscaler Status bits ^(3) 11111 = Divide by 2^31 = 2,147,483,648 11110 = Divide by 2^30 = 1,073,741,824 ...

00001 = Divide by 2^1 = 2 00000 = Divide by 2^0 = 1

bit 7-6 CLKSEL[1:0]: WDT Run Mode Clock Select Status bits ^(3,5) 11 = LPRC Oscillator

10 = FRC Oscillator

01 = Reserved

00 = SYSCLK

bit 5-1 SLPDIV[4:0]: Sleep and Idle Mode WDT Postscaler Status bits ^(3) 11111 = Divide by 2^31 = 2,147,483,648 11110 = Divide by 2^30 = 1,073,741,824 00001 = Divide by 2^1 = 2 00000 = Divide by 2^0 = 1

bit 0 WDTWINEN: Watchdog Timer Window Enable bit ^(4) 1 = Enables Window mode 0 = Disables Window mode

Note 1: A read of this bit will result in a '1' if the WDT is enabled by the device configuration or by software.
2: The user's software should not read or write the peripheral's SFRs immediately following the instruction that clears the module's ON bit.
3: These bits reflect the value of the Configuration bits.
4: The WDTWINEN bit reflects the status of the Configuration bit if the bit is set. If the bit is cleared, the value is controlled by software.
5: The available clock sources are device-dependent.

REGISTER 28-20: WDTCONH: WATCHDOG TIMER CONTROL REGISTER HIGH

W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0

WDTCLRKEY[15:8]

bit 15 bit 8

W-0 W-0 W-0 W-0 W-0 W-0 W-0 W-0

WDTCLRKEY[7:0]

bit 7 bit 0

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 15-0 WDTCLRKEY[15:0]: Watchdog Timer Clear Key bits

To clear the Watchdog Timer to prevent a time-out, software must write the value, 0x5743, to this location using a single 16-bit write.

28.7 JTAG Interface

The dsPIC33CK64MC105 family devices implement a JTAG interface, which supports boundary scan device testing. Programming is not supported through the JTAG interface; only boundary scan is supported.

Note: Refer to "Programming and Diagnostics" (www.microchip.com/DS70608) in the "dsPIC33/PIC24 Family Reference Manual" for further information on usage, configuration and operation of the JTAG interface.

28.8 In-Circuit Serial Programming ^TM (ICSP ^TM )

The dsPIC33CK64MC105 family devices can be serially programmed while in the end application circuit. This is done with two lines for clock and data, and three other lines for power, ground and the programming sequence. Serial programming allows customers to manufacture boards with unprogrammed devices and then program the device just before shipping the product. Serial programming also allows the most recent firmware or a custom firmware to be programmed.

Any of the three pairs of programming clock/data pins can be used:

• PGC1 and PGD1
• PGC2 and PGD2
• PGC3 and PGD3

28.9 In-Circuit Debugger

When the MPLAB ^® tool is selected as a debugger, the in-circuit debugging functionality is enabled. This function allows simple debugging functions when used with MPLAB IDE. Debugging functionality is controlled through the PGCx (Emulation/Debug Clock) and PGDx (Emulation/Debug Data) pin functions.

Any of the three pairs of debugging clock/data pins can be used:

• PGC1 and PGD1
• PGC2 and PGD2
• PGC3 and PGD3

To use the in-circuit debugger function of the device, the design must implement ICSP connections to MCLR, VDD, Vss and the PGCx/PGDx pin pair. In addition, when the feature is enabled, some of the resources are not available for general use. These resources include the first 80 bytes of data RAM and two I/O pins (PGCx and PGDx).

28.10 Code Protection and CodeGuard™ Security

dsPIC33CK64MC105 family devices offer multiple levels of security for protecting individual intellectual property. The program Flash protection can be broken up into three segments: Boot Segment (BS), General Segment (GS) and Configuration Segment (CS). Boot Segment has the highest security privilege and can be thought to have limited restrictions when accessing other segments. General Segment has the least security and is intended for the end user system code. Configuration Segment contains only the device user configuration data, which is located at the end of the program memory space.

The code protection features are controlled by the Configuration registers, FSEC and FBSLIM. The FSEC register controls the code-protect level for each segment and if that segment is write-protected. The size of BS and GS will depend on the BSLIM[12:0] bits setting and if the Alternate Interrupt Vector Table (AIVT) is enabled. The BSLIM[12:0] bits define the number of pages for BS with each page containing 1024 IW. The smallest BS size is one page, which will consist of the Interrupt Vector Table (IVT) and 512 IW of code protection.

If the AIVT is enabled, the last page of BS will contain the AIVT and will not contain any BS code. With AIVT enabled, the smallest BS size is now two pages (2048 IW), with one page for the IVT and BS code, and the other page for the AIVT. Write protection of the BS does not cover the AIVT. The last page of BS can always be programmed or erased by BS code. The General Segment will start at the next page and will consume the rest of program Flash, except for the Flash Configuration Words. The IVT will assume GS security only if BS is not enabled. The IVT is protected from being programmed or page erased when either security segment has enabled write protection.

The different device security segments are shown in Figure 28-3. Here, all three segments are shown, but are not required. If only basic code protection is required, then GS can be enabled independently or combined with CS, if desired.

FIGURE 28-3: SECURITY SEGMENTS EXAMPLE

IVT and AIVT Assume BS Protection IVT 0x000000 0x000200 BS AIVT + 512 IW(2) BSLIM[12:0] GS CS(1)

Note 1: If CS is write-protected, the last page (GS + CS) of program memory will be protected from an erase condition.
2: The last half (256 IW) of the last page of BS is unusable program memory.

NOTES:

29.0 INSTRUCTION SET SUMMARY

Note: This data sheet summarizes the features of the dsPIC33CK64MC105 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "16-Bit MCU and DSC Programmer's Reference Manual" (www.microchip.com/DS70000157), which is available from the Microchip website (www.microchip.com).

The dsPIC33CK64MC105 family instruction set is almost identical to that of the dsPIC30F and dsPIC33F.

Most instructions are a single program memory word (24 bits). Only three instructions require two program memory locations.

Each single-word instruction is a 24-bit word, divided into an 8-bit opcode, which specifies the instruction type and one or more operands, which further specify the operation of the instruction.

The instruction set is highly orthogonal and is grouped into five basic categories:

• Word or byte-oriented operations
- Bit-oriented operations
- Literal operations
- DSP operations
• Control operations

Table 29-1 lists the general symbols used in describing the instructions.

The dsPIC33 instruction set summary in Table29-2 lists all the instructions, along with the status flags affected by each instruction.

Most word or byte-oriented W register instructions (including barrel shift instructions) have three operands:

• The first source operand, which is typically a register 'Wb' without any address modifier
• The second source operand, which is typically a register 'Ws' with or without an address modifier
• The destination of the result, which is typically a register 'Wd' with or without an address modifier

However, word or byte-oriented file register instructions have two operands:

• The file register specified by the value 'f'
• The destination, which could be either the file register 'f' or the W0 register, which is denoted as 'WREG'

Most bit-oriented instructions (including simple rotate/shift instructions) have two operands:

• The W register (with or without an address modifier) or file register (specified by the value of 'Ws' or 'f')
• The bit in the W register or file register (specified by a literal value or indirectly by the contents of register 'Wb')

The literal instructions that involve data movement can use some of the following operands:

• A literal value to be loaded into a W register or file register (specified by 'k')
• The W register or file register where the literal value is to be loaded (specified by 'Wb' or 'f')

However, literal instructions that involve arithmetic or logical operations use some of the following operands:

• The first source operand, which is a register 'Wb' without any address modifier
• The second source operand, which is a literal value
• The destination of the result (only if not the same as the first source operand), which is typically a register 'Wd' with or without an address modifier

The MAC class of DSP instructions can use some of the following operands:

• The accumulator (A or B) to be used (required operand)
• The W registers to be used as the two operands
• The X and Y address space prefetch operations
  • The X and Y address space prefetch destinations
  • The accumulator write-back destination

The other DSP instructions do not involve any multiplication and can include:

• The accumulator to be used (required)
- The source or destination operand (designated as Wso or Wdo, respectively) with or without an address modifier
- The amount of shift specified by a W register 'Wn' or a literal value

The control instructions can use some of the following operands:

• A program memory address
- The mode of the Table Read and Table Write instructions

Most instructions are a single word. Certain double-word instructions are designed to provide all the required information in these 48 bits. In the second word, the 8 MSbs are '0's. If this second word is executed as an instruction (by itself), it executes as a NOP.

The double-word instructions execute in two instruction cycles.

Most single-word instructions are executed in a single instruction cycle, unless a conditional test is true or the Program Counter is changed as a result of the instruction, or a PSV or Table Read is performed. In these cases, the execution takes multiple instruction cycles, with the additional instruction cycle(s) executed as a NOP. Certain instructions that involve skipping over the subsequent instruction require either two or three

cycles if the skip is performed, depending on whether the instruction being skipped is a single-word or two-word instruction. Moreover, double-word moves require two cycles.

Note: In dsPIC33CK64MC105 devices, read and Read-Modify-Write operations on non-CPU Special Function Registers require an additional cycle when compared to dsPIC30F, dsPIC33F, PIC24F and PIC24H devices.

Note: For more details on the instruction set, refer to the “16-Bit MCU and DSC Programmer's Reference Manual” (www.microchip.com/DS70000157).

TABLE 29-1: SYMBOLS USED IN OPCODE DESCRIPTIONS

Field Description
#text Means literal defined by “text”
(text) Means “content of text”
[text] Means “the location addressed by text”
{} Optional field or operation
a ∈ {b, c, d}	a is selected from the set of values b, c, d
[n:m]	Register bit field
.b	Byte mode selection
.d	Double-Word mode selection
.S Shadow register select
.w	Word mode selection (default)
Acc	One of two accumulators {A, B}
AWB	Accumulator Write-Back Destination Address register ∈ {W13, [W13]+ = 2}
bit4	4-bit bit selection field (used in word-addressed instructions) ∈ {0...15}
C, DC, N, OV, Z	MCU Status bits: Carry, Digit Carry, Negative, Overflow, Sticky Zero
Expr	Absolute address, label or expression (resolved by the linker)
f	File register address ∈ {0x0000...0x1FFF}
lit1	1-bit unsigned literal ∈ {0,1}
lit4	4-bit unsigned literal ∈ {0...15}
lit5	5-bit unsigned literal ∈ {0...31}
lit8	8-bit unsigned literal ∈ {0...255}
lit10	10-bit unsigned literal ∈ {0...255} for Byte mode, {0:1023} for Word mode
lit14	14-bit unsigned literal ∈ {0...16384}
lit16	16-bit unsigned literal ∈ {0...65535}
lit23	23-bit unsigned literal ∈ {0...8388608}; LSb must be ‘0’
None	Field does not require an entry, can be blank
OA, OB, SA, SB	DSP Status bits: ACCA Overflow, ACCB Overflow, ACCA Saturate, ACCB Saturate
PC	Program Counter
Slit10	10-bit signed literal ∈ {-512...511}
Slit16	16-bit signed literal ∈ {-32768...32767}
Slit6	6-bit signed literal ∈ {-16...16}
Wb	Base W register ∈ {W0...W15}
Wd	Destination W register ∈ {Wd, [Wd], [Wd++], [Wd--], (++Wd], [-Wd]}
Wdo	Destination W register ∈ {Wnd, [Wnd], [Wnd++], [Wnd--], (++Wnd], [--Wnd], [Wnd+Wb]}
Wm,Wn	Dividend, Divisor Working register pair (direct addressing)
Wm*Wm Multiplicand and Multiplier	Working register pair for Square instructions {W4 * W4,W5 * W5,W6 * W6,W7 * W7}
Wm*Wn Multiplicand and Multiplier	Working register pair for DSP instructions {W4 * W5,W4 * W6,W4 * W7,W5 * W6,W5 * W7,W6 * W7}
Wn One of 16 Working registers {W0...W15}
Wnd One of 16 Destination Working registers {W0...W15}
Wns One of 16 Source Working registers {W0...W15}
WREG W0 (Working register used in file register instructions)
Ws	Source W register {Ws, [Ws], [Ws++, [Ws--], [++Ws], [--Ws]}
Wso Source W register	{ Wns, [Wns], [Wns++, [Wns--], [++Wns], [--Wns], [Wns+Wb]}
Wx X Data Space Prefetch Address	register for DSP instructions {[W8] += 6, [W8] += 4, [W8] += 2, [W8], [W8] -= 6, [W8] -= 4, [W8] -= 2,[W9] += 6, [W9] += 4, [W9] += 2, [W9], [W9] -= 6, [W9] -= 4, [W9] -= 2,[W9 + W12], none}
Wxd	X Data Space Prefetch Destination register for DSP instructions {W4...W7}
Wy Y Data Space Prefetch Address	register for DSP instructions {[W10] += 6, [W10] += 4, [W10] += 2, [W10], [W10] -= 6, [W10] -= 4, [W10] -= 2,[W11] += 6, [W11] += 4, [W11] += 2, [W11], [W11] -= 6, [W11] -= 4, [W11] -= 2,[W11 + W12], none}
Wyd	Y Data Space Prefetch Destination register for DSP instructions {W4...W7}

TABLE 29-2: INSTRUCTION SET OVERVIEW

Base Instr #	Assembly Mnemonic	Assembly Syntax Description		# of Words	# of Cycles(1)	Status Flags Affected
1 ADD	ADD Acc A	add Accumulators 1 1 OA,OB,SA,SB
		ADD f =f + WREG 1 1 C,DC,N,OV,Z
		ADD f,WREG	WREG = f + WREG	1	1	C,DC,N,OV,Z
		ADD #lit10,Wn	Wd = lit10 + Wd	1	1	C,DC,N,OV,Z
		ADD Wb,Ws,Wd	Wd = Wb + Ws	1	1	C,DC,N,OV,Z
		ADD Wb,#lit5,Wd	Wd = Wb + lit5	1	1	C,DC,N,OV,Z
		ADD Wso,#Slit4,Acc	16-bit Signed Add to Accumulator	1	1	OA,OB,SA,SB
2	ADDC	ADDC f	f = f + WREG + (C)	1	1	C,DC,N,OV,Z
		ADDC f,WREG	WREG = f + WREG + (C)	1	1	C,DC,N,OV,Z
		ADDC #lit10,Wn	Wd = lit10 + Wd + (C)	1	1	C,DC,N,OV,Z
		ADDC Wb,Ws,Wd	Wd = Wb + Ws + (C)	1	1	C,DC,N,OV,Z
		ADDC Wb,#lit5,Wd	Wd = Wb + lit5 + (C)	1	1	C,DC,N,OV,Z
3	AND	AND f	f = f.AND.WREG	1	1	N,Z
		AND f,WREG	WREG = f.AND.WREG	1	1	N,Z
		AND #lit10,Wn	Wd = lit10.AND.Wd	1	1	N,Z
		AND Wb,Ws,Wd	Wd = Wb.AND.Ws	1	1	N,Z
		AND Wb,#lit5,Wd	Wd = Wb.AND.lit5	1	1	N,Z
4	ASR	ASR f	f = Arithmetic Right Shift f	1	1	C,N,OV,Z
		ASR f,WREG	WREG = Arithmetic Right Shift f	1	1	C,N,OV,Z
		ASR Ws,Wd	Wd = Arithmetic Right Shift Ws	1	1	C,N,OV,Z
		ASR Wb,Ws,Wnd	Wnd = Arithmetic Right Shift Wb by Wns	1	1	N,Z
		ASR Wb,#lit5,Wnd	Wnd = Arithmetic Right Shift Wb by lit5	1	1	N,Z
5	BCLR	BCLR f,#bit4	Bit Clear f	1	1	None
		BCLR Ws,#bit4	Bit Clear Ws	1	1	None
6	BFEXT	BFEXT bit4,wid5,Ws,Wb	Bit Field Extract from Ws to Wb	2	2	None
		BFEXT bit4,wid5,f,Wb	Bit Field Extract from f to Wb	2	2	None
7	BFINS	BFINS bit4,wid5,Wb,Ws	Bit Field Insert from Wb into Ws	2	2	None
		BFINS bit4,wid5,Wb,f	Bit Field Insert from Wb into f	2	2	None
		BFINS bit4,wid5,lit8,Ws	Bit Field Insert from #lit8 to Ws	2	2	None

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.

2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax	Description	# of Words	# of Cycles(1)	Status Flags Affected
9 BRA	BRA C, Expr	Branch if Carry 1 1 (4) None
		BRA GE, Expr Branch if Greater Than or Equal	1 1 (4) None
		BRA GEU, Expr Branch if unsigned Greater Than or Equal 1 1 (4) None
		BRA GT, Expr Branch if Greater Than 1 1 (4) None
		BRA GTU, Expr Branch if Unsigned Greater Than 1 1 (4) None
		BRA LE, Expr Branch if Less Than or Equal	1 1 (4) None
		BRA LEU, Expr	Branch if Unsigned Less Than or Equal	1	1 (4)	None
		BRA LT, Expr Branch if Less Than	1 1 (4) None
		BRA LTU, Expr Branch if Unsigned Less Than	1 1 (4) None
		BRA N, Expr Branch if Negative	1 1 (4) None
		BRA NC, Expr Branch if Not Carry	1 1 (4) None
		BRA NN, Expr Branch if Not Negative	1 1 (4) None
		BRA NOV, Expr	Branch if Not Overflow	1	1 (4)	None
		BRA NZ, Expr	Branch if Not Zero	1	1 (4)	None
		BRA OA, Expr	Branch if Accumulator A Overflow	1	1 (4)	None
		BRA OB, Expr	Branch if Accumulator B Overflow	1	1 (4)	None
		BRA OV, Expr	Branch if Overflow	1	1 (4)	None
		BRA SA, Expr	Branch if Accumulator A Saturated	1	1 (4)	None
		BRA SB, Expr	Branch if Accumulator B Saturated	1	1 (4)	None
		BRA Expr	Branch Unconditionally	1	4	None
		BRA Z, Expr	Branch if Zero	1	1 (4)	None
		BRA Wn	Computed Branch	1	4	None
10	BREAK	BREAK	Stop User Code Execution	1	1	None
11	BSET	BSET f,#bit4	Bit Set f	1	1	None
			Bit Set Ws	1	1	None
12	BSW	BSW.C Ws,Wb	Write C bit to Ws[Wb]	1	1	None
		BSW.Z Ws,Wb	Write Z bit to Ws[Wb]	1	1	None
13	BTG	BTG f,#bit4	Bit Toggle f	1	1	None
		BTG Ws,#bit4	Bit Toggle Ws	1	1	None
14	BTSC	BTSC f,#bit4	Bit Test f, Skip if Clear	1	1(2 or 3)	None
		BTSC Ws,#bit4	Bit Test Ws, Skip if Clear	1	1(2 or 3)	None
15	BTSS	BTSS f,#bit4	Bit Test f, Skip if Set	1	1(2 or 3)	None
		BTSS Ws,#bit4	Bit Test Ws, Skip if Set	1	1(2 or 3)	None
16	BTST	BTST f,#bit4	Bit Test f	1	1	Z
		BTST.C Ws,#bit4	Bit Test Ws to C	1	1	C
		BTST.Z Ws,#bit4	Bit Test Ws to Z	1	1	Z
		BTST.C Ws,Wb	Bit Test Ws[Wb] to C	1	1	C
		BTST.Z Ws,Wb	Bit Test Ws[Wb] to Z	1	1	Z
17	BTSTS	BTSTS f,#bit4	Bit Test then Set f	1	1	Z
		BTSTS.C Ws,#bit4	Bit Test Ws to C, then Set	1	1	C
		BTSTS.Z Ws,#bit4	Bit Test Ws to Z, then Set	1	1	Z
18	CALL	CALL lit23	Call Subroutine	2	4	SFA
		CALL Wn	Call Indirect Subroutine	1	4	SFA
		CALL.L Wn	Call Indirect Subroutine (long address)	1	4	SFA
19	CLR	CLR f	f = 0x0000	1	1	None
		CLR WREG	WREG = 0x0000	1	1	None
		CLR Ws	Ws = 0x0000	1	1	None
		CLR Acc,Wx,Wxd,Wy,Wyd,MWB	Clear Accumulator	1	1	OA,OB,SA,SB

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.
2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax	Description	# of Words	# of Cycles(1)	Status Flags Affected
20	CLWDT CLRWD	Clear Watchdog Timer 1 1 WDTO, Sleep
21	COM f f=	f	-	1	1	N
		COM f,WREG	WREG = f	1	1	N
		COM Ws,Wd	Wd = Ws	1	1	N
22	CP	CP f	Compare f with WREG	1	1	C,DC,N,OV,Z
		CP Wb,#lit8	Compare Wb with lit8	1	1	C,DC,N,OV,Z
		CP Wb,Ws	Compare Wb with Ws (Wb - Ws)	1	1	C,DC,N,OV,Z
23	CPC	CPC f	Compare f with 0x0000	1	1	C,DC,N,OV,Z
		CPC Ws	Compare Ws with 0x0000	1	1	C,DC,N,OV,Z
24	CPB	CPB f	Compare f with WREG, with Borrow	1	1	C,DC,N,OV,Z
		CPB Wb,#lit8	Compare Wb with lit8, with Borrow	1	1	C,DC,N,OV,Z
		CPB Wb,Ws	Compare Wb with Ws, with Borrow (Wb - Ws - C)	1	1	C ,
25	CPSEQ	CPSEQ Wb,Wn	Compare Wb with Wn, Skip if =	1	1(2 or 3)	None
	CPBEQ	CPBEQ Wb,Wn,Expr	Compare Wb with Wn, Branch if =	1	1(5)	None
26	CPSGT	CPSGT Wb,Wn	Compare Wb with Wn, Skip if >	1	1(2 or 3)	None
	CPBGT	CPBGT Wb,Wn,Expr	Compare Wb with Wn, Branch if >	1	1(5)	None
27	CPSLT	CPSLT Wb,Wn	Compare Wb with Wn, Skip if <	1	1(2 or 3)	None
		CPBLT Wb,Wn,Expr	Compare Wb with Wn, Branch if <	1	1(5)	None
28	CPSNF	CPSNF Wb,Wn	Compare Wb with Wn, Skip if ≠	1	1(2 or 3)	None
		CPBNE Wb,Wn,Expr	Compare Wb with Wn, Branch if ≠	1	1(5)	None
29	CTXTSWP	CTXTSWP Mlit3	Switch CPU Register Context to Context Defined by lit3	1	2	N
30	CTXTSWP	CTXTSWP Wn	Switch CPU Register Context to Context Defined by Wn	1	2	N
31	DAM.B	DAM.B Wn	Wn = Decimal Adjust Wn	1	1	C
32	DEC	DEC f	f = f - 1	1	1	C,DC,N,OV,Z
		DEC f,WREG	WREG = f - 1	1	1	C,DC,N,OV,Z
		DEC Ws,Wd	Wd = Ws - 1	1	1	C,DC,N,OV,Z
33	DEC2	DEC2 f	f = f - 2	1	1	C,DC,N,OV,Z
		DEC2 f,WREG	WREG = f - 2	1	1	C,DC,N,OV,Z
		DEC2 Ws,Wd	Wd = Ws - 2	1	1	C,DC,N,OV,Z
34	DISI	DISI #lit14	Disable Interrupts for k Instruction Cycles	1	1	None
35	DIVF	DIVF Wm,Wn	Signed 16/16-bit Fractional Divide	1	18	N,Z,C,OV
36 DIV.S (2)		DIV.S Wm,Wn	Signed 16/16-bit Integer Divide	1	18	N,Z,C,OV
		DIV.SD Wm,Wn	Signed 32/16-bit Integer Divide	1	18	N,Z,C,OV
37 DIV.U (2)		DIV.U Wm,Wn	Unsigned 16/16-bit Integer Divide	1	18	N,Z,C,OV
		DIV.UD Wm,Wn	Unsigned 32/16-bit Integer Divide	1	18	N,Z,C,OV
38 DIVF2 (2)		DIVF2 Wm,Wn	Signed 16/16-bit Fractional Divide (W1:W0 preserved)	16	N,Z,C,OV
39 DIV2.S (2)		DIV2.S Wm,Wn	Signed 16/16-bit Integer Divide (W1:W0 preserved)	16	N,Z,C,OV
		DIV2.SD Wm,Wn	Signed 32/16-bit Integer Divide (W1:W0 preserved)	16	N,Z,C,OV
40 DIV2.U (2)		DIV2.U Wm,Wn	Unsigned 16/16-bit Integer Divide (W1:W0 preserved)	16	N,Z,C,OV
		DIV2.UD Wm,Wn	Unsigned 32/16-bit Integer Divide (W1:W0 preserved)	16	N,Z,C,OV
41	DO	DO #lit15,Expr	Do Code to PC + Expr, lit15 + 1 Times	2	2	None
		DO Wn,Expr	Do code to PC + Expr, (Wn) + 1 Times	2	2	None

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.

2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax		Description	# of Words	# of Cycles(1)	Status Flags Affected
42	ED	ED	Wm*Wm, Acc, Wx, Wy, Wxd	Euclidean Distance (no accumulate)	1	1	OA,OB,OAB, SA,SB,SAB
43	EDAC	EDAC	Wm*Wm, Acc, Wx, Wy, Wxd	Euclidean Distance	1	1	OA,OB,OAB, SA,SB,SAB
44 EXCI EXCI Wns, Wnd Swap Wns with Wnd 1 1 None
46	FBCL	FBCL	Ws, Wnd	Find Bit Change from Left (MSb) Side	1	1	C
47	FF1L	FF1L	Ws, Wnd	Find First One from Left (MSb) Side	1	1	C
48	FF1R	FF1R	Ws, Wnd	Find First One from Right (LSb) Side	1	1	C
49	FLIM	FLIM	Wb, Ws	Force Data (Upper and Lower) Range Limit without Limit Excess Result	1 1	N,Z,OV
		FLIM.V Wb, Ws, Wd		Force Data (Upper and Lower) Range Limit with Limit Excess Result	1 1	N,Z,OV
50	GOTO	GOTO	Expr	Go to Address	2	4	None
		GOTO	Wn	Go to Indirect	1	4	None
		GOTO.L	Wn	Go to Indirect (long address)	1	4	None
51	INC	INC	f	f = f + 1	1	1	C,DC,N,OV,Z
		INC	f,WREG	WREG = f + 1	1	1	C,DC,N,OV,Z
		INC	Ws, Wd	Wd = Ws + 1	1	1	C,DC,N,OV,Z
52	INC2	INC2	f	f = f + 2	1	1	C,DC,N,OV,Z
		INC2	f,WREG	WREG = f + 2	1	1	C,DC,N,OV,Z
		INC2	Ws, Wd	Wd = Ws + 2	1	1	C,DC,N,OV,Z
53	IOR	IOR	f	f = f.IOR. WREG	1	1	N,Z
		IOR	f,WREG	WREG = f.IOR. WREG	1	1	N,Z
		IOR	#lit10, Wn	Wd = lit10.IOR. Wd	1	1	N,Z
		IOR	Wb, Ws, Wd	Wd = Wb.IOR. Ws	1	1	N,Z
		IOR	Wb, #lit5, Wd	Wd = Wb.IOR. lit5	1	1	N,Z
54	LAC	LAC	Wso, #Slit4, Acc	Load Accumulator	1	1	OA,OB,OAB, SA,SB,SAB
		LAC.D	Wso, #Slit4, Acc	Load Accumulator Double	1	2	OA,SA,OB,SB
56	LNK	LNK	#lit14	Link Frame Pointer	1	1	SFA
57	LSR	LSR	f	f = Logical Right Shift f	1	1	C,N,OV,Z
		LSR	f,WREG	WREG = Logical Right Shift f	1	1	C,N,OV,Z
		LSR	Ws, Wd	Wd = Logical Right Shift Ws	1	1	C,N,OV,Z
		LSR	Wb, Wns, Wnd	Wnd = Logical Right Shift Wb by Wns	1	1	N,Z
		LSR	Wb, #lit5, Wnd	Wnd = Logical Right Shift Wb by lit5	1	1	N,Z
58 MAC	MAC	Wm*Wn, Acc, Wx, Wxd, Wy, Wyd, AWB		Multiply and Accumulate	1 1 OA,OB,OAB,		SA,SB,SAB
		MAC	Wm*Wm, Acc, Wx, Wxd, Wy, Wyd	Square and Accumulate	1	1	OA,OB,OAB, SA,SB,SAB
59	MAX	MAX	Acc	Force Data Maximum Range Limit	1	1	N,OV,Z
		MAX.V	Acc, Wnd	Force Data Maximum Range Limit with Result	1 1	N,OV,Z
60	MIN	MIN	Acc	If Accumulator A Less than B, Load Accumulator with B or vice versa	1 1	N,OV,Z
		MIN.V	Acc, Wd	If Accumulator A Less than B Accumulator, Force Minimum Data Range Limit with Limit Excess Result	1 1	N,OV,Z
		MINZ Acc		Accumulator Force Minimum Data Range Limit	1 1	N,OV,Z
		MINZ.V Acc, Wd Accumulator Force Minimum Data Range Limit with Limit Excess Result			1 1	N,OV,Z

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.
2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax	Description	# of Words	# of Cycles(1)	Status Flags Affected
61 MOV	MOV £, Wn	Move f to Wn 1 1 None
		MOV f Move f to f 1 1 None
		MOV f, WREG Move f to WREG 1 1 None
		MOV #lit16, Wn Move 16-bit Literal to Wn	1 1 None
		MOV.b #lit8, Wn	Move 8-bit Literal to Wn	1	1	None
		MOV Wn, f Move Wn to f	1 1 None
		MOV Wso, Wdo	Move Ws to Wd	1	1	None
		MOV WREG, f Move WREG to f 1 1 None
		MOV.D Wns, Wd	Move Double from W(ns):W(ns + 1) to Wd	1	2	None
		MOV.D Ws, Wnd	Move Double from Ws to W(nd + 1):W(nd)	1	2	None
62	MOVPAG	MOVPAG #lit10, DSRPAG	Move 10-bit Literal to DSRPAG	1	1	None
		MOVPAG #lit8, TBLPAG	Move 8-bit Literal to TBLPAG	1	1	None
		MOVPAG Ws, DSRPAG	Move Ws[9:0] to DSRPAG	1	1	None
		MOVPAG Ws, TBLPAG	Move Ws[7:0] to TBLPAG	1	1	None
64	MOVSAC	MOVSAC Acc, Wx, Wxd, Wy, Wyd, AWB	Prefetch and Store Accumulator	1	1	None
65	MPY	MPY Wm*Wn, Acc, Wx, Wxd, Wy, Wyd	Multiply Wm by Wn to Accumulator	1	1	OA,OB,OAB, SA,SB,SAB
		MPY Wm*Wm, Acc, Wx, Wxd, Wy, Wyd	Square Wm to Accumulator	1	1	OA,OB,OAB, SA,SB,SAB
66	MPY.N	MPY.N Wm*Wn, Acc, Wx, Wxd, Wy, Wyd	-(Multiply Wm by Wn) to Accumulator	1	1	None
67 MSC	MSC Wn*Wn	Acc, Wx, Wxd, Wy, Wyd, AWB	Multiply and Subtract from Accumulator	1	1	OA,OB,OAB, SA,SB,SAB
68	MUL	MUL.SS Wb, Ws, Wnd	{Wnd + 1, Wnd} = Signed(Wb) * Signed(WS)	1	1	None
		MUL.SS Wb, Ws, Acc	Accumulator = Signed(Wb) * Signed(WS)	1	1	None
		MUL.SU Wb, Ws, Wnd {Wnd + 1, Wnd} = Signed(Wb) * Unsigned(WS)		1	1	None
		MUL.SU Wb, Ws, Acc	Accumulator = Signed(Wb) * Unsigned(WS)	1	1	None
		MUL.SU Wb, #lit5, Acc	Accumulator = Signed(Wb) * Unsigned(lit5)	1	1	None
		MUL.US Wb, Ws, Wnd	{Wnd + 1, Wnd} = Unsigned(Wb) * Signed(WS)	1	1	None
		MUL.US Wb, Ws, Acc	Accumulator = Unsigned(Wb) * Signed(WS)	1	1	None
		MUL.UU Wb, Ws, Wnd	{Wnd + 1, Wnd} = Unsigned(Wb) * Unsigned(WS)	1	1	None
		MUL.UU Wb, #lit5, Acc	Accumulator = Unsigned(Wb) * Unsigned(lit5)	1	1	None
		MUL.UU Wb, Ws, Acc Accumulator = Unsigned(Wb) * Unsigned(WS)		1	1	None
		MULW.SS Wb, Ws, Wnd	Wnd = Signed(Wb) * Signed(WS)	1	1	None
		MULW.SU Wb, Ws, Wnd	Wnd = Signed(Wb) * Unsigned(WS)	1	1	None
		MULW.US Wb, Ws, Wnd	Wnd = Unsigned(Wb) * Signed(WS)	1	1	None
		MULW.UU Wb, Ws, Wnd	Wnd = Unsigned(Wb) * Unsigned(WS)	1	1	None
		MUL.SU Wb, #lit5, Wnd	{Wnd + 1, Wnd} = Signed(Wb) * Unsigned(lit5)	1	1	None
		MUL.SU Wb, #lit5, Wnd	Wnd = Signed(Wb) * Unsigned(lit5)	1	1	None
		MUL.UU Wb, #lit5, Wnd	{Wnd + 1, Wnd} = Unsigned(Wb) * Unsigned(lit5)	1	1	None
		MUL.UU Wb, #lit5, Wnd	Wnd = Unsigned(Wb) * Unsigned(lit5)	1	1	None
		MUL.f W3:W2 = f* WREG	1 1 None

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.
2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax	Description	# of Words	# of Cycles(1)	Status Flags Affected
69 NEG	NEG Acc	Negate Accumulator 1 1 OA,OB,OAB,				SA,SB,SAB
		NEG f f=f	+1 1 1 C,DC,N,OV,Z
		NEG f,WREG WREG=f	+1 1 1 C,DC,N,OV,Z
		NEG Ws,Wd Wd=Ws +1	1 1 C	DC,N,OV,Z
70	NOP	NOP	No Operation	1	1	None
		NOPR	No Operation	1	1	None
71	NORM	NORM Acc, Wd	Normalize Accumulator	1	1	N,OV,Z
72	POP	POP f	Pop f from Top-of-Stack (TOS)	1	1	None
		POP Wdo	Pop from Top-of-Stack (TOS) to Wdo	1	1	None
		POP.D Wnd Pop from Top-of-Stack (TOS) to W(nd):W(nd + 1)	1	2	None
		POP.S	Pop Shadow Registers	1	1	All
73	PUSH	PUSH f	Push f to Top-of-Stack (TOS)	1	1	None
		PUSH Wso	Push Wso to Top-of-Stack (TOS)	1	1	None
		PUSH.D Wns	Push W(ns):W(ns + 1) to Top-of-Stack (TOS)	1	2	None
		PUSH.S	Push Shadow Registers	1	1	None
74	PWRSAV	PWRSAV #llt1	Go into Sleep or Idle mode	1	1	WDTO,Sleep
75	RCALL	RCALL Expr	Relative Call	1	4	SFA
		RCALL Wn	Computed Call	1	4	SFA
76	REPEAT	REPEAT #lit15	Repeat Next Instruction lit15 + 1 Times	1	1	None
		REPEAT Wn	Repeat Next Instruction (Wn) + 1 Times	1	1	None
77	RESET	RESET	Software Device Reset	1	1	None
78	RETFIE	RETFIE	Return from Interrupt	1	6 (5)	SFA
79	RETLW	RETLW #lit10,Wn	Return with Literal in Wn	1	6 (5)	SFA
80	RETURN	RETURN	Return from Subroutine	1	6 (5)	SFA
81	RLC	RLC f	f = Rotate Left through Carry f	1	1	C,N,Z
		RLC f,WRKG	WREG = Rotate Left through Carry f	1	1	C,N,Z
		RLC Ws,Wd	Wd = Rotate Left through Carry Ws	1	1	C,N,Z
82	RLNC	RLNC f	f = Rotate Left (No Carry) f	1	1	N,Z
		RLNC f,WREG	WREG = Rotate Left (No Carry) f	1	1	N,Z
		RLNC Ws,Wd	Wd = Rotate Left (No Carry) Ws	1	1	N,Z
83	RRC	RRC f	f = Rotate Right through Carry f	1	1	C,N,Z
		RRC f,WREG	WREG = Rotate Right through Carry f	1	1	C,N,Z
		RRC Ws,Wd	Wd = Rotate Right through Carry Ws	1	1	C,N,Z
84	RRNC	RRNC f	f = Rotate Right (No Carry) f	1	1	N,Z
		RRNC f,WREG	WREG = Rotate Right (No Carry) f	1	1	N,Z
		RRNC Ws,Wd	Wd = Rotate Right (No Carry) Ws	1	1	N,Z
85	SAC	SAC Acc,#Slit4,Wdo	Store Accumulator	1	1	None
		SAC.R Acc,#Slit4,Wdo	Store Rounded Accumulator	1	1	None
86	SE	SE Ws,Wnd	Wnd = Sign-Extended Ws	1	1	C,N,Z
87	SETM	SETM f	f = 0xFFFF	1	1	None
		SETM WREG	WREG = 0xFFFF	1	1	None
		SETM Ws	Ws = 0xFFFF	1	1	None
88	SFTAC	SFTAC Acc,Wn	Arithmetic Shift Accumulator by (Wn)	1	1	OA,OB,OAB, SA,SB,SAB
		SFTAC Acc,#Slit6	Arithmetic Shift Accumulator by Slit6	1	1	OA,OB,OAB, SA,SB,SAB

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.
2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

TABLE 29-2: INSTRUCTION SET OVERVIEW (CONTINUED)

Base Instr #	Assembly Mnemonic	Assembly Syntax	Description	# of Words	# of Cycles(1)	Status Flags Affected
89 SL	SL f f=Left Shift f 1 1 C,N,OV,Z
		SL f,WREG WREG = Left Shift f 1 1 C,N,OV,Z
		SL Ws,Rd Wd = Left Shift Ws 1 1 C,N,OV,Z
		SL Wb,Wns,Wnd	Wnd = Left Shift Wb by Wns	1	1	N,Z
		SL Wb,#lit5,Wnd	Wnd = Left Shift Wb by lit5	1	1	N,Z
91	SUB	SUB Acc	Subtract Accumulators	1	1	OA,OB,OAB,SA,SB,SAB
		SUB f	f=f-WREG	1	1	C,DC,N,OV,Z
		SUB f,WREG	WREG = f-WREG	1	1	C,DC,N,OV,Z
		SUB #lit10,Wn	Wn = Wn - lit10	1	1	C,DC,N,OV,Z
		SUB Wb,Ws,Wd	Wd = Wb - Ws	1	1	C,DC,N,OV,Z
		SUB Wb,#lit5,Wd	Wd = Wb - lit5	1	1	C,DC,N,OV,Z
92	SUBB	SUBB ≠	f=f-WREG-(C)	1 1	C,DC,N,OV,Z
		SUBB f,WREG WREG = f-WREG-(C)	-	1 1	C,DC,N,OV,Z
		SUBB #lit10,Wn	Wn = Wn - lit10-(C)	1 1	C,DC,N,OV,Z
		SUBB Wb,Ws,Wd	Wd = Wb - Ws-(C)	1 1	C,DC,N,OV,Z
		SUBB Wb,#lit5,Wd	Wd = Wb - lit5-(C)	1 1	C,DC,N,OV,Z
93	SUBR	SUBR ≠	f=WREG-f	1	1	C,DC,N,OV,Z
		SUBR f,WREG	WREG = WREG-f	1	1	C,DC,N,OV,Z
		SUBR Wb,Ws,Wd	Wd = Ws-Wb	1	1	C,DC,N,OV,Z
		SUBR Wb,#lit5,Wd	Wd = lit5-Wb	1	1	C,DC,N,OV,Z
94	SUBBR	SUBBR f	f=WREG-f-(C)	1 1	C,DC,N,OV,Z
		SUBBR f,WREG WREG = WREG-f-(C)	-	1 1	C,DC,N,OV,Z
		SUBBR Wb,Ws,Wd	Wd = Ws-Wb-(C)	1 1	C,DC,N,OV,Z
		SUBBR Wb,#lit5,Wd	Wd = lit5-Wb-(C)	1 1	C,DC,N,OV,Z
95	SWAP	SWAP.b Wn	Wn = Nibble Swap Wn	1	1	None
		SWAP Wn	Wn = Byte Swap Wn	1	1	None
96	TBLRDH	TBLRDH Ws,Wd	Read Prog[23:16] to Wd[7:0]	1	5	None
97	TBLRDL	TBLRDL Ws,Wd	Read Prog[15:0] to Wd	1	5	None
98	TBLMTH	TBLMTH Ws,Wd	Write Ws[7:0] to Prog[23:16]	1	2	None
99	TBLMTL	TBLMTL Ws,Wd	Write Ws to Prog[15:0]	1	2	None
101	ULNK	ULNK	Unlink Frame Pointer	1	1	SFA
104	XOR	XOR f	f=f.XOR.WREG	1	1	N,Z
		XOR f,WREG	WREG = f.XOR.WREG	1	1	N,Z
		XOR #lit10,Wn	Wd = lit10.XOR.Wd	1	1	N,Z
		XOR Wb,Ws,Wd	Wd = Wb .XOR. Ws	1	1	N,Z
		XOR Wb,#lit5,Wd	Wd = Wb .XOR. lit5	1	1	N,Z
105	ZE	ZE Ws,Wnd	Wnd = Zero-Extend Ws	1	1	C,Z,N

Note 1: Read and Read-Modify-Write (e.g., bit operations and logical operations) on non-CPU SFRs incur an additional instruction cycle.
2: The divide instructions must be preceded with a "REPEAT #5" instruction, such that they are executed six consecutive times.

30.0 DEVELOPMENT SUPPORT

Move a design from concept to production in record time with Microchip's award-winning development tools. Microchip tools work together to provide state of the art debugging for any project with easy-to-use Graphical User Interfaces (GUIs) in our free MPLAB® X and Atmel Studio Integrated Development Environments (IDEs), and our code generation tools.

Providing the ultimate ease-of-use experience, Microchip's line of programmers, debuggers and emulators work seamlessly with our software tools. Microchip development boards help evaluate the best silicon device for an application, while our line of third party tools round out our comprehensive development tool solutions.

Microchip's MPLAB X and Atmel Studio ecosystems provide a variety of embedded design tools to consider, which support multiple devices, such as PIC ^ MCUs, AVR ^ MCUs, SAM MCUs and dsPIC ^ DSCs. MPLAB X tools are compatible with Windows ^ , Linux ^ and Mac ^ operating systems while Atmel Studio tools are compatible with Windows.

Go to the following website for more information and details:

https://www.microchip.com/development-tools/

NOTES:

31.0 ELECTRICAL CHARACTERISTICS

This section provides an overview of the dsPIC33CK64MC105 family electrical characteristics. Additional information will be provided in future revisions of this document as it becomes available.

Absolute maximum ratings for the dsPIC33CK64MC105 family are listed below. Exposure to these maximum rating conditions for extended periods may affect device reliability. Functional operation of the device at these, or any other conditions above the parameters indicated in the operation listings of this specification, is not implied.

Absolute Maximum Ratings ^(1)

Ambient temperature under bias....-40°C to +125°C

Storage temperature .... -65°C to +150°C

Voltage on VDD with respect to Vss -0.3V to +4.0V

Voltage on any pin that is not 5V tolerant with respect to Vs^(3) -0.3V to (VDD + 0.3V)

Voltage on any 5V tolerant pin with respect to Vss ^(3) -0.3V to +5.5V

Maximum current out of Vss pins ....300 mA

Maximum current into VDD pins ^(2) 300 mA

Maximum current sunk/sourced by any regular I/O pin....15 mA

Maximum current sunk/sourced by an I/O pin with increased current drive strength (RB1, RC8, RC9 and RD8)....25 mA

Maximum current sunk by a group of I/Os between two Vss pins ^(4) ....75 mA

Maximum current sourced by a group of I/Os between two VDD pins ^(4) ....75 mA

Maximum current sunk by all I/Os ^(2,5) 200 mA

Maximum current sourced by all I/Os ^(2,5) 200 mA

Note 1: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those, or any other conditions above those indicated in the operation listings of this specification, is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

2: Maximum allowable current is a function of device maximum power dissipation (see Table 31-2).

3: See the "Pin Diagrams" section for the 5V tolerant pins.

4: Not applicable to AV DD and AVss pins.

5: For 28-pin packages, the maximum current sunk/sourced by all I/Os is limited by 150 mA.

31.1 DC Characteristics

TABLE 31-1: dsPIC33CK64MC105 FAMILY OPERATING CONDITIONS

VDD Range Temperature	Range Maximum CPU Clock Frequency
3.0V to 3.6V -40°C to +1	25°C 100 MIPS

TABLE 31-2: THERMAL OPERATING CONDITIONS

Rating Symbol Min. Max. Unit
Industrial Temperature Devices
Operating Junction Temperature Range	T_J	-40	+125	°C
Operating Ambient Temperature Range	T_A	-40	+85	°C
Extended Temperature Devices
Operating Junction Temperature Range	T_J	-40	+140	°C
Operating Ambient Temperature Range	T_A	-40	+125	°C
Power Dissipation:
Internal Chip Power Dissipation: P_INT=V_DDx(IDD- IOH) I/O Pin Power Dissipation: I/O=(_DD-V_OH)+(VOLxIOL)	P_D	P_INT+P_I/O		W
Maximum Allowed Power Dissipation	P_DMAX	(T_J-T_A)/ JA		W

TABLE 31-3: PACKAGE THERMAL RESISTANCE (1)

Package	Symbol	Typ.	Unit
48-Pin TQFP 7x7 mm	_JA	62.76	°C/W
48-Pin UQFN 6x6 mm	_JA	27.6	°C/W
36-Pin UQFN 5x5 mm	_JA	29.2	°C/W
28-Pin UQFN 6x6 mm	_JA	22.41	°C/W
28-Pin UQFN 4x4 mm	_JA	26.0	°C/W
28-Pin SSOP 5.30 mm	_JA	52.84	°C/W

Note 1: Junction to ambient thermal resistance, Theta-JA ( _JA ) numbers are achieved by package simulations.

TABLE 31-4: OPERATING VOLTAGE SPECIFICATIONS

Operating Conditions (unless otherwise stated):-40°C ≤ TA ≤ +85°C for Industrial-40°C ≤ TA ≤ +125°C for Extended
Param No.	Symbol	Characteristic	Min.	Max.	Units	Conditions
DC10	VDD	Supply Voltage	3.0	3.6	V
DC16	VPOR	VDD Start Voltage to Ensure Internal Power-on Reset Signal	—	Vss	V
DC17	SVDD	VDD Rise Rate to Ensure Internal Power-on Reset Signal	0.03	—	V/ms	0V-3V in 100 ms
BO10	VBOR(1)	BOR Event on VDD Transition High-to-Low	2.68	2.99	V

Note 1: Device is functional at VBORMIN < VDD < VDDMIN. Analog modules (ADC and comparators) may have degraded performance. The VBOR parameter is for design guidance only and is not tested in manufacturing.

TABLE 31-5: OPERATING CURRENT (I DD) ^(2)

Parameter No. Typ.	(1)	Max. Units Conditions
DC20 5.5 6.6 mA -40°C					3.3V	10 MIPS (N = 1, N2 = 5, N3 = 2,M = 50, Fvco = 400 MHz,FPLLO = 40 MHz)
	5.2 6.4 mA +25°C
	5.7 11.9 mA +85°C
	7.2 16 mA +125°C
DC21 7.1 8.4 mA -40°C					3.3V	20 MIPS (N = 1, N2 = 5, N3 = 1,M = 60, Fvco = 480 MHz,FPLLO = 280 MHz)
	7.1 8.1 mA +25°C
	7.5 13.4 mA +85°C
	8.8 17.5 mA +125°C
DC22	10.6 12.6 mA -40°C				3.3V	40 MIPS (N = 1, N2 = 3, N3 = 1,M = 60, Fvco = 480 MHz,FPLLO = 160 MHz)
	10.3 12.3 mA +25°C
	11.6 17.1 mA +85°C
	12.3 21.3 mA +125°C
DC23	15.4 18 mA -40°C				3.3V	70 MIPS (N = 1, N2 = 2, N3 = 1,M = 70, Fvco = 560 MHz,FPLLO = 280 MHz)
	15.2 17.4 mA +25°C
	16 22 mA +85°C
	17.5 26.3 mA +125°C
DC24	19 22.5 mA -40°C				3.3V	90 MIPS (N = 1, N2 = 2, N3 = 1,M = 90, Fvco = 720 MHz,FPLLO = 360 MHz)
	18.9 21.6 mA +25°C
	19.7 26 mA +85°C
	21.2 29.6 mA +125°C
DC25	20.7 22.4 mA -40°C				3.3V	100 MIPS (N = 1, N2 = 1,N3 = 1, M = 50, Fvco = 400 MHz,FPLLO = 400 MHz)
	20.7 21.5 mA +25°C
	21.4 25.4 mA +85°C
	23 29.5 mA +125°C

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base run current (IDD) is measured as follows:

- Oscillator is switched to EC+PLL mode in software

- OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V

- OSC2 pin is configured as an I/O in the Configuration Words (OSCIOFNC (FOSC[2]) = 0)

- FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)

- Watchdog Timer is disabled (FWDTEN (FWDT[15]) = 0)

- All I/O pins (except OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)

- JTAG is disabled (JTAGEN (FICD[5]) = 0)

• NOP instructions are executed

TABLE 31-6: IDLE CURRENT (IIDLE) ^(2)

Parameter No. Typ.	(1)	Max.	Units Conditions
DC30 4.5 5.4 mA -40°C					3.3V	10 MIPS (N = 1, N2 = 5, N3 = 2,M = 50, Fvco = 400 MHz,FPLLO = 40 MHz)
	4.1 5.2 mA +25°C
	4.7 9.1 mA +85°C
	6.0 14.2		mA	+125°C
DC31 4.8 5.9 mA -40°C					3.3V	20 MIPS (N = 1, N2 = 5, N3 = 1,M = 50, Fvco = 400 MHz,FPLLO = 80 MHz)
	4.7 5.7 mA +25°C
	5.0 9.6 mA +85°C
	6.6 14.8		mA	+125°C
DC32 6.2 7.3 mA -40°C					3.3V	40 MIPS (N = 1, N2 = 3, N3 = 1,M = 60, Fvco = 480 MHz,FPLLO = 160 MHz)
	5.8 7.1 mA +25°C
	6.5	11	mA +85°C
	8.0 16.1		mA	+125°C
DC33 7.8 9.3 mA -40°C					3.3V	70 MIPS (N = 1, N2 = 2, N3 = 1,M = 70, Fvco = 560 MHz,FPLLO = 280 MHz)
	7.6 9.0 mA +25°C
	8.1 12.8		mA +85°C
	9.8	18	mA	+125°C
DC34 9.3 11.4 mA	-40°C				3.3V	90 MIPS (N = 1, N2 = 2, N3 = 1,M = 90, Fvco = 720 MHz,FPLLO = 360 MHz)
	9.2 11.2		mA +25°C
	10.0	14.5	mA +85°C
	11.6	19.8	mA	+125°C
DC35	10.0	12	mA -40°C		3.3V	100 MIPS (N = 1, N2 = 1, N3 = 1,M = 50, Fvco = 400 MHz,FPLLO = 400 MHz)
	10.0	12	mA +25°C
	10.7	13.4	mA +85°C
	12.5	18.6	mA	+125°C

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base Idle current (IIDLE) is measured as follows:

- Oscillator is switched to EC+PLL mode in software

- OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V

- OSC2 is configured as an I/O in the Configuration Words (OSCIOFNC (FOSC[2]) = 0)

- FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)

- Watchdog Timer is disabled (FWDTEN (FWDT[15]) = 0)

- All I/O pins (except OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)

- JTAG is disabled (JTAGEN (FICD[5]) = 0)

• NOP instructions are executed

TABLE 31-7: POWER-DOWN CURRENT (IPD) ^(2)

Parameter No. Typ.	(1)	Max. Units Conditions
DC40(3,4)	0.15 0.48 mA -40°C				3.3V	VREGS bit (RCON[8]) = 0LPWREN bit (VREGCON[15]) = 1
	0.23 1.1 mA +25°C
	0.86 4.2 mA +85°C
DC41 0.9 — mA	-40°C				3.3V	VREGS bit (RCON[8]) = 1LPWREN bit (VREGCON[15]) = 0
	0.9	—	mA +25°C
	1.5	—	mA +85°C
	2.9 11	mA	+125°C

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base Sleep current (IPD) is measured with:

• OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V
• OSC2 is configured as an I/O in the Configuration Words (OSCIOFNC (FOSC[2]) = 0)
• FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)
• Watchdog Timer is disabled (FWDTEN (FWDT[15]) = 0)
• All I/O pins (except OSC1) are configured as outputs and driving low
• No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)
• JTAG is disabled (JTAGEN (FICD[5]) = 0)

3: The Regulator Standby mode, when the VREGS bit = 0, is operational only in industrial temperature range: -40^ ≤ TA ≤ +85^ .

4: The Regulator Low-Power mode, when LPWREN = 1, is operational only in industrial temperature range: -40^ ≤ TA ≤ +85^ .

TABLE 31-8: DOZE CURRENT (IDOZE)

Parameter No.	Typ.^(1)	Doze Ratio	Units	Conditions
DC70	12.1 1:2 mA			-40°C	3.3V	70 MIPS (N = 1, N2 = 2, N3 = 1, M = 70, Fvco = 560 MHz, FPLLO = 280 MHz)
	8.0	1:128	mA
	12.0	1:2	mA	+25°C
	7.8	1:128	mA
	12.4	1:2	mA	+85°C
	8.3	1:128	mA
	13.8	1:2	mA	+125°C
	8.8	1:128	mA
DC71	15.8	1:2	mA	-40°C	3.3V	100 MIPS (N = 1, N2 = 1, N3 = 1, M = 50, Fvco = 400 MHz, FPLLO = 400 MHz)
	10.4	1:128	mA
	15.7	1:2	mA	+25°C
	10.3	1:128	mA
	16.6	1:2	mA	+85°C
	11.2	1:128	mA
	18.1	1:2	mA	+125°C
	12.7	1:128	mA

Note 1: Data in the "Typ." column are for design guidance only and are not tested.

TABLE 31-9: WATCHDOG TIMER DELTA CURRENT ( IwDT ) ^(1)

Parameter No. Typ. Units Conditions
DC61 1 μA -40°C				3.3V
	2 μA	+25°C
	4 μA	+85°C
	11 μA	+125°C

Note 1: The IWDT current is the additional current consumed when the module is enabled. This current should be added to the base IPD current. All parameters are for design guidance only and are not tested.

TABLE 31-10: PWM DELTA CURRENT ^(1)

Parameter No.	Typ.	Max.	Units	Conditions
DC100	5.59	6.8	mA	-40°C	3.3V	PWM Output Frequency = 500 kHz, PWM Input (FPLLO = 500 MHz), (VCO = 1000 MHz, PLLFBD = 125)
	5.87	6.9	mA	+25°C
	5.99	7.4	mA	+85°C
	6.05	7.4	mA	+125°C
DC101	4.52	6.2	mA	-40°C	3.3V	PWM Output Frequency = 500 kHz, PWM Input (FPLLO = 400 MHz), (VCO = 400 MHz, PLLFBD = 100)
	4.68	6.5	mA	+25°C
	4.77	6.5	mA	+85°C
	4.81	6.7	mA	+125°C
DC102	2.39	3.96	mA	-40°C	3.3V	PWM Output Frequency = 500 kHz, PWM Input (FPLLO = 200 MHz), (VCO = 200 MHz, PLLFBD = 50)
	2.42	3.44	mA	+25°C
	2.47	3.4	mA	+85°C
	2.49	4.2	mA	+125°C
DC103	1.24	2	mA	-40°C	3.3V	PWM Output Frequency = 500 kHz, PWM Input (FPLLO = 100 MHz), (VCO = 100 MHz, PLLFBD = 25)
	1.26	2.1	mA	+25°C
	1.28	2.2	mA	+85°C
	1.31	2.2	mA	+125°C

Note 1: PLL current is not included. The PLL current will be the same if more than one PWM is running. All parameters are characterized but not tested during manufacturing.

TABLE 31-11: ADC DELTA CURRENT ^(1)

Parameter No.	Typ.	Max.	Units	Conditions
DC120	5.35	5.9	mA	-40°C	3.3V	TAD = 14.3 ns(3.5 Msps conversion rate)
	5.42	5.9	mA	+25°C
	5.44	5.7	mA	+85°C
	5.46	5.7	mA	+125°C

Note 1: Shared core continuous conversion. TAD = 14.3 nS (3.5 Msps conversion rate). Listed delta currents are for only one ADC core. All parameters are characterized but not tested during manufacturing.

TABLE 31-12: COMPARATOR + DAC DELTA CURRENT

Parameter No. Typ. Max. Units Conditions
DC130 1.38 — mA	-40°C				3.3V F	PLLO @ 500 MHz^(1)
	1.28 —	mA +25°C
	1.30 —	mA +85°C
	1.37 —	mA +125°C

Note 1: Listed delta currents are for only one comparator + DAC instance. All parameters are characterized but not tested during manufacturing.

TABLE 31-13: OP AMP DELTA CURRENT (1)

Parameter No.	Typ.	Max.	Units	Conditions
DC140	0.21	0.42	mA	-40°C	3.3V
	0.22	0.44	mA	+25°C
	0.23	0.52	mA	+85°C
	0.47	0.89	mA	+125°C

Note 1: Listed delta currents are for only one op amp instance. All parameters are characterized but not tested during manufacturing.

TABLE 31-14: I/O PIN INPUT SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min. Max. Units Conditions
DI10 V	IL Input	Low-Level VoltageAny I/O Pin and MCLR	Vss	0.2 VDD	V	SMBus disabled
		I/O Pins with SDAx, SCLx	Vss	0.3 VDD	V
		I/O Pins with SDAx, SCLx	Vss	0.8	V	SMBus enabled
		I/O Pins with SDAx, SCLx	Vss	0.8	V	SMBus 3.0 enabled
DI20 V	IH	Input High-Level Voltage(1)I/O Pins Not 5V Tolerant	0.8 VDD	VDD	V	SMBus disabled
		I/O Pins 5V Tolerant and MCLR	0.8 VDD	5.5	V
		I/O Pins 5V Tolerant with SDAx, SCLx	0.8 VDD	5.5	V
		I/O Pins 5V Tolerant with SDAx, SCLx	2.1	5.5	V	SMBus enabled
		I/O Pins 5V Tolerant with SDAx, SCLx	1.35	VDD	V	SMBus 3.0 enabled
		I/O Pins Not 5V Tolerant with SDAx, SCLx	0.8 VDD	VDD	V	SMBus disabled
		I/O Pins Not 5V Tolerant with SDAx, SCLx	2.1	VDD	V	SMBus enabled
		I/O Pins Not 5V Tolerant with SDAx, SCLx	1.35	VDD	V	SMBus 3.0 enabled
DI30 I	CNPU	Input Current with Pull-up Resistor Enabled(2)	175	545	μA	VDD = 3.3V, VPIN = VSS
DI31	ICNPD	Input Current with Pull-Down Resistor Enabled(2)	65	360	μA	VDD = 3.3V, VPIN = VDD
DI50 IIL	Input Leakage CurrentI/O Pins and MCLR Pin		-700—	—700	nAnA	VPIN = VSSVPIN = VDD

Note 1: See the "Pin Diagrams" section for the 5V tolerant I/O pins.
2: Characterized but not tested.

TABLE 31-15: I/O PIN INPUT INJECTION CURRENT SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min. Max. Units Conditions
DI60a I	ICL	Input Low Injection Current	0	-5(1,4)	mA	This parameter applies to all pins
DI60b I	ICH	Input High Injection Current	0	+5(2,3,4)	mA	This parameter applies to all pins, except all 5V tolerant pins
DI60c	ΣIICT	Total Input Injection Current (sum of all I/O and control pins)	-20(5)	+20(5)	mA	Absolute instantaneous sum of all ± input injection currents from all I/O pinsΣ ( | IICL | + | IICH | ) ≤ ΣIICT

Note 1: VIL Source < (Vss - 0.3).
2: VIH Source > (VDD + 0.3) for non-5V tolerant pins only.
3: 5V tolerant pins do not have an internal high-side diode to VDD, and therefore, cannot tolerate any "positive" input injection current.
4: Injection currents can affect the ADC results.
5: Any number and/or combination of I/O pins, not excluded under IICL or IICH conditions, are permitted in the sum.

TABLE 31-16: I/O PIN OUTPUT SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param.	Symbol	Characteristic	Typ.^(1)	Units	Conditions
DO10	VOL	Sink Driver Voltage	0.2	V	ISINK = 3.0 mA, VDD = 3.3V
			0.4	V	ISINK = 6.0 mA, VDD = 3.3V
			0.6	V	ISINK = 9.0 mA, VDD = 3.3V
		Sink Driver Voltagefor RB1, RC8, RC9 and RD8 Pins	0.25	V	ISINK = 6.0 mA, VDD = 3.3V
			0.5	V	ISINK = 12.0 mA, VDD = 3.3V
			0.75	V	ISINK = 18.0 mA, VDD = 3.3V
DO20	VOH	Source Driver Voltage	3.1	V	ISOURCE = 3.0 mA, VDD = 3.3V
			2.9	V	ISOURCE = 6.0 mA, VDD = 3.3V
			2.7	V	ISOURCE = 9.0 mA, VDD = 3.3V
		Source Driver Voltagefor RB1, RC8, RC9 and RD8 Pins	3.1	V	ISOURCE = 6.0 mA, VDD = 3.3V
			2.8	V	ISOURCE = 12.0 mA, VDD = 3.3V
			2.6	V	ISOURCE = 18.0 mA, VDD = 3.3V

Note 1: Data in the "Typ." column are at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 31-17: PROGRAM FLASH MEMORY SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min. Max. Units Conditions
		Program Flash Memory
D130 E	P Cell Endurance 10,000 — E/W
D134 T	RETD	Characteristic Retention	20	—	Year
D137a	TPE	Self-Timed Page Erase Time	—	20	ms
D137b	TCE	Self-Timed Chip Erase Time	—	20	ms
D138a	Tww	Self-Timed Double-Word Write Cycle Time	—	20	μs	6 bytes, data are not all '1's
D138b	TRW	Self-Timed Row Write Cycle Time	—	1.28	ms	384 bytes, data are not all '1's

31.2 AC Characteristics and Timing Parameters

FIGURE 31-1: LOAD CONDITIONS FOR I/O SPECIFICATIONS

Pin VDD/2 RL CL Vss

R_L=464
CL = 50 pF

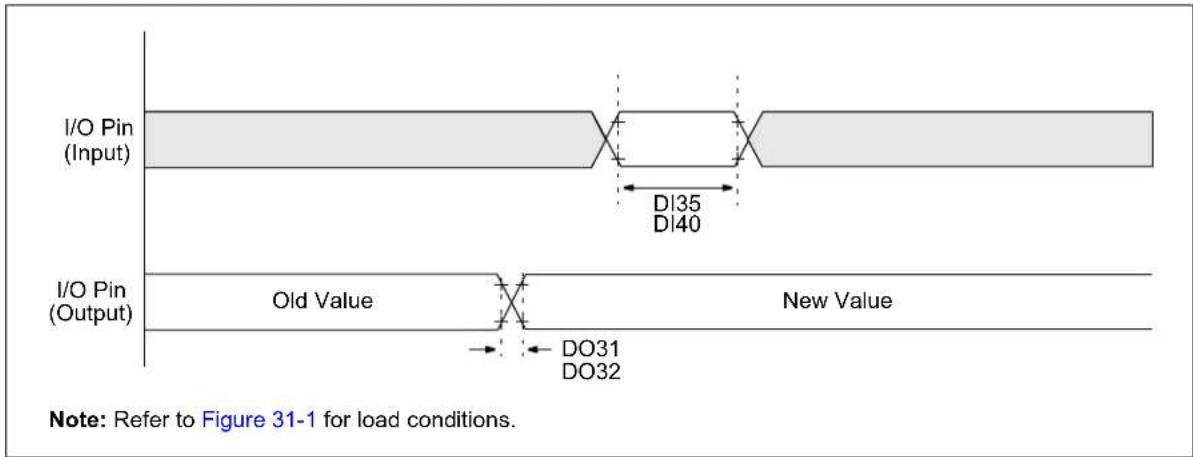

FIGURE 31-2: I/O TIMING CHARACTERISTICS

I/O Pin (Input) DI35 DI40 I/O Pin (Output) Old Value New Value DO31 DO32 Note: Refer to Figure 31-1 for load conditions.

TABLE 31-18: I/O TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
ParamNo.	Symbol Characteristic Min. Max. Units
DO31 TioR Port Output Rise Time (1)			—	1	0
DO32 TioF	Port Output Fall Time (1)		—	1	0
DI35	TINP	INTx Input Pins High or Low Time	20	—	ns
DI40	TRBP	I/O and CNx Inputs High or Low Time	2	—	TCY

Note 1: This parameter is characterized but not tested in manufacturing.

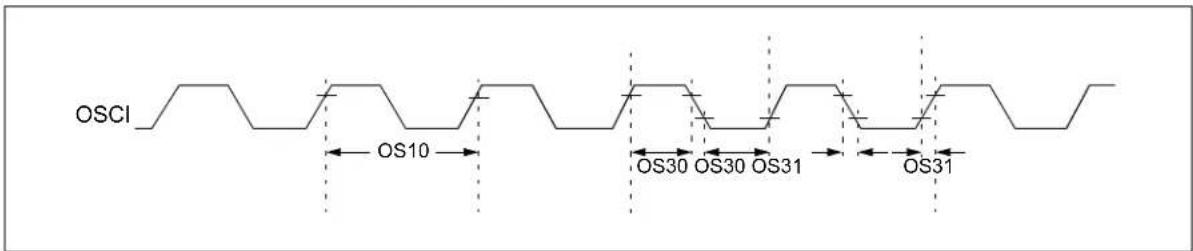

FIGURE 31-3: EXTERNAL CLOCK TIMING

OSCI OS10 OS30 OS30 OS31 OS31

TABLE 31-19: EXTERNAL CLOCK TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Sym Characteristic Min. Max. Units Conditions
OS10	FIN	External CLKI Frequency	DC	64	MHz	EC
		Oscillator Crystal Frequency	3.5	10	MHz	XT
			10	32	MHz	HS
OS30	TosL, TosH	External Clock in (OSCI) High or Low Time	0.45 x OS10	0.55 x OS10	ns	EC
OS31	TosR, TosF	External Clock in (OSCI) Rise or Fall Time(1)	—	10	ns	EC

Note 1: This parameter is characterized but not tested in manufacturing.

TABLE 31-20: PLL CLOCK TIMING SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic	Min.	Max.	Units
OS50	FPLLI	PLL Input Frequency Range	8	64	MHz
OS51	FPFD	Phase-Frequency Detector Input Frequency(after first divider)	8	Fvco/16	MHz
OS52	Fvco	VCO Output Frequency	400	1600	MHz
OS53	TLOCK	Lock Time for PLL(1)	—	250	μS

Note 1: This parameter is characterized but not tested in manufacturing.

TABLE 31-21: FRC OSCILLATOR SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min Typ		(2)	Max Units Conditions
F20 A	FRC FRC	Accuracy @ 8 MHz (1)	-2.0	—	2.0	%	-40°C ≤ TA ≤ -5°C
			-1.5	—	1.5	%	-5°C ≤ TA ≤ +85°C
			-2.0	—	2.0	%	+85°C ≤ TA ≤ +125°C
F21	TFRC	FRC Oscillator Start-up Time(3)	—	—	15	μS
F22 S	TUNE	OSCTUN Step-Size	—	0.05	—	%/bit

Note 1: To achieve this accuracy, physical stress applied to the microcontroller package (ex., by flexing the PCB) must be kept to a minimum.
2: Data in the "Typ" column are 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: This parameter is characterized but not tested in manufacturing.

TABLE 31-22: BFRC OSCILLATOR SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic	Min	Max Units
F40 A	BFRC	BFRC Accuracy @ 8 MHz	-17	17	%

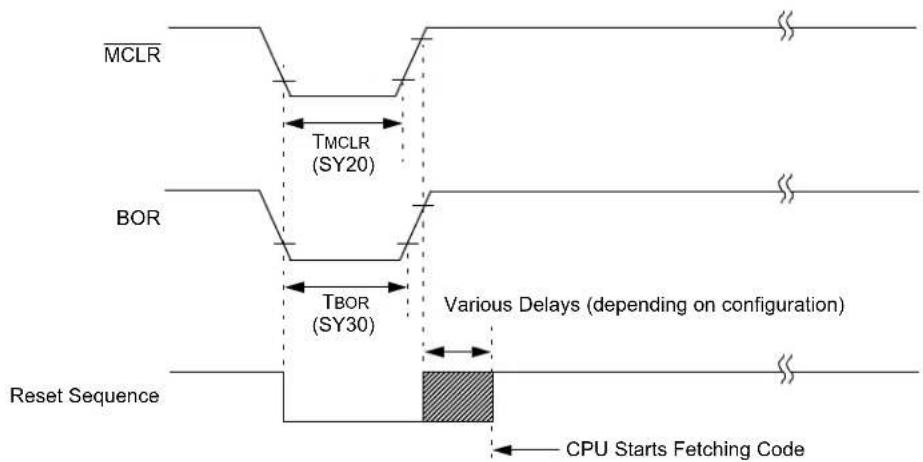

FIGURE 31-4: BOR AND MASTER CLEAR RESET TIMING CHARACTERISTICS

TABLE 31-23: RESET, WATCHDOG TIMER, OSCILLATOR START-UP TIMER TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic(1)	Min.	Typ.(2)	Max.	Units C	Conditions
SY00 T	PU	Power-up Period	—	200	—	μs	FNOSC[2:0] are FRC
SY10 T	OST	Oscillator Start-up	—	1024 Tosc	—	—	Tosc = OSCI period
SY13 T	IOZ	I/O High-Impedance from MCLR Low or Watchdog Timer Reset	—	1.5	—	μs
SY20	TMCLR	MCLR Pulse Width (low)	2	—	—	μs
SY30	TBOR	BOR Pulse Width (low)	1	—	—	μs
SY35	TFSCM	Fail-Safe Clock Monitor Delay	—	—	40	μs
SY37 T	OSCDFRC	FRC Oscillator Start-up Delay	—	—	15	μs	From POR event
SY38 T	OSCDLPRC	LPRC Oscillator Start-up Delay	—	—	50	μs	From Reset event

Note 1: These parameters are characterized but not tested in manufacturing.

2: Data in the "Typ." column are at 3.3V, +25°C unless otherwise stated.

FIGURE 31-5: HIGH-RESOLUTION PWMx MODULE TIMING CHARACTERISTICS

MP30 Fault Input (active-low) MP20 PWMx

TABLE 31-24: HIGH-RESOLUTION PWMx MODULE TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
ParamNo.	Symbol Characteristic (1)		Min. Max. Units
MP10 F	IN PWM Input Frequency 450 500 MHz
MP20 T	FD	Fault Input ↓ to PWMx I/O Change	—	26	ns
MP30	TFH	Fault Input Pulse Width	8	—	ns

Note 1: These parameters are characterized but not tested in manufacturing.

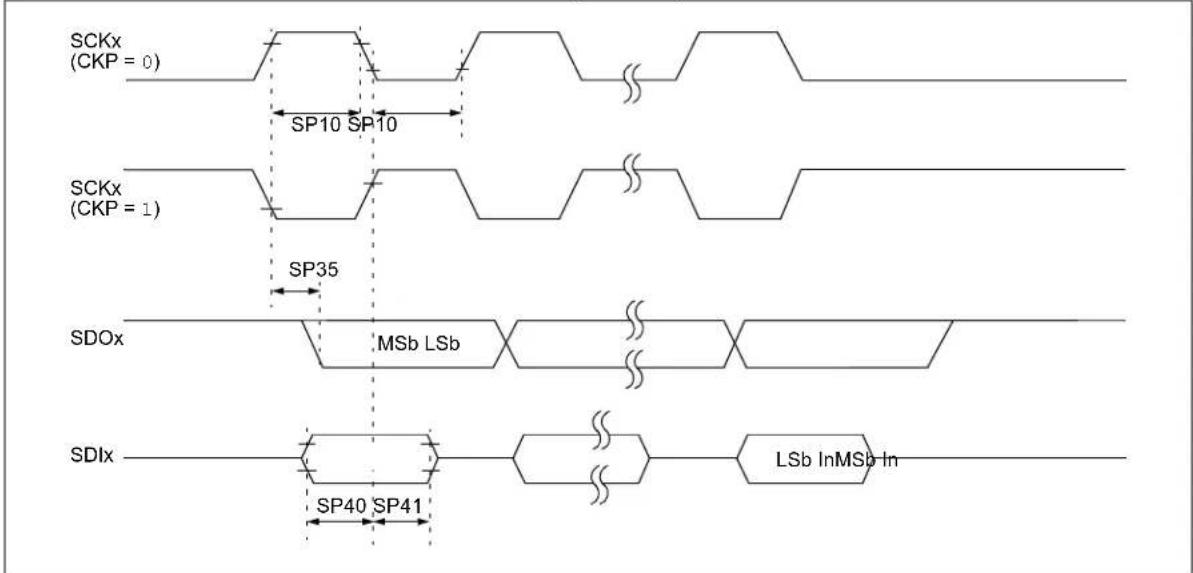

FIGURE 31-6: SPIx MODULE HOST MODE (CKE = 0) TIMING CHARACTERISTICS

SCKx (CKP = 0) SP10 SP10 SCKx (CKP = 1) SP35 SDOx MSb LSb SDIx SP40 SP41 LSb InMSb In

FIGURE 31-7: SPIx MODULE HOST MODE (CKE = 1) TIMING CHARACTERISTICS

TABLE 31-25: SPIx MODULE HOST MODE TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param.No.	Symbol Characteristics (1)		Min Max	Units
SP10 T	scL, TscH	SCKx Output Low or High Time	15	—	ns
SP35 T	scH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	— 20	ns
SP36	TdoV2sc,TdoV2scL	SDOx Data Output Setup to First SCKx Edge	3	—	ns
SP40	TDIV2scH,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	10 —	ns
SP41 T	scH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	15 —	ns

Note 1: These parameters are characterized but not tested in manufacturing.

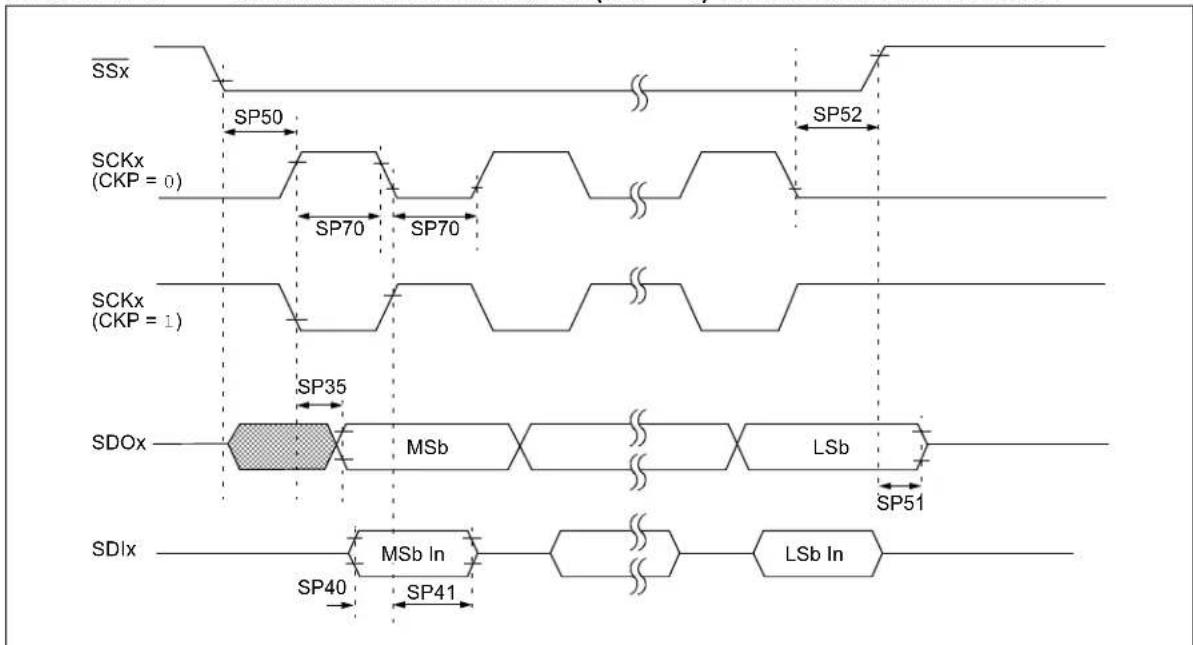

FIGURE 31-8: SPIx MODULE CLIENT MODE (CKE = 0) TIMING CHARACTERISTICS

FIGURE 31-9: SPIx MODULE CLIENT MODE (CKE = 1) TIMING CHARACTERISTICS

TABLE 31-26: SPIx MODULE CLIENT MODE TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param.No.	Symbol Characteristics	(1)	Min Max	Units
SP70 T	scL, Tsch	SCKx Input Low Time or High Time	15	—	ns
SP35	TschH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	20	ns
SP40	TDIV2scH,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	10	—	ns
SP41 T	scH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	15	—	ns
SP50 T	ssL2scH,TssL2scL	to SCKx ↓ or SCKx ↑ Input	120	—	ns
SP51 T	ssH2doZ	to SDOx Output High-Impedance	8	50	ns
SP52 T	scH2ssHTscL2ssH	after SCKx Edge	1.5 TCY + 40	—	ns
SP60	TssL2doV	SDOx Data Output Valid after Edge	—	50	ns

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 31-10: I2Cx BUS START/STOP BITS TIMING CHARACTERISTICS (HOST MODE)

SCLx IM30 IM31 SDAx Start Condition Stop Condition IM33 IM34

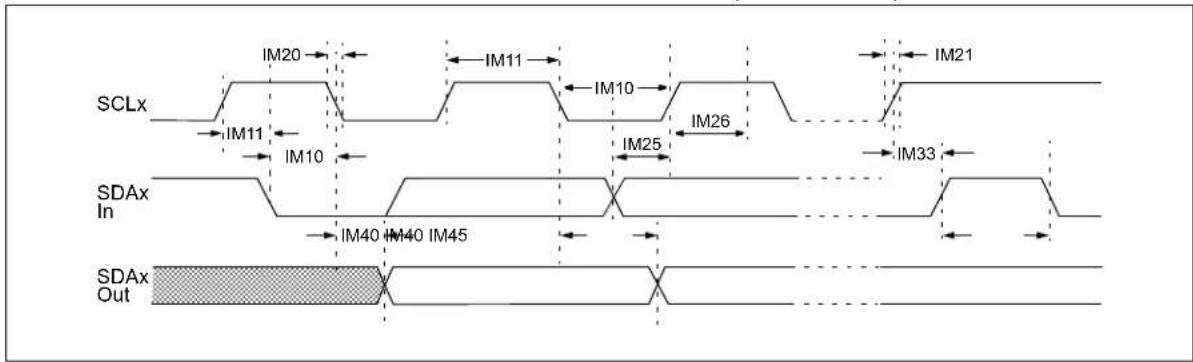

FIGURE 31-11: I2Cx BUS DATA TIMING CHARACTERISTICS (HOST MODE)

SCLx IM20 IM11 IM10 IM10 IM26 IM21 IM11 IM10 IM25 IM33 SDAx In IM40 IM40 IM45 SDAx Out

TABLE 31-27: I2Cx BUS DATA TIMING REQUIREMENTS (HOST MODE)

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristics Min.		(1)	Max.	Units Conditions
IM10 T	LO:SCL	Clock Low Time	100 kHz mode	TCY * (BRG + 1)	—	μs
			400 kHz mode	T CY * (BRG + 1)	—	μs
			1 MHz mode	TCY * (BRG + 1)	—	μs
IM11	THI:SCL	Clock High Time	100 kHz mode	TCY * (BRG + 1)	—	μs
			400 kHz mode	T CY * (BRG + 1)	—	μs
			1 MHz mode	TCY * (BRG + 1)	—	μs
IM20 T	F:SCL S	DAx and SCLxFall Time	100 kHz mode	—	300	ns
			400 kHz mode	20 x (V DD/5.5V)	300	ns
			1 MHz mode	20 x (VDD/5.5V)	120	ns
IM21 T	R:SCL S	DAx and SCLx Rise Time	100 kHz mode	—	1000	ns
			400 kHz mode	20 + 0.1 CB	300	ns
			1 MHz mode	—	120	ns
IM25	TSU:DAT	Data Input Setup Time	100 kHz mode	250	—	ns
			400 kHz mode	100	—	ns
			1 MHz mode	50	—	ns
IM26 T	HD:DAT	Data Input Hold Time	100 kHz mode	0	—	μs
			400 kHz mode	0	0.9	μs
			1 MHz mode	0	0.3	μs
IM30 T	SU:STA	Start Condition Setup Time	100 kHz mode	TCY * (BRG + 1)	—	μs	Only relevant for Repeated Start condition
			400 kHz mode	T CY * (BRG + 1)	—	μs
			1 MHz mode	TCY * (BRG + 1)	—	μs
IM31 T	HD:STA	Start Condition Hold Time	100 kHz mode	TCY * (BRG + 1)	—	μs	After this period, the first clock pulse is generated
			400 kHz mode	T CY * (BRG + 1)	—	μs
			1 MHz mode	TCY * (BRG + 1)	—	μs
IM33 T	SU:STO	Stop Condition Setup Time	100 kHz mode	TCY * (BRG + 1)	—	μs
			400 kHz mode	T CY * (BRG + 1)	—	μs
			1 MHz mode	TCY * (BRG + 1)	—	μs
IM34 T	HD:STO	Stop Condition Hold Time	100 kHz mode	TCY * (BRG + 1)	—	ns
			400 kHz mode	T CY * (BRG + 1)	—	ns
			1 MHz mode	TCY * (BRG + 1)	—	ns
IM40 T	AA:SCL	Output Valid from Clock	100 kHz mode	—	3450	ns
			400 kHz mode	—	900	ns
			1 MHz mode	—	450	ns
IM45 T	BF:SDA	Bus Free Time	100 kHz mode	4.7	—	μs	The amount of time the bus must be free before a new transmission can start
			400 kHz mode	1.3 —	μs
			1 MHz mode	0.5 —	μs
IM50 C	B	Bus Capacitive Loading	100 kHz mode	—	400	pF
			400 kHz mode	—	400	pF
			1 MHz mode	—	10	pF
IM51 T	PGD	Pulse Gobbler Delay		65	390	ns

Note 1: BRG is the value of the I²C Baud Rate Generator.

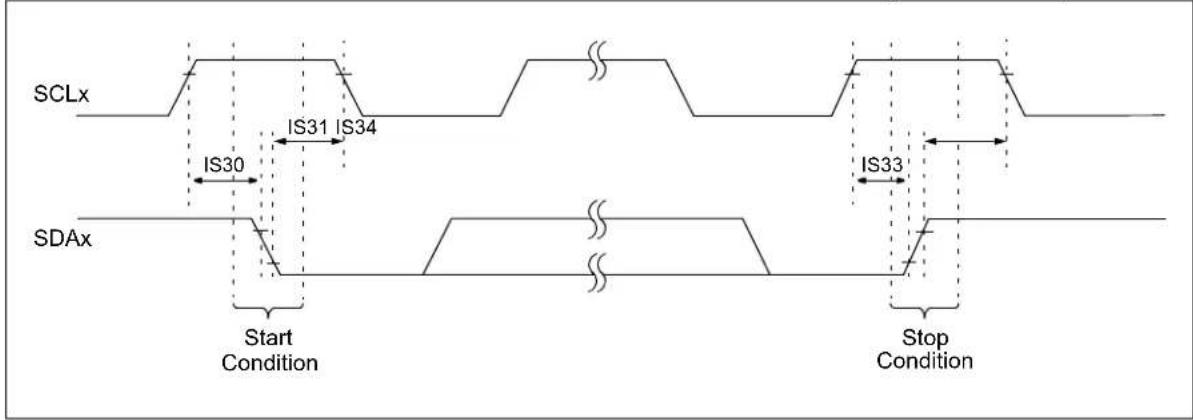

FIGURE 31-12: I2Cx BUS START/STOP BITS TIMING CHARACTERISTICS (CLIENT MODE)

SCLx IS30 IS31 IS34 SDAx Start Condition Stop Condition

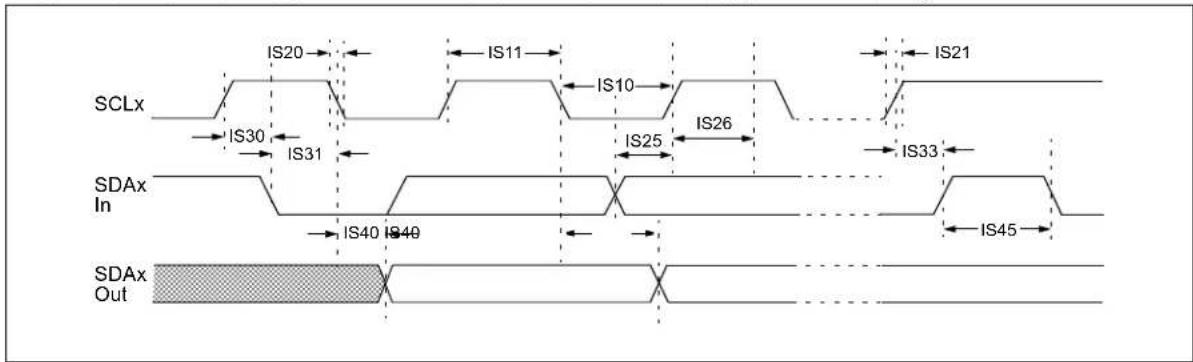

FIGURE 31-13: I2Cx BUS DATA TIMING CHARACTERISTICS (CLIENT MODE)

SCLx IS20 IS11 IS10 IS26 IS21 IS30 IS31 IS25 IS33 SDAx In IS40 IS40 IS45 SDAx Out

TABLE 31-28: I2Cx BUS DATA TIMING REQUIREMENTS (CLIENT MODE)

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristics Min. Max. Units		Conditions
IS10 T	LO:SCL	Clock Low Time	100 kHz mode 4.7 — μs CPU	clock must be minimum 800 kHz
			400 kHz mode 1.3 — μs CPU	clock must be minimum 3.2 MHz
			1 MHz mode 0.5 — μs
IS11	THI:SCL	Clock High Time	100 kHz mode 4.0 — μs CPU	clock must be minimum 800 kHz
			400 kHz mode 0.6 — μs CPU	clock must be minimum 3.2 MHz
			1 MHz mode 0.26	— μs
IS20 T	F:SCL	SDAx and SCLx Fall Time	100 kHz mode —	300	ns
			400 kHz mode 20 x (V DD/5.5V)	300	ns
			1 MHz mode 20 x (VDD/5.5V)	120	ns
IS21 T	R:SCL	SDAx and SCLx Rise Time	100 kHz mode —	1000	ns
			400 kHz mode 20 + 0.1 CB	300	ns
			1 MHz mode —	120	ns
IS25 T	SU:DAT	Data Input Setup Time	100 kHz mode 250	— ns
			400 kHz mode 100	— ns
			1 MHz mode 50 — ns
IS26 T	HD:DAT	Data Input Hold Time	100 kHz mode 0	— ns
			400 kHz mode 0	0.9	μs
			1 MHz mode 0	0.3	μs
IS30 T	SU:STA	Start Condition Setup Time	100 kHz mode 4.7 — μs Only relevant for Repeated Start
			400 kHz mode 0.6 — μs
			1 MHz mode 0.26	— μs
IS31 T	HD:STA	Start Condition Hold Time	100 kHz mode 4.0 — μs After this period, the first clock pulse is generated
			400 kHz mode 0.6 — μs
			1 MHz mode 0.26	— μs
IS33 T	SU:STO	Stop Condition Setup Time	100 kHz mode 4.0 — μs
			400 kHz mode 0.6 — μs
			1 MHz mode 0.26	— μs
IS34 T	HD:STO	Stop Condition Hold Time	100 kHz mode >0 — μs
			400 kHz mode >0 — μs
			1 MHz mode >0 — μs
IS40 T	AA:SCL	Output Valid from Clock	100 kHz mode 0	3.45	μs
			400 kHz mode 0	0.9	μs
			1 MHz mode 0	0.45	μs
IS45 T	BF:SDA	Bus Free Time	100 kHz mode 4.7	—	μs	The amount of time the bus must be free before a new transmission can start
			400 kHz mode 1.3 — μs
			1 MHz mode 0.5 — μs
IS50 C	B	Bus Capacitive Loading	100 kHz mode —	400	pF
			400 kHz mode —	400	pF
			1 MHz mode —	10	pF

FIGURE 31-14: UARTx MODULE TIMING CHARACTERISTICS

TABLE 31-29: UARTx MODULE TIMING REQUIREMENTS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol Characteristic (1)		Min. Max. Units
UA10 T	UABAUD UARTx Baud Time 40 — ns
UA11	FBAUD	UARTx Baud Rate	—	25	Mbps
UA20	TCWF	Start Bit Pulse Width to Trigger UARTx Wake-up	50	—	ns

Note 1: These parameters are characterized but not tested in manufacturing.

TABLE 31-30: ADC MODULE SPECIFICATIONS

Standard Operating Conditions: (unless otherwise stated)3.0V to 3.6V(4)-40°C ≤ TA ≤ +85°C for Industrial-40°C ≤ TA ≤ +125°C for Extended
Param No.	Symbol	Characteristics Min. Typical Max. Units Conditions
Clock Requirements
AD9 F	SRC ADC	Module Input Frequency	— — 500 MHz		Clock frequency selected by the CLKSELx bits
AD10	FCORESRC	ADC Control Clock Frequency	— — 250 MHz		Clock frequency after the first divider controlled by the CLKDIVx bits
AD11	FADCORE	ADC SAR Core Clock Frequency	—	—	70	MHz	SAR core frequency after the second divider controlled by the ADCSx or SHRADCSx bits
Analog Input
AD12	VINH-VINL	Full-Scale Input Span	AVss	—	AVDD	V
AD14	VIN	Absolute Input Voltage	AVss - 0.3	—	AVDD + 0.3	V
AD61	CHOLD	Capacitance	—	18	—	pF	Shared core (Note 1)
AD62	RIC	Input resistance	—	500	1000	Ω	Note 1
AD66	VBG	Internal Voltage Reference Source	1.14	1.2	1.26 V
ADC Accuracy
AD20	Nr	Resolution	12 data bits			bits
AD21b	INL_1S	Shared Core Integral Nonlinearity (1 Active Core)	-3.5	-1.5/+1.5	+3.5	LSb	2.7 Msps (Note 5), TADC = 4 nS (250 MHz), TCORESRC = 8 nS (125 MHz), TADCORE = 16 nS (62.5 MHz), Sampling Time = 10 TADCORE, VDD = 3.3V, AVDD = 3.3V
AD22b	DNL_1S	Shared Core Differential Nonlinearity (1 Active Core)	-1	1.5	+3.5	LSb
AD23b	GERR_1S	Shared Core Gain Error (1 Active Core)	—	+4	—	LSb
AD24b	OERR_1S	Shared Core Offset Error (1 Active Core)	—	-4	—	LSb
AD25c	—	Monotonicity	—	—	—	—	Guaranteed
Dynamic Performance
AD31b	SINAD Signal-to-Noise and Distortion	56	—	70	dB	Notes 2, 3
AD34b	ENOB	Effective Number of Bits	9.8	10.2	11.4	bits	Notes 2, 3
AD50	TAD	ADC Clock Period	14.3	—	—	ns
AD51	FTP	Throughput Rate	—	—	2.7	Msps	Shared core (Note 5)

Note 1: These parameters are not characterized or tested in manufacturing.
2: These parameters are characterized but not tested in manufacturing.
3: Characterized with a 1 kHz sine wave.
4: The ADC module is functional at VBORMIN < VDD < VDDMIN, but with degraded performance. Unless otherwise stated, module functionality is ensured, but not characterized.
5: For the shared core, the throughput includes a 10 TADCORE sampling time and 13 TADCORE conversion time.

TABLE 31-31: ANALOG-TO-DIGITAL CONVERSION TIMING REQUIREMENTS (1)

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristics Min. Max. Units
AD50 T	AD ADC Clock Period		14.28	—	ns
AD51 F	TP ADC Throughput Rate (for all channels) — 3.5		Msps

Note 1: The equivalent model of the input stages of the ADC include the Interconnect Resistance (Ric). The Ric value is 1 kOhm (max) and the Sample/Hold Capacitance (CHOLD) value is 14 pF. For additional information, refer to “12-Bit High-Speed, Multiple SARs A/D Converter (ADC)” (www.microchip.com/DS70005213).

TABLE 31-32: HIGH-SPEED ANALOG COMPARATOR MODULE SPECIFICATIONS

Operating Conditions (unless otherwise stated): ^(2) 3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min.	Typ.	^(1)	Max.	Units	Comments
CM09	FIN	Input Frequency	400	—	500	MHz	-40°C ≤ TA ≤ +85°C
			400	—	480		+85°C < TA ≤ +125°C
CM10	VIOFF	Input Offset Voltage	-20	—	20	mV
CM11	VICM	Input Common-Mode Voltage Range	AVss	—	AVDD	V	Note 1
CM13	CMRR	Common-Mode Rejection Ratio	65	—	—	dB	Note 1
CM14	TRESP	Large Signal Response	—	15	—	ns	V+ input step of 100 mV while V- input is held at AV DD/2
CM15	VHYST	Input Hysteresis	15	—	45	mV	Depends on HYSSEL[1:0] ^(1)

Note 1: These parameters are for design guidance only and are not tested in manufacturing.
2: The comparator module is functional at VBORMIN < VDD < VDDMIN, but with degraded performance. Unless otherwise stated, module functionality is tested but not characterized.

TABLE 31-33: DAC MODULE SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic Min. Typ.		(1)	Max. Units	Comments
DA02 CV	RES Res	solution 12 bits
DA03	INL	Integral Nonlinearity Error	-38	—	0	LSb
DA04	DNL	Differential Nonlinearity Error	-5	—	5	LSb
DA05	EOFF	Offset Error	-3.5	—	21.5	LSb
DA06	EG	Gain Error	0	—	41	LSb
DA07 T	SET	Settling Time	600	750	2000	ns	Output with 2% of desired output voltage with a 10-90% or 90-10% step(1)
DA08	VOUT	Voltage Output Range	0.165	—	3.135	V	VDD = 3.3V
DA09	TTR	Transition Time	340	—	—	ns	Note 1
DA10 T	ss	Steady-State Time	550	—	—	ns	Note 1

Note 1: Parameters are for design guidance only and are not tested in manufacturing.

TABLE 31-34: DAC OUTPUT (DACOUT PIN) SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
Param No.	Symbol	Characteristic	Min.	Typ.	Max.	Units	Comments
DA11 R	LOAD	Resistive Output Load Impedance	10K	— —	Ohm
DA11a	QLOAD	Output Load Capacitance	—	—	35 pF	Including output pin capacitance
DA12	IOUT	Output Current Drive Strength	— 3 —	mA	Sink and source

TABLE 31-35: CURRENT BIAS GENERATOR SPECIFICATIONS (1)

Operating Conditions (unless otherwise stated):3.0V ≤ VDD ≤ 3.6V,-40°C ≤ AT≤ +85°C for Industrial-40°C ≤ AT≤ +125°C for Extended
ParamNo.	Symbol Characteristic Min. Max. Units
CC03 I	10SRC	10 μA Source Current	8.8	11.2	μA
CC04 I	50SRC	50 μA Source Current	44	56	μA
CC05 I	50SNK	50 μA Sink Current	-44	-56	μA

Note 1: Parameters are characterized but not tested in manufacturing.

TABLE 31-36: OPERATIONAL AMPLIFIER SPECIFICATIONS

Operating Conditions (unless otherwise stated): 3.0V ≤ V_DD ≤ 3.6V,^(2) -40°C ≤ A_T ≤ +85°C for Industrial -40°C ≤ A_T ≤ +125°C for Extended
Param No.	Sym	Characteristic	Min	Typ^(1)	Max	Units	Comments
OAMP1	GBWP	Gain Bandwidth Product	—	20	—	MHz
OAMP2	SR	Slew Rate	—	40	—	V/μs
OAMP3	VIOFF	Input Offset Voltage -3	(3)	-1/+1	+3^(3)	mV	Unity gain configuration
			-8	-3/+3	+8	mV	Open-loop configuration
OAMP4	VICM	Common-Mode Input Voltage Range	AVss	—	AVDD	V	NCHDISx = 0
			AVss	—	AVDD – 1.4V	V	NCHDISx = 1
OAMP5	CMRR	Common-Mode Rejection Ratio	—	68	—	db
OAMP6	PSRR	Power Supply Rejection Ratio	—	74	—	dB
OAMP7	VOR	Output Voltage Range	AVss	—	AVDD	mV	0.5V input overdrive,no output loading
OAMP8	VIBC	Input Bias Current	—	—	—	mV	Note 4
OAMP11	CLOAD	Output Load Capacitance	—	—	30	pF	Including output pin capacitance (Note 1)
OAMP12	IOUT	Output Current Drive Strength	—	3	—	mA	Sink and source
OAMP13	PMARGIN	Phase Margin	44	—	—	degree	Unity gain (Note 1)
OAMP14	GMARGIN	Gain Margin	7	—	—	dB	Unity gain (Note 1)
OAMP15	OLG	Open-Loop Gain	68	75	—	dB	Note 1

Note 1: Parameters are for design guidance only and are not tested in manufacturing.
2: The module is functional at VBORMIN < VDD < VDDMIN, but with degraded performance. The module functionality is tested, but not characterized.
3: Parameters are characterized but not tested in manufacturing.
4: The op amps use CMOS input circuitry with negligible input bias current. The maximum "effective bias current" is the I/O pin leakage specified by electrical Parameter DI50.

32.0 HIGH-TEMPERATURE ELECTRICAL CHARACTERISTICS

This section provides an overview of the dsPIC33CK64MC105 family devices operating in an ambient temperature range of -40^ to +150^ .

The specifications between -40^ to +150^ are identical to those shown in Section 31.0 “Electrical Characteristics” for operation between -40^ to +125^ , with the exception of the parameters listed in this section.

Parameters in this section begin with an H, which denotes High temperature. For example, Parameter DC20 in Section 31.0 “Electrical Characteristics” is the Industrial and Extended temperature equivalent of HDC20.

Absolute maximum ratings for the dsPIC33CK64MC105 family high-temperature devices are listed below. Exposure to these maximum rating conditions for extended periods can affect device reliability. Functional operation of the device, at these or any other conditions above the parameters indicated in the operation listings of this specification, is not implied.

Absolute Maximum Ratings ^(1)

Ambient temperature under bias....-40°C to +150°C
Storage temperature -65^ to +150^
Voltage on VDD with respect to Vss -0.3V to +4.0V
Voltage on any pin that is not 5V tolerant with respect to Vss^(3) -0.3V to (VDD + 0.3V)
Voltage on any 5V tolerant pin with respect to Vss when V_DD ≥ 3.0V^(3) -0.3V to +5.5V
Voltage on any 5V tolerant pin with respect to Vss when V_DD < 3.0V^(3) -0.3V to +3.6V
Maximum current out of Vss pin....300 mA
Maximum current into V_DD pin ^(2) 300 mA
Maximum current sunk/sourced by any regular I/O pin....15 mA
Maximum current sunk/sourced by an I/O pin with increased current drive strength (RB1, RC8, RC9 and RD8) .....25 mA
Maximum current sunk by a group of I/Os between two Vss pins ^(4) .....75 mA
Maximum current sourced by a group of I/Os between two VDD pins ^(4) .....75 mA
Maximum current sunk by all I/Os ^(2,5) 200 mA
Maximum current sourced by all I/Os ^(2,5) .....200 mA

Note 1: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those, or any other conditions above those indicated in the operation listings of this specification, is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

2: Maximum allowable current is a function of device maximum power dissipation (see Table 32-2).
3: See the "Pin Diagrams" section for the 5V tolerant pins.
4: Not applicable to AV DD and AVss pins.
5: For 28-pin packages, the maximum current sunk/sourced by all I/Os is limited by 150 mA.

32.1 DC Characteristics

TABLE 32-1: OPERATING MIPS vs. VOLTAGE

VDD Range Temperature	Range Maximum CPU Clock Frequency
3.0V to 3.6V -40°C to +1	50°C 70

TABLE 32-2: THERMAL OPERATING CONDITIONS

Rating Symbol Min. Max. Unit
High-Temperature Devices
Operating Junction Temperature Range T	J	-40	+165	°C
Operating Ambient Temperature Range	TA	-40	+150	°C
Power Dissipation:
Internal Chip Power Dissipation: P_INT = V_DD × (I_DD - I_OH)	P_D	P_INT + P_I/O		W
I/O Pin Power Dissipation: I/O = (_DD - V_OH × I_OH) + (V_OL × I_OL)
Maximum Allowed Power Dissipation	P_DMAX	(T_J - T_A)/_JA		W

TABLE 32-3: THERMAL PACKAGING CHARACTERISTICS (1)

Package	Symbol	Typ.	Unit
28-Pin UQFN 4x4 mm	_JA	26.0	°C/W
48-Pin TQFP 7x7 mm	_JA	62.76	°C/W
48-Pin UQFN 6x6 mm	_JA	27.6	°C/W
36-Pin UQFN 5x5 mm	_JA	29.2	°C/W
28-Pin UQFN 6x6 mm	_JA	22.41	°C/W
28-Pin SSOP 5.30 mm	_JA	52.84	°C/W

Note 1: Junction to ambient thermal resistance, Theta-JA ( JA) numbers are achieved by package simulations.

TABLE 32-4: OPERATING VOLTAGE SPECIFICATIONS

Operating Conditions (unless otherwise stated):-40°C ≤ TA ≤ +150°C for High
Param No.	Symbol	Characteristic	Min.	Max.	Units	Conditions
HDC10	VDD	Supply Voltage	3.0	3.6	V
HDC16	VPOR	VDD Start Voltage to Ensure Internal Power-on Reset Signal	—	Vss	V
HDC17	SVDD	VDD Rise Rate to Ensure Internal Power-on Reset Signal	0.03 —	V/ms	0V-3V in 100 ms
HBO10	VBOR(1)	BOR Event on VDD Transition High-to-Low	2.68	2.99	V

Note 1: Device is functional at VBORMIN < VDD < VDDMIN. Analog modules (ADC and comparators) may have degraded performance. The VBOR parameter is for design guidance only and is not tested in manufacturing.

TABLE 32-5: OPERATING CURRENT (I DD) ^(2)

Parameter No. Typ.	(1)	Max. Units Conditions
HDC20 10.2 24.1 mA +150°C	C 3.3V 1	0 MIPS (N1 = 1, N2 = 5, N3 = 2,		M = 50, Fvco = 400 MHz, FPLLO = 40 MHz)
HDC21 12.2 25.4 mA +150°C	C 3.3V 2	0 MIPS (N1 = 1, N2 = 5, N3 = 1,		M = 50, Fvco = 400 MHz, FPLLO = 80 MHz)
HDC22 15.5 29.0 mA +150°C	C 3.3V 4	0 MIPS (N1 = 1, N2 = 3, N3 = 1,		M = 60, Fvco = 480 MHz, FPLLO = 160 MHz)
HDC23 21.2 34.1 mA +150°C	C 3.3V 7	0 MIPS (N1 = 1, N2 = 2, N3 = 1,		M = 70, Fvco = 560 MHz, FPLLO = 280 MHz)

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base Run current (IDD) is measured as follows:

- Oscillator is switched to EC+PLL mode in software

- OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V

- OSC2 is configured as an I/O in the Configuration Words (OSCIOFCN (FOSC[2]) = 0)

• FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)

- Watchdog Timer is disabled (FWDT[15] = 0 and WDTCONL[15] = 0)

- All I/O pins (except OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)

• JTAG is disabled (JTAGEN (FICD[5]) = 0)

- NOP instructions are executed in while(1) loop

TABLE 32-6: IDLE CURRENT (IIDLE) ^(2)

Parameter No. Typ.	(1)	Max. Units Conditions
HDC40 9.0 17.1 mA +150°C	C 3.3V 10	MIPS (N1 = 1, N2 = 5, N3 = 2,			M = 50, Fvco = 400 MHz, FPLLO = 40 MHz)
HDC41 9.7 22.6 mA +150°C	C 3.3V 20	MIPS (N1 = 1, N2 = 5, N3 = 1,			M = 50, Fvco = 400 MHz, FPLLO = 80 MHz)
HDC42 11.2 24	mA +150°C	3.3V 40 MIPS (N1 = 1, N2 = 3, N3 = 1,			M = 60, Fvco = 480 MHz, FPLLO = 160 MHz)
HDC43 13.4 25.8 mA	+150°C 3.3V	70 MIPS (N1 = 1, N2 = 2, N3 = 1,			M = 70, Fvco = 560 MHz, FPLLO = 280 MHz)

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base Idle current (IIDLE) is measured as follows:

- Oscillator is switched to EC+PLL mode in software

- OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V

- OSC2 is configured as an I/O in the Configuration Words (OSCIOFCN (FOSC[2]) = 0)

- FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)

- Watchdog Timer is disabled (FWDT[15] = 0 and WDTCONL[15] = 0)

- All I/O pins (except OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)

• JTAG is disabled (JTAGEN (FICD[5]) = 0)

- Flash in standby with NVMSIDL (NVMCON[12]) = 1

TABLE 32-7: POWER-DOWN CURRENT (IPD) ^(2)

Parameter No.	Characteristic Typ.	(1)	Max. Units Conditions
HDC60 Base	Power-Down Current 6.3 19.8 mA +150°C	3.3V

Note 1: Data in the "Typ." column are for design guidance only and are not tested.
2: Base Sleep current (IPD) is measured as follows:

• OSC1 pin is driven with external 8 MHz square wave with levels from 0.3V to VDD - 0.3V
• OSC2 is configured as an I/O in the Configuration Words (OSCIOFCN (FOSC[2]) = 0)
• FSCM is disabled (FCKSM[1:0] (FOSC[7:6]) = 01)
• Watchdog Timer is disabled (FWDT[15] = 0 and WDTCONL[15] = 0)
• All I/O pins (except OSC1) are configured as outputs and driving low
• No peripheral modules are operating or being clocked (defined PMDx bits are all '1's)
• JTAG is disabled (JTAGEN (FICD[5]) = 0)
• The regulators are in Active mode, VREGS bit = 1 (Standby mode only valid up to +85°C)
• The regulators are in Full-Power mode, LPWREN bit = 0 (Low-Power mode only valid up to +85°C)

TABLE 32-8: DOZE CURRENT (IDOZE)

Parameter No.	Typ.^(1)	Max.	Doze Ratio	Units	Conditions
HDC70	17.9	30.1	1:2	mA	+150°C	3.3V	70 MIPS (N = 1, N2 = 2, N3 = 1, M = 70, Fvco = 560 MHz, FPLLO = 280 MHz)
	13.6 26	1:1	28 mA

Note 1: Data in the "Typ." column are for design guidance only and are not tested.

TABLE 32-9: WATCHDOG TIMER DELTA CURRENT ( IwDT) ^(1)

Parameter No.	Typ.	Max.	Units	Conditions
HDC61	24	—	μA	+150°C	3.3V

Note 1: The lwdT current is the additional current consumed when the module is enabled. This current should be added to the base IPD current. All parameters are characterized but not tested during manufacturing.

TABLE 32-10: PWM DELTA CURRENT

Parameter No.	Typ. Max. Units Conditions
HDC100 5.48 7	2 mA +	150°C 3	.3V PWM	Output Frequency = 500 kHz		PWM Input (FPLLO = 500 MHz, VCO = 1000 MHz, PLLFBD = 125)
HDC101 4.44 6	8 mA +	150°C 3	.3V PWM	Output Frequency = 500 kHz		PWM Input (FPLLO = 400 MHz, VCO = 400 MHz, PLLFBD = 50)
HDC102 2.31 3	7 mA +	150°C 3	.3V PWM	Output Frequency = 500 kHz		PWM Input (FPLLO = 200 MHz, VCO = 200 MHz, PLLFBD = 50)
HDC103 1.22 2	3 mA +	150°C 3	.3V PWM	Output Frequency = 500 kHz		PWM Input (FPLLO = 100 MHz, VCO = 100 MHz, PLLFBD = 50)

TABLE 32-11: ADC DELTA CURRENT (1)

Parameter No.	Typ.	Max.	Units	Conditions
HDC120	3.76	6.1	mA	+150°C	3.3V	TAD = 14.3 ns(3.5 Msps conversion rate)

Note 1: Shared core continuous conversion. TAD = 14.3 nS (3.5 Msps conversion rate). Listed delta currents are for only one ADC core. All parameters are characterized but not tested during manufacturing.

TABLE 32-12: COMPARATOR + DAC DELTA CURRENT

Parameter No.	Symbol	Characteristic Min.	Typ.	Max.	Units	Conditions
HDC130 —	— — 1.25	1.65 mA +150°C	3.3V	F					PLLO @ 500 MHz^(1)
HDCM09	FIN	Input Frequency	400	—	475	MHz	+125°C < TA ≤ +150°C

Note 1: Listed delta currents are for only one comparator + DAC instance. All parameters are characterized but not tested during manufacturing.

TABLE 32-13: OP AMP DELTA CURRENT (1)

Parameter No.	Typ.	Max.	Units	Conditions
HDC140	0.58	2.3	mA	+150°C	3.3V

Note 1: Listed delta currents are for only one op amp instance. All parameters are characterized but not tested during manufacturing.

TABLE 32-14: I/O PIN INPUT SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V < VDD < 3.6V-40°C < TA < +150°C for High
Param No.	Symbol	Characteristic	Min.(3)	Max.(4)	Units
HDI50	IIL	Input Leakage Current(1)
		I/O Pins 5V Tolerant(2)	-800	800	nA
		I/O Pins Not 5V Tolerant(2)	-800	800	nA
		MCLR	-800	800	nA
		OSCI	-800	800	nA

Note 1: Negative current is defined as current sourced by the pin.
2: See the Pin Diagrams section for the 5V tolerant I/O pins.
3: VPIN = VSS.
4: VPIN = VDD.

TABLE 32-15: INTERNAL FRC ACCURACY

Operating Conditions (unless otherwise stated):3.0V < VDD < 3.6V-40°C < TA < +150°C for High
Param No.	Characteristic	Min.	Max.	Units
HF20a	FRC @ 8 MHz(1)	-3 +3 %

Note 1: Frequency is calibrated at +25°C and 3.3V.

TABLE 32-16: HIGH-SPEED ANALOG COMPARATOR MODULE SPECIFICATIONS ^(1)

Operating Conditions (unless otherwise stated):3.0V < VDD < 3.6V-40°C < TA < +150°C for High
Param No.	Symbol	Characteristic Min. Typ. Max. Units	Comments
CM09 F	IN	Input Frequency	400	—	475	MHz

Note 1: These parameters are for design guidance only and are not tested in manufacturing.

TABLE 32-17: DAC MODULE SPECIFICATIONS

Operating Conditions (unless otherwise stated):3.0V < VDD < 3.6V-40°C < TA < +150°C for High
Param No.	Symbol	Characteristic Min. Typ. Max. Units	Comments
HDA03	INL	Integral Nonlinearity Error	-45	—	0	LSb
HDA04	DNL	Differential Nonlinearity Error	-5	—	5	LSb
HDA05	EOFF	Offset Error	-21	—	21	LSb
HDA06	EG	Gain Error	-41	—	41	LSb

33.0 PACKAGING INFORMATION

33.1 Package Marking Information

28-Lead SSOP (5.30 mm)

XXXXXXXXXXXX XXXXXXXXXXXX YYWWNNN

28-Lead UQFN (4x4 mm)

XXXXXXXX XXXXXXXX YYWWNNN

28-Lead UQFN (6x6 mm)

XXXXXXXX XXXXXXXX YYWWNNN

36-Lead UQFN (5x5 mm)

XXXXXXXX XXXXXXXX XXXXXXXX YYWWNNN

Example

dsPIC33CK64 MC102 1710017

Example

33CK64MC 102 1710017

Example

33CK64MC 102 1710017

Example

dsPIC33 CK64MC 103 1710017

Legend: XX...X Customer-specific information Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week '01') NNN Alphanumeric traceability code

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.

33.1 Package Marking Information (Continued)

48-Lead TQFP (7x7 mm) Example

XXXXXXXX XXXXXXXXXXXXYWW NNN

CK64MC 1051710 017

48-Lead UQFN (6x6 mm) Example

XXXXXXXX XXXXXXXX YYWWNNN

33CK64 MC105 1710017

33.2 Package Details

28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

(DATUM A) (DATUM B) 1 2 D A B E1 E 28X b e TOP VIEW ⊕ 0.15①C A B

SEATING PLANE C A A2 SIDE VIEW 28X 0.10 °C A1 A

H c φ L (L1) VIEW A-A

Microchip Technology Drawing C04-073 Rev C Sheet 1 of 2

28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Isometric line drawing of an integrated circuit chip with multiple 16-pin pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
	NNumber of Pins 28
Pitch	e	0.65 BSC
Overall Height	A	-	-	2.00
				1.851.75
			-0.05A	Standoff
		Overall Width		8.207.80
				5.605.30
				10.5010
				0.950.75
Footprint	L1	1.25 REF
Lead Thickness	c			0.25-0.09
Foot Angle	φ			8°4°0°
Lead Width	b			0.38-0.22

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.20mm per side.
3. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-073 Rev C Sheet 2 of 2

28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

28 G1 C SILK SCREEN Y1 1 2 X1 E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
	CContact Pad Spacing 7.00
Contact Pad Width (X28)	X1			0.45
Contact Pad Length (X28)	Y1			1.85
Contact Pad to Center Pad (X26)	G1 0.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

1. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2073 Rev B

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 N 1 2 (DATUM B) (DATUM A) 2X 0.10 C E TOP VIEW 2X 0.10 C SEATING PLANE C A (A3) // 0.10 C A1 SIDE VIEW 28X 0.08 C 4x b1 D2 4x b2 4x b2 E2 NOTE 1 2 1 K 4x b1 L N 28X b BOTTOM VIEW Φ 0.10 A B Φ 0.10 A B Φ 0.07 A B Φ 0.05

Microchip Technology Drawing C04-333-M6 Rev B Sheet 1 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chip packages with pins and mounting holes (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	28
Pitch	e	0.40 BSC
Overall Height	A	-	-	0.60
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.152 REF
Overall Width	E	4.00 BSC
Exposed Pad Width	E2	1.80	1.90	2.00
Overall Length	D	4.00 BSC
Exposed Pad Length	D2	1.80	1.90	2.00
Terminal Width	b	0.15 0.20	0.25
Corner Anchor Pad	b1	0.40 0.45	0.50
Corner Pad, Metal Free Zone b2		0.18 0.23	0.28
Terminal Length	L	0.30	0.45	0.50
Terminal-to-Exposed-Pad	K		0

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-333-M6 Rev A Sheet 2 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV 28 1 2 ØV G3 C2 Y2 EV G2 G1 Y1 Y3 X3 X1 SILK SCREEN E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Center Pad Width	X2			2.00
Center Pad Length	Y2			2.00
	C1Contact Pad Spacing 3.90
Contact Pad Spacing	C2		3.90
Contact Pad Width (X28)	X1			0.20
Contact Pad Length (X28)	Y1			0.85
Contact Pad to Center Pad (X28) G1	0.52
Contact Pad to Pad (X24) G2 0.20
Contact Pad to Corner Pad (X8) G3	0.20
Corner Anchor Width (X4)	X3			0.78
Corner Anchor Length (X4)	Y3			0.78
Thermal Via Diameter V			0.30
Thermal Via Pitch EV			1.00

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing C04-2333-M6 Rev B

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (2N) - 6x6x0.55 mm Body [UQFN] With 4.65x4.65 mm Exposed Pad and Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing C04-385 Rev C Sheet 1 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (2N) - 6x6x0.55 mm Body [UQFN] With 4.65x4.65 mm Exposed Pad and Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chips with pin headers (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	28
Pitch	e	0.65 BSC
Overall Height	A	0.45	0.50	0.55
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.127 REF
Overall Width	E	6.00 BSC
Exposed Pad Width	E2	4.55	4.65	4.75
Overall Length	D	6.00 BSC
Exposed Pad Length	D2	4.55	4.65	4.75
Exposed Pad Corner Chamfer P -	0.35 -
Terminal Width	b	0.25	0.30	0.35
	b1	0.35 0.40	0.43Corner	Anchor Pad
Corner Pad, Metal Free Zone b2		0.15 0.20	0.25
Terminal Length	L	0.30	0.40	0.50
Terminal-to-Exposed-Pad	K		-

0.20 -

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-385 Rev C Sheet 2 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (2N) - 6x6x0.55 mm Body [UQFN] With 4.65x4.65 mm Exposed Pad and Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C2 X2 EV 28 Y3 X1 1 2 Y2 C1 EV ØV Y4 G1 G2 X3 X4 E Y1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Optional Center Pad Width	X2			4.75
Optional Center Pad Length	Y2			4.75
	C1Contact Pad Spacing 6.00
Contact Pad Spacing	C2		6.00
Contact Pad Width (X28)	X1			0.35
Contact Pad Length (X28)	Y1			0.80
Corner Anchor (X4)	X3			1.00
Corner Anchor (X4)	Y3			1.00
Corner Anchor Chamfer (X4)	X4			0.35
Corner Anchor Chamfer (X4)	Y4			0.35
Contact Pad to Pad (X28) G1 0.20
Contact Pad to Center Pad (X28) G2 0.20
Thermal Via Diameter V			0.33
Thermal Via Pitch EV			1.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
2. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2385B

36-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M5) - 5x5 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing C04-436-M5 Rev D Sheet 1 of 2

36-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M5) - 5x5 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

SEATING PLANE A C A1 (A3) DETAIL A

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	36
Pitch	e	0.40 BSC
Overall Height	A	0.50	0.55	0.60
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.152 REF
Overall Length	D	5.00 BSC
Exposed Pad Length	D2 3.60		3.70 3.80
Overall Width	E	5.00 BSC
Exposed Pad Width	E2	3.60	3.70	3.80
Terminal Width	b	0.15	0.20	0.25
Terminal Length	L	0.30	0.40	0.50
Terminal-to-Exposed-Pad	K 0.25 REF

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-436-M5 Rev D Sheet 2 of 2

36-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M5) - 5x5 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV 36 Y3 1 2 C2 Y2 EV ØV G R X3 E Y1 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Center Pad Width	X2			3.80
Center Pad Length	Y2			3.80
	C1Contact Pad Spacing 5.00
Contact Pad Spacing	C2		5.00
Contact Pad Width (X36)	X1			0.20
Contact Pad Length (X36	Y1			0.80
Corner Pad Width (X4)	X3			0.85
Corner Pad Length (X4)	Y3			0.85
Corner Pad Radius R 0.10
Contact Pad to Center Pad (X36) G	0.20
Thermal Via Diameter V			0.30
Thermal Via Pitch EV			1.00

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

1. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2436-M5 Rev D

48-Lead Plastic Thin Quad Flatpack (PT) - 7x7x1.0 mm Body [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

D D1 D2 D1 2 D2 A B E1/2 E NOTE 1 A A E1 E2 N/4 TIPS 0.20 C A-B D 1 2 3 e/2 e 0.20 C A-B D 4X TOP VIEW

SEATING PLANE A A2 A1 48X b 0.08 C 48X 0.08 M A-B D SIDE VIEW

Microchip Technology Drawing C04-300-PT Rev D Sheet 1 of 2

48-Lead Plastic Thin Quad Flatpack (PT) - 7x7x1.0 mm Body [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

H θ2 θ1 R2 R1 c θ2 L (L1)

SECTION A-A

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	48
Pitch	e	0.50 BSC
Overall Height	A	-	-	1.20
Standoff	A1	0.05	-	0.15
Molded Package Thickness	A2	0.95 1.05	1.00
Overall Length	D	9.00 BSC
Molded Package Length	D1	7.00 BSC
Overall Width	E	9.00 BSC
Molded Package Width	E1	7.00 BSC
Terminal Width	b	0.17	0.22	0.27
Terminal Thickness	c	0.09 - 0.16
Terminal Length	L	0.45	0.60	0.75
	L1 1:00 REFFootprint
	R1		-0.08	Lead Bend R
	R2		-0.08	0.20Lead Ben
			3.5°0° 7°	Foot Angle
Lead Angle	1	0°	-	-
Mold Draft Angle	2	11°	12°	13°

radius and Radius

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-300-PT Rev D Sheet 2 of 2

48-Lead Plastic Thin Quad Flatpack (PT) - 7x7x1.0 mm Body [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 C2 48 SILK SCREEN G Y1 1 2 X1 E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
	C1Contact Pad Spacing 8.40
	C2Contact Pad Spacing0
Contact Pad Width (X48)	X1			0.30
Contact Pad Length (X48)	Y1			1.50
Distance Between Pads G 0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
2. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2300-PT Rev D

48-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M4) - 6x6 mm Body [UQFN] With Corner Anchors and 4.6x4.6 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 N 1 2 (DATUM B) (DATUM A) 2X 0.10 C 2X 0.10 C TOP VIEW A B E 52X 0.08 C // 0.10 C (A3) A SEATING PLANE SIDE VIEW 8X (b1) D2 0.10 A B 8X (b2) E2 2 1 NOTE 1 L N 48X b e K 0.07 A B 0.05 B BOTTOM VIEW

Microchip Technology Drawing C04-442A-M4 Sheet 1 of 2

48-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M4) - 6x6 mm Body [UQFN] With Corner Anchors and 4.6x4.6 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two rectangular electronic components with square bases and internal traces (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN NOM		MAX
Number of Terminals	N	48
Pitch	e	0.40 BSC
Overall Height	A	0.50	0.55	0.60
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.15 REF
Overall Length	D	6.00 BSC
Exposed Pad Length	D2	4.50	4.60 4.70
Overall Width	E	6.00 BSC
Exposed Pad Width	E2	4.50 4.60 4.70
Terminal Width	b	0.15	0.20	0.25
Corner Anchor Pad	b1	0.45 REF
Corner Anchor Pad, Metal-free Zone b2	0.23 REF
Terminal Length	L	0.35	0.40	0.45
	K 0.30 REFTerminal-to-Exposed-Pad

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-442A-M4 Sheet 2 of 2

48-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M4) - 6x6 mm Body [UQFN] With Corner Anchors and 4.6x4.6 mm Exposed Pad

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV R 48 Y3 ØV G2 G1 Y1 Y2 EV C2 SILK SCREEN X3 E X1

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Center Pad Width	X2			4.70
Center Pad Length	Y2			4.70
	C1Contact Pad Spacing 6.00
Contact Pad Spacing	C2		6.00
Contact Pad Width (X48)	X1			0.20
Contact Pad Length (X48)	Y1			0.80
Corner Anchor Pad Width (X4)	X3			0.90
Corner Anchor Pad Length (X4)	Y3			0.90
Pad Corner Radius (X 20) R 0.10
Contact Pad to Center Pad (X48) G1	0.25
Contact Pad to Contact Pad G2	0.20
Thermal Via Diameter V			0.33
Thermal Via Pitch EV			1.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

1. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2442A-M4

APPENDIX A: REVISION HISTORY

Revision A (June 2019)

This is the initial version of the document.

Revision B (October 2019)

This revision incorporates the following updates:

- Sections:

- Changes the document title from "16-Bit Digital Signal Controllers with High-Speed ADC, Op Amps, Comparators and High-Resolution PWM" to "16-Bit Digital Signal Controllers with High-Speed ADC, Op Amps, Comparators and High-Speed PWM".

- Changes Chapter 11 title from "High-Resolution PWM to High-Speed PWM".

- Updates 11.0 "High-Speed PWM", "High-Speed Analog-to-Digital Converter", "Microcontroller Features", "Peripheral Features", "Pin Diagrams", Section 10.4 "Registers", Section 11.0 "High-Speed PWM", Section 12.2 "Temperature Sensor", Section 18.0 "Single-Edge Nibble Transmission (SENT)" and Section 32.0 "Packaging Information".

- Registers:

- Register 7-5, Register 9-6, Register 11-1, Register 11-5, Register 11-6, Register 11-10, Register 11-19, Register 11-24, Register 11-26, Register 11-32, Register 12-6, Register 12-8, Register 12-15, Register 12-16, Register 12-23, Register 12-26, Register 13-1, Register 13-9, Register 15-2, Register 18-1, Register 20-4, Register 21-3, Register 23-1, Register 23-2, Register 23-3, Register 26-3, Register 26-4 and Register 28-6.

- A d d s Register 20-7.

- Tables:

- Updates Table 1, Table 5-1, Table 8-4, Table 22-3, Table 22-4, Table 31-5, Table 31-6, Table 31-7, Table 31-8, Table 31-10, Table 31-11, Table 31-12 and Table 31-13.

- Figures:

- Updates Figure 12-1, Figure 12-2 and Figure 23-1.

Revision C (August 2020)

This revision incorporates the following updates:

- Sections:

- "Operating Conditions", "Safety Features", "Pin Diagrams", "Microcontroller Features", "Peripheral Features", "Safety Features", "Referenced Sources", Section 2.5 "External Oscillator Pins", Section 2.6 "External Oscillator Layout Guidance", Section 5.5 "Flash OTP by ICSP™ Write Inhibit", Section 5.5.1 "Activating Flash OTP by ICSP Write Inhibit", Section 8.2 "Configuring Analog and Digital Port Pins", Section 9.7 "Reference Clock Output", Section 10.0 "Direct Memory Access (DMA) Controller", Section 11.0 "High-Resolution PWM", Section 14.0 "Quadrature Encoder Interface (QEI)", Section 16.0 "Serial Peripheral Interface (SPI)", Section 28.5 "Brown-out Reset (BOR)", Section 28.6 "Dual Watchdog Timer (WDT)", Section 28.7 "JTAG Interface" and "Product Identification System".

- A d d s Section 32.0 "High-Temperature Electrical Characteristics".

- Registers:

- Register 3-3, Register 7-2, Register 7-3, Register 7-7, Register 8-9, Register 8-10, Register 8-11, Register 8-12, Register 9-3, Register 9-8, Register 12-6, Register 12-20, Register 12-21, Register 13-1, Register 13-9, Register 15-4, Register 18-1, Register 21-3, Register 23-2, Register 23-3, Register 24-2, Register 28-6 and Register 28-19.

- Tables:

- Table 1, Table 2, Table 3, Table 4, Table 5, Table 1-1, Table 4-6, Table 4-13, Table 7-1, Table 7-2, Table 7-3, Table 7-4, Table 7-5, Table 8-1, Table 8-2, Table 8-4, Table 8-5, Table 8-6, Table 8-7, Table 28-1, Table 28-2, Table 31-5, Table 31-6, Table 31-7, Table 31-10, Table 31-11, Table 31-12, Table 31-13, Table 31-15, Table 31-21, Table 31-23, Table 31-30, Table 31-31, Table 31-32, Table 31-33, Table 31-36 and Table 32-9.

- A d d s Table 32-16.

- Figures:

- Figure 1-1, Figure 2-4, Figure 2-5, Figure 2-6, Figure 4-1, Figure 12-1, Figure 16-5, Figure 19-1, Figure 23-1 and Figure 28-2.

Other minor typographical corrections throughout the document.

Revision D (July 2021)

This revision incorporates the following updates:

• Change in title from "High-Speed PWM" to "High-Resolution PWM"; changed throughout document.
• Sections:

- "Microcontroller Features", 28-Pin UQFN and 36-Pin UQFN in "Pin Diagrams", Section 4.3 "BIST Overview", Section 4.3.1 "BIST at Start-up", Section 5.4 "Error Correcting Code (ECC)", Section 8.5.4 "Input Mapping", Section 9.2 "CPU Clocking", Section 12.0 "High-Speed, 12-Bit Analog-to-Digital Converter (ADC)", Section 16.0 "Serial Peripheral Interface (SPI)", Section 20.1 "Time Base Generator", Section 27.2.1 "Sleep Mode", Section 27.2.2 "Idle Mode" and Section 28.6 "Dual Watchdog Timer (WDT)".

- A d d s Section 9.5 "Low-Power RC (LPRC) Oscillator" and Section 12.4 "Differential-Mode".

• Registers:
• Register 5-1, Register 7-5, Register 9-1, Register 9-6, Register 21-3, Register 28-4, Register 28-6, Register 28-18 and Register 28-19.
• Tables:
• Table 4-10, Table 4-11, Table 9-1, Table 12-1, Table 22-3, Table 31-12, Table 31-23, Table 31-24, Table 31-33, Table 31-36, Table 32-7 and Table 32-17.
• A d d s Table 32-16.
• Removes Table 32-17: ADC Module Accuracy.
• Figures:
• Figure 9-1, Figure 9-2, Figure 9-5, Figure 28-1 and Figure 28-2.
• Adds new terminology cross references table (Table6) that provides updated terminology for depreciated naming conventions.

INDEX

A

Absolute Maximum Ratings 449,477

AC Characteristics 459

Alternate Interrupt Vector Table.... 83

Analog-to-Digital Converter. See ADC.

Arithmetic Logic Unit (ALU).... 33

B

Bit-Reversed Addressing 58

Example....59

Implementation 58

Sequence Table (16-Entry).... 59

Block Diagrams

16-Bit Timer1 Module.... 329

32-Bit Timer Mode 336

ADC Module.... 212

ADC Shared Core 213

Addressing for Table Registers.... 63

CALL Stack Frame.... 54

CLCx Input Source Selection.... 351

CLCx Logic Function Combinatorial Options .... 350

CLCx Module 349

Conceptual SCCPx Modules 333

Constant-Current Source 377

CPU Core....24

CRC Module 395

Data Access from Program Space Address Generation 60

Deadman Timer Module 387

dsPIC33CK64MC105 Core Clock Sources.... 149

dsPIC33CK64MC105 Core Oscillator Subsystem .... 150

dsPIC33CK64MC105 Family 13

Dual 16-Bit Timer Mode 336

Functional Direct Memory Access (DMA) 168

High-Speed Analog Comparator.... 238

I2Cx Module.... 310

Input Capture x Module.... 338

Internal Regulator 428

Master Reset System.... 77

MCLR Pin Connections.... 18

Multiplexing Remappable Outputs for RPn.... 115

Output Compare x Module.... 337

PLL and VCO.... 151

Programmer's Model.... 26

PSV Read Address Generation 51

PTG Module.... 362

PWM High-Level Module 178

QEI Module 251

Recommended Minimum Connection.... 18

Reference Clock Generator 155

Remappable Input for U1RX.... 110

Security Segments.... 435

SENTx Module 320

Shared Port Structure 101

Simplified UARTx 270

Single Operational Amplifier 383

SPIx Client, Frame Client Connection 308

SPIx Client, Frame Host Connection 308

SPIx Host, Frame Client Connection 308

SPIx Host, Frame Host Connection 307

SPIx Host/Client Connection (Enhanced Buffer Modes) 307

SPIx Host/Client Connection (Standard Mode)...... 306

SPIx Module (Enhanced Mode).... 294

SPIx Module (Standard Mode) 293

Timer Clock Generator 334

Watchdog Timer (WDT).... 431

Brown-out Reset (BOR).... 411, 430

Built-In Self-Test. See BIST.

C

Capture/Compare/PWM/Timer

Auto-Shutdown and Gating Sources 344

Auxiliary Output 339

Control/Status Registers.... 340

General Purpose Timer 335

Input Capture Mode.... 338

Output Compare Mode 337

Synchronization Sources.... 343

Time Base Generator 334

Capture/Compare/PWM/Timer (SCCP) 333

CLC

Control Registers 352

Client Address Masking 311

Code Examples

Configuring UART1 Input and Output Functions ..... 110

PWRSAV Instruction Syntax 399

Using PLL (50 MIPS) with POSC 153

Using PLL with 8 MHz Internal FRC.... 153

Code Memory Map for dsPIC33CK32MC10X Devices ..... 36

Code Memory Map for dsPIC33CK64MC10X Devices ..... 36

Code Protection 411, 435

CodeGuard Security 411, 435

Comparator/DAC

Control Registers 239

Features Overview 239

Configurable Logic Cell (CLC).... 349

Configurable Logic Cell. See CLC

Configuration Bits 411

Bit Values for Clock Selection 157

CPU 23

Addressing Modes.... 23

Control Registers 28

Data Space Addressing 23

Instruction Set.... 23

Registers 23

Resources 27

CRC

Control Registers 396

Current Bias Generator (CBG) 377

Control Registers 378

Current Bias Generator. See CBG.

Customer Change Notification Service.... 514

Customer Notification Service 514

Customer Support.... 514

Cyclic Redundancy Check. See CRC.

D

Data Address Space.... 38

Memory Map for dsPIC33CK64MCX0X and dsPIC33CK32MCX0X Devices.... 40

Near Data Space 39

Organization, Alignment 38

SFR Space 39

Width 38

X and Y Data Spaces 41

Data Memory Test (BIST) 41

At Run Time 41

At Start-up....41

Flowchart 41

Data Space

Extended X 54

Paged Data Memory Space (figure) 52

Paged Memory Scheme 51

DC Characteristics

Operating Conditions 450

Deadman Timer (DMT) 387

Control/Status Registers 388

Deadman Timer. See DMT

Development Support 447

Device Identification 426

Device Overview 13

Direct Memory Access (DMA) Controller 167

Direct Memory Access Controller. See DMA.

DMA

Channel Trigger Sources 175

Control Registers 171

Peripheral Module Disable (PMD) 171

Summary of Operations 169

Types of Data Transfers 170

Typical Setup 171

Doze Mode....401

DSP Engine.... 33

Dual Watchdog Timer (Dual WDT) 431

E

ECC

Control Registers 72

Electrical Characteristics....449

AC 459

ADC Delta Current 454

ADC Specifications 473

Analog-to-Digital Conversion Requirements...... 474

BFRC Oscillator Specifications 462

Comparator + DAC Delta Current 455

Current Bias Generator Specifications.... 476

DAC Output (DACOUT Pin) Specifications....475

DAC Specifications 475

Doze Current (IDOZE) 453

External Clock Timing Requirements.... 461

FRC Oscillator Specifications 462

High-Resolution PWMx Timing Requirements...... 464

High-Speed Analog Comparator Specifications..... 474

I/O Pin Input Injection Current Specifications 457

I/O Pin Input Specifications.... 456

I/O Pin Output Specifications 457

I/O Timing Requirements 460

I2Cx Bus Data Requirements (Host Mode)...... 469

I2Cx Bus Data Timing Requirements (Client Mode) 471

Idle Current (IIDLE) 452

Load Conditions for I/O Specifications.... 459

Op Amp Delta Current 455

Operating Current (IDD) 451

Operating Voltage Specifications....450

Operational Amplifier Specifications.... 476

Package Thermal Resistance.... 450

PLL Clock Timing Specifications 461

Power-Down Current (IPD) 453

Program Flash Memory Specifications 458

PWM Delta Current 454

Reset, Watchdog Timer, Oscillator Start-up Timer Requirements 463

SPIx Client Mode Timing Requirements.... 467

SPIx Host Mode Requirements 466

Thermal Operating Conditions.... 450

UARTx Timing Requirements 472

Watchdog Timer Delta Current (ΔIWDT)...... 454

Equations

Calculating Frequency Output 156

FPLLO Calculation 152

Frame Time Calculations.... 321

Fvco Calculation 152

I^2C Baud Rate Reload Value Calculation 311

Relationship Between Device and SPIx Clock Speed.... 308

SYNCMINx and SYNCMAXx Calculations 322

Tick Period Calculation.... 321

Errata 10

Error Correcting Code (ECC)....71

Fault Injection 71

F

Flash OTP by ICSP Write Inhibit

Activation 75

Flash OTP by ICSP™ Write Inhibit.... 75

Flash Program Memory 63

and Table Instructions 63

Control Registers 65

RTSP Operation 64

Flexible Configuration 411

G

Getting Started Guidelines.... 17

Connection Requirements 17

Decoupling Capacitors.... 17

External Oscillator Pins.... 19

ICSP Pins 19

Master Clear (MCLR) Pin 18

Oscillator Value Conditions on Start-up.... 21

Targeted Applications 21

Unused I/Os.... 21

H

High-Resolution PWM (HRPWM) 177

High-Speed Analog Comparator with Slope Compensation DAC.... 237

High-Speed, 12-Bit Analog-to-Digital Converter (ADC) .... 211

Control/Status Registers.... 215

Differential-Mode 214

External Input Availability 211

Features Overview.... 211

Resources 214

Temperature Sensor.... 214

High-Temperature DC Characteristics

ADC Delta Current.... 482

Comparator + DAC Delta Current.... 483

DAC Specifications 484

Doze Current (IDOZE) 481

High-Speed Analog Comparator Specifications..... 484

I/O Pin Input Specifications.... 483

Idle Current (IIDLE) 480

Internal FRC Accuracy.... 483

Op Amp Delta Current 483

Operating Current (IDD)...... 479

Operating MIPS vs. Voltage.... 478

Operating Voltage Specifications.... 478

Power-Down Current (IPD) 481

PWM Delta Current 482

Thermal Operating Conditions 478

Thermal Packaging Characteristics 478

Watchdog Timer Delta Current (ΔIWDT) 481

High-Temperature Electrical Characteristics.... 477

HRPWM

Architecture.... 178

Control Registers 179

PWM4H Output on PPS.... 178

Write Restrictions.... 178

|

I/O Ports

Configuring Analog/Digital Port Pins.... 102

Control Registers 102

Helpful Tips.... 118

Parallel I/O (PIO)....99

Resources.... 119

Write/Read Timing 102

Communicating as Host in Single Host

Environment.... 309

Control/Status Registers 313

Reserved Addresses.... 312

Setting Baud Rate as Bus Host 311

I2Cx Bus Start/Stop Bits Timing Characteristics

(Host Mode) 468

In-Circuit Debugger.... 434

In-Circuit Emulation.... 411

In-Circuit Serial Programming (ICSP) 411, 434

Input Change Notification (ICN) 109

Instruction Addressing Modes.... 55

File Register Instructions 55

Fundamental Modes Supported.... 55

MAC Instructions 56

MCU Instructions 55

Move and Accumulator Instructions.... 56

Other Instructions.... 56

Instruction Set Summary...... 437

Overview 440

Symbols Used in Opcode Descriptions.... 438

Instruction-Based Power-Saving Modes 399

Idle 400

Sleep....400

Inter-Integrated Circuit. See I²C.

Internet Address....514

Interrupt Controller

Alternate Interrupt Vector Table (AIVT) 81

Control and Status Registers.... 90

INTCON1....90

INTCON2....90

INTCON3....90

INTCON4....90

INTTREG....90

Interrupt Vector Details.... 85

Interrupt Vector Table (IVT).... 81

Reset Sequence 81

Resources 90

Trap Vector Details....84

Interrupt Vector Table.... 82

Interrupts Coincident with Power Save Instructions ..... 400

J

JTAG Boundary Scan Interface 411

JTAG Interface 434

L

Low-Power Sleep Modes (table)...... 400

M

Memory Organization 35

Resources 43

Microchip Internet Website 514

Modulo Addressing 57

Applicability.... 58

Operation Example.... 57

Start and End Address 57

W Address Register Selection.... 57

0

Operational Amplifier 383

Control Registers 384

Oscillator

Backup Internal Fast RC (BFRC) 155

Configuration 157

Control Registers 158

CPU Clocking 154

Internal Fast RC (FRC).... 155

Low-Power RC (LPRC) 155

OSCCON Unlock Sequence.... 157

Primary (POSC).... 155

Primary PLL 151

Reference Clock Output 155

Oscillator with High-Frequency PLL 149

P

Packaging.... 485

Details.... 487

Marking....485

Peripheral Module Disable (PMD) 401

Control Registers 402

Peripheral Pin Select (PPS).... 109

Available Peripherals.... 109

Available Pins 109

Configuration Change Control 110

Control Registers 122

Output Selection for Remappable Pins 117

Remappable Output Pin Registers 116

Remappable Pin Inputs 111

Selectable Input Sources.... 113

Peripheral Trigger Generator (PTG) 361

Peripheral Trigger Generator. See PTG.

Pin and ANSELx Availability 100

Pinout I/O Descriptions (table) 14

Power-Saving Features.... 399

Clock Frequency and Switching.... 399

Resources.... 401

Program Address Space

Memory Map for dsPIC33CK32MC10X Devices ..... 35

Program Memory

Address Space.... 35

Construction....60

Data Access from Program Memory Using Table Instructions ....61

Table Read High Instructions (TBLRDH) 61

Table Read Low Instructions (TBLRDL) 61

Interfacing with Data Memory Spaces 60

Organization.... 37

Reset Vector 37

Programmer's Model.... 25

Register Descriptions.... 25

PT

Command Options 373

Control/Status Registers 363

Features....361

Input Descriptions 375

Output Descriptions 375

Step Command Format/Description.... 372

Q

QER

Control/Status Registers 252

Truth Table....250

Quadrature Encoder Interface (QEI) 249

Quadrature Encoder Interface. See QEI.

R

Referenced Sources 11

Register Maps

Configuration 412

Interrupt Enable 88

Interrupt Flag....88

Interrupt Priority 89

PMD 409

PORTA....120

PORTB....120

PORTC 12

PORTD 121

PPS Input Control 147

PPS Output Control 148

Registers

ADCMPxCON (ADC Digital Comparator x Control) 232

ADCMPxENH (ADC Digital Comparator x Channel Enable High).... 233

ADCMPxENL (ADC Digital Comparator x Channel Enable Low).... 233

ADCON1H (ADC Control 1 High) 216

ADCON1L (ADC Control 1 Low).... 215

ADCON2H (ADC Control 2 High) 218

ADCON2L (ADC Control 2 Low).... 217

ADCON3H (ADC Control 3 High) 220

ADCON3L (ADC Control 3 Low).... 219

ADCON5H (ADC Control 5 High) 222

ADCON5L (ADC Control 5 Low).... 221

ADEIEH (ADC Early Interrupt Enable High) 224

ADEIEL (ADC Early Interrupt Enable Low).... 224

ADEISTATH (ADC Early Interrupt Status High) ..... 225

ADEISTATL (ADC Early Interrupt Status Low)..... 225

ADFLxCON (ADC Digital Filter x Control) 234

ADIEH (ADC Interrupt Enable High).... 228

ADIEL (ADC Interrupt Enable Low) 228

ADLVLTRGH (ADC Level-Sensitive Trigger Control High) 223

ADLVLTRGL (ADC Level-Sensitive Trigger Control Low) 223

ADMOD0H (ADC Input Mode Control 0 High)...... 226

ADMOD0L (ADC Input Mode Control 0 Low) ...... 226

ADMOD1L (ADC Input Mode Control 1 Low) ...... 227

ADSTATH (ADC Data Ready Status High) 229

ADSTATL (ADC Data Ready Status Low).... 229

ADTRIGnL/ADTRIGnH (ADC Channel Trigger n(x) Selection Low/High).... 230

AMPCON1H (Op Amp Control High).... 385

AMPCON1L (Op Amp Control Low) 384

ANSELx (Analog Select for PORTx).... 102

BIASCON (Current Bias Generator Control) 378

CCPxCON1H (CCPx Control 1 High).... 342

CCPxCON1L (CCPx Control 1 Low) 340

CCPxCON2H (CCPx Control 2 High).... 345

CCPxCON2L (CCPx Control 2 Low) 344

CCPxCON3H (CCPx Control 3 High).... 346

CCPxSTATH (CCPx Status High) 348

CCPxSTATL (CCPx Status Low).... 347

CLCxCONH (CLCx Control High) 353

CLCxCONL (CLCx Control Low) 352

CLCxGLSH (CLCx Gate Logic Input Select High).... 358

CLCxGLSL (CLCx Gate Logic Input Select Low) ..... 356

CLCxSEL (CLCx Input MUX Select).... 354

CLKDIV (Clock Divider) 160

CMBTRIGH (Combinational Trigger High) 184

CMBTRIGL (Combinational Trigger Low).... 183

CNCONx (Change Notification Control for PORTx) 106

CNEN0x (Interrupt Change Notification Enable for PORTx) 106

CNEN1x (Interrupt Change Notification Edge Select for PORTx) 107

CNFx (Interrupt Change Notification Flag for PORTx) 108

CNPDx (Change Notification Pull-Down Enable for PORTx) 105

CNPUx (Change Notification Pull-up Enable for PORTx) 105

CNSTATx (Interrupt Change Notification Status for PORTx) 107

CORCON (Core Control) 30, 92

CRCCONH (CRC Control High) 397

CRCCONL (CRC Control Low).... 396

CRCXORH (CRC XOR Polynomial, High).... 398

CRCXORL (CRC XOR Polynomial, Low) 398

CTXTSTAT (CPU W Register Context Status)...... 31

DACCTRL1L (DAC Control 1 Low).... 240

DACCTRL2H (DAC Control 2 High) 241

DACCTRL2L (DAC Control 2 Low).... 241

DACxCONH (DACx Control High) 242

DACxCONL (DACx Control Low) 242

DACxDATH (DACx Data High) 244

DACxDATL (DACx Data Low) 244

DEVID (Device ID) 427

DEVREV (Device Revision)...... 426

DMACHn (DMA Channel n Control) 173

DMACON (DMA Engine Control) 172

DMAINTn (DMA Channel n Interrupt) 174

DMTCLR (Deadman Timer Clear) 389

DMTCNTH (Deadman Timer Count High) 391

DMTCNTL (Deadman Timer Count Low) 391

DMTCON (Deadman Timer Control) 388

DMTHOLDREG (DMT Hold).... 394

DMTPRECLR (Deadman Timer Preclear) 388

DMTPSCNTH (DMT Post-Configure Count Status High) 392

DMTPSCNTL (DMT Post-Configure Count Status Low).... 392

DMTPSINTVH (DMT Post-Configure Interval Status High) 393

DMTPSINTVL (DMT Post-Configure Interval Status Low).... 393

DMTSTAT (Deadman Timer Status).... 390

ECCADDRH (ECC Fault Inject Address Compare High) 73

ECCADDRL (ECC Fault Inject Address Compare Low) 73

ECCCONH (ECC Fault Injection Configuration High)....72

ECCCONL (ECC Fault Injection Configuration Low)....72

ECCSTATH (ECC System Status Display High) ..... 74

ECCSTATL (ECC System Status Display Low)...... 74

FALTREG Configuration 424

FBSLIM Configuration.... 414

FDEVOPT Configuration.... 423

FDMT Configuration.... 422

FDMTCNTH Configuration.... 421

FDMTCNTL Configuration 421

FDMTIVTH Configuration 420

FDMTIVTL Configuration 420

FICD Configuration 419

FOSC Configuration.... 416

FOSCSEL Configuration.... 415

FPOR Configuration.... 418

FSCL (Frequency Scale) 180

FSEC Configuration 413

FSIGN Configuration 414

FSMINPER (Frequency Scaling Minimum Period) ... 180

FWDT Configuration 417

I2CxCONH (I2Cx Control High) 315

I2CxCONL (I2Cx Control Low).... 313

I2CxMSK (I2Cx Client Mode Address Mask) 317

I2CxSTAT (I2Cx Status) 316

IBIASCONH (Current Bias Generator Current Source Control High) 379

IBIASCONL (Current Bias Generator Current Source Control Low) 381

INDXxCNTH (Index x Counter High) 264

INDXxCNTL (Index x Counter Low) 264

INDXxHLD (Index x Counter Hold) 265

INTCON1 (Interrupt Control 1)....93

INTCON2 (Interrupt Control 2)....95

INTCON3 (Interrupt Control 3)....96

INTCON4 (Interrupt Control 4)....97

INTTREG (Interrupt Control and Status).... 98

INTxTMRH (Interval x Timer High) 262

INTxTMRL (Interval x Timer Low)...... 262

INTXxHLDH (Interval x Timer Hold High) 263

INTXxHLDL (Interval x Timer Hold Low)...... 263

LATx (Output Data for PORTx) 104

LFSR (Linear Feedback Shift) 189

LOGCONy (Combinatorial PWM Logic Control y) .... 185

MBISTCON (MBIST Control) 42

MDC (Host Duty Cycle) 181

MPER (Host Period) 182

MPHASE (Host Phase) 181

MSTRPR (EDS Bus Master Priority Control).... 32

NVMADR (Nonvolatile Memory Lower Address)...... 68

NVMADRU (Nonvolatile Memory Upper Address) ..... 68

NVMCON (Nonvolatile Memory (NVM) Control) ...... 66

NVMKEY (Nonvolatile Memory Key) 69

NVMSRCADRH (NVM Source Data Address High)... 70

NVMSRCADRL (NVM Source Data Address Low) .... 70

ODCx (Open-Drain Enable for PORTx).... 104

OSCCON (Oscillator Control) 158

OSCTUN (FRC Oscillator Tuning).... 163

PCLKCON (PWM Clock Control) 179

PGxCAP (PWM Generator x Capture) 209

PGxCONH (PWM Generator x Control High).... 191

PGxCONL (PWM Generator x Control Low) 190

PGxDC (PWM Generator x Duty Cycle) 205

PGxDCA (PWM Generator x Duty Cycle Adjustment) 206

PGxDTH (PWM Generator x Dead-Time High)..... 208

PGxDTL (PWM Generator x Dead-Time Low) ...... 208

PGxEVTH (PWM Generator x Event High) 198

PGxEVTL (PWM Generator x Event Low).... 197

PGxIOCONH (PWM Generator x I/O Control High).... 196

PGxIOCONL (PWM Generator x I/O Control Low) 195

PGxLEBH (PWM Generator x Leading-Edge Blanking High) 204

PGxLEBL (PWM Generator x Leading-Edge Blanking Low).... 203

PGxPER (PWM Generator x Period).... 206

PGxPHASE (PWM Generator x Phase) 205

PGxSTAT (PWM Generator x Status) 193

PGxTRIGA (PWM Generator x Trigger A)...... 207

PGxTRIGB (PWM Generator x Trigger B)...... 207

PGxTRIGC (PWM Generator x Trigger C) 207

PGxyPCIH (PWM Generator xy PCI High).... 201

PGxyPCIL (PWM Generator xy PCI Low) 199

PLLDIV (PLL Output Divider) 164

PLLFBD (PLL Feedback Divider) 162

PMD1 (PMD1 Control).... 402

PMD2 (PMD2 Control) 403

PMD3 (PMD3 Control).... 404

PMD4 (PMD4 Control).... 405

PMD6 (PMD6 Control).... 406

PMD7 (PMD7 Control).... 407

PMD8 (PMD8 Control) 408

PORTx (Input Data for PORTx).... 103

POSxCNTH (Position x Counter High) 258

POSxCNTL (Position x Counter Low) 258

POSxHLD (Position x Counter Hold)...... 259

PTGADJ (PTG Adjust).... 370

PTGBTE (PTG Broadcast Trigger Enable Low) ..... 366

PTGBTEH (PTG Broadcast Trigger Enable High).... 366

PTGC0LIM (PTG Counter 0 Limit) 369

PTGC1LIM (PTG Counter 1 Limit) 369

PTGCON (PTG Control/Status High) 365

PTGCST (PTG Control/Status Low) 363

PTGHOLD (PTG Hold) 367

PTGL0 (PTG Literal 0) 370

PTGQPTR (PTG Step Queue Pointer) 371

PTGQUEn (PTG Step Queue n Pointer) 371

PTGSDLIM (PTG Step Delay Limit)....368

PTGT0LIM (PTG Timer0 Limit)....367

PTGT1LIM (PTG Timer1 Limit)....368

PWMEVTy (PWM Event Output Control y)...... 187

QEIXCON (QEIX Control) 252

QElxGECH (QElx Greater Than or Equal Compare High)....268

QElxGECL (QElx Greater Than or Equal Compare Low) 268

QEIxICH (QEIx Initialization/Capture High) 266

QEIxICL (QEIx Initialization/Capture Low)...... 266

QEIxIOC (QEIx I/O Control) 254

QElxIOCH (QElx I/O Control High).... 255

QEIXLECH (QEIX Less Than or Equal Compare High)....267

QEIxLECL (QEIx Less Than or Equal Compare Low) 267

REFOCONH (Reference Clock Control High)...... 166

REFOCONL (Reference Clock Control Low) 165

REFOTRIMH (Reference Oscillator Trim).... 166

RPCON (Peripheral Remapping Configuration) ..... 122

RPINR0 (Peripheral Pin Select Input 0)....122

RPINR1 (Peripheral Pin Select Input 1).... 123

RPINR11 (Peripheral Pin Select Input 11)...... 126

RPINR12 (Peripheral Pin Select Input 12)...... 126

RPINR13 (Peripheral Pin Select Input 13)...... 127

RPINR14 (Peripheral Pin Select Input 14)...... 127

RPINR15 (Peripheral Pin Select Input 15).... 128

RPINR18 (Peripheral Pin Select Input 18)...... 128

RPINR19 (Peripheral Pin Select Input 19)...... 129

RPINR2 (Peripheral Pin Select Input 2)....123

RPINR20 (Peripheral Pin Select Input 20)...... 129

RPINR21 (Peripheral Pin Select Input 21).... 130

RPINR22 (Peripheral Pin Select Input 22).... 130

RPINR23 (Peripheral Pin Select Input 23).... 131

RPINR27 (Peripheral Pin Select Input 27).... 131

RPINR3 (Peripheral Pin Select Input 3).... 124

RPINR37 (Peripheral Pin Select Input 37).... 132

RPINR38 (Peripheral Pin Select Input 38).... 132

RPINR4 (Peripheral Pin Select Input 4).... 124

RPINR42 (Peripheral Pin Select Input 42).... 133

RPINR43 (Peripheral Pin Select Input 43).... 133

RPINR44 (Peripheral Pin Select Input 44).... 134

RPINR45 (Peripheral Pin Select Input 45).... 134

RPINR46 (Peripheral Pin Select Input 46).... 135

RPINR47 (Peripheral Pin Select Input 47).... 135

RPINR48 (Peripheral Pin Select Input 48)...... 136

RPINR49 (Peripheral Pin Select Input 49).... 136

RPINR5 (Peripheral Pin Select Input 5).... 125

RPINR6 (Peripheral Pin Select Input 6).... 125

RPOR0 (Peripheral Pin Select Output 0) 137

RPOR1 (Peripheral Pin Select Output 1) 137

RPOR10 (Peripheral Pin Select Output 10)...... 142

RPOR11 (Peripheral Pin Select Output 11)...... 142

RPOR12 (Peripheral Pin Select Output 12)...... 143

RPOR13 (Peripheral Pin Select Output 13)...... 143

RPOR14 (Peripheral Pin Select Output 14)...... 144

RPOR15 (Peripheral Pin Select Output 15)...... 144

RPOR16 (Peripheral Pin Select Output 16)...... 145

RPOR17 (Peripheral Pin Select Output 17)...... 145

RPOR18 (Peripheral Pin Select Output 18).... 146

RPOR19 (Peripheral Pin Select Output 19).... 146

RPOR2 (Peripheral Pin Select Output 2).... 138

RPOR3 (Peripheral Pin Select Output 3).... 138

RPOR4 (Peripheral Pin Select Output 4).... 139

RPOR5 (Peripheral Pin Select Output 5).... 139

RPOR6 (Peripheral Pin Select Output 6).... 140

RPOR7 (Peripheral Pin Select Output 7)....140

RPOR8 (Peripheral Pin Select Output 8).... 141

RPOR9 (Peripheral Pin Select Output 9).... 141

SENTxCON1 (SENTx Control 1) 323

SENTxDATH (SENTx Receive Data High)...... 327

SENTxDATL (SENTx Receive Data Low) 327

SENTxSTAT (SENTx Status) 325

SLPxCONH (DACx Slope Control High).... 245

SLPxCONL (DACx Slope Control Low) 246

SLPxDAT (DACx Slope Data) 247

SPIxCON1H (SPIx Control 1 High).... 298

SPIxCON1L (SPIx Control 1 Low).... 296

SPIxCON2L (SPIx Control 2 Low).... 300

SPIxIMSKH (SPIx Interrupt Mask High) 305

SPIxIMSKL (SPIx Interrupt Mask Low).... 304

SPIxSTATH (SPIx Status High).... 303

SR (CPU STATUS).... 28, 9

T1CON (Timer1 Control) 330

TRISx (Output Enable for PORTx) 103

UxBRG (UARTx Baud Rate) 280

UxBRGH (UARTx Baud Rate High).... 280

UxINT (UARTx Interrupt) 28

UxMODE (UARTx Configuration) 27

UxMODEH (UARTx Configuration High) 274

UxP1 (UARTx Timing Parameter 1) 282

UxP2 (UARTx Timing Parameter 2) 283

UxP3 (UARTx Timing Parameter 3) 284

UxP3H (UARTx Timing Parameter 3 High) ...... 284

UxRXCHK (UARTx Receive Checksum)...... 286

UxRXREG (UARTx Receive Buffer) 281

UxSCCON (UARTx Smart Card Configuration)...... 287

UxSCINT (UARTx Smart Card Interrupt)...... 288

UxSTA (UARTx Status) 276

UxSTAH (UARTx Status High) 278

UxTXCHK (UARTx Transmit Checksum) 285

UxTXREG (UARTx Transmit Buffer) 28

VELxCNT (Velocity x Counter) 260

VELxCNTH (Velocity x Counter High) 260

VELxHLD (Velocity x Counter Hold) 261

VREGCON (Voltage Regulator Control)...... 429

WDTCONH (Watchdog Timer Control High) 433

WDTCONL (Watchdog Timer Control Low)...... 432

Resets....77

Brown-out Reset (BOR).... 77

Configuration Mismatch Reset (CM).... 77

Illegal Condition Reset (IOPUWR).... 77

Illegal Opcode....77

Security....77

Uninitialized W Register 77

Master Clear (MCLR) Pin Reset 77

Power-on Reset (POR)....7

RESET Instruction (SWR)....7

Resources 78

Trap Conflict Reset (TRAPR) 77

Watchdog Timer Time-out Reset (WDTO) 77

Revision History.... 505

S

SENTx Protocol Data Frames 320

Serial Peripheral Interface (SPI) 291

Serial Peripheral Interface. See SPI.

SFR Blocks

000h 43

100h 44

200h 44

300h-400h 45

800h 46

900h 47

A00h....48

B00h....48

C00h 48

D00h 49

E00h....49

F00h....50

Single-Edge Nibble Transmission (SENT) 319

Control/Status Registers 323

Receive Mode 322

Configuration 322

Transmit Mode.... 321

Configuration 321

Single-Edge Nibble Transmission for

Automotive Applications.... 319

Single-Edge Nibble Transmission. See SENT.

Special Features of the CPU 411

SPI

Control/Status Registers 296

T

Terminology Cross Reference 12

Timer1 329

Control Register 330

Timing Diagrams

BOR and Master Clear Reset Characteristics ..... 463

Clock/Instruction Cycle 154

External Clock....461

High-Resolution PWMx Characteristics 464

I/O Characteristics 460

I2Cx Bus Data (Client Mode) 470

I2Cx Bus Data (Host Mode) 468

I2Cx Bus Start/Stop Bits (Client Mode).... 470

QEI Interface Signals 249

SPIx Client Mode (CKE = 0) Characteristics ..... 466

SPIx Client Mode (CKE = 1) Characteristics ..... 467

SPIx Host Mode (CKE = 0) Characteristics ..... 465

SPIx Host Mode (CKE = 1) Characteristics ..... 465

UARTx Characteristics 472

U

UART

Architectural Overview.... 270

Character Frame 271

Control/Status Registers 272

Data Buffers 271

Protocol Extensions.... 271

Unique Device Identifier (UDID) 38

Unique Device Identifier. See UDID

Universal Asynchronous Receiver

Transmitter (UART) 269

Universal Asynchronous Receiver Transmitter. See UART.

User OTP Memory 428

V

Voltage Regulator (On-Chip) 428

W

Watchdog Timer (WDT).... 411

WWW Address 514

WWW, On-Line Support 10

NOTES:

THE MICROCHIP WEBSITE

Microchip provides online support via our WWW site at www.microchip.com. This website is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the website contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQ), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER CHANGE NOTIFICATION SERVICE

Microchip's customer notification service helps keep customers current on Microchip products. Subscribers will receive e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, access the Microchip website at www.microchip.com. Under “Support”, click on “Customer Change Notification” and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support

Customers should contact their distributor, representative or Field Application Engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the website at: http://microchip.com/support

NOTES:

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

dsPIC 33 CK 64 MC 105 T -I / PT - XXXMicrochip Trademark Architecture Flash Memory Family Program Memory Size (Kbyte) Product Group Pin Count Tape and Reel Flag (if applicable) Temperature Range Package Pattern

Examples: dsPIC33CK64MC105-I/PT: dsPIC33, 64-Kbyte Program Memory, Motor Control, 48-Pin, Industrial Temperature, TQFP Package.

Architecture: 33 = 16-Bit Digital Signal ControllerProduct Group: MC = Motor ControlPin Count: 02 = 28-pin 03 = 36-pin 05 = 48-pinTemperature Range: I = -40°C to +85°C (Industrial) E = -40°C to +125°C (Extended) H = -40°C to +150°C (High)Package: SS = Plastic Shrink Small Outline – (28-pin) 5.30 mm body (SSOP) M6 = Ultra Thin Plastic Quad Flat, No Lead – (28-pin) 4x4 mm body (UQFN) 2N = Ultra Thin Plastic Quad Flat, No Lead – (28-pin) 6x6 mm body (UQFN) M5 = Ultra Thin Plastic Quad Flat, No Lead – (36-pin) 5x5 mm body (UQFN) PT = Thin Quad Flatpack – (48-pin) 7x7 mm body (TQFP) M4 = Ultra Thin Plastic Quad Flat, No Lead – (48-pin) 6x6 mm body (UQFN)

NOTES:

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specifications contained in their particular Microchip Data Sheet.
• Microchip believes that its family of products is secure when used in the intended manner and under normal conditions.
- There are dishonest and possibly illegal methods being used in attempts to breach the code protection features of the Microchip devices. We believe that these methods require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Attempts to breach these code protection features, most likely, cannot be accomplished without violating Microchip's intellectual property rights.
• Microchip is willing to work with any customer who is concerned about the integrity of its code.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of its code. Code protection does not mean that we are guaranteeing the product is "unbreakable." Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication is provided for the sole purpose of designing with and using Microchip products. Information regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications.

THIS INFORMATION IS PROVIDED BY MICROCHIP "AS IS". MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE OR WARRANTIES RELATED TO ITS CONDITION, QUALITY, OR PERFORMANCE.

IN NO EVENT WILL MICROCHIP BE LIABLE FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL LOSS, DAMAGE, COST OR EXPENSE OF ANY KIND WHATSOEVER RELATED TO THE INFORMATION OR ITS USE, HOWEVER CAUSED, EVEN IF MICROCHIP HAS BEEN ADVISED OF THE POSSIBILITY OR THE DAMAGES ARE FORESEEABLE. TO THE FULLEST EXTENT ALLOWED BY LAW, MICROCHIP'S TOTAL LIABILITY ON ALL CLAIMS IN ANY WAY RELATED TO THE INFORMATION OR ITS USE WILL NOT EXCEED THE AMOUNT OF FEES, IF ANY, THAT YOU HAVE PAID DIRECTLY TO MICROCHIP FOR THE INFORMATION. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Trademarks

The Microchip name and logo, the Microchip logo, Adaptec, AnyRate, AVR, AVR logo, AVR Freaks, BesTime, BitCloud, chipKIT, chipKIT logo, CryptoMemory, CryptoRF, dsPIC, FlashFlex, flexPWR, HELDO, IGLOO, JukeBlox, KeeLoq, Kleer, LANCheck, LinkMD, maXStylus, maXTouch, MediaLB, megaAVR, Microsemi, Microsemi logo, MOST, MOST logo, MPLAB, OptoLyzer, PackeTime, PIC, picoPower, PICSTART, PIC32 logo, PolarFire, Prochip Designer, QTouch, SAM-BA, SenGenuity, SpyNIC, SST, SST Logo, SuperFlash, Symmetricom, SyncServer, Tachyon, TimeSource, tinyAVR, UNI/O, Vectron, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

AgileSwitch, APT, ClockWorks, The Embedded Control Solutions Company, EtherSynch, FlashTec, Hyper Speed Control, HyperLight Load, IntelliMOS, Libero, motorBench, mTouch, Powermite 3, Precision Edge, ProASIC, ProASIC Plus, ProASIC Plus logo, Quiet-Wire, SmartFusion, SyncWorld, Temux, TimeCesium, TimeHub, TimePictra, TimeProvider, WinPath, and ZL are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, Augmented Switching, BlueSky, BodyCom, CodeGuard, CryptoAuthentication, CryptoAutomotive, CryptoCompanion, CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, Espresso T1S, EtherGREEN, IdealBridge, In-Circuit Serial Programming, ICSP, INICnet, Intelligent Paralleling, Inter-Chip Connectivity, JitterBlocker, maxCrypto, maxView, memBrain, Mindi, MiWi, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, PowerSmart, PureSilicon, QMatrix, REAL ICE, Ripple Blocker, RTAX, RTG4, SAM-ICE, Serial Quad I/O, simpleMAP, SimpliPHY, SmartBuffer, SMART-I.S., storClad, SQL, SuperSwitcher, SuperSwitcher II, Switchtec, SynchroPHY, Total Endurance, TSHARC, USBCheck, VariSense, VectorBlox, VeriPHY, ViewSpan, WiperLock, XpressConnect, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. The Adaptec logo, Frequency on Demand, Silicon Storage Technology, and Symmcom are registered trademarks of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. All other trademarks mentioned herein are property of their respective companies.

© 2019-2021, Microchip Technology Incorporated, All Rights Reserved.

ISBN: 978-1-5224-8694-7

For information regarding Microchip's Quality Management Systems, please visit www.microchip.com/quality.

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN
