High-Performance, General Purpose and USB 32-bit Flash Microcontrollers

High-Performance 32-bit RISC CPU:

• M I P ^® SM3K2 32-bit core with 5-stage pipeline
• 80 MHz maximum frequency
• 1.56 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state Flash access
- Single-cycle multiply and high-performance divide unit
- MIPS16e ^® mode for up to 40% smaller code size
- Two sets of 32 core register files (32-bit) to reduce interrupt latency
- Prefetch Cache module to speed execution from Flash

Microcontroller Features:

• Operating temperature range of -40^ to +105^
• Operating voltage range of 2.3V to 3.6V
• 32K to 512K Flash memory (plus an additional 12 KB of boot Flash)
• 8K to 32K SRAM memory
• Pin-compatible with most PIC24/dsPIC ^ DSC devices
• Multiple power management modes
• Multiple interrupt vectors with individually programmable priority
• Fail-Safe Clock Monitor Mode
• Configurable Watchdog Timer with on-chip Low-Power RC Oscillator for reliable operation

Peripheral Features:

• Atomic SET, CLEAR and INVERT operation on select peripheral registers
• Up to 4-channel hardware DMA with automatic data size detection
• USB 2.0-compliant full-speed device and On-The-Go (OTG) controller
  • USB has a dedicated DMA channel
  • 3 MHz to 25 MHz crystal oscillator

• Internal 8 MHz and 32 kHz oscillators

• Separate PLLs for CPU and USB clocks

• T w ^2 C ^TM modules
• Two UART modules with:
• RS-232, RS-485 and LIN support
• I r D with on-chip hardware encoder and decoder
• Up to two SPI modules
• Parallel Master and Slave Port (PMP/PSP) with 8-bit and 16-bit data and up to 16 address lines
  • Hardware Real-Time Clock and Calendar (RTCC)
• Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
• Five capture inputs
• Five compare/PWM outputs
• Five external interrupt pins
  • High-Speed I/O pins capable of toggling at up to 80 MHz
  • High-current sink/source (18 mA/18 mA) on all I/O pins
• Configurable open-drain output on digital I/O pins

Debug Features:

• Two programming and debugging Interfaces:
• 2-wire interface with unintrusive access and real-time data exchange with application
• 4-wire MIPS ^® standard enhanced JTAG interface
• Unintrusive hardware-based instruction trace
• IEEE Standard 1149.2-compatible (JTAG) boundary scan

Analog Features:

- Up to 16-channel 10-bit Analog-to-Digital Converter:

- 1000 ksps conversion rate

- Conversion available during Sleep, Idle

- Two Analog Comparators

TABLE 1: PIC32MX GENERAL PURPOSE – FEATURES

GENERAL PURPOSE

Device

Pins

Packages^(2)

MHz

Program Memory (KB)

Data Memory (KB)

Timers/Capture/Compare

Programmable DMA Channels

VREG

Trace

EUART/SPI/ 12C^TM

10-bit ADC (ch)

Comparators

PMP/PSP

JTAG

PIC32MX320F032H 64

PT, MR

40 32 + 12

(1)

8 5/5

0 Yes

No 2/2

2 16

2 Yes

Yes

PIC32MX320F064H 64

PT, MR

80 64 + 12

(1)

16 5/5

5/5

0 Yes

No 2/2

2/2

16 2 Yes

Yes

PIC32MX320F128H 64

PT, MR

80 128 + 12

(1)

16 5/5

5/5

0 Yes

No 2/2

2/2

16 2 Yes

Yes

PIC32MX340F128H 64

PT, MR

80 128 + 12

(1)

32 5/5

5/5

4 Yes

No 2/2

2/2

16 2 Yes

Yes

PIC32MX340F256H 64

PT, MR

80 256 + 12

(1)

32 5/5

5/5

4 Yes

No 2/2

2/2

16 2 Yes

Yes

PIC32MX340F512H 64

PT, MR

80 512 + 12

(1)

32 5/5

5/5

4 Yes

No 2/2

2/2

16 2 Yes

Yes

PIC32MX320F128L

100 PT

80 1

28 + 12 (1)

16 5/5

5/5

0 Yes

No 2/2

2/2

16 2 Yes

Yes

121

BG

PIC32MX340F128L

100 PT

80 1

28 + 12 (1)

32 5/5

5/5

4 Yes

No 2/2

2/2

16 2 Yes

Yes

121

BG

PIC32MX360F256L

100 PT

80 2

56 + 12 (1)

32 5/5

5/5

4 Yes

Yes

2/2

16 2 Yes

Yes

121

BG

PIC32MX360F512L

100 PT

80 5

12 + 12 (1)

32 5/5

5/5

4 Yes

Yes

2/2

16 2 Yes

Yes

121

BG

Legend: PT = TQFP MR = QFN BG = XBGA
Note 1: This device features 12 KB Boot Flash memory.
2: See Legend for an explanation of the acronyms. See Section 30.0 "Packaging Information" for details.

TABLE 2: PIC32MX USB – FEATURES

USB

Device

Pins

Packages^(2)

MHz

Program Memory (KB)

Data Memory (KB)

Timers/Capture/Compare

Programmable DMA Channels

Dedicated USB DMA Channels

VREG

Trace

EUART/SPII ^2C^TM

10-bit ADC (ch)

Comparators

PMP/PSP

JTAG

PIC32MX420F032H 64

PT, MR

40 32 + 12

(1)

8 5

5/5 0 2 Yes No

2/1/2 16

2 Yes

Yes

PIC32MX440F128H

64

PT, MR

80

128 + 12^(1)

32 5

5/5 4 2 Yes No

2/1/2

16

2 Yes

Yes

PIC32MX440F256H

64

PT, MR

80

256 + 12^(1)

32 5

5/5 4 2 Yes No

2/1/2

16

2 Yes

Yes

PIC32MX440F512H

64

PT, MR

80

512 + 12^(1)

32 5

5/5 4 2 Yes No

2/1/2

16

2 Yes

Yes

PIC32MX440F128L

100 PT

80

128 + 12^(1)

32 5

5/5 4 2 Yes No

2/2/2

16

2 Yes

Yes

121

BG

PIC32MX460F256L

100 PT

80

256 + 12^(1)

32 5

5/5 4 2 Yes

Yes

2/2/2

16

2 Yes

Yes

121

BG

PIC32MX460F512L

100 PT

80

512 + 12^(1)

32 5

5/5 4 2 Yes

Yes

2/2/2

16

2 Yes

Yes

121

BG

Legend: PT = TQFP MR = QFN BG = XBGA
Note 1: This device features 12 KB Boot Flash memory.
2: See Legend for an explanation of the acronyms. See Section 30.0 "Packaging Information" for details.

Pin Diagrams

Pin Diagrams (Continued)

Pin Diagrams (Continued)

Pin Diagrams (Continued)

Note 1: Refer to Table 3 for full pin names.

TABLE 3: PIN NAMES: PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F128L, AND PIC32MX360F512L DEVICES

Pin Number	Full Pin Name
A1 PMD	4/RE4 E8 INT4/RA15
A2 PMD	3/RE3 E9 RTCC/IC1/RD8
A3 TRD	0/RG13 E10 IC2/RD9
A4 PMD	0/RE0 E11 INT3/RA14
A5 PMD	8/RG0 F1 MCLR
A6 PMD	10/RF1 F2 SDO2/PMA3/CN10/RG8
A7 ENV	REG F3 SS2
A8	Vss F4 SDI2/PMA4/CN9/RG7
A9 IC5	PMD12/RD12 F5 V
A10 OC3	/RD2
A11 OC2	/RD1
B1 No Connect (NC)
B2 RG15
B3 PMD	2/RE2 F10 V
B4 PMD	1/RE1
B5 TRD	3/RA7
B6 PMD	11/RF0 G2 INT2/RE9
B7	VCAP/VCORE
B8 PMF	D/CN14/RD5
B9 OC4	/RD3
B10	Vss
B11 SO	SCO/T1CK/CN0/RC14
C1	PMD6/RE6 G8 No Connect (NC)
C2	VDD
C3	TRD1/RG12
C4	TRD2/RG14 G11 TDI/RA4
C5	TRCLK/RA6 H1 AN5/C1IN+/CN7/RB5
C6	No Connect (NC)
C7	PMD15/CN16/RD7
C8	OC5/PMWR/CN13/RD4
C9	VDD
C10	SOSCI/CN1/RC13
C11 IC4	PMCS1/PMA14/RD11
D1	T2CK/RC1
D2	PMD7/RE7 H9 SCK1/INT0/RF6
D3	PMD5/RE5 H10 SCL1/RG2
D4	Vss
D5	Vss
D6	No Connect (NC)
D7	PMD14/CN15/RD6
D8	PMD13/CN19/RD13
D9	OC1/RD0 J5 AN11/PMA12/RB11
D10	No Connect (NC)
D11 IC3	PMCS2/PMA15/RD10
E1 T5CK	RC4
E2 T4CK	RC3
E3 SCK	PMA5/CN8/RG6
E4 T3CK	RC2 J11 SDA1/RG3
E5	VDD
E6 PMD	9/RG1 K2 PGED1/AN0/CN2/RB0
E7	Vss

Pin Number	Full Pin Name
	—
	—/PMA2/CN11/RG9
	SS
F6 No Connect (NC)
F7 No Connect (NC)
F8 V	DD
F9 OSC1/CLKI/RC12
	SS
F11 OSC2/CLKO/RC15
G1 INT1/RE8
G3	TMS/RA0
G4 No Connect (NC)
G5 V	DD
G6	Vss
G7 Vss
G9	TDO/RA5
G10	SDA2/RA3
H2	AN4/C1IN-/CN6/RB4
H3	Vss
H4	VDD
H5	No Connect (NC)
H6	VDD
H7 No Connect (NC)
H8 SDI1/RF7
H11 SCL2/RA2
J1	AN3/C2IN+/CN5/RB3
J2	AN2/C2IN-/SS1/CN4/RB2
J3	PGED2/AN7/RB7
J4	AVDD
J6	TCK/RA1
J7 AN2/PMA11/RB12
J8 No Connect (NC)
J9 No Connect (NC)
J10 SDO1/RF8
K1	PGEC1/AN1/CN3/RB1
K3	VREF+/CVREF+/PMA6/RA10

TABLE 3: PIN NAMES: PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F128L, AND PIC32MX360F512L DEVICES (CONTINUED)

Pin Number	Full Pin Name
K4 AN8	C1OUT/RB8 L3 AVss
K5 No Connect (NC)	L4 AN9/C2OUT/RB9
K6 U2CTS	/RF12 L5 AN10/CVREFOUT/PMA13/RB10
K7 AN14	/PMALH/PMA1/RB14 L6 U2RTS
K8	VDD L7 AN13/PMA10/RB13
K9 U1RTS	/CN21/RD15 L8 AN15/OCFB/PMALL/PMA0/CN12/RB15
K10 U1TX	X/RF3 L9 CN20/U1CTS
K11 U1RX	X/RF2 L10 U2RX/PMA9/CN17/RF4
L1 PGE	C2/AN6/OCFA/RB6 L11 U2TX/PMA8/CN18/RF5
L2	VREF-/CVREF-/PMA7/RA9

Pin Diagrams (Continued)

Pin Diagrams (Continued)

Pin Diagrams (Continued)

Pin Diagrams (Continued)

Note 1: Refer to Table 4 for full pin names.

TABLE 4: PIN NAMES: PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES

Pin Number	Full Pin Name
A1 PMD	4/RE4 E8 SDA1/INT4/RA15
A2 PMD	3/RE3 E9 RTCC/IC1/RD8
A3 TRD	0/RG13 E10 SS1
A4 PMD	0/RE0 E11 SCL1/INT3/RA14
A5 PMD	8/RG0 F1 MCLR
A6 PMD	10/RF1 F2 SDO2/PMA3/CN10/RG8
A7 ENV	REG F3 SS2
A8	Vss F4 SDI2/PMA4/CN9/RG7
A9 IC5	PMD12/RD12 F5 V
A10 OC3	RD2
A11 OC2	RD1
B1 No Connect (NC)
B2 RG15
B3 PMD	2/RE2 F10 V
B4 PMD	1/RE1
B5 TRD	3/RA7
B6 PMD	11/RF0 G2 INT2/RE9
B7	VCAP/VCORE
B8 PMF	D/CN14/RD5
B9 OC4	RD3
B10	Vss
B11 SO	SCO/T1CK/CN0/RC14
C1	PMD6/RE6 G8 No Connect (NC)
C2	V DD
C3	TRD1/RG12 G10 SDA2/RA3
C4	TRD2/RG14 G11 TDI/RA4
C5	TRCLK/RA6 H1 AN5/C1IN+/V
C6	No Connect (NC)
C7	PMD15/CN16/RD7
C8	OC5/PMWR/CN13/RD4
C9	VDD
C10 SO	SCI/CN1/RC13
C11 IC4	PMCS1/PMA14/RD11
D1	T2CK/RC1
D2	PMD7/RE7 H9 VUSB
D3	PMD5/RE5 H10 D+/RG2
D4	V ss
D5	V ss
D6	No Connect (NC)
D7	PMD14/CN15/RD6
D8	CN19/PMD13/RD13
D9	SDO1/OC1/INT0/RD0
D10 No Connect (NC)
D11 SCK	1/IC3/PMCS2/PMA15/RD10
E1 T5CK	/SDI1/RC4
E2 T4CK	/RC3
E3 SCK	2/PMA5/CN8/RG6
E4 T3CK	/RC2 J11 D-/RG3
E5	VDD
E6 PMD	9/RG1 K2 PGED1/AN0/CN2/RB0
E7	Vss

Pin Number	Full Pin Name
	—/IC2/RD9
	—
	—/PMA2/CN11/RG9
	ss
F6 No Connect (NC)
F7 No Connect (NC)
F8 Vdd
F9 OSC1/CLKI/RC12
	ss
F11 OSC2/CLKO/RC15
G1 INT1/RE8
G3	TMS/RA0
G4 No Connect (NC)
G5 V	DD
G6	Vss
G7 Vss
G9	TDO/RA5
	BUSON/CN7/RB5
H2	AN4/C1IN-/CN6/RB4
H3	Vss
H4	VDD
H5	No Connect (NC)
H6 V	DD
H7 No Connect (NC)
H8 V	BUS
H11 SCL2/RA2
J1	AN3/C2IN+/CN5/RB3
J2	AN2/C2IN-/CN4/RB2
J3	PGED2/AN7/RB7
J4	AVDD
J5	AN11/PMA12/RB11
J6 TCK/RA1
J7 AN12/PMA11/RB12
J8 No Connect (NC)
J9 No Connect (NC)
J10 U1TX/RF8
K1	PGEC1/AN1/CN3/RB1
K3	VREF+/CVREF+/PMA6/RA10
K4 AN8	C1OUT/RB8 L3 AVss
K5 No Connect (NC)	L4 AN9/C2OUT/RB9
K6 U2CTS	/RF12 L5 AN10/CVREFOUT/PMA13/RB10
K7 AN14	/PMALH/PMA1/RB14 L6 U2RTS
K8 VDD	L7 AN13/PMA10/RB13
K9 U1RTS	/CN21/RD15 L8 AN15/OCFB/PMALL/PMA0/CN12/
K10 USBID	/RF3 L9 U1CTS
K11 U1RX	/RF2 L10 U2RX/PMA9/CN17/RF4
L1 PGE	C2/AN6/OCFA/RB6 L11 U2TX/PMA8/CN18/RF5
L2	VREF-/CVREF-/PMA7/RA9

Pin Number	Full Pin Name
	/RF13
	/CN20/RD14

Table of Contents

1.0 Device Overview 21
2.0 Guidelines for Getting Started with 32-bit Microcontrollers .... 31
3.0 CPU 37
4.0 Memory Organization 43
5.0 Flash Program Memory 85
6.0 Resets 87
7.0 Interrupt Controller 89
8.0 Oscillator Configuration 93
9.0 Prefetch Cache 95
10.0 Direct Memory Access (DMA) Controller 97
11.0 USB On-The-Go (OTG) 99
12.0 I/O Ports 101
13.0 Timer1 103
14.0 Timer2/3 and Timer4/5 105
15.0 Input Capture.... 107
16.0 Output Compare.... 109
17.0 Serial Peripheral Interface (SPI).... 111
18.0 Inter-Integrated Circuit™ (I ^2 C™) 113
19.0 Universal Asynchronous Receiver Transmitter (UART) 115
20.0 Parallel Master Port (PMP) 119
21.0 Real-Time Clock and Calendar (RTCC).... 121
22.0 10-bit Analog-to-Digital Converter (ADC) 123
23.0 Comparator 125
24.0 Comparator Voltage Reference (CV REF)....127
25.0 Power-Saving Features 129
26.0 Special Features 131
27.0 Instruction Set 141
28.0 Development Support....147
29.0 Electrical Characteristics 151
30.0 Packaging Information....191
Index 209

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at [e-mail] or fax the Reader Response Form in the back of this data sheet to [phone]. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000A is version A of document DS30000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

- Microchip's Worldwide Web site; http://www.microchip.com

- Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using.

Customer Notification System

Register on our web site at www.microchip.com to receive the most current information on all of our products.

NOTES:

1.0 DEVICE OVERVIEW

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

This document contains device-specific information for the PIC32MX3XX/4XX devices.

Figure 1-1 illustrates a general block diagram of the core and peripheral modules in the PIC32MX3XX/4XX family of devices.

Table 1-1 lists the functions of the various pins shown in the pinout diagrams.

FIGURE 1-1: BLOCK DIAGRAM (1,2)

    subgraph Peripheral Bus Clocked by PBCLK
        JTAGBSCAN["JTAG BSCAN"] <--> EJTAGINT["EJTAG INT"] <--> MIPS32®M4K®CPU_Core["MIPS32®M4K®CPU Core"] <--> ISDS["IS DS"] <--> BusMatrix["Bus Matrix"] <--> PrefetchModule["Prefetch Module"] <--> DataRAM["Data RAM"] <--> PeripheralBridge["Peripheral Bridge"]

    end

    style Peripheral Bus Clocked by PBCLK fill:#f9f9f9,stroke:#333,stroke-width:2px
    style Peripheral Bus Clocked by PBCLK fill:#f9f9f9,stroke:#333,stroke-width:2px

Note 1: Some features are not available on all device variants.
2: BOR functionality is provided when the on-board voltage regulator is enabled.

TABLE 1-1: PINOUT I/O DESCRIPTIONS

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
AN0 16 25	K2 I Analog	Analog input channels.
AN1 15 24	K1 I Analog
AN2 14 23	J2 I Analog
AN3 13 22	J1 I Analog
AN4 12 21	H2 I Analog
AN5 11 20	H1 I Analog
AN6 17 26	L1 I Analog
AN7 18 27	J3 I Analog
AN8 21 32	K4 I Analog
AN9 22 33	L4 I Analog
AN10	23 34 L5 I Analog
AN11	24 35 J5 I Analog
AN12	27 41 J7 I Analog
AN13	28 42 L7 I Analog
AN14	29 43 K7 I Analog
AN15	30 44 L8 I Analog
CLKI	39	63	F9	I	ST/CMOS	External clock source input. Always associated with OSC1 pin function.
CLKO	40	64	F11	O	—	Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode. Optionally functions as CLKO in RC and EC modes. Always associated with OSC2 pin function.
OSC1	39	63	F9	I	ST/CMOS	Oscillator crystal input. ST buffer when configured in RC mode; CMOS otherwise.
OSC2	40	64	F11	I/O	—	Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode. Optionally functions as CLKO in RC and EC modes.
SOSCI	47	73	C10	I	ST/CMOS	32.768 kHz low-power oscillator crystal input; CMOS otherwise.
SOSCO	48	74	B11	O	—	32.768 kHz low-power oscillator crystal output.

Legend: CMOS = CMOS compatible input or output
ST = Schmitt Trigger input with CMOS levels
TTL = TTL input buffer
Analog = Analog input P = Power
O = Output I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
CN0 48 74	B11 I ST Change notification inputs.					Can be software programmed for internal weak pull-ups on all inputs.
CN1 47 73	C10 I ST
CN2 16 25	K2 I ST
CN3 15 24	K1 I ST
CN4 14 23	J2 I ST
CN5 13 22	J1 I ST
CN6 12 21	H2 I ST
CN7 11 20	H1 I ST
CN8 4 10 E3 I ST
CN9 5 11 F4 I ST
CN10	6 12 F2 I ST
CN11	8 14 F3 I ST
CN12	30 44 L8 I ST
CN13	52 81 C8 I ST
CN14	53 82 B8 I ST
CN15	54 83 D7 I ST
CN16	55 84 C7 I ST
CN17	31 49 L10 I ST
CN18	32 50 L11 I ST
CN19	— 80 D8 I ST
CN20	— 47 L9 I ST
CN21	— 48 K9 I ST
IC1	42 68 E9 I ST Capture inputs 1-5.
IC2	43 69 E10 I ST
IC3	44 70 D11 I ST
IC4	45 71 C11 I ST
IC5	52 79 A9 I ST
OCFA	17 26 L1 I ST Output Compare Fault A Input.
OC1	46 72 D9 O — Output Compare output 1.
OC2	49 76 A11 O — Output Compare output 2
OC3	50 77 A10 O — Output Compare output 3.
OC4	51 78 B9 O — Output Compare output 4.
OC5	52 81 C8 O — Output Compare output 5.
OCFB	30 44 L8 I ST Output Compare Fault B Input.
INT0	35,46 55,72 H9,D9 I ST External interrupt 0.
INT1	42 18 61 I ST External interrupt 1.
INT2	43 19 62 I ST External interrupt 2.

Legend: CMOS = CMOS compatible input or output Analog = Analog input P = Power ST = Schmitt Trigger input with CMOS levels O = Output I = Input TTL = TTL input buffer
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
INT3 44 66	E11 I ST External interrupt 3.
INT4 45 67	E8 I ST External interrupt 4.
RA0 — 17 G3 I/O ST PORTA is a bidirectional I/O port.
RA1 — 38 J6 I/O ST
RA2 — 58 H11 I/O ST
RA3 — 59 G10 I/O ST
RA4 — 60 G11	I/O ST
RA5 — 61 G9 I/O ST
RA6 — 91 C5	I/O ST
RA7 — 92 B5	I/O ST
RA9 — 28 L2	I/O ST
RA10 — 29 K3	I/O ST
RA14 — 66 E11 I/O ST
RA15 — 67 E8	I/O ST
RB0	16	25	K2	I/O	ST	PORTB is a bidirectional I/O port.
RB1	15 24 K1	I/O	ST
RB2	14 23 J2	I/O	ST
RB3	13 22 J1	I/O	ST
RB4	12 21	H2	I/O ST
RB5 11 20	H1	I/O	ST
RB6	17 26	L1	I/O ST
RB7	18 27 J3	I/O	ST
RB8	21 32 K4	I/O	ST
RB9	22 33	L4	I/O ST
RB10	23 34	L5	I/O ST
RB11	24 35 J5	I/O ST
RB12	27 41 J7	I/O ST
RB13	28 42	L7	I/O ST
RB14	29 43 K7	I/O	ST
RB15	30 44	L8	I/O ST
RC1	—	6	D1	I/O	ST	PORTC is a bidirectional I/O port.
RC2	—	7	E4	I/O	ST
RC3	—	8	E2	I/O	ST
RC4	—	9	E1	I/O	ST
RC12	39 63 F9	I/O	ST
RC13	47 73	C10	I/O ST
RC14	48 74 B11	I/O	ST
RC15	40 64	F11	I/O ST

Legend: CMOS = CMOS compatible input or output
ST = Schmitt Trigger input with CMOS levels
TTL = TTL input buffer
Analog = Analog input P = Power O = Output I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
RD0 46 72	D9 I/O ST P	ORTD is a bidirectional I/O port.
RD1 49 76	A11 I/O ST
RD2 50 77	A10 I/O ST
RD3 51 78	B9 I/O ST
RD4 52 81	C8 I/O ST
RD5 53 82	B8 I/O ST
RD6 54 83	D7 I/O ST
RD7 55 84	C7 I/O ST
RD8 42 68	E9 I/O ST
RD9 43 69	E10 I/O ST
RD10 44 70	D11 I/O ST
RD11	45 71 C11 I/O ST
RD12	—	79 A9 I/O ST
RD13	—	80 D8 I/O ST
RD14	—	47 L9 I/O ST
RD15	—	48 K9 I/O ST
RE0	60 93 A4 I/O ST PORTE is a bidirectional I/O port.
RE1	61 94	B4 I/O ST
RE2	62 98	B3 I/O ST
RE3	63 99	A2 I/O ST
RE4	64	100 A1 I/O ST
RE5	1	3 D3 I/O ST
RE6	2	4 C1 I/O ST
RE7	3	5 D2 I/O ST
RE8	—	18 G1 I/O ST
RE9	—	19 G2 I/O ST
RF0	58 87 B6 I/O ST PORTF is a bidirectional I/O port.
RF1	59 88 A6 I/O ST
RF2	34 52 K11 I/O ST
RF3	33 51 K10 I/O ST
RF4	31 49 L10 I/O ST
RF5	32 50 L11 I/O ST
RF6	35 55 H9 I/O ST
RF7	—	54 H8 I/O ST
RF8	—	53 J10 I/O ST
RF12	—	40 K6 I/O ST
RF13	—	39 L6 I/O ST

Legend: CMOS = CMOS compatible input or output ST = Schmitt Trigger input with CMOS levels TTL = TTL input buffer

Analog = Analog input O = Output

P = Power I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
RG0 — 90	A5 I/O ST P	PORTG is a bidirectional I/O port.
RG1 — 89	E6 I/O ST
RG6 4 10	E3 I/O ST
RG7 5 11	F4 I/O ST
RG8 6 12	F2 I/O ST
RG9 8 14	F3 I/O ST
RG12 — 96	C3 I/O ST
RG13 — 97	A3 I/O ST
RG14 — 95	C4 I/O ST
RG15 — 1	B2 I/O ST
RG2	37	57	H10	I	ST	PORTG input pins.
RG3	36	56	J11	I	ST
T1CK	48	74	B11	I	ST	Timer1 external clock input.
T2CK	—	6	D1	I	ST	Timer2 external clock input.
T3CK	— 7 E4	I	T Timer3	external	clock input.
T4CK	— 8 E2	I	T Timer4	external	clock input.
T5CK	— 9 E1	I	$T Timer5	external	clock input.
U1CTS	43	47 L9	ST UART1	clear to send.
U1RTS	35, 49 48	K9	O — UART1	ready to send.
U1RX 34, 50	52 K11	I	ST UART1	receive.
U1TX	33, 51	51, 53	J10, K10	O	—	UART1 transmit.
U2CTS	21	40 K6	ST UART2	clear to send.
U2RTS	29	39	L6	O	—	UART2 ready to send.
U2RX	31	49	L10	I	ST	UART2 receive.
U2TX	32	50	L11	O	—	UART2 transmit.
SCK1	35	55, 70	D11, H9	I/O	ST	Synchronous serial clock input/output for SPI1.
SDI1	34	9, 54	E1, H8	I	ST	SPI1 data in.
SDO1	33	53, 72	D9, J10	O	—	SPI1 data out.
SS1	14	23, 69	E10, J2	I/O	ST	SPI1 slave synchronization or frame pulse I/O.
SCK2	4	10	E3	I/O	ST	Synchronous serial clock input/output for SPI2.
SDI2	5 11 F4	I	ST SPI2 data in.
SDO2	6	12	F2	O	—	SPI2 data out.
SS2	8 14 F3	I/O ST S	PI2 slave synchronization or frame pulse I/O.
SCL1	37, 44	57, 66	E11, H10	I/O	ST	Synchronous serial clock input/output for I2C1.
SDA1	36, 43	56, 67	E8, J11	I/O	ST	Synchronous serial data input/output for I2C1.
SCL2	32	58	H11	I/O	ST	Synchronous serial clock input/output for I2C2.
SDA2	31	59	G10	I/O	ST	Synchronous serial data input/output for I2C2.

Legend: CMOS = CMOS compatible input or output ST = Schmitt Trigger input with CMOS levels TTL = TTL input buffer

Analog = Analog input O = Output

P = Power I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
TMS 23 17	G3 I ST JTAG	Test mode select pin.
TCK 27 38	J6 I ST JTAG	test clock input pin.
TDI 28 60	G11 I ST JTAG	test data input pin.
TDO 24 61	G9 O — JTAG	test data output pin.
RTCC 42	68 E9 O — Real-Time	Clock Alarm Output.
CVREF-	15	28	L2	I	Analog	Comparator Voltage Reference (low).
CVREF+	16	29	K3	I	Analog	Comparator Voltage Reference (high).
CVREFOUT	23	34	L5	O	Analog	Comparator Voltage Reference Output.
C1IN-	12	21	H2	I	Analog	Comparator 1 Negative Input.
C1IN+	11	20	H1	I	Analog	Comparator 1 Positive Input.
C1OUT	21 32 K4 O — Comparator 1 Output.
C2IN-	14	23	J2	I	Analog	Comparator 2 Negative Input.
C2IN+	13	22	J1	I	Analog	Comparator 2 Positive Input.
C2OUT	22	33	L4	O	—	Comparator 2 Output.
PMA0	30	44	L8	I/O	TTL/ST	Parallel Master Port Address Bit 0 Input (Buffered Slave modes) and Output (Master modes).
PMA1	29	43	K7	I/O	TTL/ST	Parallel Master Port Address Bit 1 Input (Buffered Slave modes) and Output (Master modes).
PMA2	8	14	F3	O	—	Parallel Master Port Address (De-multiplexed Master Modes).
PMA3	6	12 F2	O —
PMA4	5	11 F4	O —
PMA5	4	10	E3 O —
PMA6	16 29	K3 O —
PMA7	22 28	L2	O —
PMA8	32 50	L11	O —
PMA9	31 49 L10	O —
PMA10 28	42 L7	O —
PMA11	27 41 J7	O —
PMA12 24	35 J5	O —
PMA13 23	34 L5	O —
PMA14 45	71 C11	O —
PMA15 44	70 D11	O —
PMCS1	45	71	C11	O	—	Parallel Master Port Chip Select 1 Strobe.
PMCS2	44	70	D11	O	—	Parallel Master Port Chip Select 2 Strobe.

Legend: CMOS = CMOS compatible input or output Analog = Analog input P = Power ST = Schmitt Trigger input with CMOS levels O = Output I = Input TTL = TTL input buffer
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
PMD0 60 93	A4 I/O TTL	/ST Parallel Master	Port Data	(De-multiplexed Master mode) or Address/Data (Multiplexed Master modes).
PMD1 61 94	B4 I/O TTL	/ST
PMD2 62 98	B3 I/O TTL	/ST
PMD3 63 99	A2 I/O TTL	/ST
PMD4 64 100	A1 I/O TTL	/ST
PMD5 1 3 D3	I/O TTL	/ST
PMD6 2 4 C1	I/O TTL	/ST
PMD7 3 5 D2	I/O TTL	/ST
PMD8 — 90	A5 I/O TTL	/ST
PMD9 — 89	E6 I/O TTL	/ST
PMD10 —	88 A6 I/O TTL	/ST
PMD11 —	87 B6 I/O TTL	/ST
PMD12 —	79 A9 I/O TTL	/ST
PMD13 —	80 D8 I/O TTL	/ST
PMD14 —	83 D7 I/O TTL	/ST
PMD15 —	84 C7 I/O TTL	/ST
PMRD	53	82	B8	O	—	Parallel Master Port Read Strobe.
PMWR	52	81	C8	O	—	Parallel Master Port Write Strobe.
PMALL	30	44	L8	O	—	Parallel Master Port Address Latch Enable low-byte (Multiplexed Master modes).
PMALH	29	43	K7	O	—	Parallel Master Port Address Latch Enable high-byte (Multiplexed Master modes).
V_BUS	34	54	H8	I	Analog	USB Bus Power Monitor.
VUSB	35	55	H9	P	—	USB Internal Transceiver Supply. If the USB module is not used, this pin must be connected to VDD.
VBUSON	11	20	H1	O	—	USB Host and OTG Bus Power Control Output.
D+	37	57	H10	I/O	Analog	USB D+.
D-	36	56	J11	I/O	Analog	USB D-.
USBID	33 51	K10 I	ST USB OTG ID Detect.
ENVREG	57	86	A7	I	ST	Enable for On-Chip Voltage Regulator.
TRCLK — 91 C5		O — Trace Clock.
TRD0	—	97	A3	O	—	Trace Data Bits 0-3.
TRD1	— 96 C3	O —
TRD2	— 95 C4	O —
TRD3	— 92 B5	O —
PGED1	16 25 K2 I/O		ST Data I/O pin for programming/debugging communication channel 1.
PGEC1	15 24 K1 I		ST Clock input pin for programming/debugging communication channel 1.

Legend: CMOS = CMOS compatible input or output
ST = Schmitt Trigger input with CMOS levels
TTL = TTL input buffer
Analog = Analog input P = Power
O = Output I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

TABLE 1-1: PINOUT I/O DESCRIPTIONS (CONTINUED)

Pin Name	Pin Number^(1)			Pin Type	Buffer Type	Description
	64-pin QFN/TQFP	100-pin TQFP	121-pin XBGA
PGED2 18	27 J3 I/O ST	Data I/O	pin for programming/debugging			communication channel 2.
PGEC2 17	26 L1 I ST C	lock input	pin for programming/debugging			communication channel 2.
MCLR 7 13	F1 I/P ST M	Master Clear (Reset) input. This pin is an active-low Reset to the device.
AVDD	19	30	J4	P	P	Positive supply for analog modules. This pin must be connected at all times.
AVSS	20	31	L3	P	P	Ground reference for analog modules.
VDD	10, 26, 38	2, 16, 37, 46, 62	C2, C9, E5, F8, G5, H4, H6, K8	P	—	Positive supply for peripheral logic and I/O pins.
VCORE/VCAP	56	85	B7	P	—	Capacitor for Internal Voltage Regulator.
Vss	9, 25, 41	15, 36, 45, 65, 75	A8, B10, D4, D5, E7, F10, F5, G6, G7, H3	P	—	Ground reference for logic and I/O pins.
VREF+	16	29	K3	I	Analog	Analog voltage reference (high) input.
VREF-	15	28	L2	I	Analog	Analog voltage reference (low) input.

Legend: CMOS = CMOS compatible input or output ST = Schmitt Trigger input with CMOS levels TTL = TTL input buffer

Analog = Analog input O = Output

P = Power I = Input
Note 1: Pin numbers are provided for reference only. See the "Pin Diagrams" section for device pin availability.

NOTES:

2.0 GUIDELINES FOR GETTING STARTED WITH 32-BIT MICROCONTROLLERS

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this sheet for device-specific register and bit information.

2.1 Basic Connection Requirements

Getting started with the PIC32MX3XX/4XX family of 32-bit Microcontrollers (MCUs) requires attention to a minimal set of device pin connections before proceeding with development. The following is a list of pin names, which must always be connected:

• All V DD and Vss pins (see Section 2.2 “Decoupling Capacitors”)
• All AV DD and AVss pins (regardless if ADC module is not used) (see Section 2.2 "Decoupling Capacitors")
• VCAP/VCORE (see Section 2.3 "Capacitor on Internal Voltage Regulator (VCAP/VCORE)")
• M C IpinR (see Section 2.4 "Master Clear (MCLR) Pin")
• PGECx/PGEDx pins used for In-Circuit Serial Programming™ (ICSP™) and debugging purposes (see Section 2.5 "ICSP Pins")
• OSC1 and OSC2 pins when external oscillator source is used (see Section 2.8 "External Oscillator Pins")

Additionally, the following pins may be required:

- VREF+/VREF- pins used when external voltage reference for ADC module is implemented

Note: The AV DD and AVss pins must be connected independent of ADC use and ADC voltage reference source.

2.2 Decoupling Capacitors

The use of decoupling capacitors on every pair of power supply pins, such as VDD, VSS, AVDD and AVSS is required. See Figure 2-1.

Consider the following criteria when using decoupling capacitors:

- Value and type of capacitor: Recommendation of 0.1 F (100 nF), 10-20V. This capacitor should be a low-ESR and have resonance frequency in the range of 20 MHz and higher. It is recommended that ceramic capacitors be used.

- Placement on the printed circuit board: The decoupling capacitors should be placed as close to the pins as possible. It is recommended to place the capacitors on the same side of the

data board as the device. If space is constricted, the capacitor can be placed on another layer on the PCB using a via; however, ensure that the trace length from the pin to the capacitor is within one-quarter inch (6 mm) in length.

- Handling high frequency noise: If the board is experiencing high frequency noise, upward of tens of MHz, add a second ceramic-type capacitor in parallel to the above described decoupling capacitor. The value of the second capacitor can be in the range of 0.01 F to 0.001 F . Place this second capacitor next to the primary decoupling capacitor. In high-speed circuit designs, consider implementing a decade pair of capacitances as close to the power and ground pins as possible. For example, 0.1 F in parallel with 0.001 F .

- Maximizing performance: On the board layout from the power supply circuit, run the power and return traces to the decoupling capacitors first, and then to the device pins. This ensures that the decoupling capacitors are first in the power chain. Equally important is to keep the trace length between the capacitor and the power pins to a minimum thereby reducing PCB track inductance.

FIGURE 2-1: RECOMMENDED MINIMUM CONNECTION

VDD R R1 C MCLR VCAP/VCORE CEFC 0.1 μF Ceramic CBP VDD VSS PIC32MX VSS VDD VSS 0.1 μF Ceramic CBP 0.1 μF Ceramic CBP AVDD AVSS VDD VSS 0.1 μF Ceramic CBP 10Ω 0.1 μF Ceramic CBP

2.2.1 BULK CAPACITORS

The use of a bulk capacitor is recommended to improve power supply stability. Typical values range from 4.7 F to 47 F. This capacitor should be located as close to the device as possible.

2.3 Capacitor on Internal Voltage Regulator (VCAP/VCORE)

2.3.1 INTERNAL REGULATOR MODE

A low-ESR (< 1 Ohm) capacitor is required on the VCAP/VCORE pin, which is used to stabilize the internal voltage regulator output. The VCAP/VCORE pin must not be connected to VDD, and must have a CEFC capacitor, with at least a 6V rating, connected to ground. The type can be ceramic or tantalum. Refer to Section 29.0 "Electrical Characteristics" for additional information on CEFC specifications. This mode is enabled by connecting the ENVREG pin to VDD.

2.3.2 EXTERNAL REGULATOR MODE

In this mode the core voltage is supplied externally through the VCORE/VCAP pin. A low-ESR capacitor of 10 F is recommended on the VCAP/VCORE pin. This mode is enabled by grounding the ENVREG pin.

The placement of this capacitor should be close to the VCAP/VCORE. It is recommended that the trace length not exceed one-quarter inch (6 mm). Refer to Section 26.3 "On-Chip Voltage Regulator" for details.

2.4 Master Clear (MCLR) Pin

The MCLR pin provides for two specific device functions:

• Device Reset
  • Device Programming and Debugging

Pulling The MCLR pin low generates a device reset. Figure 2-2 illustrates a typical MCLR circuit. During device programming and debugging, the resistance and capacitance that can be added to the pin must be considered. Device programmers and debuggers drive the MCLR pin. Consequently, specific voltage levels (VIH and VIL) and fast signal transitions must not be adversely affected. Therefore, specific values of R and C will need to be adjusted based on the application and PCB requirements.

For example, as illustrated in Figure 2-2, it is recommended that the capacitor C, be isolated from the MCLR pin during programming and debugging operations.

Place the components shown in Figure 2-2 within one-quarter inch (6 mm) from the MCLR pin.

FIGURE 2-2: EXAMPLE OF MCLR PIN CONNECTIONS

VDD R R1 JP C MCLR PIC32MX

Note 1: R ≤10 kΩ is recommended. A suggested starting value is 10 kΩ. Ensure that the MCLR pin VIH and VIL specifications are met.
2: R1 ≤ 470Ω will limit any current flowing into MCLR from the external capacitor C, in the event of MCLR pin breakdown, due to Electrostatic Discharge (ESD) or Electrical Overstress (EOS). Ensure that the MCLR pin VIH and VIL specifications are met.
3: The capacitor can be sized to prevent unintentional resets from brief glitches or to extend the device reset period during POR.

2.5 ICSP Pins

The PGECx and PGEDx pins are used for In-Circuit Serial Programming™ (ICSP™) and debugging purposes. It is recommended to keep the trace length between the ICSP connector and the ICSP pins on the device as short as possible. If the ICSP connector is expected to experience an ESD event, a series resistor is recommended, with the value in the range of a few tens of Ohms, not to exceed 100 Ohms.

Pull-up resistors, series diodes and capacitors on the PGECx and PGEDx pins are not recommended as they will interfere with the programmer/debugger communications to the device. If such discrete components are an application requirement, they should be removed from the circuit during programming and debugging. Alternately, refer to the AC/DC characteristics and timing requirements information in the respective device Flash programming specification for information on capacitive loading limits and pin input voltage high (VIIH) and input low (VIL) requirements.

Ensure that the "Communication Channel Select" (i.e., PGECx/PGEDx pins) programmed into the device matches the physical connections for the ICSP to MPLAB® ICD 2, MPLAB ICD 3 or MPLAB REAL ICE™.

For more information on ICD 2, ICD 3 and REAL ICE connection requirements, refer to the following documents that are available on the Microchip web site.

• "MPLAB ^ ICD 2 In-Circuit Debugger User's Guide" DS51331
  • "Using MPLAB ^ ICD 2" (poster) DS51265
• "MPLAB ^ ICD 2 Design Advisory" DS51566
• "Using MPLAB ^ ICD 3" (poster) DS51765
• "MPLAB ^ ICD 3 Design Advisory" DS51764
• "MPLAB® REAL ICE™ In-Circuit Debugger User's Guide" DS51616
• "Using MPLAB ^ REAL ICE ^TM " (poster) DS51749

2.6 JTAG

The TMS, TDO, TDI and TCK pins are used for testing and debugging according to the Joint Test Action Group (JTAG) standard. It is recommended to keep the trace length between the JTAG connector and the JTAG pins on the device as short as possible. If the JTAG connector is expected to experience an ESD event, a series resistor is recommended, with the value in the range of a few tens of Ohms, not to exceed 100 Ohms.

Pull-up resistors, series diodes and capacitors on the TMS, TDO, TDI and TCK pins are not recommended as they will interfere with the programmer/debugger communications to the device. If such discrete components are an application requirement, they should be removed from the circuit during programming and debugging. Alternately, refer to the AC/DC characteristics and timing requirements information in the respective device Flash programming specification for information on capacitive loading limits and pin input voltage high (VIIH) and input low (VIL) requirements.

2.7 Trace

The trace pins can be connected to a hardware-trace-enabled programmer to provide a compress real time instruction trace. When used for trace the TRD3, TRD2, TRD1, TRD0 and TRCLK pins should be dedicated for this use. The trace hardware requires a 22 Ohm series resistor between the trace pins and the trace connector.

2.8 External Oscillator Pins

Many MCUs have options for at least two oscillators: a high-frequency primary oscillator and a low-frequency secondary oscillator (refer to Section 8.0 “Oscillator Configuration” for details).

The oscillator circuit should be placed on the same side of the board as the device. Also, place the oscillator circuit close to the respective oscillator pins, not exceeding one-half inch (12 mm) distance between them. The load capacitors should be placed next to the oscillator itself, on the same side of the board. Use a grounded copper pour around the oscillator circuit to isolate them from surrounding circuits. The grounded copper pour should be routed directly to the MCU ground. Do not run any signal traces or power traces inside the ground pour. Also, if using a two-sided board, avoid any traces on the other side of the board where the crystal is placed. A suggested layout is illustrated in Figure 2-3.

FIGURE 2-3: SUGGESTED PLACEMENT OF THE OSCILLATOR CIRCUIT

Oscillator Secondary Guard Trace Guard Ring Main Oscillator

2.9 Configuration of Analog and Digital Pins During ICSP Operations

If MPLAB ICD 2, ICD 3 or REAL ICE is selected as a debugger, it automatically initializes all of the Analog-to-Digital input pins (ANx) as "digital" pins by setting all bits in the ADPCFG register.

The bits in this register that correspond to the Analog-to-Digital pins that are initialized by MPLAB ICD 2, ICD 3 or REAL ICE, must not be cleared by the user application firmware; otherwise, communication errors will result between the debugger and the device.

If your application needs to use certain Analog-to-Digital pins as analog input pins during the debug session, the user application must clear the corresponding bits in the ADPCFG register during initialization of the ADC module.

When MPLAB ICD 2, ICD 3 or REAL ICE is used as a programmer, the user application firmware must correctly configure the ADPCFG register. Automatic initialization of this register is only done during debugger operation. Failure to correctly configure the register(s) will result in all Analog-to-Digital pins being recognized as analog input pins, resulting in the port value being read as a logic '0', which may affect user application functionality.

2.10 Unused I/Os

Unused I/O pins should not be allowed to float as inputs. They can be configured as outputs and driven to a logic-low state.

Alternately, inputs can be reserved by connecting the pin to Vss through a 1k to 10k resistor and configuring the pin as an input.

2.11 Referenced Sources

This device data sheet is based on the following individual chapters of the "PIC32 Family Reference Manual". These documents should be considered as the general reference for the operation of a particular module or device feature.

Note 1: To access the documents listed below, browse to the documentation section of the PIC32MX460F512L product page on the Microchip web site (www.microchip.com) or select a family reference manual section from the following list.

In addition to parameters, features, and other documentation, the resulting page provides links to the related family reference manual sections.

• Section 1. "Introduction" (DS61127)
• Section 2. "CPU" (DS61113)
• Section 3. "Memory Organization" (DS61115)
• Section 4. "Prefetch Cache" (DS61119)
• Section 5. "Flash Program Memory" (DS61121)
• Section 6. "Oscillator Configuration" (DS61112)
• Section 7. "Resets" (DS61118)
• Section 8. "Interrupt Controller" (DS61108)
• Section 9. "Watchdog Timer and Power-up Timer" (DS61114)
• Section 10. "Power-Saving Features" (DS61130)
• Section 12. "I/O Ports" (DS61120)
• Section 13. "Parallel Master Port (PMP)" (DS61128)
• Section 14. "Timers" (DS61105)
• Section 15. "Input Capture" (DS61122)
• Section 16. "Output Compare" (DS61111)
• Section 17. "10-bit Analog-to-Digital Converter (ADC)" (DS61104)
• Section 19. "Comparator" (DS61110)
• Section 20. “Comparator Voltage Reference (CV REF)” (DS61109)
• Section 21. "Universal Asynchronous Receiver Transmitter (UART)" (DS61107)
• Section 23. "Serial Peripheral Interface (SPI)" (DS61106)
- Section 24. "Inter-Integrated Circuit™ (I ^2 C™)" (DS61116)
• Section 27. "USB On-The-Go (OTG)" (DS61126)
• Section 29. "Real-Time Clock and Calendar (RTCC)" (DS61125)
• Section 31. "Direct Memory Access (DMA) Controller" (DS61117)
• Section 32. "Configuration" (DS61124)
• Section 33. "Programming and Diagnostics" (DS61129)

NOTES:

3.0 CPU

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 2. "CPU" (DS61113) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). Resources for the MIPS32® M4K® Processor Core are available at: www.mips.com/products/cores/32-64-bit-cores/mips32-m4k/.

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this sheet for device-specific register and bit information.

The MIPS32 ^® M4K ^® Processor Core is the heart of the PIC32MX3XX/4XX family processor. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of instruction execution to the proper destinations.

3.1 Features

• 5-stage pipeline
  • 32-bit Address and Data Paths
  • MIPS32 Enhanced Architecture (Release 2)

- Multiply-Accumulate and Multiply-Subtract Instructions

• Targeted Multiply Instruction
• Zero/One Detect Instructions
• WAIT Instruction
• Conditional Move Instructions (MOVN, MOVZ)
• Vectored interrupts

• Programmable exception vector base

• Atomic interrupt enable/disable

• GPR shadow registers to minimize latency for interrupt handlers
• Bit field manipulation instructions

- MIPS16e ^® Code Compression

• 16-bit encoding of 32-bit instructions to improve code density
• Special PC-relative instructions for efficient loading of addresses and constants
• SAVE & RESTORE macro instructions for setting up and tearing down stack frames within subroutines
• Improved support for handling 8 and 16-bit data types

- Simple Fixed Mapping Translation (FMT) mechanism

- Simple Dual Bus Interface

d a t a - Independent 32-bit address and data busses

- Transactions can be aborted to improve interrupt latency

• Autonomous Multiply/Divide Unit

• Maximum issue rate of one 32x16 multiply per clock
• Maximum issue rate of one 32x32 multiply every other clock
• Early-in iterative divide. Minimum 11 and maximum 34 clock latency (dividend (rs) sign extension-dependent)

- Power Control

• Minimum frequency: 0 MHz
• Low-Power mode (triggered by WAIT instruction)
• Extensive use of local gated clocks

• EJTAG Debug and Instruction Trace

• Support for single stepping
• Virtual instruction and data address/value
• breakpoints
• PC tracing with trace compression

FIGURE 3-1: MIPS ® M4K® BLOCK DIAGRAM
    SystemCoprocessor["System Coprocessor"]
    PowerMgmt.PowerMgmt. --> BusInterface
    EJTAG["EJTAG"] --> TraceI_F1["Trace I/F"]
    EJTAG --> TraceTAP["TAP"]
    TraceI_F1 --> TraceI_F2["Off-Chip Debug I/F"]
    TraceTAP --> TraceI_F3["Trace I/F"]
    BusInterface <--> DualBusI_F
    BusMatrix <--> DualBusI_F

3.2 Architecture Overview

The MIPS32 ^® M4K ^® Processor Core contains several logic blocks working together in parallel, providing an efficient high performance computing engine. The following blocks are included with the core:

• Execution Unit
• Multiply/Divide Unit (MDU)
  • System Control Coprocessor (CP0)
  • Fixed Mapping Translation (FMT)
  • Dual Internal Bus interfaces
  • Power Management
• MIPS16e Support
  • Enhanced JTAG (EJTAG) Controller

3.2.1 EXECUTION UNIT

The MIPS32 ^® M4K ^® Processor Core execution unit implements a load/store architecture with single-cycle ALU operations (logical, shift, add, subtract) and an autonomous multiply/divide unit. The core contains thirty-two 32-bit general purpose registers used for integer operations and address calculation. One additional register file shadow set (containing thirty-two registers) is added to minimize context switching overhead during interrupt/exception processing. The register file consists of two read ports and one write port and is fully bypassed to minimize operation latency in the pipeline.

The execution unit includes:

• 32-bit adder used for calculating the data address
- Address unit for calculating the next instruction address
- Logic for branch determination and branch target address calculation
- Load aligner
- Bypass multiplexers used to avoid stalls when executing instructions streams where data producing instructions are followed closely by consumers of their results
- Leading Zero/One detect unit for implementing the CLZ and CLO instructions
- Arithmetic Logic Unit (ALU) for performing bitwise logical operations
- Shifter and Store Aligner

3.2.2 MULTIPLY/DIVIDE UNIT (MDU)

The MIPS32 ^® M4K ^® Processor Core includes a multiply/divide unit (MDU) that contains a separate pipeline for multiply and divide operations. This pipeline operates in parallel with the integer unit (IU) pipeline and does not stall when the IU pipeline stalls. This allows MDU operations to be partially masked by system stalls and/or other integer unit instructions.

The high-performance MDU consists of a 32x16 booth recoded multiplier, result/accumulation registers (HI and LO), a divide state machine, and the necessary multiplexers and control logic. The first number shown ('32' of 32x16) represents the rs operand. The second number ('16' of 32x16) represents the rt operand. The PIC32MX core only checks the value of the latter (rt) operand to determine how many times the operation must pass through the multiplier. The 16x16 and 32x16 operations pass through the multiplier once. A 32x32 operation passes through the multiplier twice.

The MDU supports execution of one 16x16 or 32x16 multiply operation every clock cycle; 32x32 multiply operations can be issued every other clock cycle. Appropriate interlocks are implemented to stall the issuance of back-to-back 32x32 multiply operations. The multiply operand size is automatically determined by logic built into the MDU.

Divide operations are implemented with a simple 1 bit per clock iterative algorithm. An early-in detection checks the sign extension of the dividend (rs) operand. If rs is 8 bits wide, 23 iterations are skipped. For a 16-bit-wide rs, 15 iterations are skipped, and for a 24-bit-wide rs, 7 iterations are skipped. Any attempt to issue a subsequent MDU instruction while a divide is still active causes an IU pipeline stall until the divide operation is completed.

Table 3-1 lists the repeat rate (peak issue rate of cycles until the operation can be reissued) and latency (number of cycles until a result is available) for the PIC32MX core multiply and divide instructions. The approximate latency and repeat rates are listed in terms of pipeline clocks.

TABLE 3-1: MIPS ^ M4K ^ PROCESSOR CORE HIGH-PERFORMANCE INTEGER MULTIPLY/DIVIDE UNIT LATENCIES AND REPEAT RATES

Opcode	Operand Size (mul rt ) (div rs )	Latency	Repeat Rate
MULT/MULTU, MADD/MADDU,MSUB/MSUBU	16 bits 1 1
	32 bits 2 2
MUL 16 bits 2 1
	32 bits 3 2
DIV/DIVU 8 bits 12 11
	16 bits	19 18
	24 bits	26 25
	32 bits	33 32

The MIPS architecture defines that the result of a multiply or divide operation be placed in the HI and LO registers. Using the Move-From-HI (MFHI) and Move-From-LO (MFLO) instructions, these values can be transferred to the general purpose register file.

In addition to the HI/LO targeted operations, the MIPS32 architecture also defines a multiply instruction, MUL, which places the least significant results in the primary register file instead of the HI/LO register pair. By avoiding the explicit MFLO instruction, required when using the LO register, and by supporting multiple destination registers, the throughput of multiply-intensive operations is increased.

Two other instructions, multiply-add (MADD) and multiply-subtract (MSUB), are used to perform the multiply-accumulate and multiply-subtract operations. The MADD instruction multiplies two numbers and then adds

the product to the current contents of the HI and LO registers. Similarly, the MSUB instruction multiplies two operands and then subtracts the product from the HI and LO registers. The MADD and MSUB operations are commonly used in DSP algorithms.

3.2.3 SYSTEM CONTROL COPROCESSOR (CP0)

In the MIPS architecture, CP0 is responsible for the virtual-to-physical address translation, the exception control system, the processor's diagnostics capability, the operating modes (kernel, user and debug), and whether interrupts are enabled or disabled. Configuration information, such as presence of options like MIPS16e, is also available by accessing the CP0 registers, listed in Table3-2.

TABLE 3-2: COPROCESSOR 0 REGISTERS

Register Number	Register Name	Function
0-6 Reserved		Reserved
7	HWREna	Enables access via the RDHWR instruction to selected hardware registers
8	BadVAddr(1)	Reports the address for the most recent address-related exception
9	Count(1)	Processor cycle count
10	Reserved	Reserved
11	Compare(1)	Timer interrupt control
12	Status(1)	Processor status and control
12	IntCtl(1)	Interrupt system status and control
12	SRSCtl(1)	Shadow register set status and control
12	SRSMap(1)	Provides mapping from vectored interrupt to a shadow set
13	Cause(1)	Cause of last general exception
14	EPC(1)	Program counter at last exception
15	PRId	Processor identification and revision
15	EBASE	Exception vector base register
16	Config	Configuration register
16	Config1	Configuration register 1
16	Config2	Configuration register 2
16	Config3	Configuration register 3
17-22 Reserved Reserved
23 Debug (2)		Debug control and exception status
24 DEPC (2)		Program counter at last debug exception
25-29 Reserved Reserved
30 ErrorEPC (1)		Program counter at last error
31 DESAVE (2)		Debug handler scratchpad register

Note 1: Registers used in exception processing.
2: Registers used during debug.

Coprocessor 0 also contains the logic for identifying and managing exceptions. Exceptions can be caused by a variety of sources, including alignment errors in data, external events or program errors. Table 3-3 shows the exception types in order of priority.

TABLE 3-3: PIC32MX3XX/4XX FAMILY CORE EXCEPTION TYPES

Exception Description
Reset	Assertion or a Power-on Reset (POR)
DSS EJTAG	Debug Single Step
DINT	EJTAG Debug Interrupt. Caused by the assertion of the external EJ\_DINT input, or by setting the EjtagBrk bit in the ECR register
NMI Assertion of NMI signal
Interrupt Assertion of unmasked hardware or software interrupt signal
DIB	EJTAG debug hardware instruction break matched
AdEL	Fetch address alignment errorFetch reference to protected address
IBE	Instruction fetch bus error
DBp	EJTAG Breakpoint (execution of SDBBP instruction)
Sys	Execution of SYSCALL instruction
Bp	Execution of BREAK instruction
RI	Execution of a Reserved Instruction
CpU Execution of a coprocessor instruction for a coprocessor that is not enabled
CEU	Execution of a CorExtend instruction when CorExtend is not enabled
Ov	Execution of an arithmetic instruction that overflowed
Tr	Execution of a trap (when trap condition is true)
DDBL/DDBS	EJTAG Data Address Break (address only) or EJTAG Data Value Break on Store (address + value)
AdEL	Load address alignment errorLoad reference to protected address
AdES	Store address alignment errorStore to protected address
DBE Load	or store bus error
DDBL	EJTAG data hardware breakpoint matched in load data compare

3.3 Power Management

The MIPS32 ^® M4K ^® Processor Core offers a number of power management features, including low-power design, active power management and power-down modes of operation. The core is a static design that supports slowing or halting the clocks, which reduces system power consumption during idle periods.

3.3.1 INSTRUCTION-CONTROLLED POWER MANAGEMENT

The mechanism for invoking power-down mode is through execution of the WAIT instruction. For more information on power management, see Section 25.0 "Power-Saving Features".

The majority of the power consumed by the PIC32MX3XX/4XX family core is in the clock tree and clocking registers. The PIC32MX family uses extensive use of local gated-clocks to reduce this dynamic power consumption.

3.4 EJTAG Debug Support

The MIPS32 ^® M4K ^® Processor Core provides for an Enhanced JTAG (EJTAG) interface for use in the software debug of application and kernel code. In addition to standard user mode and kernel modes of operation, the core provides a Debug mode that is entered after a debug exception (derived from a hardware breakpoint, single-step exception, etc.) is taken and continues until a debug exception return (DERET) instruction is executed. During this time, the processor executes the debug exception handler routine.

The EJTAG interface operates through the Test Access Port (TAP), a serial communication port used for transferring test data in and out of the core. In addition to the standard JTAG instructions, special instructions defined in the EJTAG specification define what registers are selected and how they are used.

NOTES:

4.0 MEMORY ORGANIZATION

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 3. “Memory Organization” (DS61115) of the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32).

PIC32MX3XX/4XX microcontrollers provide 4 GB of unified virtual memory address space. All memory regions including program, data memory, SFRs and Configuration registers reside in this address space at their respective unique addresses. The program and data memories can be optionally partitioned into user and kernel memories. In addition, the data memory can be made executable, allowing PIC32MX3XX/4XX to execute from data memory.

4.1 Key Features

• 32-bit native data width
- Separate User and Kernel mode address space
- Flexible program Flash memory partitioning
- Flexible data RAM partitioning for data and program space
- Separate boot Flash memory for protected code
- Robust bus exception handling to intercept runaway code
- Simple memory mapping with Fixed Mapping Translation (FMT) unit
- Cacheable and non-cacheable address regions

4.2 PIC32MX3XX/4XX Memory Layout

PIC32MX3XX/4XX microcontrollers implement two address spaces: Virtual and Physical. All hardware resources such as program memory, data memory and peripherals are located at their respective physical addresses. Virtual addresses are exclusively used by the CPU to fetch and execute instructions as well as access peripherals. Physical addresses are used by peripherals such as DMA and Flash controller that access memory independently of CPU.

FIGURE 4-1: MEMORY MAP ON RESET FOR PIC32MX320F032H AND PIC32MX420F032H DEVICES ^(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

FIGURE 4-2: MEMORY MAP ON RESET FOR PIC32MX320F064H DEVICE
(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

FIGURE 4-3: MEMORY MAP ON RESET FOR PIC32MX320F128H AND PIC32MX320F128L DEVICES ^(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

FIGURE 4-4: MEMORY MAP ON RESET FOR PIC32MX340F128H, PIC32MX340F128L, PIC32MX440F128H AND PIC32MX440F128L DEVICES ^(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

FIGURE 4-5:
MEMORY MAP ON RESET FOR PIC32MX340F256H, PIC32MX360F256L, PIC32MX440F256H AND PIC32MX460F256L DEVICES^(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

FIGURE 4-6: MEMORY MAP ON RESET FOR PIC32MX340F512H, PIC32MX360F512L, PIC32MX440F512H AND PIC32MX460F512L DEVICES ^(1)

Note 1: Memory areas are not shown to scale.
2: The size of this memory region is programmable (see Section 3. "Memory Organization" (DS61115)) and can be changed by initialization code provided by end-user development tools (refer to the specific development tool documentation for information).

TABLE 4-1: BUS MATRIX REGISTERS MAP

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET, and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-2: INTERRUPT REGISTERS MAP FOR PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address(BF88,#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	2/6 21/5 20	4 19/3 18/2	17/1 16/0
1000	INTCON	31:16	——	——	——	——	——	50 000
		15:0	—	—	—	MVEC	—	TPC<2:0>			—	—	—	INT4EP	INT3EP	INT2EP	INT1EP	INT0EP	0000
1010	INTSTAT^{(2)}$	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	—	—	—	—	—	—	SRIPL<2:0>		—	—	VEC<5:0>						0000
1020	IPTMR	31:16	IPTMR<31:0>																0000
		15:0																	0000
1030	IFS0	31:16	I2C1MIF	I2C1SIF	I2C1BIF	U1TXIF	U1RXIF	U1EIF	SPI1RXIF	SPI1TXIF	SPI1EIF	OC5IF	IC5IF	T5IF	INT4IF	OC4IF	IC4IF	T4IF	0000
		15:0	INT3IF	OC3IF	IC3IF	T3IF	INT2IF	OC2IF	IC2IF	T2IF	INT1IF	OC1IF	IC1IF	T1IF	INT0IF	CS1IF	CS0IF	CTIF	0000
1040	IFS1	31:16	—	—	—	—	—	—	USBIF	FCEIF	—	—	—	—	DMA3IF	DMA2IF	DMA1IF	DMA0IF	0000
		15:0	RTCCIF	FSCMIF	I2C2MIF	I2C2SIF	I2C2BIF	U2TXIF	U2RXIF	U2EIF	SPI2RXIF	SPI2TXIF	SPI2EIF	CMP2IF	CMP1IF	PMP1F	AD1IF	CNIF	0000
1060	IEC0	31:16	I2C1MIE	I2C1SIE	I2C1BIE	U1TXIE	U1RXIE	U1EIE	SPI1RXIE	SPI1TXIE	SPI1EIE	OC5IE	IC5IE	T5IE	INT4IE	OC4IE	IC4IE	T4IE	0000
		15:0	INT3IE	OC3IE	IC3IE	T3IE	INT2IE	OC2IE	IC2IE	T2IE	INT1IE	OC1IE	IC1IE	T1IE	INT0IE	CS1IE	CS0IE	CTIE	0000
1070	IEC1	31:16	—	—	—	—	—	—	USBIE	FCEIE	—	—	—	—	DMA3IE	DMA2IE	DMA1IE	DMA0IE	0000
		15:0	RTCCIE	FSCMIE	I2C2MIE	I2C2SIE	I2C2BIE	U2TXIE	U2RXIE	U2EIE	SPI2RXIE	SPI2TXIE	SPI2EIE	CMP2IE	CMP1IE	PMP1F	AD1IE	CNIE	0000
1090	IPC0	31:16	—	—	—	INT0IP<2:0>			INT0IS<1:0>		—	—	—	CS1IP<2:0>			CS1IS<1:0>		0000
		15:0	—	—	—	CS0IP<2:0>			CS0IS<1:0>		—	—	—	CTIP<2:0>			CTIS<1:0>		0000
10A0	IPC1	31:16	—	—	—	INT1IP<2:0>			INT1IS<1:0>		—	—	—	OC1IP<2:0>			OC1IS<1:0>		0000
		15:0	—	—	—	IC1IP<2:0>			IC1IS<1:0>		—	—	—	T1IP<2:0>			T1IS<1:0>		0000
10B0	IPC2	31:16	—	—	—	INT2IP<2:0>			INT2IS<1:0>		—	—	—	OC2IP<2:0>			OC2IS<1:0>		0000
		15:0	—	—	—	IC2IP<2:0>			IC2IS<1:0>		—	—	—	T2IP<2:0>			T2IS<1:0>		0000
10C0	IPC3	31:16	—	—	—	INT3IP<2:0>			INT3IS<1:0>		—	—	—	OC3IP<2:0>			OC3IS<1:0>		0000
		15:0	—	—	—	IC3IP<2:0>			IC3IS<1:0>		—	—	—	T3IP<2:0>			T3IS<1:0>		0000
10D0	IPC4	31:16	—	—	—	INT4IP<2:0>			INT4IS<1:0>		—	—	—	OC4IP<2:0>			OC4IS<1:0>		0000
		15:0	—	—	—	IC4IP<2:0>			IC4IS<1:0>		—	—	—	T4IP<2:0>			T4IS<1:0>		0000
10E0	IPC5	31:16	—	—	—	SPI1IP<2:0>			SPI1IS<1:0>		—	—	—	OC5IP<2:0>			OC5IS<1:0>		0000
		15:0	—	—	—	IC5IP<2:0>			IC5IS<1:0>		—	—	—	T5IP<2:0>			T5IS<1:0>		0000
10F0	IPC6	31:16	—	—	—	AD1IP<2:0>			AD1IS<1:0>		—	—	—	CNIP<2:0>			CNIS<1:0>		0000
		15:0	—	—	—	I2C1IP<2:0>			I2C1IS<1:0>		—	—	—	U1IP<2:0>			U1IS<1:0>		0000
1100	IPC7	31:16	—	—	—	SPI2IP<2:0>			SPI2IS<1:0>		—	—	—	CMP2IP<2:0>			CMP2IS<1:0>		0000
		15:0	—	—	—	CMP1IP<2:0>			CMP1IS<1:0>		—	—	—	PMP1F<2:0>			PMP1S<1:0>		0000
1110	IPC8	31:16	—	—	—	RTCCIP<2:0>			RTCCIS<1:0>		—	—	—	FSCMIP<2:0>			FSCMIS<1:0>		0000
		15:0	—	—	—	I2C2IP<2:0>			I2C2IS<1:0>		—	—	—	U2IP<2:0>			U2IS<1:0>		0000
1120	IPC9	31:16	—	—	—	DMA3IP<2:0>			DMA3IS<1:0>		—	—	—	DMA2IP<2:0>			DMA2IS<1:0>		0000
		15:0	—	—	—	DMA1IP<2:0>			DMA1IS<1:0>		—	—	—	DMA0IP<2:0>			DMA0IS<1:0>		0000
1140	IPC11	31:16	——	——	——	——	——	——	——
		15:0	——	——	USBIP<2:0>			USBIS<1:0>			—	—	—	FCEIP<2:0>			FCEIS<1:0>		0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET, and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV
Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.

TABLE 4-3: INTERRUPT REGISTERS MAP FOR PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX340F128L, PIC32MX360F256L AND PIC32MX360F512L DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as 0. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.

TABLE 4-4: INTERRUPT REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H AND PIC32MX320F128L DEVICES ONLY ^(1)

Virtual Address(BF88, #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
1000	INTCON	31:16	——	——	——	——	——	50 000
		15:0	—	—	—	MVEC	—	TPC<2.0>			—	—	—	INT4EP	INT3EP	INT2EP	INT1EP	INT0EP	0000
1010	INTSTAT^{(2)}$	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	—	—	—	—	—	SRIPL<2.0>			—	—	VEC<5.0>							0000
1020	IPTMR	31:16	IPTMR<31.0>																	0000
		15:0																		0000
1030	IFS0	31:16	I2C1MIF	I2C1SIF	I2C1BIF	U1TXIF	U1RXIF	U1EIF	SPI1RXIF	SPI1TXIF	SPI1EIF	OC5IF	IC5IF	T5IF	INT4IF	OC4IF	IC4IF	T4IF	0000
		15:0	INT3IF	OC3IF	IC3IF	T3IF	INT2IF	OC2IF	IC2IF	T2IF	INT1IF	OC1IF	IC1IF	T1IF	INT0IF	CS1IF	CS0IF	CTIF	0000
1040	IFS1	31:16	—	—	—	—	—	—	—	FCEIF	—	—	—	—	—	—	—	—	0000
		15:0	RTCCIF	FSCMIF	I2C2MIF	I2C2SIF	I2C2BIF	U2TXIF	U2RXIF	U2EIF	SPI2RXIF	SPI2TXIF	SPI2EIF	CMP2IF	CMP1IF	PMPIF	AD1IF	CNIF	0000
1060	IEC0	31:16	I2C1MIE	I2C1SIE	I2C1BIE	U1TXIE	U1RXIE	U1EIE	SPI1RXIE	SPI1TXIE	SPI1EIE	OC5IE	IC5IE	T5IE	INT4IE	OC4IE	IC4IE	T4IE	0000
		15:0	INT3IE	OC3IE	IC3IE	T3IE	INT2IE	OC2IE	IC2IE	T2IE	INT1IE	OC1IE	IC1IE	T1IE	INT0IE	CS1IE	CS0IE	CTIE	0000
1070	IEC1	31:16	—	—	—	—	—	—	—	FCEIE	—	—	—	—	—	—	—	—	0000
		15:0	RTCCIE	FSCMIE	I2C2MIE	——	——				SPI2RXIE	SPI2TXIE	SPI2EIE	CMP2IE	CMP1IE	PMPIE	AD1IE	CNIE	0000
1090	IPC0	31:16	—	—	—	INT0IP<2.0>			INT0IS<1.0>		—	—	—	CS1IP<2.0>			CS1IS<1.0>			0000
		15:0	—	—	—	CS0IP<2.0>			CS0IS<1.0>		—	—	—	CTIP<2.0>			CTIS<1.0>			0000
10A0	IPC1	31:16	—	—	—	INT1IP<2.0>			INT1IS<1.0>		—	—	—	OC1IP<2.0>			OC1IS<1.0>			0000
		15:0	—	—	—	IC1IP<2.0>			IC1IS<1.0>		—	—	—	T1IP<2.0>			T1IS<1.0>			0000
10B0	IPC2	31:16	—	—	—	INT2IP<2.0>			INT2IS<1.0>		—	—	—	OC2IP<2.0>			OC2IS<1.0>			0000
		15:0	—	—	—	IC2IP<2.0>			IC2IS<1.0>		—	—	—	T2IP<2.0>			T2IS<1.0>			0000
10C0	IPC3	31:16	—	—	—	INT3IP<2.0>			INT3IS<1.0>		—	—	—	OC3IP<2.0>			OC3IS<1.0>			0000
		15:0	—	—	—	IC3IP<2.0>			IC3IS<1.0>		—	—	—	T3IP<2.0>			T3IS<1.0>			0000
10D0	IPC4	31:16	—	—	—	INT4IP<2.0>			INT4IS<1.0>		—	—	—	OC4IP<2.0>			OC4IS<1.0>			0000
		15:0	—	—	—	IC4IP<2.0>			IC4IS<1.0>		—	—	—	T4IP<2.0>			T4IS<1.0>			0000
10E0	IPC5	31:16	—	—	—	SPI1IP<2.0>			SPI1IS<1.0>		—	—	—	OC5IP<2.0>			OC5IS<1.0>			0000
		15:0	—	—	—	IC5IP<2.0>			IC5IS<1.0>		—	—	—	T5IP<2.0>			T5IS<1.0>			0000
10F0	IPC6	31:16	—	—	—	AD1IP<2.0>			AD1IS<1.0>		—	—	—	CNIP<2.0>			CNIS<1.0>			0000
		15:0	—	—	—	I2C1IP<2.0>			I2C1IS<1.0>		—	—	—	U1IP<2.0>			U1IS<1.0>			0000
1100	IPC7	31:16	—	—	—	SPI2IP<2.0>			SPI2IS<1.0>		—	—	—	CMP2IP<2.0>			CMP2IS<1.0>			0000
		15:0	—	—	—	CMP1IP<2.0>			CMP1IS<1.0>		—	—	—	PMPIP<2.0>			PMPIS<1.0>			0000
1110	IPC8	31:16	—	—	—	RTCCIP<2.0>			RTCCIS<1.0>		—	—	—	FSCMIP<2.0>			FSCMIS<1.0>			0000
		15:0	—	—	—	I2C2IP<2.0>			I2C2IS<1.0>		—	—	—	U2IP<2.0>			U2IS<1.0>			0000
1140	IPC11	31:16	——	——	——	——	——	——
		15:0	—	—	—	—	—	—	—	—	—	—	—	FCEIP<2.0>			FCEIS<1.0>			0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.

TABLE 4-5: INTERRUPT REGISTERS MAP FOR PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET, and INV registers at their virtual addresses, plus offsets of 0x4, 0x8, and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.

TABLE 4-6: INTERRUPT REGISTERS MAP FOR THE PIC32MX420F032H DEVICE ONLY (1)

Legend: x = unknown value on Reset, — = unimplemented, read as 'u'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.

TABLE 4-7: TIMER1-5 REGISTERS MAP (1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more
information.
2: This bit is not available on 64-pin devices.

TABLE 4-8: INPUT CAPTURE1-5 REGISTERS MAP

Virtual Address(BF80 #)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

14 19/3 18

2 17/1 16/0

2000

C1CON (1)

31:16

———

———

———

——— 0:00

15:0 ON

—

SIDL

—

—

—

FEDGE

C32

ICTMR

ICI<1.0>

ICOV

ICBNE

ICM<2.0>

0000

2010

IC1BUF

31:16

IC1BUF<31:0>

xxxxx

15:0

xxxxx

2200

C2CON (1)

31:16

———

———

———

——— 0:00

15:0 ON

—

SIDL

—

—

—

FEDGE

C32

ICTMR

ICI<1.0>

ICOV

ICBNE

ICM<2.0>

0O00

2210

IC2BUF

31:16

IC2BUF<31:0>

xxxxx

15:0

xxxxx

2400

C3CON (1)

31:16

———

———

———

——— 0:00

15:0 ON

—

SIDL

—

—

—

FEDGE

C32

ICTMR

ICI<1.0>

ICOV

ICBNE

ICM<2.0>

0OC0

2410

IC3BUF

31:16

IC3BUF<31:0>

xxxxx

15:0

xxxxx

2600

C4CON (1)

31:16

———

———

———

——— 0:00

15:0 ON

—

SIDL

—

—

—

FEDGE

C32

ICTMR

ICI<1.0>

ICOV

ICBNE

ICM<2.0>

0OO0

2610

IC4BUF

31:16

IC4BUF<31:0>

xxxxx

15:0

xxxxx

2800

C5CON (1)

31:16

———

———

———

——— 0:00

15:0 ON

—

SIDL

—

—

—

FEDGE

C32

ICTMR

ICI<1.0>

ICOV

ICBNE

ICM<2.0>

0UU0

2810

IC5BUF

31:16

IC5BUF<31:0>

xxxxx

15:0

xxxxx

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-9: OUTPUT COMPARE1-5 REGISTERS MAP (1)

Virtual Address(BF80 #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13 2	8/12 27/11	26/10 25/9	24/8 23/7	2/6 21/5 20	14 19/3 18/2	17/1 16/0
3000	OC1CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	—	—	—	—	—	—	—	—	OC32	OCFLT	OCTSEL	OCM<2:0>			0000
3010	OC1R	31:16	OC1R<31:0>																	xxxxx
		15:0																		xxxxx
3020	OC1RS	31:16	OC1RS<31:0>																	xxxxx
		15:0																		xxxxx
3200	OC2CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	—	—	—	—	—	—	—	—	OC32	OCFLT	OCTSEL	OCM<2:0>			0000
3210	OC2R	31:16	OC2R<31:0>																	xxxxx
		15:0																		xxxxx
3220	OC2RS	31:16	OC2RS<31:0>																	xxxxx
		15:0																		xxxxx
3400	OC3CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	—	—	—	—	—	—	—	—	OC32	OCFLT	OCTSEL	OCM<2:0>			0000
3410	OC3R	31:16	OC3R<31:0>																	xxxxx
		15:0																		xxxxx
3420	OC3RS	31:16	OC3RS<31:0>																	xxxxx
		15:0																		xxxxx
3600	OC4CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	—	—	—	—	—	—	—	—	OC32	OCFLT	OCTSEL	OCM<2:0>			0000
3610	OC4R	31:16	OC4R<31:0>																	xxxxx
		15:0																		xxxxx
3620	OC4RS	31:16	OC4RS<31:0>																	xxxxx
		15:0																		xxxxx
3800	OC5CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	—	—	—	—	—	—	—	—	OC32	OCFLT	OCTSEL	OCM<2:0>			0000
3810	OC5R	31:16	OC5R<31:0>																	xxxxx
		15:0																		xxxxx
3820	OC5RS	31:16	OC5RS<31:0>																	xxxxx
		15:0																		xxxxx

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-10: I2C1-2 REGISTERS MAP (1)

Virtual Address(BF80 #)	Register Name	Bit Range	Bits																All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
5000	2C1CON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	SCLREL	STRICT	A10M	DISSLW	SMEN	GCEN	STREN	ACKDT	ACKEN	RCEN	PEN	RSEN	SEN	1000
5010	I2C1STAT	31:16	——	——	——	——	——	0000
		15:0	ACKSTAT	TRSTAT	—	—	—	—	BCL	GCSTAT	ADD10	IWCOL	I2COV	D/A	P	S	R/W	RBF	TBF
5020	I2C1ADD	31:16	——	——	——	——	——												0000
		15:0																	0000
			—	—	—	—	—	—	—	ADD<9:0>									0000
5030	2C1MSK	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	MSK<9:0>									0000
5040	I2C1BRG	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	I2C1BRG<11:0>											0000
5050	I2C1TRN	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	I2CT1DATA<7:0>								0000
5260	I2C1RCV	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	I2CR1DATA<7:0>								0000
5200	2C2CON	31:16	——	——	——	——	——	0000
		15:0	ON	—	SIDL	SCLREL	STRICT	A10M	DISSLW	SMEN	GCEN	STREN	ACKDT	ACKEN	RCEN	PEN	RSEN	SEN	1000
5210	I2C2STAT	31:16	——	——	——	——	——	0000
		15:0	ACKSTAT	TRSTAT	—	—	—	—	BCL	GCSTAT	ADD10	IWCOL	I2COV	D/A	P	S	R/W	RBF	TBF
5220	I2C2ADD	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	ADD<9:0>									0000
5230	2C2MSK	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	MSK<9:0>									0000
5240	I2C2BRG	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	I2C2BRG<11:0>											0000
5250	I2C2TRN	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	I2CT2DATA<7:0>								0000
5260	I2C2RCV	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	I2CR2DATA<7:0>								0000

Legend: x = unknown value on Reset, — = unimplemented, read as 'c'. Reset values are shown in hexadecimal.
Note 1: All registers in this table except I2CxRCV have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-11: UART1-2 REGISTERS MAP

Virtual Address(BF80_#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13 28	12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	4 19/3 18	2 17/1 16/0
6000	U1MODE (1)	31:16	—	—	—	—	0000
		15:0 ON		—	SIDL	IREN	RTSMD	—	UEN<1:0>		WAKE	LPBACK	ABAUD	RXINV	BRCH	PDSEL<1:0>		STSEL	0000
6010	U1STA(1)	31:16	—	—	—	—	—	—	—	ADM_EN	ADDR<7:0>									0000
		15:0	UTXISEL<1:0>		UTXINV	URXEN	UTXBRK	UTXEN	UTXBF	TRMT	URXISEL<1:0>		ADDEN	RIDLE	PERR	FERR	OERR	URXDA	0110
6020	U1TXREG	31:16	—	—	—	—	0000
		15:0	—	—	—	—	—	—	—	TX8	Transmit Register									0000
6030	U1RXREG	31:16	—	—	—	—	0000
		15:0	—	—	—	—	—	—	—	RX8	Receive Register									0000
6040	U1BRG(1)	31:16	—	—	—	—	0000
		15:0	BRG<15:0>																	0000
6200	U2MODE (1)	31:16	—	—	—	—	0000
		15:0 ON		—	SIDL	IREN	RTSMD	—	UEN<1:0>		WAKE	LPBACK	ABAUD	RXINV	BRCH	PDSEL<1:0>		STSEL	0100
6210	U2STA(1)	31:16	—	—	—	—	—	—	—	ADM_EN	ADDR<7:0>									0000
		15:0	UTXISEL<1:0>		UTXINV	URXEN	UTXBRK	UTXEN	UTXBF	TRMT	URXISEL<1:1>		ADDEN	RIDLE	PERR	FERR	OERR	URXDA	0110
6220	U2TXREG	31:16	—	—	—	—	0000
		15:0	—	—	—	—	—	—	—	TX8	Transmit Register									0000
6230	U2RXREG	31:16	—	—	—	—	0000
		15:0	—	—	—	—	—	—	—	RX8	Receive Register									0000
6240	U2BRG(1)	31:16	—	—	—	—	0000
		15:0	BRG<15:0>																	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-12: SPI1-2 REGISTERS MAP (1,2)

Virtual Address (BF60 #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
5800	SPIICON	31:16	FRMEN FR	MSYNC FR	MPOL	———	———	———	———	S	P	I	F	E	—	0000
		15:0	ON	—	SIDL	DISSDO	MODE32	MODE16	SMP	CKE	SSEN	CKP	MSTEN	—	—	—	—	—	—	0000
5810	SPI1STAT	31:16	———	———	———	———	———	0000
		15:0	—	—	—	—	SPIBUSY	—	—	—	—	—	SPIROV	—	—	SPITBE	—	—	SPIRBF	0000
5820	SPI1BUF	31:16	DATA<31:0>																	0000
		15:0																		0000
5830	SPI1BRG	31:16	—	———	———	———	———	0000
		15:0	—	—	—	—	—	—	—	—	BRG<8:0>									0000
5A00	SPI2CON	31:16	FRMEN FR	MSYNC FR	MPOL	—	—	—	—	—	—	—	—	—	—	—	—	SPIFE	—	0000
		15:0	ON	—	SIDL	DISSDO	MODE32	MODE16	SMP	CKE	SSEN	CKP	MSTEN	—	—	—	—	—	—	0000
5A10	SPI2STAT	31:16	—	———	———	———	———	0000
		15:0	—	—	—	—	SPIBUSY	—	—	—	—	—	SPIROV	—	—	SPITBE	—	—	SPIRBF	0000
5A20	SPI2BUF	31:16	DATA<31:0>																	0000
		15:0																		0000
5A30	SPI2BRG	31:16	—	———	———	———	———	0000
		15:0	—	—	—	—	—	—	—	—	BRG<8:0>									0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table except SPIxBUF have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV
Registers" for more information.
2: SPI2 Module is not present on PIC32MX420FXXXX/440FXXXX devices.

TABLE 4-13: ADC REGISTERS MAP

Virtual Address (BF90 #)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

4 19/3 18/2

17/1 16/0

9000

AD1CON1(1)

31:16

———

———

———

———

C000

15:0 ON

—

SIDL

—

—

FORM<2:0>

SSRC<2:0>

CLRASAM

—

ASAM

SAMP

DONE

0000

9010

AD1CON2(1)

31:16

———

———

———

———

C000

15:0

VCFG2 VCFG1 VCFG0 OFFCAL

—

CSCNA

—

—

BUFS

—

SMPI<3:0>

BUFM

ALTS

0000

9020

AD1CON3(1)

31:16

———

———

———

———

C000

15:0

ADRC

—

—

SAMC<4:0>

ADCS<7:0>

0000

9040

AD1CHS(1)

31:16

CHONB

—

—

—

CHOSB<3:0>

CHONA

—

—

—

CHOSA<3:0>

0000

15:0

———

———

———

———

C000

9060

AD1PCFG(1)

31:16

———

———

———

———

C000

15:0

PCFG15

PCFG14

PCFG13

PCFG12

PCFG11

PCFG10

PCFG9

PCFG8

PCFG7

PCFG6

PCFG5

PCFG4

PCFG3

PCFG2

PCFG1

PCFG0

0000

9050

AD1CSSL(1)

31:16

———

———

———

———

C000

15:0

CSSL15

CSSL14

CSSL13

CSSL12

CSSL11

CSSL10

CSSL9

CSSL8

CSSL7

CSSL6

CSSL5

CSSL4

CSSL3

CSSL2

CSSL1

CSSL0

0000

9070

ADC1BUF0

31:16

ADC Result Word 0 (ADC1BUF0<31:0>)

0000

15:0

0000

9080

ADC1BUF1

31:16

ADC Result Word 1 (ADC1BUF1<31:0>)

0000

15:0

0000

9090

ADC1BUF2

31:16

ADC Result Word 2 (ADC1BUF2<31:0>)

0000

15:0

0000

90A0

ADC1BUF3

31:16

ADC Result Word 3 (ADC1BUF3<31:0>)

0000

15:0

0000

90B0

ADC1BUF4

31:16

ADC Result Word 4 (ADC1BUF4<31:0>)

0000

15:0

0000

90C0

ADC1BUF5

31:16

ADC Result Word 5 (ADC1BUF5<31:0>)

0000

15:0

0000

90D0

ADC1BUF6

31:16

ADC Result Word 6 (ADC1BUF6<31:0>)

0000

15:0

0000

90E0

ADC1BUF7

31:16

ADC Result Word 7 (ADC1BUF7<31:0>)

0000

15:0

0000

90F0

ADC1BUF8

31:16

ADC Result Word 8 (ADC1BUF8<31:0>)

0000

15:0

0000

9100

ADC1BUF9

31:16

ADC Result Word 9 (ADC1BUF9<31:0>)

0000

15:0

0000

Legend: x = unknown value on Reset, — = unimplemented, read as "u". Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-13: ADC REGISTERS MAP (CONTINUED)

Virtual Address (BF60_#)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

14 19/3 18/2

17/1 16/0

9110

ADC1BUFA

31:16

ADC Result Word A (ADC1BUFA<31:0>)

0000

15:0 0000

9120

ADC1BUF

31:16

ADC Result Word B (ADC1BUF<31:0>)

0000

15:0 0000

9130

ADC1BUFC

31:16

ADC Result Word C (ADC1BUFC<31:0>)

0000

15:0 0000

9140

ADC1BUFD

31:16

ADC Result Word D (ADC1BUFD<31:0>)

0000

15:0 0000

9150

ADC1BUFE

31:16

ADC Result Word E (ADC1BUFE<31:0>)

0000

15:0 0000

9160

ADC1BUFF

31:16

ADC Result Word F (ADC1BUFF<31:0>)

0000

15:0 0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-14: DMA GLOBAL REGISTERS MAP FOR PIC32MX340FXXXX/360FXXXX/440FXXXX/460XXXX DEVICES ONLY

Virtual Address(BF88_#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18	2 17/1 16/0
3000	DMACON (1)	31:16	——	——	——	——	0:00
		15:0 ON		— SIDE SUSPEND	——	——	——	——	0:00
3010	DMASTAT	31:16	——	——	——	——	0:00
		15:0	—	—	—	—	—	—	—	—	—	—	—	—	RDWR	—	DMACH<1:0>			0:00
3020	DMAADDR	31:16	DMAADDR<31:0>																	0:00
		15:0																		0:00

Legend: X = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-15: DMA CRC REGISTERS MAP FOR PIC32MX340FXXXX/360FXXXX/440FXXXX/460XXXX DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as 'c'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0xB and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-16: DMA CHANNELS 0-3 REGISTERS MAP FOR PIC32MX340FXXXX/360FXXXX/440FXXXX/460XXXX DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers except DCHxSPTR, DCHxDPTR and DCHxCPTR have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-16: DMA CHANNELS 0-3 REGISTERS MAP FOR PIC32MX340FXXXX/360FXXXX/440FXXXX/460XXXX DEVICES ONLY ^(1) (CONTINUED)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers except DCHxSPTR, DCHxDPTR and DCHxCPTR have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-16: DMA CHANNELS 0-3 REGISTERS MAP FOR PIC32MX340FXXXX/360FXXXX/440FXXXX/460XXXX DEVICES ONLY ^(1) (CONTINUED)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers except DCHxSPTR, DCHxDPTR and DCHxCPTR have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-17: COMPARATOR REGISTERS MAP (1)

Virtual Address (BF80_#)	Register Name	Bit Range	Bits																All Resets
			31/15 30	14 29/13 28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20/4	19/3 18/2	17/1 16/0
A000	CM1CON	31:16	——	——	——	——	C000
		15:0	ON COE CPOL			—	—	—	—	COUT	EVPOL<1:0>		—	CREF	—	—	CCH<1:0>		00:3
A010	CM2CON	31:16	——	——	——	——	C000
		15:0	ON COE CPOL			—	—	—	—	COUT	EVPOL<1:0>		—	CREF	—	—	CCH<1:0>		00:3
A060	CMSTAT	31:16	——	——	——	——	C000
		15:0	—	—	SIDL	—	—	—	—	—	—	—	—	—	—	—	C2OUT	C1OUT	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-18: COMPARATOR VOLTAGE REFERENCE REGISTERS MAP (1)

Virtual Address(BF80_#)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

9800

CVRCON

31:16

——

——

——

——

—

—

15:0 ON

—

—

—

—

—

—

—

—

—

CVROE

CVRR

CVRSS

CVR<3:0>

00:00

Legend: x = unknown value on Resol, — = unimplemented, read as 0. Resol values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-19: FLASH CONTROLLER REGISTERS MAP

Legend: x = unknown value on Reset. — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-20: SYSTEM CONTROL REGISTERS MAP (1,2)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR. SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: Reset values are dependent on the DEVCFGx Configuration bits and the type of reset.
3: This register does not have associated CLR, SET, and INV registers.

TABLE 4-21: PORTA REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address (BF68 #)

Register Name

Bit Range

Bits

All Resets

31/15 30

/14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

/4 19/3 18/2

17/1 16/0

6000

TRISA

31:16

——

——

——

——

——

0000

15:0

RISA15 TR

ISA14

—

—

—

—

TRISA10

TRISA9

—

TRISA7

TRISA6

TRISA5

TRISA4

TRISA3

TRISA2

TRISA1

TRISA0

C6F7

6010

PORTA

31:16

——

——

——

——

——

0000

15:0

RA15 RA14

—

—

—

—

RA10

RA9

—

RA7

RA6

RA5

RA4

RA3

RA2

RA1

RA0

xxxxx

6020

LATA

31:16

——

——

——

——

——

0000

15:0

LATA15

LATA14

—

—

—

—

LATA10

LATA9

—

LATA7

LATA6

LATA5

LATA4

LATA3

LATA2

LATA1

LATA0

xxxxx

6030

ODCA

31:16

——

——

——

——

——

0000

15:0

ODCA15

ODCA14

—

—

—

ODCA10

ODCA9

—

ODCA7

ODCA6

ODCA5

ODCA4

ODCA3

ODCA2

ODCA1

ODCA0

0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-22: PORTB REGISTERS MAP (1)

Virtual Address(BF68_#)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

14 19/3 18

2 17/1 16/0

6040

TRISB

31:16

——

——

——

——

——

0000

15:0

TRISB15

TRISB14

TRISB13

TRISB12

TRISB11

TRISB10

TRISB9

TRISB8

TRISB7

TRISB6

TRISB5

TRISB4

TRISB3

TRISB2

TRISB1

TRISB0

2755F

6050

PORTB

31:16

——

——

——

——

——

0000

15:0

RB15

RB14

RB13

RB12

RB11

RB10

RB9

RB8

RB7

RB6

RB5

RB4

RB3

RB2

RB1

RB0

xxxxx

6060

LATB

31:16

——

——

——

——

——

0000

15:0

LATB15

LATB14

LATB13

LATB12

LATB11

LATB10

LATB9

LATB8

LATB7

LATB6

LATB5

LATB4

LATB3

LATB2

LATB1

LATB0

xxxxx

6070

ODCB

31:16

——

——

——

——

——

0000

15:0

ODCB15

ODCB14

ODCB13

ODCB12

ODCB11

ODCB10

ODCB9

ODCB8

ODCB7

ODCB6

ODCB5

ODCB4

ODCB3

ODCB2

ODCB1

ODCB0

0000

Legend: x = unknown value on Reset. — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses. plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-23: PORTC REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address (BF68_#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18	2 17/1 16/0
6080	TRISC	31:16	——	——	——	——	——	0000
		15:0	TRISC15 TR	SC14 TRISC13 TRISC12			——	——	——	TRISC4 TRISC3 TRISC2 TRISC1 — F015
6090	PORTC	31:16	——	——	——	——	——	0000
		15:0	RC15	RC14	RC13	RC12	—	—	—	—	—	—	—	—	RC4	RC3	RC2	RC1	—	xxxx
60A0	LATC	31:16	——	——	——	——	——	0000
		15:0	LATC15	LATC14	LATC13	LATC12	—	—	—	—	—	—	—	—	LATC4	LATC3	LATC2	LATC1	—	xxxx
60B0	ODCC	31:16	——	——	——	——	——	0000
		15:0	ODCC15	ODCC14	ODCC13	ODCC12	—	—	—	—	—	—	—	—	ODCC4	ODCC3	ODCC2	ODCC1	—	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-24: PORTC REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX420F032H, PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-25: PORTD REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address (BF88_#)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

19/3 18

217/1 16/0

60C0

TRISD

31:16

——

——

——

——

——

0000

15:0

TRISD15

TRISD14

TRISD13

TRISD12

TRISD11

TRISD10

TRISD9

TRISD8

TRISD7

TRISD6

TRISD5

TRISD4

TRISD3

TRISD2

TRISD1

TRISD0

2FET

60D0

PORTD

31:16

——

——

——

——

——

0000

15:0

RD15

RD14

RD13

RD12

RD11

RD10

RD9

RD8

RD7

RD6

RD5

RD4

RD3

RD2

RD1

RD0

xxxx

60E0

LATD

31:16

——

——

——

——

——

0000

15:0

LATD15

LATD14

LATD13

LATD12

LATD11

LATD10

LATD9

LATD8

LATD7

LATD6

LATD5

LATD4

LATD3

LATD2

LATD1

LATD0

xxxx

60F0

ODCD

31:16

——

——

——

——

——

0000

15:0

ODCD15

ODCD14

ODCD13

ODCD12

ODCD11

ODCD10

ODCD9

ODCD8

ODCD7

ODCD6

ODCD5

ODCD4

ODCD3

ODCD2

ODCD1

ODCD0

2000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-26: PORTD REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX420F032H, PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Virtual Address (BF88 #)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

19/3 18/2

17/1 16/0

60C0

TRISD

31:16

— —

— —

— —

— —

0000

15:0

—

—

—

—

TRISD11

TRISD10

TRISD9

TRISD8

TRISD7

TRISD6

TRISD5

TRISD4

TRISD3

TRISD2

TRISD1

TRISD0

0F2F

60D0

PORTD

31:16

— —

— —

— —

— —

0000

15:0

—

—

—

—

RD11

RD10

RD9

RD8

RD7

RD6

RD5

RD4

RD3

RD2

RD1

RD0

xxxx

60E0

LATD

31:16

— —

— —

— —

— —

0000

15:0

—

—

—

—

LATD11

LATD10

LATD9

LATD8

LATD7

LATD6

LATD5

LATD4

LATD3

LATD2

LATD1

LATD0

xxxx

60F0

ODCD

31:16

— —

— —

— —

— —

0000

15:0

—

—

—

—

ODCD11

ODCD10

ODCD9

ODCD8

ODCD7

ODCD6

ODCD5

ODCD4

ODCD3

ODCD2

ODCD1

ODCD0

0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-27: PORTE REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registors" for more information.

TABLE 4-28: PORTE REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX420F032H, PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Virtual Address(BF88_#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
6100	TRISE	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	TRISE7	TRISE6	TRISE5	TRISE4	TRISE3	TRISE2	TRISE1	TRISE0	00FF
6110	PORTE	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	RE7	RE6	RE5	RE4	RE3	RE2	RE1	RE0	xxxx
6120	LATE	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	LATE7	LATE6	LATE5	LATE4	LATE3	LATE2	LATE1	LATE0	xxxx
6130	ODCE	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	ODCE7	ODCE6	ODCE5	ODCE4	ODCE3	ODCE2	ODCE1	ODCE0	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-29: PORTF REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L AND PIC32MX360F512L DEVICES ONLY ^(1)

Virtual Address (BF68 #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
6140	TRISF	31:16	——	——	——	——	——	0000
		15:0	—	—	TRISF13	TRISF12	—	—	—	TRISF8	TRISF7	TRISF6	TRISF5	TRISF4	TRISF3	TRISF2	TRISF1	TRISF0	31:17
6150	PORTF	31:16	——	——	——	——	——	0000
		15:0	—	—	RF13	RF12	—	—	—	RF8	RF7	RF6	RF5	RF4	RF3	RF2	RF1	RF0	xxxx
6160	LATF	31:16	——	——	——	——	——	0000
		15:0	—	—	LATF13	LATF12	—	—	—	LATF8	LATF7	LATF6	LATF5	LATF4	LATF3	LATF2	LATF1	LATF0	xxxx
6170	ODCF	31:16	——	——	——	——	——	0000
		15:0	—	—	ODCF13	ODCF12	—	—	—	ODCF8	ODCF7	ODCF6	ODCF5	ODCF4	ODCF3	ODCF2	ODCF1	ODCF0	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-30: PORTF REGISTERS MAP FOR PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Legend: x = unknown value on Reset. — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-31: PORTF REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H AND PIC32MX340F512H DEVICES ONLY ^(1)

Virtual Address(BF68 #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
6140	TRISF	31:16	——	——	——	——	——	0000
		15:0	——	——	——	— TRISF6	TRISF5	TRISF4	TRISF3	TRISF2	TRISF1	TRISF0	0.7EF
6150	PORTF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	RF6	RF5	RF4	RF3	RF2	RF1	RF0	xxxx
6160	LATF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	LATF6	LATF5	LATF4	LATF3	LATF2	LATF1	LATF0	xxxx
6170	ODCF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	ODCF6	ODCF5	ODCF4	ODCF3	ODCF2	ODCF1	ODCF0	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-32: PORTF REGISTERS MAP FOR PIC32MX420F032H, PIC32MX440F128H AND PIC2MX440F256H DEVICES ONLY ^(1)

Virtual Address(BF88 #)	Register Name	Bit Range	Bits																All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18/2	17/1 16/0
6140	RISF	31:16	——	——	——	——	——	0000
		15:0	——	——	——	——	TRISF5 TRISF4	TRISF3 TRISF2	TRISF1 TRISF0	0000
6150	PORTF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	RF5	RF4	RF3	RF2	RF1	RF0	xxxxx
6160	LATF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	LATF5	LATF4	LATF3	LATF2	LATF1	LATF0	xxxxx
6170	ODCF	31:16	——	——	——	——	——	0000
		15:0	——	——	——	——	ODCF5 ODCF4	ODCF3 ODCF2	ODCF1 ODCF0	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-33: PORTG REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address (BF68_#)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

14 19/3 18:2

17/1 16/0

6180

TRISG

31:16

——

——

——

——

——

0000

15:0

RISG15 TR

ISG14 TRIS

G13 TRISG1

2

—

—

TRISG9

TRISG8

TRISG7

TRISG6

—

—

TRISG3

TRISG2

TRISG1

TRISG0

F3CF

6190

PORTG

31:16

——

——

——

——

——

0000

15:0

RG15

RG14

RG13

RG12

—

—

RG9

RG8

RG7

RG6

—

—

RC3

RG2

RG1

RG0

xxxxx

61A0

LATG

31:16

——

——

——

——

——

0000

15:0

LATG15

LATG14

LATG13

LATG12

—

—

LATG9

LATG8

LATG7

LATG6

—

—

LATG3

LATG2

LATG1

LATG0

xxxxx

61B0

ODCG

31:16

——

——

——

——

——

0000

15:0

ODCG15 ODCG14 ODCG13 ODCG12

—

—

ODCG9

ODCG8

ODCG7

ODCG6

—

—

ODCG3

ODCG2

ODCG1

ODCG0

0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET, and INV registers at their virtual addresses, plus offsets of 0x4, 0x8, and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-34: PORTG REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX420F032H, PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-35: CHANGE NOTICE AND PULL-UP REGISTERS MAP FOR PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L AND PIC32MX460F512L DEVICES ONLY ^(1)

Virtual Address(BF88 #)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5

20/4 19/3

18/2 17/1

16/0

61C0

CNCON

31:16

— —

— —

— —

— —

— —

0000

15:0 ON

—

S

I

D

L

— —

— —

— —

— —

0000

61D0

CNEN

31:16

—

—

—

—

—

—

—

—

—

—

—

CNEN21

CNEN20

CNEN19

CNEN18

CNEN17

CNEN16

0000

15:0

CNEN15

CNEN14

CNEN13

CNEN12

CNEN11

CNEN10

CNEN9

CNEN8

CNEN7

CNEN6

CNEN5

CNEN4

CNEN3

CNEN2

CNEN1

CNEN1

CNEN0

0000

61E0

CNPUE

31:16

—

—

—

—

—

—

—

—

—

—

—

CNPUE21

CNPUE20

CNPUE19

CNPUE18

CNPUE17

CNPUE16

0000

15:0

CNPUE15

CNPUE14

CNPUE13

CNPUE12

CNPUE11

CNPUE10

CNPUE9

CNPUE8

CNPUE7

CNPUE6

CNPUE5

CNPUE4

CNPUE3

CNPUE2

CNPUE1

CNPUE1

CNPUE1

0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-36: CHANGE NOTICE AND PULL-UP REGISTERS MAP FOR PIC32MX320F032H, PIC32MX320F064H, PIC32MX320F128H, PIC32MX340F128H, PIC32MX340F256H, PIC32MX340F512H, PIC32MX420F032H, PIC32MX440F128H, PIC32MX440F256H AND PIC32MX440F512H DEVICES ONLY ^(1)

Virtual Address(BF88_#)

Register Name

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5 20

19/3 18

2 17/1 16/0

61C0

CNCON

31:16

——

——

——

——

——

0000

15:0 ON

—

S

I

D

L

——

——

——

——

0000

61D0

CNEN

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

CNEN18

CNEN17

CNEN16

0000

15:0

CNEN15

CNEN14

CNEN13

CNEN12

CNEN11

CNEN10

CNEN9

CNEN8

CNEN7

CNEN6

CNEN5

CNEN4

CNEN3

CNEN2

CNEN1

CNEN0

0000

61E0

CNPUE

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

CNPUE18

CNPUE17

CNPUE16

0000

15:0

CNPUE15

CNPUE14

CNPUE13

CNPUE12

CNPUE11

CNPUE10

CNPUE9

CNPUE8

CNPUE7

CNPUE6

CNPUE5

CNPUE4

CNPUE3

CNPUE2

CNPUE1

CNPUE1

0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-37: PARALLEL MASTER PORT REGISTERS MAP (1)

Virtual Address(BF80_#)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	2/6 21/5 20	14 19/3 18/2	17/1 16/0
7000	PMCON	31:16	——	——	——	——	——	0000
		15:0 ON		—	SIDL	ADRMUX<1:0>		PMPITTL	PTWREN	PTRDEN	CSF<1:0>			ALP	CS2P	CS1P	—	WRSP	RDSP	0000
7010	PMMODE	31:16	——	——	——	——	——	0000
		15:0	BUSY	IRQM<1:0>		INCM<1:0>		MODE16	MODE<1:0>		WAITB<1:0>			WAITM<3:0>				WAITE<1:0>		0000
7020	PMADDR	31:16	——	——	——	——	——	0000
		15:0	CS2EN/A15	CS1EN/A14		ADDR<13:0>														0000
7030	PMDOUT	31:16	DATAOUT<31:0>																	0000
		15:0																		0000
7040	PMDIN	31:16	DATAIN<31:0>																	0000
		15:0																		0000
7050	PMAEN	31:16	——	——	——	——	——	0000
		15:0	PTEN<15:0>																	0000
7060	PMSTAT	31:16	——	——	——	——	——	0000
		15:0	BF	IBOV	—	—	IB3F	IB2F	IB1F	IB0F	OBE	OBUF	—	—	OB3E	OB2E	OB1E	OB0E	OB3E

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal. Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-38: PROGRAMMING AND DIAGNOSTICS REGISTERS MAP

Legend: x = unknown value on Reset, — = unimplemented, read as 'u'. Reset values are shown in hexadecimal.

TABLE 4-39: PREFETCH REGISTERS MAP

Virtual Address (BF88, #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5	20/4 19/3	18/2	17/1	16/0
4000	CHECON (1)	31:16	—— —	—— —	—— —	—— CHECOH 0000
		15:0	—	—	—	—	—	—	—	DCSZ<1:0>		—	—	PREFEN<1:0>		—	PFMWS<2:0>			0007
4010	CHEACC(1)	31:16	CHEWEN	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	—— —	—— —	——								—— —		CHEIDX<3:0>					00xx
4020	CHETAG(1)	31:16	LTAGBOOT	—— —	——	——					LTAG<23:16>									xxxx0
		15:0	LTAG<15:4>													LVALID LLOCK	LTYPE	—	xxxx2
4030	CHEMSK (1)	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	LMASK<15:5>												—— —			—	—	xxxxx
4040	CHEW0	31:16	CHEW0<31:0>																	xxxxx
		15:0																		xxxxx
4050	CHEW1	31:16	CHEW1<31:0>																	xxxxx
		15:0																		xxxxx
4060	CHEW2	31:16	CHEW2<31:0>																	xxxxx
		15:0																		xxxxx
4070	CHEW3	31:16	CHEW3<31:0>																	xxxxx
		15:0																		xxxxx
4080	CHELRU	31:16	—— —	—— —	——						CHELRU<24:16>									0000
		15:0	CHELRU<15:0>																	0000
4090	CHEHIT	31:16	CHEHIT<31:0>																	xxxxx
		15:0																		xxxxx
40A0	CHEMIS	31:16	CHEMIS<31:0>																	xxxxx
		15:0																		xxxxx
40C0	CHEPFABT	31:16	CHEPFABT<31:0>																	xxxxx
		15:0																		xxxxx

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-40: RTCC REGISTERS MAP (1)

Virtual Address (BF60 #)	Register Name	Bit Range	Bits																	All Resets
			31/15 30	14 29/13	28/12 27/11	26/10 25/9	24/8 23/7	22/6 21/5 20	14 19/3 18	2 17/1 16/0
0200	RTCCON	31:16	—	—	—	—	—	—	CAL<11:0>											0000
		15:0	ON	—	SIDL	—	—	—	—	—	RTSECSEL	RTCCLKON	—	—	RTCWREN	RTCSYNC	HALFSEC	RTCOE	0000
0210	RTCALRM	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	ALRMEN	CHIME	PIV	ALRMSYNC	AMASK<3:0>				ARPT<7:0>									0000
0220	RTCTIME	31:16	HR10<3:0>				HR01<3:0>				MIN10<3:0>				MIN01<3:0>					xxxxx
		15:0	SEC10<3:0>				SEC01<3:0>				—	—	—	—	—	—	—	—	—	xx00
0230	RTCDATE	31:16	YEAR10<3:0>				YEAR01<3:0>				MONTH10<3:0>				MONTH01<3:0>					xxxxx
		15:0	DAY10<3:0>				DAY01<3:0>				—	—	—	—	WDAY01<3:0>					xx00x
0240	ALRMTIME	31:16	MIN10<3:0>				MIN01<3:0>				MIN10<3:0>				MIN01<3:0>					xxxxx
		15:0	SEC10<3:0>				SEC01<3:0>				—	—	—	—	—	—	—	—	—	xx00
0250	ALRMDATE	31:16	—	—	—	—	—	—	—	—	MONTH10<3:0>				MONTH01<3:0>					00xx
		15:0	DAY10<3:0>				DAY01<3:0>				—	—	—	—	WDAY01<3:0>					xx00x

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.

TABLE 4-41: DEVCFG: DEVICE CONFIGURATION WORD SUMMARY

Virtual Address (BFC0_#)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

2FF0

DEVCFG3

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

xxxxx

15:0

USERID15

USERID14

USERID13

USERID12

USERID11

USERID10

USERID9

USERID8

USERID7

USERID6

USERID5

USERID4

USERID3

USERID2

USERID1

USERID0

xxxxx

2FF4

DEVCFG2

31:16

—

—

—

—

—

—

—

—

—

—

—

—

—

FPLLODIV<2:0>

xxxxx

15:0

UPLLLEN(1)

—

—

—

—

UPLLIDIV<2:0>(1)

—

FPLLMUL<2:0>

—

FPLLLIDIV<2:0>

xxxxx

2FF8

DEVCFG1

31:16

—

—

—

—

—

—

—

—

FWDEN

—

—

WDTPS<4:0>

xxxxx

15:0

FCKSM<1:0>

FPBDIV<1:0>

—

OSCIOFNC

POSCMOD<1:0>

IESO

—

FSOSCEN

—

—

FNOSC<2:0>

xxxxx

2FFC

DEVCFG0

31:16

—

—

—

CP

—

—

—

BWP

—

—

—

—

PWP19

PWP18

PWP17

PWP16

xxxxx

15:0

PWP15

PWP14

PWP13

PWP12

—

—

—

—

—

—

—

—

ICESEL

—

DEBUG<1:0>

xxxxx

Legend: x = unknown value on Reset, — = unimplemented, read as 0. Reset values are shown in hexadecimal.
Note 1: These bits are only available on PIC32MX4XX devices.

TABLE 4-42: DEVICE AND REVISION ID SUMMARY

Virtual Address(BF80 #)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

F220

DEVID

31:16

VER<3:0>

DEVID<27:16>

xxxx

15:0

DEVID<15:0>

xxxx

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.

TABLE 4-43: USB REGISTERS MAP (1)

Legend: x = unknown value on Reset. — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV
Registers™ for more information.
2: This register does not have associated CLR, SET, and INV registers.
3: All bits in this register are read-only; therefore, CLR, SET, and INV registers are not supported.
4: The reset value for this bit is undefined.

TABLE 4-43: USB REGISTERS MAP ^(1) (CONTINUED)

Virtual Address (BF88_#)	Register Name	Bit Range	Bits																	All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
5280	U1FRML (3)	31:16	——	——	——	——	——	0000
		15:0	——	——	——	FRML<7.0> 0000
5290	U1FRMH (3)	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	—	—	FRMH<10:8>				0000
52A0	U1TOK	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	PID<3:0>				EP<3:0>				0000
52B0	U1SOF	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	CNT<7:0>								0000
52C0	U1BDTP2	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	BDTPTRH<7:0>								0000
52D0	U1BDTP3	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	BDTPTRU<7:0>								0000
52E0	U1CNFG1	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	UTEYE	UOEMON	USBFRZ	USBSIDL	—	—	—	—	—	0000
5300	U1EP0	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	LSPD	RETRYDIS	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5310	U1EP1	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5320	U1EP2	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5330	U1EP3	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5340	U1EP4	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5350	U1EP5	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5360	U1EP6	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000
5370	U1EP7	31:16	——	——	——	——	——	0000
		15:0	—	—	—	—	—	—	—	—	—	—	—	EPCONDIS	EPRXEN	EPTXEN	EPSTALL	EPSHHK	0000

Legend: x = unknown value on Reset, — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.
3: All bits in this register are read-only; therefore, CLR, SET, and INV registers are not supported.
4: The reset value for this bit is undefined.

TABLE 4-43: USB REGISTERS MAP ^(1) (CONTINUED)

Legend: x = unknown value on Reset, — = unimplemented, read as 'c'. Reset values are shown in hexadecimal.
Note 1: Except where noted, all registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively. See Section 12.1.1 "CLR, SET and INV Registers" for more information.
2: This register does not have associated CLR, SET, and INV registers.
3: All bits in this register are read-only; therefore, CLR, SET, and INV registers are not supported.
4: The reset value for this bit is undefined.

5.0 FLASH PROGRAM MEMORY

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 5. "Flash Program Memory" (DS61121) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

PIC32MX3XX/4XX devices contain an internal program Flash memory for executing user code. There are three methods by which the user can program this memory:

• Run-Time Self Programming (RTSP)
- In-Circuit Serial Programming™ (ICSP™)
- EJTAG Programming

RTSP is performed by software executing from either Flash or RAM memory. EJTAG is performed using the EJTAG port of the device and a EJTAG capable programmer. ICSP is performed using a serial data connection to the device and allows much faster programming times than RTSP. RTSP techniques are described in this chapter. The ICSP and EJTAG methods are described in the "PIC32MX Flash Programming Specification" (DS61145), which can be downloaded from the Microchip web site.

Note: Flash LVD Delay (LVDstartup) must be taken into account between setting up and executing any Flash command operation. See Example 5-1 for a code example to set up and execute a Flash command operation.

EXAMPLE 5-1:

NVMCON = 0x4004; // Enable and configure for erase operation
Wait(delay); // Delay for 6 μs for LVDstartup

NVMKEY = 0xAA996655;
NVMKEY = 0x556699AA;
NVMCONSET = 0x8000; // Initiate operation

while(NVMCONbits.WR==1); // Wait for current operation to complete

NOTES:

6.0 RESETS

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 7. "Resets" (DS61118) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The Reset module combines all Reset sources and controls the device Master Reset signal, SYSRST. The following is a list of device Reset sources:

• POR: Power-on Reset
  • M C LMBster Clear Reset Pin
• SWR: Software Reset
  • WDTR: Watchdog Timer Reset
  • BOR: Brown-out Reset
• CMR: Configuration Mismatch Reset

A simplified block diagram of the Reset module is illustrated in Figure 6-1.

FIGURE 6-1: SYSTEM RESET BLOCK DIAGRAM

NOTES:

7.0 INTERRUPT CONTROLLER

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 8. "Interrupt Controller" (DS61108) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

PIC32MX3XX/4XX devices generate interrupt requests in response to interrupt events from peripheral modules. The Interrupt Control module exists externally to the CPU logic and prioritizes the interrupt events before presenting them to the CPU.

The PIC32MX3XX/4XX interrupts module includes the following features:

• Up to 96 interrupt sources
• Up to 64 interrupt vectors
• Single and Multi-Vector mode operations
• Five external interrupts with edge polarity control
• Interrupt proximity timer
• Module Freeze in Debug mode
• Seven user-selectable priority levels for each vector
• Four user-selectable subpriority levels within each priority
  • Dedicated shadow set for highest priority level
• Software can generate any interrupt
• User-configurable interrupt vector table location
• User-configurable interrupt vector spacing

FIGURE 7-1: INTERRUPT CONTROLLER MODULE

Note: Several of the registers cited in this section are not in the interrupt controller module. These registers (and bits) are associated with the CPU. Details about them are available in Section 3.0 "CPU".

To avoid confusion, a typographic distinction is made for registers in the CPU. The register names in this section, and all other sections of this manual, are signified by uppercase letters only. The CPU register names are signified by upper and lowercase letters. For example, INTSTAT is an Interrupts register; whereas, IntCtl is a CPU register.

TABLE 7-1: INTERRUPT IRQ AND VECTOR LOCATION

Interrupt Source^(1)	IRQ	Vector Number	Interrupt Bit Location
Highest Natural Order Priority Flag Enable			Priority Subprority
CT - Core Timer Interrupt 0 0 IFS0	<0>	IEC0<0>	IPC0<4:2>	IPC0<1:0>
CS0 - Core Software Interrupt 0 1	IFS0<1>	IEC0<1>	IPC0<12:10>	IPC0<9:8>
CS1 - Core Software Interrupt 1	2	2	IFS0<2>	IEC0<2>	IPC0<20:18>	IPC0<17:16>
INT0 - External Interrupt 0	3	3	IFS0<3>	IEC0<3>	IPC0<28:26>	IPC0<25:24>
T1 - Timer1	4 4	IFS0<4>	IEC0<4>	IPC1<4:2>	IPC1<1:0>
IC1 - Input Capture 1	5	5	IFS0<5>	IEC0<5>	IPC1<12:10>	IPC1<9:8>
OC1 - Output Compare 1	6	6	IFS0<6>	IEC0<6>	IPC1<20:18>	IPC1<17:16>
INT1 - External Interrupt 1	7	7	IFS0<7>	IEC0<7>	IPC1<28:26>	IPC1<25:24>
T2 - Timer2	8 8	IFS0<8>	IEC0<8>	IPC2<4:2>	IPC2<1:0>
IC2 - Input Capture 2	9	9	IFS0<9>	IEC0<9>	IPC2<12:10>	IPC2<9:8>
OC2 - Output Compare 2	10	10	IFS0<10>	IEC0<10>	IPC2<20:18>	IPC2<17:16>
INT2 - External Interrupt 2	11	11	IFS0<11>	IEC0<11>	IPC2<28:26>	IPC2<25:24>
T3 - Timer3	12	12	IFS0<12>	IEC0<12>	IPC3<4:2>	IPC3<1:0>
IC3 - Input Capture 3	13	13	IFS0<13>	IEC0<13>	IPC3<12:10>	IPC3<9:8>
OC3 - Output Compare 3	14	14	IFS0<14>	IEC0<14>	IPC3<20:18>	IPC3<17:16>
INT3 - External Interrupt 3	15	15	IFS0<15>	IEC0<15>	IPC3<28:26>	IPC3<25:24>
T4 - Timer4	16	16	IFS0<16>	IEC0<16>	IPC4<4:2>	IPC4<1:0>
IC4 - Input Capture 4	17	17	IFS0<17>	IEC0<17>	IPC4<12:10>	IPC4<9:8>
OC4 - Output Compare 4	18	18	IFS0<18>	IEC0<18>	IPC4<20:18>	IPC4<17:16>
INT4 - External Interrupt 4	19	19	IFS0<19>	IEC0<19>	IPC4<28:26>	IPC4<25:24>
T5 - Timer5	20	20	IFS0<20>	IEC0<20>	IPC5<4:2>	IPC5<1:0>
IC5 - Input Capture 5	21	21	IFS0<21>	IEC0<21>	IPC5<12:10>	IPC5<9:8>
OC5 - Output Compare 5	22	22	IFS0<22>	IEC0<22>	IPC5<20:18>	IPC5<17:16>
SPI1E - SPI1 Fault	23	23	IFS0<23>	IEC0<23>	IPC5<28:26>	IPC5<25:24>
SPI1TX - SPI1 Transfer Done	24	23	IFS0<24>	IEC0<24>	IPC5<28:26>	IPC5<25:24>
SPI1RX - SPI1 Receive Done	25	23	IFS0<25>	IEC0<25>	IPC5<28:26>	IPC5<25:24>
U1E - UART1 Error	26	24	IFS0<26>	IEC0<26>	IPC6<4:2>	IPC6<1:0>
U1RX - UART1 Receiver	27	24	IFS0<27>	IEC0<27>	IPC6<4:2>	IPC6<1:0>
U1TX - UART1 Transmitter	28	24	IFS0<28>	IEC0<28>	IPC6<4:2>	IPC6<1:0>
I2C1B - I2C1 Bus Collision Event	29	25	IFS0<29>	IEC0<29>	IPC6<12:10>	IPC6<9:8>
I2C1S - I2C1 Slave Event	30	25	IFS0<30>	IEC0<30>	IPC6<12:10>	IPC6<9:8>
I2C1M - I2C1 Master Event	31	25	IFS0<31>	IEC0<31>	IPC6<12:10>	IPC6<9:8>
CN - Input Change Interrupt	32	26	IFS1<0>	IEC1<0>	IPC6<20:18>	IPC6<17:16>
AD1 - ADC1 Convert Done	33	27	IFS1<1>	IEC1<1>	IPC6<28:26>	IPC6<25:24>
PMP - Parallel Master Port	34	28	IFS1<2>	IEC1<2>	IPC7<4:2>	IPC7<1:0>
CMP1 - Comparator Interrupt	35	29	IFS1<3>	IEC1<3>	IPC7<12:10>	IPC7<9:8>
CMP2 - Comparator Interrupt	36	30	IFS1<4>	IEC1<4>	IPC7<20:18>	IPC7<17:16>
Highest Natural Order Priority			Flag	Enable	Priority	Subpriority
SPI2E – SPI2 Fault 37 31 IFS1<5>	IEC1<5>	IPC7<28:26>	IPC7<25:24>
SPI2TX – SPI2 Transfer Done 38 31	IFS1<6>	IEC1<6>	IPC7<28:26>	IPC7<25:24>
SPI2RX – SPI2 Receive Done 39 31	IFS1<7>	IEC1<7>	IPC7<28:26>	IPC7<25:24>
U2E – UART2 Error 40 32 IFS1<8>	IEC1<8>	IPC8<4:2>	IPC8<1:0>
U2RX – UART2 Receiver 41 32 IFS1<9>	IEC1<9>	IPC8<4:2>	IPC8<1:0>
U2TX – UART2 Transmitter	42	32	IFS1<10>	IEC1<10>	IPC8<4:2>	IPC8<1:0>
I2C2B – I2C2 Bus Collision Event	43	33	IFS1<11>	IEC1<11>	IPC8<12:10>	IPC8<9:8>
I2C2S – I2C2 Slave Event	44	33	IFS1<12>	IEC1<12>	IPC8<12:10>	IPC8<9:8>
I2C2M – I2C2 Master Event	45	33	IFS1<13>	IEC1<13>	IPC8<12:10>	IPC8<9:8>
FSCM – Fail-Safe Clock Monitor	46	34	IFS1<14>	IEC1<14>	IPC8<20:18>	IPC8<17:16>
RTCC – Real-Time Clock and Calendar	47	35	IFS1<15>	IEC1<15>	IPC8<28:26>	IPC8<25:24>
DMA0 – DMA Channel 0	48	36	IFS1<16>	IEC1<16>	IPC9<4:2>	IPC9<1:0>
DMA1 – DMA Channel 1	49	37	IFS1<17>	IEC1<17>	IPC9<12:10>	IPC9<9:8>
DMA2 – DMA Channel 2	50	38	IFS1<18>	IEC1<18>	IPC9<20:18>	IPC9<17:16>
DMA3 – DMA Channel 3	51	39	IFS1<19>	IEC1<19>	IPC9<28:26>	IPC9<25:24>
FCE – Flash Control Event	56	44	IFS1<24>	IEC1<24>	IPC11<4:2>	IPC11<1:0>
USB	57	45	IFS1<25>	IEC1<25>	IPC11<12:10>	IPC11<9:8>
Lowest Natural Order Priority

Note 1: Not all interrupt sources are available on all devices. See TABLE 1: "PIC32MX General Purpose – Features" and TABLE 2: "PIC32MX USB – Features" for available peripherals.

NOTES:

8.0 OSCILLATOR CONFIGURATION

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "PIC32 Family Reference Manual" Section 6. "Oscillator Configuration" (DS61112), which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PIC32MX oscillator system has the following modules and features:

• A total of four external and internal oscillator options as clock sources
• On-chip PLL (phase-locked loop) with user-selectable input divider, multiplier and output divider to boost operating frequency on select internal and external oscillator sources
• On-chip user-selectable divisor postscaler on select oscillator sources
• Software-controllable switching between various clock sources
• A Fail-Safe Clock Monitor (FSCM) that detects clock failure and permits safe application recovery or shut down
  • Dedicated on-chip PLL for USB peripheral

FIGURE 8-1: PIC32MX3XX/4XX FAMILY CLOCK DIAGRAM

AT system block diagram showing primary and secondary oscillator components with PLL, clock control logic, and peripheral connections.

NOTES:

9.0 PREFETCH CACHE

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 4. "Prefetch Cache" (DS61119) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

Prefetch cache increases performance for applications executing out of the cacheable program Flash memory regions by implementing instruction caching, constant data caching and instruction prefetching.

9.1 Features

• 16 Fully Associative Lockable Cache Lines
• 16-byte Cache Lines
- Up to four Cache Lines Allocated to Data
- Two Cache Lines with Address Mask to hold repeated instructions
- Pseudo LRU replacement policy
- All Cache Lines are software writable
• 16-byte parallel memory fetch
• Predictive Instruction Prefetch

FIGURE 9-1: PREFETCH MODULE BLOCK DIAGRAM

NOTES:

10.0 DIRECT MEMORY ACCESS (DMA) CONTROLLER

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 31. "Direct Memory Access (DMA) Controller" (DS61117) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PIC32MX Direct Memory Access (DMA) controller is a bus master module useful for data transfers between different devices without CPU intervention. The source and destination of a DMA transfer can be any of the memory mapped modules existent in the PIC32MX (such as Peripheral Bus (PBUS) devices: SPI, UART, PMP, and so on) or memory itself.

Following are some of the key features of the DMA controller module:

• Four Identical Channels, each featuring:
• Auto-Increment Source and Destination Address Registers
• Source and Destination Pointers
• Memory to Memory and Memory to Peripheral Transfers

• Automatic Word-Size Detection:
- Transfer Granularity, down to byte level
- Bytes need not be word-aligned at source and destination
• Fixed Priority Channel Arbitration
- Flexible DMA Channel Operating Modes:
- Manual (software) or automatic (interrupt) DMA requests
- One-Shot or Auto-Repeat Block Transfer modes
- Channel-to-channel chaining

- Flexible DMA Requests:

- A DMA request can be selected from any of the peripheral interrupt sources

- Each channel can select any (appropriate) observable interrupt as its DMA request source

- A DMA transfer abort can be selected from any of the peripheral interrupt sources

- Pattern (data) match transfer termination

- Multiple DMA Channel Status Interrupts:

- DMA channel block transfer complete

- Source empty or half empty

- Destination full or half-full

- DMA transfer aborted due to an external event

- Invalid DMA address generated

• DMA Debug Support Features:

- Most recent address accessed by a DMA channel

- Most recent DMA channel to transfer data

• CRC Generation Module:

- CRC module can be assigned to any of the available channels

- CRC module is highly configurable

FIGURE 10-1: DMA BLOCK DIAGRAM

NOTES:

11.0 USB ON-THE-GO (OTG)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 27. "USB On-The-Go (OTG)" (DS61126) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The Universal Serial Bus (USB) module contains analog and digital components to provide a USB 2.0 full-speed and low-speed embedded host, full-speed device, or OTG implementation with a minimum of external components. This module in Host mode is intended for use as an embedded host and therefore does not implement a UHCI or OHCI controller.

The USB module consists of the clock generator, the USB voltage comparators, the transceiver, the Serial Interface Engine (SIE), a dedicated USB DMA controller, pull-up and pull-down resistors, and the register interface. A block diagram of the PIC32MX USB OTG module is presented in Figure 11-1.

The clock generator provides the 48 MHz clock required for USB full-speed and low-speed communication. The voltage comparators monitor the voltage on the Vbus pin to determine the state of the bus. The transceiver provides the analog translation between the USB bus and the digital logic. The SIE is a state machine that transfers data to and from the endpoint buffers, and generates the hardware protocol for data transfers. The USB DMA controller transfers data between the data buffers in RAM and the SIE. The integrated pull-up and pull-down resistors eliminate the need for external signaling components. The register interface allows the CPU to configure and communicate with the module.

The PIC32MX USB module includes the following features:

• USB Full-Speed Support for Host and Device
- Low-Speed Host Support
- USB OTG Support
- Integrated Signaling Resistors
- Integrated Analog Comparators for V BUS Monitoring
- Integrated USB Transceiver
- Transaction Handshaking Performed by Hardware
- Endpoint Buffering Anywhere in System RAM
- Integrated DMA to Access System RAM and Flash

Note: The implementation and use of the USB specifications, as well as other third-party specifications or technologies, may require licensing; including, but not limited to, USB Implementers Forum, Inc. (also referred to as USB-IF). The user is fully responsible for investigating and satisfying any applicable licensing obligations.

FIGURE 11-1: PIC32MX3XX/4XX FAMILY USB INTERFACE DIAGRAM
Note 1: PB clock is only available on this pin for select EC modes.
2: Pins can be used as digital inputs when USB is not enabled.
3: This bit field is contained in the OSCCON register.
4: This bit field is contained in the OSCTRM register.
5: USB PLL UF IN requirements: 4 MHz.
6: This bit field is contained in the DEVCFG2 register.
7: A 48 MHz clock is required for proper USB operation.
8: Pins can be used as GPIO when the USB module is disabled.

12.0 I/O PORTS

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 12. "I/O Ports" (DS61120) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

General purpose I/O pins are the simplest of peripherals. They allow the PIC® MCU to monitor and control other devices. To add flexibility and functionality, some pins are multiplexed with alternate function(s). These functions depend on which peripheral features are on the device. In general, when a peripheral is functioning, that pin may not be used as a general purpose I/O pin.

Following are some of the key features of this module:

• Individual Output Pin Open-drain Enable/Disable
• Individual Input Pin Weak Pull-up Enable/Disable
• Monitor Selective Inputs and Generate Interrupt when Change in Pin State is Detected
  • Operation during CPU Sleep and Idle modes
• Fast Bit Manipulation using CLR, SET and INV Registers

Figure 12-1 illustrates a block diagram of a typical multiplexed I/O port.
FIGURE 12-1: BLOCK DIAGRAM OF A TYPICAL MULTIPLEXED PORT STRUCTURE

12.1 Parallel I/O (PIO) Ports

All port pins have three registers (TRIS, LAT and PORT) that are directly associated with their operation.

TRIS is a data direction or tri-state control register that determines whether a digital pin is an input or an output. Setting a TRISx register bit = 1 configures the corresponding I/O pin as an input; setting a TRISx register bit = 0 configures the corresponding I/O pin as an output. All port I/O pins are defined as inputs after a device Reset. Certain I/O pins are shared with analog peripherals and default to analog inputs after a device Reset.

PORT is a register used to read the current state of the signal applied to the port I/O pins. Writing to a PORTx register performs a write to the port's latch, LATx register, latching the data to the port's I/O pins.

LAT is a register used to write data to the port I/O pins. The LATx latch register holds the data written to either the LATx or PORTx registers. Reading the LATx latch register reads the last value written to the corresponding port or latch register.

Not all port I/O pins are implemented on some devices, therefore, the corresponding PORTx, LATx and TRISx register bits will read as zeros.

12.1.1 CLR, SET AND INV REGISTERS

Every I/O module register has a corresponding CLR (clear), SET (set) and INV (invert) register designed to provide fast atomic bit manipulations. As the name of the register implies, a value written to a SET, CLR or INV register effectively performs the implied operation, but only on the corresponding base register and only bits specified as '1' are modified. Bits specified as '0' are not modified.

Reading SET, CLR and INV registers returns undefined values. To see the affects of a write operation to a SET, CLR or INV register, the base register must be read.

Note: Using a PORTxINV register to toggle a bit is recommended because the operation is performed in hardware atomically, using fewer instructions as compared to the traditional read-modify-write method shown below:

PORTC ^= 0x0001;

12.1.2 DIGITAL INPUTS

Pins are configured as digital inputs by setting the corresponding TRIS register bits = 1. When configured as inputs, they are either TTL buffers or Schmitt Triggers. Several digital pins share functionality with analog inputs and default to the analog inputs at POR. Setting the corresponding bit in the AD1PCFG register = 1 enables the pin as a digital pin.

The maximum input voltage allowed on the input pins is the same as the maximum VIH specification. Refer to Section 29.0 "Electrical Characteristics" for VIH specification details.

Note: Analog levels on any pin that is defined as a digital input (including the ANx pins) may cause the input buffer to consume current that exceeds the device specifications.

12.1.3 ANALOG INPUTS

Certain pins can be configured as analog inputs used by the ADC and Comparator modules. Setting the corresponding bits in the AD1PCFG register = 0 enables the pin as an analog input pin and must have the corresponding TRIS bit set = 1 (input). If the TRIS bit is cleared = 0 (output), the digital output level (VOH or VOL) will be converted. Any time a port I/O pin is configured as analog, its digital input is disabled and the corresponding PORTx register bit will read '0'. The AD1PCFG Register has a default value of 0x0000; therefore, all pins that share ANx functions are analog (not digital) by default.

12.1.4 DIGITAL OUTPUTS

Pins are configured as digital outputs by setting the corresponding TRIS register bits = 0. When configured as digital outputs, these pins are CMOS drivers or can be configured as open drain outputs by setting the corresponding bits in the ODCx Open-Drain Configuration register.

The open-drain feature allows the generation of outputs higher than VDD (e.g., 5V) on any desired 5V tolerant pins by using external pull-up resistors. The maximum open-drain voltage allowed is the same as the maximum VIH specification.

See the "Pin Diagrams" section for the available pins and their functionality.

12.1.5 ANALOG OUTPUTS

Certain pins can be configured as analog outputs, such as the CVREF output voltage used by the comparator module. Configuring the Comparator Reference module to provide this output will present the analog output voltage on the pin, independent of the TRIS register setting for the corresponding pin.

12.1.6 INPUT CHANGE NOTIFICATION

The input change notification function of the I/O ports (CNx) allows devices to generate interrupt requests in response to change of state on selected pin.

Each CNx pin also has a weak pull-up, which acts as a current source connected to the pin. The pull-ups are enabled by setting corresponding bit in CNPUE register.

13.0 TIMER1

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 14. "Timers" (DS61105) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

This family of PIC32MX devices features one synchronous/asynchronous 16-bit timer that can operate as a free-running interval timer for various timing applications and counting external events. This timer can also be used with the Secondary Oscillator (Sosc) for real-time clock applications. The following modes are supported:

• Synchronous Internal Timer
• Synchronous Internal Gated Timer
• Synchronous External Timer
- Asynchronous External Timer

13.1 Additional Supported Features

• Selectable clock prescaler
• Timer operation during CPU Idle and Sleep mode
• Fast bit manipulation using CLR, SET and INV registers
• Asynchronous mode can be used with the S osc to function as a Real-Time Clock (RTC)

FIGURE 13-1: TIMER1 BLOCK DIAGRAM (1)

Note 1: The default state of the SOSCEN (OSCCON<1>) during a device Reset is controlled by the FSOSCEN bit in Configuration Word DEVCFG1.

NOTES:

14.0 TIMER2/3 AND TIMER4/5

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 14. "Timers" (DS61105) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

This family of PIC32MX devices features four synchronous 16-bit timers (default) that can operate as a free-running interval timer for various timing applications and counting external events. The following modes are supported:

• Synchronous Internal 16-bit Timer
- Synchronous Internal 16-bit Gated Timer
• Synchronous External 16-bit Timer

Two 32-bit synchronous timers are available by combining Timer2 with Timer3 and Timer4 with Timer5. The 32-bit timers can operate in three modes:

• Synchronous Internal 32-bit Timer
• Synchronous Internal 32-bit Gated Timer
• Synchronous External 32-bit Timer

Note: Throughout this chapter, references to registers TxCON, TMRx and PRx use 'x' to represent Timer2 through 5 in 16-bit modes. In 32-bit modes, 'x' represents Timer2 or 4; 'y' represents Timer3 or 5.

14.1 Additional Supported Features

• Selectable clock prescaler
• Timers operational during CPU Idle
• Time base for input capture and output compare modules (Timer2 and Timer3 only)
  • ADC event trigger (Timer3 only)
• Fast bit manipulation using CLR, SET and INV registers

FIGURE 14-1: TIMER2, 3, 4, 5 BLOCK DIAGRAM (16-BIT)

Note 1: ADC event trigger is available on Timer3 only.
2: TxCK pins not available on 64-pin devices.

FIGURE 14-2: TIMER2/3, 4/5 BLOCK DIAGRAM (32-BIT)

Note 1: In this diagram, the use of 'x' in registers TxCON, TMRx, PRx and TxCK refers to either Timer2 or Timer4; the use of 'y' in registers TyCON, TMRy, PRy and TyIF refers to either Timer3 or Timer5.

2: TxCK pins are not available on 64-pin devices.

3: ADC event trigger is available only on Timer2/3 pair.

15.0 INPUT CAPTURE

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 15. "Input Capture" (DS61122) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The Input Capture module is useful in applications requiring frequency (period) and pulse measurement. The PIC32MX3XX/4XX devices support up to five input capture channels.

The Input Capture module captures the 16-bit or 32-bit value of the selected Time Base registers when an event occurs at the ICx pin. The events that cause a capture event are listed below in three categories:

1. Simple Capture Event modes

- Capture timer value on every falling edge of input at ICx pin

- Capture timer value on every rising edge of input at ICx pin

FIGURE 15-1: INPUT CAPTURE BLOCK DIAGRAM

1. Capture timer value on every edge (rising and falling)
2. Capture timer value on every edge (rising and falling), specified edge first.
3. Prescaler Capture Event modes

- Capture timer value on every 4th rising edge of input at ICx pin

- Capture timer value on every 16th rising edge of input at ICx pin

Each input capture channel can select between one of two 16-bit timers (Timer2 or Timer3) for the time base, or two 16-bit timers (Timer2 and Timer3) together to form a 32-bit timer. The selected timer can use either an internal or external clock.

Other operational features include:

• Device wake-up from capture pin during CPU Sleep and Idle modes
- Interrupt on input capture event
• 4-word FIFO buffer for capture values

- Interrupt optionally generated after 1, 2, 3 or 4 buffer locations are filled

- Input capture can also be used to provide additional sources of external interrupts

NOTES:

16.0 OUTPUT COMPARE

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 16. "Output Compare" (DS61111) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The Output Compare module (OCMP) is used to generate a single pulse or a train of pulses in response to selected time base events. For all modes of operation, the OCMP module compares the values stored in the OCxR and/or the OCxRS registers to the value in the selected timer. When a match occurs, the OCMP module generates an event based on the selected mode of operation.

The following are some of the key features:

• Multiple output compare modules in a device
• Programmable interrupt generation on compare event
• Single and Dual Compare modes
• Single and continuous output pulse generation
• Pulse-Width Modulation (PWM) mode
• Hardware-based PWM Fault detection and automatic output disable
• Programmable selection of 16-bit or 32-bit time bases.
• Can operate from either of two available 16-bit time bases or a single 32-bit time base

FIGURE 16-1: OUTPUT COMPARE MODULE BLOCK DIAGRAM

Note 1: Where 'x' is shown, reference is made to the registers associated with the respective output compare channels 1 through 5.
2: The OCFA pin controls the OC1-OC4 channels. The OCFB pin controls the OC5 channel.
3: Each output compare channel can use one of two selectable 16-bit time bases or a single 32-bit timer base.

NOTES:

17.0 SERIAL PERIPHERAL INTERFACE (SPI)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 23. "Serial Peripheral Interface (SPI)" (DS61106) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The SPI module is a synchronous serial interface useful for communicating with external peripherals and other microcontroller devices. These peripheral devices may be Serial EEPROMs, shift registers, display drivers, Analog-to-Digital Converters, etc. The PIC32MX SPI module is compatible with Motorola® SPI and SIOP interfaces.

Following are some of the key features of this module:

• Master and Slave Modes Support
- Four Different Clock Formats
- Framed SPI Protocol Support
- User Configurable 8-bit, 16-bit and 32-bit Data Width

- Separate SPI Data Registers for Receive and Transmit

- Programmable Interrupt Event on every 8-bit, 16-bit and 32-bit Data Transfer

• Operation during CPU Sleep and Idle Mode

- Fast Bit Manipulation using CLR, SET and INV Registers

FIGURE 17-1: SPI MODULE BLOCK DIAGRAM

Note: Access SPIxTXB and SPIxRXB registers via SPIxBUF register.

NOTES:

18.0 INTER-INTEGRATED CIRCUIT™ (I²C™)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 24. “Inter-Integrated Circuit (I²C™)” (DS61116) of the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The I ^2 C module provides complete hardware support for both Slave and Multi-Master modes of the I ^2 C serial communication standard. Figure 18-1 illustrates the I ^2 C module block diagram.

The PIC32MX3XX/4XX devices have up to two I²C interface modules, denoted as I2C1 and I2C2. Each I²C module has a 2-pin interface: the SCLx pin is clock and the SDAx pin is data.

Each I²C module, ‘I2Cx’ (x = 1 or 2), offers the following key features:

• I ^2 C Interface Supporting both Master and Slave Operation.
• I ^2 C Slave Mode Supports 7 and 10-bit Address.
• I²C Master Mode Supports 7 and 10-bit Address.
• I²C Port allows Bidirectional Transfers between Master and Slaves.

- Serial Clock Synchronization for I ^2 C Port can be used as a Handshake Mechanism to Suspend and Resume Serial Transfer (SCLREL control).

- I²C Supports Multi-master Operation; Detects Bus Collision and Arbitrates Accordingly.

- Provides Support for Address Bit Masking.

FIGURE 18-1: I ^2 C ^TM BLOCK DIAGRAM (x = 1 OR 2)

19.0 UNIVERSAL ASYNCHRONOUS RECEIVER TRANSMITTER (UART)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 21. “Universal Asynchronous Receiver Transmitter (UART)” (DS61107) of the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 “Memory Organization” in this data sheet for device-specific register and bit information.

The UART module is one of the serial I/O modules available in PIC32MX3XX/4XX family devices. The UART is a full-duplex, asynchronous communication channel that communicates with peripheral devices and personal computers through protocols such as RS-232, RS-485, LIN 1.2 and IrDA ^® . The module also supports the hardware flow control option, with UxCTS and UxRTS pins, and also includes an IrDA encoder and decoder.

The primary features of the UART module are:

• Full-duplex, 8-bit or 9-bit data transmission
• Even, odd or no parity options (for 8-bit data)
• One or two Stop bits
• Hardware auto-baud feature
- Hardware flow control option
- Fully integrated Baud Rate Generator (BRG) with 16-bit prescaler
- Baud rates ranging from 76 bps to 20 Mbps at 80 MHz
• 4-level-deep First-In-First-Out (FIFO) Transmit Data Buffer
• 4-level-deep FIFO Receive Data Buffer
- Parity, framing and buffer overrun error detection
- Support for interrupt only on address detect (9th bit = 1)
- Separate transmit and receive interrupts
- Loopback mode for diagnostic support
• LIN protocol support
- IrDA encoder and decoder with 16x baud clock output for external IrDA encoder/decoder support

Figure 19-1 illustrates a simplified block diagram of the UART.
FIGURE 19-1: UART SIMPLIFIED BLOCK DIAGRAM

FIGURE 19-2: TRANSMISSION (8-BIT OR 9-BIT DATA)

Write to UxTXREG BCLK/16 (Shift Clock) UxTX Start bit bit 0 bit 1 bit 7/8 Character 1 Stop bit UxTXIF UxTXIF Cleared by User TRMT bit Character 1 to Transmit Shift Register

FIGURE 19-3: TWO CONSECUTIVE TRANSMISSIONS

Write to UxTXREG BCLK/16 (Shift Clock) Character 1 Character 2 UxTX Start bit bit 0 bit Character 1 bit 7/8 bit Stop bit Start bit Character 2 UxTXIF (UTXISEL0 = 0) UxTXIF (UTXISEL0 = 1) UxTXIF Cleared by User in Software Character 1 to Transmit Shift Register TRMT bit Character 2 to Transmit Shift Register

FIGURE 19-4: UART RECEPTION

UxRX Start bit bit1bit 0 bit 7 bit 0 Stop bit 7 Stop bit UxRXIF (RXISEL = 0x) Character 1 to UxRXREG Character 2 to UxRXREG RIDLE bit Note: This timing diagram shows 2 characters received on the UxRX input.

FIGURE 19-5: UART RECEPTION WITH RECEIVE OVERRUN

Character 1 Characters 2, 3, 4, 5 Character 6 UxRX Start bit bit 1bit 0 bit 7/8 bit 0Stop bit Start bit 7/8 Stop bit Start bit bit 7/8 Stop bit Character 1, 2, 3, 4 Stored in Receive FIFO Character 5 Held in UxRSR OERR bit OERR Cleared by User RIDLE bit

NOTES:

20.0 PARALLEL MASTER PORT (PMP)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 13. "Parallel Master Port (PMP)" (DS61128) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PMP is a parallel 8-bit/16-bit input/output module specifically designed to communicate with a wide variety of parallel devices, such as communications peripherals, LCDs, external memory devices and microcontrollers. Because the interface to parallel peripherals varies significantly, the PMP module is highly configurable.

Key features of the PMP module include:

• 8-bit,16-bit interface
• Up to 16 programmable address lines
• Up to two Chip Select lines
• Programmable strobe options

- Individual read and write strobes, or

- Read/write strobe with enable strobe

• Address auto-increment/auto-decrement
• Programmable address/data multiplexing

• Programmable polarity on control signals
  • Parallel Slave Port support

• Legacy addressable

• Address support

• 4-byte deep auto-incrementing buffer

• Programmable Wait states

• Operate during CPU Sleep and Idle modes
• Fast bit manipulation using CLR, SET and INV registers
• Freeze option for in-circuit debugging

Note: On 64-pin devices, data pins PMD<15:8> are not available.

FIGURE 20-1: PMP MODULE PINOUT AND CONNECTIONS TO EXTERNAL DEVICES

Note 1: On 64-pin devices, data pins PMD<15:8> are not available in 16-bit Master modes.

NOTES:

21.0 REAL-TIME CLOCK AND CALENDAR (RTCC)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 29. “Real-Time Clock and Calendar (RTCC)” (DS61125) of the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PIC32MX RTCC module is intended for applications in which accurate time must be maintained for extended periods of time with minimal or no CPU intervention. Low-power optimization provides extended battery lifetime while keeping track of time.

The following are some of the key features of this module:

• Time: Hours, Minutes and Seconds
• 24-Hour Format (Military Time)
- Visibility of One-Half-Second Period
- Provides Calendar: Weekday, Date, Month and Year

- Alarm Intervals are configurable for Half of a Second, One Second, 10 Seconds, One Minute, 10 Minutes, One Hour, One Day, One Week, One Month and One Year

- Alarm Repeat with Decrementing Counter

• Alarm with Indefinite Repeat: Chime

• Year Range: 2000 to 2099

- Leap Year Correction

• BCD Format for Smaller Firmware Overhead

- Optimized for Long-Term Battery Operation

• Fractional Second Synchronization

- User Calibration of the Clock Crystal Frequency with Auto-Adjust

- Calibration Range: ±0.66 Seconds Error per Month

- Calibrates up to 260 ppm of Crystal Error

- Requirements: External 32.768 kHz Clock Crystal

- Alarm Pulse or Seconds Clock Output on RTCC pin

FIGURE 21-1: RTCC BLOCK DIAGRAM

NOTES:

22.0 10-BIT ANALOG-TO-DIGITAL CONVERTER (ADC)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. Refer to Section 17. "10-bit Analog-to-Digital Converter (ADC)" (DS61104) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PIC32MX3XX/4XX 10-bit Analog-to-Digital Converter (ADC) includes the following features:

• Successive Approximation Register (SAR) conversion
• Up to 1000 kilo samples per second (ksps) conversion speed
• Up to 16 analog input pins
• External voltage reference input pins
  • One unipolar, differential Sample-and-Hold Amplifier (SHA)

• Automatic Channel Scan mode
- Selectable conversion trigger source
• 16-word conversion result buffer
- Selectable Buffer Fill modes
- Eight conversion result format options
• Operation during CPU Sleep and Idle modes

A block diagram of the 10-bit ADC is illustrated in Figure 22-1. The 10-bit ADC has 16 analog input pins, designated AN0-AN15. In addition, there are two analog input pins for external voltage reference connections. These voltage reference inputs may be shared with other analog input pins and may be common to other analog module references.

The analog inputs are connected through two multiplexers (MUXs) to one SHA. The analog input MUXs can be switched between two sets of analog inputs between conversions. Unipolar differential conversions are possible on all channels, other than the pin used as the reference, using a reference input pin (see Figure 22-1).

The Analog Input Scan mode sequentially converts user-specified channels. A control register specifies which analog input channels will be included in the scanning sequence.

The 10-bit ADC is connected to a 16-word result buffer. Each 10-bit result is converted to one of eight, 32-bit output formats when it is read from the result buffer.

FIGURE 22-1: ADC1 MODULE BLOCK DIAGRAM

Note 1: VREF+, VREF- inputs can be multiplexed with other analog inputs.

FIGURE 22-2: ADC CONVERSION CLOCK PERIOD BLOCK DIAGRAM

Note 1: See the ADC electrical characteristics for the exact RC clock value.

23.0 COMPARATOR

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. Refer to Section 19. "Comparator" (DS61110) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The PIC32MX3XX/4XX Analog Comparator module contains one or more comparator(s) that can be configured in a variety of ways.

Following are some of the key features of this module:

- Selectable inputs available include:

• Analog inputs multiplexed with I/O pins
• On-chip internal absolute voltage reference (IVREF)

• Comparator voltage reference (CV REF)

• Outputs can be inverted

• Selectable interrupt generation

A block diagram of the comparator module is illustrated in Figure 23-1.

FIGURE 23-1: COMPARATOR BLOCK DIAGRAM

Note 1: On USB variants, when USB is enabled, this pin is controlled by the USB module and therefore is not available as a comparator input.
2: Internally connected.

NOTES:

24.0 COMPARATOR VOLTAGE REFERENCE (CVREF)

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. Refer to Section 20. "Comparator Voltage Reference (CVREF)" (DS61109) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

The CVREF is a 16-tap, resistor ladder network that provides a selectable reference voltage. Although its primary purpose is to provide a reference for the analog comparators, it also may be used independently of them.

A block diagram of the module is illustrated in Figure 24-1. The resistor ladder is segmented to provide two ranges of voltage reference values and has a power-down function to conserve power when the reference is not being used. The module's supply reference can be provided from either device VDD/VSS or an external voltage reference. The CVREF output is available for the comparators and typically available for pin output.

The comparator voltage reference has the following features:

• High and low range selection
- Sixteen output levels available for each range
- Internally connected to comparators to conserve device pins
- Output can be connected to a pin

FIGURE 24-1: COMPARATOR VOLTAGE REFERENCE BLOCK DIAGRAM

NOTES:

25.0 POWER-SAVING FEATURES

Note 1: This data sheet summarizes the features of the PIC32MX3XX/4XX family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 10. "Power-Saving Features" (DS61130) of the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32).

2: Some registers and associated bits described in this section may not be available on all devices. Refer to Section 4.0 "Memory Organization" in this data sheet for device-specific register and bit information.

This section describes power-saving for the PIC32MX3XX/4XX. The PIC32MX devices offer a total of nine methods and modes that are organized into two categories that allow the user to balance power consumption with device performance. In all of the methods and modes described in this section, power-saving is controlled by software.

25.1 Power-Saving with CPU Running

When the CPU is running, power consumption can be controlled by reducing the CPU clock frequency, lowering the PBCLK, and by individually disabling modules. These methods are grouped into the following modes:

• FRC Run mode: the CPU is clocked from the FRC clock source with or without postscalers.
• LPRC Run mode: the CPU is clocked from the LPRC clock source.
• Sosc Run mode: the CPU is clocked from the Sosc clock source.
• Peripheral Bus Scaling mode: peripherals are clocked at programmable fraction of the CPU clock (SYSCLK).

25.2 CPU Halted Methods

The device supports two power-saving modes, Sleep and Idle, both of which halt the clock to the CPU. These modes operate with all clock sources, as listed below:

• Posc Idle Mode: the system clock is derived from the Posc. The system clock source continues to operate. Peripherals continue to operate, but can optionally be individually disabled.
• FRC Idle Mode: the system clock is derived from the FRC with or without postscalers. Peripherals continue to operate, but can optionally be individually disabled.
• Sosc Idle Mode: the system clock is derived from the Sosc. Peripherals continue to operate, but can optionally be individually disabled.

- LPRC Idle Mode: the system clock is derived from the LPRC.

Peripherals continue to operate, but can optionally be individually disabled. This is the lowest power mode for the device with a clock running.

- Sleep Mode: the CPU, the system clock source, and any peripherals that operate from the system clock source, are halted.

Some peripherals can operate in Sleep using specific clock sources. This is the lowest power mode for the device.

25.3 Power-Saving Operation

The purpose of all power-saving is to reduce power consumption by reducing the device clock frequency. To achieve this, low-frequency clock sources can be selected. In addition, the peripherals and CPU can be halted or disabled to further reduce power consumption.

25.3.1 SLEEP MODE

Sleep mode has the lowest power consumption of the device Power-Saving operating modes. The CPU and most peripherals are halted. Select peripherals can continue to operate in Sleep mode and can be used to wake the device from Sleep. See the individual peripheral module sections for descriptions of behavior in Sleep mode.

Sleep mode includes the following characteristics:

• The CPU is halted.
• The system clock source is typically shut down. See Section 25.3.2 "Idle Mode" for specific information.

- There can be a wake-up delay based on the oscillator selection.

- The Fail-Safe Clock Monitor (FSCM) does not operate during Sleep mode.

- The BOR circuit, if enabled, remains operative during Sleep mode.

- The WDT, if enabled, is not automatically cleared prior to entering Sleep mode.

- Some peripherals can continue to operate in Sleep mode. These peripherals include I/O pins that detect a change in the input signal, WDT, ADC, UART and peripherals that use an external clock input or the internal LPRC oscillator, e.g., RTCC and Timer 1.

- I/O pins continue to sink or source current in the same manner as they do when the device is not in Sleep.

- The USB module can override the disabling of the Posc or FRC. Refer to Section 11.0 "USB On-The-Go (OTG)" for specific details.

- Some modules can be individually disabled by software prior to entering Sleep in order to further reduce consumption.

The processor will exit, or 'wake-up', from Sleep on one of the following events:

• On any interrupt from an enabled source that is operating in Sleep. The interrupt priority must be greater than the current CPU priority.
• On any form of device Reset.
• On a WDT time-out. See Section 26.2 "Watchdog Timer (WDT)".

If the interrupt priority is lower than or equal to current priority, the CPU will remain halted, but the PBCLK will start running and the device will enter into Idle mode.

Note: There is no FRZ mode for this module.

25.3.2 IDLE MODE

In the Idle mode, the CPU is halted but the System clock (SYSCLK) source is still enabled. This allows peripherals to continue operation when the CPU is halted. Peripherals can be individually configured to halt when entering Idle by setting their respective SIDL bit. Latency when exiting Idle mode is very low due to the CPU oscillator source remaining active.

Note: Changing the PBCLK divider ratio requires recalculation of peripheral timing. For example, assume the UART is configured for 9600 baud with a PB clock ratio of 1:1 and a Posc of 8 MHz. When the PB clock divisor of 1:2 is used, the input frequency to the baud clock is cut in half; therefore, the baud rate is reduced to 1/2 its former value. Due to numeric truncation in calculations (such as the baud rate divisor), the actual baud rate may be a tiny percentage different than expected. For this reason, any timing calculation required for a peripheral should be performed with the new PB clock frequency instead of scaling the previous value based on a change in PB divisor ratio.

Oscillator start-up and PLL lock delays are applied when switching to a clock source that was disabled and that uses a crystal and/or the PLL. For example, assume the clock source is switched from Posc to LPRC just prior to entering Sleep in order to save power. No oscillator start-up delay would be applied when exiting Idle. However, when switching back to Posc, the appropriate PLL and/or oscillator startup/lock delays would be applied.

The device enters Idle mode when the SLPEN (OSCCON<4>) bit is clear and a WAIT instruction is executed.

The processor will wake or exit from Idle mode on the following events:

• On any interrupt event for which the interrupt source is enabled. The priority of the interrupt event must be greater than the current priority of CPU. If the priority of the interrupt event is lower than or equal to current priority of CPU, the CPU will remain halted and the device will remain in Idle mode.
• On any source of device Reset.
• On a WDT time-out interrupt. See Section 26.2 "Watchdog Timer (WDT)".

25.3.3 PERIPHERAL BUS SCALING METHOD

Most of the peripherals on the device are clocked using the PBCLK. The peripheral bus can be scaled relative to the SYSCLK to minimize the dynamic power consumed by the peripherals. The PBCLK divisor is controlled by PBDIV<1:0> (OSCCON<20:19>), allowing SYSCLK-to-PBCLK ratios of 1:1, 1:2, 1:4 and 1:8. All peripherals using PBCLK are affected when the divisor is changed. Peripherals such as USB, Interrupt Controller, DMA, Bus Matrix and Prefetch Cache are clocked directly from SYSCLK, as a result, they are not affected by PBCLK divisor changes

Changing the PBCLK divisor affects:

• The CPU to peripheral access latency. The CPU has to wait for next PBCLK edge for a read to complete. In 1:8 mode this results in a latency of one to seven SYSCLKs.
• The power consumption of the peripherals. Power consumption is directly proportional to the frequency at which the peripherals are clocked. The greater the divisor, the lower the power consumed by the peripherals.

To minimize dynamic power the PB divisor should be chosen to run the peripherals at the lowest frequency that provides acceptable system performance. When selecting a PBCLK divider, peripheral clock requirements such as baud rate accuracy should be taken into account. For example, the UART peripheral may not be able to achieve all baud rate values at some PBCLK divider depending on the SYSCLK value.

26.0 SPECIAL FEATURES

Note: This data sheet summarizes the features of the PIC32MX3XX/4XX family family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 9. “Watchdog Timer and Power-up Timer” (DS61114), Section 32. “Configuration” (DS61124) and Section 33. “Programming and Diagnostics” (DS61129) of the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32).

PIC32MX3XX/4XX devices include several features intended to maximize application flexibility and reliability and minimize cost through elimination of external components. These are:

• Flexible Device Configuration
• Watchdog Timer
• JTAG Interface
• In-Circuit Serial Programming™ (ICSP™)

26.1 Configuration Bits

The Configuration bits can be programmed to select various device configurations.

REGISTER 26-1: DEVCFG0: DEVICE CONFIGURATION WORD 0

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-0 r-1 r-1	R/P r-1 r-1 r-1 R/P
	—	—	—	CP	—	—	—	BWP
23:16	r-1	r-1	r-1	r-1	R/P	R/P	R/P	R/P
	—	—	—	—	PWP<7:4>
15:8	R/P R/P R/P	R/P r-1 r-1 r-1 r-1
	PWP<3:0>				—	—	—	—
7:0	r-1	r-1	r-1	r-1	R/P	r-1	R/P	R/P
	—	—	—	—	ICESEL	—	DEBUG<1:0>

Legend:

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31 Reserved: Write '0'

bit 30-29 Reserved: Write '1'

bit 28 CP: Code-Protect bit

Prevents boot and program Flash memory from being read or modified by an external programming device.

1 = Protection disabled
0 = Protection enabled

bit 27-25 Reserved: Write '1'

bit 24 BWP: Boot Flash Write-Protect bit

Prevents boot Flash memory from being modified during code execution.

1 = Boot Flash is writable
0 = Boot Flash is not writable

bit 23-20 Reserved: Write '1'

REGISTER 26-1: DEVCFG0: DEVICE CONFIGURATION WORD 0 (CONTINUED)
bit 19-12 PWP<7:0>: Program Flash Write-Protect bits Prevents selected program Flash memory pages from being modified during code execution. The PWP bits represent the one's compliment of the number of write protected program Flash memory pages. 11111111 = Disabled 11111110 = 0xBD00_0FFF 11111101 = 0xBD00_1FFF 11111100 = 0xBD00_2FFF 11111011 = 0xBD00_3FFF 11111010 = 0xBD00_4FFF 11111001 = 0xBD00_5FFF 11111000 = 0xBD00_6FFF 11110111 = 0xBD00_7FFF 11110110 = 0xBD00_8FFF 11110101 = 0xBD00_9FFF 11110100 = 0xBD00_AFFF 11110011 = 0xBD00_BFFF 11110010 = 0xBD00_CFFF 11110001 = 0xBD00_DFFF 11110000 = 0xBD00_EFFF 11101111 = 0xBD00_FFFF

.

.

.

.

01111111 = 0xBD07_FFFF

bit 11-4 Reserved: Write '1'

bit 3 ICESEL: In-Circuit Emulator/Debugger Communication Channel Select bit 1 = PGEC2/PGED2 pair is used 0 = PGEC1/PGED1 pair is used

bit 2 Reserved: Write '1'

bit 1-0 DEBUG<1:0>: Background Debugger Enable bits (forced to '1' if code-protect is enabled) 11 = Debugger disabled 10 = Debugger enabled 01 = Reserved (same as '1' setting) 00 = Reserved (same as '1' setting)

REGISTER 26-2: DEVCFG1: DEVICE CONFIGURATION WORD 1

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31-24 Reserved: Write '1'

bit 23 FWDTEN: Watchdog Timer Enable bit

1 = The WDT is enabled and cannot be disabled by software

0 = The WDT is not enabled; it can be enabled in software

bit 22-21 Reserved: Write '1'

bit 20-16 WDTPS<4:0>: Watchdog Timer Postscale Select bits

10100 = 1:1048576

10011 = 1:524288

10010 = 1:262144

10001 = 1:131072

10000 = 1:65536

01111 = 1:32768

01110 = 1:16384

01101 = 1:8192

01100 = 1:4096

01011 = 1:2048

01010 = 1:1024

01001 = 1:512

01000 = 1:256

00111 = 1:128

00110 = 1:64

00101 = 1:32

00100 = 1:16

00011 = 1:8

00010 = 1:4

00001 = 1:2

00000 = 1:1

All other combinations not shown result in operation = '10100'

bit 15-14 FCKSM<1:0>: Clock Switching and Monitor Selection Configuration bits

1x = Clock switching is disabled, Fail-Safe Clock Monitor is disabled

01 = Clock switching is enabled, Fail-Safe Clock Monitor is disabled

00 = Clock switching is enabled, Fail-Safe Clock Monitor is enabled

Note 1: Do not disable Posc (POSCMOD = 00) when using this oscillator source.

REGISTER 26-2: DEVCFG1: DEVICE CONFIGURATION WORD 1 (CONTINUED)
bit 13-12 FPBDIV<1:0>: Peripheral Bus Clock Divisor Default Value bits 11 = PBCLK is SYSCLK divided by 8 10 = PBCLK is SYSCLK divided by 4 01 = PBCLK is SYSCLK divided by 2 00 = PBCLK is SYSCLK divided by 1

bit 11 Reserved: Write '1'

bit 10 OSCIOFNC: CLKO Enable Configuration bit 1 = CLKO output signal active on the OSCO pin; primary oscillator must be disabled or configured for the External Clock mode (EC) for the CLKO to be active (POSCMOD<1:0> = 11 OR 00) 0 = CLKO output disabled

bit 9-8 POSCMOD<1:0>: Primary Oscillator Configuration bits 11 = Primary oscillator disabled 10 = HS oscillator mode selected 01 = XT oscillator mode selected 00 = External clock mode selected

bit 7 IESO: Internal External Switchover bit 1 = Internal External Switchover mode enabled (Two-Speed Start-up enabled) 0 = Internal External Switchover mode disabled (Two-Speed Start-up disabled)

bit 6 Reserved: Write '1'

bit 5 FSOSCEN: Secondary Oscillator Enable bit 1 = Enable Secondary Oscillator 0 = Disable Secondary Oscillator

bit 4-3 Reserved: Write '1'

bit 2-0 FNOSC<2:0>: Oscillator Selection bits 111 = Fast RC Oscillator with divide-by-N (FRCDIV) 110 = FRCDIV16 Fast RC Oscillator with fixed divide-by-16 postscaler 101 = Low-Power RC Oscillator (LPRC) 100 = Secondary Oscillator (Sosc) 011 = Primary Oscillator with PLL module (XT+PLL, HS+PLL, EC+PLL) 010 = Primary Oscillator (XT, HS, EC) ^(1) 001 = Fast RC Oscillator with divide-by-N with PLL module (FRCDIV+PLL) 000 = Fast RC Oscillator (FRC)

Note 1: Do not disable Posc (POSCMOD = 00) when using this oscillator source.

REGISTER 26-3: DEVCFG2: DEVICE CONFIGURATION WORD 2

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —
23:16	r-1 r-1 r-1	r-1 r-1 R/P R/P R/P
	— — —	— — FPLLLODIV<2:0>
15:8	R/P r-1 r-1	r-1 r-1 R/P R/P R/P
	UPLLEN	—	—	—	—	UPLLIDIV<2:0>
7:0	r-1 R/P	R/P	R/P	r-1 R/P	R/P R/P
	—	FPLLMUL<2:0>			—	FPLLIDIV<2:0>

Legend:

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31-19 Reserved: Write '1'

bit 18-16 FPLLODIV<2:0>: Default Postscaler for PLL bits

111 = PLL output divided by 256

110 = PLL output divided by 64

101 = PLL output divided by 32

100 = PLL output divided by 16

011 = PLL output divided by 8

010 = PLL output divided by 4

001 = PLL output divided by 2

000 = PLL output divided by 1

bit 15 UPLLEN: USB PLL Enable bit

1 = Disable and bypass USB PLL

0 = Enable USB PLL

bit 14-11 Reserved: Write '1'

bit 10-8 UPLLIDIV<2:0>: PLL Input Divider bits

111 = 12x divider

110 = 10x divider

101 = 6x divider

100 = 5x divider

011 = 4x divider

010 = 3x divider

010 = 3x divider

001 = 2x divider

000 = 1x divider

bit 7 Reserved: Write '1'

bit 6-4 FPLLMUL<2:0>: PLL Multiplier bits

111 = 24x multiplier

110 = 21x multiplier

101 = 20x multiplier

100 = 19x multiplier

011 = 18x multiplier

010 = 17x multiplier

001 = 16x multiplier

000 = 15x multiplier

bit 3 Reserved: Write '1'

bit 2-0 FPLLIDIV<2:0>: PLL Input Divider bits

111 = 12x divider

110 = 10x divider

101 = 6x divider

100 = 5x divider

011 = 4x divider

010 = 3x divider

001 = 2x divider

000 = 1x divider

REGISTER 26-4: DEVCFG3: DEVICE CONFIGURATION WORD 3

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31-16 Reserved: Write '1'

bit 15-0 USERID<15:0>: This is a 16-bit value that is user defined and is readable via ICSP™ and JTAG

REGISTER 26-5: DEVID: DEVICE AND REVISION ID REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R	R	R	R	R	R	R	R
	VER<3:0>(1)				DEVID<27:24>(1)
23:16	R	R	R	R	R	R	R	R
	DEVID<23:16>(1)
15:8	R	R	R	R	R	R	R	R
	DEVID<15:8>(1)
7:0	R	R	R	R	R	R	R	R
	DEVID<7:0>(1)

Legend:

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31-28 VER<3:0>: Revision Identifier bits ^(1)

bit 27-0 DEVID<27:0>: Device ID ^(1)

Note 1: See the "PIC32MX Flash Programming Specification" (DS61145) for a list of Revision and Device ID values.

26.2 Watchdog Timer (WDT)

This section describes the operation of the WDT and Power-Up Timer of the PIC32MX3XX/4XX.

The WDT, when enabled, operates from the internal Low-Power Oscillator (LPRC) clock source and can be used to detect system software malfunctions by resetting the device if the WDT is not cleared periodically in software. Various WDT time-out periods can be selected using the WDT postscaler. The WDT can also be used to wake the device from Sleep or Idle mode.

The following are some of the key features of the WDT module:

• Configuration or software controlled
• User-configurable time-out period
• Can wake the device from Sleep or Idle

FIGURE 26-1: WATCHDOG AND POWER-UP TIMER BLOCK DIAGRAM

26.3 On-Chip Voltage Regulator

All PIC32MX3XX/4XX device's core and digital logic are designed to operate at a nominal 1.8V. To simplify system designs, most devices in the PIC32MX3XX/4XX incorporate an on-chip regulator providing the required core logic voltage from VDD.

The internal 1.8V regulator is controlled by the ENVREG pin. Tying this pin to VDD enables the regulator, which in turn provides power to the core. A low ESR capacitor (such as tantalum) must be connected to the VCORE/VCAP pin (Figure 26-2). This helps to maintain the stability of the regulator. The recommended value for the filer capacitor is provided in Section 29.1 "DC Characteristics".

Note: It is important that the low ESR capacitor is placed as close as possible to the VCORE/VCAP pin.

Tying the ENVREG pin to Vss disables the regulator. In this case, separate power for the core logic at a nominal 1.8V must be supplied to the device on the VCORE/VCAP pin.

Alternatively, the VCORE/VCAP and VDD pins can be tied together to operate at a lower nominal voltage. Refer to Figure 26-2 for possible configurations.

26.3.1 ON-CHIP REGULATOR AND POR

When the voltage regulator is enabled, it takes fixed delay for it to generate output. During this time, designated as TPU, code execution is disabled. TPU is applied every time the device resumes operation after any power-down, including Sleep mode.

If the regulator is disabled, a separate Power-up Timer (PWRT) is automatically enabled. The PWRT adds a fixed delay of TPWRT at device start-up. See Section 29.0 "Electrical Characteristics" for more information on TPU AND TPWRT.

26.3.2 ON-CHIP REGULATOR AND BOR

When the on-chip regulator is enabled, PIC32MX3XX/4XX devices also have a simple brown-out capability. If the voltage supplied to the regulator is inadequate to maintain a regulated level, the regulator Reset circuitry will generate a Brown-out Reset. This event is captured by the BOR flag bit (RCON<1>). The brown-out voltage levels are specific in Section 29.1 "DC Characteristics".

26.3.3 POWER-UP REQUIREMENTS

The on-chip regulator is designed to meet the power-up requirements for the device. If the application does not use the regulator, then strict power-up conditions must be adhered to. While powering up, VCORE must never exceed VDD by 0.3 volts.

FIGURE 26-2: CONNECTIONS FOR THE ON-CHIP REGULATOR

Regulator Enabled (ENVREG tied to VDD):

3.3V PIC32MX VDD ENVREG CEFC (10 µF typ) V CORE/VCAP VSS

Note 1: These are typical operating voltages. Refer to and VCORE.

Regulator Disabled (ENVREG tied to ground):

1.8V(1) 3.3V(1) PIC32MX VDD ENVREG VCORE/VCAP VSS

Section 29.1 "DC Characteristics" for the full operating ranges of VDD

26.4 Programming and Diagnostics

PIC32MX3XX/4XX devices provide a complete range of programming and diagnostic features that can increase the flexibility of any application using them. These features allow system designers to include:

• Simplified field programmability using two-wire In-Circuit Serial Programming™ (ICSP™) interfaces
• Debugging using ICSP
• Programming and debugging capabilities using the EJTAG extension of JTAG
• JTAG boundary scan testing for device and board diagnostics

PIC32MX devices incorporate two programming and diagnostic modules, and a trace controller, that provide a range of functions to the application developer.

FIGURE 26-3: BLOCK DIAGRAM OF PROGRAMMING, DEBUGGING AND TRACE PORTS

REGISTER 26-6: DDPCON: DEBUG DATA PORT CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-x r-x r-x	r-x r-x r-x r-x r-x
	— — —	— — — — —
23:16	r-x r-x r-x	r-x r-x r-x r-x r-x
	— — —	— — — — —
15:8	r-x r-x r-x	r-x r-x r-x r-x r-x
	— — —	— — — — —
7:0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-1 R/W-0 r-x r-x
	DDPUSB D	DDPU1 DDPU2	DDPSPI1 JTAGEN TROEN — —

Legend:

R = Readable bit	W = Writable bit	P = Programmable bit	r = Reserved bit
U = Unimplemented bit	-n = Bit Value at POR: ('0', '1', x = Unknown)

bit 31-8 Reserved: Write '0'; ignore read

bit 7 DDPUSB: Debug Data Port Enable for USB bit

1 = USB peripheral ignores USBFRZ (U1CNFG1<5>) setting
0 = USB peripheral follows USBFRZ setting

bit 6 DDPU1: Debug Data Port Enable for UART1 bit

1 = UART1 peripheral ignores FRZ (U1MODE<14>) setting
0 = UART1 peripheral follows FRZ setting

bit 5 DDPU2: Debug Data Port Enable for UART2 bit

1 = UART2 peripheral ignores FRZ (U2MODE<14>) setting
0 = UART2 peripheral follows FRZ setting

bit 4 DDPSP1: Debug Data Port Enable for SPI1 bit

1 = SPI1 peripheral ignores FRZ (SPI1CON<14>) setting
0 = SPI1 peripheral follows FRZ setting

bit 3 JTAGEN: JTAG Port Enable bit

1 = Enable JTAG Port
0 = Disable JTAG Port

bit 2 TROEN: Trace Output Enable bit

1 = Enable Trace Port
0 = Disable Trace Port

bit 1-0 Reserved: Write '1'; ignore read

27.0 INSTRUCTION SET

The PIC32MX3XX/4XX family instruction set complies with the MIPS32 Release 2 instruction set architecture. PIC32MX does not support the following features:

• CoreExtend instructions
  • Coprocessor 1 instructions
  • Coprocessor 2 instructions

Table 27-1 provides a summary of the instructions that are implemented by the PIC32MX3XX/4XX family core.

Note: Refer to “MIPS32® Architecture for Programmers Volume II: The MIPS32® Instruction Set” at www.mips.com for more information.

TABLE 27-1: MIPS32 ® INSTRUCTION SET

Instruction Description Function
ADD Integer Add	Rd = Rs + Rt
ADDI Integer Add Immediate Rt = Rs + Immed
ADDIU Unsigned Integer Add Immediate Rt = Rs + U Immed
ADDU Unsigned Integer Add Rd = Rs + U Rt
AND Logical AND Rd = Rs & Rt
ANDI Logical AND Immediate Rt = Rs & (0 16 || Immed)
B	Unconditional Branch(Assembler idiom for: BEQ r0, r0, offset)	PC += (int)offset
BAL Branch and Link(Assembler idiom for: BGEZAL r0, offset)		GPR[31] = PC + 8PC += (int)offset
BEQ Branch on Equal if Rs == RtPC += (int)offset
BEQL Branch on Equal Likely (1)		if Rs == RtPC += (int)offsetelseIgnore Next Instruction
BGEZ Branch on Greater Than or Equal to Zero if !Rs[31]PC += (int)offset
BGEZAL	Branch on Greater Than or Equal to Zero and Link	GPR[31] = PC + 8if !Rs[31]PC += (int)offset
BGEZALL	Branch on Greater Than or Equal to Zero and Link Likely(1)	GPR[31] = PC + 8if !Rs[31]PC += (int)offsetelseIgnore Next Instruction
BGEZL Branch on Greater Than or Equal to Zero Likely (1)		if !Rs[31]PC += (int)offsetelseIgnore Next Instruction
BGTZ	Branch on Greater Than Zero	if !Rs[31] && Rs != 0PC += (int)offset
BGTZL Branch on Greater Than Zero Likely (1)		if !Rs[31] && Rs != 0PC += (int)offsetelseIgnore Next Instruction
BLEZ	Branch on Less Than or Equal to Zero	if Rs[31] || Rs == 0PC += (int)offset
Instruction	Description	Function
BLEZL Branch on Less Than or Equal to Zero Likely (1)		if Rs[31] || Rs == 0PC += (int)offsetelseIgnore Next Instruction
BLTZ Branch on Less Than Zero if Rs[31]		PC += (int)offset
BLTZAL Branch on Less Than Zero and Link GPR[31] = PC + 8		if Rs[31]PC += (int)offset
BLTZALL Branch on Less Than Zero and Link Likely (1)		GPR[31] = PC + 8if Rs[31]PC += (int)offsetelseIgnore Next Instruction
BLTZL Branch on Less Than Zero Likely (1)		if Rs[31]PC += (int)offsetelseIgnore Next Instruction
BNE Branch on Not Equal if Rs != Rt		PC += (int)offset
BNEL Branch on Not Equal Likely (1)		if Rs != RtPC += (int)offsetelseIgnore Next Instruction
BREAK Breakpoint Break Exception
CLO Count Leading Ones Rd = NumLeadingOnes(Rs)
CLZ Count Leading Zeroes Rd = NumLeadingZeroes(Rs)
DERET Return from Debug Exception PC = DEPC		Exit Debug Mode
DI Atomically Disable Interrupts Rt = Status; Status IE = 0
DIV Divide LO = (int)Rs / (int)Rt		HI = (int)Rs % (int)Rt
DIVU Unsigned Divide LO = (uns)Rs / (uns)RtHI = (uns)Rs % (uns)Rt
EHB Execution Hazard Barrier Stop instruction until execution hazards are cleared
EI	Atomically Enable Interrupts	Rt = Status; StatusIE = 1
ERET Return from Exception if Status ERLPC = ErrorEPCelsePC = EPCStatusEXL = 0StatusERL = 0LL = 0
EXT Extract Bit Field Rt = ExtractField(Rs, pos,size)
INS Insert Bit Field Rt = InsertField(Rs, Rt, pos,size)
J	Unconditional Jump	PC = PC[31:28] || offset<<2
JAL Jump and Link GPR[31] = PC + 8		PC = PC[31:28] || offset<<2
JALR Jump and Link Register Rd = PC + 8		PC = Rs
JALR.HB	Jump and Link Register with Hazard Barrier	Like JALR, but also clears execution and instruction hazards
JR Jump Register PC = Rs
JR.HB	Jump Register with Hazard Barrier	Like JR, but also clears execution and instruction hazards
LB Load Byte Rt = (byte)Mem[Rs+offset]
LBU Unsigned Load Byte Rt = (ubyte))Mem[Rs+offset]
LH Load Halfword Rt = (half)Mem[Rs+offset]
LHU Unsigned Load Halfword Rt = (uhalf)Mem[Rs+offset]
LL Load Linked Word Rt = Mem[Rs+offset>		LL_bit = 1LLAdr = Rs + offset
LUI Load Upper Immediate Rt = immediate << 16
LW Load Word Rt = Mem[Rs+offset]
LWPC Load Word, PC relative Rt = Mem[PC+offset]
LWL Load Word Left Re = Re MERGE Mem[Rs+offset]
LWR Load Word Right Re = Re MERGE Mem[Rs+offset]
MADD Multiply-Add HI | LO += (int)Rs * (int)Rt
MADDU Multiply-Add Unsigned HI | LO += (uns)Rs * (uns)Rt
MFCO Move from Coprocessor 0 Rt = CPR[0, Rd, sel]
MFHI Move from HI Rd = HI
MFLO Move from LO Rd = LO
MOVN Move Conditional on Not Zero if Rt 1⁄4		0 thenRd = Rs
MOVZ Move Conditional on Zero if Rt = 0 thenRd = Rs
MSUB Multiply-Subtract HI | LO -= (int)Rs * (int)Rt
MSUBU Multiply-Subtract Unsigned HI | LO -= (uns)Rs * (uns)Rt
MTCO Move to Coprocessor 0 CPR[0, n, Sel] = Rt
MTHI Move to HI HI = Rs
MTLO Move to LO LO = Rs
MUL Multiply with register write HI | LO = UnpredictableRd = ((int)Rs * (int)Rt)31..0
MULT Integer Multiply HI | LO = (int)Rs * (int)Rd
MULTU Unsigned Multiply HI | LO = (uns)Rs * (uns)Rd
NOP No Operation(Assembler idiom for: SLL r0, r0, r0)
NOR Logical NOR Rd = ~(Rs | Rt)
OR Logical OR Rd = Rs | Rt
ORI Logical OR Immediate Rt = Rs Immed
RDHWR Read Hardware Register (if enabled by HWRE Register) na		Re = HWR[Rd]
Instruction	Description Function
RDPGPR Read GPR from Previous Shadow Set Rt = SGPR[SRSCTL]		PSS, Rd]
ROTR Rotate Word Right Rd = Rt		sa-1..0 || Rt31..sa
ROTRV Rotate Word Right Variable Rd = Rt		Rs-1..0 || Rt31..Rs
SB Store Byte (byte)Mem[Rs+offset] = Rt
SC Store Conditional Word if LL		bit = 1mem[Rs+offset> = RtRt = LLbit
SDBBP Software Debug Break Point Trap to SW Debug Handler
SEB Sign-Extend Byte Rd = SignExtend (Rs-7...0)
SEH Sign-Extend Half Rd = SignExtend (Rs-15...0)
SH Store Half (half)Mem[Rs+offset> = Rt
SLL Shift Left Logical Rd = Rt << sa
SLLV Shift Left Logical Variable Rd = Rt << Rs[4:0]
SLT Set on Less Than if (int)Rs < (int)Rtd = 1elseRd = 0
SLTI Set on Less Than Immediate if (int)Rs < (int)ImmedRt = 1elseRt = 0
SLTIU Set on Less Than Immediate Unsigned if (uns)Rs < (uns)ImmedRt = 1elseRt = 0
SLTU Set on Less Than Unsigned if (uns)Rs < (uns)ImmedRd = 1elseRd = 0
SRA Shift Right Arithmetic Rd = (int)Rt >> sa
SRAV Shift Right Arithmetic Variable Rd = (int)Rt >> Rs[4:0]
SRL Shift Right Logical Rd = (uns)Rt >> sa
SRLV Shift Right Logical Variable Rd = (uns)Rt >> Rs[4:0]
SSNOP Superscalar Inhibit No Operation NOP
SUB Integer Subtract Rt = (int)Rs - (int)Rd
SUBU Unsigned Subtract Rt = (uns)Rs - (uns)Rd
SW Store Word Mem[Rs+offset] = Rt
SWL Store Word Left Mem[Rs+offset] = Rt
SWR Store Word Right Mem[Rs+offset] = Rt
SYNC Synchronize Orders the cached coherent and uncached loads and stores for access to the shared memory
SYSCALL System Call SystemCallException
TEQ Trap if Equal if Rs == RtTrapException
TEQI Trap if Equal Immediate if Rs == (int)ImmedTrapException
TGE	Trap if Greater Than or Equal	if (int)Rs >= (int)Rt TrapException
TGEI	Trap if Greater Than or Equal Immediate	if (int)Rs >= (int)Immed TrapException
TGEIU	Trap if Greater Than or Equal Immediate Unsigned	if (uns)Rs >= (uns)Immed TrapException
TGEU	Trap if Greater Than or Equal Unsigned	if (uns)Rs >= (uns)Rt TrapException
TLT Trap if Less	Than if (int)Rs < (int)Rt	TrapException
TLTI	Trap if Less Than Immediate	if (int)Rs < (int)Immed TrapException
TLTIU	Trap if Less Than Immediate Unsigned	if (uns)Rs < (uns)Immed TrapException
TLTU	Trap if Less Than Unsigned	if (uns)Rs < (uns)Rt TrapException
TNE Trap if Not	Equal if Rs != Rt	TrapException
TNEI Trap if Not	Equal Immediate if Rs != (int)Immed	TrapException
WAIT	Wait for Interrupt	Go to a low power mode and stall until interrupt occurs
WRPGPR	Write to GPR in Previous Shadow Set	SGPR[SRSCtlPSS, Rd> = Rt
WSBH	Word Swap Bytes Within Halfwords	Rd = Rt23..16 || Rt31..24 || Rt7..0 || Rt15..8
XOR Exclusive OR		Rd = Rs ^ Rt
XORI Exclusive OR Immediate		Rt = Rs ^ (uns) Immed

Note 1: This instruction is deprecated and should not be used.

NOTES:

28.0 DEVELOPMENT SUPPORT

The PIC ^® microcontrollers and dsPIC ^® digital signal controllers are supported with a full range of software and hardware development tools:

• Integrated Development Environment
- MPLAB ^® IDE Software

- Compilers/Assemblers/Linkers

- MPLAB C Compiler for Various Device Families

- HI-TECH C for Various Device Families

- MPASM ^TM Assembler

- M P L™ Object Linker/MPLIB™ Object Librarian

- MPLAB Assembler/Linker/Librarian for Various Device Families

- Simulators

- MPLAB SIM Software Simulator

- Emulators

- MPLAB REAL ICE™ In-Circuit Emulator

- In-Circuit Debuggers

- MPLAB ICD 3

- PICkit™ 3 Debug Express

• Device Programmers

- PICkit™ 2 Programmer

- MPLAB PM3 Device Programmer

- Low-Cost Demonstration/Development Boards, Evaluation Kits, and Starter Kits

28.1 MPLAB Integrated Development Environment Software

The MPLAB IDE software brings an ease of software development previously unseen in the 8/16/32-bit microcontroller market. The MPLAB IDE is a Windows® operating system-based application that contains:

- A single graphical interface to all debugging tools

- Simulator

- Programmer (sold separately)

- In-Circuit Emulator (sold separately)

- In-Circuit Debugger (sold separately)

• A full-featured editor with color-coded context

• A multiple project manager

- Customizable data windows with direct edit of contents

• High-level source code debugging

- Mouse over variable inspection

- Drag and drop variables from source to watch windows

- Extensive on-line help

- Integration of select third party tools, such as IAR C Compilers

The MPLAB IDE allows you to:

- Edit your source files (either C or assembly)

- One-touch compile or assemble, and download to emulator and simulator tools (automatically updates all project information)

- Debug using:

- Source files (C or assembly)

- Mixed C and assembly

- Machine code

MPLAB IDE supports multiple debugging tools in a single development paradigm, from the cost-effective simulators, through low-cost in-circuit debuggers, to full-featured emulators. This eliminates the learning curve when upgrading to tools with increased flexibility and power.

28.2 MPLAB C Compilers for Various Device Families

The MPLAB C Compiler code development systems are complete ANSI C compilers for Microchip's PIC18, PIC24 and PIC32 families of microcontrollers and the dsPIC30 and dsPIC33 families of digital signal controllers. These compilers provide powerful integration capabilities, superior code optimization and ease of use.

For easy source level debugging, the compilers provide symbol information that is optimized to the MPLAB IDE debugger.

28.3 HI-TECH C for Various Device Families

The HI-TECH C Compiler code development systems are complete ANSI C compilers for Microchip's PIC family of microcontrollers and the dsPIC family of digital signal controllers. These compilers provide powerful integration capabilities, omniscient code generation and ease of use.

For easy source level debugging, the compilers provide symbol information that is optimized to the MPLAB IDE debugger.

The compilers include a macro assembler, linker, preprocessor, and one-step driver, and can run on multiple platforms.

28.4 MPASM Assembler

The MPASM Assembler is a full-featured, universal macro assembler for PIC10/12/16/18 MCUs.

The MPASM Assembler generates relocatable object files for the MPLINK Object Linker, Intel ^® standard HEX files, MAP files to detail memory usage and symbol reference, absolute LST files that contain source lines and generated machine code and COFF files for debugging.

The MPASM Assembler features include:

• Integration into MPLAB IDE projects
- User-defined macros to streamline assembly code
- Conditional assembly for multi-purpose source files
- Directives that allow complete control over the assembly process

28.5 MPLINK Object Linker/MPLIB Object Librarian

The MPLINK Object Linker combines relocatable objects created by the MPASM Assembler and the MPLAB C18 C Compiler. It can link relocatable objects from precompiled libraries, using directives from a linker script.

The MPLIB Object Librarian manages the creation and modification of library files of precompiled code. When a routine from a library is called from a source file, only the modules that contain that routine will be linked in with the application. This allows large libraries to be used efficiently in many different applications.

The object linker/library features include:

• Efficient linking of single libraries instead of many smaller files
• Enhanced code maintainability by grouping related modules together
• Flexible creation of libraries with easy module listing, replacement, deletion and extraction

28.6 MPLAB Assembler, Linker and Librarian for Various Device Families

MPLAB Assembler produces relocatable machine code from symbolic assembly language for PIC24, PIC32 and dsPIC devices. MPLAB C Compiler uses the assembler to produce its object file. The assembler generates relocatable object files that can then be archived or linked with other relocatable object files and archives to create an executable file. Notable features of the assembler include:

• Support for the entire device instruction set
• Support for fixed-point and floating-point data
• Command line interface
• Rich directive set
• Flexible macro language
• MPLAB IDE compatibility

28.7 MPLAB SIM Software Simulator

The MPLAB SIM Software Simulator allows code development in a PC-hosted environment by simulating the PIC MCUs and dsPIC® DSCs on an instruction level. On any given instruction, the data areas can be examined or modified and stimuli can be applied from a comprehensive stimulus controller. Registers can be logged to files for further run-time analysis. The trace buffer and logic analyzer display extend the power of the simulator to record and track program execution, actions on I/O, most peripherals and internal registers.

The MPLAB SIM Software Simulator fully supports symbolic debugging using the MPLAB C Compilers, and the MPASM and MPLAB Assemblers. The software simulator offers the flexibility to develop and debug code outside of the hardware laboratory environment, making it an excellent, economical software development tool.

28.8 MPLAB REAL ICE In-Circuit Emulator System

MPLAB REAL ICE In-Circuit Emulator System is Microchip's next generation high-speed emulator for Microchip Flash DSC and MCU devices. It debugs and programs PIC® Flash MCUs and dsPIC® Flash DSCs with the easy-to-use, powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), included with each kit.

The emulator is connected to the design engineer's PC using a high-speed USB 2.0 interface and is connected to the target with either a connector compatible with in-circuit debugger systems (RJ11) or with the new high-speed, noise tolerant, Low-Voltage Differential Signal (LVDS) interconnection (CAT5).

The emulator is field upgradable through future firmware downloads in MPLAB IDE. In upcoming releases of MPLAB IDE, new devices will be supported, and new features will be added. MPLAB REAL ICE offers significant advantages over competitive emulators including low-cost, full-speed emulation, run-time variable watches, trace analysis, complex breakpoints, a ruggedized probe interface and long (up to three meters) interconnection cables.

28.9 MPLAB ICD 3 In-Circuit Debugger System

MPLAB ICD 3 In-Circuit Debugger System is Microchip's most cost effective high-speed hardware debugger/programmer for Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU) devices. It debugs and programs PIC® Flash microcontrollers and dsPIC® DSCs with the powerful, yet easy-to-use graphical user interface of MPLAB Integrated Development Environment (IDE).

The MPLAB ICD 3 In-Circuit Debugger probe is connected to the design engineer's PC using a high-speed USB 2.0 interface and is connected to the target with a connector compatible with the MPLAB ICD 2 or MPLAB REAL ICE systems (RJ-11). MPLAB ICD 3 supports all MPLAB ICD 2 headers.

28.10 PICkit 3 In-Circuit Debugger/Programmer and PICkit 3 Debug Express

The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming™.

The PICkit 3 Debug Express include the PICkit 3, demo board and microcontroller, hookup cables and CDROM with user's guide, lessons, tutorial, compiler and MPLAB IDE software.

28.11 PICkit 2 Development Programmer/Debugger and PICkit 2 Debug Express

The PICkit™ 2 Development Programmer/Debugger is a low-cost development tool with an easy to use interface for programming and debugging Microchip's Flash families of microcontrollers. The full featured Windows® programming interface supports baseline (PIC10F, PIC12F5xx, PIC16F5xx), midrange (PIC12F6xx, PIC16F), PIC18F, PIC24, dsPIC30, dsPIC33, and PIC32 families of 8-bit, 16-bit, and 32-bit microcontrollers, and many Microchip Serial EEPROM products. With Microchip's powerful MPLAB Integrated Development Environment (IDE) the PICkit™ 2 enables in-circuit debugging on most PIC® microcontrollers. In-Circuit-Debugging runs, halts and single steps the program while the PIC microcontroller is embedded in the application. When halted at a breakpoint, the file registers can be examined and modified.

The PICkit 2 Debug Express include the PICkit 2, demo board and microcontroller, hookup cables and CDROM with user's guide, lessons, tutorial, compiler and MPLAB IDE software.

28.12 MPLAB PM3 Device Programmer

The MPLAB PM3 Device Programmer is a universal, CE compliant device programmer with programmable voltage verification at VDDMIN and VDDMAX for maximum reliability. It features a large LCD display (128 x 64) for menus and error messages and a modular, detachable socket assembly to support various package types. The ICSP™ cable assembly is included as a standard item. In Stand-Alone mode, the MPLAB PM3 Device Programmer can read, verify and program PIC devices without a PC connection. It can also set code protection in this mode. The MPLAB PM3 connects to the host PC via an RS-232 or USB cable. The MPLAB PM3 has high-speed communications and optimized algorithms for quick programming of large memory devices and incorporates an MMC card for file storage and data applications.

28.13 Demonstration/Development Boards, Evaluation Kits, and Starter Kits

A wide variety of demonstration, development and evaluation boards for various PIC MCUs and dsPIC DSCs allows quick application development on fully functional systems. Most boards include prototyping areas for adding custom circuitry and provide application firmware and source code for examination and modification.

The boards support a variety of features, including LEDs, temperature sensors, switches, speakers, RS-232 interfaces, LCD displays, potentiometers and additional EEPROM memory.

The demonstration and development boards can be used in teaching environments, for prototyping custom circuits and for learning about various microcontroller applications.

In addition to the PICDEM™ and dsPICDEM™ demonstration/development board series of circuits, Microchip has a line of evaluation kits and demonstration software for analog filter design, KEELoQ® security ICs, CAN, IrDA®, PowerSmart battery management, SEEVAL® evaluation system, Sigma-Delta ADC, flow rate sensing, plus many more.

Also available are starter kits that contain everything needed to experience the specified device. This usually includes a single application and debug capability, all on one board.

Check the Microchip web page (www.microchip.com) for the complete list of demonstration, development and evaluation kits.

29.0 ELECTRICAL CHARACTERISTICS

This section provides an overview of PIC32MX3XX/4XX electrical characteristics. Additional information will be provided in future revisions of this document as it becomes available.

Absolute maximum ratings for the PIC32MX3XX/4XX are listed below. Exposure to these maximum rating conditions for extended periods may affect device reliability. Functional operation of the device at these or any other conditions above the parameters indicated in the operation listings of this specification is not implied.

Absolute Maximum Ratings (Note 1)

Ambient temperature under bias....-40°C to +105°C

Storage temperature -65°C to +150°C

Voltage on VDD with respect to Vss -0.3V to +4.0V

Voltage on any pin that is not 5V tolerant, with respect to Vss (Note 3)....-0.3V to (VDD + 0.3V)

Voltage on any 5V tolerant pin with respect to Vss when VDD ≥ 2.3V (Note 3) -0.3V to +5.5V

Voltage on any 5V tolerant pin with respect to Vss when VDD < 2.3V (Note 3).... -0.3V to +3.6V

Voltage on VCORE with respect to Vss -0.3V to 2.0V

Voltage on Vbus with respect to Vss -0.3V to +5.5V

Maximum current out of Vss pin(s)....300 mA

Maximum current into VDD pin(s) (Note 2)....300 mA

Maximum output current sunk by any I/O pin....25 mA

Maximum output current sourced by any I/O pin 25 mA

Maximum current sunk by all ports 200 mA

Maximum current sourced by all ports (Note 2)....200 mA

Note 1: Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

2: Maximum allowable current is a function of device maximum power dissipation (see Table 29-2).

3: See the "Pin Diagrams" section for the 5V tolerant pins.

29.1 DC Characteristics

TABLE 29-1: OPERATING MIPS VS. VOLTAGE

Characteristic	VDD Range(in Volts)	Temp. Range(in °C)	Max. Frequency
			PIC32MX3XX/4XX
DC5 2.3V-3.6V	-40°C to +85°C 80 MHz (Note 1)
DC5b 2.3V-3.6V	-40°C to +105°C 80 MHz (Note 1)

Note 1: 40 MHz maximum for PIC32MX320F032H and PIC32MX420F032H devices.

TABLE 29-2: THERMAL OPERATING CONDITIONS

Rating Symbol Min. Typical Max. Unit
Industrial Temperature Devices
Operating Junction Temperature Range	T_J	-40	—	+125	°C
Operating Ambient Temperature Range	T_A	-40	—	+85	°C
V-Temp Temperature Devices
Operating Junction Temperature Range	T_J	-40	—	+140	°C
Operating Ambient Temperature Range	T_A	-40	—	+105	°C
Power Dissipation:
Internal Chip Power Dissipation: P_INT=V_DD×(I_DD-S_IOH) I/O Pin Power Dissipation: I/O=S(V_DD-V_OH×I_OH)+S(V_OL×I_OL)	P_D	P_INT+P_I/O			W
Maximum Allowed Power Dissipation	P_DMAX	(T_J-T_A)/_JA			W

TABLE 29-3: THERMAL PACKAGING CHARACTERISTICS

Characteristics	Symbol	Typical	Max.	Unit	Notes
Package Thermal Resistance, 121-Pin XBGA (10x10x1.1 mm)	_JA	40	—	°C/W	1
Package Thermal Resistance, 100-Pin TQFP (12x12x1 mm)	_JA	43	—	°C/W	1
Package Thermal Resistance, 64-Pin TQFP (10x10x1 mm)	_JA	47	—	°C/W	1
Package Thermal Resistance, 64-Pin QFN (9x9x0.9 mm)	_JA	28	—	°C/W	1

Note 1: Junction to ambient thermal resistance, Theta-JA ( _JA ) numbers are achieved by package simulations.

TABLE 29-4: DC TEMPERATURE AND VOLTAGE SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics	Min.	Typical	Max.	Units	Conditions
Operating Voltage
DC10	VDD	Supply Voltage	2.3	—	3.6	V	—
DC12	VDR	RAM Data Retention Voltage(Note 1)	1.75	—	—	V	—
DC16	VPOR	VDD Start Voltageto Ensure InternalPower-on Reset Signal	1.75	—	1.95	V	—
DC17	SVDD	VDD Rise Rateto Ensure InternalPower-on Reset Signal	0.05	—	—	V/ms	—

Note 1: This is the limit to which V DD can be lowered without losing RAM data.

TABLE 29-5: DC CHARACTERISTICS: OPERATING CURRENT (IDD)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Typical(3)	Max. Units Conditions
Operating Current (IDD)(1,2)
DC20	8.5 13		mA Code executing from Flash		-40°C,+25°C,+85°C	—	4
	9 15 +105°C
DC20c	4.0	—	mA	Code executing from SRAM	—
DC21	23.5	32	mA	Code executing from Flash	—	—	20 MHz(Note 4)
DC21c 16.4	—	mA	Code executing from SRAM
DC22	48	61	mA Code executing from Flash		—	—	60 MHz(Note 4)
DC22c 45	—	mA Code executing from SRAM
DC23	55	75	mA Code executing from Flash		-40°C,+25°C,+85°C	2.3V	80 MHz
	60	100			+105°C
DC23c	55	—	mA	Code executing from SRAM	—	—
DC24	—	100	μA	—	-40°C	2.3V	LPRC (31 kHz)(Note 4)
DC24a	—	130	μA	—	+25°C
DC24b	—	670	μA	—	+85°C
DC24c	—	850	μA	—	+105°C
DC25	94	—	μA	—	-40°C	3.3V
DC25a	125	—	μA	—	+25°C
DC25b	302	—	μA	—	+85°C
DC25d	400	—	μA	—	+105°C
DC25c	71	—	μA	Code executing from SRAM	—	—
DC26	—	110	μA	—	-40°C	3.6V
DC26a	—	180	μA	—	+25°C
DC26b	—	700	μA	—	+85°C
DC26c	—	900	μA	—	+105°C

Note 1: A device's IDD supply current is mainly a function of the operating voltage and frequency. Other factors, such as PBCLK (Peripheral Bus Clock) frequency, number of peripheral modules enabled, internal code execution pattern, execution from program Flash memory vs. SRAM, I/O pin loading and switching rate, oscillator type as well as temperature can have an impact on the current consumption.
2: The test conditions for I_DD measurements are as follows: Oscillator mode = EC+PLL with OSC1 driven by external square wave from rail to rail and PBCLK divisor = 1:8. CPU, Program Flash and SRAM data memory are operational, Program Flash memory Wait states = 7, program cache and prefetch are disabled and SRAM data memory Wait states = 1. All peripheral modules are disabled (ON bit = 0). WDT and FSCM are disabled. All I/O pins are configured as inputs and pulled to Vss. MCLR = VDD.
3: Data in "Typical" column is at 3.3V, 25°C at specified operating frequency unless otherwise stated. Parameters are for design guidance only and are not tested.
4: This parameter is characterized, but not tested in manufacturing.

TABLE 29-6: DC CHARACTERISTICS: IDLE CURRENT (IIDLE)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Parameter No.	Typical (2)	Max. Units	Conditions
Idle Current (IIDLE): Core OFF, Clock ON Base Current (Note 1)
DC30 — 5 mA -40°C, +25°C, +85°C 2.3V						4 MHz
DC30a	1.4	—	mA	-40°C, +25°C, +85°C	—
DC30b	— 5 mA	-40°C, +25°C, +85°C			3.6V
DC30c	— 8 mA		+105°C
DC31 —	15	mA -40°C, +25°C, +85°C 2.3V				20 MHz(Note 3)
DC31a	13	—	mA	-40°C, +25°C, +85°C	—
DC31b	—	17	mA -40°C, +25°C, +85°C		3.6V
DC31c	—	25	mA	+105°C
DC32 —	22	mA -40°C, +25°C, +85°C 2.3V				60 MHz(Note 3)
DC32a	20	—	mA	-40°C, +25°C, +85°C	—
DC32b	—	25	mA -40°C, +25°C, +85°C		3.6V
DC32c	—	32	mA	+105°C
DC33 —	29	mA -40°C, +25°C, +85°C 2.3V				80 MHz
DC33a	24	—	mA	-40°C, +25°C, +85°C	—
DC33b	—	32	mA -40°C, +25°C, +85°C		3.6V
DC33c	—	40	mA	+105°C
DC34 —	36	μA	-40°C		2.3V	LPRC (31 kHz)(Note 3)
DC34a	—	62	μA	+25°C
DC34b	—	392	μA	+85°C
DC34c	—	550	μA	+105°C
DC35	35	—	μA	-40°C	3.3V
DC35a	65	—	μA	+25°C
DC35b	242	—	μA	+85°C
DC35c	350	—	μA	+105°C
DC36 —	43	μA	-40°C		3.6V
DC36a	—	106	μA	+25°C
DC36b	—	414	μA	+85°C
DC36c	—	600	μA	+105°C

Note 1: The test conditions for base IDLE current measurements are as follows: System clock is enabled and PBCLK divisor = 1:8. CPU in Idle mode (CPU core halted). Only digital peripheral modules are enabled (ON bit = 1) and being clocked. WDT and FSCM are disabled. All I/O pins are configured as inputs and pulled to Vss. MCLR = VDD.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: This parameter is characterized, but not tested in manufacturing.

TABLE 29-7: DC CHARACTERISTICS: POWER-DOWN CURRENT (IPD)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V (unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Parameter No.	Typical (2)	Max. Units Conditions
Power-Down Current (IPD)(1)
DC40 7 30 μA	-	4	0	°C	2.3V	Base Power-Down Current (Note 6)
DC40a	24	30	μA	+25°C
DC40b	205	300	μA	+85°C
DC40h	450	900	μA	+105°C
DC40c	25	—	μA	+25°C	3.3V	Base Power-Down Current
DC40d	9	70	μA	-40°C	3.6V	Base Power-Down Current
DC40e	25	70	μA	+25°C
DC40g	115	200(5)	μA	+70°C
DC40f	200	400	μA	+85°C
DC40i	470	1200	μA	+105°C
Module Differential Current
DC41	—	10	μA	-40°C	2.3V	Watchdog Timer Current: ΔIwDT (Notes 3, 6)
DC41a	—	10	μA	+25°C
DC41b	—	10	μA	+85°C
DC41g	—	12 μA	+105°C
DC41c	5	—	μA	+25°C	3.3V	Watchdog Timer Current: ΔIwDT (Note 3)
DC41d	—	10	μA	-40°C	3.6V	Watchdog Timer Current: ΔIwDT (Note 3)
DC41e	—	10	μA	+25°C
DC41f	—	12	μA	+85°C
DC41h	—	15 μA	+105°C
DC42	—	10	μA	-40°C	2.3V	RTCC + Timer1 w/32 kHz Crystal: ΔIRTCC (Notes 3, 6)
DC42a	—	17	μA	+25°C
DC42b	—	37	μA	+85°C
DC42h	—	45 μA	+105°C
DC42c	23	—	μA	+25°C	3.3V	RTCC + Timer1 w/32 kHz Crystal: ΔIRTCC (Note 3)
DC42e	—	10	μA	-40°C	3.6V	RTCC + Timer1 w/32 kHz Crystal: ΔIRTCC (Note 3)
DC42f	—	30	μA	+25°C
DC42g	—	44	μA	+85°C
DC42i	—	44 μA	+105°C

Note 1: Base IPD is measured with all digital peripheral modules disabled. All I/Os are configured as inputs and pulled low. WDT and FSCM are disabled.
2: Data in the "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The current is the additional current consumed when the module is enabled. This current should be added to the base IPD current.
4: Test conditions for ADC module differential current are as follows: Internal ADC RC oscillator enabled.
5: Data is characterized at +70°C and not tested. Parameter is for design guidance only.
6: This parameter is characterized, but not tested in manufacturing.

TABLE 29-7: DC CHARACTERISTICS: POWER-DOWN CURRENT (IPD) (CONTINUED)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V (unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Parameter No.	Typical(2)	Max.	Units	Conditions
Module Differential Current (Continued)
DC43 — 11	00 μA	- 4	0	°C	2.5V ADC: ΔI	ADC (Notes 3, 4, 6)
DC43a — 1	100 μA +25°C
DC43b — 1	000 μA +85°C
DC43h — 1	200 μA +105°C
DC43c	880	—	μA	—	—	ADC: ΔIADC (Notes 3, 4)
DC43e — 1	100 μA	- 4	0	°C	3.6V	ADC: ΔIADC (Notes 3, 4)
DC43f	— 1100 μA +25°C
DC43g — 1	000 μA +85°C
DC43i	— 1200 μA +105°C

Note 1: Base IPD is measured with all digital peripheral modules disabled. All I/Os are configured as inputs and pulled low. WDT and FSCM are disabled.
2: Data in the "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The current is the additional current consumed when the module is enabled. This current should be added to the base IPD current.
4: Test conditions for ADC module differential current are as follows: Internal ADC RC oscillator enabled.
5: Data is characterized at +70°C and not tested. Parameter is for design guidance only.
6: This parameter is characterized, but not tested in manufacturing.

TABLE 29-8: DC CHARACTERISTICS: I/O PIN INPUT SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V (unless otherwise stated)Operating temperature -40°C ≤ T A ≤ +85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical	(1)	Max. Units Conditions
DI10 I/C	VIL Input Low Voltage pins:
		with TTL Buffer	Vss	—	0.15 VDD	V	(Note 4)
		with Schmitt Trigger Buffer	Vss	—	0.2 VDD	V	(Note 4)
DI15		MCLR	Vss	—	0.2 VDD	V	(Note 4)
DI16 OSC1 (XT mode)	V	SS	—	0.2 VDD	V	(Vote 4)
DI17	OSC1 (HS mode)	Vss	—	0.2 VDD	V	(Note 4)
DI18 SDAx, SCLx	V	SS	—	0.3 VDD	V	SMBus disabled(Note 4)
DI19	SDAx, SCLx	Vss	—	0.8	V	SMBus enabled(Note 4)
DI20 I/C	VIH Input High Voltage pins:
		with Analog Functions	0.8 VDD	—	VDD	V	(Note 4)
		Digital Only	0.8 VDD	—		V	(Note 4)
		with TTL Buffer	0.25VDD + 0.8V	—	5.5	V	(Note 4)
		with Schmitt Trigger Buffer	0.8 VDD	—	5.5	V	(Note 4)
DI25	MCLR	0.8 VDD	—	VDD	V	(Note 4)
DI26 OSC1 (XT mode)	0.7 V	DD	—	VDD	V	(Note 4)
DI27	OSC1 (HS mode)	0.7 VDD	—	VDD	V	(Note 4)
DI28 SDAx, SCLx	0.7 V	DD	—	5.5	V	SMBus disabled(Note 4)
DI29	SDAx, SCLx	2.1	—	5.5	V	SMBus enabled,2.3V ≤VPIN ≤5.5(Note 4)
DI30	ICNPU CNxx Pull up Current		50	250	400	μA	VDD = 3.3V, VPIN = VSS
DI50 I/C	IIL Input Leakage Current						(Note 3)
	Ports —		—	+	_1	μA	VSS ≤VPIN ≤VDD,Pin at high-impedance
DI51 Analog Input	Pins —		—	+	_1	μA	VSS ≤VPIN ≤VDD,Pin at high-impedance
DI55 MCLR	——		—	—	±1	μA	VSS ≤VPIN ≤VDD
DI56	OSC1		—	—	±1	μA	VSS ≤VPIN ≤VDD,XT and HS modes

Note 1: Data in “Typical” column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: The leakage current on the MCLR pin is strongly dependent on the applied voltage level. The specified levels represent normal operating conditions. Higher leakage current may be measured at different input voltages.
3: Negative current is defined as current sourced by the pin.
4: This parameter is characterized, but not tested in manufacturing.

TABLE 29-9: DC CHARACTERISTICS: I/O PIN OUTPUT SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V (unless otherwise stated)Operating temperature -40°C ≤ T A ≤ +85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical Max. Units Conditions
DO10	V_OL Output Low Voltage
			I/O Ports	—	—	0.4	V
				—	—	0.4	V
DO16			OSC2/CLKO	—	—	0.4	V
				—	—	0.4	V
DO20	V_OH	Output High Voltage
		I/O Ports		2.4	—	—	V
				1.4	—	—	V
DO26		OSC2/CLKO		2.4	—	—	V
				1.4	—	—	V

TABLE 29-10: ELECTRICAL CHARACTERISTICS: BROWN-OUT RESET (BOR)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V (unless otherwise stated)Operating temperature -40°C ≤ T A ≤ +85°C for Industrial-40°C ≤ TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical Max. Units Conditions
BO10	VBOR BO	R Event on VDD transition high-to-low	2.0	—	2.3 V		—

TABLE 29-11: DC CHARACTERISTICS: PROGRAM MEMORY (3)

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical	(1)	Max.	Units	Conditions
		Program Flash Memory
D130	EP	Cell Endurance	1000	—	—	E/W	—
D131 V	PR	VDD for Read	VMIN	—	3.6	V	—
D132	VPEW	VDD for Erase or Write	3.0	—	3.6	V	—
D134 T	RETD	Characteristic Retention	20	—	—	Year	—
D135 I	DDP	Supply Current during Programming	—	10	—	mA	—
	TWW	Word Write Cycle Time	20	—	40	μs	—
D136 T	RW	Row Write Cycle Time ^(2) (128 words per row)	3	4.5	—	ms	—
D137 T	PE	Page Erase Cycle Time	20	—	—	ms	—
	TCE	Chip Erase Cycle Time	80	—	—	ms	—
D138	LVDstartup	Flash LVD Delay	—	—	6	μs	—

Note 1: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated.
2: The minimum SYSCLK for row programming is 4 MHz. Care should be taken to minimize bus activities during row programming, such as suspending any memory-to-memory DMA operations. If heavy bus loads are expected, selecting Bus Matrix Arbitration mode 2 (rotating priority) may be necessary. The default Arbitration mode is mode 1 (CPU has lowest priority).
3: Refer to the "PIC32MX Flash Programming Specification" (DS61145) for operating conditions during programming and erase cycles.

TABLE 29-12: PROGRAM FLASH MEMORY WAIT STATE CHARACTERISTICS

DC CHARACTERISTICS	Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤ A ≤+105°C for V-Temp
Required Flash wait states	SYSCLK	Units	Comments
0 Wait State	0 to 30	MHz	—
1 Wait State	31 to 60
2 Wait States	61 to 80

Note 1: 40 MHz maximum for PIC32MX320F032H and PIC32MX420F032H devices.

TABLE 29-13: COMPARATOR SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical Max.	Units	Comments
D300	VIOFF Input	Offset Voltage	—	±	7	5	± 2DD = VDD , mAVSS = VSS
D301	VICM	Input Common Mode Voltage	0	—	VDD	V	AVDD = VDD,AVSS = VSS(Note 2)
D302	CMRR	Common Mode Rejection Ratio	55	—	—	dB	Max VICM = (VDD - 1)V(Note 2)
D303 T	RESP	Response Time	—	150	400	ns	AVDD = VDD,AVSS = VSS(Notes 1,2)
D304	ON2ov	Comparator Enabled to Output Valid	—	—	10	μs	Comparator module is configured before setting the comparator ON bit.(Note 2)
D305 IV	REF	Internal Voltage Reference	0.57	0.6	0.63	V	—

Note 1: Response time measured with one comparator input at (V_DD-1.5)/2 , while the other input transitions from Vss to Vdd.
2: These parameters are characterized but not tested.

TABLE 29-14: VOLTAGE REFERENCE SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics	Min.	Typical	Max.	Units	Comments
D310	VRES	Resolution	V_DD/24	—	V_DD/32	LSb	—
D311	VRAA	Absolute Accuracy	—	—	1/2	LSb	—
D312 T	SET	Settling Time(1)	—	—	10	μs	—

Note 1: Settling time measured while CVRR = 1 and CVR3:CVR0 transitions from '0000' to '1111'. This parameter is characterized, but not tested in manufacturing.

TABLE 29-15: INTERNAL VOLTAGE REGULATOR SPECIFICATIONS

DC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤ TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics	Min.	Typical	Max.	Units	Comments
D320 V	CORE	Regulator Output Voltage	1.62	1.80	1.98	V	—
D321	CEFC	External Filter Capacitor Value	8	10	—	μF	Capacitor must be low series resistance (< 1 Ohm)
D322 T	PWRT	Power-up Timer Period	—	64	—	ms	ENVREG = 0

29.2 AC Characteristics and Timing Parameters

The information contained in this section defines PIC32MX3XX/4XX AC characteristics and timing parameters.

FIGURE 29-1: LOAD CONDITIONS FOR DEVICE TIMING SPECIFICATIONS
Load Condition 1 – for all pins except OSC2 Load Condition 2 – for OSC2

Pin VDD/2 RL CL VSS

RL = 4 6 4 Ω
CL = 50 pF for all pins
50 pF for OSC2 pin (EC mode)

TABLE 29-16: CAPACITIVE LOADING REQUIREMENTS ON OUTPUT PINS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤ +105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical	(1)	Max.	Units	Conditions
DO56	CIO	All I/O pins and OSC2	—	—	50	pF	EC mode
DO58	CB	SCLx, SDAx	—	—	400	pF	In I^2C^TM mode

Note 1: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

FIGURE 29-2: EXTERNAL CLOCK TIMING

OSC1 OS20 OS30 OS31 OS30 OS31

TABLE 29-17: EXTERNAL CLOCK TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical		(1)	Max. Units	Conditions
OS10 F	osc External CLKI Frequency(External clocks allowed only in EC and ECP LL modes)		DC4	—	50(3)50(5)	MHzMHz	EC (Note 5)ECPLL (Note 4)
OS11			Oscillator Crystal Frequency	3	—	10	MHz	XT (Note 5)
OS12				4	—	10	MHz	XTPLL(Notes 4, 5)
OS13				10	—	25	MHz	HS (Note 5)
OS14				10	—	25	MHz	HSPLL(Notes 4, 5)
OS15				32	32.768	100	kHz	Sosc (Note 5)
OS20 T	osc	Tosc = 1/Fosc = Tcy(2)	—	—	—	—	See parameter OS10 for Fosc value
OS30 TosL,TosH		External Clock In (OSC1)High or Low Time	0.45 x Tosc	—	—	ns	EC (Note 5)
OS31 TosR,TosF		External Clock In (OSC1)Rise or Fall Time	—	—	0.05 x Tosc	ns	EC (Note 5)
OS40 T	OST	Oscillator Start-up Timer Period(Only applies to HS, HSPLL,XT, XTPLL and Sosc Clock Oscillator modes)	—	1024	—	Tosc	(Note 5)
OS41 T	FSCM	Primary Clock Fail SafeTime-out Period	—	2	—	ms	(Note 5)
OS42 G	M	External OscillatorTransconductance	—	12	—	mA/V	VDD=3.3VTA=+25°C (Note 5)

Note 1: Data in “Typical” column is at 3.3V, 25°C unless otherwise stated. Parameters are characterized but are not tested.
2: Instruction cycle period (Tcy) equals the input oscillator time base period. All specified values are based on characterization data for that particular oscillator type under standard operating conditions with the device executing code. Exceeding these specified limits may result in an unstable oscillator operation and/or higher than expected current consumption. All devices are tested to operate at "min." values with an external clock applied to the OSC1/CLKI pin.
3: 40 MHz maximum for PIC32MX320F032H and PIC32MX420F032H devices.
4: PLL input requirements: 4 MHz ≤FPLLIN ≤5 MHz (use PLL prescaler to reduce Fosc). This parameter is characterized, but tested at 10 MHz only at manufacturing.
5: This parameter is characterized, but not tested in manufacturing.

TABLE 29-18: PLL CLOCK TIMING SPECIFICATIONS (VDD = 2.3V TO 3.6V)

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min.	Typical Max.	Units	Conditions
OS50 F	PLLI PLL	Voltage Controlled Oscillator (VCO) Input Frequency Range	4 —	5 MHz	ECPLL,	HSPLL,	XTPLL,FRCPLL modes
OS51 F	SYS On	Chip VCO System Frequency	60	—	120	MHz	—
OS52 T	LOCK	PLL Start-up Time (Lock Time)	—	—	2	ms	—
OS53 D	CLK CLKO	Stability (2)(Period Jitter or Cumulative)	-0.25	—	+0.25 %	Measured over 100 ms period

Note 1: These parameters are characterized, but not tested in manufacturing.
2: This jitter specification is based on clock-cycle by clock-cycle measurements. To get the effective jitter for individual time-bases on communication clocks, use the following formula:

$$ E f f e c t i v e J i t t e r = \frac {D _ {C L K}}{\sqrt {\frac {S Y S C L K}{C o m m u n i c a t i o n C l o c k}}} $$

For example, if SYSCLK = 80 MHz and SPI bit rate = 20 MHz, the effective jitter is as follows:

$$ E f f e c t i v e J i t t e r = \frac {D _ {C L K}}{\sqrt {\frac {8 0}{2 0}}} = \frac {D _ {C L K}}{2} $$

TABLE 29-19: INTERNAL FRC ACCURACY

AC CHARACTERISTICS		Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Characteristics	Min.	Typical	Max.	Units	Conditions
Internal FRC Accuracy @ 8.00 MHz(1)
F20	FRC	-2	—	+2	%	—

Note 1: Frequency calibrated at 25^ C and 3.3V. TUN bits can be used to compensate for temperature drift.

TABLE 29-20: INTERNAL RC ACCURACY

AC CHARACTERISTICS		Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤ +105°C for V-Temp
Param.No.	Characteristics	Min.	Typical	Max.	Units	Conditions
LPRC @ 31.25 kHz(1)
F21	LPRC	-15	—	+15	%	—

Note 1: Change of LPRC frequency as VDD changes.

FIGURE 29-3: I/O TIMING CHARACTERISTICS

I/O Pin (Input) DI35 DI40 I/O Pin (Output) DO31 DO32 Note: Refer to Figure 29-1 for load conditions.

TABLE 29-21: I/O TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (2)	Min. Typical (1)		Max. Units Conditions
DO31	TIOR	Port Output Rise Time	—	5	15	ns	VDD < 2.5V
			—	5	10	ns V	DD > 2.5V
DO32	TIOF	Port Output Fall Time	—	5	15	ns	VDD < 2.5V
			—	5	10	ns V	DD > 2.5V
DI35	TINP	INTx Pin High or Low Time	10	—	—	ns	—
DI40	TRBP	CNx High or Low Time (input)	2	—	—	TSYSCLK	—

Note 1: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated.
2: This parameter is characterized, but not tested in manufacturing.

FIGURE 29-4: POWER-ON RESET TIMING CHARACTERISTICS
Internal Voltage Regulator Enabled Clock Sources = (FRC, FRCDIV, FRCDIV16, FRCPLL, EC, ECPPL and LPRC)

VDD VPOR (TSYSDLY) SY02 Power Up Sequence (Note 2) SY00 (TPU) (Note 1) CPU starts fetching code

Internal Voltage Regulator Enabled Clock Sources = (HS, HSPLL, XT, XTPLL and Sosc)

VDD VPOR (TSYSDLY) SY02 Power Up Sequence (Note 2) SY00 (TPU) SY10 (TOST) CPU starts fetching code (Note 1)

External VCORE Provided Clock Sources = (FRC, FRCDIV, FRCDIV16, FRCPLL, EC, ECPLL and LPRC)

VDD VPOR VCORE (TSYSDLY) SY02 Power Up Sequence (Note 3) SY01 (TPWRT) (Note 1) CPU starts fetching code

Note 1: The Power-up period will be extended if the power-up sequence completes before the device exits from BOR (VDD < VDDMIN).

2: Includes interval voltage regulator stabilization delay.
3: Power-up Timer (PWRT); only active when the internal voltage regulator is disabled.

FIGURE 29-5: EXTERNAL RESET TIMING CHARACTERISTICS

TABLE 29-22: RESETS TIMING

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤ TA ≤ +105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min.	Typical (2)	Max.	Units Conditions
SY00 T	PU Power-up PeriodInternal Voltage Regulator Enabled		—	4	0	0 μs	-40°C to +85°C 0
SY01 T	PWRT Power-up PeriodExternal Vcore Applied(Power-Up-Timer Active)		48	64	80 ms	-40°C to +85°C
SY02 T	SYSDLY	System Delay Period:Time required to reload DeviceConfiguration Fuses plus SYSCLKdelay before first instruction isfetched.	—	1 μs+8 SYSCLKcycles	—	—	-40°C to +85°C
SY20 T	MCLR	Pulse Width (low)	—	2	—	μs	-40°C to +85°C
SY30 T	BOR	BOR Pulse Width (low)	—	1	—	μs	-40°C to +85°C

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typ" column is at 3.3V, 25°C unless otherwise stated. Characterized by design but not tested.

FIGURE 29-6: TIMER1, 2, 3, 4, 5 EXTERNAL CLOCK TIMING CHARACTERISTICS

Note: Refer to Figure 29-1 for load conditions.

TABLE 29-23: TIMER1 EXTERNAL CLOCK TIMING REQUIREMENTS (1)

AC CHARACTERISTICS				Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol C	Characteristics (2)		Min. Typical	Max. Units	Conditions
TA10	TtXH	TxCKHigh Time	Synchronous,with prescaler	[(12.5 ns or 1TPB)/N]+ 25 ns	—	—	ns	Must also meet parameter TA15.
			Asynchronous,with prescaler	10	—	— ns		—
TA11	TTxL	TxCKLow Time	Synchronous,with prescaler	[(12.5 ns or 1TPB)/N]+ 25 ns	—	—	ns	Must also meet parameter TA15.
			Asynchronous,with prescaler	10	—	— ns		—
TA15	TtXP	TxCKInput Period	Synchronous,with prescaler	[(Greater of 25 ns or 2TPB)/N] + 30 ns	—	—	ns	V_DD > 2.7V
				[(Greater of 25 ns or 2TPB)/N] + 50 ns	—	—	ns	V_DD < 2.7V
			Asynchronous,with prescaler	20	—	— ns		V_DD > 2.7V (Note 3)
				50	—	— ns		V_DD < 2.7V (Note 3)
OS60	FT1	SOSC1/T1CK OscillatorInput Frequency Range(oscillator enabled by setting TCS bit(T1CON<1>))		32	—	100	kHz	—
TA20	TCKEXTMRL	Delay from External TxCKClock Edge to TimerIncrement		—		1	TPB	—

Note 1: Timer1 is a Type A.
2: This parameter is characterized, but not tested in manufacturing.
3: N = prescale value (1, 8, 64, 256)

TABLE 29-24: TIMER2, 3, 4, 5 EXTERNAL CLOCK TIMING REQUIREMENTS

AC CHARACTERISTICS				Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤ A ≤ +105°C for V-Temp
Param.No.	Symbol	Characteristics (1)		Min. Max. Units Conditions
TB10 TTxH TxCK		High Time	Synchronous,with prescaler	[(12.5 ns or 1TPB)/N]+ 25 ns	— ns	Must also meet parameter TB15.		N = prescale value(1, 2, 4, 8, 16,32, 64, 256)
TB11 T	TxL	TxCK Low Time	Synchronous,with prescaler	[(12.5 ns or 1TPB)/N]+ 25 ns	— ns	Must also meet parameter TB15.
TB15 TTxP	Tx	CK Input Period	Synchronous,with prescaler	[(Greater of 25 ns or 2 TPB)/N] + 30 ns	—	ns	VDD > 2.7V
				[(Greater of 25 ns or 2 TPB)/N] + 50 ns	—	ns	VDD < 2.7V	—
TB20	TCKEXTMRL	Delay from External TxCK Clock Edge to Timer Increment		—	1	TPB	—

Note 1: These parameters are characterized, but not tested in manufacturing.

FIGURE 29-7: INPUT CAPTURE (CAPx) TIMING CHARACTERISTICS

ICx IC10 IC11 IC15

Note: Refer to Figure 29-1 for load conditions.

TABLE 29-25: INPUT CAPTURE MODULE TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)		Min. Max. Units	Conditions
IC10 T	ccL	ICx Input Low Time		[(12.5 ns or 1TPB)/N]+ 25 ns	— ns	Must also meet parameter IC15.		N = prescale value (1, 4, 16)
IC11 T	ccH	ICx Input High Time		[(12.5 ns or 1TPB)/N]+ 25 ns	—	ns	Must also meet parameter IC15.
IC15	TccP	ICx Input Period		[(25 ns or 2TPB)/N]+ 50 ns	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.

FIGURE 29-8: OUTPUT COMPARE MODULE (OCx) TIMING CHARACTERISTICS

OCx (Output Compare or PWM Mode) OC11 ← OC10 ←

Note: Refer to Figure 29-1 for load conditions.

TABLE 29-26: OUTPUT COMPARE MODULE TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤ A ≤ +105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min.	Typical(2)	Max.	Units	Conditions
OC10	TccF	OCx Output Fall Time	—	—	—	ns	See parameter DO32.
OC11	TccR	OCx Output Rise Time	—	—	—	ns	See parameter DO31.

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

FIGURE 29-9: OC/PWM MODULE TIMING CHARACTERISTICS

OC20 OCFA/OCFB OC15 OCx OCx is tri-stated Note: Refer to Figure 29-1 for load conditions.

TABLE 29-27: SIMPLE OC/PWM MODE TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param No.	Symbol	Characteristics (1)	Min Typical (2)		Max Units Conditions
OC15	TFD	Fault Input to PWM I/O Change	—	—	25	ns	—
OC20 T	FLT	Fault Input Pulse Width	50	—	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

FIGURE 29-10: SPIx MODULE MASTER MODE (CKE = 0) TIMING CHARACTERISTICS

Note: Refer to Figure 29-1 for load conditions.

TABLE 29-28: SPIx MASTER MODE (CKE = 0) TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical (2)		Max.	Units Conditions
SP10 TscL		SCKx Output Low Time(3)	Tsck/2	—	—	ns	—
SP11	TscH	SCKx Output High Time(3)	Tsck/2	—	—	ns	—
SP20 T	scF	SCKx Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP21 T	scR	SCKx Output Rise Time(4)	—	—	—	ns	See parameter DO31
SP30 T	doF	SDOx Data Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP31 T	doR	SDOx Data Output Rise Time(4)	—	—	—	ns	See parameter DO31
SP35 T	sCH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	—	15	ns	VDD>2.7V
			—	—	20	ns	VDD<2.7V
SP40 T	diV2sch,TdiV2scL	Setup Time of SDlx Data Input to SCKx Edge	10	—	—	ns	—
SP41	Tsch2diL,TscL2diL	Hold Time of SDlx Data Input to SCKx Edge	10	—	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The minimum clock period for SCKx is 40 ns. Therefore, the clock generated in Master mode must not violate this specification.
4: Assumes 50 pF load on all SPIx pins.

FIGURE 29-11: SPIx MODULE MASTER MODE (CKE = 1) TIMING CHARACTERISTICS

    G["SCKx (CKP = 1)"] --> H["SP35"]
    H --> I["SP20"]
    I --> J["SP21"]

    K["SDOx"] --> L["MSb"]
    L --> M["Bit 14"]
    M --> N["LSb"]
    N --> O["SP30, SP31"]

    P["SDIx"] --> Q["MSb In"]
    Q --> R["Bit 14"]
    R --> S["LSb In"]
    S --> T["SP40"]
    T --> U["SP41"]

Note: Refer to Figure 29-1 for load conditions.

TABLE 29-29: SPIx MODULE MASTER MODE (CKE = 1) TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical (2)		Max. Units Conditions
SP10 TscL		SCKx Output Low Time(3)	Tsck/2 —— ns —
SP11 T	scH	SCKx Output High Time(3)	Tsck/2 —— ns —
SP20	TscF	SCKx Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP21 T	scR	SCKx Output Rise Time(4)	—	—	—	ns	See parameter DO31
SP30 T	doF	SDOx Data Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP31 T	doR SDOx	Data Output Rise Time (4)	—	—	—	ns	See parameter DO31
SP35 T	scH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	—	15	ns	VDD > 2.7V
			—	—	20	ns	VDD < 2.7V
SP36 T	doV2sc,TdoV2scL	SDOx Data Output Setup to First SCKx Edge	15	—	—	ns	—
SP40 T	DIV2sch,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	15	—	—	ns	VDD > 2.7V
			20	— — ns		V	DD < 2.7V
SP41 T	scH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	15	—	—	ns	VDD > 2.7V
			20	— — ns		V	DD < 2.7V

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The minimum clock period for SCKx is 40 ns. Therefore, the clock generated in Master mode must not violate this specification.
4: Assumes 50 pF load on all SPIx pins.

FIGURE 29-12: SPIx MODULE SLAVE MODE (CKE = 0) TIMING CHARACTERISTICS
Note: Refer to Figure 29-1 for load conditions.

TABLE 29-30: SPIx MODULE SLAVE MODE (CKE = 0) TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical (2)		Max.	Units Conditions
SP70 T	scL	SCKx Input Low Time(3)	Tsck/2	—	—	ns	—
SP71 T	scH	SCKx Input High Time(3)	Tsck/2	—	—	ns	—
SP72 T	scF	SCKx Input Fall Time	—	—	—	ns	See parameter DO32
SP73 T	scR	SCKx Input Rise Time	—	—	—	ns	See parameter DO31
SP30 T	doF	SDOx Data Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP31 T	doR	SDOx Data Output Rise Time(4)	—	—	—	ns	See parameter DO31
SP35 T	sCH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	—	15	ns	VDD>2.7V
			—	—	20	ns	VDD<2.7V
SP40 T	DIV2sch,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	10	—	—	ns	—
SP41 T	sCH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	10	—	—	ns	—
SP50 T	ssL2sch,TssL2scL	SSx ↓to SCKx ↑ or SCKx Input	175	—	—	ns	—
SP51 T	ssH2doZ	SSx ↑ to SDOx Output High-Impedance(3)	5	—	25	ns	—
SP52	Tsch2ssHTscL2ssH	SSx after SCKx Edge	Tsck + 20	—	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The minimum clock period for SCKx is 40 ns.
4: Assumes 50 pF load on all SPIx pins.

FIGURE 29-13: SPIx MODULE SLAVE MODE (CKE = 1) TIMING CHARACTERISTICS

SSx SP60 SP50 SCKx (CKP = 0) SP71 SP70 SP52 SP73 SP72 SCKx (CKP = 1) SP35 SP72 SP73 SDOx MSb Bit 14 -1 Lsb SP30,SP31 SP51 SDIx SP40 SP41 MSb In Bit 14 -1 Lsb In Note: Refer to Figure 29-1 for load conditions.

TABLE 29-31: SPIx MODULE SLAVE MODE (CKE = 1) TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical (2)		Max. Units		Conditions
SP70	TscL	SCKx Input Low Time(3)	Tsck/2	—	—	ns	—
SP71	TscH	SCKx Input High Time(3)	Tsck/2	—	—	ns	—
SP72	TscF	SCKx Input Fall Time	—	5	10	ns	—
SP73	TscR	SCKx Input Rise Time	—	5	10	ns	—
SP30	TdoF	SDOx Data Output Fall Time(4)	—	—	—	ns	See parameter DO32
SP31	TdoR	SDOx Data Output Rise Time(4)	—	—	—	ns	See parameter DO31
SP35	TscH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	—	20	ns	VDD>2.7V
			—	—	30	ns	VDD<2.7V
SP40	TdiV2scH,TdiV2scL	Setup Time of SDlx Data Input to SCKx Edge	10	—	—	ns	—
SP41	TscH2dIL,TscL2dIL	Hold Time of SDlx Data Input to SCKx Edge	10	—	—	ns	—
SP50	TssL2scH,TssL2scL	SSx ↓to SCKx ↓or SCKx ↑Input	175	—	—	ns	—
SP51	TssH2doZ	SSx ↑ to SDOx Output High-Impedance(4)	5	—	25	ns	—
SP52	TscH2ssHTscL2ssH	SSx ↑ after SCKx Edge	Tsck + 20	—	—	ns	—
SP60	TssL2doV	SDOx Data Output Valid after SSx Edge	—	—	25	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Data in "Typical" column is at 3.3V, 25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: The minimum clock period for SCKx is 40 ns.
4: Assumes 50 pF load on all SPIx pins.

FIGURE 29-14: I2Cx BUS START/STOP BITS TIMING CHARACTERISTICS (MASTER MODE)

SCLx IM30 IM31 SDAx Start Condition Stop Condition IM33 IM34

Note: Refer to Figure 29-1 for load conditions.

FIGURE 29-15: I2Cx BUS DATA TIMING CHARACTERISTICS (MASTER MODE)

TABLE 29-32: I2Cx BUS DATA TIMING REQUIREMENTS (MASTER MODE)

AC CHARACTERISTICS				Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min.		(1)	Max. Units Conditions
IM10 T	LO:SCL	Clock Low Time	100 kHz mode	TPB^* (BRG + 2)	—	μs	—
			400 kHz mode	TPB^* (BRG + 2)	— μs
			1 MHz mode^(2)	TPB^* (BRG + 2)	— μs
IM11 T	HI:SCL	Clock High Time	100 kHz mode	TPB^* (BRG + 2)	— μs		—
			400 kHz mode	TPB^* (BRG + 2)	— μs
			1 MHz mode^(2)	TPB^* (BRG + 2)	— μs
IM20 T	F:SCL	SDAx and SCLxFall Time	100 kHz mode	—	300	ns	Cb is specified to be from 10 to 400 pF.
			400 kHz mode	20 + 0.1 CB	300	ns
			1 MHz mode^(2)	—	100	ns
IM21 T	R:SCL	SDAx and SCLx Rise Time	100 kHz mode	—	1000	ns	Cb is specified to be from 10 to 400 pF.
			400 kHz mode	20 + 0.1 CB	300	ns
			1 MHz mode^(2)	—	300	ns
IM25 T	SU:DAT	Data Input Setup Time	100 kHz mode	250	— ns		—
			400 kHz mode	100	— ns
			1 MHz mode^(2)	100	— ns
IM26 T	HD:DAT	Data Input Hold Time	100 kHz mode	0	—	μs	—
			400 kHz mode	0	0.9	μs
			1 MHz mode^(2)	0	0.3	μs
IM30 T	SU:STA	Start Condition Setup Time	100 kHz mode	TPB^* (BRG + 2)	— μs	Only relevant for Repeated Start condition.
			400 kHz mode	TPB^* (BRG + 2)	— μs
			1 MHz mode^(2)	TPB^* (BRG + 2)	— μs
IM31 T	HD:STA	Start Condition Hold Time	100 kHz mode	TPB^* (BRG + 2)	— μs	After this period, the first clock pulse is generated.
			400 kHz mode	TPB^* (BRG + 2)	— μs
			1 MHz mode^(2)	TPB^* (BRG + 2)	— μs
IM33 T	SU:STO	Stop Condition Setup Time	100 kHz mode	TPB^* (BRG + 2)	— μs		—
			400 kHz mode	TPB^* (BRG + 2)	— μs
			1 MHz mode^(2)	TPB^* (BRG + 2)	— μS
IM34 T	HD:STO	Stop Condition Hold Time	100 kHz mode	TPB^* (BRG + 2)	—	ns	—
			400 kHz mode	TPB^* (BRG + 2)	—	ns
			1 MHz mode^(2)	TPB^* (BRG + 2)	—	ns
IM40 T	AA:SCL	Output Valid from Clock	100 kHz mode	—	3500	ns	—
			400 kHz mode	—	1000	ns
			1 MHz mode^(2)	—	350	ns
IM45 T	BF:SDA	Bus Free Time	100 kHz mode	4.7	—	μs	The amount of time the bus must be free before a new transmission can start.
			400 kHz mode	1.3	—	μs
			1 MHz mode^(2)	0.5	— μs
IM50 C	B	Bus Capacitive Loading		—	400	pF	—
IM51 T	PGD	Pulse Gobbler Delay(3)		52	312	ns	—

Note 1: BRG is the value of the I²CTM Baud Rate Generator.
2: Maximum pin capacitance = 10 pF for all I2Cx pins (for 1 MHz mode only).
3: The typical value for this parameter is 104 ns.

FIGURE 29-16: I2Cx BUS START/STOP BITS TIMING CHARACTERISTICS (SLAVE MODE)

SCLx IS30 IS31 SDAx Start Condition Stop Condition IS33 IS34

Note: Refer to Figure 29-1 for load conditions.

FIGURE 29-17: I2Cx BUS DATA TIMING CHARACTERISTICS (SLAVE MODE)

TABLE 29-33: I2Cx BUS DATA TIMING REQUIREMENTS (SLAVE MODE)

AC CHARACTERISTICS				Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Max. Units Conditions
IS10 T	LO:SCL	Clock Low Time	100 kHz mode	4.7	—	μs	PBCLK must operate at a minimum of 800 KHz.
			400 kHz mode	1.3	—	μs	PBCLK must operate at a minimum of 3.2 MHz.
			1 MHz mode(1)	0.5	—	μs	—
IS11	THI:SCL	Clock High Time	100 kHz mode	4.0	—	μs	PBCLK must operate at a minimum of 800 KHz.
			400 kHz mode	0.6	—	μs	PBCLK must operate at a minimum of 3.2 MHz.
			1 MHz mode(1)	0.5	—	μs	—
IS20 T	F:SCL	SDAx and SCLxFall Time	100 kHz mode	—	300	ns	CB is specified to be from 10 to 400 pF.
			400 kHz mode	20 + 0.1 CB	300	ns
			1 MHz mode(1)	—	100	ns
IS21 T	R:SCL	SDAx and SCLx Rise Time	100 kHz mode	—	1000	ns	CB is specified to be from 10 to 400 pF.
			400 kHz mode	20 + 0.1 CB	300	ns
			1 MHz mode(1)	—	300	ns
IS25 T	SU:DAT Data Input Setup Time		100 kHz mode	250	—	ns	—
			400 kHz mode	100	—	ns
			1 MHz mode(1)	100	—	ns
IS26 T	HD:DAT Data Input Hold Time		100 kHz mode	0	—	ns	—
			400 kHz mode	0	0.9	μs
			1 MHz mode(1)	0	0.3	μs
IS30 T	SU:STA	Start Condition Setup Time	100 kHz mode	4700	—	ns	Only relevant for Repeated Start condition.
			400 kHz mode	600	—	ns
			1 MHz mode(1)	250	—	ns
IS31 T	HD:STA	Start Condition Hold Time	100 kHz mode	4000	—	ns	After this period, the first clock pulse is generated.
			400 kHz mode	600	—	ns
			1 MHz mode(1)	250	—	ns
IS33 T	SU:STO Stop Condition Setup Time		100 kHz mode	4000	—	ns	—
			400 kHz mode	600	—	ns
			1 MHz mode(1)	600	—	ns
IS34 T	HD:STO	Stop Condition Hold Time	100 kHz mode	4000	—	ns	—
			400 kHz mode	600	—	ns
			1 MHz mode(1)	250		ns
IS40 T	AA:SCL	Output Valid from Clock	100 kHz mode	0	3500	ns	—
			400 kHz mode	0	1000	ns
			1 MHz mode(1)	0	350	ns
IS45 T	BF:SDA	Bus Free Time	100 kHz mode	4.7	—	μs	The amount of time the bus must be free before a new transmission can start.
			400 kHz mode	1.3	—	μs
			1 MHz mode(1)	0.5	—	μs
IS50	CB	Bus Capacitive Loading		—	400	pF	—

Note 1: Maximum pin capacitance = 10 pF for all I2Cx pins (for 1 MHz mode only).

TABLE 29-34: ADC MODULE SPECIFICATIONS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical Max. Units Conditions
Device Supply
AD01 A	V DD Module VDD Supply Greater of VDD-0.3 or 2.5		—	Lesser of VDD+0.3 or 3.6	V	—
AD02	AVss	Module Vss Supply	Vss	—	Vss+0.3	V	—
Reference Inputs
AD05 V	REFH	Reference Voltage High	AVss+2.0	—	AVDD	V	(Note 1)
AD05a			2.5	—	3.6	V	VREFH = AVDD (Note 3)
AD06 V	REFL	Reference Voltage Low	AVss	—	VREFH-2.0	V	(Note 1)
AD07 V	REF Absolute Reference Voltage(VREFH-VREFL)		2.0	—	AVDD	V	(Note 3)
AD08	IREF	Current Drain	—	250—	4003	μAμA	ADC operating ADC off
Analog Input
AD12 V	INH-VINL	Full-Scale Input Span	VREFL	—	VREFH	V	—
AD13	VINL	Absolute VINL Input Voltage	AVss-0.3	—	AVDD/2	V	—
AD14 V	IN	Absolute Input Voltage	AVss-0.3	—	AVDD+0.3	V	—
AD15	—	Leakage Current	—	±0.001	±0.610	μA	VINL = AVSS = VREFL = 0V, AVDD = VREFH = 3.3VSource Impedance = 10KΩ
AD17 R	N Recommended Impedance of Analog Voltage Source		—	—	5K	Ω	(Note 1)
ADC Accuracy - Measurements with External VREF+/VREF-
AD20c	Nr	Resolution	10 data bits			bits	—
AD21c	INL	Integral Nonlinearity	—	—	<±1	LSb	VINL = AVSS = VREFL = 0V, AVDD = VREFH = 3.3V
AD22c	DNL	Differential Nonlinearity	—	—	<±1	LSb	VINL = AVSS = VREFL = 0V, AVDD = VREFH = 3.3V (Note 2)
AD23c	GERR	Gain Error	—	—	<±1	LSb	VINL = AVSS = VREFL = 0V, AVDD = VREFH = 3.3V
AD24n E OFF		Offset Error	—	—	<±1	LSb	VINL = AVSS = 0V, AVDD = 3.3V
AD25c	—	Monotonicity	—	—	—	—	Guaranteed

Note 1: These parameters are not characterized or tested in manufacturing.
2: With no missing codes.
3: These parameters are characterized, but not tested in manufacturing.
4: Characterized with 1 kHz sinewave.

TABLE 29-34: ADC MODULE SPECIFICATIONS (CONTINUED)

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics	Min.	Typical	Max.	Units	Conditions
ADC Accuracy – Measurements with Internal VREF+/VREF-
AD20d	Nr Resolution	10 data bits bits (Note 3)
AD21d	INL Integral	Nonlinearity — — <±1 LSb V					INL = AVSS = 0V,AVDD = 2.5V to 3.6V(Note 3)
AD22d	DNL	Differential Nonlinearity	—	—	<±1	LSb	VINL = AVSS = 0V,AVDD = 2.5V to 3.6V(Notes 2,3)
AD23d	GERR	Gain Error	—	—	<±4	LSb	VINL = AVSS = 0V,AVDD = 2.5V to 3.6V(Note 3)
AD24d	EOFF	Offset Error	—	—	<±2	LSb	VINL = AVSS = 0V,AVDD = 2.5V to 3.6V(Note 3)
AD25d	—	Monotonicity	—	—	—	—	Guaranteed
Dynamic Performance
AD31b	SINAD	Signal to Noise and Distortion	55	58.5	—	dB	(Notes 3, 4)
AD34b	ENOB	Effective Number of Bits	9.0	9.5	—	bits	(Notes 3, 4)

Note 1: These parameters are not characterized or tested in manufacturing.
2: With no missing codes.
3: These parameters are characterized, but not tested in manufacturing.
4: Characterized with 1 kHz sinewave.

TABLE 29-35: 10-BIT ADC CONVERSION RATE PARAMETERS (2)

Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤ +105°C for V-Temp
ADC Speed	TAD Minimum	Sampling Time Min	Rs Max	VDD	ADC Channels Configuration
1 MIPS to 400 ksps(1)	65 ns 13	2 ns 500Ω	3.0V to 3.6V
Up to 400 ksps 200 ns	200 ns 5.0	kΩ 2.5V to 3.6V
Up to 300 ksps 200 ns	200 ns 5.0	kΩ 2.5V to 3.6V

Note 1: External VREF- and VREF+ pins must be used for correct operation.
2: These parameters are characterized, but not tested in manufacturing.

TABLE 29-36: ANALOG-TO-DIGITAL CONVERSION TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics Min. Typical		(1)	Max. Units Conditions
Clock Parameters
AD50	TAD	Analog-to-Digital Clock Period	65	—	—	ns	See Table 29-35 and Note 2
AD51	TRC	Analog-to-Digital Internal RC Oscillator Period	—	250	—	ns	See Note 3
Conversion Rate
AD55	TCONV	Conversion Time	—	12 TAD	—	—	—
AD56 F	CNV	Throughput Rate(Sampling Speed)	—	—	1000	KSPS	AVDD = 3.0V to 3.6V
			—	—	400	KSPS	AVDD = 2.5V to 3.6V
AD57 T	SAMP	Sample Time	1 TAD	—	—	—	TSAMP must be ≥ 132 ns.
Timing Parameters
AD60	TPCS	Conversion Start from Sample Trigger	—	1.0 TAD	—	—	Auto-Convert Trigger (SSRC<2:0> = 111) not selected.See Note 3
AD61	TPSS	Sample Start from Setting Sample (SAMP) bit	0.5 TAD	—	1.5 TAD	—	—
AD62	TCSS	Conversion Completion to Sample Start (ASAM = 1)	—	0.5 TAD	—	—	See Note 3
AD63	TDPU	Time to Stabilize Analog Stage from Analog-to-Digital OFF to Analog-to-Digital ON	—	—	2	μs	See Note 3

Note 1: These parameters are characterized, but not tested in manufacturing.
2: Because the sample caps will eventually lose charge, clock rates below 10 kHz can affect linearity performance, especially at elevated temperatures.
3: Characterized by design but not tested.

FIGURE 29-18: ANALOG-TO-DIGITAL CONVERSION (10-BIT MODE) TIMING CHARACTERISTICS (CHPS<1:0> = 01, SIMSAM = 0, ASAM = 0, SSRC<2:0> = 000)

FIGURE 29-19: ANALOG-TO-DIGITAL CONVERSION (10-BIT MODE) TIMING CHARACTERISTICS

(CHPS<1:0>=01, SIMSAM=0, ASAM=1, SSRC<2:0>=111, SAMC<4:0>=00001)

AD50 ADCLK Instruction Execution Set ADON SAMP ch0_dischrg ch0_samp ch1_dischrg ch1_samp eoc TAMP AD55 AD55 TSAMP TCONV CONV ADxIF Buffer(0) Buffer(1) ① 2 3 4 5 6 7 8 ○ ○ ○ 9 ③ ○ ○ ○ ④

① - Software sets ADxCON. ADON to start AD operation.
② – Sampling starts after discharge period. TSAMP is described in Section 17. “10-bit Analog-to-Digital Converter (ADC)” (DS61104) of the “PIC32 Family Reference Manual”.
③ - Convert bit 9.
④ - Convert bit 8.
⑤ - Convert bit 0.
⑥ – One TAD for end of conversion.
⑦ – Begin conversion of next channel.
⑧ – Sample for time specified by SAMC<4:0>.

FIGURE 29-20: PARALLEL SLAVE PORT TIMING

CS PS5 RD PS6 WR PS4 PS7 PMD<7:0> PS3 PS1 PS2

TABLE 29-37: PARALLEL SLAVE PORT REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical Max.	Units	Conditions
PS1 Tdt	V2wrH Data	In Valid before WR or CS Inactive (setup time)	20	—	—	ns	—
PS2 Twr	H2dtI WR	or CS Inactive to Data –In Invalid (hold time)	40	—	—	ns	—
PS3 Trd	L2dtV RD	and CS Active to Data –Out Valid	—	—	60	ns	—
PS4 Trd	H2dtI RD	Active or CS Inactive to Data –Out Invalid	0	—	10	ns	—
PS5 Tcs	CS	Active Time	TPB + 40	—	—	ns	—
PS6 T	WR	WR Active Time	TPB + 25	—	—	ns	—
PS7 T	RD	RD Active Time	TPB + 25	—	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.

FIGURE 29-21: PARALLEL MASTER PORT READ TIMING DIAGRAM

PB Clock TPB TPB TPB TPB TPB TPB TPB TPB PMA<13:18> Address PMD<7:0> Address<7:0> Data PMRD PM2 PM3 PM7 PMWR PM1 PMALL/PMALH PMCS<2:1>

TABLE 29-38: PARALLEL MASTER PORT READ TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min. Typical Max.	Units Conditions
PM1	TLAT	PMALL/PMALH Pulse Width	—	1 TPB	—	—	—
PM2 TADSU Address	Out Valid to PMALL/PMALH Invalid (address setup time)		—	2 TPB	—	—	—
PM3 T	ADHOLD	PMALL/PMALH Invalid to Address Out Invalid (address hold time)	—	1 TPB	—	—	—
PM4 T	AHOLD	PMRD Inactive to Address Out Invalid(address hold time)	5	—	—	ns	—
PM5	TRD	PMRD Pulse Width	—	1 TPB	—	—	—
PM6 T	DSU	PMRD or PMENB Active to Data In Valid (data setup time)	15	—	—	ns	—
PM7 T	DHOLD	PMRD or PMENB Inactive to Data In Invalid (data hold time)	—	80	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.

FIGURE 29-22: PARALLEL MASTER PORT WRITE TIMING DIAGRAM

PB Clock TPB TPB TPB TPB TPB TPB TPB TPB PMA<13:18> Address PM2 + PM3 Address<7:0> Data PMRD PM12 PM13 PMWR PM11 PMALL/PMALH PMCS<2:1>

TABLE 29-39: PARALLEL MASTER PORT WRITE TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min.	Typical	Max.	Units	Conditions
PM11	TWR	PMWR Pulse Width	—	1 TPB	—	—	—
PM12	TDVSU	Data Out Valid before PMWR or PMENB goes Inactive (data setup time)	—	2 TPB	—	—	—
PM13	TDVHOLD	PMWR or PMEMB Invalid to Data Out Invalid (data hold time)	—	1 TPB	—	—	—

Note 1: These parameters are characterized, but not tested in manufacturing.

TABLE 29-40: OTG ELECTRICAL SPECIFICATIONS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol	Characteristics (1)	Min.	Typ	Max.	Units	Conditions
USB313	V USB	USB Voltage	3.0	—	3.6	V	Voltage on VUSB must be in this range for proper USB operation.
USB315	VILUSB	Input Low Voltage for USB Buffer	—	—	0.8	V	—
USB316	VIHUSB	Input High Voltage for USB Buffer	2.0	—	—	V	—
USB318	VDIFS	Differential Input Sensitivity	—	—	0.2	V	The difference between D+ and D-must exceed this value while VCM is met.
USB319	VCM	Differential Common Mode Range	0.8	—	2.5	V	—
USB320	Z OUT	Driver Output Impedance	28.0	—	44.0	Ω	—
USB321	VOL	Voltage Output Low	0.0	—	0.3	V	1.5 kΩ load connected to 3.6V.
USB322	VOH	Voltage Output High	2.8	—	3.6	V	1.5 kΩ load connected to ground.

Note 1: These parameters are characterized, but not tested in manufacturing.

FIGURE 29-23: EJTAG TIMING CHARACTERISTICS

TCK TMS TDI TDO TRST* TTRST*low TTRSThigh TTCKeye TTCKlow Trf Trf Trf TrfOut TDOzstate Defined Undefined Defined Undefined

TABLE 29-41: EJTAG TIMING REQUIREMENTS

AC CHARACTERISTICS			Standard Operating Conditions: 2.3V to 3.6V(unless otherwise stated)Operating temperature -40°C ≤TA ≤+85°C for Industrial-40°C ≤TA ≤+105°C for V-Temp
Param.No.	Symbol Description (1)		Min.	Max. Units	Conditions
EJ1 T	TCKCYC TCK Cycle Time 25 — ns			—
EJ2	TTCKHIGH	TCK High Time	10	—	ns	—
EJ3 T	TCKLOW	TCK Low Time	10	—	ns	—
EJ4 T	TSETUP TAP	Signals Setup Time Before Rising TCK	5	—	ns	—
EJ5	TTHOLD	TAP Signals Hold Time After Rising TCK	3	—	ns	—
EJ6 T	TDOOUT	TDO Output Delay Time from Falling TCK	—	5	ns	—
EJ7	TTDOZSTATE	TDO 3-State Delay Time from Falling TCK	—	5	ns	—
EJ8 T	TRSTLOW	TRST Low Time	25	—	ns	—
EJ9 T	RF	TAP Signals Rise/Fall Time, All Input and Output	—	—	ns	—

Note 1: These parameters are characterized, but not tested in manufacturing.

NOTES:

30.0 PACKAGING INFORMATION

30.1 Package Marking Information

64-Lead TQFP (10x10x1 mm)

PIC32

XXXXXXXXXX XXXXXXXXXX XXXXXXXXXX YYWWNNN

100-Lead TQFP (12x12x1 mm)

PIC32

XXXXXXXXXXXX XXXXXXXXXXXX YYWWNNN

64-Lead QFN (9x9x0.9 mm)

PIC32

XXXXXXXXXX XXXXXXXXXX XXXXXXXXXX YYWWNNN

121-Lead XBGA (10x10x1.1 mm)

PIC32

XXXXXXXXXX XXXXXXXXXX XXXXXXXXXX YYWWNNN

Example

PIC32

PIC32MX360F 512H-80I/PT e3 0510017

Example

PIC32

PIC32MX360F 256L-80I/PT e3 0510017

Example

PIC32

PIC32MX360F 512H-80I/MR e3 0510017

Example

PIC32

PIC32MX460F 512L-80I/BG e3 0510017

Legend: XX...X Customer-specific information

Y Year code (last digit of calendar year) YY Year code (last 2 digits of calendar year) WW Week code (week of January 1 is week '01') NNN Alphanumeric traceability code

Pb-free JEDEC designator for Matte Tin (Sn)

* This package is Pb-free. The Pb-free JEDEC designator (e3 can be found on the outer packaging for this package.

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.

30.2 Package Details

The following sections give the technical details of the packages.

64-Lead Plastic Thin Quad Flatpack (PT) - 10x10x1 mm Body, 2.00 mm [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

D D1 E E1 N b NOTE 1 1 2 3 NOTE 2

Isometric line drawing of an integrated circuit chip with multiple pins (no text or symbols)

C β L α

A A1 L1 α A2

Unitsv		MILLIMETERS
Dimension Limitsv		MINvNOMvMAX
Number of LeadsvNv64
Lead Pitchve 0.50 BSC
Overall Height	Av-	-	1.20
Molded Package Thickness	A2	0.95	1.00	1.05
Standoff	A1	0.05	-	0.15
Foot Length	L	0.45	0.60	0.75
Footprint	L1	1.00 REF
Foot Angle		0^	3.5^	7^
Overall Width	E	12.00 BSC
Overall Length	D	12.00 BSC
Molded Package Width	E1	10.00 BSC
Molded Package Length	D1	10.00 BSC
Lead Thickness	c	0.09	-	0.20
Lead Width	b	0.17	0.22	0.27
Mold Draft Angle Top		11^	12^	13^
Mold Draft Angle Bottom		11^	12^	13^

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
   2.vChamfers at corners are optional; size may vary.
2. Dimensions D1 and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.25 mm per side.
   4.vDimensioning and tolerancing per ASME Y14.5M.

BSC:vBasic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-085B

64-Lead Plastic Thin Quad Flatpack (PT) 10x10x1 mm Body, 2.00 mm Footprint [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 G SILK SCREEN Y1 X1 E C2

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Contact Pad Spacing	C1		11.40
Contact Pad Spacing	C2		11.40
Contact Pad Width (X64)	X1			0.30
Contact Pad Length (X64)	Y1			1.50
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
Microchip Technology Drawing No. C04-2085B

64-Lead Plastic Quad Flat, No Lead Package (MR) - 9x9x0.9 mm Body [QFN] With 7.15 x 7.15 Exposed Pad [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

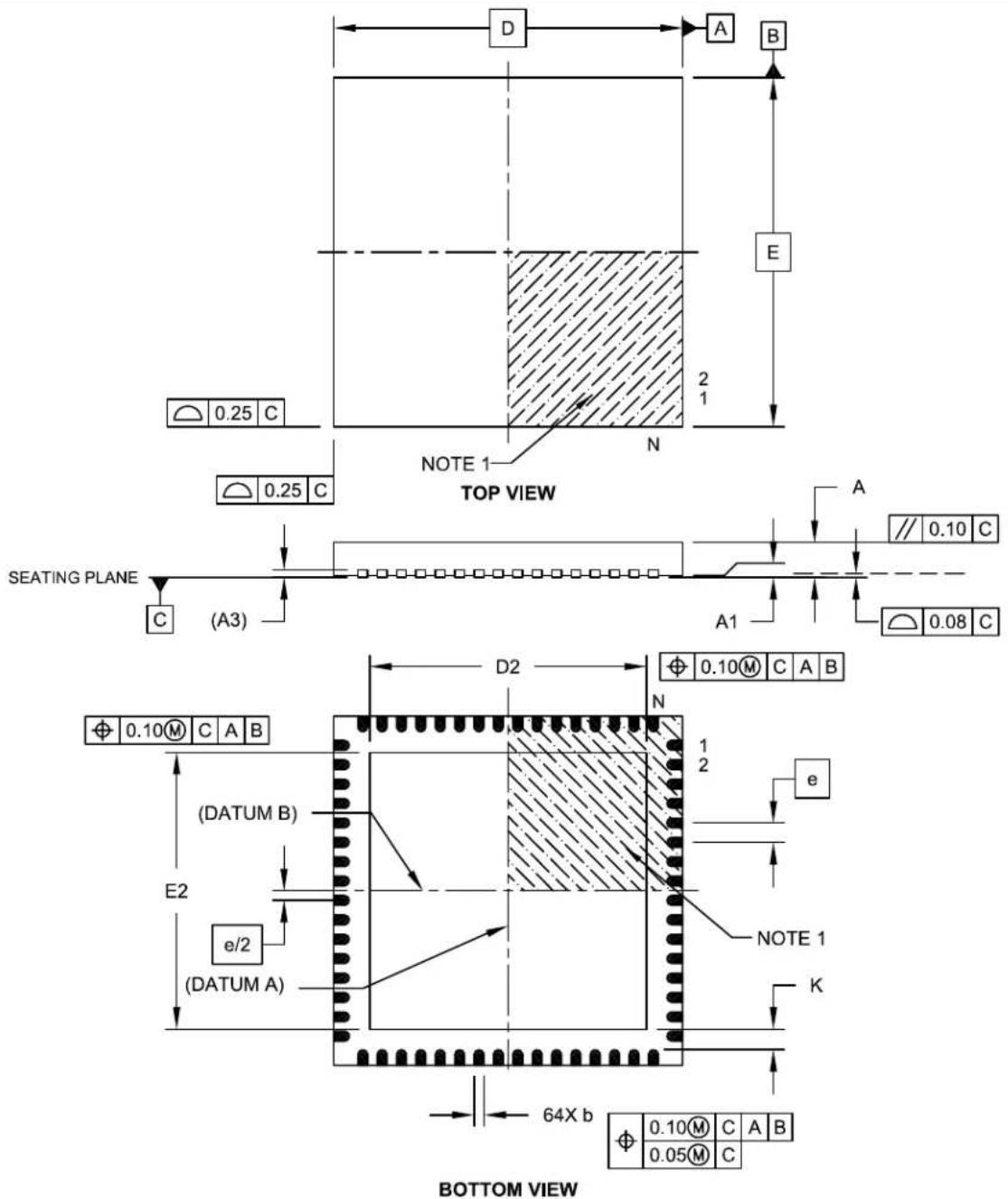

D A B E 0.25 C NOTE 1 N 2 1 TOP VIEW A // 0.10 C SEATING PLANE C (A3) A1 0.08 C D2 0.10① C A B ① ② e NOTE 1 K 64X b ① 0.10① C A B 0.05① C BOTTOM VIEW

Microchip Technology Drawing C04-149C Sheet 1 of 2

64-Lead Plastic Quad Flat, No Lead Package (MR) - 9x9x0.9 mm Body [QFN] With 7.15 x 7.15 Exposed Pad [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

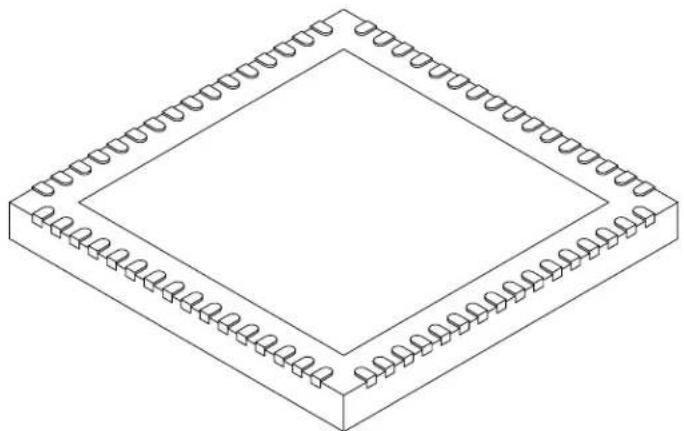

Isometric line drawing of a square electronic component with multiple pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	64
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Contact Thickness	A3	0.20 REF
Overall Width	E	9.00 BSC
Exposed Pad Width	E2	7.05	7.15	7.50
Overall Length	D	9.00 BSC
Exposed Pad Length	D2	7.05	7.15	7.50
Contact Width	b	0.18	0.25	0.30
Contact Length	L	0.30	0.40	0.50
Contact-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated.
3. Dimensioning and tolerancing per ASME Y14.5M.

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-149C Sheet 2 of 2

64-Lead Plastic Quad Flat, No Lead Package (MR) - 9x9x0.9 mm Body [QFN] With 0.40 mm Contact Length

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 W2 E G Y1 C2 T2 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Optional Center Pad Width	W2			7.35
Optional Center Pad Length	T2			7.35
Contact Pad Spacing	C1		8.90
Contact Pad Spacing	C2		8.90
Contact Pad Width (X64)	X1			0.30
Contact Pad Length (X64)	Y1			0.85
Distance Between Pads	G	0.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2149A

100-Lead Plastic Thin Quad Flatpack (PT) - 12x12x1 mm Body, 2.00 mm [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

D D1 E E1 e b N NOTE 1 123 NOTE 2 α A A1 L1 A2 c β o L

UnitsvMILLIMETERS
Dimension LimitsvMINvNOMvMAX
Number of LeadsvNv100
Lead Pitchvev0.40 BSC
Overall Height	Av-	-	1.20
Molded Package Thickness	A2	0.95	1.00	1.05
Standoff	A1	0.05	-	0.15
Foot Length	L	0.45	0.60	0.75
Footprint	L1	1.00 REF
Foot Angle		0°	3.5°	7°
Overall Width	E	14.00 BSC
Overall Length	D	14.00 BSC
Molded Package Width	E1	12.00 BSC
Molded Package Length	D1	12.00 BSC
Lead Thickness	c	0.09	-	0.20
Lead Width	b	0.13	0.18	0.23
Mold Draft Angle Top		11°	12°	13°
Mold Draft Angle Bottom		11°	12°	13°

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.

2.vChamfers at corners are optional; size may vary.

1. Dimensions D1 and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.25 mm per side.

4.vDimensioning and tolerancing per ASME Y14.5M.

BSC:vBasic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-100B

100-Lead Plastic Thin Quad Flatpack (PT)-12x12x1mm Body, 2.00 mm Footprint [TQFP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 G SILK SCREEN Y1 X1 E C2 RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Contact Pad Spacing	C1		13.40
Contact Pad Spacing	C2		13.40
Contact Pad Width (X100)	X1			0.20
Contact Pad Length (X100)	Y1			1.50
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2100B

121-Lead Plastic Thin Profile Ball Grid Array (BG) - 10x10x1.10 mm Body [XBGA]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

0.10 C 2X E/4 D/4 NOTE 1 TOP VIEW A B A D 0.10 C 2X A2 DETAIL A DETAIL B (E1) (DATUM B) e L K J H G F E D C B A 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 (DATUM A) e D1

Microchip Technology Drawing C04-148B Sheet 1 of 2

121-Lead Plastic Thin Profile Ball Grid Array (BG) - 10x10x1.10 mm Body [XBGA]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

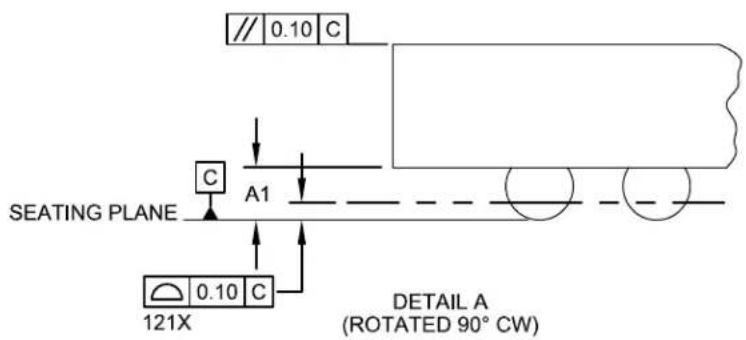

// 0.10 C SEATING PLANE C A1 0.10 C 121X DETAIL A (ROTATED 90° CW)

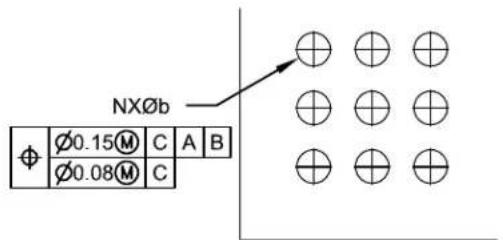

NXØb Ø0.15M C A B Ø0.08M C

DETAIL B

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Contacts	N	121
Contact Pitch	e	0.80 BSC
Overall Height	A	1.00	1.10	1.20
Standoff	A1	0.25	0.30	0.35
Molded Package Thickness	A2	0.55	0.60	0.65
Overall Width	E	10.00 BSC
Array Width	E1	8.00 BSC
Overall Length	D	10.00 BSC
Array Length	D1	8.00 BSC
Contact Diameter	b	0.40 TYP

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.

2. Dimensioning and tolerancing per ASME Y14.5M.

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

1. The outer rows and columns of balls are located with respect to datums A and B.

Microchip Technology Drawing C04-148 Rev B Sheet 2 of 2

121-Lead Plastic Thin Profile Ball Grid Array (BG) - 10x10x1.10 mm Body [XBGA]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

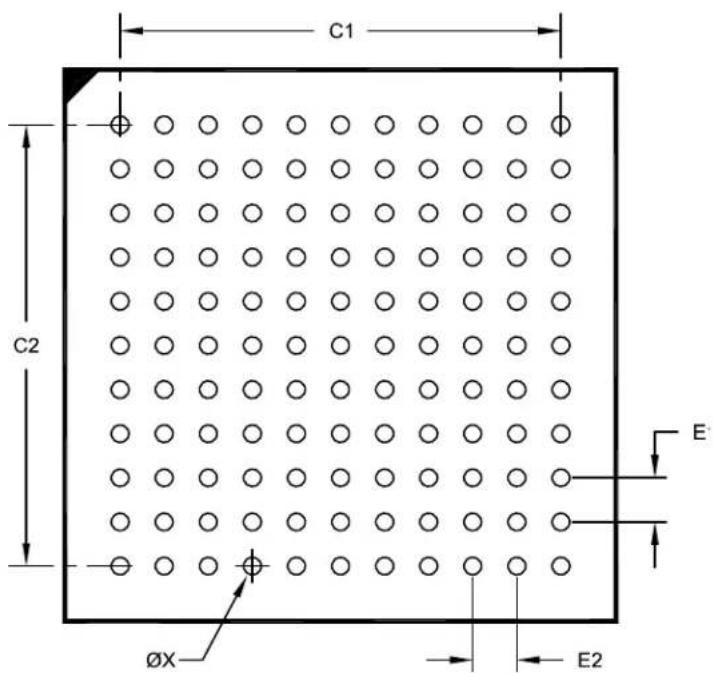

C1 C2 ØX E E2

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E1	0.80 BSC
Contact Pitch	E2	0.80 BSC
Contact Pad Spacing	C1		8.00
Contact Pad Spacing	C2		8.00
Contact Pad Diameter (X121)	X			0.32

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2148B

NOTES:

APPENDIX A: REVISION HISTORY

Revision E (July 2008)

- Updated the PIC32MX340F128H features in Table 1 to include 4 programmable DMA channels.

Revision F (June 2009)

This revision includes minor typographical and formatting changes throughout the data sheet text.

Global changes include:

• Changed all instances of OSCI to OSC1 and OSCO to OSC2
• Changed all instances of V DDCORE and VDDCORE/VCAP to VCAP/VDDCORE
• Deleted registers in most sections, refer to the related section of the "PIC32 Family Reference Manual" (DS61132).

The other changes are referenced by their respective section in the following table.

TABLE A-1: MAJOR SECTION UPDATES

Section Name Update Description
“High-Performance, General Purpose and USB 32-bit Flash Microcontrollers”	Added a “Packages” column to Table 1 and Table 2.Corrected all pin diagrams to update the following pin names.Changed PGC1/EMUC1 to PGEC1Changed PGD1/EMUD1 to PGED1Changed PGC2/EMUC2 to PGEC2Changed PGD2/EMUD2 to PGED2Shaded appropriate pins in each diagram to indicate which pins are 5V tolerant.Added 64-Lead QFN package pin diagrams, one for General Purpose and one for USB.
Section 1.0 “Device Overview”	Reconstructed Figure 1-1 to include Timers, ADC and RTCC in the block diagram.
Section 2.0 “Guidelines for Getting Started with 32-bit Microcontrollers”	Added a new section to the data sheet that provides the following information:Basic Connection RequirementsCapacitorsMaster Clear PinICSPTM PinsExternal Oscillator PinsConfiguration of Analog and Digital PinsUnused I/Os
Section 4.0 “Memory Organization”	Updated the memory maps, Figure 4-1 through Figure 4-6.All summary peripheral register maps were relocated to Section 4.0 “Memory Organization”.
Section 7.0 “Interrupt Controller”	Removed the “Address” column from Table 7-1.
Section 12.0 “I/O Ports”	Added a second paragraph in Section 12.1.3 “Analog Inputs” to clarify that all pins that share ANx functions are analog by default, because the AD1PCFG register has a default value of 0x0000.
Section 26.0 “Special Features”	Modified bit names and locations in Register 26-5 “DEVID: Device and Revision ID Register”.Replaced “TSTARTUP” with “TPU”, and “64-ms nominal delay” with “TPWRT”, in Section 26.3.1 “On-Chip Regulator and POR”.The information that appeared in the Watchdog Timer and the Programming and Diagnostics sections of 61143E version of this data sheet has been incorporated into the Special Features section:Section 26.2 “Watchdog Timer (WDT)”Section 26.4 “Programming and Diagnostics”
Section 29.0 “Electrical Characteristics”	Added the 64-Lead QFN package to Table 29-3.Updated data in Table 29-5.Updated data in Table 29-7.Updated data in Table 29-4, Table 29-5, Table 29-7 and Table 29-8.Updated data in Table 29-11.Added OS42 parameter to Table 29-17.Replaced Table 29-23.Replaced Table 29-24.Replaced Table 29-25.Updated Table 29-36.
Section 30.0 “Packaging Information”	Added 64-Lead QFN package marking information to Section 30.1 “Package Marking Information”.Added the 64-Lead QFN (MR) package drawing and land pattern to Section 30.2 “Package Details”.
“Product Identification System”	Added the MR package designator for the 64-Lead (9x9x0.9) QFN.

Revision G (April 2010)

The revision includes the following global update:

- Added Note 2 to the shaded table that appears at the beginning of each chapter. This new note provides information regarding the availability of registers and their associated bits.

This revision also includes minor typographical and formatting changes throughout the data sheet text. Major updates are referenced by their respective section in the following table.

TABLE A-2: MAJOR SECTION UPDATES

Section Name Update Description
“High-Performance, General Purpose and USB 32-bit Flash Microcontrollers”	Updated the crystal oscillator range to 3 MHz to 25 MHz (see Peripheral Features:)Added the 121-pin Ball Grid Array (XBGA) pin diagram.Updated Table 1: “PIC32MX General Purpose – Features” and Table 2: “PIC32MX USB – Features”Added the following tables:- Table 3: “Pin Names: PIC32MX320F128L, PIC32MX340F128L, and PIC32MX360F128L, and PIC32MX360F512L Devices”,- Table 4: “Pin Names: PIC32MX440F128L, PIC32MX460F256L and PIC32MX460F512L Devices”Updated the following pins as 5V tolerant:- 64-pin QFN (USB): Pin 34 (V bus), Pin 36 (D-/RG3) and Pin 37 (D+/RG2)- 64-pin TQFP (USB): Pin 34 (Vbus), Pin 36 (D-/RG3), Pin 37 (D+/RG2) and Pin 42 (IC1/RTCC/INT1/RD8)- 100-pin TQFP (USB): Pin 54 (V bus), Pin 56 (D-/RG3) and Pin 57 (D+/RG2)
Section 1.0 “Device Overview”	Updated the Pinout I/O Descriptions table to include the device pin numbers (see Table 1-1)
Section 2.0 “Guidelines for Getting Started with 32-bit Microcontrollers”	Updated the Ohm value for the low-ESR capacitor from less than 5 to less than 1 (see Section 2.3.1 “Internal Regulator Mode”).Labeled the capacitor on the VCAP/VDDCORE pin as CEFC in Figure 2-1.Changed 10 μF capacitor to CEFC capacitor in Section 2.3 “Capacitor on Internal Voltage Regulator (VCAP/VCORE)”.
Section 4.0 “Memory Organization”	Updated all register map tables to include the “All Resets” column.Separated the PORT register maps into individual tables (see Table 4-21 through Table 4-34).In addition, formatting changes were made to improve readability.
Section 12.0 “I/O Ports”	Updated the second paragraph of Section 12.1.2 “Digital Inputs” and removed Table 12-1.
Section 22.0 “10-bit Analog-to-Digital Converter (ADC)”	Updated the ADC Conversion Clock Period Block Diagram (see Figure 22-2).
Section 26.0 “Special Features”	Extensive updates were made to Section 26.2 “Watchdog Timer (WDT)” and Section 26.3 “On-Chip Voltage Regulator”.
Section 29.0 “Electrical Characteristics”	Updated the Absolute Maximum Ratings and added Note 3.Added Thermal Packaging Characteristics for the 121-pin XBGA package (see Table 29-3).Updated the conditions for parameters DC20, DC21, DC22 and DC23 in Table 29-5.Updated the comments for parameter D321 (CEFC) in Table 29-15.Updated the SPIx Module Slave Mode (CKE = 1) Timing Characteristics, changing SP52 to SP35 between the MSb and Bit 14 on SDOx (see Figure 29-13).
Section 30.0 “Packaging Information”	Added the 121-pin XBGA package marking information and package details.
“Product Identification System”	Added the definition for BG (121-lead 10x10x1.1 mm, XBGA).Added the definition for Speed.

Revision H (May 2011)

The revision includes the following global update:

• All references to V DDCORE/VCAP have been changed to: VCORE/VCAP
• Added references to the new V-Temp temperature range: -40^ to +105^

This revision also includes minor typographical and formatting changes throughout the data sheet text. Major updates are referenced by their respective section in the following table.

TABLE A-3: MAJOR SECTION UPDATES

Section Name Update Description
Section 1.0 “Device Overview”	Updated the VBUS description in Table 1-1: “Pinout I/O Descriptions”.
Section 4.0 “Memory Organization”	Added Note 2 and changed the RIPL<2:0> bits to SRIPL<2:0> in the Interrupt Register Map tables (see Table 4-2 through Table 4-6.Added Note 2 to the Timer1-5 Register Map (see Table 4-7).Updated the All Resets value for I2C1CON<15:0> and I2C2CON<15:0> in the I2C1 and I2C2 Register Map (see Table 4-10).Updated the All Resets value for SPI1STAT<15:0> and SPI2STAT<15:0> in the SPI1 and SPI2 Register Map (see Table 4-12).Updated the All Resets value for CM1CON<15:0> and CM2CON<15:0> in the Comparator Register Map (see Table 4-17).Renamed the RCDIV<2:0> bits to FRCDIV<2:0> and the LOCK bit to SLOCK in the OSCCON register, and added Note 3 and the SYSKEYregister to the System Control Registers Map (see Table 4-20).Updated the All Resets value for the PMSTAT register in the Parallel Master Port Register Map (see Table 4-37).Updated the All Resets value for CHECON<15:0> and CHETAG<15:0> in the Prefetch Register Map (see Table 4-39).Renamed FUPLLEN, FUPLLIDIV, and FPLLMULT in the DEVCFG2 register to: UPLLEN, UPLLIDIV, and FPLLMUL, respectively in the Device Configuration Word Summary (see Table 4-41).Added Notes 1 through 4 to the USB Register Map (see Table 4-43).
Section 5.0 “Flash Program Memory”	Added a note on Flash LVD Delay and Example 5-1.
Section 8.0 “Oscillator Configuration”	Updated the PIC32MX3XX/4XX Family Clock Diagram (see Figure 8-1).
Section 11.0 “USB On-The-Go (OTG)”	Updated the PIC32MX3XX/4XX Family USB Interface Diagram (see Figure 11-1).
Section 16.0 “Output Compare”	Updated the Output Compare Module Block Diagram (see Figure 16-1).
Section 22.0 “10-bit Analog-to-Digital Converter (ADC)”	Updated the ADC Conversion Clock Period Block Diagram (see Figure 22-2).
Section 26.0 “Special Features”	Renamed FUPLLEN, FUPLLIDIV, and FPLLMULT in the DEVCFG2 register to: UPLLEN, UPLLIDIV, and FPLLMUL, respectively (see Register 26-3).
Section 29.0 “Electrical Characteristics”	Added the new V-Temp temperature range (-40°C to +105°C) to the heading of all specification tables.Updated the Ambient temperature under bias, updated the Voltage on any 5V tolerant pin with respect to Vss when VDD < 2.3V, and added Voltage on Vbus with respect to Vss in Absolute Maximum Ratings.Added the characteristic, DC5a to Operating MIPS vs. Voltage (see Table 29-1).Updated or added the following parameters to the Operating Current (IDD) DC Characteristics: DC20, DC23, DC24c, DC25d, DC26c (see Table 29-5).Added the following parameters to the Idle Current (IIDLE) DC Characteristics: DC30c, DC31c, DC32c, DS33c, DC34c, DC35c, and DC36c (see Table 29-6).Added the following parameters to the Power-down Current (IPD) DC Characteristics: DC40g, DC40h, DC40i, DC41g, DC41h, DC42g, DC42h, DC42i, DC43h, and DC43i (see Table 29-7).Added the Brown-out Reset (BOR) Electrical Characteristics (see Table 29-10).Removed all Conditions from the Program Memory DC Characteristics (see Table 29-11).Removed the AC Characteristics voltage reference table (Table 29-15).Added Note 2 to the PLL Clock Timing Specifications (see Table 29-18).Updated the OC/PWM Module Timing Characteristics (see Figure 29-9).Added parameter IM51 and Note 3 to the I2Cx Bus Data Timing Requirements (Master Mode) (see Table 29-32).Added parameter numbers (AD13, AD14, and AD15) to the ADC Module Specifications (see Table 29-34).Updated the 10-bit ADC Conversion Rate Parameters (see Table 29-35).Updated parameter AD57 (TSAMP) in the Analog-to-Digital Conversion Timing Requirements (see Table 29-36).Updated the Conditions for parameters USB313, USB318, and USB319 in the OTG Electrical Specifications (see Table 29-40).
Section 30.0 “Packaging Information”	Updated the 64-Lead Plastic Quad Flat, No Lead Package (MR) – 9x9x0.9 mm Body [QFN] packing diagram.
Product Identification System	Added the new V-Temp (V) temperature information.

INDEX

A

AC Characteristics .... 161 Internal RC Accuracy.... 163

AC Electrical Specifications Parallel Master Port Read Requirements....186 Parallel Master Port Write Requirements....187 Parallel Slave Port Requirements....185

Assembler MPASM Assembler.... 148

B

Block Diagrams ADC Module....123 Comparator I/O Operating Modes....125 Comparator Voltage Reference....127 Connections for On-Chip Voltage Regulator....138 Input Capture....107 JTAG Compliant Application Showing Daisy-Chaining of Components....139 Output Compare Module....109 Reset System....87 RTCC....121 Type B Timer....37, 95, 105 UART....115 WDT....137 Brown-out Reset (BOR) and On-Chip Voltage Regulator....138

C

C Compilers MPLAB C18 .... 148

Comparator Operation .... 126 Comparator Voltage Reference Configuring.... 128

CPU Module....31, 37 Customer Change Notification Service....209 Customer Notification Service....209 Customer Support....209

D

DC Characteristics....152 I/O Pin Input Specifications....157 I/O Pin Output Specifications....158 Idle Current (IIDLE)....154 Operating Current (IDD)....153 Power-Down Current (IPD)....155 Program Memory....159 Temperature and Voltage Specifications....152 Development Support....147

E

Electrical Characteristics.... 151 AC.... 161 Errata.... 19

F

Flash Program Memory 85
RTSP Operation 85

|

I/O Ports.... 101, 115 Parallel I/O (PIO).... 102

Internet Address.... 209

M

Microchip Internet Web Site....209 MPLAB ASM30 Assembler, Linker, Librarian....148 MPLAB Integrated Development Environment Software..147 MPLAB PM3 Device Programmer....150 MPLAB REAL ICE In-Circuit Emulator System....149 MPLINK Object Linker/MPLIB Object Librarian....148

P

Packaging....191 Details....192 Marking....191 PIC32 Family USB Interface Diagram....100 Pinout I/O Descriptions (table)....22 Power-on Reset (POR) and On-Chip Voltage Regulator....138

R

Reader Response....210

S

Serial Peripheral Interface (SPI)... 87, 97, 111, 119, 121, 130 Software Simulator (MPLAB SIM) .... 149 Special Features.... 131

T

Timer1 Module....89, 95, 103, 105

Timing Diagrams 10-bit Analog-to-Digital Conversion (CHPS<1:0> = 01, SIMSAM = 0, ASAM = 0, SSRC<2:0> = 000) .. 183 10-bit Analog-to-Digital Conversion (CHPS<1:0> = 01, SIMSAM = 0, ASAM = 1, SSRC<2:0> = 111, SAMC<4:0> = 00001).... 184 I2Cx Bus Data (Master Mode).... 175 I2Cx Bus Data (Slave Mode).... 177 I2Cx Bus Start/Stop Bits (Master Mode).... 175 I2Cx Bus Start/Stop Bits (Slave Mode).... 177 Input Capture (CAPx).... 169 OC/PWM.... 170 Output Compare (OCx).... 169 Parallel Master Port Write.... 186, 187 Parallel Slave Port.... 185 SPIx Master Mode (CKE = 0).... 171 SPIx Master Mode (CKE = 1).... 172 SPIx Slave Mode (CKE = 0).... 173 SPIx Slave Mode (CKE = 1).... 174 Timer1, 2, 3, 4, 5 External Clock.... 167 Transmission (8-bit or 9-bit Data).... 116 UART Reception with Receive Overrun.... 117

Timing Requirements CLKO and I/O.....164 Timing Specifications I2Cx Bus Data Requirements (Master Mode).....175 I2Cx Bus Data Requirements (Slave Mode).....178 Output Compare Requirements.....169 Simple OC/PWM Mode Requirements.....170 SPIx Master Mode (CKE = 0) Requirements.....171 SPIx Master Mode (CKE = 1) Requirements.....172 SPIx Slave Mode (CKE = 1) Requirements.....174

V

VCORE/VCAP Pin 138
Voltage Reference Specifications 160
Voltage Regulator (On-Chip) 138

W

Watchdog Timer

Operation 137

WWW Address.... 209

WWW, On-Line Support....19

Microchip provides online support via our WWW site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQs), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER CHANGE NOTIFICATION SERVICE

Microchip's customer notification service helps keep customers current on Microchip products. Subscribers will receive e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, access the Microchip web site at www.microchip.com. Under “Support”, click on “Customer Change Notification” and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support
• Development Systems Information Line

Customers should contact their distributor, representative or field application engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://microchip.com/support

READER RESPONSE

It is our intention to provide you with the best documentation possible to ensure successful use of your Microchip product. If you wish to provide your comments on organization, clarity, subject matter, and ways in which our documentation can better serve you, please FAX your comments to the Technical Publications Manager at [phone].

Please list the following information, and use this outline to provide us with your comments about this document.

TO: Technical Publications Manager

Total Pages Sent ____

RE: Reader Response

From: Name ____

Company ____

Address

City / State / ZIP / Country ____

Telephone: (____) ____ - ____ FAX: (____) ____ - ____

Application (optional):

Would you like a reply? Y N

Device:

Literature

DS61143HPIC32M

Questions:

1. What are the best features of this document?

2. How does this document meet your hardware and software development needs?

3. Do you find the organization of this document easy to follow? If not, why?

4. What additions to the document do you think would enhance the structure and subject?

5. What deletions from the document could be made without affecting the overall usefulness?

6. Is there any incorrect or misleading information (what and where)?

7. How would you improve this document?

Product Identification System

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

	PIC32 MX 3XX F 512 H T - 80 I / PT - XXX	Examples:
Microchip Brand Architecture Product Groups Flash Memory Family Program Memory Size (KB) Pin Count Tape and Reel Flag (if applicable) Speed Temperature Range Package Pattern		PIC32MX320F032H-40I/PT: General purpose PIC32MX, 32 KB program memory, 64-pin, Industrial temperature, TQFP package. PIC32MX360F256L-80I/PT: General purpose PIC32MX, 256 KB program memory, 100-pin, Industrial temperature, TQFP package.
Flash Memory Family
Architecture MX = 32-bit RISC MCU core
Product Groups 3XX= General purpose microcontroller family 4XX= USB
Flash Memory Family F = Flash program memory
Program Memory Size 32 = 32K 64 = 64K 128 = 128K 256 = 256K 512 = 512K
Speed 40 = 40 MHz 80 = 80 MHz
Pin Count H = 64-pin L = 100-pin
Temperature Range I = -40°C to +85°C (Industrial) V = -40°C to +105°C (V-Temp)
Package PT = 64-Lead (10x10x1 mm) TQFP (Thin Quad Flatpack) PT = 100-Lead (12x12x1 mm) TQFP (Thin Quad Flatpack) MR = 64-Lead (9x9x0.9 mm) QFN (Plastic Quad Flat) BG = 121-Lead (10x10x1.1 mm) XBGA (Plastic Thin Profile Ball Grid Array)
Pattern Three-digit QTP, SQTP, Code or Special Requirements (blank otherwise) ES = Engineering Sample

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Cleveland

Independence, OH

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Farmington Hills, MI

Tel: [phone]

Fax: [phone]

Indianapolis

Noblesville, IN

Tel: [phone]

Fax: [phone]

Los Angeles

Mission Viejo, CA

Tel: [phone]

Fax: [phone]

Santa Clara

Santa Clara, CA

Tel: [phone]

Fax: [phone]

Toronto

Mississauga, Ontario,

Canada

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

Asia Pacific Office

Suites 3707-14, 37th Floor

Tower 6, The Gateway

Harbour City, Kowloon

Hong Kong

Tel: [phone]

Fax: [phone]

Australia - Sydney

Tel: [phone]

Fax: [phone]

China - Beijing

Tel: [phone]

Fax: [phone]

China - Chengdu

Tel: [phone]

Fax: [phone]

China - Chongqing

Tel: [phone]

Fax: [phone]

China - Hangzhou

Tel: [phone]

Fax: [phone]

China - Hong Kong SAR

Tel: [phone]

Fax: [phone]

China - Nanjing

Tel: [phone]

Fax: [phone]

China - Qingdao

Tel: [phone]

Fax: [phone]

China - Shanghai

Tel: [phone]

Fax: [phone]

China - Shenyang

Tel: [phone]

Fax: [phone]

China - Shenzhen

Tel: [phone]

Fax: [phone]

China - Wuhan

Tel: [phone]

Fax: [phone]

China - Xian

Tel: [phone]

Fax: [phone]

China - Xiamen

Tel: [phone]

Fax: [phone]

China - Zhuhai

Tel: [phone]

Fax: [phone]

ASIA/PACIFIC

India - Bangalore

Tel: [phone]

Fax: [phone]

India - New Delhi

Tel: [phone]

Fax: [phone]

India - Pune

Tel: [phone]

Fax: [phone]

Japan - Yokohama

Tel: [phone]

Fax: [phone]

Korea - Daegu

Tel: [phone]

Fax: [phone]

Korea - Seoul

Tel: [phone]

Fax: [phone] or

82-2-558-5934

Malaysia - Kuala Lumpur

Tel: [phone]

Fax: [phone]

Malaysia - Penang

Tel: [phone]

Fax: [phone]

Philippines - Manila

Tel: [phone]

Fax: [phone]

Singapore

Tel: [phone]

Fax: [phone]

Taiwan - Hsin Chu

Tel: [phone]

Fax: [phone]

Taiwan - Kaohsiung

Tel: [phone]

Fax: [phone]

Taiwan - Taipei

Tel: [phone]

Fax: [phone]

Thailand - Bangkok

Tel: [phone]

Fax: [phone]

EUROPE

Austria - Wels

Tel: [phone]

Fax: [phone]

Denmark - Copenhagen

Tel: [phone]

Fax: [phone]

France - Paris

Tel: [phone]

Fax: [phone]

Germany - Munich

Tel: [phone]

Fax: [phone]

Italy - Milan

Tel: [phone]

Fax: [phone]

Netherlands - Drunen

Tel: [phone]

Fax: [phone]

Spain - Madrid

Tel: [phone]

Fax: [phone]

UK - Wokingham

Tel: [phone]

Fax: [phone]

05/02/11
