Product Type	Drop-In Induction Range
Model	9110A-C
Brand	Nemco
Power Source	Electric, 120 V, 60 Hz
Power Consumption	1800 W
Current	15 A
Number of Power Levels	9 (1 to 9)
Control Type	Touch buttons (Power On/Off, Up, Down)
Display	Digital LED
Cooktop Material	Ceramic Glass
Dimensions (L x W x H)	14 9/16" x 11 5/8" x 3 1/8" (370 x 295 x 79 mm)
Weight	14 lbs (6.35 kg)
Cookware Compatibility	Induction-compatible (magnetic base), min bottom diameter 4.75", max 10.25"
Safety Features	Pan detection, auto shut-off on overheat, error codes, child lock not specified
Cleaning Method	Wipe with damp cloth, mild non-abrasive cleaner; no metal scouring pads
Installation	Flush mount or optional trim ring, requires 4" clearance from vents
Cooling System	Built-in fan, continues after shut-off
Warranty	1 year parts and labor (standard), limitations apply
Included Accessories	Installation manual, operating instructions
Certifications	UL listed (assumed)

Frequently Asked Questions - 9110A-C Nemco

What type of cookware is compatible with the Nemco 9110A-C induction range?

Only induction-compatible cookware with a magnetic base will work. Test with a magnet: if it sticks, it is likely compatible. The pan bottom must be flat (within 1/8") and have a diameter between 4.75" and 10.25". Materials like glass, ceramic, copper, or aluminum will not work.

What does the 'U' flashing on the display mean?

The 'U' indicates that no pan or an incompatible pan is detected on the cooktop. Place a suitable induction pan on the cooking zone. If the pan is removed during cooking, the display will show 'U' and the unit will turn off after about 40 seconds; to resume, place the pan back and press the power up button.

How do I clean the induction range?

After the unit has cooled, wipe the glass cooktop with a damp cloth or a mild non-abrasive cleaner. Do not use metal scouring pads, sharp objects, or abrasive cleaners, as they can scratch and damage the glass surface.

What are the recommended power levels for different cooking tasks?

For the 9110A-C (cooking unit, levels 1-9): Stir fry at 8-9; boil water at 8-9 then reduce to 5-6; pan fry at 5-9; sauté/simmer at 3-5; warming at 2; chocolate melting at 1. Adjust based on pan and food volume.

What should I do if the display shows an error code like '1', '2', or '3'?

Error codes indicate electrical issues: 1 = overcurrent, 2 = overvoltage, 3 = undervoltage. First, unplug the unit and check the outlet voltage. If the error persists, contact Nemco customer service. Other codes like 4 (overheat), 6 (pan overheated) require cooling down and ensuring proper ventilation.

Can I use the range without a pan?

No, the induction range will not operate without an appropriate pan on the cooktop. The display will flash 'U' and the unit will remain in standby. Small metal objects like knives or spoons are not detected as valid pans.

How do I install the range into a countertop?

The range can be flush-mounted directly into the countertop, ensuring the glass surface is flush. Alternatively, use the optional Stainless Steel Trim Ring for a simpler cut-out. Seal around the unit with silicone caulking to prevent liquid ingress. Ensure at least 4" clearance from vent openings for proper airflow.

What is the warranty coverage for the Nemco 9110A-C?

Nemco provides a one-year warranty from the date placed in service (or 18 months from shipment) covering parts and labor for defects in material and workmanship under normal use. The warranty does not cover damage from misuse, improper voltage, or unauthorized repairs. Contact Nemco for authorized service.

Why does the fan continue running after I turn off the unit?

The cooling fan may continue to operate for a short period after the unit is turned off to cool internal components. This is normal and helps prolong the life of the electronics.

What is the maximum power consumption of the 9110A-C?

The maximum power consumption is 1800 watts at 120 volts, drawing 15 amps. Ensure the unit is connected to a dedicated circuit with proper grounding.

USER MANUAL 9110A-C Nemco

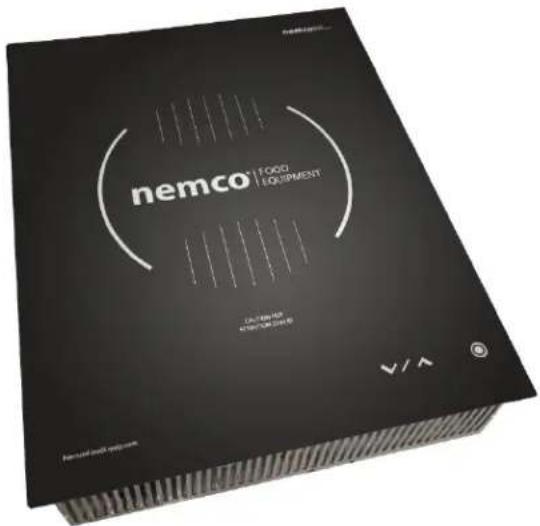

Drop-In Induction Warmers and Ranges

INSTALLATION AND OPERATING INSTRUCTIONS

IMPORTANT INFORMATION READ BEFORE USE

It is recommended that maintenance and repairs be conducted by authorized service agents using genuine Nemco replacement parts. Nemco is not responsible for the damages caused by unauthorized service agents or parts. The information contained in this manual is subject to updates and/or change at the discretion of Nemco Food Equipment without notice. Please read the Installation and Operating Instructions in its entirety before attempting to install or operate this unit.

Table of Contents

Important Safety Instrucons....3

Control Features ....4

Power Sengs/Cooking Guide 6

Cleaning the Inducon Range....7

Cookware Requirements 7

Installaon Guide....8

Troubleshoong/Error Codes 9

Warranty 10

Important Safety Instrucons

When using electrical appliances, basic safety precautions should be followed, including the following:

Warning – To reduce the risk of burns, electric shock, re, injury to persons, or exposure to excessive electromagnec energy:

1) Read all instrucons before using the appliance.

2) Read and follow the specic "PRECAUTIONS TO AVOID POSSIBLE ELECTRIC SHOCK" found on page X.

3) This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page X.

4) Use this appliance only on the specied electrical circuit.

5) Install or locate this appliance only in accordance with the provided installaon instrucons.

6) Do not heat any sealed cans on the inducon range. A Sealed can may explode.

7) Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors on this appliance.

8) As with any appliance, close supervision is necessary when used by or around children.

9) Do not operate this appliance if it has a damaged cord or plug, broken or cracked glass surface, if it is not working properly, or if it has been damaged or dropped.

10) This appliance should be serviced only by qualified service personnel. Contact Nemco for the authorized service facility for examinaon, repair or adjustment.

11) Do not cover or block any openings on the appliance. Allow 4" clearance from all vent openings.

12) Do not place the range in, on or near open ames, electric burners, ovens or other high temperature surroundings.

13) Do not move the range while cooking or while hot.

14) Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locaons.

15) Do not immerse cord or plug in water.

16) Keep cord away from heated surfaces.

17) Do not let cord hang over edge of table or counter.

18) When cleaning, use only mild, nonabrasive soaps or detergents applied with a sponge of so cloth.

19) Do not clean with metal scouring pads. These will scratch and damage the glass and control surfaces.

20) Do not touch the hot surface of the glass cooktop.

21) Do not heat empty pots/pans. Using an empty pan can result in extremely high temperatures that may damage the pan and the range.

22) Keep pacemakers at least 2 feet from the cooktop.

SAVE THESE INSTRUCTIONS

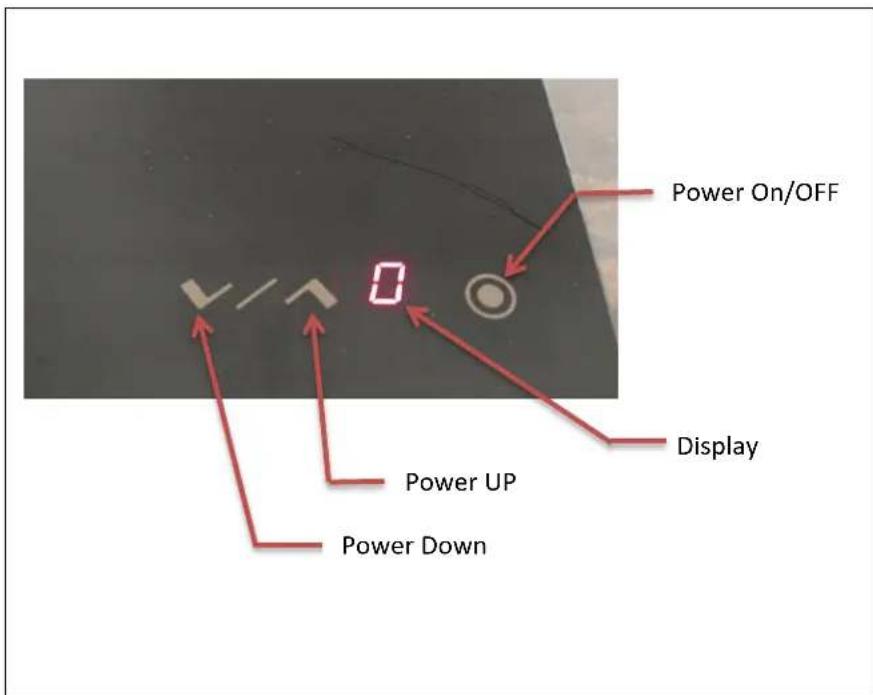

Control Features

- The range will not operate without an appropriate pan or vessel in place on the cooktop. Aer a few seconds, the display will ash 'U' indicang that no pan is present. If the pan is removed during cooking, the unit will turn o aer about 40 seconds and the display will show '0'. Resume cooking by placing the pan on the cooktop and pressing the 'ʌ' (power up) buon.

- If the temperature of the cooktop reaches 260^ C or 500^ F, the unit turns o automacally and displays an error code. This can happen if a pan is empty or is allowed to boil dry. Allow the unit to cool o. Restart by pressing power on/o buon.

- If the voltage or current in the device is abnormal it will shut itself o and display an error code.

- Small objects such as a knife or spoon will not be 'seen' as a valid pan by the range and it will not operate, however, do not place items other than inducon cookware on the range surface.

Operang Instrucons

1. Plug the unit in to the appropriate power outlet. The display will show a single red dot when voltage is present.
2. Press the round power on/o buon. The display will show '0' and the unit is now in the ready state.
3. Place an appropriate pan on the glass cooktop, centering it on the target.
4. Press the Power Up 'λ' buon. The display will show '5', and the fan will start. The range is now warming or cooking at power level 5.
5. Press the Power UP ‘ ’ buon to increase the power seng.

6. Press the Power Down buon 'v' to decrease the power level.

7. Warming Units:

(9100-1, 9100): The power will adjust from 1 to 7. See chart for approximate holding temperatures.

Cooking units:

9110, the power will adjust from 1 to 9.

9110-1, the power will adjust from 1 to 8.

9111-1, the power will adjust from 1 to 9.

1. While cooking or warming, press the Power On/O buon to stop the cooking cycle, or remove the pan.

If the pan is removed and replaced within approximately 40 seconds while the 'U' symbol is ashing on the display, the system will automatically resume heang at the previous seng. Aer 40 seconds with no pan, the display will show '0'. Pressing the Power Up key once will resume operaon at the previous seng if the pan is present.

1. The power level can be adjusted 'on the y' at any me while the unit is heang.

2. When the unit is turned o using the Power On/O buon, the cooling fan may connue to operate for a short period of me.

Power Sengs/Cooking Guide

The ‘Best’ Power Sengs will vary depending on the range model number, the type and shape of the pan being used, as well as the type and quantity of food being cooked or held. Unl you get a ‘feel’ for the unit, you should start at medium seings of 5 or 6 and adjust up or down from there to get the performance you want.

For cooking units (9110, 9110-1, 9111-1) you can use the following as a starng guide:

1. Sr Fry: Quickly sr fry on high heat sengs of 8 or 9.
2. Boil Water: Boil water on high heat sengs of 8 or 9, then reduce to level 5 or 6 to maintain a hard boil. Reduce to 3 or 4 for a slow boil.
3. Pan Fry: Pan fry on medium to high heat sengs of 5 to 9.
4. Sauté/Simmer: Use medium to low sengs 3 to 5.
5. Warming: Hold food at serving temperatures using seng 2. Results will vary depending on the volume of food being held.
6. Chocolate Melng: Use seng 1.

For Warming units (9100, 9100-1), the following chart shows an approximate temperature guide. Results will vary depending on the type of pan, and the type and volume of food being held.

Warmer Seng	1	2	3	4	5	6	7
Temp °F	95	105	122	140	160	180	195

Cleaning the Inducon Range

Aer the inducon range has cooled down, clean as follows:

Glass Cooktop: Wipe with a damp cloth or use a mild, non-abrasive cleaning soluon.

DO NOT USE SHARP OBJECTS OR ABRASIVES ON THE GLASS COOKTOP. SCRATCHES IN THE GLASS CAN WEAKEN IT AND LEAD TO BREAKAGE!

Cookware Requirements

Cooking with any inducon range requires the use of inducon compatible pots/pans. In general this means that the vessel must be magnec. If a magnet scks to it, it will probably be a good Inducon pan. Other things to consider are the size and shape of the pan. Pans should have a minimum boom diameter of 4.75 inches, and the boom of the pan should be at within about 1/8 of an inch. For best results, the maximum boom diameter of the pan should not exceed 10.25 inches.

Materials that will NOT work with inducon ranges include glass, ceramics, earthenware, bronze, copper, aluminum or 300 series stainless steel.

To test a pan to see if it is compatible, put it on the range, press the Start buon and increase the power level. If the display ashes 'U' the pan is not compatible with inducon cooking.

Product Specicaons

Model	Frequency	Voltage	Amps	Power	Weight	Dimensions
9100, 9100-C	50/60Hz	120	2.2	270 W	14 lbs.	L 14 9/16”W 11 5/8”D 3 1/8”
91000-1		208 or 240	2	400 W
9110, 9110-C		120	15	1800 W
9110-1		208 or 240	8.6	1800 W
9111-1		208 or 240	12.5	2600 W

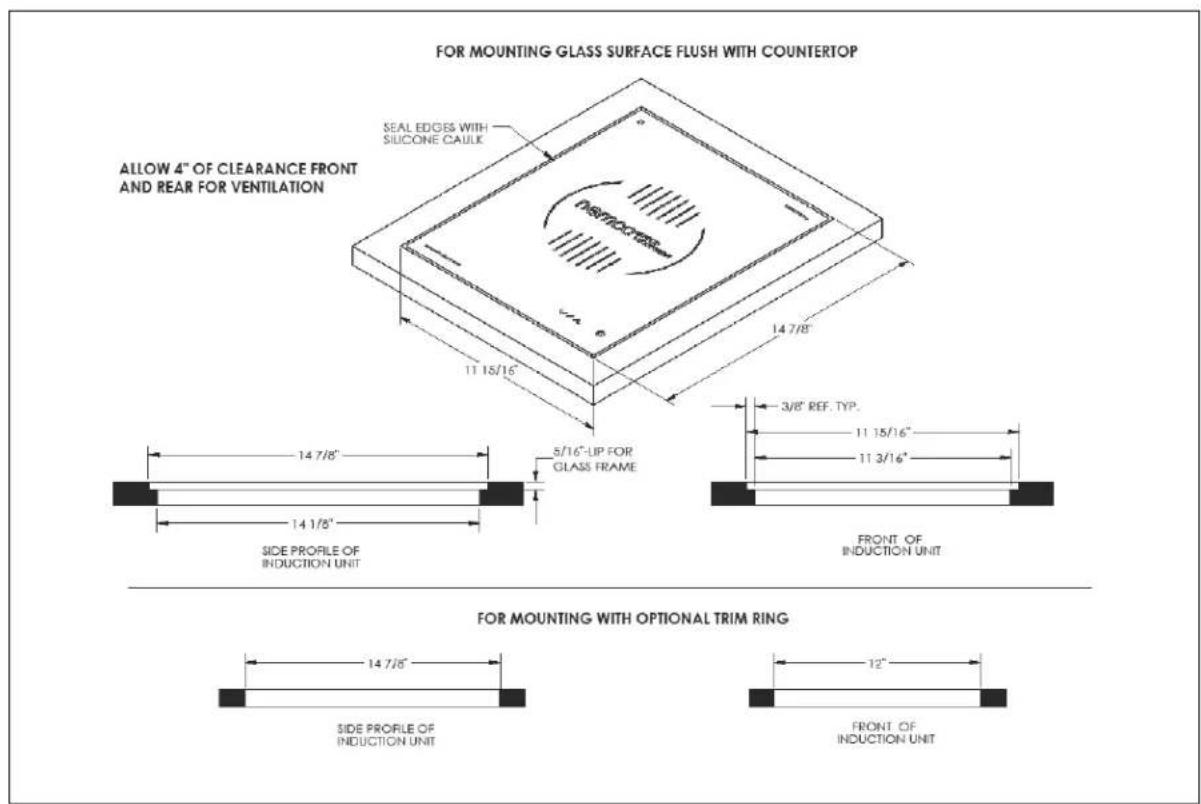

Installaon Guide

Always ensure that the glass surface of the range is mounted FLUSH with the counter top. The exposed edge of the glass is fragile and can be easily chipped or broken by side impact.

If ush moung is not feasible, you can purchase the oponal Stainless Steel Trim Ring this allows you make a simple cut-out in the counter top, and the Trim Ring supports the unit and protects the glass edge from damage.

With either moung method, seal around the unit (and Trim Ring) with silicone caulking to keep liquids from penetrang and geng below the surface.

If the units are mounted in a closed cabinet, you must ensure that there is adequate air ow for the units. Each unit draws in cooling air from the back, and exhausts warm air from the front. In a closed cabinet you must provide adequate openings for both the intake and the exhaust air.

Troubleshoong/Error Codes

Flashing Display Indicaon	Cause	Soluon
U	No pan or non- inducon pan	Place an appropriate pan on the cooktop target
1	Over current	Check for abnormal condions like water, moisture or broken parts or cord. Unplug the unit. Plug it back in. If the error connues, contact customer service.
2	Over Voltage	Check to verify that the outlet voltage is correct and within limits. Unplug the unit. Plug it back in. If the error connues, contact customer service.
3	Under Voltage	Check to verify that the outlet voltage is correct and within limits. Unplug the unit. Plug it back in. If the error connues, contact customer service.
4	Main Heat Sink Over Temp	Check to verify that the fans are working. Check to make sure the air ow is unrestricted.
5	External Temp. Probe problem	Temp mode not available on Drop-In series.
6	Pan is Overheated	Make sure the pan is not empty. Allow the unit to cool down.
7	Power Frequency is Unstable	Check the incoming power for frequency stability. Unplug the unit. Plug it back in. If the error connues, contact customer service.
8	OP Amp Oset Error	Unplug the unit. Plug it back in. If the error connues, contact customer service.
9	Main Coil Overcurrent	Unplug the unit. Plug it back in. If the error connues, contact customer service.

Warranty

Except as otherwise provided below, Nemco Food Equipment, Ltd. ("Nemco") warrants, to the original user, this product (other than blades, light bulbs, and ceramic glass cooktop breakage) to be free of electrical and mechanical defects in material and workmanship under "normal use" (dened below) for the shorter of the following periods: (a) one (1) year from the date placed in service by the original user, or (b) 18 months from the date of shipment from its factory. In addition, Nemco warrants its non-electrical food preparaon products (other than blades) to be free of mechanical defects in material and workmanship under normal use for two (2) years from the date placed in service by the original user. The warranty provided for herein shall be limited to parts and labor. Any determinaon that a product is defective or covered by this warranty, shall be made by Nemco, in its sole discreon. The determinaon of whether to repair or replace a defective, covered product, or to refund the purchase price for the product, will be at Nemco's sole discreon. This warranty does not cover products used outside the United States, or damages caused by accident, misuse, negligence of any person other than Nemco, current or voltage other than stated on the appliance, re, ood or other casualty. Any alteraon to the product or unauthorized repair voids this warranty. For purposes of this warranty, the phrase, "normal use" shall mean the use of the product in conneccon with food in accordance with the product manual accompanying the product.

Nemco shall be responsible only for repairs or replacements of defective parts performed by Nemco's authorized service personnel. Authorized service agencies are located in principal cies throughout the connental United States, Alaska and Hawaii.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. NEMCO EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY THAT ANY OF ITS PRODUCTS IS MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE, OR DOES NOT INFRINGE ON THE RIGHTS OF ANY THIRD PARTY. THE FOREGOING WARRANTY SHALL BE NEMCO'S SOLE AND EXCLUSIVE OBLIGATION. ANY PERSON'S (BUYER, USER OR OTHERWISE) EXCLUSIVE REMEDY AGAINST NEMCO, AND NEMCO'S SOLE OBLIGATION, FOR ANY AND ALL CLAIMS, WHETHER FOR BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING WITHOUT LIMITATION NEGLIGENCE), OR OTHERWISE, SHALL BE LIMITED TO NEMCO REPAIRING OR REPLACING THE PRODUCT, OR, AT NEMCO'S OPTION, REFUNDING THE PURCHASE PRICE THEREFOR. IN NO EVENT SHALL NEMCO HAVE ANY LIABILITY FOR DAMAGES IN AN AMOUNT EXCEEDING THE PURCHASE PRICE OF THE PRODUCT, NOR SHALL NEMCO HAVE ANY LIABILITY FOR INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES. Any person desiring to make any claim against Nemco must do so within six (6) months aer expiraon of the applicable warranty period, or such claim be forever barred.

Model #: ____

Serial #: ____

Installaon Date: ____

nemco®|FOOD EQUIPMENT

301 Meuse Argonne

Hicksville, OH 43526
