USER MANUAL 9130A Nemco

Portable Induction Ranges

Exterior view of a modern kitchen appliance with digital display and control panel (no readable text or symbols)

INSTALLATION AND OPERATING INSTRUCTIONS

IMPORTANT INFORMATION READ BEFORE USE

It is recommended that maintenance and repairs be conducted by authorized service agents using genuine Nemco replacement parts. Nemco is not responsible for the damages caused by unauthorized service agents or parts. The information contained in this manual is subject to updates and/or change at the discretion of Nemco Food Equipment without notice. Please read the Installation and Operating Instructions in its entirety before attempting to install or operate this unit.

Table of Contents

Important Safety Instrucons....3

Control Features .... 4

Power Sengs/Cooking Guide 6

Temperature Control Mode....7

Timer Mode....7

Seng the Timer ....7

Cleaning the Inducon Range 8

Cookware Requirements 9

Troubleshoong/Error Codes 10

Warranty 11

Important Safety Instructions

When using electrical appliances, basic safety precautions should be followed, including the following:

Warning – To reduce the risk of burns, electric shock, re, injury to persons, or exposure to excessive electromagnec energy:

1) Read all instrucons before using the appliance.

2) Read and follow the specic "PRECAUTIONS TO AVOID POSSIBLE ELECTRIC SHOCK" found on page X.

3) This appliance must be grounded. Connect only to properly grounded outlet. See "GROUNDING INSTRUCTIONS" found on page X.

4) Use this appliance only on the specied electrical circuit.

5) Install or locate this appliance only in accordance with the provided installaon instrucons.

6) Do not heat any sealed cans on the inducon range. A Sealed can may explode.

7) Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors on this appliance.

8) As with any appliance, close supervision is necessary when used by or around children.

9) Do not operate this appliance if it has a damaged cord or plug, broken or cracked glass surface, if it is not working properly, or if it has been damaged or dropped.

10) This appliance should be serviced only by qualified service personnel. Contact Nemco for the authorized service facility for examinaon, repair or adjustment.

11) Do not cover or block any openings on the appliance. Allow 4" clearance from all vent openings.

12) Do not place the range in, on or near open ames, electric burners, ovens or other high temperature surroundings.

13) Do not move the range while cooking or while hot.

14) Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locaons.

15) Do not immerse cord or plug in water.

16) Keep cord away from heated surfaces.

17) Do not let cord hang over edge of table or counter.

18) When cleaning, use only mild, nonabrasive soaps or detergents applied with a sponge of so cloth.

19) Do not clean with metal scouring pads. These will scratch and damage the glass and control surfaces.

20) Do not touch the hot surface of the glass cooktop.

21) Do not heat empty pots/pans. Using an empty pan can result in extremely high temperatures that may damage the pan and the range.

22) Keep pacemakers at least 2 feet from the cooktop.

SAVE THESE INSTRUCTIONS

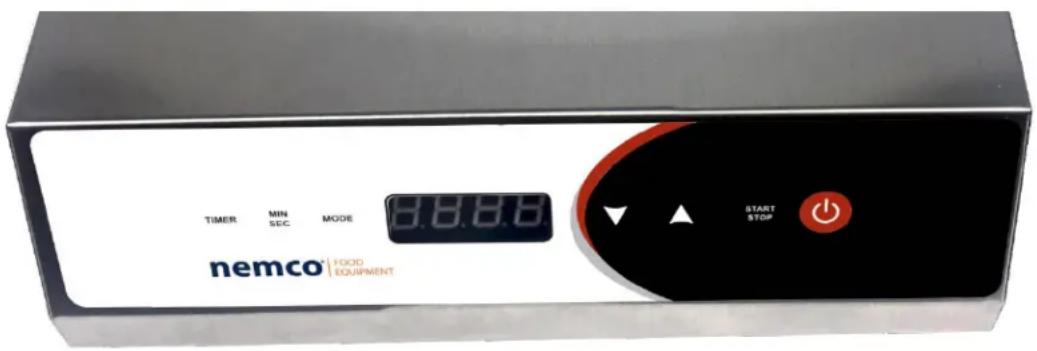

TIMER MIN MODE 8.8.8.6 NICOM FOOD EQUIPMENT START STOP nemco

• The range will not operate without an appropriate pan or vessel in place on the cooktop. Aer a few seconds, the display will ash '00' indicang that no pan is present. If the pan is removed during cooking, the unit will go into ready mode aer about 40 seconds and the display stop ashing and will show a steady '00'. Resume cooking by placing the pan on the cooktop and pressing the 'START/STOP' buon.
• If the temperature of the cooktop reaches 260 ^ or 500 ^ , the unit turns o automacally and displays an error code. This can happen if a pan is empty or is allowed to boil dry. Allow the unit to cool o. Restart by pressing power on/o buon.
• If the voltage or current in the device is abnormal it will shut itself o and display an error code.
• Small objects such as a knife or spoon will not be 'seen' as a valid pan by the range and it will not operate, however, do not place items other than inducon cookware on the range surface.

Operating Instructions

1. Plug the unit in to the appropriate power outlet. The display will show four red dots when voltage is present.
2. Press the red power on/o buon. The display will show '00' and the unit is now in the ready state.
3. Place an appropriate pan on the glass cooktop, centering it on the target.
4. Press the Power Up 'START/STOP' buon. The display will show '06', and the fan will start. The range is now cooking at power level 6.
5. Press the Power UP 'λ' buon to increase the power seng.
6. Press the Power Down buon 'v' to decrease the power level.
7. The power level will adjust from 01 to 10 for cooking powers. Below power level 01, there are 7 holding or warming sengs, H1 thru H7 that can be used to hold food at a constant temperature.
8. While cooking or warming, press the 'START/STOP' buon to stop the cooking cycle, or remove the pan.
   If the pan is removed and replaced within approximately 40 seconds while the '00' symbol is ashing on the display, the system will automatically resume heang at the previous seng. Aer 40 seconds with no pan, the display will show a steady '00'. Pressing the 'START/STOP' buon will resume operaon at the previous seng if the pan is present.
9. The power level can be adjusted 'on the y' at any me while the unit is heang.
10. When the unit is turned o using the Power On/O buon, the cooling fan may connue to operate for a short period of me.

Power Settings/Cooking Guide

The ‘Best’ Power Sengs will vary depending on the range model number, the type and shape of the pan being used, as well as the type and quantity of food being cooked or held. Unl you get a ‘feel’ for the unit, you should start at medium sengs of 5 or 6 and adjust up or down from there to get the performance you want.

You can use the following as a starng guide:

1. Sr Fry: Quickly sr fry on high heat sengs of 8, 9 or 10.
2. Boil Water: Boil water on high heat sengs of 9 or 10, then reduce to level 5 or 6 to maintain a hard boil. Reduce to 3 or 4 for a slow boil.
3. Pan Fry: Pan fry on medium to high heat sengs of 5 to 10.
4. Sauté/Simmer: Use medium to low sengs 3 to 5.
5. Warming: Hold food at serving temperatures using seng H1 thru H7. Results will vary depending on the volume of food being held.
6. Chocolate Melng: Use seng H1.

The Holding or warming sengs H1 thru H7 approximate the following temperatures. Results will vary depending on the type of pan, the type and volume of food being held, and the model number of the range being used.

Warmer Seng	1	2	3	4	5	6	7
Temp °F	95	105	122	140	160	180	195

Temperature Control Mode

If you purchased the oponal Temperature Probe, you can use this unit in Temperature Control Mode.

1. Plug the temperature probe into the jack on the back of the unit. Tighten the screw-ring to secure the probe in the connector.
2. Place the probe in the pot. Make sure the probe is in the liquid, but not touching the boom of the pot.
3. With the unit in the Ready state, press the 'MODE' buon. The display will show '000F'.
4. Press the 'Start/Stop' buon. The unit will turn on, and the display will show '100F'.
5. Use the ‘λ’ up and ‘v’ down buons to set the desired temperature in degrees Fahrenheit.
6. The display will alternate between the actual temperature and your set point.
7. When the food temperature reaches the set point, the display will lock on the actual temperature. The unit will cycle as necessary to maintain the set point temperature.
   8.

Timer Mode

The mer funcon allows you to set a mer from 1 second, up to 719 minutes. The mer resets to 719 minutes every me the power is turned o/on. The mer always runs in the background, so if the unit runs connuously for 12 hours (719 minutes), the mer will run out and the unit will turn o. To reset, turn the power o/on, or manually set the mer.

Setting the Timer

• With the unit powered on and in the Ready state (display shows a steady '00'), press the 'TMR' buon. The display will show '0719'.
• To change the mer seng, press the 'MIN/SEC' buon. The display will flash '719'.

• Use the 'λ' up and 'v' down buons to adjust the number of minutes. Pressing the 'v' buon will reduce the number of minutes. If you press the 'λ' buon past 719, the display will go to '00.59' or 59 seconds. Keep pressing the 'λ' buon to increase the minutes.

• If you want to set seconds, for instance 3 minutes and 30 seconds, press the 'ʌ' buon unl the display shows '03.59' minutes. Then press the 'MIN/SEC' buon again. The 'seconds' eld will ash. Press the 'v' buon to adjust the seconds to 30. The display will show '03.30'

• When the me is set to what you want, press the 'Start/Stop' buon. The power will come on and the mer will count down. When the mer counts down to 0, the unit will stop heang.
• While the unit is heang, the display will alternate between the mer and the power seng. You can always adjust the power seng using the 'ʌ' and 'v' buons while the display is showing the power level.
• If you press the TMR buon while the unit is heang, the display will stop alternang between the mer and the power level. The mer will connue to run. Pressing the TMR buon again will resume alternang the display.
• While the unit is heang, the mer display decimal points will ash.
• Once the mer counts down to zero, pressing the 'Start/Stop' buon will restart the cycle at the me that you set previously. Turning the unit o/on using the 'Power' Buon will reset the mer to 719 minutes.

Cleaning the Induction Range

Aer the inducon range has cooled down, clean as follows:

Glass Cooktop: Wipe with a damp cloth or use a mild, non-abrasive cleaning soluon.

Stainless Steel Body: Clean with a damp so cloth or a mild cleaning soluon or stainless cleaner/polish.

Control Panel: Wipe with a damp cloth only. Do not spray with cleaning soluons! Do not use sharp or metal objects to press the buons! Only press the buons using your nger!!

Air Filter: Remove the air Iter located underneath the unit by pulling it out from the front.

Wash/rinse by hand using warm water and detergent to remove oil/grease and dust.

Dry thoroughly and re-install the Iter on the guides underneath the unit.

DO NOT USE SHARP OBJECTS OR ABRASIVES ON THE GLASS COOKTOP. SCRATCHES IN THE GLASS CAN WEAKEN IT AND LEAD TO BREAKAGE!

Cookware Requirements

Cooking with any inducon range requires the use of inducon compatible pots/pans. In general this means that the vessel must be magnec. If a magnet socks to it, it will probably be a good Inducon pan. Other things to consider are the size and shape of the pan. Pans should have a minimum boom diameter of 4.75 inches, and the boom of the pan should be at within about 1/8 of an inch. For best results, the maximum boom diameter of the pan should not exceed 10.25 inches.

Materials that will NOT work with inducon ranges include glass, ceramics, earthenware, bronze, copper, aluminum or 300 series stainless steel.

To test a pan to see if it is compatible, put it on the range, press the Start buon and increase the power level. If the display ashes 'U' the pan is not compatible with inducon cooking.

Product Specifications

Model	Frequency	Voltage	Amps	Power	Weight	Dimensions
9130, 9130-C	50/60Hz	120	15.0	1800 W	16 lbs.	L 20.5”W 12.0”D 4.5”
9131-1		208 or 240	12.5	2600 W
9131-2		208 or 240	15	3500 W

Troubleshooting/Error Codes

Flashing Display Indicaon	Cause	Soluon
00	No pan or non- inducon pan	Place an appropriate pan on the cooktop target
E1	Over current	Check for abnormal condions like water, moisture or broken parts or cord. Unplug the unit. Plug it back in. If the error connues, contact customer service.
E2	Over Voltage	Check to verify that the outlet voltage is correct and within limits. Unplug the unit. Plug it back in. If the error connues, contact customer service.
E3	Under Voltage	Check to verify that the outlet voltage is correct and within limits. Unplug the unit. Plug it back in. If the error connues, contact customer service.
E4	Main Heat Sink Over Temp	Check to verify that the fans are working. Check to make sure the air ow is unrestricted.
E5	External Temp. Probe problem	Check to make sure the probe is properly connected.
E6	Pan is Overheated	Make sure the pan is not empty. Allow the unit to cool down.
E7	Power Frequency is Unstable	Check the incoming power for frequency stability. Unplug the unit. Plug it back in. If the error connues, contact customer service.
E8	OP Amp Oset Error	Unplug the unit. Plug it back in. If the error connues, contact customer service.
E9	Main Coil Overcurrent	Unplug the unit. Plug it back in. If the error connues, contact customer service.

Warranty

Except as otherwise provided below, Nemco Food Equipment, Ltd. ("Nemco") warrants, to the original user, this product (other than blades, light bulbs, and ceramic glass cooktop breakage) to be free of electrical and mechanical defects in material and workmanship under "normal use" (dened below) for the shorter of the following periods: (a) one (1) year from the date placed in service by the original user, or (b) 18 months from the date of shipment from its factory. In addition, Nemco warrants its non-electrical food preparaon products (other than blades) to be free of mechanical defects in material and workmanship under normal use for two (2) years from the date placed in service by the original user. The warranty provided for herein shall be limited to parts and labor. Any determinaon that a product is defective or covered by this warranty, shall be made by Nemco, in its sole discreon. The determinaon of whether to repair or replace a defective, covered product, or to refund the purchase price for the product, will be at Nemco's sole discreon. This warranty does not cover products used outside the United States, or damages caused by accident, misuse, negligence of any person other than Nemco, current or voltage other than stated on the appliance, re, ood or other casualty. Any alteraon to the product or unauthorized repair voids this warranty. For purposes of this warranty, the phrase, "normal use" shall mean the use of the product in conneccon with food in accordance with the product manual accompanying the product.

Nemco shall be responsible only for repairs or replacements of defective parts performed by Nemco's authorized service personnel. Authorized service agencies are located in principal cies throughout the connental United States, Alaska and Hawaii.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. NEMCO EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTY THAT ANY OF ITS PRODUCTS IS MERCHANTABILITY, FIT FOR A PARTICULAR PURPOSE, OR DOES NOT INFRINGE ON THE RIGHTS OF ANY THIRD PARTY. THE FOREGOING WARRANTY SHALL BE NEMCO'S SOLE AND EXCLUSIVE OBLIGATION. ANY PERSON'S (BUYER, USER OR OTHERWISE) EXCLUSIVE REMEDY AGAINST NEMCO, AND NEMCO'S SOLE OBLIGATION, FOR ANY AND ALL CLAIMS, WHETHER FOR BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING WITHOUT LIMITATION NEGLIGENCE), OR OTHERWISE, SHALL BE LIMITED TO NEMCO REPAIRING OR REPLACING THE PRODUCT, OR, AT NEMCO'S OPTION, REFUNDING THE PURCHASE PRICE THEREFOR. IN NO EVENT SHALL NEMCO HAVE ANY LIABILITY FOR DAMAGES IN AN AMOUNT EXCEEDING THE PURCHASE PRICE OF THE PRODUCT, NOR SHALL NEMCO HAVE ANY LIABILITY FOR INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES. Any person desiring to make any claim against Nemco must do so within six (6) months aer expiraon of the applicable warranty period, or such claim be forever barred.

Model #: ____

Serial #: ____

Installaon Date: ____
