USER MANUAL LSUC0966KA2 LG

Prior to installation, this air-conditioning unit must be submitted for approval by the utility service which provides electricity (EN 61000-3 Norm).

IMPORTANT

• Please read this owner's manual carefully and thoroughly before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after reading it thoroughly.

TABLE OF CONTENTS

Safety Precautions....3

Prior to Operation 5

Operating Instructions......6

Remote Controller 6

Remote Control Operation ...7

Maintenance and Service ....12

Indoor unit....12

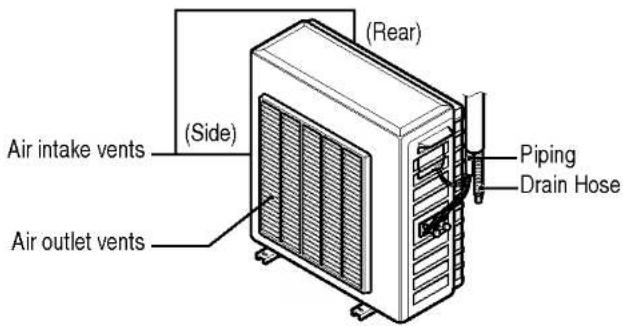

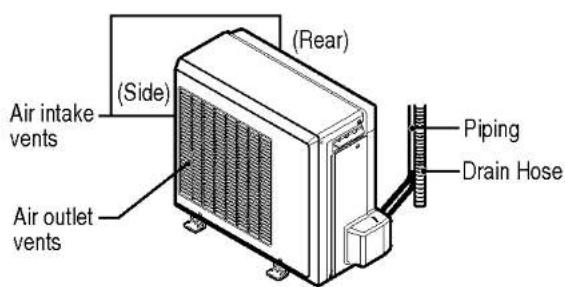

Outdoor unit 12

Operation Tips 13

Troubleshooting 14

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■ Staple your receipt to this page in the event you need it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner.

You'll find many answers to common problems in the chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for service at all.

PRECAUTION

• Contact the authorized service technician for repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young children or invalids without supervision.
• Young children should be supervised to ensure that they do not play with the air conditioner.
• When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.
  • Installation work must be performed in accordance with the National Electric Code by qualified and authorized personnel only.

Line drawing of people enjoying a picnic with sun, palm tree, and round objects (no text or symbols)

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be followed.

■ Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the following indications.

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■ Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

WARNING

Plug in the power plug properly.

• Otherwise, it will cause electric shock or fire due to heat generation or electric shock.

Do not operate or stop the unit by inserting or pulling out the power plug.

- It will cause electric shock or fire due to heat generation.

Do not damage or use an unspecified power cord.

- It will cause electric shock or fire. - In the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. (Y Attachment)

Do not modify power cord length or share the outlet with other appliances.

Do not operate with wet hands or in damp environment.

Do not direct airflow at room occupants only.

- It will cause electric shock or fire due to heat generation.

- It may cause electric shock.

• This could damage your health.

Always perform grounding work.

Do not allow water to run into electric parts.

Always install air leakage breaker and a dedicated switching board.

- No grounding may cause electric shock.

- It may cause failure of machine or electric shock.

- No installation may cause fire and electric shock accident.

Unplug the unit if strange sounds, smell, or smoke comes from it.

Do not use the socket if it is loose or damaged.

Do not open the entrance during operation.

- It may cause fire and electric shock accident.

- It may cause fire and electric shock.

- It may cause electric shock.

Ventilate before operating air conditioner when gas goes out.

- It may cause explosion, fire and, burn.

Do not disassemble or modify products randomly.

- It may cause failure and electric shock.

CAUTION

Never touch the metal parts of the unit when removing the filter.

• They are sharp and may cause injury.

Do not clean the air conditioner with water.

- Water may enter the unit and degrade the insulation. It may cause an electric shock.

Ventilate well when used together with a stove, etc.

- An oxygen shortage may occur.

When cleaning the unit, first make sure the power and breaker are turned off.

Do not put a pet or house plant where it will be exposed to direct air flow.

Do not use appliance for special purpose such as animals or vegetables, precision machine, or conservation of art articles.

- Since the fan rotates at high speed during operation, it may cause injury.

• This could injure the pet or plant.

- It may cause damage of animals or vegetables or loss of property.

Stop operation and close the window in storm or hurricane.

Hold the plug by the head of the power plug when taking it out.

Turn off the main power switch when not using it for a long time.

• Operation with windows opened may cause wetting of indoor and soaking of household furniture.

- It may cause electric shock and damage.

- It may cause failure of product or fire.

Do not place obstacles around the absorption inlet or instead of blowing-out inlet.

Ensure that an installation console of the outdoor appliance is not damaged due to the use for a long time.

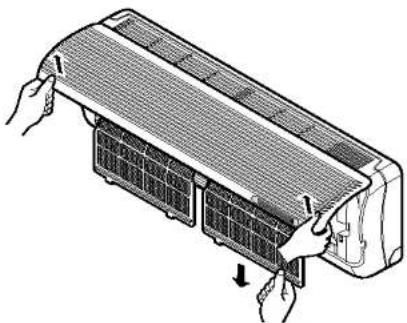

Always insert the filters securely. Clean it once every two weeks.

- It may cause failure of appliance or accident.

- If leaving appliance damaged, there is concern of damage due to the falling of product.

• Operation without filters may cause failure.

Do not use strong detergent such as wax or thinner but use a soft cloth.

Do not place heavy object on the power cord and take care so that the cord should not be pressed.

Do not drink water drained from air conditioner.

- Appearance may be deteriorated due to change of product color or scratching of its surface.

- There is danger of fire or electric shock.

- It contains contaminants and will make you sick.

Use caution when unpacking and installing. Sharp edges could cause injury.

If water enters the product, turn the power switch of the main body of appliance off. After taking the power-plug out from the socket, contact with the service center.

Prior to operation

Preparing for operation

1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.

Usage

1. Being exposed to direct airflow for an extended period of time could be hazardous to your health. Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices, food, pets, plants, and art objects). Such usage could damage the items.

Cleaning and maintenance

1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. The fan rotates at a very high speed during operation. There is a possibility of injury if the unit's power is accidentally triggered on while cleaning inner parts of the unit.

Service

For repair and maintenance, contact your authorized service dealer.

Symbols Used in this Manual

NOTICE

This symbol alerts you to the risk of electric shock.

This symbol alerts you to hazards that could cause harm to the air conditioner.

This symbol indicates special notes.

Operating Instructions

Remote Controller

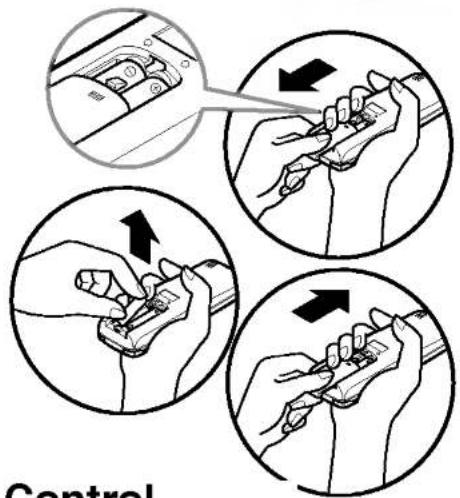

Remove the battery cover by pulling it according to the arrow direction.
2 Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3 Reattach the cover by sliding it back into position.

NOTICE Use 2 AAA(1.5volt) batteries. Do not use rechargeable batteries.

Control

Storage and Tips For Using the Remote Control

- The remote control may be stored mounted on a wall.

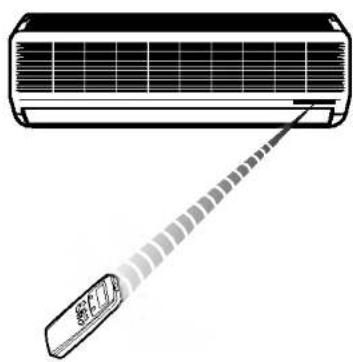

• To operate the room air conditioner, aim the remote control at the signal receptor.

Illustration of a car air conditioner with a pointer and label (no text or symbols on the device itself)

Signal Receptor

Receives the signals from the remote controller.

(Signal receiving sound:two short beeps or one long beep.)

Operation Indication Lamps

① On/Off : Lights up during the system operation.

* Defrost Mode: Lights up during Defrost Mode or *Hot Start operation. (Heat pump model only)

OUT Outdoor Unit : Lights up during outdoor unit operation. DOOR Operation (Cooling model only)

Signal receptor Operation indication lamps

*Hot Start operation: Stops the indoor fan in Heating Operation to prevent cold air from blowing out from unit.

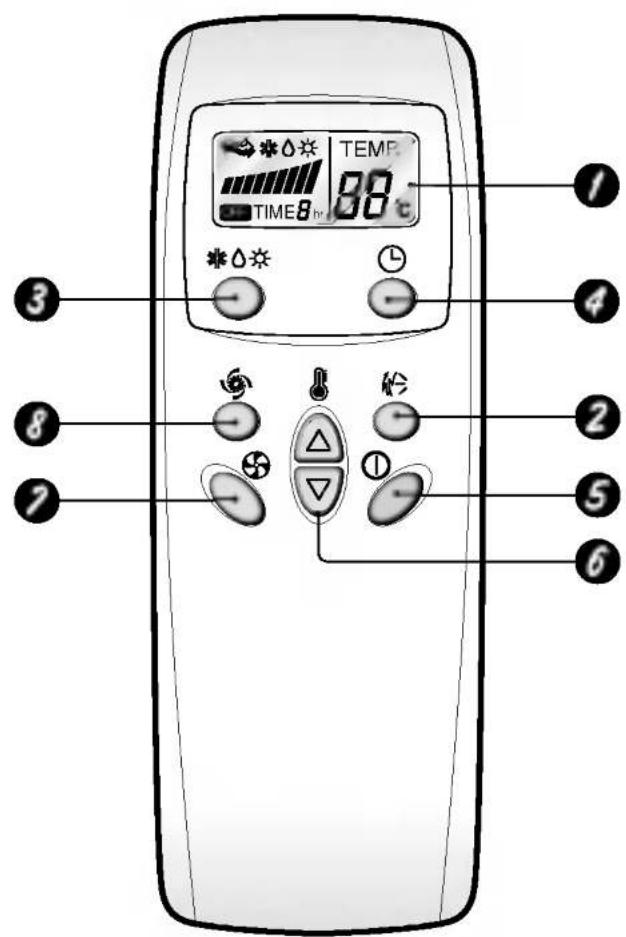

Remote Control Operation

The remote control transmits the signals to the system.

TEMP 00 TIME8h 1 3 4 8 2 7 5 6

(1) Operation Mode

OPERATION DISPLAY Displays the operation conditions.
CHAOS SWING BUTTON Used to stop or start louver movement and set the desired up/down airflow direction.
3 OPERATION MODE SELECTION BUTTON Used to select the operation mode.
4 OFF TIMER BUTTON Used to set the time of stopping operation.
5 START/STOP BUTTON Operation starts when this button is pressed, and stops when the button is pressed again.
6 ROOM TEMPERATURE SETTING BUTTONS
INDOOR FAN SPEED SELECTION BUTTON
JET COOL Used to start or stop the speed cooling. (Speed cooling operates super high fan speed in cooling mode.)

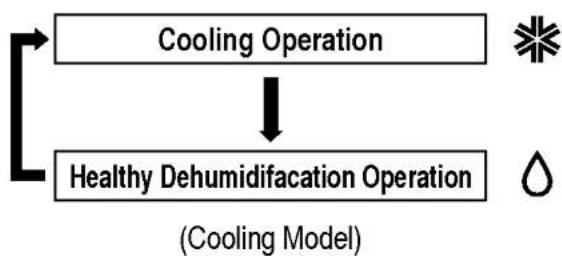

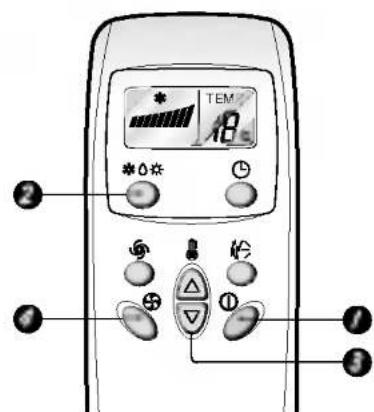

(2) Operation Procedure

1st Start/Stop Button 2nd Operation Mode Selection Button 3rd Room Temperature Setting Button 4th Indoor Fan Speed Selection Button

TEMP 0 1 2 3 4 5 6 7 8 9 10

Cooling Operation

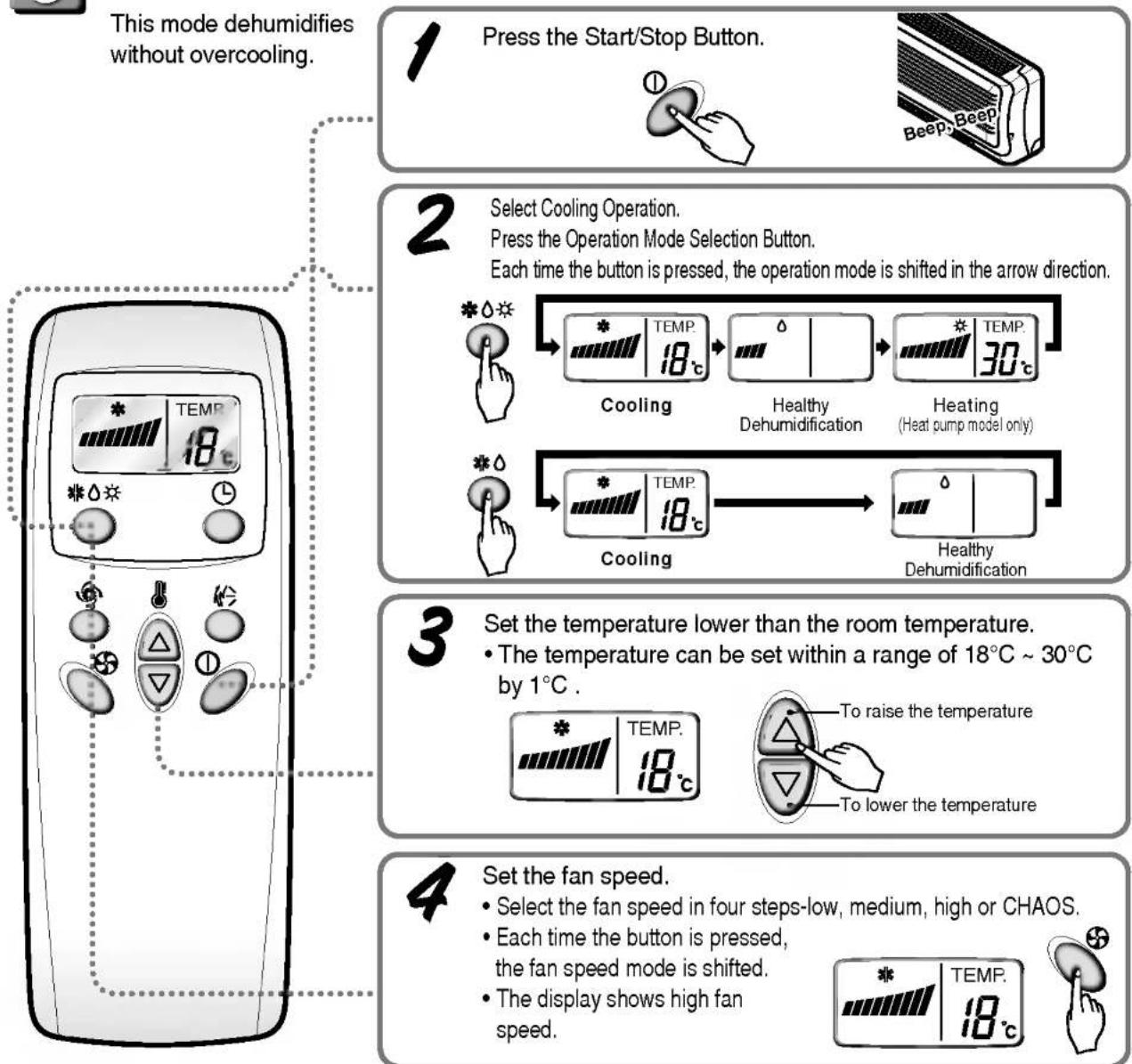

Healthy Dehumidification Operation Mode

Natural wind by the CHAOS logic

☐ For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to the CHAOS logic.

During Healthy Dehumidification Operation:

☐ If you select the dehumidification mode on the operation selection button, the airconditioner starts to run the dehumidification function, automatically setting the room temp. and airflow volume to the best condition for dehumidification based on the sensed current room temp.
In this case, however, the setting temp. is not displayed in the remote control and you are not able to control the room temp. either.
☐ During the healthy dehumidification function, the airflow volume is automatically set according to the optimization algorithm responding to the current room temp. status and makes the room condition healthy and comfortable even in the high humidity season.

Heating Operation(Heat pump model only)

Timer control Setting

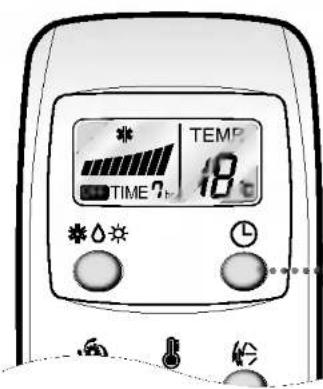

OFF TIMER CONTROL SETTING

TEMP 18°C TIME 7h * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

Press the OFF Time Button.

Beep, Beep

1. Press the OFF Time Button.
2. Check the OFF Time LED of the room air conditioner.
3. The Timer is programmed by 1 hour each pressing the OFF Time button from 1 hour to 7 hours.

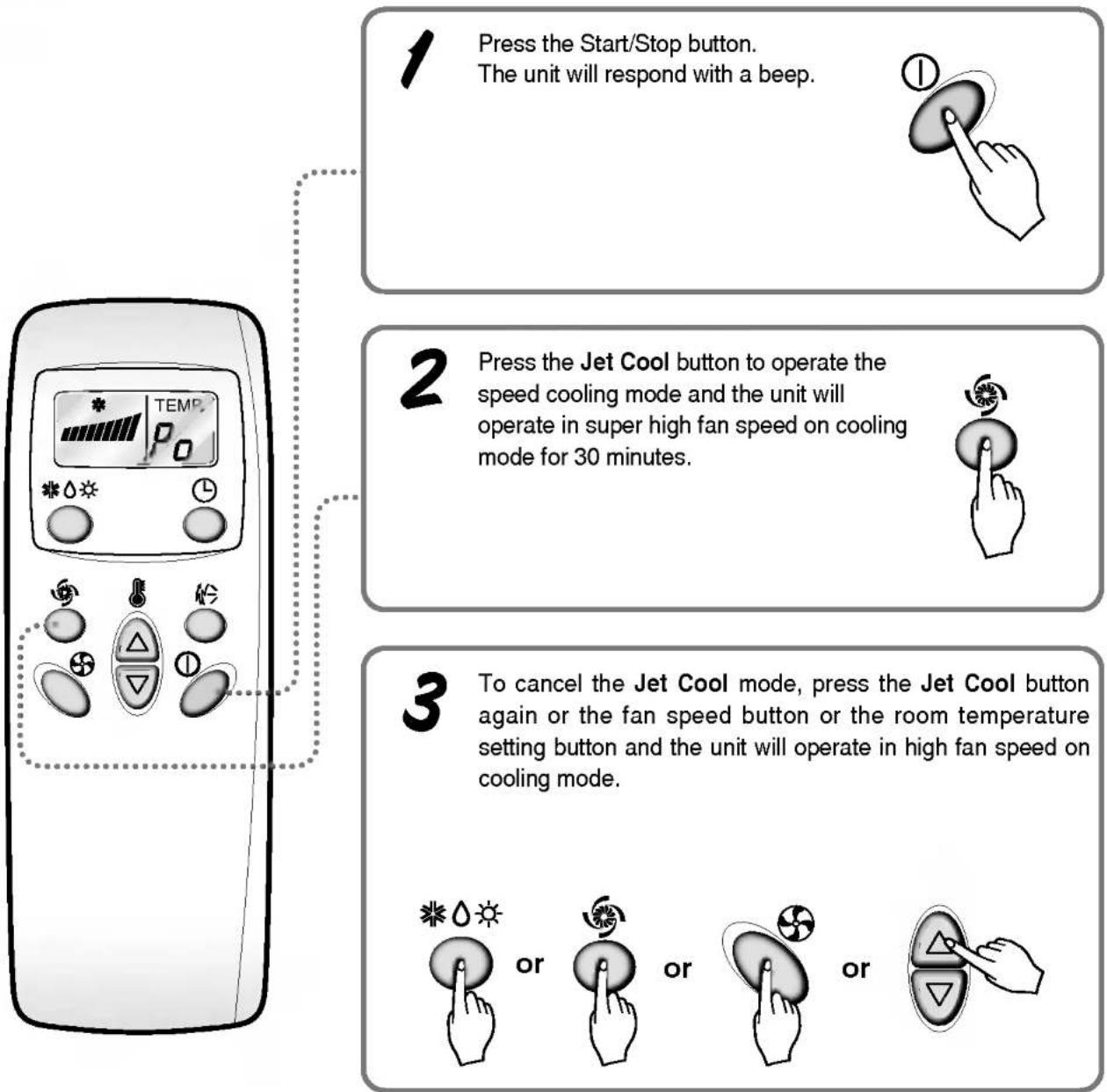

Jet Cool Operation

NOTICE

☐ During the JET COOL function at any moment, the A/C starts to blow the cool air at extremely high speed for 30 minutes setting the room temp. automatically to 18^ C. It is especially used to cool the room temp. in the shortest time in a hot summer. In heat pump mode the JET COOL function is not available.
☐ In order to return to the normal cooling mode from the JET COOL mode, you just press either the operation mode selection button, airflow volume selection or temp. setting button or the JET COOL button again.

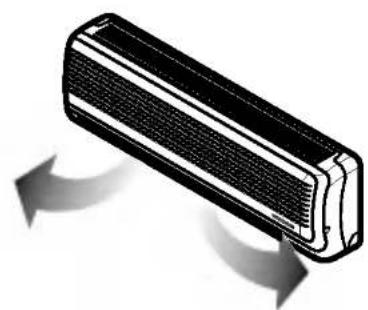

Vertical Airflow Direction Control

The up/down airflow (Vertical Airflow) can be adjusted by using the remote control.

Illustration of a car air conditioner unit with airflow arrow indicating direction (no text or symbols)

1. Press the Start/Stop button to start the unit.
2. Press Chaos Swing button and the louvers will swing up and down. Press the Chaos Swing button again to set the vertical louver at the desired airflow direction.

NOTICE

☐ If you press the CHAOS swing button, the horizontal airflow direction is changed automatically based on the CHAOS algorithm to distribute the air in the room evenly and at the same time to make the human body feel most comfortable, as if enjoying a natural breeze.
□ Always use the remote control to adjust the up/down airflow direction. Manually moving the vertical airflow direction louver by hand, could damage the air conditioner.
☐ When the unit is shut off, the up/down airflow direction louver will close the air outlet vent of the system.

Horizontal Airflow Direction Control

- Adjust the horizontal airflow direction by manually moving the horizontal airflow direction louver by hand.

Forced Operation

Operation procedures when the remote control can't be used. The operation will be started if the power button is pressed. If you want to stop operation, re-press the button.

	Cooling Model	Heat pump Model
		Room Temp. ≥ 24°C	21°C ≤ Room Temp. < 24°C	Room Temp. < 21°C
Operating mode	Cooling	Cooling	Healthy Dehumidification	Heating
Indoor FAN Speed	High	High	High	High
Setting Temperature	22°C	22°C	23°C	24°C

Diagram of a rectangular object with curved arrows indicating rotation or flow (no text or symbols)

Power button Open the front panel upward

Test operation

During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of room temperature and resets in 18 minutes.

During test operation, if remote controller signal is received, the unit operates as remote controller sets. If you want to use this operation, open the front panel upward and Press the power button let it be pressed for about 3 seconds.

If you want to stop the operation, re-press the button.

Maintenance and Service

CAUTION: Before performing any maintenance, turn off the main power to the system.

Indoor Unit

Grille, Case, and Remote Control

☐ Turn the system off before cleaning. To clean, wipe with a soft, dry cloth. Do not use bleach or abrasives.

NOTICE

Supply power must be disconnected before cleaning the indoor unit.

Air inlet vent Air outlet vent Vertical louver Horizontal louver Air filters (behind front panel)

AIR FILTERS

The air filters behind the front grille should be checked and cleaned once every 2 weeks or more often if necessary.

Diagram of a car air conditioner unit with hands installing or adjusting components (no text or symbols visible)

□ Never use any of the followings:

• Water hotter than 40^ C Could cause deformation and/or discoloration.
- Volatile substances Could damage the surfaces of the air conditioner.

Benzene Powder Gasoline

Lift the front access panel and pull the filter tab slightly forward to remove the filter.

Clean the filter with a vacuum or warm, soapy water.

• If dirt is conspicuous, wash with a solution of detergent in lukewarm water.
• If hot water (40°C or more) is used, it may be deformed.

After washing with water, dry well in the shade.

Re-install the air filter.

Outdoor Unit

The heat exchanger coils and panel vents of the outdoor unit should be checked regularly. If clogged with dirt or soot, the heat exchanger and panel vents may be professionally steam cleaned.

NOTICE

Dirty or clogged coils will reduce the operating efficiency of the system and cause higher operating costs.

Air intake vents (Side) Air outlet vents (Rear) Piping Drain Hose

Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose

Air intake vents (Side) (Air outlet vents) (Rear) Piping Drain Hose

When the air conditioner is not going to be used for a long time.

When air conditioner is not going to be used for a long time

Turn off the circuit breaker, and disconnect the plug.

CAUTION

Turn off the circuit breaker when the air conditioner is not going to be used for a long time.

Dirt may collect and may cause a fire.

Remove the batteries from the remote control.

When the air conditioner is to be used again.

Clean the air filter and install it in the indoor unit.

(Refer to page 12 for cleaning filters.)

Check that the air inlet and outlet of the indoor/outdoor unit are not blocked.

Operation Tips

Do not overcool the room.

This is not good for the health and wastes electricity.

Make sure that the doors and windows are shut light.

Avoid opening doors and windows as much as possible to keep the cool air in the room.

Keep blends or curtains closed.

Do not let direct sunshine enter the room when the air conditioner is in operation.

Clean the air filter regularly.

Blockages in the air filter reduce the airflow and lower cooling and dehumidifying effects. Clean at least once every two weeks.

Keep the room temperature uniform.

Adjust the vertical and horizontal airflow direction to ensure a uniform temperature in the room.

Vendiate the room occasionally.

Since windows are kept closed, it is a good idea to open them and ventilate the room now and then.

Troubleshooting

Check the following points before requesting repairs or service.... If the fault persists, please contact your dealer or service center.

Case	Explanation	See page
The air conditioner does not operate.	Have you made a mistake in timer operation?
	Has the fuse blown or has the circuit breaker been tripped?	-
The room has a peculiar odor.	Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.	-
It seems that condensation is leaking from the air conditioner.	Condensation occurs when the airflow from the air conditioner cools the warm room air.	-
Air conditioner does not operate for about 3 minutes when restarted.	This is the protector of the mechanism.Wait about three minutes and operation will begin.	-
Does not cool or heat effectively.	Is the air filter dirty? See air filter cleaning instructions.	12
	Has the temperature been set incorrectly?	8,9
	Are the indoor unit's air inlet or outlet vents obstructed?	-
The air conditioner operation is noisy.	For a noise that sounds like water flowing.-This is the sound of freon flowing inside the air conditioner unit.For a noise that sounds like the compressed air releasing into atmosphere.-This is the sound of the dehumidifying water being processed inside the air conditioning unit.	-
Remote control display is faint, or no display at all.	Are the batteries depleted?Are the batteries inserted in the opposite (+) and (-) directions?	6
Crack sound is heard.	This sound is generated by the expansion/constriction of the front panel, etc. due to changes of temperature.	-
