USER MANUAL HFP1HC-1HG Beverage-Air

BEVERAGE-AIR

BEVERAGE-AIR

INSTALLATION AND OPERATING INSTRUCTIONS for all HF Freezer Models

Exterior view of a modern stainless steel refrigerator with two doors (no visible text or symbols)

User Manual for HF Freezers Beverage-Air

WELCOME

Thank you for purchasing a Beverage-Air cabinet. This series has passed our strict quality control inspection and meets the high standards set by Beverage-Air Refrigeration! You have made a quality investment that with proper maintenance will give you many years of reliable service!

Important Information

• PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING, IF RECOMMENDED PROCEDURES ARE NOT FOLLOWED, WARRANTY CLAIMS MAY BE DENIED.
• Your warranty registration information is located with this manual. Please complete the card and submit it to Beverage-Air Refrigeration within TEN days of installation. Failure to properly register equipment may limit or void the warranty.

Please read the following installation and maintenance instructions before installing or using your unit. If you have any questions, Please call our Technical Service Department at [phone]. 8:00 AM to 5:00 PM EST.

- Beverage-Air Refrigeration reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

Safety 3

Important Information .... 4

Product Information 5

Clearance and Placement 6

Unpacking and Set Up 7

Shelf Installation....8

Electrical....9

Using The Unit 10

User Manual for HF Freezers Beverage-Air

SAFETY

This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However, safe operation and maintenance are your responsibilities.

Use: When using this unit, please:

• Move it carefully. If on casters be sure the casters do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move with enough help to avoid tipping or dropping the cabinet.

Maintenance

Do NOT:

• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.

• Store gasoline, kerosene or any other flammable material near the cabinet.

• Prevent children from playing in or on the cabinet. Persons unable to use this product must be prevented access.

• Follow all instructions. There are many safety labels and directions on the unit. Heed them.
• Watch your fingers. There may be pinch points near the door hinges.

Do ALWAYS

• Use a Beverage-Air recommended technician certified to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of non OEM parts can be dangerous because of the design changes needed to safely use R290.

Important Information to Add

User Manual for HF Freezers Beverage-Air

IMPORTANT INFORMATION

This unit is intended to be used in a commercial application. That includes bars and restaurants.

If installed in a residence some commercial service companies may not be able to service it on site.

The manufacturer has designed and produced this machine with the finest in materials. The manufacturer assumes no liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.

Limitations

The machine is designed for use indoors in a controlled environment. It must be kept dry, not overheated or subjected to excessive cold. May only be connected to a dedicated electrical circuit. Extension cords are not permitted.

	Minimum Maximum
Voltage 103.5 126.5
Room Air Temp 60°	F 100° F

Air Flow, All Models regardless of section, door count or door material.

Warm Air OUT Room Air IN

User Manual for HF Freezers Beverage-Air

PRODUCT INFORMATION

Model	Cabinet Dimensions w x d x h (Inches)	Half or Full Door	Glass or Solid Door	Full Load Amps	Power Cord Plug (NEMA)	Refrigerant Type / Charge (g) /Charge oz.
HF1HC-1G 26 x 33	5/8 x 85 Full Glass 11				5-15P R-290	/ 115 / 3.89
HF1HC-1HG 26 x 33	5/8 x 85 Half Glass 11
HF1HC-1HS 26 x 33	5/8 x 85 Half Solid 11
HF1HC-1S 26 x 33	3/4 x 85 Full Solid 11
HF1WHC-1S 35 x 33	3/4 x 85 Full Solid Wide	11
HF2HC-1G	52 x 33 5/8 x 85 Full Glass	13.2			5-20P	R-290 / 115 / 3.89 x 2 ^**
HF2HC-1HG 52 x 33	5/8 x 85 Half Glass	13.2
HF2HC-1HS	52 x 33 5/8 x 85 Half Solid 10				5-15P R-290	/ 115 / 3.89
HF2HC-1S 52 x 33	7/8 x 85 Full Solid 10
HF3HC-1G	78 x 33 5/8 x 85 Full Glass	13.2			5-20P	R-290 / 130 / 4.4 x 2 ^**
HF3HC-1HG	78 x 33 5/8 x 85 Half	Glass	Glass	13.2
HF3HC-1HS	78 x 33 5/8 x 85 Half Solid 13.2
HF3HC-1S 78 x 33	7/8 x 85 Full Solid 13.2

Height includes casters.

User Manual for HF Freezers Beverage-Air

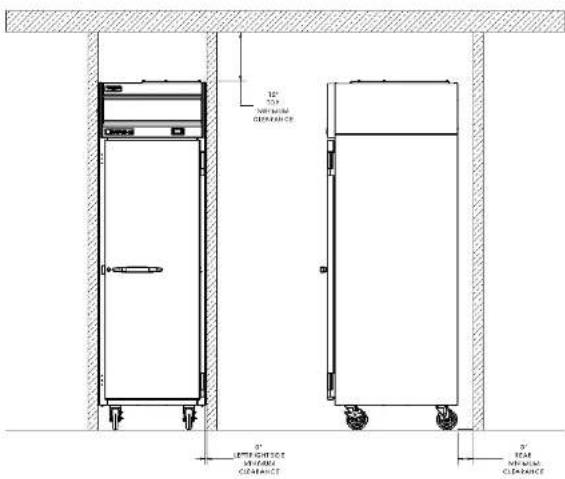

CLEARANCE AND PLACEMENT

12" 70" MINIMUM CLOTHING 9" MINIMUM CLOTHING 9" MINIMUM CLOTHING

Placement

Consider the following when selecting a location for your freezer:

Clearance:

• 12 in. at the top
  • 3.0 in. at the rear,

User Manual for HF Freezers Beverage-Air

UNPACKING AND SET UP

Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. Do NOT contact the manufacturer.

Uncrating

Tools Needed: 38 " box wrench, adjustable wrench, level, flat head screw driver, and box cutter.

1. Cut the stretch wrap along a corner post and remove the cardboard top capping and the corner posts.
2. Discard stretch wrap and any cardboard that will not be recycled.

Note: additional clear plastic protective wrap is applied directly to any product with a glass door.

1. Move unit as close to final position as possible before removing the skid.

Note: The skid must be removed before the casters or legs can be attached.

Do NOT tip unit on its front or sides. If tipped onto the back, unit must not be started for 3 hours.

Skid Removal and Caster Attachment

Tip the unit forward and remove the skid.

Risk of personal injury. Unit must be securely supported while attaching casters or legs.

1. Remove the shipping bolts using the 34 " box wrench while cabinet is held in one direction. Repeat the process

casters/levelers.

1. If plate casters or legs are installed instead of stem casters or legs, then repeat step 3 above and secure the plate with either #14 AB screws, or ¼-20 screws, depending upon which are required.
2. If levelers are employed, then repeat step 3 above and thread the leveler in place. Then repeat step 6.

Leveling:

Cabinets must be leveled when installed. Level should be

User Manual for HF Freezers Beverage-Air

SHELF INSTALLATION

1. Determine the proper location for the shelf clips. The reference numbers on the pilaster can serve as a guide to ensure all clips are properly located.
2. Insert the top tab of the shelf clip into the desired hole of the pilaster. The retaining tab MUST be facing up as shown.
3. Rotate the clip downwards and insert the bottom tab into the matching hole in the pilaster. The clip may need to be squeezed slightly during installation.
4. Install all remaining clips.

5. Install shelves onto clips with the product retention bar facing up. Be careful not to dislodge clips during installation.

6. Place shelves so that the retaining tab on the clip captures the shelf as shown.

7. Confirm that the shelf is resting on ALL 4 clips and that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf and / or the product on it to fall, resulting in damage to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to use all shelves that are supplied in an equally spaced manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure shelf overloading will not occur.

RETAINING TAB SHELF CLIP TOP TAB BOTTOM TAB

TOP TAB FULLY INSERTED INTO SLOT BOTTOM TAB FULLY SEATED PROPERLY INSTALLED SLIP IMPROPERLY INSTALLED SLIP (UPSIDE DOWN)

User Manual for HF Freezers Beverage-Air

ELECTRICAL

This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.

Power Cord

This 115 volt model is equipped with a cord and either a 5-15P plug or a 5-20P plug.

5-15P

5-20P

If the power cord becomes damaged, it must be replaced with the identical cord.

GFCI

Units that utilize variable speed compressor technology can experience nuisance tripping on Class A GFCI outlets which have a trip limit of 4 to 6 mA. To avoid this issue in a location that requires GFCI circuit protection, Victory recommends using a HUBBELL Model Number GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle.

Follow All National and Local Codes

This Unit Must Be Grounded. Do not use extension cords and do not disable or by-pass ground prong on electrical plug.

Initial Start Up

Plug the power cord into the proper power supply.

Cabinet MUST NOT SHARE A RECEPTACLE with another piece of equipment

Check that all clearances are in line with the aforementioned guidelines.

? Check that cabinet is level.

7 Check that all clearances are in line with the aforementioned guidelines.

? Check that cabinet is level.

* NOTE: Once the unit has been started and reaches proper storage temperatures, it may be loaded with product.

Door Reversal Instructions

1. Remove hinge cover.
2. Remove door from the unit including the hinge mounting brackets
3. Remove white hole covers from the side of the door opening you would like the hinges to be located (do not throw away).
4. On the bottom of the door the same hole plugs are present and need to be removed.
5. Take the hole plugs and insert them into the screw

User Manual for HF Freezers Beverage-Air

USING THE UNIT

Operation is simple, just keep it connected to the correct power supply and the freezer will maintain the internal temperature it has been set to. Keep the doors and/or drawers closed as much as possible to avoid unnecessary run time.

The controller displays the current internal temperature.

Adjusting the set temperature lower will NOT cause the system to lower the temperature faster. When on, the refrigeration system is always operating at maximum.

For best results, make certain the unit remains powered and has achieved the desired set point before loading it with product. Pull down time will vary depending upon the type of unit and ambient conditions. Freshly cooked product, or otherwise warm product placed into the appliance will also increase the pull down time significantly since this model is designed for storage and not for rapid pull down.

The temperature was set at the factory at 0' F, but you can adjust it to your own selected temperature. 30 seconds after adjustment, the display automatically reverts to showing the current temperature.

The freezer will automatically defrost as needed, there is no set time for defrost. Push and immediately release the "melting" or defrost button for a manual defrost.

Note: Holding the defrost button in too long will shut the controller off.

The internal fan will be on when the compressor is on and when the doors are closed.

The compressor and condenser fan motor will only be on when the controller senses an increase in internal cabinet temperature passed the set point.

If equipped with glass doors, holding the SC button in will turn the cabinet light on or off.

Defrost Select SC Denfoll 0°F Increase Decrease

User Manual for HF Freezers Beverage-Air

The freezer operates based on the air temperature measured by the probe located at the return air.

	ON OFF
COMPONENT OPERATION		CONTROLLER ACTION	OPERATION	CONTROLLER ACTION
COMPRESSOR	Compressor turns on when the air temperature at the probe is above the sum of the set point + 2.5	The Compressor Contact is energized	Compressor turns off when the air temperature at probe is equal to (ERC 112 - Terminal #1) or less than the set point - 2.5	The Compressor Contact is de-energized
		(ERC 112 - Terminal #1) (ERC 112 - Terminal #1) or less than the set point - 2.5
CONDENSER FAN	The Condenser Fan turns on when the Compressor is running	The Condenser Fan is wired directly to the Compressor, not through the controller	The Condenser Fan turns off when the Compressor is not running	The Condenser Fan is wired directly to the Compressor, not through the controller
EVAPORATOR FAN	The Evaporator Fan turns on when the Compressor is running and the doors are closed.	The Evaporator Fan is wired to the Fan Contact	The Evaporator Fan turns off when the Compressor is not running, and when (ERC 112 - Terminal #5) while Compressor is running	The Evaporator Fan is wired to the Fan Contact
		(ERC 112 - Terminal #5) (ERC 112 - Terminal #5)
DEFROST HEATER	The Defrost Heater will activate on cumulative Compressor runtime of 6 hours, and when	The Defrost Heater Contact is energized	When either the defrost is not scheduled or the temperature at defrost probe has reached the	The Defrost Heater Contact is de-energized

User Manual for HF Freezers Beverage-Air

Condition	Compressor	Condenser Fan	Evaporator Fan	Defrost Heater	Face/Door Heater	Drain Heater	Lights
Cabinet Temp > Set point + 2.5 ON ON ON OFF	ON ON ON	OR OFF
Cabinet Temperature <= Set point - 2.5 OFF OFF	OFF OFF	OFF ON ON	OR OFF
Defrost OFF OFF OFF ON ON ON OR OFF

Electronic Controller

DEFROST (ESC) UP 48°C V SC SELECT (OK) DOWN

Control Panel Display

	Defrost LED Alarm LED
	On fixed:	Defrost active		On fixed:	ALARM Present
	Off:	Defrost is off		Flashing:	ALARM Silenced
				Off:	No Alarm
	Fan LED			Compressor LED
	On fixed:	Fan active		On fixed:	Compressor active
	Off:	Fan Off		Flashing:	Delay, protection or activation blocked

User Manual for HF Freezers Beverage-Air

Note: When the controller is in a Standby Mode, a blue dot will be displayed as shown here. To switch out of Standby Mode, push and release the Defrost button.

Denfitt SC V

ERC 112D 100 - 240 V AC + 10% 50/60 Hz OT55 Outputs 1 2 3 4 5 6 DO1 L N DO2 DO3 DO4 Inputs S1 S2 S3 S4 di

Control Panel Connections

ERC 112C 100 - 240 V AC ± 10% 50/60 Hz OTSS

Changing the Set point

User Manual for HF Freezers Beverage-Air

The alarm condition is always signaled by the alarm icon 🔔.

Press any button to silence the alarm, the relative icon will continue flashing.

Alarm Code	Trigger	Automatic Clearance	Outputs	Comments
"Hi"	Air temperature is higher than "ALA->Hat• for "ALA->Htd"	User configured	Blink "Hi" with the highest temperature; If configured: cut in alarm relay, beep the buzzer	High temperature alarm
"Lo"	Air temperature is lower than "LAt" for "Ltd"	User configured	Blink "Lo" with the lowest temperature. If configured: cut in alarm relay, beep the buzzer	Low temperature alarm
"Con"	Condenser temperature is too high or too low	User configured	Blink "Con". If configured: cut in alarm relay, beep the buzzer	Condenser alarm
"dor"	Door open for more than	Always	Blink "dor". If configured: cut in alarm relay, beep the buzzer	Door open alarm
"uHi"	Line voltage is higher than "Cop->uHi"	Always	Blink "uHi". If configured: cut in alarm relay, beep the buzzer	High voltage alarm
"uLi"	Line voltage is higher than "Cop->uLi"	Always	Blink "uLo". If configured: cut in alarm relay, beep the buzzer.	Low voltage alarm
"LEA"	Compressor continuous running for more than "ALA->LEA"	Always	Blink "LEA". If configured: cut in alarm relay, beep the buzzer	Leakage alarm
"E01"	"S1" error	Always	Blink "E01". If configured: cut in alarm relay, beep the buzzer	"S1" sensor failure (short or open)
"E02"	"S1" error	Always	Blink "E02". If configured: cut in alarm relay, beep the buzzer	"S2" sensor failure (short or open)
"E03"	"S1" error	Always	Blink "E03". If configured: cut in alarm relay, beep the buzzer	"S3" sensor failure (short or open)
"E04"	"S1" error	Always	Blink "E04". If configured: cut in alarm relay, beep the buzzer	"S4" sensor failure (short or open)

User Manual for HF Freezers Beverage-Air

CLEANING AND MAINTENANCE

Cleaning Schedule:

Cabinet

Daily wipe down

Weekly interior

Condenser coil

Quarterly cleaning

Gaskets

Daily inspection, check that hinges are tight to the cabinet.

Routine maintenance

Annually

Daily Exterior Cleaning

It is much easier to clean on a regular basis than to have to remove stains once they have built up.

1. Wash with a clean sponge and a mild detergent that does not contain chlorine.

2. Rinse with clean water.

3. Dry with a soft cloth.

4. Polish with a soft cloth, wiping with the grain.
5. Wipe weekly with stainless steel cleaner.

Weekly Interior Cleaning

1. Remove all food, food related items and shelves. Store the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the breaker off).
3. Remove all loose food particles from the inside walls, floor, door liner and ceiling.

4. Scrub all interior surfaces and door gaskets with a

5. Rinse with clean water and allow to air dry.

6. Return the shelves to the unit and secure them.
7. Restore power.
8. Return food to the unit when it has reached a safe temperature.

User Manual for HF Freezers Beverage-Air

CONDENSER CLEANING

Keeping the condenser coil clean is critical to efficient operation.

1. Unplug unit from power supply.

2.

Rotating fan blade can cause personal injury.

Unplug unit from power supply before beginning to clean condenser

1. Remove two Phillips head screws from the top corners of the front panel
2. Lift upwards on the front panel to remove
3. To reinstall the front panel line up the keeper screws behind the panel and firmly pull downwards
4. Reinstall the screws on the top corners
5. Examine condenser surface, if dusty, brush and vacuum the dust and lint from the surface of the coil. Brush up and down to avoid damaging the fins. Use care to not disturb the wires connected to the

Remove Screws

Horizon Air Water Push Up and Off

User Manual for HF Freezers Beverage-Air

METHODS FOR CLEANING STAINLESS STEEL

Cleaning Needed Cleaning	Agent Method of Application Affect on Finish
Smears and fingerprints	Areal 20, Lac-O-Nu, Lumin Wash O'Cedar Cream Polish, Stainless Shine.	Rub with cloth as directed on the package.	Satisfactory for use on all finishes.Provides barrier film to minimize prints.
Stubborn Spots and Stains, Baked-On Splatter, and Other Light Discolorations	Allchem Concentrated Cleaner.	Apply with damp sponge or cloth.Rub with damp cloth.	Use in direction of polish lines on No. 4 (polished) finish. May scratch No. 2 (mill) and Nos. 7 and 8 (polished) finishes.
	Samae, Twinkle or Cameo Copper Cleaner	Rub with damp cloth.
	Grade FFF Italian pumice, whiting, or talc.	Rub with dry cloth.
	Liquid NuSteelPaste NuSteel or DuBois Temp.Copper's Stainless Steel CleanerRevere Stainless CleanerHousehold cleansers, such as Old Dutch, Lighthouse, Sunbrite, Wyandotte, Bab-O, Gold Dust, Sapolio, Bon Ami, Ajax, or Comet Grade F Italian Pumice, Steel Bright, Lumin Cleaner, Zud, Restore, Sta-Clean, or Highlite.Penny-Brite or Copper-Brite.	Use small amount of cleaner.Rub with dry cloth using a small amount of cleaner.Apply with damp sponge or cloth.Rub with a damp cloth. May contain chlorine bleaches.Rinsethoroughly after use.Rub with a damp cloth.Rub with a dry cloth using a small amount of cleaner.
Heat tint or discoloration	Penny-Brite or Copper-Brite.Past NuSteel, DuBois Temp, or Tarnite. Revere Stainless Steel Cleaner. Allen Polish, Steel Bright, Tenacious Deposits,Rusty Discolorations, Industrial	Rub with a dry cloth.Rub with a dry cloth or stain-less steel wool.Apply with damp sponge or cloth.Rub with a damp cloth.

User Manual for HF Freezers Beverage-Air

HELP

Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent	Unit not plugged in.Fuse or circuit breaker tripped.Power cord plug loose in outlet.	Connect to proper voltage circuit Replace fuse or reset breaker.Check outlet for loose connection, replace as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high	Dirty condenserEvaporator iced over Unit in high temperature environment	Clean condenser Defrost evaporatorReduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp	control stuck in open position Replace temp	control.
No cooling - compressor hums but does not start	Low voltage to unit.Compressor starting system failure	Check voltage, correct as needed. Check start relay and start capacitor. See next step.
No cooling - compressor starts but shuts off	Compressor start relay failure Compressor start capacitor failure	Replace relay. Replace capacitor.
No cooling - compressor cycles on and off Overheating weak overload		Clean condenser, check fan motor and blade. Check refrigerant charge. Replace overload.
Unit cools, but is slow to pull cabinet temperature down	Evaporator fan not turning	Check fan(s), on multiple fan units one fan may be turning slowly and will need to be replaced.
Unit cools but turns on and off frequently	No product in cabinet. Temperature control defective Refrigeration issue	Fill cabinet Replace controlHave system checked

User Manual for HF Freezers Beverage-Air

FOR THE SERVICE TECH · R290

Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems.

Here are some critical service items.

This list does not qualify anyone to service the unit. It is a reminder and checklist for the service tech. Keep these in mind for R290 service:

• Wire nuts are NOT to be used when changing an electrical part.
• The switches in this product are sealed, only exact replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during service, the venting MUST be in an area free from flame or spark. It must also be in a well ventilated area, with a nearby open window or door.
• A sign noting service of a system containing propane must be attached to the unit during refrigeration service.
• A combustible gas leak detector must be used to inform anyone in the area when propane is present in the air.

Other Information:

Evacuation: It is critical that a refrigeration system be leak free and internally dry. A thorough evacuation with a good vacuum pump with a micron gauge attached is the only way to ensure that the system is dry and ready for a charge of refrigerant.

Charging: The system is critically charged and the proper type and amount MUST be weighed in.

Overcharge symptoms: Unit will cool properly but the suction line temperature will be unusually cold. Compressor run time will be longer than normal.

Undercharge symptoms: Long run time, poor cooling and a hot compressor dome are the main symptoms of an undercharge.

User Manual for HF Freezers Beverage-Air

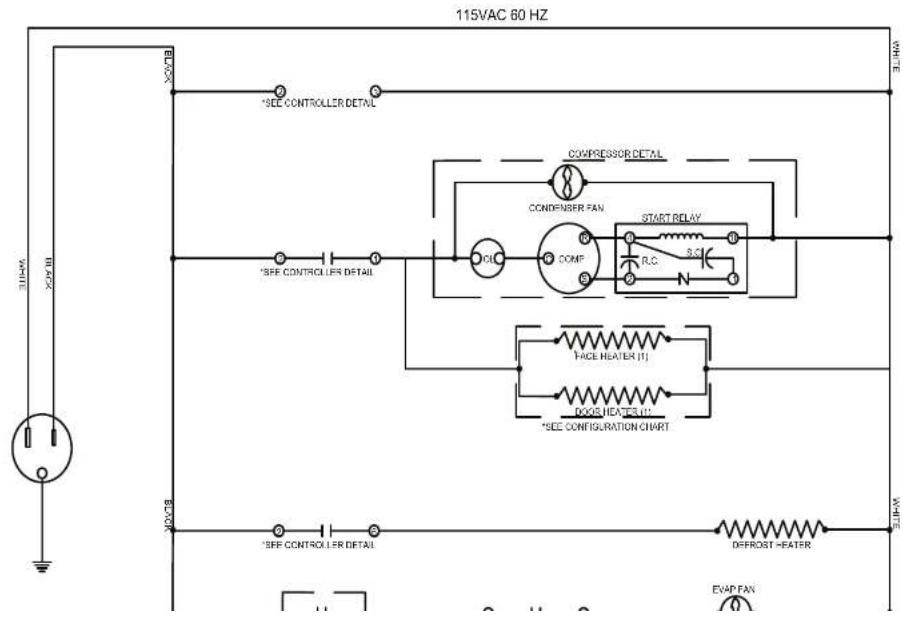

FOR THE SERVICE TECH · WIRING DIAGRAM FOR ONE SYSTEM MODELS

115VAC 60 HZ *SEE CONTROLLER DETAIL WHILE *SEE CONTROLLER DETAIL *SEE CONTROLLER DETAIL COMPRESSOR DETAIL CONDENSER FAN START RELAY COMP R.C. FACE HEATER (1) DOCK HEATER (2) *SEE CONFIGURATION CHART *SEE CONTROLLER DETAIL DEFROST -FATER EVAP FAN WHILE

User Manual for HF Freezers Beverage-Air

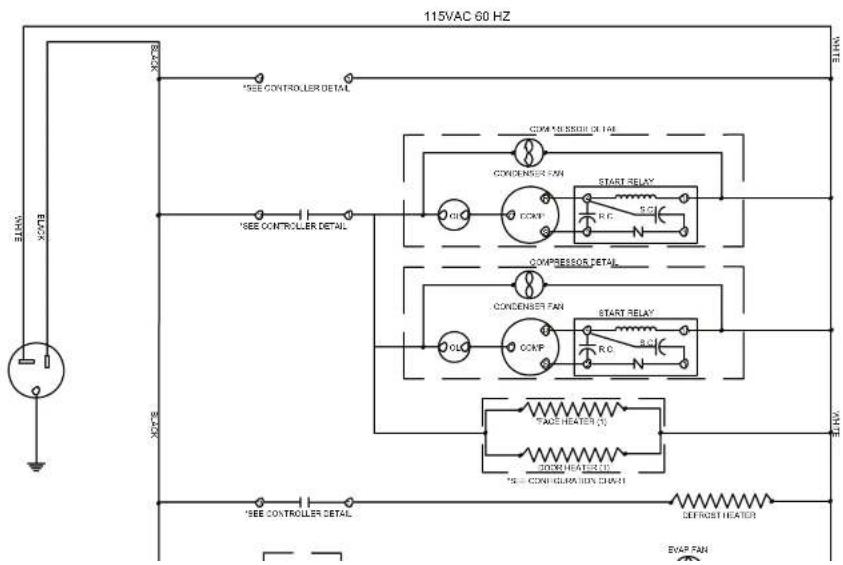

FOR THE SERVICE TECH · WIRING DIAGRAM FOR TWO SYSTEM MODELS

User Manual for HF Freezers Beverage-Air

LIMITED WARRANTY

WARRANTY (Warranty valid in USA and Canada)

THREE (3) YEAR PARTS AND LABOR WARRANTY:

Beverage-Air Corporation warrants to the original purchaser of Beverage-Air branded equipment, including all parts thereof, that such equipment is free from defects in material and workmanship, under normal use, proper maintenance, and service as indicated by Beverage-Air installation and operation instructions, for a period of three (3) years from the date of installation, or thirty-nine (39) Months from the date of shipment from the manufacturer, whichever is earlier.

ADDITIONAL FOUR (4) YEAR COMPRESSOR PART

WARRANTY': In addition to the warranty set forth above, Beverage-Air warrants the hermetically/semi-hermetically sealed compressor (part only) for an additional FOUR (4) years beyond the first three (3) years warranty period; not to exceed eighty-seven (87) months from the date of shipment from Beverage-Air, provided upon receipt of the compressor, manufacturer examination shows the sealed compressor to be defective. This extended warranty does not cover freight for the replacement compressor or freight for the return of the failed compressor.

* Units shipped after 03/01/2020. Previous warranty applies to units shipped prior.

EXCEPTIONS:

BEVERAGE-AIR

Also, this extended compressor-part only warranty does NOT apply to any electrical controls, condenser, evaporator, fan motors, overload switch, starting relay, capacitors, temperature control, filter/drier, accumulator, refrigeration tubing, wiring harness, labor charges, or supplies which are covered by the warranty above.

Normal wear type parts, such as light bulbs/lamps and gaskets are not covered by this warranty. For the purpose of this warranty, the original purchaser shall be deemed to mean the individual or company for who the product was originally installed.

Our obligation under this warranty shall be limited to repairing or replacing, including labor, any part of such product, which proves thus defective. Beverage-Air reserves the right to examine any product claimed to be defective.

The labor warranty shall be for self-contained units only and for standard straight time, which is defined as normal service rate time, for service performed during normal working hours. Any service requested outside of a servicer's normal working hours will be covered under this warranty at the normal rate and any additional overtime rate will be at the responsibility of the equipment purchaser.

Any part or accessory determined to be defective in the

User Manual for HF Freezers Beverage-Air

LIMITED WARRANTY (CONTINUED)

With the exception of Blast Chillers product is designed for maintaining temperature and not bringing food to a desired temperature therefore cannot be held responsible for this function under warranty.

Units must be in a conditioned environment or warranty will be void.

Condensing coils must be cleaned at regular intervals. Failure to do so can cause compressor malfunction and will void warranty. Although cleaning requirements vary in accordance with operation of various products, Beverage-Air recommends a minimum monthly cleaning.

NO CLAIMS CAN BE MADE AGAINST THIS WARRANTY FOR SPOILAGE OF FOOD. PRODUCTS, LOSS OF SALES OR CONSEQUENTIAL DAMAGES.

THE FOREGOING WARRANTIES ARE EXPRESSLY GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HERBY DISCLAIMED, ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART, AND WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER PERSON TO ASSUME FOR US, ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE OF SAID REFRIGERATION UNITS OR ANY PARTS THERE OF.

This warranty shall not be assignable and shall be honored only in so far as the original purchaser. This warranty

LIMITATION OF LIABILITY:

Beverage-Air Corporation or their affiliates shall not be liable for any indirect, incidental, special or consequential damages, or losses of a commercial nature arising out of malfunction equipment or its parts components thereof, as a result of defects in material or workmanship.

THE ORIGINAL OWNER'S SOLE AND EXCLUSIVE REMEDY AND BEVERAGE-AIR'S SOLE AND EXCLUSIVE LIABILITY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF PARTS OR COMPONENTS CONTAINED IN THE EQUIPMENT IDENTIFIED ABOVE WHICH UNDER NORMAL USE AND SERVICE MALFUNCTION AS A RESULT OF DEFECTS IN MATERIAL OR WORKMANSHIP, SUBJECT TO THE APPLICABLE PROVISIONS AND LIMITATIONS STATED ABOVE.

User Manual for HF Freezers Beverage-Air

Warranty Registration

Register your product online at beverage-air.com/parts-service or fill out and mail the form below.

Cabinet Model Number:

Date Of Installation:
