INSTALLATION AND OPERATING INSTRUCTIONS for all Hydrocarbon TMR Refrigerator Models

Exterior view of a modern stainless steel refrigerator with double doors and ventilation grilles (no visible text or symbols)

User Manual for TMR Refrigerators Beverage-Air

WELCOME

Thank you for purchasing a Beverage-Air cabinet. This series has passed our strict quality control inspection and meets the high standards set by Beverage-Air! You have made a quality investment that with proper maintenance will give you many years of reliable service!

Please read the following installation and maintenance instructions before installing or using your unit. If you have any questions, Please call our Technical Service Department at [phone]. 8:00 AM to 5:00 PM EST.

Important Information

- PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR USING, IF RECOMMENDED PROCEDURES ARE NOT FOLLOWED, WARRANTY CLAIMS MAY BE DENIED.

- Beverage-Air reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.

- Your warranty registration information is located with this manual. Please complete the card and submit it to Beverage-Air within TEN days of installation. Failure to properly register equipment may limit or void the warranty.

Safety 3

Important Information .... 4

Product Information 5

Clearance and Placement 6

Unpacking and Set Up 7

Installing Casters 8

Important Safety Information 9

Shelf Installation 10

User Manual for TMR Refrigerators Beverage-Air

SAFETY

This appliance has been designed with your safety in mind. It has many features to keep you from being harmed. However, safe operation and maintenance are your responsibilities.

Use: When using this unit, please:

• Move it carefully. If on casters be sure the casters do NOT run over the power cord.
• Lock the casters when in use.
• Seek help. This machine is heavy! Be sure to move with enough help to avoid tipping or dropping the cabinet.

Maintenance

Do NOT:

• Clean a frozen evaporator with a sharp object
• Clean a dirty condenser with a sharp object.

• Store gasoline, kerosene or any other flammable material near the cabinet.

• Prevent children from playing in or on the cabinet. Persons unable to use this product must be prevented access.

• Follow all instructions. There are many safety labels and directions on the unit. Heed them.
• Watch your fingers. There may be pinch points near the door hinges.

Do ALWAYS

• Use a Beverage-Air recommended technician certified to repair R290 equipment.
• Use ONLY Beverage-Air factory service parts. Use of non OEM parts can be dangerous because of the design changes needed to safely use R290.

Important Information to Add

User Manual for TMR Refrigerators Beverage-Air

IMPORTANT INFORMATION

This unit is intended to be used in a commercial application. That includes bars and restaurants.

If installed in a residence some commercial service companies may not be able to service it on site.

The manufacturer has designed and produced this machine with the finest in materials. The manufacturer assumes no liability for units that have been altered in any way. Alterations or part substitutions will void the warranty.

Limitations

The machine is designed for use indoors in a controlled environment. It must be kept dry, not overheated or subjected to excessive cold. May only be connected to a dedicated electrical circuit. Extension cords are not permitted.

	Minimum	Maximum
Voltage	100	130
Room Air Temp	75.2°F	100°F

Air Flow, All Models regardless of sections, or door count.

Warm Air OUT Room Air IN

User Manual for TMR Refrigerators Beverage-Air

PRODUCT INFORMATION

Model	Cabinet Dimensionsw x d x h (Inches)	Sections	Full LoadAmps	Power CordPlug (NEMA)	Refrigerant Type /Charge (g)
TMR1HC-1S 26 9/32	X 33 9/16 X 80 1/2 1 3			5-15P R-29	0 / 65*
TMR2HC-1S 53 31/32	X 33 9/16 X 80 1/2 2 5.3			5-15P R-29	0 / 90**

Height includes casters.

User Manual for TMR Refrigerators Beverage-Air

CLEARANCE AND PLACEMENT

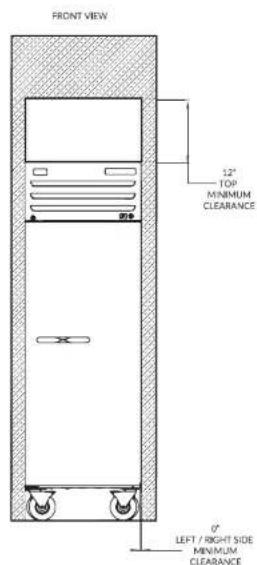

FRONT VIEW 12° TOP MINIMUM CLEARANCE 0° LEFT / RIGHT SIDE MINIMUM CLEARANCE

SIDE VIEW 3" REAR MINIMUM CLEARANCE

TOP VIEW LOUVER AND DOOR MUST FULLY PROTRUDE FROM SIDE WALLS

Placement

User Manual for TMR Refrigerators Beverage-Air

UNPACKING AND SET UP

Carefully inspect the shipping carton for damage. This is the only time that shipping damage may be claimed. If damage is suspected, open the carton immediately and, if there is damage, retain the carton and contact the shipper to make a claim. Do NOT contact the manufacturer.

Uncrating

Tools Needed: Phillips screwdriver.

1. Cut the stretch wrap from any side, remove the cardboard from the corners, the cardboard top and the cardboard in the front and the back.
   2 Remove the bond paper. Discard stretch wrap and any cardboard that will not be recycled.
   3 Move unit as close to final position as possible before removing the skid.

Skid Removal

Loosen the four hex head screws attached to your model using a 3/4 inch wrench. Once the model is loose, push it to the left and tilt the cabinet to the other direction and block it securely with a 2 X 4 piece of lumber or other suitable material. While in this position, proceed to Page 8 to install casters.

MODEL

WARNING

Risk of personal injury. Unit must be securely supported while attaching casters or legs.

User Manual for TMR Refrigerators Beverage-Air

INSTALLING THE CASTERS

1. Inside your model you will find a kit of four 6" casters (2 with brakes, and 2 free moving). The installation points are located on the bottom corners of the unit.

Pure mechanical diagram of a rectangular frame with four wheels and circular components, no text or symbols present.

NOTE: CASTERS WITH BRAKES ARE PLACED ON THE FRONT OF THE UNIT, FREE MOVING ON THE REAR.

Simple line drawing of a four-wheeled cart with wheels, enclosed in a circle (no text or symbols)

Correctly installed casters

1. Thread the stem casters into the holes on the bottom of the cabinet and tighten by hand as much as possible.

Diagram of a wheeled cart with wheels and overhead arrows indicating movement (no text or symbols)

Simple line drawing of a mechanical linkage or mounting bracket with a hanging circular component (no text or symbols)

1.

User Manual for TMR Refrigerators Beverage-Air

IMPORTANT SAFETY INFORMATION

SAVE THESE INSTRUCTIONS

WARNING

The refrigerator may tip forward when too much pressure is applied to an open door or when the refrigerator is installed on an unlevel surface. This may cause injury if the refrigerator tips over or products (food/liquids) fall from the top of the refrigerator.

▲WARNING

Refrigerator Anti-tip device

For additional protection against refrigerator tipping incidents, the supplied anti-tip device shall be installed on the wall. The refrigerator anti-tip device secures the refrigerator to the wall and prevents the refrigerator from tipping forward.

It is important to bear in mind that to avoid the risk of tipping over, it is essential to install the equipment on a completely flat leveled surface.

*IMAGES FOR ILLUSTRATION PURPOSES ONLY

Anti-tip bracket installation instructions

Refrigerator Anti-tip device, for both one and two door equipment

To avoid risk of the appliance tipping, it must be secured by a properly installed anti-tip bracket, for both one and two door equipment.

Place the anti-tip wall bracket up against the rear wall and in line with

STEP 3. INSTALL THE ANTI-TIP WALL BRACKET

Install the sleeve anchors into the drilled holes. Place the anti-tip wall bracket as indicated in step 2.

Install the 1/M" log bolts through the anti-fin wall brack.

User Manual for TMR Refrigerators Beverage-Air

SHELF INSTALLATION

1. Determine the proper location for the shelf clips. The reference numbers on the pilaster can serve as a guide to ensure all clips are properly located.
2. Insert the top tab of the shelf clip into the desired hole of the pilaster. The retaining tab MUST be facing up as shown.
3. Rotate the clip downwards and insert the bottom tab into the matching hole in the pilaster. The clip may need to be squeezed slightly during installation.
4. Install all remaining clips.

5. Install shelves onto clips with the product retention bar facing up. Be careful not to dislodge clips during installation.

6. Place shelves so that the retaining tab on the clip captures the shelf as shown.

7. Confirm that the shelf is resting on ALL 4 clips and that the clips are securely attached to the pilasters.
8. Improper shelf clip installation could cause the shelf and / or the product on it to fall, resulting in damage to the unit and possible bodily injury.
9. Do NOT overload the shelves. The unit is designed to use all shelves that are supplied in an equally spaced manner. Contact Beverage-Air customer service if fewer shelves or a different configuration to ensure shelf overloading will not occur.

RETAINING TAB SHELF CLIP TOP TAB BOTTOM TAB

TOP TAB FULLY INSERTED INTO SLOT BOTTOM TAB FULLY SEATED PROPERLY INSTALLED SLIP IMPROPERLY INSTALLED SLIP (UPSIDE DOWN)

User Manual for TMR Refrigerators Beverage-Air

ELECTRICAL

This is a cord-connected unit, and must be connected to its own dedicated power supply. Check the dataplate on the machine to confirm the voltage and per the dataplate use the correct fuses or HACR circuit breakers.

Note: Do not connect to GFI / GFCI outlets. Connection to that type of outlet can result in product loss due to unsafe cabinet temperature when GFI device trips from moisture.

Power Cord

This 115 volt model is equipped with a cord and 5-15P plug.

If the power cord becomes damaged, it must be replaced with the identical cord.

Follow All National and Local Codes

This Unit Must Be Grounded. Do not use extension cords and do not disable or by-pass ground prong on electrical plug.

Initial Start Up

Plug the power cord into the proper power supply.

The cabinet will soon begin to blow warm air out of the top area, and cool air will flow from the inside blower.

The cabinet temperature has been set at the factory and should not need adjustment, however if it was changed, the standard setting is 36.3°F for single door equipment and 35.4°F for two door equipment.

Cautions

User Manual for TMR Refrigerators Beverage-Air

USING THE UNIT

Operation is simple, just keep it connected to the correct power supply and the refrigerator will maintain the internal temperature it has been set to. Keep the doors and / or drawers closed as much as possible to avoid unnecessary run time.

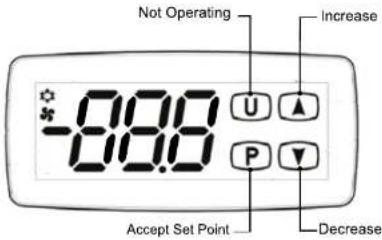

The controller displays the current internal temperature.

Adjusting the set temperature lower will NOT cause the system to lower the temperature faster. When on, the refrigeration system is always operating at maximum.

The temperature was set at the factory at 36.3^ F for the one-door model and 35.4^ F for the two-door model, but you can adjust it to your own selected temperature. 5 seconds after setting, the display will automatically shows the current temperature again.

After turning on the equipment, it will defrost automatically every 6 hours. During the defrost cycle, the display will show the legend dEF, at the end of the defrost the message PdF will be displayed until the temperature that the refrigerator had before starting the defrost is reached or 15 minutes have elapsed.

To start a defrost manually, press the button with the up arrow for 5 seconds while the temperature is shown on the display.

The internal fan will normally be on all the time except when the door is opened, when the door is opened the fan will turn off for 1 minute, after that it will turn on again, even if the door is open.

The compressor and its fan will only turn on when the internal temperature exceeds the SetPoint + 3. Every time the compressor is turned off, a minimum compressor shutdown time of 5 minutes will be applied, this is to prevent wear and tear and prolong the life of the equipment.

The equipment will turn on the light when opening the door and turn it off when closing it.

Not Operating Increase

User Manual for TMR Refrigerators Beverage-Air

Message Displayed	Why	What to do
dEF	Unit is defrosting	Nothing. Normal operation.
PdF	Post-defrost in progress	Nothing. Normal operation.
Hi	Cabinet temperature too warm	Confirm doors or drawers are closed.
Lo	Cabinet temperature too cold	Apply a defrost, if the message does not change, call for service.
oP	Door is open	Close door, if message does not change, call for service
E1 -E1 E2 -E2 E3 -E3	Sensor unplugged or has failed	Call for service.
HU	The supply voltage exceeds the maximum	Wait for the voltage to stabilize.
LU	Supply voltage below minimum	Wait for the voltage to stabilize.

The refrigerator operates based on the air temperature measured by the probe located at the return air.

	ON		OFF
COMPONENT	OPERATION	CONTROLLER ACTION	OPERATION	CONTROLLER ACTION
COMPRESSOR	Compressor turns on when the air temperature at the probe is above the sum of the set point +3	The Compressor Contact is energized	Compressor turns off when the air temperature at probe is equal to or less than the set point	The Compressor Contact is deenergized
		(E34B - Terminal #2)		(E34B - Terminal #2)
	The Condenser Fan turns on when	The Condenser Fan is wired directly to	The Condenser Fan turns off when the	The Condenser Fan is wired directly to

User Manual for TMR Refrigerators Beverage-Air

Condition	Compressor	Condenser Fan	Evaporator Fan	Lights
Cabinet Temp > Set point + 3	ON	ON	ON	ON or OFF
Cabinet Temperature <= Set point	OFF	OFF	ON	ON or OFF
Defrost	OFF	OFF	ON	ON or OFF

Electronic Controller

-8.00 Not Operating U ▲ Increase P ▼ Accept Set Point Decrease

Control Panel Display

	Defrost LED			Alarm LED
	On fixed:	Defrost active		On fixed:	ALARM Present
	Flashing:	Dripping state		Flashing:	ALARM Silenced
	Off:	Defrost is off		Off:	No Alarm
	Fan LED			Compressor LED
	On fixed:	Fan active		On fixed:	Compressor active

	Defrost LED			Alarm LED
	On fixed:	Defrost active		On fixed:	ALARM Present
	Flashing:	Dripping state		Flashing:	ALARM Silenced
	Off:	Defrost is off		Off:	No Alarm
	Fan LED			Compressor LED
	On fixed:	Fan active		On fixed:	Compressor active

	Defrost LED			Alarm LED
	On fixed:	Defrost active		On fixed:	ALARM Present
	Flashing:	Dripping state		Flashing:	ALARM Silenced
	Off:	Defrost is off		Off:	No Alarm
	Fan LED			Compressor LED
	On fixed:	Fan active		On fixed:	Compressor active

User Manual for TMR Refrigerators Beverage-Air

E34B 100-130 VAC 60Hz Outputs Supply 1 2 3 4 5 6 7 L o1 o2 o3 o4 N L Inputs 8 9 10 11 12 13 Temp. sensor Def. sensor Door sensor

Changing the Set point

Current temperature

1.

36.3 U A P T The display shows the current temperature

Flashing temperature setpoint

2.

36.0 Press: UP/DOWN to adjust setup

,

User Manual for TMR Refrigerators Beverage-Air

Electronic Controller Alarms

Alarm Code	Trigger	Outputs	Comments
"Hi"	Air temperature is above 59°F	Blink "Hi"	High temperature alarm
"Lo"	Air temperature is less than -58°F	Blink "Lo"	Low temperature alarm
"oP"	Door open	Blink "oP"	Door open alarm
"HU"	The line voltage is higher than the upper limit	Blink "HU"	High voltage alarm
"LU"	Line voltage is less than the lower limit	Blink "LU"	Low voltage alarm
"E1 -E1"	"S1" error	Blink "E1" or "-E1"	"S1" sensor failure (short or open)
"E2 -E2"	"S2" error	Blink "E2" or "-E2"	"S2" sensor failure (short or open)
"E3 -E3"	"S3" error	Blink "E3" or "-E3"	"S3" sensor failure (short or open)

User Manual for TMR Refrigerators Beverage-Air

CLEANING AND MAINTENANCE

Cleaning Schedule:

Cabinet

Daily wipe down

Weekly interior

Condenser coil

Quarterly cleaning

Gaskets

Daily inspection, check that hinges are tight to the cabinet.

Routine maintenance

Annually

Daily Exterior Cleaning

It is much easier to clean on a regular basis than to have to remove stains once they have built up.

1. Wash with a clean sponge and a mild detergent that does not contain chlorine.
2. Rinse with clean water.

3. Dry with a soft cloth.

4. Polish with a soft cloth, wiping with the grain.

5. Wipe weekly with stainless steel cleaner.

Weekly Interior Cleaning

1. Remove all food, food related items and shelves. Store the food at a safe temperature.
2. Disconnect power to the unit (unplug it or switch the breaker off).

3. Remove all loose food particles from the inside walls, floor, door liner and ceiling.

4. Rinse with clean water and allow to air dry.

5. Return the shelves to the unit and secure them.
6. Restore power.
7. Return food to the unit when it has reached a safe temperature.

User Manual for TMR Refrigerators Beverage-Air

CONDENSER CLEANING

Keeping the condenser coil clean is critical to efficient operation.

Before starting:

* Unplug unit from power supply.
* The lock must be turned off to remove the louver.

1. Remove the 4 screws holding the louver, (2) down and (2) up. As shown in the pictures.
2. Remove the louver, also disconnecting the harnesses.
3. Remove the 6 screws from the "Back cover", which is located on the back of the equipment.

Diagram of a server rack with a magnified inset showing a close-up view (no text or symbols)

Technical diagram showing a device with labeled components and an inset magnified view of a device labeled 'USB'.

User Manual for TMR Refrigerators Beverage-Air

Otherwise, for TMR1HC-1S or TMR2HC-1S only 4 screws are removed.

Technical line drawing of a two-view assembly showing top and side views with arrows indicating motion (no text or symbols)

1. Finally, you now have access to the unit to continue with the necessary maintenance.

Rotating fan blade can cause personal injury.

Unplug unit from power supply before beginning to clean condenser

User Manual for TMR Refrigerators Beverage-Air

METHODS FOR CLEANING STAINLESS STEEL

Cleaning Needed Cleaning	Agent Method of Application Affect on Finish
Smears and fingerprints	Areal 20, Lac-O-Nu, Lumin Wash O'Cedar Cream Polish, Stainless Shine.	Rub with cloth as directed on the package.	Satisfactory for use on all finishes.Provides barrier film to minimize prints.
Stubborn Spots and Stains, Baked-On Splatter, and Other Light Discolorations	Allchem Concentrated Cleaner.	Apply with damp sponge or cloth.Rub with damp cloth.	Use in direction of polish lines on No. 4 (polished) finish. May scratch No. 2 (mill) and Nos. 7 and 8 (polished) finishes.
	Samae, Twinkle or Cameo Copper Cleaner	Rub with damp cloth.
	Grade FFF Italian pumice, whiting, or talc.	Rub with dry cloth.
	Liquid NuSteelPaste NuSteel or DuBois Temp.Copper's Stainless Steel CleanerRevere Stainless CleanerHousehold cleansers, such as Old Dutch, Lighthouse, Sunbrite, Wyandotte, Bab-O, Gold Dust, Sapolio, Bon Ami, Ajax, or Comet Grade F Italian Pumice, Steel Bright, Lumin Cleaner, Zud, Restore, Sta-Clean, or Highlite.Penny-Brite or Copper-Brite.	Use small amount of cleaner.Rub with dry cloth using a small amount of cleaner.Apply with damp sponge or cloth.Rub with a damp cloth. May contain chlorine bleaches.Rinsethoroughly after use.Rub with a damp cloth.Rub with a dry cloth using a small amount of cleaner.
Heat tint or discoloration	Penny-Brite or Copper-Brite.Past NuSteel, DuBois Temp, or Tarnite. Revere Stainless Steel Cleaner. Allen Polish, Steel Bright, Tenacious Deposits,Rusty Discolorations, Industrial	Rub with a dry cloth.Rub with a dry cloth or stain-less steel wool.Apply with damp sponge or cloth.Rub with a damp cloth.

User Manual for TMR Refrigerators Beverage-Air

HELP

Trouble Diagnosis for the User
Malfunction Possible Cause Likely Solution
No cooling - unit is silent	Unit not plugged in.Fuse or circuit breaker tripped.Power cord plug loose in outlet.	Connect to proper voltage circuit Replace fuse or reset breaker.Check outlet for loose connection, replace as needed
Unit cools but seems to be on all the time Dirty condenser Clean condenser
Space temperature too high	Dirty condenserEvaporator iced over Unit in high temperature environment	Clean condenser Defrost evaporatorReduce temperature of room
Space temperature too low Temperature control Adjust or replace control
Trouble Diagnosis for the Technician
No cooling - compressor does not hum Temp	control stuck in open position Replace temp	control.
No cooling - compressor hums but does not start	Low voltage to unit.Compressor starting system failure	Check voltage, correct as needed. Check start relay and start capacitor. See next step.
No cooling - compressor starts but shuts off	Compressor start relay failure Compressor start capacitor failure	Replace relay. Replace capacitor.
No cooling - compressor cycles on and off Overheating weak overload		Clean condenser, check fan motor and blade. Check refrigerant charge. Replace overload.
Unit cools, but is slow to pull cabinet temperature down	Evaporator fan not turning	Check fan(s), on multiple fan units one fan may be turning slowly and will need to be replaced.
Unit cools but turns on and off frequently	No product in cabinet. Temperature control defective Refrigeration issue	Fill cabinet Replace controlHave system checked

User Manual for TMR Refrigerators Beverage-Air

FOR THE SERVICE TECH · R290

Refrigeration service should only be attempted by a trained trade professional certified to work on R290 systems.

Here are some critical service items.

This list does not qualify anyone to service the unit. It is a reminder and checklist for the service tech. Keep these in mind for R290 service:

• Wire nuts are NOT to be used when changing an electrical part.
• The switches in this product are sealed, only exact replacements may be used.
• The process tubes are to be used for service access.
• Cut out (with tubing cutter) refrigeration components that are to be replaced. Do NOT un-braze.
• Because R290 can be vented into the air during service, the venting MUST be in an area free from flame or spark. It must be near an opend window or door.
• A sign noting service of a system containing propane must be attached to the unit during refrigeration service.
• A combustible gas leak detector must be used to inform anyone in the area when propane is present in the air.

Other Information:

Evacuation: It is critical that a refrigeration system be leak free and internally dry. A thorough evacuation with a good vacuum pump with a micron gauge attached is the only way to ensure that the system is dry and ready for a charge of refrigerant.

Charging: The system is critically charged and the proper type and amount MUST be weighed in.

Overcharge symptoms: Unit will cool properly but the suction line temperature will be unusually cold. Compressor run time will be longer than normal.

Undercharge symptoms: Long run time, poor cooling and a hot compressor dome are the main symptoms of an undercharge.

User Manual for TMR Refrigerators Beverage-Air

FOR THE SERVICE TECH · WIRING DIAGRAM FOR TMR1HC-1S

User Manual for TMR Refrigerators Beverage-Air

FOR THE SERVICE TECH · WIRING DIAGRAM FOR TMR2HC-1S

User Manual for TMR Refrigerators Beverage-Air

LIMITED WARRANTY

WARRANTY (Warranty valid in USA and Canada)

TWO (2) YEAR PARTS AND LABOR WARRANTY:

Beverage-Air Corporation warrants to the original purchaser of Beverage-Air branded equipment, including all parts thereof, that such equipment is free from defects in material and workmanship, under normal use, proper maintenance, and service as indicated by Beverage-Air installation and operation instructions, for a period of TWO (2) years from the date of installation, or twenty-seven (27) Months from the date of shipment from the manufacturer, whichever is earlier.

ADDITIONAL FIVE (5) YEAR COMPRESSOR WARRANTY*: In addition to the warranty set forth above, Beverage-Air warrants the hermetically/semi-hermetically sealed compressor (part only) for an additional FIVE (5) years beyond the first TWO (2) years warranty period; not to exceed eighty-seven (87) months from the date of shipment from Beverage-Air, provided upon receipt of the compressor, manufacturer examination shows the sealed compressor to be defective. This extended warranty does not cover freight for the replacement compressor or freight for the return of the failed compressor.

* Units shipped after 03/01/2020. Previous warranty applies to units shipped prior.

EXCEPTIONS:

BEVERAGE-AIR

Also, this extended compressor-part only warranty does NOT apply to any electrical controls, condenser, evaporator, fan motors, overload switch, starting relay, capacitors, temperature control, filter/drier, accumulator, refrigeration tubing, wiring harness, labor charges, or supplies which are covered by the warranty above.

Normal wear type parts, such as light bulbs/lamps and gaskets are not covered by this warranty. For the purpose of this warranty, the original purchaser shall be deemed to mean the individual or company for who the product was originally installed.

Our obligation under this warranty shall be limited to repairing or replacing, including labor, any part of such product, which proves thus defective. Beverage-Air reserves the right to examine any product claimed to be defective.

The labor warranty shall be for self-contained units only and for standard straight time, which is defined as normal service rate time, for service performed during normal working hours. Any service requested outside of a servicer's normal working hours will be covered under this warranty at the normal rate and any additional overtime rate will be at the responsibility of the equipment purchaser.

Any part or accessory determined to be defective in the

User Manual for TMR Refrigerators Beverage-Air

LIMITED WARRANTY (CONTINUED)

With the exception of Blast Chillers product is designed for maintaining temperature and not bringing food to a desired temperature therefore cannot be held responsible for this function under warranty.

Units must be in a conditioned environment or warranty will be void.

Condensing coils must be cleaned at regular intervals. Failure to do so can cause compressor malfunction and will void warranty. Although cleaning requirements vary in accordance with operation of various products, Beverage-Air recommends a minimum monthly cleaning.

NO CLAIMS CAN BE MADE AGAINST THIS WARRANTY FOR SPOILAGE OF FOOD. PRODUCTS, LOSS OF SALES OR CONSEQUENTIAL DAMAGES.

THE FOREGOING WARRANTIES ARE EXPRESSLY GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WHICH ARE HERBY DISCLAIMED, ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART, AND WE NEITHER ASSUME, NOR AUTHORIZE ANY OTHER PERSON TO ASSUME FOR US, ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THE SALE OF SAID REFRIGERATION UNITS OR ANY PARTS THERE OF.

This warranty shall not be assignable and shall be honored only in so far as the original purchaser. This warranty

LIMITATION OF LIABILITY:

Beverage-Air Corporation or their affiliates shall not be liable for any indirect, incidental, special or consequential damages, or losses of a commercial nature arising out of malfunction equipment or its parts components thereof, as a result of defects in material or workmanship.

THE ORIGINAL OWNER'S SOLE AND EXCLUSIVE REMEDY AND BEVERAGE-AIR'S SOLE AND EXCLUSIVE LIABILITY SHALL BE LIMITED TO THE REPAIR OR REPLACEMENT OF PARTS OR COMPONENTS CONTAINED IN THE EQUIPMENT IDENTIFIED ABOVE WHICH UNDER NORMAL USE AND SERVICE MALFUNCTION AS A RESULT OF DEFECTS IN MATERIAL OR WORKMANSHIP, SUBJECT TO THE APPLICABLE PROVISIONS AND LIMITATIONS STATED ABOVE.

User Manual for TMR Refrigerators Beverage-Air

REPLACEMENT PARTS FOR TMR1HC-1S

GENERAL ASSEMBLY

Exploded view diagram of a refrigerator with numbered parts for identification and assembly

User Manual for TMR Refrigerators Beverage-Air

GENERAL ASSEMBLY CONT'D

ITEM	SPARE PART CODE	DESCRIPTION
*	3071368	TEMPERATURE SENSOR (1.5M)
1	2079214	CONDENSER GRILLE, 600
2	2077171	BACK DIVERTER AIR
3	2112880	LOUVER 1D (RIGHT HINGE)
4	2106497	LOUVER SUPPORT BRACKET
5	2094602	LOCK CYLINDER
6	2106533	TMR1HC-1S CONTROLLER
*	3069874	CONTROL ADJUSTMENT CLIP E34-BHRRR
7	3022239	POWER CORD
8	3071428	CASTER 6" NON-BRAKE
9	3071429	CASTER 6" WITH BRAKE
10	2113625	SUPPORT KIT FOR LED STRIP
11	2083672	20W LED DRIVER
12	2080513	LAMP SUPPORT
13	3062036	PILASTER
14	2079798	CLIP PILASTER
15	3062152	WIRE SHELF 600
*	3071339	WIRE HARNESS, MAIN (SSC20 E34B)
*	3070836	SENSOR SWITCH (E34B)
16	2106068	LOUVER 1D (LEFT HINGE)

User Manual for TMR Refrigerators Beverage-Air

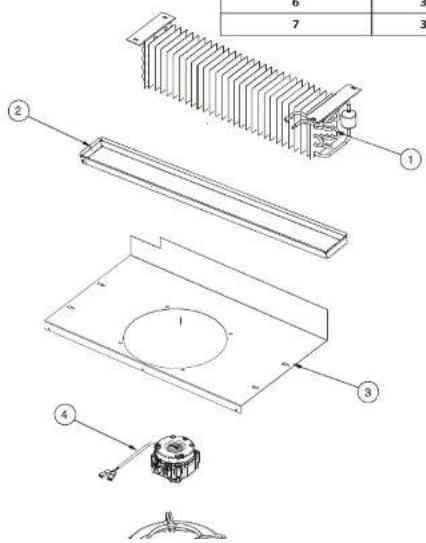

EVAPORATOR UNIT

ITEM	SPARE PART CODE	DESCRIPTION
1	2079060	EVAPORATOR 20T 1/4 AL 6APP LA450 RIGHT
2	2077233	TRAY EVAPORATOR
3	2077115	EVAPORATOR COVER
4	3030464	FAN MOTOR 115V 50/60 HZ 1800 RPM
5	3023907	EVAPORATOR MOTOR MOUNT (ABS).
6	3024837	FAN BLADE 8" 28°
7	3063383	WIRE FAN GUARD 200MM

Technical diagram of a mechanical assembly with numbered parts and labeled components

User Manual for TMR Refrigerators Beverage-Air

DOOR

Technical diagram of a door frame with numbered components and exploded view

User Manual for TMR Refrigerators Beverage-Air

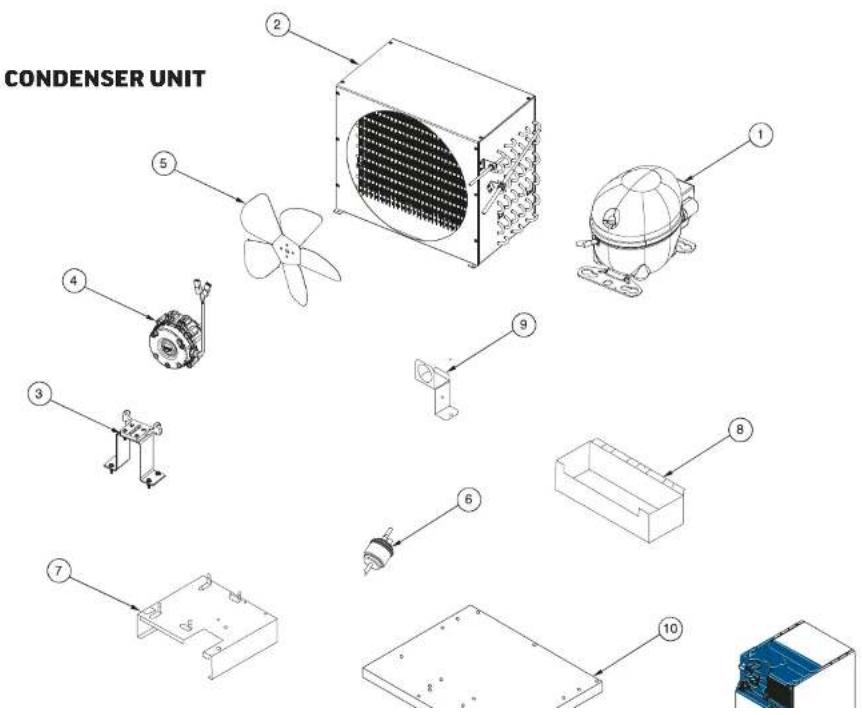

CONDENSER UNIT

User Manual for TMR Refrigerators Beverage-Air

REPLACEMENT PARTS FOR TMR2HC-1S

GENERAL ASSEMBLY

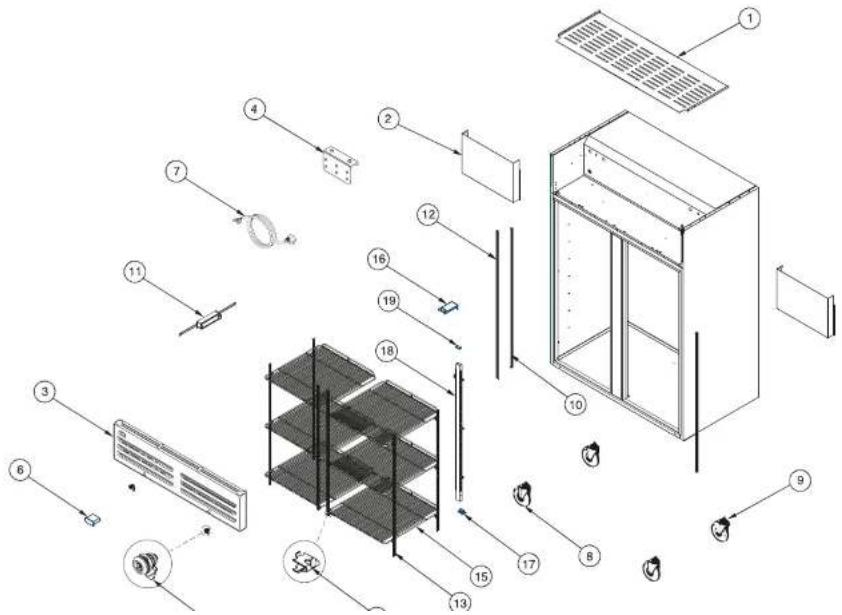

Exploded view diagram of a refrigerator unit with numbered components for identification and assembly.

User Manual for TMR Refrigerators Beverage-Air

GENERAL ASSEMBLY CONT'D

ITEM	SPARE PART CODE	DESCRIPTION
*	3071201	TEMPERATURE SENSOR (2 M)
1	2079555	CONDENSER GRILLE, 1300
2	2077171	BACK DIVERTER AIR
3	2106071	LOUVER 2D
4	2106497	LOUVER SUPPORT BRACKET
5	2094602	LOCK CYLINDER
6	2105764	TMR2HC-1S CONTROLLER
*	3069874	CONTROL ADJUSTMENT CLIP E34-BHRRR
7	3022239	POWER CORD
8	3071428	CASTER 6" NON-BRAKE
9	3071429	CASTER 6" WITH BRAKE
10	2065590	LED LIGHT STRIP (1M)
11	2079228	40W LED DRIVER
12	2080513	LAMP SUPPORT
13	3062036	PILASTER
14	2079798	CLIP, PILASTER
15	3062165	WIRE SHELF 1300
16	2094532	POLE MOUNT, PILASTER
17	2094539	POLE MOUNT
18	2094555	CENTER POLE
19	2094540	CAP POLE
*	3071340	WIRE HARNESS, MAIN (SSC45 E34B)

User Manual for TMR Refrigerators Beverage-Air

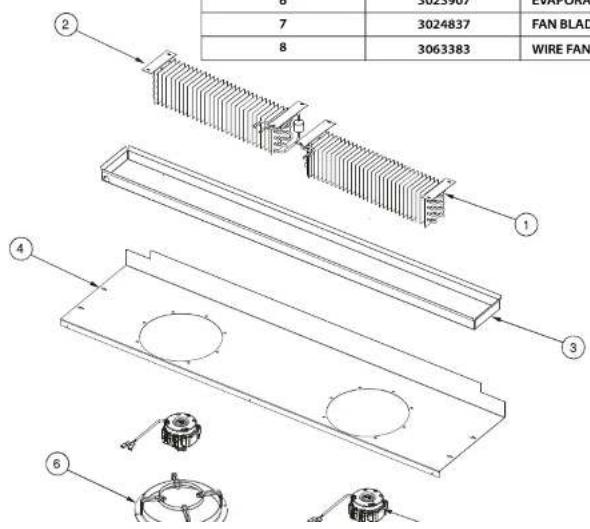

EVAPORATOR UNIT

ITEM	SPARE PART CODE	DESCRIPTION
1	3054283	EVAPORATOR 327 20T 1/4 AL 6APP LA490 RIGHT
2	3054284	EVAPORATOR 327 20T 1/4 AL 6APP LA490 LEFT
3	2077293	TRAY EVAPORATOR
4	2077297	EVAPORATOR COVER
5	3030464	FAN MOTOR 115V 50/60 HZ 1800 RPM
6	3023907	EVAPORATOR MOTOR MOUNT (ABS).
7	3024837	FAN BLADE 8" 28°
8	3063383	WIRE FAN GUARD 200MM

7 3024837 FAN BLAD 8 3063383 WIRE FAN

User Manual for TMR Refrigerators Beverage-Air

DOOR

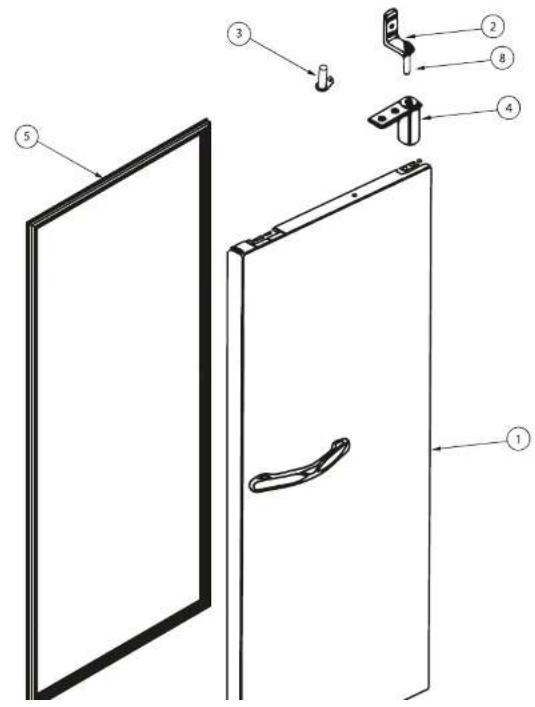

Technical diagram of a door frame assembly with numbered components for identification

User Manual for TMR Refrigerators Beverage-Air

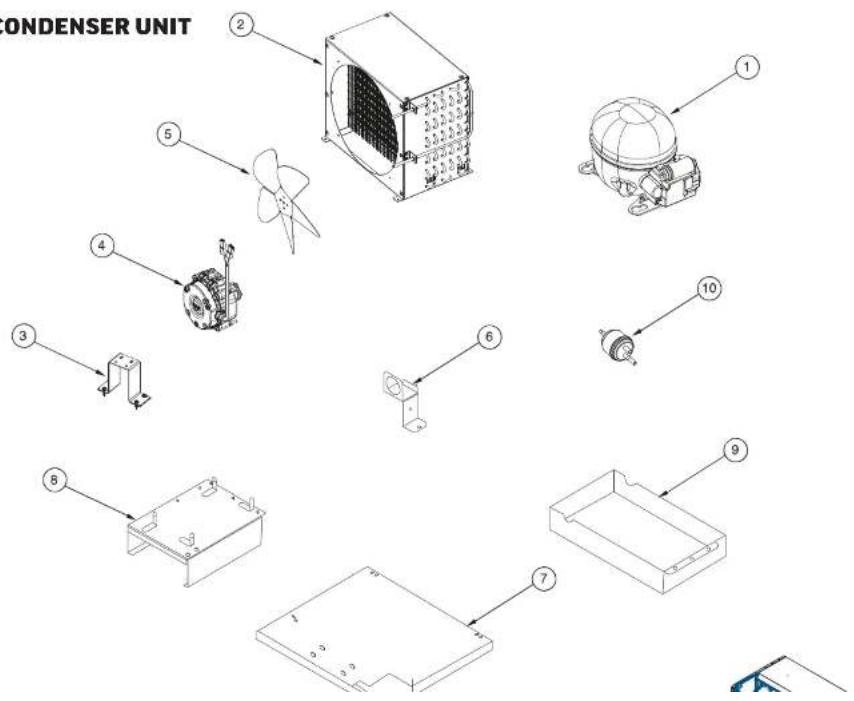

CONDENSER UNIT 1 2 3 4 5 6 7 8 9 10

User Manual for TMR Refrigerators Beverage-Air

Warranty Registration

Register your product online at beverage-air.com/parts-service or fill out and mail the form below.

Cabinet Model Number:

Date Of Installation:
