USER MANUAL 42EE7K SHARP

Pencil sketch of a blank rectangular screen with no text or symbols

PAGE LEFT INTENTIONALLY BLANK

IMPORTANT GUARANTEE INFORMATION

Thank you for purchasing this television. We hope you have many years of trouble free enjoyment from your purchase.

Your product is covered under the manufacturers' guarantee for 12 months from the date of purchase.

If you experience any difficulties with your TV, please refer to the 'Frequently Asked Questions' section at the rear of these Operating Instructions.

If you are still unable to remedy the issue, try resetting the TV to factory settings - details can be found in the 'Setup' menu section of these Operating Instructions - alternatively, please contact the helpline.

In the event that a fault is diagnosed, the helpline will arrange to collect the TV from your home or work address, return it to our service centre, repair the item and then return it to you.

If we believe we cannot offer a permanent repair, we will replace the item.

Technical Support Information

Telephone

Calls to 0330 numbers are charged at standard call rates and are included

as part of any bundled minutes with your phone provider.

The telephone opening hours are Monday to Friday 8.30am to 6pm, Saturday 9am – 5pm.

Please note these hours are subject to change periodically.

UK: Calls are charged at your normal telephone call rate.

ROI: Calls are charged at a local rate.

Please retain all packaging materials, in addition to your proof of purchase/receipt, as you will need these in the event of warranty/service support.

This guarantee is in addition to and does not affect your statutory rights.

If you need to call the helpline, you will need the following information.

Model No: (You can find this on the rear of the TV)

Serial Number. (You can find this on the rear of the TV)

Date of purchase: (You can find this on your sales receipt)

EXAMPLE OF LABEL ON REAR OF TV

Model No

SHARP

1. 2017年

CE

Important Safety Instructions

To prevent spread of fire, keep candles or other open flames away from this product at all times

Please read these instructions. All of the safety and operating instructions should be read before the appliance is operated.

- Alternating current

☐ - This equipment is a Class II or double

insulated electrical appliance. It has been designed

in such a way that it does not require a safety

connection to electrical earth.

Warnings

- Television sets with 40" screens or larger must be lifted and carried by at least 2 people.

• This television does not contain any parts that are serviceable by the user. In the event of a fault, contact the manufacturers or authorized service department.

- Exposing the internal parts of the TV may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties. - Do not use the TV set immediately after unpacking.

Wait until the TV wears up to room temperature before using it.

• To reduce the risk of fire, electric shock or damage to the TV, do not expose it to dust, rain or moisture. Never expose the TV to dripping or splashing and do not place objects filled with liquids on or near the TV.

- Do not connect any external devices (DVD player, games console etc.) when the TV is switched on. Disconnect both the TV and device from the mains before connecting. Only switch appliances on when the connection process is complete.

- Do not place the television in a confined space and do not obstruct the ventilation openings at the rear of the television. - When installing on a wall, ensure the TV is at least 5cm from the wall for ventilation.

• Always ensure that the TV's ventilation openings are not covered with items such as newspapers, table-cloths, curtains, etc.

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling. - Ensure this TV is used in moderate climates only.

- In cases of electrostatic discharge (ESD) the TV may operate incorrectly. If this happens, turn the set off at the mains and

WARNING: Never place a television set on an unstable surface. The TV set may fall causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- Use cabinets or stands recommended by the manufacturer of the television set.

- Only use furniture that can safely support the television set.

- Ensure the television set is not overnanging the edge of the supporting furniture.

- Do not place the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television.

set to a suitable support

- Do not place the television set on cloth or other materials that may be located between the television set and supporting furniture.

• For maximum safety while using your set, it is

recommended to fit anti-tip straps. These are designed to be attached between the wall/secure surface and the VISA mounts on the television. These are available from major retailers and websites and are an easy and inexpensive way of ensuring that your set stays safely upright.

- Please educate children about the dangers of climbing on

furniture to reach the television set or its controls.

- If your bonding behaviors are being retained, it is relocated, the same considerations as airway should be applied.

Safety

- For your safety, this appliance is fitted with a fused 3-pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.

- Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement mains cable is required, contact the manufacturer for a suitable replacement.

- Never use the television if it is damaged in any way.

• Always place the television on a flat level surface avoiding anywhere which may be obvious to

anywhere which may be subject to

• The ideal distance to watch the television is from

approximately 2.5-3 times the length of the diagonal

measurements of the TV screen away

- Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.

- Never place mobile phones, speakers at any other device

which may cause magnetic or radio interference, near the television. If interference is apparent, move the device causing the interference away from the television.

• To disconnect the set from the mains, remove the mains

plug from the socket

- Ensure that the mains plug is always easily accessible.

- When handling the set do not grip the LCD screen/glass. - Do not pull the set when mounted on a bracket. If using a

- DISTRAT plan is a 34 inch small block at a 12.8 inch, if fixing a movable bracket, adjust pin the bracket and not the TV set.

- In a noticeable bracket, justify the line bracket and • Do not place this set above a heat source.

WARNING: Excessive volume when using earphones and headphones can cause damage to hearing.

Maintenance

• To clean your TV, wipe with a soft dry cloth. If the surfaces are extremely dirty, use a soft cloth damponed with a weak detergent solution.

- Never use alcohol, grand thinner or benzene to clean this unit.

- Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Packaging

- The safest way to transport your item is in the original box/packaging - please save your packaging for this.

- You will need the original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important information regarding use of video games, computers, captions or other fixed image displays

The extended use of fixed image program material can cause a permanent shadow image on the LCD/LED panel also known as "screen burn".

This "shadow image" can appear in the background during normal viewing. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum suitable viewing level.

2. Do not display the fixed image for extended periods of time.

3. Turn the power off when not in use.

Examples of images that are more likely to cause "screen burn" are as follows (this is not an exhaustive list):

• TV channel logos e.g. shopping channel logos and pricing

Important: Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Please dispose of the product at a

designated collection point for recycling

of WLLE. For your nearest facilities, please see www.recycle

for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your local authority or retailer for recycling advice.

Batteries

- CAUTION: Risk of explosion if the battery is replaced with an incorrect type.

- Do not expose batteries to high

temperatures, excessive heat, prolonged

sunshine or fire as this may cause leakage, explosion or ignition.

- Observe the current probability when inserting batteries.

• Do not use different types of batteries together or mix old and very hot wins.

• Dispose of batteries in an environmentally

friendly way.

- Let him regularly play regular or regular to make it. Please consult your local authority.

CE Statement:

Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this LED TV is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU.

The full text of the EU declaration of conformity is available by following the link.

www.sharpconsumer.eu

and then entering download section of your model and choosing 'CE Statements'.

This equipment may be operated in all EU

countries.

The 5 GHzWLAN(Wi Fi) function of this equipment may only be operated indoors.

Why only be operated mode. Wi-Fi may transmit power

100 mW at 2.412 GHz - 2.472 GHz;

100 mW at 5.150 GHz - 5.350 GHz;

100 mW at 5.470 GHz-5.725 GHz

TRADEMARKS

DV3

Digi Vito Bumong

The DVB logo is the registered trademark of the Digital Video Broadcasting (DVB) project.

FreeviewPlay

The FREEVIEW text and logos are trademarks of DTV Services LTD. © DTV Services Ltd

SAORVIEW

SAORVIEW is a registered trademark owned by RTÉ

Dolby Audio

Manufactured under license from Dolby Laboratories Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

dtsx

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, DTS:X, Virtual:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2021 DTS, Inc. ALL RIGHTS RESERVED.

HDMI

The terms HDMI, HDMI High Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

harman/kardon

Harman Kardon is trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

The "CI plus" Logo is a trademark of CI Plus LLP.

The Wi-Fi CERTIFIED Logo and Miracast® are registered trademarks of Wi-Fi Alliance. Wi-Fi CERTIFIED Miracast® is a trademark of Wi-Fi Alliance.

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by bluetooth SIG, Inc.

Microsoft PlayReady™

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation of the protected content is not intended for protection by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

CONTENTS

Guarantee Information....3

Safety Instructions 4-5

Trademarks....6

Securing to a wall ....8

GETTING STARTED 9-19

Connecting External Device - Wired 9-13

Connecting Headphones - Wired 14

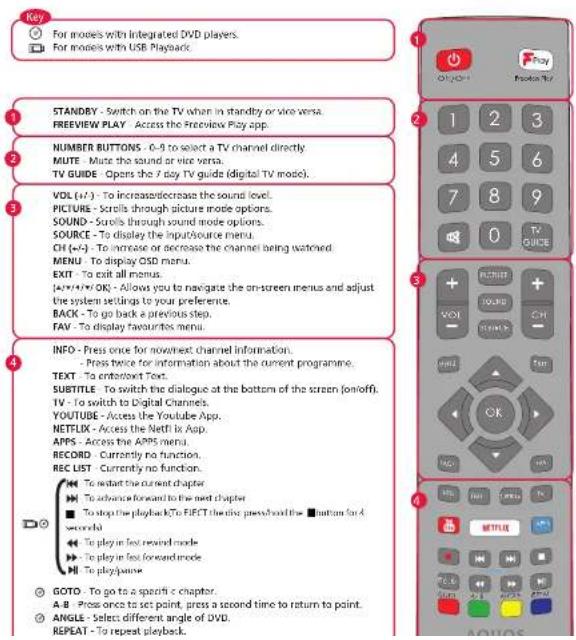

Remote Control 15-16

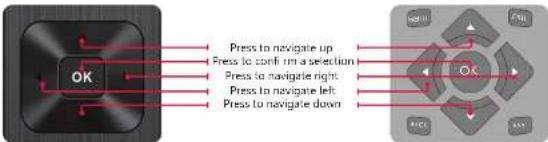

First Time Installation 17-19

USING THE TV 20-34

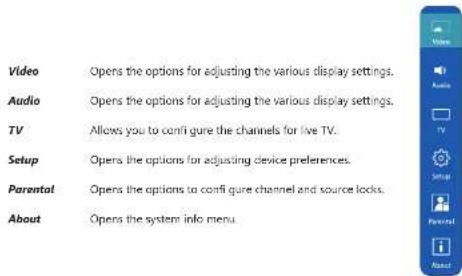

Television Menu....20

Video & Video. Explained 21-23

Audio & Audio Explained 24-26

TV and TV, Explained 27-28

Setup & Setup, Explained 29-33

Parental & Parental. Explained 33-34

About 34

DIGITAL TV & FREEVIEW PLAY 35-42

Turing in Digital Channels 35

Terrestrial 35

Cable 35

Satellite 35

Using Freeview Play....30

Channel Guide 36

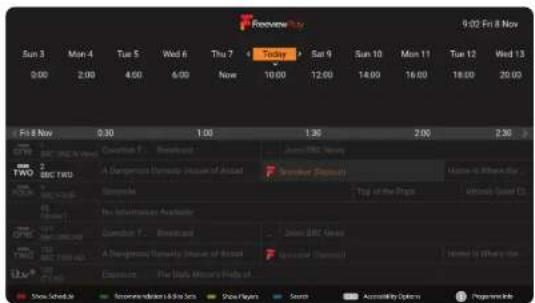

Back EPG 37

Quick Buttons....37

Freeview Play Button 39

Freeview Play App 48

Channel List....41

Information Bar....42

SPECIFICATIONS 43-48

Video Formats 43-44

Audio Formats 45-47

Image Formats 49

TROUBLESHOOTING GUIDE 49-51

Securing to a wall

SECURING THE TV TO A WALL

Securing the TV to a wall with anti-tip straps

For maximum safety in the home, when using a TV with its stand, anti-tip straps should be fitted. These are available from major retailers & websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall or furniture the TV is stood on, these are fitted as follows.

Biting one or both of the top wall mounting holes and screws fasten one end of the fastening cord/s to the TV. (the screws are already supplied in the wall mounting holes)

Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type available separately from most DIY stores);

A B

Simple line drawing of a vertical stand with a horizontal bar and base, no text or symbols present.

Note: Please ensure that children do not climb on the TV set. Note: When handling the set do not grip the LCD Panel. Note: Do not pull the set when mounted on a bracket. If using a moveable bracket, adjust via the bracket and not the set.

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions. RoSPA stated in 2010 that "Toddlers are particularly at risk of pulling flat-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images."

The risk is increased as televisions become lighter.

Wall mounting & Viewing Angle

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electrical wires, water or gas pipes.

1. Remove the four screws located at the back of the TV set.
2. The wall mount can now be easily attached to the mounting holes, located on the back of the TV, using the same four screws removed.

Note: This diagram to the left is an example of screw positions. Due to model variations, please ensure you check your TV for the exact location of the wall mounting screw positions.

Getting Started

CONNECTING EXTERNAL DEVICES - WIRED

Before turning your set on, it is recommended that your external devices are connected before continuing with the first-time installation process. Depending on the source connectivity on your television, follow the guidance below when connecting external devices.

HDMI Connection

For optimum picture quality, we recommend connecting your device to the television using an HDMI cable.

External Device HDMI cable (not supplied)* *Be sure to use an authorised HIGH-SPEED HDMI cable bearing the HDMI logo.

HDMI CEC-Compatible Devices

If an HDMI CEC-compatible device (e.g., Blu-ray player, AV receiver) is connected with an HDMI cable, you can operate the device with the televisions remote control. We recommend using the HDMI (ARC) connection when used with an AV receiver – please refer to the ARC section of this Operation Manual.

Adjusting HDMI CEC Settings

1. Turn on the connected device.
2. To enable HDMI control, press the (HOME) button, then select Settings > Device Preferences >
   Inputs.
3. Activate HDMI control on the connected device.

Available options

HDMI control Allow the	IV to control HDMI devices.
Device auto power off	If disabled, the connected device does not turn off automatically when the television is turned off.
Television auto power on	If disabled, the television does not turn on automatically when the connected device is turned on.

CEC Device list Display the HDMI CEC device list

Features Available to Compatible CEC Devices

Blu-ray/DVD player

• Automatically turns the television on and switches the input to the connected Blu-ray/DVD player when the Blu-ray/DVD player starts to play.
  • Automatically turns the connected Blu-ray/DVD player off when you turn the television off.
• Controls menu operation [ARROW] buttons, playback and track selection of the connected Blu-ray/DVD player through the TV's remote control

AV Receiver

• Automatically turns the connected AV receiver on and switches the sound output from the TV speaker to the audio system when you turn the TV on. This function is only available if you have previously used the AV receiver to output the TV's sound.
  • Automatically switches the sound output to the AV receiver by turning the AV receiver on when the TV is turned on.
  • Automatically turns the connected AV receiver off when you turn the TV off.
• Adjust the volume and mute functions via the [VOL+/−] and [MUTE] buttons on your television remote control.

Video Camera

• Automatically turns the TV on and switches the input to the connected video camera when the camera is turned on.
  • Automatically turns the connected video camera off when you turn the TV off.
• Controls menu operation [ARROW] buttons, playback, e.g. [PLAY] button of the connected video camera through the TV's remote control.

Note: Not all devices with HDMI input/output are HDMI CEC compatible. For information about CEC compatibility, refer to the instruction manual of the device. Refer to "HDMI connection (ARC supported)" section of this manual for information relating to connecting an HDMI (ARC) enabled device.

Getting Started

Composite video Connection

If your external device has composite video jacks/sockets, connect them to the television using a composite video cable and an audio Phone cable.

AV Source

Component video Connection

If your external device has component video jacks/sockets, connect them to the television using a component video cable and an audio Phone cable.

AV Source

Getting Started

Connecting an External Audio Device

You can connect audio systems such as AV receivers or sound bars to the television. Select a connection method below according to the specifications of the audio system you want to connect.

- Connecting with an HDMI cable, for Details, carefully read HDMI Connection (ARC supported).

- Connecting with a digital optical cable,

- Connecting with an audio cable.

Note: Refer to the instruction manual of the device to be connected.

HDMI Connection (ARC Supported)

Connecting the television and audio system with a HDMI cable. This is the recommended method of connecting an external audio device.

Connect to the television's HDMI input terminal bearing the text: "ARC".

A B HDMI (ARC) HDMI (ARC)

A AV Receiver or Soundbar
B HDMI cable (not supplied)*

Note: We recommend authorised Premium High-Speed HDMI Cable(s) bearing the HDMI logo

Ensure that the connected audio device is HDMI ARC compatible.

The ARC output on your television may vary depending on the model.

HDMI CEC must be enabled on your set for this connection to work. To do this press the [HOME] button, then select Settings > Device Preferences > Inputs and then enable the HDMI control option.

Control of volume can be achieved via the television remote control (CEC must be turned on).

Getting Started

Digital Audio (Optical)

Connecting your television and audio system with a digital optical cable.

Connect to the audio system digital optical input terminal.

Digital Audio Out Optical Digital Audio In Optical

AV Receiver or Soundbar
B Audio Optical cable (not supplied)

If there is no output on the digital optical output, ensure that the digital output is set to PCM.

to set, go to: Settings > Device Preferences > Sound > Digital Output to PCM.

The digital optical output is always present whatever source is selected.

RCA Analogue Audio Cable

Connect to the audio system's audio input terminal.

A B L R A A A A A A A

A AV Receiver or Soundbar
6 Audio cable (not supplied)*

Note: The output audio level is dependent upon the headphone level. The volume level on the connected audio

[Non-Text]

Getting Started

Connecting Headphones

You can connect wired headphones to this set.

Earphone

When wired headphones are connected to the 3.5mm jack socket on the rear of the set, the internal speakers will cut out. The volume of the sound which comes from the headphones is controlled via the remote control using the [VOL+] and [VOL-] buttons.

Note: When using headphones, a warning will appear advising not to use excessive volume for long periods of time as this may damage your hearing.

Turning up the headphone volume too high may result in distortion

REMOTE CONTROL

EE/EH Model Remote Control Layout

Your remote control will vary depending on the model of TV you have. The following pages describe each remote type. Please follow the layout for the remote that comes with your model of TV:

Type 1

Key For models with Integrated DVD players. For models with USB Playback. 1 STANDBY - Switch on the TV when in standby or vice versa. FREEVIEW PLAY - Access the Preview Play app. 2 NUMBER BUTTONS - 0-9 to select a TV channel directly MUTE - Muste the sound or vice versa. TV GUIDE - Opens the 7 day TV guide (digital TV mode). 3 VOL (+/-) - To increase/decrease the sound level. PICTURE - Scrolls through picture mode options. SOUND - Scroll through sound mode options. SOURCE - To display the input/source menu. CH (+/-) - To increase or decrease the channel being watched. MENU - To display OSD menu. EXIT - To exit all menus. [AV/AV/OK] - Allows you to navigate the on-screen menus and adjust the system settings to your preference. BACK - To go back a previous step. FAV - To display favourites menu. 4 INFO - Press once for now next channel information. - Press twice for information about the current programme. TEXT - To enter next Text. SUBTITLE - To switch the dialogue at the bottom of the screen (on/off). TV - To switch to Digital Channels. YOUTUBE - Access the Youtube App. NETFLIX - Access the Netflix App. APPS - Access the APPS menu. RECORD - Currently no function. REC LIST - Currently no function. To start the current chapter To advance forward to the next chapter To log the playback To EFFT periodic press which the button for a second To play in last rowed mode To play in last rowed mode To play again GOTO - Go to a specific chapter. A-B - Press once to set point, press a second time to return to point. ANGLE - Select different angle of DVD. REPEAT - To repeat playback.

EH Model Remote Control Layout

Your remote control will vary depending on the model of TV you have. The following pages describe each remote type. Please follow the layout for the remote that comes with your model of TV:

Type 2

1 2 3 4 5 6 7 8 9 0 GUIDE MENG FAV INFO OK BACK OFFS EXIT VOL CH 4 NETFLIX prime video YouTube Play 4000 SUB TEXT TV AQUOS SHARP

For models with integrated DVD players.

For models with USB Playback

STANDBY - Switch on the TV when in standby or vice versa.

SOURCE - To display the input/source menu.

NUMBER BUTTONS - 0-9 to select a TV channel directly.

MUTE - Mute the sound or vice versa

GUIDE - Opens the 7 day TV guide (digital TV mode).

MENU - Displays the OSD menu.

FAV - Displays the favourites menu.

INFO - Press once for now/next channel information.

Press twice for information about the current programme.

▲/▼/◄/►/OKAllows you navigate the on-screen menus and adjust

the system settings to your preference

BACK - To go back a previous step.

APPS - Access the Apps menu.

EXIT - To exit all menus

VOL (+/-) - Tilt to increase/decrease the sound level

CH (+/-) - Tilt to move up or down the channel being watched.

NETFLIX - Access the Netflix App.

PRIME VIDEO - Access the Prime Video App.

YOUTUBE - Access the YouTube App.

FREEVIEW PLAY - Access the Freeview Play App.

AUDIO - Scrolls through the sound mode options.

SUB - To switch the dialogue at the bottom of the screen (on/off).

TEXT - To enter/ent Telegraph.

TV - To switch to digital Channels.

To playpause

to play in fast rewind mode

to play in fast forward mode

stop the playback

COLOUR BUTTONS - Execute corresponding function at that time.

Getting Started

FIRST TIME INSTALLATION

When the set starts up for the first time, it will do so in the first-time installation mode.

To navigate through the options when in the first-time installation mode, use the buttons on your remote control as shown here:

TV Control Stick

The TV control stick is located on the back of the TV, on the left hand side when looking at the TV. The control stick can be used to control a variety of TV functions. The shape of the TV's control stick may vary by model.

While the TV is in standby mode:

1. Pressing the centre of the control stick once powers on the TV set.

While watching TV:

1. RIGHT/LEFT - volume up/volume down
2. UP/DOWN changes channel up/down
3. Press the centre of the control stick once displays the menu.
4. Press and hold the centre of the control stick - Standby/Power Off

While in menu:

1. RIGHT/LEFT/UP/DOWN navigation of cursor in on screen menus.
2. Press the centre of the control stick once - OK/Confirm selected item
3. Press and hold the centre of the control stick - back to previous menu.

Getting Started

Full First Time Installation

When the set is turned on for the first time it will enter the installation mode as shown here. It is recommended that all steps are completed as shown in the process to ensure correct operation. Use the back button on your remote control to return to the previous screen.

1. When the set first turns on, you will be requested to select your preferred on-screen display language. This will set the language in which the menus and associated information is displayed in. Should you wish to do so, this can be changed later in the Device Preferences menu.

Welcome New user accounts Home/Offenses Finish OK Finish Finish Finish Finish

1. Select the correct country in which the set will be used in. This will enable the set to correctly install the functions applicable in the country of use.

Country New Country Global

1. A PIN needs to be set to establish parentol controls.

PIN PengelaTIN 100% has been 5% Press your account.

1. Set the Time Zone in which the TV will reside. This may be dependent on the country you selected in step 2.

Getting Started

1. You will need to agree to certain information collection for the TV set to operate as intended.

DATA COLLECTIONS AND UPDATE UPDATES NOTIONS 1. 2015-03-24 2. 2015-03-25

1. You can connect the TV to your broadband router or wireless network in order to take advantage of the Smart functions. If you connect the TV to your router using an Ethernet cable, the Wifi set up will be skipped.

Network Press to add or modify the Press of to create.

1. If you have a Netflix account, it can be set up on the television here. Once set up and validated, the First Time Installation returns to the next step.

Set up Netflix We create the new content. We create a new content. PINEUS to create it.

1. For normal use, by default it is set to a power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). This can be changed in the picture mode settings.

TV Mode See TV Week. Press 0 to continue.

1. Choose to install channels via Antenna, Cable or Satellite. Then Select the next option to scan in channels.

Using The TV

TELEVISION MENU

You can access the settings menu below whilst watching the set in Television mode. To do so, ensure you are on the Live Television source and press the [MENU] button on the remote control. This menu opens on the left side of the TV display. Each menu item is described over the following pages.

Video Audio TV Setup Parental About Opens the options for adjusting the various display settings. Opens the options for adjusting the various display settings. Allows you to configure the channels for live TV. Opens the options for adjusting device preferences. Opens the options to configure channel and source locks. Opens the system info menu.

Another access menu is available by pressing the Apps button on the remote control. This menu displays on the bottom of the screen and allows easy access to the most common options.

Using The TV

Video

You can change various display options in this menu. To get to this menu, press Menu and select the Video icon. This is an overview. You can see detailed descriptions of items with a * in the "Video, explained" section.

Picture Mode* This menu provides options to modify picture quality.

Backlight Adjust the strength of the LED Backlight.

Brightness Changes the brightness of the picture.

Contrast Changes the range between the brightest and darkest parts of the picture.

Saturation Controls the amount of colour in the picture.

Hue Varies the tint of the picture.

Sharpness Allows for the sharpness of the picture to be adjusted.

Video Delay Adds delay to incoming video signals.

Gamma* Changes the gamma response of the picture.

Colour Changes the colour temperature of the picture.

(1) 2017年1月1日

Advanced Options to enhance the viewing experience.

Video Picture Mode Back Light Brightness Contrast Saturation HUI Sharpness Video Delay Gamma Color Temperature Advanced Video

Video, explained

Picture mode.

Options are:

User: For you to set your own preferences.
Sport Suitable for viewing sports events
Vivid Enhances the contrast and brightness. Standard For standard use
Movie Set for watching mov
Game For
Energy Best energy performance (on by default).
(1) 本次股东大会的决议

Gamma

Options are:

Dark Enhances colours in dark areas.

Middle Improves mid-range colours.

Using The TV

Advanced Video.

Items with a * are explained further in the section titled "Advanced Video, explained".

Options are

DNR: Digital Noise Reduction.

Reduces the noise found in some content by using

algorithms to average out power data. Options: Off / Low / Medium / Strong / Auto

MPEG NR: MPEG Noise Reduction.

A feature which improves the quality of pictures by

reducing the block noise and mosquito noise without compromising the picture resolution.

compromising the picture resolution.

Options: Off / Low / Medium / Strong

Adaptive Luma Control.

Automatically adjusts the brightness and contrast after

analyzing the input signal.

Options: Off / Low / Medium / Strong

Blue Stretch:

When activated, the brightest part of the screen will be

leveled down to reduce the saturation.

Options: ON/OH

Game

Turns

reduce

Options: On / Off

Super

Attempts to smooth gradations and decrease noise in the video

signal.

Options: Off/Off

Local

Local contrast divides your TV screen into different "zones"

so it can dim the dark parts of the screen without affecting

the bright areas.

Options:

Off / Low / Medium / High

Colours

Fine tune the TV's colours

Tuner:\*

11 Point White Balance Correction:

Adjusts the white balance by adjusting the contrast of the three primary colours.

PC Mode:

Disables certain post processing to attempt a smoother

viewing experience for reading text and clicking mouse movements.

Options On / Off

Clerghs: OH / OH

Using The TV

Advanced Video, explained

Colour Tuner

Options are

Enable

Tums the tuner on or off

When turned to "On", the options available are:

Hue

Fine adjustments of the colour.

Saturation

Fine adjustments of the colour saturation.

Brightness

Fine adjustments of the colour brightness.

Hue, Saturation and Brightness are each controlled by the

following:

Red: 0 - 100

Green: 0 - 100

Blue: 0 - 100

Cyan: 0 - 100

Magenta: 0 - 100

Yellow: 0 - 100

Flesh Tone: 0 - 100

0 ff set

Fine adjustment of the bright colours.

Options are:

Red: 0 - 100

Green: 0 - 100

Blue: 0 - 100

Gain

Fine adjustment of darker colours.

Options are:

Red: 0 - 100

Green: 0 - 100

Blue: 0 - 100

11 Point White Balance Correction

Options are

Enable

Tums the correction on or off.

When turned to "On", the options available are

Gain

Options are: 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 100 (%)

Audio

You can change various display options in this menu. To get to this menu, press Menu and select the Audio icon. Please note some options require scrolling down to make them visible.

This is an overview. You can see detailed descriptions of items with a * in the "Audio, explained" section.

Balance

Controls the Left and Right balance of the audio.

Sound Style\*

Sets the sound mode.

Equalizer

Fine control of the frequency response.

Detail

Digital Output

Settings for the digital audio output.

Digital

Allows the user to adjust the audio setting to synchronise the picture and sound for external speakers connected via digital audio output.

Output Delay

When "on" is selected, the volume remains at a constant

Auto

Volume Control

level regardless of the input/source

[Non-Text]

Type\*

Choose broadcasted audio types.

Visually

Controls audio options for accessibility.

Impaired ^a

Downmix

Selects the number of audio output channels between

mode

"stereo" and "sunround".

Soundtrack

Select which audio channels are being broadcast.

Advanced\*

Settings for Dolby Audio ^™ and DTS ^™ sound profiles.

TTS

Controls Text-To-Speech settings

Dialogue

Adjusts the frequency band of the center channel to improve the audibility of dialogues.

Enhane

Reset to original parameters

Reset to Default

Audio, explained

Sound Style

Audio Balance Sound Style Ecosystem Extent Digital Outputs Digital Outputs Relay Auto-Volume Control Type Downstream Mode Visually Injected Downstream Mode Sound Ratio Advanced TTS Desktop Interface Reset to Default

Using The TV

Equalizer Detail

Fine control of the frequency response. Bands you can adjust are:

120Hz

500Hz

1.5kHz 5.0kHz

10.0KH

Digital Output

This adjusts the type of encoding for the output of the optical digital

output

Options are:

Auto

Automatically selects from the input source

Bypass

Audio directly comes from the connected device

PCM

PCM encoded stream only

Delby

- DblblidDigital Plus

Dolby Digital Plus signals only

Dolby

- DaddidDigital

Dolby Digital signals only

Type

This adjusts the audio type for accessibility.

Options are:

Hearing

Imapired

Audio

Description

Spoken

Subtitles

Audio Description + Spoken Subtitles

This adjusts the text-to-speech parameters.

Options are:

Voice

On/Off

Using The TV

Choose from: On/Off

Pitch

Verbosity

Visually Impaired

This adjusts the audio options for for those who are visually impaired. Options are:

Speaker

On/Off

Headphone

On/Off

Volume is only activated if Speaker or Headphone is set to "On"

Pan and Fade

Advanced

This adjusts the audio options for the included Dolby Audio and DTS sound profiles. Options are:

Dolby Audio Processing

Turns processing On or Off

Sound

Style

Enables Dolby™ engineered sound profiles. Options

User / Standard / Sports / Movie / Music / News

DTS

Turns processing On or Off

Virtual:X"

Enables the DTS Virtual: X

^TM Tru Bass ^TM option

Note: You can only activate either Dolby or DTS, not both at the same time.

Using The TV

TV

You can configure the TV Tuning options whilst in this menu.

This is an overview. You can see detailed descriptions of items with a * in the "TV, explained" section.

Tuner Mode* Choose which tuner type to use for TV.

Audio Choose which Audio Language to hear from the

Language broadcasted channel.

2nd Audio Second option for Audio Language.

Language

Channels* Tune and control Channels.

Auto Channel Update channels automatically.

Update

TV Tube Movie Audio Language 2nd Audio Language Chemistry Auto-Chemical Update

TV, explained

Tuner Mode

Options are

Antenna

To tune into terrestrial broadcast signals.

Cable

To tune into Cable broadcast signals.

Satellite

To tune into satellite broadcast signals

Channels

In this menu, you can control various parameters relating to tuned in channels.

Options are

Channel Scan

Select this to begin tuning in channels. Use this to retune your TV manually.

Manual Service Update

Select this to begin tuning in additional service information related to channels.

Single RF Scan

Select a single channel from the list and press [OK] twice to tune into that specific channel.

LCN

Logical Channel Number. When turned on, digital stations will be ordered according to provider

preferences

Using The TV

L

C

N

Satellite

Channel Skip

Allows you to select channels which can be skipped when

To select a channel for skiing, highlight the desired

channel and press [OK] on the remote control.

Channel

Swap

Allows you to swap channels between locations. This is

only selectable if BCN Channel Sorting is activated. To scan a channel, first select the channel you want to

to swap a channel, if last select the channel you want to swap, press OKI on the remote once, then scroll to the

channel you want to swap with, and press [OK] again

on the remote control. The channel will swap positions.

Channel

Edit

Allows you to edit channel names, or delete it from the

channel list Should you delete the channel accidentally

you will need to return the Television.

Channel Skip
1	Digital	BBC	ONE	Oxford	○
2	Digital	BBC	TWO		○
3	Digital	ITV			○
4	Digital	Channel	4		○
5	Digital	Channel	5		○
6	Digital	ITV2			○
7	Digital	That's	TV		○

Channel Swap
1	Digital	BBC	DNE	Oxford
2	Digital	BBC	TWO
3	Digital	ITV
4	Digital	Channel	4
5	Digital	Channel	5
6	Digital	ITV2
7	Digital	That's	TV

Channel Edit
Network Name	Oxon & Bucks
Channel Number	1
Channel Name	BBC ONE Oat...
Frequency	634
Delete

Analogue channel fi ne tune

Allows fine tuning of any analogue signals being

broadcast.

Clear Channel List

Clears the tuned in channels. To regain channels,

you will need to return the TV using the Channel Scan option in this menu.

option in this menu.

SETUP

You can configure the TV's global settings whilst in this menu.

This is an overview. You can see detailed descriptions of items with a "in the Setup, explained Section."

OSD Language Change the language that the TV menus use.

Screen Mode* Make adjustments to how large or small content is displayed.

Blue Mute Switch on or off if a blue screen if no input signal is detected.

HbbTV Settings* Set various options for HbbTV.

DTV Time Setup* Set the time of the TV, Auto Power on/off settings and sleep timers.

CEC Control* Configure how the TV communicates with devices connected via HDMI cables.

Subtitles Select your preferred subtitle language and type.

Teletext Language and region settings (if available).

Common Interface Activate and set up a connected Conditional Access Module (not supplied).

Network* Allows you to connect the set to the internet and take advantage of a wealth of content.

Channel Update Advise when channel update is available, on/off

USB Upgrade Choose this to update the TV with an available software update via a USB stick.

Reset to Default Resets the TV to original factory settings.

TV Mode Set the TV to either Store Mode or Home Mode.

Internet Checks the internet for any update to the TV. Update Check

Setup COLD Language Select Mode Blue Mode Hi/TV Settings DTV Time Settings CBC Control Subscribers Features Common Interface Network Channel Update USB Upgrade Ready to Default TV Media Income Update Check

Setup, explained

Screen Mode

Options are:

Auto

Automatically fills the display with the received content.

Normal

Displays content using the full screens area.

Letterbox

Borders on the top and bottom of the screen.

Panorama

Stretches content to display across the screen.

Zoom

Content is zoomed in, cropping edges. Useful if you want to

avoid seeing graphics or borders within the received content.

Dot by Dot

1:1 pixel mapping of the received signal.

4:3

Box Ratio.

HbbTV Settings

Options are:

HbbTv Support

Options: On / Off

Do Not Track

Options: On / Off / Default

Cookie

Settings

Options: On / Off

Storage

Options: On / Off

Block Tracking Sites

Options: On / Off

Device

ID

Options: On / Off

Reset Device ID

Confir rm that you want to reset the device ID for HbbTV

FVP Tou (Terms of Use)

Display the Terms of Use for Freeview Play

DTV Time Set Up

Controls the time settings for the TVs internal clock.

Options are

Time Zone

Choose from GM -/+ 0:00:12:00

Time

Options

are

Auto

Synchronization:

Auto syncs to the broadcasted time signal. Options are: On / Off

Date

Set the date for the TV.

Time

Set the time for the T

Note: Date and Time settings can only be changed if Auto Synchronization is turned Off.

Power

On

Timmer

Turn On or Off

Power

On

Repeat

Set the frequency by day when the Power on Timer activates.

Tuner

Set the time by which the Power On timer is activated.

Power

Off Timer

Turn On or Off

Power

Off Repeat

Set the frequency by day when the Power Off Timer activates.

Timer

Controls the amount of time the set will stay powered on

without an input signal (remote, button presses) being received

Duration options are: Never / 4 Hours (default) / 6 hours / 6 Hours

Sleep

Timer

Lets you set the sleep timer so the television automatically switches off after a set

amount of time.

ff / 10 / 20 / 30 / 40 / 50 / 60 / 90 / 120 minutes can be

Auto

Sleep:

Controls the amount of time the set will stay powered on without an input signal

(remote, button presses) being received. Duration options are:

Never / 4 Hours (default) / 6 hours / 8 Hours

CEC Control

Controls how the TV communicates with connected devices via HDMI cable.

Options are:

CEC Function

Options: On / Off

ARC (Audio Return Channel)

Options: On / Off

Auto Turn Off

Options: On / Off

Auto power on

Options: On / Off

Discovery

Discover new devices connected via HDMI cable.

Network

Controls how the TV connects to the internet.

Options are:

Configuration

Confi gure various connection options:

Options

Internet Connection

Options: On / Off

Interface

Options: Ethernet

Wake

on

LAN

Wakes the TV from Standby when signal via Ethernet when

detected.

Options: On / Off

Wake

on

Wlan

Options: On / Off

Wakes the TV from Standby when signal via Wireless is detected.

Wireless

Setting

Choose how you

connect to a wireless signal

Options

are:

Scan: Scan for a wireless signal.

Manual: Manually enter details of a wireless router.

Auto: Allows use of connection via WPS.

Information

Displays current c

nection info.

IP

Setting

Configure a wired network

Ipv6

Displays

Information

IPy6

configuration information.

IPv6

Allows

Confi guration IP

configuration of IPv6 settings.

WiFi

[Non-Text]

Set up options for WiFi Direct connection sharing.

Applications

Set up options for applications

Options are

DLNA

Turn On / Off

DMR

Turn On / Off

PARENTAL

You can configure the TV's Parental settings whilst in this menu.

This is an overview. You can see detailed descriptions of items with a * in the "Parental, explained" section.

Broadcasting Controls if the Channel and Program Block options are

System Lock enabled. Options: On / Off

Channel Block*Select channels that cannot be accessed without a PIN.

Program

Select which programs can be viewed when using the Age Rating system.

Block*

Input Skip*

Allows control over which input sources can be skipped.

Input Block*

Block one or several inputs with access controlled via PIN.

Change

Update the password/PIN which controld the Parental

Password

Settings.

Paramall Broadcasting system lock Channel Block Program Block Input Ship Input Block Change Password

Note: If you have activated any settings and leave the menu, you will need to enter your PIN to enter the menu again

Parental, explained

Channel Block

Controls how the TV blocks channels. Use this system to enable specific

channel blocking. To view a channel, the user will need to enter the PIN

number.

Program Block

Using The TV

Input Skip

Select which inputs are to be skipped from the Input Menu. When an input

is selected to be skipped, it will be not be visible in the list of inputs.

Input Block

Select which inputs are to be blocked from the Input Menu. When an input

is selected to be blocked, it will be visible in the list of inputs but require

a PIN to access it.

ABOUT

You can view the TV's About information whilst in this menu.

Netflix

View various information relating to the Netflix Licence.

Help

Allows you to use the online manual. To use this, you will

Information

need to be connected to the internet.

Version Info

Version info for the TVs software. Used for diagnosis.

License Info

View license information and control user data collection.

System

Update the password/PIN which controld the Parental

Information

Settings.

TV Name

Change the TV name.

DIGITAL TELEVISION, FREEVIEW AND FREEVIEW PLAY

To watch television programmes via Antenna, Cable or Satellite, press the [HOME] button, select "Apps" from the Home Page, and select Live television from the apps list. You can also enter the digital television mode by pressing the [TV] button on the remote control.

Should your set not be tuned into a digital signal, follow the instructions as below:

Tuning in Digital Channels

It is possible to tune into either terrestrial, cable or satellite digital television signals on your television set. To do this, follow the instructions given below for each type of signal input. Only one tuning type can be selected.

Terrestrial

Before tuning terrestrial channels, ensure the television is in TV mode:

1. Press the (HOME) button, then select Settings > Channel > Channel installation mode.
2. Select option Antenna.
3. To start automatic channel scan press the [HOME] button, then select Settings > Channel > Channels > Channel scan.

After tuning into Freeview, you may be presented with a choice of regions; this is dependent upon your location and the number of transmissions received. Normally there will only be one transmitter:

• Region 1 Country
• Region 2 Transmitter Location
• Region 3 Local News variation

Cable

Receiving cable digital broadcast;

1. Before tuning cable channels, ensure the television is in cable mode:
2. Press the [HOME] button, then select Settings > Channel > Channel installation mode.
3. Select option Cable.
4. To start automatic channel scan, press the [HOME] button, then select Settings > Channel > Channels > Channel scan.

Satellite

Before tuning satellite channels, ensure the television is in satellite mode:

1. Press the [HOME] button, then select Settings > Channel > Channel installation mode.

2. Select option Preferred Satellite if you want to tune one of satellites preferred in your country.

3. Select option General Satellite to act possibly to tune our astellite

Using Freeiew Play

Freeview Play enables you to watch live television as well as having access to catch up television services and playback from the start of a live programme.

Note: To use Freeview Play your set needs to be connected to the internet and tuned into a reliable and consistent Freeview signal. Freeview Play is only available in the United Kingdom. To tune in your set, refer to the Tuning in Digital Channels section on page 63.

Channel Guide

While using Freeview Play, the Electronic Programme Guide (EPG) is available while in the Live Television mode. It provides information about forthcoming programmes. You can view the start and end time of all programmes and on all channels for the next 7 days. To enter the EPG, press the [GUIDE] button on your remote control. Press the [EXIT] button to leave programme guide.

When the EPG is entered, a screen like the one below will appear. This will show a live preview of the programme being received in the top left hand corner and a synopsis this on the right. This synopsis will change as you navigate around the guide with the [ARROW] buttons on the remote control.

Snooker (Repeat) 9:15 - 2:05 50 mins TWO File 8 Nov 9:30 1:00 1:30 2:00 2:30 7 TWO 8 TWO TWO 1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

In the middle of the display is the programme listing, which is shown in time order, half hour segments being shown at the top and channel name on the left. If you would like to quickly scan through the channels, press the [CH+] or [CH-] buttons to quickly move up or down through the listings. Using the [RIGHT] button will move forward in time, using the [LEFT] button will move back in time.

Back EPG

When moving backwards through the EPG, the display will change to show the programmes which have been previously recorded on the on-demand players for the channel shown. Recorded and available programmes will be indicated by the Freeview Play logo appearing next to them as shown in the picture below. Greyed out programmes are not available on catch up.

9:02 Fri 8 Nov Sun 3 Mon 4 Tue 5 Wed 6 This 7 Today Sat 9 Sun 10 Mon 11 Tue 12 Wed 13 0:00 2:00 4:00 6:00 Now 10:00 12:00 14:00 16:00 18:00 20:00 Fri 8 Nov 0:30 1:00 1:30 2:00 2:30 Current T - Broadcast A Dangerous Dynasty Museum of Action Current Display Top of the Progs Home to Africa Only Guest Of The Information Analyst Current T - Broadcast A Dangerous Dynasty Museum of Action Current Display Show Schedule As: Acceptance Inhibitors & Info Sets Show Players Search Accessibility Options Programs Show Schedule As: Acceptance Inhibitors & Info Sets Show Players Search Accessibility Options Programs

When a programme has been selected, the preview window and synopsis change to show the programme details. The date is below the preview window.

Note: For full functionality of the EPG, a reliable and consistent connection to the internet is required.

Without internet, back EPG will not work, channel preview will not appear, programme synopsis will change to a basic view, channel icons will not be present and catch up services will not be available.

Quick Buttons

While in the EPG, various functions can be accessed quickly by pressing the coloured buttons at the bottom of the remote control. These are detailed as described below.

[RED] – Goes to the Schedule List

While in the schedule list you can go backwards and forwards in time (7 days forwards and 7 days backwards) to select the programme which you would like to watch. If the Freeview Play logo is present, the programme can be played back when selected using the [ARROW] buttons and [OK] is pressed.

You can also select the day and time of the schedule list view by

The following table provides the information that the data is obtained from the previous year. The results are presented in Table 1.

Digital TV & Freeview Play

[GREEN] – Recommendations & Box Sets

Freeview Play recommendations can be viewed by pressing the [GREEN] button on the remote control. This screen allows you to choose the programme to watch directly or select from a number of genres. Select the programme to watch using the [ARROW] keys on the remote control and then press [OK] to start playback.

[YELLOW] - Show Players

When the [YELLOW] button is pressed on the remote control while in the EPG or in recommendations, the set will allow access to the back EPG and the various Freeview Play on demand applications. The 'Catch Up' menu allows you to access available programmes, from the last 7 days, that you may have missed. The 'Catch Up' menu will show programmes, by day, in the order that they were broadcast (descending in time order).

To navigate through this page, use the [ARROW] buttons on the remote control and then press [OK] to either play back the selected programme or go into the chosen on-demand player.

While playing back a programme, or in one of the on-demand players, pressing [BACK] or [EXIT] on the remote control will take you back to the 'Catch Up' menu. Pressing [BACK] or [EXIT] again takes you out of the programme guide and back to standard television.

Note: Catch Up is only available on Freeview Play. On-demand players may require you to log in.

[BLUE] - Search

You can use the powerful search function to look for a recorded programme by its name. Use the on-screen keyboard to enter the name, or part of the name of the programme which you would like to view and then select from the list which appears to the right of the keyboard.

When the required name is shown on the right-hand side, it can be selected to bring up the list of programmes with that title. Select one of the streams to playback using the [ARROW] buttons on the remote control and [OK] to start the playback.

Freeview Play Button

If the [FREEVIEW PLAY] button is pressed on the remote control, the set will display the Freeview Mini

Guide

Programmes on now are displayed for all channels. Select one of these using the [ARROW] buttons on the remote control and [OK] to change to this channel and view the programme.

While on the selected channel, you can also press one of the coloured buttons on the remote control.

Should there be a "swirl" symbol next to the programme name, this means

that you can playback the program form the start.

[RED] - View Programme List

Press the [RED] button to enter the view programme list for the channel you are on. This will show both future and past programmes which can be selected by pressing the [LEFT] or [RIGHT] arrow buttons on the remote control and the [OK] button to view.

If the [INFO] button is pressed while on the selected

programme, then an information screen is displayed.

While in the view programme list, the [RED] button can

be pressed to return to the On TV Now option

[GREEN] - Recommendations

Press the [GREEN] button to view recommendations for the channel that you have selected

If the [GREEN] button is pressed here, all recommendations for all channels will be shown.

[YELLOW] - On Demand Players

Press the [YELLOW] button to enter the on-demand players.

Freeview Play App

The Freeview Play app can be accessed a number of ways on your television set.

• From the Programme Guide press the [YELLOW] button and then select the Explore Freeview Play app.
• From the Home Page, select the Explore Freeview Play app.
- While in Freeview, select channel 100.
- Press the [FREEVIEW PLAY] button followed by the [YELLOW] button. Select the Freeview Play app from the on-demand players.

FreeviewPlay Search everything Sports BBC iPlayer ibv HUB All My5 UK TV Play LIFESTYLE MOMES SPORT TLEASAG ALL COMEDY DRAMA & SOAPS ENTERTAINMENT Fleebag FLEABAG Series 2: Episode 1 Live Celebration Street 52 Friday 1st March 2019 Child Genius Slaweb Churder in Sto. Series 1: Holly Gazzard Dav Hypothetical Series 1: Episode 4 Doctor Who Series 11: 3: The Woman... The Voice Series 3: Batho Round 2 Traitors 2: Traitors

When in the Freeview Play application, it is possible to search for a programme by name. Choose the "Search everything" option and then use the on-screen keyboard to type in the programme name. As you type, selections will appear. Select one of these options and press the [OK] button to start playback.

Freeview Play brings together live television viewing with "catch up" television services from broadcasters such as BBC, ITV, Channel 4 and Channel 5. The Freeview Play Explore app features a carousel of genres to select from when searching for programmes, such as sport, comedy, dramas and soaps, etc. Content is made up from recommendations of the major broadcasters and offers an alternative means of searching.

Note: To use the full functionality of Freeview Play your set must be connected to the internet.

Some apps require additional registration, this is a simple process and it will inform you of the correct website to visit to complete the registration.

Areas receiving Saerview transmissions will not support Freeview Play or Freeview Play services.

Channel List

Use the channel list to quickly go to the channel you want to watch. Use the [GREEN] and [RED] buttons to navigate up and down the list.

Filter List

Press the [YELLOW] button to get options to sort or filter channels and search channel by its number or name. When you select Type, it is possible to restrict the Channel list to various types of channels such as Radio, Free, Analogue, etc.

When selecting Find, you can search for a channel name by its name by entering the name you are looking for via the on-screen keyboard.

Favourites List

Press the [BLUE] button to open Favourites list. A list of your favourite channels will be shown here. No channels will appear unless you have added them to the list.

Adding a Favourite Channel

To add a favourite channel, go to the live digital television channel you would like to add to your favourites list, press the [MENU] button and then the [UP ARROW] button. The "Add to Favourites" icon should be highlighted, press [OK]. The channel is now added to your favourites list.

Adding a Favourite Channel

To modify your list of channels:

1. Press the SOURCE button and select television.

2. Press the MENU button and go to Settings > Channel > Channels.

You can choose one of menu items related to editing of channel list:

Channel Remote

Allows you to choose channels, which will be skipped when pressing [CH+/CH-] buttons on the skip.

Channel Sort

Allows you to swap position of two channels between each other.

Channel Move

Allows you to move selected channel to new position.

Channel Edit

Allows you to delete channels from the channel list.

Information Bar

When the INFO button is pressed on the remote control, the information bar will appear at the top of the screen.

If the [INFO] button is pressed again, the information bar will change to show further detail.

This shows a large amount of information on the channel currently being received, this includes the following:

• Channel selected
  • Program being transmitted
  • Time progress bar
  • Program start and end time
  • Time of day
  • Description of the program
• Subtitles available
  • Audio description available
• Program genre

Specifications

SPECIFICATIONS

USB

Supported Video Formats

Video Codec Container Data Rate Profi le Resolution
XviD	MP4 (mp4, mov)	40 Mbps N/A 1080P @ 60fps
	DKX (lambda)
	AVI (lambda)
	MKV (mkv)
	ASF (Last)
Sorenson H.263	FLV (flv)	40 Mbps N/A 1080P @ 60fpsAVI (lambda)
	SWF (swf)
H.263	MP4 (mp4, mov)	40 Mbps N/A 1080P @ 60fps
	3CPP L3gps, 3gp)
	AVI (lambda)
	MKV (mkv)
H.264	FLV (flv)	62.5 Mbps	Main Profi leHigh Profi le @Level 4.2	1080P @ 60fps
	MP4 (mp4, mov)
	3CPP L3gps, 3gp)
	MPEG transportstream (ls, trp, lpt)
	ASF (lambda)
	MKV (lambda)
	AVI (lambda)
	MKV (mkv)
MPEG1	MPEG programstream (MPC, MPEG)	40 Mbps	Simple Profi leAdvanced SimpleProfi le@Level 5.GMC is notsupported	1080P @ 60fps
	MP4 (mp4, mov)
	3CPP L3gps, 3gp)
	AVI (lambda)
	MKV (lambda)
	ASF (Last)
HEVC/H.265	MP4(mpv, mov)	50 Mbps	Main(8bits)/Main 10(10bits)	2048x1088 @ 60fps
	3GPPL3gpp, 3gp)
	MPEG transportstream (ls, trp, trp)
	MKV,mkv)
SHVC	MP4 (mp4, mov)	50 Mbps	Main(8bits)Main 10(10bits) Profi lo, High Level 4.1	2048x1088 @ 60 fps+1280x720 @ 60 fps
	3GPP L3gpp, 3gp)
	MPEG transportstream (ls, trp, trp)
AVS	MPEG transport stream (.ts, .trp, .tp)	60 Mbps	.Jihum profi le @ Level 6.0	1080P @ 60 fps
AVS+	MPEG transport stream (.ts, .trp, .tp)	60 Mbps	Broadcasting profi le@Level 6.0.1.08.60	1080P @ 60 fps
MPEG1/2	MPEG program stream (.DAT, .VOB, .MPEG, .MPEG)	MPEG1 40 Mbps MPEG2 80 Mbps	MP@HL 1080P	@ 60 fps
	MPEG transport stream (.ts, .trp, .tp)
	MP4 (.mp4, .mov)
	3GPP (3gpp, .3gp)
	AVI (.avi)
	MKV (.mkv)
	ASF (.esf)
Motion JPEG	AVI (.avi)	10 Mbps N/A 640x480 @ 30 fps
	3GPP (3gpp, .3gp)
	MP4 (.mp4, .mov)
	MKV (.mkv)
	ASF (.esf)
VP8	MKV (.mkv)	50 Mbps N/A 1080P @ 60 fps
	WebM (.webm)
VP9	MKV (.mkv)	30 Mbps . Profi le0/2		2048x1088 @ 60 fps
	WebM (.webm)

Supported Audio Formats

Audio Codec Container Sample Rate Bit Rate Channel
MPEG1/2 Layer1	MOVIE:AVI (.avi)ASF (.avi)DivX (.divx)Matroska (.mkv)MPG transport stream[Ls. trp. tpl]	16KHz ~ 48KHz 32	bps ~ 448 Kbps Up to 2
MPEG1/2 Layer2	MOVIE:AVI (.avi)ASF (.avi)DivX (.divx)Matroska (.mkv)MPG transport stream[Ls. trp. tpl]	16KHz ~ 48KHz 8Kbps ~ 384Kbps Up to 2
MPEG1/2/2.5 Layer3	MOVIE:AVI (.avi)ASF (.avi)DivX (.divx)Matroska (.mkv)3GPP (3gpp, .3gp)MP4 (.mp4,.mov)MPG transport stream[Ls. trp. tpl]	8KHz~48KHz 8Kbps ~ 320Kbps		Up to 2
AC3	MOVIE:AVI (.avi)Matroska (.mkv)DivX (.divx)3GPP (3gpp, .3gp)MP4 (.mp4,.mov)MPG transport stream[Ls. trp. tpl]	32KHz, 44.1KHz, 48KHz	32Kbps ~ 640Kbps Up to 5.1
FAC3	MOVIE:3GPP (3gpp, 3gp)MP4 (mp4, mov, m4a)MPEG transport stream (1s, trip, tsp)MPEG program stream (DAT, VOB, MPG, MPEG)MUSIC:EAC3 (ex3)MP4 (m4a)	32KHz44.1KHz48KHz	32 Kbps - 6 Mbps	Up to 5.1
VORAS	MOVIE:Matroska (mkv)WebM (webm)3GPP (3gpp, 3gp)MP4 (mp4, mov)MUSIC:MP4 (m4a)OGG (egg)	Up to 48KHz N/A		Up to 2
LPCM	MOVIE:AVI (av)Matroska (mkv)3GPP (3gpp, 3gp)MP4 (mp4, mov)MPEG transport stream (1s, trip, tsp)MPEG program stream (DAT, VOB, MPG, MP EG)MUSIC:WAV (wav)MP4 (m4a)	8KHz - 48KHz 54 Kbps - 1.5 Mbps		Mono, Stereo 5.1
G711 A/MP4 (m4a)	MOVIE:AVI (av)Matroska (mkv)3GPP (3gpp, 3gp)

Specifications

Supported Audio Formats (continued)

Audio Codec Container Sample Rate Bit Rate Channel
IMA A DPCM MS A DPCM	MOVIE:AVI (.av)Matroska (.mkv)3GPP (.3gpp..3gp)MP4 (.mp4..mov)MUSIC:WAV (.wav)MP4 (.m4a)	8KHz ~ 48KHz	32 Kbps ~ 384K bps	Up to 2

Supported Image Formats

Image Photo		Resolution Recommended(width x height)
JPEG	Base-line 15360x8640 (1920x8 x 1080x8)
	Progressive	1024x768
PNG	Non-interface	9600x6400
	Interlaced	1200x800
BMP		9600x6400
MPO	Base-line 15360x8640 (1920x8 x 1080x8)
	Progressive 1024x768
GIF 6400X4800

Troubleshooting

TROUBLESHOOTING GUIDE

If a full restart of the TV is required

If you have trouble, such as the picture not displaying on the screen or the remote control not working, reset the television with the following procedure. If an external USB device is connected to the TV, disconnect the USB device from the TV before resetting.

Power Reset

Restart the TV with the remote control

Press and hold the power button on the remote control for about 5 seconds until the |Power off| message is displayed. Confirm this by pressing OK button and the TV will turn off.

Unplug the AC power cord (mains lead).

If the problem persists after step 1, unplug the TV power cord (mains lead) from the electrical outlet and wait for 2 minutes. Then plug the power cord (mains lead) back into the electrical outlet.

Note: Your personal settings and data will not be lost after the TV restarts.

Factory Data Reset

If the problem persists after a power reset, try a factory data reset.

Note: Performing a factory reset will delete all of the TV's data and settings (such as Wi-Fi and wired network setting information).

Press the [MENU] button, then select Settings > Setup > Reset to Default

After the factory reset process completes successfully, your television will proceed into the first time installation mode.

No colour/Dark picture/Colour is not correct/Picture is too bright

You can adjust colour tone, brightness and picture quality on your TV from the Picture menu in Settings

Press the [MENU] button, then select the Video option.

In this menu you can make manual picture adjustments.

Distorted picture/The screen flickers

You can check the connection and position of the antenna (aerial) and external devices

Check the antenna aerial/cable connection

Keep the antenna aerial/cable away from other connecting cables.

When installing an optional device, leave some space between the device and the TV.

Make sure that the antenna (acrial) is connected using a high quality 75 ohm coaxial cable.

Check the troubleshooting guide for the connected device.

There are icons and text on the edges of the screen

Troubleshooting

Some channels are blank

The channel is for scrambled/subscription service only. Subscribe to a pay TV service.

The channel is used only for data (no picture or sound)

Contact the broadcaster for transmission details.

No sound but good picture

Check the volume control.

Press or [VOL+] button to cancel muting.

Remove any headphones.

The TV cannot connect to the Internet/Network

If the Wi-Fi network does not connect or disconnects, try the following.

Press the [MENU] button and check that the following setting is enabled. Setup > Network > Internet Connection

Check the installation location of the TV and Wi-Fi router. Signal condition may be affected by the following:

Other Wi-Fi devices, microwaves, fluorescent lights, etc. that may be located nearby.

There are floors or walls between the Wi-Fi router and television.

Turn the Wi-Fi router off and then on again.

If the network name (SSID) of the Wi-Fi router to which you want to connect is not displayed, select Add new network to enter a network name (SSID).

If the problem is not resolved even after the procedures above or if you cannot connect even with a wired network, check the status of the network connection.

Do I need an aerial signal?

For full functionality of your TV set equipped with Freeview Play you will require an aerial connected to the set with an adequate and reliable signal.

Why does my set turn on from standby so quickly?

During standby your set will be in a higher power state to enable it to turn on quickly. Should you want to put the set into low power standby, press and hold down the [STANDBY] button on the remote control for more than two seconds. This will bring up an option to put the set into low power standby. While in low power standby, the set will take longer to come on when the [STANDBY] button is pressed.

TV can connect to the Internet, but not to certain apps and services

The date and time settings of this TV may be incorrect. Depending on certain apps and services, you may not be able to connect to these if the time is incorrect.

Press the [HOME] button, then select Setup > DTV Time Set Up > Auto Synchronization > Use network-provided time to automatically adjust the time through the network.

Troubleshooting

The remote control does not operate.

Check if the TV is working properly.

Press the power button on the television to determine if the problem is with the remote control or not.

Check if the remote control is working properly.

Point the remote control at the remote control sensor located at the front of the television.

Keep the remote control sensor area clear from obstacles.

Fluorescent light can interfere with remote control operation; try turning off any fluorescent light.

Check that the orientation of each battery matches the positive (+) and negative (-) symbols in the battery compartment.

Battery power may be low. Remove the remote control cover and replace the batteries with new ones.

I cannot set the picture levels while on apps

This is because the application sets the picture levels.

I cannot access Freeview Play

To enable Freeview Play to operate correctly, you must have the set tuned in and set up in the UK and installed as country setting UK. In addition, it needs to be connected to the internet.

Why am I not able to use letters in my PIN?

Your PIN is a quick code used for accessing some of the higher functions of your set. This only contains numbers so that they can be entered using your remote control keypad.

Can I set parental controls?

Parental controls are possible when receiving digital television channels (should this service be provided by the broadcaster).

Parental control within apps is determined by the functionality of the app. For details on this you will need to go into the app settings

What do I do if my apps do not work?

First check that your set is connected to the internet, if it is, ensure that the internet connection is consistent and reliable. If this does not resolve the issue, remove the mains supply from the set and turn back on a few minutes later.

Press the [MENU] button, then select Settings > Setup > Reset to Default

SHARP

UK CA CE
