USER MANUAL DNR516P2 FLIR

Front view of a black CFLIR television studio computer with control panel and keypad (no visible text or symbols)

Instruction Manual

DNR500 SERIES

Thank you for purchasing this product. FLIR is committed to providing our customers with a high quality, reliable security solution.

This manual refers to the following models:

DNR516 (16-channel)

DNRS32 (32-channel)

For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at:

www.flirsecurity.com/pro

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RICK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Table of contents

1 Important Safeguards ....1

1.1 General Precautions.... 1
1.2 Installation.... 1
1.3 Service 3
1.4 Use....3

2 DNR500 Series Features....4

3 Getting Started (DNR500 Series) 5
4 DNR500 Series Series Front Panel 6
5 DNR500 Series Rear Panel....8
6 Basic Setup (DNR500 Series)....9

6.1 Step 1: Connect the IP Cameras .....9
6.2 Step 2: Connect the Mouse....9
6.3 Step 3: Connect the Ethernet Cable 9
6.4 Step 4: Connect the Monitor.... 10
6.5 Step 5: Connect the Power Cable to Power the NVR.... 10
6.6 Step 6: Upgrade Firmware to Latest Version (if Available) ..... 10
6.7 Step 7: Verify Camera Image 11
6.8 Step 8: Set the Time 11
6.9 Default System Password & Port Numbers 11

6.9.1 FLIR Cloud™ 11

6.10 Quick Access to System Information 12

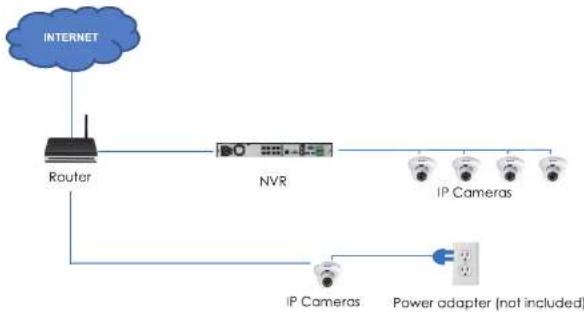

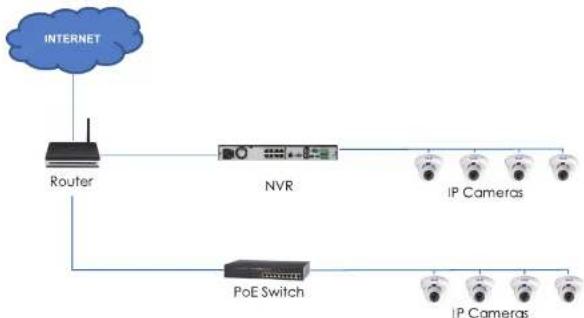

6.11 Connecting Cameras to the Local Area Network (LAN) 13

7 Mouse Control 16

8 Remote Control 17

8.1 Setting the Remote Control Address 18

9 Using the System 19

9.1 On-Screen Display 19
9.2 Using the Quick Menu.... 20
9.3 Adjusting Camera Image Settings.... 20
9.4 Using the Navigation Bar 22

Table of contents

13.3 Using Video Clip Backup 32

13.4 Viewing Backup Files.... 33

13.4.1 Viewing Backup Files on PC 33

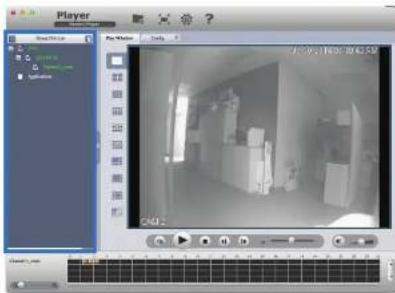

13.4.2 Viewing Backup Files on Mac 36

14 Managing Passwords and User Accounts.... 39

14.1 Changing Passwords.... 39

14.2 Adding Users 39

14.3 Modifying Users 40

14.4 Deleting Users 40

14.5 Account Groups 41

14.6 Adding Groups 41

14.7 Modifying Groups 42

14.8 Deleting Groups 42

15 Using the Main Menu 43

15.1 Camera 43

15.1.1 Remote Device 43

15.1.2 Viewing Camera Status 4

15.1.3 Viewing Camera Firmware Versions 44

15.1.4 Upgrading Camera Firmware 44

15.1.5 Recording.... 45

15.1.6 Configuring Recording Quality 45

15.1.7 Configuring Audio Recording 46

15.1.8 Configuring Snapshot Recording Settings.... 47

15.1.9 Creating Custom Channel Names 48

15.2 Info 49

15.2.1 HDD Info 49

15.2.2 Record Info 49

15.2.3 Version 50

15.2.4 Event Info 50

15.2.5 Online Users 51

15.2.6 Load 51

Table of contents

15.3.16 Configuring Pre-Recording 65

15.3.17 Configuring the Snapshot Schedule 66

15.3.18 Configuring Holidays.... 67

15.3.19 Formatting the Hard Drive 68

15.3.20 Configuring Hard Drive Type 69

15.3.21 Installing eSATA Hard Drives 69

15.3.22 Setting up Hard Drive Mirroring (Advanced) 70

15.3.23 Configuring Hard Drive Groups (Advanced) 72

15.3.24 Configuring General System Settings 73

15.3.25 Setting the Monitor Resolution (Display) 74

15.3.26 Saving Your System Configuration to a USB Thumb

Drive 75

15.3.27 Setting the System to Factory Defaults.... 76

15.3.28 Upgrading Firmware from USB.... 77

15.4 Shutdown....79

16 Connecting to Your System Over the Internet on PC or Mac 80

16.1 System Requirements.... 80

16.2 Step 1 of 3: Connect your System to Your Router 80

16.3 Step 2 of 3: Obtain the system's Device ID....81

16.4 Step 3 of 3: Connect to the System Over the Internet 81

17 Using FLIR Cloud™ Client for PC or Mac 85

17.1 Home Page 85

17.2 Live View 85

17.2.1 Live View Controls 86

17.2.2 Opening Live View in Multiple Monitors 87

17.3 Controlling PTZ Cameras 88

17.3.1 PTZ Presets 89

17.3.2 PTZ Tours.... 90

17.3.3 PTZ Pattern 91

17.3.4 PTZ Scan 92

17.3.5 PTZ Pan....92

Table of contents

18.1.1 Prerequisites.... 111

18.1.2 Connecting to your System on iPhone.... 111

18.1.3 Live View Interface 112

18.1.4 Controlling PTZ Cameras.... 113

18.1.5 Viewing Snapshots and Videos with Local Files 114

18.1.6 Using Playback Mode on iPhone 115

18.1.7 Enabling Push Notifications 116

18.1.8 Using the Event List 118

18.1.9 Using Favorites.... 119

18.1.10 Using the E-Map 120

18.1.11 Device Manager.... 122

18.1.12 Adding Devices Using an IP or DDNS Address

(Advanced) 123

18.2 iPad 125

18.2.1 Prerequisites.... 125

18.2.2 Connecting to your system on an iPad 125

18.2.3 Live View Interface 126

18.2.4 Controlling PTZ Cameras.... 127

18.2.5 Using Playback Mode on iPad.... 128

18.2.6 Using Local File to View Manual Recordings 130

18.2.7 Enabling Push Notifications 131

18.2.8 Using the Event List 133

18.2.9 Using Favorites.... 134

18.2.10 Using the E-Map 135

18.2.11 Using the Device Manager 137

18.2.12 Adding Devices Using an IP or DDNS Address

(Advanced) 137

18.3 Android 140

18.3.1 Prerequisites.... 140

18.3.2 Connecting to your System on Android 140

18.3.3 Live View Interface 141

18.3.4 Controlling PTZ Cameras.... 142

Table of contents

21.1.3 Step 3 of 3: Connect to the System's Local IP Address 160

21.2 DDNS Setup—Access your System Remotely over the Internet 162
21.2.1 Step 1 of 4: Port Forwarding 162
21.2.2 Step 2 of 4: Create a DDNS Account 163
21.2.3 Step 3 of 4: Enable DDNS on the System 164
21.2.4 Step 4 of 4: Connect to the System's DDNS Address ..... 165

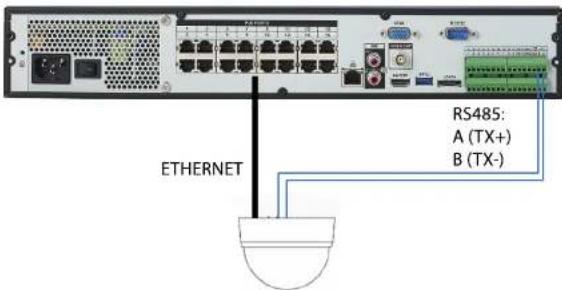

22 Connecting a PTZ Camera (DNR500 Series).... 169

22.1 Controlling a PTZ Camera (Local NVR) 170

22.2 Advanced PTZ Controls 171

22.2.1 Presets 172
22.2.2 Tours 172
22.2.3 Pattern.... 173
22.2.4 Auto Scan 173

23 Connecting An External Monitor (DNR500 Series) 175

24 DNR500 Series Hard Drive Installation 176

24.1 Installing a Hard Drive.... 176
24.2 Removing the Hard Drive.... 177
24.3 Formatting Hard Drives 178

25 Troubleshooting 180

26 DNR500 Series System Specifications 182

26.1 System 182
26.2 Inputs/Outputs 182
26.3 Display 182
26.4 Recording 182
26.5 Playback and Backup 183
26.6 Storage & Archive 183
26.7 Connectivity.... 183
26.8 General 184
26.9 Recording Resolution (Pixels) & Speed (FPS — Frames per

Important Safeguards

In addition to the careful attention devoted to quality standards in the manufacturing process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment. Please read them carefully before operating and using your product.

1.1 General Precautions

1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water-dampened cloth for cleaning.
3. Do not use this product in humid or wet places.
4. Keep enough space around the product for ventilation. Slots and openings in the storage cabinet should not be blocked.
5. It is highly recommended to connect the product to a surge protector to protect from damage caused by electrical surges. It is also recommended to connect the product to an uninterruptible power supply (UPS), which has an internal battery that will keep the product running in the event of a power outage.

CAUTION

Maintain electrical safety. Power line operated equipment or accessories connected to this product should bear the UL listing mark or CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel.

1.2 Installation

1. Read and Follow Instructions - All the safety and operating instructions should be read before the product is operated. Follow all operating instructions.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - Comply with all warnings on the product and in the operating instructions.

4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type

5. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to you, location, consult your video dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

6. Overloading - Do not overload wall outlets or extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.
7. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
8. Surge Protectors - It is highly recommended that the product be connected to a surge protector. Doing so will protect the product from damage caused by power surges. Surge protectors should bear the UL listing mark or CSA certification mark.
9. Uninterruptible Power Supplies (UPS) - Because this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product running in the event of a power outage. Uninterruptible power supplies should bear the UL listing mark or CSA certification mark.
10. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the product manufacturer's instructions have been followed.
11. Attachments - Do not use attachments unless recommended by the product manufacturer as they may cause a hazard.

12. Water and Moisture - Do not use this product near water — for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool and the like.

13. Camera Installation - Cameras are not intended for submersion in water. Not all cameras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation in a sheltered area is required.

1.3 Service

1. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Conditions Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

3. When the power supply cord or plug is damaged.

4. If liquid has been spilled or objects have fallen into the product.
5. If the product has been exposed to rain or water.
6. If the product has been dropped or the cabinet has been damaged
7. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

8. When the product exhibits a distinct change in performance. This indicates a need for service.

9. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the product manufacturer can prevent fire, electric shock, or other hazards.

10. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the product is in safe operating condition.

1.4 Use

1. Cleaning - Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

DNR500 Series Features

Front view of a black DFLR-branded electronic device with control panel and keypad (no visible text or symbols)

Features

• Easy Connection and setup with 16 integrated PoE+ ports and auto-discovery of IP Cameras
• Full HD 1080P recording provides the most detailed picture and reliable identification with selectable area digital zoom
• 150watt total PoE supports PoE+ (25watt max per camera)
  • Real-time recording in full HD per channel with cameras up to 5MP
  • 200Mbps network bit rate (supports 48-8192kbps per camera)
• Dual streaming (H.264/MJPEG)
• Pentaplex operation - simultaneous View, Record, Playback, Backup & Remote Monitoring
  • ONVIF 2.3 conformance ensures compatibility with popular industry IP cameras
  • Supports up to 5MP camera resolution
• FLIR Cloud Quick & Secure Connect via QR code scan
  • HDMI / VGA / BNC simultaneous video output
• FLIR secure DDNS service
  • RS-485 supports Pelco D & P PTZ
• Audio I/O: 1 in - 1 out, Alarm I/O: 16 in - 4 out
  • Supports 4x SATA HDDs up to 4TB (16TB total), 2x USB 2.0 ports
• Drive mirroring between up to four internal HDD
• eSata support for up to four external HDDs
• Rack mountable - 1.5U

Getting Started (DNR500 Series)

The system comes with the following components:

NVR (Network Video Recorder) AC power cable

Remote control (may not be exactly as shown)

USB mouse Ethernet cable

Rack mount brackets and screws

DNR500 Series Series Front Panel

FLIR ① ② ③ ④ ⑤

1. USB Port: Connect a USB mouse (included) or connect a USB flash drive (not included) for data backup or firmware upgrades.
2. Miscellaneous Controls:

• FN: Performs special functions in some menus.
- MULT: Press to cycle through split-screen views.
• ; Not supported.

1. Playback and Channel Controls:

• Fast: Press to increase playback speed.
• Previous: Press to skip to previous video.
- Slow: Press for slow playback.
• Reverse: Press to reverse playback/pause playback.
• REC: Press to open manual recording controls.

1. Arrow Buttons and Dial:

2. Arrow Buttons: Press to move cursor in menus. In live view, press up to change split screen layout; press left / right to select channels when single-channel mode is selected.

3. Dial: In live view, turn left / right to select split-screen layouts.

4. Power Button: Press and hold to power off the system. Press to power the system back on.

5. IR Receiver and LED Indicators: IR receiver for the remote control. Keep the IR receiver clear from obstructions. LED Indicators:

- STATUS: Glows to indicate CPU is in normal state.

- ACT: Flashes when remote control is used.

• POWER: Glows to indicate the system is on.

- Channel Indicators: Flashes slow when channel 1\~16 are recording. On 32-channel models, flashes fast when channels 17\~32 are recording. For example, if the light for channel 1 is flashing fast, it indicates channel 17 is recording. Glows solid to indicate both corresponding channels (e.g. channel 1 and channel 17 are recording).

1. IR: Not supported.

DNR500 Series Rear Panel

Labeled diagram of a network equipment rack showing ports, connectors, and ports numbered 1 to 17

1. Power input: Connect the included AC power cable.
2. On / Off switch: Turns the NVR on or off.
3. PoE Ports: Connect IP cameras. Integrated PoE (Power Over Ethernet) ports provide power to cameras and video connection to NVR.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
5. MIC IN/OUT: RCA input and output for 2-way audio.

Note

Audio-enabled IP cameras (not included) are required to use audio recording. You cannot record audio from the Input (e.g. microphone) connected to the MIC IN port.

1. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
2. USB port(s): Connect a USB mouse (included) or USB thumb drive (not included) for data backup or firmware updates.
3. eSATA: Connect a self-powered external eSATA HDD (not included) to extend the storage capacity of the system or for data backup.
4. Alarm block: Connect alarm/sensor devices (not included).
5. VGA: Connect a VGA monitor (not included) to view the system interface.
6. VIDEO OUT: Video output (BNC) to connect the system to a secondary monitor.
7. RS232: Service only; not supported.

Basic Setup (DNR500 Series)

6.1 Step 1: Connect the IP Cameras

Option 1: Direct Connection to NVR

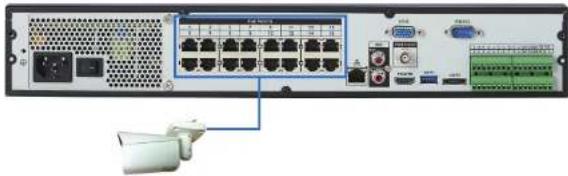

- Connect cameras to the PoE Ports on the rear panel of the NVR using Cat5e or higher grade Ethernet cable. The cameras will appear on the NVR without any additional configuration when the system starts up.

Front view of a network equipment rack with multiple Ethernet ports and connected cables (no visible text or labels)

Connect IP cameras directly to PoE ports.

Option 2: Connect Cameras to Local Network

You can also connect your IP cameras to your local network for flexible installations. For details, see 6.11 Connecting Cameras to the Local Area Network (LAN), page 13.

6.2 Step 2: Connect the Mouse

- Connect a USB mouse (included) to one of the USB ports.

Front view of a network equipment rack with multiple Ethernet ports and external connectors (no visible text or labels)

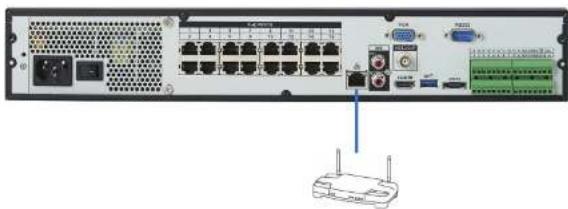

Front view of a network equipment rack with ports, switches, and a router (no visible text or labels)

6.4 Step 4: Connect the Monitor

• Connect the included HDMI cable from the HDMI port to the TV or monitor (recommended). OR
• Connect a VGA cable (not included) from the VGA port to the monitor.

Diagram of a network equipment rack with labeled ports and connectors, showing ports 1 and 2 with switches and connectors.

1. HDMI port
2. VGA port.

6.5 Step 5: Connect the Power Cable to Power the NVR

- Connect the included AC power cable to the NVR and connect the other end to a power outlet or surge protector. Then turn the power switch to I to power on the NVR.

If a firmware upgrade is available:

1. After startup, a notification will appear asking you to upgrade the firmware. Click OK to upgrade.
2. Enter the system user name (default: admin) and password (default: 000000) and click OK. Wait for the firmware update to complete. The system will restart once the firmware has been upgraded.

WARNING

DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRM WARE INSTALLATION

6.7 Step 7: Verify Camera Image

• Power on the cameras, and then verify the camera video quality before mounting the cameras to a permanent location.
• Mount the cameras under a sheltered location. Always verify the outdoor rating of your camera before installing it in a permanent location.

6.8 Step 8: Set the Time

• Set the system time and date for accurate video time stamps. Videos with inaccurate times may not be valid as surveillance evidence.
• For details on setting the system time, see 10 Setting The Time, page 25.

6.9 Default System Password & Port Numbers

CAUTION

By default, the system user name is admin and the password is 000000. It is essential that you create your own password. For details, see 14 Managing Passwords and User Accounts, page 39.

The system requires a user name and password to log in to the system remotely using a computer or mobile device. After logging on remotely the first time, you will be asked to create a custom password for the system.

Connectivity using FLIR's free DDNS service is also available, but requires the ports listed above to be port forwarded on your router.

6.10 Quick Access to System Information

To quickly open a window that displays vital system information:

• Right-click to open the Quick Menu and click Info. Enter the system user name (default: admin) and password (default: 000000). OR
• Press the ENTER button on the front panel. OR
• Press the ENTER button on the remote control.

Sales Value Type Customer Name Price Product Price Product Category Product ID Product Size Product Color Product Color Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color Product Size Product Color

Note

The QR code shown in the System Info screen can be scanned during mobile setup to enter the system's Device ID.

6.11 Connecting Cameras to the Local Area Network (LAN)

For flexibility, you may also connect IP cameras to the same Local Area Network (LAN) as the NVR. This is accomplished by connecting the cameras to the same router as the NVR. For these installations, an external PoE switch (sold separately) or power adapter (sold separately) must be used to provide power to each IP camera. You also must add the cameras on the NVR before they will show a picture on the monitor or be recorded by the NV Follow the steps below to connect the cameras to the NVR over the LAN.

Note

• For a list of 3rd party IP cameras supported, please visit www.flirsecurity.com/pro.

- Camera and NVR images in this section are used for illustration only.

Step 1 of 2 — Option A: Connecting cameras to your local network using a PoE switch:

Step 1 of 2 — Option B: Connecting cameras to your local network using power adapters:

1. Connect each camera to a compatible power adapter (visit www.flirsecurity.com/pro for compatible power adapters for your cameras).

2. Connect the camera to your router using a CAT5e or higher Ethernet cable.

Step 2 of 2: Add the cameras to your NVR:

1. Right-click and select Device Search

2. Log in using the admin account (default User Name: admin; default Password: 000000).

3. Click Device Search. The system searches the network for compatible cameras.

1. Click Add. The Status indicator turns green to show the camera is successfully connected.

Remote Device 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Note

If the Status Indicator is red, click and update the info for your IP camera. Click OK to save changes.

1. Click OK to save changes.

Note

You can also add a camera to a specific channel by hovering the mouse over an empty channel in split-screen view and clicking. Then double-click the camera you would like to add and right click to exit.

Mouse Control

The mouse is the primary control device for the system. To connect a USB mouse:
- Connect a USB mouse to the USB port on the front or rear panel.

Diagram of a computer mouse with labeled parts: head, body, and interior

1. Left-button:

2. In live view, click to open the Navigation Bar. Right-click to close the navigation bar.

3. In live view, while in a split-screen display mode, double-click an individual channel
   to view it in full-screen. Double-click again to return to the split-screen display mode.

4. While navigating menus, click to open a menu option.

5. Right-button:

6. During live view, right-click anywhere on the screen to open the Quick Menu.

7. Within system menus, right-click to exit menus.

8. Scroll wheel: In live view, use the scroll wheel to zoom in/out.

Remote Control

1. Power: Press and hold to power off the system. Press to power on.

2. Playback controls:

3. Pause/Play: In live view, press to enter playback mode. Press to play/pause playback.
   • Reverse: Press to reverse playback/pause playback.
   • Fast: Press to increase playback speed.
   • Next: Press to skip to next video.
   • Previous: Press to skip to previous video.

4. Slow: Press for slow playback.

5. Esc: In menus, press to go back / exit menus. In playback, press to return to live view.

8.1 Setting the Remote Control Address

If you have more than one system, you can set up your remote control to pair with a specific system.

To set the remote control address:

1. Right-click and click Main Menu. Enter the system user name (default: admin) and password (default: 000000).

2. Click >General>General.

3. Under Device No., enter the address number you would like to assign to the remote control.

GENERAL DETAILS ITEMS File Edit View Help Account Background Name: 12 Properties Balance Type: 12/1998 Balance As: 0 Large: 500000000 Vertical: 500000000 Width: 500000000 Post Options: 0 Intercept: 0 Cartoon: 0 Supervisory: 32.75% Normal Normal: 0.00% Normal OK Cancel Apply

1. Click OK.

2. Using the remote control, press Add. Then enter the address number and press Enter.

Using the System

Use the system's graphical on-screen display to navigate menus and configure options and settings.

Note

Up to four channels at a time may be viewed using the system's high definition Main Stream. If more than four channels need to be viewed, additional channels will be displayed using the lower resolution Sub Stream. Although the live display picture will not be as sharp on these channels, all channels will still be recorded in high definition by default.

9.1 On-Screen Display

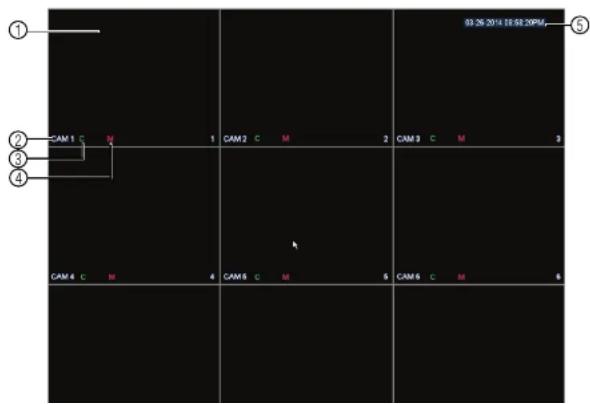

The system shows the following for all display views:

03.26-2014 DE SE 20PM ① ② CAM 1 C M 1 CAM 2 C M 2 CAM 3 C M 3 ③ ④ CAM 4 C M 4 CAM 5 C M 5 CAM 6 C M 6

9.2 Using the Quick Menu

The Quick menu gives you access to the system's key functions. To access the Quick Menu, right-click the screen during live view.

The Quick Menu has the following options:

• View: Select a camera in full-screen or select a multi-channel display.
- Pan/Tilt/Zoom: Access controls for PTZ cameras (not included).
- AutoFocus: Access zoom/focus controls for auto-focus cameras (not included).
• Color Setting: Configure image settings for cameras.
- Info: Opens the system information window.
- Sequence: Click to start/stop sequence mode.
In sequence mode, the system will automatically cycle through connected cameras
every few seconds. 📄 will appear to show that sequence mode is on.
Click the icon to pause sequence mode on the channel that is currently shown (icon
changes to 📄). Click again to resume sequence mode.
Right-click and select Sequence to return to normal viewing mode.

1. Configure the following settings as needed:

Create Lock: 10 Composition: 10 Size: 10 Opacity: 10 Angle: 10 Distance: 50 Vertical: 50 Horizontal: 50 Vertical: 50 Solid: 100 Noise: 100 Noise Ratio: 100 Noise Mode: Normal Noise Scale: Normal Noise Value: Normal Noise Light: Normal Noise Color: Normal

Note

The settings listed below are only shown if they are supported on the selected camera. Some camera models do not support all settings.

• Mirror: Select Enable to flip the image horizontally.
• Flip: Select Flip 180° to flip the image vertically, or select No Flip for the default orientation.
• 3D Denoise: Select Enable to turn on the camera's noise reduction feature. Noise reduction will ensure a cleaner image, especially at night, and may reduce the amount of disk space required to store video.
• BLC Mode: Select High or Low to enable back light compensation or Off to disable. Back light compensation adjusts the lighting levels in the picture so you can see objects in the foreground if there is a strong light source behind them.
• Scene Mode: The Scene Mode allows you to adjust white balance levels for the camera. Select Schedule for the camera to automatically adjust the white balance. Select Sunny or Night to use preset white balance levels. Select Customized to manually set blue and red levels.

9.4 Using the Navigation Bar

The Navigation Bar gives quick access to certain functions and menus.

To open the Navigation bar:

- Left click on the screen to open the Navigation Bar. The Navigation Bar has the following options:

Screenshot of a software toolbar with numbered icons for function keys or functions

1. Main Menu.

2. Collapse.

3. Select display layout.

4. Sequence: Click to start/stop sequence mode.

5. PTZ: Click to open PTZ controls.

6. Camera: Click to open camera image settings.

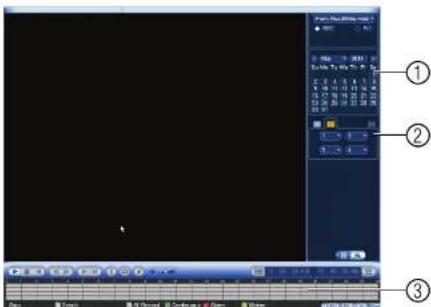

7. Search: Search and playback recorded video. See 17.4 Playback, page 92.

8. Alarm Status: View alarms in progress. See 15.2.4 Event Info, page 50.

9. Channel Info: Click to access status information about connected cameras.

10. Device Search: Manage IP cameras over the network

11. Network: Configure network settings for your system. See 15.3.1 Network, page 54.

12. HDD Manager: Manage hard drives connected to the system. See 15.3.19 Formatting the Hard Drive, page 68.

13. USB Manager: Click to access options for connected USB thumb drives (not included). You can

backup video, logs, or system configurations and install firmware upgrades.

1. System Upgrade: Check for firmware upgrades. The system must be connected to the Internet to

check for or receive updates.

9.5 Using the Camera Toolbar

The Camera Toolbar is used to perform actions on a specific channel.

To access the Camera Toolbar:

To use Quick Playback:

1. Move your mouse to the top of the channel display and click

Note

By default, the system will begin playback from 5 minutes ago. You can increase this to up to 60 minutes using the Instant Playback setting in Main Menu>Setting>General.

1. Right-click to exit Quick Playback.

9.5.2 Using Digital Zoom in Live Display

1. Move your mouse to the top of the channel display and click to activate digital zoom. A check mark will appear in the icon to indicate digital zoom is activated.

Note

You may activate digital zoom in multiple channels at the same time.

1. Click and drag inside the channel to zoom in.

- Click and drag to pan the zoom area.

• Right-click to zoom out and select a new zoom area.

- Click to disable digital zoom. Note that the channel will remain at the same zoom level until you right-click inside it.

9.5.3 Using Real-time Backup

Real-time backup allows you to save footage from the live display to a USB thumb drive (not included) or external hard drive (not included).

To use Real-time Backup:

1. Insert the USB thumb drive or external hard drive into one of the USB ports on the system.

1 ? @ # $ % * & ' . ← 1 2 3 q w e r t y u i o p / 4 5 6 a s d l g h j k l : Enter 7 8 9 z x c v b n m . Shift ↩ 0 ← ② ③

1. Backspace.
2. Enter capital letters.
3. Confirm entry

9.7 Adjusting Camera Zoom & Focus

Auto-focus cameras (not included) have a motorized lens. The motorized lens allows you to control the zoom and focus settings using the menus on your system.

Zoom 0 Focus 11 AutoFocus Default Refresh

To adjust the camera's zoom focus:

1. Double-click on the channel where the motorized lens camera is connected.
2. Right-click and then click AutoFocus. Log into the system using the admin account (default user name is admin and password is 000000).
3. Adjust the zoom and focus using the following options:

- Use the sliders to adjust the Zoom or Focus settings for the camera

Setting The Time

CAUTION

It is highly recommended to set the date and time when first setting up your system. Inaccurate time stamps may render your footage unusable for court evidence.

To set the date and time:

1. In the main viewing mode, right-click and click Main Menu.

2. Log in using the system user name (default: admin) and password (default: 000000).

3. Click

and select Setting. Click General and select the Date&Time tab.

DATA DISPLAY WRITE RPT POT/TODOM ACCOUNT Config/backup OFFSET UPDATE Clear: 0x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x100x123 Data Parameters: MSU, DIF, TIF, TIP, SWS, MSW, MSY, MSZ, MSN, MSO, MSP, MSQ, MSR, MST, MSU, MSV, MSW, MSX, MSY, MSZ, MSN, MSO, MSP, MSQ, MSR, MST, MSU, MSV, MSW, MSX, MSY, MSZ, MSN, MSO, MSP, MSQ, MSR, MST, MSU, MSV, MSW, MSX, MSY, MSZ, MSN, MSO, MSP, MSQ, MSR, MST, MSU Data Source: MSU Data Tag: 54.76.4 System Time: 88.39.37.6 GPT Type: Peak Date Raw Time: Max 3.4.4 Raw Time: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 3.4.4 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27.27 GPT Type: Max 2.97.27-27 GPT Type: Max 2.97.27-27 GPT Type: Max 2.97.27-27 GPT Type: Max 2.97.27-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97-27 GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- GPT Type: Max 2.97- Dialysis: Max=35% Min=35% Max=35% Min=35% GPT Type: GPT Data Parameters: GPT Data Source: GPT Data Tag: GPT Data Tag: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT Data Type: GPT

1. Under System Time, enter the current time and select your time zone. Then, click OK.
2. Check DST to enable auto Daylight Savings Time updates.

Note

• You can adjust the Start Time and End Time for Daylights Savings Time if the default settings do not match your region.
  • Under DST Type, select Day of Week to set the start and end time based on a day and week (e.g. 2nd Sunday in March), or select Date to set the start and end time to a specific date

Recording

By default, the system is set to immediately record video from connected cameras continuously, 24 hours a day. You can customize the recording settings according to your needs.

11.1 Video Recording Types

The system supports the following recording types.

• Recording—Continuous: Normal, continuous recording. A C icon is shown when recording is in progress.
• Recording—Motion: The system records when motion is detected by the camera. An icon is shown when motion is detected.

11.2 Main Stream and Sub Stream

The system employs two video recording streams, a Main Stream and a Sub Stream. Both Main Stream and Sub Stream recording are enabled by default.

The Main Stream records high quality video to your system's hard drive.

The Sub Stream records lower resolution video for efficient streaming to devices over the Internet. Sub Stream recording must be enabled to view video recordings on a computer or mobile device.

You can configure the video quality parameters for the Main Stream or Sub Stream. For details, see 15.1.6 Configuring Recording Quality, page 45.

11.3 Setting up Scheduled or Manual Recording

You can set the system to record based on a schedule or you can manually turn recording on and off. By default, the system is set to record on an always on recording schedule.

To configure the recording schedule, see 15.3.15 Configuring the Video Recording Schedule, page 65.

To select between scheduled and manual recording:

1. Right-click and then select Manual>Record.

Recording11

1. Under Main Stream, select how the system will record the Main Stream for each channel.

2. Schedule: Main Stream Recording will follow the recording schedule.

3. Manual: The system will record the Main Stream continuously as long as this option is checked.

4. Stop: The system will not record the Main Stream for this channel. This option is not recommended.

5. Under Sub Stream, select how the system will record the Sub Stream for each channel.

6. Schedule: Sub Stream Recording will follow the recording schedule.

7. Manual: The system will record the Sub Stream continuously as long as this option is checked.

8. Stop: The system will not record the Sub Stream for this channel.

9. Under Snapshot, select Enable to enable snapshot recording on each channel. Or, select Disable to disable snapshot recording.

10. Click OK to save changes.

11.4 Configuring Hard Drive Overwrite

When the hard drive is full, the system will overwrite the oldest recordings by default. This is recommended, as it makes sure that your system will continue to record without any input from you. You can also set the system to stop recording once the hard drive is full.

To configure hard drive overwrite:

1. Right-click and select Main Menu. Click ✗ > Setting>General>General.

2. Under HDD Full, select Overwrite for the system to overwrite the oldest recordings when the hard drive is full. Or, select Stop Record for the system to stop recording when the hard drive is full.

Search (Playback)

Search mode is used to navigate and playback recorded video files on the system.

12.1 Playing Back Video from the Hard Drive

1. From live view, right-click and then click Search.
2. Log in using the system user name (default: admin) and password (default: 000000).
3. Configure the following:

Screenshot of a video editing software interface with labeled UI elements and tool panels

3.1. Use the calendar on the right to select the day to playback.
3.2. Use the drop-down menus to select the channels you would like to playback.

3.3. Click Inside the video bar to select the playback time. The system will begin

12.2 Playback Controls

Screenshot of a video editing software interface with numbered labels pointing to various media clips and tracks.

1. Select playback device.

2. Calendar: Select the day to playback.

3. Channel select: Select channels to playback.

4. Video clip backup: Select video clip start and end times.

5. Backup video clip: Click to save selected clip.

6. Playback Bar: Click inside the bar to select a playback time.

7. Zoom Playback Bar: Select scope of lime bar

8. Recording types: Click to showwhile recording types.

9. Speed up.

10. Slow.

11. Click From ReadWrite Hdd and select From IO Device. Click Browse to open the USB drive and manually select the video file.

File Edit View Help Name: 100% (RGB, 2564, 287) Current Time: 0.00:00:00 Current Path: 0.00:00:00 Source: Date: 2023-09-27

1. Double click the video file you would like to open.

Backup

Backup video files to external USB flash drive (not included) or self-powered USB external hard drive (not included).

Note

USB external hard drives must be formatted in the FAT32 file format to be used with the system.

13.1 Formatting the USB Thumb Drive

It is recommended to format your USB thumb drive (not included) before using it with the system.

CAUTION

Formatting the USB device will permanently erase all data.

To format a USB device:

1. Insert a USB thumb drive (not included) into one of the USB ports.

2. From live view, right-click and then select Main Menu. Login if prompted.

3. Click >Backup.

4. Select the USB device you would like to format under Device Name and click Browse.

File Size: *.txt100.000 GB 8.35 GB / (New Document) 2.00 GB / 2 GB/First Time Type: All Start Time: 04:16 - 20:00 12:00 - 37:00 PM End Time: 18:16 - 20:00 11:30 - 43:00 PM The Period: 94V End Time: 04:16 - 20:00 12:00 - 37:00 PM Add Remove OK Cancel

Backup13

13.2 Backing up Video

1. Insert a USB thumb drive (not included) into one of the USB ports.

2. From live view, right-click and then select Main Menu. Login if prompted.

3. Click >Backup.

4. Configure your search options:

File Name: 01-02 (RGB) F:\3.0\B\Box\Box\Box\Box\Box Type: All Start Time: 04:15 - 2016 - 12 - 30.13 AM End Time: 04:18 - 2016 - 11 - 25.41 AM End Time: 04:19 - 2016 - 11 - 25.41 AM End Time: 04:20 - 2016 - 11 - 25.41 AM End Time: 04:21 - 2016 - 11 - 25.41 AM End Time: 04:22 - 2016 - 11 - 25.41 AM End Time: 04:23 - 2016 - 11 - 25.41 AM End Time: 04:24 - 2016 - 11 - 25.41 AM End Time: 04:25 - 2016 - 11 - 25.41 AM End Time: 04:26 - 2016 - 11 - 25.41 AM End Time: 04:27 - 2016 - 11 - 25.41 AM End Time: 04:28 - 2016 - 11 - 25.41 AM End Time: 04:29 - 2016 - 11 - 25.41 AM End Time: 04:30 - 2016 - 11 - 25.41 AM End Time: 04:31 - 2016 - 11 - 25.41 AM End Time: 04:32 - 2016 - 11 - 25.41 AM End Time: 04:33 - 2016 - 11 - 25.41 AM End Time: 04:34 - 2016 - 11 - 25.41 AM End Time: 04:35 - 2016 - 11 - 25.41 AM End Time: 04:36 - 2016 - 11 - 25.41 AM End Time: 04:37 - 2016 - 11 - 25.41 AM End Time: 04:38 - 2016 - 11 - 25.41 AM End Time: 04:39 - 2016 - 11 - 25.41 AM End Time: 04:40 - 2016 - 11 - 25.41 AM End Time: 04:41 - 2016 - 11 - 25.41 AM End Time: 04:42 - 2016 - 11 - 25.41 AM End Time: 04:43 - 2016 - 11 - 25.41 AM End Time: 04:44 - 2016 - 11 - 25.41 AM End Time: 04:45 - 2016 - 11 - 25.41 AM End Time: 04:46 - 2016 - 11 - 25.41 AM End Time: 04:47 - 2016 - 11 - 25.41 AM End Time: 04:48 - 2016 - 11 - 25.41 AM End Time: 04:49 - 2016 - 11 - 25.41 AM End Time: 04:50 - 2016 - 11 - 25.41 AM End Time: 04:51 - 2016 - 11 - 25.41 AM End Time: 04:52 - 2016 - 11 - 25.41 AM End Time: 04:53 - 2016 - 11 - 25.41 AM End Time: 04:54 - 2016 - 11 - 25.41 AM End Time: 04:55 - 2016 - 11 - 25.41 AM End Time: 04:56 - 2016 - 11 - 25.41 AM End Time: 04:57 - 2016 - 11 - 25.41 AM End Time: 04:58 - 2016 - 11 - 25.41 AM End Time: 04:59 - 2016 - 11 - 25.41 AM End Time: 04:60 - 2016 - 11 - 25.41 AM End Time: 04:61 - 2016 - 11 - 25.41 AM End Time: 04:62 - 2016 - 11 - 25.41 AM End Time: 04:63 - 2016 - 11 - 25.41 AM End Time: 04:64 - 2016 - 11 - 25.41 AM End Time: 04:65 - 2016 - 11 - 25.41 AM End Time: 04:66 - 2016 - 11 - 25.41 AM End Time: 04:67 - 2016 - 11 - 25.41 AM End Time: 04:68 - 2016 - 11 - 25.41 AM End Time: 04:69 - 2016 - 11 - 25.41 AM End Time: 04:70 - 2016 - 11 - 25.4

• Select the USB device you would like to format under Device Name.
  • Type: Select the recording type you would like to search for or select All to search
  all recording types.
• Channel: Select the channel you would like to search or select All to search all channels.
• File Format: Select DAV to save files to save files to .dav format. You can playback .dav files using the FLIR video player software from www.flirsecurity.com/pro. Or, select ASF for .asf format. You can playback .asf files in VLC Media Player (free download from www.videolan.org) on PC or Mac.

Note

Backup13

1. Start playing back video using the steps in 12.1 Playing Back Video from the Hard Drive, page 28.
2. Click to mark the beginning of the video clip. Click again to mark the end of the video clip.
3. Click to open the Backup menu.

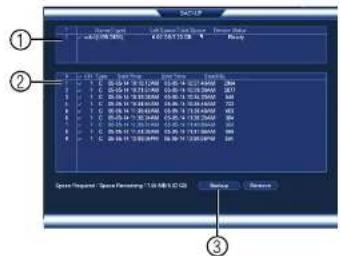

4. Configure the following:

① ② ③ Speed Required: "Speed Forecasting" (100 MHz) (2 Hz) OK Cancel Refresh

5.1. Check the USB device where you would like to save the file.
5.2. Check the files you would like to backup.
5.3. Click Backup. Then click Start. Wait for the backup to complete before removing the USB thumb drive.

13.4 Viewing Backup Files

To playback .dav backup video files, a Player is available for PC and Mac at www.flirsecurity.com/pro.

Backup13

1. Double click one of the files on the left to begin playback.

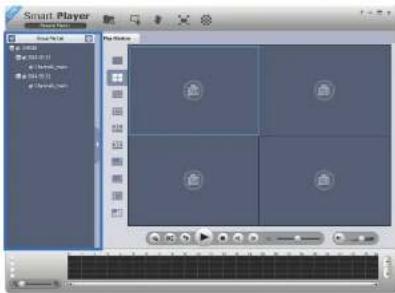

Smart Player Play Studio 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12.00:00:00 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100

OR

Click to open a back up video file in another location.

1. Use the Player controls to control playback or select other files for playback.

Video Player Controls

Smart Player ① ⑥ ⑦ ⑧ ⑨ ⑩

Backup13

1. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following:

• View information about the video file.
• Start/stop a manual recording from the video file.
• Take a snapshot from the video file.
- ✗: Close the video file.

1. Hide/show file list.

2. Playback controls:

• Playback files in sequence.
• Synchronize playback times.
• Play/pause playback.
• : Stop playback.
•: Previous frame.
• Next frame.
• TX —— : Playback speed.
• : Volume control.

1. Zoom Timeline.

2. Add Files: Click to open back up video files.

3. Digital Zoom: Click to activate digital zoom mode. Click and drag in the video to zoom

Backup13

1. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and video files saved from the player.

Smart Player File Name: 10.00000000000 File Type: C:\Users\Active\Material\... File Transfer: LanguageTransfer\Program\ Edit... B - Indie acscalerator

13.4.2 Viewing Backup Files on Mac

A Video Player for Mac is available from www.flirsecurity.com/pro.

To view backup video files using the Player on Mac:

1. Download Video Player for Mac from www.flirsecurity.com/pro.

2. Double click the downloaded file in Safari to extract the Smart Player app file.

Backup13

1. Double click one of the files on the left to begin playback.

Player Video Player Play Window Daily 19:30:14:00-20:45:50 EAD 2

OR

Click to open a back up video file in another location.

1. Use the Player controls to control playback or select other files for playback.

Video Player Controls

Player ① ② ⑥ ⑦ ⑧ ⑨ Play Window 36.05.140s 104.2V

Backup13

1. Display Area: Select the split-screen mode. Double-click a video file to expand. Click the controls inside the display area to do the following:

• View information about the video file.
• Take a snapshot from the video file.
- ✗: Close the video file.

1. Hide/show file list.

2. Playback controls:

3. When a video file ends, this button lets you select if you want the video player to repeat the same file or play the next file.
   • : Play/pause playback.

4. : Stop playback.
   •: Previous file.
   • Next file.
   • IX —— : Playback speed.
   • : Volume control.

5. Zoom Timeline.

6. Add Files: Click to open back up video files.

7. Full-screen: Click to open the player in full screen. Press ESC to exit full screen.

8. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and control the aspect ratio.

Managing Passwords and User Accounts

By default, the system user name is admin and the password is 000000. Passwords are enabled by default and are required to access the Main Menu or connect to the system using a computer or mobile device. You will be prompted to create a custom password after you connect for the first time.

Note

If you forget the password to the system, contact technical support to have it reset.

The system includes the following default accounts:

• admin: The admin account has full access to the system, may configure all system settings, and can manage user accounts.
• default: The default account is a limited user account that may only view live video from the cameras.

For security reasons, it is essential that you change the password on your system. By default, the system password is enabled.

14.1 Changing Passwords

You can change the system password of the admin and user accounts from the Users menu.

To modify an account password:

1. From Live View, right-click and then select Main Menu.

2. If prompted, enter the system user name (default: admin) and password (default: 000000).

3. Click ✗ and select Setting. Select Account.

4. Click 📋 next to the user account you would like to modify.

Managing Passwords and User Accounts14

To add a user account:

1. From Live View, right-click and then select Main Menu.

2. If prompted, enter the system user name (default: admin) and password (default:

000000

1. Click and select Setting. Select Account.

2. Click Add User.

3. Configure the following:

File Edit Name: Properties: Edit Delete Help Import Export Export Type Export Method Export Status Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type Export Method Export Type

- User Name: Enter a name for the user account.

- Password: Enter a 6 character password for the user account. Enter the password again under Confirm Password.

- Memo (optional): Enter a description of the user account.

- Group: Select the group you would like to assign to this user account. A user ac-

count cannot be given permissions its group does not have.

- Multiuser: Check to enable this user account to be used to login from more than one device at the same time.

- Authority: Check the permissions you would like the user account to have. Under the System tab, select the menus the user account may access. Under the Play-back tab, select which channels the user account may access recorded video from.

Managing Passwords and User Accounts14

14.5 Account Groups

Account groups can be used to easily manage permissions for multiple user accounts. User accounts can be given all the permissions of a group, but cannot be given permissions that the group does not have.

The system includes the following groups by default:

• admin: Accounts in the admin group are system administrators. They have full access to the system, may configure all system settings, and can manage user accounts.
• user: Accounts in the user group are normal users. They have limited access to system menus.

14.6 Adding Groups

1. From Live View, right-click and then select Main Menu.

2. If prompted, enter the system user name (default: admin) and password (default: 000000).

3. Click ✗ and select Setting.

4. Click Account and select the Group tab.

5. Click Add Group.

NEW DISPLAY HKEY WIN/SPX SUPPORT TCP/IP ASP.NET Add Menu

14.7 Modifying Groups

1. In the Group tab, click next to the group you would like to modify.
2. Update the group's details as needed, and then click OK to save changes.

14.8 Deleting Groups

1. In the Account menu, click next to the user account you would like to delete.
2. Click OK to confirm.

Note

The admin and user groups cannot be deleted from the system.

Using the Main Menu

To open the Main Menu:

- Using the mouse: Right-click and click Main Menu.

Note The system password is required to access the Main Menu. By default the user name is admin and the password is 000000.

FLIR MAIN MENU

1. SEARCH: Open Search/Playback mode. For details, see 12 Search (Playback), page 28.
2. BACKUP: Export files to USB device. For details, see 13 Backup, page 31.
3. CAMERA: Open the menu to manage IP cameras connected to the network (see 6.11 Connecting Cameras to the Local Area Network (LAN), page 13 for details), set recording parameters, and assign custom titles for your cameras.

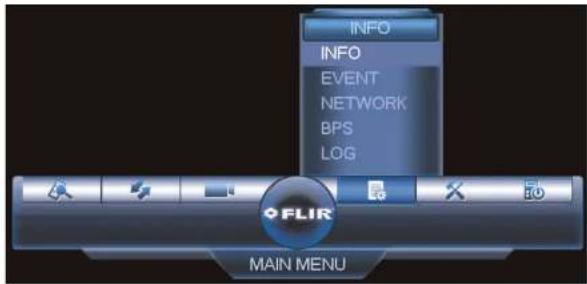

4. INFO: View system information.

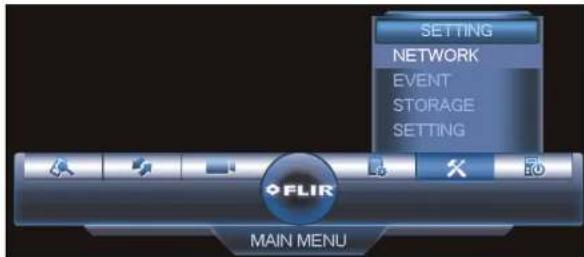

5. SETTING: Configure general system, schedule, network, recording, display, and motion settings. Restore system to factory defaults.
6. SHUTDOWN: Logout, restart, or shutdown the system.

15.1 Camera

Open the Remote Device menu to manage IP cameras, set recording parameters, and assign custom titles for your cameras.

Using the Main Menu15

15.1.2 Viewing Camera Status

The Camera Status menu allows you to view the connection and alarm status for all connected cameras.

To view camera status:

1. From the Main Menu, click and select Remote Device>Status.

Name: D:\Users\Program Files\Control Panel\Program Files\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\(^{1}\) Status: D:\Users\Program Files\Control Panel\Program Files\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\(^{2}\) Status: D:\Users\Program Files\Control Panel\Program Files\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\(^{3}\) Status: D:\Users\Program Files\Control Panel\Program Files\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\(^{4}\) Status: D:\Users\Program Files\Control Panel\Program Files\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\Status\nBalance:

15.1.3 Viewing Camera Firmware Versions

You can use the Firmware menu to view firmware versions for connected cameras.

To view camera firmware versions:

1. From the Main Menu, click and select Remote Device>Firmware.

Using the Main Menu15

1. Extract the firmware file and copy it to a USB thumb drive (not included).

2. Insert the USB thumb drive (not included) into a USB port on the system.

3. Right-click and select Main Menu. Click ____ and select Remote Device>Upgrade.

Display Pro File Edit View Help 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Click Select. Select the firmware file on the USB drive and click OK.

2. Check the cameras you would like to apply the upgrade to in the list and then click Start Upgrade.

CAUTION Wait for the firmware upgrade to complete before turning off or unplugging the cameras or NVR. The cameras will restart during the firmware update process.

15.1.5 Recording

The Recording menu allows you to set recording parameters for your cameras, such as the resolution and frame rate.

15.1.6 Configuring Recording Quality

1. Configure the following settings. Settings for the Main Stream are in the left column. Settings for the Sub Stream are in the right column.

SINCHESSED SINCHESSED General Type Customize Sub-Block Cust protection H1.04 H1.04 Function H1.04 H1.04 Function Based H1.04 H1.04 Bit Name Type Cust H1.04 Bit Name Based Cust H1.04 Bit Name Based Cust H1.04 Auto-Scale Cust OK Cancel Apply

- Resolution: Select the resolution that you want to use to record the selected channel. Higher resolutions create a more detailed image, but take up more hard drive space to record and require more bandwidth to stream to connected computers or mobile devices.

Note

Available resolutions for the Main Stream and Sub Stream depend on the model of camera that is connected to the system.

• Compression: Select the video compression type that will be used. It is recommended to select H.264, as it will have the best performance and use the least amount of disk space.
• Frame Rate (FPS): Select the frame rate in Frames Per Second (FPS) that each stream will record at. A higher frame rate provides a smoother picture, but requires more storage and bandwidth.
• Bit Rate Type: Select CBR (Constant Bit Rate) or VBR (Variable Bit Rate) to determine the bit rate type. If you select VBR, you can set the video quality setting between 1 and 6. If you select VBR, select the Quality from 1 (lowest) to 6 (highest).

Using the Main Menu15

To configure audio recording:

1. From the Main Menu, click and select Recording>Recording.

LOGICAL MARKET Type: 3 Color: 0.0000 Noise: 100% View Mode: 50 View Type: 100 View Mode: 100 View Mode: 100 Output: 100 OK Cancel Help

1. Select the audio-enabled camera under Channel.
2. Check the left Audio/Video checkbox to enable audio recording. Check the middle checkbox to enable audio streaming to remote devices (such as a smartphone). Check the right checkbox to enable video streaming to remote devices.
3. Click OK to save changes.

15.1.8 Configuring Snapshot Recording Settings

The system can be set to record snapshot images when a camera detects motion. These snapshots can be viewed through the Search menu or can be attached to email alerts and push notifications. The Snapshot tab in the Recording menu controls the quality and recording parameters for each camera.

Note

In order to enable Snapshot recording, the following menu options must be configured:
- The Snapshot schedule must be enabled for times that you would like to save snapshots. See 15.3.17 Configuring the Snapshot Schedule, page 66.
- Snapshot recording must be enabled for motion detection in the Event menu. See 15.3.8 Configuring

1. Configure the following settings for snapshots saved automatically from motion detection or the snapshot schedule:

RECORDING Recording Drop Number 1 Time Mode 1 Mode 2 Timing Image Size CIP Image Quality 4 Drop Rate Frequency 100% OK Cancel Apply OK Cancel

• Channel: Select the channel you would like to configure.
• Mode: Select Timing for the system to take snapshots according to the snapshot schedule (see 15.3.17 Configuring the Snapshot Schedule, page 66) Select Trigger for the system to take snapshots only when triggered by motion detection (snapshot must be enabled in the Motion Detect menu; see 15.3.8 Configuring Motion Detection, page 58).
• Image Size: The image size is the same as the Main Stream resolution of the camera.
• Image Quality: Select the snapshot image quality between 1 (lowest) and 6 (highest).

• Snapshot Frequency: Select the number of snapshots (up to 6) the system will take each time.

• Click OK to save changes.

15.1.9 Creating Custom Channel Names

You can assign custom names to your cameras. For example, you can name your cameras based on their location (e.g. hallway or front door).

Using the Main Menu15

15.2 Info

Info contains menus that show you system information.

INFO INFO EVENT NETWORK BPS LOG FLIR MAIN MENU

15.2.1 HDD Info

1200MPD 1200MPA 1200MPB DATA: 3 Type Size/Order Front Square Balance 100% 57 0.00 0.00 0.00 0.00 0.00 COS MR 825 MB

Using the Main Menu15

The Record Info menu shows the start and end times of recordings saved on the hard drive.

To access the Record Info menu:

- From the Main Menu, click E _0 and then select Info>Record Info.

15.2.3 Version

Microsoft Microsoft Teams 开始菜单 Device selection 选项 Change 0 Performance: 100% Model Type: 200x200.00 Win/Winset 2.524 Save As IP-CLOSE/HOSSS

The Version sub-menu allows you to view information about the current firmware installed on the system.

To access the Version menu:

- From the Main Menu, click 📄 and then click Info>Version.

15.2.4 Event Info

Using the Main Menu15

• Camera Masking: Camera masking alarm has been triggered (e.g. someone has covered the camera lens).
• Motion Detect: Shows channels with active motion alarms.
• IPC Ext Alarm: Alarm/sensor device (not included) connected to camera has been triggered.
• IPC Offline Alarm: IP camera is offline.

To access the Event Info menu:

- From the Main Menu, click Event and then select Event.

15.2.5 Online Users

ONION USERS DATA 176 018 02 03 2019 04 02 03 2019 04 02 03 2019 04 02 03 2019 04 02 03 2019 04 02 03 2019 04 02 03 2019 04 02 03 2019 04 15 03 2019 04 15 03 2019 04 15 03 2019 04 15 03 2019 04 15 03 2019 04 15 03 2019 04 15 03 2019 04 15 15 2019 04 15 15 2019 04 15 15 2019 04 15 15 2019 04 15 15 2019 04 15 15 2019 04 15 15 2019 04 15 15 Base Time:

The Online Users menu shows a list of users connected to the system using computers or mobile devices.

To access Online Users:

- From the Main Menu, click 📄 and then select Network.

15.2.6 Load

Using the Main Menu15

15.2.7 Test

Digital Text Normal Text Custom Text Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text Normal Text & Text Format Normal Text

The Test menu allows you to test if your system can connect to other devices over the LA or Internet. You can enter the IP address of a device and click Test to determine if your system can connect to it.

To access Test:

- From the Main Menu, click and then select Network>Test.

15.2.8 BPS

The BPS sub-menu shows the bitrates of connected cameras. the bitrate is the amount of data the camera is sending to the system.

CNC M2 TWP M4 TWP M6 TWP M8 TWP M10 TWP M12 TWP M14 TWP M16 TWP M18 TWP

Using the Main Menu15

File Name: 01.04.2016 17:03:2016 17:03:2016 File Edit View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help Control Panel View Insert Help

To search for system logs:

1. From the Main Menu, click and then select Log.
2. Under Type, select the log type to search for.
3. Under Start Time and End Time, select the start and end time for your search.
4. Click Search.
5. (Optional) Click Backup to export logs to a USB thumb drive connected to the system.

Using the Main Menu15

15.3 Setting

The Setting menu allows you to configure general system, schedule, network, recording, display, and motion settings. It also allows you to restore the system to factory defaults.

SETTING NETWORK EVENT STORAGE SETTING FLIR MAIN MENU

15.3.1 Network

The Network menu allows you to configure network parameters for your system.

Note

The WiFi menu is not supported.

15.3.2 Selecting DHCP or Static IP Address (TCP/IP)

The TCP/IP menu allows you to configure IP address settings.

To configure IP address settings:

1. From the Main Menu, click X and then select Network>TCP/IP.

2. Check DHCP (recommended) to let the system automatically obtain an IP address from the router or uncheck to assign a static IP address.

TCP/IP CONNECTION FTP COM IP FILTER PANET FTP USB TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP

If you uncheck DHCP, configure the following:

• IP Address: Enter the IP address you would like to assign to the system. Make sure that no other device on your network is using the same IP address.
• Subnet Mask: Enter the subnet mask for your network.
• Default Gateway: Enter the gateway address for your network.
• Preferred DNS: Enter the address of your primary DNS server

• Alternate DNS: Enter the address of your secondary DNS server.

• Click OK to save changes.

15.3.3 Configuring System Ports (Connection)

The Connection menu allows you to configure ports used by the system. Please note that port forwarding is not required to use FLIR Cloud™ or to connect using the apps.

If you are using DDNS connectivity, port forwarding is required for the HTTP Port (default: 80) and TCP (Client Port) (default: 35000).

To configure system ports:

Using the Main Menu15

15.3.4 Configuring DDNS Settings

FLIR DDNS is available as an optional connectivity option. Please see 21 DDNS Setup (Advanced), page 159 for details.

The primary connectivity option uses FLIR Cloud™ to connect to your system over the Internet without requiring port forwarding or DDNS registration. For details, see 16 Connecting to Your System Over the Internet on PC or Mac, page 80.

To configure DDNS Settings:

1. Visit http://ddns.myddns-flir.com and register for a DDNS account.

2. From the Main Menu, click X and then select Network>DDNS.

Date Time Date Time: 00:00:00:00 User Location: User: Properties: OK Cancel Help Finish Help

1. Check Enable.

2. Under Domain Name, enter the Domain Name/URL Request your received in the email after registering for DDNS.

3. Under User ID, enter your DDNS User Name.

4. Under Password, enter your DDNS Device password.

5. Click OK to save your settings.

Note

Using the Main Menu15

To configure Email Alerts:

1. From the Main Menu, click ✗ and then select Network>Email.

POST Server Parameters Post ATT Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Parameters Categories Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Instructions

1. Check Enable to enable email notifications.

2. Configure the following:

3. SMTP Server: Enter the SMTP server address.

4. Port: Enter the port used by the SMTP server.
5. Anonymous: Check if your server supports anonymous log ins. Otherwise, leave this unhevel.
   this unchecked.
6. User Name: Enter the SMTP user name.
7. Password: Enter the SMTP password
8. Receiver: Enter the email address that will receive alerts.
9. Sender: Enter the sender's email address.
10. Subject: Enter the subject line for the email alert.
11. Attachment: Check to include a jpg image attachment of the camera.

Note

You must enable the Snapshot option for motion detection on each camera you would to receive attachments. For details, see 15.3.8 Configuring Motion Detection, page 58.

Using the Main Menu15

1. Click

Network>Switch Settings.

1. Conf

gure the IP Address, Subnet Mask, and Gateway for the internal PoE switch.

TCP/IP CYP/RESET M1 DNS FTP/USB URLS FTP FTP System Settings Default OK Cancel Help

1. Click OK. Click Save to save changes. The system will restart.

15.3.7 Event

The Event menu allows you to configure settings for motion detection, video loss, and system warnings.

15.3.8 Configuring Motion Detection

Motion Detection events allow the system to mark footage that has motion. This allows you to quickly locate relevant footage through Search. You can also configure system responses to motion detection events, such as activating the system buzzer or sending an email alert.

To configure Motion Detection events:

Using the Main Menu15

1. Click Setup next to Region to configure which areas of the image will be enabled for motion detection. A grid will appear over the camera's live view.

Motion Grid

Properties Support

• Areas enabled for motion detection are shown in color and areas that are disabled are transparent.
• Hover the mouse at the top of the screen to select which motion area you would like to configure. You can set up to 4 motion detection areas and customize the sensitivity and threshold for motion detection separately for each area between 0 (lowest) and 100 (highest).
• The Sensitivity determines how sensitive the camera is to motion. For example, if the sensitivity is high, small amounts of motion are more likely to trigger an event. It is recommended to select a Sensitivity between 30\~70.
• The Threshold determines how much motion is required to trigger an event. If the amount of motion exceeds the threshold, an event occurs. It is recommended to select a Threshold between 10-50.
• Right-click when finished.

Note

It is recommended to have a second person walk in front of the camera to test different Sensitivity and Threshold settings to determine the best setting for your camera's location.

1. Under Anti-dither, enter the anti-dither time. After a motion event occurs and motion stops, if motion is detected within the anti-dither time, the system continues the motion event and includes the new motion within the first event, rather than creating a new

2. Configure the following system actions when motion is detected:

3. Alarm Out: Check the box to activate alarm output devices (not included) that will trigger when the selected channel detects motion. Select the alarm output devices that will be activated when motion is detected.

4. Latch: Enter the number of seconds an alarm output device will activate after motion is detected.
   • Show Message: Check to enable an on-screen pop-up when one of your cameras detects motion. On-screen pop-up shows the channels an event occurred on and the type of event.
5. Alarm Upload: Check to enable the system to upload alerts to FLIR Cloud™ Client.
6. Send Email: Check to enable email alerts. You must configure email alerts before you will be able to receive them (see 15.3.5 Configuring Email Alerts, page 56).
7. Channels: Select the channels that will record when motion is detected on the selected channel.
8. PTZ Activation: Check to enable PTZ actions when motion is detected (PTZ camera required; not included). Click Setup to select which PTZ actions will be taken by each camera.
9. Buzzer: Check to enable the system buzzer.
10. Sequence: Check to enable a custom sequence mode when motion is detected on the selected channel. Then click the channels you would like to display in the custom sequence mode.

11. Snapshot: Check to save a snapshot when the camera detects motion.

12. Click OK to save changes.

15.3.9 Configuring Video Loss Settings

Video Loss occurs if the system loses connection to one of the cameras.

To configure Video Loss settings:

1. From the Main Menu, click X and then click Event>Motion>Video Loss.

1. Configure the following to customize settings for video loss events:

2. Period: Click Setup to configure a schedule for video loss events. It is recommended to leave this on the default setting, so you can be alerted at any time one of your cameras loses video.

3. Alarm Out: Select the alarm output devices (not included) that will trigger when video loss occurs.
4. Latch: Enter the number of seconds an alarm output device will activate after video loss occurs.
5. Show Message: Check to show a popup message on the monitor if one of your cameras loses video.
6. Alarm Upload: Check to enable the system to upload alerts to FLIR Cloud™ Client.
7. Send Email: Check to enable email alerts. You must configure email alerts before you will be able to receive them (see 15.3.5 Configuring Email Alerts, page 56).
8. Channels: Click the checkbox to enable video recording when video loss occurs. You can then select the channels the system will record when video loss occurs on the currently selected channel.
9. PTZ Activation: Check to enable PTZ actions when video loss occurs (PTZ camera required; not included). Click Setup to select which PTZ actions will be taken by each camera.
10. Post_REC: Enter the number of seconds the system will record after video loss occurs.
11. Snapshot: Click the box to enable snapshot recording when video loss occurs. You can then select which channels will save snapshots when video loss occurs on the currently selected channel.
12. Sequence: Check to enable a custom sequence mode when video loss occurs on the selected channel. Then click the channels you would like to display in the custom sequence mode.

13. Buzzer: Check to enable the system buzzer when video loss occurs on the currently selected channel.

14. Click OK to save changes.

15.3.10 Configuring Alarm Input Devices

You can connect alarm input devices such as motion concerns (not included) or place break

1. Configure the following to activate an alarm input device:

2. Alarm In: Select the alarm input port the device is connected to.

3. Enable: Check to enable the alarm input device connected to the selected port.

4. Type: Select Normal Open or Normal Close depending on the type of alarm input device you have.

5. Configure the following system responses and parameters for the alarm input device:

6. Period: Click Setup to configure the times of the week when the selected device will be activated. By default, the device will be activated 24/7.

7. Anti-dither: Enter the anti-dither time. After the device triggers, if it triggers again within the anti-dither time, the system continues the event and includes the second activation within the first event, rather than creating a new event.
8. Alarm Out: Check the box to activate alarm output devices (not included) and select the alarm output devices (not included) will be activated when the selected device is triggered.

- Latch: Enter the number of seconds an alarm output device will activate after the selected device is triggered.

- Show Message: Check to enable an on-screen pop-up when the selected device is triggered.

- Alarm Upload: Check to enable the system to upload alerts to FLIR Cloud™ Client.

- Send Email: Check to enable email alerts. You must configure email alerts before you will be able to receive them (see 15.3.5 Configuring Email Alerts, page 56).

- Channels: Select the channels that will record when the selected device is triggered.

- PTZ Activation: Check to enable PTZ actions when the selected device is triggered (PTZ camera required; not included). Click Setup to select which PTZ actions will be taken by each camera.

- Sequence: Check to enable a custom sequence mode when the alarm device triggers. Then click the channels you would like to display in the custom sequence mode.

- Buzzer: Check to enable the system buzzer.

- Snapshot: Check to save a snapshot.

1. Click OK to save changes.

To access the Alarm Output menu:

1. From the Main Menu, click ✗ and then click Event>Alarm Output.

AVOC AVOC AVOC 0.01 AVOC 0.01/0.01 Auto Cut: 25 Stroke: 0 Manual: 0 Stop: 0 Down: 0 Auto Release: OK OK Cancel Apply

To control alarm output devices:

• To enable alarm output devices, select Schedule or Manual for each device you would like to enable. Select Stop to disable the alarm output device. Click OK to save changes.
  • To manually disable activated alarm devices, click OK under Alarm Release.

15.3.12 Configuring Hard Drive Warnings

Hard drive warnings will notify you if an issue is detected with the hard drive.

To configure hard drive warnings:

1. From the Main Menu, click ✗ and then click Event>Warning>HDD.

1. Configure the responses the system will take when the selected event occurs:

2. Alarm Out: Activate selected alarm out devices. Use Latch to select the number of seconds the alarm out device will be activated.
   • Show Message: Show a popup message on the monitor.

3. Alarm Upload: Check to enable the system to upload alerts to FLIR Cloud™ Client.
4. Send Email: Check to enable email alerts. You must configure email alerts before
   you will be able to receive them (see 15.3.5 Configuring Email Alerts, page 56).

5. Buzzer: Check to activate the system buzzer.

6. Click OK to save changes.

15.3.13 Configuring Network Warnings

Network warnings will notify you if your system loses connection to the Internet or local network or if there is an issue on your network.

To configure network warnings:

1. From the Main Menu, click X and then click Event>Warning>Network.

NEW Close Send Type: New Document Open Show Out Lock W Guard Show Messages Send Upback Send Down Show OK Cancel Apply

1. Under Event Type, select the event type you would like to configure.

- Net Dissemination: The model has last operation in the animal.

15.3.15 Configuring the Video Recording Schedule

You can set a custom recording schedule according to your needs. For example, you can set the system to record continuously during business hours and record on motion detection only outside of business hours.

A custom recording schedule helps reduce the amount of hard drive space required, increasing the time your system can retain recordings.

To configure the video recording schedule:

1. From the Main Menu, click ✕ and then click Storage>Schedule>Record.
2. Under Channel, select the channel you would like to configure or select All.
3. Configure the schedule as needed:

SCHEDULE LOG MANAGER RECORD Record Preview Control Default OK Cancel Apply 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

• Check Continuous or MD (motion detection) to select the recording type you would like to configure.
• Click and drag on each day to customize the recording schedule. The schedule is set up as a grid, which each block representing one hour.
• Click next to All to link the recording schedules for all days. The icon for a day

Using the Main Menu15

To configure pre-recording:

1. From the Main Menu, click and then click Storage>Schedule>Record.

MACHINE AVOC/AVOC/AVOC RANGE 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

1. Under Channel, select the camera you would like to configure or select All.
2. Under PreRecord, select the duration for pre-recording.
3. Click OK to save settings.

15.3.17 Configuring the Snapshot Schedule

You can set a schedule for recording snapshots from the cameras.

To set up the snapshot schedule:

1. From the Main Menu, click X and then click Storage>Schedule>Snapshot.

1. Configure the schedule as needed:

2. Check Continuous or MD (motion detection) to select the recording type you would like to configure.

3. Click and drag on each day to customize the recording schedule. The schedule is set up as a grid, which each block representing one hour.
4. Click next to All to link the recording schedules for all days. The icon for a day changes to when it is linked. You can also click the boxes next to individual days to link them to each other. If the recording schedule is linked, changes made to one of the days will apply to every day that is linked.
5. Click to disable all recording of the selected type on the selected day.

6. Click 📋 if you need to set a more precise schedule down to the minute.

7. Click OK to save changes.

15.3.18 Configuring Holidays

You can set certain days as holidays. Holidays have a special recording schedule.

To configure holidays:

1. From the Main Menu, click X and then click Setting>General>Holiday.

From the Main Menu, click X and the Command Enter Paste Properties Account Configuration Package PAGE

1. Configure the following:

Add New Including Display Mode: □ Cyan Copy □ Black Include Image □ Color □ Width Split Size: 0.00 - 10.00 Bold Size: 0.00 - 10.00 Add New Cancel Add New

• Holiday Name: Enter a name for this holiday.
- Repeat Mode: Select Once Only for the holiday to occur only this year or All-Year for the holiday to be repeated each year.
- Holiday Range: Select Date to select a specific date, or select Week to select holidays based on which week they fall on.

1. Click Add. Now that you have added a holiday, an extra holiday setting is added to the recording schedule.

Note

You cannot delete holidays, but you can disable them by selecting Stop under the Status drop-down and then click Apply.

15.3.19 Formatting the Hard Drive

The HDD Manager menu allows you to format the hard drive. If you install a new hard drive, you must format the hard drive using the system before you will be able to record.

To format the hard drive:

Using the Main Menu15

1. Click OK to save changes. The system will restart to complete the formatting process.

15.3.20 Configuring Hard Drive Type

The system supports the following hard drive types:

- Read-write HDD: Normal recording hard drive.

- Read-only HDD: The system can playback data from this hard drive, but it will not record to it.

- Mirror HDD: The hard drive will be used for mirror recording only. You must set up mirroring recording before this feature will work.

To set the hard drive type:

1. From the Main Menu, click ✗ and then click Storage>HDD Manager.

SAMSUNG HOLD MANAGER BEIJING C:\Users\NT NT T-01 NT Name F-01 2018/01/28 OK Cancel Apply

1. Click the hard drive you would like to configure.

2. Under Type, select Read-write HDD, Read-only HDD, or Mirror HDD.

3. Click OK to save changes. The system will restart to complete this operation.

15.3.21 Installing eSATA Hard Drives

The system can support up to 4 additional hard drives via the eSATA port. The drives must

Using the Main Menu15

1. Once the system is powered up, open the Main Menu and click and then click Storage>HDD Manager. The eSATA hard drives will be shown below the hard drives that are installed inside the system (SATA).

USEUM LOG MANAGER USE MODELS RETURN File Name: 01.1.2.4 Type: Normal Name: Normal Status: Normal Date: 01/01/2017 01:00 Date: 01/01/2017 01:00 Balance: Finish: OK Cancel Apply

1. Click on the eSATA hard drive in the list. Click Format.

SINEMA LOG MANAGED LOG MANAGER ORDER C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA C:\DATA\1.0.1.0 - DATA Databank - Status OK Cancel Apply

1. Select Storage to use the hard drive as a storage hard drive or Backup to use the hard drive as a backup hard drive. Click OK to confirm

Using the Main Menu15

How hard drive mirroring works:

1. Security system.
2. Primary hard drive.
3. Mirror hard drive.

Note

• The mirror hard drive must be as large or larger than primary hard drive to backup all recordings.
• HDD mirroring begins from when mirror hard drive is installed and configured.
• Two hard drives must be installed in the system to use HDD mirroring. For details on installing hard drives, see 24 DNR500 Series Hard Drive Installation, page 176.

To set up hard drive mirroring:

1. From the Main Menu, click X and then click Storage>HDD Manager.
2. Click the Type drop-down under the second hard drive and select Mirror HDD.

SOMOLE HCA MANSER RESERVED RECEIVED Current Name Type Name Date Power Put 10.1.2 New name: Add name: New name: Add name: Add name: Add name: Add name:

Using the Main Menu15

1. Under Channel, select the channel you would like to enable for mirror recording, then check Mirroring. Repeat the process for any additional channels.

COMPRESS LOGI MANAGER NET ACCOUNT RETURN Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 100% Balance 1 Balance 2 Balance 3 Balance 4 Balance 5 Balance 6 Balance 7 Balance 8 Balance 9 Balance 10 Balance 11 Balance 12 Balance 13 Balance 14 Balance 15 Balance 16 Balance 17 Balance 18 Balance 19 Balance 20 Balance 21 Balance 22 Balance 23 Balance 24 Balance 25 Balance 26 Balance 27 Balance 28 Balance 29 Balance 30 Balance 31 Balance 32 Balance 33 Balance 34 Balance 35 Balance 36 Balance 37 Balance 38 Balance 39 Balance 40 Balance 41 Balance 42 Balance 43 Balance 44 Balance 45 Balance 46 Balance 47 Balance 48 Balance 49 Balance 50 Balance 51 Balance 52 Balance 53 Balance 54 Balance 55 Balance 56 Balance 57 Balance 58 Balance 59 Balance 60 Balance 61 Balance 62 Balance 63 Balance 64 Balance 65 Balance 66 Balance 67 Balance 68 Balance 69 Balance 70 Balance 71 Balance 72 Balance 73 Balance 74 Balance 75 Balance 76 Balance 77 Balance 78 Balance 79 Balance 80 Balance 81 Balance 82 Balance 83 Balance 84 Balance 85 Balance 86 Balance 87 Balance 88 Balance 89 Balance 90 Balance 91 Balance 92 Balance 93 Balance 94 Balance 95 Balance 96 Balance 97 Balance 98 Balance 99 Balance 100

1. Click OK to save changes.

15.3.23 Configuring Hard Drive Groups (Advanced)

Hard drive groups allow you to balance recordings across multiple hard drives. For example, you can record channels 1\~4 to one hard drive and 4\~8 to a second hard drive. This can reduce the amount of wear on the hard drives and may extend the life of the hard drives.

Note

- Two hard drives must be installed in the system to use hard drive groups, and both hard drives must be formatted as Read-write hard drives. For details on installing hard drives, see 24 DNR500 Series Hard Drive Installation, page 176.

To configure hard drive groups:

1. From the Main Menu, click X and then click Storage>HDD Advance>HDD Setting.

Using the Main Menu15

1. From the Main Menu, click and then click Storage>HDD Advance>Main Stream. For each channel, select the hard drive group you would like to record the main stream (high quality) video and then click Apply.

SIGNAL PARAMETER NET ADVANCE RETURN HDD Group Current Current Current HD Group Current HD Group Current HD Group OK Cancel Apply

1. Click the Sub Stream tab. For each channel, select the hard drive group you would like to record the sub stream (reduced quality) video and then click Apply.

SELECT ITEM NUMBER DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME DATA NAME

Using the Main Menu15

To configure general settings:

1. From the Main Menu, click and then click Setting>General>General.

SINEMA SETTER MOUNT FOR FLOTH COMPOSITE RETURN FROZENUE C:\Program Files\10.0.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0.00\10.0. Settings Control OK Cancel Apply Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview Previous Preview

1. Configure the following:

• Device Type: Shows the model number of your system.
• Device No.: Select the remote control address of the system. See 8.1 Setting the
Remote Control Address, page 18.
- Language: Set the system languages. Available options are English, French, and
Spanish.
• Video Standard: Select NTSC (North America) or PAL (Europe).
- HDD Full: Select Overwrite for the system to overwrite the oldest recordings when the hard drive is full or select Stop Record for the system to stop recording when the hard drive is full.
- Pack Duration: Select the length (in minutes) of video files stored on the system. For example, if this is set to 30 minutes, the system will create a new video file for each 30 minutes of continuous recording.
- Instant Playback: Select the amount of time (in minutes) the system will go back
instant playback. Select the amount of time (in minutes), the system will go back when instant playback is activated in live view.
- Auto Logout: Select the idle time (in minutes) before the system will logout the cur-

Using the Main Menu15

To set the monitor resolution:

1. From the Main Menu, click ✕ and then click Setting>Display>Display.

DISPLAY Display RGB RGB+TSS/RGB ASCII RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB RGB+TSS/RGB 80% 40% 30% 20% 10% 5% 0% 确定 OK Cancel Apply

1. Under Resolution, select the correct resolution for your monitor: 1920x1080, 1280x1024, 1280x720, or 1024x768.
2. Click OK to save changes. Click OK again to restart the system using the new resolution.

To configure other display settings:

1. From the Main Menu, click ✗ and then click Setting>Display>Display.

DISPLAY RGB RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000 RGB/100000

Using the Main Menu15

Note

This function only saves settings created in system menus. It does not save or backup any video.

To save your system configuration to a USB thumb drive:

1. Insert a USB thumb drive (not included) into one of the USB ports.

2. From the Main Menu, click X and then click Setting>Config Backup.

1. Under Device Name, select the USB device where you would like to save the

2. Click EXPORT to save your current system configuration.

To restore a saved system configuration:

1. Insert a USB thumb drive (not included) with a saved system configuration into one of the USB ports.

2. From the Main Menu, click and then click Setting>Config Backup.

To reset the system to factory default settings:

1. From the Main Menu, click ✗ and then click Setting>Default.

CREATE DISPLAY ADD MULTI-TOCOM ACCOUNT Corporation SMT-T SYSTEM Create All ACCRITER ORDER Network Event STANDARD SYSTEM SYSTEM ACCOUNT On Cancel Apply

1. Check the menus you would like to reset to default settings.
2. Click OK.

15.3.28 Upgrading Firmware from USB

Firmware upgrades provide enhanced functionality. The system will automatically check for firmware upgrades if it is connected to the Internet. The system also supports firmware upgrades from a USB thumb drive (not included).

To upgrade firmware from a USB drive:

1. Download the firmware upgrade from www.flirsecurity.com/pro.
2. Extract the firmware file and copy the firmware to a blank USB thumb drive.

Note

Do not have any folders on the USB thumb drive—just the firmware file.

1. Insert the USB thumb drive to a USB port on the system.

Using the Main Menu15

1. Select the firmware file on the USB drive and click Start.

WARNING

DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRM-WARE INSTALLATION

Using the Main Menu15

15.4 Shutdown

Use the Shutdown menu to shutdown, restart, or log out of the system.

To access the Shutdown menu:

1. From live view, right-click and select Main Menu.
2. Enter the system User Name (default: admin) and Password (default: 000000) and click OK.

1. Click >Shutdown.
2. Select one of the following:

SHUTDOWN Shutdown Logout Reboot

• Logout: Log out the account that is currently active.
• Shutdown.
• Restart.

Connecting to Your System Over the Internet on PC or Mac

This system features connectivity using the exclusive FLIR Cloud™. This cloud-enabled service allows for Internet connectivity without requiring any network configuration. Up to 3 devices may connect to the system at the same time.

Note

• Except where noted, the PC and Mac instructions in this section are the same.
• For smartphone/tablet setup, see 18 Connecting to your System Using Smartphone or Tablet Apps.
  page 111.
• For the latest list of supported apps and devices, visit www.flirsecurity.com/pro.

FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD FLIR HOLD

16.1 System Requirements

Your system must meet the system requirements below:

Description Requirement
CPU Core 2 Duo 3.0GHz
Operating System WindowsTM 8/7/Vista

1. Reconnect the power adapter to power the system back on.

16.3 Step 2 of 3: Obtain the system's Device ID

The Device ID is a unique code that allows your system to handshake with FLIR Cloud™ servers for a secure connection over the Internet.

To find the Device ID:

1. The Device ID is located on a sticker on the system.

Device ID: xxxxxxxxxx

1. Write down the Device ID of the system.

16.4 Step 3 of 3: Connect to the System Over the Internet

1. Log into the Client Software using the Client Software user name (default: admin) and password (default: admin) and then click Login.

FLIR Cloud User NAME: admin Password: ****** Belarusian Password { Login } { Fail }

1. Click Add Device.

FLIR audio 文件(F) 100% 200% 300% 400% 500% 600% 700% 800% 900% 1000% 1100% 1200% 1300% 1400% 1500% 1600% 1700% 1800% 1900% 2000% 2100% 2200% 2300% 2400% 2500% 2600% 2700% 2800% 2900% 3000% 3100% 3200% 3300% 3400% 3500% 3600% 3700% 3800% 3900% 4000% 4100% 4200% 4300% 4400% 4500% 4600% 4700% 4800% 4900% 5000% 5100% 5200% 5300% 5400% 5500% 5600% 5700% 5800% 5900% 6000% 6100% 6200% 6300% 6400% 6500% 6600% 6700% 6800% 6900% 7000% 7100% 7200% 7300% 7400% 7500% 7600% 7700% 7800% 7900% 8000% 8100% 8200% 8300% 8400% 8500% 8600% 8700% 8800% 8900% 9000% 9100% 9200% 9300% 9400% 9500% 9600% 9700% 9800% 9900% 100

1. Enter the following:

Add Device Device Name: HD System Group Name: Default Group Type: CMV Device ID: dev538-85-0001 Client Port: 35000 Main Name: admin Password: ******** Add User Info Device Information Serial Number: View Input: Video Output: Alarm Input: Alarm Output: Add More Add Cancel

5.1. Device Name: Choose a name for your system of your choice. 5.2. Device ID: Manually enter the Device ID printed on the label.
5.3. Client Port: Enter the Client Port (default: 35000).
5.4. User Name: Enter the system User Name (default: admin).
5.5. Password: Enter the system Password (default: 000000).

1. Click Add. If this is the first time you are connecting, you will be prompted to change the system password.

8.

Click

1. Click and drag Default Group to the display window to open your cameras in live view.

FLIR.dwg FLIR.dwg FLIR.dwg

Congratulations! You can now connect over the Internet to view and playback video on your computer.

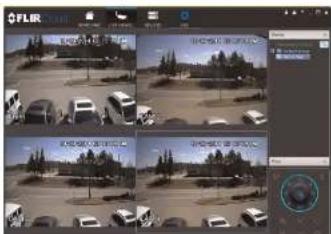

Screenshot of a video surveillance system interface showing multiple surveillance feeds with vehicle images and Chinese text labels.

Using FLIR Cloud™ Client for PC or Mac

FLIR Cloud™ Client allows you to connect to multiple systems from a PC or Mac.

17.1 Home Page

The Home Page allows you to access all the tabs within the software. Each tab allows you to access different features.

FLIR (Local) 14:09:29 2014-08-09 COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTER COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTES COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUTS COMPUT S

To open tabs:

Click a tab from the Home Page to open it or click the button at the top of the screen from within any tab to open a new tab.

17.2 Live View

The Live View tab is where you can view live video from connected systems.

To view live video from a system:

1. Click 📄 and then click to create a Live View tab.

2. Click and drag a DVR, NVR, group, or individual camera to open live video. To access individual camera, you can click + to expand groups or customs

17.2.1 Live View Controls

FLIR cloud ① ② ③ ④ ⑤ ⑥ ⑦

1. Live display: Double-click to expand the area. Right-click to access additional options. Hold the mouse over the display area to access the camera toolbar.

Camera toolbar:

Sub Stream(205kbps, 352*240) ① ②③④⑤⑥⑦⑧

1.1. Streaming quality: Shows the bitrate and resolution for the stream, and shows if display is showing the Sub Stream or Main Stream.
1.2. Manual recording: Click to start/stop manual recording.
1.3 Cnanchat Click to save a anochet

Save view: Click to save the current display layout and open cameras as a view. n enter a name for the view.

Start/stop tour: Click to start the tour. During the tour the client will cycle through saved views every few seconds. Click again to stop the tour.

PTZ Controls: Controls for PTZ cameras (not included). See 17.3 Controlling PTZ Cameras, page 88 for details.
View: Click View to access view menu. Then double-click on a view to open it in the display area.

1. Devices: Shows a list of groups, cameras, and systems connected to the client. Drag items to the display area to open live video. Right-click to view additional options.

17.2.2 Opening Live View in Multiple Monitors

If your computer has multiple monitors, you can open more than one Live View tab and move them to secondary monitors. This allows you to monitor cameras on multiple monitors at the same time.

Note

Using multiple monitors significantly increases the amount of computing resources necessary to run the application and may affect performance.

To open Live View in multiple monitors:

1. Click and drag the tab outside of the client window to create a new window. You can drag the window to one of the secondary monitors.

If you have PTZ cameras (not included), you can control them using the client.

Note

PTZ controls:

Control panel interface with numbered labels pointing to various function buttons and display icons

1. Open menu: Click to open camera OSD menu controls. This feature may not be supported for all camera models.
2. Move camera: Click the arrows to move the camera. Click to open dynamic zoom mode. Then click and drag in the video area to zoom in the camera on an area.
3. Zoom +/-: Click to zoom the camera in and out.
4. Focus +/-: Click to increase/decrease the focus.
5. Ins +/- Click to increase/decrease the Ins.
6. Advanced: Click to access advanced PTZ controls

17.3.1 PTZ Presets

Presets will save a camera position for quick retrieval.

To add presets:

1. Select the number of the preset you would like to add.

1 8 Preset 1 Input name

1. Move the camera to the desired position.
2. Click to save the current position as a preset.

To go to a saved preset:

1. Select the preset number from the list or click to go to the currently selected preset.

17.3.2 PTZ Tours

Tours will cycle through a set of presets.

To configure a PTZ tour:

1. Click ▼ to open the Advanced controls. Select Tour.
2. Click

1. Use the chart to select which presets you would like to include in the tour and the order of presets.

User Lab Close Image 1 Close Text Power Speed: Operation 1 50 30 OK Cancel

• Preset: Select the preset number.
• Time(s): Enter the time in seconds the camera will remain on the selected preset.

• Operation: Click + to add a preset to the tour. Click to delete a preset from the tour.

• Click OK to save changes.

To run a PTZ tour:

1. Select the tour number and cli

17.3.3 PTZ Pattern

Patterns automatically cycle the camera between two positions.

To create a pattern:

1. Click ▼ to open the Advanced controls. Select Pattern.
2. Select the number of the pattern you would like to set up.

17.3.4 PTZ Scan

Scan automatically cycles between a left and right point.

To set up scan mode:

1. Click ▼ to open the Advanced controls. Select Scan.

1. Move the camera to the desired left position and click.
2. Move the camera to the desired right position and click.

To run scan mode:

1. Click

17.3.5 PTZ Pan

Pan makes the camera continuously pan 360°.

To run Pan mode:

1. Click ▼ to open the Advanced controls. Select Pan.
2. Click ▼

17.4 Playback

To playback video:

1. Check the channels you would like to play back from in the Device List.
2. Under Type, check the file types you would like to search for.

• All: All recordings.
• General: Continuous recordings.
• MD: Motion recordings.
- Alarm: Alarm recordings. Your system must support alarm devices (not included) to use this feature.

1. Under Stream, select Main Stream to search for Main Stream recordings (high qual-
   ity) or Sub Stream to search for Sub Stream recordings (smaller file size).
2. Select the start time and end time for your search under From and To. You may not
   search more than 24 hours of video.
3. Click Search. Wait for the client to find video saved to the system.
4. Click inside the play back bar to start playback.

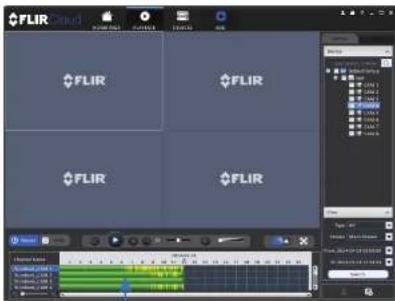

FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FF100 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001 FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR

17.5 Playback Controls

FLIR Cloud 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

1. Display area: Double-click to expand/return to split-screen mode. Hold the mouse over the display area to open the camera toolbar.

• Snapshot: Click to save a snapshot.
  • Digital zoom: Click to enable digital zoom mode. Then click and draw to zoom in Click and

• Download list: Click to see a list of files you have downloaded and the progress of files that are currently downloading.

• Search: Search for video on the selected channels based on the search parameters you set.
• Device list: Select the channels you would like to search or playback video from.

17.6 Downloading Video to your Computer Hard Drive

You can download video to your computer hard drive to save important events or share them. It is recommended to download video of important events as soon as possible to ensure they are not overwritten by new recordings.

Note

PC Users: You may need to run FLIR Cloud™ Client as an administrator to download files to your hard drive.

To download video files:

1. Start playing back video using the steps in 17.4 Playback, page 92.
2. Click to start a video clip at the current playback time. Click to stop the video clip.
3. Configure the following save options:

• Path: Use the default save folder or click Browse to select a different folder.
- File Format: Select Original Format to save to .dav format (requires the video player). Select AVI to save files to .avi format (can be played in VLC Media Player).

Note

17.7 Alarm

The Alarm menu allows you to view a list of alarms received by the client software.

Note

You must set up alarms in the Alarm CFG menu before they will appear in this list. See 17.12 Alarm CFG,

page 101 for more details.

To access Alarms:

- Click and then click

Alarm menu overview:

FLIR ① ② ③ ④

1. Number of alarms: Shows the number of open alarms.
2. Alarm list: Shows the list of alarms and information on when they occurred and which systems and channels triggered them.
3. Alarm Process: You can close alarms by selecting one of the options and clicking OK.
4. Options: Check to enable the following:
5. Display Link Video: Open live video to monitor alarms on a continuous basis.

To view client logs:

1. Click Client Log to view logs for the client software.

FLIR GROUP File Edit View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Edit View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help Add View Insert Help All Users: 123,000 (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) (123,000) +/-

1. Configure the following:

- Start Time/End Time: Select the start and end times to search for logs. - Log Type: Select the type of logs to search for.

1. Click Search.

To view logs from connected systems:

1. Click Device Log to view logs from connected systems.

1. Configure the following:

Add Map Name: Hidoc Picture: Newshing.psd Describe: Newshing of the House? Save Cancel

• Name: Enter a name for your e-map of your choice.
- Picture: Click File and then select a .png, .bmp, or .jpg image on your computer to use as the e-map.
- Describe (optional): Enter a text description of the e-map.

1. Click Save.

2. Click and drag cameras from the device list to place them on the map.

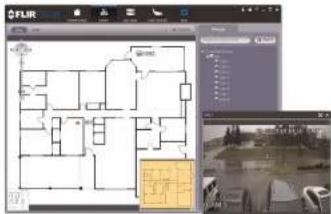

FLIR GROUP File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit View Tools Help File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit View File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Review File Edit Preview

To open cameras from the e-map:

1. Click View.

2. Double-click cameras on the map to open live video.

FLIR 2017

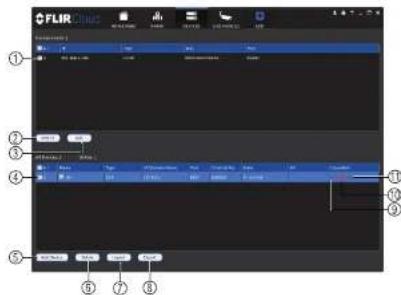

Devices overview:

FLIR Cloud ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1. Devices Found: Shows systems that are connected to the same network as the computer where the client is installed. Once you connect to the system, it moves to the botom of the screen.
2. Search: Refresh the list of systems connected to the network.
3. Add: Add checked systems to the client software.
4. Device list: Shows a list of systems connected to the client software, and shows which systems are online.
5. Add Device: Add a remote system using a Device ID or IP/DDNS address.
6. Delete: Delete the selected system
7. Import: Import a list of systems from a saved .xml file.
8. Export: Export a list of currently connected systems to an .xml file. This is useful if you need to re-install the software or if you want to open the same list of systems on a different computer.
9. Delete: Delete system.
10. Manual connect/disconnect: Manually connect/disconnect the system.
    11 Edit Edit the connection details for the system

FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR FUR

Note
The settings available depend on the model of system you have.

17.12 Alarm CFG

The Alarm CFG menu allows you to configure alarms for the client software. The client software will alert you by popping up live video and playing sound alerts.

Note

Alarm upload must be enabled on the system in order for it to send the alarm to the client software.

To create alarms:

1. Click

and then click

1. Click Add to create a new alarm.

1. In the Alarm sources menu, you set up the parameters that trigger the alarm.

Screenshot of a software interface showing a dropdown menu with options like 'OK', 'Cancel', and 'Help', alongside a toolbar with icons and text labels.

• Under Alarm Type, select the alarm type that will trigger an alarm. For example, you can select Motion Detect for the alarm to be triggered by motion.
• Select the systems or channels you would like to trigger an alarm. Continuing the example, if CAM 1 is selected, the alarm will be triggered if there is motion on CAM 1.

• Click Next.

• In the Alarm link menu, you set up the responses to alarms. Select the channels that will pop up or alarm out devices (not included; not all systems support alarm out devices) that will be triggered by an alarm. For each channel selected, configure the following:

Screenshot of a software interface showing a dialog box with file selection and properties panel

• Video: Pop up a window with live video from the selected channel, like the one below.

Screenshot of a video editing interface showing a black-and-white photo of a car parked on a road, with no visible text or symbols.

• Record: Record video from the selected channel.

Note PC Users: You may need to run the client software as admin to record.

To manage alarms:

FLIR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1. Export: Export current list of alarms as an xml file.
2. Import: Import list of alarms.
3. Delete: Delete selected alarm.
4. Add: Add new alarm.
5. Alarms.
6. On/off: Click to enable/disable alarm.
7. Delete: Click to delete alarm.
8. Edit: Click to edit alarm settings.

17.13 Tour & Task

The Tour & Task menu is where you can set up custom views for the system. You can also set up tours, which sets the client to automatically cycle through views.

To start a tour:

- Click in Live View to start a tour. The live view will automatically cycle through all views you have got up in the Tour & Task menu. Click again to stop the tour.

1. Under Name, enter a name for your view.
2. Under Stay Time, enter the number of seconds the view will be shown before the client switches to the next view.
3. Select the split-screen mode you would like to use for the view and then click and drag channels to the empty grid areas to select channels to be shown in the view.

Empty Empty Empty

1. Click Save to save the view. Or click Add More to save the view and create another view.

17.14 Account

The Account menu is where you can set up user accounts and passwords for the client software. To simplify management, you can group user accounts according to role. A role determines the permissions an individual user account can have.

To access the account menu:

- Click and then click

17.14.1 Managing User Accounts

To create a user account:

1. Click Add.

1. Configure the following settings for the user account:

AutoForm Material Name: Image 01 Material ID: AutoForm Appearance AutoForm 1.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1.1 2.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70. 3.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.50. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100.

- User Name: Enter a user name for the account.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 90.

To delete a user account:

1. Click next to the user account you would like to delete. Click OK to confirm.

17.14.2 Managing Roles

Roles make it easier to manage user accounts by determining the permissions an individual user account can have. By default, a new user account is given all the permissions of the role they are assigned to.

To create a role:

1. Click the Role tab.
2. Click Add.

FLIR Status Bar FLIR Status Bar FLIR Status Bar FLIR FLIR

1. Configure the following settings for the role:

To delete a user account:

1. Click X next to the role you would like to delete. Click OK to confirm.

17.15 General

The General menu is where you can configure application settings for the client software.

To access the General menu:

- Click and then click

17.15.1 Basic

The Basic menu contains general settings for the client software.

FLIR COLOR OK Cancel Show: Apply to Remove Save As... Log Scale: True Color: 100% ✓ Selected after color: 0 ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the following: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Select the remaining: ✓ Use as a new color in a color palette with a color palette for color selection.

The Basic menu contains the following settings:

• Log Saved Time: Select the number of days you would like the client to save log
• Instant Playback Time: Select the number of minutes the system will go back when you start an instant playback.

FLIR Name: 1234 System Name: MOS Configuration: 1234 (system name) configuration panel Description: - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - System name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR - Systems name: FLIR

The File menu contains the following options:

• Snapshot Path: Click Browse to select the default folder to save snapshots.
• Record Path: Click Browse to select the default folder to save video recordings.
• Config Path: Click Browse to select the folder where the client will save software config files.

Note

Click Save to save setting changes.

PC Users: You may need to run the client software as admin to save files to enable snapshot or video recording.

17.15.3 Alarm Prompt

The Alarm Prompt menu allows you to configure audio alerts. The client will play audio alerts when events occur. You can replace the default sounds with any .wav file.

Note

You must configure alarms in the Alarm CFG menu before the client will play alarm sounds.

• Video Loss: Select or preview the sound that will play for video loss alarms.
• Disk Full: Select or preview the sound that will play for disk full alarms.
• Disk Error: Select or preview the sound that will play for disk errors.
• External: Select or preview the sound that will play for external alarms (triggered by sensor devices, which may not be supported on all systems).
• E-map flashes when alarm occurs: If the camera has alarms enabled and is added to an e-map, a appears on the e-map when an event occurs.

Note Click Save to save changes.

17.15.4 Version

The Version menu shows you which version of the client software you are using. It is recommended to always run the latest version of the software from www.flirsecurity.com/pro.

FLIR Cloud Client FLIR Cloud Client Service Name: 21.75 Service Address: 100.00 Customer ID: 863-89888 Customer Account Number: 21.75 FLIR Cloud Client

Connecting to your System Using Smartphone or Tablet Apps

The system is compatible with iPhone, iPad and Android devices.

Platform Supported Versions and Devices		App Name Get App From
iOS iPhone/iPad FLIR	CloudTM Apple App Store
Android Android FLIR	CloudTM Google Play Store

See www.flirsecurity.com/pro for the latest list of supported apps and devices.

18.1 iPhone

FLIR Cloud™ is an iPhone app that allows you to remotely view your system.

18.1.1 Prerequisites

• Connect your system to your router using an Ethernet cable (included).
• Make sure to upgrade your system to the latest firmware version. You must have the latest firmware and mobile apps to connect to the system over the Internet

Note

For the latest list of supported apps and devices, visit www.flirsecurity.com/pro

Note

The first time it opens, the app will ask for permission to send push notifications and to access Photos. It will only send notifications if you enable motion-activated push notifications in the Push Config menu. It needs access to Photos to save snapshots and video clips to the local storage on your mobile device.

18.1.2 Connecting to your System on iPhone

1. Download FLIR Cloud™ for free from the App Store.
2. Tap on the FLIR Cloud™ icon() to start the app.

3. Tap = then + .

4. Configure the following:

EXAMPLE 1 Scan UK Code Register Mode Name: HD System Gnter ID: dhf72625481 Client Port: 35000 Username: admin Password: ****** List Preview: 866 > Playback: 866 > Back Live Preview

4.1. Tap Scan QR Code and line up the QR code on the top of your system using the camera on your mobile device.

Device ID: xxxxxxxxxx

OR

Under Device ID, manually enter the Device ID printed on the label.

4.2. Name: Choose a name for your system of your choice.
4.3. Client Port: Enter the Client Port (default: 35000).
4.4. User Name: Enter the system's User Name (default: admin).
4.5. Password: Enter the system's Password (default: 000000).

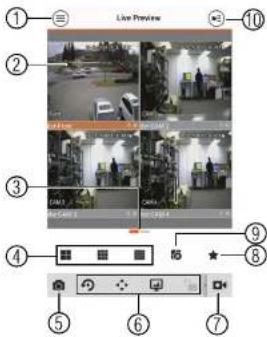

Live View Overview

Live Preview 10 2 3 4 5 6 7 8 9 ① ② ③ ④ ⑤ ⑥ ⑦

1. Menu: Tap to bring up the Menu.
2. Display Area: Double-tap to open a channel in full screen. Swipe left or right to select a different page of channels.
3. Pages: Shows the number of pages available and highlights the currently selected page.
4. Split: Select the split-screen layout.
5. Snapshot: Tap to take a snapshot from the currently selected channel.
6. Control Bar: Contains the following options. Swipe left or right to access more options.

1. Tap to open PTZ controls.

PTZ Controls

Live Preview ① ② ③ ④ ⑤ PPZClone WECAM3

1. Live Display: Swipe to move the camera. Pinch to zoom in/out.
2. Iris: Tap to show iris controls.
3. Focus: Tap to show focus controls.
4. Zoom: Tap to show zoom controls.
5. PTZ/EPTZ: Tap to switch between PTZ and EPTZ mode. Use PTZ mode to control
   PTZ cameras. Use EPTZ mode to activate digital zoom mode on non-PTZ cameras.
6. Goto preset: Tap to access preset controls. Then use the sliders to select a preset and then tap the checkmark to goto the preset.

Note

You must set presets for the camera using the system's local menus before you can use this feature.

Local Files Overview

Diagram showing four labeled scenes with vehicle and road views, numbered ① to ④, including a highlighted orange box and a red square marker.

1. Menu: Return to Menu.
2. Files: Tap to open files.
3. File Type: Tap the options to select video files or snapshots
4. Options: Tap to delete or export files to your device's local storage.

Note Exported snapshots and video files are saved to the Photos app. Video files are saved to MP4 format.

18.1.6 Using Playback Mode on iPhone

You can access recorded video on your system using your iPhone.

Note

You must enable Sub Stream Recording to use playback mode on mobile devices.

To use Playback Mode:

1. Use the on-screen controls to control playback.

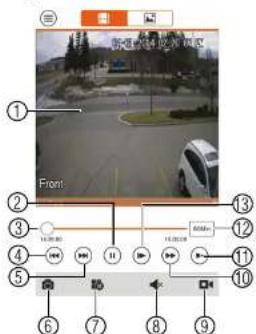

Playback Controls

Front ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟o ㉟p ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟o ㉟p

4.1. Display Area: Double-tap to open in full-screen.

4.2. Play/pause.

4.3. Time Bar: Tap inside the bar to fast forward or rewind.

4.4. Previous: Select previous video file.

4.5. Next: Select next video file.

4.6. Snapshot: Tap to take a snapshot from the selected camera.

4.7. Stop All: Stop playback on all channels.

4.8. Not supported.

4.9. Manual Record: Tap to start/stop recording to your mobile device's local storage.

4.10. Fast.

4.11. Slow

4.12 Time Range: Tan to change the range of time shown in the time bar

F-UK Email Email: F-UK Email Email Address: 132000000000000000 Email Address: 132000000000000000 Email Address: 132000000000000000 Email Address: 132000000000000000 Email Address: 132000000000000000 Email Address: 137588888888888888 Email Address: 137588888888888888 Email Address: 137588888888888888

Note

Your cameras must have motion detection activated to receive push notifications.

To enable Push Notifications:

1. Tap ≡ to access the Menu, and then tap Push Config.
2. Tap the system you would like to configure.

1. Tap Motion Detect and then check each channel you would like to receive push notifications from.

HD System Period 365 Day Push type Video Motion Detect Front CAM 2 CAM 3 CAM 4 CAM 5 CAM 6 CAM 7 CAM 8

1. Tap to save changes. You will now receive a notification when one of the selected cameras detect motion.

18.1.8 Using the Event List

The Event List menu shows a list of events that were sent to your device via push notifications.

Note You must configure push notifications before you can use the Event List.

To access the Event List:

- Tap ≡ to access the Menu, and then tap Event List.

Event List Overview

18.1.9 Using Favorites

Favorites allows you to select a group of cameras as a favorite. You can then quickly bring up the group of cameras in Live View without having to individually select each camera.

To use Favorites:

1. Tap ≡ to access the Menu, and then tap Favorites.
2. Tap a group to configure an existing group.

Note

o create a new group and then enter a name for the new group.

1. To add cameras to the group, tap.
2. Select the cameras you would like to add to the group. Tap save changes.

Favorites
HD System
Front
CAM 2
CAM 3
CAM 4
CAM 5
CAM 6
CAM 7
CAM 8

Note

1. Tap ★, and then tap to open the group.

Live Preview Live Preview Group

18.1.10 Using the E-Map

E-Map allows you to place cameras over a still image. For example, you can use the E-Map to create a virtual map of your cameras over a floor plan of your home or business.

To add an E-Map:

1. Tap ≡ to access the Menu, and then tap E-Map.

2. Tap ⊕.

1. Press 📄 and select a camera. Drag the camera on the screen to place it on the map Repeat to add additional cameras.

Floor plan diagram with labeled rooms and location markers, including a small icon at the bottom.

1. Click Choose a name for your E-Map and then tap OK. To open cameras from an E-Map:

2. Tap in Live View.

3. Select the E-Map in the Device List.

1. Tap the camera or cameras to select and then tap Start Live Preview to open the cameras.

Stark Land Project

18.1.11 Device Manager

You can use Device List to add, delete, or edit your systems.

To access Device Manager:

- Tap ≡ to access the Menu, and then tap Device Manager.

To edit a system:

1. Tap the system in Device Manager. Tap

1. Tap . Tap OK to confirm.

18.1.12 Adding Devices Using an IP or DDNS Address (Advanced)

The app can connect directly to a device via the IP address or DDNS address as an optional advanced connectivity method or for systems that do not support FLIR Cloud™.

Prerequisites:

• The device you are connecting to must be connected to the Internet.
• You must port forward the HTTP Port (default: 80) and Client port (35000) on your router to the device's local IP address.
• To ensure connectivity, it is highly recommended to register for a free DDNS domain to use with your system.
  • For more information on port forwarding and DDNS, visit www.flirsecurity.com/pro.

To add a device using an IP or DDNS address:

1. Tap 📋 then +

2. Configure the following:

EXAMPLE

Login ID: User Regulate Mode: IP/Internet > Name: HO System Address: [e-mail] Grand Font: 35000 Username: admin Password: ****** Live Password: Sub > Playback: Sub > Start Live Preview

2.1. Tap Register Mode and select IP/Domain.
2.2. Name: Choose a name for your system of your choice.
2.3. Address: Enter the IP address or DDNS address of your system.
2.4. Client Port: Enter the Client Port (default: 35000).
2.5. User Name: Enter the system's User Name (default: admin).
2.6. Password: Enter the system's Password (default: 000000).

1. Tap Start Live Preview. You will be prompted to change the system password.

2. Enter a new 6 character password and tap OK. This password will be used to log on to
   your system from now on.

3. The app opens in Live View and streams video from your cameras.

18.2 iPad

FLIR Cloud™ is an iPad app that allows you to remotely view your system.

18.2.1 Prerequisites

• Connect your system to your router using an Ethernet cable (included).
• Make sure to upgrade your system to the latest firmware version. You must have the latest firmware and mobile apps to connect to the system over the Internet.

Note

For the latest list of supported apps and devices, visit www.flirsecurity.com/pro.

Note

The first time it opens, the app will ask for permission to send push notifications and to access Photos. It will only send notifications if you enable motion-activated push notifications in the Push Config menu. It needs access to Photos to save snapshots and video flips to the local storage on your mobile device.

18.2.2 Connecting to your system on an iPad

1. Install FLIR Cloud™ for free from the App Store.

2. Tap on the FLIR Cloud™ icon(-) to start the app.

3. Tap

1. Tap Device Manager.

2. Tap Add.

1. Configure the following:

EXAMPLE

Configuration New Device 1 Start Screening 2 Register Mode: Device ID 3 Name: HCL System 4 Open Kit: dN100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 5 Close Port: 363888 6 Clear Name: admin 7 Password: ******** 8 Channel amount: 8 9 Use Position: 126 10 User Playback: 126 Start Live Preview

6.1. Tap Start Scanning and line up the QR code on the top of the system using the camera on your device.

Device ID: xxxxxxxxxx

Under Device ID, manually enter the Device ID printed on the label.

6.2. Name: Choose a name for your system of your choice.

Live View Overview

Camera navigation interface with labeled frames and adjustment knobs

1. Display area: Double-lap to open camera in full screen,
2. Favorites: Slide to select favorites.
3. Disconnect all: Disconnect all cameras.
4. Add to favorites: Add the current view to favorites.
5. Snapshot: Tap to take a snapshot from the currently selected channel.

Note

You can view or share snapshots using the Photos app.

1. Change display view.
2. Not supported.
3. Manual record: Tap to start/stop manual recording from this channel.
4. Not supported.

5. Open book

6. Slide the middle controls to the right to access PTZ controls.

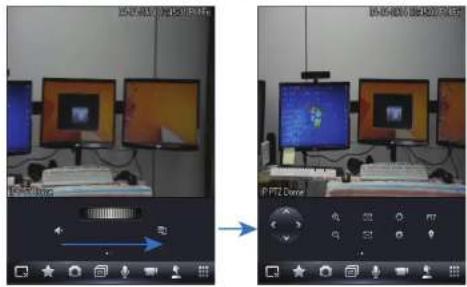

Screenshot of a video editing software interface showing two identical computer monitors with UI controls and a 'PTZ Drive' display.

PTZ Controls

Screenshot of a computer setup with labeled monitor screens and keyboard, showing numbered UI elements.

Note

You must enable Substream Recording to use playback mode on mobile devices.

To use Playback Mode:

1.

From Live View

1. In Portrait Mode: Tap +, select the start time and end time for your search, and select the camera you would like to playback.

OR

In Landscape Mode: Select the start time and end time for your search, and drag the camera you would like to playback to the display area.

Screenshot of a surveillance camera interface with multiple video thumbnails and Chinese text labels

1. Use the playback controls.

Playback Controls

Front ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

1. Display area: Double-tap to open camera in full screen.
2. Play/pause.
3. Previous file.
4. Disconnect: Disconnect the currently selected camera.
5. Not supported.
6. Snapshot: Tap to take a snapshot from the currently selected camera.
7. Change display view.
8. Menu.
9. Next file.
10. Time range: Tap to change the range of time shown in the time bar.
11. Time Bar: Tap inside the bar to fast forward or rewind.

Note

Playback controls are only shown in postmit mode.

1. Tap a video file to open it.

Configuration Local File 10.00000000000000000000000000000000000000000000000000000000000000000000000000000000000 12.14.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23 15.14.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23 17.14.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23 19.14.23.23.23.23.23.23.23.23.23.23.23.23.23.23.23 21.14.23.23.23.23.23.23.23.23.23.23.23.23 118/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/18/ 16:45:55 155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/155/ 16:45:55 176/176/176/176/176/176/176/176/176/176/176/176/176/176/176/176/176/176/176/ 16:45:55 199/199/199/199/199/199/199/199/199/199/199/199/199/199/199/199/ 16:45:55 246/446/446/446/446/446/446/446/446/446/446/446 16:45:55 476/476/476/476/476/476/476 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476 / 476

To delete videos:

1. Tap Edit.

2. Select the videos you would like to delete and tap

18.2.7 Enabling Push Notifications

You can have the app send push notifications to the notifications area on your device where one of your cameras detects motion. Once you have received a push notification, you can

FUP Cloud FUP Cloud H:\System Channel 2 Volume Cloud 2014-03-29 16:18:18 FUP Cloud H:\System Channel 1 Volume Cloud 2014-03-29 16:18:08 FUP Cloud H:\system Channel 1 Volume Cloud 2014-03-29 16:18:02

Note
Your cameras must have motion detection activated to receive push notifications.

To enable Push Notifications:

1. From live view, tap then
2. Tap Push Config.
3. Tap the slider for the system you would like to configure.

1. Tap Motion Detect then check each channel you would like to receive push notifications from.

Configuration Device Manager Electronic Comps Fruit Supply Layer File Recovery Comps Properties Local Comps Help Fruit Supply HD System Period: 50 fps Type: Features Video viewer Flow CAM-2 CAM-3 CAM-4 CAM-5 CAM-6 CAM-7 CAM-8 Layer Film

1. Under Type, select Playback to attach a video file with each push notification. Or, select Picture to attach a still image of the camera that detected motion.
2. Tap OK to save change. Whenever the selected cameras detect motion, you will receive a notification.

18.2.8 Using the Event List

The Event List menu shows a list of events that were sent to your device via push notifications.

18.2.9 Using Favorites

Favorites allows you to select a group of cameras as a favorite. You can then quickly bring up the group of cameras in Live View without having to individually select each camera.

To create favorites:

1. In Live View, lap to save the cameras that are currently open as a favorite.

2. Enter a name for the favorite and tap OK.

To open favorites in Live View:

• In Live View, slide the dial to cycle through favorites.

Screenshot of a surveillance camera interface showing four sequential frames with a vehicle on the road and a traffic light indicator.

To edit favorites:

1. From live view, tap then

2. Tao Favorites.

18.2.10 Using the E-Map

E-Map allows you to place cameras over a still image. For example, you can use the E-Map to create a virtual map of your cameras over a floor plan of your home or business.

To add an E-Map:

1. Tap Add.

1. Select a .jpg image file on your mobile device.

Preview Current Post

1. To edit the E-map:

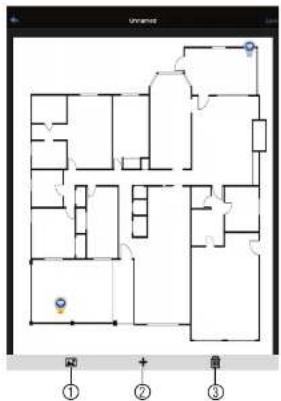

Untitled ① ② ③

4.1. Select Image: Select different image file to use for your E-Map.
4.2. Add Camera: Tap + to select cameras to add to your E-Map. Then drag the
camera to place it on the E-Map.
4.3. Delete E-Map.

1. When you are finished editing the E-Map, tap Save and enter a name for the E-Map to save changes.

To open cameras using the E-Map:

1. In live view, tap + on an empty display window and select the E-Map.

2. Tap a camera from the E-map to open.

Screenshot of a mobile home design interface showing a floor plan with labeled rooms and navigation controls

18.2.11 Using the Device Manager

Device Manager allows you to manage your systems.

To access Device Manager:

1. From live view, tap then
2. Tap Device Manager.
   To delete a system:
3. Tap the system to select it.
4. Tap ☐. Tap Yes to confirm.

• You must port forward the HTTP Port (default: 80) and Client port (default: 35000) on your router to the device's local IP address.
• To ensure connectivity, it is highly recommended to register for a free DDNS domain to use with your system.
• For more information on port forwarding and DDNS, visit www.flirsecurity.com/pro.

To add a device using an IP or DDNS address:

1. Install FLIR Cloud™ for free from the App Store.

2. Tap on the FLIR Cloud™ icon() to start the app.

3. Tap then
4. Tap Device Manager.
5. Tap Add.

Configuration Design Manager Channel Control Layout Control Layout File Using local network Favorites Lockering Help Electric Manager

1. Configure the following:

EXAMPLE

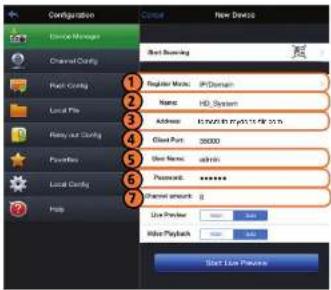

Configuration Device Manager Channel Config Back Config Local File Binary out Config Favorites Local Config Help New Device Back Starting Register Name: IP-Domain Name: HD-System Address: 81020101.pfs/15.14 PK 35.9 Class Port: 200000 Show Name: admin Password: ******** Channel amount: 0 Live Preview Enter Playback Start Live Preview

6.1. Tap Register Mode and select IP/Domain. Then tap New Device to return to the New Device screen.

6.2. Name: Choose a name for your system of your choice.
6.3. Address: Enter the DDNS or IP address of your device.
6.4. Client Port: Enter the Client Port (default: 35000).
6.5. User Name: Enter the system's User Name (default: admin).
6.6. Password: Enter the system's Password (default: 000000)
6.7. Channel Amount: Enter the number of channels your system has.

1. Tap Start Live Preview. You will be prompted to change the system password.

2. Enter a new 6 character password and tap OK. This password will be used to log on to your system from now on.

3. The app opens in Live View and streams video from all connected cameras.

18.3 Android

FLIR Cloud™ allows you to remotely view your system on Android devices.

18.3.1 Prerequisites

• Connect your system to your router using an Ethernet cable (included).
• Make sure to upgrade your system to the latest firmware version. You must have the latest firmware and mobile apps to connect to the system over the Internet.

Note

For the latest list of supported apps and devices, visit www.flirsecurity.com/pro.

18.3.2 Connecting to your System on Android

1. Download FLIR Cloud™ for free from the Google Play Store.
2. Tap on the FLIR Cloud™ icon ( ) to start the app.
3. Tap = then +

Live Preview

Device List

1. Configure the following:

EXAMPLE 1 Name: UK Code Register Mode: Service ID 2 Name: HD System Service ID: dftf23625481 3 Client Port: 35000 4 Username: Admin 5 Password: ****** List Preview: Sub > Playback: Sub > Back Live Preview

4.1. Tap Scan QR Code and line up the QR code on the top of your system using the camera on your mobile device.

Device ID: xxxxxxxxxx

OR

Under Device ID, manually enter the Device ID printed on the label.

4.2. Name: Choose a name for your system of your choice.
4.3. Client Port: Enter the Client Port (default: 35000).
4.4. User Name: Enter the system's User Name (default: admin).
4.5. Password: Enter the system's Password (default: 000000).

Live View Overview

Live Preview 10 2 3 4 5 6 7 8 9 ① ② ③ ④ ⑤ ⑥ ⑦

1. Menu: Tap to bring up the Menu.
2. Display Area: Double-tap to open a channel in full screen. Swipe left or right to select a different page of channels.
3. Pages: Shows the number of pages available and highlights the currently selected page.
4. Split: Select the split-screen layout.
5. Snapshot: Tap to take a snapshot from the currently selected channel.
6. Control Bar: Contains the following options. Swipe left or right to access more options.

1. Tap to open PTZ controls.

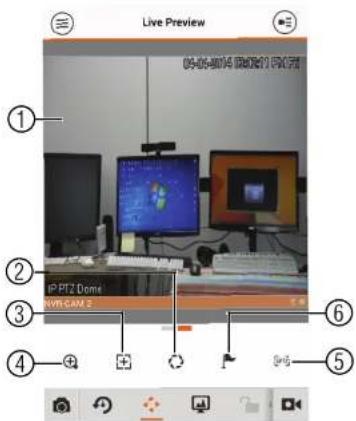

PTZ Controls

Live Preview 04-06-0014 CBOCTI PACPT IP PTZ Dome NVT-CAM 2

1. Live Display: Swipe to move the camera. Pinch to zoom in/out.
2. Iris: Tap to show iris controls.
3. Focus: Tap to show focus controls.
4. Zoom: Tap to show zoom controls.
5. PTZ/EPTZ: Tap to switch between PTZ and EPTZ mode. Use PTZ mode to control PTZ cameras. Use EPTZ mode to activate digital zoom mode on non-PTZ cameras.

Diagram showing four labeled surveillance camera setups with numbered annotations and a central display panel

1. Menu: Return to Menu.
2. Files: Tap to open files.
3. File Type: Tap the options to select video files or snapshots.
4. Options: Tap to share, delete, or export files to your device's local storage.

Note

Exported video files are saved to MP4 format in the folder /snapshot/mp4/, which you can access by connecting your Android device to a computer using a USB cable.

18.3.6 Using Playback Mode on Android

You can access recorded video on your system using your Android.

Note

You must enable Sub Stream Recording to use playback mode on mobile devices. For details on enabling Sub Stream Recording, see 11.3 Setting up Scheduled or Manual Recording, page 26.

To use Playback Mode:

1. Use the on-screen controls to control playback.

Playback Controls

Front ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉟ ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟o ㉟p ㉟q ㉟r ㉟s

4.1. Display Area: Double-tap to open in full-screen.

4.2. Play/pause.

4.3. Time Bar: Tap inside the bar to fast forward or rewind.

4.4. Previous: Select previous video file.

4.5. Next: Select next video file.

4.6. Snapshot: Tap to take a snapshot from the selected camera.

4.7. Stop All: Stop playback on all channels.

4.8. Not supported.

4.9. Manual Record: Tap to start/stop recording to your mobile device's local storage.

4.10. Fast.

4.11. Slow

4.12 Time Range: Tan to change the range of time shown in the time bar

9.51 2014-04-21 09:31 18: Overcast Overcast

Note

Your cameras must have motion detection activated to receive push notifications.

To enable Push Notifications:

1. Tap ≡ to access the Menu, and then tap Push Config.
2. Tap the system you would like to configure.

1. Tap Motion Detect and then check each channel you would like to receive push notifications from.

HD System Period 365 Day Push type Video Motion Detect Front CAM 2 CAM 3 CAM 4 CAM 5 CAM 6 CAM 7 CAM 8

1. Under Push type, select Video to attach a video clip to each push notification. Or, select Image to attach an image to each push notification.
2. Tap √ to save changes. You will now receive a notification when one of the selected cameras detect motion.

18.3.8 Using the Event List

The Event List menu shows a list of events that were sent to your device via push notifications.

Note
You must configure push notifications before you can use the Event List.

To access the Event List:

• Tan ≡ to access the Menu and then tan Event List

1. Tap ≡ to access the Menu, and then tap Favorites.
2. Tap a group to configure an existing group.

Note

Tap to create a new group and then enter a name for the new group.

1. To add cameras to the group,

1. Select the cameras you would like to add to the group. Tap to save changes.

2. Tap ★, and then tap to open the group.

18.3.10 Using the E-Map

E-Map allows you to place cameras over a still image. For example, you can use the E-Map to create a virtual map of your cameras over a floor plan of your home or business.

To add an E-Map:

1. Tap ≡ to access the Menu, and then tap E-Map.
2. Tap ⊕.

1. Press 📄 and select a camera. Drag the camera on the screen to place it on the map Repeat to add additional cameras.

Floor plan diagram with labeled rooms and location markers, including a small icon at the bottom.

1. Click Choose a name for your E-Map and then tap OK. To open cameras from an E-Map:

2. Tap in Live View.

3. Select the E-Map in the Device List.

1. Tap the camera or cameras to select and then tap Start Live Preview to open the cameras.

Stark Land Project

18.3.11 Device Manager

You can use Device List to add, delete, or edit your systems.

To access Device Manager:

- Tap ≡ to access the Menu, and then tap Device Manager.

To edit a system:

1. Tap the system in Device Manager. Tap

1. Tap . Tap OK to confirm.

18.3.12 Adding Devices Using an IP or DDNS Address (Advanced)

The app can connect directly to a device via the IP address or DDNS address as an optional advanced connectivity method or for systems that do not support FLIR Cloud™.

Prerequisites:

• The device you are connecting to must be connected to the Internet.
• You must port forward the HTTP Port (default: 80) and Client port (default: 35000) on your router to the device's local IP address.
• To ensure connectivity, it is highly recommended to register for a free DDNS domain to use with your system.
  • For more information on port forwarding and DDNS, visit www.flirsecurity.com/pro.

To add a device using an IP or DDNS address:

1. Tap 📋 then +

2. Configure the following:

EXAMPLE

Register Mode: H:\Users\* Name: HD System Address: HomeWithMyAddress.com Start Menu: 35000 Username: admin Password: ******** Live Password: Sub > Playback: Sub > Edit Live Preset

2.1. Tap Register Mode and select IP/Domain.
2.2. Name: Choose a name for your system of your choice.
2.3. Address: Enter the IP address or DDNS address of your device.
2.4. Client Port: Enter the Client Port (default: 35000).
2.5. User Name: Enter the system's User Name (default: admin).
2.6. Password: Enter the system's Password (default: 000000).

1. Tap Start Live Preview. You will be prompted to change the system password.

2. Enter a new 6 character password and tap OK. This password will be used to log on to

your system from now on.

Remote Viewing On Internet Explorer

You can also view your system remotely using Internet Explorer (version 8 or later required). In order to view your system on Internet Explorer over the Internet, you must set up DDNS and port forwarding.

Note

Remote viewing is only compatible with Internet Explorer. Mozilla Firefox, Opera, Safari, and other browsers are not supported.

19.1 Prerequisites

• The HTTP Port (default: 80) and Client Port (default: 35000) must be port forwarded to your router.
• You must create a DDNS account, and have the DDNS settings configured in your NVR. For details, 21 DDNS Setup (Advanced), page 159.
• The NVR must have internet access.

To view your system using Internet Explorer:

1. Open Internet Explorer. It is recommended to select Run as Administrator when opening Internet Explorer to ensure full functionality.
2. In the address bar, enter your system's IP address or DDNS address followed by the HTTP Port (default: 80). For example, http://192.168.1.1:80 or http://tomsmith.myddns-flir.com:80.

Note

You MUST include http:// in order to access your system.

1. An attention bar appears at the top or bottom of the screen to prompt you to install ActiveX plugins, click Install or Allow and follow the prompts to install the plugins.
2. Enter the system user name and password (by default admin / 000000).
3. Select LAN to connect using the main (high quality) stream. Select WAN to use the substream to conserve bandwidth and for improved performance when connecting over the Internet.

4. Click Login to log in.

5. Double click on cameras in the camera list to open them in live view.

Screenshot of a software interface with four grid panels and toolbars, showing icons and Chinese text labels.

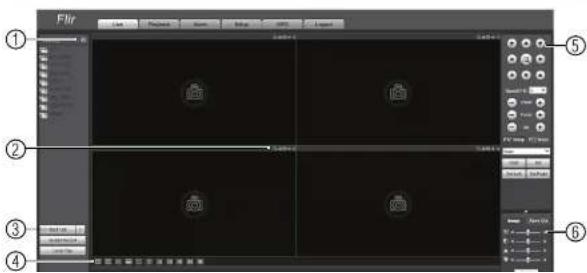

19.1.1 IE Live Display Overview

Note

Some options are not available in WAN mode.

Ftr ① ② ③ ④ ⑤ ⑥

3. Live View Controls:

• Start Talk: Click to enable 2-way audio.
• Instant Record: Not supported.
• Local Play: Open recorded or back up video files (.dav) saved on the local computer.

4. Live View Toolbar:

Screenshot of a software toolbar with labeled icons for functions like zoom, rotate, and display

4.1. Select image quality.
4.2. Fluency/latency.
4.3. Full-screen.
4.4. Select display view.

5. PTZ Controls.

1. Color Settings: Use the sliders to adjust the brightness, contrast, saturation, and hue for the selected camera.

19.1.2 Using Search Mode in IE (Playback)

You can access recorded video from your NVR using the Internet Explorer client.

To access recorded video from your NVR:

1. Click Search.
2. Perform the following to start playback:

RTSP Streaming (Advanced)

RTSP streaming allows you to stream video from a specific camera using a web address. It is an optional connectivity method used by 3rd party software applications.

Note

The instructions in this section are using VLC Media Player. VLC Media Player is a free software provided at www.videclan.org. FLIR cannot provide support for VLC Media Player or any other 3rd party software. Please contact the software vendor for technical support related to 3rd party software applications.

To connect to the video stream using VLC Media Player:

1. Open VLC Media Player

2. Click Media>Open Network Stream.

File Edit View Insert Help Open Path... 0x-0 Open Path... 0x-0 Open Path... 1x-0 Open Path... 2x-0 Open Path... 3x-0 Open Path... 4x-0 Open Path... 5x-0 Open Path... 6x-0 Open Path... 7x-0 Open Path... 8x-0 Open Path... 9x-0 Open Path... 10x-0 Open Path... 11x-0 Open Path... 12x-0 Open Path... 13x-0 Open Path... 14x-0 Open Path... 15x-0 Open Path... 16x-0 Open Path... 17x-0 Open Path... 18x-0 Open Path... 19x-0 Open Path... 20x-0 Open Path... 21x-0 Open Path... 22x-0 Open Path... 23x-0 Open Path... 24x-0 Open Path... 25x-0 Open Path... 26x-0 Open Path... 27x-0 Open Path... 28x-0 Open Path... 29x-0 Open Path... 30x-0 Open Path... 31x-0 Open Path... 32x-0 Open Path... 33x-0 Open Path... 34x-0 Open Path... 35x-0 Open Path... 36x-0 Open Path... 37x-0 Open Path... 38x-0 Open Path... 39x-0 Open Path... 40x-0 Open Path... 41x-0 Open Path... 42x-0 Open Path... 43x-0 Open Path... 44x-0 Open Path... 45x-0 Open Path... 46x-0 Open Path... 47x-0 Open Path... 48x-0 Open Path... 49x-0 Open Path... 50x-0 Open Path... 51x-0 Open Path... 52x-0 Open Path... 53x-0 Open Path... 54x-0 Open Path... 55x-0 Open Path... 56x-0 Open Path... 57x-0 Open Path... 58x-0 Open Path... 59x-0 Open Path... 60x-0 Open Path... 61x-0 Open Path... 62x-0 Open Path... 63x-0 Open Path... 64x-0 Open Path... 65x-0 Open Path... 66x-0 Open Path... 67x-0 Open Path... 68x-0 Open Path... 69x-0 Open Path... 70x-0 Open Path... 71x-0 Open Path... 72x-0 Open Path... 73x-0 Open Path... 74x-0 Open Path... 75x-0 Open Path... 76x-0 Open Path... 77x-0 Open Path... 78x-0 Open Path... 79x-0 Open Path... 80x-0 Open Path... 81x-0 Open Path... 82x-0 Open Path... 83x-0 Open Path... 84x-0 Open Path... 85x-0 Open Path... 86x-0 Open Path... 87x-0 Open Path... 88x-0 Open Path... 89x-0 Open Path... 90x-0 Open Path... 91x-0 Open Path... 92x-0 Open Path... 93x-0 Open Path... 94x-0 Open Path... 95x-0 Open Path... 96x-0 Open Path... 97x-0 Open Path... 98x-0 Open Path... 99x-0 Open Path... 100x-0

1. Enter the RTSP address in the following format:

2. rtsp://:@:/cam/realmonitor?channel=&subtype=

3. : The user name of the NVR (default: admin).
4. : The password for the NVR (default: 000000).
5. ; The IP address of the NVR.

Note

In order to view the RTSP stream over the Internet, you must port forward the RTSP port (default: 554) on your router to the NVR's IP address.

• : The RTSP port (default: 554) of the NVR.
• : The number of the channel you would like to stream from.
• : Enter 1 for the Sub Stream of the camera or 0 for the Main Stream. It is recommended to use the Sub Stream if connecting over the Internet.

The example below shows the correct format to connect to the Sub Stream on channel 1.

Open Media File Edit Doc Network Capture Device Network Protocol Please enter a network URL: log10000-000000000 168.16.174.9345@accessions/Networks (StackType=1) http://www.xcsc.org/168.com http://www.xcsc.org/168.com http://www.xcsc.org/168.com Show parameters Show performance

DDNS Setup (Advanced)

Free DDNS service is available as an optional connectivity method to connect to your system over the Internet.

FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FLIR FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF F10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Note
Except where noted, the instructions in this section are the same on PC or Mac.

21.1 Accessing your System within a Local Network (LAN)

You can connect to your system through using the Client Software through the local area network (LAN). It is recommended to confirm connectivity over a local network before setting up your system for DDNS connectivity.

Note

To complete the steps below, your computer must be on the same network as your system.

21.1.1 Step 1 of 3: Connect your System to Your Router

21.1.2 Step 2 of 3: Obtain the System's Local IP Address

1. Right-click to open the Quick Menu and click Info. Enter the system user name (default: admin) and password (default: 000000).

Service ID Service Name: Service Type: Service Address: Service Location: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Services Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address Service Address: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address ServiceAddress: Service Address

1. Write down the IP Address of the system.

• A local IP looks something like this: 192.168.5.118.

21.1.3 Step 3 of 3: Connect to the System's Local IP Address

Follow the steps below to confirm connectivity over a local network on a PC or Mac.

To connect using the system's local IP address:

1. Download and install the client software.

• PC Users: Download and install the Client Software for PC from www.flirsecurity.com/pro.
- Mac Users: Download and install the Client Software for Mac from www.flirsecurity.com/pro. Double click to extract the software. Drag the software to Applications.

1. Once installation is finished, double-click the FLIR Cloud™ Client icon)(from the desktop or Applications list.

2. The client scans your LAN for connected systems. Check your system (a) and click Add (b).

FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP FLIR GROUP

1. Enter the password for your system (default: 000000) and click OK.

2. If this is the first time you are connecting, you will be prompted to change the system password.

1. Enter a new 6 character password and click OK. This password will be used to connect to your system from now on.

1. Click and drag Default Group to the display window to open your cameras in live view.

FLIR cloud FLIR cloud

Result

Screenshot of a video editing software interface showing a grid of surveillance feeds with vehicle images and a control panel.

21.2 DDNS Setup—Access your System Remotely over the Internet

Note

If the above ports are not forwarded on your router, you will not be able to access your system remotely.

21.2.2 Step 2 of 4: Create a DDNS Account

To setup your free FLIR DDNS account:

1. In your browser, go to http://ddns.myddns-flir.com and click Create Account.

FLIR

Login
Create Account
Lost Password

1. Complete the Account Information fields with your personal information. Complete the Warranty Information with your purchase details (optional).

Credit Card Account Account Information Email: [e-mail] Password: ******** Password account: ******** First name: Type Last name: Smith Foreign: Chinese 360 Country: Canada Transmit: Eastern Standard Term (ET) By clicking on "Create New Account" you create the Terms of Use.

1. Complete the System Information fields:

- Product License: Select your product model from the Product License drop down menu (i.e. DNR500 Series).

- - : Enter the MAC address of your system.

• To find the MAC address, right-click to open the Quick Menu and click Info.

Device 0 Device Type: 123.0000 Device Name: LTR-00001 Device Size: 5.0 Device Color: RGB 161917 Device Name: RGB 161917 Device Size: 72.0000 Device Color: RGB 161917 Device Size: 72.0000 Device Type: RGB Device Size: 16 System Name: RGB System Color: RGB System Size: 16 System Color: RGB System Size: 16

- URL Request: Choose a URL for your DDNS connection (i.e. your name, your company or business name, or anything of your choice).

System Information Product License DNR200 - Product Code> - URL Request myddns-fix.com What is this? Create New Account

1. Click Create New Account.
2. Your account information will be sent to you at the email Address you used in Step 2. You will need this information for remote access to your system. Record your information below:

Domain name/URL Request:
URL Request:

2.

Click and then click Network>DDNS. TCP Microsoft Windows FTP Microsoft Windows ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET ASP.NET

1. Check Enable.
2. Under Domain Name, enter the Domain Name/URL Request your received in the email after registering for DDNS.
3. Under User Name, enter your DDNS User Name.
4. Under Password, enter your DDNS Device password.
5. Click OK to save your settings.

Note

Please allow 10–15 minutes for the DDNS servers to update with your new DDNS address before attempting to connect.

21.2.4 Step 4 of 4: Connect to the System's DDNS Address

Note

Please allow 10-15 minutes for the DDNS servers to update with your new DDNS address before attempting to connect.

To connect using the system's DDNS address:

1. Log into the Client Software using the Client Software user name (default: admin) and password (default: admin) and then click Login.

FLIR Cloud User NAME: admin Password: ****** Login/Pass User(s) { Begin } { Fail }

1. Click Add Device.

FLIR audio 文件(F) 100% 200% 300% 400% 500% 600% 700% 800% 900% 1000% 1100% 1200% 1300% 1400% 1500% 1600% 1700% 1800% 1900% 2000% 2100% 2200% 2300% 2400% 2500% 2600% 2700% 2800% 2900% 3000% 3100% 3200% 3300% 3400% 3500% 3600% 3700% 3800% 3900% 4000% 4100% 4200% 4300% 4400% 4500% 4600% 4700% 4800% 4900% 5000% 5100% 5200% 5300% 5400% 5500% 5600% 5700% 5800% 5900% 6000% 6100% 6200% 6300% 6400% 6500% 6600% 6700% 6800% 6900% 7000% 7100% 7200% 7300% 7400% 7500% 7600% 7700% 7800% 7900% 8000% 8100% 8200% 8300% 8400% 8500% 8600% 8700% 8800% 8900% 9000% 9100% 9200% 9300% 9400% 9500% 9600% 9700% 9800% 9900% 100

1. Enter the following:

Add Device Input Info Device Name: HD System Group Name: Default Group Type: DVR P/D/DNS Address: tomswith.myddns-flir.com Port: 35000 User Name: admin Password: ****** Retrieve Info Device Information Serial Number: Video Input: Video Output: Alarm Input: Alarm Output: Add More Add Cancel

5.1. Check By IP/Domain to add a system using the DDNS address.
5.2. Device Name: Choose a name for your system of your choice.
5.3. IP/DDNS Address: Enter the Domain Name/URL Request you received in the email when you registered for DDNS followed by .myddns-fllr.com.

Note

1. Enter a new 6 character password and click OK. This password will be used to connect to your system from now on.

Please update your system's password. Cancel OK

1. Click

1. Click and drag Default Group to the display window to open your cameras in live view.

Screenshot of a software interface with menu bar, toolbar, and tool icons, showing a blue cursor hovering over a gray canvas.

Congratulations! You can now connect over the Internet to view and playback video on your computer.

Connecting a PTZ Camera (DNR500 Series)

You can connect PTZ cameras (not included) to the system. FLIR IP PTZ cameras can accept PTZ commands directly through the Ethernet cable or you can connect PTZ cameras to the RS485 connectors on the back of the system.

To connect a FLIR PTZ camera to the system:

1. Connect the camera Ethernet cable to one of the PoE Ports on the system. OR

Connect the camera to the local network (LAN) and then add it to the NVR. See 6.11 Connecting Cameras to the Local Area Network (LAN), page 13 for details.

1. Right-click and click Main Menu. Enter the system user name (default: admin) and password (default: 000000) if prompted.

2. Click >Setting>Pan/Tilt/Zoom.

DISPLAY TITLE FORMATISTCOM ACCOUNT CONFIGURE OFFSET UPDATE Default OK Cancel Apply

1. Under Channel, select the channel your PTZ camera is connected to.
2. Under PTZ Type, select Remote. This allows the system to control the PTZ functions over the Ethernet cable.
3. Click OK. You can now control your PTZ camera using the system.

To connect a PTZ camera to the system via RS485:

1. Connect RS485 cables from the camera to the A (+) and B (-) ports on the NVR.

ETHERNET RS485: A (TX+) B (TX-)

1. Right-click and click Main Menu. Enter the system user name (default: admin) and password (default: 000000) if prompted.

2. Click >Setting>Pan/Tilt/Zoom.

0.000% TYPE TYPE: 32 TYPE: 124 TYPE: 1600 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 1 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 3 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2 TYPE: 2

1. Right-click and click PTZ. Enter the system user name and password if prompted. The PTZ menu opens.
2. Use the on-screen PTZ controls to control the camera.

PTZ Controls

Speed 5 Zoom Focus Iris

1. Direction keys: Click to pan and tilt the camera. Click SIT to stop the current action.

2. Mouse PTZ: Click to activate mouse PTZ mode. In mouse PTZ mode:

3. Click and drag to move the camera,

4. Use the scroll wheel to zoom in and out.
   • Right-click to exit and return to normal PTZ controls.

5. Zoom/Focus/Iris: Click +/- to adjust the zoom, focus, and iris.

6. Advanced controls: Click to open advanced PTZ controls.
7. Speed: Enter the PTZ speed.

22.2 Advanced PTZ Controls

Advanced PTZ controls can be used to save camera positions and cycle through various positions, and automate camera actions.

To open advanced PTZ controls:

- Click the arrow in the PTZ control window to open advanced controls.

1. PTZ camera menu: Click to open the camera's OSD menu. This may not be supported on all camera models.
2. Preset: Click to call the selected preset.
3. Autopan: Click to start autopan. During autopan, the camera will continuously pan 360".
4. Tour: Click to run the selected tour.
5. Flip: Click to flip the camera 180".
6. Pattern: Click to run the selected pattern.
7. Reset: Click to move the camera to the home position.
8. Auto scan: Click to run the selected autoscan.
9. Aux: Click to open the aux menu, where you can set up Presets, Tours, Patterns, and Auto Scans.

22.2.1 Presets

Presets will save a camera position for quick retrieval.

To add presets:

1. Click to open the aux menu.

2. Click the Preset tab.

PANTILT/ZOOM Preset Tour Pattern Border Preset: 1 Set Set Preset

1. Enter the number of the preset you want to create under Preset.

2. Move the camera to the desired position and click Set.

3. Under Patrol No., select the tour you would like to configure.

4. Under Preset, select a preset you would like to add to the tour.
5. Click Add Preset.
6. Repeat steps 4 and 5 to add additional presets to the tour.

Note

Click Del Tour to clear all presets from a tour.

To run a tour:

- Under No., select the number of the tour you would like to go to and click

22.2.3 Pattern

Patterns automatically cycle the camera between two positions.

To create a pattern:

1. Click 📋 to open the aux menu.
2. Click the Pattern tab.

PANTILT:ZOOM Preset Tour Pattern Border Pattern 1 Begin End

1. Under Pattern, enter the pattern you would like to configure.
2. Move the camera into the desired start position and click Begin.

3. Move the camera into the desired end position and click End.

4. Move the camera into the desired left position and click Left.

5. Move the camera into the desired right position and click Right.

To run an auto scan:

- Click

Connecting An External Monitor (DNR500 Series)

A BNC output is available to connect the NVR to an external monitor or TV. The BNC output shows a duplication of the live display.

Video OUT

DNR500 Series Hard Drive Installation

The system comes with a pre-installed 3.5" SATA hard drive. You can install up to four hair drives up to a maximum size of 4TB each.

24.1 Installing a Hard Drive

CAUTION

Make sure that the system is OFF and the power cable is disconnected before removing/installing the hard drive.

To install the hard drive:

1. Power off the system, and unplug all cabling from the system.

2. Remove the top panel screws (2x). Slide the top panel back and then lift to remove it from the system.

Front view of a network equipment rack with ports, connectors, and indicator lights (no visible text or labels)

1. Remove the hard drive bracket screws (4x) and lift the hard drive bracket out of the system.

Two-panel image showing a computer setup with a monitor and cable, before and after a server rack with visible internal components (no text or symbols)

1. Place the hard drive bracket over the hard drive with the screw holes aligned. Insert the hard drive screws (4x) to secure the hard drive to the bracket.

2. Place the hard drive bracket into the system, and replace the hard drive bracket screws (4x). The SATA data and power connectors on the hard drive should face the rear of the system.

1. Connect the SATA data and power cables to the hard drive.

1. Replace the top cover and top cover screws (2x).

Note

After installation, you must format the hard drive in order to use it with the system. See 24.3 Formatting Hard Drives, page 178.

24.2 Removing the Hard Drive

CAUTION

Make sure that the system is OFF and ALL power adapters have been disconnected before removing/installing the hard drive.

1. Power off the custom and unplus all cabling from the custom

2. Remove the hard drive bracket screws (4x) and lift the hard drive bracket out of the system.

Two-panel image showing a server rack and an open industrial server unit with visible wiring (no text or symbols)

1. Remove the hard drive screws (4x) to detach the hard drive from the hard drive bracket.

Close-up of a mechanical device with a yellow label and black handle, showing internal components (no readable text or symbols)

1. Replace the hard drive bracket and hard drive bracket screws (4x). Replace the top cover and top cover screws (2x)

Note After installation, you must format the hard drive in order to use it with the system. See 24.3 Formatting Hard Drives, page 178.

1. From the Main Menu, click ✕ and then click Storage>HDD Manager.

SINEMA HKEYMANUER REDAVING Database Name: Type C++ Format C++ File Path Path Path DATA-1 Default/IEC - Number B2.17.06.2014.03 Name: Power OK Save Tools

1. Select the hard dive you would like to format and then click Format. Click OK to confirm.
2. Click OK to save changes. The system will restart to complete the formatting process.

Troubleshooting

When a malfunction occurs, it may not be serious and can be corrected easily. The following describes the most common problems and solutions. Please refer to the following before calling FLIR Technical Support:

Error	Possible Causes Solutions
System is not receiving power, or is not powering up.	Cable from power adapter is loose or is unplugged.	Confirm that all cables are connected correctly.Confirm that the power adapter is securely connected to the back of the unit.
	Power switch is set to OFF (●) position.	Confirm that the power switch is in the ON (I) position.
	Cables are connected, but system is not receiving sufficient power.	Confirm that the system is powered on (LED indicators on the front should be ON).If the unit is connected through a power bar or surge protector, try bypassing the bar and connecting the power directly to the wall outlet.Confirm that there is power at the outlet:Connect the power cable to another outlet.Test the outlet with another device (such as a lamp or phone charger).
Remote control is not detected by the system.	Battery in the remote control is drained.There are no batteries in the remote control.	Install two fresh AAA alkaline batteries in the remote control.
Hard drive is not detected by the system.	Hard drive cables are loose or not properly connected.	Remove the housing and check that hard drive cables.

Troubleshooting25

Error Possible Causes Solutions
There is no picture on monitor/TV after connecting it to the system.	Monitor/TV not detected by system.	Power off the monitor/TV and system. Power on the monitor/TV, and then power on the system.
	Input channel for system not selected on monitor/TV.	On the monitor/TV, select the input channel the system is connected to.
	Video cable is loose or has become disconnected.	Check the video cable connection to the system and monitor/TV.
Mouse not detected by system.	Mouse cable is not firmly connected to the system. Mouse is not connected to the system.	Firmly connect the mouse cable to one of the USB ports.
	System needs to be reset	Power off the system (disconnect power cable). Firmly connect a USB mouse to one of the USB ports. Reconnect the power cable to the DC 12V port on the rear panel.
There is no picture on selected channels / camera picture is not being displayed.	Camera cables are loose or have become disconnected.	Check the camera video cable and connections.Disconnect and reconnect the cable at the system and at the camera.Try moving the camera to another channel or use another cable.
The system beeps at startup.	The beep at startup is normal.
The system boeps during motion detection.	Motion detection is enabled and the alarm buzzer is activated.	Open the Main Menu and click 📄️ 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🔍 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋 🎋

DNR500 Series System Specifications

26.1 System

Operating System	Embedded LINUX
Pentaplex	Simultaneous View, Record, Playback, Backup, and Remote Monitoring
Number of Channels 16/32 Channels

26.2 Inputs/Outputs

Video IN 16/32 ch: 16 PoE Video Input
Videc OUT Yes, BNC
VGA OUT Yes
HDMI Yes
Audio IN	1 Line IN (RCA) for two-way audio
Audio OUT 1 Line OUT (RCA) for two-way audio
USB Port 1 at the back, 1 at the front
Alarm IN 16 Alarm IN
Alarm OUT 4 Alarm OUT
Video Output Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
PTZ Control RS-485, supports Pelco-D and Pelco-P

26.3 Display

Display Split 16/32 ch: 1/4/8/8/16
Live Display Speed 16/32 ch: 480FPS NTSC, 400FPS PAL
OSD	Camera Title, Time, Camera Lock, Motion Detection, Recording Status
System Navigation	USB mouse
Motion Area Setting	Adjustable grid (22x18)
Recording Resolution Setting Per camera for different resolutions
Recording Quality Control 6 levels
Record Schedule	By hour, by day, by recording mode, by motion, channel
Pre Recording Max. 30 Seconds
Post Recording Max. 5 Minutes
Reliability Watch-Dog, auto-recovery after power failure
Covert Video Yes

26.5 Playback and Backup

Playback Channel 16/32 ch: 1/4
Playback Speed	Variable Max 16x
Playback Players Backup Player
Search by time & event
Log Search Up to 1,000 lines for motion detected, configuration changes, connects/disconnects and video loss
Audio Play	Yes (audio camera required)

26.6 Storage & Archive

Storage	16/32 ch: Up to 4 HDD's (SATA) InternalUp to 4 HDD External using 1x eSATA Port
Maximum Capacity	16/32 ch: Up to 4x4TB Internal + up to 4x4TBternal (eSATA)
Backup Media	USB flash drive & HDD
Backup File Format	DAV or ASF file

26.7 Connectivity

IP Cameras Supported FLIR, Digimerge, Panasonic, Sony, Dynacolor,Samsung, AXIS, Arecont, Bosch, Canon. Honeywell, Pelco, Panasonic, Vivotek

26.8 General

Power Consumption Approx. 40 watts (No HDD installed)
Supply Voltage 100VAC-240VAC, 50/60Hz
Total PoE Power Output (across all channels) 150W (Max 25W per Camera)
Unit Weight 6.0kg / 13.2lbs
Dimensions (W x H x D) 440mm x 410mm x 70mm / 17.3" x 16.1" x 2.8" / 1.5U
Operating Temperature 14° ~ 131°F / -10° ~ 55°C
Humidity 10 ~ 90% RH

26.9 Recording Resolution (Pixels) & Speed (FPS — Frames per second)

Model EPS		720P1280x720	1080P1920x1080	3MP2028x1536	5MP2560x1920
16 ch	Total	480	480	480	480
	Per channel	30	30	30	30
32 ch	Total	960	960	960	960
	Per channel	30	30	30	30

As our products are subject to continuous improvement, FLIR Systems, Inc. and its subsidiaries reserve the right to modify product design, specifications, and prices without notice and without incurring any obligation. E&OE

Notices

This equipment has been certified and found to comply with the limits regulated by FCC, EMC, and LVD. Therefore, it is designated to provide reasonable protection against interference and will not cause interference with other appliance usage.

However, it is imperative that the user follows the guidelines in this manual to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard injury.

In order to improve the feature functions and quality of this product, the specifications are subject to change without notice from time to time.

27.1 FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

Website

www.flirsecurity.com/pro

Technical Support

1-866-816-5919

Customer Service

1-866-344-4674

Copyright

© 2014. FLIR Systems, Inc.

All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.

Legal disclaimer

Specifications subject to change without further notice. Camera models and accessories subject to regional market considerations. License procedures may apply. Products described herein may be subject to US Export Regulations. Please refer to [e-mail] with any questions.
