USER MANUAL IPC-HFW2239M-AS-LED-B-S2 Dahua Technology

Bullet Network Camera

Quick Start Guide

Abstract geometric composition with gray and red shapes (no text or symbols)

Foreword

General

This manual introduces the functions, installation, and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning
	WARNING	Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury.
	CAUTION	Indicates a potential risk which, if not avoided, may result in property damage, data loss, lower performance, or unpredictable result.
[T1-6D]	NOTE	Provides additional information as a supplement to the text.

Revision History

Version	Revision Content	Release Time
V1.0.2	Updated the description of alarm output.	November 2021
V1.0.1	Updated "Important Safeguards and Warnings."	April 2021
V1.0.0	First release.	October 2019

our official website. The manual is for reference only. Slight differences might be found between the electronic version and the paper version.

• All the designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.
• There might be deviations in the description of the technical data, functions and operations, or errors in the print. If there is any doubt or dispute, we reserve the right of final explanation.
• Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened.
• All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners.
• Please visit our website, contact the supplier or customer service if any problems occur while using the device.
• If there is any uncertainty or controversy, we reserve the right of final explanation.

Important Safeguards and Warnings

Electrical safety

• All installation and operation should conform to your local electrical safety codes.
• The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. Note that the power supply requirements are subject to the device label.
  • Make sure the power supply is correct before operating the device.
• A readily accessible disconnect device shall be incorporated in the building installation wiring.
• Prevent the power cable from being trampled or pressed, especially the plug, power socket and the junction extruded from the device.

Environment

• Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might cause over brightness or light marks, which are not the device malfunction, and affect the longevity of Complementary Metal-Oxide Semiconductor (CMOS).
• Do not place the device in a damp or dusty environment, extremely hot or cold temperatures, or the locations with strong electromagnetic radiation or unstable lighting.
• Keep the device away from any liquid to avoid damage to the internal components.
• Keep the indoor device away from rain or damp to avoid fire or lightning.
• Keep sound ventilation to avoid heat accumulation.
• Transport, use and store the device within the range of allowed humidity and temperature.

• Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

• We recommend using the device together with lightning arrester to improve lightning protection effect.

• We recommend grounding the device to enhance reliability.
• Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower, or you can wipe the lens gently with soft cloth that is moistened with alcohol.
• You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with mild detergent. To avoid possible damage on device body coating which could cause performance decrease, do not use volatile solvent such as alcohol, benzene, diluent to clean the device body, nor can strong, abrasive detergent be used.
• Dome cover is an optical component. Do not touch or wipe the cover with your hands directly during installation or operation. For removing dust, grease or fingerprints, wipe gently with moistened oil-free cotton with diethyl or moistened soft cloth. You can also remove dust with an air blower.

WARNING

• Please strengthen the protection of network, device data and personal information by adopting measures which include but not limited to using strong password, changing password regularly, upgrading firmware to the latest version, and isolating computer network. For some device with old firmware versions, the ONVIF password will not be modified automatically along with the modification of the system password, and you need to upgrade the firmware or manually update the ONVIF password.
• Use standard components or accessories provided by manufacturer and make sure the device is installed and maintained by professional engineers.
• The surface of the image sensor should not be exposed to laser beam radiation in an

Table of Contents

Foreword....I

Important Safeguards and Warnings.... III

1 Introduction.... 1

1.1 Cable 1

1.2 Connecting Alarm Input/output 2

2 Network Configuration 4

2.1 Initializing Device 4

2.2 Changing Device IP Address....6

2.3 Logging in to Web Page....7

3 Installation....8

3.1 Packing List....8

3.2 Dimensions....8

3.3 Installing Device 9

3.3.1 Installation method....9

3.3.2 Installing SD Card (Optional) 9

3.3.3 Attaching Device....9

3.3.4 Installing Waterproof Connector (Optional) 11

3.3.5 Adjusting Sunshade Cap 12

3.3.6 Adjusting Lens Angle ....13

1 Introduction

Cable 1.1

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ Manual.

Figure 1-1 Cables

1-1 1-2 2-1 2-2 3 4 5 6 7 8

Table 1-1 Cable information

No	Port	Port Name	Description

Quick Start Guide

No	Port	Port Name	Description
2-1	DC 12V Out	Power port	Supplies 12 VDC 2W power for external devices.
2-2
3 I/O		Alarm I/O	Includes alarm signal input and output ports. See Table 1-2.
4 RS-485		RS-485	Controls external PTZ and so on.
5 LAN Ethernet port			Connects to network with network cable.Provides power to the device with PoE.PoE is available on select models.
6 AUDIO IN		Audio input	RAC port, connects to sound pickup device to receive analog audio signal.
7 AUDIO OUT		Audio output	RAC port, connects to speaker to output audio signal.
8 VIDEO OUT		Video output	BNC port, connects to TV monitor to check image when camera outputs analog video signal.

Table 1-2 Alarm information

Port	Port Name	Description
	ALARM_OUT	Outputs alarm signal to alarm device.
	ALARM_OUT_GND	When connecting to alarm device, only the ALARM_OUT port and ALARM_OUT_GND port with the same number can be used.

• Device collects logic "0" when input signal is grounded.

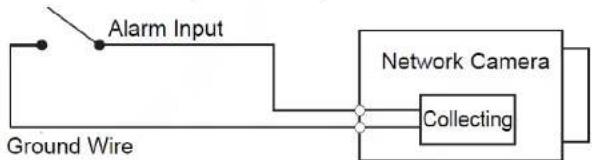

Figure 1-2 Alarm input

Step 2 Connect alarm output device to the alarm output end of the I/O port. The alarm output is relay switch output, which can only connect to NO alarm devices.

N1 and C1 or N2 and C2 constitute a switch to provide the alarm output, which is shown in Figure 1-3. The switch is open normally and closed when there is alarm output.

Figure 1-3 Alarm output

Step 3 Log in to web interface, and configure alarm input and alarm output in alarm setting.

- The alarm input on the web page is corresponding to the alarm input end of the I/O port. There will be high level and low level alarm signal generated by the alarm input device when alarm occurs, set the input mode to "NO" (default) if the alarm input signal

2 Network Configuration

Device initialization and IP setting can be finished with the ConfigTool or in web page. For more information, see web operation manual.

• Device initialization is available on select models, and it is required at first use and after device is being reset.
• Device initialization is available only when the IP addresses of the device (192.168.1.108 by default) and the PC stays in the same network segment.
• Plan useable network segment properly to connect the device to the network.
  • The following figures and interfaces are for reference only.

2.1 Initializing Device

Step 1 Double-click ConfigTool.exe to open the tool.

Step 2

Click Search Setting. Step 3

Figure 2-1 Setting

Setting ■ Current Segment Search □ Other Segment Search Start IP End IP

- Enter username and password when you want to change IP, configure the system, update the device, restart the device, and more.

Click OK. Step 5

Select one or several devices in uninitialized status, and then clickInitialize. Step 6

Select the devices to be initialized, and then click Initialize. Step 7

• If you do not provide the linked information for password reset, you can reset the password only through XML file.
• When initializing multiple devices, ConfigTool initializes all devices based on the password reset mode of the first selected device.

Figure 2-2 Password setting

Device initialization 1 device(s) have not been initialized Username admin New Password •••••••• Weak Medium Strong Confirm Password •••••••• Use a password that has 8 to 32 characters, it can be a combination of letter(s), number(s) and symbol(s) with at least two kinds of them. (excluding Single quote(°), double quote(°), colon(°), semicolon(°), connection symbol(&)

Figure 2-3 Device initialization

Device initialization Easy4IP Register device to EASY4IP and then suitable for user to apply for cloud account. It can realize cloud service such as remote surveillance, device record, alarm, cloud storage, using device to manage cloud. Auto-check for updates Notify automatically when updates available. The system checks for updates every day. Online Upgrade is a service that provides you with firmware updates by cloud. This service will collect device information in order to inform you about available firmware updates. Such information may include your device name, firmware version and device identification numbers. Such information is processed for the sole purpose of informing you about firmware updates. OK

Step 9 Select Easy4ip or select Auto-check for updates as needed. If neither, leave them unselected.

Step 10 Click OK to initialize the device.

Click the success icon (√) or the failure icon (▲) for the details.

Step 11 Click Finish.

2.2 Changing Device IP Address

- You can change IP address of one or multiple devices in one time. This section is based on

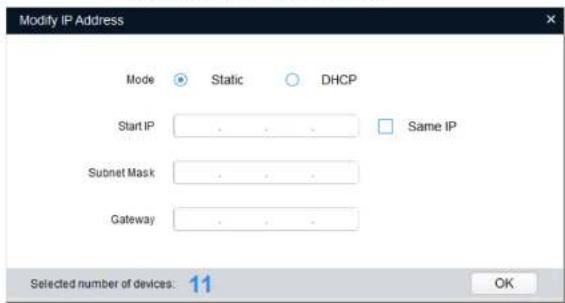

Figure 2-4 Change IP Address interface

Modify IP Address Mode Static DHCP Start IP Same IP Subnet Mask Gateway Selected number of devices: 11 OK

Step 3 Select Static mode and then enter start IP, subnet mask and gateway.

• IP addresses of multiple devices will be set to the same if you select Same IP checkbox.
• If DHCP server is available in the network, devices will automatically obtain IP addresses from DHCP server when you select DHCP.

Step 4 Click OK.

2.3 Logging in to Web Page

Step 1 Open IE browser, enter the IP address of the device in the address bar and press the Enter key.

3 Installation

Packing List 3.1

● The tools required for the installation such as electric drill are not provided in the package.
● The operation manual and related tools are contained in the disk or the QR code.

Network Camera × 1 Waterproof Connector × 1 Quick Start Guide × 1

CD-ROM or QR Code × 1 Mounting Bracket × 1 (Optional)

Dimensions 3.2

Figure 3-1 Dimensions (mm[inch])

Installing Device 3.3

3.3.1 Installation method

Figure 3-2 Installation method

Line drawing of a surveillance camera mounted on a wall-mounted device (no text or symbols)

3.3.2 Installing SD Card (Optional)

• Press the reset button for 10 s to reset the device.
• For devices with motorized vari-focal lens, zoom and focus can be adjusted automatically; for devices with T/W button, zoom and focus can be adjusted with T/W button.
• You can connect monitor to the video out port with cable to view image.

Disconnect the power before installing or removing the SD card.

Figure 3-3 Install SD card

Figure 3-4 Cable going through the wall

Diagram of a mechanical or optical device with directional arrows, no visible text or symbols

③ 2×1/4-20×8LINC

Figure 3-5 Cable going through the cable tray

Diagram illustrating three-step assembly steps of a mechanical device with labeled components and motion indicators

3.3.4 Installing Waterproof Connector (Optional)

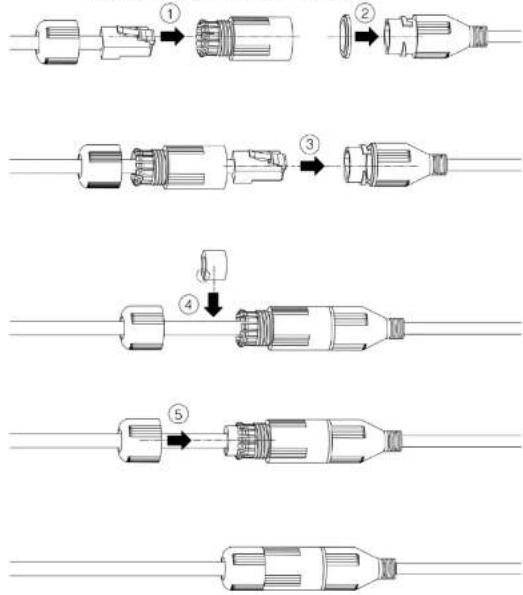

Figure 3-6 Install waterproof connector

3.3.5 Adjusting Sunshade Cap

Figure 3-7 Adjust sunshade can

3.3.6 Adjusting Lens Angle

Figure 3-8 Adjust lens angle

Diagram illustrating a mechanical device with rotating arm and magnified view showing internal components
