USER MANUAL Energise Vibe C85-E2-Re VAX

Let's get started

Let's talk safety

Basic safety precautions

This vacuum cleaner is intended for household use only and NOT for commercial or industrial use.

• Only use the vacuum cleaner indoors on dry surfaces and keep the area you're cleaning well lit.
• Keep fingers, hair and loose clothing away from moving parts and openings whilst using the vacuum cleaner.
• This vacuum cleaner can be used by children aged from 8 years and above and persons with reduced physical,

Don'ts

• Don't use the vacuum cleaner if it has been dropped, damaged or left outdoors.
• Don't run over the power cord or use vacuum cleaner if the power cord or plug is damaged. Please contact our Customer Care Line on: 0330 026 8455 (Mon-Fri 8:30am to 6:30pm, Sat 9:00am to 5:00pm).
• Don't handle the plug or use the vacuum cleaner with wet hands.
• Don't pull or carry the vacuum cleaner by the power cord.
• Don't use the power cord as a handle, pull the power cord around corners, sharp edges or close a door over the power cord.
• Don't unplug vacuum cleaner by pulling on the power cord.

Do's

• Turn off all controls on the vacuum cleaner before disconnecting or connecting the power cord.
  • Always make sure the filters are in place before use.
• Always switch off the vacuum cleaner before disconnecting or connecting the hose and accessories.

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the vacuum cleaner in a safe way and understand the hazards involved. Children shall not play with the vacuum cleaner. Cleaning and user maintenance shall not be made by children without supervision.

- Only Vax recommended tools and accessories should be used with this vacuum cleaner.

Please keep instructions for further use.

• Don't vacuum up any flammable or combustible materials (lighter fluid, petrol, kerosene etc.) or use the vacuum cleaner in an area with explosive vapours or liquid.
• Don't vacuum up hot coals, cigarette butts, matches or smoking hot burning items or use in an area where there may be harmful fluids (chlorine, bleach, and ammonia drain cleaner).
• Don't attempt to remove blockages with sharp objects as this may cause damage to the vacuum cleaner.
• Don't vacuum up hard or sharp objects such as glass, nails, screws or coins etc.
• Don't use the vacuum cleaner with incorrect voltage as this may result in damage or injury to the user. The correct voltage is listed on the ratings label.

• Take extra care when positioning and using the vacuum cleaner on the stairs.
- Use only CE approved 13amp extension cords, non-approved extension cords may overheat. Care should be taken to arrange the extension cord as it can be a trip hazard.
- Store the vacuum cleaner in a cool dry area. If filters have been cleaned

Thank you for buying this Energise Vibe™ product.

Taking care of your carpets and hard floors

The Energise Vite ^™ product is designed to make vacuuming carpets and hard floors regularly, as effective and efficient as possible and this user guide will help you get the most out of your machine.

Maintaining your carpets and hard floors will ensure they keep their appearance for longer. You've chosen the carpets and hard floors for your home for a reason and Vax will help you take good care of them.

Taking care of your Energise Vibe™ product

Also inside this guide are instructions on maintaining your new machine, so that it's always ready when you are to tackle your carpets and hard floors.

Taking care of you

We're here if you need us. Instead of taking me back to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1 800 928 308

Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.

Alternatively, you can write to us at:

Vax Ltd. Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK This User Guide can be found online at: vax.co.uk/support

Contents

Let's talk safety

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let's talk technical

Accessories

What to do if it goes wrong.

Getting in touch

Initial Setup for normal operation

1. Use the beer accessories

a. Soorise hose

b. Extension tube set to short end precise cable length

1. Clean fibers installed.

2. (1) 2016-04-25

Energise Vibe™

(Included with all models)

Included with

your machine

Hose

Telescopic extension tube

Combination floorhead

3 in 1 Tool

Pre motor Filer

Post-motor filter

Energise Vibe™ Pet

Tool connector

TurcoTool

Energise Vibe™ Reach

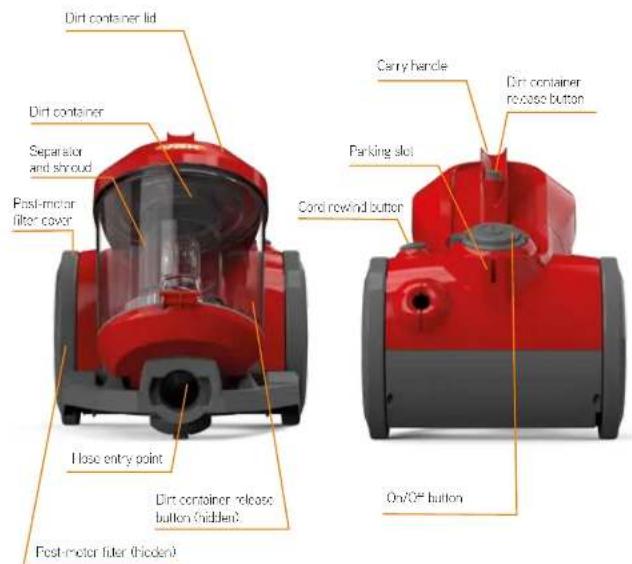

Getting to know your machine

Dirt container lid Dirt container Separation and shroud Post-meter filter cover Hose entry point Dirt container release button (hidden) Post-meter filter (thicken) Carry handle Dirt container release button Parking slot Cord rewind button On/OF button

Technical Specification
Accessories & Consumables

PLEASE READ 'LET'S TALK SAFETY' AT THE BEGINNING BEFORE USE

Before you begin cleaning

CAUTION: Always switch off the vacuum cleaner before connecting or disconnecting the hose/attachments, or removing and emptying the dirt container.

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermosier will automatically turn the vacuum cleaner off. If this appears, switch the vacuum cleaner off and unplug. Remove and empty the dirt container; also check the vacuum cleaner for blockages. Allow the vacuum cleaner to cook for approximately 7 hours till you have cleaned the filters close well, 24 hours for the filters to buy dry before pulling back into the machine.

Clean the pre-molar filler every time the dirt container is emptied and replace the pos. molar filler every 12 months. If the vacuum cleaner is blocked, switch off and unplug before removing the blockage.

Assembling your vacuum cleaner

Press both ouctions at the end of hose and insert into hose entry point.

Insert nose grip into telecopic extension tube.

Press button on telescopic extension tube and adjust to required length.

Insert the other end of the telescopic tube into the floorhead.

Using your accessories

Using your machine

IMPORTANT: The base of the vacuum cleaner should always be positioned fat on the floor when starting and in use. The dirt container should be locked into place before filling the vacuum cleaner by the carry handle.

IMPORTANT: The power cord must always be completely unwound, do not sell further than the yellow market

Operating the appliance and accessories

Unwind the power cord. Do not pull further than the yellow marker.

Plug into motors and cross the On/Off button to switch the machine on.

For use on carpets, click rocker switch forward. For use on hard floors click rocker switch back.

Lower brushes for hard floors. Raise brushes to disperse cover or nose grip open to reduce suction if required.

IMPORTANT: Unplug and switch off vacuum cleaner before performing maintenance or troubleshooting checks.

Emptying and cleaning the dirt container

Press dirt container release button. Lift to remove dirt containment from machine.

Hold dirt container over the bin. Press release clip at the bottom of the container, the dirt release door will open allowing dirt/debris to fall out.

TIP Don't over' fill the dirt container to aoki' blocking the air flow through the vacuum cleaner.

Cleaning the pre-motor filter

NOTE: Clear the pre-motor filter every time the dirt container is emptied and replace the filters every 12 months. Filters available at www.vax.co.uk

Turn the dirt container lid anti-clockwise to remove

I lift to remove the pre-motor filter out of dirt container.

Tap the filter against a bin to remove excess debris.

Taking care of your machine

Cleaning the shroud

Turn the dirt container lid anti-clockwise, to remove.

Lift to remove the pre-molar filter out of dir. container.

Using central grips, it to remove separator from dirt containers.

Twist g ps clockwise and remove cap from separator.

top the separator against a bin to remove any dirt or debris.

Portrait of a smiling man in a black polo shirt with a small logo (no text or symbols visible)

Refitting separator and shroud

Post-motor filter maintenance

IMPORTANT: The serious filler is designed to offer long life with no maintenance. The filler should be checked periodically and when heavily discoloured it should be restored. Please do no wash, scrub or brush the filler as this will damage the delicate floor media.

Turn the post-motor filter cover anti-clockwise to remove.

Put to remove post-motor filter.

Check the post-mono-File for discolouration.

Push post-motor filter into wheel and reel.

Line up the filter cover taps with the wheel and turn dockwise. The filter cover will be locked into place when the centre trim is in the horizontal position.

Storing your vacuum cleaner

Let's talk technical

Removing blockages from the TurboTool (some models only)

Slide the locking ring to remove

Lift and separate the housing.

Using a pair of scissors, remove any threads or their cough around the brushbar.

The up the rails on front of housing and push together to rech. Side looking ring into groove to secure.

Removing a blockage from the hose

Remove the hose from the vacuum cleaner and telespic extension tube. Insert a broom handle or similar bunt instrument, into the hose to remove blockage.

Accessories

Don't forget your accessories!

Order at: www.vax.co.uk/spares-and-solutions

Pro Cleaning Kit (Type 2)

1-1-133326-00

All our best wells of in one lot that makes cleaning your home markets, ocean and with own better results. We've taken care of cleaning all of the "net to reach areas such as an area of cupboards are in between birds to the dust pit isolates behind and within the radiator.

TurboTool (Type 6)

1-1-134419-00

Use the TurboLook for vacuuming your stairs up history and can introduce it's great for picking up custom pot pair.

Fur 'n' Fluff Tool

1-1-131392-00

Sarcsically designed to remove extra subban pet hair from spiroistry, furn are and carpa.

What to do if it goes wrong

SolutionProblem

Is there an accessory missing?

- Check the 'This pack contains' panel on the box to make sure the part is included with your vacuum cleaner.

Why won't the vacuum cleaner pick up?

• The dirt container may not be correctly fitted, remove the dirt container from the vacuum cleaner and check it's assembled correctly, refit ensuring it's locked into place.
  • The shroud is blocked. Go to 'Taking care of your machine'.
• The separator and shroud are incorrectly fitted. Go to 'Taking care of your machine'.
• The filter may be clogged, clean the filter. Go to 'Taking care of your machine'.
• The dir. container may be blocked, empty the dirl container. Go to 'Taking care of your machine'.
• There may be a blockage in the hose/tube. Disconnect from the vacuum cleaner and carefully remove any blockages. Go to 'Lot's talk technical'.

Why does my vacuum cleaner have no power?

• The plug may not be fully pushed into the electrical socket.
- Check the fuse in the plug if this needs replacing, always replace with a 13amo fuse.
- The motor thermostat may have tripped. If this has happened, unplug the vacuum cleaner. Remove and empty the dirt container and chock the hose for blockages. Clean the filters and allow the vacuum cleaner to cool for approximately 1 hour (if you have washed the filters you will need to wait 24 hours for the filters to fully dry before pulling them back into the vacuum cleaner).
- The filters may be clogged, clean the filter. Go to 'Taking care of your machine'.

Getting in touch

It's quick and easy to register for your FREE

2 year guarantee ^†

Online at: vax.co.uk/guarantees

Please retain your original receipt for proof of purchase.

we're here if you need us

Online vax.co.uk/support

Cell (UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm*

Alternatively, you can write to us at

Vax Ltd, Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, Worcestershire, WL9 0LW, UK
