USER MANUAL ZIPL88D2 Speco Technologies

NRL (4 and 8 Channel)

User Manual

Exterior view of a black wireless device labeled 'Speca Technologies' with control buttons and ports (no readable text beyond branding)

Back panel of a network device showing ports, connectors, and a router (no visible text or symbols)

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
• There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
• This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any ventilation openings and ensure proper ventilation around the machine.
• Do not power off the device at normal recording condition.
• This machine is for Indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get Inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.
• Do not try to repair the device by yourself without technical aid or approval.

Contents

1 Introduction....1

1.1 Welcome! 1
1.2 Features.... 1
1.3 Front Panel Descriptions 3
1.4 Rear Panel Descriptions.... 3
1.5 Connections....3

2 Basic Operation Guide 4

2.1 Startup & Shutdown 4
2.1.1 Startup....4
2.1.2 Shutdown 4
2.2 Remote Control 4
2.3 Mouse Control....5
2.4 Text-Input Instruction 5
2.5 Common Button Operation 5

3 EZ Setup & Main Interface 6

3.1 EZ Setup....6
3.2 Main Interface 9

9.2.1 Main Interface Introduction

Notes & Contents

NVR User Manual

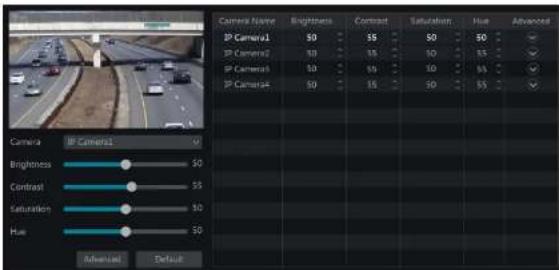

5.3.4 Image Adjustment 21

6 PTZ 24

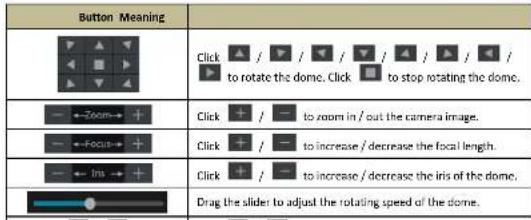

6.1 PTZ Control Interface Introduction....24
6.2 Preset Setting 26
6.3 Cruise Setting 27

7 Record & Disk Management....28

7.1 Record Configuration.... 28

7.1.1 Mode Configuration 28
7.1.2 Advanced Configuration 29

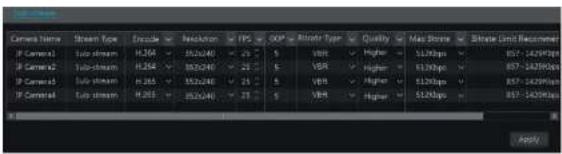

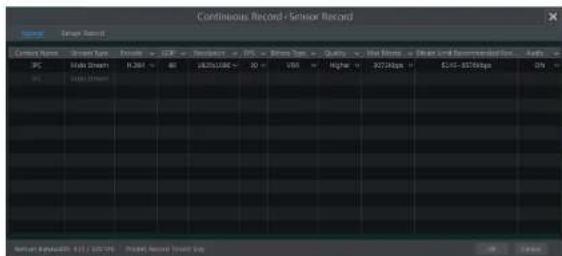

7.2 Encode Parameters Setting 29

7.3 Schedule Setting 30

7.3.1 Add Schedule 30
7.3.2 Record Schedule Configuration 31

7.4 Record Mode 32

7.4.1 Manual Recording 32
7.4.2 Timing Recording.... 32
7.4.3 Motion Based Recording 32
7.4.4 Sensor Based Recording 32

7.4.5 Analytics Recording 32

7.5 Disk 32

7.5.1 Disk Management 32

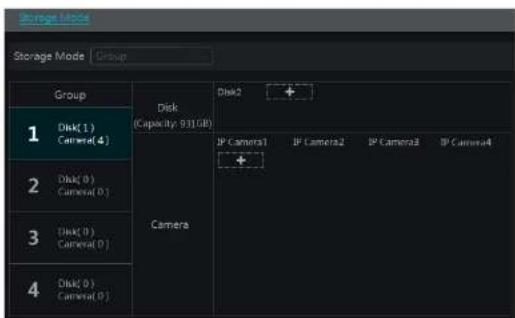

7.5.2 Storage Mode Configuration 33

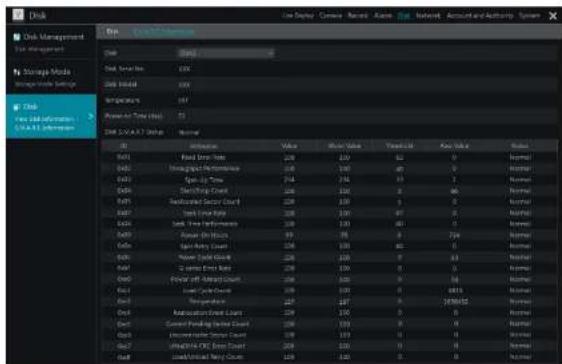

7.5.3 View Disk and S.M.A.R.T. Information 33

8 Playback & Export....35

8.1 Instant Playback 35
8.2 Playback Interface Introduction 35
8.3 Record Search, Playback & Export 37

8.3.1 EZ Search 37

8.3.2 Museum Search 38
8.3.3 Time Search 39
8.3.4 Event Search 39
8.3.5 Bookmark Search....40
8.3.6 Snapshots 40
8.3.7 View Export Status 41

9 Alarm Management....42

9.1 Sensor Alarm 42
9.2 Motion Alarm 42

9.2.1 Motion Configuration 42

Notes & Contents

NVR User Manual

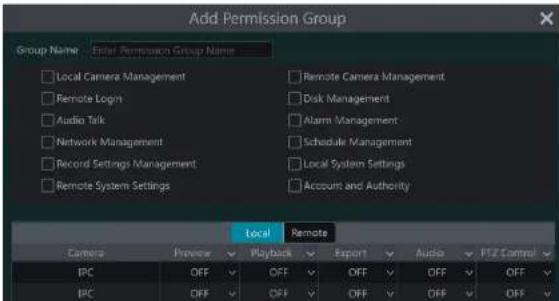

10.3 Permission Management....53

10.3.1 Add Permission Group 53
10.4 Block and Allow List....53
10.6 View Online User 54

11 Device Management....55

11.1 Network Configuration....55

11.1.1 TCP/IP Configuration 55
11.1.2 Port Configuration 55
11.1.3 PPPoE Configuration 56
11.1.4 DDNS Configuration....56

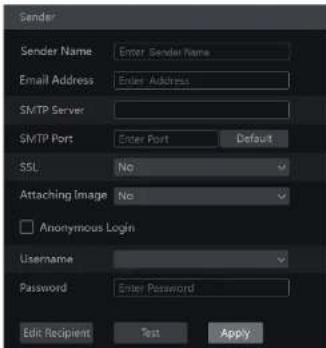

11.1.5 E-mail Configuration 56
11.1.6 UPnP Configuration 57
11.1.7 NAT Configuration 58
11.1.8 View Network Status 58

11.2 Basic Configuration....58

11.2.1 General Configuration 58
11.2.2 Date and Time Configuration....58

11.3 Factory Default 59
11.4 Device Software Upgrade 59
11.5 Backup and Restore 60
11.6 Restart Automatically 60
11.7 View Log 60

12 Remote Surveillance 62

12.1 Mobile Client Surveillance....62
12.2 Web LAN Access 62
12.3 Web WAN Access 62

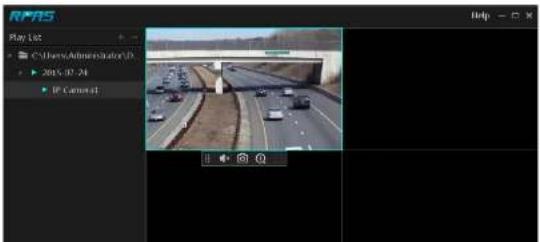

12.4 Web Remote Control 63

12.4.1 Remote Preview 63
12.4.2 Remote Playback 66
12.4.3 Remote Export 65
12.4.4 Remote Configuration 66

Appendix A FAQ....68

Appendix B Calculate Recording Capacity....72
Appendix C Specifications 73

1 Introduction

1.1 Welcome!

Thank you for purchasing this NVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] option 3

Email: [e-mail]

1.2 Features

Basic Functions

● Supports network device access including IP camera/dome and the third party IP cameras
● Supports the latest H.265 video coding stream and a mixture input of H.265 and H.264 IP cameras
● Supports standard ONVIF protocol
● Supports dual stream recording of each camera
● Supports IP cameras to be added quickly or manually
● Supports collective or individual configuration of the cameras' OSD, video parameters, mask, motion and so on
● Supports a maximum of 8 user permission groups including Administrator, Advanced and Common which are the default permission groups of the system
● Supports a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user's permission control to be enabled or disabled
● Supports multiple web clients login at the same time

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display
● Supports multi-screen modes such as 1/4/6/8
● Supports auto adjustment of the camera's image display proportion
● Supports audio monitoring of the camera to be enabled or disabled
● Supports manual snapshot of the camera
● Supports the sequence of the cameras to be adjusted
● Supports display mode to be added and saved and the saved modes can be called directly
● Supports quick tool bar operation of the preview window

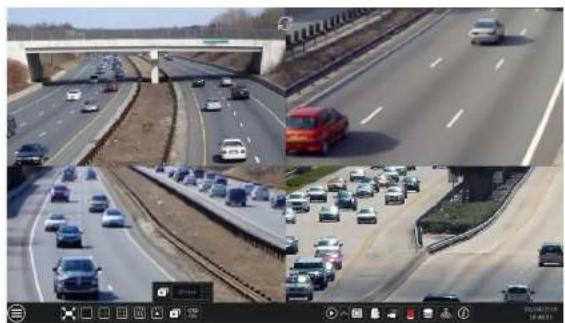

● Supports camera group view and scheme view in sequence, quick sequence view and dwell time setting
● Supports motion detection and video mask
● Supports multiple popular P.T.Z. control protocol and setup of the preset and cruise
● Supports direct mouse control of the IP dome including rotating, zoom, focusing and so on

Introduction

NVR User Manual

● Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed

● Supports record searching by time slice/time/event/tag

● Supports time view and camera view in searching by EZ mode

● Supports EZ search by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail

● Supports a maximum of 8 cameras to be searched by time

● Supports event search by manual/motion/sensor/intelligent events

● Supports bookmark search by the manual added bookmarks

● Supports instant playback of the selected camera in the live view interface

● Supports a maximum of 8 synchronous playback cameras

- Supports acceleration(maximum 32 times of the normal speed), deceleration (minimum 1/32 times of the normal speed) and 30s^ addition or reduction to current playing time

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).

● Supports record to be exported by time/event/image search

● Supports record cutting for exporting when playing back

● Supports a maximum of 10 export tasks in background and export status viewing

Alarm Management

● Supports alarm schedule setting

● Supports enabling or disabling of the motion detection, external sensor alarm Input, Intelligence alarm and exception alarms Including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable

● Supports IPC offline alarm trigger configuration of PTZ, snapshot, pop-up video, etc.

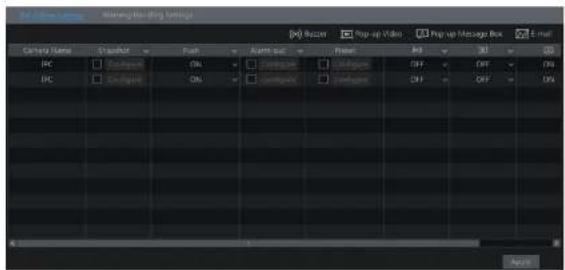

● Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on

● The captured images can be attached into the e-mail when alarm linkage is triggered

● Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm

● Supports alarm to be triggered and cleared manually

● Supports system auto reboot when exception happens

Network Functions

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on

● Supports allow and block list function and the allow and block IP address/IP segment address can be set

● Supports multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system

● Supports remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart

● Supports remote camera configuration of the NVR including video parameters, image quality and so on

■ Supports remote search, playback and export of the NUR

Introduction

NVR User Manual

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network, the light is blue
Power	Power indicator, when connection, the light is blue

1.4 Rear Panel Descriptions

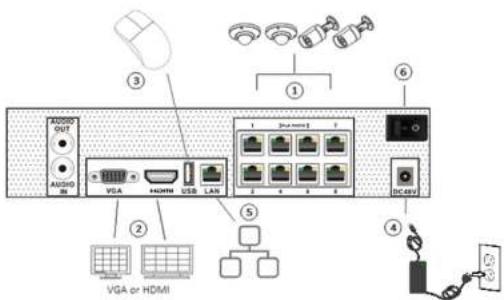

To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (N8NRL shown for reference).

AUDIO OUT AUDIO IN VGA HDMI USB LAN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Connect IP cameras to the PoE ports of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power off the device by using remote control or mouse.

By remote control:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking "OK" button.
② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power off after a while by clicking "OK"
button.
② Disconnect the power.

2.2 Remote Control

① It uses two AAA size batteries.
② Open the battery cover of the remote control.
⑧ Place batteries. Please take care the polarity (+ and -).
④ Replace the battery cover.

Key points to check in case the remote doesn't work.

1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.

If it still doesn't work, please change a new remote control to try, or contact your dealers. You can just turn the IR sensor of the remote control towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote control.

Basic Operation Guide

NVR User Manual

2.3 Mouse Control

Mouse control in Live Display & Playback interface

In the live display & playback interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the Interfaces display in full screen, move the mouse to the bottom of the Interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the Interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

Mouse control in text-input

Move the mouse to the text-input box and then click the box. The input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instruction

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
EN/CH	Switch key of language

2.5 Common Button Operation

Button Meaning
	Ctrl, Shift, Zoom, Pull, Close, Ret

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup Interface. You can view the number and status of each disk quickly and conveniently through these icons (☐: no disk; ☺: unavailable disk; ☑: RW available disk).

You can quickly configure the NVR by clicking "OK" to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click "Skip" to cancel the EZ Setup next time).

Setup OK Enable FZ setup next time. Skip

Click "OK" to start wizard. The setting steps are as follows.

① System Login. Set your own password when you use the wizard for the first time (the default username of the system is admin); select the login username and enter the password you set by yourself.

EZ Setup Admin Password Setup Username: Default New Password: Lower Password Confirm Password: Lower Password Display Password Log In Automatically

EZ Setup Time Zone GMT-85 New York, Toronto, Washington System Time 05/08/2018 16:20:22 Data Format March/Day/Year Time Format 24-Hour DST OFF Synchronous Manual NTP Server Inside Windows 9.07.00 Previous Next Cancel

③ Network Settings. Select the network work pattern as required. Check "Obtain an IP address automatically" and "Obtain DNS automatically" to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click "Next" to continue.

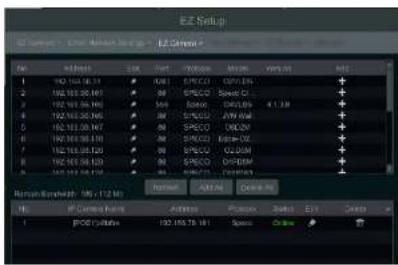

EZ Setup EZ Setup 2 - Control Settings & Settings Internal Port L - Default □ Default port (default default port) (Low Default) Acceleration 200 100 5 100 Sub-Load Switch 264 200 200 0 Off-Load 200 100 5 1 □ Default port automaticity Pensetary DMS 8 4 8 AutoDrive DMS HTTP Port 83 TCP/IP Port 564 ATOSI Port 463 Server Port 463 OK/Cancel Cancel

④ Other Network Settings.

UPnP settings: Check "Enable" In the interface and enter the port of external and then click "Test" to test the effectiveness of the Input information. If the UPnP status were "Invalid UPnP", the port number may be wrong. Click to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR. (please see 11.1.6.UPnP Configuration for details).
DDNS Settings: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the effectiveness of the domain name. If it is effective, you can enter the

EZ Setup & Main Interface

NVR User Manual

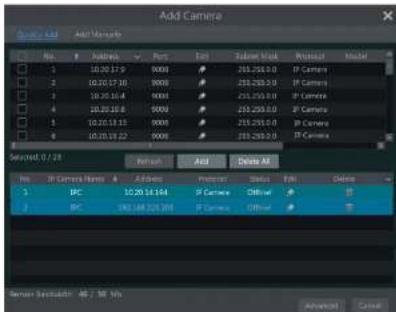

be added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click "Refresh" to refresh the list of online IP cameras which are in the same local network with NVR and then click + to add the searched camera. Click "Add All" to add all the cameras in the list. Click 📄 to delete the added camera. Click "Delete All" to delete all the added cameras.

E2 Setup File Edit View Insert Tools Help 1 100.100.00.13 2 100.100.00.147 3 100.100.00.165 4 100.100.00.185 5 100.100.00.197 6 100.100.00.205 7 100.100.00.225 8 100.100.00.245 9 100.100.00.265 10 100.100.00.285 11 100.100.00.305 12 100.100.00.325 13 100.100.00.345 14 100.100.00.365 15 100.100.00.385 16 100.100.00.405 17 100.100.00.425 18 100.100.00.445 Normal Alt No Clear No Mitsch (Bened) Nts: 1/2 M H I C D A B C F G H I L I N T O U V W X Y Z F P Q R S T A T E S S T A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E P D Q R S T A T E S S T A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A T E S A

Click to edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click "OK" to save the settings.

Edit MAC Address 00 18 26 38 56 48 Address 102 168 12 86 Sync to IPC Subnet Mask 255 255 255 0 Gateway 192 168 12 1 Username: 48*in Password: ***** OK Cancel

Edit Camera Camera Name: Camera1 Address: 192 168 12 152 Sync to IPC Port: 80 Protocol: Model: Username: admin Password: ****** Text Off Cancel

Click to edit the added camera as shown on the above right. Enter the new camera name, IP address, port, username and the password of the camera. You can click "Test" to test the effectiveness of the input information. Click "OK" to save the settings. You can change the IP camera name only when the added camera is online. Click "Next" to continue.

EZ Setup & Main Interface

NVR User Manual

Manual: Set the "Sensor Record", "Motion Record" and "Schedule Record" of each camera. Click "OK" to save. See 7.1.1 Mode Configuration for details.

E2 Setup E:\Users\Control\Hardware\BMP\C:\Users\E2 Setup\E2 Record Mode Simplified Current/Current Server Process or Network Process or Output Path Proportion Process 200%

QRCode. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.7 NAT Configuration for details). You can scan the QRCode Through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to 12.1 Mobile Client Surveillance for details. Click "OK" to save the settings.

3.2 Main Interface

3.2.1 Main Interface Introduction

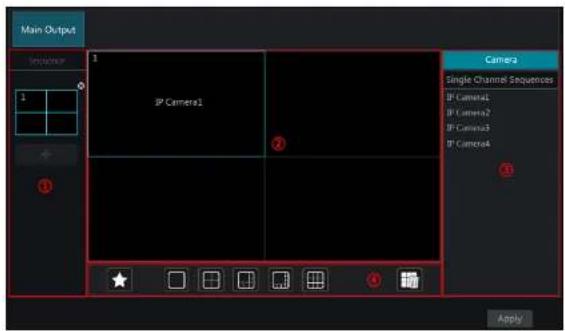

New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video New Video Next Step 10:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:03:28:28

The buttons in area ① are introduced in the table below

EZ Setup & Main Interface

NVR User Manual

Button Meaning
		Alarm status button. Click it to view the alarm status.
		Disk status button. Click it to view the disk status and RAID status.
		Network status button, Click it to view the network status.
		Information button. Click it to view system information.

Introduction of area ②:

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click "Single Channel Sequences" to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group for detail configuration of the camera group). Select one camera window on the left side of the Interface and then double click one group in the group list to preview the cameras' images one by one in the selected window.

Click "Customize Layout" to view all the display modes in the display mode list (refer to 5.2.1 Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for viewing.

Introduction of area ③:

Icon / Button	Meaning
	It shows the current login user.
Search and Export	Click it to go to record search and export interface, see 8.3 Record Search, Playback & Export for details.
	Click it to go to playback interface (click on the tool bar at the bottom of the live view interface to set the default playback time), see 8.2 Playback Interface Introduction, for details.
	Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.
Logout	Click it to log out the system.
	Click it and then select "Logout", "Reboot" or "Shutdown" in the popup window.
	Click it to go to the EZ setup.

2.2. Satun Danel

EZ Setup & Main Interface

NVR User Manual

Here we take Camera module as an example, The Camera module provides convenient links such as "Add Camera", "Edit Camera", "Image Settings", "Motion", "Intelligence Analysis" and "PTZ". Click Camera to go to the camera management interface as shown below.

C:\MACHINE\Manager Camera C:\Users\Networks\AutoCAD\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Control\System\AutoCAD\Platform 1 PCCamera 12.00-12.135 80 OFFload Navistar 01 30/2014.1 2 PC 79.00-74.154 8000 OFFload P Camera 10 06/17.3 3 PC 151.00-126.271 8000 OFFload P Camera 01 16/24.3 Motion Value Settings Investment Analysis Device & System Residual System Residual & System F12 Model: AutoCAD @ Camera Size Number 3 Residual: Max=0.0, Max=1.0

There are some function items on the left side of the camera management interface. Click each item to go to corresponding Interface or window. For instance, click "Add Camera" to pop up the window as shown below.

Add Camera Add Mode No. Address Port Edit Select Mask Protocol Model 1 10:20:17 9 9000 253.253.0.0 IP Camera 2 10:20:17 10 9000 253.253.0.0 IP Camera 3 10:20:18 4 9000 253.253.0.0 IP Camera 4 10:20:18 6 9000 253.253.0.0 IP Camera 5 10:20:18 13 9000 253.253.0.0 IP Camera 6 10:20:18 22 9000 253.253.0.0 IP Camera Selected 0 / 38 Refresh Add Delete All No. IP Camera Name 4 Address Protocol Status Edit Orders 1 BPC 10:20:16 164 IP Camera Offline # 2 BPC 193.148.225 293 IP Camera Offline # Server Bestseller Alt / MB Nb Advanced Cancel

EZ Setup & Main Interface

NVR User Manual

Disk

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.

Account and Authority

The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import&Export (see 11.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera In the setup panel or 🎨 In the top right corner of the preview window to pop up the "Add Camera" window as shown below. You can quickly add or add the IP camera manually.

Add Camera Control Sub: Add Media Player New Record View 1 Address - Font 250.250.0 IP Camera 1 10.20.17.6 8008 250.250.0 IP Camera 2 10.20.17.10 8008 250.250.0 IP Camera 3 10.20.18.4 8008 250.250.0 IP Camera 4 10.20.18.8 8008 250.250.0 IP Camera 5 10.20.18.15 8008 250.250.0 IP Camera 6 10.20.18.27 8008 250.250.0 IP Camera Selected: 0 / 13 Input: Add Delete All No IP Camera Before Address Protocol Style Edit Delete 1 IPC 10.20.18.194 IP Camera Offset 2 IPC 163.348.529.203 IP Camera Offset Named Bandwidth: 46 / 13 Bits Advanced Cancel

> Quickly Add

Check the cameras and then click "Add" to add cameras. Click to edit the camera's IP address, username and password and so on. Click "Default Password" to set the default username and password of each camera.

Camera Management

NVR User Manual

effectiveness of the input information and then click "Add" button (you can input one camera's information or above such as IP address, username and password before clicking "Add" button). Click 📄 to delete the camera. Click "Default Password" to set the default username and password of each camera.

Note: Some models may not support this function.

Click Start→Settings→System→Basic→General Settings to check "Enable Add IPC by Zero Operation". If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

Add Recorder

Add Camera Query Info Initial Manual Add Camera Address Port Username Protocol Protocol Color Add Delete All No: IP Camera Name: 1.0 Address Protocol Status Line Delete 1 IPC 10.30.14.194 IP Camera Off ref 2 IPC 182.168.216.201 IP Camera Off ref New! Broadcast: 318 / 220 Hz Advanced Manual Auth... Cancel

• Quickly Add : Select the searched NVR/DVR and the click "Add" to add NVR in the same local network.
  Manually Add : Click "Manual Add" and then enter the IP address or domain name, port, username and password of the NVR/DVR.

Check the added remote channel number and click "Test" to test the effectiveness of the input information. Then click "OK" button to return to the previous interface.

Add Recorder Channel Address 192 168 13 20 Domain Name Server Port 40.00 HTTP Port 00 Channels 0 Username admin Password ****** Template Channel No. Camera Name Model

Camera Management

NVR User Manual

window If a batch of IPCs' passwords need to be modified) and then click "Upgrade" button to start upgrading(the IPC will restart automatically after the upgrade is completed successfully).

Camera No. Camera Name Y Address Port Status Protocol Model Preview Edit Upgrade Version 1 [POESP Camera1] 10.151.151.20 BC Online OUTF xxx ▼ ↑ ↑ 3.4.2 2 IP Camera2 192.168.12.40 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 3 IP Camera3 192.168.12.52 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 4 IP Camera4 192.168.12.41 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 5 IP Camera5 192.168.12.51 BC Offew OUTF xxx ▼ ▼ ↑ 6 IP Camera6 192.168.12.54 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 7 IP Camera7 192.168.12.55 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 8 IP Camera8 192.168.12.56 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 9 IP Camera9 192.168.12.57 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 10 [POESP Camera10] 192.168.12.58 BC Online OUTF xxx ▼ ▼ ↑ ↑ 3.4.2 IP Camera Max Number: Rettan Bandwidth: 100 / 100 Mb

The IP cameras with PoE function which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

The IP camera which directly connects to the PoE port of the NVR through private protocol will be shown automatically in the camera list.
- One of the two conditions must be met if the IP camera which directly connects to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.
√ The IP camera which directly connects to the PoE port is in the same network segment with the internal ethernet port.
√ The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 in Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click "Edit Camera Group" in the above interface to go to the interface as shown below.

Camera Management

NVR User Manual

4.2.2 Edit Camera Group

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Spcs ) Number of Cameras( 2 ) IP Camera1 IP Camera2 Group2 Dwell Time ( 10 Spcs ) Number of Cameras( 2 ) IP Camera3 IP Camera4

Click to modify the group information such as group name and dwell time. Click to delete the group.

4.2.3 IP Planning

Some models may not support this function.

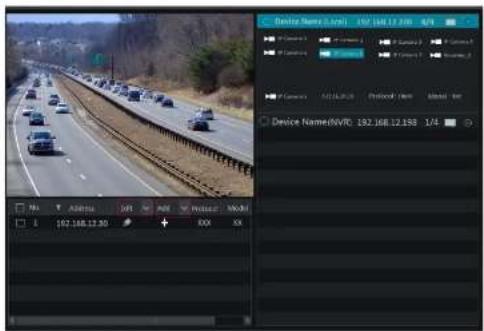

Click "IP Planning" to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add camera channels of other NVRs/DVRs into the unoccupied channels of the local NVR.

Device Name: 0.001 192.168.12.200 4/4 Device Name:0.001 192.168.12.200 4/4 Device Name:0.001 192.168.12.200 4/4 Device Name:0.001 192.168.12.200 4/4 Device Name:0.001 192.168.13.20 4/4 Device Name:0.001 192.168.13.20 4/4 Device Name:0.001 192.168.13.20 4/4 Device Name:0.001 192.168.13.20 4/4 Device Name:0.001 192,168,12,158 4/4 Device Name:0.001 192,168,12,158 4/4 Device Name:0.001 192,168,12,158 4/4 Device Name:0.001 192,168,12,158 4/4 Device Name:0.001 167, 565 966 Device Name:0.001 167, 565 Device Name:0.001 167, 565 Device Name:0.001 167, 565 Device Name:0.001 167, 565 Device Name:0.001 167, 565 Device Name:0.001 167, 565 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001 Device Name:0.001

5 Live View Introduction

5.1 Live View Interface Introduction

You should add camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for intelligence record.

Screenshot of a video editing interface showing highway traffic with a camera control panel and playback controls

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move soul. Click it to move the tool bar anywhere.
	Manually Record On	Click it to start recording.
	Instant Playback	Clickto playback the record; click "instant Playback" to select or self-define the instant playback time. See 8.1 Instant Playback for details.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by

Highway traffic scene with multiple lanes and cars, no visible text or symbols

5.2 View Mode

5.2.1 Display Mode

Set different screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

Composite image showing multiple highway traffic scenes with vehicles and a bridge, no visible text or symbols.

Live View Introduction

NVR User Manual

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Composite image showing a multi-lane highway with traffic and a red truck, no visible text or symbols.

Go to the live view interface and then click 📄 to pop up a little window. Set the dwell time in the window and then click 📄 to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📄 to stop the view.

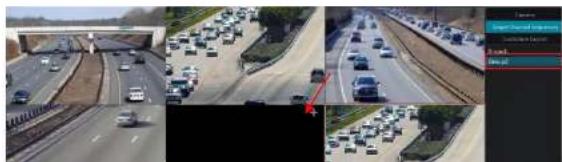

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details). ① Go to the live view interface and then select a camera window.

Composite image showing multiple highway traffic scenes with vehicles and a red arrow indicating a location (no visible text or symbols)

Live View Introduction

NVR User Manual

④ Is the tool bar (☐) clear button; ⚠: favorite button, click it to pop up a window, enter the display mode name in the window and then click "OK" to save the current display mode; other buttons are screen mode buttons).

Main Output Sequence 1 IP Camera1 Camera1 Single Channel Sequences IP Camera1 IP Camera2 IP Camera3 IP Camera4 Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme.
b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu "Clear" in area ② to remove a single camera or click to remove all the cameras.
c) Click "Apply" to save the settings.

Start Sequence View

Go to the live view interface and then click 📋 to open a window. Set the dwell time in the window and then click 📋 to start scheme view in sequence. Double click the sequence view Interface to pause the view; double click again to restore the view. Click 📋 to stop the view.

5.3 Image Configuration

Live View Introduction

NVR User Manual

5.3.2 Image Settings

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setting items. Please refer to 5.3.4 Image Adjustment for detailed introductions of these items. You can click "Default" button to restore the image settings to the default factory settings.

Camera Name Brightness Contrast Saturation Hue Advanced IP Camera1 05 00 IP Camera2 05 05 IP Camera3 05 05 IP Camera4 05 05 Camera IP Camera1 Brightness $0 Contrast $5 Saturation $0 Hue $0 Advanced Default

5.3.3 Mask Settings

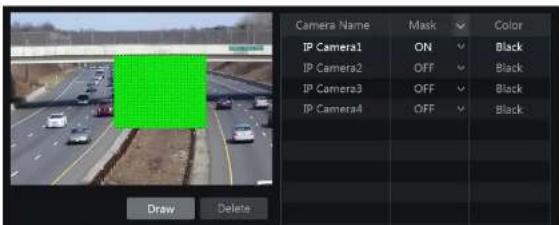

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Settings→Camera→Image→Mask Settings to go to the interface as shown below. Select the camera and enable the mask. Click "Draw" button and then drag the mouse on the image area to set the mask area; click "Delete" button to delete the mask areas; click "Apply" to save the settings.

Camera Name Mask Color IP Camera1 ON Black IP Camera2 OFF Black IP Camera3 OFF Black IP Camera4 OFF Black Draw Delete

Camera IP Camera1 Image Adjust (Lens Control) Brightness 80 Contrast 10 Saturation 10 Hue 10 Sharpen 10 Wide Dynamic 10 Denoise 10 White Balance Auto Image Mirror ON OFF Image Flip ON OFF Default Back

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

The introductions of these parameters are as follows:

Parameter Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purcr, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Adopt the noise reduction technology to decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance	White balance is the white rendition function of the camera to adjust the color

Camera Image Adjust Area Control +Zoom + Focus Mode Manual Mode +Focus +Duty Line Focus Supporting Boundary mode: Tread the route to the road + Daylight mode with autofocus Save Back

The introductions of these parameters and buttons are as follows.

Button/Parameter Meaning
←→ Zoom → +	Click + / - to zoom in/out the image.
Focus Mode	If manual mode is selected, focus button & "One Key Focus" & "Day/night mode switch autofocus" will be available; if auto mode is selected, the time interval setup will be available.
←→ Focus → +	Click + / - to increase/decrease the focal length.
One key Focus	Click it to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the time interval when camera lens is auto-focusing. The interval can be set in the drop-down list.

Note: This function is only available for motorized zoom camera, or the settings here are ineffective.

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

Click on the tool bar at the bottom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the Interface for PTZ control.

Analog Joystick

Camera P Camera1 Preset Crune Preset Preset Name Cell 1 preset1 2 preset2 Add Delete Save Position ←Zoom→+ ←Focus→+ ←Ina→+ Speed

Introductions of the buttons on the bottom right of the interface:

Button Meaning Click / / / / / / / / to rotate the dome. Click to stop rotating the dome. - ←Zoom→ + Click + / - to zoom in / out the camera image. - ←Focus→ + Click + / - to increase / decrease the focal length. - ← Iris → + Click + / - to increase / decrease the iris of the dome. Drag the slider to adjust the rotating speed of the dome.

Zoom L B

Camera [2 Camera] Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Aod Delete Save Position Zoom Focus Iris Speed

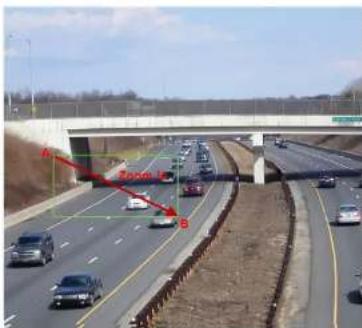

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Highway scene with multiple cars and a bridge, no visible text or symbols

Camera P Camera1 Preset Cruise Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom Focus Ins Speed

Advanced 3D Control

then save the preset position after adjusting the dome's direction); click in the preset list to call the preset; click "Delete" button to delete the selected preset.

You can also go to preset setting interface for preset setting, see 6.2 Preset Setting for details.

Cruise Setting

Click "Cruise" to go to cruise operation tab and then click "Add" button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Creation Create Name (Created) Format Form1 Form2 Symbol Time Edit Delete +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22 +23 +24 +25 +26 +27 +28 +29 +30 +31 +32 +33 +34 +35 +36 +37 +38 +39 +40 +41 +42 +43 +44 +45 +46 +47 +48 +49 +50 +51 +52 +53 +54 +55 +56 +57 +58 +59 +60 +61 +62 +63 +64 +65 +66 +67 +68 +69 +70 +71 +72 +73 +74 +75 +76 +77 +78 +79 +80 +81 +82 +83 +84 +85 +86 +87 +88 +89 +90 +91 +92 +93 +94 +95 +96 +97 +98 +99 +100

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome first).
② In the "Add Preset" window, select the preset name, preset time and preset speed and then click "OK" button.
In the "Add Cruise" window, you can click 📄 to reselect the preset, then change the preset time and speed. Click 📄 to delete the preset. Click "Add" button to save the cruise.

Click ▶ to start the cruise and click □ to stop the cruise in the cruise list of the cruise operation tab; click "Delete" button to delete the selected cruise.

You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

Cruise IP Camera1 Number of Preset ( 1 )

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and iris of the preset and then click "Save Position" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

Click Start→Settings→Camera→PTZ→Cruise to go to the Interface as shown below.

IP Camera1 Number of Cruise(1) cruise1 Camera: IP Camera1 Cruise: cruise1 Cruise Name: cruise1 Preset Preset Name Speed Time Edit 1 preset1 S 5 Secs 2 preset2 S 5 Secs Add Preset

> Add Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the "Add Cruise" window are similar to that of the PTZ control interface; please see 6.1.PTZ Control Interface Introduction for details.

Edit Cruise

Select the camera and cruise in the "Cruise" interface. Enter the new cruise name and then click to save the cruise name. Click "Add Preset" to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. Click one preset in the preset list and then

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the "Manual Record Settings" and then click "Apply" button to save the settings. There are two record modes: auto mode and manual mode.

Record Mode Audio Satellite Record Sensor Record Motion Record-Sensor Record Continuous Record-Motion Record Continuous Record-Sensor Record Continuous Record-Motion Record-Sensor Record Advanced Internal Record Settings Record Time: 10 ms OK

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record: Normal record is enabled all the time; motion alarm record will be started when motion alarm happens.

Continuous Record+Sensor Record: Normal record is enabled all the time; sensor alarm record will be started when sensor alarm happens.

Continuous Record+Motion Record+Sensor Record: Normal record is enabled all the time; motion/sensor alarm record will be enabled when

motion/sensor alarm happens.

Continuous Record+Motion Record+Sensor Record+ Analytics Record: Normal record is enabled all the time; motion/sensor/analytics alarm record will be enabled when motion/sensor/Intelligence analytics alarm happens.

You can add more auto modes on intelligence record. Click "Advanced" button to pop up a window as shown below. Check the modes in the window and then click "Add" button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check "Analytics Record").

Record & Disk Management

NVR User Manual

Continuous Record+Sensor Record Current Storage Format Current Name Stream Type E-mail USB Environment VBA Balance Span Quality Blue Balance Stage Level Recommendation Address IPC Main Stream H.264 B1 1825109C 20 VBA Higher 32728bps 145-3758bps DVR S-101-2010000000000000000000000000000000000000000000000000000000000000000000000000000000000 Satian Publications: 11/1/2013/16 Project Recorded Smart Buy

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only.

GOP: group of pictures.

Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This will help to optimize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are optional.

Manual Mode

If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setting and 7.3 Schedule Setting for details.

7.1.2 Advanced Configuration

Click Start→Settings→Record→Advanced to go to the following interface. Enable or disable cycle record (cycle record: the earliest record data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click "Apply" to save the settings.

Record & Disk Management

NVR User Manual

Click Start→Settings→Record→Stream Settings to go to "Sub-stream" interface. Set the encode, resolution, FPS, GOP, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click "Apply" to save the settings.

Camera Name Stream Type Encode Reckton EPS SOP Raptor Type Quality Max Stroke Bitrate Limit Recumbent F Camera1 Sub stream H.204 H.20240 - 21 $ VBR Higher 512bps 657 - 1420bps F Camera2 Sub stream H.204 H.20240 - 21 $ VBR Higher 512bps 657 - 1420bps F Camera3 Sub stream H.205 H.20240 - 21 $ VBR Higher 512bps 657 - 1420bps F Camera4 Sub stream H.205 H.20240 - 21 $ VBR Higher 512bps

7.3 Schedule Setting

7.3.1 Add Schedule

Click Start→Settings→Record→Record Schedule→Edit Schedules to go to the interface as shown below. "24 x 7", "24 x 5" and "24 x 2" are the default schedules; you cannot edit or delete "24 x 7" while "24 x 5" and "24 x 2" can be edited and deleted. Click the schedule name to display the detailed schedule information on the left side of the Interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Schedule Config Edit: Schedule Schedule "24x2" Mon 6000 - 24x2 Mon Sun Wed Thu Fri Sat Name Exit Delete 24x2 24x5 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x2 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x1 24x0 - 24x0

Record & Disk Management

NVR User Manual

Click and then drag the cursor on the time scale to set record time; click and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click or and then click "Manual" on each day to pop up a window as shown below. Set the start and end time in the window and then click "OK" to save the settings.

Added time manually Start Time 16:34 End Time 17:34 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected time in a day; click "Clear All" to clear all the selected area in a day.

Click "Copy To" to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click "OK" to save the settings.

Copy to ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Sat OK Cancel

Set Week Schedule

Click 📄 or 📋 and then click "Manual" beside 📋 to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click "OK" to save the settings.

Record & Disk Management
NVR User Manual

Current Name Current Schedule PC PC Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule Current Name Current Schedule

Go to "Edit Schedules" interface and then click to edit the schedule. The settings of "Edit Schedule" are similar to that of the "Add Schedule". Click delete the schedule.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click on the tool bar at the bottom of the live view interface to enable recording of the camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start→Settings→Record→Mode Settings and then set the manual record time in the interface. Click "Apply" to save the settings.

7.4.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.

7.4.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are as follows:

① Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details.
② Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details.

Record & Disk Management

NVR User Manual

CPU Capacity(GB) Free Storage(GB) Ctrl Server No. Disk Model Status Type Record Version Operations CPU1 552 600 800 200 300 400 500 600 700 800 900 1000 1100 1200 1300 System

Some models may not support this function. The settings of RAID are as followings. Please skip the settings of physical disk, array and disk mode if the NVR doesn't support this function.

Note 1. The new HDD should be formatted for normal use.

1. For normal use of the HDD which has been used in other NVR, if the NVR is of the same model with the new NVR, please import the configuration file of the NVR to the new NVR or format the HDD; if the models of the two NVRs are different, please format the HDD.

7.5.2 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the interface as shown below.

Storage Mode Storage Mode Group Group Disk(1) Camera(4) Disk(0) Camera(0) Disk(0) Camera(0) Disk(0) Camera(0) Disk2 + IP Camera1 IP Camera2 IP Camera3 IP Camera4 + Camera 2 3 4

There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

Disk Management Market Storage Media Storage Market Disk New information - CCAT Information Disk Service Disk Initial Inventory Power to Time (ms) Disk & ACAT Status Name Value Short Value Tangible Key Value Balance Add Stock Value 200 200 52 0 Normal Add Trading Performance 1.68 1.68 40 0 Normal Add Buy Now 214 214 33 7 Normal Add Turnover Count 200 200 0 66 Normal Add Recrued Sector Count 200 200 0 0 Normal Add Stock Price 200 200 47 0 Normal Add Buy Volume 200 200 40 0 Normal Add Power Shares 99 99 0 734 Normal Add Equity Count 200 200 0 0 Normal Add Stock Price Count 200 200 0 63 Normal Add Stock Price Count 200 200 0 0 Normal Add Power Shares Count 200 200 0 54 Normal Add Cycle Count 200 200 0 6815 Normal Add Stock Count 200 200 0 195952 Normal Add Recrued Sector Count 200 200 0 0 Normal Add Stock Price Count 200 200 0 0 Normal Add Recrued Sector Price Count 200 200

8 Playback & Export

8.1 Instant Playback

Click ▶ on the tool bar at the bottom of the preview camera window to play back the record (click ▶ on the tool bar at the bottom of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback time to play back the record.

Interior view of a modern building with large windows and a person standing near a railing (no visible text or symbols)

8.2 Playback Interface Introduction

Click 📄 on the tool bar at the bottom of the live view interface or click Start→Playback to go to the playback interface as shown below (click 📄 on the tool bar at the bottom of the live view interface to set the default playback time).

No Data

Button Meaning
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	OSD ON button. Click it to enable OSD; clickto disable OSD.
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Clickto stop backward 30s and clickto stop forward 30s.
	Event list/tag button. Click it to view the event record of manual/schedule/sonor/ motion and the tag information.
	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.
	Backup status button. Click it to view the backup status.
	Back button. Click it to return.
	Full screen motion button.
	Motion button.
	Draw line button. You can search the record of crossing the line after drawing the line.
	Draw quadrilateral. You can search the record in this quadrilateral after drawing it.
	Smart playback settings. Click it to set smart playback.

Introduction of area ②:

Button Meaning
	Click it to go to record search and export interface; see 8.3 Record Search.Playback & Export for details.
	Click it to Go to the live view interface; see Chapter 5 Live View Introduction

Playback & Backup

NVR User Manual

Introduction of area ④:

You can check the record type as required for record playback; first you should click ☐ on the tool bar at the bottom of the Interface to clear all the playback camera, then check the record type [☐: manual record; ☐: sensor based record; ☐: motion based record; ☐: schedule record; ☐: analytics record; and finally click + in the playback window to add camera for playback {the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤):

Click 📋 to set the date; click 🔒 to set the time and then the playback camera will play the record from the time you set.

A tool bar will appear after moving the mouse to the record time scale. Click / to zoom the timeline; click to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playback cameras.

The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set.

Drag the color block on the time scale to select the backup area and then right click the area or click to pop up a export information window. Click button in the window to pop up the export window. Select the device, export path and format and then click "Export" button to start the backup.

8.3 Record Search, Playback & Export

The record data and the captured pictures can be exported through network, USB (U disk or USB mobile HDD). The file system of the export devices should be FAT32 format.

8.3.1 EZ Search

① Click Start→Search and Export→EZ Search to go to the "EZ Search" tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

Search and Export Current Search/Export 1 View Black: Save B1/0028.13

Record Backup Device Name ExternalStorage: 0808-4ACI Refresh Free:28.96 GB/All: 29.27 GB Name Type Size Modify Date Backup Directory 0.00 KB 2011/11/03 16:54:51 Format Private New Folder Delete Export Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click "Playback" button to play the record in the playback interface (refer to 8.2 Playback Interface introduction for details). Click "Exit" to exit the interface.

Search and Export Playoff Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Action Reaction

Playback & Backup

NVR User Manual

Search and Export 06/13/2018 09:29:24 File CameraOut

8.3.3 Time Search

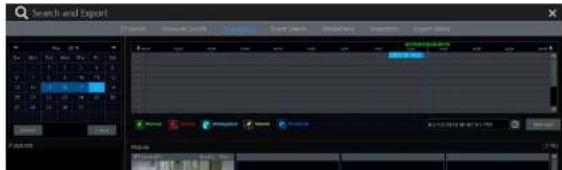

① Click Start→Search and Export→Time Search to go to the "Time Search" tab as shown below.
② Click on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set.
Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" button on the bottom left corner of the interface to set the backup start time and end time) and then click "Export" button for record backup. Click "Playback" button to play the record in the playback interface.

Search and Export Track Scene 1 Scene 2 Scene 3 Scene 4 Scene 5 Scene 6 Scene 7 Scene 8 Scene 9 Scene 10 Scene 11 Scene 12 Scene 13 Scene 14 Scene 15 Scene 16 Scene 17 Scene 18 Scene 19 Scene 20 Scene 21 Scene 22 Scene 23 Scene 24 Scene 25 Scene 26 Scene 27 Scene 28 Scene 29 Scene 30 Scene 31 Scene 32 Scene 33 Scene 34 Scene 35 Scene 36 Scene 37 Scene 38 Scene 39 Scene 40 Scene 41 Scene 42 Scene 43 Scene 44 Scene 45 Scene 46 Scene 47 Scene 48 Scene 49 Scene 50 Scene 51 Scene 52 Scene 53 Scene 54 Scene 55 Scene 56 Scene 57 Scene 58 Scene 59 Scene 60 Scene 61 Scene 62 Scene 63 Scene 64 Scene 65 Scene 66 Scene 67 Scene 68 Scene 69 Scene 70 Scene 71 Scene 72 Scene 73 Scene 74 Scene 75 Scene 76 Scene 77 Scene 78 Scene 79 Scene 80 Scene 81 Scene 82 Scene 83 Scene 84 Scene 85 Scene 86 Scene 87 Scene 88 Scene 89 Scene 90 Scene 91 Scene 92 Scene 93 Scene 94 Scene 95 Scene 96 Scene 97 Scene 98 Scene 99 Scene 100

Playback & Backup

NVR User Manual

Search and Export File Edit View Insert Tools Help Tools Remove Settings Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tots 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. 37. 38. 39. 40. 41. 42. 43. 44. 45. 46. 47. 48. 49. 50. 51. 52. 53. 54. 55. 56. 57. 58. 59. 60. 61. 62. 63. 64. 65. 66. 67. 68. 69. 70. 71. 72. 73. 74. 75. 76. 77. 78. 79. 80. 81. 82. 83. 84. 85. 86. 87. 88. 89. 90. 91. 92. 93. 94. 95. 96. 97. 98. 99. 100. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26. 27. 28. -100% 3. -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% -100% (See Page: F:\T\B\M) Import Export Help Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools Help Tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help tools help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help teams help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help groups help Groups Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Expenses & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Other Effects & Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help

② Check the event type in the interface as required.
③ Click to set the start time and end time on the top left of the interface.
④ Check cameras on the left side of the interface or check "All" to select all the cameras and then click to search the record. The searched record will be displayed in the list.
Click In the list to play back the record in the popup window. Click to back up one record data or check multiple record data in the list and then click "Backup" button for record batch backup.
⑥ Select one record data in the list and then click "Playback" button to play the record in the playback interface.

8.3.5 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback Interface and then click 📄 on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera. Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

Search and Export No. Name Search Type Date Status Report Date Report Status Index Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help Help 1.P/Commod_20140118-10322.P/Commod 到 01:09:16 15:37:50 2.P/Commod_20140118-10349.P/Commod 到 01:09:16 15:38:50 3.P/Commod_20140118-10366.P/Commod 到 01:09:16 15:39:50 4.P/Commod_20140118-10384.P/Commod 到 01:09:16 15:40:50

Click In the interface to play the record. Click to edit the tag name. Click to delete the tag.

View Image Camera Name: P Camera1 Time: 10/27/2015 14:55:01 Creator: P Camera1 Edit

8.3.7 View Export Status

Click Start→Search and Export→Export Status or click 📄 on the tool bar at the bottom of the playback interface to view the export status.

9 Alarm Management

9.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera. ① Click Start→Settings→Alarm→Sensor Alarm to go to the following Interface.

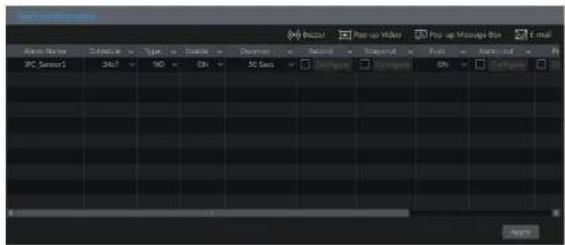

Audio Name 95C Sensor1 Audio Play up Video Play up Mouse 8 Box E-mail Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box Play up Video Play up Mouse 8 Box

② Select schedule and the alarm type (NO or NC) according to trigger type of the sensor.
③ Enable the sensor alarm of each camera.
④ Check the "Duration", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.
⑤ Click "Apply" to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows.

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Record: check it and then the "Trigger Record" window will pop up automatically (you can also click "Configure" button to pop up the window). Select camera on the left side and then click ■ to set the camera as the trigger camera. Select trigger camera on the right side and then click

to cancel the trigger camera. Click "OK" button to save the settings. The trigger cameras will record automatically when the sensor alarm is triggered.

Snapshot: check it and then the "Trigger Snapshot" window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will snap automatically when the sensor alarm is triggered.

Push: check it and choose NO or OFF. If it is ON, the system will send messages when the sensor alarm is triggered.

Alarm-out: check it and then the "Trigger Alarm-out" window will pop up automatically. Configure the trigger alarm-out in the window. The system

Camera Name ON 5 20 Seps IP Camera1 ON 5 20 Seps IP Camera2 ON 5 20 Seps IP Camera3 ON 5 20 Seps Duration: 200 Seps OK Cancel Preview View Current IP Camera4 Window ON 50 Sequence: 200 Seps Receiving Mode... Apply

② Select the camera, enable the motion and set the sensitivity and duration of the camera. Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the

value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Duration: It refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Drag the camera image to set the motion area. Click "All" to set the whole camera image as the motion area. Click "Reverse" to swap the motion area and the non-motion area. Click "Clear" to clear all the motion areas.
④ Click "Apply" to save the settings. Click "Processing Mode" to go to the alarm handling configuration interface of the motion alarm.

9.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current Current

Alarm Management

NVR User Manual

© Click "Processing Mode" to go to the alarm handling configuration interface of object detection.

Image Object Detection Object Type Area Area name Ceramics Name PT重映片 OFF Abandoned Object 1 PT重映片 OFF Abandoned Object 1 PT重映片 OFF Abandoned Object 1 Clear area Clear Preview to Play OK

Object Detection Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Object Detection to go to the following interface.

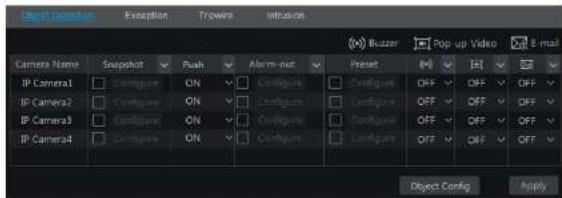

Camera Name Snapshot Push Alarm-out Preset OFF OFF OFF IP Camera1 Configure ON Configure Configure Configure OFF OFF OFF IP Camera2 Configure ON Configure Configure Configure OFF OFF OFF IP Camera3 Configure ON Configure Configure Configure OFF OFF OFF IP Camera4 Configure ON Configure Configure OFF OFF OFF Object Config Apply

② Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

Scene Change Video Buried Video Color Curr Sensitivity Context Name IP通道1 OFF V OFF V OFF V IF IP通道2 OFF V OFF V OFF V IP通道3 OFF V OFF V OFF V IF Preview to Note OK

② Select the camera and enable the relevant detection as needed.

Scene Change: Alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: Alarms will be triggered if the video becomes blurry.

Video Color Cast: Alarms will be triggered if the video becomes obscured.

③ Set the sensitivity of the exception detection.

④ Click "Apply" to save the settings.

⑤ Click "Processing Mode" to go to the alarm handling configuration interface of exception detection.

Exception Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Exception to go to the interface.

Object Detection	Excess	Triplets	Invasion
				(●) Buzzer	Pop-up Video			E mail
Camera Name	Snapshot	Push	Alarm-out	Preset	RQ	HC	OFF	OFF
IP Camera1	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera2	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera3	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera4	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF

Alarm Management

NVR User Manual

Open Direction Direction Show Follow View Timeline Line Direction Camera Name P: 01 P: 02 P: 03 P: 04 P: 05 P: 06 P: 07 P: 08 P: 09 P: 10 P: 11 P: 12 P: 13 P: 14 P: 15 P: 16 P: 17 P: 18 P: 19 P: 20 P: 21 P: 22 P: 23 P: 24 P: 25 P: 26 P: 27 P: 28 P: 29 P: 30 P: 31 P: 32 P: 33 P: 34 P: 35 P: 36 P: 37 P: 38 P: 39 P: 40 P: 41 P: 42 P: 43 P: 44 P: 45 P: 46 P: 47 P: 48 P: 49 P: 50 P: 51 P: 52 P: 53 P: 54 P: 55 P: 56 P: 57 P: 58 P: 59 P: 60 P: 61 P: 62 P: 63 P: 64 P: 65 P: 66 P: 67 P: 68 P: 69 P: 70 P: 71 P: 72 P: 73 P: 74 P: 75 P: 76 P: 77 P: 78 P: 79 P: 80 P: 81 P: 82 P: 83 P: 84 P: 85 P: 86 P: 87 P: 88 P: 89 P: 90 P: 91 P: 92 P: 93 P: 94 P: 95 P: 96 P: 97 P: 98 P: 99 Close Line Close

② Select the camera, enable the line crossing detection.

③ Select the direction.

Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alert line.

A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the intruder crosses over the alert line from A to B.

A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.

④ Draw line. Refer to the interface as shown above. Check "Draw line" and then drag the mouse in the image to draw an alert line. Uncheck the "Draw line" if you finish the drawing. Click the "Clear" to delete the alert line.

⑤ Click "Apply" to save the settings.

© Click "Processing Mode" to go to the alarm handling configuration interface of line crossing detection.

Tripwire Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Tripwire to go to the following interface.

Alarm Management

NVR User Manual

⑤ Click "Apply" to save the settings.
© Click "Processing Mode" to go to the alarm handling configuration interface of intrusion detection.

Drive Detection Functions Types Air Air Prescued for Camera Name IP 通道B1 OFF 1 IP 通道C2 OFF 1 IP 通道D3 OFF 1 Auto Drive time Clear Processing Unit Apply

Intrusion Detection Alarm Handling Configuration:

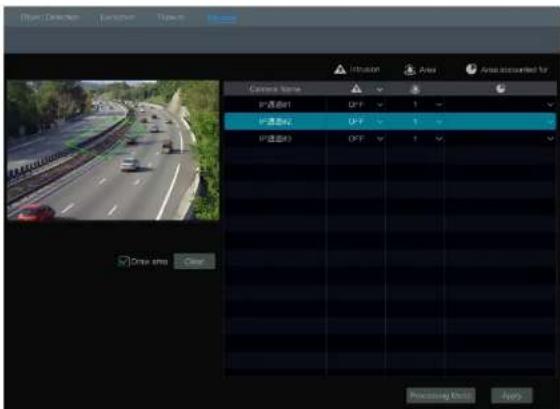

① Click Start→Settings→Alarm→Intelligence Alarm→Intrusion to go to the following interface.

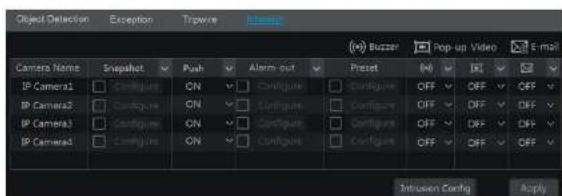

Object Detection Exception Traverse Camera Name Snapshot Push Alarm-out Preset Off OFF OFF IP Camera1 Configure ON Configure Configure OFF OFF OFF IP Camera2 Configure ON Configure Configure OFF OFF OFF IP Camera3 Configure ON Configure Configure OFF OFF OFF IP Camera4 Configure ON Configure Configure OFF OFF OFF Inclusion Config Apply

Alarm Management

NVR User Manual

File Edit Settings Name: New York Media Category Name Signal Font Audio sub Fillet Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Add Edit

9.4.2 Warning Handling Settings

① Click Start→Settings→Alarm→Exception→Warning Handling Settings to go to the interface as shown below.
② Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

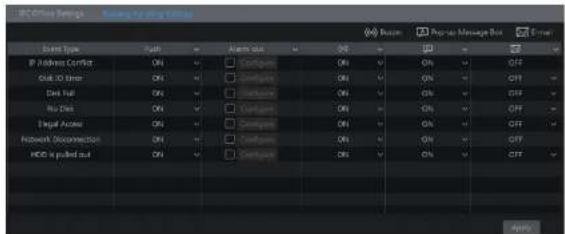

IEC Office Settings - Sourcing by ping Options Event Type: Status IP Address Correct ON Out ID Error ON Out Fail ON No Data ON Digital Access ON Facebook Connection ON HDD is pulled out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status Out ON Status 0 Status 1 Status 2 Status 3 Status 4 Status 5 Status 6 Status 7 Status 8 Status 9 Status 10 Status 11 Status 12 Status 13 Status 14 Status 15 Status 16 Status 17 Status 18 Status 19 Status 20 Status 21 Status 22 Status 23 Status 24 Status 25 Status 26 Status 27 Status 28 Status 29 Status 30 Status 31 Status 32 Status 33 Status 34 Status 35 Status 36 Status 37 Status 38 Status 39 Status 40 Status 41 Status 42 Status 43 Status 44 Status 45 Status 46 Status 47 Status 48 Status 49 Status 50

9.5 Alarm Event Notification

9.5.1 Alarm-out

① Click Start→Settings→Alarm→Event Notification to go to the following interface.

Alarm Management

NVR User Manual

and the pop-up message box. Click "Apply" to save the settings.

Pop-up Video Duration 5 Secs Pop-up Message Box Duration 10 Secs Apply

9.5.4 Buzzer

Click Start→Settings→Alarm→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click "Apply" to save the setting. You can click "Test" to test the buzzer.

9.5.5 Push Message

Click Start→Settings→Alarm→Event Notification→Push Message to go to the interface as shown below. Check "Enable" and then click "Apply" button to save the settings. If Push Server is online, it will push messages to the mobile clients.

0.5 Manual Alarm

Alarm Management

NVR User Manual

Suzzer Alarm-in Alarm-out Motion Intelligence Exception Normal Normal Normal Normal Exception Exit

Click "Clear" button to stop the buzzer when the buzzer alarm happens. Click 🤒 to view the detail information as shown below.

Blazer Alarm-In Normal Alarm-out Normal Motion Normal Intelligence Normal Exception Exception Alarm Source : Device Name Alarm Time : 06/05/2018 11:34:06 Status : No Disk Trigger Alarm out : None Trigger Blazer ON Exit

If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page. Click / to view the exception alarm information in the previous/next page. Click to play the alarm record.

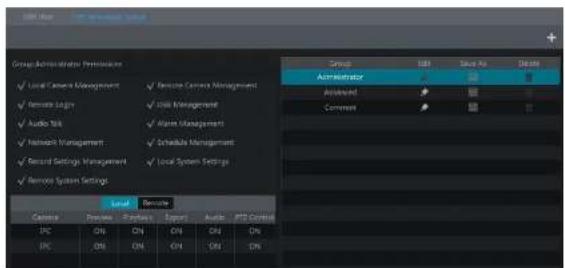

10 Account & Permission Management

10.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

User admin Remissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Login ✓ Risk Management ✓ Audio Talk ✓ Alarm Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings ✓ Account and Authority Local Remote Camera Process Retryback Backup PFZ Control Camera1 CN CN CN CN Camera2 CN CN CN CN Camera3 CN CN CN CN Camera4 CN CN CN CN Username Group MAC Address Ride Down Admn Advisor 00:00:00:00:00 1 Column 00:00:00:00:00

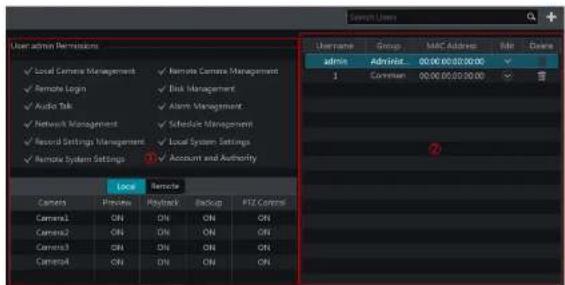

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions in area ①.

There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group for details).

Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

10.1.1 Add User

① Click Start→Settings→Account and Authority→Account→Add User or click + beside the search box to pop up the window as shown below.

Add User Username: Other Username Password: Other Password Confirm Password: Other Password

Account & Permission Management

NVR User Manual

Edit Security Question

You can set password security only for admin. Click "Edit Security Question" and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAQ for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the settings.

Modify Pattern Lock

Some models may not support this function. Click "Modify Pattern Lock" to pop up a window.

Modify Pattern Lock Current Password Pattern Lock Enable Edit OK Cancel

Enter current password and then check "Enable" to input pattern lock.

➢ Recover Password

Click "Recover Password" to reset the password to 123456.

to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group Administration Preferences ✓ Local Control Management ✓ Remote Control Management ✓ Remote Logis ✓ Disk Management ✓ Audio Bits ✓ Main Management ✓ Network Management ✓ Endable Management ✓ Second Settings Management ✓ Local System Settings ✓ Remote System Settings Local Devote Control Device Project Export Audio PTS Control IPC ON ON ON ON ON IPC ON ON ON ON ON

Click + to add permission group. Set the group name, check the permissions as needed and then set the "Local" and "Remote" permissions. Click "Add" to save the settings.

Add Permission Group Group Name Enter Permission Group Name Local Camera Management Remote Login Audio Talk Network Management Record Settings Management Remote System Settings Remote Camera Management Disk Management Alarm Management Schedule Management Local System Settings Account and Authority Local Remote Camera Preview Playback Export Audio PTZ Control IPC OFF OFF OFF OFF OFF OFF IPC OFF OFF OFF OFF OFF

Account & Permission Management

NVR User Manual

File Edit View List Prelicise On Imagelet File List Create Office List Create Book List Name: IP:000C.ADEGNTS Size Delete Win: 181.158 LJS Add IP Add MISC Apply

② Check "Enable" and then choose "Enable Allow List" or "Enable Block List" (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot).
③ Add IP/IP segment/MAC. Click "Add IP" or "Add MAC" button and then check "Enable" in the popup window (only if you check it can the IP/IP segment/MAC you add be effective). Enter the IP/IP segment/MAC and then click "OK" button. In the above interface, click to edit IP/IP segment/MAC, click to delete it. Click "Apply" to save the settings.

10.5 Preview On Logout

Click Start→Settings→Account and Authority→Security→Preview On Logout to go to the following interface.

Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Channel Channel1 Channel2 Channel3 Channel4 Channel5 Channel6 Channel7 Channel8 Channel9 Channel10 Channel11 Channel12 Channel13 Channel14 Channel15 Channel16 Channel17 Channel18 Channel19 Channel20 Channel21 Channel22 Channel23 Channel24 Channel25 Channel26 Channel27 Channel28 Channel29 Channel30 Channel31 Channel32 Channel33 Channel34 Channel35 Channel36 Channel37 Channel38 Channel39 Channel40 Channel41 Channel42 Channel43 Channel44 Channel45 Channel46 Channel47 Channel48 Channel49 Channel50 Channel51 Channel52 Channel53 Channel54 Channel55 Channel56 Channel57 Channel58 Channel59 Channel60 Channel61 Channel62 Channel63 Channel64 Channel65 Channel66 Channel67 Channel68 Channel69 Channel70 Channel71 Channel72 Channel73 Channel74 Channel75 Channel76 Channel77 Channel78 Channel79 Channel80 Channel81 Channel82 Channel83 Channel84 Channel85 Channel86 Channel87 Channel88 Channel89 Channel90 Channel91 Channel92 Channel93 Channel94 Channel95 Channel96 Channel97 Channel98 Channel99 Channel100

11 Device Management

11.1 Network Configuration

11.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automatically", "Obtain an IPv6 address automatically" and "Obtain DNS automatically" to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click "Apply" to save the settings.

User and User Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Size: 100 Output: Output: Output: Output:

Note:

- Internal Ethernet Port

if you use the NVR with the PoE network ports, click "Internal Ethernet Port" to go to the following interface.

The internal ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal ethernet port is broken. The network addresses of the internal ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (It is not recommended to change the network addresses of the internal ethernet port).

IP Address Settings Ethernet Port & (Online) Internal Ethernet Port Address Address 10 115 121 1 Address Socket Mask 212 0 3 5 Stack Length Preferred DNT Alternate DNT Apply

Device Management

NVR User Manual

stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as required.

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

11.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the interface as shown below. Check "Enable" in "PPPoE Settings" and then enter the username and password obtained from the dealer. Click "Apply" to save the settings.

PPPoF Settings Enable Username xxx Password ****** Apply

11.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click Start→Settings→Network→DDNS to go to the Interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown, you can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDNS Enable DDNS Type specodins.net Server Address Enter Address Domain Name specaEB.DAC specodins.net Username Enter UserName Password Enter Password Text Apply

Sender Sender Name: Enter Sender Name Email Address: Enter Address SMTP Server SMTP Port: Enter Port Default SSL: No Attaching Image: No Anonymous Login Username Password: Enter Password Edit Recipient Test Apply

Click "Edit Recipient" to go to the following interface.

E-mail Notification Sender [e-mail] Edit Sender No. Recipients Schedule Delete 1 [e-mail] 24x7 2 [e-mail] 24x5 Add Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click "Add" in the window to add the recipient. You can also change the recipient's receiving schedule by clicking In the "Schedule" column. Click to delete the recipient in the list. Click "Apply" to save the settings. Click "Edit Sender" to go to the e-mail configuration interface of the sender.

11.1.6 UPnP Configuration

UFP Enable Map Type Manual Port Type External Port External IP Address Port UFP Status Edit HTTP Port 80 183.17.254.19 Valid UPnP HTTPS Port 443 183.17.254.19 Valid UPnP Server Port 6036 183.17.254.19 Valid UPnP RTSP Port 554 183.17.254.19 Valid UPnP Refresh Apply

11.1.7 NAT Configuration

Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login. You can also scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the mobile client instantly.

11.1.8 View Network Status

Click Start→Settings→Network→Network Status to view the network status or click 📄 on the tool bar at the bottom of the live view interface to view network status conveniently.

11.2 Basic Configuration

11.2.1 General Configuration

Click Start→Settings→System→Basic→General Settings to go to the following Interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automatically", "Log Out Automatically" (if checked, you can set the wait time), "App Live Self-Adaption" and "Dwell Automatically" (if checked, you can set the wait time). Click "Apply" to save the settings.

General Settings Device Name Device Name Device No. 1 Language English Video Format NTSC Main Output 128x1024

Device Management

NVR User Manual

You can manually set the system time or synchronize system time with network through NTP.

Manual: select "Manual" in the "Synchronous" option and then click after the "System Time" option to set the system time.

NTP: select "NTP" in the "Synchronous" option and then enter the NTP server.

Date and Time System Time 11/03/2015 17:02:13 Date Format Month/Day/Year Time Format 24-Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT+08 Beijing, Hong Kong, 5 DST Create Apply

11.3 Factory Default

Click Start→Settings→System→Maintenance→Factory Default and then click "Reset to factory default" button in the Interface to reset to the factory default settings(check "Reset retain Network Configuration" to retain the network settings).

Note: Resetting to the factory default settings will not change time zone.

11.4 Device Software Upgrade

- Upgrade

You can click Start→Settings→System→Information→Basic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

① Copy the upgrade software into the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start→Settings→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" option and go to the path where the upgrade software exists. Select the upgrade software and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

Auto-check for updates Current Version 1.3.2.10/2017/2017 NBL U (20A/MD) beta This is in the latest versions. Don't power of during the upgrade process. Direct for Updates 工程建设 Apply

11.5 Backup and Restore

You can back up the configuration file of the NVR by exporting the file to other storage devices; you can recover the configuration to other NVRs which are of the same model with the NVR by importing the configuration file to other NVRs for time saving. Insert the USB storage device into the USB interface of the NVR and then click Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

- Backup

Select the USB device in "Device Name" option; go to the path where you want to store the configuration backup file and then click "Backup" button; finally click "OK" button in the popup window.

- Recover

Select the USB device in "Device Name" option; find the configuration backup file and then click "Recover" button; finally click "OK" button in the popup window.

11.6 Restart Automatically

You can set the automatic restart time for the NVR to maintain it regularly. Click Start→Settings→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click "Apply" to save the settings. The NVR will restart automatically at the pointed time every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23 : 59 Apply

Device Management

NVR User Manual

Choose the log file in the list and then click "Export" button to export the log file. Click on the "Content" title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click to play the video log.

11.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" information of the system.

12 Remote Surveillance

12.1 Mobile Client Surveillance

① Enable NAT in the NVR. Refer to 11.1.7 NAT Configuration for details.
② Scan the QRCode through the Speco Blue App available for IOS and Android to easily and securely view your cameras.
⑤ Run the mobile client, go to the "Add Device" interface and then click → to scan the QRCode of the NVR (Go to Start→Settings→System→Information→Basic to view the QRCode of the NVR).
④ After scanning the QRCode successfully, enter the login password to log in mobile client.

Add device My device Pick name User Password Play

QR code scanning Album

Mobile viewing is also available on our SecureGuard client app.

12.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" Interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Open the web browser on your computer, enter the IP address of the NVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top right corner of the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Remote Surveillance

NVR User Manual

② Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, Input the QR code number, your username and password to login.

speco technologies Giving You More.

PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE settings" and then enter the username and password you get from your ISP. Click "Apply" to save the settings.
② Click Start→Settings→Network→Network Status to view the IP address of the NVR.
② Open the web browser on your computer, enter the IP address of the NVR like http://210.21.229.138 in the address bar and then press enter to go to the login Interface. Enter the username and password of the NVR in the Interface and then click "Login" to go to the live view Interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the NVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
① Get the WAN IP address of the NVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 in the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the NVR. Click Start>Settings→Network→DDNS to set DDNS (see 11.1.4 DDNS Configuration for details). By using DDNS function you can use the domain name plus HTTP port like http://sunshine.dsvdydns.com:100 to access the NVR via internet.

12.4 Web Remote Control

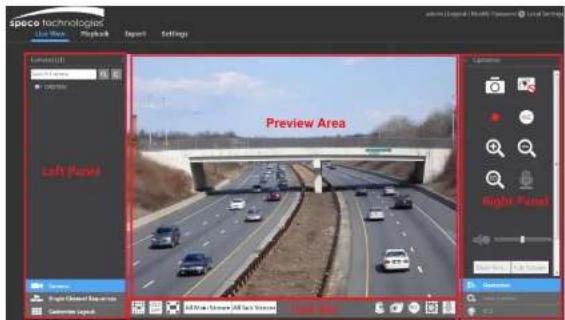

speco technologies Live State Playback Export Settings Left Panel Preview Area Right Panel Left Panel Left Panel Right Panel Left Panel Left Panel

Start Preview

Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click 📄 in the tool bar to view all the cameras.

> Left Panel Introduction

Click < on the left panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the left panel.

• View Camera

Click Camera to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in Camera (3/4) on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Enter the camera name In the search box and then click to search the camera. Click to refresh the camera list.

• View Group

Click Single Channel Sequences to view the groups. All groups and all cameras in the group can be shown in the left panel.

• View Scheme

Click Customize Layout to view the scheme (or planning). All schemes can be shown in the left panel. Double click the scheme name to invoke it quickly

➢ Tool Bar Introduction

Click

to go to "Lens Control".

Click

Operation

to go to "Operation" panel.

Operation Main Struts... Sub Struts Resolution: 1000x1080 FPS: 30 Max Bitrate: 1000fps Apply Operation Lens Control PTZ

PTZ Zoom Focus 6x Operation Lane Control PTZ

Click one camera window in the preview area and then click [Main Stream] to set the camera's live view stream and record stream to main stream in manual record mode; click Sub-stream to set the camera's live view stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click "Apply" to save the settings.

Operation panel introduction:

Button Meaning
	Click it to take snapshots.
	Click it to start recording to computer; click it again to stop recording.
	Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	Click it to zoom out the image of the camera.
	The 3D zoom in function is designed for P.T.Z. Click the button and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome one-directionally.

Remote Surveillance

NVR User Manual

Button Meaning
5	Click it to view the cruise list and then click the corresponding buttons in the list to start or stop the cruise.

12.4.2 Remote Playback

Click "Playback" In the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.

② Click 9 to search the record data and then click ① or directly click the time scale to play the record.

The operation of the playback time scale is similar to that of the time scale in the main program of the NVR. Please refer to 8.2 Playback Interface Introduction for details.

Introduction of playback control buttons:

Button Meaning
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. it works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Click to step backward 30s and click to step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Export button.
	Backup tasks button. Click it to view the backup status.
	Event list button. Click it to view the event record of manual/schedule/sensor/motion.

12.4.3 Remote Export

Click "Export" In the remote Interface to go to the export Interface. You can export the record by event search or by time search.

Event Search

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
c. Please make sure the HDDs are compatible with the NVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad. Change a new one.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the NVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*2K). The NVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the NVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the NVR.

Q4. Forget the passwords?

a. The password for admin can be reset through "Edit Security Question" function.
Click "Edit Security Question" button in the login window and then enter the corresponding answer of the selected question in the popup window, the password for admin will be reset to 1234 by default. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.
b. The passwords of other users can be reset by admin, please refer to 10.1.2 Edit User for details.

Q5. The NVR cannot add up to the maximum number of IP cameras?

Take the 16 CH NVR as an example. Some 16 CH NVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by "Quickly Add" for batch adding.

Add Camera Quickly Add Add Manually Add Recorder No. Address Port Edit Subnet Mask Protocol��el_VERSION

connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won't be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.

- Take the 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH IP cameras is shown in the picture below and the adding rules of the IP cameras are similar to the rules mentioned in the above. Please refer to the above for details.

CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
POB-1	POB-2	POB-3	POB-4	POB-5	POB-6	POB-7	POB-8

b. Please make sure that the internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol are in the same network segment.

The internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol should be in the same network segment, or you will fail to add the IP camera. Log In the IP camera's web client and then enable DHCP (obtain an IP address automatically); or manually change the IP address of the IP camera to make it in the same network segment with the internal ethernet port.

c. Check whether the number of the added IP camera is the maximum.

If the number of the added IP camera is the maximum, the system will show you the message that the IP camera number is beyond the maximum when you directly connect another IP camera to the available PoE port and thus you will fail to add the IP camera.

Q7. The IP camera which directly connects to the PoE port of the NVR through ONVIF protocol is shown in the camera list, but there is no image output, why?

Please make sure the username and password of the IP camera are correct. The IP camera's username and password can be modified through the two ways mentioned as below.

① Click "Edit Camera" in the Camera module of the setup panel to go to the interface as shown below. Click → to modify the username and password of the IP camera (enter the correct username and password of the IP camera in the popup window and then click "OK" button).

No. Camera Name Address Part Status Protocol Model Preview Edit Upgrade Version 1 IPCE1IP Camera1 80.151.151.20 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 2 IP Camera2 192.168.12.40 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 3 IP Camera3 192.168.12.15 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 4 IP Camera4 192.168.12.41 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 5 IP Camera5 192.168.12.157 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 6 IP Camera6 192.168.12.154 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 7 IP Camera7 192.168.12.157 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 8 IP Camera8 192.168.12.154 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 9 IP Camera9 192.168.12.157 80 Online CHWP exp ▼ ▼ ↑ 3.4.2 10 IPCE1IP Camera10 192.168.12.154 80 Online CHWP exp ▼ ▼ ↑ 3.4.2

cannot access the NVR remotely.

Q10. ActiveX control cannot be downloaded. How can I do?

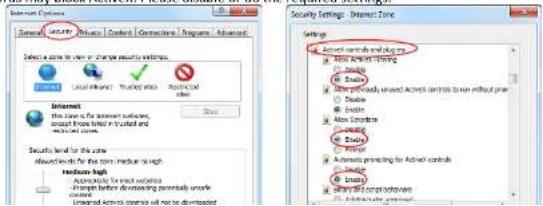

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click →Internet Options.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.

③ Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 10-2.

④ Then click "OK" to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

Internet Options General Active Controls Controls Controls Programs Advanced Select a zone to view or change security settings. Local network: Trusted info. Rejected video Internet This zone is for Internet surfaces, except from label in trusted and used video. Security level for the zone about levels for the zone, local level and medium-high Accesses for most instances change before demonstrating potentially unsafe Unlimited Active controls will not be downloaded Security Settings: Internet Zone Active controls and other Active controls (including Image) Active controls (including Image) Active controls (including Image) Active controls (including Image) Active controls (including Image) Active controls (including Image)

format.

b. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format.

RPAS Play List RPAS Open Folder Open Link 84% 40% 2019/7/02 15:00:02

Fig 11-1

RPM5 Play 102 C:\Users\Administrator\Dr 2015.07.24 IP Camera1 Help -

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity(MB) = Bitrate(Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers 3600 means record for an hour (1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate (Kbps)	Used Space (MB/H)	Used Space (MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64800
4096	1800	43200
3072	1350	32400
2048	900	21600
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
255	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity(TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	28.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.88	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH NVR recording 24 hours per day and the record stores for 30 days. The NVR adopts dual stream recording. The main stream is 4096Kbos and the sub stream is 1024Kbos, then the total recording capacity is 49.45TB (39.56TB + 9.89TB).

Appendix C Specifications

Model		N8NRL	N4NRL
System	Compression	Standard H.265
	OS	Embedded Linux
Video	IPC Input 8CH 4CH
	Network Access Bandwidth	50Mbps 40Mbps
	Network Access Format	8MP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI>1: 4K×2K/1920x1080/1280×1024, VGA×1: 1920x1080/1280×1024
Audio	Network Input	8CH IPC audio input	4CH IPC audio input
	2-way Audio	RCA×1
	Local Output RCA×1
Record	Record Stream	Dual stream recording
	Resolution	8MP/5MP/4MP/3MP/1080P/960P/720P
	Mode	Manual, schedule, motion, sensor, intelligence
Playback	Simultaneous Playback	Max 8 CH Max 4CH
	Search Mode	EZ search, museum search, time search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, motion, exception, intelligence
	Input	Support IPC alarm input
	Output	Support IPC alarm output
	Linkage	Record, snapshot, presct, e-mail, pop-up window, etc.
Network	Interface	RI45 10M/100Mbps×1
	PoE Port RJ45×8 RJ45×4
	Protocol	TCP/IP, PPPoF, DHCP, DNS, DDNS, UPnP, NTP, SMTP
	Web Client	Multiple online users
Mobile Device	OS	iOS, Android via Speco Blue, SecureGuard Client
Storage	HDD	SATA×1, max 14TB per HDD
Export	Local	By U disk, USB mobile HDD
	Network	Yes
USB	USB	US32.0×2 (one in the front panel and the other in the rear panel)
