Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC Class2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The

product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation, storage, and installation.

This product should be installed in a cool, dry place away from direct sunlight and heat sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise, it may result in CMOS sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral

detergent. Finally use the dry cloth to clean the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an optical device, please do not touch or wipe cover surface directly during installation and use, please refer to the

Warning

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

Statement

This guide is for reference only.

Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Regulatory Information

FCC conditions:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operation.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Table of Contents

1 Introduction....2
2 Web Access and Login 3
3 Live View 5
4 Camera Configuration 7

4.1 System Configuration....7

4.1.1 System Information 7
4.1.2 Date and Time 7
4.1.3 Local Recording....8
4.1.4 Storage....8

4.2 Video Configuration....10

4.2.1 Image Configuration....10
4.2.2 Video / Audio Configuration....12
4.2.3 OSD Configuration 13
4.2.4 Video Mask 14
4.2.5 ROI Configuration 15
4.2.6 Zoom/Focus....15

4.3 Event Setup....16

4.3.1 Motion Detection 16
4.3.2 Other Alarms....17
4.3.3 Alarm In (Sensor Input)....19
4.3.4 Alarm Out 19
4.3.5 Alarm Server 20

4.4 Analytics Configuration....20

4.4.1 Exception 20
4.4.2 Line Crossing....21
4.4.3 Intrusion....23
4.4.4 Face Detection 25
4.4.5 Region Entrance....26

4.6.3 Block and Allow Lists....39
4.6.4 Security Management....40

4.7 Maintenance Configuration....41

4.7.1 Backup and Restore 41
4.7.2 Reboot 41
4.7.3 Upgrade 41
4.7.4 Operation Log 42

5 Search....43

5.1 Image Search 43
5.2 Video Search 45

5.2.1 Local Video Search....45

5.2.2 SD Card Video Search....46

Appendix 49

Appendix 1 Troubleshooting ....49

1 Introduction

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operating the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installations
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applications

Two security cameras and a laptop connected by an arrow, no text or symbols present

IP Camera

Network
Web Browser

Diagram showing a security camera icon transforming into a device (no text or symbols present)

2 Web Access and Login

The IP camera settings can be accessed via a web browser through the LAN.

Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome

It is recommended to use the latest version of these web browsers.

The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera.

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:

- Access through IP Scanner

Network connection:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.

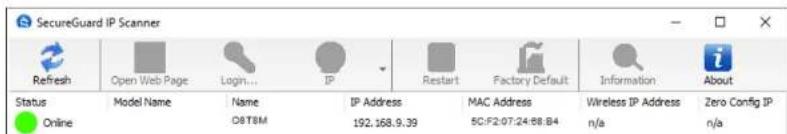

② Install IP Scanner from the CD and run it after installation. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status Model Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online 08T6M 192.168.9.39 50:F2:07:24:B8:B4 n/a n/a

Please change the default password Modify Password Match Oralf Password New Password Confirm Password Do not show again OK Cancel

If this is the first time for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the "Match Onvif Password" box (if available) or go to the the ONVIF section to change the password. (Config→Network→Ports/Connections→Onvif)

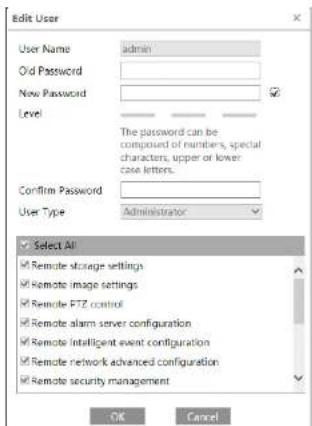

Add Modify Delete Index User Name User Type 1 admin Administrator Edit User User Name admin New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password OK Cancel

3 Live View

The window below will be shown after logging in.

Config Main stream Sub stream : Sub stream 2 Balanced CAMERA speco technologies admin | Lgout 2016/01/20 18:17:20

The following table describes the icons on the live view interface.

Icon	Description	Icon	Description

*Plug-in free live view: PTZ control, two-way audio and local recording are not supported.

● All indicator icons above will flash in live view interface only when the corresponding events are enabled.

- In full screen mode, to exit, double click on the mouse or press the ESC key on the keyboard.

Click the zoom/focus control button to show the control panel. The descriptions of the control panel are as follows:

Icon	Description	Icon	Description
	Zoom -		Zoom +
	Focus -		Focus +
	One key focus (used when image is out of focus after manual adjustment)

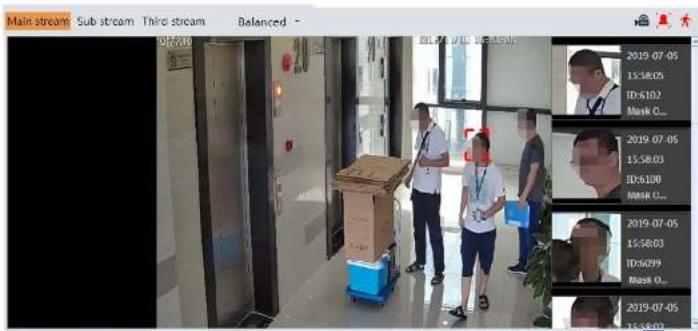

Face Capture View

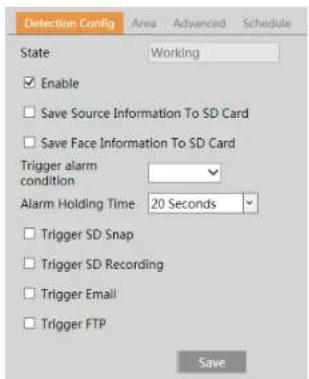

① Go to Config→Event→Face Detection interface. Check "Enable".

② Return to the live view interface. Click 📋 to go to the following interface. When there are faces detected, the face pictures will be listed on the right.

Main stream Sub stream Third stream Balanced 2019-07-05 15:58:05 ID:6102 Mask C... 2019-07-05 15:58:03 ID:6100 Mask C... 2019-07-05 15:58:03 ID:6099 Mask C... 2019-07-05 15:58:03

4 Camera Configuration

Press the "Setup" button to go to the configuration interface.

Note: Wherever applicable, click the "Save" button to save the settings.

4.1 System Configuration

4.1.1 System Information

In the "System Information" Interface, the system information of the device is listed.

Device Name	O8D8M
Product Model	O8D8M
Brand	Speco
Software Version	5.1.1.0(20697)
Software Build Date	2021-06-23
Onvif Version	20.12
OCX Version	2.1.7.8
MAC	5C:F2:07:24:68:B4
About this machine	Look Over
Privacy Statement	Look Over

4.1.2 Date and Time

To set the time and date, go to System→Date and Time. Please refer to the following interface.

Time Model: Synculatorize with NTP server NTP server: Time.windows.com Update period: 1440 Minutes Synculatorize with computer time Date: 06/05/28 Time: 06/05/28 Set manually Date: 06/05/28 Save

4.1.3 Local Recording

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files.

Picture Path C:\Program Files\Speco\ADPCamera Record Path C:\Program Files\Speco\ADPCamera Video Audio Settings Open Close Show Bitrates Open Close Local Smart Snapshot Storage Open Close Rendering Mode High-efficient Mode(Recommended) Compatible Mode Low-efficient Mode(Not Recommended) Save

Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC.

Rendering Mode: High-efficient mode, compatible mode or low-efficient mode can be optional.

If the performance of your computer is not compatible with the web client or your computer has no graphics card, low-efficient mode is suggested.

4.1.4 Storage

Go to System→Storage to go to the interface as shown below.

1. Go to Storage→Record to go to the interface as shown below.

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record (H264,H265,MJPEG) Cycle Write Yes

1. Set record stream, pre-record time and cycle writing.

Pre Record Time: Set the time to record before the actual recording begins.

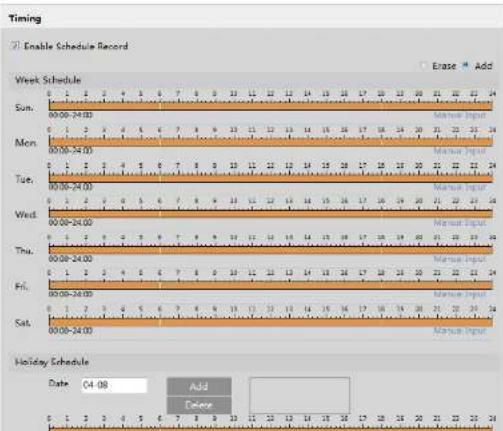

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Erase Add Week Schedule Sun. 00:00-24:00 Mon. 00:00-24:00 Tue. 00:00-24:00 Wed. 00:00-24:00 Thu. 00:00-24:00 Fri. 00:00-24:00 Sat. 00:00-24:00 Holiday Schedule Date 04:08 Add Delete

Management Record snapshot Snapshot Parameters Image Format: JPEG Resolution 704x480 Image Quality: Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here.

Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence time of an alarm event is less than the time of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable timing snapshot first and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Configuration

Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Configuration

In the Image Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the configuration file.

Camera Parameters Profile Management Config File Common Brightness 50 Contrast 50 Hue 50 Saturation 50 Sharpness 128 Noise Reduction 128 Defog 128 Auto Iris (disable without auto iris lens) BLC Off HFR Off Antiflicker Off Smart IR Off White Balance Auto Day/Night Mode Auto Sensitivity Mid Delay Time(Second) 2 Gain Mode Auto Gain Limit 50 Video Adjustment Frequency 60HZ Infra-red Mode Auto Corridor Pattern 0 Image Mirror Open Close Image Flip Open Close Default Revoke

Brightness: Set the brightness level of the camera's image.

Contrast: Set the color difference between the brightest and darkest parts.

Hue: Set the total color degree of the image.

Saturation: Set the degree of color purity. The purer the color, the brighter the image is.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Smart IR: Choose "ON" or "OFF". This function can effectively avoid image overexposure and underexposure by controlling the brightness of the IR lights according to the actual conditions to make the image more realistic. Please enable it as needed. White Balance: Adjust the color temperature according to the environment automatically.

Frequency: 50Hz and 60Hz can be optional.

Day/Night Mode: Choose "Auto", "Day", "Night" or "Timing".

Gain Mode: Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.

Frequency: 50Hz and 60Hz can be optional.

Infra-red Mode: Choose "Auto", "ON" or "OFF".

Exposure Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shutter speed can be adjusted.

Corridor Pattern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available. The default value is 0. The video resolution should be 1080P or below if this function is used.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vertically.

Schedule Settings of Image Parameters:

Click the "Profile Management" tab as shown below.

Camera Parameters Profile Management Schedule Full Time Config File Common Save

Set full time schedule for common, day or night mode and specified time schedule for day and night. Choose "Timing" in the drop-down box of schedule as shown below.

Camera Parameters Profile Management Schedule Timing Time Range

Video Audio Index Stream Name Resolution Frame Rate Bitrate Type Bitrate(Kbps) Video Quality I Frame Video Profile 1 Main stream 3840x2160 30 CBR 8192 Highest 120 H264 High Profile 2 Sub stream 1280x720 30 CBR 1536 Highest 120 H264 High Profile 3 Third stream 704x480 30 CBR 768 Higher 120 H264 High Profile Send Snapshot Sub stream Size: (704x480) Watermark (H264 , H265 ) Watermark content: Save

Click the "Audio" tab to go to the interface as shown below.

Video Audio Enable Audio Encoding G711A Audio Type MIC Save

Three video streams can be adjustable.

Resolution: The size of image.

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the better the image quality will be.

Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality, the more bitrate will be required.

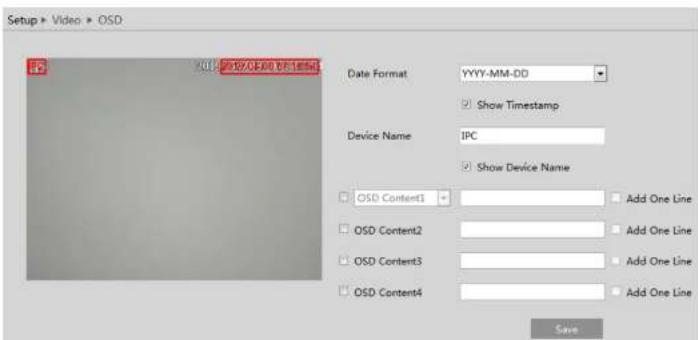

Setup > Video > OSD Date Format YYYY-MM-DD Show Timestamp Device Name IPC Show Device Name OSD Content1 Add One Line OSD Content2 Add One Line OSD Content3 Add One Line OSD Content4 Add One Line Save

Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the "Save" button to save the settings.

Picture Overlap Settings:

Check "OSD Content1", choose "Picture Overlay" and click "Browse" to select the overlap picture. Then click "Upload" to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.

4.2.4 Video Mask

Go to Image→Video Mask interface as shown below. A maximum of 4 zones can be set up.

Interior hallway with glass doors and a green carpet, no visible text or symbols

Interior hallway with glossy white flooring and a window on the left (no visible text or symbols)

To clear the video mask:

Click the "Clear" button to delete the current video mask area.

4.2.5 ROI Configuration

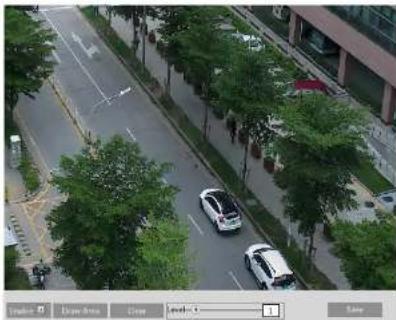

Go to Image→ROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area.

Aerial view of a multi-lane road with cars and trees, no visible text or symbols.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.

View and start switching Frame 5 One Key Frame Zoom Zoom x Reset Reset x Start

4.3 Event Setup

4.3.1 Motion Detection

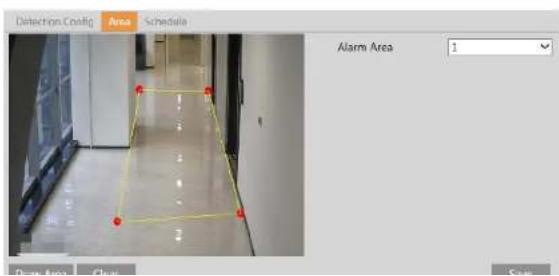

Go to Alarm→Motion Detection to set motion detection alarm.

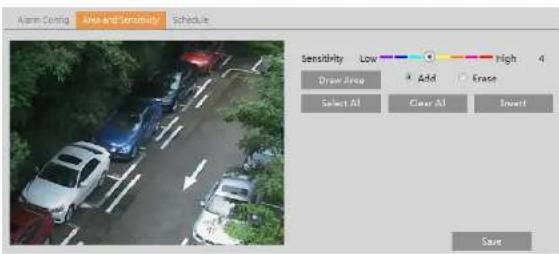

Detection Config Area and Sensitivity Schedule Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email

Alarm Coding SaaS and Sensitivity Schedule Sensitivity Low High 4 Draw Freq Add Erase Select All Clear All Insert Save

Move the "Sensitivity" scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select "Add" and click "Draw". Drag the mouse to draw the motion detection area; Select "Erase" and drag the mouse to clear motion detection area. After that, click the "Save" to save the settings. "Clear All" can be used to clear out the entire motion zone.

1. Set the schedule for motion detection. The schedule setup steps of the motion detection are the same as the schedule recording setup (See Schedule Recording).

4.3.2 Other Alarms

SD Card Full

1. Go to Alarm→Anomaly→SD Card Full.

SD Card Fuel SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

IP Address Conflict

This function is only available for the models with Alarm Out interface.

1. Go to Alarm→Anomaly→IP Address Collision as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time: 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the IP address of the camera conflicts with the IP address of other devices, the system will trigger the

4.3.3 Alarm In (Sensor Input)

This function is only available for some models. To set sensor alarm (alarm in): Go to Alarm→Alarm In interface as shown below.

Detection Config Schedule Enable Alarm Type NO Alarm Holding Time 20 Seconds Sensor Name: Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Click "Enable" and set the alarm type, alarm holding time and sensor name.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
3. Click "Save" button to save the settings.
4. Set the schedule of the sensor alarm. The setup steps of the schedule are the same as the schedule recording setup. (See Schedule Recording).

4.3.4 Alarm Out

This function is only available for some models. Go to Alarm→Alarm Out.

Alarm Out Mode Day/night switch linkage Alarm Type NC Day Close Night Close Save

Timing: Select the alarm type. Then click "Add" and drag the mouse on the timeline to set the schedule of alarm out; click "Erase" and drag the mouse on the timeline to erase the set time schedule. After this schedule is saved, the alarm out will be triggered in the specified time.

Alarm Out Mode Timing Alarm Type NC 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time Range 05:30-14:00 Erase Add Manual Input Save

4.3.5 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Set the server address, port, heartbeat, and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Detection Config Sensitivity ✓Scene Change Detection ✓Video Blur Detection ✓Video Cast Detection Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP Save

1. Enable the applicable detection that is desired.

Scene Change Detection: Alarms will be triggered if the scene of the video has changed.

Video Blur Detection: Alarms will be triggered if the video becomes blurry.

Video Cast Detection: Alarms will be triggered if the video becomes obscured.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

2. Click "Save" button to save the settings.

3. Set the sensitivity of the exception detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Non-motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Swap Trigger SD Recording Trigger Email Trigger FTP Save

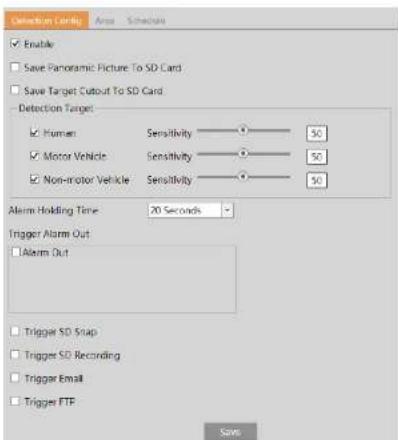

1. Enable line crossing alarm and select the snapshot type and the detection target.

Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected.

Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

Detection Target:

Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line.

Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line.

Non-motor Vehicle: Select it and then alarms will be triggered if a vehicle with two wheels (eg. a motorcycle or bicycle) crosses the pre-defined alarm line

Detection Config Area Schedule Alarm: 1 Line Direction A->B Draw Area Clear Save

Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously.

Direction: A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines. Click the "Save" button to save the settings.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Configuration of camera and surrounding area

1. Auto-focusing function should not be enabled for line crossing detection.
2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10ft or above.
4. Keep the mounting angle of the camera at about 45°.
5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image.
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.

Design Config New Substrate Enable Save Panasonic Picture To SD Card Save Target Cutout To SD Card Detection Target ✓ Human Sensitivity 100 ✓ Motor Vehicle Sensitivity 0 ✓ Non-motor Vehicle Sensitivity 0 Alarm Hosting Time 30 Seconds Trigger Alarm Out: AlarmOut Trigger SD Usage Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable intrusion alarm and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Click the "Save" button to save the settings.
4. Set the alarm area of the intrusion detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Data Area Class Scan

4.4.4 Face Detection

Face detection function is to detect the face appearing in the surveillance scene. Alarms will be triggered when a face is detected.

The setting steps are as follows:

1. Go to Event→Face Detection as shown below.

Detection Config Area Advanced Schedule State Working Enable Save Source Information To SD Card Save Face Information To SD Card Trigger alarm condition Alarm Holding Time 20 Seconds Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable the face detection function.

Save Source Information: if checked, the whole picture will be saved to an SD card when detecting a face.

Save Face Information: if checked, the captured face picture will be saved to an SD card when detecting a face.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

1. Set alarm holding time and alarm trigger options. The alarm trigger setup steps are the same as motion detection setup. Please refer to motion detection chapter for details.

2. Set alarm detection area.

rectangle to modify its size. Move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable face size by defining the maximum value and the minimum value(The default size range of a single face image occupies from 3% to 50% of the entire image).

1. Set the schedule of the face detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. Advanced configuration. Choose the snapshot interval and number as needed to avoid capturing multiple similar pictures in a very short period of time.

Detection Config Area Advanced Schedule Deduplication Period Snapshot Interval 30 Seconds Snapshot Number 3 ✓ Save

Snapshot Interval: If 5 seconds is selected, the camera will capture the same target once every 5 seconds during its continuous tracking period.

Snapshot Number: If the snapshot number is enabled and set (eg. 3), the camera will capture the same target once every 5 seconds and it will capture this target 3 times at most during its continuous tracking period. If the snapshot number is disabled, the camera will capture the same target once every 5 seconds until the target disappears in the detected area.

※ Configuration requirements of camera and surrounding area

1. Cameras must be installed in the area with stable and adequate light sources.
2. The installation height ranges from 1.9m(6.2ft) to 2.5m(8.2ft), adjustable according to the focal-length of different lenses and object distances.
3. The depression angle (a) of the camera shall be less than or equal to 15°.

Collection Config Area Schedules Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Non-motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable region entrance detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region entrance detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule 5:02 20194.84.24 17:24.5.32 Alarm Area 1

Go to Config→Event→Region Exiting interface as shown below.

Detection Config Area Schedule Enable Save Fanotomic Picture To SD Card Save Target Cutout To SD Card Detection Target ✓ Human Sensitivity 50 ✓ Motor Vehicle Sensitivity 50 ✓ Non motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP Save

1. Enable region exiting detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region exiting detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1

4.4.7 Target Counting

This function is to calculate the number of the people or vehicles crossing the alarm line through detecting, tracking and counting the shapes of the people or vehicles.

1. Go to Config→Event→Target Counting as shown below.

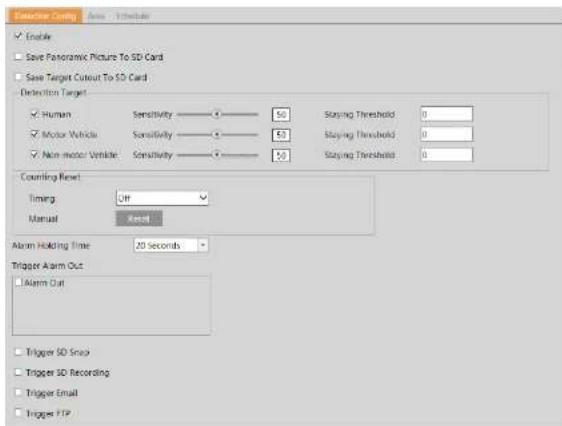

Selective Coding Save Threshold Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target ✓ Human Sensitivity 50 Staying Threshold 0 ✓ Motor Vehicle Sensitivity 50 Staying Threshold 0 ✓ Non-motor Vehicle Sensitivity 50 Staying Threshold 0 Counting Reset: Timing OFF Manual Reset Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP

1. Enable target counting and select the snapshot type and the detection target.

Detection Target: Select the target to calculate. Human, motor vehicle and motorcycle/bicycle can be selected.

Staying Threshold: When the targets (human/vehicle) staying in the specified area exceed the threshold, alarms will be triggered. Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click "Reset" to manually reset the current number of crossing line people/car/bike counting.

1. Set the area of the target counting. Click the "Area" tab to go to the interface as shown below.

Set the alarm line number and direction. Only one alarm line can be added.

Direction: A->B and A<-B can be optional. The direction of the arrow is entrance.

Statistics: If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.

The statistical OSD information can be customized as needed.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Check "Statistics" and then move the red box to change the position of the statistical information displayed on the screen. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines.

1. Set the schedule of the target counting. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

2. View the statistical information in the live view interface.

Entry: human-2 car-2 bike-0 Exit: human-8 car-2 bike-0 Stay: human-2 car-2 bike-0 Welcome

4.5 Network Configuration

4.5.1 TCP/IP

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Config" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPv4 IPv6 PPPoE Config IP Change Notification Enable User Name xxxx| Password •••••• Save

Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click "IP Change Notification Config" to go to the interface as shown below.

IPv4 IPv6 PPPoE Config IP Change Notification Trigger Email Trigger FTP Save

Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up.

Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up.

4.5.2 Port

Go to Network→Port interface as shown below. HTTP port, Data port and RTSP port can be set.

4.5.3 Server Configuration

This function is mainly used for connecting network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".
2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. Please check it in the VMS.
3. Enter the above-mentioned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the settings.

4.5.4 Onvif

The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol.

Add Modify Delete Index User Name User Type 1 Edit User Administrator Add User User Name: Password: Level: The password can be composed of members, special characters, upper or lower case entries. Confirm Password: User Type: OK Cancel

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.6 SNMP

To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

1. Go to Network→SNMP.

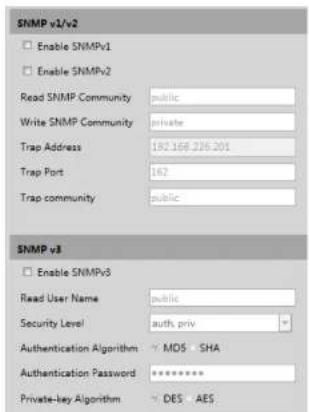

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 182.168.226.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auths priv Authentication Algorithm MDS SHA Authentication Password ****** Private-key Algorithm DES AES

4.5.7 802.1x

If it is enabled, the camera's data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed.

Enable Protocol Type EAP_MDS EAPOL Version 1 User Name Password ••••••• Confirm Password •••••••• Save

To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

4.5.8 RTSP

Go to Network→RTSP.

Enable Port 9008 Address [bp//P or domain:rtneport/profile] [bp//P or domain:rtneport/profile] [bp//P or domain:rtneport/profile] Multicast address Main stream 239.0.0.0 50154 Automatic start Sub stream 239.0.0.1 51354 Automatic start

4.5.9 RTMP

You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config→Network→RTMP.

Port Server Gmail DONG SNMP 802.1X RTSP RTMP LPnP Email Enable (Only supports H254) Stream Type: Main stream Sub stream Third stream Reconnect After Timeout 30 Second Server Address example : rtrng://127.00.1:1955/live/liv Connection Status Not Connected Refresh Save

Check "Enable", select stream type, set the reconnection time after timeout and server address as needed. Server address: Enter the server address allocated by the third party server. After that, click "Save" to save the settings. Then click "Refresh" to view the connection status.

4.5.10 UPNP

If this function is enabled, the camera can be quickly accessed through the LAN. Go to Network→UPnP. Enable UPNP and then enter UPnP name.

4.5.11 Email

If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to Network→Email.

Select the secure connection type at the "Secure Connection" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one motion alarm event is triggered and then another motion detection alarm event is triggered after 60 seconds, two emails will be sent. When different alarms are triggered at the same time, multiple emails will be sent separately.

Click the "Test" button to test the connection of the account.

Recipient Address: receiver's e-mail address.

4.5.12 FTP

After an FTP server is set up, captured pictures from events will be uploaded to the FTP server.

Go to Network→FTP.

Server Name Server Address Port User Name Upload Path Add FTP Server Name Server Address Upload Path Example/Divholder Port 21 Anonymous User Name Password On Cancel Add Modify Save Save

Server Name: The name of the FTP server.

Server Address: The IP address or domain name of the FTP.

Upload Path: The directory where files will be uploaded to.

Port: The port of the FTP server.

Idea Name and Password: The username and password that are used to login to the FTP server

the following interface will be displayed.

Enable Installation type Have digital certificate, install directly Create a private certificate Create a certificate request Install certificate Browse Install Save

* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it. * Click "Create a private certificate" to enter the following creation interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a private certificate Create Save

Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (camera's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings. * Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete Save

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Configuration

4.6.1 User Admin

Go to Security→User Admin interface as shown below.

Setup > Security > User Admin Add Modify Update Index User Name User Type Bind MAC 1 adults Administrator

Add user:

1. Click "Add" to pop up the following textbox.

Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm: Password User Type Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration

Edit User User Name admin Old Password New Password Level The password can be composed of members, special characters, upper or lower. Case letters. Confirm Password User Type Administrator Select All Remote storage settings Remote image settings Remote FTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration Remote security management OK Cancel

1. Enter the old password of the user in the "Old Password" text box.

2. Enter the new password in the "New password" and "Confirm Password" text box.

3. Modify the permission as necessary.

4. Click the "OK" button to save the settings.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user configuration list box.

2. Click the "Delete" button to delete the user.

Note: The default administrator account cannot be deleted.

4.6.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

IP Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete 0.0.0.0 IPv4 IPv6 Save

The setup steps are as follows:

Check the "Enable address filtering" check box.

Select "Block/Allow the following address", IPv4/IPv6 and then enter IP address in the address box and click the "Add" button.

4.6.4 Security Management

Go to Security→Security Management as shown below.

Security Service Password Security Authentication Enable "locking once illegal login" function Trigger Email Logout Time 3600 Second Save

In order to prevent against malicious password unlocking, "locking once illegal login" function can be enabled here. If this function is enabled, login failure after trying five times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots.

Trigger Email: if enabled, e-mail will be sent when logging in/out or illegal login lock occurs.

Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in.

4.7 Maintenance Configuration

4.7.1 Backup and Restore

Go to Maintenance→Backup & Restore.

Import Setting Path Browse Import Setting Export Settings Export Settings Default Settings Keep Network Config Security Configuration Image Configuration Factory Default

- Import & Export Settings

Configuration settings of the camera can be exported from a camera into another camera.

1. Click "Browse" to select the save path for import or export information on the PC.

2. Click the "Import Setting" or "Export Setting" button.

- Default Settings

Click the "Load Default" button to restore all system settings to the default factory settings except those you want to keep.

4.7.2 Reboot

Go to Maintenance→Reboot.

a. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100

Caution! Do not close the browser or disconnect the camera from the network during the upgrade.

4.7.4 Operation Log

To query and export log:

1. Go to Maintenance→Operation Log.

Index	Time	Main Type	Sub Type	User Name	Login IP
1	2019-04-08 08:43:43	Alarm	Motion start
2	2019-04-08 08:43:24	Alarm	Vfd Alarm
3	2019-04-08 08:43:14	Alarm	Motion stop
4	2019-04-08 08:43:20	Alarm	Motion start
5	2019-04-08 08:40:26	Alarm	Motion stop
6	2019-04-08 08:40:06	Alarm	Motion start
7	2019-04-08 08:37:18	Alarm	Motion stop
8	2019-04-08 08:34:43	Alarm	Motion start

1. Select the main type, sub type, start and end time.
2. Click "Search" to view the operation log.
3. Click "Export" to export the operation log.

5 Search

5.1 Image Search

In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Live Setup Bancore Local 4 5 6 7 8 9 Set More You Won You And Set 12 13 14 15 16 17 18 19 20 21 22 23 24 25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 1 2 3 4 5 6 7 8 9 Yachy 00:00:00 -2:5:00:00 Balanced -

- Local Image Search

1. Choose "Picture"—"Local".
2. Set time: Select date and choose the start and end time.
3. Click 🔒 to search the images.

Interior view of a modern office or meeting room with glass flooring, tables, chairs, and potted plants (no visible text or symbols)

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

Line Setup Line 10 Card File Path: Not Wild, For: Off Lost 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600 610 620 630 640 650 660 670 680 690 700 710 720 730 740 750 760 770 780 790 800 810 820 830 840 850 860 870 880 890 900 910 920 930 940 950 960 970 980 990 100

Icon		Description	Icon	Description
		Close: Select an image and click this button to close the image.		Close all: Click this button to close all images.
		Save: Click this button to select the path for saving the image on the PC.		Save all: Click this button to select the path for saving all pictures on the PC.
		Fit size: Click to fit the image on the screen.		Actual size: Click this button to display the actual size of the image.
		Zoom in: Click this button to digitally zoom in.		Zoom out: Click this button to digitally zoom out.
		Slide show play: Click this button to start the slide show mode.		Stop: Click this button to stop the slide show.
	Play speed: Play speed of the slide show.

arch

5.2.1 Local Video Search

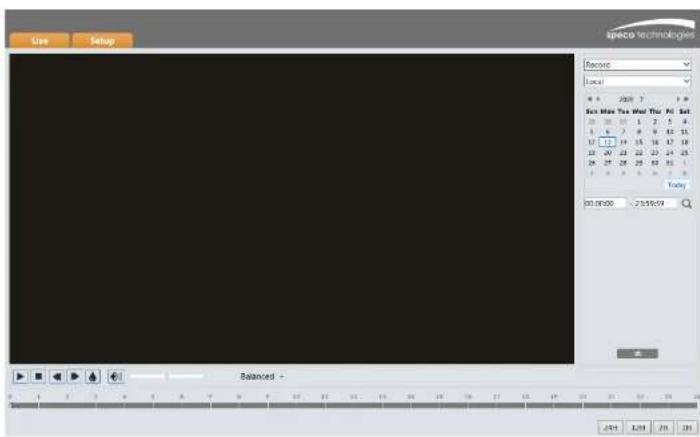

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Run More Time Wind Thu Fri Set 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 4 5 6 7 8 9 10 Tokey 00:00:00 - 23:59:59

Start Time 1 07:50:40 09:00:05 Date : 2018-01-08 Balanced 24F 12H 2H 1H

Icon	Description	Icon	Description
	Play button. After pausing the video, click this button to continue playing.		Pause button
	Stop button		Speed down
	Speed up		Watermark display
	Enable / disable audio; drag the slider to adjust the volume after enabling audio.

5.2.2 SD Card Video Search

Click Search to go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

Line Setup time 10 Cuts + 2 200 T 5.9 Sun Mode Top Wind Time Pd Sat 1 1 7 8 9 10 11 12 13 14 15 16 17 18 18 19 20 21 22 23 24 25 26 27 28 29 30 31 3 4 5 6 7 8 Speed: 00:00:00 23:59:59 Balanced - Select All Sensor Analytics Motion Detection Common 241 224 214 204

1. Select the alarm events at the bottom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a file name in the list to start playback.

Mix Stream Start Time Duration 1 07:31:31 00:12:47 2 05:30:19 02:06:13 3 05:27:17 00:02:49 4 05:21:35 00:05:19 5 03:18:25 00:02:58 6 05:14:53 00:08:21 7 05:08:17 00:06:09 8 04:56:15 00:14:46 9 04:50:24 00:02:41 10 04:49:26 00:00:49

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 011... 2018-01-16 011... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video files.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshooting

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download ActiveX control.

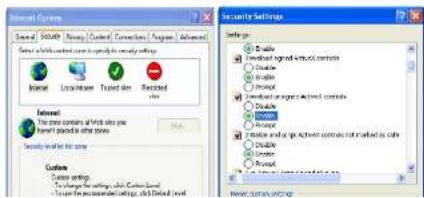

IE browser may be set up to block ActiveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Options.

1. Select Security→Custom Level.
2. Enable all the options under "ActiveX controls and plug-ins".
3. Click OK to finish setup.

Security Settings Settings ● Update ● Download signed active controls ○ Update ● Update ● Download signed active controls ○ Update ● Update ● Update and log Active controls not enabled as safe ○ Update ○ Update ● Update © 2017

Models: O8B8M/ O8B8 / O8D8M/ O8D8 / O8T8M / O8T8

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
