USER MANUAL O5T2 Speco Technologies

Important Safeguards and Warnings

1. Electrical safety

All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Heavy stress, violent vibration or exposure to water is not allowed during transportation, storage, and installation. This product should be installed in a cool, dry place away from direct sunlight and heat sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnetic radiation. Otherwise, it may result in CMOS sensor failure.

Do not block any ventilation openings.

Do not allow water and liquid intrusion into the camera.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an optical device, please do not touch or wipe cover surface directly during installation and use, please refer to the

Warning

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

Statement

This guide is for reference only.

Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Regulatory Information

FCC conditions:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operation.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Table of Contents

1 Introduction....2
2 Web Access and Login 3
3 Live View....4
4 Camera Configuration 6

4.1 System Configuration....6

4.1.1 System Information 6
4.1.2 Date and Time....6
4.1.3 Local Recording....7
4.1.4 Storage....7

4.2 Video Configuration....9

4.2.1 Image Configuration 9
4.2.2 Video / Audio Configuration....11
4.2.3 OSD Configuration 12
4.2.4 Video Mask 12
4.2.5 ROI Configuration 13
4.2.6 Zoom/Focus....14

4.3 Event Setup....14

4.3.1 Motion Detection 14
4.3.2 Other Alarms....16
4.3.3 Alarm In (Sensor Input)....17
4.3.4 Alarm Out 18
4.3.5 Alarm Server 19

4.4 Analytics Configuration....19

4.4.1 Exception 19
4.4.2 Line Crossing....20
4.4.3 Intrusion....22
4.4.4 Face Detection 24
4.4.5 Region Entrance 25

4.6.3 Block and Allow Lists....38
4.6.4 Security Management....39

4.7 MaintenanceConfiguration....40

4.7.1 Backup and Restore 40
4.7.2 Reboot 40
4.7.3 Upgrade 40
4.7.4 Operation Log 41

5 Search 42

5.1 Image Search 42
5.2 Video Search 44

5.2.1 Local Video Search....44

5.2.2 SD Card Video Search....45

Appendix 48
Appendix 1 Troubleshooting ....48
Appendix 2 Specifications ....49

1 Introduction

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operating the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installations
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applications

Two security cameras and a laptop connected by an arrow, no text or symbols present.

IP Camera

Network
Web Browser

Diagram showing a security camera icon transforming into a network device (no text or symbols)

2 Web Access and Login

The IP camera settings can be accessed via a web browser through the LAN.

Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome

It is recommended to use the latest version of these web browsers.

The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera.

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:

- Access through IP Scanner

Network connection:

① Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.
② Install IP Scanner from the CD and run it after installation. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status.Model Name Name IP Address MAC Address Wireless IP Address Zero Config IP

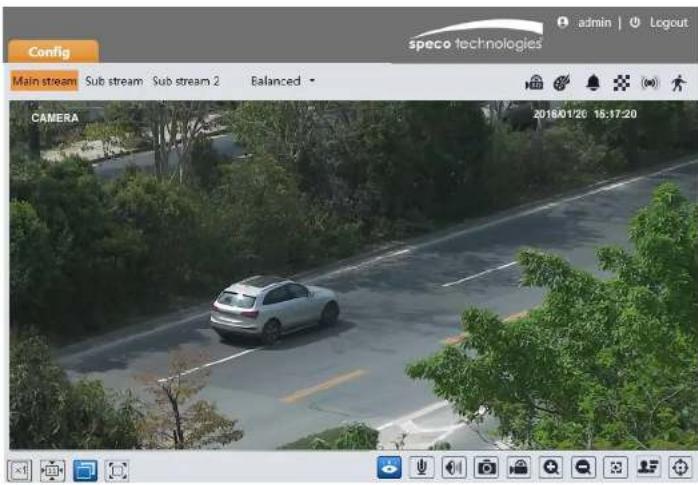

3 Live View

The window below will be shown after logging in.

Config Main stream Sub stream Sub stream 2 Balanced CAMERA speco technologies admin | Logout 2018/01/26 15:17:20

The following table describes the icons on the live view interface

Icon

Description

Icon

Description

*Plug-in free live view: PTZ control, two-way audio and local recording are not supported.

● All indicator icons above will flash in live view interface only when the corresponding events are enabled.

- In full screen mode, to exit, double click on the mouse or press the ESC key on the keyboard.

Click the zoom/focus control button to show the control panel. The descriptions of the control panel are as follows:

Icon	Description	Icon	Description
	Zoom -		Zoom +
	Focus -		Focus +
	One key focus (used when image is out of focus after manual adjustment)

Face Capture View

① Go to Config→Event→Face Detection interface. Check "Enable".

② Return to the live view interface. Click 📋 to go to the following interface. When there are faces detected, the face pictures will be listed on the right.

Main stream Sub stream: Third stream Balanced 2019-07-05 15:58:05 ID:6102 Mark O... 2019-07-05 15:58:03 ID:6100 Mark O... 2019-07-05 15:58:03 ID:6099 Mark O... 2019-07-05 15:58:02

4 Camera Configuration

Press the "Setup" button to go to the configuration interface.

Note: Wherever applicable, click the "Save" button to save the settings.

4.1 System Configuration

4.1.1 System Information

In the "System Information" interface, the system information of the device is listed.

Device Name	OSD2M
Product Model	OSD2M
Brand	Speco
Software Version	5.1.10(20697)
Software Build Date	2021-06-23
Onvif Version	20.12
OCX Version	2.1.7.8
MAC
About this machine	Look Over
Privacy Statement	Look Over

4.1.2 Date and Time

To set the time and date, go to System→Date and Time. Please refer to the following interface.

Time Mode: • Synchronize with NTP server NTP server: Time.windows.com Update period: 1440 Minutes • Synchronize with computer time Set manually: Save

4.1.3 Local Recording

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files.

Picture Path C:\Program Files\SpecioAIPCCamera Record Path C:\Program Files\SpecioAIPCCamera Video Audio Settings Open Close Show Bitrate Open Close Local Smart Snapshot Storage Open Close Rendering Mode High Efficient Mode (Recommended) Compatible Mode Low Efficient Mode(Not Recommended) Save

Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC.

Rendering Mode: High-efficient mode, compatible mode or low-efficient mode can be optional.

If the performance of your computer is not compatible with the web client or your computer has no graphics card, low-efficient mode is suggested.

4.1.4 Storage

Go to System→Storage to go to the interface as shown below.

1. Go to Storage→Record to go to the interface as shown below.

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record (H264,H265,MJPEG) Cycle Write Yes

1. Set record stream, pre-record time and cycle writing.

Pre Record Time: Set the time to record before the actual recording begins.

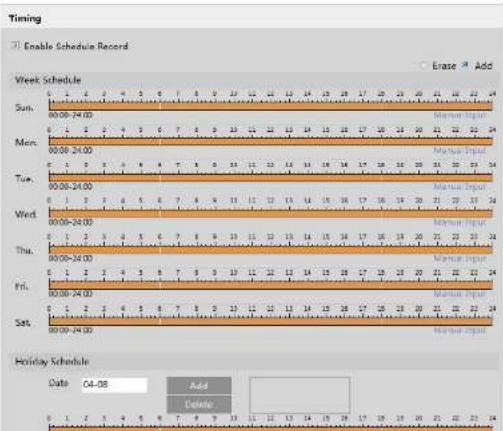

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Erase Add Week Schedule Sun. 00:08-24:00 Mon. 00:08-24:00 Tue. 00:08-24:00 Wed. 00:08-24:00 Thu. 00:08-24:00 Fri. 00:08-24:00 Sat. 00:08-24:00 Holiday Schedule Date 04-08 Add Delete

Management Record Snapshot Snapshot Parameters Image Format: JPEG Resolution: 704x80 Image Quality: Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here.

Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence time of an alarm event is less than the time of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable timing snapshot first and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Configuration

Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Configuration

In the Image Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the configuration file.

Camera Parameters Profile Management Config File Common Brightness 50

Brightness: Set the brightness level of the camera's image.

Contrast: Set the color difference between the brightest and darkest parts.

Hue: Set the total color degree of the image.

Saturation: Set the degree of color purity. The purer the color, the brighter the image is.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Noise Reduction: Decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.

Defog: Activating this function and setting an appropriate value as needed in foggy, dusty, smoggy, or rainy environment to get clear images.

Lens Distortion Correction: When the image appears distortion to some extent, please enable this function and adjust the level according to the actual scene to correct the distortion.

Auto Iris: If your camera is auto Iris, please enable it.

Backlight Compensation (BLC):

- Off: disables the backlight compensation function. It is the default mode.

- WDR: WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area. Recording will be stopped for a few seconds while the mode is changing from non-WDR to WDR mode.

- HLC: lowers the brightness of the entire image by suppressing the brightness of the image's bright area and reducing the size of the halo area.

- BLC: If enabled, the auto exposure will activate according to the scene so that the object of the image in the darkest area will be seen clearly.

HFR: High Frame Rate. If "ON" is selected, the system will restart and then the maximum value of the frame rate of the main stream can be set to 60 fps /50fps.

Antiflicker:

- Off: disables the anti-flicker function. This is used mostly in outdoor installations.

- 50Hz: reduces flicker in 50Hz lighting conditions.

- 60Hz: reduces flicker in 60Hz lighting conditions.

Smart IR: Choose "ON" or "OFF". This function can effectively avoid image overexposure and underexposure by controlling the brightness of the IR lights according to the actual conditions to make the image more realistic. Please enable it as needed.

White Balance: Adjust the color temperature according to the environment automatically.

Frequency: 50Hz and 60Hz can be optional.

Day/Night Mode: Choose "Auto", "Day", "Night" or "Timing".

Gain Mode: Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.

Frequency: 50Hz and 60Hz can be optional

drop-down box of schedule as shown below.

Camera Parameters Profile Management Schedule Timing Time Range 0:00 4:00 8:00 12:00 16:00 20:00 24:00 Day Night Save

Drag "☐" icons to set the time of day and night. Blue means daytime and blank means night time. If the current mode of camera parameters is set to "Timing", the image configuration mode will automatically switch between day and night according to the schedule.

4.2.2 Video / Audio Configuration

Go to Image→Video / Audio interface as shown below. In this interface, set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition.

Video Audio Index Stream Name Resolution Frame Rate Bitrate Type Bitrate(Kbps) Video Quality I Frame Video Profile 1 Main stream 259x1944 30 CRR 4096 Highest 120 H264 High Profile 2 Sub stream 704x880 30 CRR 480 Highest 120 H264 High Profile 3 Third stream 352x460 30 CRR 128 Higher 120 H264 High Profile Send Snapshot Sub stream ▼ Size (704x880) □ Watermark (H261, H263) Watermark content: Save

Click the "Audio" tab to go to the interface as shown below.

the value is set too high, and there is a high frequency of movement in the video, there is a risk of frame skipping.

Video Compression: MJPEG, H264+, H264, H265 or H265+ can be optional. MJPEG is not available for main stream. If H.265/H.265+/H.265S is chosen, make sure the client system is able to decode H.265/H.265+. Compared to H.265, H.265+ saves more storage space with the same maximum bitrate in most scenes. Compared to H.264, H.265 reduces the transmission bitrate under the same resolution, frame rate and image quality.

Profile: For H.264. Baseline, main and high profiles are selectable.

Send Snapshot: Set the snapshot stream.

Video encode slice split: If this function is enabled, smooth image can be gotten even though using the low-performance PC.

Watermark: When playing back the local recorded video in the search interface, the watermark can be displayed. To enable it, check the watermark box and enter the watermark text.

Audio Encoding: G711A and G711U are selectable.

Audio Type: LIN. Some models may support MIC type.

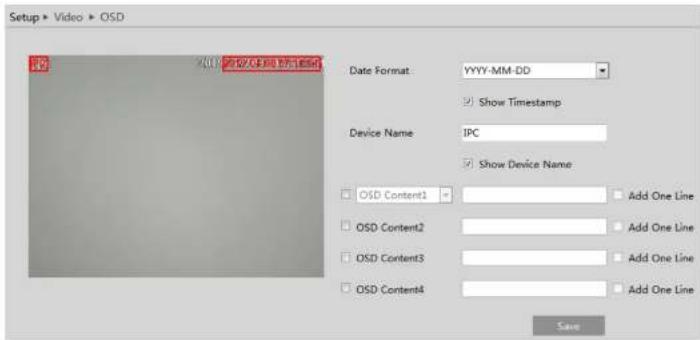

4.2.3 OSD Configuration

Go toVideo→OSDinterface as shown below.

Setup > Video > OSD Date Format: YYYY-MM-DD Show Timestamp Device Name: IPC Show Device Name OSD Content1 Add One Line OSD Content2 Add One Line OSD Content3 Add One Line OSD Content4 Add One Line Save

Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the

Interior hallway with tiled floor and window, no visible text or symbols

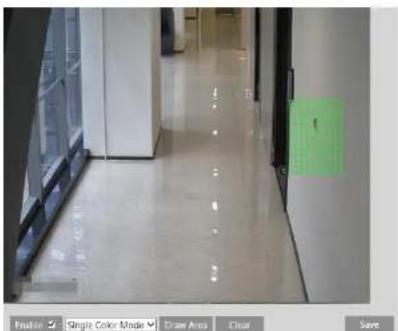

To set up video mask:

1. Enable video mask.

2. Click the "Draw Area" button and then drag the mouse to draw the video mask area.

3. Click the "Save" button to save the settings.

4. Return to the live to verify that the area have been drawn as shown as blocked out in the image.

Interior hallway with white tiled floor and large windows on both sides (no visible text or symbols)

To clear the video mask:

Click the "Clear" button to delete the current video mask area.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.
3. Set the level.
4. Click the "Save" button to save the settings.

Aerial view of a road with two cars and trees, no visible text or symbols.

Aerial view of a tree-lined road with two cars parked on the side, surrounded by greenery (no visible text or symbols)

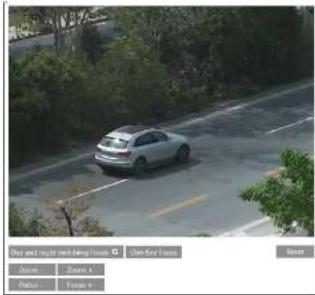

4.2.6 Zoom/Focus

This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically.

Day and night next being done Open Key Focus Show: Show a Focus: Focus a Sett

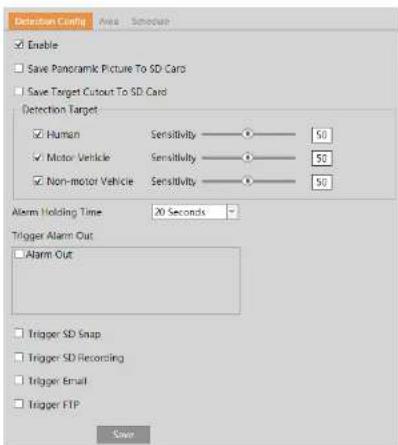

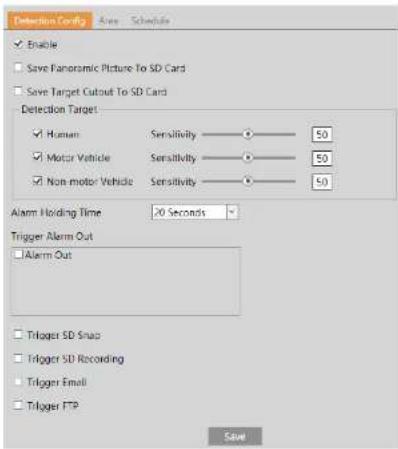

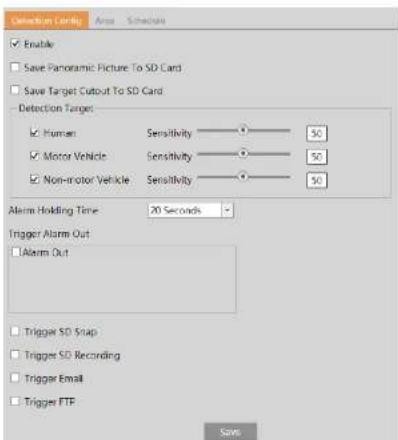

Detection Config Area and Sensitivity Schedule Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Check "Enable" check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video.

Alarm Out: If selected, this would trigger an external relay output that is connected to the camera on detecting a motion-based alarm.

Trigger SD Snap: If selected, the system will capture images on motion detection and save the images on an SD card.

Trigger SD Recording: If selected, video will be recorded on an SD card on motion detection.

Trigger Email: If "Trigger Email" and "Attach Picture" are checked (email address must be set first in the Email configuration interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "Attach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP configuration chapter for more details.

1. Set motion detection area and sensitivity. Click the "Area and Sensitivity" tab to go to the Interface as shown below.

4.3.2 Other Alarms

SD Card Full

1. Go to Alarm→Anomaly→SD Card Full.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding time.
2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

SD Card Error

When there are some errors in writing SD card, the corresponding alarms will be triggered.

1. Go to Alarm→Anomaly→SD Card Error as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the IP address of the camera conflicts with the IP address of other devices, the system will trigger the alarm out.

Cable Disconnection

This function is only available for the models with Alarm Out interface.

1. Go to Alarm→Anomaly→Cable Disconnected as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable" and set the alarm holding time.
2. Trigger alarm out. When the camera is disconnected, the system will trigger the alarm out.

4.3.3 Alarm In (Sensor Input)

1. Click "Enable" and set the alarm type, alarm holding time and sensor name.

2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

3. Click "Save" button to save the settings.

4. Set the schedule of the sensor alarm. The setup steps of the schedule are the same as the schedule recording setup. (See

Schedule Recording).

4.3.4 Alarm Out

This function is only available for some models. Go to Alarm→Alarm Out.

Alarm Out Mode Alarm Linkage Alarm Out Name alarmOut1 Alarm Holding Time 20 Seconds Alarm Type NC Save

Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and schedule are optional.

Alarm Linkage: Having selected this mode, select alarm out name, alarm holding time at the "Alarm Holding Time" pull down list box and alarm type.

Manual Operation: Having selected this mode, select alarm type and click "Open" to trigger the alarm out immediately; click "Close" to stop alarm.

Alarm Out Mode Manual Operation Alarm Type NC Manual Operation Open Close Save

Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode.

Alarm Out Mode Timing Alarm Type NC 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Time Range 05:30-14:00 Manual Input Save

4.3.5 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Set the server address, port, heartbeat, and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to configure this section.

Setup Event Setup Alarm Server Server Address Port 0 Heartbeat Disable Heartbeat interval 30 Second OK

4.4 Analytics Configuration

This series of IP cameras supports certain smart functions, such as line crossing detection, region intrusion detection, etc. These events can be triggered as alarm events.

For more accuracy, here are some recommendations for installation.

• Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of detection.
• Avoid pointing the camera at the reflective surfaces (like shiny floors, mirrors, glass, lake surfaces and so on).
• Avoid places that are narrow or have too much shadowing.
• Avoid scenario where the object's color is similar to the background color.
• At any time of day or night, please make sure the image of the camera is clear and with adequate and even light, avoiding overexposure or too much darkness on both sides.
• Ensure that the enarifir analitir enabled meet the minimum requirements for narranture of screen and/or distance

Detection Config Sensitivity ✓ Scene Change Detection ✓ Video Blur Detection ✓ Video Cast Detection Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP Save

1. Enable the applicable detection that is desired.

Scene Change Detection: Alarms will be triggered if the scene of the video has changed.

Video Blur Detection: Alarms will be triggered if the video becomes blurry.

Video Cast Detection: Alarms will be triggered if the video becomes obscured.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.

2. Click "Save" button to save the settings.

3. Set the sensitivity of the exception detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config. Sensitivity Sensitivity 1 Save

Detection Config Area Schedule Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Non-motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Swap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable line crossing alarm and select the snapshot type and the detection target.

Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected.

Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

Detection Target:

Human: Select it and then alarms will be triggered if someone crosses the pre-defined alarm line.

Motor Vehicle: Select it and then alarms will be triggered if a vehicle with four or more wheels (eg. a car, bus or truck) crosses the pre-defined alarm line.

Non-motor Vehicle: Select it and then alarms will be triggered if a vehicle with two wheels (eg. a motorcycle or bicycle) crosses the pre-defined alarm line

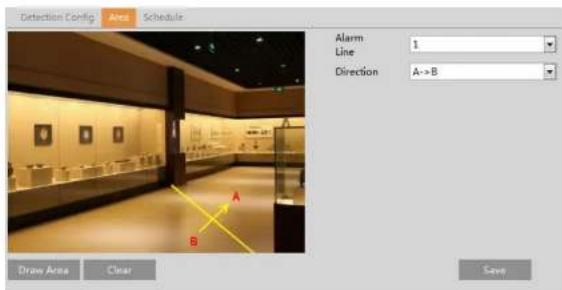

Detection Config Areas Schedule Alarm: 1 Line Direction: A->B Draw Area Clear Save

Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously.

Direction: A<>B, A>B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Click the "Stop Draw" button to stop drawing.

Click the "Clear" button to delete the lines. Click the "Save" button to save the settings.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Configuration of camera and surrounding area

1. Auto-focusing function should not be enabled for line crossing detection.

2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn't be too low.

3. Cameras should be mounted at a height of 10ft or above.

4. Keep the mounting angle of the camera at about 45^

5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image. This analytic relies on the percentage of the detected objects relative to the entire image and not distance.

Sensor Tracking □ Enable □ Save Parameters Picture To SD Card □ Save Target Colour To SD Card Detection Target √ Human Sensitivity —— 53 √ Motor Vehicle Sensitivity —— 80 √ Non-motor Vehicle Sensitivity —— 53 Alarm Holding Time: 20 Seconds Trigger Alert Out □ Alarm Out □ Trigger SD Swap □ Trigger SD Recording □ Trigger Email □ Trigger FTP Save

1. Enable intrusion alarm and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Click the "Save" button to save the settings.
4. Set the alarm area of the intrusion detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alams Area 1 Data Area Clay Save

4.4.4 Face Detection

Face detection function is to detect the face appearing in the surveillance scene. Alarms will be triggered when a face is detected. The setting steps are as follows:

1. Go to Event→Face Detection as shown below.

Detection Config Area Advanced Schedule State Working Enable Save Source Information To SD Card Save Face Information To SD Card Trigger alarm condition Alarm Holding Time 20 Seconds Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable the face detection function.

Save Source Information: if checked, the whole picture will be saved to an SD card when detecting a face.

Save Face Information: if checked, the captured face picture will be saved to an SD card when detecting a face.

Note: To save images to a local PC, please enable the local smart snapshot storage first (System→Local Recording). To save images to an SD card, please install an SD card first.

1. Set alarm holding time and alarm trigger options. The alarm trigger setup steps are the same as motion detection setup. Please refer to motion detection chapter for details.

2. Set alarm detection area.

in the background or foreground that are not needed to be captured. To enable, Click "Draw Area" and drag the border lines of the rectangle to modify its size. Move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable face size by defining the maximum value and the minimum value(The default size range of a single face image occupies from 3% to 50% of the entire image). This analytic relies on the percentage of the face to the entire image as well as distance.

1. Set the schedule of the face detection. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).
2. Advanced configuration. Choose the snapshot interval and number as needed to avoid capturing multiple similar pictures in a very short period of time.

Detection Config Area Advanced Schedule Deduplication Period Snapshot Interval 30 Seconds Snapshot Number 3 Save

Snapshot Interval: If 5 seconds is selected, the camera will capture the same target once every 5 seconds during its continuous tracking period. Snapshot Number: If the snapshot number is enabled and set (eg. 3), the camera will capture the same target once every 5 seconds and it will capture this target 3 times at most during its continuous tracking period. If the snapshot number is disabled, the camera will capture the same target once every 5 seconds until the target disappears in the detected area.

※ Configuration requirements of camera and surrounding area

1. Cameras must be installed in the area with stable and adequate light sources.
2. The installation height ranges from 1.9m(6.2ft) to 2.5m(8.2ft) , adjustable according to the focal-length of different lenses and object distances.
3. The depression angle (a) of the camera shall be less than or equal to 15^ .

Collection Config Area Schedules Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Non-motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable region entrance detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region entrance detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1

Go to Config→Event→Region Exiting interface as shown below.

Detection Config Area Schedule Enable Save Fanotomic Picture To SD Card Save Target Cutout To SD Card Detection Target ✓ Human Sensitivity 50 ✓ Motor Vehicle Sensitivity 50 ✓ Non motor Vehicle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP Save

1. Enable region exiting detection and select the snapshot type and the detection target.
2. Set the alarm holding time.
3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
4. Click the "Save" button to save the settings.
5. Set the alarm area of the region exiting detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1

4.4.7 Target Counting

This function is to calculate the number of the people or vehicles crossing the alarm line through detecting, tracking and counting the shapes of the people or vehicles.

1. Go to Config→Event→Target Counting as shown below.

Save Target Cutout To SD Card Enable Save Panoramic Picture To SD Card Save Target Cutout To SD Card Detection Target ✓ Human Sensitivity 50 Staying Threshold 0 ✓ Motor Vehicle Sensitivity 50 Staying Threshold 0 ✓ Non-motor Vehicle Sensitivity 50 Staying Threshold 0 Counting Reset: Timing Off Manual Reset Alarm Holding Time 20 Seconds Trigger Alarm Out ✓ Alarm Out ✓ Trigger SD Snap ✓ Trigger SD Recording ✓ Trigger Email ✓ Trigger FTP

1. Enable target counting and select the snapshot type and the detection target.

Detection Target: Select the target to calculate. Human, motor vehicle and motorcycle/bicycle can be selected.

Staying Threshold: When the targets (human/vehicle) staying in the specified area exceed the threshold, alarms will be triggered. Counting Reset: The current number of the target counting can be reset. You can choose to reset the counting daily, weekly or monthly. Click "Reset" to manually reset the current number of crossing line people/car/bike counting.

1. Set the area of the target counting. Click the "Area" tab to go to the interface as shown below.

Set the alarm line number and direction. Only one alarm line can be added.

Direction: A->B and A<-B can be optional. The direction of the arrow is entrance.

Statistics: If enabled, you can see the statistical information in the live view interface. If disabled, the statistical information will not be displayed in the live view interface.

The statistical OSD information can be customized as needed.

Click the "Draw Area" button and then drag the mouse to draw a line in the image. Check "Statistics" and then move the red box to change the position of the statistical information displayed on the screen. Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the lines.

1. Set the schedule of the target counting. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

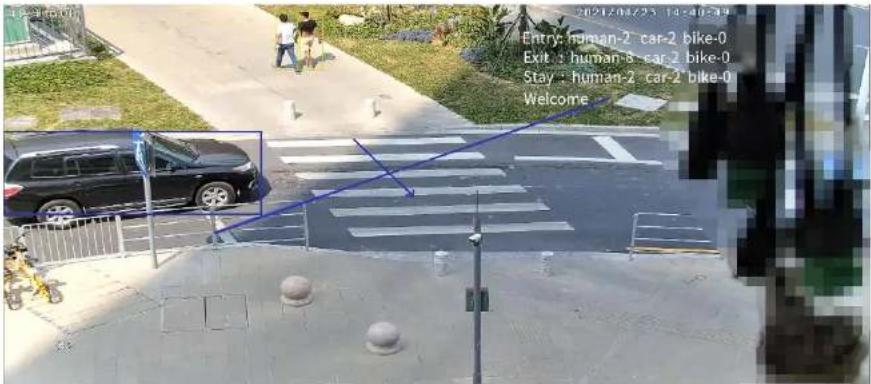

2. View the statistical information in the live view interface.

Entry: human-2 car-2 bike-0 Exit: human-8 car-2 bike-0 Stay: human-2 car-2 bike-0 Welcome

4.5 Network Configuration

4.5.1 TCP/IP

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Config" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPv4 IPv6 PPPoE Config JP Change Notification Enable User Name xxxxx| Password ••••••• Save

Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click "IP Change Notification Config" to go to the interface as shown below.

IPv4 IPv6 PPPoE Config IP Change Notification Trigger Email Trigger FTP Save

Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up. Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up.

4.5.2 Port

Go toNetwork→Port interface as shown below. HTTP port, Data port and RTSP port can be set.

4.5.3 Server Configuration

This function is mainly used for connecting network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".
2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. Please check it in the VMS.
3. Enter the above-mentioned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the settings.

4.5.4 Onvif

The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol.

Add Modify Cancel Index User Name User Type 1 Add User Password Level The password can be composed of numbers, special characters, up or lower class letters. Confirm Password User Type: OK Cancel

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.6 SNMP

To get camera status, parameters and alarm information and remotely manage the camera, the SNMP function can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

1. Go to Network→SNMP.

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 192.168.226.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auth, priv Authentication Algorithm MDS SHA Authentication Password ****** Private-key Algorithm DES AES

4.5.7 802.1x

If it is enabled, the camera's data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed.

Enable Protocol Type:EAP_MDS EAPOL Version 1 User Name Password **** Confirm Password **** Save

To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default settings.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server.

4.5.8 RTSP

Go toNetwork→RTSP.

Enable Port 9003 Address :ftp/IP or domain nameport/profile1 :ftp/IP or domain nameport/profile2 :ftp/IP or domain nameport/profile3 Multicast address Main stream 239.0.0.0 50554 Automatic start Sub stream 239.0.0.1 51554 Automatic start

4.5.9 RTMP

You can access the third-party (like YouTube) to realize video live view through RTMP protocol. Go to Config→Network→RTMP.

Enable (Only supports H264) Stream Type: Main stream Sub stream Third stream Reconnect After Timeout 30 Second Server Address: example : rtmp://127.0.1.1935/lwe/lw Connection Status Not Connected Refresh Save

Check "Enable", select stream type, set the reconnection time after timeout and server address as needed. Server address: Enter the server address allocated by the third party server. After that, click "Save" to save the settings. Then click "Refresh" to view the connection status.

4.5.10 UPNP

If this function is enabled, the camera can be quickly accessed through the LAN. Go to Network→UPnP. Enable UPNP and then enter UPnP name.

4.5.11 Email

If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to Network→Email.

Select the secure connection type at the "Secure Connection" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one motion alarm event is triggered and then another motion detection alarm event is triggered after 60 seconds, two emails will be sent. When different alarms are triggered at the same time, multiple emails will be sent separately.

Click the "Test" button to test the connection of the account.

Recipient Address: receiver's e-mail address.

4.5.12 FTP

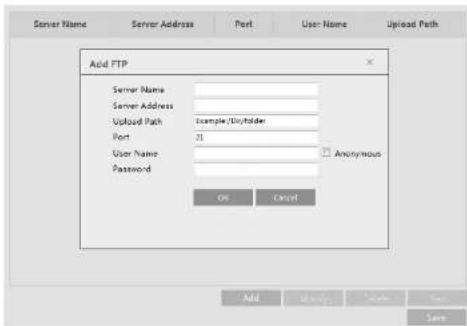

After an FTP server is set up, captured pictures from events will be uploaded to the FTP server. Go to Network→FTP.

Server Name Server Address Port User Name Upload Path Add FTP Server Name Server Address Upload Path Example/Day Fiji Port 21 User Name Password Anonymous On Cancel Add Modify Save Save

Server Name: The name of the FTP server.

Server Address: The IP address or domain name of the FTP.

Upload Path: The directory where files will be uploaded to.

Port: The port of the FTP server.

Use Name and Password: The username and password that are used to login to the ETD converter

the following interface will be displayed.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Install certificate Browse Install Save

* If there is a signed certificate, click "Browse" to select it and then click "Install" to install it.

* Click "Create a private certificate" to enter the following creation interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a private certificate Create Save

Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (camera's IP address/domain), validity date, password, province/state, region and so on. Then click "OK" to save the settings.

* Click "Create a certificate request" to enter the following interface.

Enable Installation type Have signed certificate, install directly Create a private certificate Create a certificate request Create a certificate request Create Download Delete Case

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Configuration

4.6.1 User Admin

Go to Security→User Admin interface as shown below.

Setup > Security > User Admin Add Modify Delete Index User Name User Type Bird MAC 1 adults Administrator

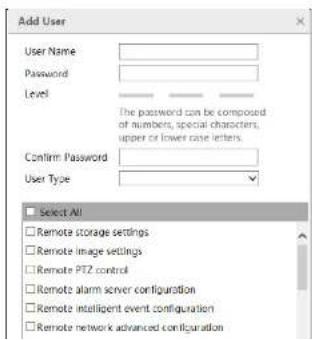

Add user:

1. Click "Add" to pop up the following textbox.

Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm: Password User Type Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration

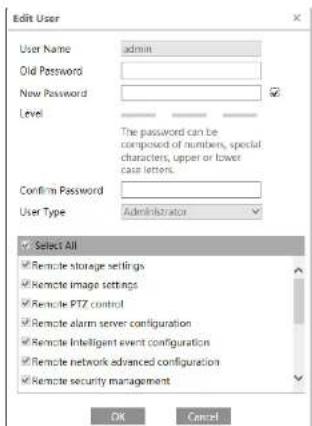

Edit User User Name admin Old Password New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Administrator Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration Remote security management OK Cancel

1. Enter the old password of the user in the "Old Password" text box.
2. Enter the new password in the "New password" and "Confirm Password" text box.
3. Modify the permission as necessary.
4. Click the "OK" button to save the settings.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user configuration list box.
2. Click the "Delete" button to delete the user.
   Note: The default administrator account cannot be deleted.

4.6.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

IP Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete C.0.0.0 IPv4 IPv6 Save

The setup steps are as follows:

Check the "Enable address filtering" check box.

Select "Block/Allow the following address", IPv4/IPv6 and then enter IP address in the address box and click the "Add" button.

4.6.4 Security Management

Go to Security→Security Management as shown below.

Security Service Password Security Authentication Enable "locking once illegal login" function Trigger Email Logout Time 3600 Second Save

In order to prevent against malicious password unlocking, "locking once illegal login" function can be enabled here. If this function is enabled, login failure after trying six times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots.

Trigger Email: if enabled, e-mail will be sent when logging in/out or illegal login lock occurs.

Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in.

4.7 Maintenance Configuration

4.7.1 Backup and Restore

Go to Maintenance→Backup & Restore.

Import Setting Path Browse Import Setting Export Settings Export Settings Default Settings Keep Network Config Security Configuration Image Configuration Factory Default

- Import & Export Settings

Configuration settings of the camera can be exported from a camera into another camera.

1. Click "Browse" to select the save path for import or export information on the PC.

2. Click the "Import Setting" or "Export Setting" button.

- Default Settings

Click the "Load Default" button to restore all system settings to the default factory settings except those you want to keep.

4.7.2 Reboot

Go to Maintenance→Reboot.

a: i, i, // a: i, // i, ... , i, ... i,

Caution! Do not close the browser or disconnect the camera from the network during the upgrade.

4.7.4 Operation Log

To query and export log:

1. Go to Maintenance→Operation Log.

Setup + Maintenance + Log
Main Type Start Time	All log 2019-04-08 08:05:30 End Time 2019-04-08 21:59:53
Index	Time	Main Type	Sub Type	User Name	Login IP
1	2019-04-08 08:43:43	Alarm	Motion start
2	2019-04-08 08:43:24	Alarm	Vfd Alarm
3	2019-04-08 08:43:14	Alarm	Motion stop
4	2019-04-08 08:41:20	Alarm	Motion start
5	2019-04-08 08:40:26	Alarm	Motion stop
6	2019-04-08 08:40:06	Alarm	Motion start
7	2019-04-08 08:37:18	Alarm	Motion stop
8	2019-04-08 08:34:43	Alarm	Motion start

1. Select the main type, sub type, start and end time.
2. Click "Search" to view the operation log.
3. Click "Export" to export the operation log.

5 Search

5.1 Image Search

In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Live Setup Apteca Technologies Record Local Set Map: Tax Wet You Pal Set 10 20 30 40 50 60 70 80 90 100 110 11 12 13 14 15 16 17 18 18 20 23 25 27 29 31 33 35 37 18 27 29 31 33 35 37 Yachy 00:00:00 -2:19:09 Balanced - 24/1 2.28 2H 3H

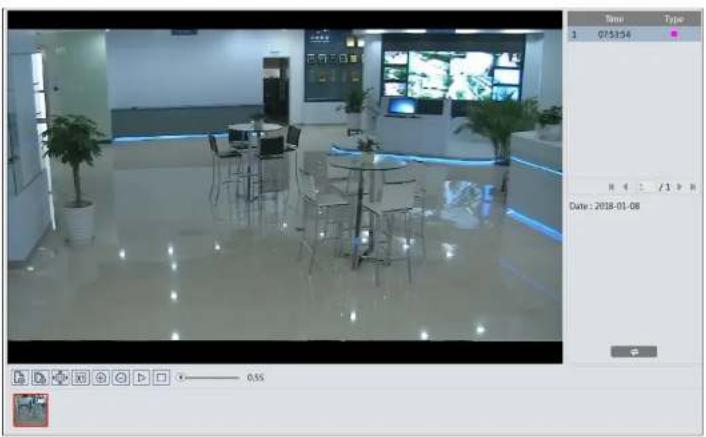

- Local Image Search

1. Choose "Picture"—"Local".
2. Set time: Select date and choose the start and end time.
3. Click to search the images.

Interior view of a modern office or service hall with glass flooring, tables, and large screens (no visible text or symbols)

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

Live Setup Specto Technologists Picture 10 Card 4 5 6 7 8 9 Last Man: Last Wind: The 10 Last 1 2 3 4 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 3 4 5 6 7 8 9 Today

Icon	Description	Icon	Description
	Close: Select an Image and click this button to close the image.		Close all: Click this button to close all images.
	Save: Click this button to select the path for saving the image on the PC.		Save all: Click this button to select the path for saving all pictures on the PC.
	Fit size: Click to fit the image on the screen.		Actual size: Click this button to display the actual size of the image.
	Zoom in: Click this button to digitally zoom in.		Zoom out: Click this button to digitally zoom out.
	Slide show play: Click this button to start the slide show mode.		Stop: Click this button to stop the slide show.
	Play speed: Play speed of the slide show.

5.2 Video Search

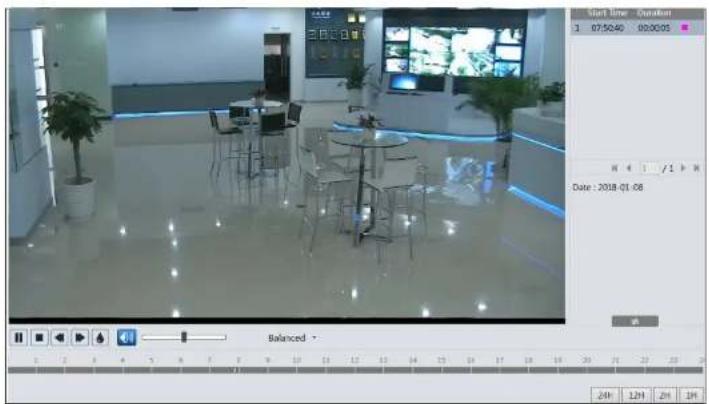

5.2.1 Local Video Search

Click Search to go to the Interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local

4 2018 1 Fri Set

Sun Mon Tue Wed Thu Fri Set 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 25 26 27 28 29 30 3 4 5 6 7 8 9 10 Time 00:00:00 2:56:59

Start Time Duration 1 07:50:40 00:00:05 Date : 2018-01-08 Balanced 24% 129 24 19

Icon	Description	Icon	Description
	Play button. After pausing the video, click this button to continue playing.		Pause button
	Stop button		Speed down
	Speed up		Watermark display
	Enable / disable audio; drag the slider to adjust the volume after enabling audio.

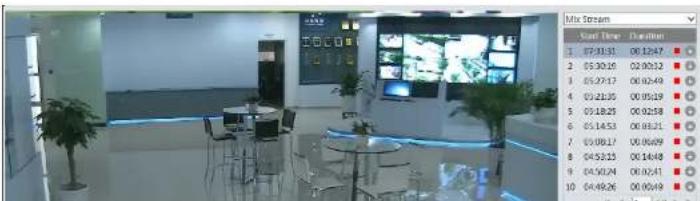

5.2.2 SD Card Video Search

Click Search to go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

Live Setup specra technologies Audio 10 Card + 5 200 T 5.9 Sun Mode: Top Wind, Top Fol Sat 1 10 1 1 0 0 4 1 1 7 6 9 10 11 12 13 14 15 16 17 18 18 19 20 21 22 23 24 25 20 21 22 23 24 25 26 2 3 4 5 6 7 8 100.0000 238959 Balanced - Select All Sensor Analytics Motion Detection Common 00:00:00 - 00:00:00 +

1. Select the alarm events at the bottom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a file name in the list to start playback.

Mix Stream Start Time Duration 1 07:31:31 00:12:47 2 05:30:10 02:00:12 3 05:27:17 00:02:49 4 05:21:35 00:05:19 5 05:18:25 00:02:58 6 05:14:53 00:08:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:50:24 00:21:41 10 04:49:26 00:09:49

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 011... 2018-01-16 011... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video files.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshooting

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download ActiveX control.

IE browser may be set up to block ActiveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Options.

1. Select Security → Custom Level.
2. Enable all the options under "ActiveX controls and plug-ins".
3. Click OK to finish setup.

Security Settings Create Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Change End Create Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Close Open

Appendix 2 Specifications

Specification /Model		OSB2
Camera	Image Sensor	1/2.7" CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	Fixed Iris
	Min. Illumination	0.02lux@F1.6, AGC ON; 0 lux with IR;
	Lens	2.8mm@F1.6, horizontal FoV:98.5°, vertical FoV:82.1°, diagonal FoV:110.9°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~360"; Tilt 0"~80"; Rotation:0"~360"
Image	Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps) HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF(1~25fps)
	Third Stream	60Hz: CIF/D1/480×240 (1~30fps); 50Hz: CIF/D1/480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Auido	1CH audio input
	Reset	Yes
	Storage	Built-in micro SD card slot; up to 256GB
Function	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HT 802.1x, UPnP, HTTPS, QoS
	Interface Protocol	ONVIF

Specification /Model		O5B2M
Camera	Image Sensor	1/2.7" CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	DC Iris
	Min. Illumination	0.02 lux@F1.6, AGC ON; 0 lux with IR
	Lens	2.8~12mm@F1.4, motorized	7~22mm@F1.6, motorized
	Field of View	H: 95.1~30°; V: 78.7~22.8°; D: 107.6~37.1°	H: 41~16.8°; V: 31.3~12.7°; D: 50~21°
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0~360°; Tilt 0~90°; Rotation:0~360°
Image	Video Compression	H.265+/H.265/ H.264+/H.264/MIPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Auido	1CH audio input; 1CH audio output
	Video	CVBS output (BNC×1)
	Reset	Yes
	Storage	Built-in micro SD card storage slot, up to 256GB
	Alarm	1CH Alarm input; 1CH Alarm Output
Function	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
Specification /Model		O5D2
Camera	Image Sensor	1/2.7 ° CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	Fixed Iris
	MIn. Ilumination	0.02lux@F1.6, AGC ON; 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV:98.5", vertical FoV:82.1", diagonal FoV:110.9"
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~355"; Tilt 0"~67"; Rotation:0"~355"
Image	Video Compression	H.265+/H.265/ H.264+/H.264/MJPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP {2592×1944}, 4MP {2592×1520}, 2K{2560×1440}, 3MP {2304×1296}, 1080P {1920×1080}, 720P{1280×720}, D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps) HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF[1~30fps]; 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Audio	1CH audio Input; 1CH Built-In MIC
	Alarm	1CH alarm input; 1CH alarm output
	Reset	Yes
	Storage	Built-in micro SD card slot; up to 256GB
Fucntion	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Motion detection, Sensor detection, SD card Full, SD card error, IP address conflict, cable disconnection, abnormal video signal detection, line crossing detection(human/vehicle classification), intrusion detection(human/vehicle classification), people/vehicle counting, region entrance, region exiting detection, face detection, face capture
Specification /Model		OSD2M
Camera	Image Sensor	1/2.7 ° CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	DC Iris
	Min. Illumination	0.01 lux@F1.4,AGC ON; 0 lux with IR
	Lens	2.8~12mm@F1.4, horizontal FoV: 95.1~30"; vertical FoV: 78.7~22.8"; Diagonal FoV: 107.6~37.1*
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~345°; Tilt 0°~77°; Rotation:0°~345°
Image	Video Compression	H.265+/H.265/ H.264+/H.264/MIPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Blt Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps) HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Auido	1CH audio input; 1CH audio output; 1CH built-in MIC
	Video	CVBS output (BNC×1)
	Reset	Yes
	Storage	Built-in micro SD card storage slot, up to 256GB
	Alarm	1CH Alarm Input; 1CH Alarm Output
	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,H 802.1x, UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
	Storage	Network remote storage, micro SD card storage
		Motion detection, Sensor detection, SD card Full, SD card error, IP address conflict, cable disconnection, abnormal video signal detection. line crossing detectionhuman/vehicle
Specification /Model		O5T2
Camera	Image Sensor	1/2.7" CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	Fixed Iris
	Min. Illumination	0.02lux@F1.6, AGC ON; 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV:98.5", vertical FoV:82.1", diagonal FoV:110.9"
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~360"; Tilt 0"~75"; Rotation:0"~360"
Image	Video Compression	H.265+/H.265/ H.264+/H.264/MJPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P{1~30fps}; 50Hz: 4MP/2K/3MP/1080P/720P{1~25fps}HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF(1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 {1~30fps}; 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	R/45
	Auido	1CH audio input; Built-in MIC×1
	Reset	Yes
	Storage	Built-in micro SD card slot; up to 256GB
Function	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802. UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Motion detection, SD card Full, SD card error, abnormal video signal detection, line crossing detection(human/vehicle classification), intrusion detection(human/vehicle classification), people/vehicle
Specification /Model		05T2M
Camera	Image Sensor	1/2.7" CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	DC Iris
	Min. Illumination	0.01 lux@F1.4,AGC ON; 0 lux with IR
	Lens	2.8~12mm@F1.4, horizontal FoV: 95.1"~30"; vertical FoV: 78.7"~22.8"; Diagonal FoV: 107.6"~37.1°
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~360"; Tilt 0"~80"; Rotation:0"~360°
Image	Video Compression	H.265+/H.265/H.264+/H.264/MIPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps) HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Auido	1CH audio Input; Built-In MIC×1
	Reset	Yes
	Storage	Built-in micro SD card slot; up to 256GB
Funcntion	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Motion detection, SD card Full, SD card error, abnormal video signal detection, line crossing detection(human/vehicle classification), intrusion detection(human/vehicle classification), people/vehicle counting, face detection, face capture
Specification /Model		O5P2
Camera	Image Sensor	1/2.7" CMOS
	Image Size	2592×1944
	Electronic Shutter	1/30s~1/100000s
	Iris Type	Fixed Irls
	Min. Illumination	0.02lux@F1.6, AGC ON; 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV:98.5", vertical FoV:82.1", diagonal FoV:110.9"
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~360"; Tilt 0"~75"; Rotation:0"~350"
Image	Video Compression	H.265+/H.265/ H.264+/H.264/MJPEG
	H.264 Type	Baseline profile/main profile/high profile
	Video Bit Rate	64Kbps~8Mbps
	Resolution	5MP (2592×1944), 4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz:5MP/4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P(1~25fps) HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Settings	BLC, HLC, Defog, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Support
Interfaces	Network	RJ45
	Auldo	1CH audio Input; Built-In MIC×1
	Reset	Yes
	Storage	Built-in micro SD card slot; up to 256GB
Function	Remote Monitoring	Web browser, SecureGuard CMS/VMS, Apple TV, Amazon Fire TV, Speco Blue
	Online Connection	Support simultaneous monitoring for up to 10 users and multi-stream transmission
	Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1 UPnP, HTTPS, QoS
	Interface Protocol	ONVIF
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Motion detection, SD card Full, SD card error, abnormal video signal detection, line crossing detection(human/vehicle classification), Intrusion detection(human/vehicle classification), people/vehicle counting, face detection, face capture
	Protection Grade	IP66
	Power	DC12V/PoF

Models: O5B2/ O5B2M/ O5D2/ O5D2M/ O5T2/ O5T2M/ O5P2

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
