USER MANUAL SMAX-0101 ACTi

Abstract geometric design with a red vertical bar and a gray star-like shape (no text or symbols)

Indoor PTZ

Mounting on a Horizontal Pole

Table of Contents

Horizontal Pole with Pendant Mount Installation

Procedures 3

Step 1: Attach the Pole Mount Kit .... 3

Step 2: Install the Straight Tube .... 5

Optional: Add Extension Tube(s)....5

Step 3: Install the Mount Kit (PMAX-0110)....6

Step 4: Install the Camera....7

Step 5: Access the Camera Live View....8

Appendix....9

How to Install Extension Tubes....9

Safety Information....10

Horizontal Pole with Pendant Mount Installation Procedures

Perform the following procedures to install the camera on a high ceiling with horizontal pole using the Pole Mount, Straight Tube and Mount Kit.

Step 1: Attach the Pole Mount Kit

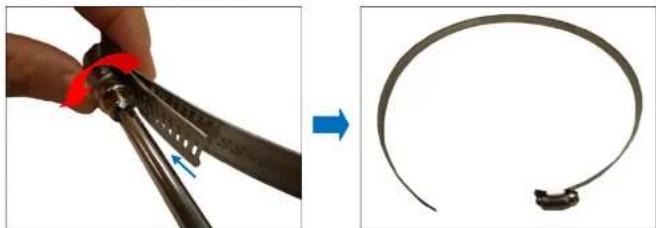

1. Using a screwdriver, turn the screw head of the wire strap counter-clockwise continuously until the two ends are detached.

Close-up of a hand using pliers to cut metal parts, with an arrow indicating the process (no text or symbols present)

1. Insert the wire strap through the strap holes of the pole mount.

Installation Guide

1. Encircle the pole with the wire straps.

NOTE: The wire straps can hold between 134 \~ 228 mm (5.28 \~ 9 in.) pole diameter.

1. Continuously turn the screw head clockwise to adjust the wire strap until it snugly fits the pole. Do the same to the other wire strap.

Close-up of a hand using scissors to cut a metal component, with an arrow indicating the process (no text or symbols visible)

1. Insert the network cable and other cables (if any) through the conduit hole of the pole mount.

Close-up of a ceiling-mounted electrical socket with a black cable inserted, no visible text or symbols

Step 2: Install the Straight Tube

1. Insert the flex conduit through the straight tube.

Close-up of a metallic cylindrical object with a black cable extending from its tip (no text or symbols visible)

1. Attach the straight tube onto the pole mount using the four (4) screws (included in the Pole Mount package).

Close-up of a white ceiling-mounted fixture with four circular mounting holes and a cylindrical base (no text or symbols visible)

Step 3: Install the Mount Kit (PMAX-0110)

1. Insert the cables from the tube into the mount kit and route them to pass through the outer bracket.

Close-up of a device with cable and wiring, showing internal components before and after assembly (no text or symbols visible)

1. Align the slot of the mount kit to the tab inside the straight tube and install the mount kit.

Close-up of a white industrial device with a red circular mark on its tip, showing internal components (no text or symbols visible)

Step 4: Install the Camera

1. If necessary, insert a memory card into the card slot of the camera.
2. Connect the network cable to the Ethernet port of the camera. If necessary, connect the other cables (such as power adaptor, DI/DO, etc.) to the corresponding connectors.

Close-up of a device's internal components, possibly a lamp or scanner, with visible wiring and circuit board (no text or symbols)

NOTE: Try to push the network cable further into the mount.

TIP: If the network cable texture is rough and not easily bent, use the bundled network extension cable (included in the mount kit package) to easily route the cables because of its flexibility.

1. Align and insert the camera base hooks to the mounting holes.

Installation Guide

ACTi

Connecting Vision

1. On the top of the mount kit, attach three (3) screws (included in the mount kit package) to secure the camera to the mount.

Close-up of a red-handled tool interacting with a white circular object, no visible text or symbols

The final installation would look similar to the one below:

Close-up of a security camera mounted on a metal frame (no visible text or symbols)

Step 5: Access the Camera Live View

Appendix

How to Install Extension Tubes

If the Straight Tube is not long enough, add one extension tube (purchased separately).

1. Remove the two (2) pre-installed screws on the extension tube.

Two identical views of a metallic cylindrical object with mounting holes, shown from top and side to front, with no visible text or symbols.

1. Insert the cable into the extension tube.
2. Align the slot on the extension tube to the tab inside the Straight Tube and install the extension tube.

Close-up of a pipe fitting with red arrows indicating direction, no visible text or symbols

Safety Information

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice.

Cleaning

Disconnect this video product from the power supply before cleaning.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition.
