USER MANUAL Forever Ready Cool FRC-24-LED Impact

Exterior view of a studio lighting fixture with adjustable light fixtures and a yellow background (no text or symbols visible)

FRC-24-LED

Forever Ready Cool

4-LED Tube Light Fixture

INSTRUCTIONS

Introduction

Thank you for choosing Impact.

Impact's Forever Ready Cool Light is a lightweight LED replacement for your old fluorescent fixtures. This color-corrected lamp is 5600 K daylight balanced, and the four LED tubes are surrounded by diffusers for a soft, flattering light that will wrap around your subject and avoid multiple harsh shadows. The LED tubes are cool to the touch, so they're ideal for photographing anything that's sensitive to heat, like food or people. The FRC-24-LED has a passive cooling system that prevents overheating.

The FRC-24-LED light comes with a yoke for light stand mounting and effortlessly aiming the light, and the built-in barn doors let you shape the beam to your specifications. The pebbled silver reflective surface on the barn doors maximizes light output.

Precautions △

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this unit away from water and any flammable gases or liquids.
  • Make sure the unit is powered off when plugging it into a power source.
• Use only the correct, recommended voltage.
• Do not stare at the lights when they are powered on.

• Handle the unit with care.

• Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Impact will not be responsible for any damage.

• Clean the unit with only a soft, dry cloth.
• Use only parts provided by the manufacturer.
  • Make sure the item is intact and there are no missing parts.
• All images are for illustrative purposes only.

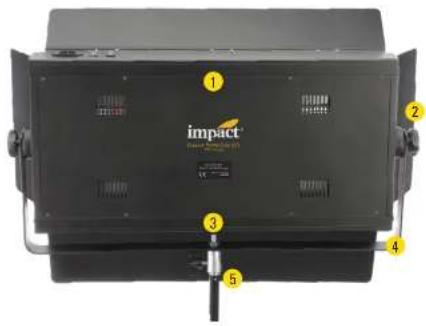

Overview

impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact

1 Light fixture
4 Yoke
2 Threaded knob (×2)
5 5/8 in. receiver
3 Receiver attachment nut

Setup

Attach the Yoke and Receiver

1. Use the threaded knobs to attach the yoke to the light fixture.
2. Use the included nut to attach the receiver to the yoke.

Connect the Lights

Gently remove the packing around the bulbs.

1. Fit each bulb into its metal clip.
2. Press each bulb into its socket until it clicks into place.

To remove a bulb, press and hold the red release button, and gently lift the bulb out of the fixture.

Powering the Light

1. Plug the light into an available wall socket.

2. Press the power switches to turn on the lights. Each switch illuminates two of the bulbs.

Barndoors

Use the barndoors to aim and shape the beam.

- Leave the barndoors fully open for a wide and unobstructed beam that will fill a large space.

- Close the barndoors more fully to limit the beam to a narrow area that will illuminate only your subject or create a narrow beam of light on your background.

- Slightly close the barndoors to limit light spill and amplify the light that falls on your subject.

Replacement bulb

Impact offers a replacement bulb FRC-24-TB for the Forever Ready Cool. Visit us online at ImpactStudioLighting.com for more information.

Specifications

Light Fixture
LED Chip Type COB
Color Temperature 5000 K
Color Accuracy Standard CRI: 97.2	TLCI: 98
Cooling System Passive
Dimming No
Display None
Housing Material Aluminum
Light Intensity @ 3 ft. 3190 lx
Number of LEDs NA
Expected Lamp Life 50,000 hr.
Dimensions (L × W × H) 25.75 × 3.75 × 14 in. (65.4 × 9.5 × 35.5 cm)

Weight 10.5 lb. (4.75 kg)

Connectors
Battery Plate NA
Power Input Connector 3 prong
Mounting
Fixture Mount bill in. female
Yake
Yoke Material	Metal
Yake Type	Yake/trackol
Fit	180°
Power
AC Input Power	110 to 220 VAC, 50/60 Hz
Power Source	Internal ballast

One-Year Limited Warranty

This impact product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that falls during normal use of this product in its intended manner and in its intended environment. Imporability of the product or parts) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOT ANY IMPLIED WARRANTIES. INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Impact is a registered trademark of the Gradus Group. © 2021 Gradus Group LLC. All Rights Reserved.
