USER MANUAL S2-ODP Sonifex

Product display of BONIFEX audio equipment with multiple channels and control panels (no visible text or symbols)

S2 Digital I/O Analogue Radio Broadcast Mixer User Handbook

Abstract digital banner with purple and blue gradient background, featuring a stylized 'S' logo at the bottom right (no readable text or symbols)

For the latest Sonifex handbook information please visit the Sonifex website at www.sonifex.co.uk

Revision 2.21 February 2020

©Sonifex Ltd, 2000-2020

All Rights Reserved

Sonifex Ltd, 61, Station Road, Irthlingborough,

Northants, NN9 5QE, England.

Tel: [phone]

Fax: [phone]

Email : [e-mail] or [e-mail]

Web: http://www.sonifex.co.uk

Information in this document is subject to change without notice and does not represent a commitment on the part of Sonifex Ltd. Sonifex Ltd shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, without the express written permission of Sonifex Ltd.

CONTENTS

Warranty & Safety Information i

Warranty and Liability

Returning the Warranty Card iii

Unpacking the S2 iii

Safety of Mains Operated Equipment iv

Fuse Rating iv

Power Cable and Connection iv

WEEE & RoHS Directives - Sonifex Statement v

Reporting Faults vi

1 Introduction

Innovative Design 1 Summary Audio Quality and Unmovational Reliability 2

Superb Public Quality and Onquestionable Reliability 3 Features

2 Installation Notes 4

Atmosphere	4
Electromagnetic Radiation 4

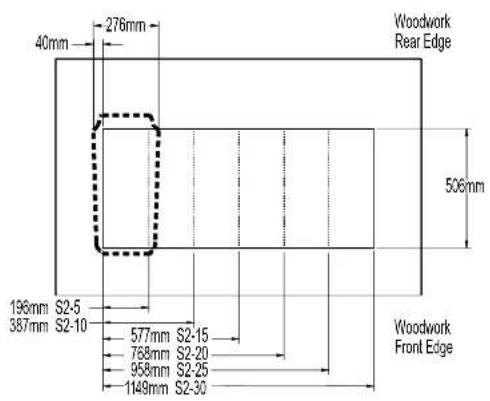

Dimensions and Cut-Out Sizes 4
Channel Configuration	5
Connectors and Cabiling 5

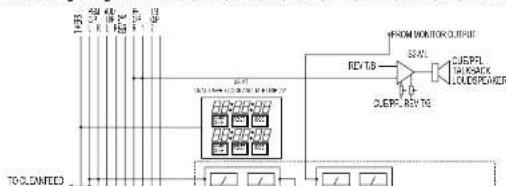

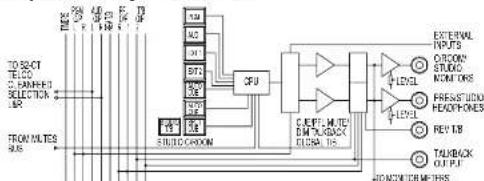

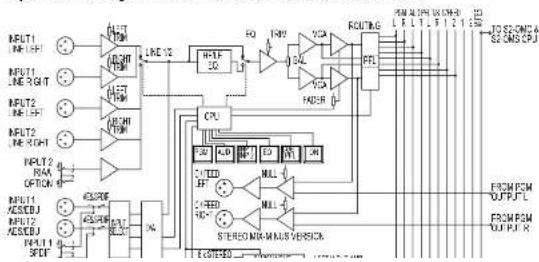

System Block Diagrams	9
Applications	11
Removing & Replacing Channels	13
Connecting A Split Desk	14

3 Power Supply 16

S2-PSU Power Supply (Old Version)	16
Front Panel	16
Rear Panel	17
Safety of Mains Operated Equipment	17
Ordering the Correct Mains Lead	18
Power Cable and Connection 18
Fuse Rating	18
S2-PSU Power Supply (New Version)	19
Front Panel Indicators	21
Rear Panel	22

4 Input Channels

S2-CML Mic/Line Input Channel 25
S2-CMM Mic/Mic Input Channel	25
S2-CS Dual Stereo Line Input Channel	25
S2-CSE Dual Stereo Line Input with EQ Channel	26
S2-CSG Stereo Line with Gram Input Channel	26
S2-CDS Digital Dual Stereo Input Channel	26
S2-CDSE Digital Dual Stereo Input with EQ Channel	26
S2-C655 6 Way Stereo Line Source Select Channel	26
S2-CT Telco Input Channel	26
S2-CSMM Stereo Mix-Minus Channel	27
S2-PG S2 Penny & Giles Conductive Plastic Fader	27

CONTENTS

CONTENTS

6 S2-CMM Mic/Mic Channel With EQ 36

Panel Controls 36

Rear Panel 37

Channel Options, Jumper Settings and Presets 38

7 S2-CSE/S2-CS Dual Stereo Line Channel With & Without EQ 43

Panel Controls 43

Bear Panel 44

Channel Options, Jumper Settings and Presets 45

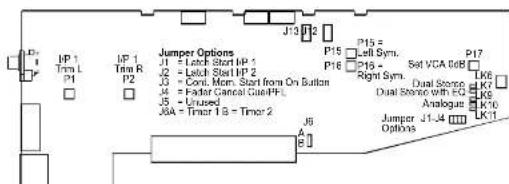

8 S2-CSGE/S2-CSG Stereo Line And Gram Channel With & Without EQ 52

Panel Controls 52

Rear Panel 53

Channel Options, Jumper Settings and Presets 54

9 S2 -CDSE/S2 -CDS Digital Dual Stereo Line Channel With & Without EQ 61

Panel Controls 61

Rear Panel 62

Channel Options, Jumper Settings and Presets 63

10 S2-C6SS 6 Way Stereo Line Source Select Channel With EQ 70

Panel Controls 70

Channel Options, Jumper Settings and Presets 72

11 S2-CT Telco Channel With EQ 76

Panel Controls 76

Rear Panel 77

Channel Options, Jumper Settings and Presets 78

12 S2 CSMM Stereo Mix Minus Channel With EQ 83

Panel Controls 83

Bear Panel 84

Channel Options, Jumper Settings and Presets 85

13 Output Channels 92

52-ODP Digital PGM Output Channel & 52-ODPF Digital PGM Output Channel

With Master Fader 92

S2-ODA Digital AUD Output Channel & S2-ODAF Digital AUD Output Channel

With Master Fader 92

S2-OMC Control Room Monitor Channel 92

\$2 OMS Studio Monitor Channel 93

14 S2-ODPF/S2-ODP Digital Output PGM Channel With & Without

Master Fader (Version 1) 94

Panel Controls 94

Rear Panel 95

Channel Options, Jumper Settings and Presets 96

15 S2-ODPF/S2-ODP Digital Output PGM Channel With & Without

Master Fader (Version 2) 101

Panel Controls 101

Rear Panel 102

CONTENTS

16 S2-ODAF/S2-ODA Digital Output AUD Channel With & Without Master Fader (Version 1) 108

Panel Controls 108

Bear Panel 109

Channel Options, Jumper Settings and Presets 110

17 S2-ODAF/S2-ODA Digital Output AUD Channel With & Without Master Fader (Version 2) 115

Panel Controls 115

Bear Panel 115

Channel Options, Jumper Settings and Presets 117

18 S2-OMC Control Room Monitor Channel 122

Panel Controls 122

Rear Panel 123

Channel Options and Jumper Settings 124

19 S2-OMS Studio Monitor Channel 128

Panel Controls 128

Rear Panel 129

Channel Options and Jumper Settings 130

20 Meterbridge Modules 134

Meterbridge Module Type

Meterbridge Distribution Board 135

S2-MB1-5 Meterbridge Blanking Plates 136

52-ML Meterbridge Loudspeaker Monitor Panel 136

S2-MVU Meterbridge VU Meter Panel, S2-MPPM PPM Meter Panel

& S2-ML53 LED Meter Panel 137

52-MTB5 Meterbridge Station Master Talkback Panel 141

S2 MSR1 Motorbridge Switch Panel With 1 Button 145

S2-MSB3 Meterbridge Switch Panel With 3 Buttons. 14S

S2-MT Motorbridge Timer Panel 146

Overview 146

Panel Con

Rear Panel 147

Configuring The Timer 147

21 Technical Specifications 152

S2 Mixer Weights and Boxed Dimensions 154

Glossary 155

CONTENTS

FIGURES

FIGURES

Figures

Fig 1-1: S2-15 Chassis Complete with Channels.	Fig 12-1: S2 Stereo Mix-Minus Board Layout.	86

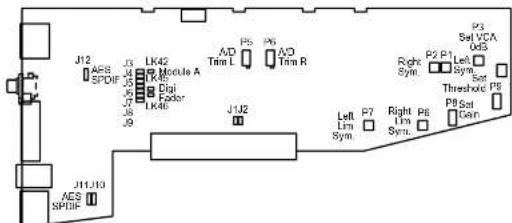

Fig 1-2: S2-7SS Script Space. 2	Fig 14-1: S2 Digital PGM Output Board Layout.	97

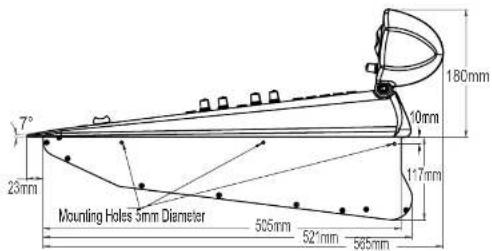

Fig 2-1: Mixer Profile. 4
Fig 2-2: Mixer Cut-Out Details. 5	Fig 14-2: S2 Digital PGM Output With Fader Board Layout.	98

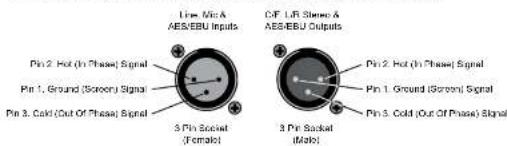

Fig 3-1: XLR Connectors. 6
Fig 2-4: RCA Phone Connector. 6	Fig 15-1: S2 Digital PGM Output Board Layout.	105
Fig 2-5: BNC Connector. 6
Fig 2-6: 1/4" Jack Connectors. 7	Fig 15-2: S2 Digital PGM Output With Fader Board Layout.	105
Fig 2-7: 9 Pin & 15 Pin D-Type Connectors.	Fig 16-1: S2 Digital AUD Output Board Layout.	111
Fig 2-8: 25 Pin D-Type Connectors. 8	Fig 16-2: S2 Digital AUD Output With Fader Board Layout.	112
Fig 2-9: 9 Pin D-Type Power Connectors. 8
Fig 2-10: System Block Diagram (Sheet 1): 9	Fig 17-1: S2 Digital AUD Output Board Layout.	118
Fig 2-11: System Block Diagram (Sheet 2): 10	Fig 17-2: S2 Digital AUD Output With Fader Board Layout.	118
Fig 2-12: Using the Sonifex IRB-LCS to control an On Air Light. 11	Fig 18-1: Control Room Monitor Board Layout.	124
Fig 2-13: Mixer Bus Cable Slots. 14	Fig 19-1: Studio Monitor Board Layout.	130
Fig 2-14: Mixer Bus Cable Screen Connection.
Fig 2-15: Cable & Channel Connection. 15	1/Fig 20-1: Meterbridge Distribution Board Layout.	135
Fig 2-16: Meterbridge interconnection. 15	Fig 20-2: Blanking Plate.	136
Fig 3-1: S2-PSU Front Panel. 16	Fig 20-3: Loudspeaker Monitor Panel.	136
Fig 3-2: S2-PSU Rear Panel. 16	Fig 20-4: PPM & True PPM Meter Panel.	137

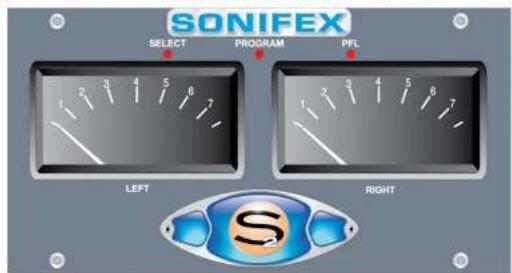

Fig 3-3: New S2 PSU Front Panel. 19	Fig 20-5: VU Meter Panel.	137
Fig 3-4: New S2-PSU Rear Panel. 20	Fig 20-6: VU & PPM LED Meter Panel.	138
Fig 3-5: S2-PSUS Front Panel. 21	Fig 20-7: Phase Motor Panel.	139
Fig 3-6: S2-PSUS Rear Panel. 22	Fig 20-8: Meterbridge 6 Way Talkback Panel.	140
Fig 3-7: New S2-PSU Diagram. 24	Fig 20-9: Meterbridge Station Master Talkback Panel.	141
Fig 5-1: S2 Mio/Line Input Board Layout. 32	Fig 20-10a: S2-MSS Panel.	143
Fig 6-1: S2 Mic/Mic Input Board Layout. 40	Fig 20-10b: S2-MSSS Diagram.	144
Fig 7-1: S2 Dual Stereo Input With & Without EQ Board Layout. 46	Fig 20-11a: S2-MSB1 S2 Meterbridge Switch Panel With 1 Button.	145
Fig 8-1: S2 Stereo Line & Gram With & Without EQ Board Layout. 55	Fig 20-11b: S2-MSB1 Diagram.	145
Fig 9-1: S2 Digital Dual Stereo Input Board Layout. 64	Fig 20-12a: S2-MSB3 S2 Meterbridge Switch Panel With 3 Buttons.	145
Fig 10-1: S2 6 W/ Source Selector Board Layout. 73	Fig 20-12b: S2-MSB3 Diagram.	145

WARRANTY & SAFETY INFORMATION

Warranty & Safety Information

Warranty and Liability

Important: the purchaser is advised to read this clause

(a) The Company agrees to repair or (at its discretion) replace Goods which are found to be defective (fair wear and tear excepted) and which are returned to the Company within 12 months of the date of despatch provided that each of the following are satisfied:

(ii) notification of any defect is given to the Company immediately upon its becoming apparent to the Purchaser;
(II) the Goods have only been operated under normal operating conditions and have only been subject to normal use (and in particular the Goods must have been correctly connected and must not have been subject to high voltage or to ionising radiation and must not have been used contrary to the Company's technical recommendations);
(III) the Goods are returned to the Company's premises at the Purchaser's expense;
(iv) any Goods or parts of Goods replaced shall become the property of the Company;
(v) no work whatsoever (other than normal and proper maintenance) has been carried out to the Goods or any part of the Goods without the Company's prior written consent;
(vi) the defect has not arisen from a design made, furnished or specified by the Purchaser;
(vii) the Goods have been assembled or incorporated into other goods only in accordance with any instructions issued by the Company;
(viii) the defect has not arisen from a design modified by the Purchaser;
(ix) the defect has not arisen from an item manufactured by a person other than the Company. In respect of any Item manufactured by a person other than the Company, the Purchaser shall only be entitled to the benefit of any warranty or guarantee provided by such manufacturer to the Company.

WARRANTY & SAFETY INFORMATION

(b) In respect of computer software supplied by the Company the Company does not warrant that the use of the software will be uninterrupted or error free.
(c) The Company accepts liability:

(i) for death or personal injury to the extent that it results from the negligence of the Company, its employees (whilst in the course of their employment) or its agents (in the course of the agency);
(iii) for any breach by the Company of any statutory undertaking as to title, quiet possession and freedom from encumbrance.

(d) Subject to conditions (a) and (c) from the time of despatch of the Goods from the Company's premises the Purchaser shall be responsible for any defect in the Goods or loss, damage, nuisance or interference whatsoever consequential economic or otherwise or wastage of material resulting from or caused by or to the Goods. In particular the Company shall not be liable for any loss of profits or other economic losses. The Company accordingly excludes all liability for the same.

(e) At the request and expense of the Purchaser the Company will test the Goods to ascertain performance levels and provide a report of the results of that test. The report will be accurate at the time of the test, to the best of the belief and knowledge of the Company, and the Company accepts no liability in respect of its accuracy beyond that set out in Condition (a).

(i) Subject to Condition (a): no representation, condition, warranty or other term, express or implied (by statute or otherwise) is given by the Company that the Goods are of any particular quality or standard or will enable the Purchaser to attain any particular performance or result, or will be suitable for any particular purpose or use under specific conditions or will provide any particular capacity, notwithstanding that the requirement for such performance, result or capacity or that such particular purpose or conditions may have been known (or ought to have been known) to the Company, its employees or agents.

(g) (i) To the extent that the Company is held legally liable to the Purchaser for any single breach of contract, tort, representation or other act or default, the Company's liability for the same shall not exceed the Price of the Goods.

(II) The restriction of liability in Condition (g)(i) shall not apply to any liability accepted by the Seller in Condition (c).

(h) Where the Goods are sold under a consumer transaction (as defined by the Consumer Transactions (Restrictions on Statements) Order 1976) the statutory rights of the Purchaser are not affected by those conditions of Sale.

WARRANTY & SAFETY INFORMATION

Returning the Warranty Card

In order to register the date of purchase so that we can keep you informed of any design improvements or modifications, it is important to complete the warranty registration document that is enclosed and return it to Sonifex Ltd in the UK, or register online at www.sonifex.co.uk/register

For your own records you should write down the serial number of both the power supply and the mixer chassis (2 for a split desk).

1st Mixer Serial Number
2nd Mixer Serial Number (split desk only)
Power Supply Serial Number

Unpacking the S2

Each product is shipped in protective packaging and should be inspected for damage. before use. Where an item is found to have transit damage, notify your supplier immediately with all the relevant details of the shipment. Packing materials should be kept for inspection and also for if the product needs to be returned.

WARRANTY & SAFETY INFORMATION

WARRANTY & SAFETY INFORMATION

Safety of Mains Operated Equipment

CE This equipment has been designed to meet the safety regulations currently advised in the country of purchase and it conforms to the safety regulations specified by use of the CE Mark.

The power supply is rated to 95 - 265VAC at 47 - 63Hz with a fuse of 2A.

Warning: There are no user serviceably parts inside the machine. If you should ever need to look inside the unit, always disconnect the mains supply before removing the equipment covers.

Fuse Rating

The product is supplied with a single fuse in the live conducting path of the power-in feed at the power supply. For reasons of safety it is important that the correct rating and type of fuse is used. Incorrectly rated fuses could present a possible fire hazard, under equipment fault conditions.

Power Cable and Connection

An IEC power connector is supplied with the product, which has a moulded plug attached this is a legal requirement. If no moulded plug has been supplied with your product, please contact your supplier, because an IEC connector is always supplied from the Sonifex factory.

If for any reason, you need to use the product with a different power cable, you should use the following wiring guidelines

Wire Colour Connection

Green, or green and yellow. Earth (E)

Blue, or Black Neutral (N)

Brown, or Red Live (L)

WARRANTY & SAFETY INFORMATION

WEEE & RoHS Directives - Sonifex Statement

The Waste Electrical and Electronic Equipment (WEEE) Directive was agreed on 13 February 2003, along with the related Directive 2002/95/EC on Restrictions of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS).

The Waste Electrical and Electronic Equipment Directive (WEEE) aims to minimise the impacts of electrical and electronic equipment on the environment during their life times and when they become waste. It applies to a huge spectrum of products. It encourages and sets criteria for the collection, treatment, recycling and recovery of waste electrical and electronic equipment. All products manufactured by Sonifex Ltd have the WEEE directive label placed on the case. It gives a contact for individuals who are unsure about the correct procedure when the product has reached its "end of use".

Sonifex Ltd will be happy to give you information about local organisations that can reprocess the products, or alternatively all products that have reached "end of use" can be returned to Sonifex and will be reprocessed correctly free of charge.

Sonifex Ltd has phased out the use of certain hazardous substances identified in the European Union's Restriction of Hazardous Substances (RoHS) directive. The RoHS directive limits the use of certain hazardous substances currently used in EEE manufacture, including lead, mercury, cadmium, hexavalent chromium, and halide-containing compounds PBB (polybrominated biphenyl) and PBDE (polybrominated diphenyl ether). Elimination of these substances will result in more environmentally friendly recycling of electronic equipment. For the products which Sonifex manufacture, the main area where products were affected was in the use of lead for manufacturing and assembling electronics circuit boards.

Sonifex Ltd practices lead-free (LF) manufacturing processes. LF solder is used on the surface-mount PCB manufacturing processes and for hand soldering. The printed circuit boards (PCBs) used are either gold plated, or immersion tin plated, both of which use no lead. Historically the PCBs were hot air solder levelled (HASL) PCBs which used tin/lead based solder.

The manufacturing processes include the assembly of purchased components from various sources. Product is offered as RoHS compliant, or LF, only after sufficient evidence is received from the component manufacturers that their components are RoHS compliant. Sonifex Ltd relies solely on the distributor, or manufacturer, of the components for identification of RoHS compliance. Thus whilst every effort is made to ensure compliance, Sonifex Ltd makes no warranty, or certification, or declaration of compliance concerning said components.

Sonifex Ltd defines "Lead Free" as pertaining to any product, which has been manufactured by Sonifex Ltd using components which have been declared by the manufacturers as

WARRANTY & SAFETY INFORMATION

REPORTING A FAULT

Reporting Faults

Although this Sonifex product is manufactured to the highest standards, it is possible that minor faults may appear in the equipment over its normal lifetime. If you find any problems with the product, please contact your Sonifex distributor, or contact Sonifex directly at the following address, or fax with a copy of this completed sheet:

To : From:
Sonifex Ltd. Name
61, Station Road, Position
Irthlingborough, Company
Northants. Address
NN9 SQE, UK
Tel : [phone] Tel
Fax : [phone] Fax
Email : [e-mail] Email

For the Serial No. of your machine, see the back panel of the unit.

Serial No.

Please describe the error in as much detail as possible (for example what you were doing when the problem occurred, what actually happened, etc)

Description of Error

Also, if you have any suggestions for additions or upgrades to the unit, we would like to hear what they are:

Additions that I Would Like to See

S INTRODUCTION 1

1 Introduction

S2 is a new breed of radio broadcast mixer. Using the latest technology components, S2 offers digital audio quality with analogue reliability in a modular format. S2 has both digital and analogue input channels, together with simultaneous analogue and digital outputs.

Following on from the Sovereign range of audio mixers, 52 combines all the features needed of a radio broadcast mixer in a stylish, flush mounting chassis: a wide range of input and output channels, PFL/Cue, fader-start operation of equipment, automatic monitor muting on mic live, light switching remote outputs, optional EQ on input modules, gram amp input options and 2 main audio buses, allowing you to broadcast on the PGM bus while recording on the AUD bus, with bus output selection on each module.

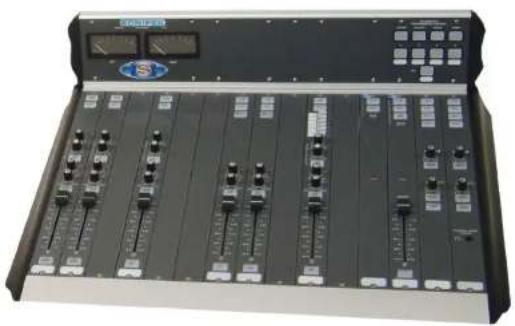

Front view of a black audio editing studio audio workstation with multiple control knobs and a digital display (no visible text or labels)

Fig 1-1: S2-15 Chassis Complete with Channels.

INTRODUCTION

Innovative Design

- The S2 chassis is available in 5 channel width sections, allowing 5, 10, 15, 20, 25 and 30 channel width mixers. This means S2 can be used for small newsrooms or large on-air situations. The following table shows the model number along with the total channel width.

1

INTRODUCTION

INTRODUCTION

- The Script Space (S2-75S) occupies an area of 7 channel widths, and is designed to hold documents/scripts for the mixer operator when desk space is at a premium. It is most commonly placed in the centre of the mixer, although it can be positioned anywhere within the mixer chassis. It has a hole in the rear of the front section to allow a keyboard/mouse cable to pass through and a 10 channel Script Space (S2-105S), is also available.

Simple line drawing of a 3D rectangular frame with a circular hole at the top (no text or symbols)

Fig 1-2: S2-75S Script Space.

• Blank channels (S2-CB) can be used to fill spaces in the chassis not occupied by active channels.
• Modular "pop-up" input and output channels means that the mixer can be maintained simply and quickly. Input channels can be individually removed and repaired whilst still on-air.
  • The angle of the meterbridge can be varied and set for best viewing position.
• Any channel can be in any position so that customizing the mixer for your own purposes is easy.
  • Large backlit buttons allow you to see the status of the mixer at all times.
• The fitted rear panel hides all cable connections but can be simply removed for maintenance.
  • The modular design of the desk gives you the flexibility to expand it at a later date.

INTRODUCTION 1

Superb Audio Quality and Unquestionable Reliability

• The S2 uses the latest Crystal semiconductor technology to allow input and output of digital audio signals up to 24 bit, 96kHz sample rate.
• The analogue signal paths use low noise circuitry to provide superb audio performance well capable of satisfying radio listeners worldwide.
• The high reliability and build quality of 52 minimizes the chance of failure, avoiding lost air time. Each channel is individually checked twice before being assembled into the finished chassis and the whole unit is tested before shipping.
• ALPS long throw 100mm faders give a smooth, repeatable response and the Neutrik XLR connectors used are an industry standard.
• The use of VCAs controlled by the faders ensures tight stereo tracking and eliminates mechanical and electronic noise.
• S2 has a separate 1U power supply providing regulated, ripple-free power to the mixer.
• High quality stainless steel is used for the chassis and screws to prevent corrosion in high humidity environments.

Features

• Fully modular build with six different frame sizes available.
• Optional script space.
  • Digital and analogue Inputs.
  • Digital and analogue PGM and AUD outputs as standard.
• Mono analogue output.
  • True cleanfeed output on each telco input.
• Stereo cleanfeed channel available.
  • VCA faders.
  • VU and PPM metering.
• Optional master faders on outputs for production use.
  • Dual digital timers with real time clock.
• Separate control room and studio monitor channels.

INTRODUCTION

2

INSTALLATION NOTES

INSTALLATION NOTES

2 Installation Notes

Atmosphere

The S2 mixer should be installed in an area which is not subject to excessive heat or cold. Also, you should avoid installing it in atmospheric conditions which are dusty, smoky, or dirty, or where there is moisture or vibration.

Do not use any liquids to clean the fascia of the mixer: a soft dry brush is ideal. Use a clean cloth moistened with water or ethyl alcohol to clean the trim and scribble pads. Other solvents may cause damage to paint or plastic parts.

Electromagnetic Radiation

Avoid using the S2 mixer close to strong sources of electromagnetic radiation such as, video monitors or high power electric cabling. This may cause degradation of the audio quality due to induced voltages in connecting leads and chassis. The S2 power supply should also be sited at least 1 metre from the mixer.

In all cases the S2 mixer and power supply should be installed and serviced by qualified personnel.

Dimensions and Cut-Out Sizes

The S2 mixer consists of a stainless steel chassis with plastic side and top mouldings and aluminium front trim. The dimensions for the mixer below include the mouldings and trim. The cut-out size is for reference only and should be checked with your mixer.

7° 23mm Mounting Holes 5mm Diameter 505mm 521mm 565mm 180mm 10mm 117mm

Fig 2-1: Mixer Profile.

INSTALLATION NOTES 2

40mm 276mm Woodwork Rear Edge 506mm 196mm S2-5 387mm S2-10 577mm S2-15 768mm S2-20 958mm S2-25 1149mm S2-30 Woodwork Front Edge

INSTALLATION NOTES

Fig 2-2: Mixer Cut-Out Details

Channel Configuration

Each of the channels can be re-configured by jumpers, which are displayed in the "Channel Options and Jumper Settings" section of each chapter. You should ensure that you are thoroughly familiar with the settings available for each channel before attempting installation of the mixer. This is because some options may involve moving jumpers on several channels to change the configuration of the mixer.

Connectors and Cabling

Many of the problems associated with installing and maintaining a mixing console are due to the use of poor cables or faulty connections. It is recommended that, wherever possible, pre-wired cables are purchased from recommended manufacturers. If you need bespoke cables making, please ensure that a qualified engineer carries out the work.

2

INSTALLATION NOTES

The main types of connectors used with the S2 mixers are the following:

XLR 3 Pin Connectors

The following diagram shows the pin details for the 3 pin XLR sockets and plugs:

INSTALLATION NOTES

Line Mir A AES/EBU Inputs CIF UR Stereo A AES/EBU Outputs Pin 2, Hot (In Phase) Signal Pin 1, Ground (Screen) Signal Pin 3, Cold (Out Of Phase) Signal 3 Pin Socket (Female) Pin 2, Hot (In Phase) Signal Pin 1, Ground (Screen) Signal Pin 3, Cold (Out Of Phase) Signal 3 Pin Socket (Male)

Fig 2-3: XLR Connectors.

RCA Phano Connector

This connector is used on the Stereo Gram Channel and the S/PDIF inputs on the digital Input/output channels.

Fig 2-4: RCA Piano Connector.

BNC Connector

This connector is used for the Word clock inputs on the PGM and AUD output channels.

Fig 2-5: BNC Connector.

INSTALLATION NOTES 2

6.35mm 'A' Gauge Stereo Jack Plugs

'A' Gauge Stereo Jack Plugs can be connected as follows:

½ A Gauge Stereo-Jack Plug used for T8 in and T8 Out Tip - T8 Signal Ring - Control Signal (T8 In) Sleeve - Common ½ A Gauge Stereo-Jack Plug used for Hosiophones and Monitors Tip - Left Signal Ring - Right Signal Sleeve - Ground (Green) Signal

Fig 2-6: 1/4" Jack Connectors

D Type Connectors

Several different D type connectors are used on the 52. A 9 pin plug is used for the remotes on input channels and external inputs on monitor channels. A 15 pin socket is used for the analogue outputs and mute relays on the output channels. A 25 pin socket is used for the audio inputs, and a 25 pin plug for the remotes, on the 6 way stereo select channel. A 9 pin plug & socket is used for the power connections from the PSU to the mixer.

9 Pin D-Type Plug used for Romelos and Eell Inputs Pin 6 Pin 9 Pin 5 Pin 1 Pin 10 Pin 8 Pin 1 15 Pin D-Type Spectral used for Analogue Outputs and Mute Relays Pin 8 Pin 1

Fig 2-7:9 Pin & 15 Pin D-Type Connectors.

INSTALLATION NOTES

INSTALLATION NOTES

INSTALLATION NOTES

Fig 2-8:25 Pin D-Type Connectors.

Fig 2 9:9 Pin D Type Power Connectors.

INSTALLATION NOTES 2

System Block Diagrams
Input Channels Diagram - CMM & CML

Input Channel Diagram - CT Telco

INSTALLATION NOTES

Input Channels Diagram - CSG,CSGE,CS,CSE,CDS,CDSE, and CSMM C6SS

INSTALLATION NOTES

INSTALLATION NOTES

Output Channels Diagram - ODP,ODPF,ODA, and ODAF

Output Channels Diagram - OMS and OMC

Meterbridge Diagram - MPPM/T, PPM, MVU, VU, ML53, MPH, MTBS, MTB6, MT, and ML

TOO.LANTED FROM MONITOR OUTPUT SEATL CJERPL RUNLOCK LOADSPONDER CJERPL REV TB

INSTALLATION NOTES 2

Applications

This section of the handbook provides examples of how to configure the different types of modules for typical applications:

Controlling an On-Air Light Using the Output Modules

The On-Air light, also known as Mic Live, is used to indicate to everyone inside or outside of the Control Room and/or Studio that microphones are live and on-air.

Two sets of latching relay contacts, activated by a control room mute, are available on the 15 way D type socket on the rear panel of the PGM and AUD modules for the Control Room On Air light and Studio On-Air light respectively. See the Remote Connector pin-outs of the relevant modules for details.

Shown below is an example of connecting one of the latching relay contacts on the PGM or AUD modules to a Sonifex RB-LC3. The remote connection on the RB-LC3 is active low.

PGM or AUD Output Module

Fig 2-12: Using the Sonilex RB-LC3 to control an On-Air Light.

Controlling a Mic Cue Light using the Input Modules

The mic cue light is used to indicate to a guest, etc., situated in a talks studio, that they should speak. The cue light is usually green, and there is usually one per microphone. This should not be confused with a mic live light, which is red and there is one per studio or control room, also known as "On Air light" (see above).

Opto-isolated outputs for a mic cue light are provided on the remote connectors of the Mic/Mic and Mic/Line modules. See the Remote Connector pin-outs of the relevant modules for details.

NOTE: It is vital that mains voltages are NOT connected to any of the connectors.

INSTALLATION NOTES

2

INSTALLATION NOTES

INSTALLATION NOTES

Enabling Talkback On Mic Modules

Talkback is used for off-air communication between studios, or between the Presenter, the Studio guests and callers on the telephone line. The presenter's microphone module can be configured to be the talkback source to the studio guests and telephone callers by connecting pin 9 to pin 7 on the presenters Mic/Mic or Mic/Line modules remote connector. This talkback audio also appears on the talkback output connector on the control room monitor module as a continuous feed. It can be used for routing talkback to other destinations.

Cough Switch and Talkback On Mic Modules

A cough switch is used to momentarily mute the output of a live microphone channel when you wish to clear your throat. Closing pin 8 to pin 7 on a Mic/Mic or Mic/Line modules remote connector performs the cough function when the module is live, i.e. when the mic input is selected, the channel is routed, the channel is ON and the fader is up. This function can be used for the presenters mic but is more usually only provided for the studio microphones.

The cough switch performs the function of talkback to the presenter when the module is not live. In this case, when a studio guest presses his cough switch the microphone module is put in to PFL, which routes the pre fade mic signal to the control room monitoring where it can be heard by the presenter via his headphones or monitor loudspeakers. The presenter can talk back to the studio by using the Studio T/B button situated on the studio monitor module. For the presenter to hear the talkback from the studio automatically, either or both the control room monitor loudspeakers and the headphones should be set to Auto Cue/PFL. While the Cough switch is enabled, if PGM and/or AUD are enabled then they will flash quickly to indicate that Cough is enabled.

Using Voice Processors On Mic Channels

The Insert point on Mic input channels is useful for hooking up an outboard effects unit to be used with the microphone, for example, a voice processor. The Insert send signal is always available as a line level balanced output. The insert return signal is enabled by placing jumper J10 on the channel, over pins 1 & 2. The insert return function is disabled in Line mode except when jumper JS. Mic on Line Input, is set.

Remote Start and Stop

When an input module is being used in line mode (e.g a Mic/Line on input 2 or a Dual Stereo module) it is usually necessary to control external equipment by means of the remote start and stop functions. See the relevant modules for pin out details.

If your equipment has a remote facility for "Fader Start" then this normally requires a latching contact to start, opening the contact will cause the equipment to stop. In this case it is only necessary to use the start remote, but you will need to make the contact latching

INSTALLATION NOTES 2

If your equipment has remote facilities for "Play", "Stop", "Re-Cue", it will be necessary to use both start and stop remotes. In this case you will need a momentary start. It should be noted that pins 2 & 5 on the input modules remote connector is common to start and stop and should be connected to the common pins on your equipments remote connector. Pins 1 & 4 on the remote should be connected to the "Play" pins on your equipment, and pins 3 & 6 should be connected to the "Stop" pins. Sometimes it may be useful to connect the mixer stop remote to the "Re-Cue" pin.

Adding Telco Channels

When adding a Telco channel to the mixer there are certain requirements that need to be met for the correct operation of the cleanfeed buses. Depending on whether you have 1, 2 or no telco channels filled, you may have to alter the cleanfeed bus termination on the digital PGM and AUD Output channels. If the console is supplied without Telco channels then both cleanfeed mix buses will need to be terminated. With one Telco channel, only the unused cleanfeed bus will require termination. With two Telco channels no termination is required. Please refer to that section of the handbook for further info.

The jumpers J11 and J12 on the Telco channel determine which of the two true cleanfeed buses the channel uses. There can only be a maximum of two telco channels in each mixer and they must not share a cleanfeed bus. If you have only one telco channel, the jumpers are fitted over pins 1 & 2 of J11, using cleanfeed bus 1. If a second telco channel is present in the mixer, then this second channel will have the jumpers fitted over pins 2 & 3 of J12, using cleanfeed bus 2 only.

Removing & Replacing Channels

When installing the mixer it may be necessary to change certain characteristics of a channel to suit your specific needs, e.g. jumper settings, Internal gain pots, etc. To do this the channel must be removed from the chassis to gain access to the jumpers and pots. Particular care must be taken when performing this procedure.

To remove a channel, first disconnect any attached cables from the rear of the channel, and remove the two screws from the front panel of the channel. The channel should now be lifted slightly from the chassis with the aid of springs situated at the two fixing points, with enough room to grab both ends of the channel, so that you can carefully lift it from the chassis. Be careful not to lay the channel across the mixer, as the underside of the channel PCB may cause scratching.

Once the necessary changes have been made, ensure that the main bus cable is still firmly attached and carefully position the channel directly above the space where it was removed from, holding it at a tilt, so that the fader end of the mixer will make contact with the chassis first. Slowly lower it down into the mixer, making sure that the main bus cable is

INSTALLATION NOTES

2

INSTALLATION NOTES

INSTALLATION NOTES

Connecting A Split Desk

There are three cables used when connecting an S2 mixer split desk configuration. A 16 way IDC cable which connects the two meterbridge distribution boards, A 60 way jacketed IDC cable which connects the two main mixer bus cables and an earth braid cable which connects the two chassis'. When shipped, these three cables will already be attached to one of the mixers and will require attaching to the other mixer. The procedure to do this is described below.

Connecting The Mixer Bus Interconnect Cable

On the under side of the mixer chassis are two slots at each end. These are where the mixer bus interconnect cable feeds through (Fig 2-13). The first thing to do is to remove the channel from the end of the mixer where the cable is going to be connected. If the interconnect cable is to be connected to the left handside mixer then this will be the right most channel of the mixer. If the interconnect cable is to be connected to the right handside mixer then this will be the left most channel.

Exterior view of a wall-mounted device with two red-circled components (no visible text or symbols)

Close-up of a control panel with scroll and dial indicators (no visible text or symbols)

Fig 2-13: Mixer Bus Cable Slots.

Close-up of a black plastic sheet mounted on a white wall, with a red circle highlighting a section (no text or symbols visible)

Once the channel has been removed, pull the cable through the slot making sure that the cable has not twisted coming from the first mixer. Pull it through so that about 2 inches (5 cm) of the cable jacketing is inside the chassis. Connect the screening wire to one of the clamping plate screws and screw in the plate to the underside of the chassis to secure the cable, and stop it from moving (Fig 2-14).

INSTALLATION NOTES 2

Then loop the cable back over itself and connect the 60 way IDC plug to the main mixer bus (Fig 2-15). Now reconnect the channel that was removed, to the free 60 way IDC socket, using the procedure described on page 13 for removing and replacing channels.

Fig 2-15: Cable & Channel Connection.

Connecting The Meterbridge Interconnect Cable

To connect this cable some of the panels on the meterbridge will require removing to locate the meterbridge distribution board. Once located, find the IDC header labelled on the distribution PCB as "From Output Module". At the back of the mixer chassis there is a slot just above where the output modules sit. Feed the Meterbridge Interconnect cable through the slot and plug it into the header. Once this has been done, replace the meterbridge panels that were removed earlier to locate the distribution board.

Close-up of a mechanical device with control panel and buttons (no visible text or symbols)

Close-up of a green electronic circuit board with a coiled cable wrapped around it (no visible text or symbols)

Fig 2-16: Meterbridge Interconnection.

Connecting The Earth Braid

As with the other cables, this will already be connected to one of the split desks. Simply connect the other end of the cable to the other desk, by unscrewing the outer M4 nut and removing the shakeproof washer. Then place the solder tag of the earth braid cable on the bolt and then replacing the shakeproof and M4 nut.

INSTALLATION NOTES

3

POWER SUPPLY

POWER SUPPLY

3 Power Supply

S2-PSU Power Supply (Old Version)

Each 52 is shipped with a separate power supply in protective packaging and should be inspected for damage before use. Where an item is found to have transit damage, notify the carrier immediately with all the relevant details of the shipment. Packing materials should be kept for inspection.

Front view of a black electronic device labeled 'SONIFEX' with indicator lights and ports (no readable text beyond branding)

Fig 3 1: S2 PSU Front Panel.

Front Panel

The S2-PSU is a 2U high rack-mount unit, which can supply power to the entire range of S2 mixers. A lead with a special 9 pin D-Type socket (see Fig 2-9) on each end is used to connect the power supply to the mixer.

The power supply should be installed where there is adequate ventilation for heat to circulate from the rear of the unit. The mixer has a heat sink attached to the rear panel, which radiates some heat.

Four LED's on the front of the unit indicate whether the power to the four voltage rails is being supplied correctly. If one of the LED's fails, then there is a problem with the power supply unit.

Front view of a black industrial power supply unit with ventilation grilles and control panel (no visible text or labels)

S POWER SUPPLY 3

Rear Panel

It is important to connect the mains supply in accordance with the information given. Ensure that the rear panel mains voltage statement on the separate power supply indicates that your equipment is suitable for your mains supply voltage and that the mains supply fuse is correctly rated. The fuse as supplied is correct for the voltage setting.

The power cable supplied carries an EARTH conductor, which is connected internally to the equipment chassis ground. This connection through a properly wired power Connector is essential for safe operation. Disconnection of this earth connection may render the Equipment unsafe, with a consequential possible electrical shock hazard from exposed metallic parts.

Safety of Mains Operated Equipment

CE This equipment has been designed to meet the safety regulations currently advised in the country of purchase and it conforms to the safety regulations specified by use of the CE Mark.

This equipment will operate in a horizontal position.

WARNING: The power must be switched off at the supply or the power lead must be disconnected before attempting to remove the panels or cover. Removal of the panels and cover can expose dangerous voltages. The cover is connected to the chassis ground of the equipment by means of fixing screws. It is essential to maintain this earth-ground connection to maintain a safe operating environment.

In addition, to provide an Electromagnetic Shield, contact between the cover and the chassis must be maintained when in use.

The power supply is switchable between 230V & 115V.

Warning: There are no user serviceably parts inside the machine. If you should ever need to look inside the unit, always disconnect the mains supply before removing the equipment covers.

The rear panel of the equipment carries the Serial Number of the machine. The operating voltage of the S2 power supply is selectable at the fuse carrier on the power inlet port of the S2-PSU unit. Ensure that the machine operating voltage is correct for your mains power supply.

POWER SUPPLY

POWER SUPPLY

Ordering the Correct Mains Lead

When ordering an S2 from Sonifex, it is helpful if you can specify your required operating voltage and mains lead. After the product code add:

UK, for 230V, UK 3 pin to IEC lead

EC, for 230V, European Schuko 2 pin to IEC lead

US, for 115V, 3 pin to IEC lead

AU for 230V, Australasian 3 pin to IEC lead

Power Cable and Connection

An IEC power connector is supplied with the S2, which has a moulded plug, attached – this is a legal requirement. If no moulded plug has been supplied with your S2, please contact your supplier, because an IEC connector is always supplied from the Sonifex factory.

The safety specification of your S2 power supply complies with local requirements and must be earthed through the mains connector.

If for any reason, you need to use the 52 with a different power cable, you should use the following wiring guidelines.

NOTE: The colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals of your plug.

Wire Colour Connection
Green and Yellow wire:	must be connected to the terminal marked with E the colour green or green – yellow.
Blue wire:	must be connected to the terminal marked N or coloured black.
Brown wire:	must be connected to the terminal marked L or coloured red.

Fuse Rating

The S2 is supplied with a single fuse in the live conducting path of the power infeed at the power supply. For reasons of safety it is important that the correct rating and type of fuse is used. Incorrectly rated fuses could present a possible fire hazard, under equipment fault conditions.

S POWER SUPPLY 3

Voltage Setting Fuse Rating

115V 3.15A (Anti-surge - 20 x 5mm)

230V 3.15A (Anti-surge - 20 x 5mm)

Power Connector

This 9 pin D type plug (see Fig 2-9) is used to supply power to the Mixer, and has the following connections;

Pin A1: +16V.

Pin A2: -16V.

Pin A3:0V.

Pin A4: +VD.

Pin 1: +16V sense.

Pin 2: -16V Sense.

Pin 3:0V Sense.

Pin 4: +VD Sense.

Pin 5: 148V.

+VD: Digital power rail.

V Sense: Voltage level sensing signals.

Dimensions (S2-PSU)

(Raw): 48cm (W) x 24.3cm (D) x 8.8cm (H)

19" (W) × 10" (D) × 3.5" (H)

(Boxed): 51cm (W) x 41.5cm (D) x 17cm (H)

Nett: 6kg (13.2lbs) Gross: 7.8kg (17lbs)

S2-PSU Power Supply (New Version)

POWER SUPPLY

SONIFEX © POWER SERVICE

3

POWER SUPPLY

POWER SUPPLY

Increased power efficiency, so that less power is drawn and therefore less heat generated.

An improved over-current and over-voltage protection system to give increased reliability and stability.

A dynamically controlled quiet cooling fan which is only switched on when required by the load conditions and temperature (greater than 50°C).

A new 1U chassis so it takes up less space in a 19" rack.

A fan failure indicator LED on the front panel so that in the unlikely event that the cooling system should fail, a visible warning is given with the LED flashing red.

Front view of a black industrial server rack with ventilation grilles and ports (no visible text or labels)

Fig 3-4: New S2-PSU Rear Panel

Important Notes:

Please note that ALL connections to the mixer should be made before powering up the S2-PSU, otherwise this could trigger the over-current protection. If the over-current protection kicks in, then the unit needs to be powered down for approximately a minute to reset the over-current protection.

This 1U sized S2-PSU is incompatible with S2-PSUS power supply switchers with a serial number of 16948 or earlier. The S2-PSUS has been redesigned (from April 2011) to work with both 1U and 2U S2-PSU power supplies, but this is only for S2-PSUS switchers with a serial number higher than 16948. Contact Sonifex if you need to replace a 2U S2-PSU and are using an S2-PSUS power supply switcher - either a new version of the S2-PSUS will be required or a 2U S2-PSU power supply will need to be specifically requested.

The fan is started and run briefly every few minutes to check that it is in operation and to ensure that it doesn't freeze through lack of use over time.

Dimensions (S2-PSU)

(Raw): 48.3cm (W) x 23cm (D) x 4.4cm (H)

19° (W) × 9° (D) × 1.7" (H)

(Boxed): 51cm (W) x 41.5cm (D) x 17cm (H)

20° (W) × 16.3° (D) × 6.7° (H)

10.14.17 19:11:30:12 Plo Cencc 4:26a

POWER SUPPLY 3

S2-PSUS Dual Power Supply Switcher

The S2-PSUS is a passive power switcher which takes the power feeds from 2 x S2-PSU units and switches between them in the event of failure. Two trailing leads 0.5 m in length connect to 2 x S2-PSU units. With LED failure indicators and GPI alarms the S2-PSUS is the perfect dual redundant power supply module.

Functionality

As an intelligent unit, the S2-PSUS detects changes in the DC levels supplied to the S2. A failure in any one of the VD, +VF , VF or +48V power rails, defined by calibrated limits, results in switching to the secondary power unit. If the glitch was temporary and the primary power unit recovers, the S2-PSUS will switch back. Once it has switched back, the unit has to remain stable for one minute for the power supply to be deemed stable again.

A failure count is incremented every time the unit returns and fails within the minute period. Once three failures have occurred the rail is no longer used and the unit will only use the secondary power supply. If the secondary power supply fails, the unit will enter 'Joint Mode' and attempt to complete the power rail set from the primary power supply. Again, if the secondary power supply recovers, it is given a minute to stabilize. Three or more failures on the same rail will result in a permanent failure to that rail. If the same rail fails in both supplies, the unit will cut all power to the mixer except in the case of the phantom power +48V rail.

POWER SUPPLY

Front Panel Indicators

SONIFEX 10.0V POWER BANANA GROUP S

Fig 3-5: S2-PSUS Front Panel.

Two indicator LEDs on the front of the unit are used to display which power supply is currently supplying the mixer. There are also eight LEDs that display the status for each of the rails.

The LED will stay illuminated when the rail is stable. If the LED flashes quickly (1/4 second), then the level is too high on that rail or if the LED flashes slowly (1/2 second), then the level is too low on that particular rail. If the unit is in 'Joint Mode', then both active LEDs will be

3

POWER SUPPLY

POWER SUPPLY

Resetting the S2-PSU States

The S2-PSUS detects when a power supply has been removed or unplugged. If this occurs, the S2-PSUS assumes the power supply has been serviced and all failure statistics are refreshed. If a rail has failed permanently, removing or unplugging the supply will allow the rail to be fully tested again, once reinstated. Removing both power supplies will reset the S2-PSUS, indicated by the alternating front led sequence.

Usage Advice

The unit has been designed to give the user as little down time as possible. If an S2-PSU rail reaches an unrecoverable state, please remove and service it. If an extreme fault occurs (total loss of power) on the +VD rail, the switch over can cause a reset of digital modules which will result in a small audio glitch.

Rear Panel

Exterior view of a black network equipment unit with attached cable and connector (no visible text or symbols)

There are alarm outputs on the rear of the unit, created using opto-isolator switches. These alarm outputs mimic those on the front panel and there is also an alarm relay which operates as a warning for total unit failure. This will come on if the both power supplies have failed.

Power Input Connectors

Two trailing leads 0.5m in length are used to connect 2 x S2-PSU units to the power switcher.

Power Output Connector

This 9 pin D type connector (see Fig 2-9) is used to route power to the Mixer from either the master or slave power supply. It has the same connections as the output from the PSU (see above).

Alarm & Status Connector

This 25 pin D type socket provides alarm and status output for the power switcher and has the following connections;

Pin 1:0V.

S POWER SUPPLY 3

Pin 5: Opto isolated +VE slave alarm NPN emitter.
Pin 6: Opto isolated -VE master alarm NPN collector.
Pin 7: Opto isolated -VE master alarm NPN emitter.
Pin 8: Opto isolated -VE slave alarm NPN collector.
Pin 9: Opto isolated -VE slave alarm NPN emitter.
Pin 10: Opto isolated IVD master alarm NPN collector.
Pin 11: Opto isolated +VD master alarm NPN emitter.
Pin 12: Opto isolated +VD slave alarm NPN collector.
Pin 13: Opto Isolated +VD slave alarm NPN emitter.
Pin 14: Opto isolated 148 master alarm NPN collector.
Pin 15: Opto Isolated +48 master alarm NPN emitter.
Pin 16: Opto isolated +48 slave alarm NPN collector.
Pin 17: Opto Isolated +48 slave alarm NPN emitter.
Pin 18: Opto isolated master active NPN collector.
Pin 19: Opto Isolated master active NPN emitter.
Pin 20: Opto isolated slave active NPN collector.
Pin 21: Opto Isolated slave active NPN emitter.
Pin 22: Master alarm relay contact 1 (makes to pin 23).
Pin 23: Master alarm relay contact 2 (makes to pin 22).
Pin 24:0V.
Pin 25:0V.

POWER SUPPLY

Dimensions (S2-PSUS)

(Raw): 48cm (W) x 23cm (D) x 4.4cm (H)

19^ (W) × 9^ (D) × 1.7^ (H)

(Boxed): 55cm (W) x 39.3cm (D) x 8.5cm (H)

21.6" (W) × 15.5" (D) × 3.4" (H)

Weight (S2-PSUS)

Nett: 1.58kg (3.5lbs) Gross: 2kg (4.4lbs)

Important Notes:

Note 1: S2-PSU units manufactured before June 2006 will need to be modified for use with the S2-PSUS. Contact Sonifex with the serial number of your unit if you wish to add-on the S2-PSUS power supply switcher.

Note 2: The S2-PSUS has been redesigned (from April 2011) to work with both the new 1U S2-PSU and older 2U S2-PSU power supplies. S2-PSUS units with a serial number greater than 16948 are able to work with either S2 power supply, but serial numbers lower than this, only operate with the 2U S2-PSU.

Dipara Motar

POWER SUPPLY

POWER SUPPLY

The factory default is set to the new 1U S2-PSU. Should you be configuring the S2-PSUS to work with a 2U S2-PSU, you have to modify the appropriate jumper/jumpers as shown overleaf.

Fig 3.7: New S2 PSU Diagram.

S INPUT CHANNELS 4

4 Input Channels

There are eleven different input channels available for installation in the mixer as well as a blank channel and script space.

The modules carry some common features, such as the ability to select the output as PRG and/or AUD and each button on a module can be programmed in different modes, depending on your requirements. The channels are each covered in the following chapters, but a summary follows:

S2-CML Mic/Line Input Channel

The Mic/Line Input channel is a mono input with a button switch to select either Mic or Mono Line. If the Mic input is used for the presenter's mic it can also become the talkback mic. The talkback function will be retained when the channel input is switched to Line. Equalisation is fitted as standard on this channel and is enabled by the EQ button, providing 7dB cut and boost at HF (6.5kHz) and LF (100kHz). The Mic input has a jumper selectable high pass filter to remove low frequency intrusions. A Pan control is available to facilitate stereo imaging. A balanced line level insert send and return is available for the Mic input but is disabled in Line mode.

Channel coarse gain is set by internal presets for mic and line – fine gain is trimmed by the front panel Trim control providing ± 12dB of gain. The channel has a Pre Fade Listen (CUE/PFL) facility that can be automatically disabled when the fader is opened. There are logic remote input controls for Mic Cough muting and Reverse Talkback, and output controls for Mic cue lights and Line remote start/stop by fader or ON button. The remote outputs on the 9 way D type plug are fed from NPN opto-isolators. The Mic Input provides a jumper selectable output to facilitate either Control Room or Studio Muting and Timer functions. In addition the Line input can be configured with all the features of the Mic Input when used as a Mic input with an external mic amp.

S2-CMM Mic/Mic Input Channel

The Mic/Mic Input channel has all the features of the Mic/Line Input channel except that the Line Input is replaced by a second Mic Input.

S2-CS Dual Stereo Line Input Channel

The Dual Stereo Input channel has two balanced stereo inputs with a button switch to select between them. Each input is on XLR connectors with internal coarse gain adjustment. Fine gain is trimmed by the front panel Trim control providing ± 12dB of gain. A Balance control is available for small adjustments of the stereo image. The channel has a Pre Fade Listen (CUE/PFL) facility that can be automatically disabled when the fader is opened.

INPUT CHANNELS

INPUT CHANNELS

S2-CSE Dual Stereo Line Input with EQ Channel

This channel is the Dual Stereo Input channel as above but fitted with equalisation, providing 7dB cut and boost at HF (6.5kHz) and LF (100Hz).

S2-CSG Stereo Line with Gram Input Channel

This channel is the Dual Stereo Input channel fitted with a RIAA input amplifier on the second input. Input connections for this are unbalanced on phono sockets. This channel is also available with equalisation, type number S2-CSGE.

S2-CDS Digital Dual Stereo Input Channel

The Digital Dual Stereo Input channel has two 24-bit 96kHz digital inputs with a button switch to select between them. Either input can be configured to be balanced AES/EBU on standard XLR, or S/PDIF on phono sockets, selected by internal jumpers. The digital signals are converted to analogue and from this point the channel functions are the same as the Dual Stereo Line Input channel.

S2-CDSE Digital Dual Stereo Input with EQ Channel

This channel is the Digital Dual Stereo Input channel as above but fitted with equalisation, providing 7dB cut and boost at HF (6.5kHz) and LF (100Hz).

S2-C6SS 6 Way Stereo Line Source Select Channel

The 6 Way Stereo Line Source Select channel has 6 balanced stereo inputs on a 25 way D type connector selectable by a 6 way mechanical Interlocking switch bank. The switch bank also controls 6 sets of remote outputs allowing each source to have a set of start/stop remotes. The channel is fitted with EQ as standard and other functions similar to the dual stereo input channel.

S2-CT Telco Input Channel

The Telco Input channel controls the connection to the telephone balance unit (hybrid). It has only one mono input with EQ fitted as standard. Equalisation is enabled by the EQ button, providing 7dB cut and boost at HF (6.5kHz) and LF (100Hz). A Pan control is available to facilitate stereo imaging. A balanced line level output is provided for the cleanfeed back to the hybrid.

Channel coarse gain is set by an internal preset and fine gain is trimmed by the front panel Trim control providing ± 12dB of gain. The channel has a Pre Fade Listen (CUE/PFL) facility that automatically routes talkback to the caller when selected. PFL can be automatically disabled when the fader is opened. There is a logic remote output to place the hybrid "on hold" by using the LINE HOLD button. The remote output on the 9 way D type plug is fed from an NPN opto-Isolator.

S INPUT CHANNELS 4

S2-CSMM Stereo Mix-Minus Channel

The Stereo Mix-Minus channel has one balanced stereo input and a balanced stereo mix-minus output, on XLR connectors. The channel is intended for use where a remote stereo source, such as another studio connected via ISDN, requires a stereo cleanfeed return. The cleanfeed is generated by the mix-minus method from either the PGM or AUD outputs, depending on the routing selection.

The outputs on this channel can also be configured by jumpers as a mono sum of mix-minus on the left channel and continuous talkback on the right channel (for use with some ISDN codec applications and telephone balance units).

Equalisation is fitted as standard on this channel and is enabled by the EQ button, providing 7dB cut and boost at HF (6.5kHz) and LF (100Hz). Coarse input gain is adjusted internally. Fine gain is trimmed by the front panel Trim control providing ± 12dB of gain. A Balance control is available for small adjustments of the stereo image. The channel has a Pre Fade Listen (CUE/PFL) facility that can be automatically disabled when the fader is opened.

There is a logic remote output function controlled by fader or ON button. The remote function can be configured to be either momentary (500mS) or latched. The remote outputs on the 9 way D type plug are fed from NPN opto-isolators.

S2-PG S2 Penny & Giles Conductive Plastic Fader

The Input and output channels of an S2 mixer can optionally be fitted with high quality Penny & Giles faders.

Close-up of a black industrial control switch with a pink button (no visible text or symbols)

INPUT CHANNELS

S2-CML MIC/LINE CHANNEL WITH EQ

5 S2-CML Mic/Line Channel With EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live".

MIC/LINE Selection

Selecting the MIC/LINE button changes the channel input connection between Mic and Line. The button is illuminated in red to indicate when Line is selected. The operation of the button is inhibited when the channel is "live".

Equalisation Controls

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The Trim control provides an additional ±12dB of gain to fine tune the input signal level.

BAL/PAN Control

The Bal control is used to pan the mono input signal in the stereo image. Full anti-clockwise pans the signal to the left and increases the signal by 3dB (right channel reduces by 70dB); full clockwise pans the signal to the right and increases the signal by 3dB (left channel reduces by 70dB).

CUE/PFL Selection

Selecting the CUE/PFL button routes the pre-fader input signal to the monitoring system where the signal can be heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the TRIM control and panned via the BAL/PAN control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down,

the selection is cancelled when released, otherwise the button is alternate action.

PGM AUD MRC LINE BQ T100 DAX LEFT CURS PDS.

S2-CML MIC/LINE CHANNEL WITH EQ 5

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to ON but remains unropped i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between unit, channel OFF and green, channel ON. Remotes, etc, are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "Pres.Mic"

Rear Panel

Mic Input Connector

This XLR 3 pin socket is used for the microphone input and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Line Input Connector

This XLR 3 pin socket is used for the electronically balanced line input and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following channel functions:

- Mic cue light

- Line remote start

- Line remote stop

• Cough/reverse talkback switch

S2-CML MIC/LINE CHANNEL WITH EQ

The connector pin-out is as follows;

Pin 1: Opto isolated mic cue light NPN collector.

Pin 2: Common NPN emitter for above.

Pin 3: No connection

Pin 4: Opto isolated Line start NPN collector.

Pin 5: Common NPN emitter for Line start and stop.

Pin 6: Opto isolated Line stop NPN collector.

Pin 7:0V logic.

Pin 8: Cough/reverse talkback switch (make to 0V to activate).

Pin 9: Talkback mic enable (make to 0V to enable the mic input as the T/B mic).

Insert Send Connector

This XLR 3 pin plug is a balanced line level pre-EQ output intended to be fed to an effects processor for the microphone input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Insert Return Connector

This XLR 3 pin socket is intended for the input signal from the equipment fed by the Insert

Send. The connections are the same as the Insert Send connector. The Insert function is

disabled in Line mode except when the "Mic on Input 2" jumper is set. See Channel Options.

Channel Options, Jumper Settings and Presets

The Mic/Line channel with EO can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J5 and channel identifying links. The Mic/Line channel is identified by having links LK14 and LK15 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LX23 and LK24 fitted.

The standard options available are:

• Using a phantom powered microphone.
- Enable full LF response on microphone input.
- Enable the Insert Point
- Select momentary or latched start.
- Select monitor mute for studio or control room.

S2-CML MIC/LINE CHANNEL WITH EQ 5

Summary of Jumper Settings for the Mic/Line Channel With EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Mic cue light.Momentary contact for Mic cue light.
J2	1 & 2None	Latching contact for Line remote start.Momentary contact for Line remote start.
J3	1 & 2None	Continuous momentary start from ON button,see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected Cue/PFL.Normal Cue/PFL function.
J5	1 & 2None	Microphone on Line input.Normal Line input.
J6	1 & 22 & 3	Phantom power to Microphone.Normal operation.
J7	1 & 2None	Full LF response on Microphone input.LF roll off.
J8 Not Fitted
J9 Not Fitted
J10	1 & 2None	Insert point enabled (Insert in).Insert out only.
J11 Not Fitted
J12 Not Fitted
J13	1 & 22 & 3None	Control room monitor mute from Microphone input.Studio monitor mute from Microphone input.No mute function.
J14	1 & 22 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.
J15	1 & 22 & 3None	Control room monitor mute from Line input.Studio monitor mute from Line input.No mute function.
J16	1&22&3None	MIC1 is selected as Talkback input.ReservedNo Talkback input.

S2-CML MIC/LINE CHANNEL WITH EQ

S2-CML MIC/LINE CHANNEL WITH EQ

J1 L1 Phantom Power P3 Line Input Trim J16 J10 Jumper On For Mc Insert J15 J16 J17 J18 J19 J20 J21 J22 J23 J24 J25 J26 J27 J28 J29 J30 J31 J32 J33 J34 J35 J36 J37 J38 J39 J40 J41 J42 J43 J44 J45 J46 J47 J48 J49 J50 J51 J52 J53 J54 J55 J56 J57 J58 J59 J60 J61 J62 J63 J64 J65 J66 J67 J68 J69 J70 J71 J72 J73 J74 J75 J76 J77 J78 J79 J80 J81 J82 J83 J84 J85 J86 J87 J88 J89 J90 J91 J92 J93 J94 J95 J96 J97 J98 J99 K100

Fig 5-1: S2 Mlc/Line Input Board Layout

Remote for Mic Cue Light

The remote output for the Microphone input (Input 1) can be used to operate a Mic Cue light when the channel is ON and the fader is up. This should not be confused with a Mic Live light. The Mic Cue light is used for indicating to presenter or guest that they should talk into the microphone. Jumper J1 is placed over pins 1 & 2. This is the default setting and produces a latched remote output.

Remote for Line

The remote output for the Line input (Input 2) can be used for starting a machine such as a CD or MD player. The default setting produces a momentary remote output. If a latched output is required then a jumper should be placed over pins 1 & 2 of J2. The remote stop output for the Line input is always momentary.

Continuous Momentary Start

The continuous momentary start function is rarely used on the Mic/Line channel and therefore J3 should be left in the default setting.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to de-select. However it may be desirable to have the fader up signal cancel a Cue/PFL selection. Placing a Jumper over J4 pins 1 & 2 will enable a previously selected Cue/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Mic Signalling on Line Input

In certain circumstances it may be desirable that a line input is treated as mic input by the

S2-CML MIC/LINE CHANNEL WITH EQ 5

Placing jumper J5 over pins 1 & 2 will enable the muting functions on the line input. The default setting is none (not fitted).

Phantom Power

If you will be using a phantom powered microphone, jumper J6 must be placed over pins 1 & 2. If a normal microphone is used the jumper should be left over pins 2 & 3. With phantom power selected a voltage of +48V is applied to pins 2 & 3 of the XLR connector. The voltage is applied through 6kB resistors limiting the current to 14mA. The default setting is with the jumper over pins 2 & 3.

Microphone LF Response

The default setting of J7 is with the jumper over pins 1 & 2 which gives a full LF response to the microphone. However, if your studio is acoustically poor and suffers from a lot of low frequency rumbles the LF response of the microphone can be rolled off at 125Hz, 6dB per octave, to reduce these acoustic problems. This is achieved by removing jumper J7. Jumpers JB and J9 are not fitted to the Mic/Line channel.

Enabling the Insert Point

The insert point is useful for hooking up an outboard effects unit to be used with the microphone, for example, a voice processor. The insert send signal is always available as a line level balanced output. The insert return signal is enabled by placing jumper J10 over pins 1 & 2. The insert return function is disabled in Line mode except when Jumper JS, Mic on Line Input, is set. The default setting of J10 is none (not fitted).

Jumpers J11 and J12 are not fitted to the Mic/line channel.

Mic Live Muting

The microphone input can be set to mute the control room or studio monitors. The default setting of J13 over pins 1 & 2 will enable a live microphone to mute the control room monitors. If it is required to mute the studio monitors the jumper should be shifted to pins 2 & 3. If no muting is required, the jumper should be removed. When a line level mic is used on Input 2, J15 sets the muting function. A jumper over pins 1 & 2 will mute the control room monitors and over pins 2 & 3 will mute the studio monitors. Line input (input 2) muting is only enabled when jumper JS. Mic on Line Input, is set. The default setting of J15 is none (not fitted).

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/ channel On signal. Jumper J14 determines which timer is set to auto-start. A jumper over pins 1 & 2 will start Timer 1, shifting the jumper to pins 2 & 3 will start Timer 2. The default setting of J14 is none (not fitted). Please note that the Timer Auto Start is only available on the Line Input.

S2-CML MIC/LINE CHANNEL WITH EQ

S2-CML MIC/LINE CHANNEL WITH EQ

Presets

Two presets are available for adjustment of the input gain for the mic and line levels.

The mic preset, P1, provides 59dB of gain adjustment, allowing an input range of -7dB to -66dB. The preset should be adjusted to give 0dB output for the chosen microphone in use. The level is preset for -50dB input when shipped.

The line preset, P3, provides 16dB of gain adjustment, allowing an input range of +6dB to -10dB referenced to 0dB output. The preset should be adjusted to give 0dB output for the chosen source, and will cater for professional equipment with nominal output levels up to +4dB and non-professional equipment with nominal output levels down to -10dBV. The level is preset for 0dB input when shipped.

Presets P5 & P6 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

A third preset, P9, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

AUD

S2-CML MIC/LINE CHANNEL WITH EQ 5

MIC/LINE

Mode 1: Normal. Can be selected as normal.

Mode 2: Always Line. Line is permanently selected.

Mode 3: Always MIC. MIC is permanently selected.

EQ

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.

ON

Mode 1: Normal.

Mode 2: Always on. The channel cannot be turned off.

Mode 3: Always on and no LED indication. The channel cannot be turned off and the On button LEDs are never active.

S2-CMM MIC/MIC CHANNEL WITH EQ

6 S2-CMM Mic/Mic Channel With EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live".

MIC 1/MIC 2 Selection

Selecting the MIC 1/MIC 2 button changes the channel input connection between MIC 1 and MIC 2. The button is illuminated in red to indicate when MIC 2 is selected. The operation of the button is inhibited when the channel is "live".

Equalisation Controls

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The TRIM control provides an additional ±12dB of gain to fine tune the input signal level.

BAL/PAN Control

The BAL/PAN control is used to pan the mono input signal in the stereo image. Full anti-clockwise pans the signal to the left and increases the signal by 3dB (right channel reduces by 70dB); full clockwise pans the signal to the right and increases the signal by 3dB (left channel reduces by 70dB).

CUE/PFL Selection

Selecting the CUE/PFL button routes the pre-fader input signal to the monitoring system where the signal can be heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the Trim control and panned via the Bal control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is alternate action.

PGM AUD RRC 1.0 RRC 2.0 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

S2-CMM MIC/MIC CHANNEL WITH EQ 6

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between unit, channel OFF and green, channel ON. Remotes, etc., are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "Pres. Mic"

Rear Panel

Mic 1 Input Connector

This XLR 3 pin socket is used for the first microphone input, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Mic 2 Input Connector

This XLR 3 pin socket is used for the second microphone input, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following channel functions;

• Mic I cue light
• Mic 2 cue light
  • Cough/reverse talkback switch
• Talkback mic enable

S2-CMM MIC/MIC CHANNEL WITH EQ

The connector pin-out is as follows;

Pin 1: Opto isolated mic 1 cue light NPN collector.

Pin 2: Common NPN emitter for above.

Pin 3: No connection

Pin 4: Opto isolated mic 2 cue light NPN collector.

Pin 5: Common NPN emitter for above.

Pin 6: No connection.

Pin 7:0V logic.

Pin 8: Cough/reverse talkback switch (make to 0V to activate).

Pin 9: Talkback mic enable (make to 0V to enable the mic input as the T/B mic).

Insert Send Connector

This XLR 3 pin plug is a balanced line level pre-EQ output intended to be fed to an effects processor for the microphone input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Insert Return Connector

This XLR 3 pin socket is intended for the input signal from the equipment fed by the Insert Send. The connections are the same as the Insert Send connector.

Channel Options, Jumper Settings and Presets

The Mic/Mic channel can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J4 and channel identifying links. The Mic/Mic channel is identified by having links LK16 and LK17 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK23 and LK24 fitted.

The standard options available are;

• Using a phantom powered microphone.
- Enable full LF response on microphone Inputs.
- Enable the Insert Point.
- Select momentary or Cue Light.
- Select monitor mute for studio or control room.
- Enable or disable Cue/PFL cancel from fader.

S2-CMM MIC/MIC CHANNEL WITH EQ 6

Summary of Jumper Settings for the Mic/Mic Channel With EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Mic 1 cue light.Momentary contact for Mic 1 cue light.
J2	1 & 2None	Latching contact for Mic 2 cue light.Momentary contact for Mic 2 cue light.
J3	1 & 2None	Continuous momentary start from ON button,see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected Cue/PFL.Normal Cue/PFL function.
J5 Not Fitted
J6	1 & 22 & 3	Phantom power to Microphone 1.Normal operation.
J7	1 & 2None	Full LF response on Microphone 1 input.LF roll off.
J8	1 & 22 & 3	Phantom power to Microphone 2.Normal operation.
J9	1 & 2None	Full LF response on Microphone 2 input.LF roll off.
J10	1 & 2None	Insert point enabled (Insert In).Insert out only.
J11 Not Fitted
J12 Not Fitted
J13	1 & 22 & 3None	Control room monitor mute from Microphone 1 input.Studio monitor mute from Microphone 1 input.No mute function.
J14 Not Fitted
J15	1 & 22 & 3None	Control room monitor mute from Microphone 2 input.Studio monitor mute from Microphone 2 input.No mute function.
J16	1&22&3None	MIC1 is selected as Talkback inputMIC2 is selected as Talkback inputNo Talkback input

S2-CMM MIC/MIC CHANNEL WITH EQ

Note: Options in bold are set as default when shipped.

6 S2-CMM MIC/MIC CHANNEL WITH EQ

J6 Phantom Power Mio 1 P5 J10 LIF Response Mic 1 J8 Phantom Power Mio 2 P2 J8 LIF Response Mic 1 J10 Jumper Mic 2 Trans On For Mic Input J3 J13, J15 LT C2 J14, J16 LT C3 J17, J18 LT C4 J19, J20 LT C5 J21, J22 LT C6 J23, J24 LT C7 J25, J26 LT C8 J27, J28 LT C9 J29, J30 LT C10 J31, J32 LT C13 J34, J35 LT C16 J37, J38 LT C19 J40, J41 LT C20 J41, J42, J43, J44, J45, J46, J47, J48, J49, J50, J51, J52, J53, J54, J55, J56, J57, J58, J59, J60, J61, J62, J63, J64, J65, J66, J67, J68, J69, J70, J71, J72, J73, J74, J75, J76, J77, J78, J79, J80, J81, J82, J83, J84, J85, J86, J87, J88, J89, J90, J91, J92, J93, J94, J95, J96, J97, J98, J99, K100

Fig 6-1: S2 Mic/Mic Input Board Layout.

Remote for Mic 1 Cue Light

The remote output for the Microphone 1 input can be used to operate a Mic Cue light when the channel is ON and the fader is up. This should not be confused with a Mic Live light. The Mic Cue light is used for indicating to presenter or guest that they should talk into the microphone. Jumper J1 is placed over pins 1 & 2. This is the default setting and produces a latched remote output.

Remote for Mic 2 Cue Light

The remote output for the Microphone 2 input can be used to operate a Mic Cue light when the channel is ON and the fader is up. This should not be confused with a Mic Live light. The Mic Cue light is used for indicating to presenter or guest that they should talk into the microphone. Jumper J2 is placed over pins 1 & 2. This is the default setting and produces a latched remote output.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to de-select. However it may be desirable to have the fader up signal cancel a CUE/PFL selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Phantom Power Mic 1

If you will be using a phantom powered microphone, jumper J6 must be placed over pins 1 & 2. If a normal microphone is used the jumper should be left over pins 2 & 3. With phantom power selected the voltage of +48V is applied to pins 2 & 3 of the XLR connector. The voltage is applied through 5kR resistors limiting the current to 16mA. The default wire is with the

S2-CMM MIC/MIC CHANNEL WITH EQ 6

frequency rumbles the LF response of the microphone can be rolled off, at 125kHz, 6dB per octave, to reduce these acoustic problems. This is achieved by removing jumper J7.

Phantom Power Mic 2

If you will be using a phantom powered microphone, jumper J8 must be placed over pins 1 & 2. If a normal microphone is used the jumper should be left over pins 2 & 3. With phantom power selected a voltage of 148V is applied to pins 2 & 3 of the XLR connector. The voltage is applied through 6kB resistors limiting the current to 14mA. The default setting is with the jumper over pins 2 & 3.

Mic 2 LF Response

The default setting of J9 is with the jumper over pins 1 & 2 which gives a full LF response to the microphone. However, if your studio is acoustically poor and suffers from a lot of low frequency rumbles the LF response of the microphone can be rolled off, at 125kHz, 6dB per octave, to reduce these acoustic problems. This is achieved by removing jumper J9.

Enabling the Insert Point

The Insert point is useful for hooking up an outboard effects unit to be used with the microphone. The insert send signal is always available as a line level balanced output. The insert return signal is enabled by placing jumper J10 over pins 1 & 2. The default setting of J10 is none (not fitted).

Jumpers J11 and J12 are not fitted to the Mic/Mic channel.

Mic Live Muting

The microphone inputs can be set to mute the control room or studio monitors. The default setting of J13 over pins 1 & 2 will enable a live microphone on Mic 1 input to mute the control room monitors. If it is required to mute the studio monitors the jumper should be shifted to pins 2 & 3. If no muting is required, the jumper should be removed. Similarly, J15 sets the muting function for the microphone on Mic 2 input. A jumper over pins 1 & 2 will mute the control room monitors and over pins 2 & 3 will mute the studio monitors. The default setting of J15 is none (not fitted).

Talkback Mic Selection

When the channel is enabled as a talkback MIC, the talkback input can be selected from either MIC1 or MIC2 using J16. This is independent of the active MIC input. To enable the microphone input to be added to the talkback bus, connect pins 7 (DV logic) and 9 (Talkback mic enable) on the remote connector. This is useful if, for example, you want to use the mic channel to talk to a caller connected to the cleanfeed output of the telco channel.

Presets

Two presets are available for adjustment of the input gain for mic 1 and mic 2 levels. Mic 1 preset 01 and mic 2 preset 02 provide 50dB of gain adjustment, allowing an input

S2-CMM MIC/MIC CHANNEL WITH EQ

S2-CMM MIC/MIC CHANNEL WITH EQ

A third preset, P9, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

MIC1/MIC2

Mode 1: Normal. Can be selected as normal.

Mode 2: Always MIC2. MIC2 is permanently selected.

Mode 3: Always MIC1. MIC1 is permanently selected.

EQ

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 7

7 S2-CSE/S2-CS Dual Stereo Line Channel With & Without EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live".

INP 1/INP 2 Selection

Selecting the INP 1/INP 2 button changes the channel input connection between Input 1 and Input 2. The button is illuminated in red to indicate when input 2 is selected. The operation of the button is inhibited when the channel is "live".

Equalisation Controls (S2-CSE only)

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM control

The TRIM control provides an additional ±12dB of gain to fine tune the input signal level.

BAL/PAN Control

The BAL/PAN control can be set to function as either a Balance or Pan control, depending on the setting of J12 & J13. As a balance control, full anti-clockwise shifts the signal to the left and increases the signal by 6dB (right channel reduces by 6dB); full clockwise shifts the signal to the right and increases the signal by 6dB (left channel reduces by 6dB). As a pan control, full anti-clockwise pans the signal to the left and increases the signal by 6dB (right channel reduces by 70dB; full clockwise pans the signal to the right and increases the signal by 6dB (left channel

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

7

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

be checked on meters and adjusted via the Trim control and balanced via the Bal control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is alternate action.

Fader

The 100mm VCA fader provides unity gain when fully open. The channel input signal is routed to the outputs whenever the fader is open, the ON button is selected and either or both of the routing buttons are selected.

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between unlit, channel OFF and green, channel ON. Remotes, etc., are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "MD1"

Rear Panel

Line 2 Left Input Connector

This XLR 3 pin socket is used for the left analogue channel of input 2, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Line 2 Right Input Connector

This XLR 3 pin socket is used for the right analogue channel of input 2, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 7

• Line 2 remote start
  • Line 2 remote stop

The connector pin-out is as follows:

Pin 1: Opto Isolated Line 1 start NPN collector.

Pin 2: Common NPN emitter for Line 1 start and stop.

Pin 3: Opto Isolated Line 1 stop NPN collector.

Pin 4: Opto isolated Line 2 start NPN collector.

Pin 5: Common NPN emitter for Line 2 start and stop.

Pin 6: Opto isolated Line 2 stop NPN collector.

Pin 7:0V logic.

Pin 8: General purpose I/O 1.

Pin 9: General purpose I/O 2.

Line 1 Left Input Connector

This XLR 3 pin socket is used for the left analogue channel of input 1, and has the following connections.

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Line 1 Right Input Connector

This XLR 3 pin socket is used for the right analogue channel of input 1, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The dual stereo channel with and without EQ can be configured in a number of different ways depending on the jumper options set on the board. The on-board processors software is configured by jumpers J1 to J5 and channel identifying links. The dual stereo channel without EQ is identified by having links LK4 and LK11 fitted. The dual stereo channel with EQ is identified by having links LK5 and LK11 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK9 and LK10 fitted.

The standard options available are;

- Select momentary or latched start for Input 1.

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

7

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

Summary of Jumper Settings for the Dual Stereo Channel With & Without EQ

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Line 1 remote start.Momentary contact for Line 1 remote start.
J2	1 & 2None	Latching contact for Line 2 remote start.Momentary contact for Line 2 remote start.
J3	1 & 2None	Continuous momentary start from ON button, see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected CUE/PFL.Normal CUE/PFL function.
J5 Not Fitted
J6	1 & 22 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.
J7 Not Fitted
J8 Not Fitted
J9 Not Fitted
J10 Not Fitted
J11 Not Fitted
J12	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control
J13	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control

Note: Options in bold are set as default when shipped.

Trim L P3 Trim R P4 J13 J P12 Lift Sym. P15 Set VCA 3/8B K4 J2 J2 = Latch Start JP1 J2 = Latch Start JP2 J3 = Cont. Mon. Start from Gr. Button J4 = Tracer Cancel Cus.PFL J5 = Unused J6A = Timer 1 B = Timer 2 J1 J12 P16 P16 = Right Sym. Right Sym. Right Sym. Analogues Jumper Options J1-J5 K10 K11

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 7

Remote for Line 1 Input

The remote output for the Line 1 input can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J1 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J1. The remote stop for Input 1 is always momentary.

Remote for Line 2 Input

The remote output for the Line 2 input can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J2 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J2. The remote stop for Input 2 is always momentary.

Continuous Momentary Start

The continuous momentary start function can be used for equipment that only ever requires a remote start but not a stop. Placing a jumper over J3 pins 1 & 2 enables the function. When enabled the operation of the ON button is changed to a continuous start button. With the fader down, the button shows red. With the fader up, the button shows green and each press of the ON button will trigger a momentary start from the remote contacts. The default setting for J3 is none (not fitted). It is not possible to configure a latching remote start output when the continuous momentary start option has been selected.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to be select. However it may be desirable to have the fader up signal cancel a CUE/PFL selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Jumper JS is not fitted to this channel.

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/channel On signal. Jumper J6 determines which timer is set to auto-start. A jumper over pins 1 & 2 will start Timer 1, shifting the jumper to pins 2 & 3 will start Timer 2. The default setting of J6 is none (not fitted).

Jumpers J7 to J10 are not fitted to this channel.

Presets

Four separate sea stillsilo for settlement of the land east left and right for the two lines

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

7

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

-10dB referenced to 0dB output. The presets should be adjusted to give 0dB output for the chosen source, and will cater for professional equipment with nominal output levels up to +4dB and non-professional equipment with nominal output levels down to -10dBV. The levels are preset for 0dB input when shipped.

Presets P15 & P16 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

A seventh preset, P17, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

General Purpose I/O

Two I/O pins are available on the remotes connector that can be configured for general purpose use. They are completely configurable and can be set as inputs or outputs, latching or momentary and active high or active low.

The setup procedure for configuring the pins is described in the following steps. Since the settings are stored in non-volatile RAM, this only needs to be done once.

• To initiate setup, press and hold down the PGM button while pressing the AUD button five times. Once completed, all the buttons will turn off and after a short while will display the current setting for GPIO 1's function (pin 8 on the remote connector).
• Using the PGM button, cycle through the following options (shown in the table below) until the desired setting is selected. For example to set GPIO 1 to a latching, active high input, press the PGM button until only the CUE/PFL button is illuminated ON. This setting is then applied by pressing the ON button. The PGM button will flash quickly for about a second to indicate that the setting is stored.

General Purpose I/O Function Options

GPIO Function			ON Button	Cue/PFL Button	AUD Button
Input/Output	Latching/Momentary	Active Low/Active High
I L AL OFF OFF OFF
I M AL ON OFF OFF
I L AH OFF ON OFF
I	M	AH	ON	ON	OFF
O	L AL OFF OFF	ON
O	M AL ON OFF	ON
O	L AH OFF ON	ON
O	M	AH	ON	ON	ON

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 7

General Purpose I/O Action Options

The functions available are dependent on whether the remote is set as an input or an output. The two tables below describe the different functions available.

Input Functions

GPIO Action	Description ON	Button	Cue/PFL Button	AUD Button
None - OFF OFF OFF
Channel ON	The remote pin replicates the ON button in the module. Activating this control will turn the channel on or off.	ON OFF OFF
Red ON Indicator	The remote pin activates the Red LED In the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	OFF ON OFF
Green ON Indicator	The remote pin activates the Green LED in the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	ON ON OFF
Fader On	The remote pin controls the fader open function. When active, the fader is fully open.	OFF OFF ON

Output Functions

GPIO Action	Description ON	Button	Cue/PFL Button	AUD Button
None - OFF OFF OFF
Channel ON	The remote pin goes active when the channel is LIVE.	ON OFF OFF

- As before, press the ON button to apply the setting, noticing that the PGM button flashes.

• The module will now display the current setting of GPIO 2's function. This is changed in exactly the same way as GPIO 1, selecting from the options in the above table.
• Once the ON button is pressed, this setting is stored and the action can be selected.
  • After the next ON button press, the module will exit the setup procedure and the module can now be used as normal.

Button Mode Settings

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

7

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

INP1/INP2

Mode 1: Normal. Can be selected as normal.

Mode 2: Always INP2. INP2 is permanently selected.

Mode 3: Always INP1. INP1 is permanently selected.

EQ (S2-CSE only)

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 7

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.
Mode 4: Normal with remotes. Cue/PFL is selected as normal, with both a momentary or latched operation and will also activate the remotes if the channel is not live.
Mode 5: Latched with remotes. Cue/PFL is selected as normal, but with only a latched operation and will also activate the remotes if the channel is not live.
Mode 6: Momentary with remotes. Cue/PFL is selected as normal, but with only a momentary operation and will also activate the remotes if the channel is not live.

ON

Mode 1: Normal.

Mode 2: Operates as normal, but the remote start function is only activated by the ON button, and generates a START whenever the button is pressed while the fader is up.
Mode 3: Always on and no LED indication. The channel cannot be turned off and the On button LEDs are never active.

Mode 4: Always on. The channel cannot be turned off.
Mode 5: Always on. The LEDs in the ON button are controlled via GPIO.
Mode 6: Always on. The LEDs in the ON button are controlled via GPIO and the remote START/STOP functions are generated by the ON button only, but are dependent on the GPIO state. This mode allows the module to interact with the VCS playout system.

Red LED Green LED State
OFF OFF Not ready. Pressing the ON button will do nothing
ON OFF Ready Pressing the ON button will generate a START.
OFF ON Playing Pressing the ON button will generate a STOP.
ON ON Not used.

Mode 7: Always on. The remote start function is activated whenever the ON button is pressed, regardless of the fader position.

Mode 8: Always on. The remote start function is activated whenever the ON button is pressed and the fader is up or when PFL is active while the fader is down.

S2-CSE/S2-CS DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

8 S2-CSGE/S2-CSG Stereo Line And Gram Channel With & Without EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live".

LINE/GRAM Selection

Selecting the Line/Gram button changes the channel input connection between Stereo Line on XLR and RIAA on phone. The button is illuminated in red to indicate when Gram (RIAA) is selected. The operation of the button is inhibited when the channel is "live".

Equalisation Controls (S2-CSGE only)

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The TRIM pot provides an additional ±1.2dB of gain to fine tune the input level.

BAL/PAN Control

The BAL/PAN control can be set to function as either a Balance or Pan control, depending on the setting of J12 & J13. As a balance control, full anti-clockwise shifts the signal to the left and increases the signal by 6dB (right channel reduces by 6dB); full clockwise shifts the signal to the right and increases the signal by 6dB (left channel reduces by 6dB). As a pan control, full anti-clockwise pans the signal to the left and increases the signal by 6dB (right channel reduces by 70dB); full clockwise pans the signal to the right and increases the signal by 6dB (left channel

PWM AUX LINE STRAW CUBE PPL 0 -0 10 -10 20 -20 30 -30 40 -40 50 -50 60 -60 70 -70 80 -80 90 -90 100

PWM AUD LINE O GRAM O EQ CUE PPL 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ 8

be checked on meters and adjusted via the Trim control and balanced via the Bal control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is alternate action.

Fader

The 100mm VCA fader provides unity gain when fully open. The channel input signal is routed to the outputs whenever the fader is open, the ON button is selected and either or both of the routing buttons are selected.

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between unit, channel OFF and green, channel ON. Remotes, etc., are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "Gram 1"

Rear Panel

GRAM Input (RIAA) Left and Right Connector

These phono connectors are used for the gram RIAA (tumtable) left and right inputs. These inputs have on-board RIAA equalisation suitable for magnetic pick up cartridges.

Inner: Phase. Outer: Screen

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following channel functions;

• Line 1 remote start

• Line 1 remote stop

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

S2-CSGE/SZ-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

The connector pin-out is as follows;

Pin 1: Opto isolated Line 1 start NPN collector.

Pin 2: Common NPN emitter for Line 1 start and stop.

Pin 3: Opto isolated Line 1 stop NPN collector.

Pin 4: Opto isolated Gram input start NPN collector.

Pin 5: Common NPN emitter for Gram input start and stop.

Pin 6: Opto isolated Gram input stop NPN collector.

Pin 7:0V logic.

Pin 8: General purpose I/O 1.

Pin 9: General purpose I/O 2.

Line 1 Left Input Connector

This XLR 3 pin socket is used for the left channel of input 1, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Line 1 Right Input Connector

This XLR 3 pin socket is used for the right channel of input 1, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The Stereo Line and Gram channel with and without EQ can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to JS and channel identifying links. The Stereo Line and Gram channel without EQ is identified by having links LK6 and LK11 fitted. The Stereo Line and Gram channel with EQ is identified by having links LK7 and LK11 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK9 and LK10 fitted.

The standard options available are:

• Select momentary or latched start for Input 1.
• Select momentary or latched start for Input 2.
• Enable continuous momentary start from ON button.

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

Summary of Jumper Settings for the Dual Stereo Gram Channel With & Without EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Line 1 remote startMomentary contact for Line 1 remote start.
J2	1 & 2None	Latching contact for Gram input remote startMomentary contact for Gram input remote start.
J3	1 & 2None	Continuous momentary start from ON button,see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected Cue/PFL.Normal Cue/PFL function.
J5 Not Fitted
J6	1 & 22 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.
J7 Not Fitted
J8 Not Fitted
J9 Not Fitted
J10 Not Fitted
J11 Not Fitted
J12	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control
J13	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control

Note: Options in bold are set as default when shipped.

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

Jumper Options J1 = Latch Short BP 1 J2 = Latch Short BP 2 J3 = Cont. Motor Start from On Button J4 = Patter Control Coil/PP+ J5 = Unused J6A = Timer 1 B = Timer 2 J5 J13 P12 P15 P16 P17 Left Sym. Set VCA t0dB Right Sym. Dual Stomp Dual Stomp with I/O Analogus Jumper Options K6 K7 K8 K9 K10

S2-CSGE/SZ-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

Remote for Line 1 Input

The remote output for the Line 1 input can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J1 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J1. The remote stop for Input 1 is always momentary.

Remote for Gram Input

The remote output for the Gram input can be used for a start and stop function for turntables. The default setting for J2 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J2. The remote stop for the Gram input is always momentary.

Continuous Momentary Start

The continuous momentary start function can be used for equipment that only ever requires a remote start but not a stop. Placing a jumper over J3 pins 1 & 2 enables the function. When enabled the operation of the ON button is changed to a continuous start button. With the fader down, the button shows red. With the fader up, the button shows green and each press of the ON button will trigger a momentary start from the remote contacts. The default setting for J3 is none (not fitted). It is not possible to configure a latching remote start output when the continuous momentary start option has been selected.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to be select. However it may be desirable to have the fader up signal cancel a CUE/PFL selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Jumper JS is not fitted to this channel.

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/channel On signal. Jumper J6 determines which timer is set to auto-start. A jumper over pins 1 & 2 will start Timer 1, shifting the jumper to pins 2 & 3 will start Timer 2. The default setting of J6 is none (not fitted).

Jumpers J7 to J10 are not fitted to this channel.

Presets

Two concrete use suitable for adjustment of line input 1, as in left snail stake, flange. D1

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ 8

The RIAA Gram input level (Input 2) is fixed.

Presets P15 & P16 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

A fifth preset, P17, sets the VCA fader gain to GdB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

General Purpose I/O

Two I/O pins are available on the remotes connector that can be configured for general purpose use. They are completely configurable and can be set as inputs or outputs, latching or momentary and active high or active low.

The setup procedure for configuring the pins is described in the following steps. Since the settings are stored in non-volatile RAM, this only needs to be done once.

• To initiate setup, press and hold down the PGM button while pressing the AUD button five times. Once completed, all the buttons will turn off and after a short while will display the current setting for GPIO 1's function (pin 8 on the remote connector).
• Using the PGM button, cycle through the following options (shown in the table below) until the desired setting is selected. For example to set GPIO 1 to a latching, active high input, press the PGM button until only the CUE/PFL button is illuminated ON. This setting is then applied by pressing the ON button. The PGM button will flash quickly for about a second to indicate that the setting is stored.

General Purpose I/O Function Options

GPIO Function			ON Button	Cue/PFL Button	AUD Button
Input/Output	Latching/Momentary	Active Low/Active High
I L AL OFF	OFF OFF
I M AL ON	OFF OFF
I L AH OFF	ON	OFF
I	M	AH	ON	ON	OFF
O	L AL OFF	OFF	ON
O	M AL ON	OFF	ON
O	L AH OFF	ON	ON
O	M	AH	ON	ON	ON

• Now select GPIO 1's action using the PGM button as before.

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

General Purpose I/O Action Options

The functions available are dependent on whether the remote is set as an input or an output. The two tables below describe the different functions available.

Input Functions

GPIO Action	Description ON	Button	Cue/PFL Button	AUD Button
None - OFF	OFF OFF
Channel ON	The remote pin replicates the ON button in the module. Activating this control will turn the channel on or off.	ON OFF OFF
Red ON Indicator	The remote pin activates the Red LED in the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	OFF ON OFF
Green ON Indicator	The remote pin activates the Green LED in the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	ON ON OFF
Fader On	The remote pin controls the fader open function. When active, the fader is fully open.	OFF OFF ON

Output Functions

GPIO Action	Description ON	Button	Cue/PFL Button	AUD Button
None - OFF OFF OFF
Channel ON	The remote pin goes active when the channel is LIVE.	ON OFF OFF

• As before, press the ON button to apply the setting, noticing that the PGM button flashes.
• The module will now display the current setting of GPIO 2's function. This is changed in exactly the same way as GPIO 1, selecting from the options in the above table.
• Once the ON button is pressed, this setting is stored and the action can be selected.
• After the next ON button press, the module will exit the setup procedure and the module can now be used as normal.

Button Mode Settings

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ 8

functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.
Mode 2: Always on. The program bus is permanently selected.
Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.
Mode 2: Always on. The audition bus is permanently selected.
Mode 3: Always off. The audition bus is permanently deselected.

INP1/INP2

Mode 1: Normal. Can be selected as normal.
Mode 2: Always INP2. INP2 is permanently selected.
Mode 3: Always INP1, INP1 is permanently selected.

EQ (S2-CSGE only)

Mode 1: Normal. Equalization can be enabled or disabled as normal.
Mode 2: Always enabled. Equalization controls are permanently enabled.
Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

S2-CSGE/S2-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

8

S2-CSGE/SZ-CSG STEREO LINE AND GRAM CHANNEL WITH & WITHOUT EQ

Mode 4: Normal with remotes. Cue/PFL is selected as normal, with both a momentary or latched operation and will also activate the remotes if the channel is not live.

Mode 5: Latched with remotes. Cue/PFL is selected as normal, but with only a latched operation and will also activate the remotes if the channel is not live.

Mode 6: Momentary with remotes. Cue/PFL is selected as normal, but with only a momentary operation and will also activate the remotes if the channel is not live.

ON

Mode 1: Normal.

Mode 2: Operates as normal, but the remote start function is only activated by the ON button, and generates a START whenever the button is pressed while the fader is up.

Mode 3: Always on and no LED indication. The channel cannot be turned off and the ON button LEDs are never active.

Mode 4: Always on. The channel cannot be turned off.

Mode 5: Always on. The LEDs in the ON button are controlled via GPIO.

Mode 6: Always on. The LEDs in the ON button are controlled via GPIO and the remote START/STOP functions are generated by the ON button only, but are dependent on the GPIO state. This mode allows the module to interact with the VCS playout system.

Red LED Green LED State

OFF OFF Not ready. Pressing the ON button will do nothing

ON OFF Ready Pressing the ON button will generate a START.

OFF ON Playing. Pressing the ON button will generate a STOP.

ON ON Not used.

Mode 7: Always on. The remote start function is activated whenever the ON button is pressed, regardless of the fader position.

Mode 8: Always on. The remote start function is activated whenever the ON button is pressed and the fader is up or when PFL is active while the fader is down.

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 9

9 S2 -CDSE/S2-CDS Digital Dual Stereo Line Channel With & Without EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel analogue audio output to the PGM and/or AUD mix buses. The buttons illuminate green to indicate the routing status. Changing the status of the PGM button is inhibited for a "live" channel.

INP 1/INP 2 Selection

Selecting the INP 1/INP 2 button changes the channel Input connection between Input 1 and Input 2. The digital inputs can be configured by internal jumpers to be either AES/EBU or S/PDIF. The button is illuminated in red to indicate when Input 2 is selected. The operation of the button is inhibited for a "live" channel.

Equalisation Controls (S2-CDSE only)

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The TRIM pot provides an additional ±1.2 dB of gain to fine tune the input level.

BAL/PAN Control

The BAL/PAN control can be set to function as either a Balance or Pan control, depending on the setting of J12 & J13. As a balance control, full anti-clockwise shifts the signal to the left and increases the signal by 6dB (right channel reduces by 6dB); full clockwise shifts the signal to the right and increases the signal by 6dB (left channel reduces by 6dB). As a pan control, full anti-clockwise pans the signal to the left and increases the signal by 6dB (right channel reduces by 70dB); full clockwise pans the signal

PUBM AUD RIP 1 ○ RIP 2 ○ PUBM AUD RIP 1 ○ RIP 2 ○ Lip F 770Hz 16 V +14V RALL 770Hz 16 V +14V RALL 770Hz 16 V +14V RALL 770Hz 16 V +14V Lip F 770Hz 16 V +14V Lip F 770Hz 16 V +14V Lip F 770Hz 16 V +14V Lip F 770Hz 16 V +14V Lip F 770Hz 16 V +14V Lip F 770Hz 16 V

52-CDSE/S2-CD5 DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

9

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the Trim control and balanced via the Bal control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is alternate action.

Fader

The 100mm VCA fader provides unity gain when fully open. The channel input signal is routed to the outputs whenever the fader is open, the ON button is selected and either or both of the routing buttons are selected.

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When until the channel is off. Flashing green indicates that there is no valid digital input. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Flashing red and green indicates that both of the above states are valid. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON.

The illumination in this case toggles between unit, channel OFF and green, channel ON. Remotes, etc, are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "CD 1"

Rear Panel

S/PDIF Input Connector

Two phono connectors are used for S/PDIF Inputs 1 and 2. There are on board jumpers to configure this input in place of the AES/EBU inputs.

Inner: Signal.

Outer Screen

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following channel functions;

- Line 1 remote start

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 9

The connector pin-outs are as follows;

Pin 1: Opto isolated Line 1 start NPN collector.

Pin 2: Common NPN emitter for Line 1 start and stop.

Pin 3: Opto isolated Line 1 stop NPN collector.

Pin 4: Opto isolated Line 2 start NPN collector.

Pin 5: Common NPN emitter for Line 2 start and stop.

Pin 6: Opto isolated Line 2 stop NPN collector

Pin 7:0V logic.

Pin 8: General purpose I/O 1.

Pin 9: General purpose I/O 2.

Input 1 AES/EBU Connector

This XLR 3 pin socket is used for AES/EBU Input 1, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Input 2 AES/EBU Connector

This XLR 3 pin socket is used for AES/EBU Input 2, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The digital dual stereo channel with and without EQ can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J5 and channel identifying links. The digital dual stereo channel without EQ is identified by having links LK4 and LK12 fitted. The digital dual stereo channel with EQ is identified by having links LK5 and LK12 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK9 and LK10 fitted.

The standard options available are;

- Select momentary or latched start for Input 1 remote output.

- Select momentary or latched start for Input 2 remote output.

- Enable continuous momentary start from ON button.

- Enable or disable Cue/PFL cancel from fader.

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

Summary of Jumper Settings for the Digital Dual Stereo Channel With & Without EQ

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Line 1 remote start.Momentary contact for Line 1 remote start.
J2	1 & 2None	Latching contact for Line 2 remote start.Momentary contact for Line 2 remote start.
J3	1 & 2None	Continuous momentary start from ON button,see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected CUE/PFL.Normal CUE/PFL function.
J5	1 & 2None	De-emphasis at 50/15μs, enabled.De-emphasis disabled.
J6	1 & 22 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.
J7	1 & 22 & 3	Input 1 selected from AES/EBU.Input 1 selected from S/PDIF.
J8	1 & 22 & 3	Input 2 selected from AES/EBU.Input 2 selected from S/PDIF.
J9 Not Fitted
J10 Not Fitted
J11	1 & 2None	PFL is disabled when no digital input is detectedNormal PFL function
J12	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control
J13	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control

Note: Options in bold are set as default when shipped.

Jumper Options J1 = Launch Start HP 1 J2 = Launch Start HP 2 J3 = Cont. Mem. Start from On Oblon J4 = Fader Cancel Cus-PPF J5 = Depris Periode J6 = Timer 1.0 = Timer 2 J7 = Unlocked PFS Mts J8 = J11 = Unlocked PFS Mts J9 = J12 = J13 = J14 = J15 = J16 = J17 = J18 = J19 = J20 = J21 = J22 = J23 = J24 = J25 = J26 = J27 = J28 = J29 = J30 = J31 = J32 = J33 = J34 = J35 = J36 = J37 = J38 = J39 = J40 = J41 = J42 = J43 = J44 = J45 = J46 = J47 = J48 = J49 = J50 = J51 = J52 = J53 = J54 = J55 = J56 = J57 = J58 = J59 = J60 = J61 = J62 = J63 = J64 = J65 = J66 = J67 = J68 = J69 = J70 = J71 = J72 = J73 = J74 = J75 = J76 = J77 = J78 = J79 = J80 = J81 = J82 = J83 = J84 = J85 = J86 = J87 = J88 = J89 = J90 = J91 = J92 = J93 = J94 = J95 = J96 = J97 = J98 = J99 = J100 Jumper JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JP 1 JMPers JP 4,8 Pos. A=ASS Pos. B=SPHIF

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 9

Remote for Digital Input 1

The remote output for Input 1 can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J1 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J1. The remote stop for Input 1 is always momentary.

Remote for Digital Input 2

The remote output for Input 2 can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J2 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J2. The remote stop for Input 2 is always momentary.

Continuous Momentary Start

The continuous momentary start function can be used for equipment that only ever requires a remote start but not a stop. Placing a jumper over J3 pins 1 & 2 enables the function. When enabled the operation of the ON button is changed to a continuous start button. With the fader down, the button shows red. With the fader up, the button shows green and each press of the ON button will trigger a momentary start from the remote contacts. The default setting for J3 is none (not fitted). It is not possible to configure a latching remote start output when the continuous momentary start option has been selected.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to be select. However it may be desirable to have the fader up signal cancel a CUE/PFL selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

De-emphasis

Placing a jumper over pins 1 & 2 of J3 will decode 50/15 s emphasis when indicated by certain channel status bits in the incoming digital audio data.

Disabling PFL When no Input is Detected

When J11 is fitted, if a digital input is not detected on the selected input, then PFL is disabled/muted.

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/channel On signal. Jumper J6 determines which timer is set to auto-start. A jumper over pins

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

AES/EBU, S/PDIF Select for Input 1

Input 1 can be either balanced AES/EBU or unbalanced S/PDIF. The default setting for J7, pins 1 & 2, is AES/EBU input via XLRs. Shifting the jumper to pins 2 & 3 enables the S/PDIF input on phonos.

AES/EBU, S/PDIF Select for Input 2

Input 2 can be either balanced AES/EBU or unbalanced S/PDIF. The default setting for J8, pins 1 & 2, is AES/EBU input via XLRs. Shifting the jumper to pins 2 & 3 enables the S/PDIF input on phonos.

Presets

Two presets are available for adjustment of the input level trim, left and right, for the digital inputs. Presets, P1 (left), P2 (right) provide 15dB of gain adjustment, to compensate for level differences in the digital input circuitry. These are preset on final test and should not require further adjustment.

Presets P15 & P16 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

A fifth preset, P17, sets the VCA fader gain to CdB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

General Purpose I/O

Two I/O pins are available on the remotes connector that can be configured for general purpose use. They are completely configurable and can be set as inputs or outputs, latching or momentary and active high or active low.

The setup procedure for configuring the pins is described in the following steps. Since the settings are stored in non-volatile RAM, this only needs to be done once.

- To initiate setup, press and hold down the PGM button while pressing the AUD button five times. Once completed, all the buttons will turn off and after a short while will display the current setting for GPIO 1's function (pin 8 on the remote connector).

- Using the PGM button, cycle through the following options (shown in the table below) until the desired setting is selected. For example to set GPIO 1 to a latching, active high input, press the PGM button until only the CUE/PFL button is illuminated ON. This setting is then applied by pressing the ON button. The PGM button will flash quickly for about a second to indicate that the setting is stored.

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 9

General Purpose I/O Function Options

GPIO Function			ON Button	Cue/PFL Button	AUD Button
Input/Output	Latching/Momentary	Active Low/Active High
I L AL OFF	OFF OFF
I M AL ON	OFF OFF
I L AH OFF	ON OFF
I M AH ON	ON OFF
O	L AL OFF	OFF ON
O	M AL ON	OFF ON
O	L AH OFF	ON	ON
O	M AH ON	ON	ON

Now select GPIO 1's action using the PGM button as before.

General Purpose I/O Action Options

The functions available are dependent on whether the remote is set as an input or an output. The two tables below describe the different functions available.

Input Functions

GPIO Action	Description	ON Button	Cue/PFL Button	AUD Button
None		OFF	OFF	OFF
Channel ON	The remote pin replicates the ON button in the module. Activating this control will turn the channel on or off.	ON	OFF	OFF
Red ON Indicator	The remote pin activates the Red LED In the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	OFF	ON	OFF
Green ON Indicator	The remote pin activates the Green LED in the ON Button. The ON button mode must be set to mode 5 or 6 when using this action.	ON	ON	OFF
Fader On	The remote pin controls the fader open function. When active, the fader is fully open.	OFF	OFF	ON

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

Output Functions

GPIOAction

Description

ONButton

Cue/PFLButton

AUDButton

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

• As before, press the ON button to apply the setting, noticing that the PGM button flashes.
• The module will now display the current setting of GPIO 2's function. This is changed in exactly the same way as GPIO 1, selecting from the options in the above table.
• Once the ON button is pressed, this setting is stored and the action can be selected.
• After the next ON button press, the module will exit the setup procedure and the module can now be used as normal.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

INP1/INP2

Mode 1: Normal. Can be selected as normal.

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ 9

EQ (S2-CDSE only)

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.

Mode 4: Normal with remotes. Cue/PFL is selected as normal, with both a momentary or latched operation and will also activate the remotes if the channel is not live.

Mode 5: Latched with remotes. Cue/PFL is selected as normal, but with only a latched operation and will also activate the remotes if the channel is not live.

Mode 6: Momentary with remotes. Cue/PFL is selected as normal, but with only a momentary operation and will also activate the remotes if the channel is not live.

ON

Mode 1: Normal.

Mode 2: Operates as normal, but the remote start function is only activated by the ON button, and generates a START whenever the button is pressed while the fader is up.

Mode 3: Always on and no LED indication. The channel cannot be turned off and the On button LEDs are never active.

Mode 4: Always on. The channel cannot be turned off.

Mode 5: Always on. The LEDs in the ON button are controlled via GPIO.

Mode 6: Always on. The LEDs in the ON button are controlled via GPIO and the remote START/STOP functions are generated by the ON button only, but are dependent on the GPIO state. This mode allows the module to interact with the VCS playout system.

Red LED Green LED State
OFF OFF Not ready. Pressing the ON button will do nothing
ON OFF Ready Pressing the ON button will generate a START.
OFF ON Playing Pressing the ON button will generate a STOP.
ON ON Not used.

S2-CDSE/S2-CDS DIGITAL DUAL STEREO LINE CHANNEL WITH & WITHOUT EQ

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ

10 S2-C6SS 6 Way Stereo Line Source Select Channel With EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live".

Input Selection

The interlocking switch bank selects one of six stereo inputs. The LED in the buttons indicates the currently selected input. The switches select the individual balanced stereo inputs as well as the remote outputs.

Equalisation Controls

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The Trim control provides an additional ± 12dB of gain to fine tune the input signal level.

BAL/PAN Control

The BAL/PAN control is used to balance the stereo image. Full anti-clockwise shifts the signal to the left and increases the signal by 6dB (right channel reduces by 6dB); full clockwise shifts the signal to the right and increases the signal by 6dB (left channel reduces by 6dB).

CUE/PFL Selection

Selecting the CUE/PFL button routes the pre-fader input signal to the monitoring system where the signal can be heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the Trim control and balanced via the Bal control. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If he held down, the selection is cancelled when released, otherwise the button is alternate action.

PWM AUD 0 0 0 0 0 0 0 0 0 0 0 0 16 210 15 210 15 210 EQ TOMR RALL / RAIN LEFT / LEFT CUE PVL 0 0 10 = 10 20 = 20 30 = 30 40 = 40 50 = 50 60 = 60

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ 10

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between unit, channel OFF and green, channel ON. Remotes, etc, are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. "OS 1".

Rear Panel

Stereo Audio Source Input Connector

This 25 pin D type socket is used for all of the Stereo Source inputs, and has the following connections:

Pin 1: Screen, chassis.

Pin 2: OS 1 Left phase.

Pin 3: OS 1 Right phase.

Pin 4: OS 2 Left phase.

Pin 5: OS 2 Right phase.

Pin 6: OS 3 Left phase.

Pin 7: OS 3 Right phase.

Pin 8: OS 4 Left phase.

Pin 9: OS 4 Right phase.

Pin 10: OS 5 Left phase.

Pin 11: OS 5 Right phase.

Pin 12: OS 6 Left phase.

Pin 13:05 & Right phase.

Pin 14: OS 1 Left non-phase.

Pin 15:05 1 Right non-phase.

Pin 16: OS 2 Left non-phase.

Pin 17: OS 2 Right non-phase.

Pin 18: OS 3 Left non-phase.

Pin 19: OS 3 Right non-phase.

Pin 20: OS 4 Left non-phase.

Pin 21: OS 4 Right non-phase.

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ

Source Remotes Connector

This 25 pin D type plug provides remote start/stop outputs for all the sources, and has the following connections;

Pin 1: Screen, chassis.

Pin 2:05 1 Start.

Pin 3: OS 1 Start Common.

Pin 4:05 2 Start.

Pin 5: OS 2 Start Common.

Pin 6: OS 3 Start

Pin 7: OS 3 Start Common.

Pin 8: OS 4 Start.

Pin 9: OS 4 Start Common.

Pin 10: OS 5 Start.

Pin 11: OS 5 Start Common.

Pin 12: OS 6 Start.

Pin 13: OS 6 Start Common.

Pin 14: OS 1 Stop.

Pin 15: OS 1 Stop Common.

Pin 16: OS 2 Stop.

Pin 17: OS 2 Stop Common.

Pin 18: OS 3 Stop.

Pin 19: OS 3 Stop Common.

Pin 20: OS 4 Stop.

Pin 21: OS 4 Stop Common.

Pin 22: OS 5 Stop.

Pin 23: OS 5 Stop Common.

Pin 24: OS 6 Stop.

Pin 25: OS 6 Stop Common.

Channel Options, Jumper Settings and Presets

The 6 way stereo line source select with EQ channel can be configured in a number of different ways depending on the jumper options set on the board. The on board processors software is configured by jumpers J1 to J3. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK4 and LK5 fitted.

The standard options available are:

- Enable or disable Cue/PFL cancel from fader.

Folius, 2017.

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ 10

Summary of Jumper Settings for the 6 Way Stereo Source Channel With EQ

Jumper Set over Pins Effect
J1	1 & 2None	Fader up signal cancels previously selected Cue/PFL.Normal Cue/PFL function.
J2	1 & 2None	Continuous momentary start from ON button, see following description.Normal start function.
J3	1 & 2None	Latching contact for all remote starts.Momentary contact for all remote starts.
J4	1 & 22 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.

Note: Options in bold are set as default when shipped.

Input Trim Left Jumper Options J1 = Forder Cancel CUENPH J2 = Cont. Motor Start from On Button J3 = Laton Start P1 P2 P3 P4 P5 J3 J2 J1 Input Trim Right Special Logic K4 K5 A - Timer 1 R = Timer 2 A4 A - Timer 1 R = Timer 2

Fig 10-1:526 Way Source Selector Board Layout

Cue/PFL Cancel

The Cue/PFL function is normally an alternate action. Press the button to select and press again to de-select. However it may be desirable to have the fader up signal cancel a Cue/PFL selection. Placing a jumper over J1 pins 1 & 2 will enable a previously selected Cue/PFL function to be cancelled when the fader is up and the channel is ON. The default setting for J1 is none (not fitted).

Continuous Momentary Start

The continuous momentary start function can be used for equipment that only ever

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ

Source Remotes

The remote outputs for the six sources can be used for a start and stop function wired to other studio equipment such as CDs or MDs. The default setting for J3 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J3. The remote stops are always momentary. It is not possible to configure a latching remote start output when the continuous momentary start option has been selected.

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/channel On signal. Jumper J4 determines which timer is set to auto-start. A jumper over pins 1 & 2 will start Timer 1, shifting the jumper to pins 2 & 3 will start Timer 2. The default setting of J4 is none (not fitted).

Presets

Two presets are available for adjustment of the input gain, left and right, for all six line Inputs. Presets, P1 (left), P2 (right) provide 16dB of gain adjustment, allowing an input range of 16dB to -10dB referenced to 0dB output. The presets should be adjusted to give 0dB output for the chosen source, and will cater for professional equipment with nominal output levels up to 14dB and non-professional equipment with nominal output levels down to -10dBV. The levels are preset for 0dB input when shipped.

A third preset, PS, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

Presets P3 & P4 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and

S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ 10

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected

Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

Source Select

Mode 1 : Normal. The source can be selected and deselected as normal.

Mode 2: Interlocking. The source can only be deselected by the selection of another source.

Mode 3: Always off. The source is permanently deselected.

EQ

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.

Mode 4: Normal with remotes. Cue/PFL is selected as normal, with both a momentary or latched operation and will also activate the remotes if the channel is not live.

Mode 5: Latched with remotes. Cue/PFL is selected as normal, but with only a latched operation and will also activate the remotes if the channel is not live.

Mode 6: Momentary with remotes. Cue/PFL is selected as normal, but with only a momentary operation and will also activate the remotes if the channel is not live.

ON

Mode 1: Normal.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 60.

S2-CT TELCO CHANNEL WITH EQ

11 S2-CT Telco Channel With EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live". Selecting the PGM button also routes the channel to one of the two true cleanfeed buses. When selecting the AUD button only, a cleanfeed is generated via the channel mix-minus system. When both PGM and AUD are selected the channel operates in the true cleanfeed mode, sending the PGM signal to the cleanfeed bus.

Equalisation Controls

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM control

The TRIM control provides an additional ± 12dB of gain to fine tune the input signal level.

BAL/PAN Control

The BAL/PAN control is used to pan the mono input signal in the stereo image. Full anti-clockwise pans the signal to the left and increases the signal by 3dB (right channel reduces by 70dB); full clockwise pans the signal to the right and increases the signal by 3dB (left channel reduces by 70dB).

CUE/PFL & T/B Selection

Selecting the CUE/PFL & T/B button routes the pre-fader input signal to the monitoring system where the signal can be heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the TRIM control and panned via the BAL/PAN control. In addition, talkback is routed back to the caller via the cleanfeed system. This enables the presenter/technical operator to communicate with the caller prior to putting the caller live to air. The button is illuminated in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection when the fader is raised. This button works with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is

PGA AUD 10V 20V 15V 30V 10V 40V 15V 50V 10V 60V 15V 70V 10V 80V 15V 90V 10V 100V 15V 110V 10V 120V 15V 130V 10V 140V 15V 150V 10V 160V 15V 170V 10V 180V 15V 190V 10V 200V 15V 210V 10V 220V 15V 230V 10V 240V 15V 250V 10V 260V 15V 270V 10V 280V 15V 290V 10V 300V 15V 310V 10V 320V 15V 330V 10V 340V 15V 350V 10V 360V 15V 370V 10V 380V 15V 390V 10V 400V 15V 410V 10V 420V 15V 430V 10V 440V 15V 450V 10V 460V 15V 470V 10V 480V 15V 490V 10V 500V 15V 510V 10V 520V 15V 530V 10V 540V 15V 550V 10V 560V 15V 570V 10V 580V 15V 590V 10V 600V 15V 610V 10V 620V 15V 630V 10V 640V 15V 650V 10V 660V 15V 670V 10V 680V 15V 690V 10V 700V 15V 710V 10V 720V 15V 730V 10V 740V 15V 750V 10V 760V 15V 770V 10V 780V 15V 790V 10V 800V 15V 810V 10V 820V 15V 830V 10V 840V 15V 850V 10V 860V 15V 870V 10V 880V 15V 890V 10V 900V 15V 910V 10V 920V 15V 930V 10V 940V 15V 950V 10V 960V 15V 970V 10V 980V 15V 990V 10V 1.0 V

S2-CT TELCO CHANNEL WITH EQ 11

button is selected and either or both of the routing buttons are selected.

LINE HOLD Selection

The LINE HOLD button works in conjunction with the fader and is used to control channel remotes and routing. The button shows various states. When unlit the channel is off. Flashing red indicates that the channel has been selected to LINE HOLD but remains unroouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is holding the telephone line and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting LINE HOLD button (Note though that this will cause dial tone and the dialling of the call to be heard on-air). The illumination in this case toggles between unit (channel off) and green (channel on). Remotes are triggered when the LINE HOLD button is on.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function.

Rear Panel

Telco Line Input Connector

This XLR 3 pin socket is used for the electronically balanced telco line input, and has the following connections:

Pin 1: Screen.

Pin 2: Phase

Pin 3: Non-phase.

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following channel functions;

- TBU hold

The connector pin-out is as follows;

Pin 1: Onto isolated TBU hold NPN collector.

Pin 2: Common NPN emitter for above.

Pin 3: No connection.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: No connection.

Pin 7:0V logic

Pin 8: General purpose input.

11 S2-CT TELCO CHANNEL WITH EQ

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The telco channel with EQ can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1, J4 and channel identifying links. The telco channel is identified by having links LK21 and LK22 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK23 and LK24 fitted.

The standard options available are;

• Select momentary or latched Hybrid hold.
• Enable or disable Cue/PFL cancel from fader.
• Cleanfeed selection - jumpers J11 & J12 must be set the same for a telco module
• Select timer option.
• Mute Cleanfeed on Talkback enable.

Summary of Jumper Settings for the Telco Channel With EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for telephone hybrid holdMomentary contact for telephone hybrid hold.
J2	1&2None	Mute C/F on Talkback enable.Talkback mixed onto C/F output on Talkback enable.
J3	1&2None	Continuous momentary start from Line Hold button.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected CUE/PFLNormal Cue/PFL function.
J5 Not Fitted
J6 Not Fitted
J7 Not Fitted
J8 Not Fitted
J9 Not Fitted
J10 Not Fitted
J11	1 & 22 & 3	Set-up for cleanfeed bus 1.Set-up for cleanfeed bus 2.
J12	1 & 22 & 3	Set-up for cleanfeed bus 1.Set-up for cleanfeed bus 2.

S2-CT TELCO CHANNEL WITH EQ 11

Jumper Options J1 - Latch Start (JP 1) J4 - Ferror Cancel Duo/PFL P6 - Cell Sym. P6 - Right Sym. Set VCA 6x8 P6 Take Trim. C/Feed Trim. C/Feed Sel. C/Feed Sel. P3 P4 J12 J1 P2 J3 J2 P1 J4 J3 Special Tattoo K34 K33 K32 K31 Left Right Clear/Red Max-Minus Null

Fig 11-1:52 Telco Input Board Layout.

Remote for Hybrid Hold

The remote output of the Telco channel can be used to hold the line on a telephone hybrid when the channel is ON and the fader is up. The hybrid is also put on hold when the Cue/PFL & T/B button is selected. Jumper J1 is placed over pins 1 & 2. This is the default setting and produces a latched remote output. If your hybrid requires a momentary contact then remove J1.

CUE/PFL & T/B Cancel

The CUE/PFL & T/B function is normally an alternate action. Press the button to select and press again to de-select. However it may be desirable to have the fader up signal cancel a CUE/PFL & T/B selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL & T/B function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Jumpers J5 to J10 inclusive are not fitted to the Telco channel.

Cleanfeed Bus Output Select

The jumpers J11 and J12 determine which of the two true cleanfeed buses the channel uses. There can only be a maximum of two telco channels in each mixer and they must not share a cleanfeed bus.

If you have only one telco channel, the jumpers are fitted over pins 1 & 2 of J11 and J12, using cleanfeed 1. J2 on the S2-ODP should also be fitted to terminate cleanfeed 2.

If a second telco channel is present in the mixer, then this second channel should have the jumpers fitted over pins 2 & 3 of J11 and J12, using cleanfeed 2 only. In this case J2 on the

S2-CT TELCO CHANNEL WITH EQ

11 S2-CT TELCO CHANNEL WITH EQ

Jumper J2 is not set on the telco channel, so that the talkback is mixed to the cleanfeed output. Then to operate, press the PFL button on the telco module so that the mic input, which is connected to the talkback bus, is routed to the cleanfeed bus sent to the caller.

Presets

The line input preset, P3, provides 16dB of gain adjustment, allowing an input range of +6dB to -10dB referenced to 0dB output. The preset should be adjusted to give 0dB output for the chosen telephone hybrid, and will cater for professional equipment with nominal output levels up to +4dB and non-professional equipment with nominal output levels down to -10dBV. The level is preset for 0dB input when shipped.

The cleanfeed output level preset, P4, provides 10dB of gain adjustment, allowing an output level from -6dB to +4dB and should be adjusted to suit the level expected by the hybrid in use. The level is preset for 0dB output when shipped.

Presets P5 & P6 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

Two presets are used to set up the cleanfeed mix-minus null when the channel is routed to AUD only. With the channel routed to AUD only and a signal of 1 kHz applied to the input and adjusted to register 0dB on the console output, P7 (left) and P8 (right) are adjusted for minimum signal at the cleanfeed output connector.

A further preset, P9, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

Terminating The Cleanfeed Buses

Depending on whether you have 1, 2 or no telco channels fitted, you may have to alter the cleanfeed bus termination on the digital PGM and AUD Output channels. Please refer to that section of the handbook for further info.

General Purpose Inputs

One input pin is available on the remotes connector that can be configured for general purpose use. It is completely configurable and can be set as latching or momentary and active high or active low.

The setup procedure for configuring the pin is described in the following steps. Since the settings are stored in non-volatile RAM, this only needs to be done once.

- To initiate setup, press and hold down the PGM button while pressing the AUD button five times. Once completed, all the buttons will turn off and after a short while will display the current setting for the inputs function (pin 8 on the remote connector).

S2-CT TELCO CHANNEL WITH EQ 11

General Purpose Input Function Options

GPIO Function			ON Button	Cue/PFL Button	AUD Button
Input/Output	Latching/Momentary	Active Low/Active High
IL AL OFF	OFF OFF
IM AL ON	OFF OFF
IL AH OFF	ON OFF
IM AH ON	ON OFF

Now select the action using the PGM button as before.

General Purpose Input Action Options
The functions available are described below.

GPIO Action	Description	ON Button	Cue/PFL Button	AUD Button
None	OFF	OFF	OFF
Talkback Enable	The remote pin controls Talkback enable to the C/F outputs.	ON	OFF	OFF
Fader ON	The remote pin controls the fader open function. When active, the fader is fully open.	OFF	ON OFF
TBU Indicator	The remote pin controls the indicators within the Line Hold button. When this control is active, the Line Hold button will be green. When it is not active it will be red. The Line Hold button mode must be set to Mode 2 when this is used.	ON	ON OFF

• Press the ON button to apply the setting.
• The module will exit the setup procedure and the module can now be used as normal.

Button Mode Settings

To make the 52 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds.

After which all the buttons will start a recurring flashing sequence, at this point it is ok to

11 S2-CT TELCO CHANNEL WITH EQ

AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

EQ

Mode 1: Normal. Equalization can be enabled or disabled as normal.

Mode 2: Always enabled. Equalization controls are permanently enabled.

Mode 3: Always disabled. Equalization controls are permanently disabled.

Cue/PFL&T/B

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.

ON

Mode 1: Normal.

Mode2: The LEDs in the ON button are controlled via the general purpose input, if configured to do so. If the remote input is not active, then the ON button will be Red. If the remote input is active then the ON button will be green. This is designed to show a visual indication of the state of a TBU connected to the channel.

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ 12

12 S2 CSMM Stereo Mix Minus Channel With EQ

Panel Controls

PGM and AUD Selection

Selecting the PGM, AUD buttons routes the channel audio output to the PGM and/or AUD mix buses. The buttons are illuminated in green to indicate the routing status. Changing the status of the PGM button is inhibited when the channel is "live". Selecting the PGM button also routes the PGM main output via the mix minus system to the cleanfeed output. Similarly, selecting the AUD button routes the AUD main output to the mix minus system. When both PGM and AUD are selected the mix minus is derived from the PGM output.

Equalisation Controls

The HF and LF controls are used to adjust the equalisation of the signal. The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the equalisation in and out of the signal path. The button is illuminated in yellow when the EQ is active.

TRIM Control

The TRIM control provides an additional ± 12dB of gain to fine tune the input signal level.

BAL/PAN Control

The BAL/PAN control can be set to function as either a Balance or Pan control, depending on the setting of J12 & J13. As a balance control, full anti-clockwise shifts the signal to the left and increases the signal by 6dB (right channel reduces by 6dB); full clockwise shifts the signal to the right and increases the signal by 6dB (left channel reduces by 6dB). As a pan control, full anti-clockwise pans the signal to the left and increases the signal by 6dB (right channel reduces by 70dB); full clockwise pans the signal to the right and increases the signal by 6dB (left channel reduces by 70dB).

CUE/PFL & T/B Selection

Selecting the CUE/PFL & T/B button routes the pre-fader input signal to the monitoring system where the signal can be heard via headphones and/or loudspeakers. The level may be checked on meters and adjusted via the TRIM control and balanced via the BAL/PAN control. In addition, talkback is routed to the cleanfeed output. This enables the presenter/technical operator to communicate with the remote source prior to going live to air. The button

PWM AVD 10Ω 20Ω 15Ω 30Ω 10Ω 25Ω 15Ω 20Ω 10Ω 15Ω 15Ω 10Ω 10Ω 5Ω 15Ω 0Ω 10Ω 0.5Ω 15Ω 10Ω 10Ω 15Ω 15Ω 20Ω 10Ω 25Ω 15Ω 30Ω 10Ω 35Ω 15Ω 40Ω 10Ω 45Ω 15Ω 50Ω 10Ω 55Ω 15Ω 60Ω 10Ω 65Ω 15Ω 70Ω 10Ω 75Ω 15Ω 80Ω 10Ω 85Ω 15Ω 90Ω 10Ω 95Ω 15Ω 100Ω 10Ω 105Ω 15Ω 110Ω 10Ω 115Ω 15Ω 120Ω 10Ω 125Ω 15Ω 130Ω 10Ω 135Ω 15Ω 140Ω 10Ω 145Ω 15Ω 150Ω 10Ω 155Ω 15Ω 160Ω 10Ω 165Ω 15Ω 170Ω 10Ω 175Ω 15Ω 180Ω 10Ω 185Ω 15Ω 190Ω 10Ω 195Ω 15Ω 200Ω 10Ω 205Ω 15Ω 210Ω 10Ω 215Ω 15Ω 220Ω 10Ω 225Ω 15Ω 230Ω 10Ω 235Ω 15Ω 240Ω 10Ω 245Ω 15Ω 250Ω 10Ω 255Ω 15Ω 260Ω 10Ω 265Ω 15Ω 270Ω 10Ω 275Ω 15Ω 280Ω 10Ω 285Ω 15Ω 290Ω 10Ω 295Ω 15Ω 300Ω 10Ω 305Ω 15Ω 310Ω 10Ω 315Ω 15Ω 320Ω 10Ω 325Ω 15Ω 330Ω 10Ω 335Ω 15Ω 340Ω 10Ω 345Ω 15Ω 350Ω 10Ω 355Ω 15Ω 360Ω 10Ω 365Ω 15Ω 370Ω 10Ω 375Ω 15Ω 380Ω 10Ω 385Ω 15Ω 390Ω 10Ω 395Ω 15Ω 400Ω 10Ω 405Ω 15Ω 410Ω 10Ω 415Ω 15Ω 420Ω 10Ω 425Ω 15Ω 430Ω 10Ω 435Ω 15Ω 440Ω 10Ω 445Ω 15Ω 450Ω 10Ω 455Ω 15Ω 460Ω 10Ω 465Ω 15Ω 470Ω 10Ω 475Ω 15Ω 480Ω 10Ω 485Ω 15Ω 490Ω 10Ω 495Ω 15Ω 500Ω 10Ω 505Ω 15Ω 510Ω 10Ω 515Ω 15Ω 520Ω 10Ω 525Ω 15Ω 530Ω 10Ω 535Ω 15Ω 540Ω 10Ω 545Omega

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ

12

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ

The outputs on the this channel can also be configured by jumper settings as a mono sum of mix-minus on the left channel and continuous talkback on the right channel (for use with some ISDN codec applications and telephone balance units).

Fader

The 100mm VCA fader provides unity gain when fully open. The channel input signal is routed to the outputs whenever the fader is open, the ON button is selected and either or both of the routing buttons are selected.

ON Selection

The ON button works in conjunction with the fader and is used to control channel remotes, routing, timers, etc. The button shows various states. When until the channel is off. Flashing red indicates that the channel has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Steady red indicates that the channel is ON and "armed", ready for the fader to be raised. Raising the fader changes the illumination to green indicating that the channel is live. Alternatively, with the button until the fader may be raised and the channel can be operated simply by selecting ON. The illumination in this case toggles between until, channel OFF and green, channel ON. Remotes, etc., are triggered when the fader is up and the channel ON button shows green.

Scribble Pad

A scribble pad is provided at the bottom for user labelling of the channel function e.g. 'OB1'.

Rear Panel

Left Cleanfeed Output Connector

This XLR 3 pin plug is used for the left channel cleanfeed output, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Right Cleanfeed Output Connector

This XLR 3 pin plug is used for the right channel cleanfeed output, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Remotes Connector

This 9 pin D type plug provides inputs and outputs for the following

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ 12

The connector pin-out is as follows;

Pin 1: Opto isolated Line input start NPN collector.

Pin 2: Common NPN emitter for Line 1 start and stop.

Pin 3: Opto isolated Line input stop NPN collector.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: No connection.

Pin 7:0V logic.

Pin 8: General purpose I/O 1.

Pin 9: General purpose I/O 2.

Line Left Input Connector

This XLR 3 pin socket is used for the left channel input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Line Right Input Connector

This XLR 3 pin socket is used for the right channel input, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The stereo mix-minus channel with EQ can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J5 and channel identifying links. The stereo mix-minus channel is identified by having links LK8 and LK11 fitted. Other, customer specific, options can be programmed into the software by special order. Special logic options will be identified by having links LK9 and LK10 fitted.

The standard options available are:

- Select momentary or latched start for the input.

- Enable continuous momentary start from ON button.

- Enable or disable Cue/PFL cancel from fader.

- Select timer option.

• Cleanfeed output selection.

12

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ

Summary of Jumper Settings for the Stereo Mix-Minus Channel With EQ

Jumper Set over Pins Effect
J1	1 & 2None	Latching contact for Line input remote start.Momentary contact for Line input remote start.
J2 Not Fitted
J3	1 & 2None	Continuous momentary start from ON button,see following description.Normal start function.
J4	1 & 2None	Fader up signal cancels previously selected Cue/PFL.Normal Cue/PFL function.
J5	1 & 2None	Mute C/F on Talkback enable.Talkback mixed onto C/F output on Talkback enable.
J6	1 & 27 & 3None	Auto start Timer 1.Auto start Timer 2.No timer function.
J7 Not Fitted
J8 Not Fitted
J9	1 & 22 & 3	Cleanfeed left to C/F output left.Cleanfeed mono to C/F output left.
J10	1 & 22 & 3	Cleanfeed right to C/F output right.Continuous talkback (T/B 1) to C/F output right.
J11 Not Fitted
J12	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control
J13	1&2None	Bal/Pan control is a Pan controlBal/Pan control is a Balance control

Note: Options in bold are set as default when shipped.

J9 & 10 P14 P13 J73 CF L Trim C/F R Trim Cleanfeed A P/PS P/PS P5 & P6 Top Nul P7 & P8 100Hz Null J12 P15 P16 P15 = Left Sym. P16 P16 = Right Sym. P17 LK8 LK9 LK10 LK11 J6 Satz VCA 3dB Stereo Mix Mirus J4.3b J6 J6 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5 J5

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ 12

Remote for Line Input

The remote output for the Line input can be used for a start and stop function wired to other studio equipment such as CD or MD players. The default setting for J1 is none (not fitted), which produces a momentary remote contact. If your equipment requires a latching contact for remote start then a jumper should be placed over pins 1 & 2 of J1. The remote stop is always momentary.

Continuous Momentary Start

The continuous momentary start function can be used for equipment that only ever requires a remote start but not a stop. Placing a jumper over J3 pins 1 & 2 enables the function. When enabled the operation of the ON button is changed to a continuous start button. With the fader down, the button shows red. With the fader up, the button shows green and each press of the ON button will trigger a momentary start from the remote contacts. The default setting for J3 is none (not fitted). It is not possible to configure a latching remote start output when the continuous momentary start option has been selected.

CUE/PFL Cancel

The CUE/PFL function is normally an alternate action. Press the button to select and press again to de-select. However it may be desirable to have the fader up signal cancel a CUE/PFL selection. Placing a jumper over J4 pins 1 & 2 will enable a previously selected CUE/PFL function to be cancelled when the fader is up and the channel is ON. The default setting is none (not fitted).

Jumper J5 is not fitted to this channel.

Timer Auto Start

The dual timer in the meterbridge can be set to start automatically from a fader open/channel On signal. Jumper J6 determines which timer is set to auto-start. A jumper over pins 1 & 2 will start Timer 1, shifting the jumper to pins 2 & 3 will start Timer 2. The default setting of J6 is none (not fitted).

Jumpers J7 and J8 are not fitted to this channel.

Cleanfeed Output Selection

The default setting for jumpers J9 and J10 is over pins 1 & 2 which gives stereo cleanfeed outputs. There may be a situation where only mono cleanfeed is required with a continuous feed of talkback from the studio. Placing jumper J9 over pins 2 & 3 places mono cleanfeed on the left cleanfeed output and placing jumper J10 over pins 2 & 3 places the continuous talkback feed on the right cleanfeed output.

Presets

Two separate sets suitable for adjustment of the line between axis left and right. Separate 11

12 S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ

Eight presets are used to adjust the cleanfeed null for the left and right channels. Cleanfeed is derived from the PGM or AUD output buses and are set up as follows. With the channel routed to PGM only and a signal of 1kHz applied to the input and adjusted to register 0dB on the console output, P5 (left) and P6 (right) are adjusted for minimum signal at the cleanfeed output connectors. The input signal frequency is then changed to 100Hz and P7 (left) and P8 (right) are adjusted for a level of -45dB at the cleanfeed output connectors. Change the routing to AUD only and repeat the set up using presets P9, P10 at 1kHz and P11, P12 at 100Hz. This will be set up during final test and should not require further adjustment, unless the channel position changes within the frame when minor adjustment may be required to maintain best performance.

Two presets are available for adjustment of the Cleanfeed gain, left and right. The presets P13 (left), P14 (right) should be adjusted to give 0dB output for the chosen source.

Presets P15 & P16 are for altering the audio waveform symmetry (i.e. distortion). They are factory set on final test and should not be adjusted further.

A further preset, P17, sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

General Purpose I/O

Two I/O pins are available on the remotes connector that can be configured for general purpose use. They are completely configurable and can be set as inputs or outputs, latching or momentary and active high or active low,

The setup procedure for configuring the pins is described in the following steps. Since the settings are stored in non-volatile RAM, this only needs to be done once.

- To initiate setup, press and hold down the PGM button while pressing the AUD button five times. Once completed, all the buttons will turn off and after a short while will display the current setting for GPIO 1's function (pin 8 on the remote connector).

- Using the PGM button, cycle through the following options (shown in the table below) until the desired setting is selected. For example to set GPIO 1 to a latching, active high input, press the PGM button until only the CUE/PFL button is illuminated ON. This setting is then applied by pressing the ON button. The PGM button will flash quickly for about a second to indicate that the setting is stored.

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ 12

General Purpose I/O Function Options

GPIO Function			ON Button	Cue/PFL Button	AUD Button
Input/Output	Latching/Momentary	Active Low/Active High
I L AL OFF	OFF OFF
I M AL ON	OFF OFF
I L AH OFF	ON OFF
I M AH	ON	ON OFF
O	L AL OFF	OFF ON
O	M AL ON	OFF ON
O	L AH OFF	ON	ON
O	M	AH	ON	ON	ON

Now select GPIO 1's action using the PGM button as before.

General Purpose I/O Action Options

The functions available are dependent on whether the remote is set as an input or an

output. The two tables below describe the different functions available.

Input Functions

GPIO Action	Description	ON Button	Cue/PFL Button	AUD Button
None		OFF	OFF	OFF
Channel ON	The remote pin replicates the ON button in the module. Activating this control will turn the channel on or off.	ON OFF	OFF
Talkback Enable	The remote pin controls Talkback enable to the C/F outputs.	OFF	ON	OFF
TBU Indicator	The remote pin controls the indicators within the ON button. When this control is active, the ON button will be green. When it is not active it will be red. The ON button mode must be set to Mode 3 when this action is used.	ON ON	OFF
Fader On	The remote pin controls the fader open function. When active, the fader is fully open.	OFF	OFF	ON

Output Functions

GPIO Action

Description

ON Button

Cue/PFL Button

AUD Button

12

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ

• As before, press the ON button to apply the setting, noticing that the PGM button flashes.
• The module will now display the current setting of GPIO 2's function. This is changed in exactly the same way as GPIO 1, selecting from the options in the above table.
• Once the ON button is pressed, this setting is stored and the action can be selected.
  • After the next ON button press, the module will exit the setup procedure and the module can now be used as normal.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.
Mode 2: Always on. The program bus is permanently selected.
Mode 3: Always off. The program bus is permanently deselected.

AUD

Mode 1: Normal. The audition bus can be selected as normal.
Mode 2: Always on. The audition bus is permanently selected.
Mode 3: Always off. The audition bus is permanently deselected.

EQ

Mode 1: Normal. Equalization can be enabled or disabled as normal.
Mode 2: Always enabled. Equalization controls are permanently enabled.

S2-CSMM STEREO MIX MINUS CHANNEL WITH EQ 12

Cue/PFL

Mode 1: Normal. Cue/PFL is selected as normal, with both a momentary or latched operation.

Mode 2: Latched. Cue/PFL is selected as normal, but will only work with a latched operation.

Mode 3: Momentary. Cue/PFL is selected as normal, but will only work with a momentary operation.

Mode 4: Normal with remotes. Cue/PFL is selected as normal, with both a momentary or latched operation and will also activate the remotes if the channel is not live.

Mode 5: Latched with remotes. Cue/PFL is selected as normal, but with only a latched operation and will also activate the remotes if the channel is not live.

Mode 6: Momentary with remotes. Cue/PFL is selected as normal, but with only a momentary operation and will also activate the remotes if the channel is not live.

ON

Mode 1: Normal.

Mode 2: Operates as normal except the start function is activated from first fader up and on combination. Thereafter, subsequent lowering and raising of the fader does not activate a start or stop. Stop is only generated when channel is turned off.

Mode 3: The LEDs in the ON button are driven by the GPIO set to TBU indicator mode.

OUTPUT CHANNELS

13 Output Channels

There are six different output channels, available for installation in the mixer as well as a blank channel and script space. The channels are each covered in the following chapters, but a summary follows:

S2-ODP Digital PGM Output Channel &

S2-ODPF Digital PGM Output Channel With Master Fader

This channel is common to every mixer and provides a digital and analogue stereo output from the PGM mix bus and a mono analogue output. The digital output is available as a balanced AES/EBU signal via standard XLRs or as S/PDIF on phone sockets. The sample rate can be set automatically or by internal jumpers from 32 kHz to 96 kHz. The output sample size can be set to 16, 18 or 24 bits on Version 1 modules, but is always 24 bits on Version 2 modules. The balanced analogue PGM output and mono output is available on a 15 way D type connector.

Button switches at the top of the channel select the mono output source. The S2-ODPF version has output faders for production use.

S2-ODA Digital AUD Output Channel &

S2-ODAF Digital AUD Output Channel With Master Fader

This channel is common to every mixer and provides a digital and analogue output from the AUD mix bus. The digital output is available as a balanced AES/FBU signal via standard XLRs or as S/PDIF on phono sockets. The sample rate can be set automatically or by internal jumpers from 32 kHz to 96 kHz. The output sample size can be set to 16, 18 or 24 bits on Version 1 modules, but is always 24 bits on Version 2 modules. The balanced analogue AUD outputs are available on a 15 way D type connector.

Button switches at the top of the channel select the monitoring source to the meterbridge. The S2-ODAF version has output faders for production use.

S2-OMC Control Room Monitor Channel

The Control Room Monitor channel is used for the monitoring of various sources on the control room loudspeakers and (presenters) headphones. A suitable power amplifier connected to the channel monitor output must be used to drive the loudspeakers. A front panel control is used to vary the monitor level. Headphones can be driven directly from the channel headphone connector on the front or rear panel via the level control.

A 4 way electronically interlocking switch bank selects the source routed to the speakers and headphones from either of two external Inputs, the PGM, or AUD output. "Auto PFL" buttons adjacent to each level control allow the monitoring of PFL when an input channel has been selected to CIEPBL. In addition, Split PFL can be selected to the headphones

OUTPUT CHANNELS 13

to allow every contribution point in the control room and studio to communicate with each other via their microphone and headphones.

An illuminated Mute LED shows when a live microphone channel in the control room has muted the control room speakers.

S2-OMS Studio Monitor Channel

The Studio Monitor channel is used for the monitoring of various sources on the studio loudspeakers and headphones. A suitable power amplifier connected to the channel monitor output must be used to drive the loudspeakers. A front panel control is used to vary the monitor level. Headphones can be driven directly from the channel headphone connector on the rear panel via the level control.

A 4 way electronically interlocking switch bank selects the source routed to the speakers and headphones from either of two external Inputs, the PGM, or AUD output. *Auto PFL* buttons adjacent to each level control allow the monitoring of PFL when an input channel has been selected to CUE/PFL.

A separate Studio T/B button is provided to allow the presenter/engineer to talk to the studio at other times and internal jumpers allow this talkback to replace or dim the selected source. A Global Talkback system can be configured to allow every contribution point in the control room and studio to communicate with each other via their microphone and headphones.

An illuminated Mute LED shows when a live microphone channel in the studio has muted the studio speakers.

OUTPUT CHANNELS

14 S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

PGM AUD SHORT NEED LOOK

PGM AUD MOND FIELD LARGE

14 S2-ODPF/S2-ODP Digital Output PGM Channel With & Without Master Fader (Version 1)

A change was made to the hardware and firmware of the S2-ODPF/S2-ODP modules around January 2008. Modules prior to this date are likely to be Version 1, modules after this date are likely to be Version 2. Externally, the only way to check the Version number of this module which has been fitted into your S2, is to look at the layout of the connectors on the rear panel. If the POWER and OUTPUTS AND REMOTES connector is at the bottom of the panel (see page 99), then you have a Version 2 module. If these connectors are nearer the middle of the panel (see page 92), then it is Version 1.

Panel Controls

Mono Output Selection

The Mono compatible output can be used to feed a mono transmitter or any station output monitoring system that requires a mono signal such as a background music system. The Mono output can be derived from either the PGM or AUD outputs by selecting the appropriate button.

Lock Indicator

The illuminated lock indicator shows that the digital output is locked to the onboard master clock, incoming Word clock or AES/EBU, S/PDIF compatible sync signal. If sync is lost then the indicator will flash. The channel automatically searches for a sync signal on the Word Clock, or the selected digital input, and automatically locks to a valid sync clock. To disable locking to the AES/EBU or S/PDIF Input, simply remove jumpers J10 and J11.

Fader (S2-ODPF only)

The 100mm VCA fader provides unity gain when fully open.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Rear Panel

AES/EBU PGM Output Connector

This XLR 3 pin plug is used for the AES/EBU Output, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

S/PDIF PGM Output Connector

This phono connector is used for S/PDIF output. There are on board jumpers to set up this input in place of the AES/EBU output.

Inner: Signal.

Outer: Screen.

S/PDIF Sync Input Connector

This phono connector is used for the S/PDIF sync input. There is an on board jumper to set up this input in place of the AES/EBU sync input.

Inner Signal.

Outer Screen.

Outputs & Remotes Connector

This 15 pin D type socket provides outputs for the following channel functions:

- PGM analogue outputs

- Mono analogue output

• Control Room muting relays. The mute relay is a double pole relay, 2A at 30VDC max

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: PGM left output phase.

Pin 3: PGM right output phase.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: Mono output phase.

Pin 7: Control Room mute relay contact 1A (makes to pin 14).

Pin 8: Control Room mute relay contact 2A (makes to pin 15).

Pin 9: PGM left output non-phase.

14 S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Word Clock Input Connector

This 75 ohm BNC socket is used for the word clock input, and has the following connections:

Inner Signal.

Outer: Screen.

AES/EBU Sync Input Connector

This XLR 3 pin socket is used for AES/EBU Sync Input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The PGM digital stereo output channel can be configured in a number of different ways depending on the jumper options set on the board. The on board processors software is configured by jumpers J3 to J9 and channel identifying links. The PGM digital output channel is identified by having links LK42 and LK45 fitted. The PGM digital output channel with fader is identified by having links LK42, LK45 and LK46 fitted.

The standard options available are;

• Cleanfeed mix bus termination.

• Select mode and sample rate.
• Select output sample size.
• Select channel status bits.
• Select AES/EBU or S/PDIF output.
• Select AES/EBU or S/PDIF sync input.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1) 14

Summary of Jumper Settings for the PGM Digital Output Channel

Jumper	Set over Pins	Effect
J1	1 & 2None	Cleanfeed 1 terminated.Cleanfeed 1 active.
J2	1 & 2None	Cleanfeed 2 terminated.Cleanfeed 2 active.
J3-J6 See table (page 96) Synchronisation Mode & Sample Rate Selection.
J7-J8 See table (page 96) Output Bit Depth Selection.
J9 See table (page 96) Channel Status Bits Selection.
J10	1 & 22 & 3	AES/EBU sync input selected.S/PDIF sync input selected.
J11 1 & 2 AES/EBU sync Input selected.
	2 & 3 S/PDIF sync input selected.
J12 1 & 2 S/PDIF output selected.
	2 & 3 AES/EBU output selected.

Note: Options in bold are set as default when shipped.

J12 AES SPDB J3 J5 J6 J7 J8 J9 J10 J11 J12 J13 J14 J15 J16 J17 J18 J19 J20 J21 J22 J23 J24 J25 J26 J27 J28 J29 J30 J31 J32 J33 J34 J35 J36 J37 J38 J39 J40 J41 J42 Modulo A Digi P5 Tnm L P6 Tnm R Left Lim Sym. Right, pg Lim Sym. Set Threshold PS Set Gain

Fig 14-1:52 Digital PGM Output Board Layout.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNE WITH & WITHOUT MASTER FADER (VERSION 1)

14 S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

J12 AES SPDIF J3 U LK42 Module A J4 J5 J6 J7 J8 J9 J10 J11J13 AES SPDIF J12 LMK42 AD Trim L P5 P6 A/D Trim R J1J2 Left Sym P7 Right Sym P8 Set VCA Ods3 Right Sym. P3 P1 Left Sym. Threshold P5 P8 Set Com

Fig 14 2: S2 Digital PGM Output With Fader Board Layout.

Cleanfeed Terminations

If the console is supplied without Telco channels then J1 and J2 will be fitted to terminate the cleanfeed mix buses. With one Telco channel only J2 is fitted and with two Telco channels no jumpers are fitted. There is no default setting.

Synchronisation Mode and Sample Rate

The following jumpers, J3 to J9, are used for setting the Sync Mode and Sample Rate of the digital output.

In Master mode, the digital output sample rate is simply set by, and locked to, the internal on-board clock generator. No sync signal is used or required.

In Auto mode the sample rate follows the sync input. When the sync signal is not present the sample rate will be set by, and locked to, the internal on-board clock generator at a frequency determined by the jumpers.

In Auto Lock mode, the sample rate follows the sync input. If the sync signal is removed then the sample rate will be set by, and locked to, the internal on-board clock generator at the closest frequency available to the previous sync input. When there has been no sync input detected the output will lock to the on-board clock generator at 32kHz.

In Slave mode, the sample rate follows the sync input. When the sync signal is not present the digital output is muted.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1) 14

Synchronisation Mode / Sample Rate (kHz)		J3 J4 J5 J6
MASTER	32 Not Fitted Not Fitted Not Fitted Not Fitted
	44.1 Fitted Not Fitted Not Fitted Not Fitted
	48 Not Fitted Not Fitted Not Fitted Not Fitted
	96 Fitted Not Fitted Fitted Not Fitted
AUTO	32 Not Fitted Fitted		Fitted Not Fitted
	44.1 Fitted	Fitted	Fitted Not Fitted
	48 Not Fitted Not Fitted Not Fitted Fitted
	96 Fitted	Fitted	Not Fitted Fitted
Auto Lock		Not Fitted Not Fitted Fitted		Fitted
Slave Mode		Fitted Not Fitted Fitted		Fitted
Reserved		Not Fitted	Fitted	Fitted	Fitted
Reserved		Fitted	Fitted	Fitted	Fitted

Output Bit Depth	J7 J8
16 bits	Not Fitted Not Fitted
20 bits	Fitted Not Fitted
24 bits	Not Fitted Fitted
Reserved	Fitted	Fitted

Channel Status Bits	J9
Consumer	Not Fitted
Professional	Fitted

Sync Select

The pair of jumpers, J10 and J11, select the sync source between AES, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU. Both jumpers need to be altered for this to work correctly.

Digital Output Mode

Jumper J12 selects the digital output mode between AES/EBU, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU.

Presets

Presets P1 & P2 are for altering the audio waveform symmetry (i.e. distortion) through the VCA stage. They are factory set on final test and should not be adjusted further.

Preset P3 sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNE WITH & WITHOUT MASTER FADER (VERSION 1)

14 S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Preset P8 sets the gain through the limiter that feeds the analogue to digital converters. Preset P9 sets the threshold. Presets P6 & P7 are for altering the audio waveform symmetry (i.e. distortion) through the limiting stage. They are all factory set on final test and should not be adjusted further.

ADC Calibration

For optimum performance, the module should be calibrated when it has been powered up for approximately 10-15 minutes. The circuitry and chipsets contained in the module will warm up during this time and the performance will deteriorate unless calibrated (the noise floor and dynamic range will be 1-2dB down on their best). The calibration cycle calibrates the gain and the zero reference of the A/D converter.

To calibrate, hold down the PGM button and press the AUD button 5 times. The lock LED on the front panel will flash quickly for 2 – 3 seconds and will return to it's previous state. The calibration procedure is now complete.

Button Mode Settings

To make the 52 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The PGM bus can be selected as the mono output source as normal.

Mode 2: Always on. The program bus is permanently selected as the mono output source.

Mode 3: Always off. The program bus can never be selected as the mono output source.

AUD

Mode 1: Normal. The AUD bus can be selected as the mono output source as normal.

Mode 2: Always on. The audition bus is permanently selected as the mono output source.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

15 S2-ODPF/S2-ODP Digital Output PGM Channel With & Without Master Fader (Version 2)

A change was made to the hardware and firmware of the S2-ODPF/S2-ODP modules around January 2008. Modules prior to this date are likely to be Version 1, modules after this date are likely to be Version 2. Externally, the only way to check the Version number of this module which has been fitted into your S2, is to look at the layout of the connectors on the rear panel. If the POWER and OUTPUTS AND REMOTES connector is at the bottom of the panel (see page 99), then you have a Version 2 module. If these connectors are nearer the middle of the panel (see page 92), then it is Version 1.

Panel Controls

Mono Output Selection

The Mono compatible output can be used to feed a mono transmitter or any station output monitoring system that requires a mono signal such as a background music system. The Mono output can be derived from either the PGM or AUD outputs by selecting the appropriate button.

Lock Indicator

The Illuminated lock indicator shows that the digital output is locked to the onboard master clock, incoming Word clock or AES/EBU, S/PDIF compatible sync signal. If sync is lost then the indicator will flash. The channel automatically searches for a sync signal on the Word Clock, or the selected digital input, and automatically locks to a valid sync clock. To disable locking to the AES/EBU or S/PDIF Input, simply remove jumpers J10 and J11.

Fader (S2-ODPF only)

The 100mm VCA fader provides unity gain when fully open.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION2)

2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

Rear Panel

AES/EBU PGM Output Connector

This XLR 3 pin plug is used for the AES/EBU Output, and has the following connections:

Pin 1: Screen.

Pln 2: Phase.

Pin 3: Non-phase.

S/PDIF PGM Output Connector

This phono connector is used for S/PDIF output. There are on board jumpers to set up this input in place of the AES/EBU output.

Inner: Signal.

Outer: Screen

S/PDIF Sync Input Connector

This phono connector is used for the S/PDIF sync input. There is an on board jumper to set up this input in place of the AES/EBU sync input.

Inner: Signal.

Outer: Screen.

Outputs & Remotes Connector

This 15 pin D type socket provides outputs for the following channel functions:

• PGM analogue outputs

• Mono analogue output

+ Control Room muting relays. The mute relay is a double pole relay, 2A at 30VDC max

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: PGM left output phase.

Pin 3: PGM right output phase.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: Mono output phase.

Pin 7: Control Room mute relay contact 1A (makes to pin 14).

Pin 8: Control Room mute relay contact 2A (makes to pin 15).

Pin 9: PGM left output non-phase.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

Word Clock Input Connector

This 75 ohm BNC socket is used for the word clock input, and has the following connections:

Inner Signal.

Outer: Screen.

AES/EBU Sync Input Connector

This XLR 3 pin socket is used for AES/EBU Sync Input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The PGM digital stereo output channel can be configured in a number of different ways depending on the jumper options set on the board. The on board processors software is configured by jumpers J3 to J9 and channel identifying links. The PGM digital output channel is identified by having links LK42 and LK45 fitted. The PGM digital output channel with Fader is identified by having links LK42, LK45 and LK46 fitted.

The standard options available are;

• Cleanfeed mix bus termination.

- Select mode and sample rate.

- Select channel status bits.

- Select AES/EBU or S/PDIF output.

- Select AES/EBU or S/PDIF sync input.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION2)

Summary of Jumper Settings for the PGM Digital Output Channel

Jumper Set over Pins Effect
J1	1 & 2None	Cleanfeed 1 terminated.Cleanfeed 1 active.
J2	1 & 2None	Cleanfeed 2 terminated.Cleanfeed 2 active.
J3-J6		See table (page 103) Synchronisation Mode & Sample Rate Selection.
J7-J8 Reserved.
J9 See table (page 103) Channel Status Bits Selection.
J10	1 & 22 & 3	AES/EBU sync input selected.S/PDIF sync input selected.
J11 1 & 2 AES/EBU sync input selected.
	2 & 3 S/PDIF sync input selected.
J12 1 & 2 S/PDIF output selected.
	2 & 3 AES/EBU output selected.
J13	1&2None	Reserved.Reserved.

Note: Options in bold are set as default when shipped.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

J12 NES AES SP0IF J11 J10 J13 K47 Program P4 Right Lim P6 J2 J3 P5 Set Gain Threshold J4J47 P6 Left Lim P7 J4J8 J5 J6 P7

Fig 15-1:52 Digital PGM Output Board Layout.

J12 AES SPDIF J11 J10 LK46 RK42 J13 J3.5J7 J2.8J8 Factor Program Right Lim SYM P8 P4 P3 Set Cein Threshold P5 Left Lim SYM P7 P6 P3 P2 P1 Left SYM Sat VDA 0JB P7

Fig 15-2: S2 Digital PGM Output With Fader Board Layout.

Cleanfeed Terminations

If the console is supplied without Telco channels then J1 and J2 will be fitted to terminate the cleanfeed mix buses. With one Telco channel only J2 is fitted and with two Telco channels no jumpers are fitted. There is no default setting.

Synchronisation Mode and Sample Rate

The following jumpers, J3 to J6 and J9 on V2, are used for setting the Sync Mode and Sample Rate of the digital output.

In Master mode, the digital output sample rate is simply set by, and locked to, the internal onboard clock generator. No sync signal is used or required.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

15

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION2)

In Auto Lock mode, the sample rate follows the sync input. If the sync signal is removed then the sample rate will be set by, and locked to, the internal on-board clock generator at the closest frequency available to the previous sync input. When there has been no sync input detected the output will lock to the on-board clock generator at 32kHz.

In Slave mode, the sample rate follows the sync input. When the sync signal is not present the digital output is muted.

Synchronisation Mode / Sample Rate (kHz)		J3 J4 J5 J6
MASTER	32 Not Fitted Not Fitted Not Fitted Not Fitted
	44.1 Fitted Not Fitted Not Fitted Not Fitted
	48 Not Fitted Fitted Not Fitted Not Fitted
	96 Fitted Not Fitted Fitted Not Fitted
AUTO	32 Not Fitted Fitted Fitted Not Fitted
	44.1 Fitted Fitted Fitted Not Fitted
	48 Not Fitted Not Fitted Not Fitted Fitted
	96 Fitted Fitted Not Fitted Fitted
Auto Lock Not Fitted Not Fitted Fitted Fitted
Slave Mode Fitted Not Fitted Fitted Fitted

Channel Status Bits J9
Consumer	Not Fitted
Professional	Fitted

Sync Select

The pair of jumpers, J10 and J11, select the sync source between AES, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU. Both jumpers need to be altered for this to work correctly.

Digital Output Mode

Jumper J12 selects the digital output mode between AES/EBU, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU.

Presets

Presets P1 & P2 are for altering the audio waveform symmetry (i.e. distortion) through the

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2) 15

Presets, P5 (left) and P4 (right), set the peak digits through the conditioning circuits to the analogue to digital converter. This is preset on final test and should not require further adjustment.

Preset P8 sets the gain through the limiter that feeds the analogue to digital converters. Preset P9 sets the threshold. Presets P6 & P7 are for altering the audio waveform symmetry (i.e. distortion) through the limiting stage. They are all factory set on final test and should not be adjusted further.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The PGM bus can be selected as the mono output source as normal.

Mode 2: Always on. The program bus is permanently selected as the mono output source.

Mode 3: Always off. The program bus can never be selected as the mono output source.

AUD

Mode 1: Normal. The AUD bus can be selected as the mono output source as normal.

Mode 2: Always on. The audition bus is permanently selected as the mono output source.

Mode 3: Always off. The audition bus can never be selected as the mono output source.

Note: If both buttons are set to mode 2 (Always on) then the mono output will be a mix of both PGM and AUD buses.

S2-ODPF/S2-ODP DIGITAL OUTPUT PGM CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

PGM AUD CB MON MOTION SELECT LOCK

PGM AUD CB NON RANTON SELECT LOCK

16 S2-ODAF/S2-ODA Digital Output AUD Channel With & Without Master Fader (Version 1)

A change was made to the hardware and firmware of the S2-ODAF/S2-ODA modules around January 2008. Modules prior to this date are likely to be Version 1, modules after this date are likely to be Version 2. Externally, the only way to check the Version number of this module which has been fitted into your S2, is to look at the layout of the connectors on the rear panel. If the OUTPUTS AND REMOTES connector is at the bottom of the panel (see page 113), then you have a Version 2 module. If these connectors are nearer the middle of the panel (see page 106), then it is Version 1.

Panel Controls

Meter Display Selection

When the meters in the meterbridge are plugged up to the "Monitor Meter" position they will display the selected signal from the electronically interlocking PGM, AUD, or CR MON buttons. The CR MON signal source is the presenter's headphone on the control room monitor channel, pre talkback and level control. This signal could be PGM, AUD, EXT 1, EXT 2, or PFL, as selected by the presenter.

Lock Indicator

The illuminated lock indicator shows that the digital output is locked to the onboard master clock, incoming Word clock or AES/EBU, S/PDIF compatible sync signal. If sync is lost then the indicator will flash. The channel automatically searches for a sync signal on the Word Clock, or the selected digital input, and automatically locks to a valid sync clock. To disable locking to the AES/EBU or S/PDIF input, simply remove jumpers J10 and J11.

Fader (S2-ODAF only)

The 100mm VCA fader provides unity gain when fully open.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Rear Panel

AES/EBU AUD Output Connector

This XLR 3 pin socket is used for the AES/EBU Output, and has the following connections:

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

S/PDIF AUD Output Connector

This phono connector is used for the S/PDIF Output. There are on board

Jumpers to set up this output in place of the AES/EBU output.

Inner: Signal.

Outer Screen.

S/PDIF Sync Input Connector

This phono connector is used for the S/PDIF sync input. There is an on board jumper to set up this input in place of the AES/EBU sync input.

Inner: Signal.

Outer: Screen.

Output & Remotes Connector

This 15 pin D type socket provides outputs for the following channel functions:

• AUD analogue outputs

- Studio muting relays. The mute relay is a double pole relay, 2A at 30VDC max

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: AUD left output phase.

Pin 3: AUD right output phase.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: No connection.

Pin 7: Studio mute relay contact 1A (makes to pin 14).

Pin 8: Studio mute relay contact 2A (makes to pin 15).

Pin 9: AUD left output non-phase.

Pin 10: AUD right output non-phase.

Pin 11: No connection

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Meterbridge Interconnect

An internal ribbon cable to the meterbridge is fitted to the AUD output channel and appears via the rear panel.

Word Clock Input Connector

This 75 ohm BNC socket is used for the word clock input, and has the following connections:

Inner: Signal.

Outer Screen.

AES/EBU Sync Input Connector

This XLR 3 pin socket is used for AES/EBU Sync Input, and has the following connections;

Pin 1: Screen.

Pin 2: Phase

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The AUD digital stereo output channel can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J3 to J9 and channel identifying links. The AUD digital output channel is identified by having links LK43 and LK45 fitted. The AUD digital output with fader is identified by having links LK43, LK45 and LK46 fitted.

The standard options available are:

- Select mode and sample rate.

• Select output sample size.
• Select channel status bits.
• Select AES/EBU or S/PDIF output
• Select AES/EBU or S/PDIF sync input.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Summary of Jumper Settings for the AUD Digital Output Channel

Jumper	Set over Pins	Effect
J1 Not Fitted
J2 Not Fitted
J3-J6 See table (page 109) Synchronisation Mode & Sample Rate Selection.
J7 J8 See table (page 110) Output Bit Depth Selection.
J9 See table (page 111) Channel Status Bits Selection.
J10	1 & 22 & 3	AES/EBU sync input selected.S/PDIF sync Input selected.
J11 1 & 2	AES/EBU sync input selected.
	2 & 3 S/PDF	sync input selected.
J12 1 & 2	S/PDIF output selected.
	2 & 3 AES/EBU output selected.

Note: Options in bold are set as default when shipped.

J12 AES SPDIF J3 J6 J8 J9 LK42 Module B KDS Digi A/D Trim L PS PS A/D Trim R J11J10 AES SPDIF Left Lm Sym. P7 Right Lm Sym. P8 Set Threshold P6 Gain

Fig 16 1:52 Digital AUD Output Board Layout.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNE WITH & WITHOUT MASTER FADER (VERSION 1)

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

J12 AES SPDF J3 LK42 Module R J5 LK45 J6 LAdi J8 LK46 J9 A/D Trim L P5 P6 A/D Trim R J11-J13 AES SPDF J1 I J1 J2 J3 J4 J5 J6 J7 J8 J9 A/D Trim L P2 P1 Right Sym. P3 Set Left Sym. Set Threshold P0 P1 P2 P3 Set VCA Sym. Left Lim Sym. Right Lim Sym. P8 Set Gain

Fig 16-2:52 Digital AUD Output With Faster Board Layout.

Synchronisation Mode and Sample Rate

The following jumpers, J3 to J9, are used for setting the Sync Mode and Sample Rate of the digital output.

In Master mode, the digital output sample rate is simply set by, and locked to, the internal on-board clock generator. No sync signal is used or required.

In Auto mode the sample rate follows the sync input. When the sync signal is not present the sample rate will be set by, and locked to, the internal on-board clock generator at a frequency determined by the jumpers.

In Auto Lock mode, the sample rate follows the sync input. If the sync signal is removed then the sample rate will be set by, and locked to, the internal on-board clock generator at the closest frequency available to the previous sync input. When there has been no sync input detected the output will lock to the on-board clock generator at 32kHz.

In Slave mode, the sample rate follows the sync input. When the sync signal is not present the digital output is muted.

Synchronisation Mode / Sample Rate (kHz)		J3 J4 J5 J6
MASTER	32 Not Fitted Not Fitted Not Fitted Not Fitted
	44.1 Fitted Not Fitted Not Fitted Not Fitted
	48 Not Fitted Fitted Not Fitted Not Fitted
	96 Fitted Not Fitted Fitted Not Fitted
AUTO	32 Not Fitted Fitted Fitted Not Fitted
	44.1 Fitted Fitted Fitted Not Fitted
	48 Not Fitted Not Fitted Not Fitted Not Fitted

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

Output Bit Depth J7 J8
16 bits Not Fitted Not Fitted
20 bits Fitted Not Fitted
24 bits Not Fitted Fitted
Reserved	Fitted	Fitted

Channel Status Bits	J9
Consumer	Not Fitted
Professional	Fitted

Sync Select

The pair of jumpers, J10 and J11, select the sync source between AES, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU. Both jumpers need to be altered for this to work correctly.

Digital Output Mode

Jumper J12 selects the digital output mode between AES/EBU, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU.

Presets

Presets P1 & P2 are for altering the audio waveform symmetry (i.e. distortion) through the VCA stage. They are factory set on final test and should not be adjusted further.

Preset P3 sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

Presets, P5 (left) and P4 (right), set the peak digits through the conditioning circuits to the analogue to digital converter. This is preset on final test and should not require further adjustment.

Preset P8 sets the gain through the limiter that feeds the analogue to digital converters. Preset P9 sets the threshold. Presets P6 & P7 are for altering the audio waveform symmetry (i.e. distortion) through the limiting stage. They are all factory set on final test and should not be adjusted further.

Gain can be altered using P4 and P5 on board versions S2-OP-04 and above, as P8 is no longer fitted on these boards.

ADC Calibration

For optimum performance, the module should be calibrated when it has been powered up for approximately 10-15 minutes. The circuitry and chipsets contained in the module will

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 1)

To calibrate, hold down the PGM button and press the AUD button 5 times. The lock LED on the front panel will flash quickly for 2 – 3 seconds and will return to it's previous state. The calibration procedure is now complete.

Button Mode Settings

To make the S2 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. PGM can be selected as the meter feeder as normal.

Mode 2: Always on. PGM is permanently selected as the meter feed.

Mode 3: Always off. PGM can never be selected as the meter feed.

AUD

Mode 1: Normal. AUD can be selected as the meter feeder as normal.

Mode 2: Always on. AUD is permanently selected as the meter feed.

Mode 3: Always off. AUD can never be selected as the meter feed.

CR MON

Mode 1: Normal. The Control Room Monitor channel be selected as the meter feed as normal.

Mode 2: Always on. The Control Room Monitor channel is permanently selected as the meter feed.

Mode 3: Always off. The Control Room Monitor channel can never be selected as the meter feed.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

17 S2-ODAF/S2-ODA Digital Output AUD Channel With & Without Master Fader (Version 2)

A change was made to the hardware and firmware of the S2-ODAF/S2-ODA modules around January 2008. Modules prior to this date are likely to be Version 1, modules after this date are likely to be Version 2. Externally, the only way to check the Version number of this module which has been fitted into your S2, is to look at the layout of the connectors on the rear panel. If the OUTPUTS AND REMOTES connector is at the bottom of the panel (see page 113), then you have a Version 2 module. If these connectors are nearer the middle of the panel (see page 106), then it is Version 1.

Panel Controls

Meter Display Selection

When the meters in the meterbridge are plugged up to the "Monitor Meter" position they will display the selected signal from the electronically interlocking PGM, AUD, or CR MON buttons. The CR MON signal source is the presenter's headphone on the control room monitor channel, pre talkback and level control. This signal could be PGM, AUD, EXT 1, EXT 2, or PFL, as selected by the presenter.

Lock indicator

The illuminated lock indicator shows that the digital output is locked to the onboard master clock, incoming Word clock or AES/EBU, S/PDIF compatible sync signal. If sync is lost then the Indicator will flash. The channel automatically searches for a sync signal on the Word Clock, or the selected digital Input, and automatically locks to a valid sync clock. To disable locking to the AES/EBU or S/PDIF input, simply remove jumpers J10 and J11.

Fader (S2-ODAF only)

The 100mm VCA fader provides unity gain when fully open.

Rear Panel

AES/EBU AUD Output Connector

This XI R 3 nin socket is used for the AFS/FBLI Output and

PGAS AUD OR MON METER SELECT LOCK

PWM AVD OR METER SELECT LOCK 0 = 0 10 = 70 20 = 20 30 = 80 40 = 80 50 = 80 60 = 80 70 = 80

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

17 S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

S/PDIF AUD Output Connector

This phono connector is used for the S/PDIF Output. There are on board jumpers to set up this output in place of the AES/EBU output. Inner: Signal.

Outer Screen

S/PDIF Sync Input Connector

This phono connector is used for the S/PDIF sync Input. There is an on board jumper to set up this input in place of the AES/EBU sync input.

Inner Signal.

Outer: Screen

Output & Remotes Connector

This 15 pin D type socket provides outputs for the following channel functions:

• AUD analogue outputs

- Studio muting relays. The mute relay is a double pole relay, 2A at 30VDC max

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: AUD left output phase.

Pin 3: AUD right output phase.

Pin 4: No connection.

Pin 5: No connection.

Pin 6: No connection.

Pin 7: Studio mute relay contact 1A (makes to pin 14).

Pin B: Studio mute relay contact 2A (makes to pin 15).

Pin 9: AUD left output non-phase.

Pin 10: AUD right output non-phase.

Pin 11: No connection.

Pin 12: No connection.

Pin 13: No connection.

Pin 14: Studio mute relay contact 1B.

Pin 15: Studio mute relay contact 2B.

Meterbridge Interconnect

An internal ribbon cable to the meterbridge is fitted to the AUD output channel and appears via the rear panel.

Word Clock Input Connector

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

Pin 1: Screen.

Pin 2: Phase.

Pin 3: Non-phase.

Channel Options, Jumper Settings and Presets

The AUD digital stereo output channel can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J3 to J9 and channel Identifying links. The AUD digital output channel is identified by having links LK43 and LK45 fitted. The AUD digital output with fader is identified by having links LK43, LK45 and LK46 fitted.

The standard options available are:

- Select mode and sample rate.

- Select channel status bits.

- Select AES/EBU or S/PDIF output.

- Select AES/EBU or S/PDIF sync Input.

Summary of Jumper Settings for the AUD Digital Output Channel

Jumper	Set over Pins	Effect
J1 Not Fitted
J2 Not Fitted
J3-J6 See table (page 116) Synchronisation Mode & Sample Rate Selection.
J7-J8 Reserved.
J9 See table (page 116) Channel Status Bits Selection.
J10	1 & 22 & 3	AES/FBU sync input selected.S/PDIF sync input selected.
J11 1 & 2	AES/FBU sync input selected.
	2 & 3 S/PDIF sync input selected.
J12 1 & 2	S/PDIF output selected.
	2 & 3 AES/FBU output selected.
J13	1&2None	Reserved.Reserved.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

17

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

J12 AES SPOIF J13 J14 J15 J16 J17 J18 LK43 Audition J19 J20 Right Lim P4 SYM P5 Left Lim SYM P7 P6 P8 Set Threshold Set Gain

Fig 17-1:52 Digital AUD Output Board Layout.

J12 AES SPDIF J13 J15 J7 J8 J16 J8 RK48 RK49 Fader Auditor Right Line SYM P6 P8 P9 P10 Left Line SYM P7 P8 P9 P10 Right SYM Sat ThresholdSens P2 P3 P4 P5 P6 P7 P8 P9 P10 Left SYM Set VCA 0dB P3

Fig 17 2: S2 Digital AUD Output With Fader Board Layout.

Synchronisation Mode and Sample Rate

The following jumpers, J3 to J6 and J9 on V2, are used for setting the Sync Mode and Sample Rate of the digital output.

In Master mode, the digital output sample rate is simply set by, and locked to, the internal on-board clock generator. No sync signal is used or required.

In Auto mode the sample rate follows the sync input. When the sync signal is not present the sample rate will be set by, and locked to, the internal on-board clock generator at a frequency determined by the jumpers.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 100.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

In Slave mode, the sample rate follows the sync input. When the sync signal is not present the digital output is muted.

Synchronisation Mode / Sample Rate (kHz)		J3 J4 J5 J6
MASTER	32 Not Fitted Not Fitted Not Fitted Not Fitted
	44.1 Fitted Not Fitted Not Fitted Not Fitted
	48 Not Fitted Fitted Not Fitted Not Fitted
	96 Fitted Not Fitted Fitted Not Fitted
AUTO	32 Not Fitted Fitted		Fitted Not Fitted
	44.1 Fitted Fitted		Fitted Not Fitted
	48 Not Fitted Not Fitted Not Fitted Fitted
	96	Fitted	Fitted Not Fitted Fitted
Auto Lock		Not Fitted Not Fitted Fitted		Fitted
Slave Mode		Fitted Not Fitted Fitted		Fitted

Channel Status Bits	J9
Consumer	Not Fitted
Professional	Fitted

Sync Select

The pair of jumpers, J10 and J11, select the sync source between AES, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU. Both jumpers need to be altered for this to work correctly.

Digital Output Mode

Jumper J12 selects the digital output mode between AES/EBU, pins 1 & 2, and S/PDIF, pins 2 & 3. The default is AES/EBU.

Presets

Presets P1 & P2 are for altering the audio waveform symmetry (i.e. distortion) through the VCA stage. They are factory set on final test and should not be adjusted further.

Preset P3 sets the VCA fader gain to 0dB when the fader is fully open. This is preset on final test and should not require further adjustment, unless it has been found necessary to replace the fader or other VCA components.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

17 S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

Presets, P5 (left) and P4 (right), set the peak digits through the conditioning circuits to the analogue to digital converter. This is preset on final test and should not require further adjustment.

Preset P8 sets the gain through the limiter that feeds the analogue to digital converters. Preset P9 sets the threshold. Presets P6 & P7 are for altering the audio waveform symmetry (i.e. distortion) through the limiting stage. They are all factory set on final test and should not be adjusted further.

Gain can be altered using P4 and P5 on board versions S2-OP-D4 and above, as P8 is no longer fitted on these boards.

Button Mode Settings

To make the 52 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. PGM can be selected as the meter feeder as normal.

Mode 2: Always on. PGM is permanently selected as the meter feed.

Mode 3: Always off. PGM can never be selected as the meter feed.

AUD

Mode 1: Normal. AUD can be selected as the meter feeder as normal.

Mode 2: Always on. AUD is permanently selected as the meter feed.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNEL WITH & WITHOUT MASTER FADER (VERSION 2)

Mode 3: Always off. AUD can never be selected as the meter feed.

CR MON

Mode 1: Normal. The Control Room Monitor channel be selected as the meter feed as normal.

Mode 2: Always on. The Control Room Monitor channel is permanently selected as the meter feed.

Mode 3: Always off. The Control Room Monitor channel can never be selected as the meter feed.

Note: If more than one button is set to mode 2 (Always on) then the meter feed will be a mix of these sources. This may not be desirable in most applications.

S2-ODAF/S2-ODA DIGITAL OUTPUT AUD CHANNE WITH & WITHOUT MASTER FADER (VERSION 2)

S2-OMC CONTROL ROOM MONITOR CHANNEL

18 S2-OMC Control Room Monitor Channel

Panel Controls

PGM, AUD, EXT 1 & EXT 2 Selection

The electronically interlocking PGM, AUD, EXT 1 & EXT 2 buttons select the monitor source for the control room headphones and loudspeaker monitors. The buttons illuminate to show the selected source, PGM and AUD in green, EXT 1 and EXT 2 in red. The External Inputs are used for monitoring an off air signal or another studio output.

Monitor level

The control room monitor loudspeaker level can be variable between 0 (cut off) and 10 (maximum). The output will need to be fed to a suitable power amplifier to drive the loudspeakers.

Monitor Auto Cue/PFL

When the yellow illuminated AUTO CUE/PFL button is selected, any input channels selected to CUE/PFL are automatically routed to the control room monitor loudspeakers.

Mute

The red mute LED will illuminate whenever a mic channel, which has been designated to Control Room mute, goes live. This will mute the control room monitors to prevent feedback. Two pairs of contacts on the remote connector of the PGM output channel will close whenever the mute function is active. These can be used to remotely illuminate "Mic Live" lights.

Phones

The control room headphone level can be varied between 0 (cut off) and 10 (maximum). Internal amplifiers provide enough drive for headphone Impedances of 35 ohms and above.

Phones Auto Cue/PFL

When the yellow illuminated AUTO CUE/PFL button is selected, any input channels selected to CUE/PFL are automatically routed to the control room headphones.

Phones Split Cue/PFL

The control room headphones have the additional facility of SPLIT CUE/PFL. When this button is selected, the monitor source will be heard in mono in the left headphone, and CUE/PFL will be heard in mono in the right headphone. The button is illuminated yellow when selected.

PGM AUD EXT 1 EXT 2 MONITOR AUTO CURRPLL MUTE POWER AUTO CURRPLL SPLIT CURRPLL CONTROL ROOM PHONES

S2-OMC CONTROL ROOM MONITOR CHANNEL 18

Rear Panel

External Inputs Connector

This 9 pin D type plug is used for the stereo balanced analogue external input signals.

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: Ext 1 left phase.

Pin 3: Ext 1 right phase.

Pin 4: Ext 2 left phase.

Pin 5: Ext 2 right phase.

Pin 6: Ext 1 left non-phase.

Pin 7: Ext 1 right non-phase.

Pin 8: Ext 2 left non-phase.

Pin 9: Ext 2 right non-phase.

Presenter Headphones Connector

This standard 6.35mm jack socket is used for the control room

headphones. It is wired in parallel with the headphone connector on the

front panel and has the following connections;

Tip: Left channel

Ring: Right channel.

Sleeve: Screen.

Control Room Monitors Connector

This standard 6.35mm jack socket is the output for the control room

monitor loudspeakers, and has the following connections;

Tip: Left channel.

Ring: Right channel.

Sleeve: Screen.

A suitable amplifier should be used to send this signal to the

loudspeakers, or connect active loudspeakers directly to this output.

Talkback Input Connector

This standard 6.35mm jack socket is used for the Reverse Talkback Input, and has the following connections;

Tip: Talkback audio.

Ring: Talkback control.

Sleeve: Screen.

18

S2-OMC CONTROL ROOM MONITOR CHANNEL

Channel Options and Jumper Settings

The control room monitor channel can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J4 and channel identifying links. The control room monitor is identified by having link LK10 fitted.

The standard options available are:

- Enable/disable global talkback.

• Enable/disable talkback to loudspeakers.
• Enable/disable talkback dimming on loudspeakers.
• Enable/disable talkback dimming on headphones.

Summary of Jumper Settings for the Control Room Monitor Channel

Jumper Set over Pins Effect
J1	1 & 2None	Global talkback enabled.Global talkback disabled.
J2	1 & 2None	Control Room Loudspeaker talkback enabled.Control Room Loudspeaker talkback disabled.
J3	1 & 2None	Control Room Loudspeaker talkback dimming enabled.Control Room Loudspeaker talkback dimming disabled.
J4	1 & 2None	Control Room Headphones talkback dimming enabled.Control Room Headphones talkback dimming disabled.

Note: Options in bold are set as default when shipped.

S2-OMC CONTROL ROOM MONITOR CHANNEL 18

Global Talkback Enable

Jumper J1 placed over pins 1 & 2 enables global talkback. This is a system whereby all programme presenters, guests, etc, can talk to each other from their individual microphones via the monitoring system. When enabled, the system becomes active when the control room and studio mutes are inactive i.e. no Mic channels with mic live muting are active. The monitored source on each person's headphones will dim by -12dB and they will be able to talk and hear each other at a normal level. When a microphone channel fader is raised, triggering a mute, the system will drop back into normal monitoring. The default setting for J1 is disabled (not fitted).

Control Room Loudspeaker Talkback Enable

Jumper J2 placed over pins 1 & 2 enables talkback to the control room monitor loudspeakers. This will allow a talkback audio and control signal on the talkback input jack to replace the monitored source on the loudspeaker monitors. If the monitors are already muted then talkback will be muted too. Talkback will also appear on the control room headphones as a replacement to the monitored source. The default setting for J2 is enabled.

Control Room Loudspeaker Talkback Dim Enable

Jumper J3 placed across pins 1 & 2 enables talkback dimming of the control room monitor loudspeakers. With J2 and J3 enabled, incoming talkback will dim the monitored source by -12dB and talkback will be heard at normal level. The default setting for J3 is enabled.

Control Room Headphone Talkback Dim Enable

Jumper J4 placed across pins 1 & 2 enables talkback dimming of the control room monitor headphones. With J4 enabled, incoming talkback will dim the headphone source by -12dB and talkback will be heard at normal level. The default setting for J4 is disabled (not fitted).

Presets

There are no presets to adjust on the control room monitor channel.

Button Mode Settings

To make the 52 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode

S2-OMC CONTROL ROOM MONITOR CHANNEL

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

Mode 4: Mix. The program bus can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

Mode 4: Mix. The audition bus can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

EXT1

Mode 1: Normal. External input 1 can be selected as normal.

Mode 2: Always on. External Input 1 is permanently selected.

Mode 3: Always off. External input 1 is permanently deselected.

Mode 4: Mix. External input 1 can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

EXT2

Mode 1: Normal. External input 2 can be selected as normal.

Mode 2: Always on. External input 2 is permanently selected

Mode 3: Always off. External input 2 is permanently deselected.

Mode 4: Mix. External input 2 can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

Monitor Auto Cue/PFL

Mode 1: Normal. Monitor Auto Cue/PFL can be selected as normal.

Mode 2: Always on. Monitor Auto Cue/PFL is permanently selected.

Mode 3: Always off. Monitor Auto Cue/PFL is permanently deselected.

S2-OMC CONTROL ROOM MONITOR CHANNEL 18

Headphone Auto Cue/PFL

Mode 1: Normal. Headphone Auto Cue/PFL can be selected as normal.

Mode 2: Always on. Headphone Auto Cue/PFL is permanently selected.

Mode 3: Always off. Headphone Auto Cue/PFL is permanently deselected.

Split Cue/PFL

Mode 1: Normal. Split Cue/PFL can be selected as normal.

Mode 2 : Always on. Split Cue/PFL is permanently selected.

Mode 3: Always off. Split Cue/PFL is permanently deselected.

Note: Split Cue/PFL is dependent on Headphone Auto Cue/PFL being selected.

S2-OMC CONTROL ROOM MONITOR CHANNEL

S2-OMS STUDIO MONITOR CHANNEL

19 S2-OMS Studio Monitor Channel

Panel Controls

PGM, AUD, EXT 1 & EXT 2 Selection

The electronically interlocking PGM, AUD, EXT 1 & EXT 2 buttons select the monitor source for the studio headphones and loudspeaker monitors. The buttons illuminate to show the selected source, PGM and AUD in green, EXT 1 and EXT 2 in red. The External Inputs are used for monitoring an off air signal or another studio output.

Monitor Level

The studio monitor loudspeaker level can be variable between 0 (cut off) and 10 (maximum). The output will need to be fed to a suitable power amplifier to drive the loudspeakers.

Monitor Auto CUE/PFL

When the green illuminated Auto CUE/PFL button is selected, any input channels selected to CUE/PFL are automatically routed to the studio monitor loudspeakers.

Mute

The red mute LED will illuminate whenever a mic channel, which has been designated to studio mute, goes live. This will mute the studio monitors to prevent feedback. Two pairs of contacts on the remote connector of the AUD output channel will close whenever the mute function is active. These can be used to remotely illuminate "Mic Live" lights.

Phones

The studio headphone level can be variable between 0 (cut off) and 10 (maximum). Internal amplifiers provide enough drive for headphone impedances of 35 ohms and above.

Phones Auto CUE/PFL

When the yellow illuminated AUTO CUE/PFL button is selected, any input channels selected to CUE/PFL are automatically routed to the studio headphones.

Studio T/B (Talkback)

When pressed, the STUDIO T/B button will route talkback from the control room talkback microphone channel to the studio loudspeakers and/or the studio headphones, depending on jumper settings. The talkback signal will replace or mix with the monitored source depending on jumper settings.

PGM ADD EXT 1 EXT 2 MONITOR AUTO CUE/PPL POMER AUTO CUE/PPL STUDIO 1TB

S2-OMS STUDIO MONITOR CHANNEL 19

Rear Panel

External Inputs Connector

This 9 pin D type plug is used for the stereo balanced external input signals.

The connector pin-out is as follows;

Pin 1: Chassis ground.

Pin 2: Ext 1 left phase.

Pin 3: Ext 1 right phase.

Pin 4: Ext 2 left phase.

Pin 5: Ext 2 right phase.

Pin 6: Ext 1 left non-phase.

Pin 7: Ext 1 right non-phase

Pin 8: Ext 2 left non-phase.

Pin 9: Ext 2 right non-phase

Studio Headphones Connector

This standard 6.35mm jack socket is the output for the studio

headphones, and has the following connections;

Tip: Left channel.

Ring: Right channel.

Sleeve: Screen.

Studio Monitor Connector

This standard 6.35mm jack socket is the output for the studio monitor

loudspeakers, and has the following connections;

Tip: Left channel.

Ring: Right channel.

Sleeve: Screen.

A suitable amplifier should be used to send this signal to the

loudspeakers, or connect active loudspeakers directly to this output.

S2-OMS STUDIO MONITOR CHANNEL

Channel Options and Jumper Settings

The studio monitor channel can be configured in a number of different ways depending on the jumper options set on the board. The on-board processor's software is configured by jumpers J1 to J4 and channel identifying links. The control room monitor is identified by having link LK11 fitted.

The standard options available are:

- Enable/disable global talkback

- Enable/disable talkback to loudspeakers.

- Enable/disable talkback dimming on loudspeakers.

- Enable/disable talkback dimming on headphones.

Summary of Jumper Settings for the Studio Monitor Channel

Jumper Set over Pins Effect
J1	1 & 2None	Global talkback enabled.Global talkback disabled.
J2	1 & 2None	Studio Loudspeaker talkback enabled.Studio Loudspeaker talkback disabled.
J3	1 & 2None	Studio Loudspeaker talkback dimming enabled.Studio Loudspeaker talkback dimming disabled.
J4	1 & 2None	Studio Headphones talkback dimming enabled.Studio Headphones talkback dimming disabled.

Note: Options in bold are set as default when shipped.

Jumper Options J1 = Grotel 2/B Enable J2 = LS T/S Enable J3 = LS Dim Enable J4 = HP Dim Enable I-X1+ Studio Jc 13 J2 11

S2-OMS STUDIO MONITOR CHANNEL 19

Global Talkback Enable

Jumper J1 placed over pins 1 & 2 enables global talkback. This is a system whereby all programme presenters, guests etc. can talk to each other from their individual microphones via the monitoring system. When enabled, the system becomes active when the control room and studio mutes are inactive i.e. noMIC channels with mic live muting are active. The monitored source on each person's headphones will dim by -12dB and they will be able to talk and hear each other at a normal level. When a microphone channel fader is raised, triggering a mute, the system will drop back into normal monitoring. The default setting for J1 is disabled (not fitted).

Studio Loudspeaker Talkback Enable

Jumper J2 placed over pins 1 & 2 enables talkback to the studio monitor loudspeakers. This will allow talkback, activated by pressing the Studio T/B button, to replace the monitored source on the loudspeaker monitors. If the monitors are already muted then talkback will be muted too. Talkback will also appear on the studio headphones as a replacement to the monitored source. The default setting for J2 is enabled.

Studio Loudspeaker Talkback Dim Enable

Jumper J3 placed across pins 1 & 2 enables talkback dimming of the studio monitor loudspeakers. With J2 and J3 enabled, incoming talkback will dim the monitored source by -12dB and talkback will be heard at normal level. The default setting for J3 is enabled.

Studio Headphones Talkback Dim Enable

Jumper J4 placed across pins 1 & 2 enables talkback dimming of the studio monitor headphones. With J4 enabled, incoming talkback will dim the headphone source by -12dB and talkback will be heard at normal level. The default setting for J4 is disabled (not fitted).

Presets

There are no presets to tamper with on the studio monitor channel.

Button Mode Settings

To make the 52 modules as flexible as possible, every button on each channel can be set to a number of different modes. These will aid in the use of the mixer and allow for extra functionality. To make use of these modes, you must enter a setup mode which is exactly the same for every module. It is only necessary to perform this procedure once.

To enter the setup mode, hold down the PGM and AUD buttons together for 5 seconds. After which all the buttons will start a recurring flashing sequence, at this point it is ok to release the PGM and AUD buttons. This sequence indicates the mode which each button is currently set to. One flash equals mode one, two flashes equals mode two etc. To change the mode for a particular button simply press it once and watch the number of flashes increase. Once the maximum mode number has been reached it will simply wrap around to mode

S2-OMS STUDIO MONITOR CHANNEL

S2-OMS STUDIO MONITOR CHANNEL

one and continue as before. To exit this setup procedure press and hold both the PGM and AUD buttons as before for 2 seconds and the module will start operating as normal.

Each button and their corresponding modes are listed below.

PGM

Mode 1: Normal. The program bus can be selected as normal.

Mode 2: Always on. The program bus is permanently selected.

Mode 3: Always off. The program bus is permanently deselected.

Mode 4: Mix. The program bus can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

AUD

Mode 1: Normal. The audition bus can be selected as normal.

Mode 2: Always on. The audition bus is permanently selected.

Mode 3: Always off. The audition bus is permanently deselected.

Mode 4: Mix. The audition bus can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

EXT1

Mode 1: Normal. External Input 1 can be selected as normal.

Mode 2: Always on. External input 1 is permanently selected.

Mode 3: Always off. External input 1 is permanently deselected.

Mode 4: Mix. External input 1 can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

EXT2

Mode 1: Normal. External input 2 can be selected as normal.

Mode 2: Always on. External input 2 is permanently selected.

Mode 3: Always off. External Input 2 is permanently deselected.

Mode 4: Mix. External input 2 can be selected as normal but also allows this button to be mixed with other buttons set to mix mode.

S2-OMS STUDIO MONITOR CHANNEL 19

Monitor Auto Cue/PFL

Mode 1: Normal. Monitor Auto Cue/PFL can be selected as normal.

Mode 2: Always on. Monitor Auto Cue/PFL is permanently selected.

Mode 3: Always off. Monitor Auto Cue/PFL is permanently deselected.

Headphone Auto Cue/PFL

Mode 1: Normal. Headphone Auto Cue/PFL can be selected as normal.

Mode 2: Always on. Headphone Auto Cue/PFL is permanently selected.

Mode 3: Always off. Headphone Auto Cue/PFL is permanently deselected.

S2-OMS STUDIO MONITOR CHANNEL

METERBRIDGE MODULES

20 Meterbridge Modules

The meterbridge area can house different styles of metering, dual timer, PFL/Talkback speaker, switcher and talkback modules. S2's meterbridge modules are freely assignable so that you can position them exactly where you want them.

Meterbridge Module Types

Three styles of dual meter panels, for displaying signal levels, are available for mounting in the meterbridge: Dual VU panel S2-MVU, dual PPM panel S2-MPPM, and dual true PPM panel S2-MPPT*. The S2-ML53 is an LED meter for displaying both VU and PPM scales. Illuminated LEDs on each meter panel indicate the monitoring source.

A meterbridge panel, S2-MPH can be linked to a dual meter panel and used to display phase information on the selected source.

A meterbridge loudspeaker panel, S2-ML, can be used to monitor PFL and Reverse Talkback via separate level controls. The speaker will mute in a "mic live" situation.

A comprehensive dual timer display, S2-MT, is available for timing events triggered from mlc or line input modules. The timer can also display the real time and date synchronised to a standard time broadcast.

Two talkback panels are available. The S2-MTB6 can be used for communicating with up to 6 other mixers or dedicated talkback systems, and the S2-MTBS is used for interfacing with a Sonifex Station Master.

One, or two source select panels, S2-M6SS, can be used to expand the number of input sources monitored using the EXT 1 and EXT2 buttons (6 for each), as well as a general input source selector for other applications.

A 1 button switch panel, S2-MSB1, and 3 button switch panel, S2-MSB3, are 1 channel wide meterbridge panels, with 1 and 3 buttons respectively which can be used for bespoke control of the S2, or for your own purposes, e.g. for equipment control.

* Please note that the S2-MPPT has been discontinued.

S METERBRIDGE MODULES 20

S2-MPPM Meterbridge PPM panel.

S2-MPPT Meterbridge true PPM meter panel. (This product has been discontinued)

S2-MVU Meterbridge VU meter panel.

S2-ML53 Meterbridge LED Meter panel.

S2-MPH Meterbridge Phase Meter panel.

S2-MT Meterbridge dual timer panel.

S2-ML Meterbridge loudspeaker monitor and talkback panel.

S2-MTB6 Meterbridge 6 way talkback panel.

S2-MTBS Meterbridge Station Master talkback panel.

S2-M6SS S2 Meterbridge 6 way source select panel.

S2-MSB1 Meterbridge 1 button switch panel.

S2-MSB3 Meterbridge 3 button switch panel.

S2 MB1 5 Meterbridge blanking plate channel width 1-5.

Meterbridge Distribution Board

The Meterbridge Distribution Board is situated in the rear section of the meterbridge metalwork and is the interface between the channel area of the desk and the meterbridge modules. Six connectors on the board provide power and various signals to the meterbridge modules and it is therefore possible, where space permits, to install 1 x S2-ML, 1 x S2-MT, and up to three of your chosen style of meter panels. Meters can be configured to display PFL, PGM, or Monitor, which is the signal selected by the buttons on the PGM output module. The sixth connector provides power only for customer option meterbridge units. The meterbridge distribution board has active circuitry allowing a basic mixer set up with one set of meters displaying the PGM output, or PGM output interrupted by PFL. Jumpers J1 and J2 select between: PGM output, jumpers over pins 1 & 2, or PGM interrupted by PFL, jumpers over pins 2 & 3. Meters should be plugged up to the "Output Meter" connector, PL6. The red "PFL" led will illuminate when PFL is being displayed.

When the S2 is used for a split frame installation, a meterbridge distribution board is fitted to each meterbridge section.

METERBRIDGE MODULES

J1, J2 In Position A Output Meter Reads Stereo PGM J1, J2 In Position B Output Meter Reads Stereo PGM Interrupted By PFL J3 On Enables PFL LED On Output Meter Board

J2 J1 J3 B □□

20 METERBRIDGE MODULES

METERBRIDGE MODULES

S2-MB1-5 Meterbridge Blanking Plates

Solid gray square with four corner dots (no text or symbols)

Fig 20-2: Blanking Plate.
Meterbridge blanking plates are available in channel widths from 1 to 5 Inclusive and are used to fill areas in the meterbridge not occupied by active modules.

S2-ML Meterbridge Loudspeaker Monitor Panel

PFL LEVEL TALKBACK LEVEL

Fig 20-3: Loudspeaker Monitor Panel.

S METERBRIDGE MODULES 20

S2-MVU Meterbridge VU Meter Panel, S2-MPPM PPM Meter Panel, S2-MPPT True PPM Meter Panel & S2-ML53 LED Meter Panel*

SONIFEX SELECT PROGRAM PFL LEFT RIGHT

Fig 20-4: PPM & True PPM Meter Panel.

METERBRIDGE MODULES

SONIFEX SELECT PROGRAM PFL 20 10 7 5 3 2 1 0 1 2 3 vu LEFT 20 10 7 5 3 2 1 0 1 2 3 vu RIGHT

Fig 20-5: VU Meter Panel.

* Please note that the S2-MPPT has been discontinued.

20 METERBRIDGE MODULES

METERBRIDGE MODULES

SONIFEX SELECT PROGRAM PFL LEFT 1 2 3 4 5 6 7 PPM -VS -VS -VS -VS -VS -VS RIGHT 1 2 3 4 5 6 7 PPM -VS -VS -VS -VS -VS -VS METER BROUGHTNESS

Fig 20-6: VU & PPM LED Meter Panel.
The dual meter panels are used for monitoring console signal levels.
The S2-MPPM panel has two fast-reading moving-coil meters with PPM-style scale.
The S2-MPPT® panel has two moving-coil PPM movements, conforming to true PPM
ballistics.
The S2-ML53 panel has an LED meter display with both PPM and VU scales.
The PPMs have a 1-7 scale and will be configured such that a 1 kHz signal, at 0dBu at the
PGM output, will indicate a meter reading of 4. Each mark on the PPM scale indicates a 4dB change in signal level.
The S2-MVU two moving coil VU meters will be configured such that a 1kHz signal, at +4dBu
at the PGM output, will indicate a meter reading of OVU.
The LED meter panel displays both VU and PPM readings simultaneously.
The meters can be configured internally to be fed from one of three signal sources,
^2 Please note that the S2-MPPT has been discontinued.

S METERBRIDGE MODULES 20

Program	PGM output which can optionally be interrupted by PFL. Plug into the OUTPUT METER connector on the meterbridge distribution board, and set jumpers J1-I3.
Select	The output of the meter switch on the AUD output module which can show PGM, AUD,or CR MON, which is the selected monitor source on the control room monitor module, (EXT 1, EXT 2,PGM, or AUD) interrupted by PFL. Plug into the MONITOR METER connector on the meterbridge distribution board.
PFL	The output of the PFL bus. Plug into the PFL METER connector on the meterbridge distribution board.

It is therefore possible, depending on the frame size, to house up to three meter panels, thereby providing a comprehensive metering system. Illuminated LEDs indicate the relevant source shown on the meters.

The S2-MLS3 has an adjustable pot accessible from the front panel which alters the meter brightness, this can be altered using a jewellers screwdriver.

The S2-MPH is a phase meter which operates on the selected source to the meters. 5 LED indicators show the phase angle in 45 degree steps from 0 (in-phase) to 180 (out of phase). A separate phase meter can be linked to each meter in the meterbridge by use of the supplied In-line cable.

METERBRIDGE MODULES

20 METERBRIDGE MODULES

METERBRIDGE MODULES

S2-MTB6 Meterbridge 6 Way Talkback Panel

TALKBACK

Fig 20-5: Meterbridge 6 Way Talkback Panel.
The S2 MTB6 Meterbridge Talkback Panel is used for communicating with up to 6 other locations. While a button is pressed, the switch is illuminated and the talkback is active. The buttons work with both a momentary and latched operation. If held down, the selection is cancelled when released, otherwise the button is alternate action.

Rear Panel

External Talkback Connector

This 15 pin D type plug is used for connecting to other talkback panels in other mixers, or dedicated talkback systems.

The connector pin-out is as follows;

Pin 1: Talkback 1 out phase.

Pin 2: Talkback 2 out phase.

Pin 3: Talkback 3 out phase.

Pin 4: Talkback 4 out phase.

Pin 5: Talkback 5 out phase.

Pin 6: Talkback 6 out phase.

Pin 7: Talkback in phase.

Pin 8: Ground.

Pin 9: Talkback 1 out non-phase.

S METERBRIDGE MODULES 20

Mixer Talkback Connector

This 9 pin D type plug is used for connecting the Talkback module to the Control Room Monitor channel. The connection cable is supplied with the Talkback module, which plugs into the S2-MTB6 via the mixer meterbridge housing, and down into the two talkback jack sockets on the rear of the Control Room channel.

The connector pin-out is as follows;

Pin 1: Talkback in phase (to mixer).

Pin 2: Talkback control.

Pin 3: No connection.

Pin 4: Talkback out phase (from mixer).

Pin 5: Ground.

Pin 6: Talkback in non-phase (to mixer).

Pin 7: No connection.

Pin 8: Talkback out non-phase (from mixer).

Pin 9: No connection.

S2-MTBS Meterbridge Station Master Talkback Panel

TALKBACK & TRANSMISSION CONTROL OFFER ACCEPT DELAY DUMP 1 2 3 4 ALL

Fig 20-9: Meterbridge Station Master Talkback Panel.

The S2-MTBS panel is used for interfacing with a Sonflex Station Master. See the Station Master manual for functionality and connection information.

METERBRIDGE MODULES

METERBRIDGE MODULES

The connector pin-out is as follows;

Pin 1: +15V

Pin 2: Offer switch.

Pin 3: Accept switch.

Pin 4: Delay switch.

Pin 5: Dump switch.

Pin 6: Talkback 1 switch.

Pin 7: Talkback 2 switch.

Pin 8: Talkback 3 switch.

Pin 9: Talkback 4 switch.

Pin 10: Talkback all switch.

Pin 11: Ground.

Pin 12: Talkback out.

Pio 13: Talkback control out

Pin 14: Ground.

Pin 15: Offer Indicator.

Pin 16: Accept indicator.

Pin 17: Delay indicator.

Pin 18: Dump indicator.

Pin 19: Talkback 1 indicator.

Pin 20: Talkback 2 indicator.

Pin 21: Talkback 3 indicator.

Pin 22: Talkback 4 indicator.

Pin 23: Talkback in.

Pin 24: Ground.

Pin 25: Ground.

Mixer Talkback Connector

This 9 pin D type plug is used for connecting the Talkback module to the Control Room

Monitor channel. The connection cable is supplied with the Talkback module, which plugs

into the S2-MTBS via the mixer meterbridge housing, and down into the two talkback jack.

sockets on the rear of the Control Room channel.

The connector pin-out is as follows;

Pin 1: Talkback in phase (to mixer).

Pin 2: Talkback control.

Pin 3: No connection.

Pin 4: Talkback out phase (from mixer).

Pin 5: Ground.

S METERBRIDGE MODULES 20

SOURCE SELECTOR

Fig 20-10a: S2-M6SS Panel

METERBRIDGE MODULES

S2-M6SS Meterbridge 6 Way Source Select Panel

The meterbridge source selector panel produces a stereo analogue audio output from 6 selectable stereo analogue sources, which can be connected to a stereo input channel within the mixer or the EXT 1 and EXT 2 monitor inputs to provide up to 12 external monitor inputs. There are 6 illuminated panel push buttons, which select and indicate the current channel selection. The 6 stereo sources are connected on the rear of the panel via a 25 way D-Type female (socket) connector, which uses exactly the same pin configuration as the stereo audio source input connector on the S2-C6SS channel. The single stereo output is provided on a 9 way D-type male (plug) and the pin configurations are shown below.

Audio Input Connector - 25 pin D-type female (socket)

Pin 1: Ground.

Pin 2: Input 1 left phase.

Pin 3: Input 1 right phase.

Pin 4: Input 2 left phase.

Pin 5: Input 2 right phase

Pin 6: Input 3 left phase.

Pin 7: Input 3 right phase.

Pin 8: Input 4 left phase.

Pin 9: Input 4 right phase.

Pin 10: Input 5 left phase.

20 METERBRIDGE MODULES

Pin 17: Input 2 right non-phase.
Pin 18: Input 3 left non-phase.
Pin 19: Input 3 right non-phase.
Pin 20: Input 4 left non-phase.
Pin 21: Input 4 right non-phase.
Pin 22: Input 5 left non-phase.
Pin 23: Input 5 right non-phase.
Pin 24: Input 6 left non-phase.
Pin 25: Input 6 right non-phase.

Audio Output Connector (To Mixer) - 9 pin D-type male (plug)

Pin 1:
Pin 2: Out left phase.
Pin 3: Out right phase.
Pin 4: No connection.
Pin 5: No connection.
Pin 6: Out left non-phase.
Pin 7: Out right non-phase.
Pin 8: No connection.
Pin 9: No connection.

Power Connectors

Pin
Pin 2: Ground.
Pin 3: +15V
Pin 4: -15V.

There are two power connectors on the board, a 'power input' and a 'power through'
connector. The power input connector should be connected to the meterbridge distribution
board power connector, or the 'power through' connector on another meterbridge panel.
The 'power through' connector can be used to daisy chain power down the meterbridge
housing, for example, to an S2-MT panel.

Audio Output on 9 Way D-type Plug Power Input Connector. Power from Melanbridge Distribution Board Timer output. (see Fig.20-1)

S METERBRIDGE MODULES 20

S2-MSB1 Meterbridge Switch Panel With 1 Button

This is a meterbridge panel, 1 channel wide, with 1 button which can be used for bespoke control of the S2, or for your own purposes, e.g. equipment control. Contact Sonifex with your particular mixer control requirements.

To make the switch illuminate either green, red or orange, set the jumper(s) next to the button to either GRN, RED or GRN & RED (for orange).

S2-MSB3 Meterbridge Switch Panel With 3 Buttons

This is a meterbridge panel, 1 channel wide, with 3 push button switches which can be used for bespoke control of the S2 or ancillary devices.

To make the switches illuminate either green, red or orange, set the jumper(s) next to the button to either GRN, RED or GRN & RED (for orange).

The connector used for both the S2-MSB1 and S2-MSB3 is a 9 pin D-type female and the pin-out details are as follows:

S2-MSB1 S2-MSB3

Female Switch Panel Switch Panel D-Type Connection Connection

Pin 1 N/C Switch 1*

Pin 2 Switch 2 Switch 2*

Pin 3 N/C Switch 3°

Pin 4 N/C Switch 1 LED**

Pin 5 Switch 2 LED ^xx Switch 2 LED ^xx

Pin 6 N/C Switch 3 LED**

Pin 7 0V 0V

Pin 8 0V 0V

Pin 9 +12V LED +12V LED

Power Input Power Input

SONIFEX S2014 Switch 2 GRN RED PL1

Fig 20-11a: S2-MSB1
S2 Meterbridge Switch
Fig 20-11b:52-MSB1
Diagram.

Panel With 1 Button.

Switch 1 GRN RED SONIF EK G-050-01 Switch 2 GRN RED P11 Switch 3 GRN RED

Fig 20-12a: S2-M583
Fig 20-12b:52-MSB3

METERBRIDGE MODULES

20 METERBRIDGE MODULES

METERBRIDGE MODULES

S2-MT Meterbridge Timer Panel

TIMER 1 88:88:88 MIC START/ STOP RESET MODE TIMER 2 TIME 88:88:88 MIC START/ STOP RESET MODE TIMER 1 88:88:88 MIC START/ STOP RESET MODE TIMER 2 DATE

Fig 20-13: Meterbridge Timer Panel.

Overview

Each of the dual timers can be used for timing events triggered by Timer 1, Timer 2, or the Mic fader open signal. In addition the upper timer is used for displaying the time of day and the lower timer for displaying the date. The illumination pattern of the red LEDs indicates the timer display mode.

The date and time can be synchronised to a very accurate internal clock or optionally from an external source, MSF, DCF, SMPTE, or RS232 time code string.

Panel Controls

START / STOP

When the display is in Timer 1, Timer 2 or MIC timer (manual) mode, this button causes the timer to start, if currently stopped, or stop, if currently running. This button has other functions when the display is in other modes, which are described below.

RESET

When the display is in Timer 1, Timer 2 or MIC timer (manual) mode, this button causes the timer to be reset, but only if that timer is not currently running.

MODE

Changes the current display mode from TIMER 1, to TIMER 2, to MIC, to TIME (or DATE) back

S METERBRIDGE MODULES 20

Quick Time View

Hold down the lower timer "START/STOP" button while in Date mode.

The Time will be displayed until the button is released.

Rear Panel

RS232 Connector

This 9 pin D type plug is used for connecting to another RS232 enabled device

(eg PC's Com port).

The connector pin-out is as follows;

Pin 1: CD.

Pin 2: Receive Data (From PC).

Pin 3: Transmit Data [To PC].

Pin 4: DTR

Pin 5: Ground.

Pin 6: DSR.

Pin 7: BTS

Pin 8: CTS.

Pin 9: No internal connection.

NOTE: Only Pins 2 & 3 are currently used.

MSF/DCF Antenna & SMPTE/EBU Connector

This 9 pin D type socket is used for receiving a time code signal from an MSF/DCF antenna

or other compatible sources.

The connector pin-out is as follows;

Pin 1: Signal+

Pin 2: Signal-.

Pin 3: Ground

Pin 4: +VD.

Pin S: No internal connection.

Pin 6: Ground.

Pin 7: Ground.

Pin 8: 5V.

Pin 9:5V.

IVD: Digital power rail. \~8.5V

Configuring The Timer

The timers are configured according to the following comprehensive instructions,

METERBRIDGE MODULES

20 METERBRIDGE MODULES

• Use the Start/Stop & Reset buttons to increment/decrement the year.
• Then press the Mode button to select the Month, then the Day, Hour, Minutes, Seconds.
• When the seconds have been set, the next press of the Mode button stores the time, and exit the time setting mode.

Setting The Mode

• Hold down the lower timer Mode button for 5 seconds.
  • To Increment Option numbers press the same mode button.
• To increment/decrement sub option number use the Start/Stop & Reset buttons.
• Continue to the last option (14), the next mode press will store the settings.

Option Number	Sub Option Number	Description
0 - Time Code Synchronisation Source
	0 None
	1 MSF Radio Time Code
	2 DCF Radio Time Code
	3 SMPTE/8BU Time Code (see option 15)
	4 RS232 Time Code String

Time Code Synchronisation Source

There are numerous types of Radio Time Code that could be added to this list, but at present only those listed are supported. Other time code options can be implemented depending on availability of test sources and/or customer demand. The Time Codes commonly supported are selectable via option 0.

Indication of Lock to Source

Hold down the upper timer "RESET" button while in TIME mode, a status indication will be displayed. This code is identical to that of the time code output string:

0 = not locked, 1 = signal/not locked, 2 = locked

Also note that source number 0 (Internal RTC) implies "not locked".

S METERBRIDGE MODULES 20

RS232 Port

The RS232 communications port is fully configurable, with separate options for data bits, stop bits, and baud rate, which can all be set independently of each other.

Option Number	Sub Option Number	Description
1 - RS232	Data Bits
	0 7 data bits
	1 8 data bits
2 - RS232	Stop Bits
	0 1 stop bit
	1 2 stop bits
3 - RS232	Parity
	0 None
	1 Even parity
	2 Odd parity
4 - RS232	Baud Rate
	0 9600 baud
	1 19200 baud
	2 38400 baud
	3 57600 baud
	4 115200 baud
5 - RS232	Output
	0 Disable
	1 Enable

METERBRIDGE MODULES

RS232 Output Format

A time code string can be output from the timer module for use in synchronising other devices to the module.

"dd/mm/yy,hh:mm:ss,A,B,C,D,hh:mm:ss.tt,hh:mm:ss.tt,hh:mm:ss.tt\n"

DATE,TIME,[3 MODE CH],TIMER_1,TIMER_2,MIC_TIMER.

A = Date string format. (See option no. 6)

B = Time code synchronisation source (see option no. 0)

C = Indication of lock to source 0 = not locked, 1 = signal/not locked, 2 = locked.

Also note that source number 0 (internal RTC) implies "not locked".

D = Indication of presence of timecode signal 0 = No signal, 1 = Signal present.

In = New Line.

r = Carriage return.

20 METERBRIDGE MODULES

Option Number	Sub Option Number	Description
6 - Date Display Format
	0 dd/mm/yy
	1 dd/yy/mm
	2 mm/dd/yy
	3 mm/yy/dd
	4 yy/dd/mm
	5 yy/mm/dd

Timers and Timer Events

METERBRIDGE MODULES
The timers and their event handling can be configured using the options below. If the timer is not currently being displayed the module can automatically switch to this timer when an event occurs, if the timer is currently running the event can trigger the timer to reset or continue counting. On an event the display will freeze for a determined number of seconds.

Option Number	Sub Option Number	Description
7 - Timer 1
	0 On event	do not display (unless already displayed)
	1 On event	show to display 1
	2 On event	show to display 2
8 - Timer 1	Event Option
	0 On event	restart timer
	1 On event	split timer
9 - Timer 2
	0 On event	do not display (unless already displayed)
	1 On event	show to display 1
	2 On event	show to display 2
10 - Timer 2	Event Option
	0 On event	restart timer
	1 On event	split timer
11 - Mic Timer
	0 On event	do not display (unless already displayed)
	1 On event	show to display 1
	2 On event	show to display 2

S METERBRIDGE MODULES 20

Option Number	Sub Option Number	Description
13 - Freeze Time
	0 On second event freeze display for 1 second
	1 On second event freeze display for 2 seconds
	2 On second event freeze display for 3 seconds
	3 On second event freeze display for 4 seconds
	4 On second event freeze display for 5 seconds
14 - Time Setting
	0 Disallow while locked to time code source
	1 Allow while locked to time code source
15 - SMPTE/EBU Timecode settings
	0 Ignore date
	1 Date Format 1
	2 Date Format 2
	3 Date Format 3

METERBRIDGE MODULES

SMPTE/EBU Timecode Settings

Setting sub option 0 in option 15 will allow the unit to ignore any date information within the timecode stream. The date will be displayed as “—.—.—”.

The remaining sub options allow the unit to handle various date formats within the timecode. The formats are defined as follows:

TECHNICAL SPECIFICATIONS

21 Technical Specifications

Input/Output Impedances

Mic Input: >1k5Ω electronically balanced.

Mono Line Input: > 20kΩ electronically balanced.

Stereo Line Input: > 20kΩ electronically balanced.

PGM & AUD Output: < 75Ω electronically balanced.

Mono Output: < 75Ω electronically balanced.

Monitor Outputs: < 75Ω unbalanced.

AES Input/Output: 110Ω

S/PDIF Input/Output: 75Ω

BNC Wordclock input: 50Ω

Input/Output Gain Range

Mic Input:	Preset pot +13dB to +60dB ref 50dBu, TRIM pot ± 12dB
Mono Line Input:	Preset pot -6dB to +10dB ref 0dBu, TRIM pot ± 12dB
Stereo Line Input:	Preset pot -6dB to +10dB ref 0dBu, TRIM pot ± 12dB
Telco Input:	Preset pot -6dB to +10dB ref 0dBu, TRIM pot ± 12dB
Telco Output: Preset pot -6dB to +4dB ref 0dBu
Mix Minus Input:	Preset pot -6dB to +10dB ref 0dBu, TRIM pot ± 12dB

Mix Minus Output: Preset pot -3dB to +3dB ref 0dBu

Digital Input:

0dBFS = +12dBu on input; TRIM pot ± 12dB allowing 0dBu to +24dBu

Digital Output: 0dBFS = +18dBu

Frequency Response

Mic Input:	40Hz to 20kHz -1dB, +0dB (-3dB at 130Hz with HPF in).
Line Inputs:	20Hz to 20kHz -0.5dB, +0dB.

S TECHNICAL SPECIFICATIONS 21

Stereo Inputs (fader down,

-89dB

one channel routed):

Stereo Inputs (unity gain, no routing): 89dB

Stereo Inputs (unity gain, one channel routed): -86dB

Stereo Inputs (unity gain,

-83dB

two channels routed):

Distortion

Total Harmonic Distortion:

0.015% at 1 kHz, 0 dB.

0.025% at 10kHz, 0dB.

Crosstalk

Inter-channel: < -90dBu.

Stereo: -90dBu at 1kHz

Equalisation

LF: Shelving at 100Hz. ± 7dB

HF: shelving at 6.5kHz ± 7dB

Range

Pan Range off/ 3dB centre/off

Balance Range ± 6dB

Common Mode Rejection Ratio

MIC Input: > 100dB at 70dB gain.

Digital I/O

Sync Input Sample Rate Range: 30kHz - 100kHz

Output Sample Rates (Using Onboard Clock): 32kHz, 44.1kHz, 48kHz, & 96kHz

Output Sample Width: 16, 20, 24 bit (24 bit on V2 ODA/ODP)

Output

Headphone Output Load >45 ohms, recommended 400Ω

Maximum Output (Analogue)

+26d5u balanced into 2k or greater

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Power

Power Rating (S2-PSU):	Filtered IEC, switchable 115V, 230V, fused, 210W max.
Dimensions (S2-PSU):
(Raw):	48cm (W) x 24.3cm (D) x 8.8cm (H)
	19" (W) x 10" (D) x 3.5" (H)
(Boxed):	51cm (W) x 41.5cm (D) x 17cm (H)
	20" (W) x 16.3" (D) x 6.7" (H)

Weight (52-PSU): Nett: 6kg Gross: 7.8kg

Nett: 13.2lbs Gross: 17lbs

Dimensions (52-PSUS):
(Raw):	48cm (W) x 73cm (D) x 4.4cm (H)
	19" (W) x 9" (D) x 1.7" (H)
(Boxed):	55cm (W) x 39.3cm (D) x 8.5cm (H)
	21.6" (W) x 15.5" (D) x 3.4" (H)

Weight (S2-PSUS): Nett: 1.58kg Gross: 2kg
Nett: 3.5lbs Gross: 4.4lbs

S2 Mixer Weights and Boxed Dimensions

Mixer Chassis Type	Width (cm)	Depth (cm)	Height (cm)	Gross Weight (kg)	Nett Weight (kg)
S2-30 137 70 45	36 34
S2-25 100 70 45	33 31
S2-20 100 70 45	30 28
S2-15 100 70 45	27 25.5
S2-10 80 70 45	24 22.5
S2-05 60 70 45	21 19.5

Note: Weights are approximate and based on a mixer chassis fully loaded with channels.

GLOSSARY

Glossary

Attenuation The reduction of a signal level. Attenuation is usually measured in dB.

AES Audio Engineering Society.

AES/EBU Professional digital audio standard covering frame format, connections and interfaces. Interface is usually on XLR sockets and plugs.

Balance The relative levels of the left and right channels of a stereo signal.

Cleanfeed A cleanfeed is the signal produced by the telco module, which is used as the output to be fed back to a caller on a telephone line. A true cleanfeed is the sum of all the other signals, which constitute the programme output, except for the caller's audio.

Clipping The onset of severe distortion in the signal path, usually caused by the peak signal voltage being limited by the circuit's headroom.

CMRR Common Mode Rejection Ratio. This is the ratio of the extent to which a differential amplifier will cancel noise, which is present on both inputs, compared to its ability to amplify the wanted signal.

Cross-talk This is the amount of an unwanted signal which appears, or is induced, on a different or unassimilated signal. The problem is usually most prevalent with adjacent channels.

CUE See PFL

dB (decibel) A ratio of two voltages or signal levels, expressed by the equation dB=20LOG(V1/V2)

Adding the suffix "u" denotes that the signal is relative to 0.775V RMS. Adding the suffix "v" denotes that the signal is relative to 1V RMS.

De-emphasis Pre-emphasis and de-emphasis are techniques used to improve the overall signal to noise ratio in communication channels. The frequency response of the channel is weighted with a 6 dB per octave slope prior to transmission (pre-emphasis), and then the inverse of this weighting is applied at the receiving end (de-emphasis) to restore a flat frequency response.

GLOSSARY

GLOSSARY

Gain The degree of amplification, or attenuation applied to a signal.

Hybrid A device that allows a telephone line to be connected to a broadcast desk in such a way that the caller may hear the programme output without the caller's voice being re-introduced onto the phone line. Essentially a two to four wire converter.

LED Light Emitting Diode.

Mix-minus Another method of producing a cleanfeed, except that the caller's voice is removed from the signal electronically. Due to phasing problems at the signal band edges, the mix-minus method often produces a lower grade signal to the true cleanfeed method.

PAN This controls the levels (usually of a mono signal) sent to the left and right outputs and is an abbreviation of "panorama".

PFL (CUE) Pre Fade Listen, also called CUE. A function that allows the operator to monitor the pre fader signal independently of the programme output.

Pre-emphasis see De-emphasis.

S/PDIF Sony/Phillips Digital Interface. Domestic digital audio interface standard using phono connectors or optically using fibre-optic connectors.

TBU See hybrid.

T/B Talkback (and reverse talkback, Rev T/B). This is the ability for two or more studios to communicate with each other off-air.

Telco TELEphone COmmunication. The telco module is used by the presenter to talk to telephone callers via a hybrid or TBU.

THD

Total Harmonic Distortion.

S INDEX

Index

C

Channel Configuration 5

Configuring The Timer 147

Connecting A Split Desk 14

Connectors and Cabling 5

Cough Switch and Talkback On Mic Modules 12

G

Glossary 155

1

Input Channels 25

Installation Notes 4

Introduction 1

M

Meterbridge Distribution Board 135

Meterbridge Modules 134

0

Output Channels 92

P

Power Supply 16

R

Removing & Replacing Channels 13

Reporting Faults vi

s

S2-C655 6 Way Stereo Line Source Select

Channel With EQ 70

S2-CD5E/S2-CDS Digital Dual Stereo

Line Channel With & Without EQ 61

S2-CML Mic/Line Channel With EQ 28

S2-CMM Mic/Mic Channel With EQ 30

S2-CSE/S2-CS Dual Stereo Line

Channel With & Without EO 4

S2-CSGE/S2-CSG Stereo Line And Gram

Channel With & Without EQ 5

52 CSMM Stereo Mix Minus Channel

With EQ 83

S2-ODAF/52-ODA Digital Output AUD

Channel With & Without Master Fader

(Version 2) 115

S2-ODPF/S2-ODP Digital Output PGM

Channel With & Without Master Fader

(Version 1): 94

S2-ODPF/S2-GDP Digital Output PGM

Channel With & Without Master Fader

(Version 2) 101

S2-DMC Control Room Monitor Channel 122

S2-OMS Studio Monitor Channel 128

Safety of Mains Operated Equipment iv, 17

T

Technical Specifications

152

w

Warranty and Liability

WEEE & RoHS Directives - Sonifex Statement v

INDEX

NOTES

NOTES

S NOTES

NOTES

SONIFEX

www.sonifex.co.uk

t:[phone]

f:[phone]

[e-mail]

Product display of electronic equipment including a BONIFEX audio jack and control panel against a blue abstract background (no visible text or symbols)
