USER MANUAL O8VB1 Speco Technologies

Important Safeguards and Warnings

1. Electrical safety

All installaon and operaon here should conform to local electrical safety codes.

Use a cered/listed 12VDC Class2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same me; it may result in device damage!

The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installaon could run the risk of re or electrical shock.

2. Environment

Heavy stress, violent vibraon or exposure to water is not allowed during transportaon, storage and installaon.

This product should be installed in a cool, dry place away from direct sunlight and heat sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnec radiaon. Otherwise it may result in CMOS sensor failure.

Do not block any venlaon openings.

Do not allow water and liquid intrusion into the camera.

3. Operaon and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor opc component. You can use a blower to clean the dust on the lens surface.

Always use the dry so cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of

neutral detergent. Finally use the dry cloth to clean the device.

Please use a professional opcal cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR funconality and/or IR reecon.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an opcal device, please don't touch or wipe cover surface directly during installaon and use, please refer

Warning

This camera should be installed by qualified personnel only.

All the examinaon and repair work should be done by qualified personnel.

Any unauthorized changes or modicaons could void the warranty.

Statement

This guide is for reference only.

Product, manuals and speciaons may be modified without prior noce. Speco Technologies reserves the right to modify these without noce and without incurring any obligaon.

Speco Technologies is not liable for any loss caused by improper operaon.

Regulatory Informaon

FCC conditions:

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operaon.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaon. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separaon between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Table of Contents

1 Introducon....2

2 Web Access and Login 3

3 Live View 4

4 Camera Conguraon 6

4.1 System Conguraon....6

4.1.1 System Informaon 6

4.1.2 Date and Time....6

4.1.3 Local Recording....7

4.1.4 Storage....7

4.2 Video Conguraon....9

4.2.1 Image Conguraon 9

4.2.2 Video / Audio Conguraon 11

4.2.3 OSD Conguraon 11

4.2.4 Video Mask 12

4.2.5 ROI Conguraon 13

4.2.6 Zoom/Focus 13

4.3 Event Setup....14

4.3.1 Moon Detecon 14

4.3.2 Other Alarms....14

4.3.3 Alarm Server 15

4.4 Analycs Conguraon....15

4.4.1 Abnormality 16

4.4.2 Line Crossing....16

4.4.3 Intrusion....17

4.5 Network Conguraon 18

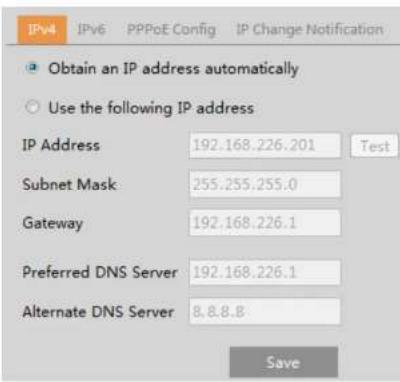

4.5.1 TCP/IP 18

4.5.2 Port 19

4.5.3 Server Conguraon....20

4.5.4 DDNS 20

5.2.2 SD Card Video Search....31

Appendix 34

Appendix 1 Troubleshoong....34

Appendix 2 Specicaons 35

1 Introducon

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operang the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installaons
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applicaons

2 Web Access and Login

The IP camera sengs can be accessed via a web browser through the LAN.

- Access through IP Scanner

Network conneccon:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.

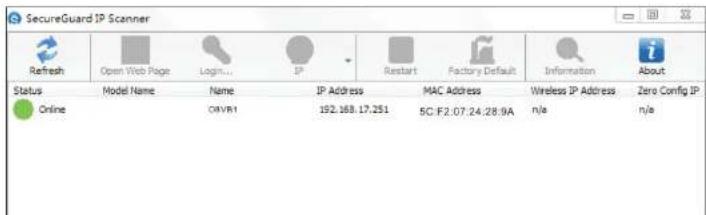

② Install IP Scanner from the CD and run it aer installaon. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status Model Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online OVIB1 192.168.17.251 5C: F2.07.24.28.9A n/a n/a

3 Live View

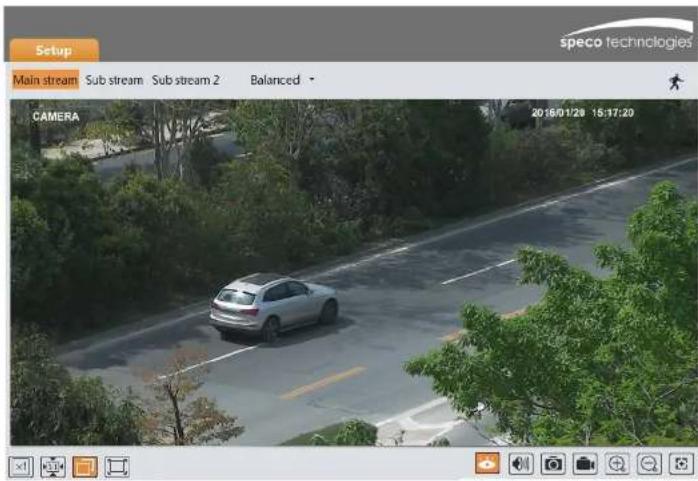

The window below will be shown aer logging in.

Setup Main stream Sub stream Sub stream 2 Balanced CAMERA speco technologies 2018/01/28 15:17:20

The following table describes the icons on the live view interface

Icon	Descripon	Icon	Descripon

Icon		Descripon	Icon		Descripon
		Zoom -			Zoom +
		Focus -			Focus +
		One key focus (used when image is out of focus aer manual adjustment)

4 Camera Conguraon

Press the "Setup" buon to go to the conguraon interface.

Note: Wherever applicable, click the "Save" bu on to save the se ngs.

4.1 System Conguraon

4.1.1 System Informaon

In the "System Informaon" interface, the system informaon of the device is listed.

speco Technologies Setup > System > System Information Device Name OSVBL Product Model OSVBL Brand Speco Software Version 5.0.1(9658) Software Build Date 2020-07-03 Kernel Version 20190906 Hardware Version 1.4-1524321 Omf Version 19.12 structured Version 1.2.09 faceDetection Version 1.46 OCX Version 2.0.8.4 MAC 5CF2.07.24.68.88

4.1.2 Date and Time

To set the me and date, go to System→Date and Time. Please refer to the following interface.

Time Mode + Synchronizer with NTP server NTP server: time.windows.com Update period: 1440 Minutes Synchronizer with computer time Date: 2023-04-28 Time: 15:00:16 Set manually Date: 2023-04-28 Time: 2023-04-28 Save

4.1.3 Local Recording

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an open to enable or disable the bitrate display in the recorded les.

For the model with built-in MIC, there is also an open to enable or disable audio recording.

4.1.4 Storage

Go to System→Storage to go to the interface as shown below.

Management Record Snapshot Total picture capacity 690 MB Picture remaining space 834 MB Total recording capacity 54720 MB Record remaining space 126 MB State Normal Snapshot Quota 10 %

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record Cycle Write Yes

1. Set record stream, pre-record me and cycle wring.

Pre Record Time: Set the me to record before the actual recording begins.

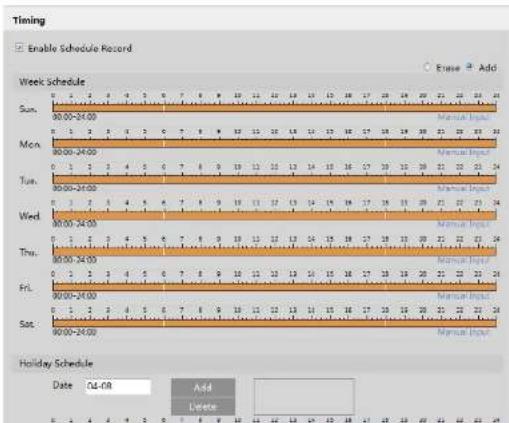

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Week Schedule Sun. 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 00:00-24:00 Mon. 00:00-24:00 Tue. 01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 00:00-24:00 Wed. 01 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 00:00-24:00 Thu. 01 3 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 00:00-24:00 Fri. 01 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 00:00-24:00 Sat. 01 5 6 7 8 9 00:00-24:00 Holiday Schedule Date: Fri-dlt Add Delete

Management Record Snapshot Snapshot Parameters Image Format JPEG Resolution 704x80 Image Quality Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resoluon and quality of the image saved on the SD card and the snapshot interval and quantity and the ming snapshot here.

Snapshot Quanty: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence me of an alarm event is less than the me of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable ming snapshot rst and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Conguraon

Video Conguraon includes Image Sengs, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Conguraon

In the Image Sengs interface as shown below, various sengs can be adjusted, such as brightness, contrast, hue and saturaon and so on. The common mode and day and night mode can be set up separately. The image eect can be quickly viewed by switching the conguraon le.

Config File Common Brightness Contrast Hue Saturation

Hue: Set the total color degree of the image.

Saturaon: Set the degree of color purity. The purer the color is, the brighter the image is.

WDR: WDR can adjust the camera to provide a beer image when there are both very bright and very dark areas simultaneously in the eld of the view by lowering the brightness of the bright area and increasing the brightness of the dark area. Recording will be stopped for a few seconds while the mode is changing from non-WDR to WDR mode.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Noise Reducon: Decrease the noise and make the image more thorough. Increasing the value will make the noise reduconect beer but it will reduce the image resoluon.

Defog: Acvang this funcon and seng an appropriate value as needed in foggy, dusty, smoggy or rainy environment to get clear images.

Backlight Compensaon:

- O: disables the backlight compensaon funcon. It is the default mode.

- HLC: lowers the brightness of the enre image by suppressing the brightness of the image's bright area and reducing the size of the halo area.

- BLC: If enabled, the auto exposure will acvate according to the scene so that the object of the image in the darkest area will be seen clearly.

Anicker:

- O: disables the an-icker funcon. This is used mostly in outdoor installaons.

- 50Hz: reduces icker in 50Hz lightng condions.

- 60Hz: reduces icker in 60Hz lightng conditions.

White Balance: Adjust the color temperature according to the environment automacally.

Frequency: 50Hz and 60Hz can be oponal.

Day/night Mode: Please choose the mode as needed.

Sensitivity: High, middle and low can be selected for switching back and forth from day to night modes.

Infrared Mode: Choose "ON", "OFF" and "Auto".

Exposure Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shuer speed can be adjusted.

Gain Limit: The higher the gain value is, the higher the brightness of the image is and the more noises of the image are.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vercally.

Schedule Sengs of Image Parameters:

Click the "Schedule" tab as shown below.

according to the schedule.

4.2.2 Video / Audio Conguraon

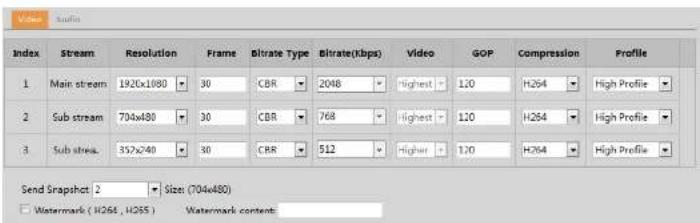

Go to Image→Video / Audio interface as shown below. In this interface, set the resoluon, frame rate, bitrate type, video quality and so on subject to the actual network condition.

Index Stream Resolution Frame Bitrate Type Bitrate(Tbps) Video GOP Compression Profile 1 Main stream 1920x1980 30 CBR 2048 Highest 120 H264 High Profile 2 Sub stream 704x480 30 CBR 768 Highest 120 H264 High Profile 3 Sub stress 352x240 30 CBR 512 Higher 120 H264 High Profile Send Snapshot: 2 Size (704x480) Watermark (H264, H265) Watermark content

Click the "Audio" tab to go to the interface as shown below.

Video Audio Audio Compression G711A Audio Type LIN Save

Three video streams can be adjustable.

Resoluon: The size of image.

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are oponal. Bitrate is related to image quality. CBR means that no maer how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the beer the image quality will be.

Data Format YYV MM-3D Show Timestamps Device Name IPC Show Device Name USB Content

Set me stamp, device name, OSD content and picture overlap here. Aer enabling the corresponding display and entering the content, drag them to change their posion. Then click the "Save" button to save the seconds.

4.2.4 Video Mask

Go to Image→Video Mask Interface as shown below. A maximum of 4 zones can be set up.

Radio 2019/01/12 11:53:20 Switch Stop Drive Clear Save

To set up video mask:

1. Enable video mask.
2. Click the "Draw Area" bu on and then drag the mouse to draw the video mask area.
3. Click the "Save" button to save the sentences.

4.2.5 ROI Conguraon

Go to Image→ROI Cong Interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in beer image quality for the idened area.

Aerial view of a multi-lane road with two cars and trees, no visible text or symbols.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.
3. Set the level.
4. Click the "Save" bu on to save the se ngs.

Aerial view of a road with two cars and trees, no visible text or symbols.

Aerial view of a tree-lined road with two cars parked on the sidewalk (no visible text or signage)

4.3 Event Setup

4.3.1 Moon Detecon

Go to Event Setup→Moon Detecon to set moon detecon alarm.

Alarm Config Enable Alarm Holding Time 20 Seconds Trigger Snapshot Trigger SD Recording Trigger Email Trigger FTP

1. Check "Enable" check box to acquire moon based alarms. If unchecked, the camera will not send out any signals to trigger moon-based recording to the NVR or CMS, even if there is moon in the video.

Trigger Snapshot: If selected, the system will capture images on moon detecon and save the images on an SD card.

Trigger SD Recording: If selected, video will be recorded on an SD card on moon detecon.

Trigger Email: If "Trigger Email" and "Aach Picture" are checked (email address must be set rst in the Email conguraon interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "A ach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP conguraon chapter for more details.

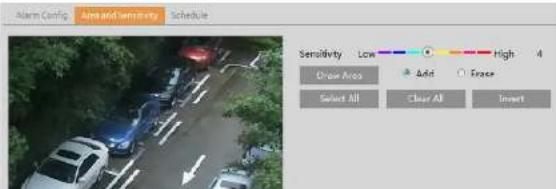

1. Set moon detecon area and sensivity. Click the "Area and Sensitivity" tab to go to the interface as shown below.

Alarm Config Area and sensitivity Schedule Sensitivity Low High 4 Draw Area Add Fract Select All Clear All Insert

1. Click "Enable" and set the alarm holding me.
2. Set alarm trigger opons. Trigger Email and FTP. The setup steps are the same as moon detecon. Please refer to moon detecon chapter for details.

SD Card Error

When there are some errors in wring to SD card, the corresponding alarms will be triggered.

1. Go to Event Setup→Anomaly→SD Card Error as shown below.

1. Click "Enable" and set the alarm holding me.
2. Set alarm trigger opons. Trigger Email and FTP. The setup steps are the same as moon detecon. Please refer to moon deteconchapter for details.

4.3.3 Alarm Server

Go to Alarm→Alarm Server interface as shown below.

Set the server address, port, heartbeat and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to conjure this secon.

4.4.1 Abnormality

This function can detect changes in the surveillance environment acted by the external factors. Go to Analycs→Abnormality Interface as shown below.

Detection Config Sensitivity Video blur detection Alarm Holding Time 20 Seconds Trigger Snapshot Trigger SD Recording Trigger Email Trigger FTP

1. Enable the applicable detect on that's desired.
   Video Blur Detecon: Alarms will be triggered if the video becomes blurry.
2. Set the alarm holding me and alarm trigger opons. The setup steps are the same as moon detecon. Please refer to
   moon detecon chapter for details.
3. Click "Save" bu on to save the sengs.
4. Set the sensi vity of the excep on detec on. Click "Sensi vity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click "Save" button to save the sengs.

The sensitivity value of Video Blur Detecon: The higher the value is, the more sensitive the system responds to the blurriness of the image.

※The requirements of camera and surrounding area

1. Auto-focusing funcon should not been enabled for excepon detecon.

2. Set alarm trigger opons. The setup steps are the same as moon detecon. Please refer to moon detecon chapter for details.

3. Click "Save" bu on to save the se ngs.

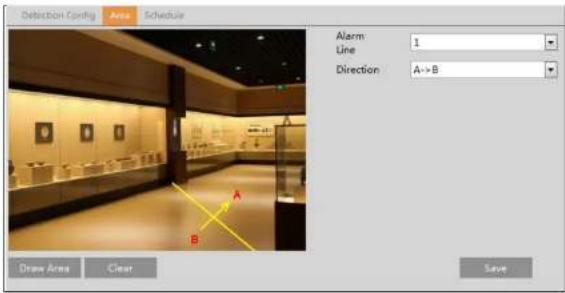

4. Set area and sensitivity of the line crossing alarm. Click the "Area and Sensi vity" tab to go to the interface as shown below.

Deflection Config Area Schedule Alarm Line Direction 1 A->B Draw Area Clear Save

Set the alarm line number and direcon. Up to 4 lines can be added. Mulple lines cannot be added simultaneously. Direcon: A<>B, A>B and A<-B oponal. This indicates the direcon of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" bu on and then drag the mouse to draw a line in the image. Click the "Stop Draw" bu on to stop drawing. Click the "Clear" bu on to delete the lines. Click the "Save" bu on to save the seconds.

1. Set the schedule of the line crossing alarm. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

※ Conguraon of camera and surrounding area
1. Auto-focusing funcon should not be enabled for line crossing detecon.
2. Avoid the scenes with many trees or the scenes with various light changes (like many ashing headlights). The ambient brightness of the scenes shouldn't be too low.

Detection Config Area Schedule Enable Alarm Holding Time 20 Seconds Trigger Snapshot Trigger SD Recording Trigger Email Trigger FTP

1. Enable region intrusion detecon alarm and set the alarm holding me.
2. Set alarm trigger opons. The setup steps are the same as moon detecon. Please refer to moon detecon chapter for details.
3. Click the "Save" bu on to save the se ngs.
4. Set the alarm area of the intrusion detection. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Draw Area Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" bu on and then click around the area where you want to set as the alarm area in the image on the le

IPv4 IPv6 PPPoE Config IP Change Notification Obtain an IP address automatically Use the following IP address IP Address 192.168.226.201 Test Subnet Mask 255.255.255.0 Gateway 192.168.226.1 Preferred DNS Server 192.168.226.1 Alternate DNS Server 8.8.8.8 Save

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Con g" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPv4 IPv6 PPPoE Config IP Change Notification Enable User Name xxxxxx Password ••••••• Save

HTTP Port 80 HTTPS Port 443 Data Port 554 RTSP Port 9008 Save

HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPS Port: The default HTTPS port is 443. It can be changed to any port which is not occupied. Data Port: The default data port is 9008. Please change it as necessary. RTSP Port: The default port is 554. Please change it as necessary.

4.5.3 Server Conguraon

This funcon is mainly used for connecng network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".
2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining informaon of the device in the VMS. Aer that, the system will automatically allot a device ID. Please check it in the VMS.
3. Enter the above-menoned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the sengs.

4.5.4 DDNS

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.5 802.1x

If it is enabled, the camera's data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authencaon is needed.

Enable Protocol Type:EAP_MDS EAPOL Version 1 User Name Password **** Confirm Password **** Save

To use this funcon, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authencaon system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authencaon of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default sengs.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authencaon server.

4.5.6 RTSP

Go to Network→RTSP.

Sub stream: The address format is

"rtsp://IP address: rtsp port/pro le2?transportmode=mcast".

Third stream: The address format is

"rtsp://IP address: rtsp port/pro le3?transportmode=mcast".

Audio: Having entered the main/sub stream in a media player (like VLC), the video and audio will play automatically. If "Allow anonymous login..." is checked, there is no need to enter the username and password to view the video.

If "auto start" is enabled, the mul cast received data should be added into a VLC player to play the video.

4.5.7 UPNP

If this funcon is enabled, the camera can be quickly accessed through the LAN.

Go to Network→UPnP. Enable UPNP and then enter UPnP name.

4.5.8 Email

If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here rst.

Go to Network → Email.

Sender Sender Address User Name Password Sender Address Secure Connection: Unnecessary SMTP Port 25 Default Send Interval(S): 0 (0-3600) Clear Text Redpoint

4.5.9 HTTPS

HTTPS provides authencaon of the web site and protects user privacy. Go to Network→HTTPS as shown below.

Enable Certificate installed C:\CN, ST=00, L=32, C=embeddersoftware Delete Issued to: C:\CN, ST=00, L=32, OverheadderSoftware, OL=IPC, Hologichost, Ecom.cn. Issues: C=CN, ST=00, L=32, OverheadderSoftware, OL=IPC, Hologichost, Ecom.cn. Validity date: 2017-07-26 05:02:07 - 2017-07-26 HOGO7 Save

There is a cercate installed by default as shown above. Enable this funcon and save it. Then the camera can be accessed by entering hps://IP: hps port via the web browser (eg. hps://192.168.226.201:443). A private cercate can be created if users don't want to use the default one. Click "Delete" to cancel the default cercate. Then the following interface will be displayed.

Enable Installation type: • Have signed certificate, install directly ○ Create a private certificate ○ Create a certificate request Install certificate: Browse Install Save

* If there is a signed cer cate, click "Browse" to select it and then click "Install" to install it. * Click "Create a private cer cate" to enter the following creation on interface.

authority for signature. Aer receiving the signed cercate, import the cercate to the device.

4.5.10 QoS

QoS (Quality of Service) funcon is used to provide dierent quality of services for dierent network applicaons. With the decient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this funcon.

Go to Network→QoS.

Video/Audio DSCP 0 Alarm DSCP 0 Manager DSCP 0 Save

Video/Audio DSCP: The range is from 0 to 63.

Alarm DSCP: The range is from 0 to 63.

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Conguraon

4.6.1 User Admin

Go to Security→User Admin interface as shown below.

Setup > Security > User Admin Add Modify Delete Index User Name User Type Bind MAC 1 adults Administrator

Modify user:

1. Select a user to modify password and MAC address if necessary in the user conguraon list box.

2. The "Edit user" dialog box pops up by clicking the "Modify" button.

Edit User Modify Password User Name: Old Password: New Password: Confirm Password: Bind MAC: OK Cancel

1. Enter the old password of the user in the "Old Password" text box.

2. Enter the new password in the "New password" and "Con rm Password" text box.

3. Enter computer's MAC address as necessary.

4. Click the "OK" bu on to save the sengs.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user conguraon list box.

2. Click the "Delete" button to delete the user.

Note: The default administrator account cannot be deleted.

4.6.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

An administrator user can kick out all the other users (including other administrators).

click the "Add" bu on.

4.6.4 Security Management

Go to Security→Security Management as shown below.

Security Service Enable "locking once illegal login" function Save

In order to prevent against malicious password unlocking, "locking once illegal login" func on can be enabled here. If this funcon is enabled, login failure aer trying six mes will make the login interface locked. The camera can be logged in again aer a half hour or aer the camera reboots.

4.7 Maintenance Conguraon

4.7.1 Backup and Restore

Go to Maintenance→Backup & Restore.

Import Setting Path: Browse Import Setting Export Settings Export Settings Default Settings Keep

If necessary, the camera can be set up to reboot on a me interval. Enable "Time Se ngs", set the date and me and then click the "Save" bu on to save the se ngs.

4.7.3 Upgrade

Go to Maintenance→Upgrade. In this interface, the camera rmware can be updated.

Setup ▶ Maintenance ▶ Upgrade Local upgrade Path Browse Upgrade

1. Click the "Browse" button to select the save path of the upgrade le

2. Click the "Upgrade" button to start upgrading the rmware.

3. The device will restart automacally

Cauon! Do not close the browser or disconnect the camera from the network during the upgrade.

4.7.4 Operaon Log

To query and export log:

1. Go to Maintenance→Operaon Log.

Setup > Maintenance > Log Main Type All log Sub Type All log Start Time 2019-04-08 03:50:30 End Time 2019-04-28 23:59:59 English Login Index Time Main Type Sub Type User Name Login IP 1 2019-04-08 03:43:43 Alarm Motion start 2 2019-04-08 03:43:24 Alarm Vid Alarm 3 2019-04-08 03:43:24 Alarm Motion stop 4 2019-04-08 03:41:26 Alarm Motion start 5 2019-04-08 03:40:26 Alarm Motion stop

5 Search

5.1 Image Search

In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Live Setup speco technologies Record Local 2019 4 Sun Mon Tue Wed Thu Fri Sel 7 1 2 3 4 5 6 7 1 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 6 6 7 8 9 10 11 Today 00:00:00 - 23:00:00 Balanced 24H 12H 2H 1H

• Local Image Search
• Choose "Picture"—"Local".

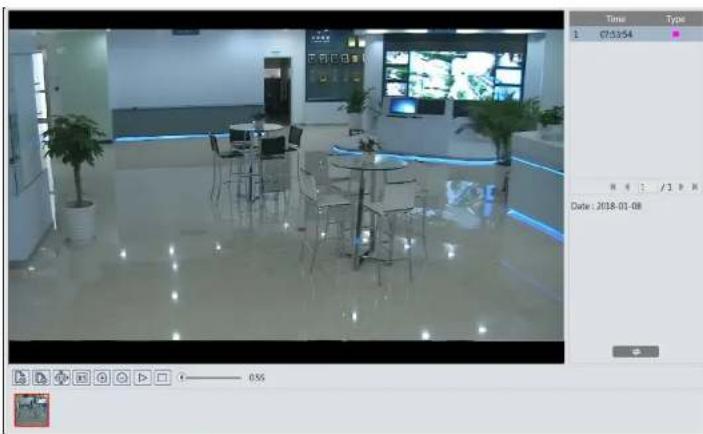

Interior view of a modern office or service hall with glass flooring, tables, and large digital screens (no visible text or symbols)

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

Picture SD Card

4 2018 1 #

Sun Mon Tue Wed Thu Fri Sat 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 3 2 3 4 5 6 7 8 9 10 Today 00:00:00 -21:59:39

Icon	Descripon	Icon	Descripon
	Close: Select an Image and click this buon to close the image.		Close all: Click this buon to close all images.
	Save: Click this buon to select the path for saving the image on the PC.		Save all: Click this buon to select the path for saving all pictures on the PC.
	Fit size: Click to t the image on the screen.		Actual size: Click this buon to display the actual size of the Image.
	Zoom In: Click this buon to digitally zoom in.		Zoom out: Click this buon to digitally zoom out.
	Slide show play: Click this buon to start the slide show mode.		Stop: Click this buon to stop the slide show.
	Play speed: Play speed of the slide show.

Play speed: Play speed of the slide show.

5.2 Video Search

5.2.1 Local Video Search

Click Search to go to the Interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Sun Mon Tue Wed Thu Art Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 26 27 28 29 30 31 32 33 4 5 6 7 8 9 10 Today 00:00:00 -23:59:50

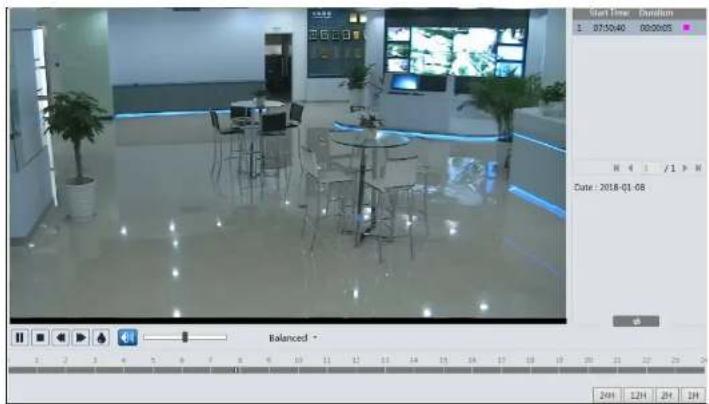

Interior view of a modern office or retail space with glass flooring, tables, chairs, and digital screens (no readable text or symbols)

Icon		Descripon	Icon	Descripon
	down	Play buon. Aer pausing the video, click this buon to connue playing.		Pause buon
	down	Stop buon		Speed down
	down	Speed up		Watermark display
	down	Enable / disable audio; drag the slider to adjust the volume aer enabling audio. (only some models support this funcon)

5.2.2 SD Card Video Search

Record SO Card Sun Mon Tue Wed Thu Fri Sat 12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 4 5 6 7 8 9 10 Today 00:00:00 23:55:59 Balanced Select All Event Motion Detection Common 24H 12H 24 14

1. Select the alarm events at the boom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a le name in the list to start playback.

Mix Stream Start Time Duration 1 07:31:41 00:17:47 2 05:38:19 02:00:32 3 05:27:17 00:02:49 4 05:27:25 00:05:19 5 05:18:25 00:02:58 6 05:14:38 00:09:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:56:24 00:02:41 10 04:49:26 00:00:49

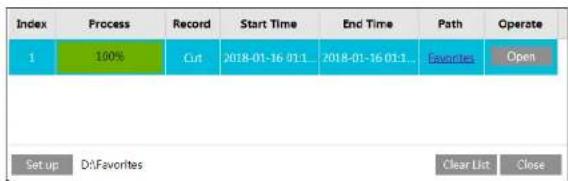

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 01:1 2018-01-16 01:1 Eavorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video les.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshoong

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download AcveX control.

IE browser may be set up to block AcveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Opons.

1. Select Security→Custom Level.
2. Enable all the op ons under "Ac veX controls and plug-ins".
3. Click OK to nish setup.

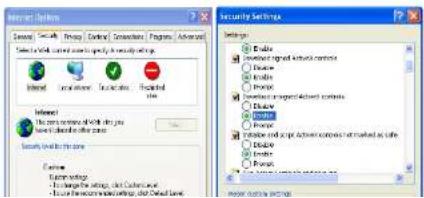

Security Settings Settings Enable Select key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key network controls Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show Show key networks Show show security settings (e.g. Open, void, or closed) for security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Use security settings to ensure security settings. Include security settings (e.g. Open, void, or closed) Include security settings (e.g. Open, void, or closed)

Appendix 2 Specicaons

Specicaon /Model		O8VB1
Camera	Image Sensor	1/2.7" CMOS
	Image Size	3840 × 2160
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	MIn. Iluminaon	0.11lux, F2.2, AGC ON; 0 lux with IR0.032lux, F1.2,AGC ON; 0 lux with IR
	Lens	2.8mm@F2.0, horizontal eld of view: 112°3.6mm@F2.2, horizontal eld of view: 89°
	Lens Mount	M12
	Day&Night	ICR
	WDR	3D DNR
	Digital NR	Digital WDR
	Angle Adjustment	Pan: 0°~360°; Tilt: 0°~80°; Rotaon:0°~360°
Image	Video Compression	H.264/H.265
	H.264 Type	Main Prole @Leve4.1 High Tier
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	8MP (3840 ×2160), 6MP(3072×2048), 5MP(2592×1944), 4MP(2592×1520),2MP (1920×1080),720P(1280×720), D1, CIF, 480×240
	Main Stream	8MP/6MP/5MP/4MP/2MP {1~20fps}
	Sub Stream	D1/CIF/480×240 {1~20fps}
	Image Sengs	Saturaoon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC, HLC, etc. adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Audio	1CH audio input
	Storage	Built-In micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 3 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
	Smart Alarm	Moon deteccon;SD card Full, SD card error, video blur detecon, line crossing, region intrusion
	IR Distance	66
Specicaon /Model		O8VD1
Camera	Image Sensor	1/2.7" CMOS
	Image Size	3840 × 2160
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Min. Illuminaon	0.11lux, F2.2, AGC ON; 0 lux with IR0.032lux, F1.2,AGC ON; 0 lux with IR
	Lens	2.8mm@F2.0, horizontal eld of view: 112°3.6mm@F2.2, horizontal eld of view: 89°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~355°; Tilt 0°~67°; Rotaon:0°~355°
Image	Video Compression	H.264/H.265
	H.264 Type	Main Prole @Leve4.1 High Tier
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	8MP {3840 ×2160}, 6MP{3072×2048}, 5MP{2592×1944}, 4MP{2592×1520},2MP{1920×1080},720P{1280×720}, D1, CIF, 480×240
	Main Stream	8MP/6MP/5MP/4MP/2MP {1~20fps}
	Sub Stream	D1/CIF/480×240 {1~20fps}
	Image Sengs	Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC, HLC, etc. adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Audio	1CH built-in MIC; 1CH audio input
	Storage	Built-In micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 3 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
	Smart Alarm	Moon detecon;SD card Full, SD card error, video blur detecon, line crossing, region intrusion
	IR Distance	98ft
	Protecon Grade	IP67
	Power	DC12V/PoF
Specicaon /Model		O8VT1
Camera	Image Sensor	1/2.7" CMOS
	Image Size	3840 x 2160
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Min. Illuminaon	0.11lux, F2.2, AGC ON; 0 lux with IR0.032lux, F1.2,AGC ON; 0 lux with IR
	Lens	2.8mm@F2.0, horizontal eld of view: 112°3.6mm@F2.2, horizontal eld of view: 89°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~360°; Tilt 0°~75°; Rotaon:0°~360°
Image	Video Compression	H.264/H.265
	H.264 Type	Main Prole @Leve4.1 High Tier
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	8MP {3840 ×2160}, 6MP{3072×2048}, 5MP{2592×1944}, 4MP{2592×1520},2MP{1920×1080},720P{1280×720}, D1, CIF, 480×240
	Main Stream	8MP/6MP/5MP/4MP/2MP {1~20fps}
	Sub Stream	D1/CIF/480×240 {1~20fps}
	Image Sengs	Saturanon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC, HLC, etc. adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Audio	1CH built-in MIC
	Storage	Built-In micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 3users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
	Smart Alarm	Moon detecon;SD card Full, SD card error, video blur detecon, line crossing, region Intrusion
	IR Distance	6G
	Protecon Grade	IP67
	Power	DC12V/PoE
	Power Consumpon	<6W

Models: O8VB1/O8VD1/O8VT1

Federal Communicaons Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaon.

FCC Responsible Party:

Speco Technologies

Amityville, NY11701www.specotech.com
