Important Safeguards and Warnings

1. Electrical safety

All installaon and operaon here should conform to local electrical safety codes.

Use a cered/listed 12VDC Class2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same me; it may result in device damage! The

product must be grounded to reduce the risk of electric shock.

Improper handling and/or installaon could run the risk of re or electrical shock.

2. Environment

Heavy stress, violent vibraon or exposure to water is not allowed during transportaon, storage and installaon.

This product should be installed in a cool, dry place away from direct sunlight and heat sources.

Do not install the product in extreme temperature conditions.

Do not expose the camera to electromagnec radiaon. Otherwise it may result in CMOS sensor failure.

Do not block any venlaon openings.

Do not allow water and liquid intrusion into the camera.

3. Operaon and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor opc component. You can use a blower to clean the dust on the lens surface.

Always use the dry so cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral

detergent. Finally use the dry cloth to clean the device.

Please use a professional opcal cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR funconality and/or IR reecon.

The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera.

Dome cover is an opcal device, please don't touch or wipe cover surface directly during installaon and use, please refer to the

Warning

This camera should be installed by qualified personnel only.

All the examinaon and repair work should be done by qualified personnel.

Any unauthorized changes or modicaons could void the warranty.

Statement

This guide is for reference only.

Product, manuals and specifications may be modified without prior noce. Speco Technologies reserves the right to modify these without noce and without incurring any obligaon.

Speco Technologies is not liable for any loss caused by improper operaon.

Regulatory Informaon

FCC conditions:

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

● This device may not cause harmful interference.

● This device must accept any interference received, including interference that may cause undesired operaon.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installaon. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separaon between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Table of Contents

1 Introducon....2
2 Web Access and Login 3
3 Live View 4
4 Camera Conguraon 6

4.1 System Conguraon....6

4.1.1 System Information 6
4.1.2 Date and Time....6
4.1.3 Local Recording....7
4.1.4 Storage....7

4.2 Video Conguraon....9

4.2.1 Image Conguration 9
4.2.2 Video / Audio Conguraon....11
4.2.3 OSD Conguration 13
4.2.4 Video Mask 13
4.2.5 ROI Conguration 14
4.2.6 Zoom/Focus 15

4.3 Event Setup

4.3.1 Moon Detecon 15
4.3.2 Other Alarms....16
4.3.3 Alarm In (Sensor Input)....18
4.3.4 Alarm Out 18
4.3.5 Alarm Server 19

4.4 Analycs Conguraon....19

4.4.1 Abnormality....19
4.4.2 Line Crossing....20
4.4.3 Intrusion....22
4.4.4 Face Detection....24

4.5 Network Conguraon 27

4.7.3 Upgrade 37
4.7.4 Operaon Log 37

5 Search....39

5.1 Image Search 39
5.2 Video Search....41

5.2.1 Local Video Search 41
5.2.2 SD Card Video Search....42

Appendix 45

Appendix 1 Troubleshoong 45

Appendix 2 Specicaons 46

1 Introducon

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operang the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● Integrated IR LEDs for clear vision in low light
● IP67 rated for outdoor installaons
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applicaons

Two security cameras and a laptop connected by an arrow, no text or symbols present.

IP Camera

Network
Web Browser

Diagram showing a security camera icon transforming into a network device (no text or symbols)

2 Web Access and Login

The IP camera sengs can be accessed via a web browser (Internet Explorer 8 and up) through the LAN.

- Access through IP Scanner

Network conneccon:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.
② Install IP Scanner from the CD and run it aer installaon. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status Mary Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online O28FRM 192.168.17.251 5C:F2:07:24:68:9A n/a n/a

② In the device list, the ID address, model number, and MAC address of each device will be listed. Select the applicable device and

3 Live View

The window below will be shown aer logging in.

Setup Main stream Sub stream Sub stream 2 Balanced - CAMERA speco technologies 2018/01/20 15:17:20

The following table describes the icons on the live view interface

Icon	Descripon	Icon	Descripon
			Zoom/Focus control (for motorized

Icon		Descripon	Icon		Descripon
		Zoom -			Zoom +
		Focus -			Focus +
		One key focus (used when image is out of focus aer manual adjustment)

Face Capture View

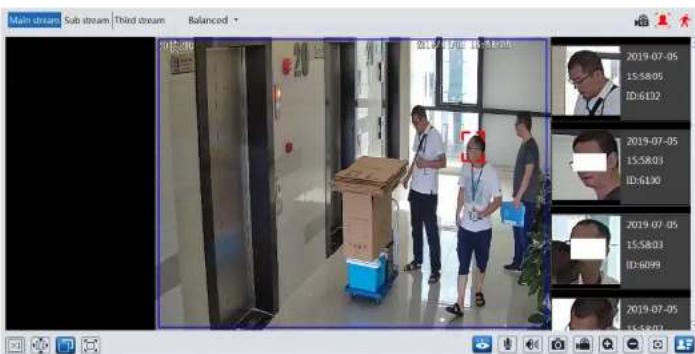

① Go to Cong→Event→Face Detecon interface. Check "Enable".
② Return to the live view interface. Click 📄 to go to the following interface. When there are faces detected, the face pictures will be listed on the right.

Main stream Sub stream Third stream Balanced 2019-07-05 15:58:05 ID:6132 2019-07-05 15:58:03 ID:6130 2019-07-05 15:58:03 ID:6099 2019-07-05 15:58:02

4 Camera Conguraon

Press the "Setup" buon to go to the conguraon interface.

Note: Wherever applicable, click the "Save" buon to save the sengs.

4.1 System Conguraon

4.1.1 System Informaon

In the "System Informaon" interface, the system informaon of the device is listed.

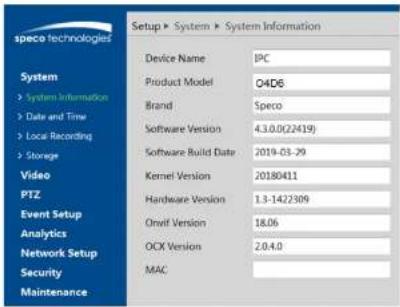

speco technologies Setup ▶ System ▶ System Information Device Name IPC Product Model O4D6 Brand Speco Software Version 4.3.0.0(22419) Software Build Date 2019-03-29 Kernel Version 20180411 Hardware Version 1.3-1422309 Orbit Version 18.06 OCX Version 2.0-4.0 MAC System > System Information > Date and Time > Local Recording > Storage Video PTZ Event Setup Analytics Network Setup Security Maintenance

4.1.2 Date and Time

To set the me and date, go toSystem→Date and Time. Please refer to the following interface.

Time Mode: • Synchronize with NTP server NTP server: Time.windows.com Update period: 1440 Minutes • Synchronize with computer time • Set manually Save

4.1.3 Local Recording

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an open to enable or disable the bitrate display in the recorded les.

Save snapshots to C:\Program Files\NettCamera Save recording files to C:\Program Files\NettCamera Audio Recording Open Close Bitrate Display Open Close Local Smart Snapshot Storage Open Close Save

Additionally, the snapshots triggered by smart events (including face detecon, line crossing detecon and intrusion detecon) can be selected to save to the local PC.

4.1.4 Storage

Go toSystem→Storage to go to the interface as shown below.

Management Record Snapshot Total picture capacity 6000 MB Picture remaining space 854 MB Total recording capacity 14720 MB Record remaining space 128 MB

Management Record Snapshot Record Parameters Record Stream Main stream Pre Record Time No Pre Record Cycle Write Yes

1. Set record stream, pre-record me and cycle wring.

Pre Record Time: Set the me to record before the actual recording begins.

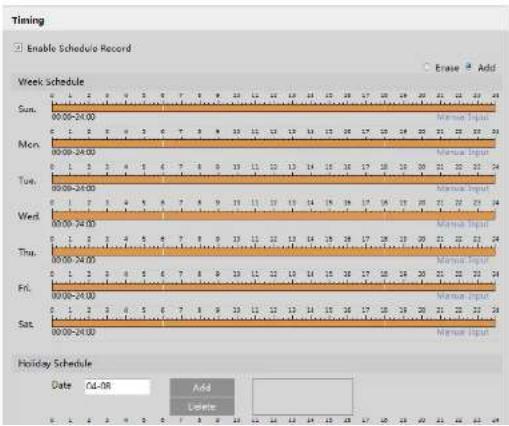

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Week Schedule Sun. 00:00-24:00 Mon. 00:00-24:00 Tue. 00:00-24:00 Wed. 00:00-24:00 Thu. 00:00-24:00 Fri. 00:00-24:00 Sat. 00:00-24:00 Holiday Schedule Date: Cd-08 Add Delete Erase Add Manus Input Manus Input Manus Input Manus Input Manus Input Manus Input Manus Input Manus Input

Management Record Snapshot Snapshot Parameters Image Format JPEG Resolution 704x480 Image Quality Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resoluon and quality of the image saved on the SD card and the snapshot interval and quantity and the ming snapshot here.

Snapshot Quanty: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence me of an alarm event is less than the me of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable ming snapshot rst and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Conguraon

Video Conguraon includes Image Sengs, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Conguraon

In the Image Sengs interface as shown below, various sengs can be adjusted, such as brightness, contrast, hue and saturaon and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the conguraon le.

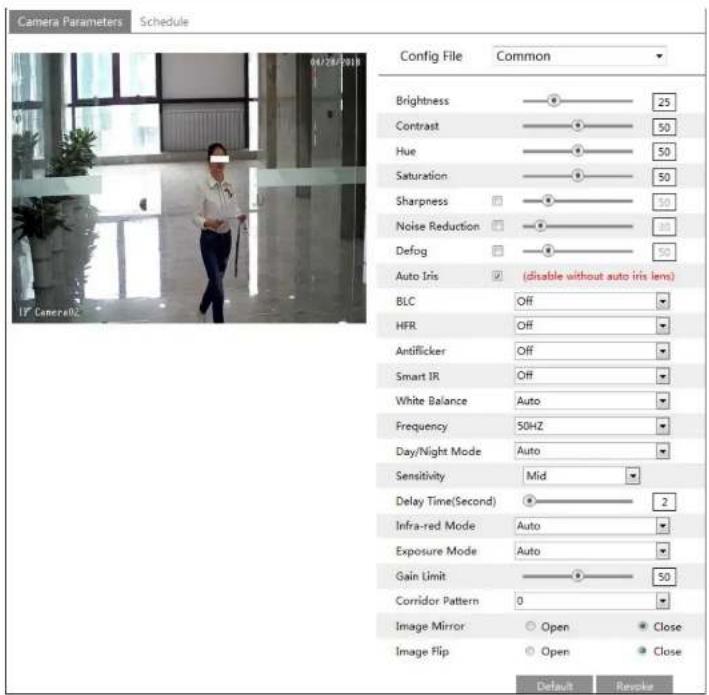

Camera Parameters Schedule 04/28/2010 Config File Common Brightness 25 Contrast 50 Hue 50 Saturation 50 Sharpness 50 Noise Reduction 30 Defog 50 Auto Iris (disable without auto iris lens) BLC Off HFR Off Antiflicker Off Smart JR Off White Balance Auto Frequency 50HZ Day/Night Mode Auto Sensitivity Mid Delay Time(Second) 2 Infra-red Mode Auto Exposure Mode Auto Gain Limit 50 Corridor Pattern 0 Image Mirror Open Close Image Flip Open Close Default Revolve

Brightness: Set the brightness level of the camera's image.

- O: disables the an-icker funcon. This is used mostly in outdoor installaons.

- 50Hz: reduces icker in 50Hz lightng conditions.

- 60Hz: reduces icker in 60Hz lightng condions.

Smart IR: Choose "ON" or "OFF". This funcon can eecvely avoid image overexposure and underexposure by controlling the

brightness of the IR lights according to the actual conditions to make the image more realisc. Please enable it as needed.

White Balance: Adjust the color temperature according to the environment automatically.

Frequency: 50Hz and 60Hz can be oponal.

Day/Night Mode: Choose "Auto", "Day", "Night" or "Timing".

Infra-red Mode: Choose "Auto", "ON" or "OFF".

Exposure Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shuer speed can be adjusted.

Corridor Paern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available. The default value is 0. The video resolution should be 1080P or below if this function is used.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vercally.

Schedule Sengs of Image Parameters:

Click the "Schedule" tab as shown below.

Camera Parameters Schedule Schedule Full Time Config File Common Save

Set full me schedule for common, day or night mode and specied me schedule for day and night. Choose "Timing" in the drop-down box of schedule as shown below.

Camera Parameters Schedule Schedule Timing Time Range 0.00 4.00 8.00 12.00 16.00 20.00 24.00

Index Stream Resolution Frame Bitrate Type Bitrate(Kbps) Video GCP Compression Profile 1 Main stream 1920x1080 30 CBR 2048 Highest 120 H264 High Profile 2 Sub stream 704x480 30 CBR 768 Highest 120 H264 High Profile 3 Sub strea. 352x240 30 CBR 512 Higher 120 H264 High Profile Send Snapshot 2 Size (704x480) Watermark (H264, H265) Watermark content:

Click the "Audio" tab to go to the interface as shown below.

Video Audio Audio Compression G711A Audio Type LIN Save

Three video streams can be adjustable.

Resoluon: The size of image.

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are oponal. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the better the image quality will be.

Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality, the more bitrate will be required. I Frame interval: It determines how many frames are allowed between a "group of pictures". When a new scene begins in a video, until that scene ends, the entire group of frames (or pictures) can be considered as a group of pictures. If there is not much movement in the scene, send the value higher than the frame rate is ne, potentially resulting in less bandwidth usage. However, if the value is set too high, and there is a high frequency of movement in the video, there is a risk of frame skipping.

Video Compression: MJPEG, H264+, H264, H265+ or H265 can be oponal. If H.265/H.265+ is chosen, make sure the client system is

The following

4.2.3 OSD Conguraon

Go toVideo→OSDinterface as shown below.

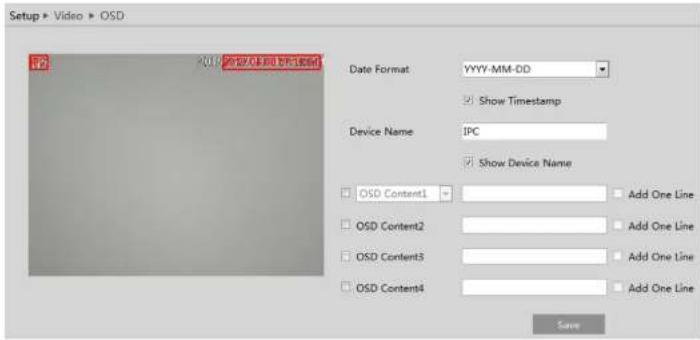

Setup > Video > OSD Date Format: YYYY-MM-DD Show Timestamp Device Name: IPC Show Device Name OSD Content1 Add One Line OSD Content2 Add One Line OSD Content3 Add One Line OSD Content4 Add One Line Save

Set me stamp, device name, OSD content and picture overlap here. Aer enabling the corresponding display and entering the content, drag them to change their posion. Then click the "Save" buon to save the sengs.

Picture Overlap Sengs:

Check "OSD Content1", choose "Picture Overlay" and click "Browse" to select the overlap picture. Then click "Upload" to upload the overlap picture. The pixel of the image shall not exceed 200*200, or it cannot be uploaded.

4.2.4 Video Mask

Go to Image→Video Maskinterface as shown below. A maximum of 4 zones can be set up.

Aerial view of a multi-lane road with trees and parked cars, no visible text or symbols.

To clear the video mask:

Click the "Clear" buon to delete the current video mask area.

4.2.5 ROI Conguraon

Go to Image→ROI Cong interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in beer image quality for the idened area.

Aerial view of a multi-lane road with trees and parked cars, no visible text or signage.

4.2.6 Zoom/Focus

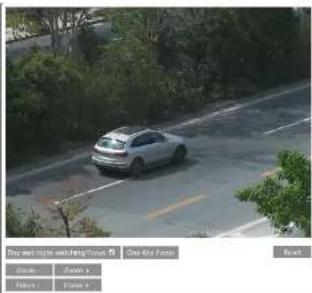

This funcon is only available for the model with motorized zoom lens. Within this secon, zoom and focus can be controlled. If the image is out of focus aer a manual adjustment, one key focus can be used to set the focus automacally.

Play and move with Haring Forum #1 Over key frame Box Box Box Box Focus Focus 0

4.3 Event Setup

4.3.1 Moon Detecon

Go to Event Setup→Moon Detecon to set moon detecon alarm.

Alarm Config Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Snapshot

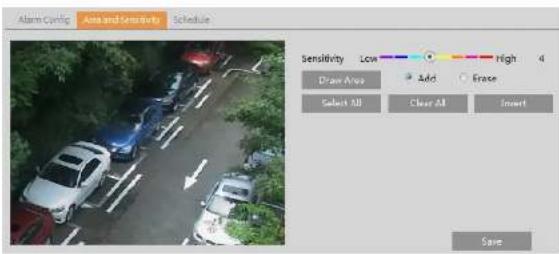

Alarm Curing Area and Security Schedule Sensitivity Low High 4 Draw Area Add Grace Select All Clear All Insert Save

Move the "Sensitivity" scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select "Add" and click "Draw". Dragthe mouse to draw the moon detecon area; Select "Erase" and dragthe mouse to clear motion detecon area. Aer that, click the "Save" to save the seings. "Clear All" can be used to clear out the enre moon zone.

1. Set the schedule for motion detecon. The schedule setup steps of the moon detecon are the same as the schedule recording setup (See Schedule Recording).

4.3.2 Other Alarms

SD Card Full

1. Go toEvent Setup→Anomaly→SD Card Full.

SD Card Fuel SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Email Trigger FTP

1. Click "Enable" and set the alarm holding me.
2. Set alarm trigger opons. Trigger alarm out, Email and FTP. The setup steps are the same as moon detecon. Please refer to moon deteconchapter for details.

IP Address Conict

This funcon is only available for the models with Alarm Out interface.

1. Go to Event Setup→Anomaly→IP Address Collision as shown below.

SD Card Full SD Card Error IP Address Collision Cable Disconnected Enable Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out

1. Click "Enable alarm" and set the alarm holding me.
2. Trigger alarm out. When the IP address of the camera is in conict with the IP address of other devices, the system will trigger the

4.3.3 Alarm In (Sensor Input)

This funcon is only available for some models. To set sensor alarm (alarm in):

Go toEvent Setup→Alarm In Interface as shown below.

Alarm Config Schedule Enable Alarm Type NO Alarm Holding Time 20 Seconds Sensor Name Trigger Alarm Out Alarm Out Trigger Snapshot Trigger SD Recording Trigger Email Trigger FTP

1. Click "Enable" and set the alarm type, alarm holding me and sensor name.
2. Set alarm trigger options. The setup steps are the same as moon detection. Please refer to moon detection chapter for details.
3. Click "Save" buon to save the sengs.
4. Set the schedule of the sensor alarm. The setup steps of the schedule are the same as the schedule recording setup. (See Schedule Recording).

4.3.4 Alarm Out

This funcon is only available for some models. Go to Alarm→Alarm Out.

Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode.

Timing: Select the alarm type. Then click "Add" and drag the mouse on the meline to set the schedule of alarm out; click "Erase" and drag the mouse on the meline to erase the set me schedule. Aer this schedule is saved, the alarm out will be triggered in the specied me.

Alarm Out Mode Alarm Type NC Time Range Save

4.3.5 Alarm Server

Go to Alarm→Alarm Server Interface as shown below.

Set the server address, port, heartbeat and heartbeat interval. When an alarm occurs, the camera will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no need to conjure this secon.

Setup Event Setup Alarm Server Server Address Port: 0 Heartbeat Disable Heartbeat interval 30 Second OK

Detection Config Sensitivity Scene change detection Video blur detection Enable video color cast detection Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Snapshot Trigger SD Recording Trigger Email Trigger FTP

1. Enable the applicable detecon that's desired.

Scene Change Detecon: Alarms will be triggered if the scene of the video has changed.

Video Blur Detecon: Alarms will be triggered if the video becomes blurry.

Enable Video Color Cast Detection: Alarms will be triggered if the video becomes obscured.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as moon detecon. Please refer to moon detecon chapter for details.

2. Click "Save" buon to save the sengs.

3. Set the sensitivity of the excepon detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click "Save" button to save the

Detection Config Area Schedule Enable Save Panoramic Picture Save Target Cutout Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Motorcycle/Bicycle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable line crossing alarm and select the snapshot type and the detecon target.

Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected.

Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage rst (System→Local Recording). To save images to an SD card, please install an SD card rst.

Detecon Target:

Detection Config Areas Schedule Alarm: 1 Line Direction A->B Draw Area Clear Save

Set the alarm line number and direcon. Up to 4 lines can be added. Mulple lines cannot be added simultaneously.

Direcon: A<->B, A->B and A<-B oponal. This indicates the direcon of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

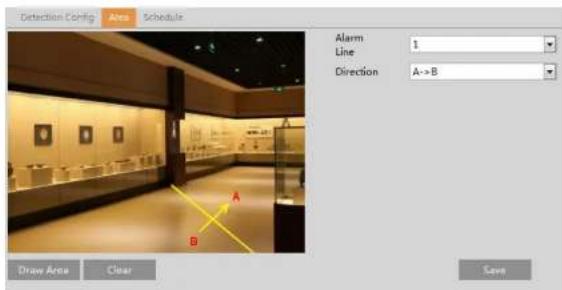

Click the "Draw Area" buon and then drag the mouse to draw a line in the image. Click the "Stop Draw" buon to stop drawing.

Click the "Clear" buon to delete the lines. Click the "Save" buon to save the sengs.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Conguraon of camera and surrounding area

1. Auto-focusing funcon should not be enabled for line crossing detecon.

2. Avoid the scenes with many trees or the scenes with various light changes (like many ashing headlights). The ambient brightness of the scenes shouldn't be too low.

3. Cameras should be mounted at a height of 10 or above.

4. Keep the moung angle of the camera at about 45^

5. The detected objects should not be less than 1% of the enre image and the largest sizes of the detected objects should not be more than 1/8 of the enre image.

6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detecon.

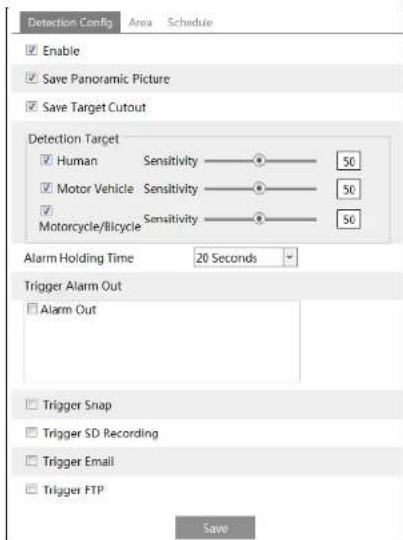

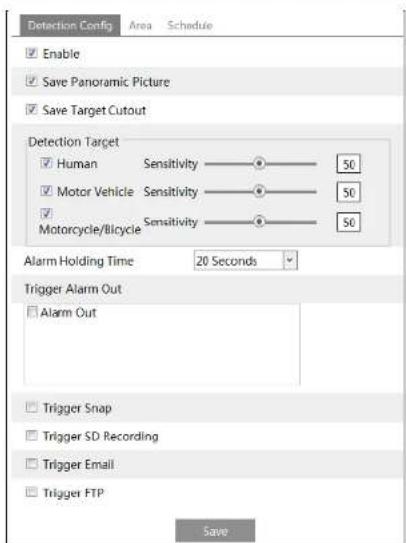

Detection Config Area Schedule Enable Save Panoramic Picture Save Target Cutout Detection Target Human Sensitivity 50 Motor Vehicle Sensitivity 50 Motorcycle/Bicycle Sensitivity 50 Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable line crossing alarm and select the snapshot type and the detecon target.

Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected.

Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.

Note: To save images to a local PC, please enable the local smart snapshot storage rst (System→Local Recording). To save images to an SD card, please install an SD card rst.

Detecon Target:

Detection Config Area Schedule Alarm Area 1 Draw Area Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" buon and then click around the area where you want to set as the alarm area in the image on the le side (the alarm area should be a closed area). Click the "Stop Draw" buon to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" buon to save the sengs.

1. Set the schedule of the intrusion detecon. The setup steps of the schedule are the same as schedule recording setup (See Schedule Recording).

※Conguraon requirements of camera and surrounding area

1. Auto-focusing funcon should not be enabled for intrusion detecon.
2. Avoid the scenes with many trees or the scenes with various light changes (like many ashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10 or above.
4. Keep the moung angle of the camera at about 45^
5. The detected objects should not be less than 1% of the enre image and the largest sizes of the detected objects should not be more than 1/8 of the enre image.
6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detecon.
7. Adequate light and clear scenery are crucial to line crossing detecon.

4.4.4 Face Detecon

Face detecon function is to detect the face appearing in the surveillance scene. Alarms will be triggered when a face is detected.

Detection Config Area Advanced Schedule State Working Enable Save Source Information Save Face Information Alarm Holding Time 20 Seconds Trigger Alarm Out Alarm Out Trigger Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Enable the face detecon funcon.

Save Source Informaon: if checked, the whole picture will be saved to an SD card when detectng a face.

Save Face Informaon: if checked, the captured face picture will be saved to an SD card when detectng a face.

Note: To save images to a local PC, please enable the local smart snapshot storage rst (System→Local Recording). To save images to an SD card, please install an SD card rst.

1. Sat alarm holding me and alarm trigger phone. The alarm trigger catin ctane are the came ac monn datoron catin. Please

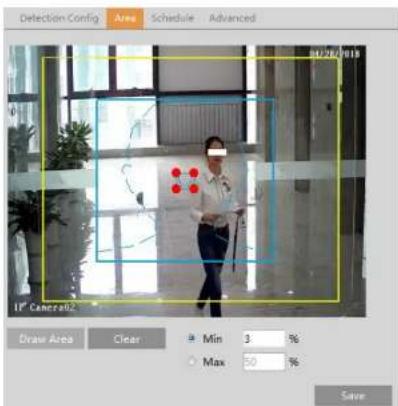

Detection Config Area Schedule Advanced 12/28/2018 1st Camera: Draw Area Clear Min 3 % Max 50 % Save

Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click "Draw Area" and drag the border lines of the rectangle to modify its size. Move the rectangle to change its position. Click "Stop Draw" to stop drawing the area. Click "Clear" to clear the area. Then set the detectable face size by dening the maximum value and the minimum value (Thedefault size range of a single face image occupies from 3% to 50% of the enre image).

1. Set the schedule of the face detecon. The setup steps of the schedule are the same asschedule recording setup (See Schedule Recording).

2. Advanced conguraon. Choose the snapshot interval and number as needed to avoid capturing multiple similar pictures in a very short period of me.

H D α

O4P4/O4B6/O4B7M/O4D6/O4D7M/O4T7/O4T7M

The recommended informaon

Model	Surveillance Width	Focal-Length	Opmal Object Distance	Installaon Height	Depression Angle
O4P4/ O4B6/ O4D6/ O4T7	3.2m (10.5)	3.6mm	1.9m(6.2)	1.8m(5.9)	10^
O4B7M/O4D7M /O4T7M/	3.2m (10.5)	2.8-12mm(W)	1.5m(4.9)	1.8m(5.9)	10^
		2.8-12mm(T)	6.1 m(20)	2.6m(8.5)	10^

1. The object distancedepends on the focal-length of the lens mounted in the camera.
2. In order to guarantee the captured face recognition rate, the requirement for face capture are: le or right face turn angle is less than about 30°; pitching angle is less than 20°.
3. Face illuminaon must be uniform, if the brightness is low or there is a large area of shadow, need to do the light lling.
4. When the capture scenario is backlight, the camera's BLC/HLC/WDR need to be turned on, or II the light.
5. The face recognition do not support black & white mode for now.

4.5 Network Conguraon

4.5.1 TCP/IP

Go to Network→TCP/IP interface as shown below. There are two ways for network conncon.

IPv4

IPv6

PPPoE Config

IP Change Notification

Obtain an IP address automatically

IPv4 IPv6 PPPoE Config IP Change Notification Enable User Name :xxxxx Password :******** Save

Either method of network conncon can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be noed, the IP change nocaoon funcon can be used. Click "IP Change Nocaon Cong" to go to the interface as shown below.

IPv4 IPv6 PPPoE Config IP Change Notification Trigger Email Trigger FTP Save

Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set up. Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up.

4.5.2 Port

Go toNetwork→Port interface as shown below. HTTP port, Data port and RTSP port can be set.

HTTP Port 80 HTTPS Port 443 Data Port 554 RTSP Port 9008

1. Check "Enable".

2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining informaon of the device in the VMS. Aer that, the system will automatically allot a device ID. Please check it in the VMS.

3. Enter the above-menoned server address, server port and device ID in the corresponding boxes. Click the "Save" button to save the sengs.

4.5.4 DDNS

If the camera is set up with a DHCP conncon, DDNS should be set for accessing the camera from the internet.

1. Go toNetwork→DDNS.

Enable Server Type specoddns.net Domain state disconnect Save

1. Enable, save and use DDNS to log in.

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.5 SNMP

To get camera status, parameters and alarm informaon and remotely manage the camera, the SNMP funcon can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

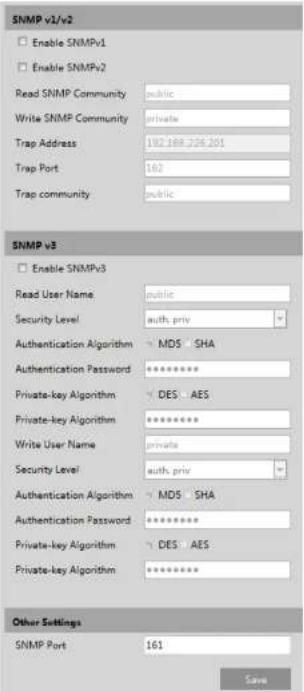

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 192.188.236.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auth. priv Authentication Algorithm MDS SHA Authentication Password ********* Private-key Algorithm DES AES Private-key Algorithm ********* Write User Name private Security Level auth. priv Authentication Algorithm MDS SHA Authentication Password ********* Private-key Algorithm DES AES Private-key Algorithm ********* Other Settings SNMP Port 161 Save

2 Check the corresponding version checkbox (Enable SNMPv1 Enable SNMPv2 Enable SNMPv3) according to the version of the

authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authencaon of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default sengs.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authencaon server.

4.5.7 RTSP

Go toNetwork→RTSP.

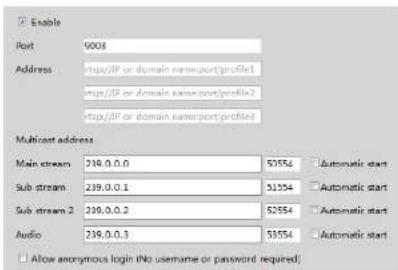

Enable Port 6008 Address :http://IP or domain name/port/profile1 http://IP or domain name/port/profile2 http://IP or domain name/port-profile Multicast address Main stream 239.0.0.0 53554 □Automatic start Sub stream 239.0.0.1 53554 □Automatic start Sub stream 2 239.0.0.2 53554 □Automatic start Audio 239.0.0.3 53554 □Automatic start □Allow anonymous login (No username or password required)

Select "Enable" to enable the RTSP funcon.

Port: Access port of the streaming media. The default number is 554.

RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player.

Mulcast Address

Main stream: The address format is

"rtsp://IP address: rtsp port/prole1?transportmode=mcast".

Sub stream: The address format is

"rtsp://IP address: rtsp port/prole2?transportmode=mcast".

Third stream: The address format is

"rtsp://IP address: rtsp port/prole3?transportmode=mcast".

Sender Sender Address User Name: Password: Server Address Secure Connection: Unnecessary SMTP Port 25 Default Send Internet(S) 0 (3600) Clear Text Recipient Recipient Address Send Delete Save

Sender Address: sender's e-mail address.

User name and password: sender's user name and password.

Server Address: The SMTP IP address or host name.

Select the secure conncon type at the "Secure Connecon" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The me Interval of sending email. For example, if it is set to 60 seconds and mulple motion detecon alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one moon alarm event is triggered and then another moon detecon alarm event is triggered aer 60 seconds, two emails will be sent. When dient alarms are triggered at the same me, mulple emails will be sent separately.

Click the "Test" buon to test the conneccon of the account.

RecipientAddress: receiver's e-mail address.

4.5.10 FTP

Aer an FTP server is set up, captured pictures from events will be uploaded to the FTP server. Go to Network → FTP.

Upload Path: The directory where les will be uploaded to.

Port: The port of the FTP server.

Use Name and Password: The username and password that are used to login to the FTP server.

4.5.11 HTTPS

HTTPS provides authencaon of the web site and protects user privacy.

Go toNetwork→HTTPS as shown below.

Enable Certificate installed C=CN, ST=00, L=52 DeemboddeSoftware Delete Issued to C=CN, ST=00, L=52, DeemboddeSoftware, CL=PC, Hlocalhost, Ecomon, Issued C=CN, ST=00, L=52, DeemboddeSoftware, CL=PC, Hlocalhost, Ecomon, Validity date: 2017-07-20 01:32:57 - 2022-07-26 01:32:47 Save

There is a cercate installed by default as shown above. Enable this funcon and save it. Then the camera can be accessed by entering hps://IP: hps port via the web browser (eg. hps://192.168.226.201:443).

A private cercate can be created if users don't want to use the default one. Click "Delete" to cancel the default cercate. Then the following interface will be displayed.

Enable Installation type Have signed certificate install directly Create a private certificate Create a certificate request Install certificate Browse Install Save

* If there is a signed cercate, click "Browse" to select it and then click "Install" to install it.

* Click "Create a private certificate" to enter the following eragon interface

Enable Installation type Have signed certificate install directly Create a private certificate Create a certificate request Create a certificate request Create Installment Ends Save

Click "Create" to create the cercate request. Then download the cercate request and submit it to the trusted cercate authority for signature. Aer receiving the signed cercate, import the cercate to the device.

4.5.12 QoS

QoS (Quality of Service) funcon is used to provide dierent quality of services for dierent network applicaons. With the decient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this funcon. Go to Network→QoS.

Video/Audio DSCP: The range is from 0 to 63.

Alarm DSCP: The range is from 0 to 63.

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Conguraon

4.6.1 User Admin

Add User User Name: Password: Confirm Password: User Type: Administrator Bind MAC OK Cancel

1. Enter user name in "User Name" textbox.
2. Enter leers or numbers in "Password" and "Conrm Password" textbox.
3. Choose the user type. Administrator has all permissions. Normal user can only view the live video. Advanced user has the same permissions as an Administrator except for; user, backup sengs, factory reset, and upgrading the rmware.
4. Enter the MAC address of the PC in "Bind MAC" textbox.
   If this opon is enabled, only the PC with the specied MAC address can access the camera for that user.
5. Click the "OK" buon and then the newly added user will be displayed in the user list.

Modify user:

1. Select a user to modify password and MAC address if necessary in the user conguraon list box.
2. The "Edit user" dialog box pops up by clicking the "Modify" buon.

Edit User Modify Password User Name: Old Password: New Password: Confirm Password: Bind MAC OK Cancel

1. Enter the old password of the user in the "Old Password" text box.

4.6.3 Block and Allow Lists

Go toSecurity→Block and Allow Lists as shown below.

IP/MAC Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete 0.0.0.0 IPv4 IPv6 MAC Save

The setup steps are as follows:

Check the "Enable address Itering" check box.

Select "Block/Allow the following address", IPv4/IPv6/MAC and thenenterIP address or MAC address in the address box and click the "Add" buon.

4.6.4 Security Management

Go toSecurity→Security Management as shown below.

Security Service Enable "locking once illegal login" function Save

In order to prevent against malicious password unlocking, "locking once illegal login" funcon can be enabled here. If this funcon is enabled, login failure aer trying six mes will make the login interface locked. The camera can be logged in again aer a half hour or aer the camera reboots.

Import Setting Path Browse Import Setting Export Settings Export Settings Default Settings Keep Network Config Security Configuration Image Configuration Factory Default

- Import & Export Sengs

Conguraon sengs of the camera can be exported form a camera into another camera.

1. Click "Browse" to select the save path for import or export informaon on the PC.

2. Click the "Import Seng" or "Export Seng" buon.

- Default Sengs

Click the "Load Default" button to restore all system sengs to the default factory setngs except those you want to keep.

4.7.2 Reboot

Go toMaintenance→Reboot.

Click the "Reboot" buon to reboot the device.

Timed Reboot Seng:

If necessary, the camera can be set up to reboot on a me interval. Enable "Time Sengs", set the date and me and then click the "Save" buon to save the sengs.

Index	Time	Main Type	Sub Type	User Name	Login IP
1	2019-04-08 08:41:43	Alarm	Motion start
2	2019-04-08 08:43:24	Alarm	Vfd Alarm
3	2019-04-08 08:43:16	Alarm	Motion stop
4	2019-04-08 08:41:20	Alarm	Motion start
5	2019-04-08 08:40:26	Alarm	Motion stop
6	2019-04-08 08:40:06	Alarm	Motion start
7	2019-04-08 08:37:18	Alarm	Motion stop
8	2019-04-08 08:34:43	Alarm	Motion start

1. Select the main type, sub type, start and end me.
2. Click "Search" to view the operaon log.
3. Click "Export" to export the operaon log.

5 Search

5.1 Image Search

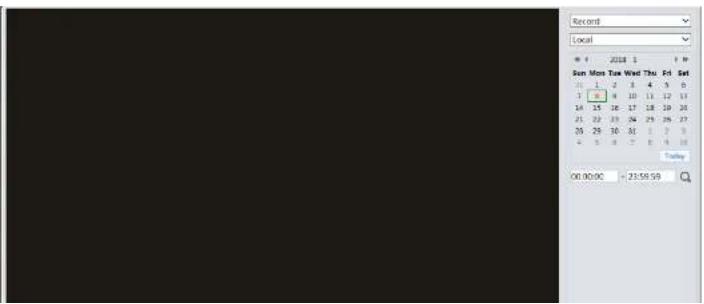

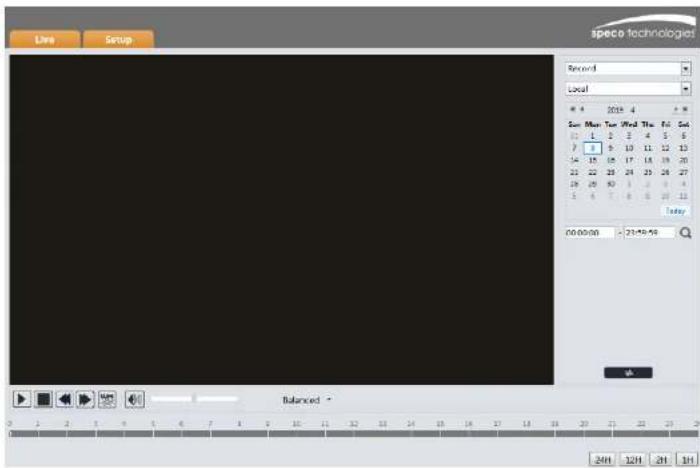

In the Setup interface, click Searchto go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Live Setup speco technologies Record Local 2019 4 Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 5 6 7 8 9 10 11 Today 00:00:00 - 21:49:59 Balanced - 24H 12H 24H 1H

• Local Image Search

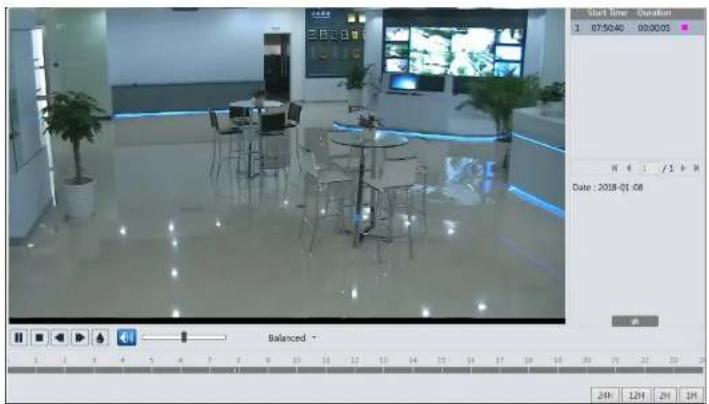

• Choose "Picture"—"Local".

Interior view of a modern office or exhibition space with glass flooring, tables, and presentation screens (no readable text or symbols)

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

Icon	Descripon	Icon	Descripon
	Close: Select an image and click this buon to close the image.		Close all: Click this buon to close all images.
	Save: Click this buon to select the path for saving the image on the PC.		Save all: Click this buon to select the path for saving all pictures on the PC.
	Fit size: Click to t the Image on the screen.		Actual size: Click this buon to display the actual size of the image.
	Zoom in: Click this buon to digitally zoom in.		Zoom out: Click this buon to digitally zoom out.
	Slide show play: Click this buon to start the slide show mode.		Stop: Click this buon to stop the slide show.
	Play speed: Play speed of the slide show.

5.2 Video Search

5.2.1 Local Video Search

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Sun Mon Tue Wed Thu Fri Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 26 27 28 29 30 31 32 33 4 5 6 7 8 9 10 Time 00:00:00 +23:59:59

Start Time 1 07:50:40 00:00:05 Date : 2018-01.08 Balanced -

Icon	Descripon	Icon	Descripon
	Play buon. Aer pausing the video, click this buon to connue playing.		Pause buon
	Stop buon		Speed down
	Speed up		Watermark display
	Enable / disable audio; drag the slider to adjust the volume aer enabling audio.

5.2.2 SD Card Video Search

ClickSearchto go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

Record Card 4 1 2018 1 + H Sun Man Two Wed Thu Fri Sat 13 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 4 5 6 7 8 9 10 Time 00:00:00 23:59:59 Balanced Select All Sensor Event Motion Detection Common 244 1.24 24 1H

1. Select the alarm events at the boom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a le name in the list to start playback.

Mia Stream Start Time Duration 1 07:31:41 00:12:47 2 05:30:29 02:00:12 3 05:27:17 00:02:49 4 05:21:35 00:05:39 5 05:18:25 00:02:58 6 05:14:33 00:03:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:50:34 00:02:41 10 04:49:26 00:00:49

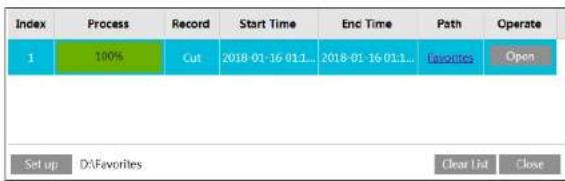

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 011... 2018-01-16 011... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video les.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshoong

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download AcveX control.

IE browser may be set up to block AcveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Opons.

1. Select Security → Custom Level.
2. Enable all the opons under "AcveX controls and plug-ins".
3. Click OK to nish setup.

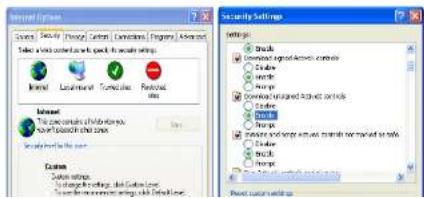

Security Settings Options Normal Remote Custom Custom Settings Custom Settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings Change settings

Appendix 2 Specicaons

Specicaon /Model		O4B6
Camera	Image Sensor	1/3"CMOS
	Image Size	2592x1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Mln. Illuminaon	0.005 lux@F1.6, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV: 100.4°3.6mm@F1.6, horizontal FoV: 80.6°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~360°; Tilt 0°~90°; Rotaon:0°~360°
Image	Video Compression	H.265S/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592x1520), 2K(2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P(1280x720), D1, CIF, 480x240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480x240 (1~30fps); 50Hz: CIF/D1/ 480x240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Auldo	LIN IN×1
	Video	No
	Storage	Built-in micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
Specicaon /Model		O4B7M
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	DC Iris
	MIn. Illuminaon	0.005 lux@F1.4, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2"~29.8"
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~360°; Tilt 0"~90°; Rotaon:0"~360°
Image	Video Compression	H.2655/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/maln prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RU4S
	Auido	LIN IN×1; LIN OUT×1
	Video	BNC×1 (analog output)
	Alarm	1CH alarm Input; 1CH alarm output (terminal block)
	Storage	Built-In micro SD card storage slot, up to 128 GB
Funcon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Moon detecon, Sensor alarm, SD card full, SD card error, IP address conict, network disconneccon, scene change detecon, video blur detecon, video color cast detecon, line crossing detecon (human/vehicle classicaon), region intrusion (human/vehicle
Specicaon /Model		O4D6
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Min. Illuminaon	0.005 lux@F1.6, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV: 100.4°3.6mm@F1.6, horizontal FoV: 80.6°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~355°; Tilt 0°~67°; Rotaon:0°~355°
Image	Video Compression	H.265S/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RU45
	Auldo	LIN IN×1; built-in MIC×1
	Video	No
	Alarm	1CH alarm input; 1CH alarm output
	Storage	Built-in micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
		Moon detecan: sensor alarm detecon. SD card Full. SD card error. IP address conict.
Specicaon /Model		O4D7M
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	DC Iris
	Mln. Iluminaon	0.005 lux@F1.6, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2"~29.8°
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0"~345°; Tilt 0"~77°; Rotaon:0"~345°
Image	Video Compression	H.265S/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Auido	LIN IN×1; LIN OUT×1; built-in MIC×1
	Video	BNC×1 (analog output)
	Alarm	1CH alarm Input; 1CH alarm output (terminal block)
	Storage	Built-in micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
		Moon detecon; sensor alarm detecon, SD card Full, SD card error, IP address conict,cable disconncon, scene change detecon, video blur detecon, video color cast detecon
Specicaon /Model		04T7
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Mln. Illuminaon	0.005 lux@F1.6, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV: 100.4°3.6mm@F1.6, horizontal FoV: 80.6°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~360°; Tilt 0°~75°; Rotaon:0°~360°
Image	Video Compression	H.265S/H.265+/H.265/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Auido	LIN IN×1; built-in MIC×1
	Video	No
	Storage	Built-in micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
	Smart Alarm	Moon detecon;SD card Full, SD card error, scene change detecon, video blur detecon,video color cast detecon, line crossing detecon (human/vehicle classicaon), region
Specicaon /Model		O4T7M
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	DC Irls
	Mln. Illuminaon	0.005 lux@F1.4, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2~29.8°
	Lens Mount	∅14
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0~360°; Tilt 0~80°; Rotaon:0~360°
Image	Video Compression	H.2655/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P(1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps)HFR mode: 60Hz: 1080P/720P(1~60fps); 50Hz: 1080P/720P(1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Auido	LIN IN×1; built-in MIC×1
	Video	NO
	Storage	Built-in micro SD card storage slot, up to 128 GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage, micro SD card storage
	Smart Alarm	Moon detecon, SD card full, SD card error, scene change detecon, video blur detecon,video color cast detecon, line crossing detecon (human/vehicle classicaon), regionintrusion (human/vehicle classicaon). face detecon
Specicaon /Model		O4P4
Camera	Image Sensor	1/3"CMOS
	Image Size	2592×1520
	Electronic Shuer	1/25s~1/100000s
	Iris Type	Fixed Iris
	Mln. Illuminaon	0.005 lux@F1.6, AGC ON, 0 lux with IR0.0028 lux@F1.2, AGC on, 0 lux with IR
	Lens	2.8mm@F1.6, horizontal FoV: 100.4°3.6mm@F1.6, horizontal FoV: 80.6°
	Lens Mount	M12
	Day&Night	ICR
	WDR	120dB
	Digital NR	3D DNR
	Angle Adjustment	Pan: 0°~355°; Tilt 0°~67°; Rotaon:0°~355°
Image	Video Compression	H.265S/H.265+/H.265/H.264S/H.264+/H.264/MJPEG
	H.264 Type	Baseline prole/main prole/high prole
	Video Bit Rate	64Kbps~8Mbps
	Resoluon	4MP (2592×1520), 2K(2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P(1280×720), D1, CIF, 480×240
	Main Stream	60Hz: 4MP/2K/3MP/1080P/720P[1~30fps]; 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps) HFR mode: 60Hz: 1080P/720P[1~60fps]; 50Hz: 1080P/720P[1~50fps);
	Sub Stream	60Hz: 720P/D1/CIF(1~30fps); 50Hz: 720P/D1/CIF (1~25fps)
	Third Stream	60Hz: CIF/ D1/480×240 (1~30fps); 50Hz: CIF/D1/ 480×240 (1~25fps)
	Image Sengs	BLC, HLC, Defog, Saturaon, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable through client or web browser
	ROI	Supported
Interfaces	Network	RJ45
	Auido	LIN IN×1; built-in MIC×1
	Video	No
	Storage	Built-in micro SD card slot; up to 128GB
Fucnon	Remote Monitoring	Web browser, CMS remote control
	Online Connecon	Support simultaneous monitoring for up to 10 users and mul-stream transmission
	Network Protocol	IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, 802.1x, QoS
	Interface Protocol	ONVIF, GB-T/28181-2016
	Storage	Network remote storage; micro SD card storage
	Smart Alarm	Moon detecon;SD card Full, SD card error, scene change detecon, video blur detecon, video color cast detecon, line crossing detecon (human/vehicle classicaon), region Intrusion (human/vehicle classicaon), face detecon

Models: O4P4/O4B6/O4B7M/O4D6/O4D7M/O4T7/O4T7M

Federal Communicaons Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaon.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
