Contents

① Contents....1
- Precautions....2, 3
Safety Instructions 4
● Package Contents......5
● Camera Installation....6-8
Specifications....9,10
- Camera Dimension 11

Precautions

Do not install the camera in extreme temperature conditions.

Illustration of two cartoon-style surveillance cameras emitting flames, with a cloud above (no text or symbols)

Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures.

Do not install the camera under unstable lighting conditions.

Severe lighting change or flicker can cause the camera to work improperly.

Do not touch the front lens of the camera.

This is one of the most important parts of the camera. Be careful not to leave fingerprints on the lens cover.

Never keep the camera pointed directly at strong light.

Illustration of a sun shining on a surveillance camera and a dome-shaped object (no text or symbols)

Do not drop the camera or subject it to physical shocks.

Illustration of two surveillance cameras with smoke, emitting exhaust smoke from a puddle (no text or symbols)

Do not expose the camera to radicactivity.

It can cause malfunctions to occur. If exposed to radioimmunity than GCB can compromise

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER/OR BACK. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ISO14001 CE FC

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

Safety Instructions

Precautions for use

① This camera should be installed by qualified personnel only
There are no user serviceable parts inside
Do not disassemble this camera other than to make initial adjustments
- Use a UL approved regulated 24 volt AC or 12 volt DC power supply
- Use appropriate low voltage power cable to prevent fire or electrical shock
- Please insure that your installation area can support the weight of the camera

Please handle this camera carefully :

Do not use a strong or abrasive detergent when cleaning the camera
Do not install near cooling or heating device

Package Contents

Please make sure that the following items are included in the Package:

1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW

• 1 Video Test Connector, Power Jack
- 1 Bracket Base
- 2 Wrenches
- Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x10

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

1. WHEN USING 24 VOLTS AC (40 Volt Amps)

RED(+) BLACK:(-) AC 24V Power Supply

1. CONNECT VIDEO CABLE

- CONNECT BNC CABLE TO THE BNC JACK.

CAMERA INSTALLATION

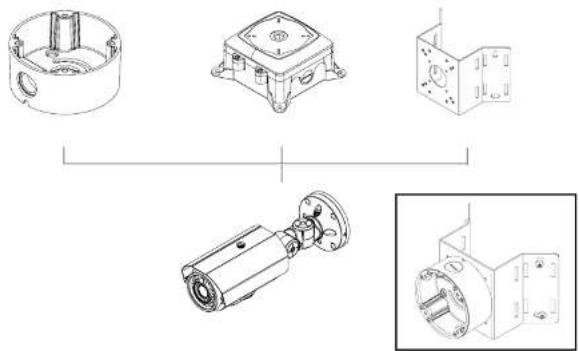

Compatibility

1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW

CVCJBB INTJBS INTCM

Technical line drawings of mechanical components including a cylindrical housing, mounting bracket, and flanged housing (no text or labels)

CAMERA INSTALLATION

1. HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW

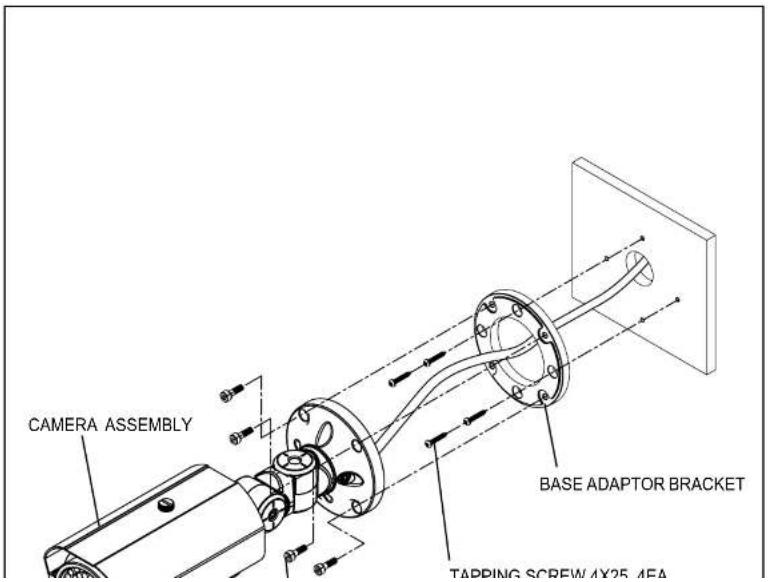

CAMERA ASSEMBLY BASE ADAPTOR BRACKET TAPPING SCREW 4X25.4EA

Glacier Series

PIR Sensor Weatherproof Bullet Camera

DC Auto Iris Varifocal Lens(2.8mm-12mm)

Exterior view of a silver security camera with mounting flange (no visible text or symbols)

HT5100BPVFG

HT5100BPVFGW

600TV Lines

DC Auto Iris Varifocal

Lens(2.8mm-12mm)

True Day / Night Capability

850nm IR LEDs * 24pcs

White LEDs * 6pcs

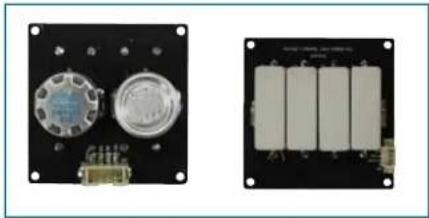

Automatic Thermostatic Sensor

Alarm Output

SPECIFICATIONS

MODEL	HT5100BPVFG / HT5100BPVFGW
Image Pick-Up Device	1/3" Sony Super HAD CCD II
TV System	NTSC, PAL
Total Pixels	NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
Effective Pixels	NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
Scanning Frequency	NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
Scanning System	2:1 Interlace
Synchronization	Internal
Resolution	600TV Lines
Minimum Illumination	0.00001Lux / IR LED ON:0.00006Lux
S/N Ratio	More than 52dB
Video Output	CVBS: 1.0Vp-p / 75Ω
Electronic Shutter Speed	NTSC=(1/60sec-1/120,000sec) / PAL=(1/50sec-1/120,000sec)
OSD	Available

Glacier Series

PIR Sensor Weatherproof Bullet Camera

DC Auto Iris Varifocal Lens (5mm-50mm)

Exterior view of a gray security camera with mounted lens and mounting flange (no visible text or symbols)

HT5200BPVFG
HT5200BPVFGW

600TV Lines

DC Auto Iris Varifocal

Lens(5mm-50mm)

True Day / Night Capability

850nm IR LEDs * 24pcs

White LEDs * 6pcs

Automatic Thermostatic Sensor

Alarm Output

SPECIFICATIONS

MODEL	HT5200BPVFG / HT5200BPVFGW
Image Pick-Up Device	1/3" Sony Super HAD CCD II
TV System	NTSC, PAL
Total Pixels	NTSC=811(H) * 508(V) / PAL=795(H) * 596(V)
Effective Pixels	NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
Scanning Frequency	NTSC=15.734KHz(H) & 59.94Hz(V) / PAL=15.625KHz(H) & 50.00Hz(V)
Scanning System	2:1 Interlace
Synchronization	Internal
Resolution	600TV Lines
Minimum Illumination	0.00001Lux / IR LED ON:0.00006Lux
S/N Ratio	More than 52dB
Video Output	CVBS: 1.0Vp-p / 75Ω
Electronic Shutter Speed	NTSC=(1/60sec-1/120,000sec) / PAL=(1/50sec-1/120,000sec)
OSD	Available

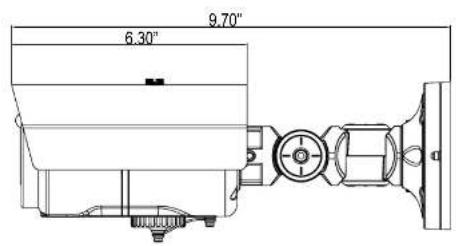

CAMERA DIMENSION

1) HT5100BPVFG, HT5100BPVFGW, HT5200BPVFG, HT5200BPVFGW

3.70° 4.17°

6.30" 9.70"

General Features

Ultra High Sensitivity

- The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)or lower illumination.

600TV Lines

- By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV lines for color and a horizontal resolution of 700TV lines for BW mode.

DNR3

- The high-performance W-V DSP chip effectively removes low-light gain noise and ghosting to provide clear images even in dark environments.

① Day & Night

- This camera has a function that automatically selects the mode that is appropriate for daytime or night-time conditions. The COLOR mode operates in daytime conditions to provide optimum colors, and BW mode operates in night-time conditions to enhance the definition of the image.

① SSDR

- For images with high contrast between bright and dark Areas from difficult lighting conditions such as backlighting, this camera selectively illuminates darker Areas while retaining the same light level for brighter Areas to even out the overall brightness.

OSD Control Button

1. Type A, Type B, Type C of OSD button could be used when it needs to OSD control.
2. Type D is extra Option (wired Remote controller)

Type A

Type.B

Type C

▲ Up button: Moves the cursor upwards. Use this button to select an item

- Menu Setup

1. Press the Function Setup switch.

- Main setup menu is displayed on the monitor screen.

MAIN SETUP ► 1.LENS DC ← 2.EXPOSURE ← 3.WHITE BAL ATW 4.SSDR OFF 5.BACKLIGHT OFF 6.DNR3 ON ← 7.DAY/NIGHT AUTO ← 8.SPECIAL ← 9.EXIT SAVE

1. Select a desired function using the Function Setup switch.
2. Place the cursor over a desired item.
3. Set up a selected item by using the Function Setup switch.
4. To finish the setting, select 'EXIT' and press the Function Setup switch.

NOTE

■ An item with the ◀ icon also has sub menus. To select a sub menu, select an item with the icon and press the Function Setup switch.

■ An item with the --- icon is unavailable due to function settings.

- FOCUS ADJ: To adjust the DC lens focus correctly, you must activate the Focus Settings mode under each lens menu. Activate the Focus Settings mode, adjust the lens focus, and then deactivate the settings mode.

NOTE

■ If color rolling occurs when using a DC lens, set Shutter to Fixed (---).

● Exposure Setting

MAIN SETUP 1.LENS DC ← ►2.EXPOSURE ← 3.WHITE BAL ATW

1. When the SETUP menu screen is displayed, select 'EXPOSURE' by using the Function Setup Switch.
2. Select a desired mode using the Function Setup switch.

EXPOSURE SETUP ▶ 1.BRIGHTNESS 25 2.SHUTTER --- 3.AGC HIGH 4.SENS-UP OFF 5.RETURN ←

▲ CHUTTED 'You can select either auto or manual shutter

◆ AGC(AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen – but the higher the noise.
* OFF : Deactivates the AGC function.
* LOW : Allows automatic gain control from 5.3dB to 32dB.
* HIGH : Allows automatic gain control from 5.3dB to 37dB.
◆ SENS-UP : When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated.
* OFF : Deactivates the SENS-UP function.
* AUTO : Activates the SENS-UP function.
◆ RETURN : Select this to save the changes in the EXPOSURE menu and return to the SETUP menu.

NOTE

■ If you press the Function Setup switch to 'AUTO' mode, you can adjust brightness by increasing or decreasing the shutter speed. (x2 \~ x512)

■ Note that the higher the zoom level, the brighter the screen, but the more likely there will be a ghosting effect.

■ It is normal for Noise, Spots and Whitish symptoms to appear in SENS-UP mode when the D-ZOOM level is increased.

● White Balance (White Bal) Setting

Use the White Balance function to adjust the seven-point color

※ Select one of the following 5 modes, as appropriate for your purpose.
◆ ATW : Select this when the color temperature is between 1,700 °K and 11,000 °K.
◆ OUTDOOR : Select this when the color temperature is between 1,700 °K and 11,000 °K. (sodium light inclusion)
INDOOR : Select this when the color temperature is between 4,500 °K and 8,500 °K.
◆ MANUAL : Select this to fine-tune White Balance manually. Set White Balance first by using the ATW or AWC mode. After that switch to MANUAL mode, fine-tune the White Balance and then press the Function Setup switch.
◆ AWC→SET : To find the optimal luminance level for the current environment, point the camera towards a sheet of white paper and press the Function Setup switch. If the environment changes, readjust it.

NOTE

■ White Balance may not work properly under the following conditions. In this case select the AWC mode.

① When the color temperature of the environment surrounding the subject is out of the control range (e.g. clear sky or sunset).
② When the ambient illumination of the subject is dim.
③ If the camera is directed towards a fluorescent light or is installed in a place where illumination changes dramatically, the White Balance operation may become unstable.

- SSDR Setting

SSNR illuminates darker spots of an image while retaining the same light level for brighter spots to even out the overall brightness of images with high contrast between bright and dark spots.

● Backlight Setting

Unlike conventional cameras, the HT5100BPVFG and HT5200BPVFG are designed to deliver a distinctive subject and background at the same time, even when the subject is backlight, by using the features of the proprietary W-V DSP chip.

1. When the SETUP menu screen is displayed, select 'BACKLIGHT' by using the Function Setup switch so that the arrow indicates 'BACKLIGHT'.

MAIN SETUP 1.LENS DC ← 2.EXPOSURE ← 3.WHITE BAL ATW 4.SSDR OFF 5.BACKLIGHT OFF 6.DNR3 ON ← 7.DAY/NIGHT AUTO ← 8.SPECIAL ← 9.EXIT SAVE

1. Select a desired mode using the Function Setup switch.

◆ BLC : Enables a user to directly select a desired area from a picture, and to view the area more clearly.
◆ HLC (High Light Compensation): If the scene contains extremely bright light areas such as; from car headlights, the light can mask out much of the on-screen detail

- LEVEL : Adjust level of the HLC function.

- LIMIT ' Enable to change the operating condition

BLC SETUP HLC SETUP

LEVEL

TOP

1

OW

38

BOTTOM

[EMPTY]

109

LEFT

1

54

RIGHT

|||||||||||||||

121

Press Set to Return

HLC SETUP

LEVEL

MIDDLE

LIMITS

NIGHT ONLY

MASK COLOR

BLACK

MASK TONE

1

TOP

5

BOTTOM

120

LEFT

5

RIGHT

172

Press Set to Return

NOTE

■ Because there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance.
■ When dark, the HLC is only activated when a bright light exceeding a specific size in NIGHT ONLY mode.
■ The HLC is not activated in day light or when bright light is not present at night in NIGHT ONLY mode.
■ BLC Function doesn't work in the B/W mode of the DAY/NIGHT menu.

● DNR3 Setting

This function reduces the background noise in a low luminance environment.

1. When the SETUP menu screen is displayed, select 'DNR3' by using the

Function Setup switch so that the arrow indicates 'DNR3'.

MENI SHENG HU

1. Set the DNR3 mode to 'ON' and press the Function Setup switch. Then you can adjust the noise reduction level.

NOTE

■ You cannot set the DNR3 to 'ON' or 'OFF' when the AGC mode of the EXPOSURE menu is 'OFF'.
■ When adjusting the noise reduction level in the DNR3 mode, remember that the higher the level set, the more the noise level will be reduced, as will the brightness of the image.

● Day/Night Setting

You can display pictures in color or black and white.

1. When the SETUP menu screen is displayed, select 'DAY/NIGHT' by using the Function Setup switch so that the arrow indicates 'DAY/NIGHT'.

MAIN SETUP 1.LENS DC ← 2.EXPOSURE ← 3.WHITE BAL ATW 4.SSDR OFF 5.BACKLIGHT OFF 6.DNR3 ON ← 7.DAY/NIGHT AUTO ← 8.SPECIAL ← 9.EXIT SAVE

1. Select a desired mode using the Function Setup Switch according to the picture display you want.

▲ COLOR: The picture is always displayed in sales

◆ AUTO : The mode is switched to 'Color' in a normal environment, but switches to 'B/W' mode when ambient illumination is low. To set up the switching time for AUTO mode, press the Function Setup switch. You can turn on or off the burst signal on B/W

mode.

• BURST MODE : You can turn on or off the burst signal on B/W mode,
• DURATION: You can select brightness of illumination about changing the day/night mode.
• DWELLTIME : You can select the duration time about changing the day/night mode. →3s, 5s, 7s, 10s, 15s, 20s, 30s, 40, 60s

	COLOR→B/W	B/W→COLOR
FAST	2.5 lux	5 lux
SLOW	1 lux	10 lux

AUTO SETUP

1.BURST MODE	ON
2.COLOR→B/W
DURATION	FAST
DWELL TIME	3SEC
3.B/W→COLOR
DURATION	FAST
DWELL TIME	10SEC
4.RETURN ←

* The day/night switching point of the camera can be adjusted.

NOTE

■ When AGC in the EXPOSURE menu is 'OFF', '-' mode operates as like selecting 'COLOR' mode and 'AUTO' mode can not be selected.

Special Setting

1. Select a desired mode using the Function Setup switch.

SPECIAL ▶ 1.IMAGE ADJ ← 2.CAM TITLE OFF 3.SYNC INT 4.MOTION DET OFF 5.PRIVACY OFF 6.DIS OFF 7.COMM ADJ ← 8.LANGUAGE ENGLISH 9.RETURN ←

◆ IMAGE ADJ. :

1) When the SETUP menu screen is displayed, select 'IMAGE ADJ' by using the Function Setup switch so that the arrow indicates 'IMAGE ADJ'.
2) Select a desired mode using the Function Setup switch.

IMAGE SETUP ► 1.V-REV 2.H-REV OFF 3.D-ZOOM OFF 4.FONT COLOR WHITE 5.SHARPNESS ON ← 6.MONITOR LCD ← 7.RETURN ←

* V_DEV * You can flip the picture vertically on the screen

NOTE

■ When the V-REV or H-REV mode is enabled, the text on the screen does not flip.
■ If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear.

◆ CAM TITLE : If you enter a title, the title will appear on the monitor.

1) If the SPECIAL menu screen is displayed, use the Function Setup switch so that the

arrow indicates 'CAM TITLE'.

2) Set it to 'ON' by using the Function Setup switch.
3) Press the Function Setup switch.
4) Use the Function Setup switch to move to a desired letter and select the letter by pressing the Function Setup switch. Repeat this to enter multiple letters. You can enter up to 15 letters.
5) Enter a title, move the cursor to 'POS' and press the Function Setup switch. The entered title appears on the screen. Select the position to display the title on the screen by using the Function Setup switch and press the Function Setup switch. When the position is determined, select 'END' and press the Function Setup switch to return to the SPECIAL menu.

CAMERA TITLE SETUP

ABCDEFGHIJKLMNOPQRSTUVWXYZ

NOPQRSTUVWXYZ

abcdefghijklmnopqrstuvwxyz

nopqrstuvwxyz

-.0123456789

←→CLR POSOEND END

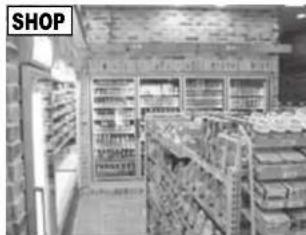

Interior view of a convenience store with shelves stocked with goods and a 'SHOP' sign visible (no readable text on shelves or signage)

NOTE

NOTE

NOTE

■ When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization.
■ When the power is DC 12V, the SYNC menu is fixed to the 'INT' mode.

♦ MOTION DET :This product has a feature that allows you to observe movement of objects in 8 different areas on the screen, and the words 'MOTION DETECTED' appear on the screen when movement is detected. Activity can be monitor more efficiently.

1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'MOTION DET'.
2) Set up the mode using the Function Setup switch.

- SENSITIVITY: You can select up to 8 MD areas. When SENSITIVITY number is high, motion detection sensitivity is increased to recognize even small movement.

• AREA MODE : Determines whether to use the MD area selected in SENSITIVITY.
• SEL POS : Determines which of the 4 vertices of each MD area is to be used.
• XPOS : Determines the coordinate of the horizontal axis for SEL POS.
• YPOS : Determines the coordinate of the vertical axis for SEL POS.
• FILL→SET : Fills in a selected MD area. The color of the area can be selected from brown, orange, blue, cyan, green, yellow, magenta and red.
• RETURN: Select this to save the MOTION DET menu settings and return to the SPECIAL menu

MOTION DET 1.SENSITIVITY 2.AREA MODE 3.SEL POS 4.XPOS 5.YPOS 6.FILL → SET 7.RETRUN ← AREA1 ON L-TOP 3 5

1) When the SPECIAL menu screen is displayed, press the Function Setup switch so that the arrow indicates 'PRIVACY'.
2) Set up the mode using the Function Setup switch.
- AREA: You can select up to 12 PRIVACY areas.
- MODE : Determines whether to use the area selected in the AREA.
- MASK COLOR : Determine area color. You can select Green, Red, Blue, Black, White, Gray.
- MASK TONE : Adjust the brightness of MASK COLOR.
- TOP/BOTTOM/LEFT/RIGHT :Adjust the size and position of the selected area.
- RETURN : Select this to save the PRIVACY menu settings and return to the SPECIAL menu.

◆ DIS (Digital Image Stabilizer) :

This function mitigates any picture movement due to external factors such as wind.

NOTE

■ As the DIS function uses the digital zoom the camera's resolution will decrease.
■ DIS doesn't operate when background illumination is too low.
- DIS doesn't operate when object pattern is monotonic as like sky or white wall.

● PIR Sensor & Alarm with Motion Detection

Built-In PIR sensor turns the white LED ON when the PIR is triggered by motion.

Automatic Thermostatic Sensor!

Two electronic components: a black circuit board with two circular components and a rectangular battery pack (no visible text or symbols)

1. Power off under -40 degree, the camera becomes frozen
2. On power on, the first temperature sensor starts working and makes heater work.
3. When the internal temperature in camera goes up to -10 degree, the second temperature sensor starts working and Camera on. In this status the first and second temperature sensor work together.
4. When the internal temperature in camera goes up to +10 degree, the first temperature sensor turns off and the only second temperature sensor keeps working.

- Exit Setting

Select a desired EXIT mode using the Function Setup Switch.

- SAVE : Save the current settings and exit the MAIN SETUP menu.

● Trouble Shooting

PROBLEM	POSSIBLE CAUSE
Northing appears on the screen.	Check the power cable, power supply output and video connection between the camera and monitor.
The image on the screen is dim.	Are the camera lens or the lens glass dirty?Clean the lens / glass with a soft clean cloth.Adjust the monitor controls, as required.If the camera is facing a very strong light, change the camera position.Adjust the lens focus.
The image on the screen is dark.	Adjust the contrast control of the monitor.If there is an intermediate device, correctly set the 75Ω/Hi-z.
The camera is not working properly and the surface of the camera is hot.	Check the camera is correctly connected to an appropriate regulated power source.
Motion Detection is not activated.	Has MOTION DET been set to ON in the menu?Has MD AREA been properly defined?

LIMITED WARRANTY - VIDEO PRODUCTS

THIS WARRANTY IS VALID ONLY ON PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA AND CANADA. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL USER.

SUBJECT TO CONDITIONS AND EXCLUSIONS FOUND BELOW. THIS PRODUCT IS WARRANTED AGAINST MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE FOLLOWING PERIOD FOR PARTS AND LABOR:

SPECO TECHNOLOGIES CAMERAS....5 YEARS

SPECO TECHNOLOGIES IP CAMERAS....2 YEARS

SPECO PTZ AND VL CAMERAS....1 YEAR

SPECO TECHNOLOGIES MONITORS....1 YEAR

IR LEDS....90 DAYS

DVRs	3 YEARS
NVRs	3 YEARS
BALANCE OF
SPECO TECHNOLOGIES LINE	1 YEAR

SPECO TECHNOLOGIES WILL REPAIR OR REPLACE (AT OUR DISCRETION) ANY PARTS FOUND TO BE DEFECTIVE FOR THE WARRANTY PERIOD SPECIFIED. WE WILL PROVIDE A REPLACEMENT FOR ANY DEFECTIVE PART.

CONDITIONS

1. YOU MUST OBTAIN A RETURN AUTHORIZATION (RA) NUMBER FOR ANY MERCHANDISE BEING RETURNED TO SPECO TECHNOLOGIES, WHETHER FOR RETURN/EXCHANGE OR REPAIR, WHETHER IN OR OUT OF WARRANTY.

2. THIS WARRANTY WILL BE HONORED ONLY UPON PRESENTATION OF THE ORIGINAL DATED BILL OF SALE OR SALES SLIP

3. TRANSPORTATION OF THE PRODUCT TO OUR SERVICE DEPARTMENT IS THE RESPONSIBILITY OF THE USER. REPAIRED OR REPLACED PRODUCT WILL BE RETURNED PREPAID DURING THE WARRANTY PERIOD.
4. SPECO TECHNOLOGIES DOES NOT AUTHORIZE ANY INTERNET OR MAIL ORDER PRODUCT SALES IF A SPECO TECHNOLOGIES PRODUCT IS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR OR OTHER SOURCE, INCLUDING RETAILERS, MAIL ORDER SELLERS AND ONLINE SELLERS. IT WILL NOT BE HONORED OR SERVICED UNDER THE EXISTING SPECO TECHNOLOGIES WARRANTY POLICY ANY SPECO TECHNOLOGIES PRODUCT PURCHASED FROM THESE ONLINE MERCHANTS WILL VOID THE APPLICABLE WARRANTY AND IS INELIGIBLE FOR TECHNICAL SUPPORT. IF YOU HAVE QUESTIONS ABOUT A RESELLER, PLEASE CONTACT SPECO TECHNOLOGIES AT 1-800-645-5516 FOR A LIST OF UNAUTHORIZED DEALERS, VISIT: www.specotech.com/unauthorized.

EXCLUSIONS

1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE APPROPRIATE Model's INSTRUCTION MANUAL OR PRODUCTS WHICH HAVE BEEN ALTERED, ABUSED, OR HAVE MISSING OR ALTERED SERIAL NUMBERS.
2. THIS WARRANTY SHALL NOT APPLY TO UNCRATING, SETUP, INSTALLATION, OR THE REMOVAL AND REINSTALLATION OF PRODUCTS AFTER REPAIR.
3. THIS WARRANTY SHALL NOT APPLY TO REPAIRS OR REPLACEMENTS NECESSITATED BY ANY CAUSE BEYOND THE RESULT OF MANUFACTURE INCLUDING, BUT NOT LIMITED TO, ANY MALFUNCTION, DEFECTS OR FAILURE CAUSED BY OR RESULTING FROM UNAUTHORIZED SERVICE OR PARTS, IMPROPER MAINTENANCE, MODIFICATION OR REPAIR BY THE USER, ABUSE, MISUSE, NEGLECT, ACCIDENT, FIRE, FLOOD, OR OTHER ACTS OF NATURE, INCORRECT LINE VOLTAGE, DAMAGE OR IMAGE BURNS TO TELEVISION PICTURE TUBES CAUSED BY OR ATTRIBUTABLE TO THE USE OF ANY ACCESSORY, ELECTRONICS GAME OR DEVICE, OR DAMAGE CAUSED TO IMAGE PICKUP DEVICES BY EXCESSIVE LIGHT

▶ MEMO

▶ MEMO

speco technologies®

200 New Highway
