USER MANUAL Intensifier T HTB11TM Speco Technologies

Intensifier T Motorized Zoom Focus Camera

HT7248TM

(Dome Camera)

HTB11TM

(Bullet Camera)

Contents

① Contents....1
- Precautions....2, 3
Safety Instructions 4
● Package Contents......5
- Camera Installation....6-9
Specifications....10-11
- Camera Dimension 12

Precautions

Do not install the camera in extreme temperature condit

Cartoon illustration of two anthropomorphic surveillance cameras emitting flames, with a cloud above (no text or symbols)

Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures.

Do not install the camera under unstable lighting conditions.

Severe lighting change or flicker can cause the camera to work improperly.

Do not touch the front lens of the camera.

This is one of the most important parts of the camera. Be careful not to leave fingerprints on the lens cover.

Never keep the camera pointed directly at strong light.

Illustration of a sun shining on a surveillance camera and a helmet, both showing expressive faces (no text or symbols)

It can cause malfunctions to occur.

Do not drop the camera or subject it to physical shocks.

Illustration of two surveillance cameras with smoke and raindrops falling (no text or symbols)

Housing damage can compromise

Do not expose the camera to radioactivity.

If exposed to radioactivity the CCD

CAUTION RISK OF ELECTRIC SHOCK DO NOT GELV. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER/ER BACK, NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ISO14001 CE FC

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In USA and Canada, Use Class 2 Power Supply Only

INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at

Safety Instructions

Precautions for use

This camera should be installed by qualified personnel only
There are no user serviceable parts inside
Do not disassemble this camera other than to make initial adjustments
- Use a UL approved regulated 24 volt AC or 12 volt DC power supply
- Use appropriate low voltage power cable to prevent fire or electrical shock
Please insure that your installation area can support the weight of the camera

Please handle this camera carefully :

Do not use a strong or abrasive detergent when cleaning the camera
Do not install near cooling or heating device

Package Contents

Please make sure that the following items are included in the Package:

1) HT7248TM

• 1 Video Test Connector, Power Jack
• 1 Chameleon Cover
• 1 Wrench
- Set Screw
- 3 Tapping Screws 4x40
- 3 Plastic Anchor

2) HTB11TM

• 1 Video Test Connector, Power Jack
• 1 Focus Adjustment
- 1 Bracket Base
• 1 Wrench
- Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x10

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500mA)

Power Input: RED Center: (+) DC 12V Power Supply

1. WHEN USING 24 VOLTS AC (40 Volt Amps)

RED(+) BLACK:(-) AC 24V Power Supply

1. CONNECT VIDEO CABLE

1) WHEN USING IT AS ANALOG OUTPUT, CONNECT YELLOW COLOR BNC CABLE TO THE BNC JACK.

CVBS

CAMERA INSTALLATION

Compatibility

1) HT7248TM

INTWM INTPM CVCJBD DFM

2) HTB11TM

CAMERA INSTALLATION

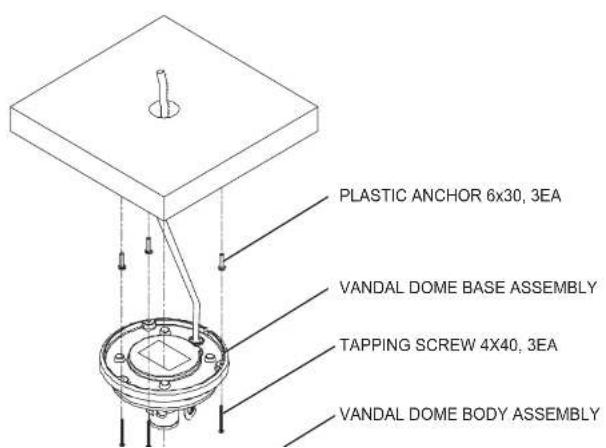

1. HT7248TM

PLASTIC ANCHOR 6x30, 3EA VANDAL DOME BASE ASSEMBLY TAPPING SCREW 4X40, 3EA VANDAL DOME BODY ASSEMBLY

CAUTION : The installation instructions in this manual are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAMERA INSTALLATION

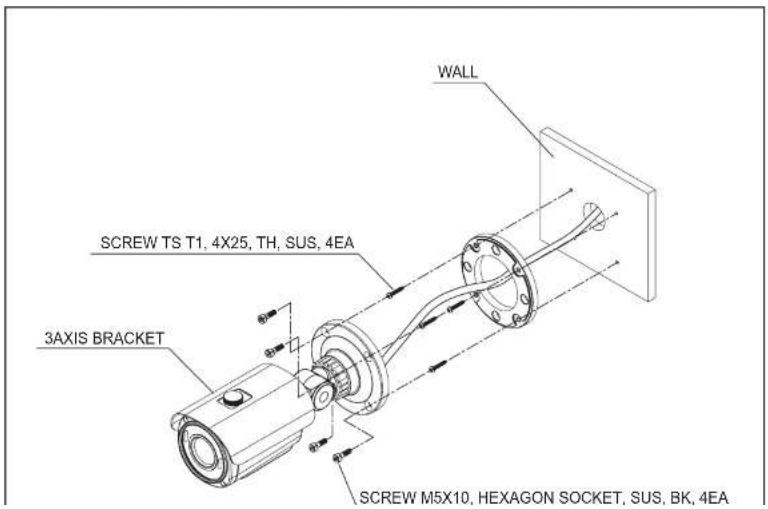

2. HTB11TM

WALL SCREW TS T1, 4X25, TH, SUS, 4EA 3AXIS BRACKET SCREW M5X10, HEXAGON SOCKET, SUS, BK, 4EA

Intensifier T Motorized Zoom Focus Camera

2.8-10mm Auto Iris Varifocal Motorized Lens

HT7248TM (2.8-10mm)

SPECIFICATIONS

MODEL	HT7248TM
Image SensorEffective Pixels	1/3" SONY 2Mega Exmor CMOS Sensor Imx2221894(H) X 1105(V), 2.19M Pixels
Total Pixels	2000(H) X 1121(V), 2.24M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Resolution	Digital: 1920X1080(1080p@30f / 1080p@25f)1280X720(720p@60f / 720p@50f)
Video Output	1.0Vp-p Composite. 75 Ohms1.0Vp-p TVI(Transport Video Interface) 75Ohms
Minimum Illumination	0.001Lux(Sens-Up X32)
LENS	2.8-10mm Auto Iris Varifocal Motorized Lens
Shutter Speed	AUTO / Manual(1/30,1/25Sec ~ 1/30000Sec) / FLICKER
OSD	Built-in
BLC	0
HSBLC	0
WDR(Wide Dynamic Range)	ON / OFF (Low,Middle,High)-(Only for TVI Output)
ACE	OFF/LOW/MIDDLE/HIGH
Day&Night	AUTO/COLOR/EXTERN
Smart-IR	0~20
White Balance	ATW/AWBIAWC SET/MANUAL

Intensifier T Motorized Zoom Focus Camera

2.8-10mm Auto Iris Varifocal Motorized Lens

Exterior view of a black security camera with mounting flange (no visible text or symbols)

HTB11TM (2.8-10mm)

SPECIFICATIONS

MODEL	HTB11TM
Image SensorEffective Pixels	1/3" SONY 2Mega Exmor CMOS Sensor Imx222
	1894(H) X 1105(V), 2.19M Pixels
Total Pixels	2000(H) X 1121(V), 2.24M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Resolution	Digital : 1920X1080(1080p@30f / 1080p@25f)1280X720(720p@60f / 720p@50f)
Video Output	1.0Vp-p Composite, 75 Ohms1.0Vp-p TVI(Transport Video Interface) 75Ohms
Minimum Illumination	0.001Lux(Sens-Up X32)
LENS	2.8-10mm Auto Iris Varifocal Motorized Lens
Shutter Speed	AUTO / Manual(1/30,1/25Sec - 1/30000Sec) / FLICKER
OSD	Built-in
BLC	0
HSBLC	0
WDR(Wide Dynamic Range)	ON / OFF (Low,Middle,High)-(Only for TVI Output)
ACE	OFF/LOW/MIDDLE/HIGH
Day&Night	AUTO/COLOR/EXTERN
Smart-IR	0–20
White Balance	ATUM/AIM/DIAWG SET/MANUAL

CAMERA DIMENSION

1) HT7248TM

5.10"5.10" 1.16" 3.46" 3.93"

Technical drawing of a circular mechanical component with bolt holes and a central square hole (no text or symbols)

2) HTB11TM

General Features

● Transfer Video Interface

The combination of a 2Mega CMOS image sensor and TVI DSP provides an excellent resolution of TVI picture.

● 3D-DNR

Smart 3DNR prevents the image blurring of moving object and activates only if moving objects are appearing on the scene.

Smart-IR

No saturation image, vivid image in darkness! "TVI" camera makes very sharp video image in darkness! This technology eliminates saturation of video image of the closer object in darkness by control of the IR sensitivity. Saturation never happens in our "TVI" cameras, you can enjoy vivid image in any dark condition!

- Sens-Up

Despite a limited & low light condition, Sens-Up - Max. x32 helps the viewer to get visible and clear images.

- Defog

Defog function "improves" the clarity of images taken in poor conditions such as fog, smoke, rain or snow.

How to Set Up the camera menu

• Setup Menu

SPECO TECH			SUB MENU 1	SUB MENU 2	SUB MENU 3	SUB MENU 4
1.PRESET			INDOOR / OUTDOOR / LOW LIGHT / HALLWAY / LOBBY(WDR) / ELEVATOR
2.MAINSETUP	1.2MOTOR	AF MODE	AUTO
			MANUAL
		SCANNING	HALF
			FULL
		ONEPUSHAF
		REFRESH	OFF
			ON
		INITIAL	ON
		RETURN
	2.LENS	DC	MODE	INDOOR / OUTDOOR / DEBLUR
			RETURN
		MANUAL	MODE	NORMAL / DEBLUR
			RETURN
	3.EXPOSURE		BRIGHTNESS	0~20
			SHUTTER	AUTO
				MANUAL	SPEED	1/30 ~ 1/30000
					RETURN
				FLICKER
			SENS-UP	OFF~X32
			AGC	0~20
			RETURN
		AUTO

How to Set Up the camera menu

• Setup Menu

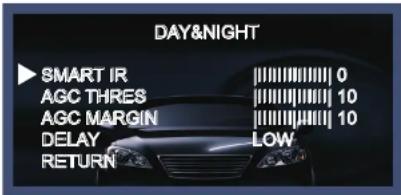

2.MAIN SETUP	7.DAY&NIGHT	AUTO	SMART IR	0~20
			AGC THRES	0~20
			AGC MARGIN	0~20
			DELAY	LOW/MIDDLE/HIGH
			RETURN
		COLOR
		B/W	SMART IR	0~20
			RETURN
		EXTERN	SMART IR	0~20
			EXTERN S/W	LOW/HIGH
			DELAY	LOW/MIDDLE/HIGH
			RETURN
			SHARPNESS	0~20
			GAMMA	0.45~0.65
			COLOR GAIN	0~20
			MIRROR	ON/OFF
			FLIP	ON/OFF
			D-ZOOM	X 1.0~X 8.0
			ACE	OFF/LOW/MIDDLE/HIGH
			DEFOG	OFF
				ON	MODE	AUTO/MANUAL
					LEVEL	LOW/MIDDLE/HIGH
					RETURN

How to Set Up the camera menu

• Setup Menu

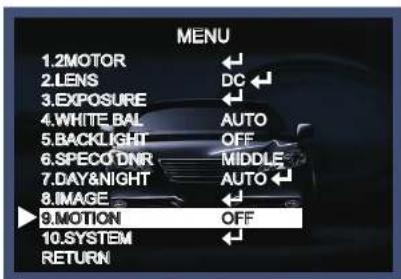

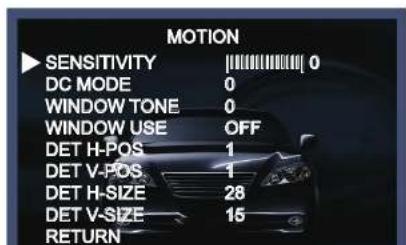

2.MAINSETUP	9.MOTION	OFF
		ON	SENSITIVITY	0~20
			WINDOW TONE	0~6
			WINDOW USE	0~3
			WINDOW ZONE	ON/OFF
			DET H-POS	1~60
			DET V-POS	1~34
			DET H-SIZE	1~60
			DET V-SIZE	1~34
			RETURN
	10.SYSTEM		COM.	CAM ID	0~255
				BAUDRATE	2400/4800/9600/57600/115200
				RETURN
			IMAGE RANGE	FULL
				COMP
				USER	OFFSET	0~20
					RETURN
			OUTPUT MODE	720P / 720P CROP/ 1080P
			COLOR SPACE	YUV / SD-cbcr / HD-cbcr
			FRAME RATE	25 FPS / 30 FPS
			CVBS	PAL / NTSC
			LANGUAGE	ENG / CHN / CHN(S) / JPN / KOR
			COLOR BAR	OFF/ON

Menu Set Up

Menu setting can be selected by the button inside the camera.

1. Press the set button.

* MENU will be displayed on the monitor.

◆ PRESET MODE : Preset is provided to maximize user convenience.

(PRESET: Indoor // Outdoor // Low light // Hallway // Lobby // Elevator)

SPECO TECH 1.PRESET 2.MAIN SETUP 3.EXIT INDOOR

◆ MAIN SETUP : Enter the MAIN SETUP to adjust further settings.(page.16)

SPECO TECH 1.PRESET 2.MAIN SETUP 3.EXIT INDOOR

Menu Set Up

Menu setting can be selected by the button inside the camera.

1. Press the set button.

* The Set Up menu will be displayed on the monitor.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

1. Move and select the required function using the Up and Down button.

* Move the triangular indicator Up or Down to select the desired feature by pressing the Up or Down button.

1. Change menu settings using the Left or Right button.
   * Available values or Status are displayed by pressing the Left or Right buttons.

Press the button until desired value / status is displayed.

1. After Changing the setting move the arrow indicator to EXIT and press the

SET button to EXIT.

NOTE

* Move to the available submenu by moving ←arrow to desired feature.

2MOTOR

1. Move the triangular indicator to 2MOTOR using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left of Right button.

◆ AF MODE : AUTO / MANUAL

- AUTO : Adjust zoom and focus automatically.

-MANUAL: Adjust zoom and focus manually.

◆ SCANNING : HALF / FULL

- HALF: Adjust auto focusing when lens focus fixed. If lens focus is not fixed well, adjust focus manually.

- FULL : Scanning full size of screen and adjust autofocusing.

ONEPUSHAF : ON/OFF

If you press OSD button 3\~4 seconds, focus will be fixed automatically.

◆ REFRESH : 1DAY, 2DAY, 3DAY, 4DAY, 5DAY, 6DAY, 7DAY, OFF

Start lens initializing when you select refresh mode.

◆ INITIAL : ON/OFF

If you press OSD button 3\~4 seconds, Lens Initializing start.

LENS

1. Move the triangular indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left or Right button.

NOTE

MODE ► MODE RETURN INDOOR

* When you select the mode setup, you can select INDOOR, OUTDOOR or DEBLUR depending on the installation environment.
*On manual mode, you can select NORMAL or DEBLUR depending on the installation environment.

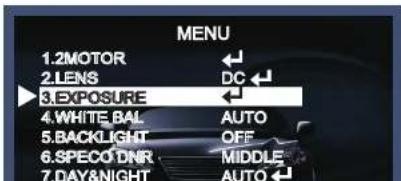

EXPOSURE

1. On the Set Up menu, Select EXPOSURE by using the Up or Down button.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO'DNR 7.DAY&NIGHT AUTO OFF MIDDLE AUTO

◆ BRIGHTNESS : The brightness can be adjusted. The brightness control range is 1\~20.
◆ SHUTTER : DC lens is launched with the setting of 1/30 and the manual lens is launched with the setting of Auto shutter, but the shutter speed can be adjusted from 1/30 to 1/30,000.
→ FLK : Select FLK mode if flickering occurs ; caused by the unmatched frequency of electric light.

NOTE

* Sense-Up mode does not work when Electronic shutter is set to Manual.

INTENSIFY: The bright screen can be displayed by sensing the degree of the darkness automatically under the circumstance of low light condition or at night.
→ Off \~x32 Level Adjustable.
◆ AGC (Auto Gain Control) : The higher the AGC level is, the more noises appear.
→ 0\~20 Level selectable.

White Balance

◆ AUTO : Use this mode when the color temperature is from 2,500k to 9,500k.
◆ AWB : The function to search for the color which is matched well with the ambient environment.
AWC→SET : After letting camera focus on the blank white paper to the best condition of current lighting environment, press the SET button. If the lighting condition is changed, Re-adjustment should be needed.

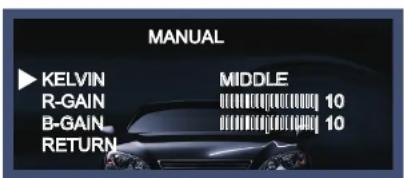

◆ MANUAL : Manual compensation allows for more control. First, after adjusting the white balance using the ATW or AWB mode, change the mode into the manual compensation mode and then press Set button. While looking at the color change of the subject seen on the screen after setting up the proper color temperature, increase the each value of the blue and the red.

MANUAL ▶ KELVIN MIDDLE R-GAIN 10 B-GAIN 10 RETURN

• KELVIN : LOW/MIDDLE/HIGH level adjustable.
• R-GAIN : 0\~20 level adjustable.
• B-GAIN : 0\~20 level adjustable.
• Return: Every function is set up at the EXPOSURE menu, and then return the previous menu.

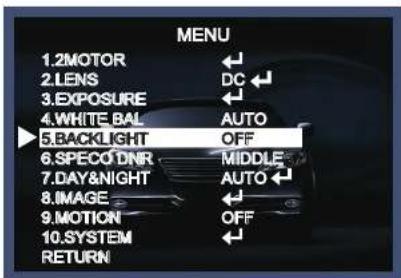

BACKLIGHT

On this menu, backlight image can be compensated by users selecting one of modes. (HLC, BLC, WDR)

1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button.

2. Select the desired mode by using the left or Right button.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

◆ Off : Deactivated status.
◆ HLC : This function is used to surpress or strong light source (for example, headlights of cars during nighttime) so that other subjects can be seen in more detail. If you select HLC, a submenu appears where you can make finer adjustments.

- LEVEL : Adjust the brightness level from which on the light source is to be masked out.

0\~20 level adjustable.

- MODE · All day/night only adjustable

◆ BLC : This function is used to counterbalance the screen image by increasing the brightness so that a subject which appears dark due to a strong backlight can be displayed in more detail. If you select BLC, a submenu appears where you can make finer adjustments.
- H-POS/V-POS/H-SIZE/V-SIZE : Define the position and size of the area of interest by changing the position & size.

BLC H-POS 6 V-POS 4 H-SIZE 5 V-SIZE 3 RETURN ↕

◆ WDR(Only For TVI Output) : The WDR (Wide Dynamic Range) function works to correct excessive light within the frame to produce a usable image. When the image has simultaneous bright and dark areas, it makes both areas distinct. If you select WDR, a submenu appears where you can make finer adjustments.

- WEIGHT [MIDDLE, HIGH, LOW] : Select the WDR level of the camera.

WDR WEIGHT RETURN MIDDLE

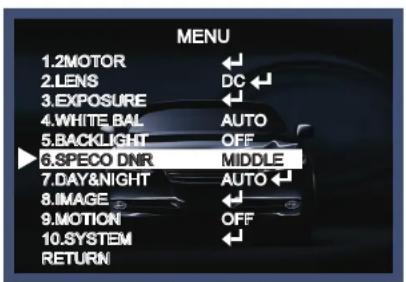

SPECO DNR

This function is used to improve the picture quality by filtering the noise which is generated under low brightness conditions. You can set different levels here.

1. Move the triangular indicator to DNR by using the Up and Down button.
2. Select the mode to use by pressing the left or Right button and LOW/MIDDLE/HIGH level selectable.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

Day&Night

You can change the color mode of color or black / white by setting up the mode.

◆ AUTO : Automatically, It shifts into the color mode in the bright environment and the B/W mode in the low light condition. It can adjust the delay time, starting brightness and end brightness according to the ambient conditions by pressing the Set button.

DAY&NIGHT SMART IR 0 AGC THRES 10 AGC MARGIN 10 DELAY LOW RETURN

• SMART IR : 0\~20 smart IR level adjustable.
• AGC THRES : 0\~20 AGC THRES level adjustable.
• AGC MARGIN : 0\~20 AGC MARGIN level adjustable.
• DELAY [LOW/MIDDLE/HIGH] : Set the delay time for switching between COLOR and B/W

◆ COLOR : Making the video output color always.

◆ B / W : Making the video output B/W always.

DAY&NIGHT SMART IR RETURN 0

CMADT ID · It controls the ID LED (bright portion base), saturation is not expected

- EXTERN S/W [LOW/HIGH] : Set the external signal for switching between COLOR and B/W.

- DELAY [LOW/MIDDLE/HIGH] : Set the delay time for switching between color and B/W .


When selecting, the following submenu will appear.

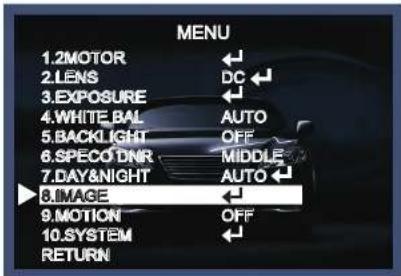

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

Here you can optimize the image quality by adjusting different options.

IMAGE SHARPNESS 10 GAMMA 0.55 COLOR GAIN 10

• D-ZOOM : You can use the digital zoom with x1\~x8 magnification. The higher the digital zoom magnification is, the lower the resolution is.
• ACE [LOW/MIDDLE/HIGH] : Intelligent lighting level control to overcome even strong backlight conditions.
• DEFOG [ON, OFF] : This function helps to recognize the object in a dusty weather condition. ON, a submenu appears where you can make finer adjustments.
• SHADING [ON, OFF] : Compensates the shading effects of lenses when the lens is set to a very wide angle. This function will reduce the brightness difference between the centre and the edges. If you select ON, a submenu appears where you can make finer adjustments.

◆ PRIVACY [ON, OFF] : This is used to hide certain areas on the monitor. You can designate each different 16 area. The size of a designated area can be adjusted. The color of a privacy area can be selected various colors. When you select the return, the setting values in this function menu are saved, then get out of this menu.

PRIVACY ZONE NUM 0 ZONE DISP OFF H-POS 12 V-POS 2 H-SIZE 3 V-SIZE 3 Y LEVEL 10 CR LEVEL 10 CB LEVEL 10 RETURN

MOTION

This function is used to detect moving objects in the monitored area. When choosing ON, the following submenu will appear where you can adjust the settings for the MOTION function.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

MOTION SENSITIVITY 0 DC MODE 0 WINDOW TONE 0 WINDOW USE OFF DET H-POS 1 DET V-POS 1 DET H-SIZE 28 DET V-SIZE 15 RETURN

SYSTEM

This can be used when you want to select the additional function control.

1. When the SETUP menu is displayed, select SYSTEM using the Up and Down button.
2. Select one of the mode using the Up and Down button.

MENU 1.2MOTOR 2.LENS 3.EXPOSURE 4.WHITE_BAL 5.BACKLIGHT 6.SPECO DNR 7.DAY&NIGHT 8.IMAGE 9.MOTION 10.SYSTEM RETURN

SYSTEM COM. IMAGE RANGE USER OUTPUT MODE 1080P COLOR SPACE HD-CbCr FRAME RATE 30 FPS CVBS NTSC LANGUAGE ENG COLOR BAR OFF RETURN

- COM.: This menu is used for RS-485 communication. Users are able to select CAM ID(0\~255) and BAU D RATE (2400/4800/9600/57600/115200).

COM. COM ID 1 BAUDRATE 9600 RETURN

• IMAGE RANGE [FULL/COMP/USER] : Adjust the rate of YC signal to 100%(FULL), 75%(COMP) or
  100%\~75%(USER).
• OUTPUT MODE [720P/720P CROP/1080P] : Choose output type.
• COLOR SPACE [YUV/SD-CBCR/HD-CBCR] : Select different color settings for a warmer or a colder image.
• FRAME RATE [25 FPS/30 FPS] : Choose a frame rate.
• CVBS [PAL/NTSC] : Select the video format that matches the present TV system.
• LANGUAGE : ENG, CHN, CHN(S), JPN, KOR
• COLOR BAR [OFF/ON] : Check current condition with color bar.

Return

Press the Set button in the exit menu to save the current settings and exit the Set Up menu.

• Trouble Shooting

PROBLEM	POSSIBLE CAUSE
Northing appears on the screen.	Check the power cable, power supply output and video connection between the camera and monitor.
The image on the screen is dim.	Are the camera lens or the lens glass dirty?Clean the lens / glass with a soft clean cloth.Adjust the monitor controls, as required.If the camera is facing a very strong light, change the camera position.Adjust the lens focus.
The image on the screen is dark.	Adjust the contrast control of the monitor.If there is an intermediate device, correctly set the 75Ω/Hi-z.
The camera is not working properly and the surface of the camera is hot.	Check the camera is correctly connected to an appropriate regulated power source.
Motion Detection is not activated.	Has MOTION DET been set to ON in the menu?Has MD AREA been properly defined?

LIMITED WARRANTY - VIDEO PRODUCTS

THIS WARRANTY IS VALID ONLY ON PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA AND CANADA. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL USER.

SUBJECT TO CONDITIONS AND EXCLUSIONS FOUND BELOW, THIS PRODUCT IS WARRANTED AGAINST MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE FOLLOWING PERIOD FOR PARTS AND LABOR:

SPECO TECHNOLOGIES CAMERAS .... 5 YEARS

SPECO TECHNOLOGIES IP CAMERAS.... 5 YEARS

SPECO PTZ AND VL CAMERAS.... 1 YEAR

SPECO TECHNOLOGIES MONITORS .... 1 YEAR

IR LEDS .... 90 DAYS

DVRs	5 YEARS
NVRs	5 YEARS
BALANCE OF
SPECO TECHNOLOGIES LINE	1 YEAR

SPECO TECHNOLOGIES WILL REPAIR OR REPLACE (AT OUR DISCRETION) ANY PARTS FOUND TO BE DEFECTIVE FOR THE WARRANTY PERIOD SPECIFIED. WE WILL PROVIDE A REPLACEMENT FOR ANY DEFECTIVE PART.

CONDITIONS

1. YOU MUST OBTAIN A RETURN AUTHORIZATION (RA) NUMBER FOR ANY MERCHANDISE BEING RETURNED TO SPECO TECHNOLOGIES, WHETHER FOR RETURN/EXCHANGE OR REPAIR, WHETHER IN OR OUT OF WARRANTY.

2. THIS WARRANTY WILL BE HONORED ONLY UPON PRESENTATION OF THE ORIGINAL DATED BILL OF SALE OR SALES SLIP.

3. TRANSPORTATION OF THE PRODUCT TO OUR SERVICE DEPARTMENT IS THE RESPONSIBILITY OF THE USER, REPAIRED OR REPLACED PRODUCT WILL BE RETURNED PREPAID DURING THE WARRANTY PERIOD.

4. SPECO TECHNOLOGIES DOES NOT AUTHORIZE ANY INTERNET OR MAIL ORDER PRODUCT SALES. IF A SPECO TECHNOLOGIES PRODUCT IS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR OR OTHER SOURCE, INCLUDING RETAILERS, MAIL ORDER SELLERS AND ONLINE SELLERS. IT WILL NOT BE HONORED OR SERVICED UNDER THE EXISTING SPECO TECHNOLOGIES WARRANTY POLICY ANY SPECO TECHNOLOGIES PRODUCT PURCHASED FROM THESE ONLINE MERCHANTS WILL VOID THE APPLICABLE WARRANTY AND IS INELIGIBLE FOR TECHNICAL SUPPORT. IF YOU HAVE QUESTIONS ABOUT A RESELLER, PLEASE CONTACT SPECO TECHNOLOGIES AT 1-800-645-5516 FOR A LIST OF UNAUTHORIZED DEALERS, VISIT: www.specotech.com/anaauthorized.

EXCLUSIONS

1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE APPROPRIATE Model's INSTRUCTION MANUAL OR PRODUCTS WHICH HAVE BEEN ALTERED, ABUSED, OR HAVE MISSING OR ALTERED SERIAL NUMBERS.

2. THIS WARRANTY SHALL NOT APPLY TO UNCRATING, SETUP, INSTALLATION, OR THE REMOVAL AND REINSTALLATION OF PRODUCTS AFTER REPAIR.

3. THIS WARRANTY SHALL NOT APPLY TO REPAIRS OR REPLACEMENTS NECESSITATED BY ANY CAUSE BEYOND THE RESULT OF MANUFACTURE INCLUDING, BUT NOT LIMITED TO, ANY MALIGN FUNCTION, DEFECTS OR FAILURE CAUSED BY OR RESULTING FROM UNAUTHORIZED SERVICE OR PARTS, IMPROPER MAINTENANCE, MODIFICATION OR REPAIR BY THE USER, ABUSE, MISUSE, NEGLECT, ACCIDENT, FIRE, FLOOD, OR OTHER ACTS OF NATURE, INCORRECT LINE VOLTAGE, DAMAGE OR IMAGE BURNS TO TELEVISION PICTURE TUBES CAUSED BY OR ATTRIBUTABLE TO THE USE OF ANY ACCESSORY, ELECTRONICS GAME OR DEVICE, OR DAMAGE CAUSED TO IMAGE PICKUP DEVICES BY EXCESSIVE LIGHT.

THE PARABAS & ROLLIF OF 11 OTHER PARABAS WARRIERS GROUP NO DAY UTRIOR OF THE RIGHT TO AGNUE FOR THE NW

speco technologies®

200 New Highway
