USER MANUAL Intensifier HT647HRTP Speco Technologies

580 Line Color Dome Camera

Intensifier 2 Series

Wall & Ceiling Mountable

speco technologies®

Please read this manual thoroughly before operation and keep it handy for further reference.

WARNING & CAUTION

CAUTION CAUTION: TO REDUCE THE RISK OF ELLICHE SHOCK DO NOT REMOVE COVER (DR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lighting flash with an arrowhead symbol, within an aquilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (serving) instructions in the literature accompanying the appliance.

INFORMATION This equipment has been tested and found to company with limits for a class a digital device Pursuant to part 16 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. When the equipments operated in a commercial environment, this equipment generates, uses, and Can Radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may Cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which Case the user will be required to correct the interference at his own expense.

WARNING - Change or modification not expressly approved by the manufacturer could void the user's authority to operate the equipment

CAUTION: To prevent electric shock and risk of fire hazards.

DO NOT use power sources other than that specified.

DO NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and should conform to all local codes.

CONTENTS

Package Contents 4

Precautions 5

Camera Installation 6-8

Features 9-10

OSD Menu Tree 11

OSD Menu Details 12-15

Troubleshooting 16-17

Specifications 18

Dimensions 19

Warranty 20

PACKAGE CONTENTS

Please make sure that the following items are included in the package:

1 HT647HRTP Camera
3 Mounting Screws
1 Chameleon Dome Cover
1 Video Test Connector

Please leave this manual with the end-user for future reference.

PRECAUTIONS

• THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED PERSONNEL
  • TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE PROPER POWER CABLE
• DO NOT CLEAN THE DOME COVER WITH AN ABRAISIVE CLEANING MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO CLEAN THE DOME COVER
• THERE ARE NO USER-SERVICEABLE PARTS INSIDE. PLEASE DO NOT DISASSEMBLE THIS CAMERA OTHER THAN TO MAKE INITIAL ADJUSTMENTS
• PLEASE USE A UL APPROVED REGULATED 12 VOLT DC POWER SUPPLY
• PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE TO PREVENT FIRE OR ELECTRICAL SHOCK
• PLEASE INSURE THAT YOUR INSTALLATION AREA CAN SUPPORT THE WEIGHT OF THE CAMERA
• PLEASE HANDLE THIS CAMERA CAREFULLY:
• DON'T USE A STRONG OR ABRASIVE DETERGENT WHEN CLEANING THE CAMERA.
• DON'T EXPOSE THE CAMERA TO DIRECT SUN

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

1. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

1. CONNECT Alarm output (Relay output)

-Connect (+, COM) for Positive activation and (-. COM) for Negative activation of External Alarm Device when Motion Detection is 'ON' in the camera.

Alarm Output

CHAMELEON COVER

If you wish to change the color of the HT647HRTP, place the Chameleon Dome over the camera

3D rendered object with a curved top and a rounded base, shown with an arrow and a close-up of the surface (no text or symbols)

Place the Chameleon Dome over the HT647HRTP and push until it snaps into position.

Notes : Optional painting before installation

* Painting method for the Chameleon Dome

* Spray the color of your choice onto the Chameleon cover
* If necessary, apply a second coat

MECHANICAL

(1) 3.6mm Lens (2) JOY STICK (3) Video Test Terminal

(1) 3.6mm Fixed Lens
(2) JOY STICK
TO SET THE OSD (ON SCREEN DISPLAY), PRESS THE JOY
STICK FOR ONE SECOND AND SET AS DESCRIBED
IN THE MANUAL
(3) VIDEO TEST TERMINAL

FEATURES

High Resolution

Horizontal resolution of 580 TV lines is achieved by using a SONY Super-HAD CCD with 410,000 pixels, and a custom DSP yielding pictures with a high S/N ratio..

INTENSIFIER

1/3inch High-inch density CCD and digital processor permit high quality Pictures to be captured in very low light condition.

SPECO DNR

The Intensifier camera has a DSP chip that can remove image noise efficiently showing clean images in low light conditions.

Motion Detection with Alarm Output

Built in motion detector with adjustable areas of coverage will Send a signal to an external alarm device when motion is detected.

DAY/NIGHT

The Intensifier camera can show color pictures in all lighting conditions, or you can have it automatically switch to a B/W picture in low light conditions

FEATURES

OSD

All camera functions are menu driven for easy use.

SLC

When the image is in front of strong background lighting, your camera allows you to get a clear image.

HLC (High Light Compensation)

This function reverses bright spots in the picture (such as headlights). This enables the entire system to do a better job of resolving and displaying grayscale information such as a license plate.

STABILIZATION

This function removes image jitter that is caused by vibrations in the building and reduces the amount of hard drive space.

PRIVACY

It also has the ability to mask up to 8 areas of the picture where Viewing is not desired. Each zone can be independently programmed via the OSD

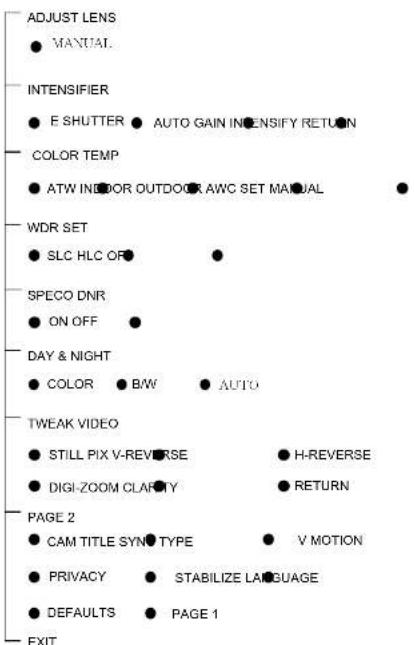

OSD MENU TREE

ADJUST LENS MANUAL INTENSIFIER E SHUTTER AUTO GAIN INSENSIFY RETURN COLOR TEMP ATW INDBOR OUTDOCK AWC SET MANUAL WDR SET SLC HLC OFF SPECO DNR ON OFF DAY & NIGHT COLOR BW AUTO TWEAK VIDEO STILL PIX V-REVERSE H-REVERSE DIGI-ZOOM CLARITY RETURN PAGE 2 CAM TITLE SYND TYPE V MOTION PRIVACY STABILIZE LANGUAGE DEFAULTS PAGE 1 EXIT

OSD MENU DETAILS

1. INTENSIFIER

[OPTION : E SHUTTER / AUTO GAIN / INTENSIFY / RETURN]

- E SHUTTER

* FLK - Flicker-less mode (FLK) reduces on-screen flickering.

* ESC - Electronic Shutter Control (AUTO) adjusts brightness level on screen.

- AUTO GAIN

Adjusts value of AGC gain and increases the GAIN level to brighten the picture. (noise / distortion may develop)

- INTENSIFY: Automatically provides a clear image under low-light conditions. You can control the maximum low-light magnification from 2x to 256x (increasing magnification may cause noise/distortion). This function is deactivated when SHUTTER is set to FLK mode.

2. COLOR TEMP

[OPTIONS : ATW / INDOOR / OUTDOOR / AWC SET / MANUAL]

- ATW

Select Auto Tracking White Balance (ATW) when the color temp. Is 1800°K-10500°K.

-INDOOR

Select this when the color temp. is 4500°K\~8500°K.

- OUTDOOR

Select this when the color temp. is 1800°K \~10500°K

- AWC SET

Set while pointing the camera towards a sheet of white paper.

- Manual

It allows you to increase or decrease the red or blue factor on screen.

OSD MENU DETAILS

3. WDR SET

[OPTION : SLC / HLC / OFF]

- SLC (Speco Light Compensation)

Provides light level control to overcome severe back light conditions.

- HLC (High Light Compensation)

High Light Compensation removes the high light and makes it possible to view the image clearly.

4. SPECO DNR

[OPTION : ON / OFF]

- Reduces noise/distortion on the screen.

Increasing the DNR level reduces noise but may introduce video artifacts.

DNR is deactivated if AGC is turned off.

5. DAY / NIGHT

[OPTION : COLOR / BW / AUTO]

- COLOR : Full time color mode

- BW : Full time black & white mode

- AUTO: Automatically detect color or black/white

6. TWEAK VIDEO

[OPTION: STILL PIX / V-REVERSE / H-REVERSE / DIGI-ZOOM]

CLARITY / RETURN]

- STILL PIX : Freezes the picture on the screen.

- V-REV : Flips the picture vertically on the screen.

- H-REV : Flips the picture horizontally on the screen.

- D-ZOOM : Digital zoom of 1 \~10X.

- CLARITY : Sharpen the image on screen, but excessive sharpening may cause picture noise.

- RETURN : Save the settings and return to the SETUP menu

OSD MENU DETAILS

7. CAM TITLE

[OPTION : ON / OFF]

- Display a name and/or number on the monitor.

8. SYNC TYPE

[OPTION : INT / LL]

- INTERNAL: When external line lock is not required.

- LINELOCK: Adjust the vertical phase (V-P) from 000\~359 (factory default is 0). This function is only available with 24VAC power.

9. V MOTION

[OPTION : ON / OFF]

- When movement is detected, camera sends a signal to an external alarm device.

MOTION DET ▶1 SENSITIVITY AREA1 2 AREA MODE OFF 3 SEL POS L_TOP 4 YPOS ---- 5 5 XPOS ---- 4 6 PILL-SET 7 RETURN#

• SENSITIVITY : Select 8 different Motion Detection area. When sensitivity number is high, it will recognize even small movement.
• AREA MODE : Activate or deactivate the selected area.
• SEL POS : Select setting point from 4 different points, Left-Top, Left-Bottom, Right-Top and Right-Bottom.
• YPOS : Move setting point to vertical direction.
• XPOS : Move setting point to horizontal direction.
• FILL SET : Fills selected area with proper color.

OSD MENU DETAILS

10. PRIVACY

[OPTION : ON / OFF]

- Mask up to 8 areas of the screen.

PRVACY D1 AREA SEL AREA F AREA NONE FIN R MASK COLOR GRAN 4 TRANSP 5 RETURN D RETURN

• AREA SEL : Select up to 8 mask areas.
• AREA mode : Activate or deactivate the selected area.
• MASK COLOR : Select area color.
• TRANSP : Adjust the transparency of selected area.
• RETURN : Save the settings and return to the SPECIAL menu.

11. STABILIZE

[OPTION : ON / OFF]

- Reduces picture movement due to external factors.

12. LANGUAGE

[OPTION : English / Korean / Japanese / Spanish / French]

- Choose the language that should be displayed

13. DEFAULTS

- Restore all factory default settings.

TROUBLESHOOTING

If you have trouble operating your camera, refer to the following

Problem Solution
Nothing appears on the screen.	● Check that the power cord and line connection between the camera and monitor are correct● Check that you have properly connected VIDEO cable to the camera VIDEO output jack.
The image on the screen is dim.	● Is the lens stained with dirt? Clean your lens with soft, clean cloth.● Set the monitor for the proper conditions.● If the camera is exposed to too strong light change the camera position.● Adjust the lens' focus.
The image on the screen is dark.	● Adjust the contrast feature of the monitor.● If you have an intermediate device, set the 750/Hi-z properly.
The camera is not working properly, and the surface of the camera is hot.	● Check that you have properly connected the camera to an appropriate power source.
MOTION DETECTION function is not active.	● Have you set 'MOTION DET.' menu to off?● Have you set 'MD LEVEL' to too low?● Have you set 'MD AREA' properly

TROUBLESHOOTING

Problem Solution
The color of the picture is not proper.	● Check that you have properly set the 'WHITE BALANCE' menu
The image on the screen flickers.	● Is the camera facing to direct sunlight or fluorescent lighting? Change the camera position.

SPECIFICATIONS

ITEM HT647/IRTP
Power Source 12VDC - Regulated
Power Consumption 230mA (DC)
Image Sensor 16", SONY SUPER HAD CCD, 410,000 pixels
Total Pixels 811(H) x 508(V), 13" CCD
Effective Pixels 768(H) x 494(V), 13" CCD
LENS TYPE	Fixed Lens
Maximum Aperture Ratio 1: 1.3~2.0
Scanning System 2: 1 Interlaced 525 Lines / 60 Fields / 30 Frames
Synchronization Internal - Crystal Controlled
Video Output 1.0V [p-p] Composita, 750°
Resolution 580 TV Line
Gain Control AGC-L, AGC-H, OFF selectable
Electric Shutter Spread 160 ~ 1200,000 sec
INTENSIFIER 2 Built-in ( selectable init = X256)
COLOR TEMP (White Balance) ATW / INDOOR / OUTDOOR / AWC SET / MANUAL
Min. Illumination	0.002Lux (intensifier) 0.05Lux (shutter)
S/N (Y signal)	52dB (Weghi On)
SPECO DINR	ON - DYNAMIC / OFF
Motion Dotscion	ON / OFF (8 Programmable Zone)
On Screen Display | O.S.D |	Built - in
PRIVACY Function	ON / OFF (8 Programmable Zone)
Operational Temperature	-29°C ~ +50°C (~ -20 ° ~ -122 °)
Operational Humidity	30% ~90% RH

DIMENSIONS

* SIDE VIEW

HIGH IMPACT DOME 78

* TOP VIEW

DIA 80 DIA 110

WARRANTY

LIMITED WARRANTY

THIS WARRANTY IS VALID ONLY ON PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL USEIL

SUBJECT TO CONDITIONAL AND EXCLUDING FOUND BELOW THIS PRODUCT IS WARRANTED AGAINST MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE FOLLOWING PERIOD FOR PARTS AND LABOR.

SPEED TECHNOLOGIES CAMERAS: 5 YEARS
SPEED TECHNOLOGIES MONITORS: 1 YEAR
BALANCE OF SPEED TECHNOLOGIES LINE: 1 YEAR*
* IR LEDs, Time lapse VCR Drum Assemblies & Heads: 90-DAYS

SPEAK TECHNOLOGIES WILL REPROH REPLACE (AT YOUR DISCRETION) ANY PARTS FOUND TO BE DEFECTIVE FOR THE WARRANTY PERIOD SPECIFIED. WE WILL PROVIDE A REPLACEMENT FOR ANY DEFECTIVE PART.

CONDITIONS

1. YOU MUST OBTAIN A RETURN AUTHORIZATION NUMBER FOR ANY MERCHANDISE BEING RETURNED TO SPECO TECHNOLOGIES, WHETHER FOR RETURN/EXCHANGE OR REPAIR, WHETHER IN OR OUT OF WARRANTY

2. THIS WARRANTY WILL BE HONOPED ONLY UPON PRESENTATION OF THE ORIGINAL DATED BILL OF SALE OR SALES SUP.

3. TRANSPORTATION OF THE PRODUCT TO OUR SERVICE DEPARTMENT IS THE RESPONSIBILITY OF THE REFERENCE ON REPLACEMENT. WILL BE RETURNED PREMIXING THE WARRANTY PERIOD.

EXCLUSIONS

1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE APPROPRIATE WRITTLE OF DISCUITATION MANUAL ON PRODUCTS WHICH HAVE BEEN AS CHED ABOUT OR HAVE MISSING OR ALtered NORMAL NUMBERS.

2. THIS WARRANTY SHALL NOT APPLY TO UNCRATING, SETUP, INSTALLATION, OR THE REMOVAL AND RENINSTALLATION OF PROJECTS, CONTRACTORS.

3. THIS WARRANTY SHALL NOT APPLY TO REPAIRS OR REPLACEMENTS NECESSATED BY ANY CAUSE BEYOND THE RESULT OF MANUFACTURE INCLUDING, BUT NOT LIMITED TO ANY MAFUNCTION, EFFECTS OR FAILURE CAUSED BY OR RESULTING FROM UNAUTHORIZED SERVICE OR PARTS, IMPROPER MAINTENANCE, MODIFICATION OR REPAIRS BY THE USER, ABUSE, MISURE, REFLECT ACIDENT, FIRE, FLOOD, OR OTHER ACTS OF NATRIC, INCORRECT LINE VOLTAGE, DAMAGE OR INJAGE BURDS TO TELEVISION, PICTURE TUBES CAUSED BY OR ATTRIBUTABLE TO THE USE OF ANY ACCESSORY ELECTRONICS GAME OR DEVICE, OR DAMAGE CAUSED TO IMAGE PICKUP DEVICES BY ECESSIVE LIGHT.

THE FORSOING IS IN USE OF ALL OTHER EXPEDATO WARRANTIES AND WE DO NOT AUTHORIZE ANY PART TO ASSUME FOR US ANY OTHER OBLIGATION OR LIABILITY IN NO EVENT SHALL BE BELIABLE FOR INCIDENTAL OR CONSIDENTIAL DAMAGES ARISING FROM THE USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE USE OF THIS PRODUCT DUE TO CAUSES BEYOND OUR CONTROL.

SOME STATES DO NOT ALLOW LIMITATIONS OF HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES. THE ABOVE LIMITATIONS ON IMPLIED WARRANTY AND CONSEQUENTIAL DAMAGES MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH WAY FROM STATE TO STATE

NOTE: FOR YOUR PROTECTION IN THE EVENT OF THEFT OR LOSS OF THIS PRODUCT. PLEASE FILL IN THE INFORMATION REQUESTED BELOW AND RETAIN WITH YOUR SALES RECEIPT.

MODEL NO:

SERIAL NO.

DATE OF PURCHASE

WHERE PLACHASED

FURCHASE PRICE

Speco Technologies

206 NEW HIGHW AMITVILLE NY 1701 www.specotech.com

FOR MORE INFORMATION REGARDING

SERVICE OR RETURN CALL US TOLL FREE: 1800-645-5316 IN METRO NY. 831-957-8700

ALWAYS WE DISCRETION WHEN INSTALLING VIDEO AND/OR AUDIO SURVILLANCE EQUIPMENT (SPECIAL? WHEN THERE IS AN EXPECTATION OF PRINACY, INQUIRE RECAIDING REDERAL, STATE AND/OR LOCAL REGULATIONS APPLICABLE TO THE (AMFUL INSTALLATION OF VIDEO AND/OR AUDIO RECORDS OR SURVEILLANCE EQUIPMENT) MATY CONDUIT MAY BE REQUIRED.
