User Guide (Ver. 1.2)

Models: ZIPKIT4D1

Network Video Recorder and IP Camera

Four identical white surveillance cameras with visible lens and camera heads, shown in a row (no text or symbols)

Cautions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols

This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

This symbol indicates the presence of "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock, property damage, personal injury, or death.

These precautions must be followed for safety reasons

Warning

• Do not use if the unit emits smoke.
• Do not disassemble the unit.
• Do not place any heavy or sharp objects on the unit.
• Do not place on uneven surface.
• Do not expose to shock or vibration.
• Do not move the unit when the unit is powered on.
• Do not block, and allow dust to accumulate in the air vents.
• Do not restrict airflow of the unit; doing so can damage the unit.
• Only qualified and experienced personnel should perform installation and servicing.
• Turn off the power of the ZS when connecting Cameras, Audio or Sensor Cables.
• The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for the product.
• The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the ZS for examination or attempting to repair the unit.

Product Components

Please make sure the following components are included as specified below.

Desktop:NxZS
Bundle IP Camera(PoE) 4 EA
Remote Control
Battery 1.5V (AAA x 2 EA)

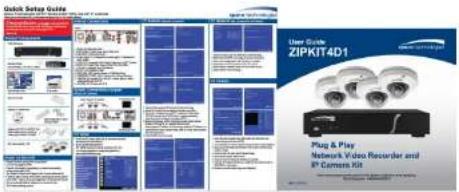

Quick Setup Guide &User Guide
Mouse for NxZS
Software & Manual CD

Specifications

MODEL N4ZS N8ZS(TBD)
Video	Input	IP Cameras 4 8
		Max Bit Rate 20Mbps 40Mbps
		Resolution Max. 1920x1080
	Output	Main Monitor VGA and HDMI
		Sub Monitor CVBS (BNC)
Audio	Input	IP Cam Audio 4 8
		RCA Input 4 4
	Output RCA Output	1
	Audio Codec G.711
Event	Sensor In	IP Cam Sensor	4 8
		Local Input	4 (Terminal Block)
	Local Alarm Output (Terminal Block)		1
	IP Camera Motion Detection		Yes
Serial	RS-232C		Yes
	RS-485		Yes
Network	Private (IP Camera, Auto Connection)		4 Port PoE	8 Port PoE
	LAN (Remote Access, IP Camera)		10/100 Base-T	10/100 Base-T
	Protocols		TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP
	Compression		H.264 (Baseline, Main, High Profile)
	Resolution & Frame Rate	D1	120fps	240fps
		1280x720	120fps	240fps
Features	Dynamic DNS Yes (Free Speco DDNS)
	Digital Zoom Yes
	DLS (Day Light Savings) Yes
	NTP (Network Time Protocol) Yes
	S.M.A.R.T. Yes
	Internal Beep Yes
	Multi-Language Yes
	e-mail Notification Yes
Network Access	3G Mobile iPad / iPhone / Android
	Web Viewer Windows (IE, Chrome, Firefox, Safari), MAC(TBD)
	PC Client Single / Multi Client and CMS (64 channels)
	Remote Setup and Upgrade Yes
Power Power Supply Voltage DC12V 5A & DC48V 2A
Temperature	Operating Temperature	41°F ~ 104°F (5°C ~ 40°C)
	Storage Temperature	14°F ~ 122°F (-10°C ~ 50°C)
Weight	Desktop Unit Weight (Gross weight)	Approximately 12 lbs
Dimension	Unit Dimension (W x D x H)	13.5"W x 10.3"D x 2.5"H

Please note that specifications and unit exterior design are subject to change without notification.

Table of Contents

1. Main Features 10
2. Initial Boot-up Process....11

2-1. Initial Boot up and Basic Time Setup.... 11
2-2. Setting up Daylight Savings Time....12
2-3. Setting NTP (Network Time Protocol)....13
2-4.EZ SETUP 16
2-5. PoE Port SETUP....19
2-6. IP Camera SETUP (through SpecoTech Web Viewer)....20
2-7. Dual Streaming....21

1. Front and Rear Panels 22

3-1. Desktop Front Panel 22
3-2. Connectors 22

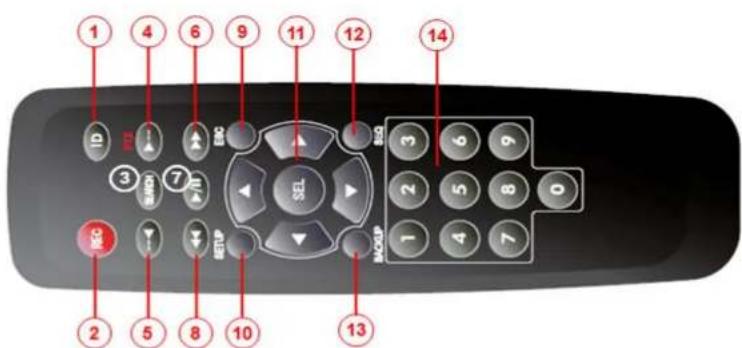

3-3. Remote Control....23

1. Setting up the ZS....24

4-0. Setup – Main Live Screen 24
4-1. Setup - IP CAMERA....25

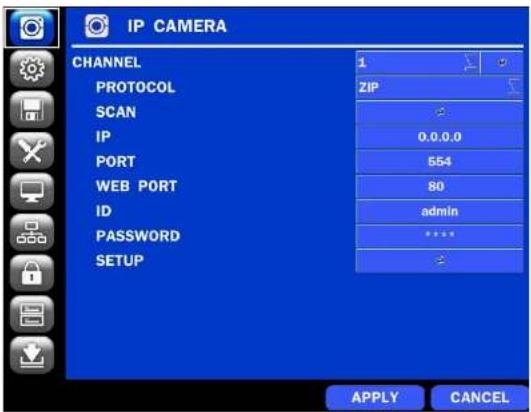

4-1-1. SCAN Menu....27

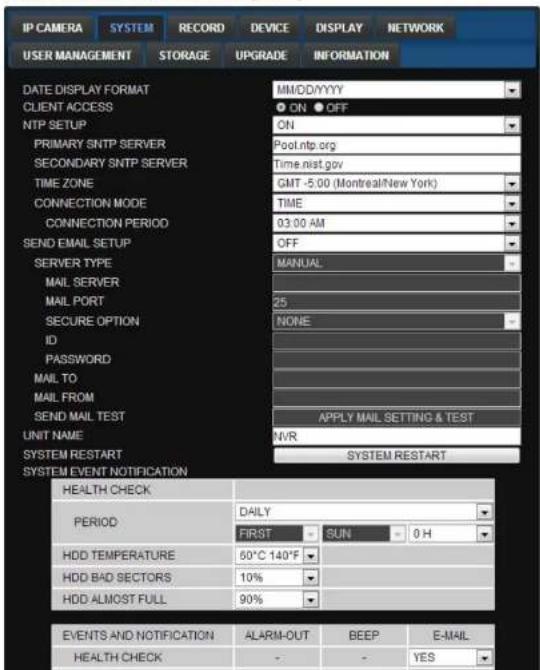

4-2. Setup - SYSTEM....28
4-3. Setup - RECORD Mode 32
4-4. Setup - DEVICE Mode 34
4-4-1. Digital Deterrent....36

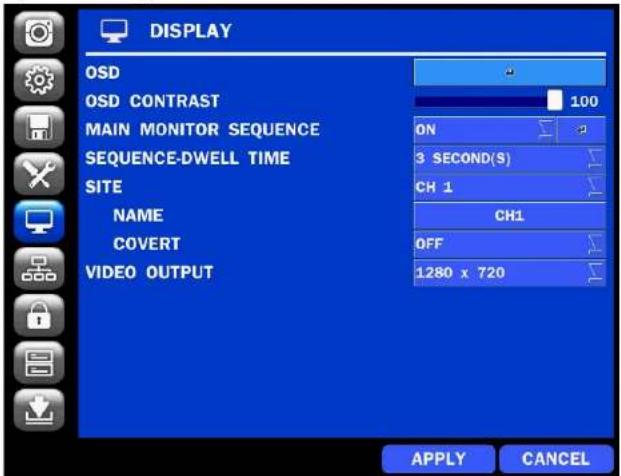

4-5. Setup - DISPLAY Mode 37
4-6. Setup - NETWORK Mode....38
4-6-1. Network Types....39

5-3-5. Go To Last Time....55
5-3-6. Go To Specific Time ....55
5-3-7. Archive List .... 55
5-3-8. Log List....56
5-4. Play Mode....56

1. Back Up....58

6-1. Video Backup onto USB Flash Drive during playback 58
6-2. EZCopy: Video Backup onto USB Flash Drive during playback....59
6-3. Transferring Still Images or Video from the ARCHIVE List....60
6-4. Playback of Backup Video....61
6-5-1. AVI Format....61
6-5-2. NSF Format....61

1. Network Access Using the Multi-Sites Network Viewer 62

7-1. Overview....62
7-2. PC Requirements....62

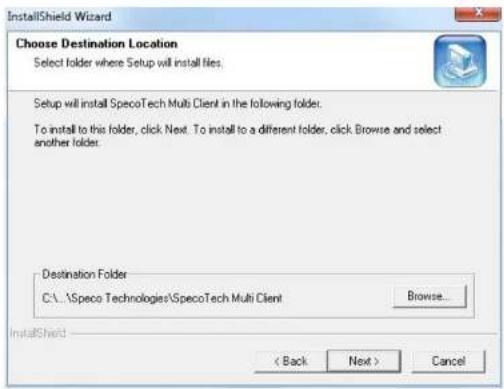

7-3. Installation of the Program 63

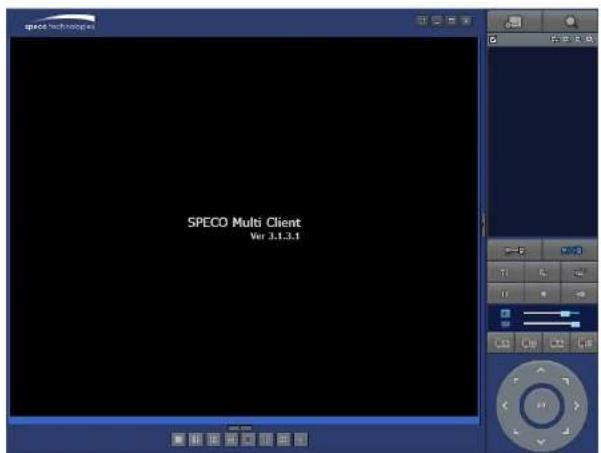

7-4. Live Window....64
7-4-1.Main User Interface....64
7-4-2. Control Buttons....64
7-5. Search and Playback Window....65
7-5-1.Main User Interface....65
7-5-2. Main Control Panel 66

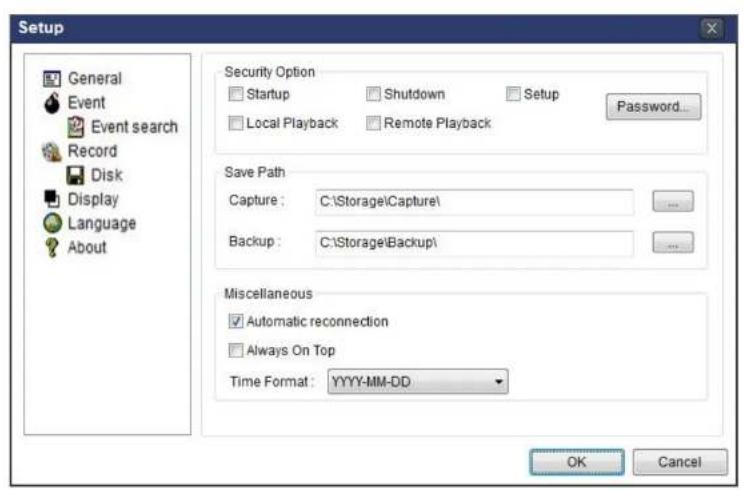

7-6. Setup of SpecoTech Multi Client....67
7-6-1. General 67
7-6-2. Event 68

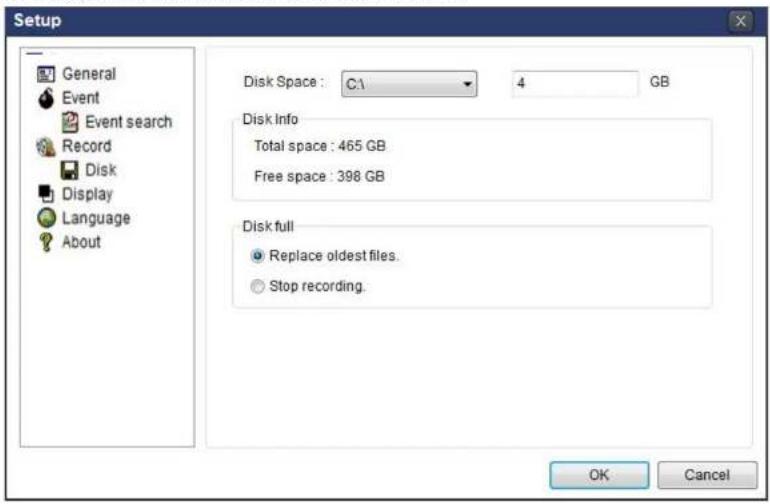

7-6-3. Record....69

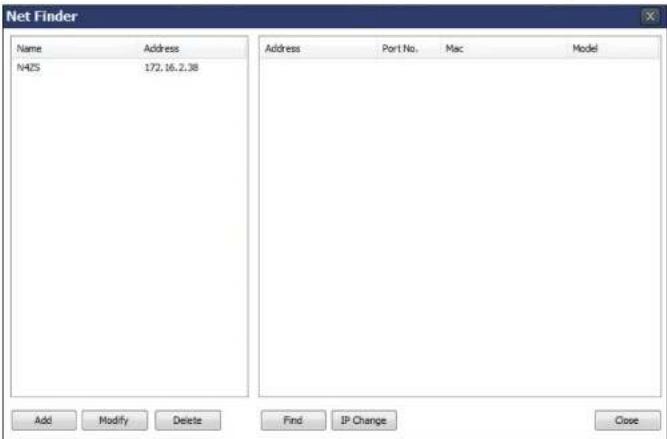

7-8-1. Addition, Delete, and Modify ZS Sites 82

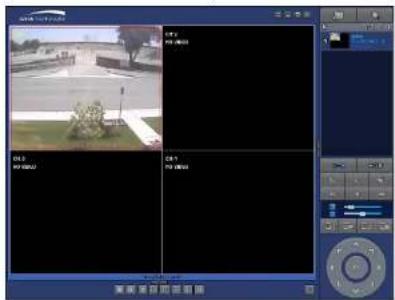

7-8-2. Connect and Disconnect....84

7-8-3. Still-Image Capture During Live....85

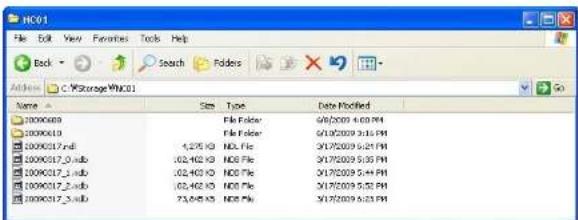

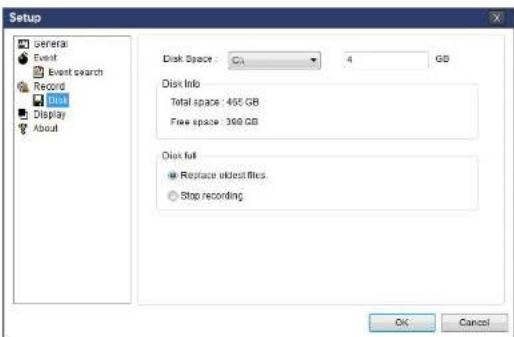

7-8-4. Recording Video on Local PC During Live 85

7-8-5. Local Playback and Remote Playback 87

7-8-6. AVI Backup during Playback 89

7-9. ZIP IP Camera Setup....91

7-9-1. Live View 91

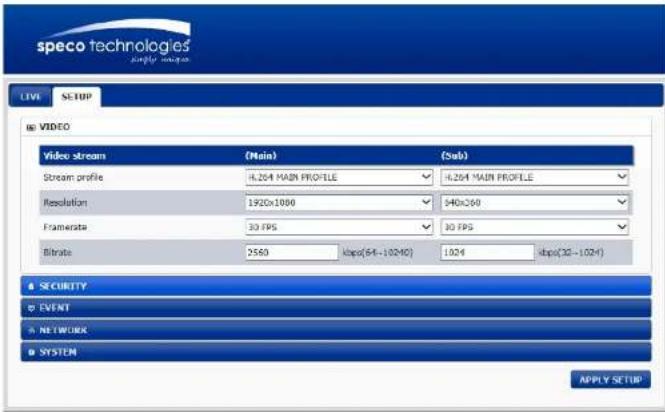

7-9-2. Video 92

7-9-3. Security....92

7-9-4. Event 93

7-9-5. Network 93

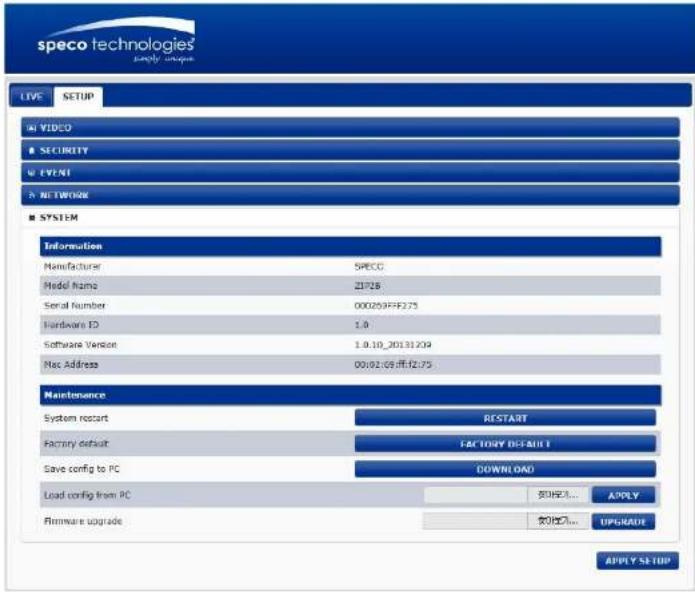

7-9-6. System....94

1. Network Access Using SpecoTech Web Viewer....96

2. Network Access Using the Smart Phone Viewer 98

9-1. App Viewer for iPhone....98

9-1-1. Live 98

9-1-2.PTZ Control 100

9-1-3. Playback....100

9-2. App Viewer for Android Phone....101

9-2-1. Live....101

9-2-2. Playback....102

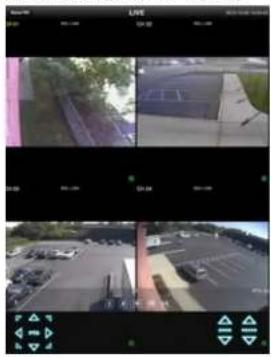

9-2-3. PTZ Control 103

APPENDIX: Network Connection - LAN....103

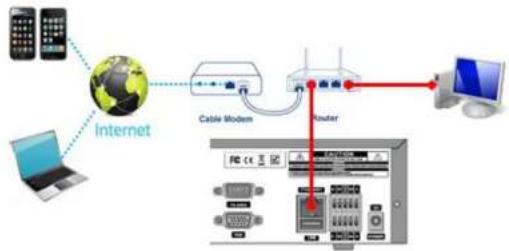

APPENDIX: Network Connection – Internet and DDNS....106

1. Main Features

■ Automatic IP Camera Detection and connection (Plug & Play)
■ Easy Record, Copy and Setup
■ Easy Search by Thumbnail Preview
■ Easy Copy
■ Easy Network
■ Easy IP Camera Setup

NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18 U.S.C. § 2510, et seq.), and the Foreign Intelligence Surveillance Act of 1978 (50 U.S.C. 1801, et seq.) permit government agents, acting with the consent of a party to a communication, to engage in warrantless interceptions of telephone communications, as well as oral and electronic communications.

■ Covert camera operation provides enhanced security and administrator control
■ Dynamically programmable recording priority, motion detection, alarms and scheduling
■ Simple and Easy Graphic User Interface
■ Simple Scheduler
■ HDMI Output
■ VGA Output
■ Password to secure installation authorization
■ Network software supports 10/100Mbps
■ USB 2.0 port for video clip exporting and easy firmware upgrade via USB Flash Drive

2. Initial Boot-up Process

2-1. Initial Boot up and Basic Time Setup

1. During the first boot up, the following logo will be displayed.

speco technologies

1. After the logo, select the language and set date and time as specified below.

CHOOSE LANGUAGE ENGLISH < PREV NEXT > CLOSE

Initializing system It may take a few seconds or minutes to check the system 90% Initialize Network....Done

Select EZ Setup EZ Setup will help you to setup your NVR.

2-2. Setting up Daylight Savings Time

To enable Daylight Saving feature/NTP synchronization, take the following steps.

1. Enter the SETUP mode. The default Username is "ADMIN" and Password is "1111".

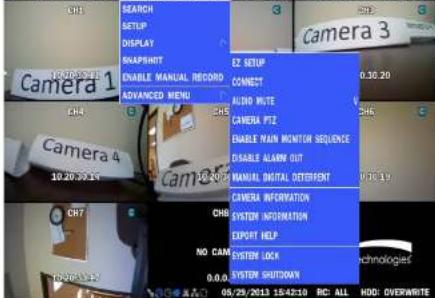

SEARCH SETUP DISPLAY MAP/SHUT ENABLE MANUAL RECORD ADVANCED MENU CX2 SETUP CONNECT AUDIO NOTE CAMERA PTE ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERPRET CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP SYSTEM LOCK SYSTEM SHUTDOWN 05/29/2013 15:43:10 RC: ALL HOD: OVERWRITE

LOGIN - SETUP USER ADMIN PASSWORD OK CANCEL

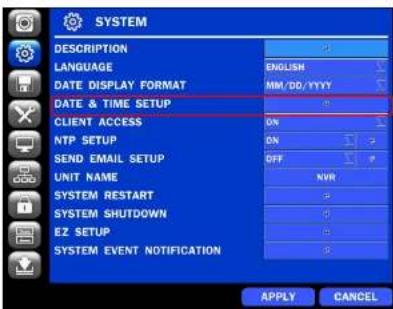

1. Go to SETUP > SYSTEM > DATE & TIME SETUP

SYSTEM DESCRIPTION LANGUAGE DATE DISPLAY FORMAT DATE & TIME SETUP CLIENT ACCESS NTP SETUP SEND EMAIL SETUP UNIT NAME SYSTEM RESTART SYSTEM SHUTDOWN EZ SETUP SYSTEM EVENT NOTIFICATION ENGLISH MM/DD/YYYY ON ON OFF NVR 5 5 5 5 5 5 APPLY CANCEL

1. Select ON from the DAVI LIGHT SAVING dropdown menu

2-3. Setting NTP (Network Time Protocol)

1. SETUP > SYSTEM > NTP SETUP > ON

SYSTEM DESCRIPTION LANGUAGE DATE DISPLAY FORMAT DATE & TIME SETUP CLIENT ACCESS NTP SETUP SEND EMAIL SETUP UNIT NAME SYSTEM RESTART SYSTEM SHUTDOWN EZ SETUP SYSTEM EVENT NOTIFICATION ENGLISH MM/DB/YYYY ON OFF NVR APPLY CANCEL

1. Select the proper TIME ZONE time.

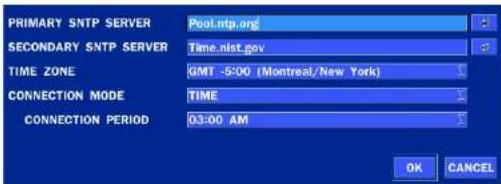

PRIMARY SNTP SERVER Pool.ntp.org SECONDARY SNTP SERVER Time.nlst.gov TIME ZONE GMT -5:00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM OK CANCEL

Table2.3.1. GMT Time Zone

State	Standard Time Daylight-Saving Time
AL Alabama	GMT-6 GMT-5
AK Alaska	GMT-9 GMT-8
AK	Alaska (Alouitan Islands)	GMT-10	NA

IL Illinois GMT-6 GMT-5
IN Indiana GMT-5 GMT-4
IN Indiana (SW / NW) GMT-6 GMT-5
IA Iowa GMT-6 GMT-5
KS Kansas GMT-6 GMT-5
KS Kansas (W) GMT-7 GMT-6
KY Kentucky (E) GMT-5 GMT-4
KY Kentucky (W) GMT-6	GMT-5
LA Louisiana	GMT-6 GMT-5
ME Maine GMT-5	GMT-4
MD Maryland	GMT-5 GMT-4
MA Massachusetts	GMT-5 GMT-4
MI Michigan	GMT-5 GMT-4
MI Michigan (W)	GMT-6 GMT-5
MN Minnesota GMT-6	GMT-5
MS Mississippi	GMT-6 GMT-5
MO Missouri	GMT-6 GMT-5
MT Montana	GMT-7 GMT-6
NE Nebraska	GMT-6	GMT-5
NE Nebraska (W)	GMT-7 GMT-6
NV Nevada	GMT-8 GMT-7
NH New Hampshire	GMT-5 GMT-4
NJ New Jersey	GMT-5 GMT-4
NM New Mexico GMT-7 GMT-6
NY New York GMT-5	GMT-4
TX Texas (W) GMT-7 GMT-6
UT Utah GMT-7 GMT-6
VT Vermont GMT-5 GMT-4
VA Virginia GMT-5 GMT-4
WA Washington GMT-8 GMT-7
WV West Virginia GMT-5 GMT-4
WI Wisconsin	GMT-6 GMT-5
WY Wyoming	GMT-7 GMT-6

NOTE: If you want the unit to automatically synchronize the local time, the Time Zone must be properly set according to your local time zone.

2-4. EZ SETUP

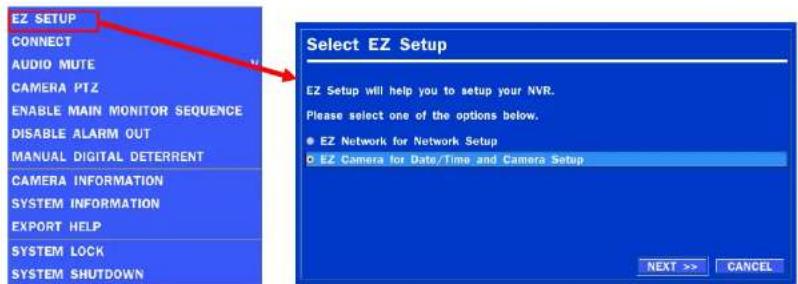

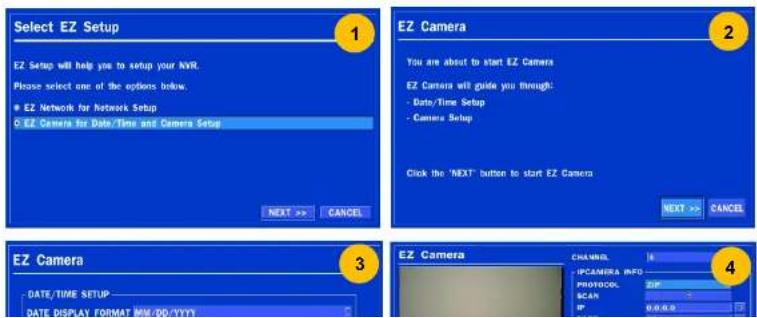

Quick installation Menu for ZS and IP Camera Easy installation(Right-Click on the Main Screen)

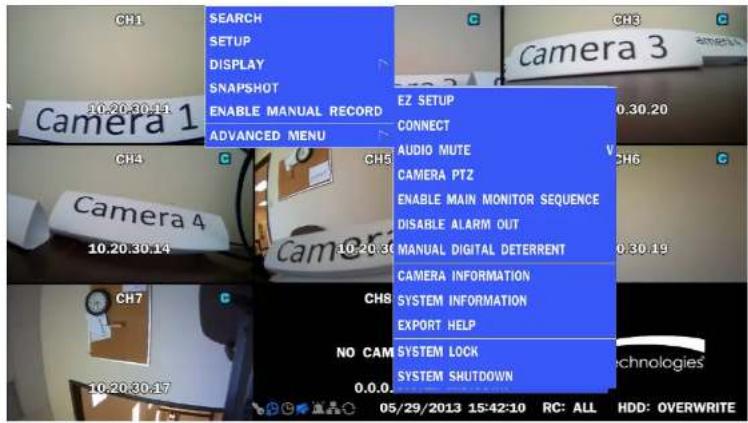

EZ SETUP CONNECT AUDIO MUTE CAMERA PTZ ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP SYSTEM LOCK SYSTEM SHUTDOWN Select EZ Setup EZ Setup will help you to setup your NVR. Please select one of the options below. ● EZ Network for Network Setup ○ EZ Camera for Date/Time and Camera Setup NEXT >> CANCEL

Figure 2.4. EZ Setup Screen

2.4.1. Setup DATE & TIME, IP CAMERA configurations.

Select EZ Setup EZ Setup will help you to setup your NVR. Please select one of the options below. • EZ Network for Network Setup • EZ Camera for Date/Time and Camera Setup NEXT >> CANCEL EZ Camera You are about to start EZ Camera EZ Camera will guide you through: - Date/Time Setup - Camera Setup Click the 'NEXT' button to start EZ Camera NEXT >> CANCEL EZ Camera - DATE/TIME SETUP - DATE DISPLAY FORMAT MM/DD/YYYY CHANNEL INFO IPCAMERA INFO PROTOCOL 20F SCAN 3 P 0.0.0.0

2.4.2. EZ NETWORK (Using an internet connection)

EZ NETWORK Internet Connection Is your DVR connected to the Internet? O Yes (I will use an Internet connection)

No (I will not use an Internet connection)

NEXT 22 CANCEL

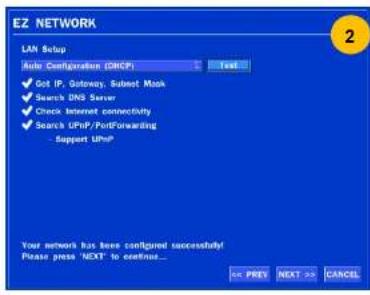

EZ NETWORK LAN Setup Auto Configuration (DHCP) ✓ Got IP, Gateway, Subset Mask ✓ Search DNS Server ✓ Check Internet connectivity ✓ Search UPnP/PortForwarding - Support UPnP* Your network has been configured successfully! Please press "NEXT" to confirm... ec PREY Next >> CANCEL

EZ NETWORK LAN Setup Manual Configuration (STATIC) Test IP Address 172.16.2.88 Socket Mask 205.255.0.0 Gateway 172.16.1.284 DNS (Primary) 368.136.63.1 DNS (Secondary) 388.136.63.2 ✓ Check Internet connectivity ✓ Search LIPvP/Performforming - support IPvP Your network has been configured successfully! Please press "NEXT" to continue... << PREV NEXT >> CANCEL

EZ NETWORK DONS Setup ENABLE DONS OFF HOST NAME NetName HOST DOMAIN NAME Netname.dmn.spcodems.net SUBMIT/LUPDATE OFF

EZ NETWORK You have now completed your network setup. Click the 'FINISH' button to finish EZ Network,

2.4.3. EZ NETWORK setting (Not using Internet connection)

EZ NETWORK Internet Connections Is your DVI connected to the Internet? • Yes (I will use an Internet connection) • No (I will not use an Internet connection) NEXT >> CANCEL

EZ NETWORK LAN Setup Auto Configuration (DHCP) Test ✓ Get IP, Gateway, Subset Mask ✓ Search DNS Server Your network has been configured successfully! Please press 'NEXT' to continue... << PRET Next >> CANCEL

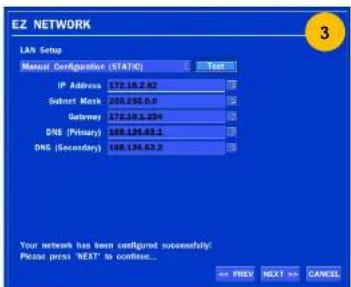

EZ NETWORK LAN Setup Manual Configuration (STATIC) Text IP Address 172.18.2.62 Subnet Mask 255.095.0.0 Gateway 172.18.3.254 DNS (Primary) 168.126.63.3 DNS (Secondary) 168.126.63.3 Your network has been configured successfully! Please press 'NEXT' to continue... = PREY NEXT > CANCE

EZ NETWORK DONS Setup ENABLE DONS OFF HOST NAME Instrames HOST DOMAIN NAME Instrames.else.specadmin.net SUBMIT/UPDATE OFF

EZ NETWORK You have now completed your network setup. Click the FINSIF Button to finish EZ Network.

2-5. PoE Port SETUP

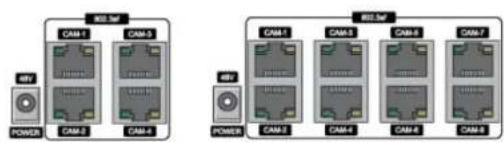

LED Perf CAM-1 CAM-3 Power CAM-2 CAM-4 LED Perf CAM-1 CAM-3 CAM-5 CAM-2 CAM-4 CAM-6 CAM-3 CAM-4 CAM-6 CAM-4 CAM-5 CAM-6 CAM-5 CAM-4 CAM-6 CAM-6 CAM-5 CAM-6 CAM-7 CAM-4 CAM-6 CAM-8 CAM-5 CAM-6 CAM-9 CAM-4 CAM-6 CAM-10 CAM-5 CAM-6

Figure 2.5. PoE Port (N4ZS/N8ZS(TBD))

2.5.1 Connecting the Camera

• The ZS Series features a "Plug and Play" function with a PoE Switch.
- The "Plug and Play" functionality requires the IP Camera to be in DHCP mode.
• The ZS automatically assigns an IP Address to the IP Camera. (192.168.78.11 \~ 254)
- The ZS models will automatically map the camera on the PoE Port to the corresponding ZS channel number.

Figure 2.5.2. Incorrect connection with the PoE Ports

With the ZS Models, it is prohibited to connect a router to the POE Ports to connect the IP Camera, the ZS will not be able to find and connect to the camera. The LAN Port can be connected to a router, but not the PoE Ports.

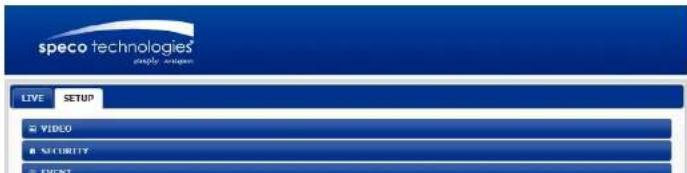

2-6. IP Camera SETUP (through SpecoTech Web Viewer)

ZS Series allows remote access to the IP Cameras through "IP Camera Setup" menu in SpecoTech Web Viewer.

2018.11.19 10:58:38 7:25:2:30 Export Rate High Quality Normal Quality Business Only B Camera Setup Cn-1 Cn-2 Cn-3 Cn-4 Cn-3 NO VIDEO Cn-4 NO VIDEO

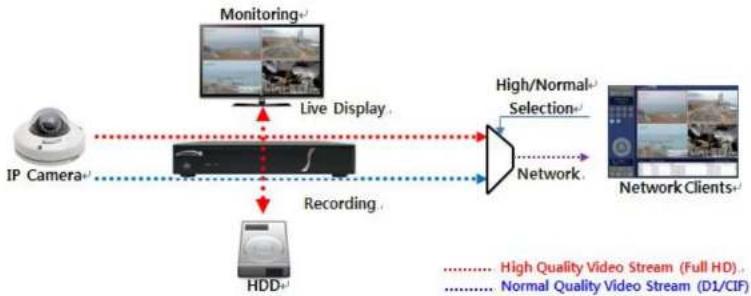

2-7. Dual Streaming

• High Quality (Main Profile) Video Stream is used for both Recording and Live Display.
- High Quality (Main Profile) Video Stream can be viewed through the network, when selected.
• Normal (Secondary) Quality Video Stream is used by default when viewing through the network.

3. Front and Rear Panels

3-1. Desktop Front Panel

Space technology ZS 100 200 400

Figure 3.1.1. Desktop ZS Front panel

Table 3.1.1. Front LED and Port of ZS

Name Description

POWER LED light is on when power is applied to the system.

HDD LED light is on when the system is recording video data.

USB Port This USB port is for archiving footage into a USB device. (USB 2.0)

3-2. Connectors

• Do not power this system on before all the connections are completed.
• Make sure all the connections are properly secured. Faulty connection may result in the system being damaged.

1 2 3 4 5 6 N4ZS 7 8 9 10 11

3-3. Remote Control

1 4 6 9 11 12 14 3 5 7 M SEL BND SETUP MOUP 1 2 5 8 10 13

① ID: Used to set up the remote control ID.
② REC: To enable or disable manual recording mode.
③ SEARCH: Goes to SEARCH menu for playback options.
④ F/ADV:

• During Playback – Moves the playback forward by 60 seconds.
• During Pause – Moves the playback forward by 1 frame.

⑤ F/REW:

• During playback – Moves the playback backward by 60 seconds
• During Pause – Moves the playback backwards by 1 frame.

⑥ FF: Increases playback speed (fast forwards).

(7) PLAY/PAUSE: To play or to pause the recording in playback mode

4. Setting up the ZS

The following sections detail the initial setup of the ZS.

Menu screen will close if user input is not received within 5 minutes.

4-0. Setup - Main Live Screen

To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the remote control.

SEARCH SETUP DISPLAY SNAPSHOT ENABLE MANUAL RECORD ADVANCED MENU EZ SETUP CONNECT AUDIO MUTE CAMERA PT2 ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP NO CAM SYSTEM LOCK SYSTEM SHUTDOWN 0.0.0 05/29/2013 15:42:10 RC: ALL HDD: OVERWRITE

Table 4.0.1. Live Screen and Quick Operation Window

4-1. Setup - IP CAMERA

Press the SETUP button and enter the password. The IP Camera setup menu is displayed below.

IP CAMERA CHANNEL 1 ZIP PROTOCOL SCAN IP 0.0.0.0 PORT 554 WEB PORT 80 ID admin PASSWORD **** SETUP APPLY CANCEL

Figure 4.1.1. IP Camera mode setup screen
Table 4.1.1. Menu items in IP CAMERA mode setup
Item Description

CHANNEL

To manually connect each camera, click on the ☐ to get this window:

	PROTOCOL	SCAN	IP	PORT	WEB PORT	OTHERS
1	ZIP		0.0,0.0	554	80

IP PORT WEB PORT 192.168.78.11 554 80 Camera Scanning has been completed. REFRESH REGISTER CANCEL

IP: Enter the address of IP camera to connect, or select from scanned list.

PORT: Enter the port number of IP camera to connect

WEB PORT: Enter the web port number of IP camera to connect

OTHERS: Change the IP camera setting. Double click the empty box and then Log-In box will be pop-up. (Enter ID and PASSWORD of IP Camera)

ID admin PASSWORD **** OK

PROTOCOL Select the Brand of the Camera.

SCAN Automatic IP Camera Search the network. for IP Camera

IP Enter the IP Address of the desired Camera.

PORT Enter the Camera stream Port Number (default: 554)

WEB PORT Enter the Camera Web Port Number (default: 80)

ID Enter the User ID for access to the IP Camera

4-1-1. SCAN Menu

IP CAMERA CHANNEL 1 ZIP SCAN IP 0.0.0.0 PORT 554 WEB PORT 80 ID admin PASSWORD **** SETUP APPLY CANCEL IP PORT WEB PORT 192.168.78.11 554 80 Camera Scanning has been completed. REFRESH REGISTER CANCEL

Figure 4.1.2 IP CAMERA Setup Screen
Figure 4.1.3 Search IP Camera Screen

① Select the specific manufacturer of IP Camera and then on click the scan button
② Select the camera on the list and then click the register button.
③ After the registration is completed, the basic information is to be displayed.

4-2. Setup - SYSTEM

In the SETUP menu, select the SYSTEM tab. Then, the SYSTEM menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

SYSTEM DESCRIPTION LANGUAGE DATE DISPLAY FORMAT DATE & TIME SETUP CLIENT ACCESS NTP SETUP SEND EMAIL SETUP UNIT NAME SYSTEM RESTART SYSTEM SHUTDOWN EZ SETUP SYSTEM EVENT NOTIFICATION ENGLISH MM/DD/YYYY ON OFF NVR APPLY CANCEL

Figure 4.2.1. SYSTEM Setup Screen
Table 4.2.1. Menu Items in SYSTEM Setup Screen

Item Description

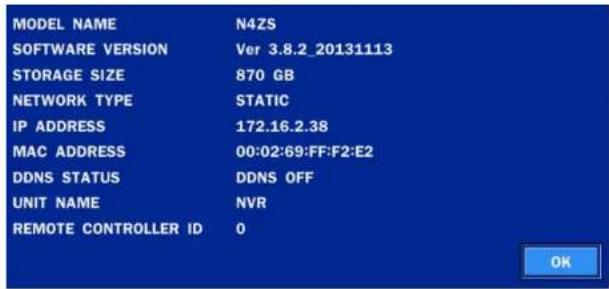

DESCRIPTION Press the button to view the system information. (Software Version, Storage Size, IP Address, MAC Address and DDNS Status)

MODEL NAME	N4ZS
SOFTWARE VERSION	Ver 3.8.2_20131114
STORAGE SIZE	870 GB

Select DAYLIGHT SAVINGS using the mouse or the remote control and select the appropriate daylight savings time zone. The options are:

OFF: Daylight saving is turned off.

USA: Applies the USA daylight saving time.

EU: Applies the EU daylight saving time.

• Select the GMT AREA using the mouse or the remote control.
• Set the time difference with the standard time using the mouse or the button.

OTHERS: If the time zone is neither USA nor EU, set the date and time of the daylight saving period.

- Select BEGIN or END.

Caution

• Do not set the start time to 23:00 for DLS.
• DLS cannot be applied if the date of BEGIN and END is the same.

CLIENT

Enable/Disable remote access through the network.

ACCESS

NTP

SETUP

NTP (Network Time Protocol) which synchronizes the time of the computer systems over variable-latency data networks.

PRIMARY SNTP SERVER Pool.ntp.org SECONDARY SNTP SERVER Time.nist.gov TIME ZONE GMT -5:00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM OK CANCEL

PRIMARY SNTP SERVER: Input the address of the primary NTP time-server.

SYSTEM TIME: Mon Oct 10 13:46:49 2011

SERVER TIME: Mon Oct 10 13:33:12 2011

ZS ID: ZS

IP ADDRESS: 172.16.2.46"

SEND EMAIL

SERVER TYPE MAIL SERVER MAIL PORT SECURE OPTION ID PASSWORD MAIL TO MAIL FROM MANUAL 25 NONE TEST OK CANCEL

SERVER TYPE: Select GMAIL, HOTMAIL, AOL, YAHOO or MANUAL)

MAIL SERVER: Enter the appropriate mail server information.

MAIL PORT: Assign Mail Port number.

SECURE OPTION: Select the secure mail server connection method. (SSL or TLS)

ID: Enter the appropriate mail server ID.

PASSWORD: Enter the appropriate mail server PASSWORD

MAIL TO: Enter the appropriate email address to enable sending e-mail reports using a

virtual keyboard.

MAIL FROM: To set the email address sent to the destination host.

TEST : E-mail settings sent a test mail to the registered account

UNIT NAME Name the 7S (e.d. Factory)

HEALTH CHECK - OFF, ON

(Allows the user to set MAIL STATUS periodically) : DAILY or WEELY or MONTHLY

PERIOD DAILY FIRST SUN 0 H OK CANCEL

EVENT AND NOTIFICATION - OFF, ON

(Allows the user to set EVENT NOFICIATION ON or OFF)

HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD

- Enable Email Notification in the event a problem occurs with the ZS.

4-3. Setup - RECORD Mode

In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

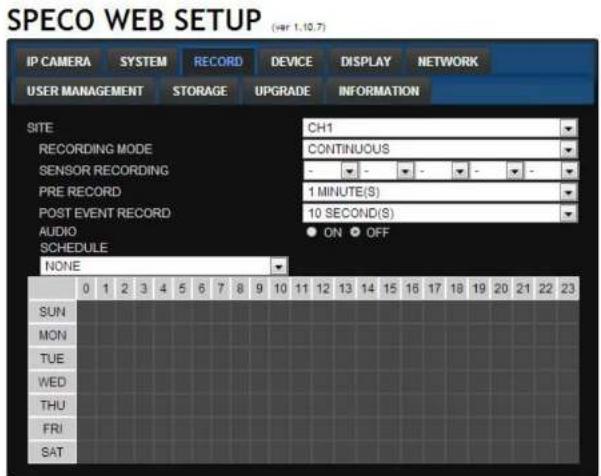

RECORD SITE CH 1 RECORDING MODE CONTINUOUS SENSOR RECORDING PRE RECORD 1 MINUTE(S) POST EVENT RECORD 10 SECOND(S) AUDIO OFF SCHEDULE APPLY CANCEL

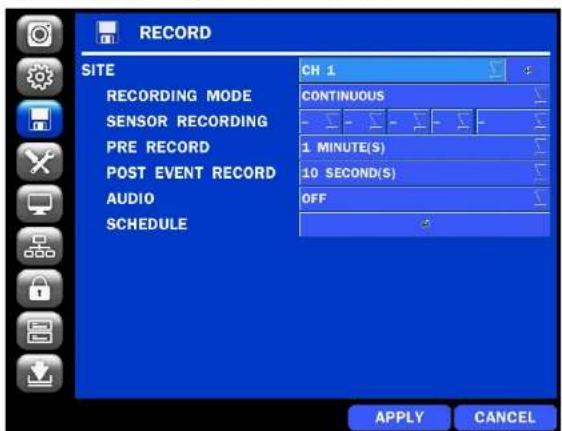

Figure 4.3.1. RECORD Setup Screen
Table 4.3.1. Menu Items in RECORD Setup Screen

Menu Item Description

SITE Select a channel for applying the following settings using the mouse or the remote

control. To change the values of all channels, take the following steps. Select the

button to change the values of all channels.

AUDIO Enable/disable audio recording for the specified channel.

SCHEDULE To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the menu items or change the settings using the mouse or the remote control.

Select CHANNEL > select NONE, CONTINUOUS, MOTION or SENSOR > Highlight area

To copy a schedule to a different channel, select the channel from the COPY SCHEDULE menu.

CHANNEL 1 NONE CONTINUOUS MOTION SENSOR CLEAR 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT COPY SCHEDULE CH 1 CH 2 CH 3 CH 4 ALL COPY OK CANCEL

Figure 4.3.2. Schedule Recording Setup Screen

• NONE: Disable recording during selected timeframe (Highlighted in White)
• CONTINUOUS: CONTINUOUS recording (Highlighted in Green)
• MOTION: MOTION recording (Highlighted in Yellow)

4-4. Setup - DEVICE Mode

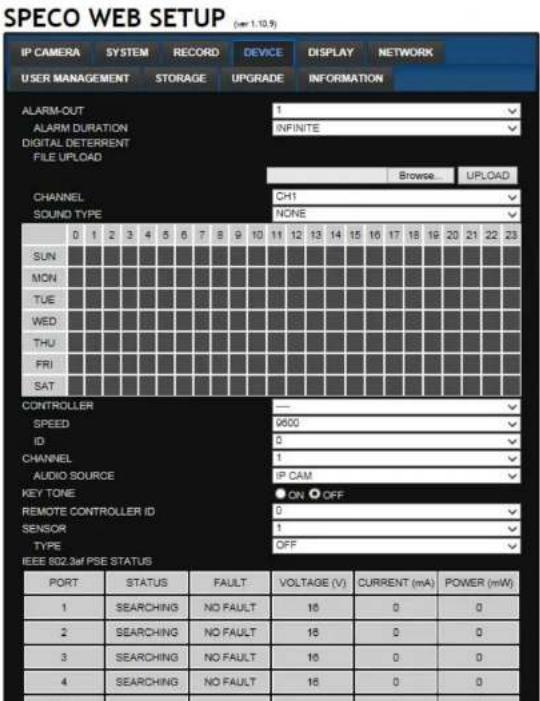

In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

DEVICE ALARM-OUT/BEEP DURATION DIGITAL DETERRENT CONTROLLER SITE AUDIO SOURCE KEY TONE REMOTE CONTROLLER ID SENSOR TYPE IEEE 802.3af PoE STATUS CH 1 IP CAM OFF 0 1 OFF 3 APPLY CANCEL

Figure 4.4.1. DEVICE Setup Screen

Table 4.4.1. Menu Items in DEVICE Setup Screen

Item Description
ALARM OUT	Only one Alarm-out is available.
/ BEEP DURATION	Set alarm dwell time from 5 to 60 seconds or infinite.

The options are from 0 to 99

SENSOR Select the type of each sensor.

Option is Off, Normal Open or Normal Close.

IEE 802.3af POE

STATUS

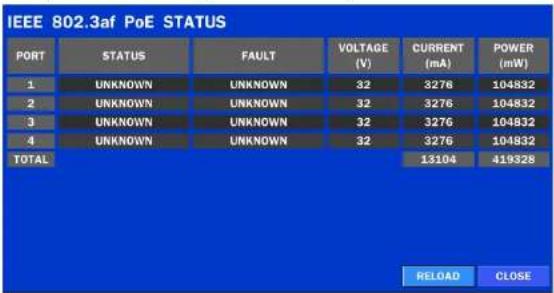

POE (Power Of Ethernet) Status Monitoring Menu

IEEE 802.3af PoE STATUS PORT STATUS FAULT VOLTAGE(V) CURRENT(mA) POWER(mW) 1 UNKNOWN UNKNOWN 32 3276 104832 2 UNKNOWN UNKNOWN 32 3276 104832 3 UNKNOWN UNKNOWN 32 3276 104832 4 UNKNOWN UNKNOWN 32 3276 104832 TOTAL 13104 419328 RELOAD CLOSE

4-4-1. Digital Deterrent

Trigger audio message via motion detection or sensor.

IMPORT FROM USB ... EXPORT TO USB ... RECORD ... SCHEDULE ... OK

Figure 4.4.2. Digital Deterrent setup screen

Table 4.4.2. Item for Digital Deterrent Setup Screen

Item Description

IMPORT FROM USB Import up to 8 sound files from USB.

EXPORT TO USB Export the sound file to USB

RECORD Select a channel and set up the date and the duration.And, select the sound file to play.

4-5. Setup - DISPLAY Mode

In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. To return to the previous setup menu screen, press the ESC button.

DISPLAY OSD OSD CONTRAST MAIN MONITOR SEQUENCE SEQUENCE-DWELL TIME SITE NAME COVERT VIDEO OUTPUT 100 ON 3 SECOND(S) CH 1 CH1 OFF 1280 x 720 APPLY CANCEL

Figure 4.5.1. DISPLAY Setup Screen
Table 4.5.1. Menu Items in DISPLAY Setup Screen

Item Description

OSD Enable/Disable on-screen-display.

SEQUENCE Set the dwell time of each,

DWELL TIME single channel display in sequential display mode (3\~60 seconds)

SITE Select a channel to apply the name and covert settings change using the

mouse or the remote control.

Select a channel to apply the following settings using the mouse.

NAME Set the channel name. Press the right square button and set the channel

name and select OK using the mouse.

The name can be made up to 10 characters.

COVERT Enable/disable display of the specified video channel in live display.

VIDEO OUTPUT Select 1280x720 or 1920x1080.

4-6. Setup - NETWORK Mode

Select the NETWORK tab. Then, the network menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

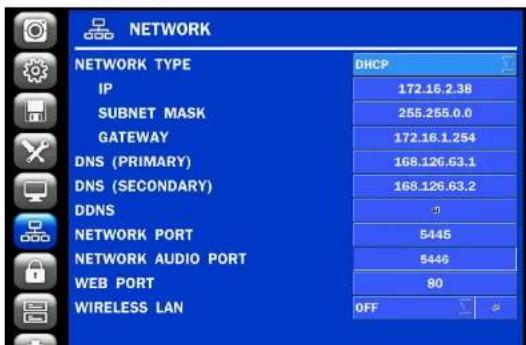

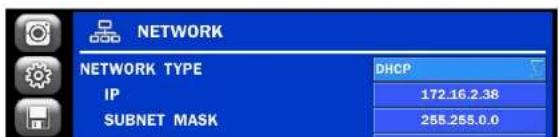

NETWORK NETWORK TYPE IP 172.16.2.38 SUBNET MASK 255.255.0.0 GATEWAY 172.16.1.254 DNS (PRIMARY) 168.126.63.1 DNS (SECONDARY) 168.126.63.2 DDNS 5445 NETWORK PORT NETWORK AUDIO PORT 5446 WEB PORT 90 WIRELESS LAN OFF

constantly synchronized with a dynamic IP address. In other words, it allows using a dynamic IP address to be associated with a static domain name so others can connect to it by the static name.

Enable/disable using domain name address through DDNS server.

NETWORK PORT Enter the port number.

NETWORK AUDIO Display the network audio port (NETWORK PORT + 1).

PORT

WEB PORT Enter the port number for connection using web.

WIRELESS LAN Wireless networks can be configured(option)

4-6-1. Network Types

4-6-1-1. DHCP

DHCP server automatically assigns the IP address and other parameters to new devices.

4-6-1-2. STATIC

IP address, Subnet Mask, Gateway, and DNS are manually assigned by the user.

• IP ADDRESS: The fixed IP address of the ZS unit.
- SUBNET MASK: The subnet mask for the LAN.
• GATEWAY: The IP address of the Gateway.
• DNS (PRIMARY) The primary address of Domain Name Server
• DNS (SECINDARY): The secondary address of Domain Name Server

NOTE

Unless DNS is properly set, the DDNS and the e-mail features will not work.

4-6-2 DDNS

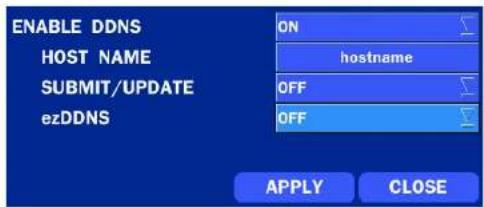

Table 4.6.2. DDNS

Item Description
ENABLE DDNS	Turn DDNS on/off
HOST NAME	This item allows the user to setup a domain name manually, using virtual keyboard displays as shown.
SUBMIT/UPDATE	When manual host name input is done, move the cursor to this item and select ON to submit the settings.
ezDDNS	Enable/disable ezDDNS to register the host name automatically.

4-6-3. Network Port and Web Port

Connecting ZS through a common IP sharing device, each ZS must be assigned a unique TCP port number for access from outside the LAN. This port number is displayed on NETWORK>NETWORK PORT Setup MENU.

NOTE:

If you access the ZS only within the same LAN, the TCP port number does not need to be changed.

Network access beyond a router

To access ZS beyond a router (firewall), you must open the proper TCP ports for live/playback streaming, for commands, for remote backup, and for audio streaming. If these ports are not opened properly, you can't access the ZS beyond a router.

For live/playback streaming, for commands, for remote backup: Open the port number on NETWORK>NETWORK PORT menu. The default port number is 5445.
For bi-directional audio: Open the port number on NETWORK AUDIO PORT. The default port number is INNETWORK PORT number + 41

4-7. Setup - USER MANAGEMENT Mode

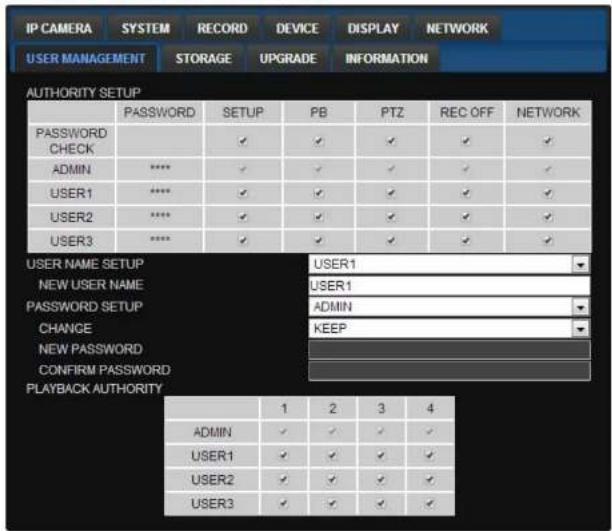

In the SETUP menu, select the USER MANAGEMENT tab. Then, the USER MANAGEMENT menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

USER MANAGEMENT AUTHORITY SETUP USER NAME SETUP PASSWORD SETUP PLAYBACK AUTHORITY APPLY CANCEL

Figure 4.7.1. USER MANAGEMENT Setup Screen
Table 4.7.1. Menu Items in USER MANAGEMENT Setup Screen

Item Description

AUTHORITY

SETUP

Only the Admin will have access to the menu.

PASSWORD CHECK: Select the Checkbox to enable the functions or leave the

Checkbox blank to disable the functions

	ADMIN, USER1, USER2, USER3:Selected Checkbox: The user can access the function.Blank Checkbox: The user can not access the function.
USER NAMESETUP	Change the name of USER1, USER2 and USER3.● Click "ENTER" after naming.
PASSWORDSETUP	Passwords can be changed for ADMIN, USER1, USER2 and USER3.Select USER PASSWORD using the mouse or the remote control. Select usernameand enter the current password. And, enter a new password, enter the same passwordagain to confirm and select OK. Then the message "PASSWORD CHANGED" isdisplayed.The factory default password is 1111.It is highly recommended to assign a new password to protect the system.
PLAYBACKAUTHORITY	Set authority level of playback on each user.Checked box: authorized to playback. Blank check box: no authority.
		1	2	3
	ADMIN	☑	☑	☑
	USER1	☑	☑	☑
	USER2	☑	☑	☑
	USER3	☑	☑	☑
				OK CANCEL

	1	2	3	4
ADMIN	☑	☑	☑	☑
USER1	☑	☑	☑	☑
USER2	☑	☑	☑	☑
USER3	☑	☑	☑	☑

4-8. Setup - STORAGE Mode

In the SETUP menu, select the STORAGE tab. Then, the STORAGE menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

STORAGE OVERWRITE ON DISK FORMAT DISK INFO RECORDING LIMIT OFF RECORDING LIMIT DAYS 30 DAY(S) APPLY CANCEL

Figure 4.8.1. STORAGE Setup Screen

Table 4.8.1. Menu Items in STORAGE Setup Screen
Item Description

OVERWRITE

When enabled, the ZS will continue recording and overwrite the oldest existing recorded data once the hard drive is full. When disabled, recording will stop once the hard drive is full.

DISK FORMAT Once clicked, the user will have to confirm to format the Hard Drive. After confirming, the 7S will reboot, and the format sequence will load

	Reallocated Sectors	Current Pending Sectors	Uncorrectable Sectors	Spin Retry Count
HDD 1	0	0	0	0
HDD 2
HDD 3
HDD 4
HDD 5
HDD 6

RECORDING

Enable/disable a recording limit.

LIMIT

RECORDING

Set the recording limit days. (1- 90 days)

LIMIT DAYS

If the RECORDING LIMIT DAYS are set to 1, the data will be overwritten after 24 hours.

4-9. Setup - CONFIG Mode

In the SETUP menu, select the CONFIG tab. Then, the configuration menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

CONFIG EXPORT TO USB IMPORT FROM USB LOAD DEFAULT LOAD FACTORY DEFAULT SOFTWARE UPGRADE APPLY CANCEL

Figure 4.9.1. CONFIGURATION Setup Screen

Table 4.9.1. CONFIGURATION Setup
Item Description

EXPORT TO USB

User can save the current configuration settings of the ZS to a USB flash drive. Plug in the USB flash on the front panel and press the button to start the export process

4-9-1. Firmware Upgrade

1. Create a new folder named "upgrade" in the USB flash drive root directory.

2. Create sub-folder for each model under "upgrade" folder and copy each firmware.

3. "n4zs" for N4ZS: "main_n4ns_speco_.*.*._201****"

4. "n8zs" for N8ZS: "main_n8ns_speco_.*.*_201****"

Computer Organize... Share with Burs New Style Twin HUA Dsn Cnsm MOS N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N45 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N40 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N38 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N36 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32 N32

1. Plug in the USB flash drive on the rear panel.
2. Navigate to CONFIG menu of SETUP.
3. Select SOFTWARE UPGRADE.
4. Follow the procedure from Figure 4.9.2 to Figure 4.9.4.

MODEL NAME N4ZS CURRENT SOFTWARE Ver 3.8.2_20131113 0% SCAN CANCEL

Figure 4.9.2

MODEL NAME N4ZS CURRENT SOFTWARE Ver 3.8.2_20131113 USB CHECK FOUND USB MOUNT OK FILE CHECK main_N4ZS_speco_3.8.2_20131113.bin 0% UPGRADE CANCEL

Figure 4.9.3

5. Live, Search and Playback

5-1. Live View

In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. Various On-Screen Display (OSD) symbols, which indicate the status of the ZS, are described in Table 5.1.1.

SEARCH SETUP DISPLAY SNAPSHOT ENABLE MANUAL RECORD ADVANCED MENU EZ SETUP CONNECT AUDIO MUTE CAMERA PT2 ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP NO CAM SYSTEM LOCK SYSTEM SHUTDOWN 0.0.0 05/29/2013 15:42:10 RC: ALL HDD: OVERWRITE

Figure 5.1.1. Live Screen and Quick Operation Window
Table 5.1.1. Status Indicator Icons in Live Viewing Screen

Icon Description

05/29/2013 15:42:10

Displays the current date and time.

RC: ALL

Remote control ID display. If a remote ID is not set, the message "ALL" is displayed.

HDD: OVERWRITE

Displays the amount of recording on the hard disk from 0-99%.

Indicates that HDD is recycled.

Continuous recording in progress.

Manual recording in progress. To set the Manual recording mode, press the Record button on the front panel.

Motion alarm recording in progress.

Sensor recording in progress.

Right click the mouse, and the quick operation window will be displayed as below.

EZ SETUP
CONNECT
AUDIO MUTE	V
CAMERA PTZ
ENABLE MAIN MONITOR SEQUENCE
DISABLE ALARM OUT

Table 5.1.2. Menu Items in Quick Operation Window

Icon Description
SEARCH Search button. Click this button to enter the search menu.
SETUP Select this option to enter the Setup menu.
DISPLAY Select between different multi-view display formats.
SNAPSHOT Capture pictures and store as BMP files
ENABLE MANUAL Manual Record button. Click this button to enable manual RECORD recording.
ADVANCED MENU
EZ SETUP Select this option to start EZ Setup Wizard.
CONNECT Select this option to disconnect/connect from IP Camera.
AUDIO MUTE Select this option to mute audio on all channels.
CAMERA PTZ Pop up the PTZ user interface.
ENABLE MAIN Sequence button. Click this button to use a sequence function.
MONITOR
SEQUENCE
ON/OFF
DISABLE Click this button to enable/disable Alarm outputs
ALARM OUT
MANUAL Select this option to manually trigger any of the saved Digital Deterrent digital Digital Deterrent messages.
DETERRENT

MODEL NAME N4ZS SOFTWARE VERSION Ver 3.8.2_20131114 STORAGE SIZE 870 GB NETWORK TYPE STATIC IP ADDRESS 172.16.2.38 MAC ADDRESS 00:02:69:FF:F2:E2 DDNS STATUS DDNS OFF UNIT NAME NVR REMOTE CONTROLLER ID 0 OK

EXPORT HELP Displays window with instructions for exporting video.

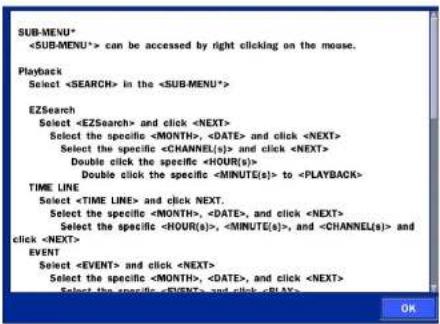

SUB-MENU* can be accessed by right clicking on the mouse. Playback Select in the EZSearch Select and click Select the specific ,, and click Select the specific and click Double click the specific Double click the specific to TIME LINE Select and click NEXT. Select the specific ,, and click Select the specific ,, and and click EVENT Select and click Select the specific ,, and click Select the specific and click

SYSTEM

Locks the ZS from unauthorized user access.

LOCK

SYSTEM

Select this option to shutdown system.

SHUTDOWN

5-1-1. PTZ Control

Table 5.1.3. Menu Items in PTZ Control Window

Item Description
INITIALIZE Initiaize the PTZ settings of the selected camera
PAN/TILT	Select PAN/TILT using the ▲▼◀ and ▶button, then press SEL.Adjust the tilt (UP/DOWN) & pan (LEFT/RIGHT) position using the ▲▼◀and ▶buttons.
ZOOM/FOCUS	Select ZOOM/FOCUS using the ▲▼◀ and ▶buttons, then press SEL.Adjust the zoom (UP/DOWN)/ focus (LEFT/RIGHT) position using the ▲▼◀ and ▶ buttons.
OSD Select OSD	to enter the menu. Control keys are Right, Left, UP, Down, Select, Far (REW KEY), and Near (FF KEY).Press the ESC button to return to the previous menu. Press the PTZ button to close the OSD menu.
AUTOSCAN	Press the right key (▶) to start auto scan.Press the left key (◀) to stop auto scan.
PRESET	Select PRESET, and then press the left key (◀). A number input window will appear.Set the number (3 digits) using the number key, and then press the SEL to confirm the preset number for the current position. Press the right key (▶) and enter the number (3digits) to go to the preset position.
TOUR	Select TOUR and press the right (▶) key. A number input window will open.

PTZ CH 2 INITIALIZE PAN/TILT ZOOM/FOCUS SEL ESC OSD AUTOSCAN PRESET TOUR 1 2 3 No :

5-2. Digital Zoom in Live and Playback Screen

ZS series supports Digital Zoom feature during live and playback mode.

1. Double click the target channel.

CH 2 CH 5 CH 6

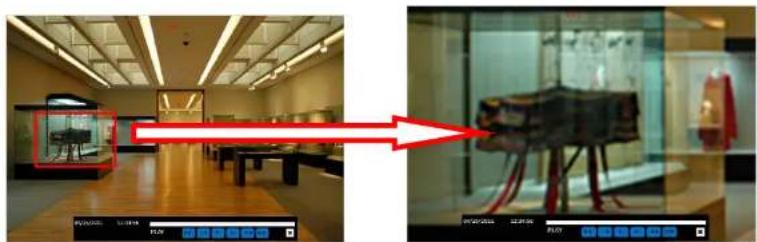

1. Click the left button of the mouse and drag to make rectangular shape.

Interior view of a modern art gallery with glass display cases and a red arrow pointing to a framed exhibit (no visible text or symbols)

5-3. SEARCH Screen

To enter the search screen menu, select SEARCH menu on the screen using the mouse or press SEARCH icon on live screen.

5-3-1. EZSearch

The EZSearch window is used to find stored video with ease using the thumb nail playback screen.

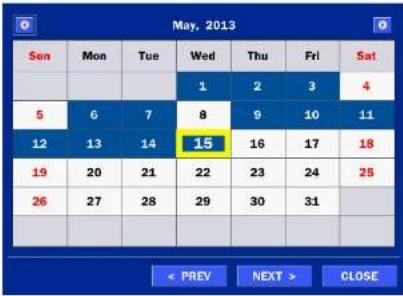

May, 2013 Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 < PREV NEXT > CLOSE

Figure 5.3.2. Calendar Screen

CH1 6 3 6 9 12 15 18 21 24 ON CH 1 CH 2 CH 3 CH 4 CHWIND... 0:00:0 # CH 2 # CH 3 # CH 4 NO > FREE PLAY CLOSE ON 0.0.0.0 0.0.0.0 S:00:AAO 11/15/2013 13:27:30 BC ALL HDD: OVERWRITE

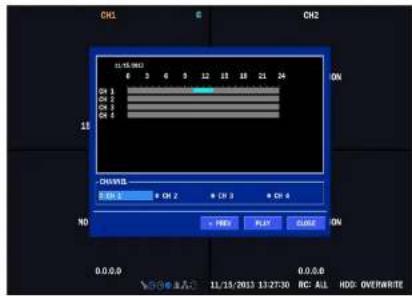

Figure 5.3.3. Channel Selection Screen

Grid of surveillance cameras with red annotation highlighting a path detection area, likely from an optical or video processing system.

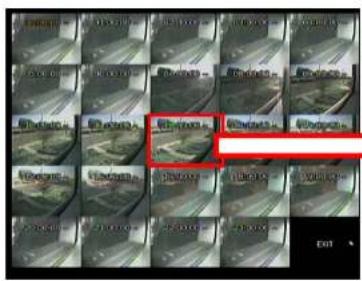

Figure 5.3.4. 24 Hourly Thumbnail Screen

Previous

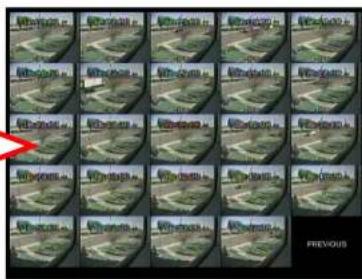

Figure 5.3.5. Minute Thumbnail Screen

5-3-2. Time Line Search

The CALENDAR Search window is used to find the stored video by using the time line bar.

May, 2013 Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 < PREV NEXT > CLOSE

Figure 5.3.7. Calendar Screen

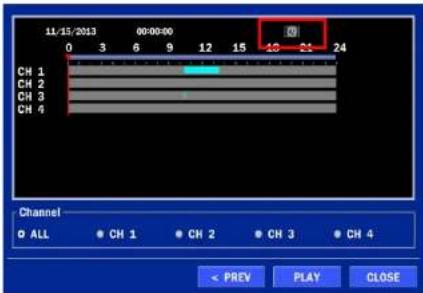

11:15/2013 00:00:00 CH 1 CH 2 CH 3 CH 4 0 3 6 9 12 15 18 21 24 Channel ● ALL ● CH 1 ● CH 2 ● CH 3 ● CH 4 < PREV PLAY CLOSE

Figure 5.3.8. Time-Line Search Screen

When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with highlights. Select a specific date and time. Click and drag the red time indicator bar to the desired hour. User can select specific minutes using a button in the above red box. Press the PLAY button after selecting the specific time. Press the PREV to return to the SEARCH window.

5-3-3. Event Search

The Event Search window is used to find stored video.

CHANNEL CH1|CH2|CH3|CH4 EVENT MOTION|SENSOR|MANUAL|CONTINUOUS CHANNEL LOG DATE CH1 CONTINUOUS 11/15/2013 09:49:59 CH2 CONTINUOUS 11/15/2013 09:49:59 CH3 CONTINUOUS 11/15/2013 09:49:59

Channel ALL CH1 CH2 CH3 CH4 Event ALL MOTION SENSOR MANUAL CONTINUOUS OK CANCEL

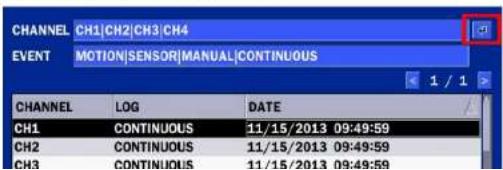

Figure 5.3.10. Event Search Screen

5-3-4. Go To First Time

User can access from the oldest recorded data on the ZS hard drive by selecting GO TO FIRST TIME on the SEARCH window. Press the PREV to return to the SEARCH window.

5-3-5. Go To Last Time

User can access from the last minute recorded data on the ZS hard drive by selecting GO TO LAST TME on the SEARCH window. Press the PREV to return to the SEARCH window.

5-3-6. Go To Specific Time

User can search for video data from a specific instance by setting the date and time in the GO SPECIFIC TIME menu. Use the mouse or the remote control to change the date and time value and press the PLAY button after setting. If there is no video data in the set date and time, No Data Exist message displays.

5-3-7. Archive List

The ARCHIVE Search window is used to find previously stored video or images.

5-3-8. Log List

You can access the LOG list search screen by selecting LOG on the SEARCH window.

LOG DATE System Start 11/15/2013 09:50:01 System Start 11/15/2013 09:51:25 Network : ADMIN Connect 11/15/2013 09:53:26 System Start 11/15/2013 09:55:26 System Start 11/15/2013 10:24:29 NTP : Keep(earlier than system time) 11/15/2013 10:24:56 Camera Connection : CH3 11/15/2013 10:25:15 Camera No Connection : CH3 11/15/2013 10:25:25 Camera Connection : CH1 11/15/2013 10:25:25 Network : ADMIN Connect 11/15/2013 10:35:11 46 log(s) found BACKUP < PREV NEXT > CLOSE

Figure 5.3.12. Log List Screen

When the Log menu is selected, the user can see a calendar, which has a log data. Select a specific date and press NEXT button, and then the log data will be displayed. Press the SAVE button to save the data and then the data is saved as a text file format.

5-4. Play Mode

During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, user may return to the SEARCH screen by pressing the X button on the status bar.

CH2 NO DATA

Table 5.4.1. Button Functions in PLAY Mode
Button Description

- 2x, 4x, 8x, 16x, 32x speeds at 2x2 screen display mode.

- 2x, 4x, 8x, 16x speeds at 3x3 screen display mode.

- 2x, 4x, 8x speeds at the 4x4 screen display mode.

- Single Channel backward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x

Jump/Step backward. The playback position moves 60 seconds backward.

Press to play or pause recorded video.

Jump/Step forward. Playback position moves 60 seconds forward.

• 2x, 4x, 8x, 16x, 32x speeds at 2x2 screen display mode

- 2x, 4x, 8x, 16x speeds at 3x3 screen display mode.

- 2x, 4x, 8x speeds at the 4x4 screen display mode.

- Single Channel forward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x

Slow Mode play. Forward playback speed x1/4, x1/2

Press to Backup the video.

EZCopy button.

Return to the previous menu screen, search window, or exit from the Menu.

6. Back Up

6-1. Video Backup onto USB Flash Drive during playback

Video can be captured and archived onto the USB flash drive or a hard drive while playing back the

recorded video. In playback mode, press the BACKUP button to launch the backup function.

1. When you press 📄CKUP button on the selected channel or all channels, the ZS will ask whether to archive a Still Image, a NSF or AVI and select the proper media type.

PLEASE SELECT ARCHIVE MEDIA TYPE ● STILL IMAGE ● NSF - PROPRIETARY FORMAT ● AVI - INTEGRATED SUBTITLE ● AVI - SEPARATED SUBTITLE, MAC COMPATIBLE < PREV NEXT > CLOSE PLEASE SELECT MEDIA TYPE ● USB DRIVE < PREV START CLOSE

1. Select USB STICK (Flash Drive) to back up less than an hour. Select USB HDD (Large Backup) to back up from 1 hour to 24 hours. (Only for NSF type)

1. The following image shows the progress of archiving the data.

90% < PREV START CLOSE

1. The following shows the image to complete the backup. Select close to return to the previous screen.

100% COMPLETE < PREV START CLOSE

6-2. EZCopy: Video Backup onto USB Flash Drive during playback

Using EZCopy feature, Video can be easily archived onto the USB flash drive or a hard drive.

In playback mode, press the COPY button to launch the backup function.

1. Press EZCOPY button on the selected channel or all channels.

- 1/4 + EZ

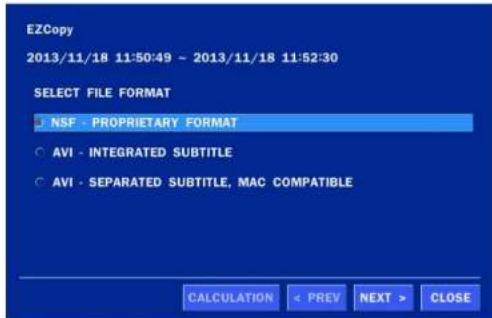

EZCopy 2013/11/18 11:50:49 ~ 2013/11/18 11:52:30 SELECT FILE FORMAT • NSF - PROPRIETARY FORMAT ○ AVI - INTEGRATED SUBTITLE ○ AVI - SEPARATED SUBTITLE, MAC COMPATIBLE CALCULATION < PREV NEXT > CLOSE

1. After backup format is selected, also select media type and channel(s) to archive the data to the media.

6-3. Transferring Still Images or Video from the ARCHIVE List

The stored data in the hard drive can be found in the ARCHIVE list in the SEARCH window.

User can back up still images or video into the storage device from the ARCHIVE list.

1. Select the date to begin searching and navigate through the days using the mouse or the remote control.
2. Once you have selected the date, press the NEXT button to open the list of stored data.
3. Use the mouse or the remote control to scroll through the archive list.
4. Select a list of stored events in the archive list.
5. Once the desired event has been selected, press the DISPLAY button to view the still image or the first frame of the selected video.
6. Press the BACKUP button to launch the archiving function in playback mode.
7. Press the CLOSE button to return to the SEARCH window.

6-4. Playback of Backup Video

6-5-1. AVI Format

AVI format: AVI format video can be played back by Window Media Player™ or other media player that is compatible with AVI format video.

1. Please install the ZS copies "HDPlayer" folder on USB flash drive with the video.

HKEY99 Windows NT 2 items

1. Otherwise, the video and time stamp over video can't be properly played back and displayed on Window Media Player™.

Interior view of a museum exhibition hall with wooden flooring, display cases, and ceiling lighting (no visible text or signage)

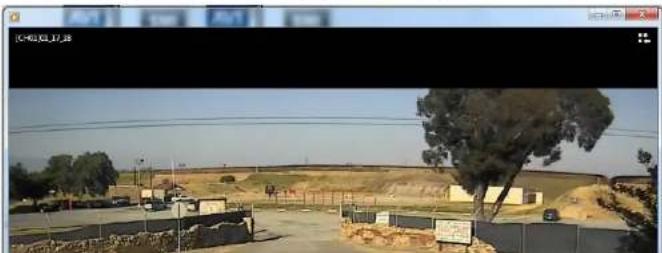

Timestamp On AVI. The subtitle is embedded to the video clip file. subtitle is embedded to the AVI file.

7. Network Access Using the Multi-Sites Network Viewer

7-1. Overview

The SpecoTech Multi Client is a multiple site monitoring client software with; video, audio, and alarm signals from the ZS over the network. The SpecoTech Multi Client does not limit the number of ZS units to register.

The program displays up to 16 ZS units and supports dual monitors.

On the program, user may control PTZ cameras on the ZS. By attaching a microphone and speaker system to devices on site, the user may make bi-directional audio communication over the network.

7-2. PC Requirements

Minimum PC Requirements

CPU Intel Core	3
	1.8Ghz
Memory 2GB DDR2
VGA 512MB
Resolution 1280x720
Disk Space 1GB
OS	Windows 2000, XP Professional, XP Home, Vista, 7 (NOTE: Not all versions of Vista and 7 are supported)
Network 10/100Base T
Others	Direct X 9.0c or Higher

Recommended PC Requirements

CPU Intel Core i5

2Ghz or higher.

7-3. Installation of the Program

1. Insert the provided CD in the CD drive and double-click "SpecoTech Multi Client (XXXX).exe"

1. Select a destination folder and click "Next".

InstallShield Wizard Choose Destination Location Select folder where Setup will install files. Setup will install SpecoTech Multi Client in the following folder. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\...\Speco Technologies\SpecoTech Multi Client Browse... < Back Next > Cancel

1. Select the program folder and click "Next".

InstallShield Wizard Select Program Folder Please select a program folder. Setup will add program icons to the Program Folder listed below. You may type a new folder

7-4. Live Window

When installation is completed, double click the "SpecoTech Multi Client" icon on your desktop to start the program.

7-4-1. Main User Interface

SPECO Multi Client Ver 3.1.3.1

7-4-2. Control Buttons

Button Description
		Click this icon to run a playback window to search and play videos that

	SETUP	Click this icon to setup configuration of SpecoTech Multi Client.
	CAPTURE	Click this icon to capture a still image.
	EVENT LIST	Opens list of events logged by the SpecoTech Multi Client.
	PAUSE	Click this icon to play/pause live video.
	ALARM ON	Click this icon to turn on/off alarm outputs.
	RECORD ON	Enable or disable recording of live video to local disk, which has set in setup menu.
		Use the volume control bar to set the audio level.
[3XG3]		MIC Use the microphone volume control bar to set the micro phone level.
		User can control PRESET/TOUR/SCAN/MENU
PRESET/TOUR/SCAN/MENU
		To select the numbers of display channel/channels (Single, quad, 9 channels, and 16 channels) of highlighted site.
CHANNEL SPLIT
		To select the numbers of ZS/ZSs (1 ZS, 4 ZSs, 9 ZSs, 16 ZSs) on main display screen.
ZS SITE SPLIT

PRESET/TOUR/SCAN/MENU
ZS SITE SPLIT

7-5. Search and Playback Window

7-5-1. Main User Interface

7-5-2. Main Control Panel

Button Description
LOCAL PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the local PC.
REMOTE PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the remote ZS.
	THUMBNAIL REFRESH: Click this icon to refresh and renew thumbnail image of the connected sites.SITE ADDITION: Click this icon to open 'Site Addition' window.SITE DELETE: Click this icon to delete site from the index window, after disconnect a site.NET FINDER: Select the site from the index window and click this icon to modify the information of specific site.
CONNECT	Click this icon to connect the selected site/sites.
DISCONNECT	Click this icon to disconnect the selected site/sites.
ETUP	Click this icon to setup configuration of SpecoTech Multi Client.
APTURE	Click this icon to capture a still image.

		To select the channel to playback.
		The calendar shows dates with recorded video in color.
		To display the recorded data of selected channel or all channels on a time line scale.
		To change a timeline scale from 24 hours to 60 minutes.The timeline shows recorded data in color on the bar. You can adjust the timeline scale and move it to the time you wish to playback. Then click the play icon to display the recorded video.
		Playback buttons.
		Thumbnail search over the network.- List the thumbnail 24images from 00:00 to 23:00.- Select one of 24 images every 150sec for an hour.- Then play the tile* Click the “PREVIOUS” button to go the previous step.
		Digital Zoom Window in Live and Playback. (Only available in Single Channel Viewing)

7-6. Setup of SpecoTech Multi Client

Setup General Event Event search Record Disk Display Language About Security Option Startup Shutdown Setup Local Playback Remote Playback Password... Save Path Capture: C:\Storage\Capture\ Backup: C:\Storage\Backup\ Miscellaneous Automatic reconnection Always On Top Time Format: YYYY-MM-DD OK Cancel

7-6-2. Event

Event log can be archived and searched.

Event Log: Specify the location to save event logs and select event to archive.

Setup General Event Event search Record Disk Log Path: C:\Storage\Log\ Size: 10 (MAX: 100MB) Event Log Event list

Event Search: Event log can be searched from the selected time.

Setup General Event Event search Record Disk Display Language About From: First 2011-04-26 12:00:00 AM To: Last 2011-04-26 7:48:54 PM Path: C:\Storage\Log\ Type Site Address Event Date/Time Save OK Cancel

7-6-3. Record

Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target ZIP and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

Setup General Record Condition

Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

Setup General Event Event search Record Disk Display Language About Disk Space : C:\ 4 GB Disk Info Total space : 465 GB Free space : 398 GB Disk full Replace oldest files. Stop recording. OK Cancel

7-6-4. Display

You can select the OSD (On Screen Display) to be displayed.

Setup General OSD

7-6-5. Language

English, French and Spanish is selectable.

Setup General Event Event search Record Disk Display Language About Language: English French English Spanish OK Cancel

7-6-6. About

"About" provides network client version information.

Setup General Event Event search SPECO Multi Client Version 3.1.2.5 (Build 130506)

7-7. Remote Setup

The menu settings for the ZS unit can be set over network.

Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to open the submenu. Then the following window is displayed as below. Select the REMOTE SETUP.

High Quality Normal Quality IFrame Only Setup Remote Setup IP Camera Setup Lock Site Information Full Screen Aspect Ratio Exit

Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen. Enter the password of the ZS when prompted. (NOTE: The default password is 1111)

Setting is the same as with the ZS menu setting. Refer to the corresponding pages for details on the setting items.

SPECO WEB SETUP

7-7-1. IP Camera

Select IP Camera to set system and time settings

SPECO WEB SETUP (ver.1.10.7)

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION CHANNEL CH1 PROTOCOL ZIP IP 192.168.78.11 PORT 554 WEB PORT 80 ID admin PASSWORD 1111

RELOAD APPLY

• CHANNEL: Select the Channel to setup an IP Camera.

• Protocol: Select the Brand of the IP Camera
• IP : Enter the IP Address of the desired Camera
• Port : Enter the Camera stream Port Number (default : 554).
• Web Port: Enter the Camera Web Port Number (default : 80).
• ID : Enter the User ID for access to the IP Camera
• PASSWORD : Enter the Password for the associated ID

7-7-2. System

Select System to set system and time settings.

SPECO WEB SETUP (ver 1.10.7)

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION DATE DISPLAY FORMAT MMOD/YYYY CLIENT ACCESS ● ON ● OFF NTP SETUP ON PRIMARY SNTP SERVER Pool.ntp.org SECONDARY SNTP SERVER Time.nist.gov TIME ZONE GMT -5.00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM SEND EMAIL SETUP OFF SERVER TYPE MANUAL MAIL SERVER MAIL PORT 25 SECURE OPTION NONE ID PASSWORD MAIL TO MAIL FROM SEND MAIL TEST APPLY MAIL SETTING & TEST UNIT NAME NVR SYSTEM RESTART SYSTEM EVENT NOTIFICATION SYSTEM RESTART HEALTH CHECK DAILY PERIOD FIRST SUN 0 H HDD TEMPERATURE 60°C 140°F HDD BAD SECTORS 10% HDD ALMOST FULL 90% EVENTS AND NOTIFICATION ALARM-OUT BEEP E-MAIL HEALTH CHECK - - YES

- SEND E-Mail SETUP: Sets whether to enable/disable e-mail sending function.

• SEVER TYPE: Select GMAIL, HOTMAIL, AOL, YAHOO or MANUAL)
• MAIL SERVER: Input the SMTP server name as well as the user ID and password.
• MAIL PORT: Mail port setting.
• SEURE OPTION: Select a secure mail server connection. (SSL or TLS)
  ID : Email User ID
• PASSWORD : Email User Password
• MAIL TO: Input the appropriate email address to enable sending e-mail reports

• MAIL FROM (Return Mail Address): Set the source e-mail address to be notified to the destination.

• SEND MAIL TEST : E-mail settings sent a test mail to the registered account
  • UNIT NAME: Name the ZS
  • SYSTEM RESTART : Restart the system
  • SYSTEM EVENT NOTIFICATION

Allows the user to set EVENT NOFICIATION ON or OFF

• HEALTH CHECK
  (Allows the user to set MAIL STATUS periodically) : DAILY or WEELY or MONTHLY
  ○ HDD TEMPERATURE
  ○ HDD BAD SECTOR
• HDD ALMOST FULL
  o HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD
  Enable Email Notification in the event a problem occurs with the ZS.

- ALARM-IN : Enable Email Notification when the camera detects sensor

- MOTION DETECTION : Enable Email Notification when the camera detects motion

- NO CONNECTION : Enable Email Beep and Alarm output Notification when the camera signal is lost

7-7-3. Record

Select RECORD tab to set the recording conditions.

SPECO WEB SETUP (var 1, 10, 7) IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION SITE CH1 RECORDING MODE CONTINUOUS SENSOR RECORDING - - - - - - PRE RECORD 1 MINUTE(S) POST EVENT RECORD 10 SECOND(S) AUDIO SCHEDULE ● ON ● OFF NONE 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT

These settings apply to the specified channel only.

- Recording Setup

o RECORDING MODE: CONTINUOUS, MOTION, SENSOR, SCHEDULE
o PRE RECORD: Sets whether to perform or not pre recording.
o POST EVENT RECORD: Sets the duration of the event recording.
o AUDIO: Sets audio recording ON or OFF.
o SCHEDULE: Sets the schedule recording.

7-7-4. Device

Select Device to set device settings of the ZS

SPECO WEB SETUP (>= 1:10.9) IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION ALARM-OUT 1 ALARM DURATION INFINITE DIGITAL DETERRENT FILE UPLOAD CHANNEL CCH1 SOUND TYPE NONE 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT CONTROLLER SPEED 9600 ID 0 CHANNEL 1 AUDIO SOURCE IP CAM KEY TONE ON OFF REMOTE CONTROLLER ID 0 SENSOR 1 TYPE OFF IEEE 802.3ef PSE STATUS PORT STATUS FAULT: VOLTAGE (V) CURRENT (mA) POWER (mW) 1 SEARCHING NO FAULT 16 0 0 2 SEARCHING NO FAULT 16 0 0 3 SEARCHING NO FAULT 16 0 0 4 SEARCHING NO FAULT 16 0 0

7-7-5. Display

Select the DISPLAY tab to set the DISPLAY conditions.

SPECO WEB SETUP (var 1.10.7) IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION OSD CHANNEL NAME ON OFF NO CONNECTION ON OFF STATUS BAR / ICON ON OFF IP ADDRESS / FPS IP OSD CONTRAST 100 MAIN MONITOR SEQUENCE ON OFF SEQUENCE-DWELL TIME 3 SECOND(S) SITE CH1 NAME CH1 COVERT OFF

These settings apply to all channels.

• OSD: Sets whether to display or not date and time as well as channel number on the screen.
• OSD CONTRAST: Adjust the character contrast on the screen.
• MAIN MONITOR SEQUENCE: Setting for automatically switching the displayed video.
  • SEQUENCE DWELL TIME: Sets the interval for automatically switching the screens.
• SITE: Name, Covert, These settings apply to the specified channel only.

7-7-6. Network

SPECO WEB SETUP (ver 1.10.7)

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION NETWORK TYPE IP 172 16.2.38 SUBNET MASK 255 255.0.0 GATEWAY 172 16.1.254 DNS (PRIMARY) 168 126.63.1 DNS (SECONDARY) 168 126.63.2 DDNS ENABLE DDNS OFF HOST NAME hostname SUBMITUPDATE OFF ezDDNS OFF NETWORK PORT 5445 NETWORK AUDIO PORT 5446 WEB PORT 80 WIRELESS LAN OFF IP ADDRESS 192 168.50.1 SSID MY_SSID KEY (8~15 CHARACTERS) 12345678

• NETWORK TYPE (Cannot be altered remotely)

o STATIC: The address setting mode is manual. Input IP, Gateway, Subnet Mask, and DNS IP.
o DHCP: The address setting mode is automatic.

• DDNS: Set whether to use DDNS service or not

HOST NAME: Allows the user to setup a domain name manually
o SUMBIT/UPDATE: Select ON to submit the settings
- ezDDNS: Enable ezDDNS to register the host name automatically

• NETWORK PORT: When connecting multiple 7Ss to the network, set a unique port number.

7-7-7. User Management

Select the USER MANAGEMENT tab to set the DISPLAY conditions.

SPECO WEB SETUP

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION AUTHORITY SETUP PASSWORD SETUP PB PTZ REC OFF NETWORK PASSWORD CHECK ✓ ✓ ✓ ✓ ✓ ADMIN **** ✓ ✓ ✓ ✓ ✓ USER1 **** ✓ ✓ ✓ ✓ ✓ USER2 **** ✓ ✓ ✓ ✓ ✓ USER3 **** ✓ ✓ ✓ ✓ USER NAME SETUP NEW USER NAME PASSWORD SETUP CHANGE NEW PASSWORD CONFIRM PASSWORD PLAYBACK AUTHORITY USER1 USER1 ADMIN KEEP 1 2 3 4 ADMIN ✓ ✓ ✓ ✓ USER1 ✓ ✓ ✓ ✓ USER2 ✓ ✓ ✓ ✓ USER3 ✓ ✓ ✓

• AUTHORITY SETUP: Select which users have access to each function, password check can be implemented for each function accessed.
• USER NAME SETUP: Select which Username to change
• NEW USER NAME: Input the new username

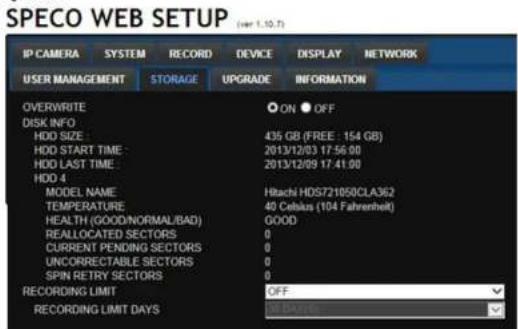

7-7-8. Storage

Select Storage to configure recording settings such as overwriting the hard disk and the setting a storage period for the recording data.

SPECO WEB SETUP IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION OVERWRITE ON OFF DISK INFO HDD SIZE 435 GB (FREE: 154 GB) HDD START TIME 2013/12/03 17:56:00 HDD LAST TIME 2013/12/09 17:41:00 HDD 4 MODEL NAME Hitachi HOS721050CLA362 TEMPERATURE 40 Celsius (104 Fahrenheit) HEALTH (GOOD/NORMAL/BAD) GOOD REALLOCATED SECTORS 0 CURRENT PENDING SECTORS 0 UNCORRECTABLE SECTORS 0 SPIN RETRY SECTORS 0 RECORDING LIMIT OFF RECORDING LIMIT DAYS 30 Days

• OVERWRITE: Select on to continue recording by overwriting when the hard disk becomes full.
• DISK INFO : Hard drive information.
- RECORD LIMIT: Sets whether to limit or not the recording data storage period.

7-7-9. Remote Upgrade

SPECO WEB SETUP (per 1.10.9) IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION Model Name : N425 Current Software : Ver 3.9.3_20131208 Browse... UPGRADE

7-8. Operation via SpecoTech Multi-Client Viewer Software

7-8-1. Addition, Delete, and Modify ZS Sites

7-8-1-1. Addition of Sites

1. Click SITE ADDITION button. And then the following window will be displayed as below.

Site Addition Site info Site name: Site address: Potnumber: 5445 ID: Password: OK Cancel

Site Name: Input a name that properly describes a site.
IP Address: Input IP address (Public IP address of a router that ZS is connected.) or Domain name
- Port Number: Default Port Number is "5445".
- ID: Input ID of ZS. Default ID is "admin".
- Password: Input network password of ZS. Default Password is "1111".

1. Click OK button. And then the registered site is added on the directory window.

7-8-1-2. Deleting a Site

1. Select the site/sites to delete from the directory window.

7-8-1-3. Modify Sites

1. Select the site/sites to modify from the directory window.

1. Click NET FINDER button. And then the following window will be displayed as below.

Net Finder Name Address N4Z5 172.16.2.38 Address Port No. Mac Model Add Modify Delete Find JP Change Close

1. Click MODIFY button and then the modified information is displayed as below.

7-8-2. Connect and Disconnect

7-8-2-1. Connect

1. Select site/sites to connect from the directory window.

1. Click CONNECT button, and then site/sites displays/display as connected.

CITY City 1 City 2 City 3 City 4 City 5 City 6 City 7 City 8 City 9 City 10 City 11 City 12 City 13 City 14 City 15 City 16 City 17 City 18 City 19 City 20 City 21 City 22 City 23 City 24 City 25 City 26 City 27 City 28 City 29 City 30 City 31 City 32 City 33 City 34 City 35 City 36 City 37 City 38 City 39 City 40 City 41 City 42 City 43 City 44 City 45 City 46 City 47 City 48 City 49 City 50 City 51 City 52 City 53 City 54 City 55 City 56 City 57 City 58 City 59 City 60 City 61 City 62 City 63 City 64 City 65 City 66 City 67 City 68 City 69 City 70 City 71 City 72 City 73 City 74 City 75 City 76 City 77 City 78 City 79 City 80 City 81 City 82 City 83 City 84 City 85 City 86 City 87 City 88 City 89 City 90 City 91 City 92 City 93 City 94 City 95 City 96 City 97 City 98 City 99 City100

7-8-2-2. Disconnect

1. Select site/sites to disconnect from the directory window.

1. Click DISCONNECT button. and then selected site/sites disconnected.

7-8-3. Still-Image Capture During Live

1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.).

Side-by-side comparison of two outdoor scenes: one showing a road with camera grid and another showing a paved area with trees and grass (no visible text or symbols)

1. Click CAPTURE button. And then the Capture window will be displayed as below.

Capture Save Path: ersUPLIM!Documents\SpecoiCaptureW4ZS Browse File name: 2013-11-18-135153 File Format: BITMAP(*.BMP) OK Cancel

1. Set Save Path, File Name, and File Format. And then click OK button.

2. Still image is saved as set in Capture window.

7-8-4. Recording Video on Local PC During Live

1. Click SETUP button and then a setup window will be displayed as below.

2. Select Record and set the values.

3. Select Disk and set the values.

Setup General Event Event search Record unt Display About Disk Space: Cx 4 GB Disk Info Total space: 465 GB Free space: 390 GB Disk full Replace invalid files. Stop recording OK Cancel

1. Click RECORD ON button. And the color of button is changed.

2. Live video data is recorded as set in Record and Disk setup. These video data can be searched and play-backed with Local Playback.

HC01 File Edit View Favorites Tools Help Back Search Folders C:\Storage\HC01 Name Size Type Data Modified 10000000 File Folder G/6/2009 4:00 PM 10000010 File Folder G/12/2009 3:15 PM 10000017.mdb 1,276 KB NCL File 3/17/2009 5:01 PM 10000017.mdb .02,462 KB NCL File 3/17/2009 5:05 PM 10000017_3.mdb .02,462 KB NCL File 3/17/2009 5:44 PM 10000017_3.mdb .02,462 KB NCL File 3/17/2009 5:52 PM 10000017_3.mdb 23,845 KB NCL File 3/17/2009 5:23 PM

7-8-5. Local Playback and Remote Playback

7-8-5-1. Playback of Recorded Video on a Local PC

1. Click LOCAL PLAYBACK. And then Playback Window will be displayed over the Live

SPEOD Multi Client Vol 3.0.4.6

Window

1. Select site/sites to connect from the directory window.

1. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale window.

2013 May S M T W T F S 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 28 27 28 29 30 31 =0.00 EZSearch AI

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7-8-5-2. Playback of Recorded Video on Remote ZS

1. Click REMOTE PLAYBACK. And then Playback Window will be displayed over the Live

Window.

SPECO Multi Client Vp 3.8.2.6

1. Select the site to connect from the directory window.

2. Click

And then Green bar displays on Search calendar and timeline scale window.

2013 May S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 25 27 28 29 30 31 0 2 4 6 8 10 12 14 16 18 EZSearch All 20 22 24

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

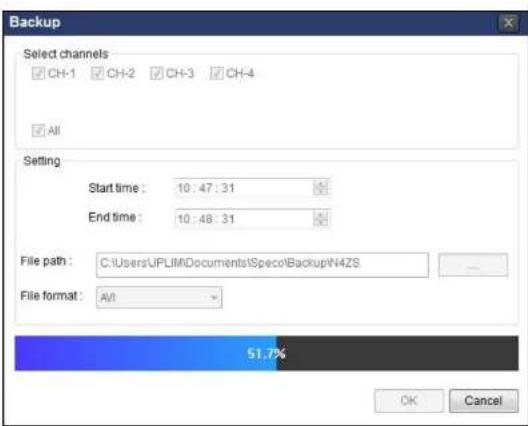

7-8-6. AVI Backup during Playback

You can back up the recorded videos in AVI format during playback.

1. Double-click the target channel to backup.
2. Select the beginning time by using the search calendar and timeline scale bar.

2013 Nov S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 0 2 4 6 8 10 12 14 16 18 20 22 24 EZ Search All

1. Click EZCOPY START button on the timeline scale to select the beginning point of the backup.

0 10 20 30 40 50 60

1. Click EZCOPY END button on the timeline scale to select the ending point of the backup. Then, the selected starting point and the ending point on the timeline scale bar will be marked in green.

0 10 20 30 40 50 60

1. Click BACKUP. And then the BACKUP window will be displayed as below.

Backup Select channels ✓ CH-1 ✓ CH-2 ✓ CH-3 ✓ CH-4

Backup Select channels CH-1 CH-2 CH-3 CH-4 All Setting Start time: 10:47:31 End time: 10:48:31 File path: C:\Users\UPLIM\Documents\Specol\Backup\P4ZS File format: A/I 51.7% OK Cancel

1. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by using Window Media Player™ or other media player that is compatible with AVI format video.

Exterior view of a rural landscape with buildings, trees, and a fence under clear sky (no signage or text visible)

7-9. ZIP IP Camera Setup

The menu settings for the ZIP IP Cameras can be set over network via SpecoTech Multi client Software. Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to open the submenu. Then the following window is displayed as below. Select the IP CAMERA SETUP.

Connect High Quality Normal Quality Preview Only Setup Service Setup IP Camera Setup Lock View Information Addict Item Add CH NO VIDEO CH NO VIDEO Disconnect High Quality Normal Quality IFrame Only Setup Remote Setup IP Camera Setup Lock Site Information Full Screen Aspect Ratio CH 1 CH 2 CH 3 CH 4

Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen. Enter the password of the IP Camera when prompted. (NOTE: The default ID : "admin" and Password is "1111")

7-9-1. Live View

speco technologies proply updates

7-9-2. Video

speco technologies LIVE SETUP VIDEO Video stream (Main) (Sub) Stream profile 4.264 MAIN PROFILE 4.264 MAIN PROFILE Resolution 1920x1080 540x360 Framerate 30 FPS 30 FPS Bitrate 3560 kbps(541-10240) 1024 kbps(32-1024) SECURITY EVENT NETWORK SYSTEM APPLY SETUP

■ VIDEO Stream (MAIN/SUB)

• Stream profile : The standard defines various sets of capabilities, which are referred to as profiles, targeting specific classes of applications.
• Resolution : Select video compression resolution. Compression resolutions are different depending on input formats.
• Framerate : Determine the maximum number of frames of video images to compress. The frame rate of actually transmitted video can be affected by the network bandwidth limitation
• Bitrate : Selectable video Bit rate. This selection is available if Preference is set to 'Bit rate'

7-9-3. Security

7-9-4. Event

speco technologies LIVE SETUP VIDEO SECURITY EVENT Motion detection Set area FULL ZONE Sensitivity 5 NETWORK SYSTEM APPLY SETUP

■ Motion Detection : Select Motion Detection function

• SET AREA: Configure regions for motion detection
• Sensitivity: Set the condition to trigger an event for motion detection. The value determines the sensitivity of the motion detection within a block: the smaller, the more sensitive

7-9-5. Network

speco technologies' play system LIVE SETUP VIDEO SECURITY EVENT

7-9-6. System

speco technologies supply unique LIVE SETUP

VIDEO

SECURITY

EVENT

NETWORK

SYSTEM

Information Manufacturer SPECC Model name Z1728 Serial Number 000209FFF275 Hardware ID 1.9 Software Version 1.0.10_20131209 Net Address 00192.09兆瓦275 Maintenance System restart RESTART Factory default FACTORY DEFAULT Save config to PC DOWNLOAD Load config from PC ADD/... APPLY Firmware upgrade NEW... UPGRADE APPLY SETUP

Information

• Manufacturer
• Model Name
• Serial Number
  ● Hardware ID : Display the Network Hardware ID of the camera recognized by system

Press Browse button to select a firmware file from PC.

Press Firmware Upgrade button to start to upgrade.

Messages for showing status (downloading / upgrading) will be displayed.

The camera will reboot automatically after completing upgrade. Do not turn the camera off during upgrading

8. Network Access Using SpecoTech Web Viewer

The ZS provides a live remote monitoring feature via SpecoTech Web Viewer.

(NOTE: Web-Browser is only available for Internet Explorer)

1. Check the IP address of the ZS from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or
2. Input the IP address or Domain name address that you pre-registered.

1. Click this bar. Then the dialog box is displayed.

This webpage wants to run the following add-on: 'CNC_Ctrl Module' from 'Not Available'. What's the risk?

This website wants to install the following add-on: 'speco_control(ver1.6.3.7)' from 'Speco Technologies'. What's the risk? Install

1. Click "Install" to download and install the ActiveX control.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SpecoTech-WebViewer(ve1.4.8.7) Verified publisher: Speco Technologies File origin: Downloaded from the Internet Show details Yes No Change when these notifications appear

1. The Web Viewer will be displayed as below after the ActiveX installation

2. Click the CONNECT button on the Left upper corner of web-viewer. Then "Connect" dialog is displayed.

Connect Connect to remote system. IP Address : Port No : 5445 ID : Password : OK Cancel

• Site Name: Input a name that properly describes a site.
• IP Address: Input IP address (Public IP address of a router that ZS is connected.) or Domain name
• Port Number: Default Port Number is "5445".
  • ID: Input ID of ZS. Default ID is "admin".

• Password: Input network password of ZS. Default Password is "1111".

• Then the cameras connected to the ZS are displayed on the screen.

• Use mouse scroll to digitally zoom in and out from a single channel display.

RANGE TECHNOLOGY On 1 On 2

9. Network Access Using the Smart Phone Viewer

Notice

Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier.

9-1. App Viewer for iPhone

1. Enter the Apple iTunes Store.

1. Search "Speco Player" in the App Store.

Notice

SPECO Player is for the ZS, NS, DS, RS, their Wall Mount versions and HD series. SPECO Player is not compatible with the CS/LS/PS/GS Models, the T Series (TH, TN or TL) or the PC Series.

9-1-1. Live

1. Open the installed "Speco Player" App and click + on to add a remote device.

1. Enter the site name, IP or DDNS address, Network Port number (default 5445), ID(default admin) and Password (default 1111). Then. click "Save" button.

2. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 or 8 channels split display depending on the ZS.

Side-by-side comparison of surveillance camera frames showing vehicle detection and parking area tracking, with a red arrow indicating the process.

1. To select the display mode(1, 4, 9, 10 or 16 split display), tap the arrow menus button

Screenshot of a surveillance camera system showing multiple video frames with vehicle images and settings like 'LIVE' and 'OK'.

9-1-2.PTZ Control

To control the PTZ functions of the camera, tap the menu button. Then PTZ menu icons will display. Using the PTZ icon on the screen, control PTZF control.

Three-panel surveillance camera view showing outdoor scenes with vehicles and a parking lot (no visible text or symbols)

9-1-3. Playback

1. Select Mode as 'Playback' and click 'CONNECT' button. Then select Date & Time and click PLAY button.

Demo ZS Connect Playback Live Site Information File: Demo ZS IP/MS demo25.ddns.specodnns.net

1. Tap the menu button. Then Playback menu icons will display.

1 4 9 10 16 Now Minute Hour Day 8x

9-2. App Viewer for Android Phone

1. Enter the Google Play Store.

1. Search "Speco Player" in the Android Market and install the "Speco Player" App.

Notice

SPECO Player is for the DS, RS, WRS, NS and ZSs. SPECO VIEWER is not compatible with the T Series NS's (TH, TN or TL) or the PC Series NS's.

9-2-1. Live

1. Open the installed "Speco Player" App and select the Live Preview. Then click the menu button of the phone to add a remote device.
2. Select the registered device and select LIVE VIEW and select up to 4 channels to monitor. Then click START button.

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display.

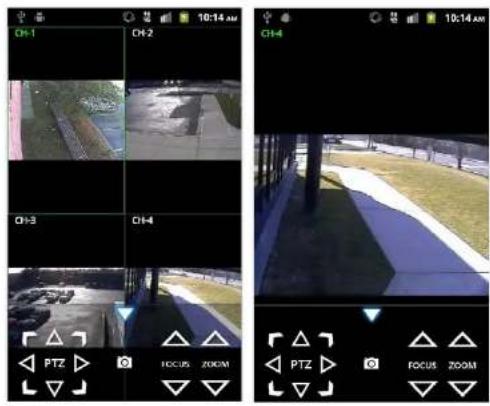

CH-1 CH-2 CH-3 CH-4 PTZ FOCUS ZOOM 10:14 AM 10:14 AM CH-4 PTZ FOCUS ZOOM

9-2-2. Playback

1. Select the registered device and select PLAYBACK and select up to 4 channels to search. Then click START button.
2. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display.

9-2-3. PTZ Control

To control the PTZ function of the camera, tap the channel screen, then the channel name will be highlighted in Yellow. Using the PTZ menu icons on the screen, control PTZF.

Screenshot of a mobile camera interface showing two video frames with camera settings and tracking controls

APPENDIX: Network Connection - LAN

1. Run the network client software.

SPECO Multi Client Ver 3.1.2.5

Site Addition Site Info Site name: Site address: Port number: 5445 ID: Password:

1. Select a site by checking the box, and Press

space technologies C1: 2 RO VIDEO C1: 3 RO VIDEO C1: 4 RO VIDEO 20000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

APPENDIX: Network Connection – Internet and DDNS

Dynamic Domain Name System (DDNS) allows a domain name to be constantly synchronized with a dynamic IP address. A current dynamic IP address is being associated with a static domain name.

1. Go to SETUP>NETWORK>DDNS and set the DDNS SERVER to ON.

ENABLE DDNS HOST NAME SUBMIT/UPDATE ezDDNS ON hostname OFF OFF APPLY CLOSE

If you set ezDDNS to ON, the host name is automatically generated and registered.

1. Go to SETUP>NETWORK>DDNS>HOST NAME. Manually enter a domain name using the virtual keyboard and click ENTER button.

1. When you exit SETUP menu, DDNS NOTIFY window will pop up.

DDNS NOTIFY : HOST NAME : n4zs_fff2e2 STATUS : SUCCESS OK DDNS NOTIFY : HOST NAME : hostname STATUS : ALREADY REGISTERED OK

1. DDNS registration status can be checked from SYSTEM INFORMATION or SETUP>SYSTEM>DESCRIPTION>DDNS STATUS

MODEL NAME N4ZS SOFTWARE VERSION Ver 3.8.2_20131113 STORAGE SIZE 870 GB NETWORK TYPE STATIC IP ADDRESS 172.16.2.38 MAC ADDRESS 00:02:69:FF:F2:E2 DDNS STATUS DDNS OFF UNIT NAME NVR REMOTE CONTROLLER ID 0 OK

1. Check the NETWORK PORT (Default: 5445), WEB PORT (Default: 80), and the IP Address of the ZS from SETUP>NETWORK.

NETWORK NETWORK TYPE IP SUBNET MASK DHCP 172.16.2.38 255.255.0.0

1. Run the network client software.

SPECO Multi Client Ver 3.1.2.5 Site Addition Site Info Site name: Site address: Partnumber: $446 ID: Password: OK Cancel

1. Input Site Name, Site Address (IP address), Port No., and Password on the connect window.

2. Site Name: Input a name that properly describes a site.
   • IP Address: Domain name or Public IP address of a router that ZS is connected.

3. Port Number: Default Port Number is "5445".
   • ID: Input ID of ZS. Default ID is "admin".

4. Password: Input network password of ZS. Default Password is "1111".

5. And select the OK button. Then, press

0x2 0x1800
