USER MANUAL N8NRP Speco Technologies

NRP (8 and 16 Channel) User Manual

Exterior view of a black server rack unit (no visible text or symbols)

N8NRP

Back panel of a network equipment unit showing ports, connectors, and indicator lights (no readable text or symbols)

N16NRP

Notes& Contents

NVR User Manual

Notes

• Please read this user manual carefully to ensure that you can use the device correctly and safely.
• There may be several technically incorrect places or printing errors in this manual. The updates will be added into the new version of this manual. The contents of this manual are subject to change without notice.
• This device should be operated only from the type of power source indicated on the marking label. The voltage of the power must be verified before using the same. Kindly remove the cables from the power source if the device is not to be used for a long period of time.
• Do not install this device near any heat sources such as radiators, heat registers, stoves or other devices that produce heat.
• Do not install this device near water. Clean only with a dry cloth.
• Do not block any ventilation openings and ensure proper ventilation around the machine.
• Do not power off the device at normal recording condition.
• This machine is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid or liquid get inside the machine's case, please turn off the device immediately and get it checked by a qualified technician.
• Do not try to repair the device by yourself without technical aid or approval.

Contents

1 Introduction ....1
1.1 Welcome 1
1.2 Features 1
1.3 Front Panel Descriptions .... 3
1.4 Rear Panel Descriptions.... 3
1.5 Connections....3
2 Basic Operation Guide ....4

2.1 Startup & Shutdown 4

2.1.1 Startup 4

2.1.2 Shutdown 4

2.2 Remote Control 4

2.3 Mouse Control 5

2.4 Text-input Instruction 5

2.5 Common Button Operation.... 5

3 EZ Setup & Main Interface 6

3.1 EZ Setup....6

3.2 Main Interface 9

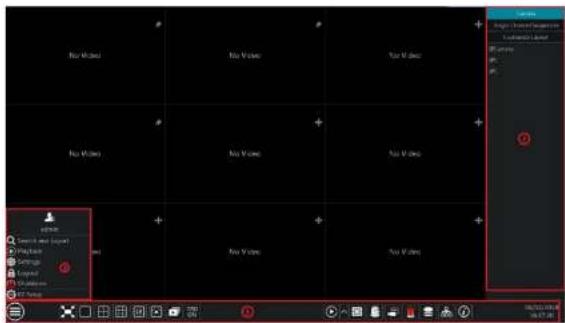

3.2.1 Main Interface Introduction 9

3.2.2 Setup Panel 10

3.2.3 Main Functions 11

Notes& Contents

NVR User Manual

6.2 Preset Setting 26

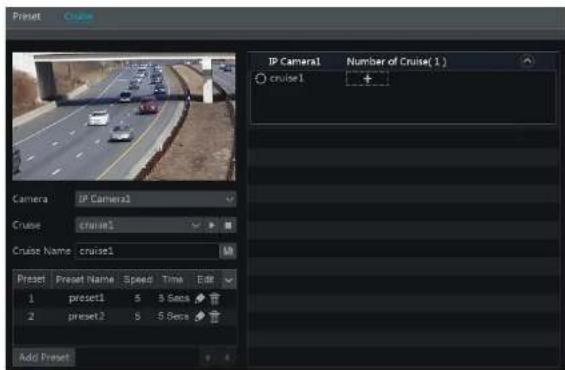

6.3 Cruise Setting 27

7 Record & Disk Management 28

7.1 Record Configuration 28
7.1.1 Mode Configuration 28
7.1.2 Advanced Configuration 29
7.2 Encode Parameters Setting 29
7.3 Schedule Setting 30
7.3.1 Add Schedule.... 30
7.3.2 Record Schedule Configuration 31
7.4 Record Mode 32
7.4.1 Manual Recording 32
7.4.2 Timing Recording.... 32
7.4.3 Motion Based Recording 32
7.4.4 Sensor Based Recording 32
7.4.5 Analytics Recording 32
7.5 Disk 32
7.5.1 Disk Management 32
7.5.2 Storage Mode Configuration 33

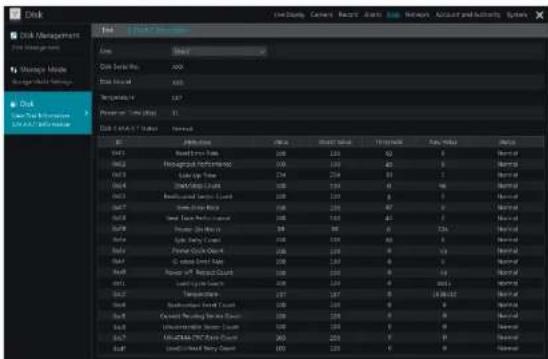

7.5.3 View Disk and S.M.A.R.T. Information 33

8 Playback & Backup....35

8.1 Instant Playback 35
8.2 Playback Interface Introduction 35
8.3 Record Search, Playback & Export 37

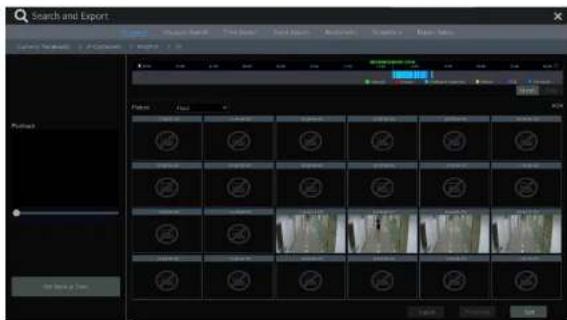

8.3.1 EZ Search 37
8.3.2 Museum Search 38
8.3.3 Time Search 39
8.3.4 Event Search 39
8.3.5 Bookmark Search....40
8.3.6 Snapshots 40
8.3.7 View Export Status 41

9 Alarm Management....42

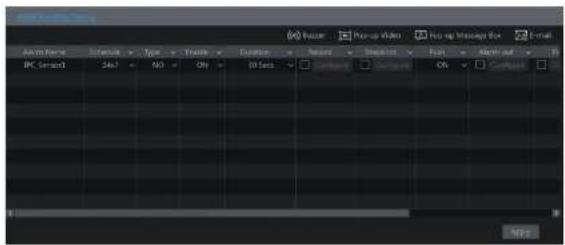

9.1 Sensor Alarm 42
9.2 Motion Alarm 42

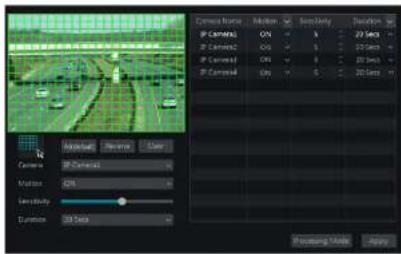

9.2.1 Motion Configuration 42

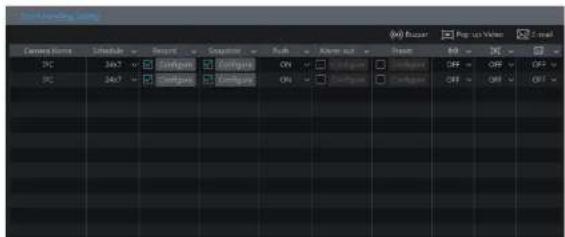

9.2.2 Motion Alarm Handling Configuration 43

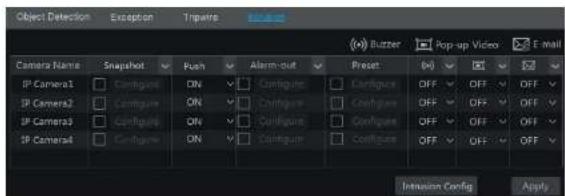

9.3 Intelligence Alarm 43
9.3.1 Object Detection 43
9.3.2 Exception....44
......

Notes& Contents

NVR User Manual

10.6 View Online User 54

11 Device Management....55

11.1 Network Configuration.... 55

11.1.1 TCP/IP Configuration 55

11.1.2 Port Configuration 55

11.1.3 PPPoE Configuration....56

11.1.4 DDNS Configuration....56

11.1.5 E-mail Configuration.... 56

11.1.6 UPnP Configuration 57

11.1.7 NAT Configuration 58

11.1.8 View Network Status 58

11.2 Basic Configuration 58

11.2.1 General Configuration 58

11.2.2 Date and Time Configuration 58

11.3 Factory Default....59

11.4 Device Software Upgrade 59

11.5 Backup and Restore....60

11.6 Restart Automatically 60

11.7 View Log 60

11.8 View System Information 61

12 Remote Surveillance 62

12.1 Mobile Client Surveillance....62

12.2 Web LAN Access 62

12.3 Web WAN Access....62

12.4 Web Remote Control 63

17.4.1 Remote Preview 63

12.4.2 Remote Playback 66

12.4.3 Remote Export 66

12.4.4 Remote Configuration 66

Appendix A FAQ....67

Appendix B Calculate Recording Capacity....71

Appendix C Specifications 72

1 Introduction

1.1 Welcome

Thank you for purchasing this NVR.

If technical assistance is needed, please contact Speco Technologies Technical Support.

Phone: [phone] option 3

Email: [e-mail]

1.2 Features

Basic Functions

● Supports network device access including IP camera/dome and the third party IP cameras

● The NVR supports the latest H.265 video coding stream and a mixture Input of H.265 and H.264 IP cameras

● Supports standard ONVIF protocol

● Supports dual stream recording of each camera

● Supports IP cameras to be added quickly or manually

● Supports collective or individual configuration of the cameras' OSD, video parameters, mask, motion and so on

● Supports a maximum of 8 user permission groups including Administrator, Advanced and Common which are the default permission groups of

the system

● Supports a maximum of 16 users to be created, multiple web clients login by using one username at the same time and the user's permission

control to be enabled or disabled

● Supports multiple web clients login at the same time

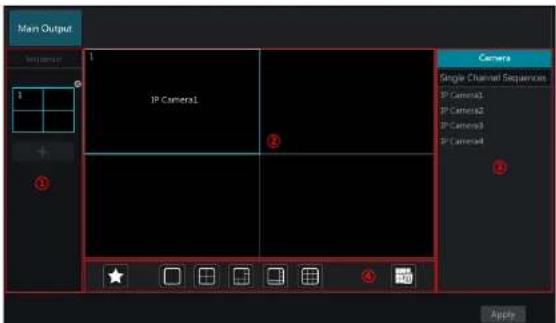

Live View

● Supports 4K×2K/1920×1080/1280×1024 HDMI and 1920×1080/1280×1024 VGA high definition synchronous display

● Supports multi-screen modes such as 1/4/6/8/16

● Supports auto adjustment of the camera's image display proportion

● Supports audio monitoring of the camera to be enabled or disabled

● Supports manual snapshot of the camera

● Supports the sequence of the cameras to be adjusted

● Supports display mode to be added and saved and the saved modes can be called directly

● Supports quick tool bar operation of the preview window

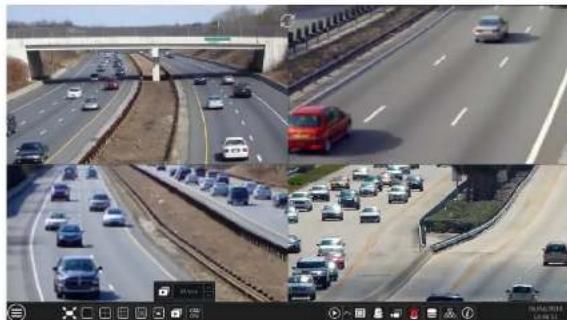

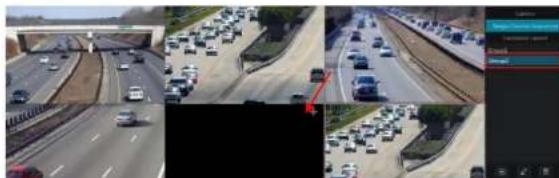

● Supports camera group view and scheme view in sequence, quick sequence view and dwell time setting

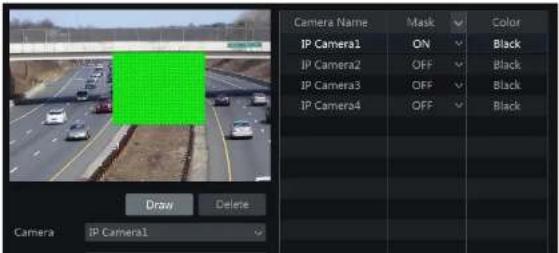

● Supports motion detection and video mask

● Supports multiple popular P.T.Z. control protocol and setup of the preset and cruise

● Supports direct mouse control of the IP dome including rotating, zoom, focusing and so on

● Supports single camera image to be zoomed by sliding the scroll wheel of the mouse

Introduction

NVR User Manual

Record Playback

● Supports time scale operation in quick playback and the playback date and time can be set randomly by scrolling the mouse; the time interval of the time scale can be zoomed

● Supports record searching by time slice/time/event/tag

● Supports time view and camera view in searching by EZ mode

● Supports EZ search by month, by day, by hour and by minute and time slice to be displayed with camera thumbnail

● Supports a maximum of 16 cameras to be searched by time

● Supports event search by manual/motion/sensor/intelligent events

● Supports bookmark search by the manual added bookmarks

● Supports instant playback of the selected camera in the live view interface

● Supports a maximum of 8 synchronous playback cameras

● Supports acceleration{maximum 32 times of the normal speed}, deceleration {minimum 1/32 times of the normal speed} and 30s' addition or reduction to current playing time

Record Export

● Supports record to be exported through USB (U disk, mobile HDD).

● Supports record to be exported by time/event/image search

● Supports record cutting for exporting when playing back

● Supports a maximum of 10 export tasks in background and export status viewing

Alarm Management

● Supports alarm schedule setting

● Supports enabling or disabling of the motion detection, external sensor alarm input, intelligence alarm and exception alarms including IP address conflict alarm, disk IO error alarm, disk full alarm, no disk alarm, illegal access alarm, network disconnection alarm, IPC offline alarm and so on, alarm trigger configuration supportable

● Supports IPC offline alarm trigger configuration of PTZ, snapshot, pop-up video, etc.

● Supports event notification modes of alarm-out, pop-up video, pop-up message box, buzzer, e-mail and so on

● The captured images can be attached into the e-mail when alarm linkage is triggered

● Supports alarm status view of alarm-in, alarm-out, motion detection and exception alarm

● Supports alarm to be triggered and cleared manually

● Supports system auto reboot when exception happens

Network Functions

● Supports TCP/IP and PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP protocol and so on

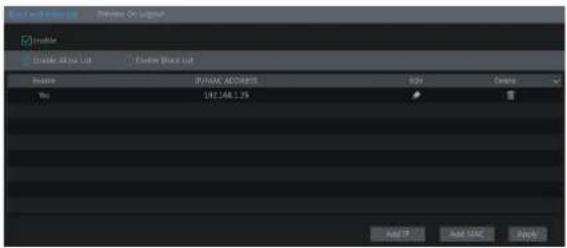

● Supports allow and block list function and the allow and block IP address/IP segment address can be set

● Supports multiple browsers including IE8/9/10/11, Firefox, Opera, Chrome (available only for the versions lower than 45) and Safari in MAC system

● Supports remote achievement, configuration, import and export of the NVR parameters and other system maintenance operations including remote upgrading and system restart

● Supports remote camera configuration of the NVR including video parameters, image quality and so on

● Supports remote search, playback and export of the NVR

- Forward, forward, and forward, between forward and forward,

Introduction

NVR User Manual

1.3 Front Panel Descriptions

The following descriptions are for reference only.

Name	Descriptions
REC	When recording, the light is blue
Net	When access to network, the light is blue
Power	Power indicator, when connection, the light is blue

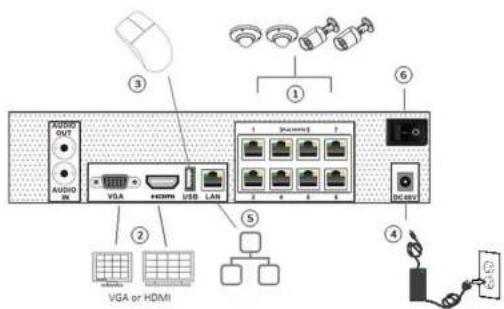

1.4 Rear Panel Descriptions

To quickly get started, connect the following to your recorder in the following order, please refer to the following figure (N8NRP shown for reference).

AUDIO OUT AUDIO IN VDA HDMI USB LAN 1 2 3 4 5 6 Planned 1 Planned 2 PLanned 3 PLanned 4 PLanned 5 PLanned 6 DC400 VGA or HDMI

1. Connect IP cameras to the PoE ports of the recorder.
2. Connect a monitor to the recorder via VGA or HDMI cable (not included).
3. Connect the included optical mouse into any USB port of the recorder.
4. Connect the power adapter to the recorder and plug power cord into a 120VAC 50/60Hz outlet.
5. Connect recorder to network (optional)
6. Turn on power switch and allow recorder to boot up.

2 Basic Operation Guide

2.1 Startup & Shutdown

Please make sure all the connections are done properly before you power on the unit. Proper startup and shutdown are crucial to expending the life of your device.

2.1.1 Startup

① Connect the output display device to the VGA/HDMI interface of the NVR.
② Connect with the mouse and power. The device will boot and the power LED would turn blue.
③ EZ setup window will pop up (you should select the display language the first time you use the NVR). Refer to 3.1 EZ Setup for details.

2.1.2 Shutdown

You can power off the device by using remote control or mouse.

By remote control:

① Press Power button. This will take you to a shutdown window. The unit will power off after a while by clicking "OK" button.

② Disconnect the power.

By mouse:

① Click Start→Shutdown to pop up the Shutdown window. Select "Shutdown" in the window. The unit will power off after a while by clicking "OK" button.

② Disconnect the power.

2.2 Remote Control

① It uses two AAA size batteries.
② Open the battery cover of the remote control.
③ Place batteries. Please take care the polarity (+ and -).
④ Replace the battery cover.

Key points to check in case the remote doesn't work.

1. Check batteries polarity.
2. Check the remaining charge in the batteries.
3. Check IR controller sensor for any masking.

If it still doesn't work, please change a new remote control to try, or contact your dealers. You can just turn the IR sensor of the remote control towards the IR receiver of the NVR to control it when you are controlling multiple devices by remote control.

The interface of remote controller is shown as below.

Basic Operation Guide

NVR User Manual

2.3 Mouse Control

Mouse control in Live Display & Playback interface

In the live display & playback Interface, double click on any camera window to show the window in single screen mode; double click the window again to restore it to the previous size.

In the live display & playback interface, if the interfaces display in full screen, move the mouse to the bottom of the interface to pop up a tool bar. The tool bar will disappear automatically after you move the mouse away from it for some time; move the mouse to the right side of the interface to pop up a panel and the panel will disappear automatically after you move the mouse away from it.

Mouse control in text-input

Move the mouse to the text-input box and then click the box. The Input keyboard will pop up automatically.

Note: Mouse is the default tool for all operations unless an exception as indicated.

2.4 Text-input Instruction

The system includes two input boxes. Refer to the above pictures. The left box is the number input box and the right box is the input box which provides inputs of numbers, letters and punctuation characters. The introductions of keys on the input boxes are shown below.

Button	Meaning	Button	Meaning
	Backspace key		Switch key of punctuation character
	Delete Key		Enter key
	Switch key between upper and lower letter		Space key
	Switch key of language

2.5 Common Button Operation

Button	Meaning
	Click it to show the menu list.
	Click it to change the sequence of the list.
	Click it to change the camera dislaving mode.

3 EZ Setup & Main Interface

3.1 EZ Setup

The disk icons will be shown on the top of the startup interface. You can view the number and status of each disk quickly and conveniently through these icons (☐: no disk; ☐: unavailable disk; ☑: RW available disk).

You can quickly configure the NVR by clicking "OK" to make the NVR work normally. You must configure the wizard if you start the NVR for the first time (or click "Skip" to cancel the EZ Setup next time).

EZ Setup OK Enable EZ setup next time Skip

Click "OK" to start wizard. The setting steps are as follows.

① System Login. Set your own password when you use the wizard for the first time (the default username of the system is admin); select the login username and enter the password you set by yourself.

EZ Setup Admin Password Setup Username: New Password: Enter Password Confirm Password: Enter Password Display Password Log In Automatically

EZ Setup Time Zone GMT-05 New York Toronto Washington System Time 05/08/2018 18:20:22 Done Format Month/Day/Year Time Format 24-Hour OST OFF Synchronous Manual MTP Server www.mtp.com Previous Non Cancel

① Network Settings. Select the network work pattern as required. Check "Obtain an IP address automatically" and "Obtain DNS automatically" to get the IP address and DNS automatically (the DHCP function of the router in the same LAN should also be enabled), or manually enter them. Enter the HTTP port, RTSP port and Server port (please see 11.1.2 Port Configuration for details). Click "Next" to continue.

EZ Setup EZ Network x (Local Settings) External Port 1 (Online) □ Address or IP address automatically access EBIT Address: 162 168 1 203 Local Mask: 254 254 218 8 Setting: 162 168 1 1 □ Address TCP automaticity Preferred CIE: 0 0 0 0 Adaptive PS: - HTTP Port: 40 HTTP Port: 754 HTTP Rate: 44% HTTP Rate: 99.9%

④ Other Network Settings.

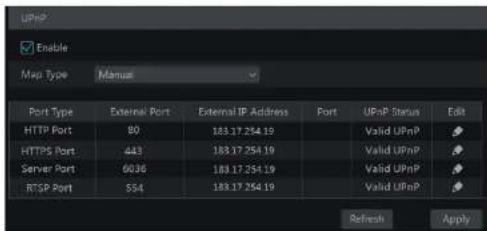

UPnP settings: Check "Enable" in the interface and enter the port of external and then click "Test" to test the effectiveness of the input information. If the UPnP status were "Invalid UPnP", the port number may be wrong. Click ☐ to modify the port until the UPnP status turns to "Valid UPnP". Refer to the following picture. You can view the external IP address of the NVR. Enter the external IP address plus port in the address bar of your browser to access the NVR. (Please see 11.1.6 UPnP Configuration for details).
DDNS Settings: Check "Enable" and then select the DDNS type. Enter the server address, domain name, username and password according to the selected DDNS type. And then click "Register" or "Test" to test the effectiveness of the domain name. If it is effective, you can enter the domain name in the address bar of your browser to access the NVR. (Please see 11.1.4 DDNS Configuration for details).

EZ Setup & Main Interface

NVR User Manual

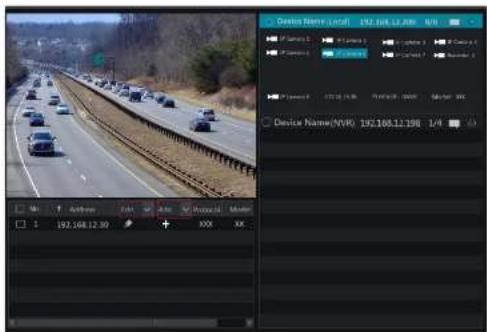

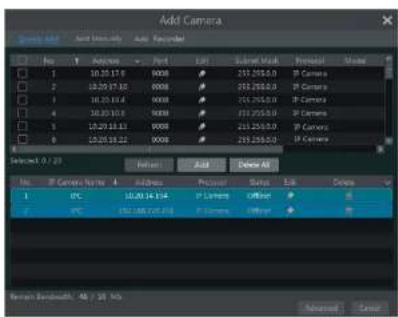

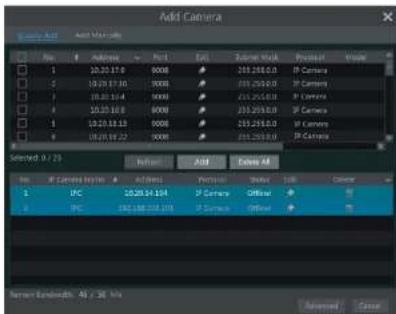

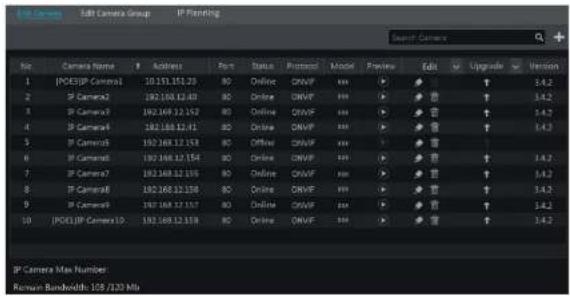

added to the corresponding channel. To add cameras from the LAN, make sure all cameras are set to DHCP. Click "Refresh" to refresh the list of online IP cameras which are in the same local network with NVR and then click + to add the searched camera. Click "Add All" to add all the cameras in the list. Click + to delete the added camera. Click "Delete All" to delete all the added cameras.

EZ Setup File Edit View Insert Format Help Window Help 1 102.108.06.51 E260 SPEC0 02/4/2 2 102.108.06.191 SE SP20.0 Sp20.0 3 102.108.06.085 S14 Sp20.0 Sp20.0 X13.9 4 102.108.06.196 SP20 SP20.0 SP20.0 5 102.108.06.197 SP20 SP20.0 SP20.0 6 102.108.06.198 SP20 SP20.0 SP20.0 7 102.108.06.199 SP20 SP20.0 SP20.0 8 102.108.06.200 SP20 SP20.0 SP20.0 9 102.108.06.201 SP20 SP20.0 SP20.0 10 102.108.06.202 SP20 SP20.0 SP20.0 Before Update Update Name: Windows Notepad File Edit View Help

Click to edit the searched IP camera as shown on the below left. Enter the new IP address, subnet mask, gateway, username and the password of the camera. You can check "Sync to IPC" to modify the IP address of the IPC via different network segments for being in the same network segment with the NVR. Click "OK" to save the settings.

Edit MAC Address Address 192 168 12 ... 86 Sync to IPC Subset Mask 255 255 255 ... 0 Gateway 192 168 12 ... 1 Username Address Password ***** OK Cancel

Edit Camera Camera Name Camera1 Address 192 168 12 112 Sync to PC Port 30 Protocol Group Auto 15 Username Admin Password ******** Next On Cancel

Click to edit the added camera as shown on the above right. Enter the new camera name, IP address, port, username and the password of the camera. You can click "Test" to test the effectiveness of the input information. Click "OK" to save the settings. You can change the IP camera name only when the added camera is online. Click "Next" to continue.

EZ Setup & Main Interface

NVR User Manual

Manual: Set the "Sensor Record", "Motion Record" and "Schedule Record" of each camera. Click "OK" to save. See 7.1.1 Mode Configuration for details.

F2 Setup C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\Current Settings\C:\Users\(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{Current Settings}\) \(\text{---}\)

⑧ QR Code. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to 11.1.7 NAT Configuration for details). You can scan the QR Code through the Speco Blue App available for iOS and Android to easily and securely view your cameras. Please refer to 12.1 Mobile Client Surveillance for details. Click "OK" to save the settings. Mobile viewing is also available on our SecureGuard Client app.

3.2 Main Interface

3.2.1 Main Interface Introduction

No Video No Video No Video No Video No Video No Video No Video Search and Export Settings Export Export Export 01.04.2019 08:37:59

The buttons in area ① are introduced in the table below.

EZ Setup & Main Interface

NVR User Manual

Button	Meaning
	Disk status button. Click it to view the disk status and RAID status.
	Network status button. Click it to view the network status.
	Information button. Click it to view system information.

Introduction of area ②:

Click "Camera" to view all the added cameras in the camera list. Select one camera window on the left side of the interface and then double click one camera in the list to preview the camera image in the selected window.

Click "Single Channel Sequences" to view all the added groups in the group list; click one group in the list to view all the added cameras in the group (refer to 4.2 Add/Edit Camera Group, for detail configuration of the camera group). Select one camera window on the left side of the interface and then double click one group In the group list to preview the cameras' images one by one in the selected window.

Click "Customize Layout" to view all the display modes in the display mode list (refer to 5.2.1 Preview by Display Mode for detail configuration of the display mode). Double click one display mode in the list to switch to the display mode for previewing.

Introduction of area ③:

Icon / Button	Meaning
	It shows the current login user.
	Click it to go to record search and export interface, see 8.3 Record Search, Playback & Export for details.
	Click it to go to playback interface (click on the tool bar at the bottom of the live view interface to set the default playback time), see 8.2 Playback Interface Introduction for details.
	Click it to pop up the setup panel, see 3.2.2 Setup Panel for details.
	Click it to log out the system.
	Click it and then select "Logout", "Reboot" or "Shutdown" in the popup window.
	Click it to go to the EZ setup.

3.2.2 Setup Panel

Click Start Settings to pop up the setup panel as shown below.

EZ Setup & Main Interface

NVR User Manual

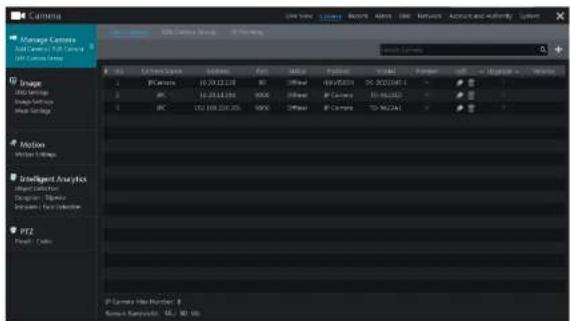

Manage Camera Image: 100 MHz Image: 100 MHz Motion Intelligent Analysis PPT2 Image: 100 MHz

There are some function Items on the left side of the camera management Interface. Click each Item to go to corresponding Interface or window. For instance, click "Add Camera" to pop up the window as shown below.

Add Camera Selected 0 / 23 File: IP Camera Key: A1 (1) 10.20.17.0 9000 B1 (2) 10.20.17.10 9000 C1 (3) 10.20.18.4 9000 D1 (4) 10.20.18.5 9000 E1 (5) 10.20.18.13 9000 F1 (6) 10.20.18.22 9000 ADD Delete All Control: 1 IPC 10.20.14.104 IPC Camera Offset 2 IPC 10.20.14.22.224 IPC Camera Offset Reverse Breakthrough: Alt x 36 fps Advanced Cancel

Click the main menus on the top of the camera management interface to go to corresponding interfaces. Refer to the picture below. For instance,

EZ Setup & Main Interface

NVR User Manual

The module covers the functions such as Disk Management, Storage Mode and Disk Information and so on. Please see Chapter 7 Record & Disk Management for details.

Network

The module covers the functions such as TCP/IP, DDNS, Port, E-mail and Network Status and so on. Please see 11.1 Network Configuration for details.

Account and Authority

The module covers the functions such as Account Management (see 10.1 Account Management for details) and Permission Management (see 10.3 Permission Management for details) and so on.

System

The module covers the functions such as Basic Configuration (see 11.2 Basic Configuration for details), Device Information (see 11.8 View System Information for details), Log Information (see 11.7 View Log for details) and Configuration File Import&Export (see 11.5 Backup and Restore for details) and so on.

4 Camera Management

4.1 Add/Edit Camera

4.1.1 Add Camera

The network of the NVR should be set before adding IP camera (see 11.1.1 TCP/IP Configuration for details).

Refer to the pictures below. Click Add Camera In the setup panel or in the top right corner of the preview window to pop up the "Add Camera" window as shown below. You can quickly add or add the IP camera manually.

Avdi Camera File Edit View Insert Modify Audio Preview □ Yes ▶ Add Options ▶ Print Alt Select Mod. Preview Mode 1 10.20.17.6 9000 ■ 237.255.0.0 JP Camera 2 10.20.17.10 9000 ■ 237.255.0.0 JP Camera 3 10.20.18.4 9000 ■ 237.255.0.0 JP Camera 4 10.20.18.5 9000 ■ 237.255.0.0 JP Camera 5 10.20.18.13 9000 ■ 237.255.0.0 JP Camera 6 10.20.18.22 9000 ■ 237.255.0.0 JP Camera Select: 3 / 23 Add Adjust Delete All No JP Camera Name 4 Address Protocol Status Init Delta 1 IPC 10.00.14.14 IP Latency Offset 2 IPC 152.188.752.813 IP Latency Offset Copyright Bandwidth: 48 / 38 Hz Advanced Cancel

Quickly Add

Check the cameras and then click "Add" to add cameras. Click to edit the camera's IP address, username and password and so on. Click "Default Password" to set the default username and password of each camera.

Camera Management

NVR User Manual

the effectiveness of the input information and then click "Add" button (you can input one camera's information or above such as IP address, username and password before clicking "Add" button). Click to delete the camera. Click "Default Password" to set the default username and password of each camera.

Note: Some models may not support this function.

Click Start→Settings→System→Basic→General Settings to check "Enable Add IPC by Zero Operation". If the NVR has unoccupied channels, it can add IPC without any operation by restarting.

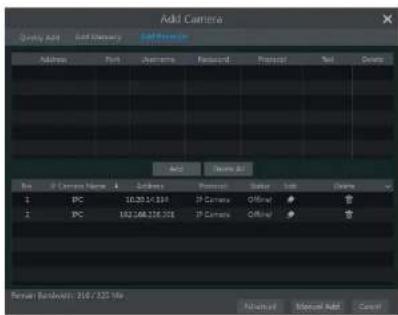

Add Recorder

Add Camera Quality and Add Summary Add Version Address Port Camera Resource Protocol Tail Delete 1 IPC 10.20.14.194 IP Camera Offocal ● 曾 2 IPC 162.168.156.356 IP Camera Offocal ● 曾 Add Remove All No IP Camera Name Access Protocol Status Temp Description + IPC 10.20.14.194 IP Camera Offocal ● 曾 + IPC 162.168.156.356 IP Camera Offocal ● 曾 Revian: 216 / 325 No Add on Manual Add Cancel

• Quickly Add : Select the searched NVR/DVR and the click "Add" to add NVR in the same local network.
• Manually Add : Click "Manual Add" and then enter the IP address or domain name, port, username and password of the NVR/DVR. Check the added remote channel number and click "Test" to test the effectiveness of the input information. Then click "OK" button to return to the previous Interface.

Add Recorder Channel Address 102.143.15.16 Server Port: 8000 Username: default Server Channel No. Camera Name Model 1 2 3

Camera Management

NVR User Manual

after the upgrade is completed successfully).

IP Camera Max Number: Rosen Bandwidth: 108/120 Mb

The IP cameras with PoE function which directly connect to the PoE port of the NVR will be displayed automatically in the camera list. Refer to the picture below. The IP camera which occupies the PoE resource has a prefix shown before its camera name. The prefix consists of PoE plus PoE port number. The IP camera which connects to the PoE port cannot be deleted from the camera list manually.

- The IP camera which directly connects to the PoE port of the NVR through private protocol will be shown automatically in the camera list.

- One of the two conditions must be met if the IP camera which directly connects to the PoE port of the NVR through ONVIF protocol should be shown automatically in the camera list.

√ The IP camera which directly connects to the PoE port is in the same network segment with the Internal ethernet port.

√ The DHCP (obtain an IP address automatically) of the IP camera which directly connects to the PoE port is enabled.

If the IP camera which connects to the PoE port cannot be displayed automatically in the camera list, please refer to Q6 In Appendix A FAQ for details.

4.2 Add/Edit Camera Group

4.2.1 Add Camera Group

Click "Edit Camera Group" in the above interface to go to the interface as shown below.

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 )

4.2.2 Edit Camera Group

Edit Camera Edit Camera Group IP Planning Group1 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera1 IP Camera2 Group2 Dwell Time ( 10 Secs ) Number of Cameras( 2 ) IP Camera3 IP Camera4

Click to modify the group information such as group name and dwell time. Click to delete the group.

4.2.3 IP Planning

Some models may not support this function.

Click "IP Planning" to go to the interface as shown below. This function supports searching other NVRs/DVRs that is in the same local network as the local NVR. The user may add camera channels of other NVRs/DVRs into the unoccupied channels of the local NVR.

Device Name (Local) 192.108.12.00 File Edit View Tools Window Help 192.108.12.30 Device Name(NVR) 192.108.12.30 1/4

Click to edit the IP address, user name or password and other information of the NVRs.

5 Live View Introduction

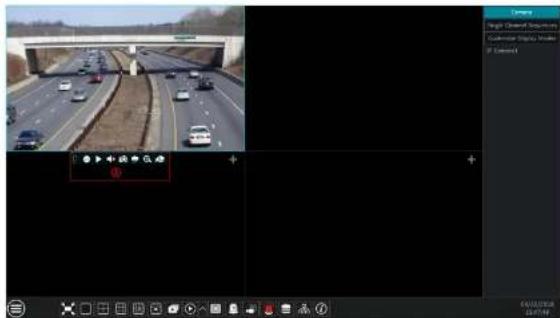

5.1 Live View Interface Introduction

You should add camera first after logging on to the system (see 4.1.1 Add Camera for details). Refer to the interface as shown below, drag one camera in the preview window to another window for camera window exchanging.

The record symbols with different colors in the live view window refer to different record types when recording: green stands for manual record, red stands for sensor based record, yellow stands for motion based record, blue stands for schedule record and cyan stands for Intelligence record.

Single Channel Security Customize Display Mode IF Connected

Click the preview window to show the tool bar as shown in area ①; right click the preview window to show the menu list. The tool bar and menu list are introduced in the table below.

Button	Menu List	Meaning
	--	Move tool. Click it to move the tool bar anywhere.
	Manually Record On	Click it to start recording.

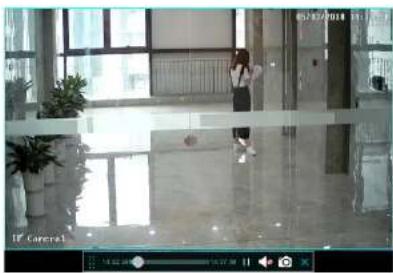

	Instant Playback	Click ▶ to playback the record; click "Instant Playback" to select or self-define the instant playback time. See 8.2 Instant Playback for details.
	Enable Audio	Click it to enable audio. You can listen to the camera audio by enabling audio.
	Snap	Click it to pop up the snap window. Click "Save" in the window to save the image. Click "Export" to export the image.

Live View Introduction

NVR User Manual

Highway traffic scene with multiple lanes and cars, no visible text or symbols

5.2 View Mode

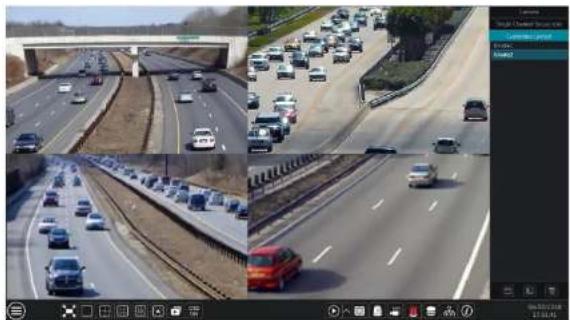

5.2.1 Display Mode

Set different screen modes and cameras' display sequences as needed and then save the display modes classified by surveillance areas, priorities and so on. Refer to the picture below. Double click one display mode in the display mode list to view the live images in this mode.

Composite image showing multiple highway traffic scenes with vehicles and a red car, displayed in a video editing interface (no readable text or symbols)

Live View Introduction

NVR User Manual

5.2.2 Quick Sequence View

You can start quick sequence view if the scheme has not been created. If the scheme has been created, please refer to 5.2.4 Scheme View in Sequence for details.

Composite image showing a multi-lane highway with traffic and a red car, alongside a close-up of multiple vehicles on elevated tracks (no visible text or symbols)

Go to the live view interface and then click 📋 to pop up a little window. Set the dwell time in the window and then click 📋 to view the live group by group according to the camera number of the current screen mode. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📋 to stop the view.

5.2.3 Camera Group View In Sequence

You can start camera group view in sequence if camera group has been created (see 4.2.1 Add Camera Group for details). ① Go to the live view Interface and then select a camera window.

Composite image showing multiple highway traffic scenes with vehicles and a red arrow pointing to a vehicle (no visible text or symbols)

Live View Introduction

NVR User Manual

④ is the tool bar (clear button; favorite button, click it to pop up a window, enter the display mode name in the window and then dk "OK" to save the current display mode; other buttons are screen mode buttons).

Main Output Sequence 1 IP Camera1 Camera Single Channel Sequences IP Camera1 IP Camera2 IP Camera3 IP Camera4 Apply

Add Scheme

Click + in area ① to create a new scheme. Click ✗ on the top right corner of the scheme to delete it.

Configure Scheme

a) Select a scheme in area ① and then click the screen mode button on the tool bar to set the screen mode of the scheme. b) Select a camera window in area ② and then double click the camera or group in area ③. The camera or group will be added into the selected window. One camera in the same scheme cannot repeat. You can click the right-click menu "Clear" in area ② to remove a single camera or click to remove all the cameras.

c) Click "Apply" to save the settings.

Start Sequence View

Go to the live view interface and then click 📄 to open a window. Set the dwell time in the window and then click 📄 to start scheme view in sequence. Double click the sequence view interface to pause the view; double click again to restore the view. Click 📄 to stop the view.

5.3 Image Configuration

5.3.1 OSD Settings

Click Start→Settings→Camera→Image→OSD Settings to go to the Interface as shown below. Select the camera, enter the camera name (or double

Live View Introduction

NVR User Manual

5.3.2 Image Settings

Click Start→Settings→Camera→Image→Image Settings to go to the following interface. Select the camera and then set the brightness, contrast, saturation and hue of the camera. Click "Advanced" button or in the camera list on the right side of the interface to pop up "Image Adjust" interface and then set the relevant setting items. Please refer to 5.3.4 Image Adjustment for detailed introductions of these items. You can click "Default" to restore the image settings to the default factory settings.

Camera Name Brightness Contrast Saturation Hue Advanced IP Camera1 50 55 50 50 IP Camera2 50 55 50 55 IP Camera3 50 55 50 55 IP Camera4 50 55 50 55 Camera IP Camera1 Brightness 50 Contrast 55 Saturation 50 Hue 50 Advanced Default

5.3.3 Mask Settings

Some areas of the image can be masked for privacy. Up to four mask areas can be set for each camera. Click Start→Settings→Camera→Image→Mask Settings to go to the interface as shown below. Select the camera and enable the mask. Click "Draw" button and then drag the mouse on the image area to set the mask area; click "Delete" button to delete the mask areas; click "Apply" to save the settings.

Camera Name IP Camera1 ON Black IP Camera2 OFF Black IP Camera3 OFF Black IP Camera4 OFF Black Draw Delete Camera IP Camera1

Camera SP Camera1 Image Adjust Lens Control Brightness 60 Contrast 50 Saturation 50 Blue 50 Sharpen 50 Wide Dynamic 50 Genslow 50 White Balance Auto Image Mirror ON OFF Image Flip ON OFF Default Back

Image Adjustment

Select the camera and then click "Image Adjustment" to go to image adjustment tab. Refer to the above picture. Drag the slider to set the camera's brightness, contrast, saturation and hue value. Check sharpen, wide dynamic and denoise and then drag the slider to set the value. Click "Default" button to set these parameters to default values.

The introductions of these parameters are as follows:

Parameter Meaning
Brightness	It is the brightness level of the camera's image.
Contrast	It is the color difference between the brightest and darkest parts.
Saturation	It is the degree of color purity. The color is purer, the image is brighter.
Hue	It relates to the total color degree of the image.
Sharpen	It relates to the resolution level of the image plane and the sharpness level of the image edge.
Wide Dynamic	The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details.
Denoise	Adopt the noise reduction technology to decrease the noise and make the image more thorough. Increasing the value will make the noise reduction effect better but it will reduce the image resolution.
White Balance	White balance is the white rendition function of the camera to adjust the color temperature according to the environment automatically.

Camera Camera1 Image Adjust Camera Control +Zoom + Focus Mode Manual Mode +Action + Close Key Mode Switch that focus mode, used to serve to Local offset Copyright mode switch out of focus Close Back

The introductions of these parameters and buttons are as follows.

Button/Parameter	Meaning
	Click + / - to zoom in/out the image.
Focus Mode	If manual mode is selected, focus button & "One Key Focus" & "Day/night mode switch autofocus" will be available; if auto mode is selected, the time interval setup will be available.
	Click + / - to increase/decrease the focal length.
One key Focus	Click it to focus instantly.
Day/night mode switch autofocus	If checked, the lens will focus automatically when the camera is switching day/night mode.
Time Interval	It is the time interval when camera lens is auto-focusing. The interval can be set in the droo-down list.

Note: This function is only available for motorized zoom camera, or the settings here are

6 PTZ

6.1 PTZ Control Interface Introduction

You can control the IP dome or PTZ which connects to the IP camera for PTZ control.

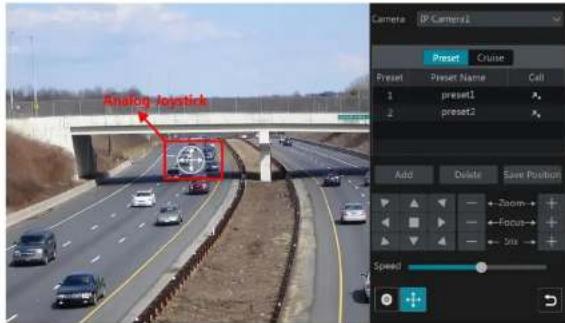

Click ☐ on the tool bar at the bottom of the live view window to go to the PTZ control interface as shown below. You can select another IP dome or PTZ which connects to the IP camera on the top right of the interface for PTZ control.

Analog Joystick Camera | Camera1 Preset Cruise Preset Preset Name Cell 1 preset1 2 preset2 Add Delete Save Position Zoom Focus Six Speed

Introductions of the buttons on the bottom right of the interface:

Button	Meaning
	Click ▲ / ▶ / ▶ / ▶ / ▶ / ▶ / ▶ / ▶ / ▶ to rotate the dome. Click □ to stop rotating the dome.
- Zoom → +	Click + / - to zoom in / out the camera image.
- ← focus → +	Click + / - to increase / decrease the focal length.
- ← Ins → +	Click + / - to increase / decrease the Ins of the dome.
	Drag the slider to adjust the rotating speed of the dome.

Highway photo with visible traffic and a red 'Zoom UI' overlay, likely indicating a zoom or tracking interface.

Camera IP Camera1 Preset Crude Preset Preset Name Call 1 preset1 2 preset2 Add Delete Save Position Zoom Focus Jin Speed

Refer to the picture as shown below. Drag the mouse from C to D to get a green rectangle and the rectangle area will be zoomed out.

Highway with multiple vehicles and a bridge structure, no visible text or symbols

Camera IP Camera3 Preset Cruise Preset Name Call 1 preset1 2 preset2 Add Delete Save Position ←Zoom→+ ←Focus→+ ←Ins→+ Speed

Advanced 3D Control

Double click the left button of the mouse on any area of the camera image and then the image size will be doubled and centered on the clicked

Adjust the dome's direction and then click "Save Position" to save the current preset position (you can also click another preset in the preset list and then save the preset position after adjusting the dome's direction); click In the preset list to call the preset; click "Delete" button to delete the selected preset. You can also go to preset setting Interface for preset setting, see 6.2 Preset Setting, for details.

Cruise Setting

Click "Cruise" to go to cruise operation tab and then click "Add" button to pop up a window as shown below left. You can add 8 cruises for each dome at most.

Add Cruise Cruise Name (frame) Primer Aircraft Name Speed Time Size Unreal power1 0.000x Add Cruise Add Cruise

① Enter the cruise name in the "Add Cruise" window and then click "Add preset" to pop up the "Add Preset" window (Before adding preset to the cruise, please add preset of the dome first). ② In the "Add Preset" window, select the preset name, preset time and preset speed and then click "OK" button. ③ In the "Add Cruise" window, you can click 📋 to reselect the preset, then change the preset time and speed. Click 📋 to delete the preset. Click "Add" button to save the cruise.

Click to start the cruise and click to stop the cruise in the cruise list of the cruise operation tab; click "Delete" button to delete the selected cruise. You can also go to cruise setting interface for cruise setting, see 6.3 Cruise Setting for details.

6.2 Preset Setting

Click Start→Settings→Camera→PTZ→Preset to go to the interface as shown below.

Preset Cruise JP Camera1 Number of Preset (1)

Select camera and preset. You can enter the new name of the preset and then click to save the new preset name. Adjust the rotating speed, position, zoom, focus and Iris of the preset and then click "Save Position" to save the preset.

Delete Preset

Select camera and preset and then click "Delete" to delete the preset.

6.3 Cruise Setting

Click Start→Settings→Camera→PTZ→Cruise to go to the interface as shown below.

IP Camera1 Number of Cruise(1) cruise1 + Camera IP Camera1 Cruise cruise1 Cruise Name cruise1 Preset Preset Name Speed Time Edit 1 preset1 5 5 Secs 2 preset2 5 -5 Secs Add Preset

Add Cruise

Click in the camera list on the right side of the interface to display the cruise information of the dome and then click to add cruise. The operations of the "Add Cruise" window are similar to that of the PTZ control Interface; please see 6.1 PTZ Control Interface introduction for details.

Edit Cruise

Select the camera and cruise in the "Cruise" interface. Enter the new cruise name and then click to save the cruise name. Click "Add Preset" to add preset to the cruise. Click to edit the preset. Click to delete the preset from the cruise. Click one preset in the preset list and then click to move down the preset and click to move up the preset. Click to start the cruise and click to stop it.

Delete Cruise

7 Record & Disk Management

7.1 Record Configuration

7.1.1 Mode Configuration

Please format the HDDs before recording (refer to 7.5 Disk Management for details). Click Start→Settings→Record→Mode Settings to go to the mode settings interface. You can set the record time under the "Manual Record Settings" and then click "Apply" to save the settings. There are two record modes: auto mode and manual mode.

Record of Block Model: □ Minimal Record □ Minimal Rebound □ Minimal Record-Reverse Record □ Continuous Real-Off-Revision Record □ Continuous Real-Off-Revision Record □ Continuous Real-Off-Mission Record-Off-Revision Record Advanced Normalized Record of Match True Advanced Type: Apply

Auto Mode

Motion Record: Motion alarm record will be enabled when motion alarm happens.

Sensor Record: Sensor alarm record will be enabled when sensor alarm happens.

Motion Record+Sensor Record: Motion/sensor alarm record will be enabled when motion/sensor alarm happens.

Continuous Record+Motion Record: Normal record is enabled all the time; motion alarm record will be started when motion alarm happens.

Continuous Record+Sensor Record: Normal record is enabled all the time; sensor alarm record will be started when sensor alarm happens.

Continuous Record+Motion Record+Sensor Record: Normal record is enabled all the time; motion/sensor alarm record will be enabled

when motion/sensor alarm happens

Continuous Record+Motion Record+Sensor Record+ Analytics Record: Normal record is enabled all the time; motion/sensor/analytics

alarm record will be enabled when motion/sensor/intelligence analytics alarm happens.

You can add more auto modes on intelligence record. Click "Advanced" button to pop up a window as shown below. Check the modes in the window and then click "Add" button to show the modes in the record mode list (in the window, the checked modes can be showed in the record mode list while the unchecked modes cannot; you shall check "Analytics Record").

Record & Disk Management

NVR User Manual

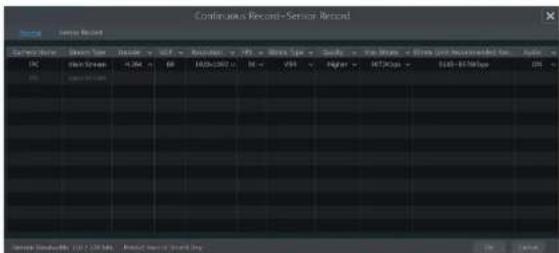

Continuous Record-Sensor Record Source: Sensor Record Data Type: Screen Type: Record - 100% - 100% - 100% DC: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count: 4,364 - 88 ISO: Screen Count/5000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Source: Standard. (12) / 225 MHz - Product Number / Sample Day

Video Encode: the available options will be H.265 and H.264 if the connected IP camera supports H.265, or the option will be H.264 only.

GOP: group of pictures,

Resolution: the higher the resolution is, the clearer the image is.

FPS: the higher the frame rate is, the more fluency the video is. However, more storage room will be taken up.

Bitrate Type: CBR and VBR are optional. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This will help to optimize the network bandwidth.

Quality: When VBR is selected, you need to choose image quality. The higher the image quality you choose, the more bitrate will be required.

Max Bitrate: 32Kbps \~10240Kbps are optional.

Manual Mode

If the manual mode is selected, you need to set the encode parameters and record schedules of each camera. See 7.2 Encode Parameters Setting and 7.3 Schedule Setting for details.

7.1.2 Advanced Configuration

Click Start→Settings→Record→Advanced to go to the following Interface. Enable or disable cycle record (cycle record: the earliest record data will be replaced by the latest when the disks are full). Set the pre-alarm record time, post-alarm record time and expiration time of each camera and then click "Apply" to save the settings.

Current Event Summary 1. Compares the total number of items to compute the latest version of each item's value. Current Event Summary Category: Project Summary Type - Total Project Summary Type - Performance Type IPC 1 Day - 27 days - More than IPC 2 Days - 30 days - More than ...

Click Start→Settings→Record→Stream Settings to go to "Sub-stream" interface. Set the encode, resolution, FPS, GOP, bitrate type, quality and max bitrate of sub-stream for each camera in the interface and then click "Apply" to save the settings.

Current Name Stream Type Exposure Production F/S GDP Balance Type Quality Max Inflow Estimate Limit Subscription B Current Sub-stream R304 R52x243 25% Vest Higher $120bps 817-142900Hz B Current2 Sub-stream R304 R52x243 25% Vest Higher $120bps 817-142900Hz B Current3 Sub-stream R304 R52x243 25% Vest Higher $120bps 817-142900Hz B Current4 Sub-stream R304 R52x243 25% Vest Higher $120bps 817-142900Hz

7.3 Schedule Setting

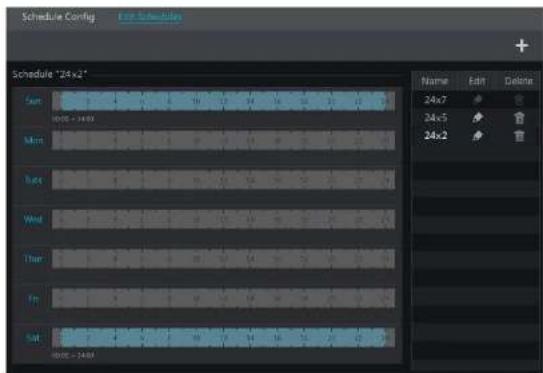

7.3.1 Add Schedule

Click Start→Settings→Record→Record Schedule→Edit Schedules to go to the interface as shown below. "24×7", "24×5" and "24×2" are the default schedules; you cannot edit or delete "24×7" while "24×5" and "24×2" can be edited and deleted. Click the schedule name to display the detailed schedule Information on the left side of the Interface. The seven rows stand for the seven days in a week and each row stands for 24 hours in a day. Blue stands for the selected time and gray stands for unselected time.

Schedule Config E12 Schedules Schedule "24 x2" Sum 00:00 - 34:00 Mcm 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24x2 24x7 24x5 24x2 Wed 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24x2 24x7 24x5 24x2 Wed 10 11 12 13 14 15 16 17 18 19 20 2- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Record & Disk Management

NVR User Manual

Set Day Schedule

Click 📄 and then drag the cursor on the time scale to set record time; click 📄 and then drag the cursor on the time scale to delete the selected area.

You can manually set the record start time and end time. Click 📄 or 📋 and then click "Manual" on each day to pop up a window as shown below. Set the start and end time in the window and then click "OK" to save the settings.

Added time manually Start Time: 16.34 End Time: 17.34 OK Cancel

Click "All" to set all day recording; click "Reverse" to swap the selected and unselected time in a day; click "Clear All" to clear all the selected area in a day. Click "Copy To" to copy the schedule of the day to other days. Refer to the picture below. Check the days in the window and then click "OK" to save the settings.

Copy to ✓ Mon ✓ Tues ✓ Wed ✓ Thur ✓ Fri ✓ Set OK Cancel

Set Week Schedule

Click 📄 or 📋 and then click "Manual" beside 📋 to set the week schedule. Refer to the picture below. Set the start and end time, check the days in the window and then click "OK" to save the settings.

Record & Disk Management

NVR User Manual

Current Name Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Schedule Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Category Current Select Categories

Go to "Edit Schedules" interface and then click to edit the schedule. The settings of "Edit Schedule" are similar to that of the "Add Schedule". Click to delete the schedule.

7.4 Record Mode

7.4.1 Manual Recording

Method One: Click 📋 on the tool bar at the bottom of the live view interface to enable recording of the camera.

Method Two: Go to the live view interface and then click the right-click menu "Manually Record On" in the camera window or click on the tool bar under the camera window to start recording.

Note: Click Start Settings Record Mode Settings and then set the manual record time in the Interface. Click "Apply" to save the settings.

7.4.2 Timing Recording

Timing Recording: the system will record automatically according to the schedule.

Set the timing record schedule of each camera. See 7.3 Schedule Setting for details.

7.4.3 Motion Based Recording

Motion Based Recording: the system will start motion based recording when the motion object appears in the setup schedule. The setup steps are

as follows:

① Set the motion based recording schedule of each camera. See 7.3 Schedule Setting for details.

② Enable the motion and set the motion area of each camera. See 9.2.1 Motion Configuration for details.

The camera will start motion based recording once you finish the above settings.

7.4.4 Sensor Based Recording

Record & Disk Management

NVR User Manual

Data Capacity(M) Free Data(M) Fork Size: No. Class Model Status Type Testing Period Operation Time Data 801 900 465 200 Car Exchney: 20/1/2017 Operating

Some models may not support this function. The settings of RAID are as followings. Please skip the settings of physical disk, array and disk mode if the NVR doesn't support this function.

Note: 1. The new HDD should be formatted for normal use. 2. For normal use of the HDD which has been used in other NVR, if the NVR is of the same model with the new NVR, please import the configuration file of the NVR to the new NVR or format the HDD: If the models of the two NVRs are different, please format the HDD.

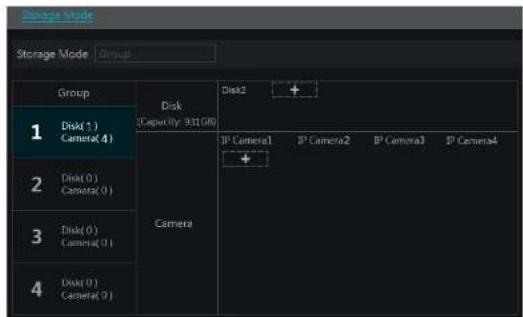

7.5.2 Storage Mode Configuration

Click Start→Settings→Disk→Storage Mode to go to the Interface as shown below.

Storage Mode Storage Mode Group Group Disk (Dupacity: 931GB) Disk2 + 1 Disk(1) Camera(4) 2 Disk(0) Camera(0) 3 Disk(0) Camera(1) 4 Disk(0) Camera(0)

There are all four disk groups. By using disk group, you can correspond the camera to disk (the record data of the camera in the group will be stored into the disks in the same group). The NVR with e-SATA interface supports e-SATA recording.

The added disks and cameras will be added into group one automatically. The disks and cameras in the groups can be deleted except group one

Disk Disk Management Disk Manager Disk Server Path: 200 Disk Market: 400 Durability: 1.57 Prevent or Total drive: 11 Disk & Disk Active drive: Normal DCT: 98% drive: 100x 30% drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 5 DCT: 98% drive: 100x 30% drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 100x 100x drive: 5 DCT: 98% drive: 100x 30% drive: 100x 100x drive: 125x 5x drive: 5 DCT: 98% drive: 100x 30% drive: 125x 5x drive: 5 DCT: 98% drive: 125x 5x drive: 5x 5x drive: 5 DCT: 98% drive: 125x 5x drive: 5x 5x drive: 5 DCT: 98% drive: 125x 5x drive: 5x 5x drive: 5 DCT: 98% drive: 125x 5x drive: 5x 5x drive: 5

8 Playback & Backup

8.1 Instant Playback

Click ▶ on the tool bar at the bottom of the preview camera window to play back the record (click ▶ on the tool bar at the bottom of the live view interface to set the default playback time). Refer to the picture below. Drag the playback progress bar to change the playback time. You can also click the right-click menu "Instant Playback" in the camera window and then set the instant playback time to play back the record.

Interior view of a modern building with large windows and potted plants, no visible text or symbols

8.2 Playback Interface Introduction

Click 📄 on the tool bar at the bottom of the live view Interface or click Start→Playback to go to the playback interface as shown below {click on the tool bar at the bottom of the live view Interface to set the default playback time}.

PC No Data ①

Button	Meaning
	Full screen button. Click it to show full screen; click it again to exit the full screen.
	Screen mode button.
	OSO ON button. Click it to enable OSD; clickto disable OSD.
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Clickto step backward 30s and clickto step forward 30s.
	Event list/tag button. Click it to view the event record of manual/schedule/sensor/ motion and the tag information.
	Backup button. Drag the mouse on the time scale to select the time periods and cameras, and then click the button to back up the record.
	Backup status button. Click it to view the backup status.
	Back button. Click it to return.
	Full screen motion button.
	Motion button.
	Draw line button. You can search the record of crossing the line after drawing the line.
	Draw quadrilateral. You can search the record in this quadrilateral after drawing it.
	Smart playback settings. Click it to set smart playback.

Introduction of area ②:

Button	Meaning
	Click it to go to record search and export interface; see 8.3 Record Search.Playback & Backup for details.
	Click it to go to the live view interface; see Chapter 5 Live View Introductionfor details.

Playback & Backup

NVR User Manual

Introduction of area ④

You can check the record type as required for record playback; first you should click ☐ on the tool bar at the bottom of the interface to clear all

the playback camera, then check the record type ( manual record; sensor based record; motion based record; schedule record;

: analytics record; and finally click + in the playback window to add camera for playback (the record time scale will show the record data of the checked record type only after the above operations).

Introduction of the record time scale (area ⑤)

Click 📋 to set the date; click 🔒 to set the time and then the playback camera will play the record from the time you set.

A tool bar will appear after moving the mouse to the record time scale. Click / to show the timeline; click to recover the timeline to 24 hours' ratio. Drag the timeline or slide the scroll wheel of the mouse on the time scale to show the hidden time on the top or bottom of the timeline. You can also click to show the hidden time on the top of the timeline or click to show the hidden time on the bottom of the timeline. Drag the slider at the bottom of the time scale to show the hidden playbar caracas

The record time scale shows different record types with different colors. The green block stands for manual record, red block stands for sensor based record, yellow block stands for motion based record, blue block stands for schedule record and cyan block stands for intelligence record. Click the record block to set the time and then the playback camera will play the record from the time you set.

Drag the color block on the time scale to select the backup area and then right click the area or click to pop up an export information window. Click button in the window to pop up the export window. Select the device, export path and format and then click "Export" button to start the backup.

8.3 Record Search, Playback & Export

The record data and the captured pictures can be exported through network, USB (U disk or USB mobile HDD). The file system of the export devices should be FAT32 format.

8.3.1 EZ Search

1 Click Start→Search and Export→EZ Search to go to the "EZ Search" tab. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. If the camera thumbnail number is more than 64, the cameras will be listed directly by their camera name, not the thumbnail. A maximum of 196 camera names can be listed. If the camera name number is more than 196, the time view mode will be disabled and the camera view mode will be available only.

Search and Export Camera Search View Mode Time RJ102R15 RJ102R16 RJ102R17

Record Backup Device Name: ExternalStorage 8000.46C4 Refresh Free:28.96 GB/All:29.27 GB Name Type Size Modify Date Backup Directory 8.00 KB 2019/11/03 16:58:53 Format Private Cancel New Folder Delete Export Cancel

Note: If you back up the record in private format, the system will back up a RPAS player to USB device automatically. The private format record can be played by RPAS player only.

⑤ Click "Playback" button to play the record in the playback interface (refer to 8.2 Playback Interface Introduction for details). Click "Exit" to exit the interface.

Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export Search and Export

Time Slice Search:

Search and Export 05/01/2018 09:29:24 Canc-4a03 Start Ending Time Cancel

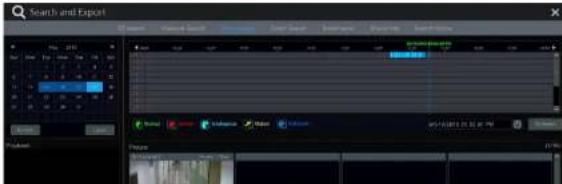

8.3.3 Time Search

① Click Start→ Search and Export→ Time Search to go to the "Time Search" tab as shown below.
② Click + on the bottom of the interface to add playback camera. A maximum of 16 cameras can be added for playback. Click "Modify" on
the top right corner of the camera window to change the camera and click "Clear" to remove the camera.
② Click the camera window to play the record in the small playback box on the left side of the interface. You can set the date on the top left of the interface, check the event type as required and click the time scale or click under the time scale to set the time. The camera window will play the record according to the time and event type you set.
Drag the color blocks on the time scale to select the record data (or click "Set Backup Time" button on the bottom left corner of the interface to set the backup start time and end time) and then click "Export" button for record backup. Click "Playback" button to play the record in the playback interface.

Search and Export Project Search and Export Project Track Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio Audio 1780

Search and Export File Edit View Insert Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Remove Settings Forward Tools Help Tools Search and Export File Edit View Insert Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools Search and Export File Edit View Insert Tools Help Tools Help Tools

② Check the event type in the interface as required.

③ Click to set the start time and end time on the top left of the interface.
④ Check cameras on the left side of the interface or check "All" to select all the cameras and then click a to search the record. The searched record will be displayed in the list.
⑤ Click in the list to play back the record in the popup window. Click to back up one record data or check multiple record data in the list and then click "Backup" button for record batch backup.
⑧ Select one record data in the list and then click "Playback" button to play the record in the playback interface.

8.3.5 Bookmark Search

Only if you add the tags can you play the record by tag search. Click Start→Playback to go to the playback interface and then click 📄 on the bottom of the camera window to add bookmarks when you want to mark the playback time point of the selected camera. Click Start→Search and Export→Bookmarks to go to "Bookmarks" tab.

Search and Export File Edit View Insert Tools Help Search & Save Options Cancel Help Search Name Text Document Name Time History Book 1 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E-07563 F:\Users\2018E

Click 📋 in the interface to play the record. Click 🔒 to edit the tag name. Click 🔒 to delete the tag.

View Image Camera Name: IP Camera1 Time: 06/27/2015 14:55:01 Creator: IP Camera1

8.3.7 View Export Status

Click Start→Search and Export→Export Status or click ⑦ on the tool bar at the bottom of the playback interface to view the export status.

9 Alarm Management

9.1 Sensor Alarm

To complete the entire sensor alarm settings, you should enable the sensor alarm of each camera and then set up the alarm handling of each camera.

① Click Start→Settings→Alarm→Sensor Alarm to go to the following interface.

Add to Media Player Action Frame Structure Type Track Expense Record Preview Play Alert Out IPC (Select) 24x1 NO ON W Sets OK Cancel OK Cancel Stop

② Select schedule and the alarm type (NO or NC) according to trigger type of the sensor.

③ Enable the sensor alarm of each camera.

④ Check the "Duration", "Record", "Snapshot", "Push", "Alarm-out" and "Preset" and enable or disable the "Buzzer", "Pop-up Video", "Pop-up Message Box" and "E-mail" as required.

⑤ Click "Apply" to save the settings.

The configuration steps of the above mentioned alarm linkages are as follows.

Duration: it refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) In 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

Record: check it and then the "Trigger Record" window will pop up automatically (you can also click "Configure" button to pop up the window).

Select camera on the left side and then click to set the camera as the trigger camera. Select trigger camera on the right side and then click to cancel the trigger camera. Click "OK" button to save the settings. The trigger cameras will record automatically when the sensor alarm is

Snapshot: check it and then the "Trigger Snapshot" window will pop up automatically. Configure the trigger camera in the window. The trigger cameras will snap automatically when the sensor alarm is triggered.

Push: check it and choose NO or OFF. If it is ON, the system will send messages when the sensor alarm is triggered.

Frame Rate Action Base Only Duration IP Camera1 ON 0 23 Sets IP Camera2 ON 0 23 Sets IP Camera3 ON 0 23 Sets IP Camera4 ON 0 30 Sets Channel Reverse Color Camera IP Camera1 Motion ON Sensitivity Duration 50 Sets Preview Mode Apply

② Select the camera, enable the motion and set the sensitivity and duration of the camera.

Sensitivity: the higher the value is, the more sensitive it is to motion. You should adjust the value according to the practical conditions since the sensitivity is influenced by color and time (day or night).

Duration: It refers to the interval time between the adjacent motion detections. For instance, if the duration time is set to 10 seconds, once the system detects a motion, it will go to alarm and would not detect any other motion (specific to camera) in 10 seconds. If there is another motion detected during this period, it will be considered as continuous movement; otherwise it will be considered as a single motion.

③ Drag the camera image to set the motion area. Click "All" to set the whole camera image as the motion area. Click "Reverse" to swap the motion area and the non-motion area. Click "Clear" to clear all the motion areas.

④ Click "Apply" to save the settings. Click "Processing Mode" to go to the alarm handling configuration interface of the motion alarm.

9.2.2 Motion Alarm Handling Configuration

① Click Start→Settings→Alarm→Motion Alarm to go to the following interface.

Stock Ordering Tools Menu Format Schedule Show Output Finish Alarm out Reset OK Cancel OK Select OK Cancel OK OFF OFF OFF OK OK Cancel OK OFF OFF OK

Alarm Management

NVR User Manual

Object Detection Detected True Area Area name Custom Name 过滤材料 OFF Abandoned Object 1 过滤材料 OFF Abandoned Object 1 过滤材料 OFF Abandoned Object 1 Draw area Clear Pointing View Apply

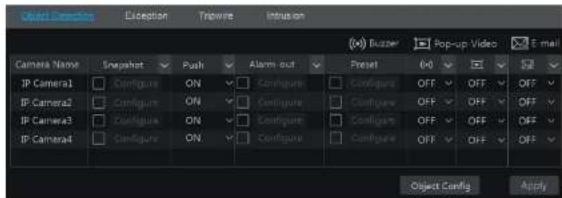

Object Detection Alarm Handling Configuration:
① Click Start→Settings→Alarm→Intelligence Alarm→Object Detection to go to the following interface.

User Connection Exception Tripwire Intron on (x) Buzzer Pop-up Video E mail Camera Name Snapshot Push Alarm-out Preset 00 OFF OFF OFF IP Camera1 Configure ON Configure Configure OFF OFF OFF IP Camera2 Configure ON Configure Configure OFF OFF OFF IP Camera3 Configure ON Configure Configure OFF OFF OFF IP Camera4 Configure ON Configure Configure OFF OFF OFF Object Config Apply

⑦ Enable or disable "Snapshot", "Push", "Alarm-out", "Preset", "Buzzer", "Pop-up Video" and "E-mail". The alarm handling setting of object detection alarm is similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).

③ Click "Apply" to save the settings. You can click "Object Config" to go to the object detection configuration interface.

Alarm Management

NVR User Manual

Cloud Connection Speed: 50000 Sound Change Video Filter Video Color Cool Residuality Cable Name IP通道1 OFF OFF OFF OFF 1 IP通道2 OFF OFF OFF 1 Impedance Mode Audio

② Select the camera and enable the relevant detection as needed.

Scene Change: Alarms will be triggered if the scene of the monitor video has changed.

Video Blurred: Alarms will be triggered if the video becomes blurry.

Video Color Cast: Alarms will be triggered if the video becomes obscured.

③ Set the sensitivity of the exception detection.

④ Click "Apply" to save the settings.

⑤ Click "Processing Mode" to go to the alarm handling configuration interface of exception detection.

Exception Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Exception to go to the interface.

Object Detection	Excessive	Tripslice	Inhibition
Camera Name	Snapshot	Push	Alarm out	Preset	M	T	E	F-mail
IP Camera1	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera2	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera3	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF
IP Camera4	Configure	ON	Configure	Configure	OFF	OFF	OFF	OFF

Open Extension Evolution Stream Inflow Tigelines Line Direction Camera Name P 通道B1 OFF 1 A+SB P 通道B2 OFF 1 A+SB P 通道B3 OFF 1 A+SB Draw Mode Close Preview Mode Apply

② Select the camera, enable the line crossing detection.

③ Select the direction.

Direction: A<->B, A->B and A<-B optional. It is the crossing direction of the intruder who crosses over the alert line.

A<->B: the alarm triggers when the intruder crosses over the alert line from B to A or from A to B.

A->B: the alarm triggers when the intruder crosses over the alert line from A to B.

A<-B: the alarm triggers when the intruder crosses over the alert line from B to A.

④ Draw line. Refer to the interface as shown above. Check "Draw line" and then drag the mouse in the image to draw an alert line. Uncheck the "Draw line" if you finish the drawing. Click the "Clear" to delete the alert line.

(5) Click "Apply" to save the settings.

⑤ Click "Processing Mode" to go to the alarm handling configuration interface of line crossing detection.

Tripwire Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Tripwire to go to the following interface.

Alarm Management

NVR User Manual

⑤ Click "Apply" to save the settings.
⑤ Click "Processing Mode" to go to the alarm handling configuration interface of intrusion detection.

Open Detection Extration Traps Control Zoom Area Area accounted for Camera Name IF 2001 IF 2002 IF 2003 View Area Clear Processing Mode Apply

Intrusion Detection Alarm Handling Configuration:

① Click Start→Settings→Alarm→Intelligence Alarm→Intrusion to go to the following interface.

Object Detection Exception Tripwire Bluest (b) Blutter Pop-up Video E-mail Camera Name Snapshot Push Alarm-out Preset (b) OFF OFF OFF IP Camera1 Configure DN Configure Configure Configure OFF OFF OFF IP Camera2 Configure DN Configure Configure OFF OFF OFF IP Camera3 Configure DN Configure Configure OFF OFF OFF IP Camera4 Configure DN Configure Configure OFF OFF OFF Inclusion Config Apply

Alarm Management

NVR User Manual

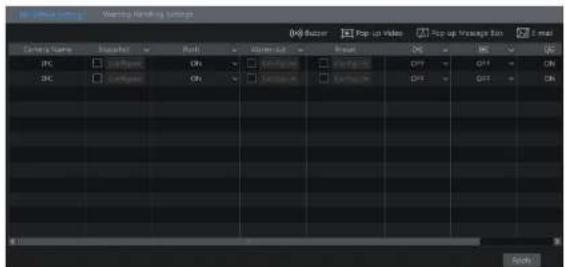

Top - Default Settings Winning Running Settings Camera Name Position Position Zoom Rate Reset OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK OFF ON OK FFO

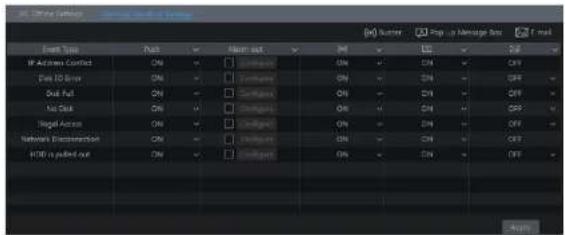

9.4.2 Warning Handling Settings

① Click Start→Settings→Alarm→Exception→Warning Handling Settings to go to the interface as shown below.
⑤ Enable or disable "Push", "Alarm-out", "Buzzer", "Pop-up Message Box" and "E-mail". The exception handling settings are similar to that of the sensor alarm (see 9.1 Sensor Alarm for details).
③ Click "Apply" to save the settings.

File Options Settings General settings & Settings Fork Type Next ✓ Next out ✓ PV ✓ ✓ ✓ ✓ ✓ W Address Control ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Dset ID Driver ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Dual Full ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ No Disk ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Single Address ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Network Transaction ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ HDD is pulled out ON ✓ ✓ ✓ ✓ ✓ ✓ ✓ OK Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cancel Cal

9.5 Alarm Event Notification

9.5.1 Alarm-out

① Click Start→Settings→Alarm→Event Notification to go to the following interface.

Alarm Management

NVR User Manual

9.5.3 Display

Click Start→Settings→Alarm→Event Notification→Display to go to the display configuration Interface. Set the duration time of the pop-up video and the pop-up message box. Click "Apply" to save the settings.

Pop-up Video Duration 5 Secs Pop-up Message Box Duration 10 Secs Apply

9.5.4 Buzzer

Click Start→Settings→Alarm→Event Notification→Buzzer to go to the buzzer configuration interface. Set the delay time of the buzzer and then click "Apply" to save the setting. You can click "Test" to test the buzzer.

9.5.5 Push Message

Click Start→Settings→Alarm→Event Notification→Push Message to go to the interface as shown below. Check "Enable" and then click "Apply" button to save the settings. If Push Server is online, it will push messages to the mobile clients.

...

Alarm Management

NVR User Manual

Bluzzer Alarm-in Normal Alarm-out Normal Motion Normal Intelligence Normal Exception Exception Set

Click "Clear" button to stop the buzzer when the buzzer alarm happens. Click 🤕 to view the detail information as shown below.

Bluzzer Alarm in Normal Alarm out Normal Motion Normal Intelligence Normal Exception Exception Alarm Source : Device Name Alarm Time : 06/05/2010 11:34:06 Status : No Disk Trigger Alarm out : None Trigger Bluzzer : ON Exit

If the exception information is more than one page, you can enter the number in the box and then click to jump to the specified page. Click / to view the exception alarm information in the previous/next page. Click to play the alarm record.

10 Account & Permission Management

10.1 Account Management

Click Start→Settings→Account and Authority→Account→Edit User to go to the interface as shown below.

User admin Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote Logit ✓ Dist Management ✓ Audio Talk ✓ Arm Management ✓ Network Management ✓ Schedule Management ✓ Record Settings Management ✓ Local System Settings ✓ Remote System Settings ✓ Account and Authority Local Remote Camera Reverse Playback Backup PTZ Control Camera1 ON ON ON ON Camera2 ON ON ON ON Camera3 ON ON ON ON Camera4 ON ON ON ON Username: Advanced 80.00.00.00.00 Comms: 80.00.00.00.00 Admio Advanced Comms: 80.00.00.00.00

Area ① displays the user permissions. Area ② displays the user list. Click the user in the list to display its user permissions In area ①. There are three default permission groups ("Administrator", "Advanced" and "Common") available when adding accounts. You can manually add new permission group (see 10.3.1 Add Permission Group, for details). Only admin and the users that have the "Account and Authority" permission can manage the system's accounts. Group "Administrator" owns all the permissions displayed in area ① except "Account and Authority" and its permissions cannot be changed while the permissions of "Advanced" and "Common" can be changed.

10.1.1 Add User

① Click Start→Settings→Account and Authority→Account→Add User or click + beside the search box to pop up the window as shown below.

Add User Username: Enter Username Password: Lower Password Confirm Password: Lower Password □ Display Password

Account & Permission Management

NVR User Manual

Edit Security Question

You can set password security only for admin. Click "Edit Security Question" and then set questions and answers in the popup window. If you forget the password for admin, please refer to Q4 in Appendix A FAO for details. The passwords of other users can be recovered by admin or the users that have the "Account and Authority" permission.

Modify Password

Only the password of admin can be modified. Click "Modify Password" to pop up a window. Enter the current password and then set new password. Click "OK" to save the settings.

Modify Pattern Lock

Some models may not support this function. Click "Modify Pattern Lock" to pop up a window.

Modify Pattern Lock Current Password Pattern Lock Enable Edit OK Cancel

Enter current password and then check "Enable" to input pattern lock.

➢ Recover Password

Click "Recover Password" to reset the password to 123456.

Edit User

Click "Edit User" to pop up the window as shown below. The admin is enabled, its permission control is closed and permission group cannot be changed by default. You can enable or disable other users if disabled. The user will be invalid, open or close their permission control if closed.

Account & Permission Management

NVR User Manual

"Login" button to log in the system.

Logout: Click Start→Logout or click Start→Shutdown to pop up the "Shutdown" window. Select "Logout" in the window and then click "OK"

button to log out the system.

10.3 Permission Management

10.3.1 Add Permission Group

Click Start→Settings→Account and Authority→Account→Edit Permission Group to go to the interface as shown below.

Group Administration Permissions ✓ Local Camera Management ✓ Remote Camera Management ✓ Remote logo ✓ Dot Management ✓ Audio Talk ✓ Active Management ✓ Network Management ✓ Schedule Management ✓ Recent Settings Management ✓ Local System Settings ✓ Remote System Settings Local Remote Camera Properties Platform Layer Anti-PTZ Control IPC ON ON ON ON IPC ON ON ON ON Administrator Advanced Common

Click + to add permission group. Set the group name, check the permissions as needed and then set the "Local" and "Remote" permissions.

Add Permission Group Group Name Enter Permission Group Name Local Camera Management Remote Login Audio Talk Network Management Record Settings Management Remote System Settings Remote Camera Management Disk Management Alarm Management Schedule Management Local System Settings Account and Authority Local Remote Camera Preview Playback Export Audio FT2 Control IPC OFF OFF OFF OFF OFF

Account & Permission Management

NVR User Manual

File Import File Import Address File Import Address List File Import Address List File Import Address List File Import Address List Add: 72 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 All Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 Add: 100 A#E##

② Check "Enable" and then choose "Enable Allow List" or "Enable Block List" (the PC client of which the IP address is in the allow list can access NVR remotely while the PC client in the block list cannot).

③ Add IP/IP segment/MAC. Click "Add IP" or "Add MAC" button and then check "Enable" in the popup window (only if you check it can the IP/IP segment/MAC you add be effective). Enter the IP/IP segment/MAC and then click "OK" button. In the above interface, click to edit IP/IP segment/MAC, click to delete it. Click "Apply" to save the settings.

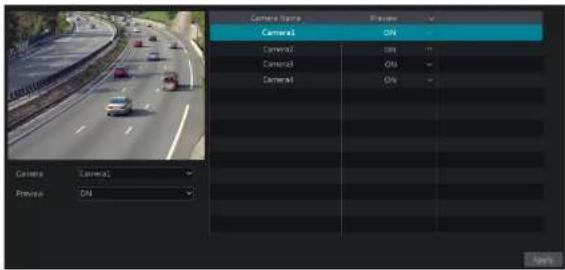

10.5 Preview On Logout

Click Start→Settings→Account and Authority→Security→Preview On Logout to go to the following Interface. Set a camera and then enable or disable the preview permission on logout as required. If a camera's preview permission on logout is "ON", you can view the live image of the camera when the system is logged out, or the live image of the camera cannot be seen when logged out.

Camera Name Process Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera ON Camera UN

11 Device Management

11.1 Network Configuration

11.1.1 TCP/IP Configuration

Click Start→Settings→Network→TCP/IP to go to the following interface. Check "Obtain an IPv4 address automatically", "Obtain an IPv6 address automatically" and "Obtain DNS automatically" to get the network addresses automatically, or manually enter the network addresses. You can modify the MTU value according to the network condition (MTU, Maximum Transmission Unit, can be modified according to network condition for higher network transmission efficiency). Click "Apply" to save the settings.

Data Entry Options Name: 10.00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Name: 1.25 Location: 367, 289, 241, 176, 128, 84, 48, 22, 12, 6, 3, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1 Name: 1.25 Location: 367, 289, 241, 176, 128, 84, 48, 22, 12, 6, 3, 2, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1 Source: Data Source ID: Source Value: Database: Database Name: Database Count: Database Date: Database Address: Database Name: Database Type: Database Name: Database Location: Database Name: Database Address: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database Name: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database Name: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database Name: Database Name: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database Name: Database NAME: Database Name: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database NAME: Database Name: Database Name: Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options Data Entry Options

Note:

• Internal Ethernet Port

If you use the NVR with the PoE network ports, click "Internal Ethernet Port" to go to the following interface.

The internal ethernet port is the port which connects all the PoE ports with the NVR system. The PoE ports are available if the internal ethernet port is online; if it is offline, all the PoE ports will be unavailable, may be the internal ethernet port is broken. The network addresses of the internal ethernet port can be changed to make the port in the same network segment with the IP cameras which directly connect to the PoE ports of the NVR (It is not recommended to change the network addresses of the internal ethernet port).

Address Settings Internet Port 1 (Domain) Subnet Mode: 200 8 9 10 Address Address Length: Preferred DNS Alternate DNS Open

11.1.2 Port Configuration

Device Management

NVR User Manual

stream protocol, you can view the live images synchronously. The default RTSP port is 554 and it can be changed as required.

Note: The HTTP port and server port of the NVR should be mapped to the router before you access the NVR via WAN.

11.1.3 PPPoE Configuration

Click Start→Settings→Network→PPPoE to go to the interface as shown below. Check "Enable" in "PPPoE Settings" and then enter the username and password obtained from the dealer. Click "Apply" to save the settings.

PPPoE Settings Enable Username xxx Password ***** Apply

11.1.4 DDNS Configuration

The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the NVR easily if the DDNS is enabled and configured. Click Start→Settings→Network→DDNS to go to the interface as shown below. The default DDNS type will be "specoddns.net". The default domain name will be shown, you can use this for your domain name or enter your own. If invalid or taken, please select another domain name. Click on test to check if ok. If so, you may now go to [your domain name].specoddns.net with Internet Explorer and access your recorder remotely.

DDoNS Enable DoNS Type: specodate.net Server Address: Server Address Domain Name: specodate.specodate.net Username: Password: Next Apply

11 1 5 E-mail Configuration

Device Management

NVR User Manual

Sender Sender Name Enter Sender Name Email Address Enter Address SMTP Server SMTP Port Enter Port Default SSL No Attaching Image No Anonymous Login Username Password Enter Password Edit Recipient Test Apply

Click "Edit Recipient" to go to the following interface.

E-mail Notification Sender [e-mail] Edit Sender No Recipients Schedule Delete 1 [e-mail] 24x7 首 2 [e-mail] 24x5 首 Add Apply

Click "Add" and then enter the recipient's e-mail address and select the schedule (if a schedule is selected, the system will send the alarm email and the recipient will receive it only in the selected schedule time) in the popup window. Click "Add" in the window to add the recipient. You can also change the recipient's receiving schedule by clicking in the "Schedule" column. Click to delete the recipient in the list. Click "Apply" to save the settings. Click "Edit Sender" to go to the e-mail configuration Interface of the sender.

11.1.6 UPnP Configuration

By UPnP you can access the NVR through the web client which is in WAN via router without port mapping.

UPnP Enable Map Type Manual Port Type External Port External IP Address Port UPnP Status Edit HTTP Port 80 183.17.254.19 Valid UPnP HTTPS Port 443 183.17.254.19 Valid UPnP Server Port 6036 183.17.254.19 Valid UPnP RTSP Port 554 183.17.254.19 Valid UPnP Refresh Apply

11.1.7 NAT Configuration

Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check "Enable". Click "Apply" to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

You can also scan the QRCode through mobile client which is installed in the mobile phone or PAD to log in the mobile client instantly.

11.1.8 View Network Status

Click Start→Settings→Network→Network Status to view the network status or click 📄 on the tool bar at the bottom of the live view interface to view network status conveniently.

11.2 Basic Configuration

11.2.1 General Configuration

Click Start→Settings→System→Basic→General Settings to go to the following Interface. Set the device name, device No., language, video format and main output. Enable or disable wizard, "Log In Automatically", "Log Out Automatically" (If checked, you can set the wait time), "App Live Self-Adaption" and "Dwell Automatically" (If checked, you can set the wait time). Click "Apply" to save the settings.

General Settings Device Name Device Name Device No 1 Language English Video Format NTSC Main Output 1280x1024 Enable EZ Setup

Device Management

NVR User Manual

You can manually set the system time or synchronize system time with network through NTP.

Manual: select "Manual" in the "Synchronous" option and then click after the "System Time" option to set the system time.

NTP: select "NTP" in the "Synchronous" option and then enter the NTP server.

Date and Time System Time 11/03/2015 17:02:13 Date Format Month/Day/Year Time Format 24 Hour Sync Time With Network Synchronous Manual NTP Server time.windows.com Time Zone / DST Time Zone GMT+DB Beijing, Hong Kong, S v DST Enable Apply

11.3 Factory Default

Click Start→Settings→System→Maintenance→Factory Default and then click "Reset to factory default" button in the interface to reset to the factory default settings(check "Reset retain Network Configuration" to retain the network settings).

Note: Resetting to the factory default settings will not change time zone.

11.4 Device Software Upgrade

□ Upgrade

You can click Start→Settings→System→Information→Basic to view MCU, kernel version and firmware version and so on. Before upgrade, please get the upgrade file from your dealer.

The upgrade steps are as follows:

① Copy the upgrade software into the USB storage device.
② Insert the USB storage device into the USB interface of the NVR.
③ Click Start→Settings→System→Maintenance→Upgrade to go to "Upgrade" interface. Select the USB device in "Device Name" option and go to the path where the upgrade software exists. Select the upgrade software and then click "Upgrade". The system may automatically restart during upgrading. Please wait for a while and do not power off the NVR during upgrading.

Circuit Upgrade ✓ Auto-check for updates Current Version 1.3.2.1202/16171/01.NUSUR(20A88) beta Release Date 2017.12.11 This is the latest versions. Can't power off during the upgrade process. Check for Updates Options Apply

11.5 Backup and Restore

You can back up the configuration file of the NVR by exporting the file to other storage devices; you can recover the configuration to other NVRs which are of the same model with the NVR by importing the configuration file to other NVRs for time saving.

Insert the USB storage device into the USB interface of the NVR and then click Start→Settings→System→Maintenance→Backup and Restore to go to the interface.

□ Backup

Select the USB device in "Device Name" option; go to the path where you want to store the configuration backup file and then click "Backup" button; finally click "OK" button in the popup window.

□ Recover

Select the USB device in "Device Name" option; find the configuration backup file and then click "Recover" button; finally click "OK" button in the popup window.

11.6 Restart Automatically

You can set the automatic restart time for the NVR to maintain it regularly. Click Start→Settings→System→Maintenance→Auto Maintenance to go to the interface as shown below. Enable auto maintenance, set the interval days and point of time and then click "Apply" to save the settings. The NVR will restart automatically at the pointed time every interval days.

Auto Maintenance Enable Interval Days 10 Days Point Of Time 23 : 59 Apply

11.7 View Log

Click Start→Settings→System→Maintenance→View Log to go to the log view Interface. Select the log main type, click 📄 to set start time and

Device Management

NVR User Manual

Choose the log file in the list and then click "Export" button to export the log file. Click on the "Content" title bar to pop up a menu list. Check contents in the menu list and then the log list will show the checked log contents only. Click to play the video log.

11.8 View System Information

Click Start→Settings→System→Information and then click the corresponding menu to view the "Basic", "Camera Status", "Alarm Status", "Record Status", "Network Status" and "Disk" information of the system.

12 Remote Surveillance

12.1 Mobile Client Surveillance

① Enable NAT in the NVR. Refer to 11.1.7 NAT Configuration for details.
② Scan the QRCode through the Speco Blue App available for iOS and Android to easily and securely view your cameras.
③ Run the mobile client, go to the "Add Device" interface and then click to scan the QRCode of the NVR (Go to Start→Settings→System→Information→Basic to view the QRCode of the NVR).
④ After scanning the QRCode successfully, enter the login password to log in mobile client.

Add device My device Back name User Password Play

QR code scanning Album

Mobile viewing is also available on our SecureGuard Client.

12.2 Web LAN Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
⑦ Open the web browser on your computer, enter the IP address of the NVR in the address bar and then press enter to go to the login interface as shown below. You can change the display language on the top-right corner of the login interface. Enter the username and password of the NVR in

Remote Surveillance

NVR User Manual

note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login.

speco technologies Giving You More. QR code number Enter Your Username Enter Your Password Login

PPPoE Access

① Click Start→Settings→Network→PPPoE to go to the "PPPoE" interface. Check "Enable" in the "PPPoE settings" and then enter the username and password you get from your ISP. Click "Apply" to save the settings.

② Click Start→Settings→Network→Network Status to view the IP address of the NVR.

③ Open the web browser on your computer, enter the IP address of the NVR like http://210.21.229.138 In the address bar and then press enter to go to the login Interface. Enter the username and password of the NVR in the Interface and then click "Login" to go to the live view Interface.

Router Access

① Click Start→Settings→Network→TCP/IP to go to the "TCP/IP" Interface. Set the IP address, subnet mask, gateway, preferred DNS and alternate DNS of the NVR.
② Set the HTTP port (it is suggested to modify the HTTP port because the default HTTP port 80 might be taken up) and enable UPnP function in both the NVR and the router. If the UPnP function is not available in the router, you need to forward the LAN IP address, HTTP port and server port of the NVR to the router. Port mapping settings may be different in different routers, so please refer to the user manual of the router for details.
① Get the WAN IP address of the NVR from the router. Open the web browser on your computer, enter the WAN IP address plus HTTP port like http://116.30.18.215:100 In the address bar and then press enter to go to the login interface. Enter the username and password of the NVR in the interface and then click "Login" to go to the live view interface.

Note: If the WAN IP address is a dynamic IP address, it is necessary for you to use the domain name to access the NVR. Click Start Settings Network DDNS to set DDNS (see 11.1.4 DDNS Configuration for details). By using DDNS function you can use the domain name plus HTTP port like http://sunshine.dvrdydns.com:100 to access the NVR via Internet.

12.4 Web Remote Control

The supported browsers of the remote surveillance are IER/9/10/11, Firefox, Opera and Chrome (available only for the versions lower than 45) in Windows system and Safari in MAC system. Here we take IE browser for example. When you access the NVR through IE for the first time, you need to download and install the relative components for normal preview and playback. Please refer to the tips in the remote interfaces for details. The buttons and icons on the top right corner of the remote interface are introduced as follows.

admin: the current login username.

1. _1 is a set of _1 and _2 is a set of _2 .

speco technologies Live Window Playback Export Settings Copyright: 100% Preview Area Left Panel Right Panel Display Select Control Parameters Custom Input All New Users All Sub Users

Start Preview

Select a window in the preview area and then click one online camera on the left panel to preview the camera in the window. You can click the tool bar to view all the cameras.

> Left Panel Introduction

Click < on the left panel to hide the panel and click > to show the panel. You can view all the added cameras and groups on the left panel.

• View Camera

Click Camera to view the cameras. You can view the number of all the added cameras and the online cameras. For instance, the left number 3 in Camera (3/4) on the left panel stands for the number of online cameras; the right number 4 stands for the number of all the added cameras. Enter the camera name in the search box and then click to search the camera. Click to refresh the camera list.

• View Group

Click Single Channel Sequences to view the groups. All groups and all cameras in the group can be shown in the left panel.

• View Scheme

Click Customer Layout to view the scheme (or planning). All schemes can be shown in the left panel. Double click the scheme name to invoke it quickly

> Tool Bar Introduction

Button	Meaning
	Screen mode button.

Operation REC Main Strips... Sub Stream Resolution 3920x2000 FPS 10 Max Rate 0.24Kbps Apply Operation Latency Control PTZ

PTZ Zoom Fina Info Operation Lens Control PTZ

Click one camera window in the preview area and then click Male Stream to set the camera's live view stream and record stream to main stream in manual record mode; click Sub-stream to set the camera's live view stream and record stream to sub stream. In sub stream tab, set the resolution, FPS and bitrate and then click "Apply" to save the settings.

Operation panel introduction:

Button	Meaning
	Click it to take snapshots.
	Click it to start recording to computer; click it again to stop recording.
	Click it to zoom in the image of the camera and then drag the mouse on the camera image to view the hidden area.
	Click it to zoom out the image of the camera.
	The 3D zoom in function is designed for P.T.Z. Click the button and then drag the image to zoom in or zoom out the image; click the image on different areas to view the image of the dome omni-directionally.
	Click it to start record to the NVR

Remote Surveillance

NVR User Manual

12.4.2 Remote Playback

Click "Playback" in the remote interface to go to the playback interface.

① Check the record event types and cameras on the left panel. Set the record date on the calendar beside the time scale.

② Click □ to search the record data and then click □ or directly click the time scale to play the record.

The operation of the playback time scale is similar to that of the time scale in the main program of the NVR. Please refer to 8.2 Playback Interface Introduction for details.

Introduction of playback control buttons:

Button	Meaning
	Stop button.
	Rewind button. Click it to play video backward.
	Play button. Click it to play video forward.
	Pause button.
	Deceleration button. Click it to decrease the playing speed.
	Acceleration button. Click it to increase the playing speed.
	Previous frame button. It works only when the forward playing is paused in single screen mode.
	Next frame button. It works only when the forward playing is paused in single screen mode.
	Clickto step backward 30s and clickto step forward 30s.
	Backup start time button. Click the time scale and then click it to set the backup start time.
	Backup end time button. Click the time scale and then click it to set the backup end time.
	Export button.
	Backup tasks button. Click it to view the backup status.
	Event list button. Click it to view the event record of manual/schedule/sensor/motion.

12.4.3 Remote Export

Click "Export" in the remote interface to go to the export interface. You can export the record by event search or by time search.

Event Search

Check the record type on the left side of the interface and then click to set the start time and end time; check the cameras and then click on the right side to search the record (the searched record data will be displayed in the list); check the record data in the list and then click "Export" button to export the record.

Time Search

Click to set the start time and end time on the left side of the interface; check the cameras and then click on the right side to backup

Appendix A FAQ

Q1. Why can't I find the HDD?

a. Please check the power and SATA data cables of the HDD to make sure they are well connected.
b. For some NVRs with the 1U or small 1U case, the power of the adapter may be not enough for operating them. Please use the power adaptor supplied along with the NVR.
c. Please make sure the HDDs are compatible with the NVR. See Appendix C Compatible Device List for details.
d. The HDD could have gone bad. Change a new one.

Q2. Why are there no images output in some or all of the camera windows?

a. Please make sure the resolutions of the cameras are supported by the NVR.
b. Please make sure the network cables of the IP camera and NVR are both connected properly and the network parameters are set correctly.
c. Please make sure the network and the switch both work normally.

Q3. The screen has no output after booting the NVR normally.

a. Please make sure the screen, HDMI or VGA cables are good and well connected.
b. Please make sure the screen supports the resolution of 1280*1024, 1920*1080 or 3840*2160 (4K*K). The NVR cannot self-adapt to the screen of which the resolution is lower than 1280*1024, and then the screen will remind you that the screen resolution is not supported by the NVR or just have no display. Please change a screen at 1280*1024, 1920*1080 or 3840*2160 resolution before booting the NVR.

Q4. Forget the passwords?

a. The password for admin can be reset through "Edit Security Question" function.
Click "Edit Security Question" button in the login window and then enter the corresponding answer of the selected question In the popup window, the password for admin will be reset to 123456 by default. If you forget the answer of the question, this way will be invalid, please contact your dealer for help.
b. The passwords of other users can be reset by admin, please refer to 10.1.2 Edit User for details.

Q5. The NVR cannot add up to the maximum number of IP cameras?

Take the 16 CH NVR as an example. Some 16 CH NVR support a maximum of 120Mbps bandwidth input (please take the real device for standard). Refer to the picture below. The remaining bandwidth should be larger than the bandwidth of the IP camera you want to add, or you would fail to add the IP camera. You should lower the added cameras' bitrate to release the bandwidth. It is recommended to add cameras by "Quickly Add" for batch adding.

Add Camera Quickly Add Add Manually Add Recorder No Address Port Edit Submit Mask Protocol Model Version 1 192 168 127 105 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 2 192 168 226 201 80 255.255.255.0 ONVIF xxx 4.0.0.1 0 3 192 168 226 201 80 255.255.255.0 ONVIF xxx 4.0.0.1 beta1 0

connecting the IP cameras directly. In this situation, if you directly connect one IP camera to PoE5, PoE6, PoE7 or PoE8, the IP camera will be displayed in the camera list automatically; if you connect it to PoE1, PoE2, PoE3 or PoE4, it won't be displayed in the camera list by showing resource conflict; if you just need to connect it to PoE1, PoE2, PoE3 or PoE4, you should first delete the IP camera which occupies the PoE port resource and then reconnect it to the PoE port.

- Take the 8 CH NVR with 8 PoE ports as another example. The resource distribution of the 8 CH IP cameras is shown in the picture below and the adding rules of the IP cameras are similar to the rules mentioned in the above. Please refer to the above for details.

CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
POE-1	POE-2	POE-3	POE-4	POE-5	POE-6	POE-7	POE-8

b. Please make sure that the internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol are in the same network segment.

The internal ethernet port and the IP camera which directly connects to the PoE port through ONVIF protocol should be in the same network segment, or you will fail to add the IP camera. Log In the IP camera's web client and then enable DHCP (obtain an IP address automatically); or manually change the IP address of the IP camera to make it In the same network segment with the internal ethernet port.

c. Check whether the number of the added IP camera is the maximum.

If the number of the added IP camera is the maximum, the system will show you the message that the IP camera number is beyond the maximum when you directly connect another IP camera to the available PoE port and thus you will fail to add the IP camera.

Q7. The IP camera which directly connects to the PoE port of the NVR through ONVIF protocol is shown in the camera list, but there is no image output, why?

Please make sure the username and password of the IP camera are correct. The IP camera's username and password can be modified through the two ways mentioned as below.

① Click "Edit Camera" in the Camera module of the setup panel to go to the interface as shown below. Click to modify the username and password of the IP camera (enter the correct username and password of the IP camera in the popup window and then click "OK" button).

IP Camera File Camera Group: IP Planning Search Camera No. Camera Name | Address | Port | Status | Protocol | Mode | Preview | Edit | Upgrade | Version 1 | IPCEI3P Camera1 | 10.151.151.20 | 80 | Online | CNVIF | ## | 2 | IP Camera2 | 102.168.12.40 | 80 | Online | CNVIF | ## | 3 | IP Camera3 | 102.168.12.152 | 80 | Online | CNVIF | ## | 4 | IP Camera4 | 102.168.12.45 | 80 | Online | CNVIF | ## | 5 | IP Camera5 | 102.168.12.153 | 80 | Online | CNVIF | ## | 6 | IP Camera6 | 102.168.12.154 | 80 | Online | CNVIF | ## | 7 | IP Camera7 | 102.168.12.155 | 80 | Online | CNVIF | ## | 8 | IP Camera8 | 102.168.12.156 | 80 | Online | CNVIF | ## | 9 | IP Camera9 | 102.168.12.157 | 80 | Online | CNVIF | ## | 10 | IPCEI3P Camera10 | 102.168.12.158 | 80 | Online | CNVIF | ## | IP Camera Max Number: Remain Bandwidths 108/120 Mb

cannot access the NVR remotely.

Q10. ActiveX control cannot be downloaded. How can I do?

a. IE browser blocks ActiveX control. Please do setup as per the steps mentioned below.

① Open IE browser. Click →InternetOptions.

Print File Zoom (100%) Safety Add site to Start menu View downloads Ctrl+J Manage add-ons F12 Developer Tools Go to pinned sites Compatibility View settings Report website problems Internet options About Internet Explorer

② Select Security→Custom Level. Refer to Fig 10-1.

③ Enable all the sub options under "ActiveX controls and plug-ins". Refer to Fig 10-2.

④ Then click "OK" to finish setup.

b. Other plug-ins or anti-virus may block ActiveX. Please disable or do the required settings.

Internet Options Create sites: Local Internet (Content) (Description) (Prepare) Advanced Select a point to change security settings. Local Internet: Trusted sites: Installed sites Internet The site is for fixed site information, except those listed in website and installed sites. Access for the site: Advanced sites for this site. Minimums for the site minimums are high. Medium-high * Support for existing sites that have been downloaded (usually only currently available). * Adjusted sites can be used to download or download as well as the following items: * Update the installed sites (including existing sites from http://www.10.12/10.13/10.14/10.15/10.16/10.17/10.18/10.19/10.20/10.21/10.22/10.23/10.24/10.25/10.26/10.27/10.28/10.29/10.30/10.31/10.32/10.33/10.34/10.35/10.36/10.37/10.38/10.39/10.40/10.41/10.42/10.43/10.44/10.45/10.46/10.47/10.48/10.49/10.50/10.51/10.52/10.53/10.54/10.55/10.56/10.57/10.58/10.59/10.60/10.61/10.62/10.63/10.64/10.65/10.66/10.67/10.68/10.69/10.70/10.71/10.72/10.73/10.74/10.75/10.76/10.77/10.78/10.79/10.80/10.81/10.82/10.83/10.84/10.85/10.86/10.87/10.88/10.89/10.90/10.91/10.92/10.93/10.94/10.95/10.96/10.97/10.98/10.99/11.00/

Security Settings - Internet Zone Settings Active Control and Puzzle Active Control Pricing Delete Add Add Active Control unused Active Control to win without layer Delete Add Add New Controls Delete Add Remove Automotive prompting for Active Control Delete Cut off Binary and speechbehaviors Automotive produced

- If you select the AVI format when backing up record by NVR, the record backup data can be played by the video player which supports this format. b. Record backed up through web. The record can only be backed up with AVI format through web. The record can be backed up to PC and played by the video player which supports this format.

RPAS Play List RPAS Open Folder Open Store RPAS 42% 7月31日 15:00:21

Fig 11-1

RPAS Play 104 C:\Users\Administrator\Dr 2015-07-24 IP Camera(s) Help: - C:\

Appendix B Calculate Recording Capacity

The recording capacity is mainly up to the record resolution, record stream and bitrate. Different image quality parameters decide different disk capacity occupation in equal times. The bigger the record resolution, record stream and record bitrate is, the more disk capacity is taken up in equal times. The calculation format of recording capacity is shown as below.

Recording Capacity(MB) = Bitrate(Kbps) ÷ 1024 ÷ 8 × 3600 × Recording hours per day × Record Storage Days × channel numbers

3600 means record for an hour(1TB=1024GB, 1GB=1024MB, 1MB=1024KB, 1Byte=8bit).

Record Bitrate(Kbps)	Used Space(MB/H)	Used Space(MB/D)
10240	4500	108000
8192	3600	86400
6144	2700	64900
4096	1800	43200
3072	1350	32400
2048	900	21900
1024	450	10800
768	337.5	8100
512	225	5400
384	168.75	4050
256	112.5	2700

The table below shows the recording capacity requirements for record storage in 30 days.

Record Bitrate (Kbps)	Recording Capacity(TB)
	1CH	4CH	8CH	16CH	32CH	64CH
10240	3.09	12.36	24.72	49.44	98.88	197.76
8192	2.48	9.89	19.78	39.56	79.11	158.21
6144	1.86	7.42	14.84	29.67	59.33	118.66
4096	1.24	4.95	9.89	19.78	39.56	79.11
3072	0.93	3.71	7.42	14.84	29.67	59.33
2048	0.62	2.48	4.95	9.89	19.78	39.56
1024	0.31	1.24	2.48	4.95	9.89	19.78
768	0.24	0.93	1.86	3.71	7.42	14.84
512	0.16	0.62	1.24	2.48	4.95	9.89
384	0.12	0.47	0.93	1.86	3.71	7.42
256	0.08	0.31	0.62	1.24	2.48	4.95

For instance, there is a 32CH NVR recording 24 hours per day and the record stores for 30 days. The NVR adopts dual stream recording. The main

stream is 4096Kbps and the sub stream is 1024Kbps, then the total recording capacity is 49.45TB (39.56TB + 9.89TB).

Considering the format loss of the disk is about 10%, the required disk capacity will be 55TB (49.45TB + (1-10%)).

Appendix C Specifications

Model		N8NRP	N16NRP
System	Compression	Standard H.26S
	OS Embedded Linux
Video	IPC Input	8CH	16CH
	Network Access Bandwidth	50Mbps 112Mbps
	Network Access Format	BMP/5MP/4MP/3MP/1080P/960P/720P@25/30fps
	Output	HDMI×1: 4K×2K/1920x1080/1280×1024 . VGA×1 : 1920x1080/1280×1024
Audio	Network Input	8CH IPC audio input	16CH IPC audio input
	2 way Audio RCA×1
	Local Output	RCA×1
Record	Record Stream	Dual stream recording
	Resolution	8MP/5MP/4MP/3MP/1080P/960P/720P
	Mode	Manual, schedule, motion, sensor, intelligence
Playback	Simultaneous Playback	Max 8 CH Max 16 CH
	Search Mode	EZ search, museum search, time search, event search, bookmark search, snapshot search
	Smart Search	Highlighted color to display camera records in a certain period of time, different colors refer to different record events
	Function	Play, pause, FF, FB, etc.
Alarm	Mode	Manual, sensor, motion, exception, intelligence
	Input Support IPC alarm input
	Output Support IPC alarm output
	Linkage	Record, snapshot, preset, c-mail, pop-up window, etc.
Network	Interface	RJ45 10M/100Mbps×1
	PoE Port	RJ45×8	RJ45×16
	Protocol	TCP/IP , PPPoE , DHCP , DNS , DDNS , UPnP , NTP , SMTP
	Web Client Multiple online users
Mobile Device	OS	iOS, Android via Speco Blue, SecureGuard Client
Storage	HDD	SATA×2 , max 14TB per HDD
Export	Local	By U disk , USB mobile HDD
	Network	Yes
Interface	USB	US82.0×2 ( one in the front panel and the other in the rear panel )
	Remote Controller Yes
	Power Supply	DC48V
