USER MANUAL O4VB1NG Speco Technologies

Important Safeguards and Warnings

1. Electrical safety

All installaon and operaon here should conform to local electrical safety codes.

Use a cered/listed 12VDC Class2 power supply only.

Please note: Do not connect two power supplying sources to the device at the same me; it may result in device damage! The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installaon could run the risk of re or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibraon or long-term exposure to water and humidity during transportaon, storage, and/or installaon.

Do not install near sources of heat.

Only install the product in environments inside the specicaon operang temperature and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnec radiation.

Do not block any venlaon openings if any.

Use all the weatherproong hardware requirement to minimize weather intrusion.

3. Operaon and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any maintenance work.

Do not touch the CMOS sensor opc component. You can use a blower to clean the dust on the lens surface.

Always use the dry so cloth to clean the device. If there is too much dust, use a cloth dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure cleaning (such as using cloth) may result in poor IR funconality and/or IR reecon.

Warning

This camera should be installed by qualified personnel only.

All the examinaon and repair work should be done by qualified personnel.

Any unauthorized changes or modicaons could void the warranty.

Statement

This guide is for reference only.

Product, manuals, and speciaons may be modified without prior noce. Speco Technologies reserves the right to modify these without noce and without incurring any obligaon.

Speco Technologies is not liable for any loss caused by improper operaon.

Regulatory Informaon

FCC conditions:

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

● This device may not cause harmful interference.
● This device must accept any interference received, including interference that may cause undesired operaon.

FCC compliance:

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaon. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separaon between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Note:

Before installaon, check the package and make sure that all components are included.

Table of Contents

1 Introducon....2
2 Web Access and Login 3
3 Live View 5
4 Camera Conguraon 7

4.1 System Conguraon....7

4.1.1 System Information 7
4.1.2 Date and Time....7
4.1.3 Local Recording....8
4.1.4 Storage....8

4.2 Video Conguraon....10

4.2.1 Image Conguration....10
4.2.2 Video / Audio Conguraon....12
4.2.3 OSD Conguration 13
4.2.4 Video Mask 14
4.2.5 ROI Conguration 14
4.2.6 Zoom/Focus 15

4.3 Alarm Setup 16

4.3.1 Moon Detecon 16
4.3.2 Other Alarms....17
4.3.3 Alarm Server 17

4.4 Analycs Conguraon....18

4.4.1 Object Removal....18
4.4.2 Exception 19
4.4.3 Line Crossing....20
4.4.4 Intrusion....21

4.5 Network Conguraon 22

4.5.1 TCP/IP 22
4.5.2 Port 23
4.5.3 Server Conguraon....24

5 Search....35

5.1 Image Search 35

5.2 Video Search....37

5.2.1 Local Video Search....37

5.2.2 SD Card Video Search....38

Appendix 4

Appendix 1 Troubleshoong 41

1 Introducon

Welcome

Thank you for purchasing this network camera!

Please read this manual carefully before operang the unit and retain it for further reference.

Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516.

Main Features

● Built-in PoE (Power over Ethernet)
● IP67 rated for outdoor installaons
● Remote viewing support via web browser, mobile APP, and CMS/VMS

Applicaons

Two security cameras and a laptop connected by an arrow, no text or symbols present

IP Camera
Network

Web Browser

Two security cameras shown in sequence: one with a sensor, the other with a device (no text or symbols visible)

2 Web Access and Login

The IP camera sengs can be accessed via a web browser through the LAN.

Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome

It is recommended to use the latest version of these web browsers.

The menu display and operaon of the camera may be slightly dierent by using the browser with plug-in or without plug-in. Installing plug-in will display more funcons of the camera.

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows:

- Access through IP Scanner

Network conneccon:

①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. Make sure that the local network has a DHCP server. Routers typically have a DHCP server built in.

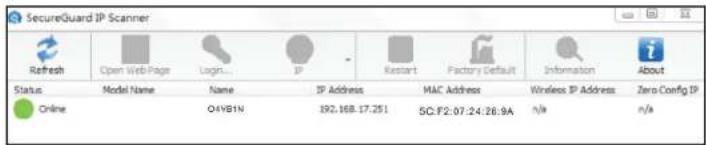

② Install IP Scanner from the CD and run it aer installaon. IP Scanner is the tool for discovering the IP cameras on the local network.

SecureGuard IP Scanner Refresh Open Web Page Login... IP Restart Factory Default Information About Status��al Name Name IP Address MAC Address Wireless IP Address Zero Config IP Online O4V51N 192.168.17.251 SC:12:07:24:26.9A n/a n/a

Please change the default password Modify Password Match Default Password New Password Confirm Password Do not show again OK Cancel

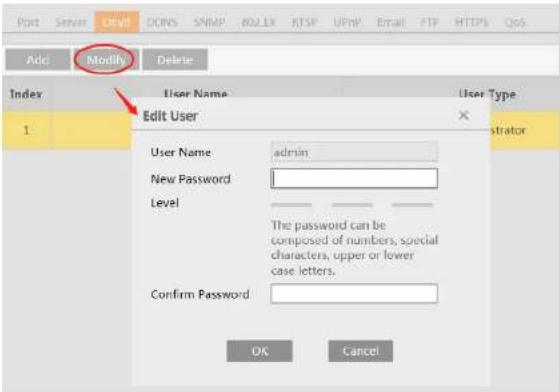

If this is the rst me for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the "Match Onvif Password" box (if available) or go to the the ONVIF section to change the password. (Cong→Network→Ports/Connections→Onvif)

Port Server Copy Add Modify Delete Index User Name Edit User User Type 1 User Name admin New Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password OK Cancel

3 Live View

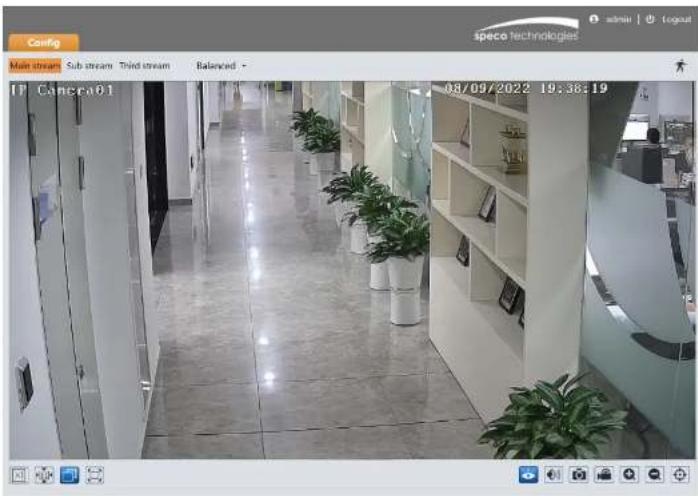

The window below will be shown aer logging in.

Config Main stream Sub stream Third stream Balanced - 08/09/2022 19:38:19 speco technologies IP Camera01

The following table describes the icons on the live view interface

Icon	Descripon	Icon	Descripon
	Zoom -		Zoom +
	Focus -		Focus +
	One key focus (used when image is out of focus aer manual adjustment)

4 Camera Conguraon

Press the "Setup" buon to go to the conguraon interface.

Note: Wherever applicable, click the "Save" bu on to save the se ngs.

4.1 System Conguraon

4.1.1 System Informaon

In the "System Informaon" interface, the system informaon of the device is listed.

Device Name	O4VB1N
Product Model	O4VB1N
Brand	Speco
Software Version	5.1.1.0(35554)
Software Build Date	2022-08-03
Onvif Version	21.12
OCX Version	2.2.3.2
MAC	5c:F2:07:24:28:9A
About this machine	Look Over

4.1.2 Date and Time

To set the me and date, go to System→Date and Time. Please refer to the following interface.

Time Mode: ● Synchronizer with NIP server ATP server: time同比下降.com Update period: 1440 Minutes ● Synchronizer with computer time Date: 2022-06-28 Time: 04.01.03 ● Set manually: 2022/06/28/27:00:05 Time Format: 24-Hour Save

4.1.3 Local Recording

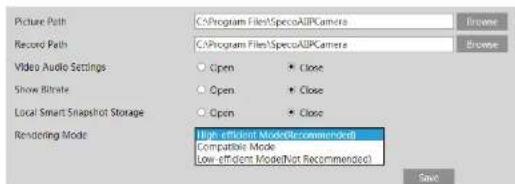

Go to System→Local Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an open to enable or disable the bitrate display in the recorded les.

Picture Path C:\Program Files\SpecoAUPCamera Record Path C:\Program Files\SpecoAUPCamera Video Audio Settings Open Close Show Filter Open Close Local Smart Snapshot Storage Open Close Rendering Mode High efficient Model(Recommended) Compastric Mode Low efficient Model(Not Recommended) Save

Additionally, the snapshots triggered by smart events (including face detecon, line crossing detecon and intrusion detecon) can be selected to save to the local PC.

Rendering Mode: High-ecient mode, compatible mode or low-ecient mode can be oponal.

If the performance of your computer is not compatible with the web client or your computer has no graphics card, low-ecient mode is suggested.

4.1.4 Storage

Go to System→Storage to go to the interface as shown below.

● Schedule Recording Sengs

1. Go to Storage→Record to go to the interface as shown below.

Management Record Together Record Parameters Record Stream Main stream Pre Record Time No Pre Record (H264.H265.MJPEG) Cycle Write Yes

1. Set record stream, pre-record time and cycle wring.

Pre Record Time: Set the me to record before the actual recording begins.

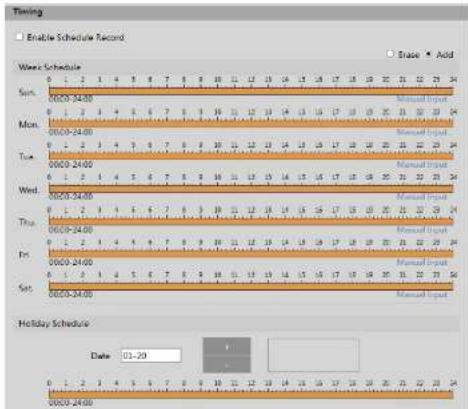

1. Set schedule recording. Check "Enable Schedule Record" and set the schedule.

Timing Enable Schedule Record Base Add Week Schedule Surs. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Mon. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Tue. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Wed. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Thu. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Manual Input Fri. 00:00-24:00 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Manual Input Manual Input Sat. 00:00-24:00 Manual Input

Management Record Snapshot Snapshot Parameters Image Format JPEG Resolution 704x480 Image Quality Low Event Trigger Snapshot Interval 1 Second Snapshot Quantity 5

Set the format, resoluon and quality of the image saved on the SD card and the snapshot interval and quantity and the ming snapshot here.

Snapshot Quanty: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. Supposing the occurrence me of an alarm event is less than the me of capturing pictures, the actual quantity of snapshots is less than the set quantity of snapshots.

Timing Snapshot: Enable ming snapshot rst and then set the snapshot interval and schedule. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

4.2 Video Conguraon

Video Conguraon includes Image Sengs, Video/Audio Setup, OSD, Privacy Mask and Region of Interest.

4.2.1 Image Conguraon

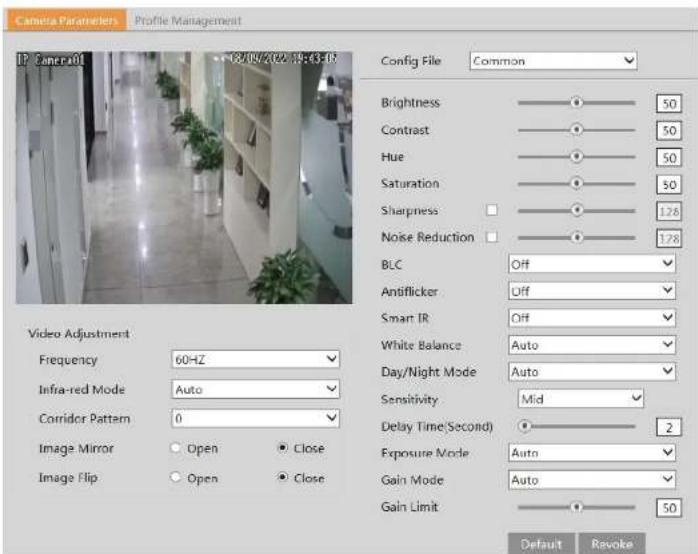

In the Image Sengs interface as shown below, various sengs can be adjusted, such as brightness, contrast, hue, and saturaon and so on. The common mode and day and night mode can be set up separately. The image effect can be quickly viewed by switching the conguraon le.

Camera Parameters Profile Management 12 ConsRef 19/08/2023 19:43:16 Config File Common Brightness 50 Contrast 50 Hue 50 Saturation 50 Sharpness 128 Noise Reduction 128 BLC Off Antiflicker Off Smart IR Off White Balance Auto Day/Night Mode Auto Sensitivity Mid Delay Time(Second) 2 Exposure Mode Auto Gain Mode Auto Gain Limit 50 Video Adjustment Frequency 60HZ Infra-red Mode Auto Corridor Pattern 0 Image Mirror Open Close Image Flip Open Close Default Revoke

Brightness: Set the brightness level of the camera's image.

Contrast: Set the color dience between the brightest and darkest parts.

Hue: Set the total color degree of the image.

Saturaon: Set the degree of color purity. The purer the color, the brighter the image is.

Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.

Noise Reducon: Decrease the noise and make the image more thorough. Increasing the value will make the noise reducon eect

beer but it will reduce the image resolution.

Auto leie: If vous envors le auto leie, please enable it

Exposure Mode: Choose "Auto" or "Manual". If manual is chosen, the digital shu er speed can be adjusted.

Gain Mode: Choose "Auto" or "Manual". If "Auto" is selected, the gain value will be automatically adjusted according to the actual situation. If "Manual" is selected, the gain value shall be set manually. The higher the value is, the brighter the image is.

Frequency: 50Hz and 60Hz can be oponal.

Infra-red Mode: Choose "Auto", "ON" or "OFF".

Corridor Paern: Corridor viewing modes can be used for situations such as long hallways. 0, 90, 180 and 270 are available. The default value is 0. The video resolution should be 1080P or below if this function is used.

Image Mirror: Turn the current video image horizontally.

Image Flip: Turn the current video image vercally.

Schedule Sengs of Image Parameters:

Click the "Prole Management" tab as shown below.

Camera Parameters Profile Management Schedule Full Time Config File Common Save

Set full me schedule for common, day or night mode and speci ed me schedule for day and night. Choose "Timing" in the drop-down box of schedule as shown below.

Camera Parameters Profile Management Schedule Timing Time Range 000 400 800 1200 1600 2000 2400 Day Night Save

Drag "💡" icons to set the "me of day and night. Blue means dayme and blank means night me. If the current mode of camera parameters is set to "Timing", the image congrason mode will automatically switch between day and night according to the

Three video streams can be adjustable.

Resoluon: The size of Image,

Frame rate: The higher the frame rate, the video is smoother.

Bitrate type: CBR and VBR are oponal. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant. VBR means that the compression bitrate will be adjusted according to scene changes. For example, for scenes that do not have much movement, the bitrate will be kept at a lower value. This can help optimize the network bandwidth usage.

Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the beer the image quality will be.

Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality, the more bitrate will be required.

I Frame interval: It determines how many frames are allowed between a "group of pictures". When a new scene begins in a video, until that scene ends, the enre group of frames (or pictures) can be considered as a group of pictures. If there is not much movement in the scene, seng the value higher than the frame rate is ne, potentially resuling in less bandwidth usage. However, if the value is set too high, and there is a high frequency of movement in the video, there is a risk of frame skipping.

Video Compression: H264 or H265 can be oponal. MJPEG is not available for main stream. If H.265 is chosen, make sure the client system is able to decode H.265. Compared to H.264, H.265 reduces the transmission bitrate under the same resolution, frame rate and image quality.

Prole: For H.264. Baseline, main and high proles are selectable

Send Snapshot: Set the snapshot stream

Video encode slice split: If this funcon is enabled, smooth image can be gotten even though using the low-performance PC.

Watermark: When playing back the local recorded video in the search interface, the watermark can be displayed. To enable it, check the watermark box and enter the watermark text.

Click the "Audio" tab to go to the interface as shown below.

Video Audio Enable Audio Encoding G711U Audio Type LIN LIN In Volume 75

Set me stamp, device name, OSD content and picture overlap here. Aer enabling the corresponding display and entering the content, drag them to change their posion. Then click the "Save" buon to save the sengs.

4.2.4 Video Mask

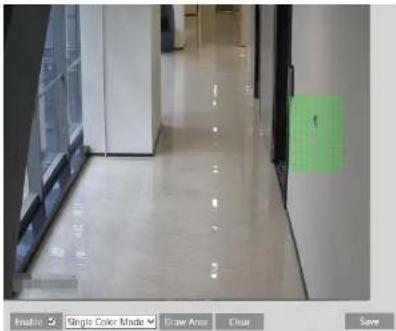

Go to Image→Video Mask interface as shown below. A maximum of 4 zones can be set up.

Interior hallway with white flooring and a window, no visible text or symbols

To set up video mask:

1. Enable video mask.
2. Click the "Draw Area" button and then drag the mouse to draw the video mask area.
3. Click the "Save" bu on to save the se ngs.
4. Return to the live to verify that the area have been drawn as shown as blocked out in the image.

Interior hallway with white walls and reflective flooring, no visible text or symbols

Aerial view of a multi-lane urban street with cars and trees, no visible text or symbols.

1. Check "Enable" and then click the "Draw Area" button.
2. Drag the mouse to set the ROI area.
3. Set the level.
4. Click the "Save" bu on to save the se ngs.

Aerial view of a road with two cars and trees, no visible text or symbols.

Aerial view of a tree-lined urban road with two cars parked on the sidewalk (no visible text or signage)

4.2.6 Zoom/Focus

This funcon is only available for the model with motorized zoom lens. Within this secon, zoom and focus can be controlled. If the Image is out of focus aer a manual adjustment, one key focus can be used to set the focus automacally.

4.3 Alarm Setup

4.3.1 Moon Detecon

Go to Alarm→Moon Detecon to set moon detecon alarm.

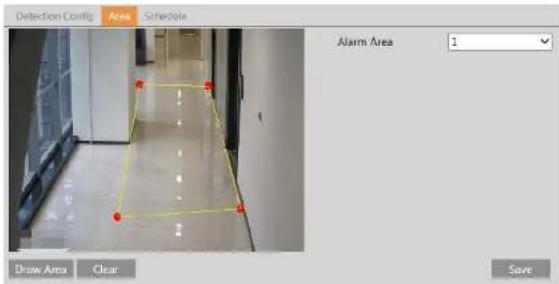

Detection Config Area and Sensitivity Schedule Enable Alarm Holding Time 20 Seconds Trigger SD Snap Trigger SD Recording Trigger Email Trigger FTP Save

1. Check "Enable" check box to activate moon-based alarms. If unchecked, the camera will not send out any signals to trigger moon-based recording to the NVR or CMS, even if there is moon in the video.

Alarm Holding Time: it refers to the interval me between the adjacent moon detecons. For instance, if the alarm holding time is set to 20 seconds, once the camera detects a moon, it will go to alarm and would not detect any other moon in 20 seconds. If there is another motion detected during this period, it will be considered as connuous movement; otherwise it will be considered as a single moon.

Trigger SD Snap: If selected, the system will capture images on moon detecon and save the images on an SD card.

Trigger SD Recording: If selected, video will be recorded on an SD card on moon detecon.

Trigger Email: If "Trigger Email" and "Aach Picture" are checked (email address must be set rst in the Email conguration interface), the captured pictures and triggered event will be sent into those addresses.

Trigger FTP: If "Trigger FTP" and "Aach Picture" are checked, the captured pictures will be sent into FTP server address. Please refer to FTP conguraon chapter for more details.

4.3.2 Other Alarms

SD Card Full

1. Go to Alarm→Anomaly→SD Card Full.

SD Card Full SD Card Error Enable Alarm Holding Time 20 Seconds Trigger Email Trigger FTP Save

1. Click "Enable" and set the alarm holding me.
2. Set alarm trigger options. The setup steps are the same as moon detecon. Please refer to moon detecon chapter for details.

SD Card Error

When there are some errors in wring SD card, the corresponding alarms will be triggered.

1. Go to Alarm→Anomaly→SD Card Error as shown below.

SD Card Full SD Card Error Enable Alarm Holding Time 20 Seconds Trigger Email

Server Address Port 8010 Heartbeat Disable Heartbeat interval 30 Second OK

4.4 Analycs Conguraon

This series of IP cameras supports certain smart funcons, such as line crossing detecon, region intrusion detection, etc. These events can be triggered as alarm events.

For more accuracy, here are some recommendaons for installaon.

- Cameras should be installed on stable surfaces, as vibraons can act the accuracy of detecon.

• Avoid poining the camera at the reecve surfaces (like shiny oors, mirrors, glass, lake surfaces and so on).
• Avoid places that are narrow or have too much shadowing.
• Avoid scenario where the object's color is similar to the background color.
• At any me of day or night, please make sure the image of the camera is clear and with adequate and even light, avoiding overexposure or too much darkness on both sides.

4.4.1 Object Removal

Alarms will be triggered when the objects are removed from or le at the pre-dened area.

To set object removal detecon:

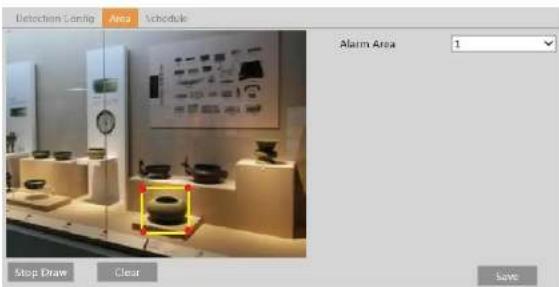

Go to Cong→Event→Object removal interface as shown below.

Detection Config Enable Enable Left Detection Enable Item Missing Detection Alarm Holding Time 20 Seconds

Detections Config Area Schedule Alarm Area 1 Stop Draw Clear Save

Set the alarm area number and then enter the desired alarm area name. Only one alarm area can be added. Click the "Draw Area" buon and then click around the area where you want to set as the alarm area in the image (the alarm area should be a closed area). Click the "Stop Draw" button to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" button to save the sengs.

1. Set the schedule of the object removal detection. The setup steps of schedule are the same as the schedule recording (See Schedule Recording).

※ The conguraon requirements of camera and surrounding areas

1. The range of the detecon object should occupy from 1/50 to 1/3 of the enre image.
2. The detecon me of objects in the camera shall be from 3 to 5 seconds.
3. The denied area cannot be covered frequently and connuously (like people and trac ow).
4. It is necessary for object removal detecon that the drawn frame must be very close to the margin of the object in enhancing the sensitivity and accuracy of the detecon.
5. Object removal detect on cannot determine the objects' ownership. For instance, there is an unia ended package in the sta on. Le object detecon can detect the package itself but it cannot determine to whom it belongs to.
6. Try not to enable object removal detector when light changes greatly in the scene.
7. Try not to enable object removal if there are complex and dynamic environments in the scene.
8. Adequate light and clear scenery are very important to object removal detecon.

4.4.2 Excepon

This function can detect changes in the surveillance environment posted by the external factors

1. Enable the applicable detecon that is desired.

Scene Change Detecon: Alarms will be triggered if the scene of the video has changed.

Video Blur Detecon: Alarms will be triggered if the video becomes blurry.

Video Cast Detecon: Alarms will be triggered if the image is abnormal caused by color deviation.

1. Set the alarm holding time and alarm trigger options. The setup steps are the same as moon detecon. Please refer to moon detecon secon for details.

2. Click "Save" bu on to save the se ngs.

3. Set the sensi vity of the excep on detection. Click "Sensitivity" tab to go to the interface as shown below.

Detection Config Sensitivity Sensitivity 1 Save

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox. Click "Save" button to save the sengs.

The sensitivity value of Scene Change Detecon: The higher the value is, the more sensitive the system responds to the amplitude of the scene change.

The sensitivity value of Video Blur Detecon: The higher the value is, the more sensitive the system responds to the blurriness of the image.

The sensitivity value of Video Cast Detection: The higher the value is, the more sensitive the system responds to the color shi of the image.

※The requirements of camera and surrounding area

1. Auto-focusing funcon should not be enabled for excepon detecon.

2. Try not to enable excepon detecon when light changes greatly in the scene.

4.4.3 Line Crossing

Line Crossing: Alarms will be triggered if the target crosses the dened alarm lines.

Go to Event→Line Crossing interface as shown below.

Detection Config Area Schedule

Detection Config Alias Schedule Alarm Line Direction 1 A->B Draw Area Clear Save

Set the alarm line number and direcon. Up to 4 lines can be added. Mulple lines cannot be added simultaneously.

Direcon: A<->B, A->B and A<-B oponal. This indicates the direcon of the intruder who crosses over the alarm line that would trigger the alarm.

A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.

A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click the "Draw Area" bu on and then drag the mouse to draw a line in the image. Click the "Stop Draw" bu on to stop drawing. Click the "Clear" bu on to delete the lines. Click the "Save" bu on to save the seconds.

1. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as the schedule recording setup (See Schedule Recording).

※Conguraon of camera and surrounding area

1. Auto-focusing funcon should not be enabled for line crossing detecon.
2. Avoid the scenes with many trees or the scenes with various light changes (like many ashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10 or above.
4. Keep the moung angle of the camera at about 45^
5. The detected objects should not be less than 1% of the enre image and the largest sizes of the detected objects should not be more than 1/8 of the enre image.

6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detecon.

7. Enable intrusion alarm.

8. Set the alarm holding me.
9. Set alarm trigger options. The setup steps are the same as motion detecon. Please refer to moon detecon chapter for details.
10. Click "Save" bu on to save the sengs.
11. Set the alarm area of the intrusion detecon. Click the "Area" tab to go to the interface as shown below.

Detection Config Area Schedule Alarm Area 1 Draw Area Clear Save

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click the "Draw Area" button and then click around the area where you want to set as the alarm area in the image on the le side (the alarm area should be a closed area). Click the "Stop Draw" bu on to stop drawing. Click the "Clear" button to delete the alarm area. Click the "Save" bu on to save the se ngs.

1. Set the schedule of the intrusion detecon. The setup steps of the schedule are the same as schedule recording setup (See

Schedule Recording).

※Conguraon requirements of camera and surrounding area

1. Auto-focusing funcon should not be enabled for intrusion detecon.
2. Avoid the scenes with many trees or the scenes with various light changes (like many ashing headlights). The ambient brightness of the scenes shouldn't be too low.
3. Cameras should be mounted at a height of 10 or above.
4. Keep the moung angle of the camera at about 45°.

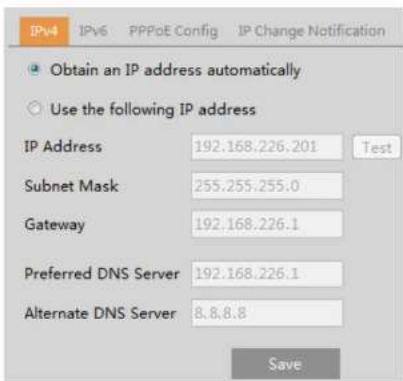

IPv4 IPv6 PPPoE Config IP Change Notification Obtain an IP address automatically Use the following IP address IP Address 192.168.226.201 Test Subnet Mask 255.255.255.0 Gateway 192.168.226.1 Preferred DNS Server 192.168.226.1 Alternate DNS Server 8.8.8.8 Save

Use IP address (take IPv4 for example)-obtain a local IP address automatically through DHCP. A typical router has a DHCP server built in, and therefore is able to assign an IP address to the camera.

Use PPPoE-Click the "PPPoE Con g" tab to go to the interface as shown below. Enable PPPoE and then enter the user name and password from your ISP.

IPvE SvE IPPuE Config IP Change Notification Enable User Name: xxxxxx Password ••••••• Save

Either method of network conncon can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP

HTTP Port 80 HTTPS Port 443 Data Port 554 RTSP Port 9000 Persistent connection Port 8080 WebSocket Port 7681 Enable Save

HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied.

HTTPS Port: The default HTTPS port is 443. It can be changed to any port which is not occupied.

Data Port: The default data port is 9008. Please change it as necessary.

RTSP Port: The default port is 554. Please change it as necessary.

Persistent Connecon Port: The port is used for a persistent conncon of the third-party plaorm to push smart data, like face pictures.

WebSocket Port: Communicaon protocol port for plug-in free preview.

4.5.3 Server Conguraon

This funcon is mainly used for connecng network video management system.

Enable Server Port 2009 Server Address Device ID 1 Save

1. Check "Enable".

2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining informaon of the device in the VMS. Aer that, the system will automatically allot a device. ID. Please check It In the VMS.

Note: when adding the device to the third-party plaorm with ONVIF/RTSP protocol, please enter the username and password created in the above interface.

4.5.5 DDNS

If the camera is set up with a DHCP conncon, DDNS should be set for accessing the camera from the internet.

1. Go to Network→DDNS.

Enable Server Type specoddns.net Domain state disconnect Save

1. Enable, save and use DDNS to log in.

Enable Server Type specoddns.net Domain speco008954.specoddns.net State connect(210.21.229.138) Save

4.5.6 SNMP

To get camera status, parameters and alarm informaon and remotely manage the camera, the SNMP funcon can be used. Before using SNMP, please install an SNMP management tool and set the parameters of the SNMP, such as SNMP port, trap address.

1. Go to Network→SNMP.

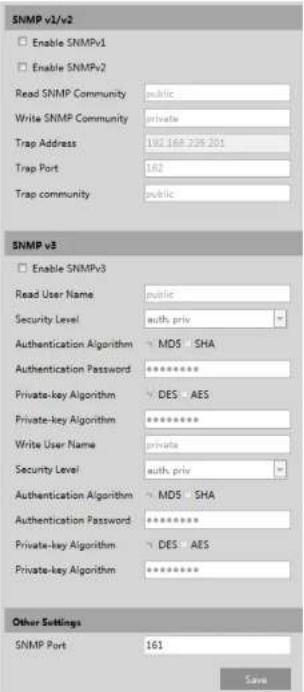

SNMP v1/v2 Enable SNMPv1 Enable SNMPv2 Read SNMP Community public Write SNMP Community private Trap Address 192 168.729.201 Trap Port 162 Trap community public SNMP v3 Enable SNMPv3 Read User Name public Security Level auth. priv Authentication Algorithm MDS SHA Authentication Password ********* Private-key Algorithm DES AES Private-key Algorithm ********* Write User Name private Security Level auth. priv Authentication Algorithm MDS SHA Authentication Password ********* Private-key Algorithm DES AES Private-key Algorithm ********* Other Settings SNMP Port 161 Save

2 Check the corresponding version checkbox (Enable SNMPv1 Enable SNMPv2 Enable SNMPv3) according to the version of the

authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authencaon of the switch, it can be accessed via the local network.

Protocol type and EAPOL version: Please use the default sengs.

User name and password: The user name and password must be the same with the user name and password applied for and registered in the authencaon server.

4.5.8 RTSP

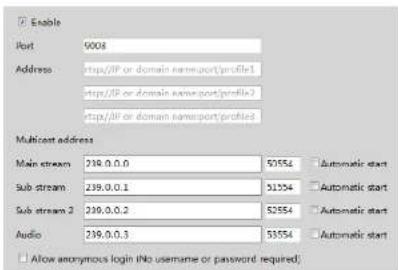

Go to Network→RTSP.

Enable Port 6008 Address https://IP or domain name/port/profile1 https://IP or domain name/port/profile2 https://IP or domain name/port-profile Multicast address Main stream 239.0.0.0 53554 Automatic start Sub stream 239.0.0.1 53554 Automatic start Sub stream 239.0.0.2 53554 Automatic start Audio 239.0.0.3 53554 Automatic start Allow anonymous login (No username or password required)

Select "Enable" to enable the RTSP funcon.

Port: Access port of the streaming media. The default number is 554.

RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player.

Mulcast Address

Main stream: The address format is

"rtsp://IP address: rtsp port/pro le1?transportmode=mcast".

Sub stream: The address format is

"rtsp://IP address: rtsp port/pro le2?transportmode=mcast".

Third stream: The address format is

"rtsp://IP address: rtsp port/pro le3?transportmode=mcast".

Sender Sender Address User Name Password Server Address Secure Connection SMTP Port 25 Default Send Interval(S) 0.0 (10-2000) Clear Text Recipient Recipient Address Add Delete Cancel

Sender Address: sender's e-mail address.

User name and password: sender's user name and password (you don't have to enter the username and password if "Anonymous Login" is enabled).

Server Address: The SMTP IP address or host name.

Select the secure connec on type at the "Secure Connec on" pull-down list according to what's required.

SMTP Port: The SMTP port.

Send Interval(S): The me interval of sending email. For example, if it is set to 60 seconds and mulple moon detecon alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent. If one moon alarm event is triggered and then another moon detection alarm event is triggered aer 60 seconds, two emails will be sent. When dient alarms are triggered at the same me, mulple emails will be sent separately.

Click the "Test" bu on to test the conneccon of the account.

Recipient Address: receiver's e-mail address.

4.5.11 FTP

Aer an FTP server is set up, captured pictures from events will be uploaded to the FTP server.

Port: The port of the FTP server.

Use Name and Password: The username and password that are used to login to the FTP server.

4.5.12 HTTPS

HTTPS provides authencaon of the web site and protects user privacy.

Go to Network→HTTPS as shown below.

□ Enable Certificate installed C=US, ST=Some-State, O=embeddedsoftewi Delete Attribute Issued to: C=US, ST=Some-State, O=embeddedsoftware, H=BTC, Issuer: C=US, ST=Some-State, O=embeddedsoftware, H=Boot CA. Validity date: 2021-03-19 03:18:30 - 2031-03-17 03:18:30 Save:

There is a cercate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering hps://IP: hps port via the web browser (eg. hps://192.168.226.201:443). A private cercate can be created if users don't want to use the default one. Click "Delete" to cancel the default cercate. Then the following interface will be displayed.

□ Enable Installation type ● Have signed certificate install directly ○ Create a private certificate ○ Create a certificate request Install certificate Browse Install Save

* If there is a signed cer cate, click "Browse" to select it and then click "Install" to install it.

* Click "Create a private certificate" to enter the following creation on interface.

Enable Installation type Have signed certificate install directly Create a private certificate Create a certificate request Create a certificate request Create Showcard Delete Save

Click "Create" to create the cer cate request. Then download the cer cate request and submit it to the trusted cer cate authority for signature. Aer receiving the signed cercate, import the cercate to the device.

4.5.13 QoS

QoS (Quality of Service) funcon is used to provide dierent quality of services for dierent network applicaons. With the decent bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congeson by using this funcon.

Go to Network→QoS.

Video/Audio DSCP: The range is from 0 to 63.

Alarm DSCP: The range is from 0 to 63.

Manager DSCP: The range is from 0 to 63.

Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Conguraon

4.6.1 User Admin

Go to Security→User Admin interface as shown below.

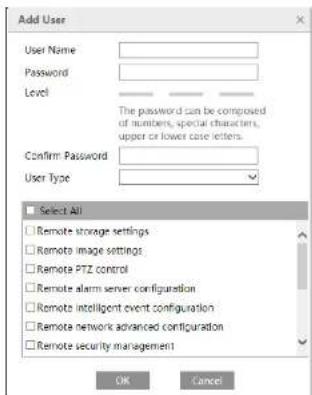

Add User User Name Password Level The password can be composed of numbers, special characters, upper or lower case letters. Confirm Password User Type Select All Remote storage settings Remote image settings Remote PTZ control Remote alarm server configuration Remote intelligent event configuration Remote network advanced configuration Remote security management OK Cancel

1. Enter user name in "User Name" textbox.
2. Enter letters or numbers in "Password" and "Con rm Password" textbox. Please set the password according to the requirement of the password security level (Go to Setup→Security→Security Management→Password Security interface to set the security level).
3. Choose the user type and select the permission.
4. Click the "OK" bu on and then the newly added user will be displayed in the user list.

Modify user:

1. Select a user to modify password and MAC address if necessary in the user conguraon list box.
2. The "Edit user" dialog box pops up by clicking the "Modify" button.

1. Click the "OK" bu on to save the sengs.

Note: To change the access level of a user, the user must be deleted and added again with the new access level.

Delete user:

1. Select the user to be deleted in the user conguraon list box.

2. Click the "Delete" bu on to delete the user.

Note: The default administrator account cannot be deleted.

4.6.2 Online User

Go to Security→Online User to view the user who is viewing the live video.

Index	Client Address	Port	User Name	User Type
1	192.168.17.232	55760	admin	Administrator	Kick Out

An administrator user can kick out all the other users (including other administrators).

4.6.3 Block and Allow Lists

Go to Security→Block and Allow Lists as shown below.

IP Address Filter Settings Enable address filtering Block the following address Allow the following address Add Delete C.0.0.0 IPv4 IPv6 Save

The setup steps are as follows:

Logout me: Set the logout me as needed. For example: 3600s, you will be automatically logged out aer 3600s and then you need to enter the username and password again to log in.

- Password Security

Security Service Password Security Authentication Password Level weak Expiration Time Never Save

Please set the password level and expiraon me as needed.

Password Level: Weak, Medium or Strong.

Weak level: Numbers, special characters, upper or lower case leers can be used. You can choose one of them or any combination of them when seng the password.

Medium Level: 8\~16 characters, including at least two of the following categories: numbers, special characters, upper case leers, lower case leers.

Strong Level: 8\~16 characters. Numbers, special characters, upper case leers and lower case leers must be included.

For your account security, it is recommended to set a strong password and change your password regularly.

HTTP Authencaon: Basic or Token is selectable.

4.7 Maintenance Conguraon

4.7.1 Backup and Restore

Go to Maintenance→Backup & Restore.

Import Setting Path Browse Import Setting Export Settings

4.7.2 Reboot

Go to Maintenance→Reboot.

Click the "Reboot" bu on to reboot the device.

Timed Reboot Seng:

If necessary, the camera can be set up to reboot on a me interval. Enable "Time Settings", set the date and me and then click the "Save" button to save the sengs.

4.7.3 Upgrade

Go to Maintenance→Upgrade. In this interface, the camera rmware can be updated.

Local upgrade Path Browse Upgrade

1. Click the "Browse" button to select the save path of the upgrade le

2. Click the "Upgrade" bu on to start upgrading the rmware.

3. The device will restart automacally

Cauon! Do not close the browser or disconnect the camera from the network during the upgrade.

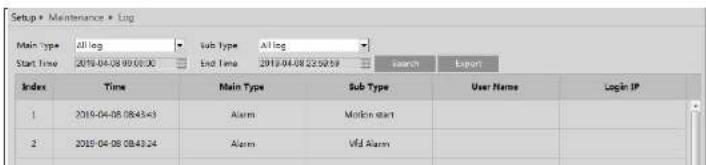

4.7.4 Operaon Log

To query and export log:

1. Go to Maintenance→Operaon Log.

Setup > Maintenance > Log Main Type All log Sub Type All log Start Time 2019-04-08 08:06:00 End Time 2019-04-08 22:59:59 search Export Index Time Main Type Sub Type User Name Login IP 1 2019-04-08 08:43:43 Alarm Motion start 2 2019-04-08 08:43:24 Alarm Vfd Alarm

5 Search

5.1 Image Search

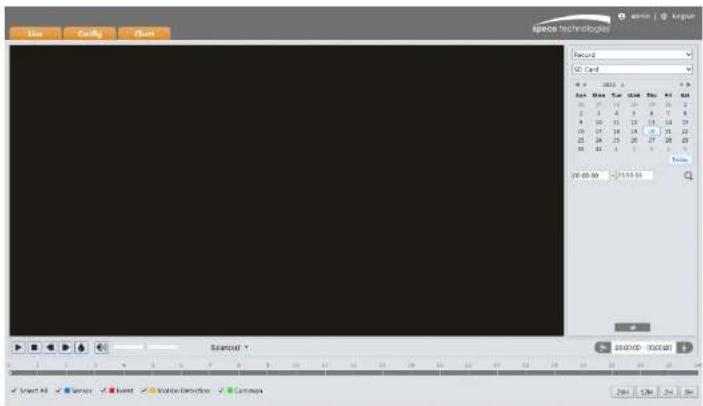

In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here.

Line Coding Chart Space technologies Record CD Card 4.0 2018 6 Run: New Run Good Run All 0 5 10 15 20 25 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 Time 20:00:00 - 2:10:50 Balance1 Select All Sensor Event Video Detection Commons 244 128 24 34

- Local Image Search

1. Choose "Picture"—"Local".
2. Set me: Select date and choose the start and end me.
3. Click to search the images.

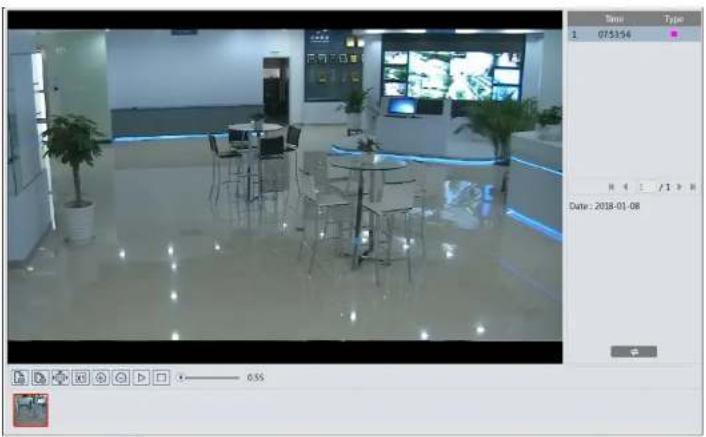

4. Double click a lename in the list to view the captured photos as shown above.

Interior view of a modern office or restaurant space with glass flooring, tables, and a potted plant (no visible text or symbols)

Click to return to the previous interface.

- SD Card Image Search

1. Choose "Picture"—"SD Card".

File U3 Card 0 4 2000 1 New Date: 2000-06-2000 1 2 3 4 5 6 7 8 9 9 10 11 12 13 14 15 15 16 17 18 19 20 21 24 25 26 27 28 29 35 36 37 38 39 40 00:00:00 - 23:59:00

Icon	Descripon	Icon	Descripon
	Close: Select an image and click this buon to close the image.		Close all: Click this buon to close all Images.
	Save: Click this buon to select the path for saving the Image on the PC.		Save all: Click this buon to select the path for saving all pictures on the PC.
	Fit size: Click to t the Image on the screen.		Actual size: Click this buon to display the actual size of the image.
	Zoom in: Click this buon to digitally zoom in.		Zoom out: Click this buon to digitally zoom out.
	Slide show play: Click this buon to start the slide show mode.		Stop: Click this buon to stop the slide show.
	Play speed: Play speed of the slide show.

5.2 Video Search

5.2.1 Local Video Search

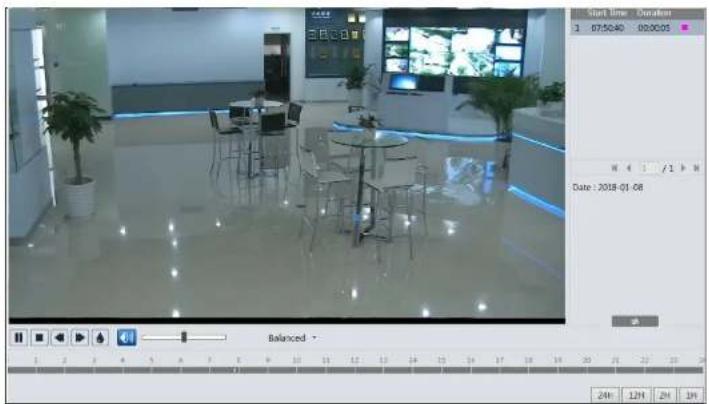

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface.

Record Local Sun Mon Tue Wed Thu Fri Set 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 26 27 28 29 30 31 32 33 + 5 6 7 8 9 10 Timing 00:00:00 +23:59:59

Start Time 1 07:50:40 00:00:05 Date : 2018-01-08 Balanced 24h 12h 24h 34h

Icon	Descripon	Icon	Descripon
	Play buon. Aer pausing the video, click this buon to connue playing.		Pause buon
	Stop buon		Speed down
	Speed up		Watermark display
	Enable / disable audio; drag the slider to adjust the volume aer enabling audio.

5.2.2 SD Card Video Search

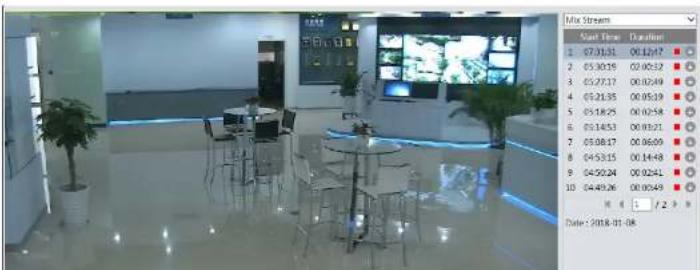

Click Search to go to the interface as shown below. Videos that were recorded on the SD card can be played in this interface.

Balance 12:00:00 0 1 Run View Temp Window Temp All 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Balance 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 0.00:00:00 -00:00:00 Select All Sensor Event Motion Detection Cartoon

1. Select the alarm events at the boom of the interface.
2. Select mix stream (video and audio stream) or video stream as needed.
3. Double click on a le name in the list to start playback.

Mix Stream Start Time Duration 1 07:31:51 00:12:17 2 05:30:19 02:00:32 3 05:27:17 00:02:49 4 05:21:35 00:05:19 5 05:18:25 00:02:58 6 05:14:53 00:03:21 7 05:08:17 00:06:09 8 04:53:15 00:14:48 9 04:50:24 00:22:41 10 04:49:26 00:03:49 Date : 2018-01-08

Index Process Record Start Time End Time Path Operate 1 100% Cut 2018-01-16 01:1... 2018-01-16 01:1... Favorites Open Set up D:\Favorites Clear List Close

Click "Set up" to set the storage directory of the video les.

Click "Open" to play the video.

Click "Clear List" to clear the downloading list.

Click "Close" to close the downloading window.

Appendix

Appendix 1 Troubleshoong

IP Scanner does not show any device.

Make sure that the PC that's running IP Scanner is on the same local network as the devices.

Internet Explorer cannot download AcveX control.

IE browser may be set up to block AcveX. Follow the steps below.

1. Open IE browser and then click Tools→Internet Opons.

1. Select Security → Custom Level.
2. Enable all the op ons under "Ac veX controls and plug-ins".
3. Click OK to nish setup.

Security Settings Settings • Security • Download signed network controls • Download • Download managed network controls • Download • Download and log Active controls that enabled as safe • Download • Download • Download

Models: O4VD1MN/O4VT1N/O4VT1NG/O4VT1MN/O4VB1N/O4VB1NG/O4VB1MN/O4VD1N/O4VD1NG

Federal Communicaons Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operaon.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY11701

www.specotech.com
