User Guide (Ver. 2.2)

Models: Desktop - N4/8/16NS, N4/8/16NSP, N16NSF

Wall Mount - N4/8/16WNS, N4/8/16WNSP

4/8/16 Channel Network Video Recorder

Exterior view of a beige office cabinet with a circular door and handle (no signage or text visible)

Cautions

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols

This symbol indicates the presence of important operang and maintenance (servicing) instrucons in the literature accompanying the product.

This symbol indicates the presence of "dangerous voltage" within the product's enclosure that may be of sucient magnitude to constute a risk of electric shock, property damage, personal injury, or death.

These precautions must be followed for safety reasons

Warning

• Do not use if the unit emits smoke.
• Do not disassemble the unit.
• Do not place any heavy or sharp objects on the unit.
• Do not place on uneven surface.
• Do not expose to shock or vibration.
• Do not move the unit when the unit is powered on.
• Do not block, and allow dust to accumulate in the air vents.
• Do not restrict airflow of the unit; doing so can damage the unit.
• Only qualified and experienced personnel should perform installation and servicing.
• Turn off the power of the NS when connecting Cameras, Audio or Sensor Cables.
• The manufacturer is not responsible for any damage caused by improper use of the product or failure to follow instructions for the product.
• The manufacturer is not responsible for any problems caused by or resulting from the user physically opening the NS for examination or attempting to repair the unit.

Product Components

Please make sure the following components are included as specified below.

Desktop:

N4NS / N8NS / N16NS

N4NSP / N8NSP / N16NSP

N16NSF

Wall Mount:

N4WNS/N8WNS/N16WNS

N4WNSP / N8WNSP / N16WNSP

Remote Control

Battery 1.5V (AAA x 2 EA)

Quick Setup Guide &

User Guide

Scanned document page with Chinese text, blue layout design, and navigation tabs, likely a quick setup guide or system interface.

Mouse for NS

Software & Manual CD

Specifications for NS/NSP

MODEL			N4NS	N8NS	N16NS	N4NSP	N8NSP	N16NSP
Video	Input	IP Cameras	4	8	16	4	8	16
		Max Bit Rate	20Mbps	40Mbps		20Mbps	40Mbps
		Resolution	Max. 1920x1080
	Output	Main Monitor	VGA and HDMI
		Sub Monitor	CVBS (BNC)
Audio	Input	IP Cam Audio	4	8	16	4	8	16
		RCA Input	4	8	16	4	8	16
	Output	RCA Output	1
	Audio Codec		G.711
Event	Sensor In	IP Cam Sensor	4	8	16	4	8	16
		Local Input	4 (Terminal Block)
	Local Alarm Output (Terminal Block)		1
	IP Camera Motion Detection		Yes
Serial	RS-232C		Yes
	RS-485		Yes
Network	Private (IP Camera, Auto Connection)		10/100 Base-T	10/100/1000 Base-T		4 Port PoE	8 Port PoE
	LAN (Remote Access, IP Camera)		10/100 Base-T	10/100/1000 Base-T		10/100 Base-T	10/100/1000 Base-T
	Protocols		TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP, ONVIF
	Compression		H.264 (Baseline, Main, High Profile)
	Resolution & Frame Rate	D1	120fps	240fps	480fps	120fps	240fps	480fps
		1280x720	120fps	240fps	400fps	120fps	240fps	400fps

User I/F	Input Method	Front Buttons, IR, Mouse, Keyboard Controller
Features	Dynamic DNS	Yes (Free DDNS)
	Digital Zoom	Yes
	DLS (Day Light Savings)	Yes
	NTP (Network Time Protocol)	Yes
	S.M.A.R.T.	Yes
	Internal Beep	Yes
	Multi-Language	Yes
	a-mail Notification	Yes
Network Access	3G Mobile	iPad / iPhone / Android
	Web Viewer	Windows (IE, Chrome, Firefox, Safari), MAC(TBD)
	PC Client	Single / Multi Client and CMS (64 channels)
	Remote Setup and Upgrade	Yes
Power	Total POE Budget	48W for the 4NSP, 96W for 8/16NSP
	Power Supply Voltage	DC12V 5A	DC12V 5A & DC48V 2A
Temperature	Operating Temperature	41°F ~ 104°F (5°C ~ 40°C)
	Storage Temperature	14°F ~ 122°F (-10°C ~ 50°C)
Weight	Desktop Unit Weight (Gross weight)	Approximately 11 lbs	Approximately 12 lbs
	Wall Mount (Gross weight)	Approximately 16 lbs	Approximately 17 lbs
Dimension	Unit Dimension (W x D x H)	15"W x 13.4"D x 2.8"H (380mm x 340mm x 72mm)
	Wall Mount (W x D x H)	13.5" x 3.5" x 17"

Please note that specifications and unit exterior design are subject to change without notification.

Specifications for N16NSF

MODEL			N16NSF
Video	Input	IP Cameras	16
		Max Bit Rate	40Mbps
		Resolution	Max. 1920x1080
	Output	Main Monitor	VGA and HDMI
		Sub Monitor	CVBS (BNC)
Audio	Input	IP Cam Audio	16 (#1~#4: RCA, #5~#16: Audio Cable)
		RCA Input	16
	Output	RCA Output	1
	Audio Codec		G.711
Event	Sensor In	IP Cam Sensor	16
		Local Input	4 (Terminal Block)
	Local Alarm Output (Terminal Block)		1
	IP Camera Motion Detection		Yes
Serial	RS-485		Yes
Network	Private (IP Camera, Auto Connection)		16 Port PoE
	LAN (Remote Access, IP Camera)		10/100/1000 Base-T
	Protocols		TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, RTP, RTSP, ONVIF
Recording	Compression		H.264 (Baseline, Main, High Profile)
	Resolution & Frame Rate	D1	480fps
		1280x720	400fps
		1920x1080	192fps

Features	Dynamic DNS	Yes (Free DDNS)
	Digital Zoom	Yes
	DLS (Day Light Savings)	Yes
	NTP (Network Time Protocol)	Yes
	S.M.A.R.T.	Yes
	Internal Beep	Yes
	Multi-Language	Yes
	e-mail Notification	Yes
Network Access	3G Mobile	iPad / iPhone / Android
	Web Viewer	Windows (IE, Chrome, Firefox, Safari), MAC(TBD)
	PC Client	Single / Multi Client and CMS (64 channels)
	Remote Setup and Upgrade	Yes
Power	Total POE budget	200W
	Power Supply Voltage	AC 110V ~ 240V, 50/60Hz, Max 250W
Temperature	Operating Temperature	41°F ~ 104°F (5°C ~ 40°C)
	Storage Temperature	14°F ~ 122°F (-10°C ~ 50°C)
Weight	Desktop Unit Weight (Gross weight)	Approximately 14 lbs
	Wall Mount (Gross weight)	Approximately 19 lbs
Dimension	Unit Dimension (W x D x H)	15"W x 13.4"D x 2.8"H (380mm x 340mm x 72mm)

Please note that specifications and unit exterior design are subject to change without notification.

Table of Contents

1. Main Features 12
2. Initial Boot-up Process.... 13
   2-1. Initial Boot up and Basic Time Setup....13
   2-2. Setting up Daylight Savings Time....14
   2-3. Setting NTP (Network Time Protocol)....14
   2-4.EZ SETUP 17
   2-5. PoE Port SETUP....19
   2-6. Non PoE Port SETUP....22
   2-7. IP Camera SETUP (through Web Viewer page) 22
   2-8. Dual Streaming....23
3. Front and Rear Panels 24
   3-1. Desktop Front Panel 24
   3-2. Connectors ....25
   3-3. Remote Control....27
4. Setting up the NS 28
   4-0. Setup – Main Live Screen....28
   4-1. Setup - IP CAMERA 29
   4-1-1. SCAN Menu ....31
   4-1-2. ONVIF SETUP Menu....32
   4-2. Setup – SYSTEM....34
   4-3. Setup - RECORD Mode 37
   4-3-1. Recording Schedules....39
   4-4. Setup - DEVICE Mode 40
   4-4-1. Digital Deterrent....42

5-3. SEARCH Screen....60

5-3-1.EZSearch 61

5-3-2. Time Line Search....62

5-3-3. Event Search....62

5-3-4. Go To First Time 63

5-3-5. Go To Last Time 63

5-3-6. Go To Specific Time....63

5-3-7. Archive List....63

5-3-8. Log List....64

5-4. Play Mode....64

1. Back Up....66

6-1. Still Image Backup onto USB Flash Drive....66

6-2. Video Backup onto USB Flash Drive during playback 66

6-2. EZCopy: Video Backup onto USB Flash Drive during playback....68

6-3. Transferring Still Images or Video from the ARCHIVE List....69

6-4. Playback of Backup Video....69

6-5-1. AVI Format....69

6-5-2. NSF Format....70

1. Network Access Using the Multi-Sites Network Viewer 71

7-1. Overview....71

7-2. PC Requirements....71

7-3. Installation of the Program 72

7-4. Live Window....73

7-4-1.Main User Interface 73

7-4-2. Control Buttons....73

7-5. Search and Playback Window....74

7-7-6. Network 86
7-7-7.User Management....87
7-7-8. Storage 88
7-7-9. Remote Upgrade 88
7-7-10. Information 88

7-8. Operation....89

7-8-1. Addition, Delete, and Modify of NS Sites....89
7-8-2. Connect and Disconnect....91
7-8-3. Still-image Capture During Live 92
7-8-4. Recording Video on Local PC During Live 92
7-8-5. Local Playback and Remote Playback....94
7-8-6. AVI Backup during Playback 96

1. Network Access Using the Web-Browser Viewer....98
2. Network Access Using the Smart Phone Viewer 100

9-1. App Viewer for iPhone....100

9-1-1. Live....100
9-1-2.PTZ Control 101
9-1-3. Playback....102

9-2. App Viewer for Android Phone....103

9-2-1. Live....103
9-2-2. Playback....104
9-2-3.PTZ Control 104

APPENDIX: Network Connection - LAN 105

APPENDIX: Network Connection – Internet and DDNS 107

APPENDIX: E-SATA CONNECTION....110

1. Main Features

■ Automatic IP Camera Detection and connection (Plug & Play)
■ Easy Record, Copy and Setup
■ Easy Search by Thumbnail Preview
■ Easy Copy
■ Easy Network
■ Easy IP Camera Setup

NOTE: Under federal law, The Fourth Amendment to the U.S. Constitution, Title III of the Omnibus Crime Control and Safe Streets Act of 1968, as amended by the Electronic Communications Privacy Act of 1986 (18 U.S.C. § 2510, et seq.), and the Foreign Intelligence Surveillance Act of 1978 (50 U.S.C. 1801, et seq.) permit government agents, acting with the consent of a party to a communication, to engage in warrantless interceptions of telephone communications, as well as oral and electronic communications.

■ Covert camera operation provides enhanced security and administrator control
■ Dynamically programmable recording priority, motion detection, alarms and scheduling
■ Simple and Easy Graphic User Interface
■ Simple Scheduler
■ HDMI Output
■ VGA Output
■ Password to secure installation authorization
■ Network software supports 10/100Mbps
■ USB 2.0 port for video clip exporting and easy firmware upgrade via USB Flash Drive

2. Initial Boot-up Process

2-1. Initial Boot up and Basic Time Setup

1. During the first boot up, the following logo will be displayed.

speco technologies

1. After the logo, select the language and set date and time as specified below.

CHOOSE LANGUAGE ENGLISH < PREV NEXT > CLOSE

Initializing system It may take a few seconds or minutes to check the system 90% Initialize Network....Done

Select EZ Setup EZ Setup will help you to setup your NVR. Please select one of the options below.

2-2. Setting up Daylight Savings Time

To enable Daylight Saving feature/NTP synchronization, take the following steps.

1. Enter the SETUP mode. The default Username is "ADMIN" and Password is "1111".

CH2 NO CONNECTION 192.168.78.18 CH3 NO CONNECTION 192.168.78.18 CH4 NO CONNECTION 192.168.78.18 CH5 NO CONNECTION 192.168.78.18 CH6 NO CONNECTION 192.168.78.18 CH7 NO CONNECTION 192.168.78.18 CH8 NO CONNECTION 0.0.0 CH9 NO CONNECTION 0.0.0 CH10 NO CONNECTION 0.0.0 CH11 NO CONNECTION 0.0.0 CH12 NO CONNECTION 0.0.0 CH13 NO CONNECTION 0.0.0 CH14 NO CONNECTION 0.0.0 CH15 NO CONNECTION 0.0.0 CH16 NO CONNECTION 0.0.0 CH17 NO CONNECTION 0.0.0 CH18 NO CONNECTION 0.0.0 CH19 NO CONNECTION 0.0.0 CH20 NO CONNECTION 0.0.0 CH21 NO CONNECTION 0.0.0 CH22 NO CONNECTION 0.0.0 CH23 NO CONNECTION 0.0.0 CH24 NO CONNECTION 0.0.0 CH25 NO CONNECTION 0.0.0 CH26 NO CONNECTION 0.0.0 CH27 NO CONNECTION 0.0.0 CH28 NO CONNECTION 0.0.0 CH29 NO CONNECTION 0.0.0 CH30 NO CONNECTION 0.0.0 CH31 NO CONNECTION 0.0.0 CH32 NO CONNECTION 0.0.0 CH33 NO CONNECTION 0.0.0 CH34 NO CONNECTION 0.0.0 CH35 NO CONNECTION 0.0.0 CH36 NO CONNECTION 0.0.0 CH37 NO CONNECTION 0.0.0 CH38 NO CONNECTION 0.0.0 CH39 NO CONNECTION 0.0.0 CH40 NO CONNECTION 0.0.0 CH41 NO CONNECTION 0.0.0 CH42 NO CONNECTION 0.0.0 CH43 NO CONNECTION 0.0.0 CH44 NO CONNECTION 0.0.0 CH45 NO CONNECTION 0.0.0 CH46 NO CONNECTION 0.0.0 CH47 NO CONNECTION 0.0.0 CH48 NO CONNECTION 0.0.0 CH49 NO CONNECTION 0.0.0 CH50 NO CONNECTION 0.0.0

1. Go to SETUP > SYSTEM > DATE & TIME SETUP

SYSTEM DESCRIPTION LANGUAGE DATE DISPLAY FORMAT DATE & TIME SETUP CLIENT ACCESS NTP SETUP SEND EMAIL SETUP UNIT NAME SYSTEM RESTART SYSTEM SHUTDOWN EZ SETUP SYSTEM EVENT NOTIFICATION ENGLISH MM/DD/YYYY OK OK OFF NVR APPLY CANCEL

1. Select ON from the DAYLIGHT SAVING dropdown menu.

1. Select the proper TIME ZONE time.

PRIMARY SNTP SERVER Poul.ntp.org SECONDARY SNTP SERVER Time.nist.gov TIME ZONE GMT -5:00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM OK CANCEL

Table2.3.1. GMT Time Zone

	State	Standard Time	Daylight-Saving Time
AL	Alabama	GMT-6	GMT-5
AK	Alaska	GMT-9	GMT-8
AK	Alaska (Aleutian Islands)	GMT-10	NA
AZ	Arizona	GMT-7	NA
AZ	Arizona (Navajo)	GMT-7	GMT-6
AR	Arkansas	GMT-6	GMT-5
CA	California	GMT-8	GMT-7
CO	Colorado	GMT-7	GMT-6
CT	Connecticut	GMT-5	GMT-4
DC	District of Columbia	GMT-5	GMT-4
DE	Delaware	GMT-5	GMT-4
FL	Florida	GMT-5	GMT-4
FL	Florida (W)	GMT-6	GMT-5
GA	Georgia	GMT-5	GMT-4
HI	Hawaii	GMT-10	NA
MI	Michigan (W)	GMT-6	GMT-5
MN	Minnesota	GMT-6	GMT-5
MS	Mississippi	GMT-6	GMT-5
MO	Missouri	GMT-6	GMT-5
MT	Montana	GMT-7	GMT-6
NE	Nebraska	GMT-6	GMT-5
NE	Nebraska (W)	GMT-7	GMT-6
NV	Nevada	GMT-8	GMT-7
NH	New Hampshire	GMT-5	GMT-4
NJ	New Jersey	GMT-5	GMT-4
NM	New Mexico	GMT-7	GMT-6
NY	New York	GMT-5	GMT-4
NC	North Carolina	GMT-5	GMT-4
ND	North Dakota	GMT-6	GMT-5
ND	North Dakota (W)	GMT-7	GMT-6
OH	Ohio	GMT-5	GMT-4
OK	Oklahoma	GMT-6	GMT-5
OR	Oregon	GMT-8	GMT-7
OR	Oregon (E)	GMT-7	GMT-6
PA	Pennsylvania	GMT-5	GMT-4
RI	Rhode Island	GMT-5	GMT-4
SC	South Carolina	GMT-5	GMT-4
SD	South Dakota (E)	GMT-6	GMT-5
SD	South Dakota (W)	GMT-7	GMT-6
TN	Tennessee (E)	GMT-5	GMT-4

2-4. EZ SETUP

Quick installation Menu for NS and IP Camera Easy installation(Right-Click on the Main Screen)

EZ SETUP CONNECT AUDIO MUTE CAMERA PTZ ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP SYSTEM LOCK SYSTEM SHUTDOWN Select EZ Setup EZ Setup will help you to setup your NVR. Please select one of the options below. ● EZ Network for Network Setup ○ EZ Camera for Date/Time and Camera Setup NEXT >> CANCEL

Figure 2.4. EZ Setup Screen

2.4.1. Setup DATE & TIME, IP CAMERA configurations.

Select EZ Setup EZ Setup will help you to setup your NVR. Please select one of the options below. • EZ Network for Network Setup • EZ Record for Date/Time and Record Setup • EZCamera for Camera Setup NEXT >> CANCEL EZ Camera You are about to start EZ Camera EZ Camera will guide you through: - Date/Time Setup - Camera Setup Click the 'NEXT' button to start EZ Camera NEXT >> CANCEL EZ Camera CHANNEL IPCAMERA INFO PROFESSION NUMBER EZ Camera

- If necessary, click on Preview to Preview the camera, or Setup to change camera settings.

2.4.2.EZ NETWORK

Select EZ Setup EZ Setup will help you to setup your SYSTEM. Please select one of the options below. O EZ Network for Network Setup * EZ Camera for Date/Time and Camera Setup NEXT >> CANCEL

EZ NETWORK Please wait while the SYSTEM automatically helps and disconnect without error... 80%

EZ NETWORK You have now completed your network setup. You can enter the ddms host name into Specio Player app, Web browser, and SecureGuard. DDMS host name n16nsf_091727.ddms.speccodins.net Click 'EDIT' to edit the host name. Click 'FINISH' to complete EZ Network. EDIT FINISH CANCEL

HOST NAME n16nsf_speco · 1 2 3 4 5 6 7 8 9 0 · = ← q w e r t y u i o p [ ] CAPS a s d f g h j k l : SHIFT z x c v b n m . . / SHIFT CLEAR SPACE CLOSE

DDNS NOTIFY : HOST NAME : n16nsf_speco STATUS : SUCCESS OK

Figure 2.4.2. EZ NETWORK Setup Procedure

2-5. PoE Port SETUP

800.5V CAM-1 CAM-3 Power CAM-2 CAM-4 800.5V CAM-1 CAM-3 CAM-4 CAM-5 CAM-6 POWER CAM-2 CAM-4 CAM-5 CAM-6

Figure 2.5.1 PoE Port (N4NSP / N8NSP & N16NSP)

Figure 2.5.2 PoE Port (N16NSF)

2.5.1 Connecting the Camera(NSP Model)

Diagram showing four cameras connected to a rack-mounted control panel with red lines and a display screen.

mera settings are recommended for optimal connection with the NS Series

Setup Items	Default	Description
Network Type	DHCP	The IP Camera must act as a DHCP client for the "Plug and Play".
Encoding Type	CBR	The "CBR" is recommended because of the internal buffer design of the NS Series
Resolution	1280x720	The maximum performance of the N16NS/NSP is 1080p@192fps or [e-mail] get higher frame rates per channel, 1280x720 is the recommended resolution.
Frame Rate	25fps	The maximum performance of the N16NS/NSP is [e-mail] 25fps per channel is recommended. (25fps x 16 = 400fps)
Bit Rate	2Mbps	The maximum throughput of the N16NS/NSP is 40Mbps.

Figure 2.5.1.2. Incorrect connection with the PoE Ports

With the NSP Models, it is prohibited to connect a router to the POE Ports to connect the IP Camera, the NSP will not be able to find and connect to the camera. The LAN Port can be connected to a router, but not the PoE Ports.

2-6. Non PoE Port SETUP

2.6.1 Connecting the Camera (Non - PoE Model)

Diagram showing D-Link network topology with security camera, security camera, and security camera connected via red lines to ports and interfaces.

Figure 2.6.1.1. Proper connection example of the NS (Non PoE Switch).

• The NS Series features a "Plug and Play" function (on board PoE Switch not included).
- Setting up cameras can be done through the EZ CAMERA menu, refer to Figure 2.4.1.

Diagram showing a device interface with labeled ports, connectors, and a red dotted curve indicating a path or connection.

GPS TECHNOLOGY CRL1 NO VIDEO CRL2 NO VIDEO CRL3 NO VIDEO Aspect Area High Quality Normal Quality IP Camera Setup CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 PPT. OF OFFICE: 2003 RAPES Type Size Event: DataTime Ghnc: 172.18.277 Camera Selected CH8 2013-04-27 14:29:28 Ghnc: 172.18.277 Camera Selected CH8 2013-04-27 14:29:28 Ghnc: 172.18.277 Camera Selected CH8 2013-04-27 14:29:28 Ghnc: 172.18.277 Camera Selected CH4 2013-04-27 14:29:28

① Click the mouse right button
② Select "IP Camera Setup".
③ Select Channel Number.
④ It launches the camera's web setup page.

In order for the web pages to launch from the "IP Camera Setup" menu when accessed from the WAN, Ports 59011 to 59254 on the router must be port forwarded to the NVR. The local address of the NVR can be found in the system information

2-8. Dual Streaming

- High Quality (Main Profile) Video Stream is used for both Recording and Live Display.

3. Front and Rear Panels

3-1. Desktop Front Panel

Space Technologies PRT 100 1 2 3 4 5 6 7 8 9 10 11 12 M FLOW MLOW DWT OUT 11 12 13 OUT 14 15 16 PZ CONTROL 300 MHz RESET 30.8 RUM OFF PUMP/REF ACAM PTZ BEI HOM

Figure 3.1.1. Desktop NS Front panel

Table 3.1.1. Front LED and Port of NS

Name	Description
POWER	LED light is on when power is applied to the system.
HDD	LED light is on when the system is recording video data.
USB Port	This USB port for archiving footage into a USB device. (USB 2.0)

Table 3.1.2. Front Buttons

Name	Description
Number1~16	Select a channel from CH1 to CH16.
	Buttons from 9 to 16 are used as function keys in PTZ control mode.To escaping PTZ mode, press the ESC button.
MENU	Enters the Setup Menu.
COPY	Takes a screenshot on Live and Backup button on Playback.
ALARM	Activates the external alarm device.
SEQ	Enable the sequence mode on Live.

3-2. Connectors

• Do not power this system on before all the connections are completed.
• Make sure all the connections are properly secured. Faulty connection may result in the system being damaged.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

[N4/8/16NS]

1 2 3 5 6 7 8 11 13 14 15 CAUTION

[N4NSP]

1 2 3 5 6 7 9 10 11 13 14 15 CAUTION

⑪ E-SATA: 1 External SATA Terminal
⑫ USB PORT: Connector for USB Mouse or USB flash memory.
⑬ ETHERNET PORT1: RJ-45 Connector for LAN Connection, used for Internet Connection
⑭ SENSOR IN, ALARM OUT, RS-485: 4 sensor inputs, 1 alarm output and RS-485 for PTZ
⑮ POWER: DC12V input

① Ground: Use for grounding.

② POWER: Power Input (200W for PoE Power -First 2 channels at 802.3at, the rest 14 channels are 802.3af

③ PoE PORT: 16 Port PoE

④ AUDIO IN/OUT: 4 Connectors for Audio Input / 1 Connector for Audio Output

⑤ CVBS OUT: MAIN – Composite Video Output.

⑥ HDMI OUT: HDMI output port, Connector to the HDMI Monitor, (1280x720, and 1920x1080).

⑦ VGA OUT: Connector for VGA Monitor, Main Video Output.

⑧ AUDIO Port: Audio inputs connections for channels 5-8 or 5-16 through external cable (N8NSP, N16NSP Models only).

3-3. Remote Control

1 4 6 9 11 12 14 3 6 9 2 5 8 0 1 4 7 13 2 5 8 10 3 5 8 13

① ID: Used to set up the remote control ID.
② REC: To enable or disable manual recording mode.
③ SEARCH: Goes to SEARCH menu for playback options.
④ F/ADV:

• During Playback – Moves the playback forward by 60 seconds.
• During Pause – Moves the playback forward by 1 frame.

⑤ F/REW:

• During playback – Moves the playback backward by 60 seconds.
• During Pause – Moves the playback backwards by 1 frame.

(6) FF: Increases playback speed (fast forwards)

The following sections detail the initial setup of the NS.

Menu screen will close if user input is not received within 5 minutes.

4-0. Setup - Main Live Screen

To enter the setup menu, right click on the mouse and select setup from the submenu or press the setup button on the remote control.

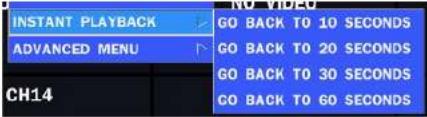

SEARCH SETUP DISPLAY SNAPSHOT SUPER EZ COPY ENABLE MANUAL RECORD INSTANT PLAYBACK ADVANCED MENU EZ SETUP CONNECT AUDIO MUTE CAMERA PTZ ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP SYSTEM LOCK SYSTEM SHUTDOWN 05/29/2013 15:42:10 RC: ALL HDD: OVERWRITE

Table 4.0.1. Live Screen and Quick Operation Window

4-1. Setup - IP CAMERA

Press the SETUP button and enter the password. The IP Camera setup menu is displayed below.

IP CAMERA CHANNEL 1 PROTOCOL SPEC0 SCAN IP 0.0.0.0 PORT 554 WEB PORT 80 ID admin PASSWORD **** SETUP APPLY CANCEL

Figure 4.1.1. IP Camera mode setup screen

Table 4.1.1. Menu items in IP CAMERA mode setup

Item	Description
CHANNEL

IP PORT WEB PORT 192.168.78.11 554 80 Camera Scanning has been completed. REFRESH REGISTER CANCEL

IP: Enter the address of IP camera to connect, or select from scanned list.

PORT: Enter the port number of IP camera to connect

WEB PORT: Enter the web port number of IP camera to connect

OTHERS: Change the IP camera setting. Double click the empty box and then Log-In box will be pop-up. (Enter ID and PASSWORD of IP Camera)

ID admin PASSWORD **** OK

PROTOCOL Select the protocol for the IP Camera.

SCAN Automatic IP Camera search on the local network.

IP Set up IP camera address.

PORT Set up the RTSP port of the IP Camera (default: 554)

WEB PORT Set up the web port of IP Camera (default: 80)

ID Enter ID of IP CAM

4-1-1. SCAN Menu

Scan for IP Cameras on network using ONVIF/SPECO protocols.

IP CAMERA CHANNEL PROTOCOL SCAN IP WEB PORT ID PASSWORD PROFILE ONVIF SETUP 0 ONVIF - 0.0.0.0 80 admin **** Primary + APPLY CANCEL

IP CAMERA CHANNEL PROTOCOL SCAN IP PORT WEB PORT ID PASSWORD SETUP SPOCS 2 192.168.78.15 80 admin 3 APPLY CANCEL

Figure 4.1.2 IP CAMERA Setup Screen

IP 192.168.0.79 80 ZIP2D SPECO 192.168.78.14 80 ZIP2D SPECO 192.168.78.12 80 ZIP2B SPECO 192.168.78.11 80 ZIP2B SPECO 192.168.0.88 7601 ZIP2B SPECO Camera Scanning has been completed. REFRESH REGISTER CANCEL

IP 192.168.0.79 554 80 192.168.78.12 554 80 192.168.78.11 554 80 192.168.78.14 554 80 192.168.0.82 554 80 192.168.0.88 7600 7601 Camera Scanning has been completed. REFRESH REGISTER CANCEL

Figure 4.1.3 Left Image using ONVIF Protocol SCAN, Right Image using SPECO Protocol SCAN

PROFILE NAME RESOLUTION		FRAME RATE	BIT RATE	I-FRAME INTERVAL	H264 PROFILE
Profile0	1920 X 1080	30	2500	30	Main
Profile1	640 X 360	30	1024	30	Main

4-1-2. ONVIF SETUP Menu

IP CAMERA CHANNEL PROTOCOL SCAN IP WEB PORT ID PASSWORD PROFILE ONVIF SETUP 0 ONVIF 0.0.0.0 80 admin **** Primary 0 APPLY CANCEL

Figure 4.1.2 IP CAMERA Setup Screen (ONVIF)

The NS Series can search for IP Cameras that are conformant to ONVIF (Open Network Video Interface Forum). In order to search for ONVIF Cameras, the field associated with VENDOR has to be set to ONVIF. Click on the Box associated with SCAN to scan the networks for ONVIF Conformance cameras.

IP WEB PORT DEVICE INFORMATION HOST NAME 192.168.56.127 80 VIP1D1 SPECO_VIP1D1 192.168.56.221 80 VIP2C1P SPECO_VIP2C1P 192.168.56.100 80 VIP2P1N SPECO_VIP2P1N 10.20.30.23 80 O2IR56B1S O2IR56B1S 10.20.30.11 80 O2D4 O2D4 10.20.30.17 80 VIP2B3 SPECO_VIP2B3 10.20.30.14 80 VIP2B3 SPECO_VIP2B3 Camera Scanning has been completed. REFRESH REGISTER CANCEL

Figure 4.1.4 ONVIF Camera Scan Window

④ Double click the listed profile to apply.
⑤ Enter ID and PASSWORD of IP CAM. Registration is .completed.

VIDEO NETWORK SYSTEM OK

Figure 4.1.6 ONVIF Setup Window

Under ONVIF Setup, the following can be viewed and changed: VIDEO, NETWORK, SYSTEM settings.

Menu Item

Description

VIDEO

Video, Encoder to view and change to audio settings.

VIDEO RESOLUTION 1920 X 1080 FRAMERATE 30 BITRATE (Kbps) 2500 ENCODER I-FRAME INTERVAL 30 H.264 PROFILE Main AUDIO CODEC SUPPORTS ONLY G.711 APPLY CANCEL

NETWORK

View and change Network settings.

4-2. Setup - SYSTEM

In the SETUP menu, select the SYSTEM tab. Then, the SYSTEM menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

SYSTEM DESCRIPTION LANGUAGE DATE DISPLAY FORMAT DATE & TIME SETUP CLIENT ACCESS NTP SETUP SEND EMAIL SETUP UNIT NAME SYSTEM RESTART SYSTEM SHUTDOWN EZ SETUP SYSTEM EVENT NOTIFICATION ENGLISH MM/DD/YYYY ON ON OFF NVR APPLY CANCEL

Figure 4.2.1. SYSTEM Setup Screen
Table 4.2.1. Menu Items in SYSTEM Setup Screen

Item

Description
DESCRIPTION Press the button to view the system information. (Software Version, Storage Size, IP Address, MAC Address and DDNS Status)

MODEL NAME	N16NSF
SOFTWARE VERSION	Ver 4.3.2_20141027
STORAGE SIZE	435 GB

• Select the GMT AREA using the mouse or the remote control.
• Set the time difference with the standard time using the mouse or the button.

OTHERS: If the time zone is neither USA nor EU, set the date and time of the daylight saving period.

- Select BEGIN or END.

Caution

• Do not set the start time to 23:00 for DLS.
• DLS cannot be applied if the date of BEGIN and END is the same.

CLIENT

Enable/Disable remote access through the network.

ACCESS

NTP

SETUP

NTP (Network Time Protocol) which synchronizes the time of the computer systems over variable-latency data networks.

PRIMARY SNTP SERVER Pool.ntp.org SECONDARY SNTP SERVER Time.nist.gov TIME ZONE GMT -5:00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM OK CANCEL

PRIMARY SNTP SERVER: Input the address of the primary NTP time-server.

SECONDARY SNTP SERVER: Input the address of the secondary NTP time-server.

TIME ZONE: NTP synchronizes with GMT (Greenwich Mean Time) regardless of geography; user must select time difference from GMT.

CONNECTON MODE: Select the NTP time-server connection mode from TIME, INTERVAL and ONCE

SEND EMAIL

SERVER TYPE MAIL SERVER MAIL PORT SECURE OPTION ID PASSWORD MAIL TO MAIL FROM MANUAL 25 NONE TEST OK CANCEL

SERVER TYPE: Select GMAIL, HOTMAIL, AOL, YAHOO or MANUAL)

MAIL SERVER: Enter the appropriate mail server information.

MAIL PORT: Assign Mail Port number.

SECURE OPTION: Select the secure mail server connection method. (SSL or TLS)

ID: Enter the appropriate mail server ID.

PASSWORD: Enter the appropriate mail server PASSWORD

MAIL TO: Enter the appropriate email address to enable sending e-mail reports using a virtual keyboard.

MAIL FROM: To set the email address sent to the destination host.

TEST : E-mail settings sent a test mail to the registered account

UNIT NAME

Name the NS (e.g. Factory)

This feature is to identify the name of the NS under the same network.

SYSTEM

Restart the system

RESTART

SYSTEM

Shut down the system

4-3. Setup - RECORD Mode

In the SETUP menu, select the RECORD tab. Then, the RECORD menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

RECORD SITE CH 1 RECORDING MODE CONTINUOUS SENSOR RECORDING - - - - - - PRE RECORD 1 MINUTE(S) POST EVENT RECORD 10 SECOND(S) AUDIO OFF SCHEDULE APPLY CANCEL

Figure 4.3.1. RECORD Setup Screen
Table 4.3.1. Menu Items in RECORD Setup Screen

Menu Item

Description

SENSOR Select the sensor setting for the selected channel.

RECORDING

PRE RECORD Enable/disable pre-event recording. Pre-event recording time is up to 20 minutes.

POST EVENT Set the post event recording time duration for the specified channel.

RECORD (10\~30 seconds)

AUDIO Enable/disable audio recording for the specified channel.

SCHEDULE Set the recording schedule.

3-1. Recording Schedules

To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the menu items or change the settings using the mouse or the remote control.

Select CHANNEL > select NONE, CONTINUOUS or MOTION > Highlight area

To copy a schedule to a different channel, select the channel from the COPY SCHEDULE menu.

CHANNEL 1 NONE CONTINUOUS MOTION SENSOR CLEAR 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT COPY SCHEDULE CH 1 CH 2 CH 3 CH 4 ALL CH 5 CH 6 CH 7 CH 8 CH 9 CH 10 CH 11 CH 12 CH 13 CH 14 CH 15 CH 16 COPY OK CANCEL

Figure 4.3.2. Schedule Recording Setup Screen

• NONE: Disable recording during selected timeframe (Highlighted in White)
• CONTINUOUS: CONTINUOUS recording (Highlighted in Green)
• MOTION: MOTION recording (Highlighted in Yellow)
• SENSOR: SENSOR recording (Highlighted in Red)
- CLEAR: Clears the schedule

4-4. Setup - DEVICE Mode

In the SETUP menu, select the DEVICE tab. Then, the device menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

DEVICE ALARM-OUT/BEEP DURATION DIGITAL DETERRENT CONTROLLER SITE AUDIO SOURCE MOTION ZONE MOTION SENSITIVITY KEY TONE REMOTE CONTROLLER ID SENSOR TYPE IEEE 802.3at PoE STATUS CH 1 IP CAM FULL ZONE 5 OFF 0 1 OFF APPLY CANCEL

Figure 4.4.1. DEVICE Setup Screen

Table 4.4.1. Menu Items in DEVICE Setup Screen

Item	Description

ALARMOUT

Only one Alarm-out is available

MOTIONZONE	Select either Full Zone or Partial Zone for motion detection.
MOTIONSENSITIVITY	Set the motion sensitivity for the selected channel.Control the motion sensitivity from 1 to 9.(9 – Highest sensitivity, 1 – Lowest sensitivity)
KEY TONE	Enable/disable key tone from front panel usage.
REMOTECONTROL ID	Set the remote control ID.1. Select ID.2. Input the remote control ID number.3. An icon will indicate on the Live Screen if the remote control ID is synchronized.The options are from 0 to 99
SENSOR	Select the type of each sensor.Option is Off, Normal Open or Normal Close.

IEE 802.3af PoE (Power Over Ethernet) Status Monitoring Menu PSE STATUS (N4/8/16NSP, N16NSF Models)

IEEE 802.3at PoE STATUS
PORT	STATUS	FAULT	VOLTAGE (V)	CURRENT (mA)	POWER (mW)	CAMERA RESTART
1	SEARCHING	NO FAULT	0	0	0
2	SEARCHING	NO FAULT	0	0	0
3	SEARCHING	NO FAULT	0	0	0
4	SEARCHING	NO FAULT	0	0	0
5	SEARCHING	NO FAULT	0	0	0
6	SEARCHING	NO FAULT	0	0	0
7	SEARCHING	NO FAULT	0	0	0
8	SEARCHING	NO FAULT	0	0	0
9	SEARCHING	NO FAULT	0	0	0
10	SEARCHING	NO FAULT	0	0	0
11	SEARCHING	NO FAULT	0	0	0

4-4-1. Digital Deterrent

Trigger audio message via motion detection or sensor.

IMPORT FROM USB ... EXPORT TO USB ... RECORD ... SCHEDULE ... OK

Figure 4.4.2. Digital Deterrent setup screen

Table 4.4.2. Item for Digital Deterrent Setup Screen

Item	Description
IMPORT FROM USB	Import up to 8 sound files from USB.
EXPORT TO USB	Export the sound file to USB
RECORD	Select a channel and set up the date and the duration.And, select the sound file to play.

4-4-2. Keyboard Controller & PTZ Setup

To control the PTZ functions of the camera, connect the PTZ controller to the RS-485 port on the back of the chassis with CAT5 (or equivalent) cable.

① Connect the RS-485 cables of PTZ camera to the RS-485 port on the rear panel.

Sensor Inputs Alarm Output S1 G D S3 A D+ RS-485 D+ RS-485 D- S2 G D S4 B D-

Figure 4.4.2.1. Device Mode Setup Screen

② Open the PTZ sub menu by selecting the submenu button.

CONTROLLER SPEED 9600 ID 0 CHANNEL 1 CAMERA SPEED 9600 ID 0 OK CANCEL

Figure 4.4.2.2. PTZ Control Setup Screen

4-4-3. Motion Zone Setup

Select MOTION ZONE using the mouse or the remote control and select either PARTIAL ZONE or FULL ZONE using the mouse control. The default value is FULL ZONE.

If FULL ZONE is selected, the motion zone grid screen is not displayed. Only set the level of sensitivity for MOTION SENSITIVITY.

FULL ZONE: The motion sensor is active on the whole screen.

PARTIAL ZONE: The motion sensor is active in the set detection frame.

Select the motion detection position using the mouse or the remote control. Then left click on the mouse or left click and drag the mouse pointer to select or deselect the area. Highlighted area indicates the partial motion detection zone. Press the ESC button or right click on the mouse to return to the previous menu.

Interior view of a modern museum or exhibition hall with wooden flooring, display cases, and ceiling lighting (no visible text or signage)

4-5. Setup - DISPLAY Mode

In the SETUP menu, select the DISPLAY tab. Then, the DISPLAY menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control. To return to the previous setup menu screen, press the ESC button.

DISPLAY OSD OSD CONTRAST MAIN MONITOR SEQUENCE SEQUENCE-DWELL TIME SITE NAME COVERT VIDEO OUTPUT 100 ON 3 SECOND(S) CH 1 CH1 OFF 1280 x 720 APPLY CANCEL

Figure 4.5.1. DISPLAY Setup Screen

Table 4.5.1. Menu Items in DISPLAY Setup Screen

Item	Description
OSD	Enable/Disable on-screen-display.(Channel Name, Video Loss, Status Bar / Icon)

4-6. Setup - NETWORK Mode

Select the NETWORK tab. Then, the network menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

NETWORK NETWORK TYPE IP 172.16.2.38 SUBNET MASK 255.255.0.0 GATEWAY 172.16.1.254 DNS (PRIMARY) 168.126.63.1 DNS (SECONDARY) 168.126.63.2 DDNS 5445 NETWORK PORT NETWORK AUDIO PORT 5446 WEB PORT 80 WIRELESS LAN OFF APPLY CANCEL

Figure 4.6.1. NETWORK Setup Screen

Table 4.6.1. Menu Items in NETWORK Setup Screen

Item	Description
NETWORK TYPE	DHCP: ZS will automatically retrieve an IP address. STATIC: Network information must be manually configured.
IP	Enter IP address that is assigned for the ZS
SUBNET MASK	Enter Subnet Mask that is assigned for the ZS
GATEWAY	Enter Gateway that is assigned for the ZS

4-6-1. Network Types

4-6-1-1. DHCP

An IP address is automatically assigned by the DHCP server, which automatically assigns the IP address and other parameters to new devices.

4-6-1-2. STATIC

IP address, Subnet Mask, Gateway, and DNS are manually assigned by the user.

• IP ADDRESS: The fixed IP address of the NS unit.
- SUBNET MASK: The subnet mask for the LAN.
• GATEWAY: The IP address of the Gateway.
• DNS (PRIMARY) The primary address of Domain Name Server
• DNS (SECINDARY): The secondary address of Domain Name Server

NOTE

Unless DNS is properly set, the DDNS and the e-mail features will not work.

4-6-2. DDNS

DDNS (Dynamic Domain Name System) allows a DNS name to be constantly synchronized with a dynamic IP address. It allows using a dynamic IP address to be associated with a static domain name.

Once the setting is completed, the DDNS address will be:

http://hostname.ddns.specoddns.net

For example, if you enter the host name as "NS", then the address will be:

http://NS.ddns.specoddns.net

Select NETWORK>DDNS. The menu displays as below.

4-6-3. Network Port and Web Port

Connecting NS/NSP through a common IP sharing device, each NS must be assigned a unique TCP port number for access from outside the LAN. This port number is displayed on NETWORK>NETWORK PORT Setup MENU.

NOTE:

If you access the NS only within the same LAN, the TCP port number does not need to be changed.

Network access beyond a router

To access NS beyond a router (firewall), you must open the proper TCP ports for live/playback streaming, for commands, for remote backup, and for audio streaming. If these ports are not opened properly, you can't access the NS beyond a router.

For live/playback streaming, for commands, for remote backup: Open the port number on NETWORK>NETWORK PORT menu. The default port number is 5445.
For bi-directional audio: Open the port number on NETWORK AUDIO PORT. The default port number is [NETWORK PORT number + 1].
For web-viewer downloading and remote firmware upgrading: Open the port number on NETWORK>WEB PORT menu. The default port number is 80.
- For IP Camera Setup through web viewer: Forward ports 59011 \~ 59254 to the NVR.

4-7. Setup - USER MANAGEMENT Mode

In the SETUP menu, select the USER MANAGEMENT tab. Then, the USER MANAGEMENT menu is displayed as pictured below. Navigate through the menu items or change the settings using the mouse or the remote control.

USER MANAGEMENT AUTHORITY SETUP USER NAME SETUP PASSWORD SETUP PLAYBACK AUTHORITY REMOTE PLAYBACK TIMEOUT DISABLE APPLY CANCEL

Figure 4.7.1. USER MANAGEMENT Setup Screen

Table 4.7.1. Menu Items in USER MANAGEMENT Setup Screen

Item	Description
AUTHORITY	Only the Admin will have access to the menu.
SETUP	PASSWORD CHECK: Select the Checkbox to enable the functions or leave the

	PASSWORD	SETUP	PB	PTZ	REC OFF	NETWORK
PASSWORD CHECK
ADMIN	1111
USER1	1111
USER2	1111
USER3	1111

ADMIN, USER1, USER2, USER3:

Selected Checkbox: The user can access the function.

Blank Checkbox: The user can not access the function.

USER NAME

Change the name of USER1, USER2 and USER3.

SETUP

- Click "ENTER" after naming.

PASSWORD

Passwords can be changed for ADMIN, USER1, USER2 and USER3.

SETUP

Select USER PASSWORD using the mouse or the remote control. Select username and enter the current password. And, enter a new password, enter the same password again to confirm and select OK. Then the message "PASSWORD CHANGED" is displayed.

The factory default password is 1111.

It is highly recommended to assign a new password to protect the system.

PLAYBACK

Set authority level of playback on each user.

AUTHORITY

Checked box: authorized to playback. Blank check box: no authority.

	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15	16
ADMIN
USER1
USER2
USER3

4-8. Setup - STORAGE Mode

In the SETUP menu, select the STORAGE tab. Then, the STORAGE menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

STORAGE OVERWRITE ON DISK FORMAT # DISK INFO # RECORDING LIMIT OFF 30 DAY(S) RECORDING LIMIT DAYS APPLY CANCEL

Figure 4.8.1. STORAGE Setup Screen

Table 4.8.1. Menu Items in STORAGE Setup Screen

Item	Description
OVERWRITE	When enabled the NS will continue recording and overwrite the oldest existing

	MODEL NAME	TEMPERATURE	HEALTH(GOOD/NORMAL/BAD)
HDD 1	WDC WD20EURS-73S48Y0	42 C (107 F)	GOOD
HDD 2	WDC WD20EVDS-63T3B0	48 C (118 F)	GOOD
HDD 3	WDC WD20EVDS-63T3B0	48 C (118 F)	GOOD
HDD 4
HDD 5
HDD 6

RECORDING LIMIT

Enable recording limit: The amount of data recorded in HDD will be limited to the most recent number of days as set by “RECORDING LIMIT DAYS”.

Disable recording limit: When OVERWRITE is ON, DVR will continue to record when HDD is full and overwrite older data. When OVERWRITE is OFF, DVR will stop recording when the HDD is full.

RECORDING

Set the recording limit days. (1- 90 days)

LIMIT DAYS

If the RECORDING LIMIT DAYS are set to 1, the data will be overwritten after 24 hours.

4-9. Setup - CONFIG Mode

In the SETUP menu, select the CONFIG tab. Then, the configuration menu is displayed as pictured below.

Navigate through the menu items or change the settings using the mouse or the remote control.

CONFIG EXPORT TO USB IMPORT FROM USB LOAD DEFAULT LOAD FACTORY DEFAULT SOFTWARE UPGRADE APPLY CANCEL

Figure 4.9.1. CONFIGURATION Setup Screen

Table 4.9.1. CONFIGURATION Setup

Item	Description
EXPORT TO USB	User can save the current configuration settings of the NS to a USB flash drive. Plug in the USB flash on the front panel and press the button to start the export process.

4-9-1. Firmware Upgrade

1. Create a new folder named "upgrade" in the USB flash drive root directory.

2. Create sub-folder for each model under "upgrade" folder and copy each firmware.

3. "n4ns" for N4NS and N4NSP: "main_n4ns_speco_.*.*_201****"

4. "n8ns" for N8NS and N8NSP: "main_n8ns_speco_.*.*_201****"
5. "n16nsf" for N16NSF: "main_n16nsf_speco_...201****"

C:\Users\123\000\123\000\123\000\123\000 Description Desktop Downloads Recent Files Name Date installed Type Status 48% 48% 48% 12/15/2013 00:00 PM 12/15/2013 00:00 PM 12/14/2013 12:59 PM 3 Weeks

1. Plug in the USB flash drive on the rear panel.
2. Navigate to CONFIG menu of SETUP.
3. Select SOFTWARE UPGRADE.
4. Follow the procedure from Figure 4.9.2 to Figure 4.9.4.

MODEL NAME N16NSF CURRENT SOFTWARE Ver 4.3.1_20141009 0% SCAN CANCEL

Figure 4.9.2

MODEL NAME N16NSF CURRENT SOFTWARE Ver 4.3.1_20141009 USB CHECK FOUND USB MOUNT OK FILE CHECK main_n16nsf_speco_4.3.2_20141027.bin 0% UPGRADE CANCEL

Figure 4.9.3

5. Live, Search and Playback

5-1. Live View

In the Live screen, video inputs from the cameras are displayed as they are configured in the Display Setup screen. Various On-Screen Display (OSD) symbols, which indicate the status of the NS, are described in Table 5.1.1.

SEARCH SETUP DISPLAY SNAPSHOT SUPER EZ COPY ENABLE MANUAL RECORD INSTANT PLAYBACK ADVANCED MENU EZ SETUP CONNECT AUDIO MUTE CAMERA PTZ ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT MANUAL DIGITAL DETERRENT CAMERA INFORMATION SYSTEM INFORMATION EXPORT HELP SYSTEM LOCK SYSTEM SHUTDOWN CH1 CH2 CH3 CH4 CH7 CH8 CH9 NO CAM 0.0.0 05/29/2013 15:42:10 RC: ALL HDD: OVERWRITE

Figure 5.1.1. Live Screen and Quick Operation Window
Table 5.1.1. Status Indicator Icons in Live Viewing Screen

Icon

Description

	Indicates that sequencing mode is enabled.
05/15/2013 11:15:42	Displays the current date and time.
RC: ALL	Remote control ID display. If a remote ID is not set, the message "ALL" is displayed.
	Displays the amount of recording on the hard disk from 0-99%.
	Indicates that HDD is recycled.
	Continuous recording in progress.
	Manual recording in progress. To set the Manual recording mode, press the Record button on the front panel.
	Motion alarm recording in progress.
	Sensor recording in progress.

Right click the mouse, and the quick operation window will be displayed as below.

EZ SETUP CONNECT AUDIO MUTE V CAMERA PTZ ENABLE MAIN MONITOR SEQUENCE DISABLE ALARM OUT SEARCH SETUP

SUPER EZ COPY	Select this option to start EZ Copy Wizard.
ENABLE MANUAL RECORD	Manual Record button. Click this button to enable manual recording.
INSTANT PLAYBACK	Instantly playback 10 to 60 seconds of recorded data.Recommended to be used with record mode set to CONTINUOUS.

ADVANCED MENU

EZ SETUP	Select this option to start EZ Setup Wizard.
CONNECT	Select this option to disconnect/connect from IP Camera.
AUDIO MUTE	Select this option to mute audio on all channels.
CAMERA PTZ	Pop up the PTZ user interface.
ENABLE MAIN MONITOR SEQUENCE	Sequence button. Click this button to use a sequence function.
DISABLE ALARM OUT	Click this button to enable/disable Alarm outputs
MANUAL DIGITAL DETERRENT	Select this option to manually trigger any of the saved Digital Deterrent messages.

Manual Digital Deterrent Select Digital Deterrent Source Source Name Default OK CLOSE

MODEL NAME D16MS SOFTWARE VERSION Ver 3.9.3.2013120M STORAGE SIZE 435 GB NETWORK TYPE DHCP IF ADDRESS 172.16.2.41 MAC ADDRESS 00:02:08:FF:FD:9E DONS STATUS DDNS OFF UNIT NAME HYBRID REMOTE CONTROLLER ID 0 OK

EXPORT HELP Displays window with instructions for exporting video.

SYSTEM Locks the system from unauthorized user access.

LOCK

SYSTEM Select this option to shutdown system.

SHUTDOWN

5-1-1. PTZ Control

Table 5.1.3. Menu Items in PTZ Control Window

Item	Description
INITIALIZE	Initialize the PTZ settings of the selected camera
PAN/TILT	Select PAN/TILT using the ▲▼◀ and ▶button, then press SEL.Adjust the tilt (UP/DOWN) & pan (LEFT/RIGHT) position using the ▲▼◀and ▶buttons.
ZOOM/FOCUS	Select ZOOM/FOCUS using the ▲▼◀ and ▶buttons, then press SEL.Adjust the zoom (UP/DOWN)/ focus (LEFT/RIGHT) position using the ▲▼◀ and ▶ buttons.
OSD	Select OSD to enter the menu. Control keys are Right, Left, UP, Down, Select, Far (REW KEY), and Near (FF KEY).Press the ESC button to return to the previous menu. Press the PTZ button to close the OSD menu.
AUTOSCAN	Press the right key (▶) to start auto scan.Press the left key (◀) to stop auto scan.
PRESET	Select PRESET, and then press the left key (◀). A number input window will appear.Set the number (3 digits) using the number key, and then press the SEL to confirm the preset number for the current position. Press the right key (▶) and enter the number (3digits) to go to the preset position.

PTZ CH 2 INITIALIZE PAN/TILT ZOOM/FOCUS SEL ESC OSD AUTOSCAN PRESET TOUR 1 2 3

5-2. Digital Zoom in Live and Playback Screen

NS series supports Digital Zoom feature during live and playback mode.

1. Double click the target channel.

CH 2 CH 5 CH 6

1. Click the left button of the mouse and drag to make rectangular shape.

Interior view of a modern exhibition hall with display cases and a red arrow pointing to a museum exhibit (no visible text or symbols)

5-3. SEARCH Screen

To enter the search screen menu, select SEARCH menu on the screen using the mouse or press SEARCH icon on live screen.

5-3-1. EZSearch

The EZSearch window is used to find stored video with ease using the thumb nail playback screen.

May, 2013 Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 < PREV NEXT > CLOSE

Figure 5.3.2. Calendar Screen

CH1 CH2 CH3 CH4 NO VIDEO 0 3 6 8 12 15 18 21 24 CH5 NO VIDEO CH6 NO VIDEO CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16 CH17 CH18 CH19 CH20 CH21 CH22 CH23 CH24 CH25 CH26 CH27 CH28 CH29 CH30 CH31 CH32 CH33 CH34 CH35 CH36 CH37 CH38 CH39 CH40 CH41 CH42 CH43 CH44 CH45 CH46 CH47 CH48 CH49 CH50 CH51 CH52 CH53 CH54 CH55 CH56 CH57 CH58 CH59 CH60 CH61 CH62 CH63 CH64 CH65 CH66 CH67 CH68 CH69 CH70 CH71 CH72 CH73 CH74 CH75 CH76 CH77 CH78 CH79 CH80 CH81 CH82 CH83 CH84 CH85 CH86 CH87 CH88 CH89 CH90 CH91 CH92 CH93 CH94 CH95 CH96 CH97 CH98 CH99 12/26/2011 09:30:55 RC ALL 96%

Figure 5.3.3. Channel Selection Screen

Grid of surveillance cameras with red annotation highlighting a specific camera's focus area

Figure 5.3.4. 24 Hourly Thumbnail Screen

Previous

Figure 5.3.5. Minute Thumbnail Screen

5-3-2. Time Line Search

The CALENDAR Search window is used to find the stored video by using the time line bar.

May, 2013 Sun Mon Tue Wed Thu Fri Sat 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 < PREV NEXT > CLOSE

Figure 5.3.7. Calendar Screen

Figure 5.3.8. Time-Line Search Screen

When the Timeline menu is selected, the user can see a calendar, which displays recorded dates with highlights. Select a specific date and time. Click and drag the red time indicator bar to the desired hour. User can select a specific minutes using a button in the above red box. Press the PLAY button after selecting the specific time. Press the PREV to return to the SEARCH window.

5-3-3. Event Search

The Event Search window is used to find stored video.

CHANNEL 14|CH5|CH6|CH7|CH8|CH9|CH10|CH11|CH12|CH13|CH14|CH15|CH EVENT MOTION|SENSOR|MANUAL|CONTINUOUS CHANNEL LOG DATE CH1 CONTINUOUS 10/27/2012 00:00:01 CH2 CONTINUOUS 10/27/2012 00:00:01 CH3 CONTINUOUS 10/27/2012 00:00:01 CH4 CONTINUOUS 10/27/2012 00:00:01 CH5 CONTINUOUS 10/27/2012 00:00:01

Channel ✓ ALL CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16 Event ✓ ALL MOTION SENSOR MANUAL CONTINUOUS OK CANCEL

Figure 5.3.10. Event Search Screen

5-3-4. Go To First Time

User can access from the oldest recorded data on the NS hard drive by selecting GO TO FIRST TIME on the SEARCH window. Press the PREV to return to the SEARCH window.

5-3-5. Go To Last Time

User can access from the last minute recorded data on the NS hard drive by selecting GO TO LAST TME on the SEARCH window. Press the PREV to return to the SEARCH window.

5-3-6. Go To Specific Time

User can search for video data from a specific instance by setting the date and time in the GO TO SPECIFIC TIME menu. Use the mouse or the remote control to change the date and time value and press the PLAY button after setting. If there is no video data in the set date and time, No Data Exist message displays.

5-3-7. Archive List

The ARCHIVE Search window is used to find previously stored video or images.

5-3-8. Log List

You can access the LOG list search screen by selecting LOG on the SEARCH window.

LOG Camera Disconnection : CH2 Camera Connection : CH2 Camera Disconnection : CH1 Setup : Enter Setup : Exit Setup : Enter Camera Disconnection : CH2 Camera Disconnection : CH3 Camera Connection : CH2 Camera Connection : CH3 42 log(s) found DATE 05/15/2013 10:02:34 05/15/2013 10:02:35 05/15/2013 11:17:48 05/15/2013 11:18:21 05/15/2013 11:18:24 05/15/2013 12:22:19 05/15/2013 13:48:30 05/15/2013 13:48:30 05/15/2013 13:52:02 05/15/2013 13:52:03 05/15/2013 13:52:03 BACKUP < PREV NEXT > CLOSE

Figure 5.3.12. Log List Screen

When the Log menu is selected, the user can see a calendar, which has a log data. Select a specific date and press NEXT button, and then the log data will be displayed. Press the SAVE button to save the data and then the data is saved as a text file format.

5-4. Play Mode

During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, user may return to the SEARCH screen by pressing the X button on the status bar.

Exterior view of a modern industrial or construction site with buildings, trees, and utility poles (no visible text or signage)

Table 5.4.1. Button Functions in PLAY Mode

Button	Description
	2x, 4x, 8x,16x, 32x speeds at 2x2 screen display mode.2x, 4x, 8x,16x speeds at 3x3 screen display mode.2x, 4x, 8x speeds at the 4x4 screen display mode.Single Channel backward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x
	Jump/Step backward. The playback position moves 60 seconds backward.
	Press to play or pause recorded video.
	Jump/Step forward. Playback position moves 60 seconds forward.
	2x, 4x, 8x,16x, 32x speeds at 2x2 screen display mode2x, 4x, 8x,16x speeds at 3x3 screen display mode.2x, 4x, 8x speeds at the 4x4 screen display mode.Single Channel forward playback speed 1x, 2x, 4x, 8x, 16x, 32x, 64x
	Slow Mode play. Forward playback speed x1/4, x1/2
	Press to backup the video.
	EZCopy button.
	Return to the previous menu screen, search window, or exit from the Menu.

6. Back Up

6-1. Still Image Backup onto USB Flash Drive

Still images can be captured and archived onto a USB flash drive or an USB external hard drive in live mode or while playing back recorded video.

1. Select a specific channel, which wants to backup on live screen.
2. When you press SNAPSHOT button on Quick operation window, the media selection window screen will display.

SEARCH SETUP DISPLAY SNAPSHOT SUPER EZ COPY ENABLE MANUAL RECORD ADVANCED MENU

PLEASE SELECT MEDIA TYPE USE DRIVE H PREV START CLOSE

1. Once you press START button, the system will capture a still image and archive onto a USB flash drive.

NOTICE

USB Flash Drive must be in FAT32 file format.

6-2. Video Backup onto USB Flash Drive during playback

Video can be captured and archived onto the USB flash drive or a hard drive while playing back the

PLEASE SELECT MEDIA TYPE © USB DRIVE < PREV START CLOSE

1. Select USB STICK DRIVE (Flash Drive) to back up less than an hour. Select USB HDD (Large Backup) to back up from 1 hour to 24 hours.

PLEASE SELECT MEDIA TYPE • USB DRIVE • USB HDD (LARGE BACKUP) CALCULATION < PREV NEXT > CLOSE

1. Once you select the channel and duration, the system will start to archive the data to the USB drive.

EZCopy 2014/01/10 00:00:06 ~ 2014/01/10 00:00:07 □ ALL ☑ CH 1 □ CH 2 □ CH 3 □ CH 4 □ CH 5 □ CH 6 □ CH 7 □ CH 8 □ CH 9 □ CH 10 □ CH 11 □ CH 12 □ CH 13 □ CH 14 □ CH 15 □ CH 16 FREE CAPACITY

6-2. EZCopy: Video Backup onto USB Flash Drive during playback

Using EZCopy feature, Video can be easily archived onto the USB flash drive or a hard drive.

In playback mode, press the EZCOPY button to launch the backup function.

1. Press EZCOPY button on the selected channel or all channels.

1. Then, EZCOPY START time will display.

2011/10/10 03:33:

1. Move time bar cursor to the time of end of backup and press EZCOPY button. Then, EZCOPY STOP time will display.

2011/10/10 04:44:

6-3. Transferring Still Images or Video from the ARCHIVE List

The stored data in the hard drive can be found in the ARCHIVE list in the SEARCH window.

User can back up still images or video into the storage device from the ARCHIVE list.

1. Select the date to begin searching and navigate through the days using the mouse or the remote control.
2. Once you have selected the date, press the NEXT button to open the list of stored data.
3. Use the mouse or the remote control to scroll through the archive list.
4. Select a list of stored events in the archive list.
5. Once the desired event has been selected, press the DISPLAY button to view the still image or the first frame of the selected video.
6. Press the BACKUP button to launch the archiving function in playback mode.
7. Press the CLOSE button to return to the SEARCH window.

LOG DATE PLAY BMP (SPLIT) 11/15/2013 13:45:49 CH1 NSF(1 min) 11/15/2013 13:55:44 2 log(s) found < PREV DISPLAY CLOSE

OK NO DATA OK NO NO DATA NO DATA 1 / 2 Backup PLAY BMP (SPLIT) MEDIA USB 11/15/2013 10:25:39 BACKUP CLOSE

1. Otherwise, the video and time stamp over video can't be properly playback and displayed on Window Media Player™.

Interior view of a museum gallery with wooden flooring, display cases, and ceiling lighting (no visible text or signage)

Timestamp On AVI. The subtitle is embedded to the video clip file.

The subtitle is embedded to the AVI file. To display a subtitle, user should install a special filter called "UMSDecoderFilter".

6-5-2. NSF Format

NSF format: NSF format video can be played back using the HDplayer that the NS copies to "NSPlayer" folder on USB flash drive with video. Use the mouse scroll to use digital zoom in and out feature.

Interior view of a museum gallery with display cases and informational panels (no visible text or signage)

7. Network Access Using the Multi-Sites Network Viewer

7-1. Overview

The SpecoTech Multi Client is a multiple site monitoring client software with; video, audio, and alarm signals from the NS over the network. The SpecoTech Multi Client does not limit the number of NS units to register. The program displays up to 16 NS units and supports dual monitors.

On the program, user may control PTZ cameras on the NS. By attaching a microphone and speaker system to devices on site, the user may make bi-directional audio communication over the network.

7-2. PC Requirements

Minimum PC Requirements

CPU	Intel Core i3
	1.8Ghz
Memory	2GB DDR2
VGA	512MB
Resoluon	1280x720
Disk Space	1GB
OS	Windows 2000, XP Professional, XP Home, Vista, 7 (NOTE: Not all versions of Vista and 7 are supported)
Network	10/100Base T
Others	Direct X 9.0c or Higher

Recommended PC Requirements

CPU	Intel Core i5
	2Ghz or higher.

7-3. Installation of the Program

1. Insert the provided CD in the CD drive and double-click "SpecoTech Multi Client (XXXX).exe"

1. Select a destination folder and click "Next".

InstallShield Wizard Choose Destination Location Select folder where Setup will install files. Setup will install SpecoTech Multi Client in the following folder. To install to this folder, click Next. To install to a different folder, click Browse and select another folder. Destination Folder C:\.\Speco Technologies\SpecoTech Multi Client Browse... < Back Next > Cancel

1. Select the program folder and click "Next".

InstallShield Wizard Select Program Folder Please select a program folder. Setup will add program icons to the Program Folder listed below. You may type a new folder

7-4. Live Window

When installation is completed, double click the "SpecoTech Multi Client" icon on your desktop to start the program.

7-4-1. Main User Interface

SPECO Multi Client Ver 3.1.2.5

7-4-2. Control Buttons

Button	Description
LOCAL PLAYBACK	Click this icon to run a playback window to search and play videos that are recorded in the local PC.

	SETUP	Click this icon to setup configuration of MULTI CLIENT.
	CAPTURE	Click this icon to capture a still image.
	EVENT LIST	Opens list of events logged by Multi Client.
	PAUSE	Click this icon to play/pause live video.
	ALARM ON	Click this icon to turn on/off alarm outputs.
	RECORD ON	Enable or disable recording of live video to local disk, which has set in setup menu.
		Use the volume control bar to set the audio level.
		MIC Use the microphone volume control bar to set the micro phone level.
		User can control PRESET/TOUR/SCAN/MENU
		To select the numbers of display channel/channels (Single, quad, 9 channels, and 16 channels) of highlighted site.
		To select the numbers of NS/NSs (1 NS, 4 NSs, 9 NSs, 16 NSs) on main display screen.

7-5. Search and Playback Window

7-5-1. Main User Interface

7-5-2. Main Control Panel

Button		Description
	LOCAL PLAYBACK		Click this icon to run a playback window to search and play videos that are recorded in the local PC.
	REMOTE PLAYBACK		Click this icon to run a playback window to search and play videos that are recorded in the remote NS.
			THUMBNAIL REFRESH: Click this icon to refresh and renew thumbnail image of the connected sites.SITE ADDITION: Click this icon to open 'Site Addition' window.SITE DELETE: Click this icon to delete site from the index window, after disconnect a site.NET FINDER: Select the site from the index window and click this icon to modify the information of specific site.
	CONNECT		Click this icon to connect the selected site/sites.
	DISCONNECT		Click this icon to disconnect the selected site/sites.
	ETUP		Click this icon to setup configuration of SpecoTech Multi Client.
	CAPTURE		Click this icon to capture a still image.
			To select the channel to playback.
			The calendar shows dates with recorded video in color.
			To display the recorded data of selected channel or all channels on a time line scale.
			To change a timeline scale from 24 hours to 60 minutes.The timeline shows recorded data in color on the bar. You can adjust the timeline scale and move it to the time you wish to playback. Then click the play icon to display the recorded video.
			Playback buttons.
			Thumbnail search over the network.- List the thumbnail 24images from 00:00 to 23:00.- Select one of 24 images every 150sec for an hour.- Then play the tile* Click the "PREVIOUS" button to go the previous step.
			Digital Zoom Window in Live and Playback. (Only available in Single Channel Viewing)

7-6. Setup of SpecoTech Multi Client

Setup General Event Event search Record Disk Display Language About Security Option Startup Shutdown Setup Local Playback Remote Playback Password... Save Path Capture : C:\Storage\Capture\ Backup : C:\Storage\Backup\ Miscellaneous Automatic reconnection Always On Top Time Format : YYYY-MM-DD OK Cancel

7-6-2. Event

Event log can be archived and searched.

Event Log: Specify the location to save event logs and select event to archive.

Setup General Event Event search Record Disk Log Path : C:\Storage\Log\ Size : 10 (MAX : 100MB) Event Log Event list

Event Search: Event log can be searched from the selected time.

Setup General Event Event search Record Disk Display Language About From: First 2011-04-26 12:00:00 AM To: Last 2011-04-26 7:48:54 PM Path: C:\Storage\Log\( Type Site Address Event Date/Time Save OK Cancel

7-6-3. Record

Record Setup: You can set the recording conditions as the following; Always, Event, or Auto record. And you can also select target NS/NSs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

Setup General Record Condition

Record Local Storage Setup: You can select the local disk to record and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

Setup General Event Event search Record Disk Display Language About Disk Space : C:\ 4 GB Disk Info Total space : 465 GB Free space : 398 GB Disk full Replace oldest files. Stop recording. OK Cancel

7-6-4. Display

You can select the OSD (On Screen Display) to be displayed.

Setup General OSD

7-6-5. Language

English, French and Spanish is selectable.

Setup General Event Event search Record Disk Display Language About Language: English French English Spanish OK Cancel

7-6-6. About

"About" provides network client version information.

Setup General Event Event search SPECO Multi Client Version 3.1.2.5 (Build 130506)

7-7. Remote Setup

The menu settings for the NS unit can be set over network.

Put the cursor of the mouse on the channel, which is connected to the site and right click on the mouse to open the submenu. Then the following window is displayed as below. Select the REMOTE SETUP.

SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Client SPECO Single Client SPECO Multi Client SPCO Single Client SPECO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect SPECO Multi Client SPCO Single Customer Effect

Then the setup window is displayed. The specified menu screen is displayed on the upper left of the screen. Enter the password of the NS when prompted. (NOTE: The default password is 1111)

Setting is the same as with the NS menu setting. Refer to the corresponding pages for details on the setting items.

SPECO WEB SETUP 17216.2.62 (cgl bin/websetup.cgl)

7-7-1. IP Camera

Select IP Camera to set system and time settings

SPECO WEB SETUP

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION CHANNEL CH9 PROTOCOL ONSIP IP 0 0 0 0 PORT 554 WEB PORT 80 ID admin PASSWORD 1734

7-7-2. System

Select System to set system and time settings.

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION DATE DISPLAY FORMAT MMOD/YYYY TIME DISPLAY FORMAT 24-HOUR FORMAT TIME ZONE GMT -5.00 (Montreal/New York) DAYLIGHT SAVING USA SET DATE & TIME SET DATE & TIME CLIENT ACCESS ON OFF NTP SETUP ON PRIMARY SNTP SERVER Pool.rtp.org SECONDARY SNTP SERVER Time.nst.gov TIME ZONE GMT -5.00 (Montreal/New York) CONNECTION MODE TIME CONNECTION PERIOD 03:00 AM SEND EMAIL SETUP OFF SERVER TYPE MAIL SERV MAIL PORT

• CLIENT ACCESS: Enable/Disable remote access through network client software.
• NTP SETUP: Sets whether to synchronize the time using NTP server or not.

o Primary SNTP Server: Input the NTP primary server address.
- Secondary SNTP Server: Input the NTP secondary server address.
- Time Zone: Select the time zone.
- Connection Mode: Select the connection mode to NTP time server.

- SEND E-Mail SETUP: Sets whether to enable/disable e-mail sending function.

- SEVER TYPE: Select GMAIL, HOTMAIL, AOL, YAHOO or MANUAL)

• MAIL SERVER: Input the SMTP server name as well as the user ID and password.
• MAIL PORT: Mail port setting.
• SEURE OPTION: Select a secure mail server connection. (SSL or TLS)
  o ID : Email User ID
• PASSWORD : Email User Password
• MAIL TO: Input the appropriate email address to enable sending e-mail reports

• MAIL FROM (Return Mail Address): Set the source e-mail address to be notified to the destination.

• SEND MAIL TEST : E-mail settings sent a test mail to the registered account
  • UNIT NAME: Name the HS
  • SYSTEM RESTART : Restart the system
  • SYSTEM EVENT NOTIFICATION

SYSTEM EVENT NOTIFICATION DISK EVENT SETUP HEALTH CHECK PERIOD DAILY HDD TEMPERATURE 60°C 140°F HDD BAD SECTORS 10% HDD ALMOST FULL 90% VIDEO CLIP SETUP

• HDD BAD SECTOR

• HDD ALMOST FULL

• VIDEO CLIP SETUP: Setting the duration for pre and post recording.

• EVENTS AND NOTIFICATION

• HEALTH CHECK / RESTART / SHUTDOWN / PANIC RECORD:
  Enable Email Notification in the event a problem occurs with the NS.

• ALARM-IN : Enable Email Notification when the camera detects sensor
• MOTION DETECTION : Enable Email Notification when the camera detects motion
• NO CONNECTION: Enable Email, Beep and Alarm output Notification when the camera signal is lost.
• HDD TEMPERATURE : Enable Email Beep and Alarm output Notification when the HDD reaches the maximum temperature
• HDD BAD SECTOR : Enable Email Notification when the HDD has bad sectors.
• HDD ALMOST FULL : Enable Email Notification when the HDD is almost full.
• HDD FULL : Enable Email Notification when the HDD is full.
• HDD FAILURE : Enable Email, Beep and Alarm output Notification when the HDD fails.

7-7-3. Record

Select RECORD tab to set the recording conditions.

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION SITE CH1 RECORDING MODE CONTINUOUS SENSOR RECORDING - - - - - - PRE RECORD 1 MINUTE(S)

7-7-4. Device

Select Device to set device settings of the NS

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION ALARM-OUT 1 ALARM DURATION INFINITE TYPE NORMAL OPEN DIGITAL DETERRENT FILE UPLOAD CHANNEL CH1 SOUND TYPE NONE 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 SUN MON TUE WED THU FRI SAT

- ALARM OUT: Set the sensor, motion, and video loss for triggering alarm relay. HDD Error and Video Loss can be set for triggering a beeping sound The following settings can be changed to trigger an alarm output.

- ALARM DURATION

- DIGITAL DETERRENT: The schedule of digital deterrent can be set and a sound file can be uploaded to the NS.

To set up schedule, select CHANNEL > select SOUND TYPE > select Area.

o CHANNEL: Select the Channel to configure audio input
o COUNT TYPE: Select the sound type.

CONTROLLER SPEED ID CHANNEL AUDIO SOURCE KEY TONE — 000 0 CHF CAM ON OFF

• REMOTE CONTROLLER ID: Sets an ID number of which remote control to receive commands.
• SENSOR: Select the type of sensor.
- IEEE 802.3af PSE Status: Table showing the status of all PoE devices connected to the NSP.

7-7-5. Display

Select the DISPLAY tab to set the DISPLAY conditions.

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION OSD CHANNEL NAME ON OFF NO CONNECTION ON OFF STATUS BAR / ICON ON OFF RECORD MODE ON OFF IP ADDRESS / FPS IP OSD CONTRAST 100 MAIN MONITOR SEQUENCE ON OFF SEQUENCE-DWELL TIME 3 SECOND(S) SITE CH1 NAME CH1 COVERT OFF

RELOAD APPLY

These settings apply to all channels.

• OSD: Sets whether to display or not date and time as well as channel number on the screen.
• OSD CONTRAST: Adjust the character contrast on the screen.
  • MAIN MONITOR SEQUENCE: Setting for automatically switching the displayed video.
  • SEQUENCE DWELL TIME: Sets the interval for automatically switching the screens.
• SITE: Name, Covert (These settings apply to the specified channel only).

7-7-6. Network

o DHCP: The address setting mode is automatic.

• DDNS: Set whether to use DDNS service or not

- HOST NAME: Allows the user to setup a domain name manually

o SUMBIT/UPDATE: Select ON to submit the settings

- ezDDNS: Enable ezDDNS to register the host name automatically

• NETWORK PORT: When connecting multiple NSs to the network, set a unique port number.

• NETWORK AUDIO PORT: Display the network audio port (NETWORK PORT + 1).

• WEB PORT: Set a web server port number.

- WIRELESS LAN : Wireless networks can be configured(option)

IP ADDRESS: Wireless IP Address

- SSID(Service set identifier): Wireless Network ID

KEY(8\~15 Characters): Wireless Network Password

7-7-7. User Management

Select the USER MANAGEMENT tab to set the DISPLAY conditions.

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION AUTHORITY SETUP PASSWORD CHECK ADMIN USER1 USER2 USER3 PASSWORD SETUP PB PTZ REC OFF NETWORK USER NAME SETUP NEW USER NAME PASSWORD SETUP CHANGE NEW PASSWORD CONFIRM PASSWORD USER1 USER1 ADMIN KEEP

7-7-8. Storage

Select Storage to configure recording settings such as overwriting the hard disk and the setting a storage period for the recording data.

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION OVERWRITE ON OFF DISK INFO HDD SIZE : 435 GB (FREE - 434 GB) HDD LAST TIME : 01/01/1970 01:00:00 HDD 1 MODEL NAME Hitachi HDS721080CLA382 TEMPERATURE 22 Celsius (71 Fahrenheit) HEALTH (GOODNORMAL/BAD) GOOD REALLOCATED SECTORS 0 CURRENT PENDING SECTORS 0 UNCORRECTABLE SECTORS 0 SPIN RETRY SECTORS 0 RECORDING LIMIT OFF RECORDING LIMIT DAYS

RELOAD APPLY

• OVERWRITE: Select on to continue recording by overwriting when the hard disk becomes full.
- RECORD LIMIT: Sets whether to limit or not the recording data storage period.

7-7-9. Remote Upgrade

SPECO WEB SETUP (ver 1,8,8)

IP CAMERA SYSTEM RECORD DEVICE DISPLAY NETWORK USER MANAGEMENT STORAGE UPGRADE INFORMATION Model Name: NBNS Current Software: Ver 3.7.4.20130524 Browse... UPGRADE

Shows the current Firmware version installed on NS.

- Browse: Select BROWSE to locate the firmware file.

7-8. Operation

7-8-1. Addition, Delete, and Modify of NS Sites

7-8-1-1. Addition of Sites

1. Click SITE ADDITION button. And then the following window will be displayed as below.

Site Addition Site info: Site name: Site address: Print number: 5445 ID: Password: OK Cancel

Site Name: Input a name that properly describes a site.
- IP Address: Input IP address (Public IP address of a router that NS is connected.) or Domain name
- Port Number: Default Port Number is "5445".
- ID: Input ID of NS. Default ID is "admin".
- Password: Input network password of NS. Default Password is "1111".

1. Click OK button. And then the registered site is added on the directory window.

7-8-1-2. Deleting a Site

1. Select the site/sites to delete from the directory window.

7-8-1-3. Modify of Sites

1. Select the site/sites to modify from the directory window.

1. Click NET FINDER button. And then the following window will be displayed as below.

Net Finder Name Address NxNS 172.16.2.62 Address Port No. Mac Model Add Modify Delete Find IP Change Close

1. Click MODIFY button. And then the modified information is displayed as below.

7-8-2. Connect and Disconnect

7-8-2-1. Connect

1. Select site/sites to connect from the directory window.

1. Click CONNECT button, and then site/sites displays/display as connected.

Screenshot of a video editing software interface showing a surveillance camera with three panels and a control panel.

7-8-2-2. Disconnect

1. Select site/sites to disconnect from the directory window.

1. Click DISCONNECT button, and then selected site/sites disconnected.

7-8-3. Still-image Capture During Live

1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured).

Side-by-side comparison of a road scene with a red arrow indicating transformation (no text or symbols present)

1. Click CAPTURE button. And then a Capture window will be displayed as below.

Capture Save Path : C:\Storage\Capture\D16DS Browse File name : 2012-10-27-210801 File Format : BITMAP(*.BMP) OK Cancel

1. Set Save Path, File Name, and File Format. And then click OK button.
2. Still image is saved as set in Capture window.

7-8-4. Recording Video on Local PC During Live

1. Click SETUP button. And then a setup window will be displayed as below.
2. Select Record and set the values.

1. Select Disk and set the values.

Setup General Event Event search Record and Display About Disk Space : C:\ 4 GB Disk Info Total space: 465 GB Free space: 398 GB Disk full ● Replace oldest files ○ Stop recording. OK Cancel

1. Click RECORD ON button. And the color of button is changed.

2. Live video data is recorded as set in Record and Disk setup. These video data can be searched and play-backed with Local Playback.

HC01 File Edit View Favorites Tools Help Back Search Folders C:\Storage\HC01 Name Size Type Date Modified 20000600 File Folder 0/0/2009 4:00 PM 20000610 File Folder 0/18/2009 5:16 PM 20000573.ind 1,275 KB N.D. File 2/19/2009 6:24 PM 20000573.indb 102,402 KB N.D. File 2/19/2009 8:38 PM 20000573.indb 102,402 KB N.D. File 2/19/2009 9:44 PM 20000573.indb 102,402 KB N.D. File 2/19/2009 5:02 PM 20000573.indb 73,545 KB N.D. File 2/19/2009 8:23 PM

7-8-5. Local Playback and Remote Playback

7-8-5-1. Playback of Recorded Video on a Local PC

1. Click LOCAL PLAYBACK. And then Playback Window will be displayed over the Live

SPECO Multi Client View 3.0.4.4

Window.

1. Select site/sites to connect from the directory window.

2. Click CONNECT button. And then Green bar displays on Search calendar and timeline scale window.

2013 May S M T W T F S 1 2 3 4 6 7 8 9 10 11 13 14 15 16 17 18 29 30 22 23 24 25 27 28 29 30 31 0 2 4 6 8 10 12 14 16 18 20 EZSearch AI

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7-8-5-2. Playback of Recorded Video on Remote NS

1. Click REMOTE PLAYBACK. And then Playback Window will be displayed over the Live

Window.

SPECO Hulo Client Var 1.0.2.8

1. Select the site to connect from the directory window.

2. Click CONNECT. And then Green bar displays on Search calendar and timeline scale window.

2013 May S M T W T E S 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 25 27 28 29 30 31 0 2 4 6 8 10 12 14 16 18 20 22 24 EZHsearch All

1. Move the marker on the timeline scale to where there is video data and press the PLAY button.

7-8-6. AVI Backup during Playback

You can back up the recorded videos in AVI format during playback.

1. Double-click the target channel to backup.
2. Select the beginning time by using the search calendar and timeline scale bar.

2011 Apr S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 0 2 4 6 8 10 12 14 16 18 20 22 24

1. Click EZCOPY START button on the timeline scale to select the beginning point of the backup.

0 10 20 30 40 50 60

1. Click EZCOPY END button on the timeline scale to select the ending point of the backup. Then, the selected starting point and the ending point on the timeline scale bar will be marked in green.

0 10 20 30 40 50 60

1. Click BACKUP. And then the BACKUP window will be displayed as below.

Backup Select Channels CH-1 CH-2 CH-3 CH-4 All

Backup Select Channels CH-1 CH-2 CH-3 CH-4 All Setting Start Time: 01:17:18 End Time: 01:19:43 File Path: C:\Storage\Backup\ File format: AVI 7.6% OK Cancel

1. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by using Window Media Player™ or other media player that is compatible with AVI format video.

Exterior view of a rural landscape with buildings, a gate, and trees under clear sky (no signage or text visible)

8. Network Access Using the Web-Browser Viewer

The NS provides a live remote monitoring feature by web-browser viewer. (NOTE: Web-Browser is only available for Internet Explorer)

1. Check the IP address of the NS from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or
2. Input the IP address or Domain name address that you pre-registered.

Address http://172.16.1.52 Go

1. Click this bar. Then the dialog box is displayed.

1. Click "Install" to download and install the ActiveX control.

User Account Control Do you want to allow the following program to make changes to this computer? Program name: SpecoTech-WebViewer(ver1.4.8.7) Verified publisher: Speco Technologies File origin: Downloaded from the Internet Show details Yes No Change when these notifications appear

1. The Web Browser Viewer will be displayed as below after the ActiveX installation

space technologies 2019-05-31 17:23:50

Connect Connect to remote system. IP Address : Port No : 5445 ID : Password : OK Cancel

• Site Name: Input a name that properly describes a site.
• IP Address: Input IP address (Public IP address of a router that NS is connected.) or Domain name
  • Port Number: Default Port Number is "5445".
  • ID: Input ID of NS. Default ID is "admin".

• Password: Input network password of NS. Default Password is "1111".

• Then the cameras connected to the NS are displayed on the screen.

• Use mouse scroll to digitally zoom in and out from a single channel display.

daveco Technologies 20-15-02-21 16:23:13 17:16:24 1 2 3 4 1 2 3 4 16.7

9. Network Access Using the Smart Phone Viewer

Notice

Data Usage applied without Wi-Fi connection. Please check with your Phone Carrier.

9-1. App Viewer for iPhone

1. Enter the Apple iTunes Store.

1. Search "Speco Player" in the App Store.

Notice

SPECO Player is for the NS, NSL, VS, HS, DS, RS and HD series DVRs. SPECO VIEWER is not compatible with the T Series DVR's (TH, TN or TL) or the PC Series

9-1-1. Live

1. Open the installed "Speco Player" App and click button to add a remote device.
2. Enter the site name, IP or DDNS address, Network Port number (default 5445), ID(default admin) and Password (default 1111). Then, click "Save" buon.

Edit

Device List

+

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4, 8, 10, 16 channels split display depending on the DVR.

< N16NSF VE 03-10-14 03:47:06 N16NSF LIVE 03-10-14 03:47:27 N16NSF ON 03-10-14 03:47:06 N16NSF ON 03-10-14 03:47:06 N16NSF ON 03-10-14 03:47:06 N16NSF ON 03-10-14 03:47:06 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:04 N16NSF ON 03-10-14 03:47:04 N16NSF ON 03-10-14 03:47:04 N16NSF ON 03-10-14 03:47:04 N16NSF ON 03-10-14 03:47:03 N16NSF ON 03-10-14 03:47:03 N16NSF ON 03-10-14 03:47:03 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:01 N16NSF ON 03-10-14 03:47:01 N16NSF ON 03-10-14 03:47:01 N16NSF ON 03-10-14 03:47:01 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:02 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:05 N16NSF ON 03-10-14 03:47:08 N16NSF ON 03-10-14 03:47:08 N16NSF ON 03-10-14 03:47:08 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:27 N16NSF ON 03-10-14 03:47:27 N16NSF ON 03-10-14 03:47:27 N16NSF ON 03-10-14 03:47:27 N16NSF ON 03-10-14 03:47:26 N16NSF ON 03-10-14 03:47:26 N16NSF ON 03-10-14 03:47:26 N16NSF ON 03-10-14 03:47:25 N16NSF ON 03-10-14 03:47:25 N16NSF ON 03-10-14 03:47:25 N16NSF ON 03-10-14 03:47:25 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:28 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:29 N16NSF ON 03-10-14 03:47:59 N16NSF ON 03-12/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSF ON 03/2/29 N16NSWON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON NISKON

1. To select the display mode(1, 4, 9, 10 or 16 split display), tap the arrow menus buon

N16NSF LIVE 03-10-14 03:47:26 DEC-5 FPS 31 1 4 0 10 16

N16NSF LIVE 03-10-14 03:47:26 GPS 04 DROG FPS 01 FFT 500Hz PDCU/8

9-1-3. Playback

1. Select Mode as 'Playback' and click 'CONNECT' buon. Then select Date & Time and click PLAY buon.

Device D16HS Edit Connect Playback Use SITE INFORMATION Sim D16HS IFINOS.demots.dhms.ajecodims.net

N16NSF Select Date & Time Tdy Mar 2 1 45 Sat Mar 8 2 46 Sun Mar 9 3 47 AM Today 4 48 PM Tue Mar 11 5 49 Wed Mar 12 6 50. Thu Mar 13 7 51 Play

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4, 8, 10, 16 channels split display depending on the DVR.

9-2. App Viewer for Android Phone

1. Enter the Android Market.

1. Search "Speco Player" in the Android Market and install the "Speco Player" app.

Notice

SPECO Player is for the NS, NSL, DS, RS, WRS and HD series. SPECO VIEWER is not compatible with the T Series NS's (TH, TN or TL) or the PC Series.

9-2-1. Live

1. Open the installed "Speco Player" App and select the Live Preview. Then click the menu buon of the phone to add a remote device.
2. Select the registered device and select LIVE VIEW and select up to 4 channels or ALL CHANNELS to monitor. Then click START buon.

speco player Main menu Live View / Playback Screen/Ghost Views Space Player Space Technogout

Demo Demo NSP Demo DIS NSP

Device Name: H2F Address: 67.08.134.225 Port: 3000 User Name: admin Password: * Mode type: Live mode Select Channel: Select Channels 1 2 3 4 10 minutes later, exit Start

9-2-2. Playback

1. Select the registered device and select PLAYBACK and select up to 4 channels or ALL CHANNELS to search. Then click START button. As soon as seng the date and me to search, the app will start the playback.

Device Name: USB Address: A1 38 134 225 Port: 3000 User Name: admin Password: * Mode type: Play Book Select Channel: All Channels 10 minutes later, exit Start

Date Name Address Port User Name Password Set Date Oct 31 2014 OK Cancel

Service Name: FLJ Subkey: 87.26.24.235 Port: 2001 Open Window: walk-in Password: * Min/Set Time 1 50 PM OK Cancel

1. The app will display the selected channel(s). Double tap the channel screen to switch 1 channel display to 4 channels split display.

Black-and-white photo of a large wall clock on a desk, with equipment and no visible text or symbols.

APPENDIX: Network Connection - LAN

1. Install the network client software from the supplied CD.
2. Check the IP address from SETUP > SYSTEM > DESCRIPTION or SETUP > NETWORK of NS.

MODEL NAME N16NSF SOFTWARE VERSION Ver 4.3.2_20141027 STORAGE SIZE 435 GB IP ADDRESS 172.16.2.32 MAC ADDRESS 00:02:69:09:17:27 DDNS STATUS DDNS OFF OK

1. Run the network client software.

space technology

Site Addition Site Info Site name: Site address: Port number: 5445 ID: Password: OK Cancel

1. Input Site Name, Site Address (IP address), Port Number, and Password on the connect window.

2. Site Name: Input a name that properly describes a site.
   • IP Address: Input IP address
   • Port Number: Default Port Number is "5445".
   • ID: Input ID of NS. Default ID is "admin".

3. Password: Input network password of NS. Default Password is "1111".

4. Select a site by checking the box, and Press button to connect to the site.

GPS 102718369 CH-2 NO VIDEO

APPENDIX: Network Connection – Internet and DDNS

Dynamic Domain Name System (DDNS) allows a domain name to be constantly synchronized with a dynamic IP address. A current dynamic IP address is being associated with a static domain name.

1. Go to SETUP>NETWORK>DDNS and set the DDNS SERVER to ON.

ENABLE DDNS HOST NAME SUBMIT/UPDATE ezDDNS ON hostname OFF OFF APPLY CLOSE

If you set ezDDNS to ON, the host name is automatically generated and registered.

1. Go to SETUP>NETWORK>DDNS>HOST NAME. Manually enter a domain name using the virtual keyboard and click ENTER button.

1. When DDNS setting is done, click the APPLY button. Otherwise DDNS setting will not be applied.
2. When you exit SETUP menu, DDNS NOTIFY window will pop up.

DDNS NOTIFY : HOST NAME : n8ns_ff1c5 STATUS : SUCCESS OK DDNS NOTIFY : HOST NAME : hostname STATUS : ALREADY REGISTERED OK

1. DDNS registration status can be checked from SYSTEM INFORMATION or SETUP>SYSTEM>DESCRIPTION>DDNS STATUS
2. Check the NETWORK PORT (Default: 5445), WEB PORT (Default: 80), and the IP Address of the NS from SETUP>NETWORK.

NETWORK NETWORK TYPE IP 172.16.2.38 SUBNET MASK 255.255.0.0 GATEWAY 172.16.1.254 DNS (PRIMARY) 168.126.63.1 DNS (SECONDARY) 168.126.63.2 DDNS 5445 NETWORK PORT NETWORK AUDIO PORT 5446 WEB PORT 80 WIRELESS LAN OFF

SPECO Multi Client Ver 3.1.2.5

Site Addition Site Info Site name: Site address: Portnumber: 6445 ID: Password: OK Cancel

1. Input Site Name, Site Address (IP address), Port No., and Password on the connect window.

2. Site Name: Input a name that properly describes a site.
   • IP Address: Domain name or Public IP address of a router that NS is connected.
   • Port Number: Default Port Number is "5445".
   • ID: Input ID of NS. Default ID is "admin".

3. Password: Input network password of NS. Default Password is "1111".

4. And select the OK button. Then, press button after checking the left check box.

SOPPER RADIO VIDEO CN 2 NO VIDEO

APPENDIX: E-SATA CONNECTION

Please read the following instructions before using the E-SATA port. Failure to do so may cause serious damage to the recorded video. SPECO is not responsible for data loss caused by improper usage.

• Use ONLY a new HDD or a HDD that is approved for the unit.
• Turn off the NS before plugging the E-SATA HDD.
• DO NOT disconnect the E-SATA port while the NS power is on.
• The purpose of the E-SATA port is to extend recording capacity.
• Once connected, DO NOT remove or disconnect the E-SATA port from the NS.
• The E-SATA port is does not support the hot swappable function.
