USER MANUAL VL7038K Speco Technologies

Intense-IR Series 1000TVL

HT7040K

(IR Bullet Camera)

HT6040K

(IR Turret Camera)

HT5940K

(IR Dome Camera)

VL7038K

(IR Bullet Camera)

Contents

① Contents ...... 1
- Precautions....2, 3
Safety Instructions 4
● Package Contents .... 5
● Camera Installation 6-12
● Lens Adjustment 13-16
Specifications....17-20

Precautions

Do not install the camera in extreme temperature condit

Illustration of two cartoon-style surveillance cameras emitting flames, one emitting smoke (no text or symbols)

Only use the camera under conditions where temperatures are between -10°C and +50°C. Be especially careful to provide ventilation when operating under high temperatures.

Do not install the camera under unstable lighting conditions.

Severe lighting change or flicker can cause the camera to work improperly.

Do not touch the front lens of the camera.

This is one of the most important parts of the camera. Be careful not to leave fingerprints on the lens cover.

Never keep the camera pointed directly at strong light.

Illustration of a sun shining on a camera and a dome-shaped object, both with smiling faces (no text or symbols)

Do not drop the camera or subject it to physical shocks.

Illustration of two surveillance cameras in water, one emitting smoke or vapor, the other showing a shield cover (no text or symbols)

Do not expose the camera to radioactivity.

It can cause malfunctions to occur. If exposed Houridogata may the CCB compromise

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ISO14001 CE FC

The lightning flash with an arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In USA and Canada, Use Class 2 Power Supply Only

INFORMATION - This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

Safety Instructions

Precautions for use

This camera should be installed by qualified personnel only
There are no user serviceable parts inside
Do not disassemble this camera other than to make initial adjustments
- Use a UL approved regulated 24 volt AC or 12 volt DC power supply
- Use appropriate low voltage power cable to prevent fire or electrical shock
Please insure that your installation area can support the weight of the camera

Please handle this camera carefully :

Do not use a strong or abrasive detergent when cleaning the camera
Do not install near cooling or heating device

Package Contents

Please make sure that the following items are included in the Package:

1) HT7040K

• 1 Video Test Connector, Power Jack
• 1 Focus Adjustment
- 1 Bracket Base
• 1 Wrench
- Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x10

2) HT6040K

• 1 Video Test Connector, Power Jack
• 2 Wrenches
- Set Screw
- 3 Tapping Screws 4x25

3) HT5940K

• 1 Video Test Connector, Power Jack
• 1 Chameleon Cover
• 1 Wrench
- Set Screw
- 3 Tapping Screws 3.5x20

4) VL7038K

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

Power Input :RED Center : (+) DC 12V Power Supply

1. WHEN USING 24 VOLTS AC (40 Volt Amps)

RED(+) BLACK:(-) AC 24V Power Supply

1. CONNECT VIDEO CABLE

- CONNECT BNC CABLE TO THE BNC JACK.

CAMERA INSTALLATION

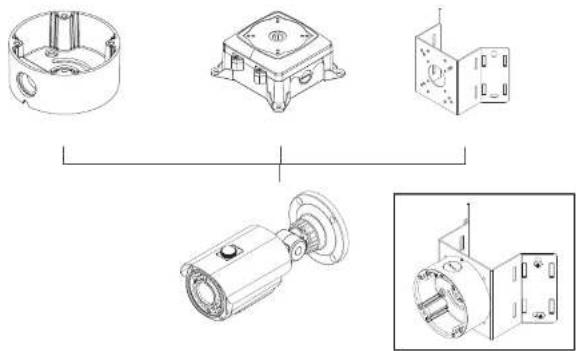

Compatibility

1) HT7040K

CVCJBB INTJBS INTCM

Technical line drawings of mechanical components including a cylindrical housing, mounting base, and motor assembly (no text or labels)

2) HT6040K

CVCJBD

CAMERA INSTALLATION

Compatibility

3) HT5940K

CVCJBD

→ Adaptor plate(59PLATE) with rubber

4) VL7038K

INTJBS INTCM

CAUTION : The installation instructions in this manual are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAMERA INSTALLATION

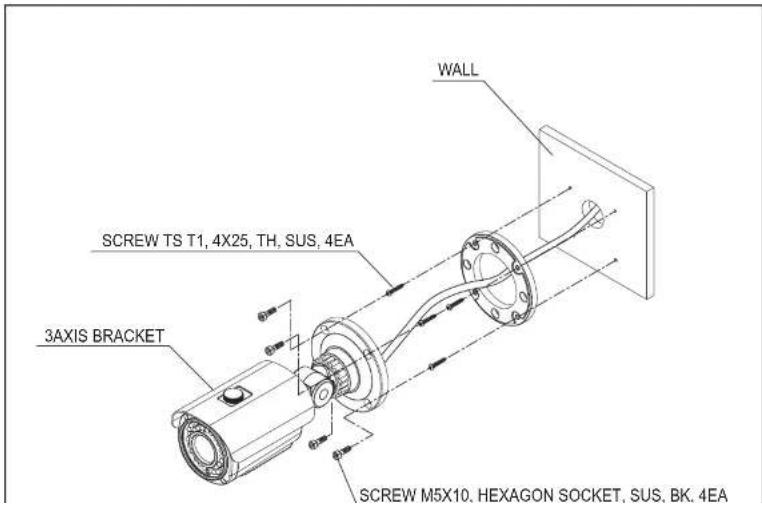

1. HT7040K

WALL SCREW TS T1, 4X25, TH, SUS, 4EA 3AXIS BRACKET SCREW M5X10, HEXAGON SOCKET, SUS, BK, 4EA

CAMERA INSTALLATION

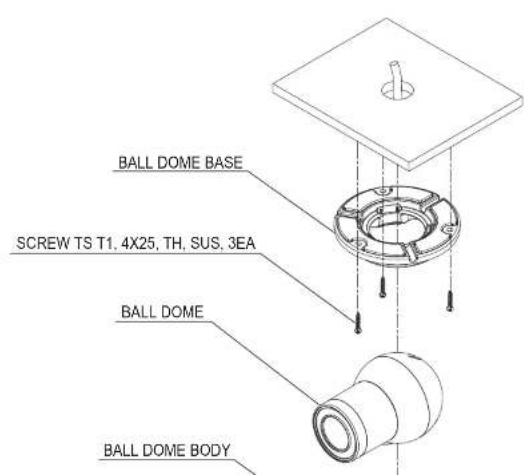

1. HT6040K

BALL DOME BASE SCREW TS T1. 4X25, TH, SUS. 3EA BALL DOME BALL DOME BODY

CAMERA INSTALLATION

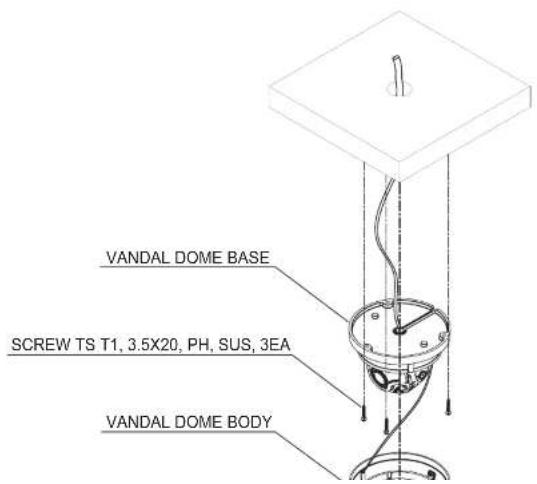

1. HT5940K

VANDAL DOME BASE SCREW TS T1, 3.5X20, PH, SUS, 3EA VANDAL DOME BODY

CAMERA INSTALLATION

1. VL7038K

CAMERA ASSEMBLY BRACKER BASE WALL TAPPING SCREW 4X25, 4EA

LENS ADJUSTMENT

1. HT7040K

"A" Open the cap

Technical line drawing of a mechanical component with no visible text or symbols

LENS ADJUSTMENT

1. HT6040K

Technical line drawing of a mechanical component with labeled section "A" (no text or symbols beyond label)

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

LENS ADJUSTMENT

1. HT5940K

"A" Open the cap

LENS ADJUSTMENT

1. VL7038K

"A" Open the cap

OSD adjustment

Intense-IR Series 1000TVL

DC Auto Iris Varifocal Lens 2.8-12mm

Exterior view of a black security camera with mounted lens (no visible text or symbols)

HT7040K

SPECIFICATIONS

MODEL	HT7040K
Image Sensor	1/3" 1.3MP SONY Sensor
Resolution	1000TV Lines
Effective Pixels	1305(H) X 1049(V), 1.37M Pixels
Total Pixels	1312(H) X 1069(V), 1.40M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Frame rate	MAX 50P/60P
Video Output	CVBS: 1.0Vp-p/75 Ohm
Minimum Illumination	OLux(Intensify x64)
LENS	DC/MANUAL
Electronic Shutter Speed	AUTO / Manual(1/60Sec ~ 1/60000Sec) / FLICKER
OSD	Built-in
BLC	O
HSBLC	O
WDR (Wide Dynamic Range)	ON(LOW,MIDDLE,HIGH) / OFF
Digital WDR	ON(LOW/MIDDLE/HIGH) / OFF
Day&Night	Color/BW/EXTERN/Auto
White Balance	ATW/AWR/AWC->SET/MANUAL
Smart-iR	0~20(Level Adjustable), Default : 0

Intense-IR Series 1000TVL

DC Auto Iris Varifocal Lens 2.8-12mm

HT6040K

SPECIFICATIONS

MODEL	HT6040K
Image Sensor	1/3" 1.3MP SONY Sensor
Resolution	1000TV Lines
Effective Pixels	1305(H) X 1049(V), 1.37M Pixels
Total Pixels	1312(H) X 1069(V), 1.40M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Frame rate	MAX 50P/60P
Video Output	CVBS: 1.0Vp-p/75 Ohm
Minimum Illumination	OLux(Intensify x64)
I ENS	DC/MANUAL
Electronic Shutter Speed	AUTO / Manual(1/60Sec ~ 1/60000Sec) / FLICKER
OSD	Built-in
BLC	O
HSBLC	O
WDR (Wide Dynamic Range)	ON(LOW,MIDDLE,HIGH) / OFF
Digital WDR	ON(LOW/MIDDLE/HIGH) / OFF
Day&Night	Color/BW/EXTERN/Auto
White Balance	ATW/AWB/AWC->SET/MANUAL
Smart IR	0~20(Level Adjustable), Default: 0

Intense-IR Series 1000TVL

DC Auto Iris Varifocal Lens 2.8-12mm

HT5940K

SPECIFICATIONS

MODEL	HT5940K
Image Sensor	1/3" 1.3MP SONY Sensor
Resolution	1000TV Lines
Effective Pixels	1305(H) X 1049(V), 1.37M Pixels
Total Pixels	1312(H) X 1069(V), 1.40M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Frame rate	MAX 50P/60P
Video Output	CVBS : 1.0Vp-p/75 Ohm
Minimum Illumination	OLux(Intensify x64)
LENS	DC/MANUAL
Electronic Shutter Speed	AUTO / Manual(1/60Sec ~ 1/60000Sec) / FLICKER
OSD	Built-in
BLC	O
HSBLC	O
WDR (Wide Dynamic Range)	ONILOW,MIDDLE,HIGH) / OFF
Digital WDR	ONILOW/MIDDLE/HIGH) / OFF
Day&Night	Color/BW/ESTREN/Auto
White Balance	ATW/AWB/AWC->SET/MANUAL
Smart-JR	0~20(Level Adjustable), Default: 0

Intense-IR Series 1000TVL

DC Auto Iris Varifocal Lens 2.8-12mm

Exterior view of a silver security camera with mounted lens and wall-mounted head (no visible text or symbols)

VL7038K

SPECIFICATIONS

MODEL	VL7038K
Image Sensor	1/3" 1.3MP SONY Sensor
Resolution	1000TV Lines
Effective Pixels	1305(H) X 1049(V), 1.37M Pixels
Total Pixels	1312(H) X 1069(V), 1.40M Pixels
Scanning System	Progressive Scan
S/N Ratio	More than 50dB
Frame rate	MAX 50P/60P
Video Output	CVBS : 1.0Vp p/75 Ohm
Minimum Illumination	OLux(Intensify x64)
LENS	DC/MANUAL
Electronic Shutter Speed	AUTO / Manual(1/60Sec ~ 1/60000Sec) / FLICKER
OSD	Built-in
BLC	O
HSBLC	O
WDR (Wide Dynamic Range)	ON(LOW,MIDDLE,HIGH) / OFF
Digital WDR	ON(LOW/MIDDLE/HIGH) / OFF
Day&Night	Color / BW / EXTERN / Auto
White Balance	ATW / AWB / AWC -> SET / MANUAL
Smart -IR	0~20(Level Adjustable), Default : 0
Sense-Up	v1, v2, v3, Default: v15

CAMERA DIMENSION

1) HT7040K

124 12 3.5° 2.04° 2.6° 2.5°

48° 32°

2) HT6040K

CAMERA DIMENSION

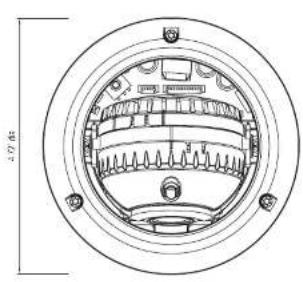

3) HT5940K

Technical line drawing of a circular mechanical or electrical component with internal channels and mounting holes (no text or symbols)

320° dz 3.25° 1.82°

4) VL7038K

General Features

● 1000 TV Lines

1.3 MEGA HD ANALOG 1000 TVL combined with SONY EXMOR SENSOR (IMX 138)

● WDR (Wide Dynamic Range)

A powerful and ultra-advanced technology that captures cleaner and superior high resolution picture even where images appear dark because there is a strong back light present.

PRESET

Preset (Indoor, Outdoor, Low light, Hallway, Lobby, Elevator) is provided to maximize user convenience.

● DNR (Digital Noise Reduction)

SMART 3D DNR prevents the image blurring of moving objects and activates only when moving objects appear on the scene.

● SMART IR

No saturation image, vivid image in darkness. it makes very sharp video image in darkness. This technology eliminates saturation of video image of the closer object in darkness by control of the IR sensitivity.

- INTENSIFY

INTENSIFY - Max. up to x64 helps get dark images visible and make it clear images in a low light environment.

How to Set Up the camera menu

- Setup Menu

PRESET MODE MENU

MAIN SETUP
	INDOOR	OUTDOOR	LOW LIGHT	HALL WAY	LOBBY	ELEVATOR

LENS	DC	MODE	INDOOR / OUTDOOR / DEBLUR
		RETURN
	MANUAL	MODE	NORMAL / DEBLUR
		RETURN
EXPOSURE		BRIGHTNESS	0 ~ 20
		SHUTTER	AUTO
			MANUAL	SPEED	1/60 ~ 1/60,000
				RETURN
			FLICKER
		INTENSIFY	OFF / X2 - X64
		AGC	0 ~ 20
		RETURN
WHITE BAL	ATW
	AWB
	AWC -> SET
	MANUAL	KELVIN	LOW / MIDDLE / HIGH
		R-GAIN	0 ~ 20
		B-GAIN	0 ~ 20
		RETURN
BLACKLIGHT	OFF
	HLC	LEVEL	0 ~ 20
		MODE	ALL DAY / NIGHT ONLY
		RETURN

How to Set Up the camera menu

• Setup Menu

IMAGE		SHARPNESS	0 ~ 10
		GAMMA	0.45 ~ 0.65
		PEDSTAL	0 ~ 20
		COLOR GAIN	0 ~ 20
		MIRROR	OFF / ON
		FLIP	OFF / ON
		RETURN

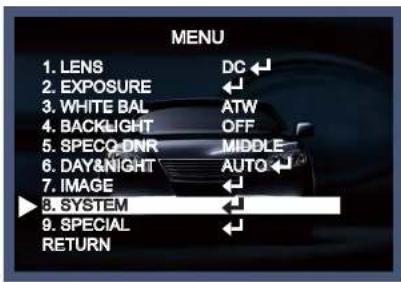

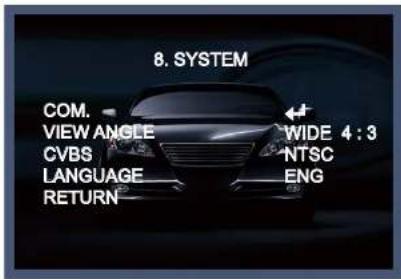

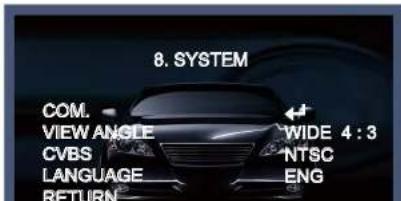

SYSTEM		COM.	CAM ID	0 ~ 255
			BAUDRATE	2400 / 4800/ 9600 / 57600 / 115200
			RETURN
		VIEW ANGLE	WIDE 4 : 3
			WIDE 16 : 9	XY ADJUST
			NORMAL	XY ADJUST
		CVBS	NTSC / PAL
		LANGUAGE	ENG / CHN / CHN(S) / JAN / KOR
		RESET	ON	PUSHING
		RETURN

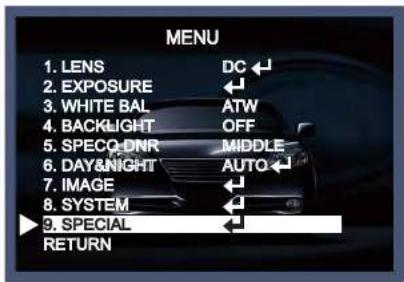

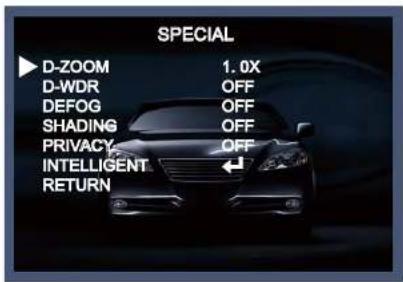

SPECIAL		D-ZOOM	1.0X - 8.0X
		D-WDR	OFF / LOW / MIDDLE / HIGH
		DEFOG	OFF
			ON	MODE	AUTO
					MANUAL
				LEVEL	LOW
					MIDDLE
					HIGH
				RETURN
		SHADING	OFF
			ON	WEIGHT	0 ~ 100%
				RETURN
			OFF
		PRIVACY	ON	ZONE NUM	0 ~ 15

How to Set Up the camera menu

- Setup Menu

			ALARM	ANTI-SHIFT	OFF / ON
				SHIFT SCALE	0 ~20
				ANTI-BLOCK	OFF / ON
				BLOCK SCALE	0 ~ 20
				RETURN

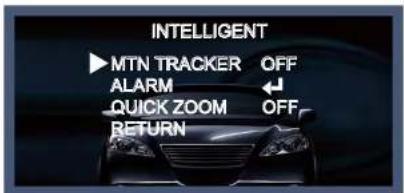

			QUICK ZOOM	MOVING	0 ~ 240 sec
				ZOOM IN	0 ~ 240 sec
				STANDBY	0 ~ 240 sec
				SYNCHRONOUS	OFF / ON
				TRACKING	OFF / ON
				REPEAT	OFF / ON
				RETURN
RETURN

MENU

Menu setting can be selected by the button inside the camera.

1. Press the set button.

* MENU will be displayed on the monitor.

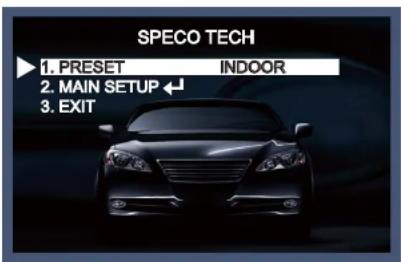

MENU

→ PRESET : Preset is provided to maximize user convenience.

(PRESET : Indoor // Outdoor // Low light // Hallway // Lobby // Elevator)

SPECO TECH 1. PRESET INDOOR 2. MAIN SETUP ← 3. EXIT

→ MAIN SETUP : Enter the MAIN SETUP to adjust further settings.

MENU SETUP

Menu setting can be selected by the button inside the camera.

1. Press the set button.

* The Set Up menu will be displayed on the monitor.

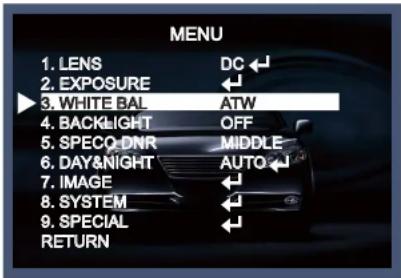

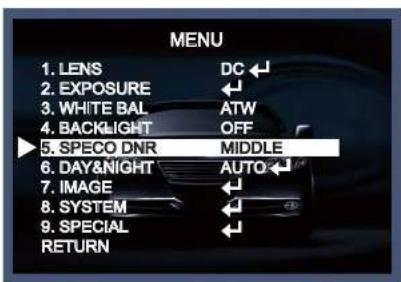

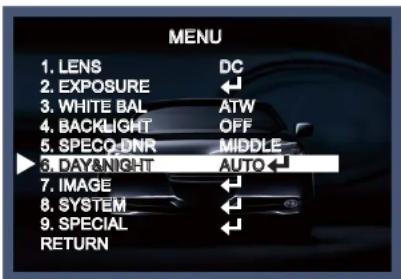

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN

1. Move and select the required function using the Up and Down button.

* Move the triangular indicator Up or Down to select the desired feature by pressing the Up or Down button.

1. Change menu settings using the Left or Right button.

* Available values or Status are displayed by pressing the Left or Right buttons. Press the button until desired value / status is displayed.

1. After Changing the setting move the arrow indicator to RETURN and press the SET button to RETURN.

NOTE

* Move to the available submenu by moving ←arrow to desired feature.
* Submenu is not available when this symbol displayed "---".

1. LENS

This function is to adjust the brightness of the monitor.

1. Move the triangular indicator to LENS using the Up and Down buttons on the Set Up menu screen.
2. Select the desired lens type by pressing the Left of Right button.

NOTE

* On DC mode, you can select INDOOR, OUTDOOR, or DEBLUR depending on the installation environment.
* On MANUAL mode, you can select NORMAL or DEBLUR depending on the installation environment.

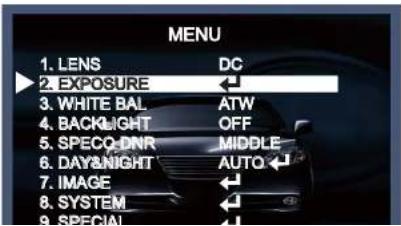

2. EXPOSURE

On this manu, users can control exposure by selecting one of modes (Brightness, Shutter, Sens-up, AGC)

1. Move the triangular indicator to EXPOSURE on the SETUP menu screen using the Up and Down button
2. Select the desired mode using the Left or Right buttons.

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ-DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL

→ SHUTTER : Users adjust electronic shutter speed by selecting one of modes(AUTO, MANUAL, FLICKER).

2. EXPOSURE BRIGHTNESS 10 SHUTTER MANUAL INTENSIFY X16 AGC 15 RETURN

Manaul mode : shutter speed is adjustable from 1/60 up to 1/60,000.

SHUTTER ▶ SPEED 1/60 RETURN

→ INTENSIFY : The brighter image can be displayed by operating digital slow shutter speed in low light environment.

( digital slow shutter : x2 \~ x64 // default value : x16)

3. WHITE BALANCE

Use this function when the color adjustment of a screen is needed.

1. Move the triangular indicator to WHITE BAL on the SETUP menu screen using the Up and Down button.
2. Select the desired mode by using the left or Right button.

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN

Use the appropriate mode according to your purposes among these three modes.

* ATW : Use this mode when the color temperature is from 1,800K to 10,500K.
* AWB : The function to search for the color which is matched well with the ambient environment. This be used when the color temperature is from 3,000K to 7,000K.
* AWC→SET : After letting camera focus on the blank white paper to the best condition of current lighting environment, press the SET button. If the lighting condition is changed, Re-adjustment

NOTE

The White Balance may not be worked properly in the following conditions. If this doesn't work, use the AWB mode.

* When there is a very high color temperature in the circumstances of the subject. (for example, clear sky, Sunset)
* It is very dark.
* If the camera is headed to the fluorescent light directly or if there is a drastic lighting change, The operation of White balance may become unstable.

4. BACK LIGHT

On this menu, back light image can be compensated by users selecting one of modes (HLC, BLC, and WDR).

1. Move the triangular indicator to BACKLIGHT on the SETUP menu screen using the Up and Down button
2. Select the desired mode using the Left or Right buttons.

◆ HLC (Highlight Light Compensation): When there is a car head light turned on at the entrance of the gas station or in some place in the parking lot, the numbers of the car plate can be recognized by blocking only the light from the car headlight. At the area is set up specifically, you can recognize the car plate numbers by blocking the strong light signal.

HLC LEVEL MODE RETURN 10 ALL DAY

Front view of a car with headlights on, labeled 'Normal HLC' below (no other text or symbols visible)

Front view of a car with illuminated grille and license plate (no readable text or symbols)

◆ BLC (Back Light Compensation): The camera with 3D-DNR provides the intelligent light level control to overcome strong backlight conditions.

◆ WDR(wide dynamic range): the function is intended to provide clear images even under back light circumstances where intensity of illumination can vary excessively, namely when there are both very bright and very dark areas simultaneously in the field of view of the camera. (To adjust WDR level, select the LOW, MIDDLE, HIGH by pressing the left or the right button)

WDR WEIGHT RETURN HIGH

WDR OFF WDR ON

Black-and-white photo of a man in a suit standing near a large glass window with trees and water in the background (no visible text or symbols)

5. DNR

This function makes the noise of the low light background decrease and is a highlighted feature.

1. Move the triangular indicator to DNR on the SETUP menu screen using the Up and Down button
2. Select one of modes(OFF, LOW, MIDDLE, HIGH) to use DNR by pressing the Right or Left button.

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECO DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN

NOTE

* If DNR function is activated, digital noise om image get reduced.

6. DAY&NIGHT

You can change the color mode of color or black / white by setting up the mode.

1. Select DAY&NIGHT using the Up or Down button on the Set Up menu screen.
2. Select one of modes (EXTERN, AUTO, COLOR, B/W) using the Left or Right buttons.

MENU 1. LENS DC 2. EXPOSURE ← 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE ← 8. SYSTEM ← 9. SPECIAL ← RETURN

◆ EXT : it can change into COLOR or B/W mode automatically through the connection with the ground terminal. Users can adjust SMART-IR level (0 \~ 20), EXTERN S/W Level, and working time of the D/N filter.

6. DAY&NIGHT SMART IR EXTERNAL S / W DELAY RETURN

◆ COLOR : Making the video output color always.
◆ B / W : Making the video output B/W always. By selecting the color signal On or Off, this lets the burst signal be disappeared or not.

6. DAY&NIGHT SMART IR RETURN

7. IMAGE

This can be used when you want to select the additional function control.

1. When the SETUP menu is displayed, select IMAGE using the Up and Down button.
2. Select one of the mode using the Left or Right buttons.

MENU 1. LENS DC 2. EXPOSURE ← 3. WHITE BAL ATW

◆ IMAGE

→ SHARPNESS : the outline of an image becomes sharp and more distinct as the level of sharpness increases. It has better be used to adjust the value to the proper one depending on a sort of image. (SHARPNESS : 0 \~ 10)

→ GAMMA : Gamma value is adjustable (GAMMA:0.45\~0.65)

→ PEDSTAL : Pedstal value is adjustable (PEDSTAL:0\~20)

→ COLOR GAIN : Color gain value is adjustable (COLOR GAIN : 0 \~ 20)

→ MIRROR : The image of the monitor is reversed horizontally.

→ FLIP : The image of the monitor is reversed vertically.

8. SYSTEM

This can be used when you want to select the additional function control.

1. When the SETUP menu is displayed, select SYSTEM using the Up and Down button.

2. Select one of the mode using the Left or Right buttons.

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN

8. SYSTEM COM. VIEW ANGLE CVBS LANGUAGE RETURN WIDE 4:3 NTSC ENG

→ VIEW ANGLE : users are able to adjust aspect ratio by selecting 'WIDE 4:3', 'WIDE 16:9' or 'NORMAL' depending on monitor aimed for surveillance. (default value : WIDE 4:3

8. SYSTEM COM. VIEW ANGLE CVBS LANGUAGE RETURN WIDE 4:3 NTSC ENG

SYSTEM COM. VIEWANGLE WIDE 16:9 CVBS LANGUAGE ENG RETURN

SYSTEM COM. VIEWANGLE NORMAL CVBS LANGUAGE ENG RETURN

→ CVRS · TV custom is manually switchable to 'P&I' or 'NTSC' on CVRS/Composite Video Blanking and Sync

9. SPECIAL

This can be used when you want to select the additional function control.

1. When the SETUP menu is displayed, select SPECIAL using the Up and Down button.
2. Select one of the mode using the Left or Right buttons.

MENU 1. LENS DC ← 2. EXPOSURE ← 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ-DNR MIDDLE 6. DAY&NIGHT AUTO ← 7. IMAGE ← 8. SYSTEM ← 9. SPECIAL ← RETURN

SPECIAL D-ZOOM 1.0X D-WDR OFF DEFOG OFF SHADING OFF PRIVACY OFF INTELLIGENT RETURN

◆ SPECIAL

→ D-ZOOM : diginal zoom supports up to x8 available (x1 \~ x8) The higher the digital zoom magnification is, the lower the resolution is.

→ DEFOG : This function helps to recognize the object in a foggy or dusty weather condition.

DEFOG MODE LEVEL RETURN AUTO MIDDLE

DEFOG OFF

DEFOG ON

→ SHADING : It is used to increase brightness in case angle of lens set as wide cause darker image on both sides than that on the center.

SHADING ► WEIGHT RETURN 100%

→ INTELLIGENT : It is used for crime prevention & detection by providing intelligent functions based on motion tracking.

INTELLIGENT ► MTN TRACKER OFF ALARM ← QUICK ZOOM OFF RETURN

◆ INTELLIGENT (MTN TRACKER, ALARM, QUICK ZOOM)

1) MTN TRACKER: it is used to adjust a certain area for motion tracking.

MTN TRACKER DET. SETTING WINDOW TONE 0 WINDOW ZONE 0 WINDOW USE OFF DET-H-POS 1 DET-V-POS 2 DET-H-SIZE 16 DET-V-SIZE 12 RETURN

Close-up of a mechanical component with a metallic tool interacting with it against a black background (no visible text or symbols)

Close-up of a hand holding a gray security camera against a black background (no text or symbols visible)

* ANTI-BLOCK: If someone intentionally block the front of camera by hands or spray, etc., it will be automatically detected by a warning message(BLOCKING DETECTED !!!) on monitor.

Person wearing a black glove walking down a hallway (no visible text or symbols)

3) QUICK ZOOM : Digital 'zoom-in' is operated to precisely detect objects when objects get in a designated

MOTION DETECTED!

Street photo showing a blue storefront with visible signage and pedestrians walking by

10. RETURN

MENU 1. LENS DC 2. EXPOSURE 3. WHITE BAL ATW 4. BACKLIGHT OFF 5. SPECQ-DNR MIDDLE 6. DAY&NIGHT AUTO 7. IMAGE 8. SYSTEM 9. SPECIAL RETURN

• Trouble Shooting

PROBLEM	POSSIBLE CAUSE
Northing appears on the screen.	Check the power cable, power supply output and video connection between the camera and monitor.
The image on the screen is dim.	Are the camera lens or the lens glass dirty?Clean the lens / glass with a soft clean cloth.Adjust the monitor controls, as required.If the camera is facing a very strong light, change the camera position.Adjust the lens focus.
The image on the screen is dark.	Adjust the contrast control of the monitor.If there is an intermediate device, correctly set the 75Ω/Hi-z.
The camera is not working properly and the surface of the camera is hot.	Check the camera is correctly connected to an appropriate regulated power source.
Motion Detection is not activated.	Has MOTION DET been set to ON in the menu?Has MD AREA been properly defined?

LIMITED WARRANTY - VIDEO PRODUCTS

THIS WARRANTY IS VALID ONLY ON PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA AND CANADA. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL USER.

SUBJECT TO CONDITIONS AND EXCLUSIONS FOUND BELOW, THIS PRODUCT IS WARRANTED AGAINST MANUFACTURING DEFECTS IN MATERIAL AND WORKMANSHIP FOR THE FOLLOWING PERIOD FOR PARTS AND LABOR:

SPECO TECHNOLOGIES CAMERAS....5 YEARS

SPECO TECHNOLOGIES IP CAMERAS....2 YEARS

SPECO PTZ AND VL CAMERAS....1 YEAR

SPECO TECHNOLOGIES MONITORS....1 YEAR

IR LEDS....90 DAYS

DVRS	3 YEARS
NVRs	3 YEARS
BALANCE OF
SPECO TECHNOLOGIES LINE	1 YEAR

SPECO TECHNOLOGIES WILL REPAIR OR REPLACE (AT OUR DISCRETION) ANY PARTS FOUND TO BE DEFECTIVE FOR THE WARRANTY PERIOD SPECIFIED. WE WILL PROVIDE A REPLACEMENT FOR ANY DEFECTIVE PART

CONDITIONS

1. YOU MUST OBTAIN A RETURN AUTHORIZATION (RA) NUMBER FOR ANY MERCHANDISE BEING RETURNED TO SPECO TECHNOLOGIES, WHETHER FOR RETURN/EXCHANGE OR REPAIR, WHETHER IN OR OUT OF WARRANTY.
2. THIS WARRANTY WILL BE HONORED ONLY UPON PRESENTATION OF THE ORIGINAL DATED BILL OF SALE OR SALES SLIP.
3. TRANSPORTATION OF THE PRODUCT TO OUR SERVICE DEPARTMENT IS THE RESPONSIBILITY OF THE USER, REPAIRED OR REPLACED PRODUCT WILL BE RETURNED PREPAID DURING THE WARRANTY PERIOD.
4. SPECO TECHNOLOGIES DOES NOT AUTHORIZE ANY INTERNET OR MAIL ORDER PRODUCT SALES. IF A SPECO TECHNOLOGIES PRODUCT IS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR OR OTHER SOURCE, INCLUDING RETAILERS, MAIL ORDER SELLERS AND ONLINE SELLERS, IT WILL NOT BE HONORED OR SERVICED UNDER THE EXISTING SPECO TECHNOLOGIES WARRANTY POLICY. ANY SPECO TECHNOLOGIES PRODUCT PURCHASED FROM THESE ONLINE MERCHANTS WILL VOID THE APPLICABLE WARRANTY AND IS INELIGIBLE FOR TECHNICAL SUPPORT. IF YOU HAVE QUESTIONS ABOUT A RESELLER, PLEASE CONTACT SPECO TECHNOLOGIES AT 1-800-645-5516 FOR A LIST OF UNAUTHORIZED DEALERS, VISIT: www.specotech.com/unauthorized.

EXCLUSIONS

1. THIS WARRANTY SHALL NOT COVER ADJUSTMENT OF CUSTOMER OPERATED CONTROLS AS EXPLAINED IN THE APPROPRIATE Model's INSTRUCTION MANUAL OR PRODUCTS WHICH HAVE BEEN ALTERED, ABUSED, OR HAVE MISSING OR ALTERED SERIAL NUMBERS.
2. THIS WARRANTY SHALL NOT APPLY TO UNCRATING, SETUP, INSTALLATION, OR THE REMOVAL AND REINSTALLATION OF PRODUCTS AFTER REPAIR.
3. THIS WARRANTY SHALL NOT APPLY TO REPAIRS OR REPLACEMENTS NECESSITATED BY ANY CAUSE BEYOND THE RESULT OF MANUFACTURE INCLUDING, BUT NOT LIMITED TO, ANY MALFUNCTION, DEFECTS OR FAILURE CAUSED BY OR RESULTING FROM UNAUTHORIZED SERVICE OR PARTS, IMPROPER MAINTENANCE, MODIFICATION OR REPAIR BY THE USER, ABUSE, MISUSE, NEGLECT, ACCIDENT, FIRE, FLOOD, OR OTHER ACTS OF NATURE, INCORRECT LINE VOLTAGE, DAMAGE OR IMAGE BURNS TO TELEVISION PICTURE TUBES CAUSED BY OR ATTRIBUTABLE TO THE USE OF ANY ACCESSORY, ELECTRONICS GAME OR DEVICE, OR DAMAGE CAUSED TO IMAGE PICKUP DEVICES BY EXCESSIVE LIGHT

THE FORECING RESULTS OF ALL OTHER EXPRESSED MARKETERS AND WE ARE NOT TO SHARE THE RIGHT TO SHARE FOR THE NOW

▶MEMO

▶MEMO

speco technologies®

200 New Highway
