USER MANUAL Squaredox 3D Blizzard

Abstract geometric pattern composed of colorful shapes (no text or symbols)

3D cube composed of colored squares (red, green, purple) forming a grid pattern (no text or symbols)

blizzard

TABLE OF CONTENTS

Squarodox™ 3D 1

1. Getting Started

	What's	In	The	Box?
Getting	It Out Of The Box		3
	Powering	Up!			3
Getting	A Hold Of Us		3
Safety Instructions (Don't Stick Your Hand In The Toaster!)					4

1. Meet The Squarodox™ 3D 5

Main	Features		5
DMX	Quick	Reference
The SquarodoxTM 3D Pin-up Picture			6

1. Setup

Fuse	Replacement
Connecting A Bunch Of Squarodox ^TM 3D Fixtures		7
Data/DMX	Cablecs
Cable	Connectors
3-Pin??? 5-Pin??? Huh?	8
Take It To The Next Level: Setting up DMX Control		8
Fixture Linking (Master/Slave Mode)		9
Mounting/Rigging		9

1. Operating Adjustments 10

The Control Panel
Control Panel Menu Structure	11
DMX Mode	11
Select The DMX Starting Address	11
Select The Channel Mode	11
Master/Slave Mode Settings	11
Auto and Sound Active Modes	11
Manual Adjustments	11
DMX Channel Values In-Depth Troubleshooting	12

1. Appendix

A Quick Lesson On DMX	17
Keeping Your SquaradoxTM 3D As Good As New		18
Returns (Gasp!)
Shipping Issues		18
Tech Specs

1. GETTING STARTED

What's In The Box?

• 1 x Squaredox™ 3D
• An Ever-So-Handy Power Cord
- 3 x Mounting Brackets
• This Lovely User Manual

Getting It Out Of The Box

Congratulations on purchasing the Squarodox™ 3D. Now that you've got your Squarodox™ 3D, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. If anything looks as if it has been damaged in transit, notify the shipper immediately and keep the packing material for inspection. Again, please save the carton and all packing materials. If a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Powering Up!

All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.

AC Voltage Switch - Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for your local power supply. See the label on the fixture or refer to the fixture's specifications chart for more information. A fixture's listed current rating is its average current draw under normal conditions. Check the fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line voltage you will use.

Warning! Verify that the voltage select switch on your unit matches the line voltage applied. Damage to your fixture may result if the line voltage applied does not match the voltage indicated on the voltage selector switch. All fixtures must be connected to circuits with a suitable Ground (Earthing).

Getting A Hold Of Us

If something happens goes wrong, please visit www.blizzardpro.com/support and open a support ticket. We'll be happy to help, honest.

Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting" assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting" reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. You can download the latest version of this document from www.blizzardoro.com.

Author: Date: Last Edited: Date:
J. Thomas 9/18/2019 J. Thomas 2/18/2020

SAFETY INSTRUCTIONS

Please read these instructions carefully. They include important information about the installation, usage and maintenance of this product.

• Please keep this User Guide for future use. If you sell the unit to someone else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the decal or rear panel of the fixture.
  • This product is intended for indoor use only.
  • To prevent risk of fire or shock, do not expose fixture to rain or moisture.
  • Make sure there are no flammable materials close to the unit while operating
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104^ (40°C).
• In the event of a serious operating problem, stop using the unit Immediately. NEVER try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
  • Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on

2. MEET THE SQUARODOX™ 3D

MAIN FEATURES

• 192 ^® 3-In-1 RGB 5050 LED chips
  • Built-in auto & sound active modes
  • 1-25Hz strobe effects
  • LED digital display
  • PowerCON® compatible power input/output connections
  ■ 3-pin DMX Input/output
• 6* rear perimeter omega mounting points

CONTROL:

• Protocol: USITT DMX-512
  • DMX channels: 5/8/41/144/149-channel modes
• Easy-to-use 4-button control panel with LED display
• Operating modes: DMX512, master/slave, auto, sound active

DMX Quick Reference (5/8/41/144/149-Channel Modes)

5CH 8CH	41CH 144CH 149CH What It Does
1 1 1 -- 1 Master Dimmer
2 2 2 -- 2 Strobe (slow <-> fast)
3 3 -- --- Red Intensity
4 4 -- --- Green Intensity
5 5 -- --- Blue Intensity
-- 6 -- --- Color Presets
-- 7 -- --- Built-in Programs
-- 8 -- --- Program Speed
-- -- 3-5 -- Section Group 1 - R/G/B
-- -- 6-8 -- Section Group 2 - R/G/B
-- -- 9-11 -- Section Group 3 - R/G/B
-- -- 12-14 -- Section Group 4 - R/G/B
-- -- 15-17 -- Section Group 5 - R/G/B
-- -- 18-20 -- Section Group 6 - R/G/B
-- -- 21-23 -- Section Group 7 - R/G/B
-- -- 24-26 -- Section Group 8 - R/G/B
-- -- 27-29 -- Section Group 9 - R/G/B
-- -- 30-32 -- Section Group 10 - R/G/B
-- -- 33-35 -- Section Group 11 - R/G/B
-- -- 36-38 -- Section Group 12 - R/G/B
-- -- 39 -- Color Presets
-- -- 40 -- Built-in Programs
-- -- 41 -- Program Speed
-- -- --- 1+3.3-5 Individual Section 1 - R/G/B
-- -- --- 4+5.6-8 Individual Section 1 - R/G/B
-- -- --- 7+9.9-11 Individual Section 1 - R/G/B
-- -- --- -- ---
-- -- --- 136-138 138-140 Individual Section 48 - R/G/B

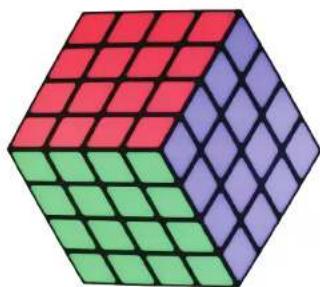

Figure 1: The Squarodox™ 3D Pin-Up Picture

192° 3-in-1 RGB 5050 LEDs 48° Individual RGB Pixels

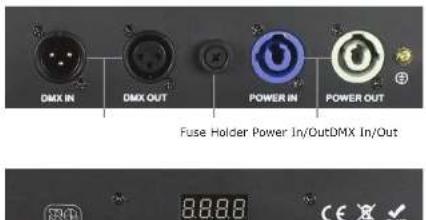

Figure 2: The Rear Connections

DMX IN DMX OUT POWER IN POWER OUT Fuse Holder Power In/OutDMX In/Out 8.000

3. SETUP

Before replacing the fuse, disconnect the power cord. ALWAYS replace it with the same type and rating.

Fuse Replacement

Remove the fuse holder from of its housing. Then take out the damaged fuse from its holder and replace with exact same type of fuse. Reattach the fuse holder, and then reconnect power.

Connecting A Bunch of Squarodox™ 3D Fixtures

You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support.

Fixtures on a serial data link must be daisy chained in one single line. Also, connecting more than 32 fixtures on one serial data link without the use of a DMX optically-isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The maximum recommended number of fixtures on a serial data link is 32 fixtures.

Data/DMX Cabling

To link fixtures together you'll need data cables. You should use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

For instance, Belden© 9841 meets the specifications for EIA RS-485 applications. Standard microphone cables will "probably" be OK, but note that they cannot transmit DMX data as reliably over long distances. In any event, the cable should have the following characteristics:

2-conductor twisted pair plus a shield

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other end. (Duh!)

Common

DMX +

A Word on Termination: DMX is a resilient communication protocol, however errors still occasionally occur. Termination reduces signal errors, and therefore best practices include use of a terminator in all circumstances. If you are experiencing problems with erratic fixture behavior, especially over long signal cable runs, a terminator may help improve performance.

To build your own DMX Terminator: Cotain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last fixture. They are also readily available from specialty retailers.

3120-ohm, 1/4-watt resistor

CAUTION: Do not allow contact between the common and the fixture's chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

3-Pin??? 5-Pin??? Huh?!?

If you use a controller with a 5-pin DMX output connector, it's no problem! You can simply use the installed 5-pin DMX input and/or output connections found on the back of your fixture(s):

Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data Link) Pin 2 Pin 2
Data 1+ (Primary Data Link) Pin 3 Pin 3
Data 2- (Optional Secondary Data Link) Pin 4 Pin 4
Data 2+ (Optional Secondary Data Link) Pin 5 Pin 5

Take It To The Next Level: Setting Up DMX Control

Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller.

Step 2: Connect the female connector of the DMX cable to the first fixture's male connector (input). Note: It doesn't matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on.

Fixture Linking (Master/Slave Mode)

1. Connect the (male) 3-pin connector side of the DMX cable to the output (female) 3-pin connector of the first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3-pin connector to the input connector of the next fixture consisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above to the input of the following fixture and so on.

First Fixture in Chain DMX IN DMX OUT Next Fixture in Chain DMX IN DMX OUT To Next Fixture

A quick note: Often, the setup for Master-Slave and Standalone operation requires that the first fixture in the chain be initialized for this purpose via either settings in the control panel or DIP-switches. Secondarily, the fixtures that follow may also require a slave setting.

Check the "Operating Adjustments" section in this manual for complete instructions for this type of setup and configuration.

Mounting & Rigging

This fixture may be mounted in any SAFE position provided there is enough room for ventilation.

It is important never to obstruct the fan or vents pathway. Mount the fixture using a suitable "C" or "O" type clamp. The clamp should be rated to hold at least 10x the fixture's weight to ensure structural stability. Do not mount to surfaces with unknown strength, and ensure properly "rated" rigging is used when mounting fixtures overhead.

Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs.

4. OPERATING ADJUSTMENTS

The Control Panel

All the features and different modes possible with the Squarodox™ 3D are accessed by using the LED control panel. There are 4 control buttons below the display which allow you to navigate through the various control panel menus.

Is used to navigate to the previous higher-level menu item.

Scrolls through menu items and numbers in ascending order.

Scrolls through menu items and numbers in descending order.

Is used to select and confirm/store the current selection.

MENU UP DOWN ENTER

The control panel LED display shows the menu items you select from the menu map on page #11. When a menu function is selected, the display will show immediately the first available option for the selected menu function. To select a menu item, press .

Control Panel Menu Structure

CH-- CH5 5-channel DMX mode
		CH8 8-channel DMX mode
		CH41 41-channel DMX mode
		C144 144-channel DMX mode
		C149 149-channel DMX mode
d001 001-512 Set, the starting address from 001-512
r--- 000-255 Red intensity (0% <-> 100%)
G--- 000-255 Green intensity (0% <-> 100%)
b--- 000-255 Blue intensity (0% <-> 100%)
Pr-- 01-30 Built-In programs (1-30)
SP-- 01-16 Program speed (slow <-> fast)
AUTO/AUDI	AUTO	Auto mode
	AUDI Sound active mode
EP00/EP01	EP00	Loss of DMX - Hold
	EP01	Loss of DMX - Blackout
DISP Yes/No	Rotate of the menu display by 180°

DMX Mode

Allows the unit to be controlled by any universal DMX controller.

Select the Starting DMX Address

1.) Navigate the main menu to reach d---, press .
2.) Use the buttons to choose a starting DMX address ranging from
001-512, press to confirm, or

to exit.
3.) When a DMX signal is being received, the display will change to A---.

Select the Channel Mode

1.) Navigate the main menu to reach CH--, press .
2.) Use the buttons to highlight your choice, and press .

Master/Slave Mode Settings

1.) Daisy chain fixtures together via DMX input/output connections.
2.) The first fixture in the DMX chain is the master fixture, and the following units
will operate in unison with the master.

Auto and Sound Active Modes:

Allows a single or Master/Siaved units to run factory installed programs.

1.) Navigate the main menu to reach AUTO/AUDI, press .
2.) Use the buttons to highlight AUTO (auto) or AUDI (sound
active mode), and press to confirm.
3.) For individual auto programs (01-30), navigate to Pr-, and press .
4.) Use the buttons to select a program, and press
5.) To adjust the program speed (01-16), navigate to Sp--, and press .
6.) Use the buttons to select a speed, and press .

DMX Values In-Depth (5-Channel Mode)

5CH Value What It Does
1 000 <--> 255	Master Dimmer (0% <--> 100%)
2 000 <--> 255	Strobe (slow <-> fast)
3 000 <--> 255	Red Intensity
4 000 <--> 255	Green Intensity
5 000 <--> 255	Blue Intensity

DMX Values In-Depth (8-Channel Mode)

BCH Value What It Does
1 000 <-> 255	Master Dimmer	0% <-> 100%)
2 000 <-> 255	Strobe (slow <-> fast)
3 000 <-> 255	Red Intensity
4 000 <-> 255	Green Intensity
5 000 <-> 255	Blue Intensity
6 000 <-> 255	Color Presets (overrides RGB values)
7	Built-in Programs
	No Function	126 <-> 132	Effect 11
	Rod	133 <-> 139	Effect 12
	Green	140 <-> 146	Effect 13
	Blue	174 <-> 153	Effect 14
	Yellow	154 <-> 160	Effect 15
	Magenta	161 <-> 167	Effect 16
	Effect 1	167 <-> 174	Effect 17
	Effect 2	175 <-> 181	Effect 18
	Effect 3	182 <-> 188	Effect 19
	Effect 4	189 <-> 195	Effect 20
	Effect 5	196 <-> 202	Effect 21
	Effect 6	203 <-> 209	Effect 22
	Effect 7	210 <-> 216	Effect 23
	Effect 8	217 <-> 223	Effect 24
	Effect 9	224 <-> 230	Color Chase
	Effect 10	231 <-> 225	Random Effects
8 000 <-> 255	Program Speed (slow <-> fast)

DMX Values In-Depth (41-Channel Mode), continued

21 000 <--> 255 Section Group 7 - Red
22 000 <--> 255 Section Group 7 - Green
23 000 <--> 255 Section Group 7 - Blue
24 000 <--> 255 Section Group 8 - Red
25 000 <--> 255 Section Group 8 - Green
26 000 <--> 255 Section Group 8 - Blue
27 000 <--> 255 Section Group 9 - Red
28 000 <--> 255 Section Group 9 - Green
20 000 <--> 255 Section Group 9 - Blue
30 000 <--> 255 Section Group 10 - Red
31 000 <--> 255 Section Group 10 - Green
32 000 <--> 255 Section Group 10 - Blue
33 000 <--> 255 Section Group 11 - Red
34 000 <--> 255 Section Group 11 - Green
35 000 <--> 255 Section Group 11 - Blue
36 000 <--> 255 Section Group 12 - Red
37 000 <--> 255 Section Group 12 - Green
38 000 <--> 255 Section Group 12 - Blue
39 000 <--> 255 Color Precis (overides RGB values)
40	Built-in Programs
	000 <--> 021	No Function	126 <--> 132	Effect 11
	022 <--> 027	Red	133 <--> 139	Effect 12
	028 <--> 034	Green	140 <--> 146	Effect 13
	035 <--> 041	Blue	174 <--> 153	Effect 14
	042 <--> 048	Yellow	154 <--> 160	Effect 15
	049 <--> 055	Magenta	161 <--> 167	Effect 16
	056 <--> 062	Effect 1	167 <--> 174	Effect 17
	063 <--> 069	Effect 2	175 <--> 181	Effect 18
	070 <--> 076	Effect 3	182 <--> 188	Effect 19
	077 <--> 083	Effect 4	189 <--> 195	Effect 20
	084 <--> 090	Effect 5	196 <--> 202	Effect 21
	091 <--> 097	Effect 6	203 <--> 209	Effect 22
	098 <--> 104	Effect 7	210 <--> 216	Effect 23
	105 <--> 111	Effect 8	217 <--> 223	Effect 24
	112 <--> 118	Effect 9	224 <--> 230	Color Chase
	119 <--> 125	Effect 10	231 <--> 225	Random Effects

41 000 <+> 255 Program Speed (slow <-> fast)

DMX Values In-Depth (144/149-Channel Mode), continued

144CH	149CH	Value What It Does
-- 1 000	<--> 255	Master Dimmer (0% <--> 100%)
-- 2 000	<--> 255	Strobe (slow <- fast)
1 3 000	<--> 295	Section 1 - Red
2 4 000	<--> 295	Section 1 - Green
3 5 000	<--> 295	Section 1 - Blue
4 6 000	<--> 295	Section 2 - Red
5 7 000	<--> 295	Section 2 - Green
6 8 000	<--> 295	Section 2 - Blue
7 9 000	<--> 295	Section 3 - Red
8 10 000	<--> 295	Section 3 - Green
9 11 000	<--> 295	Section 3 - Blue
10 12 000	<--> 295	Section 4 - Red
11 13 000	<--> 295	Section 4 - Green
12 14 000	<--> 295	Section 4 - Blue
13 15 000	<--> 295	Section 5 - Red
14 16 000	<--> 295	Section 5 - Green
15 17 000	<--> 295	Section 5 - Blue
16 18 000	<--> 295	Section 6 - Red
17 19 000	<--> 295	Section 6 - Green
18 20 000	<--> 295	Section 6 - Blue
19 21 000	<--> 295	Section 7 - Red
20 22 000	<--> 295	Section 7 - Green
21 23 000	<--> 295	Section 7 - Blue
22 24 000	<--> 295	Section 8 - Red
23 25 000	<--> 295	Section 8 - Green
24 26 000	<--> 295	Section 8 - Blue
25 27 000	<--> 295	Section 9 - Red
26 28 000	<--> 295	Section 9 - Green
27 29 000	<--> 295	Section 9 - Blue
28 30 000	<--> 295	Section 10 - Red
29 31 000	<--> 295	Section 10 - Green
30 32 000	<--> 295	Section 10 - Blue
31 33 000	<--> 295	Section 11 - Red
32 34 000	<--> 295	Section 11 - Green
33 35 000	<--> 295	Section 11 - Blue
34 36 000	<--> 295	Section 12 - Red
35 37 000	<--> 295	Section 12 - Green
36 38 000	<--> 295	Section 12 - Blue
37 39 000	<--> 295	Section 13 - Red
38 40 000	<--> 295	Section 13 - Green
39 41 000	<--> 295	Section 13 - Blue
40 42 000	<--> 295	Section 14 - Red
41 43 000	<--> 295	Section 14 - Green
42 44 000	<--> 295	Section 14 - Blue
43 45 000	<--> 295	Section 15 - Red
44 46 000	<--> 295	Section 15 - Green
45 47 000	<--> 295	Section 15 - Blue
46 48 000	<--> 295	Section 16 - Red
47 49 000	<--> 295	Section 16 - Green
48 50 000	<--> 295	Section 16 - Blue
49 51 000	<--> 295	Section 17 - Red
50 52 000	<--> 295	Section 17 - Green
55 57 000 <-->	255 Section 19 - Red
56 58 000 <-->	255 Section 19 - Green
57 59 000 <-->	255 Section 19 - Blue
58 60 000 <-->	255 Section 20 - Red
59 61 000 <-->	255 Section 20 - Green
60 62 000 <-->	255 Section 20 - Blue
61 63 000 <-->	255 Section 21 - Red
62 64 000 <-->	255 Section 21 - Green
63 65 000 <-->	255 Section 21 - Blue
64 66 000 <-->	255 Section 22 - Red
65 67 000 <-->	255 Section 22 - Green
66 68 000 <-->	255 Section 22 - Blue
67 69 000 <-->	255 Section 23 - Red
68 70 000 <-->	255 Section 23 - Green
69 71 000 <-->	255 Section 23 - Blue
70 72 000 <-->	255 Section 24 - Red
71 73 000 <-->	255 Section 24 - Green
72 74 000 <-->	255 Section 24 - Blue
73 75 000 <-->	255 Section 25 - Red
74 76 000 <-->	255 Section 25 - Green
75 77 000 <-->	255 Section 25 - Blue
76 78 000 <-->	255 Section 26 - Red
77 79 000 <-->	255 Section 26 - Green
78 80 000 <-->	255 Section 26 - Blue
79 81 000 <-->	255 Section 27 - Red
80 82 000 <-->	255 Section 27 - Green
81 83 000 <-->	255 Section 27 - Blue
82 84 000 <-->	255 Section 28 - Red
83 85 000 <-->	255 Section 28 - Green
84 86 000 <-->	255 Section 28 - Blue
85 87 000 <-->	255 Section 29 - Red
86 88 000 <-->	255 Section 29 - Green
87 89 000 <-->	255 Section 29 - Blue
88 90 000 <-->	255 Section 30 - Red
89 91 000 <-->	255 Section 30 - Green
90 92 000 <-->	255 Section 30 - Blue
91 93 000 <-->	255 Section 31 - Red
92 94 000 <-->	255 Section 31 - Green
93 95 000 <-->	255 Section 31 - Blue
94 96 000 <-->	255 Section 32 - Red
95 97 000 <-->	255 Section 32 - Green
96 98 000 <-->	255 Section 32 - Blue
97 99 000 <-->	255 Section 33 - Red
98 100 000 <-->	255 Section 33 - Green
99 101 000 <-->	255 Section 33 - Blue
100 102 000 <-->	255 Section 34 - Red
101 103 000 <-->	255 Section 34 - Green
102 104 000 <-->	255 Section 34 - Blue
103 105 000 <-->	255 Section 35 - Red
104 106 000 <-->	255 Section 36 - Green
105 107 000 <-->	255 Section 36 - Blue
106 108 000 <-->	255 Section 36 - Red

DMX Values In-Depth (144/149-Channel Mode), continued

144CH	149CH	Value What It Does
109 111	000 <->	255 Section 37	- Red
110 112	000 <->	255 Section 37	- Green
111 113	000 <->	255 Section 37	- Blue
112 114	000 <->	255 Section 38	- Red
113 115	000 <->	255 Section 38	- Green
114 116	000 <->	255 Section 38	- Blue
115 117	000 <->	255 Section 39	- Red
116 118	000 <->	255 Section 39	- Green
117 119	000 <->	255 Section 39	- Blue
118 120	000 <->	255 Section 40	- Red
119 121	000 <->	255 Section 40	- Green
120 122	000 <->	255 Section 40	- Blue
121 123	000 <->	255 Section 41	- Red
122 124	000 <->	255 Section 41	- Green
123 125	000 <->	255 Section 41	- Blue
124 126	000 <->	255 Section 42	- Red
125 127	000 <->	255 Section 42	- Green
126 128	000 <->	255 Section 42	- Blue
127 129	000 <->	255 Section 43	- Red
128 130	000 <->	255 Section 43	- Green
129 131	000 <->	255 Section 43	- Blue
130 132	000 <->	255 Section 44	- Red
131 133	000 <->	255 Section 44	- Green
132 134	000 <->	255 Section 44	- Blue
133 135	000 <->	255 Section 45	- Red
134 136	000 <->	255 Section 45	- Green
135 137	000 <->	255 Section 45	- Blue
136 138	000 <->	255 Section 46	- Red
137 139	000 <->	255 Section 46	- Green
138 140	000 <->	255 Section 46	- Blue
139 141	000 <->	255 Section 47	- Red
140 142	000 <->	255 Section 47	- Green
141 143	000 <->	255 Section 47	- Blue
142 144	000 <->	255 Section 48	- Red
143 145	000 <->	255 Section 48	- Green
144 146	000 <->	255 Section 48	- Blue
-- 147 000 <->		255 Color Process (overrides RGB values)
-- 148		Built-in Programs
		No Function	126 <-> 132	Effect 11
		Red	133 <-> 139	Effect 12
		Green	140 <-> 146	Effect 13
		Blue	174 <-> 153	Effect 14
		Yellow	154 <-> 160	Effect 15
		Magenta	161 <-> 167	Effect 16
		Effect 1	167 <-> 174	Effect 17
		Effect 2	175 <-> 181	Effect 18
		Effect 3	182 <-> 188	Effect 19
		Effect 4	189 <-> 195	Effect 20
		Effect 5	196 <-> 202	Effect 21
		Effect 6	203 <-> 209	Effect 22
		Effect 7	210 <-> 216	Effect 23
		Effect 8	217 <-> 223	Effect 24

5. APPENDIX

A Quick Lesson On DMX

DMX (aka DMX-512) was created in 1986 by the United States Institute for Theatre Technology (USITT) as a standardized method for connecting lighting consoles to lighting dimmer modules. It was revised in 1990 and again in 2000 to allow more flexibility. The Entertainment Services and Technology Association (ESTA) has since assumed control over the DMX512 standard. It has also been approved and recognized for ANSI standard classification.

DMX covers (and is an abbreviation for) Digital MultipleXed signals. It is the most common communications standard used by lighting and related stage equipment.

DMX provides up to 512 control "channels" per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 faders on a lighting console, connected to 512 light bulbs. Each slider's position is sent over the data link as an 8-bit number having a value between 0 and 255. The value 0 corresponds to the light bulb being completely off while 255 corresponds to the light bulb being fully on.

DMX data is transmitted at 250,000 bits per second using the RS-485 transmission standard over two wires. As with microphone cables, a grounded cable shield is used to prevent interference with other signals.

There are five pins on a DMX connector: a wire for ground (cable shield), two wires for "Primary" communication which goes from a DMX source to a DMX receiver, and two wires for a "Secondary" communication which goes from a DMX receiver back to a DMX source. Generally, the "Secondary" channel is not used so data flows only from sources to receivers. Hence, most of us are most familiar with DMX-512 as being employer over typical 3-pin "mic cables," although this does not conform to the defined standard.

DMX is connected using a daisy-chain configuration where the source connects to the input of the first device, the output of the first device connects to the input of the next device, and so on. The standard allows for up to 32 devices on a single DMX link.

Each receiving device typically has a means for setting the "starting channel number" that it will respond to. For example, if two 6-channel fixtures are used, the first fixture might be set to start at channel 1 so it would respond to DMX channels 1 through 6, and the next fixture would be set to start at channel 7 so it would respond to channels 7 through 12.

The greatest strength of the DMX communications protocol is that it is very simple and robust. It involves transmitting a reset condition (indicating the start of a new "packet"), a start code, and up to 512 bytes of data. Data packets are transmitted continuously. As soon as one packet is finished, another can begin with no delay if desired (usually another follows within 1 ms). If nothing is changing (i.e. no lamp levels change) the same data will be sent out over and over again. This is a great feature of DMX -- if for some reason the data is not interpreted the first time around, it will be re-sent shortly.

Not all 512 channels need to be output per packet, and in fact, it is very uncommon to find all 512 used. The fewer channels are used, the higher the "refresh" rate. It is possible to get DMX refreshes at around 1000 times per second if only 24 channels are being transmitted. If all 512 channels are being transmitted, the refresh rate is around 44 times per second.

Keeping Your Squarodox™ 3D As Good As New

The fixture you've received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you'll need to take care of it if you want it to operate as designed. You should absolutely keep the fixture clean, especially if you are using it in an environment with a lot of dust, fog, haze, wild animals, wild teenagers or spilled drinks.

Cleaning the optics routinely with a suitable glass cleaner will greatly improve the quality of light output. Keeping the fans free of dust and debris will keep the fixture running cool and prevent damage from overheating.

In transit, keep the fixtures in cases. You wouldn't throw a prized guitar, drumset, or other piece of expensive gear into a gear trailer without a case, and similarly, you shouldn't even think about doing it with your shiny new light fixtures.

Common sense and taking care of your fixtures will be the single biggest thing you can do to keep them running at peak performance and let you worry about designing a great light show, putting on a great concert, or maximizing your client's satisfaction and "wow factor." That's what it's all about, after all!

Returns (Gasp!)

We've taken a lot of precautions to make sure you never even have to worry about sending a defective unit back, or sending a unit in for service. But, like any complex piece of equipment designed and built by humans, once in a while, something doesn't go as planned. If you find yourself with a fixture that isn't behaving like a good little fixture should, you'll need to obtain a Return Authorization (RA).

Don't worry, this is easy. Just go to our website and open a support ticket at www.blizzardpro.com/support, and we'll issue you an RA. Then, you'll need to send the unit to us using a trackable, pre-paid freight method. We suggest using USPS Priority or UPS. Make sure you carefully pack the fixture for transit, and whenever possible, use the original box & packing for shipping.

When returning your fixture for service, be sure to include the following:

1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RAE issued to you
3.) A brief description of the problem/symptoms.

We will, at our discretion, repair or replace the fixture. Please remember that any shipping damage which occurs in transit to us is the customer's responsibility, so pack it well!

Shipping Issues

Tech Specs!

Weight & Dimensions
Width 23.6 inches (600 mm)
Depth 19.7 inches (500 mm)
Height 3.2 inches (82 mm)
Weight 12.8 lbs (5.8 kg)
Power
Operating Voltage 94W-260VAC, 50-60Hz
Power Consumption 48W, .66A, PF: .62
Light Source
LED 192* 3-in-1 RGB 5050 LED chips
Thermal
Max. Operating Temp.	104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX	512
DMX Channels 5/8/41/144/149-channel modes
Data 3-pin DMX input	t/output
Other Operating Modes DMX512, master	ter/slave, auto, sound active
Warranty	2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Troubleshooting

Symptom	Solution
Output is Dim	Check optical system and clean excess dust/grime.
No Light Output	Check to ensure fixture is operating under correct mode.
No Power	Check fuse, AC cord and circuit for malfunction.
Blown Fuse	Check AC cord and circuit for damage, verify that moving parts are not restricted and that unit's ventilation is not obstructed
No Response Audio	Verify that "Sound" mode is active.
Fixture Not Responding / Responding Erratically	Make sure all connectors are seated properly and securely. Use Only DMX Cables and/or check cables for defects Install a Terminator. Reset fixture(s).

If problems persists, visit www.blizzardpro.com/support.

DISCLAIMER:

The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power-

3D cube composed of colored squares (red, green, purple) forming a grid pattern (no text or symbols)
