Download the instructions for your Subwoofer in PDF format for free! Find your manual RWM252 - Maxxsonics and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RWM252 by Maxxsonics.

USER MANUAL RWM252 Maxxsonics

Thank you for choosing the MB Quart REFERENCE subwoofer for your car audio sound system. With proper installation, you are on the path to experiencing your music in a way you only imagined possible. Here at MB Quart, we call this "Sound In Every Detail."

The REFERENCE series subwoofers have been designed for the enthusiast looking for accurate bass and solid reliability in their woofer. The REFERENCE series subwoofers feature the following:

  • Injection Molded Polypropylene Cone
  • UV Resistant Butyl Rubber Surround
  • 2" High Temp Voice Coil

  • Red Nomex Spider

  • Push & Insert Style Speaker Terminals

  • Deep Drawn Stamp Steel Basket
  • Heat-Dispersing Vented Pole Plate
  • Anti-Resonant Magnet Cover

RWM252 / RWM254

RWM302 / RWM304

MBQUART

German Engineering

Index

RWM252 - Technical Data 2

RWM254 - Technical Data 3

RWM302 - Technical Data 4

RWM304 - Technical Data 5

WIRING DIAGRAMS - DVC 2-Ohm Models 6

WIRING DIAGRAMS - DVC 4-Ohm Models 7

THIELE SMALL PARAMETERS & BOX DESIGNS 8

SUBWOOFER INSTALLATION DIRECTIONS 9

GLOSSARY OF TERMS 10

Maxxsonics RWM252 - Index - 1

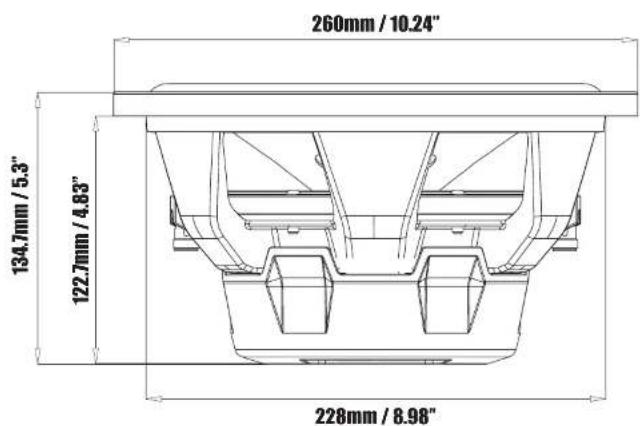

text_image 260mm / 10.24" 134.7mm / 5.3" 122.7mm / 4.83" 228mm / 8.98"

TECHNICAL DATA

Power Rating:

Impedance:

Sensitivity:

350-700 W

DVC 2 ohms

83.3 dB (1W/1m)

TECHNISCHE DATEN

Belastbarkeit:

Impedanz;

Empfindlichkeit:

350-700 W

DVC 2 ohms

83.3 dB (1W/1m)

CARACTÉRISTIQUES TECHNIQUES

Puissance:

Impédance:

Rendement:

350-700 W

DVC 2 ohmios

83.3 dB (1W/1m)

Maxxsonics RWM252 - CARACTÉRISTIQUES TECHNIQUES - 1

text_image 260mm / 10.24" 134.7mm / 5.3" 122.7mm / 4.83" 228mm / 8.98"

TECHNICAL DATA

Power Rating:

Impedance:

Sensitivity:

350-700 W

DVC 4 ohms

83.1 dB (1W/1m)

TECHNISCHE DATEN

Belastbarkeit:

Impedanz:

Empfindlichkeit:

350-700 W

DVC 4 ohms

83.1 dB (1W/1m)

CARACTÉRISTIQUES TECHNIQUES

Puissance:

Impédance:

Rendement:

350-700 W

DVC 4 ohmios

83.1 dB (1W/1m)

Maxxsonics RWM252 - CARACTÉRISTIQUES TECHNIQUES - 1

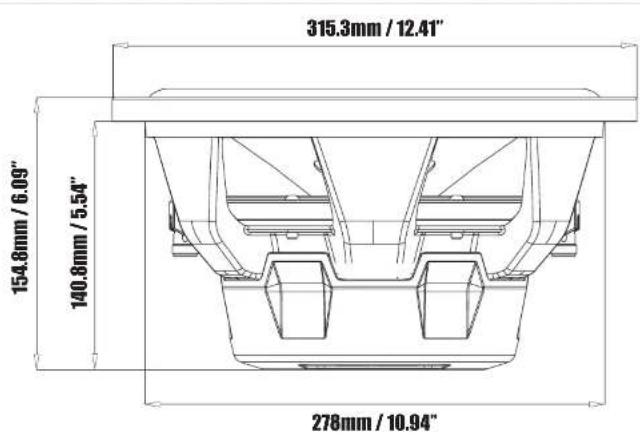

text_image 315.3mm / 12.41" 154.8mm / 6.09" 140.8mm / 5.54" 278mm / 10.94"

TECHNICAL DATA

Power Rating:

Impedance:

Sensitivity:

350-700 W

DVC 2 ohms

84.5 dB (1W/1m)

TECHNISCHE DATEN

Belastbarkeit:

Impedanz;

Empfindlichkeit:

350-700 W

DVC 2 ohms

84.5 dB (1W/1m)

CARACTÉRISTIQUES TECHNIQUES

Puissance:

Impédance:

Rendement:

350-700 W

DVC 2 ohmios

84.5 dB (1W/1m)

Maxxsonics RWM252 - CARACTÉRISTIQUES TECHNIQUES - 1

text_image 315.3mm / 12.41" 154.8mm / 6.09" 140.8mm / 5.54" 278mm / 10.94"

TECHNICAL DATA

Power Rating:

Impedance:

Sensitivity:

350-700 W

DVC 4 ohms

83.7 dB (1W/1m)

TECHNISCHE DATEN

Belastbarkeit:

Impedanz;

Empfindlichkeit:

350-700 W

DVC 4 ohms

83.7 dB (1W/1m)

CARACTÉRISTIQUES TECHNIQUES

Puissance:

Impédance:

Rendement:

350-700 W

DVC 4 ohmios

83.7 dB (1W/1m)

DVC 2-Ohm Coil Wiring

Maxxsonics RWM252 - DVC 2-Ohm Coil Wiring - 1

text_image PARALLEL COILS 1+ 1- 2- 2+ - 1-Ohm

PARALLEL COILS / PARALLEL SUBS
Maxxsonics RWM252 - DVC 2-Ohm Coil Wiring - 2

text_image 1 2 + - 1+ 1- 1+ 1- 0.5-Ohm 2- 2+ 2- 2+

Maxxsonics RWM252 - DVC 2-Ohm Coil Wiring - 3

text_image SERIES COILS 1+ 1- - 4-Ohms 2- 2+

SERIES COILS / PARALLEL SUBS
Maxxsonics RWM252 - DVC 2-Ohm Coil Wiring - 4

text_image 1 2 2+- 2- 2+- 1+ 1- 2-Ohms +

SERIES COILS / PARALLEL SUBS

DVC 4-Ohm Coil Wiring

Maxxsonics RWM252 - DVC 4-Ohm Coil Wiring - 1

text_image PARALLEL COILS 1+ 1- 2- 2- 2-Ohms

PARALLEL COILS / PARALLEL SUBS
Maxxsonics RWM252 - DVC 4-Ohm Coil Wiring - 2

text_image 1 2 1+ 1- 1+ 1- 2- 2+ 2- 2+ 1-Ohm +

Maxxsonics RWM252 - DVC 4-Ohm Coil Wiring - 3

text_image SERIES COILS 1+ 1- - 8-Ohms 2- 2+

SERIES COILS / PARALLEL SUBS
Maxxsonics RWM252 - DVC 4-Ohm Coil Wiring - 4

text_image 1 2 + 4-Ohms 1+ 1- 2- 2+

SERIES COILS / PARALLEL SUBS

RWM252/RWM254

RWM302/RWM304

MBQUART

German Engineering

REFERENCE SERIES SUBWOOFERS

ELECTRICALRWM252RWM254RWM302RWM304
WIRINGSeriesSeriesSeriesSeries
NomZ4.3448.74.3448.784Ohm
Sd0.0340.0340.05110.0511sqM
Revc3.627.253.627.32Ohm
BL11.0714.2511.3214.62TxM
Vas35.3838.3963.3570.97Liters
Cms215.8234.2171191.6uM/N
Mms127.9118.5170.2170Grams
Fo30.3830.2629.5327.94Hz
Qms3.4743.292.8583.25
Qes0.7220.80.8921.02
Qts0.5960.640.680.78
no0.1320.1280.1760.146%
SPL@1W83.383.184.583.68dB
SPL@2.83W86.8183.6588.0584.19dB
Xmax/Over Hang9.59.59.59.5mm
Xmech/Suspension14.2514.251515mm
RMS350350350350Watts
PEAK700700700700Watts
CLOSED BOX DESIGNS (SEALED)
Standard Tight Bass-Small Box

RWM252 / RWM254

RWM302 / RWM304

MBQUART

SUBWOOFER INSTALLATION DIRECTIONS

Enclosure Materials

Typically, 5/8" or 3/4" MDF (Medium Density Fiber Board) is best for most applications. 3/4" MDF is recommended.

Enclosure Build Materials

Connecting joints need to be glued and screwed to ensure no air escapes and joints do not separate under high pressure.

Mitered and rabbit joints also help to ensure the enclosure joints are secure.

Bracing

Internal bracing is also recommended to prevent flexing and to strengthen the enclosure.

RWM252 / RWM254

RWM302 / RWM304

MBQUART

Glossary of Terms

Q The energy losses of relative damping (ratio of stored to dissipated energy or ratio of reactive to resistive energy).

Fs Free air resonance of driver in Hz.

Qms Mechanical Q.

Vas Volume of air equivalent to driver from the rest position.

Cms Mechanical compliance of a loud speaker piston.

Mms Moving mass of total loud speaker piston assembly.

Xmax The maximum linear excursion of a loud speaker.

Sd Surface area of the cone.

Dia The piston diameter of a loud speaker.

Qes Electrical Q of a system.

Re DC resistance.

Le VC inductance.

Pe Maximum input power.

Qts Total Q of the system.

Sens Sensitivity. An efficiency measurement in dB's.

MBQUART

MAXXSONICS USA, INC

1290 Ensell Road

Lake Zurich, Illinois 60047 USA

E-Mail: info@maxxsonics.com

Website: www.maxxsonics.com

www.mbquart.com

Maxxsonics RWM252 - MBQUART - 1

POWERED BY MAXXSONICS

Maxxsonics Limited Warranty

As the manufacturer of Maxxsonics, Autotek, Crunch, MB Quart and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase.

All other parts and accessories of the system are warranted to be free from defects in material and workmanship for one (1) year from date of purchase. Maxxsonics will repair or replace at its option and free of charge during the warranty period, any system component that proves defective in materials and workmanship under normal installation, use and service provided that the product is returned to the authorized Maxxsonics dealer from where it was purchased. A photo copy of the original receipt must accompany the product being returned.

Valid purchase receipts will contain the name and address of the authorized reseller.
